nsplre

PLASMA TELEVISION

Operating Guide for

42HDT52, 42HDT52A and

55HDT52

MPORTANT SAFETY INSTRUCTIONS ................................................................................. 2-3

FIRST TIME USE ....................................................................................................................... 4-22

THE REMOTE CONTROL ................................................................................................ 23-41

ON-SCREEN DISPLAY ............................................................................................. 42-90

USEFUL INFORMATION .................................................................................................. 91-98

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE .................................... 99

APPENDIXES ........................................................................................................................ 100-101

NDEX ........................................................................................................................................... 102

As an Energy Star _Partner,

Hitachi, Ltd. has determined

that this product meets the

Energy StaF _guidelines for

energy efficiency4

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI PLASMA TELEVISION

Our reputation has been built on the quality,

performance, and ease of sewice of HITACHI plasma

televisions.

Safety is also foremost in our minds in the design of

these units. To help you operate these products

properly, this section illustrates safety tips which will be

of benefit to you. Please read it carefully and apply the

knowledge you obtain from it to the proper operation of

your HITACHI plasma television.

Please fill out your warranty card and mail it to

HITACHI. This will enable HITACHI to notify you

promptly in the improbable event that a safety problem

should be discovered in your product model.

Follow all warnings and instructions marked on

this plasma television.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of

uninsulated "dangerous voltage" within the

product's enclosure that may be of a sufficient

magnitude to constitute a risk of electric shock to a

person.

The exclamation point within an equilateral

triangle, is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

READ BEFORE OPERATING EQUIPMENT

Follow all warnings and instructions marked on this

plasma television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11. ©nly use the attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod,

I bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

15. Televisions are designed to comply with the

recommended safety standards for tilt and stability.

Do not apply excessive pulling force to the front, or

top, of the cabinet which could cause the product

to overturn resulting in product damage and/or

personal injury.

16. Follow instructions for wall, shelf or ceiling

mounting as recommended by the manufacturer.

17. An outdoor antenna should not be located in the

vicinity of overhead power lines or other electrical

circuits.

18. If an outside antenna is connected to the receiver

be sure the antenna system is grounded so as to

provide some protection against voltage surges and

built up static charges. Section 810 of the National

Electric Code, ANSl/NFPA No. 70-1984, provides

information with respect to proper grounding for the

mast and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size of

grounding connectors, location of antenna-

discharge unit, connection to grounding electrodes

and requirements for the grounding electrode.

./Ant_ma leadoinwire

//A_ltef_na discha ge unit(N_C Section 810-20}

Electricserviceequp neT}t

Note to the CATV system installer: This reminder is

provided to call the CATV system installer's attention to

Article 820-44 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding

system of the building, as close to the point of cable

entry as practical.

Power source

This plasma television is designed to operate on 120

volts 60 Hz, AC current. Insert the power cord into a

120 volt 60 Hz outlet.

To prevent electric shock, do not use the plasma

television's (polarized) plug with an extension cord,

receptacle, or other outlet unless the blades and

ground terminal can be fully inserted to prevent blade

exposure.

Never connect the plasma television to 50 Hz, direct

current, or anything other than the specified voltage.

Caution

Z_ ever remove the back cover of the

plasma television as this can expose you

to very high voltages and other hazards. If

the television does not operate properly,

unplug the plasma television and call your authorized

dealer or service center.

Caution

Adjust only those controls that are covered in the

instructions, as improper changes or modifications not

expressly approved by HITACHI could void the user's

warranty.

Warning

•To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

• The plasma television should not be exposed to

dripping or splashing and objects filled with liquids,

such as vases, should not be placed on the

television.

Modifications

The FCC requires the user to be notified that any

changes or modifications made to this device that are

not expressly approved by Hitachi America, Ltd. Home

Electronics Division may void the user's authority to

operate the equipment.

Note

This plasma television will display television closed

captioning, (_ or[_), in accordance with paragraph

15.119 and 15.122 of the FCC rules.

Public viewing of copyrighted material

Public viewing of programs broadcast by TV stations

and cable companies, as well as programs from other

sources, may require prior authorization from the

broadcaster or owner of the video program material.

This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorized by

Macrovision Corporation, and is intended for home and

other limited consumer uses only unless otherwise

authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Note

This digital television is capable of receiving analog

basic, digital basic and digital premium cable television

programming by direct connection to a cable system

providing such programming. A CableCARD provided

by your cable operator is required to view encrypted

digital programming. Certain advanced and interactive

digital cable services such as video-on-demand, a cable

operator's enhanced program guide and data-enhanced

television services may require the use of a set-top box.

For more information call !our local cable company.

Note

• There are no user serviceable parts inside the

plasma television.

• Model and serial numbers are indicated on back side

of the plasma television.

Prevention of screen damages

Continuous on-screen displays such as video games,

stock market quotations, computer generated graphics,

and other fixed (non-moving) patterns can be

permanently imprinted onto your TV screen. Such

"SCREEN DAMAGES" constitute misuse and are NOT

COVERED by your HITACHI Factory Warranty.

Lead Notice

This product contains lead. Dispose of this product in

accordance with applicable environmental laws. For

product recycling and disposal information, contact

your local government agency or www.eRecylcle.org

(in California), the Electronic Industries Alliance at

www.eiae.org (in the US) or the Electronic Product

Stewardship Canada at www.epsc.ca (in Canada).

FOR MORE INFORMATION, CALL 1-800-HITACHI.

Checkto makesureyouhavethefollowingaccessoriesbeforedisposingof thepackingmaterial.

O Remote Control O Two "AA" size, _ Table Top Q 2 Ferrite Core

1.5V batteries Stand (42" (see page 13)

models only)

®@@

HITACHI

E_ J

Power Cord

2 IR Mouse Cables or

les

Cleaning Cloth

Power Swivel Cable

(42" models only)

Note: Please visit our

website for optional

accessories for the

55" models.

For U.S. models:

For optional

accessories, please

access our web site at:

www.hitachi.us/tv

Remote Control Unit CLU-3851WL

(Part No. HL02065).

t_ Two "AA" size, 1.5V batteries (P# FQ00021).

Power Cord (P# EV01841).

Two IR Mouse cables (P# EY01641).

Table Top Stand (P# QJ01831K).

Cleaning Cloth (P# MS00931).

Power Swivel Cable (P# EW08431).

2 (2 pcs.) Ferrite Core (P#2169513).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery cover of the remote control by pushing down and

sliding the back cover off.

2. Insert two new "AA" size batteries for the remote control. When

replacing old batteries, push them towards the springs and lift them

out.

3. Match the batteries to the (+) and (-) marks in the battery

compartment.

4. Replace the cover.

BOTTOM VEW

(Remote Oontrel)

Press down a_d slide back to remove.

To take measures to prevent the Plasma Television from tipping over and prevent possible injury

it is important to mount the unit in a stable and flat surface.

Securing to a table-top

1. Using wood screws (two) fasten the set to the

clamping screw holes on the rear of the Plasma

Display stand as shown below.

2. Using commercially available wood screws, secure

the set firmly in position.

Wire

ood screw

wo places

Securing to a Wall

1. Keep the Plasma television 4 inches away from the

wall except when mounted using the wall mount

bracket.

2. Secure the television to the wall as shown in fig. (a)

or (b).

A B

I--'/ A B

42" 4in. 12 in.

!0 cm 30 cm

55" 4in. 16 in.

10 cm 39 cm

(a) Power Swive] (b) Power Swivel

NOT USED USED

ANTENNA

Unless your Plasma Television is connected to a cable

TV system or to a centralized antenna system, a good

outdoor color TV antenna is recommended for best

performance. However, if you are located in an

exceptionally good signal area that is free from

interference and multiple image ghosts,

an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor

illumination will not fall directly on the picture screen.

Also, be sure that the location selected allows a free

flow of air to and from the perforated back cover of the

set. In order to prevent an internal temperature

increase, maintain a space of 10 cm (4 inches) from the

sides/back of the Television, and 30 cm (12 inches)

from the top of the television to the wall. To avoid

cabinet warping, cabinet color changes, and increased

chance of set failure, do not place the TV where

temperatures can become excessively hot, for

example, in direct sunlight or near a heating appliance,

etc.

/ .....i........

Caution when moving the main unit

As this product is heavy, whenever it is moved, two

people are required to transport it safely. Whenever the

unit is moved it should be lifted forward using the top

and base on both sides of the Television for stability.

When moving the Television, lift the handles (42"

models), support the top frame (55" models) and the

bottom frame as shown below. Do not grab the

speakers or the back cover when lifting.

CONNECT POWER SWIVEL CABLE

Connect one end of cable (Arrow mark facing left) to

the swivel slot of the Plasma Rear Panel. Connect the

other end (Arrow mark facing front)to the swivel slot of

the Table Top Stand.

TURNING RADIUS

The maximum turning radius is 30 ° (left and right). Do

not place any objects on the path of the monitor when

using the power swivel feature.

42"

C D

12 in. 12 in.

30 cm 30 cm

55" 15.26 in. 16.46 in.

38.77 cm 4!.8 cm

42" 55" I

VIEWING

The best picture is seen by sitting directly in front of

the TV and about 10 to 18 feet from the screen.

During daylight hours, reflections from outside light

may appear on the screen. If so, drapes or screens

can be used to reduce the reflection or the TV can

be located in a different section of the room.

If the TV's audio output will be connected to a Hi-Fi

system's external speakers, the best audio

performance will be obtained by placing the

speakers equidistant from each side of the receiver

cabinet and as close as possible to the height of

the picture screen center. For best stereo

separation, place the external speakers at least

four feet from the side of the TV, place the surround

speakers to the side or behind the viewing area.

Differences in room sizes and acoustical

environments will require some experimentation

with speaker placement for best performance.

ANTENNA CONNECTIONS TO REAR JACK

PANEL

VHF (75-Ohm} antenna/CATV (Cable 13/)

When using a 75-Ohm coaxial cable system, connect CA'I'V coaxial cable to the CABLE (75-Ohm) terminal. If you

have an antenna, connect the coaxial cable to the AIR

terminal.

VHF |300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor

antenna, connect the VHF or UHF antenna leads to

screws of the VI-IF or UHF adapter. Plug the adapter

into the antenna terminal on the T'vt

To second antenna :_

When both VHF and UHF antennas are

connected

Attach an optional antenna cable mixer to the TV

antenna terminal, and connect the cables to the

antenna mixer. Consult your dealer or service store for

the antenna mixer.

or UHF antenna

To UHF Tooutdoorantenna

antenr_a AIR or CATV system

Antenna Mixer

Most video/audio connections between components can be made with shielded video and audio cables that have

phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be

purchased from most stores that sell audio/video products. Below are illustrations and names of common

connectors. Before purchasing any cables, be sure of the output and input connector types required by the

various components and the length of each cable.

300-Ohm Twin Lead Cable

This outdoor antenna cable must be connected to an

antenna adapter (300-Ohm to 75-Ohm).

Phono Connector

Used on all standard video and audio cables which

connect to inputs and outputs located on the

television's rear jack panel and side control panel.

"F" Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the

antenna jack on the television.

S-Video (Super Video) Cable

This cable is used on camcorders, VCRs and laser-

disc players with an S-Video feature in place of the

standard video cable to produce a high quality picture.

Optical Cable

This cable is used to connect to an audio amplifier with

an Optical Audio In jack. Use this cable for the best

sound quality.

HDMI Cable

This cable is used to connect your external devices

such as Set-Top-Boxes or DVD players equipped with

an HDMI output connection to the TV's HDMI input. !

Stereo Cable (3.8mm plug to 3.5mm plug)

Used to connect equipment with mini stereo audio jack

to the left and right audio inputs on the rear and side

panels.

_= ©

3 atom 2

STEREO ROA TYPE

MINI PLUG PLUGS

USB Cable

This cable is used to connect your digital camera to the

Photo Input in the side of the Plasma television.

IR Mouse Cable/G-LINK Cable (Provided)

Connect the IR Mouse to the IR Blaster output of your

Plasma Television when A/V Network is used. You

must place the IR Mouse in front of the corresponding

IR window of your cable box and VCR. This

connection allows your TV, and the TV Guide On

Screen TM system, to control your cable box and/or VCR.

Power Swivel Cable (Provided with 42" Models)

This cable is used to connect the swivel stand to the

rear panel of the Plasma Television.

IEEE1394 Cable

This cable is used to connect your digital television to

external digital devices.This cable will carry both the

video and audio information.

Sub-Woofer Cable

Used to connect the Sub-Woofer Out to the Sub-

Woofer Input of an audio amplifeier (not included).

In addition to controlling all of the functions on your HITACHI Plasma TV, the new remote control is designed to

operate different types of devices, such as, DVD Players, CBL (Cable Boxes), set-top-boxes, satellite receivers,

and VCRs. The remote control must be programmed to control the chosen device. Please see pages 23-41 for a

complete description of all features and programming of the Remote Control.

POWER BUTTON

(TV, eve, CF@L,STB, PVR/VCR, AMP/CO} .........

Turns the selected device on and off,

Turns on or blinks to show remote control

mode when the SOURCE ACCESS buttons

are pressed,

(TV,DVD, OF@L,STB, PVR/VCR, AMP/CB)

Cflanges tile mode of tile Universal Remote

Control to control the device selected,

ASPECT BUTTON \

IT',h\

Changes the aspect ratio of the TVI

BAY/NIGHT

(TV)

ToggMs picture mode settings bMween

DAY and N_GHT mode,

MENU BUTTON

(TV, OVO, COL, STB, PVR/VCR}

Accesses the OSD menu system,

CURSOR PAD/SELECT F@UTTON

(TV, DVB, OF@L,STB, PVR/VCR) " .....

The Cursor Pad is used as a cursor to navigate

thlough the OSO and INPUT menu systems.

The Select button is used to Select/Activate

higMighted men_l items,

(TV, STB, CF@L,PVR}

Displays vario_ls information on the screen,

such as charlrlel infom-latiorl,

(TV, AMP/CD)

Scroll up arm down to ad}ust the audio level oN your

TV, Push down on the wheel to mute,

NUMERIC BUTTONS ..........

(TF@,DVD, CBL, STB, PVR/VCR, AMP/CB)

Used to manually entel the TV channel, and used

(-) BUTTON

(TV, STB)

The (-} button is used when the remote is in

Set-Top-Box (STB) mode or when the TV uses

a digital input,

LEGEND

"IV -Television

CBL - Cable Box

STB - Set-Top-Box

'@ @@i

.......@;@;@ .....

H|TACH|

VCR - Video Cassette Recorder/Prayer

DVD - Digital Video Disc Player

SAT - Satellite Receiver

NOTJ ,,, _ The _s remete _ent_t

HHHHHHHHHHi _ H

DVD/VCR CONTROL BUTTONS

..../(DVD, PVR/VCR, AMP/CD)

Controls the functMns of your VCR, DVD

and audM devices,

PAUSE BUTTON

(TV, PVR/VCR, BVD, AMP/CD)

Press to show and change the Freeze mode of the TM

Also used to pause other devices when the remote is in

DVD, PVR/VCR or AMP/CO mode.

....PiP CONTROL F@UTTONS

(TF@)

Press to show and change the Picture-in-Picture mode,

(TV, STB, CF@L,PVR) _

Accesses the TV Guide On Screen system see page 54

of the TV or the program guide of other devices,

(TV, CBL, STB, PVR/VCR)

Exits out of the OSD, INPUTS or AV NET menu

systems if their menu is displayed,

, LAST CHANNEL F@UTTON

(TV, CBL, STB, PVR)

Switches betweeh the current and Mst channM vMwed.

INPUTS BUTTON

(TV, AMP)

Acce,sses the iNPUTS n3en_ system,

CHANNEL WHEEL

(TV, CBL, STB, PVR/VCR, AMP/CD)

Scroll up or down to change channel Push down on

the wheel to access (FAV} Favorite Channel mode,

(Favorite channel is only available for TV mode,)

..... LIGHT BUTTON

(TV, OF@L,STB, PF@R)

Press to use the back light feature. Car/

also be used to change backlight mode,

tly_th

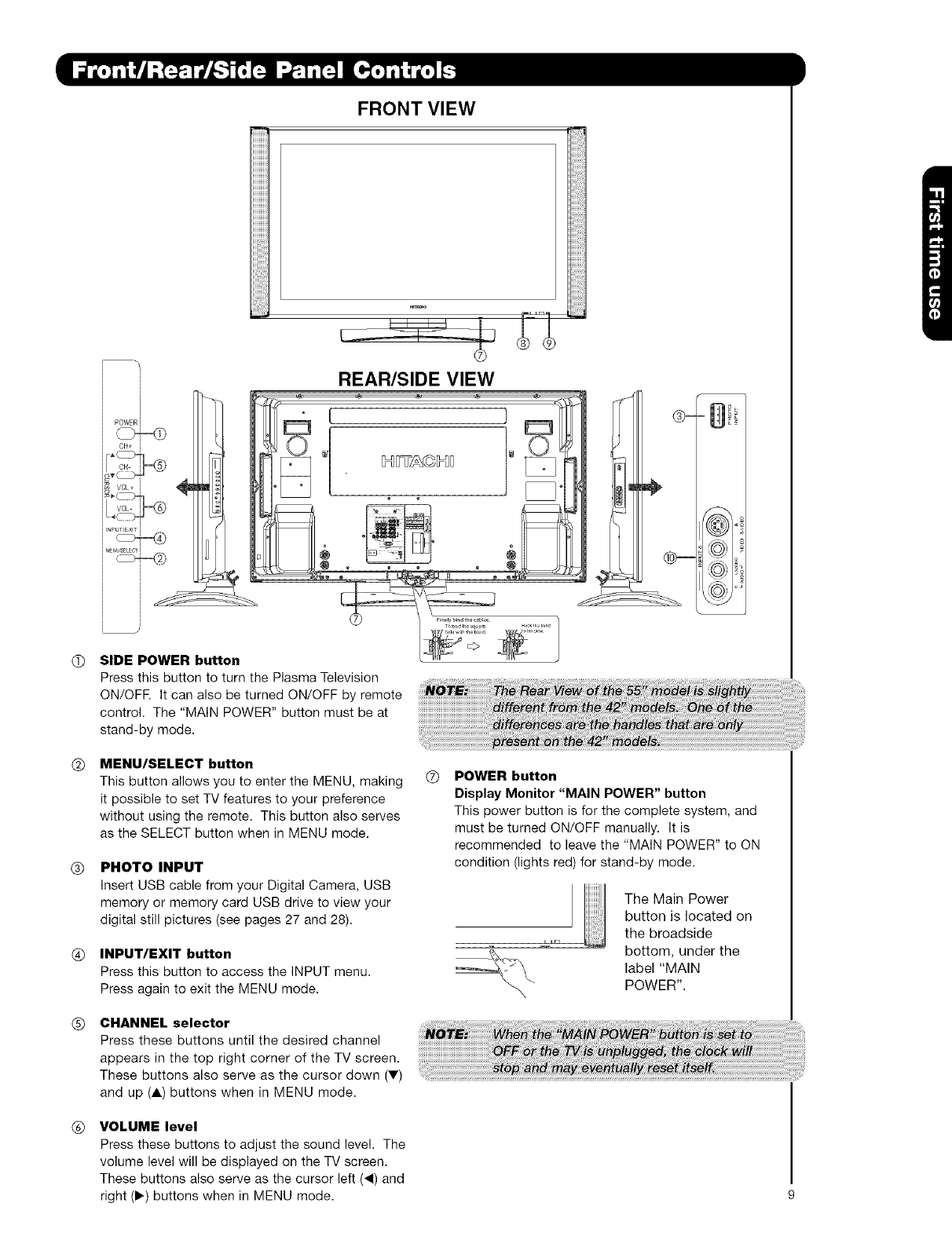

FRONT VIEW

FI Iml

REAR/SIDE VIEW

SIDE POWER button _ "' J

Press this button to turn the Plasma Television

ON/OFR It can also be turned ON/OFF by remote .................................................

control. The "MAIN POWER" button must be at

stand-by mode.

MENU/SELECT button

This button allows you to enter the MENU, making

it possible to set TV features to your preference

without using the remote. This button also serves

as the SELECT button when in MENU mode.

PHOTO INPUT

Insert USB cable from your Digital Camera, USB

memory or memory card USB drive to view your

digital still pictures (see pages 27 and 28).

INPUT/EXIT button

Press this button to access the INPUT menu.

Press again to exit the MENU mode.

®POWER button

Display Monitor "MAIN POWER" button

This power button is for the complete system, and

must be turned ON/OFF manually. It is

recommended to leave the "MAIN POWER" to ON

condition (lights red) for stand-by mode.

The Main Power

button is located on

.... the broadside

bottom, under the

label "MAIN

POWER".

CHANNEL selector

Press these buttons until the desired channel

appears in the top right corner of the TV screen.

These buttons also serve as the cursor down (T)

and up (A) buttons when in MENU mode.

VOLUME level

Press these buttons to adjust the sound level. The

volume level will be displayed on the TV screen.

These buttons also serve as the cursor left (<) and

right (1_) buttons when in MENU mode.

®POWER light indicator

To turn the monitor ON, press the main power

switch located on the lower right side of the

monitor. A red stand-by indicator tamp located on

the lower right corner of the front bezel will

illuminate. The Plasma TV is now ready for remote

ON/OFF operation.

Hndicating Lamp Power Status

Off Off

Lights Red

Lights Green

Lights Orange

Off

(Stand-by)

Off

Power Saving)

Operating

When the main power switch is set to

OFR

When the main power switch on the display

monitor is ON+

Display monitor MAHN POWER is ON+

Display monitor MAHN POWER is ON

with no signal input except antenna

(no sync+ signal)+

REMOTE CONTROL sensor

Point your remote at this area when selecting

channels, adjusting volume, etc.

LEARNING AV NET sensor

Point your equipment's remote control at this area

while using the AV NET Learning Wizard.

SIDE INPUT JACKS (for VIDEO: 5)

Use these audio/video jacks for a quick hook-up

from a camcorder or VCR to instantly view your

favorite show or new recording. Press the INPUTS

button then use the CURSOR PAD and the SELECT

button on the remote control to select INPUT 5. If

you have mono sound, insert the audio cable into

the left audio jack.

IEEE1394 (DV Input)

This input provides a digital interface for your

external digital devices such as your digital video

(DV) camcorder.

Antenna Input

The remote control allows you to switch between

two separate 75-Ohm RF antenna inputs, CABLE

and AIR.

Audio/Video INPUTS 1, 2, 3 and 4

By using the INPUTS button, the CURSOR PAD (A

and T), and the SELECT button or CURSOR PAD

• of the remote control, you can select each video

source. Use the audio and video inputs to connect

external devices, such as VCRs, camcorders,

laserdisc players, DVD players etc. (if you have

mono sound, insert the audio cable into the left

audio jack).

MONITOR OUT & HI-FI AUDIO OUT

These jacks provide fixed and variable audio and

video signals (CABLE/AIR, INPUT 1, 2 and 5)

which are used for recording. Use the S-VIDEO

Output for high quality video output. Component

signal to INPUT 3 and 4, and HDMI inputs will not

have monitor output.

Optical Out (Digital Audio)

This jack provides Digital Audio Output for your

audio device that is Dolby ® Digital and PCM

compatible, such as an audio amplifier.

,.F

#2T2..........................

-_ 2c

....g,.

0Component: Y-PBPR Inputs

INPUTS 3 and 4provide Y-PBPR jacks for

connecting equipment with this capability, such as

a DVD player or Set Top Box. You may use

composite video signal for both inputs.

®S-VIDEO INPUTS 1 and 2

INPUTS 1 and 2 provide S-VIDEO (Super Video)

jacks for connecting equipment with S-VIDEO

output capability.

®HDMI INPUTS 1 and 2 (High Definition

Multimedia Interface) I-t mr

ABOUT HDMI - HDMI is ...............................

the next-generation all digital interface for

consumer electronics. HDMI enables the secure

distribution of high-definkion video and multi-

channel audio in a single cable. Because digital

television (DTV) signals remain in digital format,

HDMI assures that pristine high-definition images

retain the highest video quality from the source all

the way to your television screen.

Use the HDMI input for your external devices such

as Set-Top-Boxes or DVD players equipped with an

HDMI output connection.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LL C.

IR Blaster/G-LINK

This jack provides IR output to your external

components (VCR, Cable box, DVD player, etc.).

With this connection, your external components

can automatically be controlled by the A/V network

feature. This connection will allow you to control

the external components with your Plasma

Television's remote control in TV mode. The G-

LINK connection will enable the TV Guide On

Screen TM recording feature.

For Service Use Only

Do not connect anything to this terminal.

Specifically for Service use only.

Subwoofer Out

Connect this SUB WOOFER OUT output to the

external audio component input using the sub

woofer cable (not provided).

Upgrade Card

This card slot is for future software upgrades.

HITACHI will notify you if a software upgrade is

required for your TV. In order to receive written

notification, please complete and return your

warranty card.

To Power Swivel Connector

Connects to the Power Swivel Table Top Stand.

IEEEt394 (DV INPUT)

These jacks provide a digital interface for your

external digital devices, such as a Digital VCR (D-

VHS), Set-Top-Box or Digital Camcorder by means

of a single cable (see page 19). When using

IEEE1394 connections, you enable video and audio

digital data exchange between a compatible

device. This connection also enables you to

control basic equipment functions (such as VCR

play, rewind, fast forward, stop, etc.) from your TV

On-Screen Display.

CableCARD Slot

This slot is for the CableCARD that will be provided

by your local cable operator to gain access to

chosen cable channels. Please call your local cable

operator if this service is available before

requesting a CableCARD (also known as Point of

Deployment (POD) module).

1. Connect a coaxial cable to cable terminal of

the Rear Panel Jacks.

2. Insert the CableCARD into the slot (Top of card

should be facing towards you as shown

below).

"212 ........

[

f_$23 C

If the CableCARD is properly installed or not installed,

the TV will display the following respective screens.

After the CableCARD is installed, wait until the second

screen below appears. The third screen below will

appear if a channel is not authorized for viewing. Press

the EXIT button to exit the second screen.

Please take note of all information on the screen (you

will provide this information to your cable operator).

Call your cable operator and give them the information

from the card to start your cable service.

Thefrontpaneljacksareprovidedasaconveniencetoallowyoutoeasilyconnectyourvideocamcorder,digital

cameraorDigitalVideoCamcorderasshowninthefollowingexamples:

Left Side PaeeE

N_'U 5

LAUDIO" VIDEOSVIDEO

S-Videocable

(Optionam, see note)

Video Camera

'_"v%'_'_-?,,o&o

Ferdte Core Instructions:

Wrap once the USB cable or IEEE

1394cable (not supplied)on the Ferdte

ferrite core near the Photo Input Core

or IEEE1394 Inputas shown.

Fold and close the ferrite core

while being careful not to pinch

the cable.

IEEE 1394

Cable

Digital Video Camcorder

Core

USB

Cable

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set

Top Box to your Plasma TV is dependent on the model and features of each component. Check the

owner's manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to

accommodate your particular assortment of components and features. For best performance, video and

audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

Connect an external source to one of the INPUT terminals, then press the INPUTS button to show the

INPUTS menu. Use the CURSOR PAD (A and T) to select the Antenna or Input of your choice. Then press

the SELECT button or the CURSOR PAD I_ to confirm your choice (see page 26).

DJGi F,_L

OUTPUT CAPABILITY

DVI

HDMI

DVDPlayer

_[ (PROVIDED)

l--

! Iii

HDTV Set Top Box

CON N ECT TO

IR BLASTER/

G-UNK

• S-VIDEO, YPBPR, or HDMI connections are provided for high performance laserdisc players, VCRs etc.

that have this feature. Use these connections in place of the standard video connection if your device has

this feature.

• If your device has only one audio output (mono sound), connect it to the left audio jack on (L/(MONO)) the

Rear Panel.

• Refer to the operating guide of your other electronic equipment for additional information on connecting

your hook-up cables.

• A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line

output (INPUT: 1 in the example on page 14). Refer to your VCR operating guide for more information on

line input-output connections.

• Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

• COMPONENT: Y-PBPR (Input 3 & 4) connections are provided for high performance components, such as

DVD players and set-top-boxes. Use these connections in place of the standard video connection if your

device has this feature.

•Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y

output to the TV's PB input and the components R-Y output to the TV's PR input.

• Your component outputs may be labeled Y-CBC R. In this case, connect the components C B output to the

TV's PB input and the components C R output to the TV's PR input.

• It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs. (See

page 44)

• To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPR ,

and HDMI input jacks.

• INPUT 1 or 2 can accept HDMI signal.

• S-VIDEO monitor output may be used for recording only when the input is of S-VIDEO type.

• When using a HDMI input from a Set-Top-Box, it is recommended to use a 1080i or 720p input signal.

CONNECTING A VIDEO AND STEREO AUDIO

SOURCE TO INPUT1 - INPUT5

1. Connect the cable from the VIDEO OUT of the

VCR or the laserdisc player to the INPUT

(VIDEO) jack, as shown on the Rear Panel on the

right.

Connect the cable from the AUDIO OUT R of the

VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of the

VCR or the laserdisc player to the INPUT

(AUDIO/L) jack.

Press the INPUTS button, then select INPUT 2

from the INPUTS menu to view the program

from the VCR or laserdisc player.

5. Select CABLE or AIR from the INPUTS menu to

return to the last channel tuned.

A,o@ @ oAoLo

_U_EF1

i g/B

R_3_

_ ackofVCB

VCR

iiiiiiiiiiiiiiiiiiiiiNOi7

iiiiiiiiiiiiiiiiii

CONNECTING AN S-VIDEO AND STEREO AUDIO

SOURCE TO INPUT 1_ 2 AND 5

Connect the cable from the S-VIDEO OUT of

the S-VHS VCR or the laserdisc player to the

INPUT (S-VIDEO) jack, as shown on the Rear

Panel on the right.

Connect the cable from the AUDIO OUT R of

the VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of

the VCR or the laserdisc player to the INPUT

(AUDIO/L) jack.

Press the INPUTS button, then select INPUT 1

from the INPUTS menu to view the program

from the VCR or laserdisc player.

5. Select CABLE or AIR from the INPUTS menu to

return to the last channel tuned.

AIR O O CABLE

..... :1IR g bSTEn

gtS232C .... @

o_ruuJ Backof VCRor

0UrpUT L:{_erfiisc Player

VORor LaserdiscPlayer

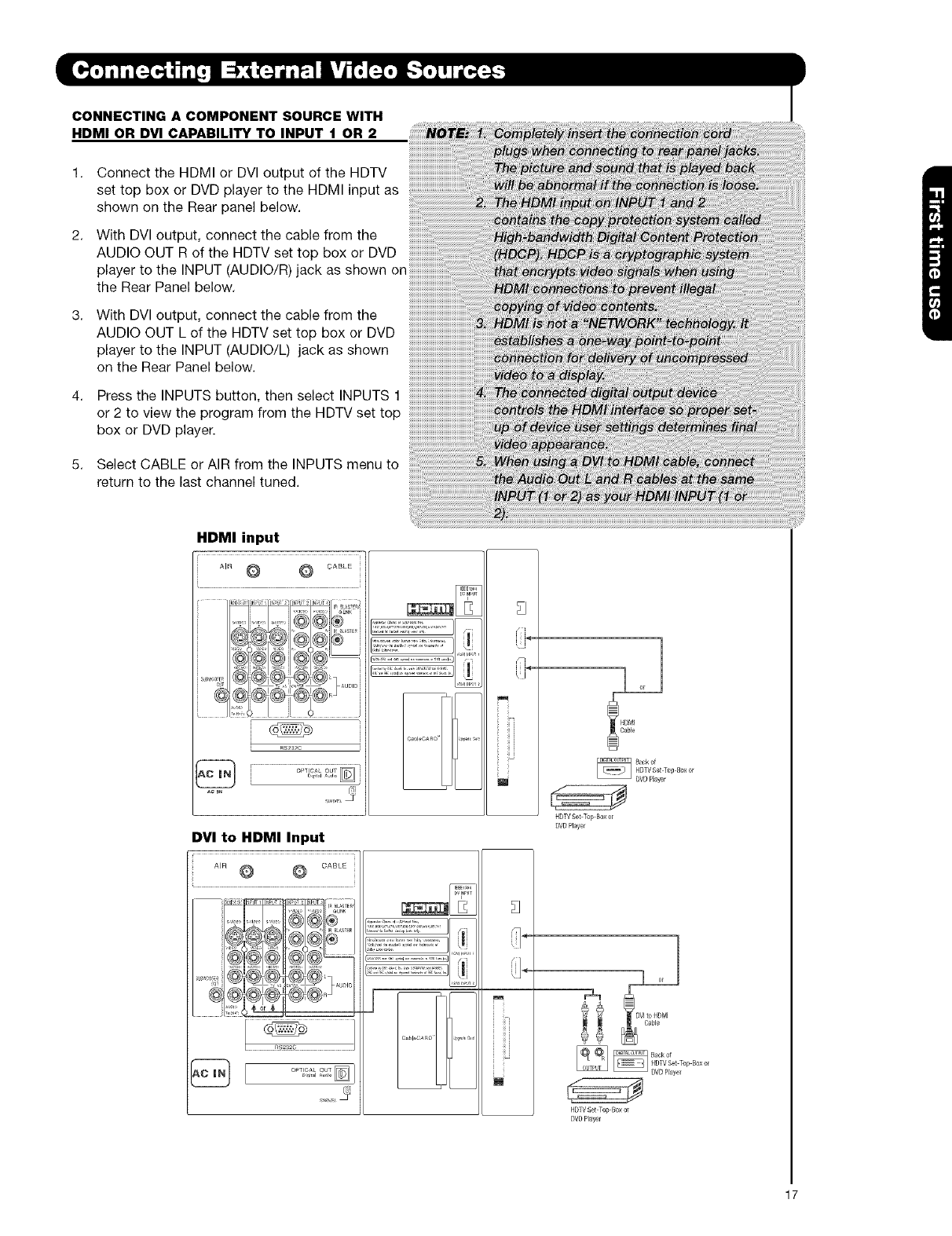

CONNECTING A COMPONENT SOURCE WITH

HDMI OR DVI CAPABILITY TO INPUT 1 OR 2

Connect the HDMI or DVI output of the HDTV

set top box or DVD player to the HDMI input as

shown on the Rear panel below.

With DVl output, connect the cable from the

AUDIO OUT R of the HDTV set top box or DVD

player to the INPUT (AUDIO/R) jack as shown

the Rear Panel below,

With DVl output, connect the cable from the

AUDIO OUT L of the HDTV set top box or DVD

player to the INPUT (AUDIO/L) jack as shown

on the Rear Panel below.

Press the INPUTS button, then select INPUTS 1

or 2 to view the program from the HDTV set top

box or DVD player.

Select CABLE or AIR from the INPUTS menu to

return to the last channel tuned.

HDMI input

Js:;_ E h uB o

Rs232c

I _i_l _o []

DVl to HDMI Input

A,R@ @ CABLE

(@l@}l@

...... @_@X@

@@]@X@

IEEEI_

_E,VI_PUT

.................................. l

[

IEEE,3_4

_DVlIN_UT

.......J ,

:'!,;'d:i_,'::_::::;:x::= j Jj

>, ,,,,

_ F

HOld/Set Top B0×o_

I)VD Playe/

HDTV Set Top Box 0_

DV_) Playe/

CONNECTING A COMPONENT AND STEREO

AUDIO SOURCE TO INPUT 3 OR 4: Y-PBPR.

Connect the cable from the Y OUT of the

Laserdisc/DVD player or HDTV set top box to

the INPUT (Y) jack, as shown on the Rear

panel below.

Connect the cable from the PB/CB OUT or B-

Y OUT of the Laserdisc/DVD player or HDTV

set top box to the INPUT (PB) jack.

Connect the cable from the PR/CR OUT or R-

Y OUT of the Laserdisc/DVD player or HDTV

set top box to the INPUT (PR) jack.

Connect the cable from the AUDIO OUT R of

the Laserdisc/DVD player or HDTV set top box

to the INPUT (AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of

the Laserdisc/DVD player or HDTV set top box

to the INPUT (AUDIO/L) jack.

Press the INPUTS button, then select INPUT 4

from the INPUTS menu to view the program

from the Laserdisc/DVD player or HDTV set

top box,

Select CABLE or AIR to return to the last

channel tuned.

Dletelv J

swhen,

rJicture,

)e abrlo_

Dac/e ?b

RS2320

OP[ICAL OUT _

_igltal Audio

HDTV Se_.rog Box

DVDPlsyer

CONNECTING A COMPONENT SOURCE WITH

DIGITAL INTERFACE CAPABILITY TO IEEE1394

TERMINALS.

1, Connect the IEEE1394 cable from the output of the

component with IEEE1394 capability, such as a

Digital VCR or AVHD (External Hard Drive) Digital

Recorder, to the IEEE1394 input terminals shown

below. IEEE 1394 allows the plasma television and

the external device to communicate with one

another. When using IEEEt394 connections, you

enable video and audio digital data exchange

between a compatible device. This connection also

enables you to control basic equipment functions

(such as VCR play, rewind, fast forward, stop, etc.)

from your TV On-Screen Display.

2. Press the INPUTS button on the Remote Control.

3. Select the IEEE1394 option (see page 29).

O @ oAoLE

_S2S2C

OPTICAl OU T D

swwH _]

,il,

Digital VCR (D-VHS)

CONNECTING A VIDEO AND MONAURAL AUDIO

SOURCE TO INPUT 1_ INPUT 2 OR INPUT 5

t. Connect the cable from the VIDEO OUT of the

VCR or the laserdisc player to the INPUT

(VIDEO) jack, as shown on the Rear Panel on the

right.

2. Connect the cable from the AUDIO OUT of the

VCR or the laserdisc player to the INPUT

(MONO)/L(AUDIO) jack.

3. Press the INPUTS button, then select INPUT 2

from the INPUTS menu to view the program

from the VCR or the laserdisc player.

4. Select CABLE or AIR from the INPUTS menu to

return to the last channel tuned.

CONNECTING AN EXTERNAL AUDIO AMPLIFIER

To monitor the audio level of the Plasma TV to an

external audio amplifier, connect the system as

shown on the right. The "OPTICAL OUT" from the

Rear Panel is a fixed output. The Volume of the

amplifier is controlled by the amplifier, not by the

Plasma Television. The OPTICAL OUT terminal

outputs all audio sources with Optical IN capability.

Connect an optical cable from the Optical out to

the Optical input of a separate Stereo System

Amplifier as shown on the Rear Panel on the

right.

A,R@ @ °ABLE

RS 320

RS232C

_ iiii!

VCR

Stereo System A,Y_pE_fier

CONNECTING MONITOR OUT

The MONITOR OUT terminal outputs video and

audio of CABLE/AIR and INPUTS 1,2, 3, 4 and 5. It

does not output component video.

Connecting S-Video:

Connect the cable from the S-VIDEO OUT of

the Rear Panel to the INPUT (S-VIDEO) jack, of

the VCR or Laserdisk player.

Connecting Video:

Connect the cable from the VIDEO INPUT of

the VCR or the laserdisc player to the VIDEO

out jack on the TV Rear Panel.

Connect the cable from the AUDIO IN R of the

VCR or the laserdisc player to the OUTPUT

(AUDIO/R) jack on the TV Rear Panel.

Connect the cable from the AUDIO IN L of the

VCR or the laserdJsc player to the OUTPUT

(AUDIO/L) jack on the TV Rear Panel.

A,R@ @ OAOLEi

...... i

o_t4on_

VCRer other external

00rn_0ner!ts

Your Hitachi Plasma Television is equipped with an AV Network feature. This feature helps to control your

external Audio/Video equipment (VCR, Set Top Box, DVD, etc.). Once this is setup, it allows your IR Mouse

connector to control your equipment using your Hitachi Plasma TV Remote Control, You can use your

HITACHI remote control to control the Audio/Video equipment command without the equipment's remote

control.

The Plasma Television Rear Panel has 2 IR BLASTER jacks. Each IR Mouse cable can connect up to 2

external Audio/Video components. Therefore, you can connect the Plasma Television with up to four

components. Please see the following example of an AV Network setup between your Hitachi Plasma

Television and external Audio/Video equipment (VCR and DVD Player).

CONNECTING EXTERNAL AUDIO/VIDEO COMPONENTS TO IR BLASTER FOR AV NETWORK

1, Connect your external Audio/Video components to the Rear Panel shown below.

2. Connect the IR Mouse cable to the IR BLASTER output of the Rear Panel.

3. Place the IR Mouse in front of the infrared sensor of the external components you wish to control.

AiR CABLE

SJB'?,'OOFE_

ObT

--?

_,_1"SY _/_JPU ' INPUT 3

..........

@"l°F° 'd

®@@

@@@@

t,U_lO

RS232C

INPUT 4

IR BLASTER

¢_lDO G LINK

8J r-_ r--

_P'_u seL_ hDVD Player

ACCESS THE AV NET SETUP WIZARD

Press the MENU button.

Use the CURSOR PAD • or channel scroll down

to highlight SETUR

Press the SELECT or CURSOR PAD 1_ button to

select.

Use the CURSOR PAD • or channel scroll to

highlight the SET AV NET features then press the

SELECT button.

8. Follow the Setup procedure on pages 79-86.

YourHitachiPlasma Television is equipped with a G-LINK feature. This connection is necessary for the TV

Guide On Screen TM system to work with your cable box to receive program listings and to enable VCR

recording features• Once you setup the G-LINK (IR Mouse) connector, then you can use your HITACHI

Plasma TV Remote Control and the TV Guide On Screen system to control your cable box and VCR

recording features•

The Plasma Television Rear Panel has IR BLASTER/G-LINK jacks• One IR Mouse cable can connect up to

2 external Audio/Video components. Please see the following example of a G-LINK setup between your

HITACHI Plasma Television and external Audio/Video equipment (VCR and Cable box).

CONNECTING THE CABLE BOX/VCR TO G-LINK FOR TV GUIDE ON SCREEN TM SYSTEM

1. Connect your external Audio/Video components to the Rear Panel shown below.

2. Connect the IR Mouse cable to the IR BLASTER/G-LINK output of the Rear Panel•

3. Place the IR Mouse in front of the infrared sensor of the external components you want to control.

AIR (0 (0 CABLE

.... f#/•s :,ff@uT

0UT

((o})j@

<(o)}K@}

{(@:>K,d,o}}..........

, L_ ( }....................

RS232C

Mouse " [

4. To access the TV Guide On-Screen TM system,

press the MENU button•

5. Use the CURSOR PAD • or channel scroll down

to highlight TV GUIDE ON SCREEN•

6. Press the SELECT or CURSOR PAD 1_ button to

select•

7. Follow the Setup procedure on pages 49-53•

In addition to controlling all the functions on your

HITACHI Plasma TV, the new remote control is

designed to operate different types of VCRs, CATV

(Cable TV) converters, set-top-box, satellite

receiver, DVD players, and other audio/video

equipment with one touch. Basic operation keys

are grouped together in one area.

To operate your Plasma TV, point the remote

control at the remote sensor of the Television and

select the TV by pressing the • or • button of the

Source Access on the remote. The TV mode

indicator will blink, indicating that the remote will

now control your television.

To operate your VCR, point the remote at the

remote sensor of the VCR and select PVR by

pressing the • or • button of the Source Access

on the remote. The PVR mode indicator will blink,

indicating that the remote will now control your

VCR (see page 37 for instructions on how to

program the remote to control your VCR).

To operate your PVR (Personal Video Recorder),

point the remote at the remote sensor of the PVR

and select PVR by pressing the • or • button of

the Source Access on the remote. The PVR mode

indicator will blink, indicating that the remote will

now control your PVR (see page 37 for instruction

on how to program the remote to control your

PVR).

To operate your cable box, point the remote at the

remote sensor of the cable box and select the

CABLE (CBL) by pressing the • or • button of the

Source Access on the remote. The CBL mode

indicator will blink, indicating that the remote will

now control your cable box (see page 34 for

instructions on how to program the remote to

control your cable box).

To operate your set-top-box or satellite receiver

point the remote at the remote sensor of the set-

top-box and select the SET-TOP-BOX (STB) by

pressing the • or • button of the Source Access

on the remote. If you have a satellite receiver, use

this button to program your satellite receiver. The

STB mode indicator will blink, indicating that the

remote will now control your set-top-box (see

page 35 for instructions on how to program the

remote to control your set-top-box).

To operate your DVD player, point the remote at

the remote sensor of the DVD player and select

DVD by pressing the • or • button of the Source

Access on the remote. The DVD mode indicator

will blink, indicating that the remote will now

control your DVD Player (see page 36 for

instruction on how to program the remote to

control your DVD

player).

To operate additional audio equipment, point the

remote at the remote sensor of the component you

wish to control and select AMP by pressing the •

or • button of the Source Access on the remote.

The AMP mode indicator will blink, indicating that

the remote will now control your audio equipment

(see page 38 for instructions on how to program

the remote to control additional Audio/Video

equipment).

l_ DVD C£L STS ['W AM_'

OOOOOO

_0UBCEACCESS

MEnU E×IT

H|TACH|

d)--

Q...-

@--

/TV DVD GBL STB PVR AMP_

_O O O O O Or

SOURCE ACCESS

ASPECT DAY/NIGHT PIP

F /

HITACHI

(9 POWER button

Press this button to turn the TV set on or off when

the remote is in TV mode. (See page 23 for

instructions on how to set the remote control to TV

mode.)

®MODE Indicator

Turns on or blinks to show remote control mode.

®SOURCE ACCESS (< or I_) buttons

Press these buttons to select remote control mode.

®SOURCE ACCESS (ENT) button

Hold down this button while entering your device

code to program the remote (see pages 34-41).

You can also use this button in an optional Input

access feature (see page 39).

®PAUSE button

Press the PAUSE button to freeze the picture.

Press the EXIT button to return the picture to

motion. Press the PAUSE button repeatedly to

cycle through the three different freeze modes (see

page 33).

(_)ASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input signal format

received, the picture format ratio allows you to adjust the images through the following options.

4:3 STANDARD

Use this aspect mode to display conventional (4:3)

images. Side panels (gray areas) are placed to the

left and right of the image to preserve the original

aspect ratio of the source. Note: Use this mode for

only 15% of your total viewing time to prevent

uneven aging of the phosphors. Phosphors in the

lighted area of the picture will age more rapidly

than the gray areas.

4:3 EXPANDED

Use this aspect mode to display conventional (4:3)

sources by linearly increasing image expansion

from the center towards the edges of the display

area in order to fill it.

•Antenna-Analog

• S-Video/Video Input

(Auto Aspect: Off)

•HDMI-480i/480p Input IMAGEINPUT

(Auto Aspect: Off)

• Component-480i/48Op

Input (Auto Aspect: Off)

Note: Please see Appendix A

on page 100.

4:3 ZOOMI/ZOOM2

Use these aspect modes to zoom in on

conventional (4:3) sources.

16-9 STANDARD

Use this aspect mode to display 16:9 sources like

HDTV and DVD's preserving the original 16:9

aspect ratio.

16:9 ZOOM

Use this aspect to Zoom-in once while in 16:9

aspect.

4:3 STANDARD 4;3 EXPANDED 4;3 ZOOM1

16:9 ZOOM 16:9 STANDARD 4:3 ZOOM2

•Antenna-Digital (4:3)

•S-Video/Video 4:3/Letter

Input (Auto Aspect: On)

•HDMI-480i/480p 4:3/

Letter Input (Auto Aspect: On)

•Component-480i/480p 4:3/

Letter Input

(Auto Aspect: On)

IMAGE INPUT 4:3 STANDARD

Note: Please see Appendix B

on page 100.

•S-Video/Video 16:9 Input

(Auto Aspect: On)

•HDMI-480i/480p 16:9 Input

(Auto Aspect: On)

•Component-48Oi/48Op

16:9 Input

(Auto Aspect: On)

IMAGE INPUT

4:3 EXPANDED

4:3ZOOM2 4:3ZOOM1

16:9 STANDARD I6:9 EXPANDED

Note: Please see Appendix C

on page 100.

•Antenna-Digital (16:9)

•HDMI-720p/1080i Input

•Component-720p/1080i

Input

Note: Please see Appendix D

on page 100.

IMAGE INPUT

16:9 STANDARD 16:9 ZOOM 4:3 EXPANDED

®DAY/NIGHT button

Press this button to toggle between Day and Night

picture mode settings. Select Day for day time

viewing with more brightness and contrast to

compete with room light. Select Night for night

time viewing with less brightness and contrast for a

more detailed picture (see page 44 for settings

changes).

(_) PICTURE-IN-PICTURE button

See separate section on pages 31-33 for a

description.

(_) MENU button

The MENU button will start the On-Screen Display.

(_ INFO button

Press this button when you want to check the

channel being received, the picture source, if the

channel has stereo (ST) or second audio program

(SAP), the time, CHANNEL ID and if the TIMER is

set.

@EXIT button

This button will exit all On-Screen Displays.

@CURSOR PAD/SELECT button

All the On-Screen Display features can be set or

adjusted by using the CURSOR PAD, except for

numeric entries. The CURSOR PAD will highlight

functions or adjust and set different features. Press

the CURSOR PAD toward desired direction and

press the SELECT button to select.

@GUIDE button

Press this button to access the TV Guide On

Screen TM interactive display (see page 54). Press

this button to access the Channel Guide of the

(CBL), and (SAT/STB) while in (CBL)(SAT/STB)

mode.

®INPUTS button

When the remote control is in TV mode, press this

button to access the INPUTS menu. Use the

CURSOR PAD and SELECT button to select the

inputs that are being used. Pressing the INPUTS

button repeatedly will also cycle through the Inputs

menu items. Then press the SELECT button to

select.

ANALOG/DIGITAL CHANNELS

E}_gitaJClosed

Caption "fhis _con

Program Inforrr at_on-4

£rogrsm Rulq Time

INF0

Picture mode

Day/NigRt --

seeing

15-2

KPBS-DT

_1 DTvCC II !080i II1:00PM

Audio Broadcast P_cture Format

Broadcast Aatirlg

Telly _d £aby Bears 5tory _ Program Desctiptioll

t t

Closed Aspect Mode

Cap on sell /g

When an S-VIDEO Input is connected

to INPUT 3

INF0

When a Component Video: Y-PbPr

Input is connected to INPUT 1

INF0

Main Picture Source

- end channel indication

Broadcast channeJ

-identMcation

- Clock

-- Event Time_ Thi_

Icon will a >peal

only alte_ the

Event Time_ Jr_the

TilnelMenL_is INPUT 1

_ogrammed

INPUT 2

INPUT 3

INPUT 4

INPUT 5

CABLE

AIR

PHOTO INPUT

IEEE1394

Select to choose INPUT 1.

Select to choose INPUT 2.

Select to choose INPUT 3.

Select to choose INPUT 4.

Select to choose INPUT 5.

Select to choose Cable.

Select to choose Air.

Select to access your pictures from a

digital camera, USB memory or

memory card USB drive connected to

the Photo Input in the side panel of

the Plasma TV (see pages 27-28).

Select to choose the IEEE1394 Input

(see page 29).

PHOTO INPUT

This feature is useful for viewing digital still pictures from your digital camera, USB Drive or memory cards USB

drive using the Photo Input in the left side panel of the TV.

Press the INPUTS button to cycle through the

INPUTS selections until the PHOTO INPUT is

selected. Press the SELECT button or

CURSOR PAD •.

2. Press the CURSOR PAD • or • to access the

next or previous photo.

Press the SELECT button to view

THUMBNAIL.

Use the CURSOR PAD buttons A, V, • or •

and the SELECT button to navigate and select

individual chosen photos.

5. Press the picture number to jump from picture

to picture.

6. Press the INFO button to access PHOTO Input

menu and to view Photo information.

7. Press the CURSOR PAD • or •and the

SELECT button to navigate and select the

PHOTO Input menu.

ROTATE

Select this menu item to rotate selected photos

either clockwise (CURSOR PAD •) and

counterclockwise (CURSOR PAD •).

SLIDESHOW

Select this menu item to start a slideshow of the

digital photos. While the Interval sub menu is

highlighted, press the SELECT button to cycle

through the interval time from 5, 10 and 30 seconds.

Press the SELECT button to stop on a chosen

picture of the slideshow. After 30 seconds, the

slideshow will resume or press the SELECT button

again to continue with the slideshow.

DEVICE

Select this menu item to select the Photo Input

Device Drive when using a USB Drive device. Use

the CURSOR PAD • or • to select Device Drive.

Press the INFO button to highlight a device, then

press the SELECT button or CURSOR PAD • to

access it. Use the CURSOR PAD • or • to choose

the device to read.

IEEE1394

Use this function to control your devices with digital interface capabilities.

When an IEEE1394 device is not connected

When an IEEE1394 device is connected

1, Press INPUT button, CURSOR PAD and SELECT

button to select IEEE 1394.

2. Use CURSOR PAD I_ to select connected device

(example D-VHSl).

3, Use CURSOR PAD cursors to highlight POWER.

4, Press the SELECT button to power on the device.

5. Use CURSOR PAD cursors to select D-VHS

operation.

6. Press down on the CURSOR PAD to enable the

selected operation.

7, Use CURSOR PAD cursors to highlight the TV

IN/OUT operation.

8. Press the SELECT button to select:

TV IN is DVHS

TV OUT is Cable

LAST CHANNEL (LAST CH) button

Press this button to toggle between the current and

last channel viewed.

VOLUME (VOL) WHEEL, MUTE button

Use the VOL WHEEL (A or T) until you obtain the

desired sound level,

To reduce the sound to one half of normal volume

(SOFT MUTE) to answer the telephone, etc., press

the VOL wheel down. Press the VOL wheel again

to turn the sound off completely (MUTE). To

restore the sound, press the VOL wheel one more

time or VOL Up (A).

Press the channel (CH) wheel to switch to Favorite

(FAV) channel mode. You will know you are in

Favorite Channel mode when (FAV) is displayed

and the displayed channel is GREEN. Press it

again to return to your regular tuned channels, You

can add any channel to your Favorite channel list

by pressing and holding down the Channel (CH)

wheel until the displayed channel turns from WHITE

to highlighted GREEN. You can also delete a

channel from your favorite channel list by pressing

and holding down the Channel (CH) wheel until the

displayed channel turns highlighted GREEN to

WHITE.

Closed Captioning will display automatically when

MUTE/SOFT MUTE is on and Closed Caption is set

to AUTO (see page 88).

When the TV power is turned off at a volume level

31 or greater, the volume level will default to 30

when the TV is turned on. However, if it is set to a

level 30 or less, the volume level will be at the level

it was set when the TV is turned ON.

CHANNEL (CH) WHEEL/CHANNEL SELECTOR

buttons

The CHANNEL wheel or the CHANNEL SELECTOR

buttons are used to select channels, lock access

code, etc. Use the CHANNELWHEEL (A or T) to

select the desired channel. Use the CHANNEL

SELECTOR buttons to enter one, two, or three

numbers to select channels. Enter "0" first for

channels 1 to 9, or simply press the single digit

channel you wish to tune then wait a few seconds

for the TV to tune. For Digital Channels, use the

CHANNEL SELECTOR buttons with the (-) DASH

button. Channel selection may also be performed

by CHANNEL WHEEL up (A) or CHANNEL WHEEL

down (Y).

(-) DASH button

Use the (-) DASH button with the CHANNEL

SELECTOR buttons to enter Digital Channels that

have subchannel numbers indicated by (-) DASH

(example 15-1).

BACKLIGHT button

Press this button to light up and illuminate the

buttons of the remote control.

YourHITACHIPlasmaTVincorporatesTwoTuner

technologydesignedforimprovedviewingenjoyment.

ThisTwoTunerfeatureallowsyoutoviewantenna

inputsonboththemainpictureandsubpicture

simultaneously,withseparatetuningcontro_foreach.

WhenaDigitalchannelisviewedinthemainpicture,

theDigitalchannelcannotbeviewedinthesub

picture.AndwhentheAnalogchannelinputisviewed

inthemainpicture,theAnalogchannelinputcannot

beviewedinthesubpicture.

TheCABLEandAIRinputcannotbeviewedinPIP

modeatthesametime.Toselectbetweenmain

pictureandPIPsubpicturetuning,usetheCURSOR

PADbuttontheremote.TheGreenhighlightedchannel

displaywillmovewitheverypressoftheCURSORPAD

buttons.

ThePicture-in-Picturefeatureisconvenientwhenyou

wanttowatchmorethanoneprogramatthesame

time.YoucanwatchaTVprogramwhileviewingother

programsfromanyofthevideoinputs.

UseconnectionshownattherighttoviewVCR

programasasub-picturewhileviewinganother

programasmainpicture(CABLEorAIR).

WheninstallingaCableCARD,connectyourcoaxial

cabletoCABLE(seepage12).

AIRQ

i od_

(_ CABLE

_s232c

VCR

P_P

PIP button

Press the PIP button and a sub-picture will appear

in one of the four different modes (POP, PIP, SPLIT

or SURF), depending on the INPUT signal. To

change the PIP mode, use the PIP button to cycle

through the four different modes.

POP MODE PICTURE-IN-PICTURE

POP Mode PIP displays the sub-picture outside of

the main picture. Use the CURSOR PAD (A or T)

to move the sub-picture. This feature is not

available with a 1080i signal. Please refer to the

PICTURE-IN-PICTURE MODES Table (see page

32).

•Main Picture

"Sub Picture

ASPECT DAY/NIGHT

|NFO

GUmDE

INPUTS

PiP

EXBT

LASTCH

PiP MODE PICTURE-IN-PICTURE

Select AIR from the INPUTS menu. Select a channel

that has a 1080i signal. To prevent a pattern burn,

occasionally move the sub-picture using the CURSOR

PAD.

SURF MODE PICTURE-IN-PICTURE

Surf Mode PIP automatically scans all active channels

(those set in Memory) and displays them as PIP sub-

pictures or Thumbnails. Press the SELECT button to

stop on a chosen channel. Use the remote CURSOR

PAD A, ,, _1 or • to navigate the Thumbnails.

Press the SELECT button to restart channel scan or

press the EXiT button to enaMe your chosen

channel and return to normal viewing.

PIP


Sub Picture

SPLIT MODE PICTURE-IN-PICTURE

Split Mode PIP displays the main picture and sub-

picture evenly on the screen.

Main Picture Sub Picture

Picture-in-Picture (PIP) Modes 480p/480i/

t080i/ A.alogTuner

PIP Mai./ DigitalTuner 720p Video/S-Video

Mode Sub Aspect t6:9 4:3 t6:9 t6:9 4:3

POP ANTDigital 16:9 .....

4'.3 - - Yes Yes Yes

480p/480i 16:9 Yes Yes - - -

ANTAnalog 4:3 Yes Yes - - -

S-Video/Video

PIP ANTDigital 16:9 - - - Yes Yes

4:3 1080i/720p 16:9 - Yes - - -

480p/480i 16:9 .....

S-Video/Video

PIP ANTDigital 16:9 - - Yes Yes Yes

16:9 1080i/720p 16:9 Yes ....

480p/480i 16:9 .....

S-Video/Video

SPLIT ANTDigital 16:9 - - Yes Yes Yes

4:3 - - Yes Yes Yes

1080i/720p 16:9 Yes Yes - - -

480p/480i 16:9 Yes Yes - - -

ANTAnalog 4:3 Yes Yes - - -

S-Video/Video

SURF - - Yes Yes - - Yes1

12PIX

1. AvailableonlyinAnalogTuner.

(_)PAUSE button

If you wish to freeze the sub-picture, press the

PAUSE button. This is convenient when trying to

write down the address for a mail order company,

recording statistics for a sporting event, etc. To

return the picture to motion, press the EXIT

button. Press the PAUSE button repeatedly to

toggle between FREEZE modes (Main Freeze,

SPLIT and STROBE).

SPLIT FREEZE

Press the PAUSE button to freeze the picture you

are currently viewing (only the right sub-picture will

freeze). Press the EXIT button to return to normal

viewing.

Freeze Main Picture _ Sub Picture

EXmT

Freeze

Freeze __

Freeze

MAIN FREEZE

Press the PAUSE button to freeze one frame of the

picture you are currently viewing and the frozen

frame will show in the Main Picture. Press the EXIT

button to return to normal viewing. This feature is

useful for freezing a picture frame with addresses.

STROBE FREEZE

Press the PAUSE button to freeze three frames of

the picture you are currently viewing (only the 3

sub-pictures will freeze). Press the EXIT button to

return to normal viewing. This feature is useful for

viewing a moving picture that has many details, for

example, a close play in a sporting event or a golf

swing.

EXIT

Money

1-800-555-1212

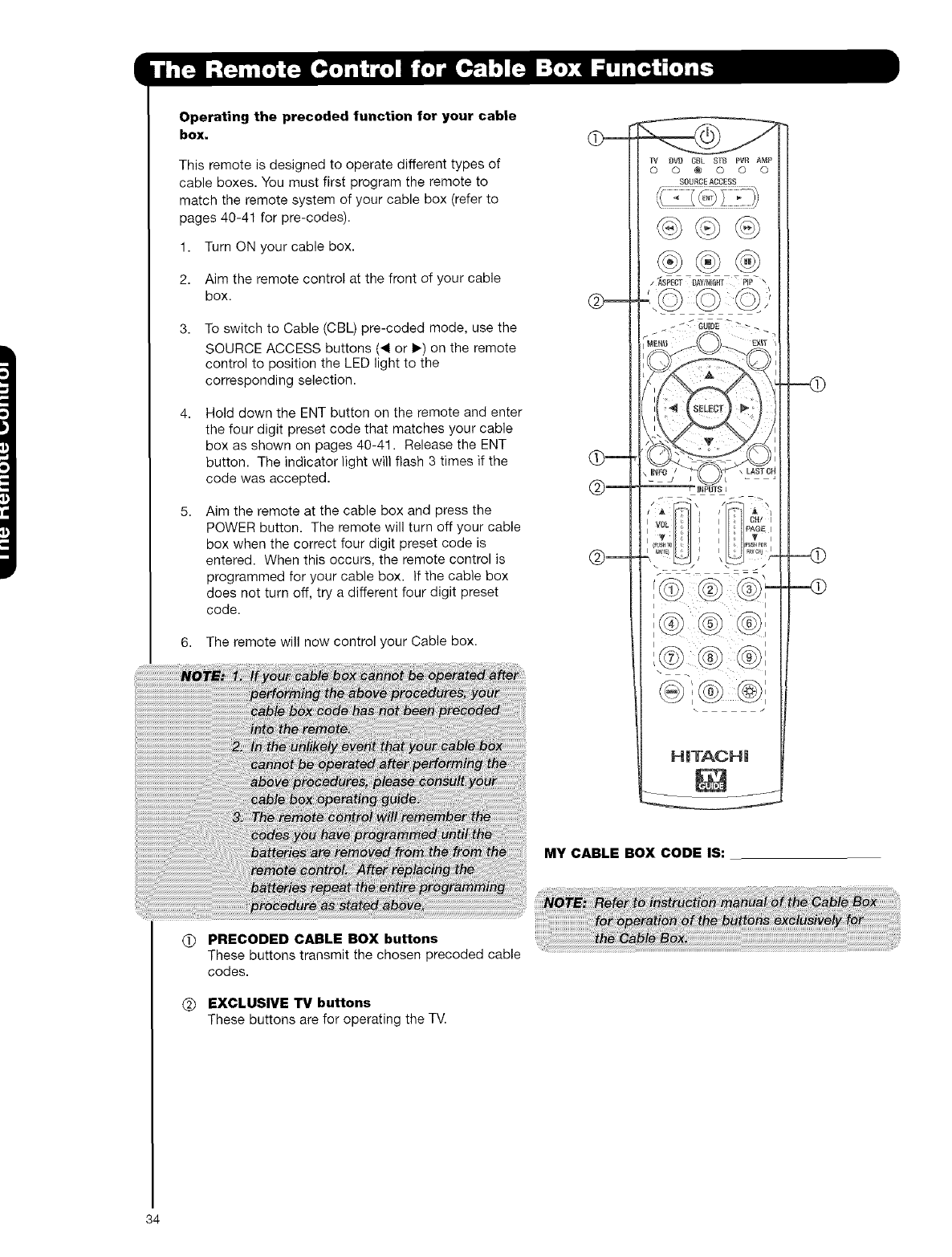

Operating the precoded function for your cable

box.

This remote is designed to operate different types of

cable boxes. You must first program the remote to

match the remote system of your cable box (refer to

pages 40-41 for pre-codes).

1. Turn ON your cable box.

2. Aim the remote control at the front of your cable

box.

3, To switch to Cable (CBL) pre-coded mode, use the

SOURCE ACCESS buttons (< or I_) on the remote

control to position the LED light to the

corresponding selection.

4, Hold down the ENT button on the remote and enter

the four digit preset code that matches your cable

box as shown on pages 40-41. Release the ENT

button. The indicator light will flash 3 times if the

code was accepted.

5, Aim the remote at the cable box and press the

POWER button. The remote will turn off your cable

box when the correct four digit preset code is

entered. When this occurs, the remote control is

programmed for your cable box. If the cable box

does not turn off, try a different four digit preset

code.

6. The remote will now control your Cable box.

TV OVD OBL STB PVR AMP

O O @ O O O

SOURCE ACCESS

HiTACHi

MY CABLE BOX CODE IS:

PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable

codes.

EXCLUSIVE TV buttons

These buttons are for operating the TV.

Operating the precoded function for your set-top-

box/satellite receiver.

This remote is designed to operate different types of

set-top-box/satellite systems. You must first program

the remote to match the remote system of your set-

top-box/satellite systems (refer to pages 40-41 for pre-

codes).

1. Turn ON your set-top-box/satellite systems.

2. Aim the remote control at the front of your set-top-

box/satellite systems.

3, To switch to set-top-box/satellite (STB) pre-coded

mode, use the SOURCE ACCESS buttons (, or I_)

on the remote control to position the LED light to

the corresponding selection.

4, Hold down the ENT button on the remote and enter

the four digit preset code that matches your set-

top-box/satellite receiver as shown on page 40-41,

Release the ENT button. The indicator light will

flash 3 times if the code was accepted.

5, Aim the remote at the set-top-box/satellite receiver

and press the POWER button. The remote will turn

off your set-top-box/satellite receiver when the

correct four digit preset code is entered. When this

occurs, the remote control is programmed for your

set-top-box/satellite receiver. If the set-top-

box/satellite receiver does not turn off, try a

different four digit preset code.

6. The remote will now control your set-top-

box/satellite receiver.

@--

_/ DVD CBL STB F_R AMP

0 0 0 ® 0 0

SOItIf ._CCISS

HITACHI

MY Satellite RECEIVER/

SET-TOP-BOX CODE IS:

OPRE-CODED SET-TOP-BOX/SATELLITE

RECEIVER buttons

These buttons transmit the chosen pre-coded set-

top-box/sate/ite codes.

(_) EXCLUSIVE IV buttons

These buttons are for operating the T_

Operating the precodod function for your DVD

player.

This remote is designed to operate different types of

DVD players. You must first program the remote to

match the remote system of your DVD player (refer to

pages 40-41 for pre-codes).

1. Turn ON your DVD player.

2. Aim the remote control at the front of your DVD

player.

3, To switch to DVD pre-coded mode, use the

SOURCE ACCESS buttons (4 or 1_) on the remote

control to position the LED light to the

corresponding selection.

4, Hold down the ENT button on the remote and enter

the four digit preset code that matches your DVD

player, as shown on pages 40-41. Release the

ENT button. The indicator light will flash 3 times if

the code was accepted.

Aim the remote at the DVD player and press the

POWER button. The remote will turn off your DVD

player when the correct four digit preset code is

entered. When this occurs, the remote control is

programmed for your DVD player. If the DVD

player does not turn off, try a different four digit

preset code.

6. The remote will now control your DVD player.

7. You will need to set the display type of your DVD

player to 16:9 widescreen.

TV DVD CBL STB PVR AMP

O ® 0 0 0 0

SOURCE ACCESS

¢INPUTSI

i/ ,A

_ VOL PAGE I

HITACHI

-<i)

MY DVD PLAYER CODE IS:

OPRECODED DVD Buttons

These buttons transmit the chosen precoded DVD

codes.

(_) EXCLUSIVE TV Buttons

These buttons are for operating the TV.

Operating the precoded function for your

VCR/PVR (Personal Video Recorder).

This remote is designed to operate different types of

VCRs/PVRs. You must first program the remote to

match the remote system of your VCR/PVR (refer to

pages 40-41 for pre-codes).

1. Turn ON your VCR/PVR.

2. Aim the remote control at the front of your

VCR/PVR.

3, To switch to VCR/PVR pre-coded mode, use the

SOURCE ACCESS buttons (,, 1_) on the remote

control to position the LED light to the

corresponding selection.

4, Hold down the ENT button on the remote and enter

the four digit preset code that matches your

VCR/PVR, as shown on pages 40-41. Release the

ENT button. The indicator light will flash 3 times if

the code was accepted.

5, Aim the remote at the VCR/PVR and press the

POWER button. The remote will turn off your PVR

when the correct four digit preset code is entered.

When this occurs, the remote control is

programmed for your VCR/PVR. If the VCR/PVR

does not turn off, try a different four digit preset

code.

6. The remote will now control your VCR/PVR.

TV DVD CBL STB PVR AMP

OOOO@O

SOURCE ACCESS

.'©

HiTACHi

MY VCR/PVR CODE IS:

PRECODED VCR/PVR Buttons

These buttons transmit the chosen precoded

VCR/PVR codes.

EXCLUSIVE TV Buttons

These buttons are for operating the T_

Operating the precoded function for your Audio

component.

This remote is designed to operate different types of

Audio component. You must first program the remote

to match the remote system of your Audio component

(refer to pages 40-41 for pre-codes).

1. Turn ON your Audio component you wish to control

with the Remote.

2. Aim the remote control at the front of your Audio

component.

3, To switch to Audio (AMP) component pre-coded

mode, use the SOURCE ACCESS buttons (, or I_)

on the remote control to position the LED light to

the corresponding selection.

4, Hold down the ENT button on the remote and enter

the four digit preset code that matches your Audio

component, as shown on pages 40-41. Release

the ENT button. The indicator light will flash 3

times if the code was accepted.

5, Aim the remote at the Audio component and press

the POWER button. The remote will turn off your

Audio component when the correct four digit

preset code is entered. When this occurs, the

remote control is programmed for your Audio

component. If the Audio component does not turn

off, try a different four digit preset code.

6. The remote will now control your Audio

component.

7. Repeat steps 1 - 6 if you wish to program the

remote to control another Audio component.

i.r

OPRECODED AUDIO Buttons

These buttons transmit the chosen precoded Audio

component codes.

(_) EXCLUSIVE TV Buttons

These buttons are for operating the TV.

TV DVD CBL STB PVR AMP

OOOOO@

SOURCE,ACCESS

_ S iNPUTS _ q

iLC_/

PAGE

,u_ Tr_ cus_ Foa

HJTACH!

MY AUDIO COMPONENT

CODE IS:

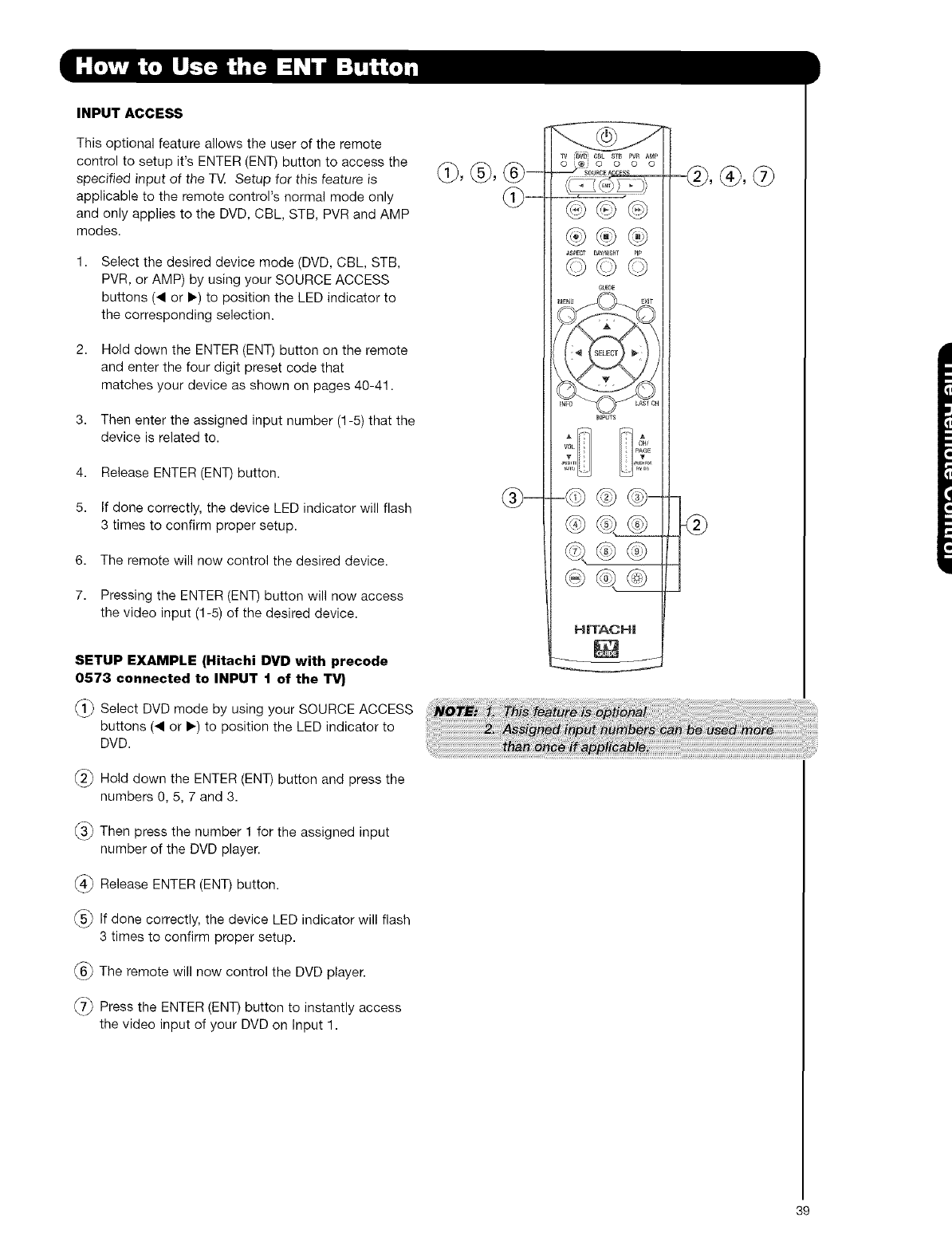

INPUT ACCESS

This optional feature allows the user of the remote

control to setup it's ENTER (ENT) button to access the

specified input of the TVt Setup for this feature is

applicable to the remote control's normal mode only

and only applies to the DVD, CBL, STB, PVR and AMP

modes.

Select the desired device mode (DVD, CBL, STB,

PVR, or AMP) by using your SOURCE ACCESS

buttons (,4 or I_) to position the LED indicator to

the corresponding selection.

2. Hold down the ENTER (ENT) button on the remote

and enter the four digit preset code that

matches your device as shown on pages 40-41.

3. Then enter the assigned input number (1-5) that the

device is related to.

4. Release ENTER (ENT) button.

5. If done correctly, the device LED indicator will flash

3 times to confirm proper setup.

6. The remote will now control the desired device.

7. Pressing the ENTER (ENT) button will now access

the video input (1-5) of the desired device.

SETUP EXAMPLE (Hitachi DVD with precode

0573 connected to INPUT 1 of the TV)

_ Select DVD mode by using your SOURCE ACCESS

buttons (,4 or I_) to position the LED indicator to

DVD.

_-_ Hold down the ENTER (ENT) button and press the

numbers 0, 5, 7 and 3.

_ Then press the number 1 for the assigned input

number of the DVD player.

_z_ Release ENTER (ENT) button.

If done correctly, the device LED indicator will flash

3 times to confirm proper setup.

The remote will now control the DVD player.

_ Press the ENTER (ENT) button to instantly access

the video input of your DVD on Input 1.

_ __ASPECT DAV/_IGHT

INpIJTS

HITACHI

VCR BRAND .................. CODE

ABS .................................. 1972

Admiral .................... 0048, 0209

Adventura ......................... O0O0

Aiko .................................... 0278

Aiwa .............. 0000, 0037, 0307

Aka( .............. 0041_ 0061, 0106

Alienware .......................... 1972

America Action .................. 0278

American High .................. 0035

Asha .................................. 0240

Audiovox .................. 0037, 0278

Beaumark .......................... 0240

Bell & Howell .................... 0104

Broksonic ................ 0121, 0184,

...................... 0002, 0209, 0479

CCE ........................ 0072, 0278

Calix .................................. 0037

Canon ................................ 0035

Carver ................................ 0081

CineraI .............................. 0278

Citizen ...................... 0278, 0037

Colt .................................... 0072

Craig ...................... 0037, 0072,

...................... 0047, 0240, 0271

Curtis Mathes ........ 0035, 0041,

................................ 0060, 0162

CyberPower ...................... 1972

Cybemex .......................... 0240

Daewoo ........ 0278, 0045, 056t

Delt .................................... f972

Denon ................................ 0042

Durabrand ................ 0039, 0038

Dynatech .......................... O0O0

E_ectrohome ...................... 0037

Electrophonic .................... 0037

Emerex .............................. 8032

Emerson0037, 0184, 000, 0121,

0043, 0209, 0002, 0278, 0061,

..0208, 0212, 0479, 0561, 1593

Fisher ............ 0104, 0047, 0066

Fuji .......................... 0033, 0036

Funai ........................ 0000, 1593

GE ................ 0035, 0060, 0240,

................................ 0202, 0761

Garrard .............................. O0O0

Gateway .......................... 1972

Go Video ................ 0432, 0526

GoldStar .................. 0037, 0038

Gradiente ................ O000, 0008

HI-Q .................................. 0047

HP ...................................... 1972

Hadey Davidson ................ 0000

Harman/Kardon ...... 0038, 008t

Harwood ............................ 0072

Headquarter ...................... 0046

Hewfett Packard ................ 1972

Hitachi 0O0O, 0041, 0042, 0105

Howard Computers ............ 1972

Hughes Network Systems 0042

iBuy Power ........................ 1972

JVC ................ 0067, 0041, 0008

Jansen .............................. 0041

KEC ........................ 0037, 0278

KLH .................................... 0872

Kenwood ...... 0041, 0067, 0038

Kodak ...................... 0035, 0037

LG ...................................... 0037

LXI .................................... 0037

Lloyd's .................... 0000, 0208

Logik .................................. 0072

MEt .................................... 0035

MGA .............. 0043, 0240, 0061

MGN Technology .............. 0240

MTC ........................ 0000, 0240

Magnasonic ...................... 0593

Magnavox __0035, 0081, 0563,

OO0O,0939, 9593

Magnin .............................. 0240

Marantz .................... 0081,0035

Marta ................................ 0037

Matsushita ....0035, 0162, 1162

Media Center PC .............. 1972

Memorex ......0035, 0162, 0037,

.......... 0048, 0039, 0047, 0240,

.......... 0O0O, 0104, 0209, 0046,

..0307, 0479, 1037, 1162, 1262

Microsoft ............................ 1972

Mind .................................. 1972

Minoita .................... 0042, 0105

Mitsubishi .... 0061,0043, 0067

Motorola .................. 0035, 0048

Multitech .................. O0O0, 0072

NEC ....0038, 0041, 0067, 0104

Nikko .................................. 0037

Noblex .............................. 0240

Northgate .......................... 1972

Olympus ............................ 0035

Qptimus ........0593, 1062, 0162,

.......... 0037, 0048, 0104, 0432,

...................... 1048, 1162, 1262

Qptonica ............................ 0062

Orion... 0184, 0209, 0002, 0479

Panasonic .,..0t62, 1062, 0035,

...................... 0616 1t62, 1262

Penney0035, 0037, 0240, 0042,

.......................................... 0038

Pentax .................... 0042, 0105

Philco .0035, 0209, 0479, 0561

Philips .......... 0081,0035, 0618,

...................... 1081, 1181, 8062

Pilot .................................... 0037

Pioneer .............................. 0067

Polk Audio .......................... 0081

Profitronic .......................... 0240

Proscan ........ 0060, 0202, 0761

Protec ................................ 0072

Pulsar ................................ 0039

Qu&rter .............................. 0046

Quartz ................................ 0046

Quasar .......... 0035, 0162, 1162

RGA....O060, 0240, 0042, 0105,

............ 0106, 0202, 0761,0880

Radio Shack ............ 0000, 1037

Radix ................................ 0037

Randex ............................. 0037

Realistic ........0035, 0037, 0048,

.......... 0047, 0000, 0104, 0046,

................................ 0062, 0066

ReptayTV ................ 0614,0616

Runco ................................ 0039

STS .................................... 0042

Samsung ...... 0045, 0240, 0432

Sanky ...................... 0839, 0048

Sansui .......... 0000, 0067, 0209,

............ 0041,0479, 1479, 0271

Sanyo .0047, 0240, 0t04, 0046

Scott ............ 0t84, 0045, 0121,

...................... 0043, 0210, 0212

Sears..0035, 0037, 0047, 0000,

0042, 0104, 1237, 0046, 0066,

.......................................... 0105

Setup ................................. 0045

Sharp ............ 0048, 0548, 0062

Shintom ............................ 0072

Shogun .............................. 0240

Singer ................................ 0072

Sonic Btue .............. 0614, 0616

Sony ............ 0035, 0032, 000O,

............ 0033, 0686, 1032, 1972

Sylvania ........0035, 0081,0000,

...................... 0043, 0593, 1593

Symphonic ....0000 0593, 1593

Systemax .......................... 1972

TMK ........................ 0240, 0208

Tagar Systems .................. 1972

Tatung ................................ 0041

Teac ........................ O0O0, 004t

Technics .................. 0035, 0162

Teknika .......... 0O00, 0035, 0037

Thomas .............................. 0090

Tire ................ 0618, 0636, 1503

ToshJba ........ 0045, 0043, 0066,

.......... 0210, 0212, 0366, 0845,

............ 1008, 1145, 1503, 1972

Totevision ................ 0037, 0240

Touch ................................ 1972

Unitech .............................. 0240

Vector ................................ 0045

Vector Research ................ 0038

Video Concepts ...... 0045, 0061

Videomagic ........................ 0037

Videosonic ........................ 0240

Viewsonic .......................... 1972

Wards 0060, 0062, 0035, 0048,

.......... 0047, 0081, 0240, 0000,

...................... 0042, 0072, 0212

White Westinghouse ..................

................................ 0072, 0209

XR-1000 ........ 0072, 00O0, 0035

Yamaha ............................ 0038

ZT Group .......................... 1972

Zenith 0039, O0O0, 0209, 0033,

................................ 0479, 1479

DVD BRAND .................. CODE

AMW .................................. 0872

Aiwa .................................. 0641

AItegro .............................. 0869

Apex Digital ..0672, 0717, 0755,

0794, 0796, 0797, 1004, 1020,

..1056, 1061,1100, 1915, 1937

Audiovox .................. 0790, 1072

Axion .................................. 1072

Blaupunkt .......................... 0717

Blue Parade ...................... 0571

Brooksonic ........................ 0695

CAVS ................................ 1057

CineVision .............. 0876, 0869

Classic .............................. 1917

Coby .................................. 1086

Curtis Mathes .................... 1087

CyberHome ..0816, 1023, 1024

DVD20O0 .......................... 0521

Daewoo .................. 0784, 0705,

...................... 0833, 0869, 1918

Denon ...................... 0490, 0634

Dual ........................ 1068, 1085

Emerson .................. 0591, 0675

Enterprise .......................... 059t

Fisher ................................ 0670

Funai .................................. 9675

GE ................ 0522, 0717, 0815

GPX ........................ 0699, 0769

Gateway ............................ f 073

Go Video ......0744, 0715, 0783,

...................... 0833, 0869, 1075

Gradiente .......................... 0651

Greenhill ............................ 9717

Grundig .............................. 0705

Harman/Kardon ................ 0702

Hitachi .......... 0573, 0664, 0695

Hiteker .............................. 0672

JRT .................................... 0783

Initial .................................. 0717

Integra .............................. 0827

Hiteker .............................. 0672

JBL .................................... 0702

JVC..... 0623, 0558, 0867, 190t

KLH .............. 0717, 0790, 1020

Kawasaki .......................... 0790

Kenwood .................. 0490, 0534

Kess .................................. 0651

Lasonic .............................. 0798

Lite-On .............................. 1058

Magnavox .............. 0503, 0675,

................................ 1914, 1976

Marantz .............................. 0539

Memorex ............................ 0696

Microsoft ............................ 0522

Mintek ...................... 0717, 0839

Mitsubishi ................ 0521, 1521

Nasa .................................. 0717

Noreent .................... 1003, 0872

Onkyo ...................... 0827, 0503

Oritron ................................ 0651

Panasonic .......................... 0490

Philco ................................ 0799

Philips..0503, 0539, 0646, 0854

Pioneer .......... 0525, 0571, 1902

Polaroid .................. 1061, 1086

Polk Audio .......................... 0539

Proscan ............................ 0522

Qwestar ............................ 0651

RCA .............. 0522, 0571, 0717,

...................... 0790, 0822, 1974

Recco ................................ 0698

Rio .................................... 0869

Rotel .................................. 0623

Rowa ................................ 8823

Sampo .................... 0698, 0752

Samsung ................ 0490, 0573,

...................... 0820, 0744, 1075

Sansui ................................ 0695

Sanyo ............ 0670, 0695, 0873

Setup ................................ 0503

Sharp ...................... 0630, 0752

Shinsonic ................ 0533, 0839

Sonic Blue ........................ 0869

Sony .................................. 0533

Sytvania ............................ 0675

Symphonic ........................ 0675

TYT .................................... 0705

Teae .................................. 0798

Technics ............................ 0490

Theta Digital ...................... 0571

Tivo .................................... 1998

Toshiba ........ 0503, 0695, 1045,

...................... 1988, 1996, 2006

Tredex .................... 0799, 0803

US Logic ............................ 9839

Urban Concepts ................ 0503

Venturer ............................ 0790

XBox .................................. 0522

Yamaha ........ 0490, 0545, 0539

Zenith ............ 0591,0503, 0869

CABLE BRAND .............. CODE

ABC __0003 0008, 0011, 0013,

................................ 0014, 0017

Allegro .................... 0158, 0315

Americast .......................... 0899

Antronix .............................. 022

Archer .............. 022, 0153, 0797

Betl& Hewer ..................... 0014

Bell South .......................... 0899

Cabletenna ........................ 0022

Cableview .......................... 0022

Century .............................. 0153

Citizen ...................... 0153,0315

ClearMax .......................... 0883

Clearmaster ...................... 0883

Coiour Voice ............ 0025, 0031

Comtechics ........................ 0040

Contec .............................. 0019

Ceolmax ............................ 0883

Pigi .................................... 0637

Director .............................. 0476

Dumont .............................. 0637

Emerson ............................ 0797

Everquest ................ 0015, 0040

Focus ................................ 0400

Garrard .............................. 0153

Gemini .................... 0015, 0797

General Instrument 0003, 0011,

...................... 0476, 0276, 0810

GeldStar .................. 0040, 0144

Goodmind .......................... 0797

Hamlin 0009, 0020, 0034, 0273

Hitachi ................................ 0011

Jasco ............ 0015, 0153, 0315

Jerrold ......... 0003, 00tl, 00t2,

0014, 0015, 0024, 0276, 0476,

.......................................... 0810

Memorex ........................... 0000

Motorola ...... 0276, 0476, 0810,

...................... 1106, 1254, 1376

Movie Time ........................ 0063

Multivision .......................... 0012

NSC .................................. 0063

Novaplex ............................ 0618

Oak .................................... 00t9

©ptimus ............................ 0021

Pace ........................ 0237, 1877

Panasonic......0000, 0021, 0107

Panther .............................. 0637

Paragon ............................ 0000

PhiHps ...................... 0305, 0317

Pioneer0023, 0025, 0031, 0153,

............ 0144, 0533, 0877, 1877

Popular Mechanics ............ 0400

Pulsar ................................ 0000

Quasar ............................... 0000

RCA .................................. 0021

RadioShack ..0015, 0315, 0797,

.......................................... 0883

Recoton ............................ 0400

Regal ............. 0020, 0273, 0279

Rembrandt ........................ 0011

Runca ............................... 0000

SL Marx ............................ 0040

Samsung ................. 0040, 0144

Scientific Atlanta ....0877, 0008,

...................... 0017, 0477, 1877

Signal ...................... 0015, 0040

Signature .......................... 00tl

Sony .................................. 1006

Sprucer .............................. 0021

Starcom .................. 0003, 0015

Stargate ........ 0015, 0040, 0797

Starquest .......................... 0015

Supercable ........................ 0276

Supermax .......................... 0883

TFC .................................... 0310

TV86 .................................. 0063

Tandy ................................ 0258

TeleOaption ........................ 0221

Teleview ............................ 0040

Timeless ............................ 0040

Tocom ...................... 0012, 0013

Torx .................................... 0003

Toshiba .............................. 0000

Tristar ................................ 0883

Tusa .................................. 0015

Unika ...................... 0022, 0153

Universal ...... 0022, 0153, 0191

V2 ...................................... 0883

ViewMaster ........................ 0883

Viewstar .................. 0063, 0258

Vision ................................ 0883

Vortex View ........................ 0883

Zenith ..0000, 0054, 0525, 0899

Zentek ................................ 0400

SATELLITE BRAND (Set-Top-

Box) ................................ CODE

AIphaStar .......................... 0772

Amway .................... 0043, 0075

Astro industries .................. 0095

BSR .................................. 0095

Cable Innovations .............. 0554

Capetronic ........................ 0095

Century .............................. 0856

Channel Master ...... 0018, 02t2

Chapparral ....0053, 0209, 0216

Conifer .............................. 0004

CrossdJgJtat ........................ 1109

Curtis Mathes ...................... 061

DX Antenna ...................... 0041

DJrecTV ........ 0392, 0566, 0639,

............ 1639, 1142, 0247, 0749,

.......... 1749, 0724, 0819, 1856,

............ 1076, 1109, 0099, 1052,

.1053, t054, 1442, 1443, 1444

Dish Network System ...... 1005,

0775, 1170

Dish Pro .................... 1005, 0775

Drake ............ 0018, 0064, 0245

Echostar ...... 1005, 0775, 0148,

...................... 0269, 0280, 1170

Expressvu .......................... 0775

GE .................................... 0566

GOt .................................... 0775

General instrument .......... 0869,

................................ 0547, 0554

Gradiente .......................... 0856

HTS .................................. 0775

Hitachi ................................ 0819

homecabte ........................ 0238

Hughes Network Systems 1142,

..0749, 1749, 1442, 1443, 1444

Hytek ................................ 0095

tQ ...................................... 0210

tQ Prism ............................ 0210

tnnova ................................ 0099

tntersat .............................. 0043

JVC .......................... 0775, 1170

Janeil ................................ 0152

Legend .............................. 0269

Macom .................... 0018,006t

Magnavox ................ 0724, 0722

Memorex .................. 0724, 0269

Mitsubishi .......................... 0749

Motorola ............................ 0869

Netsat ................................ 0099

Next Level .......................... 0869

Norsat ................................ 0004

Pace .................................. 0455

Panasonic......0247, 0701, 0152

Paysat ................................ 0724

Philips 1142, 0749, 0724, 1076,

............ 0722, 1749, 0856, 0099

Pica .................................... 0075

Proscan .................. 0392, 0566

RCA ....0392, 0566, 0855, 0143

Radioshack .............. 0869, 0554

Ramsey ............................ 0075

Realistic ............................ 0052

SKY .............. 0856, 1856, 0099

STS .......................... 0041,0210

Samsung .................. 1276, 1109

Sony ........................ 0639, 1639

Star Choice ........................ 0869

Star Trak ........ 0180, 0421,0547

Strong ................................ 0421

Tivo......1142, t442, 1443, 1444

Toshiba ........ 0749, 1749, 0790,

.......... 0061, 0082, 1052, 1053,

.1054, 1285, t286, 1287, 1289

Town & Country ................ 0547

Uniden 0724, 0722, 0052, 0074,

............ 0076, 0238, 0370, 0554

Zenith .0856, 1856, 0061, 0064

AMPLIFIER BRAND .,....CODE

Aiwa ................................... 0406

Bose .................................. 0674

Carver ................................ 0269

Curtis Mathes ................... 0300

Denon ............................... 0160

Durabrand .......................... 1561

GE ..................................... 0076

Harman/Kardon ................. 0892

JVC ................................... 0331

Left Coast .......................... 0892

Lenoxx .............................. 1561

Linn ................................... 0269

Luxman .............................. 0t65

Magnavox .......................... 0269

Marantz ........ 0269, 0321,0892

NEC .................................. 0264

Nakamichi .......................... 0321

Optimus .................. 0395, 0300

Panasonic ................ 0308, 0521

Parasound ........................ 0246

Philips ...................... 0269, 0892

Pioneer .................... 0013, 0300

Polk Audio .............. 0269, 0892

RCA .................................. 0300

Realistic ............................. 0395

Sansui ................................ 0321

Shure ................................ 0264

Sony .............. 0815, 0689, 0220

Soundesign .............. 0078, 0211

Technics .................. 0308, 0521

Toshiba .............................. 0353

Victor ................................ 0331

Wards ............ 0013, 0078, 0211

Yamaha .................. 0354, 0133

RECEIVER BRAND (Amplifier)

CODE

ADC .................................. 0531

Aiwa....1405, 0121, 0158, 0189,

0405

Anam ...................... 1074, 1609

Arcam ................................ 1120

Audiotronic ........................ 1189

Bose .............. 0639, 1229, 1253

Capetronic ......................... 0531

Carver ............ 1189, 0042, 0189

Casio ................................ 0195

Clarinette .......................... 0195

Coby .................................. 1263

Compaq ............................ 1136

Curtis Mathes .................... 0080

Dell .................................... 1383

Denon ..................... 0004, 1360

Fisher ................................ 0042

Garrard .............................. 0463

Glory Horse ...................... t263

Harman/Kardon ..0891, 0110,

0t89

Hewlett Packard ................ 1181

Hitachi ................................ 0228

Integra .............................. 0135

JBL .................................... 0110

JVC .......................... 0074, 1263

KLH .................................... 1428

Kenwood .....1313, 1570, 1569,

............ 0027, 0042, 0186, 0239

LXI .................................... 0181

Linn ................................... 0189

Lloyd's ................................ 0195

MCS .................................. 0039

Magnavox ....1189, 1269, 0189,

0195, 0391, 0531

Marantz1189, 0039, 0189, 1269

Mitsubishi .......................... 1393

Modulaire .......................... 0195

Musicmagic ........................ 1089

Nakamichi .......................... 0097

Onkyo ...................... 0135, 0842

Optimus ........ 1023, 0042, 0080,

.......... 0177, 0181,0186, 0219,

..0531, 0670, 0738, 0801, t074

Panasonic .. 1518, 0039, 0309,

0367

Penney .............................. 0195

Philips .......... 1189, 1269, 0189,

................................ 0391, 1120

Pioneer ........ 1023, 0014, 0080,

............ 0150, 0244, 0531, 0630

Polk Audio .......................... 0189

Proscan ............................ 1254

Quasar .............................. 0039

RCA .............. 1023, 1254, 0080,

...................... 0531, 1074, 1609

Radio Shack ...................... 1263

Realistic .................. 0181,0195

Rio .................................... 1383

Sansui ................................ 0189

Sanyo ...................... 0801, 1251

Scott ........................ 0163, 0322

Sharp ................................ 0186

Sharper image .................. 1263

Sherwood ................ 0491,0502

Sonic Blue ........................ 1383

Sony ..1058, 1441, 1759, 0158,

............ 0474, 1349, 1406, 1442

Soundesign ........................ 0670

Stereophonics .................... 1023

Sunfire .............................. 1313

Teac ........................ 0463, 1074

Technics .................. 1308, 1518,

................................ 0039, 0309

Thorens .............................. 1189

Toshiba .............................. 1572

Victor ................................ 0074

Wards .0014, 0080, 0158, 0189

Yamaha .......... 0176, 0186, 1176

Yorx ................................... 0195

Zenith ................................ 0857

AUDIO BRAND .............. CODE

Aiwa ........................ 0010, 0159

AudioSource ...................... 0351

Cambridge Soundworks ....0351

Carver ................................ 0351

Fisher ................................ 0052

Fosgate .............................. 0259

Harmon/Kardon ................ 0477

JBL .................................... 0477

JVC .................................... 0073

KLH .................................... 0351

Magnavox .......................... 0325

Nikko .................................. 0376

Paramount Pictures 0317, 0351

RCA .................................. 0056

SSl .................................... 0317

Sansui ................................ 0325

Schneider .......................... 0376

Sony ........................ 0010, 0576

Soundesign ........................ 0376

Yorx .................................... 0376

SET TOP BOX BRAND_CODE

Panasonic .......................... 1120

Pioneer .............................. 1010

Princeton .................. 0113, 0295

Samsung ............................ 1190

Sensory Science ................ 1126

Sharp ................................ 1010

Sony .................................. 0639

PERSONAL VIDEO

RECORDER BRAND.,,..,CODE

Panasonic .......................... 0616

Philips ................................ 0618

ReptayTV ................ 0614,0616

SonicBlue ................ 0614,0616

Sony .................................. 0636

Tivo .......................... 0618, 0636

PressMENUontheremotecontroltodisplaythe

differentfeaturesonyourHITACHIPlasmaTV,

UsetheCURSORPAD(buttonsA, y, _ and I_) or

CHANNEL WHEEL to navigate to a different menu

item.

Press EXIT on the remote control to quickly exit

from a menu.

GUIDE

INPUTS

This part of the screen shows

which selections are available.

!!!!!!!!!!!!!!!!!!!!!!_1

iiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiil

iiiiiiiiiiiiiiil

iiiiiiiiiiiiiiii

iiiiiiiiiiiiiiil

iiiiiiiiiiiiiiii

iiiiiiiiiiiiiiil

HHHHHHi

HHHHHH_

iiiiiiiiiiiiiiiiiiiiiiiiiii

HHHHHHH This part of the screen

_:_, shows which Remote

Control buttons to use.

I IFq

Video

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temperature

Select between the two picture

modes; Day and Night.

Adjust contrast.

Adjust brightness.

Adjust color.

Adjust tint.

Adjust sharpness.

Set this to High for less intense

color with more blue, set to

Medium for natural color, set to

Standard for standard colors or

Black and White for more

reddish color.

Black Enhancement Enhance picture brightness in

light scenes.

Contrast Mode Use this function to choose

between 3 Contrast Mode

settings.

Noise Reduction Reduces conspicuous noise in

the picture.

Auto Movie Mode Turn On/Off the 3:2 Pulldown

detection feature.

Aspect Choose the picture format

aspect ratio.

Black Side Panel Set the gray side bars On/Off

when watching 4:3 signals in

standard mode.

Reset Video Settings Choose to Reset Video Settings

to factory settings.

Audio

Treble Adjust the treble.

Bass Adjust the bass.

Balance Adjust the balance.

SRS Select SRS settings (Off, Wide,

Normal)

BBE Select BBE settings (Off, Soft,

Hard)

TruBass Select TruBass settings.

Audio Source Select between three Audio

Sources.

Internal Speakers Select internal or external

speakers.

Auto Noise Cancel Eliminates the noise between

stations.

Perfect Volume Adjust volume in fixed setting.

Loudness Adjust Loudness.

Language Select Language options if

available.

Digital Output Select Optical Output options.

DRC Select Dynamic Range

Compression to ON or OFR

Channel Manager

Signal Meter Access Signal Meter.

Auto Channel Scan Set Auto Channel Scan.

Channel List Set Channel List.

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings (ENG)

Canadian Ratings (FRN)

Change Lock access code.

Choose to lock channel, video

input, and/or front panel.

Block various types of movies

and video types based on

motion picture ratings.

Block various types of movies

and television programming

based on a parental guide

ratings.

Block various types of movies

and television programming

based on the Canadian ratings

system.

Block various types of movies

and television programming

based on the Canadian French

ratings system.

Tirners

Set the Clock

Set Sleep Timer

Set Day/Night Timer

Setup

Menu Preference

Screen Saver

Set The Inputs

Set AV NET

Set Closed Captions

Set Monitor Out

Upgrades

Set Stand-By Mode

Set Clock Settings.

Set Sleep Timer intervals

(30 min. intervals, 00:30-3:00).

Set Day/Night picture mode

settings.

Choose English, French, or

Spanish text.

Set Screen Saver to prevent

screen burn.

Label Video Inputs, VCR, DVD,

etc.

Set AV NET Wizard

Feature to display dialogue/text.

Set Monitor Out source.

Select to upgrade TV software.

Select the Set Stand-By Mode

options.

Power Swivel

Unlocked Power Swivel enabled. Control

the motorized Table Top Stand

Locked Power Swivel disabled.

TV Guide On Screen

TV Guide On Screen Set, Control and navigate the

system 43

Video

Select VIDEO to adjust picture settings and improve

picture quality. You can independently customize each of

the Video Inputs to your preference to increase viewing

performance and pleasure depending upon the video

program being viewed. If RESET is selected, only the

selected input will reset to initial conditions.

Picture Mode

Use this function to choose from automatic picture

settings to optimize your TV's performance,

1. Use the CURSOR buttons <or • to highlight and

select PICTURE MODE settings (Day or Night).

2. Then press the SELECT button to set the mode and

return to the Video menu or press EXIT to quit menu,

Function Day Night

Contrast 100% 90%

Brightness 50% 50%

Color 50% 30%

Tint 50% 50%

Sharpness 50% 30%

Color Temperature High Standard

Black Enhancement High Off

Contrast Mode Dynamic Normal

Noise Reduction Low Low

Auto Movie Mode Off Off

(I-V/Cinema Detection)

1. Use the CURSOR PAD • or • to highlight the function to be adjusted.

2. Press the SELECT button or the CURSOR PAD • to select the function settings.

3. Press the CURSOR PAD _ or • to adjust the function.

4. Press MENU to return to main menu,

5. Press EXIT to quit menu,

Contrast

Use this function to change the contrast between black

and white levels in the picture.

Brightness

Use this function to adjust overall picture brightness.

Color

Use this function to adjust the level of color in the picture.

Tint

Use this function to adjust flesh tones so they appear

natural.

Sharpness

Use this function to adjust the amount of fine detail in the

picture.

Color Temperature

Set this to High for cooler color with more blue, set to Medium for more natural color, set to Standard for accurate

color or set to BlacWWhite for more reddish color.

Black Enhancement

Use this function to enhance the shadow detail in dark scenes using the settings off, low, middle and high.

Contrast Mode

Use this function to choose between 3 Contrast Mode settings. Set to Dynamic for darker images more in the

level of Black, set to Normal for a balanced White to Black level, and set to Auto for automatic Contrast selection.

Noise Reduction

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading

picture quality. Set NOISE REDUCTION to OFF if the TV experiences picture blocking.

Auto Movie Mode

The AUTO MOVIE MODE function turn ON or OFF the 3:2 PULLDOWN DETECTION SPECIAL FEATURE.

Theatrical movies are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like

video. When film is transferred to video for television viewing, the disparity between the two frame rates must be

reconciled. This involves a process known as 3:2 pulldown.

When AUTO MOVIE MODE is turned ON from the VIDEO menu, your Hitachi Plasma Television will activate the

circuitry for this special feature to improve video performance when watching film based sources.

Aspect

Use this function to select the Picture Format Aspect Ratio.

Auto Aspect

Automatically adjust the Aspect Ratio depending on the

input signal to fill the screen.

Mode

Manually select the Aspect Ratio.

Vertical Position

This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOM1/ZOOM2 or 16:9 ZOOM.

Vertical position can be changed with these modes. For example, it will be useful for centering the picture

area at both the top and bottom of the picture with 480i/480p signal. Adjustable range is -10 (video center is

toward bottom of screen) to +10 (video is toward top of screen).

1. Use the CURSOR PAD • or • to to select menu item.

2. Press the CURSOR PAD < or I_ to adjust the function.

3. Press the EXIT to quit the MENU, or select ASPECT to return to the main menu.

Set Black Side Panel

The BLACK SIDE PANEL function turns the gray side

bars on/off when watching 4:3 signals in Standard

mode or use of the PIP modes.

1. Press the CURSOR PAD 4 or • to set to ON or OFE

2. Press EXIT to quit menu or select SET BLACK SIDE

PANEL to return to the previous menu.

Reset Video Settings

This function allows you to Reset the Video Menu Settings of the present input and return it to the Day VIDEO

mode.

1. Use CURSOR PAD A, • or CHANNEL WHEEL to

highlight functions.

2. Press the SELECT button or CURSOR PAD • to select

Reset Video Settings.

3. Use the CURSOR PAD • to access at the Reset

softkey.

4. Press the SELECT button to Reset the Video Settings.

You can customize each of the Video Inputs to your

preference to increase viewing performance and pleasure,

depending upon the video program being viewed. If

is selected, only the selected Input will reset to the initial

conditions as explained above.

If RESET is selected in Input 1, only Input 1 will return to

factory conditions.

SelectAUDIOtoadjusttheTVtoyourpreferenceand

toimprovethesoundquality.

1. PressCURSORPAD• or• toselectmenuitem.

2. PressCURSORPAD<or I_ to adjust the function.

3. Press EXIT to quit the MENU, or select AUDIO to

return to the main menu.

Treble

This function controls the high frequency audio to all speakers.

Bass

This function controls the low frequency audio to all speakers.

Balance

This function will control the left to right balance of the Plasma TV internal speakers.

SRS SRS(e_

[_t3

Based on the principles of the human hearing system, SRS technology delivers and exciting and

realistic 3D Sound experience from just two external speakers (or) the two internal speakers of your HITACHI

Television. If your HITACHI Television is connected to an external audio system, SRS will also create an incredible

3D sound experience from two speakers and even enhance a complete multi-speaker surround sound system.

SRS and the (0) symbol are trademarks of SRS Labs, Inc. SRS technology is incorporated under license from

SRS Labs, Inc.

BBE

Sound reproduction quality enhancement system. The BBE technology produces sound that is

natural and crisp from just two speakers or the two internal speakers found in your HITACHI television. If your

HITACHI television is connected to an external audio system, BBE will also create an incredible crisp sound

experience from two speakers. BBE brings to the listener's ear a more complete and accurate reproduction of the

original performance. Each voice, speaking or singing, each instrument or sound effect is presented with its

attendant harmonics or partials more clearly audible. The ear can then more easily recognize the unique tonal

colors of each sound as though the sound was being produced live.

Licensed by BBE Sound, Inc. under USP5510752 and 5736897. BBE and BBE symbol are registered

trademarks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.

SRS TruBass SR_ (0_

TruBass is an audio enhancement technology from SRS Labs that provides deep, rich bass on

any speaker system without the need for a subwoofer or additional extra physical components. For

systems with a subwoofer, TruBass complements and enhances the bass performance. This feature can be

set to Off, Low, Medium and High.

TruBass, SRS and the (@)symbol are trademarks of SRS Labs, Inc. TruBass technology is incorporated under

license from SRS Labs, Inc.

Audio Source

Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound)

used when receiving a weak stereo broadcast or SECOND AUDIO PROG (SAP) which may be a secondary

language, weather report, etc.

Internal Speakers

This function is useful when setting up the external speakers.

ON Select this feature if using the internal speakers only.

TV as Center Select this feature when setting up external speakers from a separate stereo system. The

TV's speakers will work as the center speaker.

OFF Select this feature if you prefer to use only speakers from a separate stereo system.

Auto Noise Cancel

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will

automatically eliminate the audio for that channel.

Perfect Volume

This function will automatically adjust volume so each channel and input has the same average volume level.

Loudness

Set this function to ON to emphasize bass and treble at low volume levels.

Language

Some programs transmit more than one DTV language option. Most will have English as a default language. The

language function will allow you to select up to 4 language options (if available).

Digital Output

This function allows you to select between Dolby ° Digital and PCM.

Dolby _ Digital - Select this feature if the TV is connected to an amplifier/receiver with a Dolby _ Digital only

decoder; it will provide six independent soundtrack channels through the optical output jack (Digital Audio).

PCM - Select this feature if the TV is connected to an

amplifier/receiver with a PCM only decoder; it will provide

two independent soundtrack channels through the optical

output jack (Digital Audio).

DRC

Dynamic Range Compression - Use this function to

compress the range of sound volume. By compressing the

range of sound volume, it is possible not only to suppress

the output of loud sound at night but also to raise the

volume of low sound. This is only effective when the TV is

connected via the optical out (digital audio) to an

amplifier/receiver with a Dolby _ Digital decoder. The

default setting is ON.

Use the CURSOR PAD ,_ or I_ to select the chosen

options.

Use the functions at right if your TV is connected to an

amplifier/receiver with optical digital input with Dolby

Digital or PCM decoder capabilities.

TV Guide On Screen

The TV Guide On-Screen system is a built-in feature

that provides a channel lineup and program listings in

your area. Once the setup process is complete, the

program listings are automatically updated several

times a day. This interactive guide can also be

programmed to receive listings from a cable box or

record your favorite shows using a VCR.

If using a Cable Box or VCR, you must first setup the

Plasma TV as shown on Page 22.

To Setup the TV Guide On Screen System:

Press the MENU button. Use the CURSOR PAD •

to highlight TV GUIDE ON SCREEN, then press the

SELECT button.

[[::i

Screen 2: Enter the ZIP code (USA) or postal code

(Canada):

Use the Numeric buttons and the CURSOR PAD •

and • for letter entries to enter the ZIP code (USA)

or postal code (CANADA) of your location.

Screen 3:

Do you have Cable service connected?

Use the CURSOR PAD • and • to highlight your

choice, then press the SELECT button to continue.

If YES: Please see Screen 4.

If NO: Please see Screen 12.

2. Press the SELECT button to continue.

Setup Procedure:

Screen 1: Select which country your TV is located

in:

Use the CURSOR PAD • and • to highlight your

TV location (USA or CANADA), then press the

SELECT button to continue.

Screen4:

DoyouhaveaCableboxconnected?

UsetheCURSORPAD• and• tohighlightyour

choice,thenpresstheSELECTbuttontocontinue.

IfYES:PleaseseeScreen5.

IfNO:PleaseseeScreen12.

Screen7:

Thisscreenshowsthecorrectwaytosetupthe

CableboxwiththeG-LINK.Pleaseconfirm

connection(seePage22).PresstheSELECT

buttontocontinue.

Screen5:

WhichTVinputistheCableboxpluggedinto?

AIR/CABLE:PleaseseeScreen6.

INPUT1/2:PleaseseeScreen7.

Screen 8:

Use the CURSOR PAD • and • to highlight your

Cable box brand or choose "Not Listed" if not

listed, then press the SELECT button to continue.

Screen 6:

Select the channel your TV is tuned to when using

a Cable box. Use the CURSOR PAD • and • to

highlight your choice, then press the SELECT

button to continue.

Screen 9:

To allow the TV Guide On-Screen system to find

the correct code for your brand of Cable box, tune

the Cable box to channel 2. Please make sure that

the Cable box and TV are ON. Press the SELECT

button to continue.

Screen10:

TheTVGuideOnScreensystemwilltestthecode

ofyourCablebox.NoTV,Cableorremotebuttons

shouldbepressedwhileperformingtheautomatic

test.Afterthetestingprocessiscomplete,the

setupprocedurewillcontinue,seescreen11.

Screen13:

Pleaseconfirmyourinitialsettings.Usethe

CURSORPAD• and•to highlight your choice,

then press the SELECT button to continue.

If YES, FINISH SETUP PROCESS: Please see

screen 14.

If NO, REPEAT SETUP PROCESS: Please see

screen 1.

Screen 11 :

Did your Cable box tune to channel 28?

Use the CURSOR PAD • and • to highlight your

choice, then press the SELECT button to continue.

If YES: Please see screen 12.

If NO: Select NO to test a different code or select

TEST THIS CODE AGAIN to test the same code.

Screen 14:

The Basic TV Guide On Screen system setup has

just been completed. Press the SELECT button to

continue.

Screen 12:

Do you have an antenna connected? Use the

CURSOR PAD • and • to highlight your choice,

then press the SELECT button to continue.

Screen 15:

Would like the TV Guide On-Screen system to

control the recording of your VCR?

Use the CURSOR PAD • and • to highlight your

choice, then press the SELECT button to continue.

If YES: Please see Screen 16.

If NO: Please see Screen 21.

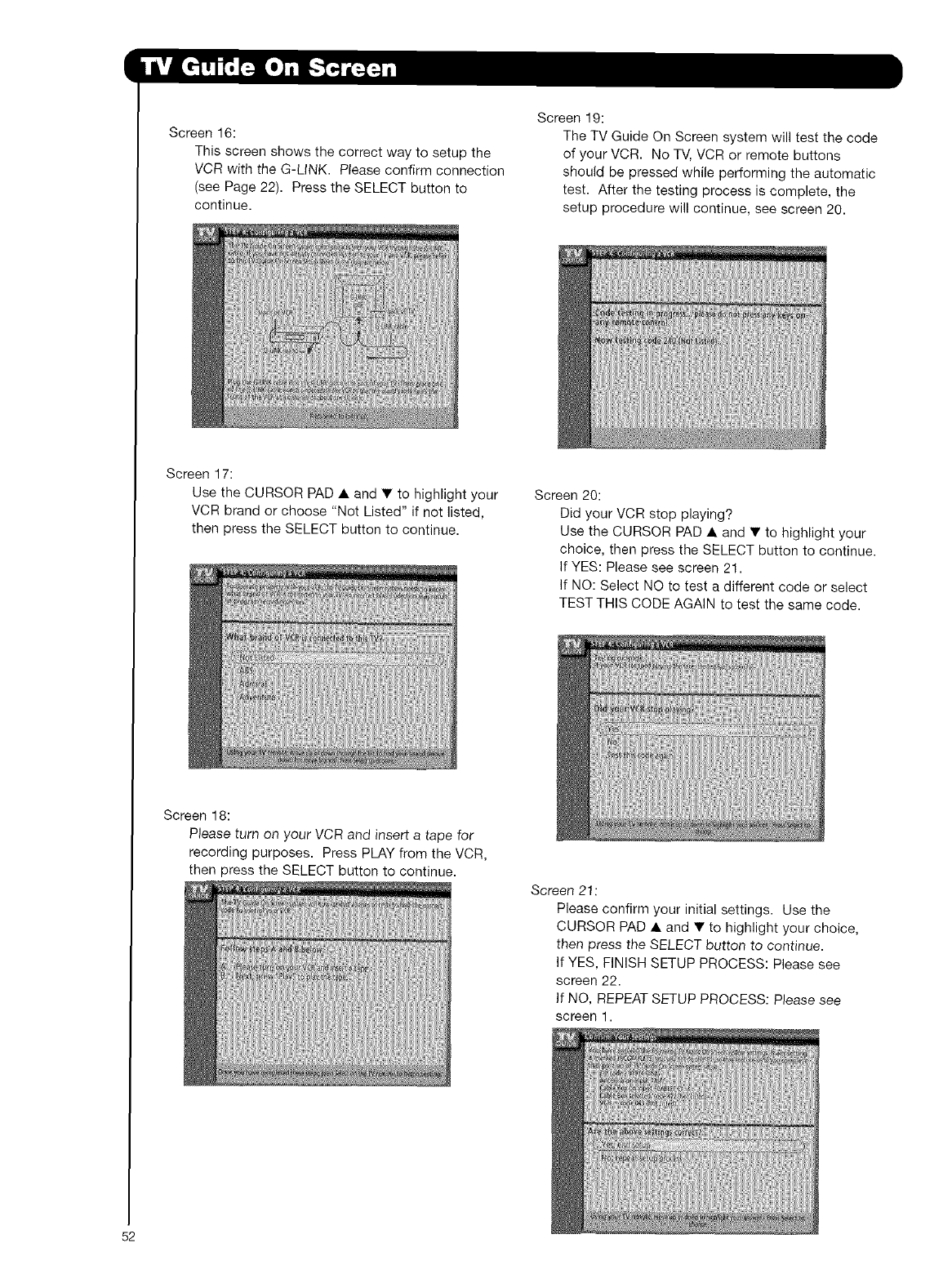

Screen16:

Thisscreenshowsthecorrectwaytosetupthe

VCRwiththeG-LINK.Pleaseconfirmconnection

(seePage22).PresstheSELECTbuttonto

continue.

Screen19:

TheTVGuideOnScreensystemwilltestthecode

ofyourVCR.NoTV,VCRorremotebuttons

shouldbepressedwhileperformingtheautomatic

test.Afterthetestingprocessiscomplete,the

setupprocedurewillcontinue,seescreen20.

Screen17:

UsetheCURSORPAD• and• tohighlightyour

VCRbrandorchoose"NotListed"ifnotlisted,

thenpresstheSELECTbuttontocontinue.

Screen20:

DidyourVCRstopplaying?

UsetheCURSORPAD• and• tohighlightyour

choice,thenpresstheSELECTbuttontocontinue.

IfYES:Pleaseseescreen21.

IfNO:SelectNOtotestadifferentcodeorselect

TESTTHISCODEAGAINtotestthesamecode.

Screen18:

PleaseturnonyourVCRand insert a tape for

recording purposes. Press PLAY from the VCR,

then press the SELECT button to continue.

Screen 21:

Please confirm your initial settings. Use the

CURSOR PAD • and • to highlight your choice,

then press the SELECT button to continue.

If YES, FINISH SETUP PROCESS: Please see

screen 22.

If NO, REPEAT SETUP PROCESS: Please see

screen 1.

Screen22:

Congratulations!TheTVGuideOnScreensystem

setupiscomplete.PresstheSELECTbuttonto

finalize.

Screen23:

ThelastscreengivestipsonusingtheTVGuide

OnScreensystem.PresstheSELECTbuttonto

exittheSetup.

Using the TV Guide On Screen System

This free interactive program guide provides up to 8 days of TV programming. The advanced program listings

make watching and recording TV shows and programs much easier.

The TV Guide On Screen system consists of 5 main services:

• Listings: Displays the available program listings and descriptions.

• Search: Allows you to find shows by keyword, alphabetically, or by program category.

• Recordings: Displays a list of recorded programs or a currently recording program.

• Schedule: Allows you to review, edit or delete "Record/Remind" events that were previously set.

•Setup: Allows you to make changes to System Settings, Channel Display and Default Options.

Video

Window

Bar

•Video Window- Displays the current TV program while the Guide is enabled.

• Clock Window- Displays the current time.

•Tile Highlight- Indicates the current active tile.

•Current Services Label- Indicates currently viewed Service Label.

•Service Bar- Provides access to the 5 main Guide services.

•Time Slot- Provides the program broadcast time frame.

• Info Icon- Indicates additional information is available, or the Info Box has additional sizes.

• Info Box- Provides information on the highlighted program.

•Tile- Displays the program's title.

• Remind Icon- Indicates the program is set to remind and the remind frequency (Once, Daily, Weekly, or

Regularly).

•Record Icon- Indicates the program is set to record and the record frequency (Once, Daily, Weekly, or

Regularly).

•Channel Logo- Indicates the channel logo for easy identification.

•Panel Menu/Panel Ad- Displays Menu options and program advertising.

NAVIGATING THE TV GUIDE ON SCREEN SYSTEM

•Press the GUIDE button while watching TV Video-_,.-

to access the TV Guide On Screen system. Window

The LISTINGS screen will be presented with

the current show displayed in the Video Window.

•Use the CURSOR PAD 4, I_, A, and •to highlight any

program, and press the SELECT button to tune to that

program (if it is currently airing) or channel (if the program

airs in the future). You can also press the GUIDE button to

exit the Guide and automatically tune to the program

displayed in the Video Window. ,_

• Press the MENU button to access the Panel Menu /

Panel Menu

where you can set reminders and recordings for

the highlighted program.

• To access another Service screen:

1. Press the MENU button to access the Panel Menu. Press the CURSOR PAD • to highlight "GO TO

SERVICE BAR". Press the SELECT button to jump to the Service Bar. You can also jump to the Service Bar

by repeatedly pressing PAGE UP or CURSOR PAD •.

2. Press the CURSOR PAD 4 or 1_ to highlight a different Service (LISTINGS, SEARCH, SETUP,

SCHEDULE, and RECORDINGS). TV Guide

3. Press the CURSOR PAD • to use the highlighted Service. Logo Clock

Video Window:

Panel Menus:

Info Box:

Press the PIP button to Lock the Video

Window to one single channel. Press the PIP

button again to Unlock the Video Window so it

displays the channels as you navigate through

the listings.

Press the MENU button to access the Panel

Menus.

Press the INFO button to access or resize the

Info Box. Info Boxes contain information about

a show, Service or Panel Ad, or Help

information for a Panel Menu.

Lock/Unlock

_Icon

Window

Remote Control

Button

(_ GUIDE

(_) CHANNEL

SELECTOR

(Numbers)

(]_)(-) DIGITAL

SEPARATOR

(_ MENU

_) INFO

(_) SELECT

(_ CURSOR PAD

(_ RECORD

(_ PIP

(_ PAGE UP /

PAGE DOWN

Functions of the TV Guide On Screen system

Function

- Press to access the TV Guide On Screen system.

- Press again to exit the TV Guide On Screen system.

- For Channel Tuning, Channel editing

- For entering Digital Channels.

- Press to access the Panel Menu

for other options.

- Press to cycle between levels of Information.

- Press to enable your selection.

- Press to directly tune to a currently airing program.

4@----

_(:Z O OO Q Q,

SOURCE AC0ESS

#(%'; ; ,_

@@@

eUBUE

MEmJ _T

B_pU_S

- Press to display Panel Menu while checking

future program tiles.

- Press to navigate the Cursor.

- Press to record current program.

- Press to toggle the Lock and Unlock feature

of the Video Window.

- Rotate the Channel Wheel one click up or down

to move one set of screen information up or down.

@ @ @,,-

,® @ @:

@® @i

HmTAoHm

=®

-®,®

TV Guide On Screen Icons

Icon NAME

Progress Bar

Info Icon

HDTV

New

_:_ co

TV Rating

Record Once

Record Daily

10.

11.

12.

Record Regularly

Record Weekly

Record Off

Record Suspended

13.

14.

Remind Once

Remind Daily

15.

16.

17.

18.

Remind Regularly

Remind Weekly

Remind Off

Remind Suspended

19.

20.

21.

22.

23.

Stereo

BD_

<__ _A _- AC3 Dolby Digital

Recording Media HDD

Recording Media DVD

Keep Recording

DESCRIPTION

Elapsed time in current program

Indicates Info Box has additional sizes and information.

Program is presented in High Definition.

Program is new (not a repeat).

Closed Captioning is available.

TV rating for the program.

Program is set to record one time.

Program is set to record every weekday that it airs on the same

channel and starts at the same time. (Only available in manual

recording).

- Program is set to record every time it airs on the same channel and

starts at the same time.

- Program is set to record every time it airs on the same day of the

week and on the same channel, and starts at the same time.

- Program is set to record but is currently Off (Still in Schedule) until

the frequency is changed.

- Program recording is suspended due to a schedule conflict (Still in

Schedule).

- The Recording will resume when the conflict no longer exists.

- Program is set to remind one time.

- Program is set to remind every weekday that it airs on the channel

and starts at the same time (Only available when setting a manual

reminder).

- Program is set to remind every time it airs on the same channel and

starts at the same time.

- Program is set to remind every time it airs on the same day of the

week and on the same channel, and starts at the same time.

- Program is set to remind but is currently Off (Still in Schedule) until

the frequency is changed.

- Program reminder is suspended due to a schedule conflict (Still in

Schedule).

The Reminder will resume when the conflict no longer exists.

Program is available in stereo.

Program is presented in High-Definition, if available.

Displays to indicate HDD storage.

Displays to indicate DVD storage.

Indicates recording will not be deleted until done so by user.

Five (S) Services:

•LISTINGS

•SEARCH

• RECORDINGS

•SCHEDULE

•SETUP

Press the MENU button while a program is highlighted

to access the Episode Options Panel Menu.

EPISODE OPTIONS Panel Menu:

•Go to Service Bar

•Watch Now

•Set a recording

• Set a reminder

•Tune to the channel

LISTINGS:

The LISTINGS service screen is always the first service

displayed when accessing the TV Guide On Screen

system.

Use the CURSOR PAD and SELECT buttons to

navigate the LISTINGS screen.

• View current day and up to 7 days of future

programs.

• Read program information.

• Press the SELECT button to tune directly to a

current program.

• Lock and Unlock the Video Window.

• Set a program to remind.

• Set a program to Record.

• Access the panel ads and channel ads when

available.

• Use the CHANNEL SELECTOR (Number) buttons

to jump to a specific channel.

Press the INFO button while the LISTINGS service is

highlighted on the Service Bar to display a Help screen.

GO TO SERVICE BAR:

Select to highlight the Service Bar.

TUNE TO CHANNEL /WATCH NOW:

Select to exit the TV Guide On Screen system and tune

to the program or channel of the highlighted current

and future program tile respectively.

SET RECORDING:

Select to display the Record Options Panel Menu from

which you can set a program to record (see page 61).

SET REMINDER:

Select to display the Remind Options Panel Menu from

which you can set a reminder for a program (see page

62).

CANCEL:

Select to close the menu and return to the highlighted

program.

SEARCH:

The SEARCH service screen allows you to find

programs by the following:

•Keyword

• Alphabetical

• Category

•HDTV

•Movies

*Sports

•Children

• Educational

• News

•Variety

• Series

2. Press the CURSOR PAD • to highlight a

subcategory (Example: ALL).

Press the SELECT button to display a list of all

movies organized by date and time.

Press the INFO button while the SEARCH service is

highlighted on the Service Bar to display a Help screen.

4. Use the CURSOR PAD • and • to highlight a

current program, and then press the SELECT

button to watch now. You can also press the

MENU button to access the Episode Options

Panel Menu (see page 57).

Example Category Search (Movies)

1. From the Search Screen, press the CURSOR PAD

• to highlight a category (Example: Movies).

Example: Keyword Search 6. A list of all the shows that matched the keyword is

displayed.

The Keyword search allows you to enter a word or

words to find a program title that matches.

1. From the Search Screen, use the CURSOR PAD 4

or • to highlight KEYWORD, and then press the

SELECT button.

2. Use the CURSOR PAD • or •to highlight NEW

SEARCH in the Panel Menu, and then press the

SELECT button.

Use the CURSOR PAD • and • to highlight a

program, and then press the SELECT button to

display all play times. Use the CURSOR PAD •

and • to highlight a chosen listing, then press the

SELECT button to watch a current program or

press the MENU button to display the Episode

Options menu (see page 57).

After the Search Options Panel Menu is accessed,

use the CURSOR PAD • or • to highlight

CATEGORY. Then, use the CURSOR PAD •or •

to highlight a category to search (ALL, HDTV,

Children, Sports, etc.).

Press the CURSOR PAD • to highlight ENTER

KEYWORD, and then press the SELECT button.

To Edit or Delete akeyword:

From the SEARCH/KEYWORD screen, use the

CURSOR PAD • and • to highlight the keyword you

want to edit or delete. Press the MENU button to

access the Search Options Panel Menu.

A keyboard is displayed. Use the CURSOR PAD •,

•, • and • to highlight a letter, and then press the

SELECT button to enter it. After entering all

necessary letters, highlight DONE and press the

SELECT button.

GO TO SERVICE BAR:

Select to highlight the Service Bar.

EDIT SEARCH:

Select to display the keyboard for editing the keyword.

DELETE SEARCH:

Select to display the Confirmation Panel Menu. Select

YES to delete the search or NO to exit the Panel Menu.

CANCEL:

Select to close the Panel Menu and return to the

highlighted program. 59

RECORDINGS:

The RECORDINGS Service screen displays a list of

previously recorded or currently recording programs on

an IEEE1394 recording device connected to the T_L

Press the INFO button while the RECORDINGS Service

is highlighted on the Service Bar to display a Help

screen.

Screen A) Highlight a program, and then press the

SELECT button to view a summary of all recorded

programs.

List - Select to display every recorded episode for

a program. (Example: Screen B) Highlight an

episode to display an Info Box with program

information. Press the MENU button to display the

Episode Options Panel Menu.

Sort By:

Use the CURSOR PAD • or 1_to select between Title

and Date.

• Title - Select to display recorded programs in

alphabetical order. (Example: Screen A)

• Date - Select to display recorded programs by

Date and Time. (Example: Screen B)

3. Press the SELECT button to highlight DONE, and

then press the SELECT button again to exit the

Panel Menu.

To choose the way recordings are displayed:

Use the CURSOR PAD • or 1_ to highlight

RECORDINGS on the Service Bar, and then press

the MENU button to access the Recording Options

Panel Menu.

2. Use the CURSOR PAD • or • to choose between

View As and Sort By.

View As:

Use the CURSOR PAD • or 1_ to select between List

View and Group View.

•Group -Select to display recorded programs

without listing every recorded episode. (Example:

To view a recording:

Use the CURSOR PAD • or • to highlight an

episode and press the SELECT button to view it

now. If viewed previously, the episode will resume

from where it was stopped.

2. Use the CURSOR PAD • or • to highlight an

episode, and then press the MENU button to

display the Episode Options Panel Menu.

GO TO SERVICE BAR:

Select to highlight the Service Bar from tile Recordings

Screen.

RESUME:

Select to start from the beginning or from where it was

stopped.

PLAY FROM BEGINNING:

Select to always start from the beginning.

DELETE EPISODE:

Select to delete the episode from the Recordings list

and from the IEEE1394 recording device. A

confirmation Panel Menu will display. Select YES to

delete or NO to exit the Panel Menu.

CANCEL:

Select to exit the Panel Menu.

SCHEDULE:

The SCHEDULE Service screen allows you to review,

edit and delete Record and Remind events.

How to Record:

The Record options can be set in the LISTINGS,

SEARCH, and SCHEDULE Services. You can also edit

record settings for a program in the SCHEDULE

Services. There are 3 ways to set a program to record.

Use the RECORD button on the Remote Control.

Press the RECORD button to record the program

Once with the current default setting. Each press of

the RECORD button cycles through the RECORD

frequency of Once (default), Regularly, Weekly and

Cancel.

Press the INFO button while the SCHEDULE Service is

highlighted on the Service Bar to display a Help screen. •Use the Panel Menu record features.

1. Use the CURSOR PAD • or • to highlight a

program and press the MENU button to access the

Panel Menu.

Use the CURSOR PAD • or • to highlight an event,

and then press the MENU button to display the

applicable Schedule Options Panel Menu options.

GO TO SERVICE BAR:

Select to highlight the Service Bar.

WATCH NOW/TUNE TO CHANNEL:

Select to exit the TV Guide On Screen system and tune

to the highlighted program.

SET RECORDING:

Select to open a menu in which you can set a

recording for the program (see page 61).

DELETE RECORDING:

Select to remove the recording from the schedule.

A confirmation Panel Menu will display. Select YES to

delete the recording or NO to exit the Panel Menu.

EDIT RECORDING:

Select to open a menu in which you can edit existing

information (see page 61).

SET REMINDER:

Select to open a menu in which you can set a reminder

for the program (see page 63).

DELETE REMINDER:

Select to remove the reminder from the schedule. A

confirmation panel menu will display. Select YES to

delete the reminder or NO to exit the panel menu.

EDIT REMINDER:

Select to open a menu in which you can edit existing

reminder information (see page 63).

CANCEL:

Select to exit the Panel Menu.

Use the CURSOR PAD • to highlight Set

Recording and press the SELECT button to display

the Record Options Panel Menu.

Use the CURSOR PAD • or • to highlight the

Frequency field and press the CURSOR PAD • or

• to select among Once, Regularly, Weekly or Off.

Press the CURSOR PAD • to highlight the Start

field, and then press the CURSOR PAD • or • to

select in the range from 120 minutes early to 120

minutes late. The default time is ON Time.

Repeat step 4 for the End Field.

Use the CURSOR PAD • to highlight the Recorder

field and then press the CURSOR PAD • or • to

select the Recording device.

Use the CURSOR PAD • to highlight the Keep Until

field and then press the CURSOR PAD • or • to

select a save option.

Press the SELECT button to highlight SCHEDULE

RECORDING. Press the SELECT button again to

exit the menu or highlight CANCEL and press the

SELECT button to close the menu and return to the

highlighted program.

UseManualRecording:

FromtheSERVICEbar,usetheCURSORPAD

or1_tohighlighttheSCHEDULE.Pressthe

MENUbuttontodisplaytheScheduleOptions

PanelMenu.

UsetheCURSORPAD• or•to highlight New

Manual Recording, and then press the SELECT

button to access the Record Options Panel Menu.

3. Set the information in the Panel Menu fields.

Recording Conflict:

A recording conflict message will appear if:

,A program set to record overlaps with part of

another program previously set to record.

, A program set to record overlaps with the program

previously set to auto-tune (see page 63).

Select these options:

° Record Anyway- The selected program will

override an existing program set to record or auto-

tune.

* Don't record this show - Cancels the recording.

4, After completing the information in the fields, press

the SELECT button to highlight SCHEDULE

RECORDING, and then press the SELECT button

again to exit the menu or use the CURSOR PAD •

or • to highlight CANCEL then press the SELECT

button to exit the menu.

How to Remind:

The Remind options can be set in the LISTINGS,

SEARCH, and SCHEDULE Services. You can also edit

remind settings for a program in the SCHEDULE

Services. Set the Reminder to perform the following

functions.

•Set to automatically turn ON the TV and tune to the

channel at the scheduled reminder time.

• Set to automatically tune the TV, at the scheduled

reminder time, to the channel specified by the

reminder.

• Set to display an on-screen notification banner that

reminds you that the program is about to start. You

will be given the choices to tune to the program

channel or cancel the reminder.

Recording Notification Banner:

If the channel you are watching is different from the one

that is set to record, a notification banner appears and

will prompt you before recording starts. The banner will

ask you to choose to start or cancel recording. If no

choice is made within 3 minutes, the banner will close

automatically and the channel will tune to the one set

to record. If you want the recording cancelled, select

"Don't change; cancel recording" in the banner and

press the SELECT button.

How to set a reminder: ° Set Manual reminder

, Set from the Panel Menu

1. Use the CURSOR PAD • or •to highlight a

program and press the MENU button to access the

Episode Options Panel Menu.

2. Use the CURSOR PAD • to highlight SET

REMINDER and press the SELECT button to

access the Remind Options Panel Menu.

1. From the Service bar, use the CURSOR PAD •or

• to highlight SCHEDULE, and then press the

MENU button to access the Schedule Options

Panel Menu.

2. Use the CURSOR PAD • or • to highlight New

Manual Reminder and then press the SELECT

button to access the Remind Options Panel Menu.

Use the CURSOR PAD • or • to highlight the

frequency field, and then use the CURSOR PAD

• or • to select from Once, Regularly, Weekly,

Daily (Only available in Manual reminder), or Off.

Use the CURSOR PAD • to highlight the Power on

TV field, and then use the CURSOR PAD • or • to

select YES ( Turns the TV On automatically at the

specified reminder time) or NO (Default setting).

Use the CURSOR PAD • to highlight the Auto Tune

TV field, and then use the CURSOR PAD •or • to

select YES (Tunes the TV which is currently ON

automatically to the channel specified at specified

reminder time).

Use the CURSOR PAD • to highlight the When

field (set the time for displaying the reminder

screen), and then use the CURSOR PAD • or • to

select from 15 minutes early to 15 minutes late or

On time (Default is 1 minute early).

Press the SELECT button to highlight Schedule

reminder, and then press the SELECT button again

to exit the menu or you can highlight Cancel and

press the SELECT button to exit the menu.

4, Use the CURSOR PAD •, •, •, • to

highlight and enter information in the panel

menu fields ( Date, start/end time, channel, input,

power on TV, auto tune TV, and frequency).

5, Press the SELECT button to highlight

SCHEDULE REMINDER, and then press the

SELECT button again to exit the menu or you

can highlight Cancel and press the SELECT

button to exit the menu.

Reminder Notification Banner

Depending on your option settings, a notification

banner will appear at the scheduled reminder time.

Press the SELECT button to hide the Reminder banner,

or, if more than one reminder appears, use the

CURSOR PAD • or • to highlight a program. Press the

SELECT button to tune to the program.

If no choice is made within 3 minutes, the banner

closes automatically.

SETUP:

The SETUP Service screen allows you to modify

settings that were entered at initial TV Guide On Screen

system setup (see page 49). The 3 settings will be the

following:

*Change System settings

°Change channel display

* Change default options

Press the INFO button while the SETUP Service is

highlighted on the Service Bar to display a Help screen.

Remind Conflict

A remind conflict message will appear if:

*A program set with an auto-tune reminder has the

same start time as an existing auto-tune reminder.

* A program set with an auto-tune reminder overlaps

with a scheduled recording.

Select these options:

°Auto-Tune anyway -The selected program will

override an existing program set to auto-tune.

° Proceed, No Auto-Tune - Set the program as a

reminder but do not auto-tune.

* Don't set this reminder- Cancels the reminder.

Use the CURSOR PAD • to highlight a setting option,

and then press the SELECT button to access each

setting.

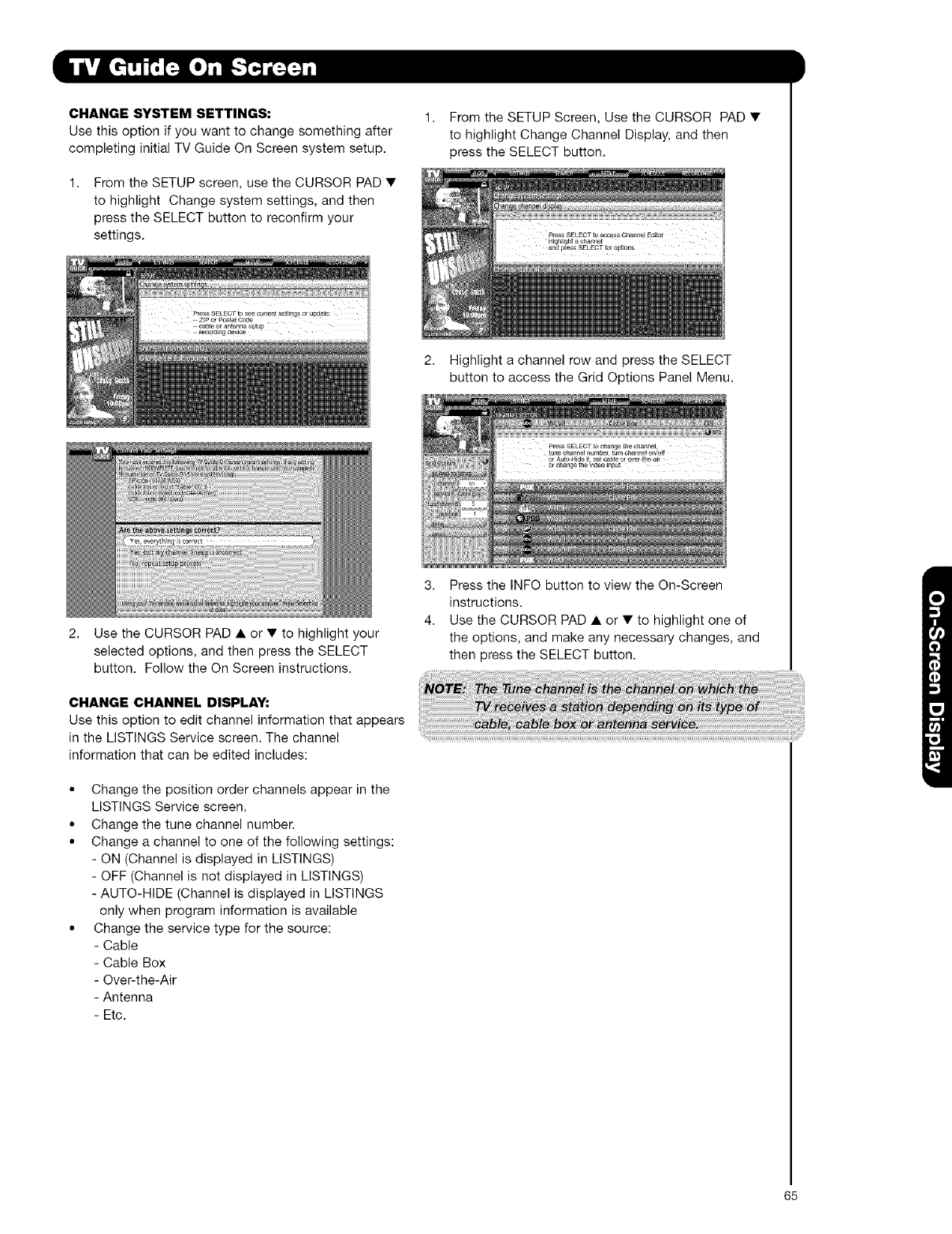

CHANGE SYSTEM SETTINGS:

Use this option if you want to change something after

completing initial TV Guide On Screen system setup.

From the SETUP screen, use the CURSOR PAD •

to highlight Change system settings, and then

press the SELECT button to reconfirm your

settings.

1. From the SETUP Screen, Use the CURSOR PAD •

to highlight Change Channel Display, and then

press the SELECT button.

2. Highlight a channel row and press the SELECT

button to access the Grid Options Panel Menu.

2. Use the CURSOR PAD • or • to highlight your

selected options, and then press the SELECT

button. Follow the On Screen instructions.

CHANGE CHANNEL DISPLAY:

Use this option to edit channel information that appears

in the LISTINGS Service screen. The channel

information that can be edited includes:

•Change the position order channels appear in the

LISTINGS Service screen.

•Change the tune channel number.

•Change a channel to one of the following settings:

- ON (Channel is displayed in LISTINGS)

- OFF (Channel is not displayed in LISTINGS)

- AUTO-HIDE (Channel is displayed in LISTINGS

only when program information is available

•Change the service type for the source:

- Cable

- Cable Box

- Over-the-Air

- Antenna

- Etc.

3. Press the INFO button to view the On-Screen

instructions.

4. Use the CURSOR PAD • or • to highlight one of

the options, and make any necessary changes, and

then press the SELECT button.

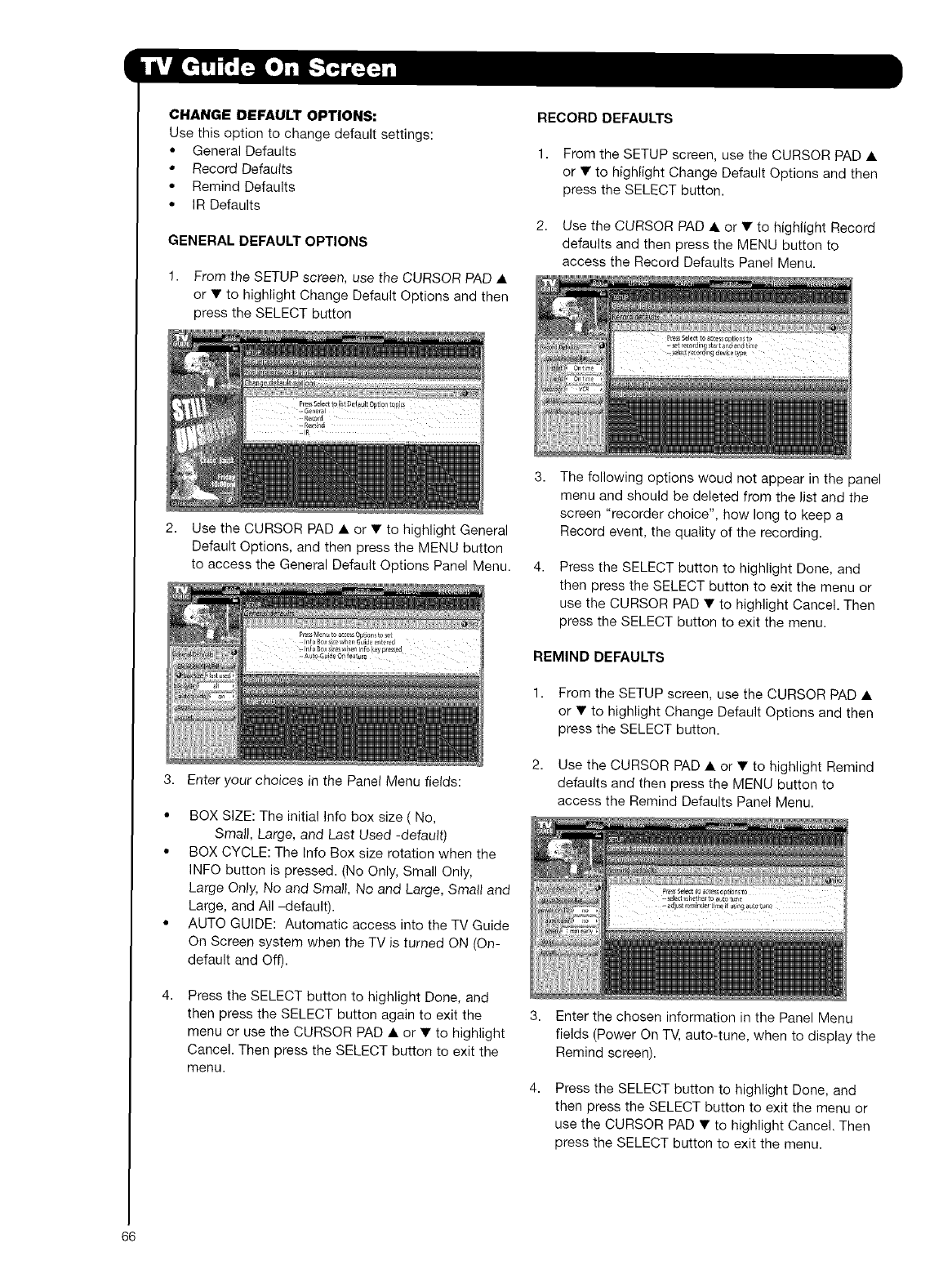

CHANGE DEFAULT OPTIONS:

Use this option to change default settings:

• General Defaults

•Record Defaults

• Remind Defaults

• IR Defaults

GENERAL DEFAULT OPTIONS

1. From the SETUP screen, use the CURSOR PAD •

or • to highlight Change Default Options and then

press the SELECT button

RECORD DEFAULTS

1. From the SETUP screen, use the CURSOR PAD •

or • to highlight Change Default Options and then

press the SELECT button.

2. Use the CURSOR PAD • or • to highlight Record

defaults and then press the MENU button to

access the Record Defaults Panel Menu.

Use the CURSOR PAD • or • to highlight General

Default Options, and then press the MENU button

to access the General Default Options Panel Menu.

Enter your choices in the Panel Menu fields:

BOX SIZE: The initial Info box size ( No,

Small, Large, and Last Used -default)

BOX CYCLE: The Info Box size rotation when the

INFO button is pressed. (No Only, Small Only,

Large Only, No and Small, No and Large, Small and

Large, and All -default).

AUTO GUIDE: Automatic access into the TV Guide

On Screen system when the TV is turned ON (On-

default and Off).

Press the SELECT button to highlight Done, and

then press the SELECT button again to exit the

menu or use the CURSOR PAD • or • to highlight

Cancel. Then press the SELECT button to exit the

menu.

The following options woud not appear in the panel

menu and should be deleted from the list and the

screen "recorder choice", how long to keep a

Record event, the quality of the recording.

4, Press the SELECT button to highlight Done, and

then press the SELECT button to exit the menu or

use the CURSOR PAD • to highlight Cancel. Then

press the SELECT button to exit the menu.

REMIND DEFAULTS

1. From the SETUP screen, use the CURSOR PAD •

or • to highlight Change Default Options and then

press the SELECT button.

2. Use the CURSOR PAD • or • to highlight Remind

defaults and then press the MENU button to

access the Remind Defaults Panel Menu.

Enter the chosen information in the Panel Menu

fields (Power On TV, auto-tune, when to display the

Remind screen).

Press the SELECT button to highlight Done, and

then press the SELECT button to exit the menu or

use the CURSOR PAD • to highlight Cancel, Then

press the SELECT button to exit the menu.

IR DEFAULTS

IR Defaults lets you modify the channel dialing defaults

if your cable box and/or VCR is not changing channels

properly.

1. From the SETUP screen, use the CURSOR PAD •

to highlight Change Default Options and then press

the SELECT button.

2. Use the CURSOR PAD • or • to highlight IR

defaults and then press the MENU button to

access the IR Defaults Panel Menu.

Enter the chosen information in the Panel Menu

fields.

•Cable box - if you have a cable box, indicates

whether or not you want to modify the default

channel dialing options.

Choices are Yes and No (default).

• Dial mode - select whether you must enter 2-

digit or 3-digit (default) channel numbers to

change channels on your cable box.

• Enter key - indicate if you currently press the

Enter key after you enter a channel number

with your cable box remote.

Choices are Yes and No (default).

• VCR - if you have a VCR, indicates whether or

not you want to modify the default channel

dialing options.

Choices are Yes and No (default).

• Dial mode - select whether you must enter 2-

digit (default) or 3-digit channel numbers to

change channels on your VCR.

• Enter key - indicate if you currently press the

Enter key after you enter a channel number

with your VCR remote.

Choices are Yes and No (default).

Press the SELECT button to highlight Done, and

then press the SELECT button to exit the menu or

use the CURSOR PAD • to highlight Cancel. Then

press the SELECT button to exit the menu.

Channel Manager

Select CHANNEL MANAGER to set your Antenna

options, run Auto Channel Scan, Check Signal Meter

and Set Channel List.

1. Press CURSOR PAD A, • or CHANNEL WHEEL to

highlight function

2. Press the SELECT button or CURSOR PAD • to

select.

Signal Meter

Select SIGNAL METER when using an indoor or outdoor

antenna. This feature will show the signal strength and

antenna to optimize signal reception.

Use the CURSOR PADS and the SELECT button to

highlight and select CLOSE to exit.

Auto Channel Scan

This feature will automatically store active Analog and

Digital channels in Auto Channel Scan memory.

iiiiiiiiiiiiiii

1. Use the CURSOR PAD • or • or CHANNEL WHEEL

to highlight CABLE or AIR.

2. Press the CURSOR PAD •or I_ to highlight the

START or RESET option.

3. Press the SELECT button to start AUTO CHANNEL

SCAN.

Channel List

This function allows you to review which channels are

labeled (CH ID}, which have been added to CHANNEL

MEMORY (SCAN}, which are protected by LOCK and

which are your FAVORITE (FAV) CHANNELS.

1. Use the CURSOR PAD to navigate the Channel List.

2. Press the SELECT button to select ON or OFF on the

SCAN and LOCK columns.

3. To select LOCK column, input the access code.

(Default access code: 0000)

4. Press the FAV button to set or remove the FAVORITE

settings.

5. Press the EXIT button to return to normal viewing.

iiiiiiiiiiiiii

Locks

This function will block out the picture and sound of the

selected channel or video input. It can also be used to

keep the TV from being viewed for a scheduled time

period that you set.

The code to enter the Locks feature is a four digit

access code number. The factory preset code is 0000.

Use the NUMBER buttons to enter the access code.

1. Use the CURSOR PAD A, • or CHANNEL

WHEEL to highlight the desired function in the

LOCKS menu.

2. Press the SELECT button to select.

Change Access Code

1. To change the ACCESS CODE NUMBER, select

CHANGE ACCESS CODE to change the factory

preset code (0000) to your preference.

If you forget your ACCESS CODE NUMBER, use

the factory code 7777 to erase your key number.

This will reset the access code number back to the

factory preset (0000).

2. Enter a new four digit number.

3. Press EXIT to quit the menu.

Engage Lock

When ENGAGE LOCK is selected, SET CHANNEL LOCK and SET FRONT PANEL LOCK can be set individually.

When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out.

When FRONT PANEL LOCK is turned on, all buttons on the Side Panel will be deactivated, except the

POWER button.

When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion

picture ratings. Picture-in-Picture will also be blocked automatically (see page 71).

When "rv RATINGS is selected, various types of television programming based on a parental guide ratings will be

blocked. Picture-in-Picture will also be blocked automatically (see page 72).

Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating

systems used in Canada that you feel may be inappropriate due to its content (see pages 73-74).

Movie Ratings

Use Movie Ratings to prevent viewing of any movie that

you feel may be inappropriate due to its content.

1. Use the CURSOR PAD &, • or CHANNEL WHEEL

to select the MOVIE RATING category that you want

to block.

2, Press SELECT to block the MOVIE RATING that you

have selected. Once rating is selected, for example

PG-13, all movies rated PG-13 and higher (R, NC-17,

and X) will be blocked.

3. Press EXIT to quit the menu or select MOVIE

RATING to return to the previous menu.

Motion Picture Ratings Table

NOT RATED Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not

been rated or ratings do not apply.

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only

TV Ratings

Use "IV RATINGS to prevent the viewing of any TV

program that you feel may be inappropriate due to its

content.

1. Use the CURSOR PAD A, • or CHANNEL

WHEEL to select the "IV RATING category that you

want to block.

2. Press SELECT to block the "IV RATING that you

have selected.

3. Press EXIT to quit the menu or select "IV RATING

to return to the previous menu.

TV Parental Guide Ratings Table

TV-Y All children. The themes and elements in this program are specifically designed for a very

young audience, including children from ages 2-6.

TV-Y7 Directed to older children. Themes and elements in this program may include mild

physical or comedic violence, or may frighten children under the age of 7.

TV-G General audience. It contains little or no violence, no strong language, and little or no

sexual dialogue or situations.

TV-PG Parental guidance suggested. The program may contain infrequent coarse language,

limited violence, some suggestive sexual dialogue and situations.

TV-14 Parents strongly cautioned. This program may contain sophisticated themes, intense

sexual situation, more intense violence and intensely suggestive dialogue.

TV-MA Mature audiences only. This program may contain mature themes, indecent language,

graphic violence, and explicit sexual content.

FV Fantasy Violence

V Violence

S Sexual Situation

L Adult Language

D Sexually Suggestive Dialogue

Canadian Ratings (Eng)

Use CANADIAN RATINGS (ENG) to block any type of

movie and television program in Canada that you feel

might be inappropriate in its content.

1. Use the CURSOR PAD A, •or CHANNEL

WHEEL to select the CANADIAN RATINGS (ENG)

category that you want to block.

2, Press SELECT to block the CANADIAN RATINGS

(ENG) that you have selected. Once rating is

selected, for example C8+, all movies and

television programs rated C8+ and higher (G, PG,

14+ and 18+) will be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (ENG) to return to the previous menu.

Canadian Ratings English Table

C Programming intended for children under age 8 - Violence Guidelines; Careful attention is

paid to themes, which could threaten children's sense of security and well-being. There will

be no realistic scenes of violence. Depictions of aggressive behaviour will be infrequent

and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other

Content Guidelines: There will be no offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over to watch on

their own - Violence Guidelines: Violence will not be portrayed as the preferred, acceptable,

or only way to resolve conflict; or encourage children to imitate dangerous acts which they

may see on television. Any realistic depictions of violence will be infrequent, discreet, of

low intensity and will show the consequences of the acts. Other Content Guidelines: There

will be no profanity, nudity or sexual content.

G General Audience - Violence Guidelines: Will contain very little violence, either physical or

verbal or emotional. Will be sensitive to themes which could frighten a younger child, will

not depict realistic scenes of violence which minimize or gloss over the effects of violent

acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and

no nudity.

PG Parental Guidance - Programming intended for a general audience but which may not be

suitable for younger children. Parents may consider some content inappropriate for

unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict

and/or aggression will be limited and moderate; may include physical, fantasy, or

supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or

mildly suggestive language. Could also contain brief scenes of nudity.

14+ Programming contains themes or content which may not be suitable for viewers under the

age of 14 - Parents are strongly cautioned to exercise discretion in permitting viewing by

pre-teens and early teens. Violence Guidelines: May contain intense scenes of violence.

Could deal with mature themes and societal issues in a realistic fashion. Other Content

Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent

use of profanity.

18+ Adult - Violence Guidelines: May contain violence integral to the development of the plot,

character or theme, intended for adult audiences. Other Content Guidelines: May contain

graphic language and explicit portrayals of nudity and/or sex.

Canadian Ratings (Frn)

Use CANADIAN RATINGS (FRN) to block Canadian

French programs according to various program ratings

that you feel might be inappropriate in its content.

1. Use the CURSOR PAD A, • or CHANNEL

WHEEL to select the CANADIAN RATINGS (FRN)

category that you want to block.

2, Press SELECT to block the CANADIAN RATINGS

(FRN) that you have selected. Once rating is

selected, for example 8 ANS+, all movies and

television programs rated 8 ANS+ and higher will

be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (FRN) to return to the previous menu.

Canadian Ratings French Chart

G General - Programming intended for audiences of all ages. Contains no violence, or the

violence content is minimal or is depicted appropriately with humor or caricature or in an

unrealistic manner.

8 ans + 8 + General - Not recommended for young children - Programming intended for a broad

audience but contains light or occasional violence that could disturb young children.

Viewing with an adult is therefore recommended for young children (under the age of 8)

who cannot differentiate between real and imaginary portrayals.

13 ans + Programming may not be suitable for children under the age of 13 - Contains either a few

violent scenes or one or more sufficiently violent scenes to affect them. Viewing with an

adult is therefore strongly recommended for children under 13.

16 ans + Programming is not suitable for children under the age of 16 - Contains frequent scenes of

violence or intense violence.

18 ans + Programming restricted to adults - Contains constant violence or scenes of extreme

violence.

Timers

Select TIMERS to set your Clock, Sleep Timer and

Day/Night Timer.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button to select.

Set The Clock

The Clock must be adjusted before you can use the

DAY/NIGHT TIMER feature.

1. Use the CURSOR button • to highlight the chosen

TIME ZONE settings. Use CURSOR buttons • or

I_ to set TIME ZONE and press SELECT to set.

2. Press CURSOR button • to select Date. Use

CURSOR buttons •, I_, • or • to set Month, Day

and Year. Press SELECT to set.

3. Press CURSOR button • to select Time. Use

CURSOR buttons •, I_, • or • to set Hour,

Minute, AM or PM. Press SELECT to set.

4. If you observe Daylight Saving Time, press

CURSOR button • to select DAYLIGHT SAVING

CHANGE and press SELECT to set.

5. Press EXIT to quit the menu or select SET THE CLOCK to return to the previous menu.

Set Sleep Timer

Select this feature to set your SLEEP TIMER from 30

minutes to 3 hours (30 minute increments).

1. Press the CURSOR PAD • repeatedly to set your

Timer from 0:00, 0:30, 1:00, 1:30, 2:00, 2:30 and

3:00.

Set Day/Night Timer

Select this feature to activate and set your TV's

DAY/NIGHT PICTURE MODE automatically. This

feature is not available until the clock is set.

1. Use the CURSOR PADS to highlight SET

DAY/NIGHT TIMER settings.

2. Press the SELECT button to select.

3. Use the CURSOR PADS to select DAY MODE ON

and to set it's TIMER. Press SELECT to set.

4. Use the CURSOR PADS to select DAY MODE OFF

and to set it's TIMER. Press SELECT to set.

5. Press EXIT to quit the menu or select SET

DAY/NIGHT TIMER to return to the previous

menu.

Select SETUP when setting your TV up for the first

time.

1. Use the CURSOR PAD A, V, • and I_ to select

the sub-menu of your choice.

2. Press the SELECT button to select.

Menu Preference

Setup the Language and background of the Menu

OSD.

Set the Language

This feature will allow you to select any one of

three different languages for all on-screen displays.

1. Use the CURSOR PAD • or I_ to select the

language of your choice.

2. Press EXIT to quit menu or select MENU

PREFERENCE to return to previous menu.

SettheMenuBackground

Thisfunctionallowsyoutochoosefromtwomenu

backgrounds.

1, Use the CURSOR PAD • or • to highlight

SET THE MENU BACKGROUND (SHADED

OR SOLID) of your choice. Use the CURSOR

PAD _ or I_ to select shaded or solid.

2, Select SOLID for a black background (no

picture can be seen behind menu screen),

select SHADED and a light background is

visible.

3. Press EXIT to quit menu or select MENU PREFERENCE to return to previous menu.

Screen Saver

Continuous on-screen displays such as video games,

stock market quotations, computer generated graphics,

and other fixed (non-moving) patterns can cause

permanent damage to the Plasma Television. Use the

SCREEN SAVER feature to hide screen burn.

1. Use CURSOR PAD • or • to highlight Screen

Saver's Main Picture Moving and Image Power

options.

2. Use the CURSOR PAD _ or 1_ to select your

choices.

Option 1

The whole picture will shift every 20 minutes by two

pixels.

Option 2

The whole picture will shift every 40 minutes by two

pixels.

Option 3

The whole picture will shift every 60 minutes by two

pixels.

Image Power

This function allows you to choose power consumption reduction based on 3 levels (min., medium and max).

Screen Wipe

If pattern mark occurs, use Screen Wipe (White Field Signal) for at least 10 minutes to refresh any damage that

may have occurred from a pattern mark. Screen Wipe can resolve pattern mark to a certain degree, if caution

is not used, permanent damage may occur. Use the cursor pad • or •to highlight Screen Wipe.

Press the SELECT button to start.

Press the EXIT button to return to normal viewing.

Screen Saver Picture's Movement

Automatic Power Saving

Use this feature to turn power off automatically when a video input signal is not detected in 15 minutes.

Set The Inputs

Use this feature to give a name to any of the live video

inputs.

1. Press the CURSOR PAD A, • to highlight the video

inputs.

2. Press the CURSOR PAD •, • to select your

choices.

INPUT 4 Auto Link

Use this function to automatically turn the TV on and

tune to INPUT 4 when it detects a video signal to

INPUT 4.

Use the CURSOR PAD &, •, • or • to

highlight and select the AUTO LINK setting of

your choice.

Auto

When AUTO is selected, the TV will turn on

and switch to Input 4 automatically, when the

Input 4 input device is turned on. This is

convenient when you want to watch a movie with your VCR, laserdisc player, or DVD player.

Remote

When REMOTE is selected, the TV will turn on and switch to Input 4 automatically when the Input 4

input device is turned on and the VCR, laserdisc, or DVD play button on your remote control is pressed.

This is convenient when you want to record a movie with your VCR and watch it later.

Off

Select OFF to disable this function.

Press EXIT to quit menu or select SET THE INPUTS to return to previous menu.

Set AV Net

Use this feature to control your external Audio/Video

equipment using your Hitachi Plasma TV Remote Control.

The IR Mouse cable must be properly connected for the

AV NET feature to work.

1. Press the MENU button.

2. Use the CURSOR PAD • or CHANNEL WHEEL to

highlight SETUP.

3. Press the SELECT button to select.

4. Use the CURSOR PAD • or CHANNEL WHEEL to

highlight SET AV NET feature.

5. Press the SELECT button to select.

AV NET SETUP WIZARD ( Example: A/V

RECEIVER Setup)

1. Press the SELECT button to start the SETUP

WIZARD.

10. Use the CURSOR PAD 4, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

2. Use the CURSOR PAD • or • to highlight

YES or NO.

3. Press the SELECT button to select "YES".

(Select YES to setup an A/V Receiver or NO to

setup other devices).

4. Use the CURSOR PAD 4, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

11.

12.

Use the CURSOR PAD • or • to select the TV

Input that connects to the video and audio

output of the A/V Receiver.

Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

5. Use the CURSOR PAD • or • to choose the

brand name of your A/V Receiver.

6. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

13. Use the CURSOR PAD • or • to select the

A/V Receiver Source if you have connected the

Monitor Out and Optical Out to the A/V

receiver. Select " Not Connected " if not used.

14. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

7. Use the CURSOR PAD • or • to choose the

preset IR Code.

8. Use the CURSOR PAD • to highlight the "

POWER " Test button.

These On-screen buttons are called " Soft

Keys ".

9. Press the SELECT button to pass the Power

command through the IR Mouse and onto the

A/V Receiver ( Repeat steps 7 to 9 until finding

the IR code that will power up the A/V

Receiver. If the A/V Receiver turns ON, then

you have found the correct preset IR code ).

15. If you would like to label your A/V Receiver

Source, use the CURSOR PAD • or • to

highlight " Yes " then press the SELECT

button to continue. Selecting " No " will

bypass the Source labeling.

AV NET SETUP WIZARD ( Example: DVD

Setup )

1. Press the SELECT button to start the SETUP

WIZARD.

16.

17.

Use the CURSOR PAD • or • to select your

A/V Receiver Sources.

Use the CURSOR PAD • or • to label your

A/V Receiver Sources.

Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

2. Use the CURSOR PAD • or • to highlight NO.

3. Press the SELECT button to select.

(Select NO to setup other devices).

4. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

19. Confirm all settings, then press the SELECT

button to move on to the next SETUP screen.

5. Use the CURSOR PAD 4, •, • and • to

highlight the device.

( Example : DVD Setup ).

6. Press the SELECT button to select.

7. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

20. Press SELECT to setup another device or use

the CURSOR PAD • or • to highlight " No

thanks, I'm done ", then press the SELECT

button to exit the A!V NET SETUR

8. Use the CURSOR PAD • or • to choose the

brand name of your DVD.

9. Press the CURSOR PAD •to highlight the IR

CODE Set, then use the CURSOR PAD • or •

to choose the preset IR Code.

10. Use the CURSOR PAD • to highlight the "

POWER " Test button.

These On-screen buttons are called " Soft

Keys ".

11. Press the SELECT button to pass the Power

command through the IR Mouse and onto the

DVD.

( Repeat steps 9 to 11 until finding the IR code

that will power up the A/V Receiver. If the DVD

turns ON, then you have found the correct

preset IR code ).

12. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

13. Use the CURSOR PAD • or • to select the TV

Input that connects to the video and audio

output of the DVD.

14. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

16. Press the SELECT button to select YES to

Setup another device. Press the CURSOR

PAD • or • to highlight " No thanks, I'm done

", then press the SELECT button to exit the

A/V NET SETUR

Learning Mode

This function of the AV NET allows the user to use

equipment that is not supported by the AV/NET codes.

After programming your equipment to the AV NET and

the Soft Keys do not work, you can manually "LEARN"

each one by completing the Learning Mode. The

Learning Mode will transfer any remote control button

IR code of your equipment to the "Soft Keys" of your

AV NET.

Learning Mode (Example: A/V Receiver

Setup)

1. Press the SELECT button to start the SETUP

WIZARD.

15. Confirm all settings, then press the SELECT

button to move on to the next SETUP screen.

iiiiiiU

2. Use the CURSOR PAD • or • to highlight

YES.

3. Press the SELECT button to select.

4. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

iiiiiiUi i

5. Use the CURSOR PAD • or • to select

"Other" from brand name choices.

6. Use the CURSOR PAD • or •to highlight

"Learning Mode" then press the SELECT

button.

Use the CURSOR PAD •, •, • and • to

10. If the IR code transfer was successful, the

screen below appears, then select "OK" to

continue setup.

11.

select the Soft Key to learn (Ex. VOL •), then

press the SELECT button.

Press and hold the VOL • button of your A/V

Receiver remote control while pointing directly

at the learning AV NET sensor of the Plasma

TV (located at the lower right corner of the

screen) at a distance of 3.2 feet or 1 meter

maximum.

Select another Soft Key to learn or select

DONE to move on to the next screen.

12. Select the Test button VOL • to check the

response of the device to this command.

13. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

If the IR code transfer was not completed, the

screen below appears. Repeat step 8 to try

again.

14. Use the CURSOR PAD • or • to select the TV

Input that connects to the video and audio

output of the A/V Receiver.

15. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

16. Use the CURSOR PAD • or • to select the

A/V Receiver Source if you have connected the

Monitor Out and Optical Out to the A/V

Receiver. Select "Not Connected" if not used.

17. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next step.

23. Select "YES" to setup another device or select

"No, thanks, I'm done" to exit the AV Net

setup.

18. If you would like to label your A/V Receiver

Source, use the CURSOR PAD • or • to

highlight "Yes", then press the SELECT button

to continue. Selecting "No" will bypass the

Source Labeling.

Learning Mode (Example: CUSTOM/DVD 3

Setup)

1. Press the SELECT button to start the SETUP

WIZARD.

19. Use the CURSOR PAD • or • to select your

A/V Receiver Sources.

20. Use the CURSOR PAD • or • to label your

A/V Receiver Sources.

21. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

2. Use the CURSOR PAD • or • to highlight NO.

3. Press the SELECT button to select "NO".

(Select NO to setup other devices).

4. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

22. Confirm all settings, then press the SELECT

button to move on to the next SETUP screen.

5. CURSOR PAD •, •, • and • to highlight

"Custom", then press the SELECT button to

select.

6. Select NEXT to continue.

7. Use the CURSOR PAD • or • to choose the

device you wish to learn. (Example: DVD 3)

8. Select NEXT to continue.

13. Select another softkey to learn or select

"DONE" to move on to the next screen.

9. Select the DVD 3 softkey to learn.

(Example: PLAY • button).

10. Select NEXT to continue.

14. Select the Test button • "Play button" to

check the response of the device to this

command.

15. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

11. Press and hold the • "Play button" of the DVD

remote control while pointing directly at the

learning AV NET sensor of the Plasma TV

(located at the lower right corner of the screen)

at a distance of 3.2 feet or 1 meter maximum.

16. Use the CURSOR PAD • or • to select the TV

Input that connects to the video and audio

output of the DVD.

17. Use the CURSOR PAD •, •, • and • to

highlight NEXT, then press the SELECT button

to move on to the next SETUP screen.

12. If the IR Code transfer was successful, the

screen below appears, then select "OK" to

continue setup. 18. Confirm all settings, then press the SELECT

button to move on to the next SETUP screen.

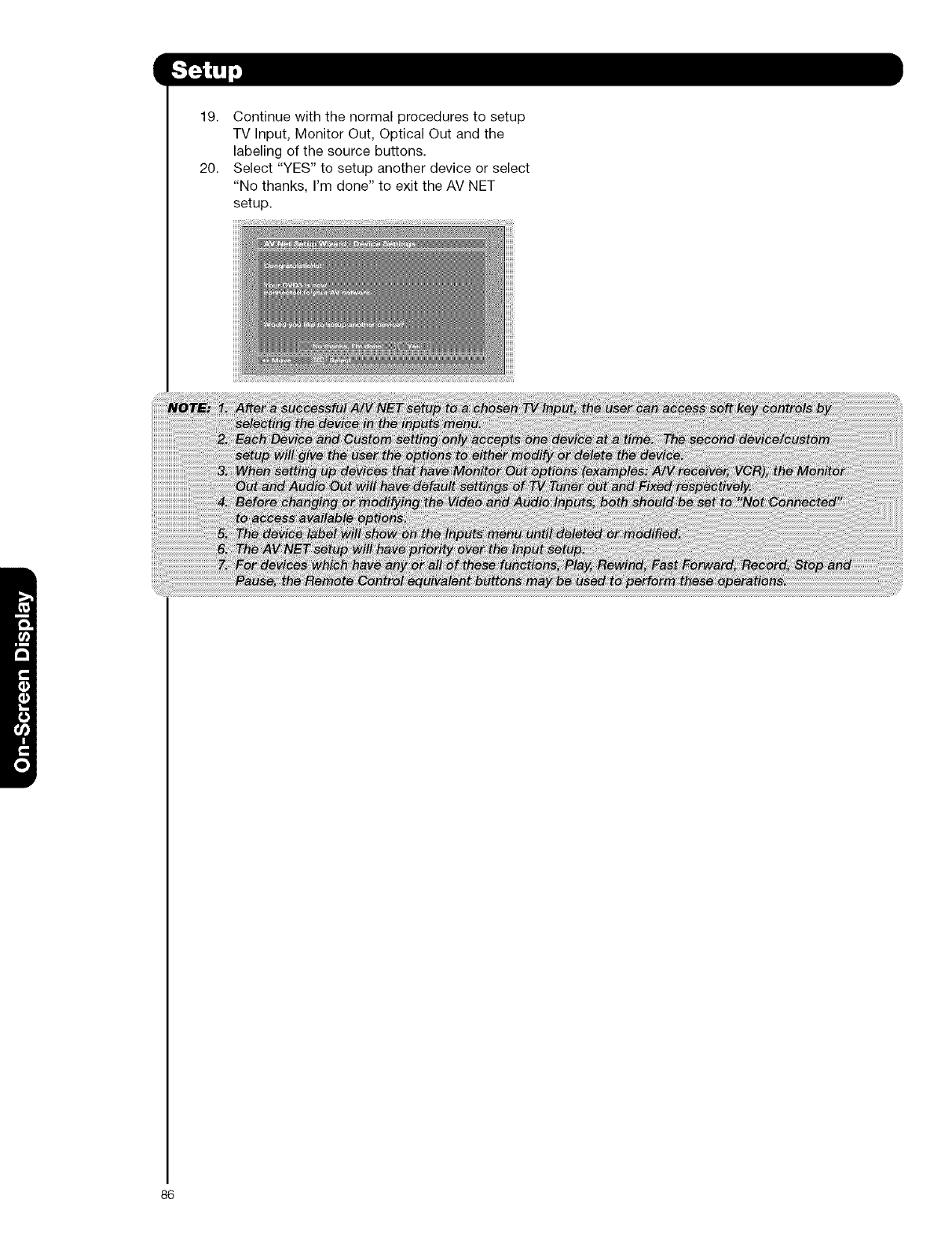

19. Continue with the normal procedures to setup

TV Input, Monitor Out, Optical Out and the

labeling of the source buttons.

20. Select "YES" to setup another device or select

"No thanks, I'm done" to exit the AV NET

setup.

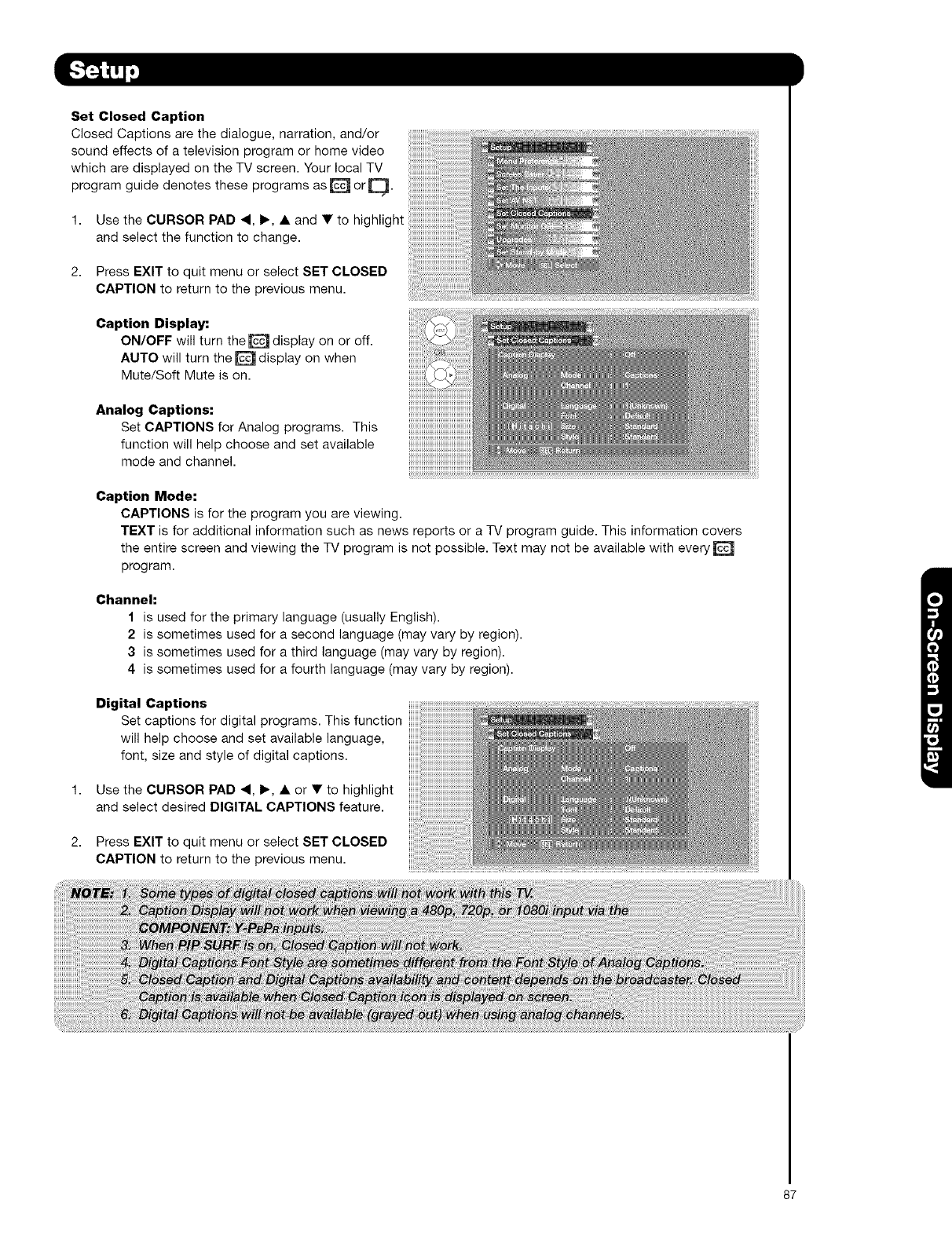

Set Closed Caption

Closed Captions are the dialogue, narration, and/or

sound effects of a television program or home video

which are displayed on the TV screen. Your local TV

program guide denotes these programs as _ or [_.

1. Use the CURSOR PAD ,, I_, • and • to highlight

and select the function to change.

2. Press EXIT to quit menu or select SET CLOSED

CAPTION to return to the previous menu.

Caption Display:

ON/OFF will turn theDdisplay on or off.

AUTO will turn the _ display on when

Mute/Soft Mute is on.

Analog Captions:

Set CAPTIONS for Analog programs. This

function will help choose and set available

mode and channel.

Caption Mode:

CAPTIONS is for the program you are viewing.

TEXT is for additional information such as news reports or a TV program guide. This information covers

the entire screen and viewing the TV program is not possible. Text may not be available with every [_7

program.

Channel:

1 is used for the primary language (usually English).

2 is sometimes used for a second language (may vary by region).

3is sometimes used for a third language (may vary by region).

4 is sometimes used for a fourth language (may vary by region).

Digital Captions

Set captions for digital programs. This function

will help choose and set available language,

font, size and style of digital captions.

1. Use the CURSOR PAD ,, I_, • or • to highlight

and select desired DIGITAL CAPTIONS feature.

2. Press EXIT to quit menu or select SET CLOSED

CAPTION to return to the previous menu.

Set Monitor Out

This feature will select the source of the Monitor

Output.

Monitor:

Select MONITOR to output the audio and

video signals of the chosen input source

(CABLE, AIR, INPUT 1-5) to a VCR or other

A!V device.

"IV Tuner Out:

Select "IV TUNER OUT to output the audio

and video signals of the last watched Antenna

Source (CABLE, AIR).

Fixed

Select AUDIO OUT FIXED to have the Audio

at fixed volume.

Variable

Select AUDIO OUT VARIABLE to have Audio volume that can be controlled by the Plasma TV Volume

Up/Down.

Video Out Audio OtJt Use

Monitor Fixed _ record currently viewed Video and Audio¸

Monitor Vad_ble Whel_ an external device like a monitor

ol¸ Hi Fi audio system isconl_ected to the

audio and video output of the TV_You can

controJ the vdume output by changing the

vdume of the TV_

TVTuner Out Fixed _ leco_ currel_fly viewed Video and Audio

flora either Cable ol¸Ai_

1. Use CURSOR PAD • or • to highlight the function to change

2. Use the CURSOR PAD _1 or • to select the function.

3. Press EXIT to quit menu or select SET MONITOR OUT to return to previous menu.

MONITOR: Available Monitor Out Signals

Input Mode Monitor Out

S-Video Video L/R HiFi

ANT Digital INoMacrovision S-Video YES YES YES YES

Channel I Macrovision S-Video YES

(Air or

Cable) Analog Channel Video YES YES YES

Input 1 HDM! 1 YES

S-Video 1 YES YES YES YES

Video 1 YES YES YES

Input 2 HDM! 2 YES

S-Video 2 YES YES YES YES

Video 2 YES YES YES

Input 3 Y-PbPr 3 YES

Video 3 YES YES YES

Input4 Y-PbPr 4 YES

Video 4 YES YES YES

Inputs S-Video 5 YES YES YES YES

Video 5 YES YES YES

"IVTUNEROUT:AvailableMonitorOutSignals

InputMode

ANT DigitalNoMacrovisionS-Video

(Air or Channel

Cable) Macrovision S-Video

Analog Channel

Input 1 HDM! 1

S-Video 1

Video !

Input 2 HDM! 2

S-Video 2

Video 2

Input 3 Y-PbPr 3

Video 3

Input4 Y-PbPr 4

Video 4

Input5 S-Video 5

Video 5

Video

[ Y-PbPr

I Y-PbPr

Monitor Out(TV Tuner Out)

S-Video Video L/R HiFi

YES YES YES YES

ANT ANT ANT ANT

YES

ANT

YES YES YES

ANT ANT ANT

YES YES YES YES

ANT ANT ANT ANT

digital

only

Upgrades

This feature shows software information and easy

upgrade procedure. This function allows the TV

software to be upgraded by using a flash card (MMC

CARD}. If a future software upgrade is required for your

TV, HITACHI will notify and provide you with a flash

card. In order to receive written notification and the

flash card, please complete and return the warranty

card.

1. Insert MMC CARD

2. Press the CURSOR PAD • or • to highlight

UPGRADE NOW.

3. Press the SELECT button to select and start

upgrading.

Set Stand-By Mode

This function sets the IEEE1394 in Stand-By Mode to

ON or OFR Certain digital devices have a power save

feature, in which the device automatically powers OFF

when not in use (sleep mode). Only by setting the

IEEE1394 function in Stand-By mode to ON, will the TV

be able to control a device that is in sleep mode.

Use CURSOR PAD • or • to highlight "IEEE1394

Stand-By" and press SELECT to set this option.

Power Swivel

This feature controls the motorized stand. It allows

the customer to turn the plasma display left or right

using the remote control. This feature is only

available when the Table Top Stand is connected.

Use the CURSOR PAD 4or • to unlock or lock

the Power Swivel.

Exit the OSD menu system before controlling the

motorized stand.

2. Press the CURSOR PAD • to to rotate the TV to

the right.

3. Press the CURSOR PAD 4to to rotate the TV to

the left.

4. Release the CURSOR PAD to stop rotation.

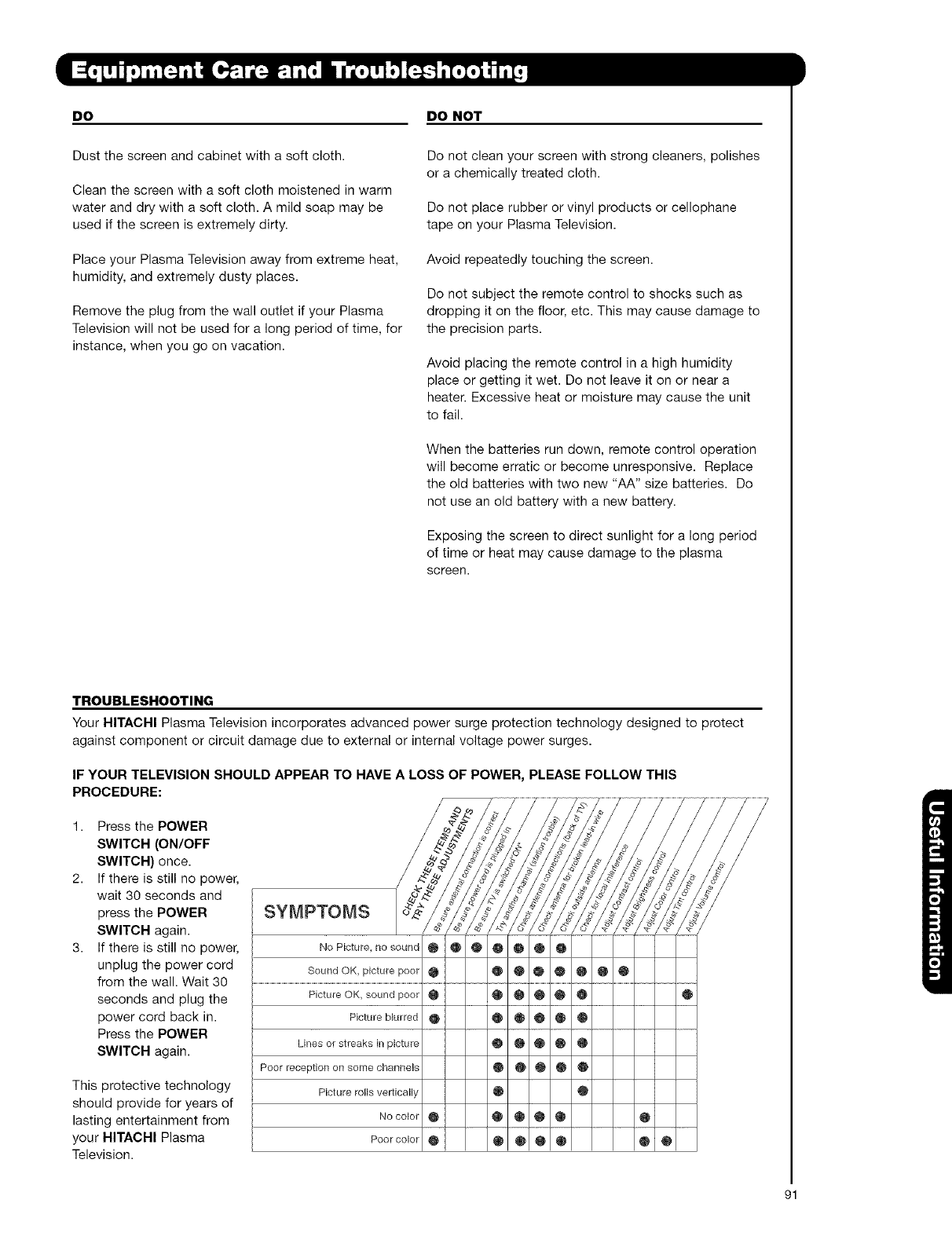

DO DO NOT

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm

water and dry with a soft cloth. A mild soap may be

used if the screen is extremely dirty.

Place your Plasma Television away from extreme heat,

humidity, and extremely dusty places.

Remove the plug from the wall outlet if your Plasma

Television will not be used for a long period of time, for

instance, when you go on vacation.

Do not clean your screen with strong cleaners, polishes

or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane

tape on your Plasma Television.

Avoid repeatedly touching the screen.

Do not subject the remote control to shocks such as

dropping it on the floor, etc. This may cause damage to

the precision parts.

Avoid placing the remote control in a high humidity

place or getting it wet. Do not leave it on or near a

heater. Excessive heat or moisture may cause the unit

to fail.

When the batteries run down, remote control operation

will become erratic or become unresponsive. Replace

the old batteries with two new "AA" size batteries. Do

not use an old battery with a new battery.

Exposing the screen to direct sunlight for a long period

of time or heat may cause damage to the plasma

screen.

TROUBLESHOOTING

Your HITACHI Plasma Television incorporates advanced power surge protection technology designed to protect

against component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS

PROCEDURE:

1. Press the POWER

SWITCH (ON/OFF

SWITCH) once.

2. If there is still no power,

wait 30 seconds and

press the POWER

SWITCH again.

3. If there is still no power,

unplug the power cord

from the wall. Wait 30

seconds and plug the

power cord back in.

Press the POWER

SWITCH again.

This protective technology

should provide for years of

lasting entertainment from

your HITACHI Plasma

Television.

SYMPTOMS _

No Picture, no sound

Sound OK,picture poor

Picture OK,sound poor

Picture blurred

Lines or streaks in picture

Poor receptionon some channels

Picture rolls vertically

Noco,or

POOr color

®/® ®

1,1,1®1,1

@@@@®

@@@@ @

@ @@@ @

@ @@@@

@ @

@@@

® O

@ @

IGNITIONNOISE:

Blackspotsorhorizontalstreaksmayappear,picturemayflutterordrift.

Usuallycausedbyinterferencefromautomobileignitionsystems,neonlamps,

electrical drills, and other electrical appliances.

GHOSTS:

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected from tall buildings, hills or some other

objects. Changing the direction or position of the antenna may improve

reception. Ghosting may also be caused by defects in the antenna system such

as unshielded leads or connecting several sets to the same antenna without

using multiple antenna couplers.

SNOW:

If your receiver is located in the fringe area of a television station where the

signal is weak, your picture may be marred by the appearance of small dots.

When the signal is extremely weak, it may be necessary to install a special

antenna to improve the picture.

RADIO FREQUENCY INTERFERENCE:

• RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some

cases, causes loss of contrast in the picture.

• PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS

This television has been designed pursuant to the FCC class B Rules. This is to prevent a problem to Radio

receivers. If this television causes a problem to Radio receivers, then take the following steps:

- Keep the television away from Radio.

- Adjust Radio antennas in order for the television not to receive interference.

- The antenna cable of Radio should be kept away from the television.

- Use a coaxial cable for antenna.

You can check if this television influences Radio receivers by turning off all other equipment other than the television.

If you find a problem receiving Radio when using the television, check the instructions mentioned above.

BLOCK NOISE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is

usually caused by interference from automobile ignition systems, neon lamps,

electrical drills, ghosting of the image and weak signals.

BLACK SCREEN:

When using an antenna, weak signals will display a black screen. It may be

necessary to upgrade your antenna.

NOTE: The TV set can generate sound distortion in external devices such as a radio. Please separate radio

equipment from the TV set to a considerable distance.

1. Plasma Television Troubleshooting

No. Items

Buzzing sound from Plasma

1 display panel.

2 Infrared interference

3 Bright and dark spots

4 Picture Image

Display panel surface

5 temperature is too high.

6 Plasma Surface

7 Transportation

8 Granular spots

9 High temperature

environment

10 Operation

11 Storage

12 Power ON or OFF

Xlotes

_,buzzing sound may be heard when the plasma television is turned on in a very quiet

"com. This is due to the plasma panel drive circuit when it is functioning. The buzzing

_ound is normal and is not a malfunction.

Some infrared rays are emitted from the plasma television panel that might affect the

Dperation of other infrared controlling equipment.

-ligh precision technology is used to manufacture the plasma television. But there

qraybe points that do not illuminate, points that are too bright, and points with color

different from that of the periphery. Please note that this is not a mafunction.

in some cases, residual images may remain after the short term display of still images

when the picture changes.

fhe plasma display panel display images by means of electrical discharges inside the

_anel. This may cause the temperature of the panel surface to increase. Please note that

this is not a malfunction.

A reinforced glass filter is installed over the plasma panel surface. A strong impact to

the front panel risk a danger of glass breakage.

Please transport the plasma television in it's packing box and placed in an upright

_osition. Do not transport the plasma television in a horizontal position. This increases

the posibility of panel breakage and pixel failure.

When a screen is seen at point-blank range, a random fine grain may be visible in the

dark areas of the picture.

High temperature affect the electric discharge/luminescence characteristic of the PDP

)anel. Do not place the plasma television in high temperature environments.

Operating altitude: 800 to 1,114hPa (6,194ft to -2,484ft). Operating temperature: 41°F

to 95°F.

Storage altitude: 300 to 1,114hPa (31,912ft to -2,484ft). Storage temperature: 5°F to

140°F

Repeatedly turning the plasma television Power ON and OFF at short intervals may

result in failure of the television.

2. TV Guide On-Screen TM System Frequently Asked Questions

My Guide listings disappeared after a power failure.

You should begin to receive listings again within 24 hours.

Some channel numbers in the Guide are incorrect.

You can correct them using Change Channel Display under Setup.

I have not received any Guide show listings.

Listings usually begin to appear within 24 hours after a successful Setup. It may take up to 5 days to receive a full

8 days of program listings.

• Check the connections between the TV, cable, antenna, and the IR cable if using a cable box.

• Verify Setup information under Change System Settings.

• Review Screen 4 and Screen 5 in the Initial Guide Setup section.

A show I set to Record did not occur.

• Make sure your recorder is turned Off before the recording begins.

• Make sure there is a tape or DVD in the VCR or DVD Recorder.

• Check the Schedule menu and verify that the show is listed before recording begins.

• Check the placement of the IR cable in front of your recorder.

The "IV did not tune to a show I scheduled with the Reminder feature.

• Check the Schedule menu and verify that the show is listed.

• If you have a cable box, check the IR cable connection.

I set a show to Auto-Tune and it did not.

• Check the Schedule menu and verify that the show is listed as a Reminder.

• Highlight the show under Listings and do the following:

• Press the Menu button on the remote.

• Use the down arrow to highlight Edit Reminder, and press SELECT.

• Verify the Auto-Tune option reads Yes.

• The TV must be On at the scheduled time for Auto-Tune,

I set a show with the Power On TV option and it did not.

• Check the Schedule menu and verify that the show is listed as a Reminder.

• Highlight the show under Listings and do the following:

• Press the Menu button on the remote.

• Use the down arrow to highlight Edit Reminder, and press SELECT.

• Verify the Power On TV option reads Yes.

• The TV must be Off at the scheduled time for Power On TV. 93

TV Guide On-Screen TM Frequently asked

quiestions continued

If I add a recorder or change my cable service, how

do I change my Setup information?

1) Highlight the Setup Service in the Guide.

2) Use the down arrow to select Change

System Settings.

3) Follow the on-screen instructions,

A show entry in the Guide reads "No Listing." What

does that mean?

Show information for that entry was not available

during the last Guide information update (download).

Show information is updated on a daily basis.

When I entered the Guide, I was asked to choose

from more than one channel lineup. What should I

do?

Select the lineup that most closely matches the one for

your area. If after you choose the lineup, you want to

make changes:

1) Highlight the Setup Service in the Guide.

2) Use the down arrow to select Change

Channel Display or change system settings.

3) Follow the on-screen instructions.

Remind feature. Highlight Schedule and press menu.

Choose the event type, press SELECT and then enter

date, start and stop time, channel number, etc.

What do the frequencies for Record and Remind

mean?

• Once--records/reminds the show one time

• Daily (manual only)--records/reminds the

time, channel, and input combination Monday

through Friday

• Regularly-- records/reminds for the

channel/time combination on any day of the

week, on the same channel

• Weekly-- records/reminds for the channel/

time combination on a specific day of the

week

• Off (not cancel)--keeps the show in the

schedule list but will not record/remind the

show until the frequency is changed

How can I look for a specific show in the Guide?

Search lets you find shows by Category (HDTV, Movies,

Sports, Children, Educational, News, Variety, Series),

Keyword, or Alphabetical.

What do the color for shows in the Listings and

Search screens indicate?

Green=Sports; Dark Blue=Children's; Purple=Movies;

Teal=Other Show

If Ihave a power outage, do Ineed to complete

Setup again?

No; Setup information is stored in TV Guide On Screen.

Is Help available in the Guide? If so, how do I find

it?

Yes. Highlight any of the 5 main Services (i.e., Listings,

Schedule, Recordings, Setup, Search) and press the

Info Button. An Expanded Info Box displays additional

help information; press Info again to close the box.

Help is also available in a Panel Menu. Press the Info

Button to display an Expanded Info Box; press Info

again to close the box.

After some show titles, I have noticed from 1 to 4

stars (****). What does that mean?

These stars are a broadcast-industry rating system

used to inform you of a show's quality. The more

stars, the better the rating.

Ihave seen the word "download" in reference to the

Guide. What does that mean?

A download sends channel and show information to a

least once a day.

In the United States, TV GUIDE and other related marks

are registered marks of Gemstar-TV Guide International,

Inc, and/or one of its affiliates. In Canada, TV GUIDE is

a registered mark of Transcontinental Inc., and is used

under license by Gemstar-TV Guide International, Inc.

The TV Guide On Screen system is manufactured under

license from Gemstar-TV Guide International, Inc.

and/or one of its affiliates.

The TV Guide On Screen system is protected by one or

more of the following issued United States patents

6,498,895; 6,418,556; 6,331,877; 6,239,794; 6,154,203;

5,940,073; 4,908,713; 4,751,578; 4,706,121.

Gemstar-TV Guide International inc. and/or its re}ated

affiliates are not in any way liable for the accuracy or

availability of the program schedule information or other

data in the TV Guide On Screen system and cannot

guarantee service availability in your area. In no event

shall Gemstar-TV Guide International, Inc. and/or its

related affiliates be liable for any damages in connection

with the accuracy or availability of the program

schedule information or other data in the TV Guide On

Screen system.

Can I set a Record or Remind event without

highlighting a show title in the Guide?

Yes. TV Guide On Screen has a Manual Record and

PLUG AND PLAY

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe Best conforme a la norme NMB-003 du Canada.

Cable Compatible Television Apparatus- Television c&blocompatible, Canada.

This Plasma Television receiver will display television closed captioning, ( _ or [_ ), in accordance with

paragraph 15.119 of the FCC rules.

AGENCY REGULATORY INFORMATION

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not

expressly approved by Hitachi Home Electronics (America), Inc. may void the user's warranty.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to

maintain compliance with FCC Rules and Regulations.

Any cables that are supplied with the system must be replaced with identical cables in order to assure

compliance with FCC rules. Order Hitachi spares as replacement cables.

Features:

•New Easy-to-Use On-Screen Menu Control (3

Language)

• New AV Network System Control

Control up to 4 components with one remote

control 2 JR Mouse cables included

• Illuminated and Preprogrammed Remote Control

• Power Management: ON/OFF via signal detection

• Picture Enhancement

• Input Signal Identification

• _CableCARD compatible - Contact your local

cable operator for more information

• HDMI (High Definition Multimedia Interface)(High

Bandwidth Digital Content Protection V1.1

Compatible)

• Photo Input (for your digital camera, USB drive or

memory card USB drive)

•B_o_° Technology

• TV Guide On Screen TM

Video:

•1024 x 1024 Display Resolution (42")

1366 x 768 Display Resolution (55")

• ALiS (Alternate Lighting of Surfaces Technology)

• Nigh-Contrast Pure-Color Glass Shield

• Wide Viewing Angle: More than 160 °

• 4 Color Temperature Presets: Black/White-5400K,

Standard-6500K, Medium-9300K, High-12000K.

• Multiple Screen Fill Modes

{4:3 Standard/Expanded/Zoom1/

Zoom2/16:9 Standard/Zoom) 1

• 4MB 10-bit 3D Y/C Comb Filter

• Picture Modes (Day and Night)

Inputs:

•Power Input ..................... AC 120V, 60Hz

• Power Consumption

- Refer to rear panel at the back of the Plasma

Monitor

• Antenna input impedance ................ 75 Ohm

• Channel coverage ....................... 191ch.

VHF-Band ............................. 2 - 13

UHF-Band ............................ 14 - 69

CATV Mid Band ...................... A-5 - A-1

......................................... A-I

Super Band .............................. J-W

Hyper Band ....................... W+I - W+28

Ultra Band ....................... W+29 - W+94

• Video ........................ 1.0Vp-p, 75 Ohm

• S-Video

Luminance (Y) ................. 1.0Vp-p, 75 Ohm

Chrominance (C) ............. 0.286Vp-p, 75 Ohm

,, Component Video

Luminance (Y) ................. 1.0Vp-p, 75 Ohm

Chrominance (PB/PR) ........... 0.7Vp-p, 75 Ohm

• Audio input Impedance ................ 270k Ohm

• Average input level ................... 479mVrms

• HDMI ................................ (19 PIN)

Outputs:

•Videol.0Vp-p. 75 Ohm

•Audio ....................... 470mVrms, lk Ohm

• Optical Out (Digital Audio) ...... 1 Optical Connector

Audio:

• MTS Stereo/SAP

• TruBass

• 40W

• Soft Mute (50%)

Supplied Accessories:

• Remote Control

• Batteries

• 6' AC Cable

• Table Top Stand (only in 42" models)

• IR Mouse Cable (2)

• Cleaning Cloth

• Power Swivel Cable (only in 42" models)

• Ferrite Core (2)

Optional Accessories:

• For U.S. Models: Please access our website:

www.hitachi.us/tv

INPUTS/OUTPUTS

•Wideband Component Y, Pb,Pr ................ 2

• Composite Video ............................ 3

• S-Video ................................... 3

• Antenna (RF) Inputs .......................... 2

• Audio Output ............................... 1

• Monitor Output ............................. 1

• Optical Output .............................. 1

• lR Blaster .................................. 2

• G-LINK .................................... 1

• CableCARD Slot ............................ 1

• Upgrade Card Slot .......................... 1

• Swivel Output .............................. 1

• Subwoofer Output ........................... 1

• HDMI ..................................... 2

• Photo Input ................................ 1

• IEEE 1394/DV Inputs ......................... 2

SPECIFICATIONS

•Pixel Pitch.. 0.90(horiz.) x 0.51(vert.) mm. (42")

........ 0.90(horiz.) x 0.90(vert.) mm. (55")

• FCC class: ............ B for Consumer Use

• Power Requirements: ........ 108-132V, 60Hz

Screen mode availability varies by input format

HDTV Monitors display HDTV when combined with an HDTV Tuner and

Source.

All specifications, weights, and dimer_sions are subiect to change without

prior notice. Please access www.hitachLcom/tv for detailed specifications

and dimensions for custom installations.

UltraVision Digital is a registered trademark of Hitachi Home Electronics

(America), Inc.

TruBass, SRS and the (m)_ symbol are trademarks of SRS Labs, Inc.

TruBass technology is incorporated under license from SRS Labs, tnc.

Licensed by BBE Sound, Inc. under USP5510752 and 5736897. BBE

and BBE symbol are registered trademarks of BBE Sound, Inc.

Manufactured under license from BBE Sound, Inc.

_._m.!. " HDMI. the HDMI ,ogo and Higb-Defin,tion Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing

LLC.

*Manufactured under license from Dolby Laboratories. "Dolby" and the

double-D symbol are trademarks of Dolby Laboratories.

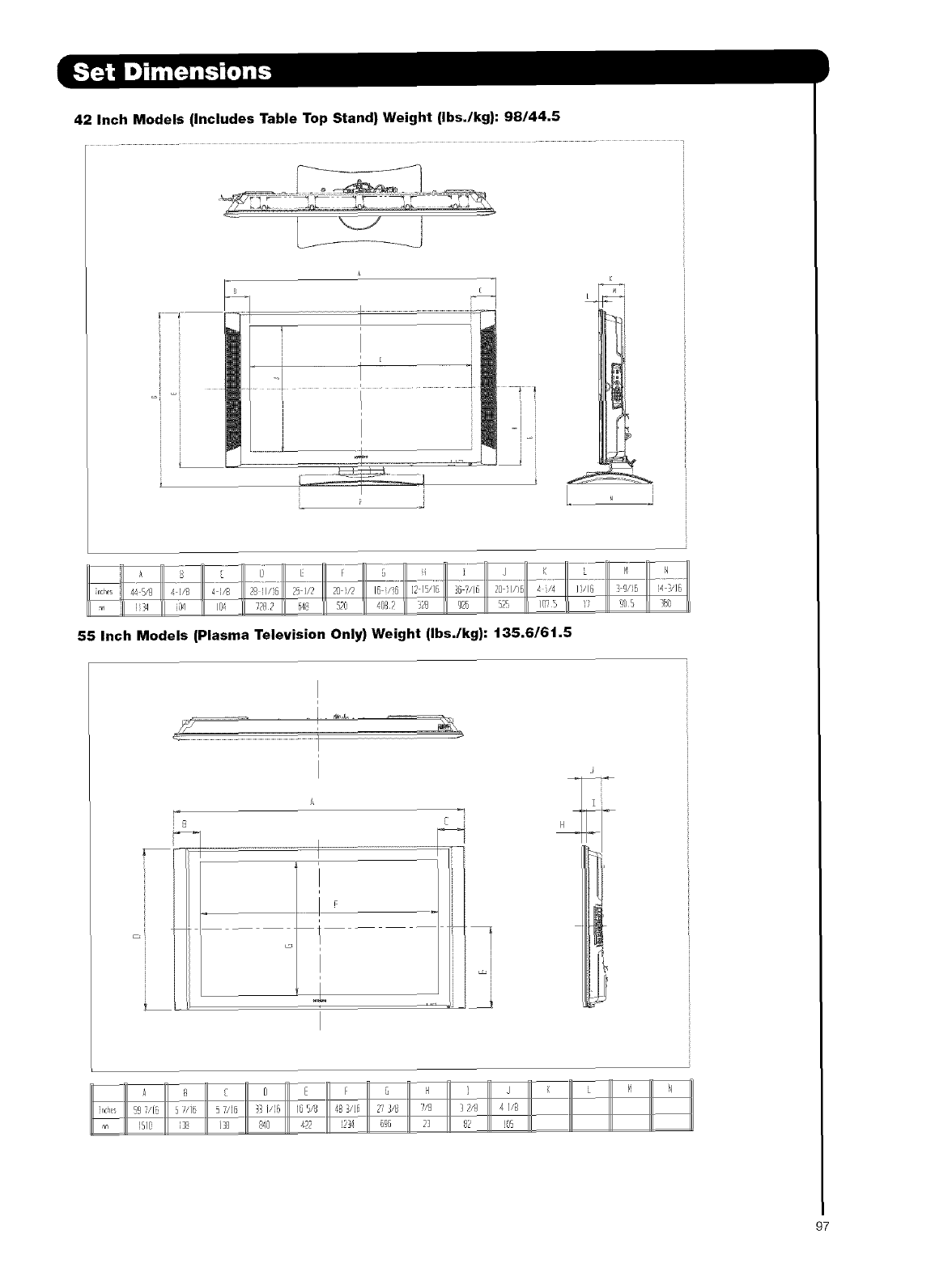

42 Inch Models (Includes Table Top Stand) Weight (Ibs./kg): 98/44.5

55 Inch Models (Plasma Television Only) Weight (Ibs./kg): 135.6/61.5

r¸ i

H _

lnspire the

To locate an authorized HITACHI

service facility in the continental

U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

1-800-HITACHI

(18004482244)

HITACHI AMERICA, LTD.

HOME ELECTRONICS DIVISION

HITACHI has made every effort to assure you hours of

trouble free operation from your unit. However, should

you require service, a network of HITACHI Authorized

Service Facilities has been established in all 50 states

and Puerto Rico. Each facility will provide you with

convenient and expedient assistance. Our service

hotline operator will direct you to the HITACHI

Authorized Service Facility nearest you. Just present

proof of purchase and/or delivery receipts to the

Hitachi Authorized Service Facility, and service will be

rendered in accordance with the terms of the limited

warranty as stated on your warranty card or operating

guide.

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

Hitachi America, LTD.

Home Electronics Division

900 Hitachi Way

Chula Vista, CA 91914-3556

HITACHI CANADA, LTD.

DIGITAL MEDIA DIVISION

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

In Canada: 1-800-HITACHI (1-800-448-2244)

Monday - Friday (EST) ......................... 9:00am - 7:00pm

Saturday (EST) ..................................... 9:00am - 5:00pm

Look for your French Manual on the outside of the

box. If the manual is missing, call 1-800-HITACHI

(1-800-448-2244) for a copy.

Pour de plus amples renseignements sur le service

durant la periode couverte par la garantie, sur le

fonctionnement ou pour de I'assistance technique

communiquez avec:

Au Canada: 1-800-HITACHI (1-800-448-2244)

Lundi - Vendredi L'EST ........................ 9:00am - 7:00pm

Samedi L'EST ....................................... 9:00am - 5:00pm

La version frangais de votre manual se trouve a

I'exterieur de la boite. Si le manuel est manquant,

coposez le 1-800-HITACHI (1-800-448-2244) pour

obenir votre copie.

HITACHI CANADA, LTD.

2495 Meadowpine Blvd.

Mississauga, Ontario L5N 6C3

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE

IMPORTANT -READ CAREFULLY: This End User License Agreement for

HITACHI DTV Software (this "Agreement') is a legal agreement between

you ("you" or "your'), in your capacity as the owner of a HITACHI brand

digital television (the "DTV"), and HITACHI America, Ltd., Home

Electronics Division ("HITACHI"). By using the DTV or the operating

system software installed on the DTV (the "System Software") or any

Upgrade (as defined below, and together with the System Software, the

"Software"), you agree to be bound by the terms and conditions of this

Agreement. IF YOU DO NOT AGREE TO BE BOUND BY THIS LICENSE

AGREEMENT, DO NOT USE THE DTV OR THE SOFTWARE.

LICENSE GRANT. HITACHI grants to you, for the life of the DTV, a

non-exclusive, non-transferable, revocable license to install and

use one copy of the Software on the DTV, subject to the following

limitations and restrictions:

a. You may not share, duplicate, republish or redistribute the

Software;

b. You may not resell, rent, lease, sublicense, gift, loan, assign or

otherwise transfer the Software or any of your rights under

this Agreement;

c. You may not modify, adapt, translate, reverse engineer,

decompile, disassemble or make derivative works from the

Software or use the Software in combination with any non-

Hitachi software; and

d. You may not use the Software for any commercial purpose.

VIOLATIONS; INDEMNITY. You understand and agree that your

use of the Software in any manner except as permitted under this

Agreement could constitute a serious crime and could subject you

to damages and an award to HITACHI of attorneys' fees in

connection with your violation of this Agreement. You further

understand that you may be held legally responsible for any

rights caused or facilitated by your failure to abide by the terms of

this Agreement. You agree to defend, indemnify and hold HITACHI

and its parent and affiliate companies harmless from and against

any and all liability resulting from any breach by you of this

Agreement.

INTELLECTUAL PROPERTY. The Software is protected by federal

property laws and treaties. The Software is licensed, not sold, to

you+ All right, title and interest in and to the Software and any

intellectual property associated therewith, including any

accompanying printed materials, shall belong to HITACHI and its

licensors and suppliers. Except as expressly provided herein,

neither HITACHI nor any of its licensors or suppliers grants to you

under this Agreement any express or implied right in or to any

patents, copyrights, trademarks, trade secrets or other intellectual

property. All right, title and interest in and to the intellectual

property rights associated with any content that is accessible

through use of the Software shall belong to the applicable content

owners and may be protected by copyright or other intellectual

property laws and treaties. This Agreement grants you no rights to

use such content. Any rights of HITACHI not expressly granted to

you hereunder are reserved expressly by Hitachi.

SOFTWARE UPGRADES. In the future, HITACHI may release or

make available one or more upgrades to the System Software

(each, an "Upgrade). You understand and agree that if you decide

to install or use any Upgrade, your installation and use of such

Upgrade and/or any other software or intellectual property

HITACHI may provide in connection therewith shall be governed by

the terms and conditions of this Agreement, except to the extent

that HITACHI provides different or supplementary license terms or

conditions that accompany such Upgrade or other software or

intellectual property. In the event HITACHI provides you with a

"flash card" or other media to effect or facilitate an Upgrade, you

understand and acknowledge that your failure to return such flash

card or other media to HITACHI as HITACHI may require could

result in HITACHI placing your name and your DTV's serial number

on a "No Further Upgrades" list, which will prohibit you from

receiving any subsequent Upgrades HITACHI may later release or

make available. IF YOU DO NOT AGREE WITH ALL THE TERMS

AND CONDITIONS OF THIS AGREEMENT OR ALL THE TERMS

AND CONDITIONS OF ANY DIFFERENT OR SUPPLEMENTARY

LICENSE THAT MAY ACCOMPANY SUCH UPGRADE, (A) DO NOT

USE ANY HITACHI-PROVIDED FLASH CARD OR OTHER MEDIA,

(B) DO NOT PERFORM INSTALL ANY HITACHI-PROVIDED

UPGRADE SOFTWARE ON YOUR DTV, AND (C) PROMPTLY

RETURN SUCH FLASH CARD OR OTHER MEDIA TO HITACHI.

10.

11,

EXPORT RESTRICTIONS. HITACHI is licensing the Software for

use within North America only. You agree that you will not export or

re-export the Software. You specifically agree not to export or re-

export the Software: (i) to any country to which the U+S+ has

embargoed or restricted the export of goods or services, which

currently include, but are not necessarily limited to Cuba, Iran,

Libya, North Korea, Sudan and Syria, or to any national of any such

country, wherever located, who intends to transmit or transport the

Software back to such country; (ii) to any person or entity who you

know or have reason to know will utilize the Software in the design,

development, or production of nuclear, chemical, or biological

weapons; or (iii) to any person or entity who has been prohibited

from participating in U+S+ export transactions by any federal agency

of the U.S. government. You warrant and represent that neither the

U.S. Bureau of Industry and Security nor any other U.S federal

Agency has suspended, revoked, or denied your export privileges.

NO WARRANTIES. The software is provided to you in "as is"

condition and HITACHI makes no warranties of any kind

whatsoever regarding the software and, to the maximum extent

permitted by law, hereby expressly disclaims all warranties of any

kind whatsoever, express or implied, with respect to the software.

All implied warranties, including without limitation, the implied

warranties of non-infringement, merchantability and fitness for a

particular purpose are hereby expressly disclaimed by hitachi to

the maximum extent permitted by law.

LIMITATION OF LIABILITY. To the maximum extent permitted by

applicable law, HITACHI, its licensors, suppliers, parent

companies, affiliates, subsidiaries, employees and agents shall not

under any circumstances be liable to you or any third parties for

any damages of any nature arising in any way from this agreement,

your use of the software or otherwise, whether indirect, special,

incidental, consequential or otherwise, including, without limitation,

any claims for lost profits, lost good will, lost data, business

interruption, procurement of substitute goods or services, or

expenditures made or committed for in reliance on the continuation

of this agreement, even if advised in advance of the possibility of

such damages.

NO FAILURE OF ESSENTIAL PURPOSE. You agree that neither

HITACHI'S breach of this agreement nor its failure to repair a

defect, error or bug in the software shall constitute a failure of the

essential purpose of this agreement.

CRYPTOGRAPHIC SOFTWARE. The software contains software

developed by the openssl project, including cryptographic software

written by eric young (the "cryptographic software"). The

cryptographic software is provided by the openssl project in "as is"

condition and any express or implied warranties, including but not

limited to, the implied warranties of merchantability and fitness for

a particular purpose are hereby expressly disclaimed to the

maximum extent permitted by law+ In no event shall the openssl

project, its contributors, HITACHI or any of its parent or affiliate

companies be liable for any direct, indirect, incidental, special,

exemplary, or consequential damages (including, but not limited to,

procurement of substitute goods or services; loss of use, data, or

profits; or business interruption) however caused and on any theory

of liability, whether in contract, strict liability, or tort (including

negligence or otherwise) arising in any way out of the use of the

software or the cryptographic software, even if advised in advance

of the possibility of such damages.

TERMINATION. HITACHI may terminate this Agreement

immediately at any time by providing notice to you.

GOVERNING LAW; SEVERABILITY. This Agreement will be

governed by the laws of the State of New York, and you consent to

the exclusive jurisdiction and venue in the federal courts sitting in

the Southern District of New York, unless no federal subject matter

jurisdiction exists, in which case you consent to the exclusive

jurisdiction and venue in the Borough of Manhattan, New York,

USA.

AppendixA:

INPUT

Air or Cable

(Analog Channels

INPUT 1 & 2

INPUT 1-5 S-Video I NTSC

Video

INPUT 3 & 4 Y-PbPr 480i/480p

IMAGE INPUT

TYPE FORMAT ASPECT

-- NTSC 4:3

HDMI 480i/480p 16:9

Letter

4:3

16:9

Letter

4:3

16:9

Letter

4:3

1S-Video = Not available in INPUT 3 & 4

VIDEO ID

16:9

Letter

4:3

No Info.

16:9

Letter

4:3

No Info.

16:9

Letter

4:3

No Info.

AUTO ASPECT

On/Off

off

On/Off

Off

On/Off

Off

On/Off

Appendix B:

INPUT

Air or Cable

(Digital Channels

INPUT 1 & 2

IMAGE INPUT

TYPE FORMAT ASPECT

-- 108Oi 4:3

HDMI 480i/480p

INPUT 1-5 S-Video= NTSC

Video

INPUT 3 & 4 Y-PbPr 480i/480p

Letter

4:3

Letter

4:3

Letter

4:3

VIDEO ID

2S-Video = Not available in INPUT 3 & 4

Letter

4:3

Letter

4:3

Letter

4:3

AUTO ASPECT

On/Off

Appendix C:

INPUT

INPUT 1 & 2

INPUT 1-5

INPUT 3 & 4

IMAGE INPUT

TYPE FORMAT ASPECT

HDMI 480i/480p 16:9

S-Video _ NTSC 16:9

Video

Y-PbPr 480i/480p 16:9

3S-Video = Not available in INPUT 3 &4

VIDEO ID

16:9

AUTO ASPECT I

Appendix D:

INPUT

Air or Cable

(Digital Channels)

INPUT 1 & 2

INPUT 3 & 4

IMAGE INPUT

TYPE FORMAT ASPECT

-- 108Oi 16:9

HDMI 1080i/720p 16:9

Y-PbPr 1080i/720p 16:9

VIDEO ID AUTO ASPECT

On/Off

100

AppendixE

AftertheCableCARDhasbeensuccessfullyinstalled,a

CableCARDInformationmenuappearsintheSETUP

menuoftheOn-ScreenDisplay.

FollowtheinstructionsbelowtoaccesstheCableCARD

Informationmenu.

1. PresstheMENUbuttonontheRemoteControlto

accesstheMainMenuscreen.

Use the CURSOR PAD • to highlight SETUP in

the Main Menu and press the SELECT button.

Use the CURSOR PAD • to highlight CableCARD

Information and press the SELECT button.

THINGS TO CHECK WHEN USING THE

CableCARD /CableCARD Services

1. Check that the CableCARD is properly inserted in

the CableCARD slot.

2. Remove the CableCARD by pressing the eject

button and pull the CableCARD straight out.

3. Visually inspect the CableCARD to ensure all pin-

holes are in good condition, with none blocked or

damaged.

4. Make sure the CableCARD is re-inserted in the

correct direction, then slowly push until it is fully

seated in the slot.

When the CableCARD is installed, note all screen

messages that appear ("CableCARD Installed",

"Acquiring Data", "CableCARD is not Installed").

If the "CableCARD Installed" message does not

appear when card is installed, check the TV's card

slot and CableCARD pins for obstructions or

damage.

6. If problems still remain, please contact your Cable

Service Provider.

4. To view the CableCARD ID and Host ID, use the

CURSOR PAD • to highlight CableCARD Info and

press the SELECT button.

101

Accessories, .......................... 4

Antennas (Connecting) .................. 6

Aspect Ratio ...................... 25, 45

Audio

TruBass ........................... 47

Audio Settings ..................... 47-48

Audio Source ........................ 48

Auto Noise Cancel ..................... 48

A/V Network .................... 21, 79-86

Balance ............................. 47

Bass ................................ 47

Black Enhancement .................... 45

Black Side Panel ...................... 46

Brightness ........................... 44

CableCARD ...................... 12, 101

Caution and Safety Tips ................ 2-3

Channel Manager ................... 68-69

Auto Channel Scan ................... 68

Clock ............................... 75

Closed Captions

Captions ........................... 87

Color Temperature ..................... 45

Color ............................... 44

Contrast ............................. 44

Contrast Mode ........................ 45

External Video Source ............... 16-22

Favorite Channel ...................... 30

Freeze ............................ 8, 33

Canadian Ratings (Frn) ................ 74

Menu Preference

Set the Language .................... 77

Set the Menu Background ............. 78

Monitor Out ....................... 88-89

Perfect Volume ....................... 48

Photo Input ....................... 27-28

Picture Mode ........................ 44

Picture-in-Picture (PIP) .............. 31-33

Power Swivel .................. 4, 5, 7, 90

Remote Control

Functions ........................ 23-41

Programming Codes ............... 40-41

Installing Batteries .................... 4

Screen Saver ......................... 78

Sharpness ........................... 44

Speakers ............................ 48

Connecting External Speakers .......... 20

Internal ............................ 48

Split Mode ........................... 32

Timers ........................... 75-76

Tint ................................ 44

Treble .............................. 47

TV Guide On Screen TM ............... 49-67

Troubleshooting .................. 93-94

HVideo Settings ..................... 44-46

HDMI ............................... 17

Input Setup .......................... 79

Language

Set the Language .................... 77

Locks

Change Access Code ................ 70

Set Channel Lock .................... 70

Front Panel Lock .................... 70

Movie Ratings ....................... 71

TV Ratings ......................... 72

Canadian Ratings (Eng) ............... 73

102

103

QR64865

Hitachi 42HDT52 User Manual TV PLASMA Manuals And Guides L0511339

HITACHI Plasma Television Manual L0511339 HITACHI Plasma Television Owner's Manual, HITACHI Plasma Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
