lnspire N

LCD REAR PROJECTION

TELEVISION

Operating Guide for

50V720

IMPORTANT SAFETY INSTRUCTIONS ................................................................................ 2-3

FIRST TIME USE ....................................................................................................................... 4-19

THE REMOTE CONTROL .................................................................................................. 20-31

ON-SCREEN DISPLAY ..................................................................................... 32-55

LAM D REPLACEMENT ............................................................................................................. 56-59

USEFUL INFORMATION .......................................................................................................... 59-62

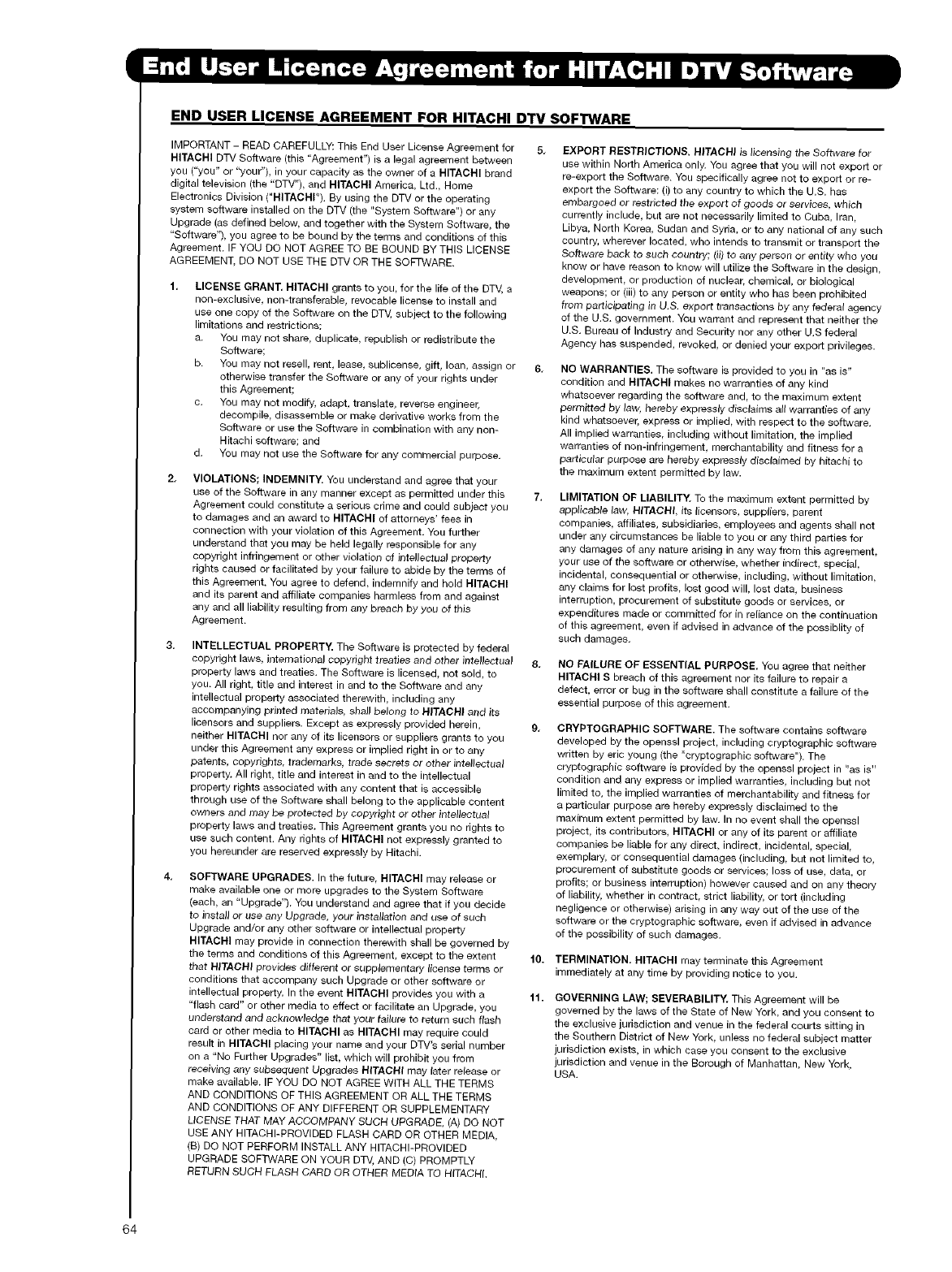

LICENSE AGREEMENT .................................................................................................................. 64

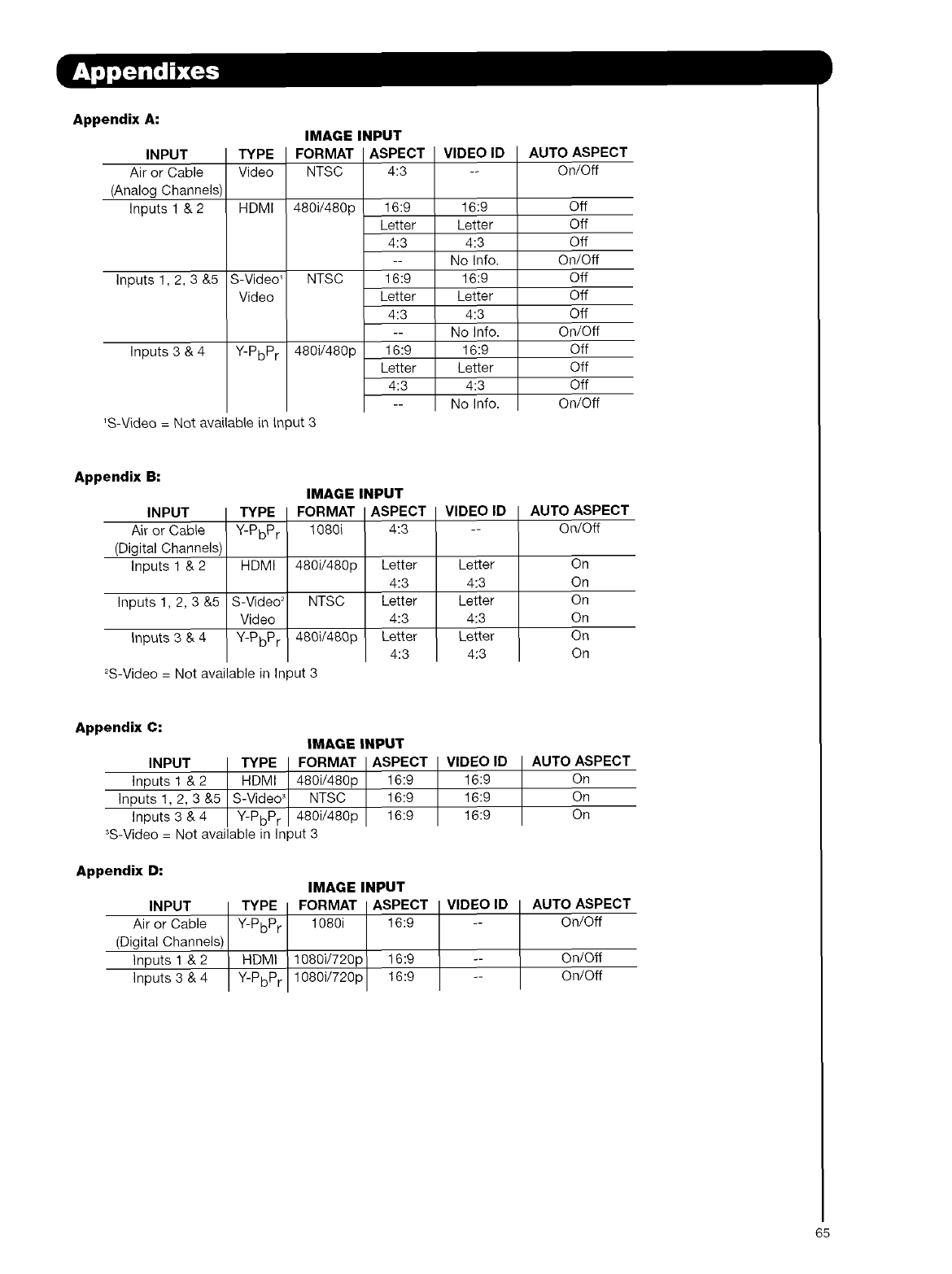

APPENDIXES ...................................................................................................................... 65

INDEX ............................................................................................................................................. 66

As an Energy StaP Partner,

Hitachi, Ltd. has determined

that this product meets the

Energy Star _ guidelines for

energy efficiency.

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI LCD REAR PROJECTION

TELEVISION

Our reputation has been built on the quality,

performance, and ease of sewice of HITACHI

televisions.

Safety is also foremost in our minds in the design of

these units. To help you operate these products

properly, this section illustrates safety tips which will be

of benefit to you. Please read it carefully and apply the

knowledge you obtain from it to the proper operation of

your HITACHI television.

Please fill out your warranty card and mail it to

HITACHI. This will enable HITACHI to notify you

promptly in the improbable event that a safety problem

should be discovered in your product model.

Follow all warnings and instructions marked on

this television.

Caution

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of

uninsulated "dangerous voltage" within the

product's enclosure that may be of a sufficient

magnitude to constitute a risk of electric shock to a

person.

The exclamation point within an equilateral

triangle, is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

READ BEFORE OPERATING EQUIPMENT

Follow all warnings and instructions marked on this

television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11. ©nly use the attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the

I manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

15. Televisions are designed to comply with the

recommended safety standards for tilt and stability.

Do not apply excessive pulling force to the front, or

top, of the cabinet which could cause the product

to overturn resulting in product damage and/or

personal injury.

16. Follow instructions for wall, shelf or ceiling

mounting as recommended by the manufacturer.

17. An outdoor antenna should not be located in the

vicinity of overhead power lines or other electrical

circuits.

18. If an outside antenna is connected to the receiver

be sure the antenna system is grounded so as to

provide some protection against voltage surges and

built up static charges. Section 810 of the National

Electric Code, ANSl/NFPA No. 70-1984, provides

information with respect to proper grounding for the

mast and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size of

grounding connectors, location of antenna-

discharge unit, connection to grounding electrodes

and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is

provided to call the CATV system installer's attention to

Article 820-44 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding

system of the building, as close to the point of cable

entry as practical.

Power source

This television is designed to operate on 120 volts

60 Hz, ac current. Insert the power cord into a 120 volt

60 Hz outlet.

To prevent electric shock, do not use the television's

(polarized) plug with an extension cord, receptacle, or

other outlet unless the blades and ground terminal can

be fully inserted to prevent blade exposure.

Never connect the television to 50 Hz, direct current, or

anything other than the specified voltage.

Caution

Never remove the back cover of the

television as this can expose you to very

high voltages and other hazards. If the

television does not operate properly,

unplug the television and call your authorized dealer or

service center.

Caution

Adjust only those controls that are covered in the

instructions, as improper changes or modifications not

expressly approved by HITACHI could void the user's

warranty.

Public viewing of copyrighted material

Public viewing of programs broadcast by TV stations

and cable companies, as well as programs from other

sources, may require prior authorization from the

broadcaster or owner of the video program material.

This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorized by

Macrovision Corporation, and is intended for home and

other limited consumer uses only unless otherwise

authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Note

This digital television is capable of receiving analog

basic, digital basic and digital premium cable television

programming by direct connection to a cable system

providing such programming. A CableCARD provided

by your cable operator is required to view encrypted

digital programming. Certain advanced and interactive

digital cable services such as video-on-demand, a cable

operator's enhanced program guide and data-enhanced

television services may require the use of a set-top box.

For more information call your local cable company.

Warning

•To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

• The television should not be exposed to dripping or

splashing and objects filled with liquids, such as

vases, should not be placed on the television.

Warning

• Do not place any objects on the top of the television

which may fall or cause a child to climb to retrieve

the objects.

Modifications

The FCC requires the user to be notified that any

changes or modifications made to this device that are

not expressly approved by Hitachi America, Ltd. Home

Electronics Division may void the user's authority to

operate the equipment.

Note

• There are no user serviceable parts inside the

television.

• Model and serial numbers are indicated on back side

of the television.

Lead Notice

This product contains lead and a lamp that contains

mercury. Dispose of this product and its lamp in

accordance with applicable environmental laws. For

lamp recycling and disposal information, go to

www.lamprecycle.org. For product recycling and

disposal information contact your local government

agency or www.eRecycle.org (in California), the

Electronic Industries Alliance at www.eiae.org (in the

US) or the Electronic Product Stewardship Canada at

www.epsc.ca (in Canada).

FOR MORE INFORMATION, CALL 1-800-HITACHI.

Note

This television receiver will display television closed

captioning, (D crib), in accordance with paragraph

15.119 and 15.122 of the FCC rules.

Check to make sure you have the following accessories before disposing of the packing material.

O Remote Control

©©00

,o©.............©o T

©®®

®@@

©@@

O@©

®®®®

®@

I_ Two "AA" size,

1.5V batteries

For US models." For optional accessories,

please access our website at

www.hitachi.us/tv

Remote Control Unit CLU-4352UG2 (Part No. HL02073).

Two "AA" size, 1.5V batteries (For Remote Control Unit).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

Open the battery cover of the remote control by pushing down and sliding the back cover off.

Insert two new "AA" size batteries for the remote control. When replacing old batteries, push them towards the

springs and lift them out.

Match the batteries to the (+) and (-) marks in the battery Bottom View (Remote Control)

compartment. " lL-F_'_ @ld3_ I _i _

Insert the bottom of the battery, the (-) side, into the battery S I

compartment first, push towards the springs and insert the _ L_ z_r,

top of the battery, the (+) side, into place. Do not force the /_

battery into the battery compartment.

Replace the cover.

Lift up on tab to remove back cover.

ANTENNA

Unless your LCD Rear PTV is connected to a cable TV system or to a centralized antenna system, a good outdoor

TV antenna is recommended for best performance. However, if you are located in an exceptionally good signal

area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure

that the location selected allows a free flow of air to and from the perforated back cover of the set. To avoid

cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where

temperatures can become excessively hot, for example, in direct sunlight or near a heating appliance, etc. When

using your LCD Rear PTV against a wall, keep it at least 10cm (4 inches) from the wall.

VIEWING

The major benefit of the HITACHI LCD Rear PTV is its

large viewing screen. To see this large screen at its best,

test various locations in the room to find the optimum

spot for viewing.

The best picture is seen by sitting directly in front of the

TV and about 10 to 18 feet from the screen. Picture

brightness decreases as the viewer moves to the left

and right of the receiver.

During daylight hours, reflections from outside light may

appear on the screen. If so, drapes or screens can be

used to reduce the reflection or the TV can be located in

a different section of the room.

If the TV's audio output will be connected to a Hi-Fi

system's external speakers, the best audio performance

will be obtained by placing the speakers equidistant

from each side of the receiver cabinet and as close as

possible to the height of the picture screen center. For

best stereo separation, place the external speakers at

least four feet from the side of the TV, place the

surround speakers to the side or behind the viewing

area. Differences in room sizes and acoustical

environments will require some experimentation with

speaker placement for best performance.

5' 10' 15' 20'

4" Minimum

BEST

HORIZONTAL

Mostvideo/audioconnectionsbetweencomponentscanbemadewithshieldedvideoandaudiocablesthathave

phoneconnectors.Forbestperformance,videocablesshoulduse75-Ohmcoaxialshieldedwire.Cablescanbe

purchasedfrommoststoresthatsellaudio/videoproducts.Belowareillustrationsandnamesofcommon

connectors.Beforepurchasinganycables,besureoftheoutputandinputconnectortypesrequiredbythe

variouscomponentsandthelengthofeach cable.

300.Ohm 'l_in Lead Connector

This outdoor antenna cable must be connected to an

antenna adapter (300-Ohm to 75-Ohm).

Pbono Connector

Used on all standard video and audio cables which

connect to inputs and outputs located on the

television's rear jack panel and side control panel.

"F" Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the

antenna jack on the television.

S-Video (Super Video) Connector

This connector is used on camcorders, VCRs and laser-

disc players with an S-Video feature in place of the

standard video cable to produce a high quality picture.

Optical Cable

This cable is used to connect to an audio amplifier with

an Optica_ Audio In jack. Use this cable for the best

sound quality.

HDMI Cable

This cable is used to connect your external devices

such as Set-Top-Boxes or DVD players equipped with

an HDMI output connection to the TV's HDMI input.

ANTENNA CONNECTIONS TO REAR JACK PANEL

VHF (75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect

CA'f3/coaxial cable to the CABLE (75-Ohm) terminal. If

you have an antenna, connect the coaxial cable to the

AIR terminal,

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor

antenna, connect the VHF or UHF antenna leads to

screws of the VHF or UHF adapter. Plug the adapter

into the antenna terminal on the T',L

When both VHF and UHF antennas are

connected

Attach an optional antenna cable mixer to the TV

antenna terminal, and connect the cables to the

antenna mixer. Consult your dealer or service store for

the antenna mixer.

outdoor VHF,_

or UHF antenna

Air From outdoor

From UHF antenna (_ VHFantenr_a

Antenna Mixer

InadditiontocontrollingallofthefunctionsonyourHITACHILCDRearProjectionTV,thenewremotecontrolis

designedtooperatedifferenttypesofdevices,suchas,DVDPlayers,CBL(CableBoxes),set-top-boxes,satellite

receivers,andVCRs.Theremotecontrolmustbeprogrammedtocontrolthechosendevice.Pleaseseepages20-

31foracompletedescriptionofallfeaturesandprogrammingoftheRemoteControl.

_NPUTSBUTTON(TV)\

Accesses the INPUTS menu N

system.

(CBL, DVD, SAT, TV} i l

Accesses the OSD menu

system.

CURSOR/SELECT BUTTONS

(TV, DVD, CBL, SAT)

The CURSOR buttons are used

to navigate the cursor through

the OSD and INPUTS menu

systems, and the SELECT

button is used to

Select/Activate the highlighted

menu item.

i it

VOLUME BUTTONS

Adjusts the audio level of your

TV,

MUTE BUTTON

Reduces the audio level to 50%

if pressed once, and to

complete mute if pressed twice.

Press it a third time to restore

audio level.

SOURCE ACCESS BUTTONS

(TV, DVD, VCR, CBL, SAT)

Changes the mode of the

Universal Remote Control to

control the device selected.

DAY/NIGHT BUTTON (TV)

Select picture mode settings

between DAY and NIGHT mode.

PIP BUTTON (TV}

Press to show and change the

Picture-in-Picture mode.

EXIT BUTTON

(TV, CBL, SAT)

Exits out of the OSD or INPUTS

menu systems if their menu is

displayed.

FAVORITE CHANNEL

(FAV CN) button (TV)

Press to enter/access Favorite

Channel (FAV) mode.

GUIDE BUTTON

(SAT/STB, CBL}

Accesses the program guide of

other devices.

INFO BUTTON

(TV, CBL, SAT)

Displays various information on

the screen.

CHANNEL BUTTONS

(TV, CBL, SAT, VCR)

Changes the channel

{TV, DVD, CBL, SAT, VCR)

Used to manually enter the TV

channel, and used for numeric

entry when navigating through

the OSD menu system.

(=) BUTTON (TV,SAT}

The (-) button is used 'when the

remote is in Set-Top-Box (STB)

mode or when the TV uses a

digital input.

RECORD BUTTON (VCR]

Press twice (2 times) to record

programs.

LAST CHANNEL (LC) BUTTON

(TV,CBL, SAT}

Switches between the current

and last channel viewed.

DVDiVCR CONTROL

BUTTONS (DVD, VCR)

Controls the precode functions

of your VCR and DVD.

PAUSE BUTTON

(TV,VCR, DVD)

Press to show and change the

Freeze mode of the TV or pause

other devices.

LEGEND

"IV-- Television

CBL- Cable Box

s'rB- Set-Top-Box

VCR -- Video Cassette Recorder/Player

DVD-- Digital Video Disc Player

SAT-- Satellite Receiver I

CURSOR

MENU/SELECT <VOLUME I_ _ CHANNEL & INPUT/EXIT POWER

O • • @ @ O •

d_ G ® @ ® -®

O MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without

using the remote. This button also serves as the SELECT button when in MENU mode.

OINPUT/EXIT button

Press this button to display the input menu selections of CABLE, AIR, INPUT: 1, 2, 3, 4 and 5. This button

also serves as the EXIT button when in MENU mode.

OCHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons

also serve as the cursor down (V) and up (A) buttons when in MENU mode.

O VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These

buttons also serve as the cursor left (,) and right (1_)buttons when in MENU mode. When the TV power is

turned OFF at a volume level 31 or greater, the volume level will default to 30 when the TV is turned ON.

However, if it is set to a level 30 or less, the volume level will be at the level it was set when the TV is turned

ON.

OPOWER button

Press this button to turn the TV ON or OFF.

O SIDE INPUT JACKS (INPUT 5)

Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite

show or new recording. Press the INPUT button and select INPUT 5. If you have mono sound, insert the

audio cable into the left audio jack.

OIR RECEIVER Sensor

Point the remote control at this area when selecting channels, adjusting volume, etc.

QPOWER Light

When the TV is turned ON, the Power Light will first blink to indicate that the television lamp is warming

up. This light will be ON during normal operation. When the TV is turned OFE the Power Light will blink

to indicate that the television lamp will be cooling down and the light will eventually turn off.

OTEMP Indicator

This light is off during normal operation. If this indicator is lit, the optic unit is too hot. If this indicator is

blinking, the cooling fan has stopped. Please call service. The optic unit has an air filter that may become

clogged over time. The internal termperature will increse which will trigger the temperature sensor to display

an ©n-Screen warning. After 6 minutes, the lamp will turn off, then the TV will turn off with the TEMP LED On.

@LAMP Indicator

This light is off during normal operation. If light is lit, the lamp has failed. See page 56-59 for lamp

replacement procedure. Consult your Hitachi dealer for proper part. If light is blinking, lamp cover is not

assembled securely after replacement.

ThesidepaneljacksareprovidedasaconveniencetoallowyoutoeasilyconnectacamcorderorVCRasshown

inthefollowingexamples:

S VIDEO

VIDEO

_Mt.o@

AUDIO

LRO

Cb------

(OptionaU, see note)

OUTPUT VS_VH s

Back of VCR

S VIDEO

S-VHS

S-VHS Video camera

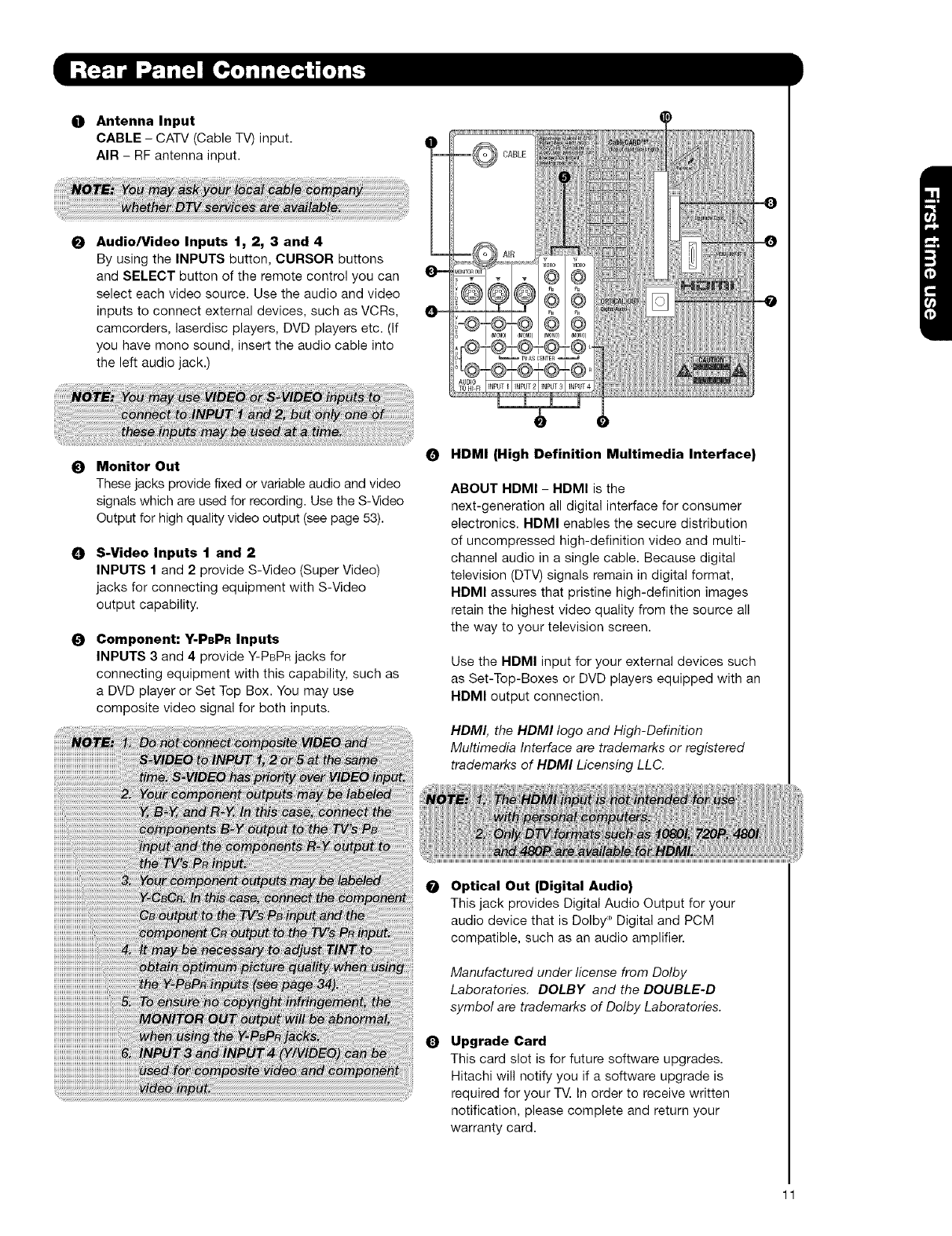

OAntenna Input

CABLE -CATV (Cable TV) input.

AIR - RF antenna input.

!_ Audio/Video Inputs 1, 2, 3 and 4

By using the INPUTS button, CURSOR buttons

and SELECT button of the remote control you can

select each video source. Use the audio and video

inputs to connect external devices, such as VCRs,

camcorders, laserdisc players, DVD players etc. (If

you have mono sound, insert the audio cable into

the left audio jack.)

t_) Monitor Out

These jacks provide fixed or variable audio and video

signals which are used for recording. Use the S-Video

Output for high quality video output (see page 53).

0 S-Video Inputs 1 and 2

INPUTS 1and 2provide S-Video (Super Video)

jacks for connecting equipment with S-Video

output capability.

OComponent: Y-PBPR Inputs

INPUTS 3and 4provide Y-PBPRjacks for

connecting equipment with this capability, such as

a DVD player or Set Top Box. You may use

composite video signal for both inputs.

OHDMI (High Definition Multimedia Interface)

ABOUT HDMI - HDMI is the

next-generation all digital interface for consumer

electronics. HDMI enables the secure distribution

of uncompressed high-definition video and multi-

channel audio in a single cable. Because digital

television (DTV) signals remain in digital format,

HDMI assures that pristine high-definition images

retain the highest video quality from the source all

the way to your television screen.

Use the HDMI input for your external devices such

as Set-Top-Boxes or DVD players equipped with an

HDMI output connection.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

Optical Out (Digital Audio)

This jack provides Digital Audio Output for your

audio device that is Dolby + Digital and PCM

compatible, such as an audio amplifier.

Manufactured under license from Dolby

Laboratories. DOLBY and the DOUBLE-D

symbol are trademarks of Dolby Laboratories.

Upgrade Card

This card slot is for future software upgrades.

Hitachi will notify you if a software upgrade is

required for your TV. In order to receive written

notification, please complete and return your

warranty card.

"13/AS CENTER (INPUTS 1-4)

These jacks are for stereo amplifiers with center

signal output capability. This feature allows the TV

speakers to be used as a center speaker. The TV

must be set as a center channel by selecting "rv

AS CENTER on the Internal Speakers Settings of

the Audio Menu (see page 38).

CableCARD Slot

This slot is for the CableOARD that will be provided

by your local cable operator to gain access to

chosen cable channels. The CableCARD will allow

you to tune digital and high definition cable

channels. Please call your local cable operator if

this service is available before requesting a

CabIeCARD (also known as Point of Deployment

(POD) module).

1. Connect a coaxial cable to cable terminal of

the Rear Panel Jacks.

2. Insert the CableCARD into the slot (Top of card

should be facing right as shown below).

DigitalCable _ j

If the CableCARD is properly installed or not installed,

the TV will display the following respective screens.

After the CableCARD is installed, wait until the second

screen below appears. The third screen below will

appear if a channel is not authorized for viewing. Press

the EXIT button to exit the second screen.

Please take note of all information on the screen (you

will provide this information to your cable operator).

Call your cable operator and give them the information

from the card to start your cable service.

Additional CableCARD Information

After the CableCARD has been successfully installed, a CableCARD Information menu appears in the SETUP menu

of the On-Screen Display.

Follow the instructions below to access the CableCARD Information menu.

1. Press the MENU button on the Remote Control to

access the Main Menu screen.

Use the CURSOR button • to highlight SETUP in

the Main Menu and press the SELECT button.

Use the CURSOR button • to highlight

CableCARD Information and press the SELECT

button.

4. To view the CableCARD ID and Host ID, use the

CURSOR button • to highlight CableCARD Info

and press the SELECT button.

TIPS ON REAR PANEL CONNECTIONS

S-VIDEO, Y-PBPR and HDMI

connections are provided for

high performance laserdisc

players, VCRs etc. that have

this feature. Use these

connections in place of the

standard video connection if

your device has this feature.

.... _!i_ OutsideAntenna

erBigitaLCabLe

,! £xternN

Digital

Component

with HDMI

oubut

capability

If your device has only one

audio output (mono sound),

connect it to the left audio iack

on the television.

Refer to the operating guide of

your other electronic equipment

for additional information on

connecting your hook-up

cables.

A single VCR can be used for

VCR #1 and VCR #2, but note

that a VCR cannot record

its own video or line output

(INPUT I in the example on

this page). Refer to your VCR

operating guide for more

information on line input-output

connections.

You may use VIDEO or

S-VIDEO inputs to connect to

INPUT 1, INPUT 2 or INPUT 5,

but only one of these may be

used at a time.

Connect only one component

_VCR, DVD player, camcorder,

etc.) to each input jack. VCR#2

COMPONENT: Y-PBPR (INPUT 3 and INPUT 4)

connections are provided for high performance

components, such as DVD players and set-top-

boxes. Use these connections in place of the

standard video connection if your device has this

feature. INPUT 3 and INPUT 4 accepts both

composite and component video signals.

Your component outputs may be labeled Y, B-Y,

and R-Y. In this case, connect the components

B-Y output to the TV's PB input and the

components R-Y output to the TV's PR input.

Your component outputs may be labeled Y-ODOR.

In this case, connect the components CB output to

the TV's PB input and the components CR output to

the TV's PR input.

•You may use composite and component video

signals for INPUT 3 and INPUT 4.

• It may be necessary to adjust TINT to obtain

optimum picture quality when using the Y-PBPR

inputs (see page 341.

tLL_ 1

r_ 1 r m

li!i1iii!i!i;i

s WDEOV L Y PdCB _Ca L

I@@@ @o @@

TOan

amplifier/

receiverwith

opticalinput

capability.

Laserdiseplayer,VCR, VCR#1 DVDPlayer

Caalc0rder,etc.

• To ensure no copyright infringement, the

MONITOR OUT output may be abnormal, when

using the Y-PBPR jacks.

When using an HDMI input from a Set-Top-Box, it

is recommended that a 1080i or 720p input signal

is used.

r_ecf o/oJ

)W oorlrl

onal en,

IDOSlte

res are i

_!_iiiiiiiiiiiiiiiii{i

ha_::::::::

MA_OVISJO I::::::NOTE

iiiiiiiiiiiiiiiiiiii!T_

_SS[

Matchthenumbersbelowtothediagramfor

speakerplacement.

O Thetelevision'sinternalspeakerswillactas

centerspeaker(selectAUDIO- INTERNAL

SPEAKERS-TVAS CENTER).

These FRONT left and right speakers are

connected to the FRONT output of a

separate audio amplifier.

These REAR left and right speakers are

connected to the Rear output of a separate

audio amplifier.

O This subwoofer is connected to the LFE/SUB

Out output of a separate audio amplifier.

Stereo_s_temAmplifier

orDVONayer

]

TheexactarrangementyouusetoconnecttheVCR,camcorder,laserdiscplayer,DVDplayer,orHDTVSetTop

BoxtoyourTVsetisdependentonthemodelandfeaturesofeachcomponent.Checktheowner'smanualof

eachcomponentforthelocationofvideoandaudioinputsandoutputs.

Thefollowingconnectiondiagramsareofferedas suggestions. However, you may need to modify them to

accommodate your particular assortment of components and features. For best performance video and audio

cables should be made from coaxial shielded wire.

BEFORE OPERATING

EXTERNAL VIDEO SOURCE

Connect an external source to the INPUT terminal, then

press the INPUTS button to show the INPUTS menu.

Use the CURSOR PAD to select the CABLE, AIR or

INPUT of your choice. Then press the SELECT button

to confirm your choice (see page 23).

._tto V/_

Ived trc

/{ Dane,

_yer, etl

CONNECTING A COMPOSITE VIDEO AND

MONAURAL AUDIO SOURCE TO INPUT1 -

INPUT5

Connect the cable from the VIDEO OUT of the VCR

or the laserdisc player to the INPUT (VIDEO) jack, Connectthe

as shown on the TV set on the right. Aircables

Connect the cable from the AUDIO OUT of the

VCR or the laserdisc player to the INPUT

(MONO)/L(AUDIO) jack.

Press the INPUTS button, then select INPUT 4

from the INPUTS menu to view the program from

the VCR or the laserdisc player. The VIDEO OSD

label disappears automatically after approximately

four seconds.

Select CABLE from tile INPUTS menu to return to

the previous channel.

CONNECTING A COMPOSITE VIDEO AND

STEREO AUDIO SOURCE TO INPUT1 - INPUT5

Connect the cable from the VIDEO OUT of the VCR

or the laserdisc player to the INPUT (VIDEO) jack,

as shown on the TV set on the right.

Connect the cable from the AUDI© OUT R of the

VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

Connect the cable from the AUDI© OUT L of the

VCR or the laserdisc player to the INPUT (AUDIO/L)

jack.

Press the INPUTS button, then select INPUT 2

from the INPUTS menu to view the program from

the VCR or laserdisc player. The VIDEO OSD label

disappears automatically after approximately four

seconds.

Select CABLE from the INPUTS menu to return to

the previous channel. VCR

CONNECTING AN S-VIDEO

SOURCE TO INPUT 1T 2 AND 5

1. Connect the cable from the S-VIDEO OUT of the

VCR or the laserdisc player to the INPUT (S-VIDEO)

jack, as shown on the TV set on the right.

2. Connect the cable from the AUDI© OUT R of the

VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

3. Connect the cable from the AUDI© OUT L of the

VCR or the laserdisc player to the INPUT (AUDIO/L)

jack.

4, Press the INPUTS button, then select INPUT 2

from the INPUTS menu to view the program from

the VCR or laserdisc player. The VIDEO OSD label

disappears automatically after approximately four

seconds.

5. Select CABLE from the INPUTS menu to return to

the previous channel.

kii_i iiZ_i_iiZiiiiZ_iiii! i_

VCR

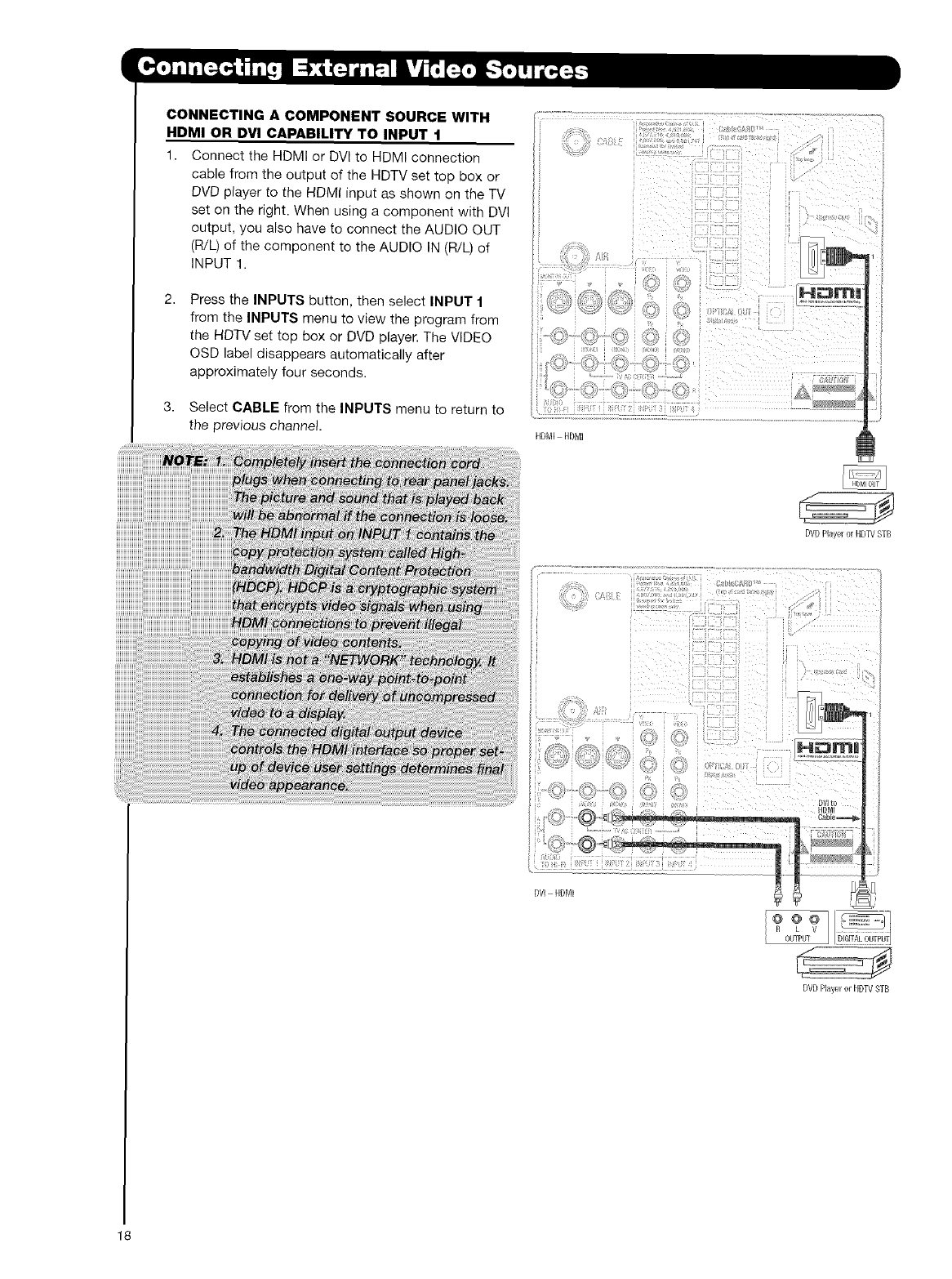

CONNECTING A COMPONENT SOURCE WITH

HDMI OR DVI CAPABILITY TO INPUT 1

1. Connect the HDMI or DVI to HDMI connection

cable from the output of the HDTV set top box or

DVD player to the HDMI input as shown on the TV

set on the right. When using a component with DVI

output, you also have to connect the AUDIO OUT

(R/L) of the component to the AUDIO iN (R/L) of

INPUT 1.

Press the INPUTS button then select INPUT 1

from the INPUTS menu to view the program from

the HDTV set top box or DVD player The VIDEO

OSD label disappears automatically after

approximately four seconds

3 Select CABLE from the INPUTS menu to return to

the previous channel.

nae#_{a

i;taliG_t

'l_eD;:;:$/

'NE_

d_Clital

DVDPlayer or HDTVSFB

CONNECTING A COMPONENT ....

SOURCE TO INPUT 3 OR 4: Y-PePR.

Connect the cable from the Y OUT of the

Laserdisc/DVD player or HDTV set top box to the

INPUT (Y) jack, as shown on the TV set on the

right.

Connect the cable from the CB/PB OUT or B-Y OUT

of the Laserdisc/DVD player or HDTV set top box

to the INPUT (PB) jack.

Connect the cable from the CR/PR OUT or R-Y OUT

of the laserdisc/DVD player or HDTV set top box to

the INPUT (PR) jack.

Connect the cable from the AUDIO ©UT R of the

Laserdisc/DVD player or HDTV set top box to the

INPUT (AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of the

Laserdisc/DVD player or HDTV set top box to the

INPUT (AUDIO/L) jack.

Press the the INPUTS button, then select INPUT 3

from the INPUTS menu to view the program from

the Laserdisc/DVD player or HDTV set top box. The

VIDEO OSD label disappears automatically after

approximately four seconds.

Select CABLE from the INPUTS menu to return to

the previous channel.

@@©@©

R L PR PB Y

OU[PUT

DVDPlayer

Inadditiontocontrollingallthefunctionsonyour

HITACHILCDRearProjectionTV,thenewremote

controlisdesignedtooperatedifferenttypesofVCRs,

CATV(CableTV)converters,set-top-boxes,satellite

receivers(SAT)andDVDplayerswithonetouch.Basic

operationkeysaregroupedtogetherinonearea.

TooperateyourTV,pointtheremotecontrolatthe

screenoftheTVandpresstheTVbutton.Theremote

willnowcontrolyourtelevision.

TooperateyourVCR,pointtheremoteattheremote

sensoroftheVCRandpresstheVCRbutton.The

remotewillnowcontrolyourVCR(seepage31for

instructionsonhowtoprogramtheremotetocontrol

yourVCR).

Tooperateyourcablebox,pointtheremoteatthe

remotesensorofthecableboxandpresstheCABLE

(CBL)button.Theremotewillnowcontrolyourcable

box(seepage28forinstructionsonhowtoprogram

theremotetocontrolyourcablebox).

Tooperateyourset-top-boxorsatellitereceiver,point

theremoteattheremotesensoroftheset-top-boxor

satellitereceiverandpresstheSATbutton.Theremote

willnowcontrolyourset-top-boxorsatellitereceiver.If

youhaveasatellitereceiver,usethisbuttontoprogram

yoursatellitereceiver(seepage29forinstructionson

howtoprogramtheremotetocontrolyourSAT).

TooperateyourDVDplayer,pointtheremoteatthe

remotesensoroftheDVDplayerandpresstheDVl)

button.TheremotewillnowcontrolyourDVDplayer

(seepage30forinstructiononhowtoprogramthe

remotetocontrolyourDVDplayer).

@ii

POWER

INPUTS ASPECT PIP DAY/NIGHT

-o C) C) o-

POWER button

Press this button to turn the TV set on or off when

the remote is in TV mode.

MODE buttons

These buttons allow the remote to control your TV,

VCR, DVD, Cable box/Satellite box depending on

which button is pressed. Refer to page 20 for how

to change between each of these modes.

PAUSE button

Press the PAUSE button to freeze the picture.

Press the EXIT button to return the picture to

motion. Press the PAUSE button repeatedly to

cycle through the three different freeze modes (see

page 26).

ODAY/NIGHT button

Press this button to toggle between Day and Night

picture mode settings. Select DAY for day time

viewing with more brightness and contrast to

compete with room light. Select NIGHT for night

time viewing with less brightness and contrast for a

more detailed picture (see page 34 for settings

changes).

OASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input signal format

received, the picture format ratio allows you to adjust the images through the following options.

4:3 STANDARD

Use this aspect mode to display conventional (4:3)

images. Side panels (gray areas) are placed to the

left and right of the image to preserve the original

aspect ratio of the source.

4:3 EXPANDED

Use this aspect mode to display conventional (4:3)

sources by linearly increasing image expansion

from the center towards the edges of the display

area in order to fill it.

4:3 ZOOMI/ZOOM2

Use these aspect modes to zoom in on

conventional (4:3) sources.

16:9 STANDARD

Use this aspect mode to display 16:9 sources like

HDTV and DVD's preserving the original 16:9

aspect ratio.

16:9 ZOOM

Use this aspect to Zoom-in once while in 16:9

aspect.

• Antenna-Analog

• S-Video/Video Input

(Auto Aspect: Off)

•HDMI-480i/480p Input

(Auto Aspect: Off)

•Component-480i/480p

Input (Auto Aspect: Off)

Note: Please see Appendix A

on page 65.

IMAGE INPUT 4:3 STANDARD 4:3 EXPANDED 4:3 ZOOM1

•Antenna-Digital (4:3)

•S-Video/Video 4:3/Letter

Input (Auto Aspect: On)

•HDMI-480i/480p 4:3/

Letter Input (Auto Aspect: On)

•Component-480i/480p 4:3/

Letter Input

(Auto Aspect: On)

iMAGE INPUT

16;9 ZOOM 16:9 STANDARD 4:3 ZOQM2

Note: Please see Appendix B

on pa,qe65.

•S-Video/Video 16:9 Input

(Auto Aspect: On)

•HDMI-480i/480p 16:9 Input

(Auto Aspect: On)

•Component-480i/48Op

16:9 Input

(Auto Aspect: On)

16:9 INPUT

4:3 EXPANDED

4:3 STANDARD

4:3 ZOOM2 4:3 ZOOM1

16:9 STANDARD 16:9 ZOOM

Note: Please see Appendix C

on page 65.

•Antenna-Digital (16:9)

•HDMI-720p/1080i Input

•Component-720p/1080i

Input

Note: Please see Appendix D

on page 65.

16:9 INPUT 16:9 STANDARD 16:9 ZOOM 4:3 EXPANDED

0INPUTS button

When the remote control is in TV mode, press this

button to access the INPUTS menu. Use the

CURSOR and SELECT buttons to scroll and select

the inputs that are being used. Pressing the

INPUTS button repeatedly will also cycle through

the Inputs menu items. Then press the SELECT

button to select.

INFO button display for Analog Channels

INPUT 1Select to choose INPUT 1.

INPUT 2 Select to choose INPUT 2.

INPUT 3 Select to choose INPUT 3.

INPUT 4 Select to choose INPUT 4.

INPUT 5 Select to choose INPUT 5.

CABLE Select to choose Cable.

AIR Select to choose Air.

PICTURE-IN-PICTURE button

See separate section on pages 25-27 for a

description.

MENU button

The MENU button will start the On-Screen Display.

GUIDE button

[Cable Box (CBL), Satellite Receiver (SAT)/

Set-Top-Box (STB) mode only]

The use of this button is only applicable when the

remote control is in (CBL) and (SAT/STB) mode.

Press this button to access the Channel Guide of

the (CBL), and (SAT/STB).

EXIT button

This button will exit all On-Screen Displays.

CURSOR buttons/SELECT button

All the On-Screen Display features can be set or

adjusted by using the CURSOR buttons and the

SELECT button, except for numeric entries. Press

the CURSOR buttons toward desired direction and

press the SELECT button to select.

INFO button

Press this button when you want to check the

channel being received, the picture source, if the

channel has stereo (ST) or second audio program

(SA), the time, CHANNEL ID and if the TIMER is set.

INFO button display for Digital Channels

INFO button display when an S-VIDEO Input is

connected to INPUT 1

INFO button display for when a COMPONENT

VIDEO: Y-PBPR Input is connected to INPUT 3

VOLUME (VOL), MUTE button

Press the VOLUME button (A or V) until you

obtain the desired sound level.

To reduce the sound to one half of normal volume

(SOFT MUTE) to answer the telephone, etc., press

the MUTE button. Press the MUTE button again to

turn the sound off completely (MUTE). To restore

the sound, press the MUTE button one more time,

or VOL UP (A).

Press the FAV CH button to switch to Favorite

(FAY) channel mode. You will know you are in

Favorite Channel mode when (FAV) is displayed

and the displayed channel is GREEN. Press it

again to return to your regular tuned channels. You

can add any channel to your Favorite channel list

by pressing and holding down the FAV CH button

until the displayed channel turns from WHITE to

highlighted GREEN. You can also delete a channel

from your favorite channel list by pressing and

holding down the FAV CH button until the

displayed channel turns highlighted GREEN to

WHITE.

Closed Captioning will display automatically when

MUTE/SOFT MUTE is on and Closed Caption is set

to AUTO (see page 52).

When the TV power is turned off at a volume level

31 or greater, the volume level will default to 30

when the TV is turned on. However, if it is set to a

level 30 or less, the volume level will be at the level

it was set when the TV is turned on.

CHANNEL SELECTOR/FAVORITE CHANNEL

(FAV CH) buttons

The CHANNEL SELECTOR buttons are used to

select channels, lock access code, etc. Use the

CHANNEL SELECTOR buttons to enter one, two,

or three numbers to select channels. Enter 0 first

for channels I to 9, or simply press the single digit

channel you wish to tune then wait a few seconds

for the TV to tune. Channe_ selection may also be

performed by CHANNEL (OH) UP (A) or

CHANNEL (CH) DOWN (V).

_t (-) DASH button

The (-) DASH button can only be used when the

remote control is in Satellite (SAT) mode.

(_ LAST CHANNEL (LC) button

Press this button to toggle between the current and

last channel viewed.

(_ RECORD button

Press twice (two times) to record programs when

the remote is in VCR mode.

YourHITACHILCDRearProjectionTVincorporatesTwo

Tunertechnologydesignedforimprovedviewing

enjoyment.ThisTwoTunerfeatureallowsyoutoview

antennainputsonboththemainpictureandsub-picture

simultaneously,withseparatetuningcontrolforeach.

WhenaDIGITALchannelisviewedasthemainpicture,

aDIGITALchannelcannotbeviewedasasubpicture.

WhenanANALOGchannelorINPUTisviewedasthe

mainpicture,anANALOGchannelorINPUTcannotbe

viewedasasubpicture.

Conr_ect the

Cable and/or

Air cables

To select between main picture and PIP sub-picture

tuning, use the CURSOR buttons on the remote. The

green highlighted channel display will move with every

press of the CURSOR buttons (4 or I_).

The Picture-in-Picture feature is convenient when you

want to watch more than one program at the same time.

You can watch a TV program while viewing other

programs from any of the video inputs.

Use the connection diagram to the right to view VCR

program (from Input 1-5) as a sub-picture while viewing

another program as main picture (CABLE, AIR). You may

also view the VCR program (from Input 1-5) as a main picture while

viewing another program as a sub-picture (CABLE or AIR).

When installing a CableCARD, connect your coaxial cable to CABLE

(see page 12). AIR will not be available while using a CableCARD.

OPIP button

Press the PIP button and a sub-picture will appear in one of the four

different modes (POP, PIP, SPLIT or SURF), depending on the INPUT

signal. To change the PIP mode, use the PIP button to cycle through

the four different modes.

POP Mode Picture-in-Picture

POP MODE PIP displays the sub-picture outside of the main picture.

Use the CURSOR buttons (A or '¥') to move the sub-picture. This

feature is not available with a Digital 16:9,720p and 1O8Oi signal.

Please refer to the Picture-in-Picture Modes Table (see page 26).

DVD VCR CBL SAT

oo©o

INPUTS ASPECT DAY/NIGHT

O O <TD

®®

PIP Mode Picture-in-Picture

This feature is only available with a Digital 16:9, 720p

and 1080i signal. To prevent a pattern burn,

occasionally move the sub-picture using the CURSOR

buttons.

SPLIT Mode Picture-in-Picture

Split Mode PIP displays the main picture and sub-

picture evenly on the screen.

SURF Mode Picture-in-Picture

Surf Mode PIP automatically scans all active channels

(those set in memory) and displays them as PIP sub-

pictures or Thumbnail channels. Press the SELECT

button to stop on a chosen channel. Use the remote

CURSOR buttons (4, I_, • and T) to navigate the

Thumbnail. Press the EXIT button to enable your

chosen channel and return to normal viewing.

Picture-In-Picture (PIP) Modes

POP

PtP YES YES

.................................................................................4/

4:3

PIP ANI Di_ilal 16:9 - YES YES YES

I(3 : 9 ] 080i e720p ] (3 : 9 YES ........................................................i..................................i ..................................................................

- YES YES YES

4 : 3 YES YES YES

.......................................... } ................................. .

16 : 9 YES YES

SPLIT ]080i _720p

..................P................."-r ...........................................................................................{.........................................

480p/4801 ]6 : 9 YES YES

AN]"Anak)g .................................................................................................................................................7....................

4 :3 YES YES

OPAUSE button

If you wish to freeze the sub-picture, press the

PAUSE button. This is convenient when trying to

write down the address for a mail order company,

recording statistics for a sporting event, etc. To return

the picture to motion, press the EXIT button. Press

the PAUSE button repeatedly to toggle between

FREEZE modes (Main Freeze, SPLIT and STROBE).

SPLIT FREEZE

Press the PAUSE button to freeze the picture you

are currently viewing (only the right sub-picture will

freeze). Press the EXIT button to return to normal

viewing.

::::_i!i!_ii_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiill........

Freeze

MAIN FREEZE

Press the PAUSE button to freeze one frame of the

picture you are currently viewing and the frozen

frame will show in the Main Picture. Press the EXIT

button to return to normal viewing. This feature is

useful for freezing a picture frame with addresses.

STROBE FREEZE

Press the PAUSE button to freeze three frames of

the picture you are currently viewing (only the 3

sub-pictures will freeze). Press the EXIT button to

return to normal viewing. This feature is useful for

viewing a moving picture that has many details, for

example, a close play in a sporting event or a golf

swing.

OPERATING THE PRECODED

FUNCTION FOR YOUR CABLE BOX.

This remote is designed to operate different types of

cable boxes. You must first program the remote to

match the remote system of your cable box (refer

below for pre-codes).

1. Turn ON your cable box.

2. Aim the remote control at the front of your cable

box.

3. To switch to Cable (CBL) pre-coded mode, press

and release the CABLE (CBL} button.

Hold down the CBL button on the remote and

enter the two digit preset code that matches your

cable box, as shown below. Release the CBL

button.

Aim the remote at the cable box and press the

POWER button. The remote will turn off your cable

box when the correct two digit preset code is

entered. When this occurs, the remote control is

programmed for your cable box. If the cable box

does not turn off, try a different two digit preset

code.

6. The remote will now control your Cable box.

®®

OCABLE (CBL) button

This button allows the remote to control your cable

box by setting it to CABLE mode.

PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable

codes.

OEXCLUSIVE TV buttons

These buttons are for operating the TV.

\ HiTACHi /

CABLE BRAND CODES

HAMLIN ...................................................... 22, 23, 24, 25

JERROLD ......................... 00, 01, 02, 03, 04, 05, 06, 07

OAK .................................................................. 26, 27, 28

PANASONIC .................................................... 18, 19, 20

PIONEER ................................................................ 13, 14

SCIENTIFIC ATLANTA ...................................... 08, 09, 10

TOCOM .................................................................. 15, 16

ZENITH ................................................................... 11, 12

MY CABLE BOX CODE IS:

OPERATING THE PRECODED FUNCTION FOR

YOUR SET-TOP-BOX/SATELLITE RECEIVER.

This remote is designed to operate different types of

set-top-box/satellite systems. You must first program

the remote to match the remote system of your set-

top-box/satellite systems (refer below for pre-codes).

1. Turn ON your set-top-box/satellite systems.

2. Aim the remote control at the front of your set-top-

box/satellite systems.

3. To switch to set-top-box/satellite (STB) pre-coded

mode, press and release the SAT button.

Hold down the SAT button on the remote and enter

the two digit preset code that matches your set-

top-box/satellite receiver, as shown below. Release

the SAT button.

Aim the remote at the set-top-box/satellite receiver

and press the POWER button. The remote will turn

off your set-top-box/satellite receiver when the

correct two digit preset code is entered. When this

occurs, the remote control is programmed for your

set-top-box/satellite receiver. If the set-top-

box/satellite receiver does not turn off, try a

different two digit preset code.

6. The remote will now control your set-top-

box/satellite receiver.

"_) POWER

DVD VCR

CBL SAT

®®

OSAT (Set-Top-Box/Satellite) button

This button allows the remote to control your set-

top-box/satellite receiver by setting it to SET-TOP-

BOX/SATELLITE mode.

OPRE-CODED SET-TOP-BOX/SATELLITE

RECEIVER buttons

These buttons transmit the chosen pre-coded set-

top-box/satellite codes.

_) EXCLUSIVE TV buttons

These buttons are for operating the T_

SATELLITE BRAND CODES

ECOSTAR ..................................................................... 03

HITACHI ....................................................................... 00

HUGHES ...................................................................... 04

RCA .............................................................................. 01

SONY ........................................................................... 02

SET TOP BOX BRAND CODES

PANASONIC ................................................................. 05

RCA ............................................................................. 06

SAMSUNG ................................................................... 07

ZENITH ......................................................................... 08

MY SATELLITE RECEIVER/

SET TOP BOX CODE IS:

OPERATING THE PRECDDED

FUNCTION FOR YOUR DVD PLAYER.

This remote is designed to operate different types of

DVD players. You must first program the remote to

match the remote system of your DVD player (refer

below for pre-codes).

1. Turn ON your DVD player.

2. Aim the remote control at the front of your DVD

player.

3. To switch to DVD pre-coded mode, press and

release the DVD button.

4, Hold down the DVD button on the remote and

enter the two digit preset code that matches your

DVD player, as shown below. Release the DVD

button.

5, Aim the remote at the DVD player and press the

POWER button. The remote will turn off your DVD

player when the correct two digit preset code is

entered. When this occurs, the remote control is

programmed for your DVD player. If the DVD player

does not turn off, try a different two digit preset

code.

6. The remote will now control your DVD player.

7. You will need to set the display type of your DVD

player to 16:9 WIDESCREEN.

POWER

VCR CBL SAT

ODVD button

This button allows the remote to control your DVD

player by setting it to DVD mode.

OPRECODED DVD Buttons

These buttons transmit the chosen precoded DVD

codes.

_) EXCLUSIVE TV Buttons

These buttons are for operating the TV.

DVD BRAND CODES

APEX ............................................................................ 10

GO VIDEO ................................................................... 09

HITACHI ........................................................................ 00

KENWOOD ................................................................... 11

PANASONIC ................................................................. 02

PIONEER..................................................................... 03

RCA............................................................................. 04

SAMSUNG ................................................................... 06

SANYO ......................................................................... 07

SONY ........................................................................... 01

TOSHIBA ...................................................................... 05

MY DVD PLAYER CODE IS:

OPERATING THE PRECODED

FUNCTION FOR YOUR VCR.

This remote is designed to operate different types of

VCRs. You must first program the remote to match the

remote system of your VCR (refer below for pre-codes).

1. Turn ON yourVCR.

2. Aim the remote control at the front of your VCR.

3. To switch to VCR pre-coded mode, press and

release the VCR button.

4. Hold down the VCR button on the remote and

enter the two digit preset code that matches your

VCR, as shown below. Release the VCR button.

5, Aim the remote at the VCR and press the POWER

button. The remote will turn off your VCR when the

correct two digit preset code is entered. When this

occurs, the remote control is programmed for your

VCR. If the VCR does not turn off, try a different

two digit preset code.

6. The remote will now control your VCR.

CBL

VCR button

This button allows the remote to control your VCR

player by setting it to VCR mode.

PRECODED VCR Buttons

These buttons transmit the chosen precoded VCR

codes.

EXCLUSIVE TV Buttons

These buttons are for operating the TV.

VCR BRAND CODES

EMERSON ........................................... 20, 21, 22, 23,24

FISHER ..................................................... 34, 37, 38, 39

HITACHI ................................... 00, 01, 02, 03, 04, 05, 06

JVC ................................................................... 49, 50, 51

MAGNAVOX ........................................................... 12, 13

MITSUBISHI .............................................. 27, 28, 29, 30

NEC ....................................................................... 40, 41

PANASONIC ........................................................... 10, 11

SAMSUNG ............................................................. 25, 26

SHARP ................................................................... 31, 32

SONY ............................................................... 07, 08, 09

MY VCR PLAYER CODE IS:

PressMENUontheremotecontroltodisplaythe

differentfeaturesonyourHITACHILCDRear

ProjectionTV.

PresstheCURSORbuttonstonavigateand

highlightadifferentfeatureoftheOn-Screen

Displaymenu.PresstheSELECTbuttontoselect.

Press EXIT on the remote control to quickly exit

from a menu.

This part of the screen shows

which selections are available.

PictureMode

Contrast

Brightness

Color

Tint

Sharpness

ColorTemperature

BlackEnhancement

ContrastMode

NoiseReduction

AutoMovieMode

Aspect

BlackSidePanel

ResetVideoSettings

Selectbetweenthetwopicture

modes;DayandNight.

Adjustcontrast.

Adjustbrightness.

Adjustcolor.

Adjusttint.

Adjustsharpness.

SetthistoHighforlessintense

colorwithmoreblue,setto

Mediumfornaturalcolor,setto

Standardforstandardcolorsor

BlackandWhiteformore

reddishcolor.

Enhancepicturebrightnessin

lightscenes.

ChooseAutomaticContrast

settings.

Reducesconspicuousnoisein

thepicture.

TurnON/OFFthe3:2Pulldown

detectionfeature.

Choosethepictureformat

aspectratio.

Setthegraysidebarson/off

whenwatching4:3signalsin

standardmode.

ChoosetheResetVideo

settings.

Treble Adjustthetreble.

Bass Adjustthebass.

Balance Adjustthebalance.

SRS SelectSRSsettings(Off,Wide,

Normal)

BBE SelectBBEsettings(Off,Soft,

Hard)

AudioSource SelectbetweenthreeAudio

Sources.

InternalSpeakers Selectinternalorexternal

speakers.

AutoNoiseCancel Eliminatesthenoisebetween

stations.

PerfectVolume Adjustvolumeinfixedsetting.

Loudness AdjustLoudness.

Language SelectLanguageoptionsif

available.

Digital Output Select Optical Output options.

DRC Select Dynamic Range

Compression to ON or OFR

Signal Meter Access Signal Meter.

Auto Channel Scan Set Auto Channel Scan.

Channel List Set Channel List.

Change Access Code Change Lock access code.

Engage Lock Choose to lock channel or

front panel.

Movie Ratings Block various types of movies

and video types based on

motion picture ratings.

TV Ratings Block various types of movies

and television programming

based on a parental guide

ratings.

Canadian Ratings (ENG) Block various types of movies

and television programming

based on the Canadian ratings

system.

Canadian Ratings (FRN) Block various types of movies

and television programming

based on the Canadian French

ratings system.

Set the Clock Set Clock Settings.

Set Sleep Timer Set Sleep Timer intervals

(30 min. intervals, 00:30-3:00).

Set Day/Night Timer Set Day/Night picture mode

settings.

Set Event Timer Set viewing reservation for TV

programs.

Menu Preference Choose English, French, or

Spanish text.

Lamp Power Control Automatic Power Saving

Feature.

Set The Inputs Label Video Inputs, VCR, DVD,

etc.

Set Closed Captions Feature to display dialogue/text.

Set Monitor Out Set Monitor Out source.

Upgrades Select to upgrade TV software.

Quick Start Up Select the TV Quick Start Up

options.

Select VIDEO to adjust picture settings and improve

picture quality. You can independently customize each

of the Video Inputs to your preference to increase

viewing performance and pleasure depending upon the

video program being viewed. If RESET is selected, only

the selected input will reset to initial conditions.

Picture Mode

Use this function to choose from automatic picture

settings to optimize your TV's performance.

1. Use the CURSOR buttons _1 or • to highlight and

select PICTURE MODE settings.

2. Press EXIT to quit menu or select PICTURE

MODE to return to previous menu.

Function Day Night

Contrast 100% 90%

Brightness 50% 50%

Color 50% 30%

Tint 50% 50%

Sharpness 50% 20%

Color Temperature High Standard

Black Enhancement Middle Off

Contrast Mode Dynamic Normal

Noise Reduction Low Low

Black Side Panel On On

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the CURSOR buttons _1 or • to adjust the function. Press the SELECT button to select the function

settings.

3. Press MENU to return to main menu or select PICTURE MODE to return to previous menu.

4. Press EXIT to quit menu.

Contrast

Use this function to change the contrast between black

and white levels in the picture.

Brightness

Use this function to adjust overall picture brightness.

Color

Use this function to adjust the level of color in the

picture.

Tint

Use this function to adjust flesh tones so they appear

natural.

Sharpness

Use this function to adjust the amount of fine detail in

the picture. Sharpness function will be disabled when

Noise Reduction is set to High.

Color Temperature

Set this to High for cooler color with more blue, set to Medium for more natural color, set to Standard for accurate

color or set to BlacWWhite for more reddish color.

Black Enhancement

Use this function to enhance Picture brightness in light scenes using the settings off, low, middle and high.

Contrast Mode

Use this function to choose between 2 Contrast Mode settings. Set to Dynamic for darker images more in the

level of Black and set to Normal for a balanced White to Black level.

Noise Reduction

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading

picture quality. Set NOISE REDUCTION to OFF if the TV experiences picture blocking. When Noise Reduction is

set to High, Sharpness function is disabled (grayed out).

Auto Movie Mode

The Auto Movie Mode turns the 3:2 PULLDOWN DETECTION SPECIAL FEATURE ON or OFR Theatrical movies

are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like video. When film is

transferred to video for television viewing, the disparity between the two frame rates must be reconciled. This

involves a process known as 3:2 pulldown.

When Auto Movie Mode is turned ON from the VIDEO menu, your Hitachi LCD Rear Projection Television will

activate the circuitry for this special feature to improve video performance when watching film based sources.

Aspect

Use this function to select the Picture Format Aspect

Ratio.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

Press the CURSOR buttons • or I_ to select ON

or OFE

Press the CURSOR buttons • or I_ to select

ASPECT MODE.

Auto Aspect

Automatically adjust the Aspect Ratio depending on the input signal to fill the screen.

4. Press the CURSOR buttons • or I_ to select VERTICAL POSITION.

Vertical Position

This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOMI/ZOOM2 or

16:9 ZOOM. Vertical position can be changed with these modes. For example, it will be useful for

centering the picture area at both the top and bottom of the picture with 480i/480P signal. Adjustable

range is -10 (video center is toward bottom of screen) to +10 (video center is toward top of screen).

5. Press MENU to return to main menu or select PICTURE MODE to return to previous menu.

6. Press EXIT to quit menu.

Black Side Panel

The BLACK SIDE PANEL function turns the gray side bars on/off when watching 4:3 signals in Standard mode.

The top/bottom gray bar will appear in SPLIT MODE PIP and SPLIT FREEZE. The TV set will always return to "Set

Black Side Panel - OFF" setting every time the TV is powered "OFF".

Reset Video Settings

This function allows you to Reset the Video Menu

Settings of the present input and return it to the Day

VIDEO mode.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button to select RESET VIDEO

SETTINGS.

3. Use the CURSOR button • to access other video

settings.

You can customize each of the Video Inputs to your

preference to increase viewing performance and

pleasure, depending upon the video program being

viewed. If RESET is selected, only the selected Input

will reset to the initial conditions as explained above.

If RESET is selected in Input 1, only Input 1 will return

to factory conditions.

SelectAUDIOtoadjusttheTVtoyourpreferenceand

toimprovethesoundquality.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the CURSOR buttons <or I_ to adjust the

function.

3. Press EXIT to quit the menu or select AUDIO to

return to the main menu.

Treble

This function controls the high frequency audio to all speakers.

Bass

This function controls the low frequency audio to all speakers.

Balance

This function will control the left to right balance of the Projection TV internal speakers.

SRS

Based on the principles of tile human hearing system, SRS technology delivers and exciting and f'_'_'_k_3_J_J'_ ''

realistic 3D Sound experience from just two external speakers (or) the two internal speakers of your HITACHI

Television. If your HITACHI Television is connected to an external audio system, SRS will also create an incredible

3D sound experience from two speakers and even enhance a complete multi-speaker surround sound system.

SRS and the (@)symbol are trademarks of SRS Labs, Inc. SRS technology is incorporated under ficense from

SRS Labs, Inc.

BB,

Sound reproduction quality enhancement system. The BBE technology produces sound that is

natural and crisp from just two speakers or the two internal speakers found in your HITACHI television. If your

HITACHI television is connected to an external audio system, BBE will also create an incredible crisp sound

experience from two speakers. BBE brings to the listener's ear a more complete and accurate reproduction of the

original performance. Each voice, speaking or singing, each instrument or sound effect is presented with its

attendant harmonics or partials more clearly audible. The ear can then more easily recognize the unique tonal

colors of each sound as though the sound was being produced live.

Licensed by BBE Sound, Inc. under USP5510752 and 5736897. BBE and BBE symbol are registered

trademarks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.

Audio Source

Multi-Channel Television Sound will allow you to select

STEREO (a stereo broadcast), MONO (monaural sound)

used when receiving a weak stereo broadcast or

SECOND AUDIO PROG (SA) which may be a

secondary language, weather report, etc.

The sources received will be displayed at the top left

edge of the T_ The source you select will be displayed

above the sources received. See example to the right

for each selection when both stereo and second audio

are received (monaural is always received).

1. Press the INFO button to display your settings.

Internal Speakers

This function is useful when setting up the external speakers.

ON Select this feature if using the internal speakers only.

TV as Center Select this feature when setting up external speakers from a separate stereo system. The

TV's speakers will work as the center speaker.

OFF Select this feature if you prefer to use only speakers from a separate stereo system.

Auto Noise Cancel

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will

automatically eliminate the audio for that channel.

Perfect Volume

This function will automatically adjust volume so each channel and input has the same average volume level.

Loudness

This function turns loudness ON or OFF. It will improve the quality of both low and high frequency sounds when

listening at low volume levels.

UsethefunctionsbelowifyourTVisconnectedtoan

amplifier/receiverwithOPTICALDIGITAL INPUT with

Dolby Digital or PCM decoder capabilities.

1. Use the CURSOR buttons •or • to highlight the

function to be adjusted.

2. Press the CURSOR buttons • or I_ to adjust the

function.

3. Press EXIT to quit the menu or select AUDIO to

return to the main menu.

Language

Some programs transmit more than one DTV language option. Most will have English as a default language. The

language function will allow you to select up to 4 language options (if available).

Digital Output

This function allows you to select between Dolby c°Digital and PCM.

Dolby _°Digital Select this feature if the TV is connected to an amplifier/receiver with a Dolb,¢ _ Digital only

decoder; it will provide six independent soundtrack channels through the optical output

jack (Digital Audio).

PCM Select this feature if the TV is connected to an amplifier/receiver with a PCM only

decoder; it will provide two independent soundtrack channels through the optical output

jack (Digital Audio).

Manufactured under ficense from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

#RC

Dynamic Range Compression - Use this function to compress the range of sound volume. By compressing the

range of sound volume, it is possible not only to suppress the output of loud sound at night but also to raise the

volume of low sound. This is only effective when the TV is connected via the optical out (digital audio) to an

amplifier/receiver with a Dolby_) Digital decoder. The default setting is ON. Use the CURSOR buttons • or i_ to

select the chosen options.

SelectCHANNELMANAGER to set your Antenna

options, run Auto Channel Scan, Check Signal Meter

and Set Channel List.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button • to

select.

Signal Meter

Select SIGNAL METER when using an indoor or

outdoor antenna. This feature will show the signal

strength and peak values of the Antenna signal to help

you adjust your antenna to optimize signal reception.

1. Use the CURSOR buttons • or • to highlight

SIGNAL METER.

2. Press the SELECT button to select.

Auto Channel Scan

This feature will automatically store active TV channels

in Auto Channel Scan memory.

1. Use the CURSOR buttons • or • to highlight

CABLE or AIR.

2. Press the CURSOR buttons _1 or • to highlight the

START or RESET option.

3. Press the SELECT button to select.

Channel List

This function allows you to review which channels are

labeled (OH ID}, which have been added to CHANNEL

MEMORY (SCAN}, which are protected by LOCK and

which are your FAVORITE (FAY} CHANNELS.

1. Use the CURSOR buttons navigate the Channel

List.

2. Press the SELECT button to select ON or OFF on

the SCAN and LOCK Columns.

3. To select the LOCK column, input the access

code. (Default access code: 0000)

4. Press the FAY button to set or remove the

FAVORITES settings.

5. Press the EXIT button to return to normal viewing.

Thisfunctionwillblockoutthepictureandsoundofthe

selectedchannelorvideoinput.Itcanalsobeusedto

keeptheTVfrombeingviewedforascheduledtime

periodthatyouset.

ThecodetoentertheLocksfeatureisafourdigit

accesscodenumber.Thefactorypresetcodeis0000.

UsetheNUMBERbuttonstoentertheaccesscode.

1. UsetheCURSORbuttons• or• tohighlightthe

function.

2. PresstheSELECTbuttontoselect.

Change Access Code

1. To change the ACCESS CODE NUMBER, select CHANGE ACCESS CODE to change the factory preset

code (0000) to your preference.

If you forget your ACCESS CODE NUMBER, use the factory code 7777 to erase your key number. This will

reset the access code number back to the factory preset (0000).

2. Enter a new four digit number.

3. Press EXIT to quit the menu or select CHANGE ACCESS CODE to return to the previous menu.

Engage Lock

When ENGAGE LOCK is selected, SET CHANNEL LOCK and SET FRONT PANEL LOCK can be set individually.

When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out.

When SET FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the

POWER button.

When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion

picture ratings. Picture-in-Picture will also be blocked automatically (see page 43).

When "rv RATINGS is selected, various types of television programming based on a parental guide ratings will be

blocked. Picture-in-Picture will also be blocked automatically (see page 44).

Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating

systems used in Canada that you feel may be inappropriate due to its content (see pages 45-46).

Movie Ratings

Use Movie Ratings to prevent viewing of any movie that

you feel may be inappropriate due to its content.

1. Use the CURSOR buttons •or • to select the

MOVIE RATING category that you want to block.

2, Press SELECT to block the MOVIE RATING that

you have selected. Once rating is selected, for

example PG-13, all movies rated PG-13 and higher

(R, NC-17, and X) will be blocked.

3. Press EXIT to quit the menu or select MOVIE

RATING to return to the previous menu.

Motion Picture Ratings Table

NOT RATED Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not

been rated or ratings do not apply.

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only

TV Ratings

Use TV RATINGS to prevent the viewing of any TV

program that you feel may be inappropriate due to its

content.

1. Use the CURSOR buttons • or • to select the "IV

RATING category that you want to block.

2. Press SELECT to block the "rv RATING that you

have selected.

3. Press EXIT to quit the menu or select "rv RATING

to return to the previous menu.

TV Parental Guide Ratings Table

TV-Y All children. The themes and elements in this program are specifically designed for a very

young audience, including children from ages 2-6.

TV-Y7 Directed to older children. Themes and elements in this program may include mild

physical or comedic violence, or may frighten children under the age of 7.

TV-G General audience. It contains little or no violence, no strong language, and little or no

sexual dialogue or situations.

TV-PG Parental guidance suggested. The program may contain infrequent coarse language,

limited violence, some suggestive sexual dialogue and situations.

TV-14 Parents strongly cautioned. This program may contain sophisticated themes, intense

sexual situation, more intense violence and intensely suggestive dialogue.

TV-MA Mature audiences only. This program may contain mature themes, indecent language,

graphic violence, and explicit sexual content.

FV Fantasy Violence

V Violence

S Sexual Situation

L Adult Language

D Sexually Suggestive Dialogue

Canadian Ratings (Eng)

Use CANADIAN RATINGS (ENG) to block any type of

movie and television program in Canada that you feel

might be inappropriate in its content.

1. Use the CURSOR buttons • or • to select the

CANADIAN RATINGS (ENG) category that you

want to block.

Press SELECT to block the CANADIAN RATINGS

(ENG) that you have selected. Once rating is

selected, for example C8+, all movies and

television programs rated 08+ and higher (G, PG,

14+ and 18+) will be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (ENG) to return to the previous menu.

Canadian Ratings English Table

C Programming intended for children under age 8 - Violence Guidelines; Careful attention is

paid to themes, which could threaten children's sense of security and well-being. There will

be no realistic scenes of violence. Depictions of aggressive behaviour will be infrequent

and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other

Content Guidelines: There will be no offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over to watch on

their own - Violence Guidelines: Violence will not be portrayed as the preferred, acceptable,

or only way to resolve conflict; or encourage children to imitate dangerous acts which they

may see on television. Any realistic depictions of violence will be infrequent, discreet, of

low intensity and will show the consequences of the acts. Other Content Guidelines: There

will be no profanity, nudity or sexual content.

G General Audience - Violence Guidelines: Will contain very little violence, either physical or

verbal or emotional. Will be sensitive to themes which could frighten a younger child, will

not depict realistic scenes of violence which minimize or gloss over the effects of violent

acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and

no nudity.

PG Parental Guidance - Programming intended for a general audience but which may not be

suitable for younger children. Parents may consider some content inappropriate for

unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict

and/or aggression will be limited and moderate; may include physical, fantasy, or

supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or

mildly suggestive language. Could also contain brief scenes of nudity.

14+ Programming contains themes or content which may not be suitable for viewers under the

age of 14 - Parents are strongly cautioned to exercise discretion in permitting viewing by

pre-teens and early teens. Violence Guidelines: May contain intense scenes of violence.

Could deal with mature themes and societal issues in a realistic fashion. Other Content

Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent

use of profanity.

18+ Adult - Violence Guidelines: May contain violence integral to the development of the plot,

character or theme, intended for adult audiences. Other Content Guidelines: May contain

graphic language and explicit portrayals of nudity and/or sex.

Canadian Ratings (Frn)

Use CANADIAN RATINGS (FRN) to block Canadian

French programs according to various program ratings

that you feel might be inappropriate in its content.

1. Use the CURSOR buttons • or • to select the

CANADIAN RATINGS (FRN) category that you

want to block.

Press SELECT to block the CANADIAN RATINGS

(FRN) that you have selected. Once rating is

selected, for example 8 ANS+, all movies and

television programs rated 8 ANS+ and higher will

be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (FRN} to return to the previous menu.

Canadian Ratings French Chart

G General - Programming intended for audiences of all ages. Contains no violence, or the

violence content is minimal or is depicted appropriately with humor or caricature or in an

unrealistic manner.

8 ans + 8 + General - Not recommended for young children - Programming intended for a broad

audience but contains light or occasional violence that could disturb young children.

Viewing with an adult is therefore recommended for young children (under the age of 8)

who cannot differentiate between real and imaginary portrayals.

13 ans + Programming may not be suitable for children under the age of 13 - Contains either a few

violent scenes or one or more sufficiently violent scenes to affect them. Viewing with an

adult is therefore strongly recommended for children under 13.

16 ans + Programming is not suitable for children under the age of 16 - Contains frequent scenes of

violence or intense violence.

18 ans + Programming restricted to adults - Contains constant violence or scenes of extreme

violence.

SelectTIMERStosetyourClock,SleepTimer,Event

TimerandDay/NightTimerRecordings.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button I_ to

select.

Set The Clock

The Clock must be adjusted before you can use the

SET EVENT TIMER or DAY/NIGHT TIMER feature.

1. Use the CURSOR button • to highlight the chosen

TIME ZONE settings. Use CURSOR buttons • or

I_ to set TIME ZONE and press SELECT to set.

2. Press CURSOR button • to select Date. Use

CURSOR buttons •, I_, • or • to set Month, Day

and Year. Press SELECT to set.

3. Press CURSOR button • to select Time. Use

CURSOR buttons •, I_, • or • to set Hour,

Minute, AM or PM. Press SELECT to set.

4, If you observe Daylight Saving Time, press

CURSOR button • to select AUTOMATICALLY

ADJUST CLOCK FOR DAYLIGHT SAVINGS

CHANGES and press SELECT to set.

5. Press EXIT to quit the menu or select SET THE CLOCK to return to the previous menu.

Set Sleep Timer

Select this feature to set your SLEEP TIMER from 30

minutes to 3 hours (30 minute increments).

1. Press the CURSOR buttons 41 or • repeatedly to

set your Timer from 0:00, 0:30, 1:00, 1:30, 2:00,

2:30 and 3:00.

Set Day/Night Timer

Select this feature to activate and set your TV's

DAY/NIGHT PICTURE MODE automatically.

1. Use the CURSOR buttons • to select ACTIVATE.

Press SELECT button to set (a check mark will

appear in the box).

2. Use the CURSOR button • to select DAY MODE

ON. Using CURSOR buttons 41, •, • or •, set

the ON TIMER. Press the SELECT button to set.

3. Use the CURSOR button • to select DAY MODE

OFF. Using CURSOR buttons 41, •, • or •, set

the OFF TIMER Press the SELECT button to set.

4. Press EXIT to quit the menu or select SET

DAY/NIGHT TIMER to return to the previous

menu.

Set Event Timer

This function will automatically operate the Projection

TV viewing reservation of a program. If the clock is not

set, you can not use this function and the screen below

will appear. The message on the screen will disappear

after 3 seconds, then the screen automatically goes to

the clock setup mode (see page 47).

Use the CURSOR buttons • or • to highlight

EVENT 1, EVENT 2, EVENT 3, EVENT 4 and then

press the SELECT button to select. A [_' in the

box means the selected event is enabled.

Use the CURSOR buttons I_, • or • to highlight

and select START TIME HOUR/MINUTE, AM OR

PM.

Use the CURSOR buttons I_, • or • to highlight

and select FINISH TIME HOUR/MINUTE, AM or

PM.

Use the CURSOR buttons • or • to set MONTH,

DAY and YEAR.

Use the CURSOR buttons I_, • or • to highlight

and select CABLE or AIR.

Use the CURSOR buttons I_, • or • to set the

channel the TV will tune to.

Select SETUP when setting your TV up for the first

time.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button •

to select.

Menu Preference

This feature will allow you to select any one of three

different languages for all on-screen displays.

Bet the Language

This function allows you to choose from three menu

languages.

1. Use the CURSOR buttons _1or • to highlight the

language of your choice.

2. Press EXIT to quit menu or select MENU

PREFERENCE to return to previous menu.

Bet the Menu Background

This function allows you to choose from two menu

backgrounds.

1. Use the CURSOR buttons _1 or • to highlight

SET THE MENU BACKGROUND (SHADED OR

SOLID).

2. Press EXIT to quit menu or CURSOR button _1to

return to previous menu.

3. Select SOLID for a black background (no picture

can be seen behind menu screen), or select

SHADED for a light background.

Lamp Power Control

Use this featureto have the TV turned OFF

automatically when a video signal is not detected for

15 minutes.

1. Press the CURSOR buttons • or I_ to highlight

Yes or No.

Set The Inputs

Use this feature to give a name to any of the five video

inputs. A named input is shown in the INPUTS menu.

1. Press the CURSOR buttons •, I_, • or • to

highlight the name of the video inputs.

Select from one of the following choices to set an

input name:

A/V Receiver, DVD, DVD2, VCR, VCR2,

Cable (STB), Satellite, PVR, DVD Recorder,

CAM, LB, Gray out (Skip), Hide (Skip)

INPUT 4 Auto Link

Use this function to automatically turn the TV on and

tune to INPUT 4 when it detects a video signal to

INPUT 4.

1. Use the CURSOR buttons <1 or • to highlight the

AUTO LINK setting of your choice.

When AUTO is selected, the TV will turn on and

tune to INPUT 4 automatically, when the Input 4

input device is turned on. This is convenient when

you want to watch a movie with your VCR,

laserdisc player or DVD player.

3. When REMOTE is selected, the TV will turn on and switch to Input 4 automatically when the INPUT 4 input

device is turned on and the VCR, laserdisc, or DVD play button on your remote control is pressed. This is

convenient when you want to record a movie with your VCR and watch it later.

4. Select OFF to disable this function.

5. Press EXIT to quit menu or select AUTO LINK to return to previous menu.

Set Closed Caption

Closed Captions are the dialogue, narration, and/or

sound effects of a television program or home video

which are displayed on the TV screen. Your local TV

program guide denotes these programs as D orig.

1. Use the CURSOR buttons <1, •, • or • to

highlight and select the function to change.

2. Press EXIT to quit menu or CURSOR button <1to

return to previous menu.

Caption Display:

ON/OFF will turn then display on or off.

AUTO will turn the [_ display on when

Mute/Soft Mute is on.

Analog Captions:

Set CAPTIONS for Analog programs. This

function will help choose and set available

mode and channel.

Caption Mode:

CAPTIONS is for the program you are viewing.

TEXT is for additional information such as news reports or a TV program guide. This information covers

the entire screen and viewing the TV program is not possible. Text may not be available with every_

program.

Channel:

1 is used for the primary language (usually English).

2 is sometimes used for a second language (may vary by region).

3is sometimes used for a third language (may vary by region).

4 is sometimes used for a fourth language (may vary by region).

Digital Captions

Set captions for digital programs. This function

will help choose and set available language,

font, size and style of digital captions.

Use the CURSOR buttons •, •, • or •to

highlight and select DIGITAL CAPTIONS feature.

Press EXIT to quit menu or CURSOR button 41to

return to previous menu.

Sot Monitor Out

This feature will select the source of the Monitor

Output.

Monitor:

Select MONITOR to output the audio and

video signals of the chosen input source

(CABLE, AIR, INPUT 1-5) to a VCR or other

A!V device.

"IV Tuner Out:

Select "IV TUNER OUT to output the audio

and video signals of the last watched Antenna

Source (CABLE, AIR).

Fixed

Select AUDIO OUT FIXED to have the Audio

at fixed volume.

Variable

Select AUDIO OUT VARIABLE to have Audio

volume that can be controlled by the LCD Rear Projection TV Volume Up/Down.

Video Out Audio Out Use

Monitor Fixed To record cur_ntly viewed Video and Audio

Monitor Vadable Whel_ an extelnal device like_ monitor

ol¸Hi Fi _Fdio system is connected to the

audio and video output of the T_Z_u can

cont _l the volume output by changing the

volume of the T_

TVTuner Out Fixed To retold ct_lrel_tly viewed Video an_JA(ldio

flora either CaMe or Ai_

1. Use CURSOR button • or • to highlight the function to change

2. Use the CURSOR button • or • to select the function.

3. Press EXIT to quit menu or select SET MONITOR OUT to return to previous menu.

MONITOR:AvailableMonitorOutSignals

InputMode MonitorOut

S-VideoVideoL/RHiFi

ANT Digital INoMacrovision S-Video YES YES YES YES

Channel I Macrovision S-Video YES

(A_ror

Cable) Analog Channel Video YES YES YES

Input 1 HDMI 1 YES

S-Video ! YES YES YES YES

Video 1 YES YES YES

Input 2 S-Video 2 YES YES YES YES

Video 2 YES YES YES

Input 3 Y-PbPr 3 YES

Video 3 YES YES YES

Input4 Y-PbPr 4 YES

Video 4 YES YES YES

Input5 S-Video 5 YES YES YES YES

Video 5 YES YES YES

"IV TUNER OUT: Available Monitor Out Signals

Input Mode

ANT Digital No Macrovision S-Video

(Airor Channel

Cable) Macrovision S-Video

Analog Channel Video

Input 1 I Y-PbPr

Input 2

Input 3

Input4

Input5

HDM! !

S-Video 1

Video !

S-Video 2

Video 2

Y-PbPr 3

Video 3

Y-PbPr 4

Video 4

S-Video 5

Video 5

Monitor Out(TV Tuner Out)

S-Video Video L/fi HiFi

YES YES YES YES

ANT ANT ANT ANT

YES

ANT

YES YES YES

ANT ANT ANT

YES YES YES YES

ANT ANT ANT ANT

digital

ONLY

Upgrades

It shows software information and easy upgrade

procedure. This function allows the TV software to be

upgraded by using a flash card (MMC CARD}. If a

future software upgrade is required for your TV,

HITACHI will notify and provide you with a flash card.

In order to receive written notification and the flash

card, please complete and return the warranty card.

1. Insert MMC CARD

2. Press the CURSOR buttons •or • to highlight

UPGRADE NOW.

3. Press the SELECT button to select and start

upgrading.

4. Unplug the power cord when the upgrade is

complete.

Quick Start Up

This feature will select QUICK START UP options. Set

this feature to ON to have the TV tune channels (both

Analog and Digital) quickly when first turning the TV on.

Set this feature to OFF to save electricity. Selecting ON

for the QUICK START UP feature will activate the TV

tuners circuits when the TV is in "standby mode" which

is commonly referred to as "off". This will allow you to

quickly tune to channels when first turning the TV on.

Digital signals often change and this feature will

monitor any changes and prepare the television to

quickly present a picture. A small amount of electricity

is used to continually monitor signals when this feature

is selected.

Lamp Life

The lamp life may vary based on usage of the LCD Rear PTV. Turning on and off frequently may shorten the life of

the lamp.

Lamp Replacement

After extended use, if the TV picture turns dark, the color looks unusual or LAMP INDICATOR light turns on, then it

is time to replace the lamp with a new iamp.

Lamp Replacement

1. Turn off the main power switch and unplug the power cord. Wait at least 30 minutes to allow the lamp to cool

down before replacing it.

Remove the front cover from the TV set. This is held by snap on. Pull the cover outwards until the quick snap

on disengages.

HITACHI

LAMPOOMPARTMENT/PULL

ooo

FRONTCOVERz======_

3. RemovethescrewsecuringthelampcoverwithaPhillipsheadscrewdriverasshown.Removethelamp

cover.

SCREW

LAMPCOVER

Hhl'ACHI ooo

4. Remove the two screws that hold the lamp in place. Remove the lamp unit by holding the lamp handle, then

pulling outwards. Exercise caution when removing the lamp unit to avoid injury to your fingers.

HANDLE LAMP UNIT

REMOVE SCREWS HANDLE

Replace with the new lamp.

Place the removed lamp into the empty box of the replacement lamp. Do not touch the front glass of the new

lamp or its receptacle. This may shorten the life of the lamp and reduce the picture quality.

• Push the lamp unit back to its original position.

• Tighten the screws firmly on the lamp unit. If they are loose, the TV may not operate correctly.

LAMP UNIT HANDLE

HANDLE TIGHTEN THE SCREWS

6. Withoutinstallingthelampcover,thepowerwillbeoffandtheLampIndicatorwillflash(seepage9).Besure

toinstallthelampcoverbyre-engagingthetwoclipsandtightenthescrewsbeforeturningthepoweron,

otherwiseitmaycauseunusualcolors.

SCREW

LAMP COVER

HITACHI _ oo

7. Install the front cover as shown below. Put the front cover back in and align the snap on quick connect

then push inwards holding the left and right side of the front cover until you hear a snap. Push the other

snap on gently to make a good fit.

8. Plug power cord into AC outlet and turn on the main power switch.

DO DO NOT

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm

water and dry with a soft cloth. A mild soap may be

used if the screen is extremely dirty.

Place your Television away from extreme heat,

humidity, and extremely dusty places.

Remove the plug from the wall outlet if your Television

will not be used for a long period of time, for instances,

when you go on vacation.

Do not clean your screen or cabinet with strong

cleaners, polishes or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane

tape on your Television.

Do not touch the screen too often.

Do not subject the remote control to shocks such as

dropping it on the floor, etc. Physical damage to the

precision parts may result.

Avoid placing the remote control in a high humidity

place or gett)ng )t wet. Do not )eave it on or near a

heater. Excessive heat or moisture may cause the unit

to cease operation.

When the batteries run down, remote control operation

will become erratic or possibly stop altogether. Replace

the old batteries with two new "AA" size batteries as

soon as possible to preserve the remote control

precodes that were set for the devices. Pressing a

remote control button with a "DEAD" battery might

erase all precodes in memory. Do not use an old

battery with a new battery.

Exposure of the viewing screen to prolonged direct

sunlight or heat may cause the screen to permanently

warp, resulting in a distorted picture..

TROUBLESHOOTING

HITACHI LCD Rear Proiection Television incorporates advanced power surge protection technology designed to

protect against component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS

PROCEDURE:

1. Press the POWER

SWITCH (ON/OFF

SWITCH) once.

2. If there is still no power,

wait 30 seconds and

press the POWER

SWITCH again.

3. If there is still no power,

unplug the power cord

from the wall. Wait 30

seconds and plug the

power cord back in.

Press the POWER

SWITCH again.

This protective technology

should provide for years of

lasting entertainment from

your HITACHI LCD Rear

Projection Television,

IGNITIONNOISE:

Blackspotsorhorizontalstreaksmayappear,picturemayflutterordrift.

Usuallycausedbyinterferencefromautomobileignitionsystems,neonlamps,

electricaldrills,andotherelectricalappliances.

GHOSTS:

Ghostsarecausedbythetelevisionsignalfollowingtwopaths.Oneisthe

directpathandtheotherisreflectedfromtallbuildings,hillsorsomeother

objects.Changingthedirectionorpositionoftheantennamayimprove

reception.Ghostingmayalsobecausedbydefectsintheantennasystemsuch

asunshieldedleadsorconnectingseveralsetstothesameantennawithout

usingmultipleantennacouplers.

SNOW:

Ifyourreceiverislocatedinthefringeareaofatelevisionstationwherethe

signalisweak,yourpicturemaybemarredbytheappearanceofsmalldots.

Whenthesignalisextremelyweak,itmaybenecessarytoinstallaspecial

antennatoimprovethepicture.

RADIOFREQUENCYINTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some

cases, causes loss of contrast in the picture.

BLOCK NOISE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is

usually caused by interference from automobile ignition systems, neon lamps,

electrical drills, ghosting of the image and weak signals.

BLACK SCREEN:

When using an antenna, weak signals will display a black screen. It may be

necessary to upgrade your antenna.

FEATURES:

•Superfine Picture Quality; 1280 Line Horizontal

Resolution

• Remote (Controls many PVR/VCR brands, cable

boxes, satellite boxes, and other audio equipment).

• New Easy-to-Use (3-Language) On-Screen Menu

• Full Set of Input Jacks, including S-Video

• COMPONENT VIDEO: Y-PB/PR

• Six Aspect Modes

• Closed Caption Decoder

• 2-Tuner Picture in Picture

• 2 Antenna Inputs (Either for Analog/Digital)

• Video Input Sensor

• HDM} (High Definition Multimedia interface) (High

Bandwidth Digital Content Protection V1.1

compatible).

• Digital Audio Output (Dolby _Digital and PCM)

• 3 Dimensional Y/C Comb Filter

• Compatible with 1080i, 720p, 480p and 480i input

signals.

• CableCARD TM compatible - Contact your local

cable operator for more information.

• BJ_k" Technology.

Licensed by BBE Sound, Inc. under USP5510752

and 5736897. BBE and BBE symbol are registered

trademarks of BBE Sound, Inc. Manufactured under

license from BBE Sound, Inc.

• (O)SRS Technology.

SRS and (@)symbol are trademarks of SRS Labs,

Inc. SRS technology is incorporated under license

from SRS Labs, Inc.

• DB_ ° Technology.

_,eITAL

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

• _,_,_,_ Technology

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

INPUTS:

• Power Input ........................................ AC 120V, 60Hz

• Stand-by Power .............................. Less than 1 Watt

• Power Consumption - Refer to rear panel at the

back of the T.V.

• Antenna input impedance ............................. 75 Ohm

• Channel coverage

VHF-Band ..................................................... 2 - 13

UHF-Band ................................................... 14 - 69

CATV Band ........................................ t - 135, A - I

• Video .............................................. 1.0Vp-p, 75 Ohm

• S-Video

Luminance (Y) ............................. 1.0Vp-p, 75 Ohm

Chrominance ((3) ..................... 0.286Vp-p, 75 Ohm

• Component Video

Luminance 00 ............................. 1.0Vp-p, 75 Ohm

Chrominance (PMPR) .................. 0.TVp-p, 75 Ohm

• Audio input Impedance ............................... 47k Ohm

• Average input level ................................... 470mVrms

• HDMI ..................................................... HDM119 PIN

OUTPUTS:

• Video .............................................. 1.0Vp-p. 75 Ohm

• Audio (Fixed) .............................. 470mVrms, lk Ohm

• S-Video

Luminance 00 ............................. 1.0Vp-p, 75 Ohm

Chrominance (C) ..................... 0.286Vp-p, 75 Ohm

• Optical Out (Digital Audio) .......... 1 optical connector

DIMENSIONS:

50V720

Height (in.) 35 112

(mm) 901.0

Width (in.) 54 5/8

(mm} 1,387.g

Depth (in.) 16 3/8

(mm) 415.0

Weight (Ibs.) 90

(kg.) 40.8

inspire the Ne×

To locate an authorized HITACHI

service facility in the continental

U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

1-800-HITACHI

(1-800-448-2244)

HITACHI AMERICA, LTD.

HOME ELECTRONICS DIVISION

HITACHI has made every effort to assure you hours of

trouble free operation from your unit. However, should

you require service, a network of HITACHI Authorized

Service Facilities has been established in all 50 states

and Puerto Rico. Each facility will provide you with

convenient and expedient assistance. Our service

hotline operator will direct you to the HITACHI

Authorized Service Facility nearest you. Just present

proof of purchase and/or delivery receipts to the

Hitachi Authorized Service Facility, and service will be

rendered in accordance with the terms of the limited

warranty as stated on your warranty card or operating

guide.

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

Hitachi America, LTD.

Home Electronics Division

900 Hitachi Way

Chula Vista, CA 91914-3556

HITACHI CANADA, LTD.

DIGITAL MEDIA DIVISION

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

In Canada: 1-800.HITACHI (1.800-448-2244)

Monday -Friday (EST) ......................... 9:00am - 7:00pm

Saturday (EST) ..................................... 9:00am - 5:00pm

Look for your French Manual on the outside of the

box. If the manual is missing, call 1.800-HITACHI

(1-800-448-2244) for a copy.

Pour de plus amples renseignements sur le service

durant la periode eouverte par la garantie, sur le

fonctionnement ou pour de I'assistance technique

oommuniquez avec:

Au Canada: 1-800-HITACHI (1-800-448-2244)

Lundi - Vendredi L'EST ........................ 9:00am - 7:00pm

Samedi L'EST ....................................... 9:00am - 5:00pm

La version fran£ais de votre manual se trouve a

I'exterieur de la boite. Si le manuel est manquant,

coposez le 1-800-HITACHI (1-800-448-2244| pour

obenir votre copie,

HITACHI CANADA, LTD.

2495 Meadowpine Blvd.

Mississauga, Ontario LSN 6C3

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE

iMPORTANT -REAL) CAREFULLY: This End User License Agreement for

HITACHI DTV Software (this "Agreement") is a legal agreement between

you ("you" or "your"), in your capacity as the owner of a HITACHI brand

digital television (the "DTV"), and HITACHI America, Ltd., Home

Electronics Division ("HITACHP). By using the DTV or the operating

system software installed on the DTV (the "System Software") or any

Upgrade (as defined below, and together with the Syatem Software, the

"Software"), you agree to be bound by the terms and conditions of this

Agreement. IF YOU DO NOT AGREE TO BE BOUND BY THIS LICENSE

AGREEMENT, DO NOT USE THE DTV OR THE SOFTWARE.

LICENSE GRANT. HITACHI grants to you, for the life of the DTV, a

non-exclusive, non-transferable, revocable license to install and

use one copy of the Software on the DTV, subject to the following

limitations and restrictions:

a. You may not share, duplicate, republish or redistribute the

Software;

b. You may not resell, rent, lease, sublicense, gift, loan, assign or

otherwise transfer the Software or any of your rights under

this Agreement;

c. You may not modify, adapt, translate, reverse engineer,

decompile, disassemble or make derivative works from the

Software or use the Software in combination with any non-

Hitachi software; and

d. You may not use the Software for any commercial purpose.

VIOLATIONS_ INDEMNITY. You understand and agree that your

use of the Software in any manner except as permitted under this

Agreement could constitute a serious crime and could subject you

to damages and an award to HITACHI of attorneys' fees in

connection with your violation of this Agreement. You further

understand that you may be held legally responsible for any

rights caused or facilitated by your failure to abide by the terms of

this Agreement. You agree to defend, indemnify and hold HITACHI

and its parent and affiliate companies harmless from and against

any and all liability resulting from any breach by you of this

Agreement.

INTELLECTUAL PROPERT'_ The Software is protected by federal

property laws and treaties. The Software is licensed, not sold, to

you. All right, title and interest in and to the Software and any

intellectual property associated therewith, including any

accompanying printed materials, shall belong to HITACHI and its

}icensors and suppliers. Except as expressly provided herein,

neither HITACHI nor any of its licensors or suppliers grants to you

under this Agreement any express or implied right in or to any

patents, copyrights, trademarks, trade secrets or other inte#ectual

property. All right, title and interest in and to the intellectual

property rights associated with any content that is accessible

through use of the Software shall belong to the applicable content

owners and may be protected by copyright or other intellectual

property laws and treaties. This Agreement grants you no rights to

use such content. Any rights of HITACHI not expressly granted to

you hereunder are reserved expressly by Hitachi.

SOFTWARE UPGRADES. In the future, HITACHI may release or

make available one or more upgrades to the System Software

(each, an "Upgrade'). You understand and agree that if you decide

to )nsta)) or use any Upgrade, your installation and use of such

Upgrade and/or any other software or intellectual property

HITACHI may provide in connection therewith shall be governed by

the terms and conditions of this Agreement, except to the extent

that HITACHI provides different or supplementary license terms or

conditions that accompany such Upgrade or other software or

intellectual property. In the event HITACHI provides you with a

"flash card" or other media to effect or facilitate an Upgrade, you

understand and acknowledge that your failure to return such flash

card or other media to HITACHI as HITACHI may require could

result in HITACHI placing your name and your DTV's serial number

on a "No Further Up9rades" list, which will prohibit you from

receiving any subsequent Upgrades HITACHI may later release or

make available. IF YOU DO NOT AGREE WITH ALL THE TERMS

AND CONDITIONS OF THIS AGREEMENT OR ALL THE TERMS

AND CONDITIONS OF ANY DIFFERENT OR SUPPLEMENTARY

LICENSE THAT MAY ACCOMPANY SUCH UPGRADE, (A) DO NOT

USE ANY HITACNI-PROVIDED FLASH CARD OR OTHER MEDIA,

(B) DO NOT PERFORM INSTALL ANY HITACHI-PROVIDED

UPGRADE SOFTWARE ON YOUR D]W, AND (C) PROMPTLY

RETURN SUCH FLASH CARD OR OTHER MEDIA TO HITACNh

10.

11.

EXPORT RESTRICTIONS. HITACHI is )icensing the Software for

use within North America only. You agree that you will not export or

re-export the Software. You specifically agree not to export or re-

export the Software: (i) to any country to which the U.S. has

embargoed or restricted the export of goods or services, which

currently include, but are not necessarily limited to Cuba, Iran,

Libya, North Korea, Sudan and Syria, or to any national of any such

country, wherever located, who intends to transmit or transport the

Software back to such country; (ii) to any person or entity who you

know or have reason to know will utilize the Software in the design,

development, or production of nuclear, chemical, or biological

weapons; or {iii) to any person or entity who has been prohibited

from participating in U.S. export transactions by any federal agency

of the U.S. government. You warrant and represent that neither the

U.S. Bureau of Industry and Security nor any other U.S federal

Agency has suspended, revoked, or denied your export privileges.

NO WARRANTIES. The software is provided to you in "as is"

condition and HITACHI makes no warranties of any kind

whatsoever regarding the software and, to the maximum extent

permitted by law, hereby expreas/y disclaims all warranties of any

kind whatsoever, express or implied, with respect to the software.

All implied warranties, including without limitation, the implied

warranties of non-infringement, merchantability and fitness for a

particular purpose are hereby expressly disclaimed by hitachi to

the maximum extent permitted by law.

LIMITATION OF LIABILITY, To the maximum extent permitted by

applicable law, HITACHI, its ticensors, suppliers, parent

companies, affiliates, subsidiaries, employees and agents shall not

under any circumstances be liable to you or any third parties for

any damages of any nature arising in any way from this agreement,

your use of the software or otherwise, whether indirect, special,

incidental, consequential or otherwise, including, without limitation,

any claims for lost profits, lost good will, lost data, business

interruption, procurement of substitute goods or services, or

expenditures made or committed for in reliance on the continuation

of this agreement, even if advised in advance of the possiblity of

such damages.

NO FAILURE OF ESSENTIAL PURPOSE. You agree that neither

HITACHI S breach of this agreement nor its failure to repair a

defect, error or bug in the software shall constitute a failure of the

essential purpose of this agreement.

CRYPTOGRAPHIC SOFTWARE. The software contains software

developed by the openssl project, including cryptographic software

written by eric young (the "eryptographic software"). The

cryptographic software is provided by the openssl project in "as is"

condition and any express or implied warranties, including but not

limited to, the implied warranties of merchantability and fitness for

a particular purpose are hereby expressly disclaimed to the

maximum extent permitted by Law. In no event shaLLthe openesl

project, its contributors, HITACHI or any of its parent or affiliate

companies be liable for any direct, indirect, incidental, special,

exemplary, or consequential damages (including, but not limited to,

procurement of substitute goods or services; loss of use, data, or

profits; or business interruption) however caused and on any theory

of liability, whether in contract, strict liability, or tort (including

negligence or otherwise) arising in any way out of the use of the

software or the cryptographic software, even if advised in advance

of the possibility of such damages.

TERMINATION. HITACHI may terminate this Agreement

immediately at any time by providing notice to you.

GOVERNING LAW; SEVERABILITY` This Agreement will be

governed by the Lawe of the State of New York, and you consent to

the exclusive jurisdiction and venue in the federal courts sitting in

the Southern District of New York, unless no federal subject matter

jurisdiction exists, in which case you consent to the exclusive

jurisdiction and venue in the Borough of Manhattan, New York,

USA.

Appendix A:

INPUT

Air or Cable Video

(Analog Channels)

Inputs 1 & 2 HDMI

Inputs 1, 2, 3 &5 S-Video _

Video

Inputs 3 & 4 Y-PbPr

IMAGE INPUT

FORMAT ASPECT

NTSC 4:3

480i/480p 16:9

Letter

4:3

NTSC 16:9

Letter

4:3

480i/480p 16:9

Letter

4:3

IS-Video =Not available in In _ut 3

VIDEO ID

16:9

Letter

4:3

No Info.

16:9

Letter

4:3

No Info.

16:9

Letter

4:3

No Info.

AUTO ASPECT

On/Off

Off

On/Off

Off

On/Off

Off

On/Off

Appendix B:

INPUT

Air or Cable

(Digital Channels)

Inputs 1 & 2

Inputs 1, 2, 3 &5

_nputs 3 & 4

Y-PbPr

IMAGE INPUT

FORMAT ASPECT

1OSOi 4:3

HDMI

S-Video 2

Video

Letter

4:3

Letter

4:3

Letter

4:3

VIDEO ID

480i/480p

NTSC

480i/480p

2S-Video = Not available in Input 3

Letter

4:3

Letter

4:3

Letter

4:3

AUTO ASPECT

On/Off

Appendix C:

INPUT

Inputs 1 & 2

Inputs 1, 2, 3 &5

Inputs 3 & 4

IMAGE INPUT

TYPE ] FORMAT ASPECT

HDMI ]480i/480p 16:9

S-Video 3 NTSC 16:9

Y-PbPr 480i/480p 16:9

%-Video = Not available in Input 3

VIDEO ID

16:9

AUTO ASPECT

Appendix D:

INPUT

Air or Cable Y-PbPr

(Digital Channels)

inputs 1 & 2 HDMI

Inputs 3 & 4

IMAGE INPUT

FORMAT ASPECT

1080i 16:9

1080i/720p 16:9

VIDEO ID AUTO ASPECT

On/Off

Accessories ................................................................ 4

Antennas (Connecting) ............................................... 6

Aspect Ratio ............................................................. 22

Audio

Languages ............................................................ 39

Dolby Digital ......................................................... 39

DRC (Dynamic Range Compression) ................... 39

SRS ....................................................................... 37

BBE ....................................................................... 37

Audio Settings .......................................................... 37

Audio Source ............................................................ 38

Auto Noise Cancel ................................................... 38

Balance ..................................................................... 37

Bass .......................................................................... 37

Black Enhancement ................................................. 35

Brightness ................................................................ 37

CableCARD .............................................................. 12

Channel Manager ..................................................... 40

Auto Channel Scan ............................................... 41

Channel List .......................................................... 41

Signal Meter ......................................................... 40

Clock

Time ...................................................................... 47

Time Zone ............................................................. 47

Date ...................................................................... 47

Closed Captions

Analog Captions ................................................... 52

Digital Captions .................................................... 53

Color Temperature .................................................... 35

Color ......................................................................... 34

Contrast .................................................................... 34

Contrast Mode ......................................................... 35

Date .......................................................................... 47

Daylight Saving Correction ....................................... 47

Event Timer .............................................................. 49

Guide Button ........................................................ 7, 23

HDMI ............................................................ 11, 14, 18

LInput button .......................................................... 7, 23

Lamp Replacement ............................................. 56-59

Language

Menu Language .................................................... 50

Audio Language ................................................... 39

Locks

Change Access Code ........................................... 42

Channel Lock ........................................................... 42

Front Panel Lock .................................................. 42

Movie Ratings ....................................................... 43

TV Ratings ............................................................ 44

TV Ratings (Canadian - English) ........................... 45

TV Ratings (Canadian - French) ........................... 46

Loudness .................................................................. 38

Menu Preference

Language .............................................................. 50

Background .......................................................... 50

Monitor Out .............................................................. 53

Pause (Freeze) Button .................................... 7, 21, 26

Perfect Volume ......................................................... 38

Picture Mode ............................................................ 34

Picture-in-Picture (PIP) ........................................ 25-27

Picture-outside-Picture (POP) .................................. 25

Remote Control

Functions ......................................................... 20-31

Programming Codes ....................................... 28-31

Installing Batteries .................................................. 4

Sharpness ................................................................ 34

Speakers .................................................................. 15

Timers ................................................................. 47-49

Time .......................................................................... 47

Tint ............................................................................ 34

Treble ........................................................................ 37

Upgrades .................................................................. 55

Video Settings ..................................................... 34-36

Volume .................................................................. 7, 24

lnspire C

QR64621

Hitachi 50V720 User Manual TV LCD Manuals And Guides L0520617

HITACHI LCD Television Manual L0520617 HITACHI LCD Television Owner's Manual, HITACHI LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
