Hitachi 53SBX59B User Manual PROJECTION TELEVISION Manuals And Guides L0302071

HITACHI Projection/Digital 42 and above TV Manual L0302071 HITACHI Projection/Digital 42 and above TV Owner's Manual, HITACHI Projection/Digital 42 and above TV installation guides

User Manual: Hitachi 53SBX59B 53SBX59B HITACHI PROJECTION TELEVISION - Manuals and Guides View the owners manual for your HITACHI PROJECTION TELEVISION #53SBX59B. Home:Electronics Parts:Hitachi Parts:Hitachi PROJECTION TELEVISION Manual

Open the PDF directly: View PDF .
Page Count: 72

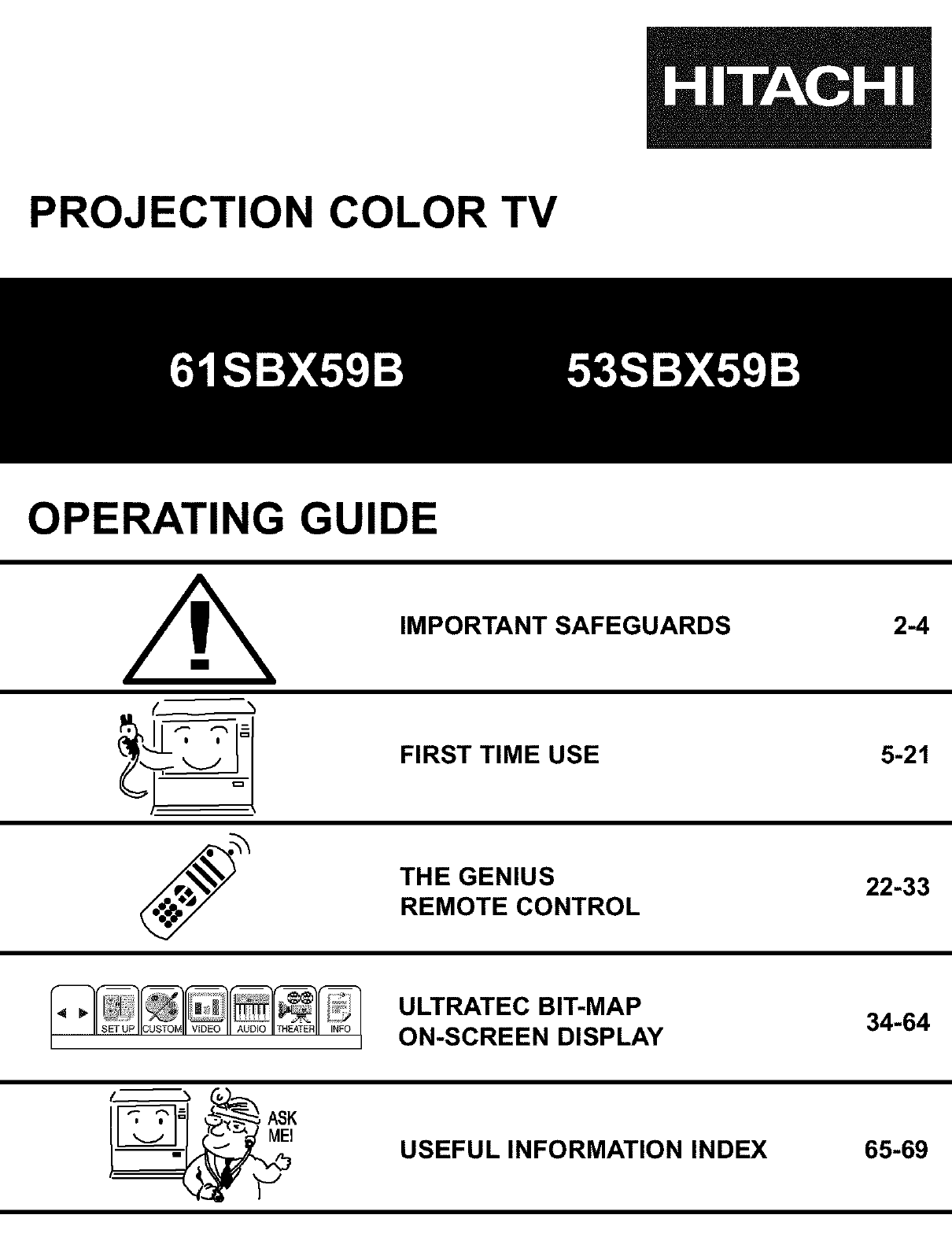

PROJECTION COLOR TV

OPERATING GUIDE

IMPORTANT SAFEGUARDS

FIRST TIME USE

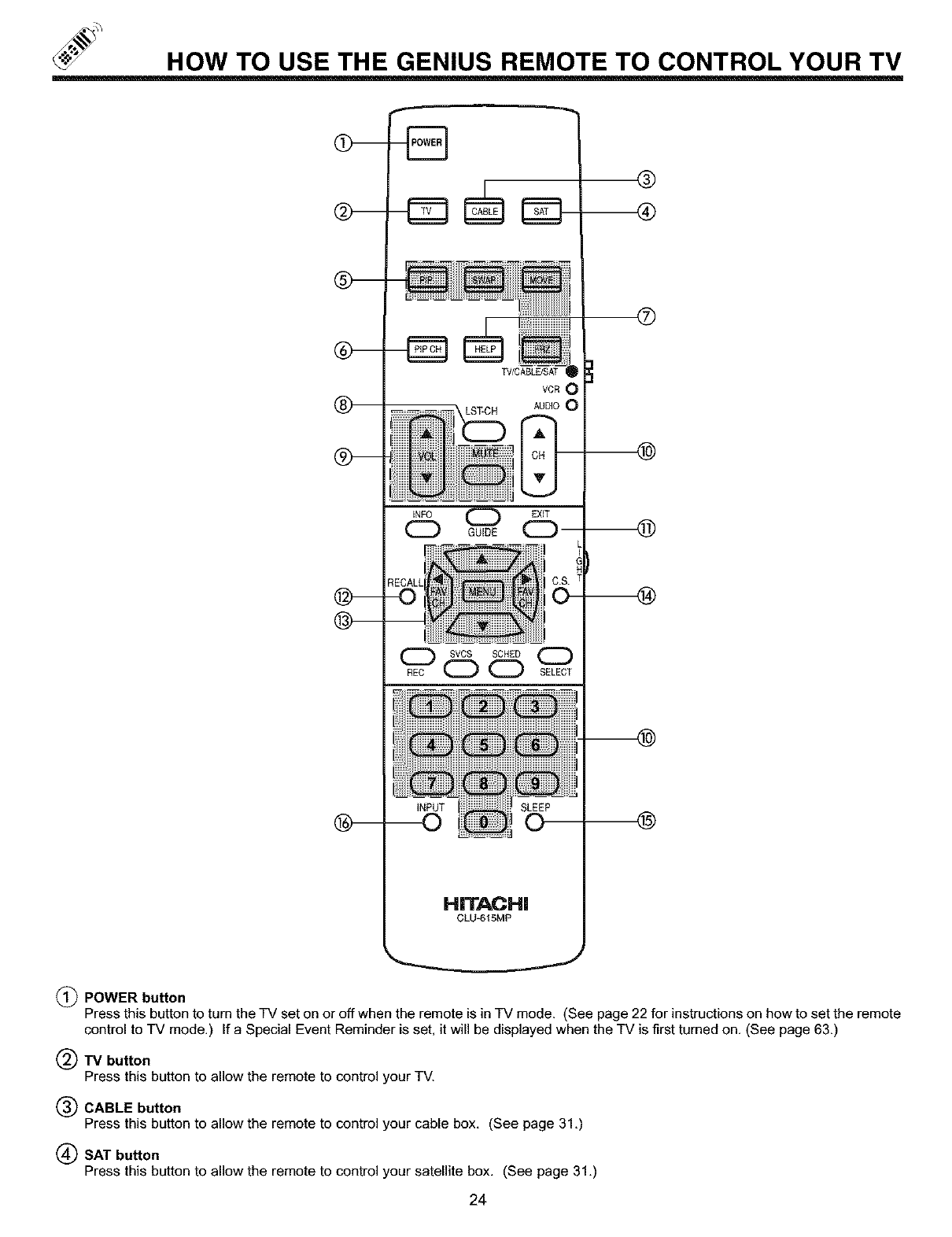

THE GENIUS

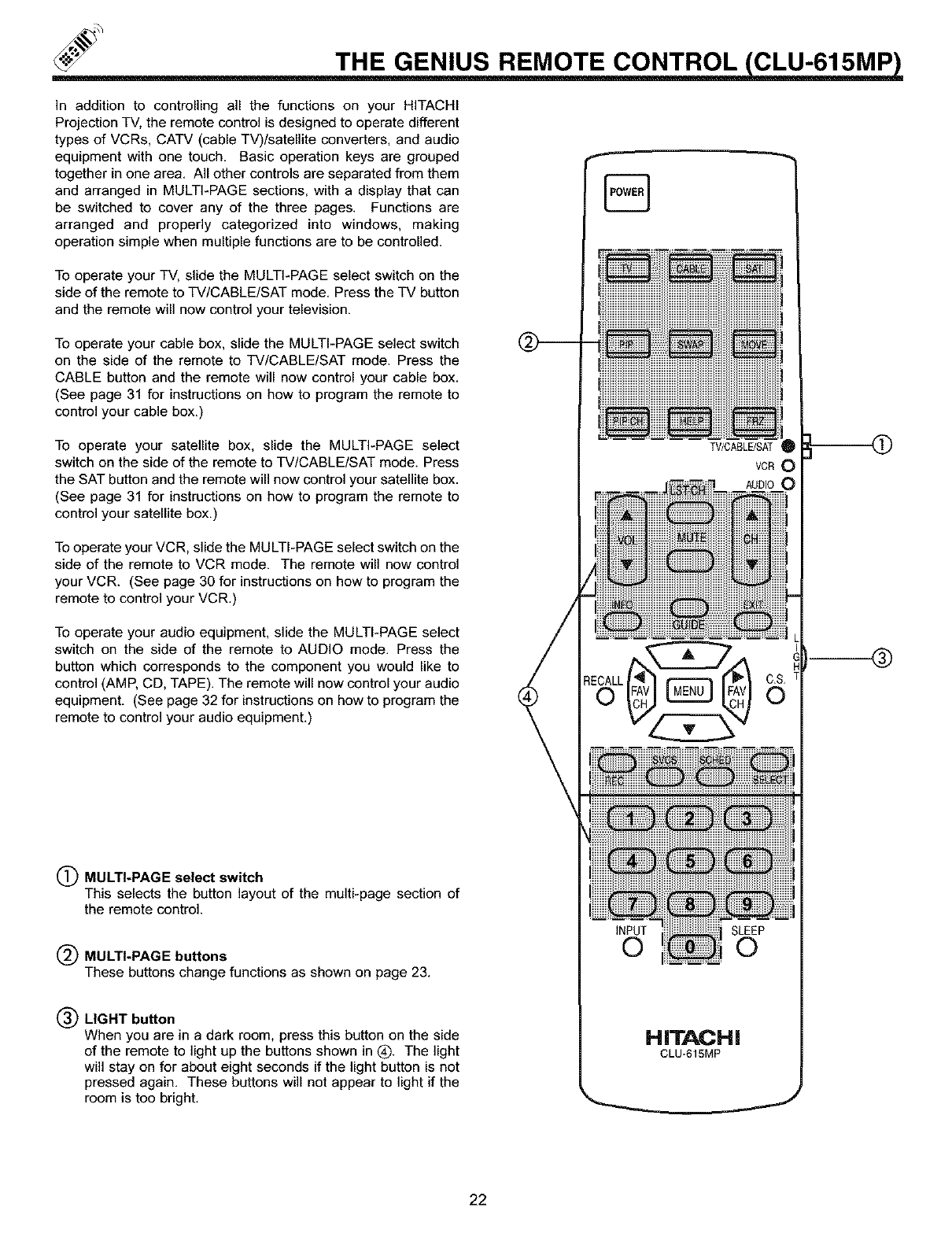

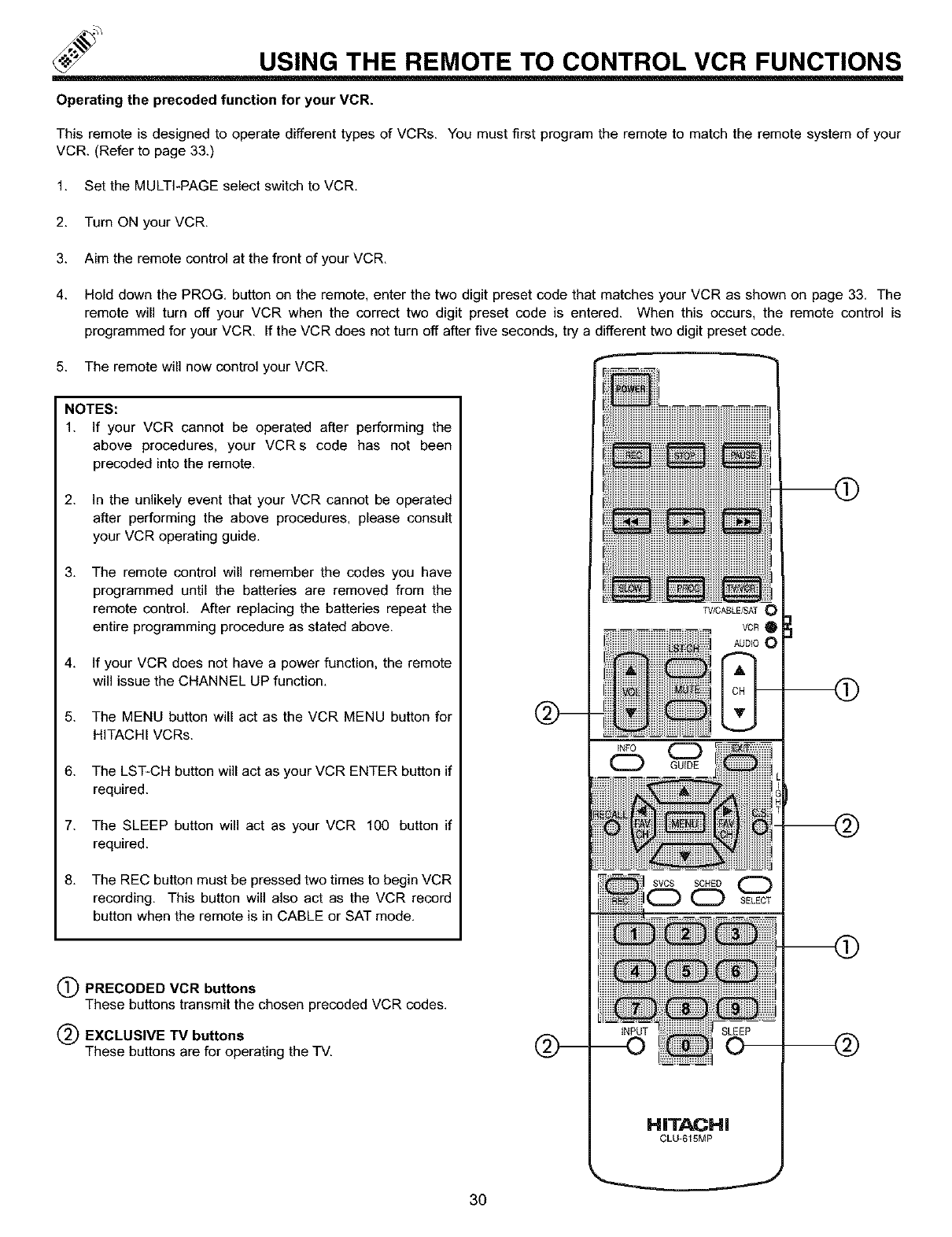

REMOTE CONTROL

2-4

5-21

22-33

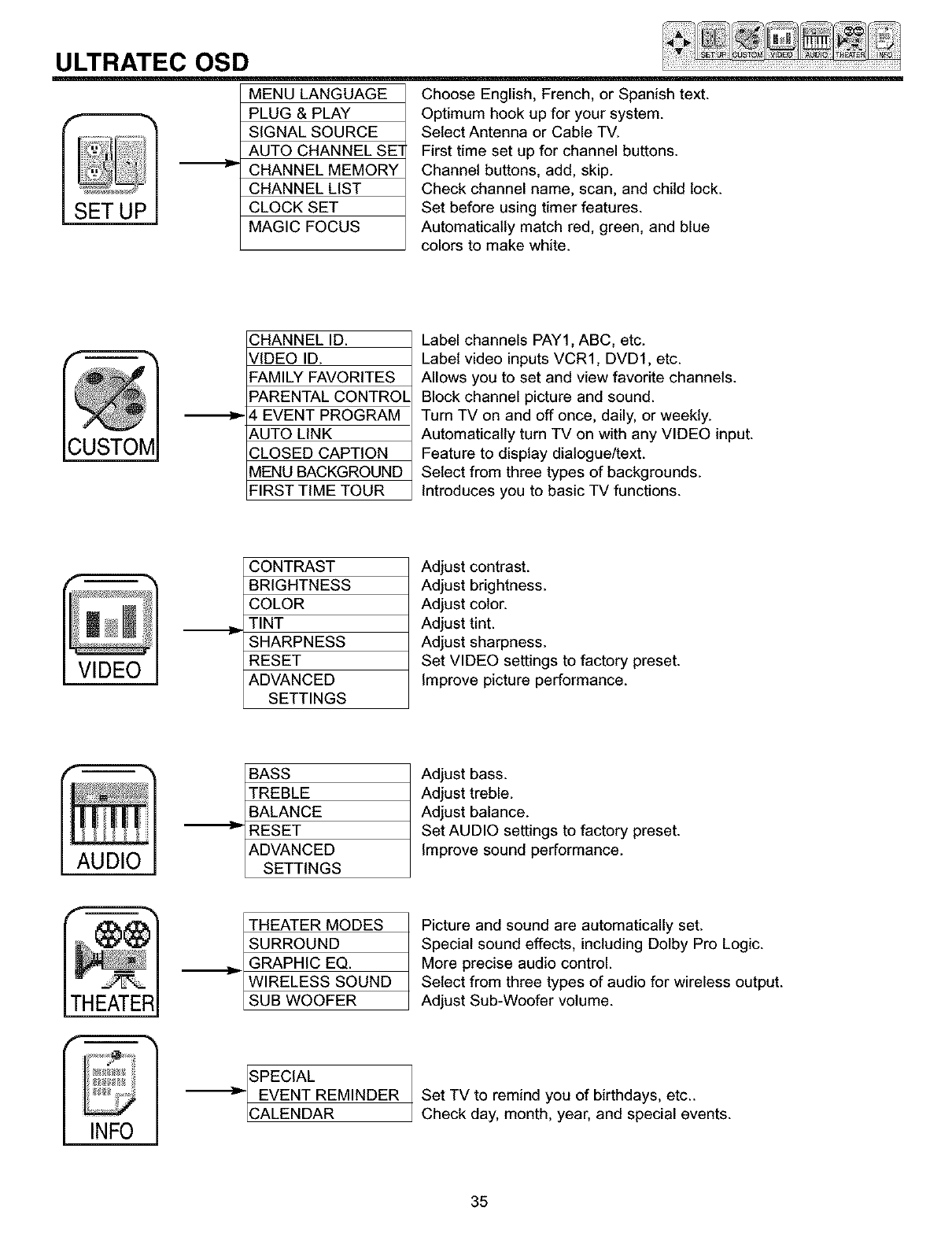

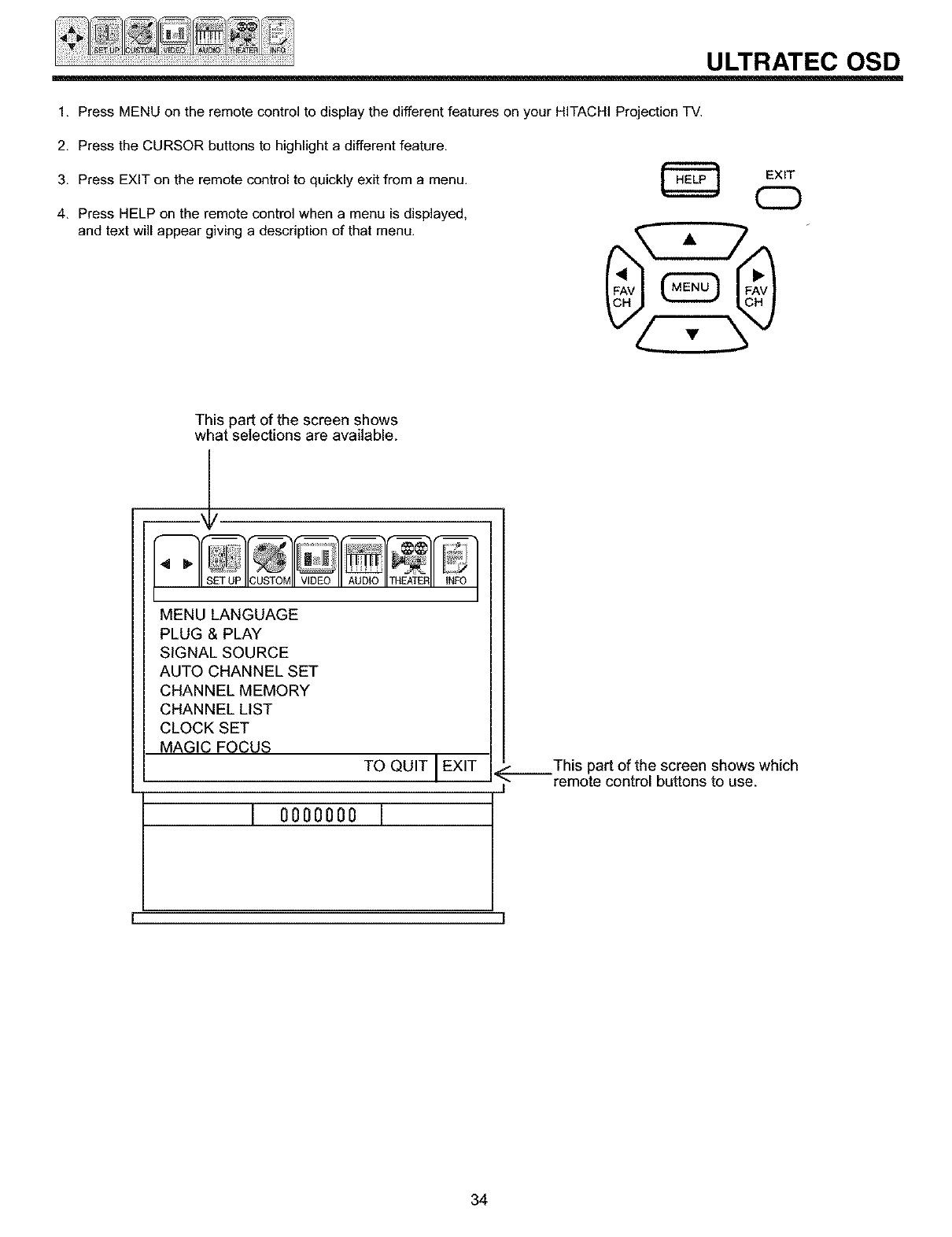

ULTRATEC BIT-MAP

ON-SCREEN DISPLAY 34-64

,_'_ ASK

USEFUL INFORMATION INDEX 65-69

IMPORTANT

Follow all warnings and instructions marked on this projection television.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERViCiNG TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

dangerous voltage within the products enclosure that may be of a

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

WARNING: I

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THIS PROJECTION TELEVISION TO RAIN OR MOISTURE.

NOTE: ¥There are no user serviceable parts inside the television. I

¥Model and serial numbers are indicated on back side of the television. I

¥This television is not intended for use in a computer room.

CAUTION: Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly I

approved by HITACHI could void the user s authority to operate the TV. I

MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that are

not expressly approved by Hitachi America. Ltd. Home Electronics Division may void the user s authority

to operate the equipment.

POWER SOURCE

This projection television is designed to operate on 120 volts 60Hz, AC current.

Insert power cord into a 120 volt 60Hz outlet.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE TELEVISION S (POLARIZED) PLUG

WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES

AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NEVER CONNECT THE TELEVISION TO 50HZ, DIRECT CURRENT, OR ANYTHING OTHER

THAN THE SPECIFIED VOLTAGE.

NOTE: This television receiver wilt display television closed captioning, ([c'_ or [_), in accordance with I

paragraph 15.119 of the FCC rules. I

,_ CAUTION: Never remove the back cover of the television as this can expose you to very high voltages and other hazards. I

If the television does not operate properly, unplug the television and call your authorized dealer or service shop.

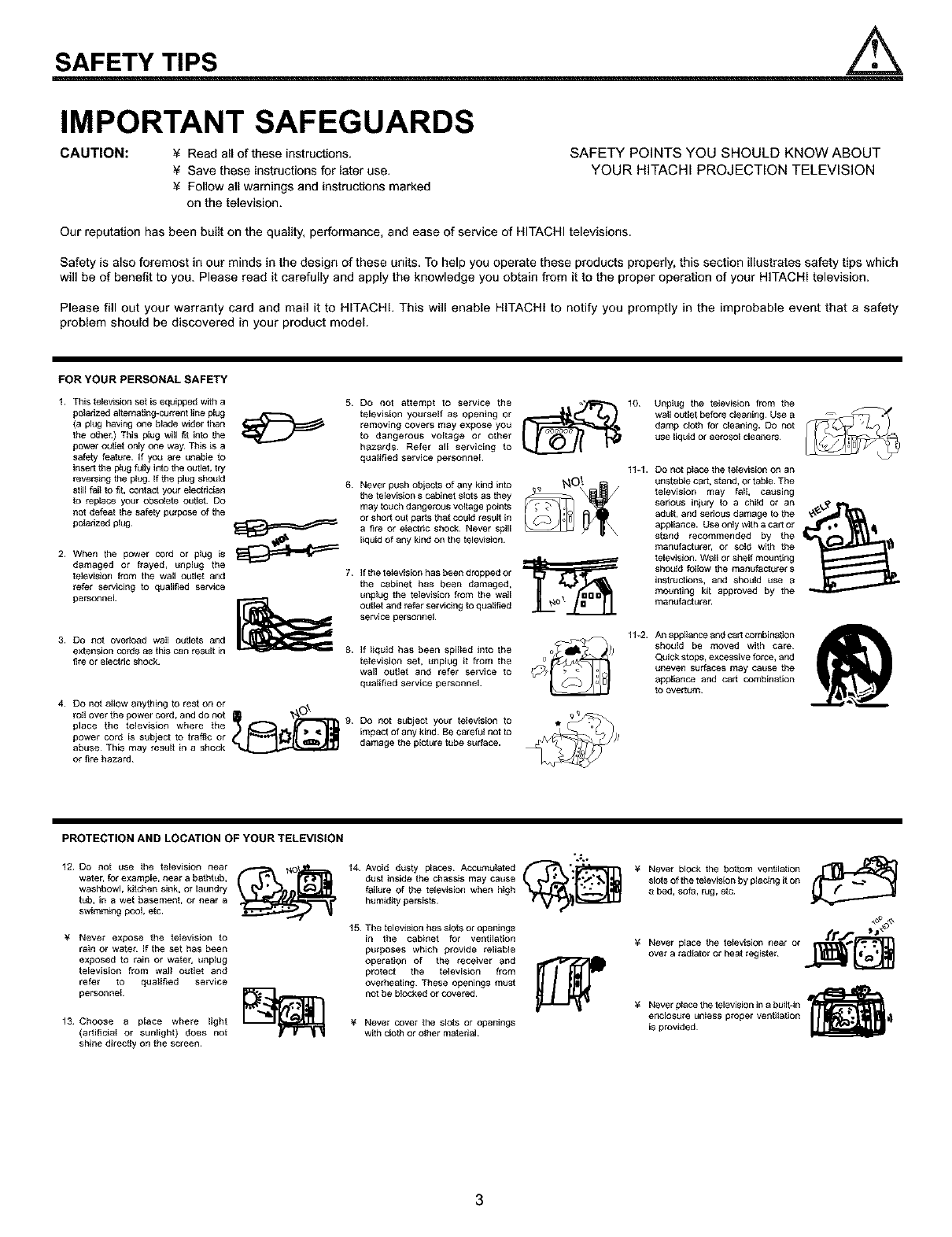

SAFETY TIPS

IMPORTANT SAFEGUARDS

CAUTION: ¥ Read all of these instructions,

¥ Save these instructions for later use,

¥ Follow all warnings and instructions marked

on the television.

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI PROJECTION TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which

will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television.

Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety

problem should be discovered in your product model.

FOR YOUR PERSONAL SAFETY

1. This television set is equipped with a

peladzed absrnatJug-current line plug J_7--""_ _

(a plug having one blade wffier than

the o_er) This plug will fit into the

power oL_Jet only one way_ This is a

safety feature¸ If you are unable to

insert the plug fulty into the outlet, try

reversing the plug. If the plug should 6

still fail to fit, contact your electrician

to replace your obsolete ouget. DO

not defeat the safety purpose of Re

polarized plug¸ _

2_ When the power COrd or plug is _

damaged or frayed_ unpEug the

feievision from the wall outlet and 7_

refer servicing to quaE_ed service

personnel

3. DO not overload wail outlets and

extension cords as this can res=tlt in

fire or electric shock¸

4. DO not allow anything to rest on or .,_,%

toil over the power cord, and do not _ _'_r_mr,_ 9

place the television where the

power cord is subject to traffic or

abuse_ This may result in a shock

or t_re hazard_

5 Do not attempt to service the

television yourself as opening or

removing covers may expose you

to dangerous voltage or other

hazards¸ Refer all servicing to

qualified service personnel¸

Never push objects of any kind into

tile television s cabinet sfets as they

may touch dangerous voltage points

or short out parts that could result in

a fire or electric shock¸ Never spill

liquid of any kind on the telewsion

If the tffievision has been dropped or

the cabinet has been damaged,

unplug the television from the wail

outlet and refer servicing to qualified

service personnel

If liquid has been spilled into the

television set, =mplug it from the

wall outlet and refer service to

qualified service personnel.

Do not s_tbject yo_tr television to

impact of any kind Be careful not to

damage the picture tube surface.

10 Unplug the television from the

wail o_ttlet before cleaning Use a

damp cloth for cleaning. DO not

use liquid or aerosol cleaners¸

11-1. Do not place the felevision on an

unstable cart, stand, or table¸ The

television may fall, causing

serious injury to a child or an

adult, and serious damage to the

appliance. Use only with a cart or

stand recommended by the

manufacturer, or sold with the

television. Wall or shelf mounting

should follow the manufacturer s

instructions, and should use a

mounting kit approved by the

manufecture_

1%2. An appliance and cart combination

should be moved with care

Quick stops, excessive force, and

uneven surfaces may cause the

appliance and cart combination

to overturn¸

PROTECTION AND LOCATION OF YOUR TELEVISION

12 Do not use the television near

water, for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement, or near a

swimming pcol, etc.

¥ Never expose the television to

rain or water If the set has been

exposed to rain or water, unplug

television from wall outlet and

refer to qualffied service

personnel¸

13 Choose a place where light

(artificial or sunlight) does not

shine directly on the screen.

".€,

14 Avoid dusty places Accumulated fr_ ".1_11_-rl

dust inside the chassis may cause

failure of the television when high

humidity persists

t 5 The television has slOtS or openings

in the cabinet for ventilation

purposes which provide reliable

operation of the receiver and

protect the television from

overeating These openings must

not be blocked or covered¸

¥ Never cover the slots or openings

with cloth or other material

¥ Never block the bottom ventilation r_l,_t_]

slots of the television by placing it on

a bed, sofa, rug, etc

¥ Never place the tffievision near or /r_

over a radiator or heat register _

¥ Never place the television in a built-in

enclosure /_ffiess proper ventilation

is provided¸

SAFETY TIPS

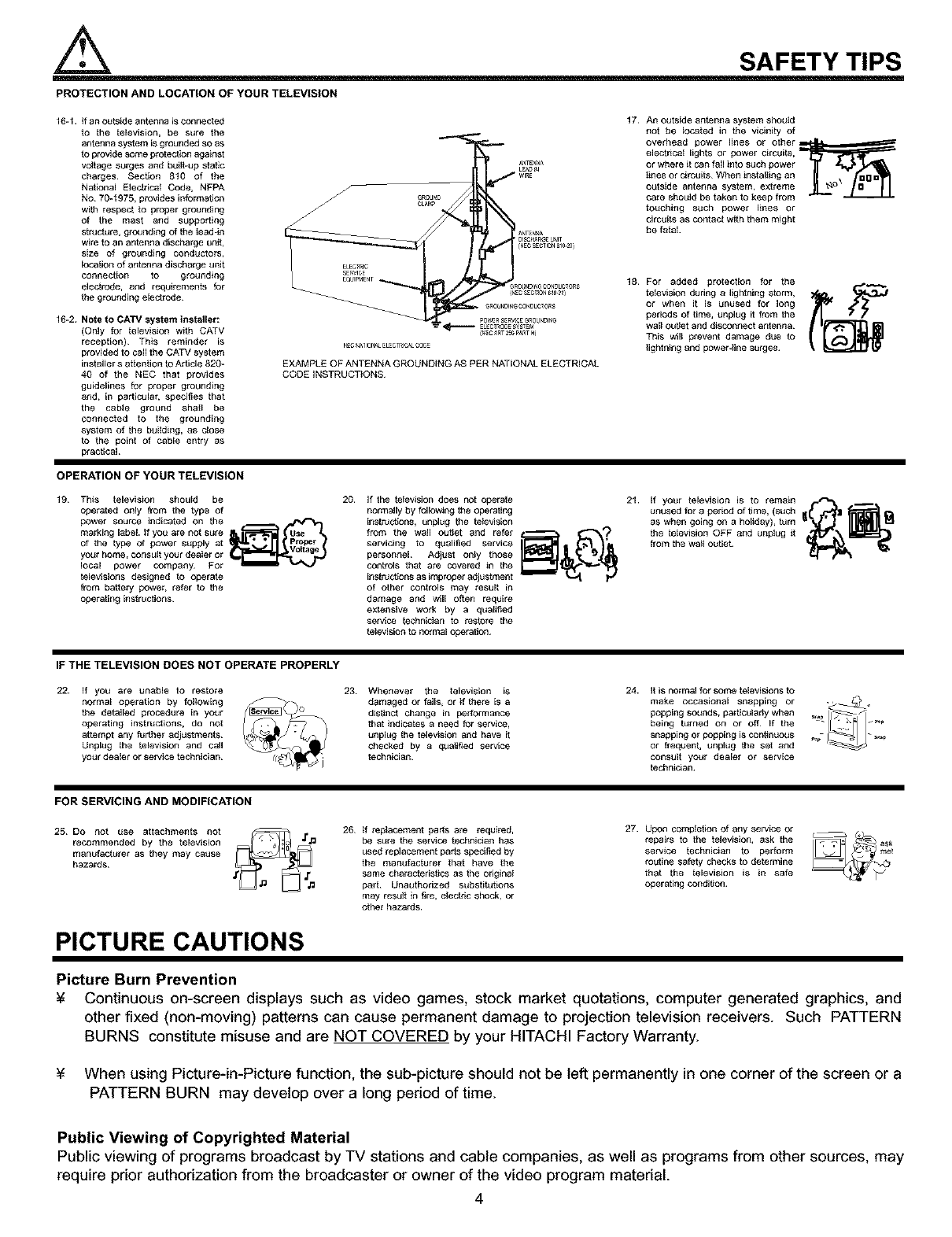

PROTECTION AND LOCATION OF YOUR TELEVISION

16-1. if an o=_tside antenna is connected

to the fetsvision, be s=_re the

antenna system is grounded so as

to provide some protection against

volfege surges and built-up stofts

charges¸ Section 810 of the

Nstional Etscfecal Code, NFPA

No 70_1975, provides information

with respect to proper grounding

of the mast and supporting

structure, grounding of the tsad-in

wire to an antenna discharge unit,

size of grounding conductors,

Iocafion of antenna discharge lJnit

connection to grounding

electrOde, end requirements for

the grounding electrode

16-2. Note to CATV system installer:

(Only for felevtston with CATV

reception)¸ This reminder is

provided to call the CATV system

installer s at fentton to Article 820_

40 of the NEC that provides

guidelines fet proper grounding

end, in particular, specifies that

the cebfe ground shstl be

connected to the grotJnding

system of the building, 8s close

to the point of cabts entry as

practical

{NECSECT_0NB_02_]

GROUNDI_C0NDUCTORS

P0WERSERV_EGROL_NDI_

(_EC_RT2_0PART_)

r_c _4A_IONA_ELECTr_ICALCODE

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL

CODE INSTRUCTIONS

17 An outside antenna system should

not be tscafed in the vicinity of

overhead power lines or other _h_mm_--"

etsctrtsal lights or power circuits,

or where it can fell into such power

tines or circuits¸ When ins fellin g an

outside antenna system, extreme

care should be taken to keep from

touching such power lines or

circuits as coofect with them might

be fetal.

18 For added protection for the

tetsvision dudng 8 lightning storm,

or when it is un_Jsed for long

periods of time, unplug it from the

wtsl oufiet and disconnect antenna¸

This wilt prevent damage due to

lightning end power-line surges¸

OPERATION OF YOUR TELEVISION

19 This totsvtsrgn should be

operated only from the type of

power source indicated on the

marking tsbeL If you are not sure

of the type of Power suppEy a_

your home_ consuIl your dealer or

IocaE power company_ For

_etsvisions designed to ogerste

from battery power_ refer to the

eperating instructions_

20. If the tetswstsn does not operate

normally by follow_ag the operating

instructtons, unplug the tetsvision

from the wtsl outJet and refer

servicing to qualified service

personnel Aftjust only those

controls that ate covered in the

instructions as improper adj*J stment

of other controls may resug in

damage and will often require

extensive work by a qualified

service technician to restore the

tetsvision to normal operation¸

21. if yo_r tetsvtsion is to remain

unused for a period of time, (such

as when goiag on a holiday), tam _'_l _

the televtsion OFF and unplug it

from the wa,I o.,t,et _/_ _

IF THE TELEVISION DOES NOT OPERATE PROPERLY

22. If you are unable to restore

normal operation by ftstowing

the deteitsd procethJre in your

operating instructions, do not

attempt any f_sthel adiustmeofs

Unglag the tetsvtstsn and call

your dealer or service technician

23 Whenever the tetsvision is

damaged or fails, or if there is a

distinct change in performance

that indicates a need for service,

unplug the tetswsion and have it

checked by a qualified service

technician

24. It is normal for some televisions to

make occasional snapping or ._

ooooagsound,oarfic.,a ,ywhen

being turned on or off if the

snapping or popping is continuous

or frequent, unplug the set and

consult yo=_r dealer or service

technician

FOR SERVICING AND MODIFICATION

25 DO not use aftachmenfe not

recommended by the tetsvision

manufacturer as they may cause

hazards¸

26 if teptscement parts are required,

be s_re the service technician has

used replacement parts specified by

the man*Jfect*Jrer that have the

same charecfedsecs as the original

pert Unauthorized substitutions

may result in fire, electric shock, or

other hazards.

27. Upon comptsfion of any service or

repairs to the tetswsion, ask the

service technician to perform

roufine safety checks to determine

that the tetsvtsion is in safe

operating condition¸

PICTURE CAUTIONS

Picture Burn Prevention

¥ Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and

other fixed (non-moving) patterns can cause permanent damage to projection television receivers. Such PATTERN

BURNS constitute misuse and are NOT COVERED by your HITACHI Factory Warranty.

¥ When using Picture-in-Picture function, the sub-picture should not be left permanently in one corner of the screen or a

PATTERN BURN may develop over a long period of time.

Public Viewing of Copyrighted Material

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may

require prior authorization from the broadcaster or owner of the video program material.

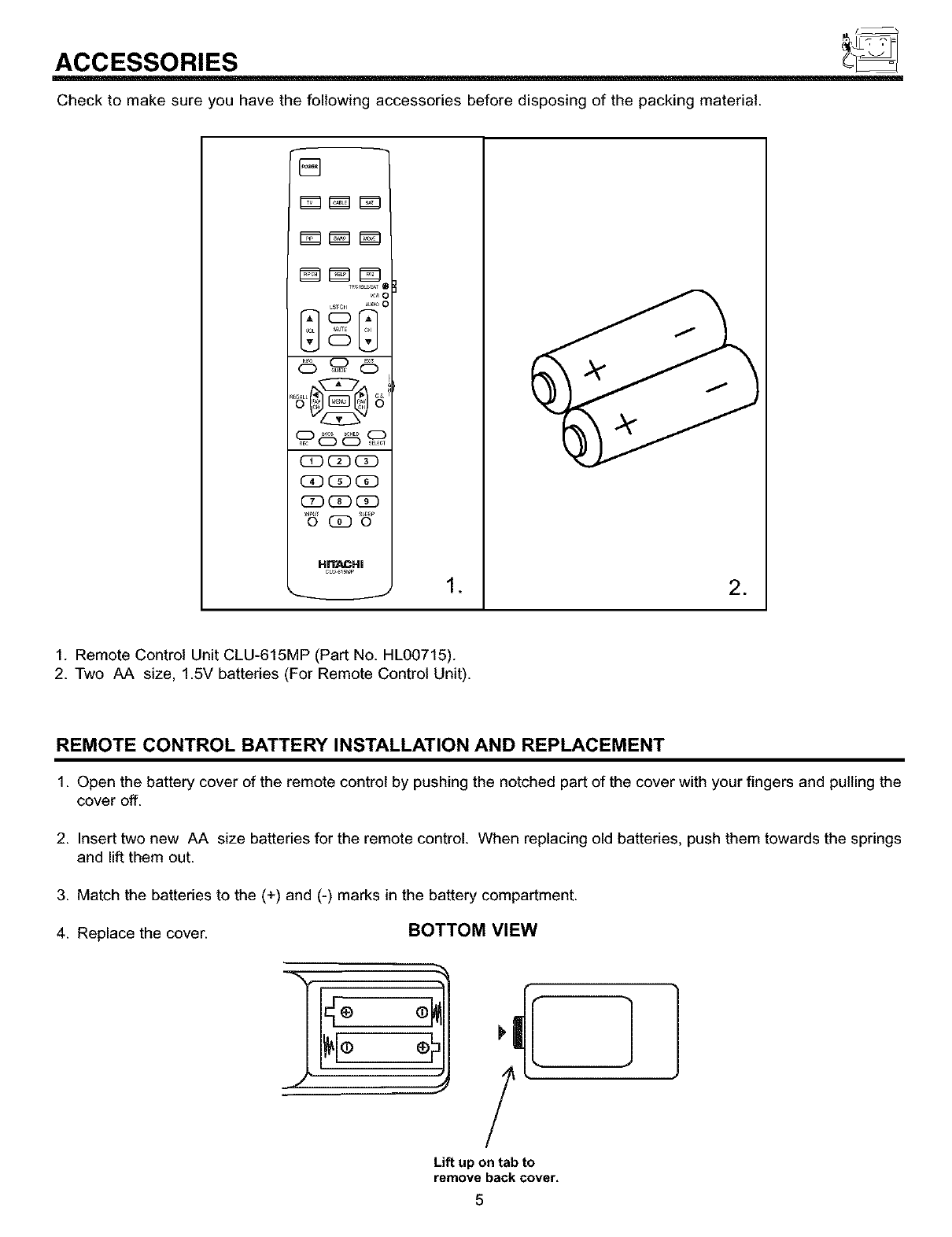

ACCESSORIES

Check to make sure you have the following accessories before disposing of the packing material.

_Z_LTz_ i

CD CD CD

C_ (]D CE)

CC)(]D (!)

HITACHI

J.*

1. Remote Control Unit CLU-615MP (Part No. HL00715).

2. Two AA size, 1.5V batteries (For Remote Control Unit).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery cover of the remote control by pushing the notched part of the cover with your fingers and pulling the

cover off.

2. Insert two new AA size batteries for the remote control. When replacing old batteries, push them towards the springs

and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Replace the cover. BOTTOM VIEW

.€

Lift up on tab to

remove back cover.

]

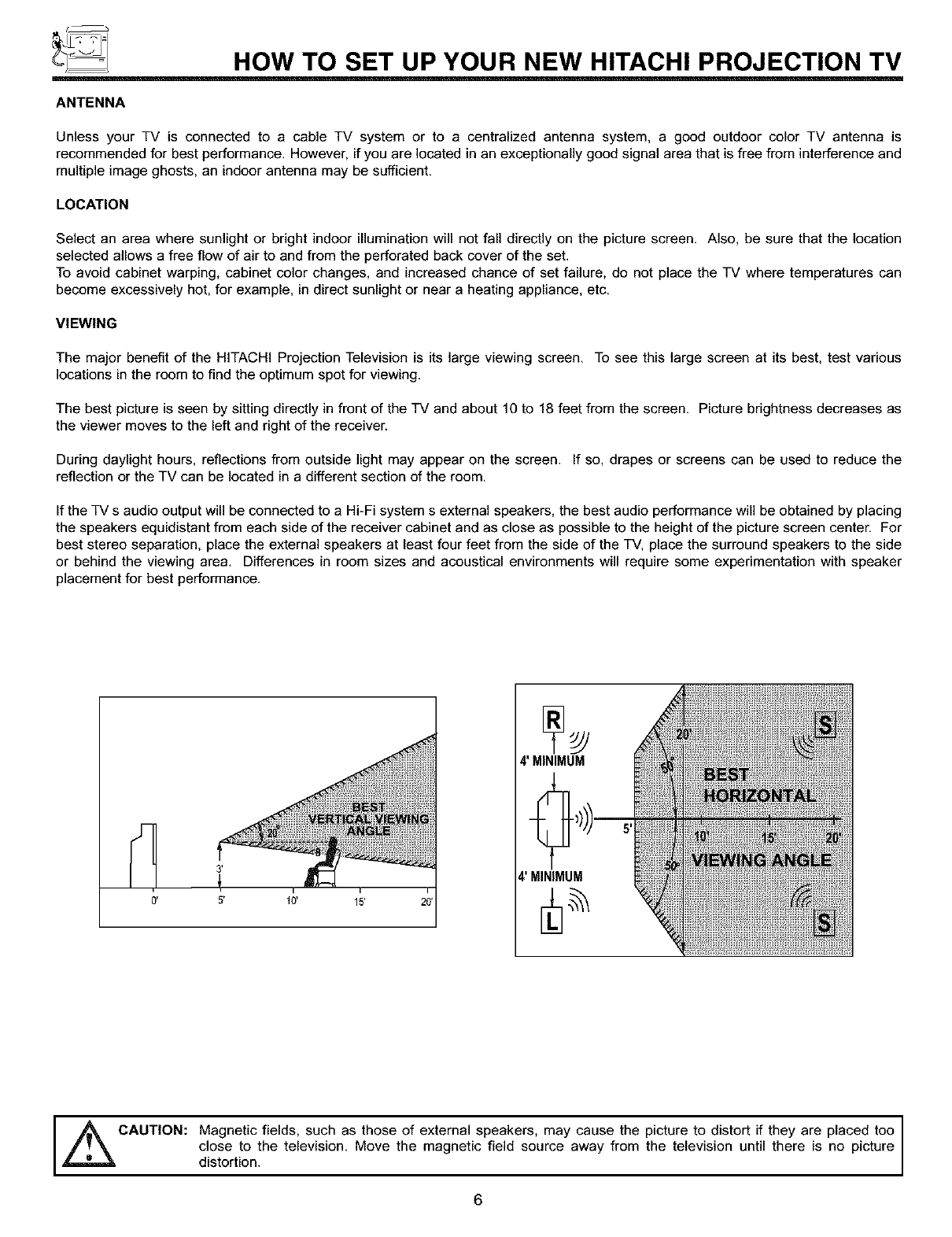

HOW TO SET UP YOUR NEW HITACHI PROJECTION TV

ANTENNA

Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna is

recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference and

multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location

selected allows a free flow of air to and from the perforated back cover of the set.

To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can

become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

VIEWING

The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various

locations in the room to find the optimum spot for viewing.

The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as

the viewer moves to the left and right of the receiver.

During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the

reflection or the TV can be located in a different section of the room.

If the TV s audio output will be connected to a Hi-Fi system s external speakers, the best audio performance will be obtained by placing

the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For

best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side

or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker

placement for best performance.

4' MINIMUM

,_ picture to distort if they are placed too I

CAUTION: Magnetic fields, such as those of external speakers, may cause the

distortion,closeto the television. Move the magnetic field source away from the television until there is no picture

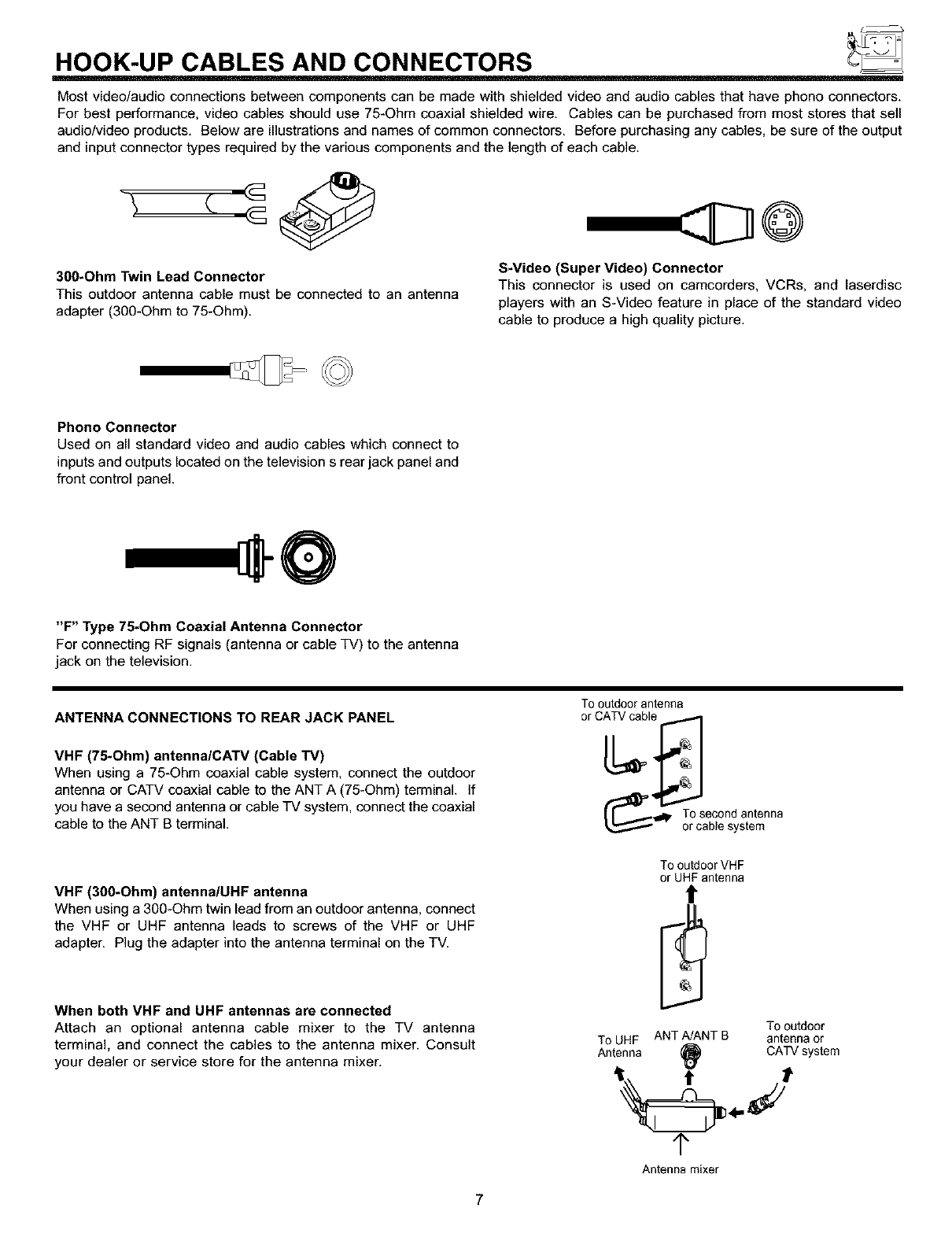

HOOK-UP CABLES AND CONNECTORS

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors.

For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell

audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output

and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Connector

This outdoor antenna cable must be connected to an antenna

adapter (300-Ohm to 75-Ohm).

S-Video (Super Video) Connector

This connector is used on camcorders, VCRs. and laserdisc

players with an S-Video feature in place of the standard video

cable to produce a high quality picture.

Phono Connector

Used on all standard video and audio cables which connect to

inputs and outputs located on the television s rear jack panel and

front control panel.

"F" Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the antenna

jack on the television.

ANTENNA CONNECTIONS TO REAR JACK PANEL

VHF (75-Ohm) antennalCATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect the outdoor

antenna or CATV coaxial cable to the ANT A (75-Ohm) terminal. If

you have a second antenna or cable TV system, connect the coaxial

cable to the ANT B terminal.

Tooutdoorantenna

_'_, To secondantenna

or cablesystem

VHF (300-Ohm) antennalUHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect

the VHF or UHF antenna leads to screws of the VHF or UHF

adapter, Plug the adapter into the antenna terminal on the TV,

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV antenna

terminal, and connect the cables to the antenna mixer. Consult

your dealer or service store for the antenna mixer.

To outdoor VHF

or UHF antenna

To outdoor

To UHF ANT A!ANT B antennaor

Antenna _ CATVsystem

Antenna mixer

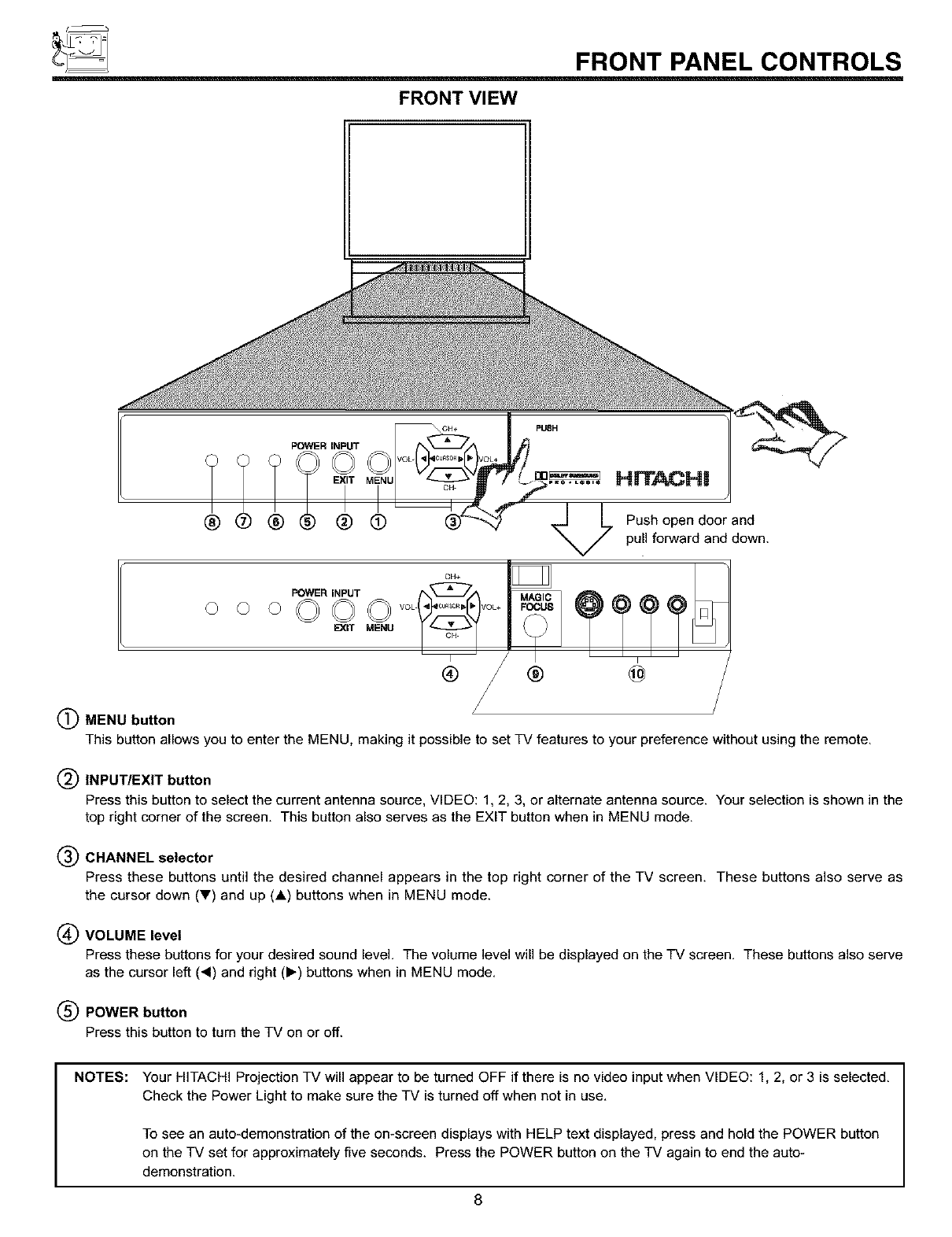

FRONT PANEL CONTROLS

FRONT VIEW

CH+ pUSH

®®®® j LPushopeodoorand

Vpull forward and down.

FOWER iNPUT

000000 EXIT MENU

® ® @

(_ MENU button z

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote.

(_ INPUT/EXIT button

Press this button to select the current antenna source, VIDEO: 1, 2, 3, or alternate antenna source. Your selection is shown in the

top right corner of the screen. This button also serves as the EXIT button when in MENU mode.

(_) CHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as

the cursor down (_') and up (A) buttons when in MENU mode.

(_ VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve

as the cursor left (4) and right (1_) buttons when in MENU mode.

(_ POWER button

Press this button to turn the TV on or off.

NOTES: Your HITACHI Projection TV will appear to be turned OFF if there is no video input when VIDEO: 1, 2, or 3 is selected.

Check the Power Light to make sure the TV is turned off when not in use.

To see an auto-demonstration of the on-screen displays with HELP text displayed, press and hold the POWER button

on the TV set for approximately five seconds. Press the POWER button on the TV again to end the auto-

demonstration.

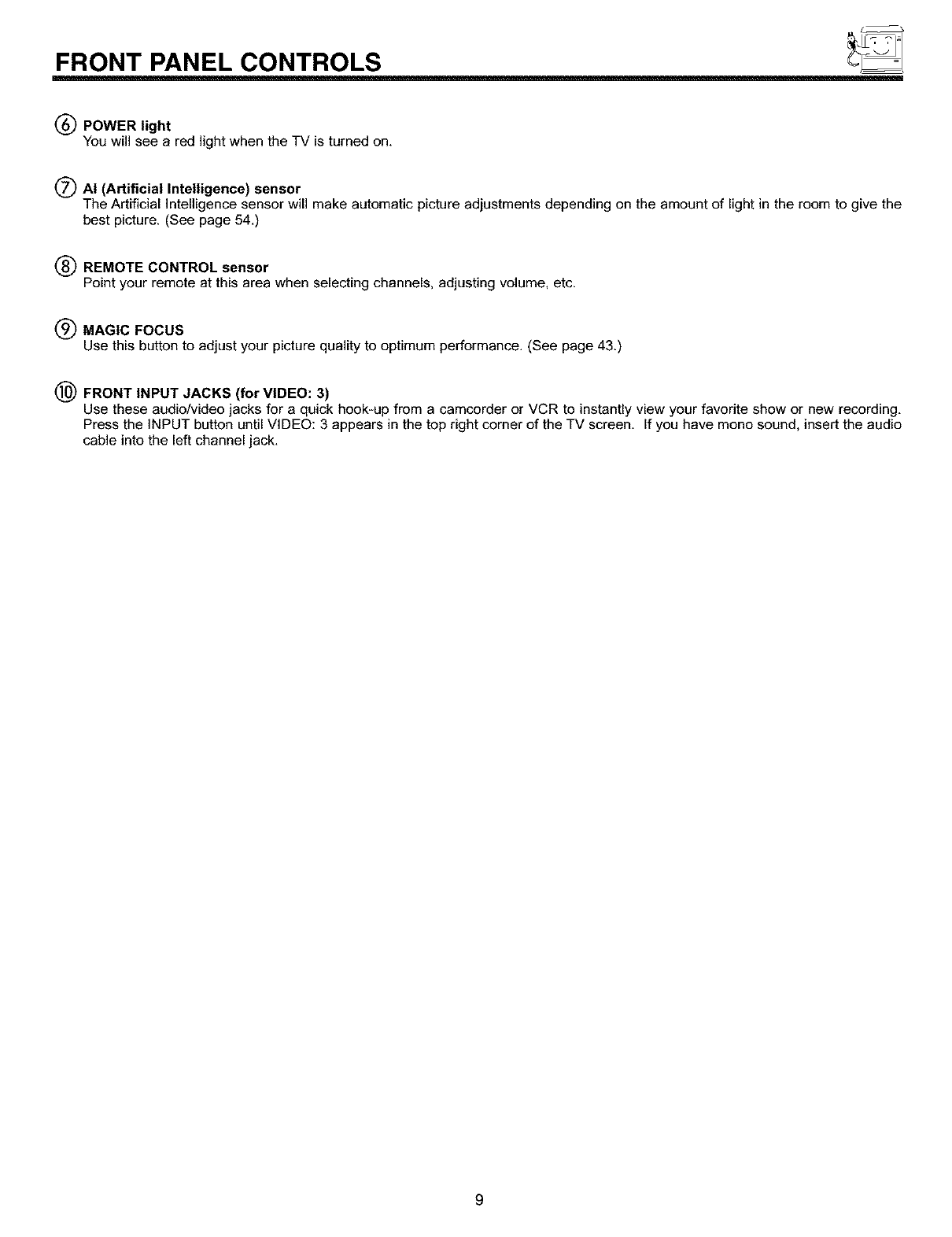

FRONT PANEL CONTROLS

(_) POWER light

You will see a red light when the TV is turned on.

(_ AI (Artificial Intelligence) sensor

The Artificial Intelligence sensor will make automatic picture adjustments depending on the amount of light in the room to give the

best picture. (See page 54.)

(_) REMOTE CONTROL sensor

Point your remote at this area when selecting channels, adjusting volume, etc.

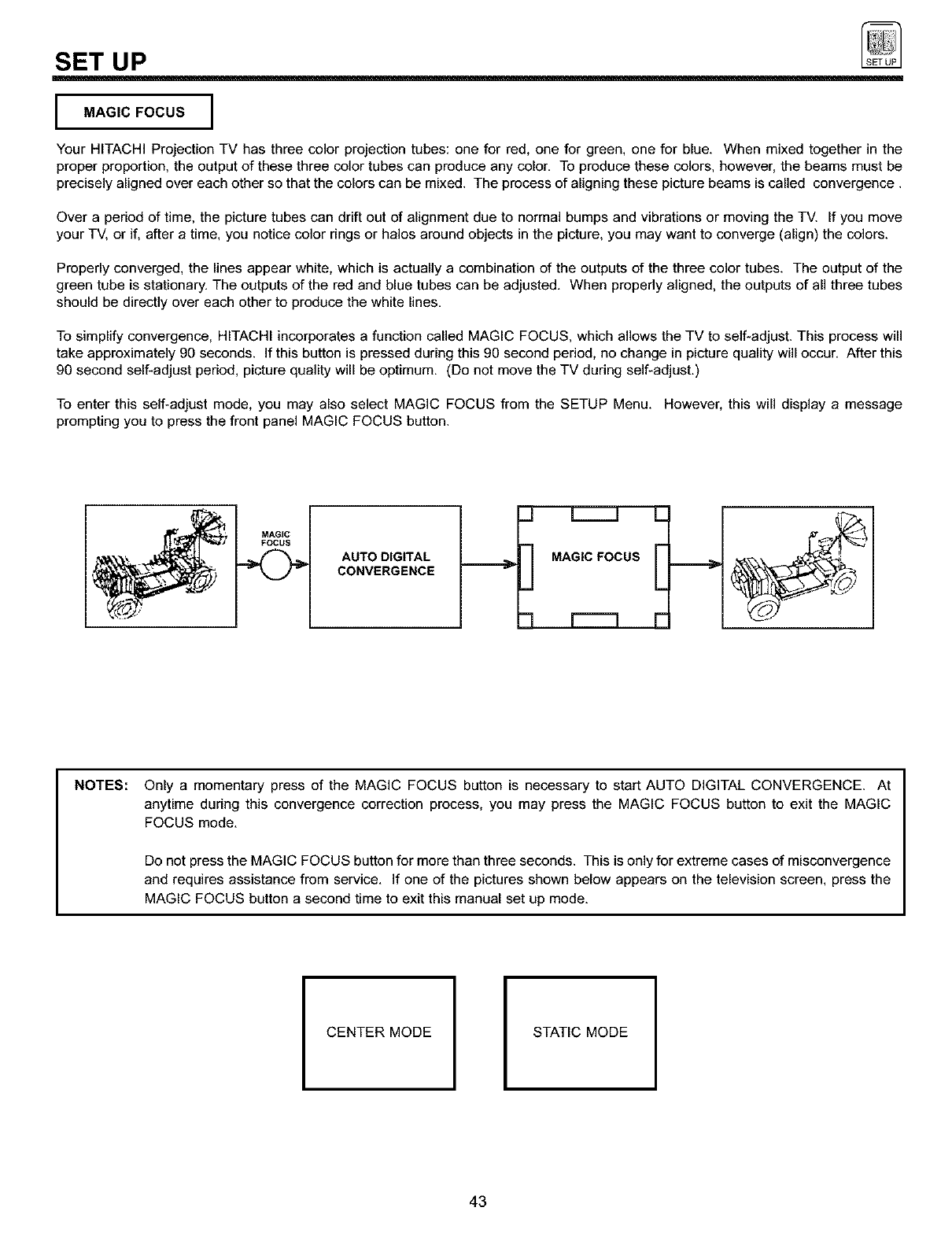

(_ MAGIC FOCUS

Use this button to adjust your picture quality to optimum performance. (See page 43.)

(_) FRONT INPUT JACKS (for VIDEO: 3)

Use these audio/video jacks for aquick hook-up from a camcorder or VCR to instantly view your favorite show or new recording,

Press the INPUT button untilVIDEO: 3 appears in the top right corner of the TV screen, If you have mono sound, insert the audio

cable into the left channel jack,

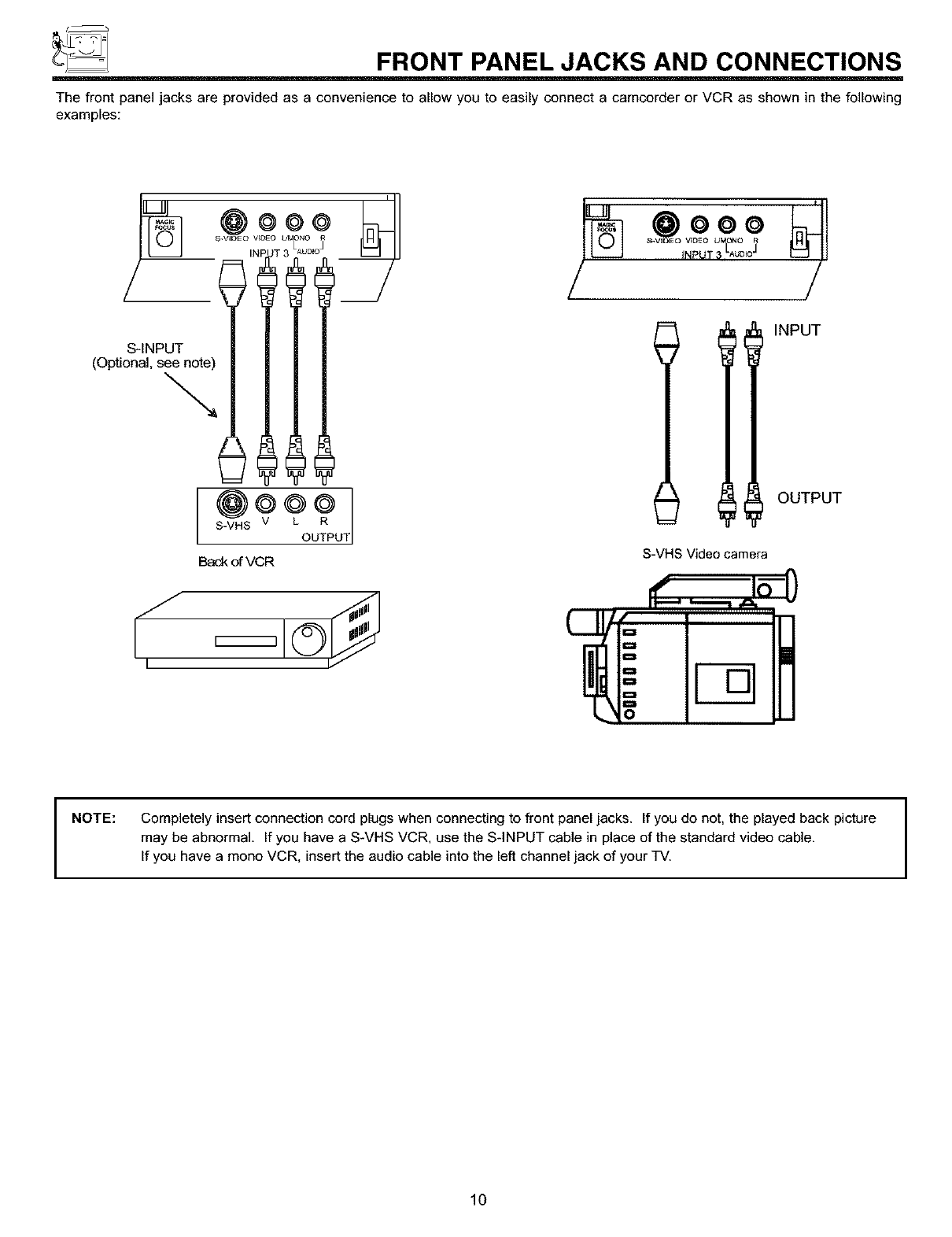

_FRONT PANEL JACKS AND CONNECTIONS

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following

examples:

S-INPUT

(Optional, see note)

S-VHS V U

Back of VCR

@ooo

S.VIDEO VEDEO UMONO

INPUT_ LAu°_3

IllNPuT

OUTPUT

S-VHS Video camera

INOTE: Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the played back picture

may be abnormal If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

If you have a mono VCR, insert the audio cable into the left channel jack of your TV.

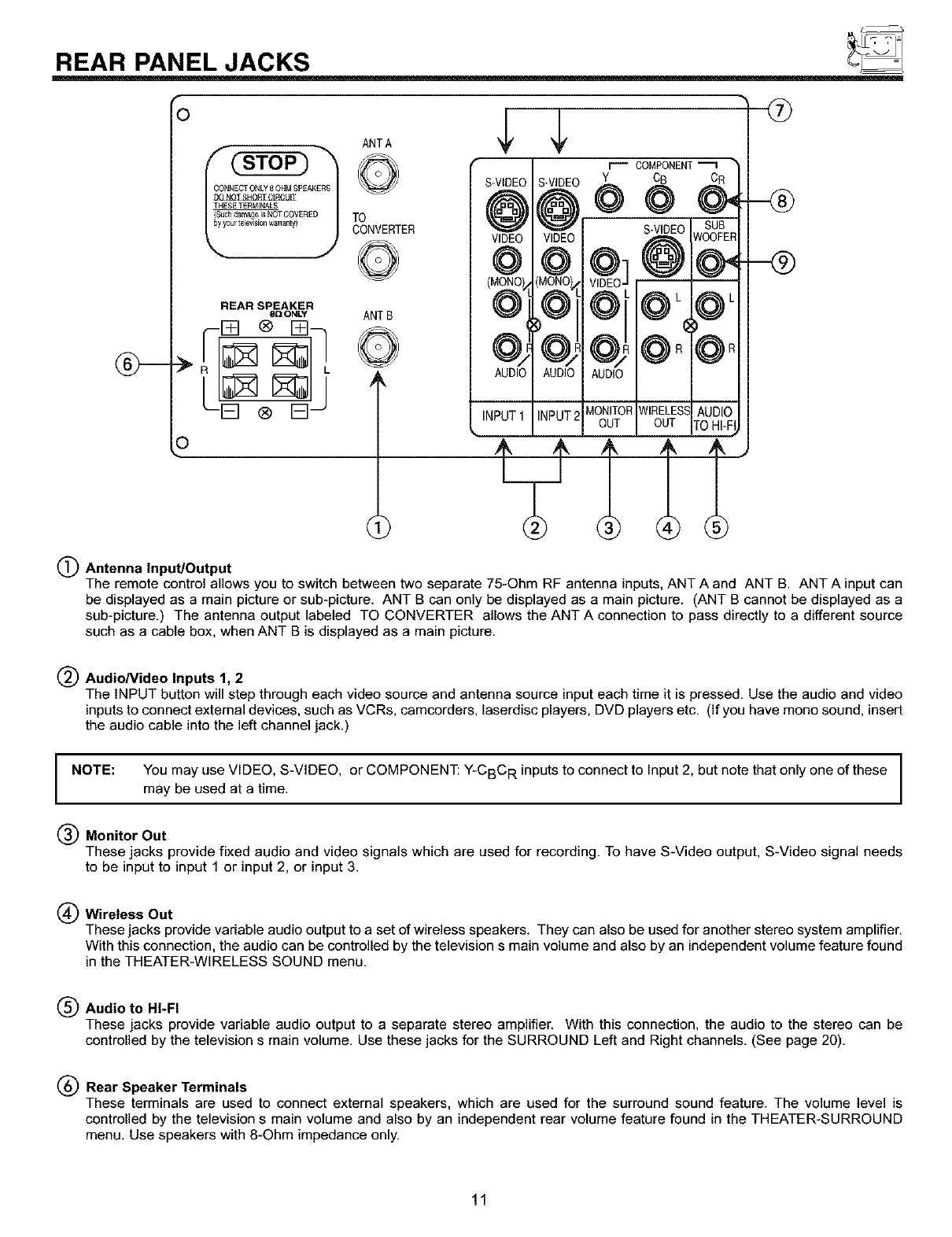

REAR PANEL JACKS

REAR SPEAKER

8Q ONLY

ANTA

CONVERTER

ANTB

S-VIDEO SUB

L k

@0,O

@R@R

WIRELESSAUDIO

OUT TOHI-Fi

< ONO < ONO ]

AUDIO AUDIO

INPUT1 INPUT2 MONITOR

OUT

-Q

(_) Antenna Input/Output

The remote control allows you to switch between two separate 75-Ohm RF antenna inputs, ANT A and ANT B. ANT A input can

be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture. (ANT B cannot be displayed as a

sub-picture.) The antenna output labeled TO CONVERTER allows the ANT A connection to pass directly to a different source

such as a cable box, when ANT B is displayed as a main picture.

(_ AudioNideo Inputs 1, 2

The INPUT button will step through each video source and antenna source input each time it is pressed. Use the audio and video

inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert

the audio cable into the left channel jack.)

NOTE: You may use VIDEO, S-VIDEO, or COMPONENT: Y-CBC R inputs to connect to Input 2, but note that only one of these

may be used at a time.

(_) Monitor Out

These jacks provide fixed audio and video signals which are used for recording. To have S-Video output, S-Video signal needs

to be input to input 1 or input 2, or input 3.

(_ Wireless Out

These jacks provide variable audio output to a set of wireless speakers. They can also be used for another stereo system amplifier.

With this connection, the audio can be controlled by the television s main volume and also by an independent volume feature found

in the THEATER-WIRELESS SOUND menu.

(_ Audio to HI-FI

These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be

controlled by the television s main volume. Use these jacks for the SURROUND Left and Right channels. (See page 20).

(_) Rear Speaker Terminals

These terminals are used to connect external speakers, which are used for the surround sound feature. The volume level is

controlled by the television s main volume and also by an independent rear volume feature found in the THEATER-SURROUND

menu. Use speakers with 8-Ohm impedance only.

FIRST TIME USE

(_) S-Video Inputs 1 and 2

Inputs 1 and 2 provide S-Video (Super Video) jacks for connecting equipment with S-Video output capability.

(_) Component: Y*CBC RInput 2

Input 2 provides Y-CBC R jacks for connecting equipment with this capability, such as a DVD player.

NOTES: DO NOT connect standard VIDEO or S-VIDEO to Input 2 when using Y-CBC R input.

When using the Y-CBC R input jacks, connect your components audio output to the TV s Input 2 Left and Right Audio

input jacks.

Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV s

Cb input and the components R-Y output to the TV s C R input.

It may be necessary to adjust TINT or turn AUTO COLOR-ON to obtain optimum picture quality when using the Y-CBC R

inputs. (See pages 53 and 54.)

To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-CBC R jacks.

When using the Y-CBC R jacks, Input 2 will be viewed as a blank PIP sub-picture. (See page 27.)

(_ Sub Woofer

This jack provides variable audio output to a sub-woofer accessory. With this connection, the audio can be controlled by the

television s main volume and also by an independent sub-woofer volume feature found in the THEATER-SUB WOOFER menu.

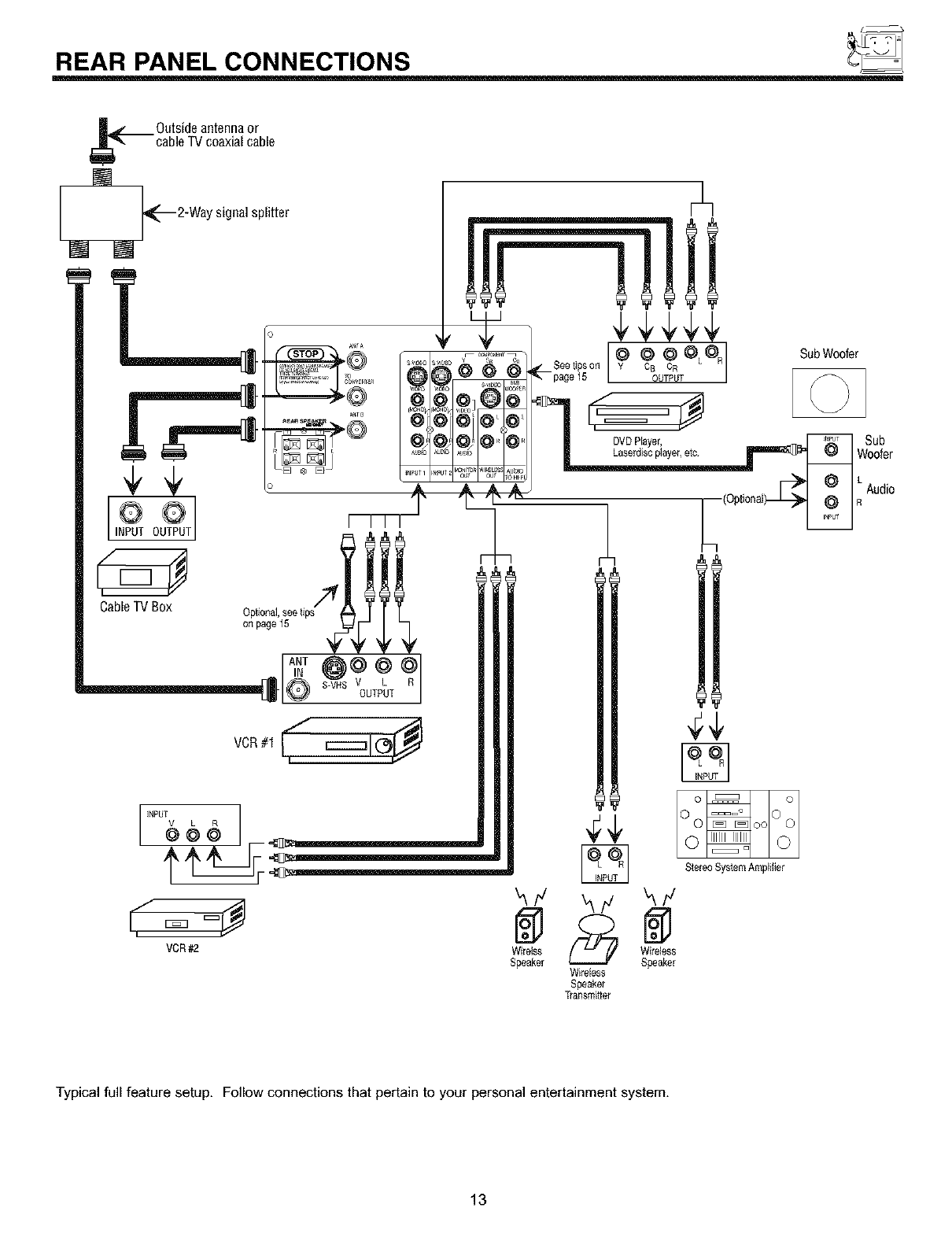

REAR PANEL CONNECTIONS

_ Outsideantennaor

cableTV coaxialcable

2-Waysignal splitter

INPUT 0T

Cable TV Box

onpage15

jjjjjjjjjjjjjjjj_ V LOUTPUT

,f= =y @

VCR #2 Wirelss

Speaker Wirebss

Speaker

Transmitter

Wirebss

Speaker

Stereo System Amplifier

Typical full feature setup. Follow connections that pertain to your personal entertainment system,

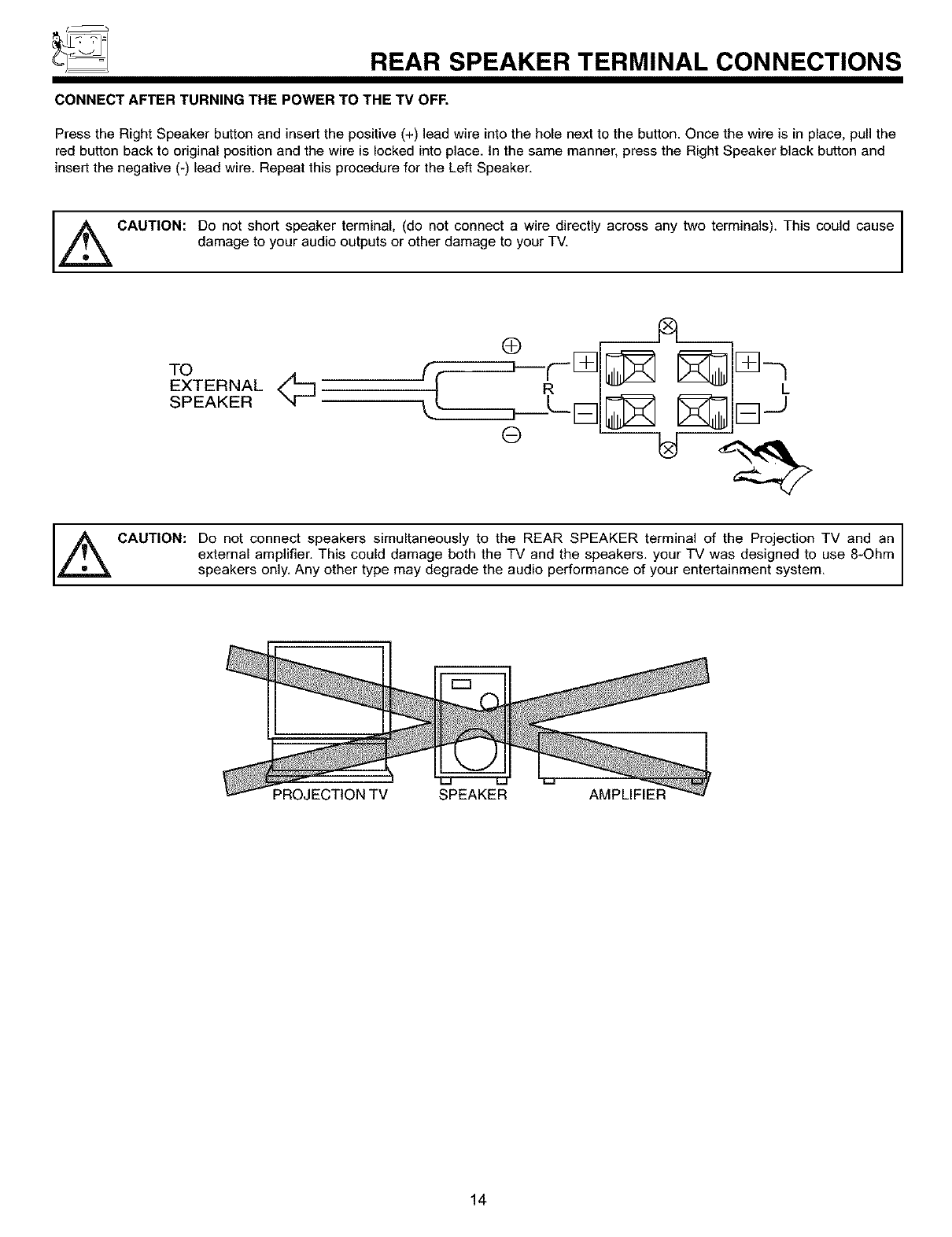

REAR SPEAKER TERMINAL CONNECTIONS

CONNECT AFTER TURNING THE POWER TO THE TV OFF.

Press the Right Speaker button and insert the positive (+) lead wire into the hole next to the button. Once the wire is in place, pull the

red button back to original position and the wire is locked into place. In the same manner, press the Right Speaker black button and

insert the negative (-) lead wire. Repeat this procedure for the Left Speaker.

,_ CAUTION: Do not short speaker terminal, (do not connect awire directly across any two terminals). This could cause I

damage to your audio outputs or other damage to your TV. I

EXTERNAL

SPEAKER

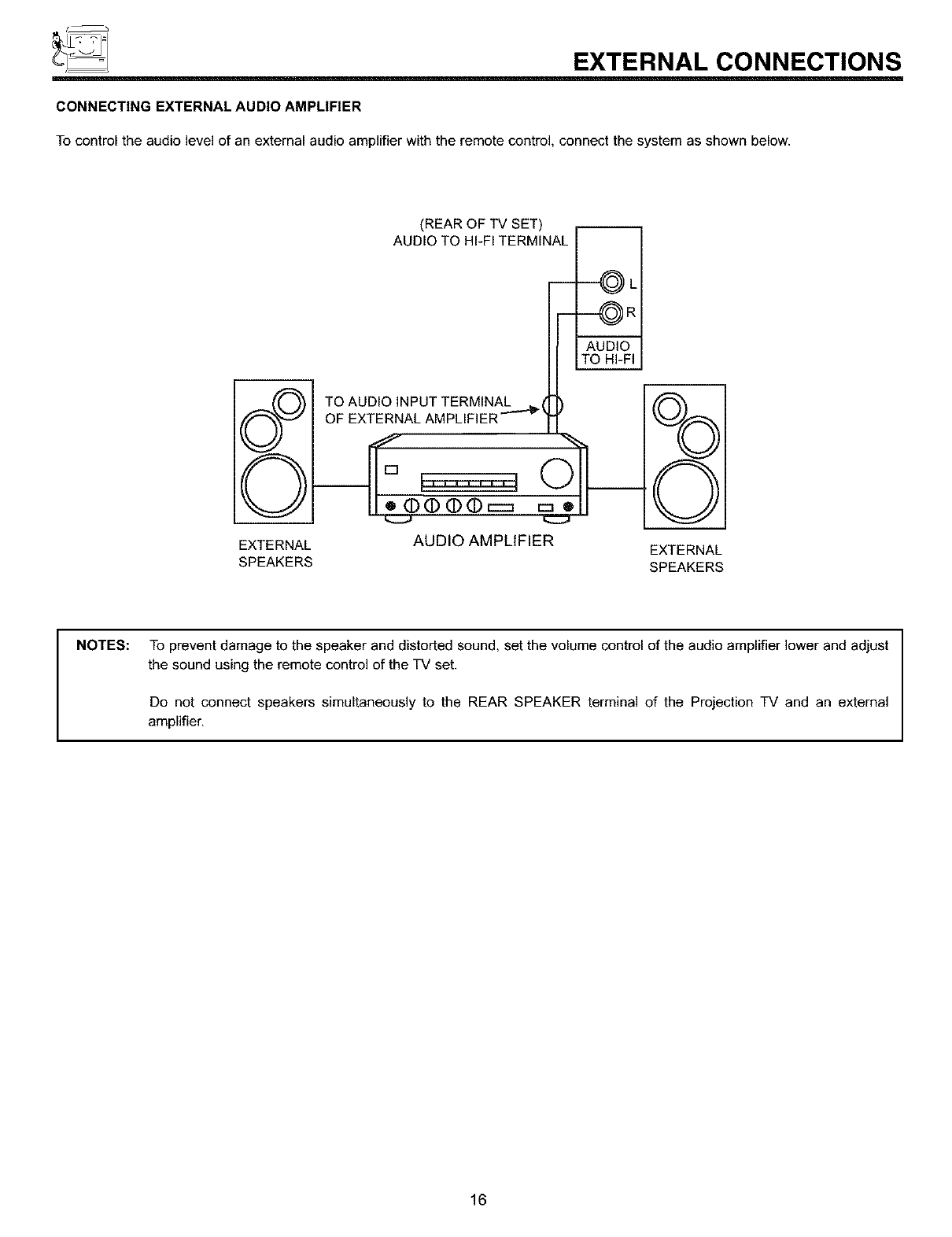

_ CAUTION: Do not connect speakers simultaneously to the REAR SPEAKER terminal of the Projection TV and an

external amplifier. This could damage both the TV and the speakers, your TV was designed to use 8-Ohm

speakers only. Any other type may degrade the audio performance of your entertainment system.

PROJECTION TV SPEAKER AMPLIFIER

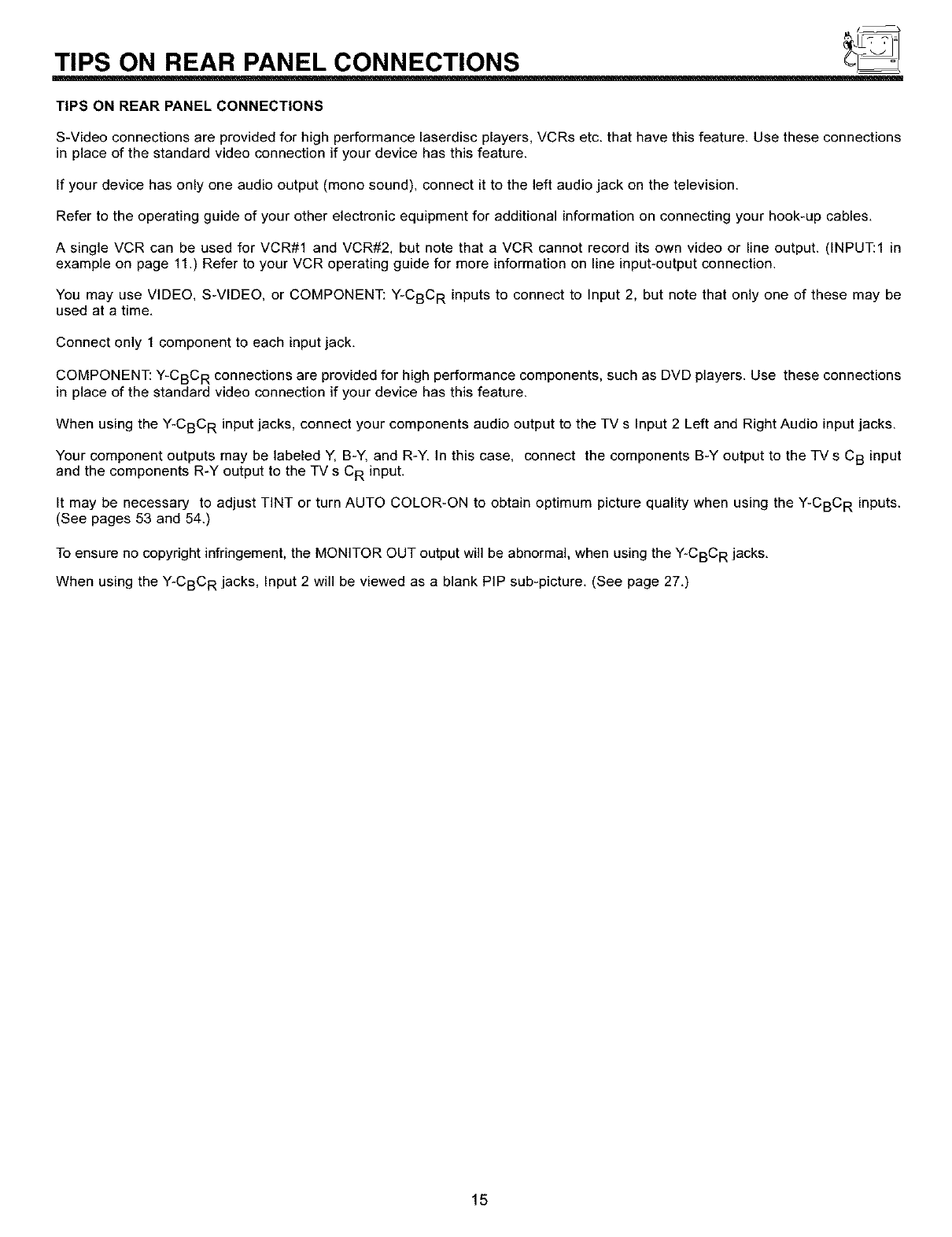

TIPS ON REAR PANEL CONNECTIONS

S-Video connections are provided for high performance laserdisc players, VCRs etc. that have this feature. Use these connections

in place of the standard video connection if your device has this feature.

If your device has only one audio output (mono sound), connect it to the left audio jack on the television.

Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables.

A single VCR can be used for VCR#1 and VCR#2, but note that a VCR cannot record its own video or line output. (INPUT:I in

example on page 11.) Refer to your VCR operating guide for more information on line input-output connection.

You may use VIDEO, S-VIDEO, or COMPONENT: Y-CBC R inputs to connect to Input 2, but note that only one of these may be

used at a time.

Connect only 1 component to each input jack.

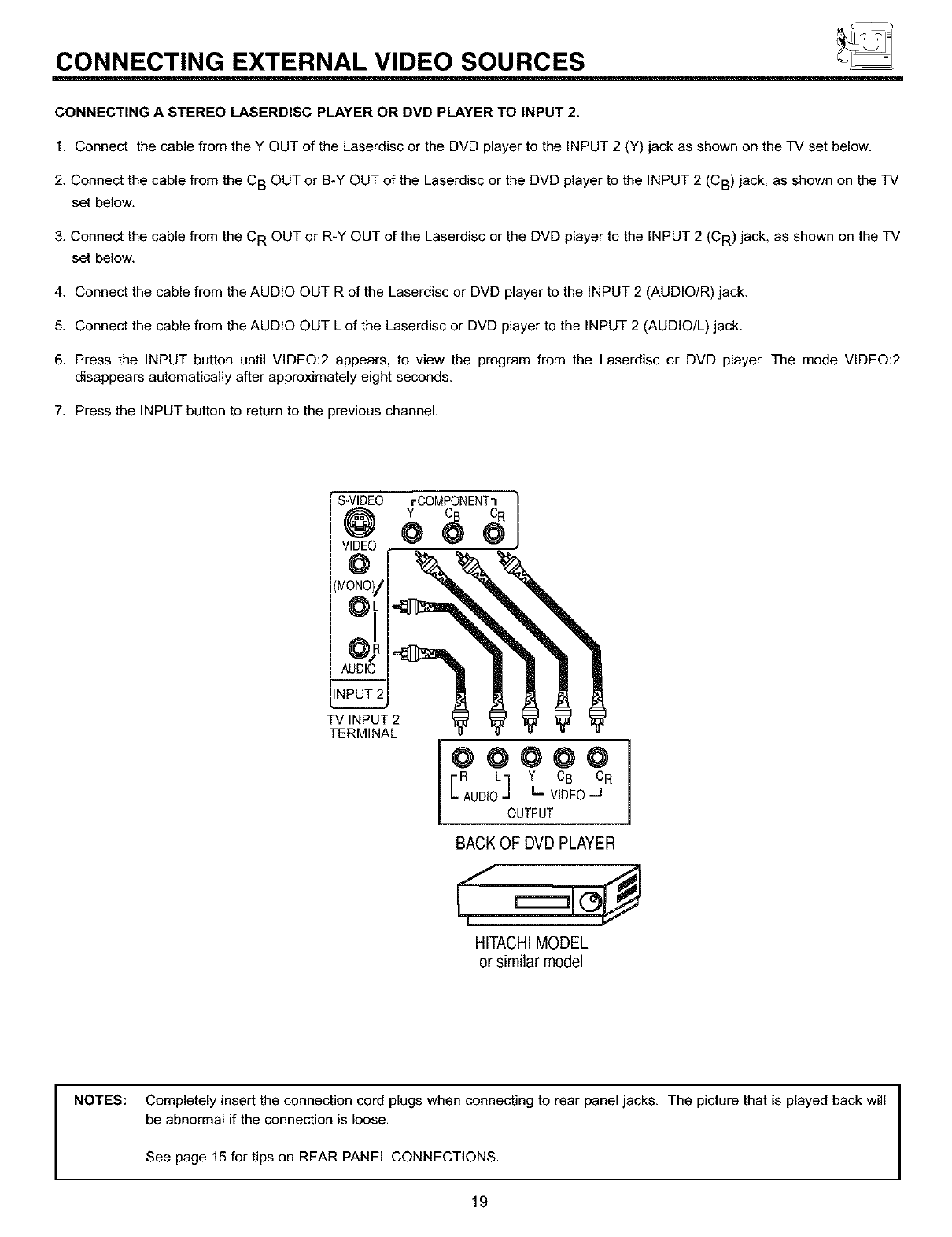

COMPONENT: Y-CBC R connections are provided for high performance components, such as DVD players. Use these connections

in place of the standard video connection if your device has this feature.

When using the Y-CBC R input jacks, connect your components audio output to the TV s Input 2 Left and Right Audio input jacks.

Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV s C B input

and the components R-Y output to the TV s C R input.

It may be necessary to adjust TINT or turn AUTO COLOR-ON to obtain optimum picture quality when using the Y-CBC R inputs.

(See pages 53 and 54.)

To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-CBC R jacks.

When using the Y-CBC R jacks, Input 2 will be viewed as a blank PIP sub-picture. (See page 27.)

EXTERNAL CONNECTIONS

CONNECTING EXTERNAL AUDIO AMPLIFIER

To control the audio level of an external audio amplifier with the remote control, connect the system as shown below.

EXTERNAL

SPEAKERS

(REAR OF TV SET)

AUDIO TO HI-FI TERMINAL

--OL

--OR

AUDIO

TO HI-FI

TO AUDIO INPUT TERMINAL _ I

OF EXTERNAL AMPLIFIER ''''_ _ /

AUDIO AMPLIFIER EXTERNAL

SPEAKERS

NOTES: To prevent damage to the speaker and distorted sound, set the volume control of the audio amplifier lower and adjust

the sound using the remote control of the TV set.

Do not connect speakers simultaneously to the REAR SPEAKER terminal of the Projection TV and an external

amplifier,

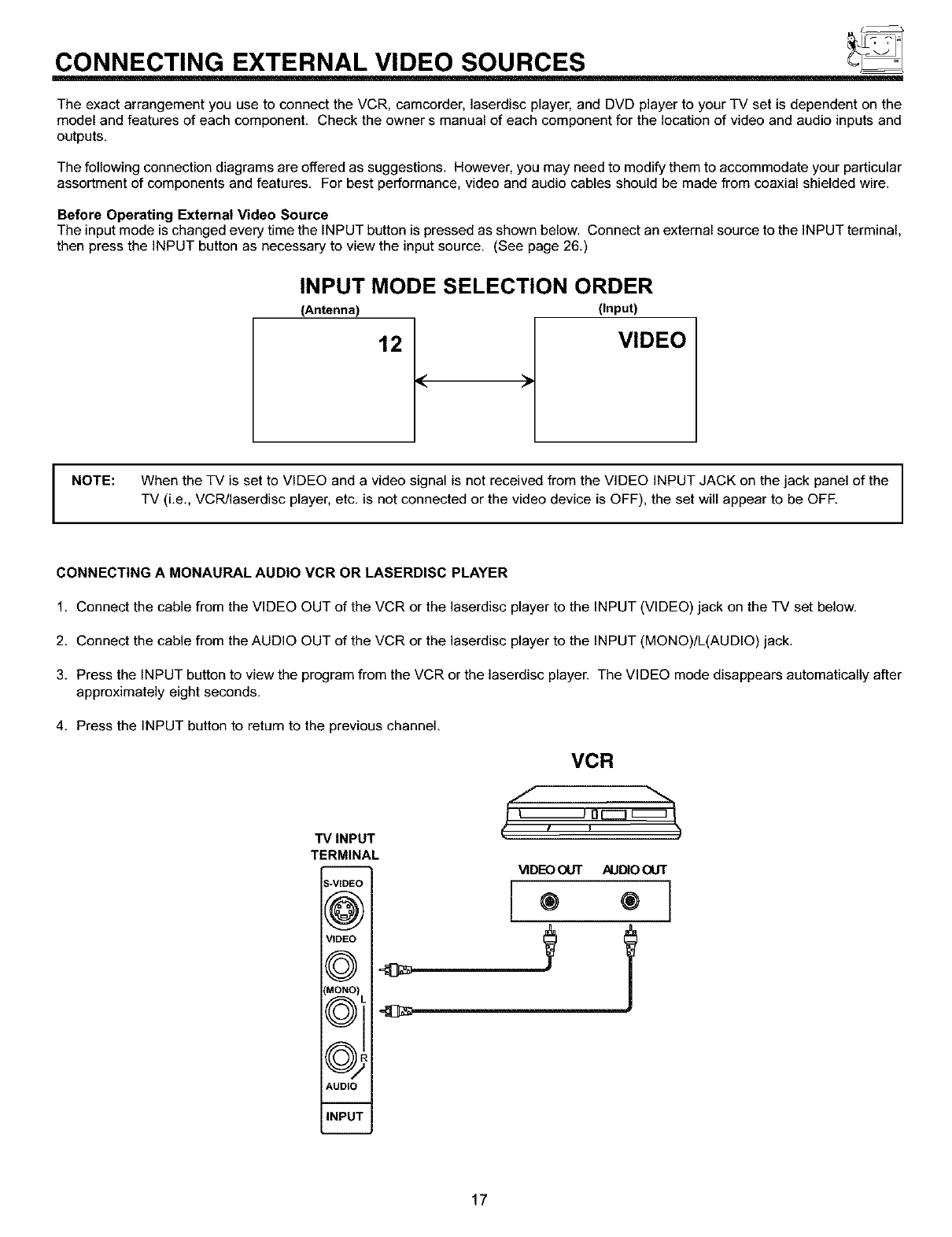

CONNECTING EXTERNAL VIDEO SOURCES

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, and DVD player to your TV set is dependent on the

model and features of each component. Check the owner s manual of each component for the location of video and audio inputs and

outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular

assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

The input mode is changed every time the INPUT button is pressed as shown below. Connect an external source to the INPUT terminal,

then press the INPUT button as necessary to view the input source. (See page 26.)

INPUT MODE SELECTION ORDER

(Antenna) (Input)

12 VIDEO

NOTE: When the TV is set to VIDEO and a video signal is not received from the VIDEO INPUT JACK on the jack panel of the

TV (i.e., VCR/laserdisc player, etc. is not connected or the video device is OFF), the set will appear to be OFF.

CONNECTING A MONAURAL AUDIO VCR OR LASERDISC PLAYER

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack on the TV set below.

2. Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.

3. Press the INPUT button to view the program from the VCR or the laserdisc player. The VIDEO mode disappears automatically after

approximately eight seconds.

4. Press the INPUT button to return to the previous channel.

VCR

I , ,nEll|

TV INPUT

TERMINAL

-- VIDEOOUT AUI3_OOUT

S-VIDEO

VIDEO

K_J

IMONOI

ff_'_'N L

\'_vJl

AUDIO

INPUT

CONNECTING EXTERNAL VIDEO SOURCES

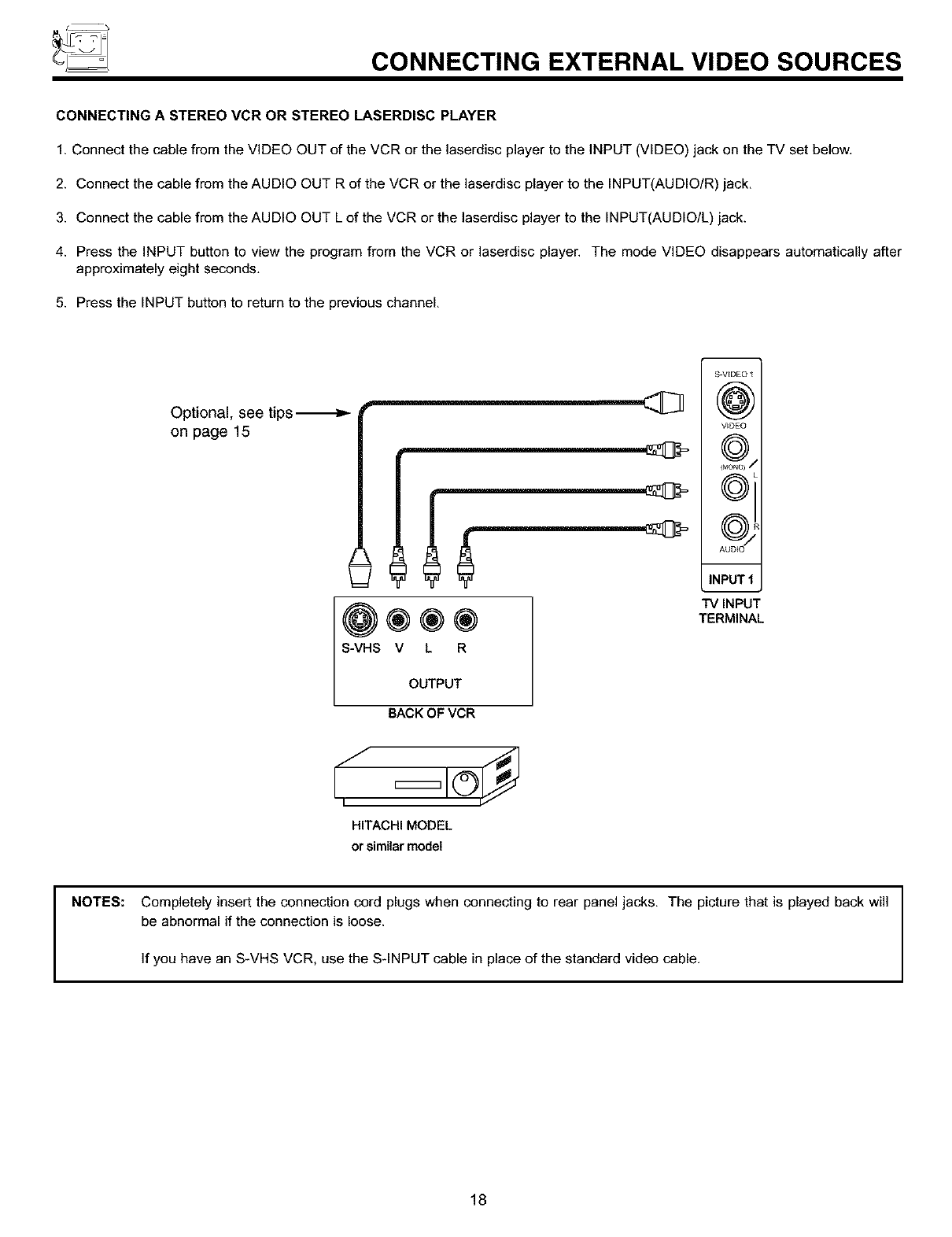

CONNECTING A STEREO VCR OR STEREO LASERDISC PLAYER

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack on the TV set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT(AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT(AUDIO/L) jack.

4. Press the INPUT button to view the program from the VCR or laserdisc player. The mode VIDEO disappears automatically after

approximately eight seconds.

5. Press the INPUT button to return to the previous channel.

Optional. see tips._- f_

on page 15

S-VHS V L R

OUTPUT

BACK OF VCR

S-VIDEO 1

(@)

VIDEO

©i

©)

INPUT1

TV INPUT

TERMINAL

HITACHI MODEL

or similar model

NOTES: Completely insert the connection cord plugs when connecting to rear panel jacks. The picture that is played back will

be abnormal if the connection is loose.

If you have an S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A STEREO LASERDISC PLAYER OR DVD PLAYER TO INPUT 2.

1. Connect the cable from the Y OUT of the Laserdisc or the DVD player to the INPUT 2 (Y) jack as shown on the TV set below,

2. Connect the cable from the C B OUT or B-Y OUT of the Laserdisc or the DVD player to the INPUT 2 (CB) jack, as shown on the TV

set below.

3. Connect the cable from the C R OUT or R-Y OUT of the Laserdisc or the DVD player to the INPUT 2 (CR) jack, as shown on the TV

set below.

4. Connect the cable from the AUDIO OUT R of the Laserdisc or DVD player to the INPUT 2 (AUDIO/R) jack.

5. Connect the cable from the AUDIO OUT L of the Laserdisc or DVD player to the INPUT 2 (AUDIO/L) jack.

6. Press the INPUT button until VIDEO:2 appears, to view the program from the Laserdisc or DVD player. The mode VIDEO:2

disappears automatically after approximately eight seconds.

7. Press the INPUT button to return to the previous channel.

' S-VIDEO =-COMPONENT'=|

Y CB CR J

V,DE0@ @ @

@@@@@

R L Y CB CR

E AUDIOJ L. VIDEOJ

OUTPUT

BACKOF DVDPLAYER

HITACHIMODEL

or similarm0del

NOTES: Completely insert the connection cord plugs when connecting to rear panel jacks. The picture that is played back will

be abnormal if the connection is loose.

See page 15 for tips on REAR PANEL CONNECTIONS.

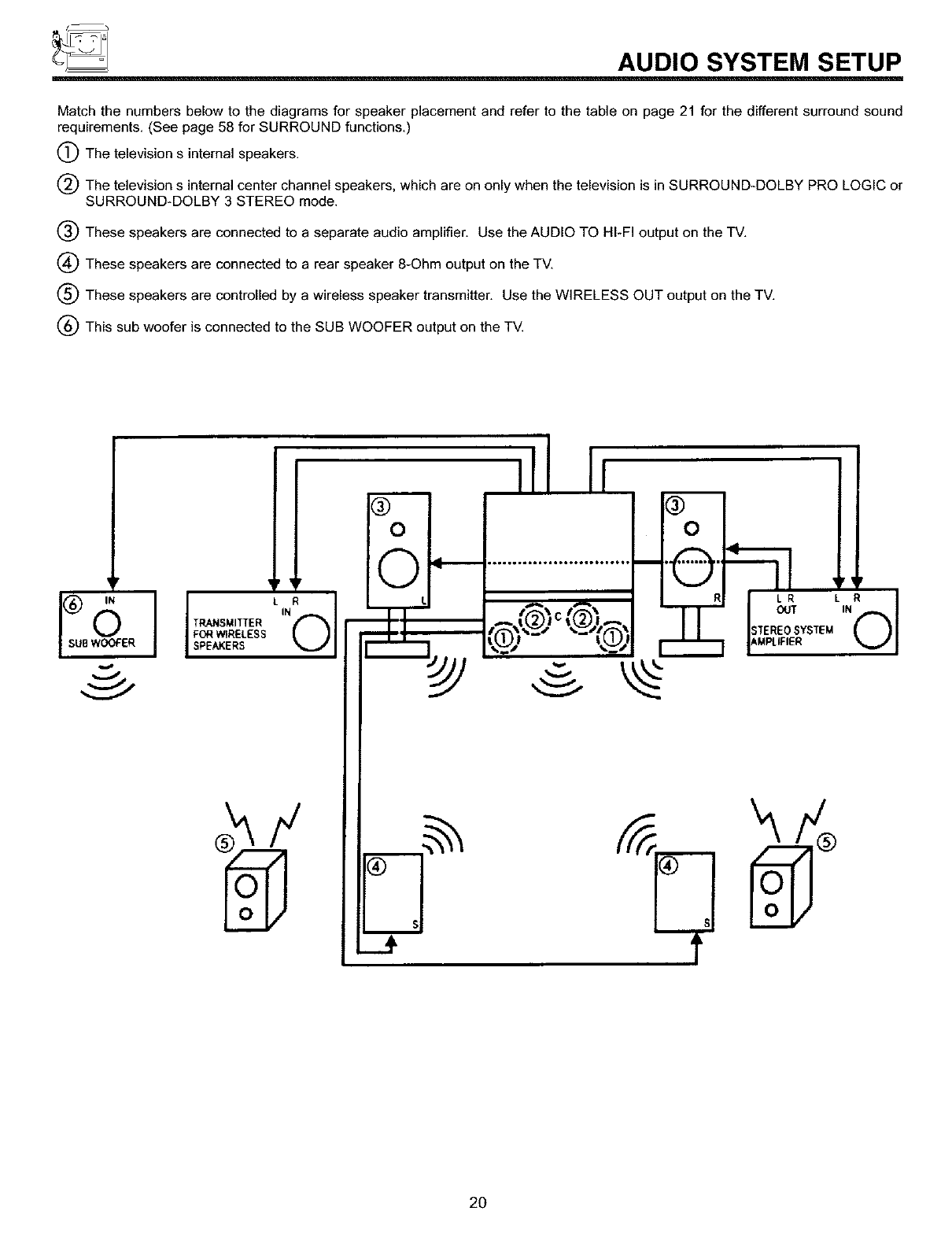

_AUDIO SYSTEM SETUP

Match the numbers below to the diagrams for speaker placement and refer to the table on page 21 for the different surround sound

requirements. (See page 58 for SURROUND functions.)

(_The television s internal speakers.

The television s internal center channel speakers, which are on only when the television is in SURROUND-DOLBY PRO LOGIC or

SURROUND-DOLBY 3 STEREO mode.

(_) These speakers are connected to a separate audio amplifier. Use the AUDIO TO HI-FI output on the TV.

(_ These speakers are connected to a rear speaker 8-Ohm output on the TV.

(_ These speakers are controlled by a wireless speaker transmitter. Use the WIRELESS OUT output on the TV.

(_) This sub woofer is connected to the SUB WOOFER output on the TV.

' ¶r ' r

Ill Ii

"°°"'°''"*°'°*°°'°'°'°'"

"-'®"®'-"P-<Iioo, ,Ol

f_%__" %_w_# ,r,c STEM

,0, ,©' _N

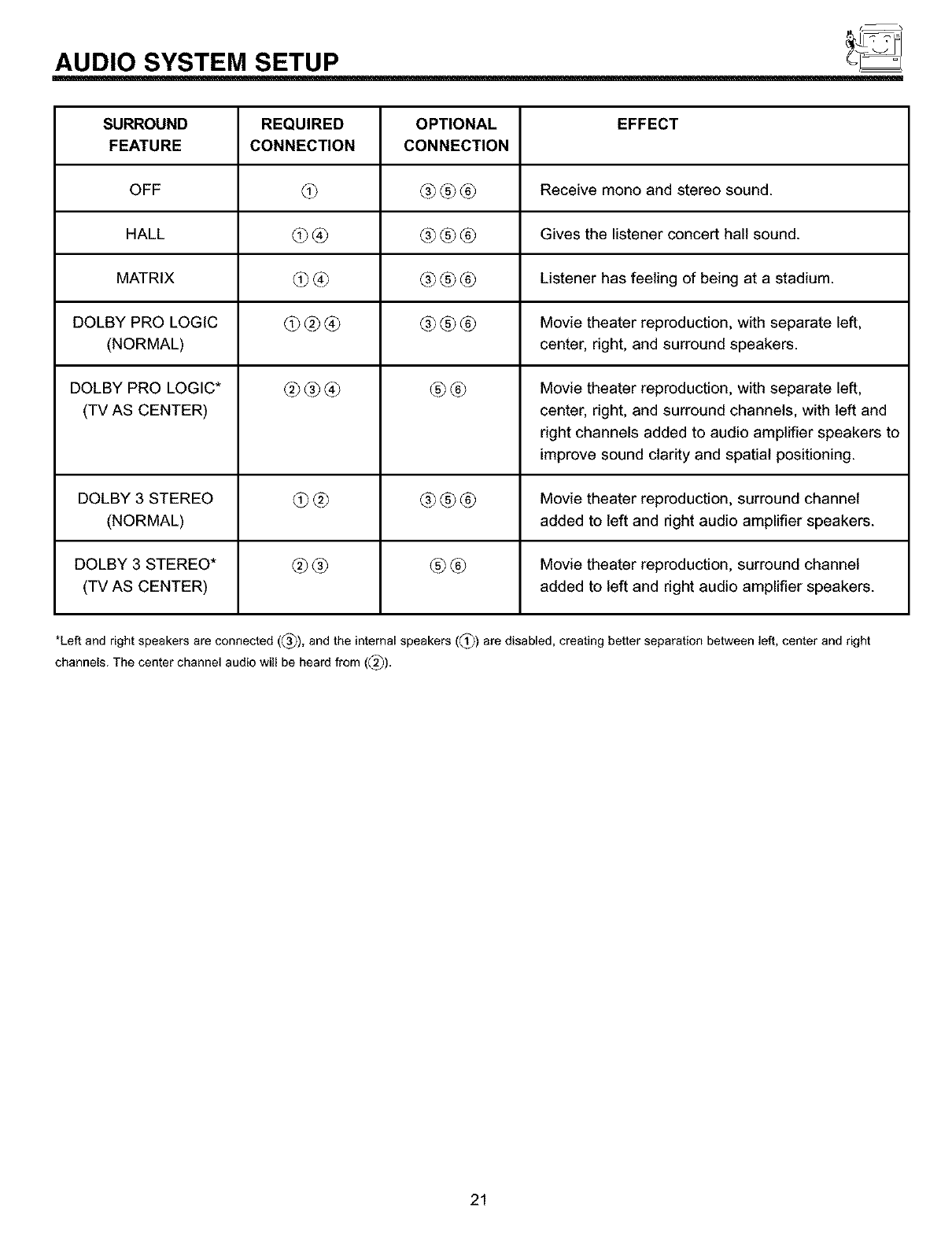

AUDIO SYSTEM SETUP

SURROUND REQUIRED OPTIONAL EFFECT

FEATURE CONNECTION CONNECTION

OFF L3_ _3_L_ _ Receive mono and stereo sound.

HALL L3_ _ _3_L_ _ Gives the listener concert hall sound.

MATRIX _ _ _3_L_ _ Listener has feeling of being at a stadium.

DOLBY PRO LOGIC _ _ _ _3_L-__ Movie theater reproduction, with separate left,

(NORMAL) center, right, and surround speakers.

DOLBY PRO LOGIC* _ _ _ _ _6_ Movie theater reproduction, with separate left,

(TV AS CENTER) center, right, and surround channels, with left and

right channels added to audio amplifier speakers to

improve sound clarity and spatial positioning.

DOLBY 3 STEREO _ @_ _3_L_ _ Movie theater reproduction, surround channel

(NORMAL) added to left and right audio amplifier speakers.

DOLBY 3 STEREO* _ _ _ _6_ Movie theater reproduction, surround channel

(TV AS CENTER) added to left and right audio amplifier speakers.

*Left and right speakers are connected (_3_), and the internal speakers (_) are disabled, creating better separation between left, center and right

channels. The center channel audio will be heard from (_).

THE GENIUS REMOTE CONTROL CLU-615MP

In addition to controlling all the functions on your HITACHI

Projection TV, the remote control is designed to operate different

types of VCRs, CATV (cable TV)/satellite converters, and audio

equipment with one touch. Basic operation keys are grouped

together in one area. All other controls are separated from them

and arranged in MULTI-PAGE sections, with a display that can

be switched to cover any of the three pages. Functions are

arranged and properly categorized into windows, making

operation simple when multiple functions are to be controlled.

To operate your TV, slide the MULTI-PAGE select switch on the

side of the remote to TV/CABLE/SAT mode. Press the TV button

and the remote will now control your television.

To operate your cable box, slide the MULTI-PAGE select switch

on the side of the remote to TV/CABLE/SAT mode. Press the

CABLE button and the remote will now control your cable box.

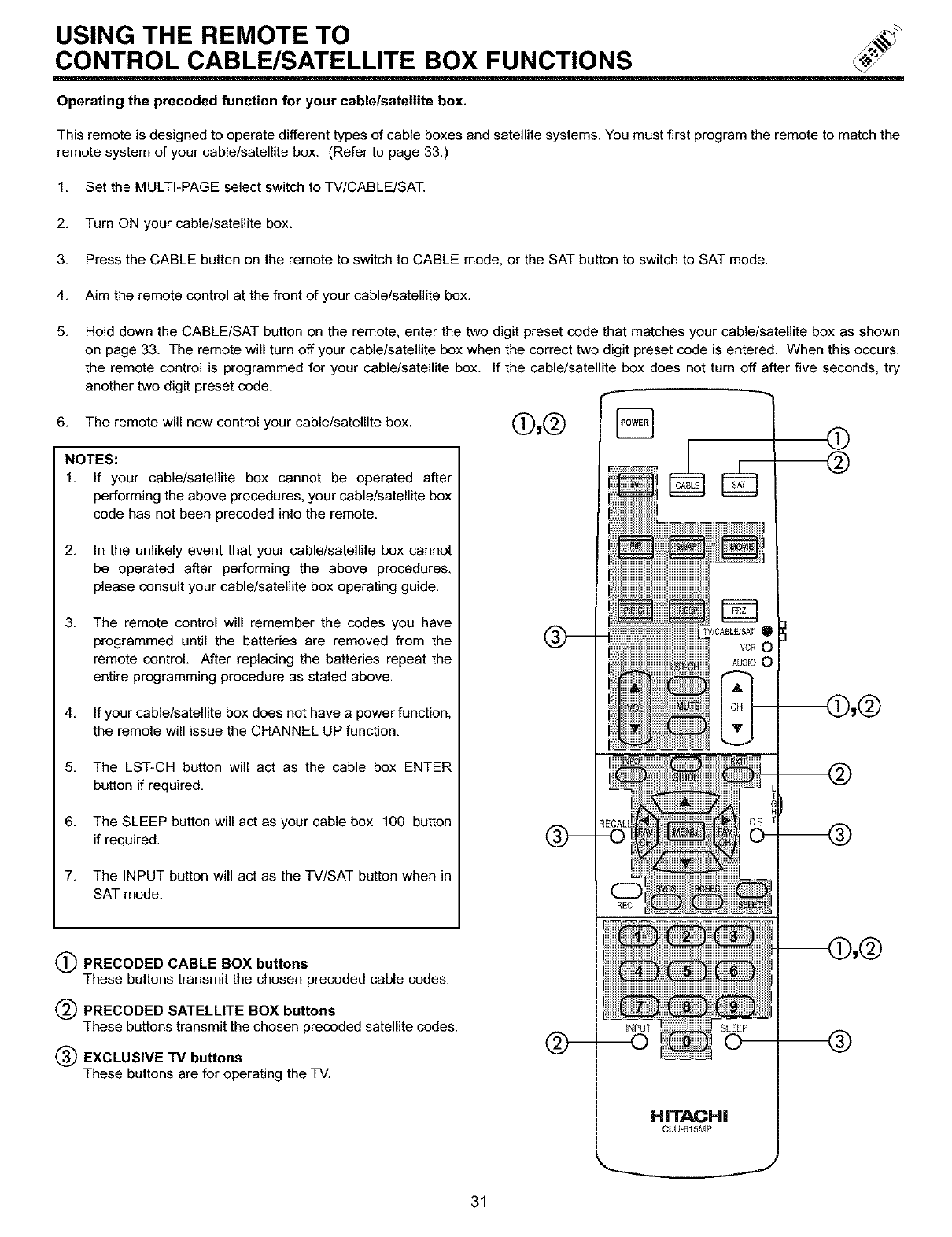

(See page 31 for instructions on how to program the remote to

control your cable box.)

To operate your satellite box, slide the MULTI-PAGE select

switch on the side of the remote to TV/CABLE/SAT mode. Press

the SAT button and the remote will now control your satellite box.

(See page 31 for instructions on how to program the remote to

control your satellite box.)

To operate your VCR, slide the MULTI-PAGE select switch on the

side of the remote to VCR mode. The remote will now control

your VCR. (See page 30 for instructions on how to program the

remote to control your VCR.)

To operate your audio equipment, slide the MULTI-PAGE select

switch on the side of the remote to AUDIO mode. Press the

button which corresponds to the component you would like to

control (AMP, CD, TAPE). The remote will now control your audio

equipment. (See page 32 for instructions on how to program the

remote to control your audio equipment.)

(_) MULTI-PAGE select switch

This selects the button layout of the multi-page section of

the remote control.

MULTI-PAGE buttons

These buttons change functions as shown on page 23.

(_ LIGHT button

When you are in a dark room, press this button on the side

of the remote to light up the buttons shown in (_. The light

will stay on for about eight seconds if the light button is not

pressed again. These buttons will not appear to light if the

room is too bright.

INPUT SLEEP

0 0

HITACHi

CLU-61SMP

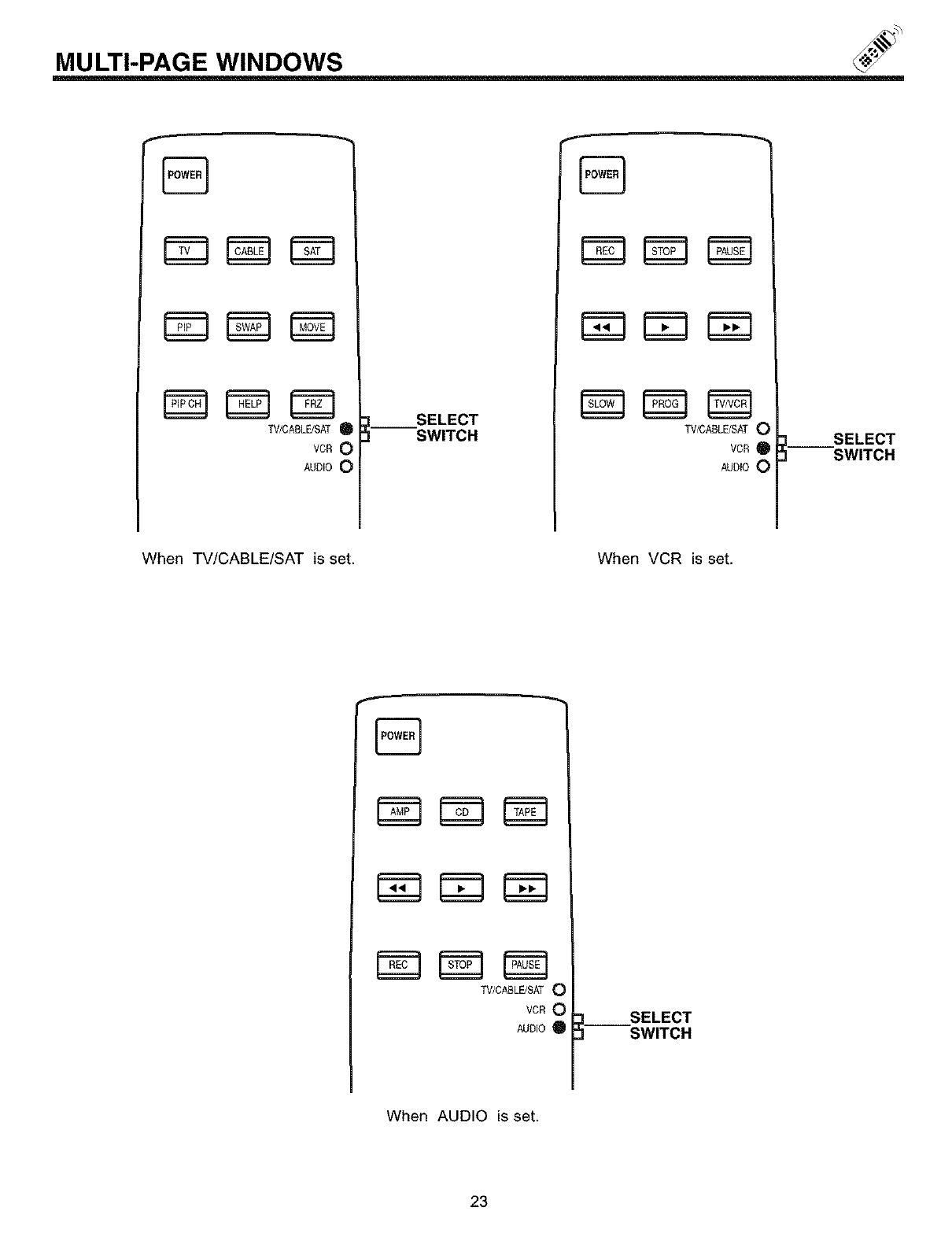

MULTI-PAGE WINDOWS

r_r_

TV/CABLE/SAT 0

VCR 0

AUDIO 0

SELECT

SWITCH

r_r_

r__r_

TV/CABLE/SAT 0

VCR lid

AUDIO 0

SELECT

SWITCH

When TV/CABLE/SAT is set. When VCR is set.

TV/CABLE/SAT 0

VCR 0

AUDIO _D SELECT

SWITCH

When AUDIO is set.

_" HOW TO USE THE GENIUS REMOTE TO CONTROL YOUR TV

POWER I

VCR 0

LST*CH AUDIO 0

_ECALLI(_

-0

SVCS SCHED 0

SELECT

INPUT

--0

HITACHI

CLU-615MP

(_) POWER button

Press this button to turn the TV set on or off when the remote is in TV mode. (See page 22 for instructions on how to set the remote

control to TV mode.) If a Special Event Reminder is set, it will be displayed when the TV is first turned on. (See page 63.)

(_)TV button

Press this button to allow the remote to control your TV.

(_) CABLE button

Press this button to allow the remote to control your cable box. (See page 31.)

(_SAT button

Press this button to allow the remote to control your satellite box. (See page 31.)

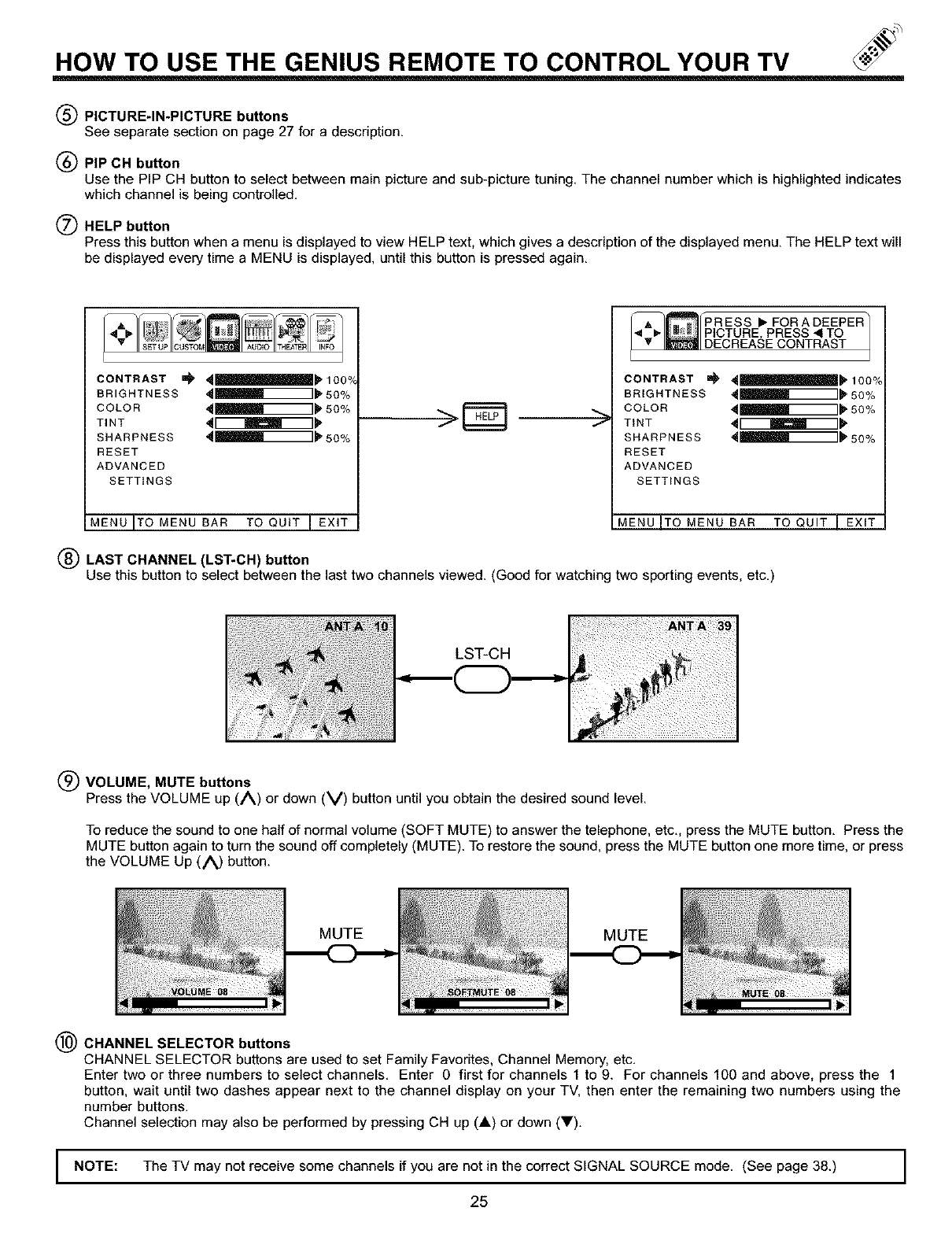

HOW TO USE THE GENIUS REMOTE TO CONTROL YOUR TV

(_ PICTURE-IN-PICTURE buttons

See separate section on page 27 for a description.

(_) PIP CH button

Use the PIP CH button to select between main picture and sub-picture tuning. The channel number which is highlighted indicates

which channel is being controlled.

(_ HELP button

Press this button when a menu is displayed to view HELP text, which gives a description of the displayed menu. The HELP text will

be displayed every time a MENU is displayed, until this button is pressed again.

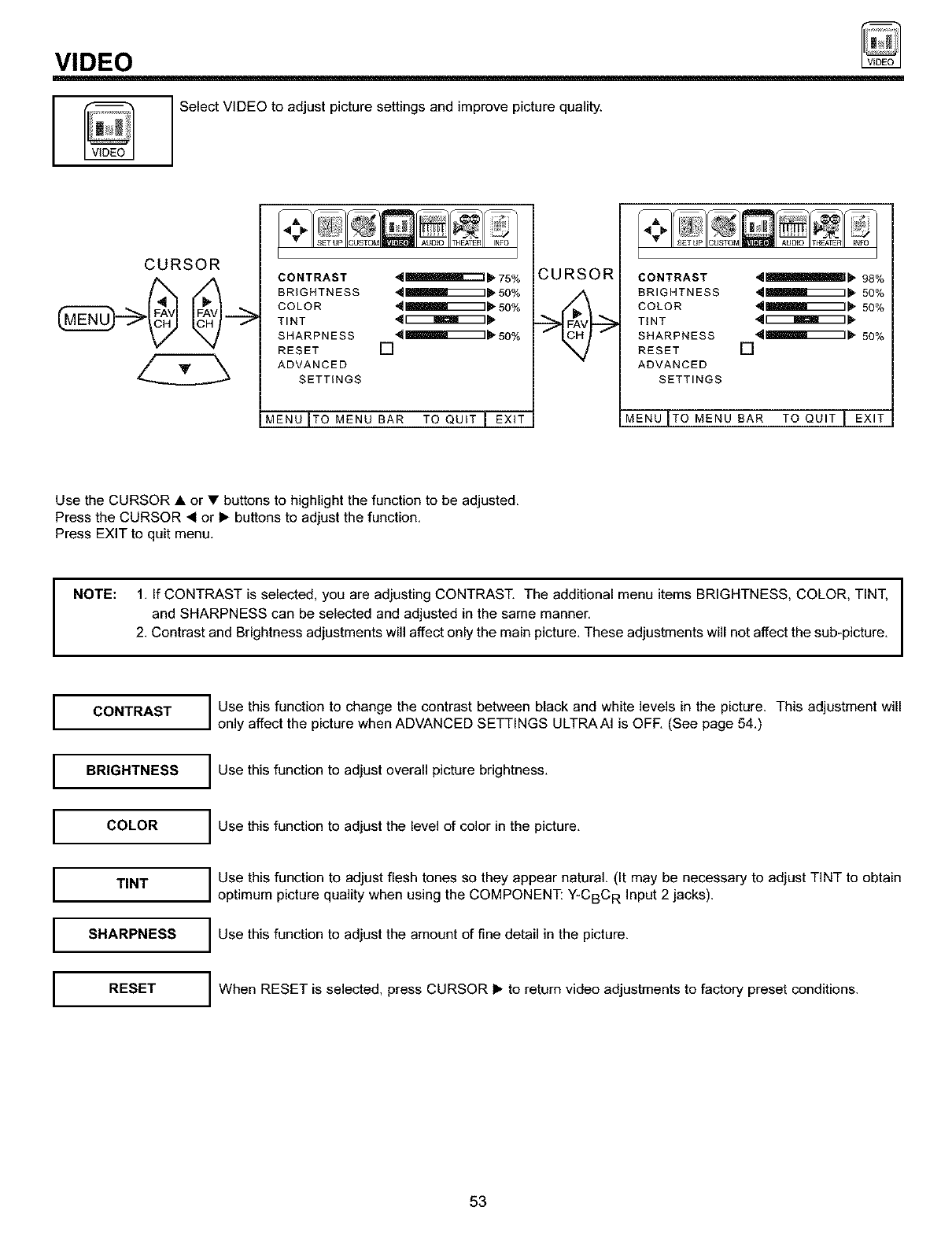

CONTRAST _ ___, 100o/

BRIGHTNESS __b 50%

COLOR _ I_ 50%

TINT __I_

SHARPNESS _ I[mmmmml iP50 %

RESET

ADVANCED

SETTINGS

MENUITO MENU BAR TO QUIT I EXIT

PRESS I_ FOR ADEEPER

_/PICTURE PRESS 41TO

_/DECREA_E CONTRAST

CONTRAST _ _lmmmmmm_mmm_ 100%

BRIGHTNESS ___ 50%

COLOR ___ 50%

TINT ,,___

SHARPNESS '___ 50%

RESET

ADVANCED

SETTINGS

MENU Imo MENU BAR TO QUIT I EXIT

(_ LAST CHANNEL (LST-CH) button

Use this button to select between the last two channels viewed, (Good for watching two sporting events, etc,)

LST-CH

(_ VOLUME, MUTE buttons

Press the VOLUME up (/_) or down (V) button until you obtain the desired sound level.

To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the

MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or press

the VOLUME Up (/_) button.

MUTE MUTE

(_) CHANNEL SELECTOR buttons

CHANNEL SELECTOR buttons are used to set Family Favorites, Channel Memory, etc.

Enter two or three numbers to select channels. Enter 0 first for channels 1 to 9. For channels 100 and above, press the 1

button, wait until two dashes appear next to the channel display on your TV, then enter the remaining two numbers using the

number buttons.

Channel selection may also be performed by pressing CH up (A) or down (V).

l NOTE: The TV not receive channels if not in the correct SIGNAL SOURCE mode. (See 38.) J

]

may some you are page

HOW TO USE THE GENIUS REMOTE TO CONTROL YOUR TV

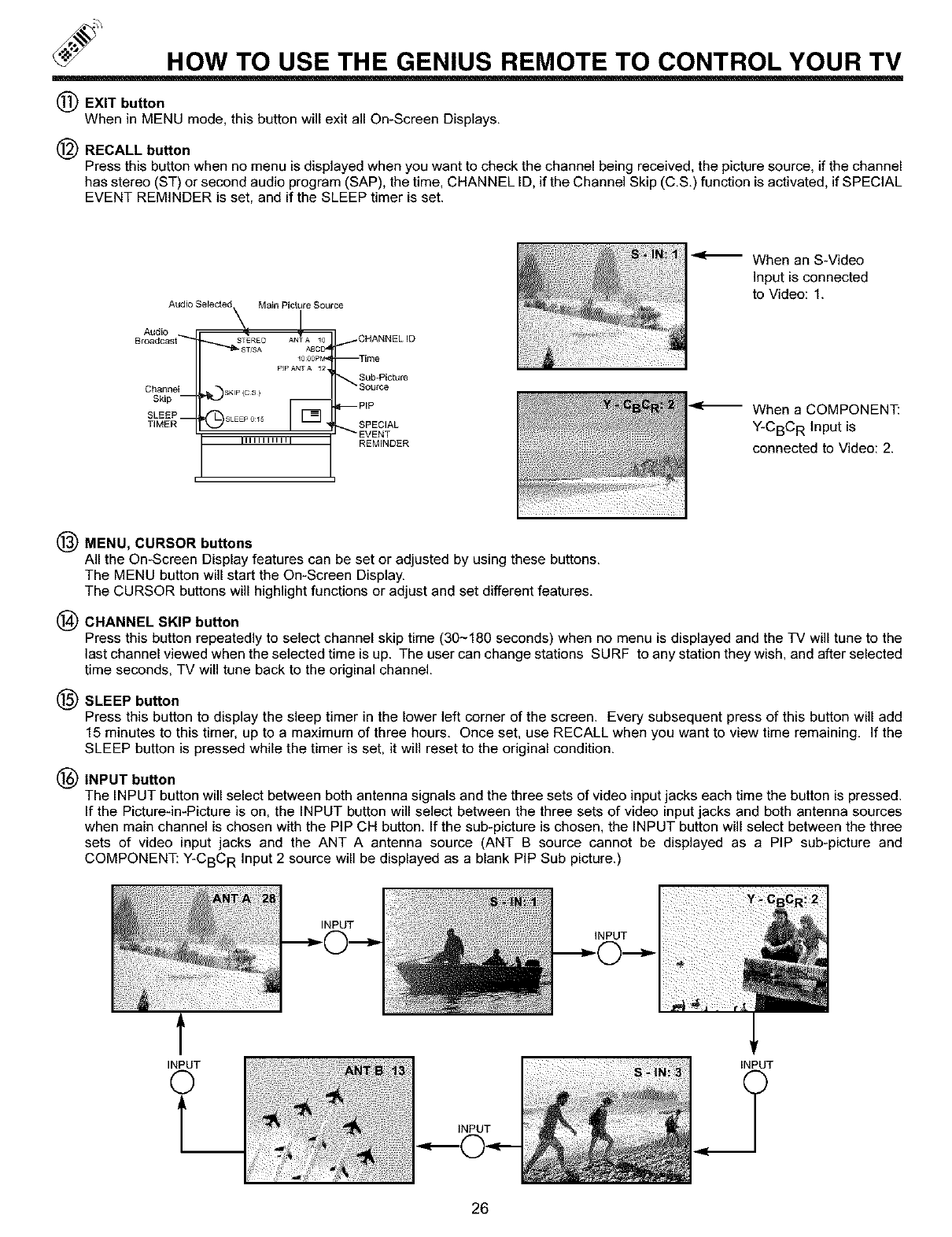

EXIT button

When in MENU mode, this button will exit all On-Screen Displays.

RECALL button

Press this button when no menu is displayed when you want to check the channel being received, the picture source, if the channel

has stereo (ST) or second audio program (SAP), the time. CHANNEL ID, if the Channel Skip (C.S.) function is activated, if SPECIAL

EVENT REMINDER is set, and if the SLEEP timer is set.

Audio Selected Main Picture Source

Audio _ X ANL 10 CHANNELID

Broadcsst STEREO /

_ STJSA ASC_

1o ooP_ --Time

P_P ANT A 12,q Sub-Picture

_ Sour_

Channel _SKIP(C S)

Skip -- [_ I_----PIP

SLEEP__ QSLEEP0 _5

TIMER SPECIAL

"_" EVENT

IIIIIIIII REMINDER

• .i

When an S-Video

input is connected

to Video: 1.

When a COMPONENT:

Y-CBC R Input is

connected to Video: 2.

MENU, CURSOR buttons

All the On-Screen Display features can be set or adjusted by using these buttons.

The MENU button will start the On-Screen Display.

The CURSOR buttons will highlight functions or adjust and set different features.

(_ CHANNEL SKIP button

Press this button repeatedly to select channel skip time (30~180 seconds) when no menu is displayed and the TV will tune to the

last channel viewed when the selected time is up. The user can change stations SURF to any station they wish. and after selected

time seconds, TV will tune back to the original channel.

SLEEP button

Press this button to display the sleep timer in the lower left corner of the screen. Every subsequent press of this button will add

15 minutes to this timer, up to a maximum of three hours. Once set, use RECALL when you want to view time remaining. If the

SLEEP button is pressed while the timer is set, it will reset to the original condition.

(_) INPUT button

The INPUT button will select between both antenna signals and the three sets of video input jacks each time the button is pressed.

If the Picture-in-Picture is on, the INPUT button will select between the three sets of video input jacks and both antenna sources

when main channel is chosen with the PIP CH button. If the sub-picture is chosen, the INPUT button will select between the three

sets of video input jacks and the ANT A antenna source (ANT B source cannot be displayed as a PIP sub-picture and

COMPONENT: Y-CBC R Input 2 source will be displayed as a blank PIP Sub picture.)

INPUT INPUT

INPUT

LINPUT

INPUT

PICTURE-IN-PICTURE PIP

Your HITACHI Projection TV incorporates Dual Tuner technology designed for improved viewing enjoyment. This Dual Tuner feature

allows you to view antenna inputs on both the main picture and sub-picture simultaneously, with separate tuning control for each. The

Dual Tuner can operate with only one input (ANT A only) or two inputs (ANT A and ANT B).

ANTAinput can be viewed as both the main picture and the sub-picture simultaneously. ANT B and COMPONENT: Y-CBCR input 2

sources can only be viewed as a main picture. To select between main picture and PIP sub-picture tuning, press the PIP CH button on

the remote. The highlighted channel display will move with every press of the PIP CH button. When the top channel display is

highlighted, channel tuning is for the main picture. When the lower channel display is highlighted, channel tuning is for the PIP sub-

picture. This method of picture tuning is the same for one antenna input (ANT A only) and two antenna inputs (ANT A and ANT B).

The Picture-in-Picture feature is convenient when you want to watch more than one program at the same time. You can watch a TV

program while viewing other programs from the ANT A source or any of the video inputs.

(_PIP button

I_d< of TV

}Jack of VCR

Press the PIP button and a sub-picture will appear in one of the three different modes (SINGLE, SPLIT or SURF), depending on

the last selection of the PIP mode. To change the PIP mode use the CURSOR • or • buttons and the new selection will appear

the next time the PIP function is used.

SINGLE MODE PIP

Press the PIP button and a sub-picture appears in one corner of the screen. Press the button again to reduce the size of the sub-

picture. Press the PIP button a third time to remove the sub-picture from the screen. Use the PIP CH button to select between main

and sub-picture tuning control (indicated by highlighted channel display.) Press the INPUT button when sub-picture channel tuning

is being controlled, to change between VIDEO: 1, VIDEO: 2, VIDEO: 3, and ANT A antenna source. (ANT B source cannot be

viewed as a sub-picture and COMPONENT: Y-CBC R Input 2 source will be displayed as a blank sub-picture).

•Main Picture

"Sub Picture

SPLIT MODE PIP

When you press the PIP button, the main channel and the PIP sub-picture will appear at the center of the screen (main channel on

right side and sub-picture on left side). Press the PIP button a second time to return to normal viewing. Use the PIP CH button to select

between main and sub-picture tuning control (indicated by highlighted channel display). Press the INPUT button when sub-picture

channel tuning is being controlled, to change between VIDEO:l, VIDEO:2, VIDEO:& and ANTA antenna source. (ANT B source cannot

be viewed as a sub-picture and CONPONENT: Y-CBCR/Y-PBP R INPUT 2 source will be displayed as a blank sub-picture).

OSINGLE

_SPLIT

OSURF

NOTES: 1) Since ANT B source cannot be viewed as a sub-picture, only SPLIT mode PIP is possible when ANT B is selected as

the main channel.

2) When ANT B is selected as the main channel, the SWAP feature is disabled.

3) When the COMPONENT: Y-CBCR/Y-PBP R Input 2 is selected as PiP, it will appear as a blank sub-picture.

4) When tuned to Video:2 with component input (Y-CBCR/Y-PBPR) you will not be able to access the PIP functions.

5) Only sound from main picture can be heard, unless you choose sub-picture audio from the THEATER wireless sound

mode and use the wireless out outputs on the rear panel.

PICTURE-IN-PICTURE PIP

PICTURE-IN-PICTURE CONT.

SURF MODE PIP

This feature will automatically scan all active channel numbers (those set in memory) and display them as PIP sub-pictures, along

the left and bottom edge of the screen. Press the PIP button a second time to remove the sub-pictures from the screen.

NOTES: 1. If no buttons are pressed when in SURF mode, auto-scanning will continuously scan.

2. If a channel is tuned during this SURF scanning, sub-pictures will be removed from the screen.

3. SURF mode PIP is allowed only when ANT A is selected as the main channel.

SWAP button

If you wish to switch what is being shown on the main picture to the sub-picture, press the SWAP button.

SINGLE

SPLIT

NOTES: 1. The SWAP button will only operate when SINGLE PIP mode or split mode PIP is chosen.

2. The SWAP function will not operate if ANT B input is set as the main channel (ANT B input cannot be displayed as

a sub-picture.)

(_) MOVE button

To move the sub-picture to another corner, press the MOVE button. The sub-picture moves one step counterclockwise every

time the MOVE button is pressed.

ANTA 10 I

VIDEO: 1 I

,,t. _SINGLE

OSPLIT

-_ _SINGLE

OSPLIT

OSURF

ANT A 10

VIDEO: I

'_ _SINGLE

OSPLIT

OSURF

ANTAI0

VIDEO: 't

ANTAI0

VIDEO: 1

D =)®SINGLE

OSPLIT

OSURF

PICTURE-IN-PICTURE PIP /"

(_ FREEZE (FRZ) button (With PIP ON)

If you wish to freeze the sub-picture, press the FRZ button. This is convenient when trying to write down the address for a mail

order company, recording statistics for a sporting event, etc. To return the picture to motion, press the FRZ button again.

I NOTE: The FREEZE function will only operate when SINGLE PiP or SPLIT PiP mode is chosen. I

m m

(_ FREEZE (FRZ) button (With PIP OFF)

Press the FRZ button to freeze the picture, depending on the mode previously selected (SINGLE, SPLIT or STROBE).

To change FREEZE modes, use cursor • or • to select which type of FREEZE mode you wish to view. The new selection will

appear the next time the FREEZE function is used.

SINGLE FREEZE

Press the FRZ button to freeze one frame of the picture you are currently viewing. Press this button again or PiP to return to normal

viewing.

SPLIT FREEZE

Press the FRZ button to freeze the picture you are currently viewing. (Only the left Sub-picture will freeze). Press this button again

or PiP to return to normal viewing.

STROBE FREEZE

Press the FRZ button to freeze seven frames of the picture you are currently viewing. Press this button again or PIP to return to

normal viewing. This feature is useful for viewing a moving picture that has many details, for example, a close play in a sporting

event or golf swing.

NOTE: Each freeze frame is delayed about 0.1 (1/10) second. I

CAUTION: A pattern burn may develop if the sub-picture is left in the same corner permanently. If the PIP feature is used I

frequently, occasionally MOVE the sub-picture to a different corner. You may also vary its position using the I

CURSOR <, I_, •, or • buttons.

NOTES: Only sound from the main picture can be heard, unless you choose sub-picture audio from THEATER-WIRELESS

SOUND mode and use the WIRELESS OUT outputs on the rear panel. (See page 61.)

Each freeze frame is delayed about 0.1 (1/10) second.

The FREEZE function will display blank sub-pictures when the COMPONENT: Y-CBC R Input 2 source is set as main

channel.

USING THE REMOTE TO CONTROL VCR FUNCTIONS

Operating the precoded function for your VCR.

This remote is designed to operate different types of VCRs. You must first program the remote to match the remote system of your

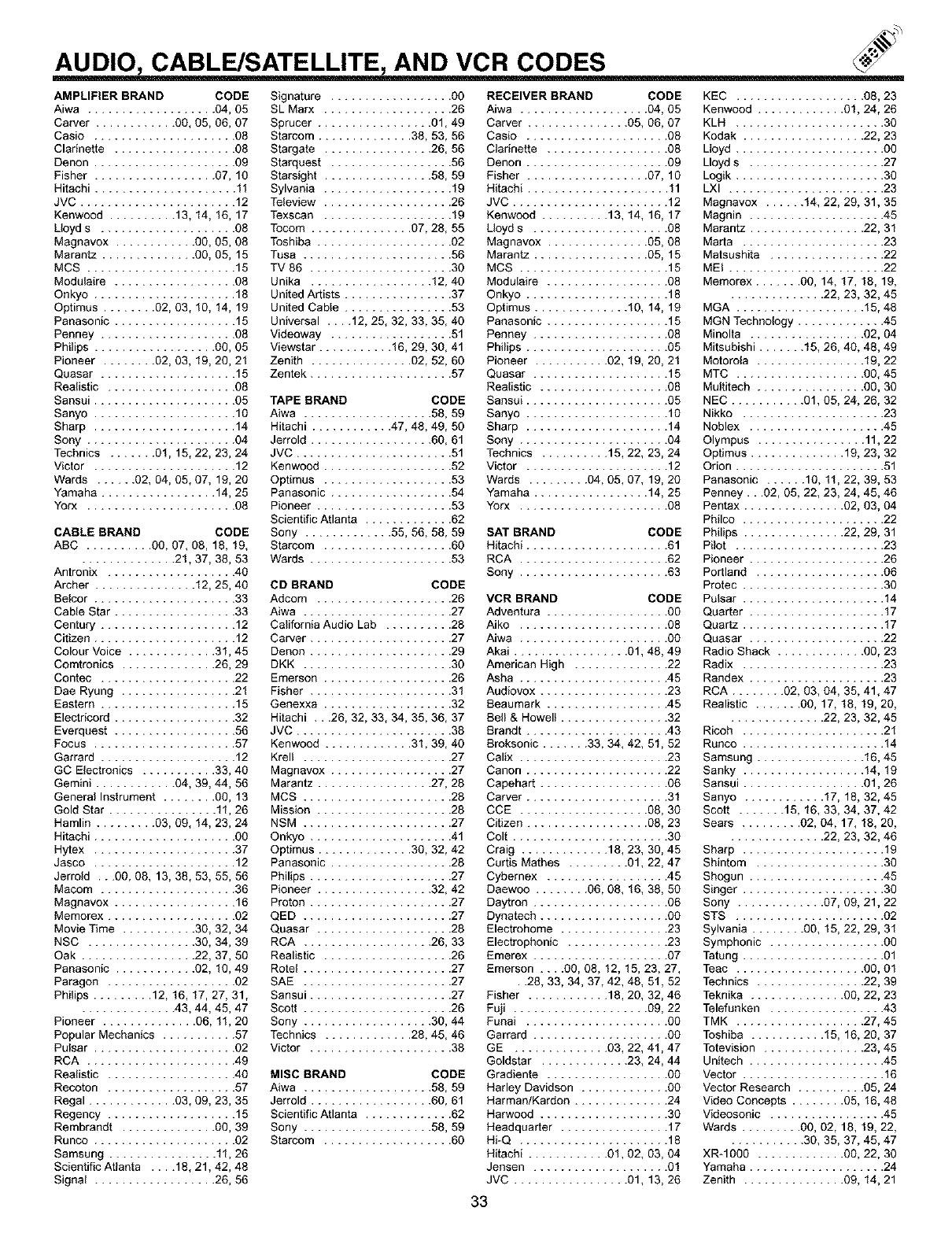

VCR. (Refer to page 33.)

1. Set the MULTI-PAGE select switch to VCR.

2. Turn ON your VCR.

3. Aim the remote control at the front of your VCR.

4. Hold down the PROG. button on the remote, enter the two digit preset code that matches your VCR as shown on page 33. The

remote will turn off your VCR when the correct two digit preset code is entered. When this occurs, the remote control is

programmed for your VCR. If the VCR does not turn off after five seconds, try a different two digit preset code.

5. The remote will now control your VCR.

NOTES:

1. If your VCR cannot be operated after performing the

above procedures, your VCRs code has not been

precoded into the remote.

2. In the unlikely event that your VCR cannot be operated

after performing the above procedures, please consult

your VCR operating guide.

3. The remote control will remember the codes you have

programmed until the batteries are removed from the

remote control. After replacing the batteries repeat the

entire programming procedure as stated above.

4. If your VCR does not have a power function, the remote

will issue the CHANNEL UP function.

5. The MENU button will act as the VCR MENU button for

HITACHI VCRs.

6. The LST-CH button will act as your VCR ENTER button if

required.

7. The SLEEP button will act as your VCR 100 button if

required.

8. The REC button must be pressed two times to begin VCR

recording. This button will also act as the VCR record

button when the remote is in CABLE or SAT mode.

(_) PRECODED VCR buttons

These buttons transmit the chosen precoded VCR codes.

EXCLUSIVE TV buttons

These buttons are for operating the TV.

INFO

O GUIDE

SVCS

TV/CA£LE/SAT 0

VOR

AUDIO0

USING THE REMOTE TO

CONTROL CABLE/SATELLITE BOX FUNCTIONS

Operating the precoded function for your cable/satellite box.

This remote is designed to operate different types of cable boxes and satellite systems. You must first program the remote to match the

remote system of your cable/satellite box. (Refer to page 33.)

1. Set the MULTI-PAGE select switch to TV/CABLE/SAT.

2. Turn ON your cable/satellite box.

3. Press the CABLE button on the remote to switch to CABLE mode, or the SAT button to switch to SAT mode.

4. Aim the remote control at the front of your cable/satellite box.

6. The remote will now control your cable/satellite box.

Hold down the CABLE/SAT button on the remote, enter the two digit preset code that matches your cable/satellite box as shown

on page 33. The remote will turn off your cable/satellite box when the correct two digit preset code is entered. When this occurs,

the remote control is programmed for your cable/satellite box. If the cable/satellite box does not turn off after five seconds, try

another two digit preset code. .._

NOTES:

1. If your cable/satellite box cannot be operated after

performing the above procedures, your cable/satellite box

code has not been precoded into the remote.

2. In the unlikely event that your cable/satellite box cannot

be operated after performing the above procedures,

please consult your cable/satellite box operating guide.

The remote control will remember the codes you have

programmed until the batteries are removed from the

remote control. After replacing the batteries repeat the

entire programming procedure as stated above.

4. If your cable/satellite box does not have apower function,

the remote will issue the CHANNEL UP function.

5. The LST-CH button will act as the cable box ENTER

button if required.

6. The SLEEP button will act as your cable box 100 button

if required.

7. The INPUT button will act as the TV/SAT button when in

SAT mode.

(_ PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable codes.

PRECODED SATELLITE BOX buttons

These buttons transmit the chosen precoded satellite codes.

(_) EXCLUSIVE TV buttons

These buttons are for operating the TV.

vcRO

AUDIO 0

HITACHi

CLU*615MP

SLEEP

0---

----0,@

m®

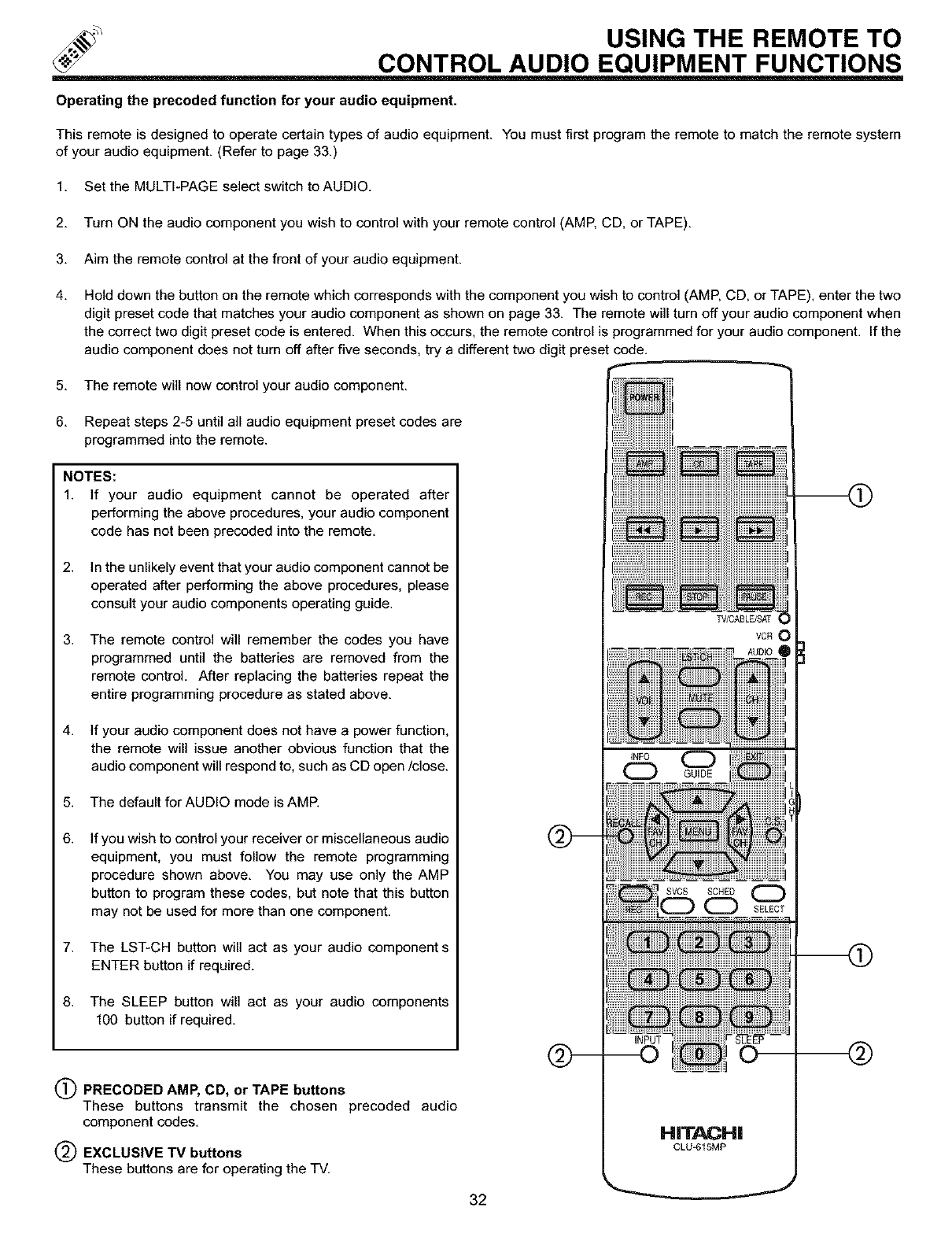

USING THE REMOTE TO

CONTROL AUDIO EQUIPMENT FUNCTIONS

Operating the precoded function for your audio equipment.

This remote is designed to operate certain types of audio equipment. You must first program the remote to match the remote system

of your audio equipment. (Refer to page 33.)

1, Set the MULTI-PAGE select switch to AUDIO,

2. Turn ON the audio component you wish to control with your remote control (AMP, CD, or TAPE).

3. Aim the remote control at the front of your audio equipment.

5. The remote will now control your audio component.

6. Repeat steps 2-5 until all audio equipment preset codes are

programmed into the remote.

Hold down the button on the remote which corresponds with the component you wish to control (AMP, CD, or TAPE). enter the two

digit preset code that matches your audio component as shown on page 33. The remote will turn off your audio component when

the correct two digit preset code is entered. When this occurs, the remote control is programmed for your audio component. If the

audio component does not turn off after five seconds, try a different two digit preset code.

NOTES:

1, If your audio equipment cannot be operated after

performing the above procedures, your audio component

code has not been precoded into the remote,

2. In the unlikely event that your audio component cannot be

operated after performing the above procedures, please

consult your audio components operating guide.

3. The remote control will remember the codes you have

programmed until the batteries are removed from the

remote control. After replacing the batteries repeat the

entire programming procedure as stated above.

4. if your audio component does not have a power function,

the remote will issue another obvious function that the

audio component will respond to, such as CD open/close.

5. The default for AUDIO mode is AMR

If you wish to control your receiver or miscellaneous audio

equipment, you must follow the remote programming

procedure shown above. You may use only the AMP

button to program these codes, but note that this button

may not be used for more than one component.

7. The LST-CH button will act as your audio component s

ENTER button if required,

8. The SLEEP button will act as your audio components

100 button if required.

(_ PRECODED AMP, CD, or TAPE buttons

These buttons transmit the chosen precoded audio

component codes,

EXCLUSIVE TV buttons

These buttons are for operating the TV.

TV/CABLE/SAT

VCR O

INFO Q

Q GUIDE

iiiiiiiiOHiiiiii

HIT_HI

CLU-615MP

AUDIO CABLE/SATELLITE, AND VCR CODES

AMPLIFIER BRAND CODE

Aiwa ................... 04, 05

Carver ............ 00, 05, 06, 07

Casio ..................... 08

Cladnette .................. 08

Denon ..................... 09

Fisher .................. 07, 10

Hitachi ..................... 11

JVC ....................... 12

Kenwood .......... 13, 14, 16, 17

Lloyd s .................... 08

Magnavox ............ 00, 05, 08

Marantz .............. 00, 05, 15

MCS ...................... 15

Modulaire .................. 08

Onkyo ..................... 18

Optimus ........ 02, 03, 10, 14, 19

Panasonic .................. 15

Penney .................... 08

Philips .................. 00, 05

Pioneer ........ 02, 03, 19, 20, 21

Quasar .................... 15

Realistic ................... 08

Sansui ..................... 05

Sanyo ..................... 10

Sharp ..................... 14

Sony ...................... 04

Technics ....... 01, 15, 22, 23, 24

Victor ..................... 12

Wards ...... 02, 04, 05, 07, 19, 20

Yamaha ................. 14, 25

Yorx ...................... 08

CABLE BRAND CODE

ABC .......... 00, 07, 08, 18, 19,

.............. 21, 37, 38, 53

Antronix ................... 40

Archer ............... 12, 25, 40

Belcor ..................... 33

Cable Star .................. 33

Century .................... 12

Citizen ..................... 12

Colour Voice ............. 31, 45

Comtronics .............. 26, 29

Contec .................... 22

Dae Ryung ................. 21

Eastern .................... 15

Electdcord .................. 32

Everquest .................. 56

Focus ..................... 57

Oarrard .................... 12

GC Electronics ........... 33, 40

Gemini ............ 04, 39, 44, 56

General Instrument ........ 00, 13

Gold Star ................ 11, 26

Hamlin ......... 03, 09, 14, 23, 24

Hitachi ..................... 00

Hytex ..................... 37

Jasco ..................... 12

Jerrold ...00, 08, 13, 38, 53, 55, 56

Macom .................... 36

Magnavox .................. 16

Memorex ................... 02

Movie Time ........... 30, 32, 34

NSC ................ 30, 34, 39

Oak ................. 22, 37, 50

Panasonic ............ 02, 10, 49

Paragon ................... 02

Philips ......... 12, 16, 17, 27, 31,

.............. 43, 44, 45, 47

Pioneer .............. 06, 11, 20

Popular Mechanics ........... 57

Pulsar ..................... 02

RCA ...................... 49

Realistic ................... 40

Recoton ................... 57

Regal ............. 03, 09, 23, 35

Regency ................... 15

Rembrandt .............. 00, 39

Runco ..................... 02

Samsung ................ 11, 26

Scientific Atlanta .... 18, 21, 42, 48

Signal .................. 26, 56

Signature .................. O0

SL Marx ................... 26

Sprucer ................. 01, 49

Starcom .............. 38, 53, 56

Stargate ................ 26, 56

Starquest .................. 56

Starsight ................ 58, 59

Sylvania ................... 19

Teleview ................... 26

Texscan ................... 19

Tocom ............... 07, 28, 55

Toshiba .................... 02

Tusa ...................... 56

TV 86 ..................... 30

Unika .................. 12, 40

United Artists ................ 37

United Cable ................ 53

Universal .... 12, 25, 32, 33, 35, 40

Videoway .................. 51

Viewstar ........... 16, 29, 30, 41

Zenith ............... 02, 52, 60

Zentek ..................... 57

TAPE BRAND CODE

Aiwa ................... 58, 59

Hitachi ............ 47, 48, 49, 50

Jerrold .................. 60, 61

JVC ....................... 51

Kenwood ................... 52

Optimus ................... 53

Panasonic .................. 54

Pioneer .................... 53

Scientific Atlanta ............. 62

Sony ............. 55, 56, 58, 59

Starcom ................... 60

Wards ..................... 53

CD BRAND CODE

Adcom .................... 26

Aiwa ...................... 27

California Audio Lab .......... 28

Carver ..................... 27

Denon ..................... 29

DKK ...................... 30

Emerson ................... 26

Fisher ..................... 31

Genexxa ................... 32

Hitachi ...26, 32, 33, 34, 35, 36, 37

JVC ....................... 38

Kenwood ............. 31, 39, 40

Krell ...................... 27

Magnavox .................. 27

Marantz ................. 27, 28

MCS ...................... 28

Mission .................... 28

NSM ...................... 27

Onkyo ..................... 41

Optimus .............. 30, 32, 42

Panasonic .................. 28

Philips ..................... 27

Pioneer ................. 32, 42

Proton ..................... 27

QED ...................... 27

Quasar .................... 28

RCA ................... 26, 33

Realistic ................... 26

Rotel ...................... 27

SAE ...................... 27

Sansui ..................... 27

Scott ...................... 26

Sony ................... 30, 44

Technics ............. 28, 45, 46

Victor ..................... 38

MISC BRAND CODE

Aiwa ................... 58, 59

Jerrold .................. 60, 61

Scientific Atlanta ............. 62

Sony ................... 58, 59

Starcom ................... 60

RECEIVER BRAND CODE

Aiwa ................... 04, 05

Carver ............... 05, 06, 07

Casio ..................... 08

Clarinette .................. 08

Denon ..................... 09

Fisher .................. 07, 10

Hitachi ..................... 11

JVC ....................... 12

Kenwood .......... 13, 14, 16, 17

Lloyd s .................... 08

Magnavox ............... 05, 08

Marantz ................. 05, 15

MCS ...................... 15

Modulaire .................. 08

Onkyo ..................... 18

Optimus .............. 10, 14, 19

Panasonic .................. 15

Penney .................... 08

Philips ..................... 05

Pioneer ........... 02, 19, 20, 21

Quasar .................... 15

Realistic ................... 08

Sansui ..................... 05

Sanyo ..................... 10

Sharp ..................... 14

Sony ...................... 04

Technics .......... 15, 22, 23, 24

Victor ..................... 12

Wards ......... 04, 05, 07, 19, 20

Yamaha ................. 14, 25

Yorx ...................... 08

SAT BRAND CODE

Hitachi ..................... 61

RCA ...................... 62

Sony ...................... 63

VCR BRAND CODE

Adventura .................. O0

Aiko ...................... 08

Aiwa ...................... 00

Akai ................. 01, 48, 49

American High .............. 22

Asha ...................... 45

Audiovox ................... 23

Beaumark .................. 45

Bell & Howel_ ................ 32

Brandt ..................... 43

Broksonic ....... 33, 34, 42, 51, 52

Calix ...................... 23

Canon ..................... 22

Capehart ................... 06

Carver ..................... 31

CCE ................... 08, 30

Citizen .................. 08, 23

Colt ....................... 30

Craig ............. 18, 23, 30, 45

Curtis Mathes ......... 01, 22, 47

Cybernex .................. 45

Daewoo ........ 06, 08, 16, 38, 50

Daytron .................... 06

Dynatech ................... 00

Electrohome ................ 23

Electrophonic ............... 23

Emerex .................... 07

Emerson .... 00, 08, 12, 15, 23, 27,

• .28, 33, 34, 37, 42, 48, 51, 52

Fisher ............ 18, 20, 32, 46

Fuji .................... 09, 22

Funai ..................... 00

Garrard .................... 00

GE .............. 03, 22, 41, 47

Goldstar ............. 23, 24, 44

Gradiente .................. 00

Harley Davidson ............. 00

Harman/Kardon .............. 24

Harwood ................... 30

Headquarter ................ 17

Hi*Q ...................... 18

Hitachi ............ 01, 02, 03, 04

Jensen .................... 01

JVC ................. 01, 13, 26

KEC ................... 08, 23

Kenwood ............. 01, 24, 26

KLH ...................... 30

Kodak .................. 22, 23

Lloyd ...................... OO

Lloyd s .................... 27

Logik ...................... 30

LXI ....................... 23

Magnavox ...... 14, 22, 29, 31, 35

Magnin .................... 45

Marantz ................. 22, 31

Marta ..................... 23

Matsushita ................. 22

MEI ....................... 22

Memorex ....... 00, 14, 17, 18, 19,

.............. 22, 23, 32, 45

MGA ................... 15, 48

MGN Technology ............. 45

Minolta ................. 02, 04

Mitsubishi ....... 15, 26, 40, 48, 49

Motorola ................ 19, 22

MTC ................... 00, 45

Multitech ................ 00, 30

NEC ........... 01, 05, 24, 26, 32

Nikko ..................... 23

Noblex .................... 45

Olympus ................ 11, 22

Optimus .............. 19, 23, 32

Orion ...................... 51

Panasonic ...... 10, 11, 22, 39, 53

Penney...02, 05, 22, 23, 24, 45, 46

Pentax ............... 02, 03, 04

Philco ..................... 22

Philips ............... 22, 29, 31

Pilot ...................... 23

Pioneer .................... 26

Portland ................... 06

Protec ..................... 30

Pulsar ..................... 14

Quarter .................... 17

Quartz ..................... 17

Quasar .................... 22

Radio Shack ............. 00, 23

Radix ..................... 23

Randex .................... 23

RCA ........ 02, 03, 04, 35, 41, 47

Realistic ....... 00, 17, 18, 19, 20,

.............. 22, 23, 32, 45

Ricoh ..................... 21

Runco ..................... 14

Samsung ................ 16, 45

Sanky .................. 14, 19

Sansui .................. 01, 26

Sanyo ............ 17, 18, 32, 45

Scott ....... 15, 16, 33, 34, 37, 42

Sears ......... 02, 04, 17, 18, 20,

.............. 22, 23, 32, 46

Sharp ..................... 19

Shintom ................... 30

Shogun .................... 45

Singer ..................... 30

Sony ............. 07, 09, 21, 22

STS ...................... 02

Sylvania ........ 00, 15, 22, 29, 31

Symphonic ................. 00

Tatung ..................... 01

Teac ................... O0, 01

Technics ................ 22, 39

Teknika .............. 00, 22, 23

Telefunken ................. 43

TMK ................... 27, 45

Toshiba ........... 15, 16, 20, 37

Totevision ............... 23, 45

Unitech .................... 45

Vector ..................... 16

Vector Research .......... 05, 24

Video Concepts ........ 05, 16, 48

Videosonic ................. 45

Wards ......... 00, 02, 18, 19, 22,

........... 30, 35, 37, 45, 47

XR-IO00 ............. 00, 22, 30

Yamaha .................... 24

Zenith ............... 09, 14, 21

1. Press MENU on the remote control to display the different features on your HITACHI Projection TV.

2. Press the CURSOR buttons to highlight a different feature.

3. Press EXIT on the remote control to quickly exit from a menu.

4. Press HELP on the remote control when a menu is displayed,

and text will appear giving a description of that menu.

ULTRATEC OSD

EXIT

This part of the screen shows

what selections are available.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

TO QUIT I EXIT •This part of the screen shows which

I_--'_remote control buttons to use.

I ooooooo1

I I

ULTRATEC OSD

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SE'I

--'_ CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

Choose English, French, or Spanish text.

Optimum hook up for your system.

Select Antenna or Cable TV.

First time set up for channel buttons.

Channel buttons, add, skip.

Check channel name, scan, and child lock.

Set before using timer features.

Automatically match red, green, and blue

colors to make white.

CUSTOM

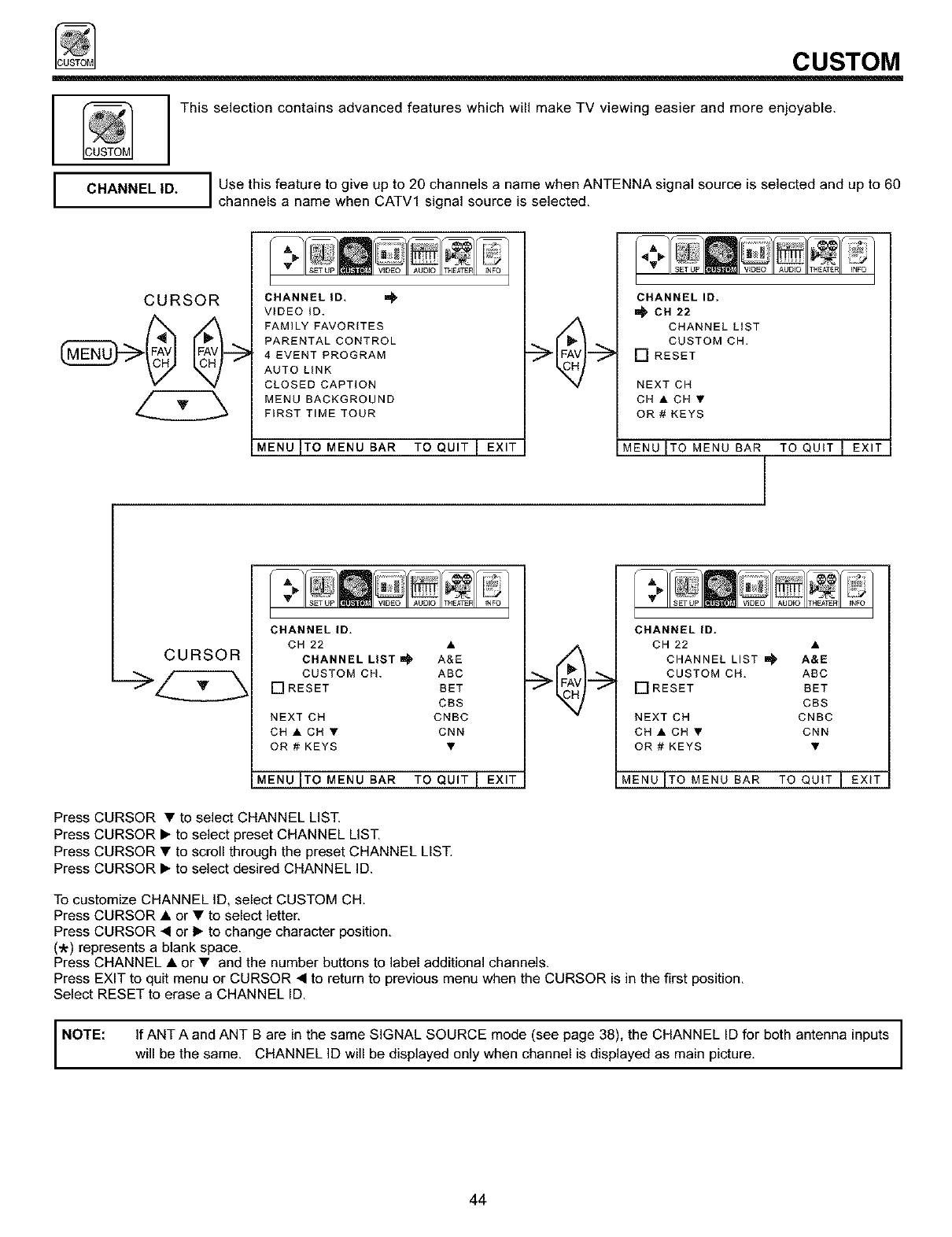

:HANNEL ID.

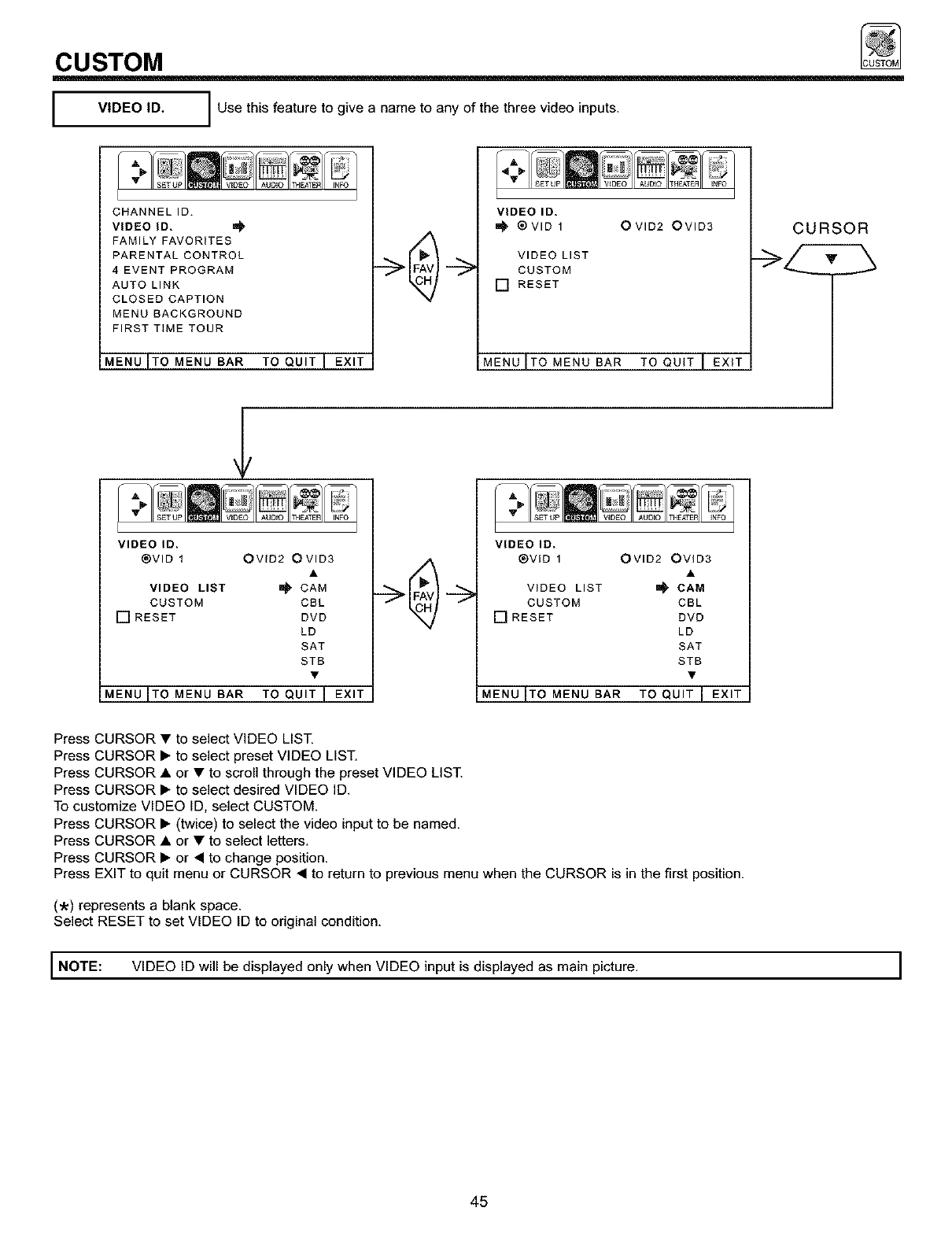

VIDEO ID.

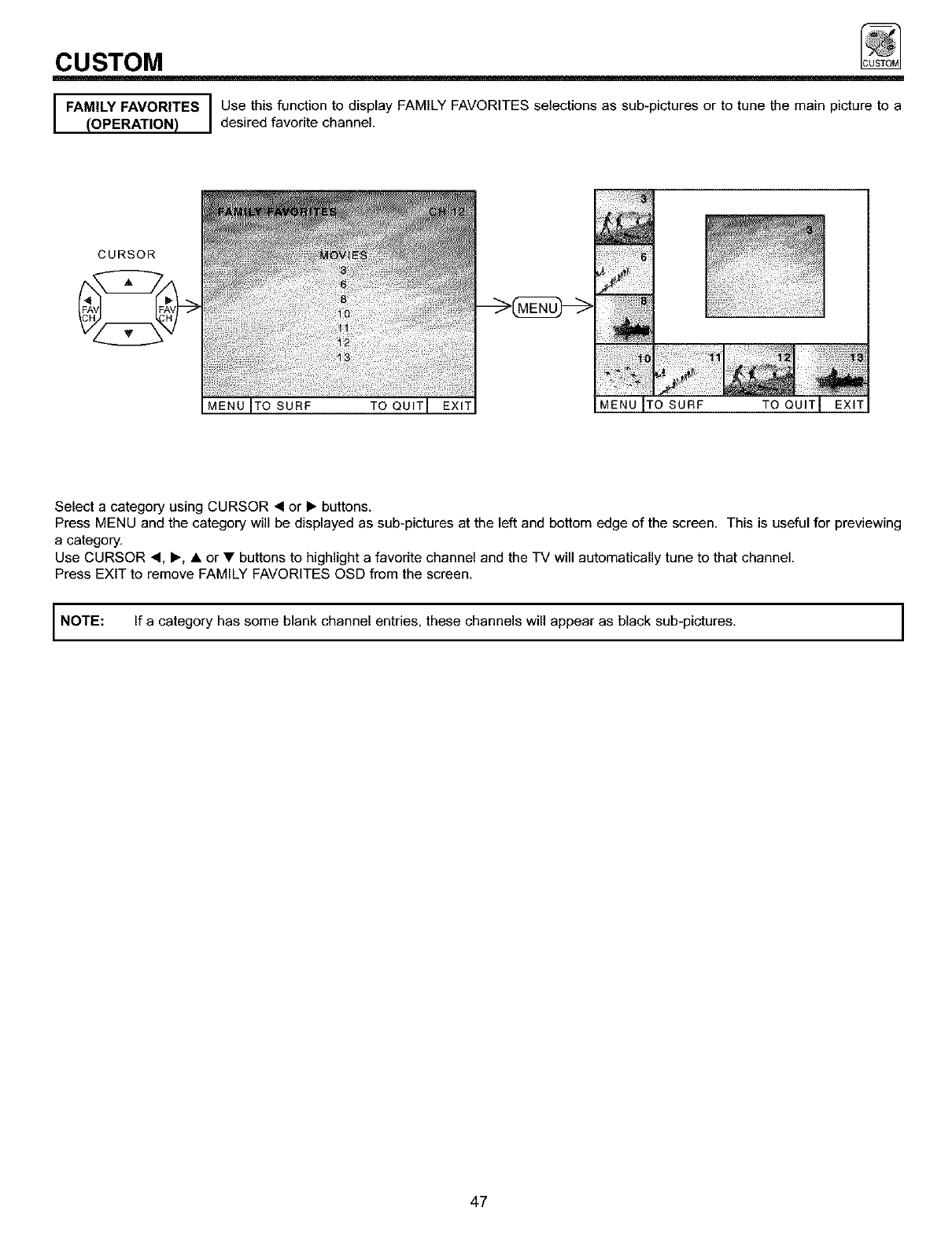

FAMILY FAVORITES

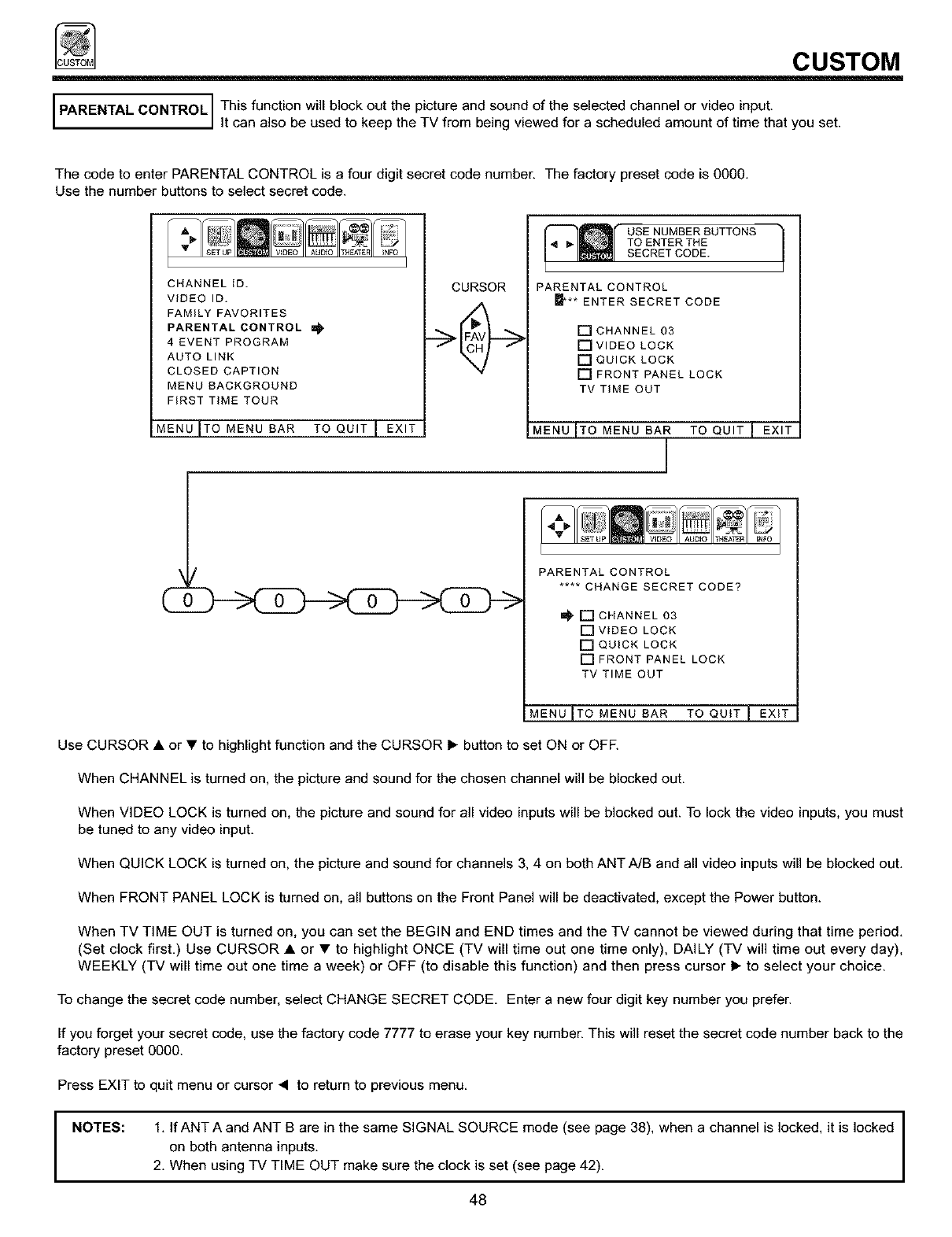

PARENTAL CONTROL

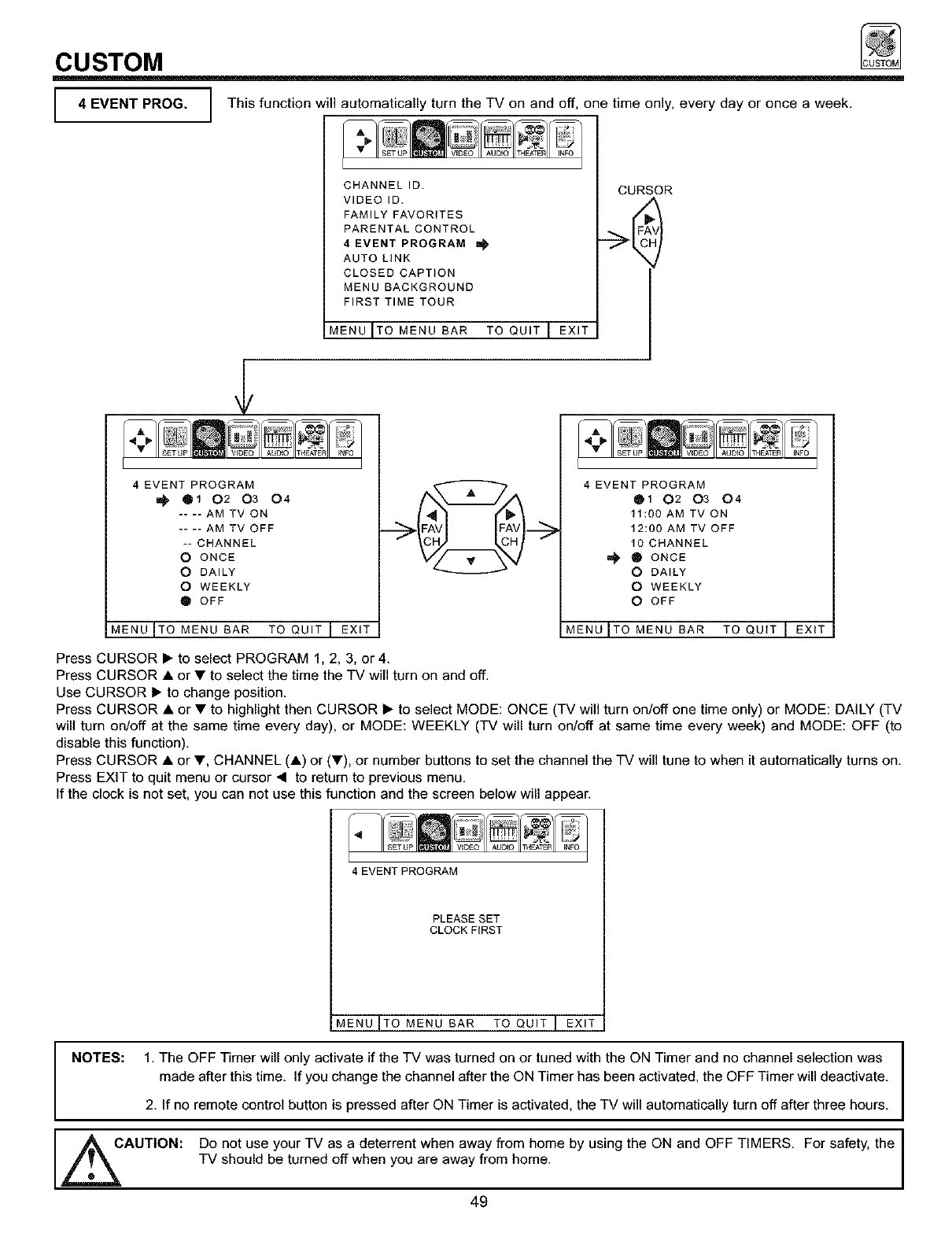

---_'- 4 EVENT PROGRAM

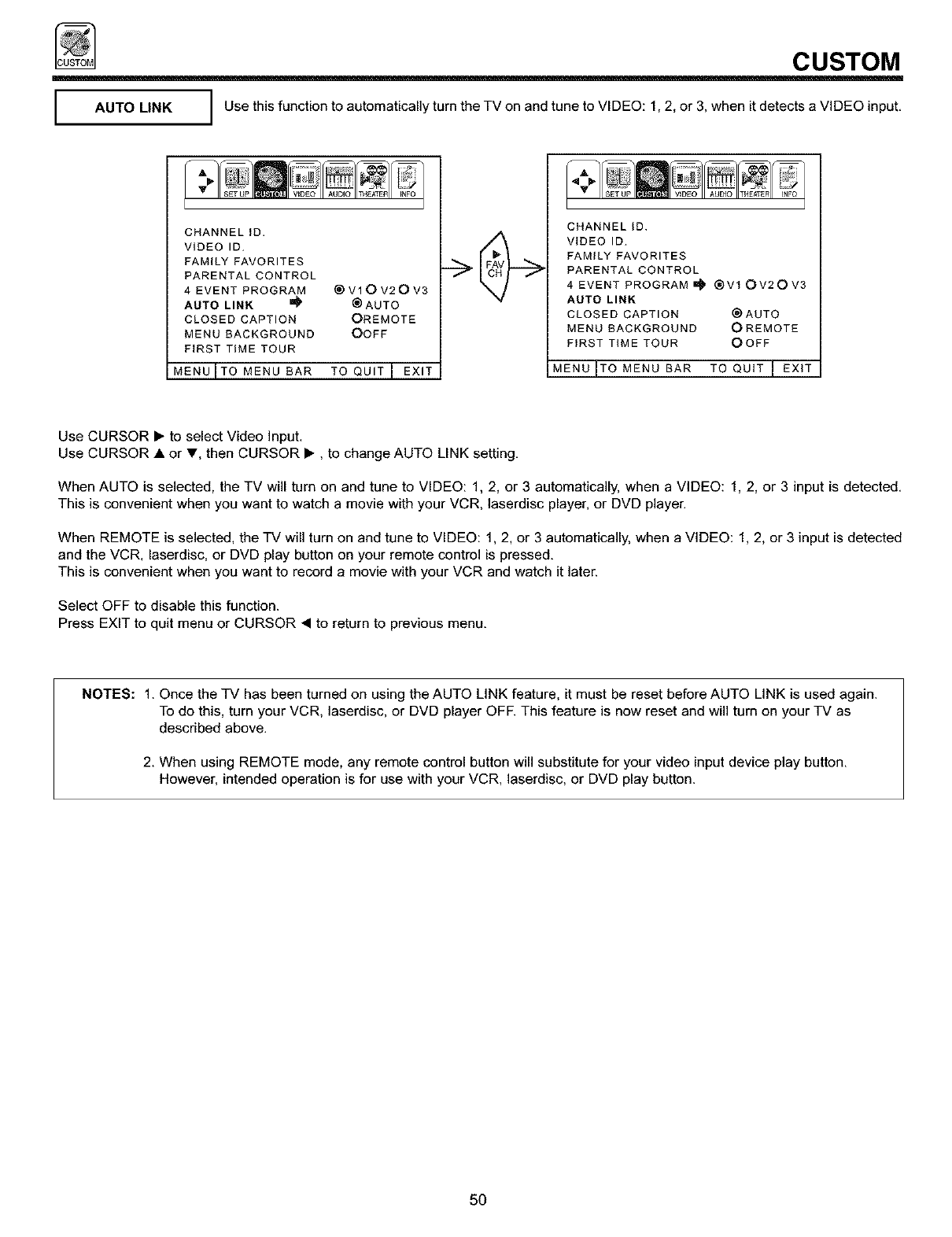

AUTO LINK

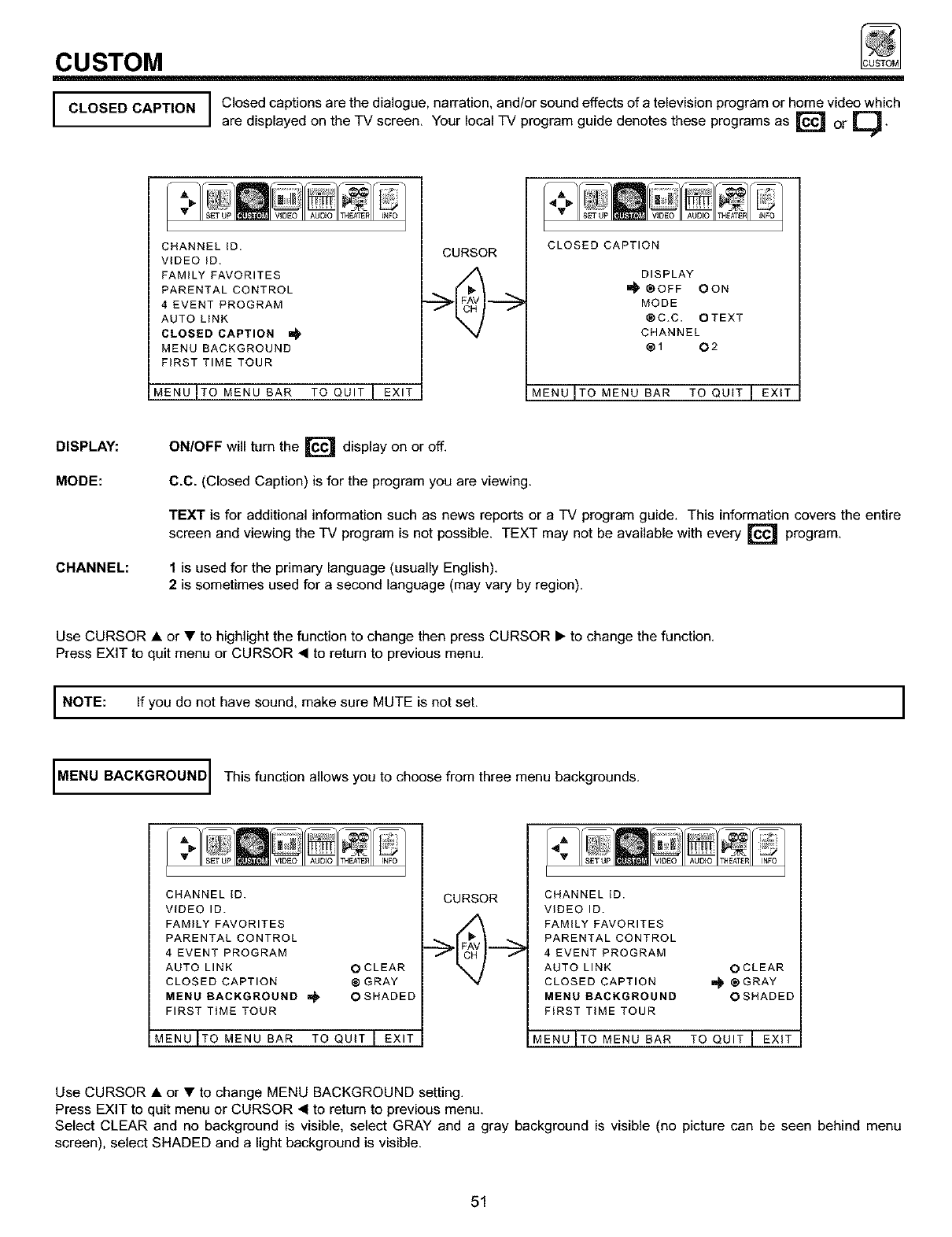

CLOSED CAPTION

MENU BACKGROUND

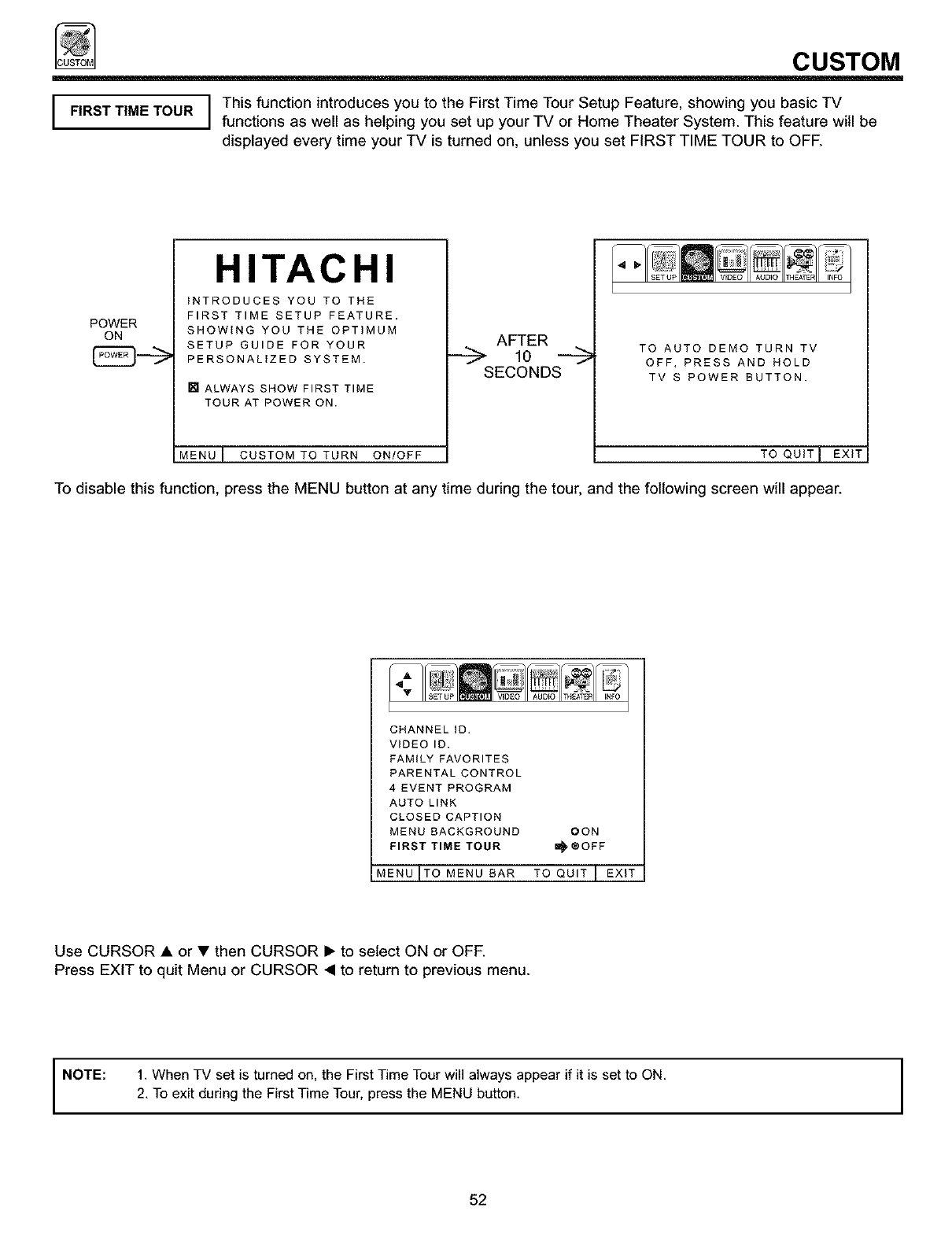

FIRST TIME TOUR

Label channels PAY1, ABC, etc.

Label video inputs VCR1, DVD1, etc.

Allows you to set and view favorite channels.

Block channel picture and sound.

Turn TV on and off once, daily, or weekly.

Automatically turn TV on with any VIDEO input.

Feature to display dialogue/text.

Select from three types of backgrounds.

Introduces you to basic TV functions.

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

RESET

ADVANCED

SETTINGS

BASS

TREBLE

BALANCE

RESET

ADVANCED

SETTINGS

Adjust contrast.

Adjust brightness.

Adjust color.

Adjust tint.

Adjust sharpness.

Set VIDEO settings to factory preset.

Improve picture performance.

AUDIO

Adjust bass.

Adjust treble.

Adjust balance.

Set AUDIO settings to factory preset.

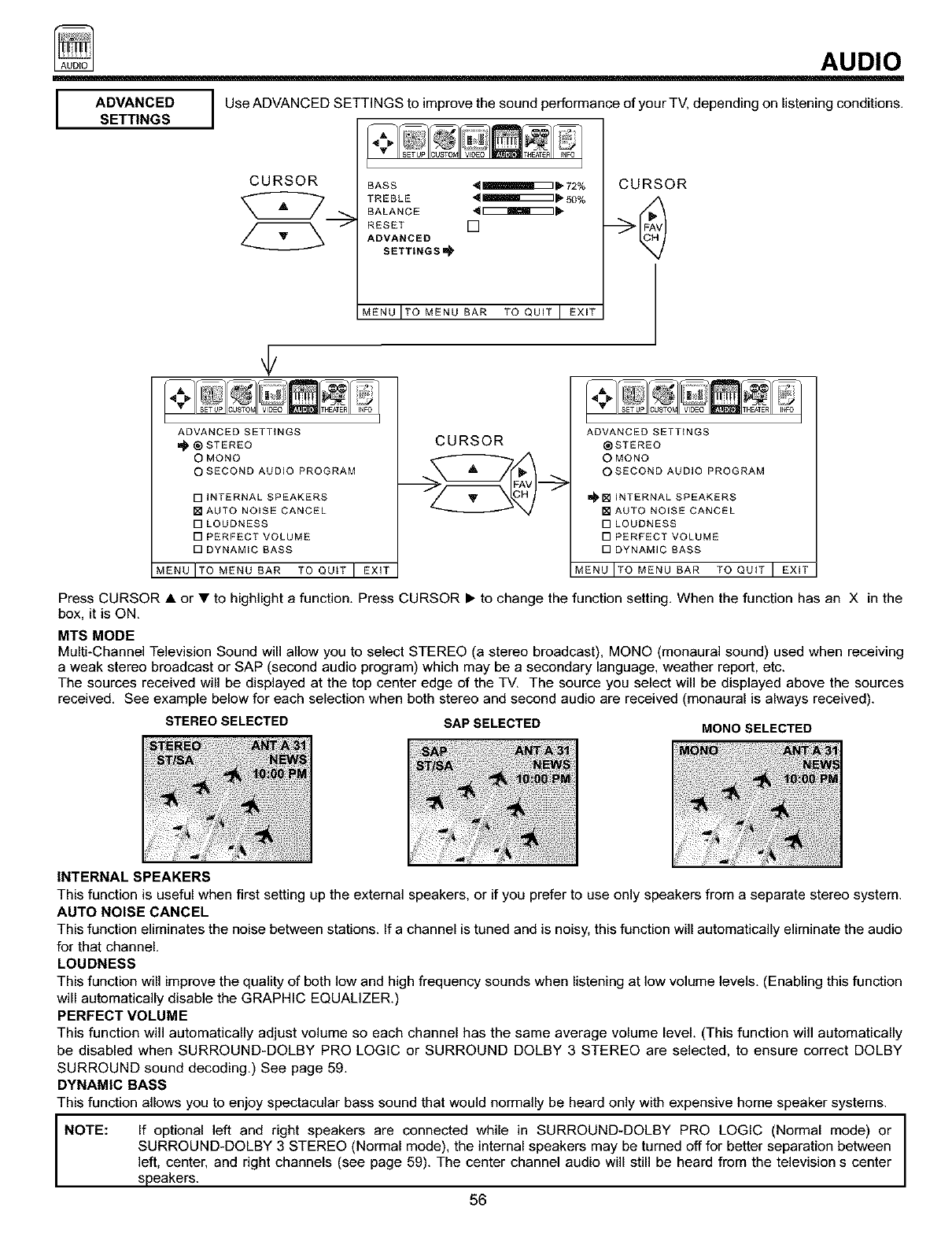

Improve sound performance.

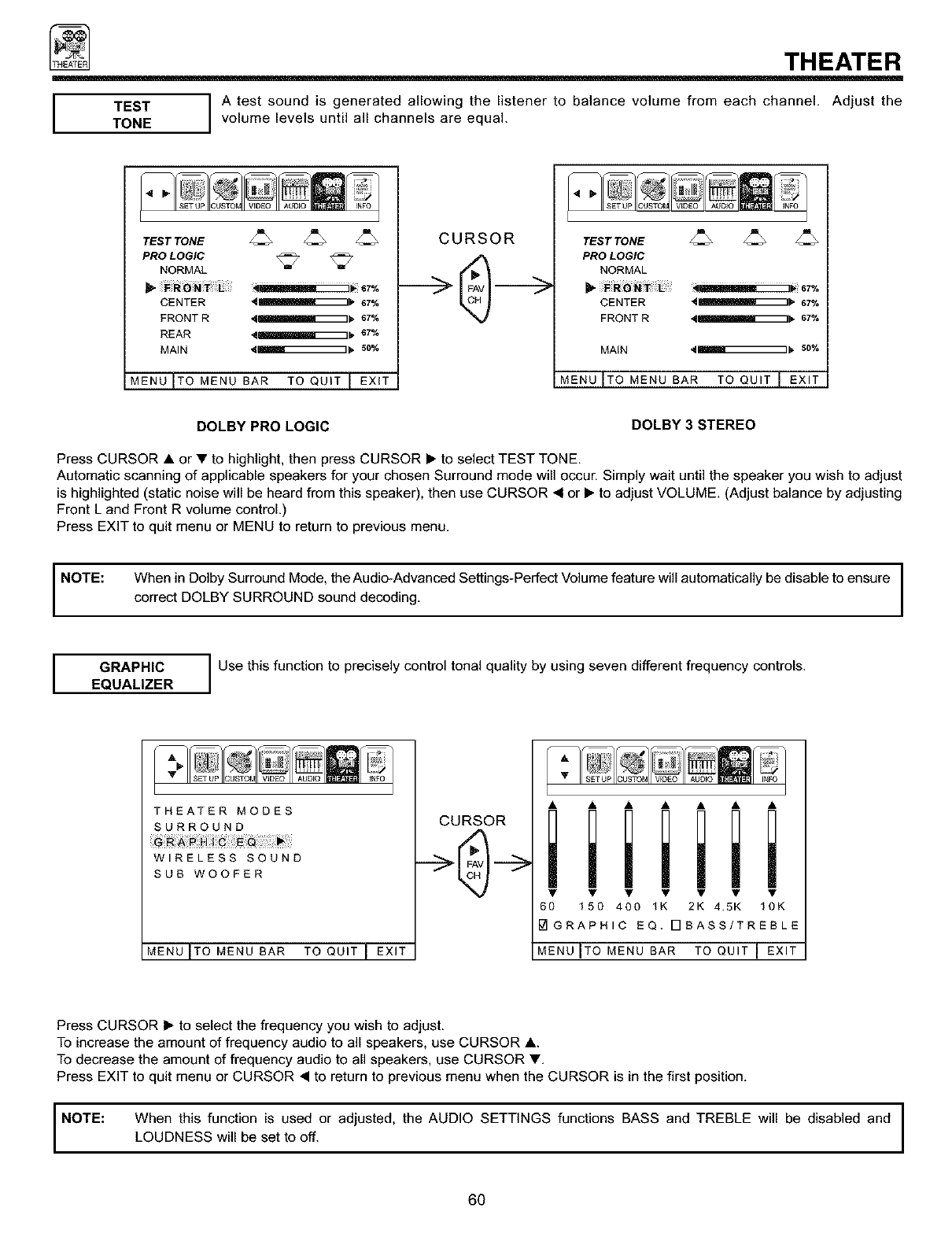

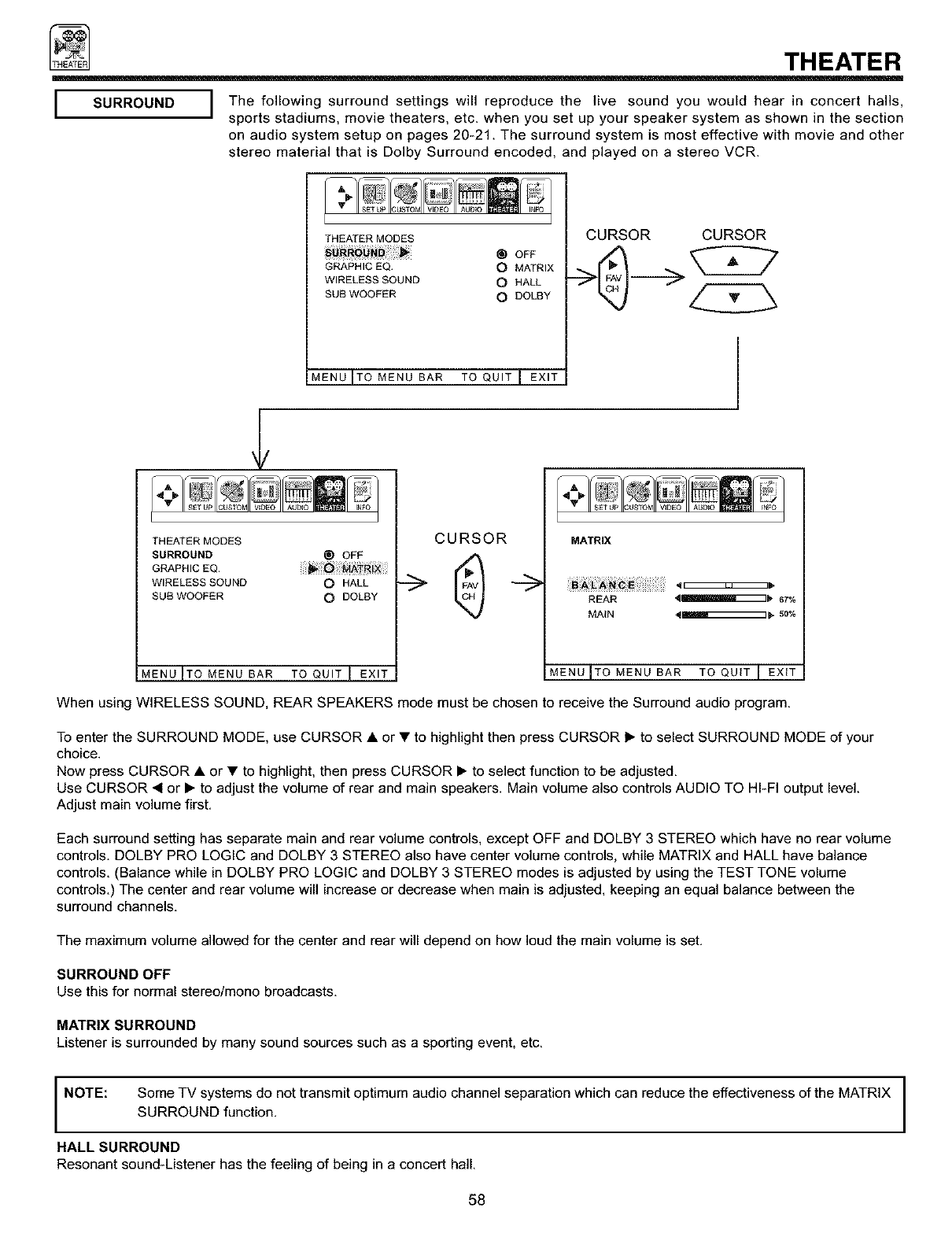

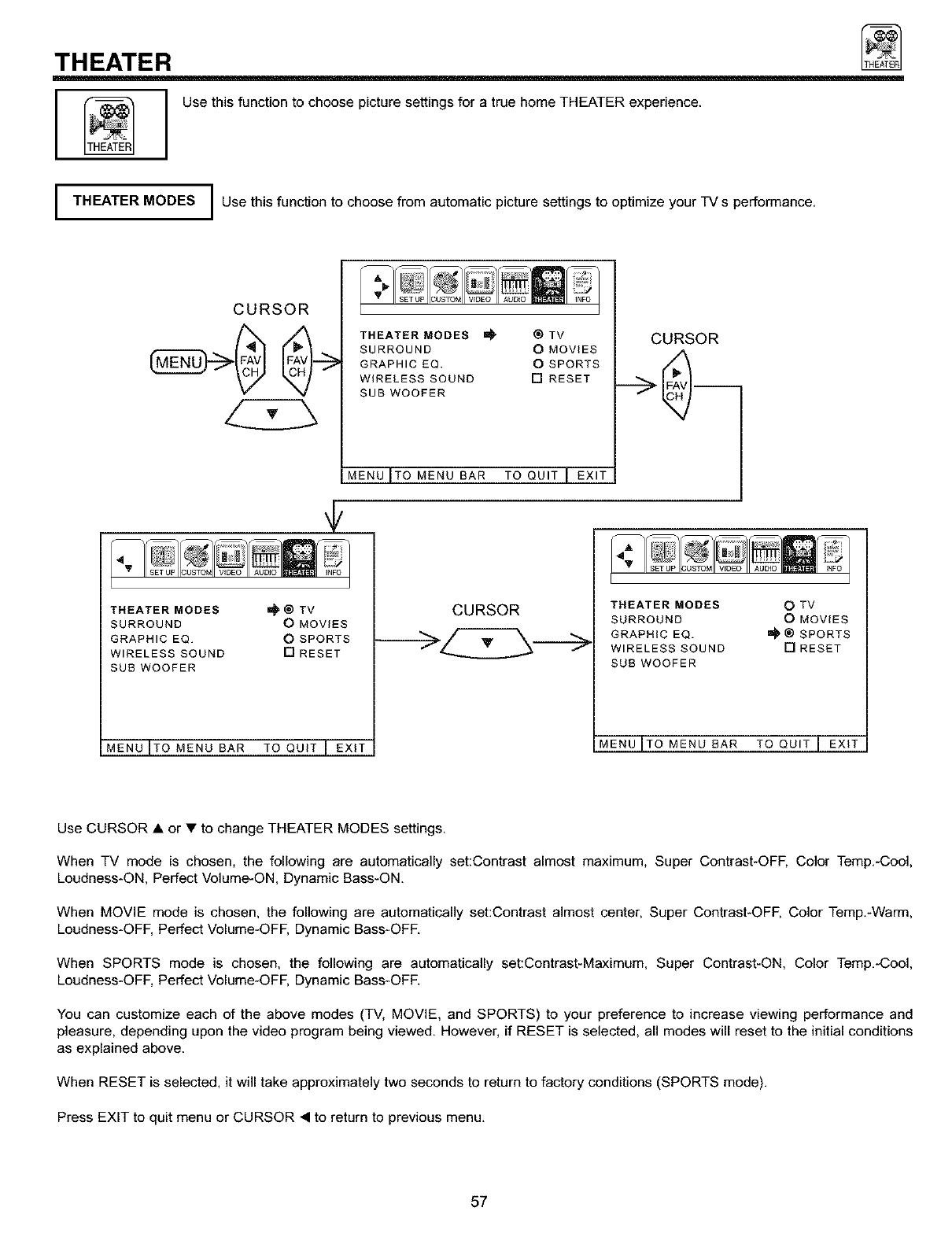

THEATER

INFO

_ MODES

I, GRAPHIC EQ.

[WIRELESS SOUND

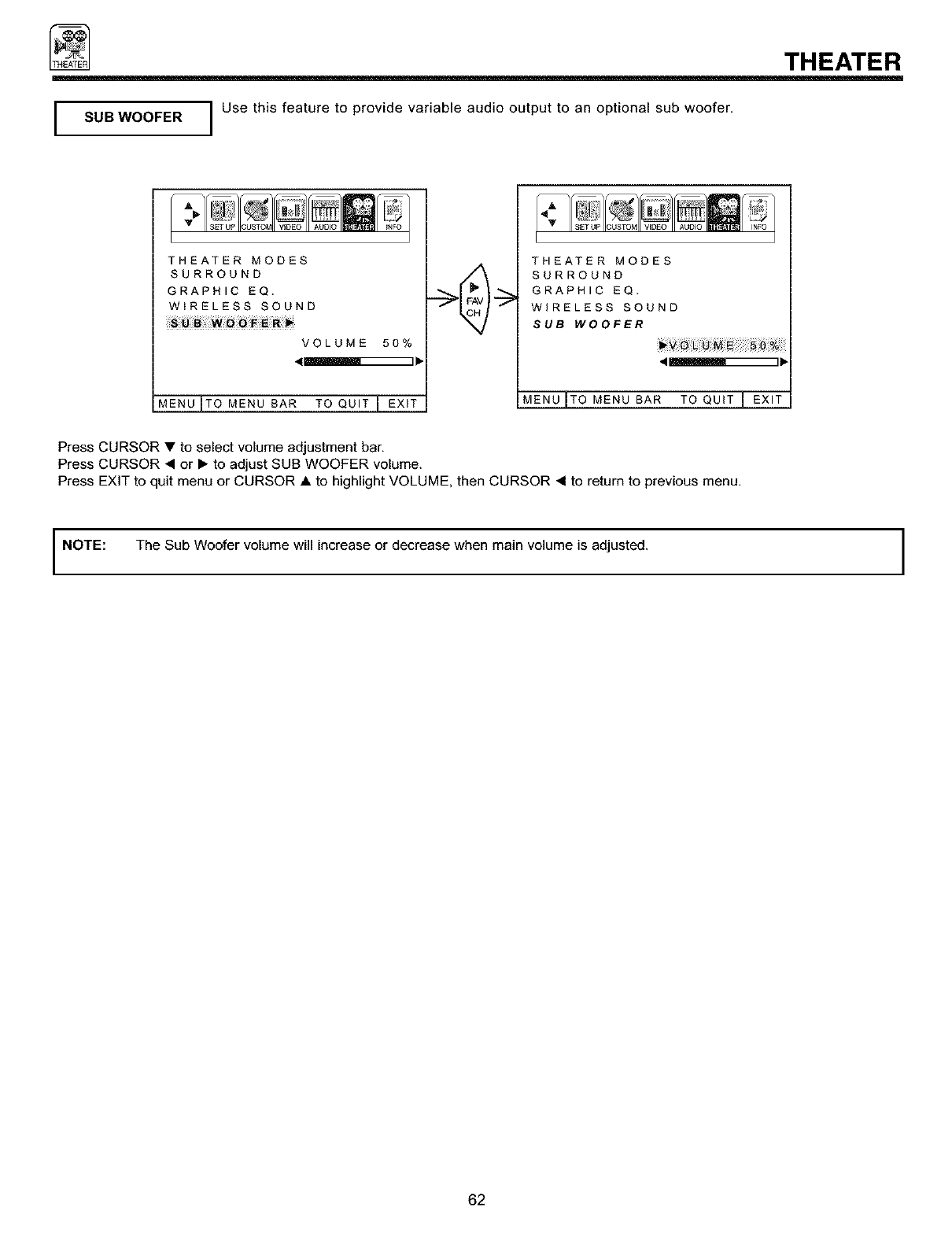

[ SUB WOOFER

ISPECIAL

"_" EVE_MINDER

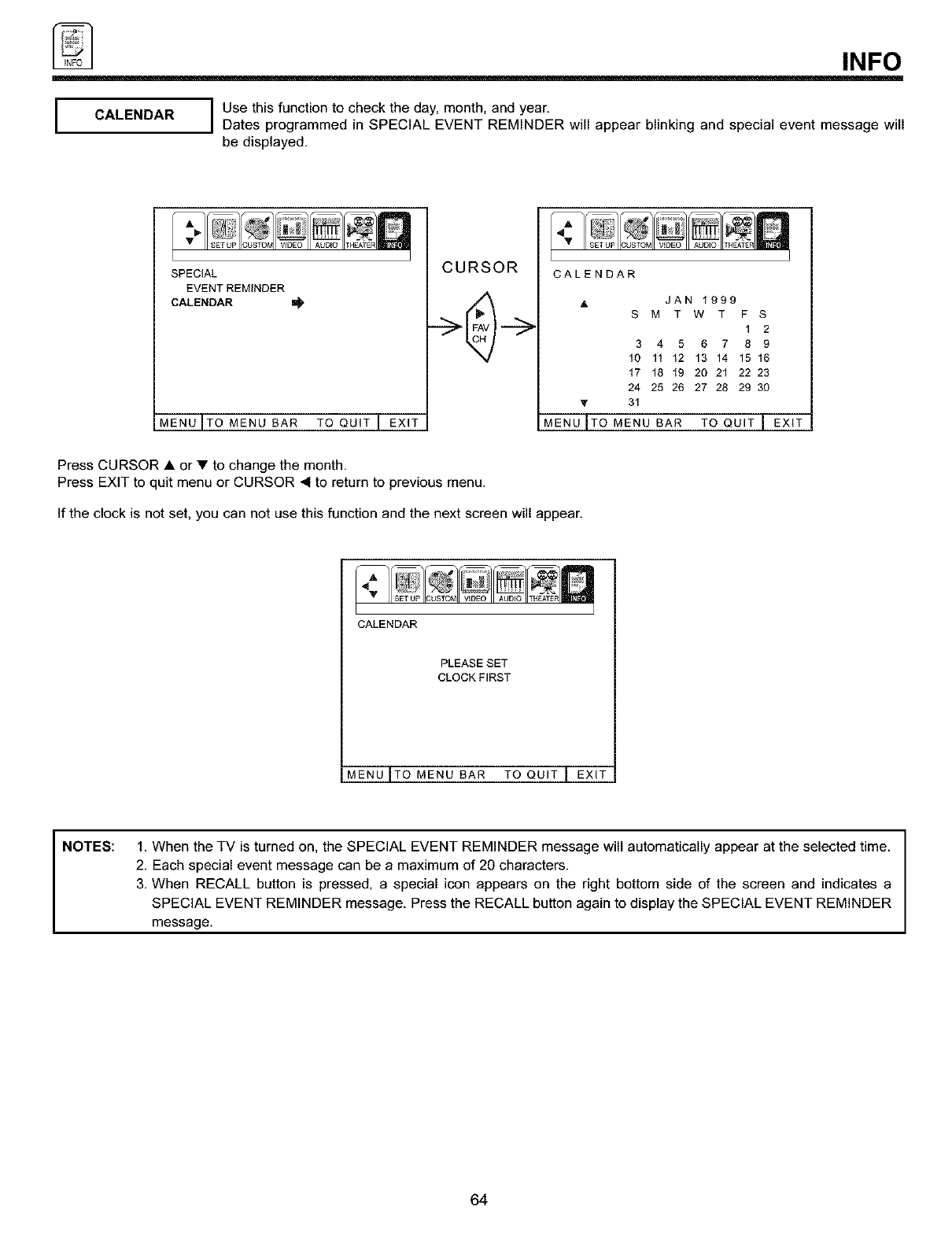

CALENDAR

Picture and sound are automatically set.

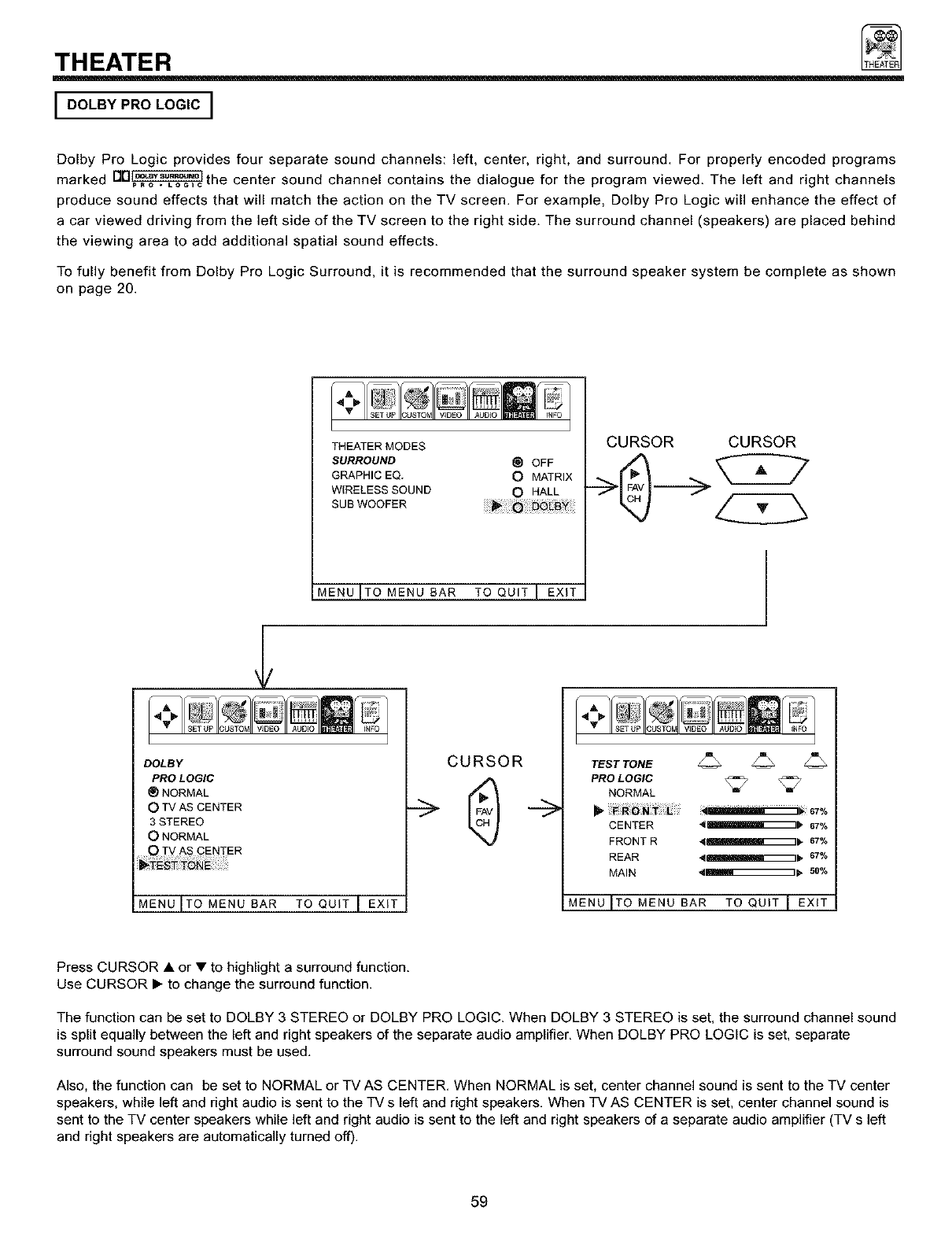

Special sound effects, including Dolby Pro Logic.

More precise audio control.

Select from three types of audio for wireless output.

Adjust Sub-Woofer volume.

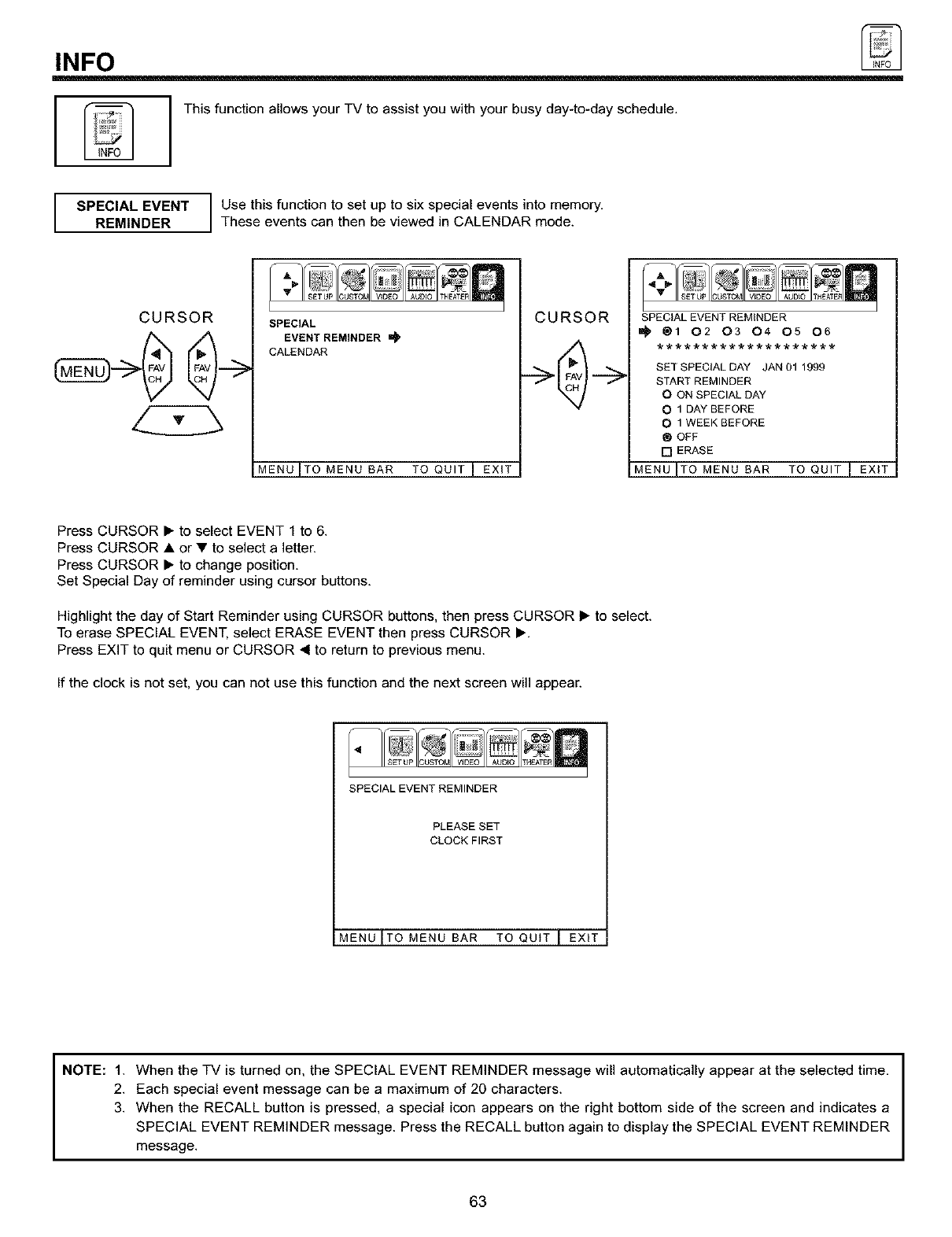

Set TV to remind you of birthdays, etc..

Check day, month, year, and special events.

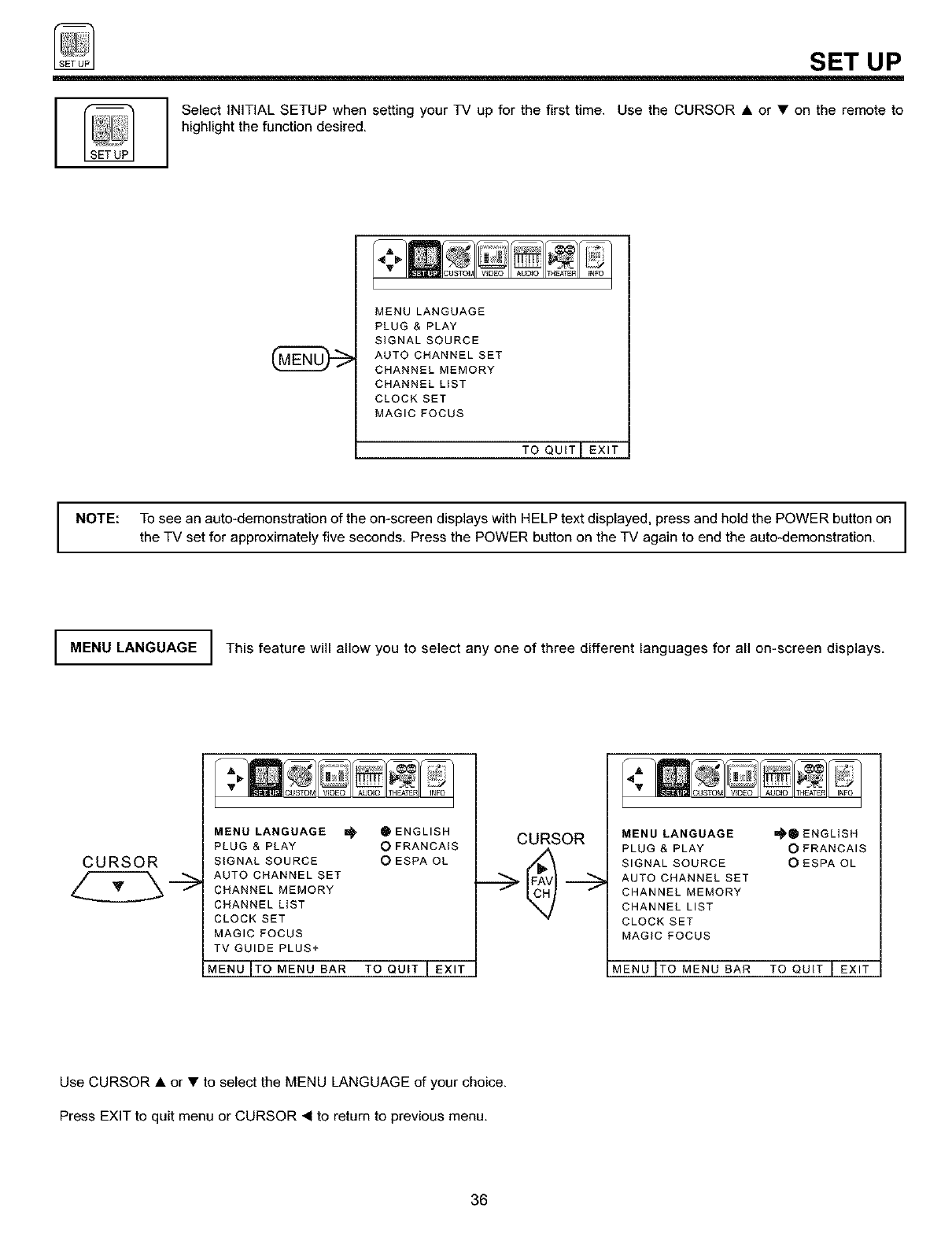

SET UP

I elect INITIAL SETUP when setting your TV up for the first time. Use the CURSOR • or • on the remote to

highlight the function desired.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNELLIST

CLOCK SET

MAGIC FOCUS

TO QUIT EXIT

NOTE: To see an auto-demonstration of the on-screen displays with HELP text displayed, press and hold the POWER button on

the TV set for approximately five seconds. Press the POWER button on the TV again to end the auto-demonstration.

IMENU LANGUAGE I This feature will allow you to select any one of three different languages for all on-screen displays.

CURSOR

MENU LANGUAGE I_ O ENGLISH

PLUG & PLAY O FRANCAIS

SIGNAL SOURCE O ESPA OL

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

TV GUIDE PLUS+

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

_O ENGLISH

OFRANCAIS

O ESPA OL

MENU ITO MENU BAR TO QUIT I EXIT

Use CURSOR • or • to select the MENU LANGUAGE of your choice.

Press EXIT to quit menu or CURSOR 4 to return to previous menu.

SET UP

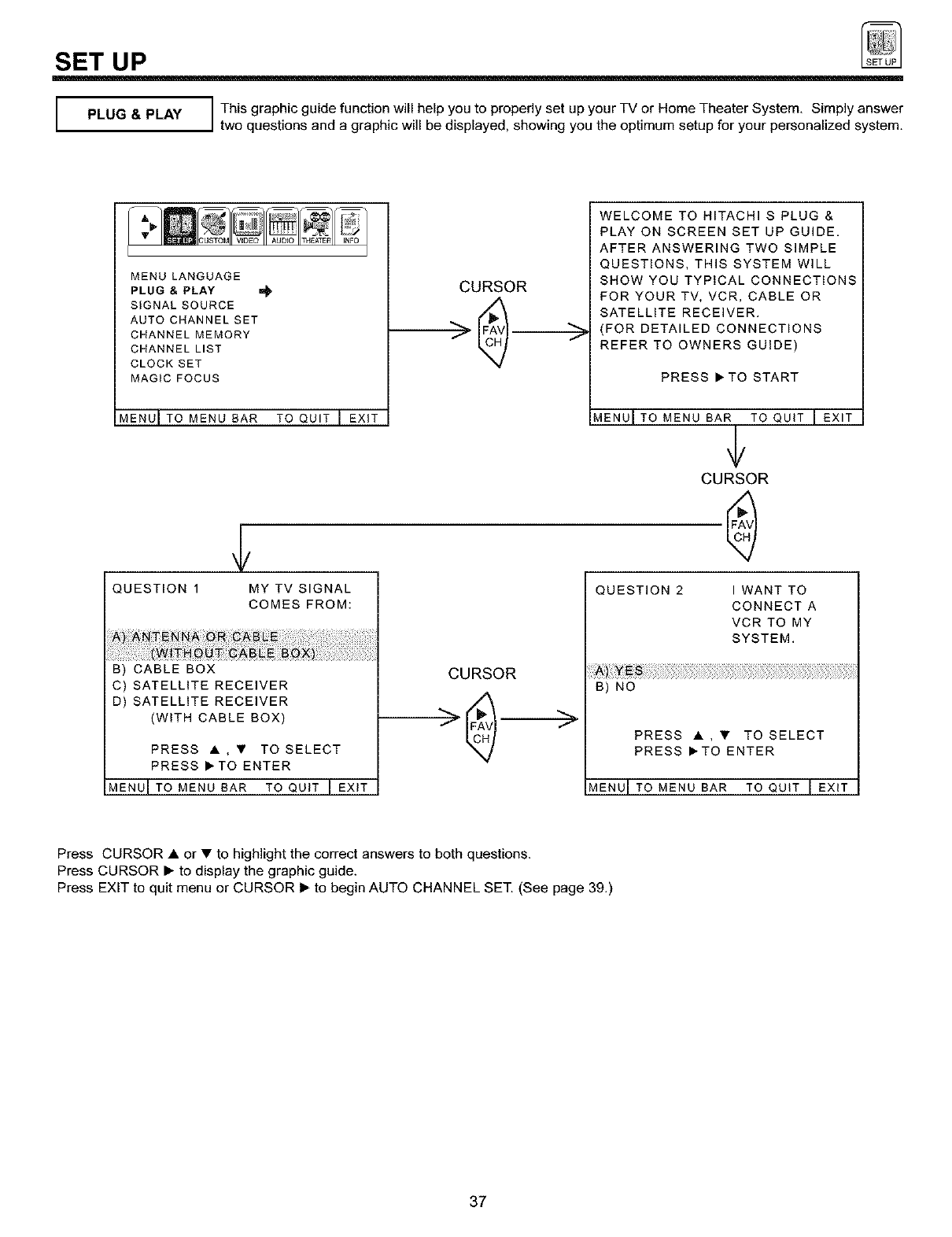

IPLUG & PLAY I This graphic guide function will help you to properly set up your TV or Home Theater System. Simply answer

two questions and a graphic will be displayed, showing you the optimum setup for your personalized system.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

MENU TO MENU BAR TO QUIT EXIT

QUESTION 1 MY TV SIGNAL

COMES FROM:

B) CABLE BOX

C) SATELLITE RECEIVER

D) SATELLITE RECEIVER

(WITH CABLE BOX)

PRESS A, • TO SELECT

PRESS •TO ENTER

MENU TO MENU BAR TO QUIT EXIT

CURSOR

WELCOME TO HITACHI S PLUG &

PLAY ON SCREEN SET UP GUIDE.

AFTER ANSWERING TWO SIMPLE

QUESTIONS, THIS SYSTEM WILL

SHOW YOU TYPICAL CONNECTIONS

FOR YOUR TV, VCR, CABLE OR

SATELLITE RECEIVER.

(FOR DETAILED CONNECTIONS

REFER TO OWNERS GUIDE)

PRESS • TO START

MENU I TO MENU SAR TO QUIT I EXIT

CURSOR

QUESTION 2 I WANT TO

CONNECT A

VCR TO MY

SYSTEM.

PRESS A, • TO SELECT

PRESS •TO ENTER

MENU I TO MENU BAR TO QUIT I EXIT

Press CURSOR • or • to highlight the correct answers to both questions.

Press CURSOR • to display the graphic guide.

Press EXIT to quit menu or CURSOR • to begin AUTO CHANNEL SET. (See page 39.)

SET UP

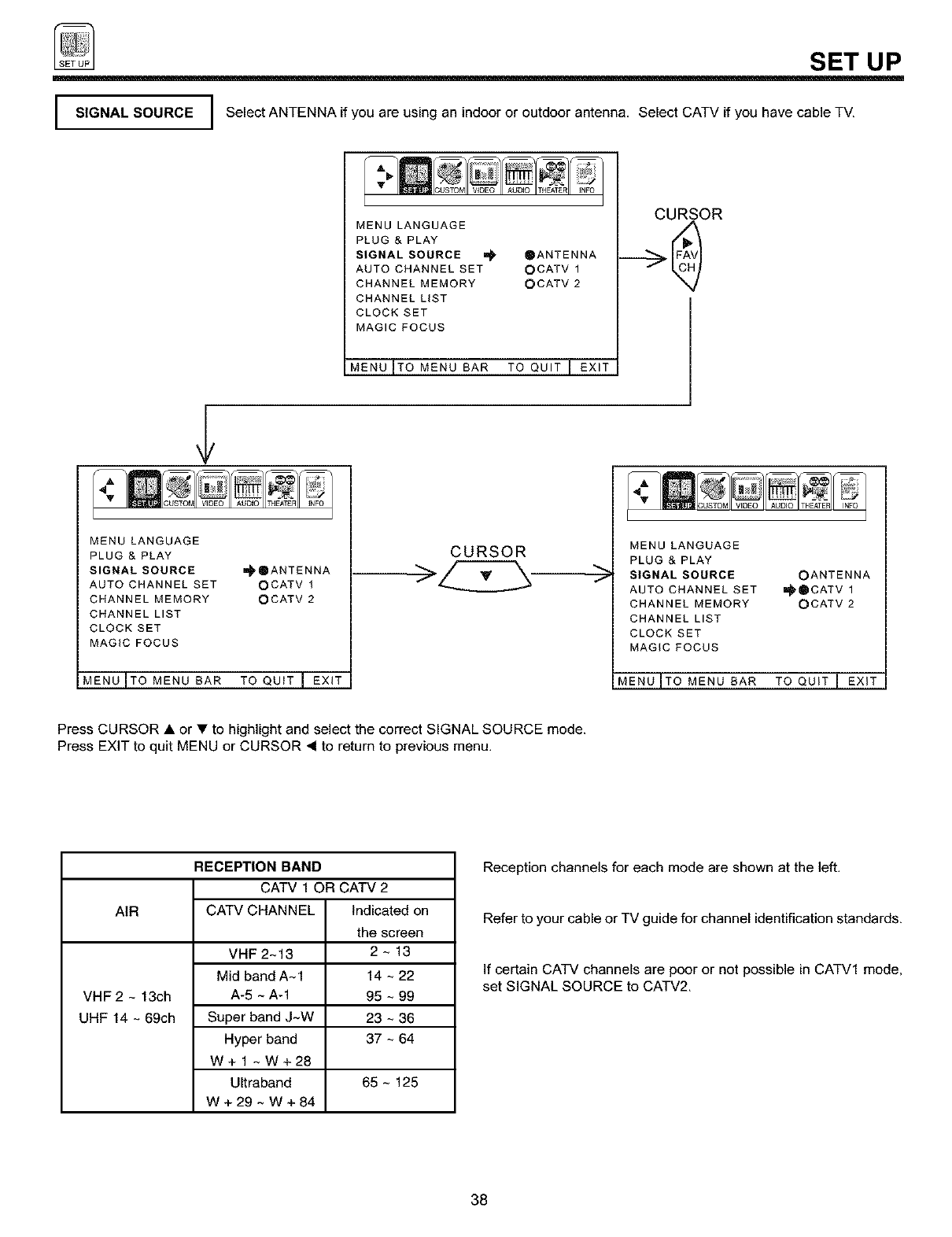

ISIGNAL SOURCE I Select ANTENNA if you are using an indoor or outdoor antenna, Select CATV if you have cable TV,

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE _ OANTENNA

AUTO CHANNEL SET OCATV 1

CHANNEL MEMORY OCATV 2

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

MENU TO MENU BAR TO QUIT EXIT

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE _OANTENNA

AUTO CHANNEL SET OCATV I

CHANNEL MEMORY OCATV 2

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

MENU TO MENU BAR TO QUIT EXIT

CURSOR

--b

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE OANTENNA

AUTO CHANNEL SET _CATV 1

CHANNEL MEMORY OCATV 2

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

MENUITO MENU BAR TO QUIT I EXIT

Press CURSOR • or • to highlight and select the correct SIGNAL SOURCE mode.

Press EXIT to quit MENU or CURSOR 4 to return to previous menu.

AIR

VHF 2 ~ 13ch

UHF 14 ~ 69ch

RECEPTION BAND

CATV 1 OR CATV 2

CATV CHANNEL Indicated on

VHF 2~13

Mid band A~I

A-5 ~ A-1

Super band J~W

Hyper band

W+l ~W+28

UItraband

W+29~W+84

the screen

2~13

14 ~ 22

95 ~ 99

23 ~ 36

37 ~ 64

65 ~ 125

Reception channels for each mode are shown at the left.

Refer to your cable or TV guide for channel identification standards.

If certain CATV channels are poor or not possible in CATV1 mode,

set SIGNAL SOURCE to CATV2.

SET UP

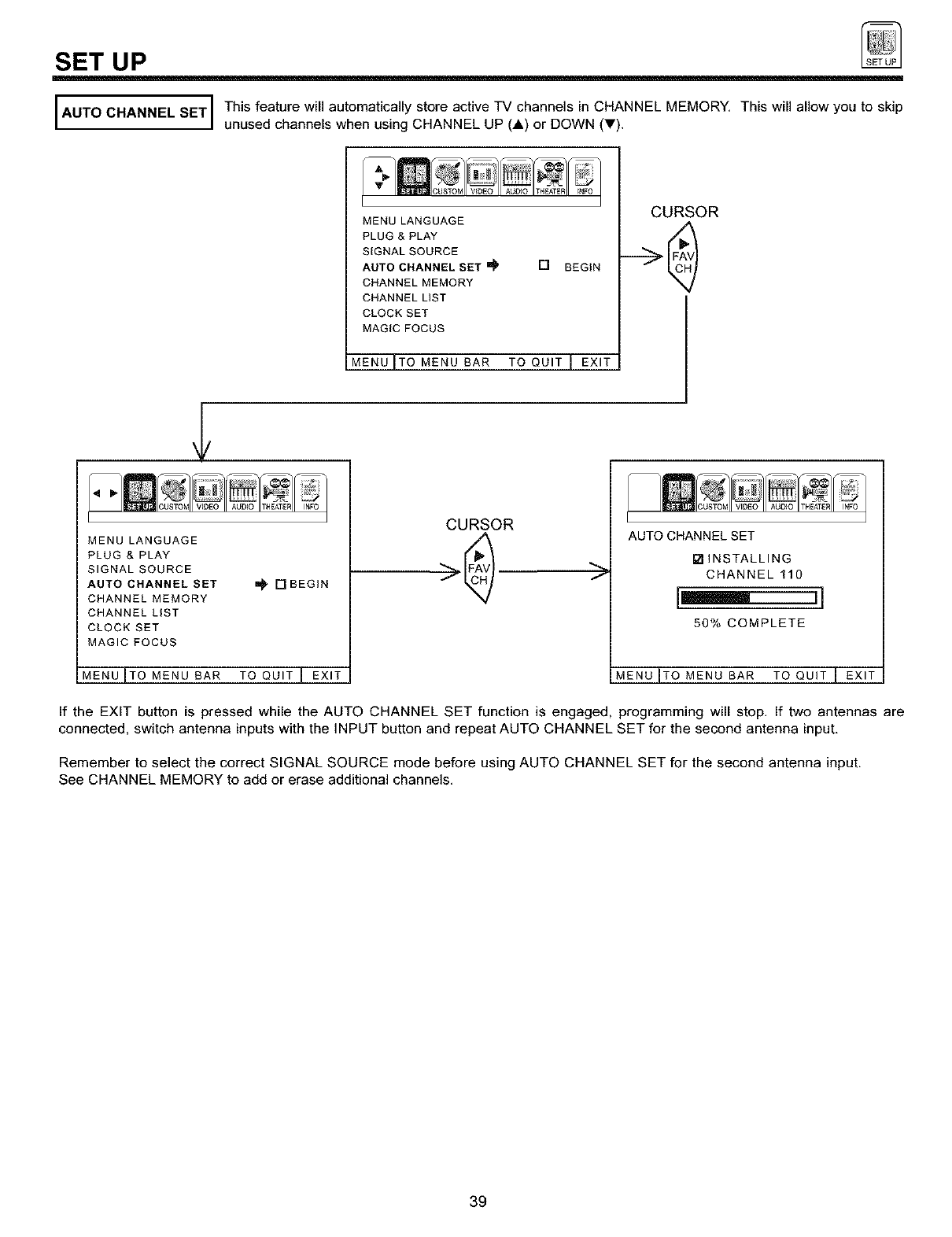

AUTO CHANNEL SET [ This feature will automatically store active TV channels in CHANNEL MEMORY, This will allow you to skip

Iunused channels when using CHANNEL UP (A) or DOWN (_').

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST

CLOCK SET

MAGIC FOCUS

[] BEGIN

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNELLIST

CLOCK SET

MAGIC FOCUS

[] BEGIN

MENU TO MENU BAR TO QUIT EXIT

CURSOR AUTO CHANNEL SET

[] INSTALLING

CHANNEL 110

50% COMPLETE

MENU ITO MENU BAR TO QUiT I EXIT

If the EXIT button is pressed while the AUTO CHANNEL SET function is engaged, programming will stop. If two antennas are

connected, switch antenna inputs with the INPUT button and repeat AUTO CHANNEL SET for the second antenna input.

Remember to select the correct SIGNAL SOURCE mode before using AUTO CHANNEL SET for the second antenna input.

See CHANNEL MEMORY to add or erase additional channels.

SET UP

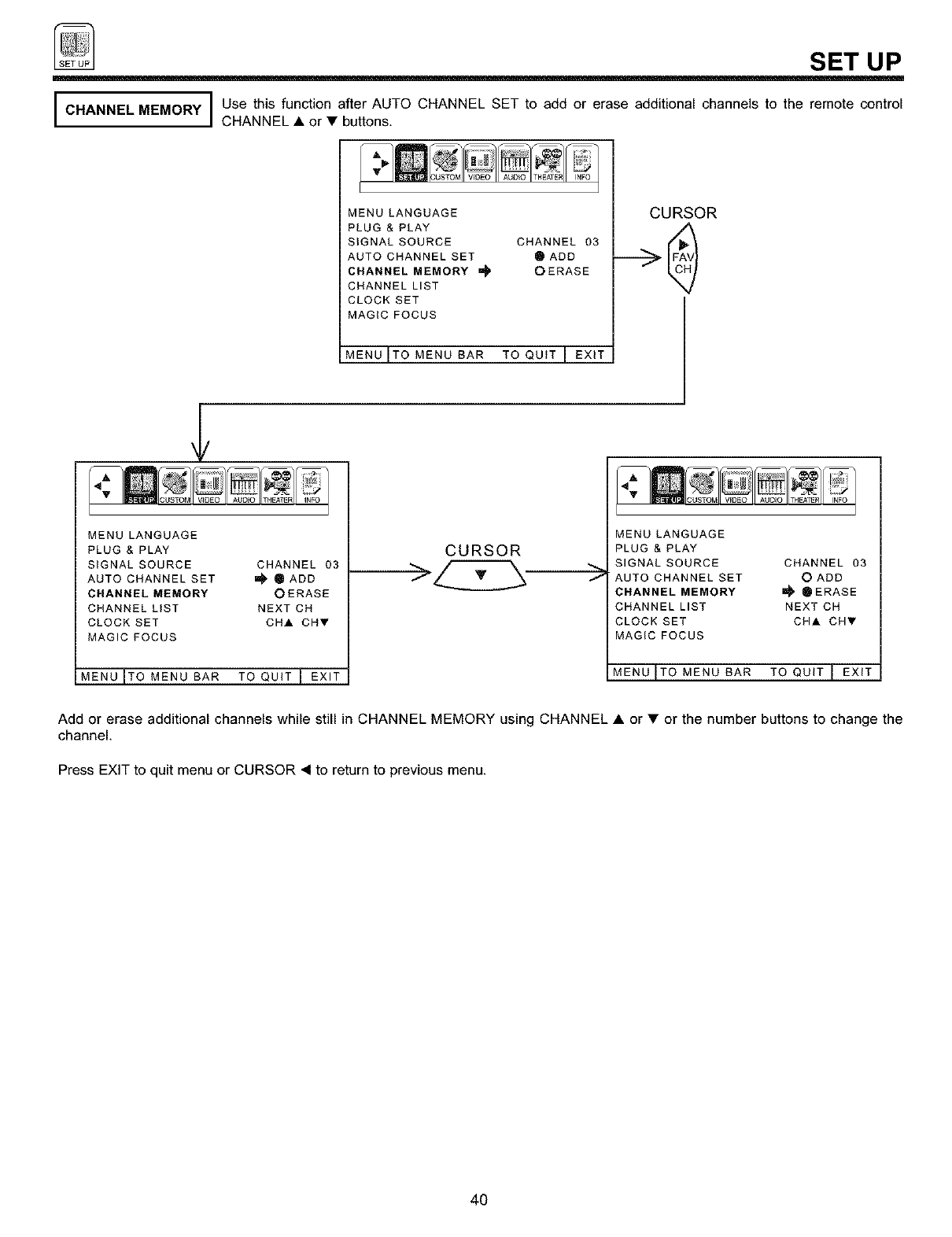

I CHANNEL MEMORY I Use this function after AUTO CHANNEL SET to add or erase additional channels to the remote control

ICHANNEL • or •buttons.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE CHANNEL 03

AUTO CHANNEL SET O ADD

CHANNEL MEMORY =_ OERASE

i CHANNEL LIST

CLOCK SET

MAGIC FOCUS

MENU TO MENU BAR TO QUiT EXiT

CURSOR

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE CHANNEL 03

AUTO CHANNEL SET I_ Q ADD

CHANNEL MEMORY OERASE

CHANNEL LiST NEXT CH

CLOCK SET CHA CHV

MAGIC FOCUS

MENU TO MENU BAR TO QUiT EXIT

CURSOR

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE CHANNEL 03

AUTO CHANNEL SET O ADD

CHANNEL MEMORY _ QERASE

i CHANNEL LIST NEXT CH

i CLOCK SET CHA CHV

MAGIC FOCUS

MENUITO MENU BAR TO QUIT I EXIT

Add or erase additional channels while still in CHANNEL MEMORY using CHANNEL • or • or the number buttons to change the

channel.

Press EXIT to quit menu or CURSOR 4 to return to previous menu.

SET UP

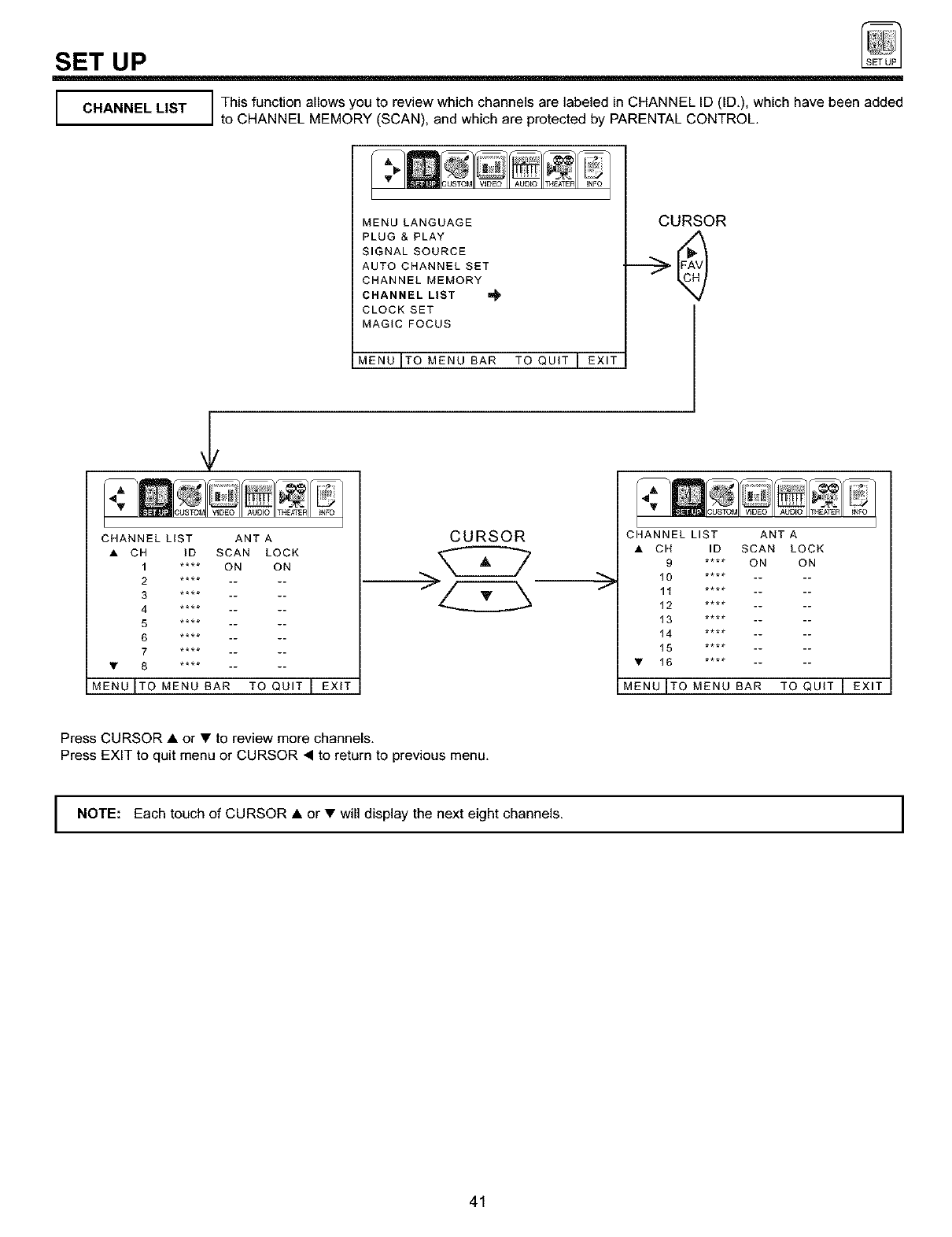

ICHANNEL LIST I This function allows you to review which channels are labeled in CHANNEL ID (ID.), which have been added

Ito CHANNEL MEMORY (SCAN), and which are protected by PARENTAL CONTROL.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNEL LIST =_

CLOCK SET

MAGIC FOCUS

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

CHANNELLIST ANT A

• CH ID SCAN LOCK

1**** ON ON

2**** --

3**** --

4**** --

5**** __

6**** __

7**** --

• 8 **** --

MENU TO MENU BAR TO QUIT EXIT

CURSOR

-->

CHANNEL LIST ANT A

• CH ID SCAN LOCK

9**** ON ON

10 ****

11 ****

12 ****

13 ****

14 ****

15 ****

• 16 ****

MENU ITO MENU BAR TO QUIT I EXIT

Press CURSOR • or •to review more channels.

Press EXIT to quit menu or CURSOR • to return to previous menu.

INOTE: Each touch of CURSOR • or •will display the next eight channels. I

SET UP

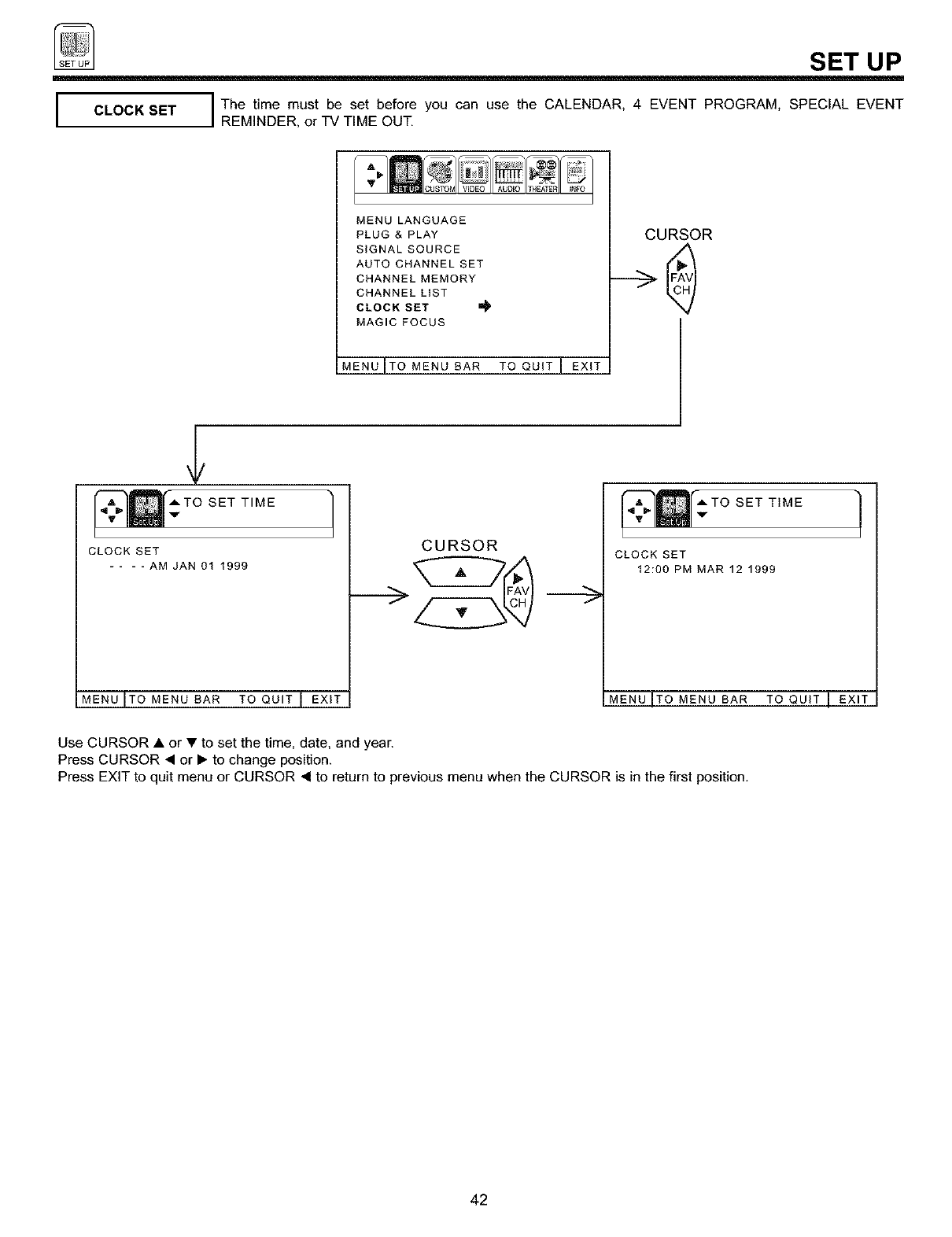

I CLOCK SET The time must be set before you can use the CALENDAR, 4 EVENT PROGRAM, SPECIAL EVENT

REMINDER, or TV TIME OUT.

MENU LANGUAGE

PLUG & PLAY

SIGNAL SOURCE

AUTO CHANNEL SET

CHANNEL MEMORY

CHANNELLtST

CLOCK SET

MAGIC FOCUS

MENU TO MENU BAR TO QUIT EXIT

CURSOR

CLOCK SET

.... AM JAN 01 1999

MENU TO MENU BAR TO QUIT EXIT

CURSOR

mr=TOSET TIME

CLOCK SET

12:00 PM MAR 12 1999

MENUITO MENU BAR TO QUIT I EXIT

Use CURSOR • or • to set the time, date, and year.

Press CURSOR • or • to change position.

Press EXIT to quit menu or CURSOR • to return to previous menu when the CURSOR is in the first position.

SET UP

I G,CFOCOSI

Your HITACHI Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the

proper proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be

precisely aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called convergence.

Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move

your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.

Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the

green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes

should be directly over each other to produce the white lines.

To simplify convergence, HITACHI incorporates a function called MAGIC FOCUS, which allows the TV to self-adjust. This process will

take approximately 90 seconds. If this button is pressed during this 90 second period, no change in picture quality will occur. After this

90 second self-adjust period, picture quality will be optimum. (Do not move the TV during self-adjust.)

To enter this self-adjust mode, you may also select MAGIC FOCUS from the SETUP Menu. However, this will display a message

prompting you to press the front panel MAGIC FOCUS button.

MAGIC

FOCUS

AUTO DIGITAL

CONVERGENCE

7MAGIC FOCUS E

NOTES: Only a momentary press of the MAGIC FOCUS button is necessary to start AUTO DIGITAL CONVERGENCE. At

anytime during this convergence correction process, you may press the MAGIC FOCUS button to exit the MAGIC

FOCUS mode.

Do not press the MAGIC FOCUS button for more than three seconds. This is only for extreme cases of misconvergence

and requires assistance from service. If one of the pictures shown below appears on the television screen, press the

MAGIC FOCUS button a second time to exit this manual set up mode.

CENTER MODE STATIC MODE

CUSTOM

IThis selection contains advanced features which will make TV viewing easier and more enjoyable.

CHANNEL lB. IUse this feature to give up to 20 channels a name when ANTENNA signal source is selected and up to 60

Ichannels a name when CATV1 signal source is selected.

CURSOR CHANNEL ID. I_

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT I EXIT

CHANNELID.

B_ CH 22

CHANNELLIST

CUSTOM CH.

E]RESET

NEXT CH

CH •CH •

OR # KEYS

CURSOR

CHANNEL ID.

CH 22 •

CHANNEL LIST I_ A&E

CUSTOM CH. ABC

El RESET BET

C8S

NEXT CH CNBC

CH • CH • CNN

OR # KEYS •

MENU ITO MENU BAR TO QUIT I EXIT

CHANNEL ID.

CH 22 •

CHANNEL LIST I_, A&E

CUSTOM CH. ABC

r-] RESET BET

CBS

NEXT CH CNBC

CH • CH • CNN

OR # KEYS •

MENU ITO MENU BAR TO QUIT IEXIT

Press CURSOR • to select CHANNEL LIST.

Press CURSOR • to select preset CHANNEL LIST,

Press CURSOR • to scroll through the preset CHANNEL LIST,

Press CURSOR • to select desired CHANNEL ID.

To customize CHANNEL ID, select CUSTOM CH.

Press CURSOR • or • to select letter.

Press CURSOR 4 or • to change character position.

(-k) represents a blank space.

Press CHANNEL • or • and the number buttons to label additional channels.

Press EXIT to quit menu or CURSOR • to return to previous menu when the CURSOR is in the first position.

Select RESET to erase a CHANNEL ID.

NOTE:

If ANT A and ANT B are in the same SIGNAL SOURCE mode (see page 38), the CHANNEL ID for both antenna inputs

will be the same. CHANNEL ID will be displayed only when channel is displayed as main picture.

CUSTOM

I VIDEO ID. I Use this feature to give a name to any of the three video inputs.

CHANNEL ID.

VIDEO ID. =_

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT I EXIT

____>

VIDEO ID.

®VlD 1OVID2 OVID3

VIDEO LIST

CUSTOM

[] RESET

MENU TO MENU BAR TO QUiT EXIT

CURSOR

VIDEO IO.

®VID IOVID2 OVID3

VIDEO LIST _ CAM

CUSTOM CBL

[] RESET DVD

SAT

STB

MENU TO MENU BAN TO QUIT EXIT

VIDEO ID.

®VID 1 OVID2 OVID3

VIDEO LIST _ CAM

CUSTOM CBL

[] RESET DVD

SAT

STB

MENU TO MENU BAR TO QUIT EXIT

Press CURSOR • to select VIDEO LIST.

Press CURSOR • to select preset VIDEO LIST.

Press CURSOR • or • to scroll through the preset VIDEO LIST.

Press CURSOR • to select desired VIDEO ID.

To customize VIDEO ID, select CUSTOM.

Press CURSOR • (twice) to select the video input to be named.

Press CURSOR • or • to select letters.

Press CURSOR • or • to change position.

Press EXIT to quit menu or CURSOR • to return to previous menu when the CURSOR is in the first position.

(-k) represents a blank space.

Select RESET to set VIDEO ID to original condition.

NOTE: VIDEO ID will be displayed only when VIDEO input is displayed as main picture. ]

CUSTOM

IFAMILY FAVORITES I This function allows you to group your favorite channels into six personalized categories that you can rename.

(MENU) IA total of 42 channels can be stored in the FAMILY FAVORITES function.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES I_

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT IEXIT

_TO CHANGE LETTER

_RECALL] TO RESET ALL

FAMILY FAVORITES CH3

MOVIES SPORTS NEWS**

3 14 33

6 15 45

8 21 r---I

10 27 r---1

11 28 r---1

12 30 r--'l

13 32 r---1

MENU TO MENU BAR TO QUIT EXIT

CURSOR FAMILY FAVORITES CH3

MOVIES SPORTS NEWS**

3 14 33

6 15 45

8 21 [""'7

10 27 r--'-'l

11 28 r----I

12 30 i"-"'-1

13 32 r-"-"l

MENU ITO MENU BAR TO QUIT IEXIT

Channel stored with AUTO CHANNEL SET will automatically be stored in FAMILY FAVORITES.

To rename the categories, use the CURSOR buttons to highlight the category you would like to rename.

Use CURSOR • or • to change a letter and CURSOR • to select the next character to change.

To enter a channel into acategory, highlight the channel location to be stored.

Press CHANNEL • or • or the number buttons to enter the desired channel. Repeat until category has been set with your favorite

channels. The channel to be added is displayed in the top right corner of the screen.

Enter channel 00 to erase a favorite channel.

To reset categories and channels back to original factory preset, press RECALL while you are renaming a category.

NOTE: This function cannot be accessed when ANT B is the main channel.

When the set is in a SIGNAL SOURCE different from ANT A, the message PLEASE SWITCH TO ANT A will appear.

CUSTOM

IFAMILY FAVORITES I Use this function to display FAMILY FAVORITES selections as sub-pictures or to tune the main picture to a

(OPERATION) I desired favorite channel.

CURSOR

SURF TO QUIT MENU ITO SURF TO QUIT I EXIT

Select a category using CURSOR _1or I_ buttons.

Press MENU and the category will be displayed as sub-pictures at the left and bottom edge of the screen. This is useful for previewing

a category.

Use CURSOR ,, _., • or • buttons to highlight a favorite channel and the TV will automatically tune to that channel.

Press EXIT to remove FAMILY FAVORITES OSD from the screen.

NOTE: If a category has some blank channel entries, these channels will appear as black sub-pictures, I

CUSTOM

PARENTAL CONTROL IThis function will block out the picture and sound of the selected channel or video input.

IIt can also be used to keep the TV from being viewed for a scheduled amount of time that you set.

The code to enter PARENTAL CONTROL is a four digit secret code number. The factory preset code is 0000.

Use the number buttons to select secret code.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL I_

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

MENU [TO MENU BAR TO QUIT I EXIT

CURSOR

"_I SE NUMBER BUTTONS

TO ENTER THE

SECRET CODE.

PARENTAL CONTROL

_** ENTER SECRET CODE

[]CHANNEL 03

[]VIDEO LOCK

[]QUICK LOCK

[] FRONT PANEL LOCK

TV TIME OUT

MENU ITO MENU BAR TO QUIT I EXIT

000

PARENTAL CONTROL

**** CHANGE SECRET CODE?

I_ [] CHANNEL 03

[] VIDEO LOCK

[] QUICK LOCK

[] FRONT PANEL LOCK

TV TIME OUT

MENUITO MENU BAR TO QUiT IEXiT

Use CURSOR • or • to highlight function and the CURSOR 1_ button to set ON or OFF.

When CHANNEL is turned on, the picture and sound for the chosen channel will be blocked out.

When VIDEO LOCK is turned on, the picture and sound for all video inputs will be blocked out. To lock the video inputs, you must

be tuned to any video input.

When QUICK LOCK is turned on, the picture and sound for channels 3, 4 on both ANT A/B and all video inputs will be blocked out.

When FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the Power button.

When TV TIME OUT is turned on, you can set the BEGIN and END times and the TV cannot be viewed during that time period.

(Set clock first.) Use CURSOR • or • to highlight ONCE (TV will time out one time only), DALLY (TV will time out every day),

WEEKLY (TV will time out one time a week) or OFF (to disable this function) and then press cursor I_ to select your choice.

To change the secret code number, select CHANGE SECRET CODE. Enter a new four digit key number you prefer.

If you forget your secret code, use the factory code 7777 to erase your key number. This will reset the secret code number back to the

factory preset 0000.

Press EXIT to quit menu or cursor •to return to previous menu.

I NOTES:

1. If ANT A and ANT B are in the same SIGNAL SOURCE mode (see page 38), when a channel is locked, it is locked

on both antenna inputs.

2. When using TV TIME OUT make sure the clock is set (see page 42).

CUSTOM

I 4 EVENT PROG. I This function will automatically turn the TV on and off, one time only, every day or once a week.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4EVENT PROGRAM I_

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT IEXIT

CURSOR

4 EVENT PROGRAM

_1_ QI 02 03 04

.... AM TV ON

.... AM TV OFF

-- CHANNEL

O ONCE

O DAILY

O WEEKLY

O OFF

MENU TO MENU BAR TO QUIT EXIT

4 EVENT PROGRAM

O1 O2 03 04

11:00 AM TV ON

12:00 AM TV OFF

10 CHANNEL

O ONCE

O DAILY

O WEEKLY

0 OFF

MENUITO MENU BAR TO QUiT I EXiT

Press CURSOR • to select PROGRAM 1, 2, 3, or 4.

Press CURSOR • or • to select the time the TV will turn on and off.

Use CURSOR • to change position.

Press CURSOR • or • to highlight then CURSOR • to select MODE: ONCE (TV will turn on/off one time only) or MODE: DAILY (TV

will turn on/off at the same time every day), or MODE: WEEKLY (TV will turn on/off at same time every week) and MODE: OFF (to

disable this function).

Press CURSOR • or •, CHANNEL (•) or (•). or number buttons to set the channel the TV will tune to when it automatically turns on.

Press EXIT to quit menu or cursor 4to return to previous menu.

If the clock is not set, you can not use this function and the screen below will appear.

4 EVENT PROGRAM

PLEASE SET

CLOCK FIRST

MENU ITO MENU BAR TO QUIT I EXIT

NOTES: 1. The OFF Timer will only activate if the TV was turned on or tuned with the ON Timer and no channel selection was

made after this time. if you change the channel after the ON Timer has been activated, the OFF Timer will deactivate.

2. If no remote control button is pressed after ON Timer is activated, the TV will automatically turn off after three hours. I

,_AUTION: Do not use your TV as a deterrent when away from home by using the ON and OFF TIMERS. For safety, the

TV should be turned off when you are away from home.

CUSTOM

IAUTO LINK I Use this function to automatically turn the TV on and tune to VIDEO: I, 2, or 3, when it detects a VIDEO input,

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM _vIOv2Ov3

AUTO LINK =_ _AUTO

CLOSED CAPTION OREMOTE

MENU BACKGROUND OOFF

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT I EXIT

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM _ ®VI OV2OV3

AUTO LINK

CLOSED CAPTION _AUTO

MENU BACKGROUND O REMOTE

FIRST TIME TOUR OOFF

MENU ITO MENU BAR TO QUIT I EXIT

Use CURSOR • to select Video Input.

Use CURSOR •or _', then CURSOR •, to change AUTO LINK setting.

When AUTO is selected, the TV will turn on and tune to VIDEO: 1, 2, or 3 automatically, when a VIDEO: 1, 2, or 3 input is detected.

This is convenient when you want to watch a movie with your VCR, laserdisc player, or DVD player.

When REMOTE is selected, the TV will turn on and tune to VIDEO: 1, 2, or 3 automatically, when a VIDEO: 1, 2, or 3 input is detected

and the VCR, laserdisc, or DVD play button on your remote control is pressed.

This is convenient when you want to record a movie with your VCR and watch it later.

Select OFF to disable this function.

Press EXIT to quit menu or CURSOR • to return to previous menu.

NOTES: 1. Once the TV has been turned on using the AUTO LINK feature, it must be reset before AUTO LINK is used again.

To do this, turn your VCR, laserdisc, or DVD player OFF. This feature is now reset and will turn on your TV as

described above.

2. When using REMOTE mode, any remote control button will substitute for your video input device play button.

However, intended operation is for use with your VCR, laserdisc, or DVD play button.

CUSTOM

I CLOSED CAPTION I Closed captions are the dialogue, narration, and/or sound effects of atelevision program or home video which

are displayed on the TV screen. Your local TV program guide denotes these programs as _ or [_.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION i_

MENU BACKGROUND

FIRST TIME TOUR

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR CLOSED CAPTION

DISPLAY

®OFF OON

MODE

®C.C. OTEXT

CHANNEL

@1 02

MENUITO MENU BAR TO QUIT I EXIT

DISPLAY:

MODE:

CHANNEL:

ON/OFF will turn the _ display on or off.

C.C. (Closed Caption) is for the program you are viewing.

TEXT is for additional information such as news reports or a TV program guide. This information covers the entire

screen and viewing the TV program is not possible. TEXT may not be available with every _"_ program.

1is used for the primary language (usually English).

2 is sometimes used for a second language (may vary by region).

Use CURSOR • or • to highlight the function to change then press CURSOR • to change the function.

Press EXIT to quit menu or CURSOR • to return to previous menu.

I NOTE: If you do not have sound, make sure MUTE is not set. I

MENU BACKGROUND I This function allows you to choose from three menu backgrounds.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

O CLEAR

@ GRAY

OSHADED

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND

FIRST TIME TOUR

OCLEAR

_GRAY

O SHADED

MENU TO MENU BAR TO QUIT EXIT

Use CURSOR • or • to change MENU BACKGROUND setting.

Press EXIT to quit menu or CURSOR • to return to previous menu.

Select CLEAR and no background is visible, select GRAY and a gray background is visible (no picture can be seen behind menu

screen), select SHADED and a light background is visible.

CUSTOM

IFIRST TIME TOUR I This function introduces you to the First Time Tour Setup Feature, showing you basic TV

Ifunctions as well as helping you set up your TV or Home Theater System. This feature will be

displayed every time your TV is turned on, unless you set FIRST TIME TOUR to OFF.

POWER

HITACHI

INTRODUCES YOU TO THE

FIRST TIME SETUP FEATURE.

SHOWING YOU THE OPTIMUM

SETUP GUIDE FOR YOUR

PERSONALIZED SYSTEM.

[] ALWAYS SHOW FIRST TIME

TOUR AT POWER ON.

MENU I CUSTOM TO TURN ON/OFF

AFTER

---> lo

SECONDS

TO AUTO DEMO TURN TV

OFF, PRESS AND HOLD

TV S POWER BUTTON.

TO QUITI EXiT

To disable this function, press the MENU button at any time during the tour, and the following screen will appear.

CHANNEL ID.

VIDEO ID.

FAMILY FAVORITES

PARENTAL CONTROL

4 EVENT PROGRAM

AUTO LINK

CLOSED CAPTION

MENU BACKGROUND OON

FIRST TIME TOUR I_ ®OFF

MENU ITO MENU BAR TO QUIT I EXiT

Use CURSOR •or • then CURSOR • to select ON or OFF.

Press EXIT to quit Menu or CURSOR • to return to previous menu.

NOTE:

1. When TV set is turned on, the First Time Tour will always appear if it is set to ON.

2. To exit during the First Time Tour, press the MENU button. I

VIDEO

Select VIDEO to adjust picture settings and improve picture quality.

CURSOR

CONTRAST 4 mmmmmmr--'l _ 75%

BRIGHTNESS '4_ 50%

COLOR _ll_ 50%

TINT __

SHARPNESS __ 50%

RESET []

ADVANCED

SETTINGS

MENUITO MENU BAR TO QUiT I EXiT

CURSOR

+CONTRAST 4_ 98%

BRIGHTNESS __ 50%

COLOR __ 50%

TINT __

SHARPNESS __ 50%

RESET []

ADVANCED

SETTINGS

MENU ITO MENU BAR TO QUIT I EXIT

Use the CURSOR • or • buttons to highlight the function to be adjusted.

Press the CURSOR 4 or 1_ buttons to adjust the function.

Press EXIT to quit menu.

INOTE: 1. If CONTRAST is selected, you are adjusting CONTRAST. The additional menu items BRIGHTNESS, COLOR, TINT,

and SHARPNESS can be selected and adjusted in the same manner.

2. Contrast and Brightness adjustments will affect only the main picture. These adjustments will not affect the sub-picture. I

m CONTRAST

mBRIGHTNESS

m COLOR

mTINT

mSHARPNESS

mRESET

Use this function to change the contrast between black and white levels in the picture. This adjustment will

only affect the picture when ADVANCED SETTINGS ULTRAAI is OFF. (See page 54.)

Use this function to adjust overall picture brightness.

Use this function to adjust the level of color in the picture.

Use this function to adjust flesh tones so they appear natural. (It may be necessary to adjust TINT to obtain

optimum picture quality when using the COMPONENT: Y-CBC R Input 2 jacks).

Use this function to adjust the amount of fine detail in the picture.

When RESET is selected, press CURSOR I_ to return video adjustments to factory preset conditions.

VIDEO

[ADVANCED

SETTINGS Your HITACHI Projection TV has an Ultra AI (Artificial Intelligence) function which will automatically adjustpicture settings to produce the highest quality picture possible.

When AI is highlighted, use CURSOR • to turn the AI on or off.

CURSOR CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

RESET

ADVANCED

SETTINGS =_

_1 _ 100%

•_1_ 50%

_1_ 50%

_1_1_ 50%

MENU TO MENU BAR TO QUIT EXIT

ADVANCED SETTINGS

CURSOR

I_[] ULTRA AI

[]AUTO COLOR

[]NOISE REDUCTION

[] SUPER CONTRAST

[] 3DYC

COLOR TEMPERATURE

_l COOL O WARM

MENU TO MENU BAR TO QUIT EXIT

Use CURSOR • or • to select function.

ADVANCED SETTINGS

[] ULTRA AI

[] AUTO COLOR

[]NOISE REDUCTION

[]SUPER CONTRAST

•3DYC

COLOR TEMPERATURE

OCOOL _ WARM

MENU ITO MENU BAR TO QUIT I EXIT

Use CURSOR • to change the function setting. When the function has an X in the box, it is ON.

Press EXIT to quit menu or CURSOR 4 to return to previous menu.

ULTRA AI (ARTIFICIAL INTELLIGENCE)

When the AI function is on, the TVs internal computer will perform the following:

1. Automatically monitor and adjust contrast depending on room lighting (sensor is located in the front panel) to produce a more

natural picture.

2. Automatically monitor and adjust color levels and maintain natural flesh tones.

3. Automatically compensate for weak or strong TV signals to produce a clear picture.

Turn the AI function off to control other PREFERENCE SETTINGS.

AUTO COLOR

The AUTO COLOR function automatically monitors and adjusts the color to maintain constant color levels even after a program or

channel changes. It also maintains natural flesh tones while preserving fidelity of background colors. (This function will automatically

set to on and cannot be turned off when the ULTRA AI function is ON.)

NOTE: InputltmaY2bejacks.necessaryto set AUTO COLOR-ON to obtain optimum picture quality when using the COMPONENT: Y-CBC R

NOISE REDUCTION

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading picture quality.

(This function will automatically set to on and cannot be turned off when the ULTRAAI function is ON.)

SUPER CONTRAST

Turn on SUPER CONTRAST to improve picture detail in areas of high brightness.

3DYC

Turn on 3DYC to eliminate flickering, or picture artifacts, that a detailed pattern or scene would normally cause,

COLOR TEMPERATURE

Set this to WARM for hotter colors with more red, or set to COOL for less intense colors with more blue,

AUDIO

i_iSeleBtAUO,OSETTINGStoadiostthe_toyourpreferenceandtoimprovethesoundqoali_.

CURSOR BASS 4 =lmmmmR---1 _ 72%

TREBLE __50%

BALANCE __

RESET []

ADVANCED

SETTINGS

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

+BASS _===============_ _%

TREBLE 4_50%

BALANCE __

RESET []

ADVANCED

SETTINGS

MENUITO MENU BAR TO QUIT I EXIT

Use CURSOR • or • to highlight the function to be adjusted.

Press CURSOR _1or • to adjust the function.

Press EXIT to quit menu.

NOTE:

BASS

TREBLE

BALANCE

RESET

If BASS is selected you are adjusting BASS. The additional menu items TREBLE and BALANCE can be selected and

adjusted in the same manner.

This function controls the low frequency audio to all speakers.

This function controls the high frequency audio to all speakers.

This function will control the left to right balance of the TV internal speakers, the AUDIO TO HI FI output, and

WIRELESS OUT output.

When RESET is selected, press CURSOR • to return audio adjustments to factory preset conditions.

NOTE: If BASS or TREBLE are adjusted, the GRAPHIC EQUALIZER will automatically be disabled.

The BALANCE function is disabled when SURROUND-DOLBY PRO LOGIC or SURROUND-DOLBY 3 STEREO are

selected. (See page 59.)

AUDIO

I ADVANCEDSETTINGS IUse ADVANCED SETTINGS tO impr°ve the s°und perf°rmance °f y°ur Tv' depending On listening cOnditi°ns"

CURSOR BASS _1_ _" 72%

TREBLE _" 50%

BALANCE *_[_

RESET []

ADVANCED

SETTtNGS _ll_

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

ADVANCED SETTINGS

_® STEREO

O MONO

OSECOND AUDIO PROGRAM

DINTERNALSPEAKERS

[]AUTO NOISE CANCEL

[] LOUDNESS

[] PERFECT VOLUME

[] DYNAMIC BASS

MENU TO MENU BAR TO QUIT EXIT

CURSOR ADVANCED SETTINGS

_STEREO

O MONO

OSECOND AUDIO PROGRAM

I_[]INTERNALSPEAKERS

[]AUTO NOISE CANCEL

[] LOUDNESS

[] PERFECT VOLUME

[] DYNAMIC BASS

MENU TO MENU BAR TO QUiT EXIT

Press CURSOR • or • to highlight a function, Press CURSOR • to change the function setting, When the function has an X in the

box, it is ON,

MTS MODE

Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound) used when receiving

a weak stereo broadcast or SAP (second audio program) which may be a secondary language, weather report, etc.

The sources received will be displayed at the top center edge of the TV. The source you select will be displayed above the sources

received. See example below for each selection when both stereo and second audio are received (monaural is always received).

STEREO SELECTED SAP SELECTED MONO SELECTED

INTERNAL SPEAKERS

This function is useful when first setting up the external speakers, or if you prefer to use only speakers from a separate stereo system.

AUTO NOISE CANCEL

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will automatically eliminate the audio

for that channel.

LOUDNESS

This function will improve the quality of both low and high frequency sounds when listening at low volume levels. (Enabling this function

will automatically disable the GRAPHIC EQUALIZER.)

PERFECT VOLUME

This function will automatically adjust volume so each channel has the same average volume level. (This function will automatically

be disabled when SURROUND-DOLBY PRO LOGIC or SURROUND DOLBY 3 STEREO are selected, to ensure correct DOLBY

SURROUND sound decoding.) See page 59.

DYNAMIC BASS

This function allows you to enjoy spectacular bass sound that would normally be heard only with expensive home speaker systems.

NOTE: If optional left and right speakers are connected while in SURROUND-DOLBY PRO LOGIC (Normal mode) or

SURROUND-DOLBY 3 STEREO (Normal mode), the internal speakers may be turned off for better separation between

left, center, and right channels (see page 59). The center channel audio will still be heard from the television s center

speakers.

THEATER

Use this function to choose picture settings for a true home THEATER experience.

I THEATER MODES I Use this function to choose from automatic picture settings to optimize your TV s performance,

CURSOR

THEATER MODES _ _ TV

SURROUND O MOVIES

GRAPHIC EQ. O SPORTS

WIRELESS SOUND [] RESET

SUB WOOFER

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

THEATER MODES I_ TV

SURROUND O MOVIES

GRAPHIC EQ. O SPORTS

WIRELESS SOUND [] RESET

SUB WOOFER

MENU TO MENU BAR TO QUIT EXIT

CURSOR THEATER MODES O TV

SURROUND O MOVIES

GRAPHIC EQ. i_ ® SPORTS

WIRELESS SOUND [] RESET

SUB WOOFER

MENU ITO MENU BAR TO QUIT I EXIT

Use CURSOR • or • to change THEATER MODES settings.

When TV mode is chosen, the following are automatically set:Contrast almost maximum, Super Contrast-OFF, Color Temp.-Cool,

Loudness-ON, Perfect Volume-ON, Dynamic Bass-ON.

When MOVIE mode is chosen, the following are automatically set:Contrast almost center, Super Contrast-OFF, Color Temp.-Warm,

Loudness-OFF, Perfect Volume-OFF, Dynamic Bass-OFR

When SPORTS mode is chosen, the following are automatically set:Contrast-Maximum, Super Contrast-ON, Color Temp.-Cool,

Loudness-OFF, Perfect Volume-OFF, Dynamic Bass-OFR

You can customize each of the above modes (TV, MOVIE, and SPORTS) to your preference to increase viewing performance and

pleasure, depending upon the video program being viewed. However, if RESET is selected, all modes will reset to the initial conditions

as explained above.

When RESET is selected, it will take approximately two seconds to return to factory conditions (SPORTS mode).

Press EXIT to quit menu or CURSOR • to return to previous menu.

THEATER

I SURROUND I The following surround settings will reproduce the live sound you would hear in concert halls,

sports stadiums, movie theaters, etc. when you set up your speaker system as shown in the section

on audio system setup on pages 20-21. The surround system is most effective with movie and other

stereo material that is Dolby Surround encoded, and played on a stereo VCR.

THEATER MODES

_) OFF

GRAPHIC EQ O MATRIX

WIRELESS SOUND O HALL

SUB WOOFER O DOLBY

MENU TO MENU BAR TO QUIT EXIT

CURSOR CURSOR

THEATER MODES

SURROUND I_ OFF

GRAPHIC EQ

WIRELESS SOUND O HALL

SUB WOOFER O DOLBY

MENU TO MENU BAR TO QUIT EXIT

CURSOR MATRIX

REAR _1_ 67%

MAIN "q_b 50%

MENU ITO MENU BAR TO QUIT I EXIT

When using WIRELESS SOUND, REAR SPEAKERS mode must be chosen to receive the Surround audio program.

To enter the SURROUND MODE, use CURSOR • or • to highlight then press CURSOR • to select SURROUND MODE of your

choice.

Now press CURSOR • or • to highlight, then press CURSOR • to select function to be adjusted.

Use CURSOR <1or • to adjust the volume of rear and main speakers. Main volume also controls AUDIO TO HI-FI output level.

Adjust main volume first.

Each surround setting has separate main and rear volume controls, except OFF and DOLBY 3 STEREO which have no rear volume

controls. DOLBY PRO LOGIC and DOLBY 3 STEREO also have center volume controls, while MATRIX and HALL have balance

controls. (Balance while in DOLBY PRO LOGIC and DOLBY 3 STEREO modes is adjusted by using the TEST TONE volume

controls.) The center and rear volume will increase or decrease when main is adjusted, keeping an equal balance between the

surround channels.

The maximum volume allowed for the center and rear will depend on how loud the main volume is set.

SURROUND OFF

Use this for normal stereo/mono broadcasts.

MATRIX SURROUND

Listener is surrounded by many sound sources such as a sporting event, etc.

NOTE: Some TV systems do not transmit optimum audio channel separation which can reduce the effectiveness of the MATRIX

SURROUND function.

HALL SURROUND

Resonant sound-Listener has the feeling of being in a concert hall,

THEATER

Ioo,BYPRO,OG,CI

Dolby Pro Logic provides four separate sound channels: left, center, right, and surround. For properly encoded programs

marked rlrl[.._._._._._._._._._J_the center sound channel contains the dialogue for the program viewed. The left and right channels

produce sound effects that will match the action on the TV screen. For example, Dolby Pro Logic will enhance the effect of

a car viewed driving from the left side of the TV screen to the right side. The surround channel (speakers) are placed behind

the viewing area to add additional spatial sound effects.

To fully benefit from Dolby Pro Logic Surround, it is recommended that the surround speaker system be complete as shown

on page 20.

THEATER MODES

SURROUND _ OFF

GRAPHIC EQ. O MATRIX

WIRELESSSOUND O HALL

SUB WOOFER

MENU TO MENU BAR TO QUIT EXIT

CURSOR CURSOR

DOLBY

PRO LOGIC

NORMAL

O TV AS CENTER

3STEREO

O NORMAL

OTVAS _ENTER

MENU TO MENU BAR TO QUIT EXIT

TEST TONE

PRO LOGIC

NORMAL

CENTER a_b _%

FRONTR _ ,_ _%

REAR d__ _%

MAIN d__ _%

MENU ITO MENU BAR TO QUIT I EXIT

Press CURSOR • or • to highlight asurround function.

Use CURSOR • to change the surround function.

The function can be set to DOLBY 3 STEREO or DOLBY PRO LOGIC. When DOLBY 3 STEREO is set, the surround channel sound

is split equally between the left and right speakers of the separate audio amplifier. When DOLBY PRO LOGIC is set, separate

surround sound speakers must be used.

Also, the function can be set to NORMAL or TV AS CENTER. When NORMAL is set, center channel sound is sent to the TV center

speakers, while left and right audio is sent to the TV s left and right speakers. When TV AS CENTER is set, center channel sound is

sent to the TV center speakers while left and right audio is sent to the left and right speakers of a separate audio amplifier (TV s left

and right speakers are automatically turned off).

THEATER

ITEST

TONE IA test sound is generated allowing the listener to balance volume from each channel. Adjust the

volume levels until all channels are equal.

TEST TONE

PRO LOGIC

NORMAL

_67%

CENTER 4_b 67%

FRONT R d__ 67%

REAR 4_b, 67%

MAIN d__. 50%

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR TEST TONE

PRO LOGIC

NORMAL

CENTER

FRONT R

._rl_ 67%

,d__. 67%

MAIN ___. 50%

MENU ITO MENU BAR TO QUIT IEXIT

DOLBY PRO LOGIC DOLBY 3 STEREO

Press CURSOR • or • to highlight, then press CURSOR • to select TEST TONE.

Automatic scanning of applicable speakers for your chosen Surround mode will occur. Simply wait until the speaker you wish to adjust

is highlighted (static noise will be heard from this speaker), then use CURSOR < or • to adjust VOLUME. (Adjust balance by adjusting

Front L and Front R volume control.)

Press EXIT to quit menu or MENU to return to previous menu.

NOTE: correctWhenin Dolby Surround Mode, the Audio-Advanced Settings-Perfect Volume feature will automatically be disable toensureDOLBYSURROUND sound decoding. I

IGRAPHIC

EQUALIZER I Use this function to precisely control tonal quality by using seven different frequency controls.

THEATER MODES

SURROUND

WIRELESS SOUND

SUB WOOFER

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR

÷@÷ llllill

60 150 400 _K 2K 4.5K 10K

I_ GRAPHIC EQ. rqBASS/TREBLE

MENU ITO MENU BAR TO QUIT IEXIT

Press CURSOR • to select the frequency you wish to adjust.

To increase the amount of frequency audio to all speakers, use CURSOR •.

To decrease the amount of frequency audio to all speakers, use CURSOR •.

Press EXIT to quit menu or CURSOR • to return to previous menu when the CURSOR is in the first position.

NOTE:

When this function is used or adjusted, the AUDIO SETTINGS functions BASS and TREBLE will be disabled and I

LOUDNESS will be set to off. I

THEATER

IWIRELESS

SOUND IThis feature allows you to choose between two possible variable audio outputs for a separate set of wireless

speakers or another stereo amplifier. The audio output may be either MAIN TV AUDIO or PIP AUDIO.

THEATER MODES

SURROUND

GRAPHIC EQ.

WIRELESS SOUND =_

SUB WOOFER

MENU ITO MENU BAR TO QUIT I EXIT

CURSOR WIRELESS SOUND

WIRELESS OUT

=_l MAiN TV AUDIO

OPIP AUDIO

OREAR SPEAKERS

MENU ITO MENU BAR TO QUiT I EXiT

Press CURSOR • or • to highlight a function.

Press CURSOR 1_ to select the function.

Press EXIT to quit menu or CURSOR < to return to previous menu.

MAIN TV AUDIO

When set to MAIN TV AUDIO mode, your wireless speakers will play the same audio program as played on your TV. The volume of

your wireless speakers will be controlled by the TV volume control.

PIP AUDIO

When set to PIP AUDIO mode, your wireless speakers will play the PIP sub-picture audio program. The volume of your wireless

speakers will now be controlled by the PIP VOLUME control, which may be varied from 0 (rain.) to 100 (max.). If no sub-picture is

displayed, the wireless speakers will play the main channel audio program with the volume being controlled by the TV volume control.

REAR SPEAKERS

When set to REAR SPEAKERS mode, your wireless speakers will play the surround audio program. The volume of your wireless

speakers will be controlled by the TV volume control, dependent upon the amount of REAR selected from SURROUND mode. (See

pages 58 and 59.)

THEATER

I SUB WOOFER I Use this feature to provide variable audio output to an optional sub woofer.

THEATER MODES

SURROUND

GRAPHIC EQ.

WIRELESS SOUND

VOLUME 50%

4_b

MENU ITO MENU BAR TO QUIT IEXiT

THEATER MODES

SURROUND

GRAPHIC EQ.

WIRELESS SOUND

SUB WOOFER

MENU ITO MENU BAR TO QUiT I EXIT

Press CURSOR • to select volume adjustment bar.

Press CURSOR • or • to adjust SUB WOOFER volume.

Press EXIT to quit menu or CURSOR • to highlight VOLUME, then CURSOR • to return to previous menu.

NOTE: The Sub Woofer volume will increase or decrease when main volume is adjusted. I

INFO

This function allows your TV to assist you with your busy day-to-day schedule.

SPECIAL EVENT Use this function to set up to six special events into memory.

REMINDER These events can then be viewed in CALENDAR mode.

CURSOR SPECIAL

EVENT REMINDER

CALENDAR

MENUITO MENU BAR TO QUIT I EXIT

CURSOR SPECIAL EVENT REMINDER

@1 02 03 04 05 06

SET SPECIAL DAY JAN 01 1999

START REMINDER

O ON SPECIAL DAY

O1 DAY BEFORE

O 1 WEEK BEFORE

_) OFF

[] ERASE

MENU ITO MENU BAR TO QUIT I EXIT

Press CURSOR • to select EVENT 1 to 6.

Press CURSOR • or • to select a letter.

Press CURSOR • to change position.

Set Special Day of reminder using cursor buttons.

Highlight the day of Start Reminder using CURSOR buttons, then press CURSOR • to select.

To erase SPECIAL EVENT, select ERASE EVENT then press CURSOR •.

Press EXIT to quit menu or CURSOR < to return to previous menu.

If the clock is not set, you can not use this function and the next screen will appear.

SPECIAL EVENT REMINDER

PLEASE SET

CLOCK FIRST

MENUITO MENU BAR TO QUIT I EXIT

NOTE:

1. When the TV is turned on, the SPECIAL EVENT REMINDER message will automatically appear at the selected time.

2. Each special event message can be a maximum of 20 characters.

3. When the RECALL button is pressed, a special icon appears on the right bottom side of the screen and indicates a

SPECIAL EVENT REMINDER message. Press the RECALL button again to display the SPECIAL EVENT REMINDER

message.

INFO

ICALENDAR Ise this function to check the day, month, and year.

Dates programmed in SPECIAL EVENT REMINDER will appear blinking and special event message will

be displayed.

SPECIAL

EVENT REMINDER

CALENDAR I_

MENU TO MENU BAR TO QUIT EXIT

CURSOR CALENDAR

&JAN 1999

S M T W T F S

3 4 5 6 7 8 9

10 11 12 13 14 15 16

17 18 19 20 21 22 23

24 25 26 27 28 29 30

V 31

MENU TO MENU BAR TO QUIT EXIT

Press CURSOR • or • to change the month,

Press EXIT to quit menu or CURSOR < to return to previous menu.

If the clock is not set, you can not use this function and the next screen will appear.

CALENDAR

PLEASE SET

CLOCK FIRST

MENU ITO MENU BAR TO QUIT I EXIT

NOTES:

1. When the TV is turned on, the SPECIAL EVENT REMINDER message will automatically appear at the selected time.

2. Each special event message can be a maximum of 20 characters.

3. When RECALL button is pressed, a special icon appears on the right bottom side of the screen and indicates a

SPECIAL EVENT REMINDER message. Press the RECALL button again to display the SPECIAL EVENT REMINDER

message.

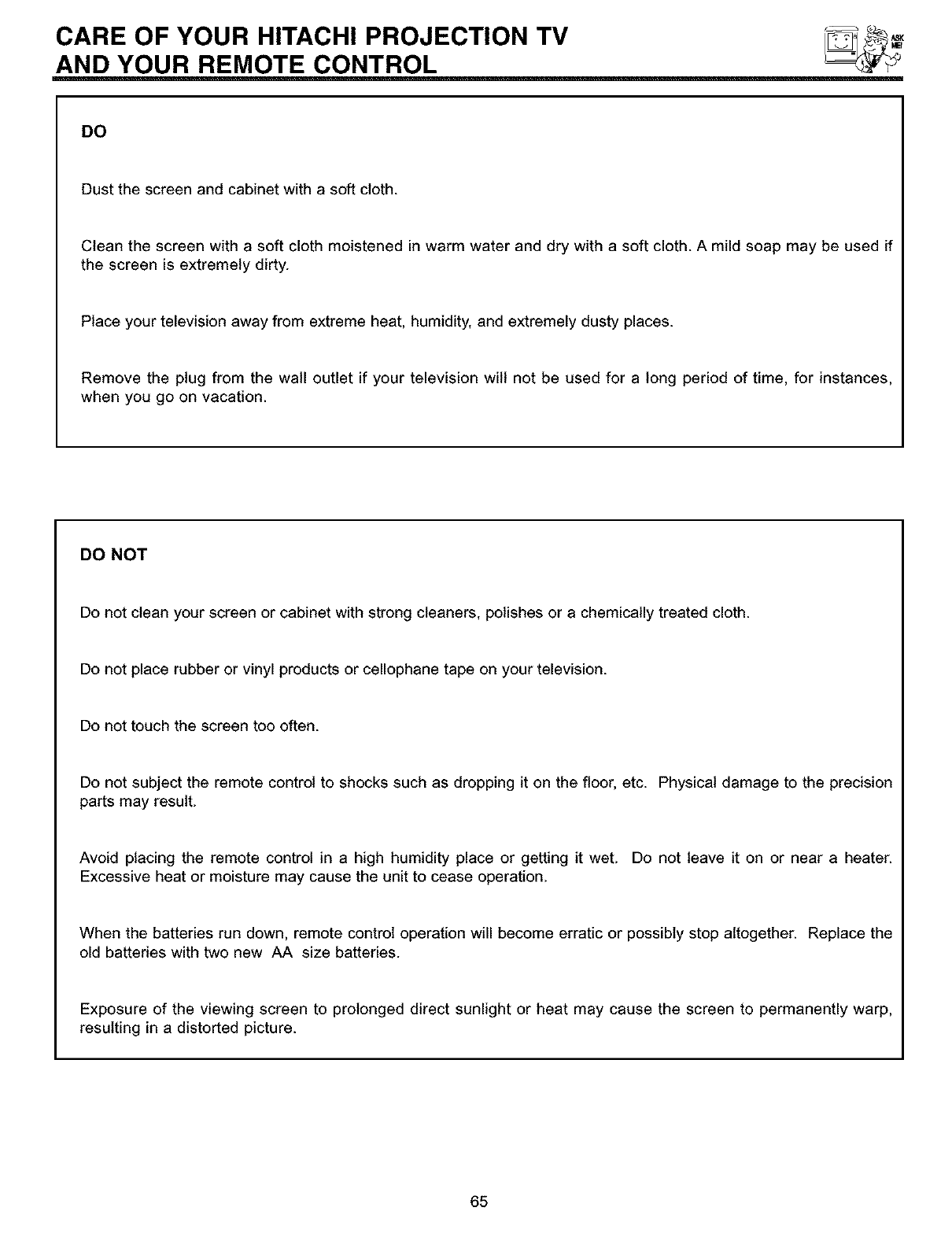

CARE OF YOUR HITACHI PROJECTION TV

AND YOUR REMOTE CONTROL

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm water and dry with a soft cloth. A mild soap may be used if

the screen is extremely dirty.

Place your television away from extreme heat, humidity, and extremely dusty places.

Remove the plug from the wall outlet if your television will not be used for a long period of time, for instances,

when you go on vacation.

DO NOT

Do not clean your screen or cabinet with strong cleaners, polishes or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane tape on your television.

Do not touch the screen too often.

Do not subject the remote control to shocks such as dropping it on the floor, etc. Physical damage to the precision

parts may result.

Avoid placing the remote control in a high humidity place or getting it wet. Do not leave it on or near a heater.

Excessive heat or moisture may cause the unit to cease operation.

When the batteries run down, remote control operation will become erratic or possibly stop altogether. Replace the

old batteries with two new AA size batteries.

Exposure of the viewing screen to prolonged direct sunlight or heat may cause the screen to permanently warp,

resulting in a distorted picture.

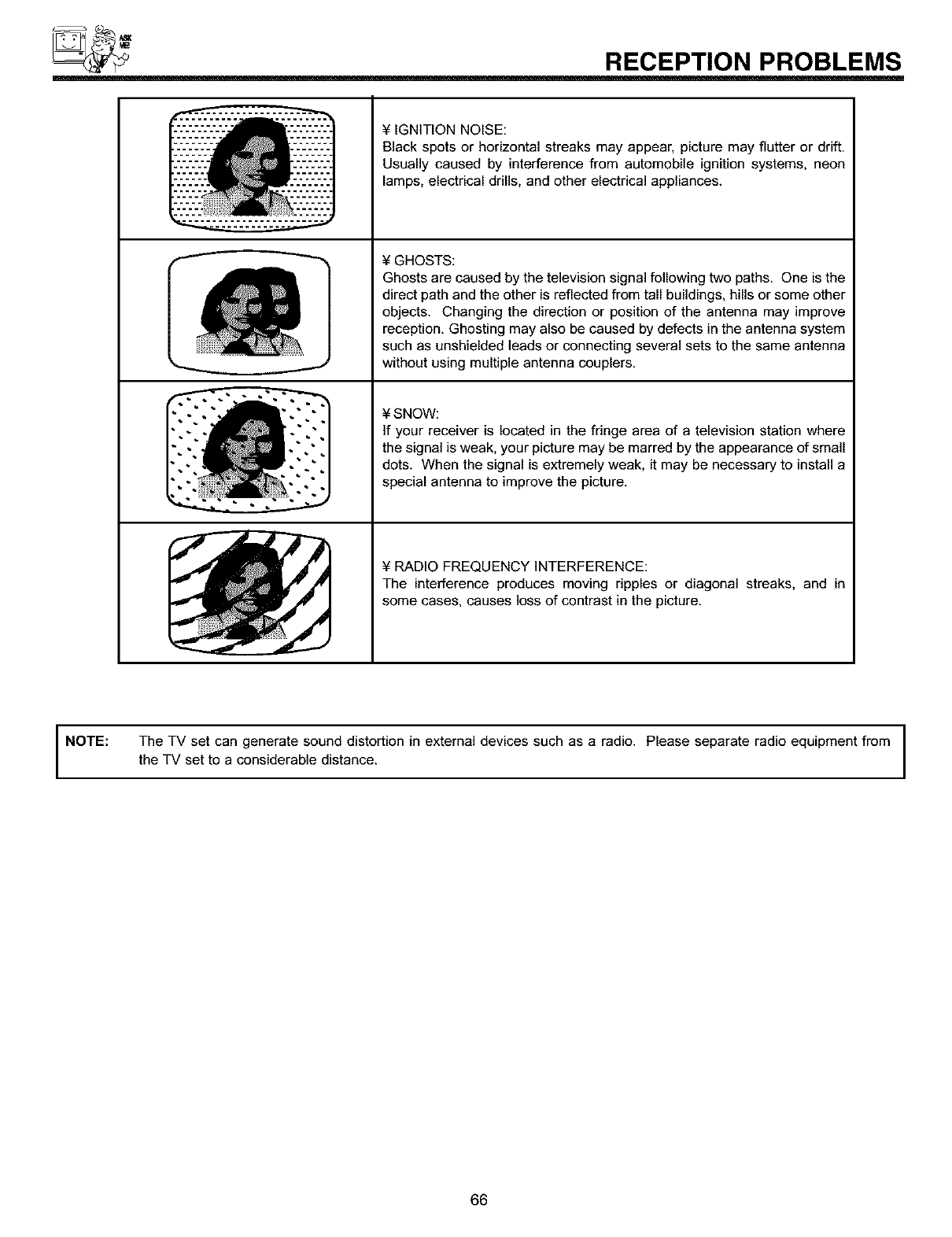

RECEPTION PROBLEMS

¥ IGNITION NOISE:

Black spots or horizontal streaks may appear, picture may flutter or drift.

Usually caused by interference from automobile ignition systems, neon

lamps, electrical drills, and other electrical appliances.

¥ GHOSTS:

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected from tall buildings, hills or some other

objects. Changing the direction or position of the antenna may improve

reception. Ghosting may also be caused by defects in the antenna system

such as unshielded leads or connecting several sets to the same antenna

without using multiple antenna couplers.

¥ SNOW:

If your receiver is located in the fringe area of a television station where

the signal is weak, your picture may be marred by the appearance of small

dots. When the signal is extremely weak, it may be necessary to install a

special antenna to improve the picture.

¥ RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in

some cases, causes loss of contrast in the picture.

NOTE: The TV set can generate sound distortion in external devices such asaradio. Please separate radio equipment from

the TV set to a considerable distance.

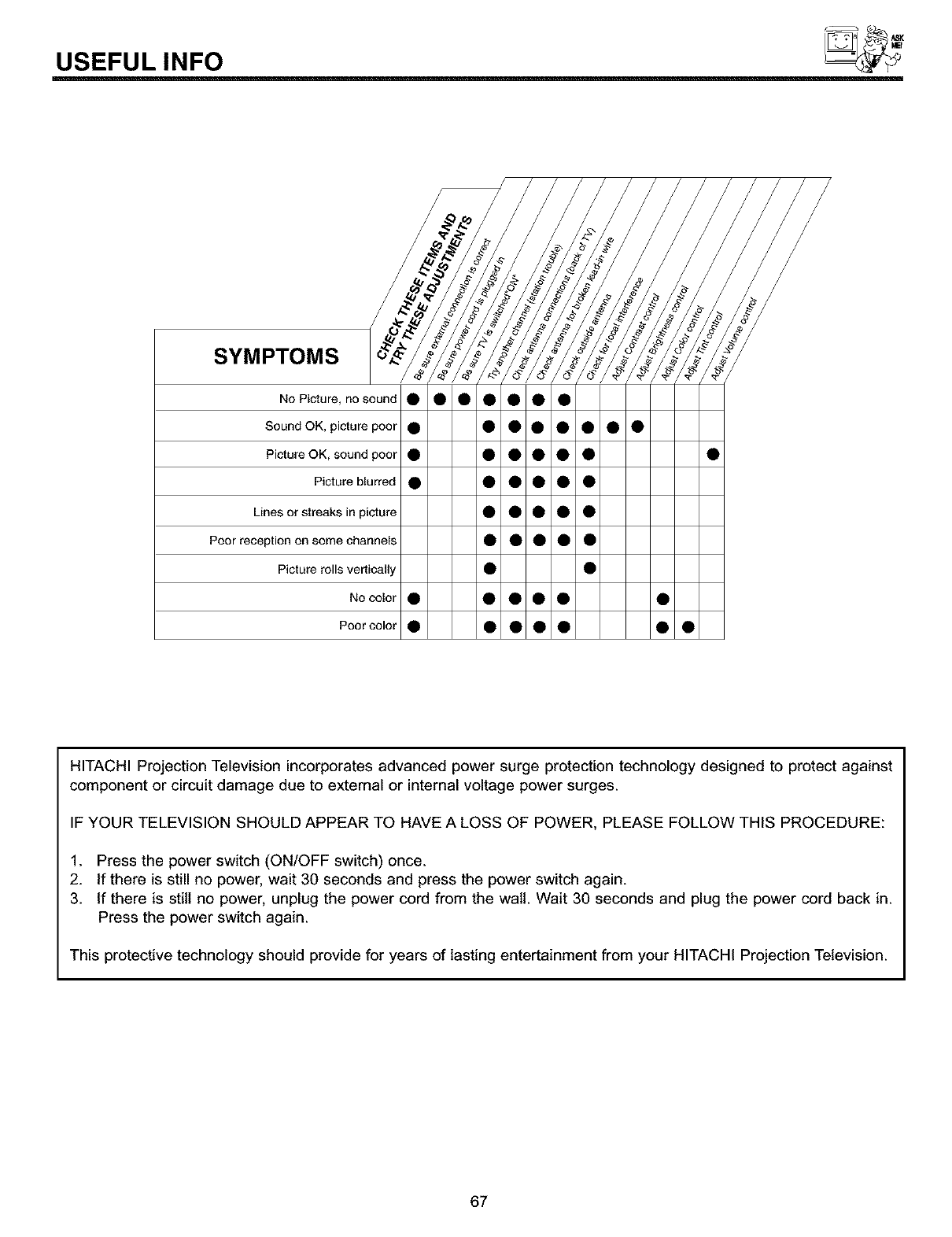

USEFUL INFO

SYMPTOMS

No Picture, no sound • • • • • • •

Sound OK, picture poor • • • • • • • •

Picture OK, sound poor • • • • • • •

Picture blurred • • • • • •

Unes or streaks in picture • • • • •

Poor reception on some channels • • • • •

Picture rolls vertically • •

No color • • • • • •

Poor color • • • • • • •

HITACHI Projection Television incorporates advanced power surge protection technology designed to protect against

component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS PROCEDURE:

1. Press the power switch (ON/OFF switch) once.

2. If there is still no power, wait 30 seconds and press the power switch again.

3. If there is still no power, unplug the power cord from the walt. Wait 30 seconds and plug the power cord back in.

Press the power switch again.

This protective technology should provide for years of lasting entertainment from your HITACHI Projection Television.

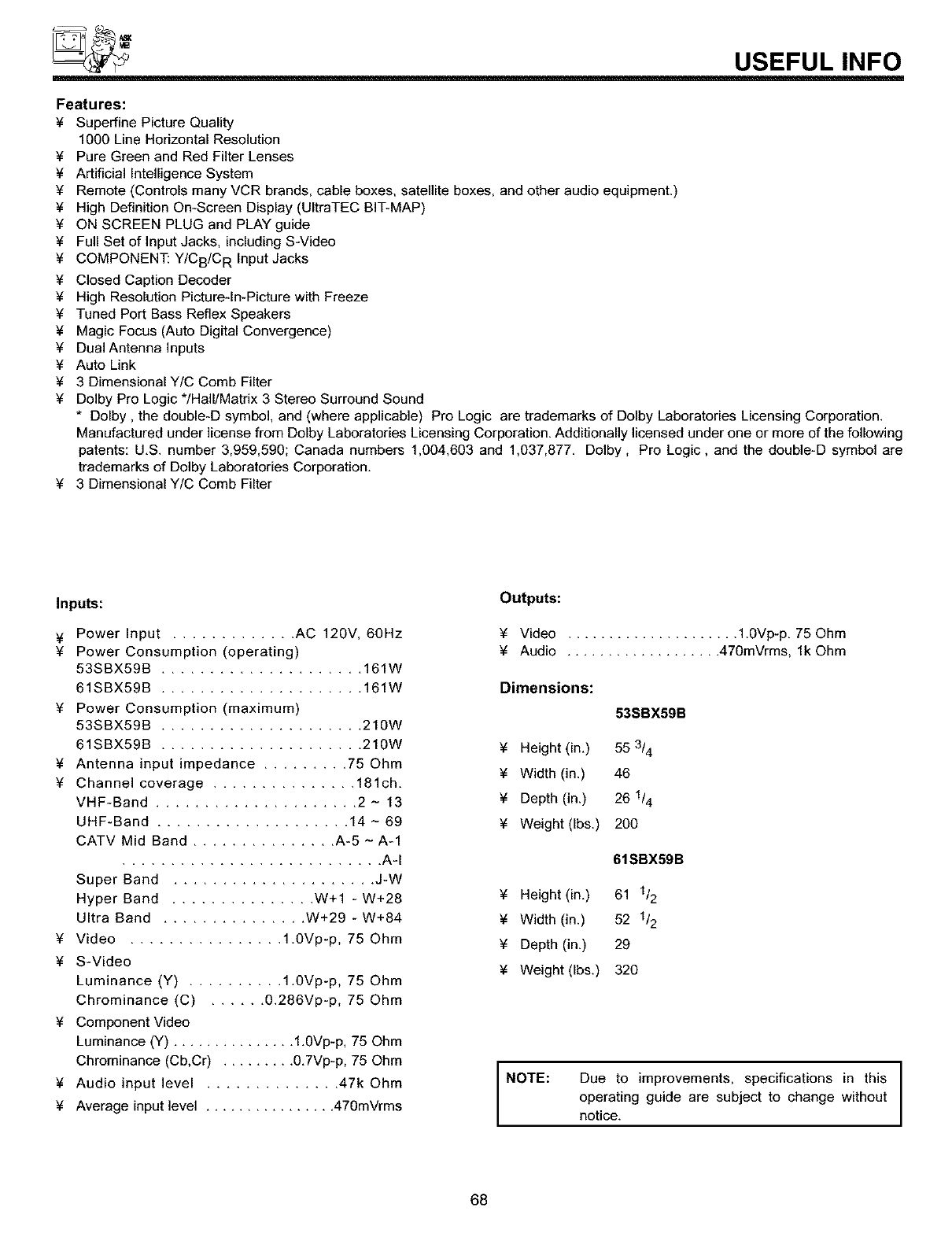

USEFULINFO

Features:

¥ Superfine Picture Quality

1000 Line Horizontal Resolution

¥ Pure Green and Red Filter Lenses

¥ Artificial Intelligence System

¥ Remote (Controls many VCR brands, cable boxes, satellite boxes, and other audio equipment.)

¥ High Definition On-Screen Display (UltraTEC BIT-MAP)

¥ ON SCREEN PLUG and PLAY guide

¥ Full Set of Input Jacks, including S-Video

¥ COMPONENT: Y/CB/C R Input Jacks

¥ Closed Caption Decoder

¥ High Resolution Picture-In-Picture with Freeze

¥ Tuned Port Bass Reflex Speakers

¥ Magic Focus (Auto Digital Convergence)

¥ DualAntenna Inputs

¥ Auto Link

¥ 3 Dimensional Y/C Comb Filter

¥ Dolby Pro Logic */Hall/Matrix 3 Stereo Surround Sound

* Dolby, the double-D symbol, and (where applicable) Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.

Manufactured under license from Dolby Laboratories Licensing Corporation. Additionally licensed under one or more of the following

patents: U.S. number 3,959,590; Canada numbers 1,004,603 and 1,037,877. Dolby, Pro Logic, and the double-D symbol are

trademarks of Dolby Laboratories Corporation.

¥ 3 Dimensional Y/C Comb Filter

Inputs:

¥ Power Input ............. AC 120V, 60Hz

¥ Power Consumption (operating)

53SBX59B ..................... 161W

61SBX59B ..................... 161W

¥ Power Consumption (maximum)

53SBX59B ..................... 210W

61SBX59B ..................... 210W

¥ Antenna input impedance ......... 75 Ohm

¥ Channel coverage ............... 181ch.

VHF-Band ..................... 2- 13

UHF-Band .................... 14 - 69

CATV Mid Band ............... A-5 - A-1

........................... A-I

Super Band ..................... J-W

Hyper Band ............... W+I - W+28

Ultra Band ............... W+29 - W+84

¥ Video ................ 1.0Vp-p, 75 Ohm

¥ S-Video

Luminance (Y) .......... 1.0Vp-p, 75 Ohm

Chrominance (C) ...... 0.286Vp-p, 75 Ohm

¥ Component Video

Luminance (Y) ............... 1.0Vp-p, 75 Ohm

Chrominance (Cb,Cr) ......... 0.7Vp-p, 75 Ohm

¥ Audio input level .............. 47k Ohm

¥ Average input level ................ 470mVrms

Outputs:

¥ Video ..................... 1.0Vp-p. 75 Ohm

¥ Audio ................... 470mVrms, lk Ohm

Dimensions:

53SBX59B

¥ Height (in.) 55 3/4

¥ Width (in.) 46

¥ Depth (in.) 26 1/4

¥ Weight (Ibs.) 200

61SBX59B

¥ Height(in.) 61 1/2

¥ Width (in.) 52 1/2

¥ Depth (in.) 29

¥ Weight (Ibs.) 320

NOTE: Due to improvements, specifications in this

operating guide are subject to change without

notice.

USEFUL INFO

HITACHI

To locate an authorized

HITACHI service facility

in the continental U.S.A.

and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

(1-800-448-2244)

Hitachi America, LTD.

Home Electronics Division

Hitachi has made every effort to assure you hours of trouble free operation from your unit. However. should you require service,

a network of Hitachi Authorized Service Facilities has been established in all 50 states and Puerto Rico. Each facility will provide

you with convenient and expedient assistance. Our service hotline operator will direct you to the Hitachi Authorized Service

Facility nearest you. Just present proof of purchase and/or delivery receipts to the Hitachi Authorized Service Facility, and service

will be rendered in accordance with the terms of the limited warranty as stated on your warranty card or operating guide.

Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:

Hitachi America, LTD.

Home Electronics Division

1855 Dornoch Court

San Diego, CA 92154

In Canada, please contact: 1-800-HITACHI

(1-800-448-2244)

HITACHI (HSC) Canada Inc.

6740 Campobetlo Road

Mississauga, Ont. L5N 2L8

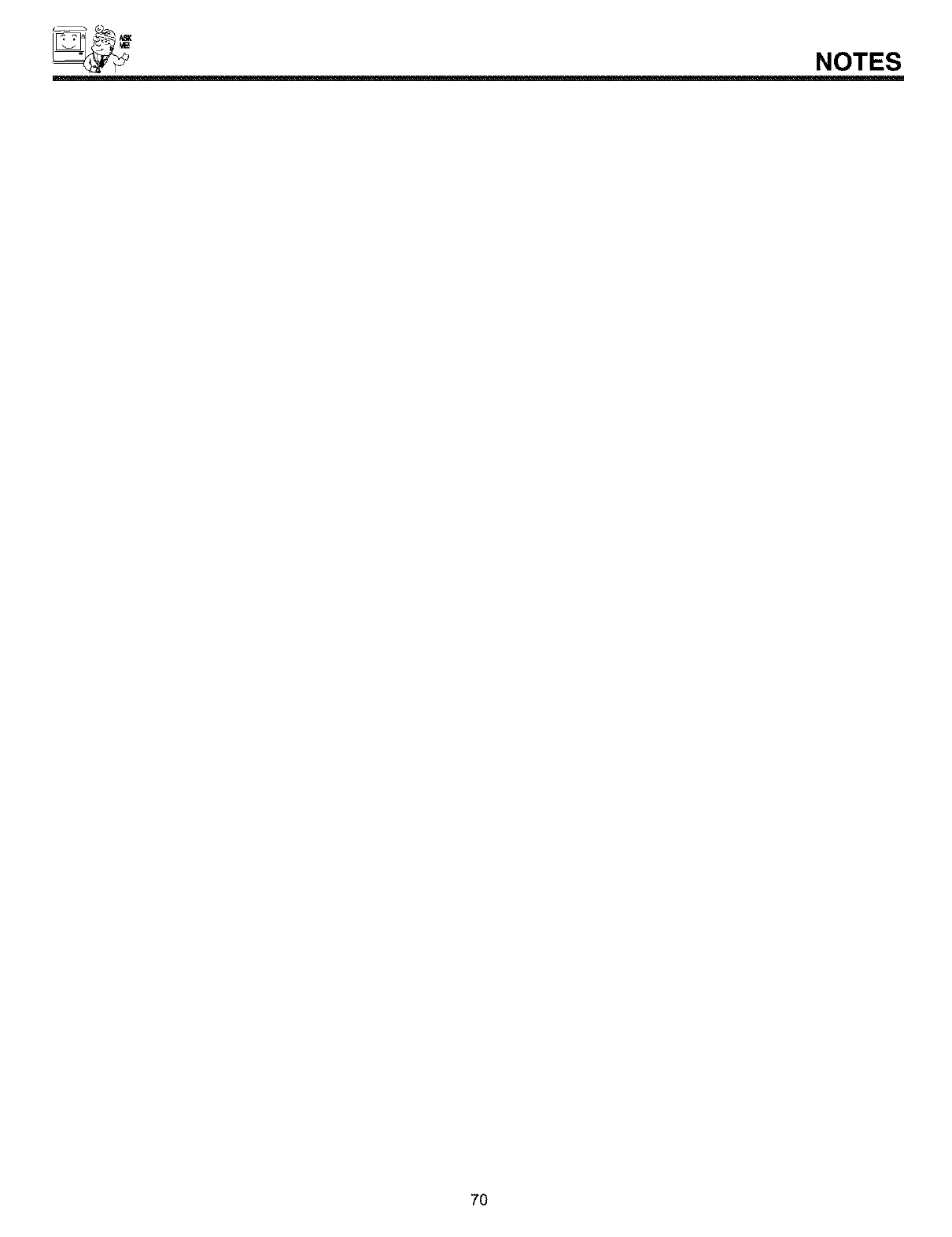

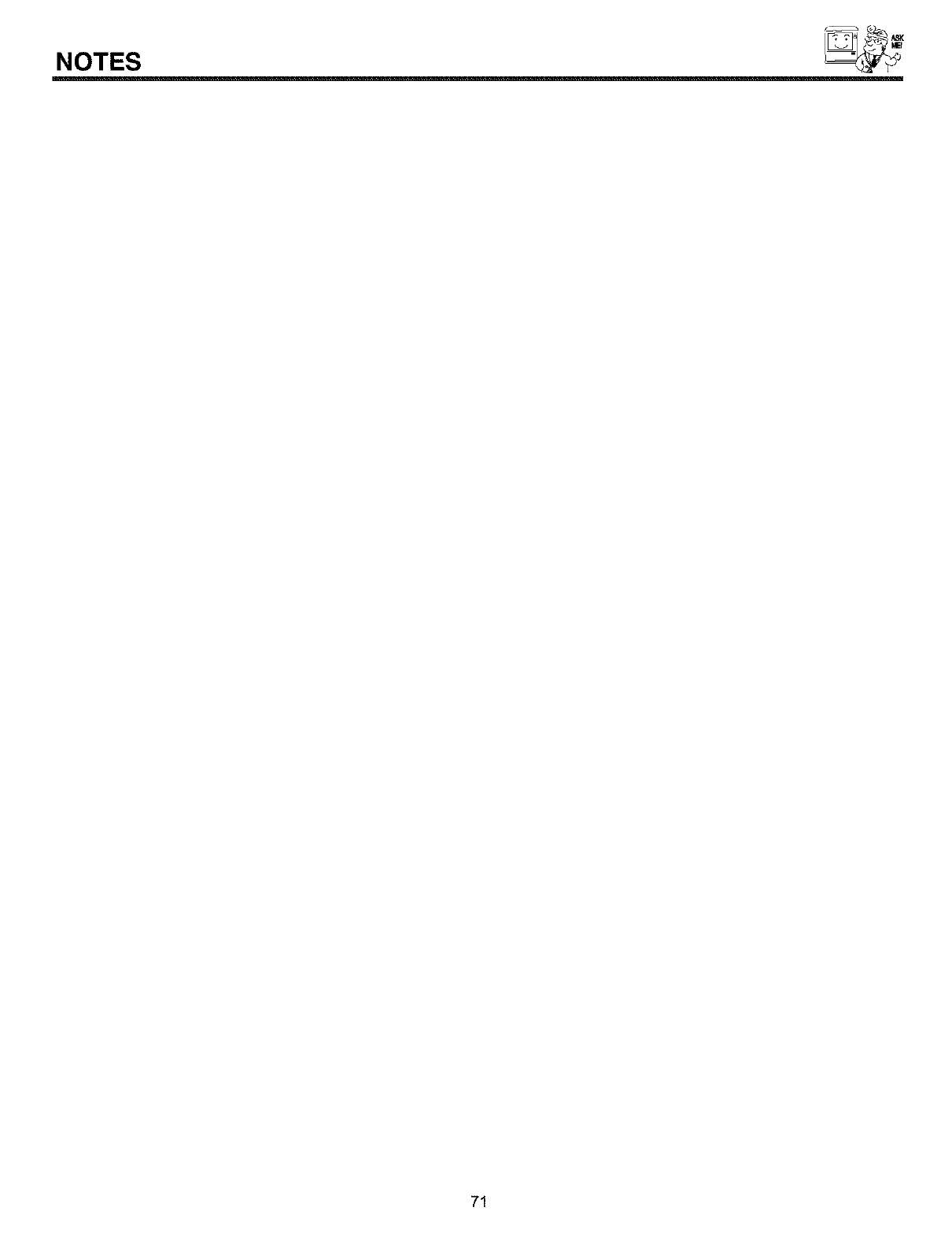

NOTES

HITACHI

QR29802
