StarBoard T-17SXL

User's Guide

How to Request a User's Guide

When requesting a separate copy of this user's guide, specify T269-2-201.

T269-2-201 Hitachi Software Engineering Co., Ltd.

Read this user’s guide and carefully retain it for future reference.

Before using this product, carefully read and fully understand the safety instructions.

Store this User’s Guide nearby for ease of reference.

1

StarBoard

T

-17SXL

English

Notices

Reproduction or reprinting, without permission, of this manual or any part thereof is prohibited.

The contents of this manual are subject to change without prior notice.

Every effort has been made to ensure that this manual is complete and correct. However, should

any questionable points, mistakes, etc., come to your attention, please inform the vendor.

Please be advised in advance that this company will assume no responsibility for losses, etc.,

resulting from the operation of this product, regardless of the preceding clauses.

FCC Warning

The user is cautioned that changes and modifications made to the equipment without approval

of the manufacturer could void the user's authority to operate this equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Disclaimers

Hitachi Software Engineering Co., Ltd. assumes no liability and makes no warranty, either

express or implicit, regarding the contents of this user’s guide.

Also, the company makes no warranty as to the product’s suitability, merchantability or fitness

for a particular intended use.

All products of Hitachi Software Engineering Co., Ltd., described in this user’s guide are

presently for sale or are site-licensed.

Users who purchased the aforesaid product(s) will bear the costs of all required services, repairs,

and damages resulting from defects in this product, and will bear the costs of direct or indirect

damages (including the loss of profits or required information) that resulted from the product

defects.

Moreover, Hitachi Software Engineering Co., Ltd., retains the right to revise this user’s guide

and to modify the contents thereof, without any obligation to notify anyone.

2

StarBoard

T

-17SXL

English

Product Assurance Provisions

This product is limited to use in the United States and Canada markets.

For warranty details, refer to Appendix 3.6 at the end of this user’s guide.

This First edition of the user’s guide (T269-2-201) is for the following products:

95.64301G00A (StarBoard T-17SXL)

The StarBoard T-17SXL incorporates WALTOP’s 17-inch LCD monitor integrated digitizer

technology.

Windows, Windows 98, Windows Me, Windows NT 4.0, Windows 2000, Windows XP and

PowerPoint are trademarks of Microsoft Corporation (U.S.) and in other countries.

Other trademarks and product names are trademarks and/or registered trademarks of their

respective holders.

Manual Creation Dates

June 2005, First Edition T269-2-201

All Rights Reserved. Copyright © 2005, Hitachi Software Engineering Co., Ltd.

Manufacturer for Repairs

Contact the department below for technical questions concerning this product.

Hitachi Software Engineering America, Ltd.

601 Gateway Blvd, Suite 750

South San Francisco, CA 94080

Phone : 650-615-7614

Fax : 650-615-7639

E-mail : Starboard_Support@hitachi-soft.com

3

StarBoard

T

-17SXL Safe Handling

English

Safe Handling

Markings and Symbols

Various markings and symbols are used in this user’s guide and on this product, to ensure the

safe and correct use of this product and to prevent personal injury and property damage. These

symbols and their meanings are as explained below. Understand the information well before

reading the body of the user’s guide.

WARNING

This symbol indicates the presence of potential dangers that, if ignored or

applied incorrectly, could lead to death or serious injury.

CAUTION

This symbol indicates the presence of potential dangers that, if ignored or

applied incorrectly, could lead to slight or moderate injury.

CAUTION

This symbol indicates the presence of potential dangers that, if ignored or

applied incorrectly, could lead to damage to surrounding property.

This symbol draws attention to cautions (including warnings).

This symbol indicates something prohibited.

This symbol indicates something that must be done.

4

StarBoard

T

-17SXL Safe Handling

English

Securely insert the power plug into the

power outlet.

If it is not plugged in securely,

overheating will occur, possibly

resulting in electric shock or fire.

Do not plug in the power plug with a wet

hand.

Electric shock will result.

Before cleaning this product, unplug the

power plug.

Electric shock sometimes results.

Do not use this product near water.

Electric shock will result.

Do not damage, break, process, or forcibly

bend the power cable.

The power cable will be damaged,

resulting in fire or electric shock.

When plugging in or unplugging the

power plug, hold the plug.

If the power cord is pulled, it might

be damaged, possibly resulting in

electric shock or fire.

Periodically clean the power plug to

remove dust.

If a dirty plug is plugged into an

outlet, fire or electric shock might

result.

Be careful about the locations of the power

cable, etc.

The power cable might trip

someone, possibly causing the

product to fall, etc., thereby causing

injury or product failure. Be careful

with their locations.

Use the product at the indicated power

supply voltage.

If the product is used at a power

sup-ply voltage other than the one

indicated, it will fail, resulting in fire

or electric shock.

Safety Precautions Alwa

y

s com

p

l

y

with them

WARNINGS

Before moving this product, detach the

power plug and the power cable.

The power cable might be damaged,

possibly resulting in electric shock

or fire.

5

StarBoard

T

-17SXL Safe Handling

English

Unplug the power plug if you do not plan

on using the product for an extended

period of time.

Failure to do so could result in a fire.

Do not use a power cable other than the

accessory power cable.

If a power cable other than the

accessory power cable is used, fire

or electric shock might result.

Only place specified objects on this

product.

If a liquid or a metal object enters

this product, electric shock or fire

might result. If either should enter,

unplug the power plug from the

outlet and contact your dealer.

Do not use this product in a location with

high temperature or high humidity.

This product’s usage environment

conditions:

Temp.: 50 °F to 95 °F

Humidity: 30% to 80%

(But no condensation may be

allowed to form..)

Do not open or alter the cabinet of this

product.

The cabinet contains high-voltage

areas, so electric shock or other

injury will result.

Do not leave this product or any of its

accessories on the floor.

Someone might step on it and

break it, or might be injured by

tripping on it.

This Product must be disposed of as

industrial waste, in accordance with the

relevant laws and regulations.

Do not place a heavy object on the power

cable, heat or pull it.

The power cable will be damaged,

causing fire or electric shock.

Safety Precautions Alwa

y

s com

p

l

y

with them

WARNINGS

6

StarBoard

T

-17SXL Safe Handling

English

In the following cases, unplug the product from the AC Adaptor outlet

and ask the technical support of Hitachi Software.

a. After the power cord or AC Adaptor plug is damaged.

b. After a liquid is spilled onto the main unit.

c. After the main unit is exposed to rain or water.

d. After this product malfunctions, even when operated according to the instruction

manual. Adjust this product within the ranges specified in the instruction manual. Do

not make other adjustments. A qualified service representative is required to correct

improper adjustments.

e. After this product falls or after its cabinet is damaged.

f. After the functionality of this product changes and repair by a service representative

is considered necessary.

Safety Precautions Alwa

y

s com

p

l

y

with them

WARNINGS

WARNINGS

This product contains the substance mercury. When disposing this

product, abide by state law legislating the disposal and handling of

mercury.

7

StarBoard

T

-17SXL Safe Handling

English

Careful thought was given to the cautions on this device and in this user’s guide. However,

unanticipated circumstances might occur. When operating this product, users themselves must

exercise caution as well as follow instructions.

Warning Details Page

Use the AC Adaptor supplied with this product.

Use only AC Adaptor or power cables specified by the manufacturer. Use

of improper adaptors or cables can damage the product or cause a fire.

P. 1-10

Warning Details Page

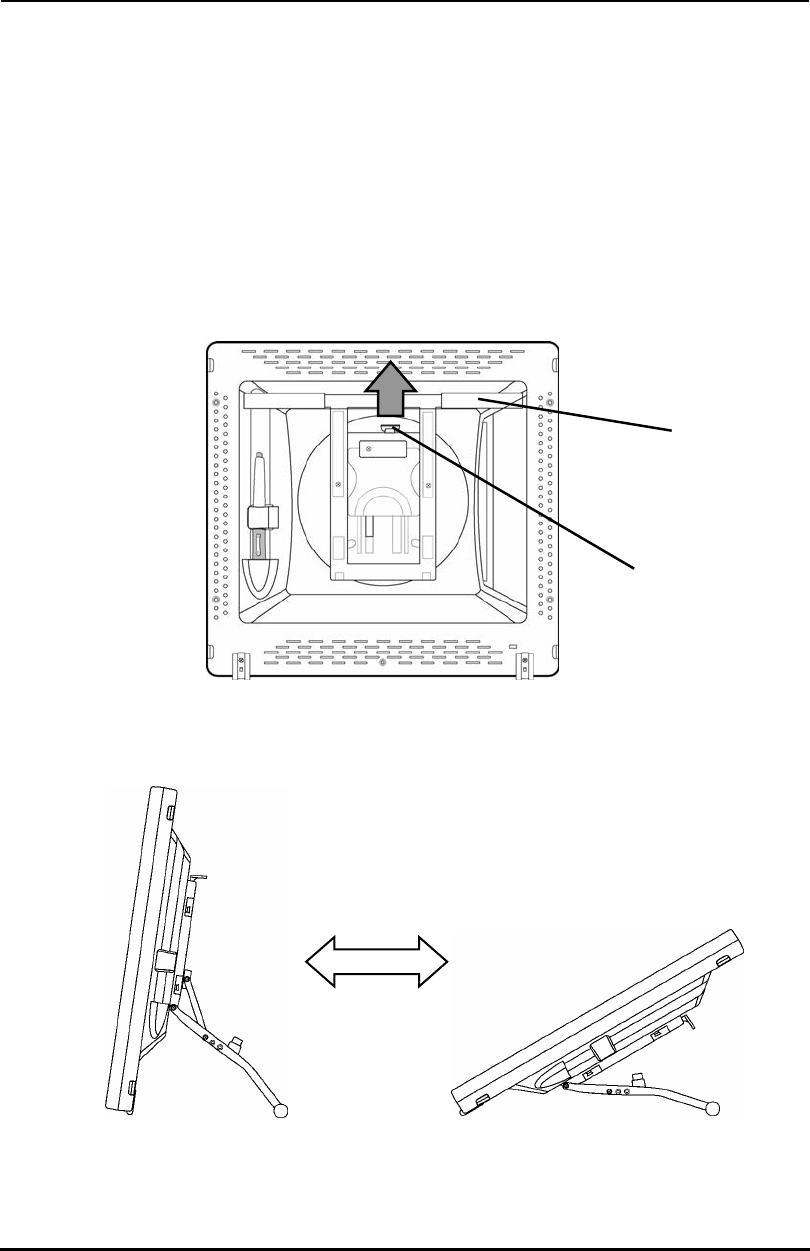

Hold the body firmly and slide the stand slowly when

adjusting it.

When adjusting the stand, if you pull up the lever without holding onto the

body, the body may move suddenly, resulting in unexpected injuries or

damage to the body.

P. 1-8

Use the screen at an easily viewable angle.

Use the screen at an easily viewable angle, taking into account external

light and ceiling lighting, which may reflect off the screen.

P. 1-8

Warning Details Page

When changing the battery, be careful not to close the pen's

rear part too forcefully.

If too much force is applied when closing the rear part of the stylus pen, the

pen may be damaged.

P. 2-4

CAUTION

WARNINGS

CAUTION

8

StarBoard

T

-17SXL

English

Contents

1. Introduction.................................................................................................1-1

1.1 Preparations before Use...................................................................................... 1-1

1.1.1 Product Overview....................................................................................................... 1-1

1.1.2 Features ...................................................................................................................... 1-1

1.2 Parts Check......................................................................................................... 1-2

1.3 Part Names and Functions .................................................................................. 1-3

1.3.1 Front Screen ............................................................................................................... 1-3

1.3.2 Front Switch Panel ..................................................................................................... 1-4

1.3.3 Connector Panel ......................................................................................................... 1-5

1.3.4 Function Buttons ........................................................................................................ 1-6

1.4 Assembly and Setup............................................................................................ 1-7

1.4.1 Adjusting the Stand .................................................................................................... 1-7

1.4.2 How to Use the Pen Holder........................................................................................ 1-8

1.4.3 Connection Procedure ................................................................................................ 1-9

2. Usage Procedures ........................................................................................2-1

2.1 Turning the StarBoard On................................................................................... 2-1

2.2 Using the Stylus Pen........................................................................................... 2-2

2.2.1 How to Use the Stylus Pen......................................................................................... 2-2

2.2.2 Basic Stylus Pen Operations ...................................................................................... 2-2

2.2.3 Stylus Pen Settings..................................................................................................... 2-3

2.2.4 Changing the Battery in the Stylus Pen...................................................................... 2-4

2.2.5 Replacing the Stylus Pen Tip ..................................................................................... 2-5

2.3 Using the OSD Menu.......................................................................................... 2-6

2.3.1 OSD Buttons and Their Functions............................................................................. 2-6

2.3.2 OSD Adjustment Options........................................................................................... 2-7

3. Appendix ......................................................................................................3-1

3.1 Troubleshooting .................................................................................................. 3-1

3.2 System Specifications......................................................................................... 3-4

3.3 How to Take Care of the StarBoard.................................................................... 3-5

3.4 Consumables....................................................................................................... 3-5

3.5 LCD Panel .......................................................................................................... 3-5

3.6 Provisions of Product Warranty.......................................................................... 3-6

1-1

StarBoard

T

-17SXL Introduction

English

1. Introduction

1.1 Preparations before Use

This section covers preparations before using the StarBoard. Please read this section

thoroughly if you are using the StarBoard for the first time.

1.1.1 Product Overview

StarBoard T-17SXL is a convenient and easy-to-use tablet-type interactive electronic

board that lets you operate a PC with a stylus pen, and write text and images to a PC

screen in real time as well as simultaneously input those to the PC. Those features work

when the included software is set up on a PC connected to the StarBoard.

1.1.2 Features

{Write directly to the PC screen

Use the stylus pen just like a mouse to operate the PC on the screen displayed on the

LCD monitor. The StarBoard Software allows text and images to be written to the PC,

and allows the text and images to be input to the PC as digital data in real time. That

data can then be saved, printed, or otherwise manipulated.

{Use as soon as the PC is started up

The StarBoard can be used as soon as the PC is started up, by just installing the

StarBoard Software package included.

{Compatible with presentations in PowerPoint

Text and images can be written into presentation materials prepared in Microsoft

PowerPoint. That allows you to further enhance presentation expression. Presentations

can also be linked to remote meetings.

{Write on video images

Write text and images to screens of captured video. That allows for easy use of video

materials in classes and presentations.

{Eight function buttons

Standard functions used frequently in the StarBoard Software are assigned to the eight

function buttons located on the top left side of the StarBoard. Those buttons act as

shortcuts when using the software.

1-2

StarBoard

T

-17SXL Introduction

English

1.2 Parts Check

After unpacking, make sure that all of the following parts are included.

Parts

No. Name Qty.

(1) 17-inch LCD monitor 1

(2) Stylus pen 1

(3) AAA alkaline dry cell 1

(4) Spare pen tips 2

(5) AC adapter 1

(6) Power cable 1

(7) RGB cable 1

(8) USB cable 1

(9) Audio cable (stereo mini-plug) 1

(10) Pen tip replacement pin set 1

(11) StarBoard Software x.x (CD-ROM) (*1) 1

(12) StarBoard T-17SXL User’s Guide (this manual) 1

(13) StarBoard Software x.x User's Guide (*1) 1

(14) StarBoard Function Buttons User's Guide 1

(15) Warranty Sheet 1

(*1) The term “x.x.” as used in this manual denotes the same version as the software which

is included with the accessories.

(1) (2) (3) (4)

(5) (6) (7) (8)

(9) (10) (11) (12)

(13) (14) (15)

1-3

StarBoard

T

-17SXL Introduction

English

1.3 Part Names and Functions

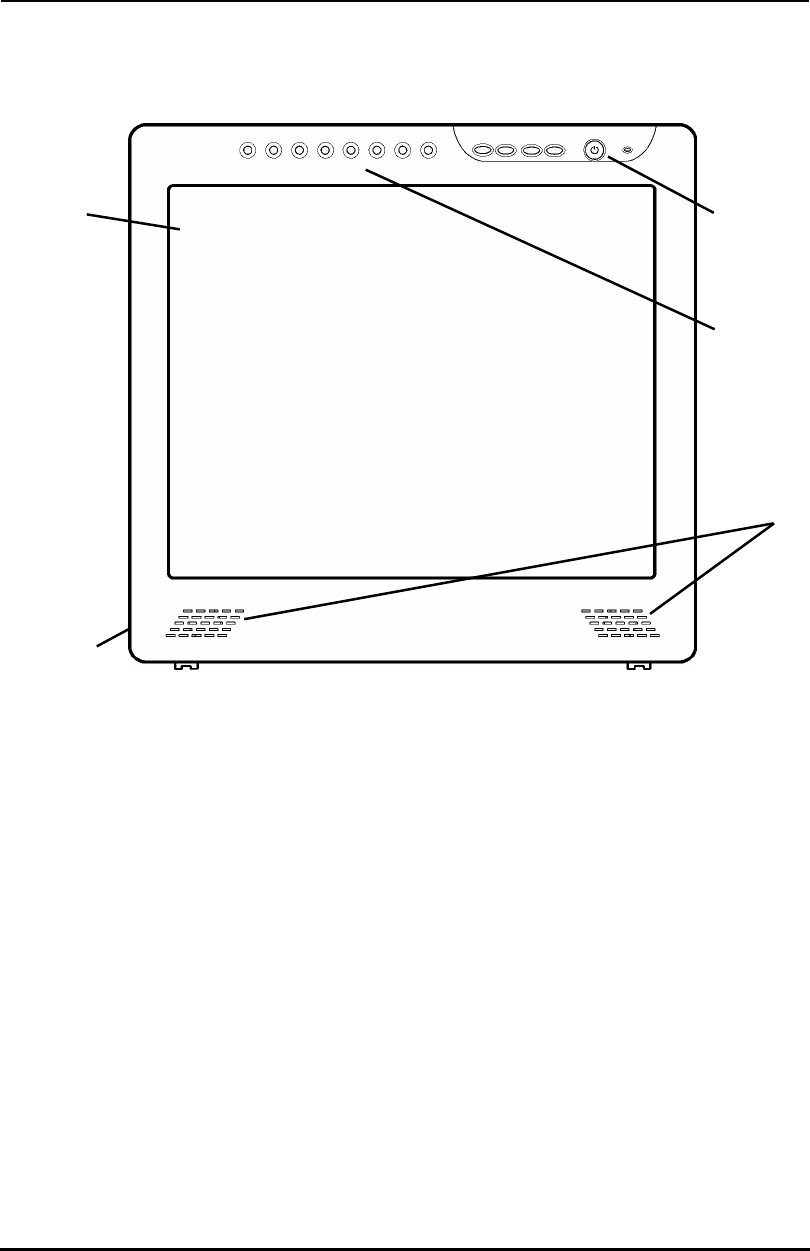

1.3.1 Front Screen

(1) LCD and tablet operating area

Receives text and graphical

information entered with the stylus

pen, and transmits the data to a PC.

(2) Stand (bottom of body and back)

The stand serves to hold the

StarBoard in place. The LCD angle

can be adjusted in the range of

approx. 20° to 70°.

(3) Speakers

The supplied audio cable can be used

to connect to the PC to allow audio

output from the speakers.

(4) Front switch panel

These switches are used to turn the

power ON/OFF, enter OSD menu

settings, and adjust the volume.

(5) Function buttons

Eight standard functions used by the

StarBoard software are assigned to

these buttons. (For details on

function button initial settings, see

“1.3.4 Function Buttons” on page

1-6 of this User’s Guide.)

(1)

(2)

(3)

(4)

(5)

1-4

StarBoard

T

-17SXL Introduction

English

1.3.2 Front Switch Panel

(1) Power button

This button turns the StarBoard LCD

monitor ON/OFF.

(2) Power indicator

This indicator turns green when

power is supplied normally to the

StarBoard and an image signal is

detected. It turns red when no image

signal is output from the PC, or

when power saving mode is on.

(3) AUTO/SELECT button

This button is used to automatically

adjust the screen display and select

OSD menu options.

(4) Menu button

This button is used to display the

OSD menu. Press it after making

menu selections to apply those.

(5) (+) button

This button is used to toggle muting

ON/OFF. It is also used to select

OSD menu options and change

settings.

(6) (–) button

Brightness can be adjusted by the (+)

and (-) buttons after pressing the (-)

button.

This button is also used to select

OSD menu options and change

setting values.

 For details on using the OSD menu, see “2.3 Using the OSD Menu” on page 2-6 of this

User’s Guide.

(4)

(3) (6)

(2)

(5) (1)

1-5

StarBoard

T

-17SXL Introduction

English

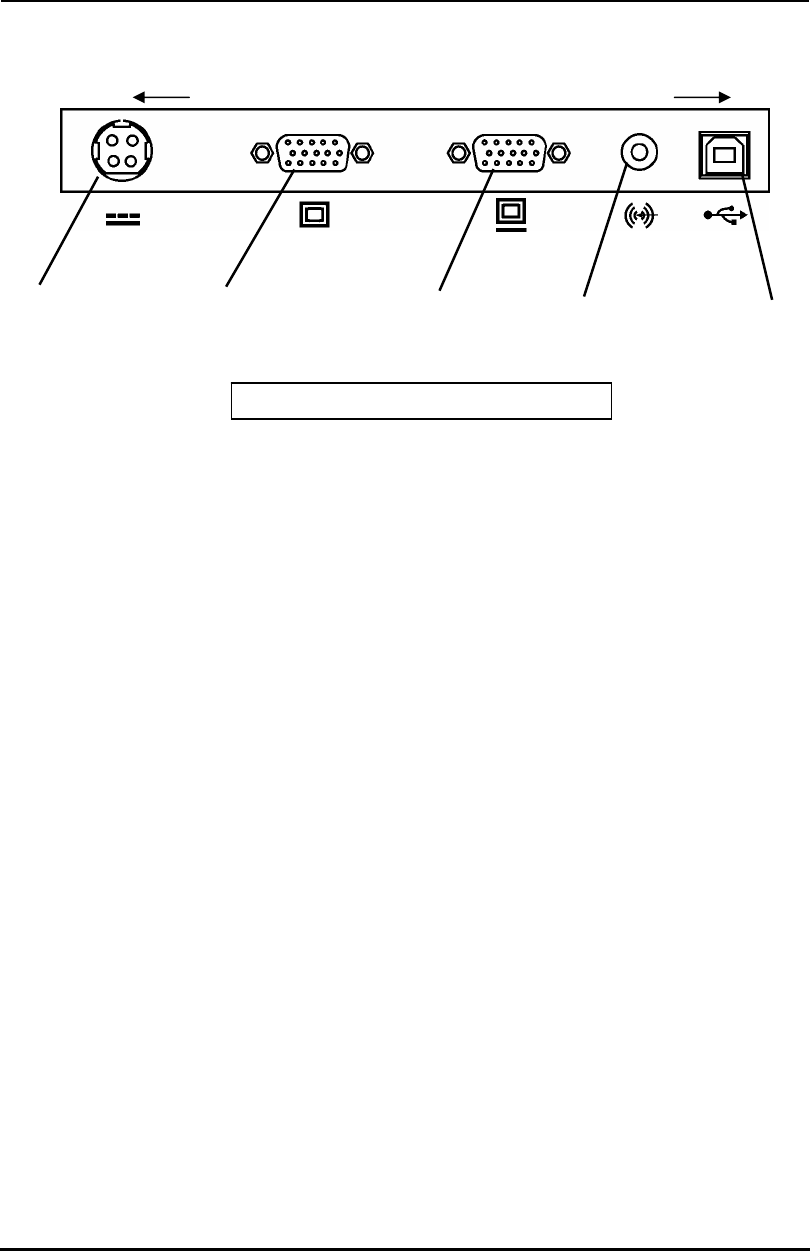

1.3.3 Connector Panel

(1) Power port

The AC adapter is connected here.

(2) VGA input port

This port is used to connect a PC via

RGB cable to display images from

the PC.

(3) VGA output port

This port is used to connect external

devices such as a projector via RGB

cable to output video displayed on

the StarBoard.

(4) Audio input port

This port is used to output PC audio

from the StarBoard speakers. The

supplied audio cable is connected to

this port.

(5) USB port

A USB cable is connected here.

(5)

(4)

View of StarBoard Back Right Side

(1) (2) (3) (4) (5)

Top

Bottom

1-6

StarBoard

T

-17SXL Introduction

English

1.3.4 Function Buttons

(1) ToolBar hide/un-hide

Hides/displays StarBoard Software

ToolBar.

(2) New blank page

Adds a new blank page.

(3) Previous page

Displays the page before the

currently displayed page.

(4) Next page

Displays the page after the currently

displayed page.

(5) Topic list

Hides/displays the Topic List.

(6) Solid pen

Switches to solid pen.

(7) Fluorescent marker pen

Switches to fluorescent marker pen.

(8) PC screen

Launches PC Operation mode, in

which operations on the PC screen

are done via the pen instead of the

mouse.

 For details on using the function buttons, see the StarBoard T-17SXL Function Buttons User's

Guide.

1-7

StarBoard

T

-17SXL Introduction

English

1.4 Assembly and Setup

Keep the following points in mind when installing the StarBoard.

Select a stable, flat location.

Avoid installing in locations that are dusty, extremely hot, cold, or humid. Also avoid

installing in locations exposed to direct sunlight.

1.4.1 Adjusting the Stand

Follow the procedure shown below to adjust the stand.

(1) Pull up the stand lever.

(2) Slide the stand to the desired angle, and release the lever.

Lever

Stand

1-8

StarBoard

T

-17SXL Introduction

English

(3) Check that the lever and stand are secure.

1.4.2 How to Use the Pen Holder

The T-17SXL comes with a pen holder on the back side.

Store the sylus pen in the pen holder when not in use.

Insert vertically

CAUTION

Hold the body firmly and slide the stand slowly when adjusting it.

When adjusting the stand, if you pull up the lever without holding onto the body, the

body may move suddenly, resulting in unexpected injuries or damage to the body.

Use the screen at an easily viewable angle.

Use the screen at an easily viewable angle, taking into account external light and ceiling

lighting, which may reflect off the screen.

1-9

StarBoard

T

-17SXL Introduction

English

StarBoard

1.4.3 Connection Procedure

Follow the procedure below to connect the PC and StarBoard.

(1) Connect the RGB cable to the VGA input port on the side of the StarBoard, and

tighten the screws to fasten. Connect the other end of the cable to the PC VGA

port, and tighten the screws to fasten.

(2) Connect the USB cable to the USB port on the side of the StarBoard. Connect the

other end of the cable to a USB port on the PC.

(3) Connect the audio cable to the audio input port on the side of the StarBoard.

Connect the other end of the cable to the audio output port on the PC. (Do this

only if you plan to use the StarBoard’s built-in speakers.)

(4) Connect the AC adapter connector to the StarBoard power connector.

(5) Connect the power cable to the AC adapter, then plug the power plug into power

outlet.

(6) If outputting the StarBoard screen to external equipment, connect the RGB cable

to the VGA output port. Connect the other end of the cable to an input port on the

external video equipment.

(2)

(1)

(3)

PC

(5)

(4)

To power outlet

(6)

1-10

StarBoard

T

-17SXL Introduction

English

WARNING

Use the AC Adaptor supplied with this product.

Use only AC Adaptor or power cables specified by the manufacturer. Use of improper

adaptors or cables can damage the product or cause a fire.

When using this product with Windows 98 or Windows 98 Second Edition, on some

computers it may be necessary to install a driver for the USB controller located inside the

PC. Follow the instructions shown in Windows to install the driver.

Using this product with Windows 98 and Windows 98 Second Edition

2-1

StarBoard

T

-17SXL Usage

English

2. Usage Procedures

This section describes the basic procedures for using StarBoard. For information on using

advanced StarBoard features, see the StarBoard Software x.x. User's Guide.

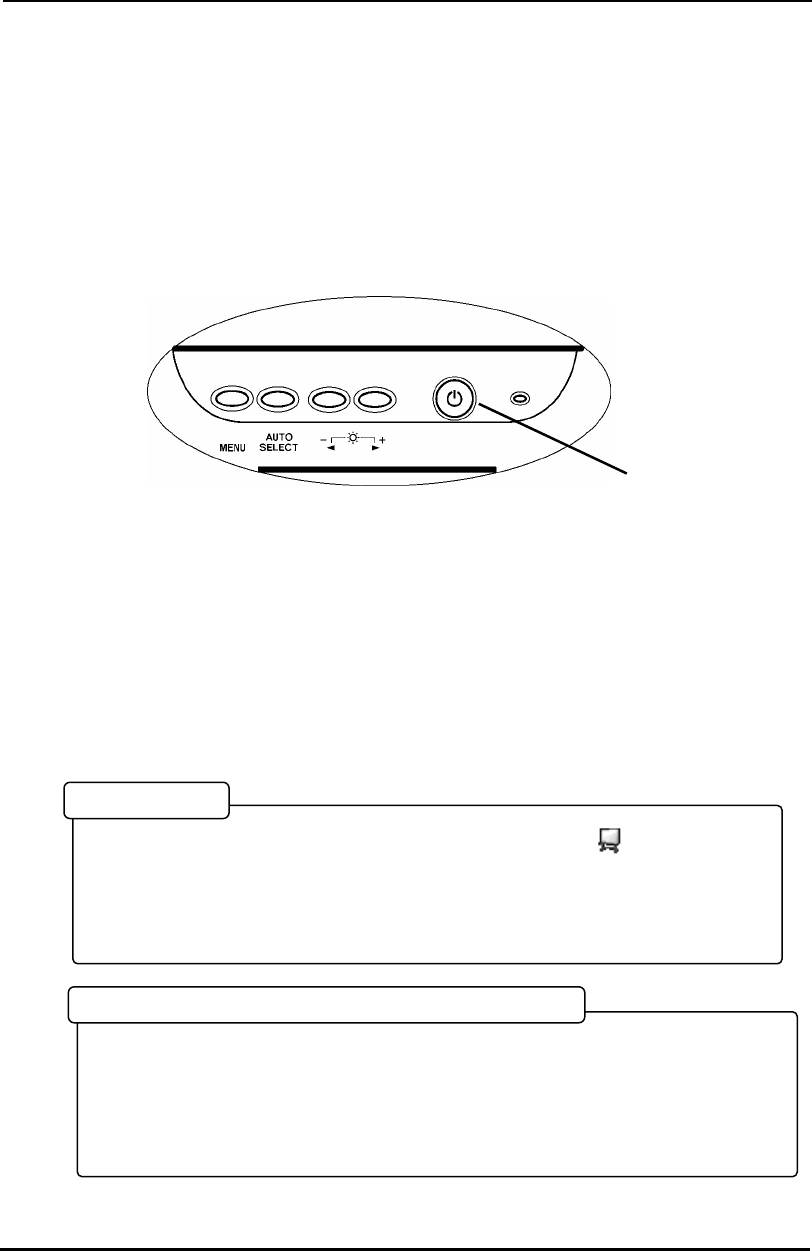

2.1 Turning the StarBoard On

This section describes how to turn the StarBoard on.

(1) Turn on the StarBoard power.

(2) Turn on the PC and allow Windows to start.

(3) The StarBoard Software starts automatically. (If the Startup checkbox was not

checked during the shortcut creation process when the software was installed, the

StarBoard Software will not start when Windows opens. In such cases, start the

StarBoard Software manually. For further details, see the StarBoard Software x.x

User’s Guide.)

Push the power button

Either select Start → Programs → StarBoard Software → StarBoard

Software, or double-click the StarBoard Software icon on the desktop. (The

StarBoard Software icon is not created on the desktop unless the Desktop checkbox

is selected during the shortcut creation process when the software is installed.)

Manual Startup

Be sure to set the monitor refresh rate to 60 Hz if displaying the StarBoard at SXGA

resolution (1280×1024). If used at a refresh rate other than 60 Hz, the pen may not

operate correctly due to noise from the LCD panel. (For details on how to make

settings, see your PC’s manual and other documentation.)

Notice when displaying screens at SXGA resolution

2-2

StarBoard

T

-17SXL Usage

English

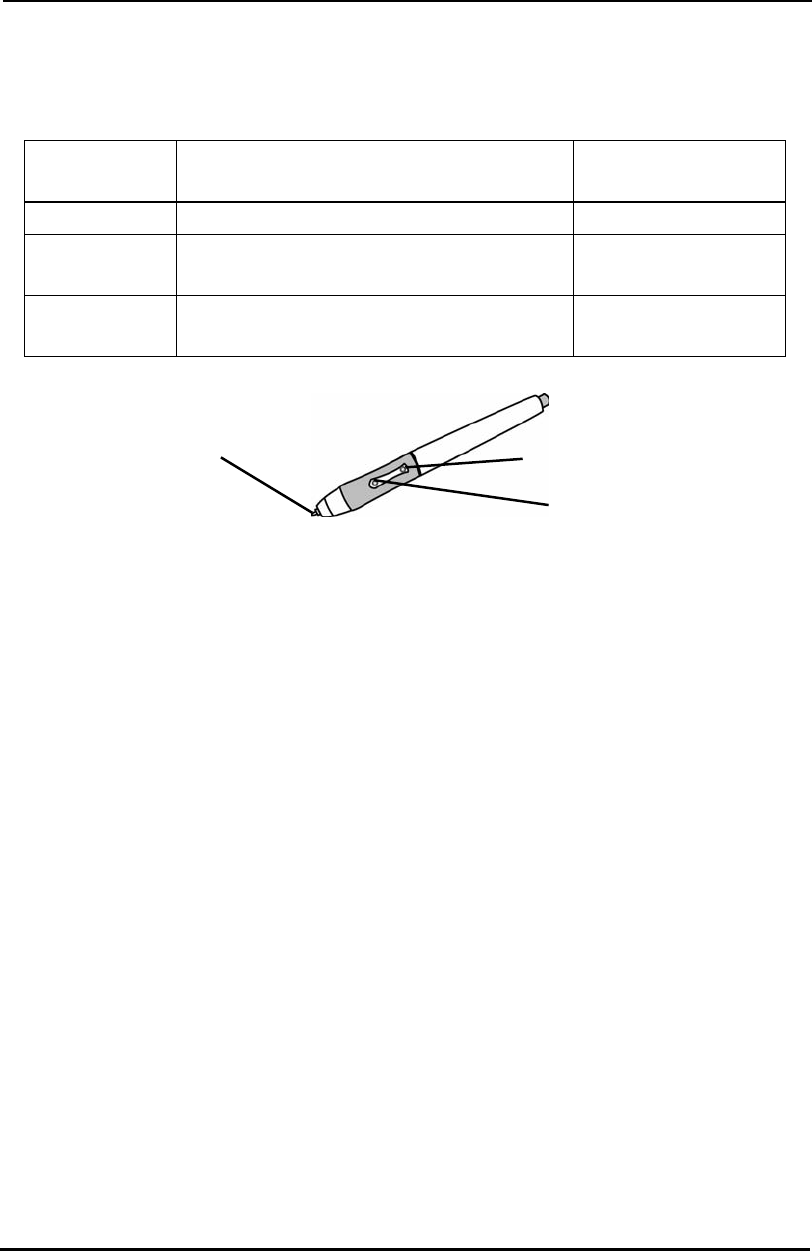

2.2 Using the Stylus Pen

This section describes how to use the StarBoard stylus pen.

2.2.1 How to Use the Stylus Pen

The stylus pen has a power switch. Battery life can be prolonged by ON/OFF the power

switch. To draw characters and figures using the stylus pen, set the power switch of the

stylus pen to the ON position.

2.2.2 Basic Stylus Pen Operations

The stylus pen can be used in the same way as a mouse. Under the stylus pen’s default

settings, the pen tip button is set to correspond to the left mouse button. When Windows

is open, the pen tip button may be used to perform the following mouse actions.

• Clicking

Press the pen tip against the display with a suitable amount of force and then release it

quickly.

• Double-clicking

Press the pen tip against the display with a suitable amount of force and then release it,

two times in a row.

• Dragging

Press the pen tip against the display with a suitable amount of force and then move the

pen while keeping it pressed against the display (without releasing it from the display).

The permitted stylus pen input angle range is 30° in any direction from a position where

the stylus pen is perpendicular to the display surface. Note that if the pen is tilted at an

angle greater than 30°, its coordinates may not be input correctly.

OFF ON

ON/OFF switch

Push the switch

2-3

StarBoard

T

-17SXL Usage

English

2.2.3 Stylus Pen Settings

The stylus pen has one pen tip button, and two side buttons. Mouse actions can be

assigned to these three buttons. The default button settings are summarized in the

following table.

For details on changing the button settings, see the StarBoard Software x.x User’s Guide.

Button User action Corresponding mouse

action

Pen tip Press the pen tip against the display. Mouse left-click

Side Button

No. 0

Press the button with the pen tip slightly

removed from the screen (5 mm or less).

Mouse left double-click

Side Button

No. 1

Same as above. Mouse right-click

Pen ti

p

Side Button No. 0

Side Button No. 1

2-4

StarBoard

T

-17SXL Usage

English

2.2.4 Changing the Battery in the Stylus Pen

The stylus pen contains a single AAA alkaline dry cell. If the pen begins to operate

erratically (e.g., if pen input is cut off), change the battery as described below. Note that

battery life is approximately 1,800 hours under normal usage. If the residual quantity of a

battery decreases, the center of a side button will light up red.

If the center of a side button will light up red, change the battery as described below.

(1) Turn the stylus pen grip to separate the two halves.

(2) Remove the AAA alkaline dry cell contained in the grip, and insert a new cell with

the positive side facing the pen tip.

(3) Put the stylus pen back together.

Positive side

Negative side

CAUTION

When changing the battery, be careful not to close the pen’s rear part too

forcefully.

If too much force is applied when closing the rear part of the stylus pen, the pen may be

damaged.

2-5

StarBoard

T

-17SXL Usage

English

2.2.5 Replacing the Stylus Pen Tip

When the stylus pen tip wears down and becomes too short, replace it as described

below.

(1) Using the special pin set, remove the stylus pen tip.

(2) Insert a new pen tip into the stylus pen.

2-6

StarBoard

T

-17SXL Usage

English

2.3 Using the OSD Menu

The OSD menu is used when adjusting the StarBoard LCD screen. OSD is an abbreviation

for On-Screen Display. The OSD feature allows you to view and adjust the settings for the

display on the screen.

2.3.1 OSD Buttons and Their Functions

■Adjustment procedure

(1) Press the Menu button to display the OSD menu.

(2) Use the (+) button and (-) button to select a menu item.

(3) Press the AUTO/SELECT button to confirm the selection.

(4) Use the (+) button and (-) button to adjust the value, and AUTO/SELECT to select that

value.

(5) To close the OSD menu, leave buttons unpressed for a set amount of time (adjustable), or

select EXIT from the menu screen. (If closing by not pressing buttons, setting changes

made up to then will be applied when the OSD closes.)

OSD Menu

•AUTO/SELECT button

This button is used to

automatically adjust the screen

display and select OSD menu

options.

• (-) button

Brightness can be adjusted by the (+)

and (-) buttons after pressing the (-)

button. This button is also used to select

OSD menu options and change setting

values.

•(+) button

This button is used to toggle

muting ON/OFF. It is also used to

select OSD menu options and

change settings.

•Menu button

This button is used to display the

OSD menu. Pressing it after

making menu selections applies

those selections.

2-7

StarBoard

T

-17SXL Usage

English

2.3.2 OSD Adjustment Options

(1) BRIGHTNESS

Used to adjust screen brightness. (0-100)

(2) CONTRAST

Used to adjust color contrast. The larger the value, the brighter the image will be. (0-100)

(3) LCD ADJUSTMENT

CLOCK : Used to adjust screen size. (0-100)

PHASE : Used to adjust the sampling timing (phase) for converting the

analog input signal to a digital input signal. (0-63)

H.POSITION : Used to change the horizontal position of the screen. (0-100)

V.POS ITION : Used to change the vertical position of the screen. (0-100)

RETURN : Used to return to the previous page.

2-8

StarBoard

T

-17SXL Usage

English

(4) COLOR TEMPRATURE

Used to adjust the color temperature of the screen.

(SRGB, 9300K, 7200K, 6500K, 5000K)

USER : Used to adjust the red, green, and blue colors of the screen.

(0-100)

RETURN : Used to return to the previous page.

(5) ECO MODE

Used to turn the ECO mode ON, and limit brightness setting from 0 to 20 to reduce power

consumption.

RETURN : Used to return to the previous page.

(6) LANGUAGE

Used to select the display language. The following languages are available: Japanese,

English, French, German, Spanish, Italian, and Chinese.

RETURN : Used to return to the previous page.

2-9

StarBoard

T

-17SXL Usage

English

(7) OTHER SETUP

SMOOTH : Used to adjust the smoothness of the image. (0-3)

OSD H.POSITION : Used to adjust horizontal position of OSD window. (0-100)

OSD V.POSITION : Used to adjust vertical position of OSD window. (0-100)

OSD TRANSPARENCY : Used to turn OSD window background transparency

ON/OFF.

OSD TIMEOUT : Used to set the amount of time before the OSD menu closes

automatically. (0-60)

VOLUME : Used to adjust the speaker volume. (0-100)

MODE MESSAGE : Used to turn the screen resolution display ON/OFF.

RESET : Used to reset OSD menu settings to their default values.

RETURN : Used to return to the previous page.

(8) EXIT

Used to exit the OSD menu.

3-1

StarBoard

T

-17SXL Appendix

English

3. Appendix

3.1 Troubleshooting

First, check adjustments and handling methods and check for poor cable connections.

Those are often the causes of problems when nothing is actually broken.

Screen display-related problems

In this case Check this And do this

Is the PC power on? To deal with problem see the PC

manual and other documentation.

Is the RGB cable connected

to the PC and StarBoard

properly?

Connect the RGB cable correctly. (For

details on how to connect, see “1.4.3

Connection Procedure” on page 1-9 of

this User’s Guide.)

For laptop PCs, is external

(RGB) output selected? Connect cable after starting up the PC,

or switch to external (RGB) output at

the screen display mode settings.

(Method of switching differs by PC.

For instructions, see the PC manual and

other documentation.)

Was LCD and monitor

switching done right (may

be assigned to a function

key)?

Set so LCD and monitor are both

selected, or that just the monitor is

selected. (For details on selection, see

the PC manual and other

documentation.)

PC screen does not

display on StarBoard.

Other Contact technical support.

StarBoard Software-related problems

In this case Check this And do this

Is the USB cable connected

properly? Connect USB cable to PC. (For details

on how to connect, see “1.4.3

Connection Procedure” on page 1-9 of

this User’s Guide.)

Was system startup done in

the proper order? Start up system in proper order. (For

details on how to start up the system,

see ”2.1 Turning the StarBoard On” on

page 2-1 of this User’s Guide.)

StarBoard Software may be

damaged or did not install

correctly.

Uninstall StarBoard Software, and then

reinstall. (For details on how to install

StarBoard software, see “StarBoard

Software Installation” in StarBoard

Software x.x User’s Guide)

StarBoard is not

recognized.

Other Contact technical support.

3-2

StarBoard

T

-17SXL Appendix

English

Stylus pen-related problems

In this case Check this And do this

StarBoard Software may be

damaged or may not be

installed correctly.

Uninstall StarBoard Software, and

then reinstall. (For details on how to

install StarBoard software, see

“StarBoard Software Installation ” in

StarBoard Software x.x User’s Guide)

Is battery worn out? Replace stylus pen battery.

(For details on how to change the

battery, see “2.2.4 Changing the

Battery in the Stylus Pen” on page 2-4

of this User’s Guide.)

Is pen tip worn down? Check if the pen tip is worn down or

is too short.

(For details on how to replace the

stylus pen tip, see “2.2.5 Replacing

the Stylus Pen Tip” on page 2-5 of this

User’s Guide.)

Are there any electronic

devices located nearby the

StarBoard such as

microwave ovens or radio

transmitters that emit

electromagnetic noise?

This product is susceptible to

electromagnetic noise, so use the

StarBoard away from devices that

emit noise.

Restart Windows and StarBoard

Software.

Stylus pen does not operate.

Other

Contact technical support.

Did you calibrate the pen

position correctly? Calibrate the pen position correctly.

(For details on how to calibrate the

pen, see “Calibration” in the

StarBoard Software x.x User’s Guide)

Stylus pen tip and pen

cursor positions do not

match.

Other Contact technical support.

3-3

StarBoard

T

-17SXL Appendix

English

Function button-related problems

In this case Check this And do this

Is the USB cable connected

properly? Connect USB cable to PC. (For details

on how to connect, see “1.4.3

Connection Procedure” on page 1-9 of

this User’s Guide.)

Is the StarBoard Software

running? Function button features require the

StarBoard Software. Use them with

the StarBoard Software running. (For

details on how to use the StarBoard

Software, see the StarBoard Software

x.x User’s Guide.)

StarBoard Software may be

damaged or may not be

installed correctly.

Uninstall StarBoard Software, and

then reinstall. (For details on how to

install StarBoard software, see

“StarBoard Software Installation” in

StarBoard Software x.x User’s Guide.)

Are there any electronic

devices located nearby the

StarBoard such as

microwave ovens or radio

transmitters that emit

electromagnetic noise?

This product is susceptible to

electromagnetic noise, so use the

StarBoard away from devices that

emit noise.

Restart Windows and StarBoard

Software.

Function buttons don’t

operate.

Other

Contact technical support.

3-4

StarBoard

T

-17SXL Appendix

English

3.2 System Specifications

Item Specification

Product name StarBoard T-17SXL

Model No. 95.64301G00A

Driver type Active-Matrix Liquid Crystal Display (TFT)

Effective screen size 17 inches 337.920 mm (W)×270.336 mm (H)

Resolution 1280×1024 (SXGA)

Pixel pitch 0.264×0.264 mm

Standard colors 16,200,000 colors

Brightness 260 cd/m2

Contrast ratio 450 : 1

Display

characteristics

Viewing angles right 70°, left 70°, up 70°, down 70°

Input system Electromagnetic induction

Pen Stylus pen

(Uses one AAA alkaline dry cell; battery life: approximately 1800

hours*)

Coordinate resolution 0.05 mm

Reading accuracy ± 0.5 mm

Tracking speed Approximately 125 points per second

Digitizer

characteristics

Interface USB interface (USB1.1)

Input Dsub 15-pin (analogue RGB)

Stereo mini-jack (stereo audio)

Input/output

Output Dsub 15-pin (analogue RGB)

Speaker output Stereo (1 W+1 W build-in amplifier)

Temperature During use: +10 – +35°C; in storage: -10 – +60°C Environmental

conditions Humidity During use: 30 – 80% (no condensation);

in storage: 10 – 80% (no condensation)

Power consumption / power supply 40 W or less (4W or less in power saving mode) /

AC adapter Input (AC 100 – 240 V, 50/60 Hz, 1 A)

Output (DC 12 V, 3.3 A)

External dimensions 395.0 (W)×375.0 (H)×57.0 (D) mm (without stand)

Weight Approx. 5.0 kg

Stand adjustment Adjustable in the range of 20° to 70°

Compatible operating systems Windows 98/98SE/Me/2000/XP

* Battery life varies depending on the temperature and humidity of the usage environment.

3-5

StarBoard

T

-17SXL Appendix

English

3.3 How to Take Care of the StarBoard

Please clean your StarBoard periodically so it will continue to work for a long time.

(1) Cleaning and care

• Use a dry, soft cloth to clean the StarBoard display surface. Do not use

detergents.

• Use a diluted detergent without abrasives to clean the StarBoard cabinet area. Do

not use undiluted detergent; rather, mix with water and soak a soft cloth in the

mixture. Wring out cloth thoroughly before wiping.

• Be careful not to scratch the StarBoard surface with fingernails or other hard

objects. That or bumping the StarBoard can damage it.

• Never use gasoline, thinner, or other solvents. That can cause the cabinet to

degenerate and printed areas to peal off.

3.4 Consumables

(1) Pen tips for Stylus pen

(2) AAA alkaline dry cell

Inquire at the place of purchase or with technical support for information on how go get

replacements.

3.5 LCD Panel

(1) The LCD panel is made using extremely high-precision technology. However, some

dots may be constantly lit or dark.

(2) The backlight used in the LCD panel has a limited lifespan. Contact technical support

if the screen becomes dark, flickers, or will not light up.

3-6

StarBoard

T

-17SXL Appendix

English

3.6 Provisions of Product Warranty

1. During the free warranty service period, if a malfunction occurs during normal use, the

malfunction will be corrected without charge, according to the provisions of the warranty.

Furthermore, if the customer registration card accompanying the warranty is not returned

to our company, the customer information will not be registered, so free repairs might be

unavailable. After receiving this product, please immediately fill out and return this

customer registration card.

2. The warranty coverage is as listed in the following table:

Legend: + Covered by warranty (excluding wear and physical damage)

– Not covered by warranty

3. Please refer to the warranty about this product’s warranty service period.

4. Even during the warranty period, there will be a repair charge in the following cases:

(1) If the registration card accompanying the warranty is not returned to our company.

(2) If the warranty is not presented.

(3) If specified fields on the registration card accompanying the warranty are not

completed, or if the wording has been changed without authorization.

(4) The warranty applies only to the original purchasers. (It does not apply to a third

party to whom the customer resold this product.)

(5) In the event of a malfunction or damage resulting from the customer’s improper

handling (e.g., a fall, impact, etc., caused by the customer during transportation or

movement).

(6) In the event of problems resulting from handling contrary to the handling and

precautions mentioned in this user’s guide.

(7) In the event of failure or damage resulting from abnormal voltages, pollution or

other natural disasters (e.g., fire, earthquake, lightning).

Product Name Part Name Warranty Coverage

17-inch LCD monitor +

Stylus pen +

RGB cable +

USB cable +

AC adapter +

Power cable +

Audio cable +

StarBoard

Stand +

Replacement tip for Stylus pen –

Other parts –

3-7

StarBoard

T

-17SXL Appendix

English

(8) In the event of a malfunction in this product caused by the connection to this

product of equipment other than the equipment specified by our company.

(9) In the event that there is no abnormality in this product, but a defect in a part other

than this product was detected or remedied.

(10) In the event of ordinary wear and tear, wear, deterioration, etc., of consumables,

even during normal use.

5. If this product malfunctions, review the contents of this user’s guide. If the problems

remain irreparable, contact technical support. Technical support will determine whether

or not the product must be repaired, so please contact them. If the customer sends the

product to our company without RMA (Return Merchandise Authorization) number, it

might not be covered by warranty.

6. As a rule, the customer is responsible for shipping charges required to send all or part of

the product for repair, etc. Our company will assume responsibility for the return

shipping to the customer.

7. This warranty does not cover labor fees for repair-associated equipment assembly or

disassembly.

8. Incidental damage caused by the failure of this product (e.g., loss of profit that should

have resulted from the use of this product) is outside the scope of this warranty.

9. The aforementioned provisions define this warranty, and they supersede those of all

express or implied warranties that include legal defect liability.
