Hitachi America, Ltd., Home Electronics Division 900 Hitachi Way, San Diego, California 91914 - www.hitachi.us/tv or 1-800-HITACHI

50VS69

UltraVision® 50" LCD Projection HDTV

Key Features

• 720p High-Definition Display1

• High-Contrast Lens System

• Ultra-Compact 3-Panel Light Engine

• VirtualHD™ 1080p II Video Processor

- Dynamic Contrast

- Dynamic Histogram Processing

- 12 Bit/68 Billion Color Capability

- 1080i 3:2 Film Processing

- 3 HD Aspect Modes

- 6 SD Aspect Modes

- 1080i/720p/480p/480i Input

Compatible

- Split Screen/Picture in Picture2

• Anti-Reflective High-Contrast

Diffusion Screen

• Quick Start Seamless HDTV (ATSC)

and NTSC Tuner

• Digital Cable-Ready (QAM)

• CableCARD™ Compatible3

• First-Surface Mirror

• 4-Step Black Enhancement

• Digital 4MB 3D Y/C Comb Filter

Audio Performance Features

• MTS Stereo/SAP with dbx™

• Simulated Surround Sound

• Bass Boost

• 24-Watt 2-Way Speaker System

• Mute and Soft Mute

• TV-as-Center Speaker (L/Mono)

Convenience Features

• Day and Night Memory by Input

with Timer

• Side Panel Menu Controls

• Preprogrammed Remote Control

• 3-Language On-Screen Display

• Parental Locks (V-Chip)

• Closed Caption Decoder

• On/Sleep Timers

• AutoLink Input Sensor

• Discrete IR Codes

Specifications

• Color: ...............................Silver/Black

• Resolution: ..... 1280 (H) x 720 (V) x 3

Inputs/Outputs

• CableCARD™ Interface: ...................1

• HDMI™ High-Definition

Multimedia Interface:4 .....................1

• Wideband Component

Video Inputs: ................................... 2

• S-Video Inputs: .................................2

• AV Inputs (Rear/Side): ..................4/1

• Antenna Inputs: ................................1

• Center Channel Input: ........All Inputs

(L/Mono)

• Optical Digital Output: ..................... 1

• Fixed/Variable Audio Output: ..........1

Optional Accessories

• Optional Floor Stand: .............. SPS50

• Replacement Lamp: .................... tbd

Dimensions

Monitor With Optional Floor Stand

• Height ........................................... tbd

• Width ............................................ tbd

• Depth ............................................ tbd

Monitor Without Optional Floor Stand

• Height ....................................... 31 3/4"

• Width ........................................ 46 3/8"

• Depth ........................................ 17 1/4"

• Weight .....................................76 lbs.

Warranty

• 1 Year Parts and Labor Warranty

In-Home Service

1 Due to variances in program productions

and transmissions not all of the 720 signal is

displayed.

2 Requires the internal tuner plus an external

tuner or other source device

3 This digital television is capable of receiving

basic analog, digital basic and digital

premium cable television programming

by direct connection to a cable system

providing such programming. A security

card (CableCARD) provided by your cable

operator is required to view encrypted digital

programming. Certain advanced interactive

digital cable services may require the use

of a set top box: video-on-demand, cable

operator enhanced program guide, data

enhanced television service. For more

information contact your local cable operator.

4 HDMI inputs are compatible with DVI-HDTV

(HDCP) signals when combined with an

adapter cable. Adapter cable is not included.

All specifications and dimensions are

subject to change due to constant

improvements. Refer to www.hitachi.us/tv for

updated custom installation specifications.

© 2006 Hitachi Ltd. UltraVision is a registered

trademark of Hitachi Home Electronics

(America), Inc. All trademarks are the property

of their respective owners.

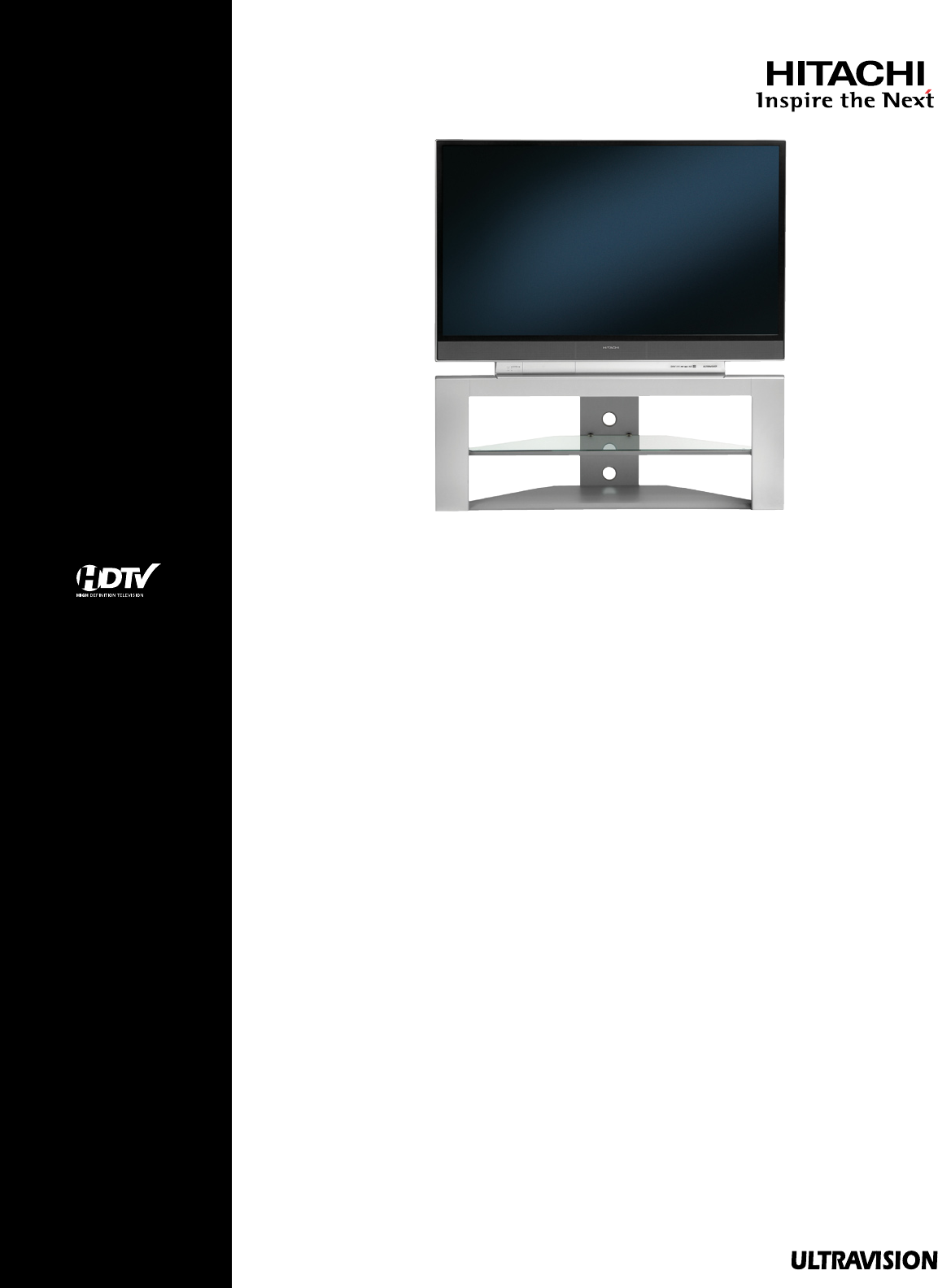

*Shown with optional floor stand
