Thank you for purchasing this Hitachi product. Please read these instructions carefully.

For additional assistance please call 800.Hitachi (800.448.2244) or visit our website at www.hitachi.us/tv.

Keep this owners guide for future reference.

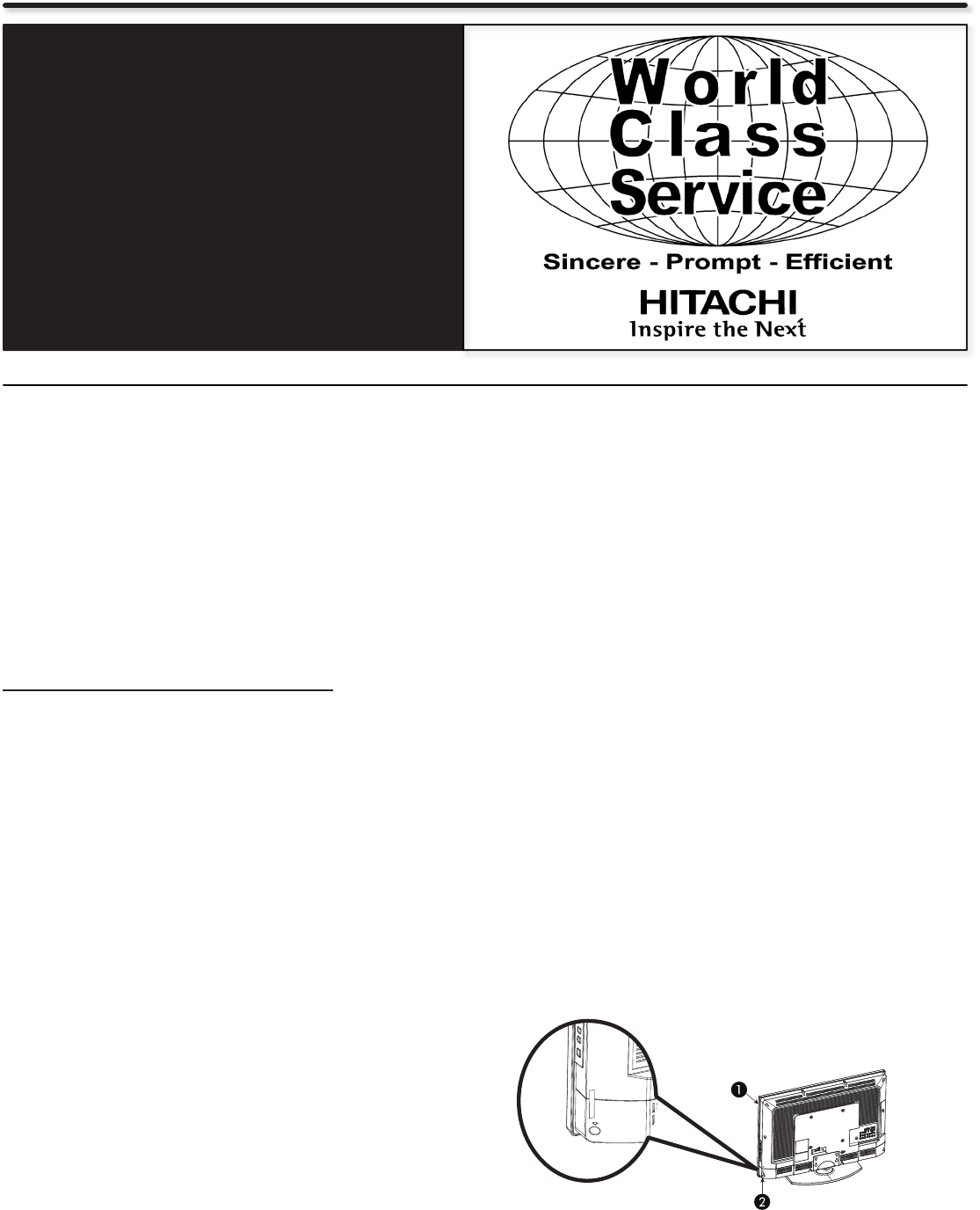

Record the model name and serial number of your LCD Television for future reference.

This information is located on the back and right side of the television.

MODEL NAME. ________________________ SERIAL NO. ___________________________

TABLE OF CONTENTS

HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface

are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and

the double-D symbol are trademarks of Dolby Laboratories.

SRS TruSurround HD™ is a trakemark of SRS Labs, Inc.

TruSurround HD technology is incorporated under license

from SRS Labs, Inc.

SRS TruSurround HD™ creates an immersive, feature-rich

surround sound experience from two speakers, complete

with rich bass, high frequency detail and clear dialog.

® Series LCD Flat Panel HDTV

IMPORTANT SAFETY INSTRUCTIONS ................................................................................. 2-5

FIRST TIME USE ................................................................................................................... 6-17

THE REMOTE CONTROL ................................................................................................... 18-27

ON-SCREEN DISPLAY ........................................................................................................ 28-41

USEFUL INFORMATION ..................................................................................................... 42-48

LIMITED WARRANTY ............................................................................................................... 49

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE .............................. 50-54

APPENDIXES ............................................................................................................................ 55

INDEX ........................................................................................................................................ 56

Revision 020310

Important Safety Instructions

To the CATV system installer: This reminder is provided to

call the CATV system installer’s attention to Article 820-44 of

the NEC that provides guidelines for proper grounding and, in particular,

species that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as practical.

SAFETY POINTS YOU SHOULD KNOW ABOUT YOUR HITACHI LCD TELEVISION

Our reputation has been built on the quality, performance, and ease of service of Hitachi LCD televisions.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety

tips which will be of benet to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your Hitachi

LCD television.

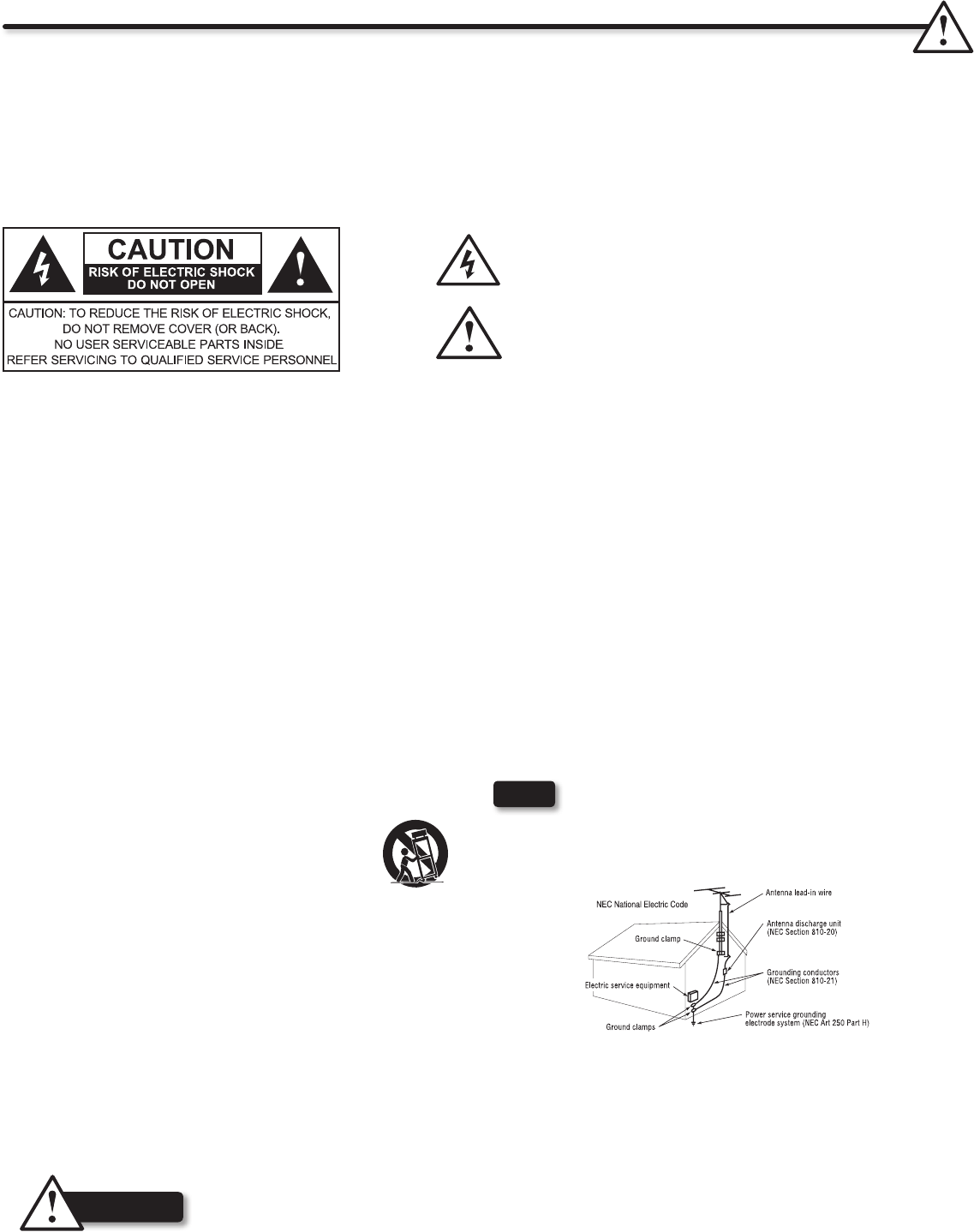

The lightning ash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of a

sufcient magnitude to constitute a risk of electric shock to a person.

The exclamation point within an equilateral triangle, is intended to

alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

NOTE

READ BEFORE OPERATING EQUIPMENT

Follow all warnings and instructions marked on this LCD television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampliers) that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider

than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong

are provided for your safety. If the provided plug does not t

into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. Only use the attachments/accessories specied by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. Televisions are designed to comply with the recommended

safety standards for tilt and stability. Do not apply excessive

pulling force to the front, or top, of the cabinet which could

cause the product to overturn resulting in product damage

and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as

recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of

overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure the

antenna system is grounded so as to provide some protection

against voltage surges and built up static charges. Section

810 of the National Electric Code, ANSI/NFPA No. 70-1984,

provides information with respect to proper grounding for the

mast and supporting structure, grounding of the lead-in wire

to an antenna discharge unit, size of grounding connectors,

location of antenna discharge unit, connection to grounding

electrodes and requirements for the grounding electrode.

Power source

This LCD television is designed to operate on 120 volts 60 Hz, AC current. Insert the power cord into a 120 volts 60 Hz outlet. The mains

plug is used as the disconnect device and shall remain readily operable.

To prevent electric shock, do not use the LCD television’s (polarized) plug with an extension cord, receptacle, or other outlet unless the

blades and ground terminal can be fully inserted to prevent blade exposure.

Never connect the LCD television to 50 Hz, direct current, or anything other than the specied voltage.

This television’s factory default settings as shipped meet ENERGY STAR requirements.

Please see the Energy Options section of this owners guide for more energy saving tips.

CAUTION

Never remove the back cover of the LCD television as this can expose you to very high voltages and other

hazards. If the television does not operate properly, unplug the LCD television and call your authorized dealer

or service center.

Adjust only those controls that are covered in the instructions, as improper changes or modications not

expressly approved by Hitachi could void the user’s warranty.

Important Safety Instructions

Warning

• To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• The LCD television should not be exposed to dripping or splashing and no objects lled with liquids, such as vases, should

be placed on the television.

• This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Public viewing of copyrighted material

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior

authorization from the broadcaster or owner of the video program material.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized, and is intended for home and other limited payper-view uses only unless

otherwise authorized. Reverse engineering or disassembly is prohibited.

Lead/Mercury Notice

This product contains lead and one or more non-replaceable mercury backlights. Do not put in trash. Recycle or dispose

of according to applicable laws. For product recycling and disposal information, contact your local government agency or

visit www.eiae.org (in USA) or www.epsc.ca (in Canada). FOR MORE INFORMATION, CALL 800.HITACHI.

FEDERAL COMMUNICATIONS COMMISSION NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Modications

The FCC requires the user to be notied that any changes or modications made to this device that are not expressly approved by Hitachi

America, Ltd. may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC

Rules and Regulations.

Any cables that are supplied with the system must be replaced with identical cables in order to assure compliance with FCC rules. Order

Hitachi spares as replacement cables.

This LCD Television receiver will display television closed captioning, ( or ), in accordance with paragraph 15.119 and 15.122 of

the FCC rules.

Declaration of Conformity

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

(1)This device may not cause harmful interference and (2)This device must accept any interference received,

including interference that may cause undesired operation.

For questions regarding this declaration, contact:

Hitachi America, Ltd.

900 Hitachi Way

Chula Vista, CA 91914-3556

Tel. 800.448.2244(800.HITACHI)

ATTN: Customer Relations

• VGA and XGA are trademarks of International Business Machines Corporation.

• VESA is a registered trademark of the Video Electronics Standard Association.

• HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks of registered trademarks of HDMI Licensing LLC in the

United States and other countries.

Important Safety Instructions

Congratulations on your purchase!

As you enjoy your new product, please keep these safety tips on mind:

HITACHI CARES!

• The consumer electronics industry is commited to making home

entertainment enjoyable and safe.

• Please note the American Academy of Pediatrics discourages television

viewing for children younger than two years of age.

• The home theater entertainment experience is a growing trend and

larger at displays are popular purchases. However, at panel displays

are not always supported on the proper stands or installed according to the

manufacturer’s recommendations.

• Flat Panel displays that are inappropriately situated on dresser, bookcases,

shelves, desks, speakers, chest or carts may fall over and cause injury.

TUNE INTO SAFETY

• One size does NOT t all. Follow the manufacturer’s recommendations

for the safe installation and use of your at panel display.

• Carefully read and understand all enclosed instructions for proper use of

this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place at panel displays on furniture that can easily be used as

steps, such as a chest of drawers.

• Remember that children can become excited while watching a program,

especially on a “larger than life” at panel display. Care should be taken

to place or install the display where it cannot be pushed, pulled over, or

knocked down.

• Care should be taken to route all cords and cables connected to the at

panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL

MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer

and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your at panel

display, contact your retailer about professional installation.

• Make sure that the wall where you are mounting the display is appropriate.

Some wall mounts are not designed to be mounted to walls with steel

studs or old cinder block construction.

If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays

can be heavy.

PRECAUTIONS AND REMINDERS

123

789

4 inch

Do not place the unit on

uneven surfaces, this may

drop or damage the unit, it may

also cause personal injury.

Unplug immediately if any

foreign materials falls into the

TV or if the TV fell down.

Do not cover or block any

vents and openings of the TV.

Inadequate ventilation may

shorten the life of the display

unit and cause overheating.

Unplug immediately if there is

a malfunction on the TV like

no picture, no video/audio or

if there is smoke and bad odor

coming from the TV.

Do not open the TV cabinet. Avoid direct sunlight, dusty,

high humidity and smokey

locations.

Do not throw any objects inside

the TV like metals, coins or any

other ammable materials.

Remember to unplug the AC

cord from the AC outlet before

cleaning. Do not use liquid

cleaners or aerosol cleaners to

clean the display.

Do not place the TV in conned

spaces or inside a box when

the TV is operating.

Make sure to unplug the unit

when not in use for a long

period of time (days).

Do not place the TV near water,

such as a bathtub, shower

rooms, kitchen sink, laundry

tub or swimming pool. Avoid

liquid containers on top of the

unit.

Notice for Remote Control

Avoid dropping the unit. Avoid liquids on it. Avoid aerosol cleaners.

Do not pick up or handle the TV

from where the TV connects to

the stand. Injury may occur if

the TV is picked up or handled

from this area.

Accessories

Check to make sure you have the following accessories before disposing of the packing material.

For optional accessories, please access our web site at: www.hitachi.us/tv

• Ceiling mounting is not recommended. Mounting the panel on the ceiling does not provide adequate

ventilation for the electronics or proper support for the front panel. This LCD television product is designed

for a maximum tilting angle of 45 degrees from vertical.

• Please see page 8 for important information related to wall mounting.

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

The remote control operates on 2 “AAA” batteries.

1. Open the battery cover of the remote control by pushing and pulling it in the direction of

the arrow.

2. Insert two new “AAA” size batteries for the Remote Control. When replacing old batteries,

push them towards the springs and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Insert the bottom of the battery, the (-) side, into the battery compartment rst, push

towards the springs and insert the top of the battery, the (+) side, into place. Do not force

the battery into the battery compartment.

5. Close the battery cover making sure the tabs rest in the corresponding holes and push

down the cover until it clicks shut.

“AAA” Size

Batteries (2)

Power Cord

Remote Control Unit

CLU-4997S

(Part No. HL02567)

• Do not insert batteries with ‘+’ and ‘-’ polarities reversed as this may cause the batteries to swell or rupture

resulting in leakage.

• Never mix used and new batteries in the device.

• Replace all the batteries in the device at the same time.

• Remove the batteries if the remote control is not going to be used for an extended period of time.

• The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.

CAUTION

Owners Guide

Easy Graphic Guide

Thank you for purchasing this Hitachi product. Please read these instructions carefully.

For additional assistance please call 800.Hitachi (800.448.2244) or visit our website at www.hitachi.us/tv.

Keep this owners guide for future reference.

Record the model name and serial number of your LCD Television for future reference.

This information is located on the back and right side of the television.

MODEL NAME. ________________________ SERIAL NO. ___________________________

TABLE OF CONTENTS

HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface

are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and

the double-D symbol are trademarks of Dolby Laboratories.

® Series LCD Flat Panel HDTV

IMPORTANT SAFETY INSTRUCTIONS ................................................................................. 2-4

FIRST TIME USE ................................................................................................................... 5-17

THE REMOTE CONTROL ................................................................................................... 18-27

ON-SCREEN DISPLAY ........................................................................................................ 28-41

USEFUL INFORMATION ..................................................................................................... 42-48

LIMITED WARRANTY ............................................................................................................... 49

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE .............................. 50-54

APPENDIXES ............................................................................................................................ 55

INDEX ........................................................................................................................................ 56

Revision 020310

32” (T4x12: Part No. Q1G940-12-47)

42” (M6x12: Part No. OM1G1760 12225 CR3)

32” (Part No. A34T1051 & A15T0643)

Stand Screws (4)

Stand Base

42” (Part No. A34T0982-11-01 & A15T0646-101)

FIRST TIME USE

• Do not block the ventilation holes of the LCD

Television. Blocking the ventilation holes might

cause overheating and damage.

• In case of an abnormal symptom, unplug the AC

cord and contact 800.HITACHI.

• If you purchased a wall mount bracket,

please ask for professional installation.

Do not try to install by yourself.

• Install the unit at a proper area where it does not

expose anyone to any danger of hitting themselves

(For example: their hands, head or face, etc.)

against the edge of the unit that could cause

personal injury.

Power Cord Installation

The Power cord provided with your new LCD Television needs to

be installed correctly to avoid its disconnection when rotating the

TV on its Table Top Stand.

Located on the back of the TV there is one plastic clamp to hold the

Power cord. Please follow the instructions below.

1. Pass the Power cord through the clamp and connect it to the TV.

2. Close the clamp to x the Power cord to the TV.

3. All the cables connected to the TV will be held by this clamp.

AC Wire Clamp

Securing to a Wall

1. Use a metallic wire (two locations) to fasten the set to the

clamping screw on the rear of the LCD TV as shown below.

2. Keep the LCD television 4 inches away from the wall, except

when mounted using the wall mount bracket, and secure to

the wall as shown below:

Wire

Clamp

Screw

Wire

How To Install Your New Hitachi LCD Television

ASSEMBLY OF THE BASE

IMPORTANT:

The base of the LCD TV must be assembled prior to use.

1. Place the TV unit face down on a soft and at surface

covered by a blanket, foam, cloth, etc. to prevent any

damage or scratches to the LCD TV.

2. Carefully align and insert the Base to the TV stand post.

3. Insert the screws included with the accessories to the

bottom of the base and tighten the base to the stand.

Caution when moving the main unit

As this product is heavy, whenever it is moved, at least two people

are required to transport it safely. Whenever the unit is moved, it

should be lifted forward using the top and base on both sides of the

Television for stability.

When moving the Television, lift from the corners, then support

the top frame as shown below.

Please use caution when handling the left and right bottom

corners of the TV, as these areas protrude slightly from the TV’s

frame. Handle this area with care to avoid damaging the unit and

the possibility of personal injury.

Location

Select an area where sunlight or bright indoor illumination will not

fall directly on the picture screen. If so, drapes or screens can be

used to reduce the reection.

Also, be sure that the location selected allows a free ow of

air to and from the perforated back cover of the set. In order to

prevent an internal temperature increase, maintain a space of 10

cm (4 inches) from the sides/back of the Television, and 30 cm

(12 inches) from the top of the television to the ceiling. To avoid

cabinet warping, cabinet color changes, and increased chance of

set failure, do not place the TV where temperatures can become

excessively hot, for example, in direct sunlight or near a heating

appliance, etc.

10 cm

(4 inches)

30 cm (12 inches)

10 cm

(4 inches)

Take the following precautions to prevent the LCD Television from tipping over and possibly causing injury. It is important to

mount the unit on a stable and at surface.

NOTES

Wire

32”

42”

4 in.

10 cm.

How To Install Your New Hitachi LCD Television

WALL MOUNTING SETUP

STEP (1) : REMOVE THE STAND BASE FROM THE LCD TELEVISION

In order to remove the stand from the TV safely, please put the TV set on a soft and at surface (blanket, foam, cloth, etc.) to prevent

any damage; then remove the screws as shown below (For model L42S504, there is one more screw under the cover) to separate the

TV from the Table Top Stand. Now the Stand can be separated from the TV. Useful dimensions for the WALL MOUNT assembly are

illustrated on page 46 and 47.

(a)

(b) (b)

(a)

4 Screws ((a) M4 and

(b) tapping screws).

Do not mix please.

L32S504 L42S504

1 Screw (M4).

4 Screws (M4).

Stand Base

Although this LCD Display Panel can be installed using a variety of third party wall mounting brackets/devices,

such third party brackets/devices have not been tested or approved by Hitachi for use or compatibility with

this LCD Display Panel. Accordingly, Hitachi accepts no responsibility or liability for any injuries or property

damage resulting from the use of such third party brackets/devices. Hitachi strongly advises that any

installation of this LCD Display Panel using wall mounting brackets/devices be performed only by a qualied and experienced television

installation technician who has completed a thorough evaluation of:

a) the weight-bearing strength and stability of the intended wall mount surface; and

b) the weight-bearing strength and compatibility of the intended wall mount brackets/device.

CAUTION

STEP (3) : TIPS TO CONSIDER FOR THE LOCATION OF THE LCD TELEVISION.

The screw type :Thread ISO M6 (Metric

type, do not use Standard type).

For Wall Mount assembly, please refer to the Installation Manual of the

Wall Mount Unit.

Insertion length (B) of the screws must be within 8.5~10.5 mm. If the length is less than 8.5 mm, the TV's

weight cannot be maintained. If the length is more than 10.5 mm, a space is created between the Wall

Mount Bracket and the LCD Television. This insertion length is very important.

STEP (2) : INSTALL THE WALL MOUNT BRACKETS ON THE LCD TELEVISION USING 4 SCREWS.

More than

30 cm (1').

More than

10 cm (4"). Keep

more than

2 cm (0.8")

away from

the wall.

• Do not block the ventilation holes. In addition

please keep a certain distance around and

make sure not to obstruct ventilation. Blocking

the ventilation holes might cause re or defect.

• If you purchased a Wall Mount bracket, please ask for a professional

installation. Do not install by yourself.

• This LCD unit features an advanced ventilation system congured for

vertical installation. A knowledgeable and experienced professional

technician can perform other mounting or installation orientations (e.g.,

horizontal, tilted) provided that you specically inform the technician of

the unit's specialized ventilation needs. Call 800.HITACHI for additional

info and guidance.

CAUTION

Wall Mount Brackets

Screw mounting holes (4 locations) for use

with a wall mount bracket.

DO NOT reuse the original screws that

were in these screw mounting holes or the

screws removed in STEP(1) above, as

such screws are not long enough to properly

secure the TV to the wall bracket. Please

refer to example at right and caution below

to determine proper screw length.

Screw Length (A)

Insertion Length (B)

Spring Washer (C)

Plane Washer (D)

Wall Mount Bracket (E)

Example :

A = B+C+D+E

A: 13.5~15.5 mm.

B: 8.5~10.5 mm.

C: 1 mm.

D: 1 mm.

E: 3 mm.

FIRST TIME USE

Side Panel Jacks & Controls

Headphone jack

Use this jack to connect headphones.

POWER light indicator

To turn the TV ON, press the Power button ( ). A blue

indicator lamp located on the lower left corner of the front

bezel illuminates to indicate the TV power is ON.

Indicating

Lamp

Power

Status

Operating

Lights

Red

OFF

(Stand-by)

When the LCD TV is plugged

to the AC line.

Lights

Blue

ON TV Power is ON; picture is

shown.

Quickly

Blinking Red

ON The TV is powering OFF.

It will soon be in the Off

(Stand-by) state.

REMOTE CONTROL SENSOR

Point your remote at this area when selecting channels,

adjusting volume, etc.

FRONT VIEW

POWER button

This power button is for turning ON the LCD TV, in order to turn

the TV On , the standby indicator must be lit red. If the indicator is

off, plug the power cord into the power outlet.

MENU button

This button allows you to enter the MENU, making it possible

to set TV features to your preference without using the

remote. This button also serves as the Return button when in

the MENU system.

INPUT button

Press this button to access the INPUT menu.

VOLUME (+/-) level

Press these buttons to adjust the sound level. The volume

level will be displayed on the TV screen. These buttons also

serve as the cursor left (◄) and right (►) buttons when in the

Menu system.

CHANNEL selector

Press these buttons until the desired channel appears in the

top right corner of the TV screen. These buttons also serve as

the cursor down ( ) and up ( ) buttons when in the MENU

system.

AV2 (SIDE) Jacks

AV2 input provide composite Video and S-Video jacks for

connecting equipment with this capability, such as a DVD

player, Game Console or Camcorders.

HDMI 3 & HDMI 4

Use these side HDMI inputs for AV equipment such as Set-

Top-Boxes or DVD players equipped with an HDMI output

connection (see page 14 for reference).

USB Multimedia / UPGRADE Slot

This USB slot is for use with the multimedia feature and future

software upgrades.

NOTES

USB/

• Your HITACHI LCD TV will not show any picture

if there is no video input when AV1, AV2,

Component1 or 2, or HDMI 1, 2, 3 or 4 is selected.

Instead, a message will indicate “No Signal”, and

the Power Light will remain Blue until the TV is

turned off or in Stand-by mode (lights red) when

not in use.

• The Remote Control can turn the TV ON/OFF as

well as control various devices and any compatible

HDMI CEC devices.

• Please do not put anything around the remote

control sensor.

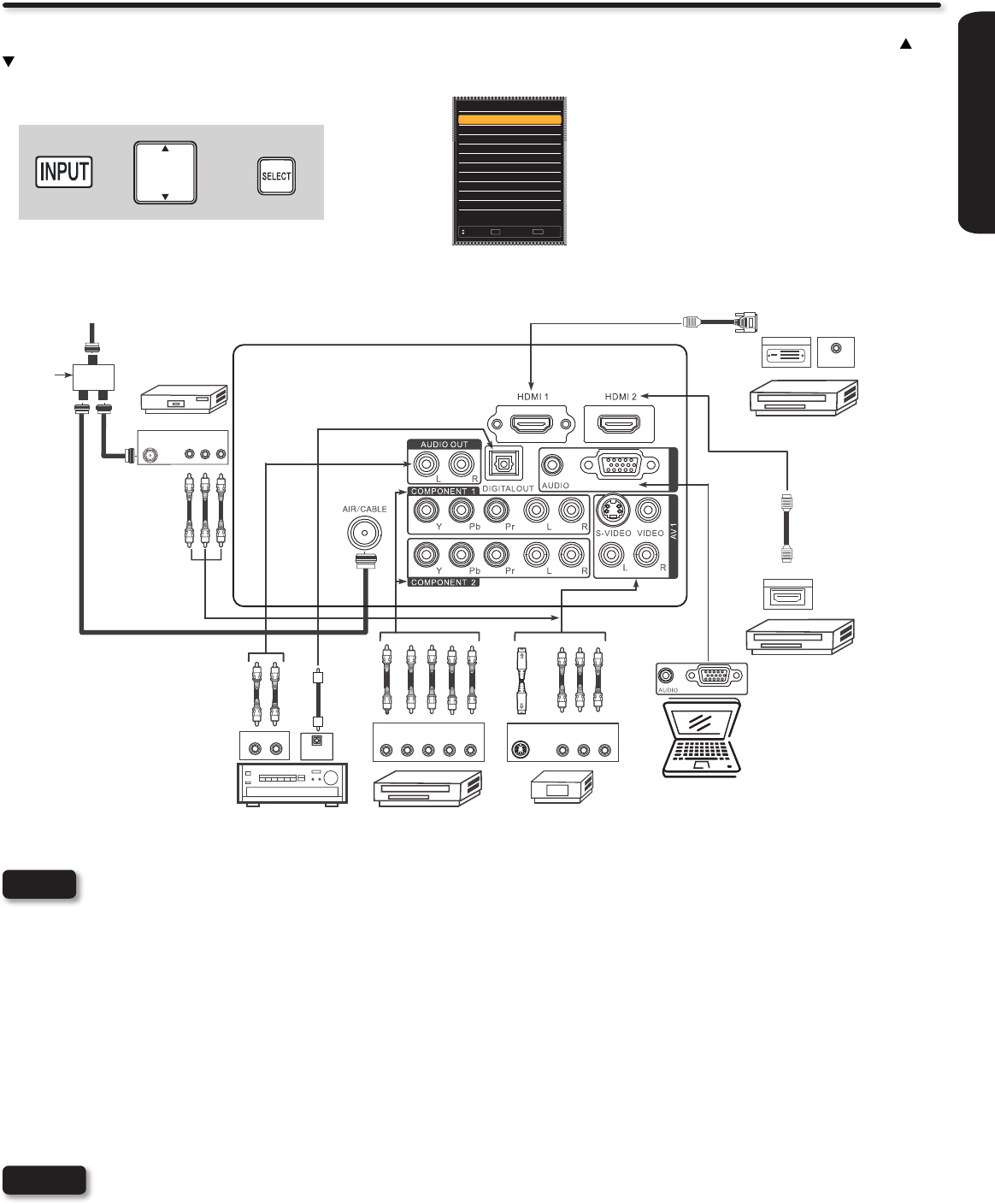

Rear Panel Jacks

Antenna Input

To switch between Cable and Air, go to the Channels Menu

option to change the signal source CABLE or AIR (see page

40).

Component: Y-PbPr and Audio Inputs

Component 1 and 2 provide Y-PbPr and Audio jacks for

connecting equipment with this capability, such as a DVD

player or Set Top Box.

• Your component outputs may be labeled Y , B-Y,

and R-Y. In this case, connect the components B-Y

output to the TV’s Pb input and the components

R-Y output to the TV’s Pr input.

• Your component outputs may be labeled Y-CbCr.

In this case, connect the component Cb output to

the TV’s Pb input and the component Cr output to

the TV’s Pr input.

• It may be necessary to adjust Tint to obtain

optimum picture quality when using the Y-PbPr

inputs (see page 31).

HDMI 1 & 2 (High Denition Multimedia Interface)

About HDMI – HDMI is the

next-generation, all digital

interface for consumer

electronics. HDMI enables the

secure distribution of uncompressed high-denition video and

multichannel audio in a single cable. Because digital television

(DTV) signals remain in digital format, HDMI assures that

pristine high-denition images retain the highest video quality

from the source all the way to your television screen. Use the

HDMI input for your AV equipment such as Set-Top-Boxes or

DVD players equipped with an HDMI output connection.

HDMI, the HDMI logo and High-Denition Multimedia Interface

are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

NOTES

RGB

Digital Out (Optical Digital Audio)

This jack provides Digital Audio Output for your audio device

that is RAW and PCM compatible, such as an audio amplier.

The Digital Output option will grayout with all input

sources, except with a digital program channel on

the Air/Cable input source.

DVI Audio Input

This jack provides Audio Input from a DVI source when

connected to the HDMI 1 Input. A DVI (source) to HDMI (TV)

connection must be made to HDMI 1.

• It is not neccessary to connect the DVI Audio Input

when the connection to HDMI 1 is a HDMI to HDMI

connection.

• The DVI Audio Input is only compatible with the

HDMI 1 Input.

Composite AV1 Jacks

AV1 input provides composite Video and S-Video jacks for

connecting equipment with this capability, such as a DVD

player, Game Console or Camcorders.

Audio Out jack

This jack provides stereo audio output from your TV to your

audio device, such as an audio amplier.

NOTES

NOTE

FIRST TIME USE

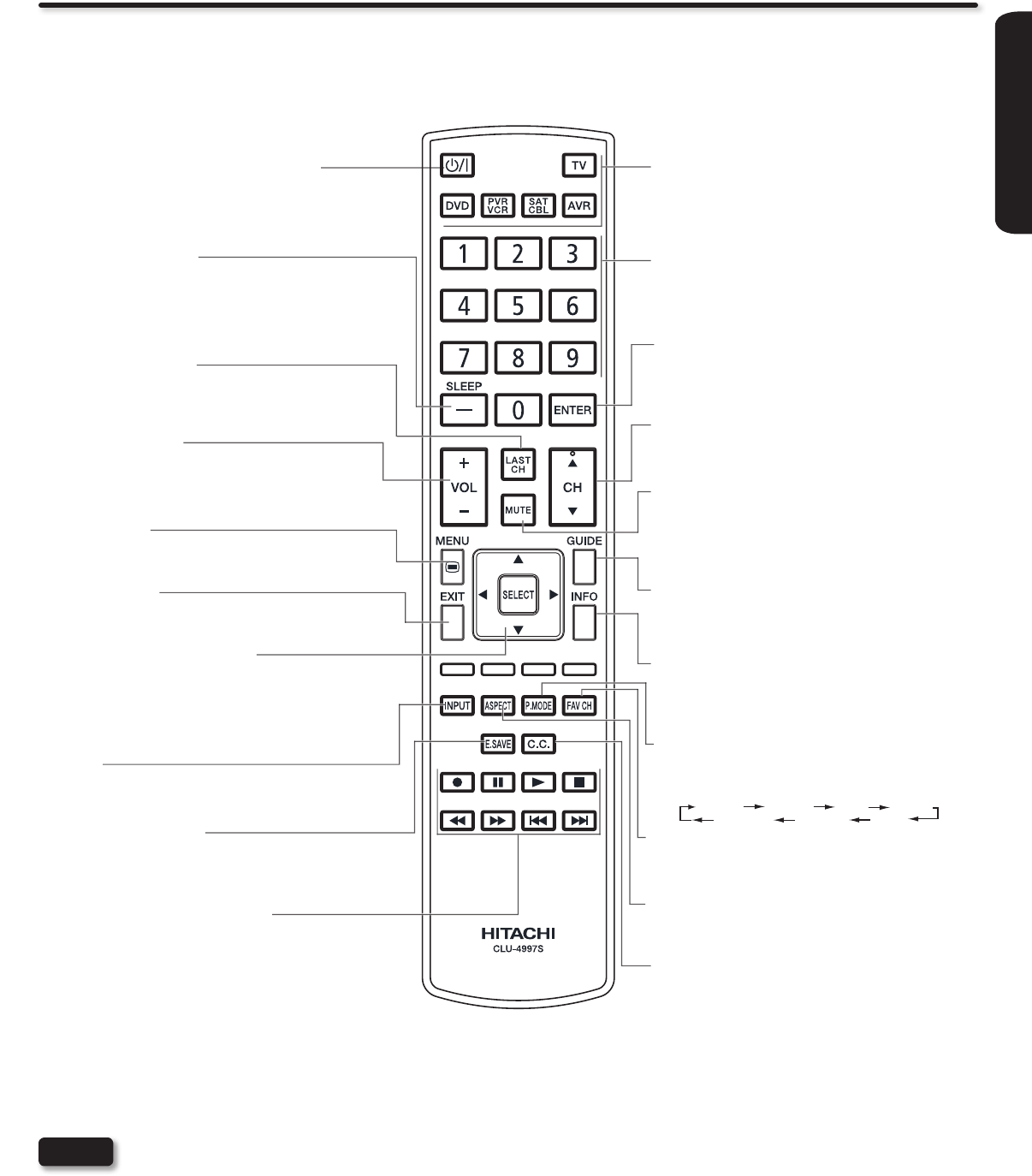

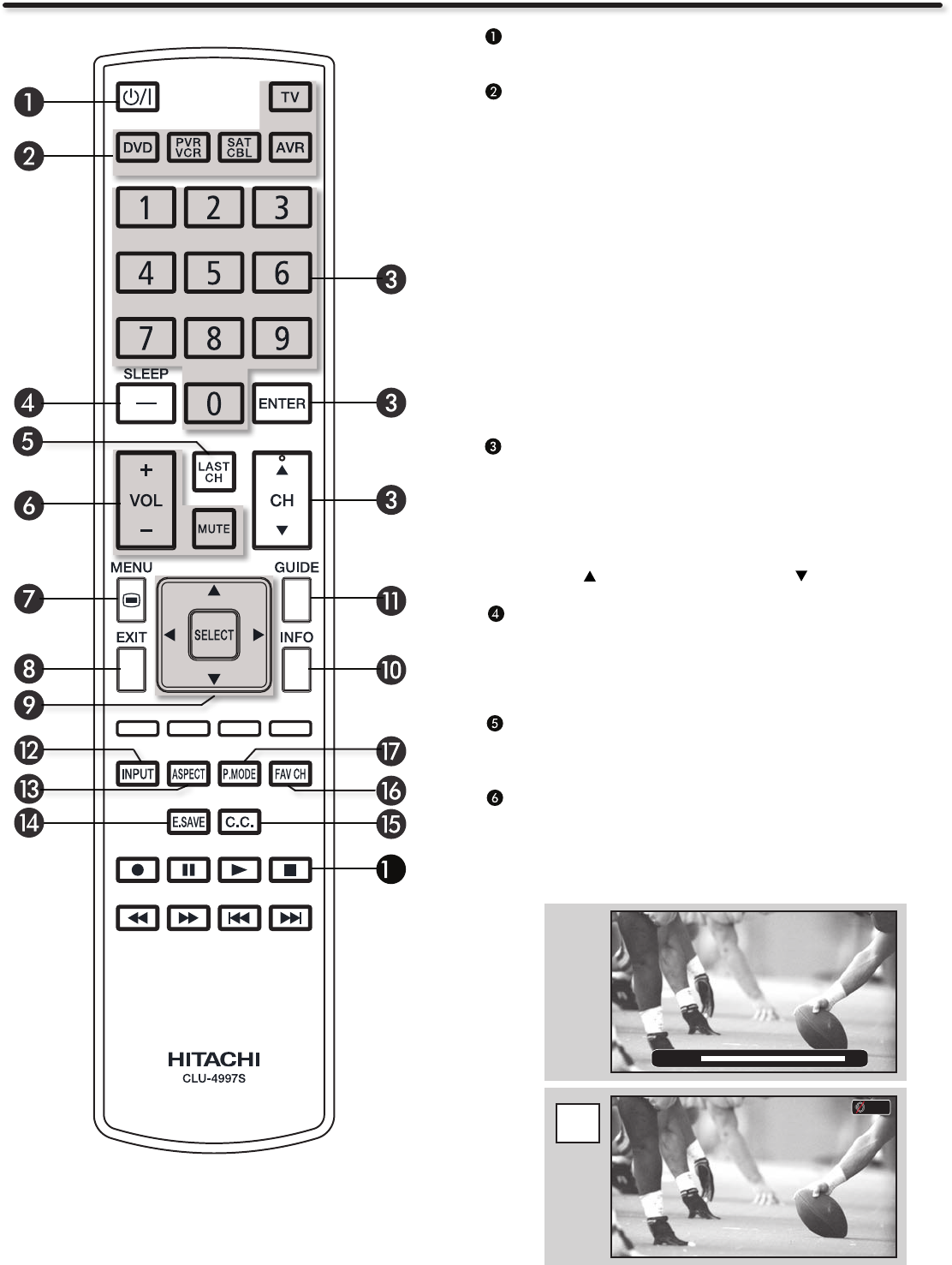

Quick Reference Remote Control Buttons and Functions

In addition to controlling all of the functions on your Hitachi LCD TV, the new remote control is designed to operate different

types of devices, such as, DVD Players, CBL (Cable Boxes), set-top-boxes, satellite receivers (SAT), VCRs and compatible

HDMI CEC DVD Players. The remote control must be programmed to control the chosen device. Please see pages 22~27 for

a complete description of all features and programming of the Remote Control.

• The TV’s remote control sensor is located on the left bottom corner of the TV frame. To control TV functions, please point

the remote control directly at the sensor for best results.

• The pause key “;“ on the Remote Control can be use to Freeze the picture on the screen, in case this key is pressed by

accident, please press it one more time to restore the moving picture.

• For HDMI CEC details please see page 38.

NOTES

Power On/Off

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Press this button to switch the selected device

On or Off standby.

(-) Dash/Sleep Button

(TV, SAT/CBL, PVR/VCR, DVD)

Press this button to tune a digital channel. In

TV mode press to set your Sleep Timer from 5

minutes to 4 hours.

Last Channel Button

(TV, SAT/CBL, PVR/VCR, DVD)

Press this button to switch between the current

and the last channel viewed.

Volume Buttons

(TV, AVR)

Press up (+) to increase or down (-) to decrease

the audio level of your TV.

Menu Button

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Accesses the OSD menu system.

EXIT Button

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Press this button to exit the OSD menu.

CURSOR PAD/Select Buttons

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

The CURSOR PAD is used to navigate through

the OSD and INPUT menu system, The Select

button is used to Set/Activate highlighted menu

items.

Input

(TV, AVR)

Press this button to change input.

Energy Save Button

(TV)

Press this button to set Power Consumption

reduction based on three levels (Min, Med, Max).

CONTROL BUTTONS

(SAT/CBL, DVD, PVR/VCR, AVR)

Control the functions of your Satellite Receiver,

Set-Top Box, Cable Box, DVD, VCR, PVR and

AVR. Also Control the functions of compatible

DVD players with HDMI-CEC control.

Device Buttons

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Press these buttons to switch between your

devices.

Numeric Buttons

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Press these buttons to manually enter the

channel or for numeric entry when navigating

through the OSD menu system.

Enter Button

(TV, DVD, PVR/VCR, SAT/CBL, AVR)

Press this button to use as a SELECT feature.

Channel Up/Down Buttons

(TV, PVR/VCR, SAT/CBL, DVD, AVR)

Changes the channel up or down.

Mute

(TV, AVR)

Reduces the audio level to 0 if pressed once,

and restore the audio level when pressed a

second time.

Guide Button

(SAT/CBL, PVR/VCR, DVD)

Press this button to access the program guide

of other devices.

Info Button

(TV, DVD, SAT/CBL, PVR/VCR)

Shows the input signal status and other

information.

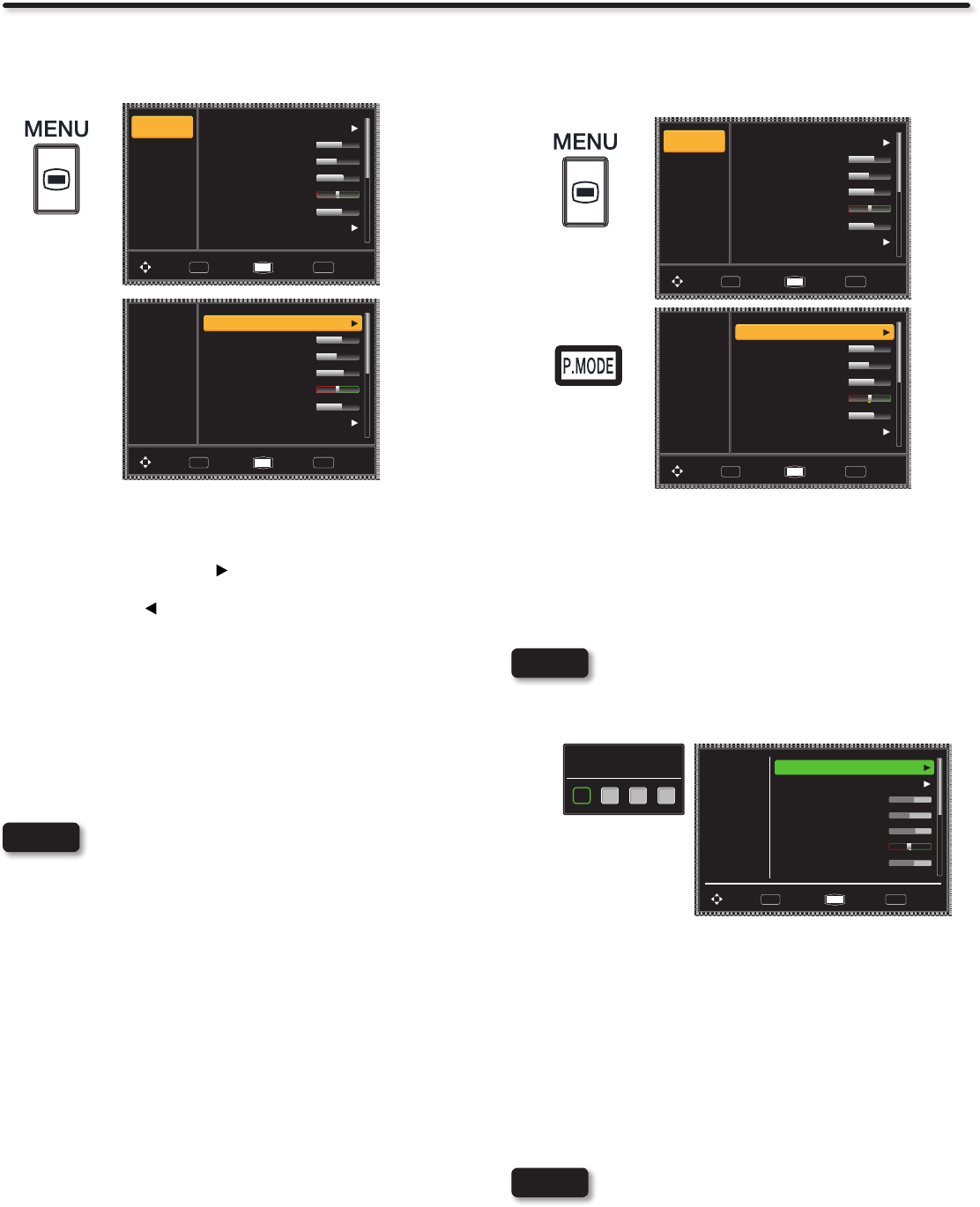

Picture Mode

(TV)

Picture mode can be changed, each time it is

pressed, in the following sequence.

Favorite Channel Button

(TV, SAT/CBL)

Press to access the Favorite Channel list.

Aspect

(TV)

Press this button to change picture size.

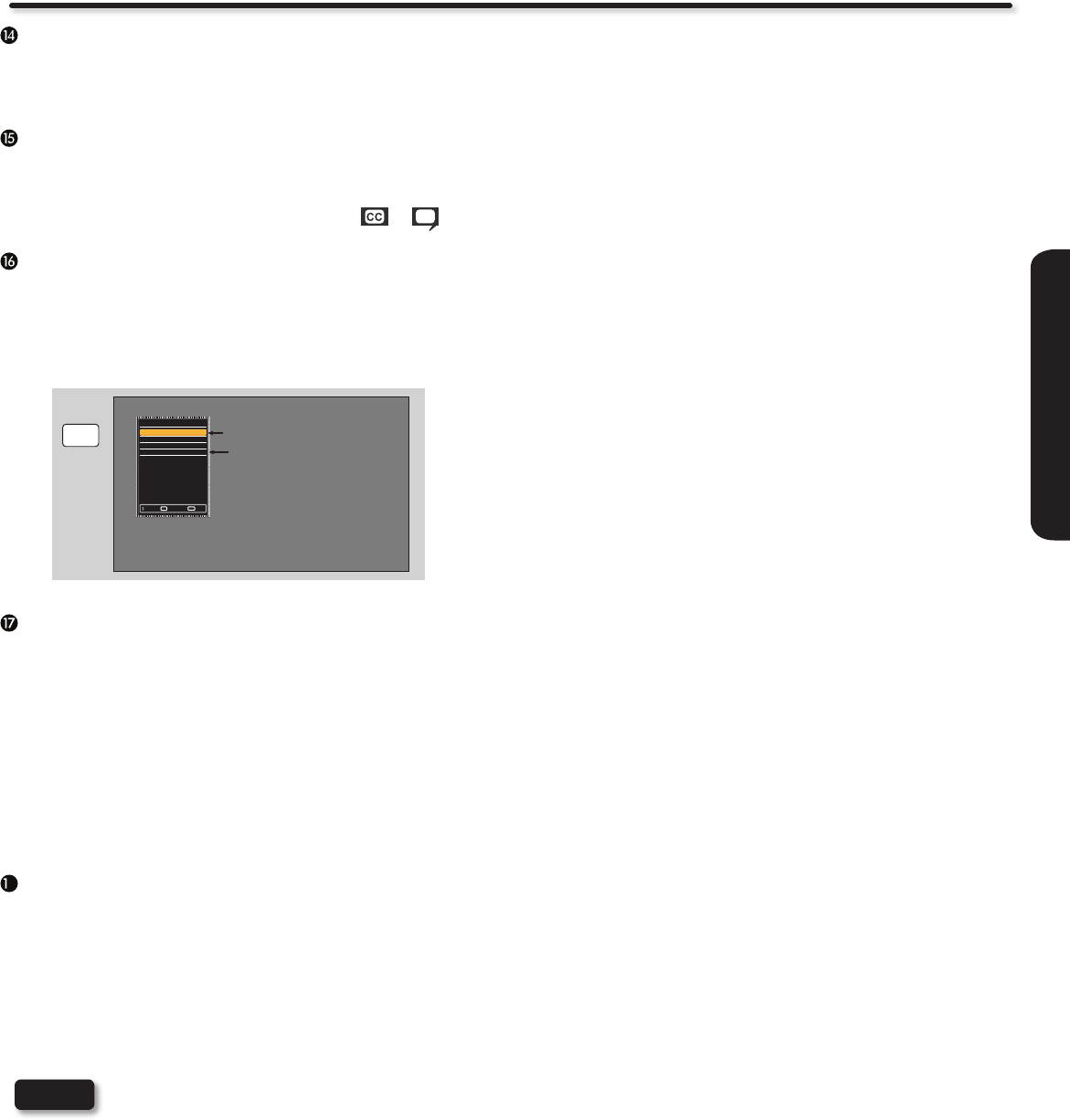

Closed Caption (CC) Button

(TV)

Press to show and change the closed caption

mode.

LEGENDS

TV - Television VCR - Video Cassete Recorder PVR - Personal Video Recorder

DVD- Digital Video Disc Player SAT - Satellite Receiver CBL - Cable Box

AVR - Audio/Video Receiver

Dynamic Standard Movie Custom

PRO-Night PRO-Day Game

Quick Setup Guide

Perform the following steps to quickly setup your new

Hitachi LCD Television Set.

1. ANTENNA CONNECTION

Unless your LCD Television is connected to a cable TV system or

to a centralized antenna system, a good outdoor color TV antenna

is recommended for best performance. However, if you are located

in an exceptionally good signal area that is free from interference

and multiple image ghosts, an indoor antenna may be sufcient.

a). VHF (75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect the CATV coaxial

cable to the AIR/CABLE (75-Ohm) terminal. Or if you have an antenna,

connect the coaxial cable to the same AIR/CABLE terminal.

To outdoor Antenna

Cable TV (CATV)

System

To Air/Cable

Terminal

b). VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect

the VHF or UHF antenna leads to screws of the VHF or UHF adapter.

Plug the adapter into the TV Air/Cable terminal on the TV.

To outdoor VHF or

UHF Antenna

To Air/Cable-

Terminal

c). When both VHF and UHF antennas are connected

Connecting a 300-Ohm twin lead connector may cause interference. Using a 75-Ohm coaxial cable is recommended.

NOTE

Rear Panel Jack

a). Connect the power cord to your TV set and secure it with the

AC Wire Clamp (see page 7) .

AC Wire Clamp

a). Connect the power cord to the AC wall outlet .

Attach an optional antenna cable mixer to the TV Air/Cable terminal

and connect the cables to the antenna mixer. Consult your dealer

or service store for the antenna mixer.

To outdoor antenna

or CATV system

To UHF antenna

Antenna Mixer

Air/Cable

b). The Indicating Lamp will light red (Standby mode) and then

light blue (picture is shown).

Indicating

Lamp

2. CONNECT YOUR NEW HITACHI LCD TV TO THE POWER SOURCE

3. POWER ON/OFF YOUR NEW HITACHI LCD TV

Press the POWER button on the Remote Control or the POWER

button on the Side Control Panel to power on/off the LCD TV.

RGB

Air/Cable

For Stand-By

Power OFF

If the Indicating lamp is OFF, the Power Button on the

Remote Control will not operate. Please make sure

that the power cord is plugged to the AC outlet.

NOTE

FIRST TIME USE

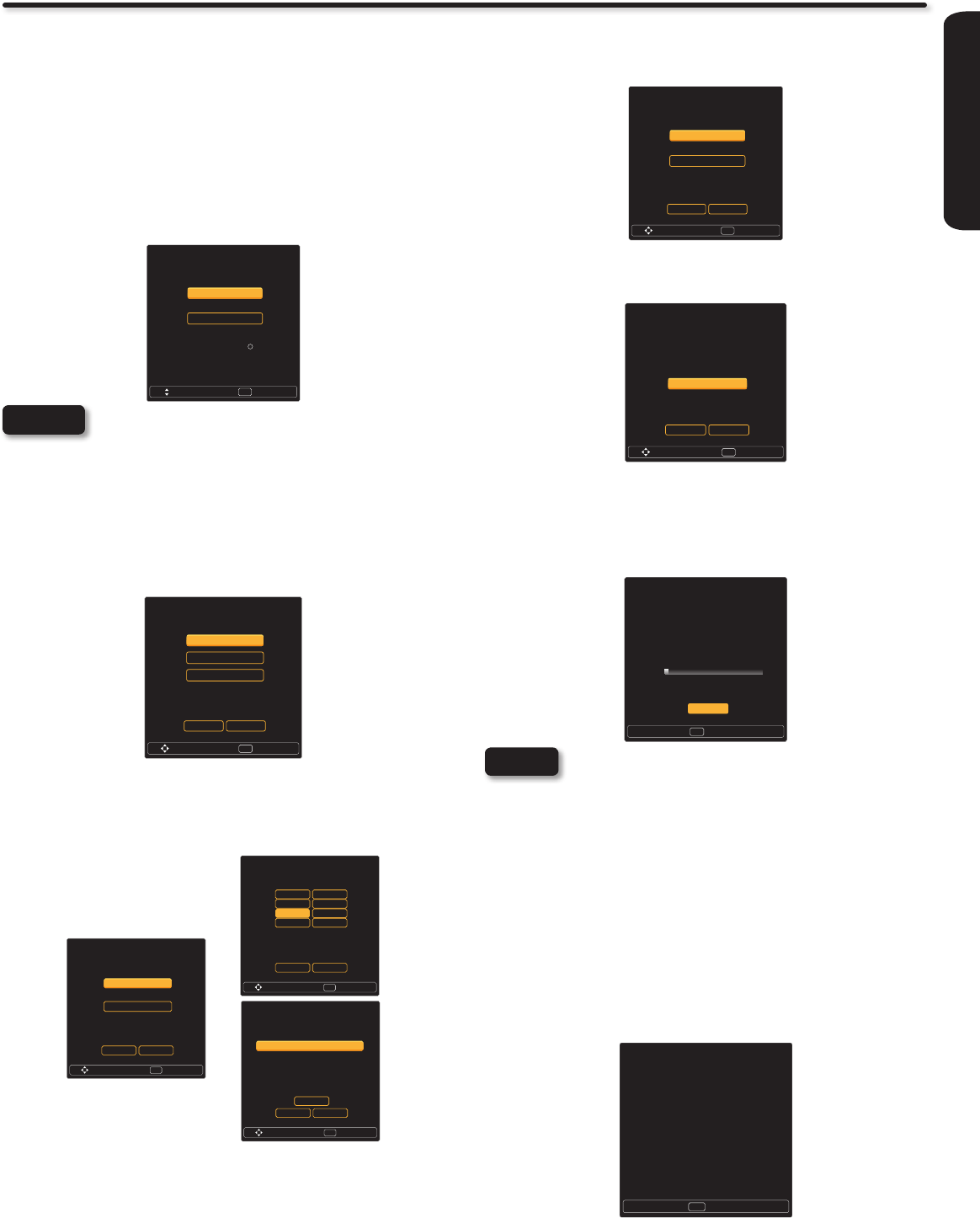

TV Setup Wizard

Setup Wizard (5/8)

Please select TV RF tuning band ...

Move SelectSEL

Air

Cable

Previous Cancel

The sixth step will start the scanning feature to nd the channels

available on the antenna or cable system. Press the SELECT

button on the remote control to start the channel scan.

Setup Wizard (6/8)

Please check that the RF cable is

connected properly.

Scan time may take over 20 minutes.

Move SelectSEL

Start

Previous Cancel

The seventh step is the channel scanning process, it shows the

scan of digital channels rst and then the analog channels next.

The scanning process will show how many channels have been

found. Please be patient while the scanning process searches

for the available channels in your area. If you wish to cancel the

process, press the SELECT button on the remote control.

Setup Wizard (7/8)

Searching, Please wait...

Searching Digital CH Channel 3

Digital Channels Found

Analog Channels Found

SelectSEL

Skip

• Once the user cancels the wizard, the wizard will

not be shown again.

• If you see the screen above and if you did not

connect your Antenna cables to your TV, turn off

your TV, unplug the power cord and connect your

cables according to the applicable connections in

the “First Time Use” section of this Owners Guide.

• After completing the TV Setup Wizard, these

screens will not appear again. For updating and

adding the channels available in your area refer to

the Add Channels to List feature on page 40.

The last step is the completion of process, it shows a brief message

and you are ready to view TV programing. This nal message will

be shown for a few seconds and then the rst detected channel will

be tuned in. You may also press EXIT on the remote control to tune

to the rst detected channel.

Setup Wizard (8/8)

Congratulations. TV Setup is done.

ExitEXIT

4. FOLLOW THE TV SETUP WIZARD INSTRUCTIONS

Your Hitachi LCD television has a TV Setup Wizard feature which has the ability to help you easily setup the rst time you turn on your TV

and nd the channels available in your area. Please follow the instructions below.

The rst time you turn on your Hitachi LCD TV, the Energy Savings

Initial Settings screen will appear. Please select either HOME or

RETAIL mode settings to advance to the TV Setup Wizard screen.

If you select HOME mode, this will save energy, and is intended

for home use. RETAIL mode will set the Picture to Dynamic default

Settings and the picture will be brighter. This setting is intended for

showroom and shop use. If later you want to change the Energy

Savings Initial Settings, you can use the Setup menu (refer to page

37).

Setup Wizard (1/8)

Please select Home/Retail ...

Home mode default settings are recommended

for in-home use. ENERGY STAR qualified.

Retail mode is intended for in-store display and

resets video settings at AC Power On.

Move SelectSEL

Home

Retail

NOTE Retail mode is intended for showroom or shop use.

If you make adjustment changes in this mode, they

will not be saved when TV’s AC power is lost (e.g.

AC power cord unplugged).

The TV Setup Wizard screen automatically starts after the Energy

Savings Initial Settings the rst time the TV is turned on.

The second step is to set the language of your TV On Screen

Menu. Select the language that you prefer. Use the p and q

CURSOR to select language and press the SELECT button on the

remote control.

Setup Wizard (2/8)

Please select language ...

Move SelectSEL

English

Español

Français

Previous Cancel

The third and fourth steps are to set the date and time. There are

two options; one for automatic time setting in which you will select

only the time zone in your area and the second option is a manual

setup for the date and time. Use the CURSOR pad to select and

change the options with the remote control.

Setup Wizard (4/8)

Please enter the date and time ...

Move SelectSEL

Year 2010

Month Jan

Date 1

Time 3:59 AM

Previous Cancel

Setup Wizard (3/8)

Please select Time mode ...

Move SelectSEL

Auto

manual

Previous Cancel

Setup Wizard (4/8)

Please select Time Zone ...

Move SelectSEL

Previous Cancel

NST MST

AST PST

EST AKST

CST HST

The fth step is designed to nd broadcasting or cable channels.

There are two options, Air for an external antenna and Cable for a

cable system provider in your home. Use the p and q CURSOR

to select a source and press the SELECT button on the remote

control.

NOTES

The SIDE panel VIDEO and S-VIDEO jacks are provided as a convenience to allow you to easily connect a Camcorder, DVD, Video

Game and a VCR as shown in the following examples. (When connecting an S-VIDEO device, also connect the audio output into the

Side Audio Input jacks).

• Completely insert connection cord plugs when connecting to side panel jacks. If you do not, the played back picture may

be abnormal.

• Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.

• When making video connections, connect S-Video only or Video only. If both are connected, S-Video takes priority.

NOTES

COMPOSITE VIDEO or

S-VIDEO OUTPUT CAPABILITY

R (Red)

L (White)

VIDEO (Yellow)

R (Red)

L (White)

VIDEO (Yellow)

OUTPUT

VIDEO L R

SIDE INPUT PANEL

3USB/

DVD player

VCR

Home video game system

Camcorder

L (White)

R (Red)

L (White)

R (Red)

OUTPUT

S-VIDEO L R

Side Panel Connections

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular

assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

There are two SIDE panel HDMI jacks provided as a convenience to allow you to easily connect HDMI or DVI signals from a DVD,

Set-Top-Box, Video Game as shown in the following examples (When a DVI product is connected, the use of a separate audio device is

necessary for audio, use an Audio Amplier and connect to the Audio In jacks).

A) Connecting HDMI signal

[HDMI] [HDMI]

SIDE INPUT PANEL HDMI DIGITAL

OUTPUT CAPABILITY

HDMI OUT

DVD player

Set-Top Box

Home video game system

B) Connecting DVI signal

3USB/

DIGITAL OUTPUT

OUTPUT

L R

DVI to HDMI Cable

[HDMI] [DVI]

R (Red)

L (White)

R (Red)

L (White)

DVI DIGITAL

OUTPUT CAPABILITY

SIDE INPUT PANEL

DVD player

Set-Top Box

Home video game system

USB/

Audio Amplier

AUDIO IN

L R

The exact arrangement you use to connect the VCR, Camcorder, DVD player, or HDTV Set-Top-Box to your LCD TV is dependent on the

model and features of each component. Check the owners guide of each component for the location of video and audio inputs and outputs.

FIRST TIME USE

Rear Panel Connections

Cables are not included.

NOTE

TIPS ON REAR PANEL CONNECTIONS

♦COMPONENT Y-PbPr (COMPONENT 1 & 2) or HDMI (1 & 2) connections are provided for high performance DVD players, VCRs etc.

that have this feature. Use these connections in place of the standard video connection if your device has this feature.

♦Refer to the owners guide of your other electronic equipment for additional information on connecting your hook-up cables.

♦Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

♦Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s Pb input and the

components R-Y output to the TV’s Pr input.

♦Your component outputs may be labeled Y-CbCr. In this case, connect the components Cb output to the TV’s Pb input and the components

Cr output to the TV’s Pr input.

♦It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PbPr inputs. (See page 31).

♦When using a HDMI input from a Set-Top-Box, it is recommended to use a 1080p, 1080i or 720p input signal.

♦When the HDMI input is a 1080p signal, it is recommended that the length of the cable should be less than 5 meters.

• Completely insert all connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back

will be abnormal if the connection is loose.

• Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.

NOTES

RGB

Outside antenna

Cable TV coaxial cable

2-Way

signal

splitter

HDMI

DVI

HDMI DIGITAL

OUTPUT CAPABILITY

DIGITAL

OUTPUT CAPABILITY

DVD PLAYER

VIDEO GAME

with Composite

video capability

HDTV SET-TOP BOX

DVD PLAYER

with Component

Output capability

HDMI OUTPUT

DIGITAL OUTPUT

AUDIO OUT

OUTPUT

S-Video Video L R

OPTICAL

VCR

V L R

ANT

STEREO SYSTEM

AMPLIFIER

OUTPUT

Y PB/CB PR/CR L R

Personal Computer

Before Operating External Video Sources

Connect an external source to one of the INPUT terminals, then press the INPUT button to show the Inputs List. Use the CURSORS ( and

) to select the Input of your choice. Then press the SELECT button to conrm your choice (see page 19).

Example: Selecting the

TV (Air/Cable) Input and

highlight “0.TV”.

+ +

Input List

0. TV

1. HDMI 1

2. HDMI 2

3. HDMI 3

4. HDMI 4

5. Component 1

6. Component 2

7. AV1

8. AV2

9. RGB

Move SelectSEL ExitEXIT

Rear Panel Connections

• Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played

back will be abnormal if the connection is loose.

• Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.

• To return to the last channel viewed, select “0.TV” from the INPUTS menu.

NOTES

CONNECTING A COMPONENT AND STEREO AUDIO

SOURCE TO COMPONENT 1 or 2: YPbPr

1. Connect the Y, Pb/Cb, Pr/Cr and AUDIO cables from the Y, Pb/

Cb, Pr/Cr OUT and AUDIO OUT jacks of the DVD PLAYER or

HDTV Set-Top-Box to the COMPONENT 1 or 2 YPbPr and

AUDIO jacks. A DVD connection to Rear Panel COMPONENT

2 example is shown on the right.

2. Press the INPUT button, then select COMPONENT 1 or 2

from the INPUTS menu to view the program from the DVD

player or HDTV Set-Top Box.

TV REAR PANEL

de Dolby

Output

L R Y PB PR

White

Red

Green

Blue

Red

DVD Player/ HDTV STB

DVD player

VCR

Home video game system

Camcorder

RGB

CONNECTING A VIDEO AND STEREO AUDIO SOURCE

TO AV1

1. Connect the VIDEO and AUDIO cables from the VIDEO OUT

and AUDIO OUT jacks of the VCR to the AV1 (VIDEO)jacks.

A VCR connection to Rear Panel AV1 example is shown on

the right.

2. Press the INPUT button, then select AV1 from the INPUTS

menu to view the program from the VCR.

OUTPUT

VIDEO L R

TV REAR PANEL

(Yellow)

(White)

(Red)

DVD player

VCR

Home video game system

Camcorder

VCR

CONNECTING A PERSONAL COMPUTER

Use the RGB PC connection terminal and the

Analog Audio Input terminals to connect the PC.

1. Connect the RGB (D-sub 15 Pin) and AUDIO

cable from the RGB and AUDIO OUT jack of

the PC to the RGB and AUDIO jack, as shown

on the Side Panel on the right.

2. Press the INPUT button, then select RGB from

the INPUTS menu to view the signal from the

PC.

RGB

(D-sub 15 Pin) or

(Audio)

OUT [PC sample]

FIRST TIME USE

NOTES

Rear Panel Connections

CONNECTING AN EQUIPMENT SOURCE WITH HDMI

OR DVI CAPABILITY TO HDMI 1 & HDMI 2

1. Connect the HDMI or DVI to HDMI connection cable from the

output of the HDTV set top box or DVD player to the HDMI

input as shown near the Rear panel at right.

2. With DVI output devices, connect a DVI to HDMI cabel to the

HDMI 1 input. Connect the audio out L and R cables to DVI

Audio Input or connect the audio cables from the Audio output

jack from the HDTV set top box or DVD player to an external

audio amplier as shown to the right.

3. Press the INPUT button, then select HDMI 1 or 2 to view the

program from the HDTV SET-TOP BOX or DVD player.

• Completely insert the connection cord plugs when

connecting to the rear panel jacks. The picture and

sound that is playing back will be abnormal if the

connection is loose.

• When using a DVI to HDMI cable, connect the Audio

Out L and R cables to an external audio amplier.

• The HDMI input on HDMI 1, 2, 3 and 4 contains

the copy protection system called High-bandwidth

Digital Content Protection (HDCP). HDCP is a

cryptographic system that encrypts video signals

when using HDMI connections to prevent illegal

copying of video contents.

• HDMI is not a “NETWORK” technology. It

establishes a one-way, point-to-point connection for

delivery of uncompressed video to a display.

• The connected digital output device controls the

HDMI interface, so proper set-up of device user

settings determines nal video appearance.

• Only HDMI 1 can support DVI audio input.

NOTES

HDMI OUT

[HDMI] [HDMI]

HDMI DIGITAL

OUTPUT CAPABILITY

TV REAR PANEL

HDMI Input

DVI to HDMI Input

DIGITAL OUTPUT

DVI DIGITAL

OUTPUT CAPABILITY

TV REAR PANEL

Audio Output

L R

CONNECTING AN EXTERNAL AUDIO AMPLIFIER

To monitor the audio level of the LCD TV to an external audio

amplier, connect the system as shown on the right. The DIGITAL

OUT and AUDIO OUT from the Rear Panel is a xed output. The

Volume of the amplier is controlled by the amplier, not by the

LCD Television.

The DIGITAL OUT terminal outputs all audio sources to equipment

with Optical IN capability.

1. Connect an optical cable from the DIGITAL OUT to the

OPTICAL IN of a separate Stereo System Amplier as shown

on the Rear Panel on the right.

2. Connect an RCA stereo cable from the AUDIO OUT to the

Audio input of a separate Stereo System Amplier as shown

on the Rear Panel on the right.

• Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played

back will be abnormal if the connection is loose.

• Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.

• To return to the last channel viewed, select “0.TV” from the INPUTS menu.

NOTES

TV REAR PANEL

OPTICAL

STEREO SYSTEM

AMPLIFIER

Optical cable

(Red)

(White)

DVD Player/ Recorder

DVD player

VCR

Home video game system

Camcorder

RGB

DVD player

VCR

Home video game system

Camcorder

RGB

[HDMI] [DVI]

AUDIO AMPLIFIER

AUDIO IN

L R

AUDIO IN

R L

RCA Stereo cable

Note : An external Audio amplier can be

used for the same purpose.

The Remote Control

POWER button

Press this button to turn the TV set on or off.

DEVICE buttons

In addition to controlling all the functions on your HITACHI LCD

TV, the new remote control is designed to operate different

types of VCRs, cable boxes, set-top-boxes, satellite receivers,

DVD players, and other audio/video equipment with one touch.

Basic operation keys are grouped together in one area.

To operate your LCD TV, select TV by pressing the TV button on

the remote control. The TV mode indicator will blink, indicating

that the remote will now control your television.

Repeat the same procedure for your DVD (press the DVD

button), for your PVR/VCR (Personal Video Recorder) press

the PVR/VCR button on the remote. For your cable box, set-

top-box or satellite receiver (press the SAT/CBL button), for

your Audio/Video System (press the AVR button). See pages

22~27 for instructions on how to program the remote to control

your device.

CHANNEL SELECTOR / ENTER buttons

The CHANNEL SELECTOR buttons are used to select channels,

lock access code, etc. Use the CHANNEL SELECTOR buttons

to enter one, two, or three numbers to select channels. Enter 0

rst for channels 1 to 9, or simply press the single digit channel

you wish to tune, then press the ENTER button for the TV to

tune. Channel selection may also be performed by CHANNEL

(CH) UP ( ) or CHANNEL (CH) DOWN ( ).

(-) DASH /Sleep Button

Use the (-) DASH button with the CHANNEL SELECTOR

buttons to enter Digital Channels that have subchannel

numbers indicated by (-) DASH (example 15-1). Also press to

Set the Sleep Timer from 5 minutes to 4 hours.

LAST CHANNEL button

Press this button to toggle between the current and

last channel viewed.

VOLUME (VOL), MUTE button

Press the VOLUME button (+ or -) until you obtain the desired

sound level.

Press the MUTE button to turn the sound off completely (MUTE).

To restore the sound, press the MUTE button one more time,

or VOL UP (+).

Mute

Volume 10

MUTE

REMOTE CONTROL

How to Use the Remote to Control your TV

Closed Captioning will display automatically when MUTE is on

and Closed Caption is set to With Mute (see page 37).

When the TV power is turned off at a volume level 21 or greater,

the volume level will default to 20 when the TV is turned on.

However, if it is set to a level 20 or less, the volume level will

be at the level it was set when the TV is turned off.

MENU button

The MENU button will start the On-Screen Display.

EXIT button

This button will exit all On-Screen Displays.

CURSOR PAD /SELECT button

All the On-Screen Display features can be set or adjusted

by using the CURSOR PAD and the SELECT button, except

for numeric entries. Press the CURSOR PAD toward desired

direction and press the SELECT button to select.

INFO button

Press this button when you want to check the channel being

received, the picture source, if the channel has stereo (ST) or

second audio program (SAP), the time, and CHANNEL ID.

• Press the INFO button again or the EXIT button to

return to normal viewing.

• The Aspect INFO will not be shown when the INFO

key is pressed.

NOTES

GUIDE button

Press this button to access the Channel Guide of your Satellte

receiver, Set Top Box or Cable Box while in SAT/CBL mode.

INPUT button

Press this button to access the INPUTS menu. Use the CURSOR

and SELECT buttons to scroll and select the inputs that are being

used. Pressing the INPUT button repeatedly will also cycle through

the Inputs menu items. Then press the SELECT button or wait 4

seconds to automatically select the highlighted input.

+ +

Input List

0. TV

1. HDMI 1

2. HDMI 2

3. HDMI 3

4. HDMI 4

5. Component 1

6. Component 2

7. AV1

8. AV2

9. RGB

Move SelectSEL ExitEXIT

0. TV Watch TV from an Air or Cable signal.

1. HDMI 1 Select to choose HDMI 1 Input.

2. HDMI 2 Select to choose HDMI 2 Input.

3. HDMI 3 Select to choose HDMI 3 Input.

4. HDMI 4 Select to choose HDMI 4 Input.

5. Component 1 Select to choose Component Input 1.

6. Component 2 Select to choose Component Input 2.

7. AV 1 Select to choose AV1 Input.

8. AV 2 Select to choose AV2 Input.

9. RGB Select to choose PC input

ANALOG CHANNELS

Analog Channel

Main Picture Source

& Channel Indication

Broadcast Channel

Indication

Broadcast Rating

Audio Broadcast

ATV

Program Information

39-0

NBC

3:17PM

Stereo+SAP

TV-G

Analog

Clock

No Program Title.

No Program Description.

INFO

DIGITAL CHANNELS

Picture Format

Main Picture Source

& Channel Indication

Broadcast Channel

Indication

Broadcast Rating

Audio Broadcast

DTV

Program Information

15-1

KPBS-HD

3:17PM

Multi

TV-G

1080i

Clock

Sesame Street

Program Description.

3:00PM- 3:30PM

Program

Run Time

INFO

VIDEO INPUTS

Picture Format

Main Picture Source

Program Information

HDMI

3:17PM

1080i

Clock

No Program Title.

No Program Description.

INFO

How to Use the Remote to Control your TV

Auto

Use this aspect mode to have the aspect mode change automatically

by signal detector.

4:3

Use this aspect mode to display conventional (4:3) images. Side

panels (black areas) are placed to the left and right of the image to

preserve the original aspect ratio of the source.

16:9

Use this aspect mode to display 16:9 sources like HDTV and DVD’s

preserving the original 16:9 aspect ratio showing 95% of the size.

Full

Use this aspect mode to display 16:9 sources like HDTV and

DVD’s preserving the original 16:9 aspect ratio showing 100% of

the size.

Zoom1/Zoom2

Use these aspect modes to zoom in and to reduce the black bars.

ASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input ratio, ASPECT allows you to adjust the

image through the following options.

• Each input has memory for the Aspect setting. Changing the aspect on one input will not affect the aspect settings on

other inputs.

• When displaying “Full” you may notice noise at the top of the picture. Select the “16:9” aspect mode to remove the noise.

The noise is normal for some signals.

• See page 55 for Aspect availability according to signal format in use.

NOTES


INPUT

Zoom2

Auto

Zoom1

16:9 4:3


INPUT


INPUT


INPUT

4:3

Zoom2 Zoom1

16:9

Auto Full

• AIR/CABLE - Analog Signal

• AIR/CABLE - Digital Signal

• Component

• AV

• HDMI - VGA

• DVI - VGA

• RGB

• HDMI - 1080p/1080i/720p/480p/480i

• DVI - 1080p/1080i/720p/480p/480i

Auto 4:3

Zoom2 Zoom1 Full

16:9

REMOTE CONTROL

ENERGY SAVE (E.SAVE) button

Use this button to choose power consumption reduction

settings based on 3 levels (Min, Medium, Max). See page 37

for further details.

CLOSED CAPTIONS (C.C.) button

Use this button to display the dialogue, narration, and/or

sound effects of a television program or home video which

are displayed on the TV screen when available. Your local TV

program guide denotes these programs as or .

FAV CH button

Press the FAV CH button to display the Favorite CH List. You

have to rst setup the Favorite Channels in the Channels Menu

in order display the list. Press the FAV CH key on the remote

control to display the list and select the desired channel using

the CURSOR PAD and then press SELECT to view.

FAV CH

Favorite CH List

0. Ch 5-0

1. Ch 7-0

2. Ch 9-0

3. Ch 11-0

Move SelectSEL ExitEXIT

DIGITAL CH

ANALOG CH

Picture mode (P.MODE) button

Press this button to toggle between Dynamic, Standard,

Movie, Custom, Game, Pro-Day and Pro-Night picture

mode settings. Select Dynamic for automatic brightness and

contrast adjustment. Select Standard for day time viewing

with more brightness and contrast to compete with room light.

Select Movie for viewing with less brightness and contrast

for a more detailed picture. Select Custom for viewing with

your own brightness and contrast picture settings. Game for

automatic brightness and contrast adjustment when playing

video games. PRO modes are for your custom calibration

settings. (see page 30 for setting changes).

Device Control buttons

These buttons can control external devices (i.e. PVR/VCR,

DVD, etc.) directly depending on the device mode set on the

remote control. Also, these buttons are for controlling devices

with Consumer Electronics Control (CEC) through the HDMI

connection like Blu-Ray or DVD players, DVR, STB while in

TV mode.

NOTE For some devices, these keys are not available

to control through the TV and HDMI connection;

please refer to the device’s owners guide for more

information.

How to Use the Remote to Control your TV

How to Use the Remote to Control your AV Equipment

NOTES • If your AV component cannot be operated after performing the above procedures, your AV component code has not been

preprogrammed into the remote.

• In the unlikely event that your AV component cannot be operated after performing the above procedures, please consult

your AV component owners guide.

• The remote control will remember the codes you have programmed even after the batteries are removed from the remote

control. To reset all programmed codes to factory default place remote control in TV mode, then press and hold TV mode

key and enter “9”, “8”, “1” in sequence.

OPERATING THE PRECODED FUNCTIONS FOR YOUR AV EQUIPMENT.

The new remote control is designed to operate different types of VCRs, cable boxes, set-top-boxes, satellite receivers, DVD players, and

other audio/video equipment. You must rst program the remote to match the remote system of your AV equipment (refer to pages 26~27

for a preprogrammed code number).

AV COMPONENT CONTROL SETUP PROCEDURE

1. Turn on your AV Component.

2. Select the desired mode: DVD, PVR/VCR, SAT/CBL or AVR

by pressing the corresponding button.

3. Hold down the device button (DVD, PVR/VCR, SAT/CBL or

AVR) on the remote and enter the four digit preset code that

matches your device as shown on pages 26~27.

4. Release the device button.

5. If done correctly, the device LED indicator will blink 3 times to

conrm proper setup.

6. The remote will now control the desired device.

SETUP EXAMPLE (Hitachi Cable Box with precode 0003)

1. Turn ON your Cable box.

2. Select Cable mode by using your SAT/CBL button to position

the LED indicator on SAT/CBL.

3. Hold down the SAT/CBL button on the remote and press the

numbers 0, 0, 0 and 3.

4. Release the SAT/CBL button.

5. The indicator light will ash 3 times if the code was accepted.

6. Aim the remote at the cable box and press the POWER

button. The remote will turn off your cable box when the

correct four digit preset code is entered. When this occurs, the

remote control is programmed for your cable box. If the cable

box does not turn off, try a different four digit preset code.

7. The remote will now control your Cable box.

Repeat the same procedure for your set-top-box or satellite

receiver (select SAT/CBL), your DVD (select DVD), your VCR/

PVR(select VCR/PVR), or your AVR (select AVR).

Power

button Device

buttons

Numeric

buttons

REMOTE CONTROL

How to Use the Remote to Control your AV Equipment

MY CABLE BOX CODE IS:_____________________

Refer to the instruction manual of the Cable Box

for operation of the buttons exclusively for the

Cable Box.

NOTE

PRECODED SET-TOP BOX/SATELLITE buttons

These buttons transmit the chosen precoded Set-Top-

Box/Satellite Receiver codes :

-Power -Cursor & Select -Number PAD

-Menu -Info -Enter

-Exit -Channel Up & Down -Dash (-)

-Guide -Last CH -Fav CH

- Play, Stop, Pause, RWD, FWD, Skip

FWD, Skip RWD, Record. -Color Buttons

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-P. Mode -CC -Input

-Aspect -Vol Up & Down -Mute

-E. Save

NOTE

PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded

cable codes :

-Power -Cursor & Select -Number PAD

-Menu -Info -Enter

-Exit -Channel Up & Down -Dash (-)

-Guide -Last CH -Fav CH

- Play, Stop, Pause, RWD, FWD, Skip

FWD, Skip RWD, Record. -Color Buttons

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-P. Mode -CC -Input

-Aspect -Vol Up & Down -Mute

-E. Save

MY SET-TOP-BOX/SATELLITE RECEIVER

CODE IS:_____________________

Refer to the instruction manual of the Set-Top-

Box/Satellite Receiver for operation of the buttons

exclusively for the Set-Top-Box/Satellite Receiver.

Cable Device

Button

Set-Top-Box/

Satellite Receiver

Device Button

How to Use the Remote to Control your AV Equipment

MY DVD PLAYER CODE IS:_____________________

Refer to the instruction manual of the DVD

Player for operation of the buttons exclusively

for the DVD Player.

NOTE

MY VCR/PVR CODE IS:______________________

Refer to the instruction manual of the PVR/VCR

for operation of the buttons exclusively for the

PVR/VCR.

PRECODED DVD buttons

These buttons transmit the chosen precoded DVD

codes :

-Power -Number PAD -Play, Stop, Pause,

RWD, FWD, Skip

FWD, Skip FWD

-Menu -Info

- Cursor &

Select

-Channel Up & Down

-Exit -Record

-Dash -Enter Guide

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-P. Mode -CC -Input

-Aspect -Vol Up & Down -Mute

-E. Save

PRECODED VCR/PVR buttons

These buttons transmit the chosen precoded VCR/PVR

codes :

-Power -Cursor & Select -Enter

-Menu -Channel Up & Down -Dash(-)

-Exit -Number PAD -Play, Pause,

Stop, FWD,

Skip FWD

-Info -Last CH

-Record -RWD, Skip RWD

-FAV CH (Only for VCR)

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-P. Mode -CC -Input

-Aspect -Vol Up & Down -Mute

-E.Save

NOTE

DVD

Device

Button

PVR/VCR

Device Button

REMOTE CONTROL

How to Use the Remote to Control your AV Equipment

AVR Device

Button

MY AUDIO/VIDEO RECEIVER (AVR)

CODE IS:______________________

Refer to the instruction manual of the AVR for

operation of the buttons exclusively for the

AVR.

PRECODED AVR buttons

These buttons transmit the chosen precoded AVR

codes :

-Power -Cursor & Select -Vol Up & Down

-Menu -Channel Up & Down -Mute

-Exit -Number PAD -Play, Pause, Stop,

RWD, Skip RWD,

FWD, Skip FWD,

-Input -Record

-Enter

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-P. Mode -CC -Aspect

-E.Save -Info

NOTE

Remote Control Codes

CABLE Brand CODES

A-MARK 0008,0144

ABC 0237,0003,0008

ACCUPHASE 0003

ACORN 0237

ACTION 0237

ACTIVE 0237

ADB 2092,2586

ARCHER 0237

BCC 0276

BRITISH

TELECOM

0003

CENTURY 0008

DIGEO 1187,2187

DIGI 0637

DIRECTOR 0476

DUMONT 0637

FOSGATE 0276

GE 0144

GENERAL

INSTRUMENT

0476,0810,0276

0003

GIBRALTER 0003

GOLDSTAR 0144

HITACHI 0003,0008

INSIGHT 0476,0810

JERROLD 0476,0810,0276

0003

MEMOREX 0000

MITSUBISHI 0003

MOTOROLA 1376,0476,0810

0276,1187,1254

1106

NOVA VISION 0008

NOVAPLEX 0008

NSC 0637

PACE 1877,0877,0237

0008

PANASONIC 0000,0008,0144

PANTHER 0637

PARAGON 0000,0008,0525

PENNEY 0000,0637

PHILIPS 1305,0317

PIONEER 1877,0877,0144

0533

PULSAR 0000

QUASAR 0000

REGAL 0276

RUNCO 0000

SAMSUNG 0003,0144

SASKTEL 1737

SCIENTIFIC

ATLANTA

1877,0877,0477

0237,0003,0000

0008

SONY 1006

SPRUCER 0144

STARCOM 0003

STORM 0637

SUPERCABLE 0276

TORX 0003

TOSHIBA 0000

UNITED CABLE 0276,0003

ELECTRONICS

0276,0003,0008

VIDEOWAY 0000

ZENITH 0000,0525

CABLE/PVR

COMBO

CODES

DIGEO 1187,2187

GENERAL

INSTRUMENTS

0810

JERROLD 0810

MOTOROLA 1376,0810,1187

1106

PACE 1877,0237

PIONEER 1877,0877

SASKTEL 1737

SCIENTIFIC

ATLANTA

1877,0877

SONY 1006

SUPERCABLE 0276

SATELLITE

BRAND

(Set Top Box)

CODES

BELL

EXPRESSVU

0775,1170

CHAPARRAL 0216

COOLSAT 1806,2147

CROSSDIGITAL 1109

DIRECTV 1377,0392,0566

0639,1639,1142

0247,0749,1749

0819,1856,1076

1108,0099,1109

1392,1414,1442

1443,1609,1640

DISH

NETWORK

SYSTEM

1505,1005,0775

1170,1775

DISHPRO 1505,1005,0775

1775

ECHOSTAR 1505,1005,0775

1170,1775

EXPRESSVU 0775,1775

FORTEC STAR 1821

FUNAI 1377

GE 0392,0566

GENERAL

INSTRUMENTS

0869

GOI 0775,1775

HITACHI 0749,0819,1250

HOUSTON 0775

HTS 0775,1775

HUGHES

NETWORK

SYSTEMS

1142,0749,1749

1442,1443

INNOVA 0099

JERROLD 0869

JVC 0775,1170,1775

LG 1414

MAGNAVOX 0722

MCINTOSH 0869

MITSUBISHI 0749

MOTOROLA 0869,0856

NETSAT 0099

NEXT LEVEL 0869

PANASONIC 0247,0701

PANSAT 1807

PHILIPS 1142,0749,1749

0775,0819,1076

0722,0099,1442

PIONEER 1142,1442

PRIMESTAR 0869

PROSCAN 0392,0566

RADIOSHACK 0566,0775,0869

RCA 0392,0566,1142

0775,0855,0143

1392,1442

SAMSUNG 1377,1142,1276

1108,1109,1442

1609

SKY 0856,0099

SONY 0639,1639,1640

STAR CHOICE 0869

STAR TRAK 0869

THOMSON 0392,0566

TIVO 1142,1442,1443

TOSHIBA 0749,1749,0790

ULTIMATE TV 1392,1640

ULTRASAT 1806

UNIDEN 0722

VOOM 0869

ZENITH 0856,1856,1810

SAT/PVR

COMBO

CODES

BELL

EXPRESSVU

0775,1170

DIRECT TV 1377,0392,0639

1142,1076,0099

1392,1442,1443

1640

DISH

NETWORK

SYSTEM

1505,0775

DISH PRO 1505,0775

ECHOSTAR 1505,0775,1170

EXPRESSVU 0775

HUGHES

NETWORK

SYSTEMS

1142,1442,1443

JVC 1170

MOTOROLA 0869

PHILIPS 1142,1442

PROSCAN 0392

RCA 1392

SAMSUNG 1442

SONY 0639,1640

STAR CHOICE 0869

TIVO 1142,1442,1443

ZENITH 1810

VCR Brand CODES

A-MARK 0037,0240,0000

0278,0046

ABS 1972

ACCURIAN 0000

ADMIRAL 0060,0048,0039

0047,0104,0209

0065,0479

ADVENTURA 0037,0240,0000

ADYSON 0072

AIKO 0278

AIWA 0037,0000,0124

AKAI 0041,0175

ALBA 0209,0072,0278

ALIENWARE 1972

ALLEGRO 0039

AMERICA ACTION 0278

AMERICAN HIGH 0035,0081

AMSTRAD 0000

ASHA 0240

ASTRA 0035,0081

AUDIOVOX 0000

AVIS 0000,0072

BEAUMARK 0240

BELL & HOWELL 0035,0048,0039

0000,0104,0046

0479

BROKSONIC 0184,0121,0209

0002,0479

CALIX 0037

CANDLE 0037,0038

CANON 0035

CAPEHART 0002

CARRERA 0240

CARVER 0035,0081

CCE 0072,0278

CINERAL 0278

CITIZEN 0035,0037,0240

0000,0209,0278

0479

CLASSIC 0037

COLORTYME 0060,0035,0045

0278

COLT 0000,0072

CRAIG 0037,0047,0240

0072

CRITERION 0000,0072

CROSLEY 0035,0081,0000

CROWN 0072,0278

CURTIS MATHES 0060,0035,0162

0240,0000,0041

0278,0432

CYBERNEX 0240

CYBERPOWER 1972

DAEWOO 0037,0045,0278

0046

DAYTRON 0037,0278

DELL 1972

DENON 0081,0042

DERWENT 0041

DIRECTV 0739

DUAL 0000

DURABRAND 0039,0038

DYNATECH 0240,0000

ELECTROHOME 0060,0037,0240

0000,0043,0209

ELECTROPHONIC 0037

EMERALD 0184,0121

EMEREX 0032

EMERSON 0037,0184,0240

0000,0121,0043

0209,0002,0278

0479,1593

FISHER 0039,0047,0000

0104,0046

FUJI 0035,0033

FUJITSU 0000

FUNAI 0037,0000,0072

0278,1593

GARRARD 0000

GATEWAY 1972

GE 0060,0035,0048

0240,0000,0065

GEMINI 0060

GENEXXA 0037,0000,0278

GO VIDEO 0240,0432,0526

0614

GOLDSTAR 0035,0037,0039

0000,0278,0038

GOODMANS 0037,0081,0000

0072,0278

GRADIENTE 0000

GRANADA 0081,0042

GRUNDIG 0081

HARLEY DAVISON 0000

HARMAN/

KARDON

0081,0038

HARVARD 0072

HARWOOD 0072

HEADQUARTER 0046

HEWLETT

PACKARD

1972

HI-Q 0035,0047,0000

HITACHI 0035,0037,0045

0000,0042,0041

0065,0105

HOWARD

COMPUTERS

1972

HP 1972

HUGHES

NETWORK

SYSTEMS

0042,0739

HUMAX 0739,1797,1988

HUSH 1972

HYTEK 0047,0000,0072

IBUYPOWER 1972

INSTANT

REPLAY

0035

ITT NOKIA 0240,0041

JANEIL 0240

JENSEN 0067,0041

JVC 0067,0041,1162

KEC 0037,0278

KENWOOD 0067,0041,0038

0046

KLH 0072

KODAK 0035,0037

KTV 0000

LG 0037,0240,0038

1037

LINKSYS 1972

LLOYD’S 0240,0000,0072

0038

LOEWE 0081

LOGIK 0240,0000,0072

LUMATRON 0278

LUXOR 0046

LXI 0037,0000,0042

0067

M ELECTRONIC 0240

MAGNASONIC 0037,0240,0000

0072,0278

MAGNAVOX 0035,0037,0048

0039,0081,0240

0000,0563,0618

1593

MAGNIN 0240

MARANTZ 0035,0081,0038

MARTA 0037

MATSUI 0037,0209

MATSUSHITA 0035,0162,0081

1162

MEDIA CENTER

1972

MEI 0035

MEMOREX 0035,0162,0037

0048,0039,0047

0240,0000,0104

0209,0072,0278

0046,0479,1037

1162

METZ 0037

MGA 0060,0240,0043

MGN

TECHNOLOGY

0240

MICROSOFT 1972

MIDLAND 0240

MIND 1972

MINOLTA 0042,0105

MITSUBISHI 0060,0048,0047

0000,0042,0067

0043,0041

MOTOROLA 0035,0048

MOVIE WALKER 0072

MTC 0240,0000,0072

MTX 0000

MULTITECH 0039,0000,0072

NAD 0240,0104

NEC 0104,0067,0041

0038

NEW TECH 0072

NIKKO 0037,0278

NIKKODO 0037,0278

NISHI 0240

NIVEUS MEDIA 1972

NOBLEX 0240

NORTHGATE 1972

OLYMPUS 0035,0162,0104

ONKYO 0222

OPTIMUS 1062,0035,0162

0037,0048,0047

0240,0000,0104

0432,1048,1162

ORION 0184,0240,0000

0104,0121,0209

0002,0278,0479

PANAMA 0035

PANASONIC 1062,0035,0162

0000,0225,0614

0616,1162

PENNEY 0035,0162,0037

0047,0081,0240

0000,0042,0067

0038

PENTAX 0042,0065,0105

PHILCO 0035,0081,0000

0209,0479

PHILIPS 0035,0162,0048

0081,0045,0000

0209,0616,0618

0739,1081,1181

PILOT 0037

PIONEER 0162,0081,0042

0067,1337

POLK AUDIO 0081

PORTLAND 0278

PRESIDIAN 1593

PROFITRONIC 0240

PROSCAN 0060

PROTEC 0000,0072

PROTECH 0072

PULSAR 0039,0240,0278

PULSER 0240

QUARTER 0046

QUARTZ 0035,0047,0046

QUASAR 0035,0162,0002

1162

RADIOSHACK 0035,0162,0037

0048,0047,0240

0000,0104,0046

1037,1162

RADIX 0037

RANDEX 0037

RCA 0060,0035,0048

0240,0045,0000

0042,0065,0105

0880

REALISTIC 0035,0162,0037

0048,0047,0240

0000,0104,0121

0278,0046,0065

1162

REPLAY TV 0614,0616

RICAVISION 1972

RUNCO 0039

SAMSUNG 0060,0240,0045

0000,0038,0432

0739

SAMTRON 0240

SANKY 0048,0039

SANSUI 0240,0000,0067

0209,0041,0072

0002,0479

SANYO 0047,0240,0000

0104,0046,0159

0479

SCOTT 0184,0045,0121

0043

SEARS 0060,0035,0162

0037,0048,0039

0047,0033,0045

0000,0042,0104

0067,0043,0209

0041,0072,0046

0065,0105

SHARP 0048,0047,0032

0000,0065,0848

SHINTOM 0039,0240,0000

0072

SHOGUN 0240

SIEMENS 0037,0104

SIGNATURE 0060,0035,0037

0048,0000,0046

0065,0479

SINGER 0037,0240,0072

SONIC BLUE 0614,0616

SONOGRAPHE 0046

SONY 0035,0047,0032

0033,0000,0067

0046,0636,1032

1972

SOUNDMASTER 0000

STACK 9 1972

STS 0042,0105

SV2000 0000,0072

SVA 0000

SYLVANIA 0035,0081,0000

0043,1593

SYMPHONIC 0240,0000,0002

1593

SYSTEMAX 1972

TAGAR SYSTEMS 1972

TANDY 0000,0104

TASHIKO 0037

TATUNG 0048,0081,0000

0067,0041

TEAC 0000,0067,0041

TECHNICS 0035,0162,0037

0000

TEKNIKA 0035,0037,0000

TELECORDER 0240

TELEFUNKEN 0041

TEVION 0479

THOMAS 0000,0002

THOMSON 0060,0041

TISONIC 0278

TIVO 0618,0636,0739

1337

TMK 0240,0000

TNIX 0037

TOCOM 0240

TOSHIBA 0240,0045,0000

0043,0209,0041

1008,1972,1988

TOSONIC 0278

TOTEVISION 0037,0240

TOUCH 1972

TRIX 0037

ULTRA 0045,0278

UNITECH 0240

VECTOR 0045

VECTOR

RESEARCH

0184,0038

VEXTRA 0072

VICTOR 0067,0041

VIDEO

CONCEPTS

0045

VIDEOMAGIC 0037

VIDEOSONIC 0240,0000,0072

VIEWSONIC 1972

VILLAIN 0000

VOODOO 1972

REMOTE CONTROL

Remote Control Codes

WARDS 0060,0035,0037

0048,0047,0081

0033,0240,0045

0000,0042,0043

0041,0072,0038

0479,0065,0046

WHITE

WESTINGHOUSE

0000,0209,0072

0278,0479

WORLD 0209,0002,0479

XR-100 0035,0240,0000

0072

YAMAHA 0041,0038

ZENITH 0037,0039,0033

0000,0209,0041

0278,0479,1139

ZT GROUP 1972

PVR Brand CODES

ABS 1972

ALIENWARE 1972

CYBERPOWER 1972

DELL 1972

DIRECTV 0739

GATEWAY 1972

GO VIDEO 0614

HEWLETT

PACKARD

1972

HOWARD

COMPUTERS

1972

HP 1972

HUGHES

NETWORK

SYSTEMS

0739

HUMAX 0739,1797,1988

HUSH 1972

IBUYPOWER 192

LINKSYS 1972

MEDIA CENTER

1972

MICROSOFT 1972

MIND 1972

NIVEUS MEDIA 1972

NORTHGATE 1972

PANASONIC 0614,0616

PHILIPS 0618,0739

PIONEER 1337

RCA 0880

REPLAY TV 0614,0616

SAMSUNG 0739

SONIC BLUE 0614,0616

SONY 0636,1972

STACK 9 1972

SYSTEMAX 1972

TAGAR

SYSTEMS

1972

TIVO 0618,0636,0739

1337

TOSHIBA 1008,1972,1988

TOUCH 1972

VIEWSONIC 1972

VOODOO 1972

ZT GROUP 1972

DBS/PVR

COMBO

CODES

DIRECTV 0739

HUGHES

NETWORK

SYSTEMS

0739

PHILIPS 0739

SAMSUNG 0739

TIVO 0739

DVD/PVR

COMBO

CODES

HUMAX 1797,1988

PIONEER 1337

RCA 0880

SYLVANIA 0000

TIVO 1337

TOSHIBA 1008,1988

DVD Brand CODES

3D LAB 0503,0539

ACCURIAN 0675,1416

ACOUSTIC

SOLUTIONS

0730

ADCOM 1094

AFREEY 0698

AIWA 0641

AKAI 0695,0705,0770

1089

ALBA 0672

ALCO 0790

ALLEGRO 0869

AMPHION

MEDIA WORKS

0872

AMW 0872

APEX DIGITAL 0533,0672,1020

1056,1061

ARRGO 1023

ASPIRE

DIGITAL

1168

AUDIOVOX 0790

AWA 0730

B & K 0655,0662

BBK 1224

BEL CANTO

DESIGN

1571

BLUE PARADE 0571

BLUE SKY 0695

BROKSONIC 0695

CALIFORNIA

AUDIO LABS

0490

CELESTIAL 1020

CENTREX 0672

CINEA 0831

CINEVISION 0876,0833,0869

CITIZEN 1003,0695,1277

1587,2116

CLAIRTONE 0571

COBY 0778,0852,1077

1086,1107,1165

1177,1351

CRAIG 0831

CREATIVE 0503,0539

CURTIS

MATHES

1087

CYBERHOME 0816,0874,1023

1024,1129,1502

1537

CYTRON 0705

DAEWOO 0784,0705,0770

0833,0869,1169

1172,1234,1242

DANSAI 0770

DAYTEK 0872

DECCA 0770

DENON 0490,0634

DENVER 0778

DIGITREX 0672

DISNEY 0675,1270

DI VIDO 0705

DUAL 0675

DURABRAND 1127

DVD2000 0521

EMERSON 1003,2116

ENTERPRISE 0591,0675

ENTIVO 0503,0539

ENZER 0770

FISHER 1919

FUNAI 0675

GATEWAY 1073,1077,1158

GE 0522,0815

GO VIDEO 0573,0744,0715

0741,0783,0833

0869,1044,1075

1099,1144,1158

1304,1730

GOLDSTAR 0741,0869

GOODMANS 0790

GPX 0769

GRADIENTE 0490

GRUNDIG 0539,0705

HARMAN/

KARDON

0582,0702

HELLO KITTY 0831

HITACHI 0573,0664,1919

HITEKER 0672

INSIGNIA 2095

INTEGRA 0571,0627

IRT 0783

JBL 0702

JMB 0695

JSI 1423

JVC 0558,0623,0867

1164

JWIN 1049,1051

KAWASAKI 0790

KENWOOD 0490,0534

KLH 0790,1020,1149

KLOSS 0533

KONKA 0711,0721

KOSS 0769,1061,1423

LASONIC 0627

LECSON 1533

LENOXX 1127

LG 0591,0741,0869

LITEON 1058,1158,1416

1440

LOEWE 0741

LOGIX 0783

MAGNASONIC 0675

MAGNAVOX 0503,0539,0646

0675,1354,1506

MALATA 1159

MARANTZ 0503,0539,0646

0675,1354,1506

MCINTOSH 1533,1273

MEMOREX 0695,0831,1270

2213

MICROSOFT 0522,2083

MINATO 0752

MITSUBISHI 1521,0521

MUSTEK 0730

MYRAD 0894

NAD 0741

NAIKO 0770

NEC 0785,0869

NEXXTECH 1402

NINTAUS 1051

NORCENT 1003,0872,1107

1265

ONKYO 0503,0627,1769

OPPO 0575,1224,1525

2185

OPTIMUS 0571

PALSONIC 0672,0852

PANASONIC 0503,0490,0571

0703,1641,1762

PHILCO 0675

PHILIPS 0503,0539,0646

0675,1267,1340

1354,2056,2084

PIANODISC 1024

PIONEER 0525,0571,0142

0631,1571

POLAROID 1020,1061,1086

POLK AUDIO 0539

PORTLAND 0770

PRESIDIAN 0675

PRIMA 2126,2127

PROCEED 0672

PROSCAN 0522

PROVISION 0778

RADIONETTE 0741

RADIOSHACK 0571

RCA 0522,0571,0790

0822,1769

REALISTIC 0571

REOC 0752

RIO 0869

RJTECH 1360

ROTEL 0623,1178

SAMPO 0698,0752

SAMSUNG 0490,0573,0744

0199,0820,1044

1075,2069

SANSUI 0695

SANYO 0675,0695,0873

1919

SCHNEIDER 0783

SCHWAIGER 0752

SENSORY SCIENCE 1158

SHARP 0630,0675,0752

1256

SHERWOOD 0633,0770,1043

1077

SHINSONIC 0533

SLIM ART 0784

SM ELECTRONIC 0730

SONIC BLUE 0573,0715,0783

0869,1099

SONY 0533,1533,0864

1033,1070,1431

1516,1536

SYLVANIA 0675

SYMPHONIC 0675

TAG MCLAREN 0894

TATUNG 0770

TEAC 0571,0790

TECHNICS 0490,0703

TECHNIKA 0770

TECHSONIC 0730

THETA DIGITAL 0571

THOMSON 0522

TIVO 1503

TOSHIBA 0503,0573,0539

0695,1154,1503

1608,1769

TREDEX 0800,0803

UNIMAX 0770

UNITED 0730

UNIVERSUM 0591

URBAN CONCEPTS 0503,0539

V1064,1226

VENTURER 0790

VIZIO 1064,1226

VOCOPRO 1360

XBOX 0522,2083

YAMAHA 0490,0539,0545

0497

YAMAKAWA 0872

ZENITH 0503,0591,0741

0869

ZEUS 0784

ZOECE 1265

BLU-RAY DISC CODES

LG 0741

PANASONIC 1641

PHILIPS 2084

PIONEER 0142

SAMSUNG 0199

SONY 1516

DVD/PVR

COMBO

CODES

GO VIDEO 1730

PANASONIC 0490

PHILIPS 1340

PIONEER 0631

RCA 0522

SHARP 1256

SONY 1033,1070,1536

SYLVANIA 0675

TOSHIBA 1503

HD-DVD CODES

LG 0741

MICROSOFT 2083

ONKYO 1769

RCA 1769

TOSHIBA 1769

XBOX 2083

AUDIO

RECEIVER Brand

CODES

AIWA 1405,0189,0121

1243,1388,1641

ALCO 1390

ANAM 1609

APEX DIGITAL 1774

ARCAM 1189

AUDIOTRONIC 1189

AUDIOVOX 1390

B & K 0820,0840

BOSE 0639,1253,1933

BRIX 1602

CAIRN 0189

CARVER 1189,0189,0121

CURTIS MATHES 0014

DELPHI 1414

DENON 1360,0121,1142

1306

ELECTROHOME 2026

GRUNDIG 0189

HARMAN/

KARDON

0189,0891,1304

1306

HITACHI 0228

INSIGNIA 1030,2169

INTEGRA 0842,1298,1320

1805

JBL 1306

JVC 1058,1374,1495

1811

KAWASAKI 1390

KENWOOD 1570,1569

KLH 1390,1428

KOSS 1497

LG 2197

LINN 0189

LIQUID VIDEO 1497

MAGNAVOX 1189,1269,0189

1266,1514

MARANTZ 1189,1269,0189

0891

MICROMEGA 1189,0189

MITSUBISHI 1393

MYRAD 1189

NAKAMICHI 0097,1555

ONKYO 0842,1298,1320

1805

OPTIMUS 1023,0014,0121

0670

ORITRON 1497

PANASONIC 1308,1518,1288

1316,1548,1633

1763,1764,2967

PHILIPS 1189,1269,0189

0891,1266

PIONEER 1023,0014,0630

1384,1935

POLK AUDIO 0189,1414

RADIO SHACK 1609

RCA 1023,1609,1390

REALISTIC 1609,0121

REVOX 0189

SAMSUNG 1304,1500,1868

SANGEAN 2165

SANSUI 1189,0189

SHERWOOD 1913

SIRIUS 1602,1811

SONY 1058,1441,1258

1759,1622,1406

1558,1658,1758

1858

SOUNDESIGN 0670

STEREOPHONICS 1023

TEAC 1390

TECHNICS 1308,1518,1633

THORENS 1189

TOSHIBA 0842,1788

VENTURER 1390

WARDS 0189,0014

XM 1406,1414

YAMAHA 1023,0176,1176

1276,1331,1815

2061

AUDIO

AMPLIFIER Brand

CODES

ADCOM 0577,1100

BOSE 0674

CARVER 0892

CARY AUDIO

DESIGN

1879

CLASSE 1461

FLEXTRONICS 1879

HALCRO 1934

HARMAN/

KARDON

0892

KRELL 1837

LEFT COAST 0892

LEXICON 1145,1802

MARANTZ 0892

MARK LEVINSON 1483

PARASOUND 1934

PHILIPS 0892

POLK AUDIO 0892

PRIMARE 1395

YAMAHA 0354

On-Screen Display

1. Press MENU on the remote control to display the different

features on your Hitachi LCD TV.

2. Use the CURSOR PAD (buttons, , , and ) and

highlight a different feature of the On-Screen Display

menu. Press the SELECT button to select.

3. Press EXIT on the remote control to quickly

exit from any menu.

The On Screen Display (OSD) for the different submenus shown in the following pages are for illustration purposes

only, there may be slight differences from the actual appearance of the OSD of your Hitachi LCD TV.

NOTE

Select between 7 pictures modes; Dynamic, Standard, Movie, Custom, Game, Pro Day and Pro Night.

Adjust picture contrast.

Adjust picture brightness.

Adjust color.

Adjust tint.

Adjust sharpness.

Set this to High for less intense color with more blue, set to Medium for natural color and set to Standard for warm

colors.

Reduces conspicuous noise in the picture.

Reduces block noise in the picture.

Changes the gamma ratio value to produce pictures of greater contrast.

Adjust to increase or decrease the brightness of backlight.

Select the 3:2 Pull down detection feature Auto/Off. For a lm like picture.

Adjust the movie motion to smooth or original.

Choose the picture format aspect ratio.

Choose to Reset Video Settings to factory settings.

Video

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Noise Reduction

MPEG NR

Gamma

Backlight

Auto Movie

Reel120 Motion

Aspect Ratio

Reset

This part of the screen shows which

selections are available.

This part of the screen shows

which Remote Control buttons

to use.

Video

Audio

Setup

Channels

Multimedia

Picture Mode Standard

Medium

53Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Move SelectSEL Return ExitEXIT

ON-SCREEN DISPLAY

Selects 4 audio presets (Custom,Standard, Movie, News).

Adjust the intensity of low frequencies.

Adjust the intensity of high frequencies.

Adjust the balance.

Select sound equalizing mode.

Select CONEQ 3D Sound settings (On, Off).

Select between three Audio Sources (Stereo, Mono, SAP).

Select Language options if available (Available for digital channel).

Select Language options if available.

Select Optical Output options.

Turn On/Off internal speakers.

Adjust volume to be closer in level between channels.

Resets all Audio settings the original condition

Audio

Sound Mode

Bass

Treble

Balance

CONEQ

CONEQ 3D Sound

Audio Source

Preferred Language

Audio Language

Digital Output

Internal Speakers

Perfect Volume

Reset

The Audio Language and Digital

Output of the Audio OSD are only

available for Digital channels.

NOTE

Choose English, French or Spanish OSD Language.

Set Clock Settings.

Set Sleep Timer intervals (5 minutes ~ 4 hours).

Set Day/Night picture mode to start at preset times.

Set the password for the Parental control access and Calibration menu access.

Ratings system to block various types of programs.

Feature to turn On/Off closed captions.

Feature to display DIGITAL dialogue/text.

Feature to change the appearance of the DIGITAL CAPTIONS.

Feature to display ANALOG dialogue/text.

Select Power Consumption Savings options.

Set the brightness or turn Off the Power LED.

Feature to change the OSD Menu transparency.

Set to ON, this feature will enable simplied operation of compatible HDMI CEC components.

Label Video Inputs, VCR, DVD, etc.

Adjust the Phase and applies Reset to any adjustments made.

Adjust Horizontal Position, Vertical Position, Clock, Phase and Reset.

Resets all Audio, Video and Setup settings to the original condition.

Selects the type of signal to be used Cable or Air.

Access Signal Strength meter.

Set Auto Channel Scan.

Adds Channels to the List (Scanned channels remain the same until New Channel Scan is performed).

Set Channel List.

Set Labels on the channels.

Set the Favorite Channels.

View digital still pictures from USB Drives.

Setup

Menu Language

Time

Sleep Timer

Day/Night Timer

Set Password

Parental Controls

Closed Captions

Digital Captions

Digital Captions Options

Analog Captions

Energy Options

Light Control

Transparency

HDMI-CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Channels

Source

Signal Strength

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Multimedia

JPEG Viewer

The Signal Strength feature of the

Channels OSD is only available for

Digital (DTV) channels.

NOTE

On-Screen Display

If there are any options grayed out, this is an

indicator that option is not available for that

specic function or mode.

NOTE

Changing any Video/Audio settings, other

than the Standard/Default settings, may not

meet ENERGY STAR 4.0 requirements.

NOTE

Select Video to adjust picture settings and improve picture quality.

You can independently customize each of the video inputs,

including Analog channels separately from Digital Channels (under

TV Mode). Adjustments will be applied to Custom settings.

Picture Mode

Use this function to choose from preset picture settings to optimize

your TV’s performance.

1. Use the CURSOR PAD to select Picture Mode settings

(Dynamic, Standard, Movie, Custom, Game or PRO modes).

2. Then press the button to return to the Video menu or press

EXIT to quit menu.

3. There are seven Picture Modes available: Dynamic,

Standard, Movie, Custom, Game, Pro-Day, and Pro-Night

Mode. Standard is the factory preset mode for your TV. The

only mode that can be directly changed by adjusting any Video

setting to your desired conditions is the Custom mode. The

other modes, with the exception of the Pro-Day and Pro-Night

(refer to Calibration Menu on page 30 for adjusting these

modes), are preset. Any changes made to these modes will

be applied to Custom mode.

NOTES • For the PC input, there are only two Picture modes

available: Standard and Custom. In this case, only

Custom can be changed to your desired conditions.

• Video Setting can be set to the user’s preference

in Game mode (Similar to Custom mode) with the

exception of the Auto Movie setting.

• If you change any of the adjustments in the Dynamic,

Standard and Movie modes, the name of the

Custom option will change. For example, changes

on Dynamic will rename the option as “Custom-

Dyn.”. This means that the original picture mode is

not affected by the changes; the only thing affected

is that Custom mode will take the video adjustments

of the mode where the change was made.

Pro Mode

This Hitachi LCD TV includes a picture quality mode called “PRO

Mode” designed to customize the picture settings and is protected

by a password in order to keep your settings as you want it. This

option will give a couple extra picture modes (Pro-Day and Pro-

Night) on your LCD TV for your viewing pleasure.

Please follow the next steps in order to adjust these special modes

on your LCD TV.

1. Using the remote control, press the MENU button and select

the Video menu by pressing the SELECT or ► button.

2. Use the CURSOR PAD ▼ to highlight the Picture Mode option,

then press and hold the P.MODE button for 3 seconds, the

Access Screen should appear.

3. The code to enter the Pro Mode feature is a four digit access

code. The factory preset code is 0000. Use the NUMBER

buttons on the remote control to enter the access code. After

entering the correct access code, the Calibration Menu (green

OSD) should appear and the picture mode changes to PRO

Mode.

The password used to access the Pro Mode feature

is the same password that is used to set and activate

parental controls. To change this password please

refer to the “Set the Password” Function on page 34.

Calibration

Input Mode

Please Enter Access Code

Access Code

Pro-Day

Contrast

Brightness

Color

Tint

Sharpness

Move SelectSEL Return ExitEXIT

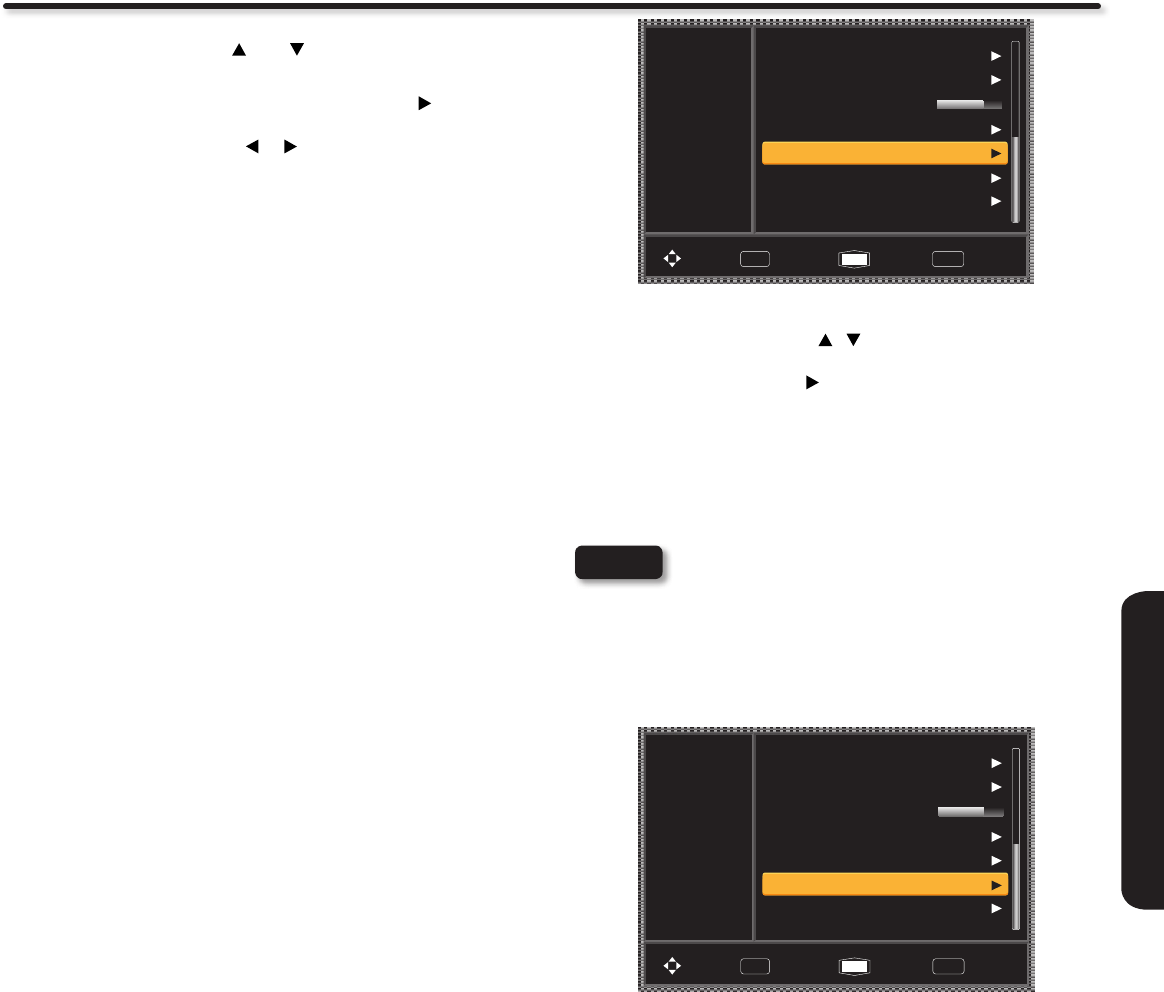

4. While in the Calibration menu, use the CURSOR PAD ▲, ▼ to

highlight the desired function to be adjusted.

5. Press the SELECT button or the CURSOR PAD ► to select

the function settings.

6. Press the CURSOR PAD ◄ or ► to adjust the function.

7. Press MENU to return to the Main menu or EXIT to quit the

Calibration menu.

Calibration Menu:

White Balance: Use this function to adjust the dark end (Cutoff)

and bright end (drive) of the White background.

For Input Mode, CABLE and AIR share the same

Video adjustment settings. Also, each of the video

inputs have their own independent video adjust-

ment settings.

Video

Audio

Setup

Channels

Multimedia

Picture Mode Standard

Medium

53Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

Picture Mode Standard

Medium

53Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

Picture Mode Standard

Medium

53Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

Picture Mode Standard

Medium

53Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Move SelectSEL Return ExitEXIT

NOTE

ON-SCREEN DISPLAY

Video

Audio

Setup

Channels

Multimedia

MPEG NR Off

Gamma 2

Auto

Mid

Auto

Gamma

Backlight

Auto Movie

Reel120 Motion

Aspect Ratio

Reset

Move SelectSEL Return ExitEXIT

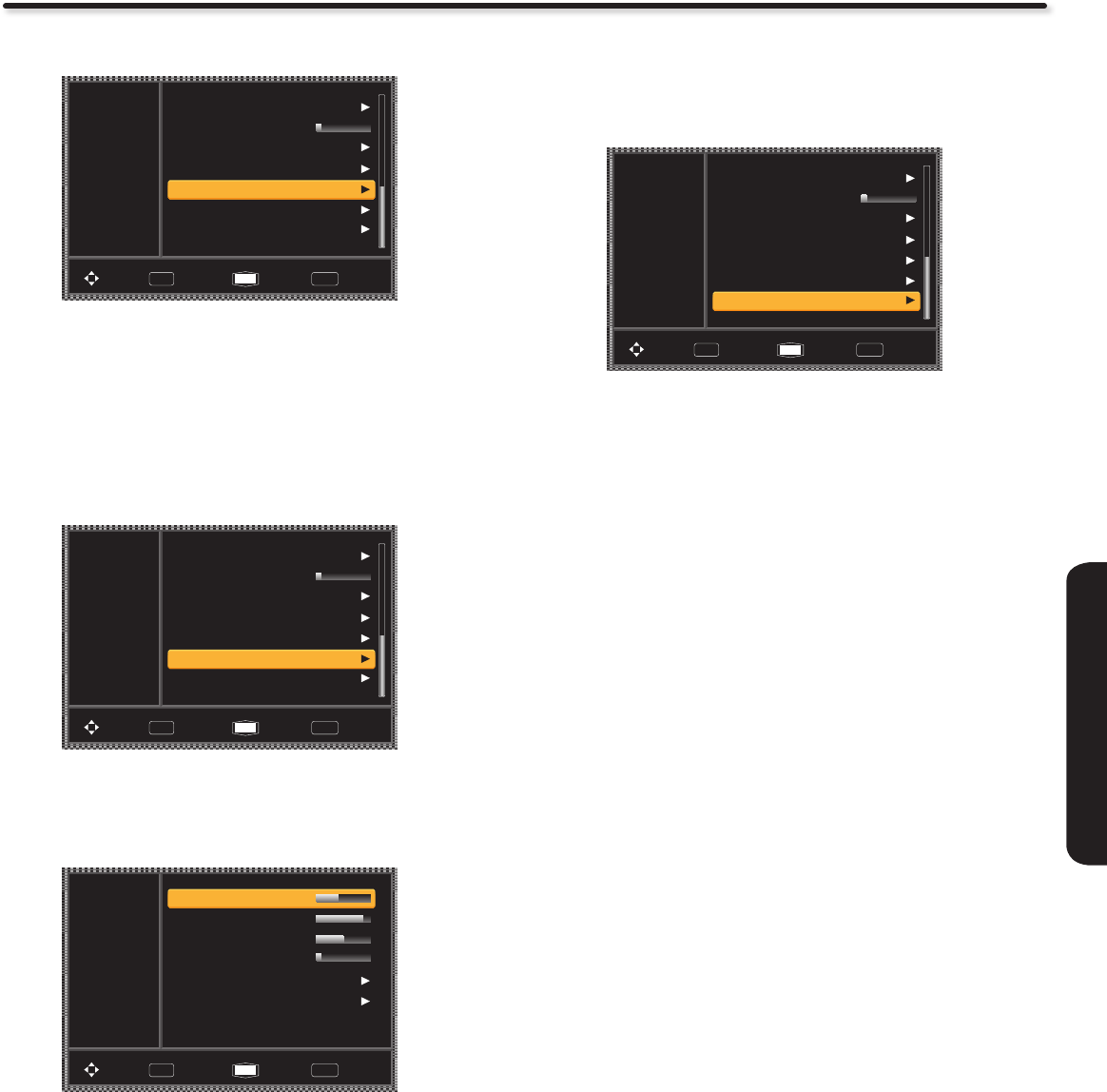

1. Use the CURSOR PAD , to highlight Reel120 Motion

function.

2. Press the CURSOR PAD to select Off, Low, Mid, or High.

High: Use this setting for the maximum smooth motion effect.

Mid: Use this setting for a moderate smooth motion effect.

Low: Use this setting for a mild smooth motion effect.

Off: Use this setting if there is noise with the High, Medium or

Low settings.

Please note that the effect may not be immediately

noticeable and the effect depends on the content of

the movie.

Aspect Ratio

Use this function to select the Picture Format Aspect Ratio.

Video

Audio

Setup

Channels

Multimedia

MPEG NR Off

Gamma 2

Auto

Mid

Auto

Gamma

Backlight

Auto Movie

Reel120 Motion

Aspect Ratio

Reset

Move SelectSEL Return ExitEXIT

Auto Aspect

Automatically adjust the Aspect Ratio depending on the

input signal.

Aspect Modes

Manually select the Aspect Ratio. There are different aspect ratios

available according to the signal in use. See page 55.

NOTE

Video

Other Video Menu Setting Adjustments

Use the CURSOR PAD or to highlight the function

to be adjusted.

1. Press the SELECT button or the CURSOR PAD to select the

function settings.

2. Press the CURSOR PAD or to adjust the function.

3. Press MENU to return to main menu.

4. Press EXIT to quit menu.

Contrast

Use this function to change the overall light output to match the

viewing area. Increase for brighter rooms.

Brightness

Use this function to change the overall brightness of the dark areas

of the picture.

Color

Use this function to adjust the level of color in the picture.

Tint

Use this function to adjust esh tones so they appear natural.

Sharpness

Use this function to adjust the amount of ne detail in the picture.

Color Temp.

Set this to High for cooler color with more blue, set to Medium for a

more natural color or set to Standard for accurate color.

Noise Reduction

The Noise Reduction function automatically reduces

conspicuous noise in the picture without degrading picture

quality. Set Noise Reduction to OFF if you see individual blocks

in the picture.

MPEG NR

The MPEG NR (Noise Reduction) function automatically reduces

block noise in the picture without degrading picture quality.

Gamma

The Gamma function allows you to set between three levels of

gamma ratio correction values (Gamma 1, Gamma 2, or Gamma

3) to produce pictures contrast.

Backlight

Adjust the brightness of the Backlight for maximum visibility. It

changes the intensity of the backlight. Increase for bright rooms

and decrease for darker rooms to make the dark areas of the

picture black.

Auto Movie

The Auto Movie function sets the 3:2 pull down detection feature to

Auto or Off. Theatrical movies are shot on lm at 24 frames or still

pictures per second, instead of 30 frames or 60 elds like video.

When lm is transferred to video for television viewing, the disparity

between the two frame rates must be reconciled. This involves a

process known as 3:2 pull down. When Auto Movie is set to Auto

your Hitachi LCD Television will activate the circuitry for this special

feature to improve video performance when watching interlaced

format lm based sources. Set to OFF to deactivate this feature.

Reel120 Motion

Hitachi’s advanced video processor can display movies at 120

frames per second. The following settings are available to smooth

the motion of movie sources. Please note that the effect may not

be immediately noticeable and the effect depends on the content

of the movie.

Reset

This function allows you to reset the Video Menu Settings of the

present input source and return it to the Standard video mode

Video

Audio

Setup

Channels

Multimedia

MPEG NR Off

Gamma 2

Auto

Mid

Auto

Gamma

Backlight

Auto Movie

Reel120 Motion

Aspect Ratio

Reset

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD , to highlight this function.

2. Press the SELECT button or CURSOR PAD to select

Yes or No.

3. Press the SELECT button on the Yes option to execute the

reset of the Video settings.

Depending upon the video program being viewed, you can

customize each video input to your preference to increase viewing

performance and pleasure.

If you run this Reset menu, only the present input source will reset

to its initial condition. For example, if the Reset menu has been

selected and done for HDMI 1 input source, only the HDMI 1

settings will return to its factory default.

Video

Aspect Ratio reference

Input Signal Display Screen Display Aspect

Recomended To display suitable screen as follows.

When Watching Standard Deﬁnition Pictures:

(4:3 Signal)

4:3

Displays 4:3 programs in there original aspect ratio with bars to

the left and right of the image.

Expands a 4:3 aspect ratio program to fill the widescreen 16:9 screen

(Vista)

Zoom1 Use this aspect mode to expand letterbox movies to fill the screen.

Note that some of the image may not be visible.

(Cinema)

Zoom2

Use this aspect mode to fill the screen with very widescreen

movies. Note that some of the image may not be viewable in

this mode.

When Watching High Deﬁnition Pictures:

(16:9 Signal)

16:9 Plays a 16:9 image faithfully showing 95% of the size.

Full

Use this mode when you want to see 100% of the signal.

Note that some signals have noise. In the case of noise use the 16:9

mode.

16:9

ON-SCREEN DISPLAY

Audio

Select Audio to adjust the sound to your preference.

Video

Audio

Setup

Channels

Multimedia

Sound Mode Standard

Table Top

Stereo

32Bass

Treble

Balance

CONEQ

CONEQ 3D Sound

Audio Source

Move SelectSEL Return ExitEXIT

Sound Mode

This function has four sound modes that are preset according

to the type of program. Standard is for normal audio conditions,

Movie audio settings is for movies, News audio settings is for

News programs, and Custom mode is for adjusting audio levels

to your preference. The only mode that can be directly changed

by adjusting any audio setting to your desired conditions is the

Custom mode. The other modes are preset and any changes

made to these modes will be applied to Custom mode.

Audio Menu Settings Adjustment

1. Press the CURSOR PAD or to select menu item.

2. Press the CURSOR PAD or to adjust the function.

3. Press EXIT to quit the MENU, or select AUDIO to return to the

main menu.

If Treble is selected you are adjusting treble.

The additional menu items Bass and Balance can be

selected and adjusted in the same manner.

Bass

This function controls the low frequency audio to the speakers.

Treble

This function controls the high frequency audio to the speakers.

Balance

This function will control the left to right balance of the LCD TV

internal speakers and headphone jack.

CONEQ

Delivers clear crisp sound and high delity music playback.

Use CURSOR to select the preferred setting.

Table Top: Use this setting for improved sound quality with

table top stands.

Wall Mount: Select this setting for improved sound quality

when wall mounting.

Hearing Aid: This special mode is for users that want to

maintain clear sound after removing their conventional hearing

aid. Note that this feature emphasizes higher frequencies.

CONEQ 3D Sound

Produces a natural, three-dimensional sound image through the

TV’s sound system.

Audio Source

Multi-Channel Television Sound will allow you to select STEREO (a

stereo broadcast), MONO (monaural sound) used when receiving

a weak stereo broadcast or SECOND AUDIO PROG (SAP) which

may be a secondary language, weather report, etc. This setting is

only for analog programing.

NOTE

Preferred Language

Some programs transmit in other languages. This language

function will allow you to set between 3 language options (English,

Español, and Français) to your preference as the audio default

language.

Audio Language

Some programs transmit more than one DTV language option. Most

will have English as a default language. The language function will

allow you to select up to 6 language options (if available). Please

try all available options.

Digital Output

This function allows you to select between RAW and PCM.

This setting changes the format of the Digital Optical Output.

PCM- Select this feature if the TV is connected to an amplier/receiver

with a PCM only decoder; it will provide two independent soundtrack

channels through the optical audio output jack (Digital Audio).

RAW- Select this feature to allow the original audio bit stream to

be passed through to the audio receiver.

Internal Speakers

This function is useful when using external speakers. Select ON if

using the internal speakers only. Select OFF if you prefer to use the

speakers from a separate stereo system.

Perfect Volume

This function will automatically adjust volume so each channel and

input has the same average volume level.

Reset

This function allows you to reset the Audio Menu Settings of the

present input source and return it to the Standard mode and default

settings.

Video

Audio

Setup

Channels

Multimedia

CONEQ 3D Sound On

PCM

Stereo

Off

Audio Source

Audio Language

Digital Output

Internal Speakers

Perfect Volume

Reset

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD , to highlight functions.

2. Press the SELECT button or the CURSOR PAD to select

Yes or No.

3. Press the SELECT button on the Yes option to execute the

reset of the Audio settings.

Depending upon the audio program being heard, you can

customize each audio input to your preference to increase audio

performance and pleasure.

If you run this Reset menu, only the present input source will reset

to its initial condition. For example, if the Reset menu has been

selected and done for HDMI 1 input source, only the HDMI 1

settings will return to its factory default.

Setup

Set Sleep Timer

Select this feature to set your Sleep Timer from 5 minutes to 4

hours.

1. Press the CURSOR PAD repeatedly to set your Timer from

Off, 5 min, 10 min, 15 min, 30 min, 60 min, 90 min, 120 min,

180 min and 240 min.

Day/Night Timer

Select this feature to activate and set your TV’s Day/Night/

Picture Mode Timers. There are three available Timers for your

convenience.

Video

Audio

Setup

Channels

Multimedia

Timer1 Off

12:00 PM

Off

12:00 AM

Off

6:00 PM

Timer1 Start Time

Timer2

Timer2 Start Time

Timer3

Timer3 Start Time

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD to highlight the Timer that you would

like to set (Timer1, Timer2, or Timer3).

2. Use the CURSOR PAD or Select button to select the Picture

Mode you would like to activate. (Dynamic, Standard, Movie,

Custom, Game, Pro-Day or Pro-Night).

3. Use the CURSOR PAD and select “Timer Start Time” and

press Select.

4. Use the CURSOR PAD or Numerical Keys to set the timer

start time.

5. Once the start time is set press Select.

6. Repeat steps 1-6 to set another Timer.

Set Password

1. To change the Password, select Set the Password option to

change the factory preset password (0000) to your preference.

If you forget your Password, use the factory password 7777

to erase your key number. This will reset the access code

number back to the factory preset (0000).

2. Enter a new four digit number.

3. Press EXIT to quit the menu.

When setting the password, please take note that

this password will also be common with the pass-

word used to access and set the Pro Mode/Calibra-

tion Menu features. For details about the Pro Mode/

Calibration Menu, please refer to page 30.

Select Setup when setting your TV up for the rst time.

Video

Audio

Setup

Channels

Multimedia

Menu Language English

Off

Time

Sleep Timer

Day / Night Timer

Set Password

Parental Controls

Closed Captions

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD ▲ or ▼ to select the Setup menu.

2. Use the CURSOR ► to enter the option of your choice and

make the changes that you need.

3. Press the MENU key to return.

Menu Language

Sets the Language of the Menu OSD. This feature will

allow you to select any one of three different languages

for the on-screen displays.

1. Use the CURSOR PAD ► to select the language of your

choice.

2. Press EXIT to quit the menu or MENU key to return to the

previous menu.

Time

Use this option to set the Clock, Date and Time Zone for your LCD TV.

Video

Audio

Setup

Channels

Multimedia

Time Mode Manual

EST

12:09 AM

Jan

2010

Time Zone

Daylight Savings

Year

Month

Date

Time

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD ▲, ▼ , ► , to highlight and setup the

TIME settings.

2. If you observe daylight savings, use the CURSOR PAD to

highlight Daylight Savings and press the ► button to activate

it. This can only be changed if the Time Mode is set to Auto.

3. Use the CURSOR PAD to highlight and adjust the CURRENT

TIME (hour and minute), AM or PM, MONTH, DAY, and YEAR.

4. Press the SELECT button to set the TIME.

5. Press EXIT to quit the menu or the Menu key to return to the

previous menu.

NOTE • When AUTO is set DAYLIGHT SAVINGS can be

set, the TV will automatically calculate the clock

adjustment for Daylight Saving. Set this setting

according to the current DST status.

• The TV counts electrical pulses for regulating

the TIMERS. When the power cord is unplugged

quickly, the clock is stopped momentarily and the

TIME indication will become slow.

• The Year, Month, Date, and Time setup can be

changed only if the Time Mode is set to Manual.

NOTE

ON-SCREEN DISPLAY

Setup

Motion Picture Ratings Table

NOT RATED Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not been rated or ratings do not apply.

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only

• If the movie does not carry a rating, the TV will not block it.

• Blocking NOT RATED programs may block emergency programming, sports, news, public service announcements, religious

programs and weather.

NOTES

TV Parental Guide Ratings Table

TV-Y All children. The themes and elements in this program are specically designed for a very young audience, including children

from ages 2-6.

TV-Y7 Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may

frighten children under the age of 7.

TV-G General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

TV-PG Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual

dialogue and situations.

TV-14 Parents strongly cautioned. This program may contain sophisticated themes, intense sexual situation, more intense violence

and intensely suggestive dialogue.

TV-MA Mature audiences only. This program may contain mature themes, indecent language, graphic violence, and explicit sexual

content.

FV: Fantasy/Cartoon Violence V: Violence S: Sexual Situation L: Adult Language D: Sexually Suggestive Dialogue

• If you Block TV-14D, you will still permit TV-MA programs; If you block TV-14V, you will automatically block TV-MAV

programs, but you will still permit TV-MALS programs. This means that the TV will block violence in TV-14 and higher (TV-

MA), but not language and sex.

• TV program ratings are dependent on the broadcaster. If the program is not rated, the TV will not block it.

NOTES

Parental Controls

This function will block out the picture and sound of the selected

rating levels.

The password to enter the Locks feature is a four digit number.

The factory preset password is 0000. Use the NUMBER buttons to

enter the password.

Video

Audio

Setup

Channels

Multimedia

Panel Lock Off

OffBlock Unrated TV

Canada

Region 5

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

Enter Old Password

Move SelectSEL Return ExitEXIT

Panel Lock

When Panel Lock is turned On, all buttons on the Side Panel,

except the Power button will be deactivated.

Block Unrated TV

When this feature is turned On, programs without ratings will be

blocked.

This option will block TV and Movie Ratings in the USA to

prevent viewing of any content that you feel may be inappropriate

(see below).

Canada

This option will block TV and Movie Ratings in Canada

to prevent viewing of any content that you feel may be

inappropriate due to its content (see page 36).

Current

Time

Setup

Canadian Ratings French Table

G General - Programming intended for audiences of all ages. Contains no violence, or the violence content is minimal or is

depicted appropriately with humor or caricature or in an unrealistic manner.

8 ans+ 8 + General - Not recommended for young children - Programming intended for a broad audience but contains light or

occasional violence that could disturb young children. Viewing with an adult is therefore recommended for young children

(under the age of 8) who cannot differentiate between real and imaginary portrayals.

13 ans+ Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more

sufciently violent scenes to affect them. Viewing with an adult is therefore strongly recommended for children under 13.

16 ans+ Programming is not suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

18 ans+ Programming restricted to adults - Contains constant violence or scenes of extreme violence.

Region 5 Alternate Ratings (Example Only)

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only.

Y Adults only.

• In order to set the Region 5 Ratings the ATSC Digital channel received must include Region 5 Ratings data. To see if the

channel has Region 5 Ratings, press the INFO key on the R/C.

• Once the TV has received Region 5 Ratings data, the Region 5 option in the Parental Controls menu will become available

and display the data.

NOTES

Region 5

Use Region 5 to block various types of movies and television

programs based on ratings systems used in the U.S. that you feel

may be inappropriate due to its content. The REGION 5 option will

operate for Digital Channels (ATSC) only.

Ratings Procedure

1. Use the CURSOR PAD t, u to select the RATING CATEGORY

(MPAA, TV Rating, etc.) that you want to block.

2. Press SELECT to block the RATING that you have selected.

3. Press EXIT to quit the menu.

Canadian Ratings English Table

C Programming intended for children under age 8 - Violence Guidelines; Careful attention is paid to themes, which could threaten

children’s sense of security and well-being. There will be no realistic scenes of violence. Depictions of aggressive behavior will be

infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other Content Guidelines: There

will be no offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over to watch on their own - Violence Guidelines: Violence

will not be portrayed as the preferred, acceptable, or only way to resolve conict; or encourage children to imitate dangerous acts

which they may see on television. Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the

consequences of the acts. Other Content Guidelines: There will be no profanity, nudity or sexual content.

G General Audience - Violence Guidelines: Will contain very little violence, either physical or verbal or emotional. Will be sensitive to

themes which could frighten a younger child, will not depict realistic scenes of violence which minimize or gloss over the effects

of violent acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.

PG Parental Guidance - Programming intended for a general audience but which may not be suitable for younger children. Parents

may consider some content inappropriate for unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of

conict and/or aggression will be limited and moderate; may include physical, fantasy, or supernatural violence. Other Content

Guidelines: May contain infrequent mild profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

14+ Programming contains themes or content which may not be suitable for viewers under the age of 14 - Parents are strongly

cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Violence Guidelines: May contain intense

scenes of violence. Could deal with mature themes and societal issues in a realistic fashion. Other Content Guidelines: May

contain scenes of nudity and/or sexual activity. There could be frequent use of profanity.

18+ Adult - Violence Guidelines: May contain violence integral to the development of the plot, character or theme, intended for adult

audiences. Other Content Guidelines: May contain graphic language and explicit portrayals of nudity and/or sex.

ON-SCREEN DISPLAY

Setup

Closed Captions

Closed Captions are the dialogue, narration, and/or sound effects

of a television program or home video which are displayed on the

TV screen. Your local TV program guide denotes these programs

as or .

Video

Audio

Setup

Channels

Multimedia

Menu Language English

Off

Time

Sleep Timer

Day / Night Timer

Set Password

Parental Controls

Closed Captions

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD ►, ▲ and ▼ to highlight and select

the function to change.

2. Press EXIT to quit menu or press menu to return to the Main

menu items.

Closed Captions:

ON/OFF will turn the display on or off.

With Mute will turn the display on when Mute is on.

Digital Captions

Set captions for digital programs and set available language.

Digital Captions Options

This function will help choose and set font, size, color and

background style of digital captions.

• The Digital Closed Captions feature only works

when using the “TV” input of this television.

• Caption Display will not work when viewing a

480i, 480p, 720p, 1080i or 1080p input via the

COMPONENT: Y-PbPr or HDMI inputs .

• Closed Captions and Digital Captions availability

and content depends on the broadcaster. Closed

Caption are available when the Closed Caption icon

is displayed on screen.

• Digital Captions language will not be available

(grayed out) when using analog channels.

Analog Captions:

Set CAPTIONS for Analog programs. This function will help

choose and set available mode and channel.

CC1,CC2, etc. : These are for the program you are viewing.

TEXT1, etc. : These are for additional information such as news

reports or a TV program guide. This information covers the entire

screen and viewing the TV program is not possible. Text may not

be available with every program.

Energy Options

Use this feature to save energy when watching your Hitachi LCD TV.

Video

Audio

Setup

Channels

Multimedia

Set Password

Off

Service1

CC1

Parental Controls

Closed Captions

Digital Captions

Digital Caption Options

Analog Captions

Energy Options

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

Picture Energy Saving

Off

Home

Min

Home/Retail

Auto TV Off

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight Energy Options.

2. Press the CURSOR PAD ► to select your choice.

Picture Energy Saving

This function allows you to choose power consumption reduction

based on 3 levels (Min, Medium, and Max).

Home/Retail

This function allows you to return to the Energy Savings Initial

Setting screen (see page 13).

The Retail mode is intended for showroom or shop-

use only, if you make any video or audio adjustment

changes in this mode, they will not be saved when the

TV is turned AC Off.

Auto TV Off

This function turns Off the TV when no remote control signal is

detected for 3 hours to save energy. Please choose On or Off to

set this feature.

Light Control

This feature allows you to turn Off/On the LED indicating

light in front of your LCD TV.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight Light Control.

2. Press the CURSOR ► or SELECT.

3. Press the CURSOR PAD ▲ or ▼ to highlight Power LED.

NOTES

NOTE

Setup

Power LED

Select this feature to turn Off or On the Power LED indicator on the

front panel on your TV.

Transparency

This function allows you to change the transparency of OSD based

on 10 levels (0 opaque ~ 10 transparent). Adjust to your own

preference.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight Transparency.

2. Press the CURSOR ► or SELECT.

3. Press the CURSOR ► to increase or  to decrease

the OSD transparency.

HDMI-CEC

Set to ON and this feature will enable the HDMI-CEC signal

bus to allow your Hitachi LCD TV to discover and communicate

automatically with other compatible HDMI-interfaced Audio/Video

equipment. The CEC signal bus makes global controls possible,

based on “plug & play” automation, to minimize the number of IR

remotes and key-presses required for basic operation of your AV

system. Select OFF to disable this option.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

Video

Audio

Setup

Channels

Multimedia

CEC Enable

Device Auto Off

TV Auto On

Move SelectSEL Return ExitEXIT

With the “HDMI-CEC” feature, you can interface the connected

equipment through the HDMI terminal automatically if the connected

equipment meets the“HDMI CEC (Consumer Electronics Control)”

industry standard. Please check if the connected equipment

supports HDMI CEC before using this feature. For example, here

are three common functions when HDMI CEC is set to ON.

Feature Description

One-Touch Play (TV

Auto On)

Pushing the “Play” button on the CEC enabled device will

command the device to play , turn the TV on, and the HDMI

input, that the device is connected to, will become the active

input source for the TV.

System Standby

(Device Auto Off)

When the user turns off the TV, all active CEC enabled

devices on the HDMI input will go to Standby.

Playback Control The user can operate the CEC enabled device’s deck control

functions (i.e. Play, Stop,Fast Forward and Rewind) by the

TV’s remote control’s transport keys (ie.

, , and

Not all devices with an HDMI connection have the

CEC feature. Consult the instruction manuals for the

device you are trying to control to conrm whether or

not CEC is available.

Input Labels

Use this feature to give a name to any of the nine video inputs

excluding the TV input.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight Inputs

Labels.

2. Press the CURSOR PAD ► to select your choices.

Video

Audio

Setup

Channels

Multimedia

Input HDMI 1

Name

Select

HDMI 1

Default

Save

Reset

Move SelectSEL Return ExitEXIT

Input Labels is Grayed out (Skip) or disabled until you

are on the INPUT that you like to change.

When the Custom option is selected a KEYBOARD

will appear on the screen to place your desired label.

NOTE

ON-SCREEN DISPLAY

Setup

Component Options

This function allows you to adjust the phase between your TV and

the Device with component output.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight Component

Options.

2. Press the CURSOR PAD ► to select your choice.

There are two options for the Component inputs:

Phase: Use this feature to ne-tune the display to perfectly

synchronize with the video signal source.

Reset: Return to the original condition for Component inputs.

RGB Options

This function is to adjust the RGB input to match your PC or laptop

output with your LCD Television.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD ▲ or ▼ to highlight RGB Options.

2. Press the CURSOR PAD ► to select your choices.

There are six options for the RGB input. H-Position, V-Position,

Clock, Phase , Auto Adjust and Reset.

Video

Audio

Setup

Channels

Multimedia

H-Position

-3

V-Position

Clock

Phase

Auto Adjust

Reset

Move SelectSEL Return ExitEXIT

H-Position

Adjusts the display position horizontally.

V-Position

Adjusts the display position vertically.

Clock

Minimizes vertical stripes on the screen.

Phase

Minimizes the blurring of letters and stripes on horizontal row.

Auto Adjust

Adjusts Horizontal Position, Vertical Position, Clock, and Phase

automatically.

Reset

Each item in RGB Options Menu will be restored to the factory

setting by selecting Yes.

Reset AV & Setup

This feature restores all Audio, Video and Setup conguration that

you have made on the TV and it will return to the factory settings.

Video

Audio

Setup

Channels

Multimedia

Light Control

1Transparency

HDMI - CEC

Input Labels

Component Options

RGB Options

Reset AV & Setup

Move SelectSEL Return ExitEXIT

Channels

Select Channels to set your signal source options, run New

Channel Scan, Check Signal Meter and Set Channel List (Add

channels to List, Channel/Labels and Favorite Channels).

Video

Audio

Setup

Channels

Multimedia

Source Air

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Move SelectSEL Return ExitEXIT

Signal Strength

Video

Audio

Setup

Channels

Multimedia

Source Air

Signal Strength

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Move SelectSEL Return ExitEXIT

1. Press CURSOR PAD or to highlight functions.

2. Press the SELECT button or CURSOR PAD enter the next

popped-up menu.

3. Press the CURSOR PAD ▲ or ▼ to select.

Source

Select the signal Source for the TV. When using an indoor or outdoor

antenna select Air. When using a cable system select Cable.

Signal Strength

Select Signal Strength when using an indoor or outdoor antenna.

This feature will show the signal strength of the Antenna signal to

help you adjust your antenna to optimize signal reception. Use the

MENU button or EXIT button to return.

The Signal Strength meter will not be available

(grayed out) when watching analog channels.

New Channel Scan

This feature will automatically store active Analog and Digital

channels to the Channel list. This scan will erase all channels

previously stored in the list.

Video

Audio

Setup

Channels

Multimedia

Source Air

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Move SelectSEL Return ExitEXIT

Signal Strength

1. Use the CURSOR buttons to highlight then press SELECT key

to start.

If you do not want to erase all scanned channels,

please use the Add Channels to List option instead.

NOTE

Add Channels to List

This function allows you to add channels to the channel memory.

Sometimes adjusting the antenna direction will allow reception of

additional channels.

Video

Audio

Setup

Channels

Multimedia

Searching, Please wait...

Channel 0

Searching Digital CH

Digital Channels Found

Analog Channels Found

Skip

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD to select the Add Channels to List.

2. Press the SELECT button to start scanning.

3. Press the EXIT button to return to normal viewing.

NOTE Only the Channels that have been added to the list

will be stored.

Channel List

This function allows you to review which channels have been

added to the Channel List.

Video

Audio

Setup

Channels

Multimedia

Channel List

Ch 5-0

Ch 7-0

Ch 9-0

Ch 11-0

Ch 43-0

Ch 47-0

View

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD to navigate the Channel List.

2. Press the SELECT or  button to select Skip or View.

3. Press the EXIT button to return to normal viewing.

NOTE The Channel List cannot be updated by only changing

the cable source. Auto Channel Scan must be

performed for the Channel List to be updated.

NOTE

ON-SCREEN DISPLAY

Channels/Multimedia

Channel Labels

Use this feature to give a name to any of the channels.

Video

Audio

Setup

Channels

Multimedia

Source Air

Signal Strength

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Move SelectSEL Return ExitEXIT

1. Press the CURSOR PAD  or ► to highlight the channels.

2. Press the CURSOR down q to change the channel label.

3. Press the SELECT key to show the Keyboard for editing

the channels.

Video

Audio

Setup

Channels

Multimedia

52-0

HDMI 1

Save

Reset

Move SelectSEL Return ExitEXIT

Favorite Channels

This function allows you to manage your Favorite Channels.

Video

Audio

Setup

Channels

Multimedia

Source Air

Signal Strength

New Channel Scan

Add Channels to List

Channel List

Channel Labels

Favorite Channels

Move SelectSEL Return ExitEXIT

1. Use the CURSOR PAD to navigate the Channel List.

Video

Audio

Setup

Channels

Multimedia

Favorite CH List

Ch 5-0

Ch 7-0

Ch 9-0

Ch 11-0

Ch 43-0

Ch 47-0

0/50

Move SelectSEL Return ExitEXIT

2. Press the SELECT or  button to check mark the channel and

make it a Favorite channel. Select all desired channels.

3. Press the EXIT button to return to normal viewing.

4. To view all the Favorite channels that you have choosen,

press the FAV CH key on the Remote Control.

Favorite CH List

0. Ch 5-0

1. Ch 7-0

2. Ch 9-0

3. Ch 11-0

Move SelectSEL ExitEXIT

Multimedia

This feature is useful for viewing digital still pictures from USB

Drives using the USB slot in the side panel of your Hitachi LCD

television.

Upon inserting a USB drive into the USB slot, you will be prompted

to view these photos with the JPEG viewer feature or you can ac-

cess them via the OSD Main Menu under Multimedia. Using the

remote control’s CURSOR PAD you can navigate through thumb-

nails and individually select pictures you would like to view. During

manual playback of selected photos, the CURSOR PAD can be uti-

lized to scroll through your pictures. Additionally, using the Menu

button on the remote control in the Browser View or Picture View

mode you can activate and set Slideshow options.

This option will remain grayed out until a USB drive

containing pictures (JPEG format) is inserted and

recognized by TV.

NOTE

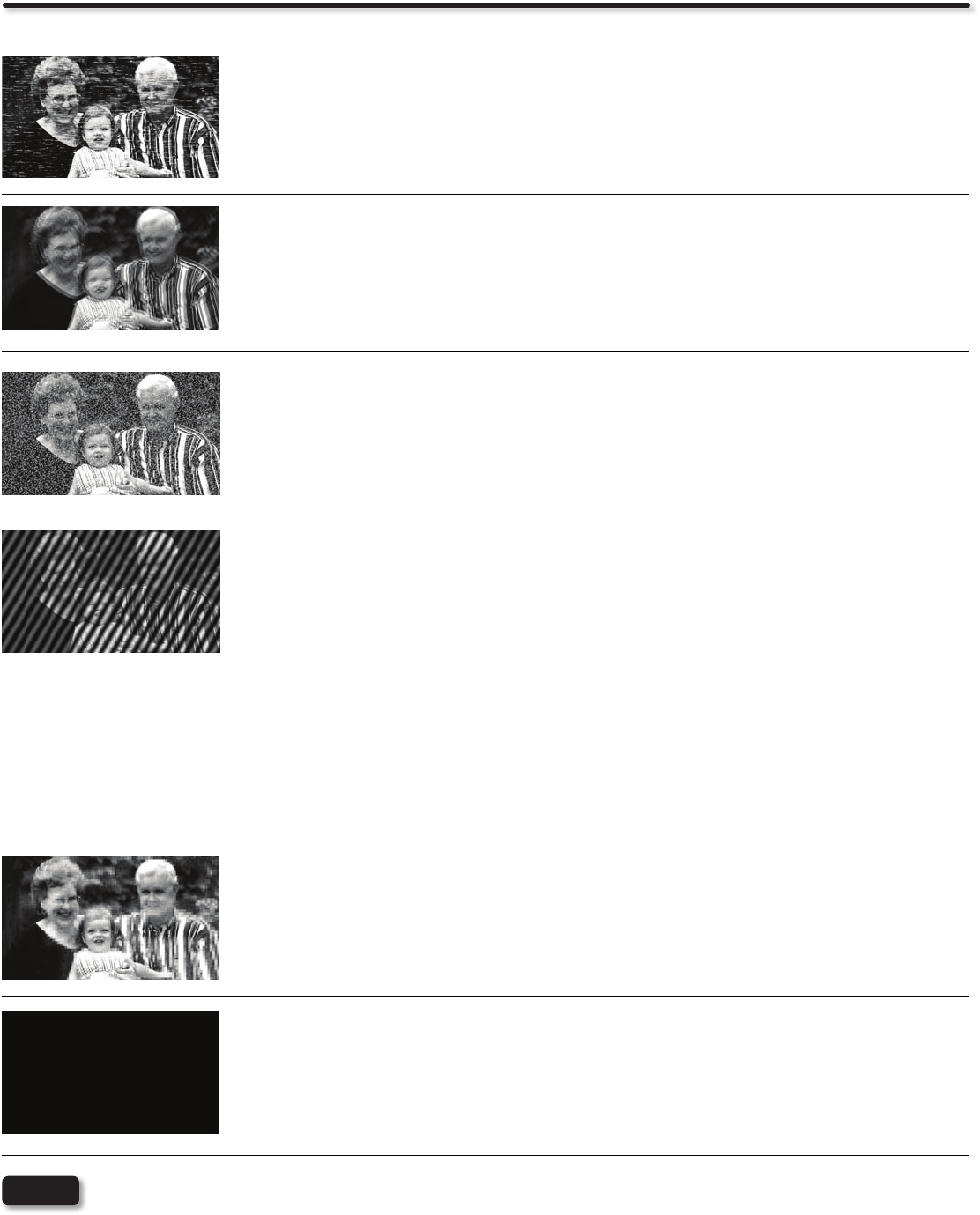

Equipment Care and Troubleshooting

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm water

and dry with a soft cloth. A mild soap may be used if the

screen is extremely dirty.

Place your LCD Television away from extreme heat, humidity

and extremely dusty places.

Remove the plug from the wall outlet if your LCD Television

will not be used for a long period of time, for instance, when

you go on vacation.

DO NOT

Do not clean your screen with strong cleaners, polishes or

a chemically treated cloth.

Do not place rubber or vinyl products or cellophane tape on

your LCD Television.

Avoid repeatedly touching the screen.

Do not subject the remote control to shocks such as

dropping it on the oor, etc. This may cause damage to the

precision parts.

Avoid placing the remote control in a high humidity place or

getting it wet. Do not leave it on or near a heater. Excessive

heat or moisture may cause the unit to fail.

When the batteries run down, remote control operation will

become erratic or become unresponsive. Replace the old

batteries with two new “AAA“ size batteries. Do not use an

old battery with a new battery.

Exposing the screen to direct sunlight for a long period of

time or heat may cause damage to the LCD screen.

Troubles are sometimes caused by simple ”faults” that you can correct without the help of a service technician. If you experience

any difculty with your TV, check a few basic remedies before calling your service technician.

TV will not turn ON

1. Press the POWER Button (ON/OFF button) once.

2. If there is still no power, wait 30 seconds and press the POWER button again.

3. If there is still no power, unplug the power cord from the wall. Wait 30 seconds and plug the power cord back in. Press

the POWER button again.

When the Following Messages Appear on the Screen

Message Condition / Action

No Signal The unit cannot detect any signals from any input terminals or the TV channel does not show picture.

• Check if the cable is connected correctly and rmly.

• Check if the power of any external equipment is ON.

• Check if the input selection matches the connection terminal.

• This message will be displayed for 15 minutes then the TV will turn Off.

If the problem cannot be solved with the suggested procedures, contact 800.HITACHI. For your safety, never try to repair

the product yourself.

USEFUL INFORMATION

Troubleshooting

Symptom and Checklist

SYMPTOM CHECKLIST PAGES

No picture - no sound • Check the Indicating lamp status (Off, Red, Blue).

• Check the connection of the power cord and/or other cables.

• Check if the power of the unit or external equipment is ON.

• Check if the correct Video input is selected.

• Check if the unit is in “Standby mode” .

• Adjust the values in “Video menu” and “Audio menu”.

9, 12,

14~17

30~33

Multiple images-normal sound • Check the connections to external equipment. 14~17

Intermittent interference • Check if the source of interference is shielded correctly.

• Move these kinds of electrical devices away from the unit.

Normal picture, but no sound • Check the volume level.

• Check if the MUTE button has been pressed or not.

• Check the connections to external equipment.

• Try next/other Audio Language.

14~18

No picture - normal sound • Check the value level of “Brightness” and “Contrast” in “Video Menu”. 31

The remote control does not work. • Check if the batteries are installed correctly.

• The batteries might be exhausted. Replace them with new ones.

• Remove all obstructions from in front of the sensor window on the unit.

• Check if the buttons on the control panel are working.

6, 9

The buttons on both the remote control and

control panel do not work.

• Unplug and connect the power cord again. 7, 42

Normal picture but no color-normal sound • Check the connections to external equipment. 14~17

No picture

The Indicating lamp → Off

• Check if the power cord is plugged into the socket securely. 7, 9

No picture

The indicating lamp → Blue

• Check if the signal cable is connected correctly and securely.

• Adjust the level of Brightness and Contrast lower.

12, 14~17,

Some screen display aspects cannot be

switched in.

• Check the signal status by pressing the INFO button on the remote control. The available

screen display aspect is different depending on the current signal status.

11, 20

No power • Check the power cord is connected to the AC oulet. 9, 12

Turns Off by itself • Check or ensure Sleep Timer settings are not activated. 11, 18, 34

Turns On by itself • Check if the HDMI-CEC feature is activated. 38

Picture may “block” or freeze when watching a

digital channel.

• Check signal strength under ”Signal Strength”. 40

HDMI Issues

SYMPTOM CHECKLIST PAGES

No picture - no sound • Make sure you have selected the correct HDMI input. Toggle through them while HDMI device

is ON or during playback.

• Unplug and re-plug HDMI connection while TV and HDMI source device are powered on.

• Turn TV and HDMI device off. Turn TV on rst and then HDMI device second.

14, 15, 17,

Error notice comes to screen • Try pressing “exit” on HDMI device remote control and then on TV remote to nd source of

the error OSD. If error persist or comes back even after pressing exit, try alternate HDMI

input on TV.

• Unplug and re-plug HDMI connection while TV and HDMI source device are powered on.

• Turn TV and HDMI device off. Turn TV on rst and then HDMI device second.

9, 11

14, 17

Normal picture, but no sound • Check HDMI Audio settings under the HDMI device menu (of the HDMI source device). In

order to get sound on TV, HDMI output must be set to PCM option.

No sound from TV Optical Out when using

HDMI devices

• Change Digital Output selection.

• As an option, use audio optical output from HDMI source device directly to separate Audio

Amplier.

Picture ickers during channel change w/

using HDMI Set Top Boxes

• This is normal operation from the source switching delay itself. It’s not an indicator of a TV

malfunction.

Picture is blurry or fuzzy • If HDMI source is HD capable, ensure it’s output is set to 1080i or 720p under HDMI device

menu (of the HDMI source device).

Pixelization noise or loss connection (“No

Signal” message display)

• Check HDMI input picture format, if use 1080p format conrm cable length it is recommended

that the length of the cable should be less than 5 meters, or change HDMI input picture format

to 1080i.

Reception Problems

IGNITION NOISE:

Black spots or horizontal streaks may appear, picture may utter or drift. Usually caused

by interference from automobile ignition systems, neon lamps, electrical drills, and other

electrical appliances.

GHOSTS:

Ghosts are caused by the television signal following two paths. One is the direct path and

the other is reected from tall buildings, hills or some other objects. Changing the direction

or position of the antenna may improve reception. Ghosting may also be caused by defects

in the antenna system such as unshielded leads or connecting several sets to the same

antenna without using multiple antenna couplers.

SNOW:

If your receiver is located in the fringe area of a television station where the signal is weak,

your picture may be marred by the appearance of small dots. When the signal is extremely

weak, it may be necessary to install a special antenna to improve the picture.

RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some cases, causes

loss of contrast in the picture.

PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS

This television has been designed pursuant to the FCC class B Rules. This is to prevent a

problem to Radio receivers. If this television causes a problem to Radio receivers, then take

the following steps:

• Keep the television away from Radio.

• Adjust Radio antennas in order for the television not to receive interference.

• The antenna cable of Radio should be kept away from the television.

• Use a coaxial cable for antenna.

You can check if this television inuences Radio receivers by turning off all other equipment

other than the television. If you nd a problem receiving Radio when using the television,

check the instructions mentioned above.

BLOCK NOISE or FREEZE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is usually

caused by interference from automobile ignition systems, neon lamps, electrical drills, ghost-

ing of the image and lost or weak receiving signals.

BLACK SCREEN:

When using an antenna, weak signals will display a black screen. It may be necessary to

upgrade your antenna.

NOTE The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment

from the TV set to a considerable distance.

USEFUL INFORMATION

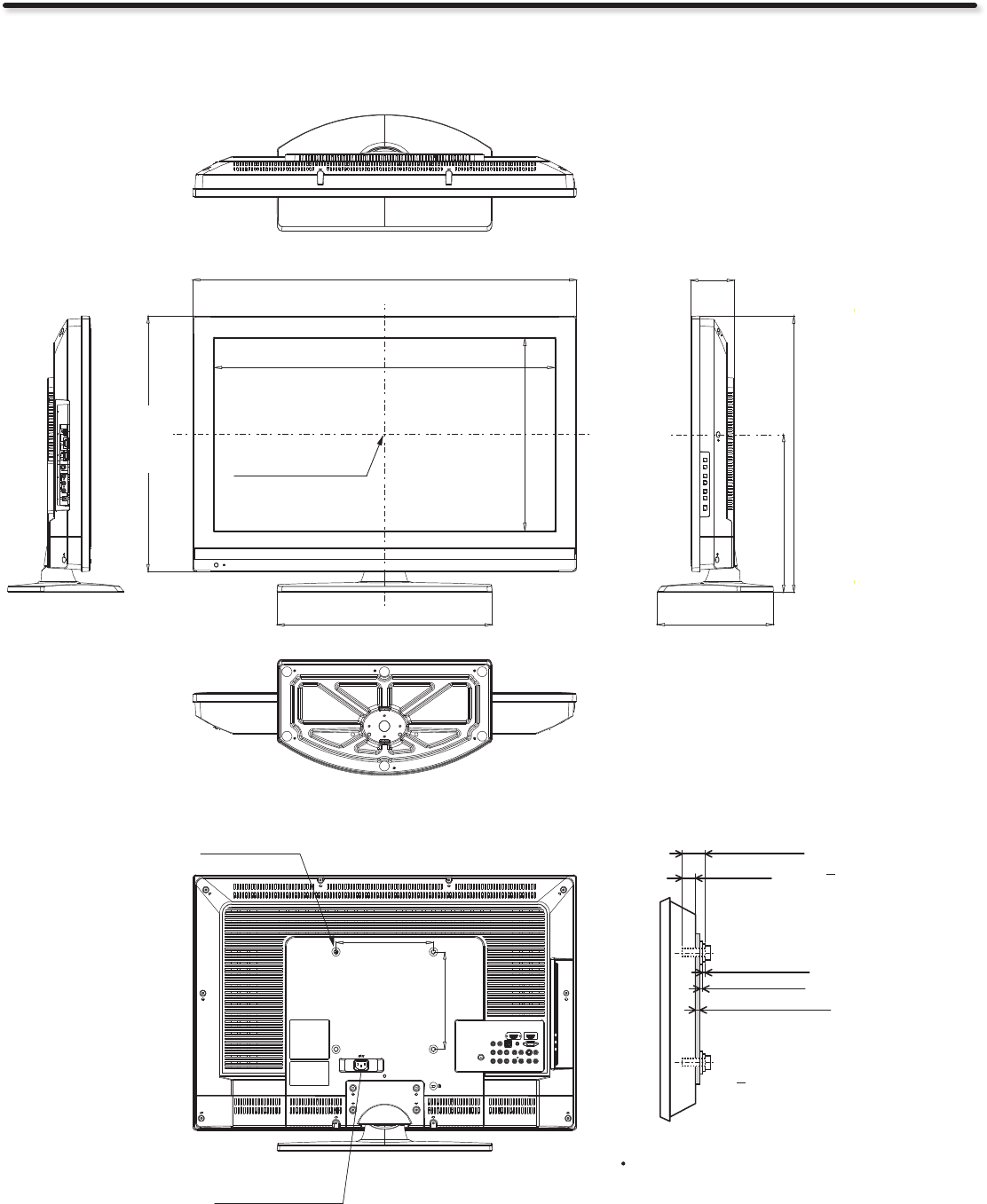

Features and Specications

Supplied Accessories:

• Remote Control

• Batteries (AAA)

• Power Cord

• Owners Guide

• Easy Graphic Guide

• Stand Base

• Stand Screws

Inputs/Outputs:

• Wideband Component Y, Pb,Pr. . . . . . . . . . . . . . . . . . . . . . . 2

• Composite Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

• S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

• Antenna (RF)Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

• Audio Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

• Optical Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

• HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

• USB Multimedia / Upgrade Slot . . . . . . . . . . . . . . . . . . . . . .1

• RGB Input .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

• RGB Audio Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

• Phono Jack for Headphone . . . . . . . . . . . . . . . . . . . . . . . . .1

Specications:

• FCC class . . . . . . . . . . . . . . . . . . . . . . . . . B for Consumer Use

• Power Requirements . . . . . . . . . . . . . . . . . . 108-132VAC, 60Hz

1 Screen mode availability varies by input format

HDTV Televisions display HDTV only when an HDTV source is available

All specications, weights, and dimensions are subject to change without prior notice.

Please access www.hitachi.us/tv for detailed specications and dimensions for

custom installations.

Features:

• New High Gloss Black Frame

• (4) HDMI® (V.1.3 with CEC)

- 1080p60, 1080p24 Input Compatible

• New Multi-Function Remote Control

• 120Hz 1080p Perfected

• Reel 120 Motion Correction

• Dynamic/Standard/Movie/Custom/Game/Pro-Day/Pro-Night

Picture Memories

• 3 Preset Color Temperatures

• Game Mode

• Calibration Menu

Video:

• 1920 x 1080p Display Resolution

• Wide Viewing Angle

• Color Temperature Presets: High, Medium, and Standard

• Multiple Screen Fill Modes: (Auto/4:3/16:9/Zoom1/Zoom2/

Full)1

• 4MB 10-bit 3D Y/C Comb Filter

• Picture Modes: Dynamic/Standard/Movie/Custom/Game/Pro-

Day/Pro-Night

Audio:

• CONEQTM Sound Quality

• MTS Stereo/SAP

• 4 Sound Modes (Custom, Standard, Movie, News)

• Rated Output Power: 10W+10W (L32S504)

12W+12W (L42S504)

Inputs:

• Power Input . . . . . . . . . . . . . . . . . . . . . . . . . . AC 120V, 60Hz

• Power Consumption

Maximum Power L32S504 . . . . .. . .. . . . . . . . . 150 W, 1.25 A

Maximum Power L42S504 . . . . . . . . . .. . . . . .. 220 W, 1.83 A

• Antenna Input Impedance . . . . . . . . . . . . . . . . . . . . .75 Ohm

• Channel Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191ch.

VHF-Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2~13

UHF-Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14~69

CATV Mid Band. . . . . . . . . . . . . . . . . . . . . . . . . . . A5~A1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AI

Super Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J-W

Hyper Band . . . . . . . . . . . . . . . . . . . . . . . . . W+1 - W+28

Ultra Band . . . . . . . . . . . . . . . . . . . . . . . . . W+29 - W+94

• Television System . . . . . . . . . . . . . . . . . . . . NTSC Standard

. . . . . . . . . . . . . ATSC Standard (8 VSB, 64-QAM, 256-QAM)

• Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0Vp-p, 75 Ohm

• S-Video

Luminance(Y) . . . . . . . . . . . . . . . . . . . . . . . . 1.0Vp-p, 75 Ohm

Chrominance(C) . . . . . . . . . . . . . . . . . . . . . 0.286Vp-p, 75 Ohm

• Component Video

Luminance(Y) . . . . . . . . . . . . . . . . . . . . . . . . 1.0Vp-p, 75 Ohm

Chrominance(Pb/Pr) . . . . . . . . . . . . . . . . . . . 0.7Vp-p, 75 Ohm

• Audio Input Impedance . . . . . . . . . . . . . . . . . . . . ..>10k Ohm

• Audio Input Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . 300mVrms

• HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (19 PIN)

Manufactured under license from Real Sound Lab, SIA.

CONEQ is a trademark of Real Sound Lab, SIA.

CONEQ™ delivers clear, rich sound using proprietary

professional equalizing technology. Dialog is clear and music

sounds more dynamic when the speakers are perfectly

optimized.

CONEQ HA Mode™ (Hearing Aid) technology produces

natural sound for the hearing impaired. The listener can enjoy

details in music and clear dialog often without the help of a

hearing aid.

CONEQ™ 3D Sound produces a natural three-dimensional

sound experience. CONEQ 3D Sound compliments any

program by providing musically accurate sound.

HDMI, the HDMI logo and High-Denition Multimedia Interface

are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby

and the double-D symbol are trademarks of Dolby Laboratories.

Set Dimensions

L32S504 model (Includes Table Top Stand) Weight (lbs./kg): 26.5/12

Rear View

Use as Reference for Wall Mount Bracket

Units : Inches (mm)

The screw type : Thread ISO M6 (Metric

type, do not use Standard type).

Side View

Wall Mount Screw speciﬁcation

20 3/4 (527.2)

27 1/2 (698.4)

(ACTIVE AREA)

17 13/32 (442.5)

15 15/32 (392.9)

(ACTIVE AREA)

12 25/32 (324.5)

22 13/32 (569.1)

CENTER OF THE SCREEN

3 9/16 (90.1)

9 7/16 (239.6)

LOCATION OF THE

AC POWER CORD

HOLE FOR

WALL MOUNT

(4 PLACES)

31 1/8 (790.5)

7 7/8 (200.00)

Screw Length (A)

Insertion Length (B)

Spring Washer (C)

Plane Washer (D)

Wall Mount Bracket (E)

Example :

A = B+C+D+E

A: 13.5~15.5 mm.

B: 8.5~10.5 mm.

C: 1 mm.

D: 1 mm.

E: 3 mm.

USEFUL INFORMATION

Set Dimensions

L42S504 model (Includes Table Top Stand) Weight (lbs./kg): 41.9/19

Units: Inches (mm)

LOCATION OF THE

AC POWER CORD

HOLE FOR

WALL MOUNT

(4 PLACES)

Rear View

Use as Reference for Wall Mount Bracket

The screw type : Thread ISO M6 (Metric

type, do not use Standard type).

Side View

Wall Mount Screw speciﬁcation

39 31/32 (1015.36)

36 5/8 (930.20)

(ACTIVE AREA)

3 25/32 (96.10)

27 11/16 (703.05)

15 19/32 (396.00)

22 9/16 (572.87)

15 3/4 (400.00)

7 7/8 (200.00)

25 13/16 (655.51)

20 19/32 (523.30)

(ACTIVE AREA)

11 1/32 (280.50)

CENTER OF THE SCREEN

Screw Length (A)

Spring Washer (C)

Plane Washer (D)

Wall Mount Bracket (E)

Example :

A = B+C+D+E

A: 13.5~15.5 mm.

B: 8.5~10.5 mm.

C: 1 mm.

D: 1 mm.

E: 3 mm.

Insertion Length (B)

Service Information

HITACHI AMERICA, LTD.

HITACHI has made every effort to assure you hours of trouble free operation from your Hitachi product.

Should you require service assistance with OPERATIONAL, HOOK UP, TECHNICAL ASSISTANCE OR WARRANTY

SERVICE SUPPORT, please contact one of our knowledgeable Customer Service Representatives at 800.HITACHI

(800.448.2244).

Our Customer Service Representatives will provide you with the assistance you need and if necessary coordinate the repair

process with a local Authorized Service Facility in your area. Please be prepared to submit proof of purchase and/or delivery

receipts to your 800.HITACHI Customer Service Representative. Warranty coverage will be provided in accordance with the

provisions of your Limited Warranty (see the Limited Warranty page in this owners guide).

Pour de plus amples renseignements sur le service durant la période couverte par la garantie, sur le fonctionnement ou pour

de l’assistance technique communiquez avec:

Au Canada: 800.HITACHI (800.448.2244)

Lundi~ Vendredi 8:00 am – 7:00 pm HNC

Hitachi America, Ltd., Digital Media Division

Customer Service Support

PO Box 3900

Peoria, IL 61612

U.S.A.: customerservice.ce@hal.hitachi.com

Canada: customerservice.canada@hal.hitachi.com

Customer Record

The MODEL NAME and SERIAL NUMBER of this product is located on the backcover and also on the RIGHT SIDE of the

set. Please follow the next steps to nd this information and then record it in the space provided below for use in case you call

800.HITACHI, they will require this information in order to give you the proper support.

Look on the right side of the set.

Locate the label where it shows the information

related to MODEL NAME and SERIAL #.

800.HITACHI will require this information in

order to give you the proper support regarding

your questions.

800.HITACHI

(800.448.2244)

Monday ~ Friday

8:00 am - 7:00 pm CST

www.hitachi.us/tv

Model Name_________________ Serial Number _________________

Limited Warranty

VALID ONLY IN

U.S.A.

AND PUERTO RICO

Congratulations on your purchase of a new Hitachi display product.

LIMITED WARRANTY

Hitachi America, Ltd. warrants

this product in accordance

with the terms and conditions

applicable to the products

identied below:

Conditions of Hitachi Limited Warranty

This Hitachi display product (the “Product”) is warranted to be free from defects in materials and workmanship beginning

on the date of purchase by the original owner and continuing for the duration of the applicable time periods specied

below. If the Product is found to be defective, Hitachi will repair or replace (at Hitachi’s option) defective parts at no

charge, subject to the conditions of this Limited Warranty. If the original owner rejects, refuses or otherwise does not

accept Hitachi’s offer to repair or replace such defective parts under this Limited Warranty, this Limited Warranty shall be

void and of no further force or effect. This Limited Warranty extends to the original owner only and is not transferable, and

such owner must provide a dated sales receipt for the Product to qualify for parts or service under this Limited Warranty.

The original owner must notify Hitachi of a defect claim by calling 800.HITACHI during the applicable Limited Warranty

period for this Limited Warranty to be effective. This Limited Warranty is valid only in the U.S.A. and Puerto Rico.

Hitachi Product :

LCD Flat Panel Televisions

PARTS: The Limited Warranty period for parts is 1 year from the date of original purchase. During the Limited Warranty

period for parts, Hitachi will replace defective parts with new or rebuilt parts (at Hitachi’s option) at no charge for such

parts. Any replacement part will be warranted for the remainder of the original warranty period applicable to the part

replaced.

LABOR: The Limited Warranty period for labor is 1 year from the date of original purchase. During the Limited Warranty

period for labor, Hitachi will repair or replace (at Hitachi’s option) defective parts without charge for labor.

SERVICE LOCATION: In-home warranty service, which includes either in-home repair or free pick-up and delivery (at

Hitachi’s option), applies to all Hitachi products except: (i) 32-inch and smaller LCD Flat Panel Televisions; (ii) Products

located outside the U.S.A. or Puerto Rico; (iii) Products located more than seventy-ve (75) driving miles from Hitachi’s

nearest Authorized Service Facility. If the foregoing clauses (i), (ii), (iii)apply, then the Product owner will be responsible

for bringing/delivering the Product to a Hitachi Authorized Service Facility and, following warranty service, retrieving the

Product from such Authorized Service Facility.

800.HITACHI (800.448.2244)

Please call 800.HITACHI (800.448.2244) for operational, hook up or warranty service support.

Visit our website at www.hitachi.us/tv :

Hitachi’s website features a wealth of information on Hitachi products and technologies, as well as downloadable owners

guides and other useful information.

Hitachi is a proud supporter

of the Certied Service Center

program. Businesses who

display the CSC certication

mark have demonstrated that

they operate in accordance

with the high standards of

professionalism prescribed by

the Consortium for Certied

Service Centers.

CERTIFIED

SERVICE

CENTER

IMPORTANT:

Before using or installing your

Product, please complete this

form and attach your sales receipt

and retain them for your records.

This will help facilitate proper

warranty coverage.

MODEL NO. SERIAL NO.

DEALER NAME DATE OF PURCHASE

DEALER ADDRESS

CITY STATE

Warranty Limitations

This Hitachi Limited Warranty does not cover:

A. Any Product that has been modied or repaired in a manner not previously authorized by Hitachi in writing.

B. Any Product whose serial number has been removed, altered, replaced, defaced or rendered illegible.

C. Any defect, malfunction, or failure caused by or resulting from improper or unauthorized service, maintenance or repair.

D. Damage resulting from abuse, misuse, mishandling, neglect or damage caused by exposure to hostile operating environments such as areas containing dust and/

or smoke.

E. Damage caused by power surges, accidents, natural disasters or any other events or circumstances outside Hitachi’s control.

F. Any Product used in any manner inconsistent with the acceptable set-up, usage, safety or installation congurations identied in the Product’s Owners Guide.

G. Any Product used for purposes or applications, or subjected to operating conditions, other than those identied as acceptable in the Product’s Owners Guide.

H. Product repairs (including any product whose case has been opened), or part replacements provided or installed, by any person other than an Authorized Hitachi

Service Facility Representative.

I. Improper uncrating, set-up or installation or any misadjustments caused by user-operated controls.

J. Any labor or costs associated with removing the Product from a custom cabinet or other specialized product installation that impedes direct and immediate removal

of the Product from the owner’s premises (must be arranged and paid by the owner).

K. Product cabinets, cabinet parts, knobs, batteries or accessories.

L. Product screens that have been cleaned by any method other than as specied in the Product’s Owners Guide.

M. Normal usage, degraded brightness caused by backlight aging and/or cell defects or ordinary wear and tear, including, without limitation, scratches or marks on the

Product’s screen, cabinet or the appearance of bright or dark screen pixels.

N. Any Product returned for service that is damaged due to improper packaging, mishandling or shipping. (IMPORTANT: When shipping any Product to a Hitachi

Authorized Service Facility, Product owner must package it securely in the original shipping container or its equivalent to prevent damage. The Product must be

returned with the shipping charges prepaid and proof of purchases included in the shipping container. Failure to properly package such product during such shipment

will void all warranties.)

O. Any Product purchased or serviced outside the United States of America and Puerto Rico.

P. Any Product that has been used for commercial purposes.

NO PERSON, AGENT, DISTRIBUTOR, DEALER, SERVICE FACILITY, OR COMPANY IS AUTHORIZED TO CHANGE, MODIFY OR AMEND THE TERMS OF THIS LIMITED WARRANTY IN

ANY MANNER WHATSOEVER. EXCEPT AS PROVIDED IN THIS LIMITED WARRANTY, HITACHI MAKES NO EXPRESS WARRANTY REGARDING THIS HITACHI PRODUCT. FURTHER,

ALL IMPLIED WARRANTIES RELATING TO ANY PORTION OF THIS PRODUCT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO THE DURATION SPECIFIED UNDER THIS LIMITED WARRANTY. HITACHI SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY OTHER PERSON FOR ANY INCIDENTAL

OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFIT OR PRODUCT RESULTING FROM ANY DEFECT IN, OR MALFUNCTION OR FAILURE OF, THIS HITACHI PRODUCT. BECAUSE

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE

LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY CONFERS SPECIFIC LEGAL RIGHTS, INCLUDING CERTAIN OTHER RIGHTS THAT MAY VARY DEPENDING ON

YOUR JURISDICTION.

LIMITED WARRANTY

End User License Agreement for HITACHI DTV Software

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE

IMPORTANT – READ CAREFULLY: This End User License Agreement for HITACHI

DTV Software (this “Agreement”) is a legal agreement between you (“you” or “your”),

in your capacity as the owner of a HITACHI brand digital television (the “DTV”), and

HITACHI America, Ltd., Home Electronics Division (“HITACHI”). By using the DTV

or the digital television software installed on the DTV (the “DTV Software”) or any

Upgrade (as dened below, and together with the DTV Software, the “Software”), you

agree to be bound by the terms and conditions of this Agreement. IF YOU DO NOT

AGREE TO BE BOUND BY THIS LICENSE AGREEMENT, DO NOT USE THE DTV

OR THE SOFTWARE.

1. LICENSE GRANT. HITACHI grants to you, for the life of the DTV, a non-

exclusive, non-transferable, revocable license to install and use one copy of the

Software on the DTV, subject to the following limitations and restrictions:

a. You may not share, duplicate, republish or redistribute the Software;

b. You may not resell, rent, lease, sublicense, gift, loan, as sign or otherwise

transfer the Software or any of your rights under this Agreement;

c. You may not modify, adapt, translate, reverse engineer, decompile,

disassemble or make derivative works from the Software or use the

Software in combination with any non-Hitachi software; and

d. You may not use the Software for any commercial purpose.

2. VIOLATIONS; INDEMNITY. You understand and agree that your use of the

Software in any manner except as permitted under this Agreement could

constitute a serious crime and could subject you to damages and an award to

HITACHI of attorneys’ fees in connection with your violation of this Agreement.

You further understand that you may be held legally responsible for any

or facilitated by your failure to abide by the terms of this Agreement. You agree

to defend, indemnify and hold HITACHI and its parent and afliate companies

harmless from and against any and all liability resulting from any breach by you

of this Agreement.

3. INTELLECTUAL PROPERTY. The Software is protected by federal copyright

laws, international copyright treaties and other intellectual property laws and

treaties. The Software is licensed, not sold, to you. All right, title and interest in

and to the Software and any intellectual property associated therewith, including

any accompanying printed materials, shall belong to HITACHI and its licensors

and suppliers. Except as expressly provided herein, neither HITACHI nor any

of its licensors or suppliers grants to you under this Agreement any express or

implied right in or to any patents, copyrights, trademarks, trade secrets or other

intellectual property. All right, title and interest in and to the intellectual property

rights associated with any content that is accessible through use of the Software

shall belong to the applicable content owners and may be protected by copyright

or other intellectual property laws and treaties. This Agreement grants you no

rights to use such content. Any rights of HITACHI not expressly granted to you

hereunder are reserved expressly by Hitachi.

4. SOFTWARE UPGRADES. In the future, HITACHI may release or make

available one or more upgrades to the DTV Software (each, an “Upgrade”).

You understand and agree that if you decide to install or use any Upgrade, your

installation and use of such Upgrade and/or any other software or intellectual

property HITACHI may provide in connection therewith shall be governed by

the terms and conditions of this Agreement, except to the extent that HITACHI

provides different or supplementary license terms or conditions that accompany

such Upgrade or other software or intellectual property. In the event HITACHI

provides you with a “ash card” or other media to effect or facilitate an Upgrade,

you understand and acknowledge that your failure to return such ash card

or other media to HITACHI as HITACHI may require could result in HITACHI

placing your name and your DTV’s serial number on a “No Further Upgrades”

list, which will prohibit you from receiving any subsequent Upgrades HITACHI

may later release or make available. IF YOU DO NOT AGREE WITH ALL THE

TERMS AND CONDITIONS OF THIS AGREEMENT OR ALL THE TERMS

AND CONDITIONS OF ANY DIFFERENT OR SUPPLEMENTARY LICENSE

THAT MAY ACCOMPANY SUCH UPGRADE, (A) DO NOT USE ANY HITACHI-

PROVIDED FLASH CARD OR OTHER MEDIA, (B) DO NOT PERFORM

INSTALL ANY HITACHI-PROVIDED UPGRADE SOFTWARE ON YOUR DTV,

AND (C) PROMPTLY RETURN SUCH FLASH CARD OR OTHER MEDIA TO

HITACHI.

5. EXPORT RESTRICTIONS. HITACHI is licensing the Software for use within

North America only. You agree that you will not export or re-export the Software.

You specically agree not to export or reexport the Software: (i) to any country

to which the U.S. has embargoed or restricted the export of goods or services,

which currently include, but are not necessarily limited to Cuba, Iran, Libya,

North Korea, Sudan and Syria, or to any national of any such country, wherever

located, who intends to transmit or transport the Software back to such country;

(ii) to any person or entity who you know or have reason to know will utilize

the Software in the design, development, or production of nuclear, chemical,

or biological weapons; or (iii) to any person or entity who has been prohibited

from participating in U.S. export transactions by any federal agency of the U.S.

government. You warrant and represent that neither the U.S. Bureau of Industry

and Security nor any other U.S federal Agency has suspended, revoked, or

denied your export privileges.

6. NO WARRANTIES. The software is provided to you in “as is” condition and

HITACHI makes no warranties of any kind whatsoever regarding the software

and, to the maximum extent permitted by law, hereby expressly disclaims

all warranties of any kind whatsoever, express or implied, with respect to

the software. All implied warranties, including without limitation, the implied

warranties of non-infringement, merchantability and tness for a particular

purpose are hereby expressly disclaimed by HITACHI to the maximum extent

permitted by law.

7. LIMITATION OF LIABILITY. To the maximum extent permitted by applicable

law, HITACHI, its licensors, suppliers, parent companies, afliates, subsidiaries,

employees and agents shall not under any circumstances be liable to you or

any third parties for any damages of any nature arising in any way from this

agreement, your use of the software or otherwise, whether indirect, special,

incidental, consequential or otherwise, including, without limitation, any claims

for lost prots, lost good will, lost data, business interruption, procurement of

substitute goods or services, or expenditures made or committed for in reliance

on the continuation of this agreement, even if advised in advance of the

possibility of such damages.

8. NO FAILURE OF ESSENTIAL PURPOSE. You agree that neither HITACHI’S

breach of this agreement nor its failure to repair a defect, error or bug in the

software shall constitute a failure of the essential purpose of this agreement.

9. CRYPTOGRAPHIC SOFTWARE. The software contains software developed by

the OpenSSL Project, including cryptographic software written by eric young

(the “cryptographic software”). The cryptographic software is provided by the

OpenSSL Project in “as is’’ condition and any express or implied warranties,

including but not limited to, the implied warranties of merchantability and tness

for a particular purpose are hereby expressly disclaimed to the maximum

extent permitted by law. In no event shall the OpenSSL Project, its contributors,

HITACHI or any of its parent or afliate companies be liable for any direct,

indirect, incidental, special, exemplary, or consequential damages (including,

but not limited to, procurement of substitute goods or services; loss of use, data,

or prots; or business interruption) however caused and on any theory of liability,

whether in contract, strict liability, or tort (including negligence or otherwise)

arising in any way out of the use of the software or the cryptographic software,

even if advised in advance of the possibility of such damages.

10. TERMINATION. HITACHI may terminate this Agreement immediately at any

time by providing notice to you.

11. GOVERNING LAW; SEVERABILITY. This Agreement will be governed by the

laws of the State of New York, and you consent to the exclusive jurisdiction and

venue in the federal courts sitting in the Southern District of New York, unless

no federal subject matter jurisdiction exists, in which case you consent to the

exclusive jurisdiction and venue in the Borough of Manhattan, New York, USA.

LICENSE AGREEMENTS

End User License Agreement for Open Source Software

OPEN SOURCE SOFTWARE LICENSE INFORMATION

This Hitachi TV incorporates open source software modules distributed under certain licenses, including the GNU General

Public License Version 3 (as dened by the Free Software Foundation, Inc.).

This Hitachi TV incorporates software based in part on the work of the Independent JPEG Group.

The open source software modules incorporated in this Hitachi TV are shown in the table below:

Software

Module

Library

Name Link Applicable License

AC3 decoder liba52.c www.liba52.sourceforge.net GNU General Public License Version 3

PNG decoder libpng 1.0.2 www.libpng.org/pub/png/libpng.html http://www.libpng.org/pub/png/src/libpng-

LICENSE.txt

zlib Zlib 1.1.3 www.zlib.net http://www.zlib.net/zlib_license.html

Jpeg decoder jpeglib www.ijg.org Download of license (within README

le) available at www.ijg.org.

THESE SOFTWARE MODULES AND THE SOURCE CODE MODIFICATIONS THERETO ARE PROVIDED “AS IS” AND

BOTH THE LICENSORS AND HITACHI DISCLAIM ANY AND ALL WARRANTIES OF ANY KIND, INCLUDING THE IMPLIED

WARRANTY OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE.

See above links and the GNU General Public License that appears on the following pages of this Owners Guide for additional

terms and conditions.

If you would like to learn more about the Free Software Foundation, Inc. or the GNU software project, please visit http://www.

fsf.org. If you would like to request a copy of the Source Code Modications, please send an email to the following address:

tvsoftwaresupport@hal.hitachi.com

End User License Agreement for Operating System Software

TERMS AND CONDITIONS

0. Denitions.

“This License” refers to version 3 of the GNU General Public License.

“Copyright” also means copyright-like laws that apply to other kinds of works, such

as semiconductor masks.

“The Program” refers to any copyrightable work licensed under this License. Each

licensee is addressed as “you”. “Licensees” and “recipients” may be individuals or

organizations.

To “modify” a work means to copy from or adapt all or part of the work in a fashion

requiring copyright permission, other than the making of an exact copy. The resulting

work is called a “modied version” of the earlier work or a work “based on” the earlier

work.

A “covered work” means either the unmodied Program or a work based on the

Program.

To “propagate” a work means to do anything with it that, without permission, would

make you directly or secondarily liable for infringement under applicable copyright

law, except executing it on a computer or modifying a private copy. Propagation

includes copying, distribution (with or without modication), making available to the

public, and in some countries other activities as well.

To “convey” a work means any kind of propagation that enables other parties to

make or receive copies. Mere interaction with a user through a computer network,

with no transfer of a copy, is not conveying.

An interactive user interface displays “Appropriate Legal Notices” to the extent

that it includes a convenient and prominently visible feature that (1) displays an

appropriate copyright notice, and (2) tells the user that there is no warranty for the

work (except to the extent that warranties are provided), that licensees may convey

the work under this License, and how to view a copy of this License. If the interface

presents a list of user commands or options, such as a menu, a prominent item in the

list meets this criterion.

1. Source Code.

The “source code” for a work means the preferred form of the work for making

modications to it. “Object code” means any non-source form of a work.

A “Standard Interface” means an interface that either is an ofcial standard dened

by a recognized standards body, or, in the case of interfaces specied for a particular

programming language, one that is widely used among developers working in that

language.

The “System Libraries” of an executable work include anything, other than the work

as a whole, that (a) is included in the normal form of packaging a Major Component,

but which is not part of that Major Component, and (b) serves only to enable use

of the work with that Major Component, or to implement a Standard Interface for

which an implementation is available to the public in source code form. A “Major

Component”, in this context, means a major essential component (kernel, window

system, and so on) of the specic operating system (if any) on which the executable

work runs, or a compiler used to produce the work, or an object code interpreter

used to run it.

The “Corresponding Source” for a work in object code form means all the source

code needed to generate, install, and (for an executable work) run the object code and

to modify the work, including scripts to control those activities. However, it does not

include the work’s System Libraries, or general-purpose tools or generally available

free programs which are used unmodied in performing those activities but which are

not part of the work. For example, Corresponding Source includes interface denition

les associated with source les for the work, and the source code for shared libraries

and dynamically linked subprograms that the work is specically designed to require,

such as by intimate data communication or control ow between those subprograms

and other parts of the work.

The Corresponding Source need not include anything that users can regenerate

automatically from other parts of the Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the

Program, and are irrevocable provided the stated conditions are met. This License

explicitly afrms your unlimited permission to run the unmodied Program. The output

from running a covered work is covered by this License only if the output, given its

content, constitutes a covered work. This License acknowledges your rights of fair

use or other equivalent, as provided by copyright law.

You may make, run and propagate covered works that you do not convey, without

conditions so long as your license otherwise remains in force. You may convey

covered works to others for the sole purpose of having them make modications

exclusively for you, or provide you with facilities for running those works, provided

that you comply with the terms of this License in conveying all material for which you

do not control copyright. Those thus making or running the covered works for you

must do so exclusively on your behalf, under your direction and control, on terms

that prohibit them from making any copies of your copyrighted material outside their

relationship with you.

Conveying under any other circumstances is permitted solely under the conditions

stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. Protecting Users’ Legal Rights From Anti-Circumvention

Law.

No covered work shall be deemed part of an effective technological measure under

any applicable law fullling obligations under article 11 of the WIPO copyright treaty

adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention

of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention

of technological measures to the extent such circumvention is effected by exercising

rights under this License with respect to the covered work, and you disclaim any

intention to limit operation or modication of the work as a means of enforcing,

against the work’s users, your or third parties’ legal rights to forbid circumvention of

technological measures.

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program’s source code as you receive it,

in any medium, provided that you conspicuously and appropriately publish on each

copy an appropriate copyright notice; keep intact all notices stating that this License

and any non-permissive terms added in accord with section 7 apply to the code; keep

intact all notices of the absence of any warranty; and give all recipients a copy of this

License along with the Program.

You may charge any price or no price for each copy that you convey, and you may

offer support or warranty protection for a fee.

5. Conveying Modied Source Versions.

You may convey a work based on the Program, or the modications to produce it

from the Program, in the form of source code under the terms of section 4, provided

that you also meet all of these conditions:

• a) The work must carry prominent notices stating that you modied it, and

giving a relevant date.

• b) The work must carry prominent notices stating that it is released under

this License and any conditions added under section 7. This requirement

modies the requirement in section 4 to “keep intact all notices”.

• c) You must license the entire work, as a whole, under this License to anyone

who comes into possession of a copy. This License will therefore apply, along

with any applicable section 7 additional terms, to the whole of the work, and

all its parts, regardless of how they are packaged. This License gives no

permission to license the work in any other way, but it does not invalidate

such permission if you have separately received it.

• d) If the work has interactive user interfaces, each must display Appropriate

Legal Notices; however, if the Program has interactive interfaces that do not

display Appropriate Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which

are not by their nature extensions of the covered work, and which are not combined

with it such as to form a larger program, in or on a volume of a storage or distribution

medium, is called an “aggregate” if the compilation and its resulting copyright are not

used to limit the access or legal rights of the compilation’s users beyond what the

individual works permit. Inclusion of a covered work in an aggregate does not cause

this License to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections

4 and 5, provided that you also convey the machine-readable Corresponding Source

under the terms of this License, in one of these ways:

• a) Convey the object code in, or embodied in, a physical product (including

a physical distribution medium), accompanied by the Corresponding

Source xed on a durable physical medium customarily used for software

interchange.

• b) Convey the object code in, or embodied in, a physical product (including a

physical distribution medium), accompanied by a written offer, valid for at least

three years and valid for as long as you offer spare parts or customer support

for that product model, to give anyone who possesses the object code either

(1) a copy of the Corresponding Source for all the software in the product

that is covered by this License, on a durable physical medium customarily

used for software interchange, for a price no more than your reasonable cost

of physically performing this conveying of source, or (2) access to copy the

Corresponding Source from a network server at no charge.

• c) Convey individual copies of the object code with a copy of the written

offer to provide the Corresponding Source. This alternative is allowed only

occasionally and noncommercially, and only if you received the object code

with such an offer, in accord with subsection 6b.

• d) Convey the object code by offering access from a designated place

(gratis or for a charge), and offer equivalent access to the Corresponding

Source in the same way through the same place at no further charge. You

need not require recipients to copy the Corresponding Source along with

the object code. If the place to copy the object code is a network server,

the Corresponding Source may be on a different server (operated by you

or a third party) that supports equivalent copying facilities, provided you

maintain clear directions next to the object code saying where to nd the

Corresponding Source. Regardless of what server hosts the Corresponding

Source, you remain obligated to ensure that it is available for as long as

needed to satisfy these requirements.

LICENSE AGREEMENTS

End User License Agreement for Operating System Software

• e) Convey the object code using peer-to-peer transmission, provided you

inform other peers where the object code and Corresponding Source of the

work are being offered to the general public at no charge under subsection

6d.

A separable portion of the object code, whose source code is excluded from the

Corresponding Source as a System Library, need not be included in conveying the

object code work.

A “User Product” is either (1) a “consumer product”, which means any tangible

personal property which is normally used for personal, family, or household purposes,

or (2) anything designed or sold for incorporation into a dwelling. In determining

whether a product is a consumer product, doubtful cases shall be resolved in favor of

coverage. For a particular product received by a particular user, “normally used” refers

to a typical or common use of that class of product, regardless of the status of the

particular user or of the way in which the particular user actually uses, or expects or is

expected to use, the product. A product is a consumer product regardless of whether

the product has substantial commercial, industrial or non-consumer uses, unless such

uses represent the only signicant mode of use of the product.

“Installation Information” for a User Product means any methods, procedures,

authorization keys, or other information required to install and execute modied

versions of a covered work in that User Product from a modied version of its

Corresponding Source. The information must sufce to ensure that the continued

functioning of the modied object code is in no case prevented or interfered with solely

because modication has been made.

If you convey an object code work under this section in, or with, or specically for

use in, a User Product, and the conveying occurs as part of a transaction in which

the right of possession and use of the User Product is transferred to the recipient in

perpetuity or for a xed term (regardless of how the transaction is characterized),

the Corresponding Source conveyed under this section must be accompanied by the

Installation Information. But this requirement does not apply if neither you nor any

third party retains the ability to install modied object code on the User Product (for

example, the work has been installed in ROM).

The requirement to provide Installation Information does not include a requirement

to continue to provide support service, warranty, or updates for a work that has been

modied or installed by the recipient, or for the User Product in which it has been

modied or installed. Access to a network may be denied when the modication itself

materially and adversely affects the operation of the network or violates the rules and

protocols for communication across the network.

Corresponding Source conveyed, and Installation Information provided, in accord

with this section must be in a format that is publicly documented (and with an

implementation available to the public in source code form), and must require no

special password or key for unpacking, reading or copying.

7. Additional Terms.

“Additional permissions” are terms that supplement the terms of this License by

making exceptions from one or more of its conditions. Additional permissions that

are applicable to the entire Program shall be treated as though they were included

in this License, to the extent that they are valid under applicable law. If additional

permissions apply only to part of the Program, that part may be used separately under

those permissions, but the entire Program remains governed by this License without

regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any

additional permissions from that copy, or from any part of it. (Additional permissions

may be written to require their own removal in certain cases when you modify the

work.) You may place additional permissions on material, added by you to a covered

work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a

covered work, you may (if authorized by the copyright holders of that material)

supplement the terms of this License with terms:

• a) Disclaiming warranty or limiting liability differently from the terms of

sections 15 and 16 of this License; or

• b) Requiring preservation of specied reasonable legal notices or author

attributions in that material or in the Appropriate Legal Notices displayed by

works containing it; or

• c) Prohibiting misrepresentation of the origin of that material, or requiring that

modied versions of such material be marked in reasonable ways as different

from the original version; or

• d) Limiting the use for publicity purposes of names of licensors or authors of

the material; or

• e) Declining to grant rights under trademark law for use of some trade names,

trademarks, or service marks; or

• f) Requiring indemnication of licensors and authors of that material by

anyone who conveys the material (or modied versions of it) with contractual

assumptions of liability to the recipient, for any liability that these contractual

assumptions directly impose on those licensors and authors.

All other non-permissive additional terms are considered “further restrictions”

within the meaning of section 10. If the Program as you received it, or any part of it,

contains a notice stating that it is governed by this License along with a term that is a

further restriction, you may remove that term. If a license document contains a further

restriction but permits relicensing or conveying under this License, you may add to a

covered work material governed by the terms of that license document, provided that

the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in

the relevant source les, a statement of the additional terms that apply to those les,

or a notice indicating where to nd the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a

separately written license, or stated as exceptions; the above requirements apply

either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided

under this License. Any attempt otherwise to propagate or modify it is void, and will

automatically terminate your rights under this License (including any patent licenses

granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular

explicitly and nally terminates your license, and (b) permanently, if the copyright

holder fails to notify you of the violation by some reasonable means prior to 60 days

after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently

if the copyright holder noties you of the violation by some reasonable means, this is

the rst time you have received notice of violation of this License (for any work) from

that copyright holder, and you cure the violation prior to 30 days after your receipt of

the notice.

Termination of your rights under this section does not terminate the licenses of

parties who have received copies or rights from you under this License. If your rights

have been terminated and not permanently reinstated, you do not qualify to receive

new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the

Program. Ancillary propagation of a covered work occurring solely as a consequence

of using peer-to-peer transmission to receive a copy likewise does not require

acceptance. However, nothing other than this License grants you permission to

propagate or modify any covered work. These actions infringe copyright if you do

not accept this License. Therefore, by modifying or propagating a covered work, you

indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a

license from the original licensors, to run, modify and propagate that work, subject

to this License. You are not responsible for enforcing compliance by third parties with

this License.

An “entity transaction” is a transaction transferring control of an organization,

or substantially all assets of one, or subdividing an organization, or merging

organizations. If propagation of a covered work results from an entity transaction,

each party to that transaction who receives a copy of the work also receives whatever

licenses to the work the party’s predecessor in interest had or could give under the

previous paragraph, plus a right to possession of the Corresponding Source of the

work from the predecessor in interest, if the predecessor has it or can get it with

reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or

afrmed under this License. For example, you may not impose a license fee, royalty,

or other charge for exercise of rights granted under this License, and you may not

initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any

patent claim is infringed by making, using, selling, offering for sale, or importing the

Program or any portion of it.

11. Patents.

A “contributor” is a copyright holder who authorizes use under this License of the

Program or a work on which the Program is based. The work thus licensed is called

the contributor’s “contributor version”.

A contributor’s “essential patent claims” are all patent claims owned or controlled

by the contributor, whether already acquired or hereafter acquired, that would be

infringed by some manner, permitted by this License, of making, using, or selling

its contributor version, but do not include claims that would be infringed only as a

consequence of further modication of the contributor version. For purposes of

this denition, “control” includes the right to grant patent sublicenses in a manner

consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license

under the contributor’s essential patent claims, to make, use, sell, offer for sale, import

and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a “patent license” is any express agreement

or commitment, however denominated, not to enforce a patent (such as an express

permission to practice a patent or covenant not to sue for patent infringement).

To “grant” such a patent license to a party means to make such an agreement or

commitment not to enforce a patent against the party.

End User License Agreement for Operating System Software

If you convey a covered work, knowingly relying on a patent license, and the

Corresponding Source of the work is not available for anyone to copy, free of charge

and under the terms of this License, through a publicly available network server or

other readily accessible means, then you must either (1) cause the Corresponding

Source to be so available, or (2) arrange to deprive yourself of the benet of the

patent license for this particular work, or (3) arrange, in a manner consistent with the

requirements of this License, to extend the patent license to downstream recipients.

“Knowingly relying” means you have actual knowledge that, but for the patent license,

your conveying the covered work in a country, or your recipient’s use of the covered

work in a country, would infringe one or more identiable patents in that country that

you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you

convey, or propagate by procuring conveyance of, a covered work, and grant a patent

license to some of the parties receiving the covered work authorizing them to use,

propagate, modify or convey a specic copy of the covered work, then the patent

license you grant is automatically extended to all recipients of the covered work and

works based on it.

A patent license is “discriminatory” if it does not include within the scope of its

coverage, prohibits the exercise of, or is conditioned on the non-exercise of one

or more of the rights that are specically granted under this License. You may not

convey a covered work if you are a party to an arrangement with a third party that is

in the business of distributing software, under which you make payment to the third

party based on the extent of your activity of conveying the work, and under which

the third party grants, to any of the parties who would receive the covered work

from you, a discriminatory patent license (a) in connection with copies of the covered

work conveyed by you (or copies made from those copies), or (b) primarily for and

in connection with specic products or compilations that contain the covered work,

unless you entered into that arrangement, or that patent license was granted, prior

to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied

license or other defenses to infringement that may otherwise be available to you

under applicable patent law.

12. No Surrender of Others’ Freedom.

If conditions are imposed on you (whether by court order, agreement or

otherwise) that contradict the conditions of this License, they do not excuse you

from the conditions of this License. If you cannot convey a covered work so as to

satisfy simultaneously your obligations under this License and any other pertinent

obligations, then as a consequence you may not convey it at all. For example, if you

agree to terms that obligate you to collect a royalty for further conveying from those to

whom you convey the Program, the only way you could satisfy both those terms and

this License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or

combine any covered work with a work licensed under version 3 of the GNU Affero

General Public License into a single combined work, and to convey the resulting

work. The terms of this License will continue to apply to the part which is the covered

work, but the special requirements of the GNU Affero General Public License, section

13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the

GNU General Public License from time to time. Such new versions will be similar

in spirit to the present version, but may differ in detail to address new problems or

concerns.

Each version is given a distinguishing version number. If the Program species

that a certain numbered version of the GNU General Public License “or any later

version” applies to it, you have the option of following the terms and conditions either

of that numbered version or of any later version published by the Free Software

Foundation. If the Program does not specify a version number of the GNU General

Public License, you may choose any version ever published by the Free Software

Foundation.

If the Program species that a proxy can decide which future versions of the GNU

General Public License can be used, that proxy’s public statement of acceptance of a

version permanently authorizes you to choose that version for the Program.

Later license versions may give you additional or different permissions. However,

no additional obligations are imposed on any author or copyright holder as a result of

your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT

PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN

WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE

PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE

ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS

WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE

COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO

IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO

MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS

OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED

BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE

WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be

given local legal effect according to their terms, reviewing courts shall apply local law

that most closely approximates an absolute waiver of all civil liability in connection

with the Program, unless a warranty or assumption of liability accompanies a copy of

the Program in return for a fee.

APPENDIXES

Appendixes

Appendix A: Picture Format for Each Input Source

Aspect Specications Yes: Available / --: Not Available

Input Signal Aspect

Auto 4:3 16:9 Full Zoom1 Zoom2

AIR / CABLE Air / Cable Yes Yes Yes -- Yes Yes

HDMI 1 HDMI / DVI 1080p, 1080i, 720p, 480p, 480i Yes Yes Yes Yes Yes Yes

640x480, 800x600, 1024x768,

1280x720, 1280x768, 1280x1024,

1440x900, 1680x1050

Yes -- -- Yes -- --

HDMI 2 HDMI 1080p, 1080i, 720p, 480p, 480i Yes Yes Yes Yes Yes Yes

HDMI 3 HDMI 1080p, 1080i, 720p, 480p, 480i Yes Yes Yes Yes Yes Yes

HDMI 4 HDMI 1080p, 1080i, 720p, 480p, 480i Yes Yes Yes Yes Yes Yes

COMPONENT 1 YPbPrYes Yes Yes -- Yes Yes

COMPONENT 2 YPbPrYes Yes Yes -- Yes Yes

AV 1 Video / S-Video -- Yes Yes -- Yes Yes

AV 2 Video / S-Video -- Yes Yes -- Yes Yes

RGB Analog RGB Yes -- -- Yes -- --

Appendix B: RGB Format

Resolution Frequency(Hz) Resolution Frequency(Hz)

640x480 60, 72, 75 1280x1024 60

720x400 70 1440x900 60

800x600 56, 60, 72, 75 1680x1050 60

1024x768 60, 70, 75 1920x1080 60

1280x720 60

1280x768 60

The type of video board or connecting cable may not allow for correct displays adjustment of H-Position,

V-Position, Clock and Phase.

Index

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Antennas (Connecting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 31, 32, 55

Audio

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Audio Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Caution and Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

New Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Closed Captions

Caption Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Color Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Energy Options . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 37

External Video Sources . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .14-17

Favorite Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Game Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15,17

HDMI-CEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Input Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Language

Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Menu Preference

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

OSD Transparency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Parental Control

Set Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Block Unrated Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Panel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Movie Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

TV Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

TV Ratings (Canadian - English) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

TV Ratings (Canadian - French) . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Region 5 (Downloadable VChip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Perfect Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Picture Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Remote Control

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-27

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Reset (Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Reset (Audio) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Reset (AV& Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Sharpness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Speakers Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45-47

Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Tint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-44

Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32

Notes

Hitachi Ultravision L32S504 Users Manual Instruction Book 2009

L32S504 l32s504

L42S504 l42s504

L32S504 to the manual 2568b00a-17b3-4d3a-aaf9-03f43b4ea5b7
