H|TACH

lnspire the Nex_

LCD Flat Panel TELEVISION

& L42S601

IMPORTANT SAFETY INSTRUCTIONS ........................................................................................... 2-3

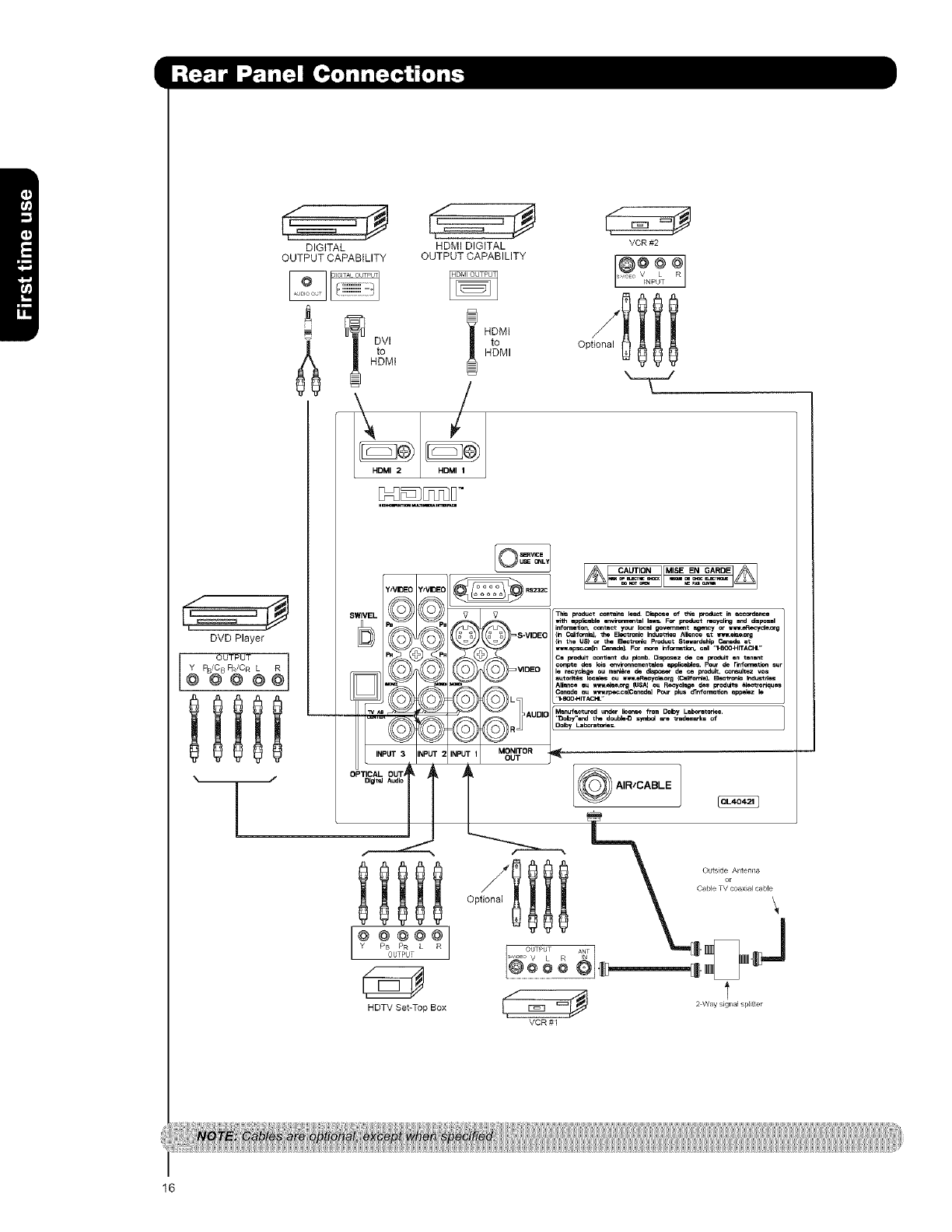

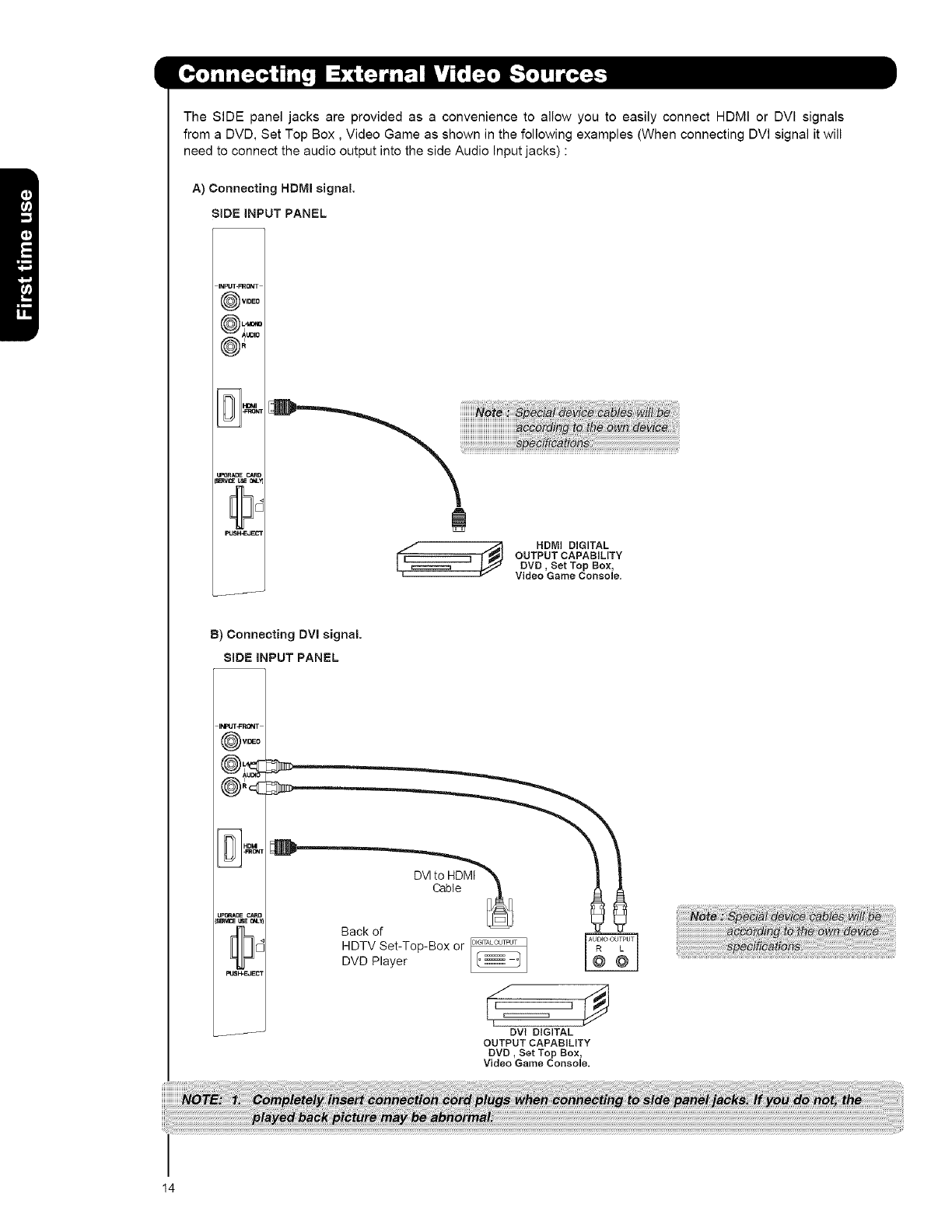

FIRST TIME USE .................................................................................................................................... 4-21

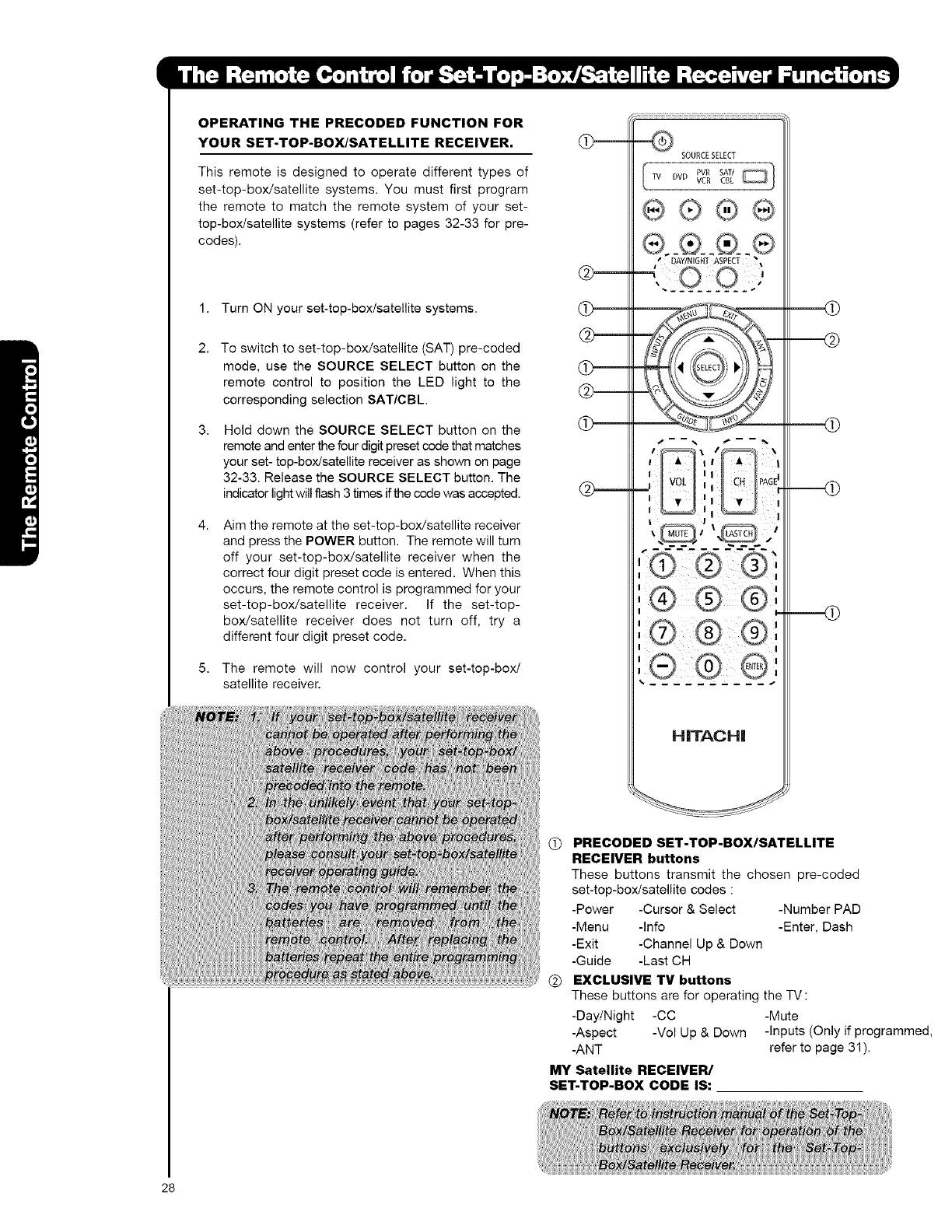

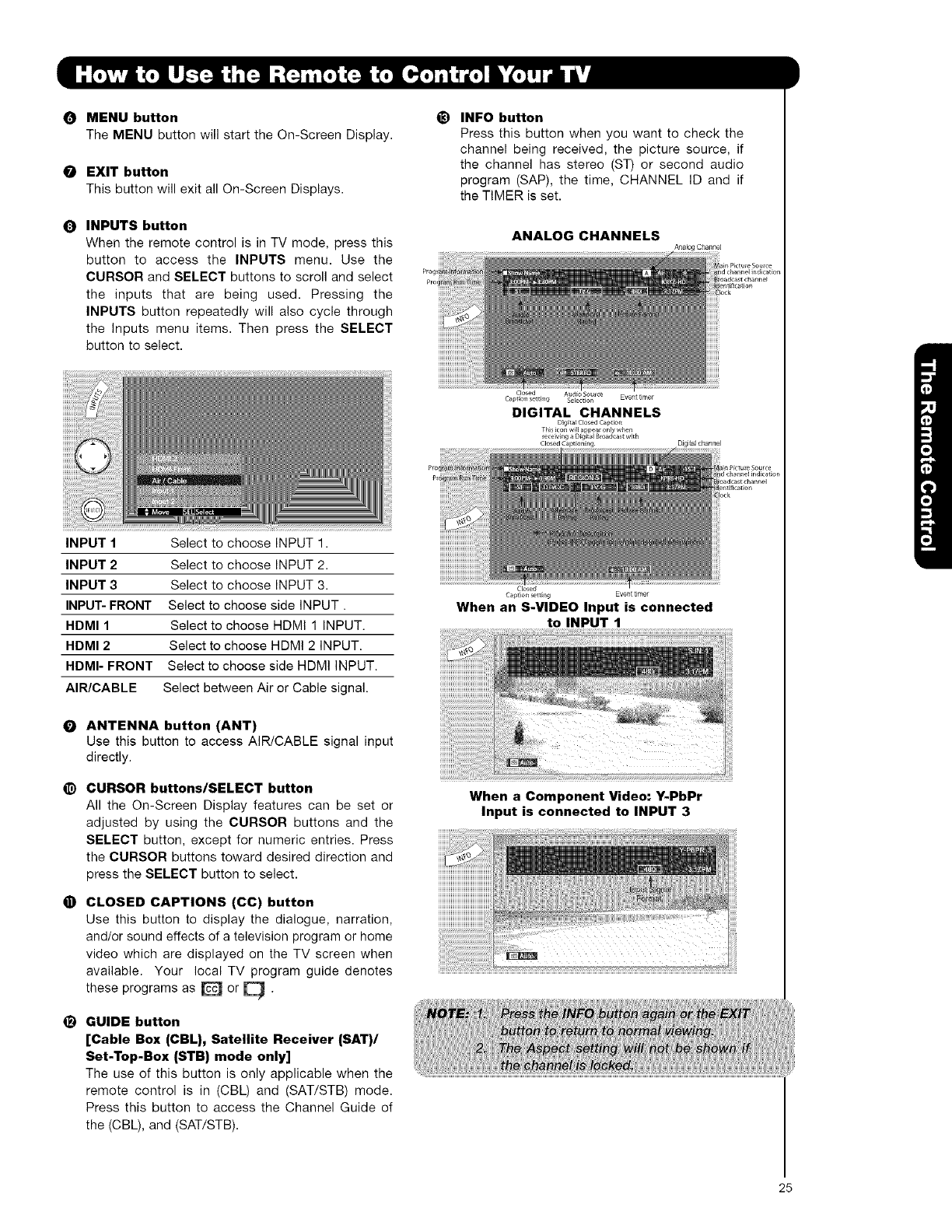

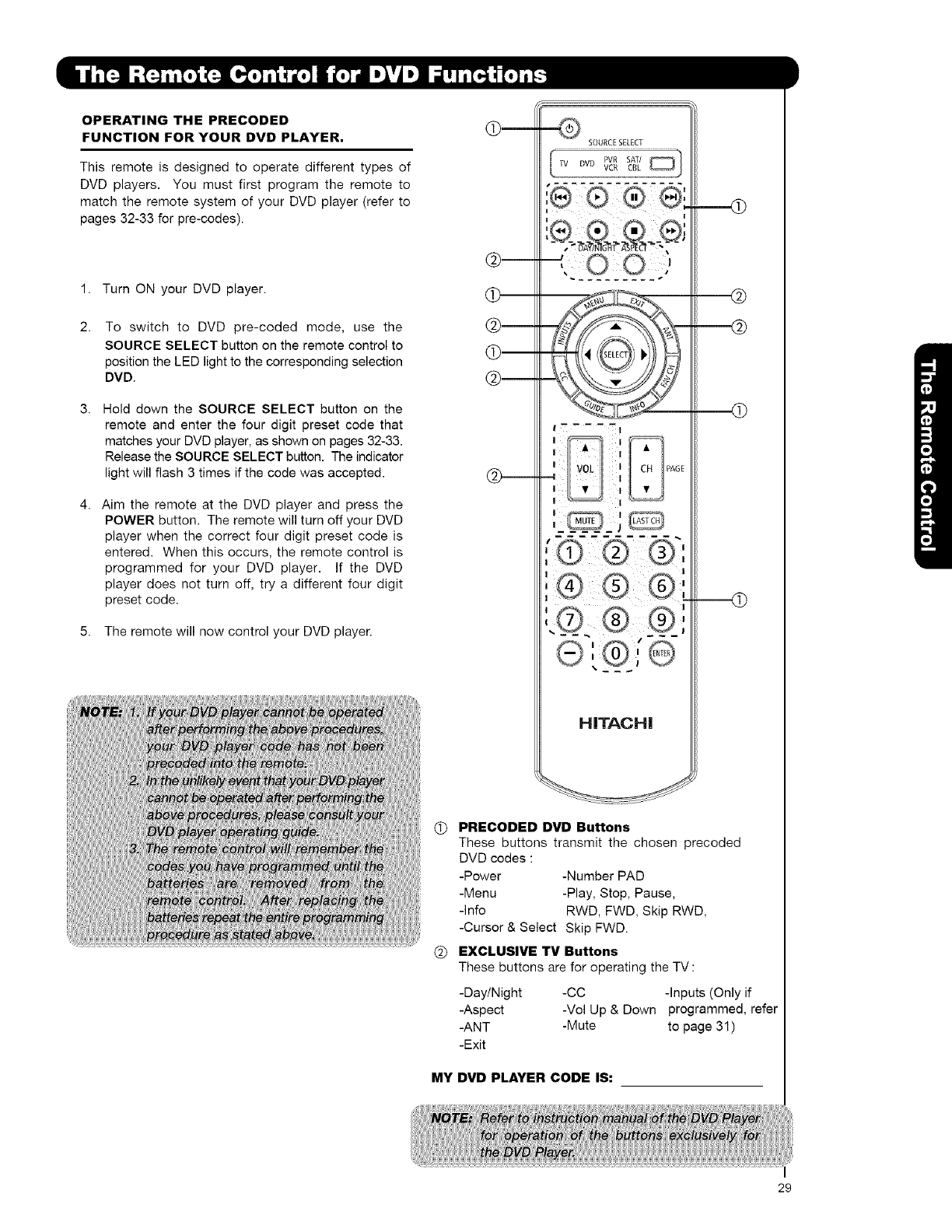

THE REMOTE CONTROL ............................................................................................................... 22-33

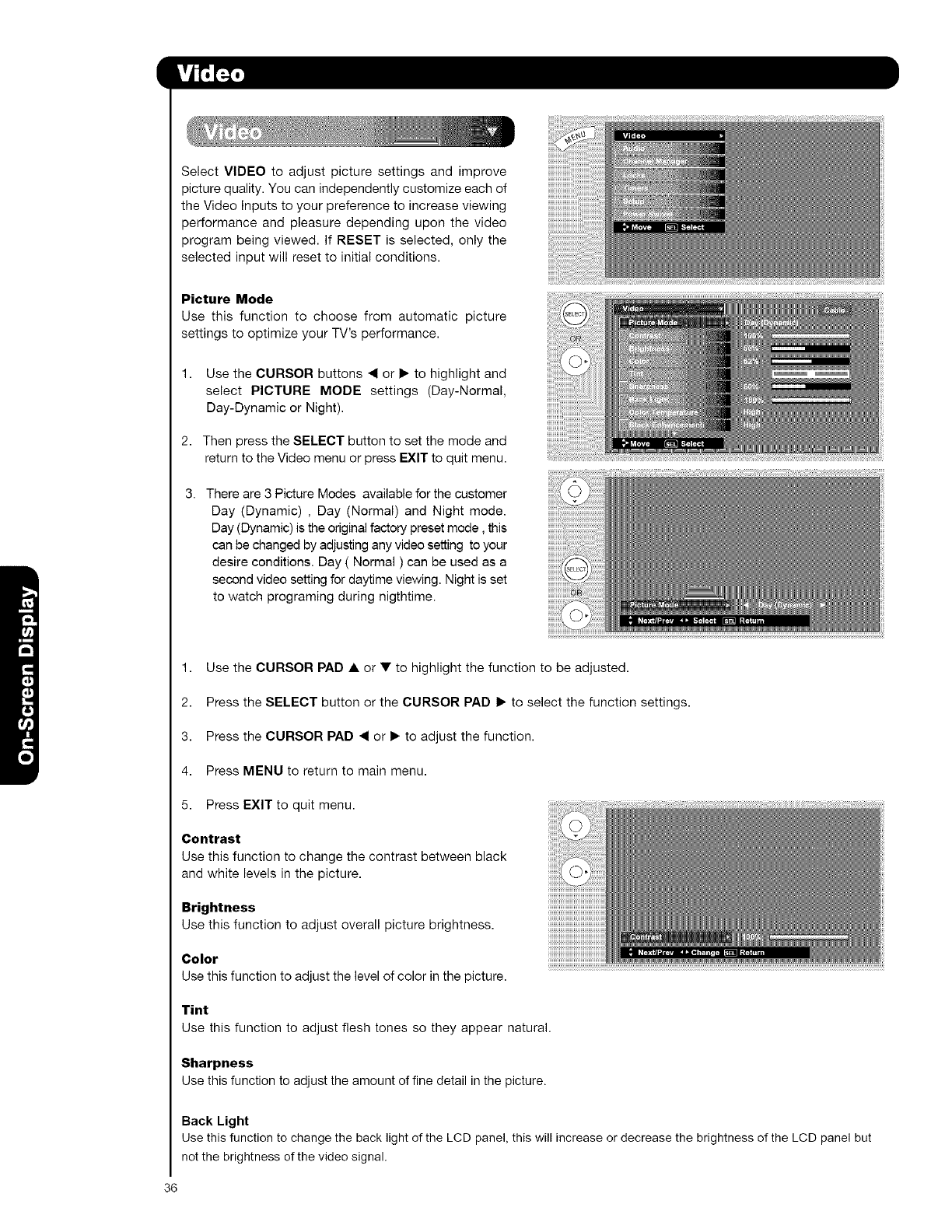

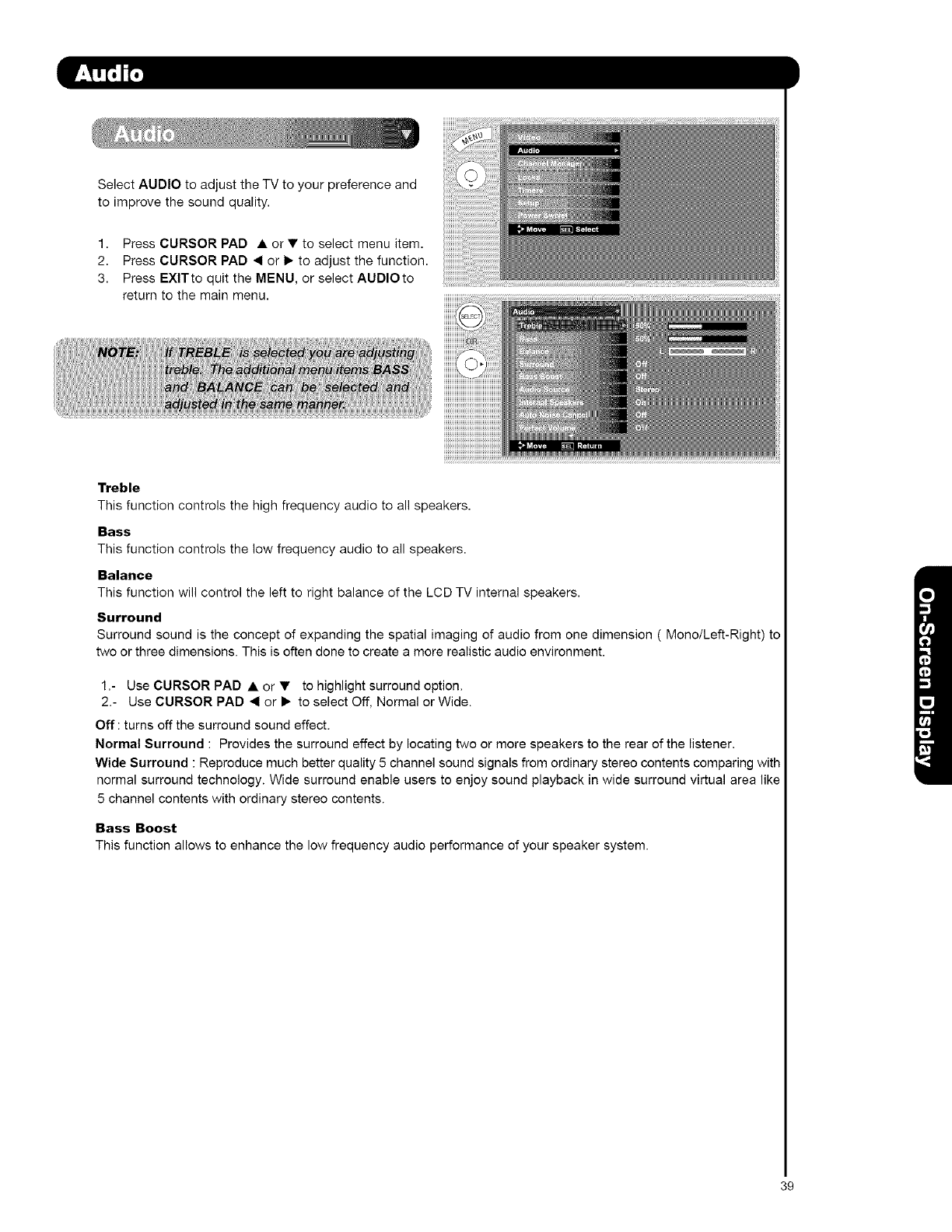

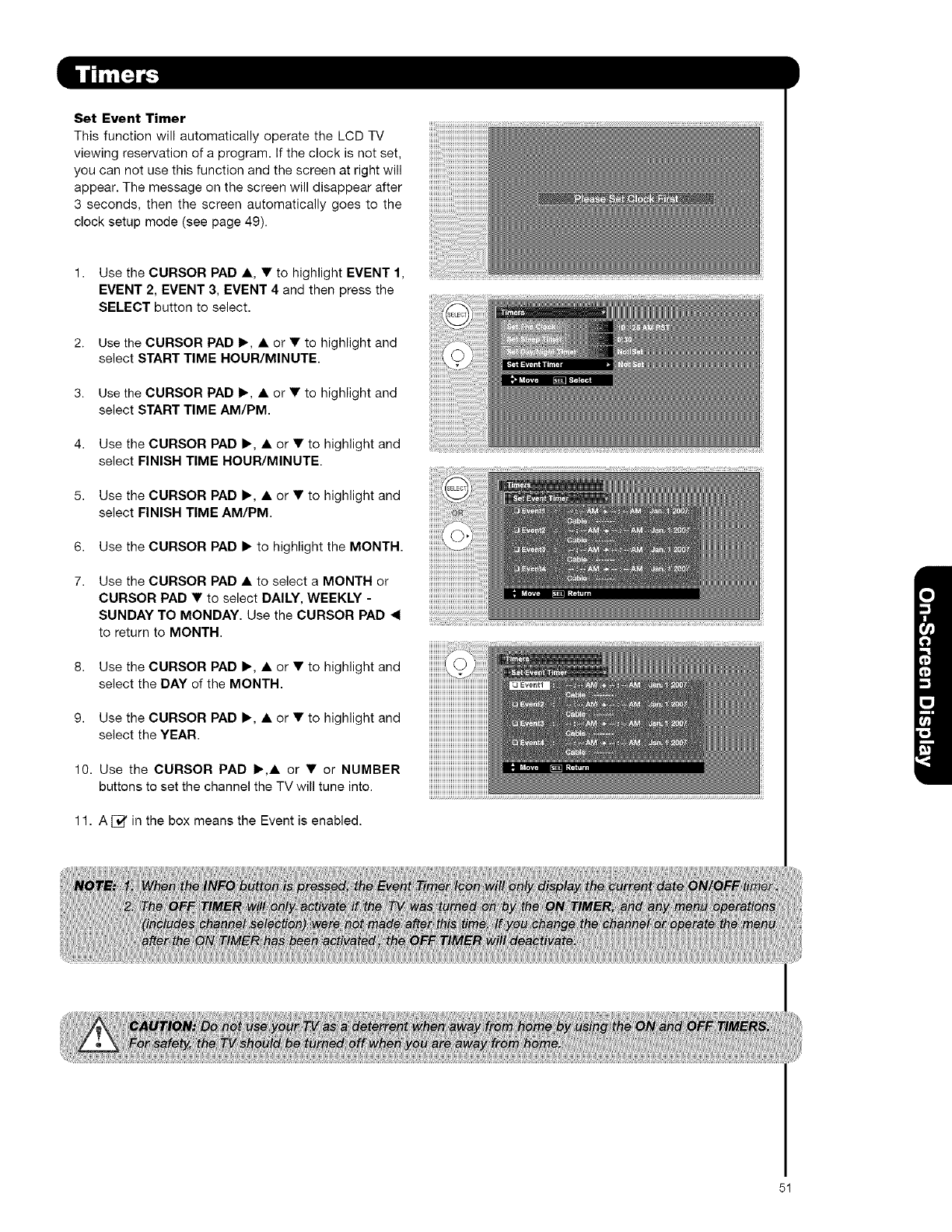

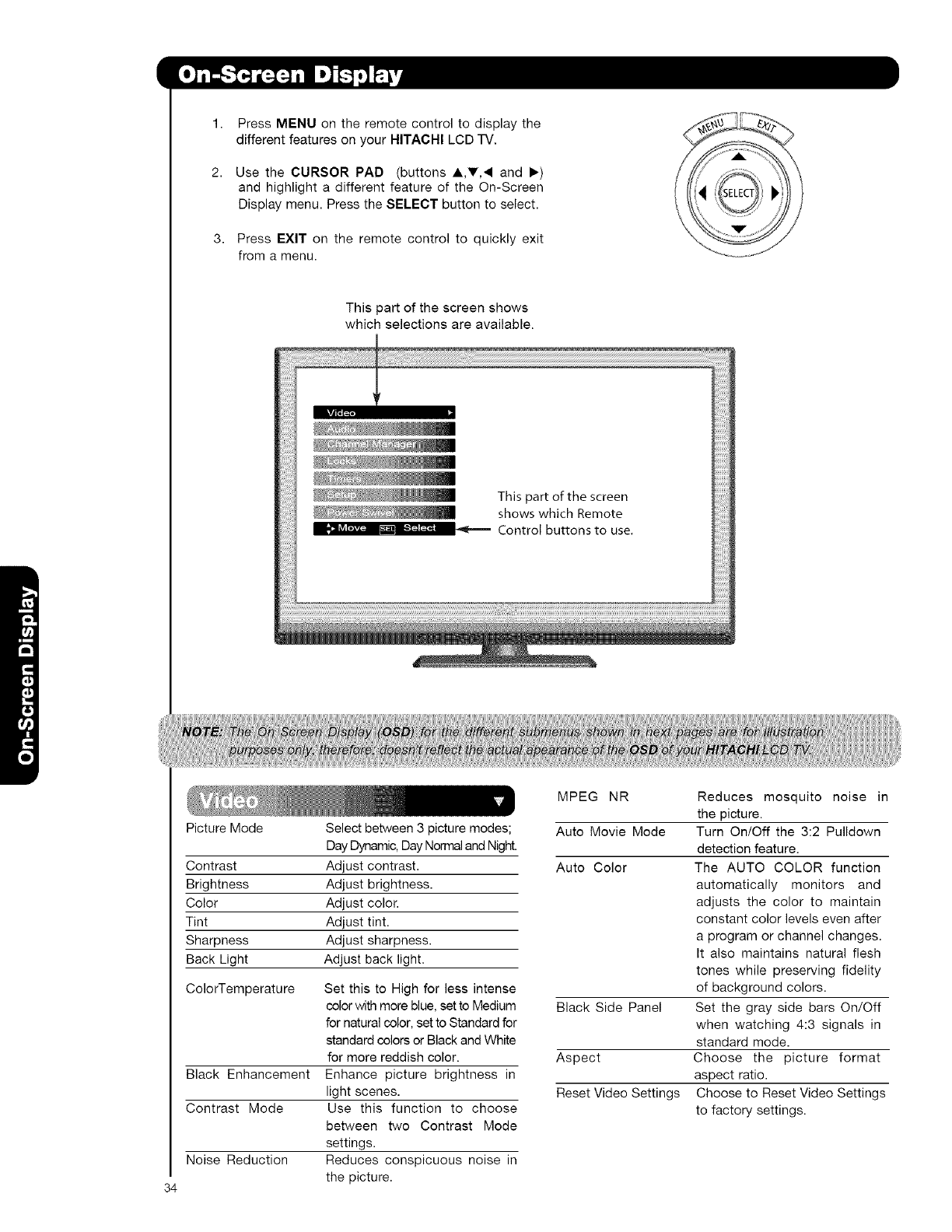

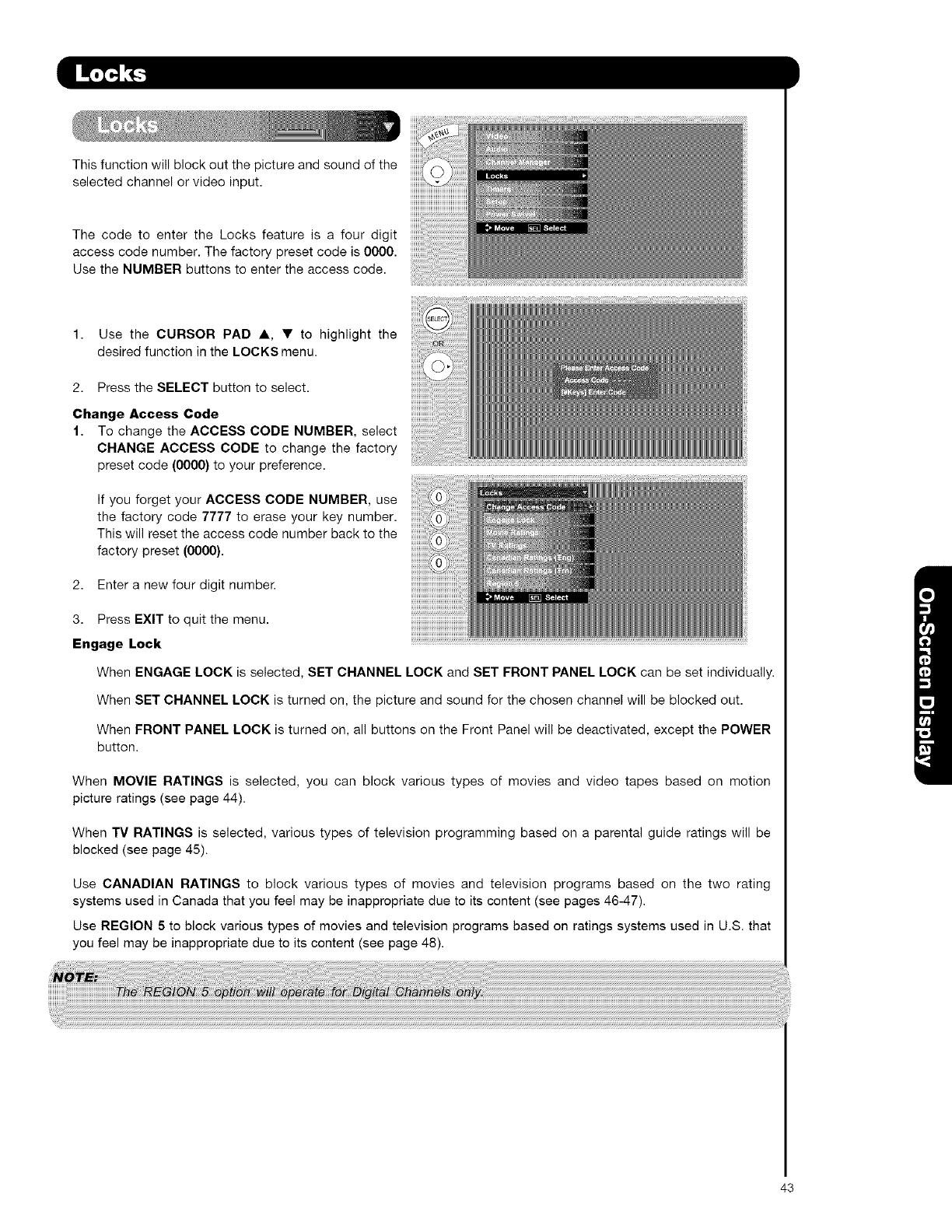

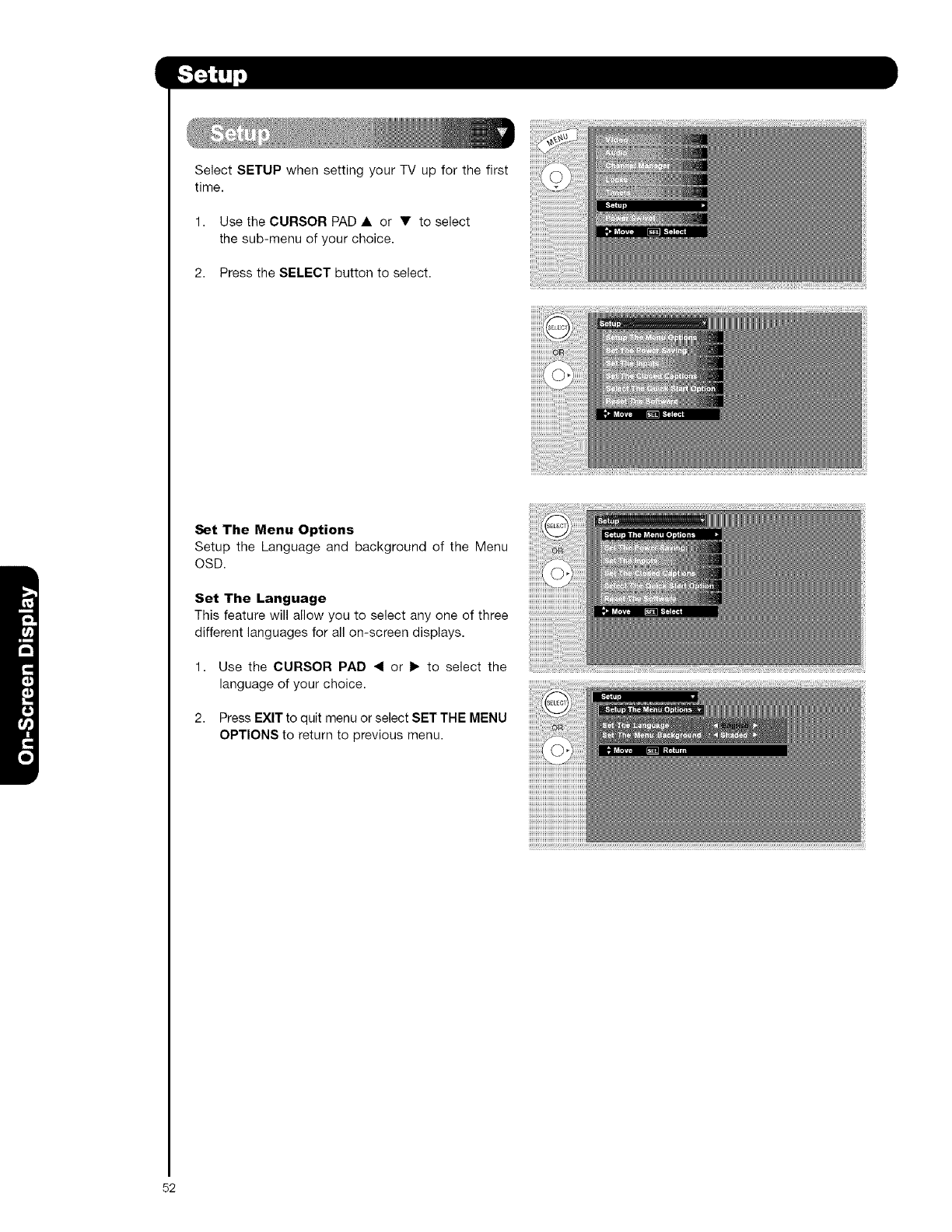

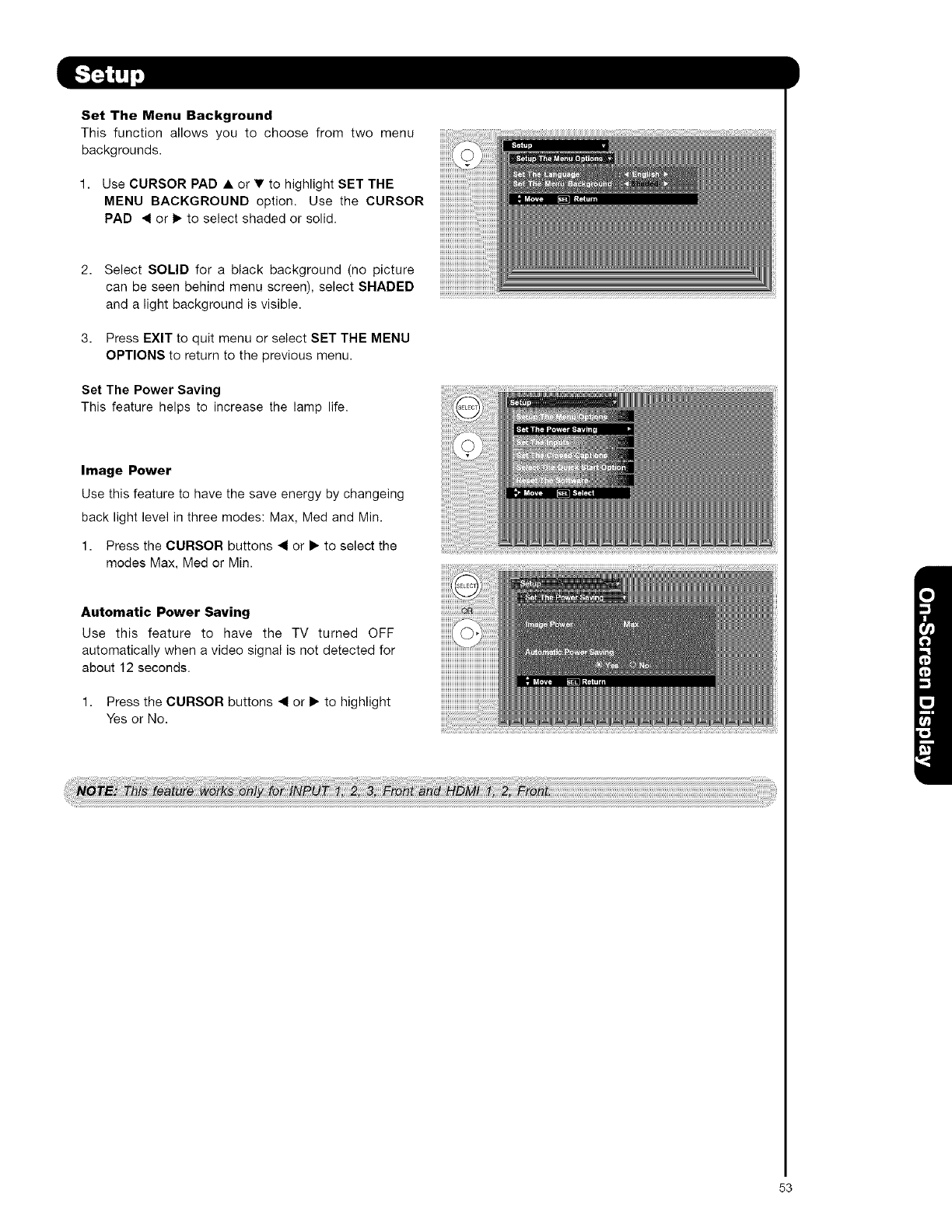

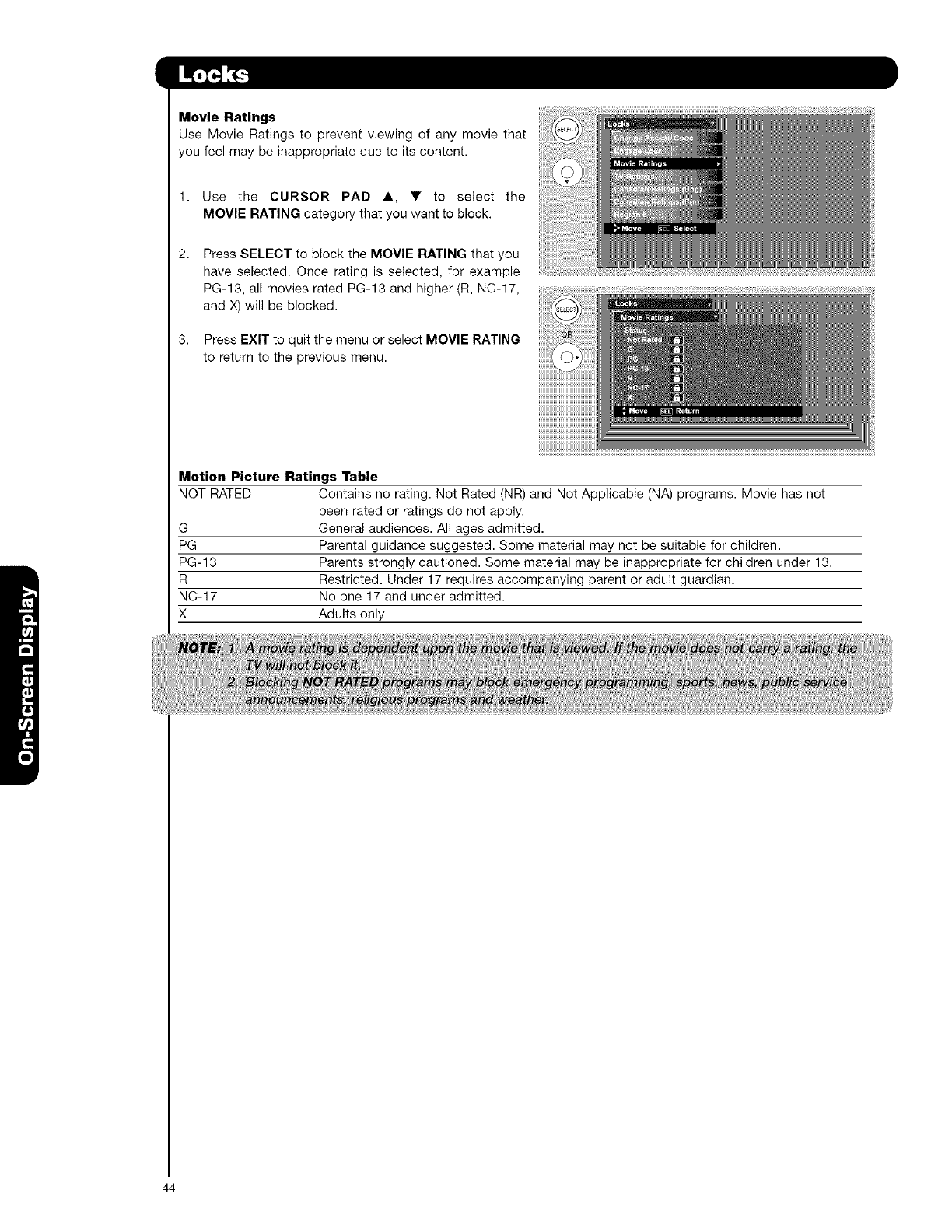

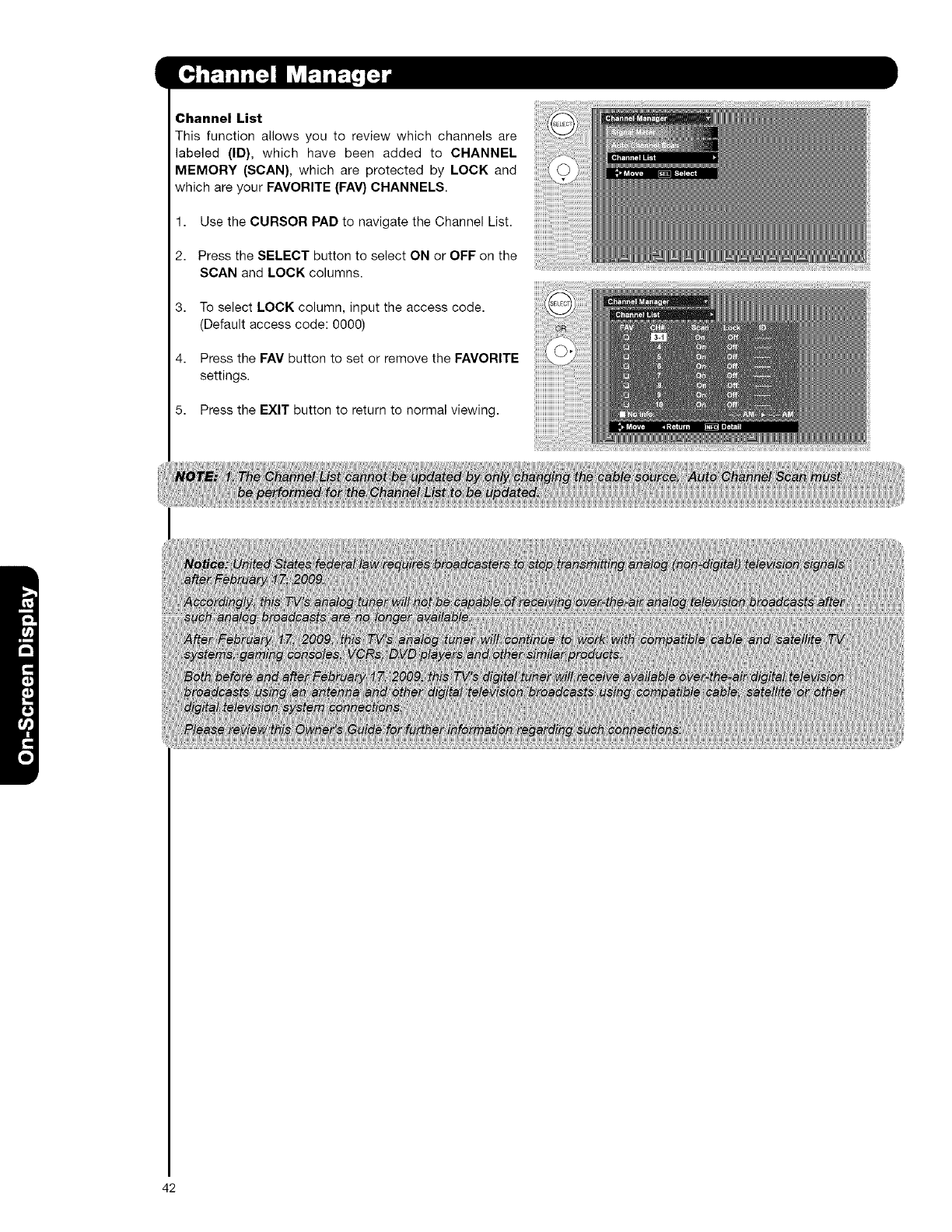

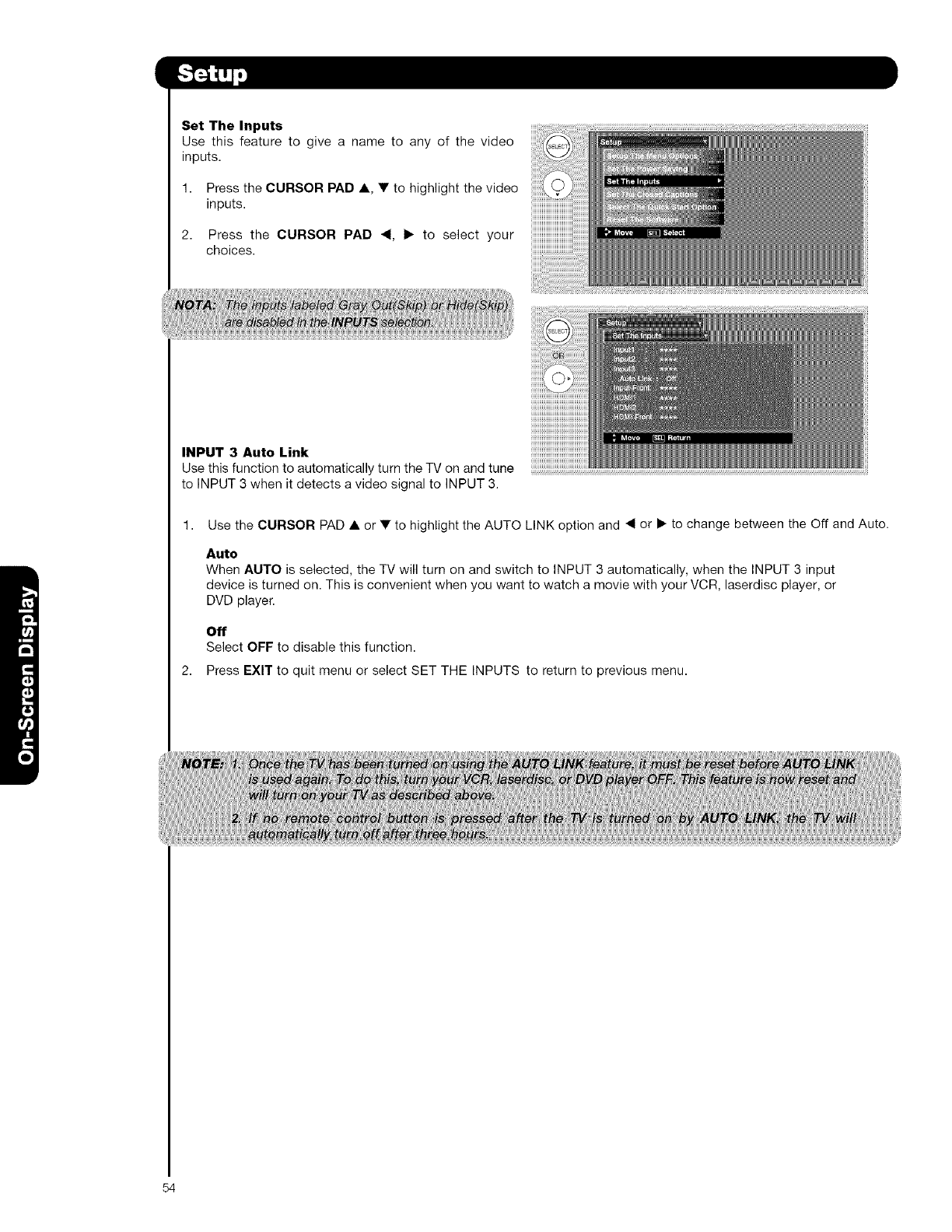

ON-SCREEN DISPLAY ....................................................................................................... 34-57

USEFUL INFORMATION ............................................................................................................... 58-64

OPERATING GU DE IN SPANISH ................................................................................................ 65-128

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE .......................................... 129-137

APPENDIXES ............................................... 138-139

INDEX ....................................................................................................................................................... 140

ULTr_VISION

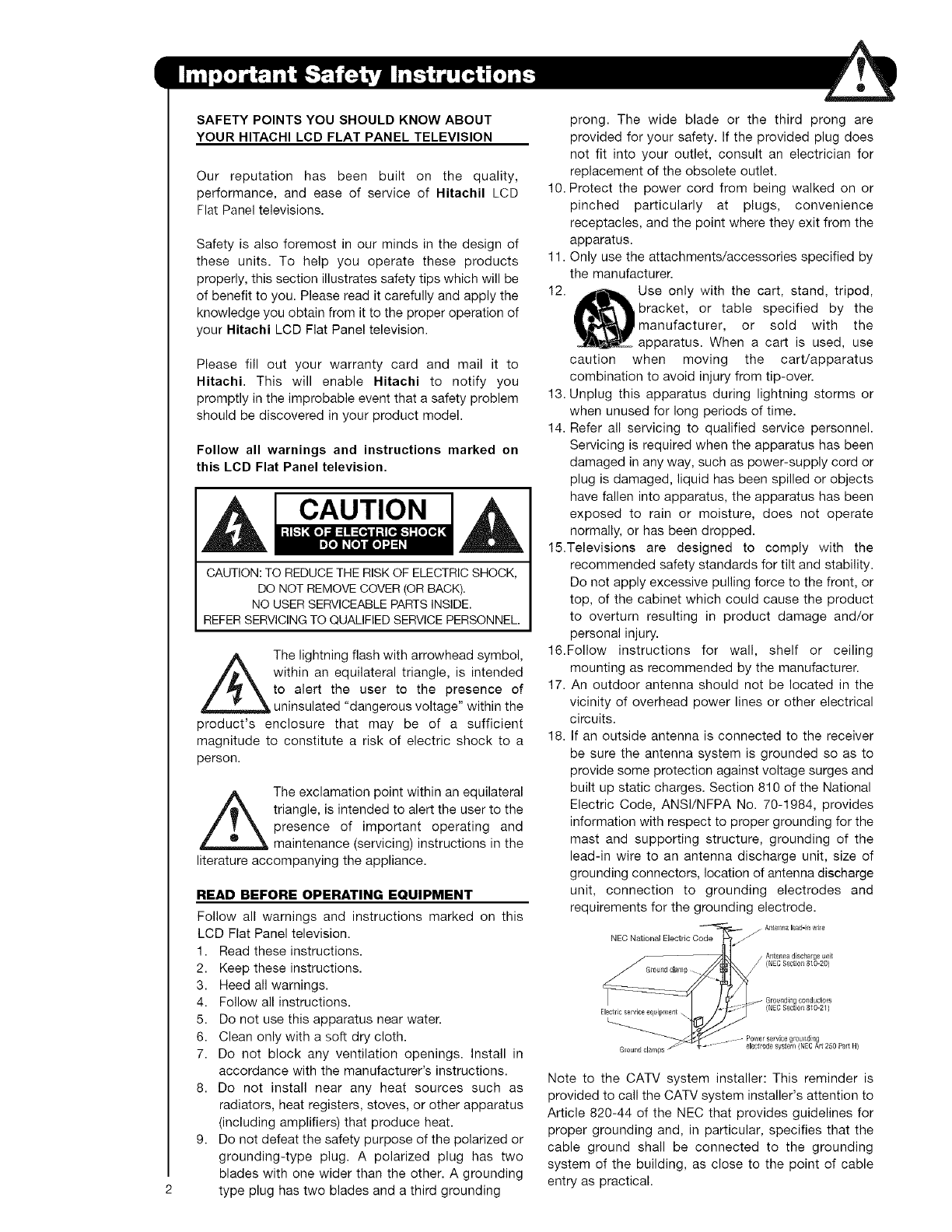

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI LCD FLAT PANEL TELEVISION

Our reputation has been built on the quality,

performance, and ease of service of Hitachil LCD

Flat Panel televisions.

Safety is also foremost in our minds in the design of

these units. To help you operate these products

properly, this section illustrates safety tips which will be

of benefit to you. Please read it carefully and apply the

knowledge you obtain from it to the proper operation of

your Hitachi LCD Flat Panel television.

Please fill out your warranty card and mail it to

Hitachi. This will enable Hitachi to notify you

promptly in the improbable event that a safety problem

should be discovered in your product model.

Follow all warnings and instructions marked on

this LCD Flat Panel television.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended

to alert the user to the presence of

uninsulated "dangerous voltage" within the

product's enclosure that may be of a sufficient

magnitude to constitute a risk of electric shock to a

person.

,_The exclamation point within an equilateral

triangle, is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

READ BEFORE OPERATING EQUIPMENT

Follow all warnings and instructions marked on this

LCD Flat Panel television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a soft dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11. Only use the attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

15.Televisions are designed to comply with the

recommended safety standards for tilt and stability.

Do not apply excessive pulling force to the front, or

top, of the cabinet which could cause the product

to overturn resulting in product damage and/or

personal injury.

16.Follow instructions for wall, shelf or ceiling

mounting as recommended by the manufacturer.

17. An outdoor antenna should not be located in the

vicinity of overhead power lines or other electrical

circuits.

18. If an outside antenna is connected to the receiver

be sure the antenna system is grounded so as to

provide some protection against voltage surges and

built up static charges. Section 810 of the National

Electric Code, ANSI/NFPA No. 70-1984, provides

information with respect to proper grounding for the

mast and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size of

grounding connectors, location of antenna discharge

unit, connection to grounding electrodes and

requirements for the grounding electrode.

j Aiitenna lead- n v,dle

NEC National Electric Code j/

_ Ar_tenrradischarge u

(NC SectJoll 810-2(

,._ Grounding c0_duct0r_

(NEC Sec io_1 810 21)

Electric service eq_H_rnem \

Power service grounding

ode sysem (NEC Ar_250 Par_ It/

Note to the CATV system installer: This reminder is

provided to call the CATV system installer's attention to

Article 820-44 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding

system of the building, as close to the point of cable

entry as practical.

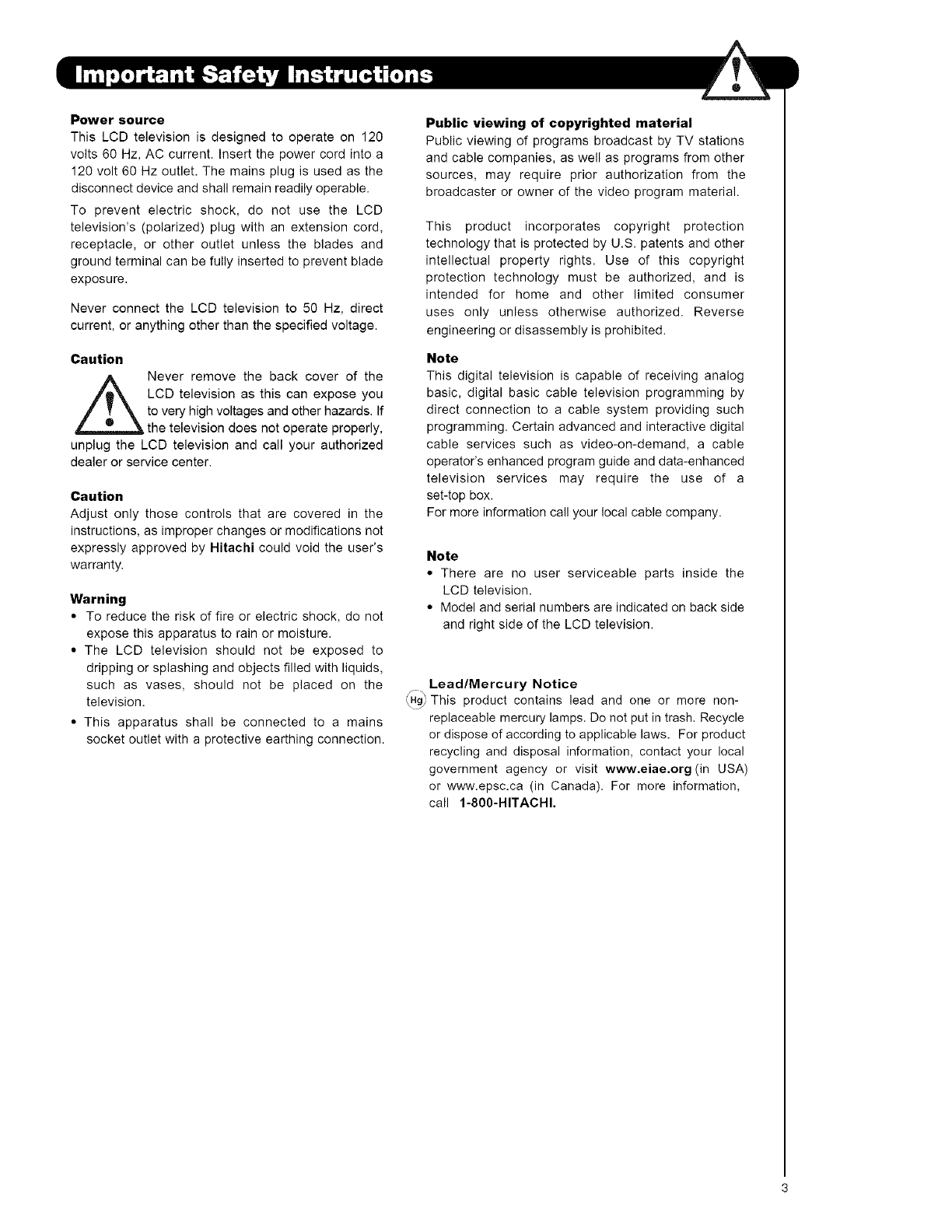

Power source

This LCD television is designed to operate on 120

volts 60 Hz, AC current. Insert the power cord into a

120 volt 60 Hz outlet. The mains plug is used as the

disconnect device and shall remain readily operable.

To prevent electric shock, do not use the LCD

television's (polarized) plug with an extension cord,

receptacle, or other outlet unless the blades and

ground terminal can be fully inserted to prevent blade

exposure.

Never connect the LCD television to 50 Hz, direct

current, or anything other than the specified voltage.

Caution

Never remove the back cover of the

LCD television as this can expose you

to very high voltages and other hazards. If

the television does not operate properly,

unplug the LCD television and call your authorized

dealer or service center.

Caution

Adjust only those controls that are covered in the

instructions, as improper changes or modifications not

expressly approved by Hitachi could void the user's

warranty.

Warning

•To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

• The LCD television should not be exposed to

dripping or splashing and objects filled with liquids,

such as vases, should not be placed on the

television.

• This apparatus shall be connected to a mains

socket outlet with a protective earthing connection.

Public viewing of copyrighted material

Public viewing of programs broadcast by TV stations

and cable companies, as well as programs from other

sources, may require prior authorization from the

broadcaster or owner of the video program material.

This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorized, and is

intended for home and other limited consumer

uses only unless otherwise authorized. Reverse

engineering or disassembly is prohibited.

Note

This digital television is capable of receiving analog

basic, digital basic cable television programming by

direct connection to a cable system providing such

programming. Certain advanced and interactive digital

cable services such as video-on-demand, a cable

operator's enhanced program guide and data-enhanced

television services may require the use of a

set-top box.

For more information call your local cable company.

Note

•There are no user serviceable parts inside the

LCD television.

• Model and serial numbers are indicated on back side

and right side of the LCD television.

Lead/Mercury Notice

_Hg_This product contains lead and one or more non-

replaceable mercury lamps. Do not put in trash. Recycle

or dispose of according to applicable laws. For product

recycling and disposal information, contact your local

government agency or visit www.eiae.erg (in USA)

or www.epsc.ca (in Canada). For more information,

call 1-800-HITACHI.

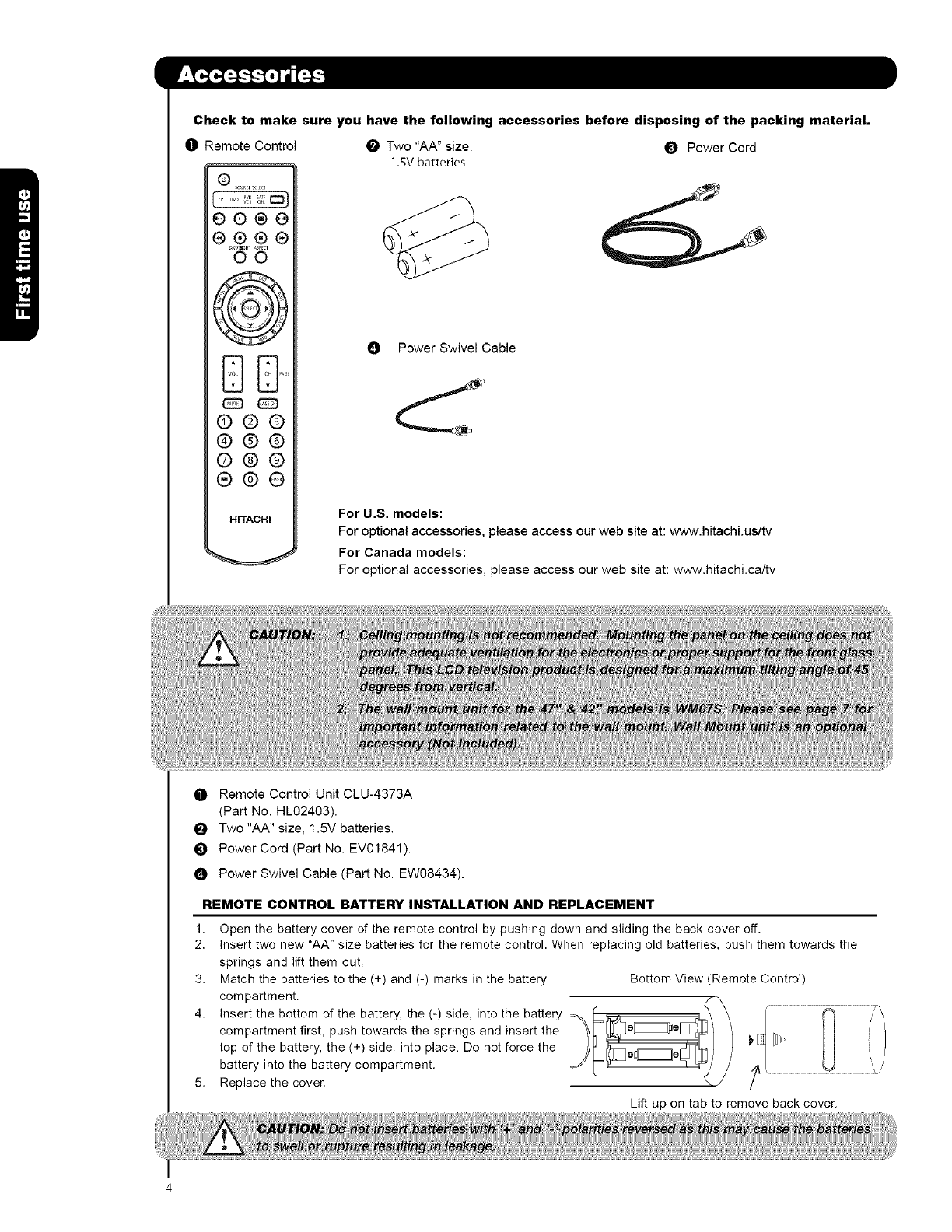

Checkto makesureyouhavethefollowingaccessoriesbeforedisposingofthepackingmaterial,

O Remote Control _ Two "AA" size, _) Power Cord

_v Dv_ wR

e@®@

®®®®

_s_H_ AS_rCT

DU....

©©@

©@@

®@@

HiTACHi

1,5V batteries

0 Power Swivel Cable

For U.S. models:

For optional accessories, please access our web site at: www.hitachi.us/tv

For Canada models:

For optional accessories, please access our web site at: www.hitachi.ca/tv

O Remote Control Unit CLU-4373A

(Part No. HL02403).

I_ Two "AA" size, 1.5V batteries.

t_ Power Cord (Part No. EV01841).

0 Power Swivel Cable (Part No. EW08434).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

Open the battery cover of the remote control by pushing down and sliding the back cover off.

Insert two new "AA" size batteries for the remote control. When replacing old batteries, push them towards the

springs and lift them out.

Match the batteries to the (+) and (-) marks in the battery Bottom View (Remote Control)

compartment. ___ r/_ (7i

Insert the bottom of the battery, the (-) side, into the battery /

compartment first, push towards the springs and insert the

top of the battery, the (+) side, into place. Do not force the ),1] I]BH>

battery into the battery compartment. _ _ _/

Replace the cover.

Lift up on tab to remove back cover.

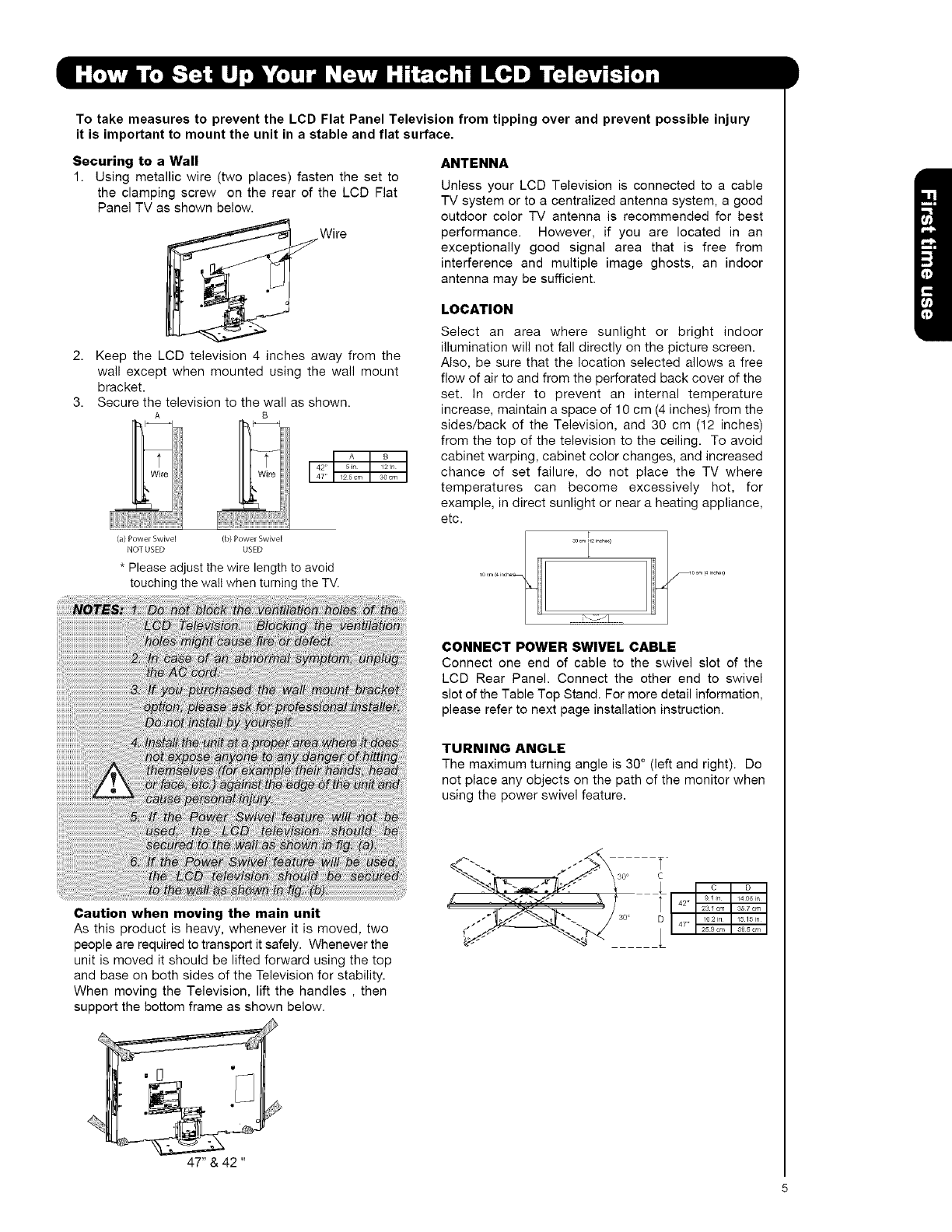

To take measures to prevent the LCD Flat Panel Television from tipping over and prevent possible injury

it is important to mount the unit in a stable and flat surface.

Securing to a Wall

1. Using metallic wire (two places) fasten the set to

the clamping screw on the rear of the LCD Fiat

Panel TV as shown below.

Wire

ANTENNA

Unless your LCD Television is connected to a cable

TV system or to a centralized antenna system, agood

outdoor color TV antenna is recommended for best

performance. However, if you are located in an

exceptionally good signal area that is free from

interference and multiple image ghosts, an indoor

antenna may be sufficient.

2. Keep the LCD television 4 inches away from the

wall except when mounted using the wall mount

bracket.

3. Secure the television to the wall as shown.

A B

I 42' 5in 12in47 = 12 5 cm 30 cm

(a) Power Swivel (b) Power Swivel

NOT USED USED

* Please adjust the wire length to avoid

touching the walt when turning the TV.

NOTE ve tii ti th

LOCATION

Select an area where sunlight or bright indoor

illumination will not fall directly on the picture screen.

Also, be sure that the location selected allows a free

flow of air to and from the perforated back cover of the

set. In order to prevent an internal temperature

increase, maintain a space of 10 cm (4 inches) from the

sides/back of the Television, and 30 cm (12 inches)

from the top of the television to the ceiling. To avoid

cabinet warping, cabinet color changes, and increased

chance of set failure, do not place the TV where

temperatures can become excessively hot, for

example, in direct sunlight or near a heating appliance,

etc.

CONNECT POWER SWIVEL CABLE

Connect one end of cable to the swivel slot of the

LCD Rear Panel. Connect the other end to swivel

slot of the Table Top Stand. For more detail information,

please refer to next page installation instruction.

TURNING ANGLE

The maximum turning angle is 30 °(left and right). Do

not place any objects on the path of the monitor when

using the power swivel feature.

Caution when moving the main unit

As this product is heavy, whenever it is moved, two

people are required to transport it safely. Whenever the

unit is moved it should be lifted forward using the top

and base on both sides of the Television for stability.

When moving the Television, lift the handles , then

support the bottom frame as shown below.

_j°_-. /3o D } 47,._

47" & 42 "

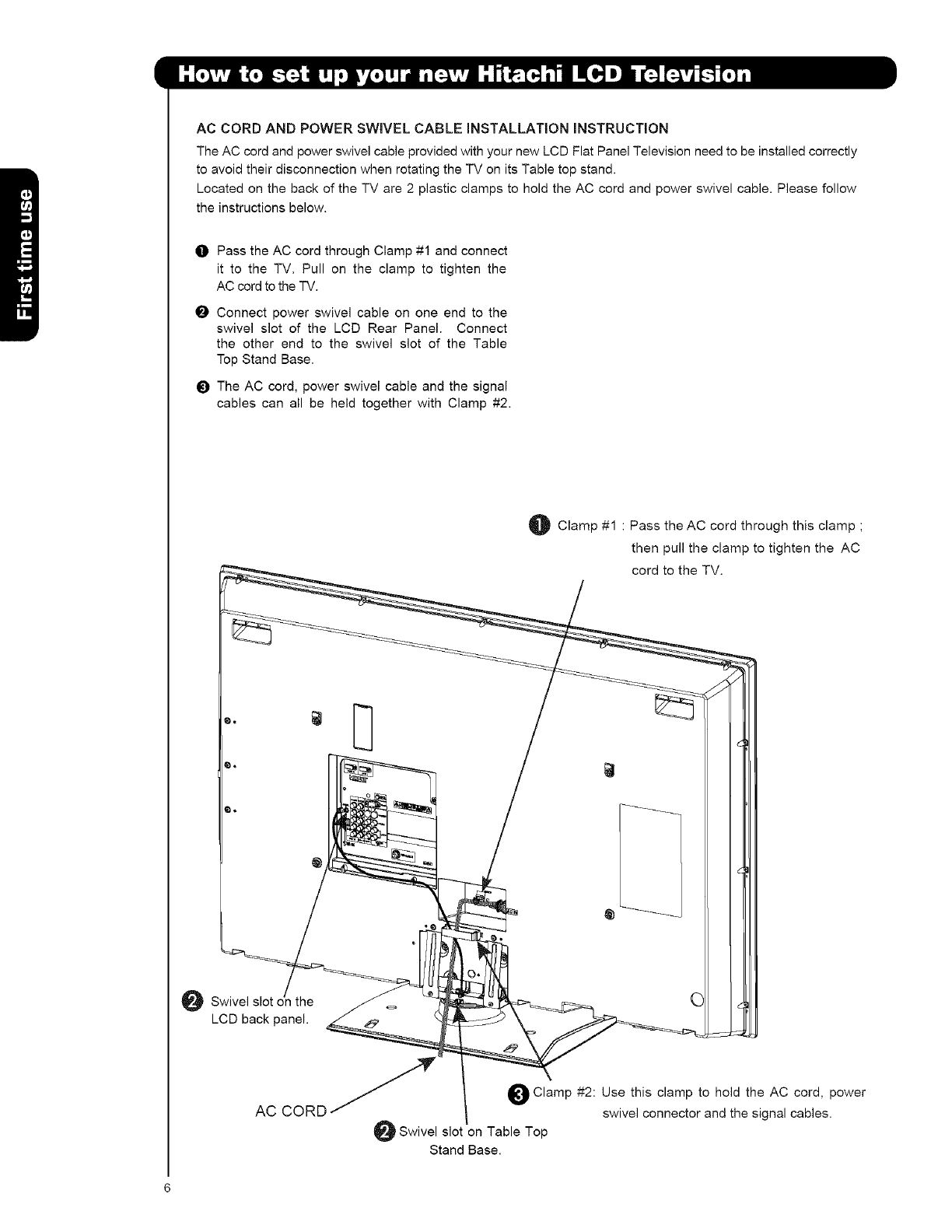

ACCORDANDPOWERSWIVELCABLEINSTALLATIONINSTRUCTION

TheACcordandpowerswivelcableprovidedwithyournewLCDFlatPanelTelevisionneedtobeinstalledcorrectly

toavoidtheirdisconnectionwhenrotatingthe13/onitsTabletopstand.

LocatedonthebackoftheTVare2plasticclampstoholdtheACcordandpowerswivelcable.Pleasefollow

theinstructionsbelow.

Pass the AC cord through Clamp #1 and connect

it to the TV. Pull on the clamp to tighten the

AC cord to the TV.

Connect power swivel cable on one end to the

swivel slot of the LCD Rear Panel. Connect

the other end to the swivel slot of the Table

Top Stand Base.

The AC cord, power swivel cable and the signal

cables can all be held together with Clamp #2.

O Clamp #1 : Pass theAC cord through this clamp ;

then pull the clamp to tighten the AC

cord to the TV.

•. 0

O Swivel slot the

LCD back panel.

AC CORD OClamp #2: Use this clamp to hold the AC cord, power

swivel connector and the signal cables.

O Swivel on Top

slot Table

Stand Base.

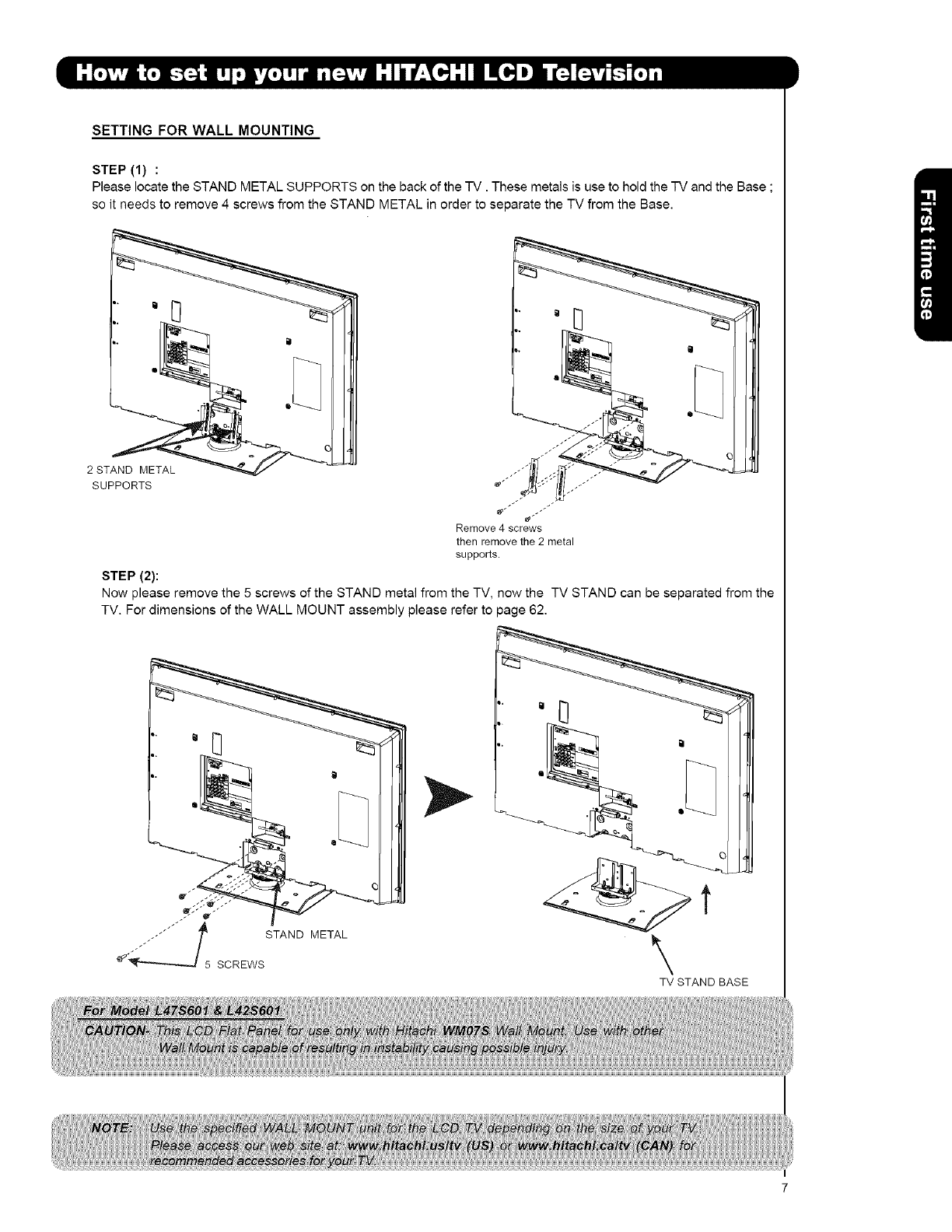

SETTING FOR WALL MOUNTING

STEP (1) :

Please locate the STAND METAL SUPPORTS on the back of the TV. These metals is use to hold the TV and the Base ;

so it needs to remove 4 screws from the STAND METAL in order to separate the TV from the Base.

2ST

SUPPORTS

Remove4 screws

then remove the 2 metal

supports.

STEP (2):

Now please remove the 5 screws of the STAND metal from the TV, now the TV STAND can be separated from the

TV. For dimensions of the WALL MOUNT assembly please refer to page 62.

_5 STAND METAL

SCREWS

,. Q il

\TV STAND BASE

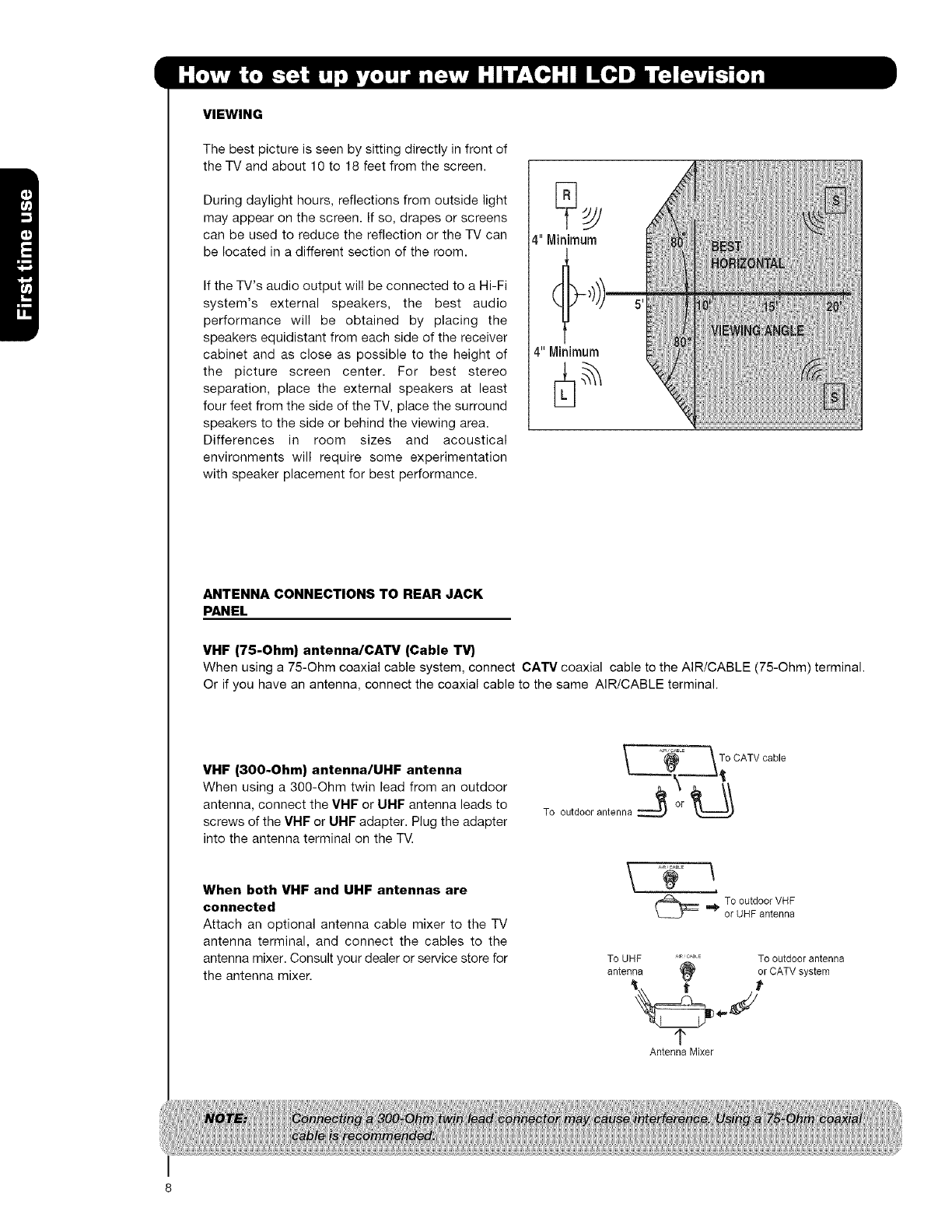

VIEWING

The best picture is seen by sitting directly in front of

the TV and about 10 to 18 feet from the screen.

During daylight hours, reflections from outside light

may appear on the screen. If so, drapes or screens

can be used to reduce the reflection or the TV can

be located in a different section of the room.

If the TV's audio output will be connected to a Hi-Fi

system's external speakers, the best audio

performance will be obtained by placing the

speakers equidistant from each side of the receiver

cabinet and as close as possible to the height of

the picture screen center. For best stereo

separation, place the external speakers at least

four feet from the side of the TV, place the surround

speakers to the side or behind the viewing area.

Differences in room sizes and acoustical

environments will require some experimentation

with speaker placement for best performance.

4" Minimum

ANTENNA CONNECTIONS TO REAR JACK

PANEL

VHF (75-Ohm) antenna/CATV (Cable TV}

When using a 75-Ohm coaxial cable system, connect CATV coaxial cable to the AIR/CABLE (75-Ohm) terminal.

Or if you have an antenna, connect the coaxial cable to the same AIR/CABLE terminal.

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor

antenna, connect the VMF or Ill-IF antenna leads to

screws of the VHF or UHF adapter. Plug the adapter

into the antenna terminal on the TV.

When both VHF and UHF antennas are

connected

Attach an optional antenna cable mixer to the TV

antenna terminal, and connect the cables to the

antenna mixer. Consult your dealer or service store for

the antenna mixer.

_ .,_E _To CATV cable

To outdoor antenna _" !r 1_

To outdoor VHF

or UHFantenna

To UHF ....... To outdoorantenna

(_ orCATVsystem

antenna

AntennaMixer

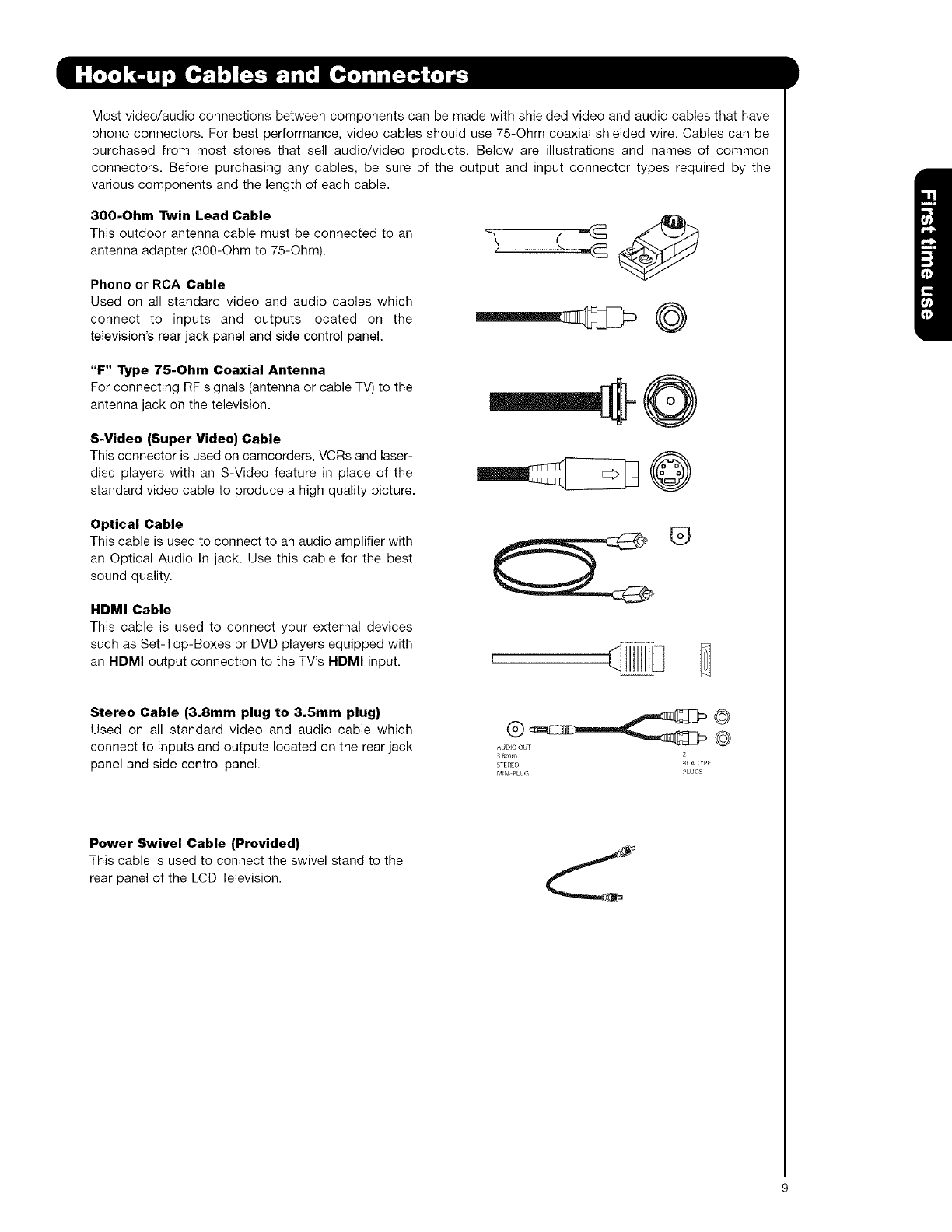

Mostvideo/audioconnectionsbetweencomponentscanbemadewithshieldedvideoandaudiocablesthathave

phoneconnectors.Forbestperformance,videocablesshoulduse75-Ohmcoaxialshieldedwire.Cablescanbe

purchasedfrommoststoresthatsellaudio/videoproducts.Belowareillustrationsandnamesof common

connectors.Beforepurchasinganycables,besureoftheoutputandinputconnectortypesrequiredbythe

variouscomponentsandthelengthofeachcable.

300-Ohm Twin Lead Cable

This outdoor antenna cable must be connected to an

antenna adapter (300-Ohm to 75-Ohm).

Phone or RCA Cable

Used on all standard video and audio cables which

connect to inputs and outputs located on the

television's rear jack panel and side control panel. @

"F" Type 75-Ohm Coaxial Antenna

For connecting RF signals (antenna or cable TV) to the

antenna jack on the television.

S-Video (Super Video) Cable

This connector is used on camcorders, VCRs and laser-

disc players with an S-Video feature in place of the

standard video cable to produce a high quality picture.

Optical Cable

This cable is used to connect to an audio amplifier with

an Optical Audio In jack. Use this cable for the best

sound quality.

HDMI Cable

This cable is used to connect your external devices

such as Set-Top-Boxes or DVD players equipped with

an HDMI output connection to the TV's HDMI input.

Stereo Cable (3.8mm plug to 3.5mm plug)

Used on all standard video and audio cable which

connect to inputs and outputs located on the rear jack

panel and side control panel. 38ram 2

STEREO RCATYpE

M[N_PLUG PLUGS

Power Swivel Cable (Provided)

This cable is used to connect the swivel stand to the

rear panel of the LCD Television.

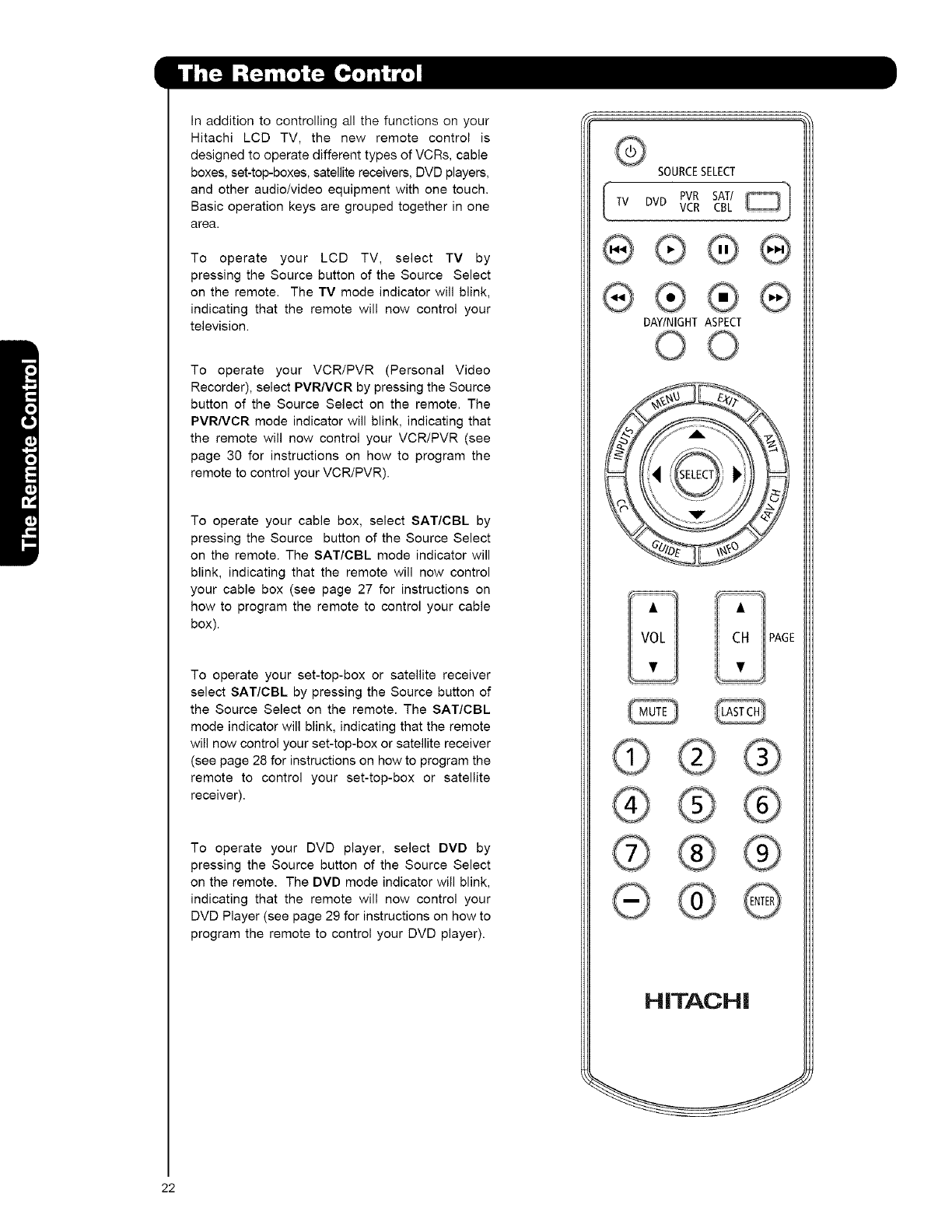

InadditiontocontrollingallofthefunctionsonyourHITACHILCDTV,thenewremotecontrolisdesignedto

operatedifferenttypesofdevices,suchas,DVDPlayers,CBL(CableBoxes),set-top-boxes,satellitereceivers,

andVCRs.Theremotecontrolmustbeprogrammedtocontrolthechosendevice.Pleaseseepages22-33fora

completedescriptionofallfeaturesandprogrammingoftheRemoteControl.

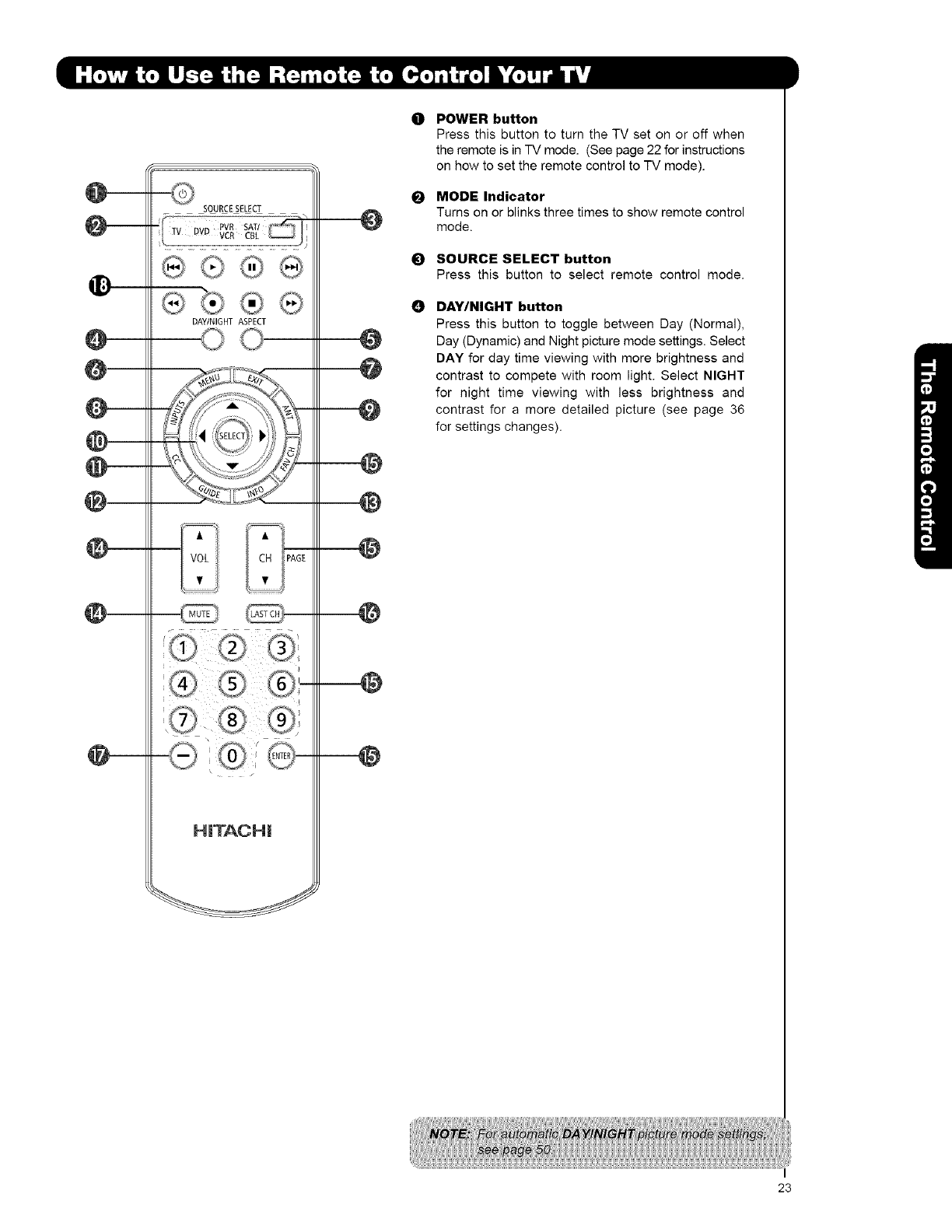

POWER BUTTON

(TV, DVD, SAT/CBL,PVR/VCR) .................

Turns the selected device on and off.

MODE INDICATOR ......

Turns on or blinks to show remote control ..............

mode when the SOURCE ACCESS buttons

are pressed.

DAY/NIGHT BUTTON

(TV)

Toggles picture mode settings .............

between DAY and NIGHT mode.

MENU BUTTON

(TV,DVD,SAT/CBL,PVR/VCR)

Accesses the OSD menu system.

iNPUTS BUTTON,

(TV) ......

Aooesses the INPUTS menu sys_m.

CURSOR PADISELECT BUTTON

(TV, DVD, SAT/CBL,PVR/VCR) ........

The Cursor Pad is used as a cursor to navigate

through the OSD and INPUT menu systems.

The Select button is used to Select/Activate

highlighted menu items.

Closed Caption (CC) BUTTON ...................

(TV)

Press to show and change the

Closed Caption mode.

GUIDE BUTTON///

(SAT/CBL, PVR)

Accesses the program guide of other devices.

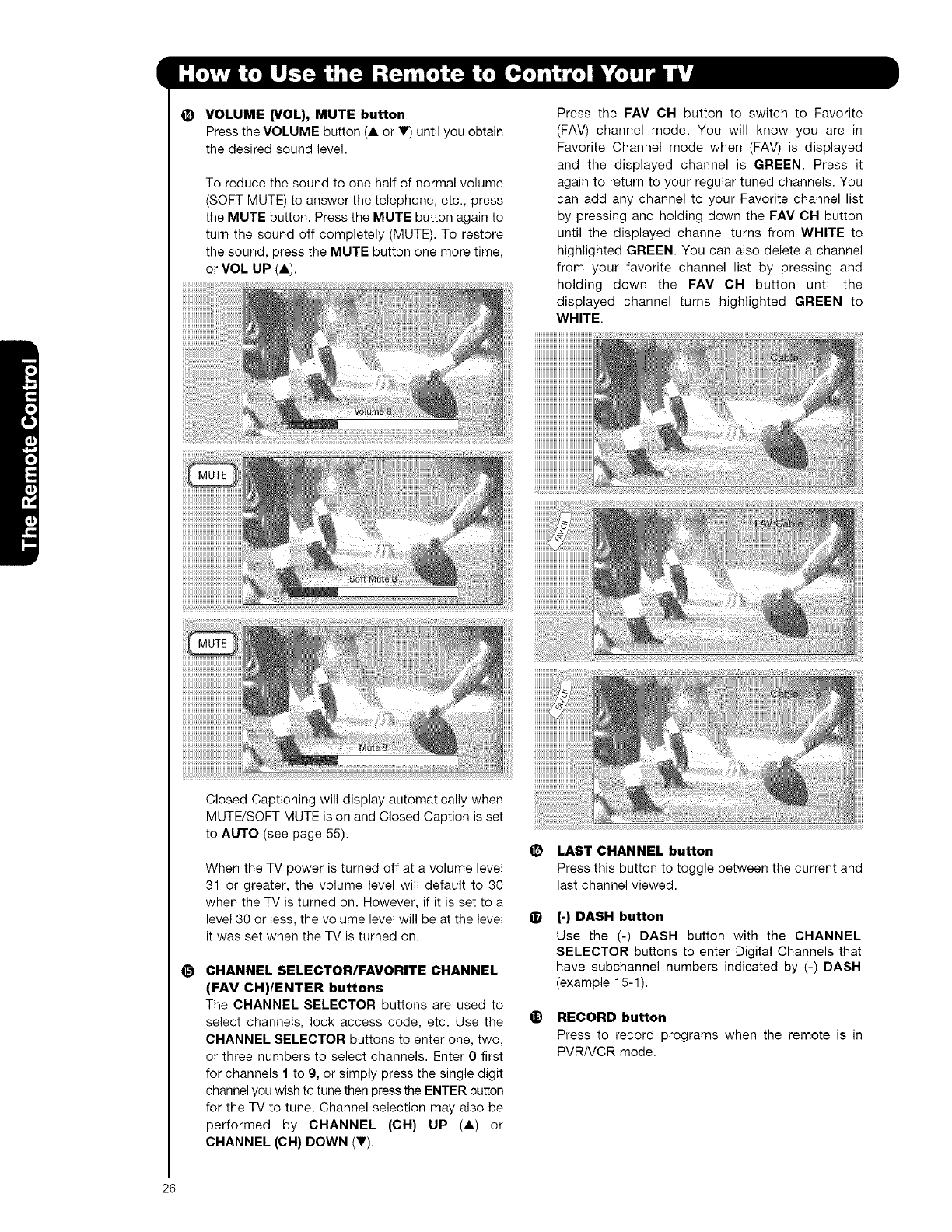

VOLUME BUTTONS

(TV)

Increase up and decrease down to adjust

the audio level of your T_L

MUTE BUTTON (TV) /

Reduces the audio level to 50% if pressed"

once, and to complete mute if pressed

twice. Press it a third time to restore audio

level. //

NUMERmC BUTTONS /

(TV, DVD, SAT/CBL, PVPJVCR)

Used to manually enter the TV channel, and used

for numeric entry when navigating through the

the OSD, iNPUTS.

(-) BUTTON ..................

(TV,STB)

The (-) button is used when the remote is in

Set-Top-Box (STB) mode or when the TV uses a

digital input

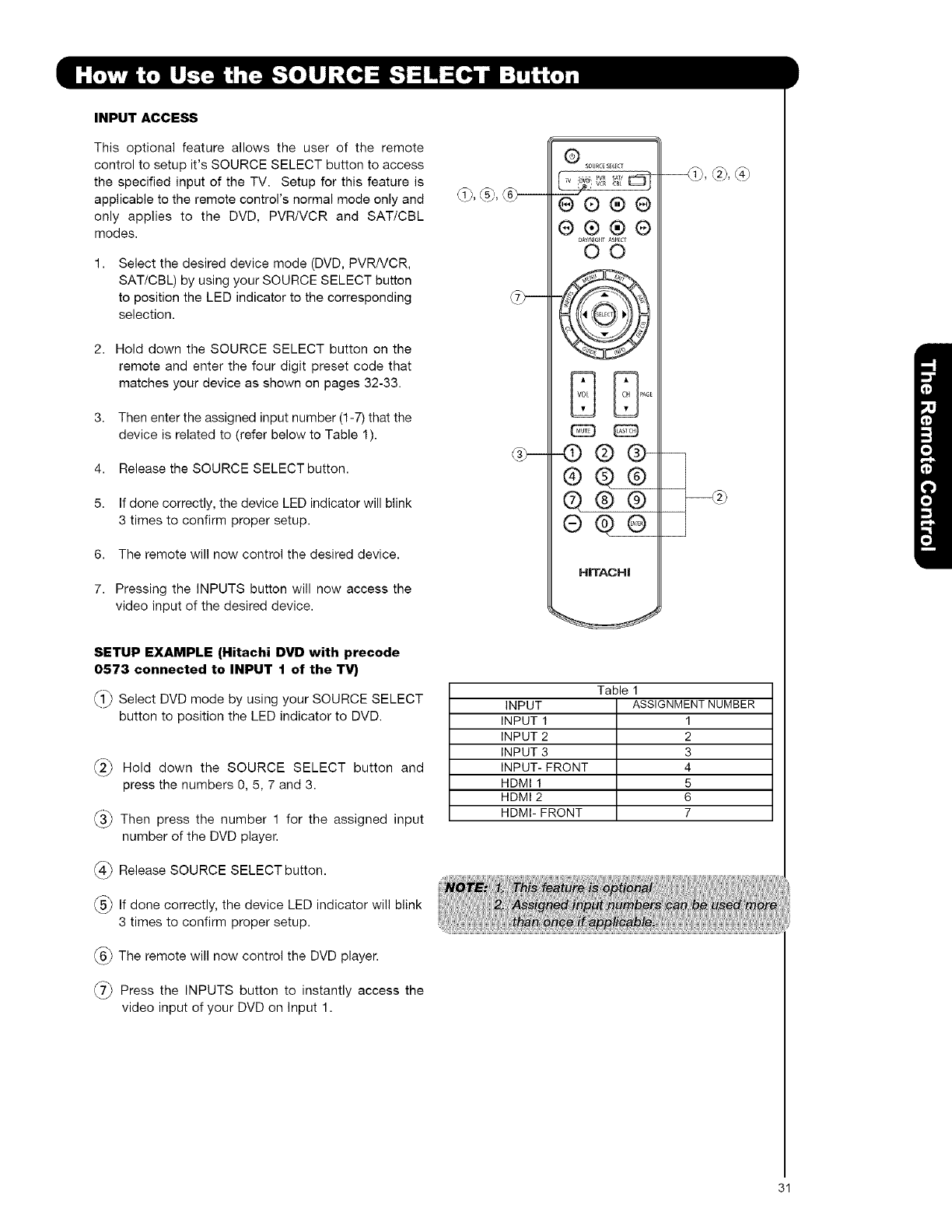

SOURCESELECT

- \

[w DVDPWSAT/_ ,

VCR CBL i_

@®

®®

DA6RT ASPECT

@@ @

SOURCE ACCESS BUTTONS

_(TV, DVD, PVR/VCR, SAT/CBL)

Changes the mode of the Universal Remote

Control to control the device selected.

PAUSE BUTTON

/(PVR/VCR, DVD)

Press to pause other devices when the remote is in

DVD, PVR/VCR mode.

DVDNCR CONTROL BUTTONS

(DVD, PVR/VCR)

Controls the functions of your VCR and DVD

(TV)

Changes the aspect ratio of the TV.

EXiT BUTTON

(TV, SAT/CBL, PVR/VCR)

Exits out of the OSD, INPUTS menu

systems if their menu is displayed.

ANT (Antenna) BUTTON

(TV)

Press for change to antenna input.

FAVORITE CHANNEL

(FAV CH) button (TV)

Press to enter/access Favorite Channel (FAV CH) mode

(Favorite channel Js only available for TV mode.)

(TV, STB, CBL, PVR)

Displays various information on the

screen, such as channel information.

............CHANNEL UP & DOWN BUTTONS

(TV, CBL, STB, PVR/VCR)

Changes up or down the channel

BUTTON

(TV, SAT/CBL, PVR)

Switches between the current and last channei viewed.

ENTER BUTTON

(TV, VCR, SAT/CBL)

Press to use as SELECT feature.

LEGEND

TV- Television

CBL- Cable Box

SAT- Satellite

PVR- Video Recorder/Player

DVD - Digital Video Disc Player

VCR - Videocassete Recorder

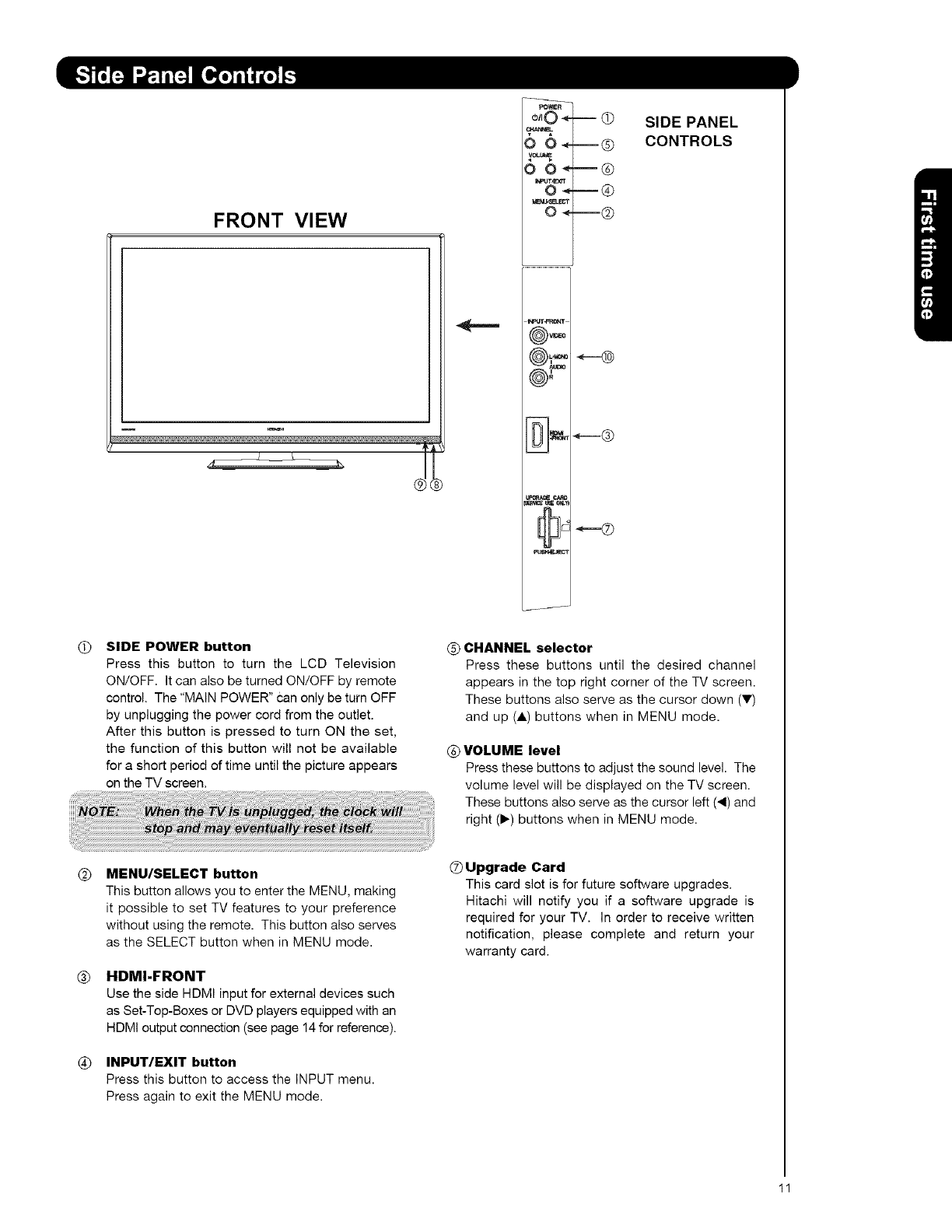

FRONT VIEW

o/IO -* -- (9

00_--@

0 0_--@

0_--@

SIDE PANEL

CONTROLS

SL;

_-®

(9 SIDE POWER button

Press this button to turn the LCD Television

ON/OFF. It can also be turned ON/OFF by remote

control. The "MAIN POWER" Can only be turn OFF

by unplugging the power cord from the outlet.

After this button is pressed to turn ON the set,

the function of this button will not be available

for a short period of time until the picture appears

on the TV screen.

®CHANNEL selector

Press these buttons until the desired channel

appears in the top right corner of the TV screen.

These buttons also serve as the cursor down (V)

and up (A) buttons when in MENU mode.

(_) VOLUME level

Press these buttons to adjust the sound level. The

volume level will be displayed on the TV screen.

These buttons also serve as the cursor left (4) and

right (1_) buttons when in MENU mode.

MENU/SELECT button

This button allows you to enter the MENU, making

it possible to set TV features to your preference

without using the remote. This button also serves

as the SELECT button when in MENU mode.

HDMI-FRONT

Use the side HDMI input for external devices such

as Set-Top-Boxes or DVD players equipped with an

HDMI output connection (see page 14 for reference).

INPUT/EXIT button

Press this button to access the INPUT menu.

Press again to exit the MENU mode.

0Upgrade Card

This card slot is for future software upgrades.

Hitachi will notify you if a software upgrade is

required for your TV. In order to receive written

notification, please complete and return your

warranty card.

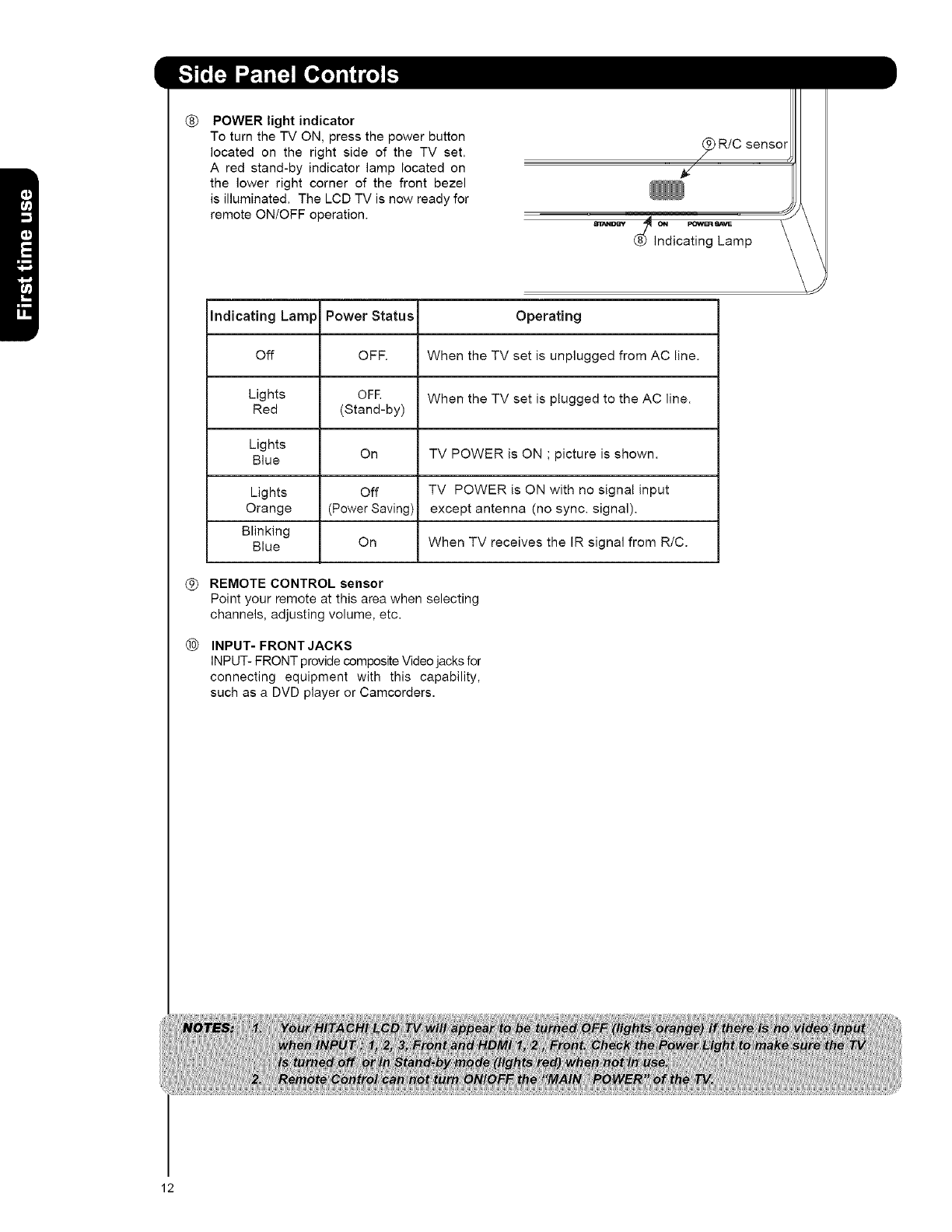

®POWER light indicator

To turn the TV ON, press the power button

located on the right side of the TV set.

A red stand-by indicator lamp located on

the lower right corner of the front bezel

is illuminated. The LCD TV is now ready for

remote ON/OFF operation.

_R/C sensor

Er_NDBY ON FOW_

Indicating Lamp

indicating Lamp Power Status Operating

Off OFF. When the TV set is unplugged from AC line.

Lights OFR When the TV set is plugged to the AC line.

Red (Stand-by)

Lights

Blue On TV POWER is ON ; picture is shown.

Lights Off TV POWER is ON with no signal input

Orange (Power Saving) except antenna (no sync. signal),

Blinking

Blue On When TV receives the IR signal from R/C.

® REMOTE CONTROL sensor

Point your remote at this area when selecting

channels, adjusting volume, etc.

®INPUT- FRONT JACKS

INPUT- FRONT provide composite Video jacks for

connecting equipment with this capability,

such as a DVD player or Camcorders.

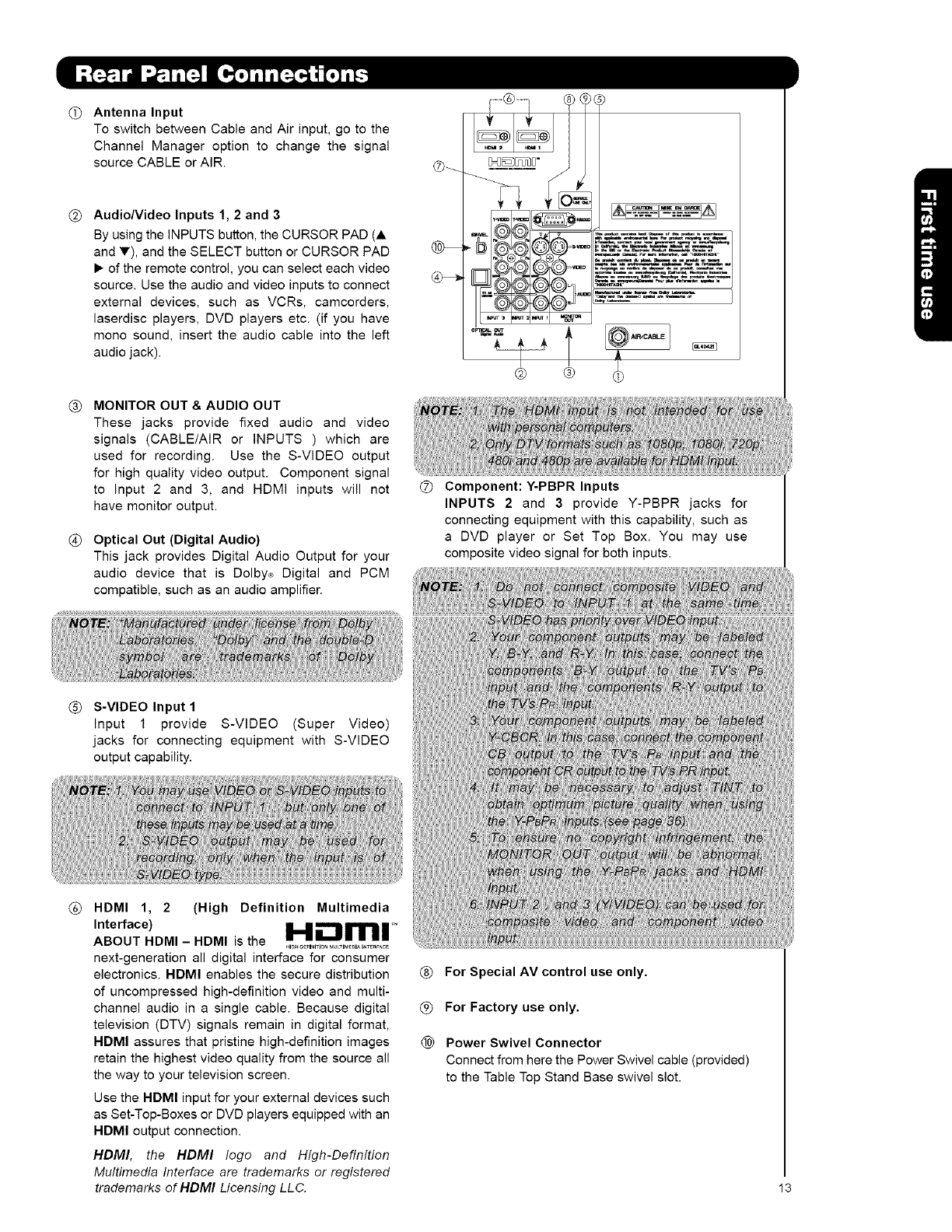

Antenna Input

To switch between Cable and Air input, go to the

Channel Manager option to change the signal

source CABLE or AIR.

AudioNideo Inputs 1, 2 and 3

By using the INPUTS button, the CURSOR PAD (A

and V), and the SELECT button or CURSOR PAD

• of the remote control, you can select each video

source. Use the audio and video inputs to connect

external devices, such as VCRs, camcorders,

laserdisc players, DVD players etc. (if you have

mono sound, insert the audio cable into the left

audio jack).

MONITOR OUT & AUDIO OUT

These jacks provide fixed audio and video

signals (CABLE/AIR or INPUTS ) which are

used for recording. Use the S-VIDEO output

for high quality video output. Component signal

to Input 2 and 3, and HDMI inputs will not

have monitor output.

Optical Out (Digital Audio)

This jack provides Digital Audio Output for your

audio device that is Dolbyco Digital and PCM

compatible, such as an audio amplifier.

@ @

[_1-_dl_=%"-_=l_]

Component: Y-PBPR Inputs

INPUTS 2 and 3provide Y-PBPR jacks for

connecting equipment with this capability, such as

a DVD player or Set Top Box. You may use

composite video signal for both inputs.

®S-VIDEO Input 1

Input 1 provide S-VIDEO (Super Video)

jacks for connecting equipment with S-VIDEO

output capability.

®HDMI 1, 2 (High Definition Multimedia

Interface)

ABOUT HDMI - HDMI is the _I_H _FI_ITIO N MULTIMEDIA I_TERFACE

next-generation all digital interface for consumer

electronics. HDMI enables the secure distribution

of uncompressed high-definition video and multi-

channel audio in a single cable. Because digital

television (DTV) signals remain in digital format,

HDMI assures that pristine high-definition images

retain the highest video quality from the source all

the way to your television screen.

Use the HDMI input for your external devices such

as Set-Top-Boxes or DVD players equipped with an

HDMI output connection.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

®For Special AV control use only.

For Factory use only,

(_ Power Swivel Connector

Connect from here the Power Swivel cable (provided)

to the Table Top Stand Base swivel slot.

TheSIDEpaneljacksareprovidedasa conveniencetoallowyouto easilyconnectHDMIorDVIsignals

fromaDVD,SetTopBox,VideoGameasshowninthefollowingexamples(WhenconnectingDVlsignalitwill

needtoconnecttheaudiooutputintothesideAudioInputjacks):

A) Connecting HDMI signal

SIDE INPUT PANEL

INpUT-FRON

VIDE

UDi

_HDMI DIGITAL

OUTPUT CAPABILITY

DVD, Set Top Box,

VideoGameConsole.

B) Connecting DVI signal

SIDE INPUT PANEL

Back of

HDTV Set-Top-Box or

DVD Player

DVt DIGITAL

OUTPUTCAPABILITY

DVD, Set Top Box,

VideoGame Console,

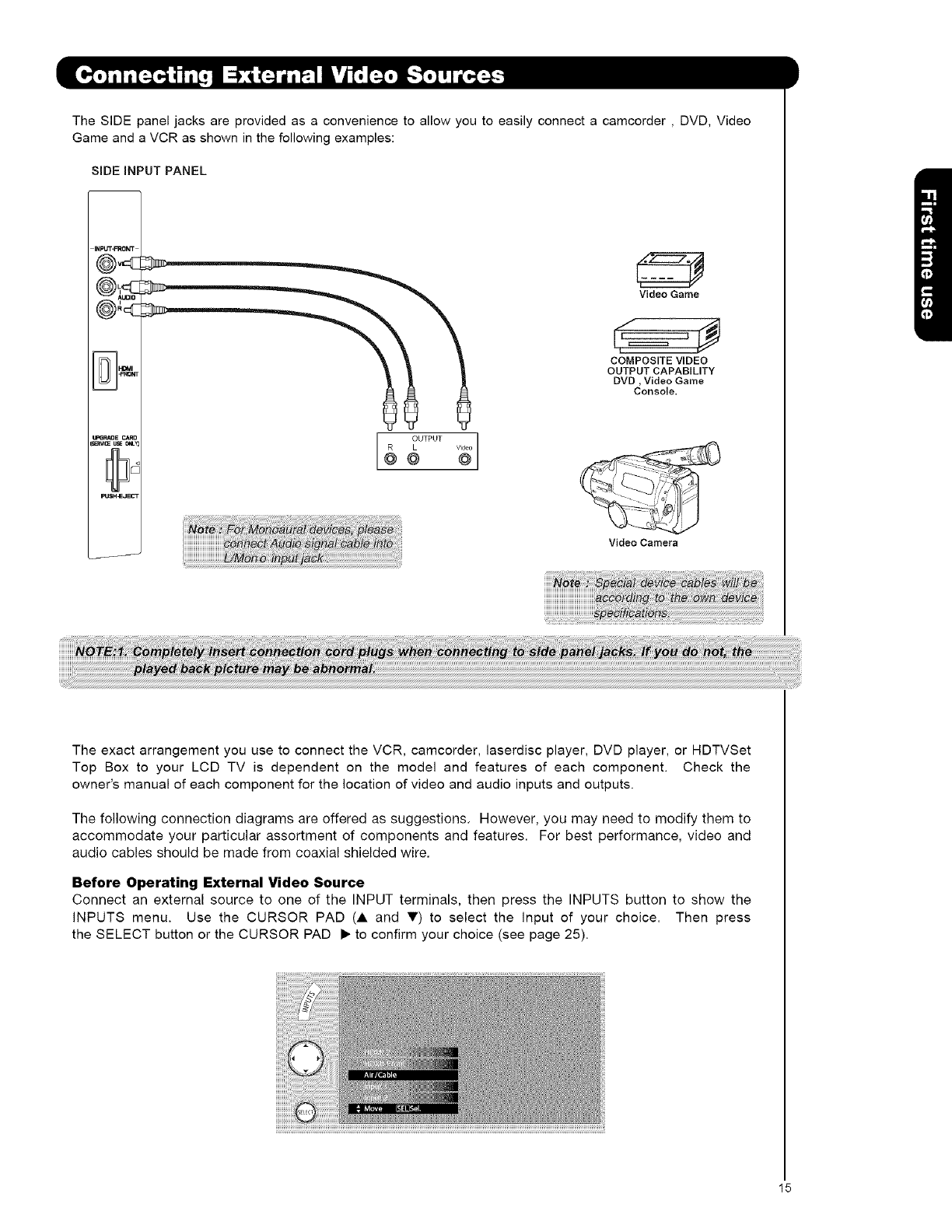

TheSIDEpaneljacksareprovidedasaconveniencetoallowyoutoeasilyconnectacamcorder,DVD,Video

GameandaVCRasshowninthefollowingexamples:

SiDEiNPUT PANEL

Video Game

COMPOSITE VIDEO

OUTPUT CAPABILITY

DVD, Video Game

Console.

OUTPUT Video

VideoCamera

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTVSet

Top Box to your LCD TV is dependent on the model and features of each component. Check the

owner's manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to

accommodate your particular assortment of components and features. For best performance, video and

audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

Connect an external source to one of the INPUT terminals, then press the INPUTS button to show the

INPUTS menu. Use the CURSOR PAD (A and V) to select the input of your choice. Then press

the SELECT button or the CURSOR PAD • to confirm your choice (see page 25).

DIGITAL HDMI DIGITAL VCR #2

OUTPUT CAPABILITY OUTPUT CAPABILITY @V@@L @R

__ ....... NPUT

t HDMI

DVl to Optional

to HDMI

HDMI

DVD Player

@@@@

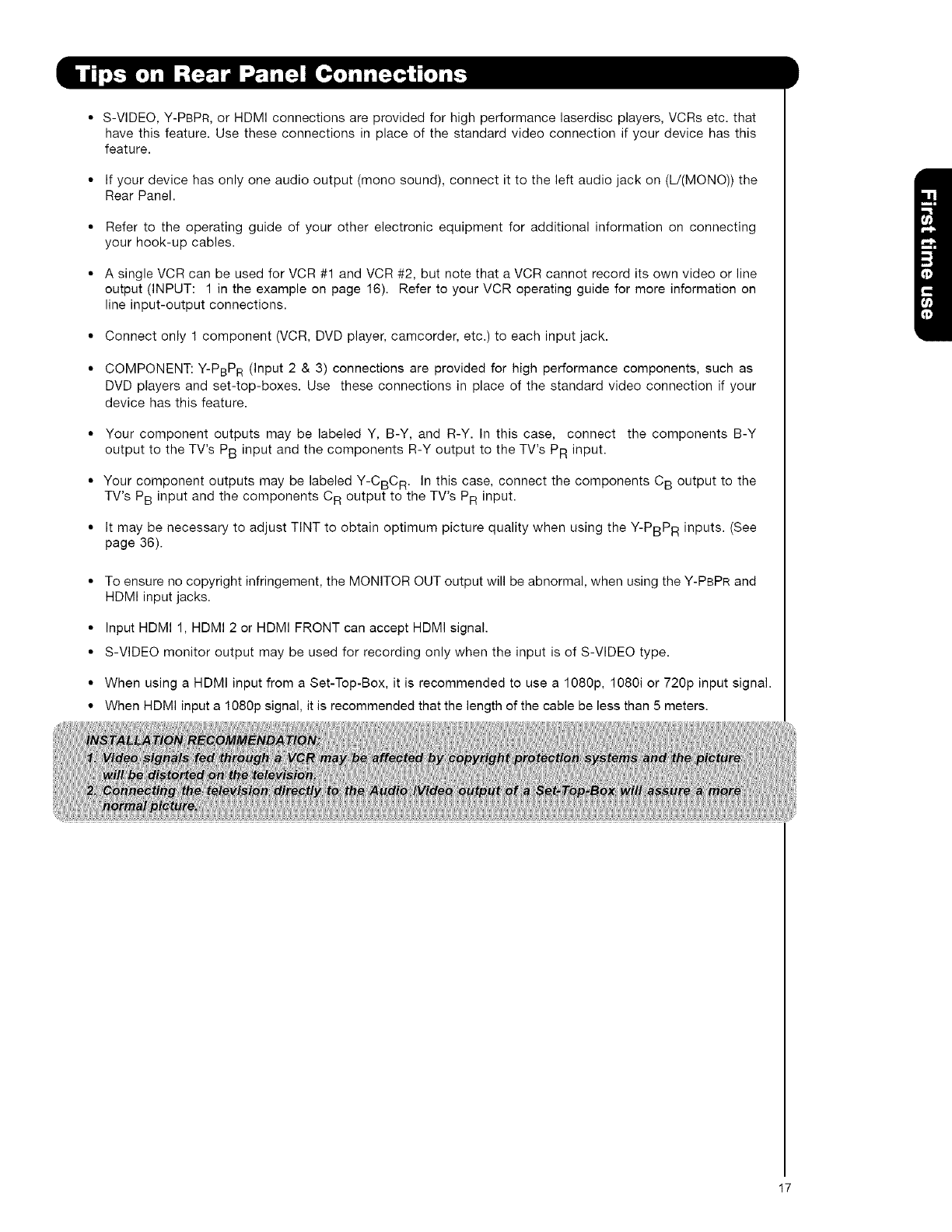

•S-VIDEO, Y-PBPR, or HDMI connections are provided for high performance laserdisc players, VCRs etc. that

have this feature. Use these connections in place of the standard video connection if your device has this

feature.

• If your device has only one audio output (mono sound), connect it to the left audio jack on (L/(MONO)) the

Rear Panel.

• Refer to the operating guide of your other electronic equipment for additional information on connecting

your hook-up cables.

• A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line

output (INPUT: 1 in the example on page 16). Refer to your VCR operating guide for more information on

line input-output connections.

• Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

• COMPONENT: Y-PBPR (Input 2 & 3) connections are provided for high performance components, such as

DVD players and set-top-boxes. Use these connections in place of the standard video connection if your

device has this feature.

• Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y

output to the TV's PB input and the components R-Y output to the TV's PR input.

• Your component outputs may be labeled Y-CBC R. In this case, connect the components C B output to the

TV's PB input and the components C R output to the TV's PR input.

• It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs. (See

page 36).

• To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPR and

HDMI input jacks.

• Input HDMI 1, HDMI 2 or HDMI FRONT can accept HDMI signal.

• S-VIDEO monitor output may be used for recording only when the input is of S-VIDEO type.

• When using a HDMI input from a Set-Top-Box, it is recommended to use a 1080p, 1080i or 720p input signal.

•When HDMI input a 1080p signal, it is recommended that the length of the cable be less than 5 meters.

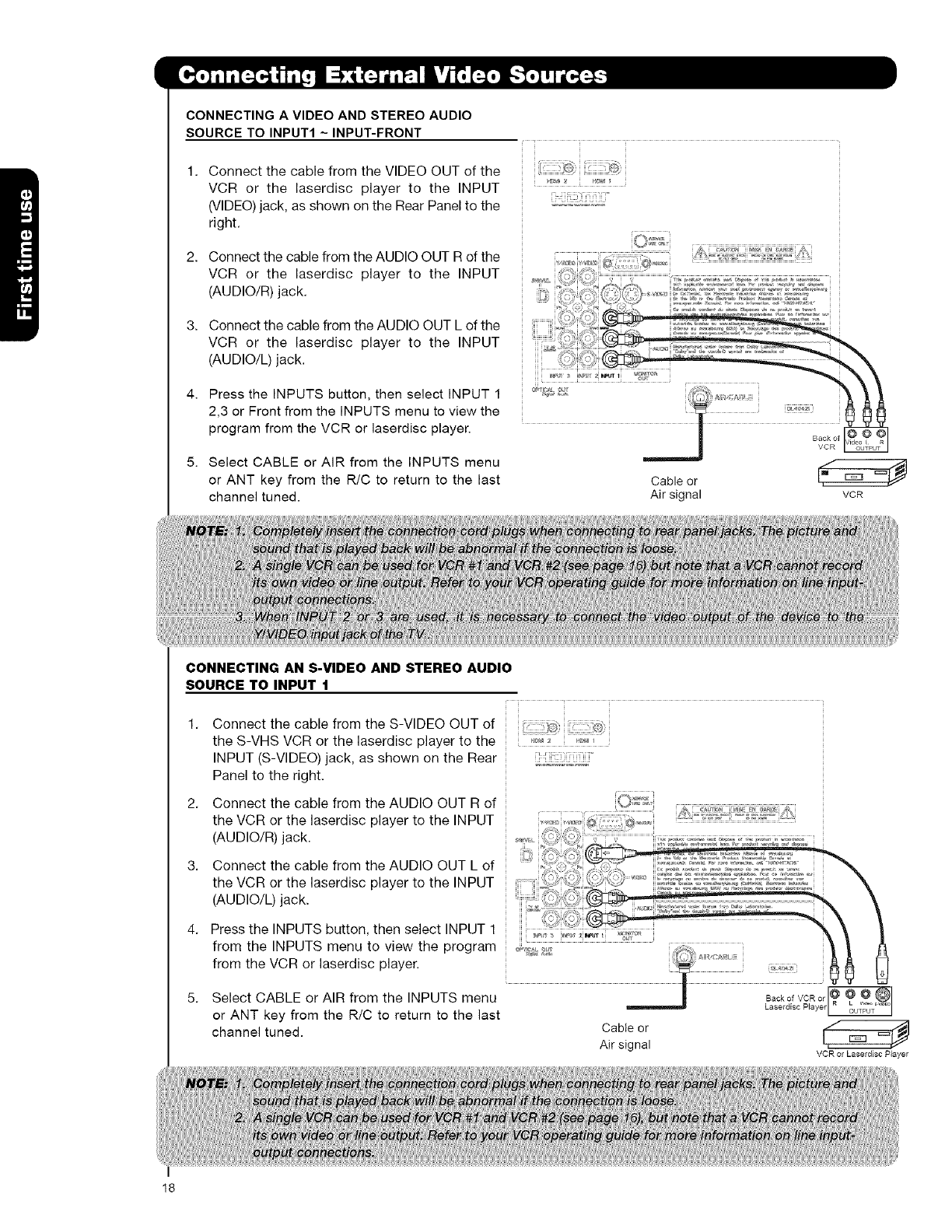

CONNECTING A VIDEO AND STEREO AUDIO

SOURCE TO INPUT1 ~INPUT-FRONT

Connect the cable from the VIDEO OUT of the

VCR or the laserdisc player to the INPUT

(VIDEO) jack, as shown on the Rear Panel to the

right.

Connect the cable from the AUDIO OUT R of the

VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of the

VCR or the laserdisc player to the INPUT

(AUDIO/L) jack.

Press the INPUTS button, then select INPUT 1

2,3 or Front from the INPUTS menu to view the

program from the VCR or laserdisc player.

Select CABLE or AIR from the INPUTS menu

or ANT key from the R/C to return to the last

channel tuned.

Back of

Cable or

Air signal VCR

CONNECTING AN S-VIDEO AND STEREO AUDIO

SOURCE TO INPUT 1

1. Connect the cable from the S-VIDEO OUT of

the S-VHS VCR or the laserdisc player to the

INPUT (S-VIDEO) jack, as shown on the Rear

Panel to the right.

2. Connect the cable from the AUDIO OUT R of

the VCR or the laserdisc player to the INPUT

(AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of

the VCR or the laserdisc player to the INPUT

(AUDIO/L) jack.

4. Press the INPUTS button, then select INPUT 1

from the INPUTS menu to view the program

from the VCR or laserdisc player.

5. Select CABLE or AIR from the INPUTS menu

or ANT key from the R/C to return to the last

channel tuned.

Back of VCR or _

Laserdisc Player

Cable or

Air signal VCR or Laserdisc Player

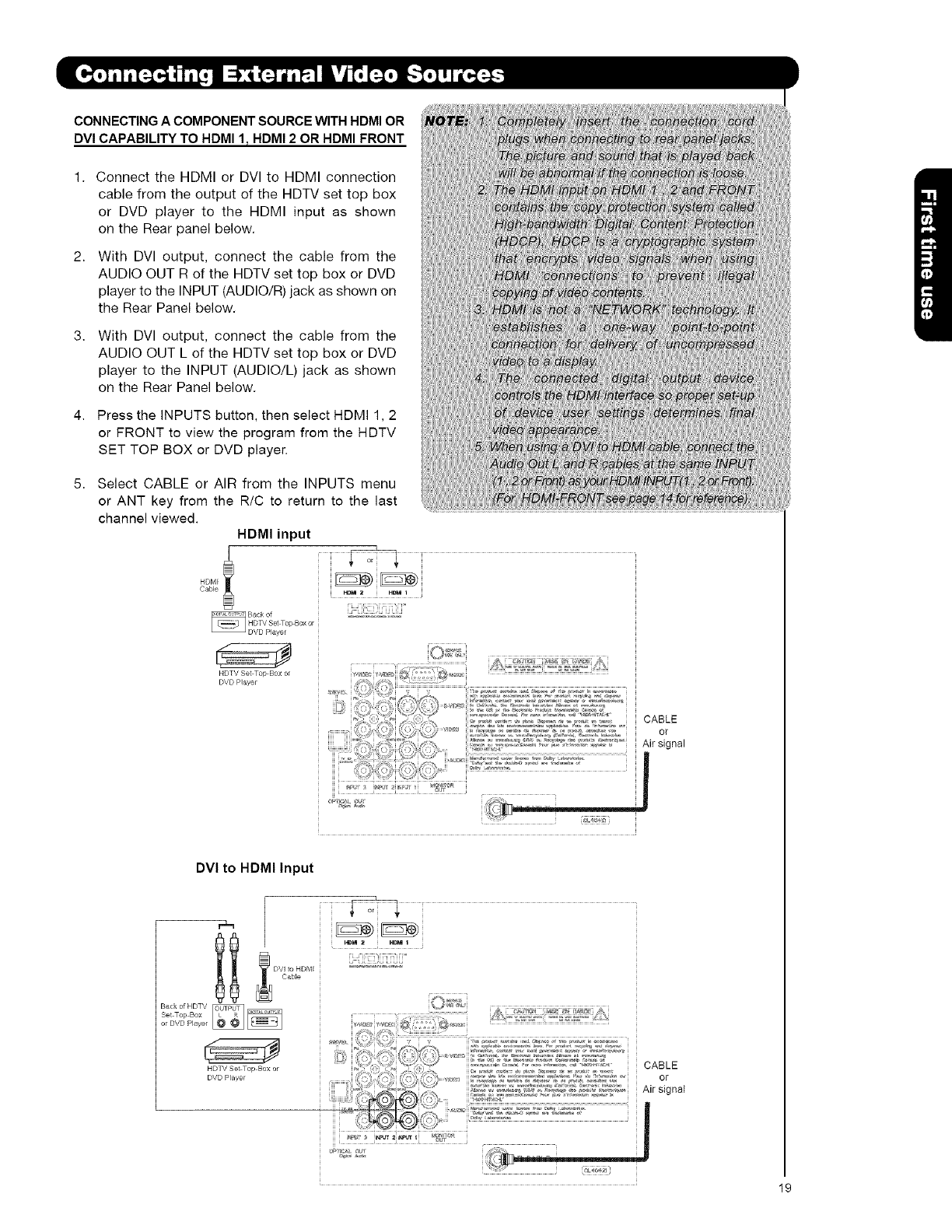

CONNECTING ACOMPONENT SOURCE WITH HDMI OR

DVI CAPABILITY TO HDMI I rHDMI 2 OR HDMI FRONT

1. Connect the HDMI or DVI to HDMI connection

cable from the output of the HDTV set top box

or DVD player to the HDMI input as shown

on the Rear panel below.

2. With DVl output, connect the cable from the

AUDIO OUT R of the HDTV set top box or DVD

player to the INPUT (AUDIO/R) jack as shown on

the Rear Panel below.

3. With DVl output, connect the cable from the

AUDIO OUT L of the HDTV set top box or DVD

player to the INPUT (AUDIO/L) jack as shown

on the Rear Panel below.

4. Press the INPUTS button, then select HDMI 1,2

or FRONT to view the program from the HDTV

SET TOP BOX or DVD player.

5. Select CABLE or AIR from the INPUTS menu

or ANT key from the R/C to return to the last

channel viewed.

HDMI input

]

HDM[ !

Cal?_e _I_M zHDM I

il iili i_iiiiiiii_

HDTV Set Top Box or

DVD Playe_

i_ ¸ _i

, != ...........................! i _i _ ii_ ¸ _ _:_ i _i i

DVI to HDMI Input

Set Top Box

or DVD Player

HDTV Set Top Box or

D//D Player

il iii_iii___iiii_ii°

/i /i 2

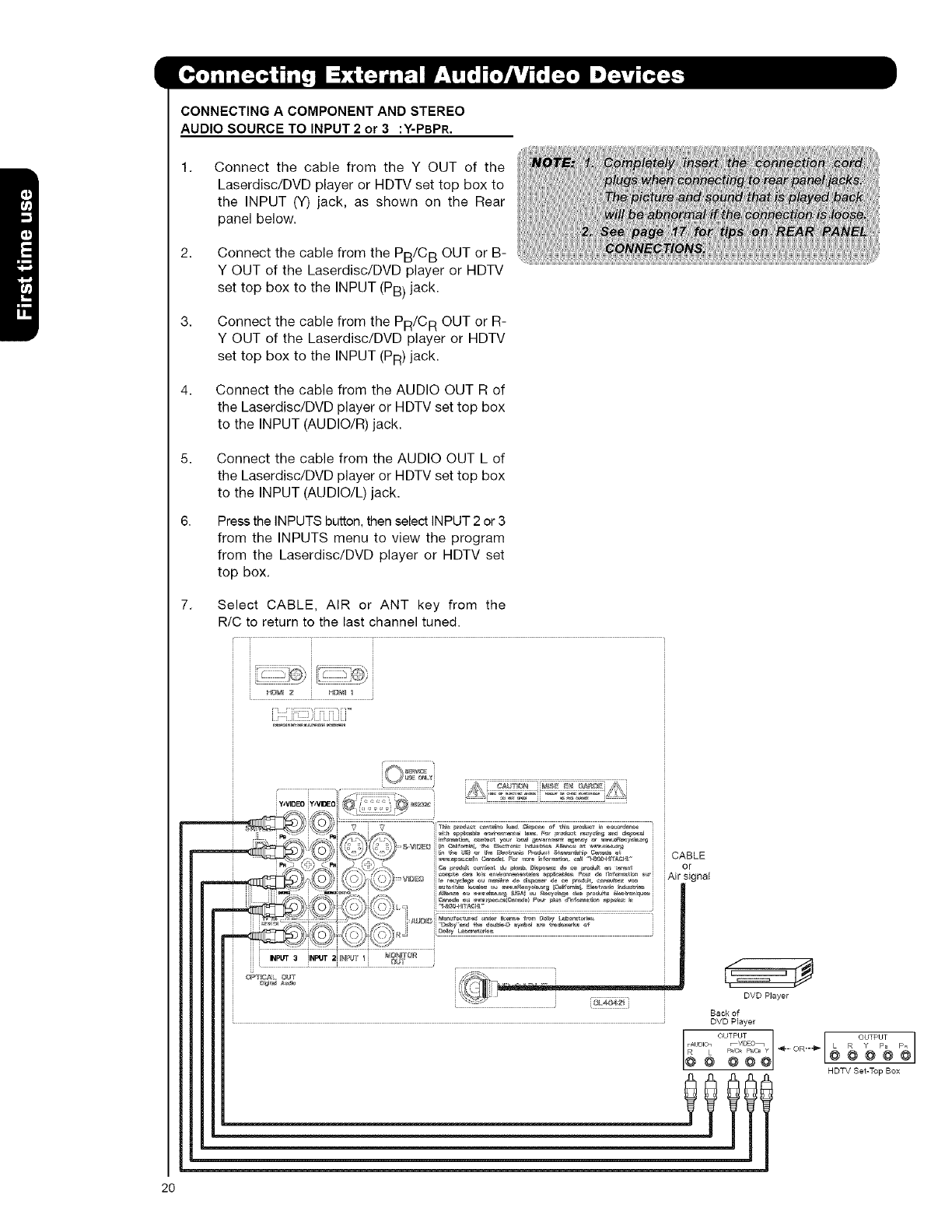

CONNECTING ACOMPONENT AND STEREO

AUDIO SOURCE TO INPUT 2 or 3 :Y-PBPR.

Connect the cable from the Y OUT of the

Laserdisc/DVD player or HDTV set top box to

the INPUT (Y) jack, as shown on the Rear

panel below.

Connect the cable from the PB/CB OUT or B-

Y OUT of the Laserdisc/DVD player or HDTV

set top box to the INPUT (PB) jack.

Connect the cable from the PR/CR OUT or R-

Y OUT of the Laserdisc/DVD player or HDTV

set top box to the INPUT (PR) jack.

Connect the cable from the AUDIO OUT R of

the Laserdisc/DVD player or HDTV set top box

to the INPUT (AUDIO/R) jack.

Connect the cable from the AUDIO OUT L of

the Laserdisc/DVD player or HDTV set top box

to the INPUT (AUDIO/L) jack.

Press the INPUTS button then select INPUT 2 or 3

from the INPUTS menu to view the program

from the Laserdisc/DVD player or HDTV set

top box.

Select CABLE, AIR or ANT key from the

R/C to return to the last channel tuned.

::: .'/ y

HI_[*a 2 HI_[_ I

DVD Player

Back of

DVD Player

OUTPUT

rAUD_07 _V'O=O_

@ @ @@@

R L P_C_ _,_ y *- OR'-_ _ @ @@ROUTPUTyPa

HDTV Set-Top Box

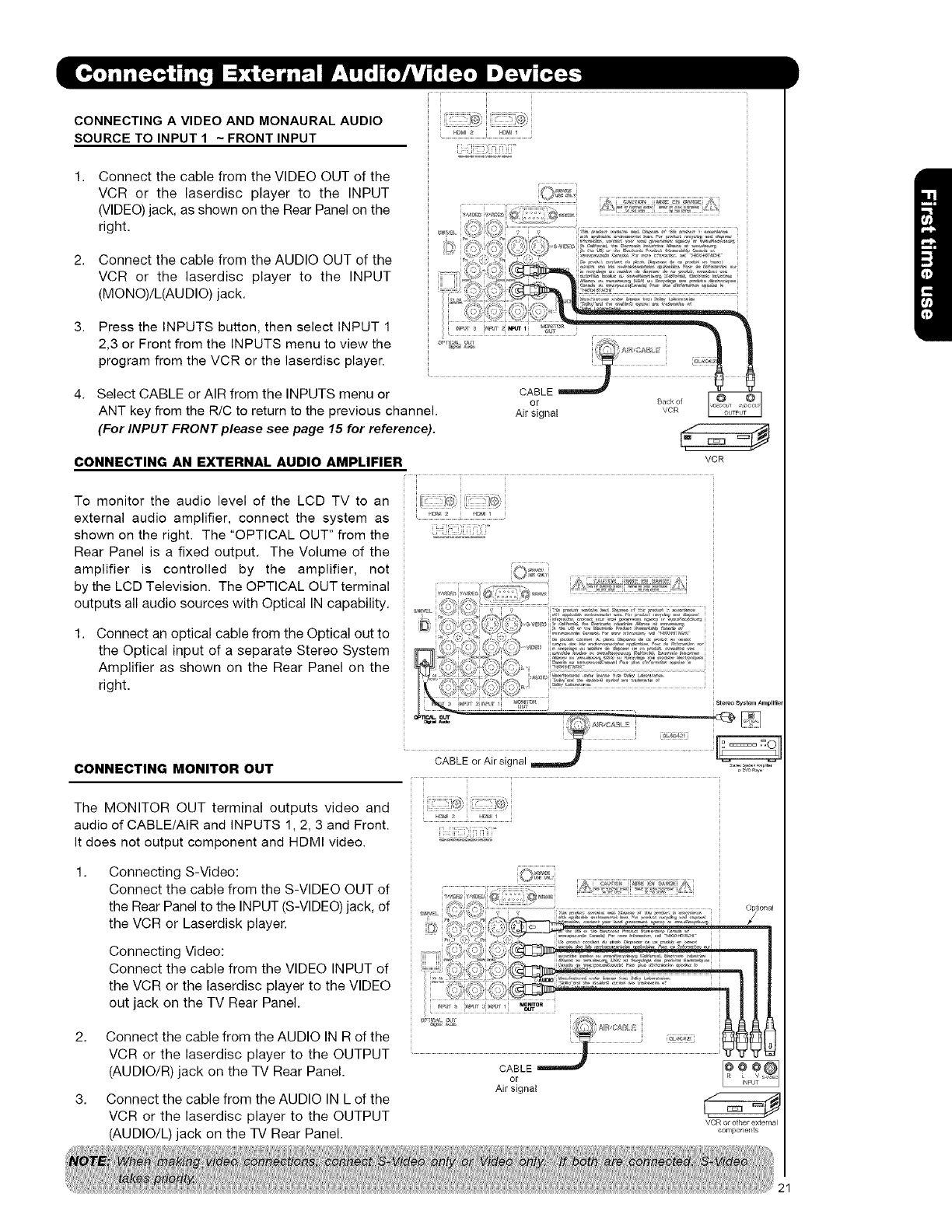

CONNECTINGA VIDEO AND MONAURAL AUDIO

SOURCE TO INPUT 1 ~FRONT INPUT

1. Connect the cable from the VIDEO OUT of the

VCR or the laserdisc player to the INPUT

(VIDEO) jack, as shown on the Rear Panel on the

right.

il i;ii!!!ii77ii;ii;iii:_i;i°

2. Connect the cable from the AUDIO OUT of the

VCR or the laserdisc player to the INPUT

(MONO)/L(AUDIO) jack,

3. Press the INPUTS button, then select INPUT 1

2,3 or Front from the INPUTS menu to view the

program from the VCR or the laserdisc player.

4. Select CABLE or AIR from the INPUTS menu or

ANT key from the R/C to return to the previous channel.

(For INPUT FRONT please see page 15 for reference).

CONNECTING AN EXTERNAL AUDIO AMPLIFIER

CABLE

Air signal °..o,vo.

VCR

To monitor the audio level of the LCD TV to an

external audio amplifier, connect the system as

shown on the right. The "OPTICAL OUT" from the

Rear Panel is a fixed output. The Volume of the

amplifier is controlled by the amplifier, not

by the LCD Television. The OPTICAL OUT terminal

outputs all audio sources with Optical IN capability.

1. Connect an optical cable from the Optical out to

the Optical input of a separate Stereo System

Amplifier as shown on the Rear Panel on the

right.

CONNECTING MONITOR OUT

The MONITOR OUT terminal outputs video and

audio of CABLE/AIR and INPUTS 1, 2, 3 and Front.

It does not output component and HDMI video.

1. Connecting S-Video:

Connect the cable from the S-VIDEO OUT of

the Rear Panel to the INPUT (S-VIDEO) jack, of

the VCR or Laserdisk player.

Connecting Video:

Connect the cable from the VIDEO INPUT of

the VCR or the laserdisc player to the VIDEO

out jack on the TV Rear Panel,

2, Connect the cable from the AUDIO IN R of the

VCR or the laserdisc player to the OUTPUT

(AUDIO/R) jack on the TV Rear Panel.

3, Connect the cable from the AUDIO IN L of the

VCR or the laserdisc player to the OUTPUT

(AUDIO/L) jack on the TV Rear Panel.

CABLE or Air signal ............

il iii:!;;i:ii:ii;i_iii_

i_ _'m<_'i

i; .... Optional

{_ :" ) ,t

; ..........................oo, ...........................

Air signal

VCR or other external

components

In addition to controlling all the functions on your

Hitachi LCD TV, the new remote control is

designed to operate different types of VCRs, cable

boxes, set-top-boxes, satellite receivers, DVD players,

and other audio/video equipment with one touch.

Basic operation keys are grouped together in one

area.

To operate your LCD TV, select TV by

pressing the Source button of the Source Select

on the remote. The TV mode indicator will blink,

indicating that the remote will now control your

television.

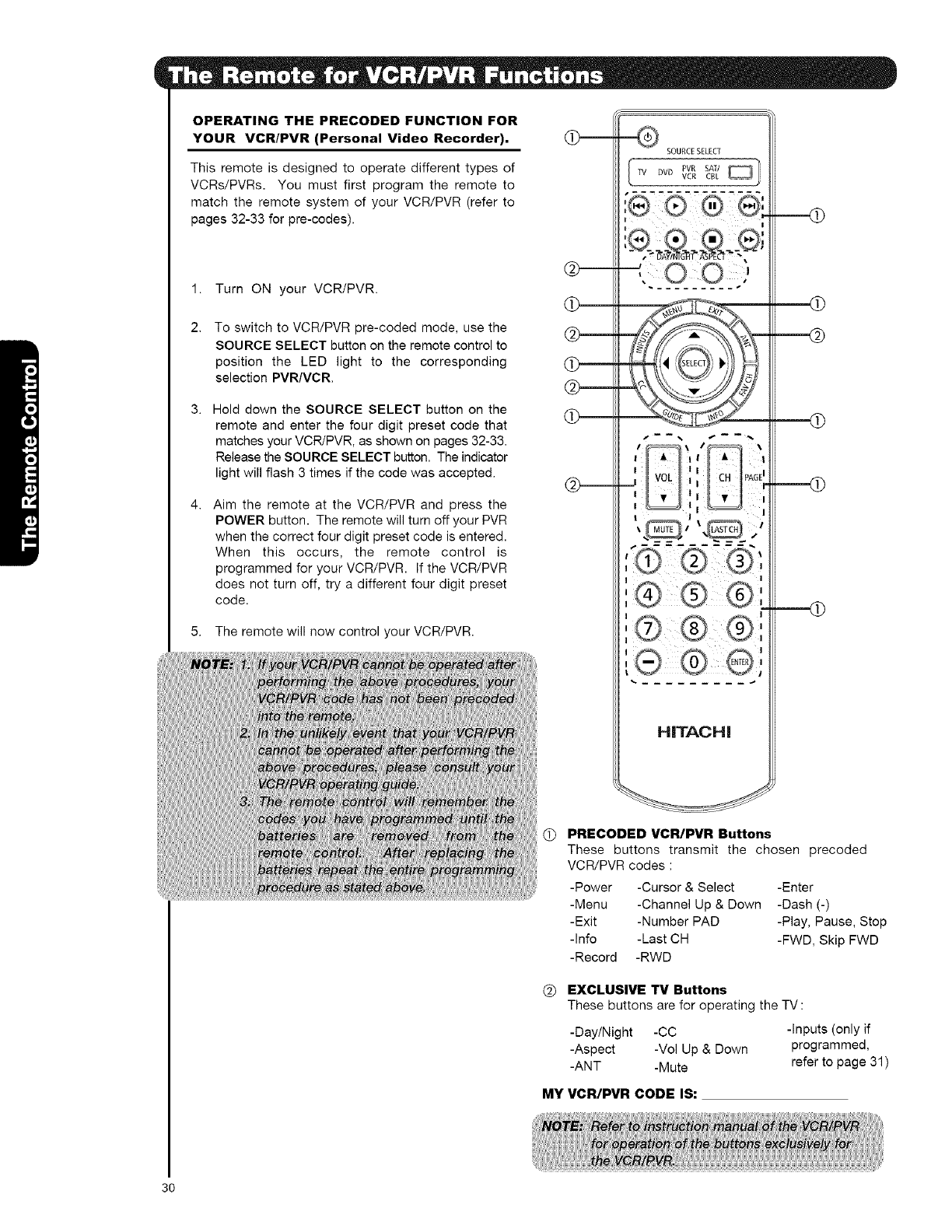

To operate your VCR/PVR (Personal Video

Recorder), select PVRNCR by pressing the Source

button of the Source Select on the remote. The

PVRNCR mode indicator will blink, indicating that

the remote will now control your VCR/PVR (see

page 30 for instructions on how to program the

remote to control your VCR/PVR).

To operate your cable box, select SAT/CBL by

pressing the Source button of the Source Select

on the remote. The SAT/CBL mode indicator will

blink, indicating that the remote will now control

your cable box (see page 27 for instructions on

how to program the remote to control your cable

box).

To operate your set-top-box or satellite receiver

select SAT/CBL by pressing the Source button of

the Source Select on the remote. The SAT/CBL

mode indicator will blink, indicating that the remote

will now control your set-top-box or satellite receiver

(see page 28 for instructions on how to program the

remote to control your set-top-box or satellite

receiver).

To operate your DVD player, select DVD by

pressing the Source button of the Source Select

on the remote. The DVD mode indicator will blink,

indicating that the remote will now control your

DVD Player (see page 29 for instructions on how to

program the remote to control your DVD player).

SOURCESELECT

Tv DVDPVRSATIJr m'l

VCR CBL _

DAYINIGHT ASPECT

HITACHI

SOURCESELECT

DAY/NIGHT ASPECT

HiTACHi

POWER button

Press this button to turn the TV set on or off when

the remote is in TV mode, (See page 22 for instructions

on how to set the remote control to TV mode),

MODE Indicator

Turns on or blinks three times to show remote control

mode.

_) SOURCE SELECT button

Press this button to select remote control mode.

ODAY/NIGHT button

Press this button to toggle between Day (Normal),

Day (Dynamic) and Night picture mode settings. Select

DAY for day time viewing with more brightness and

contrast to compete with room light. Select NIGHT

for night time viewing with less brightness and

contrast for a more detailed picture (see page 36

for settings changes).

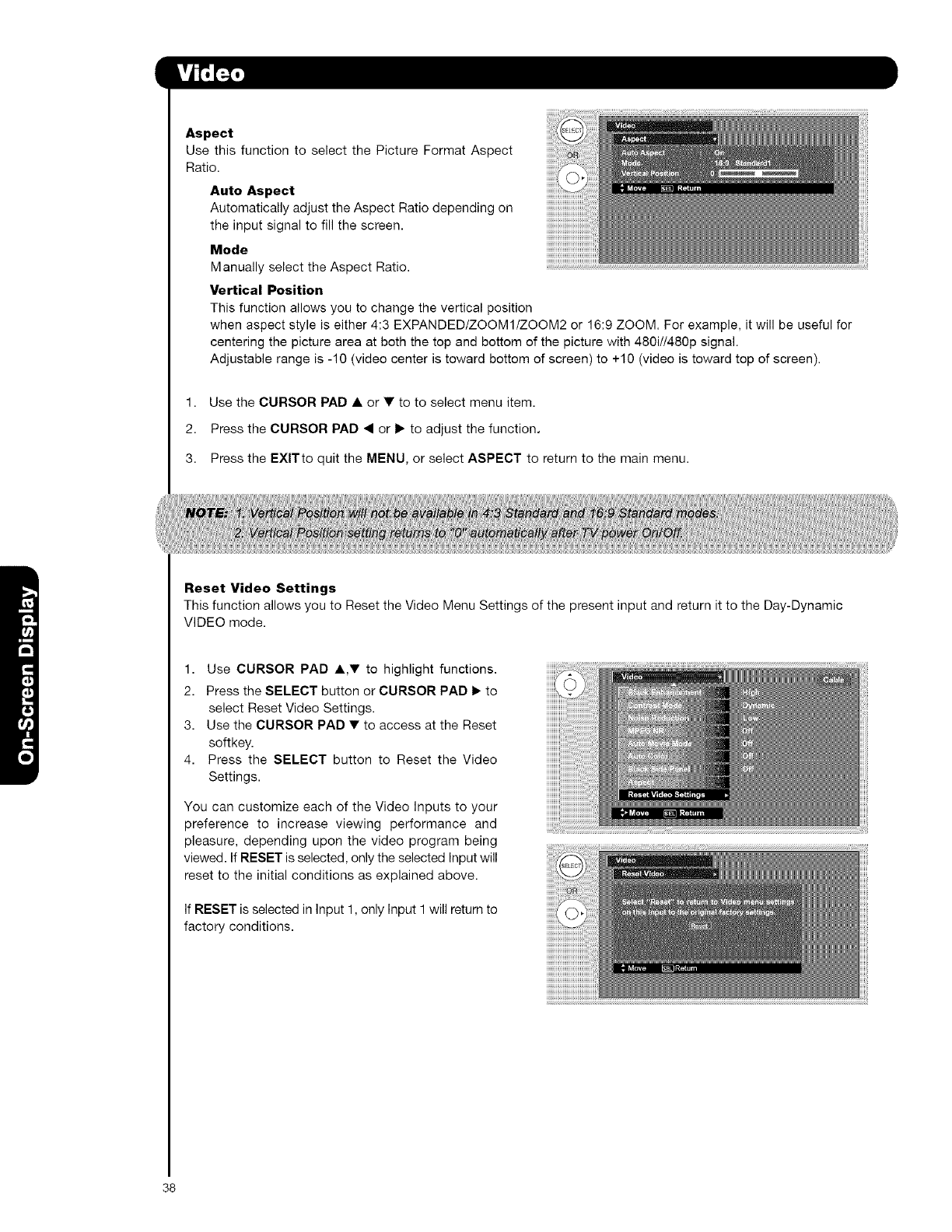

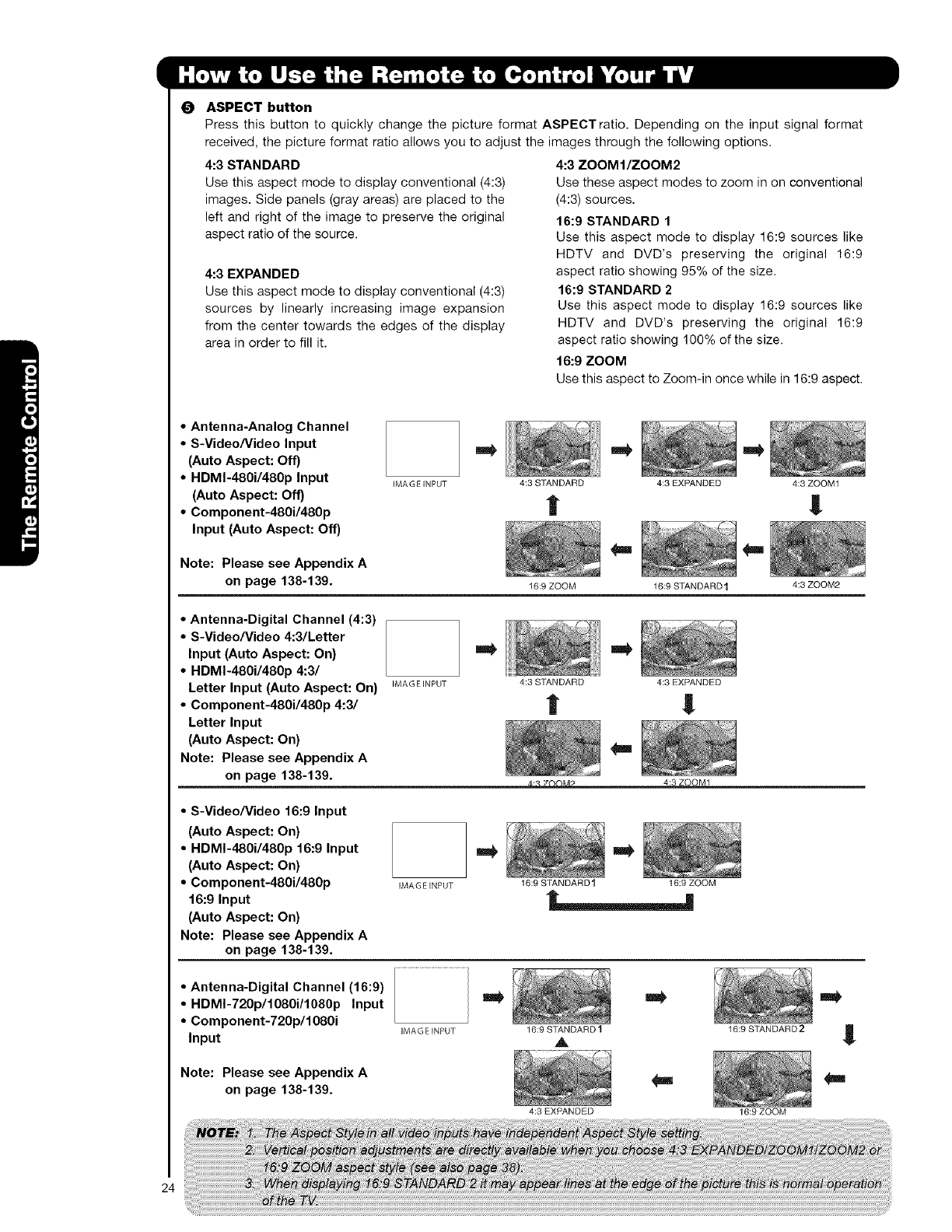

OASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input signal format

received, the picture format ratio allows you to adjust the images through the following options.

4:3 STANDARD

Use this aspect mode to display conventional (4:3)

images. Side panels (gray areas) are placed to the

left and right of the image to preserve the original

aspect ratio of the source.

4:3 EXPANDED

Use this aspect mode to display conventional (4:3)

sources by linearly increasing image expansion

from the center towards the edges of the display

area in order to fill it.

4:3 ZOOM I/ZOOM 2

Use these aspect modes to zoom in on conventional

(4:3) sources.

16:9 STANDARD 1

Use this aspect mode to display 16:9 sources like

HDTV and DVD's preserving the original 16:9

aspect ratio showing 95% of the size.

16:9 STANDARD 2

Use this aspect mode to display 16:9 sources like

HDTV and DVD's preserving the original 16:9

aspect ratio showing 100% of the size.

16:9 ZOOM

Use this aspect to Zoom-in once while in 16:9 aspect.

• Antenna-Analog Channel

• S-Video/Video Input

(Auto Aspect: Off)

• HDMI-480i/480p Input

(Auto Aspect: Off)

• Component-480i/480p

Input (Auto Aspect: Off)

Note: Please see Appendix A

on page 138-139.

IMAGE INPUT

4:3 STANDARD 4:3 EXPANDED 4:3 ZOOM1

l !

I6:9 ZOOM 16:9 STANDARD I 4:3 ZOOM2

• Antenna-Digital Channel (4:3)

• S-Video/Video 4:3/Letter

Input (Auto Aspect: On)

• HDMI-480i/480p 4:3/

Letter Input (Auto Aspect: On)

• Component-480i/480p 4:3/

Letter Input

(Auto Aspect: On)

Note: Please see Appendix A

on page 138-139.

IMA G EINPUT 4:3 STANDARD 4:3 EXPANDED

| !

,_ "4:3 ZOOM1

•S-Video/Video 16:9 Input

(Auto Aspect: On)

•HDMI-480i/480p 16:9 Input

(Auto Aspect: On)

•Component-480i/480p

16:9 Input

(Auto Aspect: On)

Note: Please see Appendix A

on page 138-139.

• Antenna-Digital Channel (16:9)

•HDMI-720p/1080i/1080p Input

•Component-720p/1080i

Input

IMAGE INPUT

16:9 STANDARD 1 16:9 ZOOM

19:9 STANDARD 1

4:3 EXPANDED

16:9 STANDARD 2

16:9 ZOOM

Note: Please see Appendix A

on page 138-139. sn

OMENU button

The MENU button will start the On-Screen Display.

OEXIT button

This button will exit all On-Screen Displays.

QINPUTS button

When the remote control is in TV mode, press this

button to access the INPUTS menu. Use the

CURSOR and SELECT buttons to scroll and select

the inputs that are being used. Pressing the

INPUTS button repeatedly will also cycle through

the Inputs menu items. Then press the SELECT

button to select.

_) INFO button

Press this button when you want to check the

channel being received, the picture source, if

the channel has stereo (ST) or second audio

program (SAP), the time, CHANNEL ID and if

the TIMER is set.

ANALOG CHANNELS

A':alog Channel

DJgita]channe;

INPUT 1

INPUT 2

INPUT 3

INPUT- FRONT

HDMI 1

HDMI 2

HDMI- FRONT

AIR/CABLE

Select to choose INPUT 1.

Select to choose INPUT 2.

Select to choose INPUT 3.

Select to choose side INPUT.

Select to choose HDMI 1 INPUT.

Select to choose HDMI 2 INPUT.

Select to choose side HDMI INPUT.

Select between Air or Cable signal.

OANTENNA button (ANT)

Use this button to access AIR/CABLE signal input

directly.

_) CURSOR buttons/SELECT button

All the On-Screen Display features can be set or

adjusted by using the CURSOR buttons and the

SELECT button, except for numeric entries. Press

the CURSOR buttons toward desired direction and

press the SELECT button to select.

_) CLOSED CAPTIONS (CC) button

Use this button to display the dialogue, narration,

and/or sound effects of a television program or home

video which are displayed on the TV screen when

available. Your local TV program guide denotes

these programs as [_ or [_ .

_) GUIDE button

[Cable Box (CBL), Satellite Receiver (SAT)/

Set-Top-Box (STB) mode only]

The use of this button is only applicable when the

remote control is in (CBL) and (SAT/STB) mode.

Press this button to access the Channel Guide of

the (CBL), and (SAT/STB).

CEosed

Capt_on_tt[ng Eventtimef

When an S-VIDEO Input is connected

to INPUT 1

When a Component Video: Y-PbPr

Input is connected to INPUT 3

@VOLUME {VOL), MUTE button

Press the VOLUME button (A or V) until you obtain

the desired sound level.

To reduce the sound to one half of normal volume

(SOFT MUTE) to answer the telephone, etc., press

the MUTE button. Press the MUTE button again to

turn the sound off completely (MUTE). To restore

the sound, press the MUTE button one more time,

or VOL UP (A).

Press the FAV CH button to switch to Favorite

(FAV) channel mode. You will know you are in

Favorite Channel mode when (FAV) is displayed

and the displayed channel is GREEN. Press it

again to return to your regular tuned channels. You

can add any channel to your Favorite channel list

by pressing and holding down the FAV CH button

until the displayed channel turns from WHITE to

highlighted GREEN. You can also delete a channel

from your favorite channel list by pressing and

holding down the FAV OH button until the

displayed channel turns highlighted GREEN to

WHITE.

Closed Captioning will display automatically when

MUTE/SOFT MUTE is on and Closed Caption is set

to AUTO (see page 55).

When the TV power is turned off at a volume level

31 or greater, the volume level will default to 30

when the TV is turned on. However, if it is set to a

level 30 or less, the volume level will be at the level

it was set when the TV is turned on.

CHANNEL SELECTOR/FAVORITE CHANNEL

(FAV CH)/ENTER buttons

The CHANNEL SELECTOR buttons are used to

select channels, lock access code, etc. Use the

CHANNEL SELECTOR buttons to enter one, two,

or three numbers to select channels. Enter 0 first

for channels I to 9, or simply press the single digit

channel you wish to tune then press the ENTER button

for the TV to tune. Channel selection may also be

performed by CHANNEL (OH) UP (A) or

CHANNEL (OH) DOWN (V).

(_ LAST CHANNEL button

Press this button to toggle between the current and

last channel viewed.

®(-) DASH button

Use the (-) DASH button with the CHANNEL

SELECTOR buttons to enter Digital Channels that

have subchannel numbers indicated by (-) DASH

(example 15-1).

_) RECORD button

Press to record programs when the remote is in

PVR/VCR mode.

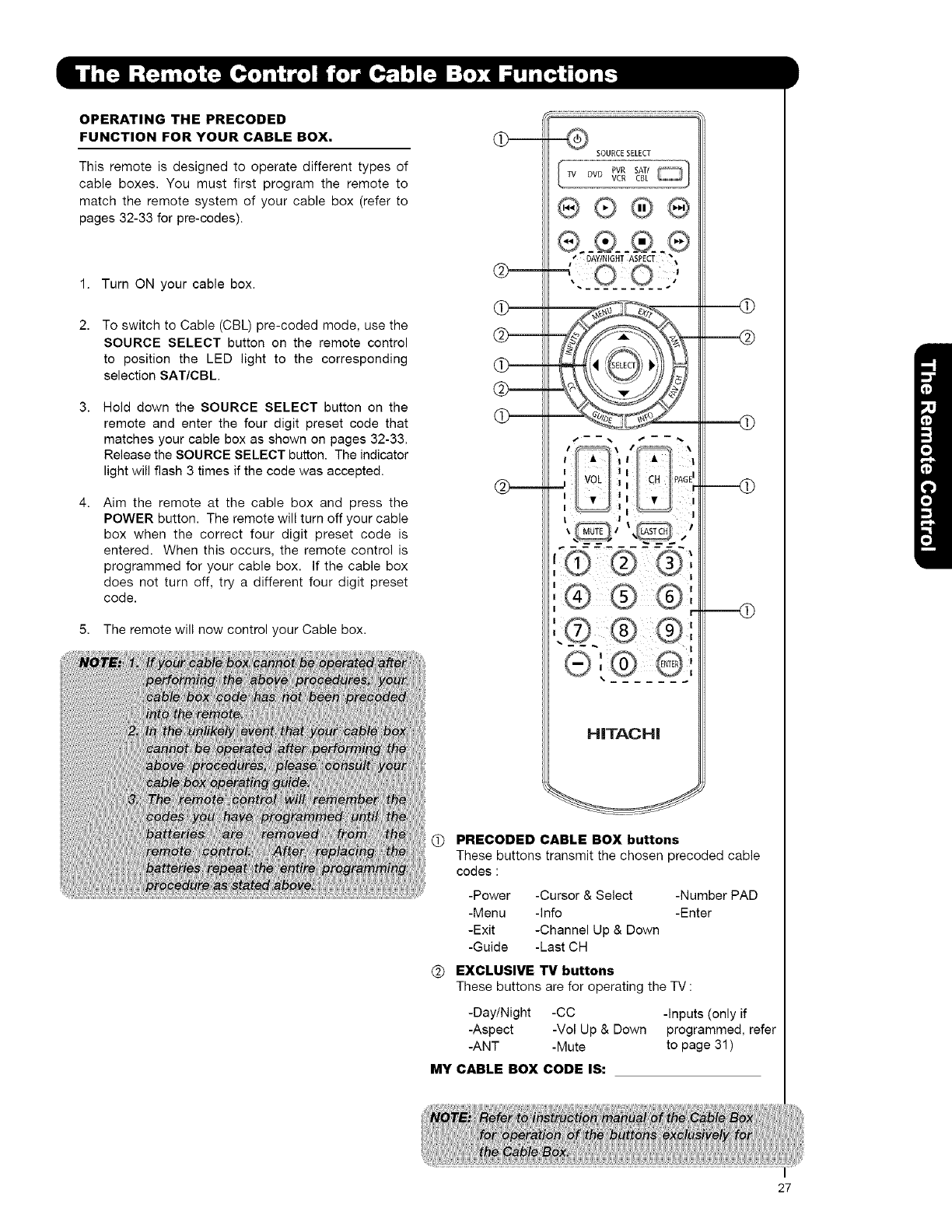

OPERATING THE PRECODED

FUNCTION FOR YOUR CABLE BOX,

This remote is designed to operate different types of

cable boxes. You must first program the remote to

match the remote system of your cable box (refer to

pages 32-33 for pre-codes).

Turn ON your cable box.

To switch to Cable (CBL) pre-coded mode, use the

SOURCE SELECT button on the remote control

to position the LED light to the corresponding

selection SAT/CBL.

Hold down the SOURCE SELECT button on the

remote and enter the four digit preset code that

matches your cable box as shown on pages 32-33.

Release the SOURCE SELECT button. The indicator

light will flash 3 times if the code was accepted.

Aim the remote at the cable box and press the

POWER button. The remote will turn off your cable

box when the correct four digit preset code is

entered. When this occurs, the remote control is

programmed for your cable box. If the cable box

does not turn off, try a different four digit preset

code.

5. The remote will now control your Cable box.

@._____

SOURCESELECT

®®®

' ':i E

J i J

HITACHI

@PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable

codes :

-Power -Cursor & Select -Number PAD

-Menu -Info -Enter

-Exit -Channel Up & Down

-Guide -Last CH

(_) EXCLUSIVE TV buttons

These buttons are for operating the TV :

-Day/Night -CC -Inputs (only if

-Aspect -Vol Up & Down programmed, refer

-ANT -Mute to page 31 )

MY CABLE BOX CODE IS:

OPERATING THE PRECODED FUNCTION FOR

YOUR SET-TOP-BOX/SATELLITE RECEIVER.

This remote is designed to operate different types of

set-top-box/satellite systems. You must first program

the remote to match the remote system of your set-

top-box/satellite systems (refer to pages 32-33 for pre-

codes).

Turn ON your set-top-box/satellite systems.

To switch to set-top-box/satellite (SAT) pre-coded

mode, use the SOURCE SELECT button on the

remote control to position the LED light to the

corresponding selection SAT/CBL

Hold down the SOURCE SELECT button on the

remote and enter the four digit preset code that matches

your set- top-box/satellite receiver as shown on page

32-33. Release the SOURCE SELECT button. The

indicator light will flash 3 times if the code was accepted.

Aim the remote at the set-top-box/satellite receiver

and press the POWER button. The remote will turn

off your set-top-boxisateNite receiver when the

correct four digit preset code is entered. When this

occurs, the remote control is programmed for your

set-top-box/sateNite receiver. If the set-top-

box/satellite receiver does not turn off, try a

different four digit preset code.

The remote will now control your set-top-box/

satellite receiver.

@---

SOURCESELECT

®®®,®

I iIj I

..J J I j r

I i ill I

I I I I

I !

HITACHI

OPRECODED SET-TOP-BOX/SATELLITE

RECEIVER buttons

These buttons transmit the chosen pre-coded

set-top-box/satellite codes :

-Power -Cursor & Select -Number PAD

-Menu -Info -Enter, Dash

-Exit -Channel Up & Down

-Guide -Last CH

EXCLUSIVE TV buttons

These buttons are for operating the TV :

-Day/Night -CC -Mute

-Aspect -Vol Up & Down -Inputs (Only if programmed,

-ANT refer to page 31 ).

MY Satellite RECEIVER/

SET-TOP-BOX CODE IS:

OPERATING THE PRECODED _

FUNCTION FOR YOUR DVD PLAYER.

This remote is designed to operate different types of

DVD players. You must first program the remote to

match the remote system of your DVD player (refer to

pages 32-33 for pre-codes).

Turn ON your DVD player.

To switch to DVD pre-coded mode, use the

SOURCE SELECT button on the remote control to

position the LED light to the corresponding selection

DVD.

Hold down the SOURCE SELECT button on the

remote and enter the four digit preset code that

matches your DVD player, as shown on pages 32-33.

Release the SOURCE SELECT button. The indicator

light will flash 3 times if the code was accepted.

Aim the remote at the DVD player and press the

POWER button. The remote will turn off your DVD

player when the correct four digit preset code is

entered. When this occurs, the remote control is

programmed for your DVD player. If the DVD

player does not turn off, try a different four digit

preset code.

5. The remote will now control your DVD player.

@___.

SOURCESELECT

I-----I

HITACHI

(_ PRECODED DVD Buttons

These buttons transmit the chosen precoded

DVD codes :

-Power -Number PAD

-Menu -Play, Stop, Pause,

-Info RWD, FWD, Skip RWD,

-Cursor & Select Skip FWD.

EXCLUSIVE TV Buttons

These buttons are for operating the TV :

-Day/Night -CC -Inputs (Only if

-Aspect -Vol Up & Down programmed, refer

-ANT -Mute to page 31)

-Exit

MY DVD PLAYER CODE IS:

OPERATING THE PRECODED FUNCTION FOR

YOUR VCR/PVR (Personal Video Recorder).

This remote is designed to operate different types of

VCRs/PVRs. You must first program the remote to

match the remote system of your VCR/PVR (refer to

pages 32-33 for pre-codes).

Turn ON your VCR/PVR.

To switch to VCR/PVR pre-coded mode, use the

SOURCE SELECT button on the remote control to

position the LED light to the corresponding

selection PVR/VCR.

Hold down the SOURCE SELECT button on the

remote and enter the four digit preset code that

matches your VCPJPVR, as shown on pages 32-33.

Release the SOURCE SELECT button. The indicator

light will flash 3 times if the code was accepted.

Aim the remote at the VCR/PVR and press the

POWER button. The remote will turn off your PVR

when the correct four digit preset code is entered.

When this occurs, the remote control is

programmed for your VCR/PVR. If the VCR/PVR

does not turn off, try a different four digit preset

code.

5. The remote will now control your VCR/PVR.

SOURCESELECT

PVR SAT/ Q

DVD VCR CBL

HITACHI

PRECODED VCR/PVR Buttons

These buttons transmit the chosen precoded

VCR/PVR codes :

-Power -Cursor & Select -Enter

-Menu -Channel Up & Down -Dash (-)

-Exit -Number PAD -Play, Pause, Stop

-Info -Last CH -FWD, Skip FWD

-Record -RWD

EXCLUSIVE TV Buttons

These buttons are for operating the TV :

-Day/Night -CC

-Aspect -Vol Up & Down

-ANT -Mute

-Inputs (only if

programmed,

refer to page 31)

MY VCR/PVR CODE IS:

INPUT ACCESS

This optional feature allows the user of the remote

control to setup it's SOURCE SELECT button to access

the specified input of the TV. Setup for this feature is

applicable to the remote control's normal mode only and

only applies to the DVD, PVR/VCR and SAT/CBL

modes.

Select the desired device mode (DVD, PVR/VCR,

SAT/CBL) by using your SOURCE SELECT button

to position the LED indicator to the corresponding

selection.

2. Hold down the SOURCE SELECT button on the

remote and enter the four digit preset code that

matches your device as shown on pages 32-33.

3. Then enter the assigned input number (1-7) that the

device is related to (refer below to Table 1).

4. Release the SOURCE SELECT button.

5. If done correctly, the device LED indicator will blink

3 times to confirm proper setup.

6. The remote will now control the desired device.

7. Pressing the INPUTS button will now access the

video input of the desired device.

SETUP EXAMPLE (Hitachi DVD with precode

0573 connected to INPUT 1 of the TV)

_ Select DVD mode by using your SOURCE SELECT

button to position the LED indicator to DVD.

_._ Hold down the SOURCE SELECT button and

press the numbers 0, 5, 7 and 3.

_3_ Then press the number 1 for the assigned input

number of the DVD player.

(_ Release SOURCE SELECT button.

_ If done correctly, the device LED indicator will blink

3 times to confirm proper setup.

The remote will now control the DVD player.

_._ Press the INPUTS button to instantly access the

video input of your DVD on Input 1.

Q sou_c__E_EC_

@®®@

®®®®

_),Y/NIG]_T A2ECE

@®@-

®®®

@®®

®@®

H|TACH|

Table 1

INPUT ASSIGNMENT NUMBER

INPUT 1 1

INPUT 2 2

INPUT 3 3

INPUT- FRONT 4

HDMI I 5

HDMI 2 6

HDMI- FRONT 7

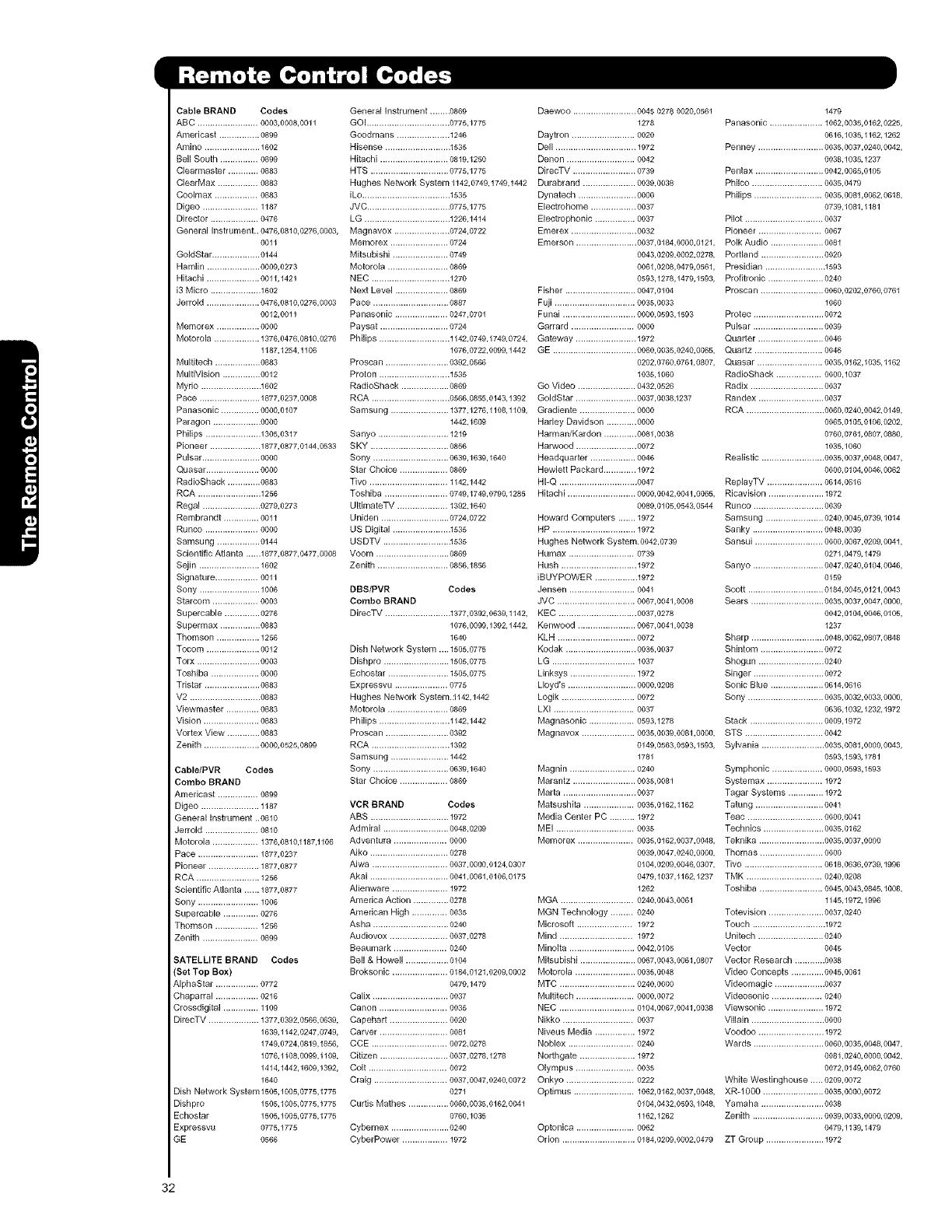

Cable BRAND Codes

ABC ........................ 0003,0008,0011

Americast ................ 0899

An_ino ...................... 1602

Bell South ............... 0899

Clearmaster ............ 0883

ClearMax ................ 0883

Coolmax ................. 0883

Digeo ...................... 1187

Director ................... 0476

General instrument.. 0476,0810,0276,0003,

0011

GoldStar ................... 0144

Hamlin ..................... 0009,6273

Hitachi ..................... 0011,1421

i3 Micro .................... 1602

Jerrold ..................... 0476,6810,0276,0003

0012,0011

Memorex ................. 0000

Motorola .................. 1376,0476,0810,0276

1187,1254,1106

Mugitech .................. 0883

MugiVision ............... 0012

Myfio ........................ 1602

Pace ........................ 1877,0237,0008

Panasonic ............... 0000,0107

Paragon ................... 0000

Philips ...................... 1305,0317

Pioneer .................... 1877,0877,0144,0533

Pulsar ....................... 0000

Quasar ..................... 0000

RadioShack ............. 0883

RCA ......................... 1256

Regal ....................... 0279,0273

Rembrandt .............. 0011

Runco ..................... 0000

Samsung ................. 0144

Scientific Atlanta ......1877,0877,0477,0008

Sejin ........................ 1602

Signature ................. 0011

Sony ........................ 1006

StarDom .................. 0003

Supercable .............. 0276

Supermax ................ 0883

Thomson ................. 1256

Tocom ..................... 0012

Torx ......................... 0003

Toshiba ................... 0000

Tdstar ...................... 0883

V2 ............................ 0883

Viewmaster ............. 0883

Vision ...................... 0883

Vortex View ............. 0883

Zenith ...................... 0000,0525,0899

Cable/PVR Codes

Combo BRAND

Americast ................ 0899

Digeo ....................... 1187

General Instrument ..0810

Jerrold ..................... 0810

Motorola .................. 1376,0810,1187,1106

Pace ........................ 1877,0237

Pioneer .................... 1877,0877

RCA ......................... 1256

Scientific Atlanta ...... 1877,0877

Sony ........................ 1006

Supercable .............. 0276

Thomson ................. 1256

Zenith ...................... 0899

SATELLITE BRAND Codes

(Set Top Box)

AlphaStar ................. 0772

Chaparral ................. 0216

Crossdigital .............. 1109

DirecTV .................... 1377,0392,0566,0639,

1639,1142,0247,0749,

1749,0724,0819,1856,

1076,1108,0099,1109,

1414,1442,1609,1392,

1640

Dish Network System1505,1005,0775,1775

Dishpro 1505,1005,0775,1775

Echostar 1505,1005,0775,1775

Expressvu 0775,1775

GE 0566

General instrument ........0869

GOI ................................. 0775,1775

Goodmans ..................... 1248

Hisense .......................... 1535

Hitachi ........................... 0819,1250

HTS ............................... 0775,1775

Hughes Network System 1142,0749,1749,1442

iLo ................................... 1535

JVC ................................. 0775,1775

LG .................................. 1226,1414

Magnavox ...................... 0724,0722

Memorex ....................... 0724

Mitsubishi ...................... 0749

Motorola ........................ 0869

NED ............................... 1270

Next Level ..................... 0869

Pace .............................. 0887

Panasonic ..................... 0247,0701

Paysat ........................... 0724

Philips ............................ 1142,0749,1749,0724,

1076,0722,0099,1442

Proscan ......................... 0392,0566

Proton ............................ 1535

RadioShack ................... 0869

RCA ............................... 0568,0855,0143,1392

Sa msu ng ....................... 1377,1276,1108,1109,

1442,1609

Sanyo ............................ 1219

SKY ............................... 0856

Sony .............................. 0639,1639,1640

Star Choice ................... 0869

Tivo ............................... 1142,1442

Toshiba ......................... 0749,1749,0790,1285

UgimateTV .................... 1392,1840

Uniden ........................... 0724,0722

US Digital ....................... 1535

USDTV .......................... .1535

Voom ............................. 0869

Zenith ............................ 0858,1856

DBS/PVR Codes

Combo BRAND

DireoTV .......................... 1377,0392,0639,1142,

1076,0099,1392,1442,

1640

Dish Network System ....1505,0775

Dishpro .......................... 1505,0775

Echostar ........................ 1505,0775

Expressvu ..................... 0775

Hughes Network System._ 142,1442

Motorola ........................ 0869

Philips ............................ 1142,1442

Proscan ......................... 0392

RCA ............................... 1392

Samsung ....................... 1442

Sony .............................. 0639,1640

Star Choice ................... 0869

VCR BRAND Codes

ABS ............................... 1972

Admiral .......................... 0048,0209

Adventura ..................... oooo

Aiko ............................... 0278

Aiwa .............................. 0037,0000,0124,0307

Akai ............................... 0041,0061,0106,0175

AIienware ...................... 1972

America Action .............. 0278

American High .............. 0035

Asha .............................. 0240

Audiovox ....................... 0037,0278

Beaumark ..................... 0240

Bell & Howell ................. 0104

Broksonic ...................... 0184,0121,0209,0002

0479,1479

Calix .............................. 0037

Canon ........................... 0035

Capehart ....................... 0020

Carver ........................... 0081

CCE .............................. 0072,0278

Citizen ........................... 0037,0278,1278

Colt ............................... 0072

Craig ............................. 0037,0047,0240,0072

0271

Curtis Mathes ................ 0060,0035,0162,0041

0760,1035

Cybemex ....................... 0240

CyberPower .................. 1972

Daewoo ......................... 0045 0278 0020,0561

1278

Daytron ......................... 0020

Dell ................................ 1972

Denon ........................... 0042

DirecTV ......................... 0739

Durabrand ..................... 0039,0038

Dynatech ....................... 0000

Electrohome .................. 0037

Electrophonic ................ 0037

Emerex .......................... 0032

Emerson ........................ 0037,0184,0000,0121,

0043,0209,0002,0278,

0061,0208,0479,0561,

0593,1278,1479,1593,

Fisher ............................ 0047,0104

Fuji ................................ 0035,0033

Funai ............................. 0000,0593,1593

Garrard ......................... 0000

Gateway ........................ 1972

GE ................................. 0060,0035,0240,0865,

0202,0760,0761,0807,

1035,1060

Go Video ....................... 0432,0526

GoldStar ........................ 0037,0038,1237

Gradiente ...................... 0000

Harley Davidson ............ 0000

Harman/Kardon ............. 0081,0038

Harwood ........................ 0072

Headquarter .................. 0046

Hewlett Packard ............. 1972

HI-Q ............................... oo47

Hitachi ........................... 0000,0042,0041,0865,

0089,0105,0543,0544

Howard Computers ....... 1972

HP ................................. 1972

Hughes Network System.o042,0739

Humax .......................... 0739

Hush .............................. 1972

iBUYPOWER ................. 1972

Jensen .......................... 0041

JVC ............................... 0067,0041,0008

KEC ............................... 0037,0278

Kenwood ....................... 0067,0041,0038

KLN ............................... oo72

Kodak ............................ 0035,0037

LG ................................. 1037

Linksys .......................... 1972

Lloyd's ........................... 0000,0208

Logik ............................. 0072

LXl ................................ oo37

Magnasonic .................. 0593,1278

Magnavox ..................... 0035,0039,0081,0800,

0149,0563,0593,1593,

1781

Magnin .......................... 0240

Marantz ......................... 0035,0081

Marta ............................. 0037

Matsushita .................... 0035,0162,1162

Media Center PC .......... 1972

MEI ............................... 0035

Memorex ...................... 0035,0162,0037,0048,

0039,0047,0240,0000,

0104,0209,0046,0307,

0479,1037,1162,1237

1262

MGA ............................. 0240,0043,0061

MGN Technology ......... 0240

Microsoft ...................... 1972

Mind ............................. 1972

Minolta .......................... 0042,0105

Mitsubishi ...................... 0067,0043,0061,0807

Motorola ........................ 0035,0048

MTC .............................. 0240,0000

Multitech ....................... 0000,0072

NEC .............................. 0104,0067,0041,0038

Nikko ............................ 0037

Niveus Media ................ 1972

Noblex .......................... 0240

Northgate ...................... 1972

Olympus ....................... 0035

Onkyo ........................... 0222

Optimus ........................ 1062,0162,0037,0048,

0104,0432,0593,1048,

1162,1262

Optonica ....................... 0062

Orion ............................. 0184,6209,6002,0479

1479

Panasonic ..................... 1062,0035,0162,0225,

0616,1035,1162,1262

Penney .......................... 0035,0037,0240,0042,

0038,1035,1237

Pentax ........................... 0042,0065,0105

Philco ............................ 0035,0479

Philips ........................... 0035,6081,0082,0618,

0739,1081,1181

Pilot ............................... 0037

Pioneer ......................... 0067

Polk Audio ..................... 0081

Portland ......................... 0020

Presidian ........................ 1593

Profitronic ...................... 0240

Proscan ......................... 0060,0202,0760,0761

1060

Protec ............................ 0072

Pulsar ............................ 0039

Quarter .......................... 0048

Quartz ........................... 0046

Quasar .......................... 0035,0162,1035,1162

RadioShack .................. 0800,1037

Radix ............................. 0037

Randex .......................... 0037

RCA ............................... 0060,6240,0042,0149,

0065,0105,0106,0202,

0760,0761,0807,0880,

1035,1060

Realistic ......................... 0035,0037,0048,0047,

0000,0104,0046,0062

ReplayTV ...................... 0614,0616

Ricavision ...................... 1972

Runco ............................ 0039

Samsung ....................... 0240,6045,0739,1014

Sanky ............................ 0048,0039

Sansui ........................... 0000,0067,0209,0041,

0271,0479,1479

Sanyo ............................ 0047,0240,0104,0046,

0159

Scott .............................. 0184,0045,0121,0043

Sears ............................. 0035,0037,0847,0000,

0042,0104,0046,0105,

1237

Sharp ............................. 0048,0062,0807,0848

Shintom ......................... 0072

Shogun .......................... 0240

Singer ............................ 0072

Sonic Blue ..................... 0614,0616

Sony .............................. 0035,0032,0033,0000,

0636,1032,1232,1972

Stack ............................. 0009,1972

STS ............................... 0042

Sylvania ......................... 0035,0081,0800,0043,

0593,1593,1781

Symphonic .................... 0000,0593,1593

Systemax ...................... 1972

Tagar Systems .............. 1972

Tatung ........................... 0041

Teac .............................. 0000,0041

Technics ........................ 0035,0162

Teknika .......................... 0035,0037,0800

Thomas ......................... 0000

Tivo ............................... 0618,0638,0739,1996

TMK .............................. 0240,0208

Toshiba ......................... 0045,0043,0845,1008,

1145,1972,1996

Totevision ...................... 0037,0240

Touch ............................. 1972

Unitech .......................... 0240

Vector 0045

Vector Research ............ 0038

Video Concepts ............. 0045,0061

Videomagic .................... 0037

Videosonic .................... 0240

Viewsonic ...................... 1972

Villain ............................. oooo

Voodoo .......................... 1972

Wards ............................ 0060,0035,0048,0047,

0081,0240,0000,0042,

0072,0149,0062,0760

White Westinghouse ..... 0209,0072

XR-IO00 ........................ 0035,0000,0872

Yamaha ......................... 0038

Zenith ............................ 0039,0033,0000,0209,

0479,1139,1479

ZT Group ....................... 1972

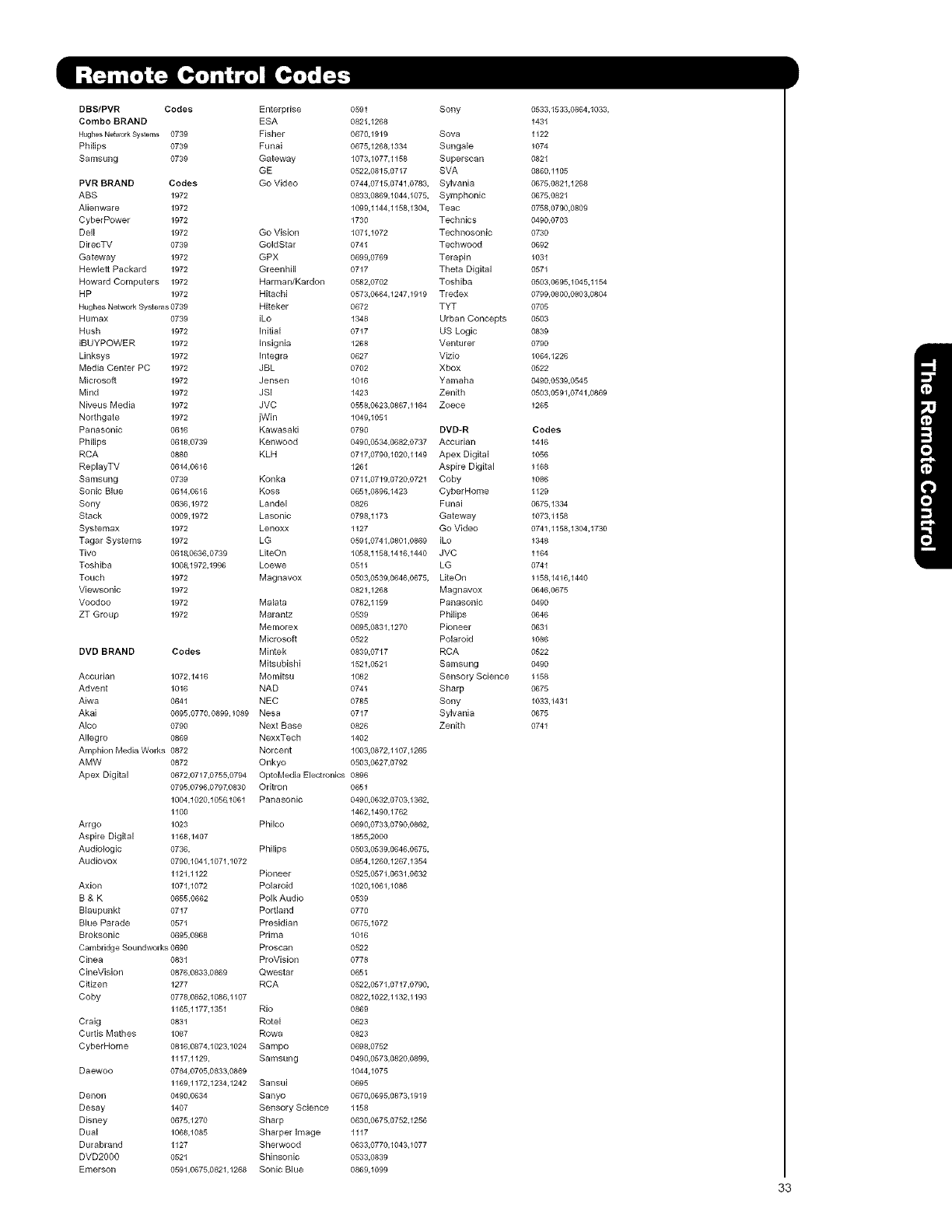

DBS/PVR Codes Enterprise

Combo BRAND ESA

HughesNetworkSystems 0739 Fisher

Philips 0739 Funai

Samsung 0739 Gateway

PVR BRAND Codes Go Video

ABS 1972

Alienware 1972

CyberPower 1972

Dell 1972 Go Vision

DirecTV 0739 GoldStar

Gateway 1972 GPX

Hewlett Packard 1972 Greenhill

Howard Computers 1972 Harman/Kardon

HP 1972 Hitachi

Hughes Network Systems 0739 Hiteker

Humax 0739 iLo

Hush 1972 blitial

iBUYPOWER 1972 insignia

Linksys 1972 Integra

Media Center PC 1972 JBL

Microsoft 1972 Jensen

Mind 1972 JSl

Niveus Media 1972 JVC

Northgate 1972 jWin

Panasonic 0616 Kawasaki

Philips 0618,0739 Kenwood

RCA 0680 KLH

ReplayTV 0614,0616

Samsung 0739 Konka

Sonic Blue 0614,0616 Koss

Sony 0636,1972 Landel

Stack 0009,1972 Lasonic

Systemax 1972 Lenoxx

Tagar Systems 1972 LG

Tivo 0618,0636,0739 LiteOn

Toshiba 1008,1972,1996 Loewe

Touch 1972 Magnavox

Viewsonic 1972

Voodoo 1972 Malata

ZT Group 1972 Marantz

Memorex

Microsoft

DVD BRAND Codes Mintek

Mgsubishi

Accudan 1072,1416 Momgsu

Advent 1016 NAD

Aiwa 0641 NEC

Akai 0695,0770,0899,1089 Nesa

AIco 0790 Next Base

Allegro 0869 NexxTech

Amphion Media Works 0872 Norcent

AMW 0872 Onkyo

0591 Sony 0533,1533,0864,1033,

0821,1268 1431

0670,1919 Sova 1122

0675,1268,1334 Sungale 1074

1073,1077,1158 Superscan 0821

0522,0815,0717 SVA 0860,1105

0744,0715,0741,0783, Sylvania 0675,0821,1268

0833,0869,1044,1075, Symphonic 0675,0821

1099,1144,1158,1304, Teac 0758,0790,0809

1730 Technics 0490,0703

1071,1072 Technosonic 0730

0741 Techwood 0692

0699,0769 Terapin 1031

0717 Theta Digital 0571

0582,0702 Toshiba 0503,0695,1045,1154

0573,0664,1247,1919 Tredex 0799,0800,0803,0804

0672 TYT 0705

1348 Urban Concepts 0503

0717 US Logic 0839

1268 Venturer 0790

0627 Vizio 1064,1226

0702 Xbox 0522

1016 Yamaha 0490,0539,0545

1423 Zenith 0503,0591,0741,0869

0558,0623,0867,1164 Zoece 1265

1049,1051

0790 DVD-R Codes

0490,0534,0682,0737 Accurian 1416

0717,0790,1020,1149 Apex Digital 1056

1261 Aspire Digital 1168

0711,0719,0720,0721 Coby 1086

0651,0896,1423 CyberHome 1129

0826 Funai 0675,1334

0798,1173 Gateway 1073,1158

1127 Go Video 0741,1158,1304,1730

0591,0741,0801,0869 iLo 1348

1058,1158,1416,1440 JVC 1164

0511 LG 0741

0503,0539,0646,0675, LiteOn 1158,1416,1440

0821,1268 Magnavox 0646,0675

0782,1159 Panasonic 0490

0539 Philips 0646

0695,0831,1270 Pioneer 0631

0522 Polaroid 1086

0839,0717 RCA 0522

1521,0521 Samsung 0490

1082 Sensory Science 1158

0741 Sharp 0675

0785 SoNy 1033,1431

0717 Sylvania 0675

0826 Zenith 0741

1402

1003,0872,1107,1265

0503,0627,0792

Apex Digital 0672,0717,0755,0794 OptoMedia Electronics 0896

0795,0796,0797,0830 Odtron 0651

1004,1020,1056,1061 Panasonic 0490,0632,0703,1362,

1100 1462,1490,1762

Arrgo 1023 Philco 0690,0733,0790,0862,

Aspire Digital 1168,1407 1855,2000

Audiologic 0736, Philips 0503,0539,0646,0675,

Audiovox 0790,1041,1071,1072 0854,1260,1267,1354

1121,1122 Pioneer 0525,0571,0631,0632

Axion 1071,1072 Polaroid 1020,1061,1086

B & K 0655,0662 Polk Audio 0539

Blaupunkt 0717 Portland 0770

Blue Parade 0571 Presidian 0675,1072

Broksonic 0695,0868 Pdma 1016

Cambridge Soundworks 0690 Proscan 0522

Cinea 0831 ProVision 0778

CineVision 0876,0833,0869 Qwestar 0651

Citizen 1277 RCA 0522,0571,0717,0790,

Coby 0778,0852,1086,1107 0822,1022,1132,1193

1165,1177,1351 Rio 0869

Craig 0831 Rotel 0623

Curtis Mathes 1087 Rowa 0823

CyberHome 0816,0874,1023,1024 Sampo 0698,0752

1117,1129, Sa msung 0490,0573,0820,0899,

Daewoo 0784,0705,0833,0869 1044,1075

1169,1172,1234,1242 Sansui 0695

Denon 0490,0634 Sanyo 0670,0695,0873,1919

Desay 1407 Sensory Science 1158

Disney 0675,1270 Sharp 0630,0675,0752,1256

Dual 1068,1085 Sharper Image 1117

Durabrand 1127 Sherwood 0633,0770,1043,1077

DVD2000 0521 Shinsonic 0533,0839

Emerson 0591,0675,0821,1268 Sonic Blue 0869,1099

Press MENU on the remote control to display the

different features on your HITACHI LCD TV.

Use the CURSOR PAD (buttons A,T,4 and I_)

and highlight a different feature of the On-Screen

Display menu. Press the SELECT button to select.

Press EXIT on the remote control to quickly exit

from a menu.

This part of the screen shows

which selections are available.

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Back Light

ColorTemperature

Black Enhancement

Contrast Mode

Noise Reduction

Select between 3 picture modes;

Day Dynamic, Day Normal and Night.

Adjust contrast.

Adjust brightness.

Adjust color.

Adjust tint.

Adjust sharpness.

Adjust back light.

Set this to High for less intense

color with more blue, set to Medium

for natural color, set to Standard for

standard colors or Black and White

for more reddish color.

Enhance picture brightness in

light scenes.

Use this function to choose

between two Contrast Mode

settings.

Reduces conspicuous noise in

the picture.

MPEG NR

Auto Movie Mode

Auto Color

Black Side Panel

Aspect

Reset Video Settings

Reduces mosquito noise in

the picture.

Turn On/Off the 3:2 Pulldown

detection feature.

The AUTO COLOR function

automatically monitors and

adjusts the color to maintain

constant color levels even after

a program or channel changes.

It also maintains natural flesh

tones while preserving fidelity

of background colors.

Set the gray side bars On/Off

when watching 4:3 signals in

standard mode.

Choose the picture format

aspect ratio.

Choose to Reset Video Settings

to factory settings.

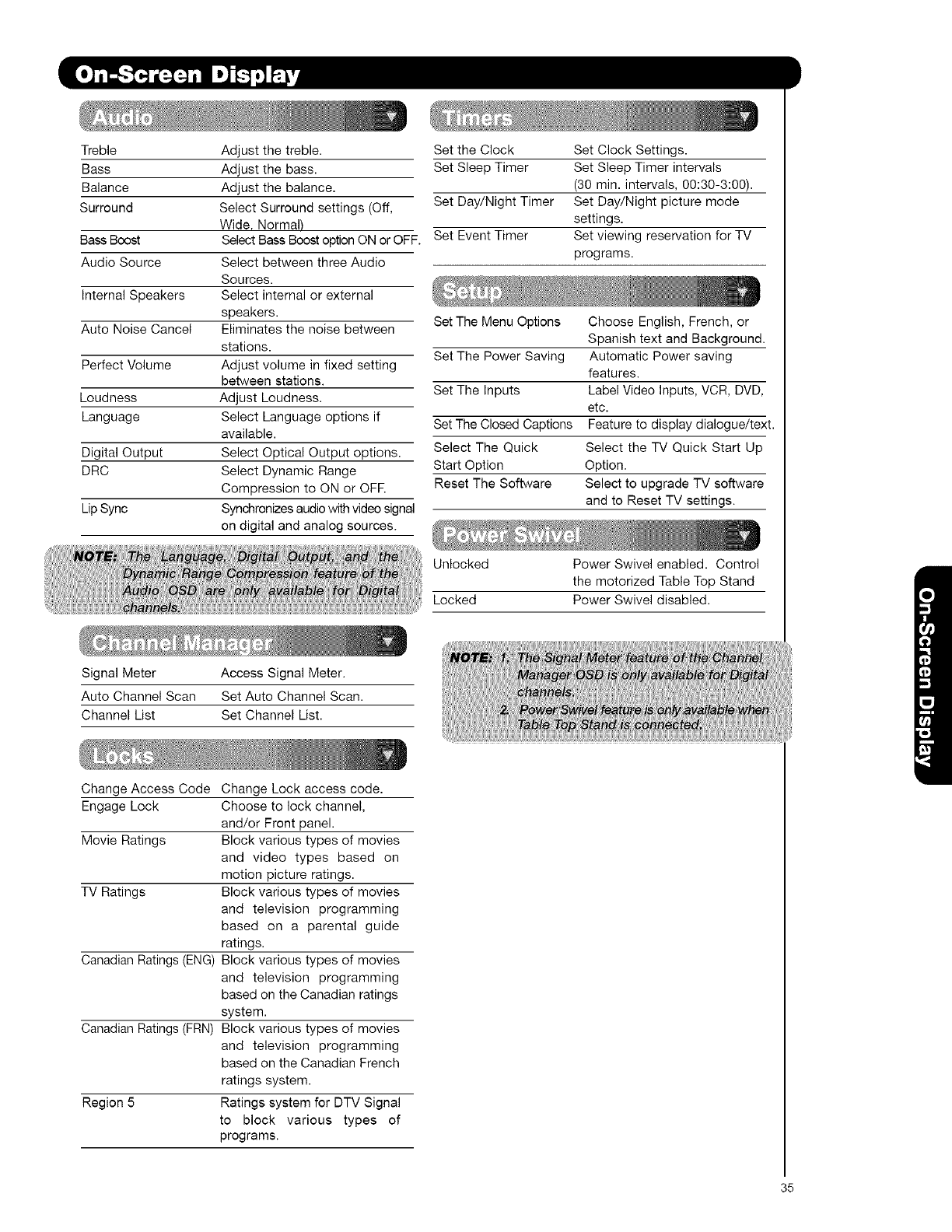

Treble

Bass

Balance

Surround

BassBoost

Audio Source

Internal Speakers

Auto Noise Cancel

Perfect Volume

Loudness

Language

Digital Output

DRC

Lip Sync

Adjust the treble.

Adjust the bass.

Adjust the balance.

Select Surround settings (Off,

Wide Normal)

Select Bass Boost option ON or OFF.

Select between three Audio

Sources.

Select internal or external

speakers.

Eliminates the noise between

stations.

Adjust volume in fixed setting

between stations.

Adjust Loudness.

Select Language options if

available.

Select Optical Output options.

Select Dynamic Range

Compression to ON or OFR

Synchronizes audio with video signal

on digital and analog sources.

Set the Clock Set Clock Settings.

Set Sleep Timer Set Sleep Timer intervals

(30 min. intervals, 00:30-3:00).

Set Day/Night Timer Set Day/Night picture mode

settings.

Set Event Timer Set viewing reservation for TV

programs.

Set The Menu Options

Set The Power Saving

Set The Inputs

Set The Closed Captions

Select The Quick

Start Option

Reset The Software

Choose English, French, or

Spanish text and Background.

Automatic Power saving

features.

Label Video Inputs, VCR, DVD,

etc.

Feature to display dialogue/text.

Select the TV Quick Start Up

Option.

Select to upgrade TV software

and to Reset TV settings.

Unlocked Power Swivel enabled. Control

the motorized Table Top Stand

Locked Power Swivel disabled.

Signal Meter Access Signal Meter.

Auto Channel Scan Set Auto Channel Scan.

Channel List Set Channel List.

Change Access Code Change Lock access code.

Engage Lock Choose to lock channel,

and/or Front panel.

Movie Ratings Block various types of movies

and video types based on

motion picture ratings.

TV Ratings Block various types of movies

and television programming

based on a parental guide

ratings.

Canadian Ratings (ENG) Block various types of movies

and television programming

based on the Canadian ratings

system.

Canadian Ratings (FRN) Block various types of movies

and television programming

based on the Canadian French

ratings system.

Region 5 Ratings system for DTV Signal

to block various types of

programs.

SelectVIDEOtoadjustpicturesettingsandimprove

picturequality.Youcanindependentlycustomizeeachof

theVideoInputstoyourpreferencetoincreaseviewing

performanceandpleasuredependinguponthevideo

programbeingviewed.IfRESETisselected,onlythe

selectedinputwillresettoinitialconditions.

Picture Mode

Use this function to choose from automatic picture

settings to optimize your TV's performance.

1. Use the CURSOR buttons _1 or I_ to highlight and

select PICTURE MODE settings (Day-Normal,

Day-Dynamic or Night).

2. Then press the SELECT button to set the mode and

return to the Video menu or press EXIT to quit menu.

3. There are 3 Picture Modes available for the customer

Day (Dynamic) , Day (Normal) and Night mode.

Day (Dynamic) is the original factory preset mode, this

can be changed by adjusting any video setting to your

desire conditions. Day ( Normal ) can be used as a

second video setting for daytime viewing. Night is set

to watch programing during nigthtime.

4. Press MENU to return to main menu.

5. Press EXIT to quit menu.

Contrast

Use this function to change the contrast between black

and white levels in the picture.

Brightness

Use this function to adjust overall picture brightness.

Color

Use this function to adjust the level of color in the picture.

Tint

Use this function to adjust flesh tones so they appear natural

Sharpness

Use this function to adjust the amount of fine detail in the picture.

Use the CURSOR PAD •or • to highlight the function to be adjusted.

Press the SELECT button or the CURSOR PAD I_ to select the function settings.

Press the CURSOR PAD _1 or I_ to adjust the function.

Back Light

Use this function to change the back light of the LCD panel, this will increase or decrease the brightness of the LCD panel but

not the brightness of the video signal.

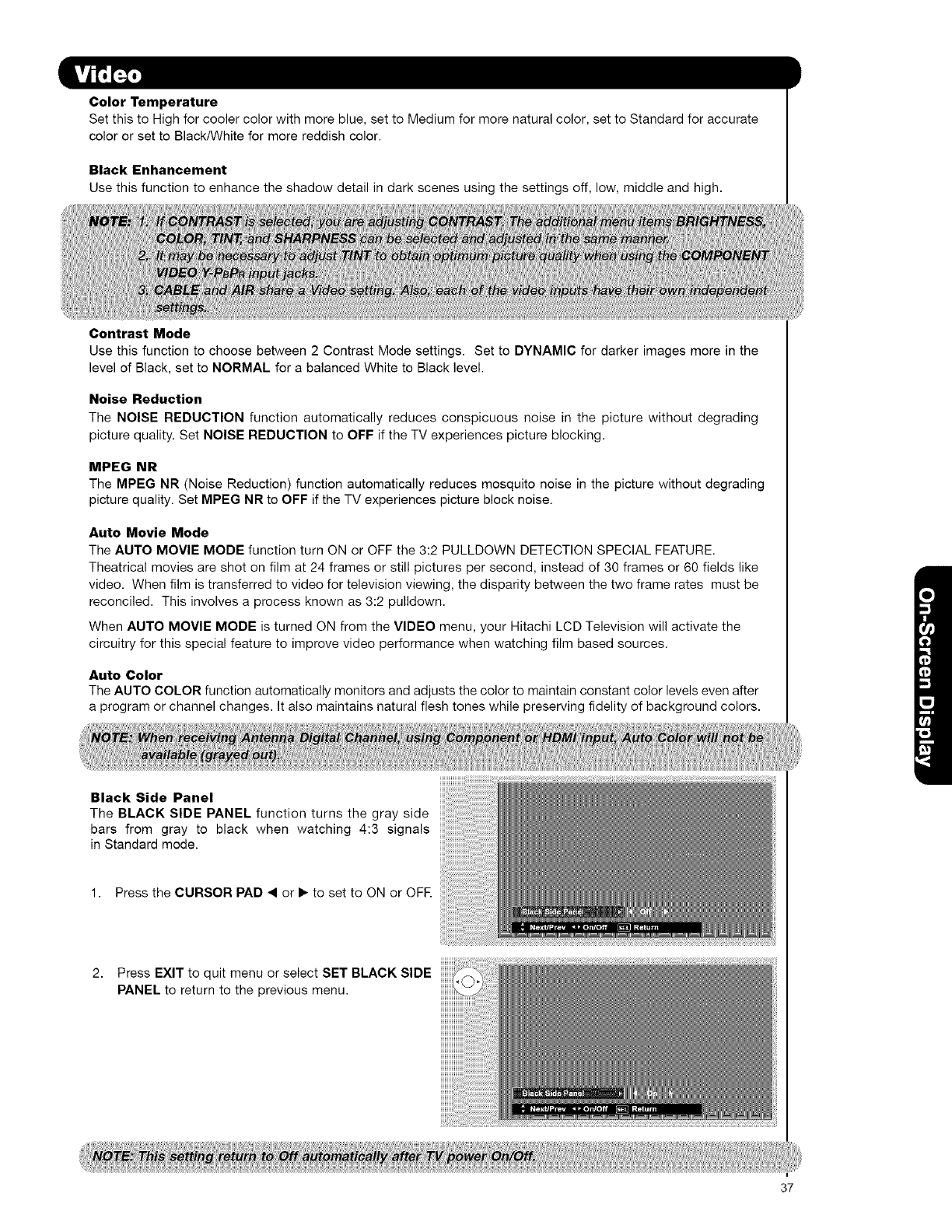

Color Temperature

Set this to High for cooler color with more blue, set to Medium for more natural color, set to Standard for accurate

color or set to Black/White for more reddish color.

Black Enhancement

Use this function to enhance the shadow detail in dark scenes using the settings off, low, middle and high.

Contrast Mode

Use this function to choose between 2 Contrast Mode settings. Set to DYNAMIC for darker images more in the

level of Black, set to NORMAL for a balanced White to Black level.

Noise Reduction

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading

picture quality. Set NOISE REDUCTION to OFF if the TV experiences picture blocking.

MPEG NR

The MPEG NR (Noise Reduction) function automatically reduces mosquito noise in the picture without degrading

picture quality. Set MPEG NR to OFF if the TV experiences picture block noise.

Auto Movie Mode

The AUTO MOVIE MODE function turn ON or OFF the 3:2 PULLDOWN DETECTION SPECIAL FEATURE.

Theatrical movies are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like

video. When film is transferred to video for television viewing, the disparity between the two frame rates must be

reconciled. This involves a process known as 3:2 pulldown.

When AUTO MOVIE MODE is turned ON from the VIDEO menu, your Hitachi LCD Television will activate the

circuitry for this special feature to improve video performance when watching film based sources.

Auto Color

The AUTO COLOR function automatically monitors and adjusts the color to maintain constant color levels even after

a program or channel changes. It also maintains natural flesh tones while preserving fidelity of background colors.

Black Side Panel

The BLACK SIDE PANEL function turns the gray side

bars from gray to black when watching 4:3 signals

in Standard mode.

1. Press the CURSOR PAD <or • to set to ON or OFE

2. Press EXIT to quit menu or select SET BLACK SIDE

PANEL to return to the previous menu.

Aspect

Use this function to select the Picture Format Aspect

Ratio.

Auto Aspect

Automatically adjust the Aspect Ratio depending on

the input signal to fill the screen.

Mode

Manually select the Aspect Ratio.

Vertical Position

This function allows you to change the vertical position

when aspect style is either 4:3 EXPANDED/ZOOMI/ZOOM2 or 16:9 ZOOM. For example, it will be useful for

centering the picture area at both the top and bottom of the picture with 480i//480p signal.

Adjustable range is -10 (video center is toward bottom of screen) to +10 (video is toward top of screen).

1. Use the CURSOR PAD • or • to to select menu item.

2. Press the CURSOR PAD • or I_ to adjust the function.

3. Press the EXlTto quit the MENU, or select ASPECT to return to the main menu.

Reset Video Settings

This function allows you to Reset the Video Menu Settings of the present input and return it to the Day-Dynamic

VIDEO mode.

1. Use CURSOR PAD •,Y to highlight functions.

2. Press the SELECT button or CURSOR PAD 1_ to

select Reset Video Settings.

3. Use the CURSOR PAD •to access at the Reset

softkey.

4. Press the SELECT button to Reset the Video

Settings.

You can customize each of the Video Inputs to your

preference to increase viewing performance and

pleasure, depending upon the video program being

viewed. If RESET is selected, only the selected Input will

reset to the initial conditions as explained above.

If RESET is selected in Input 1, only Input 1 will return to

factory conditions.

SelectAUDIOtoadjusttheTVtoyourpreferenceand

toimprovethesoundquality.

1. Press CURSOR PAD • or •to select menu item.

2. Press CURSOR PAD _ or 1_to adjust the function.

3. Press EXlTto quit the MENU, or select AUDIOto

return to the main menu.

Treble

This function controls the high frequency audio to all speakers.

Bass

This function controls the low frequency audio to all speakers.

Balance

This function will control the left to right balance of the LCD TV internal speakers.

Surround

Surround sound is the concept of expanding the spatial imaging of audio from one dimension (Mono/Left-Right) to

two or three dimensions. This is often done to create a more realistic audio environment.

1.- Use CURSOR PAD • or • to highlight surround option.

2.- Use CURSOR PAD _1 or • to select Off, Normal or Wide.

Off:turns off the surround sound effect.

Normal Surround : Provides the surround effect by locating two or more speakers to the rear of the listener.

Wide Surround : Reproduce much better quality 5 channel sound signals from ordinary stereo contents comparing with

normal surround technology. Wide surround enable users to enjoy sound playback in wide surround virtual area like

5 channel contents with ordinary stereo contents.

Bass Boost

This function allows to enhance the low frequency audio performance of your speaker system.

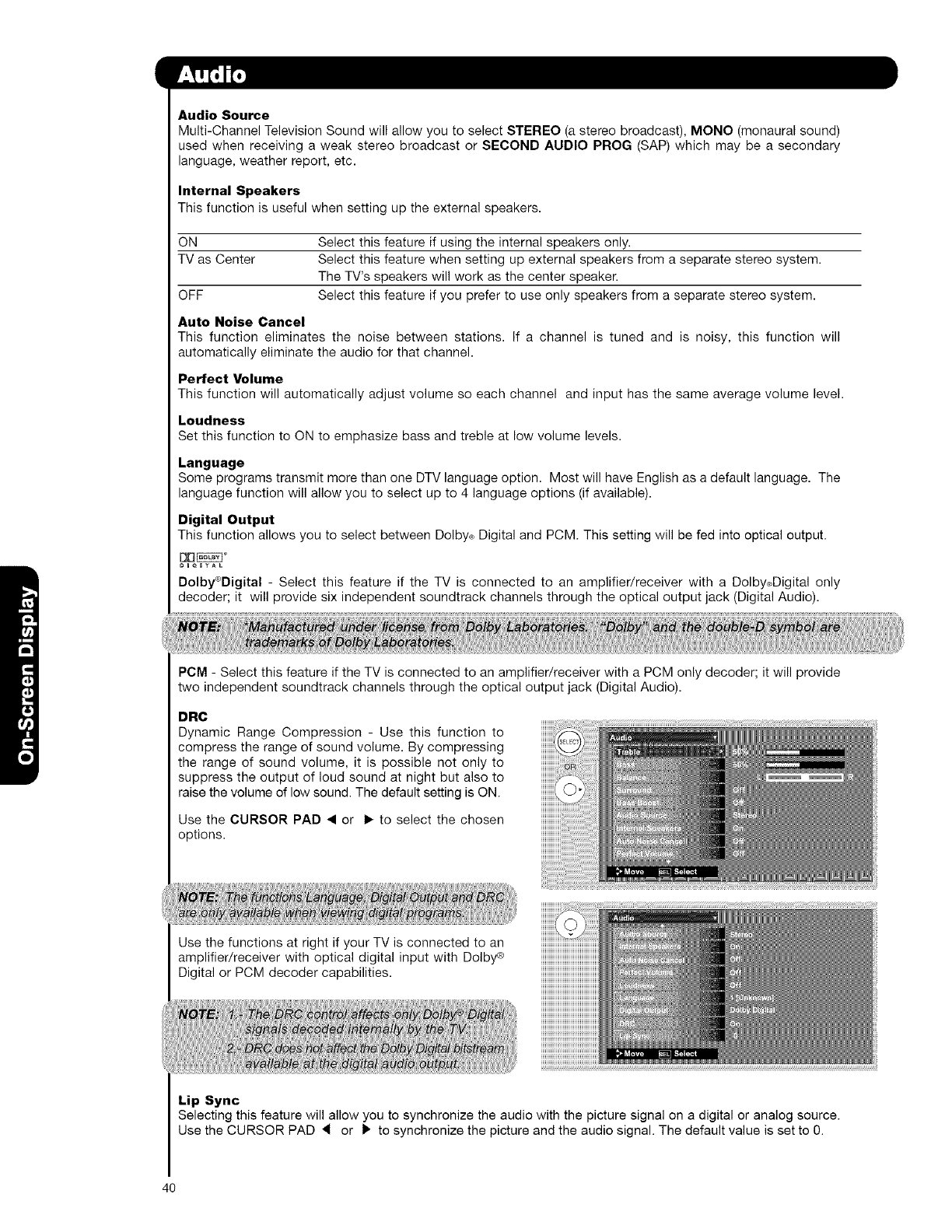

Audio Source

Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound)

used when receiving a weak stereo broadcast or SECOND AUDIO PROG (SAP) which may be a secondary

language, weather report, etc.

Internal Speakers

This function is useful when setting up the external speakers.

ON Select this feature if using the internal speakers only.

TV as Center Select this feature when setting up external speakers from a separate stereo system.

The TV's speakers will work as the center speaker.

OFF Select this feature if you prefer to use only speakers from a separate stereo system.

Auto Noise Cancel

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will

automatically eliminate the audio for that channel.

Perfect Volume

This function will automatically adjust volume so each channel and input has the same average volume level.

Loudness

Set this function to ON to emphasize bass and treble at low volume levels.

Language

Some programs transmit more than one DTV language option. Most will have English as a default language. The

language function will allow you to select up to 4 language options (if available).

Digital Output

This function allows you to select between Dolby_ Digital and PCM. This setting will be fed into optical output.

D[3_ °

_U_B_AL

Dolby®Digital - Select this feature if the TV is connected to an amplifier/receiver with a Dolby_Digital only

decoder; it will provide six independent soundtrack channels through the optical output jack (Digital Audio).

PCM - Select this feature if the TV is connected to an amplifier/receiver with a PCM only decoder; it will provide

two independent soundtrack channels through the optical output jack (Digital Audio).

DRC

Dynamic Range Compression - Use this function to

compress the range of sound volume. By compressing

the range of sound volume, it is possible not only to

suppress the output of loud sound at night but also to

raise the volume of low sound. The default setting is ON.

Use the CURSOR PAD • or I_ to select the chosen

options.

Use the functions at right if your TV is connected to an

amplifier/receiver with optical digital input with Dolby ®

Digital or PCM decoder capabilities.

Lip Sync

Selecting this feature will allow you to synchronize the audio with the picture signal on a digital or analog source.

Use the CURSOR PAD 4 or 1_ to synchronize the picture and the audio signal. The default value is set to 0.

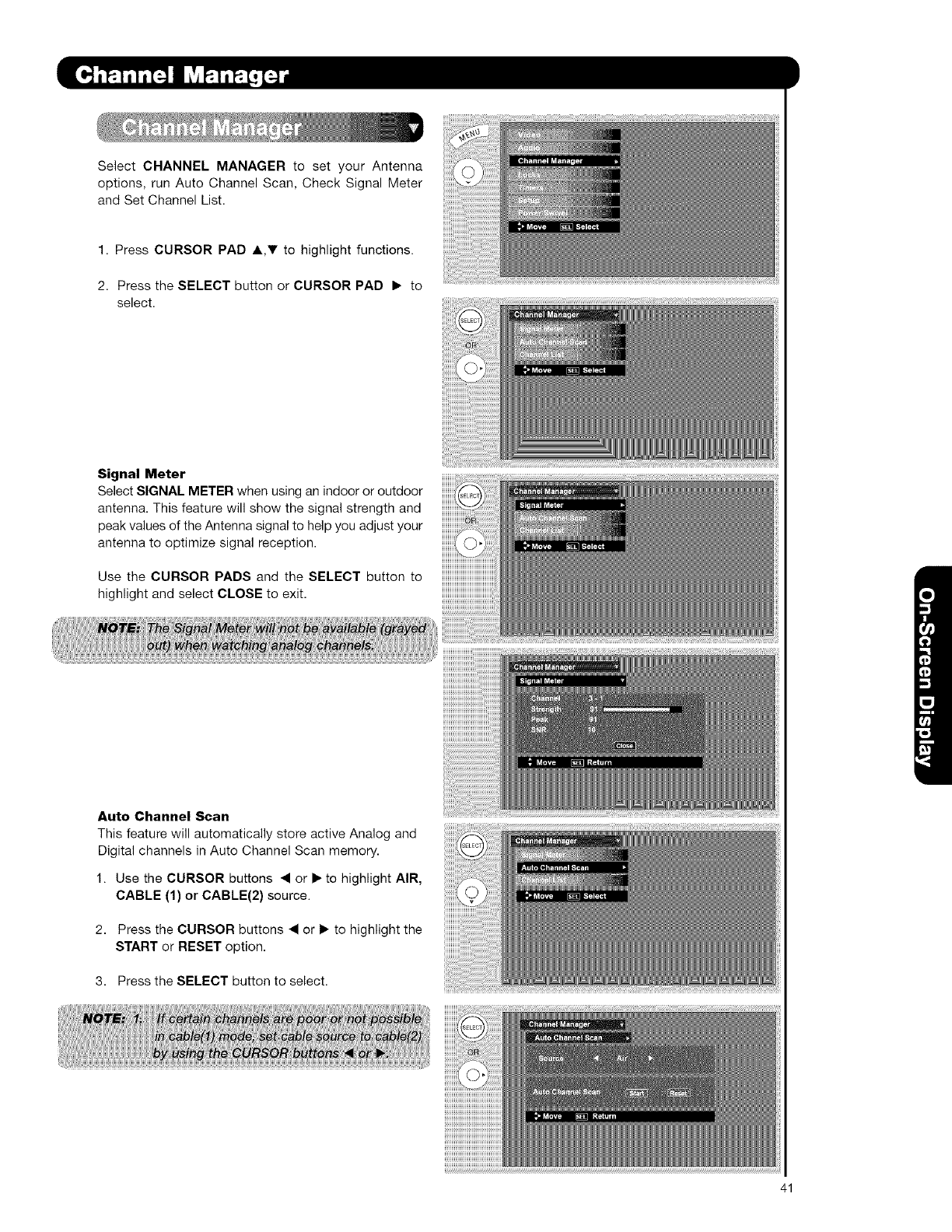

SelectCHANNELMANAGERto setyourAntenna

options,runAutoChannelScan,CheckSignalMeter

andSetChannelList.

1.PressCURSORPADA,y tohighlightfunctions.

2. PresstheSELECTbuttonorCURSORPAD• to

select.

Signal Meter

Select SIGNAL METER when using an indoor or outdoor

antenna. This feature will show the signal strength and

peak values of the Antenna signal to help you adjust your

antenna to optimize signal reception.

Use the CURSOR PADS and the SELECT button to

highlight and select CLOSE to exit.

Auto Channel Scan

This feature will automatically store active Analog and

Digital channels in Auto Channel Scan memory.

1. Use the CURSOR buttons .4 or • to highlight AIR,

CABLE (1) or CABLE(2) source.

2. Press the CURSOR buttons .4 or • to highlight the

START or RESET option.

3. Press the SELECT button to select.

Channel List

This function allows you to review which channels are

labeled (ID}, which have been added to CHANNEL

MEMORY (SCAN}, which are protected by LOCK and

which are your FAVORITE (FAV} CHANNELS.

1. Use the CURSOR PAD to navigate the Channel List.

2. Press the SELECT button to select ON or OFF on the

SCAN and LOCK columns.

3. To select LOCK column, input the access code.

(Default access code: 0000)

4. Press the FAV button to set or remove the FAVORITE

settings.

5. Press the EXIT button to return to normal viewing.

Thisfunctionwillblockoutthepictureandsoundofthe

selectedchannelorvideoinput.

Thecodeto entertheLocksfeatureis afourdigit

accesscodenumber.Thefactorypresetcodeis0000.

UsetheNUMBERbuttonstoentertheaccesscode.

1. UsetheCURSORPADA, • to highlightthe

desiredfunctionintheLOCKSmenu.

2. PresstheSELECTbuttontoselect.

Change Access Code

1. To change the ACCESS CODE NUMBER, select

CHANGE ACCESS CODE to change the factory

preset code (0000) to your preference.

If you forget your ACCESS CODE NUMBER, use

the factory code 7777 to erase your key number.

This will reset the access code number back to the

factory preset (0000).

2. Enter a new four digit number.

3. Press EXIT to quit the menu.

Engage Lock

When ENGAGE LOCK is selected, SET CHANNEL LOCK and SET FRONT PANEL LOCK can be set individually.

When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out.

When FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the POWER

button.

When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion

picture ratings (see page 44).

When "iV RATINGS is selected, various types of television programming based on a parental guide ratings will be

blocked (see page 45).

Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating

systems used in Canada that you feel may be inappropriate due to its content (see pages 46-47).

Use REGION 5 to block various types of movies and television programs based on ratings systems used in U.S. that

you feel may be inappropriate due to its content (see page 48).

Movie Ratings

Use Movie Ratings to prevent viewing of any movie that

you feel may be inappropriate due to its content.

Use the CURSOR PAD A, • to select the

MOVIE RATING category that you want to block.

Press SELECT to block the MOVIE RATING that you

have selected. Once rating is selected, for example

PG-13, all movies rated PG-13 and higher (R, NC-17,

and X) will be blocked.

Press EXIT to quit the menu or select MOVIE RATING

to return to the previous menu.

Motion Picture Ratings Table

NOT RATED Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not

been rated or ratings do not apply.

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only

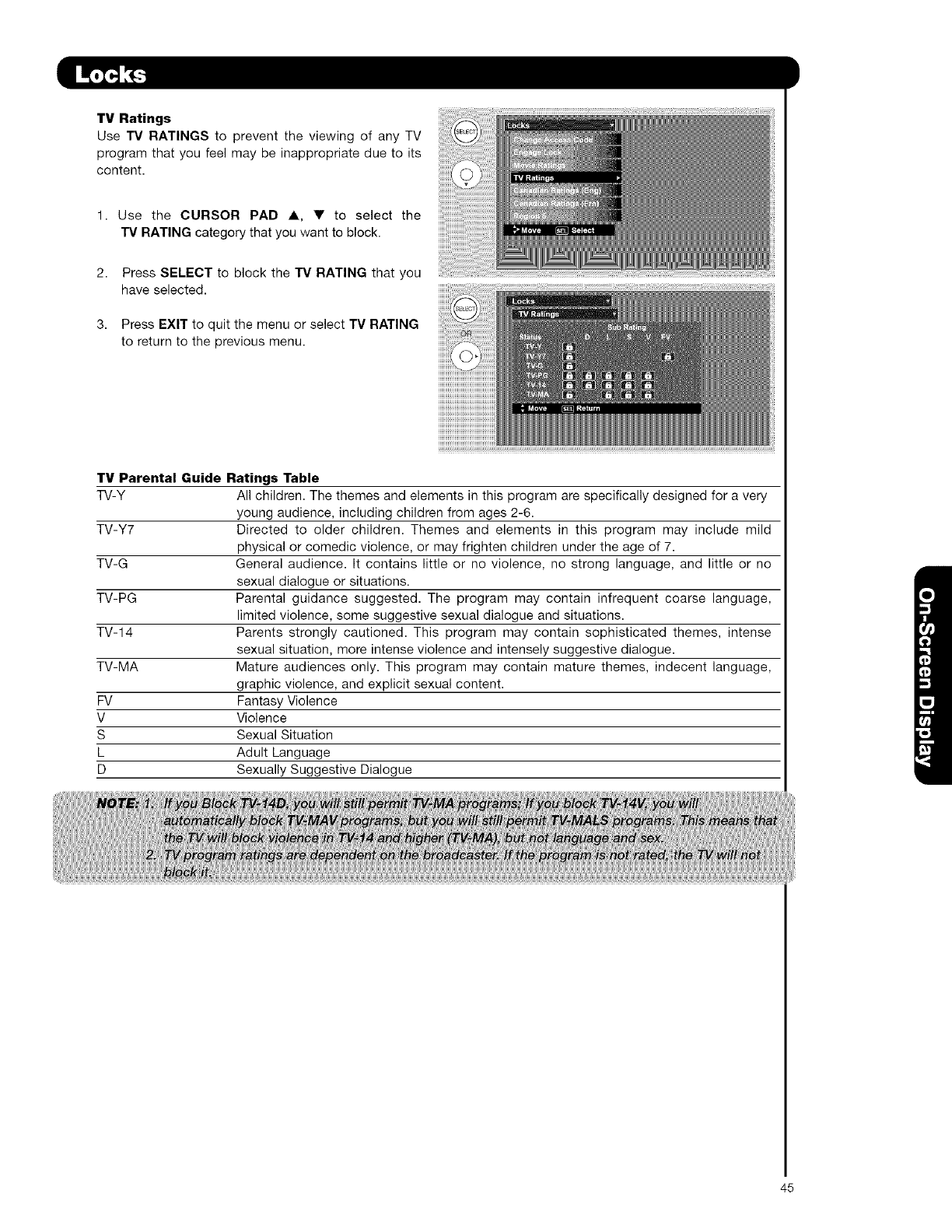

TV Ratings

Use "IV RATINGS to prevent the viewing of any TV

program that you feel may be inappropriate due to its

content.

Use the CURSOR PAD A, •to select the

"IV RATING category that you want to block.

Press SELECT to block the "IV RATING that you

have selected.

Press EXIT to quit the menu or select "IV RATING

to return to the previous menu.

TV Parental Guide Ratings Table

TV-Y All children. The themes and elements in this program are specifically designed for a very

young audience, including children from ages 2-6.

TV-Y7 Directed to older children. Themes and elements in this program may include mild

physical or comedic violence, or may frighten children under the age of 7.

TV-G General audience. It contains little or no violence, no strong language, and little or no

sexual dialogue or situations.

TV-PG Parental guidance suggested. The program may contain infrequent coarse language,

limited violence, some suggestive sexual dialogue and situations.

TV-14 Parents strongly cautioned. This program may contain sophisticated themes, intense

sexual situation, more intense violence and intensely suggestive dialogue.

TV-MA Mature audiences only. This program may contain mature themes, indecent language,

graphic violence, and explicit sexual content.

FV Fantasy Violence

V Violence

S Sexual Situation

L Adult Language

D Sexually Suggestive Dialogue

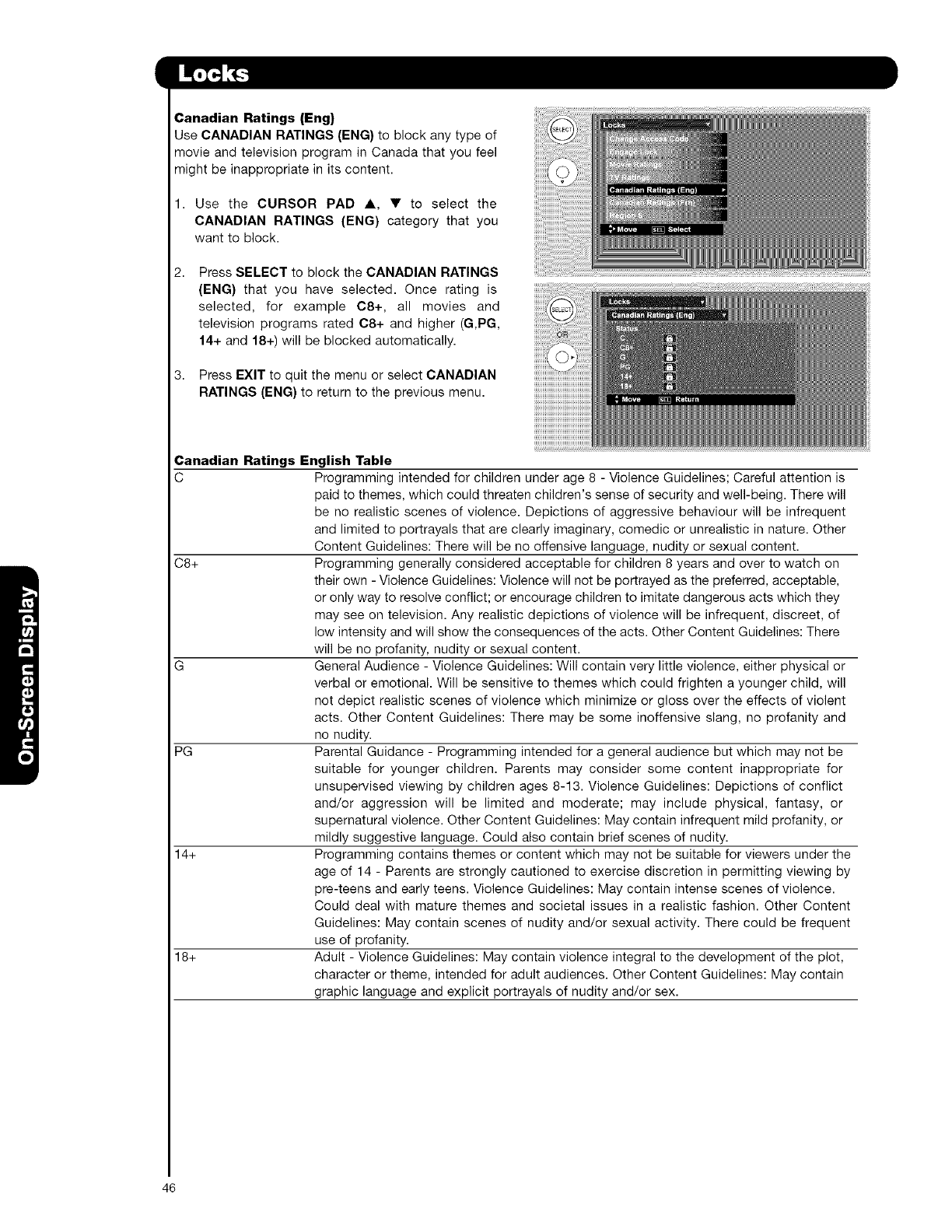

Canadian Ratings (Eng)

Use CANADIAN RATINGS (ENG) to block any type of

movie and television program in Canada that you feel

might be inappropriate in its content.

1. Use the CURSOR PAD A, • to select the

CANADIAN RATINGS (ENG) category that you

want to block.

2. Press SELECT to block the CANADIAN RATINGS

(ENG) that you have selected. Once rating is

selected, for example C8+, all movies and

television programs rated C8+ and higher (G,PG,

14+ and 18+) will be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (ENG) to return to the previous menu.

Canadian Ratings English Table

C Programming intended for children under age 8 - Violence Guidelines; Careful attention is

paid to themes, which could threaten children's sense of security and well-being. There will

be no realistic scenes of violence. Depictions of aggressive behaviour will be infrequent

and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other

Content Guidelines: There will be no offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over to watch on

their own - Violence Guidelines: Violence will not be portrayed as the preferred, acceptable,

or only way to resolve conflict; or encourage children to imitate dangerous acts which they

may see on television. Any realistic depictions of violence will be infrequent, discreet, of

low intensity and will show the consequences of the acts. Other Content Guidelines: There

will be no profanity, nudity or sexual content.

G General Audience - Violence Guidelines: Will contain very little violence, either physical or

verbal or emotional. Will be sensitive to themes which could frighten a younger child, will

not depict realistic scenes of violence which minimize or gloss over the effects of violent

acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and

no nudity.

PG Parental Guidance - Programming intended for a general audience but which may not be

suitable for younger children. Parents may consider some content inappropriate for

unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict

and/or aggression will be limited and moderate; may include physical, fantasy, or

supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or

mildly suggestive language. Could also contain brief scenes of nudity.

14+ Programming contains themes or content which may not be suitable for viewers under the

age of 14 - Parents are strongly cautioned to exercise discretion in permitting viewing by

pre-teens and early teens. Violence Guidelines: May contain intense scenes of violence.

Could deal with mature themes and societal issues in a realistic fashion. Other Content

Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent

use of profanity.

18+ Adult - Violence Guidelines: May contain violence integral to the development of the plot,

character or theme, intended for adult audiences. Other Content Guidelines: May contain

graphic language and explicit portrayals of nudity and/or sex.

Canadian Ratings (Frn)

Use CANADIAN RATINGS (FRN) to block Canadian

French programs according to various program ratings

that you feel might be inappropriate in its content.

1. Use the CURSOR PAD A, • to select the

CANADIAN RATINGS (FRN) category that you

want to block.

Press SELECT to block the CANADIAN RATINGS

(FRN) that you have selected. Once rating is

selected, for example 8 ANS+, all movies and

television programs rated 8 ANS+ and higher will

be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN

RATINGS (FRN) to return to the previous menu.

Canadian Ratings French Chart

G General - Programming intended for audiences of all ages. Contains no violence, or the

violence content is minimal or is depicted appropriately with humor or caricature or in an

unrealistic manner.

8 ans + 8 + General - Not recommended for young children - Programming intended for a broad

audience but contains light or occasional violence that could disturb young children.

Viewing with an adult is therefore recommended for young children (under the age of 8)

who cannot differentiate between real and imaginary portrayals.

13 ans + Programming may not be suitable for children under the age of 13 - Contains either a few

violent scenes or one or more sufficiently violent scenes to affect them. Viewing with an

adult is therefore strongly recommended for children under 13.

16 ans + Programming is not suitable for children under the age of 16 - Contains frequent scenes

of violence or intense violence.

18 ans + Programming restricted to adults - Contains constant violence or scenes of extreme

violence.

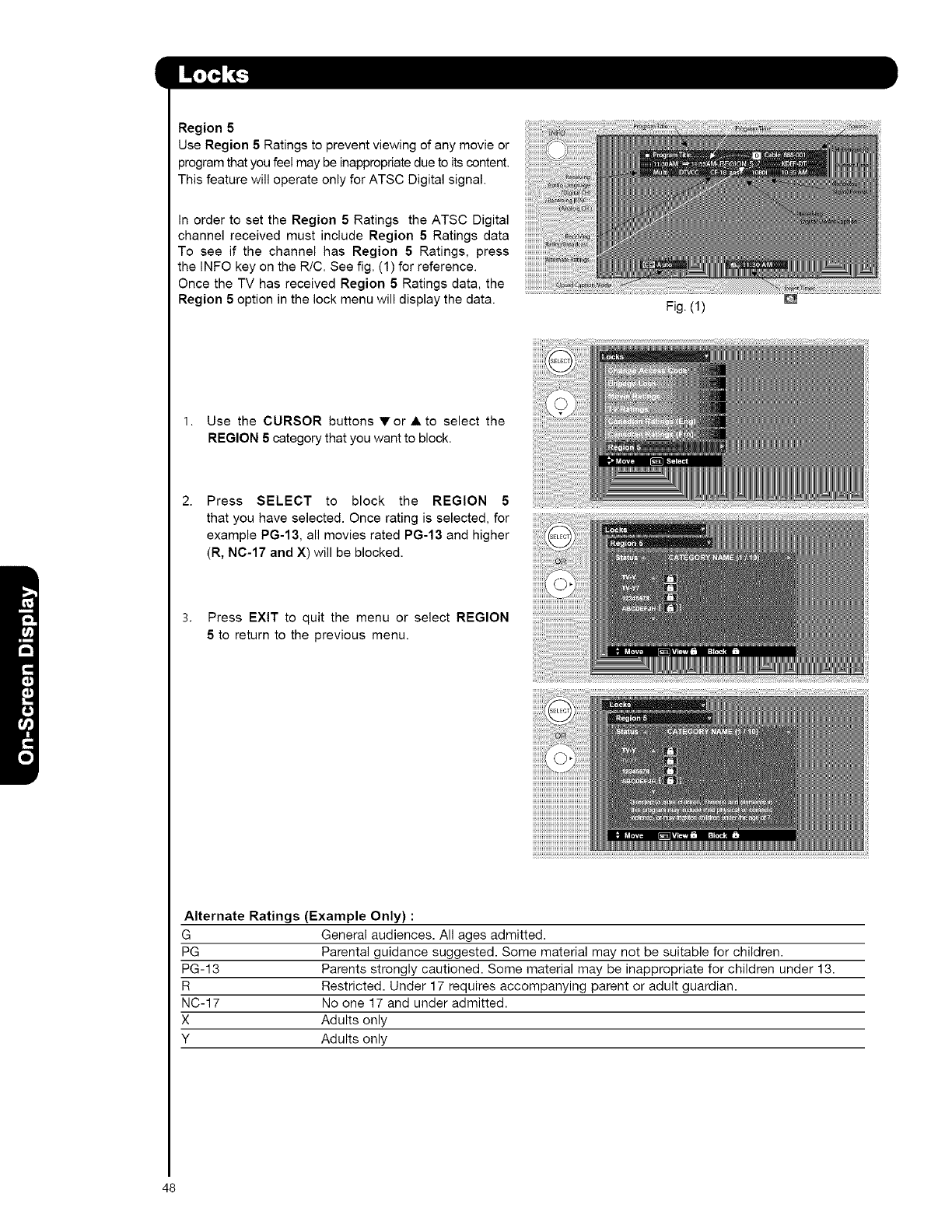

Region5

UseRegion5Ratingstopreventviewingofany movie or

program that you feel may be inappropriate due to its content.

This feature will operate only for ATSC Digital signal.

In order to set the Region 5 Ratings the ATSC Digital

channel received must include Region 5 Ratings data

To see if the channel has Region 5 Ratings, press

the INFO key on the R/C. See fig. (1) for reference.

Once the TV has received Region 5 Ratings data, the

Region 5 option in the lock menu will display the data.

1. Use the CURSOR buttons V or •to select the

REGION 5 category that you want to block.

Press SELECT to block the REGION 5

that you have selected. Once rating is selected, for

example PG-13, all movies rated PG-13 and higher

(R, NC-17 and X) will be blocked.

Press EXIT to quit the menu or select REGION

5 to return to the previous menu.

iiiiiiiii&

Fig. (1)

Alternate Ratings (Example Only) :

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian.

NC-17 No one 17 and under admitted.

X Adults only

Y Adults only

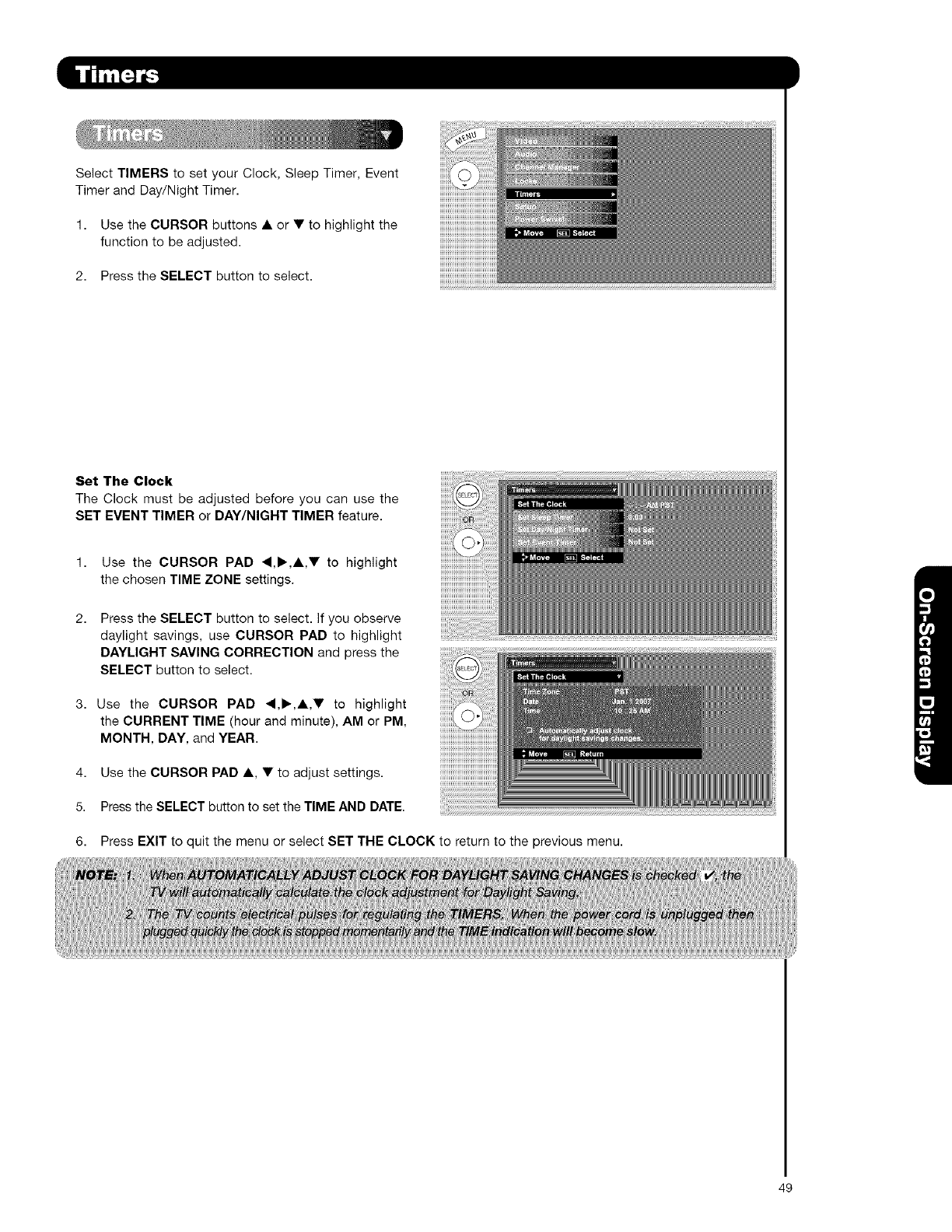

SelectTIMERStosetyourClock,SleepTimer,Event

TimerandDay/NightTimer.

1. Use the CURSOR buttons • or • to highlight the

function to be adjusted.

2. Press the SELECT button to select.

Set The Clock

The Clock must be adjusted before you can use tile

SET EVENT TIMER or DAY/NIGHT TIMER feature.

Use the CURSOR PAD 4,1_,•,• to highlight

the chosen TIME ZONE settings.

Press the SELECT button to select. If you observe

daylight savings, use CURSOR PAD to highlight

DAYLIGHT SAVING CORRECTION and press the

SELECT button to select.

Use the CURSOR PAD 4,1_,A,• to highlight

the CURRENT TIME (hour and minute), AM or PM,

MONTH, DAY, and YEAR.

Use the CURSOR PAD •, • to adjust settings.

Pressthe SELECT button to set the TIME AND DATE.

Press EXIT to quit the menu or select SET THE CLOCK to return to the previous menu.

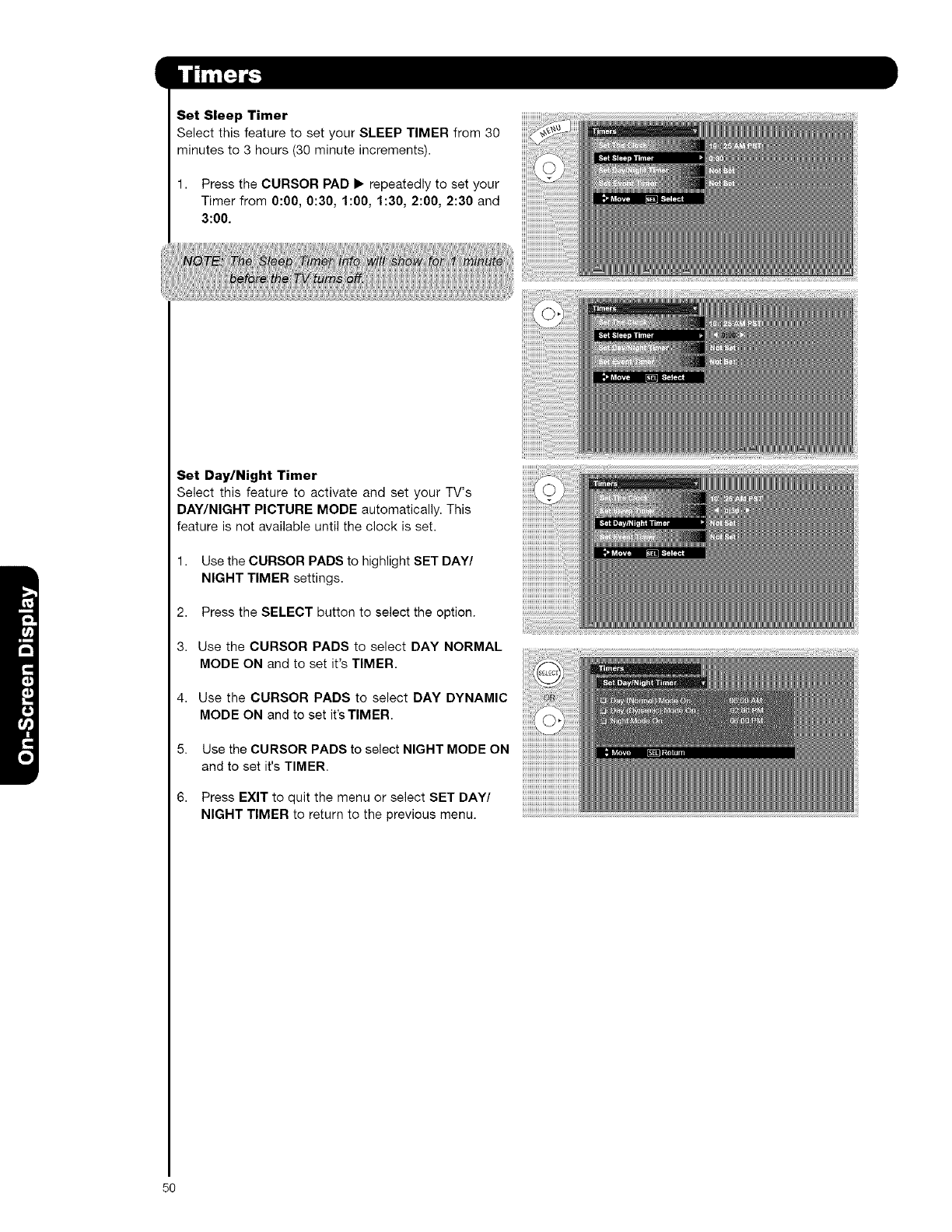

Set Sleep Timer

Select this feature to set your SLEEP TIMER from 30

minutes to 3 hours (30 minute increments).

1. Press the CURSOR PAD • repeatedly to set your

Timer from 0:00, 0:30, 1:00, 1:30, 2:00, 2:30 and

3:00.

Set Day/Night Timer

Select this feature to activate and set your TV's

DAY/NIGHT PICTURE MODE automatically. This

feature is not available until the clock is set.

1. Use the CURSOR PADS to highlight SET DAY/

NIGHT TIMER settings.

2. Press the SELECT button to select the option.

3. Use the CURSOR PADS to select DAY NORMAL

MODE ON and to set it's TIMER.

4. Use the CURSOR PADS to select DAY DYNAMIC

MODE ON and to set it's TIMER.

5. Use the CURSOR PADS to select NIGHT MODE ON

and to set it's TIMER.

6. Press EXIT to quit the menu or select SET DAY/

NIGHT TIMER to return to the previous menu,

Set Event Timer

This function will automatically operate the LCD TV

viewing reservation of a program. If the clock is not set,

you can not use this function and the screen at right will

appear. The message on the screen will disappear after

3 seconds, then the screen automatically goes to the

clock setup mode (see page 49).

1. Use the CURSOR PAD A, •to highlight EVENT 1,

EVENT 2, EVENT 3, EVENT 4 and then press the

SELECT button to select.

2. Use the CURSOR PAD •, • or • to highlight and

select START TIME HOUR/MINUTE.

3. Use the CURSOR PAD •, • or • to highlight and

select START TIME AM/PM.

4. Use the CURSOR PAD •, • or • to highlight and

select FINISH TIME HOUR/MINUTE

5. Use the CURSOR PAD •, • or • to highlight and

select FINISH TIME AM/PM.

6. Use the CURSOR PAD • to highlight the MONTH.

7, Use the CURSOR PAD • to select a MONTH or

CURSOR PAD • to select DAILY, WEEKLY -

SUNDAY TO MONDAY. Use the CURSOR PAD _1

to return to MONTH.

8. Use the CURSOR PAD •, • or • to highlight and

select the DAY of the MONTH.

9. Use the CURSOR PAD •, • or • to highlight and

select the YEAR.

10. Use the CURSOR PAD •,• or • or NUMBER

buttons to set the channel the TV will tune into.

11. A [_' in the box means the Event is enabled.

Select SETUP when setting your TV up for the first

time.

1. Use the CURSOR PAD • or • to select

the sub-menu of your choice.

2. Press the SELECT button to select.

Set The Menu Options

Setup the Language and background of the Menu

OSD.

Set The Language

This feature will allow you to select any one of three

different languages for all on-screen displays.

1. Use the CURSOR PAD _1 or I_ to select the

language of your choice.

2. Press EXIT to quit menu or select SET THE MENU

OPTIONS to return to previous menu.

!!!!!!!!!!_

Set The Menu Background

This function allows you to choose from two menu

backgrounds.

1. Use CURSOR PAD • or • to highlight SET THE

MENU BACKGROUND option. Use the CURSOR

PAD <or 1_ to select shaded or solid.

2. Select SOLID for a black background (no picture

can be seen behind menu screen), select SHADED

and a light background is visible.

3. Press EXIT to quit menu or select SET THE MENU

OPTIONS to return to the previous menu.

Set The Power Saving

This feature helps to increase the lamp life.

Image Power

Use this feature to have the save energy by changeing

back light level in three modes: Max, Med and Min.

1. Press the CURSOR buttons <1 or • to select the

modes Max, Med or Min.

Automatic Power Saving

Use this feature to have the TV turned OFF

automatically when a video signal is not detected for

about 12 seconds.

1. Press the CURSOR buttons ,_ or • to highlight

Yes or No.

Set The Inputs

Use this feature to give a name to any of the video

inputs.

1. Press the CURSOR PAD A, • to highlight the video

inputs.

2. Press the CURSOR PAD _1, • to select your

choices.

INPUT 3 Auto Link

Use this function to automatically turn the TV on and tune

to INPUT 3 when it detects a video signal to INPUT 3.

1. Use the CURSOR PAD • or • to highlight the AUTO LINK option and _1 or • to change between the Off and Auto.

Auto

When AUTO is selected, the TV will turn on and switch to INPUT 3 automatically, when the INPUT 3 input

device is turned on. This is convenient when you want to watch a movie with your VCR, laserdisc player, or

DVD player.

Off

Select OFF to disable this function.

Press EXIT to quit menu or select SET THE INPUTS to return to previous menu.

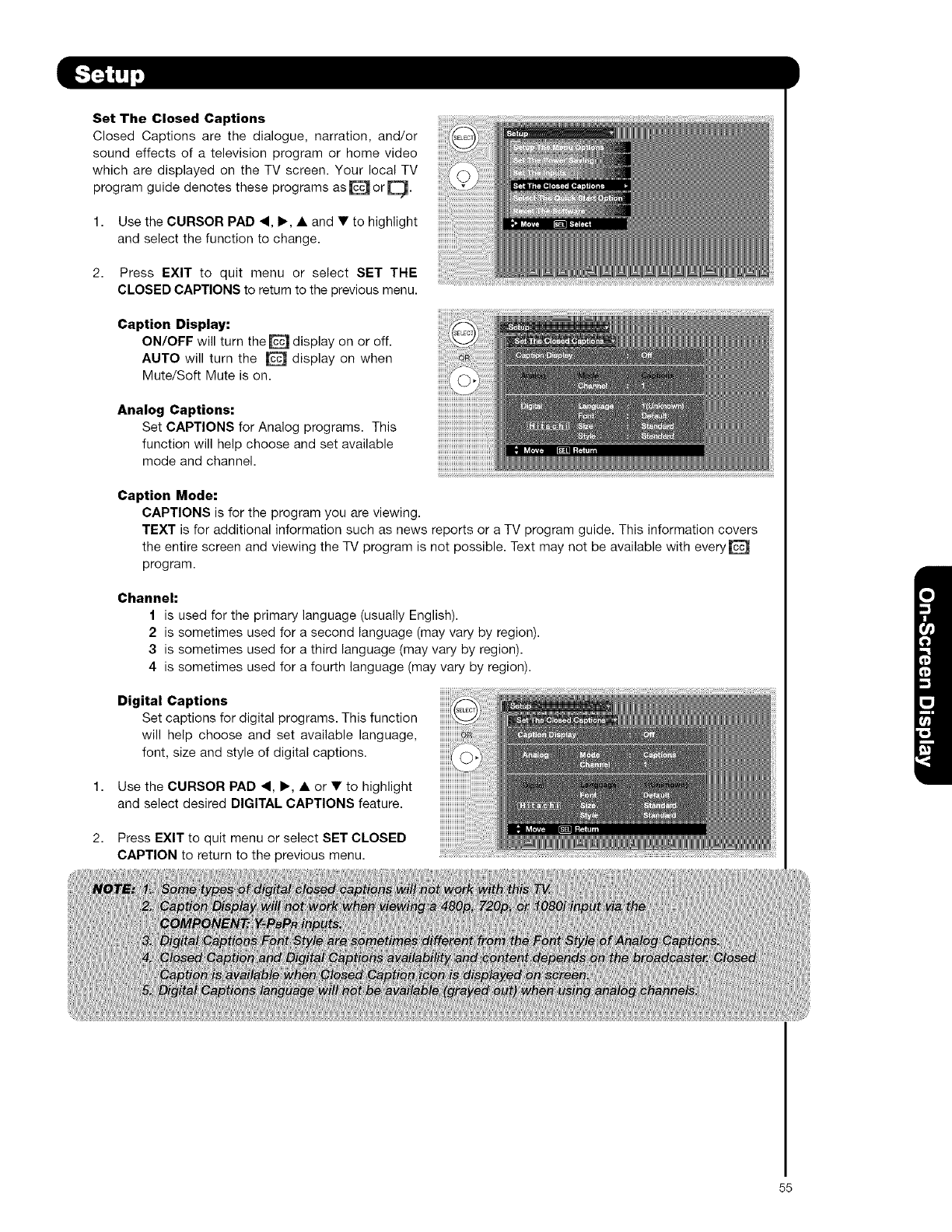

Set The Closed Captions

Closed Captions are the dialogue, narration, and/or

sound effects of a television program or home video

which are displayed on the TV screen. Your local TV

program guide denotes these programs as [_ or [_.

1. Use the CURSOR PAD 4, I_, • and • to highlight

and select the function to change.

2. Press EXIT to quit menu or select SET THE

CLOSED CAPTIONS to return to the previous menu.

Caption Display:

ON/OFF will turn the [&_J display on or off.

AUTO will turn the D display on when

Mute/Soft Mute is on.

Analog Captions:

Set CAPTIONS for Analog programs. This

function will help choose and set available

mode and channel.

Caption Mode:

CAPTIONS is for the program you are viewing.

TEXT is for additional information such as news reports or a TV program guide. This information covers

the entire screen and viewing the TV program is not possible. Text may not be available with every [_'1

program.

Channel:

I is used for the primary language (usually English).

2 is sometimes used for a second language (may vary by region).

3 is sometimes used for a third language (may vary by region).

4 is sometimes used for a fourth language (may vary by region).

Digital Captions

Set captions for digital programs. This function

will help choose and set available language,

font, size and style of digital captions.

1. Use the CURSOR PAD ._, I_, • or • to highlight

and select desired DIGITAL CAPTIONS feature.

2. Press EXIT to quit menu or select SET CLOSED

CAPTION to return to the previous menu.

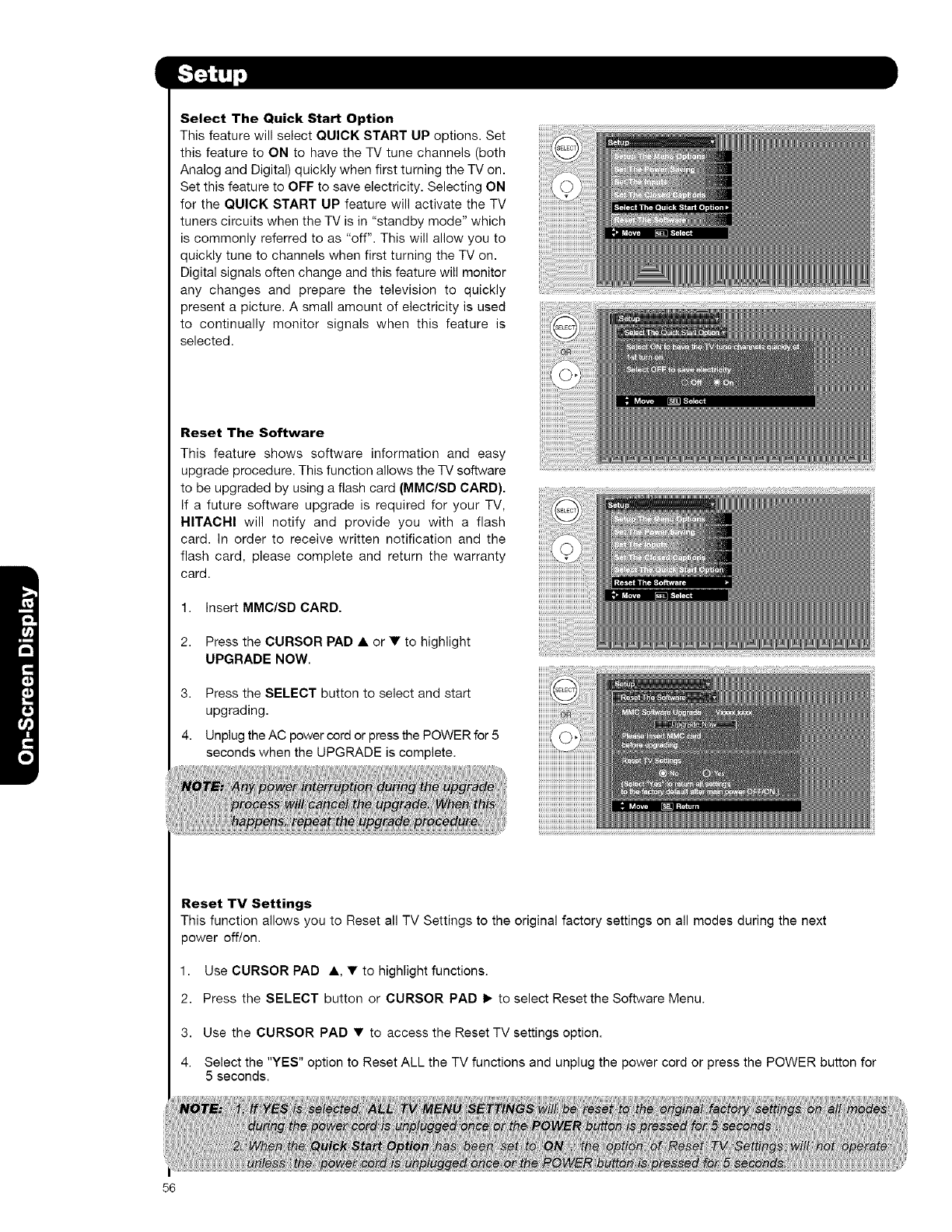

Select The Quick Start Option

This feature will select QUICK START UP options. Set

this feature to ON to have the TV tune channels (both

Analog and Digital) quickly when first turning the TV on.

Set this feature to OFF to save electricity. Selecting ON

for the QUICK START UP feature will activate the TV

tuners circuits when the TV is in "standby mode" which

is commonly referred to as "off". This will allow you to

quickly tune to channels when first turning the TV on.

Digital signals often change and this feature will monitor

any changes and prepare the television to quickly

present a picture. A small amount of electricity is used

to continually monitor signals when this feature is

selected.

Reset The Software

This feature shows software information and easy

upgrade procedure. This function allows the TV software

to be upgraded by using a flash card (MMO/SD CARD).

If a future software upgrade is required for your TV,

HITACHI will notify and provide you with a flash

card. In order to receive written notification and the

flash card, please complete and return the warranty

card.

1. Insert MMC/SD CARD.

2. Press the CURSOR PAD • or • to highlight

UPGRADE NOW.

3. Press the SELECT button to select and start

upgrading.

4. Unplug the AC power cord or press the POWER for 5

seconds when the UPGRADE is complete.

Reset TV Settings

This function allows you to Reset all TV Settings to the original factory settings on all modes during the next

power off/on.

1. Use CURSOR PAD A, • to highlight functions.

2. Press the SELECT button or CURSOR PAD I_ to select Reset the Software Menu.

3. Use the CURSOR PAD • to access the Reset TV settings option.

4. Select the "YES" option to Reset ALL the TV functions and unplug the power cord or press the POWER button for

5 seconds.

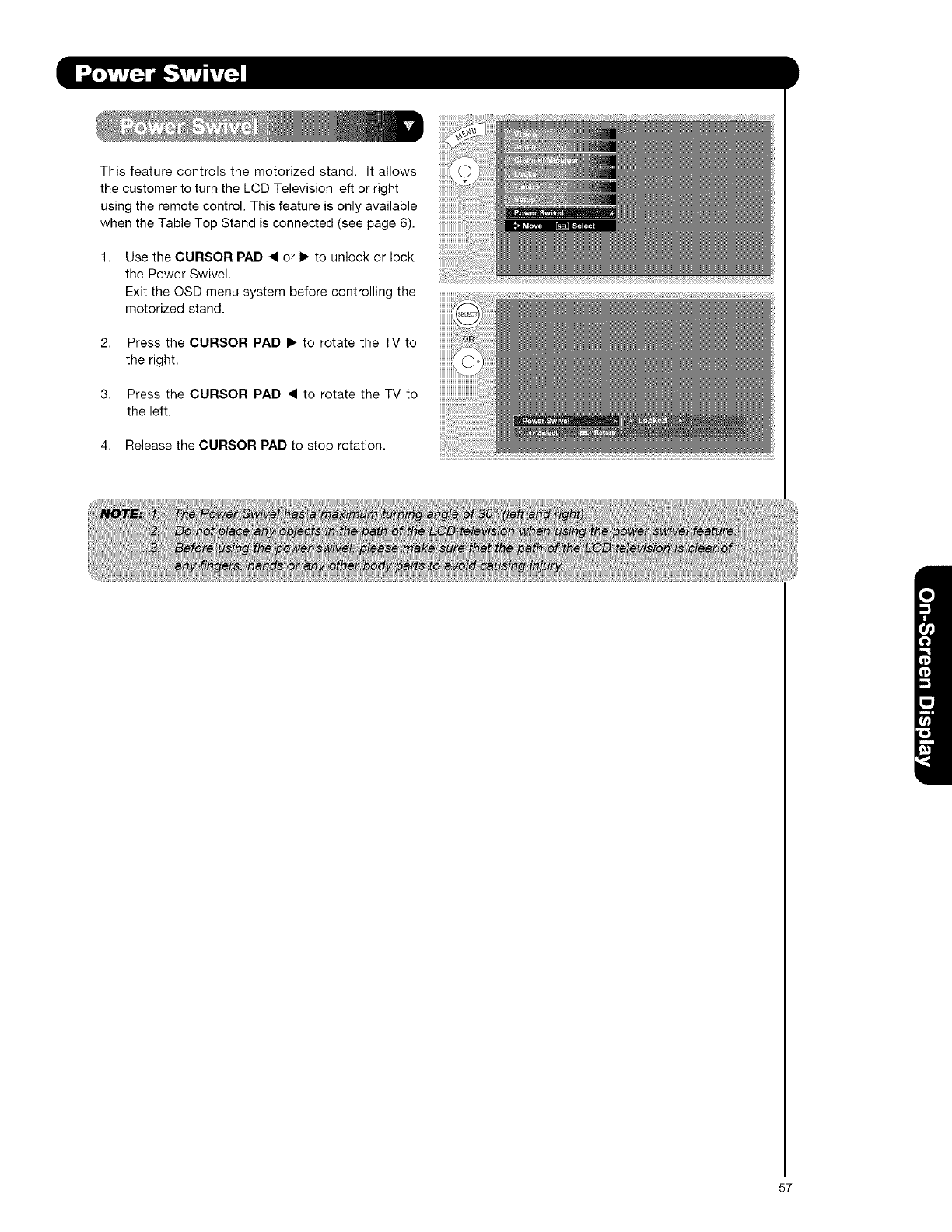

Thisfeaturecontrolsthemotorizedstand.Itallows

thecustomertoturntheLCDTelevisionleftorright

usingtheremotecontrol,Thisfeatureisonlyavailable

whentheTableTopStandisconnected(seepage6).

UsetheCURSORPAD• or• tounlockorlock

thePowerSwivel.

ExittheOSDmenusystembeforecontrollingthe

motorizedstand.

2. PresstheCURSORPAD• torotatetheTVto

theright.

3. PresstheCURSORPAD• to rotatetheTVto

theleft.

4. ReleasetheCURSORPADtostoprotation.

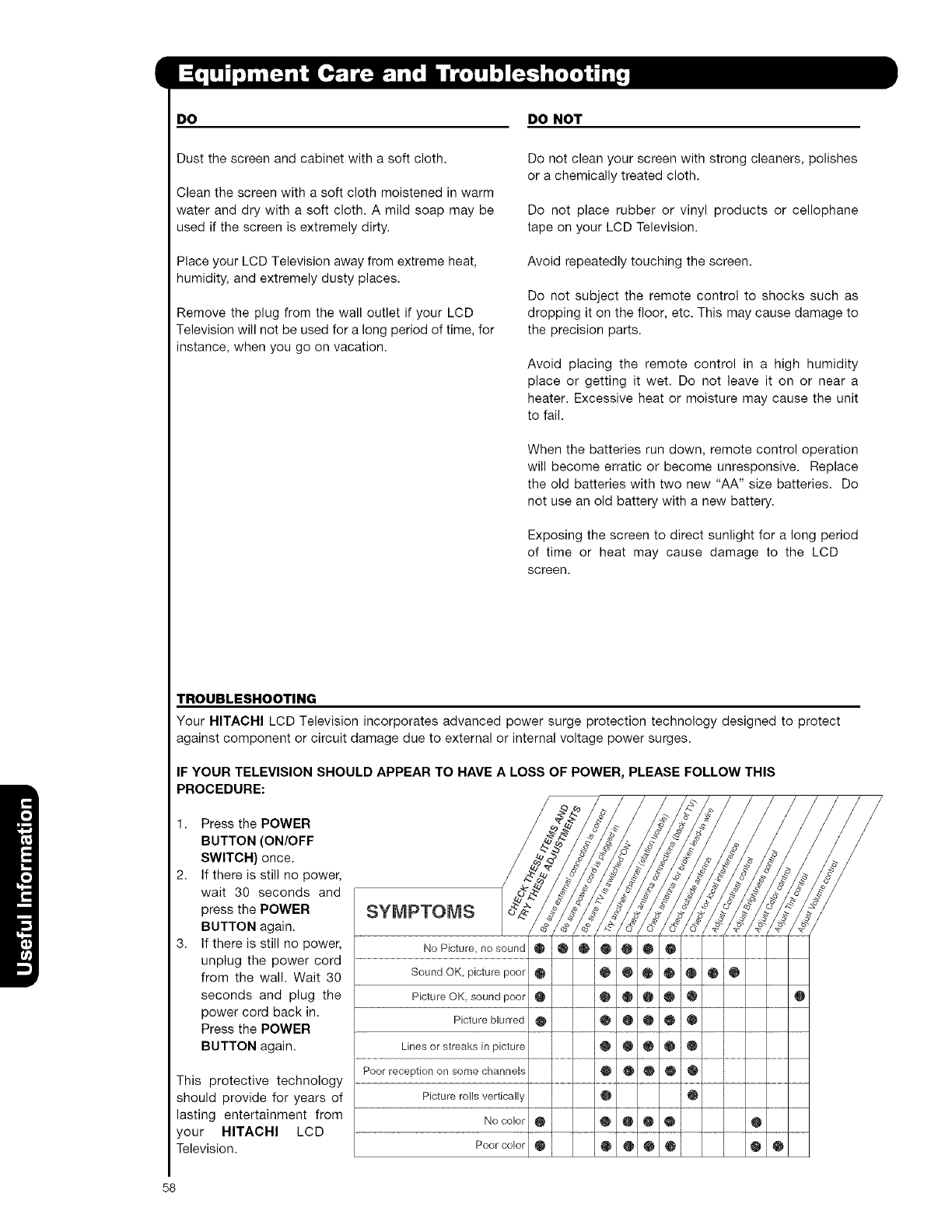

DO DO NOT

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm

water and dry with a soft cloth. A mild soap may be

used if the screen is extremely dirty.

Place your LCD Television away from extreme heat,

humidity, and extremely dusty places.

Remove the plug from the wall outlet if your LCD

Television will not be used for a long period of time, for

instance, when you go on vacation.

Do not clean your screen with strong cleaners, polishes

or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane

tape on your LCD Television.

Avoid repeatedly touching the screen.

Do not subject the remote control to shocks such as

dropping it on the floor, etc. This may cause damage to

the precision parts.

Avoid placing the remote control in a high humidity

place or getting it wet. Do not leave it on or near a

heater. Excessive heat or moisture may cause the unit

to fail.

When the batteries run down, remote control operation

will become erratic or become unresponsive. Replace

the old batteries with two new "AA" size batteries. Do

not use an old battery with a new battery.

Exposing the screen to direct sunlight for a long period

of time or heat may cause damage to the LCD

screen.

TROUBLESHOOTING

Your HITACHI LCD Television incorporates advanced power surge protection technology designed to protect

against component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS

PROCEDURE:

1. Press the POWER

BUTTON (ON/OFF

SWITCH) once.

2. If there is still no power,

wait 30 seconds and

press the POWER

BUTTON again.

3. If there is still no power,

unplug the power cord

from the wall. Wait 30

seconds and plug the

power cord back in.

Press the POWER

BUTTON again.

This protective technology

should provide for years of

lasting entertainment from

your HITACHI LCD

Television.

SYMPTOMS

No Picture, no sound

Sound OK, picture poor

Picture OK sound poor

Picture blurred

Lines or streaks in picture

Poor reception on some channels

Picture rolls verticall

Nocolor

Poor color

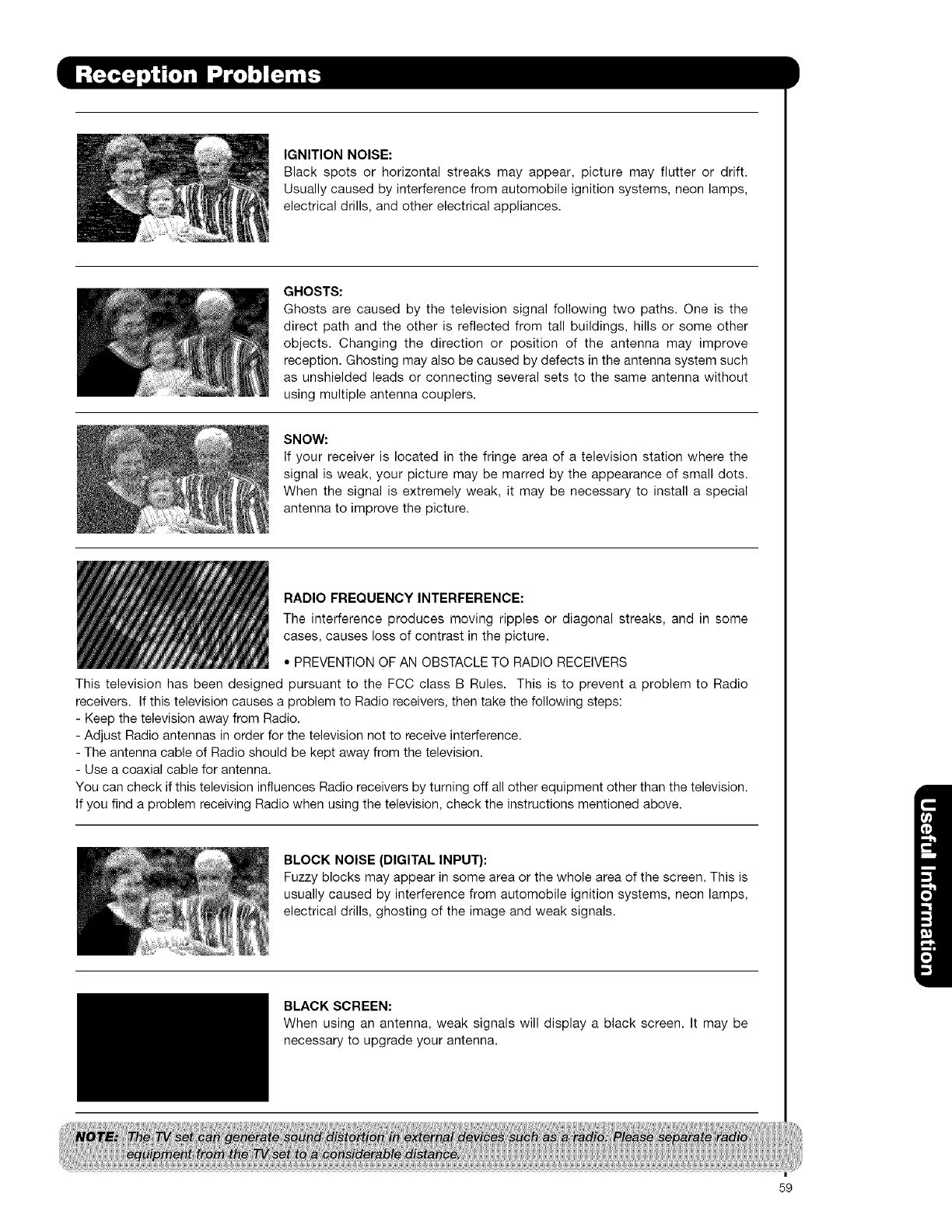

IGNITIONNOISE:

Blackspotsorhorizontalstreaksmayappear,picturemayflutterordrift.

Usuallycausedbyinterferencefromautomobileignitionsystems,neonlamps,

electrical drills, and other electrical appliances.

GHOSTS:

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected from tall buildings, hills or some other

objects. Changing the direction or position of the antenna may improve

reception. Ghosting may also be caused by defects in the antenna system such

as unshielded leads or connecting several sets to the same antenna without

using multiple antenna couplers.

SNOW:

If your receiver is located in the fringe area of a television station where the

signal is weak, your picture may be marred by the appearance of small dots.

When the signal is extremely weak, it may be necessary to install a special

antenna to improve the picture.

RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some

cases, causes loss of contrast in the picture.

° PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS

This television has been designed pursuant to the FCC class B Rules. This is to prevent a problem to Radio

receivers. If this television causes a problem to Radio receivers, then take the following steps:

- Keep the television away from Radio.

- Adjust Radio antennas in order for the television not to receive interference.

- The antenna cable of Radio should be kept away from the television.

- Use a coaxial cable for antenna.

You can check if this television influences Radio receivers by turning off all other equipment other than the television.

If you find a problem receiving Radio when using the television, check the instructions mentioned above.

BLOCK NOISE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is

usually caused by interference from automobile ignition systems, neon lamps,

electrical drills, ghosting of the image and weak signals.

BLACK SCREEN:

When using an antenna, weak signals will display a black screen. It may be

necessary to upgrade your antenna.

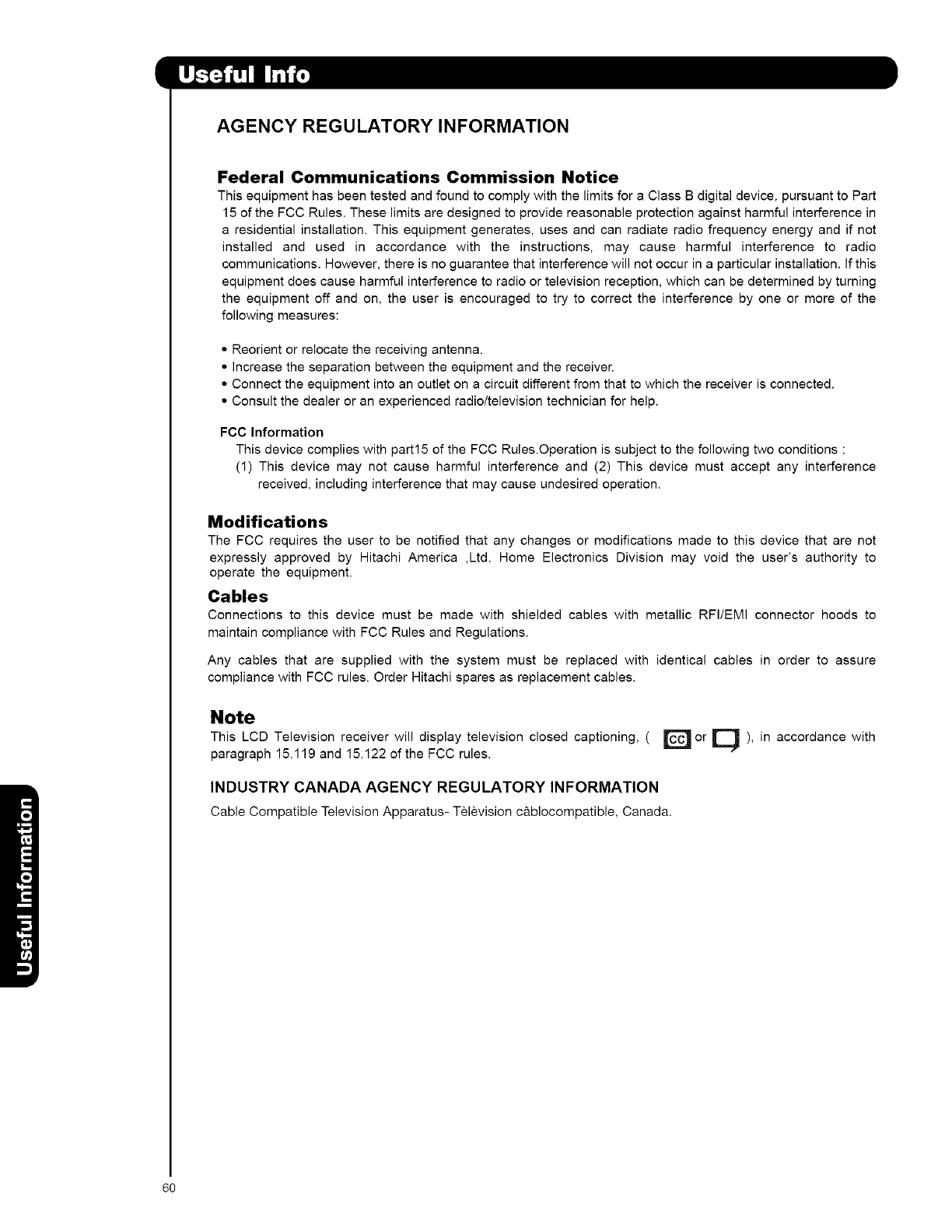

AGENCY REGULATORY INFORMATION

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

FCC Information

This device complies with part15 of the FCC Rules.Operation is subject to the following two conditions :

(1) This device may not cause harmful interference and (2) This device must accept any interference

received, including interference that may cause undesired operation.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not

expressly approved by Hitachi America ,Ltd. Home Electronics Division may void the user's authority to

operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to

maintain compliance with FCC Rules and Regulations.

Any cables that are supplied with the system must be replaced with identical cables in order to assure

compliance with FCC rules. Order Hitachi spares as replacement cables.

Note

This LCD Television receiver will display television closed captioning, ( D or El ), in accordance with

paragraph 15.119 and 15.122 of the FCC rules.

INDUSTRY CANADA AGENCY REGULATORY INFORMATION

Cable Compatible Television Apparatus- Television c&blocompatible, Canada.

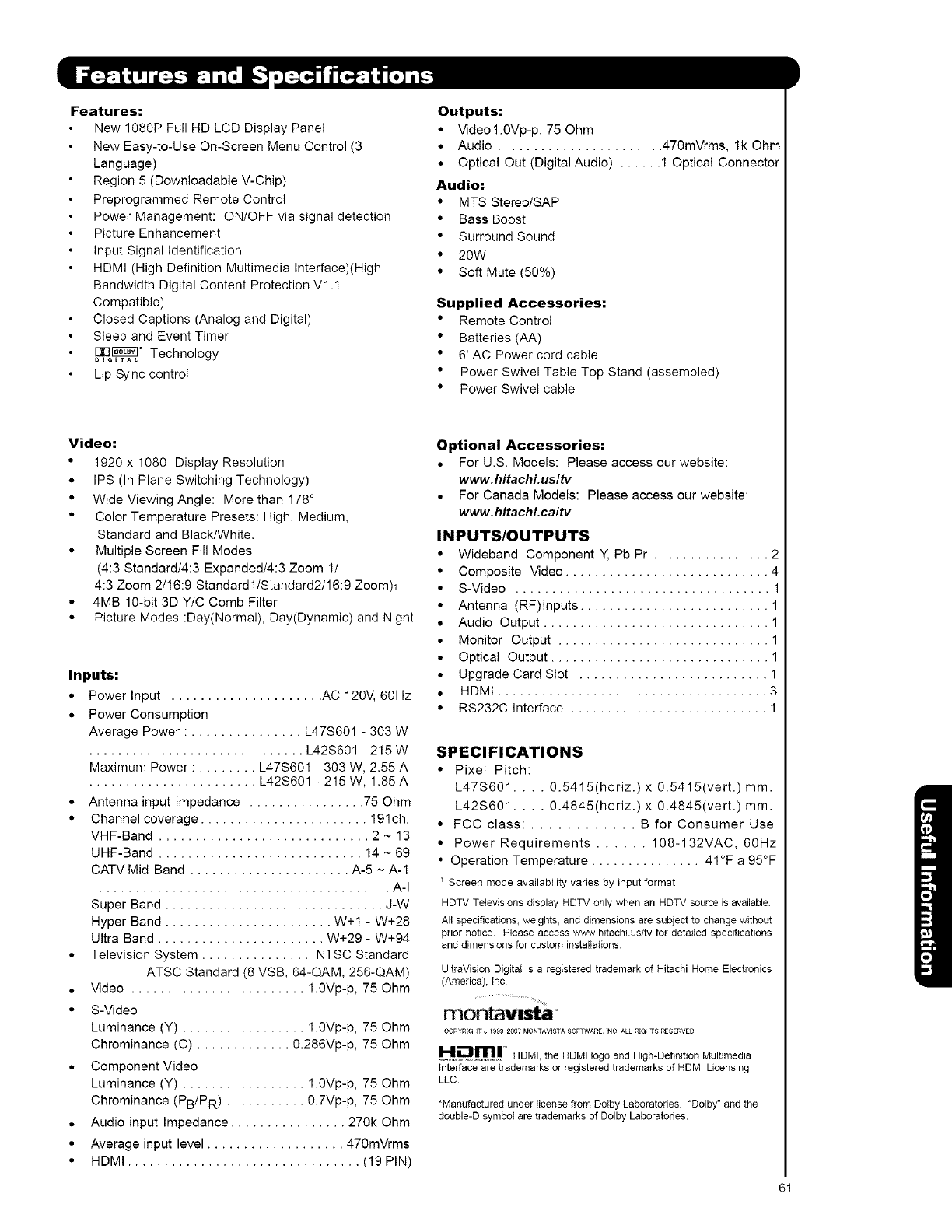

Features:

New 1080P Full HD LCD Display Panel

New Easy-to-Use On-Screen Menu Control (3

Language)

Region 5 (Downloadable V-Chip)

Preprogrammed Remote Control

Power Management: ON/OFF via signal detection

Picture Enhancement

Input Signal Identification

HDMI (High Definition Multimedia Interface)(High

Bandwidth Digital Content Protection V1.1

Compatible)

Closed Captions (Analog and Digital)

Sleep and Event Timer

_B,B_ °Technology

Lip S-_nc control

Outputs:

•Videol.0Vp-p. 75 Ohm

• Audio ....................... 470mVrms, lk Ohm

• Optical Out (Digital Audio) ...... 1 Optical Connector

Audio:

• MTS Stereo/SAP

• Bass Boost

• Surround Sound

• 20W

• Soft Mute (50%)

Supplied Accessories:

• Remote Control

• Batteries (AA)

• 6' AC Power cord cable

• Power Swivel Table Top Stand (assembled)

• Power Swivel cable

Video:

• 1920 x 1080 Display Resolution

•IPS (In Plane Switching Technology)

• Wide Viewing Angle: More than 178 °

• Color Temperature Presets: High, Medium,

Standard and Black/White.

• Multiple Screen Fill Modes

(4:3 Standard/4:3 Expanded/4:3 Zoom 1/

4:3 Zoom 2/16:9 Standard1/Standard2/16:9 Zoom)l

• 4MB 10-bit 3D Y/C Comb Filter

• Picture Modes :Day(Normal), Day(Dynamic) and Night

Inputs:

•Power Input ..................... AC 120V, 60Hz

• Power Consumption

Average Power : ............... L47S601 - 303 W

.............................. L42S601 - 215W

Maximum Power : ........ L47S601 - 303 W, 2.55 A

....................... L42S601 - 215 W, 1.85A

• Antenna input impedance ................ 75 Ohm

• Channel coverage ....................... 191ch.

VHF-Band ............................. 2 ~ 13

UHF-Band ............................ 14 ~ 69

CATV Mid Band ...................... A-5 ~ A-1

......................................... A-I

Super Band .............................. J-W

Hyper Band ....................... W+I - W+28

Ultra Band ....................... W+29 - W+94

• Television System ............... NTSC Standard

ATSC Standard (8 VSB, 64-QAM, 256-QAM)

• Video ........................ 1.0Vp-p, 75 Ohm

• S-Video

Luminance (Y) ................. 1.0Vp-p, 75 Ohm

Chrominance (C) ............. 0.286Vp-p, 75 Ohm

• Component Video

Luminance (Y) ................. 1.0Vp-p, 75 Ohm

Chrominance (PB/PR) ........... 0.7Vp-p, 75 Ohm

• Audio input Impedance ................ 270k Ohm

• Average input level ................... 470mVrms

• HDMI ................................ (19 PIN)

Optional Accessories:

• For U.S. Models: Please access our website:

www.hitachi.usltv

• For Canada Models: Please access our website:

www.hitachLcaltv

INPUTS/OUTPUTS

• Wideband Component Y, Pb,Pr ................ 2

• Composite Video ............................ 4

• S-Video ................................... 1

• Antenna (RF)lnputs .......................... 1

• Audio Output ............................... 1

• Monitor Output ............................. 1

• Optical Output .............................. 1

• Upgrade Card Slot .......................... 1

• HDMI ..................................... 3

• RS232C Interface ........................... 1

SPECIFICATIONS

• Pixel Pitch:

L47S601 .... O.5415(horiz.) x O.5415(vert.) mm.

L42S601 .... O.4845(horiz.) x O.4845(vert.) mm.

• FCC class: ............ B for Consumer Use

• Power Requirements ...... 108-132VAC, 60Hz

•Operation Temperature ............... 41°F a 95°F

i Screen mode availability varies by inputformat

HDTV Televisionsdisplay HDTVonly when an HDTV sourceis available.

All specifications,weights, anddimensionsaresubject to changewithout

prior notice. Pleaseaccess \_/w.hitachkus/tv for detailedspecifications

and dimensionsforcustom installations.

UltraVisionDigital is a registeredtrademarkof HitachiHome Electronics

(America),tnc.

H_m! HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing

LLC.

*Manufactured under license from Dolby Laboratories. "Dolby" and the

double-D symbol are trademarks of Dolby Laboratories.

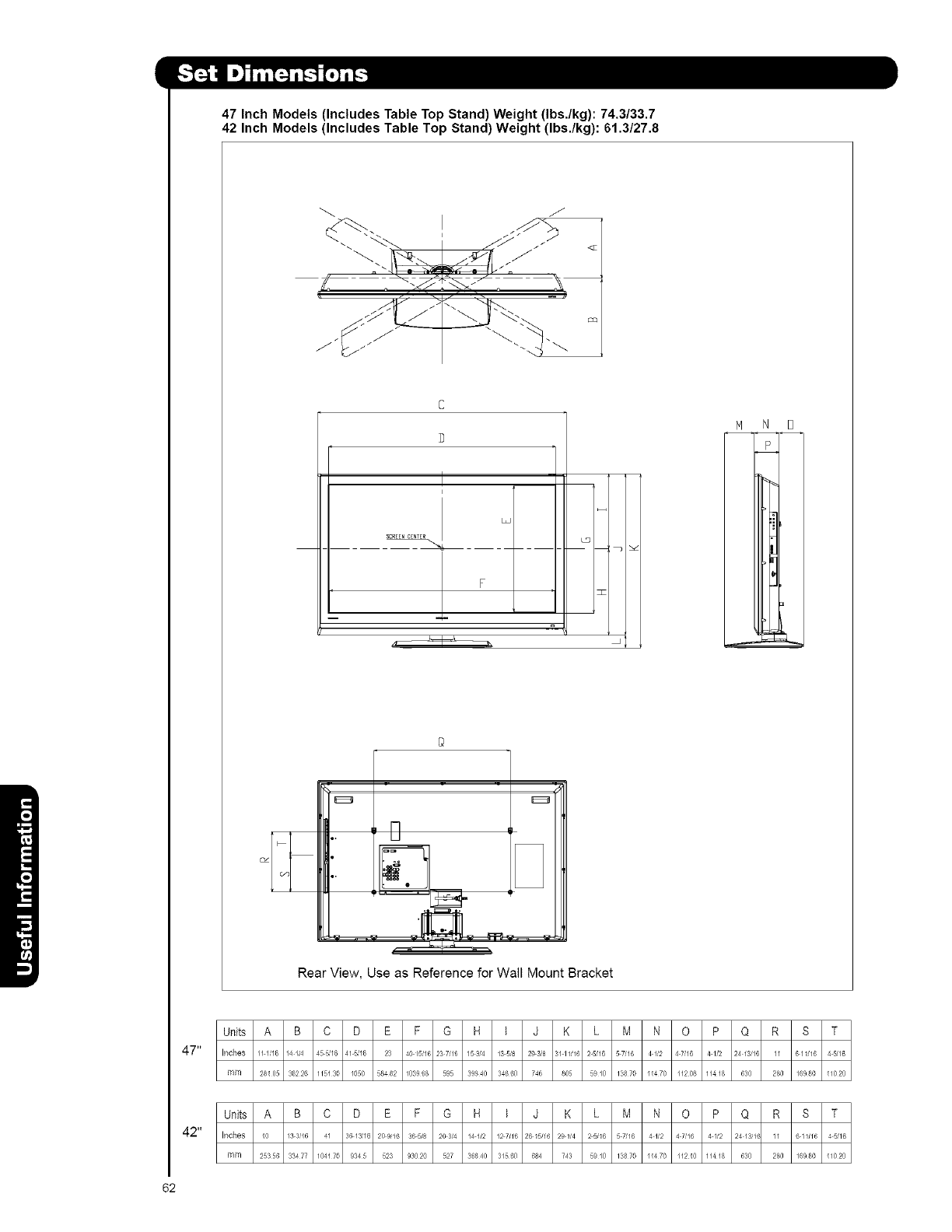

47 Inch Models (Includes Table Top Stand) Weight (Ibs./kg): 74.3/33,7

42 Inch Models (Includes Table Top Stand) Weight (Ibs./kg): 61.3/27.8

SCR[[NC[NT[R_

__ F , iI

N D

Rear View, Use as Reference for Wall Mount Bracket

Units A B C D E F G H I J K L M N O P Q R S T

47" I_ohe_111/16 14114 45d16 41d16 23 4015//6 237//6 153/4 135,_8 293/8 3/1///6 25/16 57/16 41/2 47/6 41/2 24/3//6 11 61///6 45/18

nlnl 28105 36226 115130 /050 58482 103968 595 39940 34660 746 8o5 5910 13870 11470 112o8 11418 630 28o 16980 11020

Units A B C D E F G H I J K L M N O P Q R S T

42" Inches /0 133//6 41 36/371_ 20916 365/8 203/4 141/2 127//6 26/5_/i 29//4 251/6 57//6 4//2 47i16 41/2 2413_16 11 61///6 45,_18

nlnl 25356 33477 104170 9345 523 93020 527 36840 31560 684 743 5910 13870 11470 1121o 11418 630 28o 16980 11020

lnspire the

To locate an authorized HITACHI

service facility in the continental

U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

1-800-HITACHI

(1-800-448-2244)

HITACHI AMERICA, LTD.

HOME ELECTRONICS DIVISION

HITACHI has made every effort to assure you hours of

trouble free operation from your unit. However, should

you require service, a network of HITACHI Authorized

Service Facilities has been established in all 50 states

and Puerto Rico. Each facility will provide you with

convenient and expedient assistance. Our service

hotline operator will direct you to the HITACHI

Authorized Service Facility nearest you. Just present

proof of purchase and/or delivery receipts to the

Hitachi Authorized Service Facility, and service will be

rendered in accordance with the terms of the limited

warranty as stated on your warranty card or operating

guide.

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

Hitachi America, LTD.

Home Electronics Division

900 Hitachi Way

Chula Vista, CA 91914-3556

HITACHI CANADA, LTD.

DIGITAL MEDIA DIVISION

Should you have any questions regarding warranty,

service, operation, or technical assistance, please

contact:

In Canada: 1-800-HITACHI (1-800-448-2244)

Monday - Friday (EST) ......................... 9:00am - 7:00pm

Saturday (EST) ..................................... 9:00am - 5:00pm

Pour de plus amples renseignements sur le service

durant la periode couverte par la garantie, sur le

fonctionnement ou pour de I'assistance technique

communiquez avec:

Au Canada: 1-800-HITACHI (1-800-448-2244)

Lundi - Vendredi L'EST ........................ 9:00am - 7:00pm

Samedi L'EST ....................................... 9:00am - 5:00pm

HITACHI CANADA, LTD.

1-2495 Meadowpine Blvd.

Mississauga, Ontario L5N 6C3

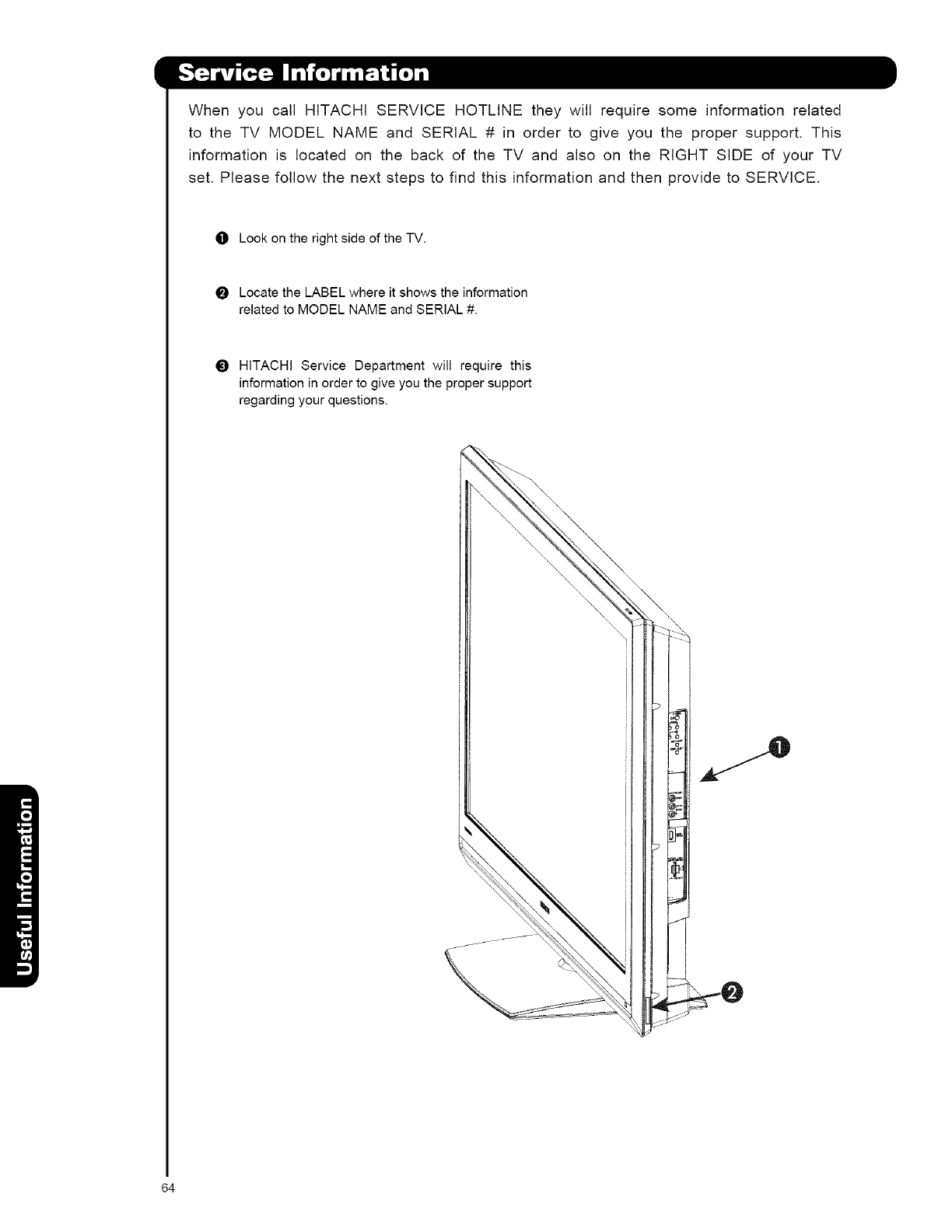

When you call HITACHI SERVICE HOTLINE they will require some information related

to the TV MODEL NAME and SERIAL # in order to give you the proper support. This

information is located on the back of the TV and also on the RIGHT SIDE of your TV

set. Please follow the next steps to find this information and then provide to SERVICE.

O Look on the right side of the TV.

Locate the LABEL where it shows the information

related to MODEL NAME and SERIAL #.

_) HITACHI Service Department will require this

information in order to give you the proper support

regarding your questions.

Hitachi L42S601 User Manual LCD TELEVISION Manuals And Guides L0710571

HITACHI LCD Television Manual L0710571 HITACHI LCD Television Owner's Manual, HITACHI LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
