1. System Specifications
a. Transmitter
b. Accessories
c. Options
2. Transmitter Functions and Operations
a. Power Switch
b. Battery Indicator LED's
c. Steering Dual Rate
d. Steering and Throttle trims
e. Tuning Cover
f. Servo Reversing switches
g. Battery Cover
h.Antenna
i.Grip Pad
j.Crystal
k.Charging Jack
l.Steering Wheel
m.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
page
page
page
page
page
page
Table of Contents Introduction
Congratulations on your purchase of the Aggressor AM pistol grip radio system. The Aggressor AM is
loaded with many great features to maximize your R/C experience. Please read this manual
carefully to familiarize yourself with the operation of your new Aggressor. After reading this manual,
store it in a safe place for future reference.
5
Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Iceland,
Ireland, The Netherland, Italy, Spain,
Norway, Portugal, United Kingdom,
Luxembourg, Sweden, Switzerland
8
- Ergonomically designed 2 channel Pistol Grip AM Radio
- Servo Reversing (All channels)
- Dual Rate Steering (Adjustable on the fly)
- 3 L.E.D. Battery status indicators
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- BEC receiver
- Standard HS-311 or 322 servo
- Receiver dry battery holder
System Features
1. System Specifications
2. Transmitter Functions and Operations
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
A) Power Switch:
- Slide the switch up to turn on the transmitter, and down to turn it off.
- Warning: Always turn your transmitter on before switching on the receiver switch.
This will help prevent accidental runaways.
B) Battery Indicator LED's:
- Green is mid - high power
- Amber is mid power (You should replace or charge your batteries very soon.)
- Red is low power (Stop driving!)
C) Steering Dual Rate: This is not shown in the image
- Adjusts the overall travel of the steering servo.
- Push the dial forward with your thumb for maximum steering.
- Pull the dial back with your thumb to reduce the travel.
- Use this to fine tune your vehicles handling to the track conditions.
- Use more steering travel for high bite tracks and less for low bite tracks.
D) Steering and Throttle trims:
- The trims are used to fine-tune the point where the servo returns to center.
- Use the ST-TRIM so your vehicle will go perfectly straight when the steering wheel is centered.
If you move the trim to its maximum and the vehicle does not go straight, move the servo horn a
notch or two on the servo output spline or adjust the linkage to fix the problem. Ideally the servo horn
will have equal throw in each direction.
- Use the THR-TRIM to adjust the "Drag Brake"; this is the amount of braking that occurs when you
let go of the trigger. Be aware that too much brake may affect the servo end point preventing
maximum power.
- Tip#1: Do not mount the horn on the servo until you turn on the radio and
center the trims.
- Tip#2: Always trim your vehicle before you run or race.
E) Tuning Cover:
- Remove the tuning cover to access the servo reversing switches.
- This is also an interchangeable part with assorted colors and designs to choose from so you may
customize the look of your radio. See "Options" for more info.
F) Servo Reversing switches:
- These are used to change the direction of the servo travel for proper control when activated.
- If you steer right and the wheels go left, change the "ST" switch from NOR to REV or REV to
NOR if needed. The same applies to the throttle.
- (Note: You should not need to change the "THR" switch from NOR if using
an Electronic Speed Control.)
G) Battery Cover:
- Remove to change batteries.
J) Crystal:
- The crystal is located above the power switch and can be interchanged with different channels in
conjunction with the receiver to prevent any conflicts with other radios used in your area.
- AM Transmitter crystal part# 67475XX (XX= Your channel number)
- Warning: Use only genuine Hitec crystals. Other brands will not work properly!
K) Charging Jack:
- The charging jack is located under the power switch for use with the optional
Hitec CG-25 charger(110v only ) when using rechargeable batteries.
(See "Recharging Batteries" for more information about this feature.)
- Used to control the steering of your vehicle.
L) Steering Wheel:
- Used to control the steering of your vehicle.
M) Throttle Trigger:
- Used to control the throttle and braking for your vehicle.
- Pull the trigger for throttle and push it for braking or reverse (Reversing ESC's only.)
3. Transmitter Battery Installation
5. Receiver and Servo Connections
- Press down on the battery cover and slide in the direction illustrated.
- Remove the cover and install the batteries as shown.
- Be careful to pay close attention to the polarity of each cell or the transmitter will not operate.
- Replace the cover making sure it is closed securely.
4. Recharging Batteries
- You must install individual AA size rechargeable batteries.
- Only use Nicad or NiMh type. (Alkaline batteries are not rechargeable).
- Connect the optional Hitec CG-25 overnight wall charger to the charging jack located under the
switch to charge. Depending on the capacity of the battery;
- A full charge on a typical Nicad will take 12-16 hours.
- A full charge on a typical NiMh will take 24-36 hours.
A) Receiver:
- The receiver in your Aggressor system includes a BEC (Battery Eliminator Circuit), which
eliminates the need for a separate receiver battery when used with a mechanical or electronic
speed control. Power input should be no more than 8.4V (7 cells)
- You can use a separate receiver battery if required for your particular model. Connect as shown.
- Be aware you should keep your antenna at least 2" away from any power wires to prevent interference.
- Run the antenna up the antenna tube as shown in your vehicles instructions.
- Warning: Be sure not to cut off any excess antenna wire, as it will shorten your operating range.
B) Servos:
- When installing the servos, refer to the manual of the vehicle for proper installation.
- Once your servos are correctly installed you will need to make sure they are properly centered.
To do this, remove the servo horns and turn on your transmitter, then the power to your receiver.
Remember; always turn your transmitter on first and off last. Failure to do so may result in loss of
control and can damage your servos and/or linkage.
- Now that the power is on, check that the servos are working properly.
- You will now center the trim knobs on the transmitter and replace the horns so that they are centered.
- Be aware they may not be perfectly centered; this is OK, just get them as close as possible.
Then use the trims for fine-tuning.
H) Antenna:
- Always extend your antenna before turning your transmitter on.
- Your antenna may be removed by turning counter clockwise.
- Warning: When collapsing your antenna, never push it from the top or it may bend!
I) Grip Pad:
- The removable grip pad helps keep your hand from slipping on the radio pistol grip handle so
you have better control of the vehicle.
- It is also available in assorted colors and sizes to customize the look and feel of your radio.
C) Battery:
- The AA receiver battery holder supplied with your radio should be used in a non-electric
vehicle that requires two servos.
- Connect the AA Receiver battery holder to the power switch supplied, and then plug the switch into the
"Batt" channel of the receiver for power.
- You will not need to connect this battery if you are using an electric car with an electronic
speed control or mechanical speed control with BEC.
Question: I installed the batteries in my transmitter, but the power lights do not come on:
Answer:
- Check that the batteries are properly installed by checking the polarity (+ and -).
Question: My radio has power, but I have no control:
Answers:
- Check to be sure the power switch is on and connected to the receiver.
- Make sure the batteries are charged (Replace or recharge if needed.)
- Make sure you are using the proper crystals.
Question: My vehicle is glitching, or the servos and/or speed control is acting erratically:
Answers:
- Check that there are no radios operating on your channel.
- Make sure your electric motor has capacitors and the comutator is clean and brushes are
not worn out. Replace if needed.
- Check for loose screws as metal-to-metal contact can cause interference.
- Make sure your receiver antenna has not been damaged or cut.
- Make sure the power wires are at least 2" away from the receiver.
- Replace the crystals if needed.
- If all fails, send the system in to be serviced, as there may be internal damage.
- Never operate your car or truck in a crowded street with traffic.
- Always extend your transmitter antenna when in operation.
- Always check the battery power indicator before use.
- Do not operate two or more models on the same frequency at the same time.
- Do not operate your model in the rain or run through standing water.
- Do not operate your model within one mile of a radio control racetrack.
- Do not operate your model while under the influence of drugs or alcohol.
- Always turn on your transmitter first and then the receiver to prevent loss of control.
- When collapsing your antenna, never push it from the top or it may bend.
- Slower is faster, Do not overdrive your car. A cleaner line around the track is faster than
more top speed. Don't overshoot the corners.
- Reduce your steering dual rate if your car is over-steering or "Loose", and increase the rate if
your car is under-steering or "Pushing."
- Add more drag brake (see Steering and Throttle trims) if your vehicle is "Pushing" into the corners.
Move the trim the other direction so your car creeps forward slightly when the throttle is at neutral if
your car is "Loose" when entering the corners.
- Don't crash! It's better to take a more conservative line than flip over and have to have a turn marshal
turn you back over.
- The most important thing to remember is to have fun!
Grip Pad
Alkaline or Nicad "AA"size
Battery Cover
Remove
Touch your dreams Touch your dreams
Touch your dreams
MADE IN KOREA
AGGRESSORAGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to ::
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.

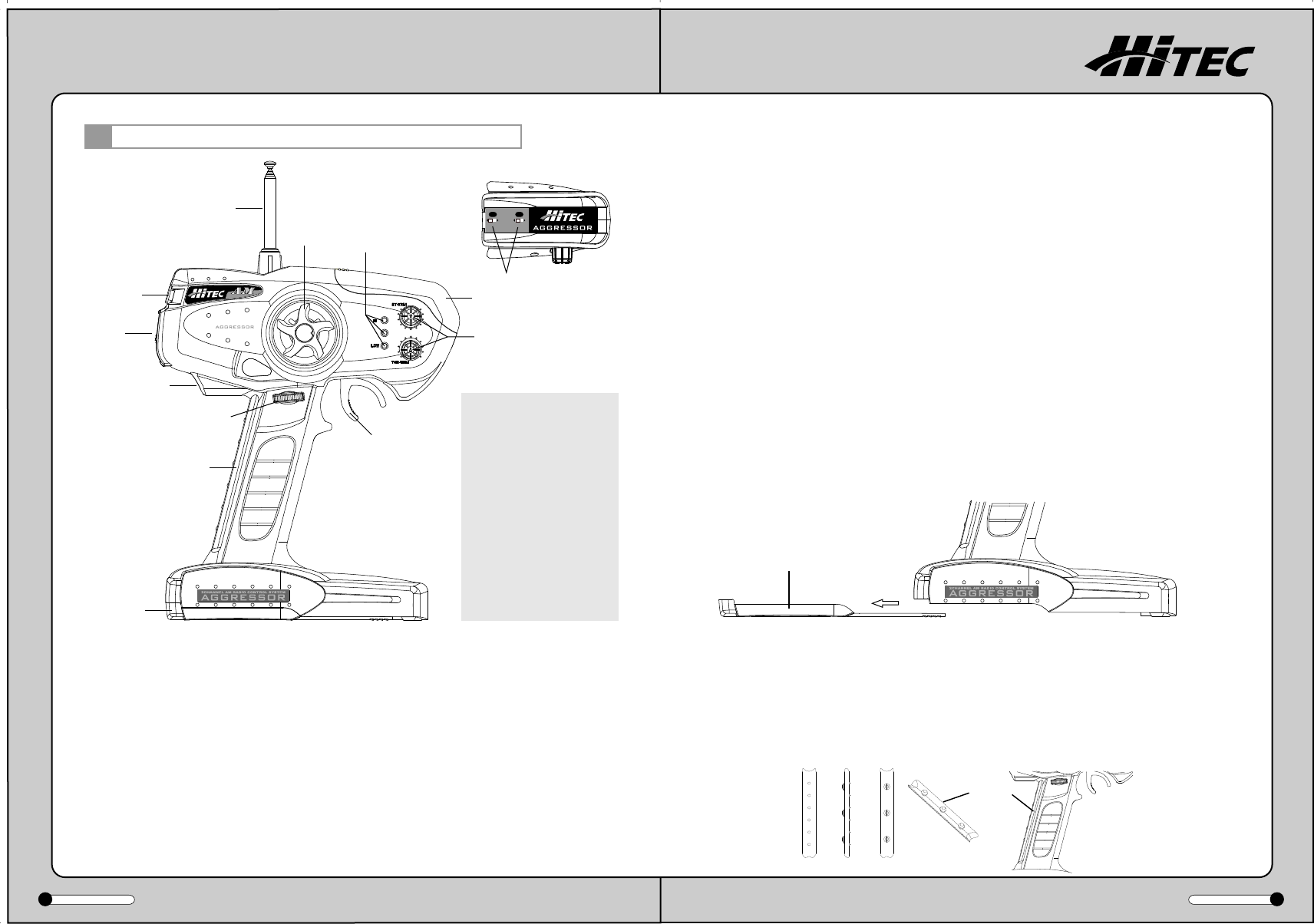

A. Power Switch
B. Battery Indicator LED's
C. Steering Dual Rate
D. Steering and Throttle trims
E. Tuning Cover
F. Servo Reversing switches
G. Battery Cover
H. Antenna
I. Grip Pad
J. Crystal
K. Charging Jack
L. Steering Wheel
M. Throttle Trigger
A
K
C
L
M
JE
D
F
I󰚟
H
G
B
NOR - REV NOR - REV
2C HANN EL AM RADI O C ONT ROL SYS TEM
ST THR
TOP
FRONT
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M 2CH ANN EL AM RAD IO CON TROL SYS TE M
Battery Cover
A
M
AGGRESSOR
INSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
Touch your dreamsTouch your dreams
A) Transmitter:
- Power Output: 500mW
- Current drain 180mA
- Modulation: AM/PPM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver:
- HAS-02MB
- Modulations: AM
- Power Supply: 4.8V~8.4V
- Weight: 0.81oz
- Size: 1.2"x1.9"x 0.7"
- Current drain: 30mA +/- 0.3mA
- BEC Maximum output: 3.0A
C) Servo:
- HS-322
- Voltage range: 4.8 - 6V
- Speed: 0.16sec/60 degree (6V)
- Torque: 53in/oz (6V)
- Weight: 1.6oz
- Size: 1.6" x 0.8" x 1.4"
D) Options:
- Red, Blue and Black colored grip pads in two sizes each (Sold separately).
- Tuning covers available in Red, Blue and Black, as well as custom designs in Silver Carbon,
Wood (Burl) and Camouflage (Sold separately).
AM
X-TAL
BLACK󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
NICAD󰚟BATTERY󰚟
7.2V - 8.4V
RED󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
STEERING󰚟SERVO
THROTTLE󰚟SERVO
YELLOW󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
Blue󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
+
-
MOTOR󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
WITH󰚟0.1uf󰚟
CAPACITOR󰚟󰚟󰚟󰚟
DUAL󰚟LED󰚟󰚟󰚟󰚟󰚟
RED󰚟:󰚟BRAKE󰚟󰚟󰚟󰚟󰚟󰚟
GREEN󰚟:󰚟FULL󰚟POWER
INDICATOR󰚟󰚟󰚟󰚟
SET󰚟UP󰚟BUTTON
On/Off󰚟Switch
ESC Installation
ESC
RECEIVER
Nomal Installation
76
432
3
5
4
6
7
8
1. System Specifications
a. Transmitter
b. Accessories
c. Options
2. Transmitter Functions and Operations
a. Power Switch
b. Battery Indicator LED's
c. Steering Dual Rate
d. Steering and Throttle trims
e. Tuning Cover
f. Servo Reversing switches
g. Battery Cover
h.Antenna
i.Grip Pad
j.Crystal
k.Charging Jack
l.Steering Wheel
m.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
page
page
page
page
page
page
Table of Contents Introduction
Congratulations on your purchase of the Aggressor AM pistol grip radio system. The Aggressor AM is
loaded with many great features to maximize your R/C experience. Please read this manual
carefully to familiarize yourself with the operation of your new Aggressor. After reading this manual,
store it in a safe place for future reference.
5
Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Iceland,
Ireland, The Netherland, Italy, Spain,
Norway, Portugal, United Kingdom,
Luxembourg, Sweden, Switzerland
8
- Ergonomically designed 2 channel Pistol Grip AM Radio
- Servo Reversing (All channels)
- Dual Rate Steering (Adjustable on the fly)
- 3 L.E.D. Battery status indicators
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- BEC receiver
- Standard HS-311 or 322 servo
- Receiver dry battery holder
System Features
1. System Specifications
2. Transmitter Functions and Operations
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
A) Power Switch:
- Slide the switch up to turn on the transmitter, and down to turn it off.
- Warning: Always turn your transmitter on before switching on the receiver switch.
This will help prevent accidental runaways.
B) Battery Indicator LED's:
- Green is mid - high power
- Amber is mid power (You should replace or charge your batteries very soon.)
- Red is low power (Stop driving!)
C) Steering Dual Rate: This is not shown in the image
- Adjusts the overall travel of the steering servo.
- Push the dial forward with your thumb for maximum steering.
- Pull the dial back with your thumb to reduce the travel.
- Use this to fine tune your vehicles handling to the track conditions.
- Use more steering travel for high bite tracks and less for low bite tracks.
D) Steering and Throttle trims:
- The trims are used to fine-tune the point where the servo returns to center.
- Use the ST-TRIM so your vehicle will go perfectly straight when the steering wheel is centered.
If you move the trim to its maximum and the vehicle does not go straight, move the servo horn a
notch or two on the servo output spline or adjust the linkage to fix the problem. Ideally the servo horn
will have equal throw in each direction.
- Use the THR-TRIM to adjust the "Drag Brake"; this is the amount of braking that occurs when you
let go of the trigger. Be aware that too much brake may affect the servo end point preventing
maximum power.
- Tip#1: Do not mount the horn on the servo until you turn on the radio and
center the trims.
- Tip#2: Always trim your vehicle before you run or race.
E) Tuning Cover:
- Remove the tuning cover to access the servo reversing switches.
- This is also an interchangeable part with assorted colors and designs to choose from so you may
customize the look of your radio. See "Options" for more info.
F) Servo Reversing switches:
- These are used to change the direction of the servo travel for proper control when activated.
- If you steer right and the wheels go left, change the "ST" switch from NOR to REV or REV to
NOR if needed. The same applies to the throttle.
- (Note: You should not need to change the "THR" switch from NOR if using
an Electronic Speed Control.)
G) Battery Cover:
- Remove to change batteries.
J) Crystal:
- The crystal is located above the power switch and can be interchanged with different channels in
conjunction with the receiver to prevent any conflicts with other radios used in your area.
- AM Transmitter crystal part# 67475XX (XX= Your channel number)
- Warning: Use only genuine Hitec crystals. Other brands will not work properly!
K) Charging Jack:
- The charging jack is located under the power switch for use with the optional
Hitec CG-25 charger(110v only ) when using rechargeable batteries.
(See "Recharging Batteries" for more information about this feature.)
- Used to control the steering of your vehicle.
L) Steering Wheel:
- Used to control the steering of your vehicle.
M) Throttle Trigger:
- Used to control the throttle and braking for your vehicle.
- Pull the trigger for throttle and push it for braking or reverse (Reversing ESC's only.)
3. Transmitter Battery Installation
5. Receiver and Servo Connections
- Press down on the battery cover and slide in the direction illustrated.
- Remove the cover and install the batteries as shown.
- Be careful to pay close attention to the polarity of each cell or the transmitter will not operate.
- Replace the cover making sure it is closed securely.
4. Recharging Batteries
- You must install individual AA size rechargeable batteries.
- Only use Nicad or NiMh type. (Alkaline batteries are not rechargeable).
- Connect the optional Hitec CG-25 overnight wall charger to the charging jack located under the
switch to charge. Depending on the capacity of the battery;
- A full charge on a typical Nicad will take 12-16 hours.
- A full charge on a typical NiMh will take 24-36 hours.
A) Receiver:
- The receiver in your Aggressor system includes a BEC (Battery Eliminator Circuit), which
eliminates the need for a separate receiver battery when used with a mechanical or electronic
speed control. Power input should be no more than 8.4V (7 cells)
- You can use a separate receiver battery if required for your particular model. Connect as shown.
- Be aware you should keep your antenna at least 2" away from any power wires to prevent interference.
- Run the antenna up the antenna tube as shown in your vehicles instructions.
- Warning: Be sure not to cut off any excess antenna wire, as it will shorten your operating range.
B) Servos:
- When installing the servos, refer to the manual of the vehicle for proper installation.
- Once your servos are correctly installed you will need to make sure they are properly centered.
To do this, remove the servo horns and turn on your transmitter, then the power to your receiver.
Remember; always turn your transmitter on first and off last. Failure to do so may result in loss of
control and can damage your servos and/or linkage.
- Now that the power is on, check that the servos are working properly.
- You will now center the trim knobs on the transmitter and replace the horns so that they are centered.
- Be aware they may not be perfectly centered; this is OK, just get them as close as possible.
Then use the trims for fine-tuning.
H) Antenna:
- Always extend your antenna before turning your transmitter on.
- Your antenna may be removed by turning counter clockwise.
- Warning: When collapsing your antenna, never push it from the top or it may bend!
I) Grip Pad:
- The removable grip pad helps keep your hand from slipping on the radio pistol grip handle so
you have better control of the vehicle.
- It is also available in assorted colors and sizes to customize the look and feel of your radio.
C) Battery:
- The AA receiver battery holder supplied with your radio should be used in a non-electric
vehicle that requires two servos.
- Connect the AA Receiver battery holder to the power switch supplied, and then plug the switch into the
"Batt" channel of the receiver for power.
- You will not need to connect this battery if you are using an electric car with an electronic
speed control or mechanical speed control with BEC.
Question: I installed the batteries in my transmitter, but the power lights do not come on:
Answer:
- Check that the batteries are properly installed by checking the polarity (+ and -).
Question: My radio has power, but I have no control:
Answers:
- Check to be sure the power switch is on and connected to the receiver.
- Make sure the batteries are charged (Replace or recharge if needed.)
- Make sure you are using the proper crystals.
Question: My vehicle is glitching, or the servos and/or speed control is acting erratically:
Answers:
- Check that there are no radios operating on your channel.
- Make sure your electric motor has capacitors and the comutator is clean and brushes are
not worn out. Replace if needed.
- Check for loose screws as metal-to-metal contact can cause interference.
- Make sure your receiver antenna has not been damaged or cut.
- Make sure the power wires are at least 2" away from the receiver.
- Replace the crystals if needed.
- If all fails, send the system in to be serviced, as there may be internal damage.
- Never operate your car or truck in a crowded street with traffic.
- Always extend your transmitter antenna when in operation.
- Always check the battery power indicator before use.
- Do not operate two or more models on the same frequency at the same time.
- Do not operate your model in the rain or run through standing water.
- Do not operate your model within one mile of a radio control racetrack.
- Do not operate your model while under the influence of drugs or alcohol.
- Always turn on your transmitter first and then the receiver to prevent loss of control.
- When collapsing your antenna, never push it from the top or it may bend.
- Slower is faster, Do not overdrive your car. A cleaner line around the track is faster than
more top speed. Don't overshoot the corners.
- Reduce your steering dual rate if your car is over-steering or "Loose", and increase the rate if
your car is under-steering or "Pushing."
- Add more drag brake (see Steering and Throttle trims) if your vehicle is "Pushing" into the corners.
Move the trim the other direction so your car creeps forward slightly when the throttle is at neutral if
your car is "Loose" when entering the corners.
- Don't crash! It's better to take a more conservative line than flip over and have to have a turn marshal
turn you back over.
- The most important thing to remember is to have fun!
Grip Pad
Alkaline or Nicad "AA"size
Battery Cover
Remove
Touch your dreams Touch your dreams
Touch your dreams
MADE IN KOREA
AGGRESSORAGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to ::
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.
A. Power Switch
B. Battery Indicator LED's
C. Steering Dual Rate
D. Steering and Throttle trims
E. Tuning Cover
F. Servo Reversing switches
G. Battery Cover
H. Antenna
I. Grip Pad
J. Crystal
K. Charging Jack
L. Steering Wheel
M. Throttle Trigger
A
K
C
L
M
JE
D
F
I󰚟
H
G
B
NOR - REV NOR - REV
2C HANN EL AM RADI O C ONT ROL SYS TEM
ST THR
TOP
FRONT
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M 2CH ANN EL AM RAD IO CON TROL SYS TE M
Battery Cover
A
M
AGGRESSOR
INSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
Touch your dreamsTouch your dreams
A) Transmitter:
- Power Output: 87mW
- Current drain 180mA
- Modulation: AM/PPM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver:
- HAS-02MB
- Modulations: AM
- Power Supply: 4.8V~8.4V
- Weight: 0.81oz
- Size: 1.2"x1.9"x 0.7"
- Current drain: 30mA +/- 0.3mA
- BEC Maximum output: 3.0A
C) Servo:
- HS-322
- Voltage range: 4.8 - 6V
- Speed: 0.16sec/60 degree (6V)
- Torque: 53in/oz (6V)
- Weight: 1.6oz
- Size: 1.6" x 0.8" x 1.4"
D) Options:
- Red, Blue and Black colored grip pads in two sizes each (Sold separately).
- Tuning covers available in Red, Blue and Black, as well as custom designs in Silver Carbon,
Wood (Burl) and Camouflage (Sold separately).
AM
X-TAL
BLACK󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
NICAD󰚟BATTERY󰚟
7.2V - 8.4V
RED󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
STEERING󰚟SERVO
THROTTLE󰚟SERVO
YELLOW󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
Blue󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
+
-
MOTOR󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
WITH󰚟0.1uf󰚟
CAPACITOR󰚟󰚟󰚟󰚟
DUAL󰚟LED󰚟󰚟󰚟󰚟󰚟
RED󰚟:󰚟BRAKE󰚟󰚟󰚟󰚟󰚟󰚟
GREEN󰚟:󰚟FULL󰚟POWER
INDICATOR󰚟󰚟󰚟󰚟
SET󰚟UP󰚟BUTTON
On/Off󰚟Switch
ESC Installation
ESC
RECEIVER
Nomal Installation
76
432
3
5
4
6
7
8
1. System Specifications
a. Transmitter
b. Accessories
c. Options
2. Transmitter Functions and Operations
a. Power Switch
b. Battery Indicator LED's
c. Steering Dual Rate
d. Steering and Throttle trims
e. Tuning Cover
f. Servo Reversing switches
g. Battery Cover
h.Antenna
i.Grip Pad
j.Crystal
k.Charging Jack
l.Steering Wheel
m.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
page
page
page
page
page
page
Table of Contents Introduction
Congratulations on your purchase of the Aggressor AM pistol grip radio system. The Aggressor AM is
loaded with many great features to maximize your R/C experience. Please read this manual
carefully to familiarize yourself with the operation of your new Aggressor. After reading this manual,
store it in a safe place for future reference.
5
Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Iceland,
Ireland, The Netherland, Italy, Spain,
Norway, Portugal, United Kingdom,
Luxembourg, Sweden, Switzerland
8
- Ergonomically designed 2 channel Pistol Grip AM Radio
- Servo Reversing (All channels)
- Dual Rate Steering (Adjustable on the fly)
- 3 L.E.D. Battery status indicators
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- BEC receiver
- Standard HS-311 or 322 servo
- Receiver dry battery holder
System Features
1. System Specifications
2. Transmitter Functions and Operations
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
A) Power Switch:
- Slide the switch up to turn on the transmitter, and down to turn it off.
- Warning: Always turn your transmitter on before switching on the receiver switch.
This will help prevent accidental runaways.
B) Battery Indicator LED's:
- Green is mid - high power
- Amber is mid power (You should replace or charge your batteries very soon.)
- Red is low power (Stop driving!)
C) Steering Dual Rate: This is not shown in the image
- Adjusts the overall travel of the steering servo.
- Push the dial forward with your thumb for maximum steering.
- Pull the dial back with your thumb to reduce the travel.
- Use this to fine tune your vehicles handling to the track conditions.
- Use more steering travel for high bite tracks and less for low bite tracks.
D) Steering and Throttle trims:
- The trims are used to fine-tune the point where the servo returns to center.
- Use the ST-TRIM so your vehicle will go perfectly straight when the steering wheel is centered.
If you move the trim to its maximum and the vehicle does not go straight, move the servo horn a
notch or two on the servo output spline or adjust the linkage to fix the problem. Ideally the servo horn
will have equal throw in each direction.
- Use the THR-TRIM to adjust the "Drag Brake"; this is the amount of braking that occurs when you
let go of the trigger. Be aware that too much brake may affect the servo end point preventing
maximum power.
- Tip#1: Do not mount the horn on the servo until you turn on the radio and
center the trims.
- Tip#2: Always trim your vehicle before you run or race.
E) Tuning Cover:
- Remove the tuning cover to access the servo reversing switches.
- This is also an interchangeable part with assorted colors and designs to choose from so you may
customize the look of your radio. See "Options" for more info.
F) Servo Reversing switches:
- These are used to change the direction of the servo travel for proper control when activated.
- If you steer right and the wheels go left, change the "ST" switch from NOR to REV or REV to
NOR if needed. The same applies to the throttle.
- (Note: You should not need to change the "THR" switch from NOR if using
an Electronic Speed Control.)
G) Battery Cover:
- Remove to change batteries.
J) Crystal:
- The crystal is located above the power switch and can be interchanged with different channels in
conjunction with the receiver to prevent any conflicts with other radios used in your area.
- AM Transmitter crystal part# 67475XX (XX= Your channel number)
- Warning: Use only genuine Hitec crystals. Other brands will not work properly!
K) Charging Jack:
- The charging jack is located under the power switch for use with the optional
Hitec CG-25 charger(110v only ) when using rechargeable batteries.
(See "Recharging Batteries" for more information about this feature.)
- Used to control the steering of your vehicle.
L) Steering Wheel:
- Used to control the steering of your vehicle.
M) Throttle Trigger:
- Used to control the throttle and braking for your vehicle.
- Pull the trigger for throttle and push it for braking or reverse (Reversing ESC's only.)
3. Transmitter Battery Installation
5. Receiver and Servo Connections
- Press down on the battery cover and slide in the direction illustrated.
- Remove the cover and install the batteries as shown.
- Be careful to pay close attention to the polarity of each cell or the transmitter will not operate.
- Replace the cover making sure it is closed securely.
4. Recharging Batteries
- You must install individual AA size rechargeable batteries.
- Only use Nicad or NiMh type. (Alkaline batteries are not rechargeable).
- Connect the optional Hitec CG-25 overnight wall charger to the charging jack located under the
switch to charge. Depending on the capacity of the battery;
- A full charge on a typical Nicad will take 12-16 hours.
- A full charge on a typical NiMh will take 24-36 hours.
A) Receiver:
- The receiver in your Aggressor system includes a BEC (Battery Eliminator Circuit), which
eliminates the need for a separate receiver battery when used with a mechanical or electronic
speed control. Power input should be no more than 8.4V (7 cells)
- You can use a separate receiver battery if required for your particular model. Connect as shown.
- Be aware you should keep your antenna at least 2" away from any power wires to prevent interference.
- Run the antenna up the antenna tube as shown in your vehicles instructions.
- Warning: Be sure not to cut off any excess antenna wire, as it will shorten your operating range.
B) Servos:
- When installing the servos, refer to the manual of the vehicle for proper installation.
- Once your servos are correctly installed you will need to make sure they are properly centered.
To do this, remove the servo horns and turn on your transmitter, then the power to your receiver.
Remember; always turn your transmitter on first and off last. Failure to do so may result in loss of
control and can damage your servos and/or linkage.
- Now that the power is on, check that the servos are working properly.
- You will now center the trim knobs on the transmitter and replace the horns so that they are centered.
- Be aware they may not be perfectly centered; this is OK, just get them as close as possible.
Then use the trims for fine-tuning.
H) Antenna:
- Always extend your antenna before turning your transmitter on.
- Your antenna may be removed by turning counter clockwise.
- Warning: When collapsing your antenna, never push it from the top or it may bend!
I) Grip Pad:
- The removable grip pad helps keep your hand from slipping on the radio pistol grip handle so
you have better control of the vehicle.
- It is also available in assorted colors and sizes to customize the look and feel of your radio.
C) Battery:
- The AA receiver battery holder supplied with your radio should be used in a non-electric
vehicle that requires two servos.
- Connect the AA Receiver battery holder to the power switch supplied, and then plug the switch into the
"Batt" channel of the receiver for power.
- You will not need to connect this battery if you are using an electric car with an electronic
speed control or mechanical speed control with BEC.
Question: I installed the batteries in my transmitter, but the power lights do not come on:
Answer:
- Check that the batteries are properly installed by checking the polarity (+ and -).
Question: My radio has power, but I have no control:
Answers:
- Check to be sure the power switch is on and connected to the receiver.
- Make sure the batteries are charged (Replace or recharge if needed.)
- Make sure you are using the proper crystals.
Question: My vehicle is glitching, or the servos and/or speed control is acting erratically:
Answers:
- Check that there are no radios operating on your channel.
- Make sure your electric motor has capacitors and the comutator is clean and brushes are
not worn out. Replace if needed.
- Check for loose screws as metal-to-metal contact can cause interference.
- Make sure your receiver antenna has not been damaged or cut.
- Make sure the power wires are at least 2" away from the receiver.
- Replace the crystals if needed.
- If all fails, send the system in to be serviced, as there may be internal damage.
- Never operate your car or truck in a crowded street with traffic.
- Always extend your transmitter antenna when in operation.
- Always check the battery power indicator before use.
- Do not operate two or more models on the same frequency at the same time.
- Do not operate your model in the rain or run through standing water.
- Do not operate your model within one mile of a radio control racetrack.
- Do not operate your model while under the influence of drugs or alcohol.
- Always turn on your transmitter first and then the receiver to prevent loss of control.
- When collapsing your antenna, never push it from the top or it may bend.
- Slower is faster, Do not overdrive your car. A cleaner line around the track is faster than
more top speed. Don't overshoot the corners.
- Reduce your steering dual rate if your car is over-steering or "Loose", and increase the rate if
your car is under-steering or "Pushing."
- Add more drag brake (see Steering and Throttle trims) if your vehicle is "Pushing" into the corners.
Move the trim the other direction so your car creeps forward slightly when the throttle is at neutral if
your car is "Loose" when entering the corners.
- Don't crash! It's better to take a more conservative line than flip over and have to have a turn marshal
turn you back over.
- The most important thing to remember is to have fun!
Grip Pad
Alkaline or Nicad "AA"size
Battery Cover
Remove
Touch your dreams Touch your dreams
Touch your dreams
MADE IN KOREA
AGGRESSORAGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to ::
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.
A. Power Switch
B. Battery Indicator LED's
C. Steering Dual Rate
D. Steering and Throttle trims
E. Tuning Cover
F. Servo Reversing switches
G. Battery Cover
H. Antenna
I. Grip Pad
J. Crystal
K. Charging Jack
L. Steering Wheel
M. Throttle Trigger
A
K
C
L
M
JE
D
F
I󰚟
H
G
B
NOR - REV NOR - REV
2C HANN EL AM RADI O C ONT ROL SYS TEM
ST THR
TOP
FRONT
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M 2CH ANN EL AM RAD IO CON TROL SYS TE M
Battery Cover
A
M
AGGRESSOR
INSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
Touch your dreamsTouch your dreams
A) Transmitter:
- Power Output: 500mW
- Current drain 180mA
- Modulation: AM/PPM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver:
- HAS-02MB
- Modulations: AM
- Power Supply: 4.8V~8.4V
- Weight: 0.81oz
- Size: 1.2"x1.9"x 0.7"
- Current drain: 30mA +/- 0.3mA
- BEC Maximum output: 3.0A
C) Servo:
- HS-322
- Voltage range: 4.8 - 6V
- Speed: 0.16sec/60 degree (6V)
- Torque: 53in/oz (6V)
- Weight: 1.6oz
- Size: 1.6" x 0.8" x 1.4"
D) Options:
- Red, Blue and Black colored grip pads in two sizes each (Sold separately).
- Tuning covers available in Red, Blue and Black, as well as custom designs in Silver Carbon,
Wood (Burl) and Camouflage (Sold separately).
AM
X-TAL
BLACK󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
NICAD󰚟BATTERY󰚟
7.2V - 8.4V
RED󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
STEERING󰚟SERVO
THROTTLE󰚟SERVO
YELLOW󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
Blue󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
+
-
MOTOR󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
WITH󰚟0.1uf󰚟
CAPACITOR󰚟󰚟󰚟󰚟
DUAL󰚟LED󰚟󰚟󰚟󰚟󰚟
RED󰚟:󰚟BRAKE󰚟󰚟󰚟󰚟󰚟󰚟
GREEN󰚟:󰚟FULL󰚟POWER
INDICATOR󰚟󰚟󰚟󰚟
SET󰚟UP󰚟BUTTON
On/Off󰚟Switch
ESC Installation
ESC
RECEIVER
Nomal Installation
76
432
3
5
4
6
7
8
1. System Specifications
a. Transmitter
b. Accessories
c. Options
2. Transmitter Functions and Operations
a. Power Switch
b. Battery Indicator LED's
c. Steering Dual Rate
d. Steering and Throttle trims
e. Tuning Cover
f. Servo Reversing switches
g. Battery Cover
h.Antenna
i.Grip Pad
j.Crystal
k.Charging Jack
l.Steering Wheel
m.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
page
page
page
page
page
page
Table of Contents Introduction
Congratulations on your purchase of the Aggressor AM pistol grip radio system. The Aggressor AM is
loaded with many great features to maximize your R/C experience. Please read this manual
carefully to familiarize yourself with the operation of your new Aggressor. After reading this manual,
store it in a safe place for future reference.
5
Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Iceland,
Ireland, The Netherland, Italy, Spain,
Norway, Portugal, United Kingdom,
Luxembourg, Sweden, Switzerland
8
- Ergonomically designed 2 channel Pistol Grip AM Radio
- Servo Reversing (All channels)
- Dual Rate Steering (Adjustable on the fly)
- 3 L.E.D. Battery status indicators
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- BEC receiver
- Standard HS-311 or 322 servo
- Receiver dry battery holder
System Features
1. System Specifications
2. Transmitter Functions and Operations
6. Troubleshooting Guide
7. Warnings
8. Racers Tips
A) Power Switch:
- Slide the switch up to turn on the transmitter, and down to turn it off.
- Warning: Always turn your transmitter on before switching on the receiver switch.
This will help prevent accidental runaways.
B) Battery Indicator LED's:
- Green is mid - high power
- Amber is mid power (You should replace or charge your batteries very soon.)
- Red is low power (Stop driving!)
C) Steering Dual Rate: This is not shown in the image
- Adjusts the overall travel of the steering servo.
- Push the dial forward with your thumb for maximum steering.
- Pull the dial back with your thumb to reduce the travel.
- Use this to fine tune your vehicles handling to the track conditions.
- Use more steering travel for high bite tracks and less for low bite tracks.
D) Steering and Throttle trims:
- The trims are used to fine-tune the point where the servo returns to center.
- Use the ST-TRIM so your vehicle will go perfectly straight when the steering wheel is centered.
If you move the trim to its maximum and the vehicle does not go straight, move the servo horn a
notch or two on the servo output spline or adjust the linkage to fix the problem. Ideally the servo horn
will have equal throw in each direction.
- Use the THR-TRIM to adjust the "Drag Brake"; this is the amount of braking that occurs when you
let go of the trigger. Be aware that too much brake may affect the servo end point preventing
maximum power.
- Tip#1: Do not mount the horn on the servo until you turn on the radio and
center the trims.
- Tip#2: Always trim your vehicle before you run or race.
E) Tuning Cover:
- Remove the tuning cover to access the servo reversing switches.
- This is also an interchangeable part with assorted colors and designs to choose from so you may
customize the look of your radio. See "Options" for more info.
F) Servo Reversing switches:
- These are used to change the direction of the servo travel for proper control when activated.
- If you steer right and the wheels go left, change the "ST" switch from NOR to REV or REV to
NOR if needed. The same applies to the throttle.
- (Note: You should not need to change the "THR" switch from NOR if using
an Electronic Speed Control.)
G) Battery Cover:
- Remove to change batteries.
J) Crystal:
- The crystal is located above the power switch and can be interchanged with different channels in
conjunction with the receiver to prevent any conflicts with other radios used in your area.
- AM Transmitter crystal part# 67475XX (XX= Your channel number)
- Warning: Use only genuine Hitec crystals. Other brands will not work properly!
K) Charging Jack:
- The charging jack is located under the power switch for use with the optional
Hitec CG-25 charger(110v only ) when using rechargeable batteries.
(See "Recharging Batteries" for more information about this feature.)
- Used to control the steering of your vehicle.
L) Steering Wheel:
- Used to control the steering of your vehicle.
M) Throttle Trigger:
- Used to control the throttle and braking for your vehicle.
- Pull the trigger for throttle and push it for braking or reverse (Reversing ESC's only.)
3. Transmitter Battery Installation
5. Receiver and Servo Connections
- Press down on the battery cover and slide in the direction illustrated.
- Remove the cover and install the batteries as shown.
- Be careful to pay close attention to the polarity of each cell or the transmitter will not operate.
- Replace the cover making sure it is closed securely.
4. Recharging Batteries
- You must install individual AA size rechargeable batteries.
- Only use Nicad or NiMh type. (Alkaline batteries are not rechargeable).
- Connect the optional Hitec CG-25 overnight wall charger to the charging jack located under the
switch to charge. Depending on the capacity of the battery;
- A full charge on a typical Nicad will take 12-16 hours.
- A full charge on a typical NiMh will take 24-36 hours.
A) Receiver:
- The receiver in your Aggressor system includes a BEC (Battery Eliminator Circuit), which
eliminates the need for a separate receiver battery when used with a mechanical or electronic
speed control. Power input should be no more than 8.4V (7 cells)
- You can use a separate receiver battery if required for your particular model. Connect as shown.
- Be aware you should keep your antenna at least 2" away from any power wires to prevent interference.
- Run the antenna up the antenna tube as shown in your vehicles instructions.
- Warning: Be sure not to cut off any excess antenna wire, as it will shorten your operating range.
B) Servos:
- When installing the servos, refer to the manual of the vehicle for proper installation.
- Once your servos are correctly installed you will need to make sure they are properly centered.
To do this, remove the servo horns and turn on your transmitter, then the power to your receiver.
Remember; always turn your transmitter on first and off last. Failure to do so may result in loss of
control and can damage your servos and/or linkage.
- Now that the power is on, check that the servos are working properly.
- You will now center the trim knobs on the transmitter and replace the horns so that they are centered.
- Be aware they may not be perfectly centered; this is OK, just get them as close as possible.
Then use the trims for fine-tuning.
H) Antenna:
- Always extend your antenna before turning your transmitter on.
- Your antenna may be removed by turning counter clockwise.
- Warning: When collapsing your antenna, never push it from the top or it may bend!
I) Grip Pad:
- The removable grip pad helps keep your hand from slipping on the radio pistol grip handle so
you have better control of the vehicle.
- It is also available in assorted colors and sizes to customize the look and feel of your radio.
C) Battery:
- The AA receiver battery holder supplied with your radio should be used in a non-electric
vehicle that requires two servos.
- Connect the AA Receiver battery holder to the power switch supplied, and then plug the switch into the
"Batt" channel of the receiver for power.
- You will not need to connect this battery if you are using an electric car with an electronic
speed control or mechanical speed control with BEC.
Question: I installed the batteries in my transmitter, but the power lights do not come on:
Answer:
- Check that the batteries are properly installed by checking the polarity (+ and -).
Question: My radio has power, but I have no control:
Answers:
- Check to be sure the power switch is on and connected to the receiver.
- Make sure the batteries are charged (Replace or recharge if needed.)
- Make sure you are using the proper crystals.
Question: My vehicle is glitching, or the servos and/or speed control is acting erratically:
Answers:
- Check that there are no radios operating on your channel.
- Make sure your electric motor has capacitors and the comutator is clean and brushes are
not worn out. Replace if needed.
- Check for loose screws as metal-to-metal contact can cause interference.
- Make sure your receiver antenna has not been damaged or cut.
- Make sure the power wires are at least 2" away from the receiver.
- Replace the crystals if needed.
- If all fails, send the system in to be serviced, as there may be internal damage.
- Never operate your car or truck in a crowded street with traffic.
- Always extend your transmitter antenna when in operation.
- Always check the battery power indicator before use.
- Do not operate two or more models on the same frequency at the same time.
- Do not operate your model in the rain or run through standing water.
- Do not operate your model within one mile of a radio control racetrack.
- Do not operate your model while under the influence of drugs or alcohol.
- Always turn on your transmitter first and then the receiver to prevent loss of control.
- When collapsing your antenna, never push it from the top or it may bend.
- Slower is faster, Do not overdrive your car. A cleaner line around the track is faster than
more top speed. Don't overshoot the corners.
- Reduce your steering dual rate if your car is over-steering or "Loose", and increase the rate if
your car is under-steering or "Pushing."
- Add more drag brake (see Steering and Throttle trims) if your vehicle is "Pushing" into the corners.
Move the trim the other direction so your car creeps forward slightly when the throttle is at neutral if
your car is "Loose" when entering the corners.
- Don't crash! It's better to take a more conservative line than flip over and have to have a turn marshal
turn you back over.
- The most important thing to remember is to have fun!
Grip Pad
Alkaline or Nicad "AA"size
Battery Cover
Remove
Touch your dreams Touch your dreams
Touch your dreams
MADE IN KOREA
AGGRESSORAGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
AGGRESSORAGGRESSOR
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to ::
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.
A. Power Switch
B. Battery Indicator LED's
C. Steering Dual Rate
D. Steering and Throttle trims
E. Tuning Cover
F. Servo Reversing switches
G. Battery Cover
H. Antenna
I. Grip Pad
J. Crystal
K. Charging Jack
L. Steering Wheel
M. Throttle Trigger
A
K
C
L
M
JE
D
F
I󰚟
H
G
B
NOR - REV NOR - REV
2C HANN EL AM RADI O C ONT ROL SYS TEM
ST THR
TOP
FRONT
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M
A
M
AGGRESSOR
INSTRUCTION MANUAL
2CH ANN EL AM RAD IO CON TROL SYS TE M 2CH ANN EL AM RAD IO CON TROL SYS TE M
Battery Cover
A
M
AGGRESSOR
INSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
Touch your dreamsTouch your dreams
A) Transmitter:
- Power Output: 500mW
- Current drain 180mA
- Modulation: AM/PPM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver:
- HAS-02MB
- Modulations: AM
- Power Supply: 4.8V~8.4V
- Weight: 0.81oz
- Size: 1.2"x1.9"x 0.7"
- Current drain: 30mA +/- 0.3mA
- BEC Maximum output: 3.0A
C) Servo:
- HS-322
- Voltage range: 4.8 - 6V
- Speed: 0.16sec/60 degree (6V)
- Torque: 53in/oz (6V)
- Weight: 1.6oz
- Size: 1.6" x 0.8" x 1.4"
D) Options:
- Red, Blue and Black colored grip pads in two sizes each (Sold separately).
- Tuning covers available in Red, Blue and Black, as well as custom designs in Silver Carbon,
Wood (Burl) and Camouflage (Sold separately).
AM
X-TAL
BLACK󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
NICAD󰚟BATTERY󰚟
7.2V - 8.4V
RED󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
STEERING󰚟SERVO
THROTTLE󰚟SERVO
YELLOW󰚟(+)󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
Blue󰚟(-)󰚟󰚟󰚟󰚟󰚟󰚟󰚟
+
-
MOTOR󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟
WITH󰚟0.1uf󰚟
CAPACITOR󰚟󰚟󰚟󰚟
DUAL󰚟LED󰚟󰚟󰚟󰚟󰚟
RED󰚟:󰚟BRAKE󰚟󰚟󰚟󰚟󰚟󰚟
GREEN󰚟:󰚟FULL󰚟POWER
INDICATOR󰚟󰚟󰚟󰚟
SET󰚟UP󰚟BUTTON
On/Off󰚟Switch
ESC Installation
ESC
RECEIVER
Nomal Installation

Navigation menu
