1812 SLICER

TECHNICAL MANUAL

SPECIFICATION SHEET

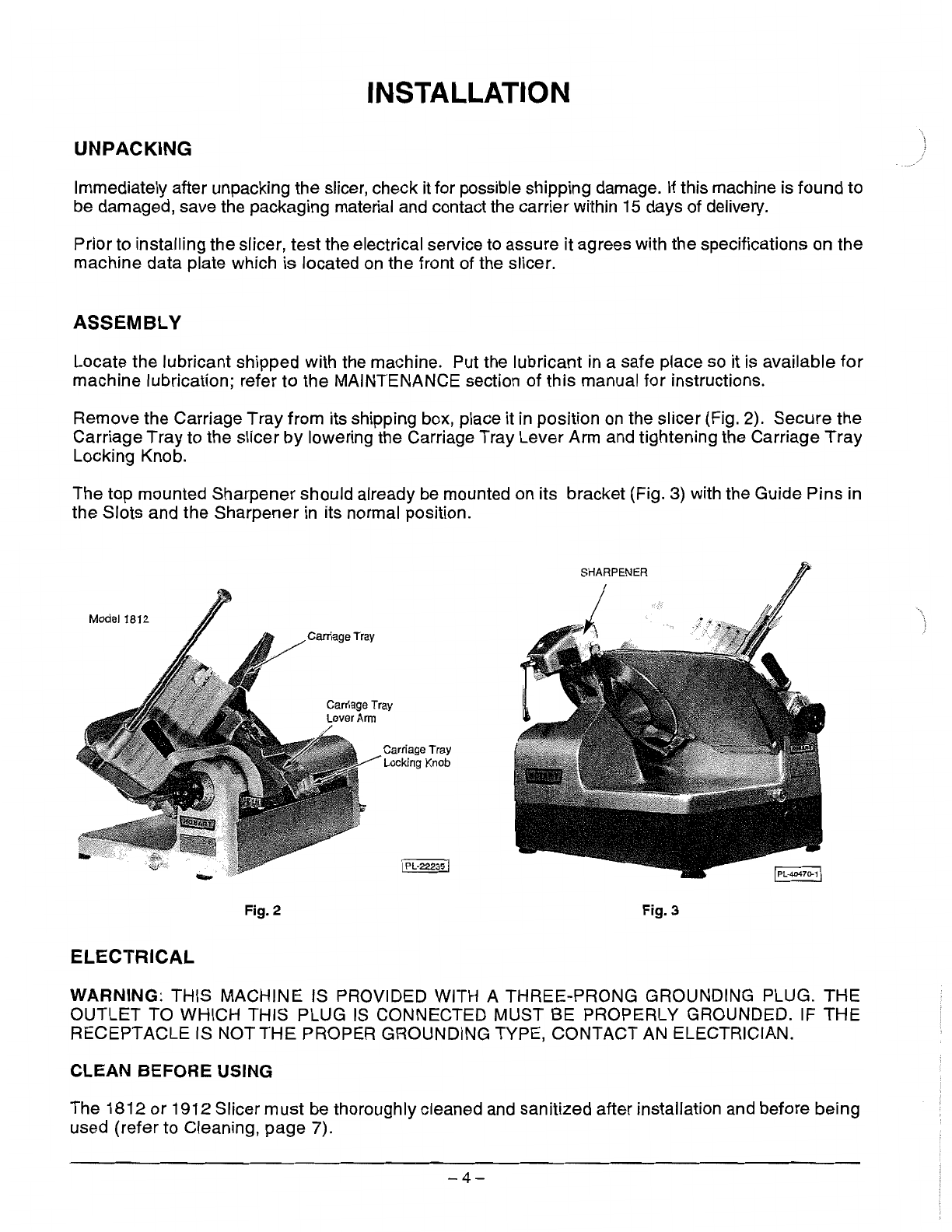

INSTALLATION INSTRUCTIONS

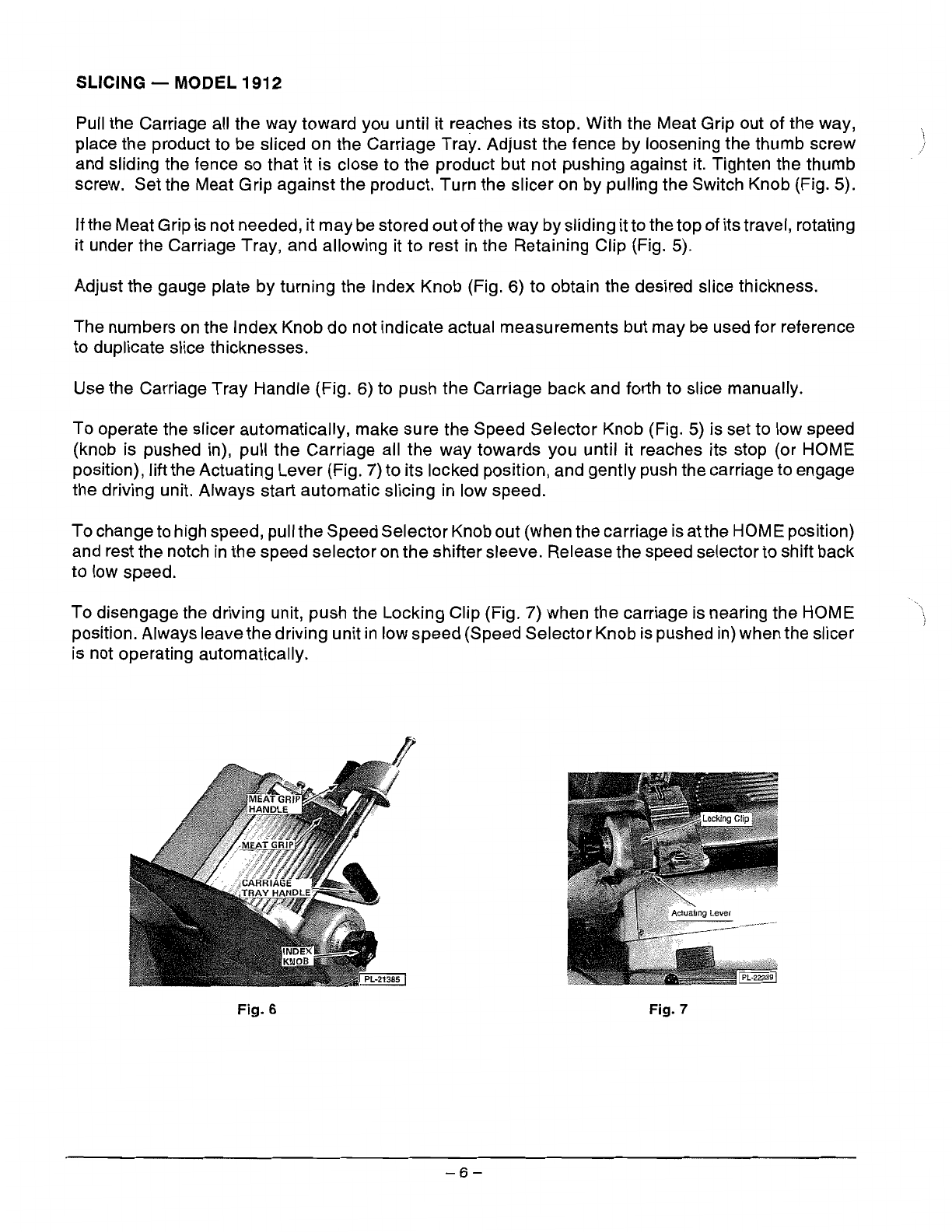

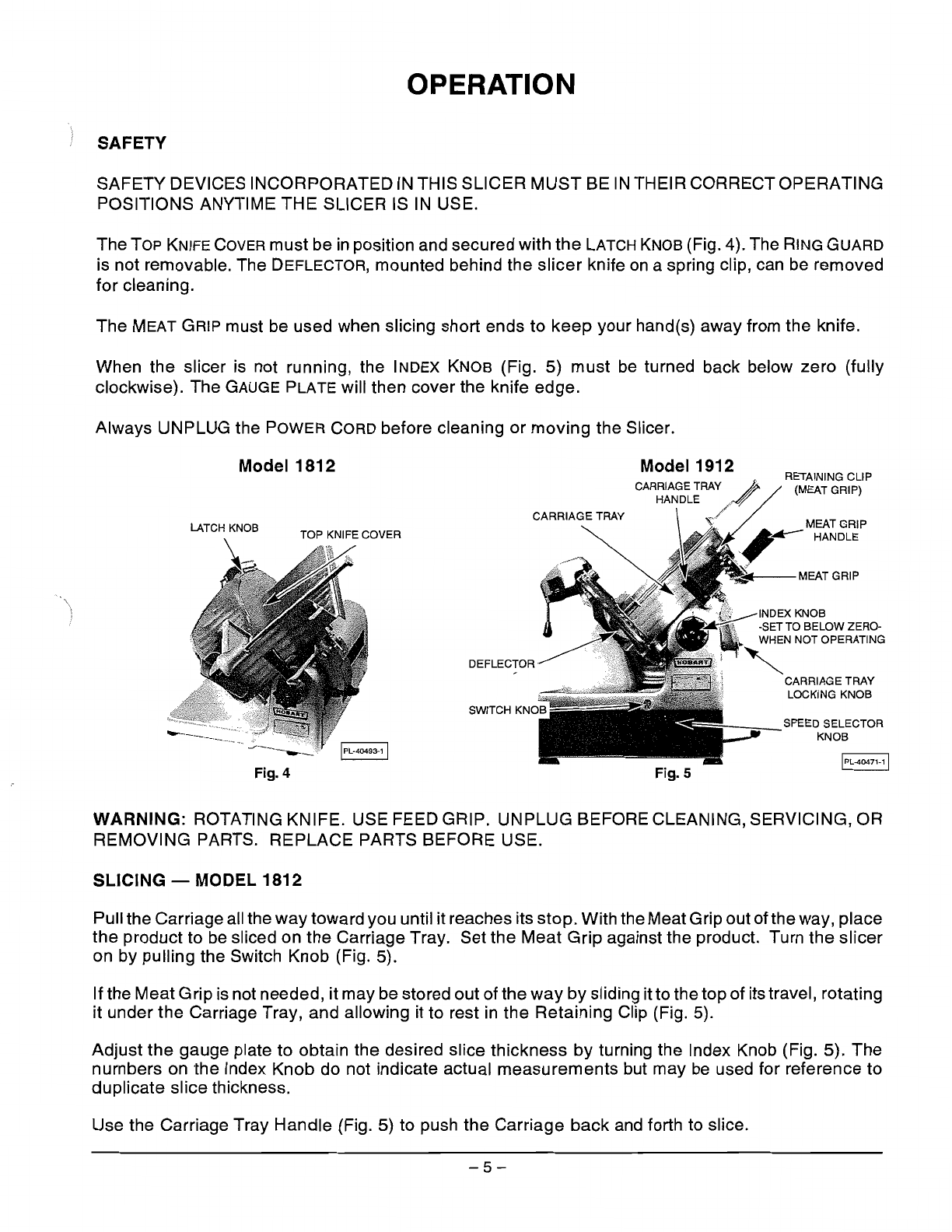

OPERATION INSTRUCTIONS

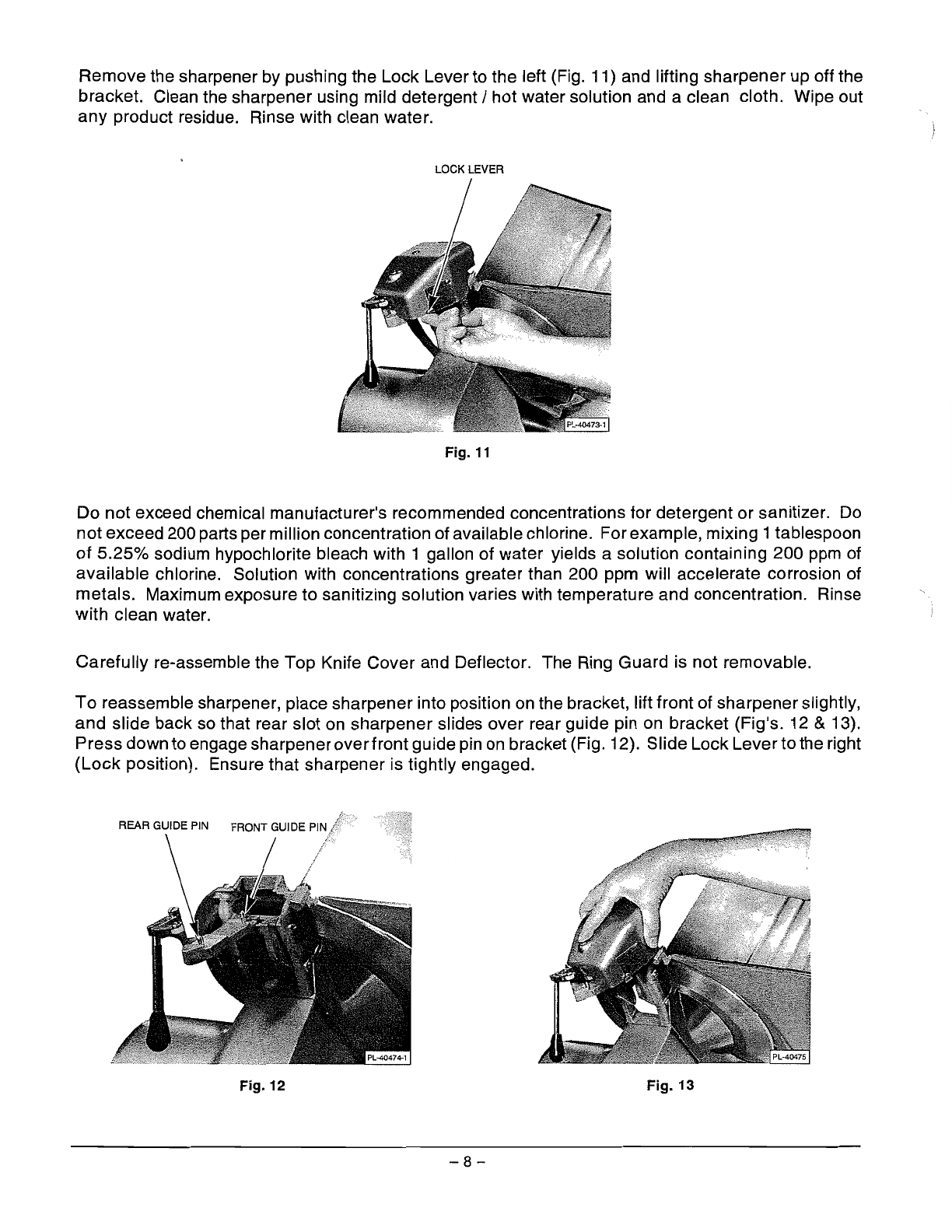

CLEANING INSTRUCTIONS

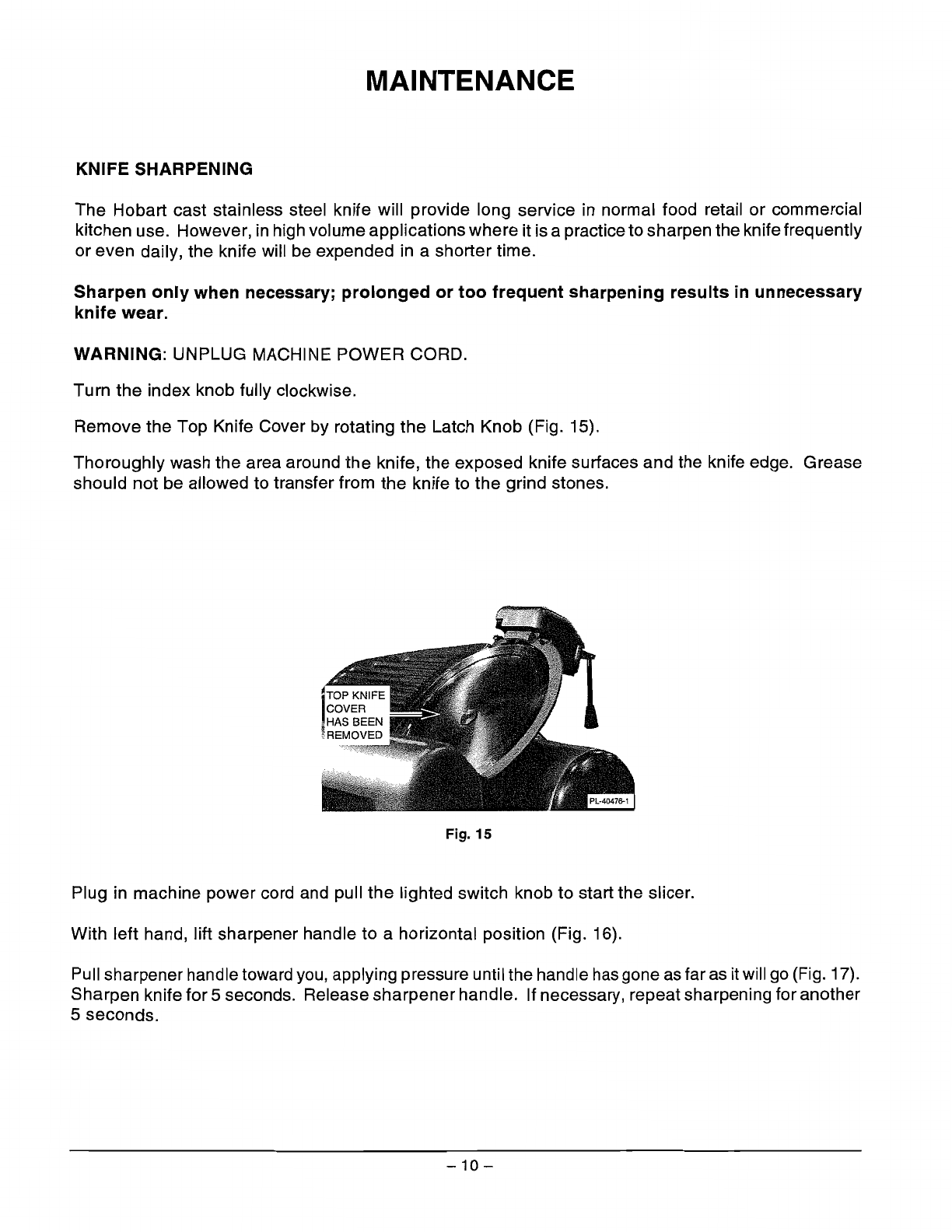

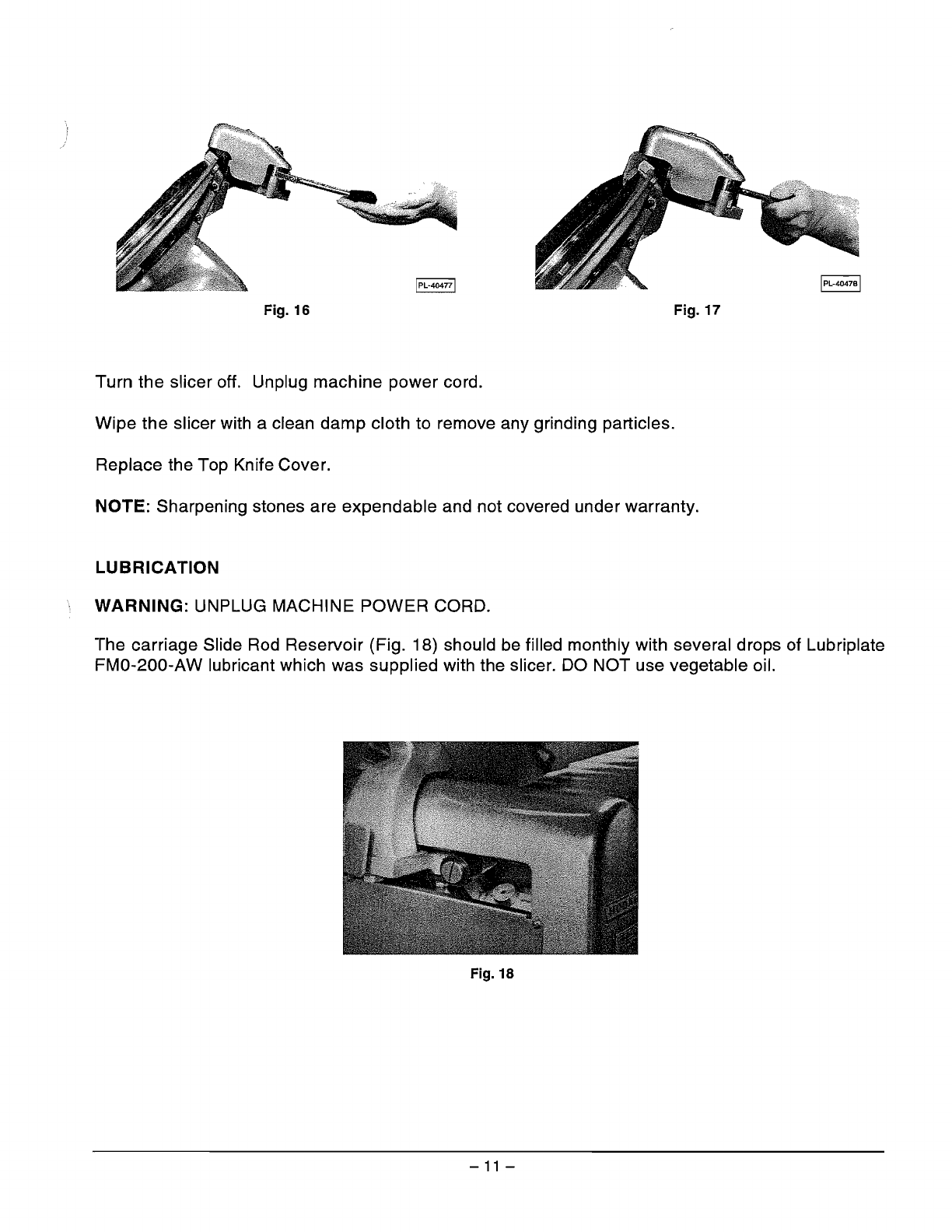

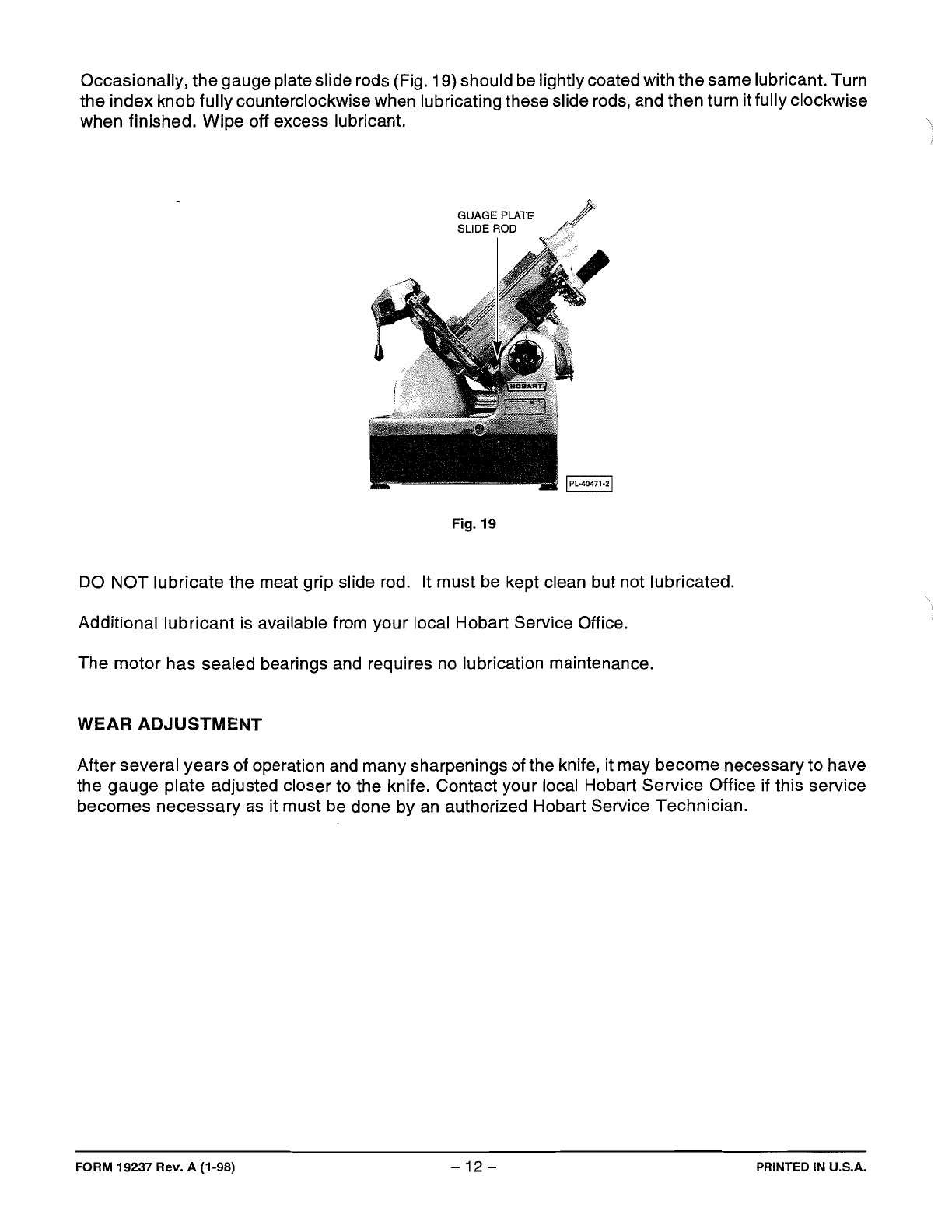

MAINTENANCE INSTRUCTIONS

TROUBLE SHOOTING INSTRUCTIONS

WIRING DIAGRAMS

CATALOG OF REPLACEMENT PARTS

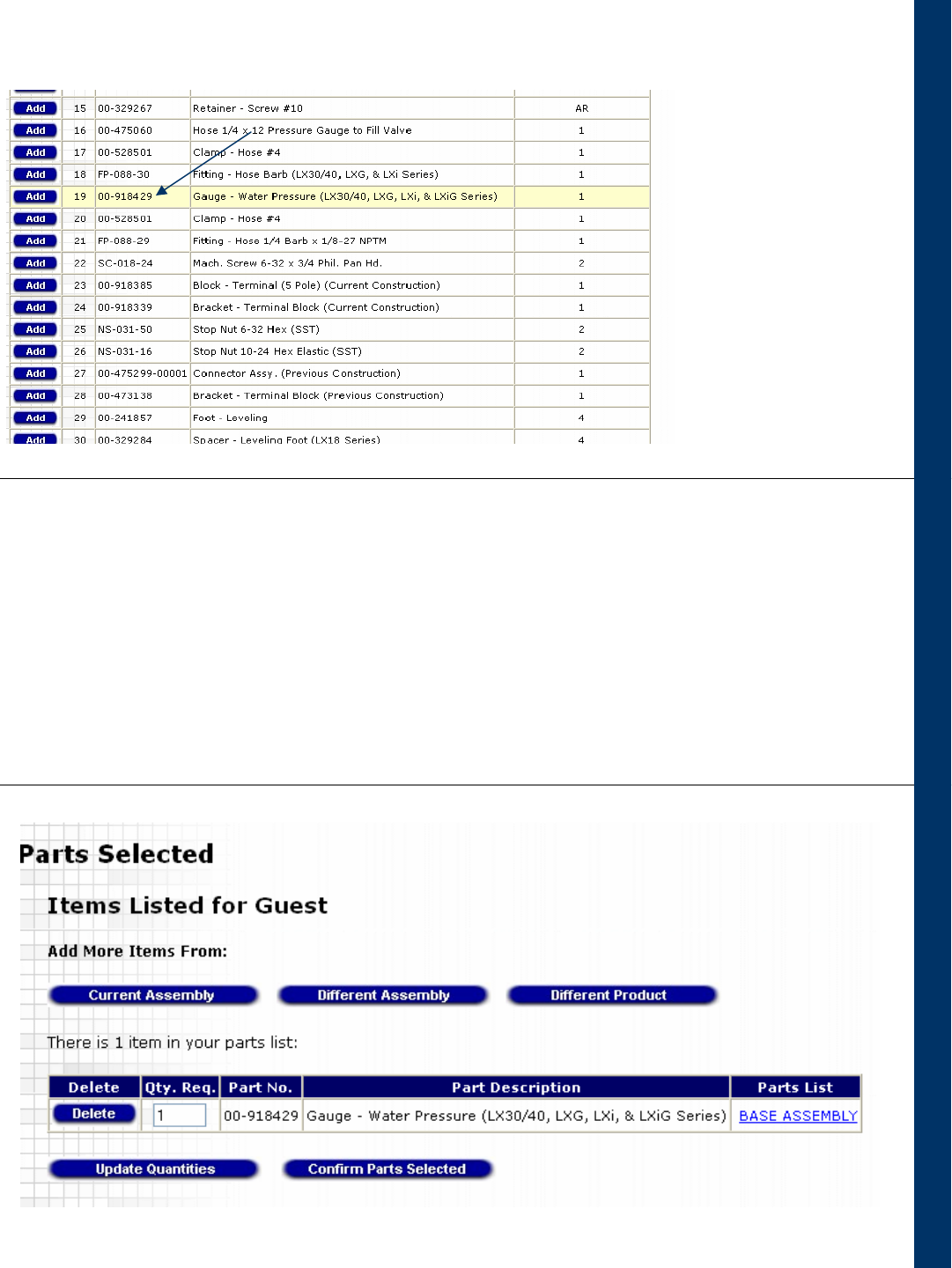

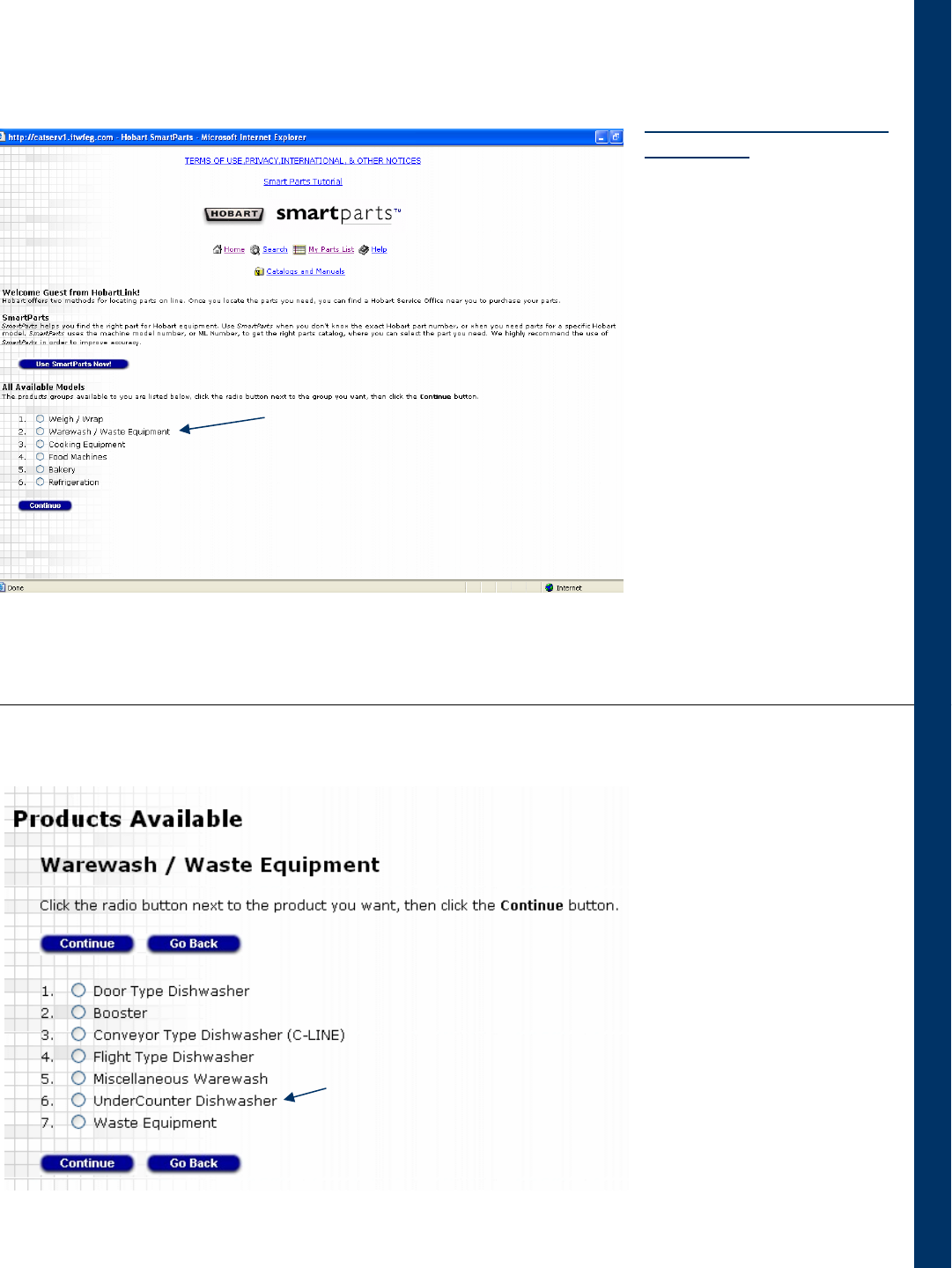

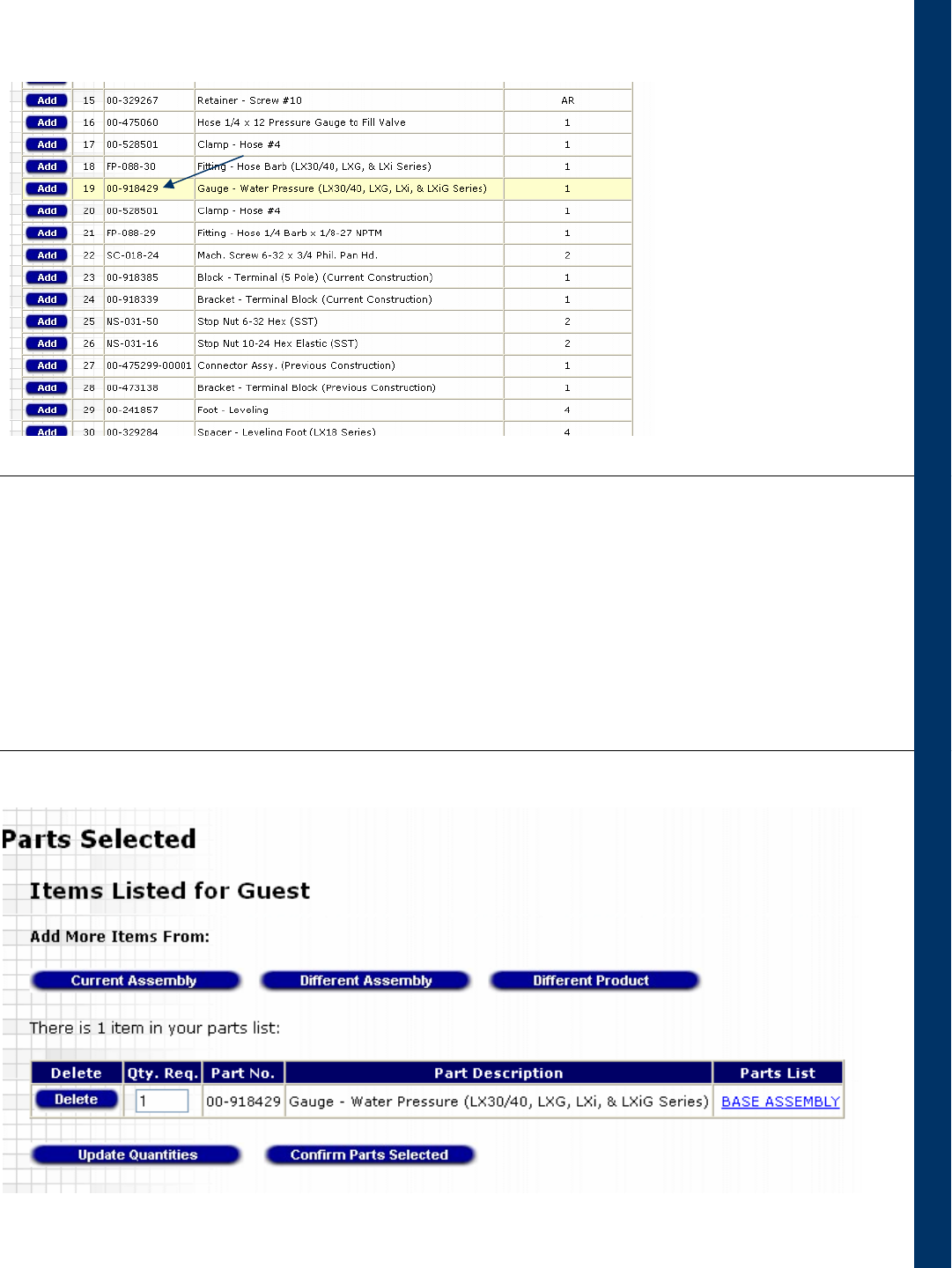

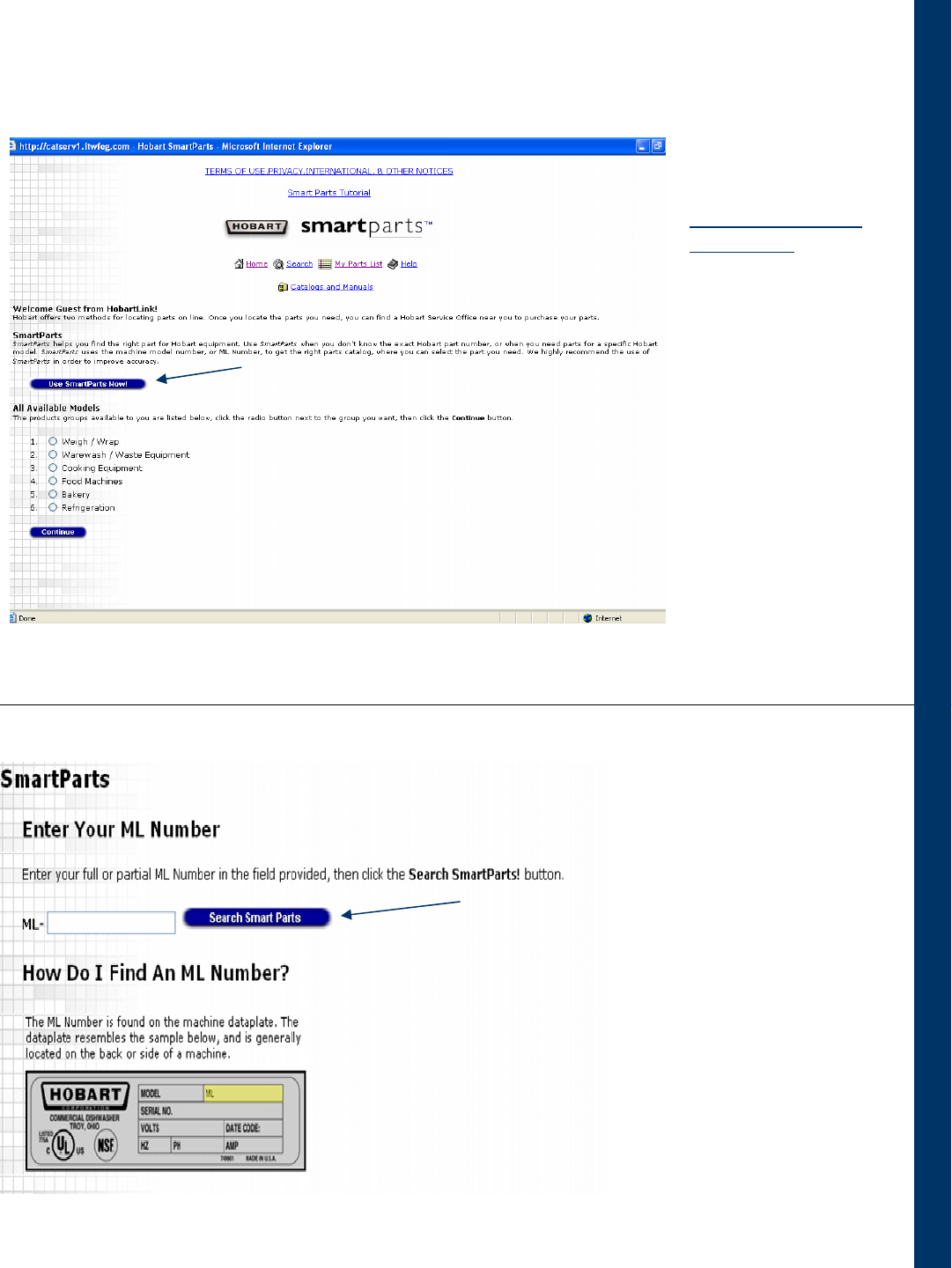

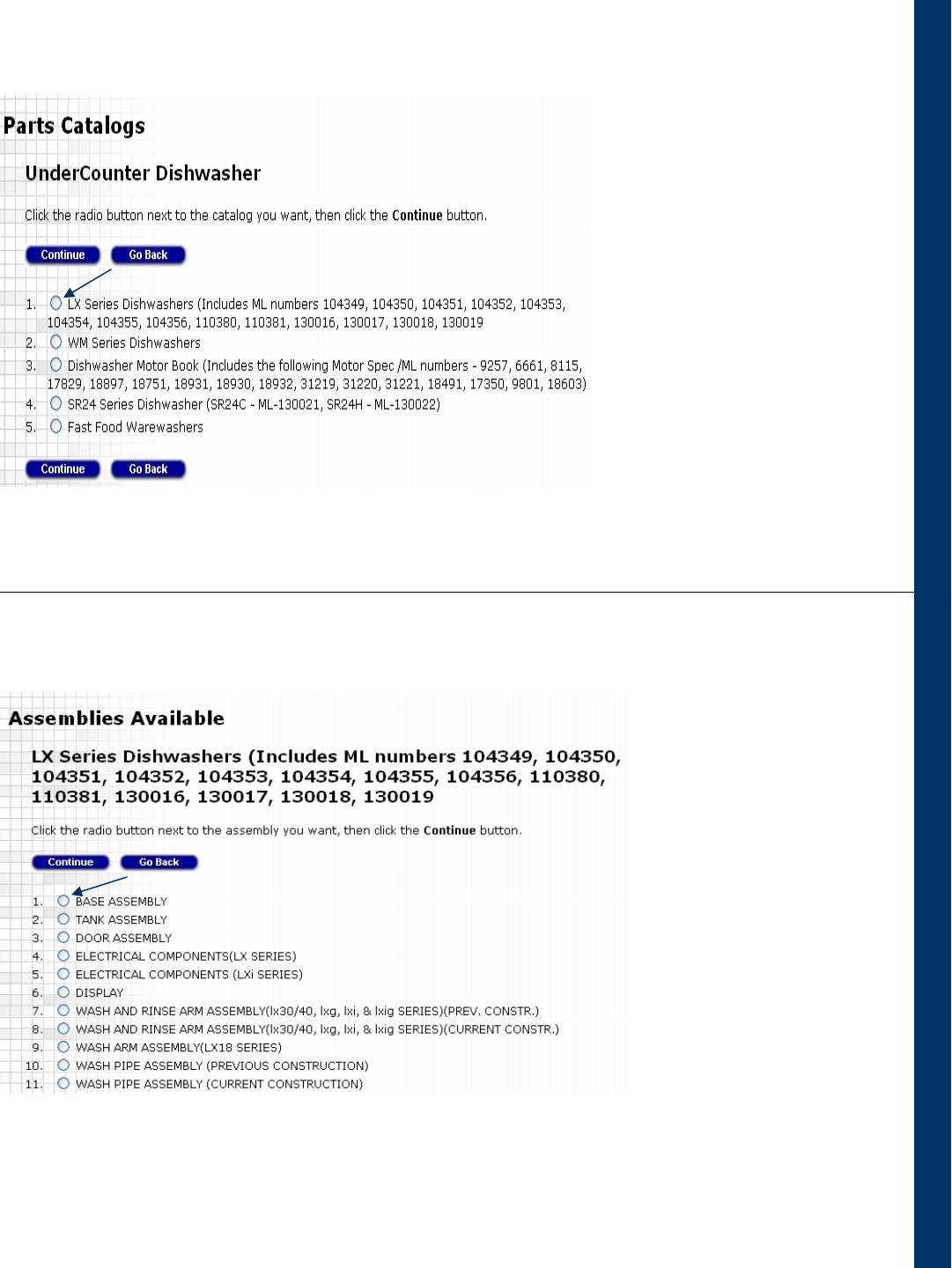

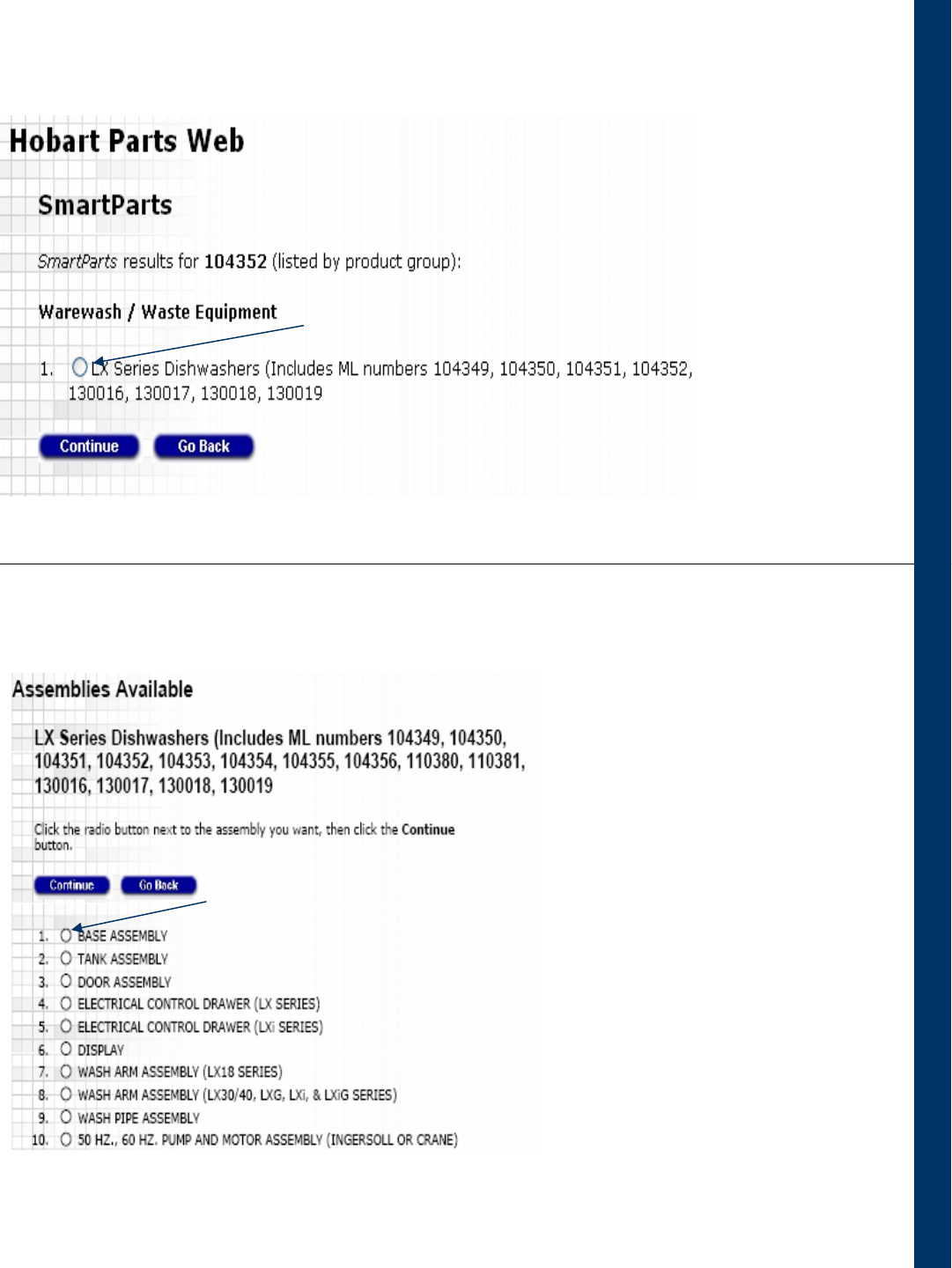

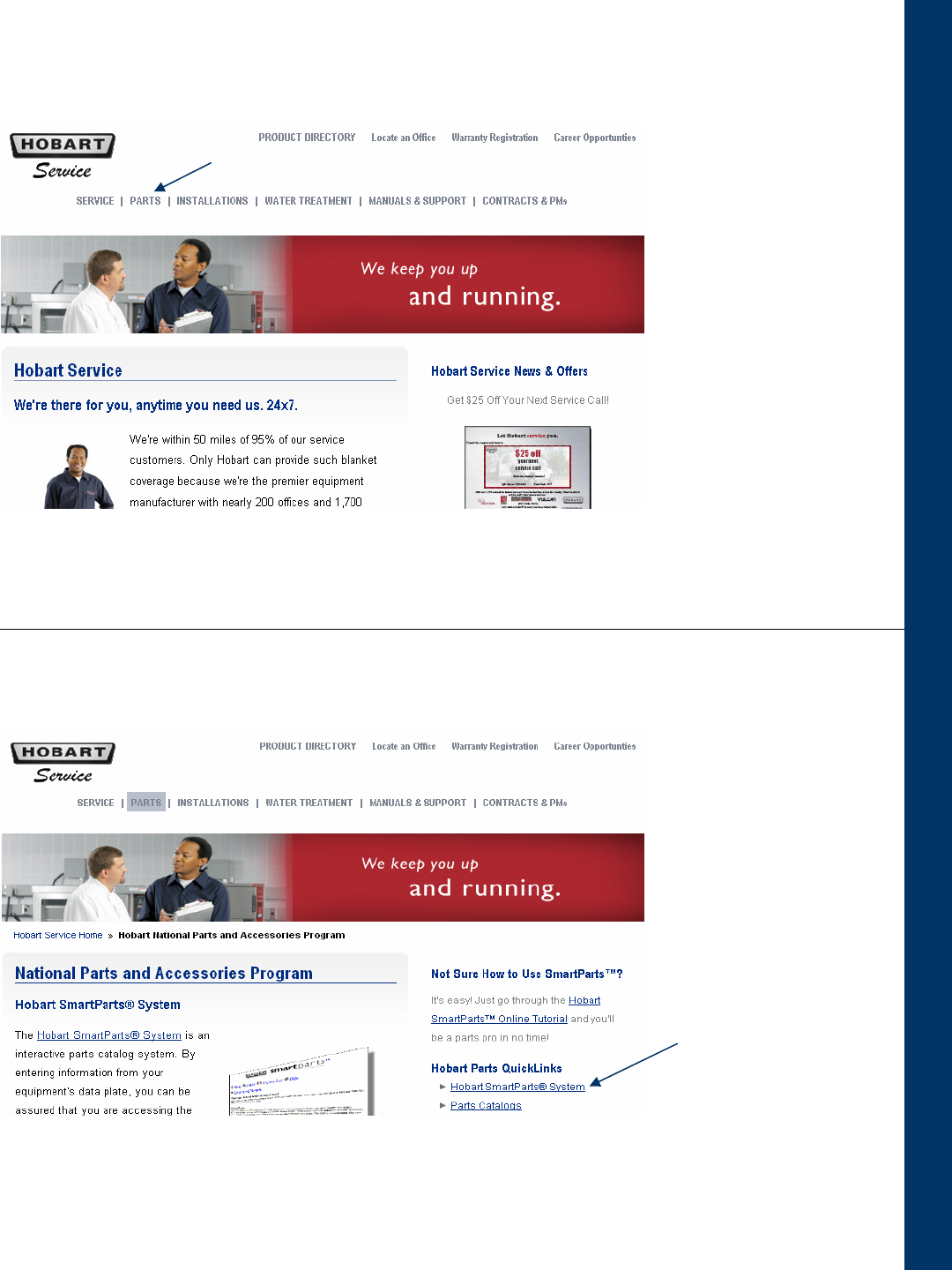

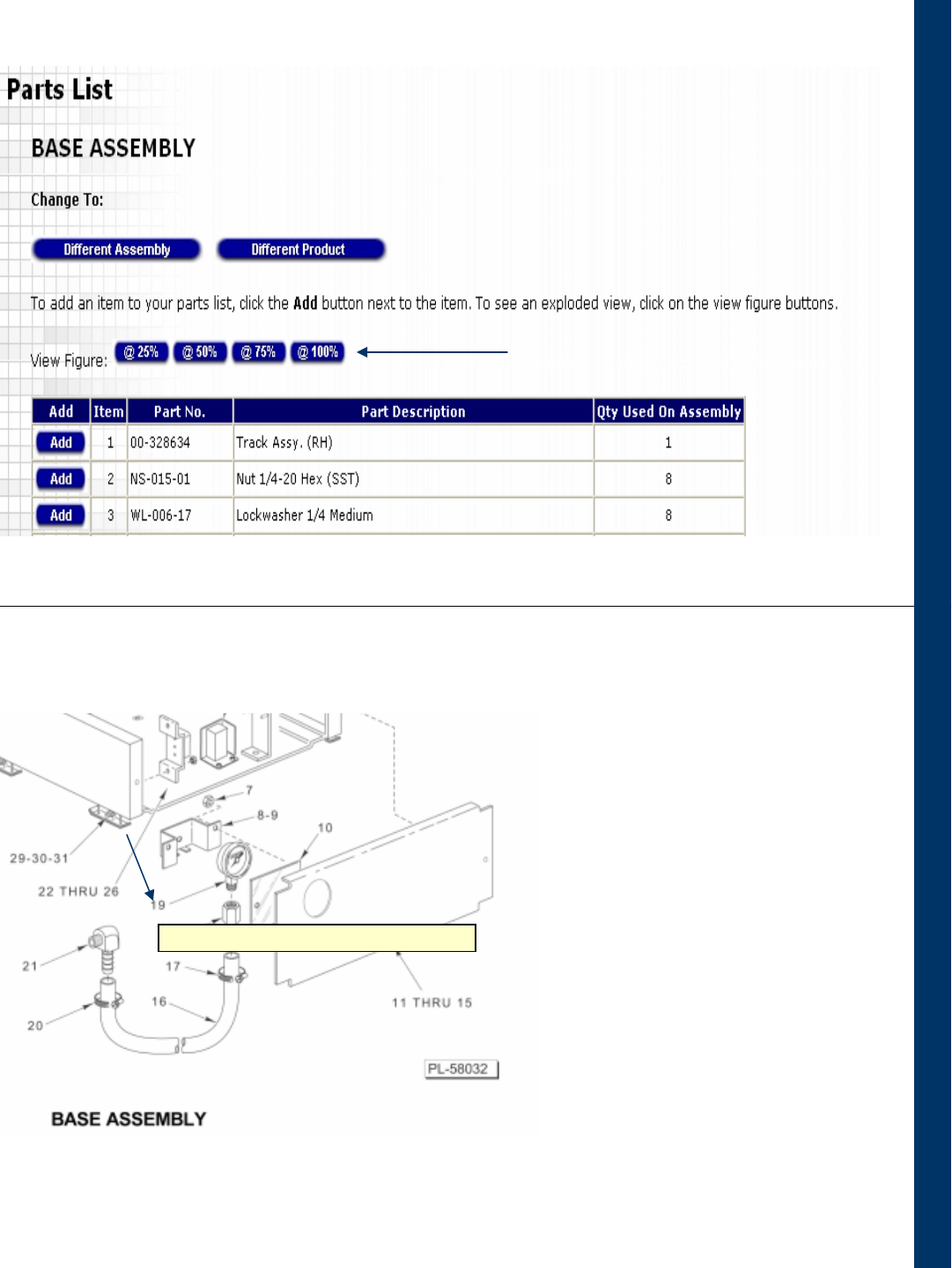

SMARTPARTS™ USER GUIDE

RECOMMENDED SPARE PARTS LIST

Need other Hobart Services?

• Warranty Registration

• Delivery and Installation

• Preventive Maintenance

• Hobart Service Contracts

• Extended Warranty Contracts

• Parts and Accessories

• Specialty Programs

• Water Treatment Programs

1812 SLicer Technical Maunal Page 2 of 49

1812 SLicer Technical Maunal Page 3 of 49

1812 SLicer Technical Maunal Page 4 of 49

1812 SLicer Technical Maunal Page 5 of 49

1812 SLicer Technical Maunal Page 6 of 49

1812 SLicer Technical Maunal Page 7 of 49

1812 SLicer Technical Maunal Page 8 of 49

1812 SLicer Technical Maunal Page 9 of 49

1812 SLicer Technical Maunal Page 10 of 49

1812 SLicer Technical Maunal Page 11 of 49

1812 SLicer Technical Maunal Page 12 of 49

1812 SLicer Technical Maunal Page 13 of 49

1812 SLicer Technical Maunal Page 14 of 49

1812 SLicer Technical Maunal Page 15 of 49

1812 SLicer Technical Maunal Page 16 of 49

TROUBLESHOOTING

1812 SLICER

SYMPTOM

POSSIBLE CAUSE

Motor will not start, switch in start

position. 1. No power to slicer.

2. Carriage tray unit not in home position.

3. Check power cord.

Power switch in run position, motor will

not stay running.

1. Off – On – Start switch malfunction.

Slicer will not shut off.

2. Off – On – Start switch malfunction.

Hard to slice.

1. Blade dull.

2. Carriage bearing assembly not free on slide rods.

NOTE:

If symptom(s) persists after possible causes have been checked, contact your local Hobart Service Office.

1812 SLicer Technical Maunal Page 17 of 49

GRN

BLK

WHT

4123

GND

68

1LS

INTERLOCK

21CR 4

ELECTRONIC

START

SWITCH

1

2

3

4

RED

RED

CAP

VIOLET

YELLOW

START

RED

MAIN

MAIN

BLUE

GREEN

WHITE

WHITE

2LS

HOME

01

1

CR

1S ON/OFF

1CR W

ELECTRICAL AND GROUNDING CONNECTIONS MUST

COMPLY WITH THE NATIONAL ELECTRICAL CODE

AND/OR OTHER APPLICABLE LOCAL CODES.

ELECTRICAL DIAGRAM

100/120V 50/60Hz

1812/1912 SLICER W/HOME START

1PL 1MTR

MOTOR

DERIVED FROM F18667

CNC

GRN

BLK

WHT

4123

GND

68

1LS

INTERLOCK

ELECTRONIC

START

SWITCH

1

2

3

4

RED

RED

CAP

VIOLET

YELLOW

START

RED

MAIN

MAIN

BLUE

GREEN

WHITE

WHITE

21CR 4

TIME DELAY

RELAY

123

654

1CR

01

1

CR

1S ON/OFF

CNC

3LS

RESET

RESISTOR

W

1PL

ELECTRICAL AND GROUNDING

CONNECTIONS MUST COMPLY WITH

THE NATIONAL ELECTRICAL CODE

AND/OR OTHER APPLICABLE LOCAL

CODES.

ELECTRICAL DIAGRAM

100/120V 50/60Hz

1812/1912 SLICER

W/HOME START

W/AUTO SHUTOFF

1TDR

1MTR

MOTOR

DERIVED FROM F18668A

2LS

HOME

GRN

BLK

WHT

4123

GND

68

1LS

INTERLOCK

21CR 4

2LS

HOME

01

1

CR

1S ON/OFF

1CR W

ELECTRICAL AND GROUNDING CONNECTIONS MUST

COMPLY WITH THE NATIONAL ELECTRICAL CODE

AND/OR OTHER APPLICABLE LOCAL CODES.

ELECTRICAL DIAGRAM

220/240V 50/60Hz

1812/1912 SLICER W/HOME START

1PL

DERIVED FROM F18688

ELECTRONIC

START

SWITCH

1

2

3

4

RED

RED

MAIN

BLUE

START

GREEN

MAIN

VIOLET

RED

YELLOW

CAP

1 MTR

MOTOR

CNC

GRN

BLK

WHT

4123

GND

68

1LS

INTERLOCK

21CR 4

TIME DELAY

RELAY

123

654

1CR

01

1

CR

1S ON/OFF

CNC

3LS

RESET

RESISTOR

W

1PL

ELECTRICAL AND GROUNDING

CONNECTIONS MUST COMPLY WITH

THE NATIONAL ELECTRICAL CODE

AND/OR OTHER APPLICABLE LOCAL

CODES.

ELECTRICAL DIAGRAM

220/240V 50/60Hz

1812/1912 SLICER

W/HOME START

W/AUTO SHUTOFF

1TDR

DERIVED FROM F18689A

ELECTRONIC

START

SWITCH

1

2

3

4

RED

RED

MAIN

BLUE

START

GREEN

MAIN

VIOLET

RED

YELLOW

CAP

2LS

HOME

1 MTR

MOTOR

AI 2730

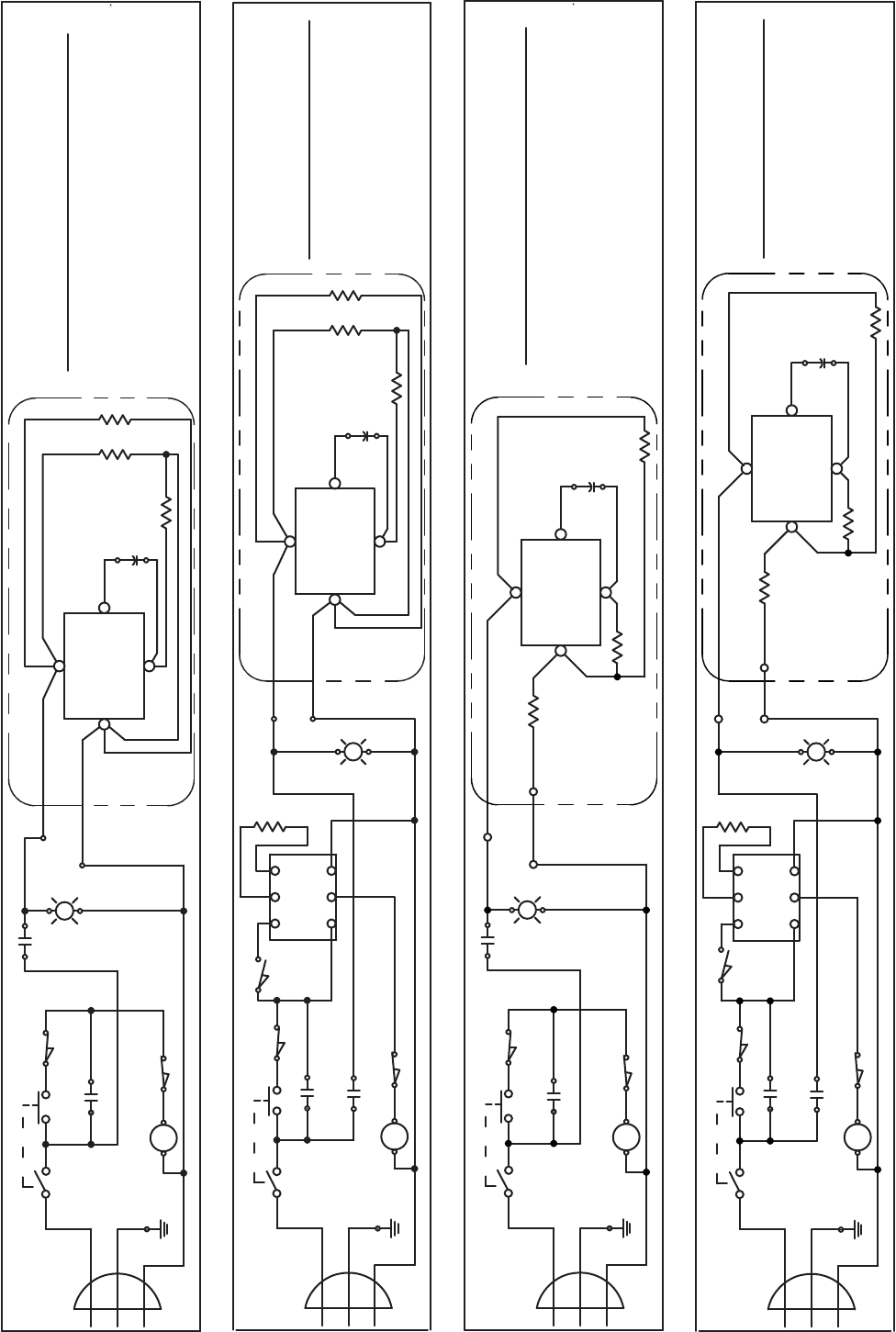

ELECTRICAL WIRING DIAGRAMS

1812 SLicer Technical Maunal Page 18 of 49

FORM 19315 Rev. A (10-99)

CATALOG OF

REPLACEMENT PARTS

A product of HOBART CORPORATION 701 RIDGE AVENUE TROY, OHIO 45374-0001

SLICERS

(INCLUDES MOTOR PARTS)

1812 ML-104550

1912 ML-104552

THIS MANUAL REPLACES AND SHOULD BE

USED INSTEAD OF FORM 18652

PRIOR ML’S COVERED IN THIS MANUAL:

ML-104275

ML-104377

1812 SLicer Technical Maunal Page 19 of 49

– 2 –

1812/1912 REPLACEMENT PARTS

© HOBART CORPORATION, 1993

P

U

L

L

T

O

S

T

A

R

T

P

U

S

H

S

T

O

P

PL-51152

1 THRU 6

7

89

11-12

19

20

26

25

21

22-23-24

10

16-17-18

13-14-15

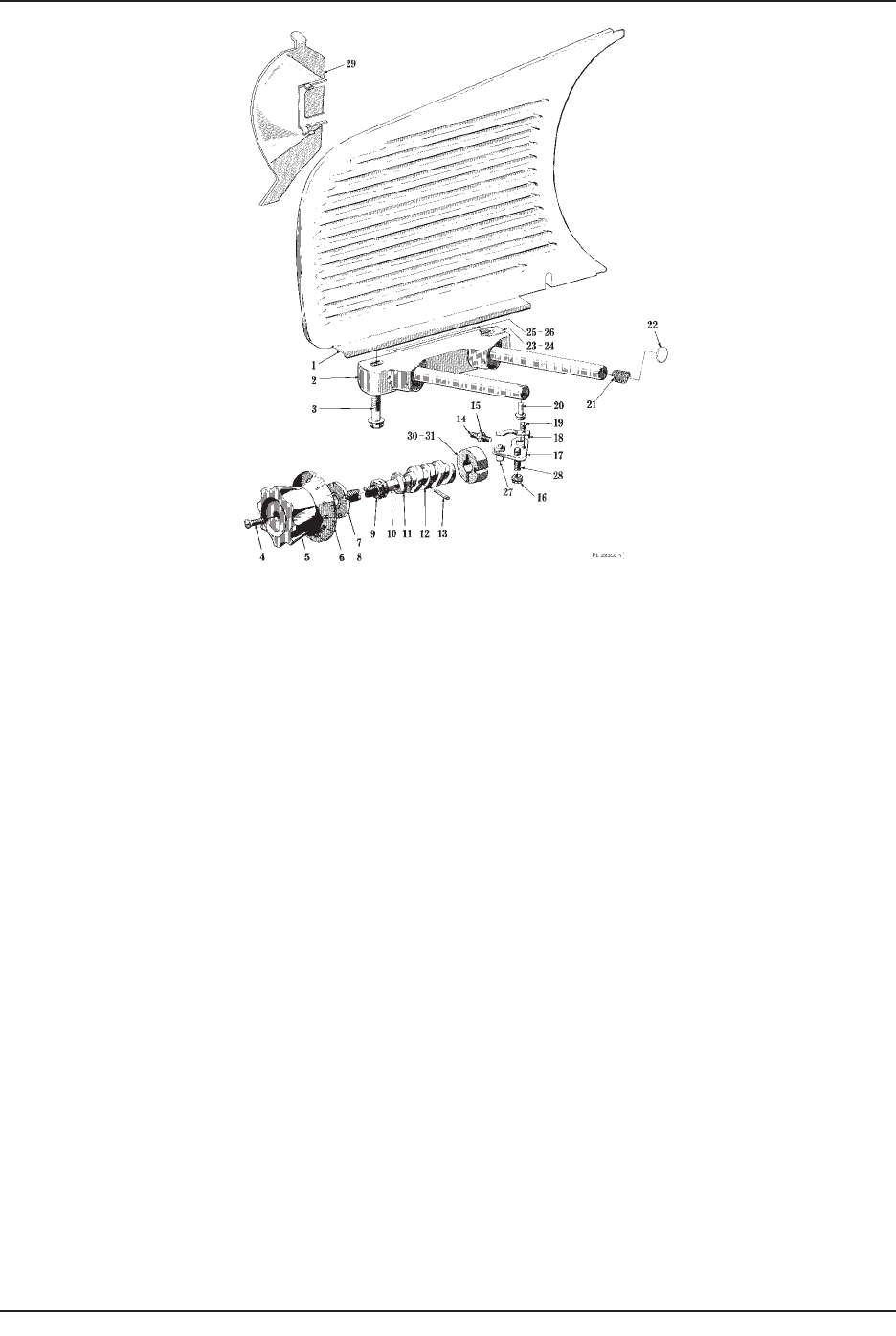

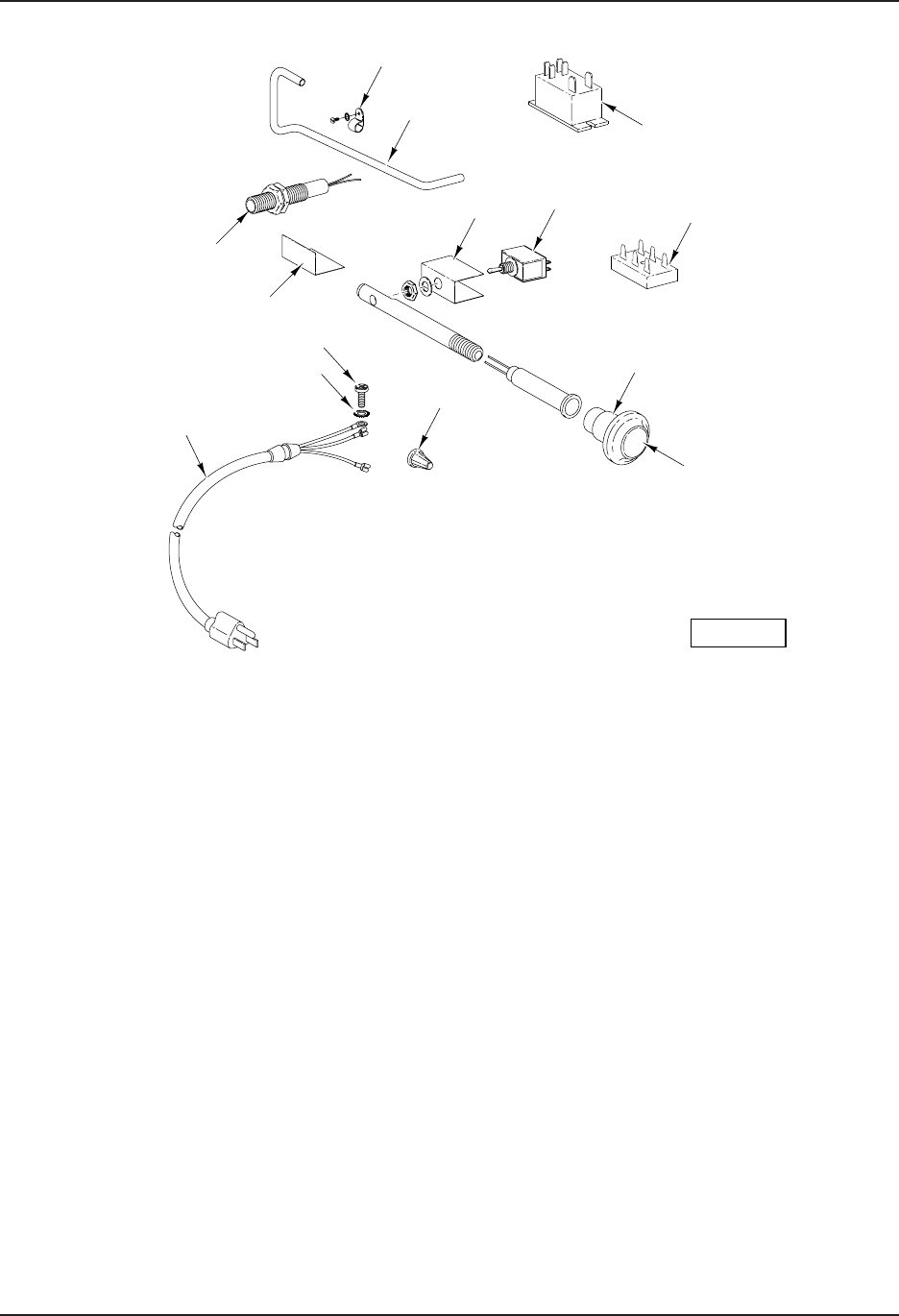

ELECTRICAL UNIT

ILLUS. PART

PL-51152 NO. NAME OF PART AMT.

1 123856-1 Cord & Plug Assy.(Under 150 V.).................................................................................................1

2 123856-2 Cord & Plug Assy. (200 - 250 V.) .................................................................................................1

3 123858 Cord Assy.(I.E.C.) ........................................................................................................................1

4 RR-8-13 Retaining Ring (Use with items 1 & 2) ..........................................................................................1

5 WS-5-36 Washer (Use with item 3) .............................................................................................................2

6 FE-6-32 Strain Relief (Use with item 3) ......................................................................................................2

7 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................1

8 WL-10-1 Lockwasher 8 External Shakeproof ..............................................................................................1

9 FE-6-29 Wire Nut (14-22 Ga.) ....................................................................................................................3

10 76902 Disc - Insert ..................................................................................................................................1

11 438294-1 Disc & Lighted Knob Assy. (Under 150 V.)(Icls.item 10) ..............................................................1

12 438294-2 Disc & Lighted Knob Assy. (200 - 250 V.)(Incls.item 10) .............................................................1

13 SD-37-95 Self-Tapping Screw 10-24 x 1 Phil. Pan Hd., Type TT (Auto-Shut-Off Only) ...............................1

14 87714-39-3 Timer - Relay (Under 150 V.) (Auto-Shut-Off Only) .....................................................................1

15 87714-39-4 Timer - Relay (200 - 250 V.) (Auto-Shut-Off Only) .......................................................................1

16 SD-12-34 Self-Tapping Screw 8-32 x 5⁄16 Pan Hd., Type T ...........................................................................2

17 87714-42-1 Relay (2 Pole)(Under 150 V.) .......................................................................................................1

18 87714-42-3 Relay (2 Pole) (220 - 240 V.) ........................................................................................................1

19 120388 Switch & Label Assy. (With Auto Shut-Off) ..................................................................................1

20 437657 Switch - Mylar ...............................................................................................................................1

21 437635 Conduit (Copper Tubing) ..............................................................................................................1

22 438015-1 Clamp (Aluminum) ........................................................................................................................1

23 WL-10-1 Lockwasher 8 External Shakeproof ..............................................................................................1

24 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................1

25 87711-243-2 Sensor (Home Position And/Or Auto-Shut-Off) .......................................................................... AR

26 438130 Insulator - Switch ..........................................................................................................................1

1812 SLicer Technical Maunal Page 20 of 49

– 3 –

REPLACEMENT PARTS 1812/1912

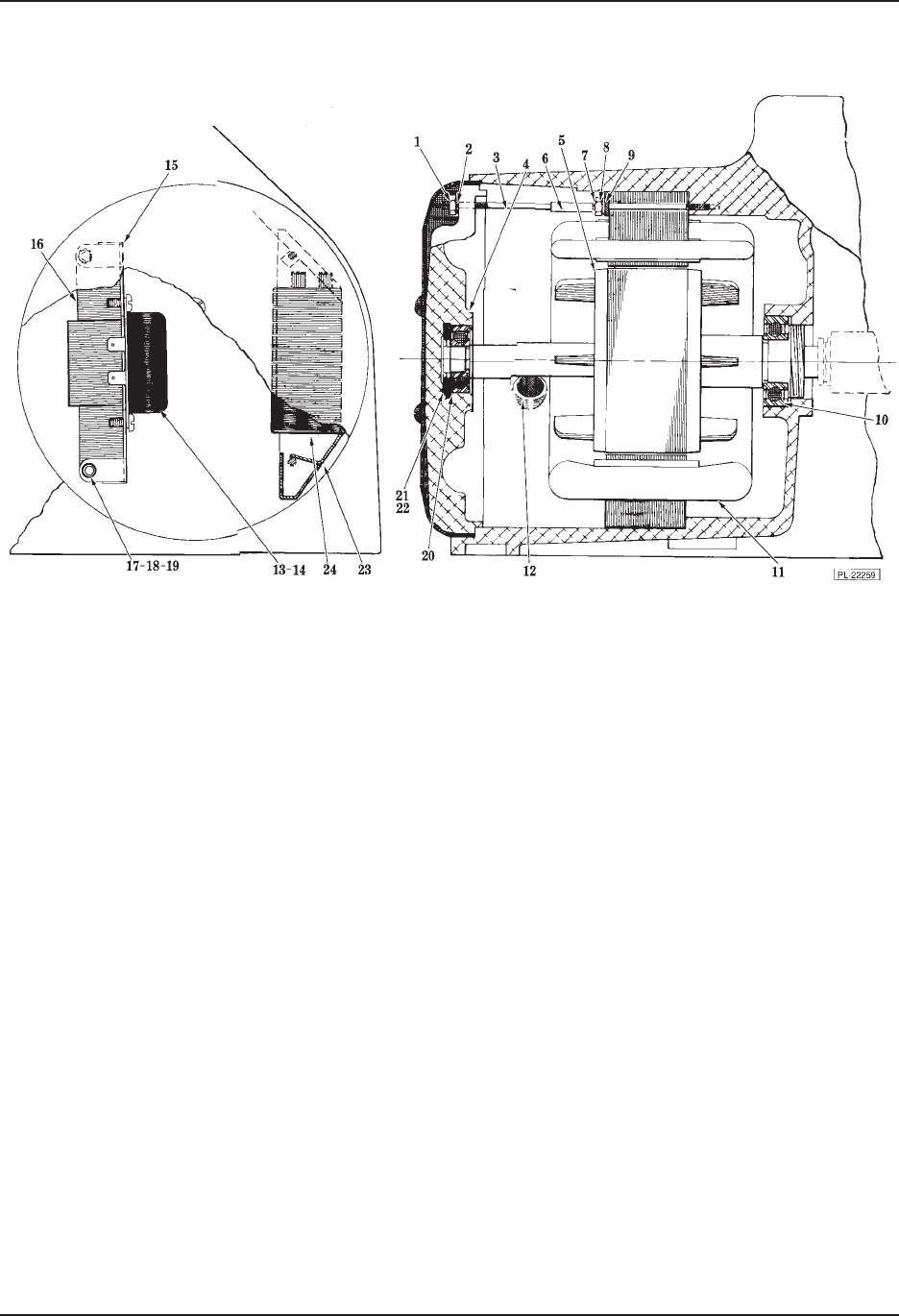

MOTOR PARTS

ILLUS. PART

PL-22259 NO. NAME OF PART AMT.

0 437626 Shaft - Indexing ............................................................................................................................1

1 NS-9-12 Mach. Nut 8-32 Hex .....................................................................................................................4

2 WL-7-6 Lockwasher 8 External Shakeproof ..............................................................................................4

3 120048 Stud - Stator .................................................................................................................................4

4 110293 Bracket - Bearing..........................................................................................................................1

5 274761 Rotor .............................................................................................................................................1

6 103661-17 Tubing - Insulator 3⁄4 lg ..................................................................................................................2

7 NS-9-12 Mach. Nut 8-32 Hex .....................................................................................................................4

8 WS-2-15 Washer .........................................................................................................................................4

9 293454 Retainer - Stator ...........................................................................................................................4

10 BB-15-41 Ball Bearing - N.D. #Z993L04 ......................................................................................................1

11 271639 Stator Assy. (All Voltages) ............................................................................................................1

12 70418 Bushing - Motor Leads .................................................................................................................1

13 271612-2 Switch - Electronic Start (50/60 Hz.) ............................................................................................1

14 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................2

15 271613 Plate - Motor Switch .....................................................................................................................1

16 271614 Insulator - Motor Switch................................................................................................................ 1

17 103661-15 Tubing - Insulator 11⁄2 lg ................................................................................................................1

18 WS-2-15 Washer .........................................................................................................................................2

19 NS-9-12 Mach. Nut 8-32 Hex .....................................................................................................................2

20 BB-18-12 Ball Bearing - Fafnir #P201KDD...................................................................................................1

21 21046-2 Washer - Bumper (1⁄32 Thk.) ..........................................................................................................2

22 SL-2-2 Spring - Loading - N.D. #S-12 ......................................................................................................1

23 278280 Retainer - Capacitor .....................................................................................................................1

24 70487-21 Capacitor (50/60 Hz.) ...................................................................................................................1

1812 SLicer Technical Maunal Page 21 of 49

– 4 –

1812/1912 REPLACEMENT PARTS

PL-51153

2

3

4

6

8

9

10

13

15

16

17

1

11

12

14

5

7

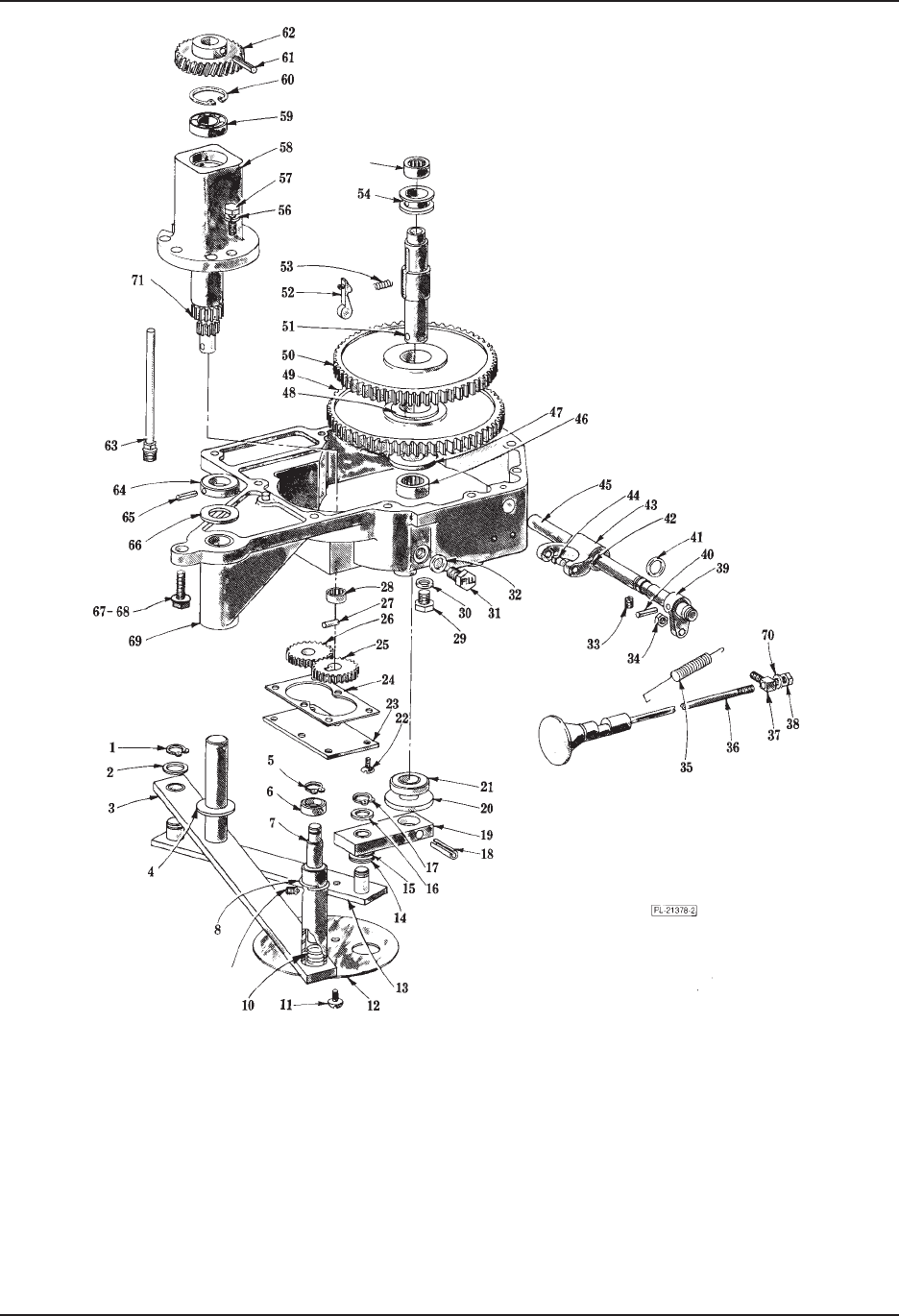

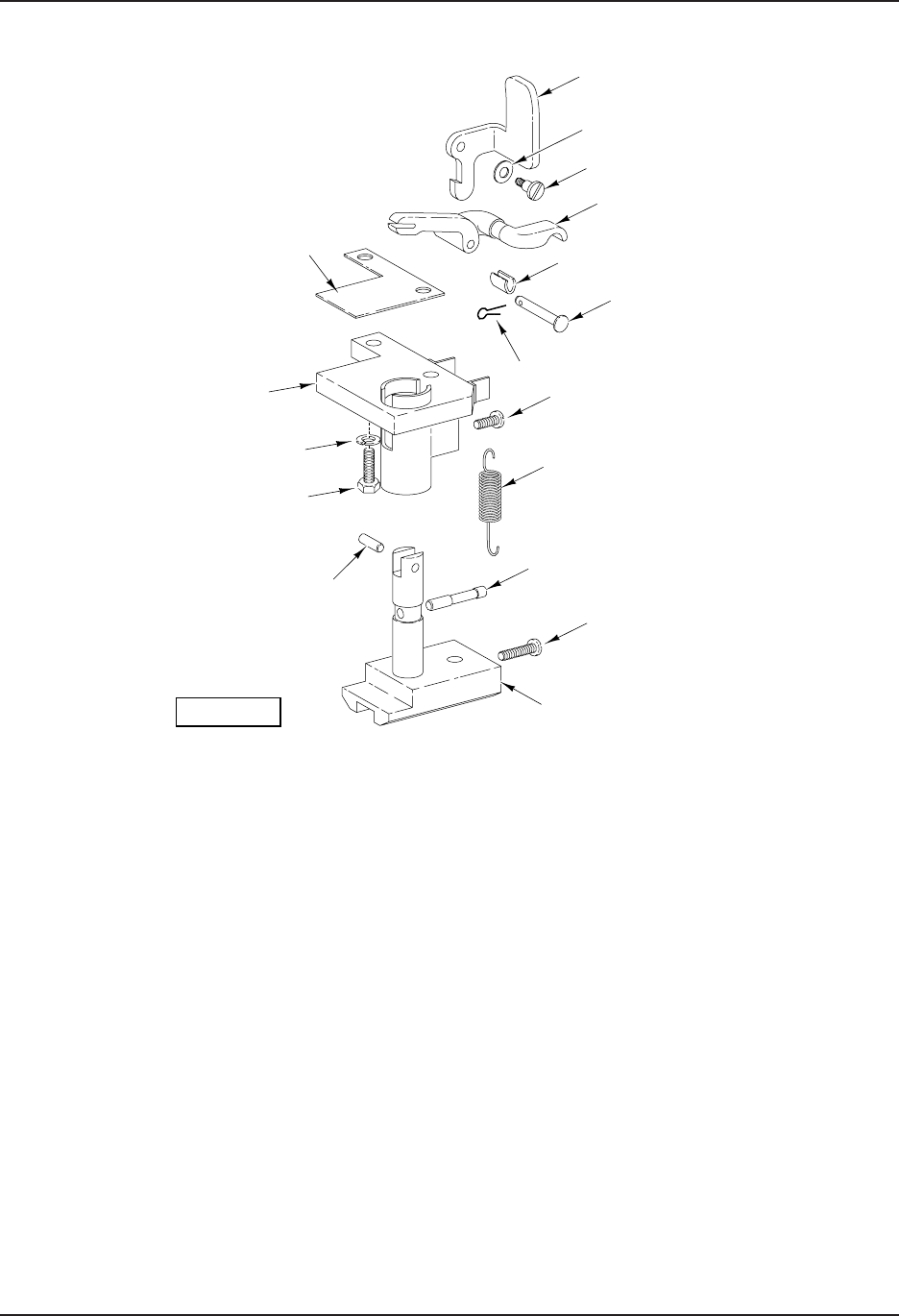

ACTUATING MECHANISM

1912

ILLUS. PART

PL-51153 NO. NAME OF PART AMT.

1 11800-137 Dowel ...........................................................................................................................................1

2 SC-62-81 Cap Screw 5⁄16-18 x 7⁄8 Hex Hd. .....................................................................................................2

3 WL-6-22 Lockwasher 5⁄16 Light ....................................................................................................................2

4 83424 Base and Brg. Assy ......................................................................................................................1

5 437643 Plate - Stop (1812 Only) ...............................................................................................................1

6 437638 Clip - Locking ................................................................................................................................1

7 WS-2-43 Washer .........................................................................................................................................1

8 437786 Screw - Shoulder ..........................................................................................................................1

9 437785 Lever - Actuating Mech. ...............................................................................................................1

10 70245 Clip - Lever Wear .........................................................................................................................1

11 70297 Pin - Hinge ....................................................................................................................................1

12 PC-3-23 Cotter Pin 1⁄16 x 1⁄2..........................................................................................................................1

13 SC-60-21 Mach. Screw 10-24 x 1⁄4 Rd. Hd....................................................................................................1

14 70399 Spring - Actuating Mech ...............................................................................................................1

15 118161 Dowel - Yoke & Shaft Locating.....................................................................................................1

16 SC-60-20 Mach. Screw 10-24 x 1 Rd. Hd. ...................................................................................................1

17 70266 Yoke & Shaft Assy ........................................................................................................................1

1812 SLicer Technical Maunal Page 22 of 49

– 5 –

REPLACEMENT PARTS 1812/1912

1

3

2

4

5

6

7

8-9

10

11

PL-51746

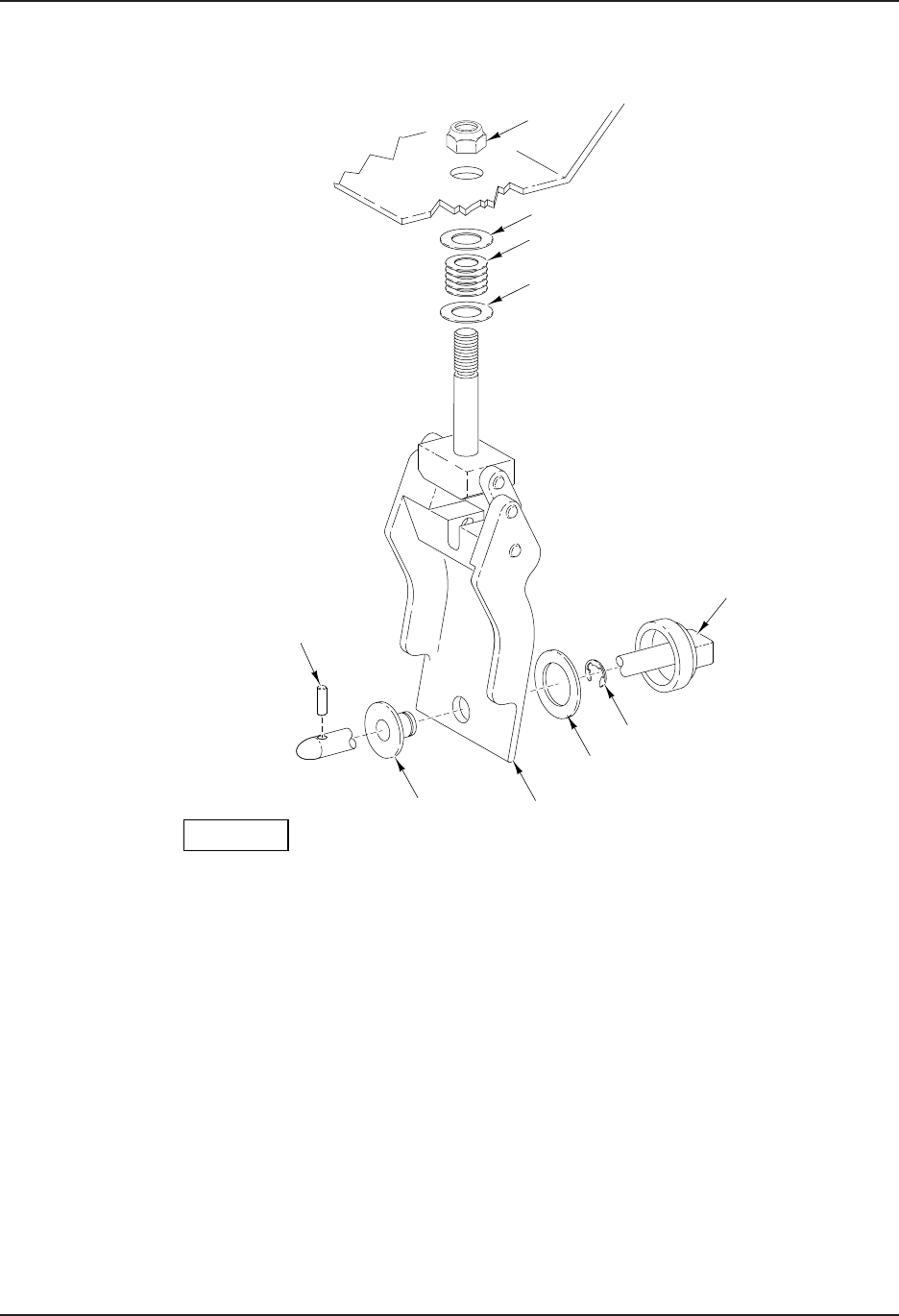

LEVER TRAY UNIT

ILLUS. PART

PL-51746 NO. NAME OF PART AMT.

1 NS-36-12 Stop Nut 3⁄8-24 “Elastic” ................................................................................................................1

2 WS-21-1 Washer ....................................................................................................................................... AR

3 437654 Spring - Belleville..........................................................................................................................4

4 WS-21-1 Washer ....................................................................................................................................... AR

5 437873 Knob & Shaft ................................................................................................................................1

6 RR-11-3 Retaining Ring ..............................................................................................................................1

7 438138 Washer - Knob Interlock ...............................................................................................................1

8 438296 Lever - Tray Assy.(Use with Carriage Trays) ...............................................................................1

9 438296-2 Lever - Tray Assy.(For use with Food Chutes) .............................................................................1

10 437653 Bushing - Knob .............................................................................................................................1

11 PG-11-17 Groov Pin 1⁄8 x 9⁄16 (SST)................................................................................................................1

1812 SLicer Technical Maunal Page 23 of 49

– 6 –

1812/1912 REPLACEMENT PARTS

32

PL-51747

1 THRU 6

9-10 11

13

14

15

18-19

20

21

22 23

26

27

28 48

49

33 34 35 36

7-8

16

17

12

24

25

37

38

39

40

43

41

42

44

45

46

29

47

31

30

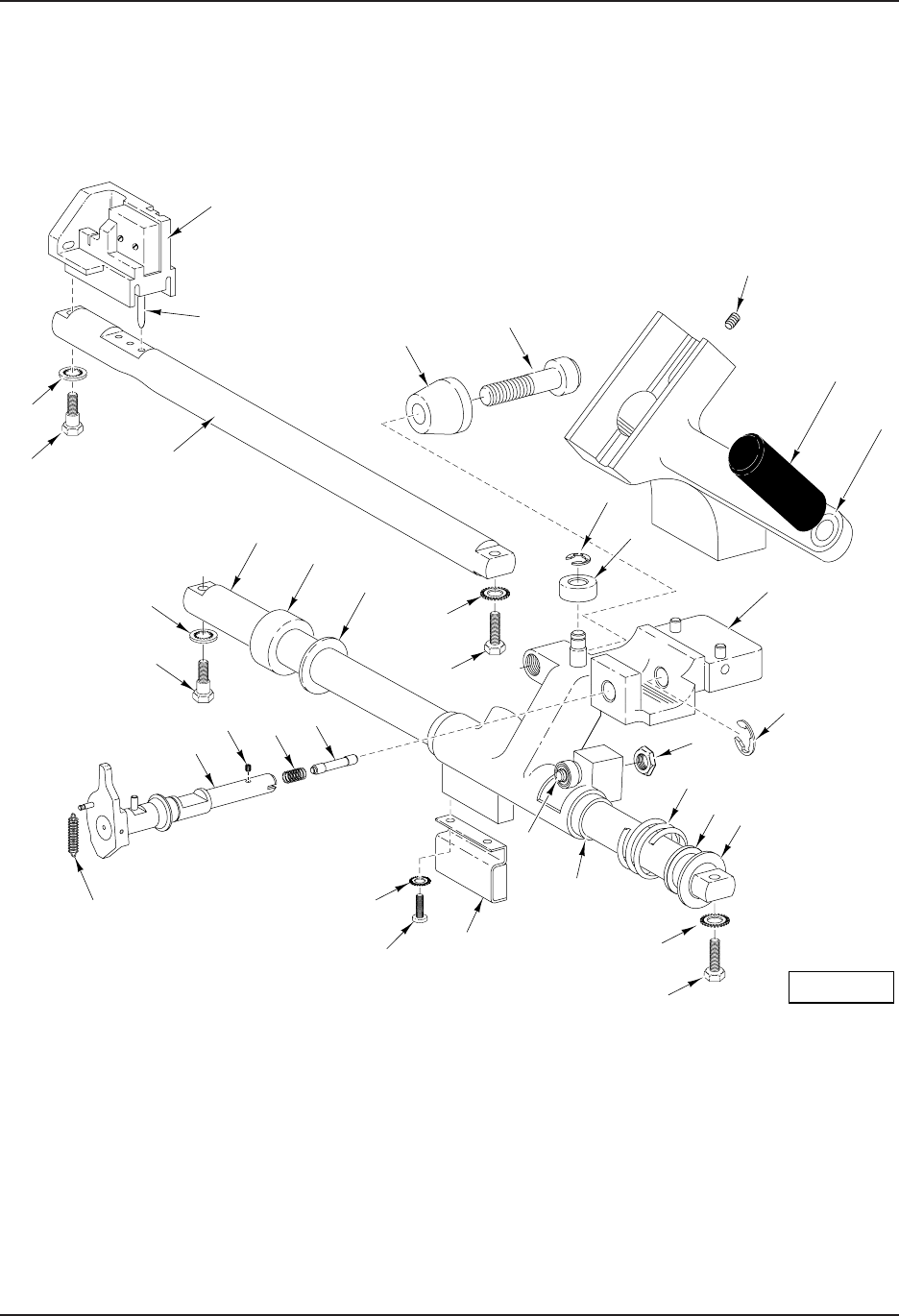

SIDE ROD & BEARING

CARRIER UNIT

1812 SLicer Technical Maunal Page 24 of 49

– 7 –

REPLACEMENT PARTS 1812/1912

SIDE ROD & BEARING

CARRIER UNIT

ILLUS. PART

PL-51747 NO. NAME OF PART AMT.

1 87711-242-1 Switch - Lockout ...........................................................................................................................1

2 437632 Bracket - Switch Mounting ............................................................................................................1

3 SC-111-4 Mach. Screw 2-56 x 5⁄8 Rd. Hd. (Mounts switch to bracket)..........................................................2

4 NS-46-7 Mach. Nut 2-56 (Mounts switch to bracket) ..................................................................................2

5 WL-8-48 Lockwasher 2 Int.”Shakeproof”(Mounts switch bracket to slide rod) ............................................2

6 SC-93-4 Mach Screw 8-32 x 1⁄2 Phil. Pan Hd. (Mounts switch bracket to slide rod) ...................................1

7 437637 Spring - Compression ...................................................................................................................1

8 437634 Plunger .........................................................................................................................................1

9 10928-2 Nut - Special .................................................................................................................................1

10 274899 Roller - Horizontal .........................................................................................................................1

11 274898 Stud - Horizontal Roller ................................................................................................................1

12 SC-118-52 Set Screw 1⁄4-20 x 1⁄2 Hdls. Cup Pt. ...............................................................................................1

13 70194 Handle - Gauge Plate ...................................................................................................................1

14 88749-3 Carriage Support & Plug Assy.(Incls.items 12 & 13) ....................................................................1

15 RR-9-15 Retaining Ring ..............................................................................................................................1

16 274897 Roller - Vertical .............................................................................................................................1

17 BB-4-11 Ball Bearing - Hoover #626ZZ ......................................................................................................1

18 437877 Carriage Bearing Assy.(Incls.items 20, 26, 27, 28 & 48) ..............................................................1

19 274895 Wick - Carriage Bearing ...............................................................................................................1

20 10928-2 Nut - Special .................................................................................................................................1

21 274903 Spring - Carriage Bearing .............................................................................................................2

22 435707 Washer - Bumper (Rubber) ..........................................................................................................1

23 435708 Washer - Backup (SST) ...............................................................................................................1

24 SC-41-15 Cap Screw 5⁄16-18 x 11⁄4 Hex Hd. ...................................................................................................1

25 WL-7-20 Lockwasher 5⁄16 Ext. “Shakeproof” ................................................................................................1

26 109870 Stud - Eccentric ............................................................................................................................1

27 BB-4-11 Ball Bearing - Hoover #626ZZ ......................................................................................................1

28 RR-9-15 Retaining Ring ..............................................................................................................................1

29 438701 Magnet Housing Assy. .................................................................................................................1

30 WL-13-8 Lockwasher 8 Internal Shakeproof ...............................................................................................2

31 SC-25-26 Mach. Screw 8-32 x 3⁄8 Bdg. Hd.(Mounts switch to bracket) .........................................................2

32 437642 Spring - Extension ........................................................................................................................1

33 438295 Shaft - Lock Assy. ........................................................................................................................1

34 SC-116-81 Set Screw 8-32 x 3⁄16 Soc. Hdls., Cup Pt. ......................................................................................1

35 437641 Spring - Compression ...................................................................................................................1

36 437640 Plunger - Shaft .............................................................................................................................1

37 SC-41-15 Cap Screw 5⁄16-18 x 11⁄4 Hex Hd. ...................................................................................................1

38 WL-7-20 Lockwasher 5⁄16 Ext. “Shakeproof” ................................................................................................1

39 435707 Washer - Bumper (Rubber) ..........................................................................................................1

40 437630 Spacer ..........................................................................................................................................1

41 437778 Screw - Shoulder ..........................................................................................................................1

42 WL-8-27 Lockwasher 3⁄8 Internal Shakeproof ..............................................................................................1

43 437837 Slide Rod - Lower .........................................................................................................................1

44 437629 Slide Rod - Upper .........................................................................................................................1

45 437778 Screw - Shoulder ..........................................................................................................................1

46 WL-8-27 Lockwasher 3⁄8 Internal Shakeproof ..............................................................................................1

47 RR-11-94 Retaining Ring ..............................................................................................................................1

48 437610 Bushing - Nyliner (Incls.item 49) ..................................................................................................2

49 437612 Liner - Bushing .............................................................................................................................2

86262 Eccentric Stud, Bearing & Nut Assy.(Incls.items 20, 26, 27 & 28) ...............................................1

1812 SLicer Technical Maunal Page 25 of 49

– 8 –

1812/1912 REPLACEMENT PARTS

21

7

19 20

21-22

8

6

5

4

3

18

17

16

15

910 11 12

13 14

PL-51156

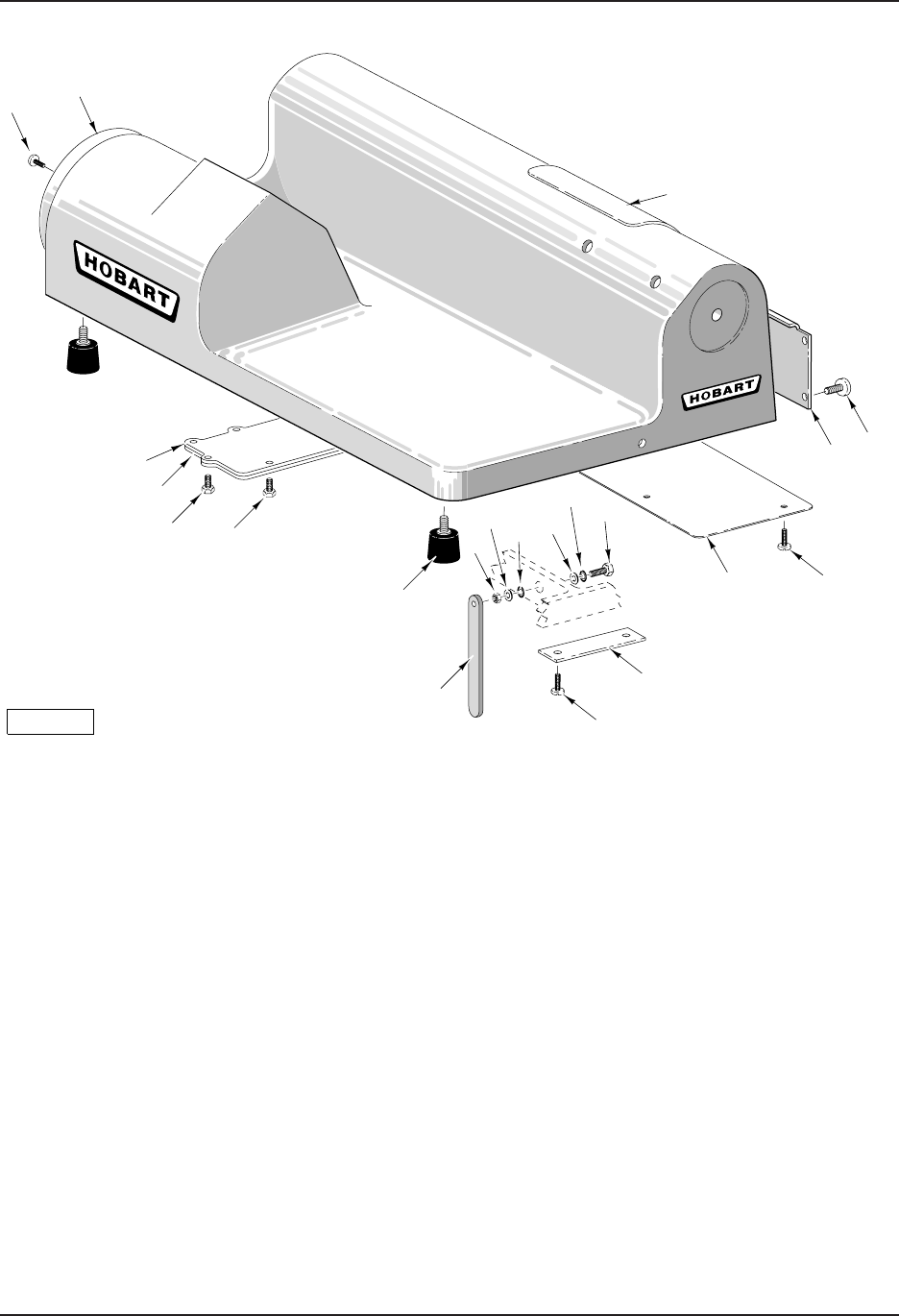

1812 BASE UNIT

ILLUS. PART

PL-51156 NO. NAME OF PART AMT.

1 70238 Cover - Bearing Bracket ...............................................................................................................1

2 SD-24-19 Self-Tapping Screw 8-32 x 3⁄8 Truss Hd., Type TT .......................................................................2

3 117710 Gasket - Gear Case Cover ...........................................................................................................1

4 116670 Cover - Gear Case .......................................................................................................................1

5 SD-24-4 Self-Tapping Screw 10-24 x 5⁄8 Hex Hd., Type TT ........................................................................5

6 SD-24-5 Self-Tapping Screw 5⁄16-18 x 5⁄8 Hex Hd., Type TT ........................................................................2

7 18682-1 Bumper .........................................................................................................................................4

8 437865 Leg - Cleaning ..............................................................................................................................1

9 NS-15-1 Full Nut 1⁄4-20 Hex.........................................................................................................................2

10 WS-17-21 Washer .........................................................................................................................................1

11 WL-14-10 Lockwasher 1⁄4 Ext. “Shakeproof” .................................................................................................1

12 WS-17-21 Washer .........................................................................................................................................1

13 WL-14-10 Lockwasher 1⁄4 Ext. “Shakeproof” .................................................................................................1

14 SC-41-2 Cap Screw 1⁄4-20 x 1 Hex Hd. .......................................................................................................1

15 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................2

16 437866 Retainer - Leg ...............................................................................................................................1

17 437655 Cover - Electronics .......................................................................................................................1

18 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................7

19 274902 Panel - Side ..................................................................................................................................1

20 SC-10-32 Mach. Screw 8-32 x 3⁄8 Truss Hd. .................................................................................................4

21 438169 Access Cover - Slide Rods ...........................................................................................................1

22 SD-37-77 Self-Tapping Screw 6-32 x 3⁄8 Truss Hd., Type T .........................................................................4

1812 SLicer Technical Maunal Page 26 of 49

– 9 –

REPLACEMENT PARTS 1812/1912

PL-51157

21

3

4-5

6

11 12

13

14-15

17

18

21

20

19

9-10

7-8

16

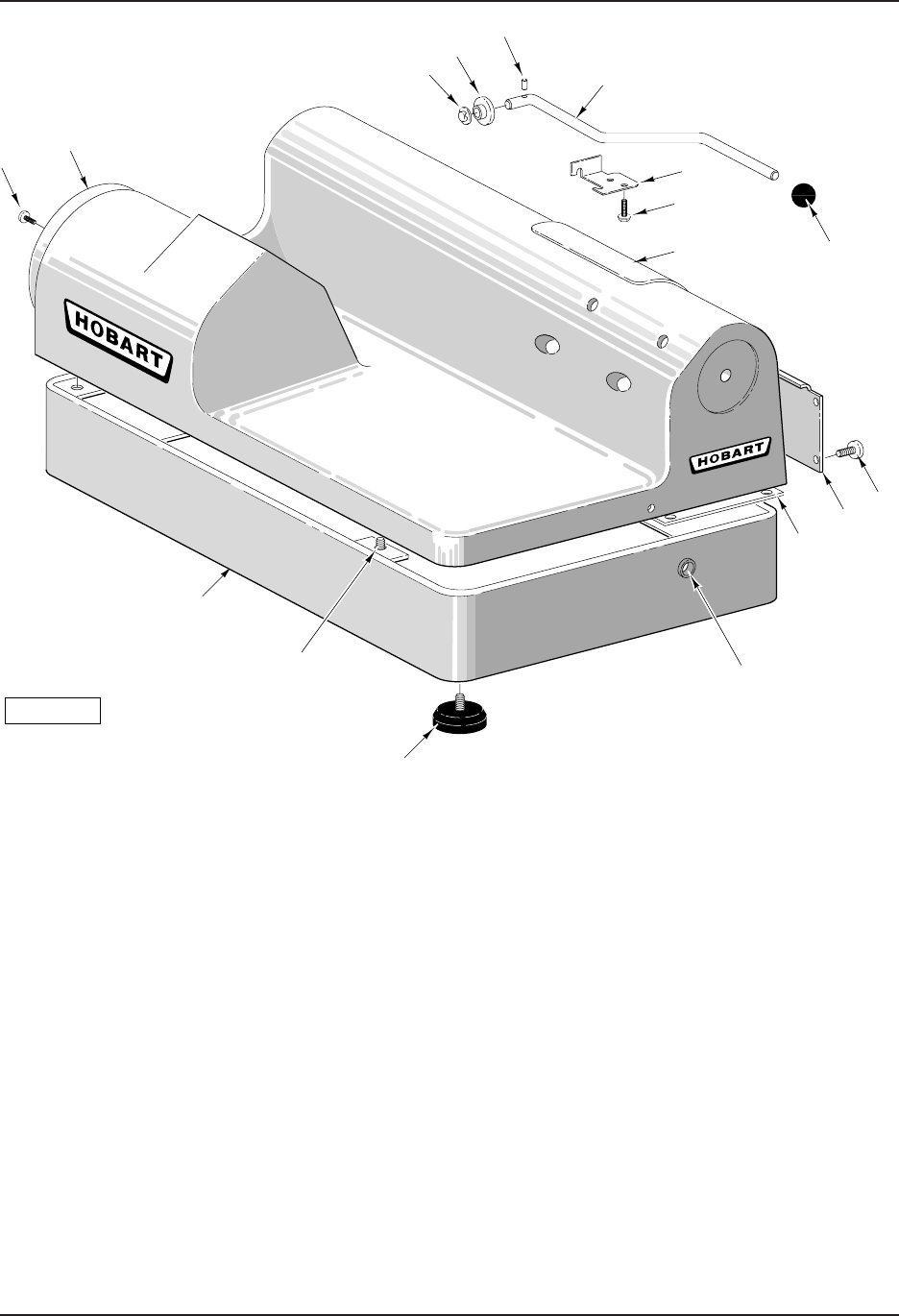

1912 BASE UNIT

ILLUS. PART

PL-51157 NO. NAME OF PART AMT.

1 70238 Cover - Bearing Bracket ...............................................................................................................1

2 SD-24-19 Self-Tapping Screw 8-32 x 3⁄8 Truss Hd., Type TT .......................................................................2

3 290038-1 Sub - Base & Bushing Assy. (Incls.items 4, 7 & 8) .......................................................................1

4 SC-62-81 Cap Screw 5⁄16-18 x 7⁄8 Hex Hd. .....................................................................................................4

5 WL-3-44 Lockwasher 5⁄16 Medium................................................................................................................4

6 83681 Foot ..............................................................................................................................................4

7 290063 Bushing - Shifter Sleeve ...............................................................................................................1

8 RR-10-13 Retaining Ring ..............................................................................................................................1

9 437655 Cover - Electronics .......................................................................................................................1

10 SD-24-13 Self-Tapping Screw 8-32 x 3⁄8 Pan Hd., Type TT ..........................................................................7

11 274902 Panel - Side ..................................................................................................................................1

12 SC-10-32 Mach. Screw 8-32 x 3⁄8 Truss Hd. .................................................................................................4

13 106503 Knob - Lifting Lever ......................................................................................................................1

14 438169 Access Cover - Slide Rods ...........................................................................................................1

15 SD-37-77 Self-Tapping Screw 6-32 x 3⁄8 Truss Hd., Type T .........................................................................4

16 SD-9-16 Self-Tapping Screw 1⁄4-20 x 3⁄4 Hex Hd., Type F ...........................................................................2

17 121920 Retainer - Lifting Lever .................................................................................................................1

18 106504 Lever - Lifting................................................................................................................................1

19 RR-9-10 Retaining Ring ..............................................................................................................................1

20 108001 Foot - Lifting Lever .......................................................................................................................1

21 106502 Push Nut .......................................................................................................................................1

106505 Lever & Foot Assy. (Incls.items 13 & 18 thru 21) .........................................................................1

1812 SLicer Technical Maunal Page 27 of 49

– 10 –

1812/1912 REPLACEMENT PARTS

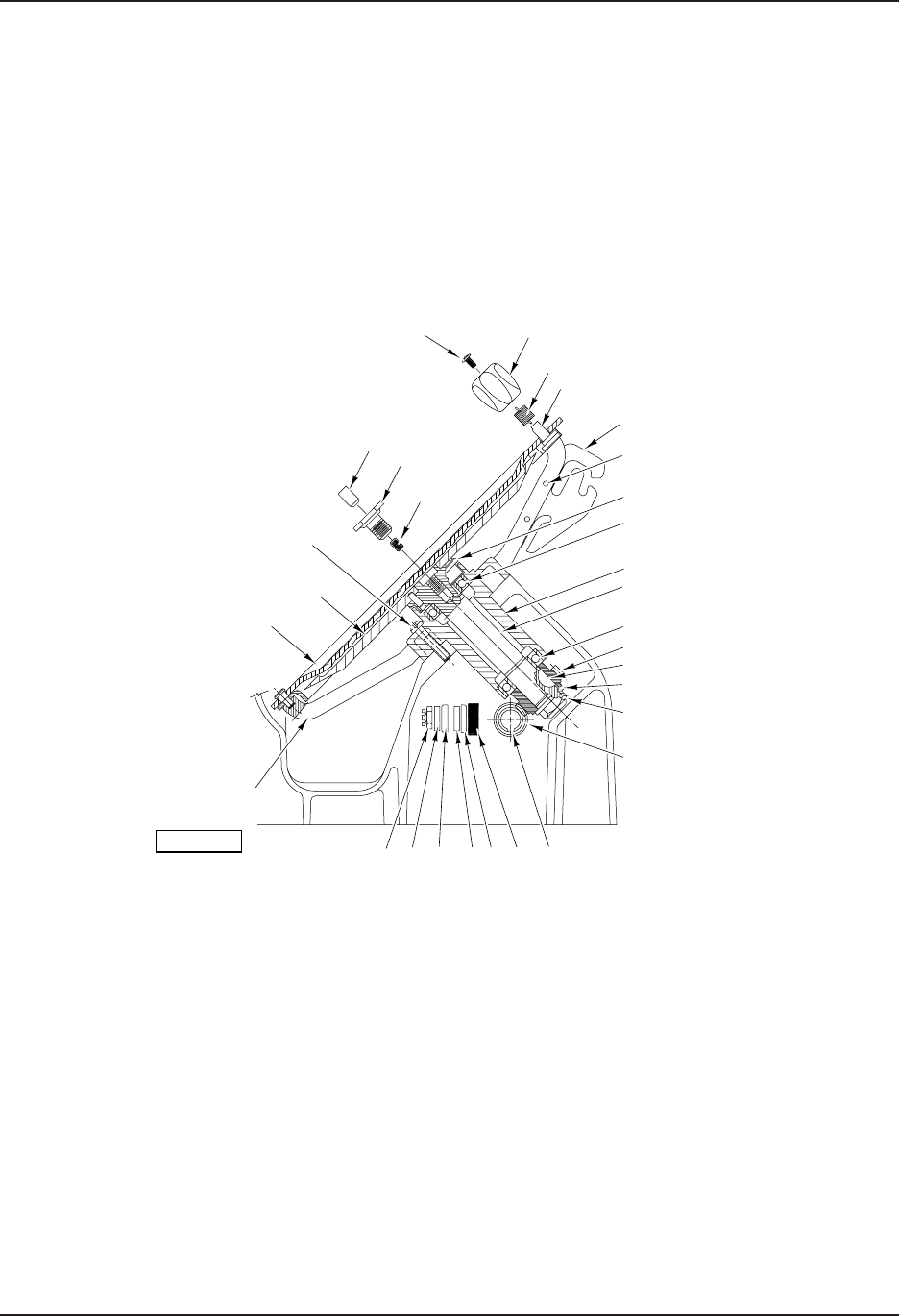

KNIFE UNIT

(ML-104377 & ML-104275)

PL-51158 123456

8-9

10

11

12

13-14

15

16

17-18

19

20

21-22

32

31

30

29 28

27

33

34

23

24

25

26

7

36

35

1812 SLicer Technical Maunal Page 28 of 49

– 11 –

REPLACEMENT PARTS 1812/1912

KNIFE UNIT

(ML-104377 & ML-104275)

ILLUS. PART

PL-51158 NO. NAME OF PART AMT.

1 NS-32-23 Lock Nut 7⁄16-20 “Flexloc” ..............................................................................................................1

2 437113 Washer - Special ..........................................................................................................................1

3 WS-7-50 Washer .........................................................................................................................................1

4 274760-1 Washer - Shock (41⁄64 I.D.) .............................................................................................................1

5 274759 Retainer - Washer ........................................................................................................................1

6 70239 Conveyor - Oil ..............................................................................................................................1

7 12430-3 Key 1⁄8 Sq. x 11⁄8 Lg. ......................................................................................................................1

8 437575 Worm (5T) (1912) (Use with item 18) ...........................................................................................1

9 294193 Worm (4T) (1812) (Use with item 17) ...........................................................................................1

10 NS-46-29 Lock Nut 3⁄4-16 Flexlox ..................................................................................................................1

11 WS-11-46 Washer .........................................................................................................................................1

12 KW-3-10 Key - 606 Woodruff ......................................................................................................................1

13 274908-2 Gear - Knife Shaft Worm (24T) (1912) .........................................................................................1

14 274908-1 Gear - Knife Shaft Worm (25T) (1812) .........................................................................................1

15 BB-15-8 Ball Bearing MRC 105KSZZ-01-ST-A-92-C .................................................................................1

16 435785 Knife Shaft & Dowel .....................................................................................................................1

17 437005-1 Knife Shaft Guard Ring & Hub Assy. (1812) (Incls.items 10 thru 12, 14, 15, 21 & 22) ................1

18 437005-2 Knife Shaft Guard Ring & Hub Assy. (1912) (Incls.items 10 thru 13 , 15, 21 & 22) .....................1

19 BB-15-8 Ball Bearing MRC 105KSZZ-01-ST-A-92-C .................................................................................1

20 111154 Ring - Knife Shaft .........................................................................................................................1

21 437008 Plate - Cam Sharpener .................................................................................................................2

22 NS-25-1 Nut-Crown 10-24 ..........................................................................................................................4

23 437880 Stud - Top Cover Locking.............................................................................................................1

24 437994 Spring - Top Cover .......................................................................................................................1

25 437879 Knob - Top Cover Locking ............................................................................................................1

26 SC-122-53 Mach. Screw 4-40 x 5⁄8 Phil. Pan Hd. ............................................................................................1

27 SC-64-4 Set Screw 1⁄4-28 x 3⁄8 Hdls., Flat Pt. “Nylok” ..................................................................................1

28 73356-2 Screw - Knife (Incls.items 27 & 29) ..............................................................................................1

29 73265 Plug - Plate Thrust........................................................................................................................1

30 SD-37-44 Self-Tapping Screw 1⁄4-20 x 15⁄8 Pan Hd., Type TT .......................................................................4

31 WS-22-8 Washer .........................................................................................................................................2

32 435401 Spacer - Deflector Mounting .........................................................................................................2

33 275913-1 Knife (Service) ..............................................................................................................................1

34 437422 Top Knife Cover Assy. (Packaged) (Incls.items 23 thru 26).........................................................1

35 438297 Ring Assy. W/Cam Plates (Incls.items 21, 22 & 36) ....................................................................1

36 437211 Stud - Cam Plate ..........................................................................................................................4

1812 SLicer Technical Maunal Page 29 of 49

– 12 –

1812/1912 REPLACEMENT PARTS

KNIFE UNIT

(ML-104550 & ML-104552)

PL-53439 123456

8-9

10

11

12

13-14

15

16

17-18

19

20

37

36

35

34 33

32

38

39

27 26 25 23

24

22

21

28

29

31

7

30

41

40

1812 SLicer Technical Maunal Page 30 of 49

– 13 –

REPLACEMENT PARTS 1812/1912

KNIFE UNIT

(ML-104550 & ML-104552)

ILLUS. PART

PL-53439 NO. NAME OF PART AMT.

1 NS-032-23 Lock Nut 7⁄16 -20 “Flexloc” ..............................................................................................................1

2 00-437113 Washer - Special ..........................................................................................................................1

3 WS-007-50 Washer .........................................................................................................................................1

4 00-274760-00001 Washer - Shock (41⁄64 I.D.) ............................................................................................................1

5 00-274759 Retainer - Washer ........................................................................................................................1

6 00-070239 Conveyor - Oil ..............................................................................................................................1

7 00-012430-00003 Key 1⁄8 Sq. x 11⁄8 Lg. ......................................................................................................................1

8 00-437575 Worm (5T) (1912) (Use with Item 18) ...........................................................................................1

9 00-294193 Worm (4T) (1812) (Use with Item 17) ...........................................................................................1

10 NS-046-29 Lock Nut 3⁄4 -16 Flexlox .................................................................................................................1

11 WS-011-46 Washer .........................................................................................................................................1

12 KW-003-10 Key - 606 Woodruff ......................................................................................................................1

13 00-274908-00002 Gear - Knife Shaft Worm (24T) (1912) .........................................................................................1

14 00-274908-00001 Gear - Knife Shaft Worm (25T) (1812) .........................................................................................1

15 BB-015-08 Ball Bearing MRC 105KSZZ-01-ST-A-92-C .................................................................................1

16 00-435785 Knife Shaft & Dowel .....................................................................................................................1

17 00-439697-00003 Knife Shaft Guard Ring & Hub(1812)(Incls. items 10, 11, 12, 14, 15, 19, 40 & 41) .....................1

18 00-439697-00004 Knife Shaft Guard Ring & Hub(1912)(Incls. items 10 thru 13, 15, 19, 40 & 41) ...........................1

19 BB-015-08 Ball Bearing MRC 105KSZZ-01-ST-A-92-C .................................................................................1

20 00-111154 Ring - Knife Shaft .........................................................................................................................1

21 00-438420 Knob .............................................................................................................................................2

22 00-438423 Handle - Cam ...............................................................................................................................4

23 00-438448 Cam Roller & Rivet Assy. .............................................................................................................1

24 SC-122-86 Mach. Screw “Special” 6-32 x 5⁄8 Pan Hd......................................................................................1

25 00-438455 Shoulder Bolt ................................................................................................................................1

26 SC-119-55 Mach. Screw 10-24 x 1 Pan Hd....................................................................................................4

27 00-437880 Stud - Top Cover Locking.............................................................................................................1

28 00-437994 Spring - Top Cover .......................................................................................................................1

29 00-437879 Knob - Top Cover Locking ............................................................................................................1

30 WL-013-02 Lockwasher 4 Int. Shakeproof ......................................................................................................1

31 SC-122-53 Mach. Screw 4-40 x 5⁄8 Phil. Pan Hd. ............................................................................................1

32 SC-064-04 Set Screw 1⁄4 -28 x 3⁄8 Hdls., Flat Pt. “Nylok” ..................................................................................1

33 00-073356-00002 Screw - Knife (Incls. items 32 & 34) .............................................................................................1

34 00-073265 Plug - Plate Thrust........................................................................................................................1

35 SD-037-44 Self-Tapping Screw 1⁄4 -20 x 15⁄8 Pan Hd., Type TT ......................................................................4

36 WS-022-08 Washer .........................................................................................................................................2

37 00-435401 Spacer - Deflector Mounting.........................................................................................................2

38 00-275913-00001 Knife (Service) ..............................................................................................................................1

39 00-437422 Top Knife Cover Assy. (Packaged) (Incls. items 27 thru 31)........................................................1

40 00-439696-00002 Pin & Ring Guard Assy. (Incls. items 21 thru 26) .........................................................................1

41 00-438439 Frame - Base & Pins Assy. ..........................................................................................................1

1812 SLicer Technical Maunal Page 31 of 49

– 14 –

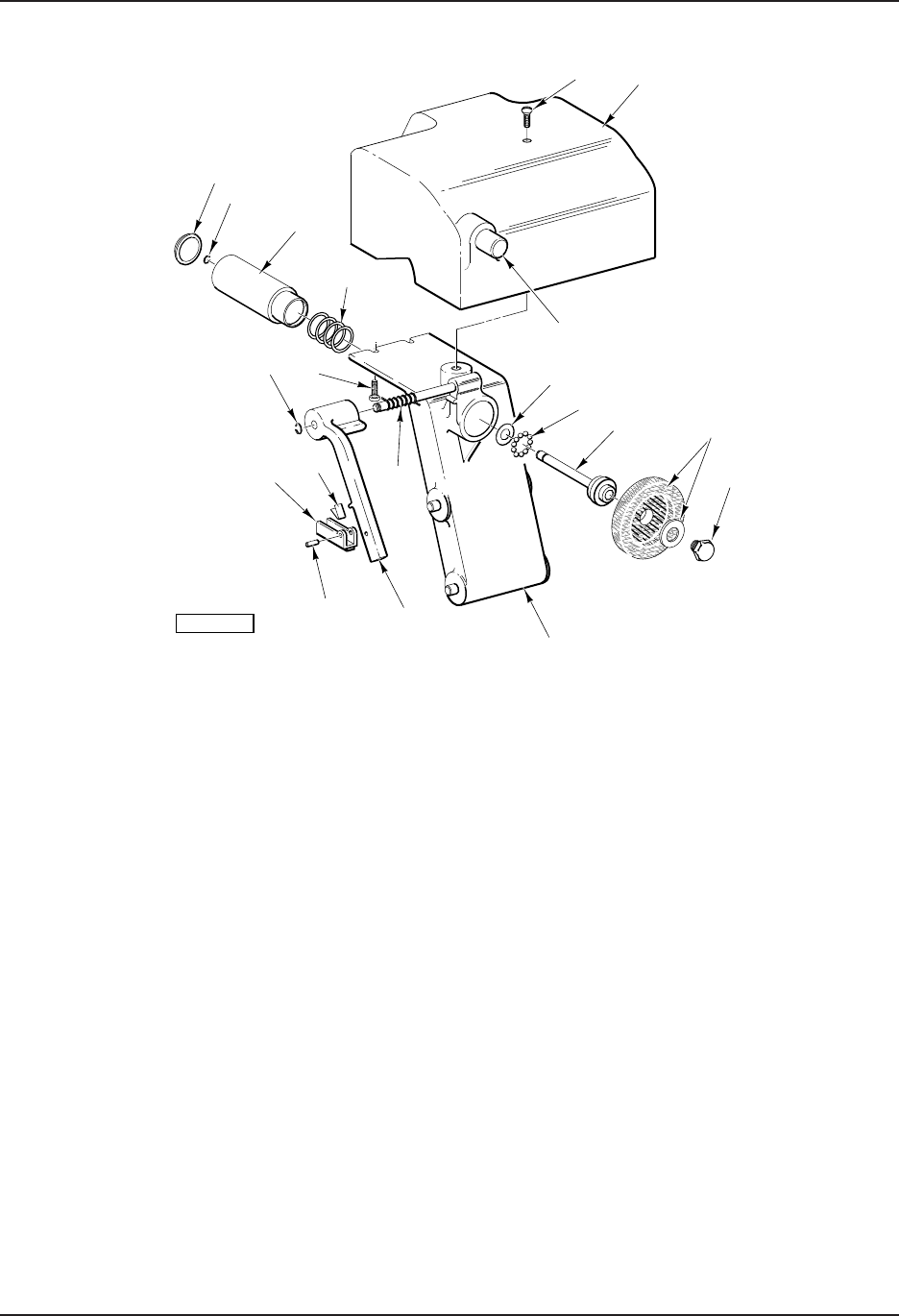

1812/1912 REPLACEMENT PARTS

KNIFE SHARPENER UNIT

(ML-104377 & ML-104275)

ILLUS. PART

PL-50723 NO. NAME OF PART AMT.

1 SC-122-31 Mach. Screw 8-32 x 7⁄16 Phil. Oval Hd. ..........................................................................................1

2 435081 Top Cover - Sharpener .................................................................................................................1

3 274934 Button - Truing Arm ......................................................................................................................1

4 119871 Spacer - Grinding Wheel Shaft.....................................................................................................1

5 BA-2-1 Ball 1⁄8 Dia. ...................................................................................................................................11

6 270503 Shaft - Grinding Wheel .................................................................................................................1

7 437847 Stone Service Kit (Incls. Fiber Washer Between items 7 & 8) .....................................................1

8 435814 Retaining Screw (R.H.) .................................................................................................................1

9 274933 Body - Sharpener & Pins ..............................................................................................................1

10 274929 Arm - Truing .................................................................................................................................1

11 PG-7-40 Groove Pin 1⁄16 ...............................................................................................................................1

12 119882 Holder & Truing Stone Assy .........................................................................................................1

13 435324 Spring - Truing Stone ...................................................................................................................1

14 437384 Spring - Truing Arm ......................................................................................................................1

15 69585-1 Plug Button ...................................................................................................................................1

16 RR-6-22 Retaining Ring ..............................................................................................................................1

17 RR-11-4 Retaining Ring ..............................................................................................................................1

18 SD-15-40 Self-Tapping Screw 8-32 x 3⁄8 Phil Pan Hd., Type TT ...................................................................2

19 119867 Spring - Compression ...................................................................................................................1

20 270501 Sleeve - Sharpener ......................................................................................................................1

274926 Sharpener Assy.(Incls.items 1 thru 20) ........................................................................................1

437848 Sharpener Kit TMS-E (Incls.item 7 & 12) .....................................................................................1

12

3

4

567

8

9

10

11

14

12 13

16 18

19

20

17

15

PL-50723

1812 SLicer Technical Maunal Page 32 of 49

– 15 –

REPLACEMENT PARTS 1812/1912

KNIFE SHARPENER UNIT

(ML-104550 & ML-104552)

ILLUS. PART

PL-51749 NO. NAME OF PART AMT.

1 SC-122-93 Mach. Screw “Special” 10-24 x 1⁄2 Phil. Truss Hd. ........................................................................2

2 438459-1 Plate & Cover Assy. .....................................................................................................................1

3 SC-122-87 Mach. Screw “Special” 8-32 x 1⁄4 Pan Hd......................................................................................1

4 438428-2 Actuator ........................................................................................................................................1

5 438430 Spring - Main ................................................................................................................................1

6 438464 Plunger & Ball Bearing Assy.(Incls.item 7) ...................................................................................1

7 BB-21-36 Ball Bearing NSK R4BDD ............................................................................................................2

8 438437 Spring - Return .............................................................................................................................1

9 438449 Housing & Stud Assy. ...................................................................................................................1

10 438417 Shaft - Grinding Wheel .................................................................................................................1

11 439691 Stone Service Kit ..........................................................................................................................1

12 435814 Retaining Screw (R.H.) .................................................................................................................1

13 438442 Screw - Shoulder “Special” ...........................................................................................................1

14 SC-122-87 Mach. Screw “Special” 8-32 x 1⁄4 Pan Hd......................................................................................1

15 438434 Lever - Locking .............................................................................................................................1

16 438435 Spring - “U”(Long end to inserted into housing) ...........................................................................1

17 SC-122-84 Mach. Screw “Special” 2-56 x 9⁄16 Pan Hd.....................................................................................1

18 438466 Stone - Truing............................................................................................................................... 1

19 435324 Spring - Truing Stone ...................................................................................................................2

20 RR-6-22 Retaining Ring ..............................................................................................................................1

21 438445 Arm - Truing & Pusher Rod Assy. ................................................................................................1

22 SC-122-85 Mach. Screw “Special” 4-40 x 1⁄4 Flat Hd. .....................................................................................2

23 438421 Plate - Rear Locking .....................................................................................................................1

24 RR-6-22 Retaining Ring ..............................................................................................................................1

25 RR-6-3 Retaining Ring ..............................................................................................................................1

26 438426 Spring - Truing Arm ......................................................................................................................1

27 RR-6-3 Retaining Ring ..............................................................................................................................1

438438-1 Sharpener Assy.(Incls.items 1 thru 27) ........................................................................................1

PL-51749

1

2

3

4

5

8

9

10 11

12

17

16

13

14

15

18

19

20

21 22

23

25

26

27

24

6-7

1812 SLicer Technical Maunal Page 33 of 49

– 16 –

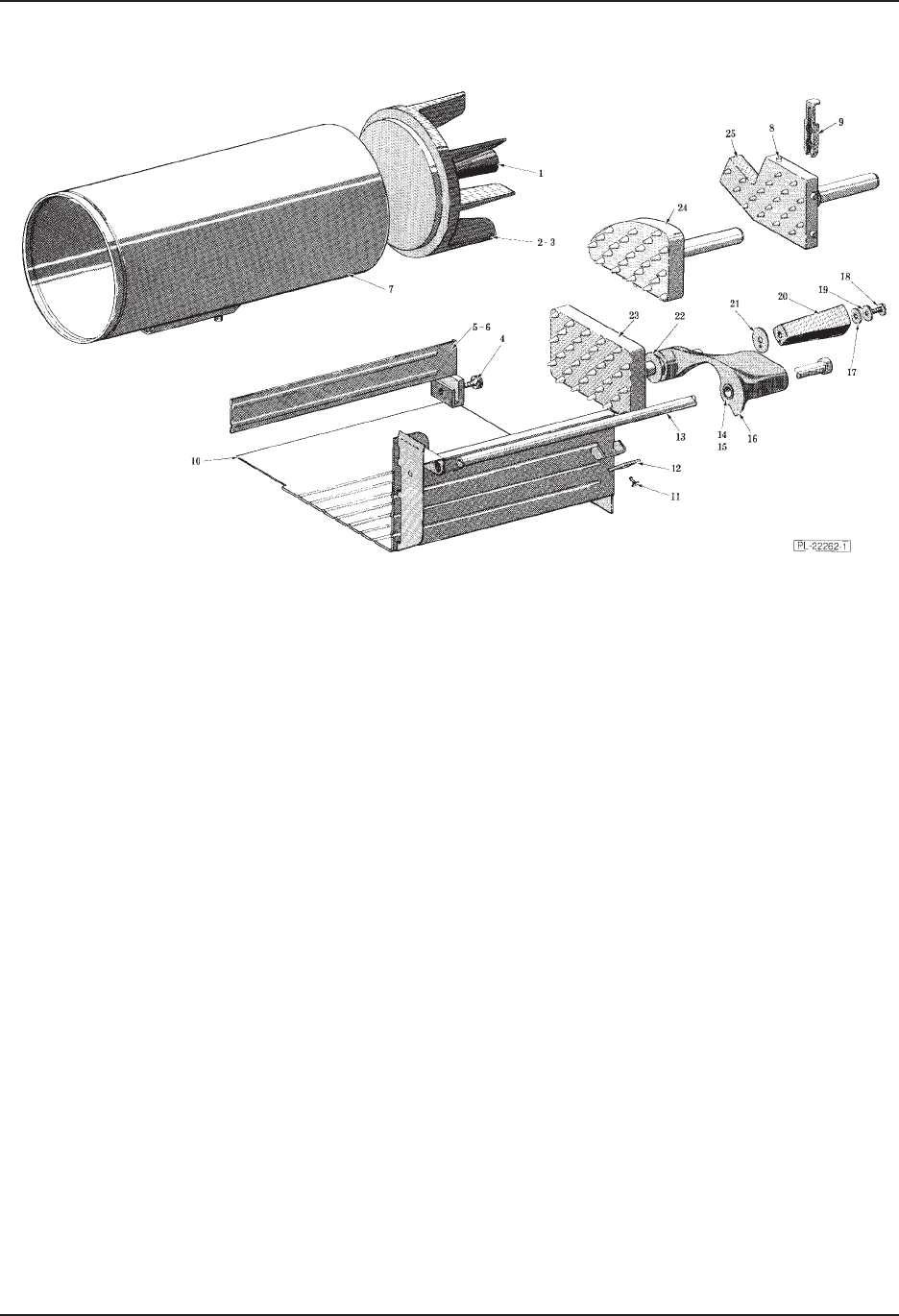

1812/1912 REPLACEMENT PARTS

1812 CARRIAGE TRAY UNIT

ILLUS. PART

PL-22262-1 NO. NAME OF PART AMT.

* 1 70194 Handle - Gauge Plate ...................................................................................................................1

* 2 75930 Plate - Pusher ...............................................................................................................................1

* 3 75945 Pusher Plate & Handle Assy. (Incls.items 1 & 2) .........................................................................1

4 290984 Thumb Screw - Fence ..................................................................................................................1

5 295118 Fence & Thumb Screw Assy. (Packaged)(Incls.item 4)(SST) ......................................................1

6 295117 High Fence & Thumb Screw Assy (Horizontal Carriage Tray)(Incls.item 4)(SST) .......................1

* 7 118332-1 Tube & Angled Seat Assy ............................................................................................................1

8 70360-1 Button - Plastic .............................................................................................................................5

9 70341 Meat Holder - Meat Grip ...............................................................................................................2

10 437115-1 Carriage Tray Assy. (SST)(Incls.item 13)..................................................................................... 1

11 SC-8-9 Mach. Screw 10-24 x 3⁄8 Rd. Hd. ...................................................................................................2

12 72579 Clip - Meat Grip Retaining ............................................................................................................1

13 435949 Shaft - Knob Assy. ........................................................................................................................1

14 437124 Bearing - Meat Grip Arm ..............................................................................................................2

15 WS-21-19 Washer ....................................................................................................................................... AR

16 437987 Meat Grip Arm & Bearing Assy. (Incls.item 14) ............................................................................1

17 70344 Washer - Handle Tension.............................................................................................................1

18 68042 Screw - Truss Hd. “Nylok” ............................................................................................................1

19 70345 Washer - Handle Retaining ..........................................................................................................1

20 70202 Handle - Meat Grip (Non-Metallic) ................................................................................................1

21 437006 Washer - Handle ..........................................................................................................................1

22 437007 Washer .........................................................................................................................................1

23 437908 Meat Grip Assy. (Standard) ..........................................................................................................1

24 438175 Meat Grip Assy. (Light Weight) (Packaged) .................................................................................1

25 438176 Meat Grip Assy. (Heavy) (Packaged) (Incls.items 8 & 9) .............................................................1

437912-2 Meat Grip Assy. & Arm Assy. (Standard) (Incls.items 17 thru 23) ...............................................1

* Attachment chute (Special, used in place of carriage)

1812 SLicer Technical Maunal Page 34 of 49

– 17 –

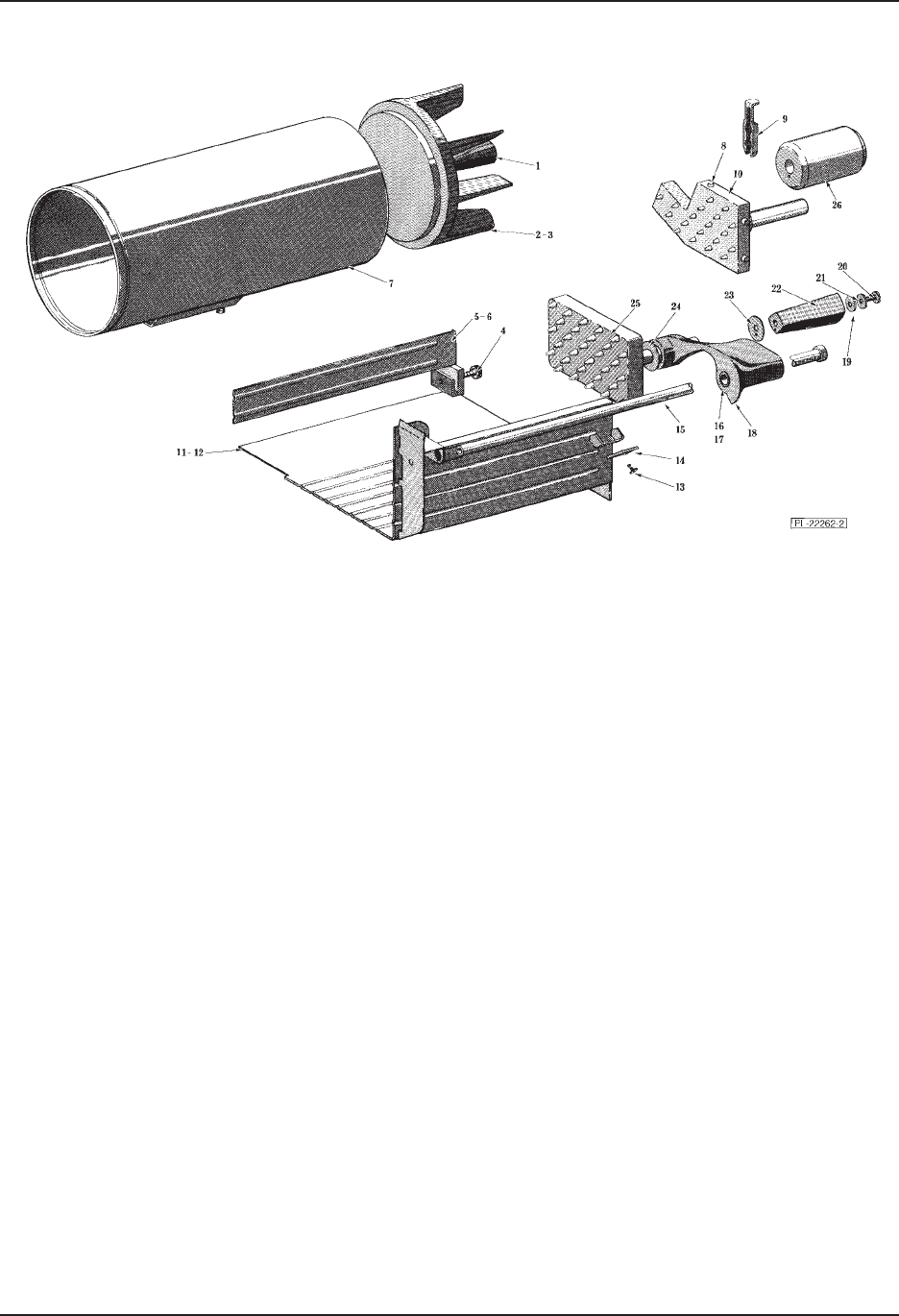

REPLACEMENT PARTS 1812/1912

1912 CARRIAGE TRAY UNIT

ILLUS. PART

PL-22262-2 NO. NAME OF PART AMT.

* 1 70194 Handle - Gauge Plate ...................................................................................................................1

* 2 75930 Plate - Pusher............................................................................................................................... 1

* 3 75945 Pusher Plate & Handle Assy. (Incls.items 1 & 2) .........................................................................1

4 290984 Thumb Screw - Fence ..................................................................................................................1

5 295118 Carriage Fence & Thumb Screw Assy. (Packaged)(Incls.item 4)(SST) ....................................... 1

6 295117 High Fence & Thum Screw Assy. (Horizontal Carriage Tray)(Package)(Incls.item 4)(SST) ........1

* 7 118332-1 Tube & Angled Seat Assy ............................................................................................................1

8 70360-1 Button - Plastic .............................................................................................................................5

9 70341 Meat Holder - Meat Grip (Use with item 10) .................................................................................2

10 438176 Meat Grip Assy. (Heavy) (Packaged) (Incls.items 8 & 9) .............................................................1

11 437115-1 Carriage Tray Assy. (SST) (Incls.item 15) ....................................................................................1

12 437116 Horizontal Carriage Tray & Slide Rod Assy. (SST) (Incls.item 15) ..............................................1

13 SC-8-9 Mach. Screw 10-24 x 3⁄8 Rd. Hd. ...................................................................................................2

14 72579 Clip - Meat Grip Retaining ............................................................................................................1

15 435949 Shaft - Knob Assy.........................................................................................................................1

16 437124 Bearing - Meat Grip Arm ..............................................................................................................2

17 WS-21-19 Washer ....................................................................................................................................... AR

18 437987 Meat Grip Arm & Bearing Assy. (Incls.item 16) ............................................................................1

19 70344 Washer - Handle Tension.............................................................................................................1

20 68042 Screw - Truss Hd. “Nylok” ............................................................................................................1

21 70345 Washer - Handle Retaining ..........................................................................................................1

22 70202 Handle - Meat Grip (Non-Metallic) ................................................................................................1

23 437006 Washer - Handle ..........................................................................................................................1

24 437007 Washer .........................................................................................................................................1

25 437908 Meat Grip Assy. (Standard) ..........................................................................................................1

26 438177 Handle - Meat Grip (Heavy) (Packaged) ......................................................................................1

437912-2 Meat Grip Assy. & Arm Assy. (Standard) (Incls.items 17 thru 25) ...............................................1

* Attachment chute (Special, used in place of carriage)

1812 SLicer Technical Maunal Page 35 of 49

– 18 –

1812/1912 REPLACEMENT PARTS

1912 GEAR CASE UNIT

ILLUS. PART

PL-21378 NO. NAME OF PART AMT.

1 RR-4-17 Retaining Ring ..............................................................................................................................1

2 WS-7-21 Washer .........................................................................................................................................1

3 70259 Engaging Arm Assy ......................................................................................................................1

4 70283 Washer - Pivot Shaft Thrust .........................................................................................................1

5 RR-4-3 Retaining Ring ..............................................................................................................................1

6 70303 Roller - Engaging Mech ................................................................................................................1

7 70295 Shaft - Engaging Mech .................................................................................................................1

8 70396 Ring - Stop Retaining ...................................................................................................................1

9 70324 Stop - Engaging Mech. Shaft .......................................................................................................1

1812 SLicer Technical Maunal Page 36 of 49

– 19 –

REPLACEMENT PARTS 1812/1912

1912 GEAR CASE UNIT (Cont.)

ILLUS. PART

PL-21378 NO. NAME OF PART AMT.

10 70307 Spring - Engaging Mech ...............................................................................................................1

11 SC-9-28 Mach. Screw 10-24 x 3⁄8 Rd. Hd....................................................................................................2

12 103915 Cover Plate - Connecting Rod ......................................................................................................2

13 70268 Connecting Rod Assy ...................................................................................................................1

14 WS-8-9 Washer .........................................................................................................................................2

15 WS-8-8 Washer .........................................................................................................................................1

16 WS-7-21 Washer .........................................................................................................................................1

17 RR-4-17 Retaining Ring ..............................................................................................................................1

18 RP-2-46 Roll Pin 1⁄4 Dia. x 11⁄4 Lg. ...............................................................................................................1

19 123889 Arm & Bearing Assy .....................................................................................................................1

20 70290 Washer - Crank Arm Thrust .........................................................................................................1

21 70442 Seal - Drive Shaft .........................................................................................................................1

22 SC-14-76 Mach. Screw 10-24 x 3⁄8 Flat Hd. ..................................................................................................6

23 70234 Cover - Gear Pump Bottom ..........................................................................................................1

24 70244 Gasket - Bottom Cover .................................................................................................................1

25 70243 Gear - Oil Pump Drive (27T) ........................................................................................................1

26 70242 Gear - Oil Pump Idler (27T) ..........................................................................................................1

27 11800-200 Dowel ...........................................................................................................................................1

28 BN-2-13 Needle Bearing (Torrington #B-86) ..............................................................................................1

29 SC-62-68 Cap Screw 1⁄2-20 x 3⁄4 Hex Hd. ......................................................................................................1

30 WS-21-21 Washer .........................................................................................................................................1

31 64465-3 Plug - Oil Fill .................................................................................................................................1

32 WS-21-20 Washer .........................................................................................................................................1

33 SC-63-14 Set Screw 8-32 x 1⁄4 Hdls., Flat Pt.................................................................................................1

34 NS-32-1 Stop Nut 10-24 “Flexloc” ..............................................................................................................1

35 70285 Spring - Shifter Mech. ...................................................................................................................1

36 70446 Shift Rod, Selector & Knob Assy ..................................................................................................1

37 70286 Knuckle - Shifter ...........................................................................................................................1

38 NS-9-30 Mach. Nut 10-32 Hex ...................................................................................................................2

39 70296 Bracket - Shifter............................................................................................................................1

40 RP-2-28 Roll Pin 3⁄16 Dia. x 3⁄4 Lg. ................................................................................................................1

41 67500-2 “O” Ring ........................................................................................................................................1

42 12430-3 Key 1⁄8 Sq. x 11⁄8 Lg. ......................................................................................................................1

43 61654 Yoke - Shifter................................................................................................................................1

44 61655 Shoe - Shifter ...............................................................................................................................2

45 70267 Shaft - Shifter ...............................................................................................................................1

46 BN-2-15 Needle Bearing (Torrington #B-126) ............................................................................................1

47 70281 Washer - Gear Thrust ...................................................................................................................1

48 70274 Collar - Diving Key ........................................................................................................................1

49 72715 Gear - Driven (119T) (Low Speed) ...............................................................................................1

50 70170 Gear - Driven (114T)(High Speed) ...............................................................................................1

51 293036 Shaft - Crank Arm Drive ...............................................................................................................1

52 435543 Key - Diving ..................................................................................................................................1

53 70308 Spring - Diving Key .......................................................................................................................1

54 61656 Sleeve - Clutch Shifter..................................................................................................................1

55 BN-2-14 Needle Bearing (Torrington #M-881) ............................................................................................1

56 WL-3-37 Lockwasher 1⁄4 Medium.................................................................................................................3

57 SC-36-6 Cap Screw 1⁄4-20 x 1 Hex Hd. .......................................................................................................3

58 70156 Carrier - Pinion Shaft Bearing ......................................................................................................1

59 BB-15-37 Ball Bearing - N.D. #3L03.............................................................................................................1

60 RR-11-52 Retaining Ring ..............................................................................................................................1

61 RP-3-8 Roll Pin 3⁄16 Dia. x 11⁄8 Lg ...............................................................................................................1

62 70159 Gear - Worm (29T) .......................................................................................................................1

63 70248 Fitting & Oil Tube Assy .................................................................................................................1

64 70275 Collar - Pivot Shaft Thrust ............................................................................................................1

65 RP-3-12 Roll Pin 1⁄8 Dia. x 11⁄4 Lg. ...............................................................................................................1

66 70283 Washer - Thrust............................................................................................................................1

67 SD-33-8 Self-Tapping Screw 5⁄16-18 x 1 Hex Washer Hd., Type TT ...........................................................4

68 SD-33-9 Self-Tapping Screw 5⁄16-18 x 3 Hex Washer Hd., Type TT ...........................................................7

69 124640-1 Gear Case, Bearing & Dowel Assy (Incls. items 21 & 46) ............................................................1

70 WL-8-13 Lockwasher 10 Internal Shakeproof .............................................................................................2

71 72716 Shaft - Pinion (19T & 14T) ............................................................................................................1

72714 Brg. Carrier, Pinion Shaft & Gear Assy (Incls. items 58 thru 62 & 71) .........................................1

106933 Drive Shaft Assy (Incls. items 51, 52, 53 & 54) ............................................................................1

1812 SLicer Technical Maunal Page 37 of 49

– 20 –

1812/1912 REPLACEMENT PARTS

FORM 19315 REV. A OCTOBER 1999 PRINTED IN U.S.A.

GAUGE PLATE & INDEXING MECH.

ILLUS. PART

PL-22358-1 NO. NAME OF PART AMT.

1 124768 Gauge Plate Unit ..........................................................................................................................1

2 274989-2 Gauge Plate Support & Slide Rod Assy. ......................................................................................1

3 112913 Screw - Special ............................................................................................................................2

4 SC-23-10 Mach. Screw 10-24 x 3⁄4 Oval Hd. .................................................................................................1

5 114214 Cap - Index Knob .........................................................................................................................1

6 118175 Dial Assy ......................................................................................................................................1

7 76948 Disc. - Indexing Drive ...................................................................................................................1

8 RP-2-40 Roll Pin 3⁄32 Dia. x 3⁄4 Lg. ................................................................................................................1

9 10928-2 Nut - Special .................................................................................................................................2

10 437626 Shaft - Indexing ............................................................................................................................1

11 88298 Washer - Belleville ........................................................................................................................2

12 87495 Worm - Indexing ...........................................................................................................................1

13 RP-3-1 Roll Pin 5⁄32 Dia. x 5⁄8 Lg. ................................................................................................................1

14 SC-63-28 Set Screw 1⁄4-20 x 1 Hdls., Flat Pt.................................................................................................1

15 NS-17-1 Jam Nut 1⁄4-20 Hex ........................................................................................................................1

16 NS-32-12 Stop Nut 5⁄16-18 “Flexloc”...............................................................................................................1

17 437213 Indexing Plate Assy.(Incls.items 18, 19, 27 & 28) ........................................................................1

18 437212 Spring - Indexing Plate .................................................................................................................1

19 SC-8-14 Mach. Screw 10-32 x 3⁄16 Rd. Hd...................................................................................................1

20 70343 Roller - Indexing Plate (Straight) ..................................................................................................1

21 274906 Spring - Gage Plate ......................................................................................................................1

22 76952 Plug - Expansion ..........................................................................................................................1

23 291171-1 Spacer - Gauge Plate Sprocket (.003 Thk.) .................................................................................1

24 291171-2 Spacer - Gauge Plate Sprocket (.005 Thk.) .................................................................................3

25 122559 Shim (Specify Dash #: -1 = .0075 Thk.; -2 = .010 Thk. & -3 = .0125 Thk.) ................................ AR

26 122573 Shim (Specify Dash #: -1 = .002 Thk.; -2 = .003 Thk.; -3 = .004 Thk.; -4 = .005 Thk.) .............. AR

27 70342 Roller - Indexing ...........................................................................................................................1

28 291569 Stud - Collar Assy .........................................................................................................................1

29 274911 Deflector .......................................................................................................................................1

30 437627 Collar (Incls.item 31) ....................................................................................................................1

31 SC-40-56 Cap Screw 8-32 x 1⁄2 Soc. Hd. ......................................................................................................1

437989 Indexing Shaft & Worm Assy.(Incls.items 10, 12 & 13) ................................................................1

1812 SLicer Technical Maunal Page 38 of 49

User Guide

Online Parts Catalog

Section 1 – If Equipment ML Number is known

Section 2 – If Equipment ML Number is not known

Note: It is helpful, but not essential to know

the ML (Material List) Number of the

equipment for which a part is needed

1812 SLicer Technical Maunal Page 39 of 49

User Guide

Next

select

SMARTPARTS

From

hobartservice.com

select

PARTS

Web Browser Pop-up blocker must be turned off for this site in order for SmartParts to operate

1812 SLicer Technical Maunal Page 40 of 49

This is SmartParts

home page

If the ML Number of

the Equipment is

known,

select

Use SmartParts Now

(We’ll explain what to

do if the ML number of

the Equipment is not

known in Section 2)

Enter the ML number

and click on

Search SmartParts

For this example, the part needed is a Water

Pressure Gauge used on the LX 30 Undercounter

Dishwasher

The ML number of this dishwasher is 104352

104352

104352

Section 1 – If Equipment ML Number is known

1812 SLicer Technical Maunal Page 41 of 49

•

Click on the

Radio button

to select the

Parts Catalog

Then click on

Continue

The Water Pressure Gauge is

on the Base Assembly

Select Base Assembly

Then click on Continue

Section 1 – If Equipment ML Number is known

1812 SLicer Technical Maunal Page 42 of 49

•

Select an appropriate figure size

Locate the part needed (Water

Pressure Gauge) on the drawing

Placing the cursor on the number

will display the Description of the

Part

Click on the number pointing to

the part

Section 1 – If Equipment ML Number is known

19: Gauge – Water Pressure (LX30/40, LXG, & LXiG Series)

1812 SLicer Technical Maunal Page 43 of 49

•Selecting the part on the figure causes the part to be highlighted on the parts list

•Click on the Add button to add the part to the shopping cart

•You can add more parts or change the quantity of the parts already in the cart

•When finished, click on the Confirm Parts Selected and then on Print Parts List if

you want to print

Section 1 – If Equipment ML Number is known

Use SMARTPARTS Now

1812 SLicer Technical Maunal Page 44 of 49

Section 2 – If Equipment ML Number is not known

This (again) is SmartParts

home page

For this example, the part

needed is a Water

Pressure Gauge used on

the LX 30 Undercounter

Dishwasher

If the ML Number of the

Equipment is not known,

click on the Radio button

to select Warewash /

Waste Equipment

Then click on Continue

(Go to Section 1 if you do know

the ML number of the

Equipment)

Click on the Radio button

to select UnderCounter

Dishwasher

Then click on

Continue

1812 SLicer Technical Maunal Page 45 of 49

Click on the Radio button

to select LX Series

Dishwashers

Then click on

Continue

Section 2 – If Equipment ML Number is not known

The Water Pressure Gauge

is on the Base Assembly

Select Base Assembly

Then click on Continue

1812 SLicer Technical Maunal Page 46 of 49

Locate the part needed (Water

Pressure Gauge) on the

drawing

Placing the cursor on the

number will display the

Description of the Part

Click on the number pointing to

the part

Section 2 – If Equipment ML Number is not known

19: Gauge – Water Pressure (LX30/40, LXG, & LXiG Series)

Select an appropriate figure size

1812 SLicer Technical Maunal Page 47 of 49

•Selecting the part on the figure causes the part to be highlighted on the parts list

•Click on the Add button to add the part to the shopping cart

•You can add more parts or change the quantity of the parts already in the cart

•When finished, click on the Confirm Parts Selected and then on Print Parts List if

you want to print

Section 2 – If Equipment ML Number is not known

Use SMARTPARTS Now

1812 SLicer Technical Maunal Page 48 of 49

1812 SLICERS

JANUARY 2010

PRODUCT SERVICE DEPARTMENT TROY, OH. 45374-0001

RECOMMENDED SPARE PARTS LIST

1812 SLICERS

Qty

Part Number

Description

1

087711-243-2

Sensor

1

087714-042-1

Relay (2 Pole, under 150 Volt)

1

087711-242-1

Switch - Lockout

1

437637

Spring - Compression

1

437634

Plunger

1

437642

Spring - Extension

1

437641

Spring - Compression

1

437640

Plunger - Shaft

1

437873

Knob and Shaft

1

479755-1

Groove Pin

1812 SLicer Technical Maunal Page 49 of 49
