C-LINE

A & AW DISHWASHERS

MODEL R-L OPERATION L-R OPERATION

C44A ML-38898 ML-38899

ML-104047 ML-104050

C44AW ML-103946 ML-103947

ML-104082 ML-104083

C54A ML-104199 ML-104198

C64A ML-103908 ML-103909

C88A ML-110042 ML-110041

CRS66A ML-38947 ML-38948

ML-104052 ML-104055

CRS66AW ML-103958 ML-103959

ML-104086 ML-104087

CRS76A ML-104202 ML-104201

CRS86A ML-103910 ML-103911

CRS110A ML-110044 ML-110043

CCS66A ML-104321 ML-104320

CCS66AW ML-104323 ML-104322

CCS76A ML-104325 ML-104324

CCS86A ML-104327 ML-104326

CCS110A ML-110046 ML-110045

CPW80A ML-38955 ML-38956

ML-104058 ML-104061

CPW80AW ML-103964 ML-103967

ML-104090 ML-104091

CPW90A ML-104205 ML-104204

CPW100A ML-103912 ML-103913

CPW124A ML-110048 ML-110047

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

FORM 17791 Rev. O (Feb. 2006)

– 2 –

IMPORTANT FOR YOUR SAFETY

THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL

GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND

ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.

POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE

EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED

FROM THE LOCAL GAS SUPPLIER.

IMPORTANT

IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN

UNITS AT MAIN SHUTOFF VALVE AND CONTACT THE

LOCAL GAS COMPANY OR GAS SUPPLIER FOR SERVICE.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE

VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY

OTHER APPLIANCE.

FOR YOUR SAFETY

READ BEFORE OPERATING

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN

UNDER WATER. IMMEDIATELY CALL A QUALIFIED

SERVICE TECHNICIAN TO INSPECT THE APPLIANCE AND

TO REPLACE ANY PART OF THE CONTROL SYSTEM AND

ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.

IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT

TO OPERATE THIS DEVICE.

– 3 –

TABLE OF CONTENTS

GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Water Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plumbing Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Drain Connection(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Fill & Final Rinse Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Steam Connection (When Equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Gas Connection (When Equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Venting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

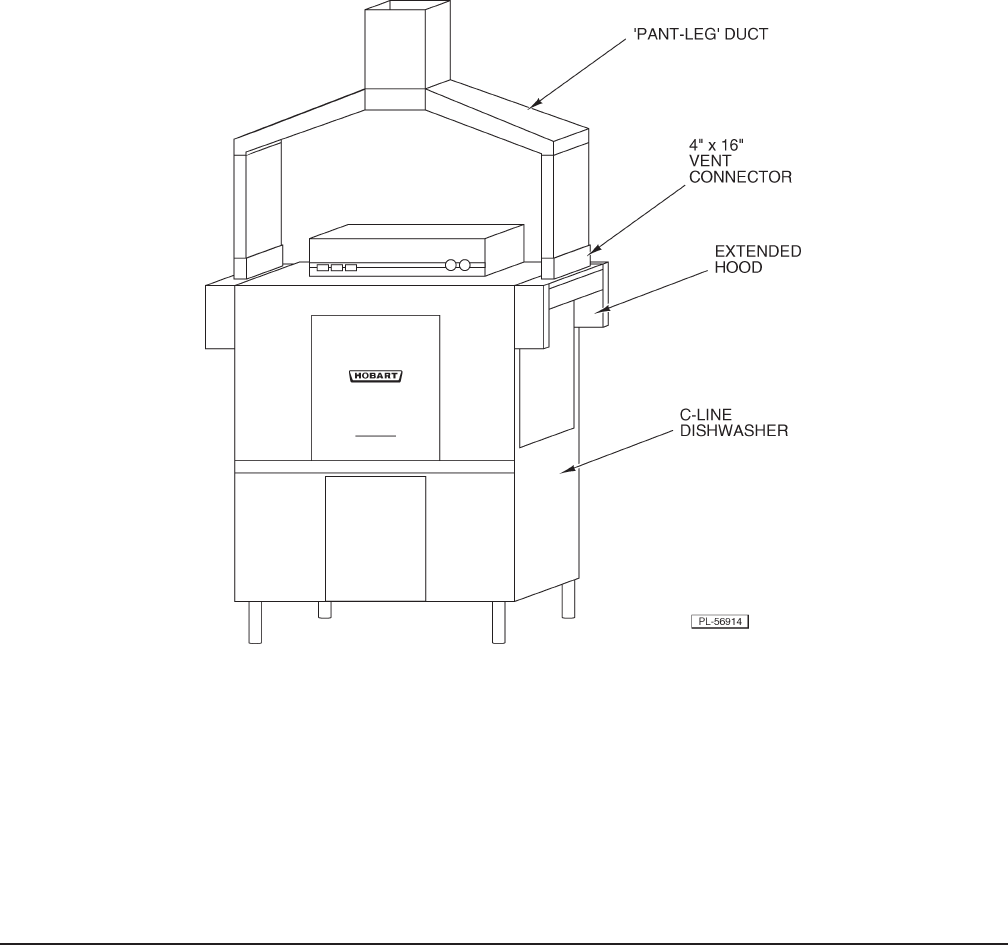

Pant-Leg Vent Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Rate of Exhaust Flow Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Electrical Connections – Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Electrical Connections – Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Optional Equipment Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Curtain Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Filling the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Starting the Gas Heat Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

DOs and DON'Ts for Your New Hobart Warewasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Vent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

– 4 –

Installation, Operation and Care Of

C-LINE A & AW DISHWASHERS

SAVE THESE INSTRUCTIONS

GENERAL

C-Line A or AW Dishwashers are fully automatic, rack-type washers that convey the rack from

one end of the machine to the other, exposing the ware to progressive wash/rinse action. It has a

stainless steel tank and chamber with a welded stainless steel angle frame, stainless steel legs and

stainless steel adjustable feet. Front inspection door(s) provide access to the interior of the

wash/rinse chambers. CRS and CPW models also have a prewash inspection door. The C44A/AW,

CRS66A/AW, CCS66A/AW, CPW80A/AW, C54A, CRS76A, CCS76A, CPW90A, C64A, CRS86A,

CCS86A and CPW100A machines are capable of either high- or low-temperature operation. The

C88A family is not available for low-temperature operation. Machines are available with steam, gas

or electric heat. A Prewash Unit or Recirculating Scrapper are also available.

Model C44A

Right to Left Operation

– 5 –

STANDARD EQUIPMENT

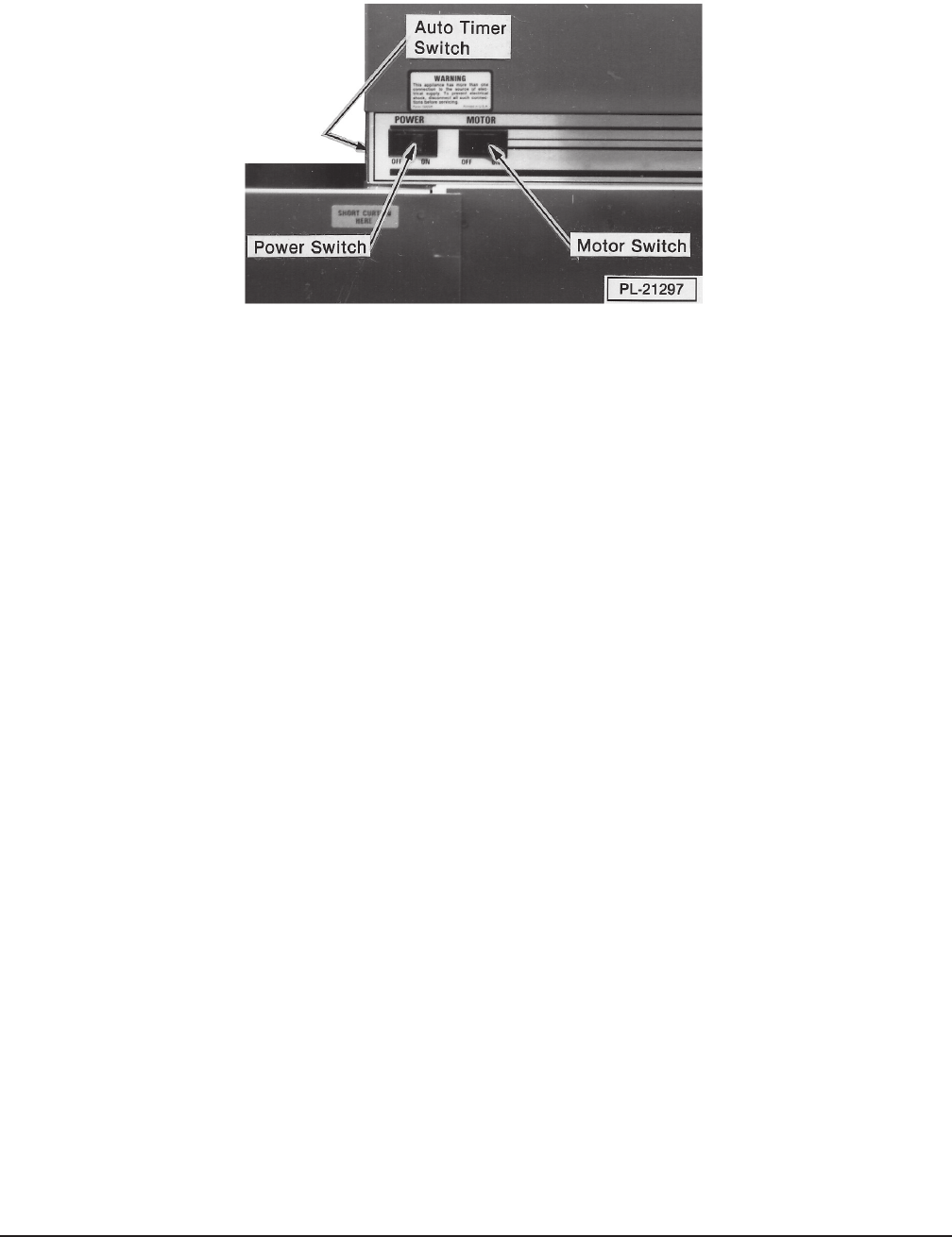

Controls (Fig. 1)

Fig. 1

The controls are mounted on top of the chamber. There are three operational control switches housed

in the control box: Power (ON-OFF); Motor (ON-OFF); and Timer (MANUAL-AUTO). A pilot circuit

transformer provides a reduced voltage of 115 volts for the machine controls. When equipped for gas

heat, a step-down transformer provides a reduced voltage of 24 volts for the igniter board(s) and

valves.

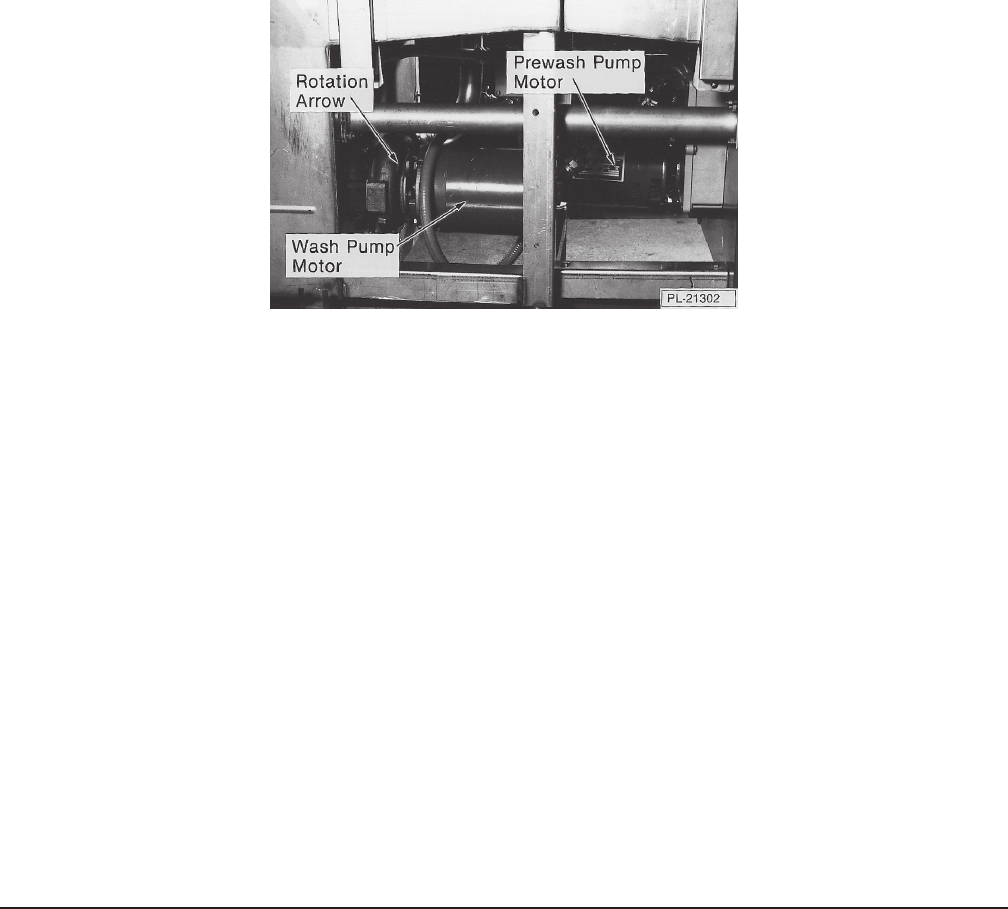

Motor and Pump Units

The wash/rinse pump(s) are centrifugal-type cast stainless steel with a stainless steel impeller. The

2 HP motor is available in the following voltages:

Volts Hz Phase Volts Hz Phase

208-240 60 1 380-415 50 3

208-240 60 3 380 60 3

200-240 50 3 480 60 3

600 60 3

The conveyor drive motor is a 1/6 HP gear motor with the same voltage as the wash/rinse pump motor.

A 1 HP prewash pump motor is standard on CRS and CCS models. A 2 HP prewash pump motor is

standard on CPW models. Voltage and construction are the same as the wash/rinse pump motor.

All motors have built-in thermal overload protection with manual reset.

Vacuum Breakers

The final rinse and fill lines contain an atmospheric vacuum breaker that prevents any reverse flow of

water from the dishwasher into the potable water supply.

Heater Protection

A float-activated switch located in the wash tank (and rinse tank if included) automatically turns off the

heat supply, if the water level is too low. Once the water returns to the proper level, the heating circuit

becomes operational if heat is demanded.

An overtemperature protector is also provided for electric and gas tank heat, and for built-in booster

if provided. If overheating should occur, the heat supply will be turned off. Turn the Power switch OFF

and contact your local Hobart service office.

– 6 –

Thermometers

Dial thermometers for wash and final rinse are indicated in °F and °C on the faceplate.

Door Interlocks

Door interlock switches will prevent machine operation while an inspection door is open. If a door is

opened while the machine is operating, the pumps and conveyor will automatically turn off. After the

door is closed, the machine must be restarted by pushing the Motor switch ON.

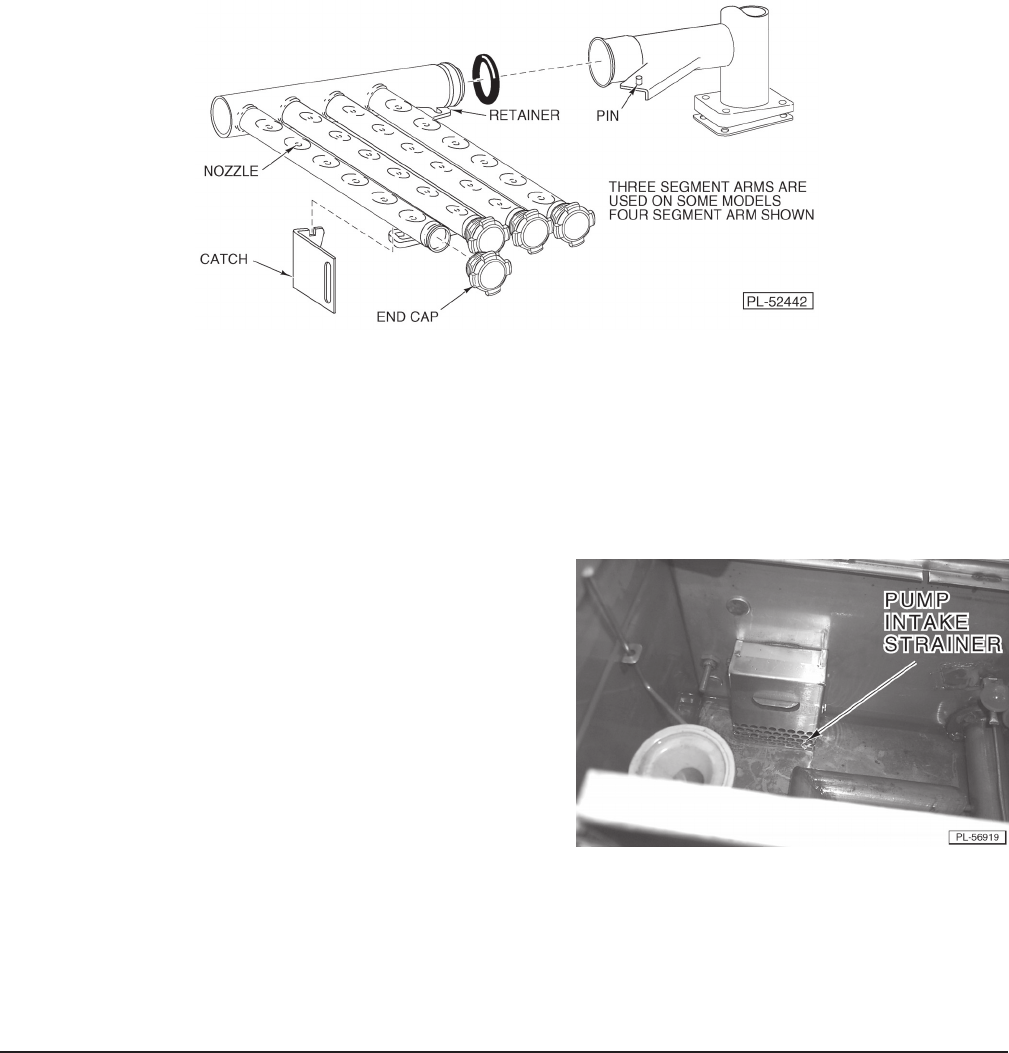

Wash and Rinse Arms

Upper and lower prewash, wash and final rinse arms are removable.

RS Unit and CS Unit – (CRS66A, CRS66AW, CRS76A, CRS86A, CRS110A, CCS66A,

CCS66AW, CCS76A, CCS86A and CCS110A)

The 22" Recirculating Scrapper is a power prewash unit which uses overflow wash water, hence, no

fill valve is required.

PW Unit – (CPW80A, CPW80AW, CPW90A, CPW100A and CPW124A)

The 36" prewash unit is a large power prewash unit which uses overflow wash water, hence, no fill valve

is required.

Auto Fill

Close door(s) and push the Power switch ON. After a 5-second delay, the machine fills automatically.

Auto Timer

The Auto Timer switch is located on the left side of the control box. Designed to save electrical power,

it is adjusted to shut off pump and drive motors a set amount of time after the last rack exits the

dishwasher. To restart, slide a rack into the machine or push the Motor switch ON. To change the time

setting, contact your local Hobart-authorized service office.

Common Drain

A stainless steel common drain tube connects the dishwasher and prewash drains together, thus

requiring only one drain connection at installation.

Front Panel

Stainless steel front panel conceals pumps and plumbing.

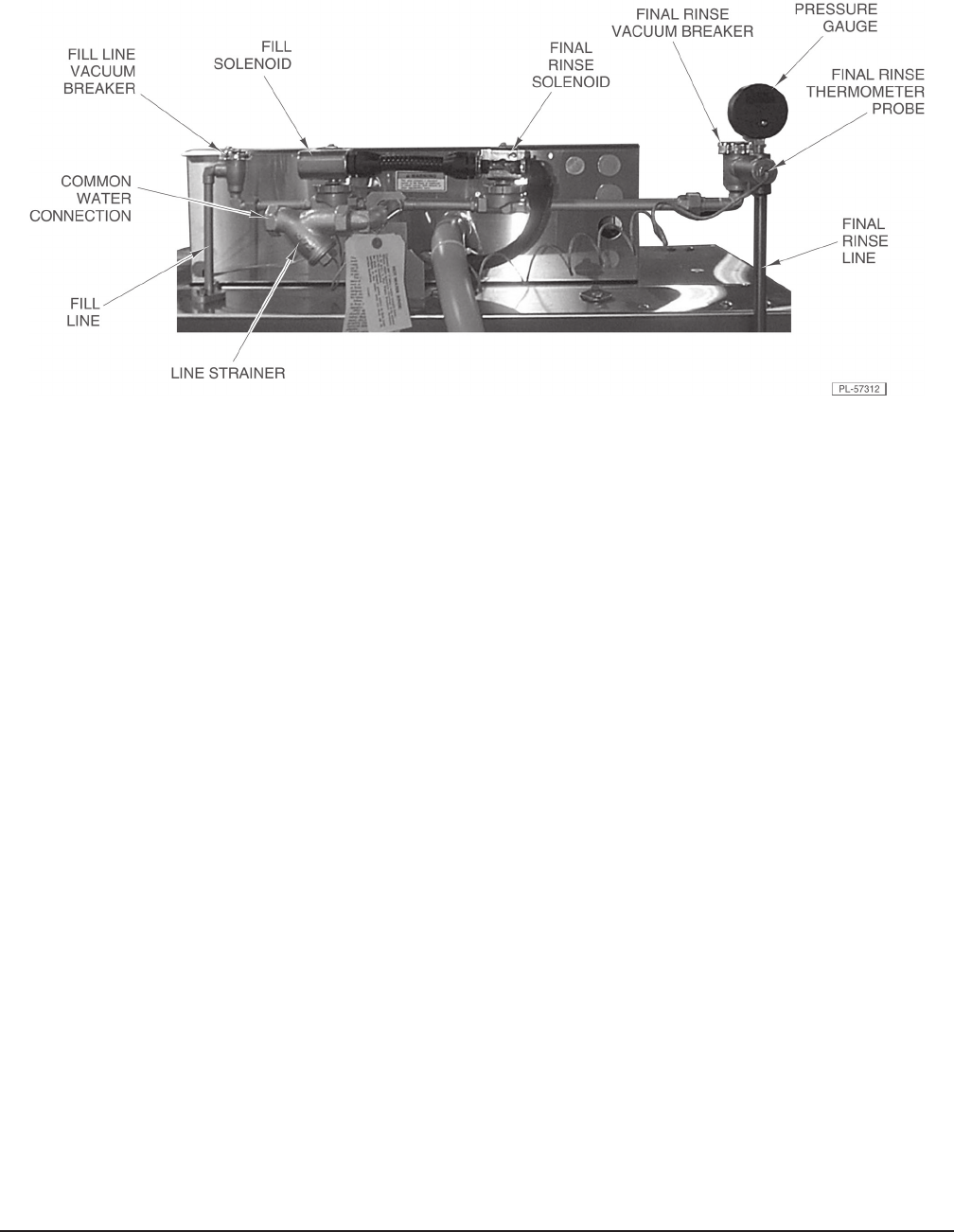

Common Water Connection

A single water connection for fill and final rinse is standard. This requires a minimum incoming water

temperature of 180°F for high-temperature machines (140°F for low-temperature machines) for

machines not equipped with booster heater. A minimum incoming water temperature of 110°F is

required for machines equipped with an optional 30 KW Hobart booster heater, and a minimum

incoming water temperature of 140°F is required for machines equipped with an optional 15 KW Hobart

booster heater.

– 7 –

OPTIONAL EQUIPMENT

Blower Dryer — Dishes are dried by forced, heated air (3-phase machines only). The exhaust

requirement at the vent stack of the blower dryer is 1400 CFM.

Conveyor Dwell — The optional conveyor dwell switch (Conveyor ON-OFF) is housed in the control

box and shuts the conveyor drive motor off.

Condenser — Removes excess moisture from exhaust air before returning air to dishroom (only on

machines without booster).

Single-Point Electrical Connection — Option for electric heat machines. Requires one electrical

service connection for non-booster machines. Available for 3-phase machines only.

Extended Hood — Provides a dampered vent and acts as an effective splash shield for the discharge

end of the wash chamber. The exhaust requirement at the entrance end is 200 CFM maximum; at the

discharge end, the exhaust requirement is 400 CFM maximum.

Side Loader — Allows machine to be placed in a corner or used where area at the load end is limited.

Available without hood.

Vent Hood — (Sides are not as long as the extended hood.) A dampered exhaust opening controls

steam and water splash to work area. The exhaust requirement at the entrance end is 200 CFM

maximum; at the discharge end, the exhaust requirement is 400 CFM maximum.

Table Limit Switch — Shuts the machine off when the unload table is full of racks.

CS/RS-22 Lower Prewash Arm — Optional on the CRS and CCS models.

DDU38 Unloader — Moves racks in a 90-degree arc from the unload end of the dishwasher to a dish

table; this allows the machine to be placed in a corner or to be used where area at the unload end is

limited.

Separate Water Connection — Individual Fill (140°F) and Final Rinse (180°F min.) water connections

are available on high-temperature, non-booster machines only.

Booster Heater — Interwired and interplumbed 30 KW or 15 KW booster heater.

– 8 –

INSTALLATION

UNPACKING

Immediately after unpacking the dishwasher, check it for possible shipping damage. If the machine is

found to be damaged, save the packaging material and contact the carrier within 15 days of delivery.

Prior to installation, verify that the electrical service agrees with the specifications on the machine data

plate, which is located on the right-hand side of the control box for non-booster machines and on the

left-hand side of the control box for booster equipped machines.

The electrical diagram is located on the inner surface of the control box cover.

After unpacking the dishwasher, remove the items shipped uninstalled (overflow tube, literature

envelope, splash shields, curtains and chamber hole plug kit) and instructions from inside

the dishwasher. Set the dishwasher in its proper location. Adjust the height and level by turning the

adjustable feet.

NOTE: The dishwasher must be positioned and leveled before making plumbing connections.

NOTE: This machine must be operated with an automatic detergent feeder and, if applicable, an

automatic chemical sanitizer feeder, including a visual means to verify that detergents and sanitizers

are delivered or a visual or audible alarm to signal if detergents and sanitizers are not available for

delivery to the respective washing and sanitizing systems. See instructions for electrical and plumbing

connections located in this manual and in the feeder equipment manual. Chemical feeders are supplied

by others.

INSTALLATION CODES

Installation must be in accordance with state and local codes, or in the absence of local codes, with the

National Fuel Gas Code, ANSIZ223.1 (latest edition), if applicable, and the National Electrical Code

ANSI/NFPA 70 (latest edition). In Canada, the installation standards are: CAN/CGA B149.1,

CAN/CGA B149.2 and CSA C22.2 No. 1 (latest editions).

– 9 –

ASSEMBLY

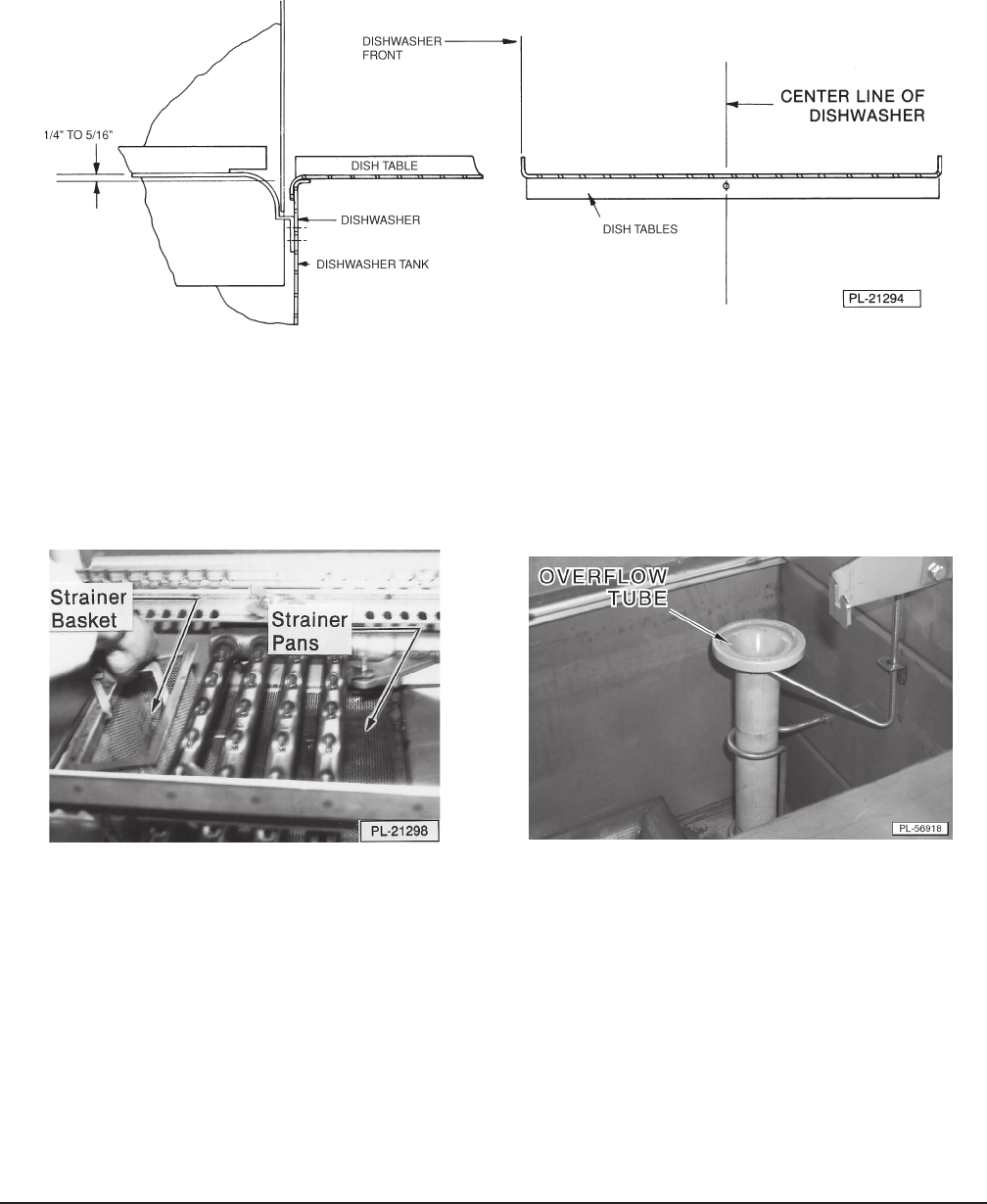

Dish tables should be fitted into the dishwasher (Fig. 2). Use mastic between table and lip of tank to

prevent leakage. Rack track height should be from 1/4 to 5/16" (Fig. 2) above the tank lip. Dish tables

should be sloped so that any water carried from the dishwasher will drain back into it.

Fig. 2

Remove the strainer basket and strainer pans from the wash chamber (Fig. 3).

Place the overflow tube in the retainer (Fig. 4).

Fig. 3 Fig. 4

– 10 –

WATER REQUIREMENTS

Proper water quality can improve ware washing performance by reducing spotting, lowering chemical

supply costs, enhancing effectiveness of labor and extending equipment life. Local water conditions

vary from one location to another. The recommended proper water treatment for effective and efficient

use of this equipment will also vary depending on the local water conditions. Ask your municipal water

supplier for details about local water specifics prior to installation.

Recommended water hardness is 4 to 6 grains of hardness per gallon. Chlorides must not exceed 50

parts per million. Water hardness above 6 grains per gallon should be treated by a water conditioner

(water softener or in-line treatment). Water hardness below 4 grains per gallon also requires water

treatment to reduce potential corrosion. Water treatment has been shown to reduce costs associated

with machine cleaning, reduce deliming of the dishwasher, reduce detergent usage and reduce

corrosion of metallic surfaces in the booster water heater and dishwasher.

Sediment, silica, chlorides or other dissolved solids may lead to a recommendation for particulate

filtration or reverse osmosis treatment.

If an inspection of the dishwasher or booster heater reveals lime buildup after the equipment has been

in service, in-line water treatment should be considered and, if recommended, should be installed and

used as directed. Contact your Hobart Service office for specific recommendations.

PLUMBING CONNECTIONS

WARNING: PLUMBING CONNECTIONS MUST COMPLY WITH APPLICABLE SANITARY, SAFETY

AND PLUMBING CODES.

The plumber who connects this machine is responsible for making certain that both water and steam

lines are THOROUGHLY FLUSHED OUT BEFORE connecting to any manual valve or solenoid valve.

This ‘‘flush-out’’ is necessary to remove all foreign matter, such as chips (resulting from cutting or

threading of pipes), pipe joint compound from the lines or, if soldered fittings are used, bits of solder or

cuttings from the tubing. Debris, if not removed, may lodge in the valves and render them inoperative.

Manual valves or solenoid valves fouled by foreign matter, and any expenses resulting from this fouling,

are NOT the responsibility of the manufacturer.

DRAIN CONNECTION

Connect the drain through a trap to the sewer using 2" pipe. The common drain for the tank(s) requires

only one connection to the floor drain.

If a grease trap is required by code, it should have a minimum flow capacity of 31 gallons per minute.

– 11 –

FILL & FINAL RINSE CONNECTION (Fig. 5)

Fig. 5

Use 3/4" pipe for the connecting line. A flowing pressure of 15 to 25 psig and a minimum temperature

of 180°F must be maintained at the machine for common water connection for a non-booster heat

machine; 110°F minimum temperature incoming water is required for machines equipped with an

optional 30 KW booster heater; and 140°F minimum temperature incoming water is required for

machines equipped with an optional 15 KW booster heater. For long runs, use larger pipe and insulation

to ensure adequate pressure and temperature. If flow pressure exceeds 25 psig, a pressure-reducing

valve (not furnished) must be installed in the supply line.

CAUTION: The water pressure regulator must have a relief bypass. Failure to use the proper

type of pressure regulator may result in damage to the unit.

A pressure gauge is provided for verification of proper water pressure.

STEAM CONNECTION (WHEN EQUIPPED)

CAUTION: Steam supply pressure must agree with steam trap selection. The steam trap

(supplied) will be for either 0 to 20 psig (flowing) or 21 to 50 psig (flowing).

The steam supply must be between 10 and 50 psig flowing pressure. If flowing pressure exceeds

50 psig, a pressure regulator (not supplied) must be installed in the supply line.

If flowing pressure is 10 psig, use 1" piping; if over 10 psig, use 3/4" piping. Steam flow is controlled by

solenoid valves.

If machine is equipped with steam injector(s), one supply connection is required. For single-tank steam

coil installations, two connections are required, one for supply and one for return. For two-tank

steam coil installations, one common supply connection and two return connections (one per tank) are

required.

– 12 –

GAS CONNECTION (WHEN EQUIPPED)

Check the gas data plate attached to the dishwasher or tag attached to the gas burner tubing for type

of gas to be used.

The burner is not adjustable. If flowing gas pressure is above 7" W.C. (natural gas) or 11" W.C. (propane

gas), an additional regulator valve (not supplied) must be installed in the supply line. Static incoming

line pressure should not exceed 14.0" W.C. for either propane or natural gas.

IMPORTANT: Make sure the installation meets the local code for your area.

GAS SPECIFICATIONS

sledoM foepyT

saG rH/UTB gnimocnI

eziSeniL

citatStoN-erusserPsaGgniwolF

)nmuloCretaW(.C.WsehcnI

erusserPeniLgnimocnI dlofinaM

erusserP

muminiMmumixaM

A45C&A44C

seilimaF

larutaN000,87TPN"2/1.C.W"5.3.C.W"7.C.W"2.3

enaporP000,87TPN"2/1.C.W"0.9.C.W"11.C.W2.8

ylimaFA46C larutaN000,49TPN"4/3.C.W"5.3.C.W"7.C.W2.3

enaporP000,49TPN"4/3.C.W"0.9.C.W"11.C.W"4.8

ylimaFA88C larutaN000,651TPN"4/3.C.W"5.3.C.W"7.C.W"2.3

enaporP000,651TPN"4/3.C.W"0.9.C.W"11.C.W2.8

NOTE:DO NOT use Teflon tape on gas line pipe threads. For gas line pipe connections, use Loctite

565, Hobart part number 546292, or a flexible sealant suitable for use with Natural and Propane Gases.

The appliance and its gas connections must be leak tested before placing the appliance in operation.

Use soapy water for leak test. DO NOT use open flame. The installation must conform with local codes,

or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 (latest edition). Copies

may be obtained from the American Gas Association, Inc., 1515 Wilson Blvd., Arlington, VA 22209.

The appliance and its individual shutoff valve must be disconnected from the gas supply piping system

during any pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPa).

The appliance must be isolated from the gas supply piping system by closing its individual manual

shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or

less than 1/2 psig (3.45 kPa).

Dissipate test pressure from the gas supply line before reconnecting the appliance and its manual

shutoff valve to the gas supply line.

CAUTION: Failure to follow this procedure may damage the gas valve.

IMPORTANT: Gas heat machines must be provided with a means to exhaust the flue gases to the

exterior of the building. Refer to Venting Requirements, pages 13 – 16.

The dishwasher must be installed so that the flow of combustion and ventilation air will not be

obstructed. Adequate clearances for air openings into the combustion chamber must be provided.

Make sure there is an adequate supply of make-up air in the room to allow for combustion of the gas

at the burner(s).

Keep the appliance area free and clear from all combustible substances. Do not obstruct the flow of

combustion and ventilation air. The dishwasher must have a minimum clearance from combustible

construction of 3" at the rear and 0" at the sides. A clearance of 40" must be provided at the front and

20" at each end of the dishwasher for servicing and proper operation.

The burner is ignited automatically by solid-state electronic circuitry; there is no pilot light. Gas flow is

regulated by the temperature control circuit.

– 13 –

VENTING REQUIREMENTS

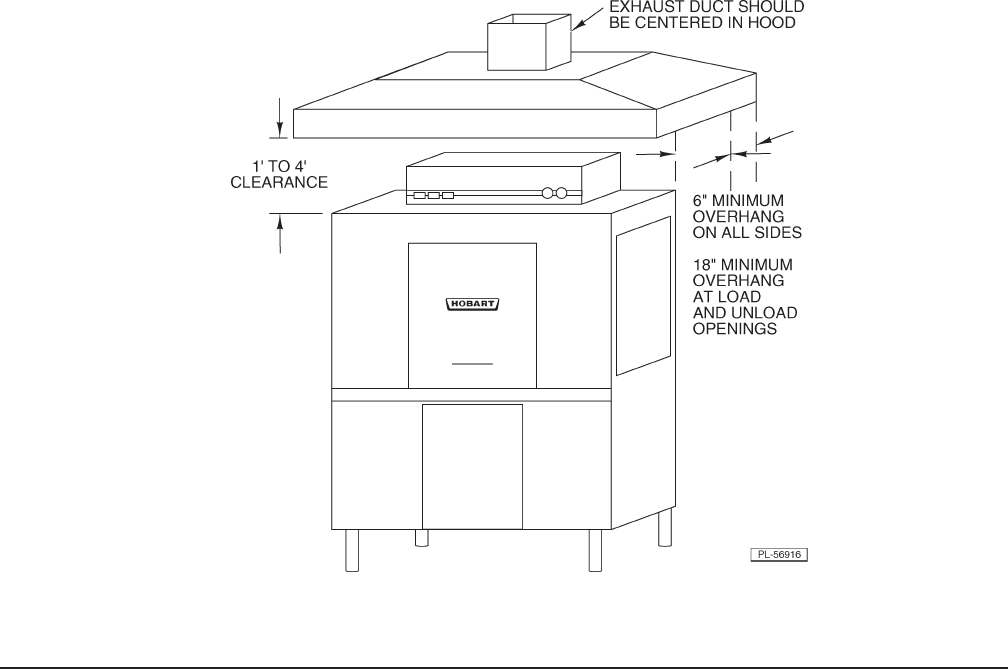

Type II Canopy Hood

Most commercial dishwashers must be provided with external venting per local codes. The exception

is electric or steam heat machines operating in the chemical or low temperature sanitizing mode where

the existing room ventilation will compensate for the vapors produced. The local authority has final

jurisdiction over this matter.

Venting can be provided by either the pant-leg duct connections (Fig. 8) or by a vent hood over the

whole machine (Fig. 6).

The Hobart C-Line dishwasher equipped for gas tank heat is not provided with a flue collar and is not

intended to have the flue directly connected to a ventilation system. However, the products of

combustion must be vented to the outside air. A vent hood over the entire dishwasher (Fig. 6) can be

employed to vent both the moist air from the dishwashing chamber and the flue gases from the gas

heater. The volume of flue exhaust required for venting moist air and flue gases using a single vent

hood over the entire dishwasher must be calculated using the formula in the

Perimeter Calculation

Formula

on page 16.

Type I or Type II canopy hoods are recommended. A factory-built commercial exhaust hood may be

listed as conforming to Underwriters Laboratory's standard 710 titled,

Exhaust Hoods for Commercial

Cooking Equipment

. Hoods must be installed according to the manufacturer's instructions. Makeup air

must be provided so that the exhaust flow rate results in a positive building pressure in the room where

the unit is located (more outside air than exhaust air). Factory-built hoods not tested to UL standard

710 and custom built hoods must comply with the following specifications: Stainless steel 0.037" [No.

20 Gage] minimum thickness or copper sheet weighing at least 24 ounces per square foot; the hood

must be secured in place by noncombustible supports and must meet the RATE OF EXHAUST FLOW

CALCULATIONS.

Fig. 6

TYPE II

CANOPY HOOD

– 14 –

PANT-LEG VENT CONNECTIONS (Figs. 7, 8)

IMPORTANT: Gas heat machines must be provided with a means to exhaust the flue gases to the

exterior of the building. Pant-Leg duct connectors (Fig. 7) alone DO NOT provide ventilation for the

gas flue at the rear of the machine. A mini vent hood (Fig. 8) must be used or a canopy type hood may

be used.

Moist air escapes from each end of the conveyor type dishwasher. The exhaust requirements

recommended are a maximum of 200 CFM at the entrance end of the dishwasher and a maximum of

400 CFM at the discharge end. Optional vent hoods or extended hoods may be provided at each end

of the machine. Sufficient make-up air must be provided so the exhaust flow results in a positive building

pressure in the room in which the unit is located (more outside air than exhaust air). Hoods are provided

with 4" x 16" vent connectors with vent dampers which allow adjustment during installation. Typical

construction is for 'Pant-Leg' hood connections to the 4" x 16" vent connectors (Fig. 5). Vent stacks

must be watertight and fit inside the vent connector openings.

Fig. 7

– 15 –

If using the 'Pant-Leg' duct, a mini vent hood (Fig. 8), positioned about 18" above the flue exit at the rear

of the dishwasher and connected to existing duct work, must be used for the flue gases. The volume

of flue exhaust in the mini vent hood should not exceed 200 CFM.

Fig. 8

In either case, if a powered means of exhaust is used, an electrical interlock must be provided to allow

the flow of gas to the dishwasher burner only when the exhaust system is in operation.

For additional information, refer to the National Fuel Gas Code, ANSI Z223.1, NFPA 54.

In all cases, local codes will prevail.

– 16 –

RATE OF EXHAUST FLOW CALCULATIONS

Based on the 2004 International Mechanical Code (IMC).

The Rate of air flow required for a vent hood is now based on the linear length of the face of the hood

instead of the area of the hood opening. The length of the hood is measured along the front side that

is parallel with the front line of the appliance (LENGTH, Fig. 9).

For hood designs not covered by these calculations consult the latest edition of the IMC or other local

codes.

Type of Hood CFM per Linear Feet of Hood

Wall Mounted Canopy 200 CFM

Single Island Canopy 400 CFM

Subtract make-up air flow supplied directly to a hood cavity from the total exhaust flow rate of the hood,

if applicable.

Fig. 9

– 17 –

ELECTRICAL CONNECTIONS — DISHWASHER

WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE

APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70 (LATEST

EDITION) AND/OR OTHER LOCAL ELECTRICAL CODES.

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW

LOCKOUT / TAGOUT PROCEDURES. THERE MAY BE MULTIPLE CIRCUITS. BE SURE ALL

CIRCUITS ARE DISCONNECTED.

Some machines may have more than one electrical power supply. All supplies MUST be disconnected.

Motor(s)

Connect a permanent electrical power supply to the terminal block in the control box. Three-phase

motor(s) must rotate the impeller in the direction of the arrow found on the pump housing of the motor

pump unit (Fig. 10), the drive motor can rotate in either direction. Before placing the machine into

service, a check must be made to verify correct rotation. Only one motor needs to be checked, as the

machine is wired at the time of manufacture so that all motors will rotate the same direction.

Fig. 10

If the impeller does not rotate in the direction of the arrow, DISCONNECT POWER SUPPLY(IES) to

the machine and interchange any two power supply leads at the control box terminal block. On

machines with a circuit breaker box, reverse any two leads at the incoming power supply block in the

circuit breaker box (three-phase only). Start the machine momentarily and verify proper direction of

rotation.

Electric Heat

Connect a permanent electrical power supply to the line terminals of the control box. The tank water

temperature is regulated by a solid-state thermostat which is preset at the factory and should not

require adjustment. If an adjustment is necessary or the machine is to operate low temperature, contact

your local Hobart service office. Use the machine thermometers for verification of proper water

temperatures.

– 18 –

ELECTRICAL CONNECTIONS — OPTIONAL EQUIPMENT

WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE

APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL

ELECTRICAL CODES.

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW

LOCKOUT / TAGOUT PROCEDURES.

OPTIONAL EQUIPMENT CONTROL CONNECTIONS

Detergent Dispenser

Maximum rating for detergent dispenser connected to DPS1 and DPS2 is 1.5 Amps at line voltage.

Rinse Aid Dispenser

Maximum rating for rinse aid dispenser connected to RPS1 and RPS2 is 1.5 Amps at line voltage.

Vent Fan Control

Maximum rating for vent fan control connected to VFC1 and VFC2 is 1.5 Amps, pilot duty.

– 19 –

CURTAIN INSTALLATION

– 20 –

OPERATION

PREPARATION

Put the dishwasher strainer pans and strainer basket (Fig. 3) into position in each dishwasher tank.

If the machine is equipped with an RS, CS, or PW unit, install the solid prewash strainer pan over the

overflow tube, flange side down and the lip toward the rear of the tank. Install one perforated strainer

pan, handle side up, across the rear of the tank. Install the other perforated strainer pan against the load

end of the tank and locate the flange into the notches on the solid and perforated strainer pans. Drop

in the perforated strainer basket (Fig. 11).

Fig. 11 Fig. 12

Hang curtains on open hooks provided. Refer to Curtain Installation.

Move drain lever(s) down to close the drain(s) (Fig. 12), or close the door(s) to automatically push the

lever(s) down.

FILLING THE DISHWASHER

Water must be proper hardness. Recommended hardness range is 4 to 6 grains/gallon.

Turn the Power switch ON (Fig. 1). Leave pumps OFF until machine has completely filled.

If the machine is equipped with an RS, CS or PW unit, the prewash tank will fill last, with overflow

water from the wash tank.

If the machine is equipped with steam heat, the mechanical ball valve (located between the drive motor

and the tank) must be opened by pulling the valve lever down.

– 21 –

If the machine is equipped with gas heat, refer to STARTING THE GAS HEAT DISHWASHER below.

The tank water temperature is regulated by the solid-state thermostat. The thermostat is preset at the

factory and no adjustment should be required. If an adjustment is necessary or the machine is to

operate low temperature, contact your local Hobart service office. Use thermometers for verification

of proper water temperatures.

Minimum temperatures for all models are:

Single-Tank Models WASH TANK RINSE TANK FINAL RINSE

C44A/AW, C54A 160°F (Min.) –––– 180°F (Min.)

CRS66A/AW, CRS76A

CPW80A/AW, CPW90A

CCS66A/AW, CCS76A

Two-Tank Models

C64A, CRS86A, CCS86A, 150°F (Min.) 160°F (Min.) 180°F (Min.)

CPW100A, C88A, CRS110A,

CCS110A, CPW124A

Minimum temperatures for optional low-temperature operation are:

Wash Tank - 140°F Rinse Tank - 140°F Final Rinse - 140°F.

If the tank is accidentally drained before turning off the power switch, the float-controlled, low-water

protector switch will automatically stop the tank heat. When the proper water level is returned, the tank

heat will be automatically started. DO NOT use the low-water protection as a power on-off switch. The

heat MUST be turned OFF at the Power switch when the machine is not in use.

This machine must be operated with an automatic detergent feeder and, if applicable, an automatic

chemical sanitizer feeder, including a visual means to verify that detergents and sanitizers are

delivered or a visual or audible alarm to signal if detergents and sanitizers are not available for delivery

to the respective washing and sanitizing systems. See Plumbing Connection and Electrical Connections

for proper installation.

STARTING THE GAS HEAT DISHWASHER

1. STOP! Read the Safety Information on page 2 before operating this dishwasher.

2. Turn main gas supply to the dishwasher ON.

3. Wait for 5 minutes to clear out any gas. If you then smell gas, STOP! Follow all safety information

covered on page 2 in Important for Your Safety.

4. If you don't smell gas, turn the manual gas valve On.

5. Turn the Power switch ON (Fig. 1). Dishwasher will fill automatically (refer to Auto Fill). When tank

is filled, the burner will ignite, if heat is required. (The ignition system includes a 15-second pre-

purge period before ignition occurs.)

6. If the dishwasher will not operate, follow the instructions below to turn off the gas to the

dishwasher. Call your local Hobart service office or gas supplier.

To Turn the Gas-Powered Dishwasher Off:

Turn the Power switch OFF. Turn the manual gas valve Off.

– 22 –

DISHWASHING

After the machine has filled, start pumps by pushing the Motor switch ON (Fig.1).

Prescrap dishes thoroughly to remove large food particles and debris. Never use steel wool on ware

that is to be loaded into the dishwasher.

Stack dishes in the racks. Do not stack dishes one on top of another, as water must have free access

to both sides of every dish. Stand plates and dishes up edgewise as shown in Fig. 13. Cups, glasses

and bowls should be inverted in open-type or compartment-type rack as shown in Fig. 13. Silverware

and other small pieces may be scattered loosely over the bottom of a flat-bottom rack.

Do not allow foreign objects to enter the unit, especially metallic contaminants.

Fig. 13

When one rack has been loaded, slide it into the machine and start loading another. The operation of

the dishwasher is automatic. Each rack moves through the prewash, wash and rinse zones, then out

onto the clean dish table. The rinse lever is actuated by the dish rack and automatically shuts off the

final rinse water when no rack is in the rinse zone.

Allow dishes to drain and air-dry before removing from rack.

Machines equipped with the optional conveyor dwell feature will allow you to stop the conveyor in order

to wash heavily soiled dishes for a longer time. When the dish rack reaches the wash chamber, turn

the Conveyor switch OFF to stop the conveyor. To start the conveyor again, turn the Conveyor switch

ON.

An overload mechanism is provided that will shut off the conveyor drive motor, should the racks jam

or the load become excessive. After the jam is cleared, push the Motor switch ON to restart the

dishwasher.

– 23 –

CLEANING

The machine must be thoroughly cleaned at the end of each working shift, or at least twice a day. Use

only products formulated to be safe on stainless steel.

1. Turn the Motor and Power switches OFF.

2. Open the door(s). Standard door interlock switches prevent machine operation with inspection

door(s) open.

3. Check the upper and lower final rinse nozzles to make sure they are free of lime and solids.

Fig. 14

4. Open drain(s) by pulling drain lever(s) up (Fig. 12).

5. Remove wash arms. Remove wash arm end caps (Fig. 14) and push any nozzle obstructions into

the wash arms. Thoroughly flush the wash arms in a sink and replace the wash arm end caps.

6. Clean off any scraps from machine walls.

7. Clean dish tables in the dishwasher.

8. Remove all strainer pans and strainer basket(s).

Empty contents into garbage can or disposer and

thoroughly clean pans and basket(s).

9. Clean pump intake strainer (Fig. 15).

10. On C54A, CRS76A, CCS76A and CPW90A

machines, remove both flowback strainer pans

and clean.

11. Remove curtains. Thoroughly scrub, rinse and

allow to dry at the end of each day’s operation. See

Curtain Installation for proper curtain installation. Fig. 15

– 24 –

13. Thoroughly wash out the interior of the machine with a heavy-duty hose fitted with a squeeze

valve. Remove remaining soil with a cloth or soft brush and mild cleanser. Rinse again with hose.

Do not allow food soil to accumulate on the bottom of the tank.

14. Return all strainer pans, strainer basket(s) and the pump intake strainer to their original locations.

15. Install upper wash arms. Rest the manifold on the rear hanger bracket with the open end of the

arm next to the wash pipe and rotate the arm upward to latch it.

16. Insert the lower wash arm at an angle between the conveyor and install the retainer over the pin.

Rotate the arm toward the catch and engage the hook into the notch (Fig. 14).

17. Leave door(s) open and curtains removed while machine is not in use. This will allow the interior

to air out and dry.

DOs AND DON'Ts FOR YOUR NEW HOBART WAREWASHER

DO assure proper water hardness.

DO pre-scrap dishes thoroughly.

DO use only detergents recommended by your chemical professional.

DO at the end of the day, thoroughly cleanse the machine, rinse and dry (leave door open).

DO closely follow your chemical professional's prescribed deliming schedule.

DO use only products formulated to be safe on stainless steel.

DO NOT over soften water (recommended water hardness is no less than 4 grains per gallon).

DO NOT use detergents formulated for residential dishwashers.

DO NOT allow food soil to accumulate on the tank bottom.

DO NOT exceed chemical manufacturer's recommended concentrations for detergent, sanitizer, rinse

aid or lime scale remover.

DO NOT use steel wool to clean ware or warewasher surface.

DO NOT allow foreign objects to enter the unit, especially metallic contaminants.

NOTE: Failure to follow use, care and maintenance instructions may void your Hobart warewasher

warranty.

– 25 –

MAINTENANCE

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW

LOCKOUT / TAGOUT PROCEDURES.

Some machines may have more than one electrical power supply. All supplies MUST be disconnected.

VENT

When cool, check the vent of this dishwasher every six months for obstructions.

LUBRICATION

None required.

SERVICE

Contact your local Hobart Service office for any repairs or adjustments needed on this equipment. If

a gas orifice fitting is to be adjusted or replaced, have it serviced by qualified Hobart Service personnel.

Long-term service contracts are available on this and other Hobart products.

– 26 –

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE

No Machine Operation. 1. Blown fuse or tripped circuit breaker at power supply.

2. Inspection door(s) not closed.

3. Conveyor jammed.

4. If Auto Timer was used, the timer may have timed out.

5. If table limit switch is used, the switch may be tripped.

6. Manual overload protector tripped on pump motors or conveyor

motor.

Dishes Not Clean. 1. Insufficient wash water due to drain obstruction preventing proper

drain closing.

2. Worn or torn drain O-ring allowing wash water to drain.

3. Missing end plug from wash arm.

4. Wash arm nozzle obstruction.

5. Water leaking past manifold O-ring.

6. Loss of water pressure due to pump obstructions.

DISCONNECT THE ELECTRICAL POWER TO THE MACHINE

AND FOLLOW LOCKOUT / TAGOUT PROCEDURES. Drain

tank(s) and check for any obstruction at the pump intake.

7. Incorrect water temperature. Check circuit breaker to electric heat

supply, or main steam valve. Make certain valve is completely

open.

8. Incorrect detergent dispensing. Contact your detergent

representative.

9. Strainer pans/buckets need to be emptied and/or cleaned.

Leaking Valve (Except 1. Foreign material preventing proper valve operation. A critical period

Solenoid Type) Supplied by is soon after installation when pipe compound or metal shavings

Others. may lodge at the valve seat. Shut off supply line. Unscrew and lift

bonnet from valve body. Clean valve and reassemble.

2. If problem is with a solenoid valve, it is recommended that you

contact your local Hobart Service office.

Spotting of Silverware, 1. Improperly loaded racks.

Glasses and Dishes. 2. Incorrect final rinse water temperature (180

°

F min.).

3. Loss of water pressure due to pump obstruction.

DISCONNECT THE ELECTRICAL POWER TO THE MACHINE

AND FOLLOW LOCKOUT / TAGOUT PROCEDURES. Drain

tank(s) and check for any obstruction at the pump intake.

4. Clogged wash arm nozzles.

5. Improper water hardness (4 to 6 grains/gallon is the recommended

range).

6. Incorrect detergent for water type.

7. Clogged rinse nozzle(s).

Low Final Rinse Temperature 1. Tank float not "up" to allow heat to turn on.

With Booster Heater. 2. Overtemp protector tripped.

3. Circuit breaker to heat system tripped.

4. Incoming water is below minimum temperature.

5. Temperature control needs adjustment or booster heater failure.

Contact your local service office.

– 27 –

SYMPTOM POSSIBLE CAUSE

Inadequate Rinse. 1. Dirty line strainer (Fig. 5) causing reduced water flow. Turn off

water supply, remove strainer cap and withdraw and clean screen.

Reassemble.

2. Low supply line pressure.

3. Clogged rinse nozzle(s).

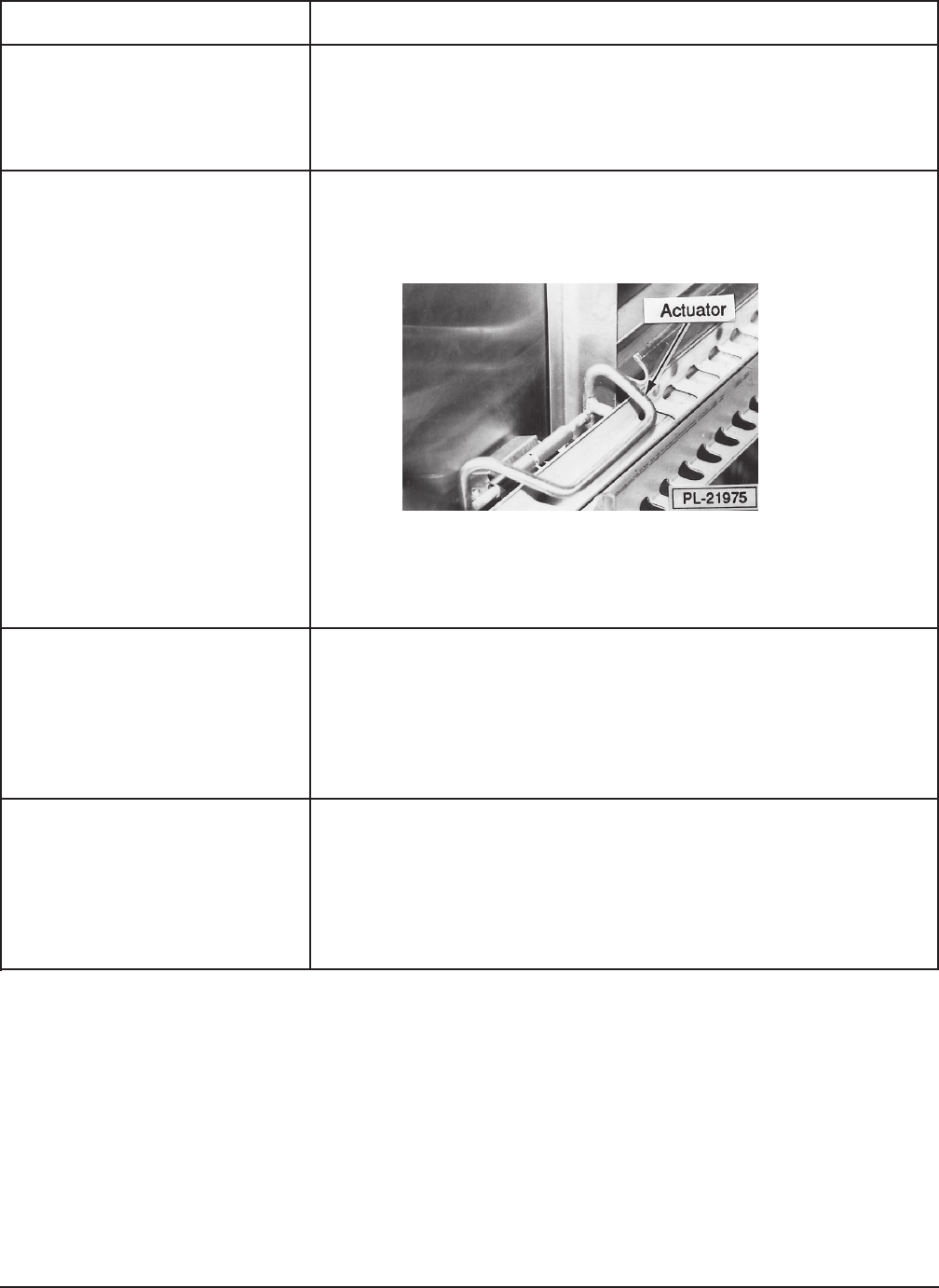

Continuous Rinse 1. Rinse actuator (Fig. 16) not moving freely.

Operation. DISCONNECT THE ELECTRICAL POWER TO THE MACHINE

AND FOLLOW LOCKOUT / TAGOUT PROCEDURES. Check

actuator for movement.

Fig. 16

2. Check for foreign object in mechanism, i.e., silverware.

3. Rinse valve failed or jammed open.

4. Contact your local Hobart Service office.

No Wash Tank Heat. 1. The machine is equipped with low water safety devices which shut

off heat, if water level drops. Check for proper water level.

2. Circuit breaker to heat system tripped.

3. Check heat float for debris and free movement.

4. Steam supply valve not open completely.

5. Overtemp protector tripped.

6. Contact your local Hobart Service office.

No or Slow Fill. 1. Dirty line strainer (Fig. 5) causing reduced water flow. Turn off

water supply, remove strainer cap and withdraw and clean screen.

Reassemble.

2. Make sure doors are closed.

3. Check both upper and lower fill floats for debris and freemovement.

4. Problem with solenoid valve.

5. Drain leaks.

NOTE: If symptom(s) persists after possible causes have been checked, contact your local Hobart

Service office.

NOTES

– 28 –

FORM 17791 Rev. O (Feb. 2006) PRINTED IN U.S.A.
