QuickStartGuide



Usage

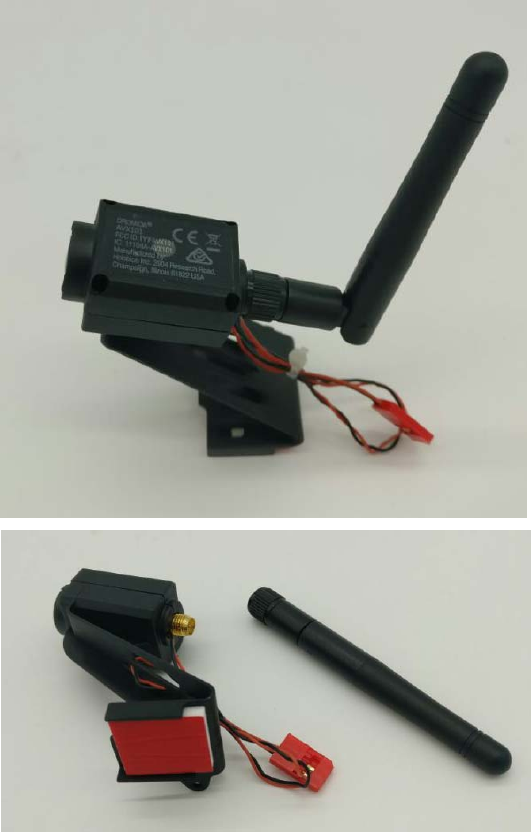

ThecameracanbeinstalledinRacercars,dronesandothersmallmobileelectronic

equipment.Itcanbeusedtoshootpictureandrecordavideo.





Specification:

Cameraresolution:600TVL7Mcamera

Lensangle:120°FOV

Videosystem:NTSC

Miniillumination:1lux

Antennadimensions:3.0cm(L)*7.0cm(W)*1.0cm(H)

Antenna:4loberighthandcircularpolarized

Frequency:5740‐5860MHz,25channels

Size:11.8cm(L)*5.6cm(W)*2.3cm(H)



InstallingtheCamera



A. Removethefourscrewsthatsecurethecasehalvestogethertoaccessthe

camera.



B.Pressthebuttontochangechannel,orpressandholdfor1secondtochangethe

band.TheLEDdisplaywillflashthebandletterandchannelnumberbeingselected.



CameraOperation

1. Poweringon.LEDdisplay0,indicatingvtxisinoffstatus,twohyphensindicating

vtxisturnedon.

Under0status,ithasmemoryfunctions.

Undertwohyphensstatus,theLEDwillscrollCHsuccessively.Shortpressthebutton

tochangechannels.Thevtxhasmemoryforsettings.

Underscrollstatus,pressandholdthebuttonfor4S,thenstartflashingtosetCH.



2. TheFPVcamerafeatures25channelsbetweenband5740‐5860MHzasbelow

tabel:



ChannelFrequency

(MHz)ChannelFrequency

(MHz)Channel Frequency

(MHz)

15740105785195830

25745115790205835

35750125795215840

45755135800225845

55760145805235850

65765155810245855

75770165815255860

85775175820//

95780185825//



FCCStatement

Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothe

followingtwoconditions.

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.



NOTE:THEMANUFACTURERISNOTRESPONSIBLEFORANYRADIOORTV

INTERFERENCECAUSEDBYUNAUTHORIZEDMODIFICATIONSTOTHISEQUIPMENT.



Product:AVX101FPVCameraFCCID:IYFAVX101





Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.



RSSWarning

ThisdevicecomplieswithISEDClicence‐exemptRSSstandard(s).Operationissubject

tothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)

thisdevicemustacceptanyinterference,includinginterferencethatmaycause

undesiredoperationofthedevice.



LeprésentareilestconformeauxCNRd'ISEDClicablesauxareilsradioexemptsde

licence.

L'exploitationestautoriséeauxdeuxconditionssuivantes:

(1)l'areilnedoitpasproduiredebrouillage,et

(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,même

silebrouillageestsusceptibled'encompromettrelefonctionnement.



Product:AVX101FPVCameraIC:11104A‐AVX101RSS‐210
