User Manual
User Manual of
DIDJ1001
A.Basic data
B.BASIC FUNCTION
2CH
ST
TH
D/R
Battery instruction
Servo inverse
Low power warning
C. Appearance size
D. Appearance picture
Type
RX7+TX
Working frequency band
2.4GHz
The Shift channel number
2CH
Item
KTH-90700G-L
Distance (m)
100
Input voltage
6V DC
Suitable model
Model Car /Ship
Rx size
Maximum Length (mm)
176.70
Maximum Height (mm)
222.80
Maximum Wide (mm)
96.90
E. Test method

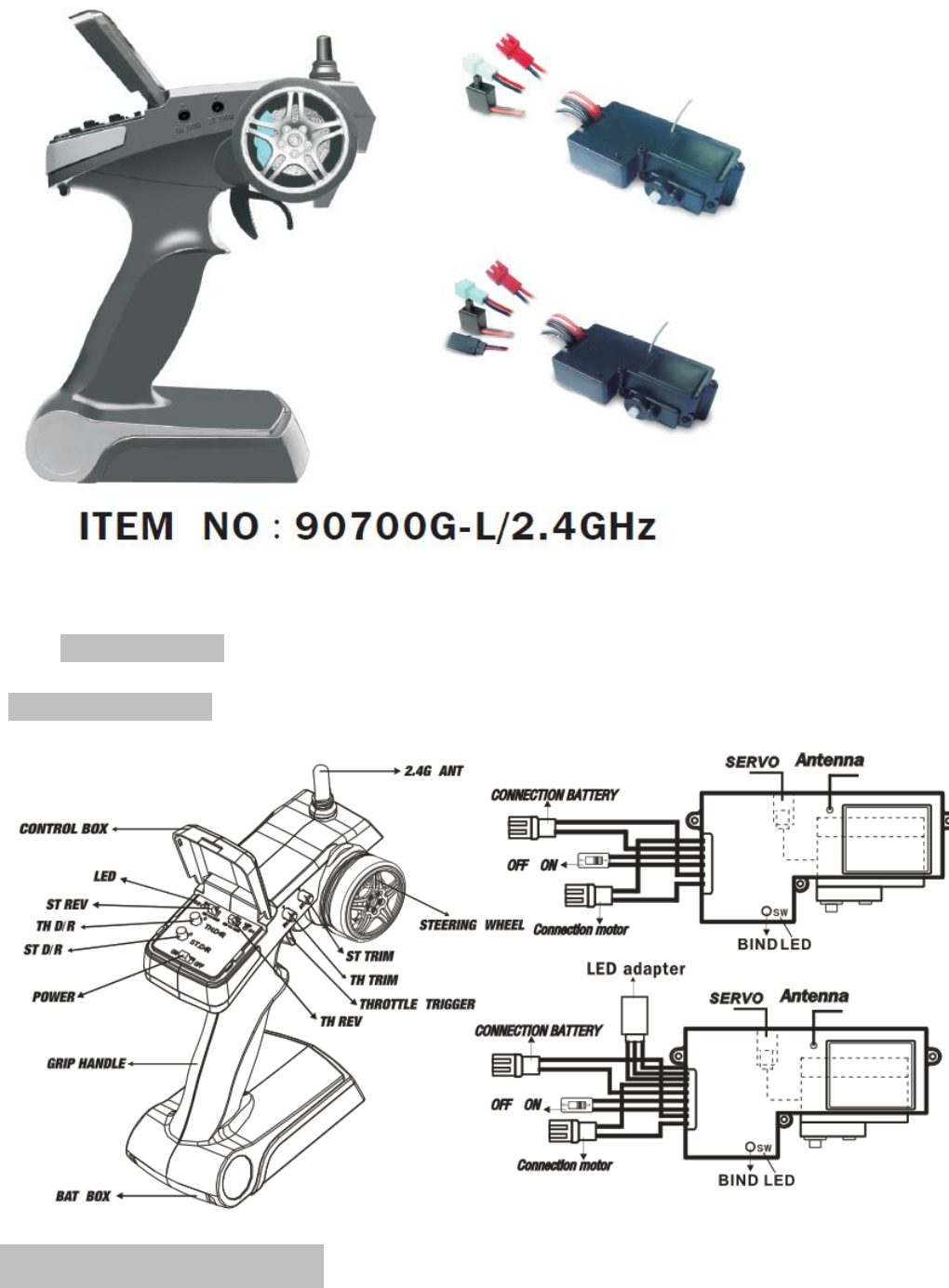

1. Function Diagram
2. Battery Installation Diagram
3. Connect to RX7 Diagram
F. Notice
1. Please distinguish the battery positive and negative pole.
2. If not use it for a long time ,please take out the battery, and store it.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
