Hobbyengine Model 0205 27 MHZ WIRELESS R/C TOY-TX User Manual USERS MANUAL

Hobbyengine Model Ltd. 27 MHZ WIRELESS R/C TOY-TX USERS MANUAL

USERS MANUAL

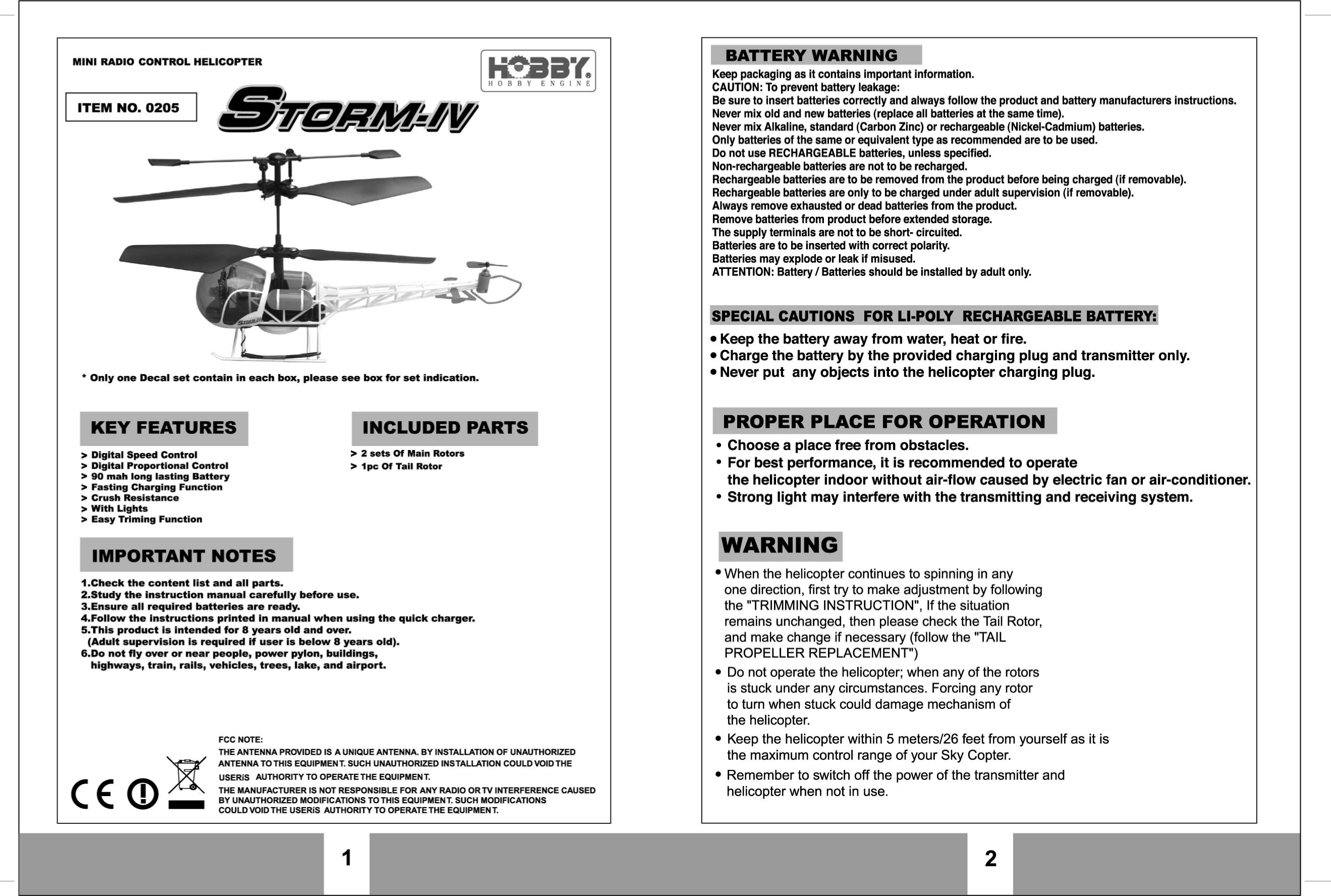

I MINI RADIO CONTROL HELICOPTER ,,,.,,I ,sy&mRML4-y -Z~JZ i I I - * Only one 'Decal set contain in each box, please see box for set indication. J b I KEY FEATURES INCLUDED PARTS 3 Digital Speed Control > 2 sets M Maln Rotors > Digital Proportlonab tontrol $ I PC of Tall Rotor 3 90 mah long lasting Battery > Fasting Charging Function * Crush Resistance > With Lights > Easy Triming Function I IMPORTANT NOTES 4.Check the content llst and all parts, 2.Study the instruction manual carefully before use. J.Ensure all required batteries are ready. 4.Follow the Instructions prSnted in manual when using the qulck charger. 5.This product is intended for 8 years old and over. (A~UI~ supervision is required if user is below 8 years old). 6.Do not fly wer or near people, power pylon, buildings, highways, train, rails, vehicles, trees, lake, and airport. FCC NOTE: THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF 'UNAUTHORIZED lz ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USERIS AUMOR~TY TO OPERATE THE EQUIPMENT. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO ORTV INTERFERENCE CAUSED - BY UNAUTHORIZED MODlFlCATlONS TOTHIS EQUIPMENT. SUCH MODIFICATIONS COULD YOIDTHE USERiS AUTHORfTY TO OPERATETHE EQUIPMENT. 1 I BATTERY WA'RN-~~G Keep packaging as it contalns important Information. CAUTION: To prevent battery leakage: Be Never sure mix to old insert and batteries new batteries correctly (replace and always all batteries follow at the the product same time). and battery manufacturers Instructions. Never mix Alkaline, standard (Carbon Zinc) or rechargeable (Nickel-Cadmium) batteries. Only batteries of the same or equivalent type as recommended are to be used. Do not use RECHARGEABLE batteries, unless specified. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged (if removable). Rechargeable batteries are only to be charged under adult supervision (if removable). Always remove exhausted or dead batteries from the product. Remove batteries from product before extended storage. The supply terminals are not to be short- circuited. Batteries are to be inserted with correct polarity. Batteries may explode or leak if misused. ATTENTION: Battery I Batteries should be installed by adult only. I SPECIAL CAUTIONS FOR LlaPOLY RECHARGEABLE BATTERY: Keep the battery away from water, heat or fire. Charge the banery by the provlded charging plug and transmitter only. Never put any objects into the helicopter charging plug. I PROPER PLACE FOR OPERATION Choose a place free from obstacles. For best performance, it is recommended to operate the helicopter indoor without air-flow caused by electric fan or air-conditioner. Strong light may interfere with the transmitting and receiving system. I 7 WARNING When the helicopter continues to spinning in any one direction, first try to make adjustment by following the "TRIMMING INSTRUCTION", If the situation remains unchanged, then please check the Tail Rotor, and make change if necessary (follow the "TAIL 'PROPELLER REPLACEMENT") Do not operate the helicopter; when any of the rotors is stuck under any circumstances. Forcing any rotor to turn when stuck could damage mechanism of the helicopter. Keep the helicopter within 5 meters126 feet from yourself as it is the maximum control range of your Sky Copter. Remember to witch off the power of the transmitter and helicopter when not in use. 3 t 1 2
