Hoin Electronic Technology HOP-E200 Thermal Receipt Printer User Manual HOP M581

Shenzhen Hoin Electronic Technology Co., Ltd Thermal Receipt Printer HOP M581

User Manual

Portable Thermal Printer
User Manual
Please read this manual carefully before using it, and keep it for
future reference
Portable Thermal Printer User Manual
I
About this manual
Thank you for your purchase of our company's 58MM thermal printer.
This manual can help you learn to use this product. Please read this manual before
use, and safekeeping, so that all the use of this product can read it.
Note
Due to our constant efforts to improve and upgrade the product's function and
performance, our company reserves the right to change the hardware and software
specifications in the manual without prior notice.
If you find any errors or missions in the contents of this manual, please tell us or our
agent,thank you very much.
Without the prior written permission of our company, the contents of the relevant
manual attached to the product shall not be reproduced, transmitted, transcribed,
stored, etc..
Portable Thermal Printer User Manual
II
Statement
This product is type A product, may cause the radio interference in the living
environment , in this case,the user need to protect the interference with effective
protection measure
Safety tips
Please follow the following notes when using the printer
●Do not disassemble the printer personally, pls read this manual before use.
●Please shut off the power supply when the failure occurs. When you find that the
printer power adapter or battery smoke or has bad smell, please unplug the power
adapter immediately, and take out the battery, pls note to avoid being burned.
●Please do not use the printer at the gas station, fuel warehouse, etc.
●When charging, please put the printer and the power adapter on the ventilation
place with environment temperature -5℃~40℃, and use the manufacturers
standard power adapter. The use of unauthorized power adapters may cause
danger, and violation of the manufacturer's warranty terms.
Portable Thermal Printer User Manual
III
●When the printer is printing, please do not open the paper cover, otherwise it may
appear unexpected situation, and even damage the printer.
●After printing, print head is still at high temperature, do not touch, so as not to
burn.
●Pls do not use dissolved substances, such as: benzene, thinner or alcohol wipe to
clean the printer casing. At the same time, please do not use corrosive chemicals
and detergent to contact printer. To avoid damage to the printer.
●Pls use our company approved or regular factory produced printing paper,
otherwise it may lead to poor print quality, and even damage the printer core.
●If you have to store the printer for a long time, please be sure to remove the
battery in the printer and for separate storage, otherwise may cause the battery
failure, and even leakage, and then damage the printer.
●Before replacing the battery, please make sure that the printer has been shut off. If
you use the power adapter, please confirm that the power supply has been cut off.
Portable Thermal Printer User Manual
IV
●Thermal printing paper printing letter save time is related to thermal printing paper
quality, if you want to print the long-term preservation bills, please choose a
long-term thermal paper.
●The printer is only suitable for using in the altitude below 2000M.
●The printer is only suitable for use in non tropical climates.
Please follow the following precautions when using the battery
●Before use, please read this manual and battery surface identification.
●Pls charge the battery indoor in the appropriate emperature, if charging
temperature is too high, will cause the battery heat, smoke, burning or deformation,
and even explosion.
●There are special protection circuit and device inside the battery, please do not
disassemble the battery, otherwise it will cause short circuit or electrolyte leakage. it
has the risk of blindness if electrolyte into the eyes , if accidentally into the eyes,
please rinse immediately, and immediately rushed to the hospital for treatment.
Portable Thermal Printer User Manual
V
●Please do not squeeze, mechanical vibration or shaking the battery, is strictly
prohibited to make the battery positive and negative shortcircuit.
●Please do not put the battery into water or other liquid, to cause the battery short
circuit, which causes the battery to heat, smoke, or even explode.
●Please do not expose the battery to the sun. Please do not use in the high
humidity environment, such as the bathroom, sauna room, etc..
Please replace the battery when the performance requirements can not be met.
●Please put the battery in a place where children can not reach, and prevent the
occurrence of danger.
●Once the battery is found deformed, leakage, fever or has other abnormal
conditions, please stop using.
Please follow the following precautions when using the power adapter
●Before use, please read this manual and the surface of the power adapter.
●If the power adapter is exposed to water or other conductive liquid, please cut off
the power immediately.
Portable Thermal Printer User Manual
VI
●Do not remove or modify the power adapter, it is strictly prohibited to use the
power adaptor with damage the power supply line , otherwise it will cause damage
to the power adapter and even lead to electric shock, fire and other hazards.
●Please do not short-circuit the power adapter, or violent shaking the power
adapter, as to avoid dangerous situations.
●Please do not use the power adapter in the bathroom, sauna and other high
humidity environment, no rain.
●Please put the battery in a place where children can not reach,and prevent the
occurrence of danger.
Application area
Water and electricity meter reading
Transport, logistics bill printing
Mobile government, police bill printing
Taxi bill printing
Portable Thermal Printer User Manual
VII
Package
Printer 1 PC
Standard power adapter 1 SET
Standard battery 1PC
Paper roll 1 ROLL
USB data line 1 PC
user manual 1 PC
optional accessories
standard COM line 1 PC
standard holster 1 PC
Portable Thermal Printer User Manual
VIII
Printer Feature
●Support 1.D,2.D bar code printing
●While compatible with Windows, Linux, Android and IOS systems
●Super battery life, with smart power saving and power consumption control
functions , to ensure longer print time
●Support USB, COM and Bluetooth communications
●Support sound and light reminder when lack of paper, printing abnormal
●Anti fall of 1.5M cement floor
Portable Thermal Printer User Manual
IX
Printer Parameter
Item
Print
parameter
Printing
Method
Effective
Printing Width
Resolution
Printing
Speed
Interface
Line spacing
Line No.
Portable Thermal Printer User Manual
X
Character
Character
Size
Barcode
character
Extended
character set
Bar code
Portable Thermal Printer User Manual
XI
Graphics
printing
Graphics
printing
Power
saving
Mode
Smart power
saving
Variable
speed printing
Consumption
Dormancy
Dection
Sensor
Paper
Type
Width
Diameter
Portable Thermal Printer User Manual
XII
Commands
Commands
Power
Type
Capacity
Charger
Physical
features
Weight
Dimension
Environme
nt
Operating
Storage
Reliability
Print head life
Software
Driver
Portable Thermal Printer User Manual
XIII

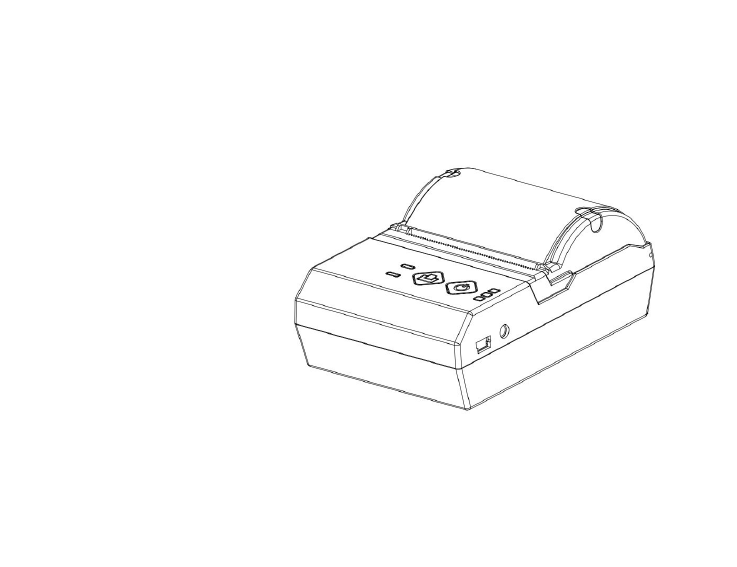

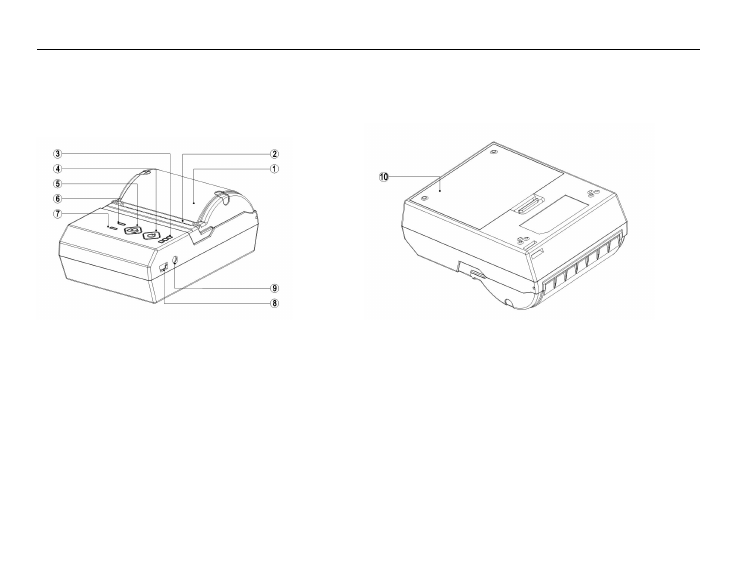

Printer components name:
1.Paper warehouse cover 2. Paper window 3. Power indicator
4. Power button 5. Feed button 6. Error indicator
7. Charge indicator 8. USB(COM)hub 9. Supply hub
10. Battery cover
Portable Thermal Printer User Manual
XIV
Interactive interface
1 battery charge indicator
Battery indicator (3 blue lights) full on means battery power is full, only one light on
means the battery is about to run out, to ensure normal use, please charge the
battery.
2 error indication
The lack of paper status, or printer in abnormal state, error indicator light (red light)
flashing, while the internal buzzer to remind each 3 seconds.
3 charge indicator
When charging the battery, charging indicator light (red, blue, double color
light )shows red, when the battery is full, charging indicator light shows blue. At this
time, please pull the power adapter plug, and you can use it normally.
Portable Thermal Printer User Manual
XV
Preparation before use
Battery installation and considerations

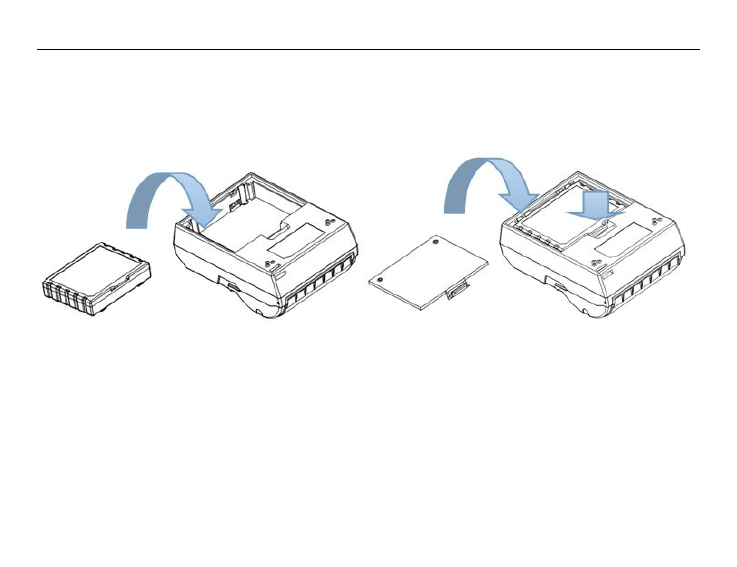

Put battery in the battery holder according to Pic and close the battery cover
Note: For the first use of the battery, need to charge it full. After the battery is stored
for a long time also need to charge it full,then the battery will achieve the best use
effect.
Portable Thermal Printer User Manual
XVI

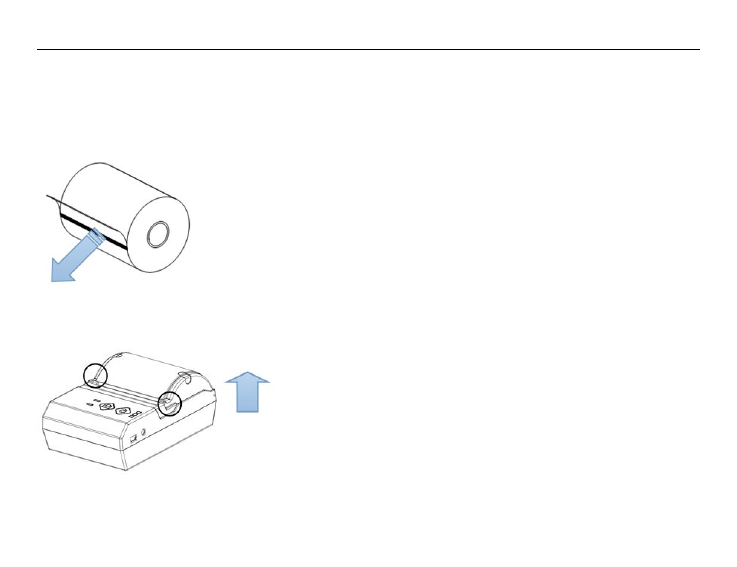

Install the print paper
The HOP-M200 is using thermal paper with diameter 40MM, and width 58MM.
1.remove the seal on the printing paper.
2.Hold the side button of paper holder and open it
Portable Thermal Printer User Manual
XVII
3.Put the paper roll in like below:
4.Put out some paper and close the paper holder,Tear up the excess paper.
Note:pls take care of the paper roll direction,if opposite it can’t print the content.
Portable Thermal Printer User Manual
XVIII
Basic operation:
1 Start
Continue to press the printer power button for 3 seconds, the printer starts.
2 shutdown
when printer is on, continue to press the printer power button for 3 seconds, the
printer is powered off.
3 print check page
In Shutdown status and print paper roll are installed well, press the power button
and feed button at the same time, when a little paper come, release the power
button and feed button at the same time, printer will print a self-test page.
Communication:
This printer provides the following ways of communication:
●USB communication: Standard USB2.0 protocol
●COM communication (need to be customized): optional COM line
●Bluetooth communication: Bluetooth 3.0 and Bluetooth3.0/4.0 dual-mode
Portable Thermal Printer User Manual
XIX

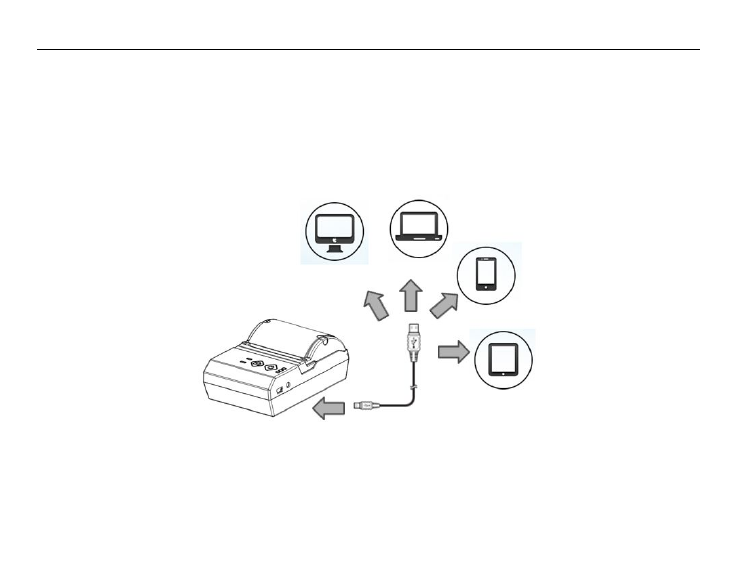

USB communication:
This printer USB interface use standard USB2.0 communication protocol can
easily connect to the windows device, androd equipment, Linux equipment, and
equipped with corresponding driver and SDK, let your print arbitrarily.
Note: the printer driver and SDK please download from the official website or
request from your supplier.
Portable Thermal Printer User Manual
XX

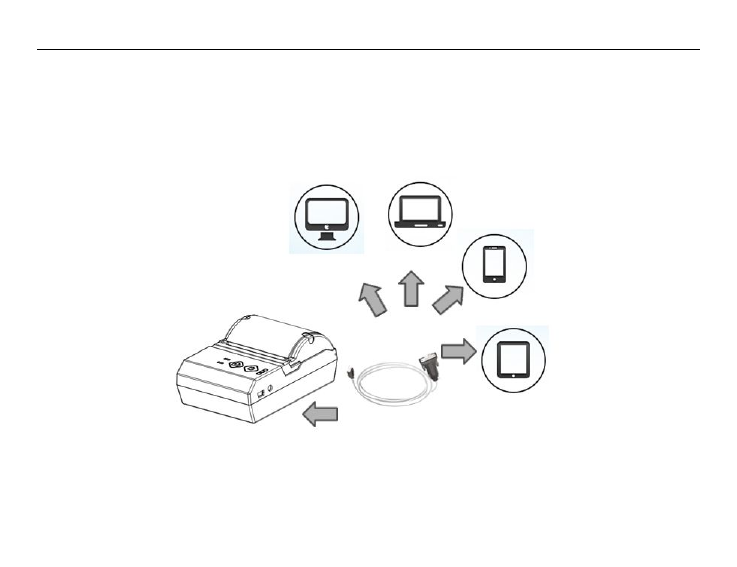

COM communication (optional)
The printer provides standard COM communication (optional), support multi
platform interconnection, and the baud rate is adjustable.
Portable Thermal Printer User Manual
XXI

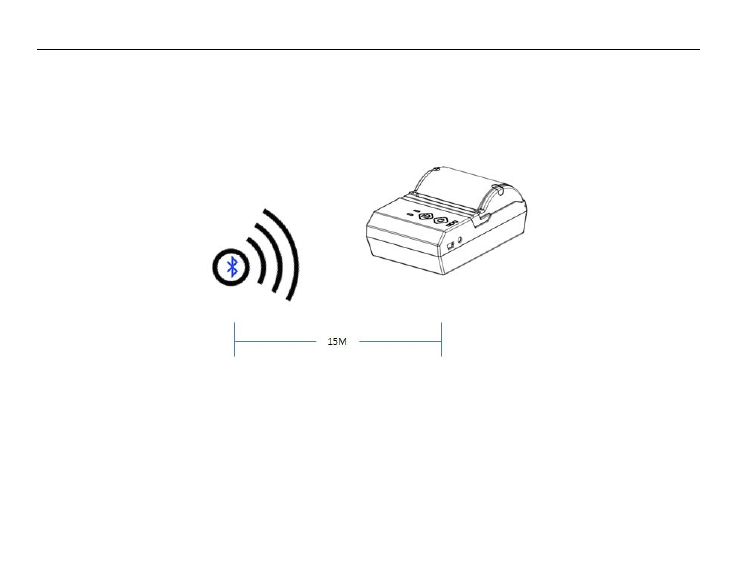

Bluetooth communication:
The printer provide Bluetooth 2.0 communication can easily connect to the windows
device, androd and IOS devices work, and communication distance up to 15m.
Note:Match password :1234
Portable Thermal Printer User Manual
XXII
Printer Repair and maintenance:
1. printer external and warehouse cleaning: please use a wet cloth gently wipe the
printer surface and internal paper warehouse.
2. Printer core clean: printer core must be clean on time, especially the quality of
printing is decline, cleaning methods are as follows: put cotton dipped in anhydrous
alcohol and gently wipe the printer core ceramic parts as shown in the picture below
until clean enough.
3.If find water inside printer, please immediately disconnect the printer power, and
dry the printer naturally.
Failure Analysis:
Failure phenomenon
Failure cause
Solution
Printer red light
flashing and make a Di
Di... sound
Printer lack of
paper
Install paper correctly
Portable Thermal Printer User Manual
XXIII
When the printer only
paper run but not print
Print paper install
reverse
Pls install the print paper for a
opposite direction
The printer print fuzzy
The print head not
clean for a long
time
Put cotton dipped in
anhydrous alcohol and gently
wipe the printer core ceramic
parts until clean enough
The character
colour in thermal
paper no good
Pls choose high quality
thermal paper
Power indicator only
has the last lights on
battery is short of
power
Pls charge the battery to
avoid affect your normal use
The printer shut down
automatically
Battery power is off
Pls charge it
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

Navigation menu
