CATALOG NUMBER
OWNER'S MANUAL
RECORD SERIAL NUMBER HERE
Fax
(800) 548-5438
(858) 578-7676
(858) 578-9558
Note: Both Serial Number and Model Number are Required when Ordering Parts
Customer Service
0806 - 011
RPL-5601
AB CRUNCH
02
04
12
13
15
17
20
21
23
25
26
27
29
30
OWNER'S MANUAL
PAGE 01 RPL-5601 ASSEMBLY
INSTRUCTIONS .....................................................................
FRAME ASSEMBLY ..............................................................
PRE-ASSEMBLY....................................................................
DECAL PLACEMENT.............................................................
DECAL REFERENCE.............................................................
PART LIST...............................................................................
ABBREVIATIONS...................................................................
BOLT SIZING CHART............................................................
WASHER SIZING CHART......................................................
MAINTENANCE SCHEDULE.................................................
GENERAL MAINTENANCE INFORMATION........................
WEIGHT TRAINING TIPS.......................................................
EXERCISE LOG......................................................................
LIMITED WARRANTY............................................................
CONTENTS
OWNER'S MANUAL
PAGE 02
RPL-5601 ASSEMBLY
Ratchet Wrench
1/2", 9/16" and 3/4" Sockets
Adjustable Wrench
Rubber Mallet
Tape Measure
Level
Hex Key Wrench Set
TOOLS REQUIRED
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that
all parts have been included in your shipment. When ordering, use part
number and description from the lists. Use only HOIST replacement parts
when servicing. Failure to do so will void your warranty and could result
in personal injury.
HOIST equipment is designed to provide the smoothest, most effective
exercise motion possible. After assembly, you should check all functions to
ensure correct operation. If you experience problems, first recheck the
assembly instructions to locate any possible errors made during assembly.
If you are unable to correct the problem, call your authorized HOIST dealer.
Be sure to have your serial number and this manual when calling. When all
parts have been accounted for, continue on.
INSTRUCTIONS
SuperLube
ACCESSORIES INCLUDED
***THIS PAGE WAS INTENTIONALLY LEFT BLANK***
OWNER'S MANUAL
PAGE 03 RPL-5601 ASSEMBLY
OWNER'S MANUAL
PAGE 04
RPL-5601 ASSEMBLY

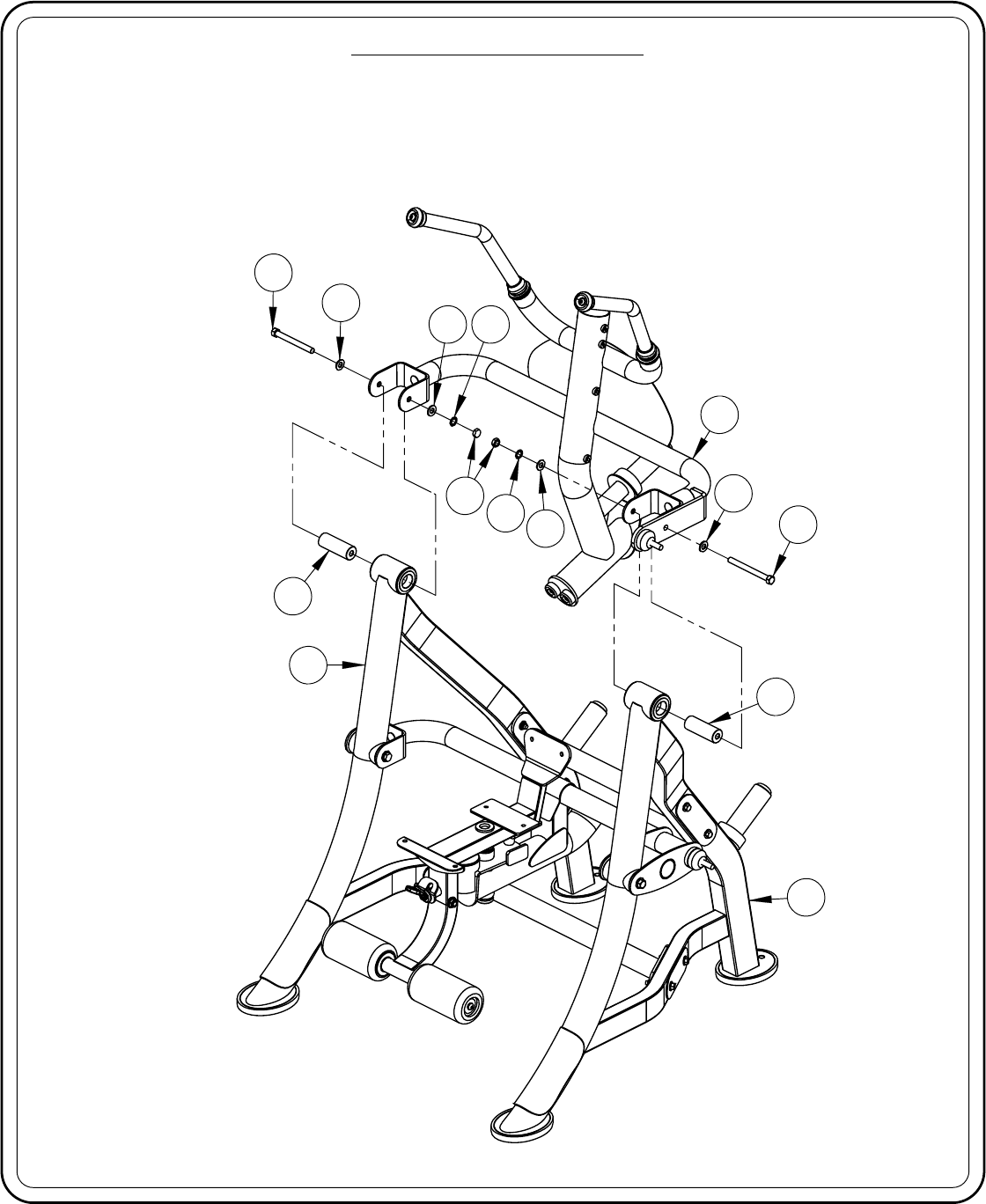

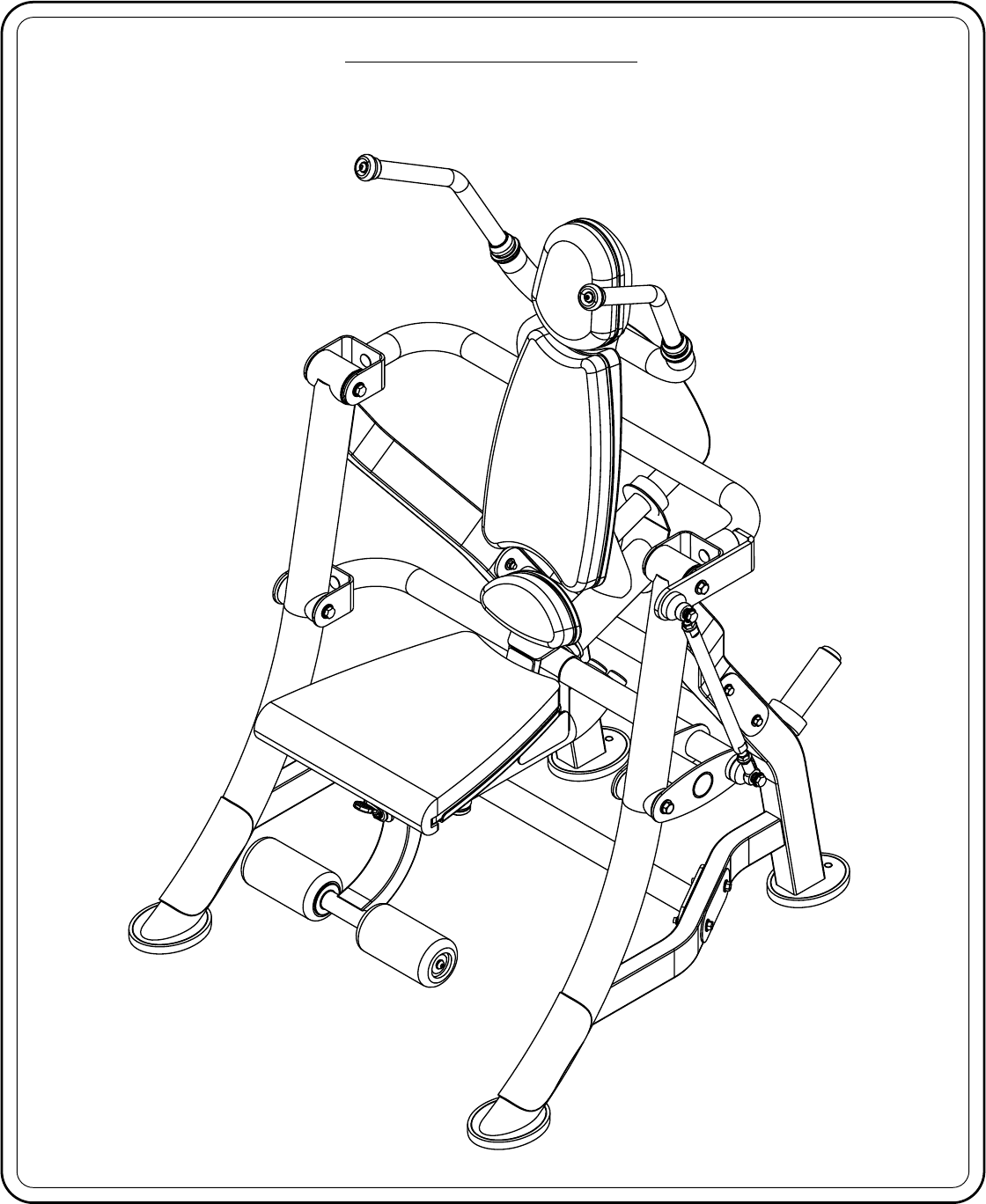

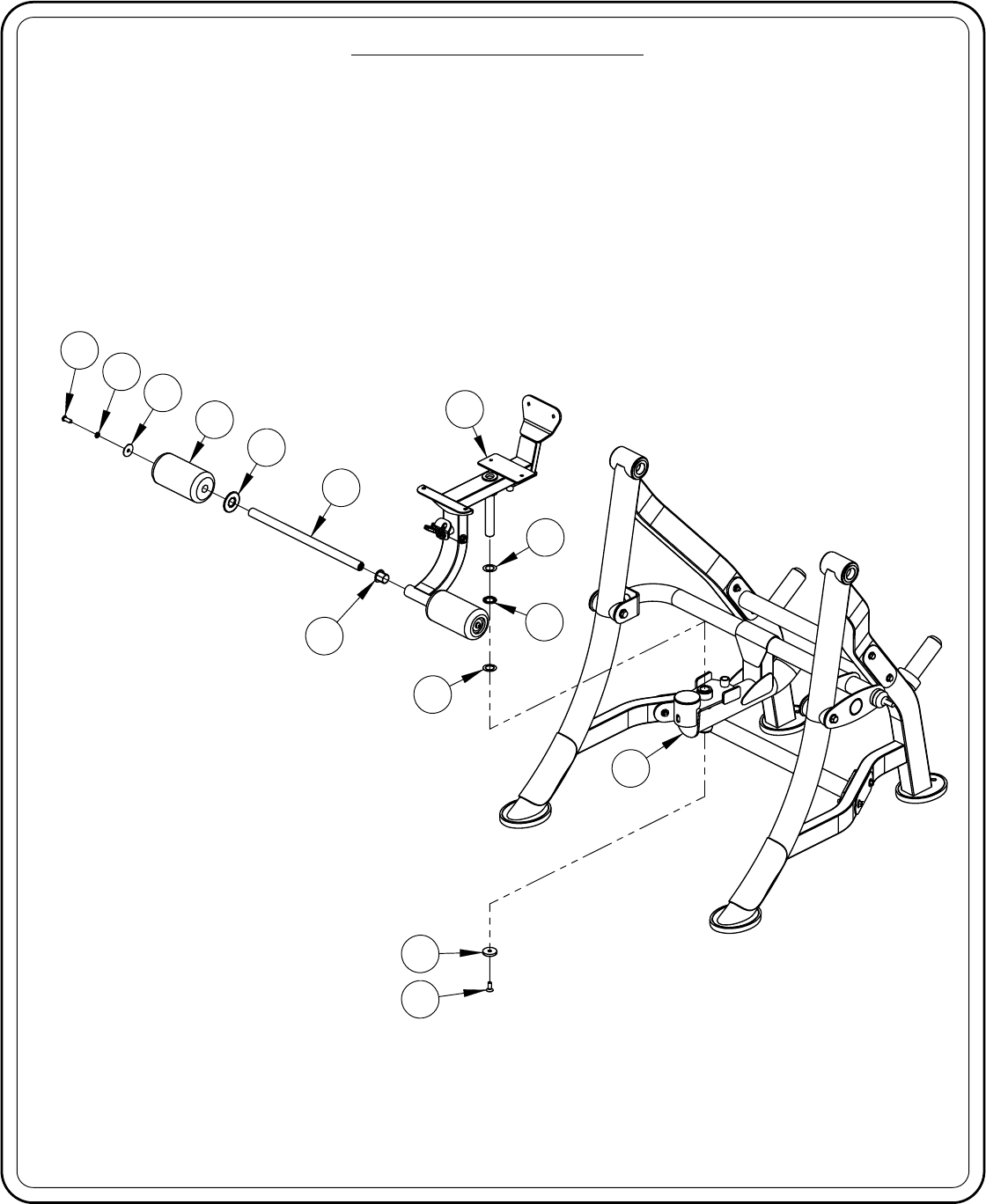

FRAME ASSEMBLY
RPL-5601 ASSEMBLY
NOTE:
PAGE 05
- HAND TIGHTEN HARDWARE.

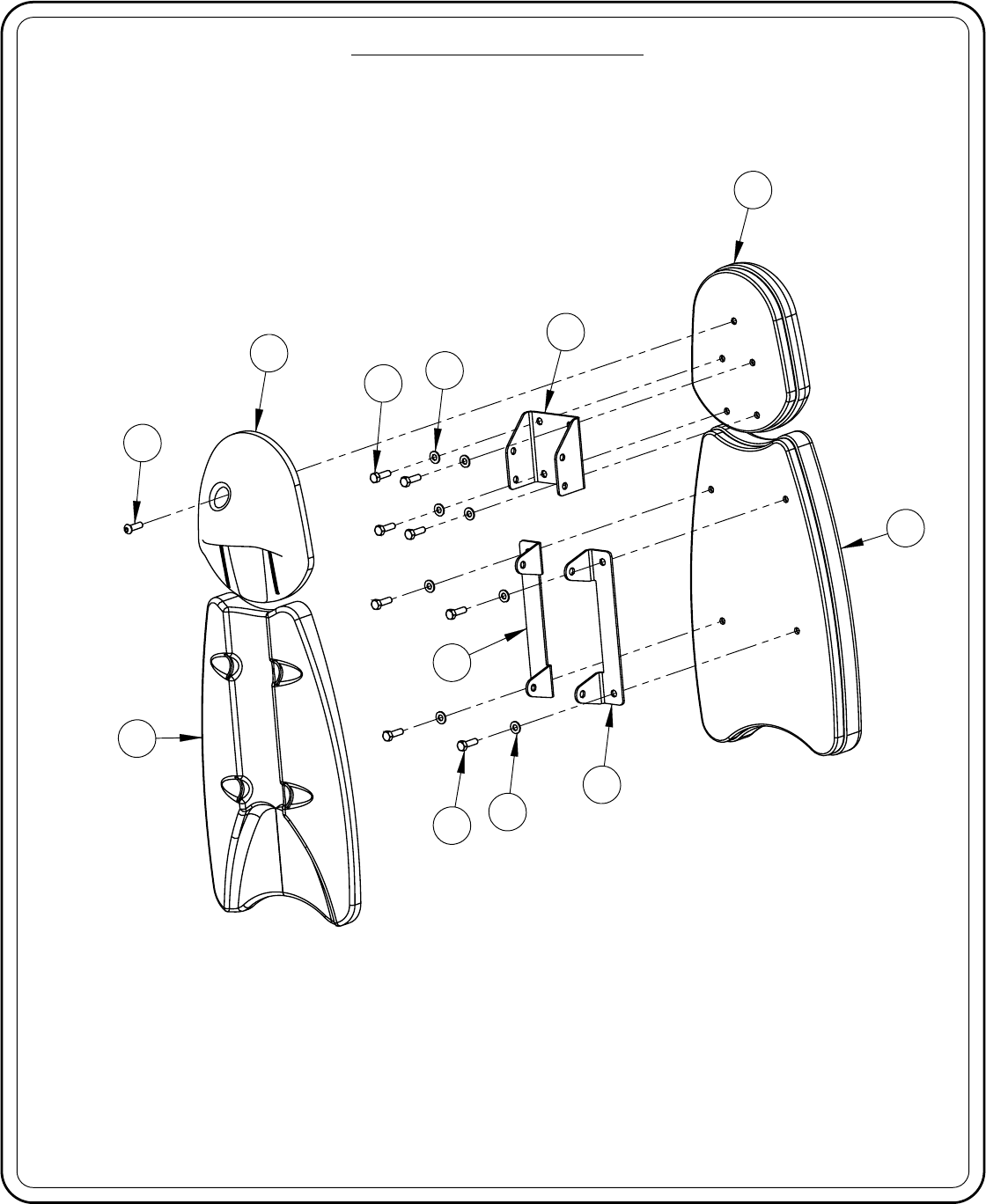

FRAME ASSEMBLY
OWNER'S MANUAL
66
74
76
60
66 23
6
31
7
66
74
23 66
5
10

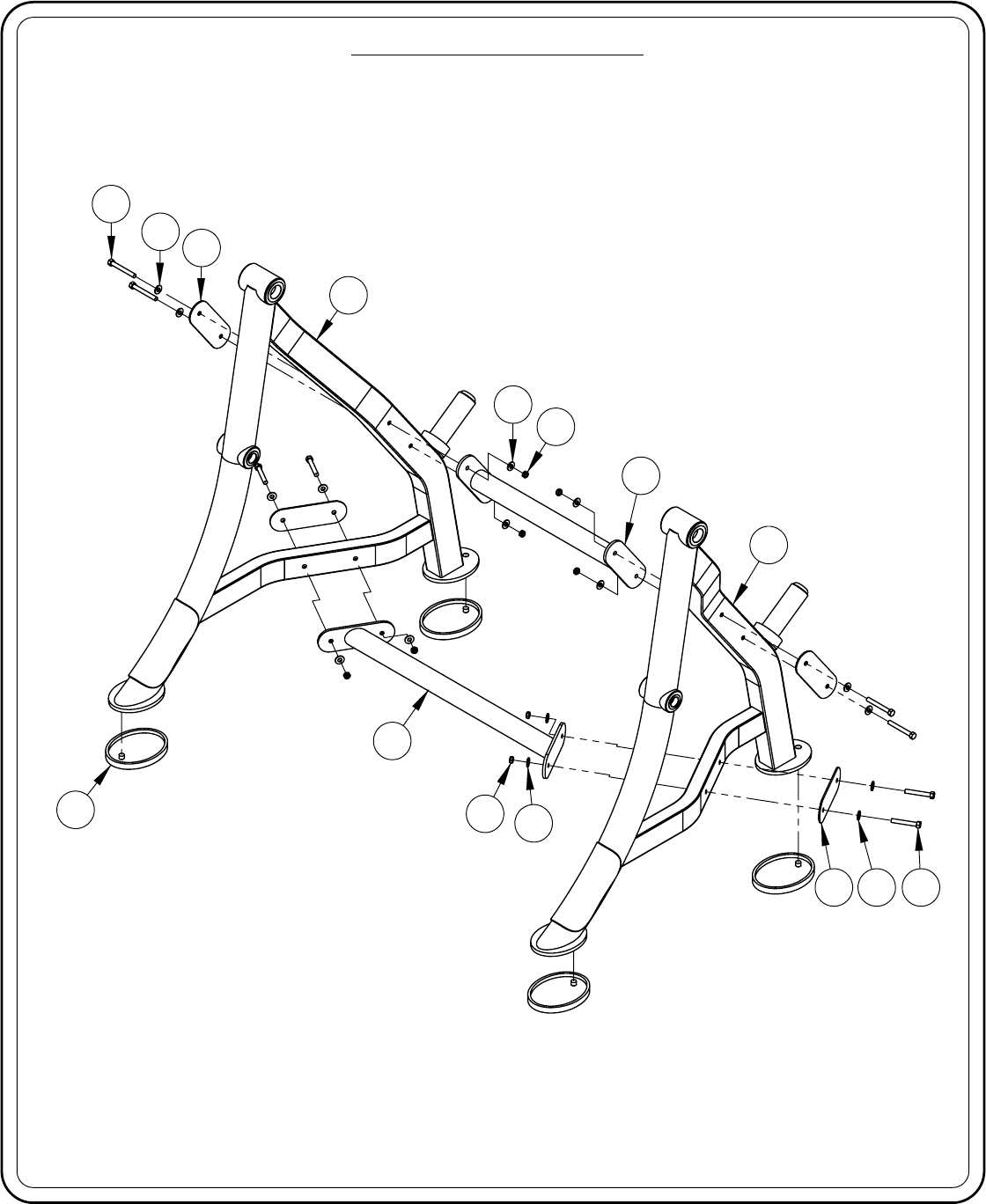

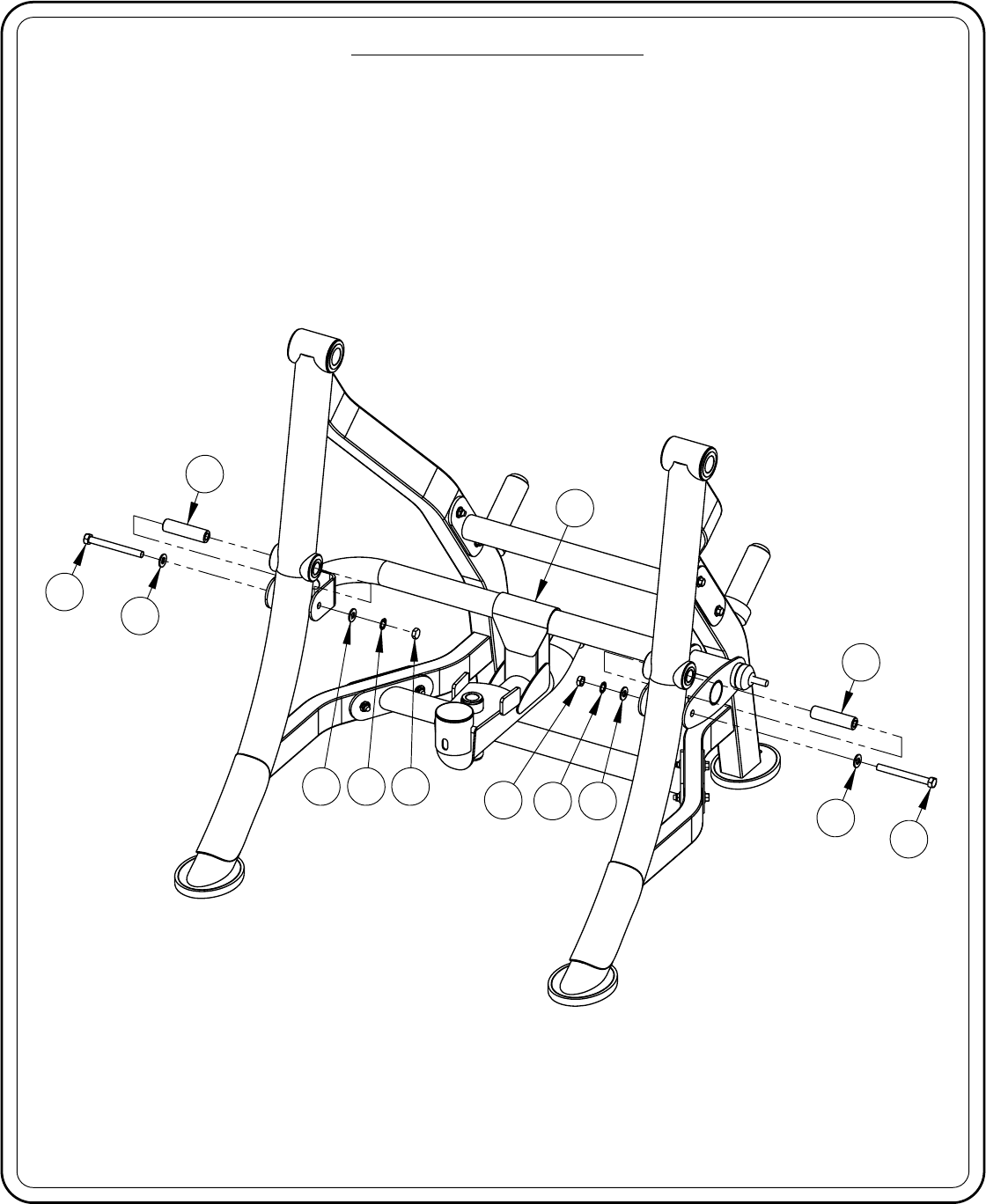

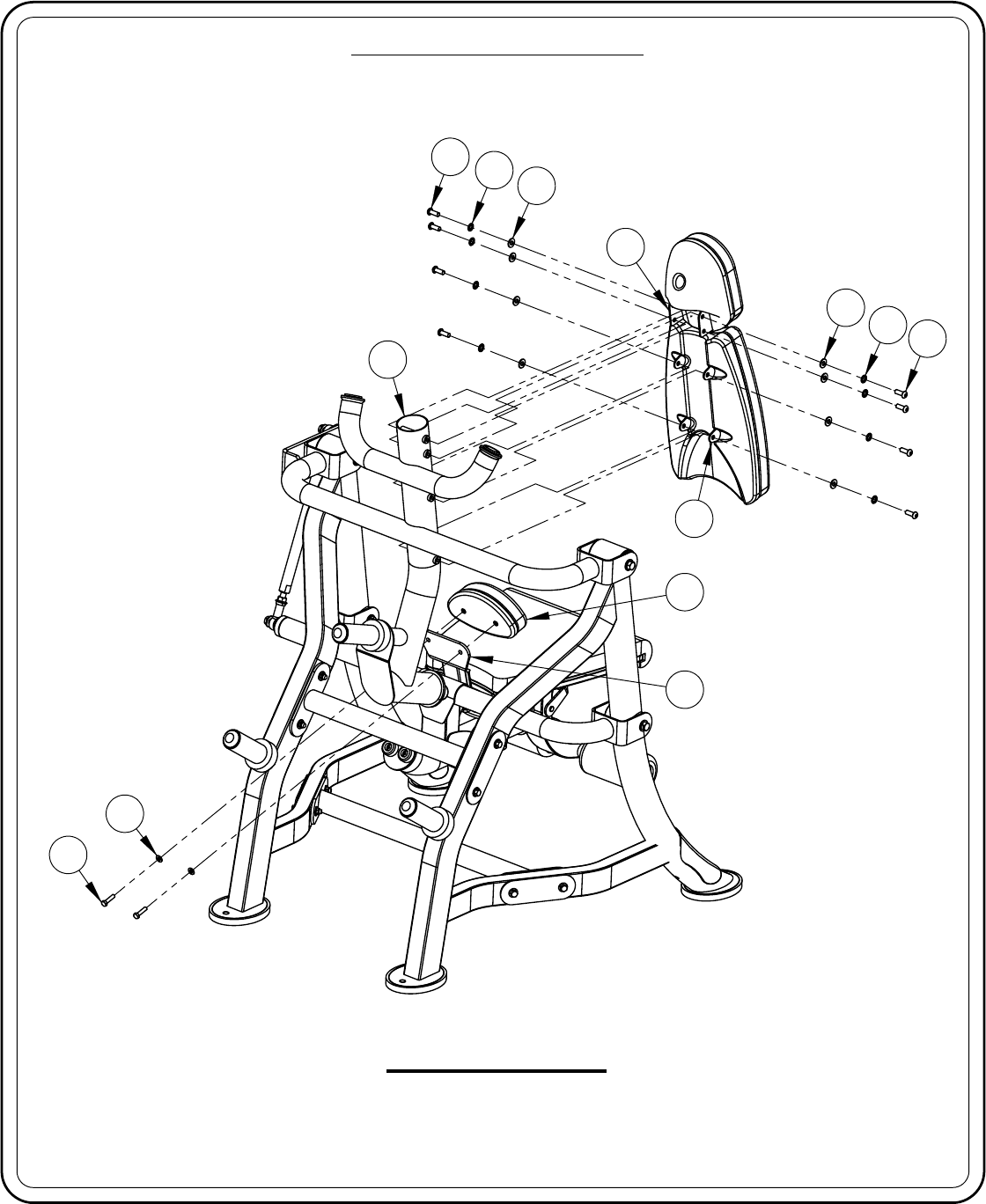

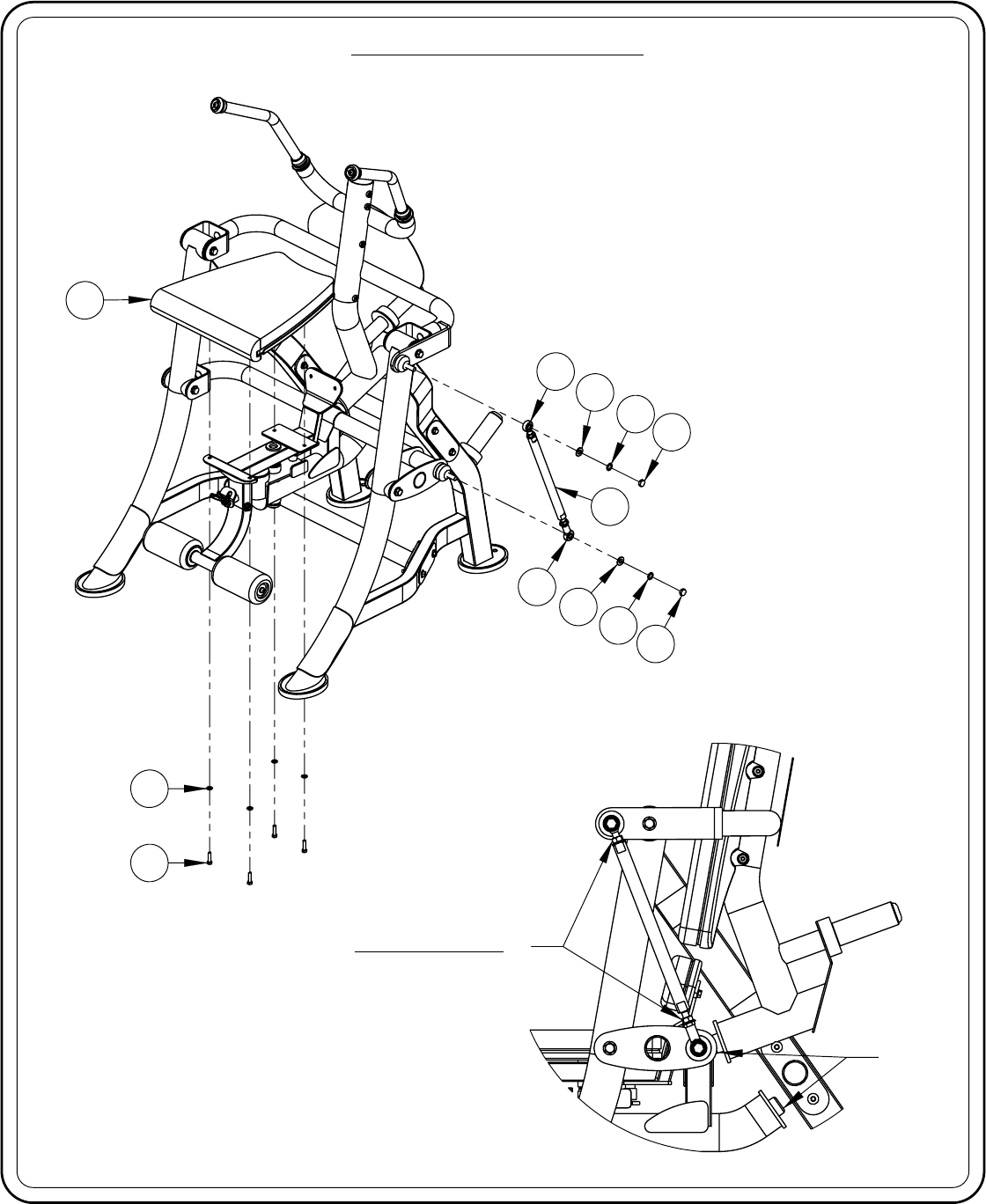

FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE (61) THEN
LOOSEN NUT JUST ENOUGH FOR (9)
TO PIVOT FREELY.
RPL-5601 ASSEMBLY
OWNER'S MANUAL
PAGE 06
88 68
68
21
8868
9
68
89
61
89
61
21
- APPLY SUPERLUBE TO BOTH SIDES OF
BEARING.
NOTE:
- REPEAT ASSEMBLY FOR OPPOSITE SIDE.
FRAME ASSEMBLY
*
OWNER'S MANUAL
PAGE 07 RPL-5601 ASSEMBLY
**
47
**
49
56
*
26
38
1
2
58
17
*
*
47
*
71
67
*
*
9
65
FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE (61 & 62)
THEN LOOSEN NUT JUST ENOUGHT FOR
(8) TO PIVOT FREELY.
- WRENCH TIGHTEN ALL OTHER HARDWARE.
OWNER'S MANUAL
RPL-5601 ASSEMBLY PAGE 08
68
61
68 62
68
20
68
8
20
88
6
5
88
89
RUBBER
BUMBERS
MAJOR ADJUSTMENT
TIGHTEN/LOOSEN JAM NUTS
SO THAT RUBBER BUMPERS
MAKE CONTACT WITH TUBES
NOTE:
- WRENCH TIGHTEN HARDWARE.
FRAME ASSEMBLY
PAGE 09

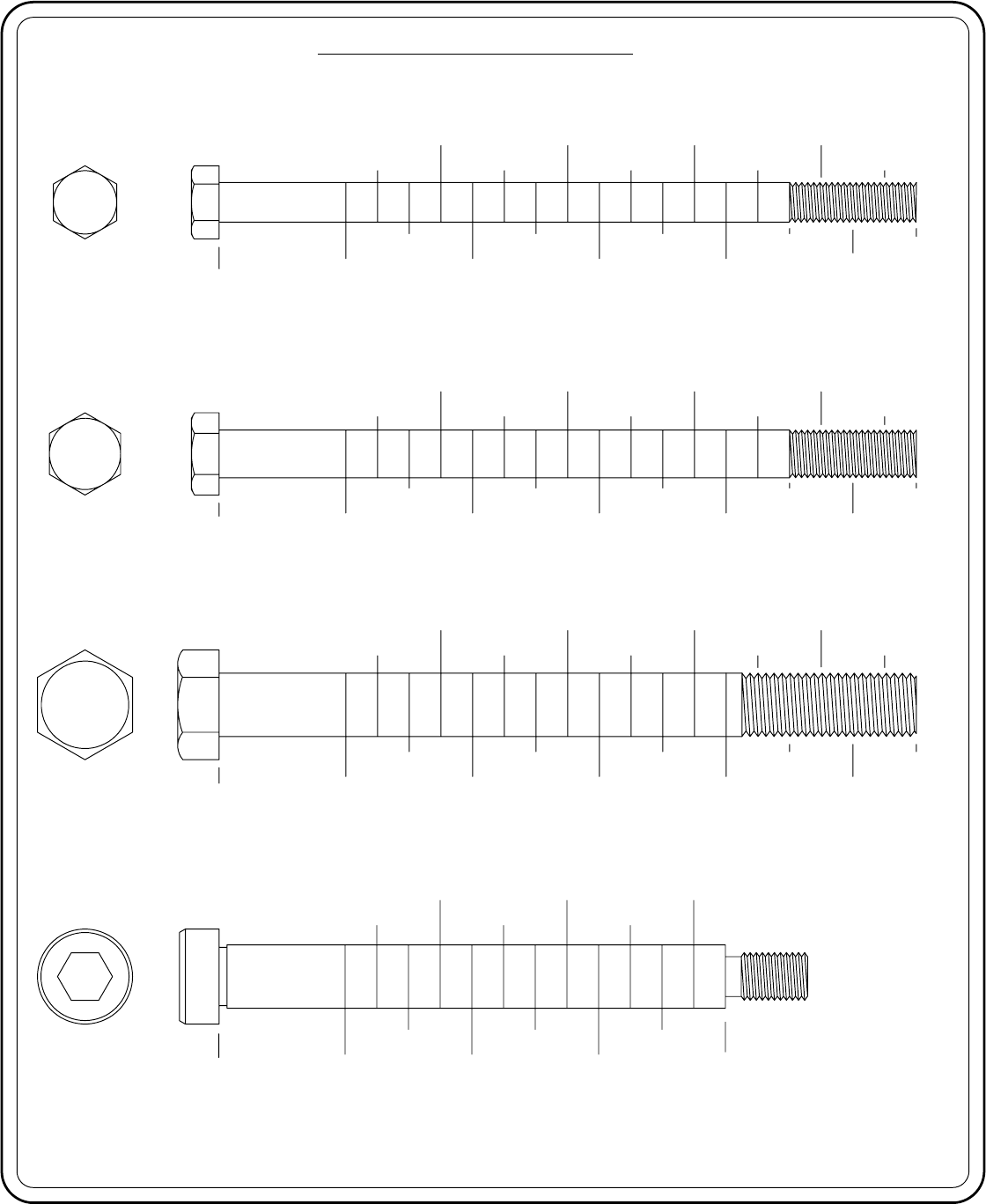

OWNER'S MANUAL
RPL-5601 ASSEMBLY
45
12
64
68
22
68
88
55
88
89
46
89
FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE.
OWNER'S MANUAL
RPL-5601 ASSEMBLY PAGE 10
36
54
77 64
77 64
37
11
13
25
25
24
72
2
55
64
66
66
8
14
57
72 57
25
24
- WRENCH TIGHTEN HARDWARE.
IT WILL BE NECESSARY TO LOOSEN FRAME HARDWARE TO RE-ALIGN THE FRAME
OWNER'S MANUAL
PAGE 11
NOTE:
AND RETIGHTEN BOLTS.
RPL-5601 ASSEMBLY
FRAME ASSEMBLY
HAND TIGHTENED HARDWARE.
- WRENCH TIGHTEN ALL PREVIOUSLY
NOW THAT THE RPL-5601 IS COMPLETELY ASSEMBLED TAKE TIME TO
ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT,
*IMPORTANT*
39
5
63
4
48
59 72 18 28
40
54
70
51
30
34
27
43
30
34
27
42
35
45
19
22
46
6
54
9
41
53
50
90
48
51
70
8
63
39
90
90
69
39
DETAIL A
91
16
33
92 16
93
DETAIL B

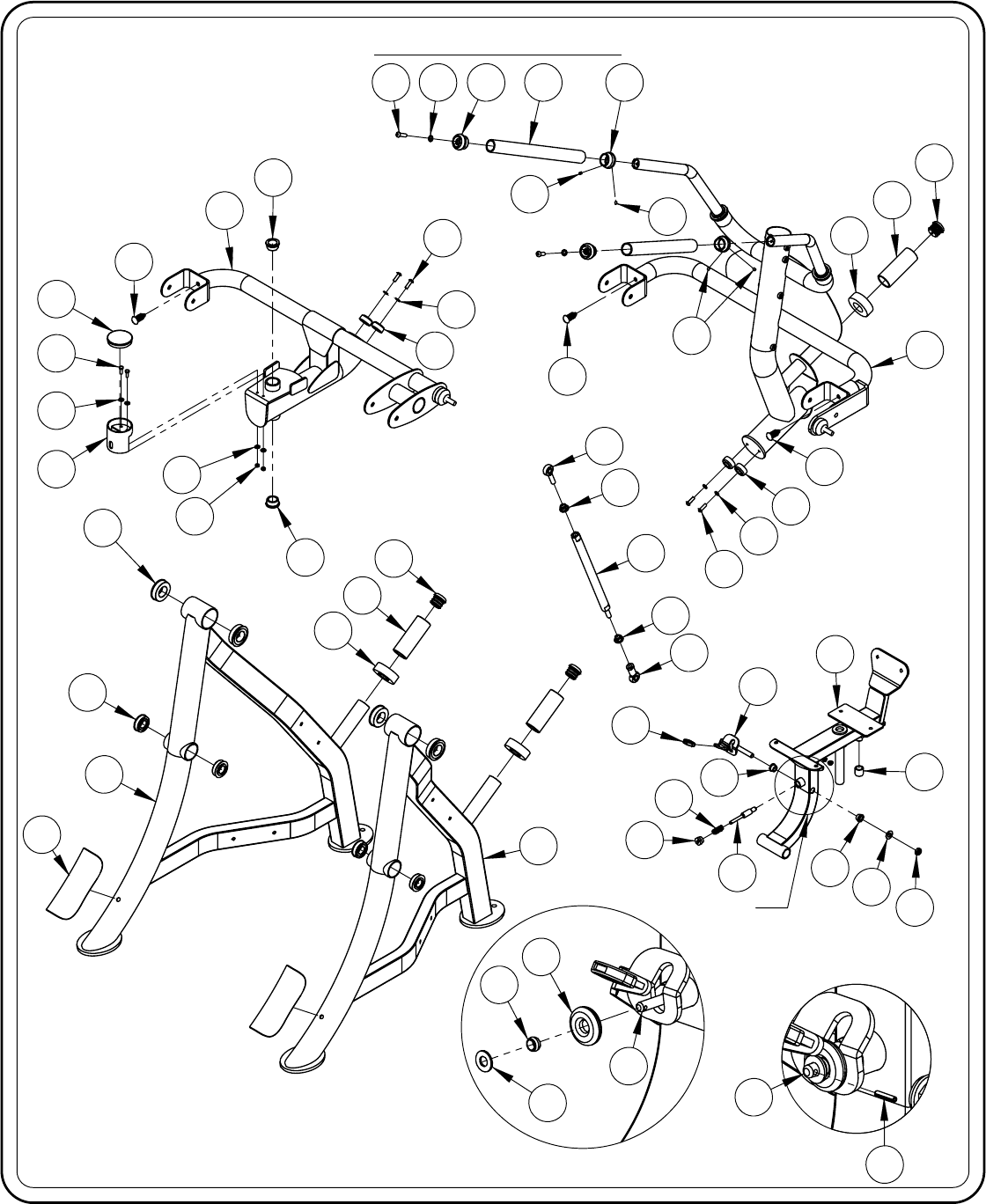

PRE-ASSEMBLY
RPL-5601 ASSEMBLY
OWNER'S MANUAL
PAGE 12
2
32
44
68
29
3
44
16
52
75
15
DETAIL A & B
87
85
86
79
83
78
83

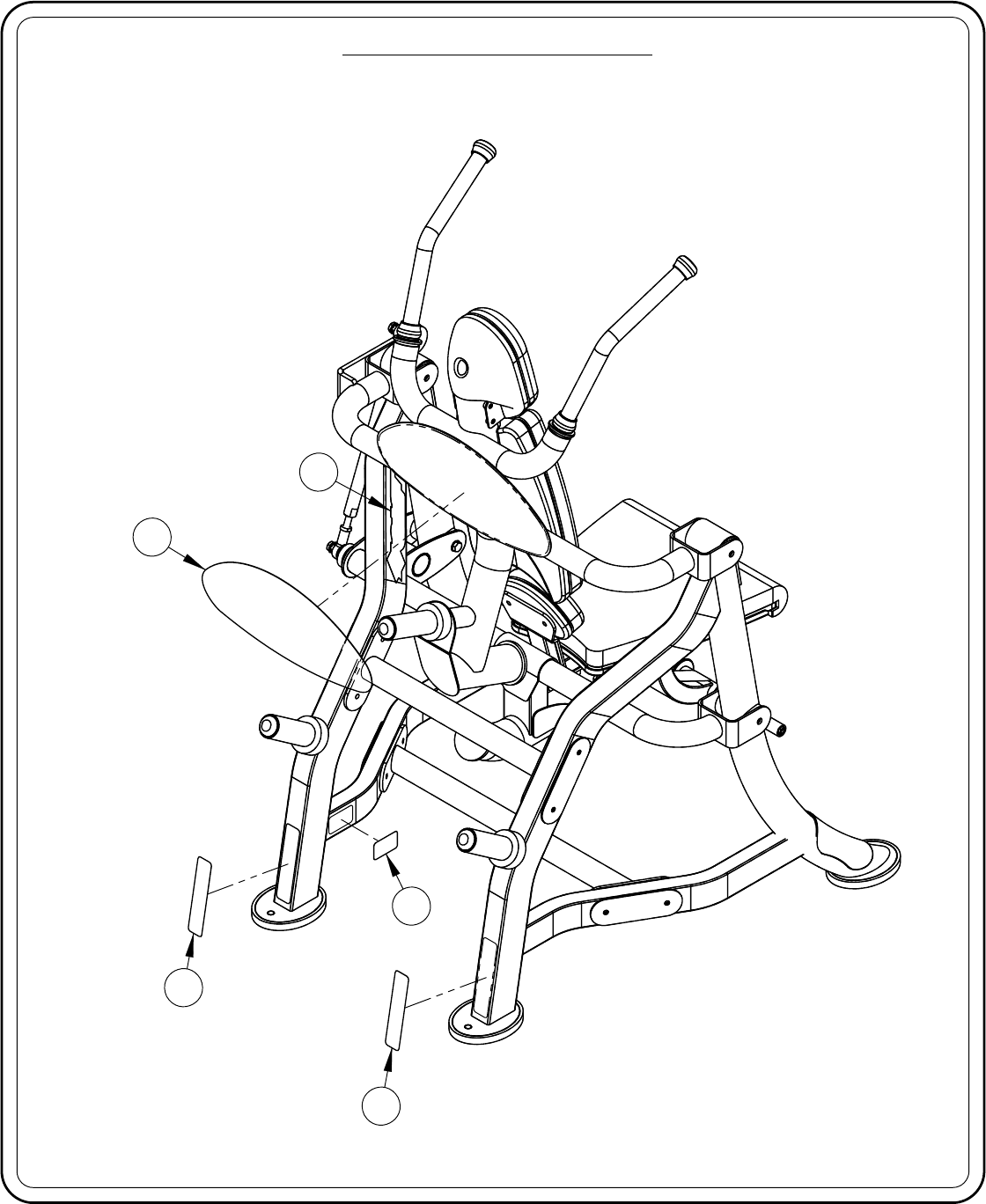

DECAL PLACEMENT
OWNER'S MANUAL
PAGE 13 RPL-5601 ASSEMBLY
NOTE:
- ALL DECALS ARE CENTERED
UNLESS OTHERWISE STATED.
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
81
82
80
84
87
OWNER'S MANUAL
RPL-5601 ASSEMBLY PAGE 14

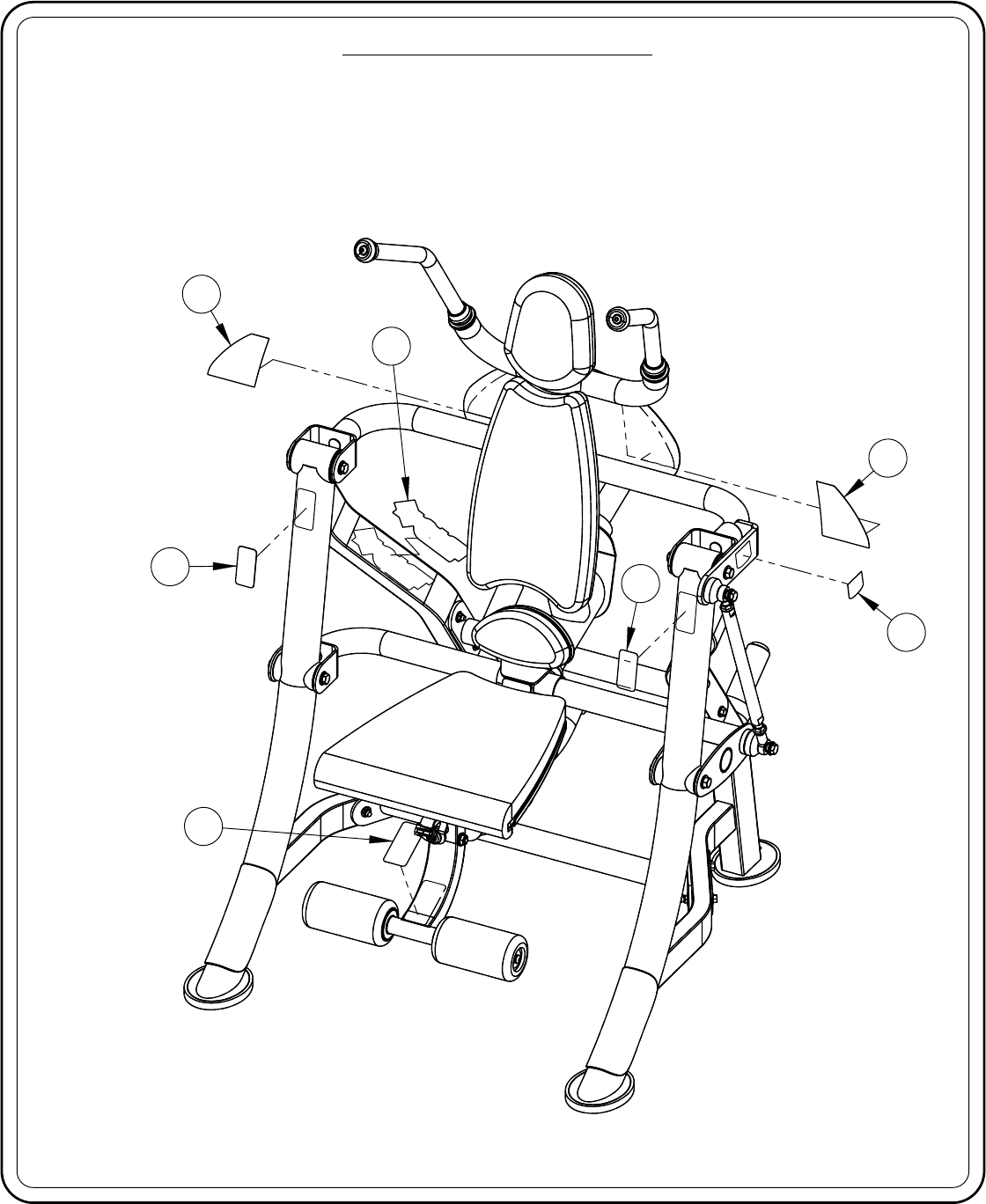

DECAL PLACEMENT
NOTE:
- ALL DECALS ARE CENTERED
UNLESS OTHERWISE STATED.
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
021-0003560
021-0003113
021-0003405
021-0003008 021-0003135
SERIAL # DECAL
021-0003221
RPL-5601 ASSEMBLY
OWNER'S MANUAL
PAGE 15

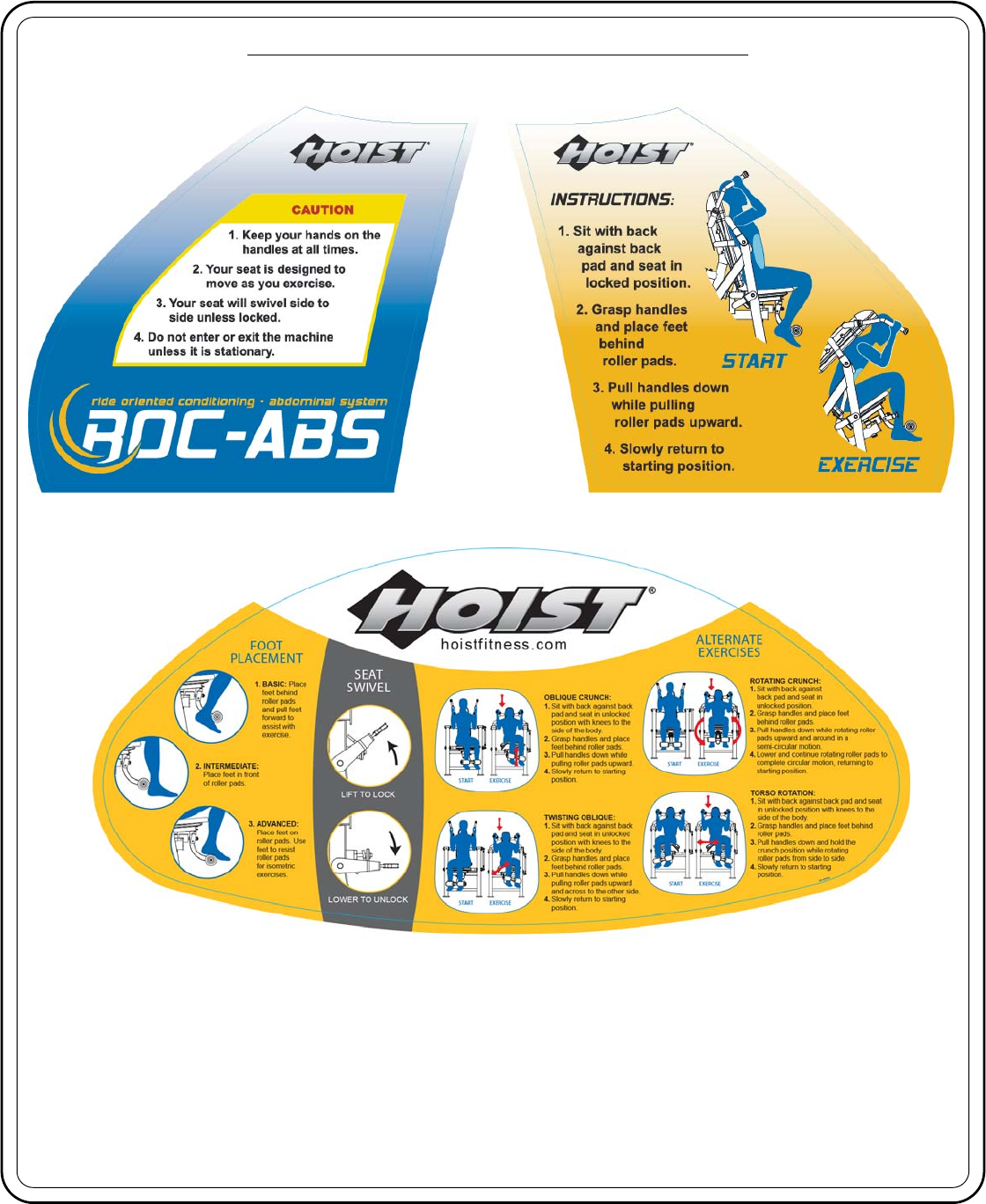

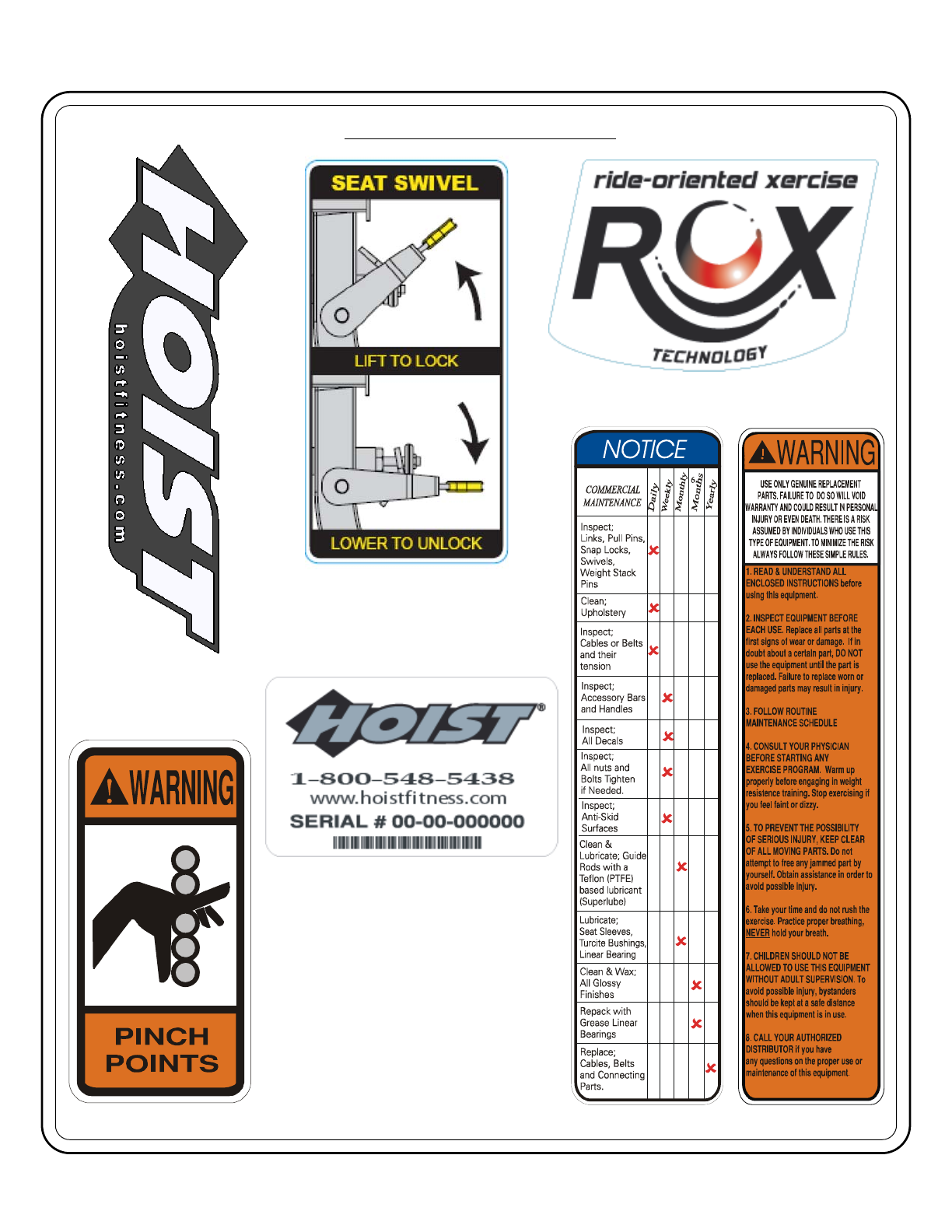

DECAL REFERENCE
021-0003569
021-0003570
021-0003559
OWNER'S MANUAL
RPL-5601 ASSEMBLY PAGE 16
DECAL REFERENCE CONTINUED
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 026-01X0139 ROLLER BAR ASSEMBLY 17.69" LG. 1
2 026-01X2973 SEAT MOUNT ASSEMBLY 1
3 026-01X3022 SWITCH LEVER ASSEMBLY 1
4 026-01X3039 LATCH ASSEMBLY 1
5 026-01X3239 SIDE FRAME ASSEMBLY - RIGHT 1
6 026-01X3241 SIDE FRAME ASSEMBLY - LEFT 1
7 026-01X3256 CROSSMEMBER ASSEMBLY 1
8 026-01X3266 BACK PAD MOUNT ASSEMBLY 1
9 026-01X3267 LOWER PIVOTING ASSEMBLY 1
10 026-01X3268 CROSSMEMBER ASSEMBLY 1
11 022-01PD2073-A HEAD PAD ASSEMBLY 1
12 022-01PD2079-A SEAT PAD ASSEMBLY 1
13 022-01PD2081-A BACK PAD ASSEMBLY 1
14 022-01PD2082-A HIP PAD ASSEMBLY 1
15 026-01M0128-1 PULL PIN CAP 1
16 026-01M2591-3 PULL-PIN PLUNGER, PINNED 1
17 026-01M0239 ALUMINUM FLATHEAD CAP 1.63" X .31" LG. 1
18 026-01M0932 END CAP: ALUMINIUM 1.25" ID 2
19 026-01M0933 ALUMINUM RING: 1.25" ID 2
20 026-01M2202 SHAFT: 1.38" X 3.77" LG. 2
21 026-01M2208 SHAFT: 1.00" X 3.75" LG 2
22 026-01M2222 TIE ROD: 1.00" X 14.25" L.G. 1
23 026-01P2185 2.50" X 7.50" BACKING PLATE 4
24 026-01P2907 HEAD BRACKET MOUNT 1
25 026-01P2929 BACK BRACKET MOUNT 2
26 026-01PL0151 PLASTIC WASHER 2.50" 2
27 026-01PL0183 1.66" END PLUG 3
28 026-01PL0235-27 GRIP: 1.19" OPEN END FOAM GRIP 2
29 026-01PL0239 THUMB LATCH 1
30 026-01PL0264 WEIGHT HORN RUBBER DONUT 3
31 026-01PL2122 OVAL-SHAPED RUBBER FOOT 4
32 026-01PL2188 .75" X .88" RUBBER TUBE 1
33 026-01PL2194 PLASTIC DISK - BLACK 1
34 026-01PL2195 WEIGHT HORN SLEEVE X 5.00" LG. 3
35 026-01PL2224 SCUFF GUARD (CURVED) 8.59" LG. 2
36 022-01PD2073-5 HEAD PAD PLASTIC BACKING 1
37 022-01PD2081-5 BACK PAD PLASTIC BACKING 1
38 022-01PDR017 ROLLER PAD 3.75" X 7.00" LG. 2
39 011-0111008 SET SCREW: 1/4"-28 X .25" LG. (WZ) 4
40 012-0102015 1/2"-20 FLANGED NUT (WZ)-LH 1
PAGE 17 RPL-5601 ASSEMBLY
OWNER'S MANUAL
PART LIST
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
ITEM NO. PART NUMBER DESCRIPTION QTY.
41 012-0102012 1/2"-20 FLANGED NUT (WZ) 1

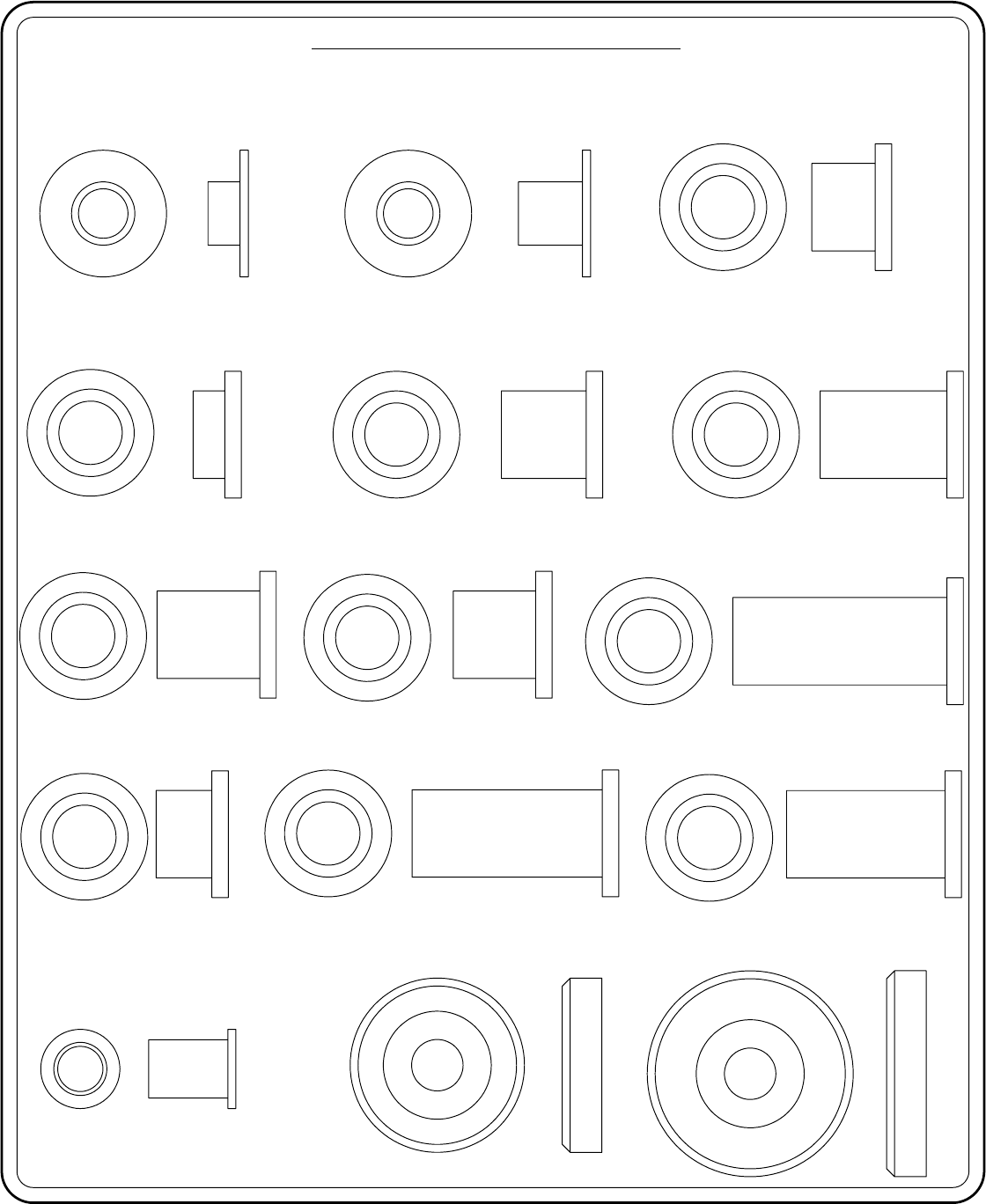

42 014-0009007 BEARING: FLANGED Ø2.00" O.D. X Ø1.00" I.D. 4
43 014-0012010 BEARING: FLANGED BEARING Ø2.50" O.D. X Ø1.39" I.D. 4
44 014-0101002 BUSHING: OILITE FLANGED Ø.75" O.D X Ø.50" I.D X .38" LG. 2
45 014-0013003 1/2-20 LH, MALE ROD END 1
46 014-0013001 1/2-20 FEMALE ROD END 1
47 014-0024001 THRUST WASHER, 1" 2
48 014-0101017 BUSHING: OILITE FLANGED Ø1.00" ID X Ø1.38" OD X .75" LG. 2
49 014-10012001 THRUST BEARING, 1" 1
50 016-0201041 3.00" END CAP .06" WALL (BLACK) 1
51 019-0001003 BUMPER, 1.50" X .625" T 4
52 020-0011009 SPRING 1
53 011-0107055 1/4"-20UNC X .75" HHB (WZ) 2
54 011-0101030 5/16"-18UNC X 1.00" BHCS (WZ) 5
55 011-0107011 5/16"-18UNC X 1.25" HHB (WZ) 6
56 011-0201003 3/8"-16UNC X 1.00" BHCS (BZ) 2
57 011-0101026 3/8"-16UNC X 1.00" BHCS (WZ) 8
58 011-0002044 3/8"-16UNC X 1.00" FHCS (WZ) W/NYLON PATCH 1
59 011-0101034 3/8"-16UNC X 1.25" BHCS (WZ) 2
60 011-0407026 3/8"-16UNC X 3.00" HHB (WZ) 4
61 011-0407055 1/2"-13UNC X 4.75" HHB (WZ) 3
62 011-0102030 1/2"-13UNC X 5.25" HHB (WZ) 1
63 013-0002003 1/4" X 16mm SAE FLAT WASHER (WZ) 4
64 013-0302008 5/16" SAE FLAT WASHER (WZ) 14
65 014-0011001 NYLINER BUSHING: Ø 1.09" O.D. X Ø 1.00" I.D X 1.13" LG. 2
66 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 24
67 013-0303003 3/8" FENDER WASHER (BZ) 2
68 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 11
69 012-0104009 1/4"-20 UNC THIN NYLOCK NUT (WZ) 2
70 013-0102021 5/16" SPLIT WASHER (WZ) 4
71 013-0102020 3/8" SPLIT LOCK WASHER (BZ) 2
72 013-0102022 3/8" INTERNAL LOCK WASHER 10
74 012-0104008 3/8"-16 UNC THIN NYLOCK NUT (WZ) 8
75 012-0304011 1/2"-13 UNC THIN NYLOCK NUT (WZ) 1
76 011-0107009 3/8"-16UNC X 2.50" HHB (WZ) 4
77 011-0107029 5/16"-18UNC X 1.00" HHB (WZ) 8
78 021-0003559 ROC-AB PLACARD (LEFT) 1
79 021-0003569 ROC-AB PLACARD (RIGHT) 1
80 021-0003570 ROC-AB DECAL PLACARD (BACK) 1
81 021-0003135 DECAL WARNING 1.50" X 6.69" 1
PART LIST CONTINUED
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
OWNER'S MANUAL
PAGE 18
RPL-5601 ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
82 021-0003008 DECAL COMMERCIAL MAINTENANCE 1.50" X 6.69" 1
83 021-0003113 DECAL PINCH POINT 1.63" X 3.25" (VERTICAL) 2
84 SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" 1
85 021-0003560 DECAL LEVER ADJUST 2.00" X 4.00" (VERTICAL) 1
86 021-0003405 DECAL ROX 1
87 021-0003221 DECAL HOIST 2.50" X 9.13" 2
88 013-0302014 1/2" INTERNAL LOCK WASHER 6
89 012-0105008 1/2"-13 ACORN NUT (WZ) 6
90 026-01PL2200 PINETREE PLUG 3
91 026-01M2580 COMPRESSION RING, 3/8" 1
92 013-0402010 5/16" SAE FLAT WASHER (SS) 1
93 030-0303017 ROLL PIN .125" DIA. X .625" LG. 1
PART LIST CONTINUED
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
PAGE 19
OWNER'S MANUAL
RPL-5601 ASSEMBLY
SHCS = Socket Head Cap Screw
OWNER'S MANUAL
PAGE 20
RPL-5601 ASSEMBLY
SHSS = Socket Head Shoulder Screw
BZ = Black Zinc
WZ = White Zinc
HHB = Hex Head Bolt
FHCS = Flat Head Cap Screw
BHCS = Button Head Cap Screw
ABBREVIATIONS
3 3/4"
OWNER'S MANUAL
PAGE 21 RPL-5601 ASSEMBLY
5 1/4"4 1/4"
4 3/4"
5"
5 1/2"
4"
4 1/2"
4 3/4"
5"
5 1/2"
4"
4 1/2"
5 1/4"4 1/4"
5 1/4"
5"
5 1/2"
4 1/4"
4"
4 1/2"
4"
4 3/4"
3 1/4"2 1/4"
2 3/4"1 3/4"
1 1/4"
3"
3 1/2"2 1/2"
2 3/4"
3"
3 1/2"2 1/2"
3 1/4"2 1/4"
1 1/2"
1 3/4"
1"
1 1/2"
1"
1 1/4"
2"
2"
5/16" HHB
0"
0"
3/8" HHB
3 1/4"
3"
3 1/2"
2 1/4"
2 1/2"
3 1/4"2 1/4"
2 3/4"
1 1/2"
1"
1 1/4"
1 3/4"
1 1/4"
2"
3 1/2"2 1/2"
3"
1 1/2"
1" 2"
0"
1/2" HHB
0"
1/2" SHSS
2 3/4"1 3/4" 3 3/4"
3 3/4"
3 3/4"

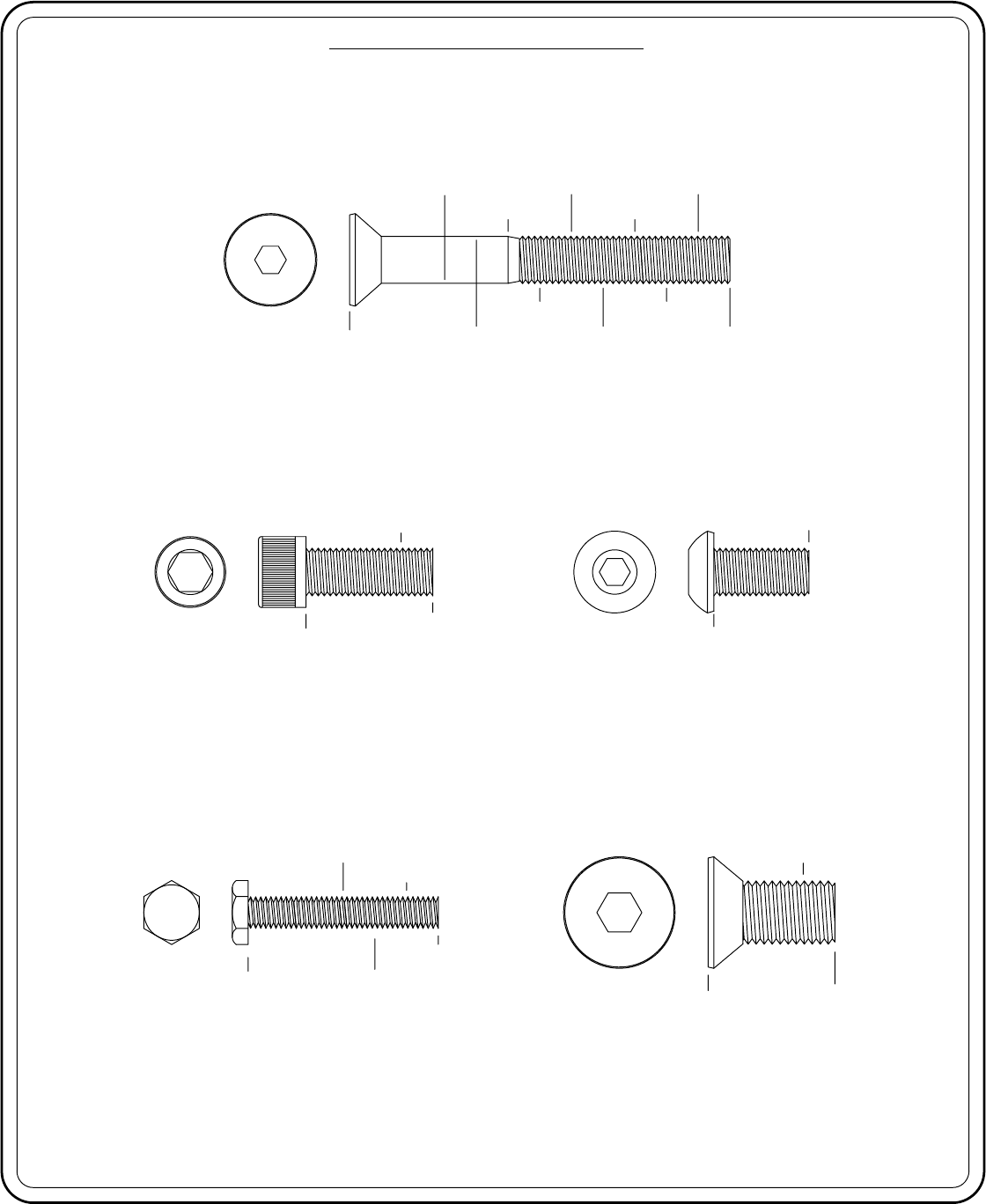

BOLT SIZING CHART
(CONTINUED)
OWNER'S MANUAL
PAGE 22
RPL-5601 ASSEMBLY
3"
3/8" BHCS
1/4" HHB
0" 1"
1 1/4"
3/4"
1 1/2"
0"
1"
0"
1/2" FHCS
0"
3/8" FHCS
3/8" SHCS
1 3/4" 2 3/4"3/4"
1 1/4"
3/4"
0" 1"
2 1/4"
1 1/2"
2"
2 1/2"
1"
3/4"
3/4"
BOLT SIZING CHART
013-0102003
OWNER'S MANUAL
PAGE 23 RPL-5601 ASSEMBLY
1/2"
013-0102018
LOCK WASHER
SMALL, SAE, 13mm
FLAT WASHER
1/4"
013-0002003
LARGE, USS, 34mm
FLAT WASHER
1/2"
SPACER
3/8" FENDER WASHER
013-0003002
PLASTIC 1 1/16"
026-01PL151
FENDER WASHER
1/2" LONG
014-0018001
013-0102026
LARGE, USS, 25mm
FLAT WASHER
3/8"
013-0402005
SMALL, SAE, 21mm
FLAT WASHER
3/8"
LOCK WASHER
1" SHIM WASHER
016-0009003
3/8"
013-0102020
LOCK WASHER
1/4"
013-0102019
FLATHEAD CAP
2" ALUMINUM
026-01M0238
CURVED WASHER
3/8"
013-0102028
013-0002004
LARGE, USS, 22mm
FLAT WASHER
5/16"
013-0102004
22mm O.D.
1 1/16"
013-0003004
FENDER WASHER
FLAT WASHER
3/8"
SPACER
1" LONG
014-0018002
013-0402007
SMALL, SAE, 27mm
FLAT WASHER
1/2"

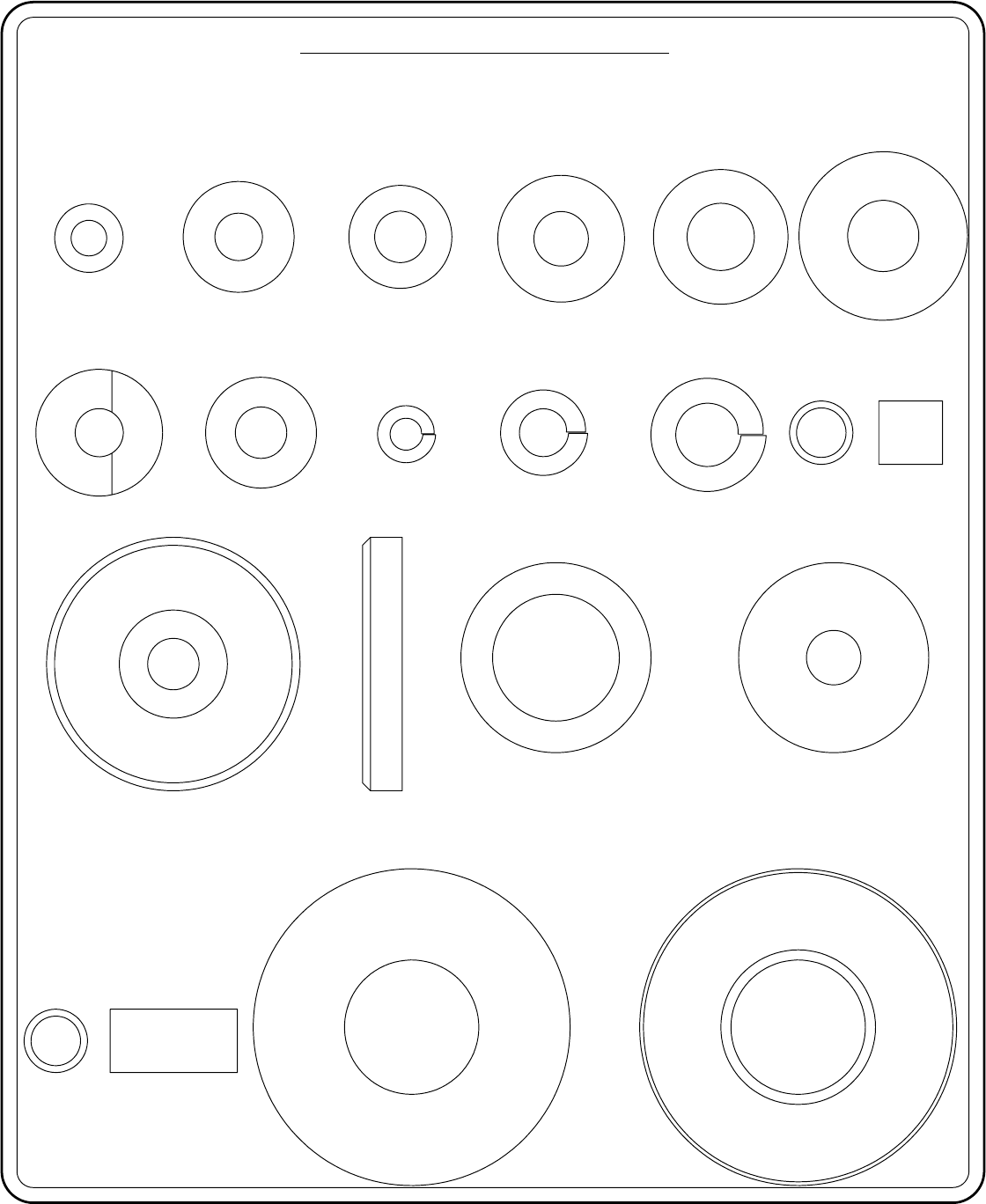

WASHER SIZING CHART
OWNER'S MANUAL
PAGE 24
RPL-5601 ASSEMBLY
026-01M0600
.625" LONG
FLANGED SPACER
1/4" LONG
026-01M0211
FLANGED SPACER
1/2" LONG
026-01M0198
FLANGED SPACER
1/2" LONG HEAVY
026-01M0760
FLANGED SPACER
1/4" LONG HEAVY
026-01M211T
FLANGED SPACER
11/16" LONG HEAVY
026-01M0532
FLANGED SPACER
1" LONG HEAVY
026-01M0551
FLANGED SPACER
.81" LONG HEAVY
026-01M0788
FLANGED SPACER
.65" LONG HEAVY
026-01M0780
FLANGED SPACER
1 11/16" LONG HEAVY
026-01M0761
FLANGED SPACER
.44" LONG HEAVY
026-01M0789
FLANGED SPACER
1 1/2" LONG HEAVY
026-01M0762
FLANGED SPACER
1 1/4" LONG HEAVY
026-01M0768
FLATHEAD CAP
1 5/8" ALUMINUM
026-01M0239
FLATHEAD CAP
1 3/8" ALUMINUM
026-01M0240
FLANGED SPACER
WASHER SIZING CHART
(CONTINUED)
Cables, Belts and Connecting Parts
OWNER'S MANUAL
PAGE 25 RPL-5601 ASSEMBLY
Seat Sleeves, Turcite Bushings,
For personal, in home use, please follow the home maintenance schedule listed above.
Your equipment comes with a commercial maintenance decal.
MAINTENANCE
DAILY
DAILY
WEEKLY
WEEKLY
WEEKLY
DAILY
COMMERCIAL
MAINTENANCE
WEEKLY
WEEKLY
WEEKLY
3 MONTHS
3 MONTHS
3 MONTHS
HOME
Upholstery
Clean;
Linear Bearing
Swivels, Weight Stack Pins
ROUTINE
Links, Pull Pins, Snap Locks,
All Decals
Inspect;
Accessory Bars, and Handles
Inspect;
Inspect;
tension
Cables or Belts and their
All Nuts and Bolts, Tighten if needed
Inspect;
WEEKLY
MONTHLY
MONTHLY
YEARLY
6 MONTHS
6 MONTHS
3 MONTHS
3 MONTHS
3 MONTHS
YEARLY
3 YEARS
YEARLY
MAINTENANCE SCHEDULE
Anti-Skid Surface
Inspect;
All Glossy Finishes
Clean and Wax;
Linear Bearings
Repack with Grease;
Inspect;
based lubricant (Superlube)
Guide Rods with a Teflon (PTFE)
Clean & Lubricate;
Lubricate;
Replace;
LATEST DATE ENTRY
lube, etc.) into the inside of the bearing. Using your finger, press the grease into the ball-bearings and their tracks. repeat until the ball-
OWNER'S MANUAL
PAGE 26
RPL-5601 ASSEMBLY
bearing tracks are full of grease. Insert the shaft back into the bearing and wipe off excess grease.
HOIST FITNESS SYSTEMS
GENERAL MAINTENANCE INFORMATION
Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins:
Check all pieces for signs of visible wear or damage.•
Check springs in snap hooks and pull-pins for proper tension and alignment.•
If the spring sticks or has lost its rigidity, replace it immediately.•
Upholstery:
To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every •
workout.
Periodically take the time to use a mild soap or an approved vinyl upholstery cleaner to deter the onset of cracking or drying. Avoid •
using any abrasive cleaners or cleaners not intended for use on vinyl.
Replace ripped or warn upholstery immediately.•
Keep sharp or pointed objects clear of all upholstery.•
Decals:
Inspect and familiarize yourself with any safety warnings or other user information posted on each decal.•
Nuts and Bolts:
Inspect all nuts and bolts for any loosening and tighten if needed.•
Go through a re-tightening sequence periodically to ensure that all hardware is tensioned proper.•
Anti-Skid Surfaces:
These surfaces are designed to supply secure footing and need to be replaced if they appear worn or become slippery.•
Belts and Cables:
Hoist uses only high quality belt, and mil-spec cables.•
Visually inspect the belts and cables for fraying, cracking, peeling or discoloration.•
While the machine is not in use, carefully run your fingers along the belt or cable to feel for thinning or bulging areas.•
*Replace belts and cables immediately at the first signs of damage or wear. Do not use equipment until belts or cables have been replaced.
Belt and Cable Tension:
Referring to the Owners Manual, when belts or cables are used check all bolts attachments to be sure they are properly attached.•
Check slack in cables and re-adjust cable tension if needed.•
Seat Sleeves, Guide Rods:
Wipe down adjusting tubes with a dust free rag before applying lubricant.•
Lubricate seat sleeves and Guide Rods with a Silicon or Teflon based lubricant spray.•
Linear Bearings:
Referring to the Owners Manual carefully disassemble the bearing from its housing and place a finger full of light grease (lithium, super •
PLEASE KEEP THIS FOR YOUR RECORDS
To gain maximum results and avoid possible injury, consult a fitness
OWNER'S MANUAL
PAGE 27
professional to develop your complete exercise program.
RPL-5601 ASSEMBLY
Always consult your physician before starting any exercise program.
To be successful in your exercise program, it is important to develop an
understanding of the basic principles of strength training. Now that you have
your RPL-5601 HOIST® Fitness System, it is only natural that you want to get
started immediately. First, determine a set of realistic goals and objectives for
yourself. By deciding on an exercise plan that is right for you prior to starting,
you will contribute significantly to your success.
Warm up properly before engaging in weight resistance training. Stretching,
yoga, jogging, calisthenics or other cardiovascular exercise can help prepare
your body for the heavier workload of lifting weights.
Learn how to perform the exercise correctly before using heavy weight.
Correct form is important to avoid injury and to ensure that you work the proper
muscle groups.
Know your limitations. If you are new to weight training or are embarking on
an exercise regimen after a long layoff, start slowly and build foundational
strength over a longer period of time.
Pay attention to your breathing. Exhale when you exert is a general rule of
thumb. Never hold your breath.
WEIGHT TRAINING TIPS
Enjoy your RPL-5601 HOIST® Fitness System!
PAGE 28
OWNER'S MANUAL
RPL-5601 ASSEMBLY
***THIS PAGE WAS INTENTIONALLY LEFT BLANK***
R
Date
Exercise
OWNER'S MANUAL
PAGE 29 RPL-5601 ASSEMBLY
S
Totals
S = Sets R = Repetition per set W = Weight used
RRWSRWWSRWSSRRWWSSRWWSWSRRWSRSRWW
WEIGHT TRAINING EXERCISE LOG
S
PAGE 30
OWNER'S MANUAL
RPL-5601 ASSEMBLY
HOIST FITNESS SYSTEMS
LIMITED LIFETIME WARRANTY
Hoist Fitness Systems warrants this product to the original purchaser to be free from defects in workmanship and/or
materials under normal use or service. If at any time a component part is defective, Hoist Fitness Systems shall repair or
replace it (at Hoist Fitness Systems option) within a reasonable period of time. This warranty does not cover costs of removal.
transportation or reinstallation. This warranty shall not apply if the defect was caused by misuse, neglect or normal wear and
tear.
WARRANTY CLAIMS. All claims require: Model number, Serial
number, Date of installation, and any information supporting the
existence of the alleged defect.
To complete Warranty Registration visit:
www.HOISTFITNESS.com
and click on the Warranty Registration link
Starting from the original date of purchase, normal wear and tear shall be considered as the following:
COMMERCIAL USE: All malfunctions of upholstery, grips, paint, and chrome that occur after one year; all malfunctions of
electronic components, belts, or cables after one year; all malfunctions of pulleys, bearings, or bushings that occur after five
years. The frame and all welded components are warranted for the life of the product.
HOME USE: All malfunctions of grips, paint, and chrome that occur after ten years; all malfunctions of electronic
components, belts, cables, or upholstery that occur after ten years; all malfunctions of pulleys, bearings, or bushings that
occur after ten years. The frame and all welded components are warranted for the life of the product.
PLEASE NOTE THAT NOT ALL HOIST PRODUCTS ARE MADE FOR COMMERCIAL USE.
Refer to the instructions page of your owners manual or consult with you fitness product dealer to establish if a product i
s
made for commercial use or not. Using a non-commercial product in a commercial setting can result in serious injury o
r
death!
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist
Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages
resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
WHAT IS NOT COVERED BY THIS WARRANTY
Hoist's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additions below.
This warranty neither assumes nor authorizes any person to assume obligations other than expressly covered by this
warranty.
NO CONSEQUENTIAL DAMAGES. Hoist is not responsible for economic loss; profit loss; or special, indirect, or
consequential damages.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original
purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made and shall void all
warranties, expressed, implied or statutory, except the one (1) and five (5) year warranties described above. These
warranties are exclusive and in lieu of all other warranties, including implied warranty and merchantability or fitness for a
particular purpose. There are no warranties which extend beyond the description on the face hereof.
TRANSPORTATION COSTS. Hoist will accept parts covered under this warranty freight collect, provided that shipment
has received prior approval. Hoist is not responsible for any other transportation costs, but will ship freight collect parts either
repaired or replaced under these warranties.
Hoist Fitness Systems
9990 Empire St. #130
San Diego, CA. 92126
(800)548-5438
PLEASE KEEP THIS FOR YOUR RECORDS
