1005 - 000
1005 - 0001005 - 000
1005 - 000
OWNERS MANUAL
OWNERS MANUAL
OWNERS MANUAL
OWNERS MANUAL
Fax
FaxFax
Fax
Customer Service
Customer ServiceCustomer Service
Customer Service
(800) 548-5438
(800) 548-5438(800) 548-5438
(800) 548-5438
(858) 578-7676
(858) 578-7676(858) 578-7676
(858) 578-7676
(858) 578-9558
(858) 578-9558(858) 578-9558
(858) 578-9558
Note: Both Serial Number and Model Number are Required when Ordering Parts
Note: Both Serial Number and Model Number are Required when Ordering PartsNote: Both Serial Number and Model Number are Required when Ordering Parts
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
RECORD SERIAL NUMBER HERERECORD SERIAL NUMBER HERE
RECORD SERIAL NUMBER HERE
CATALOG NUMBER
CATALOG NUMBERCATALOG NUMBER
CATALOG NUMBER
HF4167
FOLD - UP FLAT TO INCLINE BENCH
PAGE 01
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
02
CONTENTS
04
19
21
25
26
27
29
31
32
34
35
36
INSTRUCTIONS .....................................................................

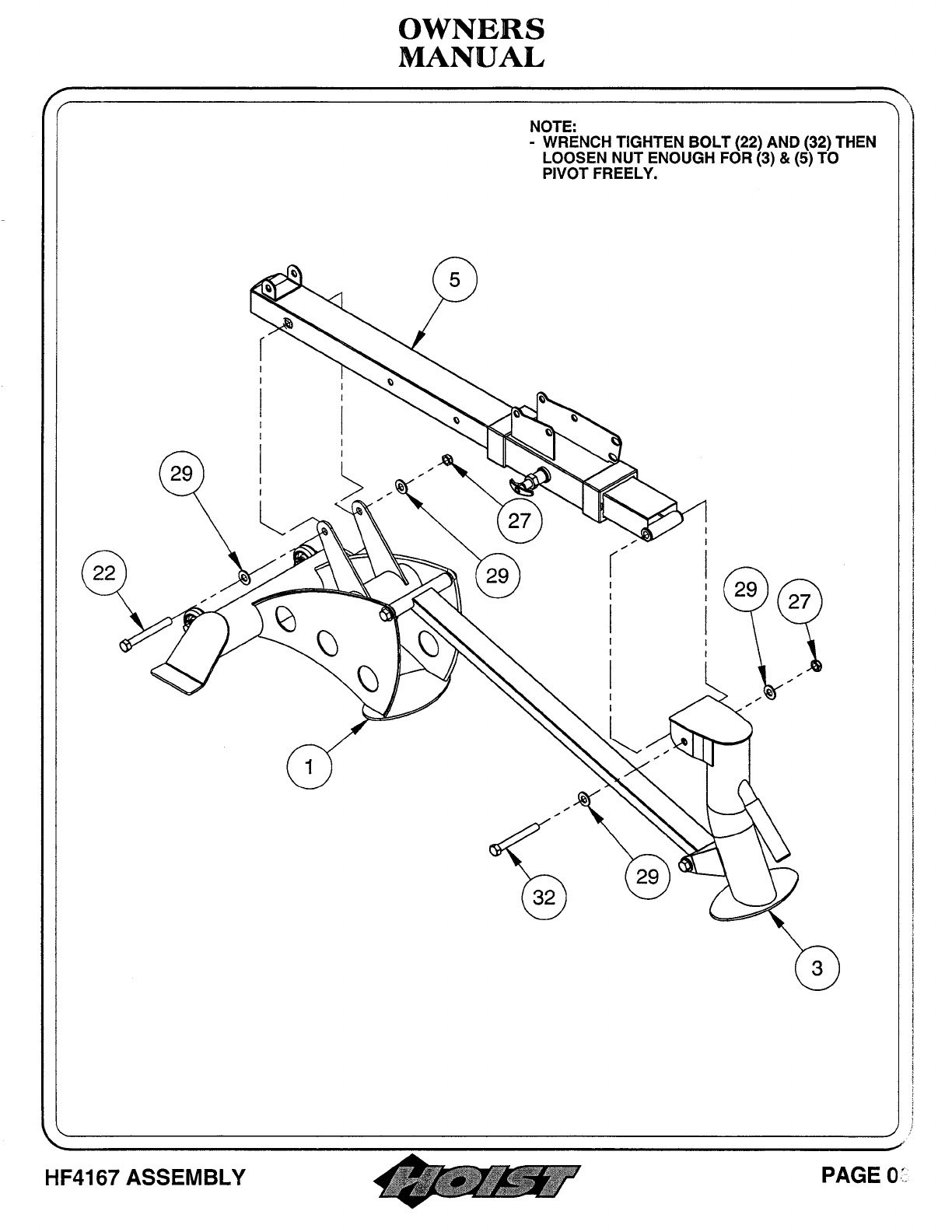

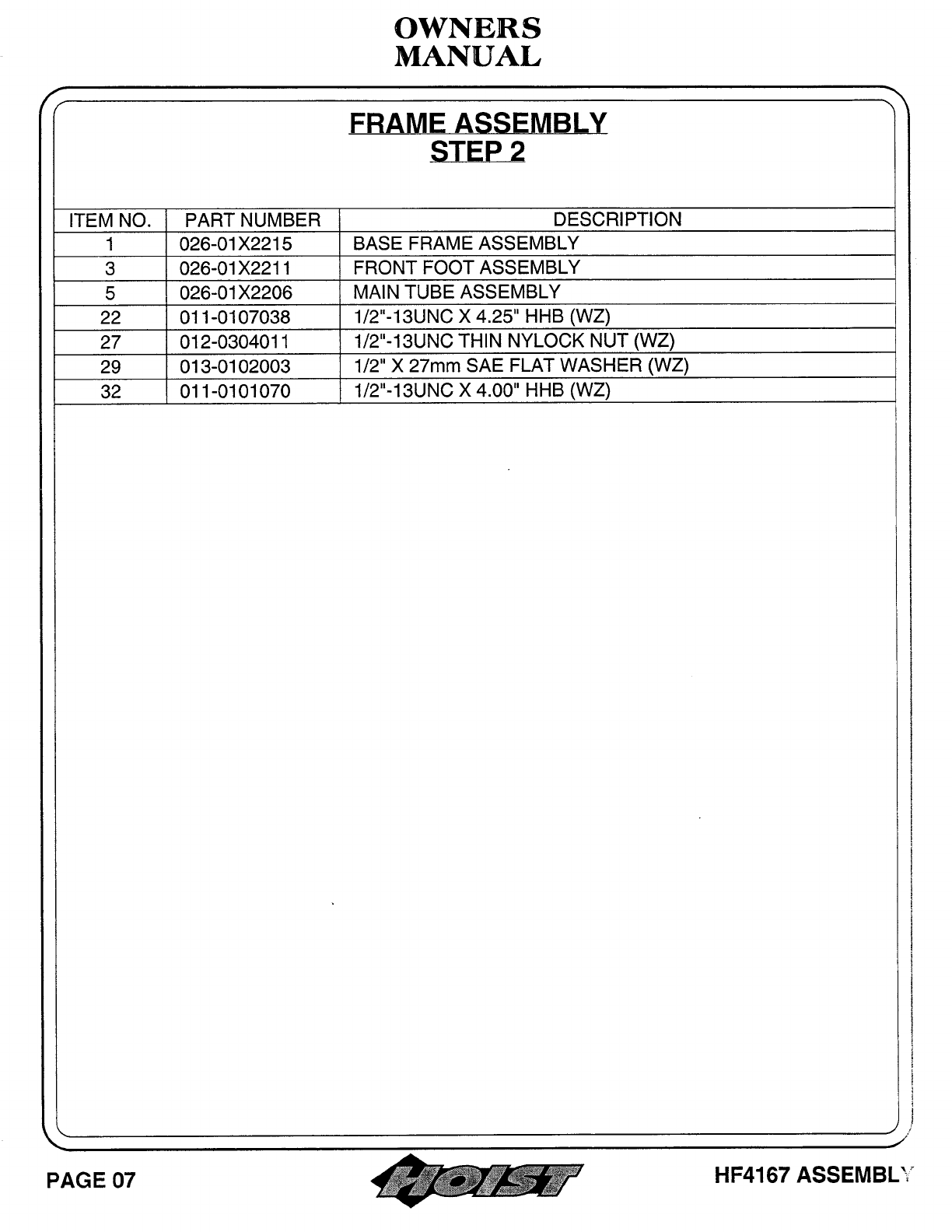

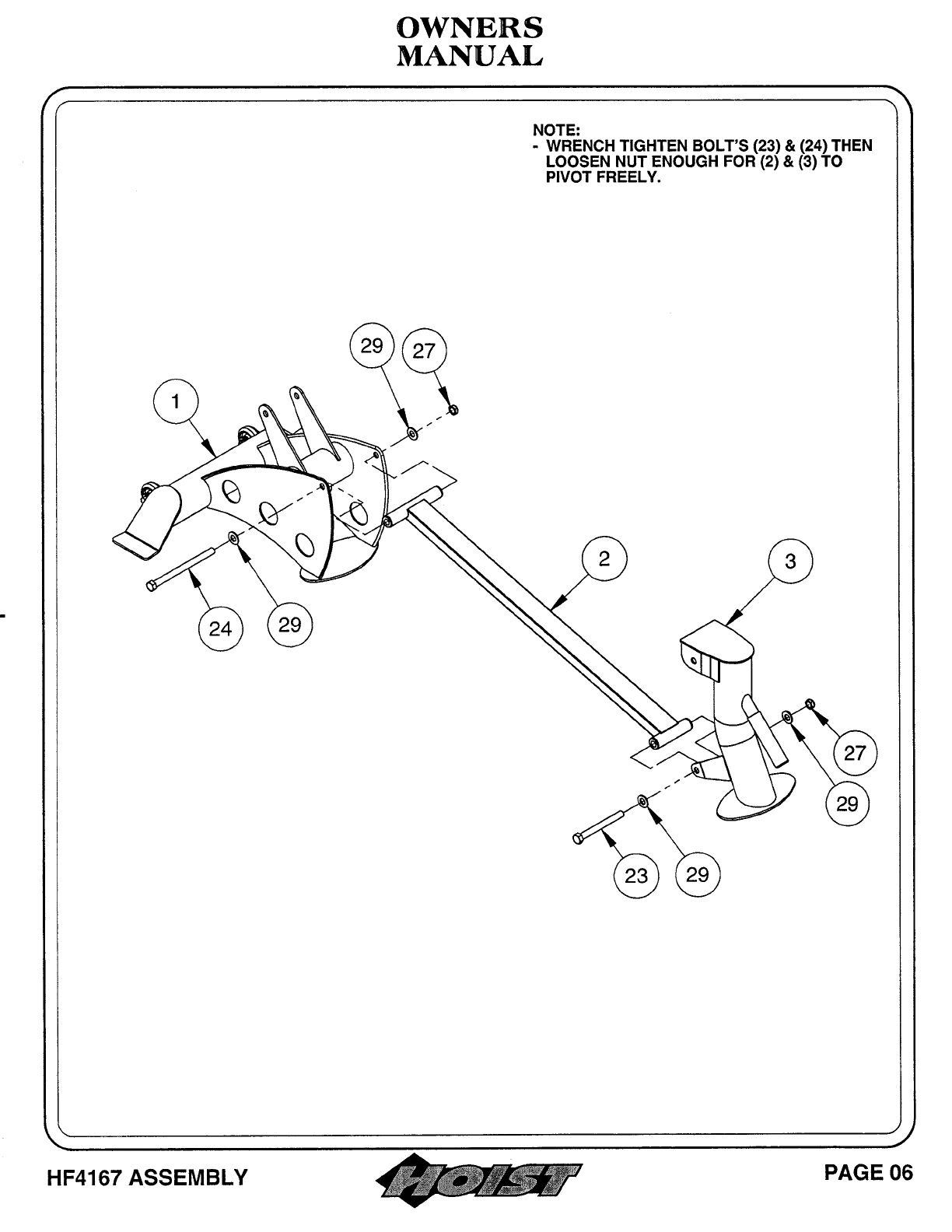

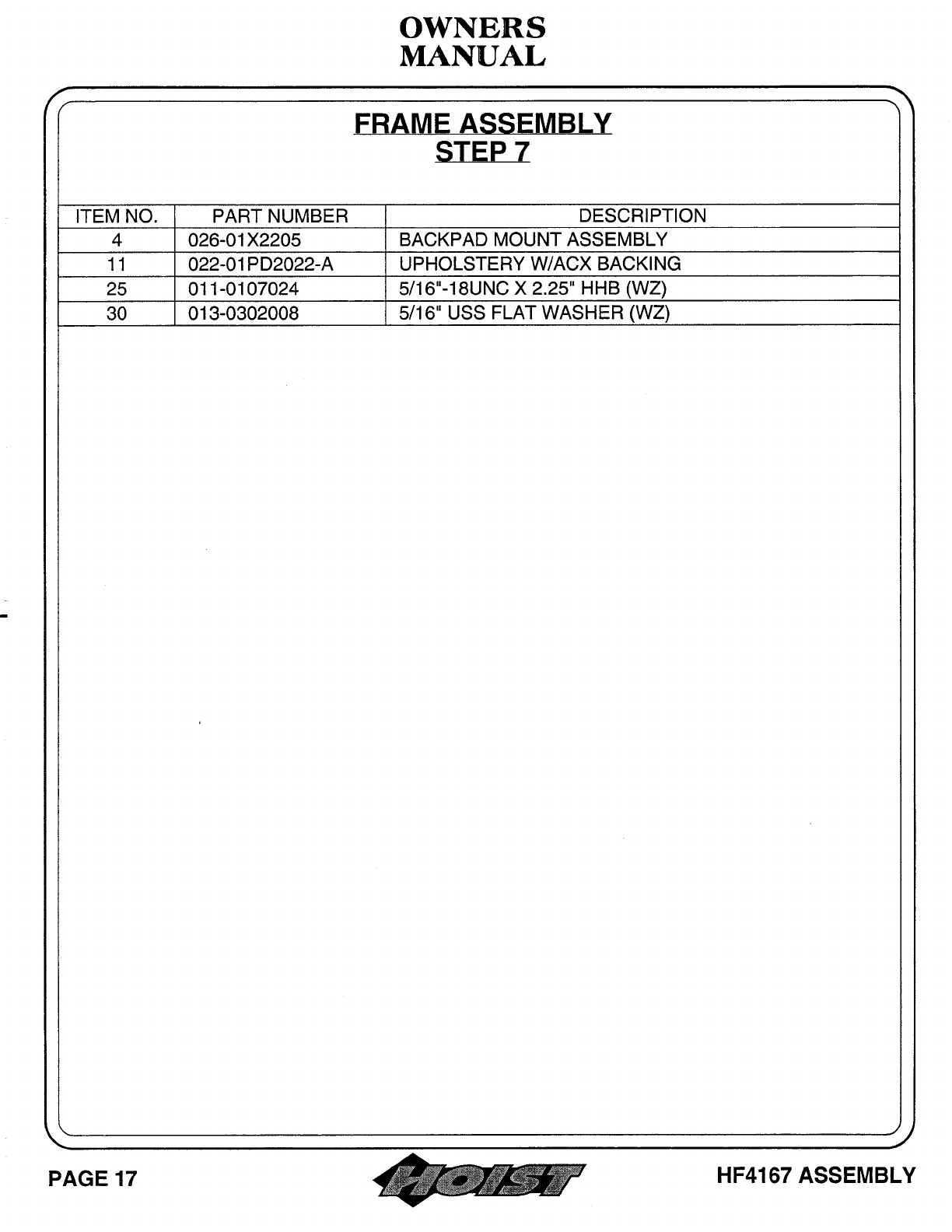

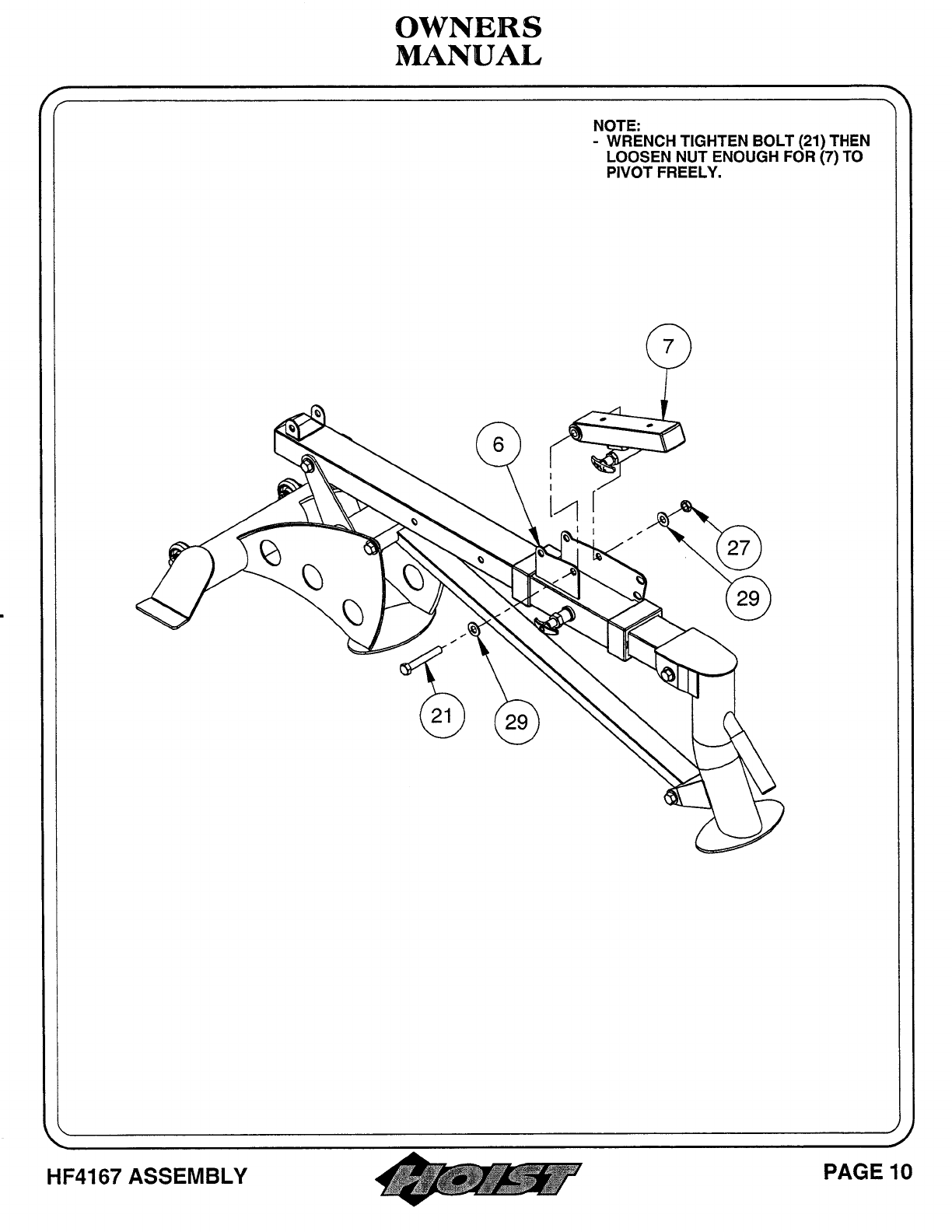

FRAME ASSEMBLY ..............................................................

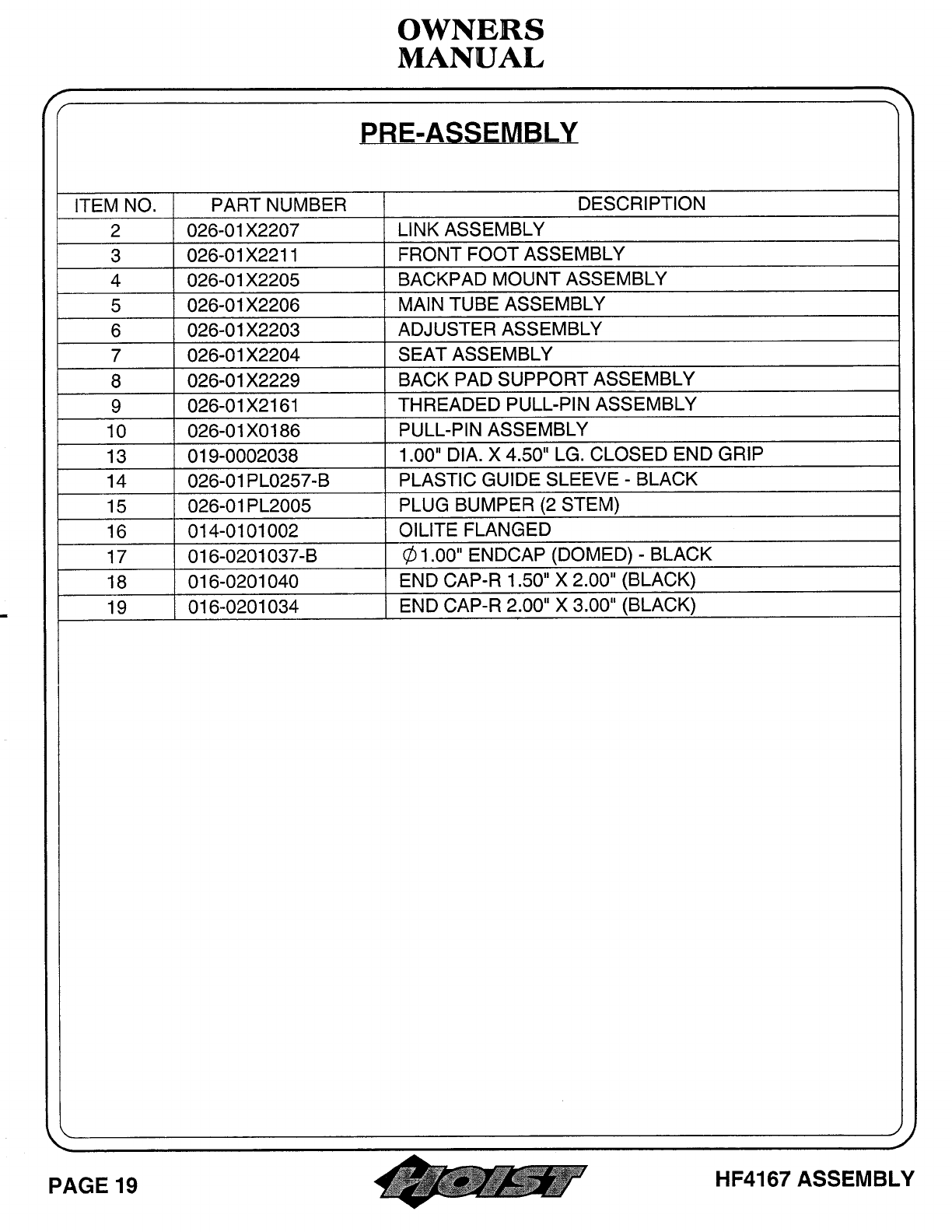

PRE-ASSEMBLY....................................................................
DECAL PLACEMENT.............................................................
PART LIST...............................................................................
ABBREVIATIONS LISTING...................................................

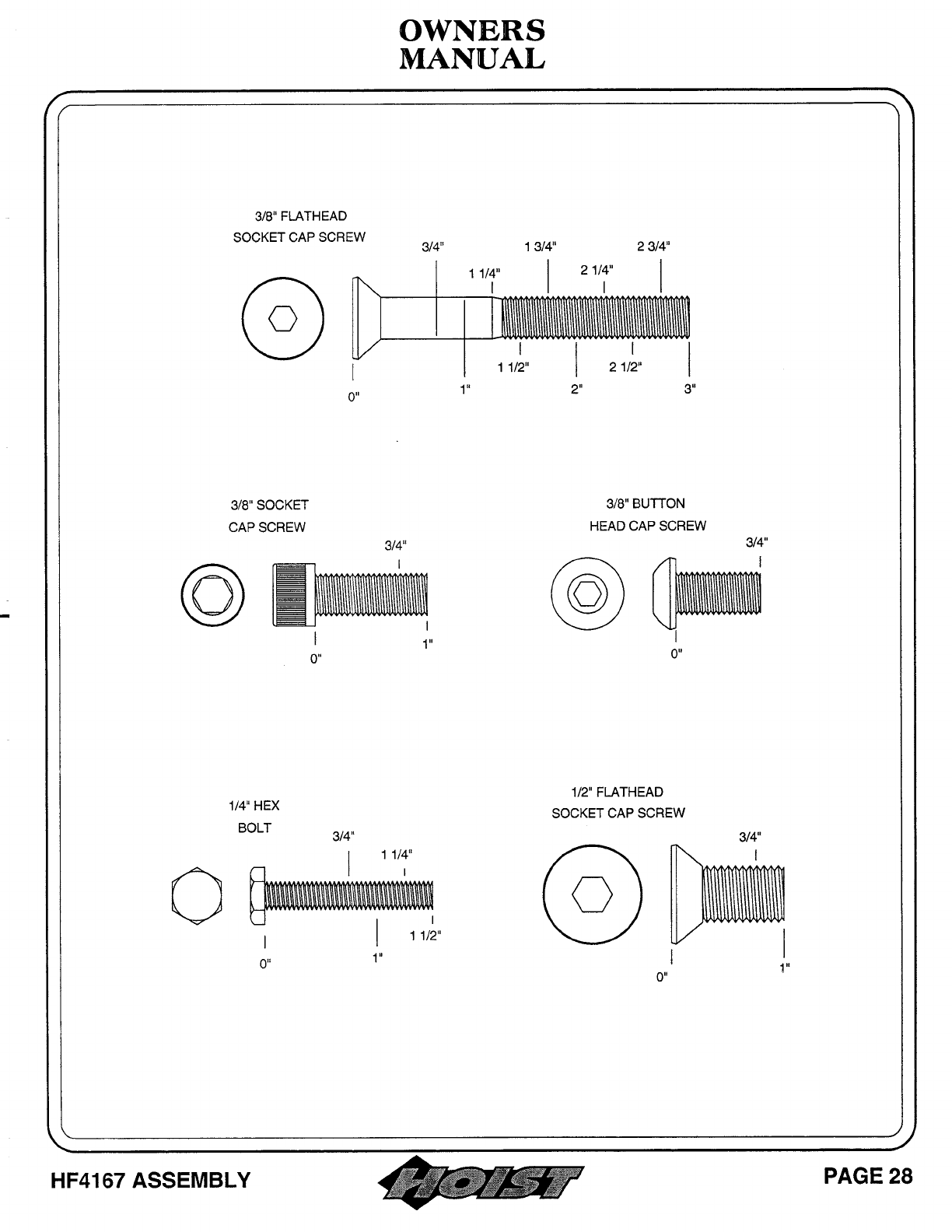

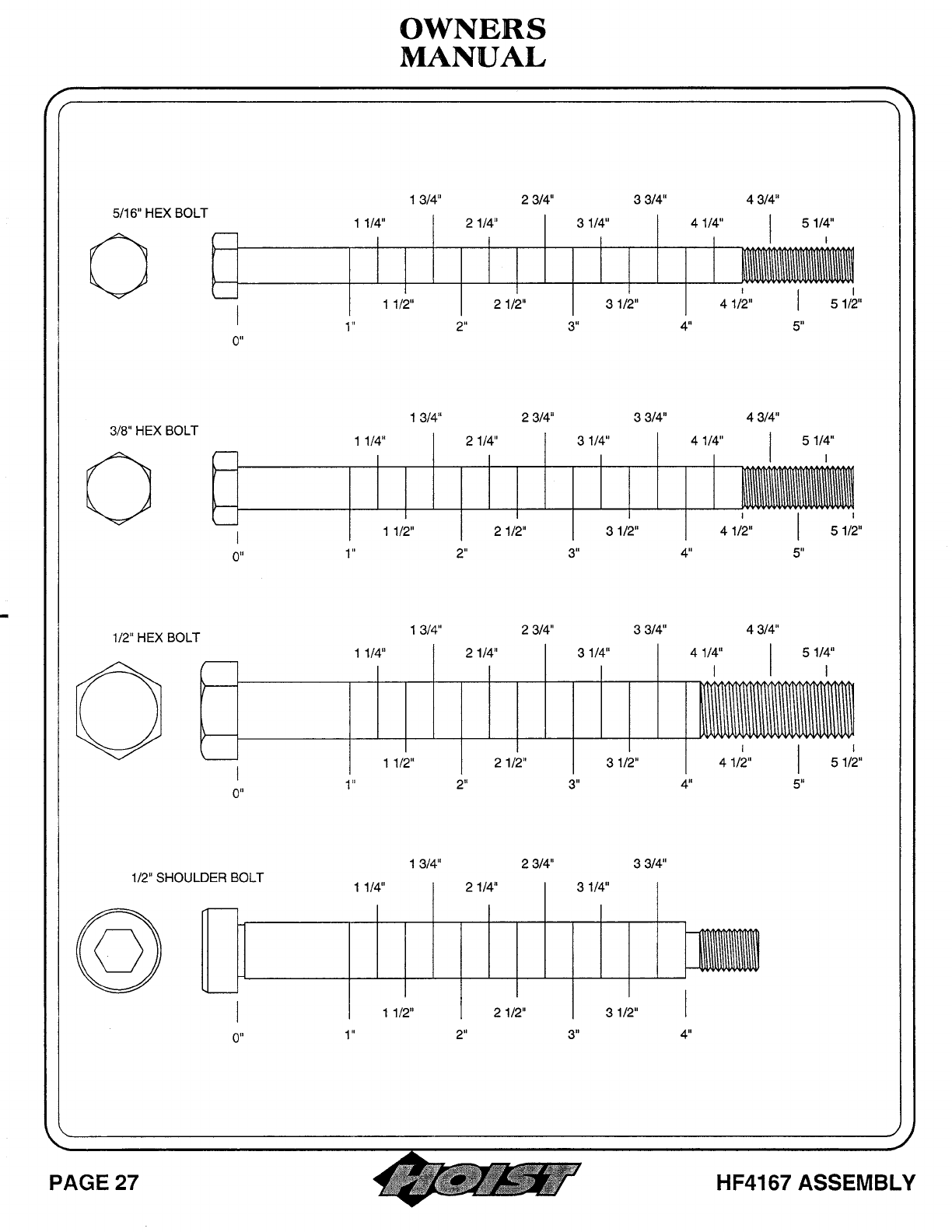

BOLT SIZING CHART............................................................

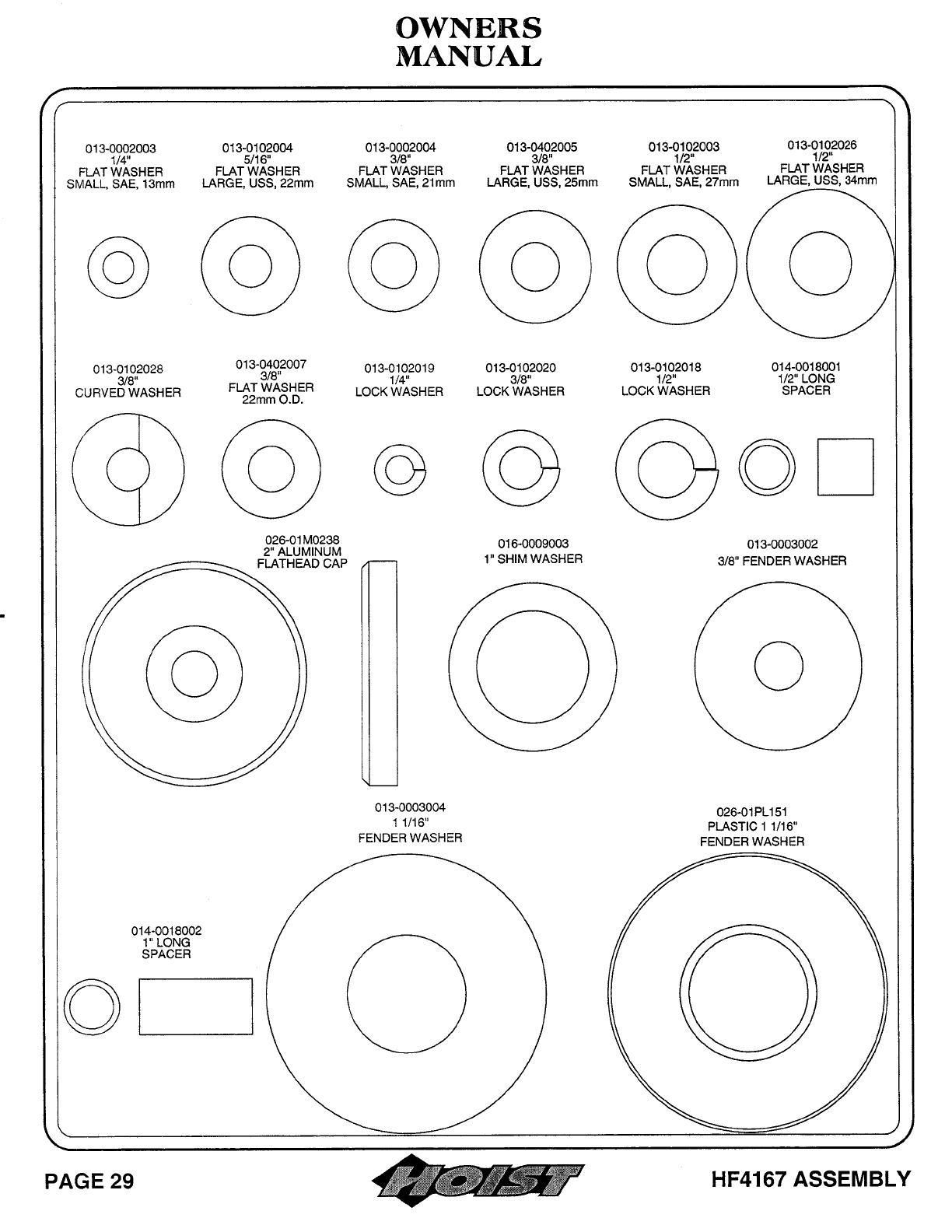

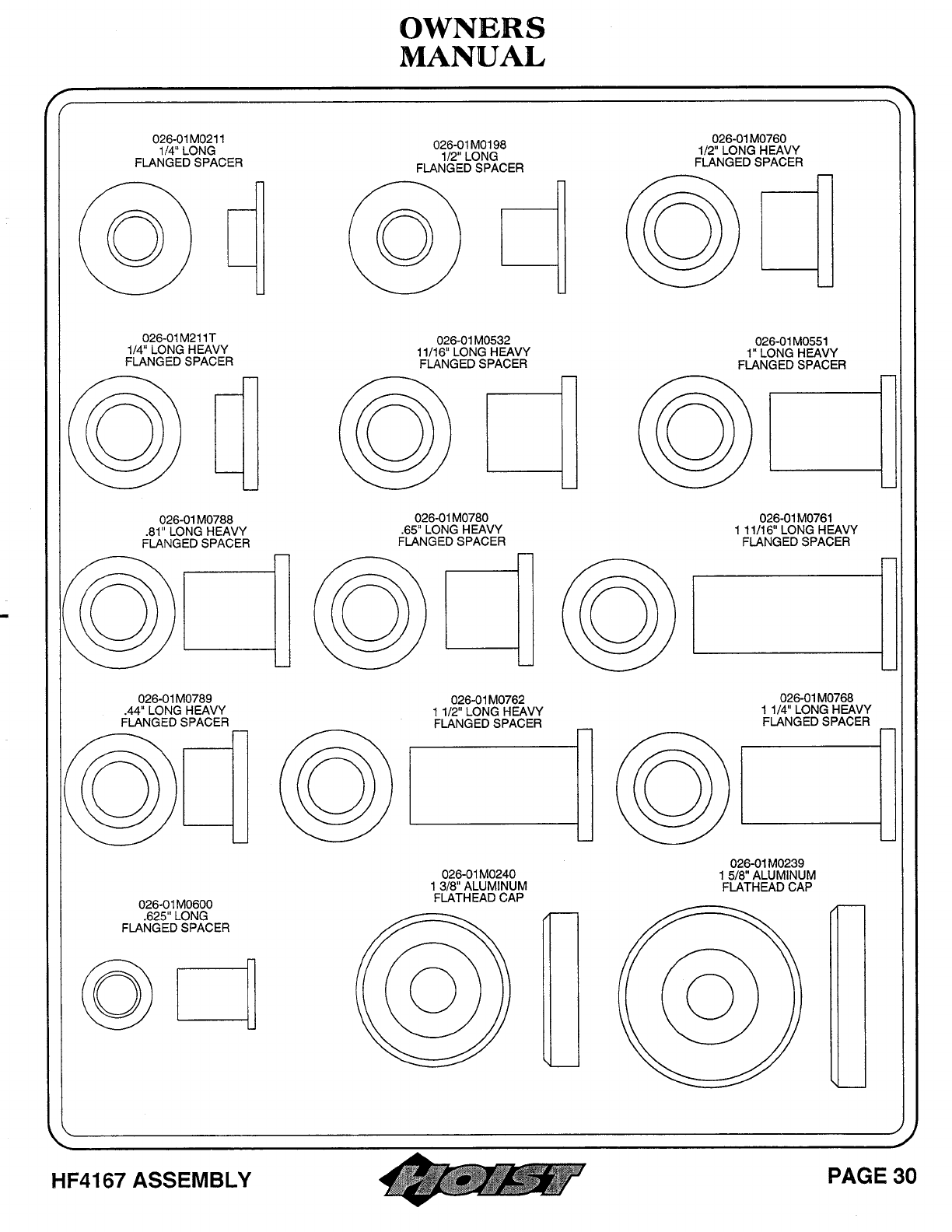

WASHER SIZING CHART......................................................

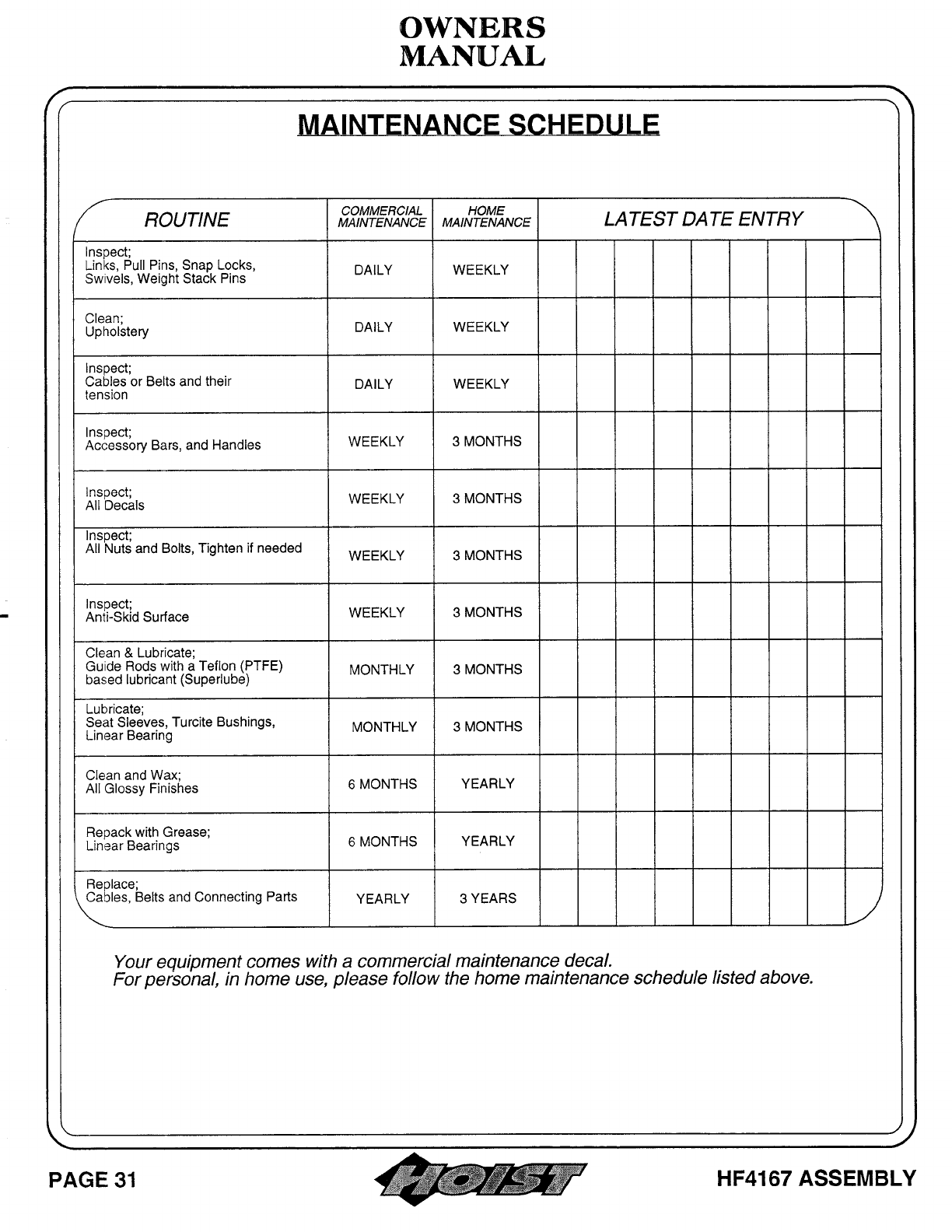

MAINTENANCE SCHEDULE.................................................

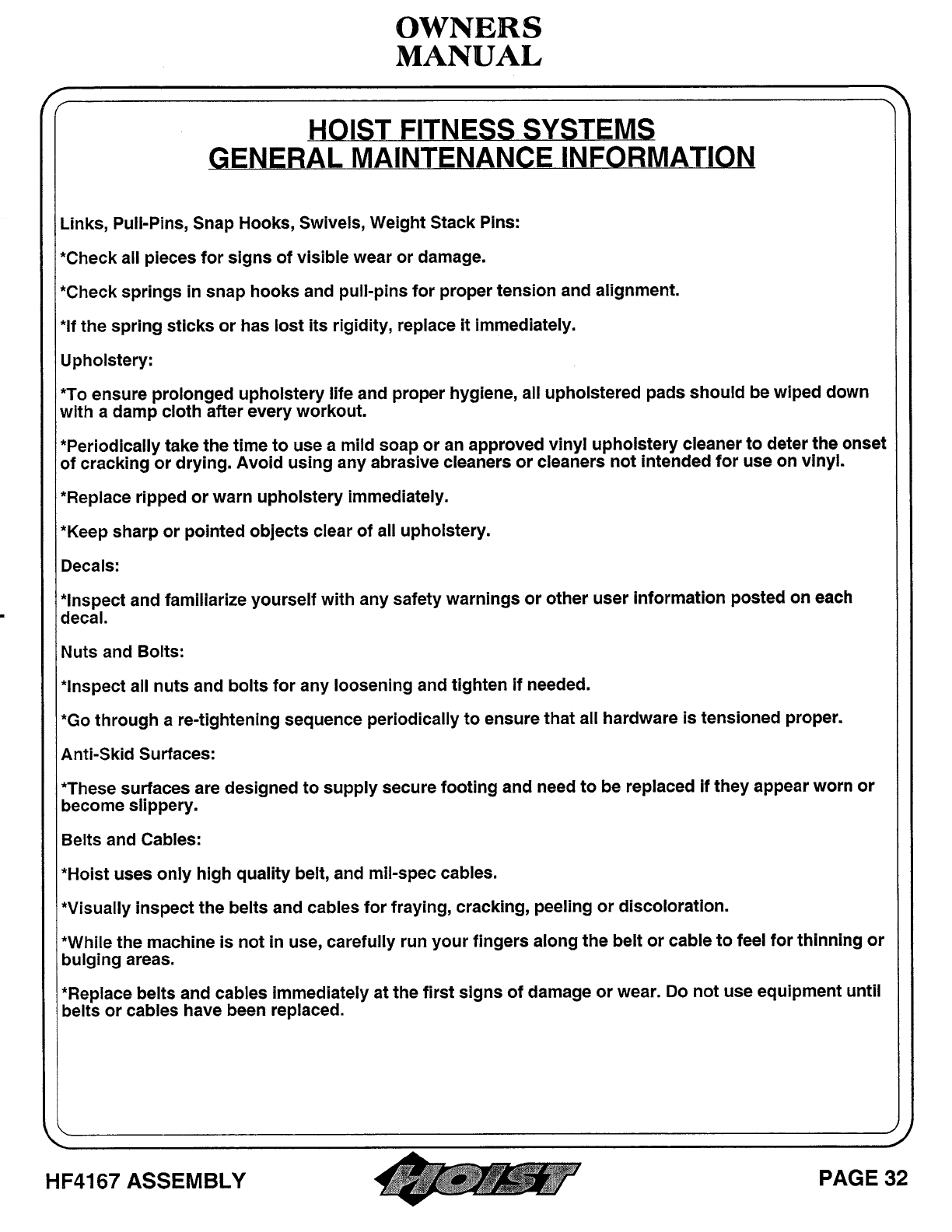

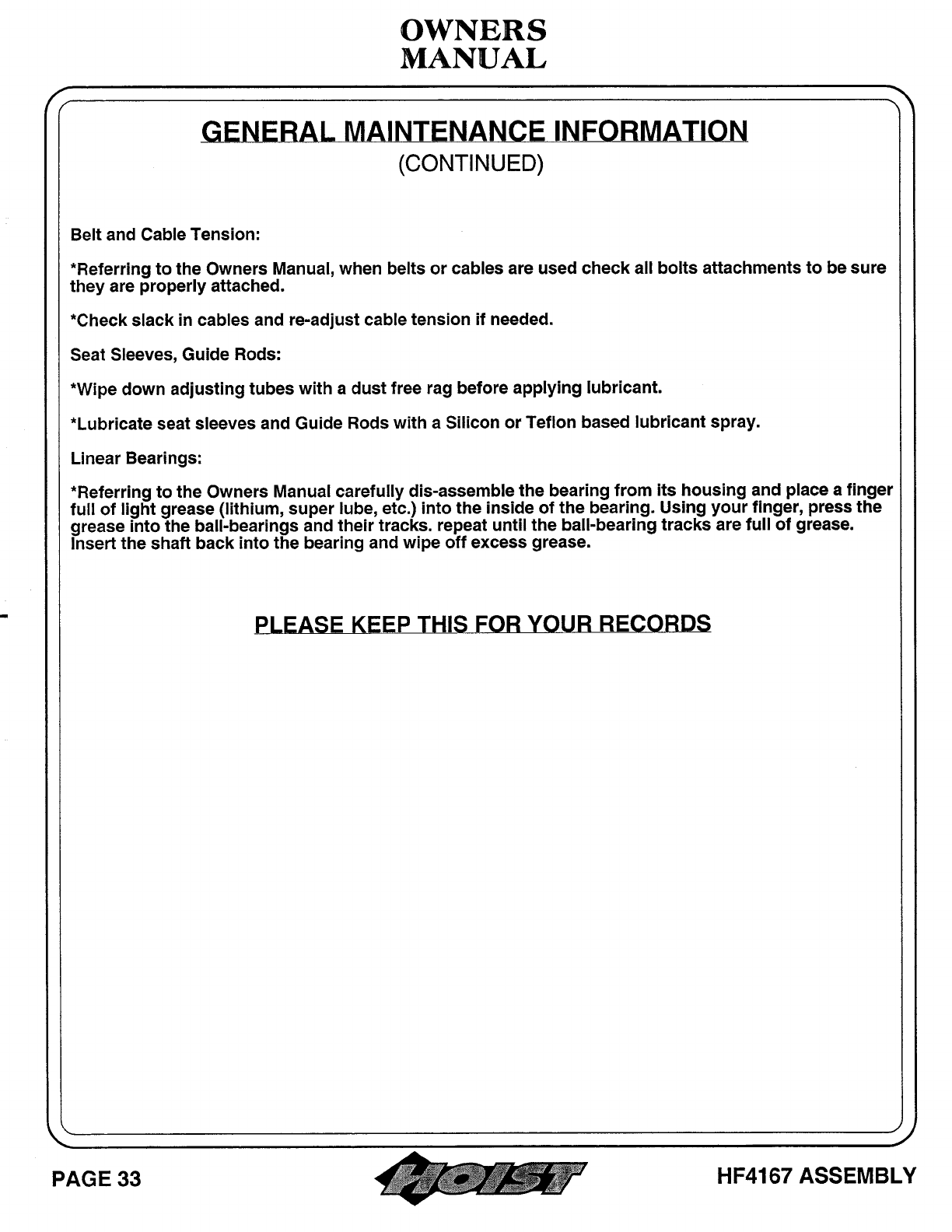

GENERAL MAINTENANCE INFORMATION.......................

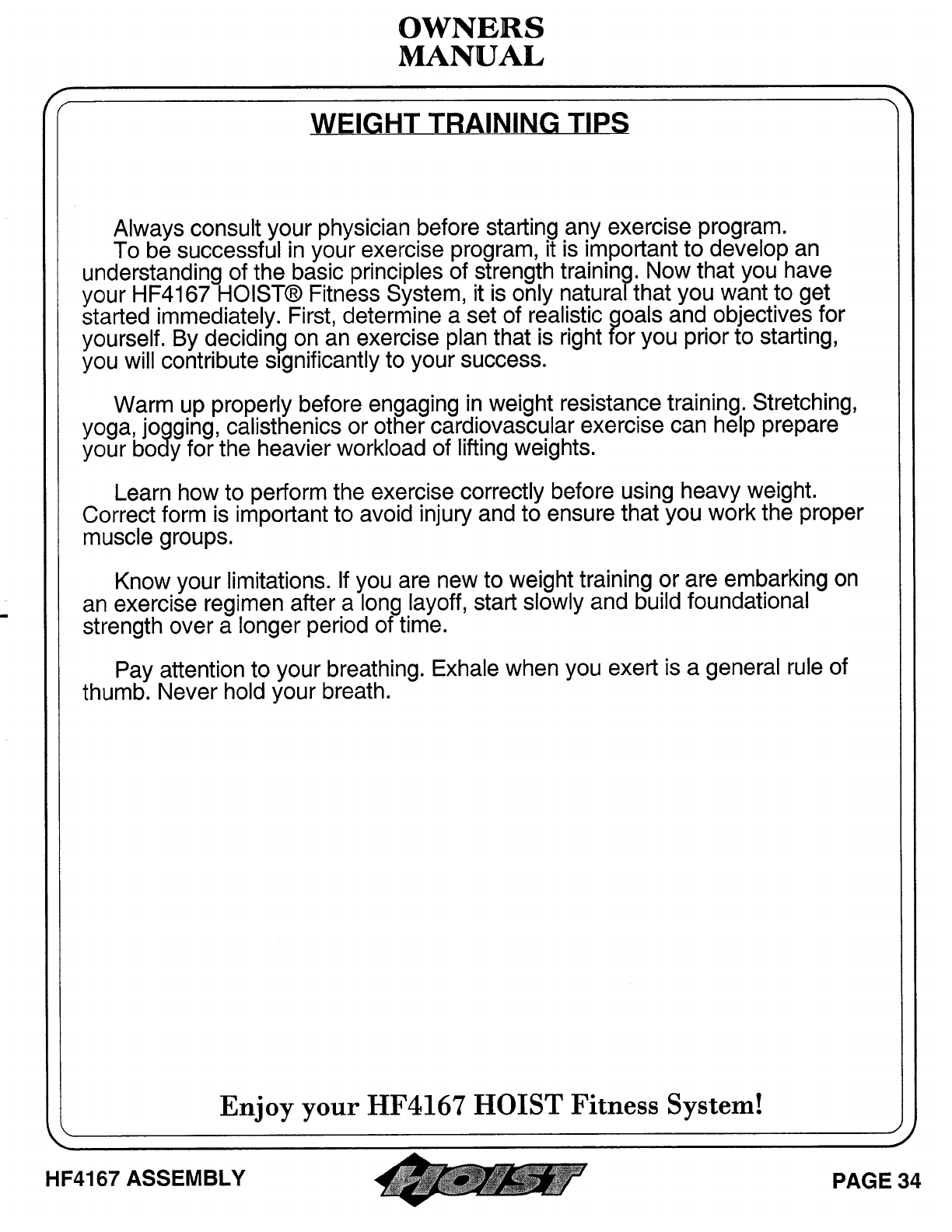

WEIGHT TRAINING TIPS......................................................

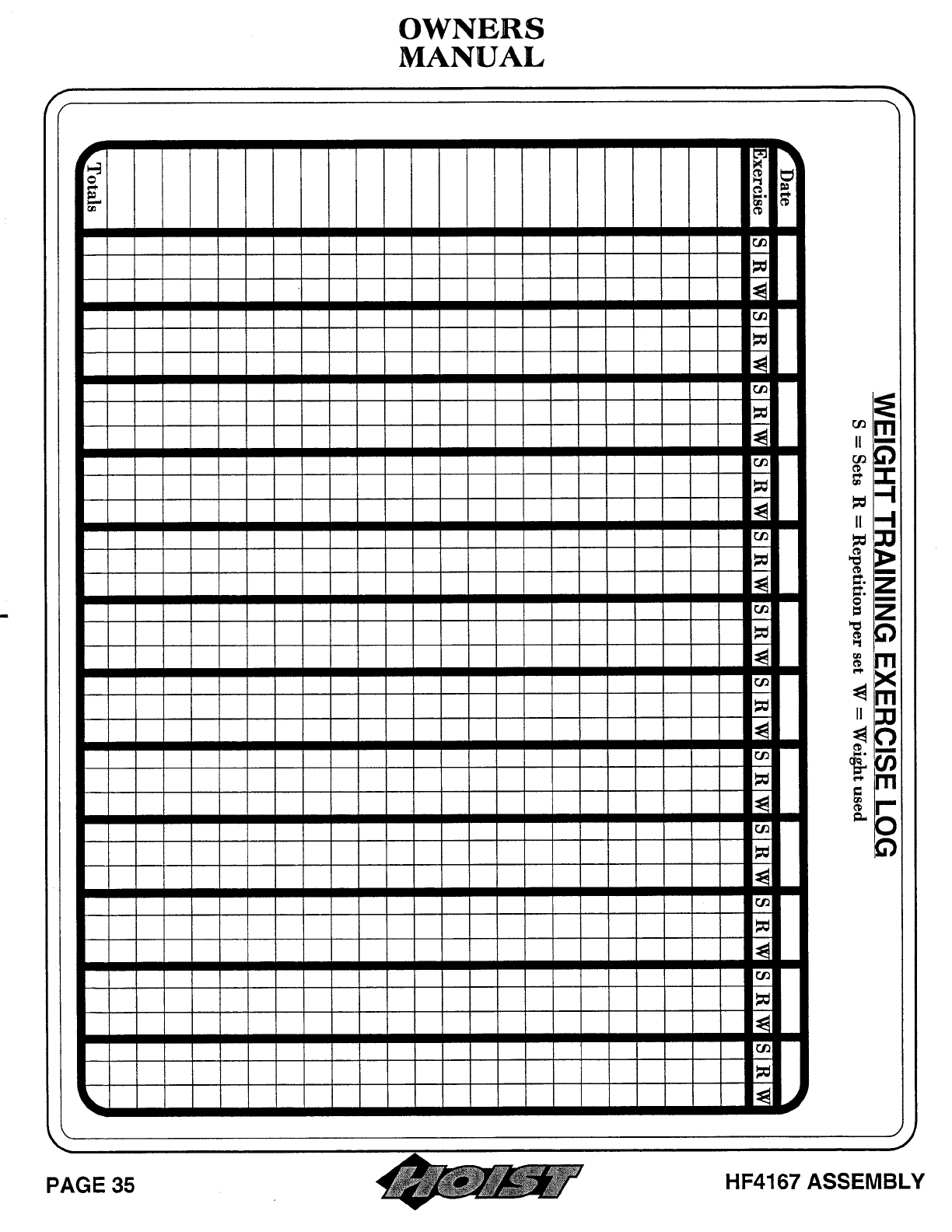

EXERCISE LOG......................................................................
LIMITED WARRANTY............................................................
parts have been accounted for, continue on.
Tape Measure
MANUAL
MANUALMANUAL
MANUAL
PAGE 02
HF4167 ASSEMBLY
OWNERS
OWNERSOWNERS
OWNERS
Rubber Mallet
Crescent Wrench
1/2", 9/16" and 3/4" Sockets
Socket Wrench
Level
TOOLS REQUIRED
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that
all parts have been included in your shipment. When ordering, use part
number and description from the lists. Use only HOIST replacement parts
when servicing. Failure to do so will void your warranty and could result
in personal injury.
HOIST equipment is designed to provide the smoothest, most effective
exercise motion possible. After assembly, you should check all functions to
ensure correct operation. If you experience problems, first recheck the
assembly instructions to locate any possible errors made during assembly.
If you are unable to correct the problem, call your authorized HOIST dealer.
Be sure to have your serial number and this manual when calling. When all
INSTRUCTIONS
PAGE 03
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
HF4167 ASSEMBLY PAGE 04
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS

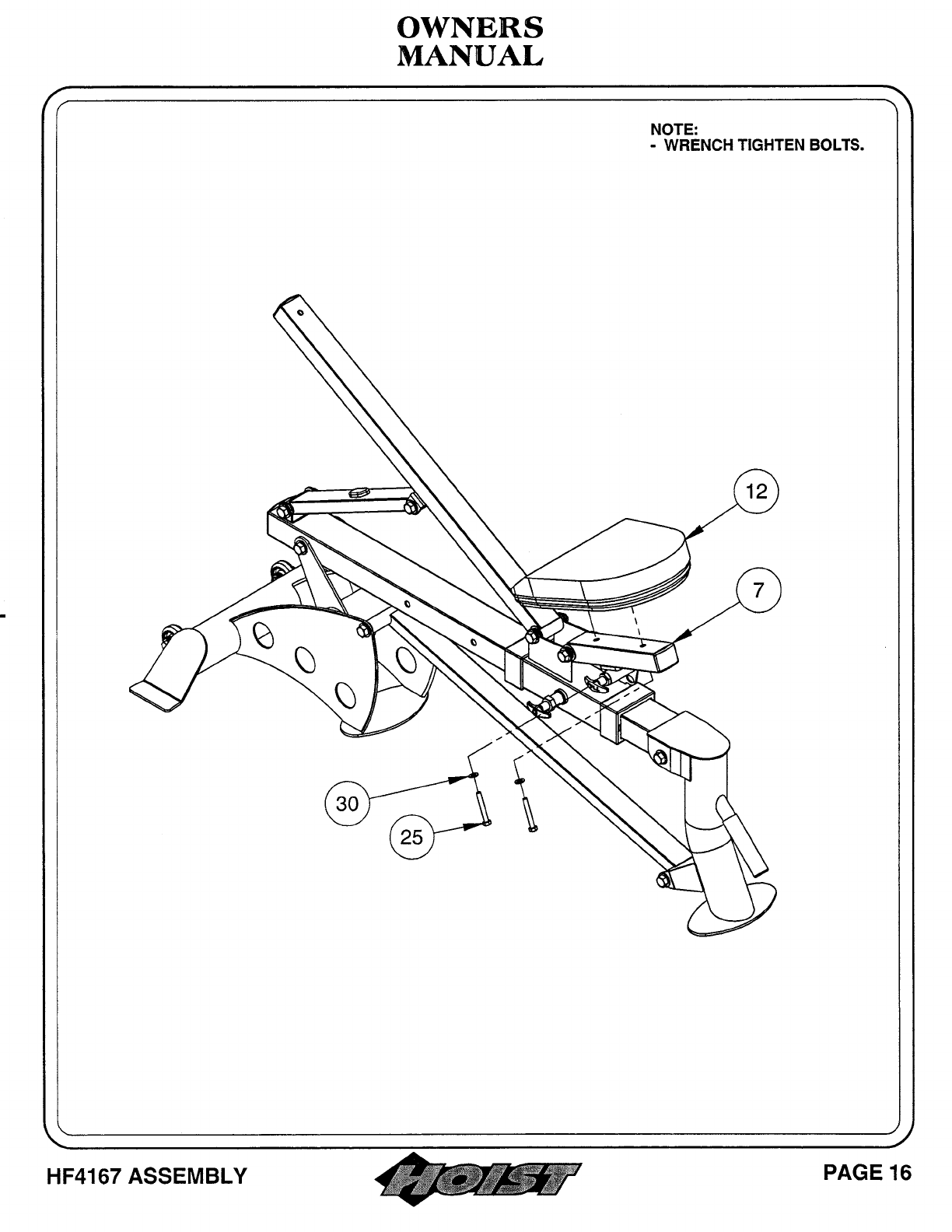

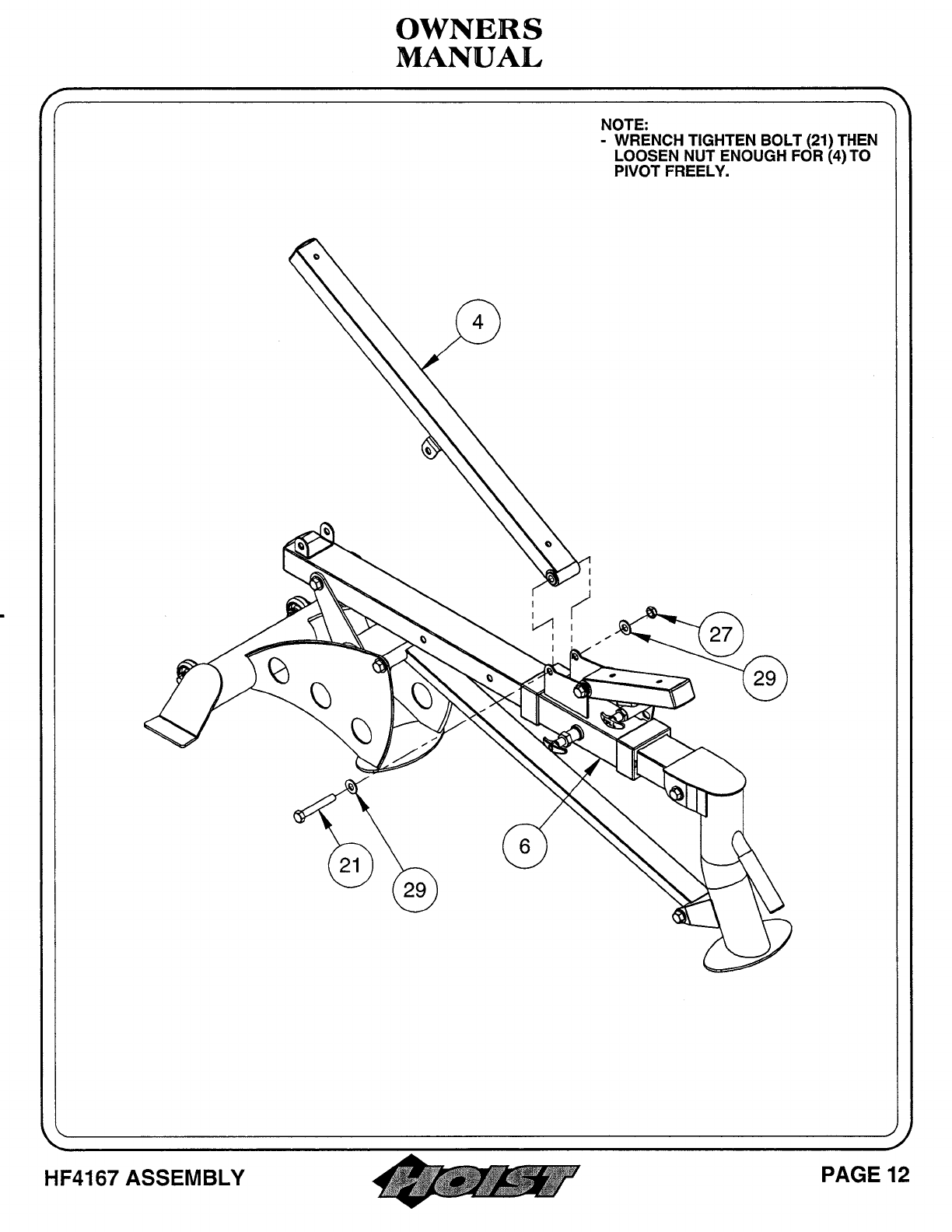

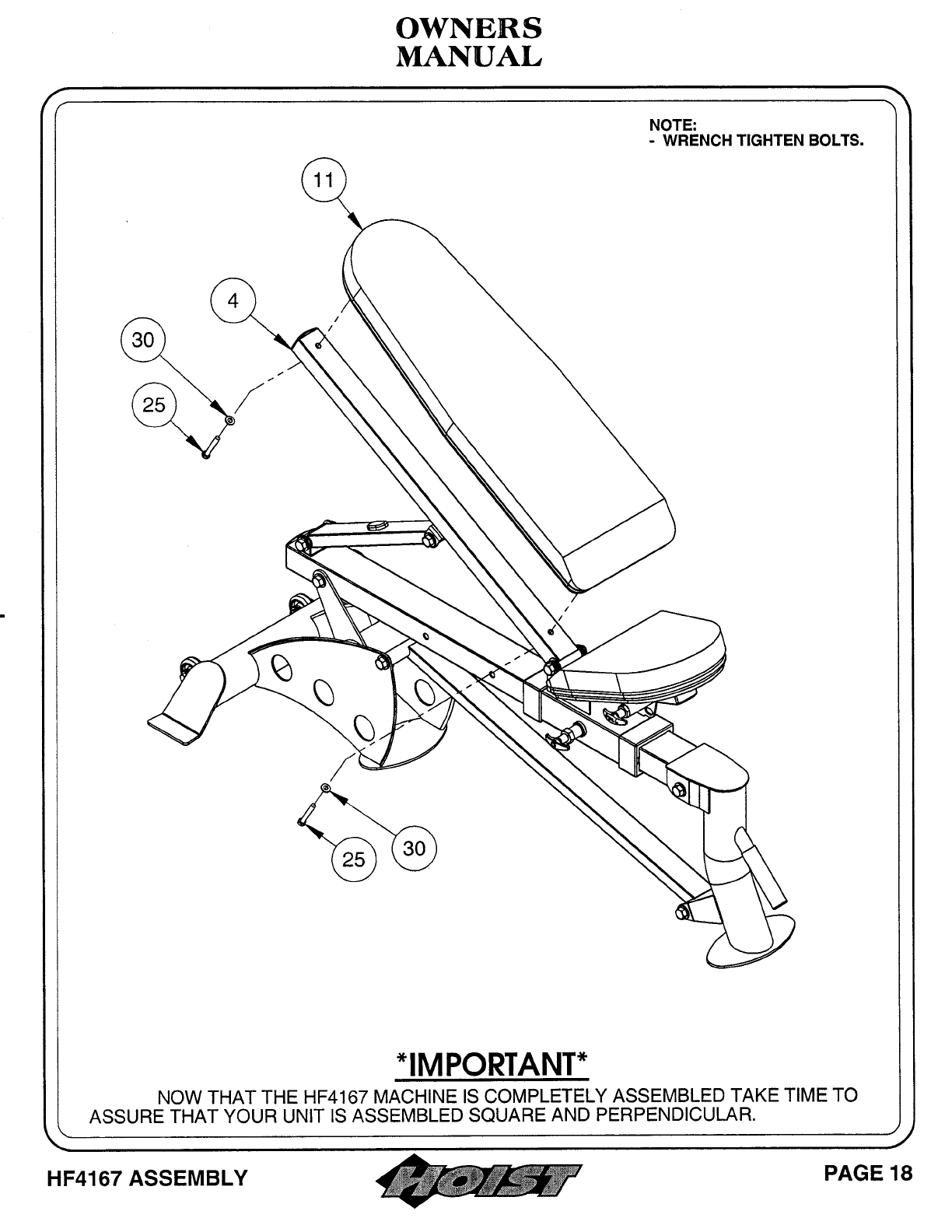

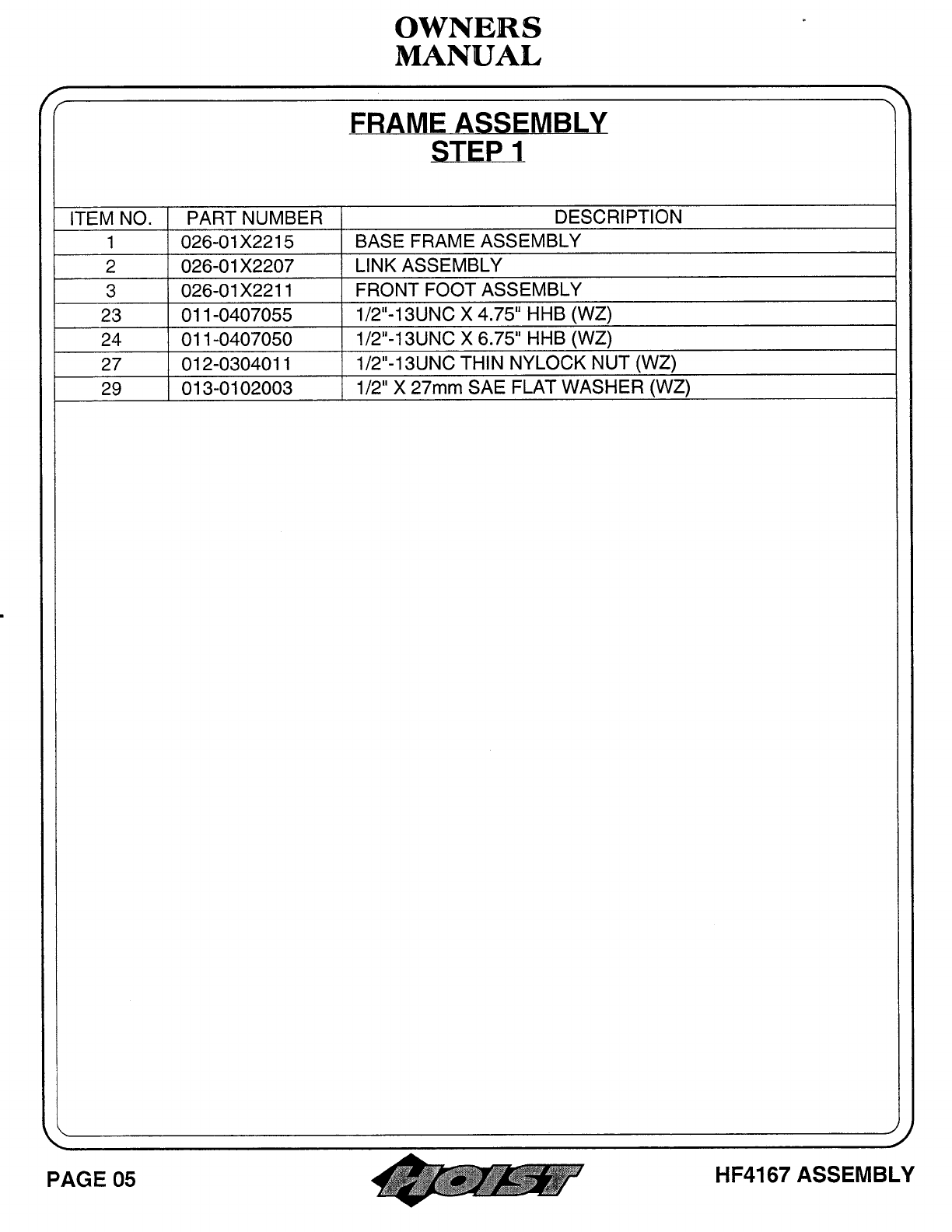

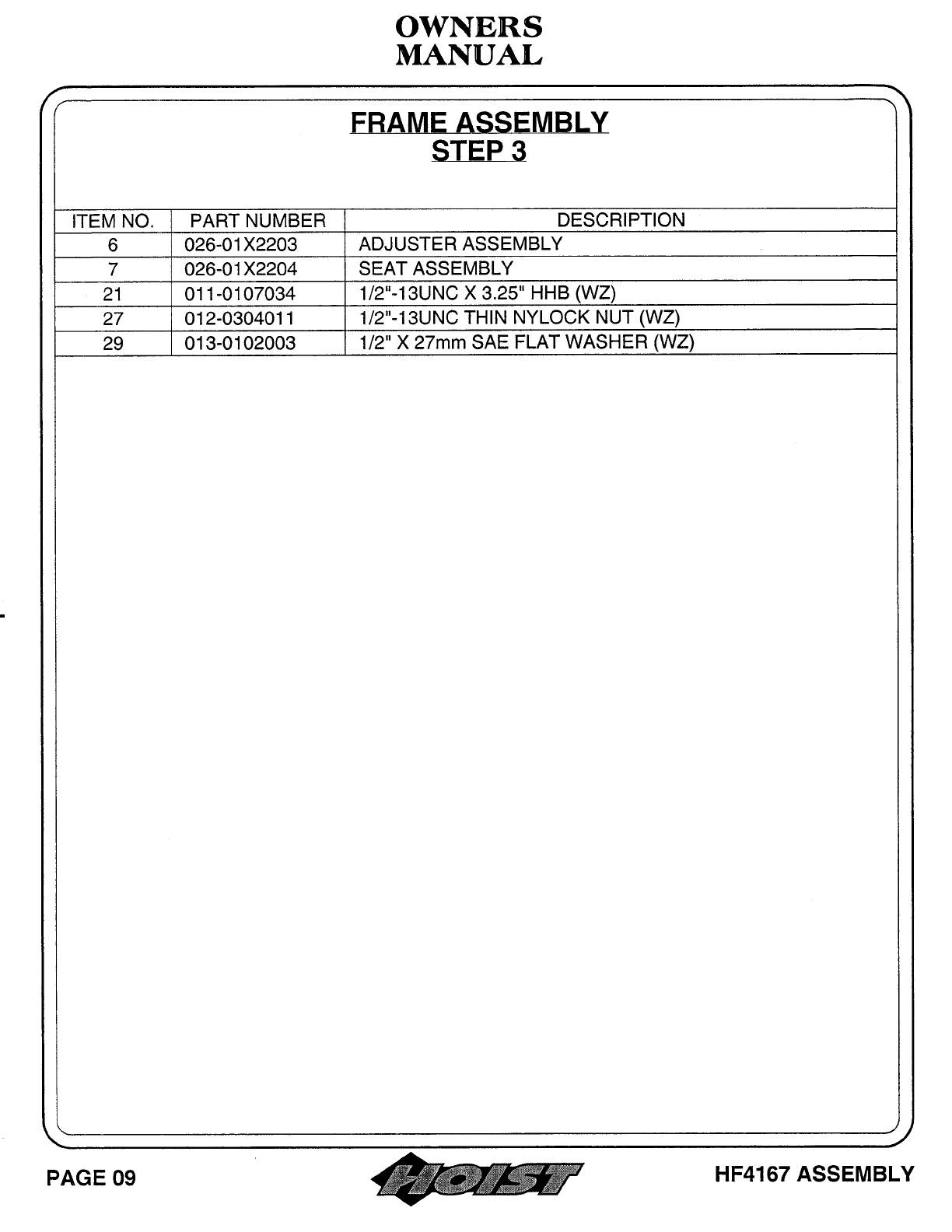

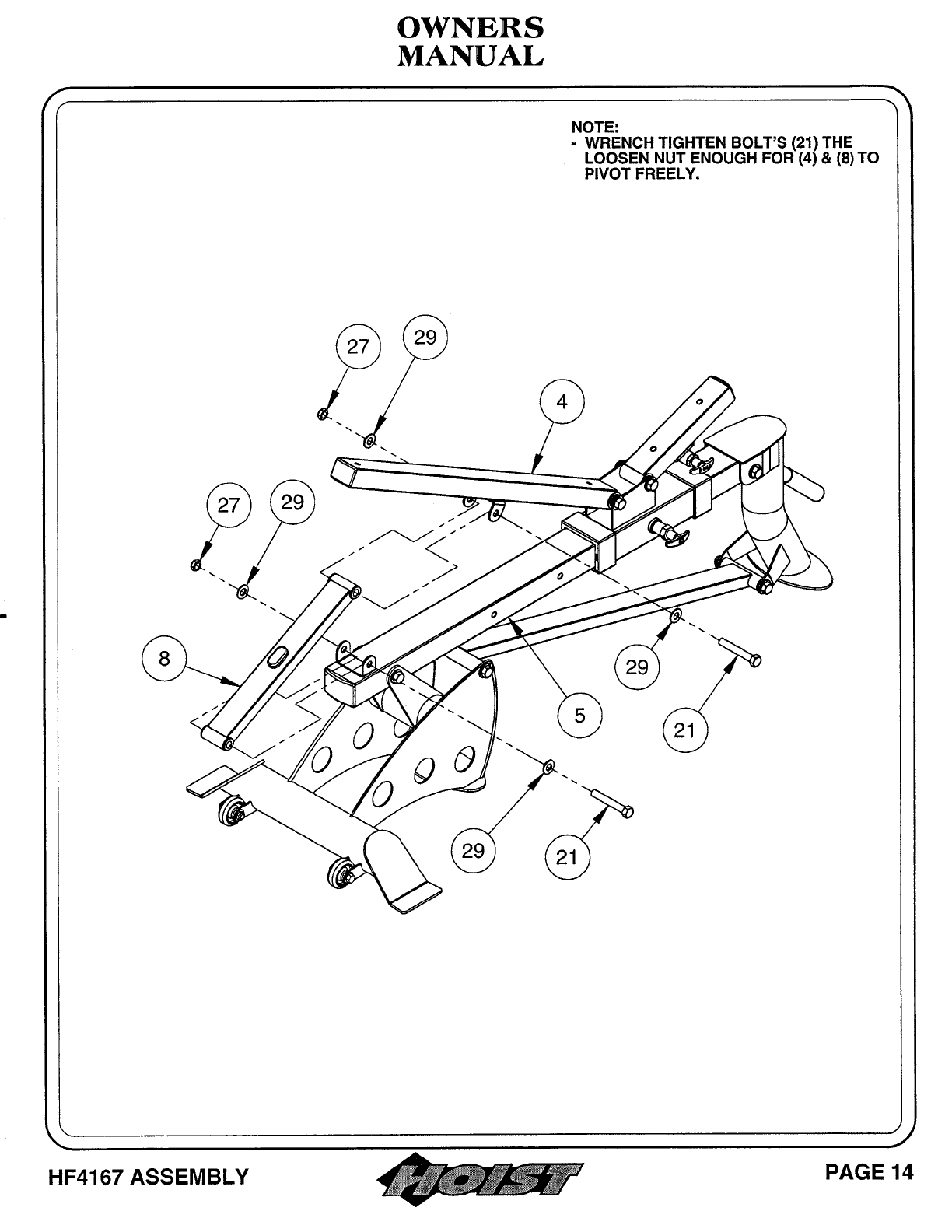

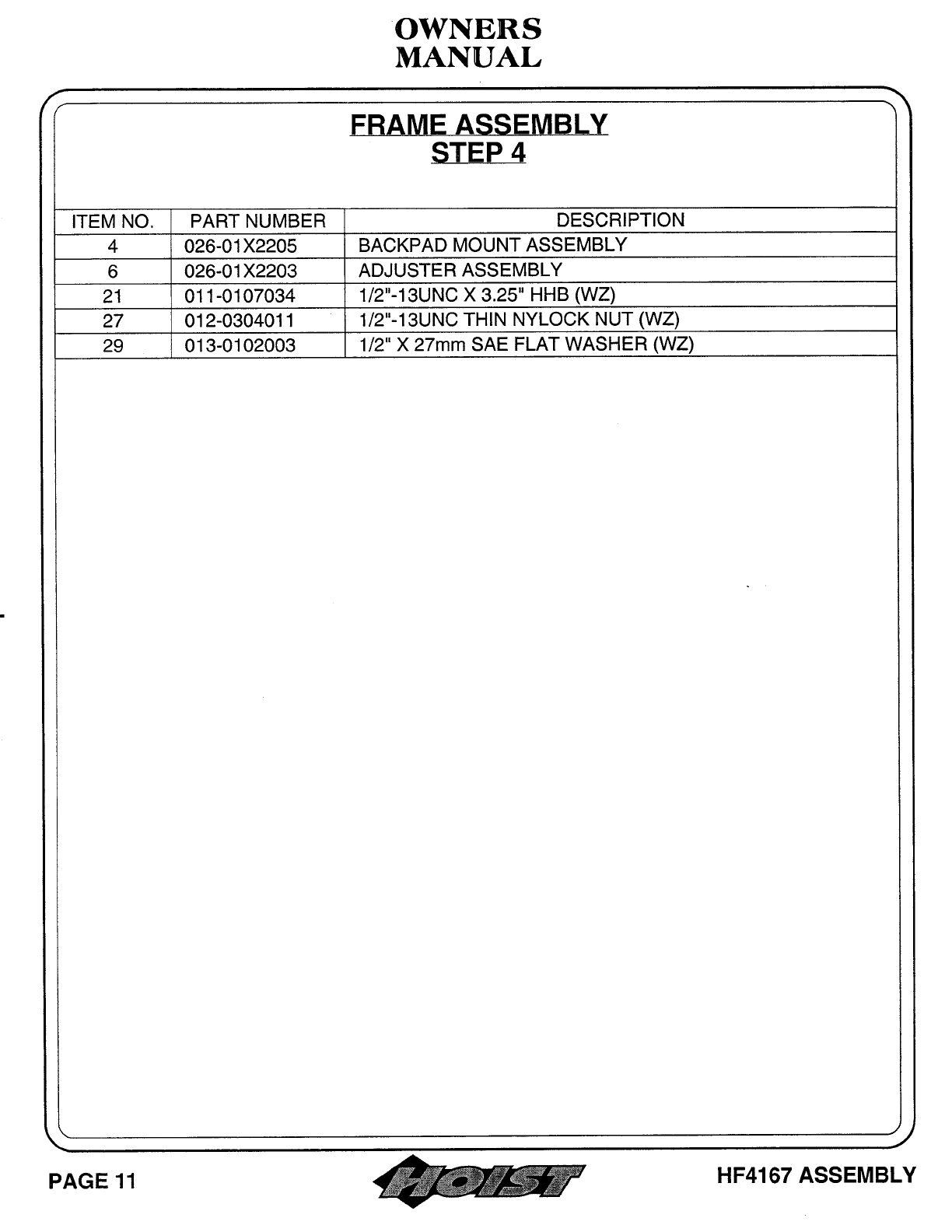

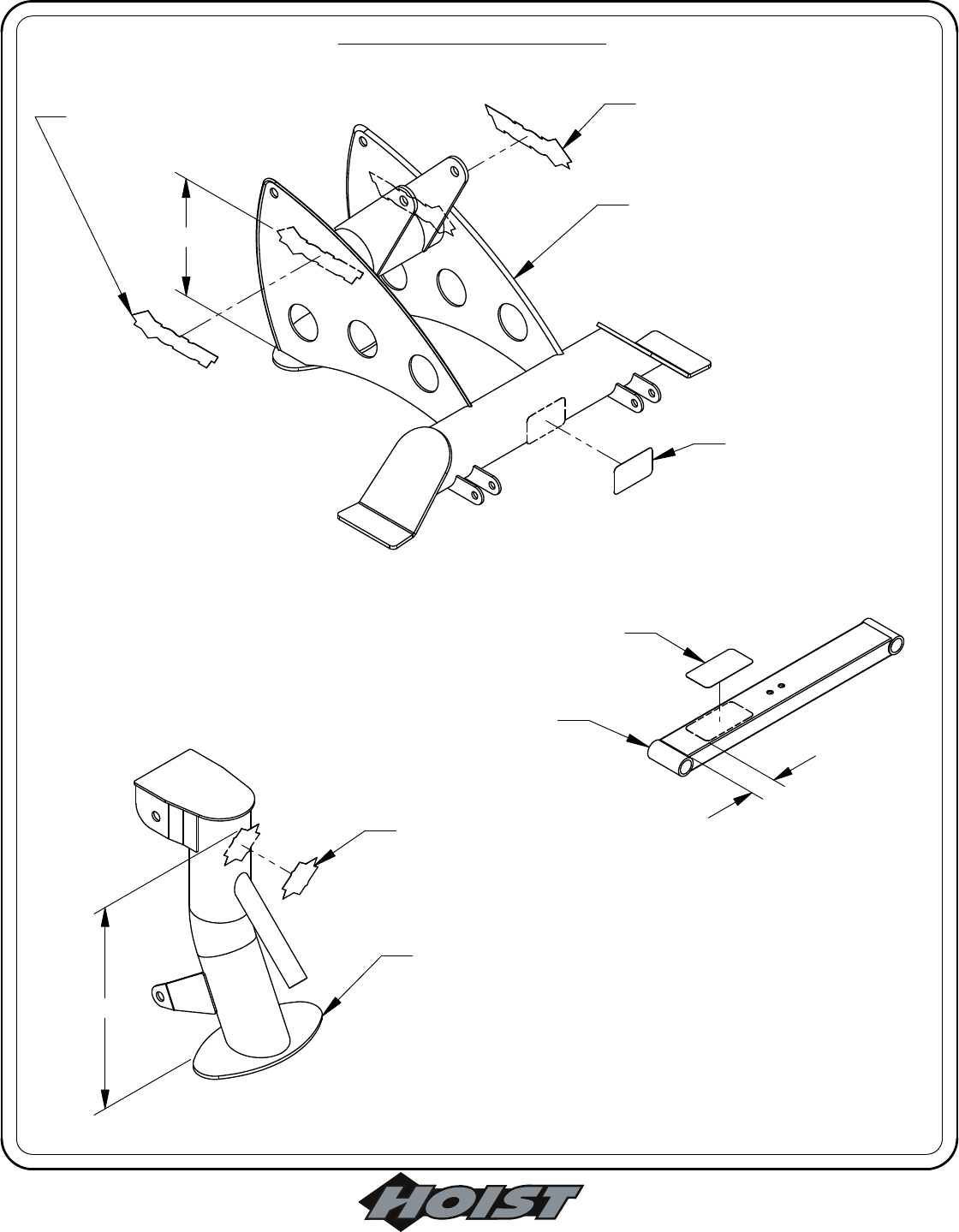

FRAME ASSEMBLY
DECAL PLACEMENT
12.00
026-01X2211
FRONT FOOT ASSEMBLY
021-0003222
CENTERED ON TUBE
1.50
021-0003113
CENTERED ON TUBE
026-01X2229
BACK PAD SUPPORT ASSEMBLY
7.00
021-0003230
CENTERED ON TUBE
BASE FRAME ASSEMBLY
026-01X2215
CENTERED ON TUBE
021-0003230
SERIAL # DECAL
CENTERED ON TUBE
PAGE 21
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
PAGE 22
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
8.00
021-0003230
CENTERED ON TUBE
026-01X2207
LINK ASSEMBLY
2.00
9.25
026-01X2205
BACKPAD MOUNT ASSEMBLY
CENTERED ON TUBE
021-0003008
021-0003135
CENTERED ON TUBE
1.13
2.75
026-01X2203
ADJUSTER ASSEMBLY
CENTERED ON TUBE
021-0003269
021-0003228
CENTERED ON TUBE
DECAL PLACEMENT
021-0003008

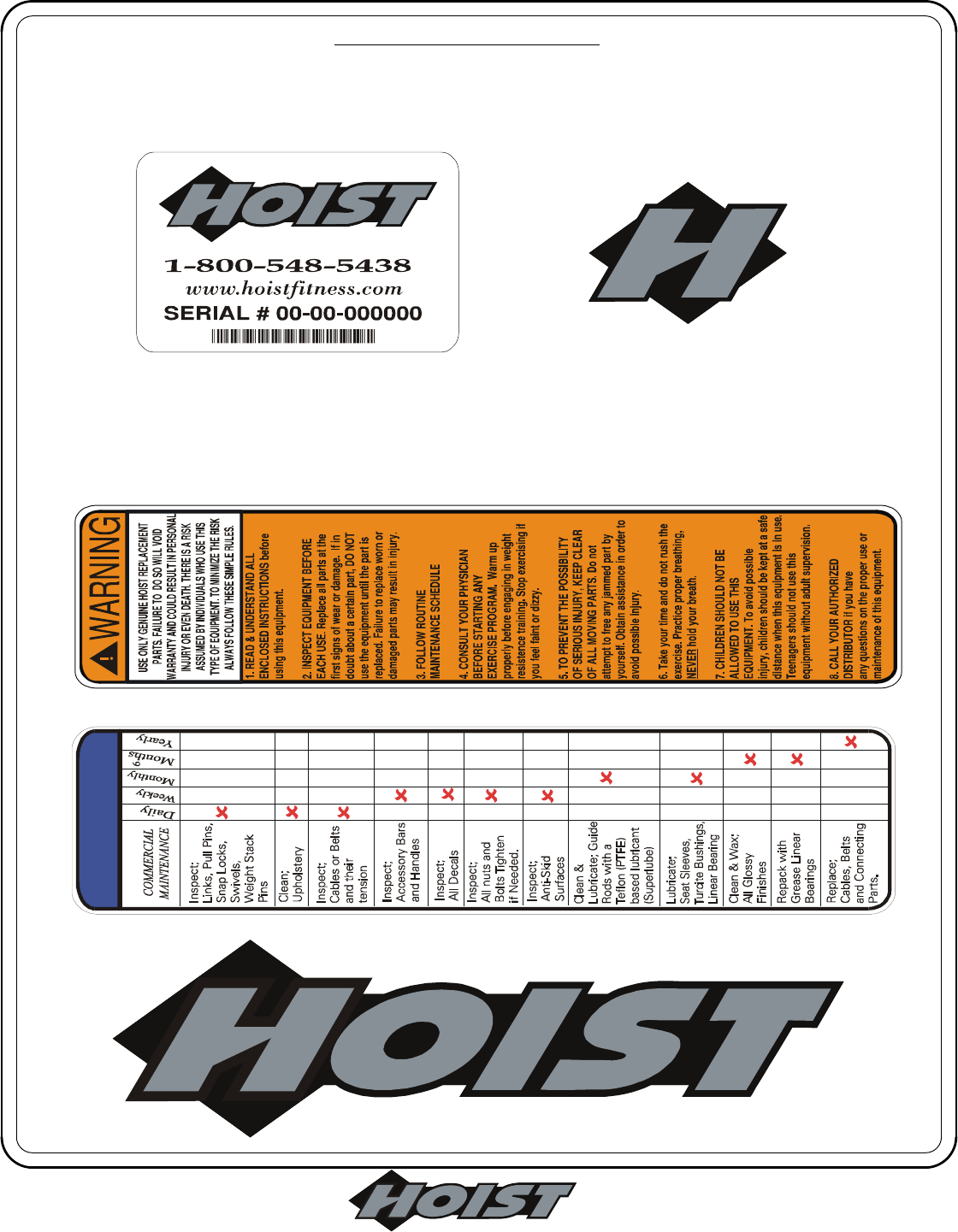

DECAL REFERENCE
SERIAL # DECAL
021-0003222
021-0003135
021-0003230
PAGE 23
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
NOTICE
PAGE 24
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
021-0003269
DECAL REFERENCE
021-0003113
021-0003228
600 LBS.
MAXIMUM
WEIGHT RATING
PAGE 25
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY

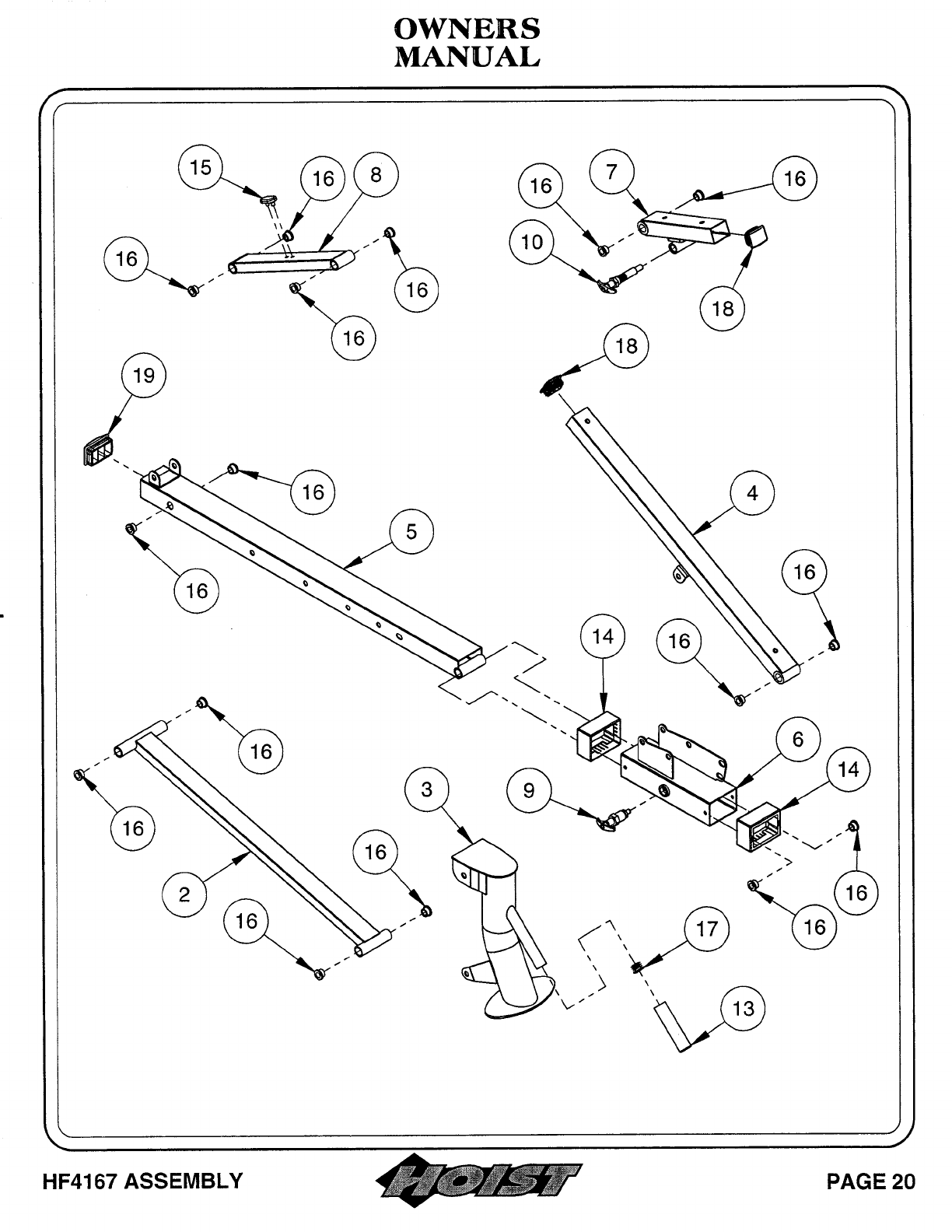

PART LIST
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 026-01X2215 BASE FRAME ASSEMBLY 1
2026-01X2207 LINK ASSEMBLY 1
3 026-01X2211 FRONT FOOT ASSEMBLY 1
4 026-01X2205 BACKPAD MOUNT ASSEMBLY 1
5 026-01X2206 MAIN TUBE ASSEMBLY 1
6 026-01X2203 ADJUSTER ASSEMBLY 1
7026-01X2204 SEAT ASSEMBLY 1
8 026-01X2229 BACK PAD SUPPORT ASSEMBLY 1
9 026-01X2161 THREADED PULL-PIN ASSEMBLY 1
10 026-01X0186 PULL-PIN ASSEMBLY 1
11 022-01PD2022-A UPHOLSTERY W/ACX BACKING 1
12 022-01PD2023-A UPHOLSTERY W/ACX BACKING 1
13 019-0002038 1.00" DIA. X 4.50" LG. CLOSED END GRIP 1
14 026-01PL0257-B PLASTIC GUIDE SLEEVE - BLACK 2
15 026-01PL2005 PLUG BUMPER (2 STEM) 1
16 014-0101002 OILITE FLANGED 16
17 016-0201037-B 1.00" ENDCAP (DOMED) - BLACK 1
18 016-0201040 END CAP-R 1.50" X 2.00" (BLACK) 2
19 016-0201034 END CAP-R 2.00" X 3.00" (BLACK) 1
20 020-0014031 WHEEL 2 3/16" 2
21 011-0107034 1/2"-13UNC X 3.25" HHB (WZ) 4
22 011-0107038 1/2"-13UNC X 4.25" HHB (WZ) 1
23 011-0407055 1/2"-13UNC X 4.75" HHB (WZ) 1
24 011-0407050 1/2"-13UNC X 6.75" HHB (WZ) 1
25 011-0107024 5/16"-18UNC X 2.25" HHB (WZ) 4
26 011-0407020 3/8"-16UNC X 1.75" HHB (WZ) 2
27 012-0304011 1/2"-13UNC THIN NYLOCK NUT (WZ) 8
28 012-0104008 3/8"-16UNC THIN NYLOCK NUT (WZ) 2
29 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 16
30 013-0302008 5/16" USS FLAT WASHER (WZ) 4
31 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 4
32 011-0101070 1/2"-13UNC X 4.00" HHB (WZ) 1
PAGE 36
MANUAL
MANUALMANUAL
MANUAL
OWNERS
OWNERSOWNERS
OWNERS
HF4167 ASSEMBLY
HOIST FITNESS SYSTEMS
LIMITED LIFETIME WARRANTY
Hoist Fitness Systems warrants this product to the original purchaser to be free from defects in workmanship and/or
materials under normal use or service. If at any time a component part is defective, Hoist Fitness Systems shall repair or
replace it (at Hoist Fitness Systems option) within a reasonable period of time. This warranty does not cover costs of
removal. transportation or reinstallation. This warranty shall not apply if the defect was caused by misuse, neglect or
normal wear and tear.
WARRANTY CLAIMS. All claims require: Model number, Serial
number, Date of installation, and any information supporting the
existence of the alleged defect.
To complete Warranty Registration visit:
www.HOISTFITNESS.com
and click on the Warranty Registration link
Starting from the original date of purchase, normal wear and tear shall be considered as the following:
COMMERCIAL USE: All malfunctions of upho
lstery, grips, paint, and chrome that occur after one year; all malfunctions
of electronic components, belts, or cables after one year; all malfunctions of pulleys, bearings, or bushings that occur after
five years. The frame and all welded components are warranted for the life of the product.
HOME USE: All malfunctions of grips, paint, and chrome that occur after ten years; all malfunctions of electronic
components, belts, cables, or upholstery that occur after ten years; all malfunctions of pulleys, bearings, or bushings that
occur after ten years. The frame and all welded components are warranted for the life of the product.
PLEASE NOTE THAT NOT ALL HOIST PRODUCTS ARE MADE FOR COMMERCIAL USE.
Refer to the instructions page of your owners manua
l or consult with you fitness product dealer to establish if a product
is made for commercial use or not. Using a non-
commercial product in a commercial setting can result in serious injury or
death!
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above.
Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential
damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
WHAT IS NOT COVERED BY THIS WARRANTY
Hoist's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additions
below. This warranty neither assumes nor authorizes any person to assume obligations other than expressly covered by
this warranty.
NO CONSEQUENTIAL DAMAGES. Hoist is not responsible for economic loss; profit loss; or special, indirect, or
consequential damages.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original
purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made and shall void
all warranties, expressed, implied or statutory, except the one (1) and five (5) year warranties described above. These
warranties are exclusive and in lieu of all other warranties, including implied warranty and merchantability or fitness for a
particular purpose. There are no warranties which extend beyond the description on the face hereof.
TRANSPORTATION COSTS
has received prior approval. Hoist is not responsible for any other transportation costs, but will ship freight collect parts
either repaired or replaced under these warranties.
Hoist Fitness Systems
9990 Empire St. #130
San Diego, CA. 92126
(800)548-5438
PLEASE KEEP THIS FOR YOUR RECORDS
