Homewerks Worldwide 76-101-BT MUSIC LAMP MIRROR User Manual
Homewerks Worldwide, LLC MUSIC LAMP MIRROR
User Manual
Table of Contents
Introduction………………………………………………………………
Safety & General Information…………………………………………
Mirror Buttons & Features……………………………………………
Mirror Ports…………………………………………………………....
Power Supply…………………………………………………………....
Bluetooth Pairing ………………………………………………………
Hands-Free Calling……………………………………………………
Playing Music from Your Mirror………………………………………
Product Specifications…………………………………………………
Simple Guide to Troubleshooting……………………………………
Manufacturer’s Warranty Details……………………………………
FCC NOTE……………………………………
76-101-BT Bluetooth Music and Hands-free Phone Mirror comes
with the following accessories:
1.USB Cable
INTRODUCTION
Thank you for purchasing the 76-101-BT Music Mirror. We hope that you love it as much
as we do! This 2-sided (true image and 5X) lit makeup mirror supports Bluetooth
Wireless Technology, letting you connect with compatible Bluetooth devices to:
※Play music from your smart phone and other Bluetooth compatible devices
※Answer calls hands-free and talk through the built-in microphone
In addition to the Bluetooth feature, this mirror also includes：
※USB port that can be used as a USB flash drive or phone charger
※LED lit 5X magnification mirror
The best part is that you can do all this while you are doing your makeup!
We know how excited you are to start using your mirror, but before doing so, please
take some time to read the user’s manual for safety information and to guide you
through the set up process for your maximum enjoyment.
The contents stated herein may be modified from time to time as
improvements are made to the product properties and functions.
The contents stated herein may be modified from time to time as improvements
are made to the product properties and functions
SAFETY AND GENERAL INFORMATION
IMPORTANT INFORMATION FOR SAFE AND EFFICIENT OPERATION OF
YOUR MUSIC AND PHONE MIRROR.
PLEASE READ BEFORE USING THIS PRODUCT.
To maintain optimal performance of this mirror：
•Do not use the mirror in areas of extreme temperatures or high humidity.
•Do not place the mirror near a heater or in direct sunlight.
•Keep it at a safe distance from the edge of the counter to prevent accidental falls.
•Keep away from splashing water.
•Never disassemble the product which would void the warranty

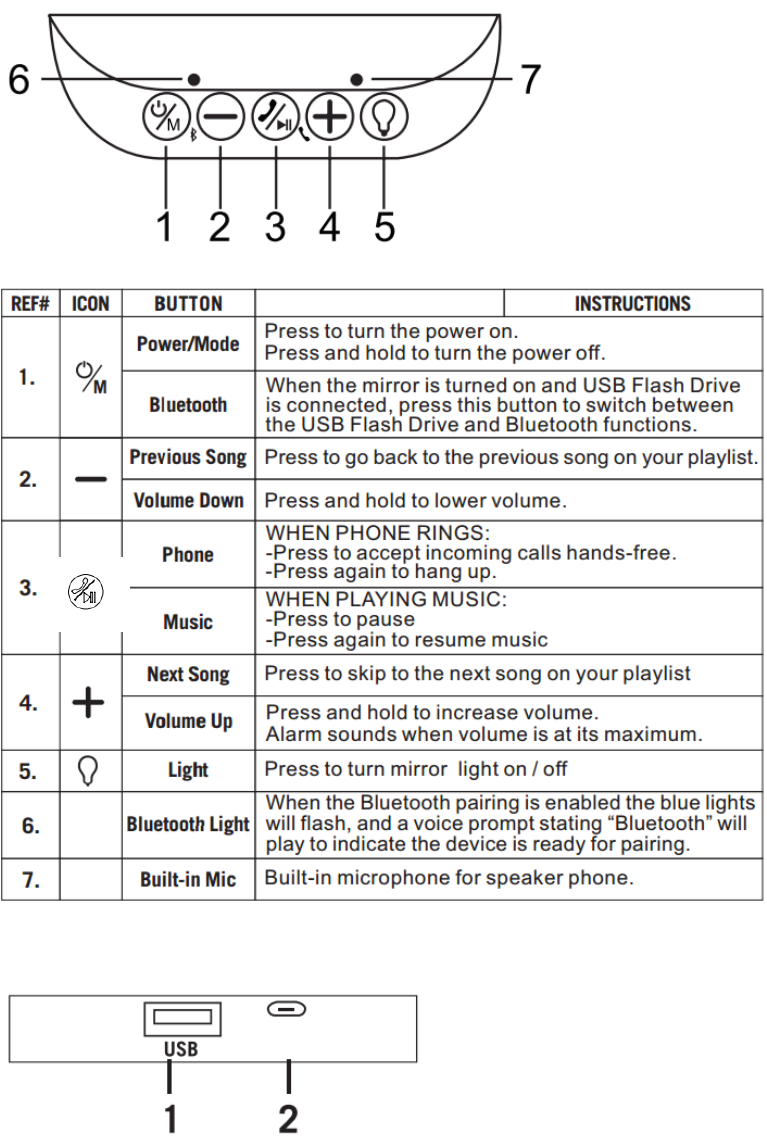

MIRROR BUTTONS AND FEATURES
Reference Table for Mirror Buttons
MIRROR PORTS
1.USB port to connect and play MP3 music from USB Flash Drive and for charging
another devices when the Music Mirror is connected to power.
Note: Power charging rate is lower when other functions (ie. light, speaker) are in use.
2.DC power supply for connection with external adapter or computer.
NOTE - When the DC and USB ports are not in use, it is important that you leave the
silicone cover on to protect them from any build-up of moisture or dust.
POWER SUPPLY!
This mirror is powered by use of the USB cable supplied to a standard AC
power outlet.
Output requirement: DC 5V/1200-1500mA, Input: 100~240V~50/60Hz
BLUETOOTH PAIRING MODE
1.When the mirror is in Bluetooth mode, the blue LED light will flash indicating
that it is ready for pairing.
2.The mirror will automatically search for available Bluetooth devices within
range. Please make sure that your wireless device is close by and pairing
is enabled.
3.Activate the Bluetooth function on your wireless device and follow
instructions for pairing.
4.If the mirror does not locate your device automatically, press and hold the
power button to restart until you hear “Bluetooth” from the mirror speaker,
then check to see that “HW MIRROR” appears as a discoverable
device on your device. This may take a few minutes.
5.Select to connect your device to the mirror.
6.The blue light will stay on indicating that the pairing is successful.
7.You are now ready to use your music mirror!
Note: Bluetooth wireless devices have a maximum range of 30 feet (10 m).
Actual range will vary depending on frequency requirements, obstacles,
interference, etc. For optimal quality of hands-free calls, it is advisable to
maintain a maximum range of about 3 feet (1 m).
Remember...
1.Whenever you turn your music mirror on, it will automatically try to connect to
the last device it was connected to.
2.If multiple devices have been successfully paired to the mirror, it will
automatically connect to the last device connected.
HANDS-FREE CALLS
Answering Calls and Hanging Up
Press the “ ” button to answer the phone. This will automatically pause the music.
Press the “ ” button again to hang up the phone. The music will automatically
begin to play again.
PLAYING MUSIC ON YOUR MIRROR SPEAKER
You can either play music on the built-in speaker from your Bluetooth enabled
device once paired, or use the USB port to play music from your USB Flash Drive.
Press and hold “－ ” to turn volume down.
Press and hold “＋ ” to turn volume up.
Press “－ ” to go to the previous song on your playlist.
Press “＋” to go to the next song on your playlist.
USB Flash Drive
This mirror has a USB port to auto-play MP3 songs when the USB Flash Drive is plugged in.
Powering Off
Press and hold “ ” power button to turn off the mirror
PRODUCT SPECIFICATIONS
1. Bluetooth： Bluetooth 2.1+EDR
2. Output Power: Light Power: 2W-2.4W Audio Power: 3.4W
3. Output Rating: Maximum connection range~30 feet (10 m)
4. Operating Frequency Range: 2.402GHz ~2.480GHz
5. Support Profiles: MPS WAV WMA
6. Speaker Impedance: 4Ω
7. Product size: 7.5” L x 4.5” W x 12.5” H
(19L x11.5 Wx32 H cm)
8. Product Weight：(521 g) - main body
Note: The product specifications and design are subject to change without prior notice.
SIMPLE GUIDE TO TROUBLESHOOTING
Here are some quick and easy steps to follow if you are having issues with your Music Mirror
Failure to establish
Bluetooth connection
1. In your settings, ensure that Bluetooth pairing is enabled on your mobile
device.
2. The mirror might still be connected to another Bluetooth device. Please ensure
that all other devices are disconnected before attempting to establish a
connection with a new device. Once this is done, pairing can be done as usual.
3. If connection still cannot be established, restart your phone or Bluetooth
device.
Bluetooth connection
range seems shorter
than normal
There might be obstacles between the Bluetooth device and mirror. Make sure
all obstacles are removed for a clear path.
There is auditable
static and / or the
music from your
mobile device cuts out
1 There might be obstacles between your mobile device and the mirror. Remove
all obstacles for a clear path.
2. The mobile device is too far away from mirror. Shorten the distance for
optimal performance
No sound is coming
from the mirror after
Bluetooth connection
has been established
1.The volume on the mobile device is turned down. Make sure that the volume is
turned up.
2.The volume on the mirror is turned all the way down. Adjust the volume by
using the volume up button “ ＋”
Unstable connection
from multiple mobile
phones and other
Bluetooth devices
Only one Bluetooth connection can be established at one time. If you wish to
connect another device to the mirror, you must first disconnect the current
paired device.
MANUFACTURER'S ONE YEAR LIMITED WARRANTY
The manufacturer warrants this mirror against any defects that are due to a defect in materials or workmanship at any time during the frst
year of ownership, the manufacturer will replace it free of charge, postage-paid at their option. This warranty does not cover products
that have been abused, altered, damaged, misused, cut or worn. This warranty does not cover use in commercial applications. Use only
manufacturer-supplied genuine warranty repair replacement parts to repair this Bluetooth® Makeup Mirror. Use of non-genuine repair parts
will void your warranty. The manufacturer DISCLAIMS all other implied or express warranties including all warranties of merchantability
and/or fitness for a particular purpose. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions
and limitations may not apply. This warranty gives you specific legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement as well as incidental and consequential damages connected with the above are excluded. Any damage to this product
as a result of neglect, misuse, accident or improper use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
FCC NOTE： This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
For a Class B digital device or peripheral, the instructions furnished the user shall include the following
or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure environment.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20cm between
the radiator and your body, and fully supported by the operating and installation configurations of the
transmitter and its antenna(s).
