Hon Hai Precision Industry WBU034 2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module User Manual
Hon Hai Precision Industry Co., Ltd. 2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module Users Manual
Users Manual
WBU034
IEEE 802.11 a/b/g/n/ac 2x2 + BT Combo Module
Product Specification 2.0
Approved:
Approved:
Prepared by:
________________________
_________________________
_________________________
Zeke Wu
Matt Lin
Ben Ho
Manager
Supervisor
Engineer
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 1
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Revision History
Date
Number
Approver
Comments
July. 29, 2016
1.0
Ben Ho
Initial Draft
Aug. 17, 2016
2.0
Cathy Kuo
Updated Module Top Side Photo
RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT
All information contained in this document is the exclusive property of Foxconn Technology Inc. and its
development partners. Any reproduction or disclosure of all or part of this document without the
expressed written consent of Foxconn Technology Inc. is strictly prohibited.
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 2
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
TABLE OF CONTENTS
Revision History .................................................................................................. 1
Table of Contents ................................................................................................ 2
Chapter 1. Module Overview ............................................................................. 4
1-1 Key Characteristic ......................................................................................................................... 4
1-2 Certification ................................................................................................................................... 4
1-3 Pin Definition ................................................................................................................................ 5
Chapter 2. Electrical and RF Specificaiton .......................................................... 6
2-1 Recommended Operation Rating ......................................................................................... 6
2-2 Power Consumption.............................................................................................................. 6
2-3 WiFi RF Specification – TX ..................................................................................................... 7
2-4 WiFi RF Specification – RX ..................................................................................................... 9
2-5 Bluetooth RF Specification .......................................................................................................... 11
2-6 Bluetooth Low Energy RF Specification ...................................................................................... 13
2-7 Antenna Specification Requirements ......................................................................................... 14
Chapter 3. MECHANICAL SPECIFICATION ......................................................... 15
3-1 Module Assembly Dimension ............................................................................................. 15
3-2 Label Specification .............................................................................................................. 16
Chapter 4. Additional Information ................................................................... 17
4-1 EEPROM Information .......................................................................................................... 17
4-2 Module Photo ............................................................................................................................. 17
4-3 Environment Specifications ........................................................................................................ 17
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 3
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Figures:
Figure 1 Pin Definitions (Module Top View) .................................................................................................................. 5
Figure 2 Mechanical Drawing ...................................................................................................................................... 15
Figure 3 Label Drawing(TOP) ....................................................................................................................................... 16
Figure 4 Label Drawing(BOTTOM) ............................................................................................................................... 16

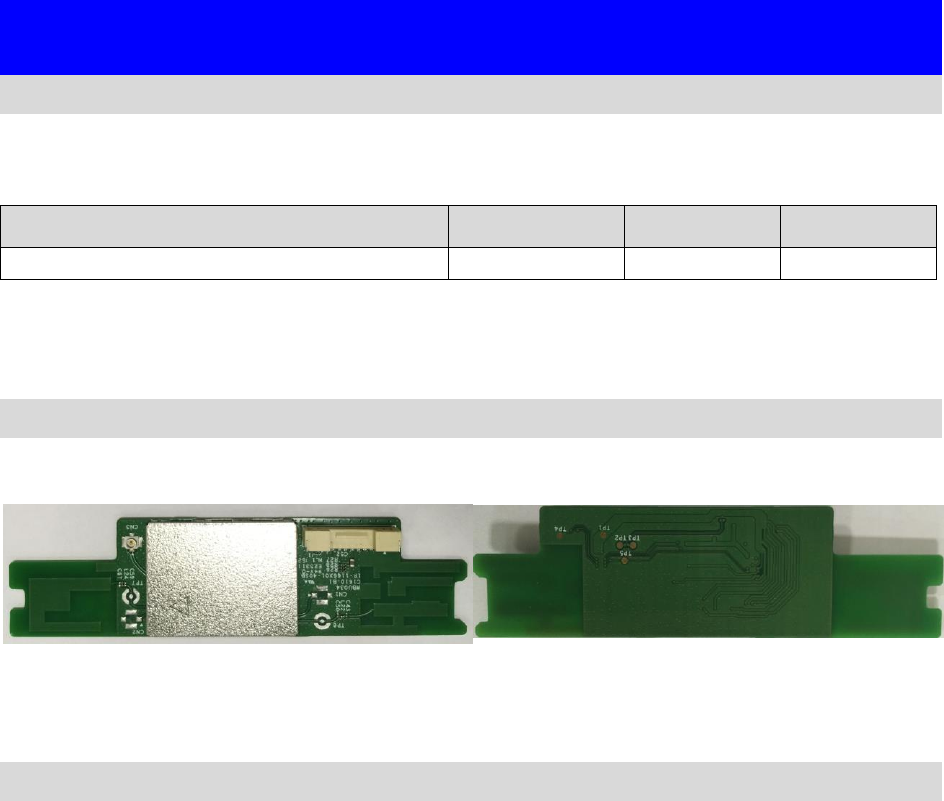

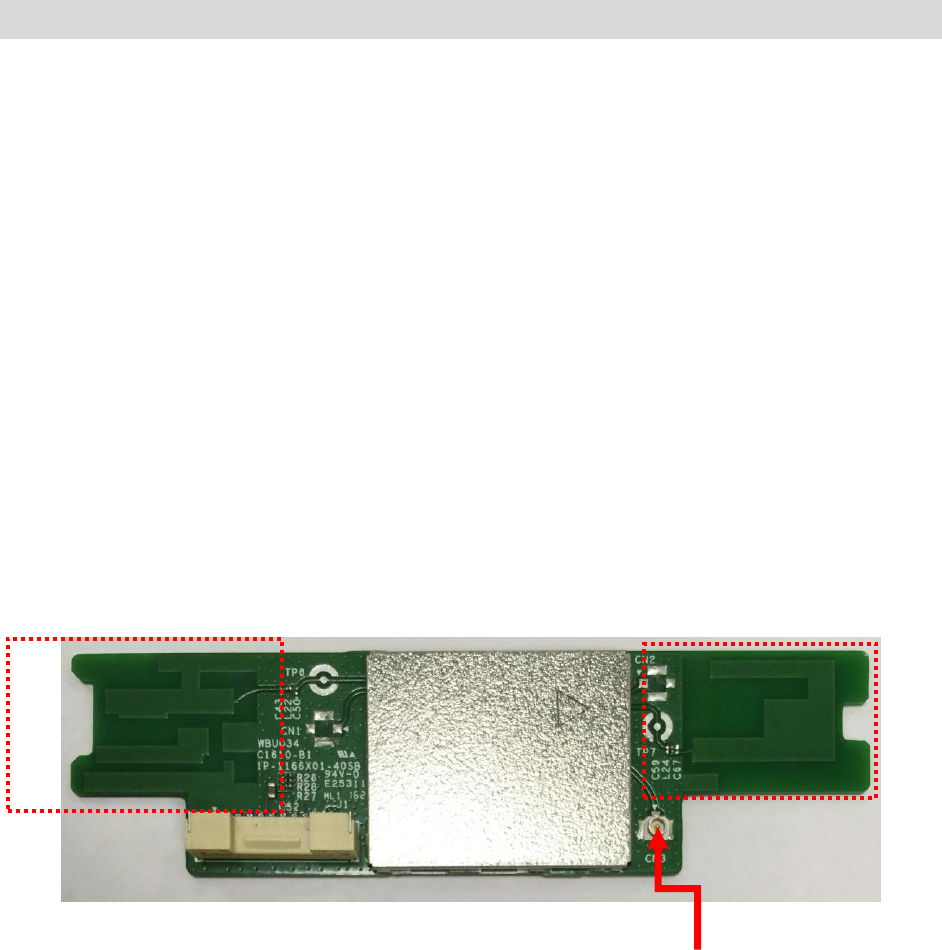

Figure 5 Top Side Photo ............................................................................................................................................... 17
Figure 6 Bottom Side Photo ......................................................................................................................................... 17
Tables
Table 1 Pin Definitions ................................................................................................................................................... 5
Table 2 Operation Rating ............................................................................................................................................... 6
Table 3 Power Consumption.......................................................................................................................................... 6
Table 4 IEEE 802.11 b/g/n/ac TX Output Power (WLAN0 & WLAN1) ............................................................................ 7
Table 5 IEEE 802.11 a/n/ac TX Output Power (WLAN0 & WLAN1) ............................................................................... 8
Table 6 IEEE 802.11 b/g/n/ac Rx sensitivity (WLAN0 & WLAN1) ................................................................................... 9
Table 7 IEEE 802.11 a/n/ac Rx sensitivity (WLAN0 & WLAN1) .................................................................................... 10
Table 8 USB PID/VID Setting ........................................................................................................................................ 17
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 4
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 1. MODULE OVERVIEW
The Foxconn WBU034 is a highly integrated module which has built in a 2x2 dual-band wireless
LAN radio and Bluetooth radio. It supports IEEE 802.11a/b/g/n/ac standard and provides the highest
PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an
extended distance. It includes Bluetooth EDR and LE radio which complies with Bluetooth v2.1+EDR,
v3.0, andv4.0+BLE.
Optimized RF architecture and baseband algorithms provide superb performance and low power
consumption. WBU034 integrates PA/LNA such that the number of the external components is reduced
to minimum. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing
accelerators which offloads the host processor.
The WBU034 supports the 802.11i security standard and implements hardware acceleration for
TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia
applications.
1-1 Key Characteristic
b/g/n and 802.11ac draft compliant
, 80MHz in 5GHz band, and 20MHz, 40MHz bandwidth in 2.4GHz band
-band 2T2R mode with data rate up to 867Mbps
PS2.0, WAPI
Compliance to Bluetooth v4.2
Integrated BALUN and PA with 9 dBm transmit power
Advanced FDD/TDD mode WiFi/Bluetooth coexistence scheme
WiFi and Bluetooth over USB
1-2 Certification
TBD
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 5
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
1-3 Pin Definition

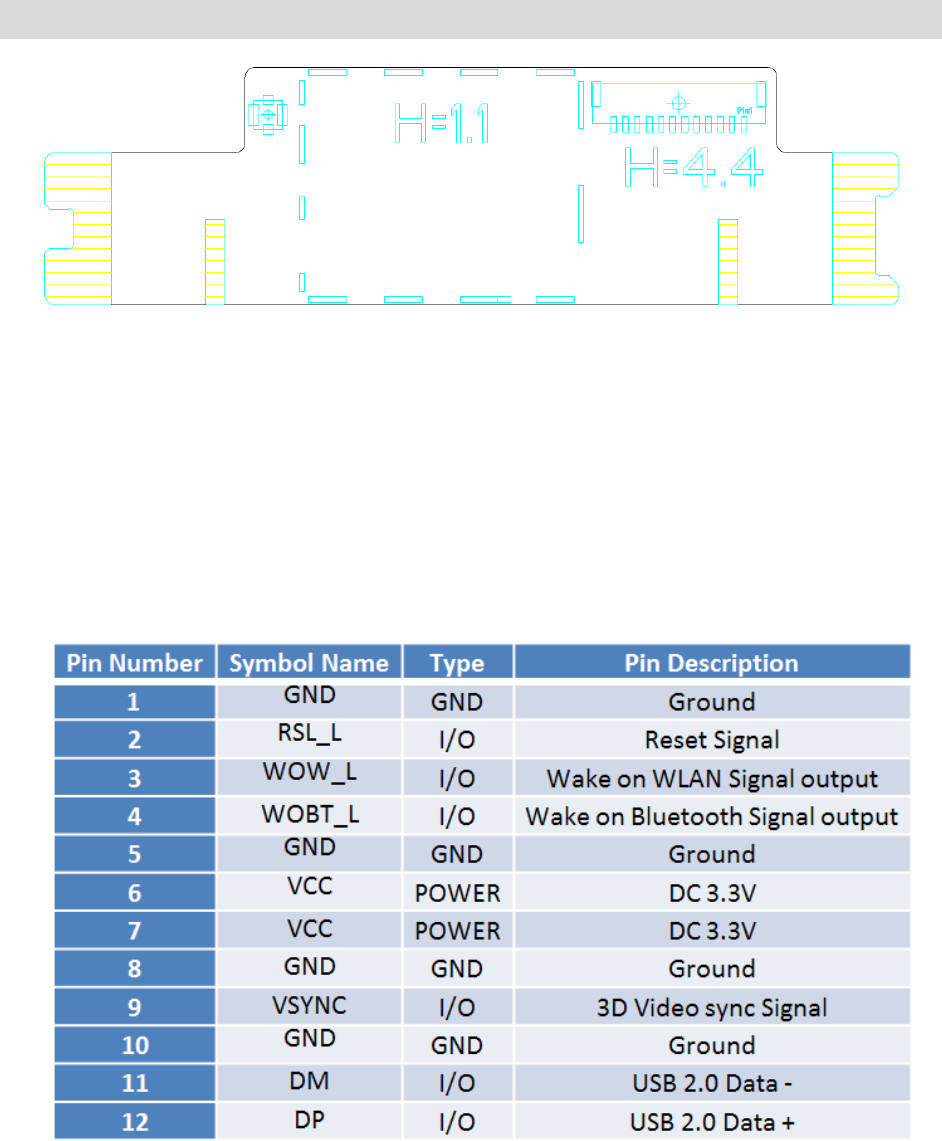

Figure 1 Pin Definitions (Module Top View)
Table 1 Pin Definitions
1
12
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 6
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON
2-1 Recommended Operation Rating
Table 2 Operation Rating
Parameter
Condition
Min
Typ.
Max.
Unit
VDD3_3
3.3V
3.0V
3.3V
3.6V
V
RF Interface
Zo
50
Ohm
2-2 Power Consumption
Power consumption is measured using current probe loop on the Power rails of the USB interface (Pins).
Table 3 Power Consumption
(IPG setting default=200, 50% duty cycle)
Description
Typical
Unit
IDLE
26
mA
2G/2T- N mode HT 40MHz MCS 7 (14.5dBm)
213
mA
2G/2T- N mode HT 20MHz MCS 7 (14.5dBm)
282
mA
2G/2T- G mode OFDM54M (16dBm)
320
mA
2G/2T- B mode CCK11M (16dBm)
473
mA
5G/2T- AC mode VHT 80MHz MCS 9 (12.5dBm)
244
mA
5G/2T- N mode HT 40MHz MCS 7 (12.5dBm)
290
mA
5G/2T- N mode HT 20MHz MCS 7 (12.5dBm)
340
mA
5G/2T- A mode OFDM54M (14dBm)
366
mA
2G/2R- N mode HT 40MHz MCS 7 (-60dBm)
212
mA
2G/2R- N mode HT 20MHz MCS 7 (-60dBm)
187
mA
2G/2R- G mode OFDM54M (-60dBm)
187
mA
2G/2R- B mode CCK11M (-60dBm)
188
mA
5G/2R- AC mode VHT 80MHz MCS 9 (-60dBm)
263
mA
5G/2R- N mode HT 40MHz MCS 7 (-60dBm)
210
mA
5G/2R- N mode HT 20MHz MCS 7 (-60dBm)
202
mA
5G/2R- A mode OFDM54M (-60dBm)
193
mA
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 7
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-3 WiFi RF Specification – TX
Table 4 IEEE 802.11 b/g/n/ac TX Output Power (WLAN0&WLAN1)
Data Rate
(Mbps)
Modulation
Tx Typical
Power (dBm)
Data Rate
(Mbps)
Modulation
Tx Typical Power
(dBm)
1
DBPSK
15
HT20-MCS0
BPSK
15
2
DQPSK
15
HT20-MCS1
BPSK
15
5.5
CCK
15
HT20-MCS2
QPSK
15
11
CCK
15
HT20-MCS3
QPSK
15
6
OFDM
15
HT20-MCS4
16-QAM
14
9
OFDM
15
HT20-MCS5
16-QAM
14
12
OFDM
15
HT20-MCS6
64-QAM
14
18
OFDM
15
HT20-MCS7
64-QAM
14
24
OFDM
14
36
OFDM
14
48
OFDM
14
54
OFDM
14
Tolerance：+ 1.5dBm / - 2dBm
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 8
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Table 5 IEEE 802.11 a/n/ac TX Output Power(WLAN0&WLAN1)
Data Rate
(Mbps)
Modulation
Tx Typical
Power (dBm)
Data Rate
(Mbps)
Modulation
Tx Typical Power
(dBm)
6
OFDM
13
HT20-MCS0
BPSK
13
9
OFDM
13
HT20-MCS1
BPSK
13
12
OFDM
13
HT20-MCS2
QPSK
13
18
OFDM
13
HT20-MCS3
QPSK
13
24
OFDM
12
HT20-MCS4
16-QAM
12
36
OFDM
12
HT20-MCS5
16-QAM
12
48
OFDM
12
HT20-MCS6
64-QAM
12
54
OFDM
12
HT20-MCS7
64-QAM
12
HT40-MCS0
BPSK
13
HT40-MCS1
QPSK
13
HT40-MCS2
QPSK
13
HT40-MCS3
16-QAM
13
HT40-MCS4
16-QAM
12
HT40-MCS5
64-QAM
12
HT40-MCS6
64-QAM
12
HT40-MCS7
64-QAM
12
VHT80_MCS0
BPSK
13
VHT80_MCS1
QPSK
13
VHT80_MCS2
QPSK
13
VHT80_MCS3
16-QAM
13
VHT80_MCS4
16-QAM
12
VHT80_MCS5
64-QAM
12
VHT80_MCS6
64-QAM
12
VHT80_MCS7
64-QAM
12
VHT80_MCS8
256-QAM
11
VHT80_MCS9
256-QAM
11
Tolerance：+ 1.5dBm / - 2dBm
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 9
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-4 WiFi RF Specification – RX
Table 6 IEEE 802.11 b/g/n RX Sensitivity (WLAN0&WLAN1)
Data
Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Data Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Max.
Typ.
Max.
Typ.
1
DBPSK
-83
-94
HT20-7.22
BPSK
-82
-89
2
DQPSK
-80
-91
HT20-14.44
QPSK
-79
-86
5.5
CCK
-79
-90
HT20-21.67
QPSK
-77
-85
11
CCK
-76
-87
HT20-28.89
16-QAM
-74
-82
6
OFDM
-85
-91
HT20-43.33
16-QAM
-70
-78
9
OFDM
-84
-90
HT20-57.78
64-QAM
-66
-74
12
OFDM
-82
-88
HT20-65
64-QAM
-65
-73
18
OFDM
-80
-86
HT20-72.22
64-QAM
-64
-72
24
OFDM
-77
-83
36
OFDM
-73
-79
48
OFDM
-69
-75
54
OFDM
-68
-74
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 10
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Table 7 IEEE 802.11 a/n/ac RX Sensitivity (WLAN0&WLAN1))
Data
Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Data Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Max.
Typ.
Max.
Typ.
6
OFDM
-85
-89
HT20-7.22
BPSK
-82
-89
9
OFDM
-84
-88
HT20-14.44
QPSK
-79
-86
12
OFDM
-82
-86
HT20-21.67
QPSK
-77
-85
18
OFDM
-80
-84
HT20-28.89
16-QAM
-74
-81
24
OFDM
-77
-81
HT20-43.33
16-QAM
-70
-77
36
OFDM
-73
-77
HT20-57.78
64-QAM
-66
-73
48
OFDM
-69
-73
HT20-65
64-QAM
-65
-72
54
OFDM
-68
-72
HT20-72.22
64-QAM
-64
-71
HT40-15
BPSK
-79
-86
HT40-30
QPSK
-76
-83
HT40-45
QPSK
-74
-81
HT40-60
16-QAM
-71
-78
HT40-90
16-QAM
-67
-74
HT40-120
64-QAM
-63
-70
HT40-135
64-QAM
-62
-69
HT40-150
64-QAM
-61
-68
VHT80_MCS0
BPSK
-76
-83
VHT80_MCS1
QPSK
-73
-80
VHT80_MCS2
QPSK
-71
-78
VHT80_MCS3
16-QAM
-68
-75
VHT80_MCS4
16-QAM
-64
-71
VHT80_MCS5
64-QAM
-60
-67
VHT80_MCS6
64-QAM
-59
-66
VHT80_MCS7
64-QAM
-58
-65
VHT80_MCS8
256-QAM
-53
-60
VHT80_MCS9
256-QAM
-51
-57
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 11
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-5 Bluetooth RF Specification
Parameter
Condition
Min.
Typ.
Max.
Unit
Basic Data Rate – Transmit Performance
RF Transmit Power (TRM01)
-6
-2
2
dBm
Power Density (TRM02)
Per 100kHz
≤20
dBm
Power Control (TRM03)
2≤ step size ≤ 8
dB
TX Output Spectrum –
Freq. Range (TRM04)
F(low)- CH0
> 2400
MHz
F(high)-CH78
< 2483.5
TX Output Spectrum – 20dB BW (TRM05)
∣fH-fL∣< 1000
MHz
TX Output Spectrum –
Adjacent Channel Power (TRM06)
∣f-f0∣= 2MHz
≤ -20
dBm
∣f-f0∣≥ 3MHz
≤ -40
TX Output Spectrum –
Out of Band Spurious Emission
30MHz – 1GHz
≤ -36
dBm
1GHz -12.75GHz
≤ -30
5.15GHz -5.35GHz
≤ -47
5.725GHz-5.825GHz
≤ -47
Modulation Characteristic (TRM07)
Delta f1 avg
140 ≤ ∆f1avg≤ 175
kHz
Delta f2 max
≥ 115 at 99.9%
Delta f2 avg/Delta f1 avg
≥ 0.8
Initial Carrier Frequency Tolerance (TRM08)
≤± 75
kHz
Carrier Frequency Drift (TRM09)
DH1
≤± 25
kHz
DH3
≤± 40
DH5
≤± 40
Maximum Drift Rate (TRM09)
20 kHz/50 us
Enhanced Data Rate – Transmit Performance
RF Transmit Power
π/4 DQPSK
-6
-2
2
dBm
8DPSK
-6
-2
2
Relative Transmit Power (TRM10)
All pairs
(PGFSK-4 dB)<PDPSK<(PGFSK+1 dB)
Carrier Frequency Stability (TRM11)
All packets
-75 ≤ wi≤ 75
kHz
All blocks
-75 ≤ (w0+wi) ≤ 75
All blocks
-10 ≤ w0 ≤ 10
Modulation Accuracy –
RMS DEVM (TRM11)
π/4 DQPSK
≤ 20
%
8DPSK
≤ 13
Modulation Accuracy –
Peak DEVM (TRM11)
π/4 DQPSK
≤ 35
8DPSK
≤ 25
Modulation Accuracy –
99% DEVM (TRM11)
π/4 DQPSK
≤ 30
8DPSK
≤ 20
EDR Differential Phase Emissions (TRM12)
≥ 99
%
In-band Spurious Emission (TRM13)
∣f-f0∣= 1MHz
≤ -26
dB
∣f-f0∣= 2MHz
≤ -20
dBm
∣f-f0∣≥ 3MHz
≤ -40
TX Output Spectrum –
Out of Band Spurious Emission
30MHz – 1GHz
≤ -36
dBm
1GHz -12.75GHz
≤ -30
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 12
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
5.15GHz -5.35GHz
≤ -47
5.725GHz-5.825GHz
≤ -47
Enhanced power control (TRM14)
Step Size
2 ≤ Step Size ≤ 8
dB
Difference. Btw. GFSK,
π/4 DQPSK,&8DPSK
≤ 10
Basic Data Rate – Receiver Performance
Sensitivity at 0.1% BER (RCV01-02)
≤ -81
dBm
C/I Co-Channel interference (RCV03)
≤ 11
dB
C/I Adjacent CH interference (RCV03)
∣f-f0∣= 1MHz
≤ 0
∣f-f0∣= 2MHz
≤ -30
∣f-f0∣≥ 3MHz
≤ -40
C/I Image CH interference (RCV03)
C/Iimage
≤ -9
C/Iimage±1MHz
≤ -20
Out of band Blocking (RCV04)
30MHz – 2000 MHz
-10
dBm
2003MHz – 2399MHz
-27
2484MHz – 2997MHz
-27
3000MHz – 12750MHz
-10
Intermodulation Performance at ≤ 0.1% BER (RCV05)
-64
dBm
Maximum input power level
≥ -20
dBm
Spurious Emission
30MHz – 12.75GHz
≤ -57
dBm
Enhanced Data Rate – Receiver Performance
Sensitivity at 0.1% BER (RCV07)
π/4 DQPSK
≤ -85
dBm
8DPSK
≤ -77
EDR BER Floor Performance at ≤ 0.0007% BER (RCV08)
-60
dBm
C/I Co-Channel interference (RCV09)
π/4 DQPSK
≤ +13
dB
8DPSK
≤ +21
C/I Adjacent Channel C/I ∣f-f0∣=
1MHz (RCV09)
π/4 DQPSK
≤ 0
8DPSK
≤ +5
C/I Adjacent Channel C/I ∣f-f0∣=
2MHz (RCV09)
π/4 DQPSK
≤ -30
8DPSK
≤ -25
C/I Adjacent Channel C/I ∣f-f0∣
≥3MHz (RCV09)
π/4 DQPSK
≤ -40
8DPSK
≤ -33
C/I Image Channel C/Iimage (RCV09)
π/4 DQPSK
≤ -7
8DPSK
≤ 0
C/I Image Channel C/Iimage±1MHz (RCV09)
π/4 DQPSK
≤ -20
8DPSK
≤ -13
Maximum input power level (RCV10)
≥ -20
dBm
Spurious Emission
30MHz – 12.75GHz
≤ -57
Pass
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 13
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-6 Bluetooth Low Energy RF Specification
Parameter
Condition
Min.
Typ.
Max.
Unit
Transmit Performance
RF Transmit Power (TRM-LE01,02)
-6
-2
2
dBm
In-Band Emission (TRM-LE03,04)
∣f-f0∣= 2MHz
≤ -20
dBm
∣f-f0∣≥ 3MHz
≤ -30
TX Output Spectrum –
Out of Band Spurious Emission
30MHz – 1GHz
≤ -36
dBm
1GHz -12.75GHz
≤ -30
5.15GHz -5.35GHz
≤ -47
5.725GHz-5.825GHz
≤ -47
Modulation Characteristic (TRM-LE05)
Delta f1 avg
225 ≤ ∆f1avg≤ 275
kHz
Delta f2 max
≥ 185 at 99.9%
Delta f2 avg/Delta f1 avg
≥ 0.8
Carrier Frequency Drift (TRM-LE06,07)
Center frequency
≤± 150
kHz
During any packet
≤± 50
Maximum Drift Rate (TRM-LE06,07)
20 Hz/50 us
Receiver Performance
Sensitivity at 30.8% PER(0.1%BER) (RCV-LE01,02)
≤ -81
dBm
C/I Co-Channel interference (RCV-LE03)
Co-channel
≤ 21
dB
C/I Adjacent CH interference (RCV-
LE03)
∣f-f0∣= 1MHz
≤ 15
∣f-f0∣= 2MHz
≤ -17
∣f-f0∣≥ 3MHz
≤ -27
C/I Image CH interference (RCV-LE03)
C/Iimage
≤ -9
C/Iimage±1MHz
≤ -15
Out of band Blocking (RCV-LE04)
30MHz – 2000 MHz
-30
dBm
2003MHz – 2399MHz
-35
2484MHz – 2997MHz
-35
3000MHz – 12750MHz
-30
Intermodulation Performance at ≤30.8% (≤ 0.1% BER) (RCV-LE05)
-64
dBm
Maximum input power level (RCV-LE06)
≥ -10
dBm
PER Report Integrity 50% ≤ PER ≤ 65.4% (RCV-LE07)
-30
dBm
Spurious Emission
30MHz – 12.75GHz
≤ -57
dBm
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 14
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-7 Antenna Specification Requirements
Nominal antenna port impedance specification is 50 ohms for the Foxconn WBU034 hardware.
For regulatory requirements, it is assumed that the antenna gain is:
For WLAN0 & WLAN1 (WiFi):
WLAN0 Antenna gain for the 2.4GHz band : 1.68 dBi
WLAN0 Antenna gain for the 5GHz band : 2.78 dBi
WLAN1 Antenna gain for the 2.4GHz band : 3.36 dBi
WLAN1 Antenna gain for the 5GHz band : 4.11 dBi
For BT (Bluetooth):
Antenna gain for the 2.4GHz band :3.11 dBi
WLAN1 Antenna
WLAN0 Antenna
BT Antenna Connector
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 15
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 3. MECHANICAL SPECIFICATION
3-1 Module Assembly Dimension
Figure 2 Mechanical Drawing
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 16
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
3-2 Label Specification

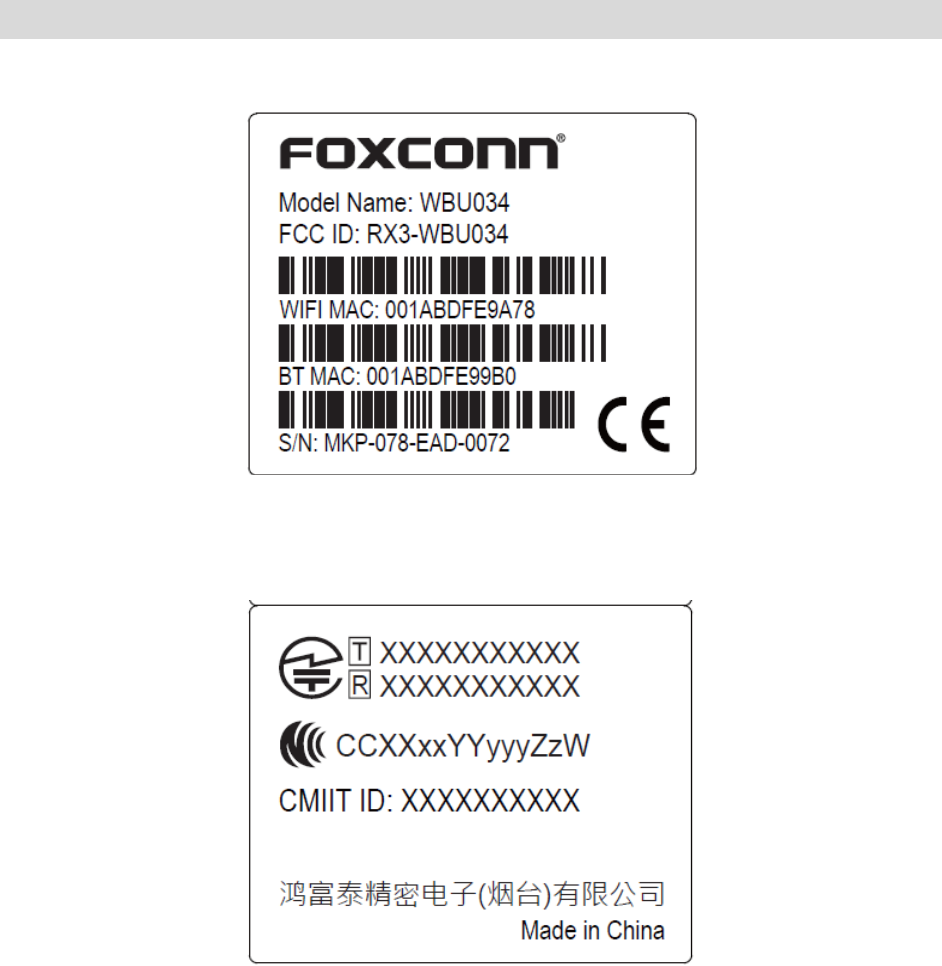

Figure 3 Label Drawing (TOP)
Figure 4 Label Drawing (BOTTON)
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 17
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 4. ADDITIONAL INFORMATION
4-1 EEPROM Information
Table 8 USB PID/VID Setting (TBD)
4-2 Module Photo
Figure 5 Top Side Photo Figure 6 Bottom Side Photo
4-3 Environment Specifications
Operating Conditions (preliminary)
Operation Temperature : 0 ~ 60℃
Storage Conditions (preliminary)
Non-Operation Temperature : -44 ~ 60℃ (Typ. 25℃)
Relevant Humidity: 5 ~ 90% (non-condensing)
Type
Mode
PID
VID
WiFi_If
AC
9A50
04DD
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 18
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or
modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and 2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for reevaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WBU034 PRODUCT SPECIFICATION August 17, 2016
FOXCONN CONFIDENTIAL 19
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: RX3-WBU034”. The grantee's
FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show
in this manual.
