Hon Hai Precision Industry WFU033 802.11 a/b/g/n/ac module User Manual Manual
Hon Hai Precision Industry Co., Ltd. 802.11 a/b/g/n/ac module Manual
Manual
WFU033
IEEE 802.11 a/b/g/n/ac 2x2 Combo Module
Product Specification 3.0
Approved:
Approved:
Prepared by:
________________________
_________________________
_________________________
Zeke Wu
Matt Lin
Derek Wu
Manager
Supervisor
Engineer
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 1
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Revision History
Date
Number
Approver
Comments
May. 23, 2016
1.0
Derek Wu
Initial Draft
2.0
Derek Wu
DVT
Apr. 12, 2018
3.0
Cathy Kuo
Added FCC and IC user statement
RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT
All information contained in this document is the exclusive property of Foxconn Technology Inc. and its
development partners. Any reproduction or disclosure of all or part of this document without the
expressed written consent of Foxconn Technology Inc. is strictly prohibited.
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 2
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
TABLE OF CONTENTS
Revision History .................................................................................................. 1
Table of Contents ................................................................................................ 2
Chapter 1. Module Overview ............................................................................. 4
1-1 Key Characteristic ......................................................................................................................... 4
1-2 Certification ................................................................................................................................... 4
1-3 Block Diagram ............................................................................................................................... 5
1-4 Pin Definition ................................................................................................................................ 5
Chapter 2. Electrical and RF Specificaiton .......................................................... 7
2-1 Recommended Operation Rating ......................................................................................... 7
2-2 Power Consumption.............................................................................................................. 7
2-3 WiFi RF Specification – TX ..................................................................................................... 8
2-4 WiFi RF Specification – RX ................................................................................................... 10
2-5 Antenna Specification Requirements ......................................................................................... 11
Chapter 3. MECHANICAL SPECIFICATION ......................................................... 12
3-1 Module Assembly Dimension ............................................................................................. 12
3-2 Label Specification .............................................................................................................. 13
Chapter 4. Additional Information ................................................................... 14
4-1 EEPROM Information .......................................................................................................... 14

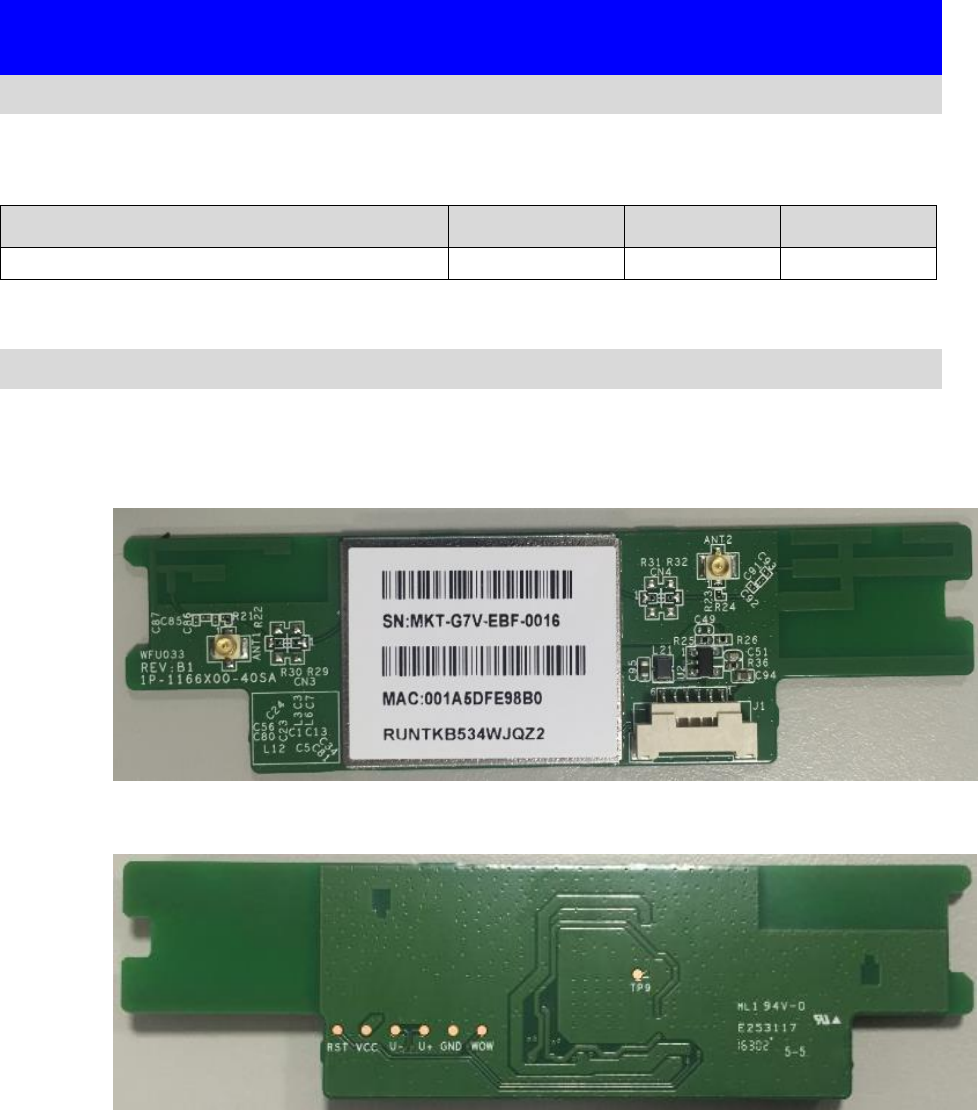

4-2 Module Photo ............................................................................................................................. 14
4-3 Environment Specifications ........................................................................................................ 15
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 3
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Figures:
Figure 1 Module Block Diagram..................................................................................................................................... 5
Figure 2 Pin Definitions(Module Bottom View) ............................................................................................................. 5

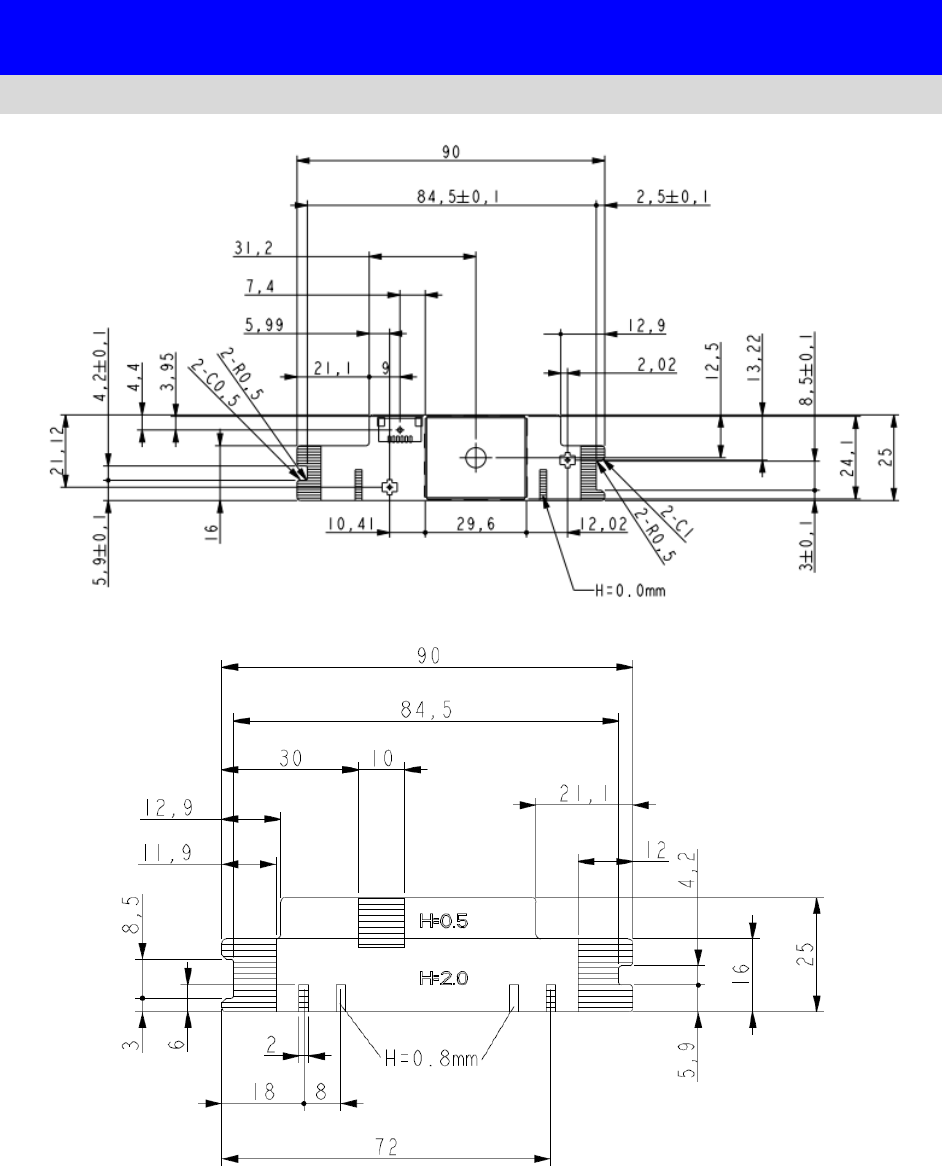

Figure 3 Mechanical Drawing .................................................................................................................................... 126

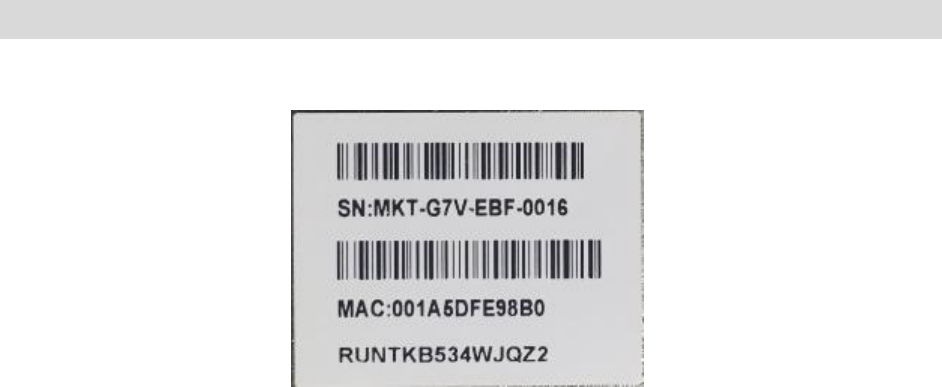

Figure 4Label Drawing ................................................................................................................................................. 17
Figure 5 Top Side Photo ............................................................................................................................................. 148
Figure 6 Bottom Side Photo ....................................................................................................................................... 148
Tables
Table 1 Pin Definitions ................................................................................................................................................... 6
Table 2 Operation Rating ............................................................................................................................................... 7
Table 3 Power Consumption.......................................................................................................................................... 7
Table 4 IEEE 802.11 b/g/n/ac TX Output Power (WLAN0 & WLAN1) ............................................................................ 8
Table 5 IEEE 802.11 a/n/ac TX Output Power (WLAN0 & WLAN1) ............................................................................... 7
Table 6 IEEE 802.11 b/g/n/ac Rx sensitivity (WLAN0 & WLAN1) ................................................................................... 8
Table 7 IEEE 802.11 a/n/ac Rx sensitivity (WLAN0 & WLAN1) ...................................................................................... 8
Table 8 USB PID/VID Setting ........................................................................................................................................ 14
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 4
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved

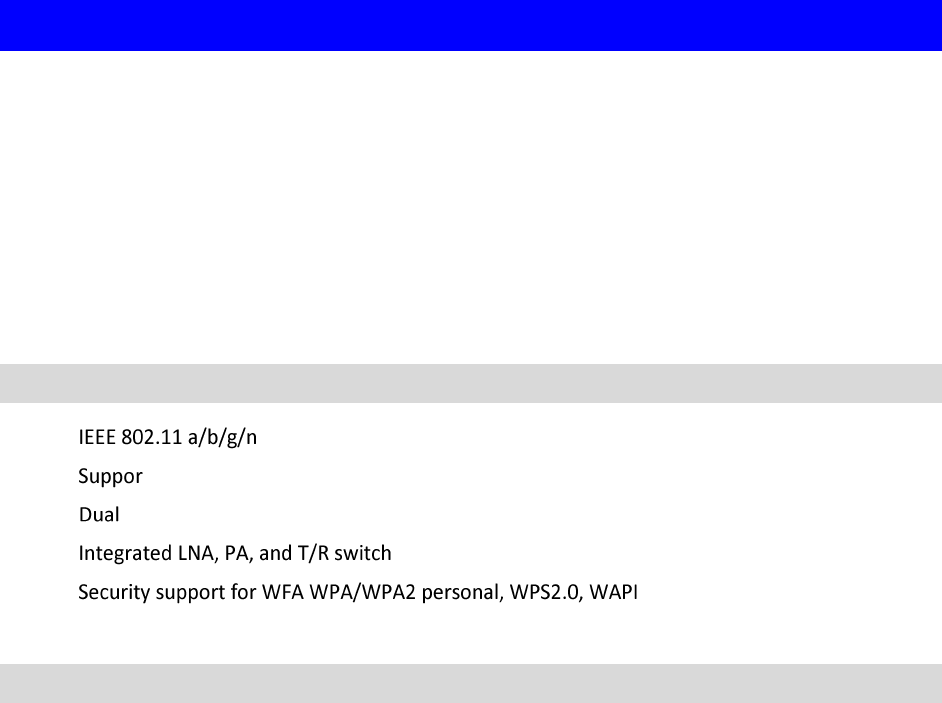

CHAPTER 1. MODULE OVERVIEW
The Foxconn WFU033 is a highly integrated module which has built in a 2x2 dual-band wireless
LAN radio. It supports IEEE 802.11a/b/g/n/ac standard and provides the highest PHY rate up to 867Mbps,
offering feature-rich wireless connectivity and reliable throughput from an extended distance.
Optimized RF architecture and baseband algorithms provide superb performance and low power
consumption. WFU033 integrates PA/LNA such that the number of the external components is reduced
to minimum. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing
accelerators which offloads the host processor.
The WFU033 supports the 802.11i security standard and implements hardware acceleration for
TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia
applications.
1-1 Key Characteristic
and 802.11ac draft compliant
t 20MHz, 40MHz, 80MHz in 5GHz band, and 20MHz, 40MHz bandwidth in 2.4GHz band
-band 2T2R mode with data rate up to 867Mbps
A full-speed USB 2.0-compliant interface for WLAN
1-2 Certification
TBD
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 5
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
1-3 Block Diagram
The general HW architecture is shown below Figure:
Figure 1 Module Block Diagram
1-4 USB Pin Definition
Figure 2 Pin Definitions (Module Top View)
1
6
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 6
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Table 1 Pin Definitions
Pin#
Name
Description
1
RST
System reset
2
Vcc
+5V Power Supply
3
D-
USB Data D-
4
D+
USB Data D+
5
GND
GND
6
WOW
Wake on WLAN
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 7
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON
2-1 Recommended Operation Rating
Table 2 Operation Rating
Parameter
Min
Typ.
Max.
Unit
Vcc
4.5
5
5.5
V
RST
2.97
3.3
3.63
V
WOW
2.97
3.3
3.63
V
RF Interface
50
Ohm
2-2 Power Consumption
Power consumption is measured using current probe loop on the Power rails of the USB interface (Pins).
Table 3 Power Consumption
Description
Typical
Unit
IDLE
70
mA
2G/2T- N mode HT 40MHz MCS 7 (14dBm)
176
mA
2G/2T- N mode HT 20MHz MCS 7 (14dBm)
210
mA
2G/2T- G mode OFDM54M (15dBm)
215
mA
2G/2T- B mode CCK11M (16dBm)
370
mA
5G/2T- AC mode HT 80MHz MCS 9 (12dBm)
210
mA
5G/2T- N mode HT 40MHz MCS 7 (13dBm)
210
mA
5G/2T- N mode HT 20MHz MCS 7 (13dBm)
240
mA
5G/2T- A mode OFDM54M (14dBm)
280
mA
2G/2R- N mode HT 40MHz MCS 7 (-60dBm)
160
mA
2G/2R- N mode HT 20MHz MCS 7 (-60dBm)
140
mA
2G/2R- G mode OFDM54M (-60dBm)
160
mA
2G/2R- B mode CCK11M (-60dBm)
160
mA
5G/2R- AC mode HT 80MHz MCS 9 (-60dBm)
190
mA
5G/2R- N mode HT 40MHz MCS 7 (-60dBm)
150
mA
5G/2R- N mode HT 20MHz MCS 7 (-60dBm)
140
mA
5G/2R- A mode OFDM54M (-60dBm)
140
mA
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 8
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-3 WiFi RF Specification – TX
Table 4 IEEE 802.11 b/g/n/ac TX Output Power (WLAN0&WLAN1)
Data Rate
(Mbps)
Modulation
Tx Typical
Power (dBm)
Data Rate
(Mbps)
Modulation
Tx Typical Power
(dBm)
1
DBPSK
15
HT20-MCS0
BPSK
14
2
DQPSK
15
HT20-MCS1
BPSK
14
5.5
CCK
15
HT20-MCS2
QPSK
14
11
CCK
15
HT20-MCS3
QPSK
14
6
OFDM
15
HT20-MCS4
16-QAM
14
9
OFDM
15
HT20-MCS5
16-QAM
14
12
OFDM
15
HT20-MCS6
64-QAM
14
18
OFDM
15
HT20-MCS7
64-QAM
14
24
OFDM
15
HT40-MCS0
BPSK
14
36
OFDM
15
HT40-MCS1
QPSK
14
48
OFDM
15
HT40-MCS2
QPSK
14
54
OFDM
15
HT40-MCS3
16-QAM
14
HT40-MCS4
16-QAM
14
HT40-MCS5
64-QAM
14
HT40-MCS6
64-QAM
14
HT40-MCS7
64-QAM
14
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 9
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Table 5 IEEE 802.11 a/n/ac TX Output Power(WLAN0&WLAN1)
Data Rate
(Mbps)
Modulation
Tx Typical
Power (dBm)
Data Rate
(Mbps)
Modulation
Tx Typical Power
(dBm)
6
OFDM
14
HT20-MCS0
BPSK
13
9
OFDM
14
HT20-MCS1
BPSK
13
12
OFDM
14
HT20-MCS2
QPSK
13
18
OFDM
14
HT20-MCS3
QPSK
13
24
OFDM
14
HT20-MCS4
16-QAM
13
36
OFDM
14
HT20-MCS5
16-QAM
13
48
OFDM
14
HT20-MCS6
64-QAM
13
54
OFDM
14
HT20-MCS7
64-QAM
13
HT40-MCS0
BPSK
13
HT40-MCS1
QPSK
13
HT40-MCS2
QPSK
13
HT40-MCS3
16-QAM
13
HT40-MCS4
16-QAM
13
HT40-MCS5
64-QAM
13
HT40-MCS6
64-QAM
13
HT40-MCS7
64-QAM
13
HT80_MCS0
BPSK
12
HT80_MCS1
QPSK
12
HT80_MCS2
QPSK
12
HT80_MCS3
16-QAM
12
HT80_MCS4
16-QAM
12
HT80_MCS5
64-QAM
12
HT80_MCS6
64-QAM
12
HT80_MCS7
64-QAM
12
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 10
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
2-4 WiFi RF Specification – RX
Table 6 IEEE 802.11 b/g/n RX Sensitivity (WLAN0&WLAN1)
Data
Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Data Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Max.
Typ.
Max.
Typ.
1
DBPSK
-83
-95
HT20-7.22
BPSK
-82
-89
2
DQPSK
-80
-91
HT20-14.44
QPSK
-79
-88
5.5
CCK
-79
-90
HT20-21.67
QPSK
-77
-86
11
CCK
-76
-86
HT20-28.89
16-QAM
-74
-82
6
OFDM
-85
-89
HT20-43.33
16-QAM
-70
-80
9
OFDM
-84
-89
HT20-57.78
64-QAM
-66
-75
12
OFDM
-82
-88
HT20-65
64-QAM
-65
-73
18
OFDM
-80
-86
HT20-72.22
64-QAM
-64
-72
24
OFDM
-77
-82
HT40-15
BPSK
-79
-86
36
OFDM
-73
-80
HT40-30
QPSK
-76
-85
48
OFDM
-69
-75
HT40-45
QPSK
-74
-83
54
OFDM
-68
-73
HT40-60
16-QAM
-71
-79
HT40-90
16-QAM
-67
-77
HT40-120
64-QAM
-63
-72
HT40-135
64-QAM
-62
-70
HT40-150
64-QAM
-61
-69
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 11
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Table 5 IEEE 802.11 a/n/ac RX Sensitivity (WLAN0&WLAN1))
Data
Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Data Rate
(Mbps)
Modulation
Rx Sensitivity
(dBm)
Max.
Typ.
Max.
Typ.
6
OFDM
-85
-89
HT20-7.22
BPSK
-82
-88
9
OFDM
-84
-88
HT20-14.44
QPSK
-79
-86
12
OFDM
-82
-87
HT20-21.67
QPSK
-77
-84
18
OFDM
-80
-85
HT20-28.89
16-QAM
-74
-81
24
OFDM
-77
-81
HT20-43.33
16-QAM
-70
-78
36
OFDM
-73
-80
HT20-57.78
64-QAM
-66
-73
48
OFDM
-69
-74
HT20-65
64-QAM
-65
-72
54
OFDM
-68
-73
HT20-72.22
64-QAM
-64
-70
HT40-15
BPSK
-79
-85
HT40-30
QPSK
-76
-84
HT40-45
QPSK
-74
-82
HT40-60
16-QAM
-71
-78
HT40-90
16-QAM
-67
-75
HT40-120
64-QAM
-63
-71
HT40-135
64-QAM
-62
-69
HT40-150
64-QAM
-61
-67
HT80_MCS0
BPSK
-76
-80
HT80_MCS1
QPSK
-73
-79
HT80_MCS2
QPSK
-71
-78
HT80_MCS3
16-QAM
-68
-75
HT80_MCS4
16-QAM
-64
-72
HT80_MCS5
64-QAM
-60
-67
HT80_MCS6
64-QAM
-59
-66
HT80_MCS7
64-QAM
-58
-63
HT80_MCS8
256-QAM
-53
-59
HT80_MCS9
256-QAM
-51
-57
2-7 Antenna Specification Requirements
TBD
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 12
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 3. MECHANICAL SPECIFICATION
3-1 Module Assembly Dimension
Figure 3 Mechanical Drawing
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 13
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
3-2 Label Specification
Figure 4 Label Drawing (TBD)
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 14
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
CHAPTER 4. ADDITIONAL INFORMATION
4-1 EEPROM Information
Table 8 USB PID/VID Setting (TBD)
4-2 Module Photo
Figure 4 Top Side Photo
Figure5 Bottom Side Photo
WLAN Type
Mode
PID
VID
MT7612U WiFi (TBD)
AC
7612
0E8D
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 15
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
4-3 Environment Specifications
Operating Conditions (preliminary)
Operation Temperature : 0~55 ℃
Relevant Humidity: 5 ~ 90% (non-condensing)
Storage Conditions (preliminary)
Operation Temperature : -20~105 ℃
Relevant Humidity: 5 ~ 90% (non-condensing)
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 16
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or
modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and 2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for reevaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 17
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: RX3-WFU033”. The grantee's
FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show
in this manual.
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 18
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Canada, Industry Canada (IC) Statement
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Required end product labeling:
Any device incorporating this module must include an external, visible, permanent marking
or label which states: “Contains IC: 2878F-WFU033”
This radio transmitter (identify the device by certification number or model number if Category
II) has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this
device.
Antenna Type: Printing Peak Gain: 2,76 dBi(2,4GHz)/3,54 dBi(5GHz)
WFU033 PRODUCT SPECIFICATION April 12, 2018
FOXCONN CONFIDENTIAL 19
This preliminary specification is subject to change without notice.
Copyright © 2016 Hon Hai Precision Ind Co., Ltd. All rights reserved
Canada, Industrie Canada (IC ) Déclaration
Cet appareil numérique de classe B est conforme à la norme NMB-003.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Déclaration d'exposition aux radiations:
Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance
minimale de 20 centimètres entre le radiateur et votre corps.
Obligation d'étiquetage du produit final:
Tout dispositif intégrant ce module doit comporter un externe, visible, marquage permanent
ou une étiquette qui dit: "Contient IC : 2878F-WFU033".
Cet émetteur radio ( identifier le dispositif par numéro de certification ou le numéro de modèle ,
si la catégorie II ) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous avec le gain maximal admissible indiqué . types d'antennes non inclus dans
cette liste , ayant un gain supérieur au gain maximum indiqué pour ce type , sont strictement
interdits pour une utilisation avec cet appareil.
Type d'antenne: Printing Pic Gain: 2,76 dBi(2,4GHz)/3,54 dBi(5GHz)
