2017

NAVIGATION MANUAL

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,

however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Accessories Precautions

The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.

Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you

install any such item, install it away from the navigation display and antenna.

Important Safety Information

Avoid focusing on the screen or manually operating the system controls while driving.

Certain on-screen controls are disabled when driving, however most of the voice commands continue to function. Pull to the side of the road if you need to devote

more attention and time to look at the screen or access additional menus.

Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.

The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey

traffic laws.

2System Limitations P. 128

NOTICE

This vehicle’s navigation display, if so equipped, includes mercury-containing components. Upon removal, please reuse, recycle, or dispose of as hazardous waste.

Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on navigation screens.

3 WARNING

Using the navigation system while driving can take your

attention away from the road, causing a crash in which you

could be seriously injured or killed.

Only operate system controls when the conditions permit you

to safely do so.

17 CR-V NAVI-31TLA8000.book 0 ページ２０１６年９月１５日　木曜日　午後５時２分

00X31-TLA-8000 2017 CR-V Navigation Manual ANV-03713

Contents

2System Setup P. 15

Start-up 16 Personal Information 18 Display Mode Settings 26 Map & Vehicle 28

Navigation 36 Traffic 44 Other Settings 45 Data Reset 51

2Navigation P. 53

Entering a Destination 54 Calculating the Route 70 Driving to Your Destination 73 Map Operation 77

Changing Your Route 87 Changing Your Destination 91

2Other Features P. 105

About Apps Menu 106 ecoRoute

107 Information Functions 115

2Troubleshooting P. 121

Troubleshooting 122

2Reference Information P. 127

System Limitations 128 Customer Assistance 130 Legal Information 132

2Voice Commands P. 135

Voice Commands 136 List of Categories 138

Quick Reference Guide

P. 2

System Setup

P. 15

Navigation

P. 53

Other Features

P. 105

Troubleshooting

P. 121

Reference Information

P. 127

Voice Commands

P. 135

Index

P. 139

17 CR-V NAVI-31TLA8000.book 1 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Overview—Functions at a Glance

Navigation

You can select any place/landmark as a destination by using the touchscreen. The navigation system gives you

turn-by-turn driving directions to your destination.

Store home address

(P18)

home address.

Track route

(P73)

Follow your route in real-time with voice guidance.

Store contacts

(P19)

Store locations to use as the destination.

Enter destination

(P54)

Select your destination using several methods.

Select route

(P71)

Set route preferences and select one of the available routes.

Avoid certain areas

(P39)

Set streets and areas to detour around.

Add waypoints

(P90)

Add “pit stops” along your route.

Traffic Information* (P82)

View and avoid congestion and traffic incidents.

*: Available only in certain areas.

17 CR-V NAVI-31TLA8000.book 2 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

HOME Screen

The system displays various functions from the HOME screen. Press the (Home) icon at any time to return to the main HOME screen.

Navigation Top Screen

Display the map screen and operate the navigation features. From the HOME screen, press the (Map) icon and then press the (Back)

icon. The navigation top screen is displayed.

(Back)

Go back to the previous screen.

(Display Mode)

Switch between Day and Night modes

manually.

VOL (Volume)

Increase or decrease the audio volume.

Navigation

Display the navigation feature that was

used the last time.

At start-up, the navigation top screen is

displayed.

(Home)

Display the HOME screen.

(Map)

Display the map screen.

GPS signal strength (P119)

Display the satellites’ status.

Where To? (P54)

Select search methods to enter a destination for

route guidance.

Apps (P106)

Display the useful functions incorporated into the

navigation system.

View Map (P6)

Display the map screen.

Settings (P15)

Change the settings for the navigation

functions.

Display the map menu.

17 CR-V NAVI-31TLA8000.book 3 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Touchscreen Operation

You can operate the system using your finger on the touchscreen.

The touchscreen can be operated if you are wearing thin gloves, but it may be more difficult for the system to respond.

Tap

Touch the screen lightly with your finger to select an option on the

screen.

Swipe

Lightly sweep your finger side to side or up and down to scroll a list

or map.

You can change the touchscreen sensitivity setting.

2Refer to the Owners Manual.

Slide

Move your finger slowly across the screen to scroll the map.

Pinch In/Out

Open or close your fingers on the screen in a pinching motion to

zoom in or out of the map.

17 CR-V NAVI-31TLA8000.book 4 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

How to Enter Information

You can enter information (e.g., city names, street names, numbers, and symbols) when prompted on the input screen.

Using Voice Commands

When you see in this manual, voice commands are available for

that feature.

The system recognizes only certain commands.

Available navigation commands (P136)

-Press the (Talk) button, and say the letter, number, or symbol

(e.g., say “1”).

-If a voice command is not recognized, a list is displayed with

possible options.

On list screens:

-Say the number of the list item (e.g., say “Three” to select

item 3).

-Say “Main menu” to return to the voice command menu

screen.

-Say “Back” to return to the previous screen.

-Say “Page Up” to scroll up one page.

-Say “Page Down” to scroll down one page.

-Say “Exit” to end the voice command function.

Using the Touchscreen

Select a character or icon on the screen to select it.

-Select to remove the last entered character.

-Select to remove all entered characters.

-Select to display upper/lower case characters.

-Select to enter a space character.

-Select to display other types of characters.

-Select to change the keypad language.

On input search screens, the suggested search terms are

displayed. Select to display a list of possible entries.

17 CR-V NAVI-31TLA8000.book 5 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Map Screen Legend

The color of the map is different depending on the selected Map Theme.

Map operation icons

(P77)

Map menu (P78)

Map scale (P77)

Current vehicle position

Streets

Landmark icons

Traffic incident icons

Traffic flow indicator

Traffic is flowing

normally.

Traffic is slightly

congested.

Traffic is heavily

congested or stopped.

Searching specific category (P54)

Traffic has not

updated.

Map buttons (P33)

Feature areas

17 CR-V NAVI-31TLA8000.book 6 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

During Route Guidance

During route guidance, route information is displayed on the map screen.

You can see the detailed information on the turn information screen.

Map Screen

Guidance Screen

Dashboards (P73)

Next guidance indicator (P73)

Distance to the next guidance point and street name of

next guidance point.

Where To? (P54)

Waypoint

Calculated route

Speed limit

Cancel route

Street name of next

guidance point

Distance to next guidance pointEstimated time to

next guidance point

Scrolls key

Select this key to scroll

the display.

Day or Night Mode

Press the (Display Mode) icon to

manually switch between Day and

Night modes.

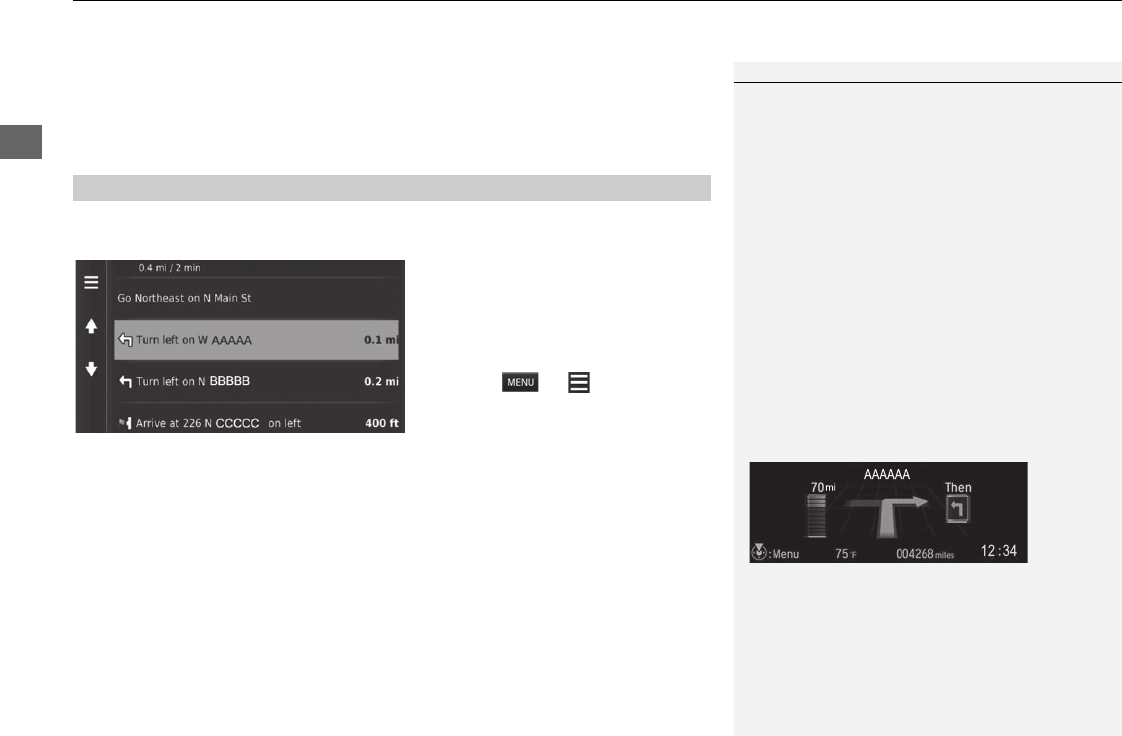

Turn-by-Turn Directions

The next guidance point appears on

the Driver Information Interface.

Day Mode Night Mode

Remaining

distance

Street name of next

guidance point

Next driving maneuver is

approaching.

17 CR-V NAVI-31TLA8000.book 7 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Navigation—Home Addresses and Going Home

The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home.

You can store one home address. (P18)

The order of the steps may change depending on the map data loaded on your system.

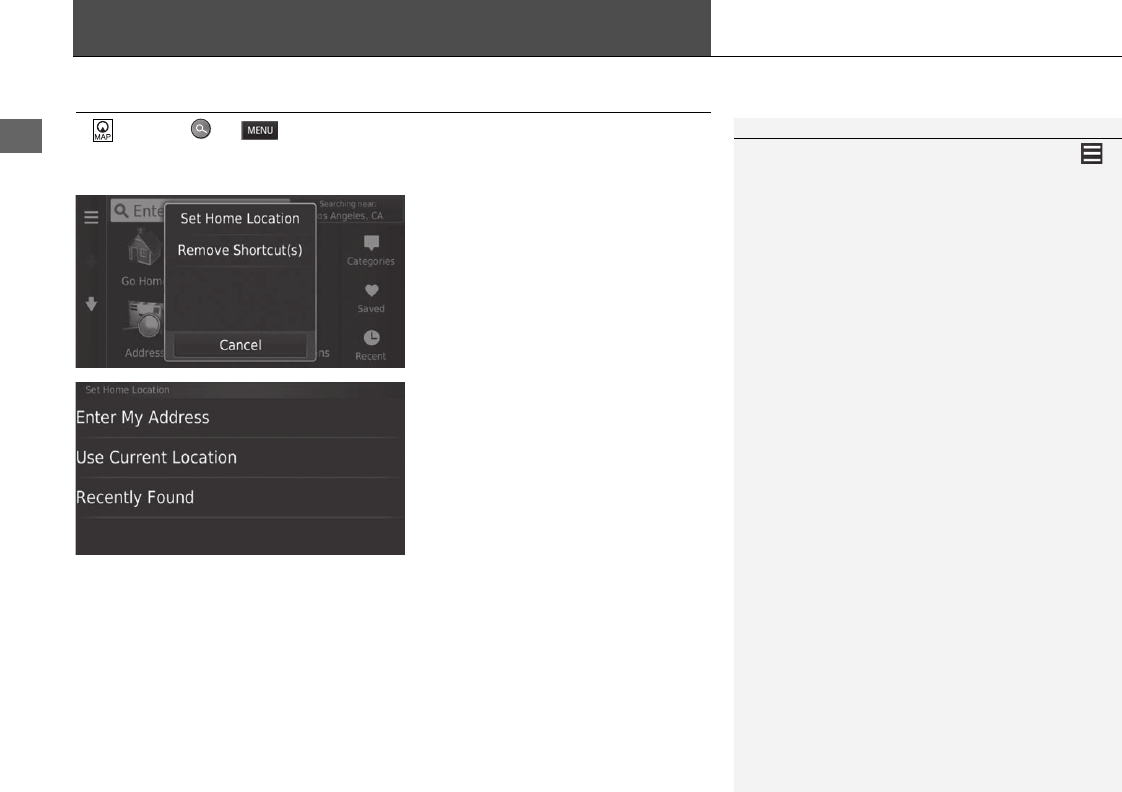

Storing Your Home Address

aPress the (Map) icon.

bSelect .

cSelect and then select Set Home

Location.

dSelect Enter My Address.

eEnter a house number and then select

Done.

fEnter a street and then select Next.

gSelect an address from the list.

hSelect Select.

Going Home

aPress the (Map) icon.

bSelect .

cSelect Go Home.

Alternatively, you can say

“Navigation” and then “Go

Home” from any screen.

17 CR-V NAVI-31TLA8000.book 8 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Navigation—Entering a Destination

Enter your destination using one of several methods, then follow route guidance on the map to your destination.

The order of the steps may change depending on the map data loaded on your system.

aPress the (Map) icon.

bSelect .

cSelect Address.

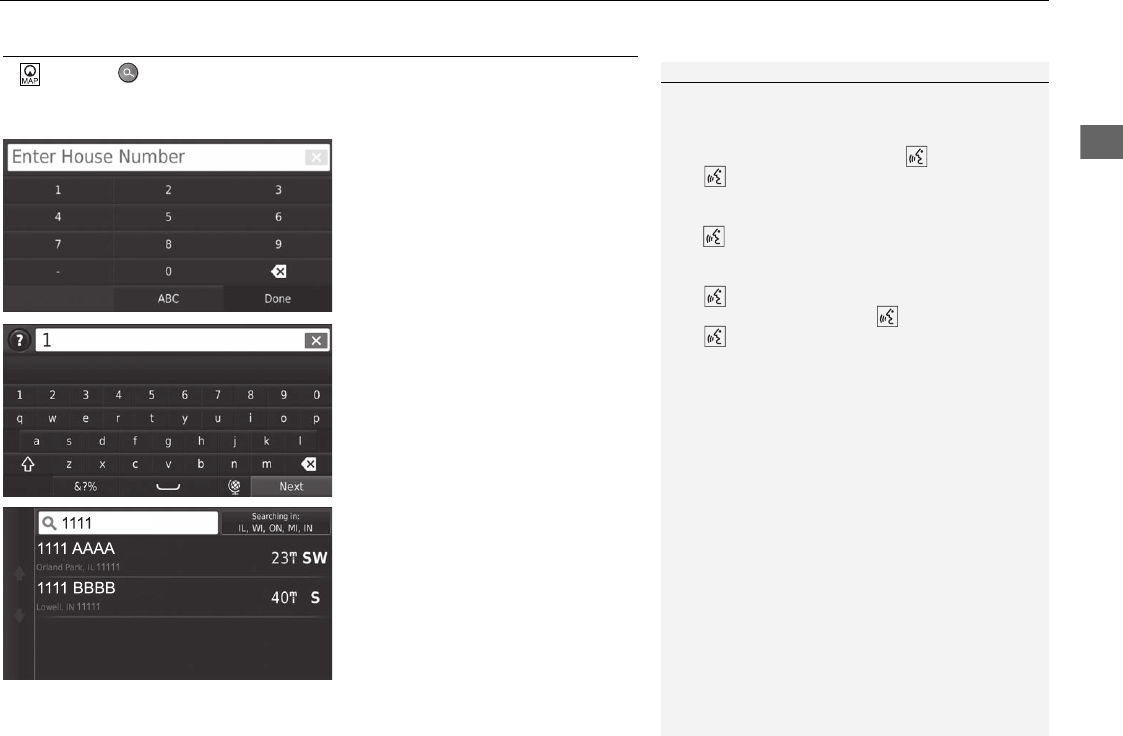

dEnter the house number and select

Done if necessary.

eEnter the name of your destination

street and select Next.

fSelect an address from the list.

gSelect Go!.

Route guidance to the destination

begins.

-Routes: Choose one of multiple routes.

-: Display your destination map and

save a place.

17 CR-V NAVI-31TLA8000.book 9 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Navigation—Changing Route or Destination

You can alter your route by adding waypoints to visit, or changing your destination during route guidance.

Adding a Waypoint (“Pit Stop”)

You can add waypoints along your route.

(P90)

aPress the (Map) icon.

bSelect .

cSelect a search method.

dSelect the location to add to the

destination list and select Go!.

eSelect Add to Active Route.

fIf necessary, edit the order of the

destinations and select Done.

Changing Your Destination

There are several methods you can use to

specify a new destination during route

guidance.

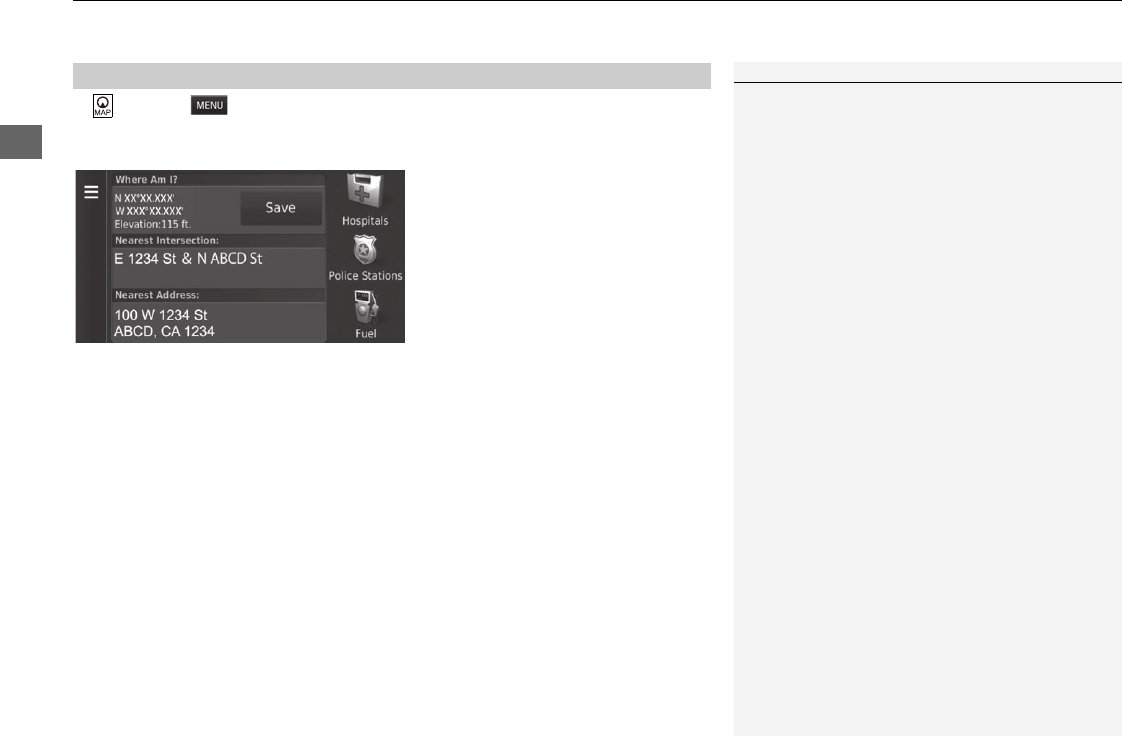

-Searching nearby hospitals, police

stations, or gas stations (P92)

Select the vehicle icon and select an

option.

-Selecting an icon on the map (P91)

Select a place/landmark icon or a new

area on the map twice.

-Entering a new destination (P94)

Select Where to? and then enter a new

destination.

Canceling Your Route

aSelect .

Alternatively, you can say

“Navigation” and then “Stop

route” from any screen.

Help

This navigation system comes with help

information, which tells you how to use

this navigation. (P115)

aPress the (Map) icon.

bPress the (Back) icon.

cSelect Apps.

dSelect Help.

eSelect a help topic.

Select to search help topics by

keyword.

-You can also display a help topic to

select on each menu screen.

17 CR-V NAVI-31TLA8000.book 10 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Voice Control Operation

Voice Portal Screen

aPress and release the (Talk)

button.

The system prompts you to say a voice

command. Press and release the

(Talk) button again to bypass this

prompt.

-The system beeps when ready for a

command. Press the (Hang-Up/

Back) button or the (Back) icon to

cancel.

bSay “Navigation.”

The Voice Command screen is

displayed.

After that follow the voice prompt

and say a voice command.

-The audio system is muted during voice

control mode.

-You can use other voice commands on

the Voice Portal screen.

-Set Voice Prompts to Off to bypass the

voice prompt.

See the Owner's Manual.

-Carefully read the usage note for the

voice control.

Voice Control System (P17)

-You can use other voice commands on

the Voice Command screen for

navigation.

Voice Commands (P136)

Voice Command Screen

aAfter saying “Navigation” from

the Voice Portal screen, the below

screen appears.

bListen for the voice prompt, then say a

voice command.

-You do not need to press the (Talk)

button again in the Voice Command

screen.

-Available voice commands are

highlighted on the screen.

17 CR-V NAVI-31TLA8000.book 11 ページ２０１６年９月１５日　木曜日　午後５時２分

Quick Reference Guide

Troubleshooting

For more Information (P121)

Why does the vehicle position icon on the map appear

slightly off my actual position, especially at intersections?

This is normal. The navigation system is unaware of the

width of intersections. Large differences in vehicle position

can indicate a temporary loss of the GPS signal.

Why does the “Arrival time” display sometimes increase

even though I am getting closer to my destination?

The “Arrival time” is based on the speed limit on each

road. Depending on the traffic conditions, the “Arrival

time” may be calculated to be earlier or later.

Why does my clock frequently change the time forward

and backward by one hour?

The clock setting is automatically updated based on your

GPS location. If you are driving near a time zone border,

the automatic update likely is the reason.

How do I turn on the navigation system voice guidance?

1.Press the (Map) icon and then press the (Back)

icon. Select Settings > Navigation and enable Voice

Prompts.

2.Press the (Home) icon.

Select Settings > System > Sound/Beep tab.

Turn up Guidance Volume, if guidance volume is low.

For more details, see the Owner’s Manual.

How do I specify a destination when an entered city or

street could not be found?

Try selecting the destination directly from the map.

17 CR-V NAVI-31TLA8000.book 12 ページ２０１６年９月１５日　木曜日　午後５時２分

How to Use This Manual

This section explains different methods on how you can easily find information in this manual.

Searching the Table of Contents

(P1)

First, find the general chapter related to

what you are looking for (e.g., entering

a destination from the Saved).

Then, go to that chapter to view a more

specific table of contents.

Searching the Index

(P139)

This more detailed table of contents

shows you exactly what information is

listed by section and title.

The Index consists of

main terms and sub-

entries. The sub-entries

help you get to the

desired page depending

on what you are looking

for.

Table of Contents Chapter Contents

Navigation Screen Index

Two types of Tables of Contents help

you find your desired information.

Menu items displayed on the

navigation screen (e.g., Saved) can be

found individually in the Index.

More Detailed

Contents

Go to the

17 CR-V NAVI-31TLA8000.book 13 ページ２０１６年９月１５日　木曜日　午後５時２分

Select the item on the system

control panel.

Menu Tree

The menu tree helps guide you

through the system’s menu options.

To get to your desired function, follow

the menu tree in order of the steps

shown.

Select the menu option.

After following the menu

tree, step-by-step

instructions explain how to

achieve the desired result.

* Sample pages and images in this section may differ from the actual ones.

Select Saved.

(Home) Saved

(Map)

17 CR-V NAVI-31TLA8000.book 14 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

This section describes the start-up procedure and the navigation and setup functions.

Start-up ....................................................16

Voice Control System ..............................17

Voice Recognition ...................................17

Personal Information...............................18

Setting Home Location............................18

Saved Locations ......................................19

Display Mode Settings ............................26

Switching Display Mode Manually ...........26

Map & Vehicle ..........................................28

Vehicle....................................................29

Driving Map View (Map Orientation) .......30

Map Detail..............................................31

Map Theme ............................................32

Map Buttons...........................................33

Map Layers ............................................ 34

Dashboards............................................ 34

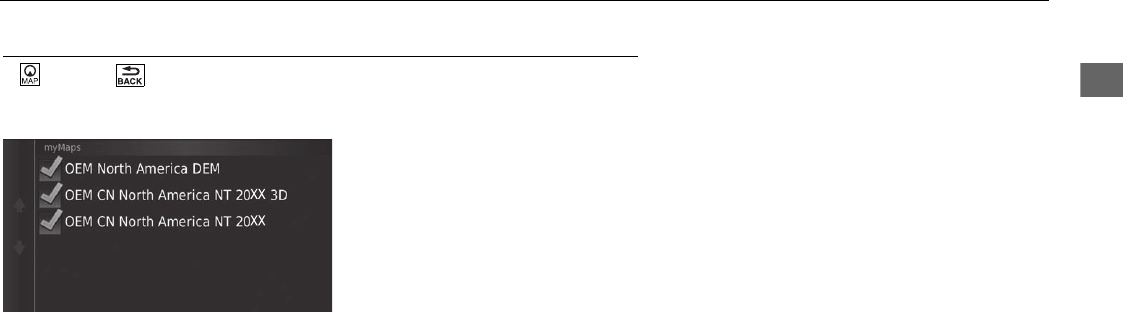

myMaps................................................. 35

Navigation............................................... 36

Calculation Mode................................... 37

Avoidances ............................................ 38

Custom Avoidances ............................... 39

Traffic....................................................... 44

Other Settings......................................... 45

Units ...................................................... 45

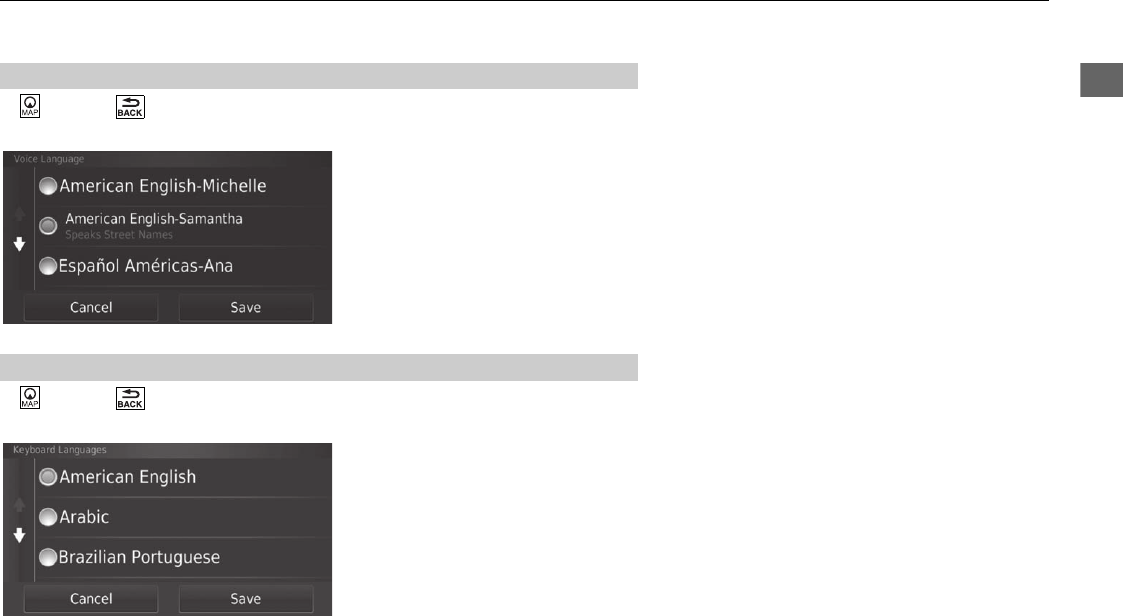

Language & Keyboard............................ 46

Device.................................................... 49

Data Reset ............................................... 51

Reset Factory Default Settings ................ 51

17 CR-V NAVI-31TLA8000.book 15 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Start-up

The navigation system starts automatically when you set the power mode to

ACCESSORY or ON. At start-up, the following confirmation screen is displayed.

1. Select OK.

uThe HOME screen is displayed.

uIf you do not select OK, the

system will automatically select

OK after a certain period of

time.

uThe system will automatically

start up the feature that was

used the last time.

2. Press the (Map) icon.

uThe map screen is displayed.

uWhen you want to display the

navigation top screen, you

press the (Back) icon.

Certain manual functions are disabled or inoperable while the vehicle is in motion.

You cannot select a grayed-out option until the vehicle is stopped.

Voice commands are still operable while the vehicle is in motion.

1Start-up

Avoid focusing on the screen and drive safely.

When you use the navigation system, the system may

close other apps.

When you select Navigation, the system displays the

navigation feature that was used the last time. At

start-up, the navigation top screen is displayed.

■Limitations for Manual Operation

17 CR-V NAVI-31TLA8000.book 16 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Voice Control System

Your vehicle has a voice control system that allows hands-free operation of the

navigation system functions.

The voice control system uses the (Talk) and (Hang-Up/Back) buttons on the

steering wheel and a microphone near the map lights on the ceiling.

For details of the (Talk) button, (Hang-Up/Back) button and microphone

position, see the Owner's Manual.

Voice Recognition

To achieve optimum voice recognition when using the navigation voice control

system:

• Make sure the correct screen is displayed for the voice command that you are

using.

• Close the windows, moonroof

, or panoramic roof

• Adjust the dashboard and side vents so air does not blow onto the microphone

on the ceiling.

• Speak in a clear, natural speaking voice without pausing between words.

• Reduce any background noise if possible. The system may misinterpret your

command if more than one person is speaking at the same time.

1Voice Control System

When you press the (Talk) button, the system

prompts you to say a voice command. Press and

release the (Talk) button again to bypass this

prompt and give a command.

1Voice Recognition

The voice control system can only be used from the

driver’s seat because the microphone unit removes

noises from the front passenger’s side.

* Not available on all models

17 CR-V NAVI-31TLA8000.book 17 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Personal Information

Setting Home Location

H (Map) uu

Use the personal information menu to set your home location.

1. Select Set Home Location.

2. Select an option.

uSelect Use Current Location

to set home location.

uIf selecting Enter My Address

or Recently Found, proceed to

steps 3 and 4.

3. Select the home location.

4. Select Select.

The following options are available:

•Enter My Address: Sets the home location by entering the address.

2Storing Your Home Address P. 8

•Use Current Location: Sets your current location as your home location.

•Recently Found: Sets the home location from a recently found location.

1Personal Information

You can also display the same screen by selecting

on the Where To? screen.

If you want to delete a shortcut(s), select Remove

Shortcut(s).

2Deleting Shortcuts P. 59

The home location can be overwritten.

17 CR-V NAVI-31TLA8000.book 18 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

Continued

System Setup

Saved Locations

You can save locations so you can quickly find them and create routes to them.

H (Map) u

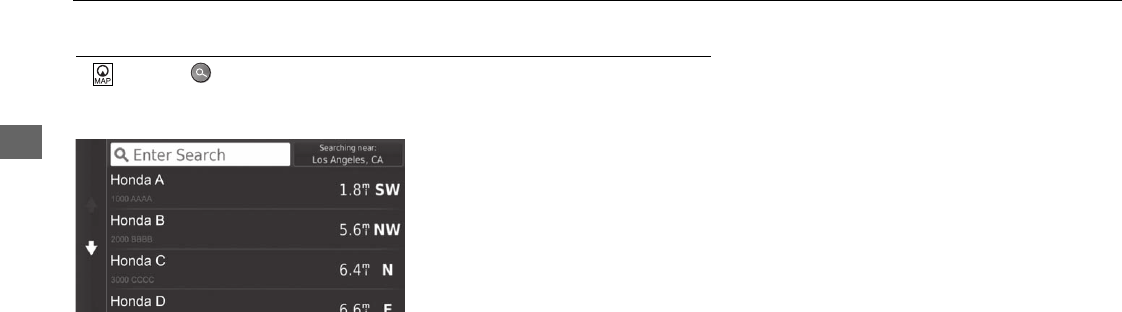

1. Select a search method.

uFind a location that you want to

save.

2Entering a Destination P. 54

2. Select .

3. Select or .

4. Select Save.

uIf necessary, enter a name and

select Done.

5. Select OK.

■Saving a Saved Location

17 CR-V NAVI-31TLA8000.book 19 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

System Setup

H (Map) u (Back) uView Map

1. Select a destination from the map.

2Map Input P. 69

2. Select the destination name at the

bottom of the map.

3. Select or .

4. Select Save.

uOn some places other than POI,

you can edit the place name.

5. Select OK.

■Saving a Saved Location Manually

17 CR-V NAVI-31TLA8000.book 20 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

uuPersonal InformationuSaved Locations

System Setup

H (Map) u (Back) uView Map

1. Select the vehicle icon.

2. Select Save.

3. Enter a name of the location.

4. Select Done.

5. Select OK.

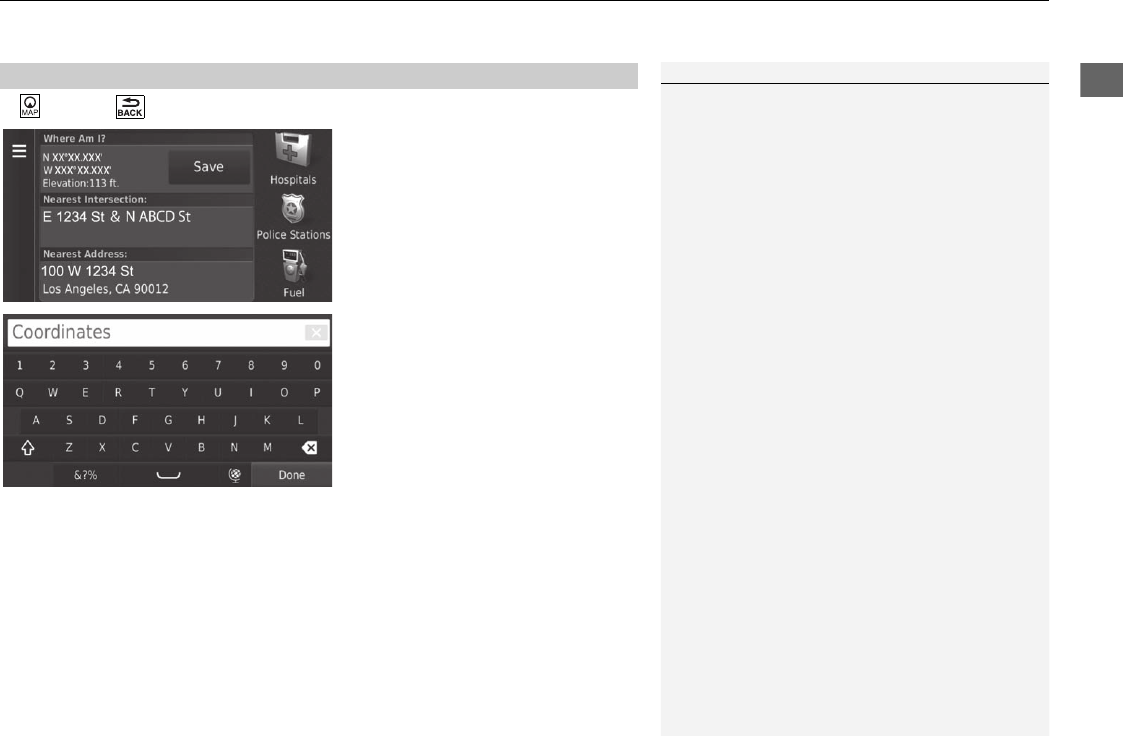

■Saving Your Current Location

1Saving Your Current Location

Vehicle position may not be displayed when:

•The vehicle is traveling off-road.

•The vehicle position data cannot be updated.

17 CR-V NAVI-31TLA8000.book 21 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

System Setup

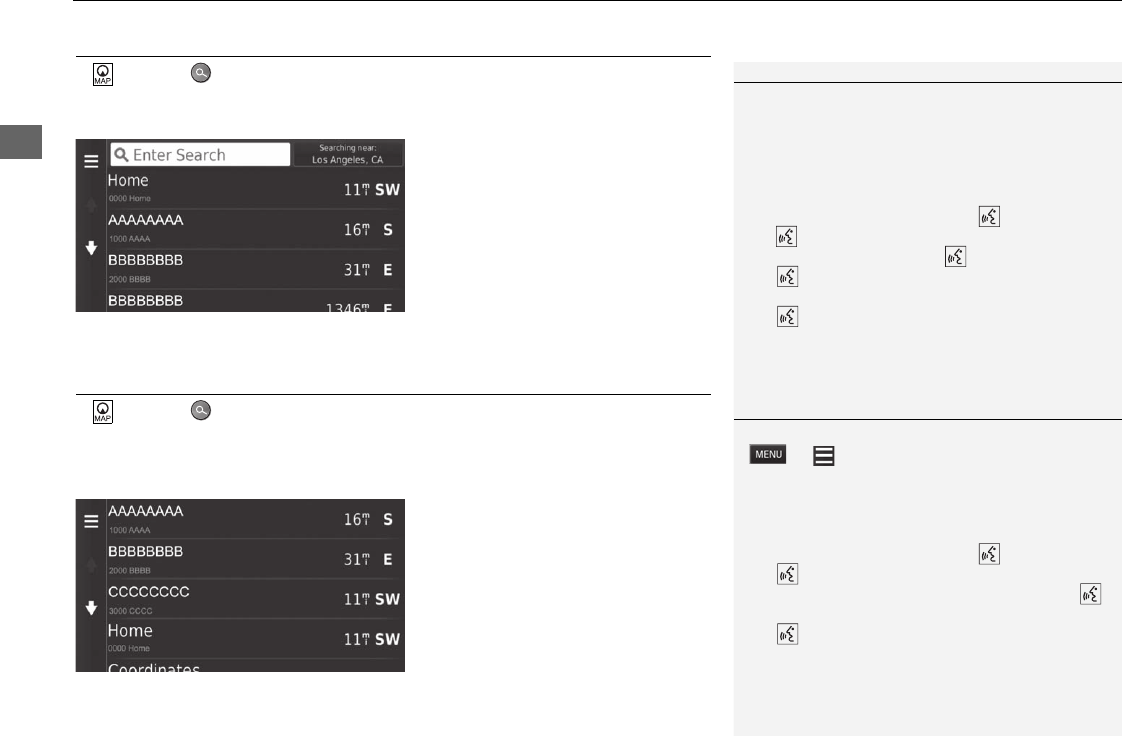

H (Map) uuSaved

1. Select a saved location you want

to edit.

2. Select .

3. Select or .

4. Select Edit.

■Editing a Saved Location

17 CR-V NAVI-31TLA8000.book 22 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

Continued

System Setup

5. Select an option.

The following options are available:

•Name: Enters a new name for the location.

•Phone Number: Enters a phone number.

•Categories: Creates or changes the category in which this location is saved.

•Change Map Symbol: Select a new symbol.

17 CR-V NAVI-31TLA8000.book 23 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

System Setup

H (Map) uuSaved

1. Select a saved location you want

to delete.

2. Select .

3. Select or .

4. Select Delete.

5. Select Yes.

■Deleting a Saved Location

17 CR-V NAVI-31TLA8000.book 24 ページ２０１６年９月１５日　木曜日　午後５時２分

uuPersonal InformationuSaved Locations

System Setup

H (Map) uuSaved

1. Select or .

2. Select Delete Saved Places.

3. Select a saved location you want

to delete.

uSelect Select All to delete all

saved locations.

4. Select Delete.

5. Select Yes.

■Deleting Saved Locations

17 CR-V NAVI-31TLA8000.book 25 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Display Mode Settings

Switching Display Mode Manually

Set the screen brightness separately for Day and Night modes. Press the

(Display Mode) icon to cycle through the display modes (Day to Night to Off).

Press the (Display Mode) icon.

uThe Brightness bar is displayed for

a few seconds.

uSelect or to adjust the

brightness.

1Switching Display Mode Manually

You can also adjust the display brightness by sliding

or swiping on the Brightness bar.

You can change the touchscreen sensitivity setting.

2Refer to the Owners Manual.

17 CR-V NAVI-31TLA8000.book 26 ページ２０１６年９月１５日　木曜日　午後５時２分

uuDisplay Mode SettingsuSwitching Display Mode Manually

System Setup

Illumination

control Operation

(Display

Mode) icon

Selects Day or Night display mode when the user

wants to change the brightness of the display

temporarily.

Remember: This button overrides all other display

brightness adjustments either set automatically by

the sunlight sensor or manually from the System

settings screen.

Sunlight sensor

(see your Owner’s

Manual for

location)

If the sunlight sensor detects daylight and the

headlights are turned on, the system automatically

overrides the Night display and displays the Day

display mode.

Remember: If desired, use the (Display Mode)

icon to override this automatic choice.

Dash illumination

adjustment knob

(see your Owner’s

Manual for

location)

When the headlights are turned on, and you wish to

have the Day display mode, adjust the illumination

to the full brightness (beeps).

Remember: Adjust the dash brightness back to

midrange to allow auto switching by sensing the

headlights are on or off.

Headlights (Auto/

On/Off)

When turned on, the display changes to Night

display mode.

The previous three controls listed above can

“cancel” this function.

Remember: Use the (Display Mode) icon, to

adjust the dash illumination to full brightness, or set

the display to your desired choice.

17 CR-V NAVI-31TLA8000.book 27 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Map & Vehicle

H (Map) u (Back) uSettings uMap & Vehicle

Change the map settings.

Select an option.

The following options are available:

•Vehicle: Changes the icon to represent your position on the map.

2Vehicle P. 29

•Driving Map View: Sets the perspective on the map.

2Driving Map View (Map Orientation) P. 30

•Map Detail: Sets the level of detail on the map. More detail may cause the map

to draw slower.

2Map Detail P. 31

•Map Theme: Changes the color of the map data.

2Map Theme P. 32

•Map Buttons: Sets which icons are included on the map. Up to three icons can

be included on the map.

2Map Buttons P. 33

•Map Layers: Sets the data that appears on the map.

2Map Layers P. 34

•Dashboards: Sets the map dashboard layout.

2Dashboards P. 34

17 CR-V NAVI-31TLA8000.book 28 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuVehicle

System Setup

•myMaps: Sets which installed maps the system uses.

2myMaps P. 35

Vehicle

H (Map) u (Back) uSettings uMap & Vehicle uVehicle

You can choose your vehicle icon.

1. Select an option.

2. Select Save.

1Vehicle

The factory default is set to .

17 CR-V NAVI-31TLA8000.book 29 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuDriving Map View (Map Orientation)

System Setup

Driving Map View (Map Orientation)

H (Map) u (Back) uSettings uMap & Vehicle uDriving Map View

Select the map orientation.

1. Select an option.

2. Select Save.

The following options are available:

•Track Up: Displays the map with your direction of travel facing upwards.

•North Up: Displays the map with north always pointing up.

•3-D (factory default): Displays the map in 3D with your direction of travel facing

upwards.

17 CR-V NAVI-31TLA8000.book 30 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuMap Detail

System Setup

Map Detail

H (Map) u (Back) uSettings uMap & Vehicle uMap Detail

Sets the level of detail on the map.

1. Select an option.

2. Select Save.

The following options are available:

•More: Shows more detail on the map.

•Normal (factory default): Shows a standard amount of detail on the map.

•Less: Shows less detail on the map.

17 CR-V NAVI-31TLA8000.book 31 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuMap Theme

System Setup

Map Theme

H (Map) u (Back) uSettings uMap & Vehicle uMap Theme

Changes the color of the map data.

1. Select an option.

2. Select Save.

17 CR-V NAVI-31TLA8000.book 32 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuMap Buttons

System Setup

Map Buttons

H (Map) u (Back) uSettings uMap & Vehicle uMap Buttons

Sets up to three shortcuts that appear in the map tools menu.

1. Select if you want to delete a

shortcut and then select OK.

2. Select to add a new shortcut.

3. Select an option.

4. Select Save.

1Map Buttons

Reset to Defaults

Resets the settings to the factory defaults.

17 CR-V NAVI-31TLA8000.book 33 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleuMap Layers

System Setup

Map Layers

H (Map) u (Back) uSettings u Map & Vehicle uMap Layers

Sets the data that appears on the map screen.

1. Select an option(s).

2. Select Save.

Dashboards

H (Map) u (Back) uSettings u Map & Vehicle uDashboards

Switches the dashboard layout at the bottom of the map.

1. Select or .

2. Select Save.

1Map Layers

Trip Log is set to off as factory default.

17 CR-V NAVI-31TLA8000.book 34 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap & VehicleumyMaps

System Setup

myMaps

H (Map) u (Back) uSettings uMap & Vehicle umyMaps

Sets which installed maps the system uses.

Select an option(s).

17 CR-V NAVI-31TLA8000.book 35 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Navigation

H (Map) u (Back) uSettings uNavigation

Changes the navigation settings.

The following options are available:

•Calculation Mode: Sets route preference.

2Calculation Mode P. 37

•Avoidances: Sets road features to avoid on a route.

2Avoidances P. 38

•Custom Avoidances: Allows you to avoid specific roads or areas.

2Custom Avoidances P. 39

•Advanced Detours: Sets the length of the detour.

•Voice Prompts: Turns the voice prompts on or off.

•GPS Simulator: Stops the system from receiving a GPS signal.

1Navigation

Advanced Detours and GPS Simulator are set to

off as factory default.

17 CR-V NAVI-31TLA8000.book 36 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCalculation Mode

System Setup

Calculation Mode

H (Map) u (Back) uSettings uNavigation uCalculation Mode

Sets the route preference.

1. Select an option.

2. Select Save.

The following options are available:

•Faster Time (factory default): Calculates routes that are faster to drive but can be

longer in distance.

•Shorter Distance: Calculates routes that are shorter in distance but can take

more time to drive.

•Less Fuel: Calculates routes that could use less fuel than other routes.

17 CR-V NAVI-31TLA8000.book 37 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuAvoidances

System Setup

Avoidances

H (Map) u (Back) uSettings uNavigation uAvoidances

Set preferences for route options to avoid.

1. Select an option(s).

2. Select Save.

The following options are available:

•U-Turns: Avoids u-turns.

•Highways: Avoids highways.

•Tolls and Fees: Avoids toll roads.

•Ferries: Avoids ferries.

•Carpool Lanes: Avoids car share lanes.

•Unpaved Roads: Avoids unpaved roads.

1Avoidances

Highways, Tolls and Fees, and Ferries are set to off

as factory default.

17 CR-V NAVI-31TLA8000.book 38 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCustom Avoidances

Continued

System Setup

Custom Avoidances

H (Map) u (Back) uSettings uNavigation uCustom Avoidances

Allows you to avoid specific areas and sections of road. You can enable and disable

custom avoidances as needed.

Select an option.

uSelect Add Avoidance if custom

avoidances are already stored.

The following options are available:

•Add Avoid Area: Sets an area to avoid.

2Adding an Avoid Area P. 40

•Add Avoid Road: Sets a road to avoid.

2Adding an Avoid Road P. 41

17 CR-V NAVI-31TLA8000.book 39 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCustom Avoidances

System Setup

H (Map) u (Back) uSettings uNavigation uCustom Avoidances

uAdd Avoid Area

1. Select the upper-left (right) corner

of the area to avoid. Select Next.

uThe icon is displayed on the

map.

2. Select the lower-right (left) corner

of the area to avoid. Select Next.

uThe selected area is shaded on

the map.

3. Select Done.

■Adding an Avoid Area

17 CR-V NAVI-31TLA8000.book 40 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCustom Avoidances

Continued

System Setup

H (Map) u (Back) uSettings uNavigation uCustom Avoidances

uAdd Avoid Road

1. Select the starting point of the

section of road to avoid. Select

Next.

uThe icon is displayed on the

map.

2. Select the ending point of the road

section. Select Next.

uThe selected road color

changes.

3. Select Done.

■Adding an Avoid Road

17 CR-V NAVI-31TLA8000.book 41 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCustom Avoidances

System Setup

H (Map) u (Back) uSettings uNavigation uCustom Avoidances

1. Select the area or road to edit

from the list.

2. Select or .

uThe menu screen is displayed.

3. Select an item.

The following items are available:

•Rename: Enters a new name.

•Delete: Deletes a selected area or road.

•Disable: Disables the avoidance.

■Editing a Custom Avoidance

17 CR-V NAVI-31TLA8000.book 42 ページ２０１６年９月１５日　木曜日　午後５時２分

uuNavigationuCustom Avoidances

System Setup

H (Map) u (Back) uSettings uNavigation uCustom Avoidances

1. Select .

2. Select options you want to delete.

uSelect Select All for all options

in the list.

3. Select Delete.

■Deleting Custom Avoidances

1Deleting Custom Avoidances

Select if you want to search the saved custom

avoidance.

17 CR-V NAVI-31TLA8000.book 43 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Traffic

H (Map) u (Back) uSettings uTraffic

Sets the traffic feature.

Select an option.

The following options are available:

•Traffic: Enables the traffic feature.

2Traffic Information P. 82

•Current Provider: Sets the traffic provider to use for traffic data.

•Subscriptions: Displays the lists of the current traffic subscriptions.

•Optimize Route: Sets whether to use optimized alternate routes On Request

(factory default) or Automatic.

17 CR-V NAVI-31TLA8000.book 44 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Other Settings

Units

H (Map) u (Back) uSettings uUnits uUnits

Set the units and display on the map of the navigation system.

1. Select an option.

2. Select Save.

The following options are available:

•Miles (factory default): Sets the units to miles.

•Kilometers: Sets the units to kilometers.

17 CR-V NAVI-31TLA8000.book 45 ページ２０１６年９月１５日　木曜日　午後５時２分

uuOther SettingsuLanguage & Keyboard

System Setup

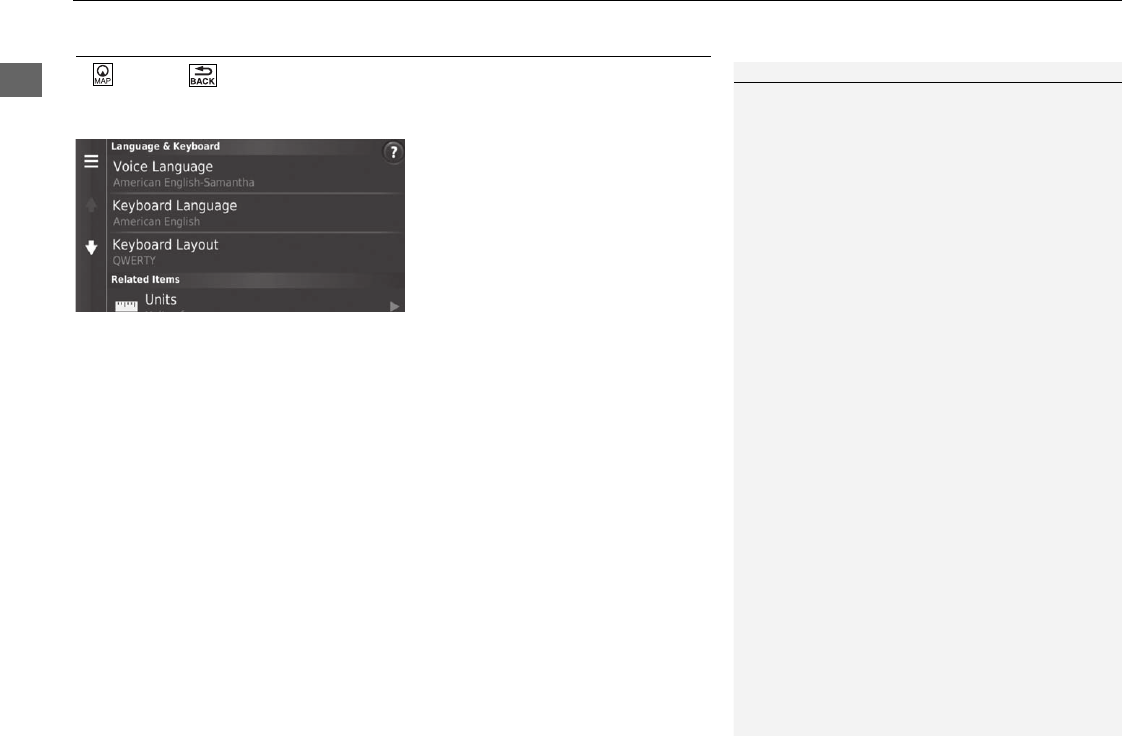

Language & Keyboard

H (Map) u (Back) uSettings uLanguage & Keyboard

Set the language for the unit and the keyboard layout.

Select an option.

The following options are available:

•Voice Language: Sets the language for voice prompts.

2Voice Language P. 47

•Keyboard Language: Sets the language for your keyboard.

2Keyboard Language P. 47

•Keyboard Layout: Sets the keyboard layout.

2Keyboard Layout P. 48

1Language & Keyboard

When you select a language for the audio system, the

language setting of the navigation system is

automatically switched.

See the Owner’s Manual for instructions.

17 CR-V NAVI-31TLA8000.book 46 ページ２０１６年９月１５日　木曜日　午後５時２分

uuOther SettingsuLanguage & Keyboard

Continued

System Setup

H (Map) u (Back) uSettings uLanguage & Keyboard uVoice

Language

1. Select an option.

2. Select Save.

H (Map) u (Back) uSettings uLanguage & Keyboard uKeyboard

Language

1. Select an option.

2. Select Save.

■Voice Language

■Keyboard Language

17 CR-V NAVI-31TLA8000.book 47 ページ２０１６年９月１５日　木曜日　午後５時２分

uuOther SettingsuLanguage & Keyboard

System Setup

H (Map) u (Back) uSettings uLanguage & Keyboard uKeyboard

Layout

1. Select an option.

2. Select Save.

The following options are available:

•QWERTY (factory default): Sets the keyboard layout to QWERTY.

•ABCDE: Sets the keyboard layout to ABCDE.

■Keyboard Layout

17 CR-V NAVI-31TLA8000.book 48 ページ２０１６年９月１５日　木曜日　午後５時２分

uuOther SettingsuDevice

Continued

System Setup

Device

H (Map) u (Back) uSettings uDevice

Select an option.

The following options are available:

•About: Displays the device information.

2About P. 50

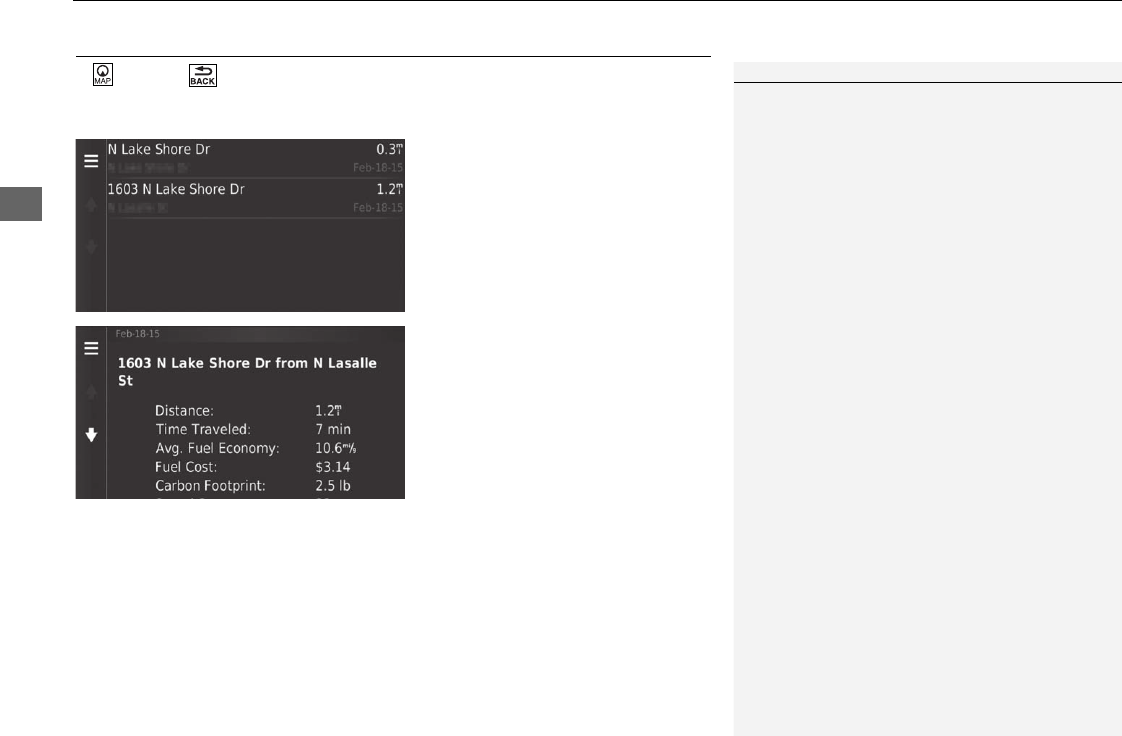

•Travel History: Allows the system to record information for suggested routes,

previous routes and destinations, and Trip Log features.

•Clear Travel History: Deletes the recorded information.

•Update Map: Displays the description screen of map update.

2Obtaining a Navigation Update P. 130

17 CR-V NAVI-31TLA8000.book 49 ページ２０１６年９月１５日　木曜日　午後５時２分

uuOther SettingsuDevice

System Setup

H (Map) u (Back) uSettings uDevice uAbout

Displays the device information.

■About

17 CR-V NAVI-31TLA8000.book 50 ページ２０１６年９月１５日　木曜日　午後５時２分

System Setup

Data Reset

Reset Factory Default Settings

H (Map) u (Back) uSettings u

You can restore all settings to the factory default values.

1. Select Restore.

2. Select Yes.

1Reset Factory Default Settings

When you want to reset the following options, see

the below references:

•Home

2Deleting Saved Locations P. 25

•Recent

2Recent P. 68

•Saved

2Saved Locations P. 19

When you select or in each settings

category, you can restore the selected category.

When you transfer the vehicle to a third party, reset

all settings to default and delete all personal data.

17 CR-V NAVI-31TLA8000.book 51 ページ２０１６年９月１５日　木曜日　午後５時２分

17 CR-V NAVI-31TLA8000.book 52 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

This section describes how to enter a destination, select a route to take, and follow the

route to your destination. It also describes how to change your route or destination along

the way.

Entering a Destination ............................54

HONDA ..................................................60

Address ..................................................61

Categories ..............................................62

Saved......................................................68

Recent ....................................................68

Map Input...............................................69

Calculating the Route ..............................70

Viewing and Selecting the Routes ...........71

Viewing the Destination Map..................72

Driving to Your Destination ...................73

Viewing the Route ..................................73

Map Operation ........................................77

Map Menu..............................................78

Traffic Information ..............................82

Changing Your Route ............................. 87

Stopping the Route ................................ 87

Taking a Detour ..................................... 88

Adding Waypoints ................................. 90

Changing Your Destination ................... 91

Selecting a Destination on the Map ........ 91

Searching Near Establishment ................ 92

Entering a New Destination.................... 94

Entering a New Destination from Trip

Planner................................................. 95

Editing the Destination List ..................... 99

17 CR-V NAVI-31TLA8000.book 53 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

Entering a Destination

H (Map) u

This section describes how to enter a destination for route guidance.

Select an option.

The following options are available:

•Enter Search: Sets a destination by entering a category, name, address, or city

name.

2Using the Search Bar P. 56

•Searching near: Selects the city to search near.

2Changing the Search Area P. 57

•Go Home: Sets your home address as the destination.

2Going Home P. 8

•HONDA: Sets a nearby Honda authorized dealer as the destination.

2HONDA P. 60

•Places: Launches HondaLink® to search for places.

For more details, see the Owner's Manual.

•Address: Sets a destination by entering an address.

2Address P. 61

•Categories: Sets a destination by selecting a category.

2Categories P. 62

1Entering a Destination

The Display Audio system can only provide route guidance

from one navigation system at a time. When setting a

destination on one system, any active route guidance with

the other system is canceled, and the system you are

currently using will direct you to your destination.

To use HondaLink®, you must connect your smartphone

to the system.

For more details about smartphone connection and

how to use HondaLink®, see the Owner's Manual.

If you press the (DISP) button on the steering

wheel and select Navigation Menu while on the

map screen, the following items are available. Use

the steering wheel buttons to select the items.

•Go Home

•Recent Destination

•Calculation Mode

•Saved Places

•Stop

•Add New Address

(DISP) Button

Shortcuts

17 CR-V NAVI-31TLA8000.book 54 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a Destinationu

Continued

Navigation

•Saved: Sets a destination by selecting a place stored in the Saved list.

2Saved P. 68

•Recent: Sets a destination by selecting a previous destination.

2Recent P. 68

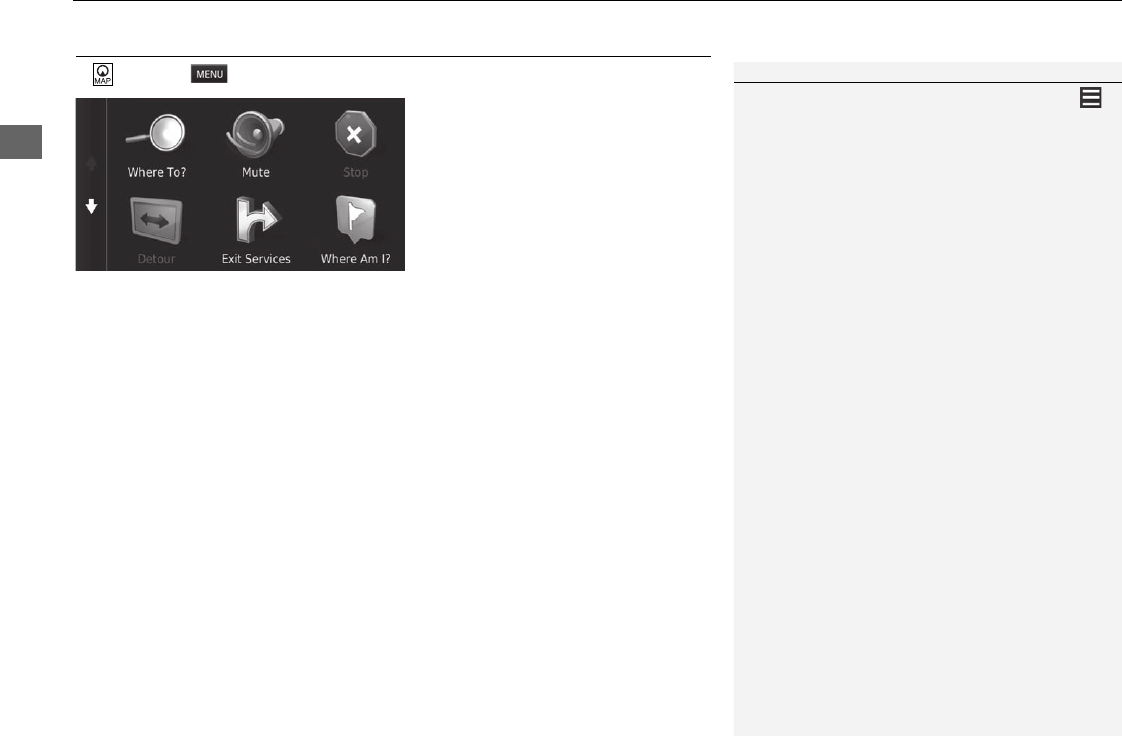

•Add Shortcut: Adds shortcuts to the Where To? menu.

2Adding Shortcuts P. 58

17 CR-V NAVI-31TLA8000.book 55 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a Destinationu

Navigation

H (Map) uuEnter Search

You can use the search bar to search for locations by entering a category, name,

address, company phone number, or city name.

1. Enter a search term.

uThe search history is displayed

below the search bar.

uSuggested search terms appear

below the search bar as you

type.

2. Select or a suggested search

term.

3. Select your destination from the

list.

4. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

■Using the Search Bar

1Using the Search Bar

Using Voice Command

You can say the names of popular, well-known

locations.

From the Voice Portal screen, say “Navigation.”

Say “Find Place,” then say a place name (e.g.,

“Honda”).

Say the line number of screen (e.g., “1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

•To search for a type of business, enter a category

name, such as “movie theaters.”

•To search for a business by name, enter all or part

of the name.

•To search for an address near you, enter the street

number and street name.

•To search for an address in another city, enter the

street number, street name, city, and state.

•To search for a city, enter the city and state.

If you want to delete the search history, select

Restore.

2Reset Factory Default Settings P. 51

17 CR-V NAVI-31TLA8000.book 56 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

uuEntering a Destinationu

Navigation

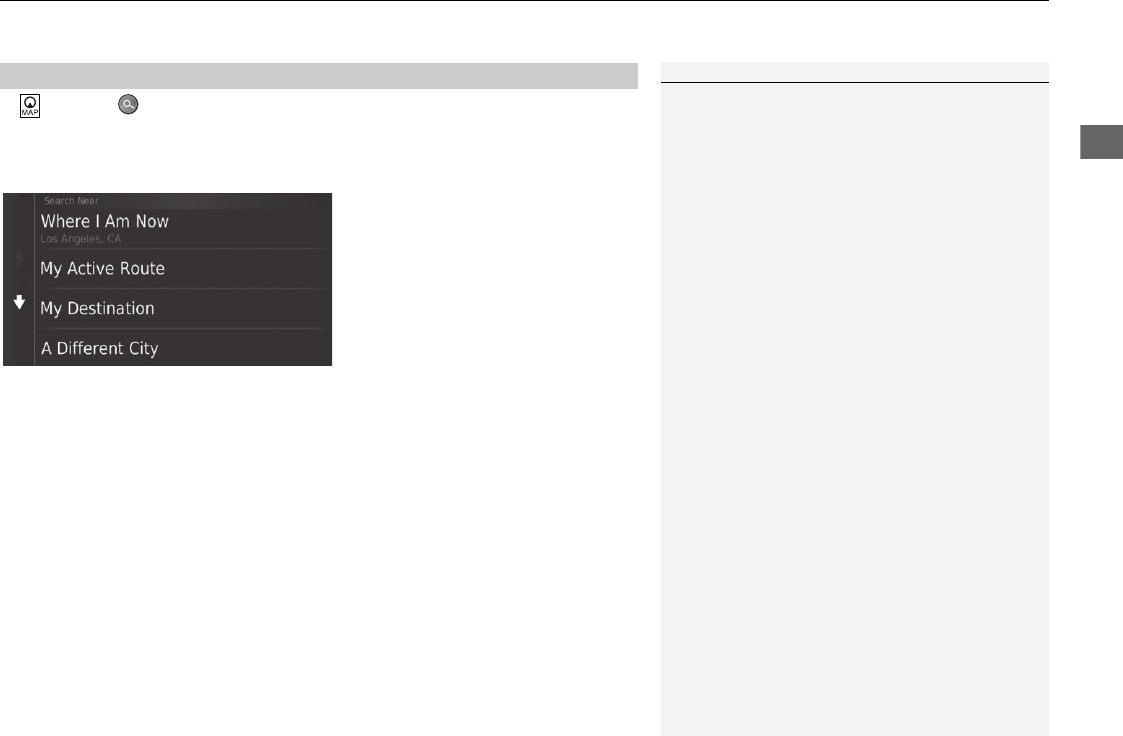

H (Map) uuSearching near

By default, your system finds locations closest to your current location. You can find

a location near another city or location.

Select an option.

The following options are available:

•Where I Am Now: Searches near your current location.

•My Active Route: Searches along your current route.

•My Destination: Searches near your current destination.

•A Different City: Searches near the city you enter.

•Recent Destination: Searches near a recent destination.

•Saved Place: Searches near a saved place.

■Changing the Search Area

1Changing the Search Area

My Active Route and My Destination can be set

when the route is active.

17 CR-V NAVI-31TLA8000.book 57 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a Destinationu

Navigation

H (Map) uuAdd Shortcut

Up to 36 shortcut icons can be stored.

Select an option you want to add as

a shortcut.

■Adding Shortcuts

17 CR-V NAVI-31TLA8000.book 58 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a Destinationu

Navigation

H (Map) uu uRemove Shortcut(s)

1. Select a shortcut with if you

want to delete it.

2. Select Touch to Remove.

3. Select Save.

■Deleting Shortcuts

17 CR-V NAVI-31TLA8000.book 59 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuHONDA

Navigation

HONDA

H (Map) uuHONDA

Find any Honda authorized dealers to set as a destination.

1. Select the desired name from the

list.

2. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

17 CR-V NAVI-31TLA8000.book 60 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuAddress

Navigation

Address

H (Map) uuAddress

Enter an address to use as the destination.

1. Enter the house number. Select

Done.

2. Enter the street name. Select

Next.

uA list of matching hits is

automatically displayed after

you enter several letters, with

the closest match at the top of

the list.

3. Select your destination from the

list.

uSelect Searching in or Tip if

you want to search different

city, state or country.

4. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

1Address

Using Voice Command

You can say the entire address at once using voice

commands.

From the Voice Portal screen, say “Navigation.”

Say “Find Address” on the voice command

screen, then say the entire address. (e.g., “1-2-3-4

Main Street, Los Angeles, California”).

Say “Change Country” if you want to change the

country.

The system interprets the address.

Say “Yes” or a line number of a screen if the

destination list appears (e.g., “1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

The order of the steps may change depending on the

map data loaded on your system.

17 CR-V NAVI-31TLA8000.book 61 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuCategories

Navigation

Categories

Select the category of a place (e.g., Restaurants, Gas Stations, Shopping) stored in

the map database to search for the destination.

H (Map) uuCategories

1. Select a category.

2. Select a subcategory.

uIf the subcategory screen is not

displayed, proceed to step 3.

■Finding a Location by Category

1Categories

This option is convenient if you do not know the

exact name of a place or if you want to narrow down

the number of matches returned for places with a

common name.

When you set the destination or waypoint, the same

categories of icons do not appear.

Using Voice Command

You can find a place by the name using voice

commands.

From the Voice Portal screen, say “Navigation.”

Say “Find Category” on the voice command

screen, then say a category (e.g., “Fast Food”).

Say “View Categories” if you want to confirm

the category list.

Say a subcategory if the subcategory screen is

displayed.

Say a line number of a screen (e.g., “1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

17 CR-V NAVI-31TLA8000.book 62 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

uuEntering a DestinationuCategories

Navigation

3. Select a place name from the list.

4. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

1Categories

Quick Search screen

After you have performed a search for a destination,

certain categories display a Quick Search list that

display several destinations you selected.

17 CR-V NAVI-31TLA8000.book 63 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuCategories

Navigation

H (Map) uuCategories uIntersections

Select the intersection of two streets as the destination.

1. Select Spell City.

uIf selecting Search All, proceed

to step 4.

uSelect State or Country, if

necessary.

2. Enter a city name. Select Done.

uA list of matching hits is

automatically displayed after

you enter several letters with

the closest match at the top of

the list.

3. Select a city.

■Finding a Location by Intersections

1Finding a Location by Intersections

If there is more than one intersection, you are

prompted to select the intersection.

Using Voice Command

You can find intersections by the street name using

voice commands.

From the Voice Portal screen, say “Navigation.”

Say “Find Intersection” on the voice command

screen and then say a city name.

Say a street name 1, then say a line number of a

screen (e.g., “1”).

Say a street name 2, then say a line number of a

screen (e.g., “1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

17 CR-V NAVI-31TLA8000.book 64 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuCategories

Continued

Navigation

4. Enter the street 1 name. Select

Done.

uA list of matching hits is

automatically displayed after

you enter several letters with

the closest match at the top of

the list.

5. Select the street from the list.

uRepeat step 4 to enter the

street 2 name.

6. Select the intersection.

7. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

17 CR-V NAVI-31TLA8000.book 65 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuCategories

Navigation

H (Map) uuCategories uCities

Selects your destination city.

1. Select a city.

uSelect Enter Search and enter

a city name if you want to

narrow down the number of

matches.

2. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

■Finding a City

1Finding a City

Using Voice Command

You can find a city by using voice commands.

From the Voice Portal screen, say “Navigation.”

Say “Find City” on the voice command screen,

then say a city name. (e.g., “Los Angeles”).

Say a line number of a screen (e.g., “1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

17 CR-V NAVI-31TLA8000.book 66 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuCategories

Navigation

H (Map) uuCategories uCoordinates

You can find a location using latitude and longitude coordinates. This can be helpful

when geocaching.

1. Select the latitude coordinate.

2. Enter the new coordinate. Select

Done.

3. Select the longitude coordinate.

4. Enter the new coordinate. Select

Done.

5. Select View on Map.

6. Select Go! to set the route to your

destination.

2Viewing the Destination Map

P. 72

■Finding a Location Using Coordinates

1Finding a Location Using Coordinates

If you want to change the coordinate format, select

or and then select Format.

17 CR-V NAVI-31TLA8000.book 67 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuSaved

Navigation

Saved

H (Map) uuSaved

Select a saved location to use as the destination.

1. Select your destination from the

list.

2. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

Recent

H (Map) uuRecent

Select an address from a list of your 50 most recent destinations to use as the

destination. The list is displayed with the most recent destination at the top.

1. Select your destination from the

list.

2. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

1Saved

You can add, edit, or delete the saved place.

2Saved Locations P. 19

Using Voice Command

You can utilize a saved place by using voice

commands.

From the Voice Portal screen, say “Navigation.”

Say “Saved Place” on the voice command screen,

then say a saved place (e.g., “Honda”).

Say “View List” if you want to confirm all saved

places.

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

1Recent

If you want to delete all recent destinations, select

or and then select Clear.

Using Voice Command

You can utilize a recent destination by using voice

commands.

From the Voice Portal screen, say “Navigation.”

Say “Recently Found” on the voice command

screen, then say a line number of a screen (e.g.,

“1”).

Say “Navigate” or “Yes” to set the route.

2Using Voice Commands P. 5

2Voice Control Operation P. 11

17 CR-V NAVI-31TLA8000.book 68 ページ２０１６年９月１５日　木曜日　午後５時２分

uuEntering a DestinationuMap Input

Navigation

Map Input

H (Map) u (Back) uView Map

Scroll the map to manually select an icon or a location as the destination.

1. Select any point on the map, a

street, intersection, or category

icon.

uReturn to the current location

when you press the (Back)

icon.

2. Select Go! to set the route to your

destination.

2Calculating the Route P. 70

1Map Input

“View Map”

2Using Voice Commands P. 5

2Voice Control Operation P. 11

You can customize the map as you like using ,

, , or .

2Map Operation P. 77

If you want to display a specific category of places,

select and then select a category icon.

The place information is displayed when you select

on the map.

2Viewing the Destination Map P. 72

17 CR-V NAVI-31TLA8000.book 69 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

Calculating the Route

This section describes how to calculate your route.

Select Go!.

uThe system calculates and displays

the route line on the map screen.

The following options are available:

•Routes: Displays different routes.

2Viewing and Selecting the Routes P. 71

• : Displays the destination on the map.

2Viewing the Destination Map P. 72

1Calculating the Route

If the system has many guidance points on the route

to the destination, it may stop calculation.

In this case, the route guidance will start when you

select OK.

17 CR-V NAVI-31TLA8000.book 70 ページ２０１６年９月１５日　木曜日　午後５時２分

uuCalculating the RouteuViewing and Selecting the Routes

Navigation

Viewing and Selecting the Routes

View and select different routes to your destination.

1. Select or to change a route.

uThe travel distance, estimated

travel time, and traffic

information are displayed for

each route.

2. Select Go!.

uThe system calculates and

displays the route line on the

map screen.

17 CR-V NAVI-31TLA8000.book 71 ページ２０１６年９月１５日　木曜日　午後５時２分

uuCalculating the RouteuViewing the Destination Map

Navigation

Viewing the Destination Map

1. Select an option.

2. Select Go!.

uThe system calculates and

displays the route line on the

map screen.

The following options are available:

•Route Info: Displays different routes.

2Viewing and Selecting the Routes P. 71

•Set Location: Sets the vehicle position when you are indoors or not receiving

satellite signals.

You can use this feature when GPS Simulator is set to on.

2Navigation P. 36

1Viewing the Destination Map

When you select or , you can add to the

saved location list.

2Saved Locations P. 19

17 CR-V NAVI-31TLA8000.book 72 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

Navigation

Driving to Your Destination

Viewing the Route

This section describes how to follow the route guidance to your destination.

After calculating the route to your

destination, the route is displayed on

the map screen.

2During Route Guidance P. 7

As you drive, the system tracks your

position on the map in real time and

provides guidance as you approach

each guidance point on the route.

The following options are available:

• Select the text bar on the top of the map to display the turn list screen.

2Turn List P. 74

• Select the next guidance indicator to display the turn information screen or

intersection view screen.

2Turn Information P. 75

• Select to cancel the route guidance and remove your current route.

2Canceling Your Route P. 10

• Select or to display the map menu.

2Map Menu P. 78

• Select to display the parking information screen of nearby parking.

■Map Screen

1Viewing the Route

When your phone is connected to Bluetooth®

HandsFreeLink®, the navigation screen will switch to

the incoming call screen when receiving a call.

Speed limit icon

The speed limit shown on the map may be different

from the actual speed limit.

The speed limit icon is not displayed on all roads.

Select the vehicle icon to view the Where Am I?

screen.

2Viewing the Current Location Information

P. 80

You can stop your vehicle en route (e.g., to rest, stop

for gas, etc.), and then continue on your route.

If you did not complete your route, the navigation

restarts when you restart your vehicle.

When LaneWatch

is activated, the navigation screen

will switch to the LaneWatch screen.

Next guidance indicator

Speed limit icon

Dashboards

* Not available on all models

17 CR-V NAVI-31TLA8000.book 73 ページ２０１６年９月１５日　木曜日　午後５時２分

uuDriving to Your DestinationuViewing the Route

Navigation

• Select the map dashboards when you want to change the information that is

displayed. Select the following options:

Arrival Time, Distance, Time to Destination, Via Arrival, Distance to Via,

Time to Via, Direction of Travel, Elevation.

The turn list screen displays turn-by-turn instructions and the distance between

turns.

Select the text bar on the top of the

map.

uSelect a turn to display the

detailed information.

2Turn Information P. 75

uSelect or to display the

entire route on the map.

2Entire Route P. 75

■Turn List

1Viewing the Route

The next guidance indicator does not appear in the

following cases.

•The vehicle speed is 3 mph (4.8 km/h) or less

•The GPS signal is weak

•The vehicle position on the map and current vehicle

position do not match

The system displays a roundabout to the next

guidance indicator in the following cases.

•Its diameter is 82 ft (25 m) or more

•There is no road inside it

•There is no stop sign

Turn-by-Turn Directions

The next guidance point appears on the Driver

Information Interface.

The Turn-by-Turn directions may not be displayed if

the information cannot be received correctly.

17 CR-V NAVI-31TLA8000.book 74 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

uuDriving to Your DestinationuViewing the Route

Navigation

The turn information screen displays the turn on the map and the distance and time

remaining before you reach the turn. The lane assist screen may display a view of the

upcoming intersection.

Select the next guidance indicator of

the map or select any turn on the

turn list screen.

The entire route screen displays the entire route, destination name, time to

destination, and distance to destination.

1. Select the text bar on the top of

the map.

2. Select or .

3. Select Map to display the entire

route screen.

uPress the (Back) icon to

return to the previous screen.

■Turn Information

1Viewing the Route

Intersection View Screen

The intersection view screen displays a view of the

upcoming intersection and which lane you should be

driving.

■Entire Route

17 CR-V NAVI-31TLA8000.book 75 ページ２０１６年９月１５日　木曜日　午後５時２分

uuDriving to Your DestinationuViewing the Route

Navigation

If you leave the calculated route, the system automatically recalculates a route to the

set destination based on your current location and direction.

If you set the trip log to show, a series of lines (breadcrumbs) are displayed to track

the path you are taking.

2Map Layers P. 34

■Deviating From the Planned Route

■Trip Log Display

1Trip Log Display

You can delete the Trip Log.

2Device P. 49

2Reset Factory Default Settings P. 51

17 CR-V NAVI-31TLA8000.book 76 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

Map Operation

Customize the map, set a destination, and save a place from the map.

1. Select any point on the map.

2. Select an option.

uIf you want to set a destination

or save a location in the map,

scroll the map and select the

desired location.

2Saved Locations P. 19

2Map Input P. 69

The following options are available:

• : Zooms in to the map.

• : Zooms out of the map.

• : Switches the map to 2D or 3D.

• : Rotates the 3D map.

• : Sets the data that appears on the map.

2Map Layers P. 34

1Map Operation

When you select Track Up or North Up, the current

map scale and the (Track Up only) appear on the

map.

The always points to North.

2Driving Map View (Map Orientation) P. 30

1Map Operation

When you select Track Up or North Up, the current

map scale and the (Track Up only) appear on the

map.

The always points to North.

2Driving Map View (Map Orientation) P. 30

17 CR-V NAVI-31TLA8000.book 77 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuMap Menu

Navigation

Map Menu

H (Map) u

Select an option.

The following options are available:

•Where To?: Enters a new destination.

2Entering a Destination P. 54

•Mute: Turns the voice prompts on or off.

•Stop: Cancels the route guidance and removes your current route.

•Detour: Calculates a detour route.

2Taking a Detour P. 88

•Exit Services: Displays a list of the exit services for the route.

2Viewing Exit Services P. 79

•Where Am I?: Displays the information about your current location.

2Viewing the Current Location Information P. 80

•Map Layers: Sets the data that appears on the map.

2Map Layers P. 34

•ecoRoute

Uses the ecoRoute

features.

2ecoRoute

P. 107

•Settings: Changes settings for navigation functions.

2System Setup P. 15

1Map Menu

You can also display the map menu by selecting

on the map screen.

17 CR-V NAVI-31TLA8000.book 78 ページ２０１６年９月１５日　木曜日　午後５時２分

Continued

uuMap OperationuMap Menu

Navigation

H (Map) uuExit Services

You can view exit services (e.g., whether the exit is near gas stations, restaurants,

etc.) and add new destinations or waypoints to the calculated route.

1. Select or to display your

desired list of exit services.

2. Select a category tab.

3. Select an option.

uThe location is displayed on the

Calculate Route screen.

2Viewing the Destination Map

P. 72

■Viewing Exit Services

1Viewing Exit Services

The map screen of the selected exit is displayed when

you select .

17 CR-V NAVI-31TLA8000.book 79 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuMap Menu

Navigation

H (Map) uuWhere Am I?

You can confirm your current location, address, and nearest intersection.

Select an option.

The following options are available:

•Save: Saves your current location.

2Saving Your Current Location P. 21

•Hospitals/Police Stations/Fuel: Searches for a hospital, police station, or gas

station around your current location.

2Searching Near Establishment P. 92

■Viewing the Current Location Information

1Viewing the Current Location Information

Vehicle position may not be displayed when:

•The vehicle is traveling off-road.

•The vehicle position data cannot be updated.

17 CR-V NAVI-31TLA8000.book 80 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuMap Menu

Navigation

H (Map) uuWhere Am I?

Get a list of directions to your current location.

1. Select or .

2. Select Directions to Me.

3. Select an option.

4. Select Select.

uThe turn list screen displays

turn-by-turn instructions and

the distance between turns.

2Turn List P. 74

■Using Directions to Me

17 CR-V NAVI-31TLA8000.book 81 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuTraffic Information

Navigation

Traffic Information

When you set the traffic feature, the system examines traffic conditions and

optimizes the route for the shortest time. If a severe traffic delay occurs while you

are navigating, the system searches for a faster route. If it finds one, the system will

prompt you and you can choose to accept the new route.

The traffic icon changes color to indicate the severity of traffic conditions on your

route or on the road you are currently traveling. The system may route you through

a traffic delay if a better alternative route does not exist. The delay time is added into

your estimated time of arrival automatically.

1. Select on the map screen.

1Traffic Information

Continuously updated traffic information is available

in major metropolitan areas across contiguous United

States and some cities in Canada.

You can change the traffic information settings.

2Traffic P. 44

The traffic icon changes color to indicate the severity

of traffic conditions.

•Green: Flowing freely.

•Yellow: Moderate traffic condition.

•Red: Very slow or stop-and-go traffic.

•Gray: No traffic data.

17 CR-V NAVI-31TLA8000.book 82 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuTraffic Information

Continued

Navigation

2. Select an option.

The following options are available:

•Alternate Route: Displays the alternate route screen.

2Alternate Route P. 84

•Traffic On Route: Displays the traffic delays on your route. You can select the

traffic you want to avoid.

2Traffic Rerouting Manually P. 85

•Traffic Conditions: Displays the traffic flow and delays on nearby roads.

2Viewing Traffic Delays P. 86

•Traffic Legend: Displays an overview of traffic legends.

2Viewing Traffic Legends P. 86

17 CR-V NAVI-31TLA8000.book 83 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuTraffic Information

Navigation

H (Map) uuAlternate Route

Display the alternate route screen.

Select Go!.

■Alternate Route

17 CR-V NAVI-31TLA8000.book 84 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuTraffic Information

Continued

Navigation

H (Map) uuTraffic On Route

View the traffic delays on your route, including the estimated time of each delay and

the distance to each delay. You can select the traffic you want to avoid manually.

1. Display a list of traffic events.

2. Select an option.

3. Select or and then select

Avoid to avoid the traffic delay.

uSelect or to view other

traffic delays on your route.

■Traffic Rerouting Manually

17 CR-V NAVI-31TLA8000.book 85 ページ２０１６年９月１５日　木曜日　午後５時２分

uuMap OperationuTraffic Information

Navigation

H (Map) uuTraffic Conditions

View the traffic flow and delays on nearby roads.

uSelect if you want to display a

list of traffic delays.

H (Map) uuTraffic Legend

See an overview of the icons and colors used on the traffic map.

The system displays the traffic

legend.

■Viewing Traffic Delays

■Viewing Traffic Legends

17 CR-V NAVI-31TLA8000.book 86 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

Changing Your Route

Stopping the Route

Stop the route guidance and remove the destination and all waypoints.

Select .

1Stopping the Route

“Stop route”

2Using Voice Commands P. 5

2Voice Control Operation P. 11

You can also stop your route from the map menu.

2Map Menu P. 78

17 CR-V NAVI-31TLA8000.book 87 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your RouteuTaking a Detour

Navigation

Taking a Detour

H (Map) uuDetour (when en route)

Calculate a new route to avoid something ahead of you. The system creates a new

route if possible. The system attempts to get you back on your original route as

quickly as possible.

You can take a detour for a specified distance along your route or detour around

specific roads. This is useful if you encounter construction zones, closed roads, or

poor road conditions.

Select an option.

■Taking a Detour Around Specified Areas

1Taking a Detour

“Detour”

2Using Voice Commands P. 5

2Voice Control Operation P. 11

If your current route is the only reasonable option,

the system might not calculate a detour.

1Taking a Detour Around Specified Areas

You can use this feature when Advanced Detours is

set to On.

2Navigation P. 36

Select to delete all detours.

17 CR-V NAVI-31TLA8000.book 88 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your RouteuTaking a Detour

Navigation

The following options are available:

•Next 0.5 mi on Route: Calculates a new route by avoiding the next 0.5 mile on

your route.

•Next 2 mi on Route: Calculates a new route by avoiding the next 2 miles on

your route.

•Next 5 mi on Route: Calculates a new route by avoiding the next 5 miles on your

route.

•Detour by Road(s) on Route: Calculates a new route by avoiding the specific

roads on your route. Select roads from the turn list.

17 CR-V NAVI-31TLA8000.book 89 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your RouteuAdding Waypoints

Navigation

Adding Waypoints

Add waypoints (pit stops) along the route to your destination.

1. While en route, select a search

method to add a new destination

or waypoint.

2Entering a Destination P. 54

2. Select a place. Select Go!.

3. Select Add to Active Route.

uSelect Start New Route to set

the location as your new

destination.

2Entering a New Destination

P. 94

4. Select and hold , or

and then move the destination to

the desired position.

5. Select Done.

uThe route is automatically

recalculated and displayed on

the map screen.

1Adding Waypoints

When you add a waypoint, the system may take

some time to update the arrival time.

17 CR-V NAVI-31TLA8000.book 90 ページ２０１６年９月１５日　木曜日　午後５時２分

Navigation

Changing Your Destination

Selecting a Destination on the Map

Select a new destination when en route by selecting a location on the map.

1. Select any point on the map, or a

street, intersection, or category

icon.

2. Select Go!.

3. Select an option.

The following options are available:

•Start New Route: Sets the location as your new destination.

•Add to Active Route: Sets the location as the first waypoint in the Edit Route

screen.

2Adding Waypoints P. 90

17 CR-V NAVI-31TLA8000.book 91 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuSearching Near Establishment

Navigation

Searching Near Establishment

H (Map) uuWhere Am I?

Search for a hospital, police station, or gas station around your current location.

1. Select a category type.

uYou can also confirm your

current location, address, and

nearest intersection.

2. Select a place.

3. Select Go!.

17 CR-V NAVI-31TLA8000.book 92 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuSearching Near Establishment

Navigation

4. Select an option.

The following options are available:

•Start New Route: Sets the location as your new destination.

•Add to Active Route: Sets the location as the first waypoint in the Edit Route

screen.

2Adding Waypoints P. 90

17 CR-V NAVI-31TLA8000.book 93 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEntering a New Destination

Navigation

Entering a New Destination

H (Map) u

Enter a new destination using the destination menu screen even when you are en

route.

1. Select a search method to enter a

new destination.

2Entering a Destination P. 54

2. Select a place and then select Go!.

3. Select an option.

The following options are available:

•Start New Route: Sets the location as your new destination.

•Add to Active Route: Sets the location as the first waypoint in the Edit Route

screen.

2Adding Waypoints P. 90

1Entering a New Destination

You can also display the Where To? screen by

pressing (Back) icon on the navigation top

screen.

17 CR-V NAVI-31TLA8000.book 94 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEntering a New Destination from Trip Planner

Continued

Navigation

Entering a New Destination from Trip Planner

You can use the trip planner to create and save a route with multiple destinations.

H (Map) u (Back) uApps uTrip Planner uNew Trip uSelect Start

Location

1. Select a method to enter a new

destination.

2Entering a Destination P. 54

2. Select Select.

3. Select to add additional

locations.

uRepeat steps 1 and 2 to enter

the destination.

uSelect and hold , or

and then move the destination

to the desired position.

uSelect to delete unwanted

destinations.

4. Select Next.

■Creating Your Route

17 CR-V NAVI-31TLA8000.book 95 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEntering a New Destination from Trip Planner

Navigation

5. Enter a route name.

6. Select Done.

7. Select Go!.

uSelect Map to display the

destination and waypoints on

the map screen.

2Reorder Your Destination

List Automatically P. 102

uSelect to display the Edit

Trip screen.

2Editing the Saved Route

P. 97

8. Select the next destination from

the list.

9. Select Start.

uThe route is automatically

recalculated and displayed on

the map screen.

17 CR-V NAVI-31TLA8000.book 96 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEntering a New Destination from Trip Planner

Continued

Navigation

H (Map) u (Back) uApps uTrip Planner

1. Select a saved route.

2. Select Go!.

3. Select the next destination from

the list.

4. Select Start.

uThe route is automatically

recalculated and displayed on

the map screen.

H (Map) u (Back) uApps uTrip Planner

1. Select a saved route you want to

edit.

2. Select .

■Using the Saved Route

■Editing the Saved Route

17 CR-V NAVI-31TLA8000.book 97 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEntering a New Destination from Trip Planner

Navigation

3. Select an option.

The following options are available:

•Edit Destinations: Edits the destination list of the saved trip.

2Editing Your Route P. 101

•Delete Trip: Deletes a saved trip.

•Rename Trip: Enters a new name for the saved trip.

•Optimize Order: Automatically orders the waypoints in the destination list.

2Reorder Your Destination List Automatically P. 102

•Route Preference: Changes the route preferences (calculating method).

2Recalculate Using Another Route Preference P. 103

17 CR-V NAVI-31TLA8000.book 98 ページ２０１６年９月１５日　木曜日　午後５時２分

uuChanging Your DestinationuEditing the Destination List

Continued

Navigation

Editing the Destination List

You can use the trip planner to edit and save a route with multiple destinations.

H (Map) u (Back) uApps uTrip Planner

1. Select the trip you want to edit.

2. Select a place from the destination

list.

■Editing Places on the Your Route

1Editing the Destination List

Select Map to display the destination and waypoints

on the map screen.

2Reorder Your Destination List

Automatically P. 102

17 CR-V NAVI-31TLA8000.book 99 ページ２０１６年９月１５日　木曜日　午後５時２分

100

uuChanging Your DestinationuEditing the Destination List

Navigation

3. Select an option.

The following options are available:

•Departure Time (current location only): Sets the departure time.

•Clear Departure Time (current location only): Clears the departure time.

•Arrival Time (destination and waypoints): Sets the arrival time.

•Clear Arrival Time (destination and waypoints): Clears the arrival time.

•Duration (waypoints only): Sets the duration time.

•Change Location: Changes the destination or waypoint.

•Remove Location: Removes the destination or waypoint.

•Rename Location: Enters a new name for the location.

17 CR-V NAVI-31TLA8000.book 100 ページ２０１６年９月１５日　木曜日　午後５時２分

101

uuChanging Your DestinationuEditing the Destination List

Continued

Navigation

H (Map) u (Back) uApps uTrip Planner

1. Select the trip you want to edit.

2. Select .

3. Select Edit Destinations.

4. Select and hold , or

and then move the destination to

the desired position.

uSelect to add a new

location.

uSelect to delete destinations

from the destination list.

5. Select Save.

uThe route is automatically

recalculated.

■Editing Your Route

17 CR-V NAVI-31TLA8000.book 101 ページ２０１６年９月１５日　木曜日　午後５時２分

102

uuChanging Your DestinationuEditing the Destination List

Navigation

H (Map) u (Back) uApps uTrip Planner (when en route)

1. Select Unsaved Trip.

2. Select .

3. Select Save Trip.

4. Enter a route name.

5. Select Done.

H (Map) u (Back) uApps uTrip Planner

Automatically order the waypoints in the destination list.

1. Select the trip you want to edit.

2. Select .

3. Select Optimize Order.

4. Select Map to display the

destination and waypoints on the

map screen.

■Saving Your Route

■Reorder Your Destination List Automatically

17 CR-V NAVI-31TLA8000.book 102 ページ２０１６年９月１５日　木曜日　午後５時２分

103

uuChanging Your DestinationuEditing the Destination List

Navigation

H (Map) u (Back) uApps uTrip Planner

The route preference is just for this time. If you want to change the route preference

for routing, change the navigation settings.

2Calculation Mode P. 37

Recalculates the route using another route preference.

1. Select the trip you want to edit.

2. Select .

3. Select Route Preference.

4. Select an option.

5. Select Save.

uThe route is automatically

recalculated.

■Recalculate Using Another Route Preference

17 CR-V NAVI-31TLA8000.book 103 ページ２０１６年９月１５日　木曜日　午後５時２分

104

17 CR-V NAVI-31TLA8000.book 104 ページ２０１６年９月１５日　木曜日　午後５時２分

105

Other Features

This section describes the useful functions incorporated into the

navigation system.

About Apps Menu ................................ 106

ecoRoute

............................................ 107

Setting Up the Vehicle Profile ............... 108

Viewing the Vehicle Profile................... 110

Calibrating the Fuel Economy ............... 111

Viewing the ecoChallenge Scores......... 112

Viewing Fuel Economy Information ...... 113

Viewing a Mileage Report .................... 114

Information Functions .......................... 115

Help..................................................... 115

Where I've Been................................... 116

Calculator ............................................ 117

Unit Converter ..................................... 118

GPS Information................................... 119

17 CR-V NAVI-31TLA8000.book 105 ページ２０１６年９月１５日　木曜日　午後５時２分

106

Other Features

About Apps Menu

H (Map) u (Back) uApps

Display the useful functions incorporated into the navigation system.

Select an option.

The following options are available:

•Help: Displays the Help function.

2Help P. 115

•ecoRoute

: Allows for mileage and fuel cost entry and displays fuel economy

information, mileage reports, your driving habits, and vehicle information.

2ecoRoute

P. 107

•Trip Planner: Sets the trip planner to create and save a trip with multiple

destinations.

2Editing the Destination List P. 99

2Entering a New Destination from Trip Planner P. 95

•Where I've Been: Displays your previous routes and places you have stopped on

the map.

2Where I've Been P. 116

•Calculator: Displays the calculator function.

2Calculator P. 117

•Unit Converter: Displays the unit converter function.

2Unit Converter P. 118

17 CR-V NAVI-31TLA8000.book 106 ページ２０１６年９月１５日　木曜日　午後５時２分

107

Other Features

ecoRoute

H (Map) u (Back) uApps uecoRoute

The ecoRoute

feature calculates the fuel economy and the fuel price of navigating

to a destination and offers tools for improving fuel efficiency.

The data provided by the ecoRoute

feature is an estimate only.

To receive more accurate fuel reports for your specific vehicle and driving habits,

calibrate the fuel economy.

Select an option.

The following options are available:

•At The Pump: Calibrates the fuel economy to receive more accurate fuel reports.

2Calibrating the Fuel Economy P. 111

•ecoChallenge: Helps you maximize the vehicle fuel economy by scoring your

driving habits.

2Viewing the ecoChallenge Scores P. 112

•Fuel Economy: Displays fuel economy information.

2Viewing Fuel Economy Information P. 113

•Vehicle Profile: Checks or resets your vehicle information.

2Viewing the Vehicle Profile P. 110

•Mileage Report: Displays mileage reports for your vehicle.

2Viewing a Mileage Report P. 114

1ecoRoute

The first time you use the ecoRoute

features, you

must enter vehicle information.

2Setting Up the Vehicle Profile P. 108

17 CR-V NAVI-31TLA8000.book 107 ページ２０１６年９月１５日　木曜日　午後５時２分

108

uuecoRoute

uSetting Up the Vehicle Profile

Other Features

Setting Up the Vehicle Profile

H (Map) u (Back) uApps uecoRoute

The first time you use the ecoRoute

features, you must enter vehicle information.

1. Select Yes.

2. Select a fuel type.

3. Select Next.

4. Enter your estimated city fuel

economy.

5. Select Next.

17 CR-V NAVI-31TLA8000.book 108 ページ２０１６年９月１５日　木曜日　午後５時２分

109

uuecoRoute

uSetting Up the Vehicle Profile

Other Features

6. Enter your estimated highway

fuel economy.

7. Select Next.

8. Enter the fuel price.

9. Select Next.

uThe confirmation message will

appear.

10. Select OK.

17 CR-V NAVI-31TLA8000.book 109 ページ２０１６年９月１５日　木曜日　午後５時２分

110

uuecoRoute

uViewing the Vehicle Profile

Other Features

Viewing the Vehicle Profile

H (Map) u (Back) uApps uecoRoute

Select Vehicle Profile.

uIf you want to reset the Vehicle

Profile, select Reset.

17 CR-V NAVI-31TLA8000.book 110 ページ２０１６年９月１５日　木曜日　午後５時２分

111

uuecoRoute

uCalibrating the Fuel Economy

Other Features

Calibrating the Fuel Economy

H (Map) u (Back) uApps uecoRoute

uAt The Pump

You can calibrate the fuel economy to receive more accurate fuel reports for your

specific vehicle and driving habits. You should calibrate when you fill up your fuel

tank.

1. Enter the current fuel price.

2. Enter the amount of fuel the

vehicle has used since the last time

the fuel tank was filled.

3. Enter the distance you have

traveled since the last time the fuel

tank was filled.

4. Select Next.

uThe system calculates the

average vehicle fuel economy.

5. Select Save.

17 CR-V NAVI-31TLA8000.book 111 ページ２０１６年９月１５日　木曜日　午後５時２分

112

uuecoRoute

uViewing the ecoChallenge Scores

Other Features

Viewing the ecoChallenge Scores

H (Map) u (Back) uApps uecoRoute

uecoChallenge

The ecoChallenge feature helps you maximize fuel economy by scoring your driving

habits. When your ecoChallenge scores are high, it means you have saved more fuel.

The ecoChallenge collects data and calculates a score whenever the vehicle is

moving.

The following information is displayed:

•Current: Displays the score for your current driving activity.

•Overall: Displays an average of the speed, acceleration, and braking score.

•Speed: Displays your score for driving your vehicle at the optimal speed for

conserving fuel (45–60 mph (72–96 km/h) for most vehicles).

•Acceleration: Displays your score for smooth and gradual acceleration. You lose

points for rapid acceleration.

•Braking: Displays your score for smooth and gradual braking. You lose points for

hard braking.

1Viewing the ecoChallenge Scores

If you want to reset the ecoChallenge scores, select

or and then select Reset.

17 CR-V NAVI-31TLA8000.book 112 ページ２０１６年９月１５日　木曜日　午後５時２分

113

uuecoRoute

uViewing Fuel Economy Information

Other Features

Viewing Fuel Economy Information

H (Map) u (Back) uApps uecoRoute

uFuel Economy

You can view your fuel consumption, your total fuel cost, and your average fuel

economy.

Select a section of the graph to zoom

in.

1Viewing Fuel Economy Information

If you want to reset the Fuel Economy information,

select or and then select Reset.

17 CR-V NAVI-31TLA8000.book 113 ページ２０１６年９月１５日　木曜日　午後５時２分

114

uuecoRoute

uViewing a Mileage Report

Other Features

Viewing a Mileage Report

H (Map) u (Back) uApps uecoRoute

uMileage Report

You can view the mileage reports on the system.

Select a report.

uDisplay the Mileage Report.

1Viewing a Mileage Report

Mileage Reports

Mileage reports provide the distance, the time, the

average fuel economy, and the fuel cost of

navigating to a destination.

A mileage report is created for every route that you

drive. If you stop a route on the system, a mileage

report is created for the distance you traveled.

17 CR-V NAVI-31TLA8000.book 114 ページ２０１６年９月１５日　木曜日　午後５時２分

115

Other Features

Information Functions

Help

H (Map) u (Back) uApps uHelp

Select a help topic you want to

display.

H (Map) u (Back) uApps uHelp u

1. Enter a keyword. Select Done.

2. Select a help topic you want to

display.

1Help

You can also display the help topic to select on

each menu screen.

■Searching Help Topics

17 CR-V NAVI-31TLA8000.book 115 ページ２０１６年９月１５日　木曜日　午後５時２分

116

uuInformation FunctionsuWhere I've Been

Other Features

Where I've Been

H (Map) u (Back) uApps uWhere I've Been

Before you can use this feature, you must enable the travel history feature. You can

view your previous routes and places you have stopped on the map.

1Where I've Been

If you want to delete the recorded information, select

or and then select Clear Travel History.

If you select , you can select the day to

display the travel history.

17 CR-V NAVI-31TLA8000.book 116 ページ２０１６年９月１５日　木曜日　午後５時２分

117

uuInformation FunctionsuCalculator

Other Features

Calculator

H (Map) u (Back) uApps uCalculator

Enter a numeric value to calculate.

17 CR-V NAVI-31TLA8000.book 117 ページ２０１６年９月１５日　木曜日　午後５時２分

118

uuInformation FunctionsuUnit Converter

Other Features

Unit Converter

H (Map) u (Back) uApps uUnit Converter

1. If necessary, select a measurement

category (e.g., Distance).

uSelect a measurement category

from the list. Select Save.

2. If necessary, select a unit of

measurement (e.g., km).

uSelect a unit of measurement

from the list. Select Save.

3. Enter a numeric value to convert

(e.g., 1000). Select Done.

17 CR-V NAVI-31TLA8000.book 118 ページ２０１６年９月１５日　木曜日　午後５時２分

119

uuInformation FunctionsuGPS Information

Other Features

GPS Information

H (Map) u (Back)

The GPS info screen displays the satellites’ status.

Select and hold .

uA solid bar indicates that the GPS

satellite is ready for use.

17 CR-V NAVI-31TLA8000.book 119 ページ２０１６年９月１５日　木曜日　午後５時２分

120

17 CR-V NAVI-31TLA8000.book 120 ページ２０１６年９月１５日　木曜日　午後５時２分

121

Troubleshooting

Troubleshooting ................................... 122

Map, Voice, Entering Destinations........ 122

Traffic .................................................. 123

Guidance, Routing ............................... 124

Update, Coverage, Map Errors ............. 125

Display, Accessories.............................. 125

Miscellaneous Questions ...................... 126

17 CR-V NAVI-31TLA8000.book 121 ページ２０１６年９月１５日　木曜日　午後５時２分

122

Troubleshooting

Map, Voice, Entering Destinations

Problem Solution

The Startup Confirmation screen is displayed every

time I start the car.

This is normal. The Startup Confirmation screen reminds you and your guest

drivers to always operate the navigation system in a safe manner. The Startup

Confirmation screen goes off after a certain period of time, even if you do not

select OK.

The navigation system reboots by itself (returns to

the opening screen).

A reboot can be caused by extreme temperatures or shock from bumpy roads, and

does not necessarily indicate a problem. If this happens frequently, please see your

dealer.

How do I specify a destination when an entered city

or street could not be found?

Try selecting the destination directly from the map.

2Map Input P. 69

How do I delete saved places? 1. Select (Map) > > Saved > > Delete Saved Places.

2. Select saved places you want to delete.

3. Select Delete.

4. Select Yes.

I cannot hear the navigation system voice. 1. Select (Map) and then select the (Back) icon. Select Settings >

Navigation and enable Voice Prompts.

2. Press the (Home) icon. Select Settings > System > Sound/Beep tab.

Turn up Guidance Volume, if guidance volume is low.

For more details, see the Owner’s Manual.

17 CR-V NAVI-31TLA8000.book 122 ページ２０１６年９月１５日　木曜日　午後５時２分

123

uuTroubleshootinguTraffic

Troubleshooting

Traffic

Problem Solution

Traffic information is missing or is not displaying

properly. What is wrong?

Verify the following:

●

Traffic information relies on a clear signal. If signal strength is low, traffic data

may not be available.

●

Check that the traffic icons are turned on.

2Traffic Information P. 82

●

It is possible that there is a temporary technical problem with your metropolitan

area traffic provider. You can call Honda Automobile Customer Service to see if

there is an outage.

2Honda Automobile Customer Service Contact Information P. 130

●

If the situation persists, see your Honda authorized dealer for assistance.

●

Traffic information is available only in certain areas.

17 CR-V NAVI-31TLA8000.book 123 ページ２０１６年９月１５日　木曜日　午後５時２分

124

uuTroubleshootinguGuidance, Routing

Troubleshooting

Guidance, Routing

Problem Solution

The navigation system does not route me the same

way I would go or the same way as other mapping

systems.

The navigation system attempts to generate the optimal route. You can change the

route preferences used when calculating a route.

2Recalculate Using Another Route Preference P. 103

The street I’m on is not shown on the map screen. The mapping database is constantly undergoing revision.

The vehicle position icon is not following the road.

●

Check that the GPS antenna (located in the dashboard) is not blocked. For best

reception, remove items from the dashboard, such as radar detectors, cellular

phones, or loose articles.

●

Metallic tinting or other aftermarket devices can interfere with GPS reception.

Please consult your dealer.

2GPS P. 128

How do I stop the map from rotating as I drive

along?

1. Select (Map) and then press the (Back) icon.

2. Select Settings > Map & Vehicle > Driving Map View.

3. Check that Driving Map View is set to Track Up or 3-D.

4. Select North Up and then select Save.

The “Arrival time” display sometimes increases

even though I am getting closer to my destination.

The “Arrival time” is based on the speed limit on each road. Depending on the

traffic conditions, the “Arrival time” may be calculated to be earlier or later.

My elevation (shown when I display the current

position) seems to fluctuate even though my

elevation has not changed.

This is normal. The elevation can vary ±100 ft (30 m) due to GPS calculation errors.

2GPS P. 128

My elevation is missing on the “current position”

screen.

The elevation is only displayed if the GPS antenna can receive signals from at least

four satellites. Try moving the vehicle into an open area. The elevation is also not

displayed if the calculated elevation is zero or below sea level.

17 CR-V NAVI-31TLA8000.book 124 ページ２０１６年９月１５日　木曜日　午後５時２分

125

uuTroubleshootinguUpdate, Coverage, Map Errors

Troubleshooting

Update, Coverage, Map Errors

Display, Accessories

Problem Solution

My city is not part of a fully verified detailed

coverage area.

The mapping database is constantly undergoing revision.

Does the navigation system work outside North

America?

The system contains maps for the United States of America, Canada, Mexico,

Puerto Rico, US Virgin islands, Cayman Islands, Bahamas, French Guyana,

Guadeloupe, Martinique, Saint Barthelemy, and Jamaica. The navigation system

will not work in other countries.

2Map Coverage P. 131

Problem Solution

The display appears dim when starting the car in

really cold weather.

This is normal. The display will become brighter after a few minutes.

17 CR-V NAVI-31TLA8000.book 125 ページ２０１６年９月１５日　木曜日　午後５時２分

126

uuTroubleshootinguMiscellaneous Questions

Troubleshooting

Miscellaneous Questions

Problem Solution

My clock frequently changes forward and backward

by one hour.

The clock setting is automatically updated based on your GPS location. If you are

driving near a time zone border, the automatic update likely is the reason.

How do I change the interface language? Press the (Home) icon and then select Settings > System > Others tab >

Language.

Select the desired language for system language.

For more information, see the Owner's Manual.

17 CR-V NAVI-31TLA8000.book 126 ページ２０１６年９月１５日　木曜日　午後５時２分

127

Reference Information

System Limitations ................................128

GPS ......................................................128

Address Calculation ..............................128

Database ..............................................128

Customer Assistance .............................130

Resolving Problems ...............................130

Obtaining a Navigation Update .............130

Honda Automobile Customer Service

Contact Information............................130

Visiting Your Dealer ..............................131

Map Coverage ......................................131

Traffic Information ................................131

Legal Information ................................. 132

User Agreement................................... 132

17 CR-V NAVI-31TLA8000.book 127 ページ２０１６年９月１５日　木曜日　午後５時２分

128

Reference Information

System Limitations

GPS

The signals received from GPS satellites are

extremely weak (less than a millionth of the

strength of a local FM station) and require

an unobstructed view of the sky. The GPS

antenna is located in the dashboard. The

signal reception can easily be interrupted or

interfered with by the following:

• Metallic window tint on the front or side

windows

• Cellular phones, PDAs, or other electronic

devices docked in a cradle or lying loose

on the dashboard

• Remote starters or “hidden” vehicle

tracking systems mounted near the

navigation unit

• Audio electronic devices mounted near

the navigation unit

• Trees, tall buildings, highway overpasses,

tunnels, or overhead electrical power

wires

GPS is operated by the U.S. Department of

Defense. For security reasons, there are

certain inaccuracies built into GPS for which

the navigation system must constantly

compensate. This can cause occasional

positioning errors of up to several hundred

feet (meters).

Address Calculation

The destination icon shows only the

approximate location of a destination

address. This occurs if the number of

possible addresses is different from the

number of actual addresses on a block. For

example, the address 1425 on a 1400 block

with 100 possible addresses (because it is

followed by the 1500 block) will be shown a

quarter of the way down the block by the

system. If there are only 25 actual addresses

on the block, the actual location of address

1425 would be at the end of the block.

Database

The digitized map database reflects

conditions as they existed at various points

in time before production. Accordingly,

your database may contain inaccurate or

incomplete data or information due to the

passage of time, road construction,

changing conditions, or other causes.

For example, some places/landmarks may

be missing when you search the database

because the name was misspelled, the place

was improperly categorized, or a place/

landmark is not yet in the database. This is

also true for police stations, hospitals, and

other public institutions. Do not rely on the

navigation system if you need law

enforcement or hospital services. Always

check with local information sources.

17 CR-V NAVI-31TLA8000.book 128 ページ２０１６年９月１５日　木曜日　午後５時２分

129

uuSystem LimitationsuDatabase

Reference Information

The database does not include, analyze,

process, consider, or reflect any of the

following categories of information:

• Neighborhood quality or safety

• Population density

• Availability or proximity of law

enforcement

• Emergency, rescue, medical, or other

assistance

• Construction work, zones, or hazards

• Road and lane closures

• Legal restrictions (such as vehicular type,

weight, load, height, and speed

restrictions)

• Road slope or grade

• Bridge height, width, weight, or other

limits

• Traffic facilities safety

• Special events

• Pavement characteristics or conditions

Every effort has been made to verify that

the database is accurate. The number of

inaccuracies you experience increases the

longer you go without obtaining an

updated map database.

2Obtaining a Navigation Update P. 130

We assume no liability for any incident that

may result from an error in the program, or

from changed conditions not noted above.

17 CR-V NAVI-31TLA8000.book 129 ページ２０１６年９月１５日　木曜日　午後５時２分

130

Reference Information

Customer Assistance

Resolving Problems

If you run into a specific issue that you

cannot resolve, consult the following help

resources:

• For navigation system issues:

2Troubleshooting P. 122

Or, please contact your dealer.

• For traffic-related issues:

2Traffic P. 123

• For reporting issues with the database or

places/landmarks:

• Visit

https://my.garmin.com/mapErrors/

report.faces?utm_source=garmin&ut

m_medium=webpage&utm_content=

support&utm_campaign=errorreport

• Or call Garmin OEM support directly at

(855) 607-2536.

Obtaining a Navigation

Update

Honda is continuously updating the

navigation system and new software is

usually made available on an annual basis.

For information on navigation updates for

your vehicle, please visit:

• U.S.: www.hondanavi.com

• Canada: www.honda.ca

You can also contact your Honda

authorized dealer for further information

regarding the update program available for

your vehicle.

Honda Automobile

Customer Service Contact

Information

Honda Navi

American Honda Motor Co., Inc.

Honda Automobile Customer Service

Mail Stop 500-2N-7A

1919 Torrance Blvd.

Torrance, CA 90501-2746

Tel: (800) 999-1009

Fax: (310) 783-3023

Honda Canada Inc.

Honda Customer Relations

180 Honda Blvd.

Markham, ON

L6C 0H9

Tel: (888)-9-HONDA-9

Hours: 8:00 am to 7:30 pm Mon to Fri (EST)

17 CR-V NAVI-31TLA8000.book 130 ページ２０１６年９月１５日　木曜日　午後５時２分

131

uuCustomer AssistanceuVisiting Your Dealer

Reference Information

Visiting Your Dealer

If you have a question that you cannot

resolve using the available help resources,

you can consult your dealer. Please identify

the specific issue (e.g., error occurs when

you enter a specific address, when driving

on a certain road, or just when it’s cold) so

that the service advisor can refer the issue to

the factory so that a solution can be found.

Be patient, the service advisor may be

unfamiliar with your specific issue.

Map Coverage

The system provides maps for the United

States of America, Canada, Mexico, Puerto

Rico, US Virgin islands, Cayman Islands,

Bahamas, French Guyana, Guadeloupe,

Martinique, Saint Barthelemy, and Jamaica.

The navigation system will not work in other

countries.

Traffic Information

Continuously updated traffic information is

available in major metropolitan areas across

contiguous United States and some cities in

Canada.

17 CR-V NAVI-31TLA8000.book 131 ページ２０１６年９月１５日　木曜日　午後５時２分

132

Reference Information

Legal Information

User Agreement

The content provided (“Data”) is licensed,

not sold. By opening this package, or

installing, copying, or otherwise using the

Data, you agree to be bound by the terms

of this agreement. If you do not agree to

the terms of this agreement, you are not

permitted to install, copy, use, resell or

transfer the Data. If you wish to reject the

terms of this agreement, and have not

installed, copied, or used the Data, you

must contact your retailer or HERE North

America, LLC (as defined below) within

thirty (30) days of purchase for a refund of

your purchase price. To contact HERE,

please visit www.here.com.

The Data is provided for your personal,

internal use only and may not be resold. It is

protected by copyright, and is subject to the

following terms (this “End User License

Agreement”) and conditions which are

agreed to by you, on the one hand, and

HERE and its licensors (including their

licensors and suppliers) on the other hand.

For purposes of these terms, “HERE” shall

■END USER TERMS

mean (a) HERE North America, LLC with

respect to Data for the Americas and/or the

Asia Pacific region and (b) HERE Europe B.V.

for Data for Europe, the Middle East and/or

Africa.

The Data includes certain information and

related content provided under license to

HERE from third parties and is subject to the

applicable supplier terms and copyright

notices set forth at the following URL:

http://corporate.navteq.com/

supplier_terms.html.

License Limitations on Use: You agree

that your license to use this Data is limited

to and conditioned on use for solely

personal, noncommercial purposes, and not

for service bureau, timesharing or other

similar purposes. Except as otherwise set

forth herein, you agree not to otherwise

reproduce, copy, modify, decompile,

disassemble or reverse engineer any portion

of this Data, and may not transfer or

distribute it in any form, for any purpose,

except to the extent permitted by

mandatory laws.

■TERMS AND CONDITIONS

License Limitations on Transfer: Your

limited license does not allow transfer or

resale of the Data, except on the condition

that you may transfer the Data and all

accompanying materials on a permanent

basis if: (a) you retain no copies of the Data;

(b) the recipient agrees to the terms of this

End User License Agreement; and (c) you

transfer the Data in the exact same form as

you purchased it by physically transferring

the original media (e.g., the CD-ROM or

DVD you purchased), all original packaging,

all Manuals and other documentation.

Specifically, Multidisc sets may only be

transferred or sold as a complete set as

provided to you and not as a subset thereof.

Additional License Limitations: Except

where you have been specifically licensed to

do so by HERE in a separate written

agreement, and without limiting the

preceding paragraph, your license is

conditioned on use of the Data as

prescribed in this agreement, and you may

not (a) use this Data with any products,

systems, or applications installed or

otherwise connected to or in

communication with vehicles capable of

vehicle navigation, positioning, dispatch,

17 CR-V NAVI-31TLA8000.book 132 ページ２０１６年９月１５日　木曜日　午後５時２分

133

uuLegal InformationuUser Agreement

Continued

Reference Information

real time route guidance, fleet management

or similar applications; or (b) with, or in

communication with, including without

limitation, cellular phones, palmtop and

handheld computers, pagers, and personal

digital assistants or PDAs.

Warning: This Data may contain inaccurate

or incomplete information due to the

passage of time, changing circumstances,

sources used and the nature of collecting

comprehensive geographic Data, any of

which may lead to incorrect results.

No Warranty: This Data is provided to you

“as is”, and you agree to use it at your own

risk. HERE and its licensors (and their

licensors and suppliers) make no

guarantees, representations or warranties

of any kind, express or implied, arising by

law or otherwise, including but not limited

to, content, quality, accuracy,

completeness, effectiveness, reliability,

fitness for a particular purpose, usefulness,

use or results to be obtained from this Data,

or that the Data or server will be

uninterrupted or error free.

Disclaimer of Warranty: HERE AND ITS

LICENSORS (INCLUDING THEIR LICENSORS

AND SUPPLIERS) DISCLAIM ANY

WARRANTIES, EXPRESS OR IMPLIED, OF

QUALITY, PERFORMANCE,

MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE OR NON-

INFRINGEMENT. Some States, Territories

and Countries do not allow certain warranty

exclusions, so to that extent the above

exclusion may not apply to you.

Disclaimer of Liability: HERE AND ITS

LICENSORS (INCLUDING THEIR LICENSORS

AND SUPPLIERS) SHALL NOT BE LIABLE TO

YOU IN RESPECT OF ANY CLAIM, DEMAND

OR ACTION, IRRESPECTIVE OF THE NATURE

OF THE CAUSE OF THE CLAIM, DEMAND

OR ACTION ALLEGING ANY LOSS, INJURY

OR DAMAGES, DIRECT OR INDIRECT,

WHICH MAY RESULT FROM THE USE OR

POSSESSION OF THIS DATA; OR FOR ANY

LOSS OF PROFIT, REVENUE, CONTRACTS

OR SAVINGS, OR ANY OTHER DIRECT,

INDIRECT, INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING OUT

OF YOUR USE OF OR INABILITY TO USE THIS

DATA, ANY DEFECT IN THIS DATA, OR THE

BREACH OF THESE TERMS OR

CONDITIONS, WHETHER IN AN ACTION IN

CONTRACT OR TORT OR BASED ON A

WARRANTY, EVEN IF HERE OR ITS

LICENSORS HAVE BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. Some

States, Territories and Countries do not

allow certain liability exclusions or damages

limitations, so to that extent the above may

not apply to you.

Export Control: You agree not to export

from anywhere any part of the Data or any

direct product thereof except in compliance

with, and with all licenses and approvals

required under, applicable export laws,

rules and regulations, including but not

limited to the laws, rules and regulations

administered by the Office of Foreign Assets

Control of the U.S. Department of

Commerce and the Bureau of Industry and

Security of the U.S. Department of

Commerce. To the extent that any such

export laws, rules or regulations prohibit

HERE from complying with any of its

obligations hereunder to deliver or

distribute Data, such failure shall be excused

and shall not constitute a breach of this

Agreement.

17 CR-V NAVI-31TLA8000.book 133 ページ２０１６年９月１５日　木曜日　午後５時２分

134

uuLegal InformationuUser Agreement

Reference Information

Entire Agreement: These terms and

conditions constitute the entire agreement

between HERE (and its licensors, including

their licensors and suppliers) and you

pertaining to the subject matter hereof, and

supersedes in their entirety any and all

written or oral agreements previously

existing between us with respect to such

subject matter.

Severability: You and HERE agree that if

any portion of this agreement is found

illegal or unenforceable, that portion shall

be severed and the remainder of the

Agreement shall be given full force and

effect.

Governing Law: The above terms and

conditions shall be governed by the laws of

the State of Illinois (for Data for the

Americas and/or the Asia Pacific region) or

The Netherlands (for Data for Europe, the

Middle East and Africa), without giving

effect to (i) its conflict of laws provisions, or

(ii) the United Nations Convention for

Contracts for the International Sale of

Goods, which is explicitly excluded. For any

and all disputes, claims and actions arising

from or in connection with the Data

(“Claims”), you agree to submit to the

personal jurisdiction of (a) the State of

Illinois for Claims related to Data for the

Americas and/or the Asia Pacific region

provided to you hereunder, and (b) The

Netherlands for Data for Europe, the Middle

East and/or Africa provided to you

hereunder.

Government End Users: If the Data is

being acquired by or on behalf of the

United States government or any other

entity seeking or applying rights similar to

those customarily claimed by the United

States government, this Data is a

“commercial item” as that term is defined

at 48 C.F.R. (“FAR”) 2.101, is licensed in

accordance with this End User License

Agreement, and each copy of Data

delivered or otherwise furnished shall be

marked and embedded as appropriate with

the following “Notice of Use”, and be

treated in accordance with such Notice:

This Data is a commercial item as defined in

FAR 2.101 and is subject to the End User

License Agreement under which this Data

was provided.

If the Contracting Officer, federal

government agency, or any federal official

refuses to use the legend provided herein,

the Contracting Officer, federal

government agency, or any federal official

must notify HERE prior to seeking additional

or alternative rights in the Data.

NOTICE OF USE

CONTRACTOR (MANUFACTURER/

SUPPLIER) NAME:

HERE

CONTRACTOR (MANUFACTURER/

SUPPLIER) ADDRESS:

425 West Randolph Street, Chicago, IL

60606.

17 CR-V NAVI-31TLA8000.book 134 ページ２０１６年９月１５日　木曜日　午後５時２分

135

Voice Commands

Voice Commands .................................. 136

Navigation Commands......................... 136

List of Categories .................................. 138

17 CR-V NAVI-31TLA8000.book 135 ページ２０１６年９月１５日　木曜日　午後５時２分

136

Voice Commands

Navigation Commands

The system accepts these commands on a

map/guidance screen.

Navigation

View Map

Go Home

Find Place

Find Address

Find Category

Find City

Find Intersection

Saved Places

Recently Found

Stop Route

Detour

Back

Page Up

Page Down

Exit

■Voice Portal Commands

■Navigation Commands

■Other Commands

Yes

Navigate

Main Menu

Start New Route

Add to Active Route

View List

Change Country

Along Route

Near Destination

Near Current Location

View Categories

Restaurants

Everyday Life

Banks & ATMs

Rest Areas

Attractions

■Line Number Commands

■Category Commands

Medical Care

Shopping

Gas Stations

Parking

Art & Entertainment

Recreation

Transit

Lodging

All Restaurants

Browse By Style

Barbecue

Coffee and Tea

Delis

Donuts and Baked Goods

Fast Food

Fish and Seafood

Grills

Pizza

Steakhouses

Wine, Beer, and Liquor

All Everyday Life

Auto Services

Car Washes

Colleges and Universities

Community Services

■Sub Category Commands

17 CR-V NAVI-31TLA8000.book 136 ページ２０１６年９月１５日　木曜日　午後５時２分

137

uuVoice CommandsuNavigation Commands

Voice Commands

Convenience Store

Fitness and Gyms

Laundry Services

Libraries

Places of Worship

Post Offices

Schools

Veterinary Clinics

All Attractions

Amusement Parks

Event Centers

Historical Landmarks

Museums and Galleries

Offbeat Places

Parks and Gardens

Tourist Information

Wineries and Breweries

Zoos and Aquariums

All Medical Care

Hospitals

Doctor Offices

Pharmacies

All Shopping

Books, Music, and Movies

Clothing and Accessories

Computers and Electronics

Convenience Store

Department Stores

Florists and Gifts

Grocery Stores

Home and Garden

Housewares

Office Supply and Shipping

Pharmacies

Shopping Centers

Sporting Goods

Wine, Beer, and Liquor

All Art & Entertainment

Bars and Pubs

Casinos

Movie Theaters

Museums and Galleries

Nightclubs

Performing Arts

All Recreation

Amusement Parks

Bowling Center

Camps and Retreats

Golfing

Skiing and Winter Sports

Sport Centers

Stadiums and Tracks

All Transit

Airports

Bus Stations

Car Rental

Ferry Terminals

Transit Service

Truck Stops

Train Stations

Travel Agents

All Lodging

Bed and Breakfast or Inn

Campground or RV Park

Hotel or Motel

17 CR-V NAVI-31TLA8000.book 137 ページ２０１６年９月１５日　木曜日　午後５時２分

138

Voice Commands

List of Categories

Restaurants Everyday Life Recreation

Barbecue Fish and Seafood Auto Services Laundry Services Amusement Parks

Skiing and Winter Sports

Coffee and Tea Grills Car Washes Libraries Bowling Center Sports Centers

Delis Pizza

Colleges and Universities

Places of Worship Camps and Retreats Stadiums and Tracks

Donuts and Baked Goods

Steakhouses Community Services Post Offices Golfing

Fast Food Wine, Beer, and Liquor Convenience Store Schools Medical Care

Shopping Fitness and Gyms Veterinary Clinics Doctor Offices Pharmacies

Books, Music, and Movies

Home and Garden Art & Entertainment Hospitals

Clothing and Accessories

Housewares Bars and Pubs Museums and Galleries Transit

Computers and Electronics

Office Supply and Shipping

Casinos Nightclubs Airports Train Stations

Convenience Store Pharmacies Movie Theaters Performing Arts Bus Stations Transit Service

Department Stores Shopping Centers Attractions Car Rental Travel Agents

Florists and Gifts Sporting Goods Amusement Parks Parks and Gardens Ferry Terminals Truck Stops

Grocery Stores Wine, Beer, and Liquor Event Centers Tourist Information Gas Stations

Lodging Historical Landmarks Wineries and Breweries Banks & ATMs

Bed and Breakfast or Inn

Hotel or Motel Museums and Galleries Zoos and Aquariums Parking

Campground or RV Park

Offbeat Places Rest Areas

17 CR-V NAVI-31TLA8000.book 138 ページ２０１６年９月１５日　木曜日　午後５時２分

Index

139

Index

Symbols

a (Display Mode) Icon.................. 3, 7, 26

d (Talk) Button .............................. 5, 11, 17

Numbers

3D Map ....................................................... 30

Adding Waypoints..................................... 90

Apps Menu ............................................... 106

Avoidances ................................................. 38

Calculating the Route................................ 70

Calculation Mode....................................... 37

Calculator ................................................. 117

Cancel Route .............................................. 10

Honda Manual ATLA1717NV

ATLA1717NV 2017 Honda CR-V Navigation Manual | SERVICE MANUAL OWNERS

Navigation menu

Versions of this User Manual:

Views

Navigation
