201

Navigation Manual

(Unlinked)

This document does not contain hyperlinks and may be formatted for printing instead of

web use. This is due to changes in content and specifications of the vehicle that happen

throughout the model year. This manual will be replaced with a hyperlinked version at the

end of the model year.

3 Odyssey

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,

however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Accessories Precautions

The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.

Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you

install any such item, install it away from the navigation display and antenna.

Important Safety Information

Avoid focusing on the screen or manually operating the system controls while driving.

Enter information before you begin driving or when stopped. As you drive, listen to the audible instructions and use voice commands when possible. Pull to the

side of the road if you need more time to look at the screen or operate the controls.

Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.

The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey

traffic laws.

2System Limitations P. 234

NOTICE

Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on navigation screens.

Using the navigation system while driving can take your

attention away from the road, causing a crash in which you

could be seriously injured or killed.

Only operate system controls when the conditions permit you

to safely do so.

WARNING

Contents

2System Setup P. 19

Start-up 20 Voice Control System 22 Interface Settings 24 Personal Information 37

Music Search 45 Routing & Guidance 49 Clock Adjustment 58 Vehicle 61

Data Reset 64

2Navigation P. 67

Entering a Destination 68 Calculating the Route 90 Driving to Your Destination 93 Map Menu 98

Changing Your Route 116 Changing Your Destination 123 Resuming Your Trip 127

2Audio P. 129

Audio System 130 Playing FM/AM Radio 132 Playing XM® Radio 136 Playing a Disc 141

Playing Hard Disc Drive (HDD)

Audio 145

Playing an iPod® 155 Searching for Music Using

Song By Voice™ (SBV) 159

Playing a USB Flash

Drive 160

Playing Bluetooth® Audio 164

Adjusting the Sound 166 Audio Remote Controls 167

2Bluetooth® HandsFreeLink® P. 169

Bluetooth®

HandsFreeLink® 170

Pairing a Phone 172 Importing Phonebook

Data 177

Setting Up Speed

Dialing 178

Editing User Name and

PIN 180

Making a Call 182 Receiving a Call 185 HFL Menus 186

2Rear Entertainment System P. 189

Rear Entertainment

System 190

Rear Control Panel

Operation 192

Front Control Panel

Operation 203

Wireless Headphones 206

2Other Features P. 209

Trip Computer 210 Calendar 211 Calculator 213 Information Functions 215

Multi-view Rear Camera 217

2Troubleshooting P. 219

Troubleshooting 220 Error Messages 227

2Reference Information P. 231

System Initialization 232 System Limitations 234 Client Assistance 236 Legal Information 239

2Voice Commands P. 245

Voice Commands 246

Quick Reference Guide P.2

System Setup P.19

Navigation P.67

Audio P.129

Bluetooth

® HandsFreeLink® P.169

Rear Entertainment System P.189

Other Features P.209

Troubleshooting P.219

Reference Information P.231

Voice Commands P.245

Index P.261

Quick Reference Guide

Overview—Functions at a Glance

Navigation You can select any place/landmark as a destination by using voice control or the Interface Dial. The navigation

system gives you turn-by-turn driving directions to your destination.

Store home addresses (P42)

Store contacts (P38)

Store up to 200 contacts in 2 address books.

Enter destination (P68)

Select your destination using 12 methods.

Select route (P92)

Set route preferences and select one of 3 routes.

Track route (P93)

Follow your route in real-time with voice guidance.

FM Traffic (P114)

View and avoid congestion and traffic incidents.

Avoid certain areas (P117)

Set streets and areas to detour around.

Add waypoints (P118)

Add up to 4 “pit stops” along your route.

Quick Reference Guide

Other Features

Multi-view Rear Camera (P217)

Helps you check for obstacles around the rear of your vehicle on the navigation screen when reversing.

Audio The advanced audio system provides clear, well-defined sound and makes the most of your music.

Enjoy listening to a variety of audio sources, such as:

AM/FM Radio (P132)

XM® Radio (P136)

Compact Disc (P141)

iPod® (P155)

USB Flash Drive (P160)

Bluetooth® Audio (P164)

Hard Disk Drive (HDD) (P145)

Rear Entertainment System (P189)

Rear seat passengers can enjoy a completely separate entertainment source than front

passengers, including movies, games, and other audio choices.

Voice Control (P22)

Use voice commands for safer system control while driving. You can operate all key functions of

the navigation, audio, Bluetooth® HandsFreeLink®, and climate control systems.

Bluetooth® HandsFreeLink® (P170)

Pair a compatible cell phone to receive incoming and make outgoing calls. You can operate the

phone features without ever taking your hands off the wheel.

4
Quick Reference Guide
System Controls
la HDD Button (P145)
Display
lc DVD Button (P6)
lj REAR POWER Button
(P6)
lf CATEGORY Bar (P6)
1AM/FM Button (P132)
lb USB/AUX Button (P155)
lh TUNE/8 (Sound) Knob
(P166)
li  (Play/Pause) Button
2TITLE Button (P6)
4DVD/CD Slot (P6)
me a (Display Mode)
Button (P29)
md CANCEL Button
mi Interface Dial/ENTER
Button (P8)
lg E (Eject) Button
9CD Button (P141)
Navigation Screen
Audio & Rear Entertainment
System
Navigation
Voice Control
Bluetooth® HandsFreeLink®
ma REAR SOURCE Button
(P203)
ld CD Slot (P6)
le SCAN Button (P6)
mh INFO Button
mc MAP/GUIDE Button
(P103)
3VOL 9 (Volume/Power)
Knob (P6)
5AUDIO Button (P6)
6Preset Buttons (P6)
7SKIP Bar (P6)
8XM Button (P136)
mg PHONE Button (P170)
mf DEST/ROUTE Button
mb E (Eject) Button
Rear Entertainment System

Quick Reference Guide

mc Microphone

(P22)

md MODE Button

(P167)

me VOL (Volume)

Button

(P167)

mf CH (Channel)

Button

(P168)

mj K (Back) Button

mi d (Talk) Button (P5)

mh j (Hang-Up) Button (P185)

mg h (Pick-Up) Button (P185)

Voice Control Operation

aPress and release the d (Talk) button.

A helpful prompt asks what you

would like to do. Press and release the

d (Talk) button again to bypass this

prompt.

The icon is displayed and the

system beeps when ready for a

command. Press the K (Back) button

to cancel.

Available voice commands are

highlighted on the screen.

d (Talk Button)

The audio system is muted during voice

control mode.

Carefully read the usage note for the voice

control. Voice Control System (P22)

Voice Help

This navigation system comes with Voice

Help information, which tells you how to

use the voice command functions.

Go to Voice Help for tips when using the

voice command functions.

bSay a voice command.

Voice Comand Index (P245)

aPress the INFO

button.

bRotate i to select Voice Help.

Press u.

Quick Reference Guide

Audio System

You can play music from a wide array of media sources. You can also control the audio system using voice commands.

Basic Operation

Audio Buttons

aPress the VOL 9

(Volume/Power)

knob to turn the

audio system on/off.

bSelect the audio source. cRotate the VOL 9

(Volume/Power)

knob to adjust the

volume.

TITLE

Displays track title, artist, and other text information, if

available.

Bass, treble, and balance settings.

1 to 6

Preset stations (FM/AM) and channels (XM).

SKIP

Finds stations with strong signal (FM/AM).

Skip to start/end of tracks, or press and hold to fast reverse/forward

(Disc).

SCAN

Plays 10-second sample of each station (FM/AM), channel (XM), or track

(Disc). Press again to play the current selection.

TUNE

Tunes to next frequency (FM/AM) or channel (XM).

Fast-reverse/forward.

CATEGORY

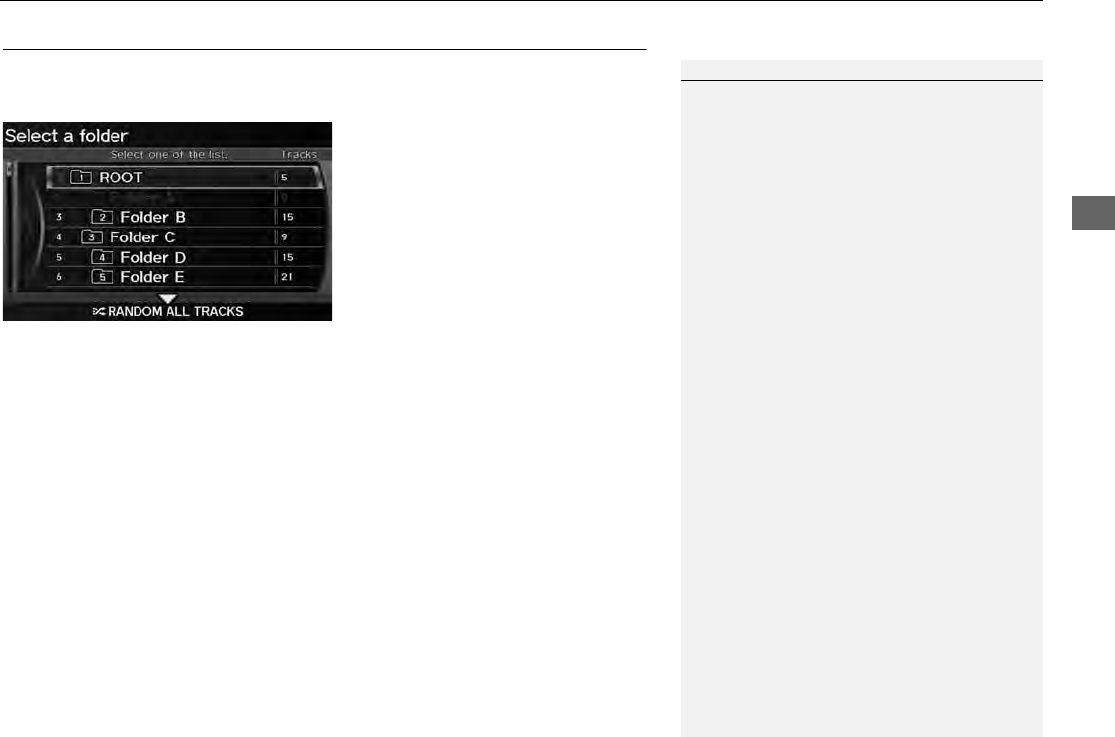

Selects next category (XM) or next folder (WMA, MP3, AAC).

Loading a Disc

aPress the CD or DVD

button.

bInsert a disc into the disc slot.

The disc automatically starts playing.

cPress the AUDIO button to display

the audio screen.

Select an audio source (e.g., FM/AM)

to stop the disc.

Press the E (Eject) button to remove

the disc. If you eject but do not

remove the disc, the disc

automatically reloads after a few

seconds.

Quick Reference Guide

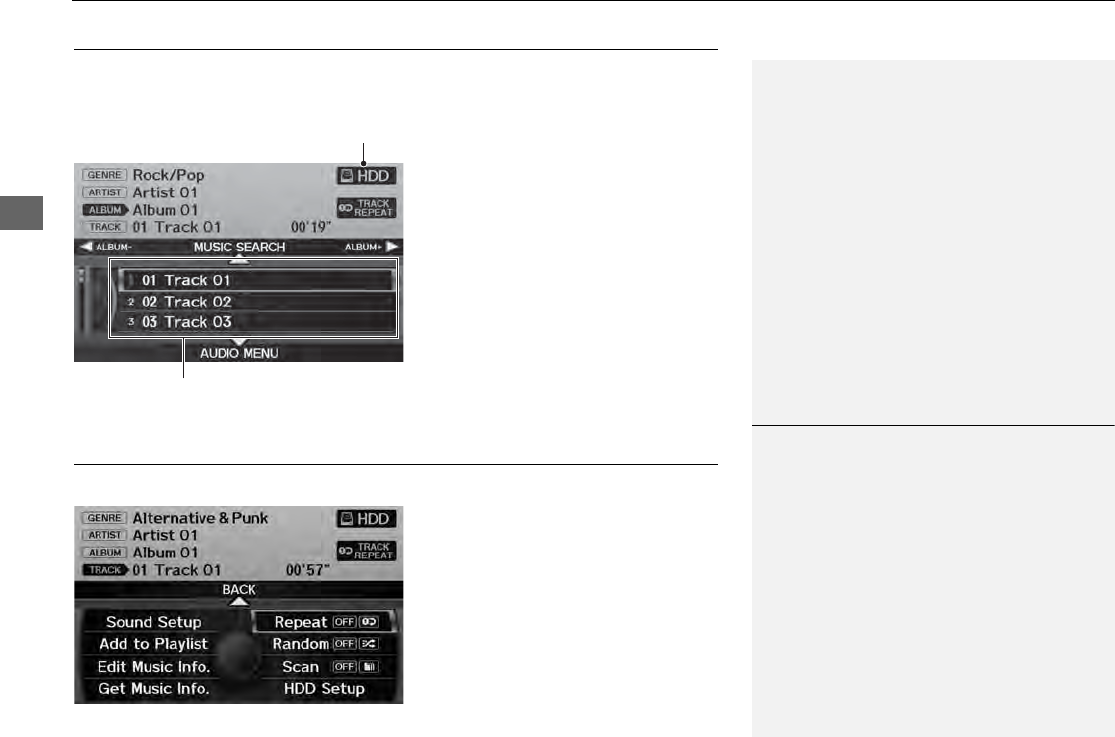

Audio Control Display

Press the AUDIO button to display the audio system on the navigation screen.

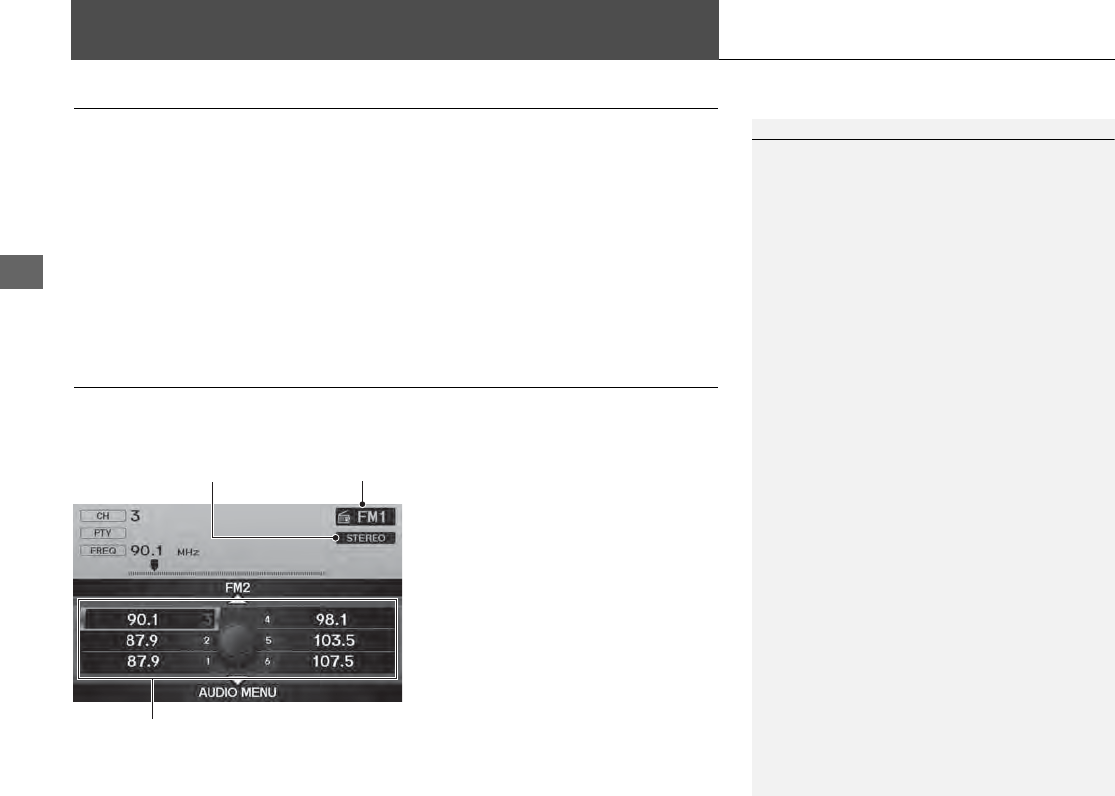

FM/AM Radio (P132), XM® Radio (P136)

Hard Disk Drive (HDD) (P145), iPod®

(P155),USB Flash Drive (P160)

Band

Stereo indicator

Presets

Tune, scan, and

other functions

iPod® mode

(HDD mode,

USB mode)

Track list Repeat, shuffle, and other functions

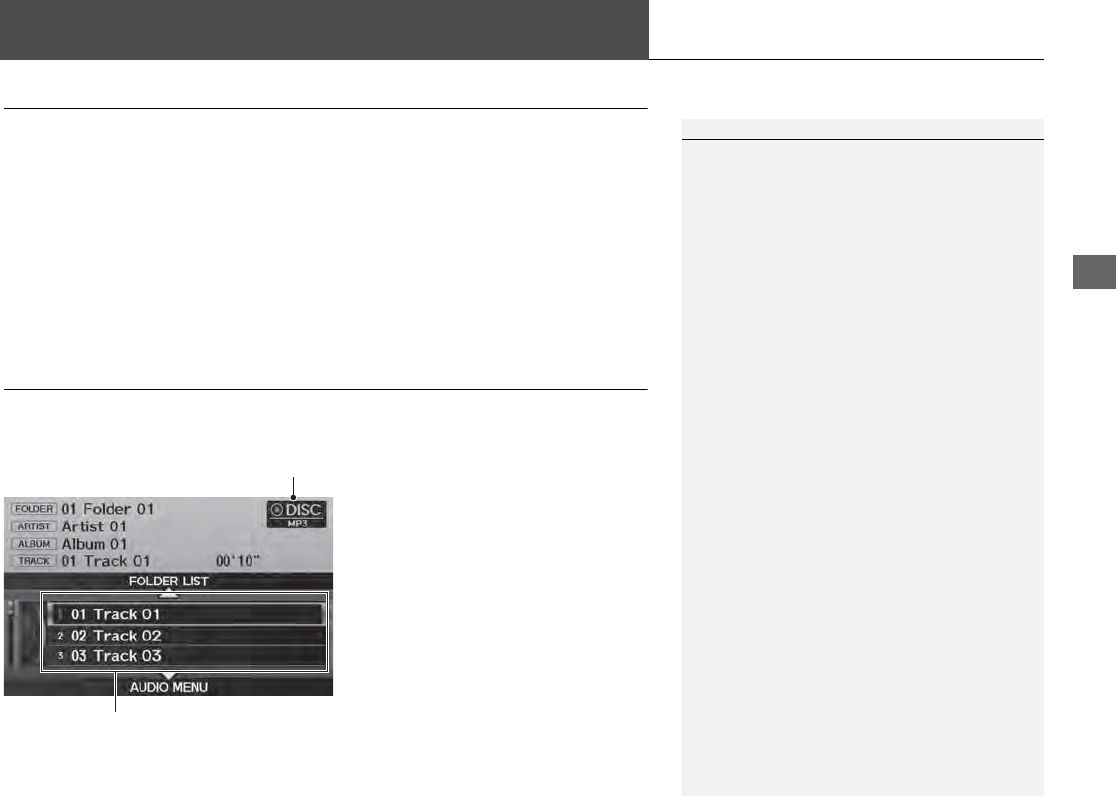

Compact Disc (P141)

Bluetooth® Audio (P164)

Disc mode

Play mode

Recorded

icon

Recording icon

Recording

ready icon

Repeat, random, scan, and

other functions

Track list

Bluetooth®

Audio mode

Stop/Start

control

Sound preferences

Quick Reference Guide

Interface Dial/ENTER Button Operation

You will see these icons in each chapter.

They represent how you can operate the Interface Dial.

Changes scale

Map screens

Highlights menu options

Menu screens

Rotate dial

Press ENTER

Move up Move left Move down Move right

Scrolls map

(8 directions)

Menu screens

Selects labeled

function

Menu screens

Selects function

Selects map icon

Map screens

Selecting Icon

Selects highlighted option

Menu screens

Rotate dial iPress ENTER u

Move

e up r down w left y right

Quick Reference Guide

How to Enter Information

You can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)

when prompted on input screens by two different methods.

Using Voice Control

When you see d in this manual, voice commands are available for

that feature.

-Say the letter, number, or symbol (e.g., say d “A”).

-Use spelling assist (e.g., say d “Alpha” to enter the letter “A” or

d “Hyphen” to enter a hyphen).

-The system beeps if you say an unavailable (grayed out) letter or

number.

-If a voice command is not recognized, a list is displayed with

possible options.

On list screens:

-Say the number of the list item (e.g., say d “Five” to select item

5).

-Say d “Up” or d “Previous” to scroll up one page.

-Say d “Down” or d “Next” to scroll down one page.

Using the Interface Dial

Rotate i to highlight a character.

The # (pound symbol) or @ (at symbol) displays symbols.

-Move e to select OPTION to display accented and upper/lower

case characters.

Press to enter the highlighted character.

-Move y to select SPACE to enter a space character.

-Move w to select DELETE to remove the last entered character.

Number of Hits

On input search screens, the number of hits in the map database is

displayed. Move r to select LIST to display a list of possible entries.

Quick Reference Guide

Map Screen Legend

Map orientation (P108)

GPS signal strength

North up

Heading up

Best reception

Good reception

No icon: Poor/No reception

Traffic status indicator (P114)

Traffic information available

Flow or incident data not available

Traffic information not available

Traffic information off or map

scale too large

No icon: Out of coverage area

Current street name Map menu (P98)

Map scale (P111)

Current vehicle

position (P109)

Streets

Landmark icons (P106)

Park

Hospital

Shopping Mall

Golf Course

Airport/Business

Water Area

Cemetery

University

Freeways

State routes

Verified streets

Unverified streets

One-way streets

Acura dealer

Honda dealer

ATM

School

Parking lot

Parking garage

Grocery store

Hotel/Lodging

Gas station

Hospital

Post office

Restaurant

Freeway exit information

Feature areas

Current map scale

Traffic incident icons

Congestion

Incident

Weather

Construction

Road Closed

Traffic flow indicator

Heavy (0 – 27 mph)

Moderate

(27 – 52 mph)

Free-flowing

(52+ mph)

Traffic incident details

Quick Reference Guide

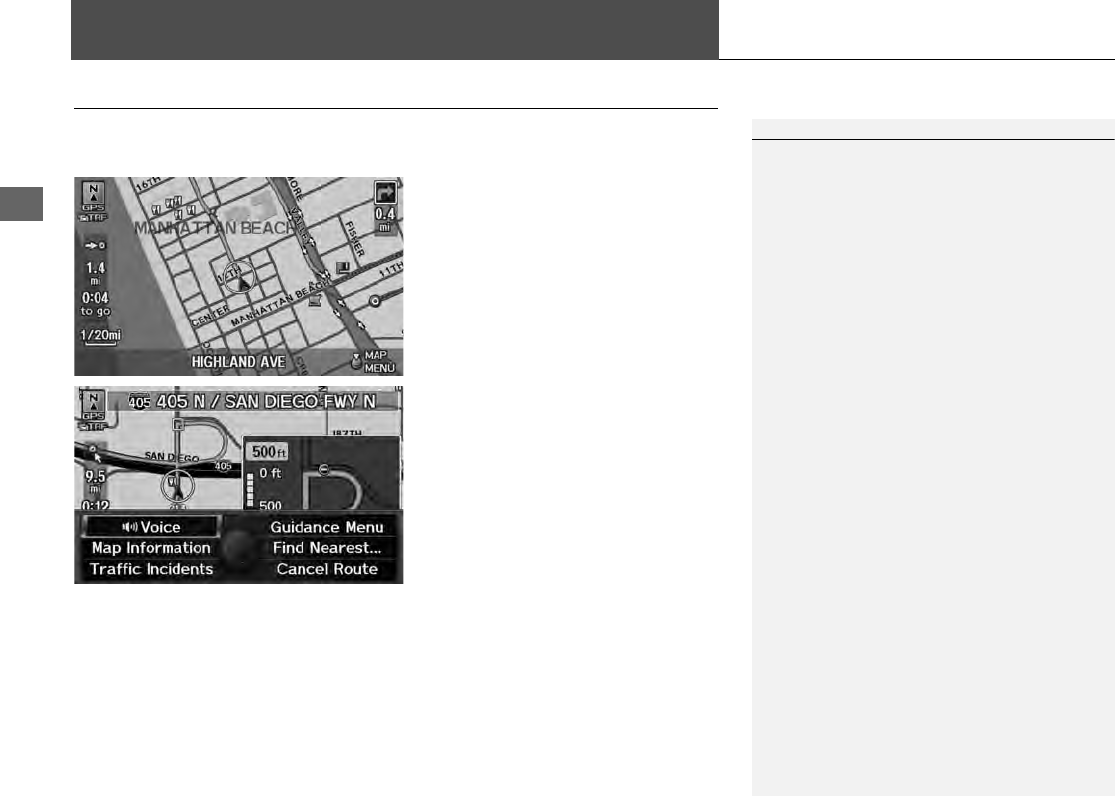

During Route Guidance

During route guidance, route information is displayed on the map screen and guidance screen.

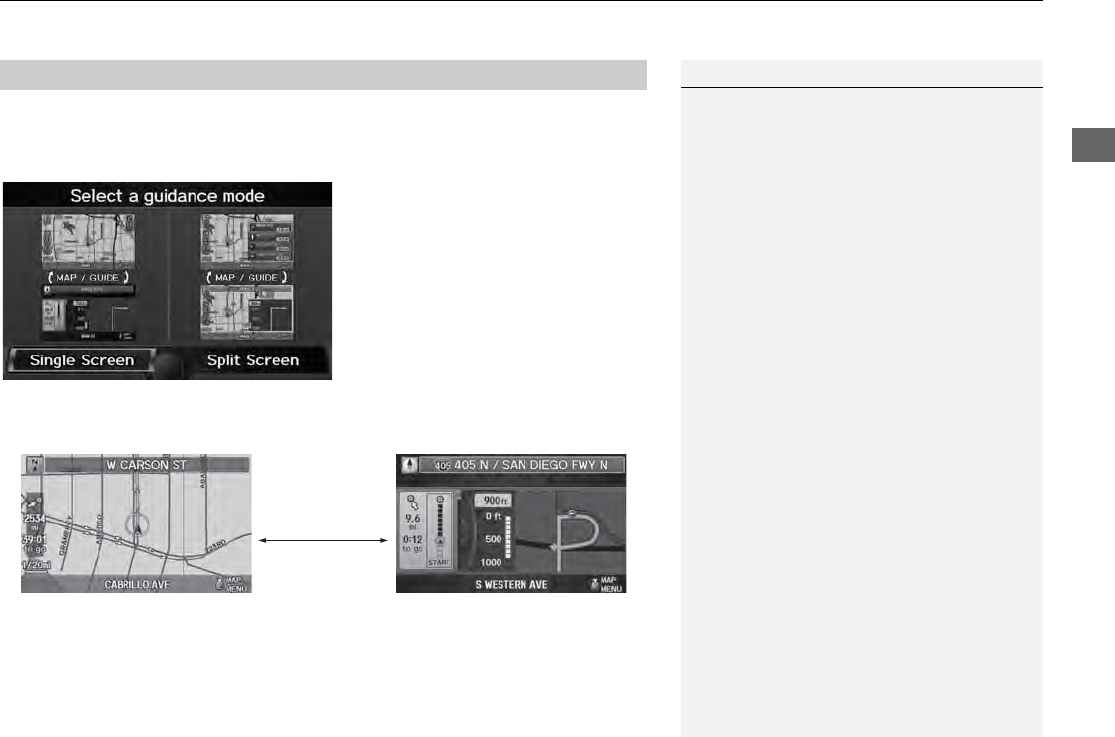

Press the MAP/GUIDE button to toggle between the map and guidance screen.

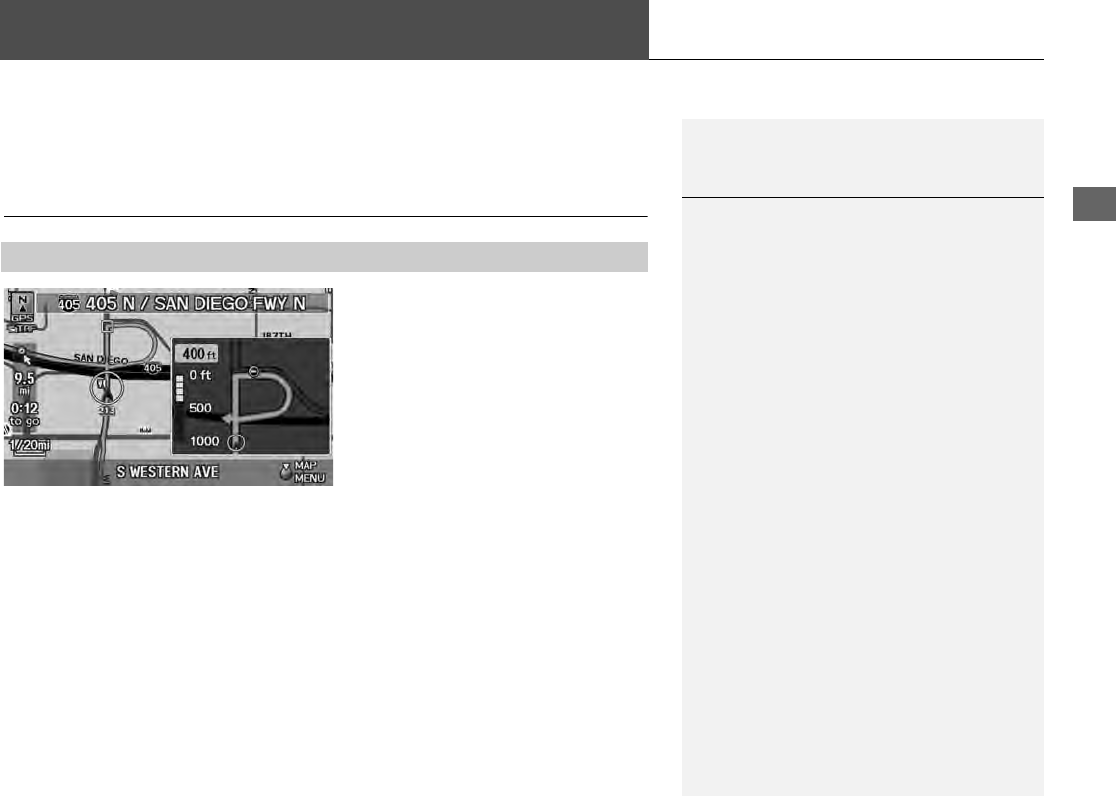

Map Screen

Guidance Screen

Calculated route

(P93)

Destination direction

indicator

Direction “as the crow

flies”

Next guidance

indicator

Distance to the next

guidance point.

Distance to destination

Distance of the actual

route.

Estimated time to

destination

Waypoint (P118)

Destination icon

(P92)

Calculated route

(unverified roads)

(P94)

Street name of

guidance point

Route guidance list scroll bar

Rotate i to scroll the list of

guidance points.

Route progress bar

Distance to

guidance point

No entry icon

Map Menu

Contains map or routing options.

Day or Night Mode

Press the a (Display mode) button

to manually switch between day and

night mode.

Day mode Night mode

Quick Reference Guide

Navigation—Home Addresses and Going Home

The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying d “Go

Home.” You can store two home addresses as Home Address 1 and Home Address 2. (P42)

Storing Your Home Address

aPress the INFO

button.

bRotate i to select Setup. Press u.

cRotate i to select Personal

Information. Press u.

dRotate i to select Home Address 1.

Press u.

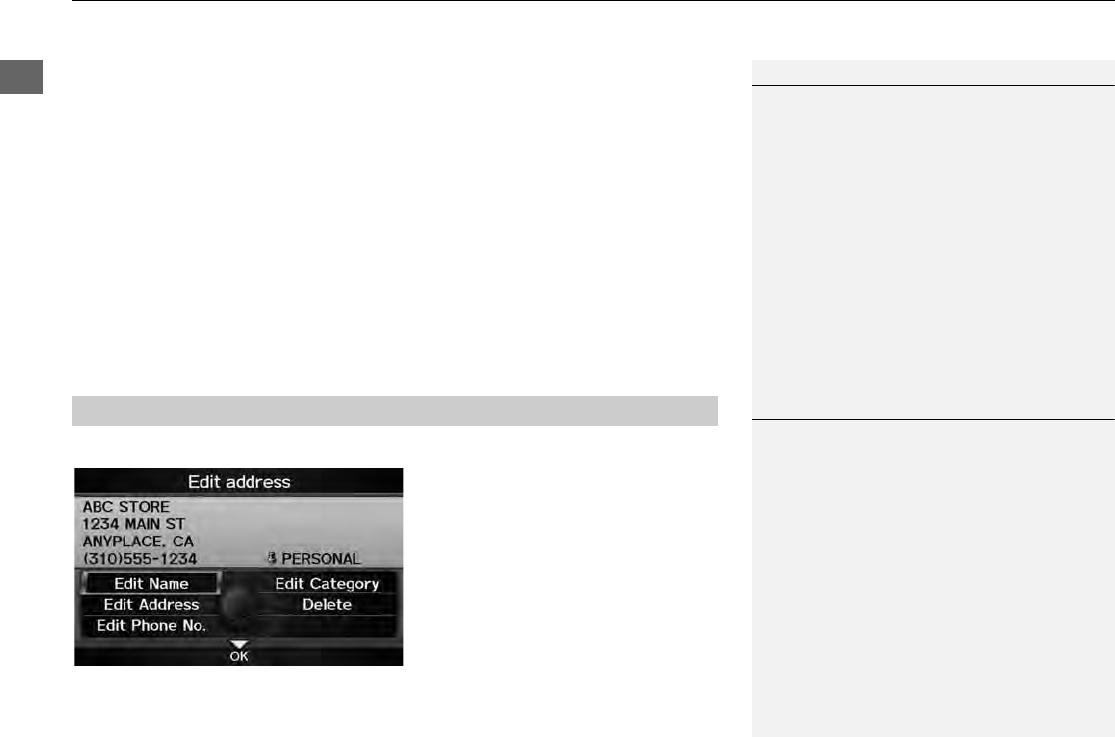

eRotate i to select Edit Name. Press

fEnter a name.

gRotate i to select Edit Address.

Press u.

hRotate i to select Address. Press u.

iEnter an address.

jRotate i to select Edit Phone No.

Press u.

kEnter a phone number.

lMove r to select OK.

Going Home

aPress the DEST/ROUTE

button.

bRotate i to select Go Home 1. Press

Alternatively, you can say d “Go

Home” from any screen. Your home

address is displayed on the Calculate

Route screen.

cMove r to select OK.

-The following voice commands are

available: say d “Go Home,” d “Go

Home 1,” d “Go Home 2.”

-If you have two home addresses stored,

saying d “Go Home” will select Home

Address 1.

Quick Reference Guide

Navigation—Entering a Destination

Enter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You

can also perform these steps using d voice control.

aPress the DEST/ROUTE

button.

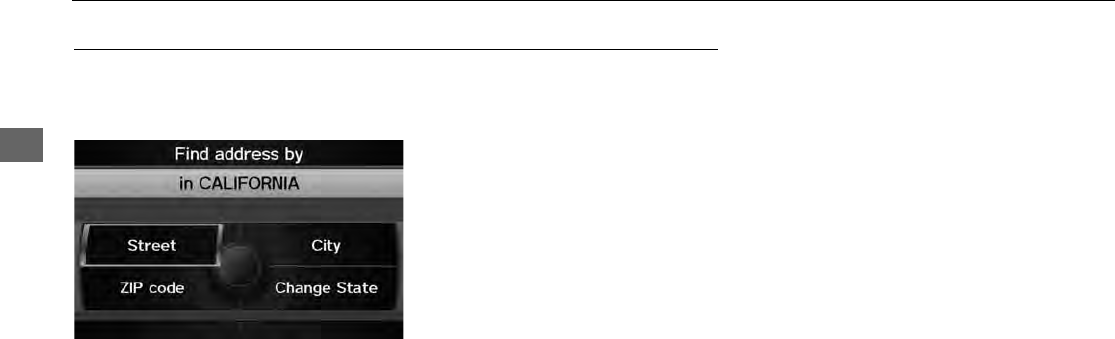

bRotate i to select Address. Press u.

cRotate i to select Street. Press u.

dEnter the name of your destination

street.

eRotate i to select your destination

street from the list. Press u.

fEnter the street number. Move r to

select OK when finished.

gIf there is more than one city with the

specified street, a list of cities is

displayed. Rotate i to select the

desired city from the list. Press u.

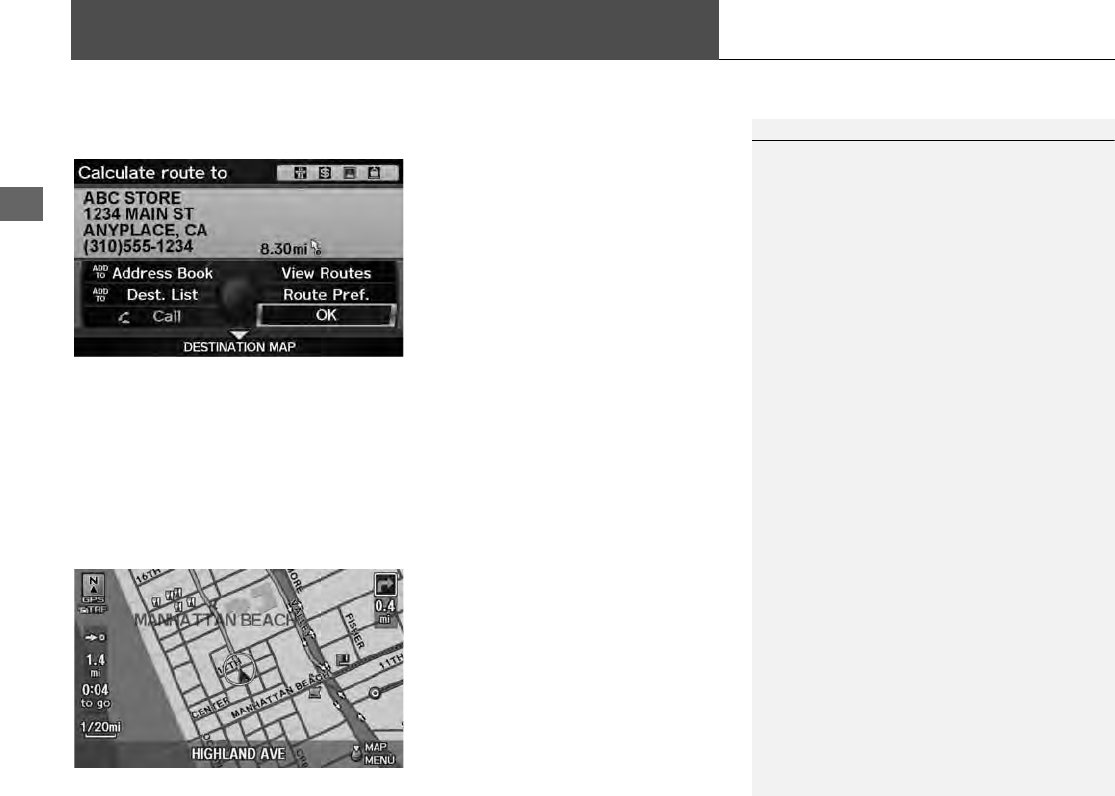

hRotate i to select OK. Press u.

Route guidance to the destination

begins.

-Select View Routes: Choose one of

three routes.

-Select Route Pref.: Choose MAX or MIN

for the four settings.

Quick Reference Guide

Navigation—Changing Route or Destination

You can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guidance.

Adding a Waypoint

(“Pit Stop”)

You can add up to four waypoints along

your route. (P118)

aPress the DEST/ROUTE button.

bRotate i to select Waypoint. Press

cRotate i to select location and

search method. Press u.

-SEARCH AROUND: Search around a

location.

-SEARCH ALONG: Search between two

locations.

dSelect the icon category and location

to add to the Destination List when

prompted.

eMove r to select OK.

Changing Your

Destination

There are four methods you can use to

specify a new destination during route

guidance.

-Say d “Find Nearest…” (P123)

Searches for the nearest place/landmark

on the map screen (e.g., d “Find

nearest gas station”).

-Say d “Go Home” (P12)

Routes to your home address.

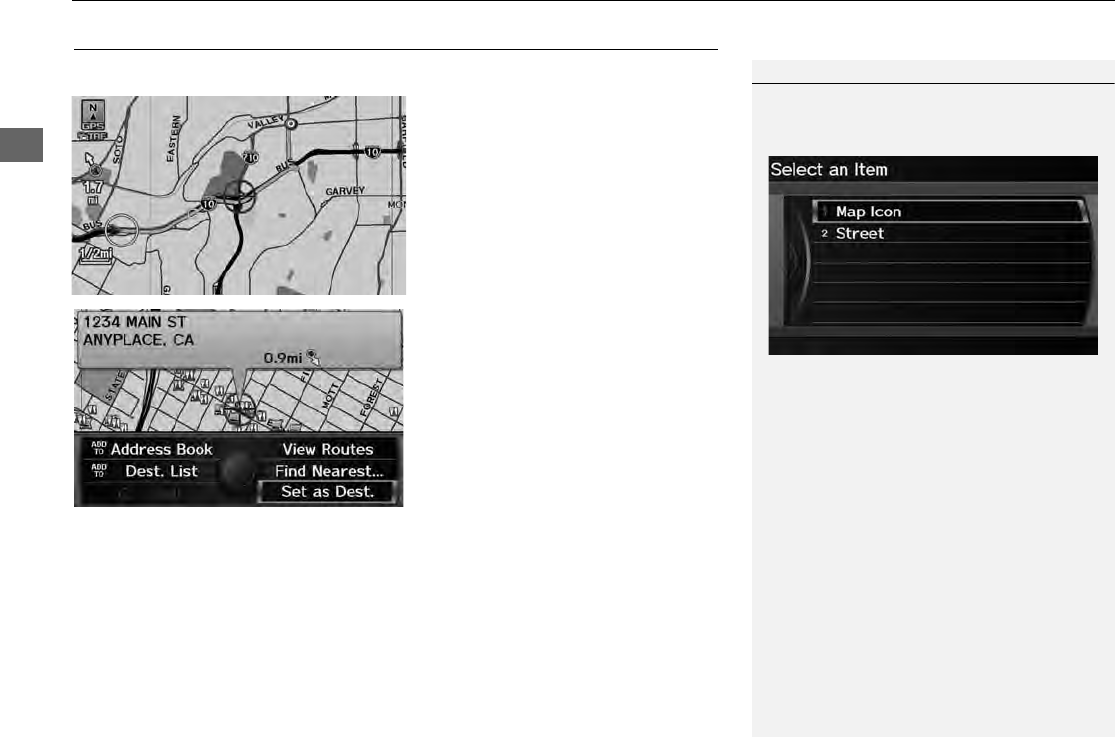

-Selecting an icon on the map (P124)

Scroll the map to position the cursor over

a place/landmark icon or a new area on

the map. Press u twice.

-Entering a new destination (P125)

Press the DEST/ROUTE button. Move y

to select Dest.MENU1/2 and enter a new

destination.

Canceling Your Route

From the map screen:

aPress the DEST/ROUTE button.

bRotate i to select Cancel Route.

Press u.

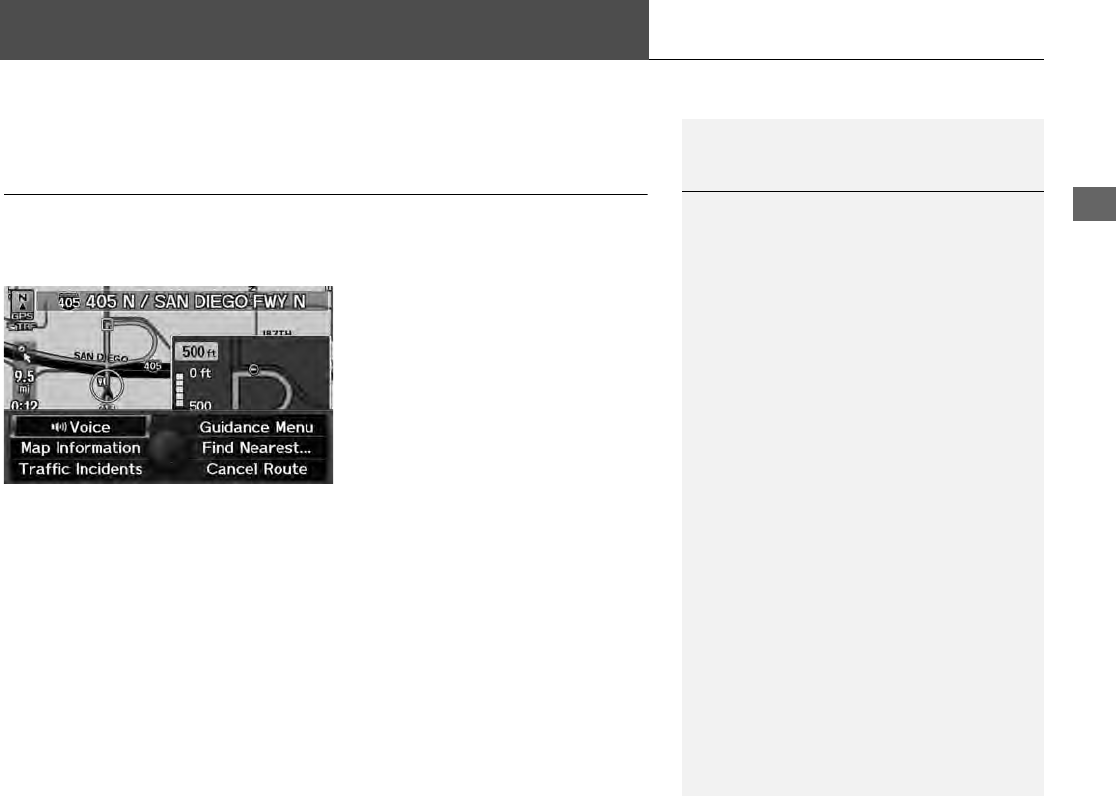

aPress u to select MAP MENU.

bRotate i to select Cancel Route.

Press u.

Quick Reference Guide

Rear Entertainment System (P189)

The rear passengers can enjoy a wide array of audio/visual sources with the Rear Entertainment System (RES). The rear passengers can use

wireless headphones and operate the system with the remote control panel.

Overhead Screen and Rear Control Panel

RES

Press the Release button to

remove the rear control panel.

Select the audio source.

Press the buttons to

select items.

Pull down the bottom

edge of the screen.

(Light-up) Button

Illuminate the buttons on the

rear control panel.

9 (Power) Button

Turn on the rear control panel.

CH/FOLDER Bar

Select a channel (Radio) or a

folder (Disc/USB).

TUNE/SKIP Bar

Find stations (FM/AM). Skip to

start/end of tracks, or press

and hold to fast reverse/fast

forward (Disc/USB/DVD).

CATEGORY Bar

Select a category (XM).

(Play/Pause) Button

Play or pause the playback.

TITLE SCROLL Bar

Display track title, artist, and

other text information.

Select the audio source.

Rotate the Interface Dial

to select items.

Ultrawide RES

Press the Open button to

open and pull down the

screen.

Press the Release button to

remove the rear control panel.

Basic Operation

aOpen the overhead screen.

bPress the REAR

POWER button on

the front control

panel.

cPress the 9 (Power)

button on the rear

control panel.

dSelect the audio source.

-RES: Press the desired button.

-Ultrawide RES: Press the SOURCE

button and rotate the Interface

Dial to select an audio source.

Press the ENTER button.

Quick Reference Guide

Troubleshooting For more Information (P219)

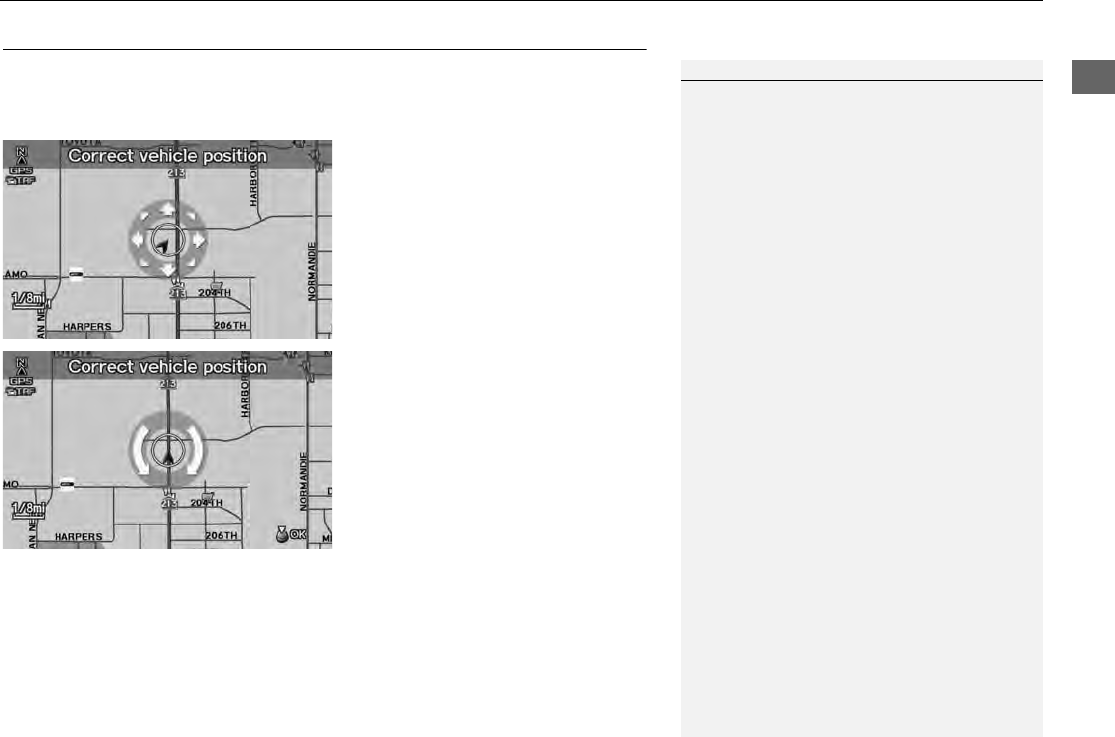

Why does the vehicle position icon on the map “lag” a

short distance behind my actual position, especially at

intersections?

This is normal. The navigation system is unaware of the

width of intersections. Large differences in vehicle position

can indicate a temporary loss of the GPS signal.

Why does the “time to destination” display sometimes

increase even though I am getting closer to my

destination?

The “time to destination” is based on the posted road

speed signs and your actual road speed to give you a

better estimate of arrival time.

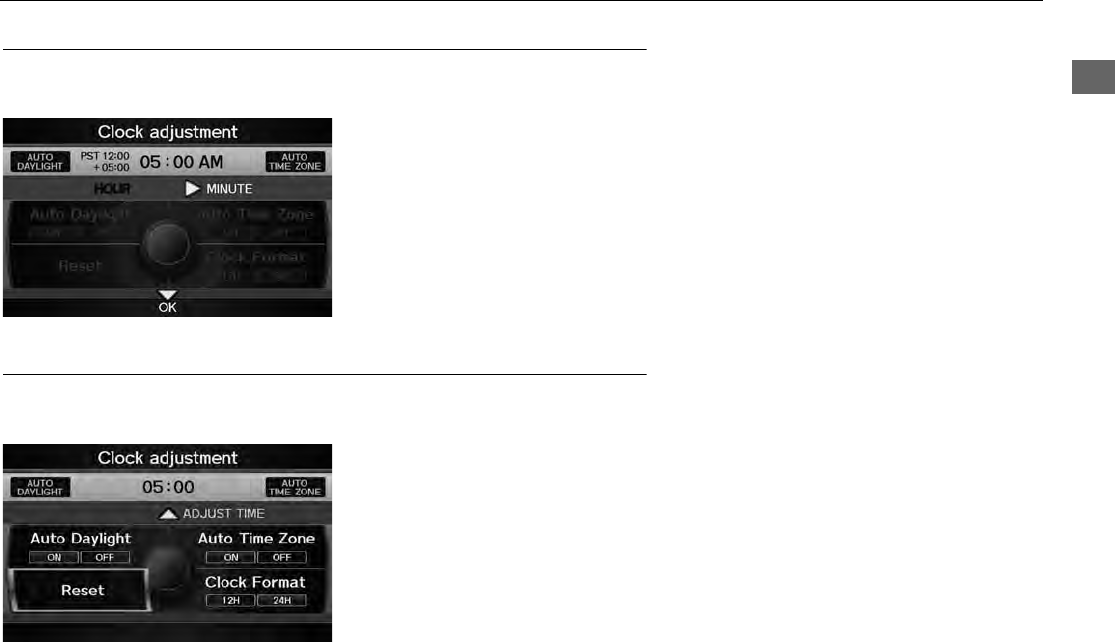

Why does my clock frequently change the time forward

and backward by one hour?

The clock setting is automatically updated based on your

GPS location. If you normally drive between two time

zones, the clock may keep adjusting the time. You can

turn this feature off.

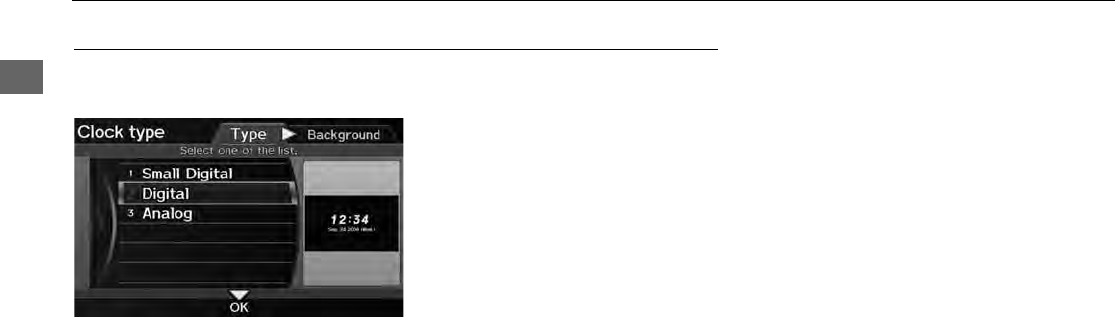

2Clock Adjustment P. 58

How do I specify a destination when an entered city or

street could not be found?

Try entering the street first. Some cities are lumped in with

a major metro area. In rural “unverified” areas or new

subdivisions, streets may be missing or only partially

numbered.

How do I turn on the navigation system voice guidance?

1. Press the INFO button. Rotate i to select Setup and

press u. Check that Volume is not set to OFF.

2. Move y to select Other, rotate i to select Basic

Settings, and press u. Set Voice Recognition Tutor

to ON if you want the system to provide confirmations

and system prompts.

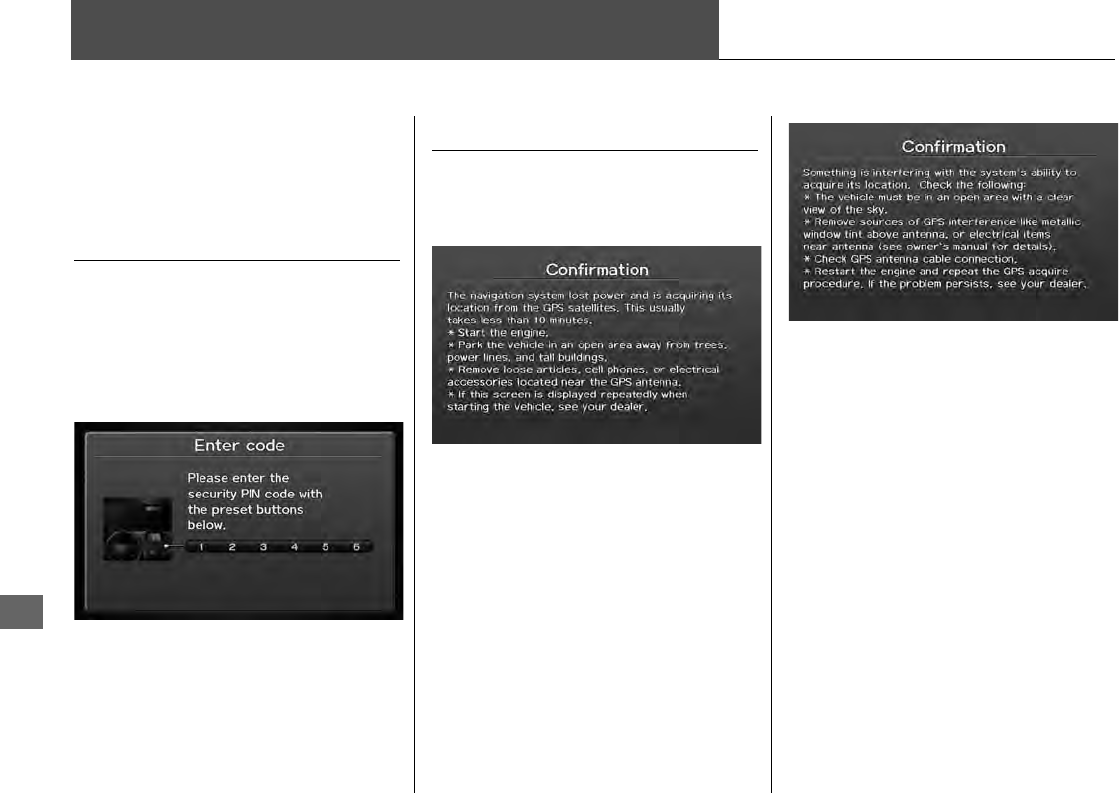

My battery was disconnected or went dead, and the

navigation system is asking for a code. Where do I find it?

Your vehicle comes with a card in the glove box that

includes the 5-digit security code and serial number. You

should keep this card in a safe place outside your vehicle. If

you cannot find it, contact your dealer.

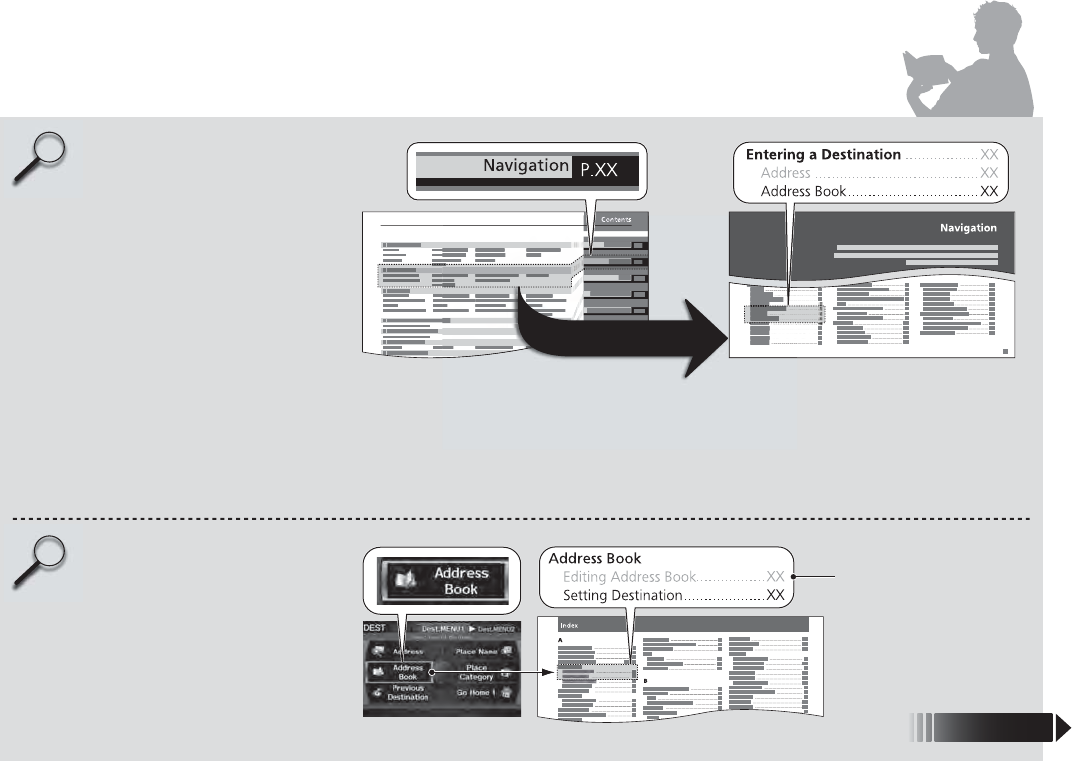

How to Use This Manual

This section explains different methods on how you can easily find information in this manual.

Contents

More Detailed

Contents

Go to the

Searching the Table of Contents

(P1)

Two types of Tables of Contents help

you find your desired information.

First, find the general chapter related to

what you are looking for (e.g., entering

a destination from the Address Book).

Then, go to that chapter to view a more

specific table of contents.

Searching the Index (P261)

Menu items displayed on the

navigation screen (e.g., Address Book)

can be found individually in the Index.

This more detailed table of contents

shows you exactly what information is

listed by section and title.

The Index consists of main

terms and sub-entries. The

sub-entries help you get to

the desired page depending

on what you are looking

for.

Table of Contents Chapter Contents

Navigation Screen Index

DEST/ROUTE Button Address Book

Menu Tree

The menu tree helps guide you

through the system’s menu options.

To get to your desired function, follow

the menu tree in order of the steps

shown.

NOTE:

All menu options can also be

activated with voice commands. Press the hard button on the

system control panel.

Press the DEST/ROUTE button.

Select the menu option with the

Interface Dial.

Rotate i to select Address Book.

Press u.

After following the menu

tree, step-by-step

instructions explain how to

achieve the desired result.

* Sample pages and images in this section may differ from the actual ones.

System Setup

This section describes the start-up procedure, and the navigation and

audio system setup functions.

Start-up ................................................... 20

Voice Control System ............................. 22

Command Input .................................... 22

Voice Recognition .................................. 23

Interface Settings ................................... 24

Display and Volume Settings .................. 24

Interface Dial Feedback .......................... 25

Basic Settings......................................... 26

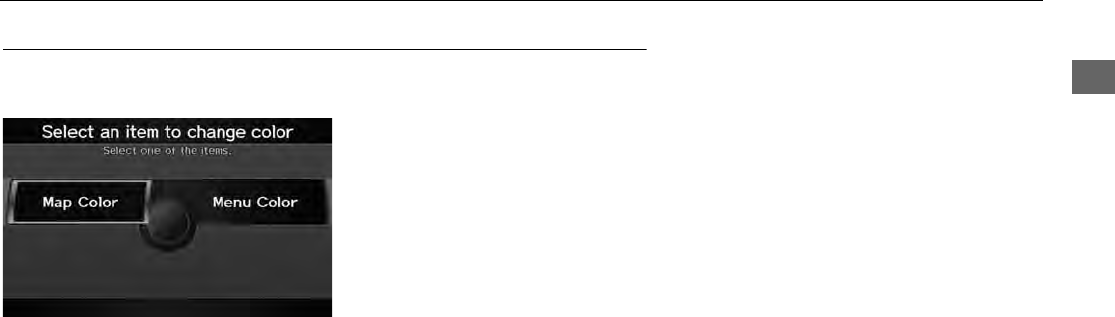

Color ..................................................... 27

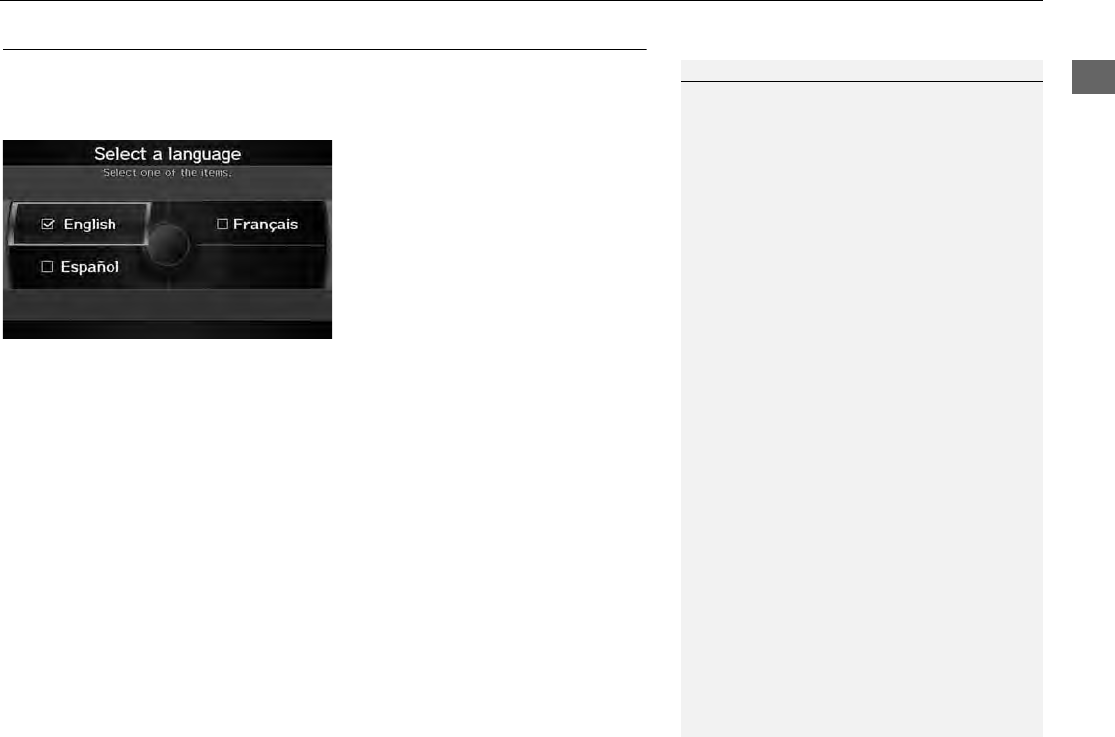

Language............................................... 31

Wallpaper .............................................. 32

Personal Information.............................. 37

Address Book......................................... 38

Home Addresses .................................... 42

PIN Numbers...........................................43

Previous Destinations ..............................44

Music Search ............................................45

Song By Voice™ (SBV) ............................46

Phonetic Modification .............................47

Routing & Guidance ................................49

Rerouting................................................50

Unverified Area Routing..........................51

Edit Avoid Area.......................................53

Edit Waypoint Search Area......................55

Street Name Guidance ............................56

Guidance Screen Interruption..................57

Clock Adjustment ....................................58

Adjust Time ............................................59

Resetting the Clock Settings................... 59

Vehicle ..................................................... 61

Off-road Tracking................................... 62

Correct Vehicle Position ......................... 63

Data Reset ............................................... 64

Reset Factory Default Settings ................ 64

Clear Personal Data................................ 65

System Setup

Start-up

The navigation system starts automatically when you turn the ignition to

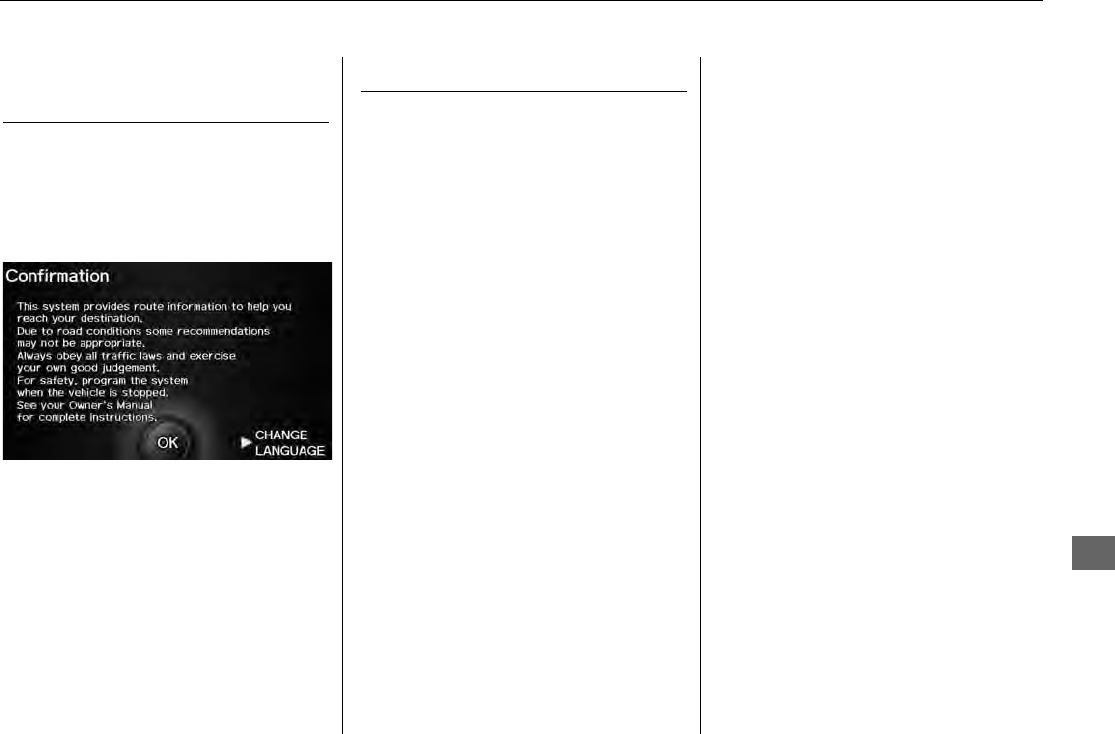

ACCESSORY (I) or ON (II). At start-up, the following Confirmation screen is displayed.

1. Move y to select CHANGE

LANGUAGE.



If you do not need to change

the system language, proceed to

step 3.

2. Rotate i to change the system

language. Press u.

3. Press u to select OK.



Your current position is

displayed on the map screen.



If you have set any calendar

event reminders, they are

displayed. Proceed to step 4.

1Start-up

If the navigation system loses power at any time,

you may be prompted for the 5-digit security

code.

2System Initialization P. 232

You can change the system language at any

time.

2Language P. 31

“OK” on the Confirmation screen cannot be

activated by voice. If you do not press u within

30 seconds, the screen goes blank (or displays

your wallpaper or clock screen and you cannot

use voice commands). Press any navigation or

voice control button to continue.

2Wallpaper P. 32



Start-up



System Setup

4. Rotate i to select an option.

Press u.



Your current position is

displayed on the map screen.

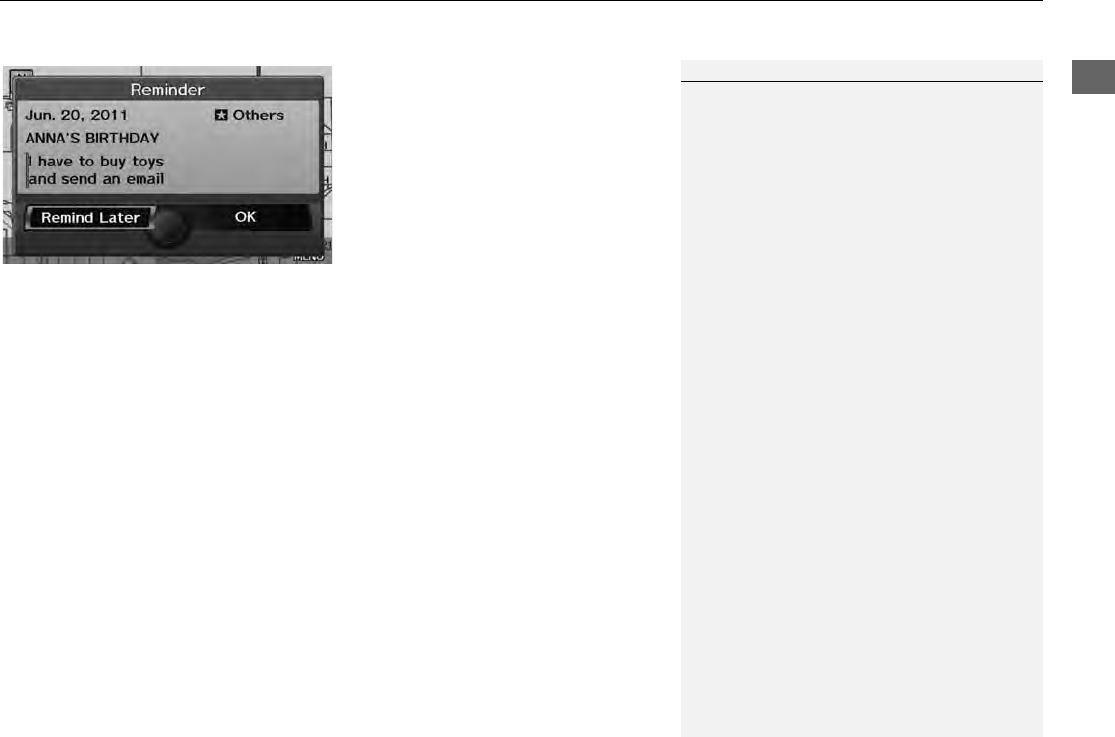

The following options are available:

•Remind Later: Displays the reminder again next time you start the vehicle.

•OK: Turns the reminder off.

1Start-up

You can set a calendar event reminder.

2Calendar P. 211

Remind Later

You can skip the reminder by pressing the

CANCEL button.

System Setup

Voice Control System

Your vehicle has a voice control system that allows hands-free operation of most of

the navigation system functions. You can also control the audio and climate control

system, and make and receive phone calls using Bluetooth® HandsFreeLink®.

The voice control system uses the d (Talk) and K (Back) buttons on the steering

wheel and a microphone near the map lights on the ceiling.

A “Voice Help” feature provides a tutorial that explains how to use the voice control

system.

2Voice Help P. 5

Command Input

If the system does not understand a command or you wait too long to give a

command, it responds with “Pardon,” “Please repeat,” or “Would you say again.”

When you give a command, the system generally either repeats the command as a

confirmation or asks you for further information. If you do not wish to hear this

feedback, you can turn it off. However, listening to the feedback will help familiarize

you with the way the system expects commands to be phrased.

2Basic Settings P. 26

If the system cannot perform a command or the command is not appropriate for the

screen you are on, the system beeps.

If the system responds with prompts such as “Please use the Interface Dial to…” or

“Please choose an area with the Interface Dial,” the system is asking for input that

cannot be performed using the voice control system.

On character input screens, a list of possible characters is displayed if the system

does not recognize your command.

You can find out which voice commands are available for a particular screen using

the d Help command. The system will display and read the list of available

commands to you.

1d (Talk) Button

When you press the d (Talk) button, a helpful

prompt asks what you would like to do. Press

and release the d (Talk) button again to bypass

this prompt and give a command.

1Command Input

The audio system is muted while using the voice

control system.



Voice Control System



Voice Recognition

System Setup

Voice Recognition

To achieve optimum voice recognition when using either the navigation voice

control system or Bluetooth® HandsFreeLink®:

•Make sure the correct screen is displayed for the voice command that you are

using.

2Voice Commands P. 246

•Close the windows and moonroof.

•Adjust the dashboard and side vents so air does not blow onto the microphone on

the ceiling.

•Speak clearly in a clear, natural speaking voice without pausing between words.

•Reduce any background noise if possible. The system may misinterpret your

command if more than one person is speaking at the same time.

•Refer to the Voice Help tutorial.

2Voice Help P. 5

1Voice Recognition

The voice control system can only be used from

the driver’s seat because the microphone unit

removes noises from the front passenger’s side.

System Setup

Interface Settings

Display and Volume Settings

HINFO button



Setup

Use the Main Setup screen to adjust the display and volume.

1. Rotate i to select an item. Press

2. Rotate i to make the

adjustment. Press u.

The following items are available:

•Brightness: Adjusts the screen’s brightness.

•Contrast: Adjusts the screen’s contrast.

•Black Level: Adjusts the screen’s black level.

•Volume: Adjusts the navigation system volume level.

1Display and Volume Settings

You can set separate daytime and nighttime

settings for Brightness, Contrast, and Black

Level. Adjust each setting when the display is in

either daytime or nighttime mode.

You can set the display and volume settings

using voice commands on the Setup screen.

2Main Setup Screen Commands P. 254

Volume

If you set Volume to OFF, you will not hear

route guidance or voice command confirmations.

If you then select Voice in the Map Menu, you

will hear route guidance at the default volume.



Interface Settings



Interface Dial Feedback

System Setup

Interface Dial Feedback

HINFO button



Setup



Interface Dial Feedback

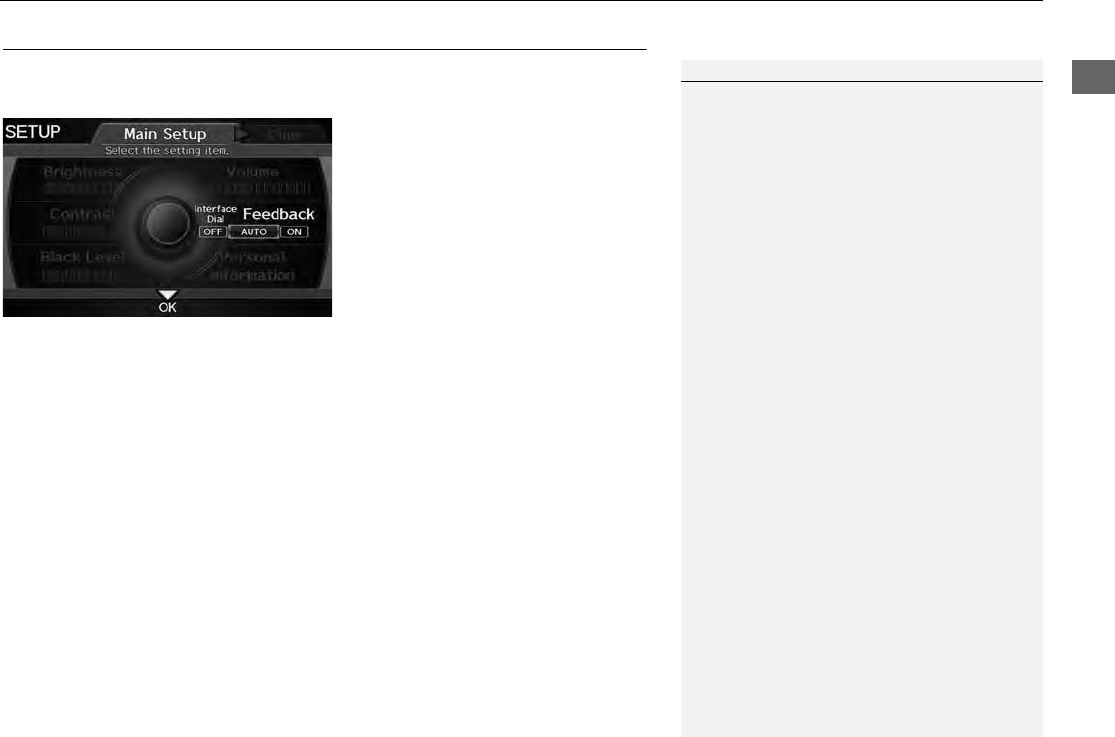

Set if and when the system reads aloud a selection made using the Interface Dial.

Rotate i to select an option. Press

The following options are available:

•ON: Always reads the selection.

•AUTO (factory default): Reads the selection only when the vehicle is moving.

•OFF: Disables the feature.

1Interface Dial Feedback

You can use this feature to minimize the need to

look at the screen while operating the Interface

Dial.

You can set the interface dial feedback settings

using voice commands on the Setup screen.

2Main Setup Screen Commands P. 254



Interface Settings



Basic Settings

System Setup

Basic Settings

HINFO button



Setup



Other



Basic Settings

Set the map units to either miles or kilometers (km), and control the voice feedback

from the navigation system.

Rotate i to select an item. Press u.

The following items are available:

•Units: Sets the map units to either miles (factory default) or kilometers (km).

•Voice Recognition Tutor: Turns the voice feedback feature on or off.

ON (factory default): Provides voice control system confirmation or prompts.

OFF: Disables the feature.



Interface Settings



Color

System Setup

Color

HINFO button



Setup



Other



Color

Choose the color of the navigation map and system menus.

Rotate i to select an item. Press u.

The following items are available:

•Map Color: Sets the color of the map screen.

2Map Color P. 28

•Menu Color: Sets the color of the menu screens.

2Menu Color P. 28

Continued



Interface Settings



Color

System Setup

HINFO button



Setup



Other



Color



Map Color

Set separate map colors for Day and Night modes.

1. Rotate i to select Day or Night.

Press u.

2. Rotate i to select a color for the

map screen. Press u.

HINFO button



Setup



Other



Color



Menu Color

Set separate menu colors for Day and Night modes.

1. Rotate i to select Day or Night.

Press u.

2. Rotate i to select a color for the

menu screens. Press u.

■Map Color

1Map Color

For Day mode

Set to WHITE (factory default is BEIGE) to obtain

the best daytime display contrast.

For Night mode

Set to BLACK (factory default) to obtain the best

nighttime display contrast.

■Menu Color

1Menu Color

For Day mode

Set to WHITE (factory default) to obtain the best

daytime display contrast.

For Night mode

Set to BLACK (factory default) to obtain the best

nighttime display contrast.



Interface Settings



Color

System Setup

Set the screen brightness separately for Day and Night modes. Press the

(Display mode) button to cycle through the display modes (Day to Night to Off).

1. Press the a button.



The Brightness bar is displayed

for a few seconds.

2. Press the a button again.



Repeat the procedure to switch

the display modes.



Rotate i to adjust the

brightness. Press u.

■Switching Display Mode Manually

1Switching Display Mode Manually

A visual guide helps you see the difference

between Day and Night modes.

2Day or Night Mode P. 11

Recommended Settings

•Select mid-range for the dash illumination.

•Select WHITE for the map Day display and

BLACK for the map Night display.

Continued



Interface Settings



Color

System Setup

Illumination

control Priority Operation

a button 1Selects Day, Night, or Off display mode. This button has

the highest priority and overrides all other display control

adjustments listed below.

Remember: Once you press this button, you assume full

manual control of the display mode until the ignition is

turned off.

Sunlight sensor

(see your

Owner’s Manual

for location)

2 If the sunlight sensor detects daylight and the headlights

are turned on, the system automatically overrides the

Night display and displays the Day display mode.

Remember: If desired, use the a button to override

this automatic choice.

Dash illumination

adjustment

buttons (see your

Owner’s Manual

for location)

3When headlights are turned on, and you wish to have the

Day display mode, adjust the illumination to the full

brightness setting (beeps).

Remember: Adjust the dash brightness back to mid-range

to allow auto switching by sensing the headlights are on or

off.

Headlights

(Auto/On/Off)

4 When turned on, the display changes to Night display

mode. The previous three controls listed above can

“cancel” this function.

Remember: Use the a button, or adjust the dash

illumination to full brightness, to set the display to your

desired choice.

Screen color

choice

N/A The user can select the color of the screen that will be

displayed for the Day and Night display modes described

above.

Remember: For best contrast, ensure that the map color is

white for Day and black for Night.



Interface Settings



Language

System Setup

Language

HINFO button



Setup



Other



Language

Set the system language used on all screens. You can choose from three languages:

English, Français (French), Español (Spanish).

Rotate i to select the system

language. Press u.

1Language

Voice confirmation of cities and streets only

occurs when English is the system language.

When Français or Español is selected, some

messages continue to be displayed in English.



Interface Settings



Wallpaper

System Setup

Wallpaper

HINFO button



Clock/Wallpaper



Picture Setup

Select, delete, and import wallpaper pictures for display on the screen.

Rotate i to select an item. Press u.

The following items are available:

•Select a Picture for Wallpaper: Sets the desired picture for the wallpaper.

2Selecting a Wallpaper Picture P. 34

•Delete Pictures on HDD: Deletes pictures on the Hard Disc Drive.

2Deleting Pictures from HDD P. 35

•Import Pictures from USB: Stores pictures on the Hard Disc Drive.

2Importing Pictures from USB P. 36



Interface Settings



Wallpaper

System Setup

HINFO button



Clock/Wallpaper



Wallpaper Type

Rotate i to select an option to

change the design. Press u.

■Setting the Wallpaper Type

Continued



Interface Settings



Wallpaper

System Setup

HINFO button



Clock/Wallpaper



Picture Setup



Select a Picture for

Wallpaper

1. Rotate i to select a picture. Press



The picture is displayed on the

screen.

2. Press u to select OK.

■Selecting a Wallpaper Picture

1Selecting a Wallpaper Picture

Two images are provided for the HDD as a

factory default.



Interface Settings



Wallpaper

System Setup

HINFO button



Clock/Wallpaper



Picture Setup



Delete Pictures on HDD

1. Rotate i to select a picture. Press



The picture is displayed on the

screen.

2. Press u to select OK.



Repeat step 1 and 2 to delete

other pictures.



Items to be deleted are indicated

with a trash icon.

3. Move r to select OK.

4. Rotate i to select Yes. Press u

to delete the picture(s).

■Deleting Pictures from HDD

1Deleting Pictures from HDD

If there are no pictures on the HDD, “No Entries

Exist” is displayed.

You can only delete pictures when the vehicle is

in Park.

You can only delete pictures that have been fully

uploaded from a USB flash drive.

Trash icon

Continued



Interface Settings



Wallpaper

System Setup

HINFO button



Clock/Wallpaper



Picture Setup



Import Pictures from

USB

1. Connect a USB flash drive

containing pictures.

2. Rotate i to select a picture to

upload. Press u.



Repeat the procedure to upload

more pictures.

3. Move r to select OK.

■Importing Pictures from USB

1Importing Pictures from USB

You can only import pictures when the vehicle is

in Park.

You can connect a USB flash drive using the USB

adapter cable in the console compartment.

2Connecting a USB Flash Drive P. 160

You can only import pictures from the root

directory. Pictures in folders cannot be imported.

The display size is a fixed 800  480 pixels.

Smaller pictures are displayed against a black

background. Larger pictures are scaled down

without changing the aspect ratio.

Ten pictures (in BMP or JPEG format) can be

saved to the HDD.

Incompatible data formats or pictures greater

than 6 MB cannot be uploaded.

Pictures with a file name longer than 211

characters cannot be uploaded.

If you attempt to upload a picture with the same

name as an existing picture, a pop-up screen asks

if you want to overwrite the existing picture file.

System Setup

Personal Information

HINFO button



Setup



Personal Information

Use the personal information menu to select and set your address books, home

addresses, and PIN numbers. You can also delete unwanted destinations from the list

of previously routed destinations.

Rotate i to select an item. Press u.

The following items are available:

•Address Book: Stores new addresses or edits your address book.

2Address Book P. 38

•Home Address 1: Sets or edits your home address.

2Home Addresses P. 42

•Home Address 2: Sets or edits another home address.

2Home Addresses P. 42

•PIN Number: Sets or changes your PIN number.

2PIN Numbers P. 43

•Previous Destinations: Deletes the destination history.

2Previous Destinations P. 44

1Personal Information

Personal information cannot be backed up or

moved to another navigation system.



Personal Information



Address Book

System Setup

Address Book

HINFO button



Setup



Personal Information



Address Book

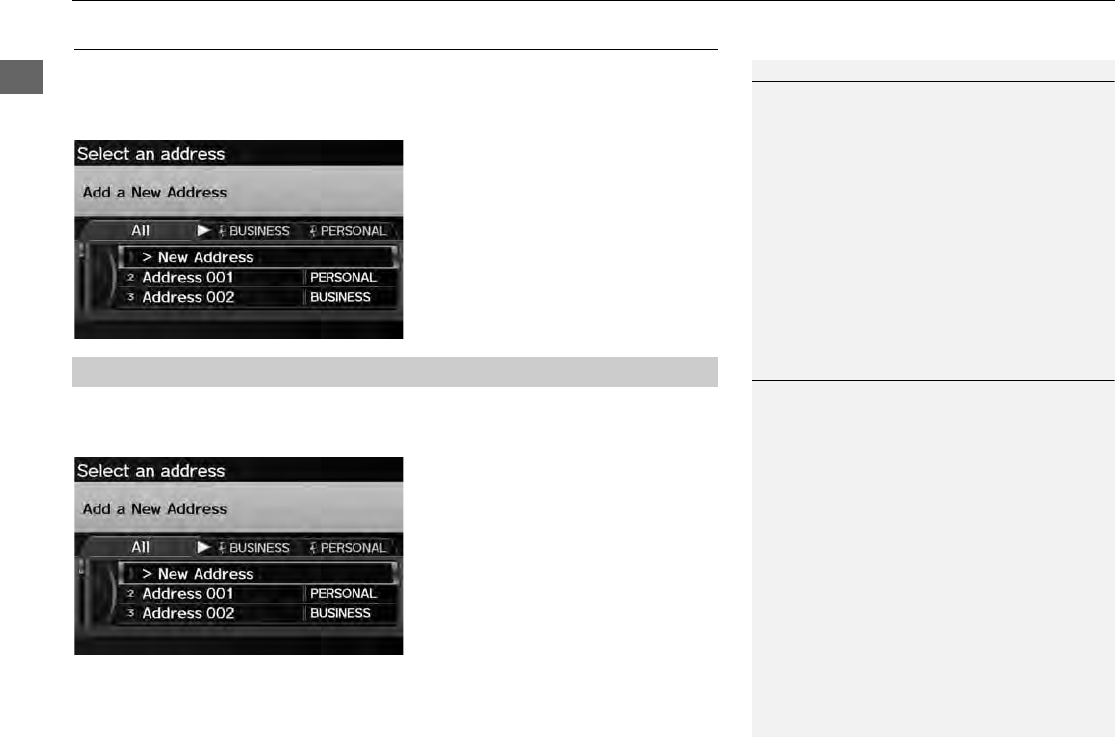

Store up to 200 address entries in two address books. You can add, edit, and delete

information in the address books.

Move w or y to display only the

addresses in the selected category.

HINFO button



Setup



Personal Information



Address Book

This section explains how to enter the name and address.

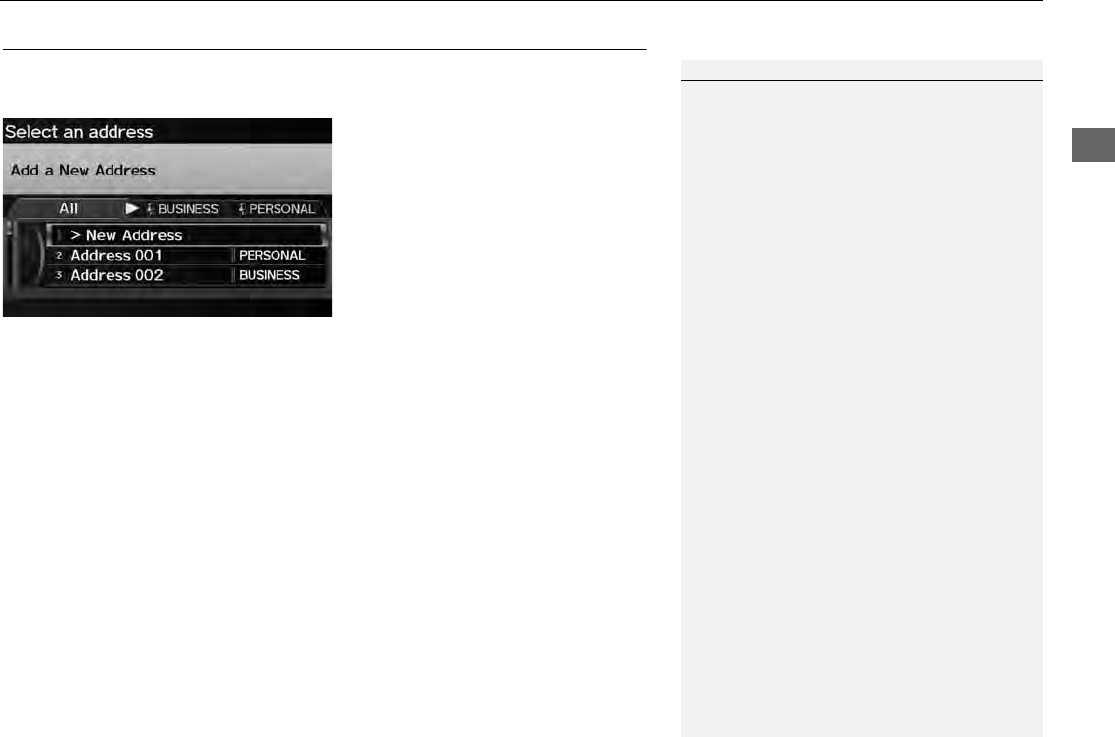

1. Rotate i to select New Address.

Press u.

1Address Book

If you have PIN-protected your address book,

enter your PIN when prompted. Move r to

select OK. PIN numbers are optional.

2PIN Numbers P. 43

Any address book categories you create are also

displayed on the Select an Address screen.

2Selecting an Address Book Category P. 41

■Adding an Address Book Entry

1Adding an Address Book Entry

If you do not give the address a name, one is

automatically assigned (e.g., Address 001). You

can re-enter, edit, or make changes to any entry.

“Address” is the only required field.



Personal Information



Address Book

System Setup

2. Rotate i to select an item. Press

The following items are available:

•Edit Name: Edits the name of the entry.

•Edit Address: Edits the address of the entry.

•Edit Phone No.: Edits the phone number of the entry.

•Edit Category: Specifies the category of the entry.

•Delete: Deletes the entry.

3. Rotate i to select Edit Name.

Press u.

4. Enter a name or title. Move r to

select OK.

5. Rotate i to select Edit Address.

Press u.

6. Rotate i to select an item for

specifying the address. Press u.

Continued



Personal Information



Address Book

System Setup

The following items are available:

•Current Position: Select your current position.

•Address: Enter an address on the character input screen when prompted.

2Address P. 70

•Previous Destinations: Select a previous destination.

2Previous Destination P. 76

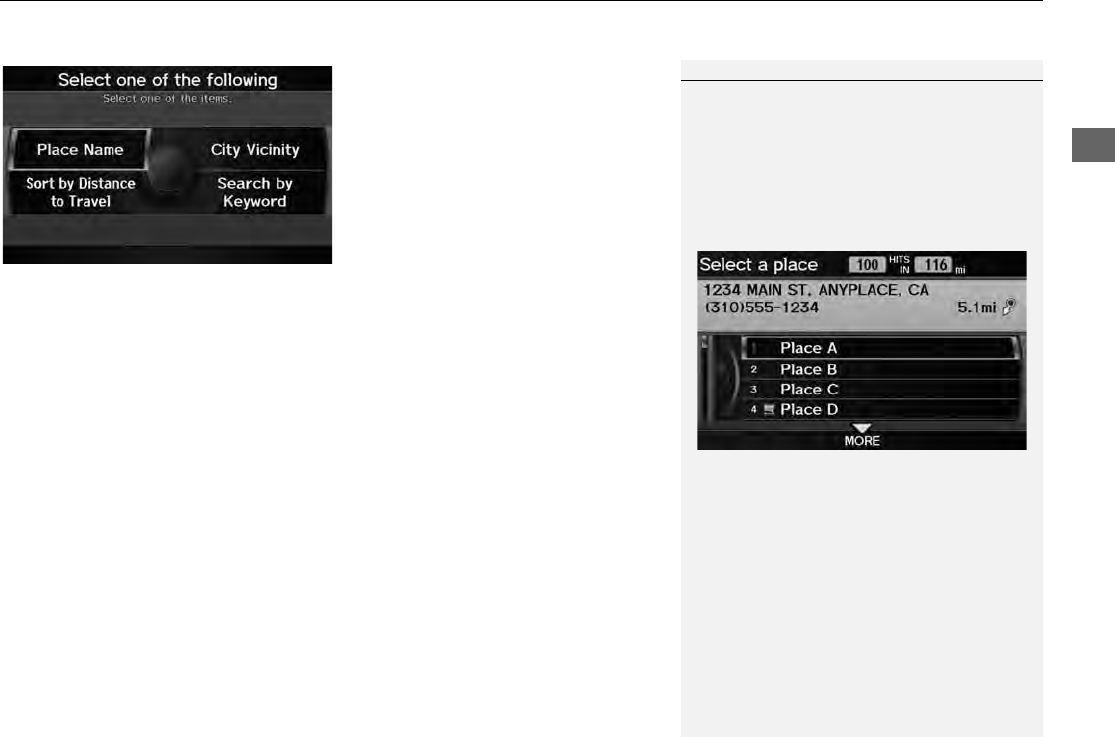

•Place Name: Enter the name of a place/landmark.

2Place Name P. 77

•Place Category: Select a category to search for a place/landmark (e.g., Banking,

Lodging).

2Place Category P. 80

•Place Phone Number: Enter the phone number of a place/landmark.

2Place Phone Number P. 84

HINFO button



Setup



Personal Information



Address Book

1. Rotate i to select the address to

edit. Press u.

2. Enter the name, address, phone

number, and category fields.

2Adding an Address Book Entry

P. 38

3. Move r to select OK.

■Editing an Address Book Entry

1Adding an Address Book Entry

When you use Place Name or Place Category,

the phone number is automatically entered.

1Editing an Address Book Entry

The entered contents are displayed on the Edit

address screen.



Personal Information



Address Book

System Setup

HINFO button



Setup



Personal Information



Address Book

1. Rotate i to select an address.

Press u.

2. Rotate i to select Edit

Category. Press u.

3. Rotate i to select BUSINESS,

PERSONAL, or a category you

created. Press u.

■Creating a New Category

1. Rotate i to select New Category. Press u.

2. Enter a name and select an icon when prompted.



The created category is displayed in the list of categories.

■Deleting or Editing a Category

1. Move y to select Edit.

2. Rotate i to select Delete or Edit Category. Press u.

3. Delete an existing category, or change the name and icon.

■Selecting an Address Book Category

1Selecting an Address Book Category

You can have up to 100 categories (including

“UNFILED”).

If you delete a category that is used by other

addresses, the category type for those addresses

changes to “UNFILED.”

Category Icons

The following icons can be selected for a

category:

Continued



Personal Information



Home Addresses

System Setup

HINFO button



Setup



Personal Information



Address Book

1. Rotate i to select the address to

delete. Press u.

2. Rotate i to select Delete. Press

3. Rotate i to select Yes. Press u

to delete the address.

Home Addresses

HINFO button



Setup



Personal Information



Home Address 1 or Home

Address 2

Set two home addresses that you frequently use.

1. Edit the name, address, and phone

number the same way as an

address in the address book.

2Adding an Address Book Entry

P. 38

2. Move r to select OK.

■Deleting an Address Book Entry

1Deleting an Address Book Entry

When you transfer the vehicle to a third party,

delete all address book entries.

1Home Addresses

If you have PIN-protected your home addresses,

enter your PIN when prompted. Move r to

select OK. PIN numbers are optional.

2PIN Numbers P. 43

If your home street is not in the system database,

park on the nearest verified street to your home.

When entering the “Address” field, rotate i to

select Current Position to use your current

location as the home address and press u.

You can delete a home address if necessary.

Rotate i to select Delete. Press u. Rotate

i to select Yes. Press u.

When you transfer the vehicle to a third party,

delete all address book entries.

The home icon is shown on the map screen on

the 1/20 and 1/8 mile scales.



Personal Information



PIN Numbers

System Setup

PIN Numbers

HINFO button



Setup



Personal Information



PIN Number

Set a 4-digit PIN for protecting personal addresses and your home addresses. Once

you set a PIN, you are prompted to enter it whenever you access a personal address

or a home address.

1. Rotate i to select the PIN to

create. Press u.

2. Rotate i to select a digit to

enter. Press u. Repeat to enter a

new 4-digit PIN.

3. Re-enter the new PIN, when

prompted, to confirm the number

you just entered.



If you have not entered the

same number both times, an

“INCORRECT PIN” message is

displayed. Enter your PIN again.

1PIN Numbers

Personal Identification Number (PIN) is a

password used to access personal data.

PINs are optional. If you choose to use a PIN,

keep a note of the number in a secure location. If

you forget your PIN, your dealer will have to reset

the navigation system and all of your stored

information will be erased. The factory default is

no PIN.

If you want to stop using a PIN, move r to select

DO NOT USE PIN.



Personal Information



Previous Destinations

System Setup

Previous Destinations

HINFO button



Setup



Personal Information



Previous Destinations

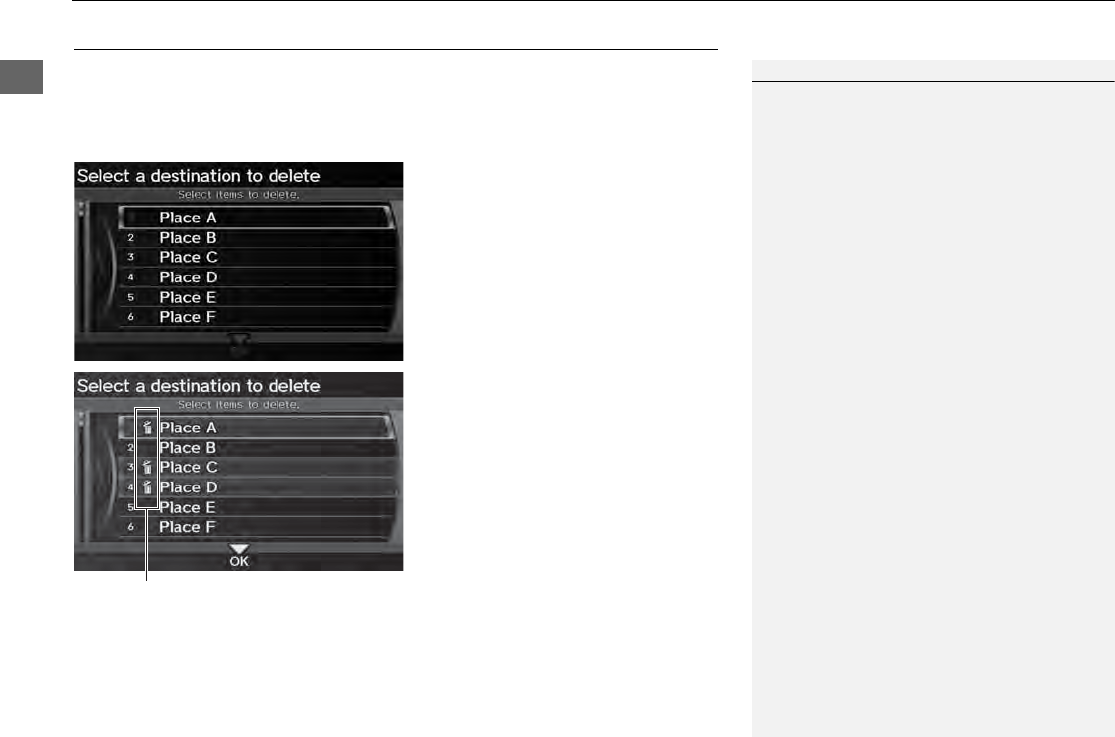

The navigation system maintains a list of your previously routed destinations as a

shortcut for entering the same destination in the future. You can delete some or all

of your previous destinations from the list.

1. Rotate i to select the destination

to delete. Press u.



Repeat the procedure as

necessary.



Items to be deleted are indicated

with a trash icon.

2. Move r to select OK to delete the

selected destinations.

1Previous Destinations

Up to 50 destinations can be stored.

To cancel the selection of a previous destination,

rotate i to highlight the destination again.

Press u to de-select it.

Trash icon

System Setup

Music Search

HINFO button



Setup



Other



Music Search

Use this feature to set up the music search abilities when using Song By Voice™

(SBV) commands.

Rotate i to select an item. Press u.

The following items are available:

•Song By Voice: Turns the feature on or off.

2Song By Voice™ (SBV) P. 46

•Phonetic Modification: Changes the phonetic (song name, artist name, etc.) so

that they are more easily recognized through voice commands.

2Phonetic Modification P. 47



Music Search



Song By Voice™ (SBV)

System Setup

Song By Voice™ (SBV)

HINFO button



Setup



Other



Music Search



Song By Voice

Use SBV to search for and play music from your HDD or iPod® using voice

commands. Use this setting to enable SBV.

Rotate i to select an option. Press

The following options are available:

•ON (factory default): Song By Voice commands are available.

2Searching for Music Using Song By Voice™ (SBV) P. 159

•OFF: Disable the feature.



Music Search



Phonetic Modification

System Setup

Phonetic Modification

HINFO button



Setup



Other



Music Search



Phonetic Modification

Add phonetic modifications of difficult or foreign words so that it is easier for SBV to

recognize artists, songs, albums, and composers in voice commands when searching

for music on the HDD or iPod®.

1. Rotate i to select New

Modification. Press u.

2. Rotate i to select the media

source (HDD or iPod). Press u.

1Phonetic Modification

Phonetic Modification is grayed out when

Song By Voice is set to OFF.

You can store up to 2,000 phonetic modification

items.

SBV may not be able to recognize languages

other than English. The Phonetic Modification

feature is helpful in the following situations:

•The music information cannot be identified

using Gracenote®.

•The phonetics are in languages other than

English.

Continued



Music Search



Phonetic Modification

System Setup

3. Rotate i to select the item to

modify (e.g., Artist). Press u.

4. Rotate i to select an entry (e.g.,

“No Name”). Press u.

5. Rotate i to select Edit. Press u.



Rotate i to select Play to

listen to the phonetic

modification. Press u.



Rotate i to select OK and

press u when finished.

6. Enter the phonetic spelling you

wish to use (e.g., “Artist A”) when

prompted.

7. Move r to select OK to exit.



The artist “No Name” is

phonetically modified to “Artist

A.” When in SBV mode, you can

use the voice command d

“Play Artist ‘Artist A’” to play

songs by the artist “No Name.”

System Setup

Routing & Guidance

HINFO button



Setup



Other



Routing & Guidance

Choose various settings that determine the navigation system functionality during

route guidance.

Rotate i to select an item. Press u.

The following items are available:

•Rerouting: Sets the route recalculation to automatic or manual mode.

2Rerouting P. 50

•Unverified Area Routing: Sets whether you use the route guidance in unverified

areas.

2Unverified Area Routing P. 51

•Edit Avoid Area: Specifies areas to avoid when calculating a route.

2Edit Avoid Area P. 53

•Edit Waypoint Search Area: Sets the distance from the route to find waypoints.

2Edit Waypoint Search Area P. 55

•Guidance Mode: Sets whether to display only the map screen or a split map-

guidance screen.

2Guidance Mode P. 103

•Street Name Guidance: Sets whether to read out the street names during voice

guidance.

2Street Name Guidance P. 56

Continued



Routing & Guidance



Rerouting

System Setup

•Guidance Screen Interruption: Sets whether the guidance screen interrupts the

audio screen display.

2Guidance Screen Interruption P. 57

Rerouting

HINFO button



Setup



Other



Routing & Guidance



Rerouting

Set whether route recalculation occurs automatically or manually during route

guidance.

Rotate i to select an option. Press

The following options are available:

•AUTOMATIC (factory default): The system calculates a new route automatically

when you deviate from the route. It is strongly recommended that you leave the

system set to Automatic.

•MANUAL: Disables route recalculation. The system beeps and “Off Route” is

displayed when you deviate from the route.

1Rerouting

If you live in an area with poor mapping, you

may wish to set Rerouting to MANUAL to avoid

constant recalculation. You will need to select

Recalculation manually to make the system

recalculate your new route.



Routing & Guidance



Unverified Area Routing

System Setup

Unverified Area Routing

HINFO button



Setup



Other



Routing & Guidance



Unverified Area

Routing

Receive turn-by-turn map and voice guidance in unverified areas.

Rotate i to select ON or OFF. Press

1Unverified Area Routing

Unverified roads are found in rural areas, and

typically include residential streets away from the

center of a town. They may not be accurate, and

can contain errors in location, naming, and

address range.

Unverified roads are shown only when viewing

the map in the 1/20, 1/8, or 1/4 mile map scales.

Vector line (dotted)

Blue-pink route line

Differences OFF (factory default) ON

ON or OFF? The driver wishes to manually

navigate using the navigation map

and choose the streets that lead to

the destination.

The driver chooses to let the

navigation system suggest

possible routing, knowing that the

guidance may not be accurate.

Route

calculation

Route is usually longer, using

verified roads whenever possible.

Route is shorter, but uses

unverified (purple) streets that

may not be accurate.

Route line A blue dotted vector line is displayed

on the map that continually points

to your destination.

A blue-pink dashed route line

highlights suggested unverified

streets on the map while traveling

to your destination.

Cautionary

messages

Cautionary pop-up screens and

voice announcements remind you to

obey all traffic restrictions.

Cautionary pop-up screens and

voice announcements remind you

to exercise additional caution and

obey all traffic restrictions.

Continued



Routing & Guidance



Unverified Area Routing

System Setup

Guidance

(map/voice)

There is no turn-by-turn map or

voice guidance.

Voice guidance commands end

with the phrase “if possible” to

remind you to verify all traffic

restrictions.

Directions

list

A direction list is typically not

available. However, depending on

your route, directions are provided

to help you reach the first available

verified road.

A direction list is provided

showing street names and turn

symbols in pink.

Differences OFF (factory default) ON



Routing & Guidance



Edit Avoid Area

System Setup

Edit Avoid Area

HINFO button



Setup



Other



Routing & Guidance



Edit Avoid Area

Specify up to five areas to avoid (e.g., road construction, closures), if possible, when

the system calculates routes to your destination.

1. Rotate i to select New Area or

an existing area to edit. Press u.

2. Rotate i to select Edit Name to

label the area to avoid. Press u.

3. Enter a name or title. Move r to

select OK.

4. Rotate i to select Edit Area to

define the area to avoid. Press u.

The following options are available:

•View Area Map: Displays the selected avoid area on the map.

•Delete: Deletes the selected avoid area.

1Edit Avoid Area

The maximum size of an “avoid area” is 1/2

square mile.

If your selected area contains a freeway, you are

asked “Do you want to avoid freeways?”

Answering “No” allows you to use a route

through an avoid area on a freeway without any

pop-up messages.

You can select areas to avoid, however you

cannot select roads or areas that you want the

system to use for routing.

You can enter up to 25 characters for the name.

Continued



Routing & Guidance



Edit Avoid Area

System Setup

5. Rotate i to select a method for

specifying the area. Press u.

The following options are available:

•Address: Specify the general area by entering an address.

2Address P. 70

•Map Input: Specify the general area by map input.

2Map Input P. 88

6. Scroll the map to position the

cursor over your desired start point,

adjusting the map scale as

necessary. Press u to mark the

start point.



To redo the area selection, press

the CANCEL button.

7. Scroll the map to “draw” the area.

Press u to mark the end point.

8. Press u to select OK.



The area you specify is displayed

in the list of areas to avoid.

Cursor

Avoid area



Routing & Guidance



Edit Waypoint Search Area

System Setup

Edit Waypoint Search Area

HINFO button



Setup



Other



Routing & Guidance



Edit Waypoint

Search Area

Select the distance from your highlighted route line (on either side of your route)

that the system will search for a waypoint.

2Adding Waypoints P. 118

You can specify a different search distance for freeways and surface streets.

1. Rotate i to select an item. Press

2. Rotate i to select a search

distance. Press u.

The following items are available:

•On Freeways: 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.

•On Surface Street: 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.

1Edit Waypoint Search Area

The search distance does not affect the search

range used for the Find Nearest voice commands

(e.g., say d “Find nearest gas station”).



Routing & Guidance



Street Name Guidance

System Setup

Street Name Guidance

HINFO button



Setup



Other



Routing & Guidance



Street Name

Guidance

The navigation system includes the street names during voice guidance (e.g., “Turn

right on Main Street”).

Rotate i to select an option. Press

The following options are available:

•ON: Voice guidance includes the street names.

•OFF (factory default): Disables the feature.

1Street Name Guidance

Street Name Guidance is grayed out when the

system language is not set to English.



Routing & Guidance



Guidance Screen Interruption

System Setup

Guidance Screen Interruption

HINFO button



Setup



Other



Routing & Guidance



Guidance Screen

Interruption

The navigation system temporarily interrupts the audio screen display to view the

guidance screen as you approach a guidance point.

Rotate i to select an option. Press

The following options are available:

•ON: The guidance screen interrupts the audio screen.

•OFF (factory default): Disables the feature.

System Setup

Clock Adjustment

HINFO button



Clock/Wallpaper



Clock Adjustment

Set the automatic adjustment of the system clock for daylight saving and

international time zones.

Rotate i to select an item. Press u.

The following items are available:

•Auto Daylight: The navigation system automatically adjusts the clock (“spring

ahead” or “fall back” by one hour) when a daylight saving time change occurs.

ON (factory default): Adjusts the clock automatically.

OFF: Disables the feature.

•Auto Time Zone: The navigation system automatically adjusts the clock when

driving through different time zones.

ON (factory default): Adjusts the clock automatically.

OFF: Disables the feature.

•ADJUST TIME: Adjust the current time manually.

2Adjust Time P. 59

•Reset: Reset the clock settings to the factory default.

2Resetting the Clock Settings P. 59

•Clock Format: Sets the time notation to either 12-hour clock (12H, factory

default) or 24-hour clock (24H).

1Clock Adjustment

You can check the time and date from any

screen using voice commands.

2Global Commands P. 246

Auto Daylight

This function is not activated in areas that have

not adopted daylight saving time, even if you

have set Auto Daylight to ON.

Auto Time Zone

If you live and work in two different time zones,

you may want to turn Auto Time Zone to OFF.

When driving near a time zone boundary, the

displayed time zone may fluctuate between the

two zone times.



Clock Adjustment



Adjust Time

System Setup

Adjust Time

HINFO button



Clock/Wallpaper



Clock Adjustment



Adjust Time

Adjust the current time (hours and minutes).

1. Move w or y to select HOUR or

MINUTE.

2. Rotate i to adjust the value.

3. Move r to select OK.

Resetting the Clock Settings

HINFO button



Clock/Wallpaper



Clock Adjustment



Reset

Reset the Auto Daylight and Auto Time Zone settings to the factory defaults.



Clock Adjustment



Setting the Clock Type

System Setup

Setting the Clock Type

HINFO button



Clock/Wallpaper



Clock Type

Set the design of the clock screen.

1. Move w or y to select Type or

Background.

2. Rotate i to select an option to

change the design.

3. Move r to select OK.

System Setup

Vehicle

HINFO button



Setup



Other



Vehicle

Set the off-road tracking feature and correct the vehicle position displayed on the

map.

Rotate i to select an item. Press u.

The following items are available:

•Off-road Tracking: Set whether to display the tracking dots on the map.

2Off-road Tracking P. 62

•Correct Vehicle Position: Adjust the position of the vehicle on the map.

2Correct Vehicle Position P. 63



Vehicle



Off-road Tracking

System Setup

Off-road Tracking

HINFO button



Setup



Other



Vehicle



Off-road Tracking

The navigation system displays white off-road tracking dots (“breadcrumbs”) on the

map screen whenever you drive into an area approximately 1/2 mile away from a

mapped road.

Rotate i to select an option. Press

The following options are available:

•ON: The system displays the white tracking dots.

2Driving Off-road P. 96

•OFF (factory default): Disables the feature.

1Off-road Tracking

To clear existing breadcrumbs, set Off-road

Tracking to OFF, exit the Setup screen, and then

set Off-road Tracking to ON again.



Vehicle



Correct Vehicle Position

System Setup

Correct Vehicle Position

HINFO button



Setup



Other



Vehicle



Correct Vehicle Position

Manually adjust the current position of the vehicle as displayed on the map screen if

the position appears to be incorrect.

1. Put the vehicle in Park.

2. Rotate i to select Correct

Vehicle Position. Press u.

3. Scroll the map to position the

arrowhead at your correct position.

Press u.

4. Rotate i to position the

arrowhead in the correct direction

the vehicle is facing.

5. Press u to select OK.

1Correct Vehicle Position

An apparent position error can occur where

buildings, tunnels, and other objects block or

reflect the GPS signals, forcing the system to use

“dead reckoning” to determine your location

and direction.

Using this function to adjust vehicle position is

not recommended. When the system reacquires

a GPS signal, it will automatically place the

vehicle in the correct location.

If you continually have to adjust the vehicle

position, you may have problems with the GPS

reception or there may be database errors.

2System Limitations P. 234

System Setup

Data Reset

Reset Factory Default Settings

HINFO button



Setup



Other



Reset Factory Default

Reset all the settings on the Setup screens and multi-view rear camera brightness

settings to their factory default.

Rotate i to select Yes. Press u to

reset the settings.

1Reset Factory Default Settings

When you transfer the vehicle to a third party,

reset all settings to default and delete all

personal data.

The following settings are reset:

•Brightness, Contrast, Black Level, Volume,

Interface Dial Feedback, Brightness (multi-view

rear camera)

•Basic Settings: Units, Voice Recognition Tutor

•Routing & Guidance: Rerouting, Unverified

Area Routing, Edit Waypoint Search Area,

Guidance Mode, Street Name Guidance,

Guidance Screen Interruption

•Clock Adjustment: Auto Daylight, Auto Time

Zone, Time, Clock Format

•Vehicle: Off-road Tracking

•Color: Map Color, Menu Color

•Wallpaper Settings: Wallpaper Type, Clock

Type



Data Reset



Clear Personal Data

System Setup

Clear Personal Data

HINFO button



Setup



Other



Clear Personal Data

Delete uploaded data, calendar entries, address books, or stored destinations, or

reset other settings to their factory defaults.

1. Rotate i to select an item. Press



Repeat the procedure to delete

other items.



Items to be deleted are indicated

with a trash icon.

2. Move r to select OK.

3. Rotate i to select Yes. Press u

to delete the data.

1Clear Personal Data

When you transfer the vehicle to a third party,

reset all settings to default and delete all

personal data.

The following items can be deleted:

•Address book

•Home address 1 and 2

•Previous destination

•Calendar entries

•Avoid areas

•Music on HDD

•Cellular phone information (phonebook, dial/

receive history, speed dial, registered phone,

and pass key)

•Wallpapers

When the Address Book is deleted, all contents

(except the Categories) are deleted.

When Cellular Phone Information is deleted, the

imported phonebooks, speed dials, and voice

tags are deleted.

If you have PIN-protected your address books or

home addresses, enter your PIN when prompted.

Move r to select OK. PIN numbers are optional.

2PIN Numbers P. 43

Trash icon

Navigation

This section describes how to enter a destination, select a route to take,

and follow the route to your destination. It also describes how to change

your route or destination along the way.

Entering a Destination ........................... 68

Address ................................................. 70

Address Book......................................... 75

Previous Destination............................... 76

Place Name............................................ 77

Place Category....................................... 80

Place Phone Number.............................. 84

ZAGAT................................................... 84

Coordinate ............................................ 86

Intersection............................................ 87

Map Input.............................................. 88

Calculating the Route ..............................90

Changing the Route Preference ..............91

Viewing the Routes.................................92

Calculating the Route on the Destination

Map......................................................92

Driving to Your Destination ...................93

Viewing the Route ..................................93

Listening to Voice Guidance....................97

Map Menu................................................98

Displaying the Map Menu .......................98

Guidance Menu ....................................100

Map Information...................................105

FM Traffic .............................................114

Changing Your Route ........................... 116

Canceling the Route............................. 117

Taking a Detour ................................... 117

Avoiding Streets................................... 117

Adding Waypoints ............................... 118

Editing the Destination List................... 122

Changing Your Destination ................. 123

Find Nearest Place ................................ 123

Selecting a Destination on the Map...... 124

Entering a New Destination.................. 125

Resuming Your Trip .............................. 127

Navigation

Entering a Destination

HDEST/ROUTE button

This section describes how to enter a destination for route guidance.

Rotate i to select an item. Press u.



Move y to select Dest. MENU 2

to display additional menu entries.

The following items are available:

•Address: Sets a destination by entering an address.

2Address P. 70

•Address Book: Sets a destination by selecting an address stored in your Address

Book.

2Address Book P. 75

•Previous Destination: Sets a destination by selecting a previous destination.

2Previous Destination P. 76

1Entering a Destination

d “Display Menu”, d “Display Navigation”

If you press the DEST/ROUTE button when en

route, the Route Menu screen is displayed.

2Changing Your Route P. 116

Prior to departure, you can set areas along your

route to avoid.

2Avoiding Streets P. 117



Entering a Destination



Navigation

•Place Name: Sets a destination by entering a place name.

2Place Name P. 77

•Place Category: Sets a destination by selecting a place/landmark.

2Place Category P. 80

•Place Phone No.: Sets a destination by entering the phone number of a place/

landmark.

2Place Phone Number P. 84

•ZAGAT: Sets a destination (restaurant) by using ZAGAT® SURVEY Rating

information.

2ZAGAT P. 84

•Coordinate: Sets a destination by entering latitude and longitude.

2Coordinate P. 86

•Intersection: Sets a destination (intersection) by entering two streets.

2Intersection P. 87

•Map Input: Sets a destination by scrolling through the map.

2Map Input P. 88

•Go Home 1 or 2: Sets your home address as a destination.

2Going Home P. 12



Entering a Destination



Address

Navigation

Address

HDEST/ROUTE button



Address

Enter an address to use as the destination. The state or province you are currently in

is displayed (e.g., California).

Rotate i to select an item. Press u.

The following items are available:

•City: Selects your destination city.

2Selecting a City P. 72

•Street: Selects your destination street.

2Selecting a Street P. 73

•Change State: Selects the state or province.

2Selecting the State or Province P. 71

•ZIP code: Enters the zip code to select the city.

2Selecting a City by Zip Code P. 71



Entering a Destination



Address

Navigation

HDEST/ROUTE button



Address



Change State

Rotate i to select a state from the

list. Press u.

HDEST/ROUTE button



Address



ZIP code

1. Enter the zip code of your

destination.

2. Move r to select OK.

■Selecting the State or Province

1Selecting the State or Province

Move w to select USA for the American

mainland, Hawaii, and Puerto Rico. Move y to

select Canada/AK for Canada and Alaska.

■Selecting a City by Zip Code

1Selecting a City by Zip Code

If your city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

Continued



Entering a Destination



Address

Navigation

3. Rotate i to select the destination

city from the list. Press u.



Next, you are prompted to enter

a street name.

2Selecting a Street P. 73

HDEST/ROUTE button



Address



City

The name of the city where you are currently located is displayed.

1. Enter the name of a different city,

or move r to select OK for the

current city.



Move r to select List to display

a list of cities.

■Selecting a City

1Selecting a City by Name

Vehicle position may not be displayed when:

•the automobile is traveling off-road.

•the vehicle position data cannot be updated.

You do not need to enter spaces or symbols

(e.g., &, -, %). Partial matches are supported

(e.g., “ANGELES” to find “LOS ANGELES”).

Using Voice Command (English only)

Say d “City” on the Find address by screen, and

the following screen is displayed:

Say d “Current City” to select your current

location, or say the name of a different city.

2Selecting a Street P. 73



Entering a Destination



Address

Navigation

2. Rotate i to select your

destination city from the list. Press



A list of matching hits is

automatically displayed after

you enter several letters, with

the closest match at the top of

the list. Matching letters are in

yellow.



Next, you are prompted to enter

a street name.

2Selecting a Street P. 73

HDEST/ROUTE button



Address



Street

1. Enter the name of your destination

street.



Do not enter the street type

(e.g., street, road, avenue) or

direction (e.g., north, south,

east, west).



Move r to select List to display

a list of streets.

1Selecting a City by Name

If your city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

Non-detailed area mark: Try entering the

street first and then select the city.

■Selecting a Street

1Selecting a Street

When entering the names of major freeways,

you can use the following abbreviations. For

interstates, use an “I” (e.g., I-10). For U.S.

freeways, use “US” (e.g., US-18). For state

freeways, use the two-character state

designation (e.g., CA-101). For county roads, use

the appropriate designation (e.g., G-2).

Using Voice Command (English only)

Say d “Street” on the Find address by screen,

and the following screen is displayed:

•Say the name of your destination street, and

say the street number as a string of individual

numbers.

•Set the route to your destination.

2Calculating the Route P. 90

Continued



Entering a Destination



Address

Navigation

2. Rotate i to select your

destination street from the list.

Press u.



A list of matching hits is

automatically displayed after

you enter several letters, with

the closest match at the top of

the list. Matching letters are in

yellow.

3. Enter the street number. Move r

to select OK.



Only valid street numbers can be

entered.

4. Set the route to your destination.

2Calculating the Route P. 90

1Selecting a Street

If you did not select a city first and there is more

than one city with the specified street, a list of

cities is displayed.

Rotate i to select the desired city from the list.

Press u.



Entering a Destination



Address Book

Navigation

Address Book

HDEST/ROUTE button



Address Book

Select an address stored in your address book to use as the destination.

1. Rotate i to select your

destination from the list. Press u.

2. Set the route to your destination.

2Calculating the Route P. 90



Move w or y to display only

the entries in a category: All,

BUSINESS, PERSONAL, or other

categories you have created.

2Selecting an Address Book

Category P. 41

1Address Book

If you have PIN-protected your address book,

enter your PIN when prompted. Move r to

select OK. PINs are optional.

2PIN Numbers P. 43

You can select New Address on the Select an

address screen to add an entry to the address

book.

2Adding an Address Book Entry P. 38



Entering a Destination



Previous Destination

Navigation

Previous Destination

HDEST/ROUTE button



Previous Destination

Select an address from a list of your 50 most recent destinations to use as the

destination. The list is displayed with the most recent destination at the top.

1. Rotate i to select a destination

from the list. Press u.

2. Set the route to your destination.

2Calculating the Route P. 90

1Previous Destination

If Previous Destination is grayed out, there are

no previous destinations entered.

Your home addresses and addresses stored in

your address book are not added to the list of

previous destinations.

You can delete unwanted previous destinations

from the list.

2Previous Destinations P. 44



Entering a Destination



Place Name

Navigation

Place Name

HDEST/ROUTE button



Place Name

Enter the name of a place (e.g., business, hotel, restaurant) stored in the map

database to use as the destination.

1. Enter a place name.

2. Move r to select LIST to display a

list of matching hits.

3. Rotate i to select a place name

from the list. Press u.



If the place name is in multiple

categories, the categories are

displayed when you select it.

2Place Name in Multiple

Categories P. 78

4. Set the route to your destination.

2Calculating the Route P. 90

1Place Name

This option is convenient if you know the exact

name of a place.

Move e to select OPTION to enter symbols and

accented letters, move y to select SPACE to

enter a space character, or move w to select

DELETE to remove the last character.

Once a name is entered and selected, move r to

select SORT BY NAME or SORT BY DISTANCE.

Matching letters are in yellow.

Restaurants with a z icon have a ZAGAT®

review. Move y to select z to view the

complete ZAGAT® review.

2ZAGAT P. 84

Continued



Entering a Destination



Place Name

Navigation

If the place name is in multiple categories in the map database, the following screen

is displayed.

1. Rotate i to select a place name.

Press u.

2. Rotate i to select a subcategory.

Press u.

■Place Name in Multiple Categories

1Place Name in Multiple Categories

Move r to select SORT BY CITY or SORT BY

DISTANCE. Matching letters are in yellow.



Entering a Destination



Place Name

Navigation

3. Rotate i to select a place. Press

4. Set the route to your destination.

2Calculating the Route P. 90



Entering a Destination



Place Category

Navigation

Place Category

HDEST/ROUTE button



Place Category

Select the category of a place (e.g., Banking, Lodging, Restaurant) stored in the map

database to search for the destination.

1. Rotate i to select a category.

Press u.

2. Rotate i to select a subcategory.

Press u.



Move w or y to change the

main category.

2List of Categories P. 258

1Place Category

This option is convenient if you do not know the

exact name of a place or if you want to narrow

down the number of matches returned for places

with a common name.

You can store up to 30 favorite subcategories.

Move y to select Fav. Subcategory to access

your favorites.

2Favorite Subcategories P. 82

Advanced helps you to search the subcategory.

When you enter a keyword and select LIST, the

list of appropriate subcategories is displayed.



Entering a Destination



Place Category

Navigation

3. Rotate i to select an item. Press

The following items are available:

•Place Name: Searches for a place in the subcategory by name. Enter a city name

when prompted.

•City Vicinity: Searches for a place in the subcategory within a 20-mile radius of a

specific city. Enter a city name and then a place name when prompted. Only the

first 1,000 matching places/landmarks are displayed.

•Sort by Distance to Travel: Displays all the places in the subcategory sorted by

distance from your current location. The closest place is displayed at the top.

•Search by Keyword: Searches for a place by keyword when you do not know the

exact category. Select Sort by Distance to Travel for locations near your current

location, or select City Vicinity for locations in a specific city. Enter a keyword

when prompted. Move r to select LIST to view a list of possible locations if one is

not found automatically.

1Place Category

Sort by Distance to Travel

For locations sorted by distance to travel, you can

move r to select MORE to increase the scope of

the search. The number of locations increases to

100, 200, and up to 1000. When the number of

locations is 100 or less, you can increase the

scope to 500 miles, 1000 miles, or the entire U.S.

Continued



Entering a Destination



Place Category

Navigation

4. Rotate i to select a place name

from the list. Press u.

5. Set the route to your destination.

2Calculating the Route P. 90

HDEST/ROUTE button



Place Category



Fav. Subcategory

Store up to 30 favorite subcategories.

1Place Category

The straight line distance (as the crow flies, not

driving distance) and direction to the destination

are shown for the highlighted place.

Restaurants with a z icon have a ZAGAT®

review. To display only restaurants with a

ZAGAT® review, select Restaurant > All Types

(Zagat Only) or say d “Zagat”.

2Key to ZAGAT Ratings P. 216

■Favorite Subcategories



Entering a Destination



Place Category

Navigation

■To store a subcategory in favorites:

1. Rotate i to select a subcategory

on any subcategory screen.

2. Move r to select ADD TO FAV.

SUBCATEGORY.

■To delete a subcategory from favorites:

1. Rotate i to select a favorite

subcategory on the Favorite

Subcategory screen.

2. Move r to select DELETE FROM

FAV. SUBCATEGORY.

1Favorite Subcategories

Stored categories

A subcategory stored in Fav. Subcategory has a

star at the end of the line.

Deleting categories

You can also delete a favorite subcategory on

any Subcategory screen. Rotate i to select a

favorite subcategory (which has a star at the end

of line) and move r to select DELETE FROM

FAV. SUBCATEGORY.



Entering a Destination



Place Phone Number

Navigation

Place Phone Number

HDEST/ROUTE button



Dest. MENU 2



Place Phone No.

Select a destination by phone number. Only phone numbers in the database are

recognized.

1. Enter the area code and phone

number. Move r to select OK.

2. Set the route to your destination.

2Calculating the Route P. 90

ZAGAT

HDEST/ROUTE button



Dest. MENU 2



ZAGAT

Find a restaurant by ZAGAT® SURVEY Rating information.

1. Select a metropolitan area, region,

neighborhood, and restaurant type

when prompted.

1Place Phone Number

All 10 digits must be entered.

Phone numbers of private residences entered in

your address book are not stored in the database

and thus cannot be used to search for a

destination.

A list is displayed if there are multiple locations in

the database with the same phone number.

Rotate i to select a place from the list. Press



Entering a Destination



ZAGAT

Navigation

2. Rotate i to select the sort

method used to list the restaurants.

Press u.

The following options are available:

•Food, Decor, Service: Lists the restaurants by the rating value.

•Cost: Lists the restaurants by the average cost of a meal (including drink and tip).

3. Rotate i to select a restaurant.

Press u.



The ZAGAT® ratings are shown

across the top of the screen.



Move y to select z to view

the rating information.

4. Set the route to your destination.

2Calculating the Route P. 90

1ZAGAT®

Selecting this sorting method will show you

ZAGAT's highest-rated restaurants by the

options, and not necessarily by distance from

your current location.

You can move y to select z (or say d

“ZAGAT List Number X,” where X is the list item

number) to view the complete ZAGAT® review.

•Press u (or say d “Read List”) to have the

system read the ZAGAT® review.

•Move y to select ? (or say d “Key to ZAGAT

Rating”) for details on the ratings and symbols.

2Key to ZAGAT Ratings P. 216

•Scrolling through the review is disabled while

the vehicle is moving.

•Move r to select OK to set the route to your

destination.

2Calculating the Route P. 90



Entering a Destination



Coordinate

Navigation

Coordinate

HDEST/ROUTE button



Dest. MENU 2



Coordinate

Specify a location using latitude and longitude map coordinates.

1. Enter the latitude. Move r to

select OK.

2. Enter the longitude. Move r to

select OK.

3. Scroll the map to position the

cursor over your desired

destination, adjusting the map

scale as necessary. Press u.



If the address is not the desired

location, scroll to another

location and try again.

4. Press u again to display the route

calculation menu.

2Calculating the Route P. 90

5. Rotate i to select Set as Dest.

Press u.

1Coordinate

Latitude and longitude must be entered up to

the seconds’ value.

A yellow box (shown at scales above 1/4 mile)

denotes the area that can be viewed when you

press u on the current map.

Information icons are displayed at scales from 1

mile to 1/4 mile. Place/landmark icons are

displayed at 1/8 mile or less. Roads are displayed

at 1/4 mile or less.

If you select multiple icons within the cursor

radius, you are prompted to select one of the

items from a list.



Entering a Destination



Intersection

Navigation

Intersection

HDEST/ROUTE button



Dest. MENU 2



Intersection

Select the intersection of two streets as the destination. The state or province for

your current location is displayed at the top of the screen (e.g., California).

1. Rotate i to select the

intersection search method. Press

2. Set the route to your destination.

2Calculating the Route P. 90

The following options are available:

•Street: Selects the two intersecting streets. The city or cities that the streets are

located in are displayed.

2Selecting a Street P. 73

•City: Selects the city where the intersection is located. You are prompted to enter

the name of the two intersecting streets.

2Selecting a City P. 72

•Change State: Selects the state or province.

2Selecting the State or Province P. 71

1Intersection

It is usually easier to select Street to find the

streets first. The city or cities that the streets are

in will be displayed. If you select City and your

city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

If the intersection is outside the state you are

currently in, Rotate i to select Change State.

2Selecting the State or Province P. 71

If there is more than one intersection, you are

prompted to select the intersection. If the two

streets that you have selected do not intersect,

no intersection is entered.



Entering a Destination



Map Input

Navigation

Map Input

HDEST/ROUTE button



Dest. MENU 2



Map Input

Use the Interface Dial to manually select an icon or a location on the map screen as

the destination.

You are prompted to define the map area to display.

1. Rotate i to select an item. Press

The following items are available:

•Current Position: Your current position is centered on the map.

•City: You are prompted to select the city.

2Selecting a City P. 72

•State: You are prompted to select the state.

2Selecting the State or Province P. 71

•USA and Canada: Your current position is displayed on a map of the country.



Entering a Destination



Map Input

Navigation

2. Scroll the map to position the

cursor over your desired

destination, adjusting the map

scale as necessary. Press u.



If the address is not the desired

location, scroll the map to

another location and try again.

3. Press u again to display the route

calculation menu.

2Calculating the Route P. 90

4. Rotate i to select Set as Dest.

Press u.

1Map Input

A yellow box (shown at scales above 1/4 mile)

denotes the area that can be viewed when you

press u on the current map.

Information icons are displayed at scales from 1

mile to 1/4 mile. Place/landmark icons are

displayed at 1/8 mile or less. Roads are displayed

at 1/4 mile or less.

If you select multiple icons within the cursor

radius, you are prompted to select one of the

items from a list.

2Selecting a Destination on the Map P. 124

Navigation

Calculating the Route

This section describes how to calculate your route.

1. Rotate i to select OK. Press u.



The system calculates and

displays the route line on the

map screen.

2Route Line P. 94

The following options are available:

•Route Pref.: Changes the route preferences (calculating method).

2Changing the Route Preference P. 91

•View Routes: Displays three different routes.

2Viewing the Routes P. 92

•DESTINATION MAP: Move r to select DESTINATION MAP to display a map of

the destination.

2Calculating the Route on the Destination Map P. 92

2. Follow the route guidance to your

destination.

2Driving to Your Destination P. 93



The system provides you with

pop-up messages if your route

passes through unverified areas,

avoid areas, areas with traffic

restrictions.

1Calculating the Route

The current route preferences are displayed as

icons on the top right of the Calculate Route

screen. The straight line distance (as the crow

flies, not driving distance) and direction to the

destination are shown.

You cannot use voice commands while the

system is calculating the route.

Add to Address Book

You can add the destination address to the

address book.

2Adding an Address Book Entry P. 38

Add to Dest. List

You can add the address to the Destination List.

2Editing the Destination List P. 122

Call

You can place a telephone call to the destination

phone number.

2Bluetooth® HandsFreeLink® P. 170



Calculating the Route



Changing the Route Preference

Navigation

Changing the Route Preference

Change the route preference by selecting minimum or maximum driving methods.

1. Rotate i to select an item. Press

2. Rotate i to select MIN or MAX.

Press u.



Repeat step 1 and 2 as

necessary.

3. More r to select OK.

1Changing the Route Preference

The calculated route may not be the route you

would choose. For safety reasons, the system

generally applies the following rules to your

route:

•Shortcuts through residential areas are

avoided.

•Right turns are favored over left turns or U-

turns.

•Time-restricted turns (turns prohibited at

certain times of the day) are not used.

If you select MIN or MAX of ETC Roads as your

route preference, the system finds the route with

as few electronic toll collection (ETC) gates as

possible in MIN or as many ETC gates as possible

in MAX.



Calculating the Route



Viewing the Routes

Navigation

Viewing the Routes

View three different routes to your destination.

Rotate i to select a route. Press u.



The travel distance and estimated

travel time is displayed for each

route.



The system calculates and displays

the route line on the map screen.

2Route Line P. 94

Calculating the Route on the Destination Map

Calculate the route from the map of the destination address.

Rotate i to select Calculate the

Route. Press u.



The system calculates and display

the route line on the map screen.

2Route Line P. 94

1Viewing the Routes

It is not unusual for some calculated route

options to be identical.

1Calculating the Route on the Destination Map

d “Display Destination Map” (when en route)

Navigation

Driving to Your Destination

This section describes how to follow the route guidance to your destination, receive

traffic information, and choose the icons displayed on the map screen.

Viewing the Route

After calculating the route to your

destination, the route is displayed on

the map screen.

2Map Screen Legend P. 10

As you drive, the system tracks your

position on the map in real time and

provides guidance as you approach

each guidance point on the route.

■Map Screen

1Viewing the Route

d “Display Map”

You can change the map scale using voice

control commands (e.g., say d “Display 2 mile

scale”).

2Map Scale Commands P. 247

You can also change the map scale by rotating

You can control the icons displayed on the map

screen using voice control commands (e.g., say

d “Display post office”).

2Map Display Commands P. 246

You can obtain information about the route

using voice control commands (e.g., say d

“How long to the destination?”).

2Route Commands P. 248

You can display the next guidance point on the

map screen by saying d “Display Map Guide”

(when en route).

If you scroll the map while en route, the time and

distance to destination indicators are replaced

with an indicator showing distance from the

current vehicle position.

The map screen can be viewed in single-screen or

split-screen mode.

2Guidance Mode P. 103

Continued



Driving to Your Destination



Viewing the Route

Navigation

The guidance screen offers an alternative way to view your route.

In single-screen mode, press the MAP/

GUIDE button to switch between the

map and guidance screens. In split-

screen mode, press the MAP/GUIDE

button to switch between the next

guidance direction and a list of

guidance directions.

When driving on verified streets, the route line is light blue. The route line display

changes when driving on unverified streets:

•If Unverified Area Routing is

OFF, the route line uses verified

streets only (when possible). A

dotted “vector line” pointing

directly towards your destination is

also displayed.

■Guidance Screen

1Guidance Screen

A visual guide helps you check the guidance

screen.

2Guidance Screen P. 11

■Route Line

1Route Line

You can set Unverified Area Routing to OFF to

follow your own route to the destination. If

Unverified Area Routing is ON, be aware that

unverified streets may not be displayed

accurately.

2Unverified Area Routing P. 51

You can always view the entire route by simply

saying d “Display entire route.”

The route line may also consist of red, orange, or

green segments when your route line displays

traffic information.

2Map Screen Legend P. 10

2FM Traffic P. 114

Vector line (dotted)



Driving to Your Destination



Viewing the Route

Navigation

•If Unverified Area Routing is ON,

the route line changes to a blue-

pink line to indicate that the route

line uses unverified streets.

If you momentarily leave the calculated route, the system automatically recalculates

a route to the desired destination based on your current location and direction.

2Rerouting P. 50

Blue-pink route line

■Deviating From the Planned Route

1Deviating From the Planned Route

If Rerouting is set to MANUAL and you go off

route, the system waits for you to manually

initiate recalculation. Rotate i to select

Recalculation and press u.

2Rerouting P. 50

Continued



Driving to Your Destination



Viewing the Route

Navigation

If you leave all mapped (digitized) roads, the system automatically starts displaying a

series of dots (breadcrumbs) to track the path you are taking. If needed, you can

follow the dots back to the mapped road you originally left.

2Off-road Tracking P. 62

■Driving Off-road

1Driving Off-road

A message “Not on a digitized road” may appear

when you drive half a mile away from a mapped

road.

Breadcrumbs may occasionally be displayed in

urban areas, such as large parking lots in

shopping malls, in new subdivisions where the

roads are not yet in the database, or in areas

where a GPS signal is unavailable, such as in a

parking garage.

Off-road tracking breadcrumbs are limited to

approximately 150 miles. Breadcrumbs at the

beginning of the trail are deleted if you exceed

that distance.

Breadcrumbs are displayed only at 1/20, 1/8, 1/4,

and 1/2 mile map scales.



Driving to Your Destination



Listening to Voice Guidance

Navigation

Listening to Voice Guidance

HENTER button (on map)



Voice

As you approach each guidance point, a pop-up window is displayed on the map

screen with instructions for you to follow. Voice guidance for each guidance point is

also provided.

Typically, you hear three prompts:

•1/2 mile from the guidance point

•1/4 mile from the guidance point

•Just before the guidance point

To replay voice guidance, rotate i to select Voice in the Map Menu.

If you select Voice between guidance points, voice guidance for the next guidance

point is provided.

1Listening to Voice Guidance

d “Voice” (on the map screen)

You can turn voice guidance OFF if you prefer.

2Display and Volume Settings P. 24

When driving in unverified areas, the phrase “if

possible” is inserted before each voice guidance

prompt.

Voice in the Map Menu may be grayed out if the

vehicle is approaching or is in an unverified area.

The timing of voice guidance varies depending

on the type of road you are on and the distance

to the next guidance point.

Navigation

Map Menu

Displaying the Map Menu

Use the Map Menu to control the icons displayed on the screen, and to display traffic

information. You can also use the Map Menu to find locations or to cancel the route.

1. On the map screen, press u to

select MAP MENU (if displayed).



The Map Menu is displayed on

the map screen.

2. Rotate i to select an item. Press

The following items are available:

•Voice: Select to hear the voice guidance when en route.

2Listening to Voice Guidance P. 97

•Traffic Incidents: Displays a list of the traffic incidents around your current

location or on your current route.

2FM Traffic P. 114

1Map Menu

If you scroll the map while en route, press the

MAP/GUIDE (or CANCEL/BACK) button to return

to the current position map screen, then press

u to select MAP MENU.

Traffic Incidents

You must be in or near a traffic-enabled city to

receive coverage for that area. FM Traffic is

available in the lower 48 states and Hawaii.

The incident icons are displayed on the 5 mile (8

km) or less map scale.

2Map Scale and Functions P. 111



Map Menu



Displaying the Map Menu

Navigation

•Guidance Menu: Allows you to set or confirm the guidance points and freeway

exits for your route.

2Guidance Menu P. 100

•Find Nearest…: Allows you to find the nearest place/landmark (e.g., nearest gas

station) by specifying a category. You can then add the location to the list of

destinations, set as a waypoint, or set as your destination.

2Changing Your Destination P. 123

•Map Information: Allows you to select the information icons to display on the

map, change the orientation of the map, or display your current location.

2Map Information P. 105

•Cancel Route: Cancels your current route.

2Canceling the Route P. 117

100



Map Menu



Guidance Menu

Navigation

Guidance Menu

HENTER button (on map)



Guidance Menu

Display the guidance points and freeway exits for your route, and set the display

mode for the map and guidance screens.

Rotate i to select an item. Press u.

The following items are available:

•Directions: Displays a list of the guidance points.

2Directions P. 101

•Exit Info.: Displays a list of the freeway exits.

2Freeway Exit Information P. 102

•Guidance Mode: Selects the guidance display mode.

2Guidance Mode P. 103

101



Map Menu



Guidance Menu

Navigation

HENTER button (on map)



Guidance Menu



Directions

Display a list of the guidance points on your route for your confirmation.

1. Rotate i to select a guidance

point from the list. Press u.



The system displays a map of

the guidance point.

2. Press u to select RETURN or press

the CANCEL (BACK) button to

return to the previous screen.

■Directions

1Directions

Guidance points with exit information are

indicated by a (freeway exit information)

icon. Move y to select Exit Info to display the

exit information.

2Freeway Exit Information P. 102

The route guidance information is automatically

deleted when you reach your destination.

Continued

102



Map Menu



Guidance Menu

Navigation

HENTER button (on map)



Guidance Menu



Exit Info.

Display a list of the freeway exits for the route. You can view freeway exit

information (whether the exit is near gas stations, restaurants, ATMs, etc.) and add

new destinations or waypoints to the calculated route.

1. Rotate i to select an exit from

the list. Press u.

2. Rotate i to select a list item.

Press u.



Move w or y to display

information for different exits.



The location is displayed on the

Calculate Route screen.

2Calculating the Route P. 90

■Freeway Exit Information

1Freeway Exit Information

d “Display Freeway Exit Information”

You can scroll the map and select a (freeway

exit information) icon on the map screen to

display the freeway exit information. The

icon is only displayed if there is exit information

available.

Icons are displayed only at 1/4, 1/2, or 1 mile

scale.

2Showing Icons on the Map P. 106

The route guidance information is automatically

deleted when you reach your destination.

OPEN MAP

Move r to select OPEN MAP to display a map

of the exit.

103



Map Menu



Guidance Menu

Navigation

HENTER button (on map)



Guidance Menu



Guidance Mode

Select the display mode during route guidance: single-screen mode (default) or split-

screen mode.

Rotate i to select an option. Press

The following options are available:

•Single Screen: Displays the map and guidance screens on separate screens.

■Guidance Mode

1Guidance Mode

The guidance mode can also be selected from

the System Setup menu.

2Routing & Guidance P. 49

Map screen

Press the

MAP/GUIDE

button

Guidance screen

Continued

104



Map Menu



Guidance Menu

Navigation

•Split Screen: Displays the map and guidance information simultaneously on the

map screen.

1Guidance Mode

Next guidance point

The next guidance point (the pop-up window) is

displayed on the map screen as you approach a

guidance point in the single-screen mode.

Next guidance point

Press the

MAP/GUIDE

button

Guidance direction list

105



Map Menu



Map Information

Navigation

Map Information

HENTER button (on map)



Map Information

Select the landmark icons to display on the map, change the orientation of the map,

display your current location, and learn the meaning of the icons, colors, and

symbols displayed on the map.

Rotate i to select an item. Press u.

The following items are available:

•Show Icon on Map: Selects the icons to display on the map.

2Showing Icons on the Map P. 106

•North-up/Heading-up: Selects the map orientation (North-up or Heading-up).

2Map Orientation P. 108

•Current Location: Displays and saves your current location.

2Current Location P. 109

•Map Legend: Displays an overview of the map features.

2Map Legend P. 110

Continued

106



Map Menu



Map Information

Navigation

HENTER button (on map)



Map Information



Show Icon on Map

The icon bar along the bottom of the screen allows you to select the icons that are

displayed on the map.

Rotate i to select an icon in the

icon bar. Press u.



Pressing u toggles the icon display

on or off.



Repeat the procedure as necessary.

The following options are available:

•Icon check boxes: Displays or hides the traffic and landmark icons.

2Map Screen Legend P. 10

•ALL OFF: Hides all icons.

•ICON OPTION: Fine-tunes the icon display. Move r.

2Fine-tuning the Icons P. 107

■Showing Icons on the Map

1Showing Icons on the Map

You can display or hide the icons using voice

commands on the map screen (e.g., say d

“Display hospital”).

2Map Display Commands P. 246

107



Map Menu



Map Information

Navigation

■Fine-tuning the Icons

Icons in some categories can be fine-tuned to display or hide.

1. Rotate i to select an icon

category from the list (e.g., Other

Icons). Press u.

2. Rotate i to select the icons to

display on the map. Press u.



Pressing u toggles the icon

display on or off.



Repeat the procedure as

necessary.

3. Move r to select OK.

1Fine-tuning the Icons

To display the “Other Icons,” be sure to turn on

OTHER ICON in the icon bar.

Continued

108



Map Menu



Map Information

Navigation

HENTER button (on map)



Map Information

Select the map orientation.

Rotate i to select North-up or

Heading-up. Press u.



The system changes the map

orientation and displays the map

screen.

The following options are available:

•North-up: Displays the map with North always pointing up.

•Heading-up: Displays the map so that the direction you are traveling is always

pointing up.

■Map Orientation

1Map Orientation

d “Display Heading-up” (from map screen), d

“Display North-up” (from map screen)

The red arrow in the symbol always points North.

On scales greater than 1 mile, North-up mode is

always used.

109



Map Menu



Map Information

Navigation

HENTER button (on map)



Map Information



Current Location

Display and save your current location for future use as a destination. The address,

latitude, longitude, and elevation of your current location are displayed.

■To save your current location in the address book:

1. Rotate i to select Save. Press u.

2. Edit the name, phone number, and

category.

2Address Book P. 38

3. Move r to select OK.

■Current Location

1Current Location

d “Display Current Location” (on map screen)

You can also save the current location by saying

d “Register the Current Location”.

If you have PIN-protected your address book,

enter your PIN number when prompted. Move r

to select OK. PIN numbers are optional.

2PIN Numbers P. 43

The elevation is not displayed if the system is

receiving insufficient GPS information. When

elevation is displayed, it may differ with roadside

elevation signs by ±100 feet or more.

Saving your current location does not change or

cancel your current route.

Continued

110



Map Menu



Map Information

Navigation

HENTER button (on map)



Map Information



Map Legend

See an overview of the map lines, areas, routes, traffic information, and navigation

icons.

Rotate to i select an item.



The system displays the map

legend.

■Map Legend

1Map Legend

A visual guide helps you see the map legend.

2Map Screen Legend P. 10

111



Map Menu



Map Information

Navigation

The functions that are available from the map screen depend on the map scale.

■Map Scale and Functions

Function page

Map Scale (top: mile, bottom: metric)

1/20 1/8 1/4 1/2 1 2 5 15 50 150 350 1000

80 200 400 800 1.6 3 8 24 80 240 560 1600

Icon display

Landmark icon 10 ✔ ✔

Exit info. 10 ✔✔✔

One-way traffic 10 ✔

Waypoint

“flag” 11 ✔✔✔✔✔✔✔✔✔✔✔ ✔

Traffic incident 10 ✔✔✔✔✔✔✔

Map orientation

Heading-up 108 ✔✔✔✔✔

North-up 108 ✔✔✔✔✔✔✔✔✔✔✔ ✔

Others

Off-road

tracking dots 96 ✔ ✔ ✔ ✔

Unverified road 10 ✔ ✔ ✔

Map features 10 ✔✔✔✔✔✔✔✔✔✔✔

Avoid areas 53 ✔ ✔ ✔

Traffic speed 10 ✔✔✔✔✔✔✔

1Map Scale & Functions

You can change the map scale using voice

commands on the map screen (e.g., say d

“Display 2 mile scale”).

2Map Scale Commands P. 247

You can change between miles or kilometers.

2Basic Settings P. 26

Continued

112



Map Menu



Map Information

Navigation

Display or hide all icons on the map screen, with the exception of Honda/Acura

Dealer icons which are always shown.

■Landmark icon

■Map Icons and Functions

Type Icon display

control

Icon

selectable

Icon

searchable

Honda/Acura dealer Always on Yes Yes

Hospital Yes Yes Yes

School Yes Yes Yes

ATM Yes Yes Yes

Gas station Yes Yes Yes

Restaurants Yes Yes Yes

Post office Yes Yes Yes

Grocery store Yes Yes Yes

Hotel/Lodging Yes Yes Yes

Police station No icon No Yes

Shopping, Tourist attraction, Bank No icon No Yes

Parking garage Yes Yes Yes

Parking lot Yes Yes Yes

Freeway exit info. Yes Yes No

1Map Icons & Functions

You can display or hide the icons using voice

commands on the map screen (e.g., say d

“Display hospital”).

2Map Display Commands P. 246

Some icons, like police stations, are not shown,

but you can still locate the nearest one with the

Find Nearest voice command (e.g., say d “Find

nearest police station”).

2Find Place Commands P. 247

Icon display control

Icons that can be displayed or hidden using the

Interface Dial or voice command.

Icon selectable

Icons that can be selected as a destination using

the Interface Dial.

Icon searchable

Icons that can be searched using the d Find

Nearest voice command.

113



Map Menu



Map Information

Navigation

■Traffic icon

Type Icon display

control

Icon

selectable

Icon

searchable

Traffic speed Yes No No

Traffic incident Yes No Yes

1Traffic Incident

When you use the Interface Dial to position the

cursor (round red circle) over the traffic incident

icon, you can view the summary of the incident.

When you press u to select the traffic incident

icon, you can view a pop-up message describing

the incident in detail.

114



Map Menu



FM Traffic

Navigation

FM Traffic

HENTER button (on map)



Traffic Incidents

View and avoid specific incidents and/or congestion on your route:

1. Rotate i to select an incident

from the list. Press u.



The system displays the map

screen and the incident location.

1FM Traffic

d “Display traffic incidents”, d “Display traffic

list”

You can also display the traffic incidents from the

INFO screen.

You must be in or near a traffic-enabled city to

receive coverage for that area. FM Traffic is

available in the lower 48 states and Hawaii.

Traffic rerouting may not provide a detour route

depending on circumstances.

You can display traffic incidents and related

information on the map screen using voice

commands.

2Map Display Commands P. 246

115



Map Menu



FM Traffic

Navigation

2. Press u to select TRAFFIC

DETAIL.

3. Rotate i to select Avoid. Press



Repeat step 1 to 3 as necessary.

4. Move r to select REROUTE.



The system recalculates a detour

route that avoids the traffic

incidents.

1FM Traffic

You can choose to avoid up to 10 traffic

incidents. It is not always possible for the system

to calculate a route that avoids all traffic

incidents or specific traffic incidents you select.

The “On Route” tab on the Traffic List screen is

only available during route guidance.

You cannot select an incident to avoid from the

“All” tab.

You can also detour around a traffic incident

manually if you encounter an unexpected

obstacle.

2Taking a Detour P. 117

116

Navigation

Changing Your Route

HDEST/ROUTE button (when en route)

This section describes how to alter your route, add an interim “waypoint” (pit stop),

choose a different destination, cancel your current destination, and continue your

trip after stopping.

Rotate i to select an item. Press u.

The following items are available:

•Cancel Route: Cancels the route guidance.

2Canceling the Route P. 117

•Detour: Calculates a detour route.

2Taking a Detour P. 117

•Avoid Streets: Avoids streets along your route.

2Avoiding Streets P. 117

•Change Route Preference: Changes the route preferences (calculating method).

2Changing the Route Preference P. 91

•Waypoint: Sets waypoints along your route.

2Adding Waypoints from the Route Menu P. 119

•Destination List: Shows a list of waypoints. You can delete waypoints or edit the

order of them.

2Editing the Destination List P. 122

1Changing Your Route

d “Display Menu”, d “Display Navigation”

(when en route)

If you press the DEST/ROUTE button when not en

route, the Destination Menu screen is displayed.

2Entering a Destination P. 68

117



Changing Your Route



Canceling the Route

Navigation

Canceling the Route

HDEST/ROUTE button (when en route)



Cancel Route

Cancel the route guidance and remove the destination and all waypoints from the

destination list. The system then returns to the map screen.

Taking a Detour

HDEST/ROUTE button (when en route)



Detour

Calculate a detour route manually. The system attempts to calculate a new route by

avoiding the next 5 miles (while on a freeway) or 1 mile (while on a surface street).

Avoiding Streets

HDEST/ROUTE button (when en route)



Avoid Streets

Select a street or streets along your route to avoid.

1. Rotate i to select the street you

want to avoid. Press u.



Repeat the procedure to avoid

other streets.



Streets to be avoided are

indicated with a trash icon.

1Canceling the Route

You can also cancel your route from the Map

Menu.

2Map Menu P. 98

1Taking a Detour

The detour option is convenient if you encounter

an unexpected obstacle such as a road closure or

extremely heavy traffic congestion.

1Avoiding Streets

Avoiding certain streets is convenient if you

know of road construction, road closures, or

excessive traffic along the route.

You cannot choose specific streets you want to

use, only those to avoid. However, you can select

intersections or waypoints (places/landmarks)

that the system will use in your route.

2Adding Waypoints P. 118

You can store up to 10 streets to avoid. You

cannot avoid your current street or the streets of

your waypoint(s) or destination (system beeps if

selected).

Continued

118



Changing Your Route



Adding Waypoints

Navigation

2. Move r to select OK.



The system calculates a new

route.

Adding Waypoints

Add up to four waypoints (pit stops) along the route to your destination.

Waypoints are displayed on the map

screen as small, numbered red flags.

The route follows the waypoints in

the order they are listed in the

Destination List.

1Adding Waypoints

Waypoints allow you to stop for gas or food, for

example, and then continue on to your

destination.

Press the MAP/GUIDE button to return to the

map screen without adding a waypoint at any

time.

The search corridor used for adding waypoints

can be adjusted.

2Edit Waypoint Search Area P. 55

You can delete waypoints or edit the order of

waypoints in the destination list.

2Editing the Destination List P. 122

119



Changing Your Route



Adding Waypoints

Navigation

HDEST/ROUTE button (when en route)



Waypoint

1. Rotate i to select a search

method and location to add a

waypoint. Press u.

The following options are available:

•SEARCH AROUND: Searches in a spiral pattern around the location you select.

•SEARCH ALONG: Searches within a “corridor” on either side of the locations you

select.

2. Rotate i to select a waypoint

category (e.g., GAS STATION).

Press u.

■Adding Waypoints from the Route Menu

1Adding Waypoints

Search method

“Search around” method

“Search along” method

Continued

120



Changing Your Route



Adding Waypoints

Navigation

3. Rotate i to select a place. Press



The waypoint is added to the

Destination List.

4. Move r to select OK.



The route is automatically

recalculated and displayed on

the map screen.

121



Changing Your Route



Adding Waypoints

Navigation

1. Rotate i to select ADD TO Dest.

List. Press u.

2. Rotate i to select a location in

the Destination List. Press u.

3. Move r to select OK.



The route is automatically

recalculated and displayed on

the map screen.

■Adding Waypoints from the Calculate Route Screen

122



Changing Your Route



Editing the Destination List

Navigation

Editing the Destination List

HDEST/ROUTE button (when en route)



Destination List

Delete or edit the order of waypoints.

1. Move y to select Edit.



Move w to select Map to

display the destination and

waypoints on the map screen.

2. Rotate i to select an item. Press

3. Move r to select OK.



The route is automatically

recalculated and displayed on

the map screen.

The following options are available:

•Delete: Rotate i to select a list item to delete. Press u.

•Edit Order: Rotate i to select a list item to move, press u, rotate i to select

a new location, and press u again.

123

Navigation

Changing Your Destination

There are several methods you can use to change the route destination.

Find Nearest Place

HENTER button (on map)



Find Nearest…

Search for the nearest place/landmark on the map screen and set it as your

destination.

1. Rotate i to select Find

Nearest…. Press u.

2. Rotate i to select a category

type. Press u.

3. Rotate i to select a place. Press

4. Rotate i to set the place as a

destination or add to the

destination list. Press u.



The system calculates the route.

2Calculating the Route P. 90

1Find Nearest Point of Interest

d “Find Nearest…” (on map screen)

The Find Nearest voice command is the fastest

method of specifying a place/landmark as your

destination. Many kinds of place/landmark can

be found.

2Find Place Commands P. 247

124



Changing Your Destination



Selecting a Destination on the Map

Navigation

Selecting a Destination on the Map

Select a new destination when en route by selecting a location on the map.

1. Scroll the map to position the

cursor over your desired

destination, adjusting the map

scale as necessary. Press u.



If the address displayed is not

the desired location, press the

CANCEL/BACK button and

repeat the procedure.

2. Rotate i to select OK or Set as

Dest. (depending on the screen

displayed). Press u.

2Calculating the Route P. 90

1Selecting a Destination on the Map

If there is more than one icon or street under the

map cursor, you are prompted to select the item

from a list.

•Rotate i to select an item. Press u.

•If you select Map Icon, rotate i to select a

place and press u.

125



Changing Your Destination



Entering a New Destination

Navigation

3. Rotate i to select an option.

Press u.



The route is automatically

recalculated and displayed on

the map screen.

The following options are available:

•Set as New Destination: Sets the location as your new destination.

•Add to Dest. List: Sets the location as a new waypoint.

Entering a New Destination

HDEST/ROUTE button (when en route)



Dest. MENU 1 or Dest. MENU 2

Enter a new destination using the Destination Menu screen even when you are en

route.

1. Enter a new destination.

2Entering a Destination P. 68



After entering a new

destination, the address is

displayed on the Calculate

Route screen.

2. Rotate i to select OK. Press u.

1Entering a New Destination

d “Display Menu”, d “Display Navigation”

Continued

126



Changing Your Destination



Entering a New Destination

Navigation

3. Rotate i to select an option.

Press u.



The route is automatically

recalculated and displayed on

the map screen.

The following options are available:

•Set as New Destination: Sets the location as your new destination.

•Add to Dest. List: Sets the location as a new waypoint.

127

Navigation

Resuming Your Trip

Stop your vehicle en route (e.g., to rest, stop for gas, etc.), and then continue on

your route.

If you did not complete your route, the Continue Trip screen is displayed when you

restart your vehicle.

Rotate i to select OK. Press u.



You can continue on the same

route.

•Route Pref.: Changes the route preferences (calculating method).

2Changing the Route Preference P. 91

•View Routes: Displays three different routes.

2Viewing the Routes P. 92

•DESTINATION MAP: Move r to select DESTINATION MAP to display a map of

the destination.

2Calculating the Route on the Destination Map P. 92

1Continuing Your Trip

The Continue Trip screen has the same options

as when you calculate a route.

2Calculating the Route P. 90

To cancel your destination, press the CANCEL/

BACK button.

Add to Address Book

You can add the destination address to the

address book.

2Adding an Address Book Entry P. 38

Add to Dest. List

You can add the address to the Destination List.

2Editing the Destination List P. 122

Call

You can place a phone call to the destination

phone number.

2Bluetooth® HandsFreeLink® P. 170

128

129

Audio

This section describes how to operate the audio system. You can play

music from a wide array of media sources, and control the audio system

using the audio buttons, the Interface Dial, or voice control.

Audio System .................................................. 130

About Your Audio System.............................. 130

Auxiliary Input Jack ........................................ 131

Audio System Theft Protection ....................... 131

Playing FM/AM Radio ..................................... 132

Selecting FM/AM Mode.................................. 132

Audio Screen Control..................................... 132

Audio Menu .................................................. 133

Radio Data System (RDS)................................ 134

Playing XM® Radio ......................................... 136

Selecting XM Mode........................................ 136

Audio Screen Control..................................... 136

Audio Menu .................................................. 137

Note Function ................................................ 138

XM® Radio Service ........................................ 140

Playing a Disc................................................... 141

Selecting Disc Mode....................................... 141

Audio Screen Control..................................... 141

Audio Menu...................................................142

Playing MP3/WMA/AAC Discs ........................143

Recommended Discs ......................................144

Playing Hard Disc Drive (HDD) Audio ............145

Selecting HDD Mode ......................................145

Audio Screen Control .....................................146

Audio Menu...................................................146

Recording a Music CD to HDD........................148

Searching for Music........................................150

Adding a Track to a User Playlist.....................151

Editing a Playlist .............................................151

Displaying Music Information .........................153

Updating Gracenote® Album Info..................154

Playing an iPod® .............................................155

Selecting iPod® Mode....................................156

Audio Screen Control .....................................156

Audio Menu...................................................157

Searching for Music........................................158

Searching for Music Using Song By Voice™

(SBV)............................................................... 159

Playing a USB Flash Drive............................... 160

Selecting USB Mode....................................... 161

Audio Screen Control..................................... 161

Audio Menu .................................................. 162

Playing Tracks in Folders................................. 163

Playing Bluetooth® Audio ............................. 164

Selecting Bluetooth® Audio Mode................. 164

Switching to HFL Mode.................................. 165

Audio Screen Control..................................... 165

Adjusting the Sound ....................................... 166

Audio Remote Controls .................................. 167

Steering Wheel Controls ................................ 167

130

Audio

Audio System

About Your Audio System

The audio system features FM/AM radio and XM® Radio. It can also play audio discs,

WMA/MP3/AAC tracks, iPods®, USB flash drives, and Bluetooth® devices.

The audio system is operable from the buttons and switches on the panel, or the

remote controls on the steering wheel.

The radio theft protection feature activates if the audio system is disconnected from

electric power. You need to enter a radio code that comes with your vehicle to

reactivate the disabled system.

1About Your Audio System

XM® Radio is available on a subscription basis

only.

2XM® Radio Service P. 140

XM® Radio is available in the United States and

Canada, except Hawaii, Alaska, and Puerto Rico.

XM is a registered trademark of Sirius XM®

Radio, Inc.

Video CDs, DVD-Videos, and 3-inch (8-cm) mini

discs are not supported.

iPod® is a registered trademark owned by Apple

Inc.

MP3 and AAC are standard audio compression

formats. WMA is an audio compression format

developed by Microsoft Corporation.

You can operate the audio system by voice

commands.

2Audio Commands P. 249

XM® Radio

Remote Control

iPod®

USB Flash

Drive

131



Audio System



Auxiliary Input Jack

Audio

Auxiliary Input Jack

Use the jack in the front console compartment to connect standard audio devices.

1. Open the AUX cover.

2. Connect a standard audio device to

the input jack using a 1/8 inch (3.5

mm) stereo miniplug.



The audio system automatically

switches to the AUX mode.

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source (e.g.,

when the battery is disconnected or goes dead.)

■Entering the Audio Security Code

“ENTER CODE” appears on the display when the power is reconnected.

1. Turn on the audio system.

2. Enter the audio security code using the preset buttons. If you enter an incorrect

digit, continue to the last digit, then try again. If you do not enter the code

correctly after 10 tries, you need to visit a dealer to have the system reset.

1Auxiliary Input Jack

To switch the mode, press any of the other audio

mode buttons. You can return to the AUX mode

by pressing the USB/AUX button.

You cannot use the auxiliary input jack if you

replace the audio system.

1Audio System Theft Protection

Find the audio system’s security code and serial

number label in your Owner’s Manual kit.

Do not store the label in your vehicle. If you lose

the label, you must first retrieve the serial

number, and then obtain the code from your

dealer.

132

Audio

Playing FM/AM Radio

Selecting FM/AM Mode

1. Press the AM/FM button.



Press the AM/FM button again, if necessary, to select the frequency band (AM,

FM1, FM2).

2. Select a station using the buttons (Preset, SCAN), the bars (SKIP, CATEGORY), and

the TUNE knob.



On the FM bands, you can also use the CATEGORY bar and TITLE button to

select a station provided by the Radio Data System (RDS).



The band and frequency are displayed on the display.

Audio Screen Control

HAUDIO button (in FM/AM mode)

Control the audio system through the navigation screen.

1. Move e to select a frequency band

(AM, FM1, or FM2).

2. Rotate i to select a preset

station. Press u.



Press and hold u until a beep

sounds to store the current

station in a preset button.



Move r to select AUDIO

MENU.

2Audio Menu P. 133

1Playing FM/AM Radio

d “Display audio screen”

You can control the radio using voice control

commands.

2Radio Commands P. 249

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

The ST indicator comes on the display for stereo

FM broadcasts. Stereo reproduction in AM is not

available.

The radio can receive the complete AM and FM

bands:

AM band: 530 to 1710 kHz

FM band: 87.7 to 107.9 MHz

You can store six AM stations and 12 FM stations

in the preset buttons. FM1 and FM2 let you store

six stations each.

Stereo indicator Frequency band

Preset stations

133



Playing FM/AM Radio



Audio Menu

Audio

Audio Menu

HAUDIO button (in FM/AM mode)



AUDIO MENU

Rotate i to select an item. Press u.

The following items are available:

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Read Radio Text: Displays the text information broadcast by the current RDS

station.

2Radio Text Display P. 135

•RDS Search: Searches for programs by RDS category.

2Searching for Programs by RDS Category P. 134

•Scan: Scans for stations with a strong signal in the current band and plays a 10-

second sample. Select Scan again to stop scanning and play the current selection.

•A.SEL (Auto Select): When set to ON, scans and automatically stores up to six

AM stations and 12 FM stations with a strong signal in the preset buttons.

•Tune: Tunes the radio to the frequency you select. Rotate i to select a

frequency.

1Audio Menu

The A.SEL indicator comes on the display when

A.SEL is ON. If you do not like the stations Auto

Select has stored, you can change the

frequencies stored in the preset buttons

manually. Set A.SEL to OFF to restore the

previous preset button settings.

134



Playing FM/AM Radio



Radio Data System (RDS)

Audio

Radio Data System (RDS)

Provides text data information related to your selected RDS capable FM station.

Press the TITLE button to turn RDS information on or off. When set to ON, the name

of the FM station is displayed on the display. When set to OFF, the frequency of the

station is displayed.

HAUDIO button (in FM/AM mode)



AUDIO MENU



RDS Search

Search for FM stations with a strong signal that are broadcasting the selected RDS

category information.

1. Move w or y to select a search

method (Seek Up, Seek Down,

Scan).

2. Rotate i to select a category.

Press u.



Scanning for stations in that

category begins.



If there are no RDS-capable

stations in the area, “NOTHING”

briefly appears on the display.

■RDS Info Display

■Searching for Programs by RDS Category

135



Playing FM/AM Radio



Radio Data System (RDS)

Audio

HAUDIO button (in FM/AM mode)



AUDIO MENU



Read Radio Text

Display the radio text information of the selected RDS station.

■Radio Text Display

1Radio Text Display

The RDS indicator comes on the display when the

selected RDS station is broadcasting text data.

136

Audio

Playing XM® Radio

Selecting XM Mode

1. Press the XM button.



Press the XM button again, if necessary, to select the band (XM1, XM2).

2. Select a channel using the buttons (Preset, SCAN), the bars (SKIP, CATEGORY),

and the TUNE knob.



The band and channel are displayed on the display.

Audio Screen Control

HAUDIO button (in XM mode)

Control the audio system through the navigation screen.

1. Move e to select the channel band

(XM1, XM2).

2. Rotate i to select a preset

channel. Press u.



Press and hold u until a beep

sounds to store the current

channel in a preset button.



Move r to select AUDIO

MENU.

2Audio Menu P. 137

1Playing XM® Radio

d “Display audio screen”

You can control the radio using voice control

commands.

2Radio Commands P. 249

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

In the channel mode, all available channels are

selectable. In the category mode, you can select

a channel within a category (Jazz, Rock, Classical,

etc.).

There may be instances when XM® Radio does

not broadcast all the data fields (artist name,

title). This does not indicate a problem with your

audio system.

You can store 12 XM stations in the preset

buttons. XM1 and XM2 let you store six stations

each.

XM® Radio display messages will be displayed

on the audio screen.

2XM® Radio Display Messages P. 140

Channel band

Preset channels

137



Playing XM® Radio



Audio Menu

Audio

Audio Menu

HAUDIO button (in XM mode)



AUDIO MENU

Rotate i to select an item. Press u.

The following items are available:

•Note: Records a 10-second sound file from the current channel.

2Note Function P. 138

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Tune: Tunes to the channel you select. Rotate i to select a channel.

•Mode: Sets CH (channel mode) or CAT (category mode) scan mode.

•Channel List: Displays the list of available channels. Scroll the list to select a

channel.

•Channel Scan: Scans for channels with a strong signal in the current band and

plays a 10-second sample. Select Channel Scan again to stop scanning and play

the current selection.

•Category Scan: Scans for channels with a strong signal in the selected category in

the current band and plays a 10-second sample. Select Category Scan again to

stop scanning and play the current selection.

138



Playing XM® Radio



Note Function

Audio

Note Function

Record a 10-second sound file from the current channel that contains the channel,

category, name, and title information.

1. When tuned to the channel you want to record, press and hold the XM button for

a few seconds to start recording.

2. Press the XM button again to stop the recording if less than 10 seconds have

elapsed.

HAUDIO button (in XM mode)



AUDIO MENU



Note

Rotate i to select a sound file. Press

u to select PLAY.

■Recording a Sound File

■Replaying a Sound File

1Recording a Note

The system can store up to 30 sound files. Each

time you add a new recording, the oldest one is

deleted.

Recorded date

139



Playing XM® Radio



Note Function

Audio

HAUDIO button (in XM mode)



AUDIO MENU



Note

1. Rotate i to select a sound file.

2. Move y to select DELETE.

3. Rotate i to select Delete All or

Delete Selected Item. Press u.

■Deleting a Sound File

140



Playing XM® Radio



XM® Radio Service

Audio

XM® Radio Service

1. You need your radio ID ready before registering for subscription.



To see the ID in the display, rotate the TUNE knob while in XM mode until “0”

appears in the center display.

2. Have your radio ID and credit card number ready, and either call XM or visit the

XM website to subscribe.

Press the XM button and stay in this mode for about 30 minutes until the service is

activated. Make sure your vehicle is in an open area with good reception.

LOADING: XM is loading the audio or program information.

OFF AIR: The channel is not currently broadcasting.

UPDATING: The encryption code is being updated. Channels 0 and 1 still work

normally.

NO SIGNAL: The signal is too weak in the current location.

--------: No such channel exists, the channel is not part of your subscription, or the

artist or title information is not available.

CHECK ANTENNA: There is a problem with the XM antenna. Contact a dealer.

■Subscribing to XM® Radio

■Receiving XM® Radio

■XM® Radio Display Messages

1Subscribing to XM® Radio

Contact Information for XM® Radio:

U.S.: XM® Radio at www.siriusxm.com, or

(800) 852-9696

Canada: XM Canada at www.xmradio.ca, or

(877) 209-0079

1Receiving XM® Radio

The XM satellites are in orbit over the equator;

therefore, objects south of the vehicle may cause

satellite reception interruptions. Satellite signals

are more likely to be blocked by tall buildings

and mountains the farther north you travel from

the equator.

You may experience reception problems under

the following circumstances:

•In a location with an obstruction to the south

of your vehicle

•In tunnels

•On the lower level of a multi-tiered road

•Large items are carried on the roof rack

141

Audio

Playing a Disc

Selecting Disc Mode

1. Press the CD button to play a CD or other disc.

2. Insert a disc into the disc slot.



The disc automatically begins playing.

3. Select a track using the buttons (Preset, SCAN) and the bars (SKIP, CATEGORY).



The track number and elapsed time are displayed on the display. Title

information for audio CDs is displayed if found in the Gracenote® Album Info

(Gracenote® Media Database) stored on the built-in hard disc drive (HDD). Text

information stored on MP3/WMA/AAC discs is also displayed.

Audio Screen Control

HAUDIO button (in DISC mode)

Control the audio system through the navigation screen.

Rotate i to select a track. Press u.



Move e to select FOLDER LIST to

display the list of folders on MP3/

WMA/AAC discs having a folder

structure.

2Playing MP3/WMA/AAC Discs

P. 143



Move r to select AUDIO MENU

to display the Audio Menu.

2Audio Menu P. 142

1Recording a Note

d “Display audio screen”

You can control the disc using voice control

commands.

2Disc Commands P. 250

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

In some cases, the name of the artist, album, or

track may not appear correctly.

Do not use discs with adhesive labels. The label

can cause the disc to jam in the unit.

WMA and AAC tracks protected by digital

rights management (DRM) cannot be played.

The audio system displays UNSUPPORTED, then

skips to the next track.

If there is a problem, you may see an error

message on the display.

2Error Messages P. 227

If you eject the disc but do not remove it from

the slot, the system reloads the disc automatically

after several seconds.

Pausing a Disc

Press the preset 1 button. To resume playing the

disc, press the button again.

Disc mode

Track list

142



Playing a Disc



Audio Menu

Audio

Audio Menu

HAUDIO button (in DISC mode)



AUDIO MENU

Rotate i to select an item. Press u.

The following items are available, depending on the type of disc:

•Rec to HDD: Records a music CD onto the HDD for playback using HDD Audio.

2Recording a Music CD to HDD P. 148

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•HDD Setup: Displays menu for setting HDD preferences for recording music CDs

and for updating Gracenote® information.

2Recording a Music CD to HDD P. 148

2Updating Gracenote® Album Info P. 154

•Repeat:

6: Repeats the current track.

7: Repeats all tracks in the current folder.

•Random:

3: Plays all tracks on the current disc in random order.

4: Plays all tracks in the current folder in random order.

1Repeat, Random, and Scan Play

1. Rotate i to select Repeat, Random, or

Scan. Press u.

2. Rotate i to select an option. Press u.

143



Playing a Disc



Playing MP3/WMA/AAC Discs

Audio

•Scan:

1: Scans all tracks on the disc (or in the selected folder) in the order they were

recorded (stored) and plays a 10-second sample. Select OFF to stop scanning and

play the current selection.

2: Scans the first track in each folder on the disc and plays a 10-second

sample. Select OFF to stop scanning and play the current selection.

Playing MP3/WMA/AAC Discs

HAUDIO button (in DISC mode)



FOLDER LIST

Change the folder on MP3/WMA/AAC discs that have tracks stored in a folder

structure.

1. Rotate i to select a folder. Press

2. Rotate i to select a track. Press



The system displays the track list

and begins playing the selected

track.

1Playing MP3/WMA/AAC Discs

Folder List

•Any tracks not in a folder are automatically

added to a “ROOT” folder, which is displayed

at the top of the Folder List.

•If the root folder has additional folders in a

lower layer, they are listed on the screen.

144



Playing a Disc



Recommended Discs

Audio

Recommended Discs

•Use only high-quality CD-R or CD-RW discs labeled for audio use.

•Use only CD-R or CD-RW discs on which the recordings are closed.

•Play only standard round-shaped discs.

•Use DVD-R/RW discs that meet DVD verification standards.

■Recording to HDD

•Only standard CD-DA (44.1 kHz, 16 bit stereo PCM digital sound data) discs can

be recorded to HDD.

•Digital music tracks, such as MP3, WMA, AAC, etc., in CD-R or DVD-R cannot be

copied to HDD. Likewise, digital music tracks recorded to HDD cannot be copied

to CD-R and DVD-R.

■Discs with MP3, WMA, or AAC Tracks

•Some software files may not allow for audio play or text data display.

•Some versions of MP3, WMA, or AAC formats may be unsupported. If an

unsupported track is found, the audio unit displays UNSUPPORTED, and then skips

to the next track.

1Recommended Discs

A Dual-disc cannot play on this audio unit. If

recorded under certain conditions, a CD-R or CD-

RW may not play either.

Manufactured under license under U.S. Patent

#’s: 5,451,942; 5,956,674; 5,974,380;

5,978,762; 6,487,535 & other U.S. and

worldwide patents issued & pending. DTS and

DTS Digital Surround are registered trademarks

and the DTS logos and Symbol are trademarks of

Reserved.

The disc packages or jackets should have one of these symbols.

Also includes:

145

Audio

Playing Hard Disc Drive (HDD) Audio

The Hard Disc Drive (HDD) Audio function plays tracks from music CDs that have

been recorded onto the built-in HDD. You can arrange the tracks in playlists or play

the tracks using various search methods.

Selecting HDD Mode

1. Press the HDD button to play tracks stored on the HDD.

2. Select a track by genre, artist, album, recording (ripping) date, playlist, or track list.



The track number and elapsed time are displayed on the display. Title

information is displayed if found in the Gracenote® Album Info (Gracenote®

Media Database) stored on the HDD.



The HDD has two types of playlists: original playlists and user playlists. An

original playlist is automatically created for each album when a music CD is

recorded. You can customize up to six user playlists provided on the HDD by

adding tracks from your original playlists.

1Playing Hard Disc Drive (HDD) Audio

d “Display audio screen”

You can control the HDD audio using voice

control commands.

2HDD Commands P. 250

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

In some cases, the name of the artist, album, or

track may not appear correctly.

Music tracks recorded on HDD cannot be

recorded onto CDs or other devices.

Tracks are recorded at four times the playback

speed using ultra-efficient compression

technology; therefore, sound quality may vary

slightly from the original.

If the HDD is ever replaced, all music data is lost

and cannot be recovered.

If there is a problem, you may see an error

message on the display.

2Error Messages P. 227

146



Playing Hard Disc Drive (HDD) Audio



Audio Screen Control

Audio

Audio Screen Control

HAUDIO button (in HDD mode)

Control the audio screen through the navigation system.

Rotate i to select a track. Press u.



Move w or y to select ALBUM-

or ALBUM+ to change albums.



Move e to select MUSIC SEARCH

to display the Music Search Menu.

2Searching for Music P. 150



Move r to select AUDIO MENU.

2Audio Menu P. 146

Audio Menu

HAUDIO button (in HDD mode)



AUDIO MENU

Rotate i to select an item. Press u.

HDD mode

Track list

1Repeat, Random, and Scan Play

1. Rotate i to select Repeat, Random, or

Scan. Press u.

2. Rotate i to select an option. Press u.

147



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

The following items are available:

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Add to Playlist: Adds the current track to a user playlist.

2Adding a Track to a User Playlist P. 151

•Edit Music Info.: Edits artist name, playlist name, track name, genre, and track

order in playlists. You can also delete tracks and playlists.

2Editing a Playlist P. 151

•Get Music Info.: Gets the original title information for a track in a user playlist

from an original playlist.

2Displaying Music Information P. 153

•Repeat

6: Repeats the current track.

•Random

3: Plays all tracks on the HDD in random order.

•Scan

1: Scans all tracks on the HDD in the order they were recorded and plays a 10-

second sample. Select OFF to stop scanning and play the current selection.

•HDD Setup: Displays menu for setting preferences for recording music CDs and

updating Gracenote® information.

2Recording a Music CD to HDD P. 148

2Updating Gracenote® Album Info P. 154

148



Playing Hard Disc Drive (HDD) Audio



Recording a Music CD to HDD

Audio

Recording a Music CD to HDD

The songs on music CDs are automatically recorded (ripped) by factory default to the

HDD the first time you play each disc. You can then play the songs directly from the

HDD.

1. Move r to select AUDIO MENU.

2. Rotate i to select Cancel Rec to HDD. Press u.

1Recording a Music CD to HDD

You can add tracks to user playlists, where you

can mix and match tracks from other CDs

recorded on the HDD.

2Adding a Track to a User Playlist P. 151

2Editing a Playlist P. 151

If you stop the engine or the power system is

turned off while recording a CD, there may be

pauses between songs when you play back from

the HDD.

Repeat, random, and scan functions are not

available during recording.

You can play music from other sources (e.g., XM,

HDD, etc.) while recording.

Please note that there is no compensation

offered in the case of unsuccessful recording of

audio data or the loss of audio data due to any

cause whatsoever.

Clearing the HDD

Any music tracks stored on the HDD can be

deleted. Select Music on HDD in the Clear

Personal Data menu.

2Clear Personal Data P. 65

■Stopping Recording

Recording indicator

Recorded

Recording

Ready to record

149



Playing Hard Disc Drive (HDD) Audio



Recording a Music CD to HDD

Audio

HAUDIO button (in DISC or HDD mode)



AUDIO MENU



HDD Setup

1. Rotate i to select CD

Recording. Press u.

2. Rotate i to select MANUAL.

Press u.

3. Move r to select RETURN.

4. Rotate i to select Rec to HDD.

Press u.



During recording, rotate i to

select Cancel Rec to HDD. Press

u to cancel.

■Recording a CD Manually

150



Playing Hard Disc Drive (HDD) Audio



Searching for Music

Audio

Searching for Music

HAUDIO button (in HDD mode)



MUSIC SEARCH

Search for music recorded to HDD using six different methods.

1. Rotate i to select a search

category. Press u.

2. Rotate i to select an item. Press



Move w or y to select

alphabetical tabs on some

screens.



The first track begins playing.

1Searching for Music

Albums, Artists, and Tracks display lists in

alphabetical order. Ripped Date displays albums

in chronological order.

You can also search for music on the HDD

through voice commands using SBV.

2Searching for Music Using Song By

Voice™ (SBV) P. 159

RANDOM ALL TRACKS

Move r to select RANDOM ALL TRACKS to

shuffle the playback of all tracks that have been

recorded to HDD.

151



Playing Hard Disc Drive (HDD) Audio



Adding a Track to a User Playlist

Audio

Adding a Track to a User Playlist

HAUDIO button (in HDD mode)



AUDIO MENU



Add to Playlist

Add a track from any playlist to one of the six user playlists.

Rotate i to select a playlist. Press



The track is added to the end of the

playlist.

Editing a Playlist

HAUDIO button (in HDD mode)



AUDIO MENU



Edit Music Info.

Change the playlist name, track title, artist name, genre, and track order of the

current playlist. You can also delete tracks, playlists, and albums.

Rotate i to select an item. Press u.

1Adding a Track to a User Playlist

The maximum number of songs in each of the six

user playlists is 999. Adding new songs

overwrites the oldest songs.

Adding a track from a user playlist into the same

user playlist will cause the track to appear twice

in the playlist.

1Editing a Playlist

Deleting an album (original playlist) also deletes

the album tracks you have stored in any user

playlists.

Deleting a user playlist or deleting all tracks from

a user playlist does not remove the playlist folder.

The folder retains the playlist name and artist

information.

Continued

152



Playing Hard Disc Drive (HDD) Audio



Editing a Playlist

Audio

The following items are available, depending on the type of playlist:

•Edit Artist Name: Enter a new artist name. Move r to select OK when finished.

Then, select whether to apply the new artist name to the album (playlist) and all

tracks, the current track only, all tracks, or the album (playlist) only.

•Edit Playlist Name (user playlists): Enter a new playlist name. Move r to select

OK when finished.

•Edit Album Name (original playlists): Enter a new album name. Move r to

select OK when finished.

•Edit Track Name: Enter a new track name. Move r to select OK when finished.

•Edit Genre: Select a new genre. Then select the original playlist to apply the

genre.

•Edit Track Order (user playlists): Select the track to move, and then select the

new location. Repeat to move more than one track. Move r to select OK when

finished.

•Delete Playlist: Deletes the user playlist. Rotate i to select Yes at the

confirmation prompt to delete the playlist.

•Delete Album: Deletes the original playlist. Rotate i to select Yes at the

confirmation prompt to delete the album.

•Delete Track: Deletes the current track. Rotate i to select Yes at the

confirmation prompt to delete the current track.

153



Playing Hard Disc Drive (HDD) Audio



Displaying Music Information

Audio

Displaying Music Information

HAUDIO button (in HDD mode)



AUDIO MENU



Get Music Info.

Display the music information (album name, artist name, genre) for an album

(original playlist).



Gracenote® searches for the

information of the currently

selected album (original playlist).

Rotate i to select an album. Press



The information is displayed.

1Displaying Music Information

The maximum number of original playlists is 999

with a maximum of 99 songs in each playlist.

Each album CD counts as an original playlist.

154



Playing Hard Disc Drive (HDD) Audio



Updating Gracenote® Album Info

Audio

Updating Gracenote® Album Info

HAUDIO button (in HDD or DISC mode)



AUDIO MENU



HDD Setup

Update the Gracenote® Album Info (Gracenote® Media Database) that is included

with the navigation system.

1. Insert the update disc into the disc

slot or connect the USB flash drive

that includes the update.

2. Rotate i to select Gracenote

Info. Update. Press u.

3. Rotate i to select USB or Disc

update source media. Press u.

4. Rotate i to select Yes on the

confirmation screen. Press u.



The system updates the

Gracenote information.

5. Rotate i to select OK on the

confirmation screen. Press u.

1Updating Gracenote® Album Info

To acquire updated files:

•Consult your dealer.

•U.S.: Visit automobiles.honda.com.

•Canada: Visit www.hondanavi.ca.

Once you perform an update, any information

you edited before will be overwritten or erased.

Maximum capacity Remaining capacity

Gracenote version

number

155

Audio

Playing an iPod®

1. Unclip the USB connector in the glovebox and loosen the adapter cable.

2. Install the iPod® dock connector to the USB connector.

■Connecting an iPod®

1Connecting an iPod®

•Do not use an extension cable with the USB

adapter cable.

•Do not connect your iPod® using a hub.

•Do not use a device such as a card reader or

hard disk drive, as the device or your tracks

may be damaged.

•We recommend backing up your data before

using the device in your vehicle.

•Displayed messages may vary depending on

the device model and software version.

Your audio system may not work with all

software versions of these devices.

If the audio system does not recognize your

iPod®, try reconnecting it a few times or reboot

the device.

■Model Compatibility

Model

iPod (5th generation)

iPod classic 80GB/160GB (launch in 2007)

iPod classic 120GB (launch in 2008)

iPod nano

iPod touch

156



Playing an iPod®



Selecting iPod® Mode

Audio

Selecting iPod® Mode

1. Connect the iPod® to the USB adapter cable in the console compartment.

2. Press the USB/AUX button until you get to iPod® mode.

3. Select a track using the iPod® menu on the screen.



The current track number and total number of tracks are displayed on the

display.

Audio Screen Control

HAUDIO button (in iPod® mode)

Control the audio screen through the navigation system.

Rotate i to select a track. Press u.



Move e to select MUSIC SEARCH

to change songs in the track list.

2Searching for Music P. 158



Move r to select AUDIO MENU.

2Audio Menu P. 157

1Playing an iPod®

d “Display audio screen”

You can control the iPod® using voice control

commands.

2iPod® Commands P. 251

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

In some cases, the name of the artist, album, or

track may not appear correctly.

Available operating functions vary on models or

versions. Some functions may not be available on

the vehicle’s audio system.

If there is a problem, you may see an error

message on the display.

2Error Messages P. 227

iPod® mode

Track list

157



Playing an iPod®



Audio Menu

Audio

Audio Menu

HAUDIO button (in iPod® mode)



AUDIO MENU

Rotate i to select an item. Press u.

The following items are available:

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Repeat

6: Repeats the current track.

•Shuffle:

3: Plays all tracks in the track list in random order.

5: Plays all tracks in the track list in random order by albums. Each song in an

album is played in the right order and only the order of albums is randomized.

1Repeat and Shuffle Play

1. Rotate i to select Repeat or Shuffle. Press

2. Rotate i to select an option. Press u.

158



Playing an iPod®



Searching for Music

Audio

Searching for Music

HAUDIO button (in iPod® mode)



MUSIC SEARCH

Search for music using the iPod® menu.

1. Rotate i to select a search

category. Press u.

2. Rotate i to select an item. Press



The selection begins playing.

1Searching for Music

The order of the track list displayed if you select

“All” on the iPod® menu varies depending on

the iPod® model and software.

You can also search for music on the iPod®

through voice commands using SBV.

2Searching for Music Using Song By

Voice™ (SBV) P. 159

SHUFFLE ALL TRACKS

Move r to select SHUFFLE ALL TRACKS to

shuffle the playback of all tracks on the iPod®.

159

Audio

Searching for Music Using Song By Voice™ (SBV)

Use Song By Voice™ (SBV) to search for and play music from your HDD or iPod®

device using voice commands.

1. Set Song By Voice to ON in the

system setup.

2Song By Voice™ (SBV) P. 46

2. Say d “Hard Disc Drive Search” or

d “iPod Search” to activate the

SBV feature for the HDD or iPod®.



The SBV commands that you

can use are displayed on the

screen.

3. Say a command.



Example 1: Say d “List Artist

‘Artist A’” to view a list of songs

by that artist. Select the desired

song to start playing.



Example 2: Say d “Play Artist

‘Artist A’” to start playing songs

by that artist.

4. To cancel SBV mode, press the

CANCEL (BACK) button on the

steering wheel or any button on

the navigation system interface.

The selected song continues

playing.

1Searching for Music Using Song By Voice™ (SBV)

The SBV voice commands give you more control

over the music than the regular iPod® and HDD

voice commands.

2Song By Voice™ Commands P. 251

You can add phonetic modifications of difficult

words so that it is easier for SBV to recognize

artists, songs, albums, and composers in voice

commands.

2Phonetic Modification P. 47

SBV may not be able to recognize languages

other than English for the artist name, song title,

album title, and composers.

Once you have canceled this mode, you need to

say d “Hard Disc Drive Search” or d “iPod

Search” again to re-activate this mode.

160

Audio

Playing a USB Flash Drive

1. Unclip the USB connector in the glovebox and loosen the adapter cable.

2. Install the USB flash drive to the USB connector.

Use a recommended USB flash drive of 256 MB or higher.

Some digital audio players may not be compatible.

Some USB flash drives (e.g., a device with security lockout) may not work.

Some software files may not allow for audio play or text data display.

Some versions of MP3, WMA, or AAC formats may be unsupported.

■Connecting a USB Flash Drive

1Connecting a USB Flash Drive

•Do not use an extension cable with the USB

adapter cable.

•Do not connect your USB flash drive using a

hub.

•Do not use a device such as a card reader or

hard disk drive, as the device or your tracks

may be damaged.

•We recommend backing up your data before

using the device in your vehicle.

■USB Flash Drives

1USB Flash Drives

Digital music tracks, such as MP3, WMA, AAC,

etc., in USB flash drives cannot be copied to

HDD. Likewise, digital music tracks recorded to

HDD cannot be copied to USB flash drives.

161



Playing a USB Flash Drive



Selecting USB Mode

Audio

Selecting USB Mode

1. Connect the USB flash drive to the USB adapter cable in the console

compartment.

2. Press the USB/AUX button until you get to USB mode.

3. Select a track using skip, scan, folder list, or track list.



The current track number and folder number are displayed on the display.

Audio Screen Control

HAUDIO button (in USB mode)

Control the audio screen through the navigation system.

Rotate i to select a track. Press u.



Move e to select FOLDER LIST to

display the folder list.

2Playing Tracks in Folders P. 163



Move r to select AUDIO MENU.

2Audio Menu P. 162

1Playing a USB Flash Drive

d “Display audio screen”

You can control the audio system using voice

control commands.

2USB Commands P. 251

A visual guide helps you operate the audio

system.

2System Controls P. 4

2Basic Operation P. 6

In some cases, the name of the artist, album, or

track may not appear correctly.

Tracks on the USB flash drive are played in their

stored order. This order may be different from

the order displayed on your PC or device.

The audio system displays UNPLAYABLE FILE, and

then skips to the next track when the following

tracks are played:

•Tracks in WMA or AAC format protected by

digital rights management (DRM)

•Tracks in unsupported format

If there is a problem, you may see an error

message on the display.

2Error Messages P. 227

USB mode

Track list

162



Playing a USB Flash Drive



Audio Menu

Audio

Audio Menu

HAUDIO button (in USB mode)



AUDIO MENU

Rotate i to select an item. Press u.

The following items are available:

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Repeat:

6: Repeats the current track.

7: Repeats all tracks in the current folder.

•Random:

3: Plays all tracks on the USB flash drive in random order.

4: Plays all tracks in the current folder in random order.

•Scan:

1: Scans all tracks in the current folder in the order they were stored and plays

a 10-second sample. Select OFF to stop scanning and play the current selection.

2: Scans the first track in each folder on the USB flash drive and plays a 10-

second sample. Select OFF to stop scanning and play the current selection.

1Repeat, Random, and Scan Play

1. Rotate i to select Repeat, Random, or

Scan. Press u.

2. Rotate i to select an option. Press u.

163



Playing a USB Flash Drive



Playing Tracks in Folders

Audio

Playing Tracks in Folders

HAUDIO button (in USB mode)



FOLDER LIST

Change the folder if the tracks are stored in a folder structure.

1. Rotate i to select a folder. Press

2. Rotate i to select a track. Press



The display returns to the track list

menu and the selected track.

1Playing Tracks in Folders

Folder List

•Any music tracks not in a folder are

automatically added to a “ROOT” folder,

which is displayed at the top of the Folder List.

•If the root folder has additional folders in a

lower layer, they are listed on the screen.

RANDOM ALL TRACKS

Move r to select RANDOM ALL TRACKS to

shuffle the playback of all tracks on the USB flash

drive.

164

Audio

Playing Bluetooth® Audio

Your audio system allows you to listen to music tracks stored on your Bluetooth-

compatible phone.

This function is available when the phone is linked to the vehicle’s Bluetooth®

HandsFreeLink® (HFL) system.

2Bluetooth® HandsFreeLink® P. 169

Selecting Bluetooth® Audio Mode

1. Make sure that your phone is on, paired, and linked to HFL.

2Pairing a Phone P. 172

2. Press the USB/AUX button to select Bluetooth® Audio mode.



A Bluetooth® message and icon are displayed on the display and screen.

3. If necessary, follow the cell phone operating instructions for playing audio tracks.

Check the following if the phone is not recognized:

•Another HFL-compatible phone, which is not compatible for Bluetooth® Audio, is

already connected.

1Playing Bluetooth® Audio

d “Display audio screen”

You can control the audio system using voice

control commands.

2Bluetooth® Audio Commands P. 251

Not all Bluetooth-enabled phones with

streaming audio capabilities are compatible. To

check if your phone is compatible:

•U.S.: Visit automobiles.honda.com/

handsfreelink.

•Canada: Visit www.handsfreelink.ca.

•Call HandsFreeLink customer support at

(888) 528-7876.

In some states, it may be illegal to perform some

data device functions while driving.

In some cases, the name of the artist, album, or

track may not appear correctly.

Only one phone can be used with HFL at a time.

When there are more than two paired phones in

the vehicle, the first paired phone the system

finds will be automatically linked.

Pressing the TITLE side of the SCAN/TITLE bar

switches the center display between the

Bluetooth® Audio message and the device

name.

165



Playing Bluetooth® Audio



Switching to HFL Mode

Audio

Switching to HFL Mode

1. If you receive a call when

Bluetooth® Audio is playing, press

the h (Pick-Up) button on the

steering wheel to answer the call.

2Bluetooth® HandsFreeLink®

P. 170

2. Press the j (Hang-Up) button to

end the call, and Bluetooth® Audio

is resumed.

Audio Screen Control

HAUDIO button (in BT mode)



AUDIO MENU

Control the audio screen through the navigation system.

Rotate i to select an item. Press u.

The following items are available:

•Sound Setup: Displays the sound preferences screen.

2Adjusting the Sound P. 166

•Resume/Pause: Resumes/pauses play.

1Playing Bluetooth® Audio

If more than one phone is paired to the HFL

system, there may be a delay before the system

begins to play.

A “NO CONNECT” message may be displayed if:

•The phone is not linked to HFL.

•The phone is not turned on.

•The phone is not in the vehicle.

•An incompatible phone is connected.

h (Pick-Up) button

j (Hang-Up) button

1Audio Screen Control

The pause function may not be available on

some devices.

The display items may vary depending on the

connected device.

Bluetooth® Audio mode

166

Audio

Adjusting the Sound

HAUDIO button



AUDIO MENU



Sound Setup

Adjust the sound bass, treble, fader, and balance. You can also adjust the strength

of the sound coming from the center and subwoofer speakers. In addition, you can

set Dolby PL (ProLogic) II and Speed-sensitive Volume Compensation (SVC).

1. Rotate i to select the sound

mode to adjust. Press u.

2. Rotate i to adjust the desired

level. Press u.



The display returns to the audio

screen after a few seconds.

You can also use the 8 (Sound) button to adjust the sound. Press the 8

button repeatedly to cycle through the edit modes, displayed on the display. Rotate

the VOL 9 knob to adjust the setting.

1Adjusting the Sound

You can check the level on the navigation screen

or on the display. When the level reaches the

center, you will see “C” in the display.

Fader adjusts the front-to-back strength, while

balance adjusts the side-to-side strength. If the

fader adjustment is set to the maximum front

level, the subwoofer is turned off. If the fader is

set to the maximum rear level, the center speaker

is off.

Dolby PL II signal processing creates multi-

channel surround sound from 2-channel stereo

audio sources. Dolby ProLogic II is available only

in DISC (CD-DA, MP3, WMA, AAC), XM® Radio,

AUX (USB, iPod®, AUX, Bluetooth® Audio), and

HDD modes.

Manufactured under license from Dolby

Laboratories. Dolby, ProLogic, MLP Lossless, and

the double-D symbol are trademarks of Dolby

Laboratories.

The SVC has four modes: OFF, LOW, MID, and

HIGH. SVC adjusts the volume level based on the

vehicle speed. The faster you go, the audio

volume increases. As you slow down, the audio

volume decreases. If you feel the sound is too

loud, choose LOW, and vice versa.

TREBLE BASS

SVC BALANCE

FADER

SUBWOOFERDOLBY PL II CENTER

167

Audio

Audio Remote Controls

Steering Wheel Controls

Control basic audio system functions using the controls mounted on the steering

wheel.

Adjusts the volume.

•Press the R (Volume) button to increase the volume.

•Press the U (Volume) button to decrease the volume.

Changes the audio source mode. Press to cycle through all currently connected

media sources.

1MODE Button

DISC mode appears only when a disc is loaded.

When in AUX mode, the following are operable

from the remote audio controls:

•iPod®/USB flash drive connected to the USB

adapter cable

•Audio unit plugged into the auxiliary input jack

•Bluetooth® Audio (not all phones support this

function)

Volume button Mode button

Channel button

■VOL (Volume) Button

■MODE Button

FM2FM1

AUX XM1

DISCHDD XM2

Continued

168



Audio Remote Controls



Steering Wheel Controls

Audio

FM/AM, XM

•Press the N (Channel) button to change to the next preset station (channel).

•Press the B (Channel) button to go to the previous preset station (channel).

•FM/AM: Press and hold for one second to scan for a station with a strong signal.

•XM: Press and hold for one second to go to the next/previous channel in the

current category.

DISC, HDD, iPod®, USB, Bluetooth® Audio (on some phones)

•Press the N button to skip to the end of the current track.

•Press the B button to skip to the beginning of the current track. Press the B

button again to go to the beginning of the previous track.

•Press and hold to skip forward/backward to the first track of the next folder.

■CH (Channel) Button

169

Bluetooth® HandsFreeLink®

This section describes how to operate Bluetooth® HandsFreeLink®. You

can place and receive phone calls using your vehicle’s audio system

without handling your cell phone.

Bluetooth® HandsFreeLink® ............... 170

Pairing a Phone .................................... 172

Importing Phonebook Data .................. 177

Setting Up Speed Dialing...................... 178

Editing User Name and PIN................... 180

Phone Setup ........................................ 181

Making a Call....................................... 182

Receiving a Call.................................... 185

HFL Menus........................................... 186

170

Bluetooth® HandsFreeLink®

HPHONE button

Rotate i to select an item. Press u.

The following items are available:

•PHONE SETUP: Move r to set up the HFL features.

2Pairing a Phone P. 172

2Setting Up Speed Dialing P. 178

•Call History: Displays the call history.

2Using Call History P. 184

•Phonebook: Displays the phonebook.

2Using the Phonebook P. 183

•Dial: Makes a call by entering the phone number.

2Entering a Phone Number P. 183

•More Speed Dial: Displays more speed dial entries stored in the system.

2Using Speed Dial P. 184

•Speed Dial 1-4: Makes a call to stored speed dial entries.

2Using Speed Dial P. 184

1Bluetooth® HandsFreeLink®

You can control the HFL system using voice

commands.

2HFL Menus P. 186

To use HFL, you need a Bluetooth-compatible

cell phone. For a list of compatible phones,

pairing procedures, and special feature

capabilities:

•U.S.: Visit automobiles.honda.com/

handsfreelink.

•Canada: Visit www.handsfreelink.ca.

•Call HandsFreeLink customer support at

(888) 528-7876.

Voice Control Tips

•Aim the vents away from the ceiling and close

the windows, as noise coming from them may

interfere with the microphone.

•Press and release the d (Talk) button before

giving a command. Speak clearly and naturally

after a beep.

2Voice Control Operation P. 5

•If the microphone picks up voices other than

yours, the command may be misinterpreted.

•When HFL is in use, navigation voice

commands cannot be recognized.

•To change the volume level, use the audio

system’s volume knob or the remote audio

controls.

171



Bluetooth® HandsFreeLink®



Bluetooth® HandsFreeLink®

Say d “Hands-free help” or d “Help” any time to get help or hear a list of

commands.

2Voice Help P. 5

■Help Features

1Bluetooth® HandsFreeLink®

Bluetooth® Wireless Technology

Bluetooth® name and logos are registered

trademarks owned by Bluetooth SIG, Inc., and

any use of such marks by Honda Motors Co.,

Ltd., is under license. Other trademarks and

trade names are those of their respective owners.

HFL Limitations

An incoming call on HFL will interrupt

Bluetooth® Audio when it is playing. Audio will

resume when the call is ended.

172



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

Pairing a Phone

HPHONE button

When no Bluetooth-compatible phone is paired, the following screen appears:

1. Rotate i to select Yes. Press u.

2. Put your cell phone in “Discovery”

or “Search” mode.

3. Select OK.

4. Select your phone in the list.



Select Find Another Phone if

your phone is not found.



Refer to your phone manual for

instructions on searching for a

Bluetooth® device.

5. Enter the 4-digit pairing code on

your phone when prompted to

complete the pairing process.

1Pairing a Phone

Your Bluetooth-compatible phone must be

paired to HFL before you can make and receive

hands-free calls.

You can control the HFL system using voice

commands.

2HFL Menus P. 186

The maximum range between your phone and

vehicle is about 30 feet (10 meters).

Phone Pairing Tips

•You cannot pair your phone while the vehicle

is moving.

•Your phone must be in discovery or search

mode when pairing the phone. Refer to your

phone’s manual.

•Up to six phones can be paired.

•Your phone’s battery may drain faster when it

is paired to HFL.

•If your phone is not ready for pairing or not

found by the system within three minutes, the

system will time out and returns to idle.

•The default pass-key “0000” is used until you

change the setting.

Pass-Key

You can change the pass-key setting.

2Changing the Pass-key P. 174

Delete a Phone

You can delete the paired phone.

2Deleting a Paired Phone P. 175

173



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

HPHONE button



PHONE SETUP



Connection

Use the Phone setup screen to pair an additional Bluetooth-compatible phone if a

phone has been previously paired to the system.

1. Rotate i to select Add New

Phone. Press u.

2. Select the location (1-6) for the

phone to be added.

3. Put your cell phone in “Discovery”

or “Search” mode.

4. Select OK.



The system begins to search for

your phone.

5. Select your phone in the list.



Select Find Another Phone if

your phone is not found.



Refer to your phone manual for

instructions on searching for a

Bluetooth® device.

6. Enter the 4-digit pairing code on

your phone when prompted to

complete the pairing process.

■Pairing from Phone Setup

1Pairing from Phone Setup

If a prompt appears asking to connect to a

phone, select No and proceed with step 1.

Continued

174



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

HPHONE button



PHONE SETUP



Connection

1. Rotate i to select Pass-key. Press

2. Rotate i to select an item. Press

The following items are available:

•Random: Uses a randomly generated pass-key.

•Fixed: Create your own pass-key.

■Changing the Pass-key

175



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

3. Move w to select DELETE to

remove the current pass-key.

4. Enter a new pass-key. Move r to

select OK.

HPHONE button



PHONE SETUP



Connection

1. Rotate i to select Delete.

■Deleting a Paired Phone

Continued

176



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

2. Rotate i to select a phone to

delete. Press u.



The Bluetooth® icon indicates

the currently linked phone.



Items to be deleted are indicated

with a trash icon.

3. Move r to select OK.

4. Rotate i to select Yes. Press u

to delete the device(s).

HPHONE button



PHONE SETUP



Connection

1. Rotate i to select Connect. Press

2. Rotate i to select a phone. Press



HFL disconnects the linked

phone and starts searching for

another paired phone. If no

other paired phone is found,

HFL automatically links the

previous phone.

3. Press u to select OK.

Trash icon

Bluetooth® icon

■Changing the Currently Paired Phone

1Changing the Currently Paired Phone

If no other phones are found or paired when

trying to switch to another phone, HFL will

inform you that the original phone is linked

again.

177



Bluetooth® HandsFreeLink®



Importing Phonebook Data

Bluetooth® HandsFreeLink®

Importing Phonebook Data

When your phone is paired, the

content of its phonebook and call

history are automatically imported to

HFL.

1Importing Phonebook Data

Up to 10,000 numbers for 1,000 names can be

imported. Up to three icons are displayed for

each phonebook entry. If there are more than

three numbers for an entry, “…” is displayed.

This feature is not available on all phones.

Preference Fax

Home Car

Mobile Voice

Work Other

Pager

178



Bluetooth® HandsFreeLink®



Setting Up Speed Dialing

Bluetooth® HandsFreeLink®

Setting Up Speed Dialing

HPHONE button



PHONE SETUP



Edit Speed Dial



Store Speed Dial

Create speed dial entries with voice tags for easy calling.

1. Rotate i to select a location in

the speed dial list. Press u.

2. Rotate i to select a number entry

method. Press u.

3. Follow the prompt to enter a voice

tag.

The following options are available:

•Phonebook: Adds a number from the imported phonebook.

•Call History: Adds a number from the last 30 numbers.

•Dial: Enters a number manually.

1Setting Up Speed Dialing

You can control the HFL system using voice

commands.

2HFL Menus P. 186

Up to 20 speed dial entries can be stored per

user. The first four entries are displayed on the

Cellular Phone screen.

You can select a “No Entry” field directly from

the Cellular Phone screen to store a speed dial

number.

Speed dial

179



Bluetooth® HandsFreeLink®



Setting Up Speed Dialing

Bluetooth® HandsFreeLink®

HPHONE button



PHONE SETUP



Edit Speed Dial

1. Rotate i to select Store Voice

Tag. Press u.

2. Rotate i to select a speed dial

entry. Press u.

3. Follow the prompt to enter a voice

tag.

■Registering a Voice Tag to a Speed Dial Entry

1Registering a Voice Tag to a Speed Dial Entry

Voice tags allow you to call speed dial entries

from any screen by saying d “Dial by voice tag”

and the voice tag, followed by d “Dial”.

•Avoid using duplicate voice tags.

•Avoid using “Home” as a voice tag.

•It is easier for HFL to recognize a longer name

(e.g., “John Smith” instead of “John”).

1Deleting a Voice Tag

1. Rotate i to select Delete Voice Tag. Press

2. Rotate i to select the number you want to

delete the voice tag for. Move r to select OK.

1Deleting a Speed Dial Entry

1. Rotate i to select Delete Speed Dial. Press

2. Rotate i to select the entry you want to

delete. Move r to select OK.

180



Bluetooth® HandsFreeLink®



Editing User Name and PIN

Bluetooth® HandsFreeLink®

Editing User Name and PIN

HPHONE button



PHONE SETUP



Phone Name/PIN

Edit the user name of a paired phone, and protect the phonebook and speed dial

entries with a PIN.

Rotate i to select an item. Press u.

The following items are available:

•Name: Enter a name.

•PIN: Enter a 4-digit PIN. Re-enter to confirm. You can select DO NOT USE PIN to

remove a PIN number.

1Editing User Name and PIN

You can control the HFL system using voice

commands.

2HFL Menus P. 186

You can name up to six HFL users. Each can be

PIN protected, and have their own phonebook,

speed dial entries, and call history.

User name

PIN-protected

speed dial

181



Bluetooth® HandsFreeLink®



Phone Setup

Bluetooth® HandsFreeLink®

Phone Setup

HPHONE button



PHONE SETUP

Set HFL options and features.

1. Rotate i to select an item. Press

2. Rotate i to select an option.

Press u.

The following items are available:

•Connection: Pairs your phone to the system, connect/disconnect your phone, or

changes the pass-key.

2Pairing a Phone P. 172

•Edit Speed Dial: Stores/deletes the speed dials or edits the voice tag.

2Setting Up Speed Dialing P. 178

•Phone Name/PIN: Change your phone name or protects the phonebook/speed

dials with a PIN.

2Editing User Name and PIN P. 180

•Auto Transfer: Sets whether to automatically transfer a call from your phone to

HFL when you enter and turn on the vehicle.

ON (factory default): Automatically transfers your call to HFL.

OFF: Disables the feature.

•Auto Answer: Sets whether to automatically answer an incoming call after about

2, 5, or 10 seconds. To disable the feature, select OFF (factory default).

1Editing User Name and PIN

You can control the HFL system using voice

commands.

2HFL Menus P. 186

Clear Phone Information

When you transfer the vehicle to a third party,

delete all paired phones.

Continued

182



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

•Clear Phone Information: Clear all paired phones, phonebook entries, speed

dials, and pass-keys.

Making a Call

Make calls by entering a number or using the imported phonebook, call history, or

speed dial entries.

2Using the Phonebook P. 183

2Entering a Phone Number P. 183

2Using Call History P. 184

2Using Speed Dial P. 184

1Making a Call

You can control the HFL system using voice

commands.

2HFL Menus P. 186

When you say d “Dial by number” or d “Dial

by voice tag” on most screens, the following

screen appears:

Say the phone number or the voice tag (e.g., d

“John Smith“), followed by d “Dial“.

2Registering a Voice Tag to a Speed Dial

Entry P. 179

Only one phone can be used with HFL at a time.

When there are more than two paired phones in

the vehicle, a first paired phone the system finds

will be automatically linked.

183



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HPHONE button



Phonebook

1. Rotate i to select a name. Press



Move w or y to select

alphabetical tabs to display the

entries in the group.

2. Rotate i to select a number.

Press u to begin dialing.

HPHONE button



Dial

1. Enter a phone number.

2. Move r to select DIAL to begin

dialing.

■Using the Phonebook

1Using the Phonebook

You must first import a phonebook before using

it to make calls.

2Importing Phonebook Data P. 177

■Entering a Phone Number

1Entering a Phone Number

A command that consists of several words can be

spoken together. For example, say d “123-456-

7890” at once.

Continued

184



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HPHONE button



Call History

Rotate i to select a call. Press u to

begin dialing.



Move w or y to select All, Dial,

Receive, Missed to view the call

history by category.

From the PHONE screen: Rotate i to select one of the four speed dial numbers.

Press u to begin dialing.

From the PHONE screen: Rotate i to select More Speed Dial. Press u. Rotate

i to select a number. Press u to begin dialing.

■Using Call History

1Using Call History

The call history only shows the last 30 calls from

your phone.

■Using Speed Dial

1Using Speed Dial

To make a call using speed dial, you need to

create speed dial entries.

2Setting Up Speed Dialing P. 178

If the other phone is PIN-protected, enter the PIN

when prompted. Select OK. PINs are optional.

2Editing User Name and PIN P. 180

185



Bluetooth® HandsFreeLink®



Receiving a Call

Bluetooth® HandsFreeLink®

Receiving a Call

1. Press the h (Pick-Up) button to

answer a call and display the

Calling screen.



“HANDSFREELINK” is also

displayed on the display.

2. Press the j (Hang-Up) button to

terminate the call.

The following options are available during a call:

•Dial Tones (available on some phones): Allows you to send numbers or names

during a call. This is useful when you call an automated phone system.

•Transfer: Allows you to transfer a call from HFL to your phone, or from your

phone to HFL.

•Mute: Allows you to mute your voice.

1Receiving a Call

An incoming call notification appears on the

screen, and you hear an audible ring tone.

If your phone has Call Waiting, press the h

button to put the original call on hold and

answer the incoming call. To return to the

original call, press the h button again. If you

want to hang up the original call and answer the

new call, press the j button.

To change the volume level of HFL, use the audio

system volume knob or the steering wheel

volume controls.

Some phones may send battery, signal strength,

and roaming status information to the screen.

Phonebook

Displays the imported phonebook.

2Using the Phonebook P. 183

Call ID Bluetooth indicator Roaming status

Signal strength Battery level

186



Bluetooth® HandsFreeLink®



HFL Menus

Bluetooth® HandsFreeLink®

HFL Menus

Use HFL when the vehicle’s ignition is in the ACCESSORY (I) or ON (II) position.

You can operate HFL by voice when on the PHONE screen. Below is the flow chart

showing available voice commands.

1HFL Menus

To use HFL, you must first pair your Bluetooth-

compatible cell phone to the system while the

vehicle is parked.

“Add New Phone”

“Connect”

“Pass-Key”

“Connection”

“Phone Setup”

“Disconnect”

“Delete”

“Store Voice Tag”

“Delete Voice Tag”

“Store Speed

Dial”

“Delete Speed Dial”

“Edit Speed Dial”

Continued

Press the h (Pick-Up) button to display the PHONE screen.

Press the d (Talk) button each time you give a voice command.

Pair your phone to the system.

2Pairing a Phone P. 172

Set a “fixed” or “random” pass-key code for phone

pairing. 2Changing the Pass-key P. 174

Delete a previously paired phone.

2Deleting a Paired Phone P. 175

Switch from a currently linked phone to another paired

phone. 2Changing the Currently Paired Phone P. 176

Disconnect your paired phone from the system.

2Changing the Currently Paired Phone P. 176

Create a voice tag for a speed dial number.

2Registering a Voice Tag to a Speed Dial Entry P. 179

Delete a voice tag for a speed dial number.

Select a number from Call History or Phonebook to

store as a speed dial number.

Delete a previously stored speed dial number.

2Setting Up Speed

Dialing P. 178

187



Bluetooth® HandsFreeLink®



HFL Menus

Bluetooth® HandsFreeLink®

“Clear Phone

Information”

“Phonebook”

“Call History”

“Name”

“PIN”

“Phone Name/PIN”

“Auto Answer”

“Auto Transfer”

Continued

Press the h (Pick-Up) button to display the Cellular Phone screen.

Press the d (Talk) button each time you give a voice command.

Delete all paired phones, phonebook entries, speed dials, and pass-keys.

2Phone Setup P. 181

Display the paired phone’s previously imported phonebook (or import a new one).

2Using the Phonebook P. 183

Display the last 30 incoming, outgoing, or missed calls.

2Using Call History P. 184

Turn the auto transfer on or off.

2Phone Setup P. 181

Turn the auto answer on or off.

2Phone Setup P. 181

2Editing User Name

and PIN P. 180

Create a user name for a paired phone.

Create a PIN number for a paired phone.

188



Bluetooth® HandsFreeLink®



HFL Menus

Bluetooth® HandsFreeLink®

“Dial Tones”

“Dial”

“Mute”

“Transfer”

“One”

“Two”

“Three”

“Four”

“More Speed

Dial”

Speed dial

entries

“Dial”

The first four on the Cellular Phone screen.

Display a list of all 20 speed dial entries.

2Using Speed Dial P. 184

Send numbers or names during a call.

Say a phone number to dial.

2Entering a Phone Number P. 183

Mute your voice during a call.

Transfer a call from HFL to your phone, or from your

phone to HFL.

189

Rear Entertainment System

Rear seat passengers can enjoy a completely separate entertainment

source than front passengers, including movies, games, and other audio

choices.

Rear Entertainment System ..................190

Auxiliary Console Panel .........................190

HDMI Input Jack ...................................191

Rear Control Panel Operation...............192

Selecting the Audio Source ...................192

Rear DVD Menu....................................193

Screen and Surround Settings ...............196

DVD Initial Settings ...............................199

Dual Screen Mode (Ultrawide RES only).200

Replacing the Batteries..........................202

Front Control Panel Operation .............203

Selecting the Audio Source ...................203

Rear System Setup ................................204

Setting the Rear DVD Menu ..................205

Wireless Headphones ........................... 206

Using the Wireless Headphones ........... 206

Changing the Sound Source (Ultrawide RES

only)................................................... 207

Replacing the Batteries......................... 208

190

Rear Entertainment System

The Rear Entertainment System (RES) is operable from both the front control panel

and the rear control panel.

2Front Control Panel Operation P. 203

2Rear Control Panel Operation P. 192

Auxiliary Console Panel

Auxiliary input jacks and headphone connectors for the rear entertainment system

are above the third row seat armrest on the driver’s side.

V = Video jack

L = Left audio jack

R = Right audio jack

■Auxiliary Input Jacks

The system will accept auxiliary inputs from standard video games and video

equipment. Some video game power supplies may cause poor picture quality.

■Headphone Connectors

There are two headphone connectors for the third row seat passengers. Each

connector has its own volume control.

1Rear Entertainment System

This vehicle’s overhead mounted video display, if

so equipped, includes mercury-containing

components. Upon removal, please reuse,

recycle, or dispose of as hazardous waste.

NOTICE

AUXILIARY INPUT JACK

191



Rear Entertainment System



HDMI Input Jack

Rear Entertainment System

HDMI Input Jack

There is an HDMI input jack above the third row seat armrest on the passenger’s

side. The system will accept HDMI input from video games and video equipment

which are equipped with an HDMI jack.

Open the outlet cover and insert the

cable.

192

Rear Entertainment System

Rear Control Panel Operation

Selecting the Audio Source

■RES

1. Press the audio source button.

2. Select a station, channel, track, or chapter using the CH/FOLDER, TUNE/SKIP, or

CATEGORY bars.

2Overhead Screen and Rear Control Panel P. 15

■Ultrawide RES

1. Press the SOURCE button.

2. Select the audio source. Press the

ENTER button.

3. Select a station, channel, track, or

chapter using the CH/FOLDER,

TUNE/SKIP, or CATEGORY bars.

1Rear Control Panel Operation

In the procedures of this section, “select” means

the following actions:

The rear control panel can be detached from the

ceiling unit and used as a remote control.

2Overhead Screen and Rear Control Panel

P. 15

In this section, screen illustrations from the

standard RES are used for the explanation unless

otherwise noted.

The screen is displayed on the overhead screen.

RES

Press the cursor buttons

on the rear control panel.

Ultrawide RES

Rotate the Interface Dial

on the rear control panel.

193



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

Rear DVD Menu

HMENU button (in the DVD mode)

Select an item. Press the ENTER

button.

The following items are available:

•Top Menu: Displays the top menu of the DVD.

•Menu: Displays the menu of the DVD.

•Play Mode: Displays while a DVD is playing and changes the DVD’s audio,

subtitle, or angle settings.

2Setting the Play Mode P. 194

•Initial Settings: Displays while a DVD is not playing and changes the DVD

preferences.

2DVD Initial Settings P. 199

•Search/NumInput: Skips to a title or chapter by entering the number.

2Searching a Title/Chapter P. 195

•Repeat:

o TITLE REPEAT: Repeats the current title.

p CHAPTER REPEAT: Repeats the current chapter.

•Pause/Play: Pauses or resume the playback

•Stop: Stops the playback.

•Return: Hides the rear audio menu.

Continued

194



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

HMENU button (in the DVD mode)



Play Mode

1. Select an item. Press the ENTER

button.

2. Select an option. Press the ENTER

button.

The following items are available:

•Audio: Selects the language of the DVD audio.

•Subtitle: Selects the language of the DVD subtitle.

•Angle: Selects the angle of a scene shot with multiple cameras.

■Setting the Play Mode

195



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

HMENU button (in the DVD mode)



Search/NumInput

1. Select an item. Press the ENTER

button.

2. Select a number. Press the ENTER

button.

The following items are available:

•Title: Skips to a title you specify.

•Chapter: Skips to a chapter you specify.

•NumInput: Enters a number of a title or chapter to skip.

Enter a number and select ENT. Press the ENTER button.

Enter a number and press the ENTER button. Select DONE.

■Searching a Title/Chapter

RES

Ultrawide RES

196



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

Screen and Surround Settings

HSETUP button (in the DVD mode)



Search/NumInput

Select an item. Press the ENTER

button.

The following items are available:

•Display Adjust: Adjusts the screen’s preferences.

2Adjusting the Screen P. 197

•Aspect Ratio: Selects an aspect ratio of the image

2Setting the RES Aspect Ratio P. 198

2Setting the Ultrawide RES Aspect Ratio P. 198

•PERSONAL SURROUND: Sets the surround of the rear speakers. You can choose

from three options: Music, Cinema, or Voice. Select Off to disable the feature.

•Language: Sets the system language used on all screens. You can choose from

three languages: English, Français (French), or Español (Spanish).

•Brightness: Adjusts the screen’s brightness. Adjust the brightness using the

Interface Dial and press the ENTER button.

•Appearance: Selects the color of the rear menu screen. When you select Front

sync, the menu screen color can be synchronized with the front navigation screen.

Ultrawide RES Only

197



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

HSETUP button (in the DVD mode)



Display Adjust

1. Select an item. Press the ENTER

button.

2. Make the adjustment. Press the

ENTER button.

The following items are available:

•Brightness: Adjusts the screen’s brightness.

•Contrast: Adjusts the screen’s contrast.

•Black Level: Adjusts the screen’s black level.

•Color: Adjusts the screen’s color strength.

•Tint: Adjusts the screen’s hue.

•Reset: Resets all the settings to their factory default.

■Adjusting the Screen

Continued

198



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

HMENU button (in the DVD mode)



Aspect Ratio

Select an option. Press the ENTER

button.

HMENU button (in the DVD mode)



Aspect Ratio

1. Select an item. Press the ENTER

button.

2. Select an item. Press the ENTER

button.

The following items are available:

•Wide: Selects the wide screen option (Normal, Full, Super Full, Ultra Full).

•ZOOM: Selects the zoom screen option (Super Zoom, Ultra Zoom).

■Setting the RES Aspect Ratio

■Setting the Ultrawide RES Aspect Ratio

199



Rear Control Panel Operation



DVD Initial Settings

Rear Entertainment System

DVD Initial Settings

HMENU button (in the DVD mode)



Initial Settings

Set the DVD default settings so that you do not have to select the settings each time

you play a DVD.

1. Select an item. Press the ENTER

button.

2. Select an option. Press the ENTER

button.

The following items are available:

•Language Settings: Selects a menu language of the DVD (top) menu.

2Selecting the DVD Menu Language P. 200

•Dynamic Range: Sets whether to control the range of the loud and low sounds.

ON: Adjusts the dynamic range to easily hear the low sound.

OFF (factory default): Disables the feature.

•Angle Mark: Sets whether to display the angle symbol.

ON: Displays the angle symbol when playing the multiple angle scenes.

OFF (factory default): Disables the feature.

Continued

200



Rear Control Panel Operation



Dual Screen Mode (Ultrawide RES only)

Rear Entertainment System

HMENU button (in the DVD mode)



Initial Settings



Language Settings

1. Select an item. Press the ENTER

button.

2. Select a language. Press the ENTER

button.

Dual Screen Mode (Ultrawide RES only)

Select between the two screen modes, single or dual.

■Single Mode

The selected source is displayed in the center of the screen.

■Dual Mode

Two separate screens are displayed side by side. You can only select one output

source from the front audio system. The other source must come from “AUX-

VIDEO” or “AUX-HDMI.”

■Selecting the DVD Menu Language

1Selecting the DVD Menu Language

When you select Other, enter a 4-digit language

code.

2List of Language Codes P. 259

201



Rear Control Panel Operation



Dual Screen Mode (Ultrawide RES only)

Rear Entertainment System

■Single mode to Dual mode

■Dual mode to Single mode

DVD

Press the DUAL

button.

Select the side

(e.g., “Left”).

Select a source

(e.g., “AUX-

VIDEO”).

Press the SWAP

button.

DVD AUX-VIDEO AUX-VIDEO DVD

AUX-VIDEO DVD

Press the

SINGLE button.

Select a source

(e.g., “DVD”).

DVD

202



Rear Control Panel Operation



Replacing the Batteries

Rear Entertainment System

Replacing the Batteries

1. Remove the rear control panel.

2Overhead Screen and Rear

Control Panel P. 15

2. Open the cover.

3. Change the batteries.



Battery type: BR3032

1Replacing the Batteries

An improperly disposed of battery can hurt the

environment. Always confirm local regulations

for battery disposal.

Cover

203

Rear Entertainment System

Front Control Panel Operation

Operate the Rear Entertainment System (RES) from the front control panel.

Selecting the Audio Source

1. Press the REAR SOURCE button.



The rear source is displayed on

the front audio screen.



The rear source is heard from

the front speakers.

2. Press the audio source button on

the front control panel to select the

audio source.

2Audio System P. 6

3. Select a station, channel, track, or

chapter in the same way as the

front audio system.

2Audio P. 129

204



Front Control Panel Operation



Rear System Setup

Rear Entertainment System

Rear System Setup

HREAR SOURCE button



AUDIO MENU



Rear Setup

1. Rotate i to select an item. Press

2. Rotate i to select an option.

Press u.

The following items are available:

•Rear Control: Sets whether to use the rear control panel to control the RES.

ON (factory default): Operates the RES using the rear control panel.

OFF: Disables the feature.

•Rear Speaker: Sets whether to output the sound of the front source from the

rear speakers when the audio mode of front and rear is different.

ON (factory default): Outputs the sound of the front source from the rear

speakers.

OFF: Disables the feature.

•Single Screen: Selects a source to continue playing when you switch from dual

mode to single mode on the overhead screen. Rotate i to select a source and

press u.

Ultrawide RES Only

205



Front Control Panel Operation



Setting the Rear DVD Menu

Rear Entertainment System

Setting the Rear DVD Menu

HREAR SOURCE button (in the Rear DVD mode)



DVD Setup

1. Rotate i to select an item. Press

2. Rotate i to select an option.

Press u.

The following items are available:

•Title Search: Skips to a title by entering the title number. Rotate i to select a

number and press u.

•Chapter Search: Skips to a chapter by entering the chapter number. Rotate i

to select a number and press u.

•Audio: Selects the language of the DVD audio.

•Subtitle: Selects the language of the DVD subtitle.

•Repeat: Sets whether to use the rear control panel to control the RES.

o TITLE REPEAT: Repeats the current title.

p CHAPTER REPEAT: Repeats the current chapter.

•Auto Play: Sets whether to automatically play a DVD when you insert a disc and

select the DVD mode.

ON: Plays the DVD without stopping at the DVD menu screen.

OFF (factory default): Disables the feature.

206

Rear Entertainment System

Wireless Headphones

Using the Wireless Headphones

Audio for the Rear Entertainment System is sent to the wireless headphones that

come with the system.

1. Pivot the earpieces outward.

2. Adjust the volume by turning the

dial on the bottom of the right

earpiece.

3. Wear the headphones correctly.



L (left) and R (right) are marked

on the sides of the frame.

1Using the Wireless Headphones

When you remove the headphones, the

earpieces automatically pivot inward, and the

headphones turn off. When not in use, store the

headphones in the back pocket of either front

seat.

Some state and local government agencies

prohibit the use of headphones by the driver of a

motor vehicle. Always obey applicable laws and

regulations.

You can use wired headphones through the

auxiliary input jacks.

2Auxiliary Console Panel P. 190

Volume Dial

207



Wireless Headphones



Changing the Sound Source (Ultrawide RES only)

Rear Entertainment System

Changing the Sound Source (Ultrawide RES only)

In dual screen mode, you can switch the sound source of the wireless headphones

between the left and right side screens.

Slide the tab to ‘‘L’’ for the left side,

or ‘‘R’’ for the right side.

■Wireless Headphone

1Changing the Sound Source (Ultrawide RES only)

You can switch the sound source from the setup

menu if you connected a set of wired

headphones.

1. Press the SETUP button on the rear control

panel.

2. Select Wired Headphones. Press the ENTER

button.

3. Select Left or Right to switch the sound

source. Press the ENTER button.

Tab

208



Wireless Headphones



Replacing the Batteries

Rear Entertainment System

Replacing the Batteries

1. Insert a coin in the slot and twist it

slightly to pry the cover away from

the earpiece.

2. Pull the cover outward, and pivot it

out of the way.

3. Remove the battery.

4. Install the new battery in the

earpiece as shown in the diagram

next to the battery slot.



Battery Type: AAA battery

5. Slide the cover back into place on

the earpiece, then press down on

the back edge to lock it in place.

1Replacing the Batteries

The battery is under the cover on the left

earpiece.

An improperly disposed of battery can hurt the

environment. Always confirm local regulations

for battery disposal.

Coin

Cover

Battery

209

Other Features

This section describes the useful functions incorporated into the

navigation system to help make your journey easier and more enjoyable.

Trip Computer ....................................... 210

Calendar ................................................ 211

Calculator .............................................. 213

Unit Conversion ................................... 213

Information Functions .......................... 215

Scenic Road Information ...................... 215

System/Device Information ................... 215

Map Data Update Status ...................... 216

Key to ZAGAT Ratings.......................... 216

Multi-view Rear Camera....................... 217

210

Other Features

Trip Computer

HINFO button



Trip Computer

View the distance traveled and average fuel consumption.

Select an item.

The following items are available:

•Current Drive: Displays the current trip information.

•History of Trip A: Displays information for three previous histories. The

information is stored every time you reset Trip A.

•Delete History: Deletes the trip information. Select Yes.

1Trip Computer

Displays the following trip information:

•Instant Fuel: The current estimated instant

fuel economy.

•Average Fuel: The average fuel economy

since the last key cycle.

•1st, 2nd, 3rd Prev.: The previous average fuel

consumption.

•RANGE: The estimated distance you can travel

on the fuel remaining in the tank.

These values are estimates only.

211

Other Features

Calendar

HINFO button



Calendar

Enter events and display reminders each time you start your vehicle.

1. Rotate i to select the day. Press

2. Rotate i to select an item. Press

The following items are available:

•Edit Date: Moves the calendar entry to a new date. The display automatically

returns to the Schedule screen.

•Edit Title: Enter the name of your event. Move r to select OK to return to the

Schedule screen.

•Edit Message: Enter a message for your event. You can enter a message on two

lines using k to change between lines. Move r to select OK to return to the

Schedule screen.

1Calendar

You can select the day of the month on the

calendar using voice commands (e.g., say d

“Five” to select the 5th).

Move w or y to scroll through the months of

the year.

Only one event entry can be stored for each

date. Dates with an icon indicate there is a

scheduled entry for that date.

A maximum of 50 entries can be stored in the

calendar.

Entries may be stored in the calendar for 10

years.

Active calendar entries are displayed when you

start your vehicle after you select OK on the Start

Confirmation screen.

2Start-up P. 20

Continued

212



Calendar



Other Features

•Message Icon: Select an icon from the list to help identify the type of message.

The message icon you choose will be displayed alongside the specified date on the

Calendar screen.

•Reminder: Sets whether event reminders are displayed each time you start your

vehicle.

2Start-up P. 20

•Delete: Deletes the event. Select Yes on the confirmation screen to remove the

event from the calendar.

1Calendar

Message Icons

The following icons can be selected:

Schedule Time Call

Restaurant Others

213

Other Features

Calculator

HINFO button



Other



Calculator

Use the calculator to make basic calculations and to convert measurement units.

Unit Conversion

1. Enter a numeric value to convert

(e.g., 1000).

2. Move r to select UNIT

CONVERSION.

3. Rotate i to select the type of

unit to convert (e.g., Length). Press

1Unit Conversion

If you do not enter a value to convert, only

“Temperature” units are selectable.

Conversions using negative values may produce

meaningless or physically impossible values.

Continued

214



Calculator



Unit Conversion

Other Features

4. Rotate i to select the base unit

to convert from (e.g., mm).



The conversion into other units

is displayed on the right (e.g.,

1000 mm is 39.37 inches).

5. Move y to select CALC. to return

to the Calculator screen.

215

Other Features

Information Functions

Scenic Road Information

HINFO button



Other



Scenic Road Information

View a list of scenic roads for each state (U.S. only).

1. Rotate i to select a state. Press

2. Rotate i to select a scenic road.

Press u.

3. Rotate i to set the place as a

destination or add to the

destination list. Press u.

System/Device Information

HINFO button



Other



System/Device Information

View database, software, device, and vehicle identification information.

1Scenic Road Information

If you select a scenic road that runs through

multiple states, only the portion of the road in

the selected state is displayed. You can also set

the scenic road as a destination or waypoint.

1System/Device Information

You will need this information when ordering an

update DVD.

2Obtaining a Navigation Update DVD

P. 237

216



Information Functions



Map Data Update Status

Other Features

Map Data Update Status

HINFO button



Other



Map Data Update Status

Check the map data update status when updating the map database.

Key to ZAGAT Ratings

HINFO button



Other



Key to ZAGAT Rating

The ZAGAT® survey for some restaurants is included in the database and displayed

when entering a restaurant as a destination. You can view an explanation of the

data displayed for the surveyed restaurants.

Rotate i to scroll the complete

ratings description.

1Map Data Update Status

This operation is only available during a database

update.

2Obtaining a Navigation Update DVD

P. 237

1Key to ZAGAT Ratings

Food, Decor, and Service categories are rated

using numbered values (e.g., 0-9, 10-15).

Cost is the average cost of a meal, including

drink and tip (VE: Very Expensive, E: Expensive,

M: Moderate, I: Inexpensive).

Symbols, if displayed, indicate additional

information:

s open on Sunday

m open on Monday

l open for lunch

f serving after 11 PM

g no credit card accepted

217

Other Features

Multi-view Rear Camera

Your vehicle is equipped with a multi-view rear camera. When you shift into Reverse,

the rear view is displayed on the navigation system screen. The edge of the bumper

and parking guide lines are also displayed.

To turn the guide lines on or off, press

and hold the CANCEL button for

about three seconds.

Rotate i to adjust the brightness of

the multi-view rear camera.

While the rear view is displayed, press

u to switch between Wide, Normal,

and Top down view modes.

1Multi-view Rear Camera

Always keep the camera lens clean and

unobstructed. The multi-view rear camera has a

lens that makes distances appear different than

they actually are. Always take care when

reversing, and look behind you for obstacles.

Navigation controls are disabled when in

Reverse.

Adjusting the brightness for the multi-view rear

camera display does not affect the brightness for

the navigation screen.

If you turn the guide lines off, they remain off

until you turn them back on.

If the last used viewing mode is Wide or Normal,

the same mode is selected the next time you shift

into Reverse. If Top view was last used, Normal

mode is selected.

Multi-view

Rear Camera

Screen display

Bumper

Guide lines

Camera

Approx. 1 m (3.3 ft)

Approx. 2 m (6.6 ft)

Approx. 3 m (9.8 ft)

Approx. 50 cm

(1.7 ft)

Tailgate open range

Approx. 3 m (9.8 ft)

Approx. 2 m (6.6 ft)

Approx. 1 m (3.3 ft)

Wide

Normal

Top down

218

219

Troubleshooting

Troubleshooting ................................... 220

Map, Voice, Entering Destinations........ 220

Traffic .................................................. 222

Guidance, Routing ............................... 223

Update DVD, Coverage, Map Errors ..... 225

Display, Accessories.............................. 225

Rear Camera ........................................ 225

Miscellaneous Questions ...................... 226

Error Messages...................................... 227

Navigation System................................ 227

Disc Player............................................ 228

iPod® .................................................. 229

USB Flash Drive .................................... 230

220

Troubleshooting

Map, Voice, Entering Destinations

Problem Solution

The Startup Confirmation screen is displayed every

time I start the car.

This is normal. The Startup Confirmation screen reminds you and your guest drivers to

always operate the navigation system in a safe manner. If you do not select OK at

startup, voice commands will not work.

The navigation system reboots by itself (returns to the

opening screen).

A reboot can be caused by extreme temperatures or shock from bumpy roads, and

does not necessarily indicate a problem. If this happens frequently, please see your

dealer.

How do I specify a destination when an entered city or

street could not be found?

• Try entering the street first. Some cities are lumped in with a major metro area. In

rural “unverified” areas or new subdivisions, streets may be missing or only partially

numbered.

• Try selecting the destination directly from the map.

2Map Input P. 88

Why do some letters become grayed out when I enter

an address?

As you enter each letter in an address or a place/landmark, the navigation system

looks in the database to see what letters are possible and grays out letters that do not

apply.

How do I delete Personal Addresses, Previous

Destinations, or the Home Address?

1. Press the INFO button. Select Setup > Personal Information to display the types

of information.

2. Select the type of address to delete.

3. Select Delete.

I cannot hear the navigation system voice. 1. Press the INFO button. Select Setup and check that Volume is not set to OFF.

2Display and Volume Settings P. 24

2. Select Other > Basic Settings and set Voice Recognition Tutor to ON.

2Basic Settings P. 26

The voice control system is having difficulty

recognizing my voice commands.

• Check that the vents are not blowing air onto the microphone on the ceiling, the

vehicle is as quiet as possible, and you are using the correct command when

speaking.

2Voice Recognition P. 23

•Say d “Help” on any screen to see a list of the applicable voice commands.

221



Troubleshooting



Map, Voice, Entering Destinations

Troubleshooting

The navigation system pronunciation of street names

in the guidance command or destination address

sounds strange.

The basic guidance phrases use a studio-recorded voice, but street names are

pronounced using a machine-generated voice. Consequently, the name may be

mispronounced or sound strange at times.

The screen is bright when I drive at night. 1. Check that the nighttime dashboard brightness control is not set to maximum.

2. Press the INFO button. Select Setup > Other > Color > Map Color. Set the Night

color to Black for the best contrast.

2Switching Display Mode Manually P. 29

The screen is dark when I drive during the day. Press the INFO button. Select Setup > Other > Color > Map Color. Set the Day color

to White for the best contrast.

2Switching Display Mode Manually P. 29

How do I change or remove my PIN? 1. Press the INFO button. Select Setup > Personal Information > PIN Numer > GO

Home 1 PIN or GO Home 2 PIN or Address Book PIN.

2. Enter your existing PIN. You then have the choice to change or remove the PIN.

2PIN Numbers P. 43

I have forgotten my PIN. How do I reset the PIN for

Home or the PIN for personal addresses?

Your dealer must reset the PIN for you.

Why is CALL grayed out on the Calculate Route

screen?

Your phone is not paired to Bluetooth® HandsFreeLink® or, if paired, your phone is in

use.

Problem Solution

222



Troubleshooting



Traffic

Troubleshooting

Traffic

Problem Solution

My FM Traffic is missing or is not displaying properly.

What is wrong?

Verify the following:

• FM Traffic relies on a clear FM signal. If signal strength is low, traffic data may not

be available.

• Check the traffic icon on the icon bar, and the icon options for traffic.

2Showing Icons on the Map P. 106

• It is possible that there is a temporary technical problem with your metropolitan

area traffic. You can call Honda Automobile Customer Service to see if there is an

outrage.

2Honda Automobile Customer Service Contact Information P. 236

• If the situation persists, see your Honda dealer for assistance.

The navigation system routes me to an exit and an

alternate freeway with unknown flow speeds or

surface streets.

The navigation system predicts which route should be faster based on freeway

congestion along your route. Use your own experience to determine whether the

alternate route would be faster.

223



Troubleshooting



Guidance, Routing

Troubleshooting

Guidance, Routing

Problem Solution

The navigation system does not route me the same

way I would go or the same way as other mapping

systems.

The navigation system attempts to generate the optimal route. You can change the

route preferences used when calculating a route.

2Changing the Route Preference P. 91

The street I’m on is not shown on the map screen. The mapping database is constantly undergoing revision. You can access the most

recent information on the internet.

2Map Coverage P. 237

The vehicle position icon is not following the road and

the “GPS icon” text in the upper left hand corner of

the screen is white or missing.

• Check that the GPS antenna (located in the dashboard) is not blocked. For best

reception, remove items from the dashboard, such as radar detectors, cell phones,

or loose articles.

• Metallic tinting or other aftermarket devices can interfere with the GPS reception.

Please consult your dealer.

2GPS System P. 234

The blue highlighted route and voice guidance

stopped or turned into a blue/pink dashed line before I

got to my destination.

Your route has entered an unverified area.

2Unverified Area Routing P. 51

How do I stop the map from rotating as I drive along? Press the MAP/GUIDE button. Select Map Information > North-up, or say d

“Display north-up” to change the map orientation.

Sometimes, I cannot select between the North-up and

Heading-up map orientations.

The Heading-up map orientation can only be shown in the lower scales (1/20 - 1 mile

scales).

2Map Scale and Functions P. 111

The “time to destination” display sometimes increases

even though I am getting closer to my destination.

If your speed reduces due to slower traffic, the navigation system updates the “time to

destination” based on your actual road speed to give you a better estimate of arrival

time.

The vehicle position icon on the map “lags” a short

distance behind, especially when I arrive at an

intersection.

This is normal. The navigation system is unaware of the width of intersections. Large

differences in vehicle position can indicate a temporary loss of the GPS signal.

2GPS System P. 234

Continued

224



Troubleshooting



Guidance, Routing

Troubleshooting

The screen is showing white dots as I drive along. These dots are called “breadcrumbs.” These are displayed if Off-road Tracking is set

to ON and you drive more than 1/2 mile off mapped roads.

2Off-road Tracking P. 62

How do I remove the white dots (“breadcrumbs”)

from my screen?

Press the INFO button. Select Setup > Other > Vehicle, and set Off-road Tracking

to OFF, then return to the map.

2Off-road Tracking P. 62

A road that I selected to avoid is being used when

routing.

When you “draw” your area to avoid, make sure to select sections of roads that

include at least one intersection.

2Avoiding Streets P. 117

My elevation (shown when I display the current

position) seems to fluctuate even though my elevation

has not changed.

This is normal. The elevation can vary ±100 feet due to GPS calculation errors.

2GPS System P. 234

My elevation is missing on the “current position”

screen.

The elevation is only displayed if the GPS antenna can receive signals from at least four

satellites. Try moving the vehicle into an open area. The elevation is also not displayed

if the calculated elevation is zero or below sea level.

Problem Solution

225



Troubleshooting



Update DVD, Coverage, Map Errors

Troubleshooting

Update DVD, Coverage, Map Errors

Display, Accessories

Rear Camera

Problem Solution

My city is not part of a fully verified detailed coverage

area.

The mapping database is constantly undergoing revision. You can access the most

recent information on the internet.

2Map Coverage P. 237

Does the navigation system work outside North

America?

The navigation system contains maps for the 50 U.S. states, Canada, and Puerto Rico.

The navigation system will not work in Mexico or other countries.

2Map Coverage P. 237

Can I play video DVDs in my navigation system? No. The navigation system is designed only to read music discs and the update DVD

provided with your vehicle. The navigation system cannot read other mapping

databases or video DVDs. If you experience any problems that you cannot resolve,

please contact your dealer.

How do I report errors I find in the database? Minor errors are bound to occur in a large database. If you encounter major errors, see

2Reporting Errors P. 236

Problem Solution

The display appears dim when starting the car in really

cold weather.

This is normal. The display will become brighter after a few minutes.

Problem Solution

When I shift gears, the rear camera image display is

delayed.

This is normal. When shifting into or out of Reverse, you may experience a delay while

the screen image switches between the navigation screen and the rear camera image.

The rear camera image is too dark or too bright. How

do I adjust the brightness?

While the camera image is displayed, rotate the Interface Dial to adjust the brightness.

This adjustment does not affect the navigation screen brightness settings.

226



Troubleshooting



Miscellaneous Questions

Troubleshooting

Miscellaneous Questions

Problem Solution

My clock frequently changes forward and backward by

one hour.

The clock setting is automatically updated based on your GPS location. If you live and

work on the boundary between two time zones, you can turn off this feature.

2Clock Adjustment P. 58

The clock changes even when I am not driving near a

time zone boundary.

The time zone boundaries are only approximated in the navigation system. Depending

on the geography of the time zone boundary, the switch to a different zone can be

erratic.

2Clock Adjustment P. 58

My state does not observe daylight saving time. How

do I turn off this feature?

Press the INFO button. Select Setup > Other > Clock Adjustment, and set Auto

Daylight to OFF.

2Clock Adjustment P. 58

Daylight saving time has started, but the navigation

system did not change time even though Auto

Daylight is set to ON.

The automatic daylight saving time feature does not work in regions where the

daylight saving time system has not been adopted.

The navigation system automatic daylight time feature

is not switching the navigation system clock on the

correct dates.

Press the INFO button. Select Setup > Other > Clock Adjustment, and set Auto

Daylight to ON. Note that the automatic daylight saving time feature does not work

in regions where the daylight saving time system has not been adopted.

2Clock Adjustment P. 58

The navigation system clock switched by one hour for

no apparent reason.

You may be driving near a time zone boundary.

2Clock Adjustment P. 58

My battery was disconnected or went dead, and the

navigation system is asking for a code.

Your vehicle comes with a card that included the 5-digit security code and serial

number. You should keep this card in a safe place outside your vehicle. If you cannot

find it, see your dealer.

How do I change the interface language? Press the INFO button. Select Setup > Other > Language, and set the language to

English, Français, or Español.

227

Troubleshooting

Error Messages

Navigation System

Error Message Solution

Display temp is too high. System will shut down until

display cools down.

This message appears briefly when the display temperature is too high. The navigation

system turns off until the display cools down. The system turns back on automatically

when the display cools down.

HDD access error. System reset. The navigation system has difficulty reading the HDD when the temperature is below

approximately -22°F. The navigation system starts up automatically when the display

warms up.

Route has not been completed. Please try again from a

different location.

This message appears when you are on a route to or from a new area that is not in the

database. Try planning a different route to or from a different location. If the error

persists, or is shown for a wide area, see your dealer.

Destination is not in this database version. Please set

from map.

The destination was not found in the database. Try another destination nearby, or

select the destination from the map using the Interface Dial. If the error persists, or is

shown for a wide area, see your dealer.

228



Error Messages



Disc Player

Troubleshooting

Disc Player

Error Message Cause Solution

BAD DISC

PLEASE CHECK OWNERS

MANUAL

Servo error • Press the E (Eject) button and remove the disc, and check that the

error message is cleared.

• Check that the disc is not damaged or deformed, and insert the disc

again.

2Recommended Discs P. 144

• If the error message reappears, press the E button, and pull out

the disc.

• Insert a different disc. If the new disc plays, there is a problem with

the first disc.

• If the error message repeats, or the disc cannot be removed, contact

your dealer. Do not try to force the disc out of the player.

BAD DISC

PLEASE CHECK OWNERS

MANUAL

PUSH EJECT

Mechanical error

MECH ERROR Mechanical error

CHECK DISC Focus error

Disc violates copyright

Disc not supported

CHECK DISC LOAD Load error

UNSUPPORTED Track format not supported • Current track will be skipped. The next supported track plays

automatically.

HEAT ERROR High temperature • Turn the audio system off and allow the player to cool down until

the error message is cleared.

229



Error Messages



iPod®

Troubleshooting

iPod®

Error Message Cause Solution

UNSUPPORTED Appears when an unsupported

iPod® is connected.

Update the iPod® software to the latest version.

CONNECT RETRY Appears when the iPod® cannot

be authenticated.

Reconnect the iPod®.

NO SONG Appears when there are no tracks

in the iPod®.

Store tracks in the iPod®.

230



Error Messages



USB Flash Drive

Troubleshooting

USB Flash Drive

Error Message Cause Solution

FILE ERROR The system cannot read the

track(s).

Check the tracks in the USB flash drive. There is a possibility that the

tracks have been damaged.

UNSUPPORTED Appears when an unsupported

device is connected.

If it appears when a supported device is connected, reconnect the

device.

UNPLAYABLE FILE Appears when the tracks in the

USB flash drive are DRM or an

unsupported format.

This error message appears for about 3 seconds, then plays the next

song.

NO SONG Appears when the USB flash drive

is empty or there are no tracks in

MP3, WMA, or AAC format in the

drive.

Save tracks in MP3, WMA, or AAC format in the USB flash drive.

BAD USB DEVICE

PLEASE CHECK OWNER'S

MANUAL

Appears when the overcurrent

protection feature of the system

stops supplying power to USB

because an incompatible device is

connected.

Disconnect the device. Turn the audio system off, and turn it on again.

Do not reconnect the device that caused the error.

ERROR Appears when the Internal USB

ROM error occurs.

Try a different USB flash drive.

231

Reference Information

System Initialization..............................232

Entering the Security Code....................232

Acquiring GPS Information....................232

Startup Confirmation Screen.................233

Map Matching ......................................233

System Limitations ................................234

GPS System...........................................234

Address Calculation ..............................234

Database ..............................................234

Client Assistance ....................................236

Resolving Problems ...............................236

Reporting Errors....................................236

Honda Automobile Customer Service

Contact Information............................236

Visiting Your Dealer ............................. 236

Map Coverage ..................................... 237

Obtaining a Navigation Update DVD .... 237

Traffic Information ............................... 238

Operation in Alaska, Hawaii, Canada, and

Puerto Rico......................................... 238

Shipping a Vehicle to the U.S. Mainland238

Legal Information ................................. 239

Copyrights ........................................... 239

User Agreements ................................. 239

As required by the FCC ........................ 244

232

Reference Information

System Initialization

The navigation system must be initialized if

power to the navigation system is

interrupted for any reason (e.g., the

battery was disconnected).

Entering the Security Code

When you purchased the vehicle, you

should have received a card with the

navigation system security code and serial

number. Keep this card in a safe place. If

you lose the card, you must obtain the

security code from your dealer.

1. Press the VOLUME button to activate

the audio system.

2. Enter the 5-digit security code when

prompted using the radio preset

buttons.

Acquiring GPS Information

Depending on the length of time the

power was interrupted, your system may

require GPS initialization.

If initialization is not necessary, the system

proceeds directly to the Startup

Confirmation screen.

If the system fails to locate a sufficient

number of satellites to locate your position

within 10 minutes, the following screen is

displayed.

If you are experiencing GPS reception

problems:

2GPS System P. 234

233



System Initialization



Startup Confirmation Screen

Reference Information

Startup Confirmation

Screen

The Startup Confirmation screen is

displayed when initialization has

successfully completed. It is displayed every

time you start your vehicle. Press u to

select OK to continue.

Map Matching

Map matching is the process of using the

acquired GPS information to locate your

position on the map screen. If you are on a

mapped road, the name of the road is

displayed along the bottom of the map

screen when map matching is completed.

Do not enter a destination until the road

name is displayed.

The system may initially show your location

on a different street (e.g., in urban areas

where streets are close together), may

show an incorrect elevation, or may delay

the display of the vehicle position icon at

intersections. This is normal; the system

will correct itself while you drive.

234

Reference Information

System Limitations

GPS System

The signals received from the GPS satellites

are extremely weak (less than a millionth

of the strength of a local FM station) and

require an unobstructed view of sky. The

GPS antenna is located in the dashboard.

The signal reception can easily be

interrupted or interfered with by the

following:

•Metallic window tint on the front or side

windows

•Cell phones, PDAs, or other electronic

devices docked in a cradle or lying loose

on the dashboard

•Remote starters or “hidden” vehicle

tracking systems mounted near the

navigation unit

•Audio electronic devices mounted near

the navigation unit

•Trees, tall buildings, freeway overpasses,

tunnels, or overhead electrical power

wires

The GPS is operated by the U.S.

Department of Defense. For security

reasons, there are certain inaccuracies built

into the GPS for which the navigation

system must constantly compensate. This

can cause occasional positioning errors of

up to several hundred feet.

Address Calculation

The destination icon shows only the

approximate location of a destination

address. This occurs if the number of

possible addresses is different from the

number of actual addresses on a block.

e.g., the address 1425 on a 1400 block

with 100 possible addresses (because it is

followed by the 1500 block) will be shown

a quarter of the way down the block by

the system. If there are only 25 actual

addresses on the block, the actual location

of address 1425 would be at the end of

the block.

Database

The digitized map database reflects

conditions as they existed at various points

in time before production. Accordingly,

your database may contain inaccurate or

incomplete data or information due to the

passage of time, road construction,

changing conditions, or other causes.

For example, some places/landmarks may

be missing when you search the database

because the name was misspelled, the

place was improperly categorized, or a

place/landmark is not yet in the database.

This is also true for police stations,

hospitals, and other public institutions. Do

not rely on the navigation system if you

need law enforcement or hospital services.

Always check with local information

sources.

235



System Limitations



Database

Reference Information

In addition, the map database contains

verified and unverified areas. Unverified

streets may be missing from the map, in

the wrong location, or have an incorrect

name or address range. A message will

warn you if your route includes unverified

streets. Exercise additional caution when

driving in unverified areas.

The database does not include, analyze,

process, consider, or reflect any of the

following categories of information:

•Neighborhood quality or safety

•Population density

•Availability or proximity of law

enforcement

•Emergency, rescue, medical, or other

assistance

•Construction work, zones, or hazards

•Road and lane closures

•Legal restrictions (such as vehicular type,

weight, load, height, and speed

restrictions)

•Road slope or grade

•Bridge height, width, weight, or other

limits

•Traffic facilities safety

•Special events

•Pavement characteristics or conditions

Every effort has been made to verify that

the database is accurate. The number of

inaccuracies you experience increases the

longer you go without obtaining an

updated map database.

2Obtaining a Navigation Update DVD

P. 237

We assume no liability for any incident that

may result from an error in the program, or

from changed conditions not noted above.

236

Reference Information

Client Assistance

Resolving Problems

If you run into a specific issue that you

cannot resolve, consult the following help

resources:

•For navigation system issues:

2Troubleshooting P. 220

There are also FAQs available online at

automobiles.honda.com.

•For questions regarding HandsFreeLink,

audio, or other systems that interact

with the navigation system:

2Bluetooth® HandsFreeLink® P. 170

•For traffic-related issues:

2Traffic P. 222

•For reporting issues with the database

or places/landmarks:

2Reporting Errors P. 236

•Call Honda Automobile Customer

Service.

2Honda Automobile Customer Service

Contact Information P. 236

Reporting Errors

You can help to improve database

accuracy by reporting any errors you

encounter.

•Report errors in freeways and main

“verified” roads shown in black on the

map at http://mapreporter.navteq.com/

dur-web-external/.

•Please do not report errors in purple

“unverified” roads. Maps for these

areas are provided for reference only.

2Unverified Area Routing P. 51

•Please do not report errors in places/

landmarks, such as changes in business

names. Information about points of

interest are constantly being updated.

An updated database is available for

purchase, usually in the fall of each year.

2Obtaining a Navigation Update DVD

P. 237

•For vehicle position icon errors, screen

error messages, or other GPS-related

errors:

2Troubleshooting P. 220

2System Limitations P. 234

Honda Automobile

Customer Service Contact

Information

Honda Navi

American Honda Motor Co., Inc.

Honda Automobile Customer Service

Mail Stop 500-2N-7E

1919 Torrance Blvd.

Torrance, CA 90501-2746

Tel: (800) 999-1009

Fax: (310) 783-3273

Visiting Your Dealer

If you have a question that you cannot

resolve using the available help resources,

you can consult your dealer. Please identify

the specific issue (e.g., error occurs when

you enter a specific address, when driving

on a certain road, or just when it’s cold) so

that the service consultant can refer the

issue to the factory so that a solution can

be found. Be patient, the service

consultant may be unfamiliar with your

specific issue.

237



Client Assistance



Map Coverage

Reference Information

Map Coverage

The navigation system provides map

coverage for the United States, Canada,

and Puerto Rico. The map coverage

consists of accurately mapped (verified)

metropolitan areas and a less accurate

(unverified) rural database. Note that

unverified areas are constantly being

reviewed and converted to verified areas

each year.

Contiguous United States

Hawaii Puerto Rico

Canada

Alaska

Map coverage update information is

available from Honda Automobile

Customer Service or online at

www.hondanavi.com.

To find navigation system update

information:

1. Visit www.hondanavi.com.

2. Enter your vehicle model and model

year.

3. Click Map Coverage to display a list of

verified coverage areas on the most

recent update DVD.

4. Click Map Coverage Details to display a

PDF document with a full listing of all

coverage areas.



Adobe® Reader® is required for

viewing and printing the Portable

Document Format (PDF) documents.

To download the latest version of

Adobe Reader, visit http://

get.adobe.com/reader/.

Obtaining a Navigation

Update DVD

Honda is continually expanding the scope

of the navigation system. Navigation

system software upgrades may be made

available periodically, usually in the fall of

each year.

To purchase an updated DVD:

1. Obtain your vehicle’s VIN number and

the System/Device Information.

2System/Device Information P. 215

2. Call the Honda Navigation Disc

Fulfilment Center at (888) 291-4675, or

order online at www.hondanavi.com.

Update DVDs are not available from your

dealer. However, the dealer may assist you

in obtaining an update DVD for you out of

courtesy. There is no program for free DVD

updates.

238



Client Assistance



Traffic Information

Reference Information

Traffic Information

•Continuously updated traffic

information is available in major

metropolitan areas across the 48

contiguous states and and Hawaii.

•Visit automobiles.honda.com/traffic for

a complete listing of coverage areas and

other information.

Operation in Alaska,

Hawaii, Canada, and

Puerto Rico

Navigation-equipped vehicles delivered to

Alaska, Hawaii, Canada, and Puerto Rico

are equipped with XM hardware, but XM

broadcasting is not available. There are

certain functions that rely on XM satellite

signal coverage which are not available.

Unavailable menu options will appear gray

on the LCD display.

All roads displayed on the map screens are

verified roads. Information in this manual

relating to “unverified” roads or areas is

not applicable.

■XM® Radio

■Map Coverage

Entering a destination address or place/

landmark on another island may result in a

screen caution message. This is because

there are no ferry routes between islands

in the database.

If Street Name Guidance is set to ON, the

street names will not be read out by voice

guidance. This may change in a future data

update.

Shipping a Vehicle to the

U.S. Mainland

To receive XM audio, you must call XM

and set up an account at (800) 852-9696.

■Address and Place Entry

Screens

■Puerto Rico

239

Reference Information

Legal Information

Copyrights

•infoUSA-Data: Certain business data

provided by infoUSA, Inc., Omaha, NE,

LLC. Zagat Survey is a registered

trademark of Zagat Survey, LLC.

•Brand icons: The icons for companies

displayed by this product to indicate

business locations are the registered

marks of their respective owners. The

use of such icons in this product does

not imply any sponsorship, approval, or

endorsement by such companies of this

product.

User Agreements

In using this HDD “Satellite Linked

Navigation System” (the “HDD”), which

includes HONDA MOTOR CO., LTD.

software, ALPINE ELECTRONICS, INC.

software, and NAVTEQ database contents

(hereinafter referred to as “Licensors”),

you are bound by the terms and conditions

set forth below. By using your copy of the

HDD, you have expressed your Agreement

to the terms and conditions of this

Agreement. You should, therefore, make

sure that you read and understand the

following provisions. If for any reason you

do not wish to be bound by the terms of

this Agreement, please return the HDD to

your dealer.

•The HDD may not be copied, duplicated,

or otherwise modified, in whole or in

part, without the express written

permission of the Licensors.

•The HDD may not be transferred or

sublicensed to any third party for profit,

rent or loan, or licensed for reuse in any

manner.

■Navigation System User

Agreement

•The HDD may not be decompiled,

reverse engineered or otherwise

disassembled, in whole or in part.

•The HDD may not be used in a network

or by any other manner of simultaneous

use in multiple systems.

•The HDD is intended solely for personal

use (or internal use where the end-user

is a business) by the consumer. The HDD

is not to be used for commercial

purposes.

•The Licensors do not guarantee to the

client that the functions included in the

HDD meet the specific objectives of the

user.

•Licensor shall not be responsible for any

damages caused by the use of the HDD

to the actual user or to any third party.

•The warranty on the HDD shall not

extend to an exchange or refund due to

misspelling, omission of letters, or any

other cosmetic discrepancy in the

contents of the HDD.

•The right to use the HDD shall expire

either when the user destroys the HDD

or software, or when any of the terms

of this Agreement are violated and the

Licensors exercise the option to revoke

the license to use the HDD or software.

Continued

240



Legal Information



User Agreements

Reference Information

•The terms and conditions hereof apply

to all subsequent users and owners as

well as to the original purchaser.

•The logos of oil companies, hotels,

convenience stores, and other

businesses are displayed for your

information and convenience, and in no

way imply any sponsorship, approval or

endorsement of these companies, or

their products. The logos are trademarks

of their respective owners.

The user shall indemnify and save harmless

the Licensors, and their officers, employees

and agents, from and against any claim,

demand or action, irrespective of the

nature of the cause of the claim, demand

or action, alleging loss, costs, expense,

damages or injuries (including injuries

resulting in death) arising out of the use or

possession of the HDD or software.

Use, duplication, or disclosure of this HDD

by or on behalf of the United States

government is subject to “Restricted

Rights” as set forth at FAR 52.227-14, -19

or DFARS 252.227-7013, as applicable.

Manufacturers are the Licensors, including

HONDA MOTOR CO., LTD., 2-1-1 Minami

Aoyama Minato-Ku Tokyo 107-8556

JAPAN., Alpine Electronics, Inc., 20-1

Yoshima Kogyodanchi, Iwaki, Fukushima

970-1192 JAPAN., NAVTEQ Corporation,

425 W Randolph St. Chicago, IL 60606,

USA.

You have acquired a device (“DEVICE”)

that includes software licensed by Alpine

Electronics, Inc. (collectively “ALPINE”)

from an affiliate of Microsoft Corporation

(collectively “MS”). Those installed

software products of MS origin, as well as

associated media, printed materials, and

“online” or electronic documentation

(“SOFTWARE”) are protected by

international intellectual property laws and

treaties. The SOFTWARE is licensed, not

IF YOU DO NOT AGREE TO THIS END USER

LICENSE AGREEMENT (“EULA”), DO NOT

USE THE DEVICE OR COPY THE SOFTWARE

INSTEAD, PROMPTLY CONTACT ALPINE

FOR INSTRUCTIONS ON RETURN OF THE

UNUSED DEVICE(S) FOR A REFUND. ANY

USE OF THE SOFTWARE, INCLUDING BUT

NOT LIMITED TO USE ON THE DEVICE,

WILL CONSTITUTE YOUR AGREEMENT TO

■Navigation System END USER

LICENSE AGREEMENT

THIS EULA (OR RATIFICATION OF ANY

PREVIOUS CONSENT).

•GRANT OF SOFTWARE LICENSE

This EULA grants you the following

license: You may use the SOFTWARE

only on the DEVICE.

•NOT FAULT TOLERANT

THE SOFTWARE IS NOT FAULT

TOLERANT. ALPINE HAS

INDEPENDENTLY DETERMINED HOW TO

USE THE SOFTWARE IN THE DEVICE,

AND MS HAS RELIED UPON ALPINE TO

CONDUCT SUFFICIENT TESTING TO

DETERMINE THAT THE SOFTWARE IS

SUITABLE FOR SUCH USE.

•NO WARRANTIES FOR THE SOFTWARE

THE SOFTWARE is provided “AS IS” and

with all faults. THE ENTIRE RISK AS TO

SATISFACTORY QUALITY,

PERFORMANCE, ACCURACY, AND

EFFORT (INCLUDING LACK OF

NEGLIGENCE) IS WITH YOU. ALSO,

THERE IS NO WARRANTY AGAINST

INTERFERENCE WTH YOUR ENJOYMENT

OF THE SOFTWARE OR AGAINST

INFRINGEMENT. IF YOU HAVE RECEIVED

ANY WARRANTIES REGARDING THE

DEVICE OR SOFTWARE THOSE

241



Legal Information



User Agreements

Reference Information

WARRANTIES DO NOT ORIGINATE

FROM, AND ARE NOT BINDING ON, MS.

•NO LIABILITY FOR CERTAIN DAMAGES.

EXCEPT AS PROHIBITED BY LAW, MS

SHALL HAVE NO LIABILITY FOR ANY

INDIRECT, SPECIAL, CONSEQUENTIAL

OR INCIDENTAL DAMAGES ARISING

FROM OR IN CONNECTION WITH THE

USE OR PERFORMANCE OF THE

SOFTWARE. THIS LIMITATION SHALL

APPLY EVEN IF ANY REMEDY FAILS OF

ITS ESSENTIAL PURPOSE. IN NO EVENT

SHALL MS BE LIABLE FOR ANY

AMOUNT IN EXCESS OF U.S. TWO

HUNDRED FIFTY DOLLARS (U.S.

$250.00).

•SPEECH RECOGNITION

If the SOFTWARE includes speech

recognition component(s), you should

understand that speech recognition is

an inherently statistical process and that

recognition errors are inherent in the

process. Neither ALPINE nor its suppliers

shall be liable for any damages arising

out of errors in the speech recognition

process.

•LIMITATIONS ON REVERSE

ENGINEERING, DECOMPILATION, AND

DISASSEMBLY

You may not reverse engineer,

decompile, or disassemble the

SOFTWARE, except and only to the

extent that such activity is expressly

permitted by applicable law

notwithstanding this limitation.

•ADDITIONAL SOFTWARE/SERVICES

The SOFTWARE may permit ALPINE, MS,

Microsoft Corporation or their affiliates

to provide or make available to you

SOFTWARE updates, supplements, add-

on components, or Internet-base service

components of the SOFTWARE after the

date you obtain your initial copy of the

SOFTWARE (“Supplemental

Components”).



If ALPINE provides or makes available

to you Supplemental Components

and no other EULA terms are

provided along with the

Supplemental Components, then the

terms of this EULA shall apply.



If MS, Microsoft Corporation or their

affiliates make available

Supplemental Components, and no

other EULA terms are provided, then

the terms of this EULA shall apply,

except that MS, Microsoft

Corporation or affiliate entity

providing the Supplemental

Component(s) shall be licensor of the

Supplemental Component(s).



ALPINE, MS, Microsoft Corporation

and their affiliates reserve the right to

discontinue any Internet-based

services provided to you or made

available to you through the use of

the SOFTWARE.

•RECOVERY MEDIA

If SOFTWARE is provided by ALPINE on

separate media and labeled “Recovery

Media” you may use the Recovery

Media solely to restore or reinstall the

SOFTWARE originally installed on the

DEVICE.

•UPGRADES

If the SOFTWARE is provided by ALPINE

separate from the DEVICE on separate

media or via web download or other

means, and is labeled “For Upgrade

Purposes Only” you may install one (1)

copy of such SOFTWARE onto the

DEVICE as a replacement copy for the

existing SOFTWARE, and use it in

accordance with this EULA, including

Continued

242



Legal Information



User Agreements

Reference Information

any additional EULA terms

accompanying the upgrade SOFTWARE.

•TERMINATION

Without prejudice to any other rights,

ALPINE or MS may terminate this EULA

if you fail to comply with the terms and

conditions of this EULA. In such event,

you must destroy all copies of the

SOFTWARE and all of its component

parts.

•INTELLECTUAL PROPERTY RIGHTS

All title and intellectual property rights

in and to the SOFTWARE (including but

not limited to any images, photographs,

animations, video, audio, music, text

and “applets,” incorporated into the

SOFTWARE), the accompanying printed

materials, and any copies of the

SOFTWARE, are owned by MS,

Microsoft Corporation, their affiliates or

suppliers. The SOFTWARE is licensed,

not sold.

You may not copy the printed materials

accompanying the SOFTWARE. All title

and intellectual property rights in and to

the content which may be accessed

through use of the SOFTWARE is the

property of the respective content

owner and may be protected by

applicable copyright or other intellectual

property laws and treaties. This EULA

grants you no rights to use such

content. All rights not specifically

granted under this EULA are reserved by

MS, Microsoft Corporation, their

affiliates and suppliers. Use of any on-

line services which may be accessed

through the SOFTWARE may be

governed by the respective terms of use

relating to such services. If this

SOFTWARE contains documentation

that is provided only in electronic form,

you may print one copy of such

electronic documentation.

•TRADEMARKS

This EULA does not grant you any rights

in connection with any trademarks or

service marks of ALPINE MS, Microsoft

Corporation, their affiliates or suppliers.

•PRODUCT SUPPORT

Product support for the SOFTWARE is

not provided by MS, its parent

corporation Microsoft Corporation, or

their affiliates or subsidiaries. For

product support, please refer to ALPINE

support number provided in the

documentation for the DEVICE.

Should you have any questions

concerning this EULA, or if you desire to

contact ALPINE for any other reason,

please refer to the address provided in

the documentation for the DEVICE.

•SOFTWARE TRANSFER ALLOWED BUT

WITH RESTRICTIONS

You may permanently transfer rights

under this EULA only as part of a

permanent sale or transfer of the

Device, and only if the recipient agrees

to this EULA. If the SOFTWARE is an

upgrade, any transfer must also include

all prior versions of the SOFTWARE.

•EXPORT RESTRICTIONS

You acknowledge that SOFTWARE is of

US-origin. You agree to comply with all

applicable international and national

laws that apply to the SOFTWARE,

including the U.S. Export Administration

Regulations, as well as end-user, end-

use and country destination restrictions

issued by U.S. and other governments.

For additional information on exporting

the SOFTWARE, see http://

www.microsoft.com/exporting/.

243



Legal Information



User Agreements

Reference Information

Music recognition technology and

related data are provided by

Gracenote®. Gracenote is the industry

standard in music recognition

technology and related content delivery.

For more information, visit

www.gracenote.com.

When music is recorded to the HDD

from a CD, information such as the

recording artist and track name are

retrieved from the Gracenote Database

and displayed (when available).

Gracenote may not contain information

for all albums.

Gracenote is an internet-based music

recognition service that allows artist,

album, and track information from CDs

to display on the HDD.

Gracenote users are allowed 4 free

updates a year. More information about

Gracenote, its features, and downloads

are available at www.honda.com (in

U.S.) or www.honda.ca (in Canada).

■Gracenote Music Recognition

Service (CDDB)

CD and music-related data from

present Gracenote. Gracenote Software,

One or more patents owned by

Gracenote apply to this product and

service. See the Gracenote website for a

non-exhaustive list of applicable

Gracenote patents. Gracenote, CDDB,

MusicID, MediaVOCS, the Gracenote

logo and logotype, and the “Powered

by Gracenote” logo are either registered

trademarks or trademarks of Gracenote

in the United States and/or other

countries.

This application or device contains

software from Gracenote, Inc. of

Emeryville, California (“Gracenote”). The

software from Gracenote (the “Gracenote

Software”) enables this application to

perform disc and/or file identification and

obtain music- related information,

including name, artist, track, and title

information (“Gracenote Data”) from

online servers or embedded databases

(collectively, “Gracenote Servers”) and to

perform other functions. You may use

■Gracenote® END USER

LICENSE AGREEMENT

Gracenote Data only by means of the

intended End-User functions or this

application or device.

You agree that you will use Gracenote

Data, the Gracenote Software, and

Gracenote Servers for your own personal

non-commercial use only.

You agree not to assign, copy, transfer, or

transmit the Gracenote Software or any

Gracenote Data to any third party.

YOU AGREE NOT TO USE OR EXPLOIT

GRACENOTE DATA, THE GRACENOTE

SOFTWARE, OR GRACENOTE SERVERS,

EXCEPT AS EXPRESSLY PERMITTED

HEREIN.

You agree that your non-exclusive license

to use the Gracenote Data, the Gracenote

Software, and Gracenote Servers will

terminate if you violate these restrictions. If

your license terminates, you agree to cease

any and all use of the Gracenote Data, the

Gracenote Software, and Gracenote

Servers.

Continued

244



Legal Information



As required by the FCC

Reference Information

Gracenote reserves all rights in Gracenote

Data, the Gracenote Software, and the

Gracenote Servers, including all ownership

rights. Under no circumstances will

Gracenote become liable for any payment

to you for any information that you

provide. You agree that Gracenote, Inc.

may enforce its rights under this

Agreement against you directly in its own

name.

The Gracenote service uses a unique

identifier to track queries for statistical

purposes. The purpose of a randomly

assigned numeric identifier is to allow the

Gracenote service to count queries without

knowing anything about who you are. For

more information, see the web page for

the Gracenote Privacy Policy for the

Gracenote service.

The Gracenote Software and each item of

Gracenote Data are licensed to you “AS

IS.”

Gracenote makes no representations or

warranties, express or implied, regarding

the accuracy of any Gracenote Data from

in the Gracenote Servers. Gracenote

reserves the right to delete data from the

Gracenote Servers or to change data

categories for any cause that Gracenote

deems sufficient. No warranty is made that

the Gracenote Software or Gracenote

Servers are error-free or that functioning of

Gracenote Software or Gracenote Servers

will be uninterrupted.

Gracenote is not obligated to provide you

with new enhanced or additional data

types or categories that Gracenote may

provide in the future and is free to

discontinue its services at any time.

GRACENOTE DISCLAIMS ALL

WARRANTIES EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE, AND NON-

INFRINGEMENT. GRACENOTE DOES NOT

WARRANT THE RESULTS THAT WILL BE

OBTAINED BY YOUR USE OF THE

GRACENOTE SOFTWARE OR ANY

GRACENOTE SERVER. IN NO CASE WILL

GRACENOTE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL

DAMAGES OR FOR ANY LOST PROFITS OR

LOST REVENUES.

As required by the FCC

1. This device complies with Part 15 of the

FCC Rules and Canadian RSS-210/

RSSGen. Operation is subject to the

following two conditions: (1) this device

may not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause undesired

operation.

2. The FCC requires the user to be notified

that any changes or modifications made

to this device that are not expressly

approved by the party responsible for

compliance may void the user’s

authority to operate the equipment.

3. This product emits radio frequency

energy, but the radiated output power

of this device is far below the FCC and

IC radio frequency exposure limits. This

equipment complies with FCC and IC RF

radiation exposure limits set forth for an

uncontrolled environment. Nevertheless,

the device should be used in such a

manner that the potential for human

contact with the antenna during normal

operation is minimized.

245

Voice Commands

Voice Commands .................................. 246

Global Commands ............................... 246

Navigation Commands......................... 246

Climate Control Commands................. 249

Audio Commands ................................ 249

Cellular Phone Commands ................... 254

Main Setup Screen Commands ............ 254

On-Screen Commands ......................... 254

Spelling Assistance ............................... 254

246

Voice Commands

Global Commands

The system accepts these commands on

any screen.

Help (displays commands for current

screen)

Display map (equivalent to MAP)

Display menu (equivalent to MENU)

Display information (equivalent to INFO)

Display audio screen (equivalent to

AUDIO)

Display phone (equivalent to PHONE)

Back (returns to previous screen)

Cancel (equivalent to CANCEL)

What is today’s date?

What time is it?

Navigation Commands

The system accepts these commands on a

map/guidance screen.

Display menu (if en route, displays the

Route screen)

Display navigation (if en route, displays

the Route screen)

Display map

Display map guide (when en route,

shows the next guidance point)

Display information (or Information)

Display phone

Display clock

Display wallpaper

Display audio screen

Cancel

Backward (or Back)

What time is it?

What is today’s date?

Help (reads list of General and Map

Display Commands)

Dial by number

Dial by voice tag

■General Commands

Display current location (shows current

latitude, longitude, and elevation)

Display/Hide (specify icon type):

ATM

gas station

restaurant

post office

grocery store

lodging (hotel, motel)

parking garage

parking lot

school

hospital

freeway exit information

traffic

traffic speeds

traffic icons

traffic incidents

Go home 1

Go home 2

current location in the Address Book)

■Map Display Commands

247



Voice Commands



Navigation Commands

Voice Commands

Display north up

Display heading up

Display zoom in

Display zoom out

Display (specify scale):

1/20 mile (80 m) scale

1/8 mile (200 m) scale

1/4 mile (400 m) scale

1/2 mile (800 m) scale

1 mile (1600 m) scale

2 mile (3 km) scale

5 mile (8 km) scale

15 mile (24 km) scale

50 mile (80 km) scale

150 mile (240 km) scale

350 mile (560 km) scale

1000 mile (1600 km) scale

Max zoom in

Max zoom out

■Map Scale Commands

Find nearest (specify place):

Auto service center

ACURA dealers

HONDA dealers

Gas station

Hydrogen station

Auto parts & electronics shop

Auto repair & maintenance shop

Car wash & detailing shop

Motorcycle dealers

Other car dealers

Roadside assistance

Banking center

ATM

Bank

Check cashing

Currency exchange

Community

Business

City hall

Civic center

Convention center

Court house

Higher education

Library

Post office

■Find Place Commands School

Emergency room

Hospital

Police station

Veterinarian

Lodging

Bed & breakfast

Hotel

Resort

Leisure center

Amusement park

Golf course

Historical monument

Marina

Movie theater

Museum

Park

Performing arts

Sports complex

Tourist attraction

Restaurant

Zagat restaurant

American restaurant

Californian restaurant

Chinese restaurant

Café/Coffee shop

Continental restaurant

Fast food restaurant

Continued

248



Voice Commands



Navigation Commands

Voice Commands

French restaurant

German restaurant

Greek restaurant

Indian restaurant

Italian restaurant

Japanese restaurant

Korean restaurant

Mexican restaurant

Pizza

Seafood restaurant

Thai restaurant

Vegetarian restaurant

Vietnamese restaurant

Other restaurant

Shopping area

Accessory store

Book store

Clothing store

Grocery store

Home improvement store

Mall

Office supply store

Pharmacy

Pet food store

Sewing store

Shoe store

Sporting goods store

Toy store

Travel center

Airport

Automobile club

Bus station

Camping

Commuter rail station

Ferry terminal

Named place

Park & ride

Parking garage

Parking lot

Rental car agency

Rest area

Ski area

Tourist information

Train station

Travel agency

Truck stop

The system accepts these commands when

a route is set.

How long to the destination?*

How far to the destination?*

Display destination map

Display entire route

* These commands are not available if

you scroll through the map while en

route to a destination.

■Route Commands

249



Voice Commands



Climate Control Commands

Voice Commands

Climate Control

Commands

The system accepts these commands on

most screens.

Climate control automatic (maintains

selected temperature)

Climate control off

Air conditioner on*

Air conditioner off*

Climate control defrost on*

Climate control defrost off*

Rear defrost on*

Rear defrost off*

Climate control fresh air

Climate control recirculate

Climate control vent

Climate control bi-level (vent and floor)

Climate control floor

Climate control floor and defrost

Fan speed up

Fan speed down

Fan speed # (#: 1 to 7)

Rear lock on

Rear lock off

Temperature # degrees (#: 57 to 87 °F)

Driver temperature # degrees (#: 57 to

87 °F)

Passenger temperature # degrees (#: 57

to 87 °F)

Temperature up

Temperature down

Driver temperature up

Driver temperature down

Passenger temperature up

Passenger temperature down

Temperature max hot

Temperature max cold

Driver temperature max hot

Driver temperature max cold

Passenger temperature max hot

Passenger temperature max cold

Climate control sync on

Climate control sync off

Front climate control automatic

(maintains selected temperature)

Front climate control off

Rear climate control automatic

(maintains selected temperature)

Rear climate control off

Rear climate control vent

Rear climate control bi-level (vent and

floor)

Rear climate control floor

Rear fan speed up

Rear fan speed down

Rear fan speed # (#: 1 to 5)

* These commands toggle the function

on and off, so the command may not

match your intended action.

Audio Commands

The system accepts these commands on

most screens.

Audio on*

Audio off*

Radio on*

Radio off*

Radio select FM1

Radio select FM2

Radio select AM

Radio tune to # FM (#: frequency, e.g.,

95.5)

Radio tune to # AM (#: frequency, e.g.,

1020)

Radio seek up

Radio seek down

Radio next station

Radio preset # (#: 1 to 6)

Radio FM preset # (#: 1 to 6)

Radio FM1 preset # (#: 1 to 6)

■Radio Commands

Continued

250



Voice Commands



Audio Commands

Voice Commands

Radio FM2 preset # (#: 1 to 6)

Radio AM preset # (#: 1 to 6)

Radio auto select*

Radio scan*

Radio select XM1

Radio select XM2

XM channel # (#: 1 to 255)

XM channel up

XM channel down

XM category up

XM category down

XM preset # (#: 1 to 6)

XM1 preset # (#: 1 to 6)

XM2 preset # (#: 1 to 6)

XM scan*

XM category scan*

XM channel scan*

XM category mode

XM channel mode

* These commands toggle the function

on and off, so the command may not

match your intended action.

NOTE:

Radio volume levels cannot be controlled

using voice control.

DISC play

DISC play track # (#: 1 to 30)

DISC skip forward

DISC skip back

DISC track random*

DISC track repeat*

DISC track scan*

DISC folder up

DISC folder down

DISC folder random*

DISC folder repeat*

DISC folder scan*

DISC normal play (cancels random,

repeat, or scan play mode, resumes

normal play mode)

* These commands toggle the function

on and off, so the command may not

match your intended action.

■Disc Commands

HDD play

HDD search (activates Song By Voice™)

HDD skip forward

HDD skip back

HDD album up*1

HDD album down*1

HDD genre up*1

HDD genre down*1

HDD artist up*1

HDD artist down*1

HDD track up

HDD track down

HDD playlist up*1

HDD playlist down*1

HDD track random*2

HDD track repeat*2

HDD track scan*1

HDD normal play (cancels random,

repeat, or scan play mode, resumes

normal play mode)

What/Who am I listening to?

Who is this?

What’s playing?

Who’s playing?

What album is this?

■HDD Commands

251



Voice Commands



Audio Commands

Voice Commands

*1. These commands are available only in

the corresponding playback mode.

For example, “Artist” commands are

available only in “Artist” mode.

*2. These commands toggle the function

on and off, so the command may not

match your intended action.

USB play

USB play track # (#: 1 to 30)

USB skip forward

USB skip back

USB track random*

USB track repeat*

USB track scan*

USB folder up

USB folder down

USB folder random*

USB folder repeat*

USB folder scan*

USB normal play (cancels random,

repeat, or scan play mode, resumes

normal play mode)

* These commands toggle the function

on and off, so the command may not

match your intended action.

■USB Commands

iPod play

iPod search (activates Song By Voice™)

iPod skip forward

iPod skip back

iPod track shuffle*

iPod album shuffle*

iPod track repeat*

iPod normal play (cancels repeat or

shuffle play mode, resumes normal play

mode)

What/Who am I listening to?

Who is this?

What’s playing?

Who’s playing?

What album is this?

* These commands toggle the function

on and off, so the command may not

match your intended action.

■iPod® Commands

Bluetooth audio play

Bluetooth audio skip forward

Bluetooth audio skip back

Bluetooth audio pause

Bluetooth audio resume

NOTE:

Bluetooth® Audio commands may not

work on some phones or Bluetooth®

audio devices.

AUX play (or Auxiliary play)

iPod search (activates Song By Voice™)

HDD search (activates Song By Voice™)

List album (specify album)

List artist (specify artist)

List composer (specify composer)

List genre (specify genre)

List playlist (specify playlist)

Play album (specify album)

Play artist (specify artist)

Play composer (specify composer)

Play genre (specify genre)

Play playlist (specify playlist)

■Bluetooth® Audio Commands

■AUX Commands

■Song By Voice™ Commands

Continued

252



Voice Commands



Audio Commands

Voice Commands

Play song (specify song)

What/Who am I listening to?

Who is this?

What’s playing?

Who’s playing?

What album is this?

NOTE:

Song By Voice™ commands are available

for tracks stored on the HDD or iPod®.

Rear audio on*

Rear audio off*

Rear radio on*

Rear radio off*

Rear radio select FM1

Rear radio select FM2

Rear radio select AM

Rear radio tune to # FM (#: frequency,

e.g., 95.5)

Rear radio tune to # AM (#: frequency,

e.g., 1020)

Rear radio seek up

Rear radio seek down

Rear radio next station

Rear radio preset # (#: 1 to 6)

Rear radio FM preset # (#: 1 to 6)

Rear radio FM1 preset # (#: 1 to 6)

■Rear Radio Commands

Rear radio FM2 preset # (#: 1 to 6)

Rear radio AM preset # (#: 1 to 6)

Rear radio auto select*

Rear radio scan*

Rear radio select XM1

Rear radio select XM2

Rear XM channel # (#: 0 to 255)

Rear XM channel up

Rear XM channel down

Rear XM category up

Rear XM category down

Rear XM preset # (#: 1 to 6)

Rear XM1 preset # (#: 1 to 6)

Rear XM2 preset # (#: 1 to 6)

Rear XM scan*

Rear XM category scan*

Rear XM channel scan*

Rear XM category mode

Rear XM channel mode

* These commands toggle the function

between on and off, so the command

may not match your intended action.

NOTE:

Radio volume levels cannot be controlled

using voice control.

Rear CD play

Rear CD play track # (#: 1 to 30)

Rear CD skip forward

Rear CD skip back

Rear CD track random*

Rear CD track repeat*

Rear CD track scan*

Rear CD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

Rear CD folder up

Rear CD folder down

Rear CD folder random*

Rear CD folder repeat*

Rear CD folder scan*

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear CD Commands

253



Voice Commands



Audio Commands

Voice Commands

Rear DVD play

Rear DVD pause

Rear DVD title up

Rear DVD title down

Rear DVD chapter up

Rear DVD chapter down

Rear DVD title # (#: 1 to 30)

Rear DVD chapter # (#: 1 to 30)

Rear DVD title #1 chap. #2 (#1, #2: 1 to

30)

Rear DVD play track # (#: 1 to 30)

Rear DVD skip forward

Rear DVD skip back

Rear DVD track random*

Rear DVD track repeat*

Rear DVD track scan*

Rear DVD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

Rear DVD folder random*

Rear DVD folder repeat*

Rear DVD folder scan*

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear DVD Commands

Rear HDD play

Rear HDD skip forward

Rear HDD skip back

Rear HDD album up

Rear HDD album down

Rear HDD genre up

Rear HDD genre down

Rear HDD artist up

Rear HDD artist down

Rear HDD track up

Rear HDD track down

Rear HDD playlist up

Rear HDD playlist down

Rear HDD track random*

Rear HDD track repeat*

Rear HDD track scan*

Rear HDD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear HDD Commands

Rear iPod play

Rear iPod skip forward

Rear iPod skip back

Rear iPod track shuffle*

Rear iPod album shuffle*

Rear iPod track repeat*

Rear iPod normal play (resumes “Play”

from the shuffle- or repeat-play)

* These commands toggle the function

between on and off, so the command

may not match your intended action.

Rear AUX play (or Rear Auxiliary play)

■Rear iPod Commands

■Rear AUX Commands

254



Voice Commands



Cellular Phone Commands

Voice Commands

Cellular Phone Commands

The system accepts these commands only

on the PHONE screen.

Dial #

Call (voice tag)

Call history

Phonebook

More speed dial

Phone setup

These commands can be made from any

screen.

Dial/call by number

Dial/call by voice tag

Main Setup Screen

Commands

The system accepts these commands on

the Main Setup screen.

Brightness up

Brightness down

Brightness minimum/min.

Brightness maximum/max.

Contrast up

Contrast down

Contrast minimum/min.

Contrast maximum/max.

Black level up

Black level down

Black level minimum/min.

Black level maximum/max.

Volume up

Volume down

Volume minimum/min.

Volume maximum/max.

Volume off

Interface dial feedback off

Interface dial feedback auto

Interface dial feedback on

On-Screen Commands

The system accepts these commands on

any screen. There are over 100 on-screen

commands. Say what is written on the

screen to activate that selection. For lists,

you can say the list item number to select

that item.

Next (or Down)

Previous (or Up)

Return

OK (excluding Startup Confirmation

screen)

Delete

Spelling Assistance

The voice control system can also

recognize phonetic alphabet input for

numbers, letters, accented letters,

punctuation marks, and symbols.

NOTE:

When selecting letters using the voice

control system, a confirmation box may

pop up to confirm the entry.

255



Voice Commands



Spelling Assistance

Voice Commands

■Numbers

Say … Say … or Number …

1One

2Two

3Three

4 Four

5Five

6Six

7Seven

8Eight

9Nine

0 Zero

■Letters

Say … Or say…

AAlpha/Apple

BBravo/Boy

CCharlie

DDelta/Dog

EEcho/Edward

F Foxtrot/Frank

GGolf/George

HHotel/Henry

IIndia/Igloo

J Juliet/John

KKilo/King

LLima/Larry

MMike/Mary

N November/Nancy

OOscar

P Papa/Paul

QQuebec/Queen

R Romeo/Robert

SSierra/Sam

T Tango/Tom

UUniform/Uncle

VVictor

WWhiskey/William

XX-ray

YYankee/Yellow

Z Zulu/Zebra

Say … Or say…

Continued

256



Voice Commands



Spelling Assistance

Voice Commands

■Accented Letters

Say … Say … or Symbol …

ÀA grave

ÂA circumflex

ÄA umlaut

Ç C cedilla

ÈE grave

ÉE acute

ÊE circumflex

Ë E umlaut

ÌI grave

ÎI circumflex

ÏI umlaut

Ô O circumflex

ÙU grave

Û U circumflex

ÜU umlaut

Say … Say … or Symbol … ■Punctuation Marks

Say … Say … or Symbol …

@At sign

^ Caret

*Asterisk

_ Underscore

`Back quote

, Comma

.Dot

? Question mark

:Colon

;Semicolon

+Plus

257



Voice Commands



Spelling Assistance

Voice Commands

■Symbols

Say … Say … or Symbol …

-Hyphen

! Exclamation point

“Double quote

# Pound

$Dollar

% Percent

&Ampersand

‘ Apostrophe

(Open parenthesis

) Close parenthesis

~Tilde

/Slash

<Less than

> Greater than

{Open brace

}Close brace

kEnter

Say … Say … or Symbol …

258

List of Categories

Auto Service Lodging Shopping

Acura Dealers*

Auto Repair & Maintenance

Bed & Breakfast Resort All Shopping*

Office Supplies/Electronics

Acura Roadside Assistance

Car Wash & Detailing Hotel/Motel Accessories/Jewelry Pharmacy/Drug Store

Honda Dealers* Motorcycle Dealers Leisure

Auto Parts & Electronics

Pet Food/Supplies

Gas Station* Other Car Dealers Amusement Park Museum Books/Music/Video Sewing/Linen

Hydrogen Station Roadside Assistance Golf Course

Park/Recreation Area

Clothing Shoes/Bags

Auto Parts & Electronics

Historical Monument

Performing Arts Groceries Sporting Goods

Banking Marina Sports Complex Home Improvement Toys/Arts/Crafts

ATM*

Check Cashing/Money Transfer

Movie Theater Tourist Attraction

Mall/Department Store

Bank Currency Exchange Restaurant Travel

Community All Types* Indian Airport Parking Lot

Business Higher Education

All Types (Zagat Only)

Italian Automobile Club Rental Car Agency

City Hall Library American Japanese Bed & Breakfast Resort

Civic/Community Center Post Office Californian Korean Bus Station Rest Area

Convention/Exhibition Center

School Chinese Mexican Camping Ski Area

Court House Cafe/Coffee Shop Pizza

Commuter Rail Station

Tourist Attraction

Emergency Continental Seafood Ferry Terminal Tourist Information

Acura Roadside Assistance Roadside Assistance Fast Food Thai Hotel/Motel Train Station

Hospital* Veterinarian French Vegetarian Named Place Travel Agency

Police Station German Vietnamese Park & Ride Truck Stop/Plaza

Greek Other

Parking Garage/House

* Stored in “Fav. Subcategory” by factory default.

259

List of Language Codes

Language Input Code

Abubasia 0102

Afar 0101

Afrikaans 0106

Albanian 1917

Amharic 0113

Arabic 0118

Armenian 0825

Assamese 0119

Aymara 0125

Azerbaijani 0126

Bashkir 0201

Basque 0521

Belarussian 0205

Bengali 0214

Bhutanese 0426

Bihari 0208

Bislama 0209

Breton 0218

Bulgarian 0207

Burmese 1325

Cambodian 1113

Catalan 0301

Chinese 2608

Corsican 0315

Croatian 0818

Czech 0319

Danish 0401

Dutch 1412

English 0514

Esperanto 0515

Estonian 0520

Faroese 0615

Fijian 0610

Finnish 0609

French 0618

Frisian 0625

Galician 0712

Georgian 1101

German 0405

Greek 0512

Greenlandic 1112

Guarani 0714

Gujarati 0721

Hausa 0801

Hebrew 0923

Hindi 0809

Language Input Code

Hungarian 0821

Icelandic 0919

Indonesian 0914

Interlingue 0905

International 0901

Inupiaq 0911

Irish 0701

Italian 0920

Japanese 1001

Javanese 1023

Kannada 1114

Kashmiri 1119

Kazakh 1111

Kinyarwanda 1823

Kirghiz 1125

Kirundi 1814

Korean 1115

Kurdish 1121

Laotian 1215

Latvian 1222

Lingala 1214

Lithuanian 1220

Macedonian 1311

Language Input Code

Continued

260



List of Language Codes



Spelling Assistance

List of Language Codes

Malagasy 1307

Malay 1319

Malayalam 1312

Maltese 1320

Maori 1309

Marathi 1318

Moldavian 1315

Mongolian 1314

Nauruan 1401

Nepali 1405

Norwegian 1415

Oriya 1518

Oromo 1513

Pashto 1619

Persian 0601

Polish 1612

Portuguese 1620

Provencal 1503

Punjabi 1601

Quechua 1721

Rhaeto-Romance 1813

Romanian 1815

Russian 1821

Language Input Code

Sand 1907

Sanskrit 1901

Scottish Gaelic 0704

Serbian 1918

Serbo-Croatian 1908

Seth-Thu 1920

Setswana 2014

Shona 1914

Sindhi 1904

Sinhalese 1909

SiSwati 1919

Slovak 1911

Slovene 1912

Somali 1915

Somoan 1913

Spanish 0519

Sundanese 1921

Swahili 1923

Swedish 1922

Tagalog 2012

Tajir 2007

Tamil 2001

Tartar 2020

Language Input Code

Telugu 2005

Thai 2008

Tibetan 0215

Tigris 2009

Tonga 2015

Turki 2011

Turkish 2018

Twi 2023

Twonga 2019

Ukrainian 2111

Urdu 2118

Uzbek 2126

Vietnamese 2209

Volapuk 2215

Welsh 0325

Worf 2315

Xhosa 2408

Yiddish 1009

Yoruba 2515

Zulu 2621

Language Input Code

261

Index

Symbols

K (Back) Button

....................................5

a (Display Mode) Button

...................... 29

j (Hang-Up) Button

................................185

h (Pick-Up) Button

..........................185

186

8 (Sound) Button

.............................6

166

d (Talk) Button

......................................5

A.SEL (Auto Select)

....................................133

Add to Address Book

..........................90

127

Add to Dest. List

..........90

121

125

126

127

Add to Playlist

............................................151

Address

Editing Address Book

.................................40

Editing Avoid Area

.....................................54

Setting Destination

.....................................70

Address Book

Editing Address Book

.................................38

Setting Destination

.....................................75

Address Book PIN

........................................43

Adjust Time

.................................................. 59

Advanced (Place Category)

........................ 80

AM/FM Button

.......................................6

132

AM/FM Radio

Playing

...................................................... 132

Voice Commands List

...............................249

Audio

........................................................... 129

Basic Operation

............................................6

Control Display

............................................. 7

Remote Control

........................................167

Sound Setup

.............................................166

Voice Commands List

...............................249

AUDIO Button

................................................7

Audio Menu

Bluetooth® Audio

....................................165

Disc

...........................................................142

FM/AM Radio

............................................133

HDD

..........................................................146

iPod®

........................................................157

USB Flash drive

.........................................162

XM® Radio

...............................................137

Auto Daylight

...............................................58

Auto Service (Place Category)

....................80

Auto Time Zone

...........................................58

AUX

Input Jack

..................................................131

Voice Commands List

...............................251

Avoid Streets

..............................................117

Banking (Place Category)

...........................80

Basic Settings

................................................26

Black Level

....................................................24

Bluetooth® Audio

Playing

......................................................164

Voice Commands List

...............................251

Bluetooth® HandsFreeLink®

...................169

Editing User Name/PIN

..............................180

Importing Phonebook

...............................177

Making a Call

...........................................182

Pairing a Phone

.........................................172

Receiving a Call

.........................................185

Setting Speed Dials

...................................178

Brightness

...............................................24

Calculator

................................................... 213

Calendar

..................................................... 211

Call

Calculate Route Screen

...................... 90

127

Call History

................................................. 184

Cancel Route

.............................................. 117

Honda 2013 Odyssey Navigation Manual

Honda-2013-Odyssey-Unlinked-Navigation-Manual-108905 honda-2013-odyssey-unlinked-navigation-manual-108905

K81313NV 2013 Honda Odyssey Owners Manual | SERVICE MANUAL OWNERS

Navigation menu

Versions of this User Manual:

Views

Navigation
