This owner’s manual should be considered a permanent part of the

vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find

descriptions of equipment and features that are not on your

particular model.

Images throughout this owner’s manual (including the front cover)

represent features and equipment that are available on some, but

not all, models. Your particular model may not have some of these

features.

This owner’s manual is for vehicles sold in the United States and

Canada.

The information and specifications included in this publication were

in effect at the time of approval for printing. Honda Motor Co., Ltd.

reserves the right, however, to discontinue or change specifications

or design at any time without notice and without incurring any

obligation.

2Safe Driving P. 25

For Safe Driving P. 26 Seat Belts P. 30 Airbags P. 39

2Instrument Panel P. 69

Indicators P. 70 Gauges and Displays P. 92

2Controls P. 107

Clock P. 108 Locking and Unlocking the Doors P. 110

Security System P. 135 Opening and Closing the Windows P. 138

Adjusting the Mirrors P. 158

Heating and Cooling* P. 194

2Features P. 205

Audio System P. 206 Audio System Basic Operation P. 211, 234

Rear Entertainment System* P. 276 Customized Features P. 295

2Driving P. 395

Before Driving P. 396 Towing a Trailer P. 401

Rearview Camera P. 445 Refueling P. 446

2Maintenance P. 451

Before Performing Maintenance P. 452 Maintenance MinderTM P. 455

Checking and Maintaining Wiper Blades P. 486

Remote Control and Wireless Headphone Care* P. 502

2Handling the Unexpected P. 509

Tools P. 510 If a Tire Goes Flat P. 511

Overheating P. 526 Indicator, Coming On/Blinking P. 528

When You Cannot Open or Close the Tailgate P. 540

2Information P. 541

Specifications P. 542 Identification Numbers P. 544

Warranty Coverages P. 549 Authorized Manuals P. 551

14 US ODYSSEY-31TK86300.book 0 ページ２０１３年７月２５日　木曜日　午後４時２３分

Contents

Child Safety P. 52 Exhaust Gas Hazard P. 66 Safety Labels P. 67

Opening and Closing the Tailgate P. 121 Opening and Closing the Sliding Doors P. 127

Opening and Closing the Moonroof* P. 141 Operating the Switches Around the Steering Wheel P. 142

Adjusting the Seats P. 161 Interior Lights/Interior Convenience Items P. 176

Climate Control System* P. 198

Audio Error Messages P. 267 General Information on the Audio System P. 272

HomeLink® Universal Transceiver* P. 325 Bluetooth® HandsFreeLink® P. 327, 360 Compass* P. 392

When Driving P. 407 Braking P. 436 Parking Your Vehicle P. 440

Fuel Economy P. 449 Accessories and Modifications P. 450

Maintenance Under the Hood P. 463 Replacing Light Bulbs P. 475

Checking and Maintaining Tires P. 490 Battery P. 499 Remote Transmitter Care P. 500

Heating and Cooling System*/Climate Control System* Maintenance P. 504 Cleaning P. 505

Engine Does Not Start P. 520 Jump Starting P. 523 Shift Lever Does Not Move P. 525

Fuses P. 533 Emergency Towing P. 539

Devices that Emit Radio Waves P. 545 Reporting Safety Defects P. 546 Emissions Testing P. 547

Customer Service Information P. 552

Quick Reference Guide P. 2

Safe Driving P. 25

Instrument Panel P. 69

Controls P. 107

Features P. 205

Driving P. 395

Maintenance P. 451

Handling the Unexpected P. 509

Information P. 541

Index P. 553

14 US ODYSSEY-31TK86300.book 1 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Visual Index

❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P427)

❙Lane Departure Warning (LDW) Button* (P424)

❙Power Sliding Door Switch* (P129)

❙Power Tailgate Switch* (P123)

❙

Parking Sensor System Switch

(P441)

❙System Indicators (P70)

❙Gauges (P92)

❙Information Display* (P93)

❙Multi-Information Display* (P96)

❙Rear Window Defogger (P154)

❙Heated Mirror Button* (P154)

❙Hazard Warning Button

❙Heating and Cooling System* (P194)

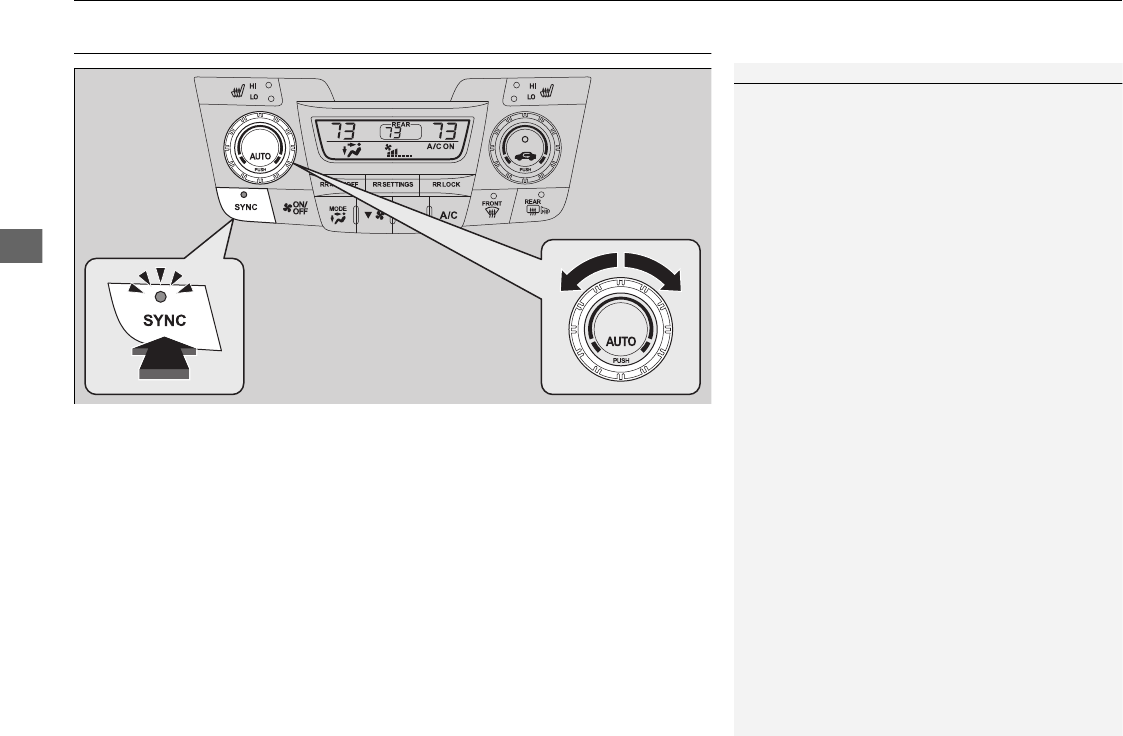

❙Climate Control System* (P198)

❙Seat Heater Switches* (P189)

❙Cool Box Switch* (P180)

❙Center Pocket (P180)

❙Driving Position Memory System

Buttons* (P155) ❙Auxiliary Input Jack (P207)

❙USB Port (P207)

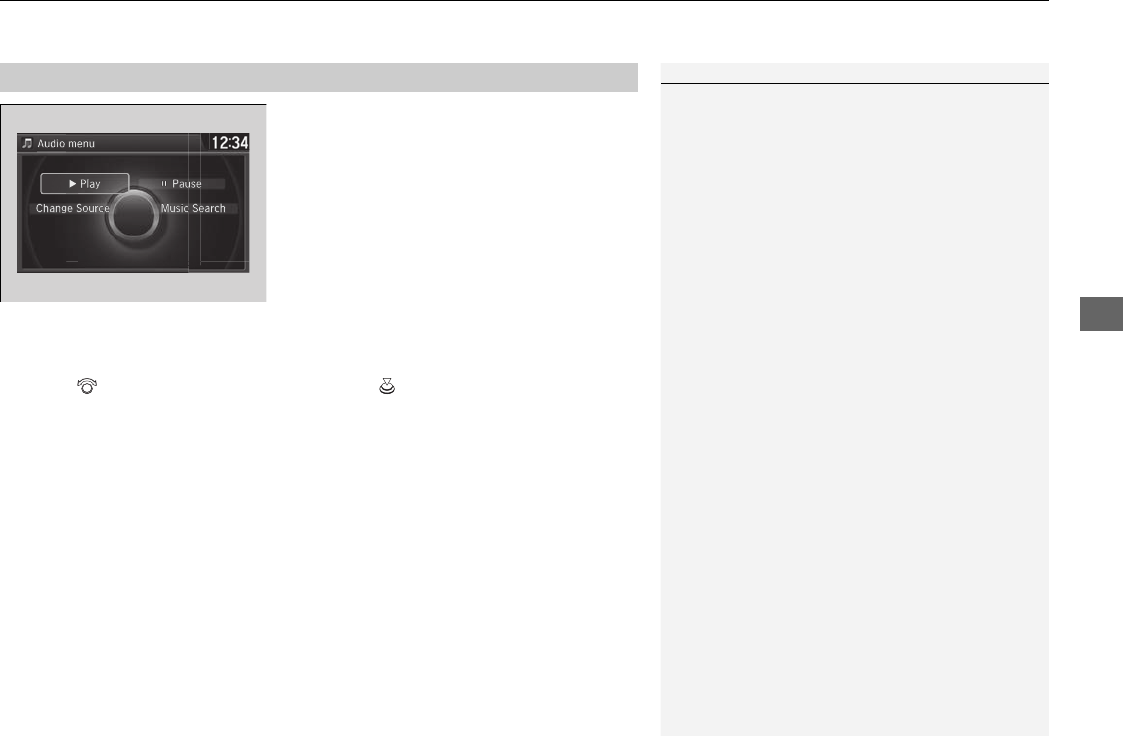

❙Audio System (P206)

❙Accessory Power Socket (P183)

❙Rear Entertainment System* (P276)

❙Beverage Holder* (P181)

❙Navigation System*

() See Navigation System Manual

14 US ODYSSEY-31TK86300.book 2 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

❙Navigation System Voice Control Buttons*

() See Navigation System Manual

❙Bluetooth® HandsFreeLink® System

Buttons (P327, 360)

❙Audio Remote Control Buttons (P210)

❙Steering Wheel Adjustments (P157)

❙Cruise Control Buttons (P415)

❙Wipers/Washers (P151)

❙ (Select/Reset) Knob (P93)

❙Brightness Control (P153)

❙Shift Lever

Automatic Transmission (P412)

❙SEL/RESET Button* (P96)

❙ / (Information) Button* (P96)

❙Headlights/Turn Signals (P147)

❙LaneWatchTM* (P434)

❙Fog Lights* (P150)

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

❙Horn (Press an area around .)

❙ENGINE START/STOP Button*1 (P143)

❙Ignition Switch*1 (P142)

* Not available on all models

14 US ODYSSEY-31TK86300.book 3 ページ２０１３年７月２５日　木曜日　午後４時２３分

Visual Index

Quick Reference Guide

❙Door Mirror Controls (P159)

❙Master Door Lock Switch (P118)

❙Hood Release Handle (P464)

❙Fuel Fill Door Release Handle (P447)

❙Coin Pocket

❙Parking Brake Pedal (P436)

❙Power Window Switches (P138)

❙Rearview Mirror (P158)

❙Driver Side Fuse Box (P535)

❙Passenger's Front Airbag

(P42)

❙Glove Box (P178)

❙Driver's Front Airbag (P42)

❙Passenger Side Fuse Box

(P536)

14 US ODYSSEY-31TK86300.book 4 ページ２０１３年７月２５日　木曜日　午後４時２３分

5
Quick Reference Guide
❙Sun Visors
❙Vanity Mirrors
❙Moonroof Switch* (P141)
❙Map Lights (P177)
❙HomeLink® Button* (P325)
❙Sunglasses Holder (P188)
❙Seat Belts (P30)
❙Grab Handle
❙Coat Hooks (P186)
❙Seat Belt to Secure a Child Seat (P62)
❙Seat Belt (Installing a Child Seat) (P60)
❙Accessory Power Socket (P183)
❙Side Curtain Airbags (P48)
❙Coat Hooks (P186)
❙AC Power Outlet* (P185)
❙Auxiliary Input Jacks* (P276)
❙Side Airbags (P46)
❙Second Row Seat (P162, 169)
❙Front Seat (P161)
❙Removable Center Console* (P178)
❙Flip-up Trash Bag Ring* (P179)
❙Third Row Seat (P162, 169)
❙Folding the One-Motion Third Row Magic Seat (P173)
❙Second Row Multi-Functional Center Seat* (P162, 172)
❙Integrated Sunshades* (P190)
❙HondaVACTM* (P191)
* Not available on all models
14 US ODYSSEY-31TK86300.book 5 ページ ２０１３年７月２５日　木曜日　午後４時２３分

Visual Index

Quick Reference Guide

❙Maintenance Under the Hood (P463)

❙Windshield Wipers (P151, 486)

❙Door Lock/Unlock Control (P113)

❙Power Door Mirrors (P159)

❙Headlights (P147, 475)

❙Front Turn Signal/Parking/Side Marker Lights (P147, 480)

❙Tires (P490, 511)

❙Fog Lights* (P150, 479)

❙How to Refuel (P447)

❙Rearview Camera (P445)

❙Opening/Closing the Tailgate (P121)

❙Back-Up Lights (P483)

❙Opening/Closing the Sliding Doors

(P127)

❙Taillights (P483)

❙Tailgate Outer Handle (P122)

❙Brake Lights (P481)

❙Rear Side Marker/Taillights (P481)

❙Rear Turn Signal Lights (P481)

❙High-Mount Brake Light (P485)

❙Rear License Plate Lights (P484)

14 US ODYSSEY-31TK86300.book 6 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Safe Driving (P25)

Airbags (P39)

●Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety (P52)

●All children 12 and younger should be seated in the rear seat.

●Smaller children should be properly restrained in a forward-facing child seat.

●Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard (P66)

●Your vehicle emits dangerous exhaust gases that contain

carbon monoxide. Do not run the engine in confined

spaces where carbon monoxide gas can accumulate.

Before Driving Checklist (P29)

●Before driving, check that the front seats, head restraints,

steering wheel, and mirrors have been properly adjusted.

Seat Belts (P30)

●Fasten your seat belt and sit upright well

back in the seat.

●Check that your passengers are wearing

their seat belts correctly.

Fasten your lap belt as

low as possible.

* Not available on all models

14 US ODYSSEY-31TK86300.book 7 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Instrument Panel (P69)

System Indicators

Malfunction

Indicator Lamp

Low Oil Pressure

Indicator

Charging System

Indicator

Anti-lock Brake System

(ABS) Indicator

Vehicle Stability Assist

(VSA®) System Indicator

VSA® OFF Indicator

Low Tire Pressure

Indicator*/

Low Tire Pressure/

TPMS Indicator*

Security System Alarm

Indicator*

Lights Reminders

Lights On Indicator

High Beam Indicator

Fog Light Indicator*

Immobilizer System

Indicator

Seat Belt Reminder

Indicator

System Indicators

Starter System

Indicator*

System Message

Indicator*

Parking Brake

and Brake System

Indicator (Red)

Supplemental

Restraint System

Indicator

Door and Tailgate Open Indicator/

Parking Sensor Indicator*

CRUISE MAIN

Indicator

Tachometer

Information Display*/

Multi-Information Display*

Speedometer

Fuel Gauge

Shift Lever

Position Indicator

Power Sliding Door

Indicator*

Gauges (P92)/Information Display* (P93)/

Multi-Information Display* (P96)/System Indicators (P70)

Power Tailgate

Indicator*

Fuel Economy

Indicator

TPMS Indicator*

Turn Signal and

Hazard Warning

Indicators

Maintenance Minder

Indicator*

Daytime Running

Lights Indicator*

Washer Level

Indicator*

Blind Spot Information

System Indicator*

CRUISE CONTROL

Indicator

Temperature

Gauge

Low Fuel

Indicator

Smart Entry System

Indicator*

Forward Collision Warning

(FCW) Indicator*

Lane Departure Warning

(LDW) Indicator*

Brake System Indicator

(Amber)

U.S.

Canada

U.S.

Canada

System Indicators

U.S.

Canada

U.S.

Canada

U.S.

Canada

14 US ODYSSEY-31TK86300.book 8 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Controls (P107)

Clock (P108)

aEnter the Clock Adjustment screen.

2Adjusting the Clock (P108)

bRotate to change hour, then press

cRotate to change minute, then

press .

The navigation system receives signals from

GPS satellites, updating the clock

automatically.

Models with navigation system

ENGINE START/STOP

Button* (P143)

Press the button to change the vehicle’s

power mode.

Turn Signals (P147)

Turn Signal Control Lever

Right

Left

Lights (P147)

Wipers and Washers (P151)

Light Control Switches

Low Beam

High Beam

Flashing

Wiper/Washer Control Lever

Adjustment Ring

: Long Delay

: Short Delay

MIST

OFF

INT: Low speed with intermittent

LO: Low speed wipe

HI: High speed wipe

Pull toward

you to spray

washer fluid.

* Not available on all models

14 US ODYSSEY-31TK86300.book 9 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Steering Wheel (P157)

●To adjust, push the adjustment lever

down, adjust to the desired position, then

pull up the lever back in place.

Power Sliding Door*

(P129)

●When the main switch is ON, the power

sliding door opens and closes

automatically when you press OPEN or

CLOSE side of the / switch.

Tailgate (P121)

●To open the tailgate, press and hold the

tailgate outer handle, and lift up.

●Press the power tailgate button on the

instrument panel or the smart entry

remote to open and close the power

tailgate.

Tailgate

Outer

Handle

Models with the power tailgate

Power Door Mirrors

(P159)

●With the ignition switch in ON (w*1, move

the selector switch to L or R.

●Push the appropriate edge of the

adjustment switch to adjust the mirror.

●Press the folding button* to fold in and

out the door mirrors.

●Place the selector switch in the L or R

position to use the reverse tilt door mirror

feature.

Selector Switch

Adjustment Switch

Folding Button*

Models with driving position memory system

14 US ODYSSEY-31TK86300.book 10 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Power Windows (P138)

●With the ignition switch in ON (w*1, open

and close the power windows.

●If the power window lock button is in the

OFF position, the passenger's window can

be opened and closed with its own

switch.

●If the power window lock button is in the

ON position (indicator is on), the

passenger's window switch is disabled.

Power Window Lock Button

Window Switch

Indicator

Heating and Cooling System* (P194)

●Rotate the fan control dial to adjust the fan speed.

●Press the Mode button to select the vents air flows from.

●Rotate the temperature control dial to adjust the temperature.

●Use the button for maximum cool setting.

●Press the button to turn the system on or off.

●Press the button to defrost the windshield.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

Fan Control Dial

(Rear Window

Defogger/Heated

Mirror*) Button

A/C (Air

Conditioning)

Button

Air flows from floor and

windshield defroster vents.

Air flows from floor vents.

Air flows from floor and

dashboard vents.

Air flows from dashboard

vents.

Button

(Recirculation) Button

Temperature

Control Dial

(On/Off)

Button

Mode Control Button

(Windshield

Defroster) Button

* Not available on all models

14 US ODYSSEY-31TK86300.book 11 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Climate Control System* (P198)

●Press the AUTO button to activate the climate control system.

●Press the button to turn the system on or off.

●Press the button to defrost the windshield.

The climate control system is voice operable. See the Navigation System Manual for

complete details.

Models with navigation system

Fan Control

Button

(Rear Window

Defogger/Heated

Mirror) Button

(Windshield

Defroster) Button

A/C (Air

Conditioning)

Button

Air flows from floor and

windshield defroster vents.

Air flows from floor vents.

Air flows from floor and

dashboard vents.

Air flows from dashboard

vents.

(Recirculation)

Button

Passenger’s

Side

Temperature

Control Dial

AUTO Button

Driver’s Side

Temperature

Control Dial

Mode Control Button

SYNC

(Synchronized) Button

(On/Off) Button

Rear Climate Control

●Press the AUTO button to activate the

rear climate control system.

●Press the button to turn the system

on or off.

Rear Passenger

Compartment

Temperature

Control Buttons

(Fan Control)

Button

Air flows

from the

rear floor

vents.

Airflow is

divided

between the

rear floor

vents and

rear ceiling

vents.

Air flows

from the

rear ceiling

vents.

(On/Off)

Button

AUTO Button

14 US ODYSSEY-31TK86300.book 12 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Features (P205)

Audio Remote Controls

(P210)

●VOL (Volume) Button

Press / to adjust the volume up/down.

●MODE Button

Press and release to change the audio

mode: FM/AM/XM®*/CD/USB/iPod®/

Bluetooth® Audio/Pandora®*/AhaTM*/AUX.

●CH (Channel) Button

Radio:Press and release to change the

preset station.

Press and hold to select the next or

previous strong station.

CD/USB device:

Press and release to skip to the

beginning of the next song or return

to the beginning of the current song.

Press and hold to change a folder/

album.

MODE Button

CH Button

VOL Button

Audio System (P211, 234)

FM/AM Button

VOL/

(Volume/Power)

Knob

(CD Eject) Button

Selector Knob

Preset Buttons

(1-6)

AUX Button

SETTINGS Button

(P211)

Models with one display

BACK Button

PHONE Button

CD Slot

MENU Button

Audio/Information

Screen

CD Button

Button

(Skip/Seek)

Button

(Skip/Seek)

Button

DISPLAY Button

* Not available on all models

14 US ODYSSEY-31TK86300.book 13 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

*1: Icons that appear on the screen vary by the source selected.

VOL/ (Volume/Power)

Knob (CD Eject) Button

Interface Dial/ENTER Button

Presets*1

SETTINGS Button

(P234)

Models with two displays

BACK Button

PHONE Button

CD Slot

MENU Button

Audio/Information Screen

Button

(Skip/Seek) Icon*1 (Skip/Seek) Icon*1

Audio with Touch Screen

Audio Source*1

(Tune Down) Icon*1 (Tune Up) Icon*1

Shortcuts*1

More*1

INFO Button

AUDIO Button

14 US ODYSSEY-31TK86300.book 14 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

*1: Icons that appear on the screen vary by the source selected.

VOL/ (Volume/Power)

Knob

(CD Eject) Button

Interface Dial/

ENTER Button

Presets*1

SETTINGS Button

(P234, 277)

Models with two displays and rear entertainment system

BACK Button

PHONE Button

CD Slot

MENU Button

Button

(Skip/Seek) Icon*1 (Skip/Seek) Icon*1

Audio with Touch Screen

Audio Source*1

(Tune Down) Icon*1 (Tune Up) Icon*1

Shortcuts*1

More*1

INFO Button FRONT AUDIO Button

Audio/Information Screen

REAR (Power) Button

REAR AUDIO Button

DVD Slot

(DVD Eject) Button

14 US ODYSSEY-31TK86300.book 15 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Driving (P395)

Release Button

Shift Lever

Depress the brake pedal and press the

release button to move out of (P.

Move the shift lever without

pressing the release button.

Press the release button to

move the shift lever.

Automatic Transmission (P413)

●Shift to (P and depress the brake pedal when starting the engine.

●Shifting

Park

Turn off or start the engine.

Transmission is locked.

Reverse

Used when reversing.

Neutral

Transmission is not locked.

Drive

Normal driving.

Low

Strong engine braking.

Press the D4 button while the shift lever is in (D.

Used when:

●Going up or down hills

●Towing a trailer in hilly terrain

Button

14 US ODYSSEY-31TK86300.book 16 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

VSA® OFF Button (P427)

●The vehicle stability assist (VSA®) system

helps stabilize the vehicle during

cornering, and helps maintain traction

while accelerating on loose or slippery

road surfaces.

●VSA® comes on automatically every time

you start the engine.

●To turn VSA® on or off, press and hold

the button until you hear a beep.

Cruise Control (P415)

●Cruise control allows you to maintain a

set speed without keeping your foot on

the accelerator pedal.

●To use cruise control, press the CRUISE

button, then press once you

have achieved the desired speed (above

25 mph or 40 km/h).

Tire Pressure Monitoring

System (TPMS) (P428)

●TPMS monitors tire pressure.

●TPMS is turned on automatically every

time you start the engine.

DECEL/SET

Refueling (P446)

Fuel recommendation: Unleaded gasoline with a pump octane number 87 or

higher required

Fuel tank capacity: 21 US gal (79.5 L)

aPull the fuel fill door

release handle.

bTurn the fuel fill cap

slowly to remove the

cap.

cPlace the cap in the

holder on the fuel fill

door.

dAfter refueling, screw

the cap back on until it

clicks at least once.

14 US ODYSSEY-31TK86300.book 17 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Maintenance (P451)

Under the Hood (P463)

●Check engine oil, engine coolant, and window washer fluid.

Add when necessary.

●Check brake fluid.

●Check the battery regularly.

aPull the hood release handle under the corner of the

dashboard.

bLocate the hood latch lever, slide the lever, and lift up the

hood.

cWhen finished, close the hood and make sure it is firmly

locked in place.

Lights (P475)

●Inspect all lights regularly.

Wiper Blades (P486)

●Replace blades if they leave streaks

across the windshield.

Tires (P490)

●Inspect tires and wheels regularly.

●Check tire pressures regularly.

●Install snow tires for winter driving.

14 US ODYSSEY-31TK86300.book 18 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

Handling the Unexpected (P509)

Flat Tire (P511)

●Park in a safe location and replace the

flat tire with the compact spare tire under

the floor between the front seats and the

second row seats.

Indicators Come On

(P 528)

●Identify the indicator and consult the

owner's manual.

Engine Won't Start

(P520)

●If the battery is dead, jump start using a

booster battery.

Blown Fuse (P533)

●Check for a blown fuse if an electrical

device does not operate.

Overheating (P526)

●Park in a safe location. If you do not see

steam under the hood, open the hood,

and let the engine cool down.

Emergency Towing

(P539)

●Call a professional towing service if you

need to tow your vehicle.

14 US ODYSSEY-31TK86300.book 19 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

What to Do If

The ignition switch does

not turn from (0 to (q*1.

Why?

●The steering wheel may be locked.

●Try to turn the steering wheel left and

right while turning the ignition key*.

●Move the steering wheel left and right

while pressing the ENGINE START/STOP

button* at the same time.

The ignition switch does

not turn from (q to (0*1

and I cannot remove the

key. Why?

The shift lever should be moved to (P.

Why does the brake pedal

pulsate slightly when

applying the brakes?

This can occur when the ABS activates, and does not indicate a

problem. Apply firm, steady pressure on the brake pedal. Never

pump the brake pedal.

14 US ODYSSEY-31TK86300.book 20 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

The rear door cannot be

opened from inside the

vehicle. Why?

Check if the childproof lock is in the

LOCK position. If so, open the rear door

with the outside door handle.

To cancel this function, push the lever to

the UNLOCK position.

Why do the doors lock

after I unlocked the doors

using a remote

transmitter?

If you do not open the doors within 30 seconds, the doors are

relocked automatically for security.

Why does the beeper

sound when I open the

driver's door?

The beeper sounds when:

●The key is left in the ignition switch*.

●The power mode* is in ACCESSORY.

●The exterior lights are left on.

Why does the beeper

sound when I start driving?

The beeper sounds when:

●Driver and/or front passenger are not wearing their seat belts.

●The parking brake is not fully released.

Why do I hear a screeching

sound when I apply the

brake pedal?

The brake pads may need to be replaced. Have your vehicle

inspected by a dealer.

* Not available on all models

14 US ODYSSEY-31TK86300.book 21 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

California Proposition 65 Warning

Event Data Recorders

This vehicle is equipped with an event data recorder (EDR).

The main purpose of an EDR is to record, in certain crash or near

crash-like situations, such as an air bag deployment or hitting a

road obstacle, data that will assist in understanding how a vehicle’s

systems performed. The EDR is designed to record data related

to vehicle dynamics and safety systems for a short period of

time, typically 30 seconds or less. The EDR in this vehicle is

designed to record such data as:

•How various systems in your vehicle were operating;

•Whether or not the driver and passenger safety belts were

buckled/fastened;

•How far (if at all) the driver was depressing the accelerator

and/or brake pedal; and,

•How fast the vehicle was traveling.

These data can help provide a better understanding of the

circumstances in which crashes and injuries occur. NOTE: EDR data

are recorded by your vehicle only if a non-trivial crash situation

occurs; no data are recorded by the EDR under normal driving

conditions and no personal data (e.g., name, gender, age, and

crash location) are recorded. However, other parties, such as law

enforcement, could combine the EDR data with the type of

personally identifying data routinely acquired during a crash

investigation.

WARNING: This product contains or emits

chemicals known to the state of California to cause

cancer and birth defects or other reproductive

harm.

To read data recorded by an EDR, special equipment is required,

and access to the vehicle or the EDR is needed. In addition to the

vehicle manufacturer, other parties, such as law enforcement, that

have the special equipment, can read the information if they have

access to the vehicle or the EDR.

The data belongs to the vehicle owner and may not be accessed by

anyone else except as legally required or with the permission of the

vehicle owner.

Service Diagnostic Recorders

This vehicle is equipped with service-related devices that record

information about powertrain performance. The data can be used

to verify emissions law requirements and/or help technicians

diagnose and solve service problems. It may also be combined with

data from other sources for research purposes, but it remains

confidential.

California Perchlorate Contamination Prevention Act

The airbags, seat belt tensioners, and CR type batteries in this

vehicle may contain perchlorate materials - special handling may

apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded

by a symbol. This information is intended to help you avoid

damage to your vehicle, other property, or the environment.

NOTICE

14 US ODYSSEY-31TK86300.book 22 ページ２０１３年７月２５日　木曜日　午後４時２３分

Quick Reference Guide

A Few Words About Safety

Your safety, and the safety of others, is very important. And

operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have

provided operating procedures and other information on labels and

in this manual. This information alerts you to potential hazards that

could hurt you or others.

Of course, it is not practical or possible to warn you about all the

hazards associated with operating or maintaining your vehicle. You

must use your own good judgement.

You will find this important safety information in a variety of forms,

including:

●Safety Labels - on the vehicle.

●Safety Messages - preceded by a safety alert symbol 3 and

one of three signal words: DANGER, WARNING, or CAUTION.

These signal words mean:

●Safety Headings - such as Important Safety Precautions.

●Safety Section - such as Safe Driving.

●Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please

read it carefully.

3DANGER

You WILL be KILLED or SERIOUSLY HURT if

you don't follow instructions.

3WARNING

You CAN be KILLED or SERIOUSLY HURT if

you don't follow instructions.

3CAUTION

You CAN be HURT if you don't follow

instructions.

14 US ODYSSEY-31TK86300.book 23 ページ２０１３年７月２５日　木曜日　午後４時２３分

14 US ODYSSEY-31TK86300.book 24 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

You can find many safety recommendations throughout this chapter, and throughout this manual.

For Safe Driving

Important Safety Precautions ............. 26

Your Vehicle's Safety Features............ 28

Seat Belts

About Your Seat Belts........................ 30

Fastening a Seat Belt.......................... 33

Seat Belt Inspection............................ 38

Airbags

Airbag System Components............... 39

Types of Airbags ................................ 42

Front Airbags (SRS) ............................ 42

Side Airbags....................................... 46

Side Curtain Airbags .......................... 48

Airbag System Indicators.................... 49

Airbag Care ....................................... 51

Child Safety

Protecting Child Passengers ............... 52

Safety of Infants and Small Children .......54

Safety of Larger Children ................... 64

Exhaust Gas Hazard

Carbon Monoxide Gas....................... 66

Safety Labels

Label Locations .................................. 67

14 US ODYSSEY-31TK86300.book 25 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

For Safe Driving

The following pages explain your vehicle's safety features and how to use them

properly. The safety precautions below are ones that we consider to be among the

most important.

Important Safety Precautions

■Always wear your seat belt

A seat belt is your best protection in all types of collisions. Airbags are designed to

supplement seat belts, not replace them. So even though your vehicle is equipped

with airbags, make sure you and your passengers always wear your seat belts, and

wear them properly.

■Restrain all children

Children age 12 and under should ride properly restrained in a back seat, not the

front seat. Infants and small children should be restrained in a child seat. Larger

children should use a booster seat and a lap/shoulder seat belt until they can use the

belt properly without a booster seat.

■Be aware of airbag hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants

who sit too close to them, or are not properly restrained. Infants, young children,

and short adults are at the greatest risk. Be sure to follow all instructions and

warnings in this manual.

■Don't drink and drive

Alcohol and driving don't mix. Even one drink can reduce your ability to respond to

changing conditions, and your reaction time gets worse with every additional drink.

So don't drink and drive, and don't let your friends drink and drive, either.

1Important Safety Precautions

Some states, provinces and territories prohibit the use

of cell phones other than hands-free devices by the

driver while driving.

14 US ODYSSEY-31TK86300.book 26 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuFor Safe DrivinguImportant Safety Precautions

Safe Driving

■Pay appropriate attention to the task of driving safely

Engaging in cell phone conversation or other activities that keep you from paying

close attention to the road, other vehicles, and pedestrians could lead to a crash.

Remember, situations can change quickly, and only you can decide when it is safe to

divert some attention away from driving.

■Control your speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher

the speed, the greater the risk, but serious injuries can also occur at lower speeds.

Never drive faster than is safe for current conditions, regardless of the maximum

speed posted.

■Keep your vehicle in safe condition

Having a tire blowout or a mechanical failure can be extremely hazardous.

To reduce the possibility of such problems, check your tire pressures and condition

frequently, and perform all regularly scheduled maintenance.

14 US ODYSSEY-31TK86300.book 27 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuFor Safe DrivinguYour Vehicle's Safety Features

Safe Driving

Your Vehicle's Safety Features

The following checklist will help you take an active role in protecting yourself and

your passengers.

1Your Vehicle's Safety Features

Your vehicle is equipped with many features that

work together to help protect you and your

passengers during a crash.

Some features do not require any action on your part.

These include a strong steel framework that forms a

safety cage around the passenger compartment,

front and rear crush zones, a collapsible steering

column, and tensioners that tighten the front seat

belts in a sufficient crash.

However, you and your passengers cannot take full

advantage of these features unless you remain seated

in the correct position and always wear your seat

belts. In fact, some safety features can contribute to

injuries if they are not used properly.

Safety Cage

Crush Zones

Seats and Seat-Backs

Head Restraints

Collapsible Steering Column

Seat Belts

Front Airbags

Side Curtain Airbags

Seat Belt Tensioners

Side Airbags

Door Locks

14 US ODYSSEY-31TK86300.book 28 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuFor Safe DrivinguYour Vehicle's Safety Features

Safe Driving

For the safety of you and your passengers, make a habit of checking these items

each time before you drive.

•After everyone has entered the vehicle, be sure all doors and the tailgate are

closed and locked. Locking the doors helps prevent an occupant from being

ejected and an outsider from unexpectedly opening a door.

2Locking/Unlocking the Doors from the Inside P. 118

•Adjust your seat to a position suitable for driving. Be sure the front seats are

adjusted as far to the rear as possible while allowing the driver to control the

vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a

crash.

2Adjusting the Seats P. 161

•Adjust head restraints to the proper position. Head restraints are most effective

when the center of the head restraint aligns with the center of your head. Taller

persons should adjust their head restraint to the highest position.

2Adjusting the Head Restraints P. 164

•Always wear your seat belt, and make sure you wear it properly. Confirm that any

passengers are properly belted as well.

2Fastening a Seat Belt P. 33

•Protect children by using seat belts or child seats according to a child's age, height

and weight.

2Child Safety P. 52

■Safety CheckList

1Safety CheckList

If the door and tailgate open indicator is on, a door or

the tailgate is not completely closed. Close all doors

tightly until the indicator goes off.

2Door and Tailgate Open Indicator P. 75

* Not available on all models

14 US ODYSSEY-31TK86300.book 29 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

Seat Belts

About Your Seat Belts

Seat belts are the single most effective safety device because they keep you

connected to the vehicle so that you can take advantage of many built-in safety

features. They also help keep you from being thrown against the inside of the

vehicle, against other passengers, or out of the vehicle. When worn properly, seat

belts also keep your body properly positioned in a crash so that you can take full

advantage of the additional protection provided by the airbags.

In addition, seat belts help protect you in almost every type of crash, including:

-frontal impacts

-side impacts

-rear impacts

-rollovers

■Lap/shoulder seat belts

All seven or eight seating positions are equipped with lap/shoulder seat belts with

emergency locking retractors. In normal driving the retractor lets you move freely

while keeping some tension on the belt. During a collision or sudden stop the

retractor locks to restrain your body. The second and third row passenger’s seat

belts also have a lockable retractor for use with child seats.

2Installing a Child Seat with a Lap/Shoulder Seat Belt P. 60

1About Your Seat Belts

Seat belts cannot completely protect you in every

crash. But in most cases, seat belts can reduce your

risk of serious injury.

Most states and all Canadian provinces and territories

require you to wear seat belts.

WARNING

Not wearing a seat belt properly increases

the chance of serious injury or death in a

crash, even though your vehicle has

airbags.

Be sure you and your passengers always

wear seat belts and wear them properly.

14 US ODYSSEY-31TK86300.book 30 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 31

uuSeat BeltsuAbout Your Seat Belts

Safe Driving

■Proper use of seat belts

Follow these guidelines for proper use:

•All occupants should sit upright, well back in the seat, and remain in that position

for the duration of the trip. Slouching and leaning reduces the effectiveness of

the belt and can increase the chance of serious injury in a crash.

•Never place the shoulder part of a lap/shoulder seat belt under your arm or

behind your back. This could cause very serious injuries in a crash.

•Two people should never use the same seat belt. If they do, they could be very

seriously injured in a crash.

•Do not put any accessories on the seat belts. Devices intended to improve comfort

or reposition the shoulder part of a seat belt can reduce the protective capability

and increase the chance of serious injury in a crash.

Your vehicle monitors front seat belt use. If

the ignition switch is turned to ON (w*1

before the driver's seat belt is fastened, a

beeper will sound and the indicator will blink.

If the driver does not fasten the belt before

the beeper stops, the indicator will remain on.

The beeper will also periodically sound and

the indicator will blink while driving until the

driver's and front passenger’s seat belts are

fastened.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Seat Belt Reminder

1About Your Seat Belts

If a rear seat passenger moves around and extends

the seat belt, the lockable retractor may activate. If

this happens, release the retractor by unfastening the

seat belt and allow the belt to retract completely.

Then refasten the belt.

1Seat Belt Reminder

The indicator will also come on if a front passenger

does not fasten their seat belt within 6 seconds after

the ignition switch is turned to ON (w*1.

When no one is sitting in the front passenger’s seat,

the indicator will not come on and the beeper will not

sound. The indicator also may not come on and the

beeper may not sound when the occupant is not

heavy enough to trigger the weight sensor. Such

occupants (e.g., infants and smaller children) should

be moved to the rear seat as a deploying front airbag

likely will injure or kill them.

2Protecting Child Passengers P. 52

* Not available on all models

14 US ODYSSEY-31TK86300.book 31 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuAbout Your Seat Belts

Safe Driving

The front seats are equipped with automatic seat belt tensioners to enhance safety.

The tensioners automatically tighten the front seat belts during a moderate-to-

severe frontal collision, sometimes even if the collision is not severe enough to

inflate the front airbags.

■Automatic Seat Belt Tensioners

1Automatic Seat Belt Tensioners

The seat belt tensioners can only operate once.

If a tensioner is activated, the SRS indicator will come

on. Have a dealer replace the tensioner and

thoroughly inspect the seat belt system as it may not

offer protection in a subsequent crash.

During a moderate-to-severe side impact, the

tensioner on that side of the vehicle also activates.

14 US ODYSSEY-31TK86300.book 32 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuFastening a Seat Belt

Continued

Safe Driving

Fastening a Seat Belt

After adjusting a front seat to the proper position, and while sitting upright and well

back in the seat:

2Adjusting the Seats P. 161

1. Pull the seat belt out slowly.

2. Insert the latch plate into the buckle, then

tug on the belt to make sure the buckle is

secure.

uMake sure that the belt is not twisted or

caught on anything.

1Fastening a Seat Belt

No one should sit in a seat with an inoperative seat

belt or one that does not appear to be working

correctly. Using a seat belt that is not working

properly may not protect the occupant in a crash.

Have a dealer check the belt as soon as possible.

Never insert any foreign objects into the buckle or

retractor mechanism.

Pull out slowly.

Correct

Seated

Posture.

Latch

Plate

Buckle

14 US ODYSSEY-31TK86300.book 33 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuFastening a Seat Belt

Safe Driving

3. Position the lap part of the belt as low as

possible across your hips, then pull up on

the shoulder part of the belt so the lap part

fits snugly. This lets your strong pelvic

bones take the force of a crash and reduces

the chance of internal injuries.

4. If necessary, pull up on the belt again to

remove any slack, then check that the belt

rests across the center of your chest and

over your shoulder. This spreads the forces

of a crash over the strongest bones in your

upper body.

The front seats and second row seats have adjustable shoulder anchors to

accommodate taller and shorter occupants.

1. Move the anchor up and down while

holding the release button.

2. Position the anchor so that the belt rests

across the center of your chest and over

your shoulder.

1Fastening a Seat Belt

To release the belt, push the red PRESS button then

guide the belt by hand until it has retracted

completely.

When exiting the vehicle, be sure the belt is out of

the way and will not get caught by closing the door.

WARNING

Improperly positioning the seat belts can

cause serious injury or death in a crash.

Make sure all seat belts are properly

positioned before driving.

Lap belt

as low as

possible

■Adjusting the Shoulder Anchor

1Adjusting the Shoulder Anchor

The shoulder anchor height can be adjusted to four

levels. If the belt contacts your neck, lower the height

one level at a time.

After an adjustment, make sure that the shoulder

anchor position is secure.

Push

14 US ODYSSEY-31TK86300.book 34 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 35

uuSeat BeltsuFastening a Seat Belt

Safe Driving

1. Pull out the seat belt’s small latch plate and

the latch plate from each holding slot in the

ceiling.

2. Line up the triangle marks on the small

latch plate and anchor buckle.

Make sure the seat belt is not twisted.

Attach the belt to the anchor buckle.

■Seat Belt with Detachable Anchor

1Seat Belt with Detachable Anchor

WARNING

Using the seat belt with the detachable

anchor unlatched increases the chance of

serious injury or death in a crash.

Before using the seat belt, make sure the

detachable anchor is correctly latched.

14 US ODYSSEY-31TK86300.book 35 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuFastening a Seat Belt

Safe Driving

3. Insert the latch plate into the buckle.

Properly fasten the seat belt the same way

you fasten the lap/shoulder seat belt.

1Seat Belt with Detachable Anchor

To unlatch the detachable anchor, insert a key into

the slot on the side of the anchor buckle.

Pivot down the anchor buckle forward.

Insert a key into the slot on the back of the anchor

buckle.

Second row center seat

Buckle

Latch

Plate

14 US ODYSSEY-31TK86300.book 36 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuFastening a Seat Belt

Safe Driving

If you are pregnant, the best way to protect yourself and your unborn child when

driving or riding in a vehicle is to always wear a seat belt and keep the lap part of the

belt as low as possible across the hips.

■Advice for Pregnant Women

1Advice for Pregnant Women

Each time you have a checkup, ask your doctor if it is

okay for you to drive.

To reduce the risk of injuries to both you and your

unborn child that can be caused by an inflating front

airbag:

•When driving, sit upright and adjust the seat as far

back as possible while allowing full control of the

vehicle.

•When sitting in the front passenger's seat, adjust

the seat as far back as possible.

Wear the shoulder belt

across the chest avoiding

the abdomen.

Wear the lap part of the

belt as low as possible

across the hips.

14 US ODYSSEY-31TK86300.book 37 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSeat BeltsuSeat Belt Inspection

Safe Driving

Seat Belt Inspection

Regularly check the condition of your seat belts as follows:

•Pull each belt out fully, and look for frays, cuts, burns, and wear.

•Check that the latches work smoothly and the belts retract easily.

uIf a belt does not retract easily, cleaning the belt may correct the problem. Only

use a mild soap and warm water. Do not use bleach or cleaning solvents. Make

sure the belt is completely dry before allowing it to retract.

Any belt that is not in good condition or working properly will not provide proper

protection and should be replaced as soon as possible.

A belt that has been worn during a crash may not provide the same level of

protection in a subsequent crash. Have your seat belts inspected by a dealer after

any collision.

1Seat Belt Inspection

WARNING

Not checking or maintaining seat belts can

result in serious injury or death if the seat

belts do not work properly when needed.

Check your seat belts regularly and have

any problem corrected as soon as possible.

14 US ODYSSEY-31TK86300.book 38 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued

Safe Driving

Airbags

Airbag System Components

789

14 US ODYSSEY-31TK86300.book 39 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuAirbag System Components

Safe Driving

The front, front side, and side curtain

airbags are deployed according to the

direction and severity of impact. Both side

curtain airbags are deployed in a rollover.

The airbag system includes:

aTwo SRS (Supplemental Restraint System)

front airbags. The driver's airbag is stored

in the center of the steering wheel; the

front passenger's airbag is stored in the

dashboard. Both are marked SRS

AIRBAG.

bTwo side airbags, one for the driver and

one for a front passenger. The airbags are

stored in the outer edges of the seat-

backs. Both are marked SIDE AIRBAG.

cTwo side curtain airbags, one for each

side of the vehicle. The airbags are stored

in the ceiling, above the side windows.

The front and rear pillars are marked

SIDE CURTAIN AIRBAG.

dAn electronic control unit that continually

monitors and records information about

the sensors, the airbag activators, the

seat belt tensioners, and driver and front

passenger seat belt use when the ignition

switch is in ON (w*1.

eAutomatic front seat belt tensioners. The

driver's and front passenger's seat belts

incorporate sensors that detect whether

or not they are fastened.

fA driver's seat position sensor. If the seat

is too far forward, the airbag will inflate

with less force.

gWeight sensors in the front passenger's

seat. The front passenger's airbag will be

turned off if the weight on the seat is 65

lbs (29 kg) or less (the weight of an infant

or small child).

hImpact sensors that can detect a

moderate-to-severe front or side impact.

iAn indicator on the dashboard that alerts

you that the front passenger's front

airbag has been turned off.

jAn indicator on the instrument panel that

alerts you to a possible problem with your

airbag system or seat belt tensioners.

kSafing Sensor

lA rollover sensor that can detect whether

the vehicle is about to roll over.

*1: Models with the smart entry system have an

ENGINE START/STOP button instead of an

ignition switch.

14 US ODYSSEY-31TK86300.book 40 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuAirbag System Components

Safe Driving

Airbags can pose serious hazards. To do their job, airbags must inflate with

tremendous force. So, while airbags help save lives, they can cause burns, bruises,

and other minor injuries, and sometimes even fatal ones if occupants are not

wearing their seat belts properly and sitting correctly.

What you should do: Always wear your seat belt properly, and sit upright and as

far back from the steering wheel as possible while allowing full control of the

vehicle. A front passenger should move their seat as far back from the dashboard as

possible.

Remember, however, that no safety system can prevent all injuries or deaths that

can occur in a severe crash, even when seat belts are properly worn and the airbags

deploy.

Do not place hard or sharp objects between yourself and a front airbag.

Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp

object in your mouth, can result in injuries if your front airbag inflates.

Do not attach or place objects on the front airbag covers. Objects on the

covers marked SRS AIRBAG could interfere with the proper operation of the airbags

or be propelled inside the vehicle and hurt someone if the airbags inflate.

■Important facts about your airbags

1Important facts about your airbags

Do not attempt to deactivate your airbags. Together,

airbags and seat belts provide the best protection.

When driving, keep hands and arms out of the

deployment path of the front airbag by holding each

side of the steering wheel. Do not cross an arm over

the airbag cover.

14 US ODYSSEY-31TK86300.book 41 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuTypes of Airbags

Safe Driving

Types of Airbags

Your vehicle is equipped with three types of airbags:

•Front airbags: Airbags in front of the driver's and front passenger's seats.

•Side airbags: Airbags in the driver's and front passenger's seat-backs.

•Side curtain airbags: Airbags above the side windows.

Each is discussed in the following pages.

Front Airbags (SRS)

The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect

the head and chest of the driver and/or front passenger.

SRS (Supplemental Restraint System) indicates that the airbags are designed to

supplement seat belts, not replace them. Seat belts are the occupant's primary

restraint system.

The front airbags are housed in the center of the steering wheel for the driver, and

in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Housing Locations

1Types of Airbags

The airbags can inflate whenever the ignition switch

is in ON (w*1.

After an airbag inflates in a crash, you may see what

looks like smoke. This is from the combustion process

of the inflator material and is not harmful. People

with respiratory problems may experience some

temporary discomfort. If this occurs, get out of the

vehicle as soon as it is safe to do so.

1Front Airbags (SRS)

Dual-Stage, Multiple-Threshold Front Airbags

(SRS)

Your vehicle is equipped with dual-stage, multiple-

threshold front airbags (SRS).

During a frontal crash severe enough to cause one or

both front airbags to deploy, the airbags can inflate

at different rates, depending on the severity of the

crash, whether or not the seat belts are latched, and/

or other factors. Frontal airbags are designed to

supplement the seat belts to help reduce the

likelihood of head and chest injuries in frontal

crashes.

14 US ODYSSEY-31TK86300.book 42 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 43

uuAirbagsuFront Airbags (SRS)

Safe Driving

Front airbags are designed to inflate during moderate-to-severe frontal collisions.

When the vehicle decelerates suddenly, the sensors send information to the control

unit which signals one or both front airbags to inflate.

A frontal collision can be either head-on or angled between two vehicles, or when a

vehicle crashes into a stationary object, such as a concrete wall.

While your seat belt restrains your torso, the

front airbag provides supplemental protection

for your head and chest.

The front airbags deflate immediately so that

they won't interfere with the driver's visibility

or the ability to steer or operate other

controls.

The total time for inflation and deflation is so fast that most occupants are not

aware that the airbags deployed until they see them lying in front of them.

■Operation

■How the Front Airbags Work

1How the Front Airbags Work

Although the driver's and front passenger's airbags

normally inflate within a split second of each other, it

is possible for only one airbag to deploy. This can

happen if the severity of a collision is at the margin,

or threshold, that determines whether or not the

airbags will deploy. In such cases, the seat belt will

provide sufficient protection, and the supplemental

protection offered by the airbag would be minimal.

14 US ODYSSEY-31TK86300.book 43 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuFront Airbags (SRS)

Safe Driving

■When front airbags should not deploy

Minor frontal crashes: Front airbags were designed to supplement seat belts and

help save lives, not to prevent minor scrapes, or even broken bones that might occur

during a less than moderate-to-severe frontal crash.

Side impacts: Front airbags can provide protection when a sudden deceleration

causes a driver or front passenger to move towards the front of the vehicle. Side

airbags and side curtain airbags have been specifically designed to help reduce the

severity of injuries that can occur during a moderate-to-severe side impact which

can cause the driver or passenger to move towards the side of the vehicle.

Rear impacts: Head restraints and seat belts are your best protection during a rear

impact. Front airbags cannot provide any significant protection and are not designed

to deploy in such collisions.

Rollovers: Seat belts and, in vehicles equipped with a rollover sensor, side airbags

and side curtain airbags offer the best protection in a rollover. Because front airbags

could provide little if any protection, they are not designed to deploy during a

rollover.

■When front airbags deploy with little or no visible damage

Because the airbag system senses sudden deceleration, a strong impact to the

vehicle framework or suspension might cause one or more of the airbags to deploy.

Examples include running into a curb, the edge of a hole, or other low fixed object

that causes a sudden deceleration in the vehicle chassis. Since the impact is

underneath the vehicle, damage may not be readily apparent.

■When front airbags may not deploy, even though exterior damage

appears severe

Since crushable body parts absorb crash energy during an impact, the amount of

visible damage does not always indicate proper airbag operation. In fact, some

collisions can result in severe damage but no airbag deployment because the airbags

would not have been needed or would not have provided protection even if they

had deployed.

14 US ODYSSEY-31TK86300.book 44 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuFront Airbags (SRS)

Safe Driving

Your front airbags have advanced features to help reduce the likelihood of airbag

related injuries to smaller occupants.

The driver's advanced front airbag system

includes a seat position sensor.

If the seat is too far forward, the airbag

inflates with less force, regardless of the

severity of the impact.

The passenger's advanced front airbag system

has weight sensors.

Although Honda recommends against

carrying an infant or small child in front, if the

sensors detect the weight of a child (up to

about 65 lbs or 29 kg), the system will

automatically turn off the passenger's front

airbag.

■Advanced Airbags

1Advanced Airbags

If there is a problem with the driver's seat position

sensor, the SRS indicator will come on and the airbag

will inflate with full (normal) force, regardless of the

driver's seating position.

For both advanced front airbags to work properly:

•Do not spill any liquid on or under the seats.

•Do not put any object under the passenger’s seat.

•Make sure any objects are positioned properly on

the floor. Improperly positioned objects can

interfere with the advanced airbag sensors.

•All occupants should sit upright and wear their seat

belts properly.

•Do not place any cover over the passenger side

dashboard.

Make sure the floor mat behind the front passenger’s

seat is hooked to the floor mat anchor. An improperly

placed mat can interfere with the advanced airbag

sensors.

2Floor Mats P. 506

Driver’s

Seat

Position

Sensor

Passenger’s

Seat

Weight

Sensors

14 US ODYSSEY-31TK86300.book 45 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuSide Airbags

Safe Driving

Side Airbags

The side airbags help protect the torso and pelvis of the driver or a front passenger

during a moderate-to-severe side impact.

The side airbags are housed in the outside

edge of the driver's and passenger's seat-

backs.

Both are marked SIDE AIRBAG.

When the sensors detect a moderate-to-

severe side impact, the control unit signals the

side airbag on the impact side to immediately

inflate.

■Housing Locations

1Side Airbags

Make sure you and your front seat passenger always

sit upright. Leaning into the path of a side airbag can

prevent the airbag from deploying properly and

increases your risk of serious injury.

Do not attach accessories on or near the side airbags.

They can interfere with the proper operation of the

airbags, or hurt someone if an airbag inflates.

If the impact is on the passenger side, the airbag

deploys even if there is no passenger in the passenger

seat.

Do not cover or replace the front seat-back covers

without consulting a dealer.

Improperly replacing or covering front seat-back

covers can prevent your side airbags from properly

deploying during a side impact.

Housing

Location

■Operation

When

inflated

Side

Airbag

14 US ODYSSEY-31TK86300.book 46 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuSide Airbags

Safe Driving

■When a side airbag deploys with little or no visible damage

Because the airbag systems senses sudden acceleration, a strong impact to the side

of the vehicle's framework can cause a side airbag to deploy. In such cases, there

may be little or no damage, but the side impact sensors detected a severe enough

impact to deploy the airbag.

■When a side airbag may not deploy, even though visible damage appears

severe

It is possible for a side airbag to not deploy during an impact that results in

apparently severe damage. This can occur when the point of impact was towards

the far front or rear of the vehicle, or when the vehicle's crushable body parts

absorbed most of the crash energy. In either case, the side airbag would not have

been needed nor provided protection even if it had deployed.

14 US ODYSSEY-31TK86300.book 47 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuSide Curtain Airbags

Safe Driving

Side Curtain Airbags

The side curtain airbags help protect the heads of the driver and passengers in outer

seating positions during a moderate-to-severe side impact. The side curtain airbags

equipped in this vehicle are also designed to help reduce the likelihood of partial and

complete ejection of vehicle occupants through side windows in crashes, particularly

rollover crashes.

The side curtain airbags are located in the

ceiling above the side windows on both sides

of the vehicle.

The side curtain airbag is designed to deploy

in a rollover or a moderate-to-severe side

impact.

■Housing Locations

1Side Curtain Airbags

If the SRS control unit senses that your vehicle is

about to rollover, it immediately deploys both side

curtain airbags and activates both front seat belt

tensioners.

If the impact is on the passenger’s side, the

passenger’s side curtain airbag will inflate even if

there are no occupants on that side of the vehicle.

To get the best protection from the side curtain

airbags, occupants should wear their seat belts

properly and sit upright and well back in their seats.

Do not attach any objects to the side windows or roof

pillars as they can interfere with the proper operation

of the side curtain airbags.

Side Curtain Airbag Storage

■Operation

Deployed Side Curtain Airbag

14 US ODYSSEY-31TK86300.book 48 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 49

uuAirbagsuAirbag System Indicators

Safe Driving

■When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may inflate in a moderate-to-severe angled frontal

collision.

In this case, the side curtain airbags will deploy slightly after the front airbags.

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a

message appears on the multi-information display*.

■When the ignition switch is turned to

ON (w*1

The indicator comes on for a few seconds,

then goes off. This tells you the system is

working properly.

If the indicator comes on at any other time, or does not come on at all, have the

system checked by a dealer as soon as possible. If you don't, your airbags and seat

belt tensioners may not work properly when they are needed.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■SRS (Supplemental Restraint System) Indicator

1SRS (Supplemental Restraint System) Indicator

WARNING

Ignoring the SRS indicator can result in

serious injury or death if the airbag systems

or tensioners do not work properly.

Have your vehicle checked by a dealer as

soon as possible if the SRS indicator alerts

you to a possible problem.

* Not available on all models

14 US ODYSSEY-31TK86300.book 49 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuAirbag System Indicators

Safe Driving

■When the passenger airbag off

indicator comes on

The indicator comes on to alert you that the

passenger's front airbag has been turned off.

This occurs when the weight sensors detect

65 lbs (29 kg) or less, the weight of an infant

or small child, on the seat.

Infants and small children should always ride properly restrained in a back seat.

2Child Safety P. 52

Objects placed on the seat can also cause the indicator to come on.

If the front passenger seat is empty, the passenger's front airbag will not deploy and

the indicator will not come on.

■Passenger Airbag Off Indicator

1Passenger Airbag Off Indicator

If the indicator comes on with no front passenger and

no objects on the passenger’s seat, or with an adult

riding there, something may be interfering with the

weight sensors. Such as:

•An object hanging on the seat or in the seat-back

pocket.

•A child seat or other object pressing against the

rear of the seat-back.

•A rear passenger pushing or pulling on the back of

the front passenger's seat.

•The front seat or seat-back is forced back against

an object on the seat or floor behind it.

•An object placed under the front passenger's seat.

If none of these conditions exist, have your vehicle

checked by a dealer as soon as possible.

The passenger airbag off indicator may come on and

goes off repeatedly if the total weight on the seat is

near the airbag cutoff threshold.

U.S.

Canada

14 US ODYSSEY-31TK86300.book 50 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuAirbagsuAirbag Care

Safe Driving

Airbag Care

You do not need to, and should not, perform any maintenance on or replace any

airbag system components yourself. However, you should have your vehicle

inspected by a dealer in the following situations:

■When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced.

Similarly, once an automatic seat belt tensioner has been activated, it must be

replaced.

■When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the driver’s

seat position sensor, weight sensors in the passenger’s seat, front seat belt

tensioners, and each seat belt that was worn during the crash.

■Do not remove or modify a front seat without consulting a dealer

This would likely disable the driver's seat position sensor or the weight sensors in the

passenger’s seat. If it is necessary to remove or modify a front seat to accommodate

a person with disabilities, contact a Honda dealer, or for U.S. vehicles, American

Honda Automobile Customer Service at 800-999-1009 and for Canadian vehicles,

Honda Canada Customer Relations at 888-9-HONDA-9.

1Airbag Care

We recommend against the use of salvaged airbag

system components, including the airbag, tensioners,

sensors, and control unit.

14 US ODYSSEY-31TK86300.book 51 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

Child Safety

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are

either unrestrained or not properly restrained. In fact, vehicle accidents are the

number one cause of death of children age 12 and under.

To reduce the number of child deaths and injuries, every state, Canadian province

and territory requires that infants and children be properly restrained when they ride

in a vehicle.

Children should sit properly restrained in a rear seat. This is because:

•An inflating front or side airbag can injure

or kill a child sitting in the front seat.

•A child in the front seat is more likely to

interfere with the driver's ability to safely

control the vehicle.

•Statistics show that children of all sizes and

ages are safer when they are properly

restrained in a rear seat.

1Protecting Child Passengers

The National Highway Traffic Safety Administration

and Transport Canada recommend that all children

age 12 and under be properly restrained in a rear

seat. Some states or provinces/territories have laws

restricting where children may ride.

WARNING

Children who are unrestrained or

improperly restrained can be seriously

injured or killed in a crash.

Any child too small for a seat belt should be

properly restrained in a child seat. A larger

child should be properly restrained with a

seat belt, using a booster seat if necessary.

14 US ODYSSEY-31TK86300.book 52 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuProtecting Child Passengers

Safe Driving

•Any child who is too small to wear a seat belt correctly must be restrained in an

approved child seat that is properly secured to the vehicle using either the lap belt

portion of the lap/shoulder belt or the lower anchors of the LATCH system.

•Never hold a child on your lap because it is impossible to protect them in the

event of a collision.

•Never put a seat belt over yourself and a child. During a crash, the belt would

likely press deep into the child and cause serious or fatal injuries.

•Never let two children use the same seat belt. Both children could be very

seriously injured in a crash.

•Do not allow children to operate the doors, windows or seat adjustments.

•Do not leave children in the vehicle unattended, especially in hot weather when

the inside of the vehicle can get hot enough to kill them. They could also activate

vehicle controls causing it to move unexpectedly.

1Protecting Child Passengers

To deactivate a lockable retractor, release the buckle

and allow the seat belt to wind up all the way.

To remind you of the passenger's front airbag

hazards and child safety, your vehicle has warning

labels on the dashboard (U.S. models) and on the

front visors. Please read and follow the instructions

on these labels.

2Safety Labels P. 67

WARNING

Allowing a child to play with a seat belt or

wrap one around their neck can result in

serious injury or death.

Instruct children not to play with any seat

belt and make sure any unused seat belt a

child can reach is buckled, fully retracted,

and locked.

14 US ODYSSEY-31TK86300.book 53 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

Safety of Infants and Small Children

An infant must be properly restrained in a rear-facing, reclining child seat until the

infant reaches the seat maker's weight or height limit for the seat, and the infant is

at least one year old.

■Positioning a rear-facing child seat

Child seats must be placed and secured in a

rear seating position.

When properly installed, a rear-facing child seat may prevent the driver or a front

passenger from moving their seat all the way back, or from locking their seat-back

in the desired position.

It can also interfere with proper operation of the passenger's advanced front airbag

system.

2Airbags P. 39

If this occurs, we recommend that you install the child seat directly behind the front

passenger's seat, move the seat as far forward as needed, and leave it unoccupied.

Or, you may wish to get a smaller rear-facing child seat.

■Protecting Infants

1Protecting Infants

Rear-facing child seats should never be installed in a

forward facing position.

Always refer to the child seat manufacturer’s

instructions before installation.

WARNING

Placing a rear-facing child seat in the front

seat can result in serious injury or death

during a crash.

Always place a rear-facing child seat in the

rear seat, not the front.

14 US ODYSSEY-31TK86300.book 54 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 55

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

If a child is at least one year old and within the weight range indicated by the child

seat manufacturer, the child should be properly restrained in a firmly secured

forward-facing child seat.

■Forward-facing child seat placement

We strongly recommend placing a forward-

facing child seat in a rear seating position.

Placing a forward-facing child seat in the front seat can be hazardous, even with

advanced front airbags that automatically turn the passenger's front airbag off. A

rear seat is the safest place for a child.

■Protecting Smaller Children

1Protecting Smaller Children

Educate yourself about the laws and regulations

regarding child seat use where you are driving, and

follow the child seat manufacturer's instructions.

Many experts recommend use of a rear-facing seat

up to age two, if the child’s height and weight are

appropriate for a rear-facing seat.

WARNING

Placing a forward-facing child seat in the

front seat can result in serious injury or

death if the front airbag inflates.

If you must place a forward-facing child

seat in front, move the vehicle seat as far

back as possible, and properly restrain the

child.

14 US ODYSSEY-31TK86300.book 55 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).

Some have a rigid-type connector, while others have a flexible-type connector. Both

are equally easy to use. Some existing and previously owned child seats can only be

installed using the seat belt. Whichever type you choose, follow the child seat

manufacturer's use and care instructions as well as the instructions in this manual.

Proper installation is key to maximizing your child's safety.

In seating positions and vehicles not equipped with LATCH, a LATCH compatible

child seat can be installed using the seat belt and a top tether for added security.

This is because all child seats are required to be designed so that they can be secured

with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat

manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat

once a child reaches a specified weight. Please read the child seat owner’s manual

for proper installation instructions.

■Important consideration when selecting a child seat

Make sure the child seat meets the following three requirements:

•The child seat is the correct type and size for the child.

•The child seat is the correct type for the seating position.

•The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or

Canadian Motor Vehicle Safety Standard 213.

■Selecting a Child Seat

1Selecting a Child Seat

Installation of a LATCH-compatible child seat is

simple.

LATCH-compatible child seats have been developed

to simplify the installation process and reduce the

likelihood of injuries caused by incorrect installation.

14 US ODYSSEY-31TK86300.book 56 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Continued

Safe Driving

A LATCH-compatible child seat can be installed in each of the second and third row

seats. A child seat is attached to the lower anchors with either the rigid or flexible

type of connectors.

1. Locate the lower anchors under the marks.

■Installing a LATCH-Compatible Child Seat

Marks

Third row seat

Second row seat

14 US ODYSSEY-31TK86300.book 57 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

2. Place the child seat on the vehicle seat then

attach the child seat to the lower anchors

according to the instructions that came

with the child seat.

uWhen installing the child seat, make sure

that the lower anchors are not

obstructed by the seat belt or any other

object.

To install a LATCH-compatible child seat in

the second row center seat, remove the

covers on each lower end of the seat-back

by pulling on the handles.

1Installing a LATCH-Compatible Child Seat

For your child's safety, when using a child seat

installed using the LATCH system, make sure that the

seat is properly secured to the vehicle. A child seat

that is not properly secured will not adequately

protect a child in a crash and may cause injury to the

child or other vehicle occupants.

Rigid Type

Lower Anchors

Flexible Type

Lower Anchors

Handle

Marks

Cover

Second row center seat

14 US ODYSSEY-31TK86300.book 58 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Continued

Safe Driving

3. Raise the head restraint to its highest

position, then route the tether strap

between the head restraint legs, and secure

the tether strap hook onto the anchor.

4. Tighten the tether strap as instructed by the

child seat maker.

5. Make sure the child seat is firmly secured by

rocking it forward and back and side to

side; little movement should be felt.

6. Make sure any unused seat belt that a child

can reach is buckled, the lockable retractor

is activated, and the belt is fully retracted

and locked.

Anchor

Tether Strap Hook

Anchor

Tether

Strap

Hook

Second row center seat

Second row outer position

14 US ODYSSEY-31TK86300.book 59 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

1. Place the child seat on the vehicle seat.

2. Route the seat belt through the child seat

according to the seat maker's instructions,

and insert the latch plate into the buckle.

uInsert the latch plate fully until it clicks.

3. Slowly pull the shoulder part of the belt all

the way out until it stops. This activates the

lockable retractor.

4. Let the seat belt completely wind up into

the retractor, then try to pull it out to make

sure the retractor is locked.

uIf you are able to pull the shoulder belt

out, the lockable retractor is not

activated. Pull the seat belt all the way

out, and repeat steps 2 – 4.

5. Grab the shoulder part of the seat belt near

the buckle, and pull up to remove any slack

from the lap part of the belt.

uWhen doing this, place your weight on

the child seat and push it into the vehicle

seat.

■Installing a Child Seat with a Lap/Shoulder Seat Belt

1Installing a Child Seat with a Lap/Shoulder Seat Belt

A child seat that is not properly secured will not

adequately protect a child in a crash and may cause

injury to the child or other vehicle occupants.

14 US ODYSSEY-31TK86300.book 60 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 61

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

6. Make sure the child seat is firmly secured by

rocking it forward and back and side to

side; little movement should be felt.

7. Make sure any unused seat belt that a child

can reach is buckled, the lockable retractor

is activated, and the belt is fully retracted

and locked.

1Installing a Child Seat with a Lap/Shoulder Seat Belt

To deactivate a lockable retractor, release the buckle

and allow the seat belt to wind up all the way.

14 US ODYSSEY-31TK86300.book 61 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

A tether anchorage point is provided behind

each second and third row seating position. A

child seat that is installed with a seat belt and

comes with a tether can use the tether for

additional security.

1. Locate the appropriate tether anchorage

point.

2. Raise the head restraint to its highest

position, then route the tether strap

through the head restraint legs. Make sure

the strap is not twisted.

■Adding Security with a Tether

1Adding Security with a Tether

Since a tether can provide additional security to the

lap/shoulder seat belt installation, we recommend

using a tether whenever one is available.

Second row seat

Third row seat

Tether Anchorage Points

Second row outer position

Tether Strap

Hook

Anchor

14 US ODYSSEY-31TK86300.book 62 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Infants and Small Children

Safe Driving

3. Secure the tether strap hook onto the

anchor.

4. Tighten the tether strap as instructed by the

child seat manufacturer.

Second row center seat

Third row seat

Anchor

Tether

Strap

Hook

Tether

Strap

Hook

Anchor

14 US ODYSSEY-31TK86300.book 63 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Larger Children

Safe Driving

Safety of Larger Children

The following pages give instructions on how to check proper seat belt fit, what kind

of booster seat to use if one is needed, and important precautions for a child who

must sit in front.

When a child is too big for a child seat, secure the child in a rear seat using the lap/

shoulder seat belt. Have the child sit upright and all the way back, then answer the

following questions.

■Checklist

•Do the child's knees bend comfortably over

the edge of the seat?

•Does the shoulder belt cross between the

child's neck and arm?

•Is the lap part of the seat belt as low as

possible, touching the child's thighs?

•Will the child be able to stay seated like this

for the whole trip?

If you answer yes to all these questions, the child is ready to wear the lap/shoulder

seat belt correctly. If you answer no to any question, the child needs to ride on a

booster seat until the seat belt fits properly without a booster seat.

■Protecting Larger Children

■Checking Seat Belt Fit

1Safety of Larger Children

WARNING

Allowing a child age 12 or under to sit in

front can result in injury or death if the

passenger's front airbag inflates.

If a larger child must ride in front, move the

vehicle seat as far to the rear as possible,

have the child sit up properly and wear the

seat belt properly, using a booster seat if

needed.

14 US ODYSSEY-31TK86300.book 64 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuChild SafetyuSafety of Larger Children

Safe Driving

If a lap/shoulder seat belt cannot be used

properly, position the child in a booster seat in

a rear seating position. For the child's safety,

check that the child meets the booster seat

manufacturer's recommendations.

Your vehicle has a rear seat where children can be properly restrained. If you ever

have to carry a group of children, and a child must ride in front:

•Make sure you read and fully understand the instructions and safety information

in this manual.

•Move the front passenger seat as far back as possible.

•Have the child sit upright and well back in the seat.

•Check that the seat belt is properly positioned so that the child is secure in the

seat.

■Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more

mature children sometimes need to be reminded to fasten their seat belts and sit up

properly.

■Booster Seats

1Booster Seats

When installing a booster seat, make sure to read the

instructions that came with it, and install the seat

accordingly.

There are high- and low-type booster seats. Choose a

booster seat that allows the child to wear the seat

belt correctly.

Some U.S. states and Canadian provinces and

territories require children to use a booster seat until

they reach a given age or weight (e.g. 6 years or 60

lbs). Be sure to check current laws in the state or

province, or territory where you intend to drive.

■Protecting Larger Children-Final Checks

14 US ODYSSEY-31TK86300.book 65 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

Exhaust Gas Hazard

Carbon Monoxide Gas

The engine exhaust from this vehicle contains carbon monoxide, a colorless,

odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon

monoxide gas will not get into the interior.

■Have the exhaust system inspected for leaks whenever

•The exhaust system is making an unusual noise.

•The exhaust system may have been damaged.

•The vehicle is raised for an oil change.

When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into

the interior and create a hazardous condition. If you must drive with the tailgate

open, open all the windows and set the heating and cooling*/climate control*

system as shown below.

1. Select the fresh air mode.

2. Select the mode.

3. Set the fan speed to high.

4. Set the temperature control to a comfortable setting.

Adjust the heating and cooling*/climate control* system in the same manner if you

sit in your parked vehicle with the engine running.

1Carbon Monoxide Gas

An enclosed area such as a garage can quickly fill up

with carbon monoxide gas.

Do not run the engine with the garage door closed.

Even when the garage door is open, drive out of the

garage immediately after starting the engine.

WARNING

Carbon monoxide gas is toxic.

Breathing it can cause unconsciousness and

even kill you.

Avoid any enclosed areas or activities that

expose you to carbon monoxide.

* Not available on all models

14 US ODYSSEY-31TK86300.book 66 ページ２０１３年７月２５日　木曜日　午後４時２３分

Safe Driving

Safety Labels

Label Locations

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels

carefully.

If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer

for a replacement.

Sun Visor

U.S. models Canadian models

Radiator Cap

U.S. models

U.S. models only

Dashboard

Canadian models

Doorjambs

14 US ODYSSEY-31TK86300.book 67 ページ２０１３年７月２５日　木曜日　午後４時２３分

14 US ODYSSEY-31TK86300.book 68 ページ２０１３年７月２５日　木曜日　午後４時２３分

Instrument Panel

This chapter describes the buttons, indicators, and gauges that are used while driving.

Indicators

Information Display Warning and

Information Messages*.................... 84

Multi-Information Display Warning and

Information Messages*.................... 86

Gauges and Displays

Gauges.............................................. 92

Information Display*.......................... 93

Multi-Information Display*................. 96

* Not available on all models

14 US ODYSSEY-31TK86300.book 69 ページ２０１３年７月２５日　木曜日　午後４時２３分

Instrument Panel

Indicators

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Parking Brake

and Brake

System Indicator

(Red)

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on when the parking brake

is applied, and goes off when it is

released.

●Comes on when the brake fluid

level is low.

●Comes on if there is a problem

with the brake system.

●The beeper sounds and the

indicator comes on if you drive

with the parking brake not fully

released.

●Comes on while driving - Make sure

the parking brake is released. Check the

brake fluid level.

2What to do when the indicator

comes on while driving P. 530

●Comes on along with the ABS

indicator - Have the vehicle checked by

a dealer.

2If the Brake System Indicator (Red)

Comes On P. 530

Brake System

Indicator

(Amber)

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem

with the brake override system.

●Stays on constantly - Have the vehicle

checked by a dealer.

U.S.

Canada

(Red)

U.S. Canada

U.S.

Canada

(Amber)

U.S. Canada

* Not available on all models

14 US ODYSSEY-31TK86300.book 70 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Low Oil Pressure

Indicator

●Comes on when you turn the

ignition switch to ON (w*1, and

goes off when the engine starts.

●Comes on when the engine oil

pressure is low.

●Comes on while driving - Immediately

stop in a safe place.

2If the Low Oil Pressure Indicator

Comes On P. 528

Malfunction

Indicator Lamp

●Comes on when you turn the

ignition switch to ON (w*1, and

goes off either when the engine

starts or after several seconds if the

engine is not started. If “readiness

codes” have not been set, it blinks

five times before it goes off.

●Comes on if there is a problem

with the emissions control system.

●Blinks when a misfire in the

engine's cylinders is detected.

●Readiness codes are part of the on board

diagnostics for the emissions control

systems.

2Testing of Readiness Codes P. 547

●Comes on while driving - Have the

vehicle checked by a dealer.

●Blinks while driving - Stop in a safe

place where there are no flammable

objects. Stop the engine for 10 minutes

or more, and wait for it to cool down.

Then, take the vehicle to a dealer.

2If the Malfunction Indicator Lamp

Comes On or Blinks P. 529

* Not available on all models

14 US ODYSSEY-31TK86300.book 71 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Charging System

Indicator

●Comes on when you turn the

ignition switch to ON (w*1, and goes

off when the engine starts.

●Comes on when the battery is not

charging.

●Stays on while driving - Turn off the

heating and cooling*/climate control*

system and rear defogger in order to

reduce electricity consumption.

2If the Charging System Indicator

Comes On P. 528

Shift Lever

Position Indicator

●Indicates current shift lever position.

D4 Indicator:

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on when you press the D4

button while the shift lever is in (D.

2Shifting P. 413 —

Transmission

Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Blinks if the transmission system has

a problem.

●Blinks while driving - Avoid sudden

starts and acceleration and have the

vehicle checked by a dealer

immediately.

Information Display

Multi-Information

Display

* Not available on all models

14 US ODYSSEY-31TK86300.book 72 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Seat Belt

Reminder

Indicator

●Comes on and the beeper sounds if

you are not wearing a seat belt when

you turn the ignition switch to ON

(w*1.

●If the front passenger is not wearing

a seat belt, the indicator comes on

about a few seconds later.

●Blinks while driving if either you or

the front passenger has not fastened

a seat belt. The beeper sounds and

the indicator blinks at regular

intervals.

●The beeper stops and the indicator goes

off when you and the front passenger

fasten their seat belts.

●Stays on after you or the front

passenger has fastened the seat

belt - A detection error may have

occurred in the sensor. Have the vehicle

checked by a dealer.

2Seat Belt Reminder P. 31

Low Fuel

Indicator

●Comes on when the fuel reserve is

running low (approximately 3.0 U.S.

gal./11.4 Liter left).

●Blinks if there is a problem with the

fuel gauge.

●Comes on - Refuel your vehicle as soon

as possible.

●Blinks - Have the vehicle checked by a

dealer.

ABS (Anti-lock

Brake System)

Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●If it comes on at any other time,

there is a problem with the ABS.

●Stays on constantly - Have the vehicle

checked by a dealer. With this indicator

on, your vehicle still has normal braking

ability but no anti-lock function.

2ABS (Anti-lock Brake System)

P. 438

Indicator

* Not available on all models

14 US ODYSSEY-31TK86300.book 73 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Supplemental

Restraint System

Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if a problem with any of

the following is detected:

-Supplemental restraint system

-Side airbag system

-Side curtain airbag system

-Seat belt tensioner

●Stays on constantly or does not

come on at all - Have the vehicle

checked by a dealer.

VSA® (Vehicle

Stability Assist)

System Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Blinks when VSA® is active.

●Comes on if there is a problem with

the VSA® system.

●Stays on constantly - Have the vehicle

checked by a dealer.

2VSA® (Vehicle Stability Assist), aka

ESC (Electronic Stability Control),

System P. 426

VSA® (Vehicle

Stability Assist)

OFF Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on when you deactivate

VSA®.

2VSA® On and Off P. 427 —

* Not available on all models

14 US ODYSSEY-31TK86300.book 74 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Door and Tailgate

Open Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if any door or the tailgate

is not completely closed.

●The beeper sounds and the indicator

comes on if any door or the tailgate

is opened while driving.

●Goes off when all doors and tailgate are

closed.

Parking Sensor

Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●A corresponding indicator comes on

when an obstacle is detected while

parking.

●Comes on if there is a problem with

the parking sensor system. The

beeper sounds.

●Comes on without any obstacles or

when you are not parking - Check if

the area around the sensor(s) is covered

with mud, ice, snow, etc. If the

indicator(s) stays on even after you

clean the area, have the system checked

by a dealer.

—

Daytime Running

Lights Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem with

the DRL system.

●Have your vehicle checked by a dealer.

2Daytime Running Lights P. 150

—

* Not available on all models

14 US ODYSSEY-31TK86300.book 75 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

TPMS Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem with

the TPMS, or when a compact spare

tire is temporarily installed.

●Stays on constantly or does not

come on at all - Have the vehicle

checked by a dealer. If the vehicle is

fitted with a compact spare, get your

regular tire repaired or replaced and put

back on your vehicle as soon as you can.

—

Low Tire Pressure

Indicator

Low Tire Pressure/

TPMS Indicator

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if the tire pressure of any

of the tires becomes significantly

low.

●Comes on for a while and then goes

off when a compact spare tire is

temporarily installed.

●Blinks for about one minute, and

then stays on if there is a problem

with the TPMS, or when a compact

spare tire is temporarily installed.

●Comes on while driving - Stop in a

safe place, check tire pressures, and

inflate the tire(s) if necessary.

●Blinks and remains on - Have the

vehicle checked by a dealer. If the

vehicle is fitted with a compact spare,

get your regular tire repaired or

replaced and put back on your vehicle

as soon as you can.

Models with

information

display

Models with

information

display

Models with

multi-

information

display

Models with information display

Models with multi-information display

* Not available on all models

14 US ODYSSEY-31TK86300.book 76 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

System Message

Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on along with a beep when a

problem is detected. A system

message on the multi-information

display appears at the same time.

●While the indicator is on, press the /

(information) button to see the

message again.

●Refer to the Indicators information in

this chapter when a system message

appears on the multi-information

display. Take the appropriate action for

the message.

●The multi-information display does not return

to the normal screen unless the warning is

canceled, or the / (information)

button is pressed.

—

Turn Signal and

Hazard Warning

Indicators

●The turn signal indicators blink when

you operate the turn signal lever.

●If you press the hazard warning

button, both indicators and all turn

signals blink at the same time.

●Does not blink or blinks rapidly - A

turn signal light bulb has blown.

Change the bulb immediately.

2Replacing Light Bulbs

P. 480, 481

—

High Beam

Indicator

●Comes on when the high beam

headlights are on. ——

Lights On

Indicator

●Comes on whenever the light switch

is on, or in AUTO* when the exterior

lights are on.

●If you remove the key from the ignition

switch*1 while the lights are on, a chime

sounds when the driver's door is

opened.

—

* Not available on all models

14 US ODYSSEY-31TK86300.book 77 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Fog Light

Indicator*

●Comes on when the fog lights are

on. ——

Immobilizer

System Indicator

●Comes on briefly when you turn the

ignition switch to ON (w*1, then

goes off.

●Comes on if the immobilizer system

cannot recognize the key

information.

●Blinks - You cannot start the engine.

Turn the ignition switch to LOCK (0*1,

pull the key out, and then insert the key

and turn it to ON (w*1 again.

●Repeatedly blinks - The system may

be malfunctioning. Have the vehicle

checked by a dealer.

●Do not attempt to alter this system or

add other devices to it. Electrical

problems can occur.

—

* Not available on all models

14 US ODYSSEY-31TK86300.book 78 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

Indicator Name On/Blinking Explanation Message*

Security System

Alarm Indicator*

●Blinks when the security system

alarm has been set. 2Security System Alarm* P. 135 —

Smart Entry

System Indicator*

●Comes on for a few seconds when

you set the power mode to ON, then

goes off.

●Comes on as soon as a problem is

detected in the smart entry system or

push button starting system.

●Stays on constantly or does not

come on at all - Have your vehicle

checked by a dealer.

Starter System

Indicator*

●Comes on if there is a problem with

the starter system. ●As a temporary measure, press and hold

the ENGINE START/STOP button for

up to 15 seconds while pressing the

brake pedal and manually start the

engine. Have the vehicle checked by a

dealer.

●As a temporary measure, hold the

ignition switch to START (e for up to

15 seconds and start the engine. Have

the vehicle checked by a dealer.

—

Indicator

U.S.

Canada

Models with smart entry system

Models without smart entry system

* Not available on all models

14 US ODYSSEY-31TK86300.book 79 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

*2:On the left: Models with information display

On the right: Models with multi-information display

Indicator Name On/Blinking Explanation Message*2

Forward

Collision

Warning

(FCW)

Indicator*

●Comes on for a few seconds

when you turn the ignition

switch to ON (w*1, then goes

off.

●Comes on when you have

customized FCW to turn off.

●Comes on if there is a problem

with the FCW system.

●Stays on constantly without FCW off - Have the vehicle

checked by a dealer.

●Blinks when the system detects

a likely collision with a vehicle

in front of you. The beeper

sounds.

●Blinks while driving - Take appropriate action to prevent

a collision (apply the brakes, change lanes, etc.). — —

●Comes on when the FCW

system shuts itself off.

●Stays on - The temperature inside the FCW system is too

high. The system activates when the temperature inside the

system cools down.

2Automatic shutoff P. 420

●Stays on - The area around the camera is blocked by dirt,

mud, etc. Stop your vehicle in a safe place, and wipe it off

with a soft cloth.

●Have your vehicle checked by a dealer if the indicator and

message come back on after you cleaned the area around

the camera.

2Automatic shutoff P. 420

2Automatic shutoff P. 420 — —

Models with information display

* Not available on all models

14 US ODYSSEY-31TK86300.book 80 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Continued

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

*2:On the left: Models with information display

On the right: Models with multi-information display

Indicator Name On/Blinking Explanation Message*2

Lane Departure

Warning (LDW)

Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem with

the LDW system.

●Stays on constantly - Have the vehicle

checked by a dealer.

●Blinks when your vehicle is too close

to the lane lines. The beeper sounds.

●Blinks while driving - Take

appropriate action to keep your vehicle

within the lane lines.

— —

●Comes on when the LDW system

shuts itself off.

●Stays on - The temperature inside the

LDW camera is too high.

The system activates when the

temperature inside the camera cools

down.

2LDW Camera P. 424

●Stays on - The area around the camera

is blocked by dirt, mud, etc. Stop your

vehicle in a safe place, and wipe it off

with a soft cloth.

●Have your vehicle checked by a dealer if

the indicator and message come back

on after you cleaned the area around

the camera.

2LDW Camera P. 424

Models with information display

* Not available on all models

14 US ODYSSEY-31TK86300.book 81 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Fuel Economy

Indicator

●Comes on and stays on while you are

driving with good fuel economy. ——

CRUISE MAIN

Indicator

●Comes on when you press the

CRUISE button. 2Cruise Control P. 415 —

CRUISE

CONTROL

Indicator

●Comes on if you have set a speed for

cruise control. 2Cruise Control P. 415 —

Washer Level

Indicator*

●Comes on when the washer fluid is

low.

●Refill the washer fluid.

2Refilling Window Washer Fluid

P. 474

—

Maintenance

Minder Indicator*

●Comes on when the scheduled

maintenance is due soon. 2Maintenance MinderTM P. 455 —

Power Tailgate

Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem with

the power tailgate system.

●Stays on constantly or does not

come on at all - You can still open or

close the tailgate manually. Have the

vehicle checked by a dealer. —

U.S.

Canada

* Not available on all models

14 US ODYSSEY-31TK86300.book 82 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsu

Instrument Panel

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Indicator Name On/Blinking Explanation Message*

Power Sliding

Door Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Comes on if there is a problem with

the power sliding door system.

●Stays on constantly or does not

come on at all - Turn off the main

switch and manually operate the power

sliding doors. Have the vehicle checked

by a dealer.

2Opening/Closing the Power

Sliding Doors* P. 129

—

BSI (Blind Spot

Information)

Indicator*

●Comes on for a few seconds when

you turn the ignition switch to ON

(w*1, then goes off.

●Stays on while BSI is turned off.

●Comes on when mud, snow, or ice

accumulates in the vicinity of sensor.

●Comes on if there is a problem with

the system.

—

●Comes on while driving - Remove the

obstacle in the vicinity of sensor.

●Comes on while driving - Have the

vehicle checked by a dealer.

U.S.

Canada

* Not available on all models

14 US ODYSSEY-31TK86300.book 83 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuInformation Display Warning and Information Messages*

Instrument Panel

Information Display Warning and Information Messages*

The following messages appear only on the information display.

Message Condition Explanation

●Appears when the fuel fill cap is loose or is not

installed. 2Check/Tighten Fuel Cap Message P. 529

●Appears when there is a problem with the sensor on

the battery.

●Have your vehicle checked by a dealer.

2Checking the Battery P. 499

* Not available on all models

14 US ODYSSEY-31TK86300.book 84 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuInformation Display Warning and Information Messages*

Instrument Panel

Message Condition Explanation

●Appears if you push the ENGINE START/STOP button

to turn the engine off without the shift lever in (P.

●Push the ENGINE START/STOP button twice after

moving the shift lever to (P.

●Appears when the power mode is in ACCESSORY. —

●Appears when the steering wheel is locked. ●Move the steering wheel left and right while pressing

the ENGINE START/STOP button at the same time.

●Appears when you close the door with the power mode

in ON without the smart entry remote inside the vehicle.

●Disappears when you bring the smart entry remote back

inside the vehicle and close the door.

●Appears when the smart entry remote’s battery

becomes weak.

●Replace the battery as soon as possible.

2Replacing the Button Battery P. 500

Models with smart entry system

14 US ODYSSEY-31TK86300.book 85 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Instrument Panel

Multi-Information Display Warning and Information Messages*

The following messages appear only on the multi-information display. Press the / (information) button to see the message again

with the system message indicator on.

Message Condition Explanation

●Appears when the fuel fill cap is loose or is not

installed. 2Check/Tighten Fuel Cap Message P. 529

●Appears when the scheduled maintenance is due

soon.

●Consequently, SERVICE DUE NOW and SERVICE

PAST DUE follow.

2Maintenance Minder Messages on the Multi-

Information Display P. 460

●Appears when the engine coolant temperature gets

abnormally high. 2Overheating P. 526

●Appears when there is a problem with the sensor on

the battery.

●Have your vehicle checked by a dealer.

2Checking the Battery P. 499

●Appears if there is a problem with the parking sensor

system. The beeper sounds.

●Check if the area around the sensor(s) is covered with

mud, ice, snow, etc. If the indicator(s) stays on even

after you clean the area, have the system checked by a

dealer.

* Not available on all models

14 US ODYSSEY-31TK86300.book 86 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Continued

Instrument Panel

●Appears if there is a problem with the DRL system. ●Have your vehicle checked by a dealer.

2Daytime Running Lights P. 150

●Appears when the starting system has a problem. ●As a temporary measure, press and hold the ENGINE

START/STOP button for 15 seconds while pressing the

brake pedal and manually start the engine. Have the

vehicle checked by a dealer.

●Appears when the washer fluid is low. ●Refill the washer fluid.

2Refilling Window Washer Fluid P. 474

Message Condition Explanation

U.S.

Canada

Canadian models

14 US ODYSSEY-31TK86300.book 87 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Instrument Panel

●Appears when there is a problem with the power

tailgate system.

●Manually open or close the power tailgate.

●Have the vehicle checked by a dealer.

●Appears if there is a problem with the power sliding

door system.

●Turn off the main switch and manually operate the

power sliding doors.

●Have the vehicle checked by a dealer.

2Opening/Closing the Power Sliding Doors* P. 129

Message Condition Explanation

U.S.

Canada

U.S.

Canada

* Not available on all models

14 US ODYSSEY-31TK86300.book 88 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Continued

Instrument Panel

Message Condition Explanation

●Flashes when the system senses a likely collision with

a vehicle in front of you.

●Take appropriate action to prevent a collision (apply the

brakes, change lanes, etc.).

2Forward Collision Warning (FCW)* P. 418

●Appears when your vehicle is too close to the traffic

lane lines. The beeper sounds.

●Take appropriate action to keep your vehicle within the

lane lines.

2Lane Departure Warning (LDW)* P. 422

●Appears while you are customizing the settings and

the shift lever is moved out of (P.2Customized Features P. 99

●Appears if you try to go to CUSTOMIZE SETTINGS

from the multi-information display while the audio/

information screen shows the Vehicle Setings

menu.

●Select either display to customize a setting. You cannot

have CUSTOMIZE SETTINGS displayed on the multi-

information display and Vehicle Settings on the audio/

information screen simultaneously.

2Customized Features P. 99, 295

●Appears when you set the power mode to

ACCESSORY or ON. 2Starting the Engine P. 407

●Appears when the steering wheel is locked. ●Move the steering wheel left and right after pressing

the ENGINE START/STOP button.

* Not available on all models

14 US ODYSSEY-31TK86300.book 89 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Instrument Panel

Message Condition Explanation

●Appears if you push the ENGINE START/STOP

button to turn the engine off without the shift lever

in (P.

●Push the ENGINE START/STOP button twice after

moving the shift lever to (P.

●Appears when the power mode is in ACCESSORY.

—

●Appears after the driver’s door is opened when the

power mode is in ACCESSORY.

●Press the ENGINE START/STOP button twice with your

foot off the brake pedal to change the power mode to

VEHICLE OFF (LOCK).

●Appears when you close the door with the power

mode in ON without the smart entry remote inside

the vehicle.

●Disappears when you bring the smart entry remote

back inside the vehicle and close the door.

2Smart Entry Remote Reminder P. 145

●Appears when the smart entry remote battery

becomes weak.

●Replace the battery as soon as possible.

2Replacing the Button Battery P. 500

●Appears if the smart entry remote battery is too

weak to start the engine or the key is not with you to

start the engine.

A beeper sounds six times.

●Bring the smart entry remote in front of the ENGINE

START/STOP button to be touched with.

2If the Smart Entry Remote Battery is Weak P. 521

14 US ODYSSEY-31TK86300.book 90 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuIndicatorsuMulti-Information Display Warning and Information Messages*

Instrument Panel

Message Condition Explanation

●Appears three seconds after the TO START, HOLD

REMOTE NEAR START BUTTON, then TO START

VEHICLE messages appeared sequentially.

●Unless you bring the smart entry remote in front of the

ENGINE START/STOP button, this message does not

appear.

2If the Smart Entry Remote Battery is Weak P. 521

14 US ODYSSEY-31TK86300.book 91 ページ２０１３年７月２５日　木曜日　午後４時２３分

Instrument Panel

Gauges and Displays

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.

They are displayed when the ignition switch is in ON (w*1.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Speedometer

■Tachometer

■Fuel Gauge

■Temperature Gauge

1Fuel Gauge

NOTICE

You should refuel when the reading approaches .

Running out of fuel can cause the engine to misfire,

damaging the catalytic converter.

The actual amount of remaining fuel may differ from

the fuel gauge reading.

1Temperature Gauge

If the temperature gauge pointer is in the upper

zone, the engine is in danger or overheating.

Driving with the temperature gauge pointer in the

upper zone can cause serious engine damage. Pull

safety to the side of the road and allow engine

temperature to return to normal.

2Overheating P. 526

14 US ODYSSEY-31TK86300.book 92 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuGauges and DisplaysuInformation Display*

Continued

Instrument Panel

Information Display*

The information display shows the odometer, trip meter, engine oil life and

maintenance service item codes, and other gauges.

Press the (Select/Reset) knob to change the display.

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has

accumulated.

■Switching the Display

■Odometer

Engine oil life

Trip meter B

Average fuel economy

Trip meter A

Instant fuel economy

Range

(estimated distance)

Outside temperature*

Odometer

* Not available on all models

14 US ODYSSEY-31TK86300.book 93 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuGauges and DisplaysuInformation Display*

Instrument Panel

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last

reset. Meters A and B can be used to measure two separate trips.

■Resetting a trip meter

To reset a trip meter, display it, then press and hold the knob. The trip meter is

reset to 0.0.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100

km (Canada). The display is updated at set intervals. When a trip meter is reset, the

average fuel economy is also reset.

Shows the remaining oil life and Maintenance MinderTM.

2Maintenance MinderTM P. 455

Shows the estimated distance you can travel on the remaining fuel. This distance is

estimated from the fuel economy of your trips in the past.

■Trip Meter

■Instant Fuel Economy

■Average Fuel Economy

■Engine Oil Life

■Range

1Trip Meter

Switch between trip meter A and trip meter B by

pressing the knob.

1Average Fuel Economy

You can change when to reset the average fuel

economy.

2Customized Features P. 295

14 US ODYSSEY-31TK86300.book 94 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuGauges and DisplaysuInformation Display*

Instrument Panel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■Adjusting the outside temperature indicator

Adjust the temperature reading up to ±5ºF or ±3ºC if the temperature reading

seems incorrect.

1. Turn the ignition switch to ON (w*1.

2. Press and hold the (Select/Reset) knob

for 10 seconds or more.

uThe information display shows the reset

mode initial display.

3. Select outside temperature with the

knob.

4. Press and hold the knob for a few

seconds to enter the outside temperature

setting mode.

5. Turn the knob to adjust the

temperature.

6. Press and release the knob.

uThe new outside temperature is now

entered.

*1: Models with the smart entry system have an

ENGINE START/STOP button instead of an ignition

switch.

■Outside Temperature*

1Outside Temperature*

The temperature sensor is in the front bumper. Road

heat and exhaust from another vehicle can affect the

temperature reading when your vehicle speed is less

than 19 mph (30 km/h).

It may take several minutes for the display to be

updated after the temperature reading has stabilized.

1Adjusting the outside temperature indicator

Adjust the temperature reading up to ±5ºF or ±3ºC.

Reset Mode Initial Display

Oil Life

Outside Temperature

* Not available on all models

14 US ODYSSEY-31TK86300.book 95 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

Multi-Information Display*

The multi-information display shows the odometer, trip meter, outside temperature

indicator, and other gauges.

It also displays important messages such as warnings and other helpful information.

Press the / (information) button or the SEL/RESET button to change the

display.

■Switching the Display

SEL/RESET

Button

Average fuel economy/

Instant fuel economy

Average Speed

/ Button

Engine oil life Trip meter B

Trip meter A

Odometer

Customize Settings

Elapsed Time

Range

* Not available on all models

14 US ODYSSEY-31TK86300.book 96 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 97

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has

accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last

reset. Meters A and B can be used to measure two separate trips.

■Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip

meter is reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100

km (Canada). The display is updated at set intervals. When a trip meter is reset, the

average fuel economy is also reset.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining fuel. This distance is

estimated from the fuel economy of your trips in the past.

Shows the time elapsed since the last time Trip A or Trip B was reset.

■Odometer

■Trip Meter

■Average Fuel Economy

■Instant Fuel Economy

■Range

■Elapsed Time

1Trip Meter

Switch between trip meter A and trip meter B by

pressing the SEL/RESET button.

1Average Fuel Economy

You can change when to reset the average fuel

economy.

2Customized Features P. 99, 295

1Elapsed Time

You can change when to reset the elapsed time.

2Customized Features P. 99, 295

14 US ODYSSEY-31TK86300.book 97 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

Shows the average speed in mph (U.S.) or km/h (Canada) since the last time Trip A

or Trip B was reset.

Shows the remaining oil life and Maintenance MinderTM.

2Maintenance MinderTM P. 455

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading

seems incorrect.

■Average Speed

■Engine Oil Life

■Outside Temperature

1Average Speed

You can change when to reset the average speed.

2Customized Features P. 99, 295

1Outside Temperature

The temperature sensor is in the front bumper.

Road heat and exhaust from another vehicle can

affect the temperature reading when your vehicle

speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be

updated after the temperature reading has stabilized.

Use the multi-information display's customized

features to correct the temperature.

2Customized Features P. 99, 295

14 US ODYSSEY-31TK86300.book 98 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 99

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

Use the multi-information display to customize certain features.

■How to customize

Select the CUSTOMIZE SETTINGS by pressing the / button while the

power mode is in ON. Press the SEL/RESET button.

■Customized Features

1Customized Features

To customize other features, press the /

button.

2List of customizable options P. 102

2Example of customization settings P. 105

Customization is possible when you see the driver’s

ID (DRIVER 1 or DRIVER 2) on the GROUP screen.

The driver’s ID indicates which remote transmitter

you have used to unlock the driver’s door.

The customized settings are recalled every time you

unlock the driver’s door with that remote.

When you customize settings:

Shift to (P.

Customizing is also available from the audio/

information screen.

You cannot have CUSTOMIZE SETTINGS displayed

on the multi-information display while the audio/

information screen shows the Vehicle Settings

menu.

2Customized Features P. 295

SEL/RESET Button

Enters the selected item.

/ Button

Changes the customize

menu and items.

14 US ODYSSEY-31TK86300.book 99 ページ２０１３年７月２５日　木曜日　午後４時２３分

100

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

■Customization flow

Press the / button.

SEL/RESET

CUSTOMIZE SETTINGS SEL/RESET

SEL/RESET

SEL/RESET ADJUST OUTSIDE TEMP. DISPLAY

LANGUAGE SELECTION

“TRIP B” RESET TIMING

“TRIP A” RESET TIMING

FORWARD COLLISION WARNING DISTANCE

BLIND SPOT INFO

DRIVING POSITION SETUP MEMORY POSITION LINKSEL/RESET

KEYLESS ACCESS SETUP SEL/RESET

DOOR UNLOCK MODE

KEYLESS ACCESS BEEP

KEYLESS ACCESS LIGHT FLASH

DRIVER ASSIST SYSTEM

SETUP

METER SETUP

14 US ODYSSEY-31TK86300.book 100 ページ２０１３年７月２５日　木曜日　午後４時２３分

101

uuGauges and DisplaysuMulti-Information Display*

Continued

Instrument Panel

EXIT

DEFAULT ALL

SEL/RESET

POWER TAILGATE SETUP

KEYLESS OPEN MODE

POWER OPEN BY OUTER HANDLE

SEL/RESET

DOOR SETUP SEL/RESET

AUTO DOOR LOCK

SECURITY RELOCK TIMER

AUTO DOOR UNLOCK

KEY AND REMOTE UNLOCK MODE

PSD KEYLESS OPEN MODE

KEYLESS LOCK ACKNOWLEDGMENT

LIGHTING SETUP

INTERIOR LIGHT DIMMING TIME

AUTO LIGHT SENSITIVITY

HEADLIGHT AUTO OFF TIMERSEL/RESET

14 US ODYSSEY-31TK86300.book 101 ページ２０１３年７月２５日　木曜日　午後４時２３分

102

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

■List of customizable options

*1: Default Setting

Setup Group Customizable Features Description Selectable settings

DRIVER

ASSIST

SYSTEM

SETUP

FORWARD COLLISION

WARNING DISTANCE Changes at which distance FCW alerts, or turns FCW

on and off. LONG/NORMAL*1/SHORT/

OFF

BLIND SPOT INFO Changes the setting for the blind spot information. AUDIBLE AND VISUAL ALERT*1/

VISUAL ALERT/OFF

METER

SETUP

LANGUAGE SELECTION Changes the displayed language. ENGLISH*1/FRENCH/SPANISH

ADJUST OUTSIDE TEMP.

DISPLAY Adjusts the temperature reading by a few degrees. -5°F ~ ±0°F*1 ~ +5°F (U.S.)

-3°C ~ ±0°C*1 ~ +3°C (Canada)

“TRIP A” RESET TIMING

Changes the setting of how to reset trip meter A, average

fuel economy A, average speed A, and elapsed time A.

WITH REFUEL/IGN OFF/

MANUALLY RESET*1

”TRIP B” RESET TIMING

Changes the setting of how to reset trip meter B, average

fuel economy B, average speed B, and elapsed time B.

WITH REFUEL/IGN OFF/

MANUALLY RESET*1

POSITION

SETUP

MEMORY POSITION

LINK Changes the driver’s seat position to a stored setting. ON*1/OFF

KEYLESS

ACCESS

SYSTEM

SETUP

DOOR UNLOCK MODE Changes which doors unlock when you grab the

driver’s door handle. DRIVER DOOR*1/ALL DOORS

KEYLESS ACCESS LIGHT

FLASH Causes some exterior lights to flash when you unlock/

lock the doors. ON*1/OFF

KEYLESS ACCESS BEEP

Causes the beeper to sound when you unlock/lock the doors.

ON*1/OFF

14 US ODYSSEY-31TK86300.book 102 ページ２０１３年７月２５日　木曜日　午後４時２３分

103

uuGauges and DisplaysuMulti-Information Display*

Continued

Instrument Panel

*1: Default Setting

Setup Group Customizable Features Description Selectable settings

LIGHTING

SETUP

INTERIOR LIGHT

DIMMING TIME

Changes the length of time the interior lights stay on

after you close the doors. 60sec/30sec*1/15sec

HEADLIGHT AUTO OFF

TIMER Changes the length of time the exterior lights stay on

after you close the driver’s door. 60sec/30sec/15sec*1/0sec

AUTO LIGHT

SENSITIVITY Changes the timing for the headlights to come on. MAX/HIGH/MID*1/LOW/MIN

DOOR SETUP

AUTO DOOR LOCK Changes the setting for the automatic locking

feature. WITH VEH SPD*1/SHIFT

FROM P/OFF

AUTO DOOR UNLOCK Changes the setting for when the doors unlock

automatically.

DRIVER DOOR WITH SHIFT

TO P*1/ALL DOORS WITH

SHIFT TO P/DRIVER DOOR

WITH IGN OFF/ALL DOORS

WITH IGN OFF/OFF

KEY AND REMOTE

UNLOCK MODE Changes which doors unlock with the remote

transmitter on a first push. DRIVER DOOR*1/ALL DOORS

PSD KEYLESS OPEN

MODE Changes the keyless setting for when the power

sliding door opens. ANYTIME*1/WHEN

UNLOCKED

KEYLESS LOCK

ACKNOWLEDGMENT

LOCK/UNLOCK - The exterior lights flash.

LOCK (2nd push) - The beeper sounds. ON*1/OFF

SECURITY RELOCK

TIMER

Changes the time it takes for the doors to relock and

the security system to set after you unlock the vehicle

without opening any door.

90sec/60sec/30sec*1

14 US ODYSSEY-31TK86300.book 103 ページ２０１３年７月２５日　木曜日　午後４時２３分

104

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

*1: Default Setting

Setup Group Customizable Features Description Selectable settings

POWER

TAILGATE

SETUP

KEYLESS OPEN MODE Changes the keyless setting for when the power

tailgate opens. ANYTIME*1/WHEN

UNLOCKED

POWER OPEN BY

OUTER HANDLE Changes the setting to open the power tailgate by

the tailgate outer handle. OFF (MANUALLY)/ON

(POWER/MANUAL)*1

DEFAULT ALL Cancels/Resets all the customized settings as default. CANCEL/SET

14 US ODYSSEY-31TK86300.book 104 ページ２０１３年７月２５日　木曜日　午後４時２３分

105

uuGauges and DisplaysuMulti-Information Display*

Continued

Instrument Panel

■Example of customization settings

The steps for changing the “TRIP A” RESET TIMING setting to WITH REFUEL are

shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY

RESET.

1. Press the / button to select

CUSTOMIZE SETTINGS, then press the

SEL/RESET button.

2. Press the / button until METER

SETUP appears on the display.

3. Press the SEL/RESET button.

uLANGUAGE SELECTION appears first

on the display.

4. Press the / button until “TRIP A”

RESET TIMING appears on the display,

then press the SEL/RESET button.

uThe display switches to the

customization setup screen, where you

can select WITH REFUEL, IGN OFF,

MANUALLY RESET, or EXIT.

14 US ODYSSEY-31TK86300.book 105 ページ２０１３年７月２５日　木曜日　午後４時２３分

106

uuGauges and DisplaysuMulti-Information Display*

Instrument Panel

5. Press the / button and select WITH

REFUEL, then press the SEL/RESET button.

uThe WITH REFUEL SETUP screen

appears, then the display returns to the

customize menu screen.

6. Press the / button until EXIT

appears on the display, then press the SEL/

RESET button.

7. Repeat Step 6 until you return to the

normal screen.

14 US ODYSSEY-31TK86300.book 106 ページ２０１３年７月２５日　木曜日　午後４時２３分

107

Controls

This chapter explains how to operate the various controls necessary for driving.

Clock .................................................. 108

Locking and Unlocking the Doors

Key Types and Functions .................. 110

Low Smart Entry Remote Signal Strength

..... 112

Locking/Unlocking the Doors from the Outside..... 113

Locking/Unlocking the Doors from the Inside... 118

Childproof Door Locks ..................... 119

Auto Door Locking/Unlocking .......... 120

Opening and Closing the Tailgate... 121

Opening and Closing the Sliding Doors

...... 127

Security System

Immobilizer System .......................... 135

Security System Alarm*.................... 135

Opening and Closing the Windows..... 138

Opening and Closing the Moonroof

..... 141

Operating the Switches Around the

Steering Wheel

Ignition Switch*............................... 142

ENGINE START/STOP Button*........... 143

Ignition Switch and Power Mode

Comparison ................................... 146

Turn Signals..................................... 147

Light Switches.................................. 147

Fog Lights*...................................... 150

Daytime Running Lights ................... 150

Wipers and Washers ........................ 151

Brightness Control ........................... 153

Rear Defogger/Heated Door Mirror

Button ..154

Driving Position Memory System*.... 155

Adjusting the Steering Wheel........... 157

Adjusting the Mirrors....................... 158

Interior Rearview Mirror ................... 158

Power Door Mirrors ......................... 159

Adjusting the Seats

Adjusting the Seat Positions............. 161

Interior Lights/Interior Convenience

Items ................................................ 176

Interior Lights .................................. 176

Interior Convenience Items .............. 178

Heating and Cooling*

Using Vents, Heating and A/C.......... 194

Climate Control System*

Using Automatic Climate Control .... 198

Automatic Climate Control Sensors... 203

* Not available on all models

14 US ODYSSEY-31TK86300.book 107 ページ２０１３年７月２５日　木曜日　午後４時２３分

108

Controls

Clock

Adjusting the Clock

You can adjust the time in the clock display with the ignition switch is in ON (w *1.

■Using the Settings menu on the audio/information screen

1. Press the SETTINGS button.

2. Rotate to select System Settings, then

press .

uRepeat the procedure to select Clock,

then Clock Adjustment.

2. Move or to select Clock.

Rotate to select Clock Adjustment,

then press .

3. Rotate to change hour, then press .

4. Rotate to change minute, then press .

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Adjusting the Time

1Adjusting the Clock

The clock is automatically updated through the

navigation system, so the time does not need to be

adjusted.

These indications are used to show how to operate

the selector knob.

Rotate to select.

Press to enter.

These indications are used to show how to operate

the interface dial.

Rotate to select.

Press to enter.

Move , , or to select secondary menu.

You can customize the clock display to show the 12

hour clock or 24 hour clock.

2Customized Features P. 295

You can turn the clock display on and off.

2Customized Features P. 295

Models with navigation system

Models with one display

Models with two displays

All models

Models without navigation system

Models with one display

Models with two displays

All models

14 US ODYSSEY-31TK86300.book 108 ページ２０１３年７月２５日　木曜日　午後４時２３分

109

uuClockuAdjusting the Clock

Controls

■Using the SETTINGS button

1. Press and hold the CLOCK (SETTINGS)

button until the clock display blinks.

2. Press Preset (4 (Hour) or (5 (Minute) to

adjust the time.

3. Press the CLOCK button again to set the

time.

1Using the SETTINGS button

To set the time to the nearest hour: Press and hold

the CLOCK button until the clock display blinks, then

press the (6 (Reset) button.

Depending on the displayed time, the clock sets

forward or backward.

Example:

1:06 will reset to 1:00

1:53 will reset to 2:00

Models with one display

(5 (Minute) Button

CLOCK (SETTINGS) Button

(6 (Reset) Button

(4 (Hour) Button

14 US ODYSSEY-31TK86300.book 109 ページ２０１３年７月２５日　木曜日　午後４時２３分

110

Controls

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

Use the keys to start and stop the engine, and to lock and unlock the doors and

tailgate. You can also use the remote transmitter or smart entry system* to lock and

unlock the doors and to open the tailgate.

■Smart entry remote*

The built-in key can be used to lock/unlock the

doors when the smart entry remote battery

becomes weak and the power door lock/

unlock operation is disabled.

To remove the built-in key, pull it out while

sliding the release knob. To reinstall the built-

in key, push the built-in key into the smart

entry remote until it clicks.

■Master Keys

1Key Types and Functions

All of the keys have an immobilizer system. The

immobilizer system helps to protect against vehicle

theft.

2Immobilizer System P. 135

The keys contain precision electronics.

Adhere to the following advice to prevent damage to

the electronics:

•Do not leave the keys in direct sunlight, or in

locations with high temperature or high humidity.

•Do not drop the keys or set heavy objects on them.

•Keep the keys away from liquids.

•Do not take the keys apart except for replacing the

battery.

If the circuits in the keys are damaged, the engine

may not start, and the remote transmitter may not

work.

If the keys do not work properly, have them

inspected by a dealer.

Models without

smart entry system

Models with smart

entry system

Models with smart entry

system and power tailgate

Release Knob

Built-in Key

* Not available on all models

14 US ODYSSEY-31TK86300.book 110 ページ２０１３年７月２５日　木曜日　午後４時２３分

111

uuLocking and Unlocking the DoorsuKey Types and Functions

Controls

Can be used to start and stop the engine, and

lock and unlock driver's door.

Contains a number that you will need if you

purchase a replacement key.

■Valet Key*

1Valet Key*

When you need to leave a key with a third party,

leave the valet key.

Gray

■Key Number Tag

1Key Number Tag

Keep the key number tag separate from the key in a

safe place outside of your vehicle.

If you wish to purchase an additional key, contact a

dealer.

If you lose your key and you cannot start the engine,

contact a dealer.

* Not available on all models

14 US ODYSSEY-31TK86300.book 111 ページ２０１３年７月２５日　木曜日　午後４時２３分

112

uuLocking and Unlocking the DoorsuLow Smart Entry Remote Signal Strength*

Controls

Low Smart Entry Remote Signal Strength*

The vehicle transmits radio waves to locate the smart entry remote when locking/

unlocking the doors and the tailgate, opening the power sliding door and the power

tailgate*, or to start the engine.

In the following cases, locking/unlocking the doors, opening the power sliding door

and the power tailgate*, or starting the engine may be inhibited or operation may

be unstable:

•Strong radio waves are being transmitted by nearby equipment.

•You are carrying the smart entry remote together with telecommunications

equipment, laptop computers, cell phones, or wireless devices.

•A metallic object is touching or covering the smart entry remote.

1Low Smart Entry Remote Signal Strength*

Communication between the smart entry remote and

the vehicle consumes the smart entry remote’s

battery.

Battery life is about two years, but this varies

depending on regularity of use.

The battery is consumed whenever the smart entry

remote is receiving strong radio waves. Avoid placing

it near electrical appliances such as televisions and

personal computers.

* Not available on all models

14 US ODYSSEY-31TK86300.book 112 ページ２０１３年７月２５日　木曜日　午後４時２３分

113

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside

Continued

Controls

Locking/Unlocking the Doors from the Outside

■Locking the doors

Press the lock button.

Once:

uSome exterior lights flash, all the doors

and the tailgate lock, and the security

system sets.

Twice (within five seconds after the first

push):

uA beeper sounds and verifies the security

system* is set.

■Using the Remote Transmitter

1Using the Remote Transmitter

If you do not open a door within 30 seconds of

unlocking the vehicle with the remote transmitter,

the doors will automatically relock.

You can change the relock timer setting.

2Customized Features P. 99, 295

If the interior light switch is in the door activated

position, the interior lights come on when you press

the unlock button.

No doors opened: The lights fade out after 30

seconds.

Doors relocked with the remote: The lights go off

immediately.

2Interior Lights P. 176

The remote transmitter uses low-power signals, so

the operating range may vary depending on the

surroundings.

The remote will not lock the vehicle when a door is

open.

You can lock or unlock doors using the remote

transmitter or smart entry system only when the

power mode in VEHICLE OFF.

Models without smart entry system

Models with smart entry system

LED

Unlock

Button

Lock

Button

Unlock

Button

LED

Lock

Button

Unlock

Button Lock

Button

LED

* Not available on all models

14 US ODYSSEY-31TK86300.book 113 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside

114

Controls

■Unlocking the doors

Press the unlock button.

Once:

uSome exterior lights flash twice, and the driver's door unlocks.

Twice:

uThe remaining doors and the tailgate unlock.

1Using the Remote Transmitter

If the distance at which it works varies, the battery is

probably low.

If the LED does not come on when you press a

button, the battery is dead.

2Replacing the Button Battery P. 500

You can customize the door unlock mode setting.

2Customized Features P. 99, 295

14 US ODYSSEY-31TK86300.book 114 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 115

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside

Controls

When you carry the smart entry remote, you

can lock/unlock the doors and open the

tailgate.

You can lock/unlock the doors within a radius

of about 32 inches (80 cm) of the outside door

handle. You can open the tailgate within

about 32 inches (80 cm) radius from the

tailgate outer handle.

■Locking the doors and the tailgate

Press the door lock button on the front door

or the tailgate.

uSome exterior lights flash; the beeper

sounds; all the doors and tailgate lock;

and the security system sets.

■Using the Smart Entry with Push Button Start System*

Door Lock Button

Lock Button

1Using the Smart Entry with Push Button Start System*

•Do not leave the smart entry remote in the vehicle

when you get out. Carry it with you.

•Even if you are not carrying the smart entry remote,

you can lock/unlock the doors while someone else

with the remote is within range.

•The door may be unlocked if the door handle is

covered with water in heavy rain or in a car wash if

the smart entry remote is within range.

•If you grip a door handle wearing gloves, the door

sensor may be slow to respond or may not respond

by unlocking the doors.

•You cannot unlock the door by gripping the handle

after two seconds of unlocking it.

•The door might not open if you pull it immediately

after gripping the door handle. Grip the handle

again and confirm that the door is unlocked before

pulling the handle.

•Even within the 32 inches (80 cm) radius, you may not

be able to lock/unlock the doors with the smart entry

remote if it is above or below the outside handle.

•The smart entry remote may not operate if it is too

close to the door and door glass.

If the distance at which it works varies, the battery is

probably low.

If the LED does not come on when you press a

button, the battery is dead.

2Replacing the Button Battery P. 500

You can customize the door lock mode and keyless

lock acknowledgement setting.

2Customized Features P. 99, 295

* Not available on all models

14 US ODYSSEY-31TK86300.book 115 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside

116

Controls

■Unlocking the doors and the tailgate

Grab the driver’s door handle:

uThe driver’s door unlocks.

uSome exterior lights flash twice and the

beeper sounds twice.

Grab the front passenger’s door or rear door

handle:

uAll doors and the tailgate unlock.

uSome exterior lights flash twice and the

beeper sounds twice.

Press and hold the tailgate outer handle.

uAll doors and the tailgate unlock and

open.

uSome exterior lights flash twice and the

beeper sounds twice.

2Opening/Closing the Tailgate Using the

Tailgate Outer Handle and Inner Handle

P. 122

1Using the Smart Entry with Push Button Start System*

If you do not open a door within 30 seconds of

unlocking the vehicle, the doors will automatically

relock.

The light flash, beep and unlock settings can be

customized.

2Customized Features P. 99, 295

You can also unlock and open with the power

tailgate.

2Opening/Closing the Tailgate Using the

Tailgate Outer Handle and Inner Handle

P. 122

Tailgate Outer

Handle

* Not available on all models

14 US ODYSSEY-31TK86300.book 116 ページ２０１３年７月２５日　木曜日　午後４時２３分

117

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside

Controls

Fully insert the key and turn it.

■Locking the driver's door

Push the lock tab rearward a or push the

master door lock switch in the lock direction

b, and close the door.

■Locking the passenger's doors

Push the lock tab rearward and close the door.

■Lockout prevention system

The doors and tailgate cannot be locked when the key is in the ignition switch*1, or

the smart entry remote is inside the vehicle.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Locking/Unlocking the Doors Using a Key

1Locking/Unlocking the Doors Using a Key

When you lock the driver's door with a key, all of the

other doors and the tailgate lock at the same time.

When unlocking, the driver's door unlocks first. Turn

the key a second time within a few seconds to unlock

the remaining doors and the tailgate.

You can customize the door unlock mode setting.

2Customized Features P. 99, 295

Lock Unlock

■Locking a Door Without Using a Key

1Locking a Door Without Using a Key

When you lock the driver's door, all the other doors

and the tailgate lock at the same time.

Make sure you have the key in your hand before

locking the door to prevent it from being locked in

the vehicle.

14 US ODYSSEY-31TK86300.book 117 ページ２０１３年７月２５日　木曜日　午後４時２３分

118

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside

Controls

Locking/Unlocking the Doors from the Inside

■Locking a door

Pull the lock tab.

■Unlocking a door

Push the lock tab in.

Press the master door lock switch in as shown

to lock or unlock all doors and the tailgate.

■Using the Lock Tab

1Using the Lock Tab

When you lock the door using the lock tab on the

driver's door, all of the other doors and the tailgate

lock at the same time.

When you unlock the door using the lock tab on the

driver's door, only the driver's door will unlock.

To Unlock

Lock Tab

To Lock

■Using the Master Door Lock Switch*

1Using the Master Door Lock Switch*

When you lock/unlock the driver's door using the

master door lock switch, all the other doors and the

tailgate lock/unlock at the same time.

The front passenger’s door also has the master door

lock switch.

To Unlock

Master Door

Lock Switch

To Lock

* Not available on all models

14 US ODYSSEY-31TK86300.book 118 ページ２０１３年７月２５日　木曜日　午後４時２３分

119

uuLocking and Unlocking the DoorsuChildproof Door Locks

Controls

Childproof Door Locks

The childproof door locks prevent the rear doors from being opened from the inside

regardless of the position of the lock tab.

Slide the lever in the rear door to the lock

position, and close the door.

■When opening the sliding door

Open the door using the outside door handle.

■Setting the Childproof Door Locks

1Childproof Door Locks

To open the door from the inside when the

childproof door lock is on, put the lock tab in the

unlock position, lower the rear window, put your

hand out of the window, and pull the outside door

handle.

The door pillar switches become disabled.

2Power Sliding Door Switches P. 131

Unlock

Lock

Models with power sliding doors

Lock

Unlock

14 US ODYSSEY-31TK86300.book 119 ページ２０１３年７月２５日　木曜日　午後４時２３分

120

uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking

Controls

Auto Door Locking/Unlocking

Your vehicle locks all doors and the tailgate and unlocks the driver’s door

automatically when a certain condition is met.

■Drive lock mode

All doors and the tailgate lock when the vehicle’s speed reaches about 10 mph (15

km/h).

■Park unlock mode

The driver’s door unlocks when the shift lever is moved into (P with the brake pedal

depressed.

■Auto Door Locking

■Auto Door Unlocking

1Auto Door Locking/Unlocking

You can turn off or change to another auto door

locking/unlocking setting using the audio/

information screen or multi-information display*.

2Customized Features P. 99, 295

* Not available on all models

14 US ODYSSEY-31TK86300.book 120 ページ２０１３年７月２５日　木曜日　午後４時２３分

121

Controls

Opening and Closing the Tailgate

Precautions for Opening/Closing the Tailgate

Always make sure individuals and objects are clear of the tailgate before opening or

closing it.

■Opening the tailgate

•Open the tailgate all the way.

uIf it is not fully opened, the tailgate may begin to close under its own weight.

•Be careful when it is windy. The wind may cause the tailgate to close.

■Closing the tailgate

Keep the tailgate closed while driving to:

uAvoid possible damage.

uPrevent exhaust gas from leaking into the vehicle.

2Exhaust Gas Hazard P. 66

1Precautions for Opening/Closing the Tailgate

Be careful not to hit your head on the tailgate or to

put your hands between the tailgate and the cargo

area.

When operating the power tailgate, make sure there

is enough space around your vehicle. People near the

tailgate may be seriously hurt if the tailgate hits their

head or closes on their heads. Be especially cautious

if children are around.

When you are storing or picking up luggage from the

cargo area while the engine is idling, do not stand in

front of the exhaust pipe. You may get burned.

Do not allow any passenger in the cargo space. They

may get hurt during hard braking, a sudden

acceleration, or a crash.

WARNING

Closing a power tailgate while anyone is in

the path of the tailgate can cause serious

injury.

Make sure everyone is clear before closing

the tailgate.

Models with power tailgate

14 US ODYSSEY-31TK86300.book 121 ページ２０１３年７月２５日　木曜日　午後４時２３分

122

uuOpening and Closing the TailgateuOpening/Closing the Tailgate Using the Tailgate Outer Handle and Inner Handle

Controls

Opening/Closing the Tailgate Using the Tailgate

Outer Handle and Inner Handle

When all the doors are unlocked, the tailgate

is unlocked. Press and hold the tailgate outer

handle and lift open the tailgate.

Even if the tailgate is locked, you can open the

tailgate if you carry the smart entry remote.

When the Power Tailgate Open By Outer

Handle setting is On (Power/Manual), you

can operate the power tailgate by pressing

and releasing the tailgate outer handle.

2Customized Features P. 99, 295

To manually close the tailgate, grab the inner

handle, pull the tailgate down, and push it

closed from outside.

Tailgate

Outer

Handle

Models with smart entry system

Models with power tailgate

Inner

Handle

14 US ODYSSEY-31TK86300.book 122 ページ２０１３年７月２５日　木曜日　午後４時２３分

123

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*

Continued

Controls

Opening/Closing the Power Tailgate*

The power tailgate can be operated by pressing the power tailgate button on the

smart entry remote or instrument panel, or pressing the handle or button on the

tailgate.

■The power tailgate can be opened when:

•The tailgate is fully closed.

•The shift lever is in (P.

•Press and hold the tailgate button on the smart entry remote for about one

second when the power mode is in VEHICLE OFF (LOCK).

uIf you have changed the Power Tailgate Keyless Open Mode setting to

When Unlocked, you need to unlock the tailgate before you press the tailgate

button to open it.

2Customized Features P. 99, 295

■The power tailgate can be closed when:

•The tailgate is fully open.

•The shift lever is in (P.

•Press and hold the tailgate button on the smart entry remote for about one

second when the power mode is in VEHICLE OFF (LOCK).

1Opening/Closing the Power Tailgate*

The power tailgate may not open or close under the

following conditions:

•The vehicle is parked on a steep hill.

•The vehicle is swayed in a strong wind.

•The tailgate or the roof is covered with snow or ice.

If you close the power tailgate when all the doors are

locked, the power tailgate locks automatically.

If you replace the battery or the power tailgate fuse

while the tailgate is open, the power tailgate may be

disabled. The power tailgate resumes once you

manually close the tailgate.

Installing aftermarket components other than

genuine Honda accessories on the power tailgate

may prevent it from fully opening or closing.

Make sure the power tailgate is fully open before you

get your luggage in and out.

Make sure the power tailgate is fully closed before

you start the vehicle.

* Not available on all models

14 US ODYSSEY-31TK86300.book 123 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*

124

Controls

Press the power tailgate button for more than

one second to operate.

To reverse direction while the power tailgate is

in operation, press the button again. The

beeper sounds three times and the tailgate

reverses direction.

■Customizing when to open the tailgate

Anytime: The power tailgate unlocks and opens at the same time. This is the

default setting.

When Unlocked: The tailgate opens when all doors are unlocked.

2Customized Features P. 99, 295

■Remote Transmitter

1Opening/Closing the Power Tailgate*

If the power tailgate meets resistance while opening

or closing, the auto reverse feature reverses the

direction. Three beeps sound.

The auto reverse function stops sensing when the

tailgate is almost closed to make sure that it fully

closes.

Do not touch the sensors located on both sides of the

tailgate. The power tailgate does not close if you

touch either sensor when you are trying to close the

tailgate.

Be careful not to scratch the sensors with a sharp

object. If scratched, they can be damaged, and the

power tailgate closing feature malfunctions.

Power

Tailgate

Button

* Not available on all models

14 US ODYSSEY-31TK86300.book 124 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 125

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*

Controls

To open or close the power tailgate, press the

power tailgate button for about one second.

The beeper sounds and some exterior lights

flash.

To reverse direction while the power tailgate is

in operation, press the button again. The

beeper sounds three times and the tailgate

reverses direction.

Press the button on the tailgate to close the

power tailgate.

If you press the button again while the power

tailgate is closing, it stops and reverses

direction.

■Power Tailgate Button

Power

Tailgate

Button

■Power Tailgate Close Button

1Power Tailgate Close Button

If you press the power tailgate close button while the

tailgate is automatically opening or closing, the

power tailgate operation stops. Use caution if the

tailgate stops in the middle of either operation. It may

suddenly swing up or down.

Power Tailgate

Close Button

14 US ODYSSEY-31TK86300.book 125 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*

126

Controls

If you manually close the power tailgate, it latches automatically.

Automatically lowers the power tailgate when there is a possibility that the fully

opened power tailgate can fall down by its own weight (for example, by snow on

the tailgate). The beeper sounds while the power tailgate lowers.

■Auto-Closer

■Power Tailgate Fall Detection

1Auto-Closer

The auto-closer feature does not activate if you push

the tailgate release button while the power tailgate is

closing.

Do not put any force on the tailgate while the power

tailgate is latching.

Keep your hands away from the tailgate when you

manually close the tailgate and let it latch

automatically. It is dangerous to put your hands

around the tailgate as it starts to latch itself.

1Power Tailgate Fall Detection

If you try to manually close the power tailgate

immediately after it fully opens, the power tailgate

fall detection may activate.

Once the power tailgate fall detection activates, wait

until the power tailgate fully closes. Keep away from

the power tailgate when it is in motion.

If the power tailgate fall detection constantly

activates, consult at a dealer.

14 US ODYSSEY-31TK86300.book 126 ページ２０１３年７月２５日　木曜日　午後４時２３分

127

Controls

Opening and Closing the Sliding Doors

Precautions for Opening/Closing the Sliding Doors

Always make sure individuals and objects are clear of the sliding doors.

■Opening the sliding doors

Open the door all the way until it stops.

uIf it is not fully opened, the door may close again by its own weight.

1Precautions for Opening/Closing the Sliding Doors

Do not leave the sliding door open while parking on

a slope. The door may slide close by its weight.

When opening or closing the sliding doors, do not

grab the door or place your hand on the vehicle body.

Use the handle.

Do not put your foot and hand on the sliding door rail

and on the rollers.

If a small child is in the vehicle, use the childproof

door locks to prevent the child in the rear seat from

accidentally opening the sliding doors.

2Childproof Door Locks P. 119

Do not put any items that stick out from the pocket

in the door pockets. It may prevent the doors from

properly opening or closing, and damage the vehicle.

WARNING

Closing a sliding door while any part of a

passenger is in the door’s path can cause

serious injury.

Make sure all passengers are clear of the

doorway before closing a sliding door.

14 US ODYSSEY-31TK86300.book 127 ページ２０１３年７月２５日　木曜日　午後４時２３分

128

uuOpening and Closing the Sliding DoorsuOpening/Closing a Sliding Door

Controls

Opening/Closing a Sliding Door

■From outside

To open: Pull the door handle rearward and

slide the door.

To close: Pull the door handle forward and

slide the door.

■From inside

To open: Grab the inner handle and pull it

rearward. Slide the door.

To close: Grab the inner handle and pull it

forward. Slide the door.

1Opening/Closing a Sliding Door

Once a door is fully opened, the door position is

locked.

Do not step on the cover that stores the wiring for

the sliding door. The wiring is likely to get damaged,

causing the sliding door operation to malfunction.

If you try to open the sliding door with the window

open more than 3 inch (8 cm), the door stops

halfway. Close the door, close the window, and then

open the door again.

While the fuel fill door is open, you cannot open the

driver side sliding door. Operate the door after the

fuel fill door is closed.

If you try to open the driver side power sliding door

while the fuel fill door is open, the beeper sounds and

the door stops.

Cover

Models with power sliding doors

Door Handle

Inner Handle

Open

14 US ODYSSEY-31TK86300.book 128 ページ２０１３年７月２５日　木曜日　午後４時２３分

129

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors*

Continued

Controls

Opening/Closing the Power Sliding Doors*

The power sliding doors can be operated by pressing the power sliding door button

on the smart entry remote, pressing the power sliding door switches on the

dashboard or door pillars, or using the door handle.

The power sliding doors can be operated when:

•The sliding door main switch is in the ON position.

•The power sliding door is unlocked.

•The fuel fill door is closed (on the driver side sliding door only).

•The power mode is in VEHICLE OFF (LOCK) when using the smart entry remote.

•The shift lever is in (P, the brake pedal is depressed, or the parking brake is

applied (with the power mode in ON) when using the power sliding door switches

on the dashboard.

1Opening/Closing the Power Sliding Doors*

If you move the shift lever out of (P, and release the

brake pedal and the parking brake:

While opening – The sliding door stops and is left

ajar.

While closing – The beeper sounds until the door

closes.

Check that passengers, especially children, do not

have their hands on the sliding doors or on the door

pillars before its operation. If someone is caught in

the opening or closing sliding door, it can cause

serious injury.

Before replacing a rear tire, turn the power sliding

door main switch to OFF.

Operate the power sliding doors only when the

vehicle is at a complete stop. Make sure you apply the

brake when rear passengers are boarding or exiting.

* Not available on all models

14 US ODYSSEY-31TK86300.book 129 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors*

130

Controls

■Switching between manual and automatic operations

Automatic operation: Select the ON

position of the sliding door main switch.

Manual operation: Select the OFF position

of the sliding door main switch.

2Opening/Closing a Sliding Door P. 128

1Opening/Closing the Power Sliding Doors*

Do not turn the main switch off while the power

sliding door is in operation on a slope. The power

sliding door’s fail-safe mode activates and the beeper

sounds continuously.

When the fail-safe mode is active, turn the main

switch on and close the door automatically.

The following can deactivate the fail-safe mode and

the sliding door may close by its own weight.

•Using the door handle

•Turning the main switch from ON to OFF

If you replace the battery or the power sliding door

fuse while the door is open, the power sliding door

may be disabled. The power sliding door resumes

once you manually close the door.

OFF ON

* Not available on all models

14 US ODYSSEY-31TK86300.book 130 ページ２０１３年７月２５日　木曜日　午後４時２３分

Continued 131

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors*

Controls

The power sliding door opens when you press

the OPEN side of the / switch, and

closes when you press the CLOSE side of the

/ switch.

While the power sliding door is in operation, if

you press the switch that corresponds to that

power sliding door, the beeper sounds and

the operation stops.

To resume the power sliding door operation,

press the same switch again.

■Power Sliding Door Switches

1Opening/Closing the Power Sliding Doors*

Auto Reverse

Do not touch the pinch sensor located at the front edge

of the power sliding door. Do not damage the sensor.

The power sliding door may not operate properly.

If the power sliding door senses resistance when

closing automatically, it will stop closing and reverse

direction. The beeper sounds.

Before the power sliding door operation, make sure

there are no people or obstacles near the door. The

auto reverse function should be activated in case of

emergency only. If someone is caught in the opening

or closing sliding door, it can cause serious injury. Pay

special attention to children.

Closing a power sliding door on someone’s hand or

fingers can cause serious injury. Some parts of the

door edge do not sense resistance when the door is

near closing.

Pinch

Sensor

* Not available on all models

14 US ODYSSEY-31TK86300.book 131 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors*

132

Controls

Press the power sliding door button for more

than one second to operate.

While the power sliding door is in operation, if

you press the button that corresponds to that

power sliding door, the beeper sounds and

the operation stops.

If you press the same button again, the sliding

door reverses its direction.

■Customizing when to open the sliding doors

Anytime: The power sliding door unlocks and opens at the same time. This is the

default setting.

When Unlocked: The door opens when all doors are unlocked.

2Customized Features P. 99, 295

■Smart Entry Remote

1Smart Entry Remote

When you press the power sliding door button to

open the door, the front door on the same side

unlocks.

Driver’s Side Power Sliding

Door Button

Passenger’s Side Power Sliding

Door Button

1Customizing when to open the sliding doors

When you select When Unlocked, you will hear

three short beeps.

When you select Any Time, you will hear one long

beep.

In When Unlocked, trying to operate the power

sliding door without unlocking the door triggers the

beeper to sound.

14 US ODYSSEY-31TK86300.book 132 ページ２０１３年７月２５日　木曜日　午後４時２３分

133

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors*

Controls

■Outer handles

Pull up on the outer handle towards you. The

sliding door starts opening or closing.

■Inner handles

Pull it rearward to automatically open the

sliding door, and pull it forward to

automatically close the door.

While the power sliding door is in operation, if you pull either handle that

corresponds to that power sliding door, the beeper sounds and the operation stops.

To resume the power sliding door operation, pull the same handle in the same

direction again.

■Door Handles

1Opening/Closing the Power Sliding Doors*

The beeper sounds and the power sliding door does

not open when you pull the inner or outer handle

under the following conditions:

•The power mode is in ON.

•The shift lever is in other than (P .

•The brake pedal is released.

•The parking brake is released.

If you leave the power sliding door half open on a

steep hill with the engine off, the door starts to

sliding down towards the hill bottom after 30

minutes. While the door is sliding down, the beeper

sounds.

Outer Handle

Inner Handle

Open

* Not available on all models

14 US ODYSSEY-31TK86300.book 133 ページ２０１３年７月２５日　木曜日　午後４時２３分

134

uuOpening and Closing the Sliding DoorsuAuto-Closer

Controls

Auto-Closer

If you manually close the power sliding door, it latches automatically.

The auto-closer feature activates with or without the main switch ON. The only

exception is when the fuel fill door is open with the main switch ON.

1Auto-Closer

Keep your hands away from the power sliding door.

The manually closed door latches automatically when

it is half-shut.

The auto-closer feature does not activate if you keep

pulling the inner or outer handle and while the sliding

door is closing.

Do not put any force on the power sliding door while

the door is latching.

Models with power sliding door

14 US ODYSSEY-31TK86300.book 134 ページ２０１３年７月２５日　木曜日　午後４時２３分

135

Continued

Controls

Security System

Immobilizer System

The immobilizer system prevents a key that has not been pre-registered from

starting the engine. Each key contains electronic transmitters that use electronic

signals to verify the key.

Pay attention to the following when inserting the key into the ignition switch or

pressing the ENGINE START/STOP button:

•Do not allow objects that emit strong radio waves near the ignition switch or the

ENGINE START/STOP button.

•Make sure the key is not covered by or touching a metal object.

•Do not bring a key from another vehicle's immobilizer system near the ignition

switch.

Security System Alarm*

The security system alarm activates when the tailgate, hood, or doors are opened

without the key, remote transmitter, or smart entry system*.

■When the security system alarm activates

The horn sounds intermittently, and all of the exterior lights flash.

■To deactivate the security system alarm

Unlock the vehicle using the key, remote transmitter, or smart entry system. The

system, along with the horn and flashing lights, is deactivated.

1Immobilizer System

NOTICE

Leaving the ignition key in the vehicle can result in

theft or accidental movement of the vehicle.

Always take the ignition key with you whenever you

leave the vehicle unattended.

Do not alter the system or add other devices to it.

Doing so may damage the system and make your

vehicle inoperable.

1Security System Alarm*

The security alarm continues for a maximum of two

minutes until the security system deactivates.

* Not available on all models

14 US ODYSSEY-31TK86300.book 135 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuSecurity SystemuSecurity System Alarm*

136

Controls

■Setting the security system alarm

The security system alarm automatically sets when the following conditions have

been met:

•The ignition switch is in LOCK (0*1, and the key has been removed from the

ignition switch.

•The hood is closed.

•All doors and the tailgate are locked with the key, the remote transmitter or smart

entry system.

■When the security system alarm sets

The security system alarm indicator in the instrument panel blinks. When the

blinking interval changes after about 15 seconds, the security system alarm is set.

■To cancel the security system alarm

The security system alarm is canceled when the vehicle is unlocked using the key,

remote transmitter, or smart entry sytem, or the ignition switch is turned to ON

(w*1. The security system alarm indicator goes off at the same time.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

1Security System Alarm*

Do not set the security system alarm when someone

is in the vehicle or a window is open. The system can

accidentally activate when:

•Unlocking the door with the lock tab.

•Opening the tailgate with the power tailgate

button on the dashboard.

If the battery goes dead after you have set the

security system alarm, the security alarm may go off

once the battery is recharged or replaced.

If this occurs, deactivate the security system alarm by

unlocking a door using the key or remote transmitter.

Do not attempt to alter this system or add another

device to it.

Models with power tailgate

* Not available on all models

14 US ODYSSEY-31TK86300.book 136 ページ２０１３年７月２５日　木曜日　午後４時２３分

137

uuSecurity SystemuSecurity System Alarm*

Controls

■The panic button on the remote

transmitter

If you press the panic button for

approximately one second, the following will

occur for about 30 seconds:

•The horn sounds.

•Some exterior lights flash.

■Canceling panic mode

Press any button on the remote transmitter, or

turn the ignition switch to ON (w*1.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Panic Mode

Panic

Button

Panic

Button

Panic

Button

14 US ODYSSEY-31TK86300.book 137 ページ２０１３年７月２５日　木曜日　午後４時２３分

138

Controls

Opening and Closing the Windows

Opening/Closing the Power Windows

The power windows can be opened and closed when the ignition switch is in ON

(w*1, using the switches on the doors. The driver side switches can be used to open

and close all of the windows.

The power window lock button on the driver side must be switched off (not pushed

in, indicator off) to open and close the windows from anywhere other than the

driver's seat.

When the power window lock button is pushed in, the indicator comes on and you

can only operate the driver's window. Turn the power window lock button on when

children are in the vehicle.

■Automatic operation

To open: Push the switch down firmly.

To close: Pull the switch up firmly.

The window opens or closes completely. To stop the

window at any time, push or pull the switch briefly.

■Manual operation

To open: Push the switch down lightly, and

hold it until the desired position is reached.

To close: Pull the switch up lightly, and hold it

until the desired position is reached.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Opening/Closing Windows with Auto-Open/Close Function

1Opening/Closing the Power Windows

The power windows can be operated for up to 10

minutes after you turn the ignition switch off.

Opening either front door cancels this function.

Auto Reverse

If a power window senses resistance when closing

automatically, it will stop closing and reverse

direction.

The driver’s window auto reverse function is disabled

when you continuously pull up the switch.

The auto reverse function stops sensing when the

window is almost closed to ensure that it fully closes.

WARNING

Closing a power window on someone's

hands or fingers can cause serious injury.

Make sure your passengers are away from

the windows before closing them.

OFF

Power Window

Lock Button

Indicator

Driver’s

Window

Switch

Front Passenger’s

Window Switch

14 US ODYSSEY-31TK86300.book 138 ページ２０１３年７月２５日　木曜日　午後４時２３分

139

uuOpening and Closing the WindowsuOpening/Closing the Power Windows

Continued

Controls

To open: Push the switch down.

To close: Pull the switch up.

Release the switch when the window reaches

the desired position.

To open: Press the unlock button twice

within 10 seconds and hold it down for the

second time. If the windows stop midway,

repeat the procedure.

■

Opening/Closing Windows without Auto-Open/Close Function

Open

2nd row seat

■Opening the Windows and Moonroof* with the Remote

Transmitter

Unlock

Button

* Not available on all models

14 US ODYSSEY-31TK86300.book 139 ページ２０１３年７月２５日　木曜日　午後４時２３分

140

uuOpening and Closing the WindowsuOpening/Closing the Power Windows

Controls

To open: Unlock the driver’s door with the

key. Within 10 seconds of returning the key to

the central position, turn the key in the unlock

direction and hold it there.

To close: Lock the driver’s door with the key.

Within 10 seconds of returning the key to the

central position, turn the key in the lock

direction and hold it there.

Release the key to stop the windows/

moonroof at the desired position. If you want

further adjustment, repeat the same

operation.

■Opening/Closing the Windows and Moonroof* with the Key

Close Open

* Not available on all models

14 US ODYSSEY-31TK86300.book 140 ページ２０１３年７月２５日　木曜日　午後４時２３分

141

Controls

Opening and Closing the Moonroof*

You can only operate the moonroof when the ignition switch is in ON (w*1. Use the

switch in the front of the ceiling to open and close the moonroof.

■Automatic operation

To open: Pull the switch back firmly.

To close: Push the switch forward firmly.

The moonroof will automatically open or close

all the way. To stop the moonroof midway,

touch the switch briefly.

■Manual operation

To open: Pull the switch back lightly, and

hold it until the desired position is reached.

To close: Push the switch forward lightly, and

hold it until the desired position is reached.

■Tilting the moonroof up

To tilt: Push on the center of the moonroof

switch.

To close: Push the switch forward firmly, then

release.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Opening/Closing the Moonroof

1Opening/Closing the Moonroof

NOTICE

Opening the moonroof in below freezing

temperature or when it is covered with snow or ice

can damage the moonroof panel or motor.

The power moonroof can be operated for up to 10

minutes after you turn the ignition switch off.

Opening either front door cancels this function.

When resistance is detected, the auto reverse

function causes the moonroof to change directions,

then stop. Auto reverse stops sensing when the

moonroof is almost closed to ensure that it fully

closes. Make sure that all objects, including fingers,

are clear of the moonroof.

You can use the remote transmitter or the key to

operate the moonroof.

2Opening the Windows and Moonroof*

with the Remote Transmitter P. 139

2Opening/Closing the Windows and

Moonroof* with the Key P. 140

WARNING

Opening or closing the moonroof on

someone's hands or fingers can cause

serious injury.

Make sure all hands and fingers are clear of

the moonroof before opening or closing it.

Open

Close Tilt

* Not available on all models

14 US ODYSSEY-31TK86300.book 141 ページ２０１３年７月２５日　木曜日　午後４時２３分

142

Controls

Operating the Switches Around the Steering Wheel

Ignition Switch*

1Ignition Switch*

You cannot take the key out unless the shift lever is

in (P.

If you open the driver's door when the key is in LOCK

(0 or ACCESSORY (q, a warning buzzer will sound

to remind you to take the key out.

If the key won't turn from LOCK (0 to ACCESSORY

(q, turn the key while moving the steering wheel left

and right. The steering wheel will unlock, allowing

the key to turn.

(0 LOCK: Insert and remove the key in this

position.

(q ACCESSORY: Operate the audio system and

other accessories in this position.

(w ON: This is the position when driving.

(e START: This position is for starting the engine.

The switch returns to ON (w when you let go of

the key.

* Not available on all models

14 US ODYSSEY-31TK86300.book 142 ページ２０１３年７月２５日　木曜日　午後４時２３分

143

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*

Continued

Controls

ENGINE START/STOP Button*

■Changing the Power Mode

1ENGINE START/STOP Button*

ENGINE START/STOP Button Operating Range

You can start the engine when the smart entry

remote is inside the vehicle.

The engine may also run if the smart entry remote is

close to the door or window, even if it is outside the

vehicle.

ON mode:

Indicator in the button is off, if the engine is running.

If the smart entry remote battery is weak, the beeper

sounds and the TO START, HOLD REMOTE NEAR

START BUTTON message appears on the multi-

information display*.

2If the Smart Entry Remote Battery is Weak

P. 521

Do not leave the power mode in ACCESSORY or ON

when you get out.

Operating Range

VEHICLE OFF (LOCK)

Indicator in the button is off.

The steering wheel is locked. The power to all electrical

components is turned off.

Press the button without the shift lever in (P.

Shift to (P then press the button.

Press the button.

Without pressing

the brake pedal

ACCESSORY

Indicator in the button is on.

Indicator in the button blinks (from ON to ACCESSORY).

Operate the audio system and other accessories in this

position.

Indicator in the button is on.

All electrical components can be used.

Indicator

* Not available on all models

14 US ODYSSEY-31TK86300.book 143 ページ２０１３年７月２５日　木曜日　午後４時２３分

144

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*

Controls

If you leave the vehicle for 30 to 60 minutes with the shift lever in (P and the power

mode in ACCESSORY, the vehicle automatically goes into the mode similar to

VEHICLE OFF (LOCK) to avoid the battery drain.

When in this mode:

The steering wheel does not lock.

You cannot lock or unlock doors with the remote transmitter or the smart entry

system.

Press the ENGINE START/STOP button twice to switch the mode to VEHICLE OFF

(LOCK).

■Automatic Power Off

14 US ODYSSEY-31TK86300.book 144 ページ２０１３年７月２５日　木曜日　午後４時２３分

145

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*

Controls

If you open the driver’s door when the power mode is set to ACCESSORY, a warning

buzzer sounds.

Warning buzzers may sound from inside or/

and outside the vehicle to remind you that the

smart entry remote is out of the vehicle. If the

buzzer continues even after the remote is put

back inside, place it to be within its

operational range.

■When the power mode is in ON

If the smart entry remote is taken out of the

vehicle, and the driver’s door is closed,

warning buzzers sound from both inside and

outside the vehicle. A warning message on

the information display or multi-information

display notifies the driver inside that the

remote is out.

■When the power mode is in

ACCESSORY

If the smart entry remote is taken out of the

vehicle, and the driver’s door is closed, a

warning buzzer sounds from outside the

vehicle.

■Power Mode Reminder

■Smart Entry Remote Reminder

1Smart Entry Remote Reminder

When the smart entry remote is within the system’s

operational range, and the driver’s door is closed, the

warning function cancels.

If the smart entry remote is taken out of the vehicle

after the engine has been started, you can no longer

change the ENGINE START/STOP button mode or

restart the engine. Always make sure if the remote is

in your vehicle when you operate the ENGINE

START/STOP button.

Removing the smart entry remote from the vehicle

through a window does not activate the warning

buzzer.

Do not put the smart entry remote on the dashboard

or in the glove box. It may cause the warning buzzer

to go off. Under some other conditions that can

prevent the vehicle from locating the remote, the

warning buzzer may also go off even if the remote is

within the system’s operational range.

Models with information display

Models with multi-information display

14 US ODYSSEY-31TK86300.book 145 ページ２０１３年７月２５日　木曜日　午後４時２３分

146

uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison

Controls

Ignition Switch and Power Mode Comparison

Ignition Switch

Position

LOCK (0)

(with/without

the key)

ACCESSORY (I) ON (II) START (III)

Without Smart Entry

System

●Engine is turned off and

power is shut down.

●The steering wheel is

locked.

●No electrical

components can be

used.

●Engine is turned off.

●Some electrical

components such as the

audio system and the

accessory power socket

can be operated.

●Normal key position

while driving.

●All electrical components

can be used.

●Use this position to start

the engine.

●The ignition switch

returns to the ON (II)

position when you

release the key.

Power Mode VEHICLE OFF

(LOCK)

ACCESSORY ON START

With Smart Entry

System and ENGINE

START/STOP

Button

Indicator-Off

●Engine is turned off and

power is shut down.

●The steering wheel is

locked.

●No electrical

components can be

used.

Indicator-On or blinking

●Engine is turned off.

●Some electrical

components such as the

audio system and the

accessory power socket

can be operated.

Indicator-

On (engine is turned off)

Off (engine is running)

●All electrical components

can be used.

Indicator-Off

●The mode automatically

returns to ON after the

engine starts.

Indicator is: On Off

14 US ODYSSEY-31TK86300.book 146 ページ２０１３年７月２５日　木曜日　午後４時２３分

147

uuOperating the Switches Around the Steering WheeluTurn Signals

Continued

Controls

Turn Signals

The turn signals can be used when the ignition

switch is in ON (w*1.

■One-touch turn signal

When you lightly push up or down and release

the turn signal lever, the exterior turn signals

and turn signal indicator blink three times.

The feature can be used when signaling for a

lane change.

Light Switches

Rotating the light switch turns the lights on

and off, regardless of the position of the

ignition switch*1.

■High beams

Push the lever forward until you hear a click.

■Low beams

When in high beams, pull the lever back to

return to low beams.

■Flashing the high beams

Pull the lever back, and release it.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

Right Turn

Left Turn

■Manual Operation

1Light Switches

If you leave the power mode in VEHICLE OFF (LOCK)

with the lights on, a light on reminder chime sounds

when you open the driver’s door.

If you remove the key from the ignition switch while

the lights are on, a chime sounds when the driver’s

door is opened.

When the lights are on, the lights on indicator in the

instrument panel will be on.

2Lights On Indicator P. 77

Repeatedly turning the headlights on and off reduces

the life of the HID headlight bulbs. If you sense that

the level of the headlights is abnormal, have the

vehicle inspected by a dealer.

Do not leave the lights on when the engine is off

because it will cause the battery to discharge.

Models with smart entry system

Models without smart entry system

Models with high voltage discharge tube bulb

High Beams

Flashing the high beams

Low Beams

Turns on parking, side marker,

tail, and rear license plate lights

Turns on headlights, parking, side

marker, tail, and rear license plate

lights

14 US ODYSSEY-31TK86300.book 147 ページ２０１３年７月２５日　木曜日　午後４時２３分

uuOperating the Switches Around the Steering WheeluLight Switches

148

Controls

Automatic lighting control can be used when

the ignition switch is in ON (w*1.

When you turn the light switch to AUTO, the

headlights and other exterior lights will switch

on and off automatically depending on the

ambient brightness.

uYou can change the auto light sensitivity

setting.

2Customized Features P. 99, 295

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Automatic Lighting Control*

1Automatic Lighting Control*

We recommend that you turn on the lights manually

when driving at night, in a dense fog, or in dark areas

such as long tunnels or parking facilities.

The light sensor is in the location shown below.

Do not cover this light sensor with anything;

otherwise, the automatic lighting system may not

work properly.

Adjust the auto light sensitivity as follows:

Setting The exterior lights come on

when the ambient light is at

MAX

HIGH

MID

LOW

MIN

Light Sensor

Bright

Dark

* Not available on all models

14 US ODYSSEY-31TK86300.book 148 ページ２０１３年７月２５日　木曜日　午後４時２３分

149

uuOperating the Switches Around the Steering WheeluLight Switches

Controls

The headlights automatically come on when the wipers are used several times within

a certain intervals with the headlight switch in AUTO.

The headlights automatically go off a few minutes later if the wipers are stopped.

The headlights, all other exterior lights, and the instrument panel lights turn off 15

seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),

take the remote with you, and close the driver's door.

uYou can change the headlight auto off timer setting.

2Customized Features P. 99, 295

If you turn the ignition switch to LOCK (0*1 with the headlight switch on, but do

not open the door, the lights turn off after 10 minutes (three minutes, if the switch

is in the AUTO position).

The lights turn on again when you unlock or open the driver's door. If you unlock

the door, but do not open it within 15 seconds, the lights go off. If you open the

driver's door, you will hear a lights on reminder chime.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an

ignition switch.

■Headlight Integration with Wiper*

■Automatic Lighting Off Feature

1Headlight Integration with Wiper*

This feature activates during the headlights are off in

AUTO.

The instrument panel brightness does not change

when the headlights come on.

At dark ambient light levels, the automatic lighting

control feature turns on the headlights, regardless of

the number of wiper sweeps.

* Not available on all models

14 US ODYSSEY-31TK86300.book 149 ページ２０１３年７月２５日　木曜日　午後４時２３分

150

uuOperating the Switches Around the Steering WheeluFog Lights*

Controls
