California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
How various systems in your vehicle were operating;
Whether or not the driver and passenger safety belts were
buckled/fastened;
How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
NOTICE
15 CR-V-31T0A6300.book 0 ページ 2014年9月16日 火曜日 午後2時13分
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this important safety information in a variety of forms,
including:

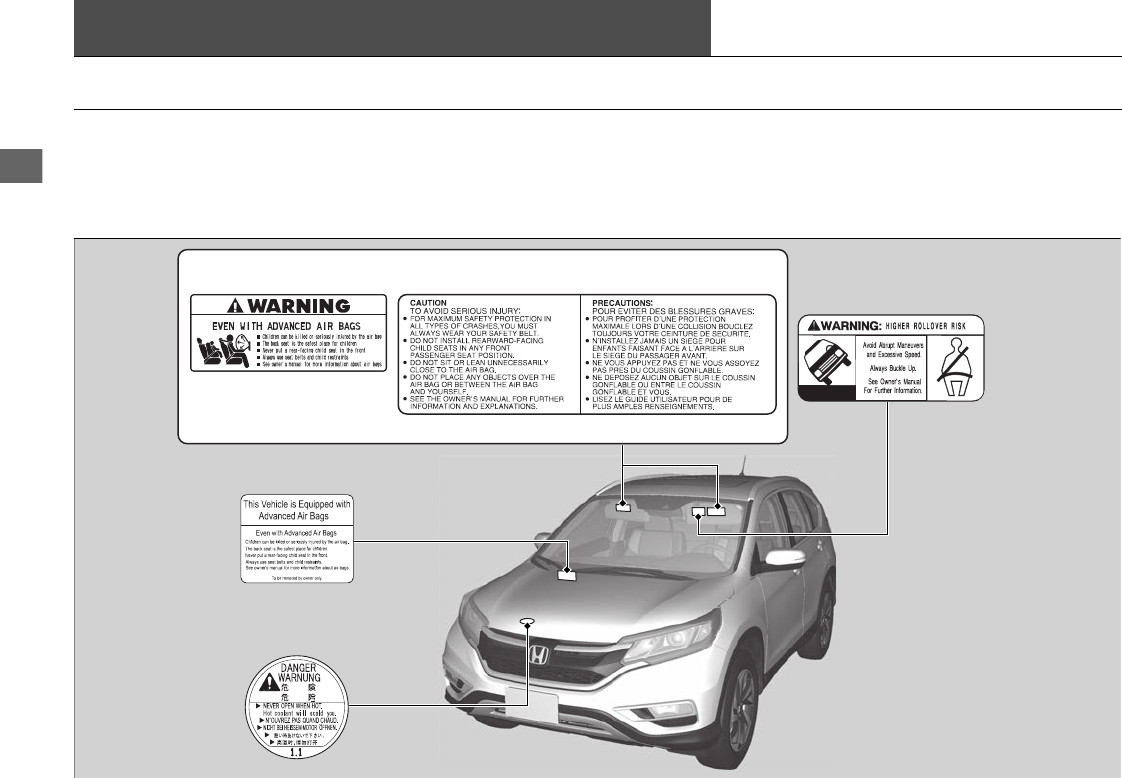

Safety Labels - on the vehicle.
Safety Messages - preceded by a safety alert symbol
3
and
one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
Safety Headings - such as Important Safety Precautions.
Safety Section - such as Safe Driving.
Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3DANGER
You WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTION
You CAN be HURT if you don't follow
instructions.
15 CR-V-31T0A6300.book 1 ページ 2014年9月16日 火曜日 午後2時13分
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 33 Airbags P. 41
2Instrument Panel P. 69
Indicators P. 70 Gauges and Displays P. 92
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 130
Opening and Closing the Moonroof
*
P. 152
Adjusting the Seats P. 175
Climate Control System
*
P. 200
2Features P. 205
Audio System P. 206 Audio System Basic Operation P. 213
Customized Features P. 271 HomeLink® Universal Transceiver
*
P. 282
2Driving P. 347
Before Driving P. 348 Towing a Trailer P. 353
Parking Your Vehicle P. 416
Multi-View Rear Camera
*
P. 417
2Maintenance P. 425
Before Performing Maintenance P. 426 Maintenance Minder
TM
P. 429
Checking and Maintaining Wiper Blades P. 461
2Handling the Unexpected P. 483
Tools P. 484 If a Tire Goes Flat P. 485
Overheating P. 497 Indicator, Coming On/Blinking P. 499
2Information P. 509
Specifications P. 510 Identification Numbers P. 512
Emissions Testing P. 515 Warranty Coverages P. 517
15 CR-V-31T0A6300.book 2 ページ 2014年9月16日 火曜日 午後2時13分
Contents
Child Safety P. 54 Exhaust Gas Hazard P. 67 Safety Labels P. 68
Opening and Closing the Tailgate P. 140 Security System P. 147 Opening and Closing the Windows P. 150
Operating the Switches Around the Steering Wheel P. 153 Adjusting the Mirrors P. 173
Interior Lights/Interior Convenience Items P. 185 Heating and Cooling System
*
P. 197
Audio Error Messages P. 262 General Information on the Audio System P. 267
Bluetooth® HandsFreeLink® P. 284 Compass P. 342
Off-Highway Driving Guidelines P. 358 When Driving P. 360 Braking P. 405
Refueling P. 420 Fuel Economy P. 423 Accessories and Modifications P. 424
Maintenance Under the Hood P. 440 Replacing Light Bulbs P. 452
Checking and Maintaining Tires P. 465 Battery P. 474 Remote Transmitter Care P. 475
Heating and Cooling System
*
/Climate Control System
*
Maintenance P. 477 Cleaning P. 478
Engine Does Not Start P. 491 Jump Starting P. 494 Shift Lever Does Not Move P. 496
Fuses P. 503 Emergency Towing P. 506
When You Cannot Open the Tailgate P. 507
Devices that Emit Radio Waves P. 513 Reporting Safety Defects P. 514
Authorized Manuals P. 519 Customer Service Information P. 520
Quick Reference Guide
P. 4
Safe Driving
P. 27
Instrument Panel
P. 69
Controls
P. 127
Features
P. 205
Driving
P. 347
Maintenance
P. 425
Handling the Unexpected
P. 483
Information
P. 509
Index
P. 522
15 CR-V-31T0A6300.book 3 ページ 2014年9月16日 火曜日 午後2時13分
4
Quick Reference Guide
Quick Reference Guide
Visual Index
ECON Button
(P 370)
Ignition Switch
*
(P 153)
Steering Wheel Adjustments
(P 172)
Information Display
*
(P 93)
Tire Pressure Monitoring System (TPMS) Button
*
(P 401)
Hazard Warning Button
System Indicators
(P 70)
Rear Window Defogger
(P 168)
Heated Mirror Button
*
(P 168)
Gauges
(P 92)
intelligent Multi-Information Display
(i-MID)
(P 111)
Multi-Information Display
*
(P 96)
ENGINE START/STOP Button
*
(P 154)
Heating and Cooling System
*
(P 197)
Audio System
(P 206)
Navigation System
*
() See the Navigation System Manual
(Vehicle Stability Assist (VSA®) System OFF) Button
(P 396)
Lane Departure Warning (LDW) Button
*
(P 387)
Collision Mitigation Braking System
TM
(CMBS
TM
) OFF Button
*
(P 412)
Heated Windshield Button
*
(P 169)
Power Tailgate Button
*
(P 145)
Climate Control System
*
(P 200)
15 CR-V-31T0A6300.book 4 ページ 2014年9月16日 火曜日 午後2時13分
5
(Select/Reset) Knob
*
(P 93)
MENU Button
(P 114)
(+ / (- / / Buttons (P 114)
SOURCE Button
(P 114)
(Display) Button
(P 111)
Headlights/Turn Signals
(P 158)
Brightness Control
(P 167)
Navigation System Voice Control Buttons
*
() See the Navigation System Manual
Bluetooth® HandsFreeLink® System Voice
Control Buttons
(P 284)
LaneWatch
TM*
(P 398)
Fog Lights
*
(P 162)
Wipers/Washers
(P 164)
Cruise Control Buttons
(P 371)
Adaptive Cruise Control (ACC) Buttons
*
(P 375)
Lane Keeping Assist System (LKAS) Button
*
(P 391)
(Information) Button
*
(P 96)
SEL/RESET Button
*
(P 96)
Horn (Press an area around .)
* Not available on all models
15 CR-V-31T0A6300.book 5 ページ 2014年9月16日 火曜日 午後2時13分
Visual Index
6
Quick Reference Guide
Power Door Lock Master Switch
(P 138)
Power Window Switches
(P 150)
Rearview Mirror
(P 173)
Driver's Front Airbag
(P 44)
Parking Brake
(P 405)
Hood Release Handle
(P 441)
Glove Box
(P 187)
Driver’s Pocket
Fuel Fill Door Release Handle
(P 421)
Memory Buttons
*
(P 171)

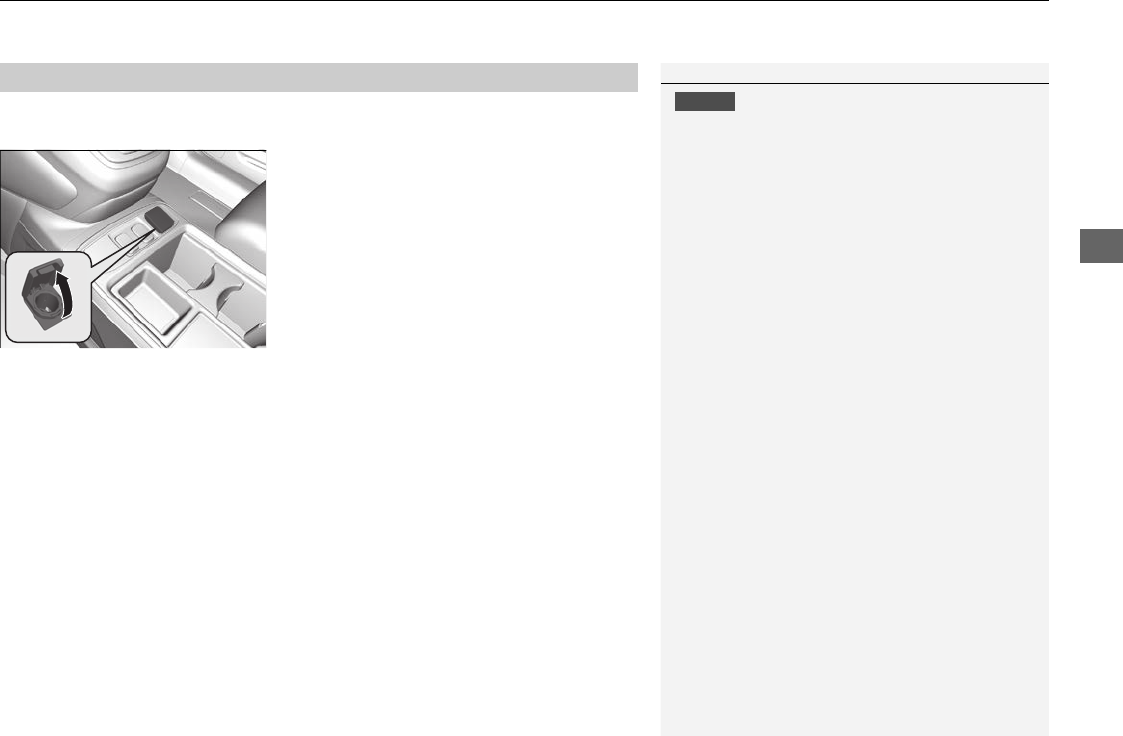

Accessory Power Socket
(P 189)
Seat Heater Switches
*
(P 194)
Interior Fuse Box
(P 504)
Passenger's Front Airbag
(P 44)
Shift Lever
Continuously Variable
Transmission
(P 368)
SET Button
*
(P 171)
Door Mirror Controls
(P 174)
15 CR-V-31T0A6300.book 6 ページ 2014年9月16日 火曜日 午後2時13分
7
Sun Visors
Vanity Mirrors
Moonroof Switch
*
(P 152)
Map Lights
(P 186)

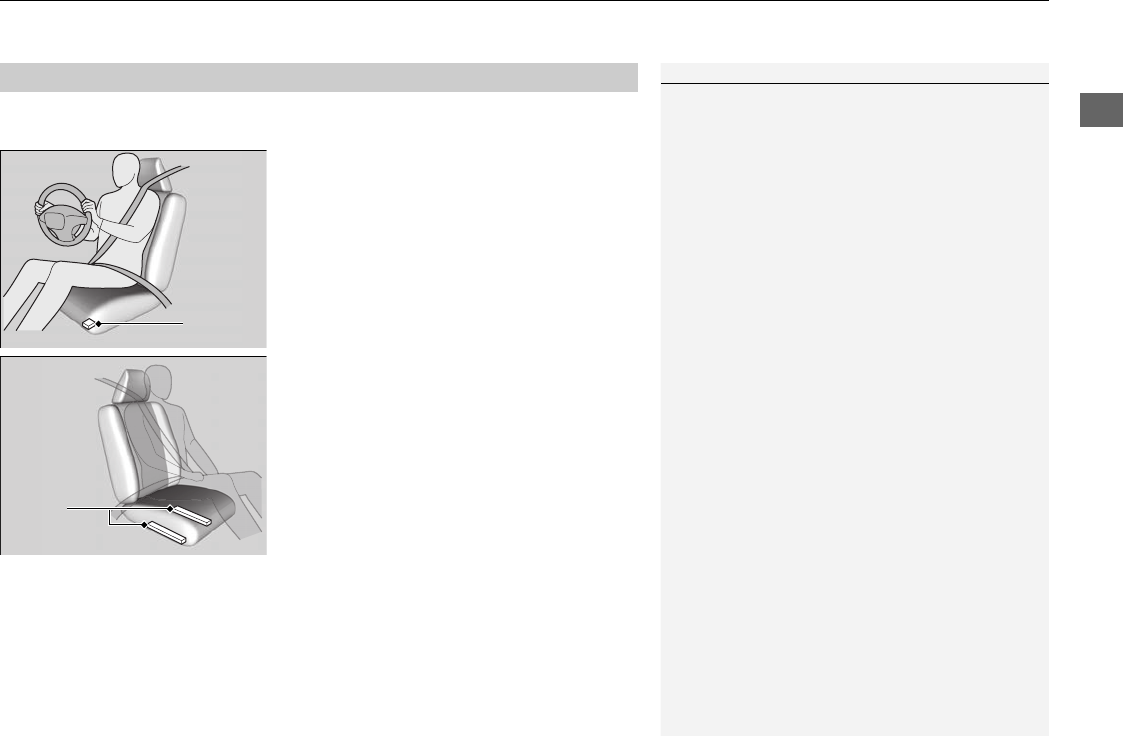

Front Seat
(P 175)
Seat Belts
(P 33)
Side Airbags
(P 48)
Rear Seat
(P 182)
Ceiling Light
(P 185)
Side Curtain Airbags
(P 50)

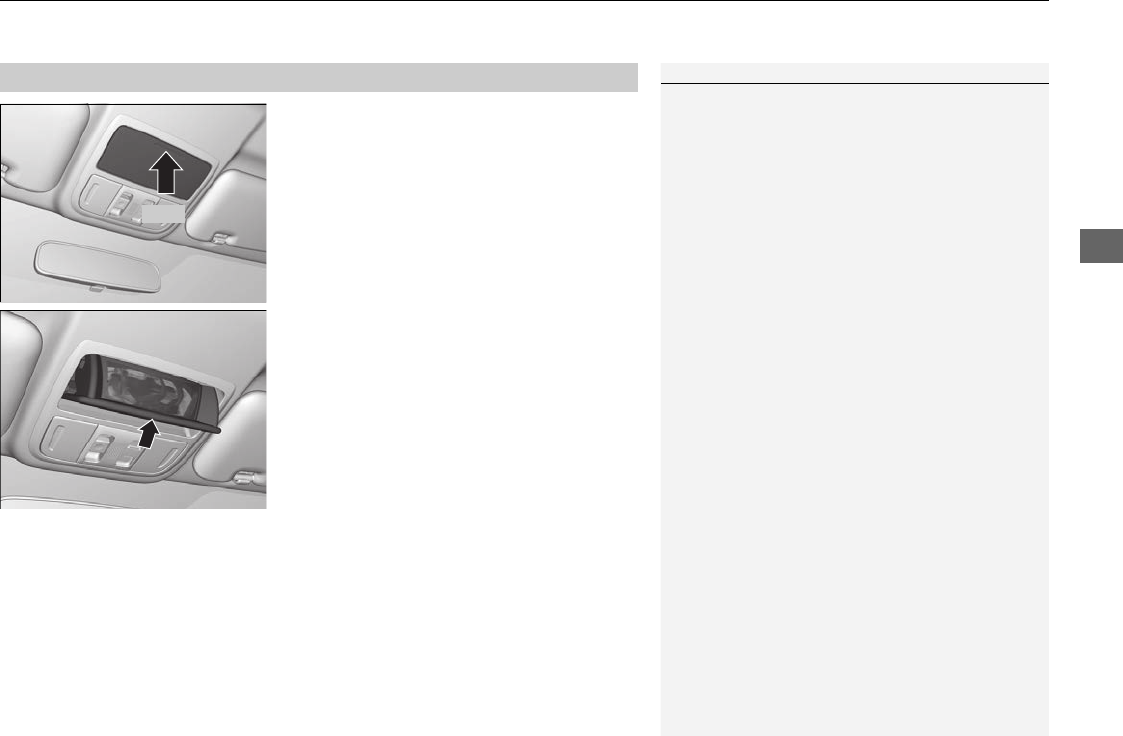

Sunglasses Holder
(P 193)
Seat Belt with Detachable Anchor
(P 38)
Cargo Area Light
(P 185)
USB Port(s)
*
(P 208)

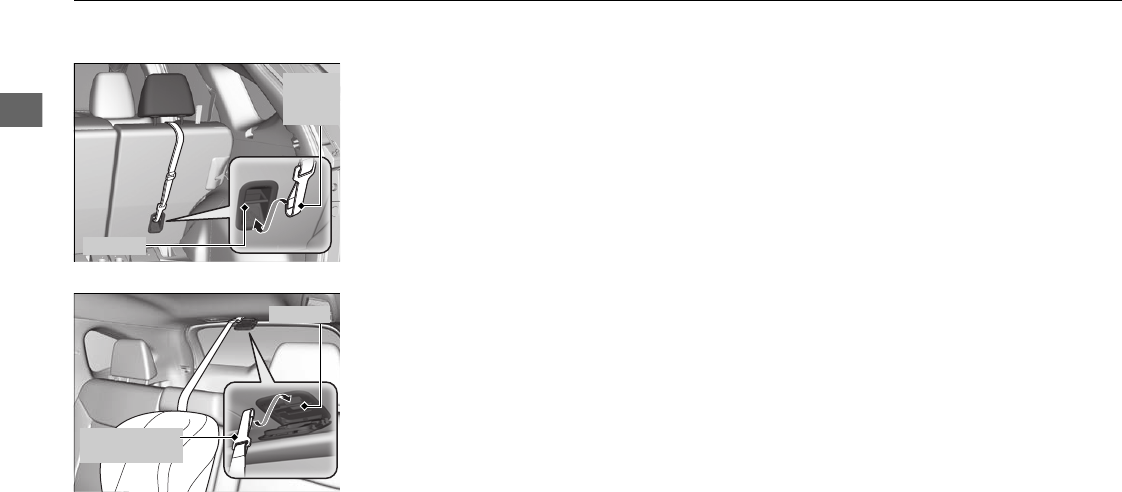

LATCH to Secure a Child Seat
(P 59)
Accessory Power Socket
(P 189)
HDMI® Port
*
(P 209)
Grab Handle
Coat Hook
(P 191)
Seat Belt to Secure a Child Seat
(P 63)
Seat Belt (Installing a Child Seat)
(P 62)
USB Adapter Cable
*
(P 207)
Auxiliary Input Jack
*
(P 207)
* Not available on all models
15 CR-V-31T0A6300.book 7 ページ 2014年9月16日 火曜日 午後2時13分
Visual Index
8
Quick Reference Guide
Audio Antenna
(P 209)
Windshield Wipers
(P 164, 461)
Door Lock/Unlock Control
(P 133)
How to Refuel
(P 421)
High-Mount Brake Light
(P 460)
Rear Wiper
(P 165, 463)
Back-Up Lights
(P 457)
Brake/Taillights
(P 457)
Rear Turn Signal Lights
(P 457)
Rear Side Marker Lights
(P 457)
Power Door Mirrors
(P 174)
Maintenance Under the Hood
(P 440)
Fog Lights
*
(P 162, 453)
Multi-View Rear Camera
*
(P 417)
Front Turn Signal/Side Marker Lights
(P 158, 455, 456)
Parking Lights
(P 159, 456)
Tires
(P 465, 485)
Headlights
(P 159, 452)
Opening/Closing the Tailgate
(P 140)
Tailgate Release Button
(P141)
15 CR-V-31T0A6300.book 8 ページ 2014年9月16日 火曜日 午後2時13分
9
Eco Assist System (P 370)
Ambient Meter
Changes color to reflect your driving
style.
Green: Fuel efficient driving
Yellow: Moderate acceleration/
deceleration
White: Aggressive acceleration/
deceleration
The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 370)
Helps maximize fuel economy.
ECON Mode Indicator (P 78)
Comes on when ECON mode is on.
The message is displayed for a
few seconds when the ECON
mode is turned on.
Models with multi-information
display
* Not available on all models
15 CR-V-31T0A6300.book 9 ページ 2014年9月16日 火曜日 午後2時13分
10
Quick Reference Guide
Safe Driving (P 27)
Airbags
(P 41)
Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety
(P 54)
All children 12 and younger should be seated in the rear seat.
Smaller children should be properly restrained in a forward-facing child seat.
Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard
(P 67)
Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist
(P 32)
Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts
(P 33)
Fasten your seat belt and sit upright well
back in the seat.
Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
15 CR-V-31T0A6300.book 10 ページ 2014年9月16日 火曜日 午後2時13分
11
Instrument Panel (P 69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA®) System
Indicator
VSA® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
*
Parking Brake
and Brake System
Indicator
Supplemental
Restraint System
Indicator
Door and Tailgate
*
Open Indicator
CRUISE MAIN Indicator
*
Tachometer Speedometer Fuel
Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
Low Fuel Indicator
Gauges
(P 92)
/Information Display
*
(P 93)
/Multi-Information Display
*
(P96)
/
intelligent Multi-Information Display (i-MID)
(P 111)
/System Indicators
(P 70)
Tailgate Open
Indicator
*
ECON Mode Indicator
Maintenance Minder
Indicator
*
Washer Level
Indicator
*
Ambient Meter
Temperature Gauge
Electric Power
Steering (EPS)
Indicator
Turn Signal and
Hazard Warning
Indicators
All-Wheel Drive
(AWD) System
Indicator
*
System Indicators
Canada
U.S.
Smart Entry System
Indicator
*
Lane Keeping Assist
System (LKAS) Indicator
*
Adaptive Cruise Control
(ACC) Indicator
*
Starter System
Indicator
*
Collision Mitigation
Braking System
TM
(CMBS
TM
) Indicator
*
Lane Departure
Warning Indicator
*
System Message
Indicator
*
Multi-Information Display
*
* Not available on all models
15 CR-V-31T0A6300.book 11 ページ 2014年9月16日 火曜日 午後2時13分
12
Quick Reference Guide
Controls (P127)
Clock
(P 128)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the i-MID is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation system
Models with two displays
i-MID
a
Press the CLOCK (AUX) button until the
displayed time begins flashing.
b
Press the (4 (Hour) or (5 (Minute)
button to set the time. Press the (6
(Reset) button to set the time to the
nearest hour.
c
Press the CLOCK button again to set
the time.
To set the time to the nearest hour:
Press and hold the CLOCK button until the
clock display begins to blink, then press the
(6 (Reset) button.
Depending on the displayed time, the clock
sets forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
a
Press the (Home) button, then
select Settings.
b
Select Clock/Info, then Clock
Adjustment.
c
Touch the / icon to adjust the
numbers up or down.
d
Select OK.
Models with two displays
(Home) Button
3
4
15 CR-V-31T0A6300.book 12 ページ 2014年9月16日 火曜日 午後2時13分
13
ENGINE START/STOP
Button
*
(P154)
Press the button to change the vehicle’s
power mode.
Turn Signals
(P158)
Lights
(P159)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam
High Beam
Flashing
Wipers and Washers
(P164)
*1:Models with automatic intermittent
wipers
*2:Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
: Low Sensitivity
*1
: Long Delay
*2
: High Sensitivity
*1
: Short Delay
*2
MIST
OFF
AUTO
*1
: Wiper speed varies
automatically
INT
*2
: Low speed with
intermittent
LO: Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
* Not available on all models
15 CR-V-31T0A6300.book 13 ページ 2014年9月16日 火曜日 午後2時13分
14
Quick Reference Guide
Steering Wheel
(P172)
To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P137)
Pull either front door inner handle to
unlock and open it at the same time.
Tailgate
(P140)
With all the doors unlocked, press the
tailgate release button and lift open the
tailgate.
Press the tailgate release button to
unlock and open the tailgate when you
carry the smart entry remote.
Press the power tailgate button on the
driver side control panel or the remote
transmitter to open and close the power
tailgate.
Models without smart entry system
Models with smart entry system
Models with power tailgate
Power Door Mirrors
(P174)
With the ignition switch in ON (w
*1
, move
the selector switch to L or R.
Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Selector Switch
Adjustment Switch
15 CR-V-31T0A6300.book 14 ページ 2014年9月16日 火曜日 午後2時13分
15
Power Windows
(P150)
With the ignition switch in ON (w
*1
, open
and close the power windows.
If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch
Indicator
Heating and Cooling System
*
(P 197)
Rotate the fan control dial to adjust the fan speed.
Press the Mode buttons ( / / / ) to select the vents air flows from.
Rotate the temperature control dial to adjust the temperature.
Use the button for maximum cool setting.
Rotate the fan control dial to OFF to turn the system off.
Press the button to defrost the windshield.
Fan Control
Dial
(Windshield
Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
Button
Button
Button (Recirculation) Button
Temperature
Control Dial
Button Button
* Not available on all models
15 CR-V-31T0A6300.book 15 ページ 2014年9月16日 火曜日 午後2時13分
16
Quick Reference Guide
Climate Control System
*
(P 200)
Press the AUTO button to activate the climate control system.
Press the button to turn the system on or off.
Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
Models with navigation system
Driver's Side Temperature
Control Dial
/ (Fan Control) Buttons
(Windshield Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
SYNC (Synchronized) Button
(Recirculation) Button
AUTO Button
Passenger's Side Temperature
Control Dial
MODE Control Button
(On/Off) Button
15 CR-V-31T0A6300.book 16 ページ 2014年9月16日 火曜日 午後2時13分
17
Features (P 205)
Audio Remote Controls
(P211)
(+ / (- Button
Press to adjust the volume up/down.
SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM®
*
/CD/USB/iPod/Pandora®
*
/Aha
TM
/
Apps/Bluetooth® Audio/AUX HDMI.
/ Button
Radio:Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button
/ Button
Models with one display
Models with two displays
Audio System
(P 206)
For navigation system operation
() See the Navigation System Manual
i-MID
AM Button
FM Button
SCAN Button
Skip/Seek Button
Selector Knob
Button (Power) Button
CD Button
AUX Button
CD Slot
(CD Eject) Button
Preset Buttons (1-6)
Button
SETUP Button
Skip/Seek Button
PHONE Button
Models with one display
* Not available on all models
15 CR-V-31T0A6300.book 17 ページ 2014年9月16日 火曜日 午後2時13分
18
Quick Reference Guide
Press the (Eject/CLOSE) button to open the screen.
Models with two displays
i-MID
(Power) Button
(Home) Button
VOL (Volume)
Buttons
(Menu) Button
(Back) Button
(Eject/CLOSE)
Button
Button
Audio/Information Screen
Microphones
Press the (Eject/CLOSE) button to
return the screen to the upright position.
(Eject/CLOSE) Button CD Slot
15 CR-V-31T0A6300.book 18 ページ 2014年9月16日 火曜日 午後2時13分
19
Driving (P 347)
Release Button Shift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Continuously Variable Transmission
(P 368)
Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
Better acceleration
Used to increase engine braking
Used when going up or down hills
Low
Used to further increase engine braking
Used when going up or down hills
15 CR-V-31T0A6300.book 19 ページ 2014年9月16日 火曜日 午後2時13分
20
Quick Reference Guide
VSA® OFF Button
(P 397)
The vehicle stability assist (VSA®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
VSA® comes on automatically every time
you start the engine.
To turn VSA® on or off, press and hold
the button until you hear a beep.
Cruise Control
(P 371)
Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
To use cruise control, press the CRUISE
button, then press –/SET once you have
achieved the desired speed (above 25
mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P 401)
Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
The TPMS is turned on automatically
every time you start the engine.
A calibration procedure must be
performed when certain conditions arise.
Collision Mitigation
Braking System
TM
(CMBS
TM
) OFF Button
*
(P 412)
When a possible collision is likely
unavoidable, the CMBS
TM
can help you to
reduce the vehicle speed and the severity
of the collision.
To turn the CMBS
TM
on or off, press and
hold the button until you hear a beep.
15 CR-V-31T0A6300.book 20 ページ 2014年9月16日 火曜日 午後2時13分
21
Refueling
(P 420)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 15.3 US gal (58 L)
a
Pull the fuel fill door
release handle.
b
Turn the fuel fill cap
slowly to remove the
cap.
c
Place the cap in the
holder on the fuel fill
door.
d
After refueling, screw
the cap back on until it
clicks at least once.
* Not available on all models
15 CR-V-31T0A6300.book 21 ページ 2014年9月16日 火曜日 午後2時13分
22
Quick Reference Guide
Maintenance (P 425)
Under the Hood
(P 440)
Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
Check brake fluid.
Check the battery condition monthly.
a
Pull the hood release handle under the corner of the
dashboard.
b
Locate the hood latch lever, pull the lever up, and lift up
the hood.
c
When finished, close the hood and make sure it is firmly
locked in place.
Lights
(P 452)
Inspect all lights regularly.
Wiper Blades
(P 461)
Replace blades if they leave streaks
across the windshield.
Tires
(P 465)
Inspect tires and wheels regularly.
Check tire pressures regularly.
Install snow tires for winter
driving.
15 CR-V-31T0A6300.book 22 ページ 2014年9月16日 火曜日 午後2時13分
23
Handling the Unexpected
(P483)
Flat Tire
(P485)
Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P499)
Identify the indicator and consult the
owner's manual.
Engine Won't Start
(P491)
If the battery is dead, jump start using a
booster battery.
Blown Fuse
(P503)
Check for a blown fuse if an electrical
device does not operate.
Overheating
(P497)
Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P506)
Call a professional towing service if you
need to tow your vehicle.
15 CR-V-31T0A6300.book 23 ページ 2014年9月16日 火曜日 午後2時13分
24
Quick Reference Guide
What to Do If
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Canadian models
The ignition switch does
not turn from (0 to (q
*1
.
Why?
The steering wheel may be locked.
Try to turn the steering wheel left and right
while turning the ignition key.
Move the steering wheel left and right while pressing the
ENGINE START/STOP button at the same time.
The ignition switch does
not turn from (q to (0
*1
and I cannot remove the
key. Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?
This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Models without smart entry system
Models with smart entry system
*2
15 CR-V-31T0A6300.book 24 ページ 2014年9月16日 火曜日 午後2時13分
25
The rear door cannot be
opened from inside the
vehicle. Why?
Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, push the
lever to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?
If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?
The beeper sounds when:
The key is left in the ignition switch
*
.
The power mode
*
is in ACCESSORY.
The exterior lights are left on.
* Not available on all models
15 CR-V-31T0A6300.book 25 ページ 2014年9月16日 火曜日 午後2時13分
26
Quick Reference Guide
Why does the beeper
sound when I start driving?
The beeper sounds when:
Driver and/or front passenger are not wearing their seat belts.
The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?
The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
15 CR-V-31T0A6300.book 26 ページ 2014年9月16日 火曜日 午後2時13分
27
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions ............. 28
Important Handling Information......... 30
Your Vehicle's Safety Features............ 31
Seat Belts
About Your Seat Belts........................ 33
Fastening a Seat Belt.......................... 36
Seat Belt Inspection............................ 40
Airbags
Airbag System Components............... 41
Types of Airbags ................................ 44
Front Airbags (SRS) ............................ 44
Side Airbags ...................................... 48
Side Curtain Airbags .......................... 50
Airbag System Indicators.................... 51
Airbag Care ....................................... 53
Child Safety
Protecting Child Passengers ............... 54
Safety of Infants and Small Children .......56
Safety of Larger Children ................... 65
Exhaust Gas Hazard
Carbon Monoxide Gas....................... 67
Safety Labels
Label Locations .................................. 68
15 CR-V-31T0A6300.book 27 ページ 2014年9月16日 火曜日 午後2時13分
28
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not properly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
Don't drink and drive
Alcohol and driving don't mix. Even one drink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
15 CR-V-31T0A6300.book 28 ページ 2014年9月16日 火曜日 午後2時13分
29
uuFor Safe DrivinguImportant Safety Precautions
Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regularly scheduled maintenance.
15 CR-V-31T0A6300.book 29 ページ 2014年9月16日 火曜日 午後2時13分
30
uuFor Safe DrivinguImportant Handling Information
Safe Driving
Important Handling Information
Your vehicle has higher ground clearance than a passenger vehicle designed for use
only on pavement. Higher ground clearance has many advantages for off-highway
driving. It allows you to travel over bumps, obstacles, and rough terrain. It also
provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Because your vehicle is taller and rides higher
off the ground, it has a higher center gravity making it more susceptible to tripping
or roll over if you make abrupt turns. Utility vehicles have a significantly higher
rollover rate than other types of vehicles. In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt. As a reminder,
make sure you and your passengers always wear seat belts.
1Important Handling Information
For information on how to reduce the risk of rollover,
read:
2Precautions While Driving P. 366
2Off-Highway Driving Guidelines P. 358
Failure to operate your vehicle correctly might result
in a crash or a rollover.
15 CR-V-31T0A6300.book 30 ページ 2014年9月16日 火曜日 午後2時13分
31
uuFor Safe DrivinguYour Vehicle's Safety Features
Continued
Your Vehicle's Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1Your Vehicle's Safety Features
Your vehicle is equipped with many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passengers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Seat Belt Tensioners
Side Airbags
11
10
9
8
7
6
Door Locks
11
10
8
7
99 8
6
10
7
15 CR-V-31T0A6300.book 31 ページ 2014年9月16日 火曜日 午後2時13分
uuFor Safe DrivinguYour Vehicle's Safety Features
32
Safe Driving
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2Locking/Unlocking the Doors from the Inside P. 137
Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2Adjusting the Seats P. 175
Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2Adjusting the Head Restraints P. 178
Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2Fastening a Seat Belt P. 36
Protect children by using seat belts or child seats according to a child's age, height
and weight.
2Child Safety P. 54
Safety Checklist
1Safety Checklist
If the door and/or the tailgate open indicator will
come on and a message appears on the multi-
information display
*
, a door and/or the tailgate is not
completely closed. Close all doors and the tailgate
tightly until the indicator goes off.
2Door and Tailgate Open Indicator P. 75
2Door Open Indicator P. 75
2Tailgate Open Indicator P. 75
**
* Not available on all models
15 CR-V-31T0A6300.book 32 ページ 2014年9月16日 火曜日 午後2時13分
33
Continued
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from being thrown against the inside of the
vehicle, against other passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
-frontal impacts
-side impacts
-rear impacts
-rollovers
Lap/shoulder seat belts
All five seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop the retractor locks to
restrain your body. The rear seat belts also have a lockable retractor for use with
child seats.
2Installing a Child Seat with a Lap/Shoulder Seat Belt P. 62
1About Your Seat Belts
Seat belts cannot completely protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
The emergency locking retractor may lock if you lean
forward too quickly. Slower movements will allow
the belt to extend fully without locking.
3
WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
15 CR-V-31T0A6300.book 33 ページ 2014年9月16日 火曜日 午後2時13分
uuSeat BeltsuAbout Your Seat Belts
34
Safe Driving
Proper use of seat belts
Follow these guidelines for proper use:
All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduce the effectiveness of the
belt and can increase the chance of serious injury in a crash.
Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
Do not put any accessories on the seat belts. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability
and increase the chance of serious injury in a crash.
Your vehicle monitors front seat belt use. If
the ignition switch is turned to ON (w
*1
before the driver’s seat belt is fastened, the
beeper will sound and the indicator will blink.
If the driver does not fasten the belt before
the beeper stops, the indicator will remain on.
The beeper will also periodically sound and
the indicator will blink while driving until the
driver's and front passenger’s seat belts are
fastened.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Seat Belt Reminder
1About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
1Seat Belt Reminder
The indicator will also come on if a front passenger
does not fasten their seat belt within six seconds after
the ignition switch is turned to ON (w
*1
.
When no one is sitting in the front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
The indicator also may not come on and the beeper
may not sound when the occupant is not heavy
enough to trigger the weight sensor. Such occupants
(e.g., infants and smaller children) should be moved
to the rear seat as a deploying front airbag likely will
injure or kill them.
2Protecting Child Passengers P. 54
*
* Not available on all models
15 CR-V-31T0A6300.book 34 ページ 2014年9月16日 火曜日 午後2時13分
35
uuSeat BeltsuAbout Your Seat Belts
The front seats are equipped with automatic seat belt tensioners to enhance safety.
The tensioners automatically tighten the front seat belts during a moderate-to-
severe frontal collision, sometimes even if the collision is not severe enough to
inflate the front airbags.
Automatic Seat Belt Tensioners
1Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
During a moderate-to-severe side impact, the
tensioner on that side of the vehicle also activates.
15 CR-V-31T0A6300.book 35 ページ 2014年9月16日 火曜日 午後2時13分
36
uuSeat BeltsuFastening a Seat Belt
Safe Driving
Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat:
2Adjusting the Seats P. 175
1. Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
uMake sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat belt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign objects into the buckle or
retractor mechanism.
Pull out slowly.
Correct
Seated
Posture.
Latch
Plate
Buckle
15 CR-V-31T0A6300.book 36 ページ 2014年9月16日 火曜日 午後2時13分
Continued
37
uuSeat BeltsuFastening a Seat Belt
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. This spreads the forces
of a crash over the strongest bones in your
upper body.
The front seats have adjustable shoulder anchors to accommodate taller and shorter
occupants.
1. Move the anchor up and down while
holding the release buttons.
2. Position the anchor so that the belt rests
across the center of your chest and over
your shoulder.
1Fastening a Seat Belt
To release the belt, push the red PRESS button then
guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is out of
the way and will not get caught by closing the door.
3
WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.
Lap belt
as low as
possible
Adjusting the Shoulder Anchor
1Adjusting the Shoulder Anchor
The shoulder anchor height can be adjusted to four
levels. If the belt contacts your neck, lower the height
one level at a time.
After an adjustment, make sure that the shoulder
anchor position is secure.
Push
Push
15 CR-V-31T0A6300.book 37 ページ 2014年9月16日 火曜日 午後2時13分
uuSeat BeltsuFastening a Seat Belt
38
Safe Driving
1. Pull out the seat belt’s small latch plate and
the latch plate from each holding slot in the
ceiling.
2. Line up the triangle marks on the small
latch plate and anchor buckle. Make sure
the seat belt is not twisted. Attach the belt
to the anchor buckle.
3. Insert the latch plate into the buckle.
Properly fasten the seat belt the same way
you fasten the lap/shoulder seat belt.
Seat Belt with Detachable Anchor
1Seat Belt with Detachable Anchor
To unlatch the detachable anchor, insert the latch
plate into the slot on the side of the anchor buckle.
3
WARNING
Using the seat belt with the detachable
anchor unlatched increases the chance of
serious injury or death in a crash.
Before using the seat belt, make sure the
detachable anchor is correctly latched.
Small Latch Plate
Latch Plate
Small Latch Plate
Latch Plate
Small Latch Plate
Anchor Buckle
Latch
Plate
Buckle
15 CR-V-31T0A6300.book 38 ページ 2014年9月16日 火曜日 午後2時13分
39
uuSeat BeltsuFastening a Seat Belt
If you are pregnant, the best way to protect yourself and your unborn child when
driving or riding in a vehicle is to always wear a seat belt and keep the lap part of the
belt as low as possible across the hips.
Advice for Pregnant Women
1Advice for Pregnant Women
Each time you have a checkup, ask your doctor if it is
okay for you to drive.
To reduce the risk of injuries to both you and your
unborn child that can be caused by an inflating front
airbag:
When driving, sit upright and adjust the seat as far
back as possible while allowing full control of the
vehicle.
When sitting in the front passenger's seat, adjust
the seat as far back as possible.
Wear the shoulder belt
across the chest avoiding
the abdomen.
Wear the lap part of the
belt as low as possible
across the hips.
15 CR-V-31T0A6300.book 39 ページ 2014年9月16日 火曜日 午後2時13分
40
uuSeat BeltsuSeat Belt Inspection
Safe Driving
Seat Belt Inspection
Regularly check the condition of your seat belts as follows:
Pull each belt out fully, and look for frays, cuts, burns, and wear.
Check that the latches work smoothly and the belts retract easily.
uIf a belt does not retract easily, cleaning the belt may correct the problem. Only
use a mild soap and warm water. Do not use bleach or cleaning solvents. Make
sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper
protection and should be replaced as soon as possible.
A belt that has been worn during a crash may not provide the same level of
protection in a subsequent crash. Have your seat belts inspected by a dealer after
any collision.
1Seat Belt Inspection
3
WARNING
Not checking or maintaining seat belts can
result in serious injury or death if the seat
belts do not work properly when needed.
Check your seat belts regularly and have
any problem corrected as soon as possible.
15 CR-V-31T0A6300.book 40 ページ 2014年9月16日 火曜日 午後2時13分
41
Continued
Airbags
Airbag System Components
6
789
10
11
12
8
8
88
8
15 CR-V-31T0A6300.book 41 ページ 2014年9月16日 火曜日 午後2時13分
42
uuAirbagsuAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
a
Two SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
b
Two side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
c
Two side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
d
An electronic control unit that continually
monitors and can record information
about the sensors, the airbag activators,
the seat belt tensioners, and driver and
front passenger seat belt use when the
ignition switch is in ON (w
*1
.
e
Automatic front seat belt tensioners. The
driver's and front passenger's seat belts
incorporate sensors that detect whether
or not they are fastened.
f
A driver's seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
g
Weight sensors in the front passenger's
seat. The front passenger's airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
h
Impact sensors that can detect a
moderate-to-severe front or side impact.
i
An indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
j
An indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
k
Safing Sensor
l
A rollover sensor that detects whether
the vehicle is about to roll over.
*1: Models with the smart entry system
have an ENGINE START/STOP button
instead of an ignition switch.
15 CR-V-31T0A6300.book 42 ページ 2014年9月16日 火曜日 午後2時13分
43
uuAirbagsuAirbag System Components
Airbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help save lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properly and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possible while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system can prevent all injuries or deaths that
can occur in a severe crash, even when seat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in injuries if your front airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the proper operation of the airbags
or be propelled inside the vehicle and hurt someone if the airbags inflate.
Important Facts About Your Airbags
1Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts provide the best protection.
When driving, keep hands and arms out of the
deployment path of the front airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
15 CR-V-31T0A6300.book 43 ページ 2014年9月16日 火曜日 午後2時13分
44
uuAirbagsuTypes of Airbags
Safe Driving
Types of Airbags
Your vehicle is equipped with three types of airbags:
Front airbags: Airbags in front of the driver's and front passenger's seats.
Side airbags: Airbags in the driver's and front passenger's seat-backs.
Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.
Housing Locations
1Types of Airbags
The airbags can inflate whenever the ignition switch
is in ON (w
*1
.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the inflator material and is not harmful.
People with respiratory problems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1Front Airbags (SRS)
Dual-Stage, Multiple-Threshold Front Airbags
(SRS)
Your vehicle is equipped with dual-stage, multiple-
threshold front airbags (SRS).
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, depending on the severity of the
crash, whether the seat belts are latched, and/or
other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
15 CR-V-31T0A6300.book 44 ページ 2014年9月16日 火曜日 午後2時13分
Continued
45
uuAirbagsuFront Airbags (SRS)
Front airbags are designed to inflate during moderate-to-severe frontal collisions.
When the vehicle decelerates suddenly, the sensors send information to the control
unit which signals one or both front airbags to inflate.
A frontal collision can be either head-on or angled between two vehicles, or when a
vehicle crashes into a stationary object, such as a concrete wall.
While your seat belt restrains your torso, the
front airbag provides supplemental protection
for your head and chest.
The front airbags deflate immediately so that
they won't interfere with the driver's visibility
or the ability to steer or operate other
controls.
The total time for inflation and deflation is so fast that most occupants are not
aware that the airbags deployed until they see them lying in front of them.
Operation
How the Front Airbags Work
1How the Front Airbags Work
Although the driver's and front passenger's airbags
normally inflate within a split second of each other, it
is possible for only one airbag to deploy. This can
happen if the severity of a collision is at the margin,
or threshold that determines whether or not the
airbags will deploy. In such cases, the seat belt will
provide sufficient protection, and the supplemental
protection offered by the airbag would be minimal.
15 CR-V-31T0A6300.book 45 ページ 2014年9月16日 火曜日 午後2時13分
46
uuAirbagsuFront Airbags (SRS)
Safe Driving
When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help save lives, not to prevent minor scrapes, or even broken bones that might occur
during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move toward the front of the vehicle. Side
airbags and side curtain airbags have been specifically designed to help reduce the
severity of injuries that can occur during a moderate-to-severe side impact which
can cause the driver or passenger to move toward the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: Seat belts and, in vehicles equipped with a rollover sensor, side airbags
and side curtain airbags offer the best protection in a rollover. Because front airbags
could provide little if any protection, they are not designed to deploy during a
rollover.
When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
15 CR-V-31T0A6300.book 46 ページ 2014年9月16日 火曜日 午後2時13分
47
uuAirbagsuFront Airbags (SRS)
Your front airbags have advanced features to help reduce the likelihood of airbag
related injuries to smaller occupants.
The driver's advanced front airbag system
includes a seat position sensor.
If the seat is too far forward, the airbag
inflates with less force, regardless of the
severity of the impact.
The passenger's advanced front airbag system
has weight sensors.
Although we recommend against carrying an
infant or small child in front, if the sensors
detect the weight of a child (up to about 65
lbs or 29 kg), the system will automatically
turn off the passenger's front airbag.
Advanced Airbags
1Advanced Airbags
If there is a problem with the driver's seat position
sensor, the SRS indicator will come on and the airbag
will inflate with full (normal) force, regardless of the
driver's seating position.
For both advanced front airbags to work properly:
Do not spill any liquid on or under the seats.
Do not put any object under the passenger’s seat.
Make sure any objects are positioned properly on
the floor. Improperly positioned objects can
interfere with the advanced airbag sensors.
All occupants should sit upright and wear their seat
belts properly.
Do not place any cover over the passenger side
dashboard.
Driver’s
Seat
Position
Sensor
Passenger’s
Seat
Weight
Sensors
15 CR-V-31T0A6300.book 47 ページ 2014年9月16日 火曜日 午後2時13分
48
uuAirbagsuSide Airbags
Safe Driving
Side Airbags
The side airbags help protect the torso and pelvis of the driver or a front passenger
during a moderate-to-severe side impact.
The side airbags are housed in the outside
edge of the driver's and passenger's seat-
backs.
Both are marked SIDE AIRBAG.
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.
Housing Locations
1Side Airbags
Do not let the front passenger lean sideways with
their head in the deployment path of the side airbag.
An inflating side airbag can strike with strong force
and seriously injure the passenger.
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
If the impact is on the passenger's side, the airbag
may not deploy when there is no passenger in the
front passenger seat.
Do not cover or replace the front seat-back covers
without consulting a dealer.
Improperly replacing or covering front seat-back
covers can prevent your side airbags from properly
deploying during a side impact.
Housing
Location
Operation
When
inflated
Side
Airbag
15 CR-V-31T0A6300.book 48 ページ 2014年9月16日 火曜日 午後2時13分
49
uuAirbagsuSide Airbags
When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle's framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle's crushable body parts absorbed
most of the crash energy. In either case, the side airbag would not have been
needed nor provided protection even if it had deployed.
15 CR-V-31T0A6300.book 49 ページ 2014年9月16日 火曜日 午後2時13分
50
uuAirbagsuSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and passengers in outer
seating positions during a moderate-to-severe side impact. The side curtain airbags
equipped in this vehicle are also designed to help reduce the likelihood of partial and
complete ejection of vehicle occupants through side windows in crashes, particularly
rollover crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.
Housing Locations
1Side Curtain Airbags
If the SRS control unit senses that your vehicle is
about to rollover, it immediately deploys both side
curtain airbags and activates both front seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airbag will inflate even if
there are no occupants on that side of the vehicle.
To get the best protection from the side curtain
airbags, occupants should wear their seat belts
properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
Operation
Deployed Side Curtain Airbag
15 CR-V-31T0A6300.book 50 ページ 2014年9月16日 火曜日 午後2時13分
Continued
51
uuAirbagsuAirbag System Indicators
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may inflate in a moderate-to-severe angled frontal
collision.
In this case, the side curtain airbags will deploy slightly after the front airbags.
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator will come on.
When the ignition switch is turned to
ON (w
*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don't, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint System (SRS) Indicator
3
WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
*
* Not available on all models
15 CR-V-31T0A6300.book 51 ページ 2014年9月16日 火曜日 午後2時13分
uuAirbagsuAirbag System Indicators
52
Safe Driving
When the passenger airbag off
indicator comes on
The indicator comes on to alert you that the
passenger's front airbag has been turned off.
This occurs when the weight sensors detect
65 lbs (29 kg) or less, the weight of an infant
or small child, on the seat.
Infants and small children should always ride properly restrained in a back seat.
2Child Safety P. 54
Objects placed on the seat can also cause the indicator to come on.
If the front passenger seat is empty, the passenger's front airbag will not deploy and
the indicator will not come on.
Passenger Airbag Off Indicator
1Passenger Airbag Off Indicator
If the indicator comes on with no front passenger and
no objects on the passenger’s seat, or with an adult
riding there, something may be interfering with the
weight sensors, such as:
An object hanging on the seat or in the seat-back
pocket.
A child seat or other object pressing against the
rear of the seat-back.
A rear passenger pushing or pulling on the back of
the front passenger's seat.
The front seat or seat-back is forced back against
an object on the seat or floor behind it.
An object placed under the front passenger's seat.
If none of these conditions exist, have your vehicle
checked by a dealer as soon as possible.
The passenger airbag off indicator may come on and
goes off repeatedly if the total weight on the seat is
near the airbag cutoff threshold.
U.S. Canada
15 CR-V-31T0A6300.book 52 ページ 2014年9月16日 火曜日 午後2時13分
53
uuAirbagsuAirbag Care
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without consulting a dealer
This would likely disable the driver's seat position sensor or the weight sensors in the
passenger's seat. If it is necessary to remove or modify a front seat to accommodate
a person with disabilities, contact a Honda dealer, or for U.S. vehicles, American
Honda Automobile Customer Service at 800-999-1009 and for Canadian vehicles,
Honda Canada Customer Relations at 888-9-HONDA-9.
1Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.
15 CR-V-31T0A6300.book 53 ページ 2014年9月16日 火曜日 午後2時13分
54
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle accidents are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and children be properly restrained when they ride
in a vehicle.
Children should sit properly restrained in a rear seat. This is because:
An inflating front or side airbag can injure
or kill a child sitting in the front seat.
A child in the front seat is more likely to
interfere with the driver's ability to safely
control the vehicle.
Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.
1Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada recommend that all children
ages 12 and under be properly restrained in a rear
seat. Some states or provinces/territories have laws
restricting where children may ride.
3
WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.
15 CR-V-31T0A6300.book 54 ページ 2014年9月16日 火曜日 午後2時13分
55
uuChild SafetyuProtecting Child Passengers
Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.
Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
Do not allow children to operate the doors, windows or seat adjustments.
Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.
1Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger's front airbag
hazards and child safety, your vehicle warning came
with a label on the dashboard (U.S. models) and has
labels on the front visors. Please read and follow the
instructions on these labels.
2Safety Labels P. 68
3
WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
15 CR-V-31T0A6300.book 55 ページ 2014年9月16日 火曜日 午後2時13分
56
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weight or height limit for the seat, and the
infant is at least one year old.
Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position.
It can also interfere with proper operation of the passenger's advanced front airbag
system.
2Airbags P. 41
If this occurs, we recommend that you install the child seat directly behind the front
passenger's seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.
Protecting Infants
1Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
3
WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-facing child seat in the
rear seat, not the front.
15 CR-V-31T0A6300.book 56 ページ 2014年9月16日 火曜日 午後2時13分
Continued
57
uuChild SafetyuSafety of Infants and Small Children
If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be properly restrained in a firmly secured
forward-facing child seat.
Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger's front airbag off. A
rear seat is the safest place for a child.
Protecting Smaller Children
1Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer's instructions.
Many experts recommend use of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.
3
WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
15 CR-V-31T0A6300.book 57 ページ 2014年9月16日 火曜日 午後2時13分
uuChild SafetyuSafety of Infants and Small Children
58
Safe Driving
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer's use and care instructions as well as the instructions in this manual.
Proper installation is key to maximizing your child's safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
Important consideration when selecting a child seat
Make sure the child seat meets the following three requirements:
The child seat is the correct type and size for the child.
The child seat is the correct type for the seating position.
The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
Selecting a Child Seat
1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.
15 CR-V-31T0A6300.book 58 ページ 2014年9月16日 火曜日 午後2時13分
59
uuChild SafetyuSafety of Infants and Small Children
Continued
A LATCH-compatible child seat can be installed in rear seats. A child seat is attached
to the lower anchors with either the rigid or flexible type of connectors.
1. Locate the lower anchors under the marks.
2. Place the child seat on the vehicle seat then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
uWhen installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
Installing a LATCH-Compatible Child Seat
Marks
Rigid Type
Lower Anchors
15 CR-V-31T0A6300.book 59 ページ 2014年9月16日 火曜日 午後2時13分
uuChild SafetyuSafety of Infants and Small Children
60
Safe Driving
3. Put the head restraint to its upper-most
position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.
4. Go to step 7.
3. Lower the head restraint to its lowest
position.
4. Open the anchor cover.
Flexible Type
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether
Strap
Hook
Anchor
Outer position
Outer position
Cover
Center Lower Anchor
Center position
Center position
15 CR-V-31T0A6300.book 60 ページ 2014年9月16日 火曜日 午後2時13分
61
uuChild SafetyuSafety of Infants and Small Children
Continued
5. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
6. Secure the tether strap hook onto the
anchor.
7. Tighten the tether strap as instructed by the
child seat manufacturer.
8. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
9. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.
Tether Strap
Hook
Anchor
Center position
All models
15 CR-V-31T0A6300.book 61 ページ 2014年9月16日 火曜日 午後2時13分
uuChild SafetyuSafety of Infants and Small Children
62
Safe Driving
1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
uInsert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
uIf you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 3 – 4.
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
uWhen doing this, place your weight on
the child seat and push it into the vehicle
seat.
Installing a Child Seat with a Lap/Shoulder Seat Belt
1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
15 CR-V-31T0A6300.book 62 ページ 2014年9月16日 火曜日 午後2時13分
Continued
63
uuChild SafetyuSafety of Infants and Small Children
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.
Two tether anchorage points are provided
behind the rear outer seating positions and
one in the ceiling for the rear center. A child
seat that is installed with a seat belt and
comes with a tether can use the tether for
additional security.
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
Adding Security with a Tether
Tether Anchorage Points
Anchor Fitting
1Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt installation, we recommend
using a tether whenever one is available.
15 CR-V-31T0A6300.book 63 ページ 2014年9月16日 火曜日 午後2時13分
64
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
Using an outer anchor
1. Put the head restraint to its upper-most
position, then route the tether strap
through the head restraint legs.
Make sure the strap is not twisted.
2. Secure the tether strap hook onto the
anchor.
3. Tighten the tether strap as instructed by the
child seat manufacturer.
Using the center anchor
1. Lower the head restraint to its lowest
position.
2. Open the anchor cover.
3. Route the tether strap over the head
restraint.
Make sure the strap is not twisted.
4. Secure the tether strap hook onto the
anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether
Strap
Hook
Anchor
Tether Strap
Hook
Anchor
15 CR-V-31T0A6300.book 64 ページ 2014年9月16日 火曜日 午後2時13分
65
uuChild SafetyuSafety of Larger Children
Continued
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
Checklist
Do the child's knees bend comfortably over
the edge of the seat?
Does the shoulder belt cross between the
child's neck and arm?
Is the lap part of the seat belt as low as
possible, touching the child's thighs?
Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
Protecting Larger Children
Checking Seat Belt Fit
1Safety of Larger Children
3
WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger's front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
15 CR-V-31T0A6300.book 65 ページ 2014年9月16日 火曜日 午後2時13分
uuChild SafetyuSafety of Larger Children
66
Safe Driving
If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child's safety,
check that the child meets the booster seat
manufacturer's recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
Make sure you read and fully understand the instructions and safety information
in this manual.
Move the front passenger seat as far back as possible.
Have the child sit upright and well back in the seat.
Check that the seat belt is properly positioned so that the child is secure in the
seat.
Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.
Booster Seats
1Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
Protecting Larger Children-Final Checks
15 CR-V-31T0A6300.book 66 ページ 2014年9月16日 火曜日 午後2時13分
67
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
Have the exhaust system inspected for leaks whenever
The exhaust system is making an unusual noise.
The exhaust system may have been damaged.
The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the heating and cooling system
*
/climate control
system
*
as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the heating and cooling system
*
/climate control system
*
in the same manner
if you sit in your parked vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
* Not available on all models
15 CR-V-31T0A6300.book 67 ページ 2014年9月16日 火曜日 午後2時13分
68
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap
U.S. models only
Dashboard
U.S. models only
Sun Visor
15 CR-V-31T0A6300.book 68 ページ 2014年9月16日 火曜日 午後2時13分
69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators ............................................ 70
Gauges and Displays
Gauges.............................................. 92
Information Display
*
.......................... 93
Multi-Information Display
*
................. 96
intelligent Multi-Information Display (i-
MID) .............................................. 111
* Not available on all models
15 CR-V-31T0A6300.book 69 ページ 2014年9月16日 火曜日 午後2時13分
70
Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Parking Brake
and Brake System
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off if the parking
brake has been released.
Comes on when the parking brake is
applied, and goes off when it is
released.
Comes on when the brake fluid level
is low.
Comes on if there is a problem with
the brake system.
The beeper sounds and the indicator
comes on if you drive with the
parking brake not fully released.
Comes on while driving - Make sure the
parking brake is released. Check the brake
fluid level.
2What to do when the indicator comes
on while driving P. 501
Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2If the Brake System Indicator (Red)
Comes On P. 501
Low Oil Pressure
Indicator
Comes on when you turn the ignition
switch to ON (w
*1
, and goes off
when the engine starts.
Comes on when the engine oil
pressure is low.
Comes on while driving - Immediately
stop in a safe place.
2If the Low Oil Pressure Indicator Comes
On P. 499
U.S.
Canada
* Not available on all models
15 CR-V-31T0A6300.book 70 ページ 2014年9月16日 火曜日 午後2時13分
71
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Malfunction
Indicator Lamp
Comes on when you turn the ignition
switch to ON (w
*1
, and goes off
when the engine starts, or after
several seconds if the engine did not
start. If “readiness codes” have not
been set, it blinks five times before it
goes off.
Comes on if there is a problem with
the emissions control systems.
Blinks when a misfire in the engine's
cylinders is detected.
Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 515
Comes on while driving - Have your
vehicle checked by a dealer.
Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and wait
for it to cool down. Then, take your vehicle
to a dealer.
2If the Malfunction Indicator Lamp
Comes On or Blinks P. 500
Charging System
Indicator
Comes on when you turn the ignition
switch to ON (w
*1
, and goes off
when the engine starts.
Comes on when the battery is not
charging.
Comes on while driving - Turn off the
heating and cooling system
*
/climate control
system
*
and rear defogger to reduce
electricity consumption.
2If the Charging System Indicator Comes
On P. 499
Shift Lever
Position Indicator
Indicates current the shift lever
position.
2Shifting P. 368
* Not available on all models
15 CR-V-31T0A6300.book 71 ページ 2014年9月16日 火曜日 午後2時13分
72
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Transmission
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Blinks if the transmission system has
a problem.
Blinks while driving - Avoid sudden starts
and acceleration and have your vehicle
checked by a dealer immediately.
Seat Belt
Reminder
Indicator
Comes on and the beeper sounds if
you are not wearing a seat belt when
you turn the ignition switch to ON
(w
*1
.
If the front passenger is not wearing
a seat belt, the indicator comes on a
few seconds later.
Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
The beeper stops and the indicator goes off
when you and the front passenger fasten
their seat belts.
Stays on after you or the front
passenger has fastened the seat belt - A
detection error may have occurred in the
sensor. Have your vehicle checked by a
dealer.
2Seat Belt Reminder P. 34
Low Fuel
Indicator
Comes on when the fuel reserve is
running low (approximately 2.3 U.S.
gal./8.6 Liter left).
Blinks if there is a problem with the
fuel gauge.
Comes on - Refuel your vehicle as soon as
possible.
Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
15 CR-V-31T0A6300.book 72 ページ 2014年9月16日 火曜日 午後2時13分
73
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Anti-lock Brake
System (ABS)
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
If it comes on at any other time, there
is a problem with the ABS.
Stays on constantly - Have your vehicle
checked by a dealer. With this indicator on,
your vehicle still has normal braking ability
but no anti-lock function.
2Anti-lock Brake System (ABS) P. 407
Supplemental
Restraint System
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
-Side airbag system
-Side curtain airbag system
-Seat belt tensioner
Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
All-Wheel Drive
(AWD) System
Indicator
*
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on if there is a problem with
the AWD.
Blinks when the AWD system is
overheated. The system is inactive.
Stays on constantly - the engine drives the
front wheels only in this state. Have your
vehicle checked by a dealer.
Blinks while driving - the engine drives the
front wheels only in this state. Stop in a safe
place, shift to (P, and idle the engine until the
indicator goes off. If the indicator does not
stop blinking, take your vehicle to a dealer.
2Real Time AWD with Intelligent Control
System
TM
*
P. 400
* Not available on all models
15 CR-V-31T0A6300.book 73 ページ 2014年9月16日 火曜日 午後2時13分
74
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Vehicle Stability
Assist (VSA®)
System Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Blinks when VSA® is active.
Comes on if there is a problem with
the VSA® system.
Comes on if there is a problem with
the hill start assist system.
Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability Assist (VSA®), aka
Electronic Stability Control (ESC),
System P. 396
VSA® OFF
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on when you deactivate
VSA®.
2VSA® On and Off P. 397
* Not available on all models
15 CR-V-31T0A6300.book 74 ページ 2014年9月16日 火曜日 午後2時13分
75
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Door and Tailgate
Open Indicator
Comes on for a few seconds when
you set the power mode to ON, then
goes off.
Comes on if any door or the tailgate
is not completely closed.
The beeper sounds and the indicator
comes on if any door or the tailgate is
opened while driving.
Goes off when all doors and the tailgate are
closed.
Door Open
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on if any door is not
completely closed.
The beeper sounds and the indicator
comes on if any door is opened while
driving.
Goes off when all doors are closed.
Tailgate Open
Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on if the tailgate is not
completely closed.
Goes off when the tailgate is closed.
Models with
multi-information
display
Models without
multi-information
display
Models without
multi-information
display
* Not available on all models
15 CR-V-31T0A6300.book 75 ページ 2014年9月16日 火曜日 午後2時13分
76
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Electric Power
Steering (EPS)
System Indicator
Comes on when you turn the ignition
switch to ON (w
*1
, and goes off
when the engine starts.
Comes on if there is a problem with
the EPS system.
Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 501
Low Tire Pressure/
TPMS Indicator
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
.
May come on for a few seconds
again if the engine is not started for
several tens of seconds with the
ignition switch in ON (w
*1
.
Comes on when:
-One or more tires’ pressures are
determined to be significantly low.
-The system has not been calibrated.
Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
Stays on after the tires are inflated to
the recommended pressures - The system
needs to be calibrated.
2TPMS Calibration P. 401
Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
* Not available on all models
15 CR-V-31T0A6300.book 76 ページ 2014年9月16日 火曜日 午後2時13分
77
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Turn Signal
Indicators
Blinks when you operate the turn
signal lever.
Blinks along with all turn signals if
you press the hazard warning
button.
Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the bulb
immediately.
2Replacing Light Bulbs P. 457
High Beam
Indicator
Comes on when the high beam
headlights are on.
Lights On
Indicator
Comes on whenever the light switch
is on, or in AUTO
*
when the exterior
lights are on.
If you remove the key from the ignition
switch
*1
while the lights are on, a chime
sounds when the driver's door is opened.
Fog Light
Indicator
*
Comes on when the fog lights are
on.
* Not available on all models
15 CR-V-31T0A6300.book 77 ページ 2014年9月16日 火曜日 午後2時13分
78
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Immobilizer
System Indicator
Comes on briefly when you turn the
ignition switch to ON (w
*1
, then goes
off.
Comes on if the immobilizer system
cannot recognize the key
information.
Blinks - You cannot start the engine. Turn
the ignition switch to LOCK (0
*1
, pull the
key out, and then insert the key and turn it
to ON (w
*1
again.
Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
Security System
Alarm Indicator
*
Blinks when the security system
alarm has been set. 2Security System Alarm
*
P. 147
ECON Mode
Indicator
Comes on when you turn the ignition
switch to ON (w
*1
, then goes off.
Comes on when ECON mode is on. 2ECON Button P. 370
Indicator
* Not available on all models
15 CR-V-31T0A6300.book 78 ページ 2014年9月16日 火曜日 午後2時13分
79
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
CRUISE MAIN
Indicator
Comes on when you press the
CRUISE button. 2Cruise Control P. 371
CRUISE
CONTROL
Indicator
Comes on when you have set a
speed for cruise control. 2Cruise Control P. 371
Washer Level
Indicator
*
Comes on when the washer fluid
gets low.
Refill washer fluid.
2Refilling Window Washer Fluid P. 451
Maintenance
Minder Indicator
*
Comes on when you turn the ignition
switch to ON (w
*1
, then goes off.
Comes on when the scheduled
maintenance is due soon.
2Maintenance Minder
TM
P. 429
* Not available on all models
15 CR-V-31T0A6300.book 79 ページ 2014年9月16日 火曜日 午後2時13分
80
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
Smart Entry
System Indicator
*
Comes on for a few seconds when
you set the power mode to ON.
Comes on as soon as a problem is
detected in the smart entry system or
push button starting system.
Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
Starter System
Indicator
*
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on if the starter system has a
problem.
As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15
seconds while pressing the brake pedal and
manually start the engine. Have the vehicle
checked by a dealer.
* Not available on all models
15 CR-V-31T0A6300.book 80 ページ 2014年9月16日 火曜日 午後2時13分
81
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message
*
System Message
Indicator
*
Comes on for a few seconds when
you turn the ignition switch to ON
(w
*1
, then goes off.
Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
While the indicator is on, press the
(information) button to see the message
again.
Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
The multi-information display does not
return to the normal screen unless the
warning is cancelled, or the button
is pressed.
* Not available on all models
15 CR-V-31T0A6300.book 81 ページ 2014年9月16日 火曜日 午後2時13分
82
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
*
Adaptive Cruise
Control (ACC)
Indicator
*
Comes on for a few seconds when
you set the power mode to ON, then
goes off.
Comes on if there is a problem with
ACC.
Comes on - Have your vehicle checked by a
dealer.
Lane Keeping
Assist System
(LKAS) Indicator
*
Comes on for a few seconds when
you set the power mode to ON, then
goes off.
Comes on if there is a problem with
the LKAS.
Comes on - Have your vehicle checked by a
dealer.
Comes on when the LKAS button is
pressed or the LKAS automatically
canceled. The beeper sounds
simultaneously.
If any other system indicators come on, such
as the VSA®, ABS and brake system, take
appropriate action.
2Indicators P. 70
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 82 ページ 2014年9月16日 火曜日 午後2時13分
83
uuIndicatorsu
Continued
Indicator Name On/Blinking Explanation Message
*
Collision
Mitigation
Braking System
TM
(CMBS
TM
)
Indicator
*
Comes on for a few seconds when
you set the power mode to ON, then
goes off.
Comes on when you deactivate the
CMBS
TM
. A multi-information display
message appears for five seconds.
Comes on if there is a problem with
the CMBS
TM
.
Stays on constantly without the CMBS
TM
off - Have your vehicle checked by a dealer.
2Collision Mitigation Braking System
TM
(CMBS
TM
)
*
P. 409
Models with CMBS
TM
* Not available on all models
15 CR-V-31T0A6300.book 83 ページ 2014年9月16日 火曜日 午後2時13分
84
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
*
Collision
Mitigation
Braking System
TM
(CMBS
TM
)
Indicator
*
Comes on when the CMBS
TM
system
shuts itself off.
Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2Front Sensor Camera
*
P. 374
When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
Have your vehicle checked by a dealer if the
message does not disappear even after you
clean the sensor cover.
2Collision Mitigation Braking System
TM
(CMBS
TM
)
*
P. 409
Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The system
activates when the temperature inside the
camera cools down.
2Front Sensor Camera
*
P. 374
Models with CMBS
TM
* Not available on all models
15 CR-V-31T0A6300.book 84 ページ 2014年9月16日 火曜日 午後2時13分
85
uuIndicatorsu
Indicator Name On/Blinking Explanation Message
*
Lane Departure
Warning (LDW)
Indicator
*
Comes on for a few seconds when
you change the power mode to ON,
then goes off.
Comes on if there is a problem with
the LDW system.
Stays on constantly - Have your vehicle
checked by a dealer.
Comes on when the LDW system
shuts itself off.
Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2Front Sensor Camera
*
P. 374
Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2Front Sensor Camera
*
P. 374
* Not available on all models
15 CR-V-31T0A6300.book 85 ページ 2014年9月16日 火曜日 午後2時13分
86
uuIndicatorsuDisplay Warning and Information Messages
*
Instrument Panel
Display Warning and Information Messages
*
The following messages appear on the multi-information display
*
or intelligent multi-information display (i-MID). Press the
(information) button to see the message again with the system message indicator on.
Message Condition Explanation
Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 497
Message Condition Explanation
Appears when the differential temperature is too high. Stop in a safe place, shift to (P, and idle the engine until
the message goes off. If it does not goes off, take your
vehicle to a dealer.
2Real Time AWD with Intelligent Control System
TM
*
P. 400
Models with AWD system
* Not available on all models
15 CR-V-31T0A6300.book 86 ページ 2014年9月16日 火曜日 午後2時13分
87
uuIndicatorsuDisplay Warning and Information Messages
*
Continued
Message Condition Explanation
Appears when you close the door with the power mode
in ON without the keyless remote inside the vehicle.
Disappears when you bring the keyless remote back
inside the vehicle, and close the door.
2Smart Entry Remote Reminder P. 156
Appears when the smart entry remote battery becomes
weak.
Replace the battery as soon as possible.
2Smart Entry Remote
*
P. 476
Appears when the starting system has a problem.
As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while depressing
the brake pedal and manually start the engine. Have the
vehicle checked by a dealer.
2Starting the Engine P. 362
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 87 ページ 2014年9月16日 火曜日 午後2時13分
88
uuIndicatorsuDisplay Warning and Information Messages
*
Instrument Panel
Message Condition Explanation
Appears when there is a problem with the power tailgate
system.
Manually open or close the power tailgate.
Have your vehicle checked by a dealer.
Message Condition Explanation
Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
May appear when driving in bad weather (rain, snow,
fog, etc.)
When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using soft cloth.
Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2Adaptive Cruise Control (ACC)
*
P. 375
Models with power tailgate system
U.S.
Canada
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 88 ページ 2014年9月16日 火曜日 午後2時13分
89
uuIndicatorsuDisplay Warning and Information Messages
*
Continued
Message Condition Explanation
Blinks when you fail to steer the vehicle.
Operate the steering wheel to resume the LKAS.
Appears when the vehicle is driving out of a detected
line. The beeper sounds simultaneously.
Keep the vehicle within the lane you are driving.
Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the front
sensor camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously.
Use the climate control system to cool down the camera.
Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2Front Sensor Camera
*
P. 374
Appears when the LKAS button is pressed or the LKAS
automatically canceled. The beeper sounds
simultaneously.
If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.
2Indicators P. 82
Models with LKAS
* Not available on all models
15 CR-V-31T0A6300.book 89 ページ 2014年9月16日 火曜日 午後2時13分
90
uuIndicatorsuDisplay Warning and Information Messages
*
Instrument Panel
Message Condition Explanation
Appears after you unlock and open the driver’s door.
2Starting the Engine P. 362
Appears three seconds after the TO START ENGINE:
BRAKE + PUSH messages appears.
Appears three seconds after you bring the smart entry
remote in front of the ENGINE START/STOP button
when TO START, HOLD REMOTE NEAR START
BUTTON appears. TO START ENGINE: BRAKE + PUSH
appears sequentially.
2Changing the Power Mode P. 154
Models with smart entry system
15 CR-V-31T0A6300.book 90 ページ 2014年9月16日 火曜日 午後2時13分
91
uuIndicatorsuDisplay Warning and Information Messages
*
Message Condition Explanation
Appears when the steering wheel is locked.
Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Appears if you press the ENGINE START/STOP button
to turn the engine off without the shift lever in (P.
Press the ENGINE START/STOP button twice after
moving the shift lever to (P.
Appears when the power mode is in ACCESSORY.
Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF.
Appears if the smart entry remote’s battery is too weak
to start the engine or the key is not with you when
starting the engine. A beeper sounds six times. 2If the Smart Entry Remote Battery is Weak P. 492
15 CR-V-31T0A6300.book 91 ページ 2014年9月16日 火曜日 午後2時13分
92
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON (w
*1
.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Speedometer
Tachometer
Fuel Gauge
Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from
the fuel gauge reading.
E
1Temperature Gauge
NOTICE
Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.
2Overheating P. 497
15 CR-V-31T0A6300.book 92 ページ 2014年9月16日 火曜日 午後2時13分
93
uuGauges and DisplaysuInformation Display
*
Continued
Information Display
*
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilometers that your vehicle has accumulated.
Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Some of the items on the information display also
appear on the i-MID. They also change along with the
information display changes while the fuel
consumption is shown.
Instant Fuel Economy,
Average Fuel A, Trip Meter
A, Outside Temperature
Engine Oil Life
Instant Fuel Economy,
Average Fuel B, Trip Meter
B, Outside Temperature
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Odometer
* Not available on all models
15 CR-V-31T0A6300.book 93 ページ 2014年9月16日 火曜日 午後2時13分
uuGauges and DisplaysuInformation Display
*
94
Instrument Panel
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM
.
2Maintenance Minder
TM
P. 429
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Appears when the fuel fill cap is loose or is not installed.
2Check/Tighten Fuel Cap Message P. 500
Trip Meter
Average Fuel Economy
Engine Oil Life
Range
Check Fuel Cap
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
15 CR-V-31T0A6300.book 94 ページ 2014年9月16日 火曜日 午後2時13分
95
uuGauges and DisplaysuInformation Display
*
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).
Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Outside Temperature
1Outside Temperature
The temperature sensor is in the front bumper. Road
heat and exhaust from another vehicle can affect the
temperature reading when your vehicle speed is less
than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the i-MID’s customized features to correct the
temperature.
2Customized Features P. 114
15 CR-V-31T0A6300.book 95 ページ 2014年9月16日 火曜日 午後2時13分
96
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
Multi-Information Display
*
The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
Press the (information) button or the SEL/RESET button to change the display.
Main displays
Switching the Display
Instant Fuel Economy Average Fuel Economy A
Customizable Setting Entry Average Speed A Elapsed Time A
Range
SEL/RESET Button
Button
Blank
Engine Oil Life
* Not available on all models
15 CR-V-31T0A6300.book 96 ページ 2014年9月16日 火曜日 午後2時13分
Continued
97
uuGauges and DisplaysuMulti-Information Display
*
Lower displays
Shows the total number of miles or kilometers that your vehicle has accumulated.
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Odometer
Trip Meter
SEL/RESET
Button
SEL/RESET
Button
SEL/RESET
Button
Trip BTrip A
Outside Temperature
Odometer
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
15 CR-V-31T0A6300.book 97 ページ 2014年9月16日 火曜日 午後2時13分
uuGauges and DisplaysuMulti-Information Display
*
98
Instrument Panel
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).
Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM
.
2Maintenance Minder
TM
P. 429
Outside Temperature
Instant Fuel Economy Gauge
Average Fuel Economy
Engine Oil Life
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature.
2Customized Features P. 100
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2Customized Features P. 100
15 CR-V-31T0A6300.book 98 ページ 2014年9月16日 火曜日 午後2時13分
Continued
99
uuGauges and DisplaysuMulti-Information Display
*
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
Shows the time elapsed since the last time Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km/h (Canada) since the last time Trip A
or Trip B was reset.
Range
Elapsed Time
Average Speed
1Elapsed Time
You can change when to reset the elapsed time.
2Customized Features P. 100
1Average Speed
You can change when to reset the average speed.
2Customized Features P. 100
15 CR-V-31T0A6300.book 99 ページ 2014年9月16日 火曜日 午後2時13分
uuGauges and DisplaysuMulti-Information Display
*
100
Instrument Panel
Use the multi-information display to customize certain features.
How to customize
Select the VEHICLE SETTINGS screen by pressing the button while the
ignition switch is in ON (w
*1
. The screen switches to CHANGE SETTINGS.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Customized Features
1Customized Features
To select customizing items, press the SEL/RESET
button on the CHANGE SETTINGS screen, then
press the button.
2List of customizable options P. 104
2Example of customization settings P. 109
When you customize settings, shift to (P.
Multi-Information Display:
Goes to customize settings.
Button:
Changes the customize menus and items.
SEL/RESET Button:
Enters the selected item.
15 CR-V-31T0A6300.book 100 ページ 2014年9月16日 火曜日 午後2時13分
101
uuGauges and DisplaysuMulti-Information Display
*
Continued
Customization flow
Press the button.
“TRIP B” RESET TIMING
FUEL EFFICIENCY BACKLIGHT
“TRIP A” RESET TIMING
FORWARD COLLISION WARNING DISTANCE
SEL/RESET
VEHICLE SETTINGS
CHANGE SETTINGS
ADJUST OUTSIDE TEMP. DISPLAY
LANGUAGE SELECTION
SEL/RESET
DRIVER ASSIST SYSTEM
SETUP
*
METER SETUP SEL/RESET
LANE KEEPING ASSIST SUSPEND BEEP
TPMS CALIBRATION
ACC DISPLAY SPEED UNIT
ACC FORWARD VEHICLE DETECT BEEP
SEL/RESET
* Not available on all models
15 CR-V-31T0A6300.book 101 ページ 2014年9月16日 火曜日 午後2時13分
102
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
DOOR LOCK MODE
INTERIOR LIGHT DIMMING TIME
AUTO DOOR UNLOCK
AUTO DOOR LOCK
SEL/RESET
DOOR SETUP SEL/RESET
AUTO LIGHT SENSITIVITY
HEADLIGHT AUTO OFF TIMER
SEL/RESET DRIVING POSITION SETUP SEL/RESET MEMORY POSITION LINK
LIGHTING SETUP
DOOR UNLOCK MODE
SEL/RESET
KEYLESS ACCESS BEEP
KEYLESS ACCESS SETUP
*
* Not available on all models
15 CR-V-31T0A6300.book 102 ページ 2014年9月16日 火曜日 午後2時13分
103
uuGauges and DisplaysuMulti-Information Display
*
Continued
SEL/RESET
EXIT
KEYLESS OPEN MODE
SEL/RESET
POWER OPEN BY OUTER HANDLE
POWER TAILGATE SETUP
MAINTENANCE RESET
DEFAULT ALL
EXIT
15 CR-V-31T0A6300.book 103 ページ 2014年9月16日 火曜日 午後2時13分
104
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
List of customizable options
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
TPMS
CALIBRATION
Calibrates the TPMS. CANCEL/CALIBRATE
CHANGE
SETTINGS
DRIVER ASSIST
SYSTEM
SETUP
*
FORWARD
COLLISION WARNING
DISTANCE
Changes the distance to activate the collision
alert when a vehicle ahead of you gets too
close.
LONG/NORMAL
*1
/
SHORT
ACC FORWARD
VEHICLE DETECT
BEEP
*
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes
out of the ACC range.
ON/OFF
*1
ACC DISPLAY SPEED
UNIT
*
Changes the displayed measurement of the
set vehicle speed on the multi-information
display.
mph
*1
/km/h (U.S.)
mph/km/h
*1
(Canada)
LANE KEEPING
ASSIST SUSPEND
BEEP
*
Causes the system to beep when the LKAS is
suspended. ON/OFF
*1
* Not available on all models
15 CR-V-31T0A6300.book 104 ページ 2014年9月16日 火曜日 午後2時13分
105
uuGauges and DisplaysuMulti-Information Display
*
Continued
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
CHANGE
SETTINGS METER SETUP
LANGUAGE
SELECTION Changes the displayed language. ENGLISH
*1
/
FRANCAIS/ESPANOL
ADJUST OUTSIDE
TEMP. DISPLAY
Adjusts the temperature reading by a few
degrees.
−5°F ~ ±0°F
*1
~ +5°F
(U.S.)
−3°C ~ ±0°C
*1
~ +3°C
(Canada)
“TRIP A” RESET
TIMING
Changes the setting of how to reset trip
meter A, average fuel economy A, average
speed A, and elapsed time A.
WHEN REFUELED/
IGN OFF/MANUALLY
RESET
*1
“TRIP B” RESET
TIMING
Changes the setting of how to reset trip
meter B, average fuel economy B, average
speed B, and elapsed time B.
WHEN REFUELED/
IGN OFF/MANUALLY
RESET
*1
FUEL EFFICIENCY
BACKLIGHT Turns the ambient meter feature on and off. ON
*1
/OFF
15 CR-V-31T0A6300.book 105 ページ 2014年9月16日 火曜日 午後2時13分
106
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
CHANGE
SETTINGS
DRIVING
POSITION
SETUP
*
MEMORY POSITION
LINK
Turns the driving position memory system on
and off. ON
*1
/OFF
KEYLESS
ACCESS SETUP
*
DOOR UNLOCK
MODE
Changes which doors unlock when you grab
the driver’s door handle and tailgate handle.
When you press the tailgate release button, if
you chose DRIVER DOOR ONLY, only
tailgate is unlatched.
If you chose ALL DOORS, tailgate is
unlatched and all doors are unlocked.
DRIVER DOOR
ONLY
*1
/ALL DOORS
KEYLESS ACCESS
BEEP
Causes the beeper to sound when you
unlock/lock the doors. ON
*1
/OFF
LIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIME
Changes the length of time the interior lights
stay on after you close the doors. 60 sec/30 sec
*1
/15 sec
HEADLIGHT AUTO
OFF TIMER
Changes the length of time the exterior lights
stay on after you close the driver’s door.
60 sec/30 sec/15
sec
*1
/0 sec
AUTO LIGHT
SENSITIVITY
*
Changes the timing for the headlights to
come on.
MAX/HIGH/MID
*1
/
LOW/MIN
* Not available on all models
15 CR-V-31T0A6300.book 106 ページ 2014年9月16日 火曜日 午後2時13分
107
uuGauges and DisplaysuMulti-Information Display
*
Continued
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
CHANGE
SETTINGS DOOR SETUP
AUTO DOOR LOCK Changes the setting for when the doors
automatically lock.
OFF/WITH VEH SPD
*1
/
SHIFT FROM P
AUTO DOOR
UNLOCK
Changes the setting for when the doors
automatically unlock.
WHEN DRIVER’S
DOOR OPENS
*1
/WHEN
SHIFTING INTO PARK/
WHEN IGNITION
SWITCHED OFF/OFF
DOOR LOOK MODE
Sets up either the driver’s door or all doors to
unlock on the first operation of the remote or
ignition key.
DRIVER DOOR
*1
/ALL
DOORS
KEYLESS LOCK
ACKNOWLEDGMENT
Turns on or off the keyless lock
acknowledgment of:
LOCK/UNLOCK- The exterior lights flash.
ON
*1
/OFF
SECURITY RELOCK
TIMER
Changes the time it takes for the doors to
relock and the security system to set after you
unlock the vehicle without opening any door.
90 sec/60 sec/30 sec
*1
15 CR-V-31T0A6300.book 107 ページ 2014年9月16日 火曜日 午後2時13分
108
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
CHANGE
SETTINGS
POWER
TAILGATE
SETUP
*
KEYLESS OPEN
MODE
Changes the keyless setting for when the
power tailgate opens.
ANYTIME
*1
/WHEN
UNLOCKED
POWER OPEN BY
OUTER HANDLE
Changes the setting to open power tailgate
by tailgate outer handle.
OFF (MANUAL
ONLY)/ON (POWER/
MANUAL)
*1
MAINTENANCE
RESET
Resets/Cancels the engine oil life display
when you have performed the maintenance
service.
CANCEL/RESET
DEFAULT
ALL
Cancels/Resets all the customized settings as
default. SET/CANCEL
* Not available on all models
15 CR-V-31T0A6300.book 108 ページ 2014年9月16日 火曜日 午後2時13分
109
uuGauges and DisplaysuMulti-Information Display
*
Continued
Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to WHEN REFUELD are
shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY
RESET.
1. Press the button until VEHICLE
SETTINGS appears on the display, then
press the SEL/RESET button.
2. Press the button until CHANGE
SETTINGS appears on the display, then
press the SEL/RESET button.
3. Press the button until METER
SETUP appears on the display, then press
the SEL/RESET button.
uLANGUAGE SELECTION appears first in
the display.
15 CR-V-31T0A6300.book 109 ページ 2014年9月16日 火曜日 午後2時13分
110
uuGauges and DisplaysuMulti-Information Display
*
Instrument Panel
4. Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
uThe display switches to the
customization setup screen, where you
can select WHEN REFUELED,
MANUALLY RESET, IGN OFF, or EXIT.
5. Press the button and select WHEN
REFUELED, then press the SEL/RESET
button.
uThe WHEN REFUELED setup screen
appears, then the display returns to the
customization menu screen.
6. Press the button until EXIT appears
in the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
15 CR-V-31T0A6300.book 110 ページ 2014年9月16日 火曜日 午後2時13分
111
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
intelligent Multi-Information Display (i-MID)
Shows useful information, such as audio status. It also displays the compass
direction and clock.
Press the (display) button to change the display.
Switching the Display

Display
Button
Fuel consumption
Audio/HFL display
Black screen
Full size analog clock/
Wallpaper
15 CR-V-31T0A6300.book 111 ページ 2014年9月16日 火曜日 午後2時13分
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
112
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Average Fuel Economy
Range
Elapsed Time
Average Speed
1Average Fuel Economy
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected.
2Customized Features P. 114
You can change when to reset the average fuel
economy.
2Customized Features P. 114
1Elapsed Time
You can change when to reset the elapsed time.
2Customized Features P. 114
1Average Speed
You can change when to reset the average speed.
2Customized Features P. 114
15 CR-V-31T0A6300.book 112 ページ 2014年9月16日 火曜日 午後2時13分
Continued
113
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Shows the remaining oil life and Maintenance Minder
TM
.
2Maintenance Minder
TM
P. 429
Shows the vehicle's traveling direction.
2Compass P. 342
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2See the Navigation System Manual
Engine Oil Life and Maintenance Items
Compass Direction
Turn-by-Turn Directions
*
1Turn-by-Turn Directions
*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2Customized Features P. 114
* Not available on all models
15 CR-V-31T0A6300.book 113 ページ 2014年9月16日 火曜日 午後2時13分
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
114
Instrument Panel
Use the i-MID to customize certain features.
How to customize
Select the Vehicle Menu screen by pressing the MENU button while the ignition
switch is in ON (w
*1
, and the vehicle is at a complete stop. Select Customize
Settings, then press the SOURCE button.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Customized Features
1Customized Features
To customize other features, press the (+ / (-
button.
2List of customizable options P. 118
2Example of customizing wallpapers
*
P. 123
When you customize settings, shift to (P.
Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu.
(+ Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
(- Button
Press to scroll downwards.
* Not available on all models
15 CR-V-31T0A6300.book 114 ページ 2014年9月16日 火曜日 午後2時13分
115
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
Customization flow
Press the MENU button.
1Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Adjust Clock
*
* Not available on all models
15 CR-V-31T0A6300.book 115 ページ 2014年9月16日 火曜日 午後2時13分
116
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
Customize Settings
Display Setup
Select Wallpaper
*
Language Selection
Adjust Outside Temp. Display
Fuel Efficiency Backlight
Import Wallpaper
*
Delete Wallpaper
*
Trip Meter Item to Display
Welcome Screen
Color Theme
Turn by Turn Display
*
Trip A reset trigger
Trip B reset trigger
TPMS Calibration
Trip Computer Setup
Keyless Start Guidance Screens
*
Language Selection
* Not available on all models
15 CR-V-31T0A6300.book 116 ページ 2014年9月16日 火曜日 午後2時13分
117
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
Lighting Setup
Door Setup
Default All
Interior Light Dimming Time
Auto Light Sensitivity
*
Auto Door Lock
Security Relock Timer
Headlight Auto Off Timer
Door Lock Mode
Auto Unlock All Doors
Keyless Lock Acknowledgment
Keyless Access Setup
*
Keyless Access Beep
Door Unlock Mode
* Not available on all models
15 CR-V-31T0A6300.book 117 ページ 2014年9月16日 火曜日 午後2時13分
118
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
List of customizable options
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
Vehicle
Information Maintenance info Reset the Maintenance Minder
TM
.No/Yes
Adjust
Clock
*
Selects the 12 hour or 24 hour clock display, and
adjusts the time. 12h
*1
/24h
Customize
Settings
TPMS Calibration Calibrates the TPMS. Cancel/Initialize
Display
Setup
Select
Wallpaper
*
Selects the full-size analogue clock or the wallpaper. Clock
*1
/Image 1/Image 2/
Image 3
Import
Wallpaper
*
Imports an image file for a new wallpaper.
Three images can be stored.
2Importing wallpapers
from USB P. 123
Delete
Wallpaper
*
Deletes an image file for a wallpaper. Image 1/Image 2/Image 3
Trip Meter
Item to
Display
Selects an item to be displayed along with average
fuel economy.
Range
*1
/Elapsed time/
Average speed
* Not available on all models
15 CR-V-31T0A6300.book 118 ページ 2014年9月16日 火曜日 午後2時13分
119
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
*1:Default Setting
*2:See the Navigation System Manual
*3:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Setup Group Customizable Features Description Selectable settings
Customize
Settings
Display
Setup
Welcome
Screen
Selects whether the welcome screen comes on or not
when you turn the ignition switch to ON (w
*3
.On
*1
/Off
Color Theme Changes the color of the screen. Blue
*1
/Red/Amber/Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode. On/Off
*1
Turn by Turn
Display
*, *2
Selects whether the turn-by-turn display comes on or
not during the route guidance. On
*1
/Off
Language
Selection Changes the displayed language. English
*1
/Francais/Español
* Not available on all models
15 CR-V-31T0A6300.book 119 ページ 2014年9月16日 火曜日 午後2時13分
120
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
Customize
Settings
Trip
Computer
Setup
Adjust
Outside
Temp.
Display
Adjusts the temperature reading by a few degrees.
−5°F ~ ±0°F
*1
~ +5°F (U.S.)
−3°C ~ ±0°C
*1
~ +3°C
(Canada)
Trip A reset
trigger
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A.
With refuel/Manual
only
*1
/IGN Off
Trip B reset
trigger
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and elapsed
time B.
With refuel/Manual
only
*1
/IGN Off
Fuel
Efficiency
Backlight
Turns the ambient meter feature on and off. On
*1
/Off
Language Selection Changes the displayed language. English
*1
/Francais/Espanol
Driving
Position
Setup
*
Memory
Position Link Turns the driving position memory system on and off. On
*1
/Off
* Not available on all models
15 CR-V-31T0A6300.book 120 ページ 2014年9月16日 火曜日 午後2時13分
121
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
Customize
Settings
Keyless
Access
Setup
*
Keyless
Access Beep
Causes the beeper to sound when you unlock/lock the
doors. On
*1
/Off
Door Unlock
Mode
Changes which doors unlock when you grab the
driver’s door handle and tailgate handle.
When you press the tailgate release button, if you
chose Driver Door Only, only tailgate is unlatched.
If you chose All Doors, tailgate is unlatched and all
doors are unlocked.
Driver Door Only
*1
/All
Doors
Lighting
Setup
Interior Light
Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors. 60sec/30sec
*1
/15sec
Headlight
Auto Off
Timer
Changes the length of time the exterior lights stay on
after you close the driver’s door. 60sec/30sec/15sec
*1
/0sec
Auto Light
Sensitivity
*
Changes the timing for the headlights to come on. Max/High/Mid
*1
/Low/Min
* Not available on all models
15 CR-V-31T0A6300.book 121 ページ 2014年9月16日 火曜日 午後2時13分
122
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable settings
Customize
Settings
Door
Setup
Auto Door
Lock
Changes the setting for when the doors
automatically lock.
Off/With Vehicle Speed
*1
/
Shift from P
Door Lock
Mode
Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key. Driver Door
*1
/All Doors
Auto unlock
All doors
Changes the setting for when the doors
automatically unlock.
Off/When Driver’s Door
Opens
*1
/When Shift To Park/
When Ignition Off
Key and
remote
unlock mode
Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key. Driver Door
*1
/All Doors
Keyless Lock
Acknowledgment
Turns on or off the keyless lock acknowledgment of:
LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1
/Off
Security
Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec/60sec/30sec
*1
Default
All
Cancels/Resets all the customized settings as
default.
Cancel
Reset All Defaults
15 CR-V-31T0A6300.book 122 ページ 2014年9月16日 火曜日 午後2時13分
Continued
123
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Example of customizing wallpapers
*
You can customize the display from clock to wallpaper.
Importing wallpapers from USB
You can import up to three images, one at a time for wallpaper from a USB flash
drive.
Select Import Wallpaper from Customize Settings and properly connect a USB
flash drive to store an image.
1. Connect the USB flash drive to the adapter cable.
2USB Adapter Cable
*
P. 207
2. Press the MENU button.
3. Select Customize Settings with the (+ / (- button, then press the SOURCE
button.
1Customized Features
When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
Each image file can be up to 2 MB.
The maximum image size is 1,680 x 936 pixels. If
the image size is less than 420 x 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
The number of files that can be selected is up to
255.
Up to 64 characters can be displayed in the file
name.
* Not available on all models
15 CR-V-31T0A6300.book 123 ページ 2014年9月16日 火曜日 午後2時13分
124
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
4. Select Display Setup with the (+ / (-
button, then press the SOURCE button.
5. Select Import Wallpaper with the (+ / (-
button, then press the SOURCE button.
uThe file names are displayed on the
screen.
6. Press the (- button until the file name you
want to store appears on the center of the
display, then press the SOURCE button.
15 CR-V-31T0A6300.book 124 ページ 2014年9月16日 火曜日 午後2時13分
125
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Continued
7. The preview of the imported data is
displayed. Press the SOURCE button if it is
OK.
8. Press the SOURCE button to save the
image file.
9. Select the location you want to store the
image file in with the (+ / (- button,
then press the SOURCE button.
10. Press the MENU button to exit the
customizing screen.
6DYH
15 CR-V-31T0A6300.book 125 ページ 2014年9月16日 火曜日 午後2時13分
126
uuGauges and Displaysuintelligent Multi-Information Display (i-MID)
Instrument Panel
Selecting a wallpaper
1. Press the MENU button.
2. Select Customize Settings with the (+ /
(- button, then press the SOURCE button.
3. Select Display Setup with the (+ / (-
button, then press the SOURCE button.
4. Select Select Wallpaper with the (+ / (-
button, then press the SOURCE button.
5. Select the image file you want with the (+ /
(- button, then press the SOURCE button.
uWhen the scroll is stopped, the
thumbnail is displayed.
6. Press the MENU button to exit the
customizing screen.
15 CR-V-31T0A6300.book 126 ページ 2014年9月16日 火曜日 午後2時13分
127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock .................................................. 128
Locking and Unlocking the Doors
Key Types and Functions .................. 130
Low Smart Entry Remote Signal Strength
*
...132
Locking/Unlocking the Doors from the
Outside .......................................... 133
Locking/Unlocking the Doors from the Inside ...137
Childproof Door Locks ..................... 138
Auto Door Locking/Unlocking .......... 139
Opening and Closing the Tailgate... 140
Security System ................................ 147
Immobilizer System .......................... 147
Security System Alarm
*
.................... 147
Opening and Closing the Windows..... 150
Opening and Closing the Moonroof
*
.. 152
Operating the Switches Around the Steering Wheel
Ignition Switch................................. 153
ENGINE START/STOP Button............. 154
Ignition Switch and Power Mode
Comparison ................................... 157
Turn Signals..................................... 158
Light Switches.................................. 159
Fog Lights
*
...................................... 162
Daytime Running Lights ................... 163
Wipers and Washers ........................ 164
Brightness Control ........................... 167
Models without smart entry system
Models with smart entry system
Defogger/Heated Door Mirror
*
........ 168
Driving Position Memory System
*
.... 170
Adjusting the Steering Wheel .......... 172
Adjusting the Mirrors....................... 173
Interior Rearview Mirror ................... 173
Power Door Mirrors ......................... 174
Adjusting the Seats .......................... 175
Adjusting the Seat Positions............. 175
Interior Lights/Interior Convenience Items
.. 185
Heating and Cooling System
*
......... 197
Using Vents, Heating and A/C.......... 197
Climate Control System
*
.................. 200
Using Automatic Climate Control .... 200
Automatic Climate Control Sensors... 203
* Not available on all models
15 CR-V-31T0A6300.book 127 ページ 2014年9月16日 火曜日 午後2時13分
128
Controls
Clock
Adjusting the Clock
The audio and navigation system receives signals from GPS satellites, updating the
clock automatically.
You can adjust the time in the clock display with the ignition switch in ON (w
*1
.
Using the MENU button
1. Press the MENU button.
2. Select Adjust Clock with the (+ / (- button, then press the SOURCE button.
3. Press the (+ / (- button to change the
setting between 12h and 24h.
4. Select hour or minute with the /
button.
5. Press the (+ / (- button to adjust the
numbers up or down.
6. Select Set with the / button, then
press the SOURCE button to enter your
selection.
uThe display will return to the Adjust
Clock display.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Models with two displays
All models
Models with one display
15 CR-V-31T0A6300.book 128 ページ 2014年9月16日 火曜日 午後2時13分
129
uuClockuAdjusting the Clock
Using the SETUP button
1. Press the SETUP button.
2. Rotate to select Adjust Clock, then press .
3. Rotate to select the item you want to change (12/24 hour mode, hour,
minute). Then press .
4. Rotate to make the adjustment.
5. Press to enter your selection. The display returns to Adjust Clock. Repeat steps
4 to 6 to adjust other items.
6. To enter the selection, Rotate and select Set, then press .
7. Press the SETUP button to go back to the normal display.
Using the audio with touch screen
1. Press the (Home) button, then select
Settings.
2. Select Clock/Info, then Clock
Adjustment.
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
1Using the SETUP button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To set the time to the nearest hour:
Press and hold the CLOCK button until the clock
display begins to blink, then press the (6 (Reset)
button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
Models with two displays
(Home) Button
3
4
1Using the audio with touch screen
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2Customized Features P. 271
15 CR-V-31T0A6300.book 129 ページ 2014年9月16日 火曜日 午後2時13分
130
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following key:
Use the key to start and stop the engine, and
to lock and unlock the doors and tailgate. You
can also lock and unlock the doors and
tailgate pressing the buttons on remote
transmitter.
Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2Immobilizer System P. 147
The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:
Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
Do not drop the keys or set heavy objects on them.
Keep the keys away from liquids.
Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Ignition Keys with Remote
Transmitter
*
Smart Entry Remote
*
* Not available on all models
15 CR-V-31T0A6300.book 130 ページ 2014年9月16日 火曜日 午後2時13分
Continued
131
uuLocking and Unlocking the DoorsuKey Types and Functions
Smart entry remote
*
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
Can be used to start and stop the engine, and
lock and unlock driver's door.
Built-in Key
Release Knob
Valet Key
*
1Valet Key
*
When you need to leave a key with a third party,
leave the valet key.
Gray
* Not available on all models
15 CR-V-31T0A6300.book 131 ページ 2014年9月16日 火曜日 午後2時13分
uuLocking and Unlocking the DoorsuLow Smart Entry Remote Signal Strength
*
132
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remote Signal Strength
*
The vehicle transmits radio waves to locate the smart entry remote when locking/
unlocking the doors, opening the tailgate, or to start the engine.
In the following cases, locking/unlocking the doors, opening the tailgate, or starting
the engine may be inhibited or operation may be unstable:
Strong radio waves are being transmitted by nearby equipment.
You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, cell phones, or wireless devices.
A metallic object is touching or covering the smart entry remote.
Key Number Tag
1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1Low Smart Entry Remote Signal Strength
*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
15 CR-V-31T0A6300.book 132 ページ 2014年9月16日 火曜日 午後2時13分
133
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Locking/Unlocking the Doors from the Outside
Locking the doors
Press the lock button.
Once:
uSome exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five seconds after the first
push):
uThe beeper sounds and verifies the
security system is set.
Unlocking the doors
Press the unlock button.
Once:
uSome exterior lights flash twice, and the
driver's door unlocks.
Twice:
uThe remaining doors and tailgate unlock.
Using the Remote Transmitter
1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle, the doors will
automatically relock.
You can change the relock timer setting.
2Customized Features P. 114
If the interior light switch is in the door activated
position, the interior lights come on when you press
the unlock button.
No doors opened: The lights fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately.
2Interior Lights P. 185
The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock the vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the battery is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2Replacing the Button Battery P. 475
You can customize the door unlock mode setting.
2Customized Features P. 114
LED
Unlock
Button
Lock
Button
Ignition Keys with Remote Transmitter
Models with smart entry remote
LED
Unlock
Button
Lock
Button
15 CR-V-31T0A6300.book 133 ページ 2014年9月16日 火曜日 午後2時13分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
134
Controls
When you carry the smart entry remote, you
can lock/unlock the doors and open the
tailgate.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the tailgate within
about 32 inches (80 cm) radius from the
tailgate release button.
Locking the doors and tailgate
Press the door lock button on the front door
or the tailgate.
uSome exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.
Using the Smart Entry with Push Button Start System
*
1Using the Smart Entry with Push Button Start System
*
Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
You cannot unlock the door by gripping the handle
after two seconds of unlocking it.
The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.
Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is above or below the outside
handle.
The smart entry remote may not operate if it is too
close to the door and door glass.
Door Lock
Button
Door Lock
Button
* Not available on all models
15 CR-V-31T0A6300.book 134 ページ 2014年9月16日 火曜日 午後2時13分
135
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Unlocking the doors and tailgate
Grab the driver’s door handle:
uThe driver’s door unlocks.
uSome exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
uAll the doors and tailgate unlock.
uSome exterior lights flash twice and the
beeper sounds twice.
Press the tailgate release button:
uThe tailgate unlocks.
uSome exterior lights flash twice and the
beeper sounds twice.
2Using the Tailgate Release Button
P. 141
Release Button
15 CR-V-31T0A6300.book 135 ページ 2014年9月16日 火曜日 午後2時13分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
136
Controls
Fully insert the key and turn it.
Locking the driver's door
Push the lock tab forward
a
or push the
master door lock switch in the lock direction
b
, and close the door.
Locking the passenger's doors
Push the lock tab forward and close the door.
Lockout prevention system
The doors and tailgate cannot be locked when the key is in the ignition switch.
The doors and tailgate cannot be locked when the smart entry remote is inside the
vehicle.
Locking/Unlocking the Doors Using a Key
1Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver's door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors and the tailgate.
You can customize the door unlock mode setting.
2Customized Features P. 114
Lock
Unlock
Locking a Door Without Using a Key
1Locking a Door Without Using a Key
When you lock the driver's door, all the other doors
and tailgate lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
Ignition Keys with Remote Transmitter
Models with smart entry remote
15 CR-V-31T0A6300.book 136 ページ 2014年9月16日 火曜日 午後2時13分
137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Locking/Unlocking the Doors from the Inside
Locking a door
Push the lock tab forward.
Unlocking a door
Pull the lock tab rearward.
Pull the front door inner handle.
uThe door unlocks and opens in one
motion.
Using the Lock Tab
1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors and tailgate lock at
the same time.
When you unlock the door using the lock tab on the
driver's door, only the driver's door will unlock.
To Unlock
Lock Tab
To Lock
Unlocking Using the Front Door Inner Handle
1Unlocking Using the Front Door Inner Handle
The front door inner handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2Childproof Door Locks P. 138
Inner
Handle
15 CR-V-31T0A6300.book 137 ページ 2014年9月16日 火曜日 午後2時13分
uuLocking and Unlocking the DoorsuChildproof Door Locks
138
Controls
Press the master door lock switch in as shown
to lock or unlock all doors and the tailgate.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
When opening the door
Open the door using the outside door handle.
Using the Master Door Lock Switch
1Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
The front passenger’s door also has the master door
lock switch.
To Unlock
Master Door
Lock Switch
To Lock
Setting the Childproof Door Locks
1Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
15 CR-V-31T0A6300.book 138 ページ 2014年9月16日 火曜日 午後2時13分
139
uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking
Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks the driver’s door automatically when a
certain condition is met.
Drive lock mode
All doors and tailgate lock when the vehicle’s speed reaches about 10 mph (15 km/h).
Driver’s door open mode
All doors unlock when the driver’s door is opened.
Auto Door Locking
Auto Door Unlocking
1Auto Door Locking/Unlocking
You can turn off or change to another auto door
locking/unlocking setting using the i-MID.
2Customized Features P. 114
15 CR-V-31T0A6300.book 139 ページ 2014年9月16日 火曜日 午後2時13分
140
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
Opening the tailgate
Open the tailgate all the way.
uIf it is not fully opened, the tailgate may begin to close under its own weight.
Be careful when it is windy. The wind may cause the tailgate to close.
Closing the tailgate
Keep the tailgate closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2Carbon Monoxide Gas P. 67
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between the tailgate and the cargo
area when closing the tailgate.
When you are storing or picking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
15 CR-V-31T0A6300.book 140 ページ 2014年9月16日 火曜日 午後2時13分
Continued
141
uuOpening and Closing the TailgateuPrecautions for Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate release button and lift open
the tailgate.
Press the tailgate release button for more than
one second, and wait until you hear two
beeps before you lift open the tailgate.
uReleasing the release button within one
second with one beep enables the power
tailgate operations.
2Opening/Closing the Power Tailgate
*
P. 143
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
Using the Tailgate Release Button
1Using the Tailgate Release Button
Do not leave the key, remote transmitter
*
, or smart
entry remote
*
in the luggage area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tailgate while someone else
with the remote is within range.
You can change the power tailgate operation setting
on and off.
2Customized Features P. 114
Models with smart entry system
Models with power tailgate
Release Button
Models without power tailgate
Models with power tailgate
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 141 ページ 2014年9月16日 火曜日 午後2時13分
uuOpening and Closing the TailgateuPrecautions for Opening/Closing the Tailgate
142
Controls
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
Press the tailgate unlock button to unlock the
tailgate.
Inner Handle
Using the Remote Transmitter
*
1Using the Remote Transmitter
*
If you have unlocked and opened the tailgate using
the remote transmitter
*
or smart entry remote
*
,
when closing, the tailgate locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
* Not available on all models
15 CR-V-31T0A6300.book 142 ページ 2014年9月16日 火曜日 午後2時13分
143
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
Continued
Opening/Closing the Power Tailgate
*
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tailgate button in the driver side control
panel, or pressing the button on the tailgate.
The power tailgate can be opened when:
The tailgate is fully closed.
The shift lever is in (P.
The power tailgate can be closed when:
The tailgate is fully open.
The shift lever is in (P.
1Opening/Closing the Power Tailgate
*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your vehicle. People near the
tailgate may be seriously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
You start the engine while the tailgate is
automatically opening or closing.
The vehicle is parked on a steep hill.
The vehicle is swayed in a strong wind.
The tailgate or the roof is covered with snow or ice.
If you close the power tailgate with all the doors
locked, the power tailgate locks automatically.
3
WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the power tailgate.
* Not available on all models
15 CR-V-31T0A6300.book 143 ページ 2014年9月16日 火曜日 午後2時13分
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
144
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
Customizing when to open the tailgate
ANYTIME: The power tailgate unlocks and opens at the same time. This is the
default setting.
WHEN UNLOCKED: The tailgate opens when all doors are unlocked.
2Customized Features P. 100, 114
Remote Transmitter
1Opening/Closing the Power Tailgate
*
If you close the power tailgate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tailgate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda accessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgate is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
15 CR-V-31T0A6300.book 144 ページ 2014年9月16日 火曜日 午後2時13分
Continued
145
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
To open: Press and hold the tailgate button in
the driver side control panel for about one
second.
uSome exterior lights flash and the beeper
sounds.
To close: Press and hold the tailgate button in
the driver side control panel for about one
second.
uSome exterior lights flash and the beeper
sounds.
To reverse direction while the power tailgate is
in operation, press the button again.
Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it stops and reverses
direction.
Power Tailgate Button
1Opening/Closing the Power Tailgate
*
If the power tailgate meets resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailgate does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power Tailgate Close Button
1Power Tailgate Close Button
If you press the tailgate release button inside the
handle while the tailgate is automatically opening or
closing, the power tailgate operation stops. Use
caution if the tailgate stops in the middle of either
operation. It may suddenly swing up or down.
* Not available on all models
15 CR-V-31T0A6300.book 145 ページ 2014年9月16日 火曜日 午後2時13分
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
146
Controls
If you manually close the power tailgate, it latches automatically.
Automatically lowers the power tailgate when there is a possibility that the fully
opened power tailgate can fall down by its own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
Auto-Closer
Power Tailgate Fall Detection
1Auto-Closer
The auto-closer feature does not activate if you push
the tailgate open button while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailgate and let it latch
automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it fully opens, the power tailgate
fall detection may activate
Once the power tailgate fall detection activates, wait
until the power tailgate fully closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fall detection constantly
activates, consult at a dealer.
15 CR-V-31T0A6300.book 146 ページ 2014年9月16日 火曜日 午後2時13分
147
Continued
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserting the key into the ignition switch or
pressing the ENGINE START/STOP button
*
:
Do not allow objects that emit strong radio waves near the ignition switch
*1
.
Make sure the key is not covered by or touching a metal object.
Do not bring a key from another vehicle's immobilizer system near the ignition
switch.
Security System Alarm
*
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not go off if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off when a door is opened with the key, then the shift
lever is moved out of (P or the hood is opened before the power mode is set to ON.
When the security system alarm activates
The horn sounds intermittently and all the exterior lights flash.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental movement of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Security System Alarm
*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
15 CR-V-31T0A6300.book 147 ページ 2014年9月16日 火曜日 午後2時13分
uuSecurity SystemuSecurity System Alarm
*
148
Controls
To deactivate the security system alarm
Unlock the vehicle using the remote transmitter or smart entry system. The system,
along with the horn and flashing lights, is deactivated.
Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
The power mode is set to VEHICLE OFF (LOCK).
The hood and tailgate are closed.
All doors and tailgate are locked with the key or the remote transmitter.
When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
To cancel the security system alarm
The security system is canceled when the vehicle is unlocked using the remote
transmitter, or smart entry system, or the power mode is set to ON. The security
system indicator goes off at the same time.
1Security System Alarm
*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
Unlocking the door with the lock tab.
Opening the hood with the hood release handle.
Moving the shift lever out of (P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key or remote transmitter.
Do not attempt to alter this system or add another
device to it.
* Not available on all models
15 CR-V-31T0A6300.book 148 ページ 2014年9月16日 火曜日 午後2時13分
149
uuSecurity SystemuSecurity System Alarm
*
The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
The horn sounds.
Some exterior lights flash.
Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON (w
*1
.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Panic Mode
Panic
Button
Panic
Button
15 CR-V-31T0A6300.book 149 ページ 2014年9月16日 火曜日 午後2時13分
150
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the ignition switch is in ON
(w
*1
, using the switches on the doors. The driver side switches can be used to open
and close all the windows.
The power window lock button on the driver side must be switched off (not pushed
in, indicator off) to open and close the windows from anywhere other than the
driver's seat.
When the power window lock button is switched on (pushed in, indicator on), you
can only operate the driver's window. Turn the power window lock button on if a
child is in the vehicle.
Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.
Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Opening/Closing Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it stops closing and reverse direction.
The driver’s window auto reverse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to ensure that it fully closes.
3
WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
ON
OFF
Power Window
Lock Button
Indicator
Driver’s
Window
Switch
Front Passenger’s
Window Switch
15 CR-V-31T0A6300.book 150 ページ 2014年9月16日 火曜日 午後2時13分
151
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
Opening/Closing Windows without Auto-Open/Close Function
Close
Open
15 CR-V-31T0A6300.book 151 ページ 2014年9月16日 火曜日 午後2時13分
152
Controls
Opening and Closing the Moonroof
*
You can operate the moonroof when the ignition switch is in ON (w
*1
. Use the
switch in the front of the ceiling to open and close the moonroof.
Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof automatically opens or closes
all the way. To stop the moonroof midway,
touch the switch briefly.
Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch forward lightly, and
hold it until the desired position is reached.
Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly, then
release.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
Opening/Closing the Moonroof
1Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonroof panel or motor.
The power moonroof can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes.
3
WARNING
Opening or closing the moonroof on
someone's hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
Close Tilt
* Not available on all models
15 CR-V-31T0A6300.book 152 ページ 2014年9月16日 火曜日 午後2時13分
153
Operating the Switches Around the Steering Wheel
Ignition Switch
Models with ignition Keys with remote transmitter
1Ignition Switch
You cannot take the key out unless the shift lever is
in (P.
If you open the driver's door when the key is in LOCK
(0 or ACCESSORY (q, a warning buzzer will sound
to remind you to take the key out.
If the key won't turn from LOCK (0 to ACCESSORY
(q, turn the key while moving the steering wheel left
and right. The steering wheel will unlock, allowing
the key to turn.
(0 LOCK: Insert and remove the key in this
position.
(q ACCESSORY: Operate the audio system and
other accessories in this position.
(w ON: This is the position when driving.
(e START: This position is for starting the engine.
The switch returns to ON (w when you let go of
the key.
15 CR-V-31T0A6300.book 153 ページ 2014年9月16日 火曜日 午後2時13分
154
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button
Controls
ENGINE START/STOP Button
*1:Canadian models
Changing the Power Mode
Models with smart entry remote
1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, even if it is outside the
vehicle.
ON mode:
Indicator in the button is off, if the engine is running.
If the smart entry remote battery is weak, beeper
sounds and the TO START, HOLD REMOTE NEAR
START BUTTON message appears on the i-MID.
2If the Smart Entry Remote Battery is Weak
P. 492
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating Range
VEHICLE OFF (LOCK)
Indicator in the button is off.
The steering wheel is locked
*1
.
The power to all electrical
components is turned off.
Press the button without
the shift lever in (P.
Shift to (P then press the
button.
Press the button.
Without pressing
the brake pedal
ACCESSORY
Indicator in the button is on.
Indicator in the button blinks
(from ON to ACCESSORY).
Operate the audio system and
other accessories in this position.
ON
Indicator in the button is on.
All electrical components can be
used.
Indicator
U.S. models
Shift to (P.
15 CR-V-31T0A6300.book 154 ページ 2014年9月16日 火曜日 午後2時13分
Continued
155
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button
If you leave the vehicle for 30 to 60 minutes with the shift lever in (P and the power
mode in ACCESSORY, the vehicle automatically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid the battery drain.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with the remote transmitter or the smart entry
system.
Press the ENGINE START/STOP button three times to switch the mode to VEHICLE
OFF (LOCK).
Automatic Power Off
1ENGINE START/STOP Button
If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the steering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Canadian models
Canadian models
15 CR-V-31T0A6300.book 155 ページ 2014年9月16日 火曜日 午後2時13分
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button
156
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
buzzer sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it within its operational
range.
When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the information display/multi-information
display notifies the driver inside that the
remote is out.
When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
Power Mode Reminder
Smart Entry Remote Reminder
1Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driver’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entry remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may also go off even if the remote is
within the system’s operational range.
Models without multi-information
display
Models with multi-information display
15 CR-V-31T0A6300.book 156 ページ 2014年9月16日 火曜日 午後2時13分
157
uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison
Ignition Switch and Power Mode Comparison
*1:Canadian models
Ignition Switch
Position
LOCK (0)
(with/without
the key)
ACCESSORY (I) ON (II) START (III)
Without Smart Entry
System
Engine is turned off and
power is shut down.
The steering wheel is
locked.
No electrical
components can be
used.
Engine is turned off.
