The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,

however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Accessories Precautions

The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.

Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you

install any such item, install it away from the navigation display and antenna.

Important Safety Information

Avoid focusing on the screen or manually operating the system controls while driving.

Enter information before you begin driving or when stopped. As you drive, listen to the audible instructions and use voice commands when possible. Pull to the

side of the road if you need more time to look at the screen or operate the controls.

Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.

The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey

traffic laws.

2System Limitations P. 292

Using the navigation system while driving can take your

attention away from the road, causing a crash in which you

could be seriously injured or killed.

Only operate system controls when the conditions permit you

to safely do so.

WARNING

00X31-TK8-8400 ANV51431

Contents

2System Setup P. 19

Start-up 20 Voice Control System 22 Interface Settings 25 Personal Information 36

Routing 49 Guidance 57 Map 65 Data Reset 81

Touchscreen 82

2Navigation P. 83

Entering a Destination 84 Calculating the Route 106

Driving to Your Destination 108

Map Menu 114

Changing Your Route 120 Changing Your Destination 129 Resuming Your Trip 132

2Audio P. 133

Audio System 134 Audio Remote Controls 140 Audio Settings 141 Playing FM/AM Radio 145

Playing SiriusXM® Radio 151 Playing a Disc 156 Playing Hard Disc Drive (HDD) Audio 163

Playing an iPod® 175 Playing Internet Radio 187 Playing a USB Flash Drive 191 Playing Bluetooth® Audio 197

2Bluetooth® HandsFreeLink® P. 201

Bluetooth® HandsFreeLink® 202 Text Message/E-mail 231

2Rear Entertainment System P. 243

Rear Entertainment System 244 Rear Control Panel Operation 248

Front Control Panel Operation 259

Wireless Headphones 263

2Other Features P. 267

Trip Computer 268 Calendar 269 Information Functions 270 Multi-view Rear Camera 272

2Troubleshooting P. 275

Troubleshooting 276 Error Messages 282

2Reference Information P. 289

System Initialization 290 System Limitations 292 Customer Assistance 294 Legal Information 297

2Voice Commands P. 305

Voice Commands 306

Quick Reference Guide P.2

System Setup P.19

Navigation P.83

Audio P.133

Bluetooth® HandsFreeLink® P.201

Rear Entertainment System P.243

Other Features P.267

Troubleshooting P.275

Reference Information P.289

Voice Commands P.305

Index P.321

Quick Reference Guide

Overview—Functions at a Glance

Navigation You can select any place/landmark as a destination by using voice control or the Interface Dial. The navigation

system gives you turn-by-turn driving directions to your destination.

Store home address (P42)

Store contacts (P37)

Store up to 200 contacts in an address book.

Enter destination (P84)

Select your destination using 12 methods.

Select route (P107)

Set route preferences and select one of 3 routes.

Track route (P108)

Follow your route in real-time with voice guidance.

Avoid certain areas (P128)

Set streets and areas to detour around.

Add waypoints (P122)

Add up to 4 “pit stops” along your route.

Quick Reference Guide

Other Features

Multi-view Rear Camera (P272)

Helps you check for obstacles around the rear of your vehicle on the navigation screen when reversing.

Audio The advanced audio system provides clear, well-defined sound and makes the most of your music.

Enjoy listening to a variety of audio sources, such as:

FM/AM Radio (P145)

SiriusXM® Radio (P151)

Compact Disc (P156)

iPod® (P175)

USB Flash Drive (P191)

Bluetooth® Audio (P197)

Hard Disk Drive (HDD) (P163)

Internet Radio (P187)

Rear Entertainment System (P244)

Rear seat passengers can enjoy a completely separate entertainment source than front

passengers, including movies, games, and other audio choices.

Voice Control (P22)

Use voice commands for safer system control while driving. You can operate all key functions of

the navigation, audio, Bluetooth® HandsFreeLink®, and climate control systems.

Bluetooth® HandsFreeLink® (P202)

Pair a compatible cell phone to receive incoming and make outgoing calls. You can operate the

phone features without ever taking your hands off the wheel.

Quick Reference Guide

System Controls

REAR

AUDIO

FRONT

AUDIO

NAV

FRONT

AUDIO

REAR

UDIO

FRO

AUD

NAV

RONT

AUDIO

UDIO

Navigation

Rear Entertainment System

Bluetooth® HandsFreeLink®

Voice Control

Audio

1 PHONE Button (P204)

lj AUDIO Button

Models without RES

9FRONT AUDIO Button

0REAR AUDIO Button

(P259)

lb REAR 9 (Power) Button

Models with RES

lc Microphone (P22)

lg h (Pick-Up) Button

(P202)

lh J (Hang-Up/

Back) Button

(P202)

li d (Talk) Button

(P202)

ld MODE Button

(P140)

le VOL Button (P140)

lf CH Button (P140)

2NAV Button (P84)

3BACK Button

4a (Display Mode)

Button (P70)

5Interface Dial/ENTER

Button (P7)

6INFO Button

7MENU Button

8SETTINGS Button

Touchscreen

Navigation Screen

Quick Reference Guide

Voice Control Operation

Voice Portal Screen

aPress and release the d (Talk) button

on the top screen of any mode.

The system prompts you to say a voice

command and gives examples. Press

and release the d (Talk) button again

to bypass this prompt.

-The system beeps when ready for a

command. Press the J (Hang-Up/

Back) button to cancel.

-Available voice commands are

highlighted on the screen.

bSay a voice command (e.g., Address).

After that, follow the voice prompt

and say a voice command.

-The audio system is muted during voice

control mode.

-You can use other voice commands on

the Voice Portal screen. Voice Command

Index (P306)

-Say d “Voice Help” to enter supported

commands for the current screen. A

voice help tutorial is also available. Voice

Help (P15)

-During the voice control mode, press and

hold the J (Hang-Up/Back) button to

return to the Voice Portal screen.

-Set Voice Prompt to Off to bypass the

voice prompt. Voice Recognition

Settings (P24)

-Carefully read the usage note for the

voice control. Voice Control System

(P22)

On the Menu Screen

-Say d “Voice portal” to display the

Voice Portal on any screen.

-Say d “Voice Help” to enter supported

commands for the current screen. A voice

help tutorial is also available. Voice Help

(P15)

aPress and release the d (Talk) button

on the menu or setting screen.

The system prompts you to say a voice

command and gives examples. Press

and release the d (Talk) button again

to bypass this prompt.

Available voice commands are

highlighted on the screen.

bSay a voice command.

Quick Reference Guide

Touchscreen Basic Operation

Select to change an audio

source.

Shortcuts (P138)

Audio Source

Presets

To listen to a stored station,

select 1-6 (AM) or 1-12 (FM).

Source List Icons

Select to store a station.

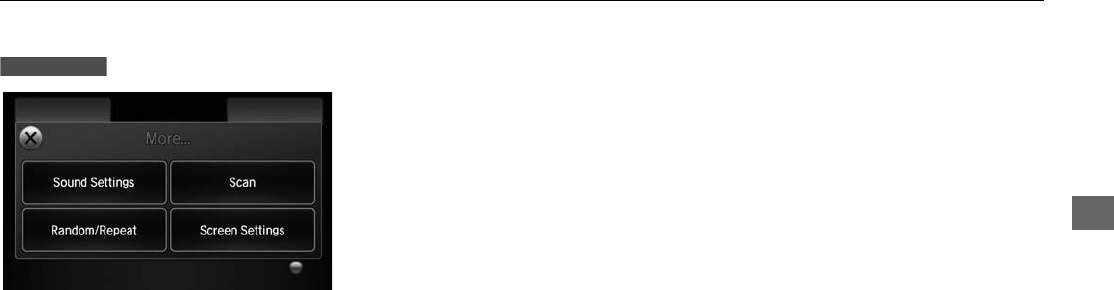

Select to display the menu

items.

Menu Items

-AM, FM, SiriusXM®, Pandora® , AhaTM

bn : Select the preset station (AM/FM/Pandora®/AhaTM) or category (SiriusXM®).

cx : Select to search the selected band for a station with a strong signal. (AM/FM)

Select the channel. In channel mode, select and hold to change the channel rapidly. (SiriusXM®)

Select a song (Pandora®) or a contents (AhaTM).

-CD, HDD, USB flash drive, Bluetooth® Audio

bn : Select n to skip to the next folder, and b to skip to the beginnig of the previous folder.

cx : Select to change tracks. Select and hold to move rapidly within a track.

-iPod®

Album bar : Select an album.

cx : Select to change tracks. Select and hold to move rapidly within a track.

Shortcut icons

Quick Reference Guide

Interface Dial/ENTER Button Operation

You will see these icons in each chapter.

They represent how you can operate the Interface Dial.

Changes scale

Map screens

Highlights menu options

Menu screens

Rotate dial

Press ENTER

Move up Move left Move down Move right

Scrolls map

(8 directions)

Map screens

Selects labeled

function

Menu screens

Selects function

Selects map icon

Map screens

Selecting Icon

Selects highlighted option

Menu screens

Rotate dial iPress ENTER u

Move

e up r down w left y right

Quick Reference Guide

How to Enter Information

You can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)

when prompted on input screens by two different methods.

Using Voice Control

When you see d in this manual, voice commands are available for

that feature.

-Say the letter, number, or symbol (e.g., say d “A”).

-Use spelling assist (e.g., say d “Alpha” to enter the letter “A” or

d “Hyphen” to enter a hyphen).

-The system beeps if you say an unavailable (grayed out) letter or

number.

-If a voice command is not recognized, a list is displayed with

possible options.

On list screens:

-Say the number of the list item (e.g., say d “Five” to select item

5).

-Say d “Up” or d “Previous” to scroll up one page.

-Say d “Down” or d “Next” to scroll down one page.

Using the Interface Dial

Rotate i to highlight a character.

-Select to display upper/lower case characters.

-Select Sym to display symbols and accented characters.

-Select Edit (or move e) to edit the entered characters.

Press u to enter the highlighted character.

-Move y to select Space to enter a space character.

-Move w to select Delete to remove the last entered character.

-You can also use the touch screen to enter information.

Scrolling through lists or tabs is limited while the vehicle is moving.

Certain screen functions are limited or inoperable while the vehicle

is moving. For these functions, use available voice commands or

pull over to proceed.

Number of Hits

On input search screens, the number of hits in the map database is

displayed. Move r to select OK to display a list of possible entries.

Quick Reference Guide

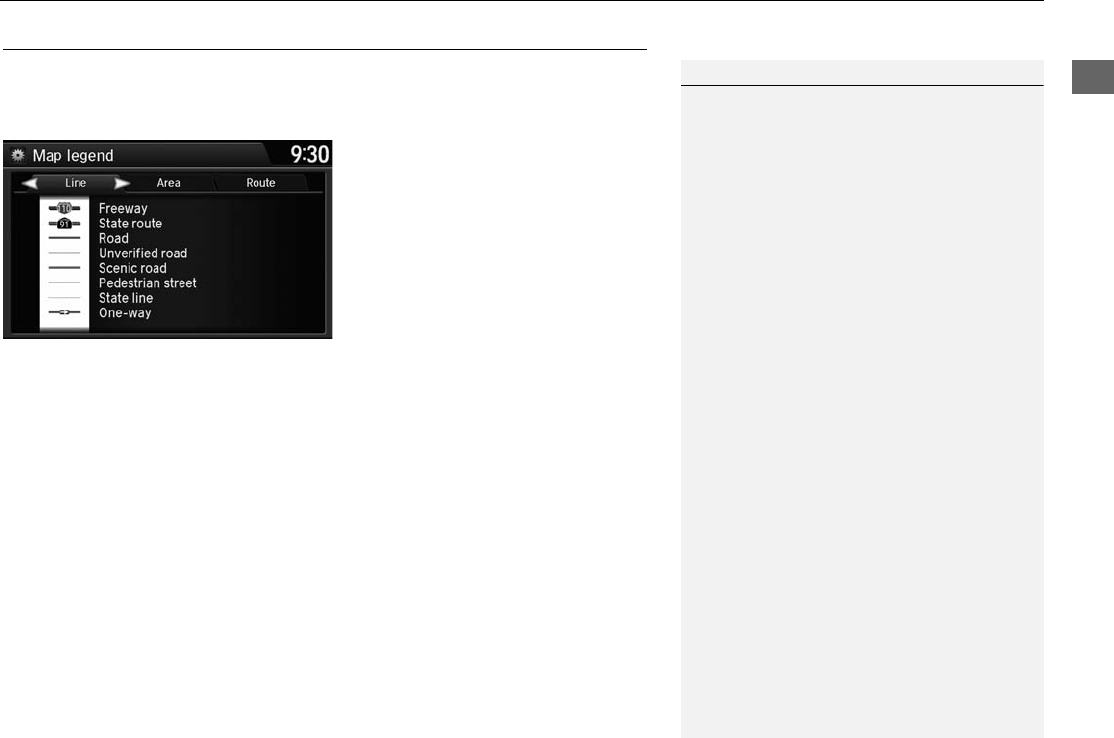

Map Screen Legend

Landmark icons (P67)

Acura dealer

Honda dealer

ATM

School

Parking lot

Parking garage

Grocery store

Hotel/Lodging

Gas station

Hospital

Post office

Restaurant

Freeway exit information

Streets

Freeways

State routes

Verified streets

Unverified streets

One-way streets

Traffic flow indicator (P118)

Heavy (approx.)

surface: 0 to 20 mph

freeway: 0 to 25 mph

Moderate (approx.)

surface: 21 to 30 mph

freeway: 25 to 52 mph

Congestion

Incident

Weather

Construction

Road Closed

Traffic incident icons (P118)

Current street name

Current vehicle position

(P74)

Traffic status indicator (P118)

Traffic information availabled

Traffic information off or map

scale too large

No icon: Out of coverage area

Park

Hospital

Shopping Mall

Golf Course

Airport/Business

Water Area

Cemetery

University

Map scale (P76)

Feature areas

GPS signal strength

Best reception

Good reception

No icon: Poor/No reception

Map orientation (P72)

North up

Heading up

Current map scale

3D map

Quick Reference Guide

During Route Guidance

During route guidance, route information is displayed on the map screen and guidance screen.

Press the NAV button to toggle between the map and guidance screen.

Map Screen

Guidance Screen

Calculated route

(P108)

Guide to destination or

waypoint

Next guidance

indicator

Distance to the next

guidance point.

Distance to destination

(waypoint)

Distance of the actual route.

Estimated time to

destination (waypoint)

Waypoint (P122)

Destination icon

Calculated route

(unverified roads)

(P110)

Tracking dots

(P111)

Guidance indicator

Street name of

guidance point and

distance to the

guidance point.

Lane guidance

No entry icon

Guide to destination or

waypoint

Distance to destination

(waypoint)

Distance of the actual route.

Estimated time to

destination (waypoint) Guidance point

Guidance point

Map Menu

Contains map or routing options.

Day or Night Mode

Press the a (Display mode) button to

manually switch between day and night

mode.

Night mode

Day mode

Quick Reference Guide

Navigation—Home Addresses and Going Home

The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home, or saying d “Go

Home.”

Storing Your Home Address

aPress the SETTINGS

button.

bRotate i to select Navi Settings.

Press u.

cRotate i to select Edit Go Home.

Press u.

dRotate i to select Name. Press u.

SETTINGS

eEnter a name.

fRotate i to select Address. Press u.

gEnter an address.

hRotate i to select Phone No. Press

iEnter a phone number.

jMove r and rotate i to select OK.

Press u.

Going Home

aFrom the map screen,

press the MENU button.

bRotate i to select Go Home. Press

Alternatively, you can say d “Go

Home” from any screen. Your home

address is displayed on the Calculate

Route screen.

cRotate i to select Set as

Destination. Press u.

Quick Reference Guide

Navigation—Entering a Destination

Enter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You

can also perform these steps using d voice commands.

aFrom the map screen,

press the MENU button.

bRotate i to select Address. Press u.

cRotate i to select Street. Press u.

dEnter the name of your destination

street.

eRotate i to select your destination

street from the list. Press u.

fEnter the street number. Move r to

select OK when finished.

gIf there is more than one city with the

specified street, a list of cities is

displayed. Rotate i to select the

desired city from the list. Press u.

hRotate i to select Set as

Destination. Press u.

Route guidance to the destination

begins.

-View Routes: Choose one of three

routes.

-Route Preference: Choose Max or Min

for the five settings.

Quick Reference Guide

Navigation—Changing Route or Destination

You can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guidance.

Adding a Waypoint

(“Pit Stop”)

You can add up to four waypoints along

your route. (P122)

aFrom the map screen, press the MENU

button.

bRotate i to select Destination List.

Press u.

cRotate i to select Add New

Destination. Press u.

dRotate i to select Find Along Route.

Press u.

eRotate i to select location and

search method. Press u.

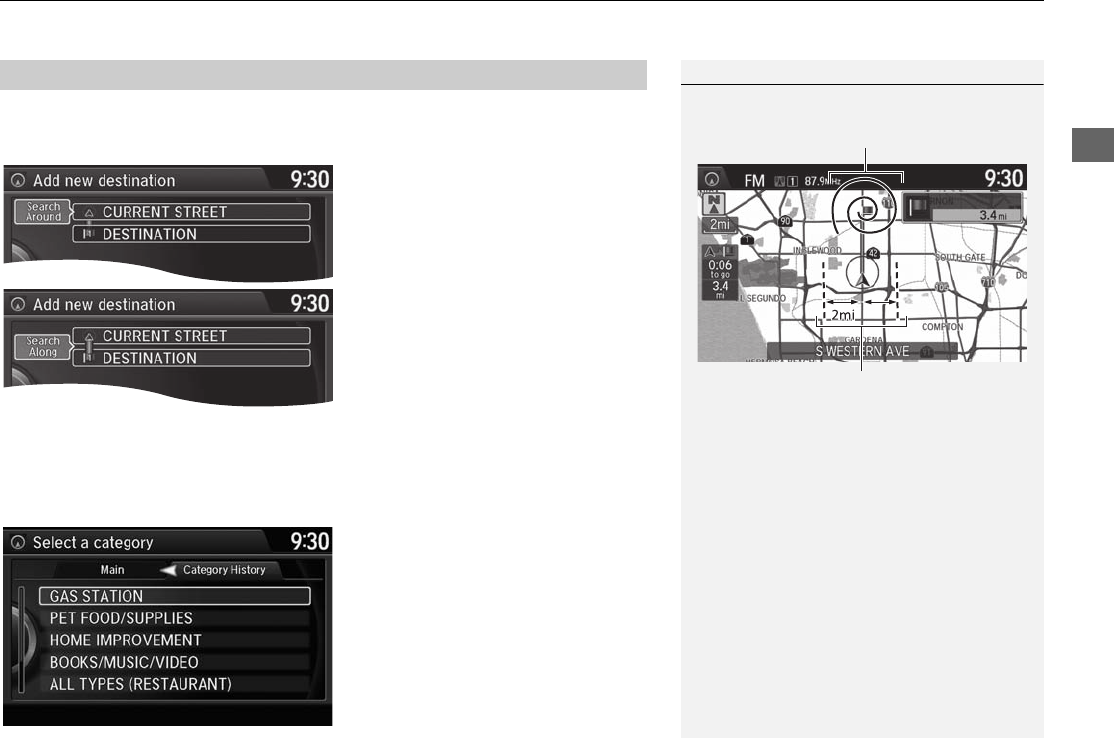

Search Around

: Search around a location.

-Search Along: Search between two

locations.

Changing Your

Destination

There are four methods you can use to

specify a new destination during route

guidance.

-Say d “Find Nearest…” (P129)

Searches for the nearest place/landmark

on the map screen (e.g., d “Find

nearest gas station”).

-Say d “Go Home” (P11)

Routes to your home address.

-Selecting an icon on the map (P130)

Scroll the map to position the cursor over

a place/landmark icon or a new area on

the map. Press u twice.

-Entering a new destination (P131)

Press the MENU button. Move w to

select Destination and enter a new

destination.

fSelect the icon category and location

to add to the Destination List when

prompted. Edit the order of

destinations if necessary.

gMove r and rotate i to select Start

Route. Press u.

Canceling Your Route

From the map screen:

aPress the MENU button.

bRotate i to select Cancel Route.

Press u.

aPress u on the map screen.

bRotate i to select Cancel Route.

Press u.

Quick Reference Guide

Rear Entertainment System (P243)

The rear passengers can enjoy a wide array of audio/visual sources with the Rear Entertainment System (RES). The rear passengers can use

wireless headphones and operate the system with the rear control panel.

Overhead Screen and Rear Control Panel

Pull down the bottom edge of

the screen.

Select the audio source.

Press the buttons to

select items.

Press the Release button to

remove the rear control panel.

RES

(Light-up) Button

Illuminate the buttons on the

rear control panel.

9 (Power) Button

Turn the system on or off

(when rear power is turned on).

CH/FOLDER Bar

Select a channel (Radio) or a

folder (Disc/USB).

TUNE/SKIP Bar

Find stations (FM/AM). Skip to

start/end of tracks, or press

and hold to fast reverse/fast

forward (Disc/USB/DVD).

CATEGORY Bar

Select a category (SiriusXM®).

(Play/Pause) Button

Play or pause the playback.

TITLE SCROLL Bar

Display track title, artist, and

other text information.

Select the audio source.

Rotate the Interface Dial

to select items.

Press the Release button to

remove the rear control panel.

Press the Open button to open

and pull down the screen.

Ultrawide RES

Basic Operation

aOpen the overhead screen.

bPress the REAR 9

(Power) button on

the front control

panel.

cSelect the audio source.

-RES: Press the desired button on

the rear control panel.

-Ultrawide RES: Press the SOURCE

button and rotate the Interface

Dial on the rear control panel to

select an audio source. Press the

ENTER button.

REAR

Quick Reference Guide

Voice Help

This navigation system comes with voice help, which shows you what command to say when using the voice command functions.

Command Help

aPress and release the d (Talk)

button.

bSay d “Voice Help.”

The voice help screen is displayed.

The d “Voice Help” command is

available on most screens.

cPress and release the d (Talk)

button.

dSay one of the options for a list of

available commands by category (e.g.,

d “Navi commands”).

ePress and release the d (Talk)

button.

fSay one of the options for a list of

available commands by category (e.g.,

d “Route commands”).

gThe system displays a list of all

available commands for the category.

Press u to hear the list read aloud.

Getting Started Tutorial

aMove r and rotate i to select

Getting Started on the voice help

screen. Press u.

For “Voice Settings” and “All

Commands.” (P305)

bPress u to have the system read the

tips for the voice control.

-Rotate i to read the tips.

-Move w or y to display the previous/

next page.

Quick Reference Guide

Troubleshooting For more Information (P275)

Why does the vehicle position icon on the map “lag” a

short distance behind my actual position, especially at

intersections?

This is normal. The navigation system is unaware of the

width of intersections. Large differences in vehicle position

can indicate a temporary loss of the GPS signal.

Why does the “time to destination” display sometimes

increase even though I am getting closer to my

destination?

The “time to destination” is based on your actual road

speed and traffic conditions to give you a better estimate

of arrival time.

How do I specify a destination when an entered city or

street could not be found?

Try entering the street first. Some cities are lumped in with

a major metro area. In rural “unverified” areas or new

subdivisions, streets may be missing or only partially

numbered.

How do I turn on the navigation system voice guidance?

1. Press the SETTINGS button. Rotate i to select System

Settings and press u. Check that Volume is not set to

2. Move w or y to select Voice Rec. Set Voice Prompt

to On if you want the system to provide confirmations

and system prompts.

My battery was disconnected or went dead, and the

navigation system is asking for a code. Where do I find it?

In most cases, you do not need to enter a code. Simply

press and hold the 9 (Power) button for two seconds; the

system should reactivate.

2System Initialization P. 290

How to Use This Manual

This section explains different methods on how you can easily find information in this manual.

Contents

More Detailed

Contents

Go to the

Searching the Table of Contents

(P1)

Two types of Tables of Contents help

you find your desired information.

First, find the general chapter related to

what you are looking for (e.g., entering

a destination from the Address Book).

Then, go to that chapter to view a more

specific table of contents.

Searching the Index (P321)

Menu items displayed on the

navigation screen (e.g., Address Book)

can be found individually in the Index.

This more detailed table of contents

shows you exactly what information is

listed by section and title.

The Index consists of main

terms and sub-entries. The

sub-entries help you get to

the desired page depending

on what you are looking

for.

Table of Contents Chapter Contents

Navigation Screen Index

MENU button

Menu Tree

The menu tree helps guide you

through the system’s menu options.

To get to your desired function, follow

the menu tree in order of the steps

shown.

NOTE:

All menu options can also be

activated with voice commands. Press the hard button on the

system control panel.

Press the MENU button.

Select the menu option with the

Interface Dial.

Rotate i to select Address Book.

Press u.

After following the menu

tree, step-by-step

instructions explain how to

achieve the desired result.

Sample pages and images in this section may differ from the actual ones.

System Setup

This section describes the start-up procedure and the navigation and

setup functions.

Start-up .............................................................. 20

Voice Control System........................................ 22

Command Input .............................................. 22

Voice Recognition ............................................ 23

Interface Settings .............................................. 25

Personal Information ........................................ 36

Address Book................................................... 37

Home Address ................................................. 42

PIN Numbers .................................................... 43

Previous Destination......................................... 44

Category History .............................................. 45

Download POI.................................................. 46

Routing .............................................................. 49

Route Preference.............................................. 50

Unverified Routing ........................................... 51

Traffic Rerouting .............................................. 53

Edit POI Search Radius Along Route ................. 54

Avoided Area................................................... 55

Guidance ............................................................57

Guidance Mode ............................................... 58

Street Name Guidance .....................................60

Non-map screens .............................................61

Guidance Point.................................................63

Estimated Time.................................................64

Map..................................................................... 65

Showing Icons on Map.....................................67

Color................................................................ 69

View (Map Orientation) ....................................72

3D Angle Adjustment.......................................73

Straight Line Guide...........................................73

Current Location ..............................................74

Map Legend.....................................................75

Display Tracking ...............................................79

Correct Vehicle Position....................................80

Data Reset.......................................................... 81

Defaulting All the Settings................................81

Touchscreen....................................................... 82

Changing the Screen Settings .......................... 82

System Setup

Start-up

The navigation system starts automatically when you set the power mode to

ACCESSORY or ON. At start-up, the following Confirmation screen is displayed.

1. Press u to select OK.



If you do not select OK, the map

screen is displayed after a

certain period of time.



Your current position is

displayed on the map screen.

2. Press the NAV button if a different

mode is selected.



Your current position is

displayed on the map screen.

1Start-up

If the navigation system loses power at any time,

you may need to press and hold the 9 (Power)

button for more than two seconds, or you may

be prompted for the five-digit security code.

2System Initialization P. 290

“OK” on the Confirmation screen cannot be

selected by using a voice command.



Start-up



System Setup

Certain manual functions are disabled

or inoperable while the vehicle is in

motion. You cannot select a grayed-

out option using the Interface Dial

until the vehicle is stopped.

Voice commands are still operable

while the vehicle is in motion.

■Limitations for Manual Operation

Disabled option

System Setup

Voice Control System

Your vehicle has a voice control system that allows hands-free operation of most of

the navigation system functions.

The voice control system uses the d (Talk) and J (Hang-Up/Back) buttons on

the steering wheel and a microphone near the map lights on the ceiling.

A “Getting Started” feature provides a tutorial that explains how to use the voice

control system.

2Getting Started Tutorial P. 15

Command Input

If the system does not understand a command or you wait too long to give a

command, the system asks you to repeat the command.

When you give a command, the system generally either repeats the command as a

confirmation or asks you for further information. If you do not wish to hear this

feedback, you can turn it off. However, listening to the feedback will help familiarize

you with the way the system expects commands to be phrased.

If the system cannot perform a command or the command is not appropriate for the

screen you are on, the system beeps.

On character input screens, a list of possible characters is displayed if the system

does not recognize your command.

You can find out which voice commands are available for a particular screen using

the d “Voice Help” command. The system will display and read the list of available

commands to you.

2Voice Help P. 15

1d (Talk) Button

When you press the d (Talk) button, the system

prompts you to say a voice command and gives

examples. Press and release the d (Talk) button

again to bypass this prompt and give a

command.

1Command Input

The audio system is muted while using the voice

control system.



Voice Control System



Voice Recognition

System Setup

Voice Recognition

To achieve optimum voice recognition when using the navigation voice control

system:

•Make sure the correct screen is displayed for the voice command that you are

using.

2Voice Commands P. 306

•Close the windows and moonroof.

•Adjust the dashboard and side vents so air does not blow onto the microphone on

the ceiling.

•Speak clearly in a clear, natural speaking voice without pausing between words.

•Reduce any background noise if possible. The system may misinterpret your

command if more than one person is speaking at the same time.

•Refer to the Voice Help feature.

2Voice Help P. 15

1Voice Recognition

The voice control system can only be used from

the driver’s seat because the microphone unit

removes noises from the front passenger’s side.



Voice Control System



Voice Recognition Settings

System Setup

Voice Recognition Settings

HSETTINGS button



System Settings



Voice Rec

Rotate i to select an item. Press u.

The following items are available:

•Volume: Adjusts the voice prompt volume level.

•Voice Prompt: Turns the voice prompt on or off.

On (factory default): Provides the voice prompts.

Off: Disable the feature.

•Song by Voice: Turns the Song By VoiceTM on or off.

2Song By VoiceTM (SBV) P. 182

•Song by Voice Phonetic Modification: Modifies a voice command of music

stored in the HDD or an iPod®.

2Phonetic Modification P. 184

•Phonebook Phonetic Modification: Modifies a voice command for the

phonebook.

2Phonebook Phonetic Modification P. 214

System Setup

Interface Settings

Display Settings

HSETTINGS button



System Settings



Display

Adjusts the screen’s preferences.

1. Rotate i to select an item. Press

2. Rotate i to make the

adjustment. Press u.

The following items are available:

•Brightness: Adjusts the screen’s brightness.

•Contrast: Adjusts the screen’s contrast.

•Black Level: Adjusts the screen’s black level.

1Display Settings

You can set separate daytime and nighttime

settings for Brightness, Contrast, and Black

Level. Adjust each setting when the display is in

either daytime or nighttime mode.



Interface Settings



Sound and Beep Settings

System Setup

Sound and Beep Settings

HSETTINGS button



System Settings



Sound/Beep

Changes the system sound and beep settings.

Rotate i to select an item. Press u.

The following items are available:

•Volume: Adjusts the navigation system volume level.

•Interface Dial Feedback: Sets if and when the system reads aloud a selection

made using the Interface Dial.

On: Always reads the selection.

Off: Disables the feature.

Auto (factory default): Reads the selection only when the vehicle is moving.

•Message Auto Reading: Selects whether the system automatically reads out

messages, and, if selected, whether only when driving.

On: Always reads the message.

Off: Disables the feature.

Auto (factory default): Reads the message only when the vehicle is moving.

•Verbal Reminder: Turns the verbal reminders on and off.

On: Sets the verbal reminders.

Off: Disables the feature.

1Sound and Beep Settings

Volume

If you set Volume to 0, you will not hear route

guidance or voice command confirmations.

If you then select Voice in the Map Menu, you

will hear route guidance at the default volume.



Interface Settings



Clock Adjustment

System Setup

Clock Adjustment

HSETTINGS button



System Settings



Clock

Set the automatic adjustment of the system clock for daylight saving and

international time zones.

Rotate i to select an item. Press u.

The following items are available:

•Clock/Wallpaper Type: Changes the clock display type and the wallpaper type.

2Setting the Clock Type P. 28

•Clock Adjustment: Adjust the current time manually.

2Setting the Clock P. 28

•Clock Format: Sets the time notation to either 12-hour clock (12H, factory

default) or 24-hour clock (24H).

•Auto Time Zone: The navigation system automatically adjusts the clock when

driving through different time zones.

On (factory default): Adjusts the clock automatically.

Off: Disables the feature.

•Auto Daylight: The navigation system automatically adjusts the clock (“spring

ahead” or “fall back” by one hour) when a daylight saving time change occurs.

On (factory default): Adjusts the clock automatically.

Off: Disables the feature.

•Clock Reset: Resets the settings of all items in the Clock group.

1Clock Adjustment

Auto Time Zone

If you live and work in two different time zones,

you may want to turn Auto Time Zone to OFF.

When driving near a time zone boundary, the

displayed time zone may fluctuate between the

two zone times.

Auto Daylight

This function is not activated in areas that have

not adopted daylight saving time, even if you

have set Auto Daylight to ON.

You can turn the clock display in the navigation

screen on and off.

2Header Clock Display P. 35



Interface Settings



Clock Adjustment

System Setup

HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 

Clock

1. Rotate i to select an option to

change the design. Press u.

2. Move r to select OK. Press u.

HSETTINGS button



System Settings



Clock



Clock Adjustment

1. Rotate i to select an item. Press

2. Rotate i to select a minute. Press

■Setting the Clock Type

■Setting the Clock



Interface Settings



Wallpaper Settings

System Setup

Wallpaper Settings

Select, delete, and import wallpaper pictures for display on the screen.

HSETTINGS button



System Settings



Clock



Clock/Wallpaper Type

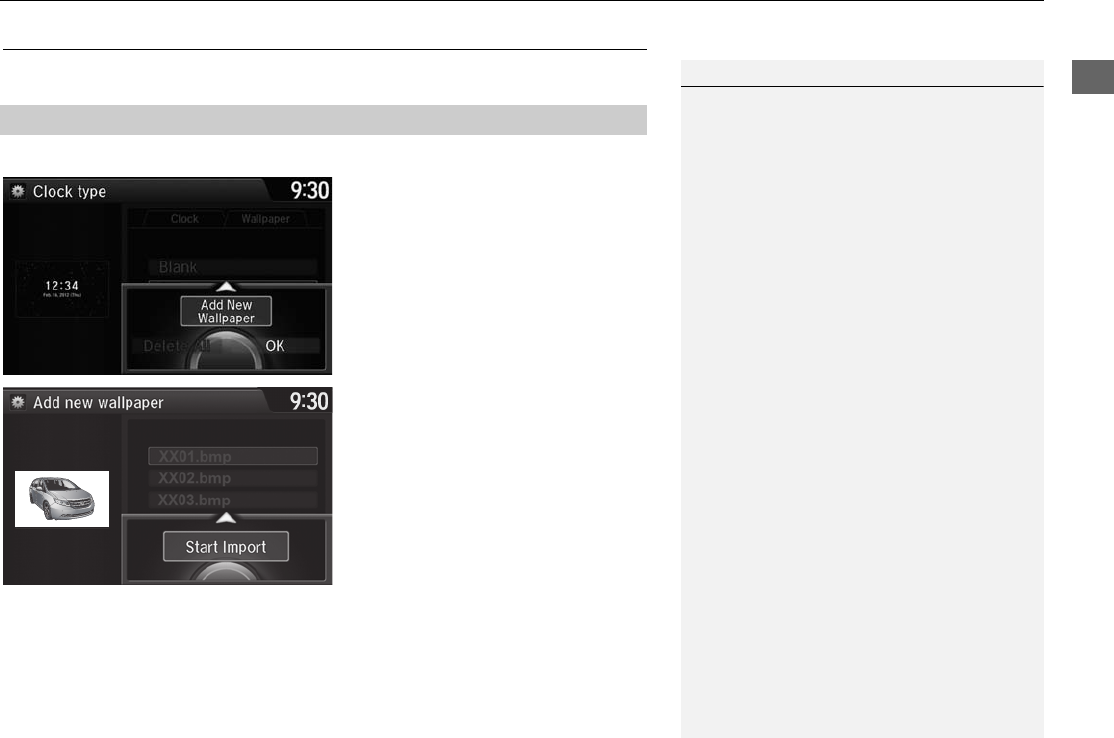

1. Connect the USB flash drive to the

USB port.

2. Move y to select Wallpaper.



The screen will change to the

wallpaper list.

3. Move r and rotate i to select

Add New Wallpaper. Press u.

4. Rotate i to select a desired

picture. Press u.



The preview is displayed on the

left side on the screen.

5. Move r and rotate i to select

Start Import. Press u.



The confirmation message will

appear. Then the display will

return to the wallpaper list.

■Import wallpaper

1Wallpaper Settings

•When importing wallpaper files, the image

must be in the USB flash drive’s root directory.

Images in a folder cannot be imported.

•The file name must be fewer than 210 bytes.

•The file format of the image that can be

imported is BMP (bmp) or JPEG (jpg).

•The individual file size limit is 6 MB.

•The maximum image size is 4,800 x 4,800

pixels. If the image size is less than 420 × 234

pixels, the image is displayed in the middle of

the screen with the extra area appearing in

black.

•Up to 10 files can be saved.

•If the USB flash drive does not have any

pictures, the No files detected message

appears.



Interface Settings



Wallpaper Settings

System Setup

HSETTINGS button



System Settings



Clock



Clock/Wallpaper Type



Wallpaper

1. Rotate i to select a desired

wallpaper. Press u.



The preview is displayed on the

left side on the screen.



The pop-up menu appears on

the screen.

2. Rotate i to select Set. Press u.



The display will return to the

wallpaper list.

■Select wallpaper

1Select wallpaper

From the pop-up menu, rotate to select Preview

and press to see a preview at full-size screen.

To go back to the previous screen, press to select

OK, or press the BACK button.

When the file size is large, it takes a while to be

previewed.



Interface Settings



Wallpaper Settings

System Setup

HSETTINGS button



System Settings



Clock



Clock/Wallpaper Type



Wallpaper

1. Rotate i to select a previously

imported wallpaper that you want

to delete. Press u.



The preview is displayed on the

left side on the screen.



The pop-up menu appears on

the screen.

2. Rotate i to select Delete. Press



The confirmation message will

appear.

3. Rotate i to select Yes. Press u.



The display will return to the

wallpaper list.

■Delete wallpaper

1Delete wallpaper

You cannot delete the factory default images.



Interface Settings



Unit Settings

System Setup

Unit Settings

HSETTINGS button



System Settings



Others



Units

Sets the map units to either miles (factory default) or kilometers (km).

Rotate i to select the map unit.

Press u.



Interface Settings



Language Settings

System Setup

Language Settings

HSETTINGS button



System Settings



Others



Language

Set the system language used on all screens. You can choose from three languages:

English, Français (French), Español (Spanish).

Rotate i to select the system

language. Press u.

1Language Settings

Voice confirmation of cities and streets only

occurs when English is the system language.

When Français or Español is selected, some

messages continue to be displayed in English.



Interface Settings



Background Color

System Setup

Background Color

HSETTINGS button



System Settings



Others



Background Color

Changes the background color of the navigation screen and the touchscreen.

Rotate i to select a desired color.

Press u.



Interface Settings



Header Clock Display

System Setup

Header Clock Display

HSETTINGS button



System Settings



Others



Header Clock Display

Selects whether the clock display comes on.

Rotate i to select an option. Press

The following options are available:

•On (factory default): The system displays the clock in the navigation screen.

•Off: Disables the feature.

System Setup

Personal Information

HSETTINGS button



Navi Settings



Personal Info

Use the personal information menu to select and set your address books, home

address, and PINs. You can also delete unwanted destinations from the list of

previously routed destinations.

Rotate i to select an item. Press u.

The following items are available:

•Address Book: Stores new addresses or edits your address book.

2Address Book P. 37

•Edit Go Home: Sets or edits your home address.

2Home Address P. 42

•PIN Number: Sets or changes your PIN.

2PIN Numbers P. 43

•Previous Destination: Deletes the destination history.

2Previous Destination P. 44

•Category History: Deletes the place categories you recently used.

2Category History P. 45

•Download POI: Edits and deletes the Imported POI categories.

2Editing POI Categories P. 47

1Personal Information

Personal information cannot be backed up or

moved to another navigation system.



Personal Information



Address Book

System Setup

Address Book

HSETTINGS button



Navi Settings



Personal Info



Address Book

Store up to 200 address entries in the address book. You can add, edit, and delete

information in the address book.

Move w or y to display only the

addresses in the selected category.

HSETTINGS button



Navi Settings



Personal Info



Address Book

This section explains how to enter the name and address.

1. Move r and rotate i to select

Add New Address. Press u.

1Address Book

If you have PIN-protected your address book,

enter your PIN when prompted. Press u to

select OK. PINs are optional.

2PIN Numbers P. 43

Any address book categories you create are also

displayed.

2Selecting an Address Book Category P. 40

■Adding an Address Book Entry

1Adding an Address Book Entry

If you do not give the address a name, one is

automatically assigned (e.g., Address 001). You

can re-enter, edit, or make changes to any entry.

“Address” is the only required field.

Continued



Personal Information



Address Book

System Setup

2. Rotate i to select an item. Press

The following items are available:

•Name: Edits the name of the entry.

•Address: Edits the address of the entry.

•Phone No.: Edits the phone number of the entry.

•Category: Specifies the category of the entry.

•Alert: Alerts you when you approach the address entry.

On: Beeps and displays a message when your vehicle gets near the entry.

Off (factory default): Disables the feature.

3. Rotate i to select Name. Press

4. Enter a name or title. Move r to

select OK.

5. Rotate i to select Address. Press

6. Rotate i to select an item for

specifying the address. Press u.



Personal Information



Address Book

System Setup

The following items are available:

•Current Position: Select your current location.

•Address: Enter an address on the character input screen when prompted.

2Address P. 86

•Previous Destinations: Select a previous destination.

2Previous Destination P. 93

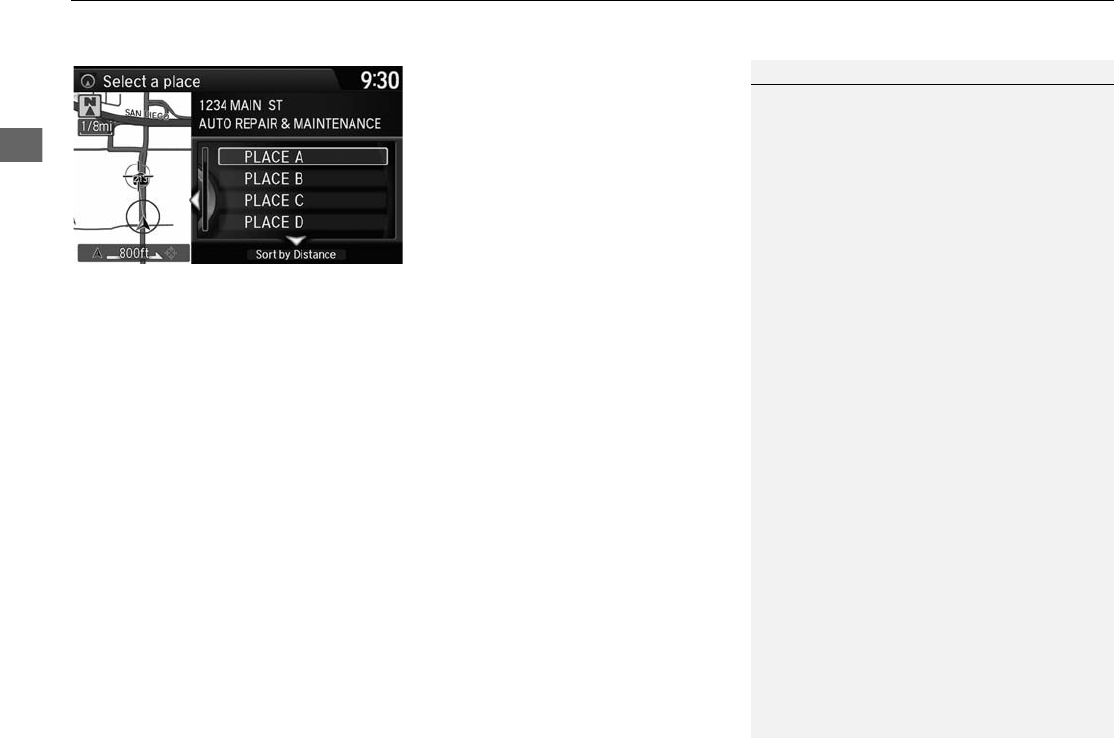

•Place Name: Enter the name of a place/landmark.

2Place Name P. 96

•Place Category: Select a category to search for a place/landmark (e.g., Banking,

Lodging).

2Place Category P. 94

•More Search Methods: Displays additional search method entries.

2Entering a Destination P. 84

HSETTINGS button



Navi Settings



Personal Info



Address Book

1. Rotate i to select the address to

edit. Press u.

2. Enter the name, address, phone

number, and category fields.

2Adding an Address Book Entry

P. 37

3. Move r and rotate i to select

OK. Press u.

■Editing an Address Book Entry

1Adding an Address Book Entry

When you use Place Name or Place Category,

the phone number is automatically entered.

You can also add a phone number and category.

1Editing an Address Book Entry

The entered contents are displayed on the Edit

address screen.



Personal Information



Address Book

System Setup

HSETTINGS button



Navi Settings



Personal Info



Address Book

1. Rotate i to select an address.

Press u.

2. Rotate i to select Category.

Press u.

3. Rotate i to select a category.

Press u.



Create a category in advance.

2Creating a New Category

P. 40

■Creating a New Category

1. Move r and rotate i to select New Category. Press u.

2. Enter a name and select an icon when prompted.



The created category is displayed in the list of categories.

■Deleting or Editing a Category

1. Move r and rotate i to select Delete or Edit. Press u.

2. Delete an existing category, or change the name and icon.



The selected category to delete is indicated with a trash icon. Move r and

rotate i to select OK.

■Selecting an Address Book Category

1Selecting an Address Book Category

You can have up to 100 categories (including

“Unfiled”).

If you delete a category that is used by other

addresses, the category type for those addresses

changes to “Unfiled.”



Personal Information



Address Book

System Setup

HSETTINGS button



Navi Settings



Personal Info



Address Book

1. Rotate i to select the address to

delete. Press u.

2. Move r and rotate i to select

Delete. Press u.

3. Rotate i to select Yes. Press u

to delete the address.

■Deleting an Address Book Entry

1Deleting an Address Book Entry

When you transfer the vehicle to a third party,

delete all address book entries.



Personal Information



Home Address

System Setup

Home Address

HSETTINGS button



Navi Settings



Personal Info



Edit Go Home

Set a home address that you frequently use.

1. Edit the name, address, and phone

number the same way as an

address in the address book.

2Adding an Address Book Entry

P. 37

2. Move r and rotate i to select

OK. Press u.

1Home Addresses

If you have PIN-protected your home addresses,

enter your PIN when prompted. Press u to

select OK. PINs are optional.

2PIN Numbers P. 43

If your home street is not in the system database,

park on the nearest verified street to your home.

When entering the “Address” field, rotate i to

select Current Position to use your current

location as the home address and press u.

You can delete a home address if necessary.

Move r and rotate i to select Clear Home

Entry. Press u. Rotate i to select Yes. Press

When you transfer the vehicle to a third party,

delete all home addresses.

The home icon is shown on the map screen on

the 1/20 and 1/8 mile scales.



Personal Information



PIN Numbers

System Setup

PIN Numbers

HSETTINGS button



Navi Settings



Personal Info



PIN Number

Set a four-digit PIN for protecting personal addresses and your home address. Once

you set a PIN, you are prompted to enter it whenever you access a personal address

or a home address.

1. Rotate i to select the PIN to

create. Press u.

2. Rotate i to select a digit to

enter. Press u to select OK.

Repeat to enter a new four-digit

PIN.

3. Re-enter the new PIN, when

prompted, to confirm the number

you just entered. Press u to select

OK.



If you have not entered the

same number both times, an

“INCORRECT PIN” message is

displayed. Enter your PIN again.

1PIN Numbers

Personal Identification Number (PIN) is a

password used to access personal data.

PINs are optional. If you choose to use a PIN,

keep a note of the number in a secure location. If

you forget your PIN, a dealer will have to reset

the navigation system and all of your stored

information will be erased. The factory default is

no PIN.

If you want to stop using a PIN, move r to select

Turn off PIN entry. Press u.



Personal Information



Previous Destination

System Setup

Previous Destination

HSETTINGS button



Navi Settings



Personal Info



Previous Destination

The navigation system maintains a list of your previously routed destinations as a

shortcut for entering the same destination in the future. You can delete some or all

of your previous destinations from the list.

1. Rotate i to select the destination

to delete. Press u.



Repeat the procedure as

necessary.



Items to be deleted are indicated

with a trash icon.

2. Move r and rotate i to select

OK to delete the selected

destinations.

1Previous Destinations

Up to 50 destinations can be stored.

To cancel the selection of a previous destination,

rotate i to highlight the destination again.

Press u to de-select it.

Trash icon



Personal Information



Category History

System Setup

Category History

HSETTINGS button



Navi Settings



Personal Info



Category History

The navigation system maintains a list of your recently used place categories as a

shortcut for selecting the same categories in the future. You can delete some or all

of your recently used categories from the list.

1. Rotate i to select the category to

delete. Press u.



Repeat the procedure as

necessary.



Items to be deleted are indicated

with a trash icon.

2. Move r and rotate i to select

OK to delete the selected

categories.

1Category History

Up to 50 categories can be stored.

To cancel the selection of a category, rotate i

to highlight the category again. Press u to de-

select it.

Trash icon



Personal Information



Download POI

System Setup

Download POI

Import custom Points of Interest (POI) into the navigation system and set the POI as a

destination. You can also add, edit, and delete POIs.

HMENU button (on map)



More Search Methods



Download POI

1. Connect a USB flash drive with

stored POI data to the USB

connector.

2. Move r and rotate i to select

Import from USB. Press u.

■Importing POI Categories

1Importing POI Data

For more information about connecting a USB

flash drive.

2Connecting a USB Flash Drive P. 191

POI data in csv and kml formats can be imported.

You can download POI data from various POI

websites.



Personal Information



Download POI

System Setup

3. Rotate i to select a category to

import. Press u.

HSETTINGS button



Navi Settings



Personal Info



Download POI

1. Rotate i to select the

downloaded POI category to edit.

Press u.

■Editing POI Categories



Personal Information



Download POI

System Setup

2. Rotate i to select an item. Press

The following items are available:

•Alert Setting: Alerts you when you approach the places/landmarks in the

category.

On: Beeps and displays a message when your vehicle gets near the places/

landmarks in the category.

Off (factory default): Disables the feature.

•Delete Category: Deletes all places/landmarks and icon in the selected category.

•Edit Icon: Changes the category icon.

System Setup

Routing

HSETTINGS button



Navi Settings



Routing

Choose various settings that determine the navigation system functionality during

route calculation.

Rotate i to select an item. Press u.

The following items are available:

•Route Preference: Changes the route preferences (calculating method).

2Route Preference P. 50

•Unverified Routing: Sets whether you use the route guidance in unverified

areas.

2Unverified Routing P. 51

•Traffic Rerouting: Sets whether you use automatic recalculation based on traffic

information.

2Traffic Rerouting P. 53

•Edit POI Search Radius Along Route: Sets the distance from the route to find

waypoints.

2Edit POI Search Radius Along Route P. 54

•Avoided Area: Specifies areas to avoid when calculating a route.

2Avoided Area P. 55



Routing



Route Preference

System Setup

Route Preference

HSETTINGS button



Navi Settings



Routing



Route Preference

Change the route preference by selecting minimum or maximum driving methods.

1. Rotate i to select an item. Press

2. Rotate i to select Min or Max.

Press u.



Repeat step 1 and 2 as

necessary.

3. Move r to select OK. Press u.

1Route Preference

The calculated route may be the shortest route or

the route you would choose. For safety reasons,

the system generally applies the following rules

to your route:

•Shortcuts through residential areas are

avoided.

•Right turns are favored over left turns or U-

turns.

•Time-restricted turns (turns prohibited at

certain times of the day) are not used.

Check the ferry schedule when the calculated

route includes ferry route.

ETC is short for the Electronic Toll Collection

system.



Routing



Unverified Routing

System Setup

Unverified Routing

HSETTINGS button



Navi Settings



Routing



Unverified Routing

Receive turn-by-turn map and voice guidance in unverified areas.

Rotate i to select On or Off. Press

1Unverified Routing

Unverified roads are found in rural areas, and

typically include residential streets away from the

center of a town. They may not be accurate, and

can contain errors in location, naming, and

address range.

Unverified roads are shown only when viewing

the map in the 1/20, 1/8, or 1/4 mile map scales.

Straight line guide

Blue-pink route line

Differences Off On (factory default)

On or Off? The driver wishes to manually

navigate using the navigation map

and choose the streets that lead to

the destination.

The driver chooses to let the

navigation system suggest

possible routing, knowing that the

guidance may not be accurate.

Route

calculation

Route is usually longer, using

verified roads whenever possible.

Route is shorter, but uses

unverified (purple) streets that

may not be accurate.

Route line The route line uses verified streets

only (when possible).

If Straight Line Guide is set to On,

a pink vector line is displayed on the

map that continually points to your

destination.

2Straight Line Guide P. 73

A blue-pink route line highlights

suggested unverified streets on

the map while traveling to your

destination.



Routing



Unverified Routing

System Setup

Cautionary

messages

Cautionary pop-up screens and

voice announcements remind you to

obey all traffic restrictions when

starting route guidance,

approaching an unverified area, and

entering an unverified street.

Cautionary pop-up screens and

voice announcements remind you

to obey all traffic restrictions

when entering an unverified

street.

Guidance

(map/voice)

There is no turn-by-turn map or

voice guidance.

Voice guidance commands end

with the phrase “if possible” to

remind you to verify all traffic

restrictions.

Directions

list

A direction list is typically not

available. However, depending on

your route, directions are provided

to help you reach the first available

verified road.

A direction list is provided

showing street names and turn

symbols in pink.

Differences Off On (factory default)



Routing



Traffic Rerouting

System Setup

Traffic Rerouting

HSETTINGS button



Navi Settings



Routing



Traffic Rerouting

A faster route can be calculated based on continuously updated traffic information.

2Traffic Rerouting™ P. 118

Rotate i to select an option. Press

The following options are available:

•On: The system reroutes automatically based on traffic information.

•Off (factory default): Disables the feature.

1Traffic Rerouting

You must be in or near a traffic-enabled city to

receive coverage for that area. FM Traffic is

available in the lower 48 states and Hawaii.

Automatic traffic rerouting may not provide a

detour route depending on circumstances.



Routing



Edit POI Search Radius Along Route

System Setup

Edit POI Search Radius Along Route

HSETTINGS button



Navi Settings



Routing



Edit POI Search Radius

Along Route

Select the distance from your highlighted route line (on either side of your route)

that the system will search for a waypoint.

2Adding Waypoints P. 122

You can specify a different search distance for freeways and surface streets.

1. Rotate i to select an item. Press

2. Rotate i to select a search

distance. Press u.

The following items are available:

•On Freeways: 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.

•On Surface Streets: 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.

1Edit POI Search Radius Along Route

The search distance does not affect the search

range used for the Find Nearest voice commands

(e.g., say d “Find nearest gas station”).



Routing



Avoided Area

System Setup

Avoided Area

HSETTINGS button



Navi Settings



Routing



Avoided Area

Specify up to five areas to avoid (e.g., road construction, closures), if possible, when

the system calculates routes to your destination.

1. Move r and rotate i to select

New Area, or rotate i to select

an existing area to edit.

2. Rotate i to select Name to label

the area to avoid. Press u.

3. Enter a name or title. Move r to

select OK.

4. Rotate i to select Area to define

the area to avoid. Press u.

The following options are available (after an area is set):

•View Area: Displays the selected avoid area on the map.

•Delete: Deletes the selected avoid area.

1Avoided Area

The maximum size of an “avoid area” is

approximately 1 square mile.

If your selected area contains a freeway, you are

asked “Do you want to avoid freeways?”

Answering “No” allows you to use a route

through an avoid area on a freeway without any

pop-up messages.

You can select areas to avoid, however you

cannot select roads or areas that you want the

system to use for routing.

You can enter up to 25 characters for the name.



Routing



Avoided Area

System Setup

5. Rotate i to select a method for

specifying the area. Press u.

The following options are available:

•Address: Specify the general area by entering an address.

2Address P. 86

•Map Input: Specify the general area by map input.

2Map Input P. 103

6. If you select Map Input, scroll the

map to position the cursor over

your desired start point, adjusting

the map scale as necessary. Press

u to mark the start point.



To redo the area selection, press

the BACK button.

7. Scroll the map to “draw” the area.

Press u to mark the end point.

8. Press u to select OK.



The area you specify is displayed

in the list of areas to avoid.

1Avoided Area

Avoid area can be set in the 1/20, 1/8, or

1/4 mile map scales.

Cursor

Avoid area

System Setup

Guidance

HSETTINGS button



Navi Settings



Guidance

Choose various settings that determine the navigation system functionality during

route guidance.

Rotate i to select an item. Press u.

The following items are available:

•Guidance Mode: Sets whether to display only the map screen or a split map-

guidance screen.

2Guidance Mode P. 58

•Street Name Guidance: Sets whether to read out the street names during voice

guidance.

2Street Name Guidance P. 60

•Non-map screens (models without LaneWatch): Sets whether the guidance

screen interrupts the screen display.

2Non-map screens P. 61

•Next Maneuver Pop Up (models with LaneWatch): Sets whether to display the

guidance information to the destination or the next waypoint.

2Next Maneuver Pop up P. 62

•Guidance Point: Sets whether to display the guidance information to the

destination or the next waypoint.

2Guidance Point P. 63

•Estimated Time: Sets whether to display the remaining time or arrival time to the

guidance point.

2Estimated Time P. 64



Guidance



Guidance Mode

System Setup

Guidance Mode

HSETTINGS button



Navi Settings



Guidance



Guidance mode

Select the display mode for the map and guidance screens.

Rotate i to select an option. Press

The following options are available:

•Map (factory default): Displays only the map screen. When you approach a

guidance point, the next guidance point appears.

1Guidance Mode

The guidance mode can also be selected from

the map menu.

2Map Menu P. 114

Press the NAV button to switch between the

map, next guidance direction, and a list of

guidance directions.

Near the next

guidance point

Map screen Next Maneuver screen

Next guidance point



Guidance



Guidance Mode

System Setup

•Direction List: Displays the map and direction list simultaneously on the map

screen. When you approach a guidance point, the next guidance point appears.

•Next Maneuver: Displays the map and next guidance point simultaneously on

the map screen.

Guidance direction list

Near the next

guidance point

Next guidance point

Direction List screen Next Maneuver screen

Next guidance point

Near the next

guidance point

Next Maneuver screen Next Maneuver screen



Guidance



Street Name Guidance

System Setup

Street Name Guidance

HSETTINGS button



Navi Settings



Guidance



Street Name Guidance

The navigation system includes the street names during voice guidance (e.g., “Turn

right on Main Street”).

Rotate i to select an option. Press

The following options are available:

•On (factory default): Voice guidance includes the street names.

•Off: Disables the feature.

1Street Name Guidance

This feature is only available when the system

language is set to English.

This feature may not be available in non-English

speaking areas.



Guidance



Non-map screens

System Setup

Non-map screens

HSETTINGS button



Navi Settings



Guidance



Non-map screens

The navigation system temporarily interrupts the screen display to view the guidance

screen as you approach a guidance point.

Rotate i to select an option. Press

The following options are available:

•On: The guidance screen interrupts other mode screens (e.g., audio, phone, etc,

except the rear view camera mode).

•Off (factory default): Disables the feature.

Models without LaneWatch



Guidance



Next Maneuver Pop up

System Setup

Next Maneuver Pop up

HSETTINGS button



Navi Settings



Guidance



Next Maneuver Pop up

The navigation system temporarily interrupts the screen display to view the guidance

screen as you approach a guidance point.

Rotate i to select an item. Press u.

The following items are available:

•LaneWatch: Sets whether to view the guidance screen while displaying the

LaneWatch screen.

On (factory default): The guidance screen interrupts the LaneWatch screen.

Off: Disables the feature.

•Non-map Screens: Sets whether to view the guidance screen while displaying

other mode (e.g., audio, phone, etc.) screen.

On: The guidance screen interrupts other mode screens (except the rear view

mode).

Off (factory default): Disables the feature.

Models with LaneWatch



Guidance



Guidance Point

System Setup

Guidance Point

HSETTINGS button



Navi Settings



Guidance



Guidance Point

Set the guidance point to display on the map screen.

Rotate i to select an option. Press

The following options are available:

•Destination (factory default): Displays the remaining/arrival time and distance to

the destination.

•Next Point: Displays the remaining/arrival time and distance to the next

waypoint.



Guidance



Estimated Time

System Setup

Estimated Time

HSETTINGS button



Navi Settings



Guidance



Estimated Time

Select the estimated time to display on the screen.

Rotate i to select an option. Press

The following options are available:

•Arrival: Displays the arrival time to the destination or the next waypoint.

•Remaining (factory default): Displays the remaining time to the destination or the

next waypoint.

System Setup

Map

HSETTINGS button



Navi Settings



Map

Select the landmark icons to display on the map, change the orientation of the map,

display your current location, and learn the meaning of the icons, colors, and

symbols displayed on the map.

Rotate i to select an item. Press u.

The following items are available:

•Show Icon on Map: Selects the icons to display on the map.

2Showing Icons on Map P. 67

•Color (Day): Selects the color of the map for the Day mode.

2Color P. 69

•Color (Night): Selects the color of the map for the Night mode.

2Color P. 69

•View: Selects the map orientation (North-up, Heading-up, or 3D map).

2View (Map Orientation) P. 72

•3D Angle Adjustment: Adjusts the viewing angle for the 3D map.

23D Angle Adjustment P. 73

•Straight Line Guide: Sets whether to display a straight guideline to the

destination or waypoint.

2Straight Line Guide P. 73

Continued



Map



Estimated Time

System Setup

•Current Location: Displays and saves your current location.

2Current Location P. 74

•Map Legend: Displays an overview of the map features.

2Map Legend P. 75

•Display Tracking: Sets whether to display the tracking dots on the map.

2Display Tracking P. 79

•Delete Tracking: Deletes the tracking dots on the map.

2Deleting Tracking Dots P. 79

•Correct Vehicle Position: Adjusts the position of the vehicle on the map.

2Correct Vehicle Position P. 80

•System Device Information: Views database, software, device, and vehicle

identification information.

2System Device Information P. 270

•Map Data Update: Checks the map data update status when updating the map

database.

2Map Data Update P. 270



Map



Showing Icons on Map

System Setup

Showing Icons on Map

HSETTINGS button



Navi Settings



Map



Show Icon on Map

Select the icons that are displayed on the map.

1. Rotate i to select an item. Press

2. Rotate i to select an option.

Press u.



Repeat step 1 and 2 as

necessary.

3. Move r to select OK. Press u.

The following options are available:

•All On: Displays the landmark icons.

2Map Screen Legend P. 9

•Customize: Fine-tunes the icon display.

2Fine-tuning the Icons P. 68

•Off: Hides the landmark icons.

1Showing Icons on Map

You can display or hide the icons using voice

commands on the Voice Portal screen (e.g., say

d “Display hospital”).

2Map Display Commands P. 306

If you have PIN-protected your address book,

enter your PIN when prompted. Move r to

select OK. PINs are optional.

2PIN Numbers P. 43



Map



Showing Icons on Map

System Setup

Icons in some categories can be fine-tuned to display or hide.

1. Rotate i to select the icons to

display on the map. Press u.



Pressing u toggles the icon

display on or off.



Repeat the procedure as

necessary.

2. Move r and rotate i to select

OK. Press u.

■Fine-tuning the Icons



Map



Color

System Setup

Color

Set separate map colors for Day and Night modes.

HSETTINGS button



Navi Settings



Map



Color (Day)

Rotate i to select a color for the

Day mode. Press u.

HSETTINGS button



Navi Settings



Map



Color (Night)

Rotate i to select a color for the

Night mode. Press u.

■Color (Day)

1Color (Day)

The factory default is set to Beige.

■Color (Night)

1Color (Night)

The factory default is set to Blue.



Map



Color

System Setup

Set the screen brightness separately for Day and Night modes. Press the

(Display mode) button to cycle through the display modes (Day to Night to Off).

1. Press the a button.



The Brightness bar is displayed

for a few seconds.



Rotate i to adjust the

brightness. Press u.

2. Press the a button again.



Repeat the procedure to switch

the display modes.

■Switching Display Mode Manually

1Switching Display Mode Manually

A visual guide helps you see the difference

between Day and Night modes.

2Day or Night Mode P. 10

Recommended Settings

•Select mid-range for the dash illumination.

•Select White for the map Day display and

Black for the map Night display.



Map



Color

System Setup

Illumination

control Priority Operation

a button 1Selects Day, Night, or Off display mode. This button has

the highest priority and overrides all other display control

adjustments listed below.

Remember: Once you press this button, you assume full

manual control of the display mode until the power mode

is set to VEHICLE OFF (LOCK).

Sunlight sensor

(see your

Owner’s Manual

for location)

2 If the sunlight sensor detects daylight and the headlights

are turned on, the system automatically overrides the

Night display and displays the Day display mode.

Remember: If desired, use the a button to override

this automatic choice.

Dash illumination

adjustment

buttons (see your

Owner’s Manual

for location)

3When headlights are turned on, and you wish to have the

Day display mode, adjust the illumination to the full

brightness setting (beeps).

Remember: Adjust the dash brightness back to mid-range

to allow auto switching by sensing the headlights are on or

off.

Headlights

(Auto/On/Off)

4 When turned on, the display changes to Night display

mode. The previous three controls listed above can

“cancel” this function.

Remember: Use the a button, or adjust the dash

illumination to full brightness, to set the display to your

desired choice.

Screen color

choice

N/A The user can select the color of the screen that will be

displayed for the Day and Night display modes described

above.

Remember: The factory default is set to beige for Day and

blue for Night.



Map



View (Map Orientation)

System Setup

View (Map Orientation)

HSETTINGS button



Navi Settings



Map



View

Select the map orientation.

Rotate i to select an option. Press

The following options are available:

•North-Up: Displays the map with North always pointing up.

•Heading-Up: Displays the map so that the direction you are traveling is always

pointing up.

•3D Map: Displays the bird’s eye view map.

1View (Map Orientation)

d “Display Heading-up” (on Voice Portal

screen), d “Display North-up” (on Voice Portal

screen), d “Display 3D map” (on Voice Portal

screen)

The red arrow in the symbol always points North.

Heading-up and 3D map view switch to the

North-up view on the maximum map scale.

The bird’s eye view map switches to the

Heading-up map while scrolling the map.

The viewing angle for the bird’s eye view can be

adjusted.

23D Angle Adjustment P. 73



Map



3D Angle Adjustment

System Setup

3D Angle Adjustment

HSETTINGS button



Navi Settings



Map



3D Angle Adjustment

Adjust the viewing angle.

Rotate i to adjust the angle. Press

Straight Line Guide

HSETTINGS button



Navi Settings



Map



Straight Line Guide

Set whether to display a straight guideline to the destination or waypoint

Rotate i to select an option. Press

The following options are available:

•On (factory default): Displays the straight guideline on the map.

•Off: Disables the feature.



Map



Current Location

System Setup

Current Location

HSETTINGS button



Navi Settings



Map



Current Location

Display and save your current location for future use as a destination. The address,

latitude, longitude, and elevation of your current location are displayed.

■To save your current location in the address book:

1. Press u to select Address Book.



Move w to scroll the map as

necessary.

2. Edit the name, phone number, and

category.

2Address Book P. 37

3. Move r and rotate i to select

OK. Press u.

1Current Location

d “Display Current Location” (on Voice Portal

screen)

You can also save the current location by saying

d “Register the Current Location”.

If you have PIN-protected your address book,

enter your PIN when prompted. Press u to

select OK. PINs are optional.

2PIN Numbers P. 43

The elevation is not displayed if the system is

receiving insufficient GPS information. When

elevation is displayed, it may differ with roadside

elevation signs by ±100 feet or more.

Saving your current location does not change or

cancel your current route.



Map



Map Legend

System Setup

Map Legend

HSETTINGS button



Navi Settings



Map



Map Legend

See an overview of the map lines, areas, routes, traffic information, and navigation

icons.

Move w or y select an item.



The system displays the map

legend.

1Map Legend

A visual guide helps you see the map legend.

2Map Screen Legend P. 9



Map



Map Legend

System Setup

The functions that are available from the map screen depend on the map scale.

■Map Scale and Functions

Function page

Map Scale (top: mile, bottom: metric)

1/20 1/8 1/4 1/2 1 2 5 15 50 150 350 1000

80 200 400 800 1.6 3.2 824 80 240 560 1600

Icon display

Landmark icon 9✔ ✔

Exit info. 9✔ ✔ ✔

One-way traffic 9✔

Waypoint

“flag” 10 ✔✔✔✔✔✔✔✔✔✔✔ ✔

Traffic incident 9✔✔✔✔✔✔✔

Map orientation

Heading-up 72 ✔✔✔✔✔✔✔✔✔✔✔

North-up 72 ✔✔✔✔✔✔✔✔✔✔✔ ✔

3D map 72 ✔✔✔✔✔✔✔✔✔✔✔

Others

Tracking dots 111 ✔✔✔✔

Unverified road 9✔✔✔✔✔✔

Map features 9✔✔✔✔✔✔✔✔✔✔✔

Avoid areas 55 ✔✔✔

Traffic speed 9✔✔✔✔✔✔✔

1Map Scale and Functions

You can change the map scale using voice

commands on the Voice Portal screen (e.g., say

d “Display 2 mile scale”).

2Map Scale Commands P. 306

You can change between miles or kilometers.

2Unit Settings P. 32



Map



Map Legend

System Setup

Display or hide all icons on the map screen, with the exception of Honda/Acura

Dealer icons which are always shown.

■Landmark icon

■Map Icons and Functions

Type Icon display

control

Icon

selectable

Icon

searchable

Honda/Acura dealer Always on Yes Yes

Hospital Yes Yes Yes

School Yes Yes Yes

ATM Yes Yes Yes

Gas station Yes Yes Yes

Restaurants Yes Yes Yes

Post office Yes Yes Yes

Grocery store Yes Yes Yes

Hotel/Lodging Yes Yes Yes

Police station No icon No Yes

Shopping, Tourist attraction, Bank No icon No Yes

Parking garage Yes Yes Yes

Parking lot Yes Yes Yes

Freeway exit info. Yes Yes No

1Map Icons and Functions

You can display or hide the icons using voice

commands on the map screen (e.g., say d

“Display hospital”).

2Map Display Commands P. 306

Some icons, like police stations, are not shown,

but you can still locate the nearest one with the

Find Nearest voice command (e.g., say d “Find

nearest police station”).

2Find Place Commands P. 307

Icon display control

Icons that can be displayed or hidden using the

Interface Dial or voice command.

Icon selectable

Icons that can be selected as a destination using

the Interface Dial.

Icon searchable

Icons that can be searched using the d Find

Nearest voice command.



Map



Map Legend

System Setup

■Traffic icon

Type Icon display

control

Icon

selectable

Icon

searchable

Traffic incident Yes No Yes

1Traffic Incident

When you use the Interface Dial to position the

cursor (round red circle) over the traffic incident

icon, you can view the summary of the incident.

Press u on the traffic incident icon to view a

pop-up message describing the incident in detail.



Map



Display Tracking

System Setup

Display Tracking

HSETTINGS button



Navi Settings



Map



Display Tracking

The navigation system can be set to display white tracking dots (“breadcrumbs”) on

the map screen.

Rotate i to select an option. Press

The following options are available:

•On: The system displays the white tracking dots.

2Tracking Dots P. 111

•Off (factory default): Disables the feature.

HSETTINGS button



Navi Settings



Map



Delete Tracking

Rotate i to select Yes. Press u.

■Deleting Tracking Dots

1Deleting Tracking Dots

When you transfer the vehicle to a third party,

delete the tracking dots.



Map



Correct Vehicle Position

System Setup

Correct Vehicle Position

HSETTINGS button



Navi Settings



Map



Correct Vehicle Position

Manually adjust the current position of the vehicle as displayed on the map screen if

the position appears to be incorrect.

1. Put the vehicle in Park.

2. Rotate i to select Correct

Vehicle Position. Press u.

3. Scroll the map to position the

cursor over at your correct position.

Press u.

4. Rotate i to position the

arrowhead in the correct direction

the vehicle is facing.

5. Press u to select OK.

1Correct Vehicle Position

An apparent position error can occur where

buildings, tunnels, and other objects block or

reflect the GPS signals, forcing the system to use

“dead reckoning” to determine your location

and direction.

Using this function to adjust vehicle position is

not recommended. When the system reacquires

a GPS signal, it will automatically place the

vehicle in the correct location.

If you continually have to adjust the vehicle

position, you may have problems with the GPS

reception or there may be database errors.

2System Limitations P. 292

System Setup

Data Reset

Defaulting All the Settings

HSETTINGS button



System Settings



Others



Factory Data Reset

Reset all the menu and customized settings as the factory defaults.

1. Rotate i to select Yes. Press u.



The confirmation message will

appear.

2. Rotate i to select Yes. Press

again to reset the settings.



The confirmation message will

appear. Press to select OK.

1Defaulting All the Settings

When you transfer the vehicle to a third party,

reset all settings to default and delete all

personal data.

The following settings will be reset:

•Routing & Guidance: Rerouting, Unverified

Area Routing, Traffic Rerouting, Edit Waypoint

Search Area, Guidance Mode, Street Name

Guidance

•Route Preference

System Setup

Touchscreen

Changing the Screen Settings

Adjusts the screen settings of the touchscreen.

1. Select More.

2. Select Screen Settings.

3. Use N, B or other icons to adjust

the setting.

The followings are adjustable screen settings:

•Brightness: Adjusts the screen's brightness.

•Contrast: Adjusts the screen's contrast.

•Black Level: Adjusts the screen's black level.

•Display: Changes between the daytime or nighttime modes.

•Beep: Sounds a beep every time you touch the screen.

•Fade Timer: Sets the screen black out timing.

1Changing the Screen Settings

Select to go back to the previous screen.

Use the / / / icons to turn the page.

Navigation

This section describes how to enter a destination, select a route to take,

and follow the route to your destination. It also describes how to change

your route or destination along the way.

Entering a Destination ........................... 84

Address ................................................. 86

Address Book......................................... 92

Previous Destination............................... 93

Place Category....................................... 94

Place Name............................................ 96

Place Phone Number.............................. 99

Download POI...................................... 100

Scenic Route ........................................ 101

Intersection.......................................... 102

Map Input............................................ 103

Coordinate .......................................... 105

Calculating the Route ........................... 106

Viewing the Routes.............................. 107

Driving to Your Destination .................108

Viewing the Route ................................108

Listening to Voice Guidance..................112

Reaching a Waypoint ............................113

Map Menu..............................................114

Displaying the Map Menu .....................114

Directions .............................................116

Traffic Rerouting™................................118

Changing Your Route............................120

Pausing the Route.................................121

Canceling the Route .............................121

Adding Waypoints ................................122

Editing the Destination List....................126

Taking a Detour ....................................128

Avoiding Streets................................... 128

Changing Your Destination ................. 129

Find Nearest Place ................................ 129

Selecting a Destination on the Map...... 130

Entering a New Destination.................. 131

Resuming Your Trip .............................. 132

Navigation

Entering a Destination

HMENU button (on map)

This section describes how to enter a destination for route guidance.

Rotate i to select an item. Press u.



Select More Search Methods to

display additional menu entries.

The following items are available:

•Address: Sets a destination by entering an address.

2Address P. 86

•Address Book: Sets a destination by selecting an address stored in your Address

Book.

2Address Book P. 92

•Previous Destination: Sets a destination by selecting a previous destination.

2Previous Destination P. 93

1Entering a Destination

d “Display Destination”, d “Display

Navigation”

If you press the MENU button when en route,

the Route Option screen is displayed.

2Changing Your Route P. 120

Prior to departure, you can set areas along your

route to avoid.

2Avoiding Streets P. 128



Entering a Destination



Navigation

•Go Home: Sets your home address as a destination.

2Going Home P. 11

•Place Category: Sets a destination by selecting a place/landmark.

2Place Category P. 94

•Place Name: Sets a destination by entering a place name.

2Place Name P. 96

•Place Phone No.: Sets a destination by entering the phone number of a place/

landmark.

2Place Phone Number P. 99

•Download POI: Sets a destination by using a list of the imported POI (category

and places) data you created.

2Download POI P. 100

•Scenic Route: Sets a destination by using a list of scenic roads for each state (U.S.

and Canada only).

2Scenic Route P. 101

•Intersection: Sets a destination (intersection) by entering two streets.

2Intersection P. 102

•Map Input: Sets a destination by scrolling through the map.

2Map Input P. 103

•Coordinate: Sets a destination by entering latitude and longitude.

2Coordinate P. 105



Entering a Destination



Address

Navigation

Address

HMENU button



Address

Enter an address to use as the destination. The state or province you are currently in

is displayed (e.g., California).

Rotate i to select an item. Press u.

The following items are available:

•City: Selects your destination city.

2Selecting a City P. 88

•Street: Selects your destination street.

2Selecting a Street P. 89

•House Number: Enters the house number to select the street.

2Selecting a Street by House Number P. 91

•ZIP Code: Enters the zip code to select the city.

2Selecting a City by Zip Code P. 87

•Change State: Selects the state or province.

2Selecting the State or Province P. 87



Entering a Destination



Address

Navigation

HMENU button



Address



Change State

Rotate i to select a state from the

list. Press u.

HMENU button



Address



ZIP Code

1. Enter the zip code of your

destination.

2. Move r to select OK. Press u.

■Selecting the State or Province

1Selecting the State or Province

Move w or y to select the following areas:

•USA for the U.S. mainland, Alaska, Hawaii,

and Puerto Rico

•Canada

•Mexico

■Selecting a City by Zip Code

1Selecting a City by Zip Code

If your city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

Continued



Entering a Destination



Address

Navigation

3. Rotate i to select the destination

city from the list. Press u.



Next, you are prompted to enter

a street name.

2Selecting a Street P. 89

HMENU button



Address



City

The name of the city where you are currently located is displayed.

1. Enter the name of a different city,

or move r to select OK for the

current city. Press u.

■Selecting a City

1Selecting a City

Vehicle position may not be displayed when:

•The automobile is traveling off-road.

•The vehicle position data cannot be updated.

You do not need to enter spaces or symbols

(e.g., &, -, %). Partial matches are supported

(e.g., “ANGELES” to find “LOS ANGELES”).

Using Voice Command (English only)

Say d “City” on the Find address by screen, and

the following screen is displayed:

•Say d “Current City” to select your current

location, or say the name of a different city.

2Selecting a Street P. 89

•The Say city name screen is not displayed when

your vehicle is in Puerto Rico or Mexico.



Entering a Destination



Address

Navigation

2. Rotate i to select your

destination city from the list. Press



A list of matching hits is

automatically displayed after

you enter several letters, with

the closest match at the top of

the list. Matching letters are

highlighted.



Next, you are prompted to enter

a street name.

2Selecting a Street P. 89

HMENU button



Address



Street

1. Enter the name of your destination

street.



Do not enter the street type

(e.g., street, road, avenue) or

direction (e.g., north, south,

east, west).



Move r to select OK to display

a list of streets. Press u.

1Selecting a City

If your city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

Non-detailed area mark: Try entering the

street first and then select the city.

■Selecting a Street

1Selecting a Street

When entering the names of major freeways,

you can use the following abbreviations. For

interstates, use an “I” (e.g., I-10). For U.S.

freeways, use “US” (e.g., US-18). For state

freeways, use the two-character state

designation (e.g., CA-101). For county roads, use

the appropriate designation (e.g., G-2).

Using Voice Command (English only)

Say d “Street” on the Find address by screen,

and the following screen is displayed:

•Say the name of your destination street, and

say the street number as a string of individual

numbers.

•Set the route to your destination.

2Calculating the Route P. 106

•The Say street name screen is not displayed

when your vehicle is in Puerto Rico or Mexico.

Continued



Entering a Destination



Address

Navigation

2. Rotate i to select your

destination street from the list.

Press u.



A list of matching hits is

automatically displayed after

you enter several letters, with

the closest match at the top of

the list. Matching letters are

highlighted.

3. Enter the street number.



Only valid street numbers can be

entered.

4. Move r to select OK. Press u.

5. Set the route to your destination.

2Calculating the Route P. 106

1Selecting a Street

If you did not select a city first and there is more

than one city with the specified street, a list of

cities is displayed.

Rotate i to select the desired city from the list.

Press u.



Entering a Destination



Address

Navigation

HMENU button



Address



House Number

1. Enter the house number.



Only a valid house number can

be entered.

2. Move r to select OK. Press u.



If you did not yet select a street

name, enter a street name when

you are prompted.

3. Rotate i to select your

destination street from the list.

Press u.



Select a city when you are

prompted.

4. Set the route to your destination.

2Calculating the Route P. 106

■Selecting a Street by House Number



Entering a Destination



Address Book

Navigation

Address Book

HMENU button



Address Book

Select an address stored in your address book to use as the destination.

1. Rotate i to select your

destination from the list. Press u.

2. Set the route to your destination.

2Calculating the Route P. 106



Move w or y to display only

the entries in the categories you

have created.

2Selecting an Address Book

Category P. 40

1Address Book

If you have PIN-protected your address book,

enter your PIN when prompted. Press u to

select OK. PINs are optional.

2PIN Numbers P. 43

Move r and rotate i to select the following

items:

•Add New Address: Adds an entry to the

address book.

2Adding an Address Book Entry P. 37

•Sort: Selects Sort by Name or Sort by

Distance.

•Delete All: Deletes all entries in the address

book.



Entering a Destination



Previous Destination

Navigation

Previous Destination

HMENU button



Previous Destination

Select an address from a list of your 50 most recent destinations to use as the

destination. The list is displayed with the most recent destination at the top.

1. Rotate i to select a destination

from the list. Press u.

2. Set the route to your destination.

2Calculating the Route P. 106

1Previous Destination

If Previous Destination is grayed out, there are

no previous destinations entered.

Your home address and addresses stored in your

address book are not added to the list of

previous destinations.

Move r and rotate i to select Delete All to

delete all previous destinations.

You can delete unwanted previous destinations

from the list.

2Previous Destination P. 44



Entering a Destination



Place Category

Navigation

Place Category

HMENU button



Place Category

Select the category of a place (e.g., Banking, Lodging, Restaurant) stored in the map

database to search for the destination.

1. Rotate i to select a category.

Press u.

2. Rotate i to select a subcategory.

Press u.

2List of Categories P. 318

1Place Category

This option is convenient if you do not know the

exact name of a place or if you want to narrow

down the number of matches returned for places

with a common name.

Move y to select Category History to access

your recently used place categories. Up to 30

categories can be stored.

You can also delete your recently used place

categories.

2Category History P. 45

Search POI Categories helps you to search the

subcategory. When you enter a keyword and

select OK, the list of appropriate subcategories is

displayed.



Entering a Destination



Place Category

Navigation

3. Rotate i to select an item. Press

The following items are available:

•Search by Name: Searches for a place in the subcategory by name. Enter a city

name when prompted.

•City Vicinity: Searches for a place in the subcategory within a 20-mile radius of a

specific city. Enter a city name and then a place name when prompted. Only the

first 1000 matching places/landmarks are displayed.

•Sort by Distance to Travel: Displays all the places in the subcategory sorted by

distance from your current location. The closest place is displayed at the top.

4. Rotate i to select a place name

from the list. Press u.

5. Set the route to your destination.

2Calculating the Route P. 106

1Place Category

The straight line distance (as the crow flies, not

driving distance) and direction to the destination

are shown for the highlighted place.



Entering a Destination



Place Name

Navigation

Place Name

HMENU button



Place Name

Enter the name of a place (e.g., business, hotel, restaurant) stored in the map

database to use as the destination.

1. Enter a place name.

2. Move r to select OK to display a

list of matching hits. Press u.

3. Rotate i to select a place name

from the list. Press u.



If the place name is in multiple

categories, the categories are

displayed when you select it.

2Place Name in Multiple

Categories P. 97

4. Set the route to your destination.

2Calculating the Route P. 106

1Place Name

This option is convenient if you know the exact

name of a place.

Once a name is entered and selected, move r to

select Sort by Name or Sort by Distance.

Matching letters are highlighted.



Entering a Destination



Place Name

Navigation

If the place name is in multiple categories in the map database, the following screen

is displayed.

1. Rotate i to select a place name.

Press u.

2. Rotate i to select a subcategory.

Press u.

■Place Name in Multiple Categories

1Place Name in Multiple Categories

Matching letters are in highlighted.

Continued



Entering a Destination



Place Name

Navigation

3. Rotate i to select a place. Press

4. Set the route to your destination.

2Calculating the Route P. 106

1Place Name in Multiple Categories

Move r to select Sort by City or Sort by

Distance.



Entering a Destination



Place Phone Number

Navigation

Place Phone Number

HMENU button



More Search Methods



Place Phone Number

Select a destination by phone number. Only phone numbers in the database are

recognized.

1. Enter the area code and phone

number.

2. Rotate i to select OK. Press u.

3. Set the route to your destination.

2Calculating the Route P. 106

1Place Phone Number

All 10 digits must be entered.

Phone numbers of private residences entered in

your address book are not stored in the database

and thus cannot be used to search for a

destination.

A list is displayed if there are multiple locations in

the database with the same phone number.

Rotate i to select a place from the list. Press

100



Entering a Destination



Download POI

Navigation

Download POI

HMENU button



More Search Methods



Download POI

Select a place imported into the navigation system as the destination.

1. Rotate i to select a category

from the list. Press u.

2. Rotate i to select a place. Press

3. Set the route to your destination.

2Calculating the Route P. 106

1Download POI

Move r and rotate i to select the following

items:

•Import from USB: Imports POI data into the

navigation system.

2Importing POI Categories P. 46

•Delete All: Deletes all POI entries.

•Help with Feature: Views tips for the

Download POI feature.

101



Entering a Destination



Scenic Route

Navigation

Scenic Route

HMENU button



More Search Methods



Scenic Route

Select a scenic road as a destination (U.S. and Canada only).

1. Rotate i to select a state. Press

2. Rotate i to select a scenic road.

Press u.

3. Set the route to your destination.

2Calculating the Route P. 106

1Scenic Route

If you select a scenic road that runs through

multiple states, only the portion of the road in

the selected state is displayed.

102



Entering a Destination



Intersection

Navigation

Intersection

HMENU button



More Search Methods



Intersection

Select the intersection of two streets as the destination. The state or province for

your current location is displayed at the top of the screen (e.g., California).

1. Rotate i to select the

intersection search method. Press

2. Set the route to your destination.

2Calculating the Route P. 106

The following options are available:

•City: Selects the city where the intersection is located. You are prompted to enter

the name of the two intersecting streets.

2Selecting a City P. 88

•Street: Selects the two intersecting streets. The city or cities that the streets are

located in are displayed.

2Selecting a Street P. 89

•Change State: Selects the state or province.

2Selecting the State or Province P. 87

1Intersection

It is usually easier to select Street to find the

streets first. The city or cities that the streets are

in will be displayed. If you select City and your

city is not listed, it may be part of a larger

metropolitan area. Try entering the street first.

If the intersection is outside the state you are

currently in, rotate i to select Change State.

2Selecting the State or Province P. 87

If there is more than one intersection, you are

prompted to select the intersection. If the two

streets that you have selected do not intersect,

no intersection is entered.

103



Entering a Destination



Map Input

Navigation

Map Input

HMENU button



More Search Methods



Map Input

Use the Interface Dial to manually select an icon or a location on the map screen as

the destination.

You are prompted to define the map area to display.

1. Rotate i to select an item. Press

The following items are available:

•Current Position: Your current location is centered on the map.

•State: You are prompted to select the state.

2Selecting the State or Province P. 87

•City: You are prompted to select the city.

2Selecting a City P. 88

•USA, Canada and Mexico: Your current location is displayed on a map of the

country.

Continued

104



Entering a Destination



Map Input

Navigation

2. Scroll the map to position the

cursor over your desired

destination, adjusting the map

scale as necessary.



If the address is not the desired

location, scroll the map to

another location and try again.

3. Press u to display the route

calculation menu.

2Calculating the Route P. 106

4. Rotate i to select Set as

Destination. Press u.

1Map Input

Auto Zoom

Press u repeatedly on the map to zoom in (to

the scale 1/4 mile) while scrolling the map.

Information icons are displayed at scales from 1

mile to 1/4 mile. Place/landmark icons are

displayed at 1/8 mile or less. Roads are displayed

at 1/4 mile or less.

If you select multiple icons within the cursor

radius, you are prompted to select one of the

items from a list.

2Selecting a Destination on the Map P. 130

105



Entering a Destination



Coordinate

Navigation

Coordinate

HMENU button



More Search Methods



Coordinate

Specify a location using latitude and longitude map coordinates.

1. Enter the latitude and select OK.

2. Enter the longitude and select OK.

3. Move w to scroll the map to

position the cursor over your

desired destination, adjusting the

map scale as necessary.



If the address is not the desired

location, scroll to another

location and try again.

4. Press u to display the route

calculation menu.

2Calculating the Route P. 106

5. Rotate i to select Set as

Destination. Press u.

1Coordinate

Latitude and longitude must be entered up to

the seconds’ value.

106

Navigation

Calculating the Route

This section describes how to calculate your route.

1. Rotate i to select Set as

Destination. Press u.



The system calculates and

displays the route line on the

map screen.

2Route Line P. 110



Move w to scroll the map

around the destination.

The following options are available:

•View Routes: Displays three different routes.

2Viewing the Routes P. 107

•Route Preference: Move r to select Route Preference to change the route

preferences (calculating method).

2Route Preference P. 50

2. Follow the route guidance to your

destination.

2Driving to Your Destination

P. 108



The system provides you with

pop-up messages if your route

passes through unverified areas,

avoid areas, or areas with traffic

restrictions.

1Calculating the Route

The straight line distance (as the crow flies, not

driving distance) and direction to the destination

are shown.

You cannot use voice commands while the

system is calculating the route.

Search Nearby

You can find the nearest place/landmark (e.g.,

nearest gas station) by specifying a category.

2Find Nearest Place P. 129

Call

You can place a telephone call to the destination

phone number.

2Bluetooth® HandsFreeLink® P. 202

Save to Address Book

You can add the destination address to the

address book.

2Adding an Address Book Entry P. 37

Edit/Delete Entry

You can edit or delete the address book entry.

2Editing an Address Book Entry P. 39

Edit Home Entry

You can edit your home address entry.

2Home Address P. 42

107



Calculating the Route



Viewing the Routes

Navigation

Viewing the Routes

View three different routes to your destination.

Rotate i to select a route. Press u.



The travel distance and estimated

travel time is displayed for each

route.



The system calculates and displays

the route line on the map screen.

2Route Line P. 110

1Viewing the Routes

It is not unusual for some calculated route

options to be identical.

108

Navigation

Driving to Your Destination

This section describes how to follow the route guidance to your destination, receive

traffic information and choose the icons displayed on the map screen.

Viewing the Route

After calculating the route to your

destination, the route is displayed on

the map screen.

2Map Screen Legend P. 9

As you drive, the system tracks your

position on the map in real time and

provides guidance as you approach

each guidance point on the route.

2During Route Guidance P. 10

■Map Screen

1Viewing the Route

d “Display Map”

You can change the map scale using voice

commands (e.g., say d “Display 2 mile scale”).

2Map Scale Commands P. 306

You can also change the map scale by rotating

You can control the icons displayed on the map

screen using voice commands (e.g., say d

“Display post office”).

2Map Display Commands P. 306

You can obtain information about the route

using voice commands (e.g., say d “How long

to the destination?”).

2Route Commands P. 308

You can display the next guidance point on the

map screen by saying d “Display Map Guide”

(when en route).

If you scroll the map while en route, the time and

distance to destination indicators are replaced

with an indicator showing distance from the

current vehicle position.

You can display only the map screen or a split

map-guidance screen.

2Guidance Mode P. 58

109



Driving to Your Destination



Viewing the Route

Navigation

The guidance screen offers an alternative way to view your route.



The next guidance point is

displayed as you approach each

guidance point on the route.



You can also view a list of guidance

directions.

■Guidance Screen

1Guidance Screen

A visual guide helps you check the guidance

screen.

2Guidance Screen P. 10

110



Driving to Your Destination



Viewing the Route

Navigation

When driving on verified streets, the route line is light blue. The route line display

changes when driving on unverified streets:

•If Unverified Routing is Off, the

route line uses verified streets only

(when possible). If Straight Line

Guide is set to On, a pink “vector

line” pointing directly towards your

destination is displayed.

2Straight Line Guide P. 73

•If Unverified Routing is On, the

route line changes to a blue-pink

line to indicate that the route line

uses unverified streets.

■Route Line

1Route Line

You can set Unverified Routing to Off to

follow your own route to the destination. If

Unverified Routing is On, be aware that

unverified streets may not be displayed

accurately.

2Unverified Routing P. 51

You can always view the entire route by simply

saying d “Display entire route.”

The route line may also consist of red, orange, or

green segments when traffic information is

displayed.

2Map Screen Legend P. 9

2Traffic Rerouting™ P. 118

Straight line guide

Blue-pink route line

111



Driving to Your Destination



Viewing the Route

Navigation

If you leave the calculated route, the system automatically recalculates a route to the

desired destination based on your current location and direction.

2Route Preference P. 50

You can display a series of dots (breadcrumbs) to track the path you are taking. If

needed, you can follow the dots back to the mapped road you originally left.

2Display Tracking P. 79

■Deviating From the Planned Route

■Tracking Dots

1Tracking Dots

A message “Not on a digitized road” may appear

when you drive half a mile away from a mapped

road.

Breadcrumbs may occasionally be displayed in

urban areas, such as large parking lots in

shopping malls, in new subdivisions where the

roads are not yet in the database, or in areas

where a GPS signal is unavailable, such as in a

parking garage.

Breadcrumbs are limited to approximately 150

miles. Breadcrumbs at the beginning of the trail

are deleted if you exceed that distance.

Breadcrumbs are displayed only at 1/20, 1/8, 1/4,

and 1/2 mile map scales.

112



Driving to Your Destination



Listening to Voice Guidance

Navigation

Listening to Voice Guidance

HENTER button (on map)



Voice

As you approach each guidance point, a pop-up window is displayed on the map

screen with instructions for you to follow. Voice guidance for each guidance point is

also provided.

Typically, you hear three prompts:

•1/2 mile from the guidance point (2 miles on freeway)

•1/4 mile from the guidance point (1 mile on freeway)

•Just before the guidance point

To replay voice guidance, rotate i to select Voice in the Map Menu.

If you select Voice between guidance points, voice guidance for the next guidance

point is provided.

1Listening to Voice Guidance

d “Voice” (on the map screen)

You can turn voice guidance OFF if you prefer.

Press the SETTINGS button. Select System

Settings and set Volume to 0.

When driving in unverified areas, the phrase “if

possible” is inserted before each voice guidance

prompt.

Voice in the Map Menu may be grayed out if:

•The system is in process of gathering the route

guidance information.

•The vehicle is out of the road (e.g., pulling in a

parking lot).

The timing of voice guidance varies depending

on the type of road you are on and the distance

to the next guidance point.

113



Driving to Your Destination



Reaching a Waypoint

Navigation

Reaching a Waypoint

When you reach a waypoint, a pop-up message is displayed. You can continue or

pause the route guidance.

Rotate i to select No to pause the

route guidance. Press u.



Select Yes to continue the

guidance.

You can resume the route guidance in the following ways:

•Restart the engine when you stop your car (e.g., to rest, stop for gas, etc.).

2Resuming Your Trip P. 132

•Select Resume Guidance from the navigation menu or the map menu.

2Map Menu P. 114

2Changing Your Route P. 120

■Resuming the route guidance

114

Navigation

Map Menu

Displaying the Map Menu

Use the Map Menu to control the icons displayed on the screen and to display traffic

information and messages. You can also use the Map Menu to find locations or to

cancel the route.

1. On the map screen, press u.



The Map Menu is displayed on

the map screen.

2. Rotate i to select an item. Press

The following items are available:

•Voice: Select to hear the voice guidance when en route.

2Listening to Voice Guidance P. 112

1Map Menu

If you scroll the map while en route, press the

NAV (or BACK) button to return to the current

position map screen, then press u.

Traffic Incidents

You must be in or near a traffic-enabled city to

receive coverage for that area. FM Traffic is

available in the lower 48 states and Hawaii.

The incident icons are displayed on the 5 mile or

less map scale.

2Map Scale and Functions P. 76

115



Map Menu



Displaying the Map Menu

Navigation

•Map/Guidance: Allows you to select the map and guidance settings (display

mode, icons to display on the map, map orientation, map color, and 3D view

angle), display your current location and an overview of the map features.

2Guidance Mode P. 58

2Showing Icons on Map P. 67

2Color P. 69

2View (Map Orientation) P. 72

23D Angle Adjustment P. 73

2Current Location P. 74

2Map Legend P. 75

•Pause Guidance: Pauses your current route.

2Pausing the Route P. 121

•Resume Guidance: Resumes your current route. This item is displayed while the

route guidance is paused.

•Cancel Route: Cancels your current route.

2Canceling the Route P. 121

•Directions: Displays a list of the guidance points.

2Directions P. 116

•Search Nearby: Allows you to find the nearest place/landmark (e.g., nearest gas

station) by specifying a category. You can then add the location to the list of

destinations, set as a waypoint, or set as your destination.

2Find Nearest Place P. 129

•Traffic Incidents: Displays a list of the traffic incidents around your current

location or on your current route.

2Traffic Rerouting™ P. 118

1Map Menu

Directions

The system provides freeway exit information

only in the U.S.

116



Map Menu



Directions

Navigation

Directions

HENTER button (on map)



Directions

Display a list of the guidance points on your route for your confirmation.

1. Rotate i to select a guidance

point from the list. Press u.



The system displays a map of

the guidance point.

2. Press u to select Back to list or

press the BACK button to return to

the previous screen.

1Directions

Guidance points with exit information are

indicated by a (freeway exit information)

icon. Move r to select Exit Info to display the

exit information.

2Freeway Exit Information P. 117

The system provides freeway exit information

only in the U.S.

The route guidance information is automatically

deleted when you reach your destination.

117



Map Menu



Directions

Navigation

HENTER button (on map)



Directions



Exit Info

Display a list of the freeway exits for the route. You can view freeway exit

information (whether the exit is near gas stations, restaurants, ATMs, etc.) and add

new destinations or waypoints to the calculated route.

1. Rotate i to select an exit from

the list. Press u.

2. Rotate i to select a list item.

Press u.



Move w or y to display

information for different exits.



You can set the route to your

destination.

2Calculating the Route P. 106

■Freeway Exit Information

1Freeway Exit Information

d “Display Freeway Exit Information”

You can scroll the map and select a (freeway

exit information) icon on the map screen to

display the freeway exit information. The

icon is only displayed if there is exit information

available.

Icons are displayed only at 1/4, 1/2, or 1 mile

scale.

2Showing Icons on Map P. 67

The system provides freeway exit information

only in the U.S.

The route guidance information is automatically

deleted when you reach your destination.

118



Map Menu



Traffic Rerouting™

Navigation

Traffic Rerouting™

When driving to your destination, the system automatically searches for a faster

route based on traffic flow information and traffic incidents.

2Map Screen Legend P. 9

2Traffic Rerouting P. 53

HENTER button (on map)



Traffic Incidents

Manually avoid specific incidents and/or congestion on your route:

1. Rotate i to select an incident

from the list. Press u.



The system displays the map

screen and the incident location.

1Traffic Rerouting™

Automatic traffic rerouting may not provide a

detour route depending on circumstances.

■Traffic Rerouting™ Manually

1Traffic Rerouting™ Manually

d “Display traffic incidents”, d “Display traffic

list”

You can display traffic incidents and related

information on the map screen using voice

commands.

2Map Display Commands P. 306

119



Map Menu



Traffic Rerouting™

Navigation

2. Rotate i to select Avoid. Press



Repeat step 1 to 2 as necessary.

3. Move r to select Reroute. Press



The system recalculates a detour

route that avoids the traffic

incidents.

1Traffic Rerouting™ Manually

You can choose to avoid up to 10 traffic

incidents. It is not always possible for the system

to calculate a route that avoids all traffic

incidents or specific traffic incidents you select.

The “On Route” tab on the Traffic List screen is

only available during route guidance.

You cannot select an incident to avoid from the

“All” tab.

You can also detour around a traffic incident

manually if you encounter an unexpected

obstacle.

2Taking a Detour P. 128

120

Navigation

Changing Your Route

HMENU button (when en route)

This section describes how to alter your route, add an interim “waypoint” (pit stop),

choose a different destination, cancel your current destination, and continue your

trip after stopping.

Rotate i to select an item. Press u.

The following items are available:

•Voice: Select to hear the voice guidance when en route.

2Listening to Voice Guidance P. 112

•Destination List: Shows a list of waypoints. You can delete waypoints or edit the

order of them.

2Editing the Destination List P. 126

•Pause Guidance: Pauses your current route.

2Pausing the Route P. 121

•Resume Guidance: Resumes your current route. This item is displayed while the

route guidance is paused.

•Cancel Route: Cancels the route guidance.

2Canceling the Route P. 121

•View Routes: Displays three different routes.

2Viewing the Routes P. 107

1Changing Your Route

d “Display Destination”, d “Display

Navigation” (when en route)

If you press the MENU button when not en

route, the Destination Menu screen is displayed.

2Entering a Destination P. 84

121



Changing Your Route



Pausing the Route

Navigation

•Change Route Preference: Changes the route preferences (calculating method).

2Route Preference P. 50

•Detour: Calculates a detour route.

2Taking a Detour P. 128

•Avoid Streets: Avoids streets along your route.

2Avoiding Streets P. 128

Pausing the Route

HMENU button (when en route)



Pause Guidance

Pause the route guidance and return to the map screen. The destination icons and all

waypoint flags remain displayed on the map. Press the MENU button when en route

and select Resume Guidance to resume the route guidance.

Canceling the Route

HMENU button (when en route)



Cancel Route

Cancel the route guidance and remove the destination and all waypoints from the

destination list. The system then returns to the map screen.

1Pausing the Route

You can also pause your route from the Map

Menu.

2Map Menu P. 114

1Canceling the Route

You can also cancel your route from the Map

Menu.

2Map Menu P. 114

122



Changing Your Route



Adding Waypoints

Navigation

Adding Waypoints

Add up to four waypoints (pit stops) along the route to your destination.

Waypoints are displayed on the map

screen as small, numbered red flags.

The route follows the waypoints in

the order they are listed in the

Destination List.

1Adding Waypoints

Waypoints allow you to stop for gas or food, for

example, and then continue on to your

destination.

Press the NAV button to return to the map

screen without adding a waypoint at any time.

The search corridor used for adding waypoints

can be adjusted.

2Edit POI Search Radius Along Route P. 54

You can delete waypoints or edit the order of

waypoints in the destination list.

2Editing the Destination List P. 126

123



Changing Your Route



Adding Waypoints

Navigation

HMENU button (when en route)



Destination List



Add New Destination



Find Along Route

1. Rotate i to select a search

method to add a waypoint. Press

The following items are available:

•Search Around: Searches in a spiral pattern around the location you select.

•Search Along: Searches within a “corridor” on either side of the locations you

select.

2. Rotate i to select a waypoint

category (e.g., GAS STATION).

Press u.

■Adding Waypoints from the Route Menu

1Adding Waypoints

Search method

“Search around” method

“Search along” method

Continued

124



Changing Your Route



Adding Waypoints

Navigation

3. Rotate i to select a place. Press



The waypoint is added to the

Destination List.

4. Rotate i to select a location and

move the order of destinations.

Press u.

5. Move r and rotate i to select

Start Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.

125



Changing Your Route



Adding Waypoints

Navigation

HMENU button (when en route)



Destination List



Add New Destination



Use Nav Menu

1. Rotate i to select a method to

enter a waypoint.

2Entering a Destination P. 84



A new destination is added to

the end of the Destination list.

2. Move r and rotate i to select

Start Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.

■Adding Waypoints from the Navigation Menu

1Adding Waypoints from the Navigation Menu

You can edit the order of waypoints and

destination.

2Editing the Destination List P. 126

126



Changing Your Route



Editing the Destination List

Navigation

Editing the Destination List

HMENU button (when en route)



Destination List

1. Move r and rotate i to select

Edit Order. Press u.

2. Rotate i to select a list item to

move. Press u.

3. Rotate i to select a new location.

Press u.

4. Move r and rotate i to select

Start Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.

■Editing the Order of Waypoints

1Editing the Order of Waypoints

Move r to rotate i to select Show All on

Map to display the destination and waypoints on

the map screen.

127



Changing Your Route



Editing the Destination List

Navigation

HMENU button (when en route)



Destination List

1. Rotate i to select a list item to

delete. Press u.

2. Rotate i to select Delete. Press

3. Rotate i to select Yes. Press u.

■Deleting Waypoints

1Deleting Waypoints

Move r and rotate i to select Delete All to

delete the destination and all the waypoints.

Select Show on Map to display the waypoint on

the map screen.

128



Changing Your Route



Taking a Detour

Navigation

Taking a Detour

HMENU button (when en route)



Detour

Calculate a detour route manually. The system attempts to calculate a new route by

avoiding the next 5 miles (while on a freeway) or 1 mile (while on a surface street).

Avoiding Streets

HMENU button (when en route)



Avoid Streets

Select a street or streets along your route to avoid.

1. Rotate i to select the street you

want to avoid. Press u.



Repeat the procedure to avoid

other streets.

2. Move r to select Recalculate

Route. Press u.



The system calculates a new

route.

1Taking a Detour

The detour option is convenient if you encounter

an unexpected obstacle such as a road closure or

extremely heavy traffic congestion.

1Avoiding Streets

Avoiding certain streets is convenient if you

know of road construction, road closures, or

excessive traffic along the route.

You cannot choose specific streets you want to

use, only those to avoid. However, you can select

intersections or waypoints (places/landmarks)

that the system will use in your route.

2Adding Waypoints P. 122

You can store up to 10 streets to avoid. You

cannot avoid your current street or the streets of

your waypoint(s) or destination (system beeps if

selected).

129

Navigation

Changing Your Destination

There are several methods you can use to change the route destination.

Find Nearest Place

HENTER button (on map)



Search Nearby

Search for the nearest place/landmark on the map screen and set it as your

destination.

1. Rotate i to select Search

Nearby. Press u.

2. Rotate i to select a category

type. Press u.

3. Rotate i to select a place. Press

4. Rotate i to select Set as

Destination. Press u.

5. Move r to select Clear Current

Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.



Rotate i to edit the order to

set the location as a new

waypoint. Press u.

1Find Nearest Place

d “Find Nearest…”

The Find Nearest voice command is the fastest

method of specifying a place/landmark as your

destination. Many kinds of places can be found.

2Find Place Commands P. 307

130



Changing Your Destination



Selecting a Destination on the Map

Navigation

Selecting a Destination on the Map

Select a new destination when en route by selecting a location on the map.

1. Scroll the map to position the

cursor over your desired

destination, adjusting the map

scale as necessary. Press u.



If the address displayed is not

the desired location, press the

BACK button and repeat the

procedure.

2. Rotate i to select Set as

Destination. Press u.

2Calculating the Route P. 106

3. Move r to select Clear Current

Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.



Rotate i to edit the order to

set the location as a new

waypoint. Press u.

1Selecting a Destination on the Map

If there is more than one icon or street under the

map cursor, you are prompted to select the item

from a list.

Rotate i to select an item. Press u.

131



Changing Your Destination



Entering a New Destination

Navigation

Entering a New Destination

HMENU button (when en route)



Destination

Enter a new destination using the Destination Menu screen even when you are en

route.

1. Rotate i to select a method to

enter a new destination.

2Entering a Destination P. 84



After entering a new

destination, the address is

displayed on the Calculate

Route screen.

2. Rotate i to select Set as

Destination. Press u.

3. Move r to select Clear Current

Route. Press u.



The route is automatically

recalculated and displayed on

the map screen.



Rotate i to edit the order to

set the location as a new

waypoint. Press u.

1Entering a New Destination

d “Display Destination”, d “Display

Navigation”

132

Navigation

Resuming Your Trip

Stop your vehicle en route (e.g., to rest, stop for gas, etc.), and then continue on

your route.

If you did not complete your route, the Continue Trip screen is displayed when you

restart your vehicle.

Rotate i to select Set as

Destination. Press u.



You can continue on the same

route.



Move w to scroll the map around

the destination.



Press the BACK button to cancel

your destination.

•Route Preference: Move r to select Route Preference to change the route

preferences (calculating method).

2Route Preference P. 50

•View Routes: Displays three different routes.

2Viewing the Routes P. 107

1Resuming Your Trip

The Continue Trip screen has the same options

as when you calculate a route.

2Calculating the Route P. 106

You can also cancel your destination by pressing

any hard button except the a button

Search Nearby

You can find the nearest place/landmark (e.g.,

nearest gas station) by specifying a category.

2Find Nearest Place P. 129

Call

You can place a telephone call to the destination

phone number.

2Bluetooth® HandsFreeLink® P. 202

Save to Address Book

You can add the destination address to the

address book.

2Adding an Address Book Entry P. 37

Edit/Delete Entry

You can edit or delete the address book entry.

2Editing an Address Book Entry P. 39

Edit Home Entry

You can edit your home address entry.

2Home Address P. 42

133

Audio

This section describes how to operate the audio system. You can play

music from a wide array of media sources, and control the audio system

using the audio buttons, the Interface Dial, or voice control.

Audio System .................................................. 134

About Your Audio System.............................. 134

USB Port ........................................................ 135

Auxiliary Input Jack ........................................ 136

Audio System Theft Protection ....................... 137

Setting Audio Shortcuts ................................. 138

Audio Remote Controls .................................. 140

Steering Wheel Controls ................................ 140

Audio Settings................................................. 141

Adjusting the Sound ...................................... 143

Playing FM/AM Radio ..................................... 145

Selecting FM/AM Mode.................................. 145

Audio Screen Control..................................... 145

Audio Menu .................................................. 147

Playing SiriusXM® Radio ................................ 151

Selecting SiriusXM® Mode............................. 151

Audio Screen Control..................................... 151

Audio Menu .................................................. 153

SiriusXM® Radio Service.................................155

Playing a Disc...................................................156

Selecting Disc Mode .......................................156

Audio Screen Control .....................................157

Audio Menu...................................................158

Recommended CDs........................................161

Playing Hard Disc Drive (HDD) Audio ............ 163

Selecting HDD Mode ......................................163

Recording a Music CD to HDD........................164

Audio Screen Control .....................................165

Audio Menu...................................................166

Playing an iPod® .............................................175

Selecting iPod® Mode....................................176

Audio Screen Control .....................................177

Audio Menu...................................................179

Song By VoiceTM (SBV) .................................... 182

Playing Internet Radio.....................................187

Selecting Internet Radio Mode........................187

Pandora® Menu ............................................ 188

AhaTM Radio Menu......................................... 189

Playing a USB Flash Drive............................... 191

Selecting USB Mode....................................... 192

Audio Screen Control..................................... 193

Audio Menu .................................................. 194

Playing Bluetooth® Audio ............................. 197

Selecting Bluetooth® Audio Mode ................ 197

Audio Screen Control..................................... 198

134

Audio

Audio System

About Your Audio System

The audio system features AM/FM radio and the SiriusXM® Radio service. It can also

play audio CDs, WMA/MP3/AAC files, Hard Disc Drive (HDD) audio, USB flash drives,

and iPod®, iPhone® and Bluetooth® devices.

You can operate the audio system from the buttons and switches on the panel, the

icons on the touchscreen interface.

1About Your Audio System

SiriusXM® Radio is available on a subscription

basis only. For more information on SiriusXM®

Radio, contact a dealer.

2SiriusXM® Radio Service P. 155

SiriusXM® Radio is available in the United States

and Canada, except Hawaii, Alaska, and Puerto

Rico.

SiriusXM® is a registered trademark of Sirius XM

Radio, Inc.

Video CDs, DVDs, and 3-inch (8-cm) mini CDs

are not supported.

iPod® and iPhone® are registered trademarks

owned by Apple Inc.

State or local laws may prohibit the operation of

handheld electronic devices while operating a

vehicle.

When the screen is viewed through polarized

sunglasses, a rainbow pattern may appear on the

screen due to optical characteristics of the

screen. If this is disturbing, please operate the

screen without polarized sunglasses.

Remote Controls iPod® USB Flash Drive

135



Audio System



USB Port

Audio

USB Port

Install the iPod® or iPhone® dock

connector or the USB flash drive to

the USB port.

1USB Port

•Do not leave the iPod® or USB flash drive in

the vehicle. Direct sunlight and high

temperatures may damage it.

•Do not connect the iPod® or USB flash drive

using a hub.

•Do not use a device such as a card reader or

hard disk drive, as the device or your files may

be damaged.

•We recommend backing up your data before

using the device in your vehicle.

•Displayed messages may vary depending on

the device model and software version.

If the audio system does not recognize the

iPod®, try reconnecting it a few times or reboot

the device. To reboot, follow the manufacturer’s

instructions provided with the iPod® or visit

www.apple.com/ipod.

136



Audio System



Auxiliary Input Jack

Audio

Auxiliary Input Jack

Use the jack to connect standard

audio devices.

1. Open the AUX cover.

2. Connect a standard audio device to

the input jack using a 1/8 inch (3.5

mm) stereo miniplug.



The audio system automatically

switches to the AUX mode.

1Auxiliary Input Jack

You can return to the AUX mode by selecting

Change Source on the Audio menu screen or

Audio Source on the touchscreen.

137



Audio System



Audio System Theft Protection

Audio

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source, such as

when the battery is disconnected or goes dead. In certain conditions, the system may

display Enter code. If this occurs, reactivate the audio system.

1. Set the power mode to ON.

2. Turn on the audio system.

3. Press and hold the audio system power button for more than two seconds.



The audio system is reactivated when the audio control unit establishes a

connection with the vehicle control unit. If the control unit fails to recognize

the audio unit, you must go to a dealer and have the audio unit checked.

■Reactivate the audio system

138



Audio System



Setting Audio Shortcuts

Audio

Setting Audio Shortcuts

You can store up to six radio stations, and HDD audio album/play lists when playing

AM, FM, or SiriusXM® Radio, or HDD audio.

1. Select Shortcuts.

2. Tune to a radio station or select a

song.

2Playing FM/AM Radio P. 145

2Playing SiriusXM® Radio P. 151

2Playing Hard Disc Drive (HDD)

Audio P. 163

3. Select Edit or No Entry.



If you select No Entry, go to step

4. Select Add.

5. Select the preset icon you want to

store the station or song to.

■Storing a station or song

1Setting Audio Shortcuts

You can also preset a station or song by pressing

and holding the preset icon you want to store

that station or song after step 3.

139



Audio System



Setting Audio Shortcuts

Audio

1. Select Shortcuts.

2. Select Edit.

3. Select Delete.

4. Select the preset icon with the radio station or a song you want to delete.

■Deleting a preset station or song

140

Audio

Audio Remote Controls

Steering Wheel Controls

Allows you to operate the audio system while driving.

MODE Button

Cycles through the audio modes as

follows:

FM AM SiriusXM® CD HDD

USB iPod® Bluetooth® Audio

Pandora® AhaTM AUX

VOL Button

Press R: To increase the volume.

Press U: To decrease the volume.

CH Button

•When listening to the radio

Press N: To select the next preset radio station.

Press B: To select the previous preset radio station.

Press and hold N: To scan to the next strong station.

Press and hold B: To scan to the previous strong station.

•When listening to a CD, HDD, iPod®, USB flash drive, or Bluetooth® Audio

Press N: To skip to the next song.

Press B: To go back to the beginning of the current or previous song.

Press and hold N: To go to the group up. (Bluetooth® Audio only)

Press and hold B: To go to the group down. (Bluetooth® Audio only)

•When listening to a CD, HDD or USB flash drive

Press and hold N: To skip to the next folder.

Press and hold B: To go back to the previous folder.

•When listening to Pandora® or AhaTM

Press N: To skip to the next song.

Press and hold N: To select the next station.

Press and hold B: To select the previous station.

1Audio Remote Controls

The CD mode appears only when a CD is loaded.

The USB mode, iPod® mode, Bluetooth® Audio

mode, Pandora® mode, and AhaTM mode appear

when a connection (Bluetooth or USB) is

established with a device.

MODE Button

CH Button

MODE Button

VOL Button

141

Audio

Audio Settings

HSETTINGS button



Audio Settings

Rotate i to select an item. Press u.

The following items are available:

•Sound: Adjusts the settings of the audio speaker’s sound.

2Adjusting the Sound P. 143

•Source Select Popup: Selects whether the list of selectable audio sources comes

on when the AUDIO button is pressed.

•HD Radio Mode (AM/FM mode): Selects whether the audio system automatically

switches to the digital radio waves or receives the analogue waves only.

•Cover Art (CD (MP3/WMA/AAC), iPod®, USB, Pandora® or Aha™ mode): Turns

on and off the cover art display.

•Connect Bluetooth Audio Device (Bluetooth® Audio, Pandora® or Aha™

mode): Connects, disconnects or pairs a Bluetooth® Audio device to HFL.

•Recording from CD (CD mode): Selects whether the songs on music CDs are

automatically recorded to the HDD.

•Recording Quality (CD mode): Selects the quality of the music files recorded to

the HDD.

•HDD Info (HDD mode): Displays the HDD capacity.

Continued

142



Audio Settings



Steering Wheel Controls

Audio

•Update Gracenote Album Info (CD or HDD mode): Updates the Gracenote®

Album Info (Gracenote® Media Database) from CD or from USB.

2Updating Gracenote® Album Info P. 173

•DVD Auto Play (DVD mode): Turns the auto play feature on or off.

•Audio Language (DVD mode): Selects a language for the audio that is available

on the DVD.

•Subtitle Language (DVD mode): Selects a language for the subtitle that is

available on the DVD.

•Menu Language (DVD mode): Selects a language for the DVD menu that is

available on the DVD.

•Angle Mark (DVD mode): Sets whether to display the angle symbol.

•Dynamic Range (DVD mode): Sets whether to control the range of the loud and

low sounds.

•Delete all HDD Data (HDD mode): Resets all the menu and customized settings,

and delete all music data on the HDD.

•Default: Cancels/Resets all customized items in the Audio Settings group as

default.

143



Audio Settings



Adjusting the Sound

Audio

Adjusting the Sound

HSETTINGS button



Audio Settings



Sound

1. Rotate i to select the sound

mode to adjust. Press u.

2. Rotate i to adjust the desired

level. Press u.

1Adjusting the Sound

The SVC has four modes: Off, Low, Mid, and

High.

SVC adjusts the volume level based on the

vehicle speed. As you go faster, audio volume

increases. As you slow down, audio volume

decreases.

DTS Neural Surround is a trademark of DTS, Inc.

When available, DTS Neural Surround converts

stereo sound into surround sound.

Interface Dial

Speed-sensitive

Volume

Compensation

Bass

Treble

Fader

Balance

Subwoofer

SVC

Center*

DTS Neural*

Surround

Continued

*: Not available on all models

144



Audio Settings



Adjusting the Sound

Audio

1. Select More.

2. Select Sound Settings.

3. Use N, B or other icon to adjust

the setting.

Touchscreen

1Adjusting the Sound

Select Off, Low, Mid or High for the SVC

setting.

2Adjusting the Sound P. 143

Select to go back to the previous screen.

Use the / / / icons to turn the page.

145

Audio

Playing FM/AM Radio

Selecting FM/AM Mode

1. Press the MENU button.(in AUDIO mode)

2. Rotate i to select Change Source. Press u.

3. Rotate i to select the frequency band (FM, AM). Press u.



The band and frequency are displayed on the navigation screen.

1. Select Audio Source.

2. Select the frequency band (AM, FM) icon.



The band and frequency are displayed on the touchscreen.

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

Rotate i to select a preset station.

Press u.



Press and hold u for a few

seconds to store the current

station.



Press MENU button to display the

menu items.

2Audio Menu P. 147

1Playing FM/AM Radio

d “Display audio screen”

You can control the AM/FM radio using voice

commands.

2Voice Control Operation P. 5

The ST indicator appears on the display

indicating stereo FM broadcasts.

Stereo reproduction in AM is not available.

Interface Dial

Touchscreen

The radio can receive the complete AM and FM

bands:

AM band: 530 to 1710 kHz

FM band: 87.7 to 107.9 MHz

You can store 6 AM stations and 12 FM stations

into the preset memory.

Preset stations

Frequency band

Interface Dial

Continued

146



Playing FM/AM Radio



Audio Screen Control

Audio

Select b or n to tune the radio

frequency.

Select c or x to search up and

down the selected band for a station

with a strong signal.



Select Presets to listen a preset

station.

Select and hold the preset number

you want to store that station.



Select More to display the menu

item.

2Audio Menu P. 147



Select TAG to tag the song if it is

played on an HD RadioTM station*.

The iPod®/ iPhone® should be

connected to the audio system to

store the tagged song information

on your device.

Touchscreen

*: Not available on all models

147



Playing FM/AM Radio



Audio Menu

Audio

Audio Menu

HMENU button (in FM/AM mode)

Rotate i to select an item. Press u.

The following items are available:

•Scan: Scans for stations with a strong signal in the current band and plays a 10-

second sample. Select Cancel Scan to stop scanning and play the current

selection.

•Station List: Displays the stored station list.

•Save Preset: Stores the station into the preset memory.

•Change Source: Changes the audio source mode.

Interface Dial

Continued

148



Playing FM/AM Radio



Audio Menu

Audio

•Radio Text: Displays the text information broadcast by the current RDS station.

•Tag Song*: Displays the TAG information saved to the audio system when an HD

RadioTM station is selected.

•Tagged Song List*: You can store the TAG information in the connected iPod®/

iPhone®. If the iPod®/iPhone® is not connected to the audio system, the

information is stored in the audio unit temporarily, then once the device is

connected to the system, data is transferred to the iPod®/iPhone®.

•Tune/Seek: Tunes the radio to the frequency you select. Rotate i to select a

frequency, then Move u.

•HD subchannel*: Displays the subchannel list when an HD RadioTM station is

selected.

1Audio Menu

iTunes Tagging*

“iTunes” in “iTunes Tagging” is a trademark of

Apple Inc.

When an HD RadioTM station is selected, the HD

indicator appears on the navigation screen and

touchscreen.

If you want to have the information on the song

played from the HD RadioTM station, select TAG

in touchscreen or select Tag Song in the menu

with Interface dial.

If iPod®/iPhone® is connected, the tag is

transferred to the connected device immediately,

otherwise the tag will be transferred when the

device will be connected and select Tag Song in

the menu with Interface dial.

*: Not available on all models

149



Playing FM/AM Radio



Audio Menu

Audio

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Scan: Scans for stations with a strong signal in the current band and plays a 10-

second sample. Select Cancel Scan to stop scanning and play the current

selection.

•Save Preset: Stores the station into the preset memory.

•Screen Settings: Adjusts the screen’s preferences.

2Changing the Screen Settings P. 82

•HD subchannel*: Displays the subchannel list when an HD RadioTM station is

selected.

Touchscreen

*: Not available on all models

150



Playing FM/AM Radio



Audio Menu

Audio

HMENU button (in FM mode)



Station List

Provides text data information related to your selected RDS-capable FM station.

■To find an RDS station from

Station List

Rotate i to select the station. Press

■Manual update

Updates your available station list at

any time.

Rotate i to select Refresh. Press

■Radio Data System

151

Audio

Playing SiriusXM® Radio

Selecting SiriusXM® Mode

1. Press the MENU button. (in AUDIO mode)

2. Rotate i to select Change Source. Press u.

3. Rotate i to select XM. Press u.



The band and channel are displayed on the navigation screen.

1. Select Audio Source.

2. Select the SiriusXM® icon.



The band and channel are displayed on the touchscreen.

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

Rotate i to select a preset channel.

Press u.



Press and hold u for a few

seconds to store the current

channel.



Press MENU button to display the

menu items.

2Audio Menu P. 153

1Playing SiriusXM® Radio

You can control the SiriusXM® Radio using voice

commands.

2Voice Control Operation P. 5

In the channel mode, all available channels are

selectable. In the category mode, you can select

a channel within a category (Jazz, Rock, Classical,

etc.).

There may be instances when SiriusXM® Radio

does not broadcast all the data fields (artist

name, title). This does not indicate a problem

with your audio system.

You can store 12 SiriusXM® stations into the

preset memory.

SiriusXM® Radio stations load in ascending

order, which can take about a minute. Once they

have loaded, you can scroll up or down to make

your selections.

Interface Dial

Touchscreen

Interface Dial

Continued

152



Playing SiriusXM® Radio



Audio Screen Control

Audio

Select b or n to display and select

an SiriusXM® Radio category.

Select c or x to the previous or

next channel.

In channel mode, select and hold to

change the channel rapidly.



Select Presets to listen a preset

station.

Select and hold the preset number

you want to store that channel on

the preset screen.



Select More to display the menu

item.

2Audio Menu P. 147

Genre AAA

Channel AAA

001

Touchscreen

153



Playing SiriusXM® Radio



Audio Menu

Audio

Audio Menu

HMENU button (in SiriusXM® mode)

Rotate i to select an item. Press u.

The following items are available:

•Scan: Scans for channels in the selected mode and plays a 10- second sample.

Select Cancel Scan to stop scanning and play the current selection.

•Save Preset: Stores the station into the preset memory.

•Change Source: Changes the audio source mode.

•Channel List: Displays the list of available channels. Rotate i to select a

channel.

•XM Tune Mode:

Channel Mode: Scans to select all available channels.

Category Mode: Scans to select a channel within a category (Jazz, Rock, Classic,

etc.).

Interface Dial

Continued

154



Playing SiriusXM® Radio



Audio Menu

Audio

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Save Preset: Stores the station into the preset memory.

•Screen Settings: Adjusts the screen’s preferences.

2Changing the Screen Settings P. 82

•Scan: Scans for channels with a strong signal in the selected mode and plays a 10-

second sample. Select Cancel Scan to stop scanning and play the current

selection.

•XM tune mode: Sets the scan mode.

Channel: Scans to select all available channels.

Category: Scans to select a channel within a category (Jazz, Rock, Classic, etc.).

Touchscreen

155



Playing SiriusXM® Radio



SiriusXM® Radio Service

Audio

SiriusXM® Radio Service

1. You need your radio ID ready before registering for subscription. To see the ID in

the display: Select c on the touchscreen until channel 0 appears.

2. Have your radio ID and credit card number ready, and either call or visit the

SiriusXM® website to subscribe.

Switch to the SiriusXM® mode by pressing the SOURCE button repeatedly or

operating the touchscreen, and stay in this mode for about 30 minutes until the

service is activated. Make sure your vehicle is in an open area with good reception.

Loading:

SiriusXM® is loading the audio or program information.

Ch off air:

The channel is not currently broadcasting.

Ch unauthorized:

SiriusXM® Radio is receiving information update from the network.

No signal:

The signal is too weak in the current location.

Ch unavailable:

No such channel exists, the channel is not part of your subscription, or the artist or

title information is unavailable.

Check antenna:

There is a problem with the SiriusXM® antenna. Contact a dealer.

1Subscribing to SiriusXM® Radio

Contact Information for SiriusXM® Radio:

SiriusXM® Radio at www.siriusxm.com or (800)

852-9696

■Subscribing to SiriusXM® Radio

■Receiving SiriusXM® Radio

■SiriusXM® Radio Display Messages

1Receiving SiriusXM® Radio

The SiriusXM® satellites are in orbit over the

equator; therefore, objects south of the vehicle

may cause satellite reception interruptions.

Satellite signals are more likely to be blocked by

tall buildings and mountains the farther north

you travel from the equator.

You may experience reception problems under

the following circumstances:

•In a location with an obstruction to the south

of your vehicle.

•In tunnels

•On the lower level of a multi-tiered road

•Large items carried on the roof rack

156

Audio

Playing a Disc

Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or

AAC format. With the CD loaded, select the CD mode.

Selecting Disc Mode

1. Insert a disc into the disc slot.



The disc automatically being playing.

2. Press the MENU button. (in AUDIO mode)

3. Rotate i to select Change Source. Press u.

4. Rotate i to select CD. Press u.

2. Select Audio Source.

3. Select the CD icon.

1Playing a Disc

Do not use CDs with adhesive labels. The label

can cause the CD to jam in the unit.

WMA and ACC files protected by digital rights

management (DRM) cannot be played.

The audio system displays Unplayable File, then

skips to the next file.

Text data appears on the display under the

following circumstances:

•When you select a new folder, file, or track.

•When you change the audio mode to CD.

•When you insert a CD.

If you eject the CD but do not remove it from the

slot, the system reloads the CD automatically

after several seconds.

You can control a CD audio using voice

commands.

2Voice Control Operation P. 5

NOTICE

Interface Dial

Touchscreen

157



Playing a Disc



Audio Screen Control

Audio

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

1. Rotate i or press u to display

the song list.

2. Rotate i, move w or y to

select a file from the list. Press u.



Press MENU button to display

the menu items

2Audio Menu P. 147

1. Select n to skip to the next folder,

and b to skip to the beginning of

the previous folder in MP3, WMA,

or AAC.

2. Select c or x to change tracks

(files in MP3, WMA, or AAC).

Select and hold to move rapidly

within a track/file.



Select More to display the menu

item.

2Audio Menu P. 147

Track list

Interface Dial

File AAA

Folder AAA

Touchscreen

158



Playing a Disc



Audio Menu

Audio

Audio Menu

HMENU button (in CD mode)

Rotate i select an item. Press u.

The following items are available, depending on the type of disc:

•Scan:

Scan Folders (MP3/WMA/AAC): Provides 10-second sampling of the first file in

each of the main folders.

Scan Tracks: Provides 10-second sampling of all tracks on the CD (all files in the

current folder in MP3, WMA, or AAC).

•Random/Repeat:

Repeat Folder (MP3/WMA/AAC): Repeats all files in the current folder.

Repeat Track: Repeats the current track/file.

Random in Folder (MP3/WMA/AAC): Plays all files in the current folder in

random order.

Random All Tracks: Plays all tracks/files in random order.

Interface Dial

159



Playing a Disc



Audio Menu

Audio

•Change Source: Changes the audio source mode.

•Rec to HDD: Records a music CD onto the HDD for playback using HDD Audio.

2Recording a Music CD to HDD P. 164

•Music Search: Selects a file from the Music Search list.

2How to Select a File from the Music Search List (MP3/WMA/AAC) P. 160

1. Select More.

2. Select a setting item.

The following items are available, depending on the type of disc:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Random/Repeat:

Random All Tracks: Plays all tracks/files in random order.

Repeat Track: Repeats the current track/file.

•Scan: Provides 10-second sampling of all tracks on the CD (all files in the current

folder in MP3, WMA, or AAC).

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

Touchscreen

160



Playing a Disc



Audio Menu

Audio

HMENU button (in CD mode)



Music Search

Rotate i, move w or y to select

a file from the Music Search list. Press

■

How to Select a File from the Music Search List (MP3/WMA/AAC)

161



Playing a Disc



Recommended CDs

Audio

Recommended CDs

•Use only high-quality CD-R or CD-RW discs labeled for audio use.

•Use only CD-R or CD-RW discs on which the recordings are closed.

•Play only standard round-shaped CDs.

•Some software files may not allow for audio play or text data display.

•Some versions of MP3, WMA or AAC formats may be unsupported.

1Recommended CDs

A Dual-disc cannot play on this audio unit. If

recorded under certain conditions, a CD-R or CD-

RW may not play either.

Manufactured under license under U.S. Patent

Nos: 5,956,674; 5,974,380; 6,487,535 & other

U.S. and worldwide patents issued & pending.

DTS, the Symbol, & DTS and the Symbol together

are registered trademarks & DTS Digital Surround

and the DTS logos are trademarks of DTS, Inc.

Product includes software. © DTS, Inc. All Rights

Reserved.

Manufactured under license from DTS Licensing

Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks & DTS Neural

Surround is a trademark of DTS, Inc. Product

includes software. © DTS, Inc. All Rights

Reserved.

Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, MLP Lossless and

the double-D symbol are trademarks of Dolby

Laboratories.

■CDs with MP3, WMA or AAC files

The CD packages or jackets should have one of these marks.

Also includes:

162



Playing a Disc



Recommended CDs

Audio

■Protecting CDs

Follow these precautions when handling or storing CDs:

•Store a CD in its case when it is not being played.

•When wiping a CD, use a soft clean cloth from the center to the outside edge.

•Handle a CD by its edge. Never touch either surface.

•Never insert foreign objects into the CD player.

•Keep CDs out of direct sunlight and extreme heat.

•Do not place stabilizer rings or labels on the CD.

•Avoid fingerprints, liquids, and felt-tip pens on the CD.

1Protecting CDs

Do not insert a damaged CD. It may be stuck

inside and damage the audio unit.

NOTICE

Examples:

•Damaged CDs

Bubbled/

Wrinkled With Label/

Sticker Using

Printer Label

Kit

Sealed With Plastic Ring

•Poor quality

CDs

Chipped/

Cracked Warped Burrs

•Small CDs

3-inch

(8-cm)

•Bubbled, wrinkled, labeled, and

excessively thick CDs

163

Audio

Playing Hard Disc Drive (HDD) Audio

The Hard Disc Drive (HDD) Audio function plays tracks from music CDs that have

been recorded onto the built-in HDD. You can arrange the tracks in playlists or play

the tracks using various search methods.

Selecting HDD Mode

1. Press the MENU button. (in AUDIO mode)

2. Rotate i to select Change Source. Press u.

3. Rotate to select HDD. Press to play tracks stored on the HDD.



Title information is displayed if found in the Gracenote® Album Info

(Gracenote® Media Database) stored on the HDD.



The HDD has two types of playlists: original playlists and user playlists. An

original playlist is automatically created for each album when a music CD is

recorded. You can customize up to six user playlists provided on the HDD by

adding tracks from your original playlists.

1. Select Audio Source.

2. Select the HDD icon to play tracks stored on the HDD.

1Playing Hard Disc Drive (HDD) Audio

You can control the HDD audio using voice

commands.

2Voice Control Operation P. 5

2Song By VoiceTM (SBV) P. 182

Music tracks recorded on HDD cannot be

recorded onto CDs or other devices.

Tracks are recorded at four times the playback

speed using ultra-efficient compression

technology; therefore, sound quality may vary

slightly from the original.

If the HDD is ever replaced, all music data is lost

and cannot be recovered.

If there is a problem, you may see an error

message on the display.

2Hard Disc Drive (HDD) Audio P. 284

Interface Dial

Touchscreen

164



Playing Hard Disc Drive (HDD) Audio



Recording a Music CD to HDD

Audio

Recording a Music CD to HDD

The songs on music CDs are automatically recorded by factory default to the HDD

the first time you play each disc. You can then play the songs directly from the HDD.

1. Press the MENU button. (in CD mode)

2. Rotate i to select Cancel Record to HDD. Press u.

1. Press the MENU button. (in CD mode)

2. Rotate i to select Rec to HDD. Press u.

1Recording a Music CD to HDD

You can add tracks to user playlists, where you

can mix and match tracks from other CDs

recorded on the HDD.

2Editing an Album or Playlist P. 169

2Editing Track Information P. 171

If you stop the engine or the power system is

turned off while recording a CD, there may be

pauses between songs when you play back from

the HDD.

■Stopping Recording

■Recording a CD Manually

Recording indicator

Recording

Ready to record

Repeat, random, and scan functions are not

available during recording.

You can play music from other sources (e.g.,

SiriusXM®, HDD, etc.) while recording.

Please note that there is no compensation

offered in the case of unsuccessful recording of

audio data or the loss of audio data due to any

cause whatsoever.

Clearing the HDD

Any music tracks stored on the HDD can be

deleted.

165



Playing Hard Disc Drive (HDD) Audio



Audio Screen Control

Audio

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

1. Rotate i or u press to display

the song list.

2. Rotate i, move w or y to

select a track from the list. Press



Press MENU button to display

the menu items

2Audio Menu P. 147

1. Select n skip to the next playlist/

album, and b to skip to the

beginning of the previous playlist/

album.

2. Select c or x to change tracks.



Select and hold to move rapidly

within a track.



Select More to display the menu

item.

2Audio Menu P. 147

Interface Dial

Track AAA

Album AAA

Touchscreen

166



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

Audio Menu

HMENU button (in HDD mode)

Rotate i to select an item. Press u.

The following items are available:

•Scan:

Scan Albums: Provides 10-second sampling of the first track in each album.

Scan Tracks: Provides 10-second sampling of all tracks on HDD.

•Music Search: Selects a file from the Music Search list.

2How to Select a Track from the Music Search List P. 168

•Change Source: Changes the audio source mode.

•Random/Repeat: The following menu items vary depending on the category you

selected by the Music Search list.

Repeat Artist: Repeats all tracks in the current artist.

Repeat Album: Repeats all tracks in the current album.

Repeat Track: Repeats the current track.

Random in Artist: Plays all tracks in the current artist in random order.

Random in Album: Plays all tracks in the current album in random order.

Random All Tracks: Plays all tracks in random order.

•Edit/Delete: Change the playlist name, album name, genre, and track order of

the current playlist. You can also delete tracks, playlists, and albums.

Interface Dial

167



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Random/Repeat: The following menu items vary depending on the category you

selected by the Music Search list.

Repeat Artist: Repeats all tracks in the current artist.

Repeat Album: Repeats all tracks in the current album.

Repeat Track: Repeats the current track.

Random in Artist: Plays all tracks in the current artist in random order.

Random in Album: Plays all tracks in the current album in random order.

Random All Tracks: Plays all tracks in random order.

•Scan:

Scan Albums: Provides 10-second sampling of the first track in each album.

Scan Tracks: Provides 10-second sampling of all tracks on HDD.

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

Touchscreen

168



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HMENU button (in HDD mode)



Music Search

1. Move w or y to select a search

category. Press u.

2. Rotate i to select a track from

the Music Search list. Press u.

■How to Select a Track from the Music Search List

169



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HMENU button (in HDD mode)



Edit/Delete

1. Rotate i to select Albums or

Playlist. Press u.

2. Rotate i to select an album or

playlist that you want edit or

delete. Press u.



The pop-up menu appears on

the screen.

3. Rotate i to select an item. Press

The following items are available:

•Edit Name: Enter a new name using the interface dial or the touchscreen.

•Delete: Deletes the selected album or playlist.

•List Tracks: Change the track title, artist name, genre and composer. You can

also delete tracks.

■Editing an Album or Playlist

1Editing an Album or Playlist

The maximum number of songs in each of the six

user playlists is 999. Adding new songs

overwrites the oldest songs.

The maximum number of original playlists is 999

with a maximum of 99 songs in each playlist.

Each album CD counts as an original playlist.

Adding a track from a user playlist into the same

user playlist will cause the track to appear twice

in the playlist.

Deleting an album (original playlist) also deletes

the album tracks you have stored in any user

playlists.

Deleting a user playlist or deleting all tracks from

a user playlist does not remove the playlist folder.

The folder retains the playlist name and artist

information.

170



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HMENU button (in HDD mode)



Edit/Delete



Playlists



Create New Playlist

1. Enter the playlist name using the

interface dial or the touchscreen.

2. Select tracks from the music search

list.

■Creating a new Playlist

171



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HMENU button (in HDD mode)



Edit/Delete



Tracks

Change the track title, artist name, genre and composer. You can also delete tracks.

Rotate i select a track you want to

edit or delete. Press u.



The pop-up menu appears on the

screen.

The following items are available:

•Edit Name: Enter the track information (track name, track artist, etc.) using the

interface dial or the touchscreen.

•Delete: Deletes a track.

■Editing Track Information

172



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HMENU button (in HDD mode)



Edit/Delete

Music information (album name, artist name, genre) can be acquired by accessing

the Gracenote® Album Info.

1. Rotate i to select Albums. Press

2. Rotate i to select an album that

you want edit or delete. Press u.



The pop-up menu appears on

the screen.

3. Rotate i to select Edit Name.

Press u.

4. Move r to select Get Music Info.

Press u.



The system starts to access the

Gracenote® Album Info.

■Displaying Music Information

173



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HSETTINGS button (in HDD mode)



Audio Settings

Update the Gracenote® Album Info (Gracenote® Media Database) that is included

with the navigation system.

1. Insert the update disc into the disc

slot or connect the USB flash drive

that includes the update.

2. Rotate i to select Update

Gracenote Album Info. Press u.

3. Rotate i to select Update by CD

or Update by USB. Press u.



The system starts updating and

the confirmation message

appears on the screen. Press to

finish u.

■Updating Gracenote® Album Info

1Updating Gracenote® Album Info

To acquire updated files:

•Consult a dealer.

•Visit http://www.navteq.com/gracenote/

honda.

Once you perform an update, any information

you edited before will be overwritten or erased.

Audio Settings

174



Playing Hard Disc Drive (HDD) Audio



Audio Menu

Audio

HSETTINGS button



Audio Settings



Delete all HDD Data

Delete all music data on the HDD.

Rotate i to select Yes. Press u.

■Deleting all HDD Data

175

Audio

Playing an iPod®

1. Open the USB cover.

2. Install the iPod® dock connector to the USB connector.

■Connecting an iPod®

1Connecting an iPod®

•Do not connect your iPod® using a hub.

•Do not use a device such as a card reader or

hard disk drive, as the device or your tracks

may be damaged.

•We recommend backing up your data before

using the device in your vehicle.

•Displayed messages may vary depending on

the device model and software version.

Your audio system may not work with all

software versions of these devices.

If the audio system does not recognize your

iPod®, try reconnecting it a few times or reboot

the device.

State or local laws may prohibit the operation of

handheld electronic devices while operating a

vehicle.

■Model Compatibility

Model

iPod (5th generation)

iPod classic 80GB/160GB (launch in 2007)

iPod classic 120GB (launch in 2008)

iPod classic 160GB (launch in 2009)

iPod nano (1st to 6th generation) launch in 2010

iPod touch (1st to 4th generation) launch in 2010

iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S

176



Playing an iPod®



Selecting iPod® Mode

Audio

Selecting iPod® Mode

1. Connect the iPod® to the USB adapter cable in the console compartment.

2. Press the MENU button. (in AUDIO mode)

3. Rotate i, select Change Source. Press u.

4. Rotate i, select iPod. Press u.

2. Select Audio Source.

3. Select the iPod icon.

1Playing an iPod®

You can control an iPod® using voice

commands.

2Voice Control Operation P. 5

2Song By VoiceTM (SBV) P. 182

Available operating functions vary on models or

versions. Some functions may not be available on

the vehicle’s audio system.

If there is a problem, you may see an error

message on the navigation screen.

2iPod®/USB Flash Drive P. 285

Interface Dial

Touchscreen

177



Playing an iPod®



Audio Screen Control

Audio

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

1. Rotate i or press u o display

the song list.

2. Rotate i, move w or y to

select a song from the list. Press



Press MENU button to display

the menu items.

2Audio Menu P. 147

1Audio Screen Control

This function may not be available depending on

models or versions.

Select r to go back to the previous screen.

Track list

Interface Dial

Continued

178



Playing an iPod®



Audio Screen Control

Audio

1. Select the album bar.



The image of the current album is displayed.

2. Select c or x to search for an album.



When the album image you are looking for appears, select it to play.



Select More to display the menu item.

2Audio Menu P. 147

Touchscreen

Song AAA

Album AAA

Album Bar Album Image

Select an album

image.

Select the

album bar.

179



Playing an iPod®



Audio Menu

Audio

Audio Menu

HMENU button (in iPod® mode)

Rotate i to select an item. Press u.

The following items are available:

•Music Search: Selects a song from the Music Search list.

2How to Select a Song from the Music Search List P. 181

•Change Source: Changes the audio source mode.

•Shuffle/Repeat:

Repeat Song: Repeats the current track.

Shuffle Albums: Plays all available albums in a selected list (playlists, artists,

albums, songs, genres, or composers) in random order.

Shuffle All Songs: Plays all available files in a selected list (playlists, artists,

albums, songs, genres, or composers) in random order.

Interface Dial

Continued

180



Playing an iPod®



Audio Menu

Audio

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Shuffle/Repeat:

Repeat Song: Repeats the current track.

Shuffle Albums: Plays all available albums in a selected list (playlists, artists,

albums, songs, genres, or composers) in random order.

Shuffle All Songs: Plays all available files in a selected list (playlists, artists,

albums, songs, genres, or composers) in random order.

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

Touchscreen

181



Playing an iPod®



Audio Menu

Audio

HMENU button (in iPod® mode)



Music Search

1. Move w or y to select a search

category. Press u.

2. Rotate i to select a file from the

Music Search list. Press u.

■How to Select a Song from the Music Search List

182



Playing an iPod®



Song By VoiceTM (SBV)

Audio

Song By VoiceTM (SBV)

Use SBV to search for and play music from your HDD or iPod® using voice

commands.

HSETTINGS button



System Settings



Song by Voice

Rotate i to select On or Off. Press

The following items are available:

•On (factory default): Song By Voice commands are available.

•Off: Disable the feature.

■Settings Song By VoiceTM (SBV)

183



Playing an iPod®



Song By VoiceTM (SBV)

Audio

1. Set the Song by Voice setting to

On.

2. Press the d (Talk) button and say

“Music Search” to activate the SBV

feature for the HDD and iPod®.

3. Press the d button and say a

command.



Example 1: Say “(List) ‘Artist A’“

to view a list of songs by that

artist. Select the desired song to

start playing.



Example 2: Say “Play ‘Artist A’“

to start playing songs by that

artist.

4. To cancel SBV, press the J

(hang-up/back) button on the

steering wheel. The selected song

continues playing.

■Searching for music using Song By VoiceTM (SBV)

1Searching for music using Song By VoiceTM (SBV)

Song By VoiceTM Commands List

2Song By VoiceTM commands P. 310

NOTE:

Song By VoiceTM commands are available for

tracks stored on the HDD or iPod®.

You can add phonetic modifications of difficult

words so that it is easier for SBV to recognize

artists, songs, albums, and composers in voice

commands.

2Phonetic Modification P. 184

SBV may not be able to recognize languages

other than English for the artist name, song title,

album title, and composers.

Once you have canceled this mode, you need to

press the d button and say “Music Search”

again to re-activate this mode.

184



Playing an iPod®



Song By VoiceTM (SBV)

Audio

SETTINGS button



System Settings



Song by Voice Phonetic Modification

Add phonetic modifications of difficult or foreign words so that it is easier for SBV to

recognize artists, songs, albums, and composers in voice commands when searching

for music on the HDD or iPod®.

1. Move u and i rotate to select

New Modification. Press u.

2. Rotate i to select HDD or iPod.

Press u.

■Phonetic Modification

1Phonetic Modification

Phonetic Modification is grayed out when Song

By Voice is set to Off.

You can store up to 2,000 phonetic modification

items.

185



Playing an iPod®



Song By VoiceTM (SBV)

Audio

3. Rotate i to select the item to

modify (e.g., Artist). Press u.



The list of the selected item

appears on the screen.

4. Rotate i to select an entry (e.g.,

No Name). Press u.



The pop-up menu appears on

the screen.

5. Rotate i to select Modify. Press



The listen to the current

phonetic modification, rotate

i to select Play. Press u.



To delete the current phonetic

modification, rotate i to

select Delete. Press u.

Continued

186



Playing an iPod®



Song By VoiceTM (SBV)

Audio

6. Enter the phonetic spelling you

wish to use (e.g., “Artist A”) when

prompted.

7. Move r to select OK to exit.

The artist “No Name” is

phonetically modified to “Artist A.”

When in the SBV mode, you can

press the d (Talk) button and use

the voice command

“Play ‘Artist A’”

to play songs by the artist “No

Name.”

187

Audio

Playing Internet Radio

Selecting Internet Radio Mode

1. Connect a compatible phone through Bluetooth®.

2. Press the MENU button.(in AUDIO mode)

3. Rotate i to select Change Source. Press u.

4. Rotate i to select Pandora or Aha. Press u.

2. Select Audio Source.

3. Select the Pandora or Aha icon.

You can also connect the phone using your dock connector to the USB port.

1Playing internet Radio

Pandora®, the Pandora logo, and the Pandora

trade dress are trademarks or registered

trademarks of Pandora Media, Inc., used with

permission. Pandora is currently available

exclusively in the United States.

To find out if your phone is compatible with this

feature, visit www.handsfreelink.honda.com, or

call 1-888-528-7876.

Pandora® is a personalized Internet radio service

that selects music based on an artist, song, or

genre a user enters, and streams what is likely to

be of interest.

To use this service in your vehicle, the Pandora®

app must first be installed on your phone. Visit

www.pandora.com. for more information.

If you cannot operate Pandora® through the

audio system, it may be streaming through

Bluetooth® Audio.

Make sure Pandora® mode on your audio

system is selected.

Interface Dial

Touchscreen

iPhone®

188



Playing Internet Radio



Pandora® Menu

Audio

Pandora® Menu

Rotate i to select an item. Press u.



Press MENU button to display the

menu items.

2Selecting Internet Radio Mode

P. 187

The following items are available:

1. Select b or n to change a

station.

2. Select x to skip a song.



Select to resume or play a

song.



Select or to evaluate a

song.



Select More to display the menu

item.

2Adjusting the Sound P. 143

2Changing the Screen

Settings P. 82

Interface Dial

•Skip Forward •Dislike

•Play/Pause •Bookmark Track

•Station List •Bookmark Artist

•Like

1Pandora® Menu

You can control Pandora® using voice

commands.

2Voice Control Operation P. 5

Available operating functions vary on software

versions. Some functions may not be available on

the vehicle’s audio system.

If there is a problem, you may see an error

message on the navigation screen.

2Pandora® P. 286

There are restrictions on the number of songs

you can skip or dislike in a given hour.

Song AAA

Station AAA

Touchscreen

189



Playing Internet Radio



AhaTM Radio Menu

Audio

AhaTM Radio Menu

Rotate i to select an item. Press u.



Press MENU button to display the

menu items.

2Selecting Internet Radio Mode

P. 187

The following items are available:

3. Select b or n to change a

station.

4. Select c or x to skip contents.



Select to resume or play a

song.



Select an icon to evaluate a

song.



Select More to display the menu

item.

2Adjusting the Sound P. 143

2Changing the Screen

Settings P. 82

Interface Dial

•Like •30sec skip

•Dislike •View text

•Play/Pause •View list

•15sec Back •Reply

1AhaTM Radio Menu

AhaTM by Harman is a cloud-based service that

organizes your favorite web content into live

radio stations. You can access podcasts, internet

radio, location-based services, and audio updates

from social media sites.

You can control AhaTM Radio using voice

commands.

2Voice Control Operation P. 5

Available operating functions vary on software

versions. Some functions may not be available on

the vehicle’s audio system.

If there is a problem, you may see an error

message on the navigation screen.

2AhaTM Radio P. 287

The menu items vary depending on the station

you selected.

To use this service in your vehicle, the HondaLink

app must be installed on your phone. Visit

owners.honda.com/apps for more information.

You must have a previously set up Aha account

prior to using the service in your vehicle. Visit

www.aharadio.com for more information.

To display stations on the screen, they must be

previously stored as favorites in the Aha app.

Touchscreen

190



Playing Internet Radio



AhaTM Radio Menu

Audio

HMENU button (in AhaTM mode)



Stations

Rotate i to select a station form the

Station list. Press u.

■How to Select a Station from the Station List

191

Audio

Playing a USB Flash Drive

1. Open the USB cover.

2. Install the USB flash drive to the USB connector.

Use a recommended USB flash drive of 256 MB or higher.

Some digital audio players may not be compatible.

Some USB flash drives (e.g., a device with security lockout) may not work.

Some software files may not allow for audio play or text data display.

Some versions of MP3, WMA, or AAC formats may be unsupported.

■Connecting a USB Flash Drive

1Connecting a USB Flash Drive

•Do not connect your USB flash drive using a

hub.

•Do not use a device such as a card reader or

hard disk drive, as the device or your tracks

may be damaged.

•We recommend backing up your data before

using the device in your vehicle.

■USB Flash Drives

1USB Flash Drives

Digital music tracks, such as MP3, WMA, AAC,

etc., in USB flash drives cannot be copied to

HDD. Likewise, digital music tracks recorded to

HDD cannot be copied to USB flash drives.

Files on the USB flash drive are played in their

stored order. This order may be different from

the order displayed on your PC or device.

192



Playing a USB Flash Drive



Selecting USB Mode

Audio

Selecting USB Mode

1. Connect the USB flash drive to the USB port in the console compartment.

2. Press the MENU button. (in AUDIO mode)

3. Rotate i to select Change Source. Press u.

4. Rotate i to select USB. Press u.

2. Select Audio Source.

3. Select the iPod icon.

1Playing a USB Flash Drive

You can control a USB flash drive using voice

commands.

2Voice Control Operation P. 5

Files in WMA/ACC format protected by digital

rights management (DRM) cannot be played.

The audio system displays Unplayable File, and

then skips to the next file.

If there is a problem, you may see an error

message on the navigation screen.

2iPod®/USB Flash Drive P. 285

Interface Dial

Touchscreen

193



Playing a USB Flash Drive



Audio Screen Control

Audio

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

1. Rotate i or press u to display

the song list..

2. Rotate i, move w or y to

select a song from the list. Press



Press MENU button to display

the menu items

2Audio Menu P. 147

1. Select b to skip to the next folder,

and n to skip to the beginning of

the previous folder.

2. Select c or x to change files.

Select and hold to move rapidly

within a file.



Select More to display the menu

item.

2Audio Menu P. 147

Interface Dial

File AAA

Folder AAA

Touchscreen

194



Playing a USB Flash Drive



Audio Menu

Audio

Audio Menu

HMENU button (in USB mode)

Rotate i to select an item. Press u.

The following items are available:

•Scan:

Scan Folders: Provides 10-second sampling of the first file in each of the main

folders.

Scan Tracks: Provides 10-second sampling of all files in the current folder.

•Random/Repeat:

Repeat Folder: Repeats all files in the current folder.

Repeat Track: Repeats the current file.

Random in Folder: Plays all files in the current folder in random order.

Random All Tracks: Plays all files in random order.

•Change Source: Changes the audio source mode.

2Selecting Disc Mode P. 156

•Music Search: Selects a file from the Music Search list.

2How to Select a File from the Music Search List P. 196

Interface Dial

195



Playing a USB Flash Drive



Audio Menu

Audio

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Random/Repeat:

Repeat Folder: Repeats all files in the current folder.

Repeat Track: Repeats the current file.

Random in Folder: Plays all files in the current folder in random order.

Random All Tracks: Plays all files in random order.

•Scan:

Scan Folders: Provides 10-second sampling of the first file in each of the main

folders.

Scan Tracks: Provides 10-second sampling of all files in the current folder.

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

Touchscreen

196



Playing a USB Flash Drive



Audio Menu

Audio

HMENU button (in USB mode)



Music Search

1. Move w or y to select a search

category. Press u.

2. Rotate i to select a file from the

Music Search list. Press u.

■How to Select a File from the Music Search List

197

Audio

Playing Bluetooth® Audio

Your audio system allows you to listen to music from your Bluetooth®-compatible

phone.

This function is available when the phone is paired and connected to the vehicle’s

Bluetooth® HandsFreeLink® (HFL) system.

2Bluetooth® HandsFreeLink® P. 202

Selecting Bluetooth® Audio Mode

1. Make sure that your phone is on, paired, and linked to HFL.

2Phone Settings P. 219

2. Press the MENU button. (in AUDIO mode)

3. Rotate i to select Change Source. Press u.

4. Rotate i to select Bluetooth Audio. Press u.

2. Select Audio Source.

3. Select the Bluetooth icon.

Interface Dial

Touchscreen

1Playing Bluetooth® Audio

Not all Bluetooth®-enabled phones with

streaming audio capabilities are compatible with

the system.

For a list of compatible phones, visit

www.handsfreelink.honda.com, or

call 1-888-528-7876.

State or local laws may prohibit the operation of

handheld electronic devices while operating a

vehicle.

If more than one phone is paired to the HFL

system, there will be a delay before the system

begins to play.

You can control Bluetooth® Audio using

voicecommands.

2Voice Control Operation P. 5

198



Playing Bluetooth® Audio



Audio Screen Control

Audio

Audio Screen Control

Control the audio system through the navigation screen and touchscreen.

1. Press MENU button. (in BT mode).

2. Rotate i select an item. Press

The following items are available:

•Play: Plays a song.

•Pause: Pauses a song.

•Change Source: Changes the audio source mode.

2Selecting Disc Mode P. 156

•Music Search: Selects a song from the Music Search list.

1Audio Screen Control

To play the audio files, you may need to operate

your phone. If so, follow the phone maker’s

operating instructions.

The pause function and Music Search may not be

available on some phones.

Switching to another mode pauses the music

playing from your phone. This function may not

be available on some phones.

Interface Dial

199



Playing Bluetooth® Audio



Audio Screen Control

Audio

1. Select b or n to change folders.

2. Select c or x to change files.



Select More to display the menu

items, then select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

File AAA

Folder AAA

Touchscreen

200

201

Bluetooth® HandsFreeLink®

This section describes how to operate Bluetooth® HandsFreeLink®. You

can place and receive phone calls using your vehicle’s audio system

without handling your cell phone.

Bluetooth® HandsFreeLink® ................202

Using HFL .............................................202

Pairing a Phone.....................................204

Importing Phonebook Data ...................210

Setting Up Speed Dialing ......................211

Phonebook Phonetic Modification.........214

Phone Settings......................................219

Making a Call .......................................224

Receiving a Call.....................................229

Text Message/E-mail .............................231

Setting a Text Message/E-mail...............231

Selecting a Mail Account.......................233

Receiving a Text Message/E-mail ...........234

Displaying Messages .............................235

HFL Menus........................................... 239

202

Bluetooth® HandsFreeLink®

Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using

your vehicle’s navigation system, without handling your cell phone.

Using HFL

h (Pick-up) button: Press to go directly to the Phone screen or to answer an

incoming call.

J (Hang-up/back) button: Press to end a call, to cancel a command or to return

to the previous screen.

d (Talk) button: Press to give HFL voice commands.

PHONE button: Press to go directly to the Phone screen.

Interface dial: Rotate i to select an item on the screen, then press u. Move w,

y, e or u to select secondary menu.

■HFL Buttons

1Bluetooth® HandsFreeLink®

To use HFL, you need a Bluetooth®-compatible

cell phone. For a list of compatible phones,

pairing procedures, and special feature

capabilities:

Visit www.handsfreelink.honda.com, or

call 1-888-528-7876.

Voice control tips:

•Aim the vents away from the ceiling and close

the windows, as noise coming from them may

interfere with the microphone.

•Press and release the d button when you

want to call a number using a stored voice tag,

a phonebook name, or a number. Speak

clearly and naturally after a beep.

•If the microphone picks up voices other than

yours, the command may be misinterpreted.

•To change the volume level, use the audio

system’s volume knob or the remote audio

controls on the steering wheel.

State or local laws may prohibit the operation of

handheld electronic devices while operating a

vehicle.

If you receive a call while using the audio system,

the system resumes its operation an after ending

the call.

NAV

Button

MODE Button

Pick-up

Button

PHONE

Button

Interface

Dial

Microphone

VOL

Button

Talk Button

Hang-up/Back

Button

203



Bluetooth® HandsFreeLink®



Using HFL

Bluetooth® HandsFreeLink®

The navigation screen notifies you when there is an incoming call.

Certain manual functions are disabled

or inoperable while the vehicle is in

motion.

You cannot select a grayed-out

option until the vehicle is stopped.

Only previously stored speed dial

entries with voice tags, phonebook

names, or numbers can be called

using voice commands while the

vehicle is in motion.

2Setting Up Speed Dialing P. 211

■HFL Status Display

1Bluetooth® HandsFreeLink®

Bluetooth® Wireless Technology

The Bluetooth® word mark and logos are

registered trademarks owned by Bluetooth SIG,

Inc., and any use of such marks by Honda Motor

Co., Ltd., is under license. Other trademarks and

trade names are those of their respective owners.

Battery Level Status

Bluetooth® Indicator

Comes on when your

phone is connected

to HFL. Roam Status

Signal Strength

Caller’s Name

Caller’s Number

■Limitations for Manual Operation

1HFL Status Display

The information that appears on the navigation

screen varies between phone models.

You can change the system language to English,

French, or Spanish.

2Language Settings P. 33

Disabled Option

204



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

Pairing a Phone

HPHONE button

When no Bluetooth®-compatible phone has ever been paired, the following screen

appears:

1. Rotate i to select Yes. Press u.

2. Make sure your phone is in search

or discoverable mode. Press u.



HFL automatically searches for a

Bluetooth® device.

3. When your phone appears on the

list, select it by pressing u.



If your phone does not appear,

you can select Refresh to search

again.



If your phone still does not

appear, move r to select

Phone not Found? and search

for Bluetooth® devices using

your phone. From your phone,

select HandsFreeLink.

1Pairing a Phone

Your Bluetooth®-compatible phone must be

paired to HFL before you can make and receive

hands-free calls.

Phone Pairing Tips:

•You cannot pair your phone while the vehicle

is moving.

•Up to six phones can be paired.

•Your phone's battery may drain faster when it

is connected to HFL.

•If your phone is not ready for pairing or not

found by the system within three minutes, the

system will time out and returns to idle.

Once you have paired a phone, you can see it

displayed on the screen with one or two icons on

the right side.

These icons indicate the following:

: The phone can be used with HFL.

: The phone is compatible with Bluetooth®

Audio.

205



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

4. HFL gives you a pairing code on the

navigation screen.



Confirm if the pairing code on

the screen and your phone

match.

This may vary by phone.

5. You will receive a notification on

the screen if pairing is successful.

HSETTINGS button



Phone Settings



Connect Phone

1. Rotate i to select Add

Bluetooth Device.

2. Make sure your phone is in search

or discoverable mode. Press u.



HFL automatically searches for a

Bluetooth® device.

1Pairing a Phone

When pairing is completed, an Automatic

Phone Sync prompt appears. Select On if you

want your call history and phonebook

automatically imported to HFL.

2Automatic Phone Sync setting P. 223

■Pairing from Phone Setup

Continued

206



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

3. When your phone appears on the

list, select it by pressing u.



If your phone does not appear,

you can select Refresh to search

again.



If your phone still does not

appear, move r to select

Phone not Found? and search

for Bluetooth® devices using

your phone. From your phone,

select HandsFreeLink.

4. HFL gives you a pairing code on the

navigation screen.



Confirm if the pairing code on

the screen and your phone

match. This may vary by phone.

5. You will receive a notification on

the screen if pairing is successful.

207



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

HSETTINGS button



System Settings

1. Rotate i to select Edit Pairing

Code. Press u.

2. Rotate i to select Fixed or

Random. Press u.

■Changing the Pairing Code

1Changing the Pairing Code

The pairing code may be six or four digits

depending on your phone.

The default pairing code is 0000 until you

change the setting.

To create your own, select Fixed, and delete the

current code, then enter a new one.

For a randomly generated pairing code each time

you pair a phone, select Random.

208



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Bluetooth Device List

1. Rotate i to select a paired phone

you want to replace. Press u.

2. Rotate i to select Replace This

Device. Press u.

3. HFL enters the pairing process and

searches a new phone.



Follow the prompts to pair a

new phone.

4. You will receive a notification on

the screen if pairing is successful.

■Changing the Currently Paired Phone

1Changing the Currently Paired Phone

The replaced phone will keep the same speed

dial entries, and security PIN information from

the previously paired phone.

209



Bluetooth® HandsFreeLink®



Pairing a Phone

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Bluetooth Device List

1. Rotate i to select a paired phone

you want to replace. Press u.

2. Rotate i to select Delete This

Device. Press u.

3. You will receive a confirmation

message on the screen. Rotate i

to select Yes. Press u.

4. You will receive a notification on

the screen if deletion is successful.

■Deleting a Paired Phone

210



Bluetooth® HandsFreeLink®



Importing Phonebook Data

Bluetooth® HandsFreeLink®

Importing Phonebook Data

When your phone is paired, the

contents of its phonebook and call

history are automatically imported to

HFL.

1Importing Phonebook Data

When you select a person from the list in the

cellular phonebook, you can see up to three

category icons. The icons indicate what types of

numbers are stored for that name.

On some phones, it may not be possible to

import the category icons to HFL.

The phonebook is updated after every

connection. Call history is updated after every

connection or call.

Pref Fax

Home Car

Mobile Other

Work Message

Pager Voice

211



Bluetooth® HandsFreeLink®



Setting Up Speed Dialing

Bluetooth® HandsFreeLink®

Setting Up Speed Dialing

HMENU button (on PHONE screen)



Speed Dial

Up to 20 speed dial numbers can be stored per phone.

1. Rotate i to select New Entry.

Press u.

2. Rotate i to select a number

entry method. Press u.

The following options are available:

•Import from Call History: Select a number from the call history.

•Manual Input: Input the number manually.

•Import from Phonebook: Select a number from the linked cell phone's imported

phonebook.

1Setting Up Speed Dialing

When a voice tag is stored, press the d button

to call the number using the voice tag. Say ”Call“

and the voice tag name.

212



Bluetooth® HandsFreeLink®



Setting Up Speed Dialing

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Edit Speed Dial

1. Select an existing speed dial entry.

2. From the pop-up menu, rotate i

to select Edit. Press u.

3. Rotate i to select Voice Tag.

Press u.

4. From the pop-up menu, rotate i

to select Record. Press u.



After selecting Record, wait for

the beep(s) to sound before you

say the name.

5. Move r and select OK to complete

the voice tag.

■Registering a Voice Tag to a Speed Dial Entry

1Registering a Voice Tag to a Speed Dial Entry

Avoid using duplicate voice tags.

Avoid using ”home“ as a voice tag.

It is easier for HFL to recognize a longer name.

For example, use ”John Smith“ instead of

”John.“

213



Bluetooth® HandsFreeLink®



Setting Up Speed Dialing

Bluetooth® HandsFreeLink®

■To delete a voice tag

1. Select an existing speed dial entry.

2. From the pop-up menu, rotate i

to select Edit. Press u.

3. Rotate i to select Voice Tag.

Press u.

4. From the pop-up menu, rotate i

to select Clear. Press u.

5. You will receive a confirmation

message on the screen. Rotate to

select Yes. Press u.

■To delete a speed dial

1. Select an existing speed dial entry.

2. From the pop-up menu, rotate i

to select Delete. Press u.

3. You will receive a confirmation

message on the screen. Rotate to

select Yes. Press u.

214



Bluetooth® HandsFreeLink®



Phonebook Phonetic Modification

Bluetooth® HandsFreeLink®

Phonebook Phonetic Modification

HSETTINGS button



System Settings



Phonebook Phonetic Modification

Add phonetic modifications or a new voice tag to the phone's contact name so that

it is easier for HFL to recognize voice commands.

■To add a new voice tag

1. Rotate i to select the phone you

want to add phonetic modification

to. Press u.

2. Rotate i to select New Voice

Tag. Press u.

1Phonebook Phonetic Modification

You can store up to 20 phonetic modification

items.

Phonetic modification

215



Bluetooth® HandsFreeLink®



Phonebook Phonetic Modification

Bluetooth® HandsFreeLink®

3. Move w or y and rotate i to

select a contact name. Press u.



The pop-up menu appears on

the screen.

4. Rotate i to select Modify. Press

5. Using the d button, follow the

prompts to complete the voice tag.

6. You will receive a confirmation

message on the screen. Rotate i

to select OK. Press u.

7. The screen returns to the New

Voice Tag screen. Move r and

rotate i to select OK. Press u.

216



Bluetooth® HandsFreeLink®



Phonebook Phonetic Modification

Bluetooth® HandsFreeLink®

■To modify a voice tag

1. Rotate i to select the phone you

want to add phonetic modification

to. Press u.

2. Rotate i to select a contact

name you want to modify. Press



The pop-up menu appears on

the screen.

3. Rotate i to select Modify. Press

4. Using the d button, follow the

prompts to complete the voice tag.

5. You will receive a confirmation

message on the screen. Rotate i

to select OK. press u.

1Phonebook Phonetic Modification

You can only modify or delete contact names for

the currently connected phone.

217



Bluetooth® HandsFreeLink®



Phonebook Phonetic Modification

Bluetooth® HandsFreeLink®

■To delete a modified voice tag

1. Rotate i to select the phone you

want to delete phonetic

modification. Press u.

2. Rotate i to select a contact

name you want to delete. Press u.



The pop-up menu appears on

the screen.

3. Rotate i to select Delete, then

press u.



Items to be deleted are indicated

with a trash icon.

4. Move r and rotate i to select

OK. Press u.

Trash icon

Continued

218



Bluetooth® HandsFreeLink®



Phonebook Phonetic Modification

Bluetooth® HandsFreeLink®

■To delete all modified voice tags

1. Rotate i to select the phone you

want to delete phonetic

modification. Press u.



The contact name list appears.

2. Move r and rotate i to select

Delete All. Press u.

3. You will receive a confirmation

message on the screen. Rotate i

to select OK. press u.

Phonetic modification

219



Bluetooth® HandsFreeLink®



Phone Settings

Bluetooth® HandsFreeLink®

Phone Settings

HSETTINGS button



Phone Settings

Set HFL options and features.

HSETTINGS button



Phone Settings



Bluetooth Device List

You can protect each of the six cell phones with a security PIN.

1. Rotate i to select the phone you

want to add a security PIN to. Press

2. Rotate i to select Edit PIN. Press

3. Enter a new four-digit number.

Rotate i to select OK to enter

the security PIN.



Move w to delete.

4. Re-enter the four-digit number.



The screen returns to the screen

in step 4.

■Editing a Security PIN

1Editing a Security PIN

If the phone is already security PIN protected, you

need to enter the current security PIN before

clearing the PIN or creating a new one.

220



Bluetooth® HandsFreeLink®



Phone Settings

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Bluetooth Device List

Edit the user name of a paired phone as follows:

1. Rotate i to select a phone you

want to edit. Press u.

2. Rotate i to select Edit Device

Name. Press u.

3. Enter a new name of the phone.



Rotate i or move r to select

OK to enter the name. Press u.



Move w to delete.

■Editing User Name

221



Bluetooth® HandsFreeLink®



Phone Settings

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Auto Transfer

If you get into the vehicle while you are on the phone, the call can be automatically

transferred to HFL.

Rotate i to select On. Press u.

HSETTINGS button



Phone Settings



Auto Answer

You can set HFL to automatically answer an incoming call in four seconds.

Rotate i to select On. Press u.

■Automatic Transferring

■Auto Answer

222



Bluetooth® HandsFreeLink®



Phone Settings

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Ring Tone

You can change the ring tone setting.

Rotate i to select your desired

setting item. Press u.

The following items are available:

•Fixed: The fixed ring tone sounds from the speaker.

•Mobile Phone: The ring tone stored in the connected cell phone sounds from the

speaker.

•Off: No ring tones sound from the speaker.

■Ring Tone

223



Bluetooth® HandsFreeLink®



Phone Settings

Bluetooth® HandsFreeLink®

HSETTINGS button



Phone Settings



Automatic Phone Sync

Rotate i to select On or Off. Press

HSETTINGS button



Phone Settings



Use Contact Photo

You can display a caller's picture on an incoming call screen.

Rotate i to select On. Press u.

■Automatic Phone Sync setting

■Use Contact Photo

Phone settings

All Phone

Auto Transfer

Auto Answer

Ring Tone

Automatic Phone Sy

Use Contact Photo

O

Default

224



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

Making a Call

You can make calls by inputting any phone number, or by using the imported

phonebook, call history, speed dial entries, or redial.

1Making a Call

Any voice-tagged speed dial entry, phonebook

name, or number can be dialed by voice from

most screens. Press the d button and say ”Call“

and the voice tag name, ”Call by name“ and the

phonebook name, or ”Call“ and the phone

number.

The maximum range between your phone and

vehicles is 30 feet (10 meters).

Once a call is connected, you can hear the voice

of the person you are calling through the audio

speakers.

225



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HMENU button (on Phone Settings)



Phonebook

1. The phonebook is stored

alphabetically. Move r to Search.



You can use the keyboard on

the touch screen for an

alphabetical search.

2. Rotate i to select a number.

Press u.



Dialing starts automatically.

■Using the Phonebook

1Using the Phonebook

This function is disabled while the vehicle is

moving. However, you can call a stored voice-

tagged speed dial number, phonebook name, or

number using voice commands.

2Limitations for Manual Operation P. 203

2Setting Up Speed Dialing P. 211

226



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HMENU button (on Phone Settings)



Dial

1. Rotate i to select a number.

Press u.

2. Rotate i to select h. Press u.

HMENU button (on Phone Settings)



Redial

You can display a caller's picture on an incoming call screen.

Rotate i to select Dial. Press u.



Dialing starts automatically.

■Entering a Phone Number

1Entering a Phone Number

This function is disabled while the vehicle is

moving. However, you can call a stored voice-

tagged speed dial number, phonebook name, or

number using voice commands.

2Limitations for Manual Operation P. 203

2Setting Up Speed Dialing P. 211

■Using Redial

227



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HMENU button (on Phone Settings)



Call History

Call history is stored by All, Dialed, Received, and Missed.

1. Move w or y to select All,

Dialed, Received, and Missed.

2. Rotate i to select a number.

Press u.



Dialing starts automatically.

1. Press the h button.

2. Move the left selector wheel right

to select Call History.

3. Roll the left selector wheel to select

a number.

4. Push the left selector wheel or the

h button.



Dialing starts automatically.

■Using Call History

1Using Call History

The call history displays the last 20 dialed,

received, or missed calls.

(Appears only when a phone is connected to

HFL.)

These icons next to the number indicate the

following:

: Dialed calls

: Received calls

: Missed calls

The call history displays the last 12 dialed,

received, or missed calls.

Steering switches

228



Bluetooth® HandsFreeLink®



Making a Call

Bluetooth® HandsFreeLink®

HMENU button (on Phone Settings)



Speed Dial

Rotate i to select a number. Press



Dialing starts automatically.

1. Press the h button.

2. Move the left selector wheel left to

select Speed Dial.

3. Roll the left selector wheel to select

a number.

4. Push the left selector wheel or the

h button.



Dialing starts automatically.

■Using Speed Dial

1Using Speed Dial

Move r to select More Speed Dials to view

another paired phone's speed dial list. You can

make a call from that list using the currently

connected phone.

When a voice tag is stored, press the d button

to call the number using the voice tag.

2Setting Up Speed Dialing P. 211

Any voice-tagged speed dial entry, phonebook

name or number can be dialed by voice from any

screen. Press the d button and follow the

prompts.

The speed dial displays the 20 speed dial entries.

Steering switches

229



Bluetooth® HandsFreeLink®



Receiving a Call

Bluetooth® HandsFreeLink®

Receiving a Call

When there is an incoming call, an audible notification sounds (if activated) and the

Incoming call screen appears.

1. Press the h button to answer the

call.

2. Press the J button to decline

or end the call.

1Receiving a Call

Call Waiting

Press the h button to put the current call on

hold to answer the incoming call.

Press the h button again to return to the

current call.

Ignore the incoming call if you do not want to

answer it.

Press the J button if you want to hang up

the current call.

230



Bluetooth® HandsFreeLink®



Receiving a Call

Bluetooth® HandsFreeLink®

The available options are shown on the Phone screen.

Rotate i to select the option. Press



The mute icon appears when Mute

is selected. Select Mute again to

turn it off.

The following options are available during a call:

•Mute: Mute your voice.

•Transfer: Transfer a call from HFL to your phone.

•Touch Tones: Send numbers during a call. This is useful when you call a menu-

driven phone system.

■Options During a Call

1Options During a Call

Touch Tones: Available on some phones when

the vehicle is stopped.

231

Bluetooth® HandsFreeLink®

Text Message/E-mail

Setting a Text Message/E-mail

HSETTINGS button



Phone Settings



Enable Text/Email

Rotate i to select On or Off. Press

HSETTINGS button



Phone Settings



New Text/Email Alert

Rotate i to select On or Off. Press

The following items are available:

•On: A pop-up notification comes on every time you receive a new text message.

•Off: The message you receive is stored in the system without notification.

■To turn on or off the text/E-mail function

■To turn on or off the text/E-mail notice

232



Text Message/E-mail



Setting a Text Message/E-mail

Bluetooth® HandsFreeLink®

HSETTINGS button



System Settings



Message Auto Reading

Rotate i to select On, Off or Auto.

Press u.

The following items are available:

•On: A text message/Email is always read aloud.

•Off: A text message/Email is not read aloud.

•Auto: A text message/Email is read aloud only when driving.

■To set up the auto reading option

233



Text Message/E-mail



Selecting a Mail Account

Bluetooth® HandsFreeLink®

Selecting a Mail Account

HSETTINGS button



Phone Settings



Select Account

If a paired phone has text message or mail accounts, you can select one of them to

be active and receive notifications.

Rotate i to Text Messages or an

E-mail account you want. Press u.

1Selecting a Mail Account

You can also select a mail account from the

folder list screen or the message list screen.

Move r to select Select Account, then press

You can only receive notifications from one text

message or mail account at a time.

234



Text Message/E-mail



Receiving a Text Message/E-mail

Bluetooth® HandsFreeLink®

Receiving a Text Message/E-mail

HFL can display newly received text messages and E-mails as well as 20 of the most

recently received messages on a linked cell phone. Each received message can be

read aloud and replied to using a fixed common phrase.

1. A pop-up appears and notifies you

of a new text message or E-mail.

2. Rotate i to select Read to listen

to the message. Press u.



The text message or E-mail is

displayed. The system

automatically starts reading out

the message.

3. To discontinue the message read-

out. Press u.

1Receiving a Text Message/E-mail

The system does not display any received

messages while you are driving. You can only

hear them read aloud.

With some phones, you may be able to display

up to 20 most recent text messages and E-mails.

State or local laws may limit your use of the HFL

text message/E-mail feature. Only use the text

message/ E-mail feature when conditions allow

you to do so safely.

When you receive a text message or E-mail for

the first time since the phone is paired to HFL,

you are asked to turn the New Text/Email

Alert setting to On.

2To turn on or off the text/E-mail notice

P. 231

235



Text Message/E-mail



Displaying Messages

Bluetooth® HandsFreeLink®

Displaying Messages

HMENU button (on Phone Settings)



Text/Email

1. Select account if necessary.

2. Rotate i to select a message.

Press u.



The text message is displayed.

The system automatically starts

reading the message aloud.

■Displaying text messages

1Displaying Messages

The icon appears next to an unread message.

If you delete a message on the phone, the

message is also deleted in the system. If you send

a message from the system, the message goes to

your phone’s outbox.

To see the previous or next message, move w

or y on the text message screen.

236



Text Message/E-mail



Displaying Messages

Bluetooth® HandsFreeLink®

HMENU button (on Phone Settings)



Text/Email

1. Rotate i to select a folder. Press

2. Rotate i to select a message.

Press u.



The text message is displayed.

The system automatically starts

reading the message aloud.

■Displaying E-mails

1Displaying E-mails

Received text messages and E-mails may appear

in the message list screen at the same time. In

this case, text messages are titled No subject.

237



Text Message/E-mail



Displaying Messages

Bluetooth® HandsFreeLink®

1. Go to the text message or E-mail

screen.



The system automatically starts

reading the message aloud.

2Displaying Messages P. 235

2. Press u to stop reading.

Press u again to start reading the

message from the beginning.

1. Go to the text message or E-mail

screen.



The system automatically starts

reading the message aloud.

2Displaying Messages P. 235

2. Move r and rotate i to select

Reply. Press u.

■Read or stop reading a message

■Reply a message

238



Text Message/E-mail



Displaying Messages

Bluetooth® HandsFreeLink®

3. Rotate i to select the reply

message. Press u.



The pop-up menu appears on

the screen.

4. Select Send to send the message.



Message Sent appears on the

screen when the reply message

was successfully sent.

1. Go to the text message screen.

The system automatically starts

reading the message aloud.

2Displaying text messages P. 235

2. Move r and rotate i to select

Call. Press u.

■Making a call to a sender

1Reply to a message

The available fixed reply messages are as follows:

•Talk to you later, I’m driving.

•I’m on my way.

•I’m running late.

•OK

•Yes

•No

You cannot add, edit, or delete reply messages.

239



Text Message/E-mail



HFL Menus

Bluetooth® HandsFreeLink®

HFL Menus

The power mode must be in ACCESSORY or ON to use HFL.

■Phone Settings screen

1. Press the SETTINGS button.

2. Rotate i to select Phone

Settings, then press u.

1HFL Menus

To use HFL, you must first pair your Bluetooth®-

compatible cell phone to the system while the

vehicle is parked.

Some functions are limited while driving. A

message appears on the screen when the vehicle is

moving and the operation is canceled.

Edit the user name of a paired phone.

Phone

Edit Device

Name

Connect

phone

Bluetooth

Device List

(Existing

entry list)

Replace This

Device

Add Bluetooth

Device

Disconnect a paired phone from the system.

Connect a phone to the system.

*1: Appears only when a phone is connected to HFL.

Disconnect

(Existing entry list)

Pair a phone to the system.

Edit PIN

Create a security PIN for a paired phone.

Replace a previously paired phone with a

new phone.

Delete This

Device Delete a previously paired phone.

Add Bluetooth

Device Pair a phone to the system.

Continued

240



Text Message/E-mail



HFL Menus

Bluetooth® HandsFreeLink®

Text/

Email*1

Manual

Input

Edit Speed

Dial New Entry

Import from

Call History

*1: Appears only when a phone is connected to HFL.

Import from

Phonebook

Delete All Delete all the previously stored speed dial numbers.

Select a phone number from the call

history to store as a speed dial number.

Select a phone number from the

phonebook to store as a speed dial number.

Enter a phone number to store as a speed

dial number.

Edit

Delete

(Existing

entry list)

Edit a previously stored speed dial number.

•Change a number.

•Create or delete a voice tag.

Delete a previously stored speed dial number.

Set calls to automatically transfer from your phone to HFL when you enter the

vehicle.

Auto Transfer

Auto Answer

Ring Tone

Set whether to automatically answer an incoming call after about four

seconds.

Select the ring tone.

Use Contact Photo

Set phonebook data to be automatically imported when a phone is paired to

HFL.

Display a caller’s picture on an incoming call screen.

Automatic Phone Sync

Select Account Select a mail or text message account.

Enable Text/Email Turn the text message/E-mail function on and off.

New Text/Email Alert Select whether a pop-up alert comes on the screen when HFL receives a new

text message/E-mail.

Cancel/Reset all customized items in the Phone Settings group as default.

Default

241



Text Message/E-mail



HFL Menus

Bluetooth® HandsFreeLink®

■Phone screen

1. Press the PHONE button.

2. Press the MENU button to display

the menu items.

Select a phone number from the call history to store as a

speed dial number.

Speed Dial*1

Manual Input

New Entry Import from

Call History

Import from

Phonebook

Select a phone number from the phonebook to store as a

speed dial number.

Enter a phone number to store as a speed dial number.

More Speed Dials Display another paired phone’s speed dial list.

*1: Appears only when a phone is connected to HFL.

(Existing entry list) Dial the selected number in the speed dial list.

Phonebook*1

Dial*1

Display the paired phone’s phonebook.

Enter a phone number to dial.

242



Text Message/E-mail



HFL Menus

Bluetooth® HandsFreeLink®

Text/Email*1

Message is

read aloud.

See the previous message.

(Read/Stop)

Next See the next message.

System reads received message aloud, or stop message

from being read.

Call

Reply to a received message using one of six fixed phrases.

Make a call to the sender.

Select

Account

Select a message

and press .

Select a mail or text message account.

Redial*1 Redial the last number dialed in the phone’s history.

Display the last 20 outgoing, incoming and missed calls.

Call History*1

All

Dialed

Received

Display the last 20 outgoing calls.

Display the last 20 incoming calls.

Missed Display the last 20 missed calls.

*1: Appears only when a phone is connected to HFL.

243

Rear Entertainment System

Rear seat passengers can enjoy a completely separate entertainment

source than front passengers, including movies, games, and other audio

choices.

Rear Entertainment System ..................244

Auxiliary Console Panel .........................244

HDMI Input Jack (Ultrawide RES only)....245

Rear Control Panel Operation...............248

Selecting the Audio Source ...................248

Rear DVD Menu....................................249

Screen and Surround Settings ...............252

DVD Initial Settings (RES only) ...............255

Dual Screen Mode (Ultrawide RES only).256

Replacing the Batteries..........................258

Front Control Panel Operation .............259

Selecting the Audio Source using front

control panel.......................................259

Rear System Setup ................................260

Setting the DVD Menu ......................... 261

Wireless Headphones ........................... 263

Using the Wireless Headphones ........... 263

Changing the Sound Source (Ultrawide RES

only)................................................... 264

Replacing the Batteries......................... 265

244

Rear Entertainment System

The Rear Entertainment System (RES) is operable from both the front control panel

and the rear control panel.

2Front Control Panel Operation P. 259

2Rear Control Panel Operation P. 248

Auxiliary Console Panel

Auxiliary input jacks and headphone connectors for the rear entertainment system

are above the third row seat armrest on the driver’s side.

V = Video jack

L = Left audio jack

R = Right audio jack

■Auxiliary Input Jacks

The system will accept auxiliary inputs from standard video games and video

equipment. Some video game power supplies may cause poor picture quality.

■Headphone Connectors

There are two headphone connectors for the rear passengers. Each connector has its

own volume control.

1Rear Entertainment System

This vehicle’s overhead mounted video display, if

so equipped, includes mercury-containing

components. Upon removal, please reuse,

recycle, or dispose of as hazardous waste.

NOTICE

AUXILIARY INPUT JACK

245



Rear Entertainment System



HDMI Input Jack (Ultrawide RES only)

Rear Entertainment System

HDMI Input Jack (Ultrawide RES only)

There is an HDMI input jack above the third row seat armrest on the passenger’s

side. The system will accept HDMI input from video games and video equipment

which are equipped with an HDMI jack.

Open the outlet cover and insert the

cable.

246



Rear Entertainment System



Audio Sources for Front and Rear Seats

Rear Entertainment System

Audio Sources for Front and Rear Seats

The table shows the possible audio source combinations of the front audio system

and rear entertainment system’s simultaneous use.

*1. The front seat passengers are only able to hear the DVD’s sound from the front

speakers.

Front

Rear

AM/FM

Radio

SiriusXM®

Radio CD DVD*1 HDD USB

iPod®

Bluetooth

Audio

Pandora

Aha

AM/FM

Radio Yes Yes Yes Yes Yes Yes Yes Yes

SiriusXM®

Radio Yes Yes Yes Yes Yes Yes No No

CD Yes Yes Yes Yes Yes Yes Yes Yes

DVD Yes Yes Yes Yes Yes Yes Yes Yes

HDD Yes Yes Yes Yes Yes Yes Yes Yes

USB

iPod®Yes Yes Yes Yes Yes Yes Yes Yes

1Audio Sources for Front and Rear Seats

Yes: These audio sources are simultaneously

playable. When listening to same source in both

the front and rear, the playing channel or track

will also be the same for each.

No: These audio sources are not simultaneously

playable.

247



Rear Entertainment System



Playable Discs

Rear Entertainment System

Playable Discs

The discs that come with these labels can be played in your vehicle’s rear

entertainment system.

Also look for the region code of 1 or ALL on the package or jacket on the disc.

DVD-ROMs are not playable in this unit.

1Playable Discs

This product incorporates copyright protection

technology that is protected by U.S. patents and

other intellectual property rights.

Use of this copyright protection technology must

be authorized by Rovi Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorized by Rovi

Corporation. Reverse engineering and

disassembly are prohibited.

Manufactured under license under U.S. Patent

Nos: 5,956,674; 5,974,380; 6,487,535 & other

U.S. and worldwide patents issued & pending.

DTS, the Symbol, & DTS and the Symbol together

are registered trademarks & DTS Digital Surround

and the DTS logos are trademarks of DTS, Inc.

Reserved.

Manufactured under license from DTS Licensing

Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks & DTS Neural

Surround is a trademark of DTS, Inc. Product

Reserved.

Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, MLP Lossless and

the double-D symbol are trademarks of Dolby

Laboratories.

The disc packages or jackets should have one of these marks.

Also includes:

248

Rear Entertainment System

Rear Control Panel Operation

Selecting the Audio Source

■RES

1. Press the Rear Power button on the front control panel.

2. Press the audio source button on the rear control panel.



You can also change the audio source by the front control panel.

2Selecting the Audio Source using front control panel P. 259

3. Select a station, channel, track, or chapter using the CH/FOLDER, TUNE/SKIP, or

CATEGORY bars.

2Overhead Screen and Rear Control Panel P. 14

■Ultrawide RES

1. Press the Rear Power button on the

front control panel.

2. Press the SOURCE button on the

rear control panel.

3. Select the audio source. Press the

ENTER button.



You can also change the audio

source by the front control

panel.

2Selecting the Audio Source

using front control panel P. 259

4. Select a station, channel, track, or

chapter using the CH/FOLDER,

TUNE/SKIP, or CATEGORY bars.

1Rear Control Panel Operation

In the procedures of this section, “select” means

the following actions:

The rear control panel can be detached from the

ceiling unit and used as a remote control.

2Overhead Screen and Rear Control Panel

P. 14

In this section, screen illustrations from the

standard RES are used for the explanation unless

otherwise noted.

The screen is displayed on the overhead screen.

RES

Press the cursor buttons

on the rear control panel.

Ultrawide RES

Rotate the Interface Dial

on the rear control panel.

249



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

Rear DVD Menu

HMENU button (in the DVD mode)

Select an item. Press the ENTER

button.

The following items are available:

•Top Menu: Displays the top menu of the DVD.

•Menu: Displays the menu of the DVD.

•Play Mode: Displays while a DVD is playing and changes the DVD’s audio,

subtitle, or angle settings.

2Setting the Play Mode P. 250

•Initial Settings: Displays while a DVD is not playing and changes the DVD

preferences.

2DVD Initial Settings (RES only) P. 255

•Search/NumInput: Skips to a title or chapter by entering the number.

2Searching a Title/Chapter P. 251

•Repeat:

o TITLE REPEAT: Repeats the current title.

p CHAPTER REPEAT: Repeats the current chapter.

•Pause/Play: Pauses or resume the playback

•Stop: Stops the playback.

•Return: Hides the rear audio menu.

250



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

HMENU button (in the DVD mode)



Play Mode

1. Select an item. Press the ENTER

button.

2. Select an option. Press the ENTER

button.

The following items are available:

•Audio: Selects the language of the DVD audio.

•Subtitle: Selects the language of the DVD subtitle.

•Angle: Selects the angle of a scene shot with multiple cameras.

■Setting the Play Mode

251



Rear Control Panel Operation



Rear DVD Menu

Rear Entertainment System

HMENU button (in the DVD mode)



Search/NumInput

1. Select an item. Press the ENTER

button.

2. Select a number. Press the ENTER

button.

The following items are available:

•Title: Skips to a title you specify.

•Chapter: Skips to a chapter you specify.

•NumInput: Enters a number of a title or chapter to skip.

Enter a number and select ENT. Press the ENTER button.

Enter a number and press the ENTER button. Select DONE.

■Searching a Title/Chapter

RES

Ultrawide RES

252



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

Screen and Surround Settings

HSETUP button (in the DVD mode)

Select an item. Press the ENTER

button.

The following items are available:

•Brightness (Ultrawide RES only): Adjusts the screen’s brightness. Adjust the

brightness using the Interface Dial and press the ENTER button.

•Appearance (Ultrawide RES only): Selects the color of the rear menu screen.

•Display Adjust: Adjusts the screen’s preferences.

2Adjusting the Screen P. 253

•Aspect Ratio: Selects an aspect ratio of the image

2Setting the RES Aspect Ratio P. 254

2Setting the Ultrawide RES Aspect Ratio P. 254

•PERSONAL SURROUND: Sets the surround of the wireless headphones. You can

choose from three options: Music, Cinema, or Voice. Select Off to disable the

feature.

•Language: Sets the system language used on all screens. You can choose from

three languages: English, Français (French), or Español (Spanish).

253



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

HSETUP button (in the DVD mode)



Display Adjust

1. Select an item. Press the ENTER

button.

2. Make the adjustment. Press the

ENTER button.

The following items are available:

•Brightness (RES only): Adjusts the screen’s brightness.

•Contrast: Adjusts the screen’s contrast.

•Black Level: Adjusts the screen’s black level.

•Color: Adjusts the screen’s color strength.

•Tint: Adjusts the screen’s hue.

•Reset: Resets all the settings to their factory default.

■Adjusting the Screen

254



Rear Control Panel Operation



Screen and Surround Settings

Rear Entertainment System

HMENU button (in the DVD mode)



Aspect Ratio

Select an option. Press the ENTER

button.

HMENU button (in the DVD mode)



Aspect Ratio

1. Select an item. Press the ENTER

button.

2. Select an item. Press the ENTER

button.

The following items are available:

•Wide: Selects the wide screen option (Normal, Full, Super Full, Ultra Full).

•Zoom: Selects the zoom screen option (Super Zoom, Ultra Zoom).

■Setting the RES Aspect Ratio

■Setting the Ultrawide RES Aspect Ratio

255



Rear Control Panel Operation



DVD Initial Settings (RES only)

Rear Entertainment System

DVD Initial Settings (RES only)

HMENU button (in the DVD mode)



Initial Settings

Set the DVD default settings so that you do not have to select the settings each time

you play a DVD.

1. Select an item. Press the ENTER

button.

2. Select an option. Press the ENTER

button.

The following items are available:

•Language Settings: Selects a menu language of the DVD (top) menu.

2Selecting the DVD Menu Language P. 256

•Dynamic Range: Sets whether to control the range of the loud and low sounds.

On: Adjusts the dynamic range to easily hear the low sound.

Off (factory default): Disables the feature.

•Angle Mark: Sets whether to display the angle symbol.

On: Displays the angle symbol when playing the multiple angle scenes.

Off (factory default): Disables the feature.

256



Rear Control Panel Operation



Dual Screen Mode (Ultrawide RES only)

Rear Entertainment System

HMENU button (in the DVD mode)



Initial Settings



Language Settings

1. Select an item. Press the ENTER

button.

2. Select a language. Press the ENTER

button.

Dual Screen Mode (Ultrawide RES only)

Select between the two screen modes, single or dual.

■Single Mode

The selected source is displayed in the center of the screen.

■Dual Mode

Two separate screens are displayed side by side. You can only select one output

source from the front audio system. The other source must come from “AUX-

VIDEO” or “AUX-HDMI.”

■Selecting the DVD Menu Language

1Selecting the DVD Menu Language

When you select Other, enter a 4-digit language

code.

2List of Language Codes P. 319

257



Rear Control Panel Operation



Dual Screen Mode (Ultrawide RES only)

Rear Entertainment System

■Single mode to Dual mode

■Dual mode to Single mode

DVD

Press the DUAL

button.

Select the side

(e.g., “Left”).

Select a source

(e.g., “AUX-

VIDEO”).

Press the SWAP

button.

DVD AUX-VIDEO AUX-VIDEO DVD

AUX-VIDEO DVD

Press the

SINGLE button.

Select a source

(e.g., “DVD”).

DVD

258



Rear Control Panel Operation



Replacing the Batteries

Rear Entertainment System

Replacing the Batteries

1. Remove the rear control panel.

2Overhead Screen and Rear

Control Panel P. 14

2. Open the cover.

3. Change the batteries.



Battery type: BR3032

1Replacing the Batteries

An improperly disposed of battery can hurt the

environment. Always confirm local regulations

for battery disposal.

Cover

259

Rear Entertainment System

Front Control Panel Operation

Operate the Rear Entertainment System (RES) from the front control panel.

Selecting the Audio Source using front control panel

1. Press the Rear 9 (Power) button

on the front control panel.

2. Press the REAR AUDIO button.



The rear source is displayed on

the front audio screen and the

touchscreen.



The rear source is heard from

the front speakers.

3. Select Rear Audio Source on the

touchscreen.

4. Select the audio source icon on the

touchscreen.

5. Select a station, channel, track, or

chapter in the same way as the

front audio system.

2Audio P. 133

260



Front Control Panel Operation



Rear System Setup

Rear Entertainment System

Rear System Setup

HSETTINGS button



Rear Ent Settings

1. Rotate i to select an item. Press

2. Rotate i to select an option.

Press u.

The following items are available:

•Source Select Popup: Selects whether the list of selectable audio sources comes

on when the AUDIO button is pressed.

•Rear Control: Sets whether to use the rear control panel to control the RES.

On (factory default): Operates the RES using the rear control panel.

Off: Disables the feature.

•Rear Speaker: Sets the front audio source to play through the rear speakers, even

when the RES is on. The RES source can only be heard through the wireless

headphones.

On (factory default): Outputs the sound of the front source to the rear speakers.

Off: Disables the feature.

•Single/Dual Screen Mode (Ultrawide RES only): Selects a source to continue

playing when you switch from dual mode to single mode on the overhead screen.

Rotate i to select a source and press u.

261



Front Control Panel Operation



Setting the DVD Menu

Rear Entertainment System

Setting the DVD Menu

HMENU button (in DVD mode)

1. Rotate i to select an item. Press



Select Other Function to

display additional menu entries.

2. Rotate i to select an option.

Press u.

The following items are available:

•Top Menu: Displays the top menu of the DVD.

•Menu: Displays the menu of the DVD.

•Repeat:

Repeat Title: Repeats the current title.

Repeat Chapter: Repeats the current chapter.

•Change Source: Changes the audio source mode.

Interface Dial

262



Front Control Panel Operation



Setting the DVD Menu

Rear Entertainment System

•Play/Pause: Pauses or resume the playback.

•Stop: Stops the playback.

•Audio/Subtitle: Selects the language of the DVD audio and the DVD subtitle.

•Angle: Selects the angle of a scene shot with multiple cameras.

•Return: Hides the DVD menu.

•Number Input: Enters a number of a title or chapter to skip.

•Search: Skips to a title or chapter by Interface Dial.

1. Select More.

2. Select a setting item.

The following items are available:

•Sound Settings: Displays the sound preferences screen.

2Adjusting the Sound P. 143

•Stop: Stops the playback.

•Repeat:

Repeat Title: Repeats the current title.

Repeat Chapter: Repeats the current chapter.

•Screen Settings: Displays the screen preferences screen.

2Changing the Screen Settings P. 82

Touchscreen

263

Rear Entertainment System

Wireless Headphones

Using the Wireless Headphones

Audio for the Rear Entertainment System is sent to the wireless headphones that

come with the system.

1. Pivot the earpieces outward.

2. Adjust the volume by turning the

dial on the bottom of the right

earpiece.

3. Wear the headphones correctly

with the left and right earpieces on

the correct sides.



L (left) and R (right) are marked

on the sides of the frame.

1Using the Wireless Headphones

When you remove the headphones, the

earpieces automatically pivot inward, and the

headphones turn off. When not in use, store the

headphones in the back pocket of either front

seat.

You can use wired headphones through the

auxiliary input jacks.

2Auxiliary Console Panel P. 244

Volume Dial

264



Wireless Headphones



Changing the Sound Source (Ultrawide RES only)

Rear Entertainment System

Changing the Sound Source (Ultrawide RES only)

In dual screen mode, you can switch the sound source of the wireless headphones

between the left and right side screens.

Slide the tab to ”L” for the left side,

or “R” for the right side.

■Wireless Headphone

1Changing the Sound Source (Ultrawide RES only)

You can switch the sound source from the setup

menu if you connected a set of wired

headphones.

1. Press the SETUP button on the rear control

panel.

2. Select Wired Headphones. Press the ENTER

button.

3. Select Left or Right to switch the sound

source. Press the ENTER button.

Tab

265



Wireless Headphones



Replacing the Batteries

Rear Entertainment System

Replacing the Batteries

1. Insert a coin in the slot and twist it

slightly to pry the cover away from

the earpiece.

2. Pull the cover outward, and pivot it

out of the way.

3. Remove the battery.

4. Install the new battery in the

earpiece as shown in the diagram

next to the battery slot.



Battery Type: AAA battery

5. Slide the cover back into place on

the earpiece, then press down on

the back edge to lock it in place.

1Replacing the Batteries

The battery is under the cover on the left

earpiece.

An improperly disposed of battery can hurt the

environment. Always confirm local regulations

for battery disposal.

If static is heard in the headphones, try replacing

the battery.

Coin

Cover

Battery

266

267

Other Features

This section describes the useful functions incorporated into the

navigation system to help make your journey easier and more enjoyable.

Trip Computer ....................................... 268

Calendar ................................................ 269

Information Functions .......................... 270

System Device Information ................... 270

Map Data Update ................................ 270

Info Screen Preference ......................... 271

Multi-view Rear Camera....................... 272

About Your Multi-View Rear Camera ... 272

268

Other Features

Trip Computer

HINFO button



Trip Computer

View the distance traveled and average fuel consumption.

Move w or y to select the trip

information.

The following items are available:

•Current Drive: Displays the current trip information.

•History of Trip A: Displays information for three previous histories. The

information is stored every time you reset Trip A.

•Delete History: Deletes the trip information. Move r on the Trip A screen to

select Delete History, then press u. You will receive a confirmation message on

the screen. Rotate i to select Yes, then press u.

1Trip Computer

Displays the following trip information:

•Instant Fuel: The current estimated instant

fuel economy.

•Average Fuel: The average fuel economy

since the last key cycle.

•1st, 2nd, 3rd Prev.: The previous average fuel

consumption.

•Range: The estimated distance you can travel

on the fuel remaining in the tank.

These values are estimates only.

269

Other Features

Calendar

HINFO button



Calendar

View the calendar screen.

Move w or y to select the months

of the year.

270

Other Features

Information Functions

System Device Information

HSETTINGS button



Navi Settings



Map



System Device Information

View database, software, device, and vehicle identification information.

Map Data Update

HSETTINGS button



Navi Settings



Map



Map Data Update

Check the map data update status when updating the map database.

1System Device Information

You will need this information when ordering a

map update.

2Obtaining a Navigation Update P. 295

1Map Update Status

This operation is only available during a database

update.

2Obtaining a Navigation Update P. 295

271



Information Functions



Info Screen Preference

Other Features

Info Screen Preference

HSETTINGS button



Info Settings



Other



Info Screen Preference

Select the top menu when the INFO button is pressed.

Rotate i to select your desired

setting item. Press u.

The following options are available:

•Info Top: A brief menu pops up.

•Info Menu (factory default): A full menu pops up.

•Off: A menu does not pop up.

272

Other Features

Multi-view Rear Camera

About Your Multi-View Rear Camera

The navigation screen can display your vehicle’s rear view. The display automatically

changes to the rear view when the shift lever is moved to Reverse.

You can view three different camera angles on the rearview display. Press the

interface dial to switch the angle.

If Top View is last used before you turn the power mode to OFF, Wide mode is

selected next time you turn the power on and move the shift lever to Reverse.

■Multi-View Rear Camera Display Area

1About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot

see the corner ends of the bumper or what is

underneath the bumper. Its unique lens also

makes objects appear closer or farther than they

actually are.

Visually confirm that it is safe to drive before

backing up. Certain conditions (such as weather,

lighting, and high temperatures) may also restrict

the rear view. Do not rely on the rearview display

which does not give you all information about

conditions at the back of your vehicle.

If the camera lens is covered with dirt or

moisture, use a soft, moist cloth to keep the lens

clean and free of debris.

Bumper

Guidelines

Approx. 118 inches (3 m)

Approx. 79 inches (2 m)

Approx. 39 inches

(1 m)

Approx. 20 inches

(50 cm)

Camera

Approx. 39 inches (1 m)

Approx. 79 inches (2 m)

Approx. 118 inches (3 m)

273



Multi-view Rear Camera



About Your Multi-View Rear Camera

Other Features

HSETTINGS button



Camera Settings



Fixed Guideline

Rotate i to select an item. Press u.

The following items are available:

•On (factory default): Guidelines appear when you shift into Reverse.

•Off: Guidelines do not appear.

■Multi-View Rear Camera Settings

274

275

Troubleshooting

Troubleshooting ................................... 276

Map, Voice, Entering Destinations........ 276

Traffic .................................................. 278

Guidance, Routing ............................... 279

Update, Coverage, Map Errors ............. 281

Display, Accessories.............................. 281

Miscellaneous Questions ...................... 281

Error Messages...................................... 282

Navigation System................................ 282

CD Player ............................................. 283

Hard Disc Drive (HDD) Audio ................ 284

iPod®/USB Flash Drive.......................... 285

Pandora® ............................................ 286

AhaTM Radio ......................................... 287

276

Troubleshooting

Map, Voice, Entering Destinations

Problem Solution

The Startup Confirmation screen is displayed every

time I start the car.

This is normal. The Startup Confirmation screen reminds you and your guest drivers to

always operate the navigation system in a safe manner. The Startup Confirmation

screen goes off after a certain period of time and the top screen of the last mode is

displayed.

The navigation system reboots by itself (returns to the

opening screen).

A reboot can be caused by extreme temperatures or shock from bumpy roads, and

does not necessarily indicate a problem. If this happens frequently, please see a dealer.

How do I specify a destination when an entered city or

street could not be found?

• Try entering the street first. Some cities are lumped in with a major metro area. In

rural “unverified” areas or new subdivisions, streets may be missing or only partially

numbered.

• Try selecting the destination directly from the map.

2Map Input P. 103

Why do some letters become grayed out when I enter

an address?

As you enter each letter in an address or a place/landmark, the navigation system

looks in the database to see what letters are possible and grays out letters that do not

apply.

How do I delete Personal Addresses, Previous

Destinations, or the Home Address?

1. Press the SETTINGS button. Select Navi Settings > Personal Info to display the

types of information.

2. Select the type of address to delete.

3. Select Delete.

I cannot hear the navigation system voice. 1. Press the SETTINGS button. Select System Settings and check that Volume is not

set to 0.

2. Select Voice Rec. and set Voice Prompt to On.

The voice control system is having difficulty

recognizing my voice commands.

• Check that the vents are not blowing air onto the microphone on the ceiling, the

vehicle is as quiet as possible, and you are using the correct command when

speaking.

2Voice Recognition P. 23

•Say d “Voice Help” on any screen to see a list of the applicable voice commands.

I cannot give voice commands. Make sure you selected OK at the Startup Confirmation screen.

2Start-up P. 20

277



Troubleshooting



Map, Voice, Entering Destinations

Troubleshooting

I cannot select an option using the Interface Dial. To reduce potential driver distraction, certain onscreen functions and features are

limited or inoperable while the vehicle is moving. Use voice commands or pull over to

proceed.

The navigation system pronunciation of street names

in the guidance command or destination address

sounds strange.

The basic guidance phrases use a studio-recorded voice, but street names are

pronounced using a machine-generated voice. Consequently, the name may be

mispronounced or sound strange at times.

The screen is bright when I drive at night. 1. Check that the nighttime dashboard brightness control is not set to maximum.

2. Press the SETTINGS button. Select Navi Settings > Map > Color (Night). Set the

Night color to Black for the best contrast.

2Switching Display Mode Manually P. 70

The screen is dark when I drive during the day. Press the SETTINGS button. Select Navi Settings > Map > Color (Day). Set the Day

color to White for the best contrast.

2Switching Display Mode Manually P. 70

How do I change or remove my PIN? 1. Press the SETTINGS button. Select Navi Settings > Personal Info > PIN Number >

Address Book PIN or Go Home PIN.

2. Enter your existing PIN. You then have the choice to change or remove the PIN.

2PIN Numbers P. 43

I have forgotten my PIN. How do I reset the PIN for

Home or the PIN for personal addresses?

A dealer must reset the PIN for you.

Why is Call grayed out on the Calculate Route screen? Your phone is not paired to Bluetooth® HandsFreeLink® or, if paired, your phone is in

use.

2Bluetooth® HandsFreeLink® P. 202

Problem Solution

278



Troubleshooting



Traffic

Troubleshooting

Traffic

Problem Solution

My FM Traffic is missing or is not displaying properly.

What is wrong?

Verify the following:

• FM Traffic relies on a clear FM signal. If signal strength is low, traffic data may not

be available.

• Check the traffic icons and traffic flow on the Navi Settings.

2Showing Icons on Map P. 67

• It is possible that there is a temporary technical problem with your metropolitan

area traffic.

You can call Honda Automobile Customer Service to see if there is an outage.

2Honda Automobile Customer Service Contact Information P. 294

• If the situation persists, see your Honda dealer for assistance.

The navigation system sometimes provides a detour

route when I am driving a route on the freeway.

If Traffic Rerouting is set to On, the navigation system provides a detour route to

your destination only if it can find a significantly faster route than the original one.

2Traffic Rerouting P. 53

The navigation system routes me to an exit and an

alternate freeway with unknown flow speeds or

surface streets.

The navigation system predicts which route should be faster based on freeway

congestion along your route. Use your own experience to determine whether the

alternate route would be faster.

How can I ignore the detour route and return to the

original route?

Press the SETTINGS button. Select Navi Settings > Routing, and set Traffic

Rerouting to Off.

2Traffic Rerouting P. 53

279



Troubleshooting



Guidance, Routing

Troubleshooting

Guidance, Routing

Problem Solution

The navigation system does not route me the same

way I would go or the same way as other mapping

systems.

The navigation system attempts to generate the optimal route. You can change the

route preferences used when calculating a route.

2Route Preference P. 50

The navigation system wants to route me around

potential traffic problems. How do I stop these pop-up

messages?

Press the SETTINGS button. Select Navi Settings > Routing, and set Traffic

Rerouting to Off.

2Traffic Rerouting P. 53

The street I’m on is not shown on the map screen. The mapping database is constantly undergoing revision. You can access the most

recent information on the internet.

2Map Coverage P. 295

The vehicle position icon is not following the road and

the “GPS icon” text in the upper left hand corner of

the screen is white or missing.

• Check that the GPS antenna (located in the dashboard) is not blocked. For best

reception, remove items from the dashboard, such as radar detectors, cell phones,

or loose articles.

• Metallic tinting or other aftermarket devices can interfere with the GPS reception.

Please consult a dealer.

2GPS System P. 292

The blue highlighted route and voice guidance

stopped or turned into a blue/pink line before I got to

my destination.

Your route has entered an unverified area.

2Unverified Routing P. 51

How do I stop the map from rotating as I drive along? Press the SETTINGS button. Select Navi Settings > Map > View > North-Up, or say

d “Display north-up” to change the map orientation.

The “time to destination” display sometimes increases

even though I am getting closer to my destination.

If your speed reduces due to slower traffic, the navigation system updates the “time to

destination” based on your actual road speed to give you a better estimate of arrival

time.

The vehicle position icon on the map “lags” a short

distance behind, especially when I arrive at an

intersection.

This is normal. The navigation system is unaware of the width of intersections. Large

differences in vehicle position can indicate a temporary loss of the GPS signal.

2GPS System P. 292

Continued

280



Troubleshooting



Guidance, Routing

Troubleshooting

The screen is showing white dots as I drive along. These dots are called “breadcrumbs.” These are displayed if Display Tracking is set to

On.

2Display Tracking P. 79

How do I remove the white dots (“breadcrumbs”)

from my screen?

Press the SETTINGS button. Select Navi Settings > Map, set Display Tracking to Off

or select Delete Tracking to remove the white dots from the map.

2Display Tracking P. 79

A road that I selected to avoid is being used when

routing.

When you “draw” your area to avoid, make sure to select sections of roads that

include at least one intersection.

2Avoided Area P. 55

My elevation (shown when I display the current

position) seems to fluctuate even though my elevation

has not changed.

This is normal. The elevation can vary ±100 feet due to GPS calculation errors.

2GPS System P. 292

My elevation is missing on the “current position”

screen.

The elevation is only displayed if the GPS antenna can receive signals from at least four

satellites. Try moving the vehicle into an open area. The elevation is also not displayed

if the calculated elevation is zero or below sea level.

Problem Solution

281



Troubleshooting



Update, Coverage, Map Errors

Troubleshooting

Update, Coverage, Map Errors

Display, Accessories

Miscellaneous Questions

Problem Solution

My city is not part of a fully verified detailed coverage

area.

The mapping database is constantly undergoing revision. You can access the most

recent information on the internet.

2Map Coverage P. 295

Does the navigation system work outside North

America?

The navigation system contains maps for the 50 U.S. states, Canada, Puerto Rico, and

Mexico. The navigation system will not work in other countries.

2Map Coverage P. 295

How do I report errors I find in the database? Minor errors are bound to occur in a large database. If you encounter major errors, see

2Reporting Errors P. 294

Problem Solution

The display appears dim when starting the car in really

cold weather.

This is normal. The display will become brighter after a few minutes.

Problem Solution

My battery was disconnected or went dead, and the

navigation system is asking for a code.

Set the power mode to ON, and press and hold the 9 (Power) button for two

seconds. The system should reactivate. If you have installed an aftermarket system,

contact a dealer.

282

Troubleshooting

Error Messages

Navigation System

Error Message Solution

The display temperature is too high. For protection,

the system will shut off until the display cools down.

This message appears briefly when the display temperature is too high. The navigation

system turns off until the display cools down. The system turns back on automatically

when the display cools down.

System temp is low. System will shut down until it

warms up.

The navigation system has difficulty reading the HDD when the temperature is below

approximately -22°F (-30°C). The navigation system starts up automatically when the

display warms up.

The navigation system temperature is too low. For

protection, the system will shut off until it warms up.

The navigation system atmospheric pressure is too

low. For protection, the system will shut off until the

pressure returns to safe levels.

The HDD is inoperable due to low atmospheric pressure. Move your vehicle to the

place where the atmospheric pressure is high.

The navigation system temperature is too high. For

protection, the system will shut off until it cools down.

The navigation system has difficulty reading the HDD when the temperature is high.

The navigation system starts up automatically when the system cools down.

System temp is too high. System will shut down until it

cools down.

HDD access error. Please consult your dealer. Writing of the data to the HDD failed with a cause other than low temperature, high

temperature, and low atmospheric pressure. After a short wait, try to operate the

system again. If this does not solve the problem, consult with the dealer.

HDD access error. The system will reset and attempt to

correct the problem.

283



Error Messages



CD Player

Troubleshooting

CD Player

If a disc error occurs, you may see the following error messages.

Error Message Cause Solution

Unplayable File Track/file format not supported • Current track/file will be skipped. The next supported track/file

plays automatically.

Bad Disc

Please Check Owner’s Manual

Push Eject Mechanical error

• Press the (eject) button and remove the disc, and check that the

error message is cleared.

• Check that the disc is not damaged or deformed, and insert the

disc again.

2Protecting CDs P. 162

• If the error message reappears, press the button, and pull out

the disc.

• Insert a different disc.

If the new disc plays, there is a problem with the first disc.

• If the error message repeats, or the disc cannot be removed,

contact a dealer.

Do not try to force the disc out of the player.

Mecha Error

Bad Disc

Please Check Owner’s Manual

Servo error

Check Disc Disc error • Check that the disc is not damaged or deformed.

2Protecting CDs P. 162

Heat Error High temperature • Turn the audio system off and allow the player to cool down until

the error message is cleared.

284



Error Messages



Hard Disc Drive (HDD) Audio

Troubleshooting

Hard Disc Drive (HDD) Audio

If an error occurs while playing the Hard Disc Drive (HDD) Audio, you may see the

following error messages. If you cannot clear the error message, contact a dealer.

Error Message Solution

HDD access error.

Please consult your dealer. —

The display system temperature is too high. For protection, the system

will shut off until the display cools down.

Turn the audio system off and allow the player to cool down until the

error message is cleared.

The navigation system temperature is too low. For protection, the

system will shut off until it warms up.

The navigation system has difficulty reading the HDD when the

temperature is below approximately -22°F (-30°C). The navigation

system starts up automatically when the display warms up.

Unplayable File Appears when a file format not supported. Current track will be

skipped. The next supported track plays automatically.

285



Error Messages



iPod®/USB Flash Drive

Troubleshooting

iPod®/USB Flash Drive

If an error occurs while playing an iPod® or USB flash drive, you may see the

following error messages. If you cannot clear the error message, contact a dealer.

Error Message Solution

USB Error Appears when there is a problem with the audio system. Check if the device is compatible with the audio

system.

Incompatible USB Device

Please Check Owner’s Manual

Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system off,

and turn it on again. Do not reconnect the device that caused the error.

Unsupported Version Appears when an unsupported iPod® is connected. If it appears when a supported iPod® is connected,

update the iPod® software to the newer version.

Connect Retry Appears when the system does not acknowledge the iPod®. Reconnect the iPod®.

Unplayable File Appears when the files in the USB flash drive are DRM or an unsupported format. This error message

appears for about 3 seconds, then plays the next song.

No Data

Appears when the iPod® is empty.

Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash drive.

Check that compatible files are stored on the device.

Unsupported Appears when an unsupported device is connected. If it appears when a supported device is connected,

reconnect the device.

iPod®

USB flash drive

iPod® and USB flash drive

286



Error Messages



Pandora®

Troubleshooting

Pandora®

If an error occurs while playing Pandora®, you may see the following error messages.

If you cannot clear the error message, contact a dealer.

Error Message Solution

Incompatible USB Device

Please Check Owner’s Manual

Appears when an incompatible device is connected. Disconnect the

device. Then turn the audio system off, and turn it again. Do not

reconnect the device that caused the error.

There is no station list in the device.

Please add the station list to your device.

No stations have been created.

Please create a station on the device.

Appears when there is no station list on the device. Use the device to

create a station.

Music licenses force us to limit the number of tracks you may skip each

hour.

Appears when you try to skip a song or select Dislike over the

predetermined number of times in an hour.

Unable to save rating.

Unable to save bookmark

Unable to skip

Appears when the commanded operation is failed. Try again later.

No data Appears when no data is available with Pandora® activated. Reboot

the app and reconnect the device.

PANDORA ver unsupport Appears when Pandora® version is not supported. Update Pandora®

to the latest version.

PANDORA system maintenance Appears when the Pandora® server is in maintenance. Try again later.

Cannot connect to PANDORA when stopped. Check your mobile

phone

Appears when Pandora® is unable to play music. Check your device.

Navigation Screen

Touchscreen

287



Error Messages



AhaTM Radio

Troubleshooting

AhaTM Radio

If an error occurs while playing AhaTM Radio, you may see the following error messages.

If you cannot clear the error message, contact a dealer.

Error Message Solution

Cannot connect to HondaLink. When stopped, check your mobile

device.

Appears when the AhaTM app is not activated. Check your device.

Incompatible USB Device

Please Check Owner’s Manual

Appears when an incompatible device is connected. Disconnect the

device. Then turn the audio system off, and turn it on again. Do not

reconnect the device that caused the error.

288

289

Reference Information

System Initialization..............................290

Entering the Security Code....................290

Acquiring GPS Information....................290

Startup Confirmation Screen.................291

Map Matching ......................................291

System Limitations ................................292

GPS System...........................................292

Address Calculation ..............................292

Database ..............................................292

Customer Assistance .............................294

Resolving Problems ...............................294

Reporting Errors....................................294

Honda Automobile Customer Service

Contact Information............................294

Visiting a Dealer ................................... 294

Map Coverage ..................................... 295

Obtaining a Navigation Update ............ 295

Traffic Information ............................... 296

Operation in Alaska, Hawaii, Canada,

Puerto Rico, and Mexico..................... 296

Legal Information ................................. 297

Copyrights ........................................... 297

User Agreements ................................. 297

As required by the FCC ........................ 303

290

Reference Information

System Initialization

The navigation system must be initialized if

power to the navigation system is

interrupted for any reason (e.g., the

battery was disconnected).

Entering the Security Code

In most cases, you do not need to enter a

security code. Follow the steps to

reactivate the system.

1. Set the power mode to ON, and turn on

the audio system.

2. Press and hold the 9 (Power) button

for more than two seconds.



The system is reactivated when the

system’s control unit recognizes that

the system is in your vehicle.

If the control unit fails to recognize,

you must go to a dealer and have the

system checked.

Acquiring GPS Information

Depending on the length of time the

power was interrupted, your system may

require GPS initialization.

If initialization is not necessary, the system

proceeds directly to the Startup

Confirmation screen.

If the system fails to locate a sufficient

number of satellites to locate your position

within 10 minutes, the following screen is

displayed.

291



System Initialization



Startup Confirmation Screen

Reference Information

If you are experiencing GPS reception

problems:

2GPS System P. 292

Startup Confirmation

Screen

The Startup Confirmation screen is

displayed when initialization has

successfully completed. It is displayed every

time you start your vehicle. Press u to

select OK to continue.

Map Matching

Map matching is the process of using the

acquired GPS information to locate your

position on the map screen. If you are on a

mapped road, the name of the road is

displayed along the bottom of the map

screen when map matching is completed.

Do not enter a destination until the road

name is displayed.

The system may initially show your location

on a different street (e.g., in urban areas

where streets are close together), may

show an incorrect elevation, or may delay

the display of the vehicle position icon at

intersections. This is normal; the system

will correct itself while you drive.

292

Reference Information

System Limitations

GPS System

The signals received from the GPS satellites

are extremely weak (less than a millionth

of the strength of a local FM station) and

require an unobstructed view of the sky.

The GPS antenna is located in the

dashboard. The signal reception can easily

be interrupted or interfered with by the

following:

•Metallic window tint on the front or side

windows

•Cell phones, PDAs, or other electronic

devices docked in a cradle or lying loose

on the dashboard

•Remote starters or “hidden” vehicle

tracking systems mounted near the

navigation unit

•Audio electronic devices mounted near

the navigation unit

•Trees, tall buildings, freeway overpasses,

tunnels, or overhead electrical power

wires

The GPS is operated by the U.S.

Department of Defense. For security

reasons, there are certain inaccuracies built

into the GPS for which the navigation

system must constantly compensate. This

can cause occasional positioning errors of

up to several hundred feet.

Address Calculation

The destination icon shows only the

approximate location of a destination

address. This occurs if the number of

possible addresses is different from the

number of actual addresses on a block. For

example, the address 1425 on a 1400

block with 100 possible addresses

(because it is followed by the 1500 block)

will be shown a quarter of the way down

the block by the system. If there are only

25 actual addresses on the block, the

actual location of address 1425 would be

at the end of the block.

Database

The digitized map database reflects

conditions as they existed at various points

in time before production. Accordingly,

your database may contain inaccurate or

incomplete data or information due to the

passage of time, road construction,

changing conditions, or other causes.

For example, some places/landmarks may

be missing when you search the database

because the name was misspelled, the

place was improperly categorized, or a

place/landmark is not yet in the database.

This is also true for police stations,

hospitals, and other public institutions. Do

not rely on the navigation system if you

need law enforcement or hospital services.

Always check with local information

sources.

293



System Limitations



Database

Reference Information

In addition, the map database contains

verified and unverified areas. Unverified

streets may be missing from the map, in

the wrong location, or have an incorrect

name or address range. A message will

warn you if your route includes unverified

streets. Exercise additional caution when

driving in unverified areas.

The database does not include, analyze,

process, consider, or reflect any of the

following categories of information:

•Neighborhood quality or safety

•Population density

•Availability or proximity of law

enforcement

•Emergency, rescue, medical, or other

assistance

•Construction work, zones, or hazards

•Road and lane closures

•Legal restrictions (such as vehicular type,

weight, load, height, and speed

restrictions)

•Road slope or grade

•Bridge height, width, weight, or other

limits

•Traffic facilities safety

•Special events

•Pavement characteristics or conditions

Every effort has been made to verify that

the database is accurate. The number of

inaccuracies you experience increases the

longer you go without obtaining an

updated map database.

2Obtaining a Navigation Update P. 295

We assume no liability for any incident that

may result from an error in the program, or

from changed conditions not noted above.

294

Reference Information

Customer Assistance

Resolving Problems

If you run into a specific issue that you

cannot resolve, consult the following help

resources:

•For navigation system issues:

2Troubleshooting P. 276

There are also FAQs available online at

www.hondanavi.com.

•For traffic-related issues:

2Traffic P. 278

•For reporting issues with the database

or places/landmarks:

2Reporting Errors P. 294

•Call Honda Automobile Customer

Service.

2Honda Automobile Customer Service

Contact Information P. 294

Reporting Errors

You can help to improve database

accuracy by reporting any errors you

encounter.

•Report errors in freeways and main

“verified” roads shown in black on the

map at http://mapreporter.navteq.com/

dur-web-external/.

•Please do not report errors in purple

“unverified” roads. Maps for these

areas are provided for reference only.

2Unverified Routing P. 51

•Please do not report errors in places/

landmarks, such as changes in business

names. Information about points of

interest are constantly being updated.

An updated database is available for

purchase, usually in the fall of each year.

2Obtaining a Navigation Update P. 295

•For vehicle position icon errors, screen

error messages, or other GPS-related

errors:

2Troubleshooting P. 276

2System Limitations P. 292

Honda Automobile

Customer Service Contact

Information

Honda Navi

American Honda Motor Co., Inc.

Honda Automobile Customer Service

Mail Stop 500-2N-7E

1919 Torrance Blvd.

Torrance, CA 90501-2746

Tel: (800) 999-1009

Fax: (310) 783-3273

Visiting a Dealer

If you have a question that you cannot

resolve using the available help resources,

you can consult a dealer. Please identify

the specific issue (e.g., error occurs when

you enter a specific address, when driving

on a certain road, or just when it’s cold) so

that the service technician can refer the

issue to the factory so that a solution can

be found. Be patient, the service technician

may be unfamiliar with your specific issue.

295



Customer Assistance



Map Coverage

Reference Information

Map Coverage

The navigation system provides map

coverage for the United States, Canada,

Puerto Rico, and Mexico. The map

coverage consists of accurately mapped

(verified) metropolitan areas and a less

accurate (unverified) rural database. Note

that unverified areas are constantly being

reviewed and converted to verified areas

each year.

Map coverage update information is

available from Honda Automobile

Customer Service or online at

www.hondanavi.com.

To find navigation system update

information:

1. Visit www.hondanavi.com.

2. Enter your vehicle model and model

year.

3. Click Map Coverage to display a list of

verified coverage areas on the most

recent update.

4. Click Map Coverage Details to display a

PDF document with a full listing of all

coverage areas.



Adobe® Reader® is required for

viewing and printing the Portable

Document Format (PDF) documents.

To download the latest version of

Adobe Reader, visit http://

get.adobe.com/reader/.

Obtaining a Navigation

Update

Honda is continually expanding the scope

of the navigation system. Navigation

system software upgrades may be made

available periodically, usually in the fall of

each year.

To purchase an update:

1. Obtain your vehicle’s VIN number and

the System/Device Information.

2System Device Information P. 270

2. Call the Honda Navigation Disc

Fulfillment Center at (888) 291-4675, or

order online at www.hondanavi.com.

An update is not available from a dealer.

However, the dealer may assist you in

obtaining one for you out of courtesy.

There is no program for free updates.

296



Customer Assistance



Traffic Information

Reference Information

Traffic Information

•Continuously updated traffic

information is available in major

metropolitan areas across the 48

contiguous states and some cities in

Canada. A list of coverage areas is

available online.

•Visit automobiles.honda.com/traffic for

a complete listing of coverage areas and

other information.

Operation in Alaska,

Hawaii, Canada, Puerto

Rico, and Mexico

All roads displayed on the map screens are

verified roads. Information in this manual

relating to “unverified” roads or areas is

not applicable.

Entering a destination address or place/

landmark on another island may result in a

screen caution message. This is because

there are no ferry routes between islands

in the database.

If Street Name Guidance is set to On, the

street names will not be read out by voice

guidance. This may change in a future data

update.

■Map Coverage

■Address and Place Entry

Screens

■Puerto Rico and Mexico

297

Reference Information

Legal Information

Copyrights

•Infogroup-Data: Certain business data

RIghts Reserved.

•Brand icon: The marks of companies

displayed by this product to indicate

business locations are the marks of their

respective owners. The use of such

marks in this product does not imply any

sponsorship, approval, or endorsement

by such companies of this product.

User Agreements

In using this HDD “Satellite Linked

Navigation System” (the “HDD”), which

includes HONDA MOTOR CO., LTD.

software, ALPINE ELECTRONICS, INC.

software, and NAVTEQ database contents

(hereinafter referred to as “Licensors”),

you are bound by the terms and conditions

set forth below. By using your copy of the

HDD, you have expressed your Agreement

to the terms and conditions of this

Agreement. You should, therefore, make

sure that you read and understand the

following provisions. If for any reason you

do not wish to be bound by the terms of

this Agreement, please return the HDD to

your dealer.

•The HDD may not be copied, duplicated,

or otherwise modified, in whole or in

part, without the express written

permission of the Licensors.

•The HDD may not be transferred or

sublicensed to any third party for profit,

rent or loan, or licensed for reuse in any

manner.

■Navigation System User

Agreement

•The HDD may not be decompiled,

reverse engineered or otherwise

disassembled, in whole or in part.

•The HDD may not be used in a network

or by any other manner of simultaneous

use in multiple systems.

•The HDD is intended solely for personal

use (or internal use where the end-user

is a business) by the consumer. The HDD

is not to be used for commercial

purposes.

•The Licensors do not guarantee to the

client that the functions included in the

HDD meet the specific objectives of the

user.

•Licensor shall not be responsible for any

damages caused by the use of the HDD

to the actual user or to any third party.

•The warranty on the HDD shall not

extend to an exchange or refund due to

misspelling, omission of letters, or any

other cosmetic discrepancy in the

contents of the HDD.

•The right to use the HDD shall expire

either when the user destroys the HDD

or software, or when any of the terms

of this Agreement are violated and the

Licensors exercise the option to revoke

the license to use the HDD or software.

Continued

298



Legal Information



User Agreements

Reference Information

•The terms and conditions hereof apply

to all subsequent users and owners as

well as to the original purchaser.

•The logos of oil companies, hotels,

convenience stores, and other

businesses are displayed for your

information and convenience, and in no

way imply any sponsorship, approval or

endorsement of these companies, or

their products. The logos are trademarks

of their respective owners.

•The marks of companies displayed by

this product to indicate business

locations are the marks of their

respective owners.

•The use of such marks in this product

does not imply any sponsorship,

approval, or endorsement by such

companies of this product.

The user shall indemnify and save harmless

the Licensors, and their officers, employees

and agents, from and against any claim,

demand or action, irrespective of the

nature of the cause of the claim, demand

or action, alleging loss, costs, expense,

damages or injuries (including injuries

resulting in death) arising out of the use or

possession of the HDD or software.

Use, duplication, or disclosure of this HDD

by or on behalf of the United States

government is subject to “Restricted

Rights” as set forth at FAR 52.227-14, -19

or DFARS 252.227-7013, as applicable.

Manufacturers are the Licensors, including

HONDA MOTOR CO., LTD., 2-1-1 Minami

Aoyama Minato-Ku Tokyo 107-8556

JAPAN., Alpine Electronics, Inc., 20-1

Yoshima Kogyodanchi, Iwaki, Fukushima

970-1192 JAPAN., NAVTEQ Corporation,

425 W Randolph St. Chicago, IL 60606,

USA.

You have acquired a device (“DEVICE”)

that includes software licensed by Alpine

Electronics, Inc. (collectively “ALPINE”)

from an affiliate of Microsoft Corporation

(collectively “MS”). Those installed

software products of MS origin, as well as

associated media, printed materials, and

“online” or electronic documentation

(“SOFTWARE”) are protected by

international intellectual property laws and

treaties. The SOFTWARE is licensed, not

■Navigation System END USER

LICENSE AGREEMENT

IF YOU DO NOT AGREE TO THIS END USER

LICENSE AGREEMENT (“EULA”), DO NOT

USE THE DEVICE OR COPY THE SOFTWARE

INSTEAD, PROMPTLY CONTACT ALPINE

FOR INSTRUCTIONS ON RETURN OF THE

UNUSED DEVICE(S) FOR A REFUND. ANY

USE OF THE SOFTWARE, INCLUDING BUT

NOT LIMITED TO USE ON THE DEVICE,

WILL CONSTITUTE YOUR AGREEMENT TO

THIS EULA (OR RATIFICATION OF ANY

PREVIOUS CONSENT).

•GRANT OF SOFTWARE LICENSE

This EULA grants you the following

license: You may use the SOFTWARE

only on the DEVICE.

•NOT FAULT TOLERANT

THE SOFTWARE IS NOT FAULT

TOLERANT. ALPINE HAS

INDEPENDENTLY DETERMINED HOW TO

USE THE SOFTWARE IN THE DEVICE,

AND MS HAS RELIED UPON ALPINE TO

CONDUCT SUFFICIENT TESTING TO

DETERMINE THAT THE SOFTWARE IS

SUITABLE FOR SUCH USE.

•NO WARRANTIES FOR THE SOFTWARE

THE SOFTWARE is provided “AS IS” and

with all faults. THE ENTIRE RISK AS TO

SATISFACTORY QUALITY,

PERFORMANCE, ACCURACY, AND

299



Legal Information



User Agreements

Reference Information

EFFORT (INCLUDING LACK OF

NEGLIGENCE) IS WITH YOU. ALSO,

THERE IS NO WARRANTY AGAINST

INTERFERENCE WITH YOUR

ENJOYMENT OF THE SOFTWARE OR

AGAINST INFRINGEMENT. IF YOU HAVE

RECEIVED ANY WARRANTIES

REGARDING THE DEVICE OR

SOFTWARE THOSE WARRANTIES DO

NOT ORIGINATE FROM, AND ARE NOT

BINDING ON, MS.

•NO LIABILITY FOR CERTAIN DAMAGES.

EXCEPT AS PROHIBITED BY LAW, MS,

MICROSOFT CORPORATION AND THEIR

AFFILIATES SHALL HAVE NO LIABILITY

FOR ANY INDIRECT, SPECIAL,

CONSEQUENTIAL OR INCIDENTAL

DAMAGES ARISING FROM OR IN

CONNECTION WITH THE USE OR

PERFORMANCE OF THE SOFTWARE.

THIS LIMITATION SHALL APPLY EVEN IF

ANY REMEDY FAILS OF ITS ESSENTIAL

PURPOSE. IN NO EVENT SHALL MS,

MICROSOFT CORPORATION AND/OR

THEIR AFFILIATES BE LIABLE FOR ANY

AMOUNT IN EXCESS OF U.S. TWO

HUNDRED FIFTY DOLLARS

(U.S.$250.00).

•SPEECH RECOGNITION

If the SOFTWARE includes speech

recognition component(s), you should

understand that speech recognition is

an inherently statistical process and that

recognition errors are inherent in the

process. Neither ALPINE nor its suppliers

shall be liable for any damages arising

out of errors in the speech recognition

process.

•LIMITATIONS ON REVERSE

ENGINEERING, DECOMPILATION, AND

DISASSEMBLY

You may not reverse engineer,

decompile, or disassemble the

SOFTWARE, except and only to the

extent that such activity is expressly

permitted by applicable law

notwithstanding this limitation.

•ADDITIONAL SOFTWARE/SERVICES

The SOFTWARE may permit ALPINE, MS,

Microsoft Corporation or their affiliates

to provide or make available to you

SOFTWARE updates, supplements, add-

on components, or Internet-base service

components of the SOFTWARE after the

date you obtain your initial copy of the

SOFTWARE (“Supplemental

Components”).



If ALPINE provides or makes available

to you Supplemental Components

and no other EULA terms are

provided along with the

Supplemental Components, then the

terms of this EULA shall apply.



If MS, Microsoft Corporation or their

affiliates make available

Supplemental Components, and no

other EULA terms are provided, then

the terms of this EULA shall apply,

except that MS, Microsoft

Corporation or affiliate entity

providing the Supplemental

Component(s) shall be licensor of the

Supplemental Component(s).



ALPINE, MS, Microsoft Corporation

and their affiliates reserve the right to

discontinue any Internet-based

services provided to you or made

available to you through the use of

the SOFTWARE.

•RECOVERY MEDIA

If SOFTWARE is provided by ALPINE on

separate media and labeled “Recovery

Media” you may use the Recovery

Media solely to restore or reinstall the

SOFTWARE originally installed on the

DEVICE.

Continued

300



Legal Information



User Agreements

Reference Information

•UPGRADES

If the SOFTWARE is provided by ALPINE

separate from the DEVICE on separate

media or via web download or other

means, and is labeled “For Upgrade

Purposes Only” you may install one (1)

copy of such SOFTWARE onto the

DEVICE as a replacement copy for the

existing SOFTWARE, and use it in

accordance with this EULA, including

any additional EULA terms

accompanying the upgrade SOFTWARE.

•TERMINATION

Without prejudice to any other rights,

ALPINE or MS may terminate this EULA

if you fail to comply with the terms and

conditions of this EULA. In such event,

you must destroy all copies of the

SOFTWARE and all of its component

parts.

•INTELLECTUAL PROPERTY RIGHTS

All title and intellectual property rights

in and to the SOFTWARE (including but

not limited to any images, photographs,

animations, video, audio, music, text

and “applets,” incorporated into the

SOFTWARE), the accompanying printed

materials, and any copies of the

SOFTWARE, are owned by MS,

Microsoft Corporation, their affiliates or

suppliers. The SOFTWARE is licensed,

not sold.

You may not copy the printed materials

accompanying the SOFTWARE. All title

and intellectual property rights in and to

the content which may be accessed

through use of the SOFTWARE is the

property of the respective content

owner and may be protected by

applicable copyright or other intellectual

property laws and treaties. This EULA

grants you no rights to use such

content. All rights not specifically

granted under this EULA are reserved by

MS, Microsoft Corporation, their

affiliates and suppliers. Use of any on-

line services which may be accessed

through the SOFTWARE may be

governed by the respective terms of use

relating to such services. If this

SOFTWARE contains documentation

that is provided only in electronic form,

you may print one copy of such

electronic documentation.

•TRADEMARKS

This EULA does not grant you any rights

in connection with any trademarks or

service marks of ALPINE MS, Microsoft

Corporation, their affiliates or suppliers.

•PRODUCT SUPPORT

Product support for the SOFTWARE is

not provided by MS, its parent

corporation Microsoft Corporation, or

their affiliates or subsidiaries. For

product support, please refer to ALPINE

support number provided in the

documentation for the DEVICE.

Should you have any questions

concerning this EULA, or if you desire to

contact ALPINE for any other reason,

please refer to the address provided in

the documentation for the DEVICE.

•SOFTWARE TRANSFER ALLOWED BUT

WITH RESTRICTIONS

You may permanently transfer rights

under this EULA only as part of a

permanent sale or transfer of the

Device, and only if the recipient agrees

to this EULA. If the SOFTWARE is an

upgrade, any transfer must also include

all prior versions of the SOFTWARE.

•EXPORT RESTRICTIONS

You acknowledge that SOFTWARE is of

US-origin. You agree to comply with all

applicable international and national

laws that apply to the SOFTWARE,

including the U.S. Export Administration

Regulations, as well as end-user, end-

use and country destination restrictions

301



Legal Information



User Agreements

Reference Information

issued by U.S. and other governments.

For additional information on exporting

the SOFTWARE, see http://

www.microsoft.com/exporting/.

Music recognition technology and related

data are provided by Gracenote®.

Gracenote is the industry standard in music

recognition technology and related

content delivery.

For more information, visit

www.gracenote.com.

When music is recorded to the HDD from a

CD, information such as the recording

artist and track name are retrieved from

the Gracenote Database and displayed

(when available).

Gracenote may not contain information

for all albums.

Gracenote is an internet-based music

recognition service that allows artist,

album, and track information from CDs to

display on the HDD.

Gracenote users are allowed 4 free

updates a year. More information about

Gracenote, its features, and downloads are

■Gracenote Music Recognition

Service (CDDB)

available at www.honda.com (in U.S.) or

www.honda.ca (in Canada).

CD and music-related data from

present Gracenote. Gracenote Software,

One or more patents owned by Gracenote

apply to this product and service. See the

Gracenote website for a non-exhaustive

list of applicable Gracenote patents.

Gracenote, CDDB, MusicID, MediaVOCS,

the Gracenote logo and logotype, and the

“Powered by Gracenote” logo are either

registered trademarks or trademarks of

Gracenote in the United States and/or

other countries.

This application or device contains

software from Gracenote, Inc. of

Emeryville, California (“Gracenote”). The

software from Gracenote (the “Gracenote

Software”) enables this application to

perform disc and/or file identification and

obtain music- related information,

including name, artist, track, and title

information (“Gracenote Data”) from

online servers or embedded databases

■Gracenote® END USER

LICENSE AGREEMENT

302



Legal Information



User Agreements

Reference Information

(collectively, “Gracenote Servers”) and to

perform other functions. You may use

Gracenote Data only by means of the

intended End-User functions or this

application or device.

You agree that you will use Gracenote

Data, the Gracenote Software, and

Gracenote Servers for your own personal

non-commercial use only.

You agree not to assign, copy, transfer, or

transmit the Gracenote Software or any

Gracenote Data to any third party.

YOU AGREE NOT TO USE OR EXPLOIT

GRACENOTE DATA, THE GRACENOTE

SOFTWARE, OR GRACENOTE SERVERS,

EXCEPT AS EXPRESSLY PERMITTED

HEREIN.

You agree that your non-exclusive license

to use the Gracenote Data, the Gracenote

Software, and Gracenote Servers will

terminate if you violate these restrictions. If

your license terminates, you agree to cease

any and all use of the Gracenote Data, the

Gracenote Software, and Gracenote

Servers.

Gracenote reserves all rights in Gracenote

Data, the Gracenote Software, and the

Gracenote Servers, including all ownership

rights. Under no circumstances will

Gracenote become liable for any payment

to you for any information that you

provide. You agree that Gracenote, Inc.

may enforce its rights under this

Agreement against you directly in its own

name.

The Gracenote service uses a unique

identifier to track queries for statistical

purposes. The purpose of a randomly

assigned numeric identifier is to allow the

Gracenote service to count queries without

knowing anything about who you are. For

more information, see the web page for

the Gracenote Privacy Policy for the

Gracenote service.

The Gracenote Software and each item of

Gracenote Data are licensed to you “AS

IS.”

Gracenote makes no representations or

warranties, express or implied, regarding

the accuracy of any Gracenote Data from

in the Gracenote Servers. Gracenote

reserves the right to delete data from the

Gracenote Servers or to change data

categories for any cause that Gracenote

deems sufficient. No warranty is made that

the Gracenote Software or Gracenote

Servers are error-free or that functioning of

Gracenote Software or Gracenote Servers

will be uninterrupted.

Gracenote is not obligated to provide you

with new enhanced or additional data

types or categories that Gracenote may

provide in the future and is free to

discontinue its services at any time.

GRACENOTE DISCLAIMS ALL

WARRANTIES EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE, AND

NONINFRINGEMENT. GRACENOTE DOES

NOT WARRANT THE RESULTS THAT WILL

BE OBTAINED BY YOUR USE OF THE

GRACENOTE SOFTWARE OR ANY

GRACENOTE SERVER. IN NO CASE WILL

GRACENOTE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL

DAMAGES OR FOR ANY LOST PROFITS OR

LOST REVENUES.

303



Legal Information



As required by the FCC

Reference Information

As required by the FCC

1. This device complies with Part 15 of the

FCC Rules and Canadian RSS-210/

RSSGen. Operation is subject to the

following two conditions: (1) this device

may not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause undesired

operation.

2. The FCC requires the user to be notified

that any changes or modifications made

to this device that are not expressly

approved by the party responsible for

compliance may void the user’s

authority to operate the equipment.

3. This product emits radio frequency

energy, but the radiated output power

of this device is far below the FCC and

IC radio frequency exposure limits. This

equipment complies with FCC and IC RF

radiation exposure limits set forth for an

uncontrolled environment. Nevertheless,

the device should be used in such a

manner that the potential for human

contact with the antenna during normal

operation is minimized.

304

305

Voice Commands

Voice Commands .................................. 306

Navigation Commands......................... 306

Voice Portal Commands ....................... 308

Phone Commands................................ 308

Info Commands ................................... 309

Climate Control Commands................. 309

Audio Commands ................................ 310

On-Screen Commands ......................... 314

Spelling Assistance ............................... 314

306

Voice Commands

Navigation Commands

The system accepts these commands on a

map/guidance screen.

Display phone (equivalent to PHONE)

Display audio (equivalent to AUDIO)

Display navigation (if en route, displays

the Route screen)

Display information (equivalent to INFO)

Display menu (equivalent to MENU. if en

route, displays Route Options)

Display setting (equivalent to SETTING)

Display map

Display map guide (when en route,

shows the next guidance point)

Display rear audio

Display front audio

Cancel

What time is it?

What is today’s date?

Voice help (displays commands for

current screen)

■General Commands

Display current location (shows current

latitude, longitude, and elevation)

Display/Hide (specify icon type):

ATM

gas station

restaurant

post office

grocery store

lodging (hotel, motel)

parking garage

parking lot

school

hospital

freeway exit information

traffic

traffic speeds

traffic icons

traffic incidents

Go home

current location in the Address Book)

■Map Display Commands

Display north up

Display heading up

Display 3D map

Display zoom in

Display zoom out

Display (specify scale):

1/20 mile (80 m) scale

1/8 mile (200 m) scale

1/4 mile (400 m) scale

1/2 mile (800 m) scale

1 mile (1600 m) scale

2 mile (3 km) scale

5 mile (8 km) scale

15 mile (24 km) scale

50 mile (80 km) scale

150 mile (240 km) scale

350 mile (560 km) scale

1000 mile (1600 km) scale

Max zoom in

Max zoom out

■Map Scale Commands

307



Voice Commands



Navigation Commands

Voice Commands

Find nearest (specify place):

Fuel and auto

Honda dealers

Acura dealers

Gas station

Hydrogen station

Auto parts & electronics

Auto repair & maintenance

Car wash & detailing

Motorcycle dealers

Other car dealers

Roadside assistance

ATM and bank

ATM

Bank

Check cashing

Currency exchange

Community

Business

City hall

Civic center

Convention center

Court house

Higher education

Library

Post office

■Find Place Commands School

Emergency room

Hospital

Police station

Veterinarian

Lodging

Bed & breakfast

Hotel

Resort

Recreation

Amusement park

Golf course

Historical monument

Marina

Movie theater

Museum

Park

Performing arts

Sports complex

Tourist attraction

Restaurant

American restaurant

Californian restaurant

Chinese restaurant

Coffee shop

Continental restaurant

Fast food

French restaurant

German restaurant

Greek restaurant

Indian restaurant

Italian restaurant

Japanese restaurant

Korean restaurant

Mexican restaurant

Pizza

Seafood restaurant

Thai restaurant

Vegetarian restaurant

Vietnamese restaurant

Other restaurant

Shopping

Shopping area

Accessory store

Book store

Clothing store

Grocery store

Home improvement store

Mall

Office supply store

Pharmacy

Pet food store

Sewing store

Shoe store

Sporting goods store

Toy store

Continued

308



Voice Commands



Voice Portal Commands

Voice Commands

Travel center

Airport

Automobile club

Bus station

Camping

Commuter rail station

Ferry terminal

Named place

Park & ride

Parking garage

Parking lot

Rental car agency

Rest area

Ski area

Tourist information

Train station

Travel agency

Truck stop

The system accepts these commands when

a route is set.

How long to the destination?*

How far to the destination?*

Display destination map

Display entire route

Cancel route

Repeat guidance

* These commands are not available if

you scroll through the map while en

route to a destination.

■Route Commands Voice Portal Commands

The system accepts these commands on

the Voice Portal screen.

•Call Your contact name

•Call Phone Number

•Find nearest POI category name

•Go home

•Route menu

•Cancel route

Phone Commands

The system accepts these commands on

any screen.

•Call by number

•Call by name

Contacts that are imported from your

phone to the vehicle are all made available

by voice. Voice Tags can also be recorded

for each of your Speed Dial entries.

309



Voice Commands



Info Commands

Voice Commands

Info Commands

The system accepts these commands on

any screen.

•Trip computer

•Traffic information

•Display clock

•Display wallpaper

Climate Control

Commands

The system accepts these commands on

most screens.

•Climate control automatic*1

•Climate control off*1

•Air conditioner on*1

•Air conditioner off*1

•Climate control defrost on*1

•Climate control defrost off*1

•Rear defrost on*1

•Rear defrost off*1

•Climate control fresh air

•Climate control recirculate

•Climate control vent

•Climate control bi-level

•Climate control floor

•Climate control floor and defrost

•Climate control mode automatic

•Fan speed up

•Fan speed down

•Fan speed # (#: 1 to 7)

•Fan automatic

•Rear lock on

•Rear lock off

•Temperature # degrees (#: 57 to 87°F,

15 to 29°C)

•Driver temperature # degrees (#: 57 to

87°F, 15 to 29°C)

•Passenger temperature # degrees (#: 57

to 87°F, 15 to 29°C)

•Temperature up

•Temperature down

•Driver temperature up

•Driver temperature down

•Passenger temperature up

•Passenger temperature down

•Temperature max heat

•Temperature max cool

•Driver temperature max heat

•Driver temperature max cool

•Passenger temperature max heat

•Passenger temperature max cool

•Climate control sync on*1

•Climate control sync off*1

•Front climate control automatic

•Front climate control off

•Rear climate control automatic

•Rear climate control off

•Rear climate control vent

•Rear climate control bi-level

•Rear climate control floor

•Rear fan speed up

•Rear fan speed down

•Rear fan speed # (#: 1 to 5)

•Rear temperature # degrees (#: 57 to

87°F, 15 to 29°C)

•Rear temperature up

•Rear temperature down

•Rear temperature max heat

•Rear temperature max cool

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

310



Voice Commands



Audio Commands

Voice Commands

Audio Commands

The system accepts these commands on

most screens.

Song By VoiceTM is a feature that allows you

to select music from your Hard Disc Drive or

iPod® device using your voice.

To activate this mode, you must press the

(Talk) button on the Voice Portal

screen and say: “Music search.”

•Music search

•Play album (specify album)

•Play artist (specify artist)

•Play composer (specify composer)

•Play genre (specify genre)

•Play playlist (specify playlist)

•Play song (specify song)

•What am I listening to?

•Who am I listening to?

•Who is this?

•What’s playing?

•Who’s playing?

•What album is this?

■Using Song By VoiceTM

■Song By VoiceTM commands

•Hard Disc Drive play

•Hard Disc Drive play track # (#: 1 to 30)

•Hard Disc Drive skip forward

•Hard Disc Drive skip back

•Hard Disc Drive album up*2

•Hard Disc Drive album down*2

•Hard Disc Drive track up

•Hard Disc Drive track down

•Hard Disc Drive playlist up*2

•Hard Disc Drive playlist down*2

•Hard Disc Drive track random*1

•Hard Disc Drive track repeat*1

•Hard Disc Drive track scan*1

•Hard Disc Drive normal play

•What am I listening to?

•Who am I listening to?

•Who is this?

•What’s playing?

•Who’s playing?

•What album is this?

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

*2: These commands are available only in

the corresponding playback mode.

■HDD commands For example, “Artist” commands are

available only in “Artist” mode.

•Audio on*1

•Audio off*1

•Radio on*1

•Radio off*1

•Radio select FM

•Radio select AM

•Radio tune to # FM

(#: frequency from 87.7 to 107.9)

•Radio tune to # AM

(#: frequency from 530 [five thirty] to

1710 [seventeen ten])

•Radio seek up

•Radio seek down

•Radio next station

•Radio preset # (#: 1 to 12)

•Radio FM preset # (#: 1 to 12)

•Radio AM preset # (#: 1 to 6)

•Radio scan*1

•Radio select XM

•XM channel #

(#: 0 to 255 [two fifty five])

•XM channel up

•XM channel down

•XM category up

•XM category down

■Radio commands

311



Voice Commands



Audio Commands

Voice Commands

•XM preset # (#: 1 to 12)

•XM scan*1

•XM category mode

•XM channel mode

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

NOTE:

Radio volume levels cannot be controlled

using voice control.

•Disc play

•Disc play track # (#: 1 to 30)

•Disc skip forward

•Disc skip back

•Disc track random*1

•Disc track repeat*1

•Disc track scan*1

•Disc folder up

•Disc folder down

•Disc folder random*1

•Disc folder repeat*1

•Disc folder scan*1

•Disc normal play

■Disc commands

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

•iPod play

•iPod play track # (#: 1 to 30)

•iPod skip forward

•iPod skip back

•iPod track shuffle*1

•iPod album shuffle*1

•iPod track repeat*1

•iPod normal play

•What am I listening to?

•Who am I listening to?

•Who is this?

•What’s playing?

•Who’s playing?

•What album is this?

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

■iPod® commands

•USB play

•USB play track # (#: 1 to 30)

•USB skip forward

•USB skip back

•USB track random*1

•USB track repeat*1

•USB track scan*1

•USB folder up

•USB folder down

•USB folder random*1

•USB folder repeat*1

•USB folder scan*1

•USB normal play

*1: These commands toggle the function

on and off, so the command may not

match your intended action.

■USB commands

312



Voice Commands



Audio Commands

Voice Commands

•Bluetooth Audio play

•Bluetooth Audio skip forward

•Bluetooth Audio skip back

•Bluetooth Audio group up

•Bluetooth Audio group down

•Bluetooth Audio pause

•Bluetooth Audio resume

NOTE:

Bluetooth® Audio commands may not

work on some phones or Bluetooth®

Audio devices.

•Auxiliary play

■Bluetooth® Audio commands

■AUX commands

The system accepts these commands while

the Pandora® is playing.

•Pandora play

•Pandora skip forward

•Pandora station up

•Pandora station down

•Pandora pause

•Pandora resume

•Pandora thumbs up

•Pandora thumbs down

The system accepts these commands while

the AhaTM is playing.

•Aha radio play

•Aha radio skip forward

•Aha radio skip back

•Aha radio station up

•Aha radio station down

•Aha radio resume

•Aha radio pause

•Aha radio like

•Aha radio dislike

■Pandora® commands

■AhaTM Radio commands

•Internet service play

•Internet service skip forward*1

•Internet service skip back*1

•Internet service station up*1

•Internet service station down*1

•Internet service resume*1

•Internet service pause*1

•Internet service like*1

•Internet service dislike*1

*1: The system accepts these commands

while the Internet service is playing.

Rear audio on*

Rear audio off*

Rear radio on*

Rear radio off*

Rear radio select FM

Rear radio select AM

Rear radio tune to # FM (#: frequency,

e.g., 95.5)

Rear radio tune to # AM (#: frequency,

e.g., 1020)

Rear radio seek up

Rear radio seek down

Rear radio next station

■Internet service commands

■Rear Radio Commands

313



Voice Commands



Audio Commands

Voice Commands

Rear radio preset # (#: 1 to 12)

Rear radio FM preset # (#: 1 to 12)

Rear radio AM preset # (#: 1 to 6)

Rear radio scan*

Rear radio select XM

Rear XM channel # (#: 0 to 255)

Rear XM channel up

Rear XM channel down

Rear XM category up

Rear XM category down

Rear XM preset # (#: 1 to 12)

Rear XM scan*

Rear XM category mode

Rear XM channel mode

* These commands toggle the function

between on and off, so the command

may not match your intended action.

NOTE:

Radio volume levels cannot be controlled

using voice control.

Rear CD play

Rear CD play track # (#: 1 to 30)

Rear CD skip forward

Rear CD skip back

Rear CD track random*

Rear CD track repeat*

Rear CD track scan*

Rear CD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

Rear CD folder up

Rear CD folder down

Rear CD folder random*

Rear CD folder repeat*

Rear CD folder scan*

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear CD Commands

Rear DVD play

Rear DVD pause

Rear DVD title up

Rear DVD title down

Rear DVD chapter up

Rear DVD chapter down

Rear DVD title # (#: 1 to 30)

Rear DVD chapter # (#: 1 to 30)

Rear DVD title #1 chapter #2 (#1, #2: 1

to 30)

Rear DVD play track # (#: 1 to 30)

Rear DVD skip forward

Rear DVD skip back

Rear DVD track random*

Rear DVD track repeat*

Rear DVD track scan*

Rear DVD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

Rear DVD folder random*

Rear DVD folder repeat*

Rear DVD folder scan*

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear DVD Commands

314



Voice Commands



On-Screen Commands

Voice Commands

Rear HDD play

Rear HDD skip forward

Rear HDD skip back

Rear HDD album up

Rear HDD album down

Rear HDD track up

Rear HDD track down

Rear HDD playlist up

Rear HDD playlist down

Rear HDD track random*

Rear HDD track repeat*

Rear HDD track scan*

Rear HDD normal play (resumes “Play”

from the random-, repeat-, or scan-play)

* These commands toggle the function

between on and off, so the command

may not match your intended action.

■Rear HDD Commands

Rear iPod play

Rear iPod skip forward

Rear iPod skip back

Rear iPod track shuffle*

Rear iPod album shuffle*

Rear iPod track repeat*

Rear iPod normal play (resumes “Play”

from the shuffle- or repeat-play)

* These commands toggle the function

between on and off, so the command

may not match your intended action.

Rear AUX play (or Rear Auxiliary play)

■Rear iPod Commands

■Rear AUX Commands

On-Screen Commands

The system accepts these commands on

any screen. There are over 100 on-screen

commands. Say what is written on the

screen to activate that selection. For lists,

you can say the list item number to select

that item.

Next (or Down)

Previous (or Up)

Return

OK (excluding Startup Confirmation

screen)

Delete

Spelling Assistance

The voice control system can also

recognize phonetic alphabet input for

numbers, letters, accented letters,

punctuation marks, and symbols.

NOTE:

When selecting letters using the voice

control system, a confirmation box may

pop up to confirm the entry.

315



Voice Commands



Spelling Assistance

Voice Commands

■Numbers

Say … Say … or Number …

1One

2Two

3Three

4 Four

5Five

6Six

7Seven

8Eight

9Nine

0 Zero

■Letters

Say … Or say…

AApple/Alpha

B Boy/Bravo

CCharlie

DDog/Delta

EEdward/Echo

F Frank/Foxtrot

GGeorge/Golf

HHenry/Hotel

IIgloo/India

J John/Juliet

KKing/Kilo

L Larry/Lima

MMary/Mike

N Nancy/November

OOscar

P Paul/Papa

QQueen/Quebec

R Robert/Romeo

SSam/Sierra

T Tom/Tango

UUncle/Uniform

VVictor

WWilliam/Whiskey

XX-ray

YYellow/Yankee

ZZebra/Zulu

Say … Or say…

316



Voice Commands



Spelling Assistance

Voice Commands

■Accented Letters

Say … Say … or Symbol …

ÁA acute

ÀA grave

ÂA circumflex

Ä A umlaut

ÇC cedilla

ÈE grave

ÉE acute

Ê E circumflex

ËE umlaut

ÍI acute

ÎI circumflex

Ï I umlaut

ÓO acute

Ô O circumflex

ÖO umlaut

ÙU grave

ÚU acute

Û U circumflex

ÜU umlaut

Say … Say … or Symbol … ■Symbols

Say … Say … or Symbol …

?Question mark

! Exclamation point

$Dollar

# Pound

*Asterisk

+Plus

-Hyphen

: Colon

;Semicolon

/Slash

@At sign

&Ampersand

~Tilde

317



Voice Commands



Spelling Assistance

Voice Commands

.Dot

“Double quote

, Comma

‘Apostrophe

¡ Inverted exclamation point

¿Inverted question mark

« Left-pointing double angle

quotation mark

»Right-pointing double angle

quotation mark

% Percent

_Underscore

< Less than

>Greater than

{ Open brace

}Close brace

^ Caret

`Back quote

Say … Say … or Symbol …

318

List of Categories

Fuel/Auto Lodging Shopping

All Types

Auto Repair & Maintenance

All Types Hotel/Motel All Types

Mall/Department Store

Honda Dealers Car Wash & Detailing Bed & Breakfast Resort Accessories/Jewelry

Office Supplies/Electronics

Acura Dealers Motorcycle Dealers Recreation

Auto Parts & Electronics

Pharmacy/Drug Store

Gas Station Other Car Dealers All Types Museum Books/Music/Video Pet Food/Supplies

Hydrogen Station Roadside Assistance Amusement Park

Park/Recreation Area

Clothing Sewing/Linen

Auto Parts & Electronics Golf Course Performing Arts Shoes/Bags Sporting Goods

ATM/Bank

Historical Monument

Sports Complex Groceries Toys/Arts/Crafts

All Types

Check Cashing/Money Transfer

Marina Tourist Attraction Home Improvement

ATM

Currency Exchange

Movie Theater Travel

Bank Restaurant All Types

Parking Garage/House

Community All Types Italian Airport Parking Lot

All Types Court House American Japanese Automobile Club Rental Car Agency

Business Higher Education Café/Coffee shop Korean Bed & Breakfast Resort

City Hall Library Californian Mexican Bus Station Rest Area

Civic/Community Center Post Office Chinese Pizza Camping Ski Area

Convention/Exhibition Center

School Continental Seafood

Commuter Rail Station

Tourist Attraction

Emergency Fast Food Thai Ferry Terminal Tourist Information

All Types Roadside Assistance French Vegetarian Hotel/Motel Train Station

Hospital Veterinarian German Vietnamese Named Place Travel Agency

Police Station Greek Other Park & Ride Truck Stop/Plaza

Indian

319

List of Language Codes

Language Input Code

Abubasia 0102

Afar 0101

Afrikaans 0106

Albanian 1917

Amharic 0113

Arabic 0118

Armenian 0825

Assamese 0119

Aymara 0125

Azerbaijani 0126

Bashkir 0201

Basque 0521

Belarussian 0205

Bengali 0214

Bhutanese 0426

Bihari 0208

Bislama 0209

Breton 0218

Bulgarian 0207

Burmese 1325

Cambodian 1113

Catalan 0301

Chinese 2608

Corsican 0315

Croatian 0818

Czech 0319

Danish 0401

Dutch 1412

English 0514

Esperanto 0515

Estonian 0520

Faroese 0615

Fijian 0610

Finnish 0609

French 0618

Frisian 0625

Galician 0712

Georgian 1101

German 0405

Greek 0512

Greenlandic 1112

Guarani 0714

Gujarati 0721

Hausa 0801

Hebrew 0923

Hindi 0809

Language Input Code

Hungarian 0821

Icelandic 0919

Indonesian 0914

Interlingue 0905

International 0901

Inupiaq 0911

Irish 0701

Italian 0920

Japanese 1001

Javanese 1023

Kannada 1114

Kashmiri 1119

Kazakh 1111

Kinyarwanda 1823

Kirghiz 1125

Kirundi 1814

Korean 1115

Kurdish 1121

Laotian 1215

Latvian 1222

Lingala 1214

Lithuanian 1220

Macedonian 1311

Language Input Code

320



List of Language Codes



List of Language Codes

Malagasy 1307

Malay 1319

Malayalam 1312

Maltese 1320

Maori 1309

Marathi 1318

Moldavian 1315

Mongolian 1314

Nauruan 1401

Nepali 1405

Norwegian 1415

Oriya 1518

Oromo 1513

Pashto 1619

Persian 0601

Polish 1612

Portuguese 1620

Provencal 1503

Punjabi 1601

Quechua 1721

Rhaeto-Romance 1813

Romanian 1815

Russian 1821

Language Input Code

Sand 1907

Sanskrit 1901

Scottish Gaelic 0704

Serbian 1918

Serbo-Croatian 1908

Seth-Thu 1920

Setswana 2014

Shona 1914

Sindhi 1904

Sinhalese 1909

SiSwati 1919

Slovak 1911

Slovene 1912

Somali 1915

Somoan 1913

Spanish 0519

Sundanese 1921

Swahili 1923

Swedish 1922

Tagalog 2012

Tajir 2007

Tamil 2001

Tartar 2020

Language Input Code

Telugu 2005

Thai 2008

Tibetan 0215

Tigris 2009

Tonga 2015

Turki 2011

Turkish 2018

Twi 2023

Twonga 2019

Ukrainian 2111

Urdu 2118

Uzbek 2126

Vietnamese 2209

Volapuk 2215

Welsh 0325

Worf 2315

Xhosa 2408

Yiddish 1009

Yoruba 2515

Zulu 2621

Language Input Code

321

Index

Symbols

a (Display Mode) Button

....................... 70

J (Hang-Up/Back) Button

.................5

d (Talk) Button

.......................................5

Numerics

3D Angle Adjustment

..................................73

Address

Editing Address Book

..................................39

Editing Avoid Area

...................................... 56

Setting Destination

...................................... 86

Address Book

Editing Address Book

..................................37

Setting Destination

...................................... 92

Address Book PIN

......................................... 43

AhaTM Radio

................................................. 287

ATM/Bank (Place Category)

........................ 94

Audio

Remote Control

......................................... 140

Settings

...................................................... 141

Touchscreen

.................................................. 6

Voice Commands List

................................310

Audio Menu

Bluetooth® Audio

.....................................197

Disc

............................................................ 156

FM/AM Radio

............................................ 145

HDD

........................................................... 163

Internet Radio

............................................ 187

iPod®

......................................................... 175

SiriusXM® Radio

.......................................151

USB Flash drive

..........................................191

Audio System

Auxiliary Input Jack

....................................136

Security Code

.............................................137

Theft Protection

.........................................137

USB Port

.....................................................135

Auxiliary Input Jack

....................................136

Avoid Streets

...............................................128

Avoided Area

................................................55

Black Level

.....................................................25

Bluetooth® Audio

Playing

.......................................................197

Voice Commands List

................................312

Bluetooth® HandsFreeLink®

Editing User Name/PIN

.......................219

220

Importing Phonebook Data

.......................210

Making a Call

.............................................224

Pairing a Phone

..........................................204

Phone Settings

...........................................219

Receiving a Call

..........................................229

Setting Up Speed Dialing

...........................211

Brightness

......................................................25

Calendar

.......................................................269

Call

Calculate Route Screen

......................106

132

Call History

...................................................227

Cancel Route

...............................................121

Honda 2015 Odyssey Navigation Manual
