1
INTRODUCTION
Congratulations on your selection of a Honda lawn mower! We are
certain you will be pleased with your purchase of one of the finest
lawn mowers on the market.
We want to help you get the best results from your new mower and to
operate it safely. This manual contains the information on how to do
that; please read it carefully.
We suggest you read the DISTRIBUTOR’S LIMITED WARRANTY
(page 19) and EMISSION CONTROL SYSTEM WARRANTY
(page 20) to fully understand coverage and your responsibilities of
ownership.
When your mower needs scheduled maintenance, keep in mind that
an authorized Honda servicing dealer is specially trained in servicing
Honda mowers and is supported by the parts and service divisions of
American Honda. Your Honda dealer is dedicated to your satisfaction
and will be pleased to answer your questions and concerns.
Keep this owner’s manual handy so you can refer to it at any time.
This owner’s manual is considered a permanent part of the lawn
mower and should remain with the lawn mower if resold.
The information and specifications included in this publication were in
effect at the time of approval for printing. American Honda Motor Co.,
Inc. reserves the right, however, to discontinue or change
specifications or design at any time without notice and without
incurring any obligation whatever. No part of this publication may be
reproduced without written permission.
SAFETY MESSAGES
Your safety and the safety of others are very important. We have
provided important safety messages in this manual and on the
mower. This information alerts you to potential hazards that could hurt
you or others. Please read these messages carefully.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining a lawn mower. You
must use your own good judgment.
You will find important safety information in a variety of forms:
•Safety Labels – on the lawn mower.
•Instructions – how to use this mower correctly and safely.
•Safety Messages – preceded by a safety alert symbol and one
of three signal words: DANGER, WARNING, or CAUTION. These
signal words mean:
Each message tells you what the hazard is, what can happen, and
what you can do to avoid or reduce injury.
•Damage Prevention Messages – You will also see other
important messages that are preceded by the word NOTICE. This
word means:
CONTENTS
For more information regarding cable adjustment or how to mow
your lawn, see FAQs at www.HondaPowerEquipment.com/faq
DANGER You WILL be KILLED or SERIOUSLY
HURT if you don't follow instructions.
WARNING You CAN be KILLED or SERIOUSLY
HURT if you don't follow instructions.
CAUTION You CAN be HURT if you don't follow
instructions.
NOTICE
Your lawn mower or other property can be
damaged if you don’t follow instructions.
INTRODUCTION...................................... 1
SAFETY MESSAGES.............................. 1
LAWN MOWER SAFETY......................... 2
IMPORTANT MESSAGE TO
PARENTS......................................... 2
SAFETY LABEL LOCATIONS.......... 2
SETTING UP YOUR MOWER................. 3
CONTROL LOCATIONS.......................... 4
BEFORE OPERATION ............................ 4
IS YOUR LAWN MOWER READY
TO GO? ............................................ 4
CHECK YOUR MOWING AREA ...... 4
GET THE MOWER READY.............. 5
OPERATION............................................ 7
SAFE OPERATING PRECAUTIONS7
STARTING THE ENGINE................. 7
OPERATING THE CONTROLS
FOR MOWING.................................. 7
STOPPING THE ENGINE ................ 7
SAFE MOWING PRACTICES .......... 8
SERVICING YOUR LAWN MOWER ....... 8
MAINTENANCE SAFETY................. 8
MAINTENANCE SCHEDULE........... 9
BLADES............................................ 9
GRASS BAG CLEANING AND
REPLACEMENT............................. 10
ENGINE MAINTENANCE............... 11
REFUELING ................................... 13
TRANSPORTING...................................13
STORAGE..............................................13
TAKING CARE OF UNEXPECTED
PROBLEMS ...........................................15
TECHNICAL INFORMATION.................16
SERIAL NUMBER LOCATIONS.....16
CARBURETOR
MODIFICATION FOR HIGH
ALTITUDE OPERATION ................16
EMISSION CONTROL SYSTEM....16
AIR INDEX......................................17
SPECIFICATIONS..........................17
CONSUMER INFORMATION ................18
REPLACEMENT PARTS,
OPTIONAL EQUIPMENT, AND
SERVICE ITEMS ............................18
DEALER LOCATOR
INFORMATION ...............................18
CUSTOMER SERVICE
INFORMATION...............................18
DISTRIBUTOR'S LIMITED
WARRANTY ...................................19
EMISSION CONTROL SYSTEM
WARRANTY ...................................20
PRODUCT REGISTRATION
CARD .........................................Last page
OWNER’S MANUAL
HRX217VKA
WARNING:
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
© 2003-2012 American Honda Motor Co., Inc.—All Rights Reserved
31VH7V310
00X31-VH7-V310 EM5 POM31VH7V310
HPE.2012.04
PRINTED IN U.S.A.
K3
Click here to save
this manual to your
computer.
2
LAWN MOWER SAFETY
Most injuries or property damage with walk-behind mowers can be
prevented if you follow all instructions in this manual and on the
mower. The most common hazards are discussed below, along with
the best way to protect yourself and others.
Avoid Rotating Blades
Rotating blades can cause serious cuts and even amputate fingers,
hands, toes, or feet. Keep away from the mower deck whenever the
engine is running. If you need to adjust the cutting height or work
around the deck for any other reason, always shut off the engine.
Wear heavy gloves and disconnect the spark plug cap when you need
to clean the mower deck or handle the blades.
Clear Mowing Area
Mower blades can throw rocks and other objects with enough force to
cause serious injury. Before mowing, carefully inspect the area and
remove all sticks, stones, pieces of wire, and other loose objects.
Never operate the blades over gravel.
Keep Shields in Place
Guards and shields are designed to protect you from being hit by
thrown objects and from hot engine parts and moving components.
For your safety and the safety of others, keep all shields in place
when the engine is running.
Refuel with Care
Gasoline is extremely flammable and gasoline vapor can explode.
Refuel only outdoors in a well-ventilated area with the engine OFF.
Never smoke near gasoline and keep other flames and sparks away.
Always store gasoline in an approved container.
Wear Protective Clothing
Wearing protective clothing will reduce your risk of injury. Long pants
and eye protection reduce the risk of injuries from thrown objects.
Sturdy shoes with aggressive soles will help protect your feet and give
you better traction on slopes or uneven ground.
Turn Engine Off When Not Mowing
If you need to leave the mower for any reason, even just to inspect the
lawn ahead, release the blade control lever to stop the engine.
IMPORTANT MESSAGE TO PARENTS
THE SAFETY OF YOUR CHILDREN IS VERY IMPORTANT to
Honda. That’s why we urge you to read this message before letting
your child operate this lawn mower. Lawn mowers are tools, not toys.
As with any equipment, bad judgments can result in serious injuries.
You can help prevent injuries or property damage by making good
decisions about if, when, and how your child operates this equipment.
The first question you’ll need to ask is whether your child is capable of
operating this mower safely. Remember, young people vary widely,
and AGE IS NOT THE ONLY FACTOR.
Physically, a child must be LARGE ENOUGH AND STRONG
ENOUGH to easily start the mower and control its direction. The child
also needs enough size, strength, and coordination to comfortably
reach and operate the controls.
A tougher question you need to ask is if your child has enough
MATURITY AND RESPONSIBILITY to safely operate this mower.
Does the young person think through problems and come to logical
solutions? Be honest! Anyone who takes unnecessary risks and
doesn’t obey rules should not operate this lawn mower.
If you decide that your son or daughter can handle the mower safely,
CAREFULLY READ THE OWNER’S MANUAL with your child. Make
sure you both understand all instructions and safety information. Also,
be sure your child wears sturdy shoes and other protective clothing
when operating or handling the mower.
SUPERVISION is also very important. Walk with your child during the
first few minutes of mowing. Even after he or she has become
confident with the mower, do not let him or her use the mower without
good adult supervision. An adult should also be present during
refueling and maintenance. In fact, it’s up to the adult owner to make
sure that the mower is properly maintained and kept in safe operating
condition.
By always placing safety first, your child will acquire useful skills and a
sense of accomplishment. And you’ll both get the best results from
your lawn mower.

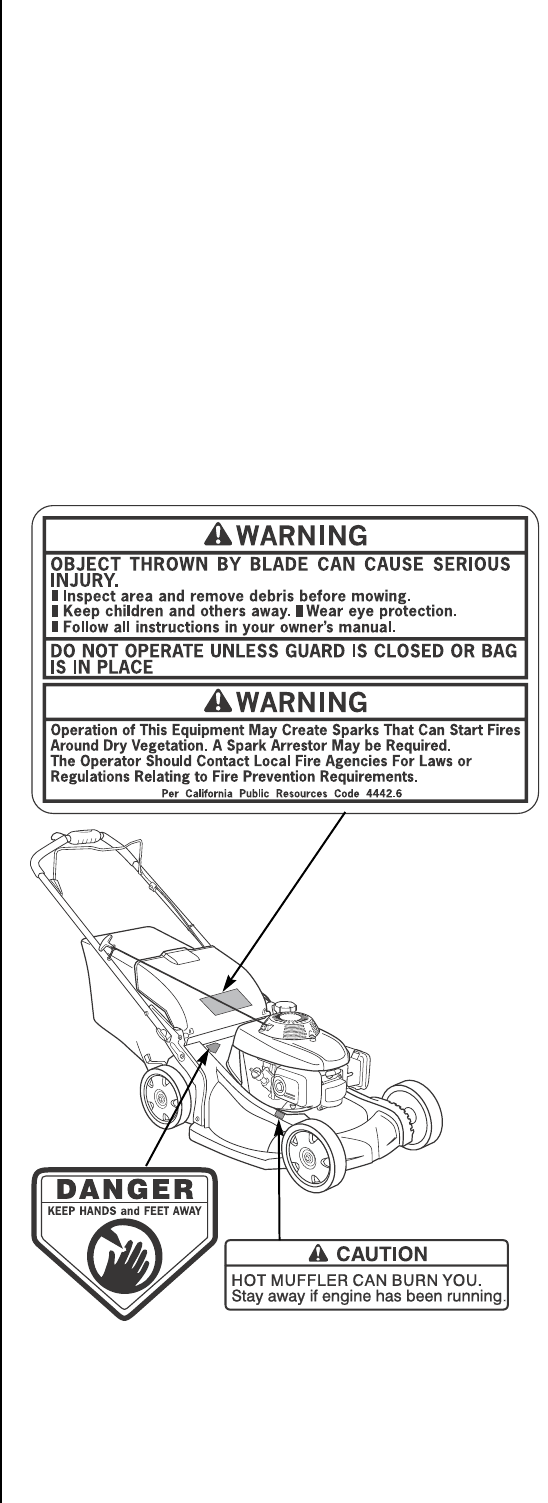

SAFETY LABEL LOCATIONS
These labels warn you of potential hazards that can cause serious
injury. Read them carefully. If a label comes off or becomes hard to
read, contact an authorized Honda servicing dealer for a replacement.
3
SETTING UP YOUR MOWER
Unpacking
Remove all the cardboard from around the handlebar.

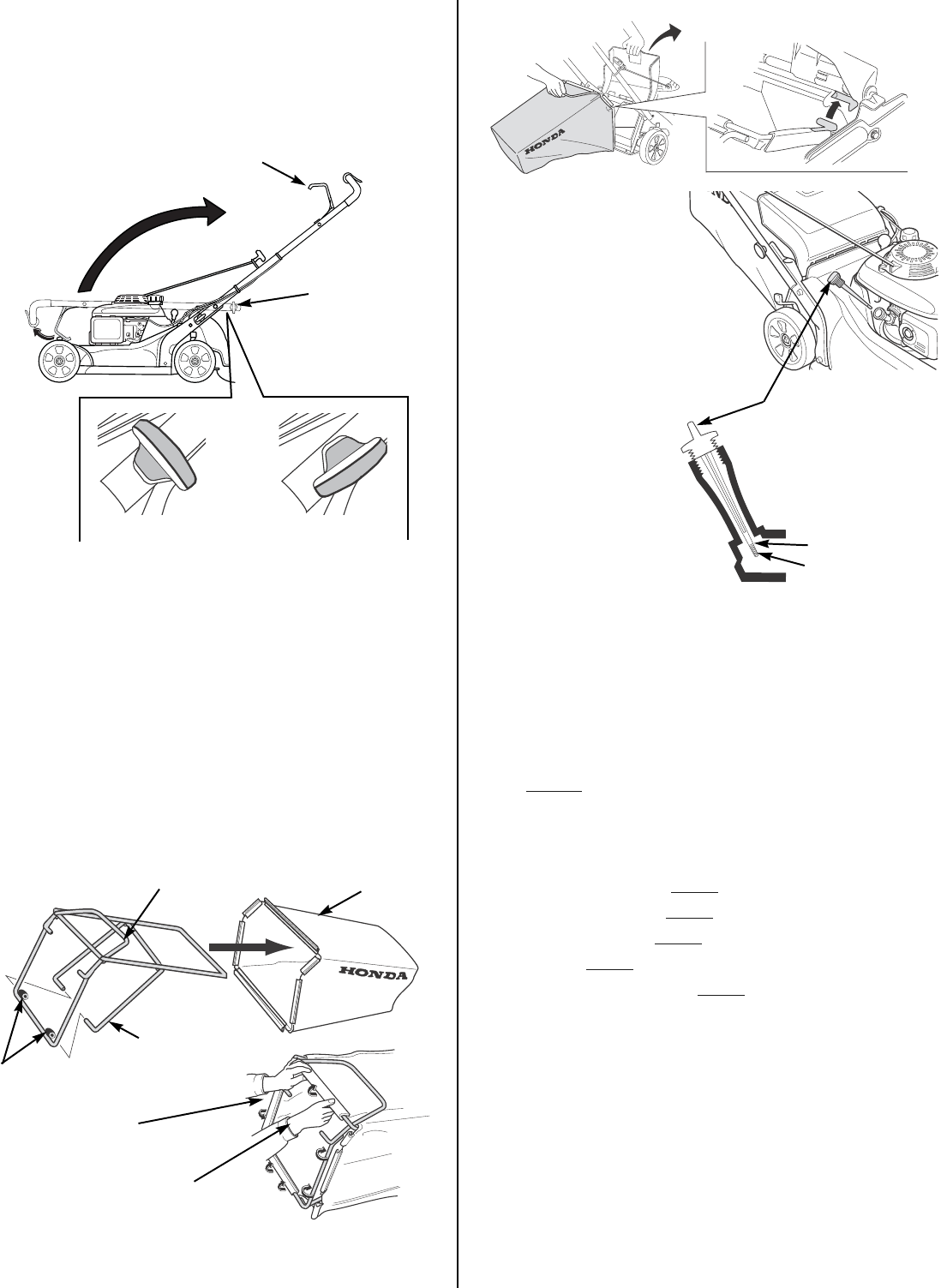

Handlebar Setup
1. With the handlebar adjust knobs in the unlocked position, depress
the blade control lever and raise the handlebar into the
mowing position.
2. Align the adjust knobs with one of the three holes on the handle
stay. Setting the adjust knobs in the lowest holes raises the
handlebar to its highest position, and setting the adjust knobs in
the highest holes lowers the handlebar to its lowest position.
3. Turn the adjusting knobs 90 degrees into the lock position, and the
pins will spring into the holes and lock into position.
Grass Bag Assembly
1. Assemble the grass bag frame by pulling the support legs outward
and sliding them into the eyelets as shown.
2. Install the assembled frame into the fabric grass bag, keeping the
bag frame handle exposed.
3. Install the plastic clips over the bag frame as shown.
4. Lift the discharge guard and install the grass bag.

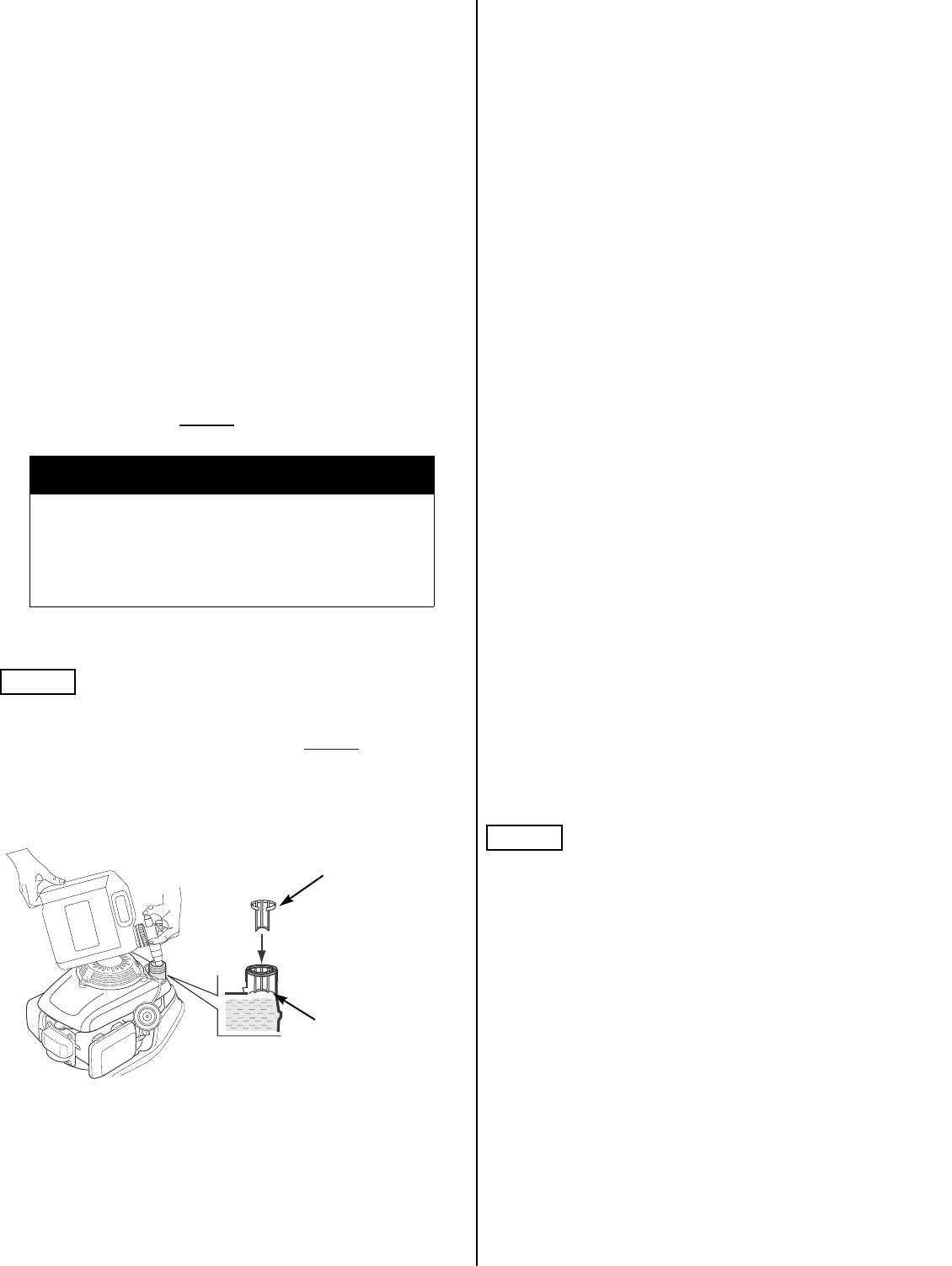

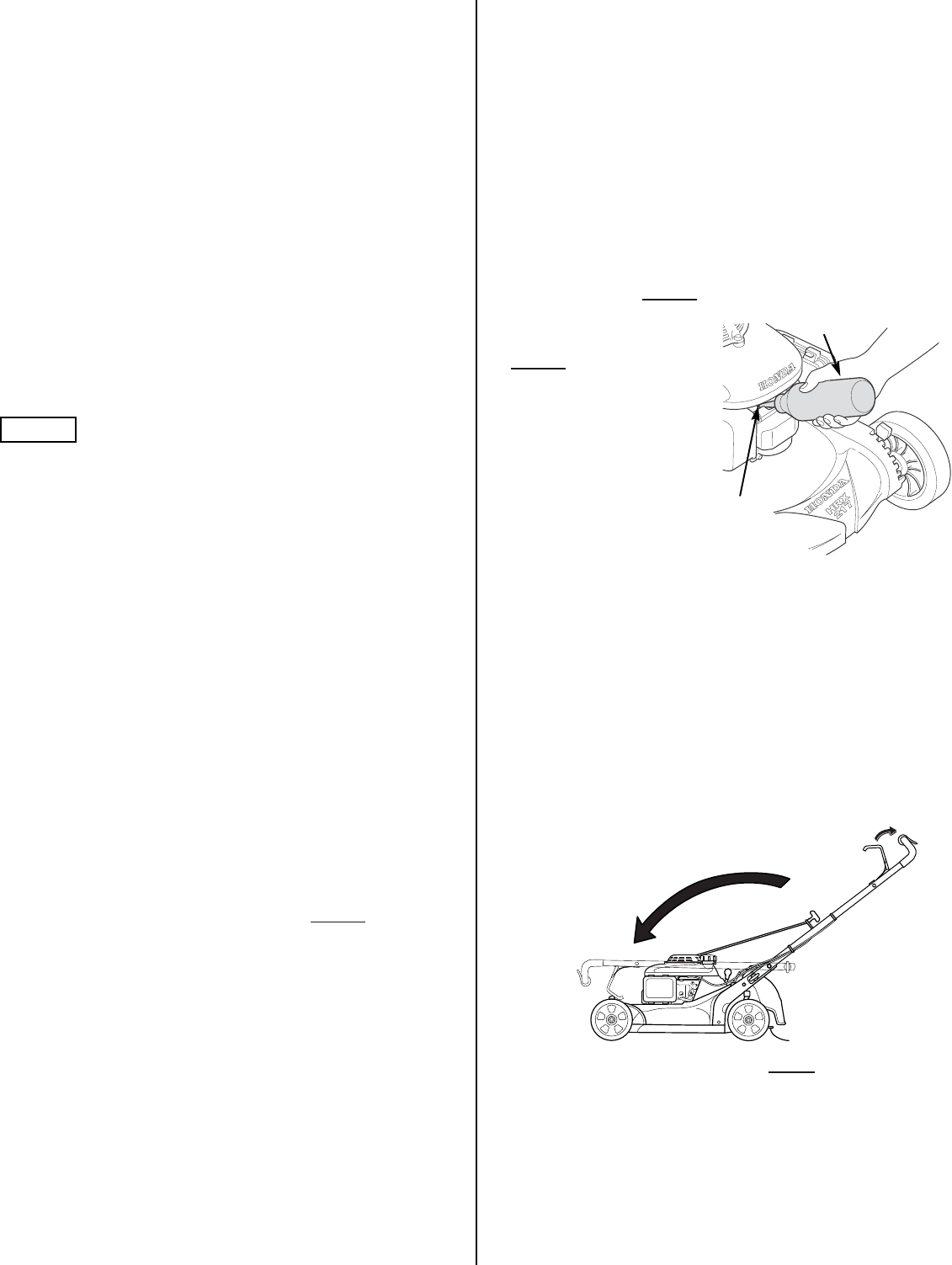

Engine Oil
The mower is shipped
WITHOUT OIL in the
engine.
A bottle of oil is included in
the box with your mower.
Add the entire contents of
the oil bottle into the oil filler
opening.
All Honda engines are run at
the factory prior to
packaging. Most of the oil is
removed prior to shipment;
however, some oil remains
in the engine. The amount of
oil left in the engine varies.
If not using the supplied oil,
add enough SAE 10W-30
API service category SJ or
later oil to bring the oil level
between the upper and
lower limit marks on the dipstick as shown.
Do not overfill the engine with oil. If the engine is overfilled, the excess
oil may get transferred to the air cleaner housing and air filter.
After filling the engine with oil, remove the hang tag near the recoil
starter grip that says “The engine has no oil. A container of oil is in the
shipping box.”
Fuel
Refer to page 13.
Before Using Your Lawn Mower
Before using the lawn mower, all mower operators must read the
following sections:
•LAWN MOWER SAFETY (page 2)
• CONTROL LOCATIONS (page 4)
•BEFORE OPERATION (page 4)
•OPERATION (page 7)
•MAINTENANCE SCHEDULE (page 9)
You can also find additional information on the Honda power
equipment web site. Visit www.hondapowerequipment.com/faq/.
Please Register Your Lawn Mower
If your dealer did not collect registration information from you, please
take a few minutes and register your purchase with Honda. This
allows us to contact you with any important updates regarding your
mower. Your information will remain confidential. It will not be
released to any other company or organization. Please note,
registration is not required to obtain warranty service.
You can register by completing and mailing the included registration
card, or go online to www.hondapowerequipment.com and click on
Product Registration.
HANDLEBAR
ADJUST
KNOB (2)
UNLOCKED LOCKED
BLADE CONTROL LEVER
BAG FRAME HANDLE
EYELETS
FABRIC GRASS BAG
GRASS BAG
FRAME
PLASTIC CLIP
SUPPORT LEGS
4
CONTROL LOCATIONS BEFORE OPERATION
Your safety is your responsibility. A little time spent in preparation will
significantly reduce your risk of injury.
Read and understand this manual. Know what the controls do and
how to operate them.
Familiarize yourself with the lawn mower and its operation before you
begin using it. Know how to shut off the lawn mower quickly in case of
an emergency.
IS YOUR LAWN MOWER READY TO GO?
For your safety, and to maximize the service life of your lawn mower,
it is very important to take a few moments before you operate the lawn
mower to check its condition. Be sure to take care of any problem you
find or have your servicing dealer correct it before you operate the
lawn mower.
Before beginning your pre-operation checks, be sure the lawn mower
is on a level surface.
Check the General Condition of the Lawn Mower
• Look around and underneath the lawn mower for signs of oil or
gasoline leaks.
• Look for signs of damage.
• Check each control for proper operation.
• Check the blades for wear. Replace as necessary (page 9).
• Check that the blade bolts are tight (page 10).
• Check that all nuts, bolts, and screws are tightened.
Check the Engine
• Check the air cleaner (page 11) and oil level (page 11).
• Check the fuel level (page 13). Starting with a full tank will help
eliminate or reduce operating interruptions for refueling.
CHECK YOUR MOWING AREA
For your safety and the safety of others, always inspect the area
before operating the lawn mower.
Objects
Anything that can be picked up by the blades and thrown is a potential
hazard to you and others. Look for things like stones, sticks, nails, and
wire, and remove them from the mowing area.
People and Pets
People and animals near the work area can move into your lawn
mower’s path or into a position where they could be struck by thrown
objects. Clear the area of pets and people, especially children. Their
safety is your responsibility.
Work Area
Check the condition of the grass. Adjust your lawn mower ground
speed and mowing swath accordingly.
HANDLEBAR
(p. 3)
DISCHARGE GUARD
FUEL TANK
CAP (p. 13)
FRONT CUTTING
HEIGHT ADJUSTMENT
LEVERS (p. 6)
MUFFLER
OIL FILLER CAP (p. 3)
REAR CUTTING
HEIGHT ADJUSTMENT
LEVER (2) (p. 6)
GRASS
BAG (p. 6)
HANDLEBAR
ADJUST KNOB (2)
(p. 3)
RECOIL STARTER
GRIP (p. 7)
AIR CLEANER
(p. 11)
CARBURETOR
SPARK PLUG
CAP (p. 12)
BLADE CONTROL
LEVER (p. 7)
CLIP DIRECTOR®
KNOB (p. 5)
FUEL VALVE (p. 7)
SMART DRIVE CONTROL (p. 5)
WARNING
Improperly maintaining this lawn mower or failing to correct a
problem before operation could cause a malfunction in which
you could be seriously injured.
Always perform a pre-operation inspection before each
operation and correct any problem.
5
GET THE MOWER READY
Handlebar Height Adjustment
Adjust handlebar height for a comfortable operating position (page 3).

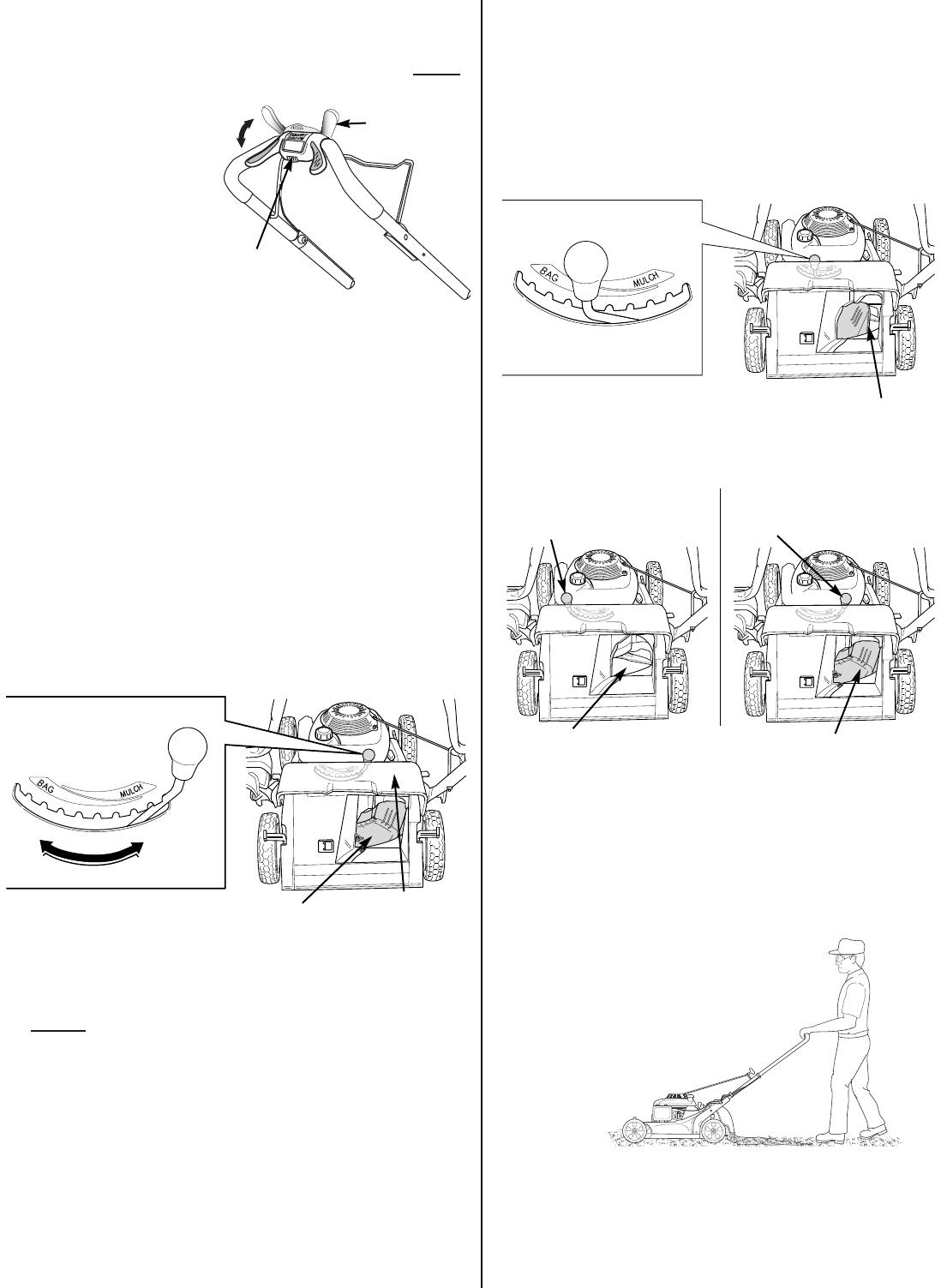

Smart Drive™ Control
The Smart Drive control can be
adjusted up or down into any
one of five positions.
Do not attempt to adjust the
position of the Smart Drive
control while the mower is in
motion.
Slide the multi-position adjuster
to the left to unlock the control,
move the Smart Drive control
up or down into the most comfortable position, and then release the
multi-position adjuster and allow it to engage.
Clip Director®
Adjust the Clip Director knob in any one of the ten positions to achieve
the desired mowing results.
To adjust the Clip Director knob, pull the knob downward and towards
the rear of the mower. The knob adjusts a sliding door from the fully
open BAG position to the fully closed MULCH position.
Some grass accumulation in the discharge opening is normal when
the Clip Director is fully closed. To remove this grass, close the
discharge guard, fully open the Clip Director, engage the blade control
lever, and start the engine.
If a high resistance is noticed when moving the Clip Director knob
from side-to-side, excessive grass may have built up on top of the
sliding door.
IMPORTANT SAFETY PRECAUTION
Always release the blade control lever and disconnect the spark plug
cap (page 12) before lifting the discharge guard to view or clean
around the sliding door. This will prevent contact with the rotating
blades and prevent objects from being thrown into the discharge area.
Sliding Door Position
The sliding door can be positioned to produce different mowing
results. If the preferred sliding door position is unknown, install the
grass bag and begin mowing with the Clip Director knob all the way to
the BAG position. Check the appearance of the lawn. As the knob is
moved towards the MULCH position, more grass will be recycled back
into the lawn. Adjust the Clip Director knob until the desired result is
achieved.
Rear Discharge
To discharge clippings to the rear, remove the grass bag and position
the Clip Director knob in the BAG range. Maximum rear discharge will
occur when the Clip Director knob is all the way to the left (BAG)
position. As the Clip Director knob is moved toward the right (MULCH)
position, less grass will be discharged through the rear discharge
guard.
Fallen Leaves
Use the Clip Director to shred and collect fallen leaves for disposal.
Set the front wheels so they are one or two settings higher than the
rear. Set the Clip Director in position #9 (not quite full mulching), and
adjust the setting from this point for best results.
CONTROL
™
MULTI-
POSITION
ADJUSTER
SMART DRIVE
CONTROL
CLIP DIRECTOR KNOB
SLIDING DOOR
(fully closed)
DISCHARGE
GUARD
BAGGING OR REAR DISCHARGE
AND SOME MULCHING
SLIDING DOOR
(50% open)
CLIP DIRECTOR KNOB
FULL BAGGING OR
REAR DISCHARGE FULL MULCHING
KNOB (MULCH POSITION)
KNOB (BAG POSITION)
SLIDING DOOR
(fully open) SLIDING DOOR
(fully closed)
6
Rear Shield
During normal use the rear shield is subject to deterioration and wear.
Remove the grass bag and raise the discharge guard to check the
rear shield for cracks or tears. If the rear shield is excessively worn,
have it replaced by your authorized Honda servicing dealer.
Grass Bag
A lawn mower works like a vacuum cleaner; it blows air through the
bag, which traps the grass clippings. Always empty the grass bag
before it becomes filled to the limit of its capacity. Bagging
performance will diminish after the bag becomes about 90% filled.
Also, the bag is easier to empty when it is not packed full.
You can leave the grass bag on the mower during mowing, even
when full mulching is selected, to meet various mowing conditions.
Inspection
During normal use, the grass bag material is subject to deterioration
and wear.
NOTICE
Frequently inspect the grass bag for tears, holes, and excessive wear.
Check for necessary replacement. Make sure the new bag meets the
original specifications.
Grass bag replacement is explained on page 10.
Installation
1. Raise the discharge
guard and hook the
grass bag onto the
mower deck as
shown.
2. Release the
discharge guard to
secure the grass bag.
Removal
1. Raise the discharge
guard, grasp the
grass bag handle,
and remove the
grass bag.
2. Release the
discharge guard.
3. When the grass bag
is clear of the
discharge guard, you
can lift it through the
handlebar opening, or you can remove it to the rear of the mower
below the handlebar.

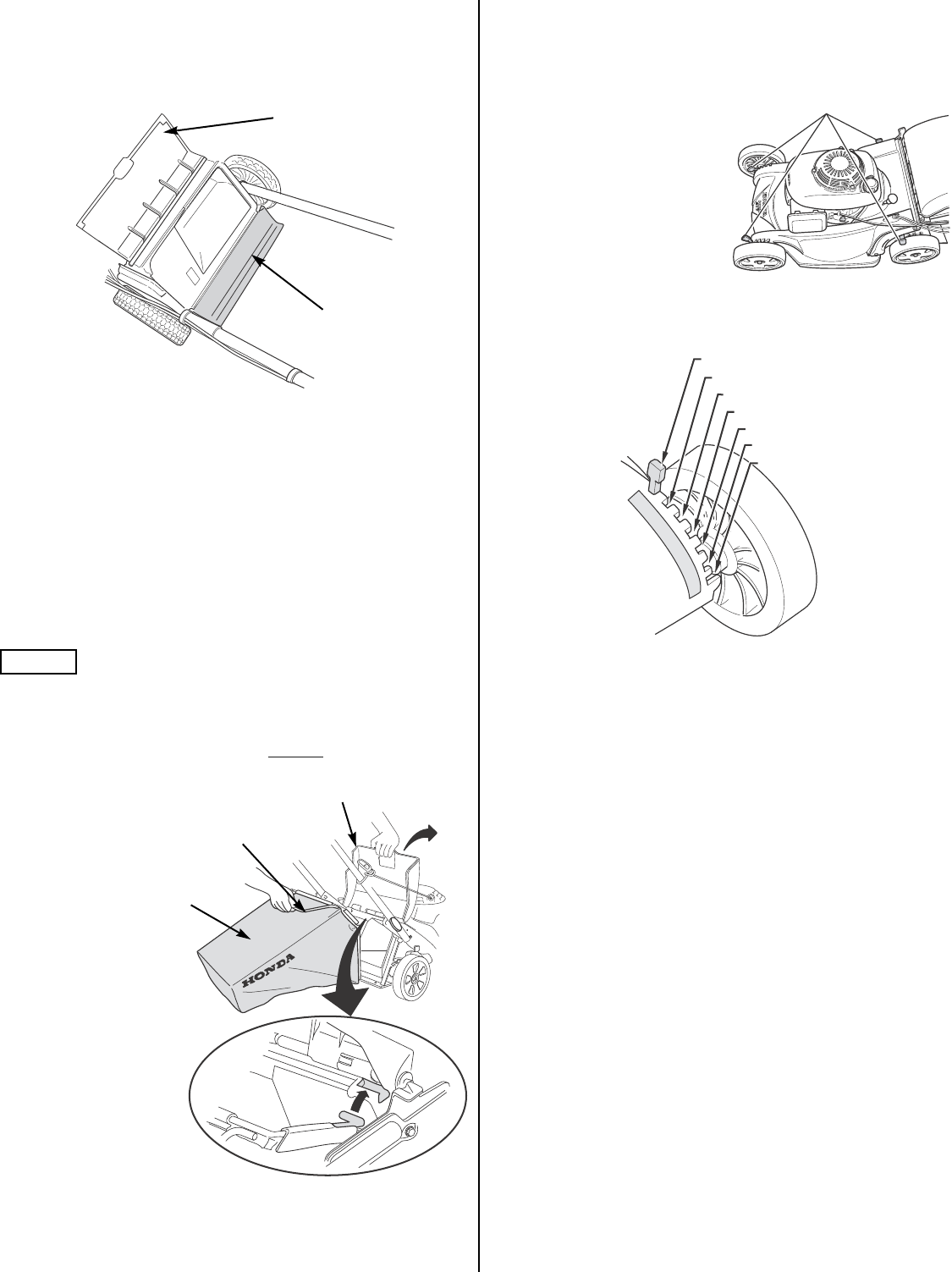

Cutting Height Adjustment
Each wheel of the mower can be adjusted to one of seven settings.
The cutting height figures are approximate. The actual height of cut
grass will vary with lawn and soil conditions.
Move all four adjustment levers to
the same position.
To adjust cutting height, pull each
adjustment lever toward the
wheel, and move it into another
notch.
If you are not sure what cutting
height to select, start with a high
setting and check the appearance
of the lawn after mowing a small
area. Then readjust the cutting
height if necessary.
REAR SHIELD
DISCHARGE GUARD
GRASS BAG
HANDLE
BAG
DISCHARGE GUARD
ADJUSTMENT LEVERS
3/4 in (20 mm)
1-1/4 in (32 mm)
2 in (46 mm)
2-1/2 in (62 mm)
3 in (75 mm)
3-1/2 in (88 mm)
4 in (100 mm)
1
2
3
4
•
•
•
7
OPERATION
SAFE OPERATING PRECAUTIONS
Before operating the mower for the first time, please review LAWN
MOWER SAFETY (page 2). Even if you have operated other mowers,
take time to become familiar with how this mower works and practice
in a safe area until you build up your skills. For your safety, avoid
starting or operating the engine in an enclosed area, such as a
garage. Your mower’s exhaust contains poisonous carbon monoxide
gas, which can collect rapidly in an enclosed area and cause illness or
death.
Frequency Of Use
If your equipment will be used on an infrequent or intermittent basis,
(more than 4 weeks before next use), please refer to the Fuel section
of the STORAGE chapter (page 14) for additional information
regarding fuel deterioration.

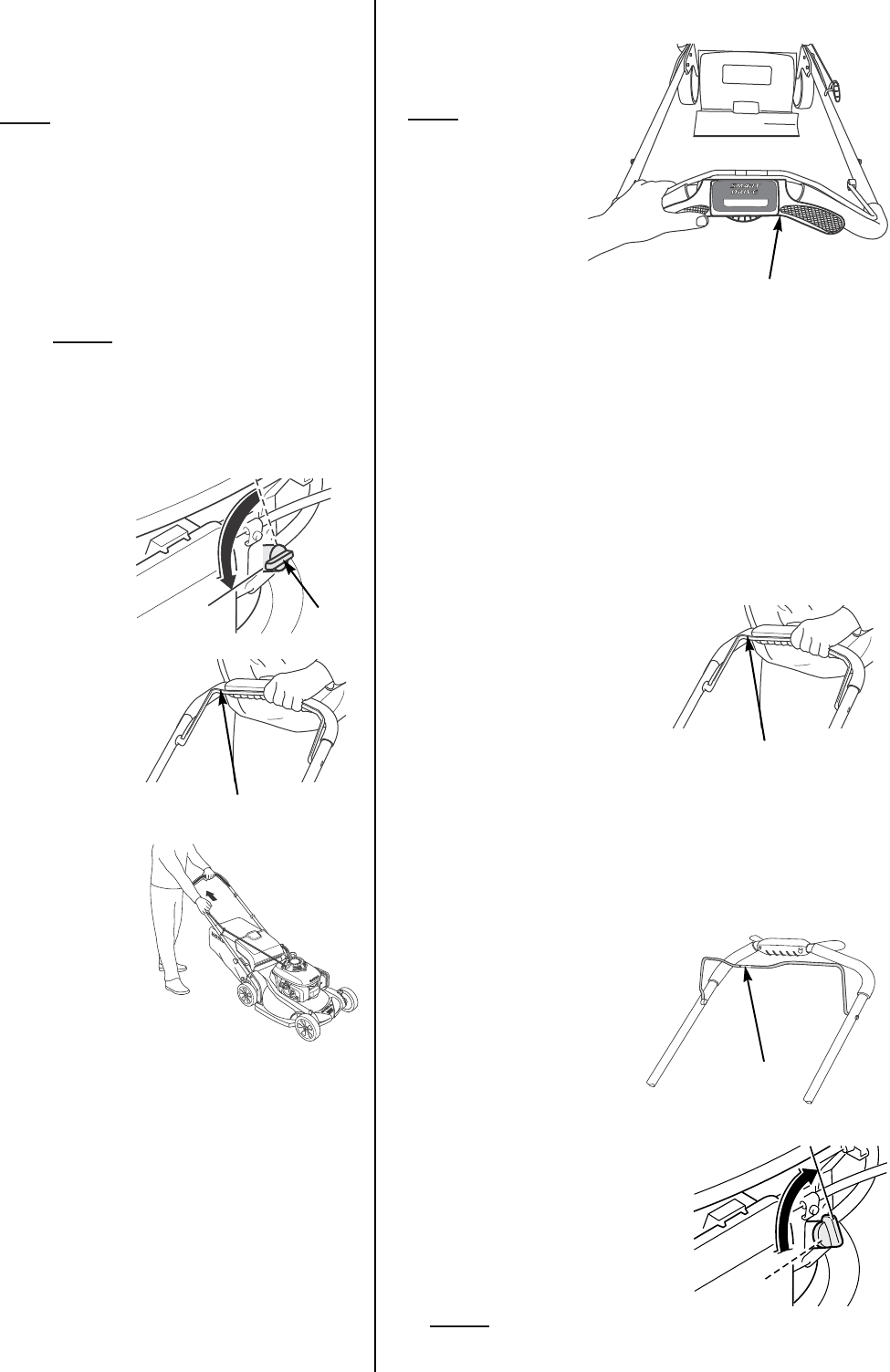

STARTING THE ENGINE
Before starting, always release the Smart Drive control so that the
mower will not move forward when you operate the starter.
1. Turn the fuel valve to the ON
position.
2. Pull back on the blade control
lever and hold it against the
handlebar.
The lever must be against the
handlebar to start the engine.
The blades start to rotate when
the lever is against the handlebar
and the recoil starter grip is
pulled.
3. Pull the starter grip lightly until
you feel resistance, then pull
briskly. Return the starter grip
gently.
Continue to hold the blade
control lever against the
handlebar; the engine stops
when the blade control lever is
released.
To ensure easy restarting and maximum performance from the
Auto Choke System™, allow the engine to run for at least three
minutes after starting a cold engine before shutting down. This
minimum run time will be longer if the temperature is below 70°F
(21°C).
OPERATING THE CONTROLS FOR MOWING
Smart Drive Control
Control position
adjustment is described
on page 5.
With the engine running
and the blades rotating,
slowly push the Smart
Drive control to propel the
mower forward.
Ground speed will
increase as more
pressure is applied to the
Smart Drive control. After
maximum ground speed is
obtained, applying additional pressure will not further increase ground
speed. Apply only enough pressure to achieve the desired speed.
Ground speed control sensitivity will vary with such factors as terrain,
grass height, slope, and grass bag weight. For example, achieving a
very slow ground speed on smooth level terrain requires very light
pressure applied to the Smart Drive control. However, additional
pressure may be required to achieve the same ground speed on
slopes, in tall grass, or on uneven terrain. The Smart Drive control is
designed to allow you to move the control to maintain the desired
ground speed under constantly changing mowing conditions.
Release the Smart Drive control to disengage (stop) the rear wheels.
Blade Control Lever
The lever must be pulled back
against the handlebar to start the
engine. The blade starts to rotate
when the lever is pulled back
against the handlebar and the recoil
starter grip is pulled.
Continue to hold the lever against
the handlebar. This will keep the
engine and blade rotating smoothly
and prevent premature wear to the flywheel brake system.
Release the lever to stop the engine and stop blade rotation whenever
you need to leave the mower.
STOPPING THE ENGINE
1. Release the blade control
lever to stop the engine.
2. When the mower is not in
use, turn the fuel valve to the OFF
position.
3. If your equipment will not be used for
3 to 4 weeks, we recommend
running the engine’s carburetor out
of fuel. You can do this by leaving the
fuel valve OFF, restarting the engine
and running it out of fuel. See “Fuel”
on page 14 for periods of inactivity
that exceed 4 weeks.
ON FUEL
VALVE
BLADE CONTROL LEVER
CONTROL
™
SMART DRIVE
CONTROL
BLADE CONTROL LEVER
BLADE CONTROL
LEVER
OFF
8
SAFE MOWING PRACTICES
For your safety, keep all four wheels on the ground and be careful to
avoid losing your footing and your control of the mower. Keep a firm
grip on the handlebar and walk, never run, with the mower. Be very
careful when mowing uneven or rough ground.
If stuck, do not kick or shove the mower with your foot. Use the
handlebar to control the mower.

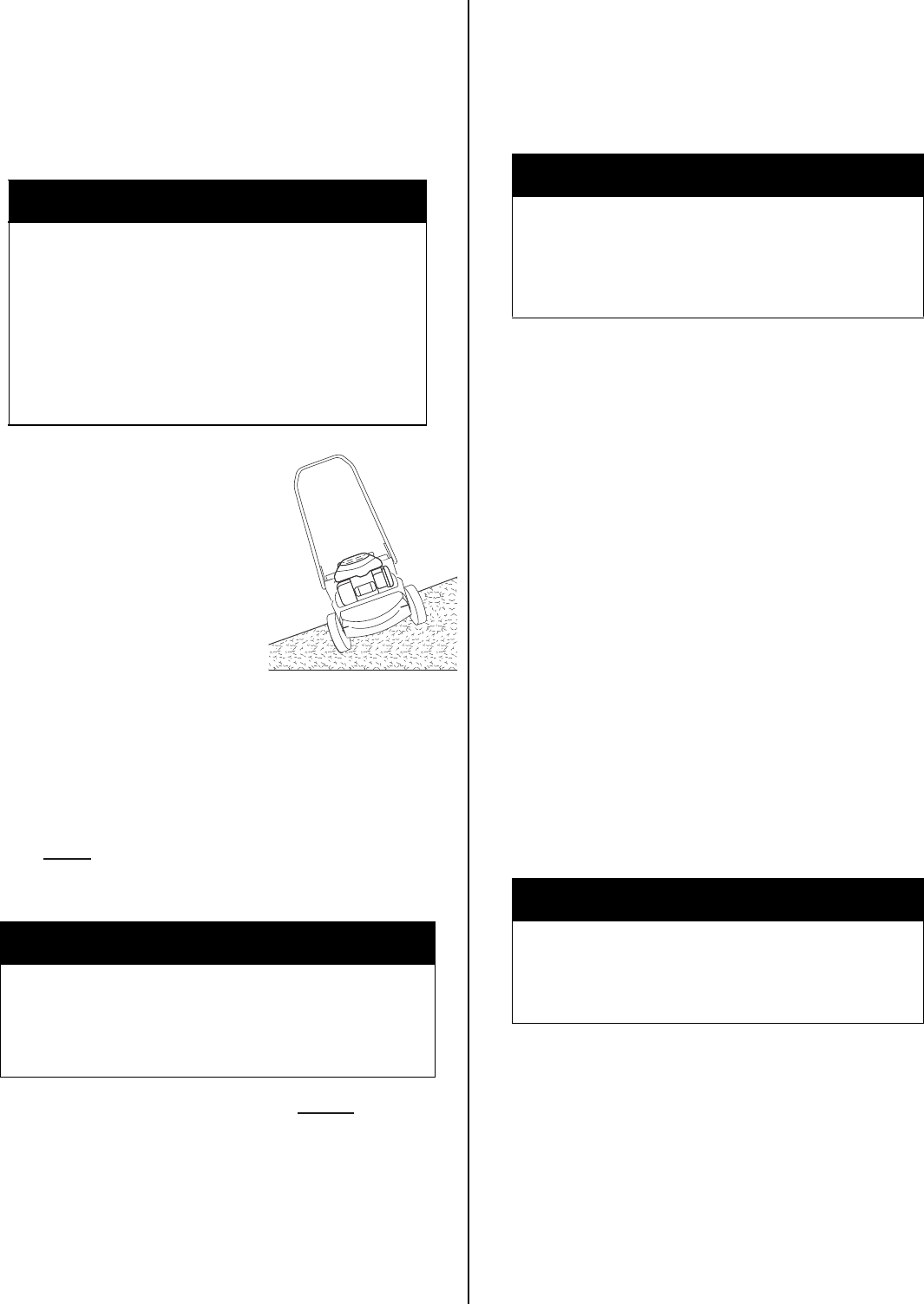

Slopes
Mow across slopes, not up and down.
Avoid steep slopes (more than 20), and
be careful when changing direction.
Mowing on a slope when the grass is
damp or wet could cause you to slip, fall,
and lose control of the mower.
Obstacles
Use the side of the mower to cut close to
large obstacles, such as fences or walls.
Release the Smart Drive control to disengage the drive when mowing
around trees and other obstacles. Push the mower around obstacles
for better directional control. Be careful when mowing over obstacles
embedded in the lawn, such as sprinkler heads, paving, edging,
raised tree roots, etc. Avoid anything that sticks up above the surface
of the lawn.
If a blade hits something or the mower starts to vibrate, stop the
engine immediately, disconnect the spark plug cap, and check for
damage (page 9). Striking objects may damage the blades, bend the
crankshaft, and/or break the mower deck or other components.
Vibration usually indicates serious trouble.
The DISTRIBUTOR’S LIMITED WARRANTY (page 19) does not
cover parts damaged by collision.
Gravel and Loose Objects
Gravel, loose stones, and landscaping material can be picked up by
the mower and thrown many feet with enough force to cause serious
personal injury and/or property damage. The best way to prevent
potential injury from thrown objects is to release the blade control
lever to stop the engine, and then push the mower across areas with
gravel, loose stones, or landscaping material.
SERVICING YOUR LAWN
MOWER
Good maintenance is essential for safe, economical, trouble-free
operation. It will also help reduce air pollution.
To help you properly care for your mower, the following pages include
a maintenance schedule, routine inspection procedures, and simple
maintenance procedures using basic hand tools. Other service tasks
that are more difficult or require special tools are best handled by
professionals and are normally performed by a Honda technician or
other qualified mechanic.
The maintenance schedule applies to normal operating conditions. If
you operate your mower under severe conditions, such as sustained
high-load or high-temperature operation, or use in unusually wet or
dusty conditions, consult your servicing dealer for recommendations
applicable to your individual needs and use.
Remember that an authorized Honda servicing dealer knows your
mower best and is fully equipped to maintain and repair it.
To ensure the best quality and reliability, use only new, Honda
Genuine parts or their equivalents for repair and replacement.
Maintenance, replacement, or repair of the emission control
devices and systems may be performed by any engine repair
establishment or individual, using parts that are “certified” to
EPA standards.
MAINTENANCE SAFETY
Some of the most important safety precautions follow. However, we
cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you
should perform a given task.
Safety Precautions
• Make sure the engine is off before you begin any maintenance or
repairs. This will eliminate several potential hazards:
–Carbon monoxide poisoning from engine exhaust
Be sure there is adequate ventilation whenever you operate
the engine.
–Burns from hot parts
Let the engine and exhaust system cool before touching.
–Injury from moving parts
Do not run the engine unless instructed to do so.
WARNING
The blades are sharp and spin at high speed.
Spinning blades can cut you severely and can amputate
fingers and toes.
• Wear protective footwear.
• Keep your hands and feet away from the mower deck
while the engine is running.
• Stop the engine before performing any adjustment,
inspection, or maintenance.
WARNING
A worn, cracked, or damaged blade can break, and pieces
of the damaged blade can become dangerous projectiles.
Thrown objects can cause serious injury.
Inspect the blades regularly, and do not operate the mower
with a worn or damaged blade.
WARNING
Improper maintenance or failure to correct a problem
before operation can cause a malfunction in which you
can be seriously hurt or killed.
Always follow the inspection and maintenance
recommendations and schedules in this owner’s manual.
WARNING
Failure to properly follow maintenance instructions and
precautions can cause you to be seriously hurt or killed.
Always follow the procedures and precautions in this
owner’s manual.
9
• Read the instructions before you begin, and make sure you have
the tools and skills required.
• To reduce the possibility of fire or explosion, be careful when
working around gasoline. Use only a nonflammable solvent, not
gasoline, to clean parts. Keep cigarettes, sparks, and flames away
from all fuel-related parts.
MAINTENANCE SCHEDULE
1. Service more frequently when used in dusty areas.
2. These items should be serviced by an authorized Honda servicing
dealer, unless you have the proper tools and are mechanically
proficient. Refer to the Honda shop manual for service procedures.
See “Honda Publications” on page 18 for ordering information.
Failure to follow this maintenance schedule could result in
non-warrantable failures.
BLADES
Inspection
1. Move the fuel valve to the OFF position (page 7) and disconnect
the spark plug cap from the spark plug (page 12).
2. Tilt the mower to the
right so the fuel cap
is up. This will help
prevent fuel leakage,
motor oil seeping
into the air filter, and
hard starting.
3. Inspect the blades
for damage, cracks,
and excessive wear,
rust, or corrosion.
A dull blade can be sharpened, but a blade that is excessively
worn, bent, cracked, or otherwise damaged must be replaced. A
worn or damaged blade can break, causing blade pieces to be
thrown from the mower.
If a blade is bent, take the lawn mower to an authorized Honda
servicing dealer for inspection.
4. Always use a torque wrench when installing the blades. Check that
the blade bolts are tight.
Regular Service
Period Item Page
Before each
use Rear shield: Check
Blades: Check
Blade torque: Check
Grass bag: Check
Engine oil level: Check
Air filter: Check
Operation of the blade control: Check
page 6
page 9
page 10
page 10
page 11
page 11
page 12
First month
or 5 hours Engine oil: Change 1
Smart Drive cable: Adjust 2page 11
First 25 hours Air filter: Clean 1
Smart Drive cable: Adjust 2page 11
Every 50 hours Engine oil: Change 1
Air filter: Clean 1
Smart Drive cable: Adjust 2
page 11
page 11
Every 100
hours Spark plug: Check-adjust
Spark arrester: Clean (if equipped)
Operation of the blade control: Check
Pinion gears: Grease 2
Blade control cable: Adjust 2
Flywheel brake pad: Check 2
Valve clearance: Adjust 2
Idle speed: Adjust 2
Fuel tank: Clean 2
page 12
page 12
page 12
Every 150
hours Air filter: Replace
Spark plug: Replace
Rear wheel adjuster bushing:
Inspect-Grease 2
page 11
page 12
Every 2 years Check: Fuel lines replace if
necessary 2
WARNING
A worn, cracked, or damaged blade can break, and pieces
of the damaged blade can become dangerous projectiles.
Thrown objects can cause serious injury.
Inspect the blades regularly, and do not operate the mower
with a worn or damaged blade.
FUEL CAP
BLADE BOLTS BLADES
NORMAL WORN BENT CRACKED
NORMAL
TRAILING EDGE
EXCESSIVELY WORN
TRAILING EDGE
10

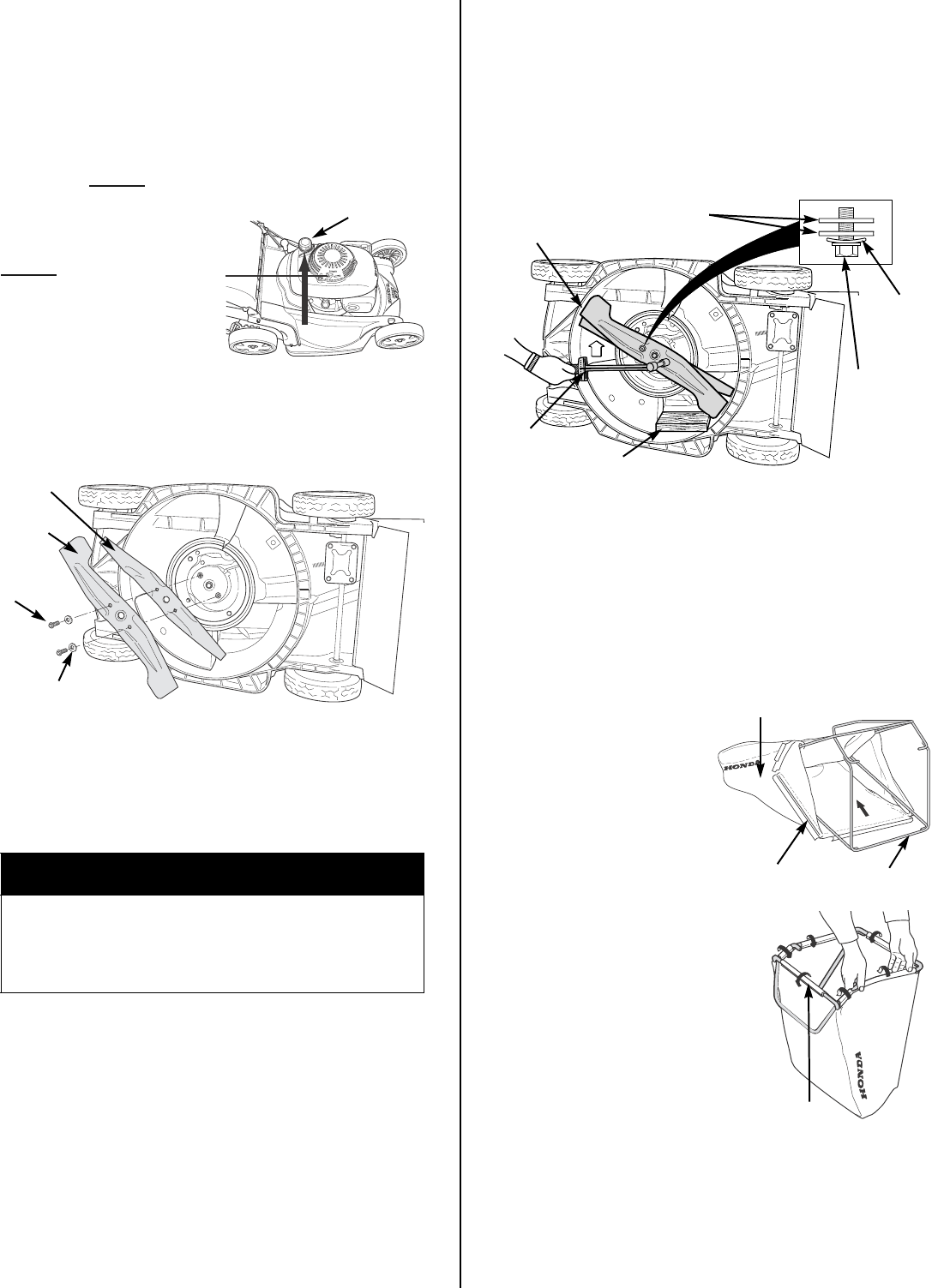

Blade Removal and Installation
If you remove the blades for sharpening or replacement, you will need
a torque wrench for installation. Wear heavy gloves to protect your
hands.
BLADE SHARPENING: To avoid weakening the blades or causing
imbalance or poor cutting, the blades should be sharpened by trained
staff at an authorized Honda servicing dealer.
BLADE REPLACEMENT: Use Honda Genuine replacement blades or
their equivalent (page 18).
Blade Removal
1. Turn the fuel valve OFF.
Disconnect the spark plug cap
(page 12), and then tilt the
mower to the right side (from the
operator’s point of view) so the
fuel filler cap is up. This will help
prevent fuel leakage, motor oil
seeping into the air filter, and
hard starting.
2. Remove the two blade bolts with a 14 mm (6 point) socket wrench.
Use a wooden block to prevent the blades from turning when
removing the bolts. Remove the blades.
Blade Installation
1. Clean dirt and grass from around the blade mounting area.
2. Install both blades using the two blade bolts and special washers
as shown. Be sure to install the special washers with the concave
side toward the blades and the convex side toward the bolts.
The blade bolts and washers are specially designed for this
application. When replacing bolts and washers, use only Honda
Genuine replacement parts.
3. Tighten the blade bolts with a torque wrench. Use a wooden block
to prevent the blades from turning when tightening the bolts.
Blade bolt torque: 36 ~ 43 ft-lb (49 ~ 59 N·m)
If you do not have a torque wrench, have an authorized Honda
servicing dealer tighten the blade bolts before you use the mower.
If the blade bolts are overtightened, they could break.
If the blade bolts are not tightened enough, they could loosen or
come out. In either case, it would be possible for the blades to fly
off while you are operating the mower.
GRASS BAG CLEANING AND REPLACEMENT
Cleaning
Wash the bag with a garden hose and allow it to dry completely before
use; a wet bag will clog quickly.
Replacement
Replace a worn or damaged bag with a Honda Genuine replacement
bag or equivalent.
Removal
1. Unclip the plastic edges of the
bag from the frame.
2. Remove the bag from the
frame.
Installation
1. Insert the bag frame into the
bag, as shown.
2. Clip the plastic edges of the
bag onto the frame, as shown.
WARNING
Operating this mower with only one blade will result in an
improperly seated blade that can be thrown from the
mower and seriously hurt or kill someone.
Always use both blades as a set.
FUEL CAP UP
UPPER BLADE
LOWER
BLADE
BLADE
BOLT (2)
SPECIAL
WASHER (2)
BLADES
SPECIAL
WASHER (2)
BLADE
BOLT (2)
TORQUE
WRENCH
BLADES
WOODEN
BLOCK
FRAME
PLASTIC EDGE
BAG
PLASTIC
EDGE
11
ENGINE MAINTENANCE
Engine Oil Level Check
1. Unscrew and remove the filler
cap/dipstick and wipe it clean.
Insert and remove the
dipstick without screwing it
into the filler neck. Check
the oil level shown on the
dipstick.
2. If the oil level is low, add
oil to reach the upper
limit mark on the
dipstick. Do not overfill.
If the engine is
overfilled, the excess oil
may get transferred to
the air cleaner housing
and air cleaner filter.
NOTICE
Running the engine with a low oil level can cause engine damage.
3. Screw in the filler cap/dipstick securely.
Engine Oil Recommendations
Oil is a major factor affecting performance and service life. Use
4-stroke automotive detergent oil.
Always change the oil in
accordance with the
maintenance schedule on
page 9.
SAE 10W-30 is recommended for
general use. Other viscosities
shown in the chart may be used
when the average temperature in
your area is within the recommended range.
The SAE oil viscosity and service category are in the API label on the
oil container. Honda recommends that you use API service category
SJ or later oil.
Engine Oil Change
Drain the used oil while the engine is warm. Warm oil drains quickly
and completely.
1. Turn the fuel valve OFF (page 7). This will reduce the possibility of
fuel leakage.
2. Wipe the oil filler area clean, and then remove the oil filler
cap/dipstick.
3. Place a suitable
container next to the
mower to catch the
used oil, and then tilt
the mower on its right
side.
The used oil will drain
through the filler
neck. Allow the oil to
drain completely.
Please dispose of used motor oil and the container in a manner
that is compatible with the environment. We suggest you take it in
a sealed container to your local recycling center or service station
for reclamation. Do not throw it in the trash, pour it on the ground,
or pour it down a drain.
4. Fill with the recommended oil.
Do not overfill. Allow a couple
of minutes for the oil to settle in
the engine, then measure the
oil level as shown previously.
NOTICE
Using nondetergent oil can shorten the engine’s service life, and
using 2-stroke oil can damage the engine.
Air Cleaner Service
A properly maintained air filter will help prevent dirt from entering your
engine. Dirt entering the carburetor can be drawn into small passages
in the carburetor and cause premature engine wear. These small
passages can become blocked, causing starting or running problems.
NOTICE
Operating the engine without an air filter or with a damaged filter
allows dirt to enter the engine, causing rapid engine wear. This type of
damage is not covered by the DISTRIBUTOR’S LIMITED
WARRANTY (page 19).
We recommend the use of a Honda Genuine air filter to ensure it
seals and performs as designed. Using a non-Honda air filter can
result in dirt bypassing the filter, causing damage to the engine or fuel
system.
1. Press down on the cover tabs and remove the cover.
2. Remove the filter from the air cleaner housing.
3. Inspect the filter; replace if damaged.
4. Clean the filter by tapping it several times on a hard surface to
remove dirt, or blow compressed air (not exceeding 30 psi
[207 kPa]) through the filter from the inside. Never try to brush off
dirt; brushing will force dirt into the fibers.
5. Use a moist rag to wipe dirt from the inside of the air cleaner
housing and cover. Be careful to prevent dirt from entering the air
duct that leads to the carburetor.
6. Reinstall the filter and cover.
FILLER
CAP/DIPSTICK
LOWER
LIMIT
UPPER
LIMIT
-20 20 30 40°C-10 0 10
40 60 100°F80020
30
5W-30 • 10W-30
AIR CLEANER
HOUSING
FILTER
COVER
COVER
TABS
12

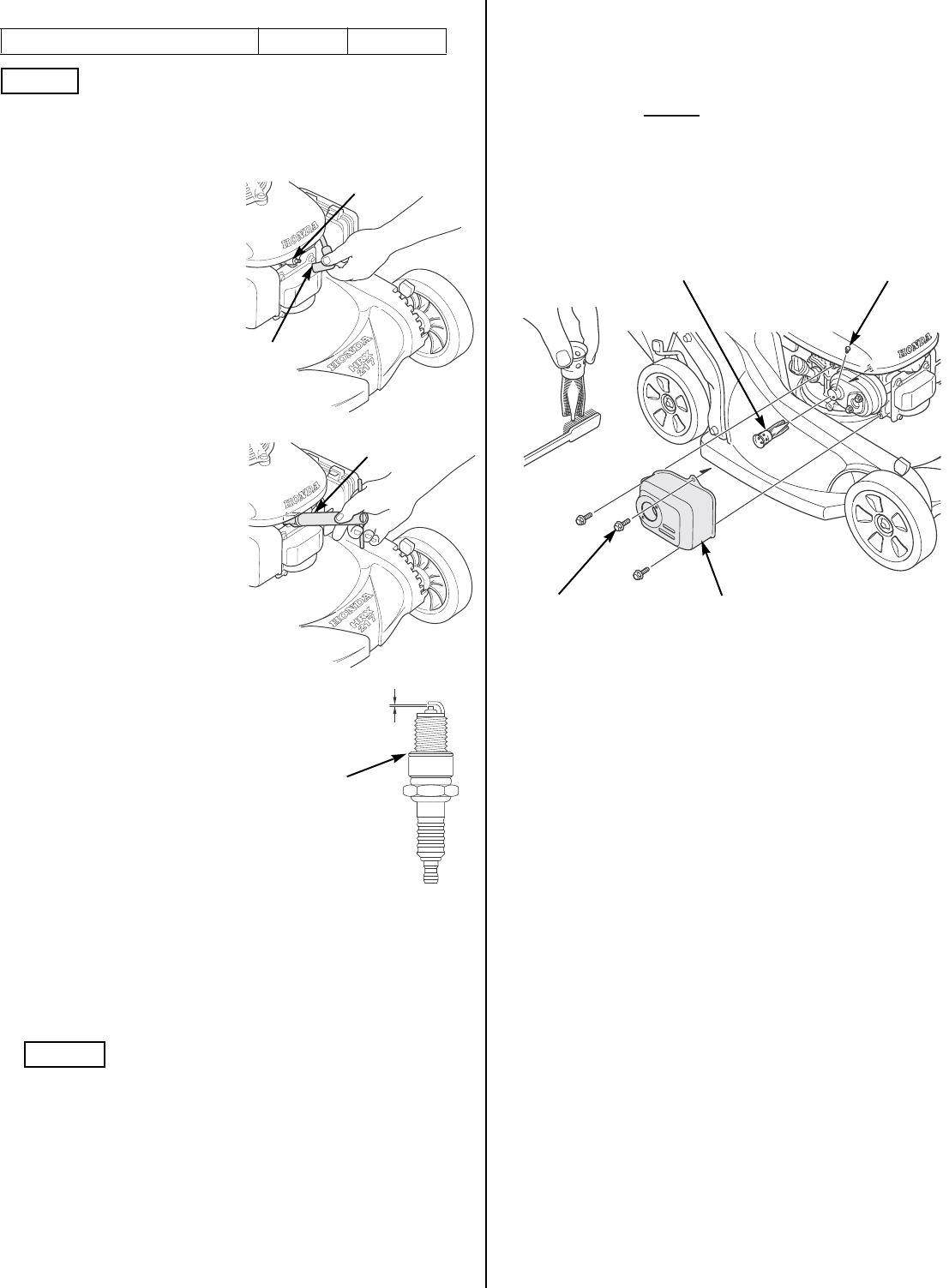

Spark Plug Service
NOTICE
An incorrect spark plug can cause engine damage.
For good performance, the spark plug must be properly gapped and
free of deposits.
1. Disconnect the spark plug
cap, and remove any dirt
from around the spark plug
area.
2. Remove the spark plug
with a 13/16 in (21 mm)
spark plug wrench.
3. Inspect the spark plug.
Replace it if the electrodes
are worn or if the insulator is
cracked, chipped, or fouled.
4. Measure the spark plug
electrode gap with a suitable
gauge. The gap should be
0.028 ~ 0.031 in (0.7 ~ 0.8 mm).
Correct the gap, if necessary,
by carefully bending the side
electrode.
5. Install the spark plug carefully,
by hand, to avoid
cross-threading.
6. After the spark plug seats,
tighten with a 13/16 in (21 mm)
spark plug wrench to compress the washer.
If reinstalling the old spark plug, tighten 1/8 to 1/4 turn after the
spark plug seats.
If installing a new spark plug, tighten 1/2 turn after the spark plug
seats to compress the sealing washer.
NOTICE
A loose spark plug can overheat and damage the engine.
Overtightening the spark plug can damage the threads in the
cylinder head.
7. Install the spark plug cap on the spark plug.
Spark Arrester Service (optional equipment)
Your lawn mower engine is not factory-equipped with a spark arrester.
In some areas, it is illegal to operate an engine without a spark
arrester. Check local laws and regulations. An optional USDA
approved spark arrester is available from an authorized Honda
servicing dealer. See page 18 for part numbers.
The spark arrester must be serviced every 100 hours to keep it
functioning as designed.
1. Allow the engine to cool and disconnect the spark plug cap.
2. Remove the three flange bolts and the heat shield. Remove the set
screw and the spark arrester from the muffler.
3. Inspect the spark arrester; replace it if the screen is damaged.
4. Check for carbon deposits on the spark arrester and the exhaust
port. Brush carbon deposits away. Be careful to avoid damaging
the spark arrester screen.
5. Installation is the reverse of removal. Tighten all hardware
securely.
6. Reconnect the spark plug cap.
Blade Control Operation Check
Start the engine outdoors. Release the blade control lever; the engine
should stop quickly. If the engine does not stop quickly, take the
mower to an authorized Honda servicing dealer for repair.
RECOMMENDED SPARK PLUG NGK BPR5ES
SPARK PLUG
SPARK
PLUG
CAP
SPARK PLUG
WRENCH
0.028 ~ 0.031 in
(0.7 ~ 0.8 mm)
SEALING
WASHER
SET SCREW
SPARK ARRESTER
FLANGE BOLT (3) HEAT SHIELD
13
REFUELING
This engine is certified to operate on unleaded gasoline with a pump
octane rating of 86 or higher.
We recommend refueling after each use to minimize the air present in
the fuel tank.
Refuel in a well-ventilated area with the engine stopped. If the engine
has been running, allow it to cool first. Never refuel the engine inside a
building where gasoline fumes may reach flames or sparks.
You may use regular unleaded gasoline containing no more than 10%
ethanol (E10) or 5% methanol by volume. In addition, methanol must
contain cosolvents and corrosion inhibitors. Use of fuels with content
of ethanol or methanol greater than shown above may cause starting
and/or performance problems. It may also damage metal, rubber, and
plastic parts of the fuel system. In addition, ethanol is hygroscopic,
which means it attracts and retains water in the fuel system. Engine
damage or performance problems that result from using a fuel with
percentages of ethanol or methanol greater than shown above are not
covered by warranty.
If your equipment will be used on an infrequent or intermittent basis
(more than 4 weeks before next use), please refer to the fuel section
of the STORAGE chapter (page 14) for additional information
regarding fuel deterioration.
Never use stale or contaminated gasoline or an oil/gasoline mixture.
Avoid getting dirt or water in the fuel tank.
NOTICE
Fuel can damage paint and plastic. Be careful not to spill fuel when
filling your fuel tank. Damage caused by spilled fuel is not covered by
the DISTRIBUTOR’S LIMITED WARRANTY (page 19).
1. Remove the fuel tank cap.
2. Add fuel to the bottom of the red fuel level gauge in the neck of the
fuel tank. Do not overfill. Wipe up spilled fuel before starting the
engine.
3. Secure the fuel tank cap. Tighten the cap until it clicks.
Move the mower at least 10 feet (3 meters) away from the fueling
source and site before starting the engine.
Fuel Storage Container
Store your gasoline in a clean, plastic, sealed container approved for
fuel storage. Close the vent (if equipped) when not in use, and store
the container away from direct sunlight. If it will take more than 3
months to use the fuel in the container, we suggest adding a fuel
stabilizer to the fuel when you fill the container.
If you have some fuel left in your storage container at the end of the
season, the Environmental Protection Agency (EPA) recommends
adding the gasoline to your vehicle's gas tank
(http://epa.gov/reg5oair/mobile/winter.html).
TRANSPORTING
If the engine has been running, allow it to cool for at least 15 minutes
before loading the mower onto the transport vehicle. A hot engine and
exhaust system can burn you and ignite some materials.
1. Turn the fuel valve to the OFF position. This will prevent carburetor
flooding and reduce the possibility of fuel leakage.
2. If installed, remove the grass bag.
If a suitable loading ramp is not available, two people should lift the
mower onto and off the transport vehicle while holding the mower
level.
Position the mower so all four wheels are on the bed of the transport
vehicle. Tie the mower down with rope or straps and block the wheels.
Keep the tie-down rope or straps away from the controls, adjustment
levers, cables, and the carburetor.
The handlebar can be folded so the mower will take up less space.
STORAGE
PREPARING FOR STORAGE
Proper storage preparation is essential for keeping your lawn mower
trouble free and looking good. The following steps will help keep rust
and corrosion from impairing your lawn mower’s function and
appearance, and will make the engine easier to start when you use
the lawn mower again.
Cleaning
Engine
Wash the engine by hand, and be careful to prevent water from
entering the air cleaner.
NOTICE
Using a garden hose or pressure washing equipment can force water
into the air cleaner. Water in the air cleaner will soak the paper filter
and can enter the carburetor or engine cylinder, causing damage.
Water contacting a hot engine can cause damage. If the engine has
been running, allow it to cool for at least half an hour before washing.
Mower Deck
Before washing the underside of the mower deck, be sure the fuel
valve is in the OFF position. Disconnect the spark plug cap. Rest the
mower on its right side so the fuel filler cap is up. This will help prevent
fuel leakage and hard starting due to carburetor flooding. Wear heavy
gloves to protect your hands from the blades.
Wash the lawn mower, including the underside of the mower deck.
If using a garden hose or pressure washing equipment to clean the
mower deck, be careful to avoid getting water into controls and
cables, or anywhere near the engine air cleaner or muffler opening.
WARNING
Gasoline is highly flammable and explosive, and you can
be burned or seriously injured when refueling.
• Stop the engine and keep heat, sparks, and flame away.
• Refuel only outdoors.
• Wipe up spills immediately.
MAXIMUM FUEL
LEVEL
FUEL LEVEL
GAUGE
14
Grass Bag
Remove the bag from the mower, and wash it with a garden hose or
pressure washing equipment. Allow the bag to dry completely before
storage.
The grass bag can be stored flat when not in use by unhooking the
plastic clips from the fabric bag and pushing the frame lower support
legs outward from the eyelets.
Drying
1. After washing the lawn mower, wipe dry all accessible surfaces.
2. With the mower in an upright position, move the Clip Director knob
to the BAG position, start the engine outdoors, and let it run until it
reaches normal operating temperature to evaporate any water
remaining on the engine.
3. Stop the engine and allow it to cool.
4. After the lawn mower is clean and dry, touch up any damaged
paint (touch-up paint part numbers are on page 18) and coat other
areas that may rust with a light film of oil.
Fuel
NOTICE
Depending on the region where you operate your equipment, fuel
formulations may deteriorate and oxidize rapidly. Fuel deterioration
and oxidation can occur in as little as 30 days and may cause damage
to the carburetor and fuel system. Please contact your servicing
dealer for local storage recommendations.
Gasoline will oxidize and deteriorate in storage. Old gasoline will
cause hard starting, and it leaves gum deposits that can clog the
small passages in the fuel system. If the gasoline in your mower
deteriorates during storage, you may need to have the carburetor and
other fuel system components serviced or replaced.
The length of time that gasoline can be left in your fuel tank and
carburetor without causing functional problems will vary with such
factors as gasoline blend, your storage temperatures, and whether
the fuel tank is partially or completely filled. The air in a partially filled
fuel tank promotes fuel deterioration. Very warm storage
temperatures accelerate fuel deterioration. Fuel deterioration
problems may occur within a few months, or even less if the gasoline
was not fresh when you filled the fuel tank.
If you keep a container of gasoline for refueling, be sure that it
contains only fresh gasoline.
If it will take more than 3 months to use the fuel in your storage
container, we suggest adding a fuel stabilizer to the fuel when you fill
the container.
The DISTRIBUTOR’S LIMITED WARRANTY (page 19) does not
cover fuel system damage or engine performance problems resulting
from neglected storage preparation.
Short Term Storage (30-90 days)
If your equipment will not be used for 30 to 90 days, we recommend
the following to prevent fuel-related problems:
1. Add fuel stabilizer following the manufacturer’s instructions.
When adding a fuel stabilizer, fill the fuel tank with fresh gasoline. If
only partially filled, air in the tank will promote fuel deterioration
during storage.
Note:
– All stabilizers have a shelf life and their performance will
deteriorate over time.
– Fuel stabilizers will not reconstitute stale fuel.
2. After adding a fuel stabilizer, run the engine outdoors for
10 minutes to be sure that treated gasoline has replaced the
untreated gasoline in the carburetor.
3. Stop the engine and turn the fuel valve to the OFF position.
4. Start the engine and continue to run the engine until it stops from
the lack of fuel in the carburetor fuel bowl. Running time should be
less than 3 minutes.
Long Term or Seasonal Storage (greater than 90 days)
Start the engine and allow it to run long enough to empty all the
gasoline from the entire fuel system (including the fuel tank). Do not
allow gasoline to remain in your engine for more than 90 days of
inactivity.
Engine Oil
Change the engine oil (page 11).
Engine Cylinder
1. Remove the spark plug
(page 12).
2. Pour a teaspoon (5 ~ 10 cc)
of clean engine oil into the
cylinder. This will prevent rust
from developing inside the
engine.
3. Press and hold the blade
control lever; then pull the
starter rope several times to
distribute the oil in the
cylinder.
4. Reinstall the spark plug.
5. Press and hold the blade control lever, pull the starter rope slowly
until resistance is felt, and then return the starter grip gently. This
will close the valves so moisture cannot enter the engine cylinder.
Handlebar Folding
The handlebar can be folded for storage or transport by unlocking the
handlebar adjust knobs.
1. Remove the grass bag. You can place it on top of the engine, with
the bag opening to the front.
2. Unlock the handlebar adjust knobs [1] (page 3).
3. Press and hold the blade control lever [2].
4. Swing the handlebar forward [3]. Prevent the cables from getting
pinched or kinked.
When unfolding the handlebar, be sure to lock the adjust knobs to
secure the handlebar in the mowing position.
SPARK
PLUG
HOLE
OIL
15
PLACING IN STORAGE
If your mower will be stored with gasoline in the fuel tank, it is
important to reduce the hazard of gasoline vapor ignition. Select a
well-ventilated storage area away from any appliance that operates
with a flame, such as a furnace, water heater, or clothes dryer. Also
avoid any area with a spark-producing electric motor or where power
tools are operated.
If possible, avoid storage areas with high humidity because humidity
promotes rust and corrosion.
Make sure the fuel valve is in the OFF position to reduce the
possibility of fuel leakage.
Place the mower with its wheels on a level surface. Tilting can cause
fuel or oil leakage.
The handlebar can be folded for compact storage.
With the engine and exhaust system cool, cover the mower to keep
out dust. A hot engine and exhaust system can ignite or melt some
materials. Do not use sheet plastic as a dust cover. A nonporous
cover will trap moisture around the mower, promoting rust and
corrosion. Honda recommends using the optional stretch fabric
storage cover (page 18).
REMOVING FROM STORAGE
Check your mower as described in BEFORE OPERATION (page 4).
If the cylinder was coated with oil during storage preparation, the
engine will smoke briefly at startup. This is normal.
TAKING CARE OF
UNEXPECTED PROBLEMS
Engine Will Not Start
Loss of Power
Vibration
Mowing and Bagging Problems
Possible Cause Correction
Fuel valve OFF Turn the fuel valve ON (page 7).
Out of fuel Refuel (page 13).
Bad fuel, mower was stored
without treating the gasoline,
or refueled with bad gasoline
Refuel with fresh gasoline
(page 13).
Spark plug faulty, fouled, or
improperly gapped Gap or replace the spark plug
(page 12).
Spark plug wet with fuel
(flooded engine) Dry and reinstall the spark plug.
Fuel filter clogged, carburetor
malfunction, ignition
malfunction, valves stuck, etc.
Take the mower to an authorized
Honda servicing dealer for repair.
Possible Cause Correction
Grass too tall or wet Raise the cutting height (page 8),
cut a narrower swath, use a slower
ground speed, cut more frequently
when the grass is dry, or move the
Clip Director knob toward the BAG
position (page 5).
Mower deck clogged Clean out the mower deck.
Air filter clogged Clean or replace the air filter
(page 11).
Bad fuel, mower was stored
without treating the gasoline,
or refueled with bad gasoline
Refuel with fresh gasoline
(page 13).
Fuel filter clogged, carburetor
malfunction, ignition
malfunction, valves stuck,
etc.
Take the mower to an authorized
Honda servicing dealer for repair.
Possible Cause Correction
Grass and debris lodged
under the mower deck Clean out the mower deck.
Blades loose, bent,
damaged, or unbalanced by
improper sharpening
Tighten loose blade bolts
(page 10).
If blades are found to be bent or
damaged, take the lawn mower to
an authorized Honda servicing
dealer for inspection (page 9).
Mechanical damage, such as
a bent crankshaft Take the mower to an authorized
Honda servicing dealer for repair.
Possible Cause Correction
Mower is moving too fast for
lawn conditions Reduce the pressure on the Smart
Drive control to slow the mower
(page 5).
Cutting height adjustment
levers set at different
positions
Set all levers at the same cutting
height position (page 6).
Grass bag overfilled or
clogged Empty the grass bag. Wash the
grass bag if it is clogged with dirt
(page 10).
Mower deck clogged Clean out the mower deck.
Blades dull, worn, or
damaged Sharpen or replace the blades if
necessary (page 9).
Wrong blades installed Install correct blades (page 10).
16
TECHNICAL INFORMATION
SERIAL NUMBER LOCATIONS
There are two serial numbers, one for the engine and one for the
mower frame. Record the engine and frame serial numbers in the
space below. You will need these serial numbers when ordering parts
and when making technical or warranty inquiries (page 18).
Engine serial number: ________________________________
Frame serial number: ________________________________
Date of purchase: ___________________________________
CARBURETOR MODIFICATION FOR HIGH
ALTITUDE OPERATION
At high altitude, the standard carburetor air-fuel mixture will be too
rich. Performance will decrease, and fuel consumption will increase. A
very rich mixture will also foul the spark plug and cause hard starting.
Operation at an altitude that differs from that at which this engine was
certified, for extended periods of time, may increase emissions.
High altitude performance can be improved by specific modifications
to the carburetor. If you always operate your lawn mower at altitudes
above 5,000 feet (1,500 meters), have your servicing dealer perform
this carburetor modification. This engine when operated at high
altitude with the carburetor modifications for high altitude use will
meet each emission standard throughout its useful life.
Even with carburetor modification, engine horsepower will decrease
about 3.5% for each 1,000-foot (300-meter) increase in altitude. The
effect of altitude on horsepower will be greater than this if no
carburetor modification is made.
NOTICE
When the carburetor has been modified for high altitude operation,
the air-fuel mixture will be too lean for low altitude use. Operation at
altitudes below 5,000 feet (1,500 meters) with a modified carburetor
may cause the engine to overheat and result in serious engine
damage. For use at low altitudes, have your servicing dealer return
the carburetor to original factory specifications.
EMISSION CONTROL SYSTEM
Source of Emissions
The combustion process produces carbon monoxide, oxides of
nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of
nitrogen is very important because, under certain conditions, they
react to form photochemical smog when subjected to sunlight. Carbon
monoxide does not react in the same way, but it is toxic.
Honda utilizes appropriate air/fuel ratios and other emissions control
systems to reduce the emissions of carbon monoxide, oxides of
nitrogen, and hydrocarbons. Additionally, Honda fuel systems utilize
components and control technologies to reduce evaporative
emissions.
The U.S., California Clean Air Act, and Environment
Canada
EPA, California, and Canadian regulations require all manufacturers
to furnish written instructions describing the operation and
maintenance of emissions control systems.
The following instructions and procedures must be followed in order to
keep the emissions from your Honda engine within the emissions
standards.
Tampering and Altering
NOTICE
Tampering is a violation of Federal and California law.
Tampering with or altering the emissions control system may increase
emissions beyond the legal limit. Among those acts that constitute
tampering are:
• Removing or altering any part of the intake, fuel, or exhaust
systems.
• Altering or defeating the speed-adjusting mechanism to cause the
engine to operate outside its design parameters.
Problems That May Affect Emissions
If you are aware of any of the following symptoms, have your engine
inspected and repaired by your servicing dealer.
• Hard starting or stalling after starting
• Rough idle
• Misfiring or backfiring under load
• Afterburning (backfiring)
• Black exhaust smoke or high fuel consumption
Replacement Parts
The emissions control systems on your new Honda engine were
designed, built, and certified to conform with EPA, California, and
Canadian emissions regulations. We recommend the use of Honda
Genuine parts whenever you have maintenance done. These
original-design replacement parts are manufactured to the same
standards as the original parts, so you can be confident of their
performance. The use of replacement parts that are not of the original
design and quality may impair the effectiveness of your emissions
control system.
A manufacturer of an aftermarket part assumes the responsibility that
the part will not adversely affect emissions performance. The
manufacturer or rebuilder of the part must certify that use of the part
will not result in a failure of the engine to comply with emissions
regulations.
Maintenance
Follow the MAINTENANCE SCHEDULE on page 9. Remember this
schedule is based on the assumption that your machine will be used
for its designed purpose. Sustained high-load or high-temperature
operation or use in unusually wet or dusty conditions will require more
frequent service.
HRX2173VKA GH
MAGA –– XXXXXXX
AMERICAN HONDA MOTOR CO., INC.
ALPHARETTA, GA 30005-8847
MODEL NAME
AND FRAME
SERIAL NUMBER
ENGINE
SERIAL
NUMBER
17
AIR INDEX
An Air Index Information hang tag/label is applied to engines certified
to an emission durability time period in accordance with the
requirements of the California Air Resources Board.
The bar graph is intended to provide you, our customer, the ability to
compare the emissions performance of available engines. The lower
the Air Index, the less pollution.
The durability description is intended to provide you with information
relating the engine’s emission durability period. The descriptive term
indicates the useful life period for the engine’s emission control
system. See your EMISSION CONTROL SYSTEM WARRANTY
(page 20) for additional information.
SPECIFICATIONS
Mower Model
Maintenance
Tuneup
Dimensions, Weights, and Capacities
Engine Design and Performance
Transmission Design and Performance
Descriptive Term Applicable to Emissions
Durability Period
Moderate 50 hours (0 ~ 80 cc)
125 hours (greater than 80 cc)
Intermediate 125 hours (0 ~ 80 cc)
250 hours (greater than 80 cc)
Extended 300 hours (0 ~ 80 cc)
500 hours (greater than 80 cc)
1000 hours (225 cc and greater)
HRX217K3VKA Honda rotary mower, grass bag, 21-inch
mower deck, Clip Director, variable speed
transmission, flywheel brake, auto choke
Fuel Unleaded gasoline with a pump
octane rating of 86 or higher. page 13
Engine oil SAE 10W-30, API SJ or later page 11
Spark plug type BPR5ES (NGK) page 12
Maximum governed
speed * 2,950 ~ 3,100 rpm Shop
manual
Blade bolt torque 36 ~ 43 ft-lb (49 ~ 59 N•m) page 10
* Do not try to increase the engine speed above the maximum
governed speed; the blades could fracture and come apart.
Spark plug gap 0.028 ~ 0.031 in
(0.7 ~ 0.8 mm) page 12
Valve clearance
(cold) Intake:0.15 ± 0.04 mm
Exhaust:0.20 ± 0.04 mm Shop
manual
Other specifications No other adjustments needed.
Overall length 63.8 in (1621 mm)
Width at mower deck 23 in (585 mm)
Overall height 38.4 in (976 mm)
Dry weight 88.6 lb (40.2 kg)
Wheelbase [cutting
height adjusters set to
1-1/4 in (32 mm)]
26.7 in (678 mm)
Cutting width 21 in (530 mm)
Approximate cutting
height (7 adjustable
positions)
3/4, 1-1/4, 2, 2-1/2, 3, 3-1/2, 4 in
(20, 32, 46, 62, 75, 88, 100 mm)
Fuel tank capacity 0.25 US gal (0.93 -)
Engine oil capacity 18.6 oz (0.55 -)
** Refill amount: 12.0 ~ 13.5 oz
(0.35 ~ 0.40 -)
Grass bag capacity 23 US gal (2.5 bushels; 3.1 cu ft; 88 -)
** Actual amount will vary based on residual oil in the engine.
Always use the dipstick to confirm the actual level (see page 11).
Engine model GCV190
Engine type 4-stroke, overhead-cam, single-cylinder,
forced air-cooled
Displacement 11.4 cu in (187 cc)
Bore and stroke 2.71 x 1.97 in (69 x 50 mm)
Compression ratio 8.5:1
Ignition system Transistorized magneto
Transmission type Variable speed, thumb or hand operation
(twist grip) Smart Drive
Mower ground speed
(engine at 3,100 rpm) 0 ~ 3.6 mph (0 ~ 1.6 m/s)
18
CONSUMER INFORMATION
REPLACEMENT PARTS,
OPTIONAL EQUIPMENT, AND SERVICE ITEMS
Contact an authorized Honda servicing dealer to purchase any of
these (or other) Honda Genuine items for your lawn mower.
Replacement Parts
Optional Equipment
Service Items
DEALER LOCATOR INFORMATION
To find an Authorized Honda Servicing Dealer anywhere in the United
States:
Visit our website:
www.HondaPowerEquipment.com and click on Dealer Locator.
CUSTOMER SERVICE INFORMATION
Honda Power Equipment dealership personnel are trained
professionals. They should be able to answer any question you may
have. If you encounter a problem that your dealer does not solve to
your satisfaction, please discuss it with the dealership's management.
The Service Manager or General Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the decision made by the dealership's
management, contact the Honda Power Equipment Customer
Relations Office. You can write:
American Honda Motor Co., Inc.
Power Equipment Division
Customer Relations Office
4900 Marconi Drive
Alpharetta, GA 30005-8847
Or telephone: (770) 497-6400 M-F, 8:30 a.m. - 7:00 p.m. ET
When you write or call, please give us this information:
• Model and serial numbers (page 16)
• Name of the dealer who sold the lawn mower to you
• Name and address of the dealer who services your lawn mower
• Date of purchase
• Your name, address, and telephone number
• A detailed description of the problem
Honda Publications
These publications give you additional information for maintaining and
repairing your lawn mower.
Shop Manual—This manual covers complete maintenance and
overhaul procedures. It is intended to be used by a skilled technician
with proper tools. Available through your Honda dealer or visit
www.HondaPowerEquipment.com and click on Product Manuals.
Parts Catalog—This manual provides complete illustrated parts lists
and is available through your Honda dealer.
Frequently Asked Questions—The Honda Power Equipment web
site provides additional information for users of Honda equipment.
Visit www.HondaPowerEquipment.com and click on FAQs.
Item Part Number Notes
Spark plug 98079-55846 BPR5ES NGK (brand)
Air filter 17211-ZL8-023 Paper
Lower blade 72511-VH7-000 Always use an upper and
lower blade as a set.
Upper blade 72531-VH7-000
Grass bag 81320-VH7-D00 Fabric bag only, no frame
Wheel/tire 42710-VH7-000ZA Rear
44710-VH7-000ZA Front
Item Part Number Notes
Spark arrester kit 06180-Z0J-000 Includes spark arrester,
ID plate, and screw
Mower deck
guard kit 06761-VH7-000AH Two stainless steel side
guards
Universal lawn
mower cover 08P59-VE2-000AH Custom fitted, waterproof,
and breathable
Item Part Number Notes
SAE 10W-30
engine oil 08207-10W30 Honda Genuine
recommended oil
Fuel stabilizer 08732-0001 For 30 ~ 90 day storage
No Spill gas can 06176-1450
06176-1405
5 gallon
2.5 gallon
Matte black
touch-up paint 08707-NH105 (aerosol can)
For handlebar only
19
DISTRIBUTOR'S LIMITED WARRANTY
This warranty is limited to the following Honda Power Equipment products when
distributed by American Honda Motor Co., Inc., Power Equipment Division, 4900
Marconi Drive, Alpharetta, Georgia 30005-8847. The following warranty applies to
products purchased at retail or placed in rental service on or after January 1, 2010.
(1) Batteries supplied with applicable mowers as standard, original equipment are covered
by this warranty for a period of 12 months (private residential) or 3 months
(commercial/rental/institutional use) from the date of original retail product purchase.
(2) Private residential: Used in maintaining owner’s primary and/or secondary residence.
Any other use, including but not limited to informal “for hire” use, is considered
commercial/rental/institutional use.
(3) Limited lifetime warranty is valid for the original purchaser for private residential use
only.
To Qualify for This Warranty:
The product must be purchased in the United States, Puerto Rico, or the U.S. Virgin
Islands from American Honda or a dealer authorized by American Honda to sell
those products. This warranty applies to the first retail purchaser and each
subsequent owner during the applicable warranty time period.
What American Honda Will Repair or Replace Under Warranty:
American Honda will repair or replace, at its option, any part that is proven to be
defective in material or workmanship under normal use during the applicable
warranty time period. Warranty repairs and replacements will be made without
charge for parts or labor. Anything replaced under warranty becomes the property of
American Honda Motor Company, Inc. All parts replaced under warranty will be
considered as part of the original product, and any warranty on those parts will
expire coincident with the original product warranty.
To Obtain Warranty Service:
You must, at your expense, take the Honda Power Equipment product, accessory,
replacement part, apparel, or the power equipment on which the accessory or
replacement part is installed, and proof of purchase to any Honda Power Equipment
dealer in the United States, Puerto Rico, or the U.S. Virgin Islands who is authorized
to sell that product, during the dealer’s normal business hours. If you are unable to
obtain warranty service or are dissatisfied with the warranty service you receive,
take the following steps: First, contact the owner of the dealership involved;
normally this will resolve the problem. However, if you should require further
assistance, write or call the Power Equipment Customer Relations Dept. of
American Honda Motor Co., Inc. at the following address:
Exclusions:
1. Any damage or deterioration resulting from the following:
- Neglect of the periodic maintenance as specified in this manual
- Improper repair or maintenance
- Operating methods other than those indicated in this manual
- The use of non-genuine Honda parts and accessories other than those
approved by Honda (other than recommended lubricants and fluids)
- Exposure of the product to soot and smoke, chemical agents, bird droppings,
sea water, sea breeze, salt or other environmental phenomena
- Collision, fuel contamination or deterioration, neglect, unauthorized alteration,
misuse, incorporation or use of unsuitable attachments or parts
- Natural wear and tear (natural fading of painted or plated surfaces, sheet
peeling and other natural deterioration)
2. Consumable parts: Honda does not warrant parts deterioration due to natural
wear and tear. The parts listed below are not covered by warranty (unless they
are needed as a part of another warranted repair):
- Spark plug, fuel filter, air cleaner element, clutch disc, tire, wheel bearing,
recoil starter rope, cable, belt, cutter blade.
- Lubricant: oil and grease.
3. Cleaning, adjustment, and normal periodic maintenance work (carburetor
cleaning, engine oil draining, blade sharpening, belt and cable adjustments).
4. Any product that has ever been declared a total loss or sold for salvage by a
financial institution or insurer.
5. Auger and paddle assemblies of snowthrowers, tiller tines of roto-tillers, mower
blades and mower deck housings, are specifically not warranted against impact
damage, including but not limited to, abrasive damage.
Disclaimer of Consequential Damage and Limitation of Implied
Warranties:
American Honda disclaims any responsibility for loss of time or use of the product,
transportation, commercial loss, or any other incidental or consequential damage.
Any implied warranties are limited to the duration of this written limited warranty.
Some states do not allow limitations on how long an implied warranty lasts and/or
do not allow the exclusion or limitation of incidental or consequential damages, so
the above exclusions and limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to
state.
Honda Accessories, Replacement Parts, And Apparel
This warranty is limited to Honda Power Equipment parts, accessories, and apparel
when distributed by American Honda Motor Co., Inc., 4900 Marconi Drive,
Alpharetta, Georgia 30005-8847.
To Qualify for This Warranty:
1. The accessories, replacement parts, or apparel must be purchased from
American Honda, or a dealer, distributor, or distributor’s dealer authorized by
American Honda to sell those products in the United States, Puerto Rico, and
the U.S. Virgin Islands. Parts and Accessories must be purchased for installation
on original Honda equipment or engines to be eligible for warranty coverage.
Installing parts and accessories on non-Honda products or engines voids this
warranty.
2. You must be the first retail purchaser. This warranty is not transferable to
subsequent owners.
What American Honda Will Repair or Replace Under Warranty:
American Honda will repair or replace, at its option, any Honda Power Equipment
accessories, replacement parts, or apparel that are proven to be defective in
material or workmanship under normal use during the applicable warranty time
period. Anything replaced under warranty becomes the property of American Honda
Motor Company, Inc. All parts replaced under warranty will be considered as part of
the original product, and any warranty on those parts will expire coincident with the
original product warranty.
Accessories and replacement parts installed by a dealer, distributor, or distributor’s
dealer who is authorized by American Honda to sell them will be repaired or
replaced under warranty without charge for parts or labor. If installed by anyone
else, accessories and replacement parts will be repaired or replaced under warranty
without charge for parts, but any labor charges will be the responsibility of the
purchaser. Apparel will be repaired or replaced under warranty without any charge.
To Obtain Warranty Service:
You must, at your expense, take the Honda Power Equipment accessory,
replacement part, apparel, or the Honda Power Equipment on which the accessory
or replacement part is installed, and proof of purchase to any Honda Power
Equipment dealer, distributor, or distributor’s dealer in the United States, Puerto
Rico, or the U.S. Virgin Islands who is authorized to sell that product, during the
dealer's or distributor’s normal business hours. If you are unable to obtain warranty
service or are dissatisfied with the warranty service you receive, take the following
steps: First, contact the owner of the dealership or distributorship involved; normally
this will resolve the problem. However, if you should require further assistance, write
or call the Power Equipment Customer Relations Department of American Honda
Motor Co., Inc. Refer to adjacent column for contact information.
Exclusions:
This warranty does not extend to accessories, parts, or apparel affected or
damaged by collision, normal wear, use in an application for which the product was
not designed or any other misuse, neglect, incorporation or use of unsuitable
attachments or parts, unauthorized alteration, improper installation, or any causes
other than defects in material or workmanship of the product. Installing Parts and
Accessories on non-Honda products or engines voids this warranty.
Disclaimer of Consequential Damage and Limitation of Implied
Warranties:
American Honda disclaims any responsibility for loss of time or use of the product,
or the power equipment on which the product is installed, transportation,
commercial loss, or any other incidental or consequential damage. Any implied
warranties are limited to the duration of this written warranty. Some states do not
allow limitations on how long an implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential damages, so the above
exclusions and limitations may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
PRODUCTS COVERED
BY THIS WARRANTY LENGTH OF WARRANTY (1)
(from date of original retail purchase)
PRIVATE
RESIDENTIAL (2) COMMERCIAL/
RENTAL/INSTITUTIONAL
HRX Lawn mowers 60 months 3 months
HRX Mower decks Limited lifetime (3) 3 months
American Honda Motor Co., Inc.
Power Equipment Customer Relations Dept.
4900 Marconi Drive
Alpharetta, GA 30005-8847 Telephone: (770) 497-6400
PRODUCTS COVERED
BY THIS WARRANTY LENGTH OF WARRANTY
(from date of original retail purchase)
PRIVATE
RESIDENTIAL COMMERCIAL/
RENTAL/INSTITUTIONAL
Accessories 12 months 3 months
Replacement parts 6 months 3 months
Apparel 6 months 3 months
20
EMISSION CONTROL SYSTEM WARRANTY
Your new Honda Power Equipment engine complies with the U.S. EPA,
Environment Canada, and State of California emission regulations (models
certified for sale in California only). American Honda Motor Co., Inc. provides
the emission warranty coverage for engines in the United States and its
territories. Honda Canada Inc. provides the emission warranty for engines in
the 13 provinces and territories of Canada. In the remainder of this Emission
Control System Warranty, American Honda Motor Company Inc. and Honda
Canada Inc. will be referred to as Honda.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
CALIFORNIA
The California Air Resources Board and Honda are pleased to explain the
emission control system warranty on your Honda Power Equipment engine. In
California, new spark-ignited small off-road equipment engines must be
designed, built, and equipped to meet the State's stringent anti-smog
standards.
OTHER STATES, U.S. TERRITORIES, AND CANADA
In other areas of the United States and in Canada, your engine must be
designed, built, and equipped to meet the U.S. EPA and Environment Canada
emission standards for spark-ignited engines at or below 19 kilowatts. Specific
Honda products that do not meet the California emissions regulations can be
identified by a “Not for sale in California” decal.
ALL OF THE UNITED STATES AND CANADA
Honda must warrant the emission control system on your power equipment
engine for the period of time listed below, provided there has been no abuse,
neglect, or improper maintenance of your power equipment engine. Where a
warrantable condition exists, Honda will repair your power equipment engine at
no cost to you including diagnosis, parts, and labor.
Your emission control system may include such parts as the carburetor or fuel
injection system, the ignition system, and catalytic converter. Also included
may be hoses, connectors, and other emission-related assemblies. (See
adjacent table for additional covered parts).
OWNER'S WARRANTY RESPONSIBILITY:
As the power equipment engine owner, you are responsible for the performance
of the required maintenance listed in your owner's manual. Honda recommends
that you retain all receipts covering maintenance on your power equipment
engine, but Honda cannot deny warranty coverage solely for the lack of receipts
or for your failure to ensure the performance of all scheduled maintenance.
As the power equipment engine owner, you should however be aware Honda
may deny you warranty coverage if your power equipment engine or a part has
failed due to abuse, neglect, improper maintenance, or unapproved
modifications.
You are responsible for presenting your power equipment engine to a Honda
Power Equipment dealer as soon as a problem exists. The warranty repairs
should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your emissions warranty rights and
responsibilities, you should contact the Honda Office in your region:
WARRANTY COVERAGE:
Honda power equipment engines sold in the United States and Canada are
covered by this warranty for a period of two years from the date of delivery to
the original retail purchaser or the length of the Honda Distributor’s Limited
Warranty, whichever is longer. This warranty is transferable to each subsequent
purchaser for the duration of the warranty period.
If any emission-related part on your engine is defective, the part will be repaired
or replaced by Honda without charge for diagnosis, parts, or labor. All defective
parts replaced under this warranty become the property of Honda. A list of
warranted parts is in the adjacent column. Normal maintenance items, such as
spark plugs and filters, that are on the warranted parts list are warranted up to
their required replacement interval only.
Honda will also replace other engine components damaged by a failure of any
warranted part during the warranty period.
Only Honda approved replacement parts may be used in the performance of
any warranty repairs and must be provided without charge to the owner. The
use of replacement parts not equivalent to the original parts may impair the
effectiveness of your engine emission control system. If such a replacement
part is used in the repair or maintenance of your engine, and an authorized
Honda dealer determines it is defective or causes a failure of a warranted part,
your claim for repair of your engine may be denied. If the part in question is not
related to the reason your engine requires repair, your claim will not be denied.
TO OBTAIN WARRANTY SERVICE:
You must, at your own expense, take your Honda Power Equipment engine or
the product on which it is installed, along with your sales registration card or
other proof of original purchase date, to any Honda Power Equipment dealer
who is authorized by Honda to sell and service that Honda product during his
normal business hours. Claims for repair or adjustment found to be caused
solely by defects in material or workmanship will not be denied because the
engine was not properly maintained and used.
If you are unable to obtain emission warranty service or are dissatisfied with
the warranty service you received, contact the owner of the dealership
involved. Normally this should resolve your problem. However, if you require
further assistance, contact the Honda office in your region. Refer to adjacent
column for contact information.
EXCLUSIONS:
Failures other than those resulting from defects in material or workmanship are
not covered by this warranty. This warranty does not extend to emission control
systems or parts that are affected or damaged by owner abuse, neglect,
improper maintenance, misuse, misfueling, improper storage, collision, the
incorporation of, or use of, unsuitable attachments, or the unauthorized
alteration of any part.
This warranty does not cover replacement of expendable maintenance items
made in connection with required maintenance service after the item’s first
scheduled replacement as listed in the maintenance section of the product
Owner’s Manual, such as: spark plugs and filters.
DISCLAIMER OF CONSEQUENTIAL DAMAGE AND LIMITATION
OF IMPLIED WARRANTIES:
American Honda Motor Co., Inc. and Honda Canada disclaim any
responsibility for incidental or consequential damages such as loss of time or
the use of the power equipment, or any commercial loss due to the failure of
the equipment; and any implied warranties are limited to the duration of this
written warranty. This warranty is applicable only where the California, U.S.
EPA or Environment Canada emission control system warranty regulation is in
effect.
EMISSION CONTROL SYSTEM WARRANTY PARTS:
American Honda Motor Co., Inc.
Power Equipment Customer
Relations
4900 Marconi Drive
Alpharetta, Georgia 30005-8847
Telephone: (888) 888-3139
or
Honda Canada Inc.
Power Equipment Customer
Relations
Visit www.honda.ca for
contact information
Telephone: (888) 946-6329
Email: powerequipmentemissions
@ahm.honda.com
SYSTEMS COVERED
BY THIS WARRANTY: PARTS
DESCRIPTION:
Fuel Metering Carburetor assembly, (includes starting enrichment
system), Engine temperature sensor, Engine control
module, Fuel regulator, Intake manifold
Evaporative Fuel tank, Fuel cap, Fuel hoses, Vapor hoses,
Carbon canister, Canister mounting brackets,
Fuel strainer, Fuel cock, Fuel pump, Fuel hose joint,
Canister purge hose joint
Exhaust Catalyst, Exhaust manifold
Air Induction Air filter housing, Air filter element*
Ignition Flywheel magneto, Ignition pulse generator,
Crankshaft position sensor, Power coil, Ignition coil
assembly, Ignition control module, Spark plug cap,
Spark plug*
Crankcase Emission
Control Crankcase breather tube, Oil filler cap
Miscellaneous Parts Tubing, fittings, seals, gaskets, and clamps
associated with these listed systems.
Note: This list applies to parts supplied by Honda and does not cover parts
supplied by the equipment manufacturer. Please see the original
equipment manufacturer’s emissions warranty for non-Honda parts.
* Covered up to the first required replacement only. See the MAINTENANCE
SCHEDULE on page 9.
NOTES
NOTES
XXXX-XXXXXXX
XXXX XXXX
MODEL:
SERIAL NO:
Honda
Mini-Tiller
Look on the right side
of the tine shield.
Look between the wheels on the lower frame.
Honda Snowthrowers
Honda HR Mowers
Look on the center rear section of
the mower deck (HRS), and in front
of the discharge guard (HRR).
Honda HRX Mowers
Look on the left rear section of
the mower deck, in front of the
discharge guard door spring.
Honda
Hand-Held
Products
Look on the shaft
between the two grips.
Print the serial
number here.
PRODUCT REGISTRATION
PLEASE COMPLETE and MAIL or REGISTER ONLINE
www.HondaPowerEquipment.com
(commercial/rental users)
(check one)
(private, homeowner use) (for-hire use)
Owner's Last Name
Company Name
Address
City
Date of Purchase
First Name
Telephone
()
State ZIP Code
Application
Commercial Non-commercial Rental
y
R
Serial number
(professional use)
* Dealer Store ZIP code
* Dealer Store number
*If available
MONTH YEARDAY
E-mail address
Dear Honda Customer,
Thank you for choosing
Honda.
To ensure you receive
current product information
and service updates,
please take a moment to
register your product.
You may complete and
mail this postage-paid
registration card or
register online at
www.HondaPowerEquipment.com
Failure to register this
product does not diminish
the purchaser’s warranty
rights.
1. Go www.hondapowerequipment.com to register your unit.
2. Click on Product Registration.
3. Complete the required information and click Submit.
It’s that simple! You’ll receive e-mail confirmation
of your registration.
Power Equipment Division
American Honda Motor Co., Inc.
4900 Marconi Dr
Alpharetta GA 30005-9956
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
Product Registration
BUSINESS REPLY MAIL
FIRST-CLASS MAIL ALPHARETTA GAPERMIT NO. 117
POSTAGE WILL BE PAID BY ADDRESSEE

Navigation menu
