©1996 Honda Motor Co., Ltd.—All Rights Reserved
Owner's Manual
SNOWBLOWER
HS622

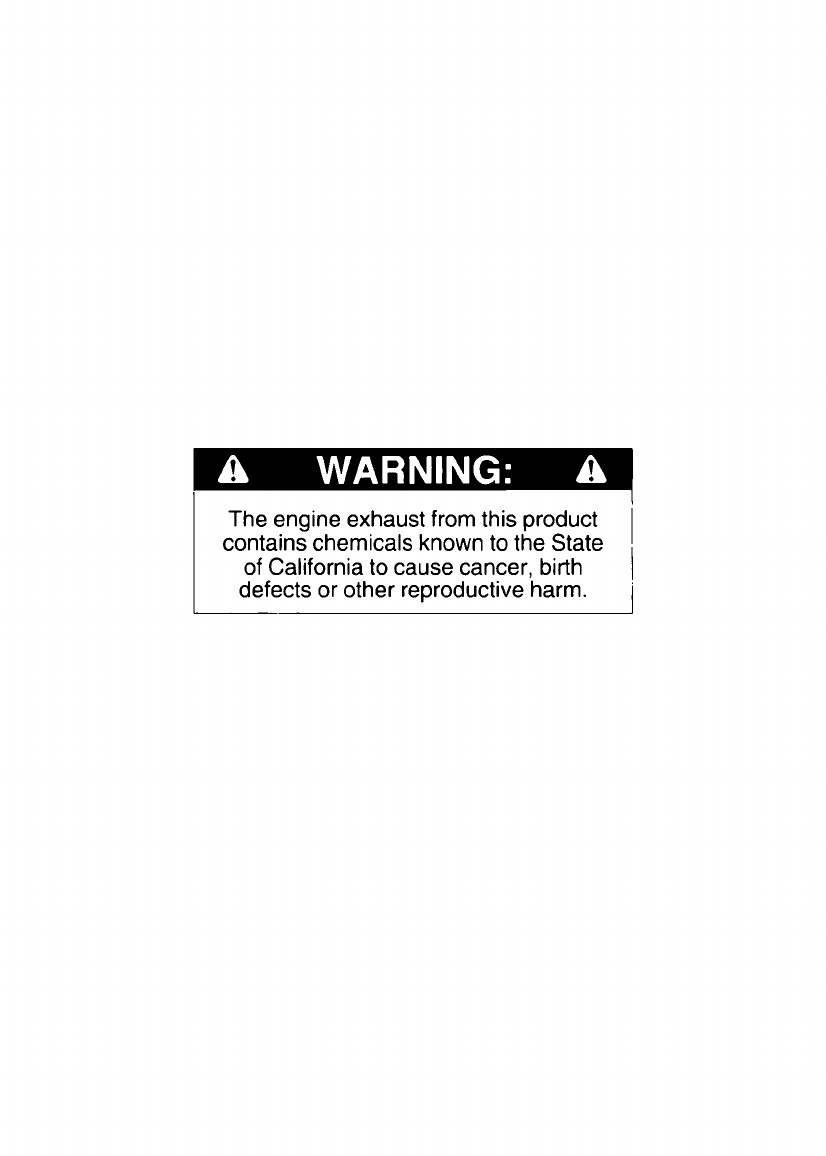

The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm. 1

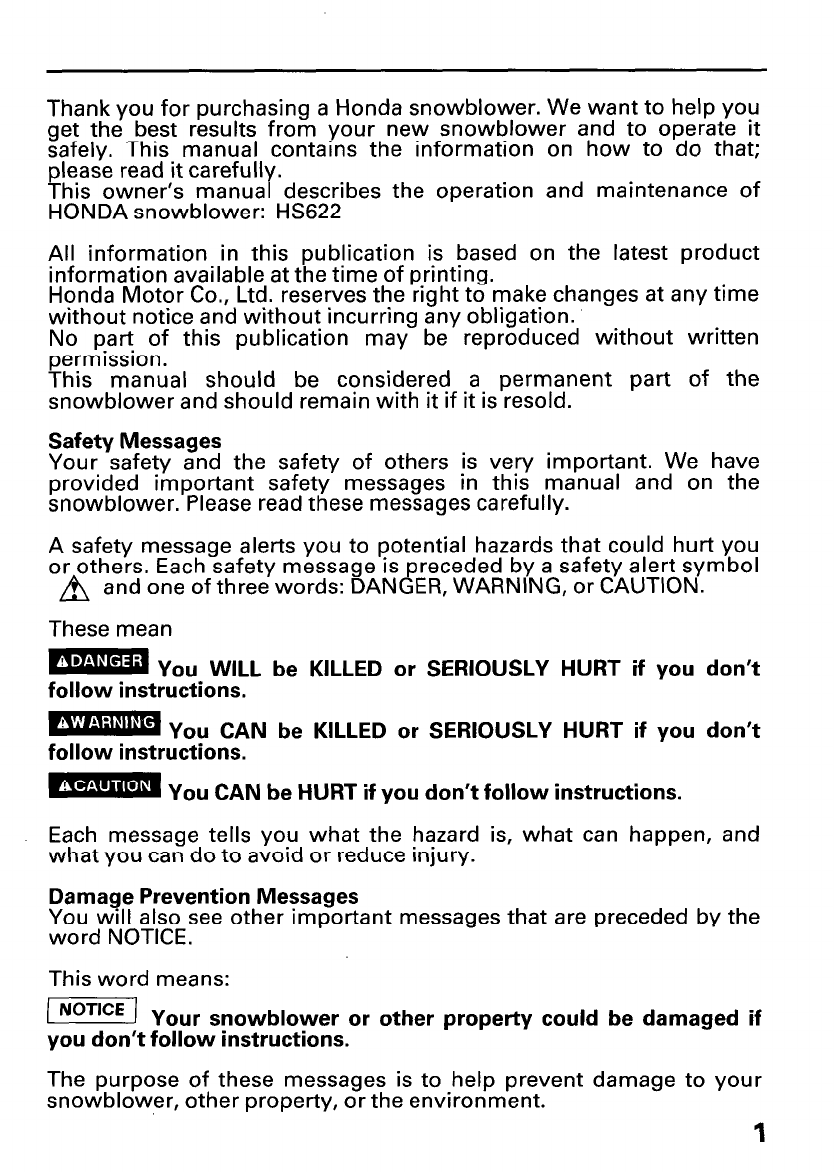

Thank you for purchasing a Honda snowblower. We want to help you
get the best results from your new snowblower and to operate it
safely. This manual contains the information on how to do that;
please read it carefully.
This owner’s manual describes the operation and maintenance of
HONDA snowblower: HS622
All information in this publication is based on the latest product
information available at the time of printing.
Honda Motor Co., Ltd. reserves the right to make changes at any time
without notice and without incurring any obligation.
No part of this publication may be reproduced without written
permission.
This manual should be considered a permanent part of the
snowblower and should remain with it if it is resold.
Safety Messages
Your safety and the safety of others is very important. We have
provided important safety messages in this manual and on the
snowblower. Please read these messages carefully.
A safety message alerts you to potential hazards that could hurt you
or others. Each safety message is preceded by a safety alert symbol
8. and one of three words: DANGER, WARNING, or CAUTION.
These mean
m You WILL be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
B You CAN be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
B You CAN be HURT if you don’t follow instructions.
Each message tells you what the hazard is, what can happen, and
what you can do to avoid or reduce injury.
Damage Prevention Messages
You will also see other important messages that are preceded by the
word NOTICE.
This word means:
( Your snowblower or other property could be damaged if
you don’t follow instructions.
The purpose of these messages is to help prevent damage to your
snowblower, other property, or the environment.
CONTENTS
SAFETY ........................................................................................................ 3
SAFETY LABEL LOCATIONS .................................................................. 3
SAFETY INFORMATION .......................................................................... 4
COMPONENT IDENTIFICATION.. .............................................................. .7
CONTROLS .................................................................................................. 8
Engine Switch .......................................................................................... 8
Fuel Valve ................................................................................................. 8
Choke Lever .............................................................................................. 9
Starter Grip ............................................................................................... 9
Throttle Lever ........................................................................................ .lO
Shift Lever .............................................................................................. 10
Chute Guide ........................................................................................... 11
Drive Clutch Lever ................................................................................ .ll
Auger Clutch Lever ................................................................................ 12
Height Adjustment Bolt ........................................................................ .12
Skid Plate and Scraper .......................................................................... 13
Handle Height Adjusting Bolt ...............................................................
PRE-OPERATION CHECK.. ........................................................................ ::
Engine Oil ............................................................................................... 14

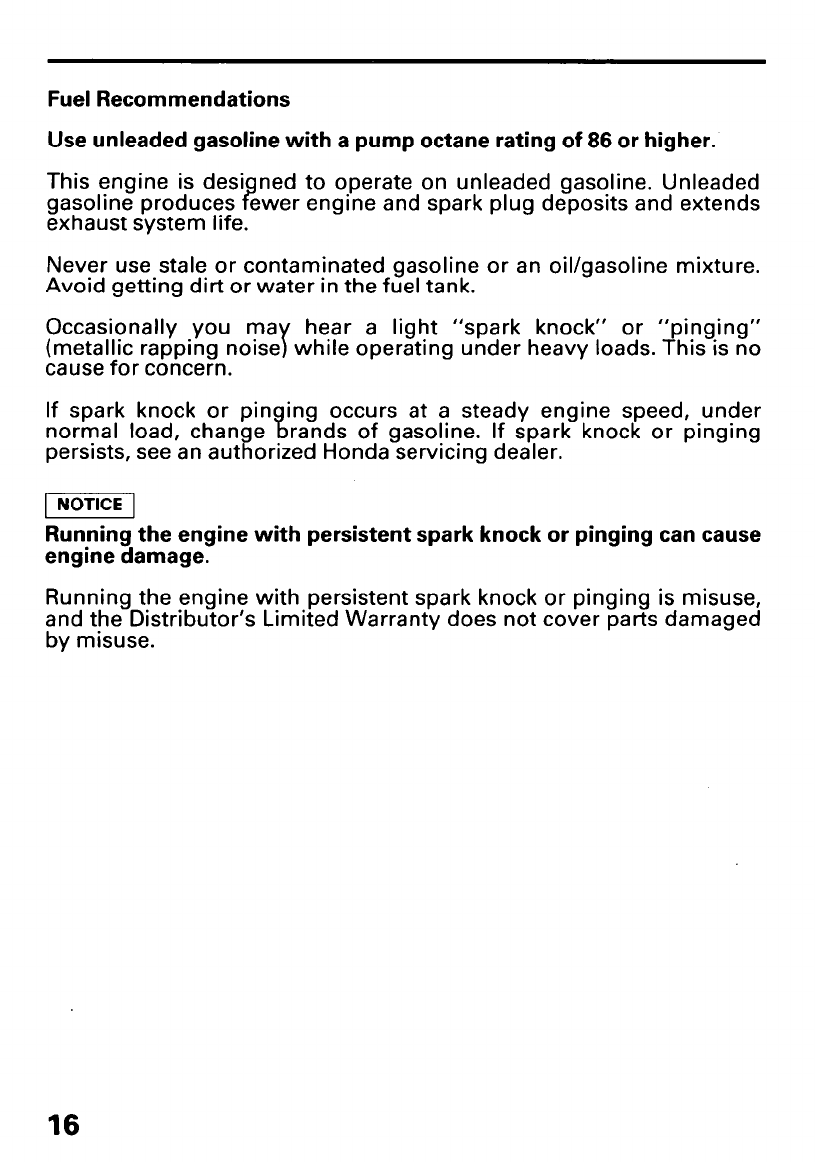

Fuel ......................................................................................................... 15

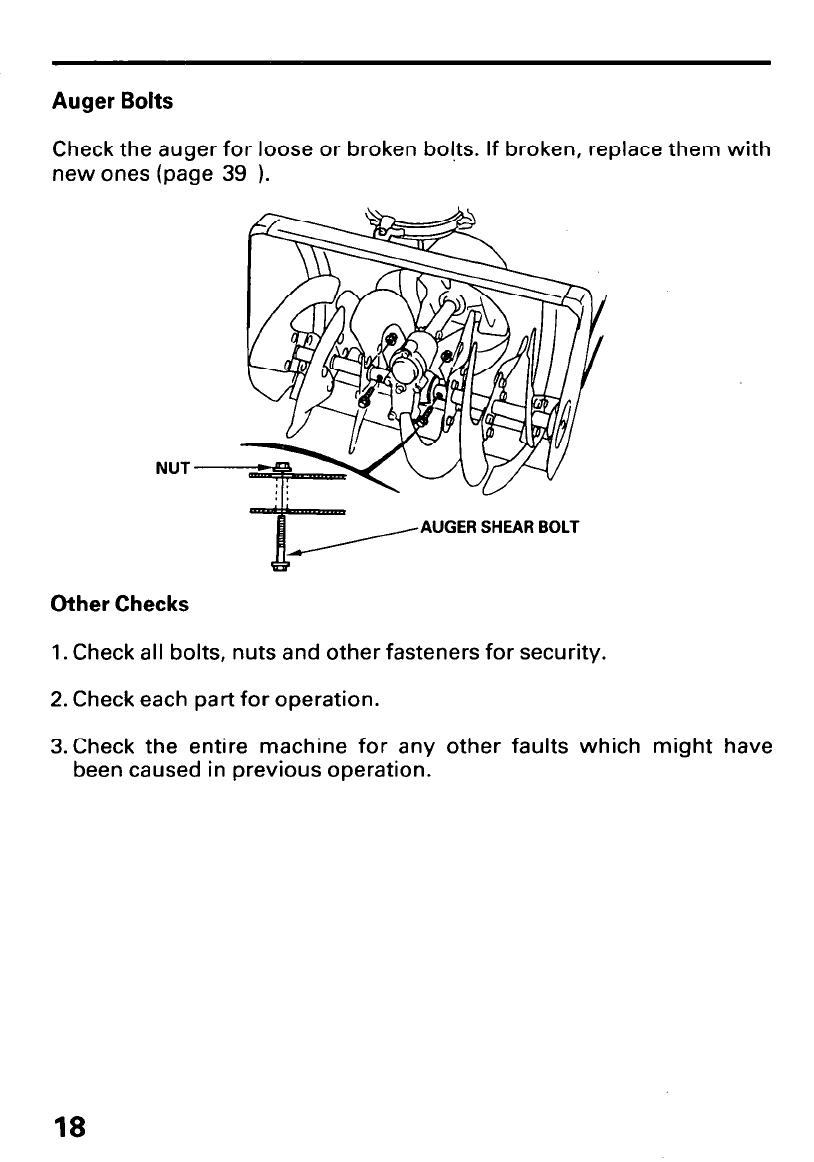

Auger Bolts ............................................................................................. 18
Other Checks .......................................................................................... 18

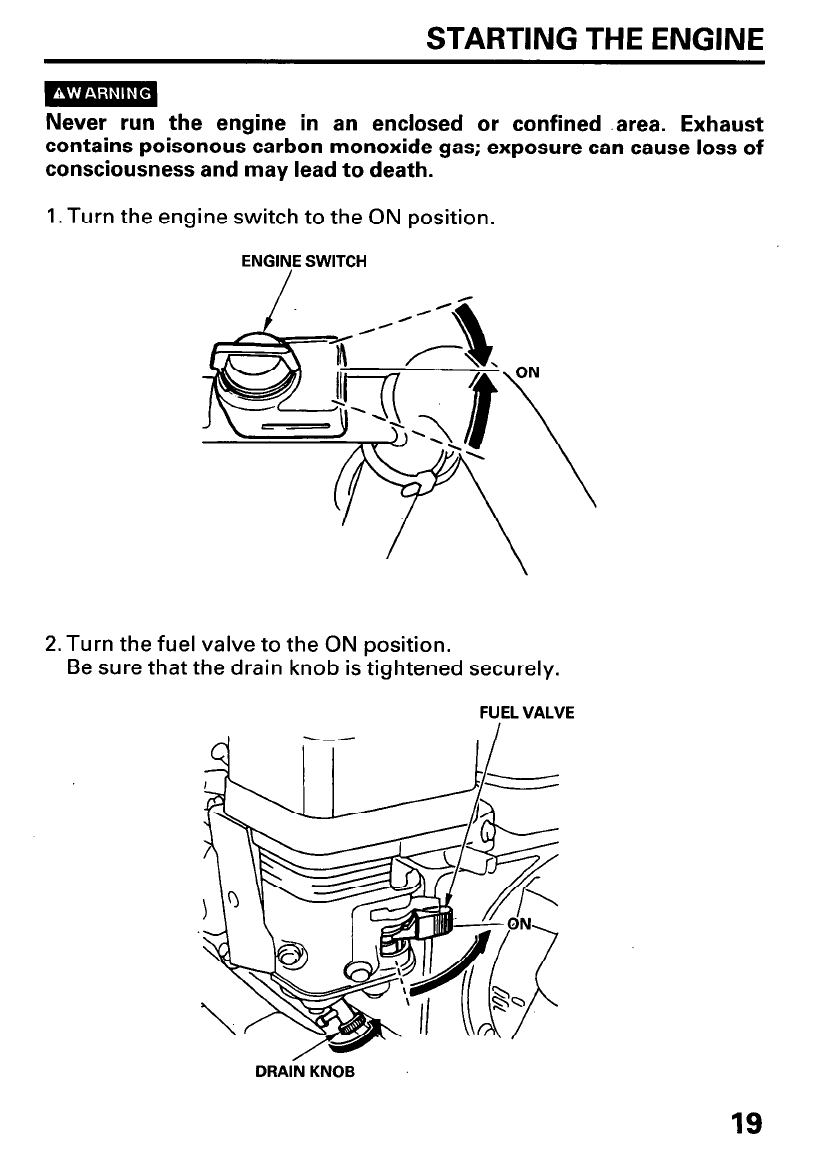

STARTING THE ENGINE ........................................................................... 19
SNOWBLOWER OPERATION ................................................................... 22

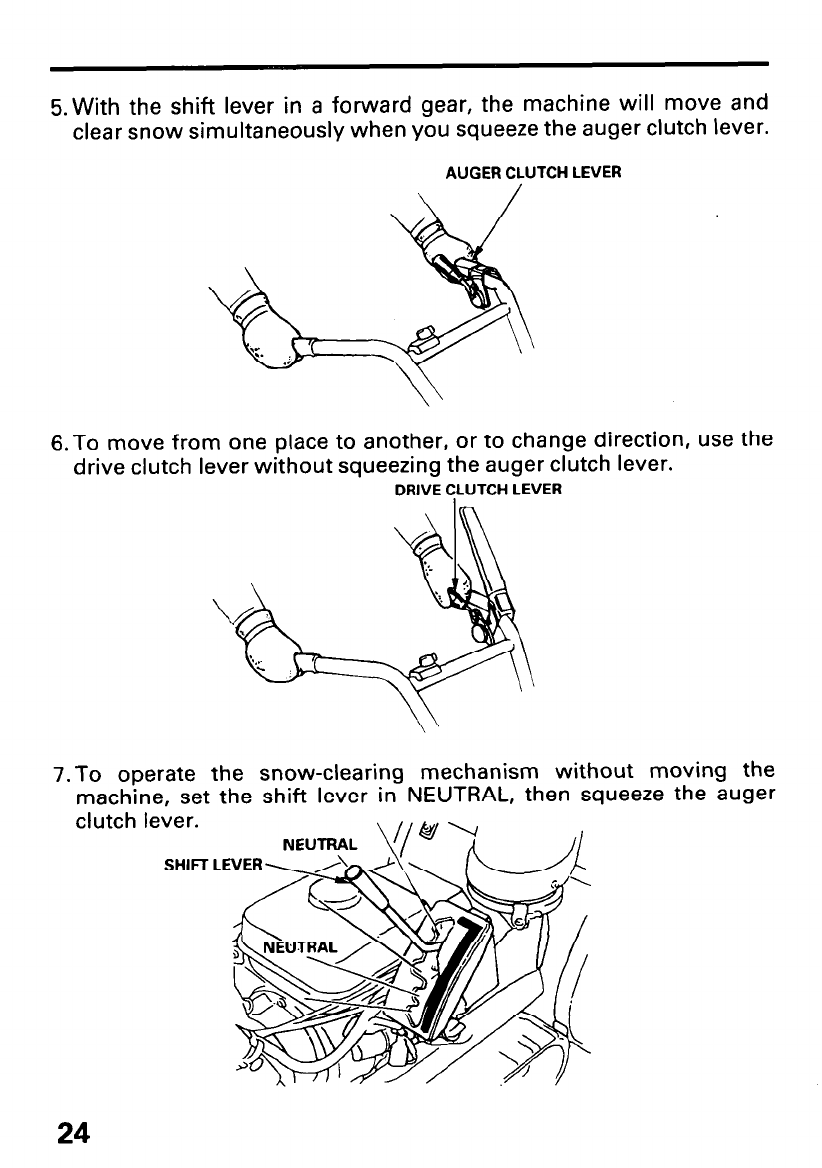

Operating the Controls .......................................................................... 22

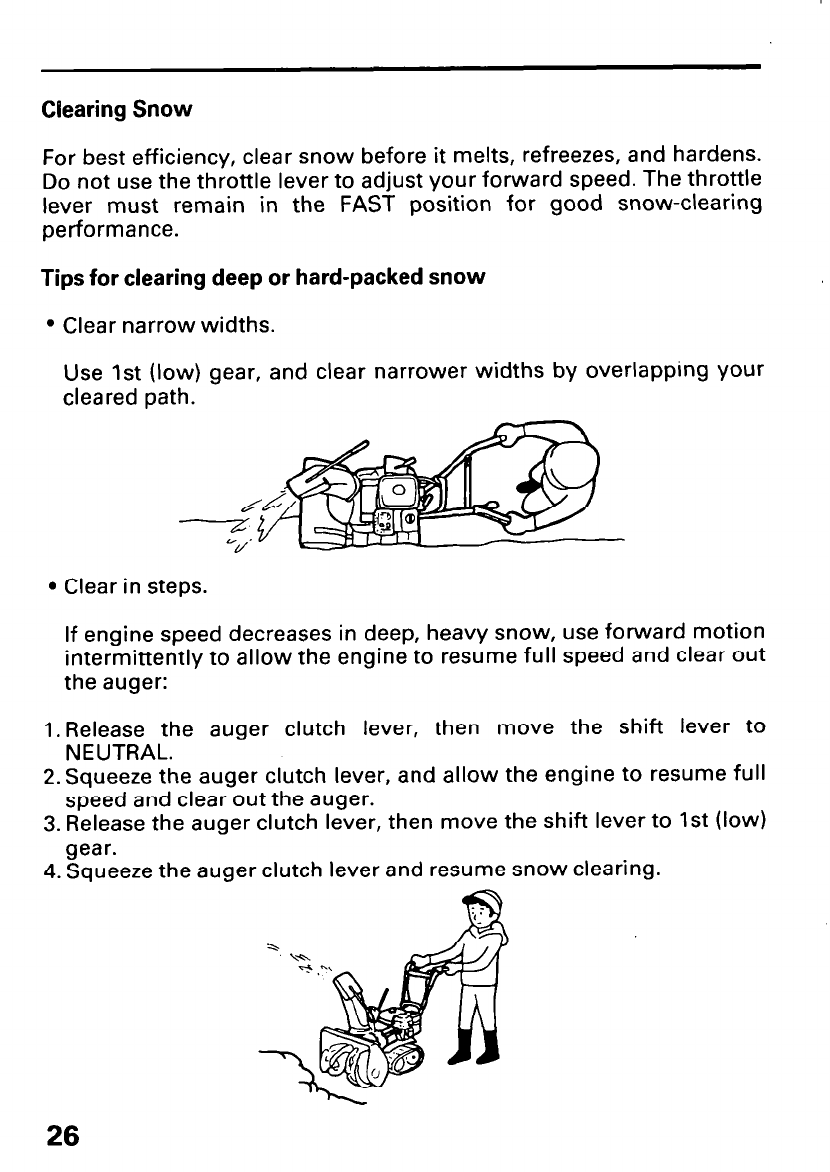

Clearing Snow ........................................................................................ 26

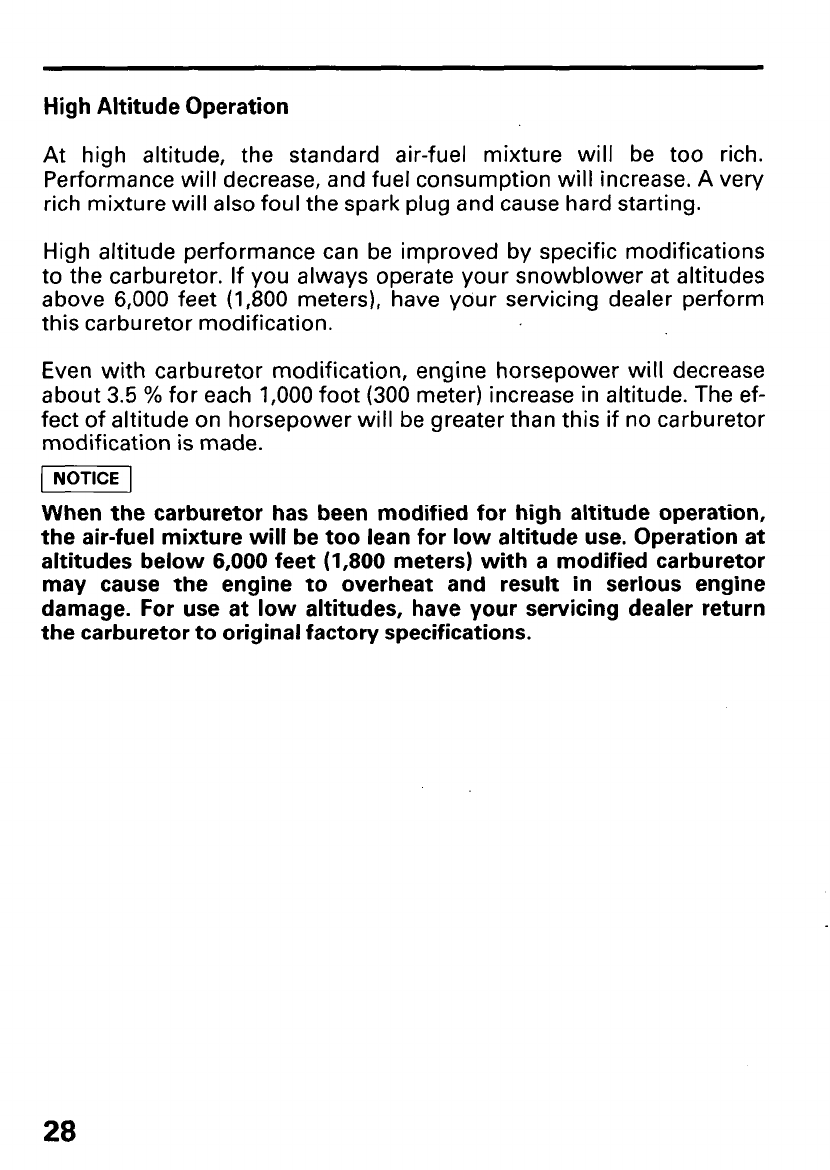

High Altitude Operation ........................................................................ 28
STOPPING THE ENGINE .......................................................................... -29
MAINTENANCE ......................................................................................... 30

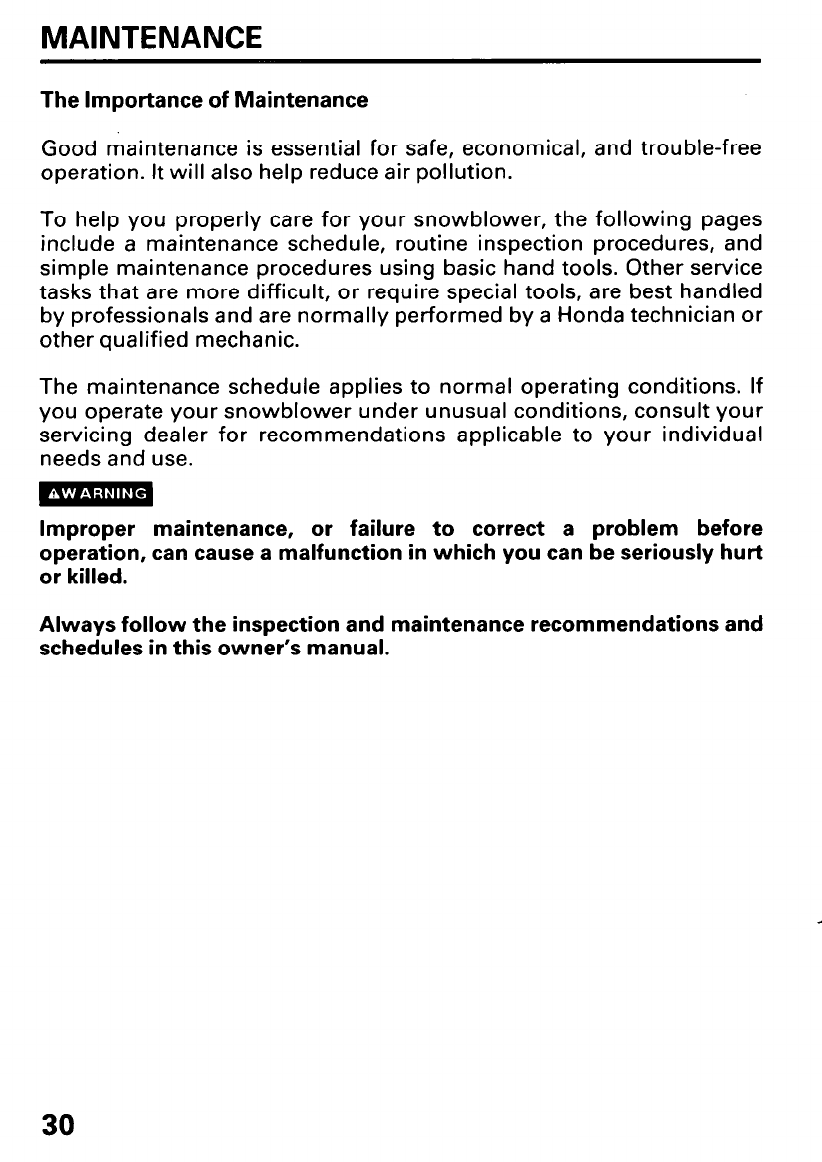

The Importance of Maintenance .......................................................... 30

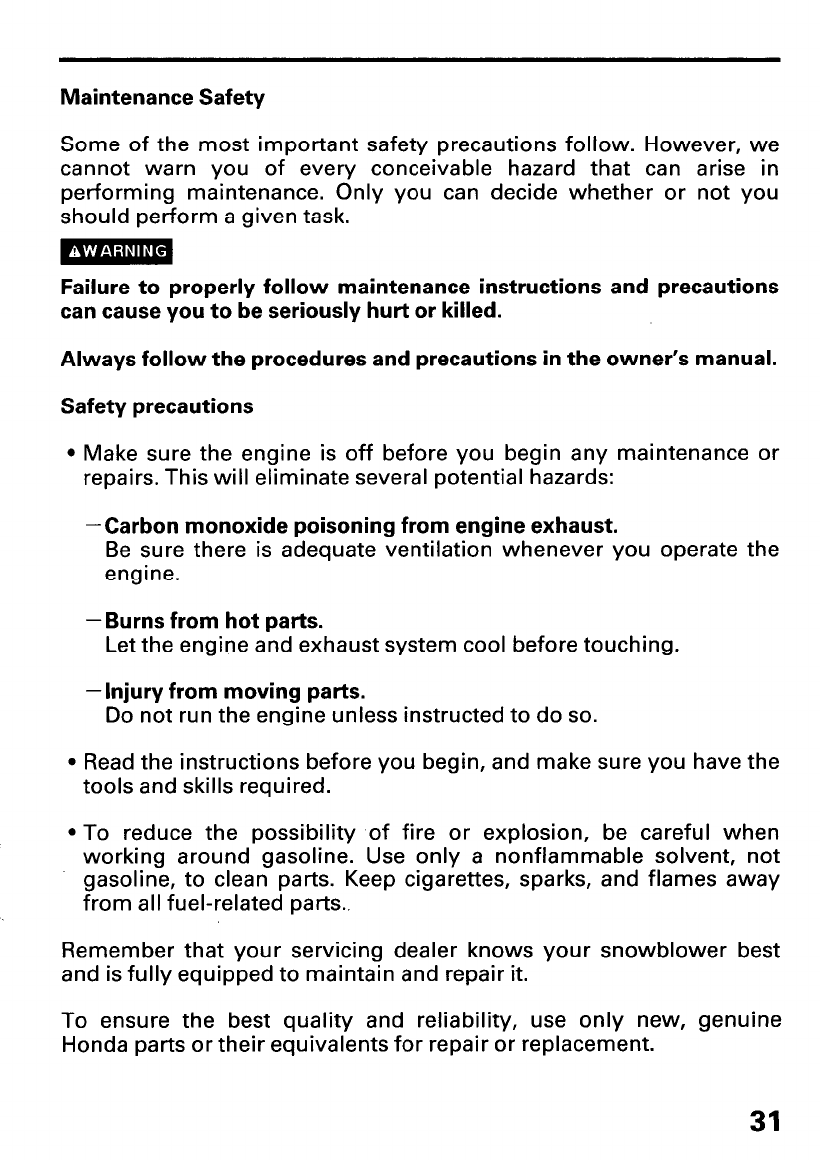

Maintenance Safety ............................................................................... 31

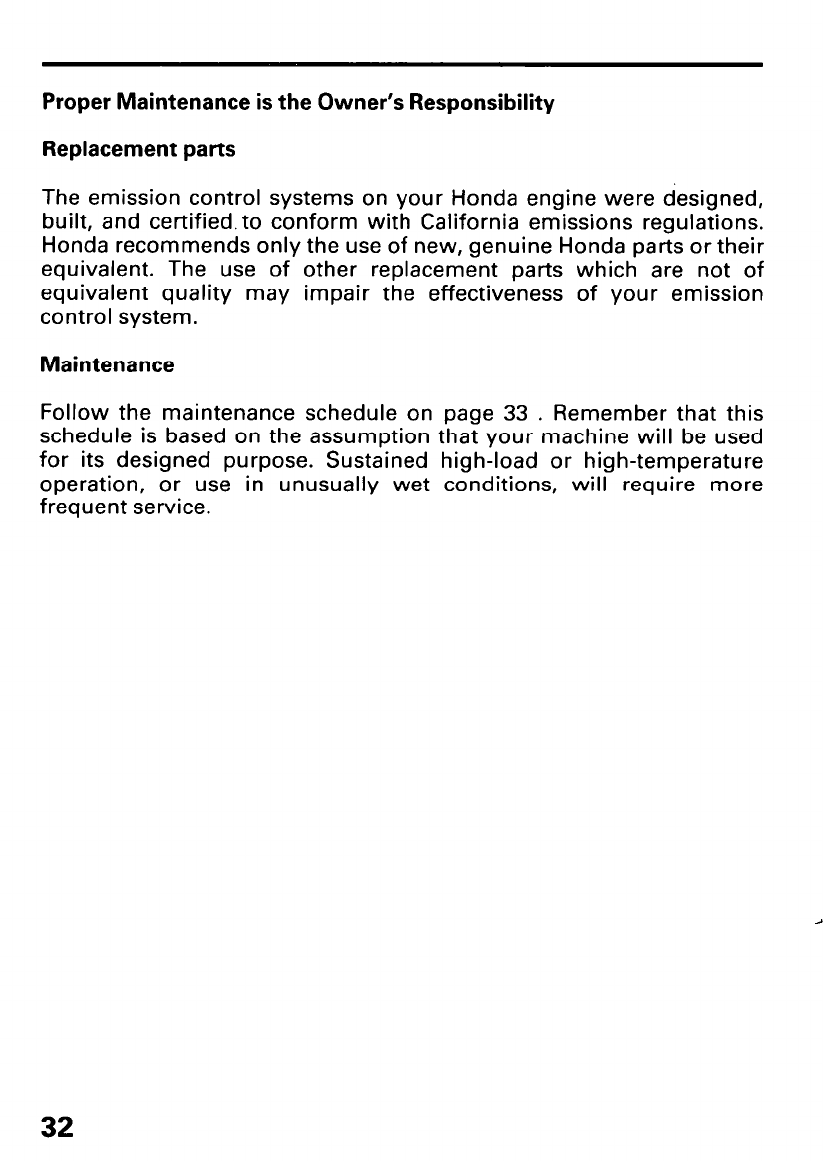

Proper Maintenance is the Owner’s Responsibility .......................... .32

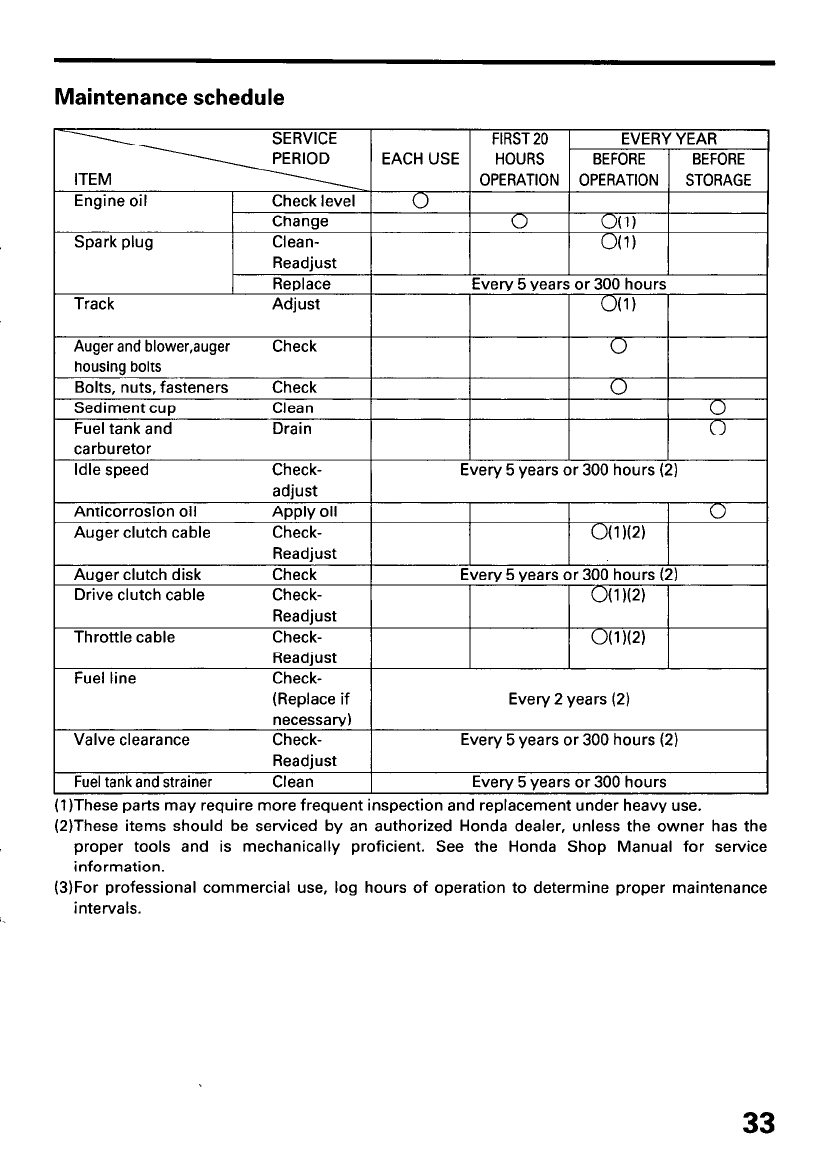

Maintenance Schedule .......................................................................... 33
Tools ....................................................................................................... 34

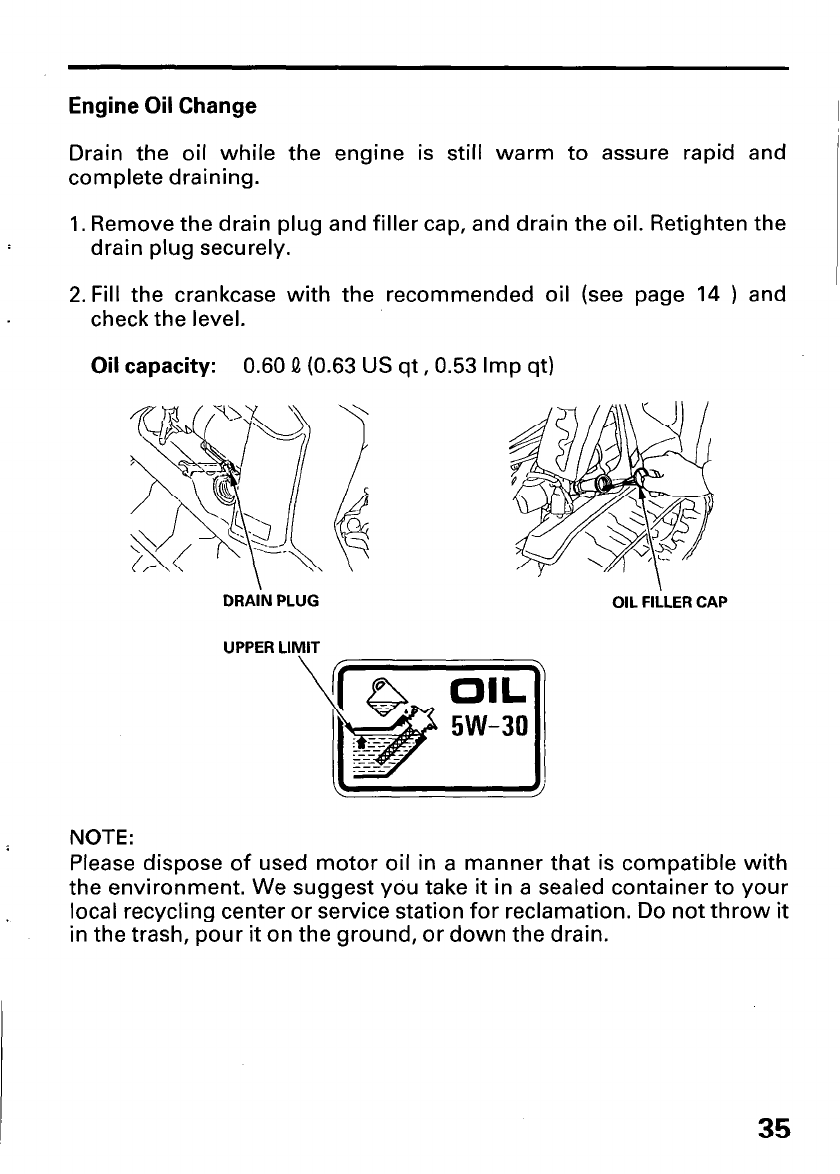

Engine Oil Change ................................................................................ .35
Spark Plug Service ................................................................................. 36

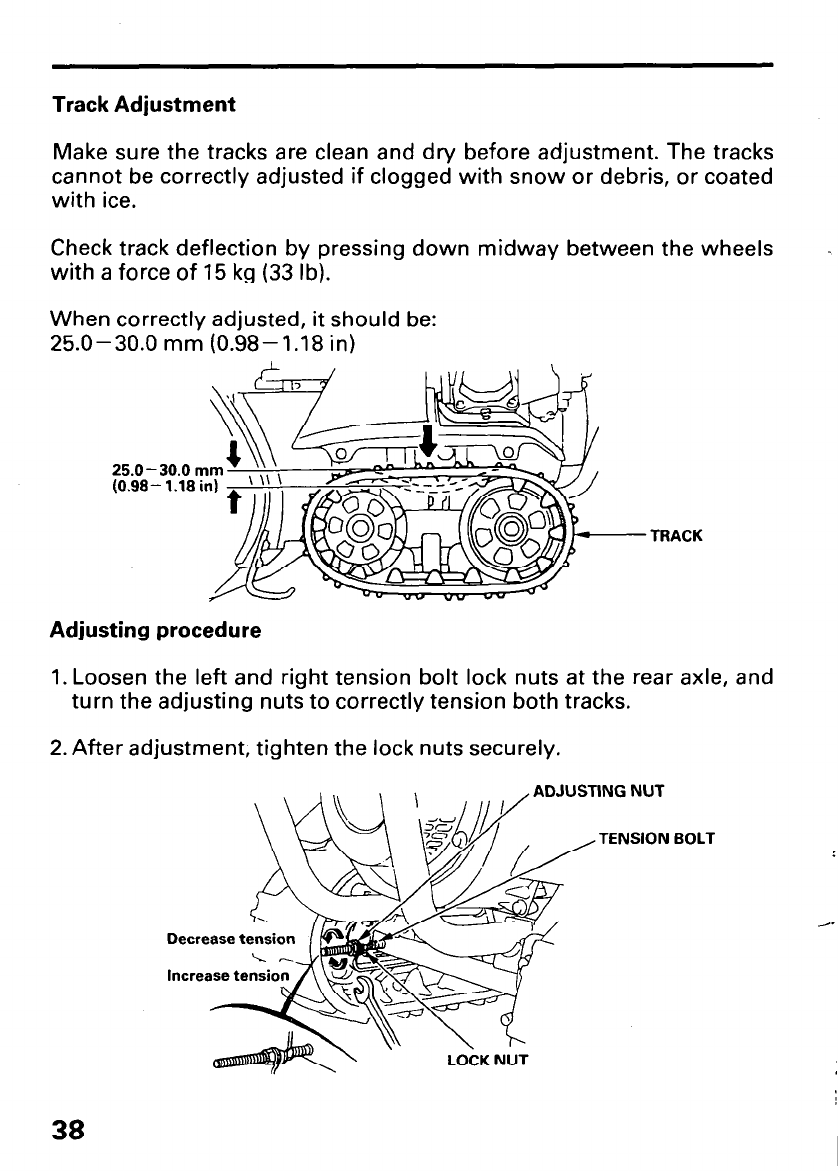

Track Adjustment ................................................................................... 38

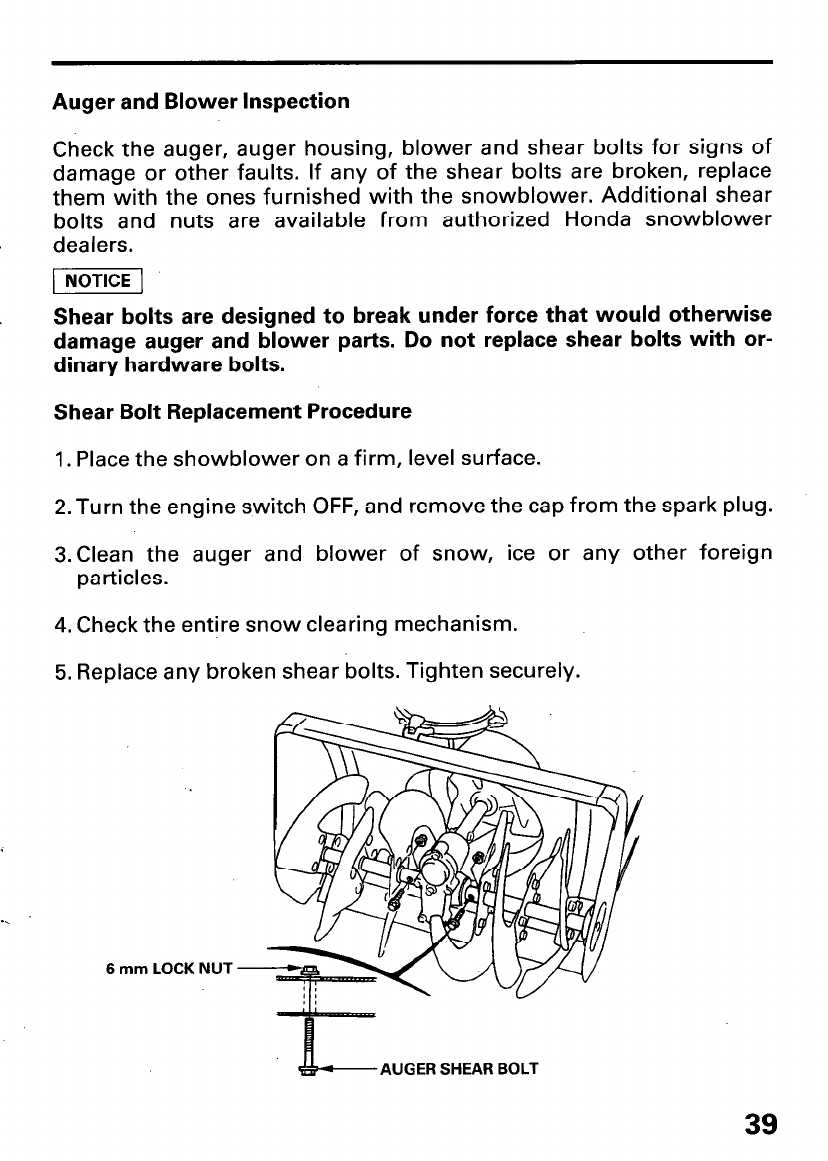

Auger and Blower Inspection ............................................................... 39

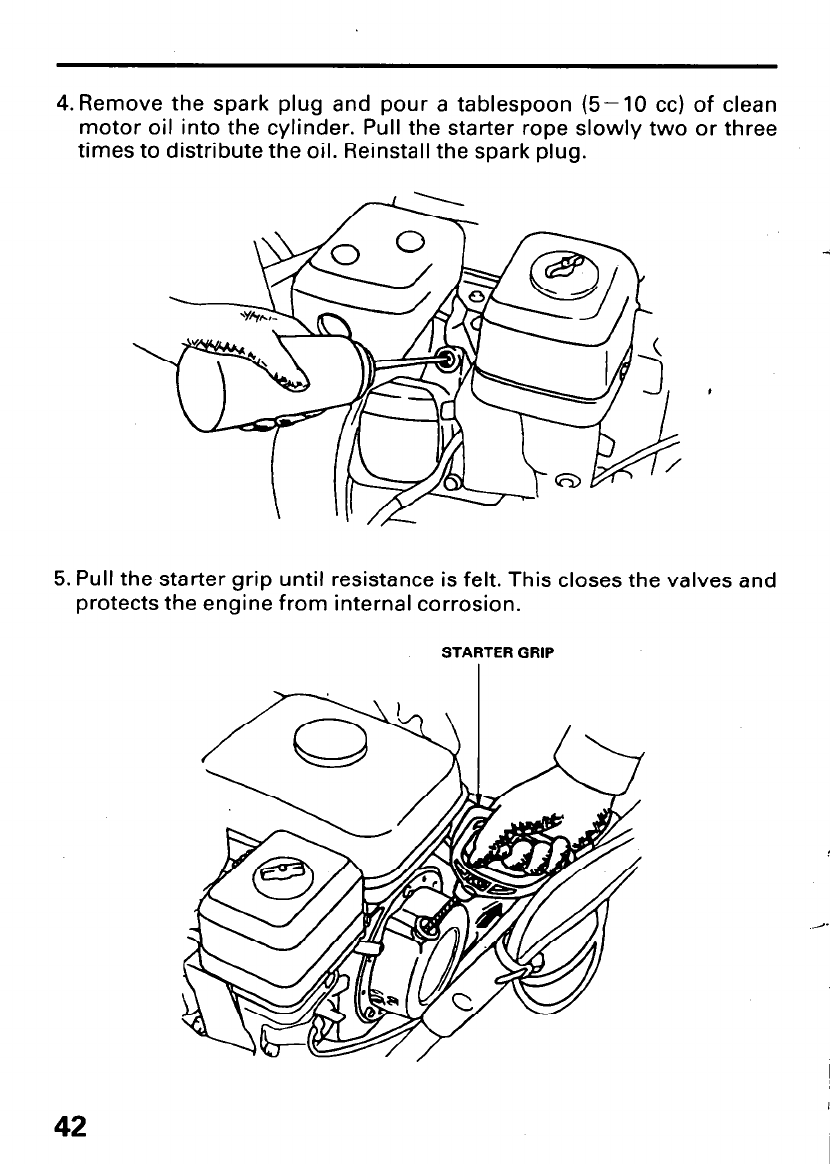

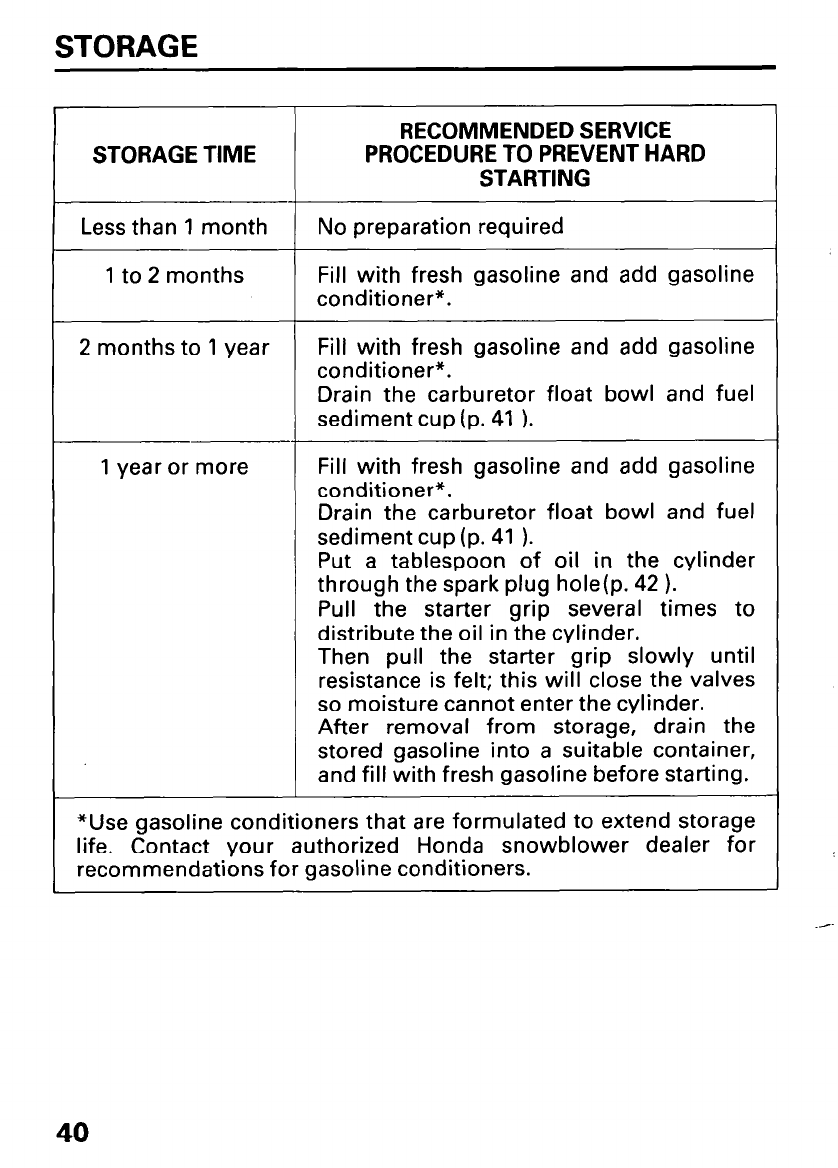

STORAGE ................................................................................................... 40

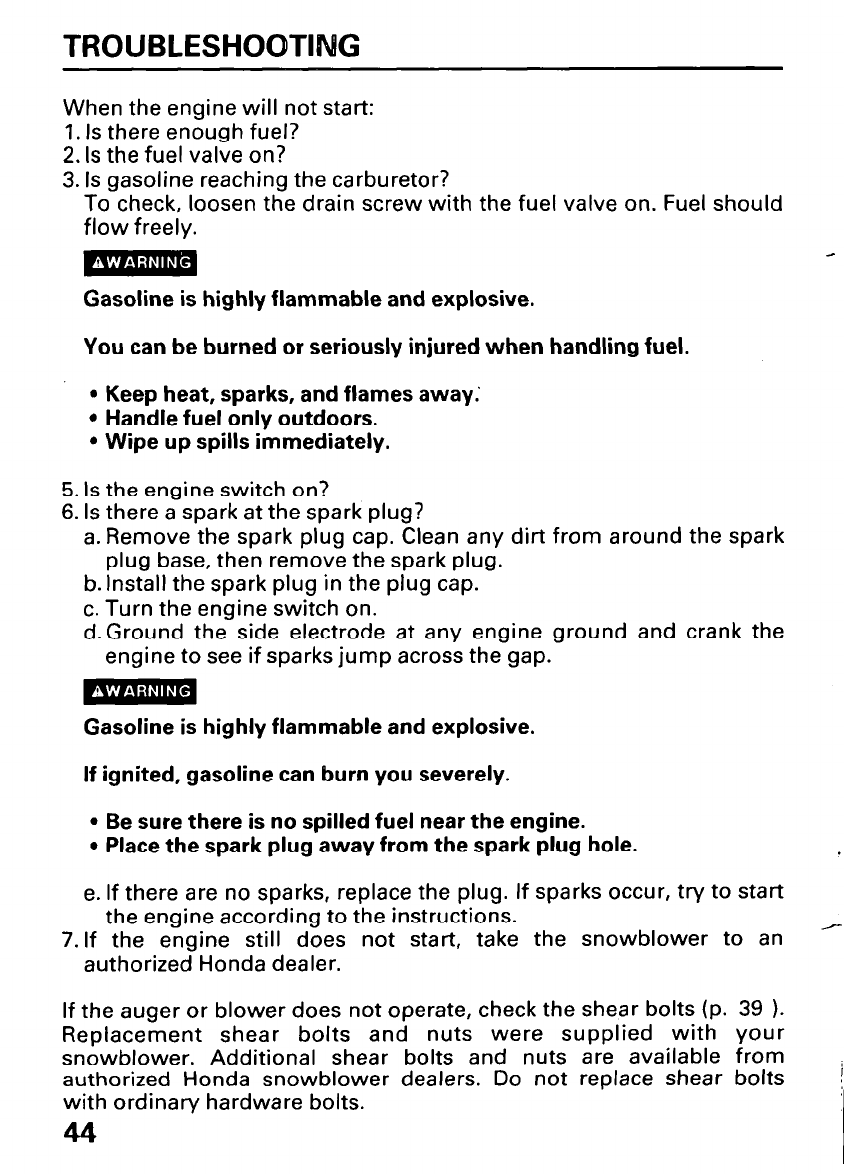

TROUBLESHOOTING..
SPECIFICATIONS..
...................................................................................................................................................................
.

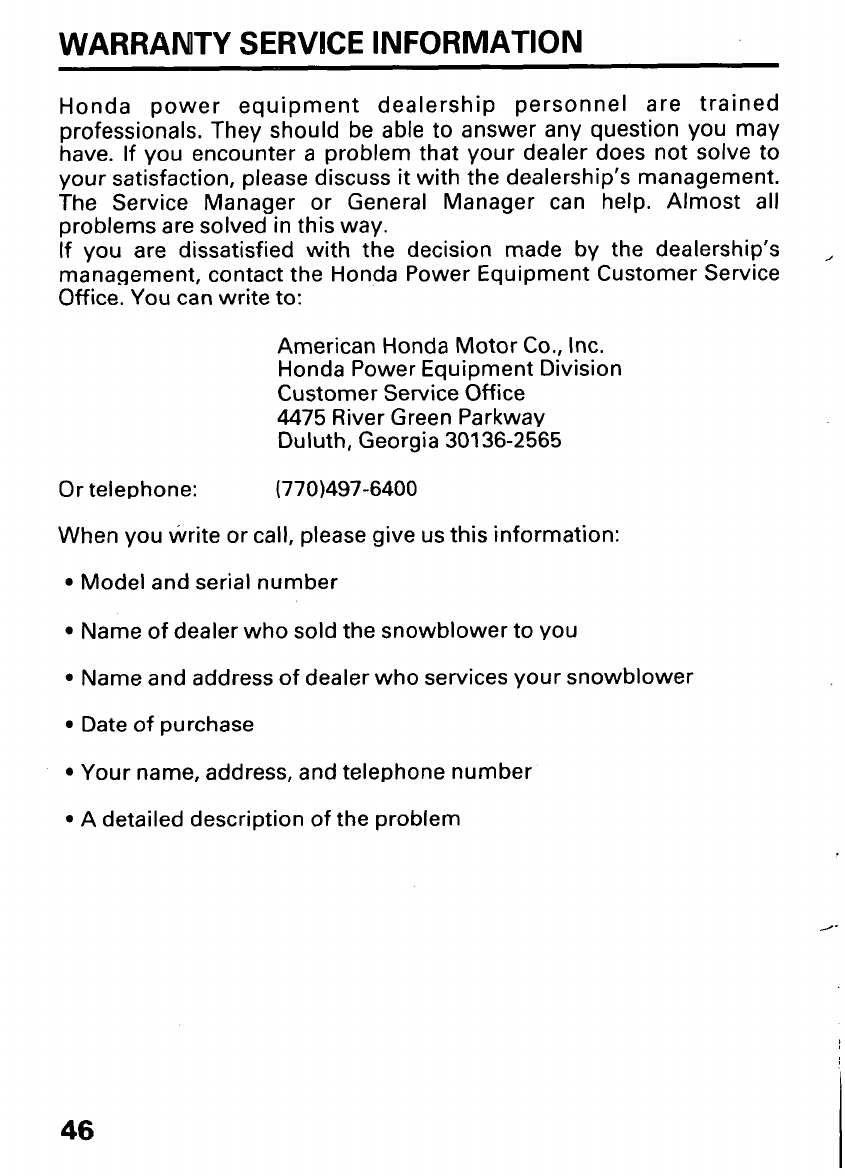

WARRANTY SERVICE INFORMATION ................................................... .46

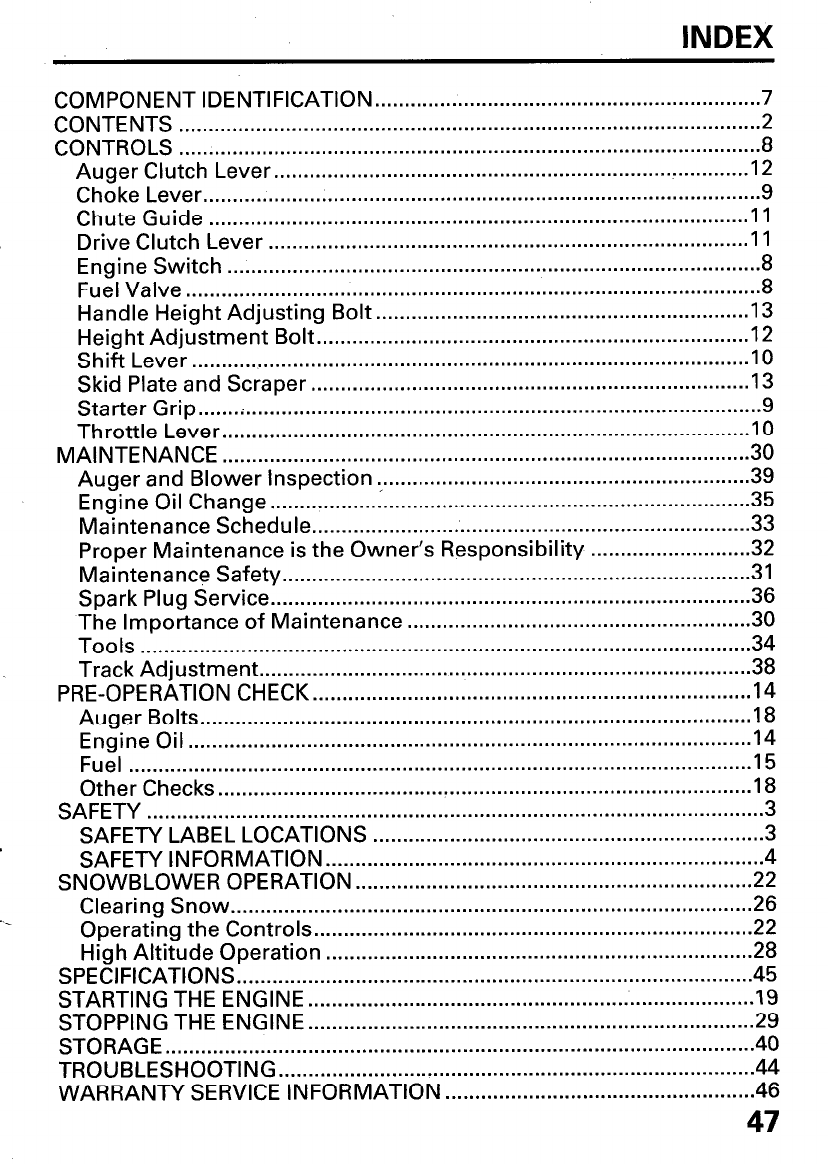

INDEX ......................................................................................................... 47
2
SAFETY

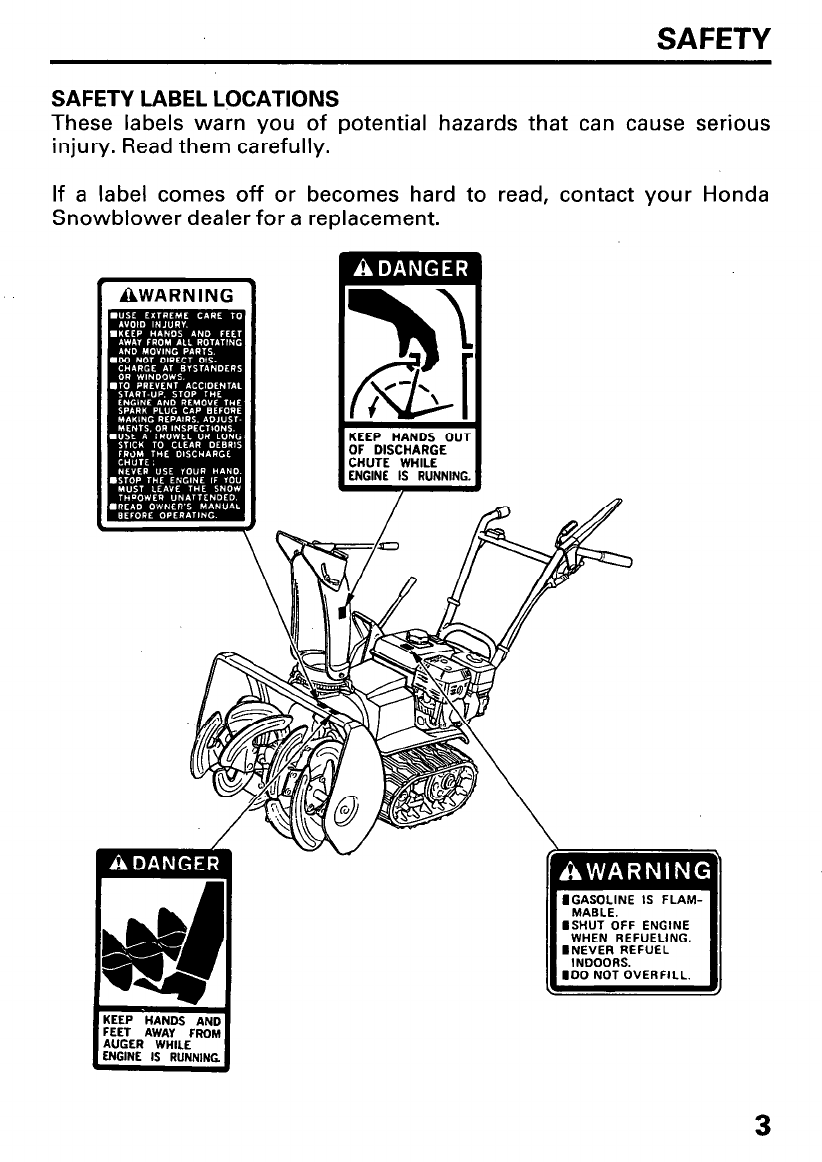

SAFETY LABEL LOCATIONS
These labels warn you of potential hazards that can cause serious
injury. Read them carefully.
If a label comes off or becomes hard to read, contact your Honda
Snowblower dealer for a replacement.
3

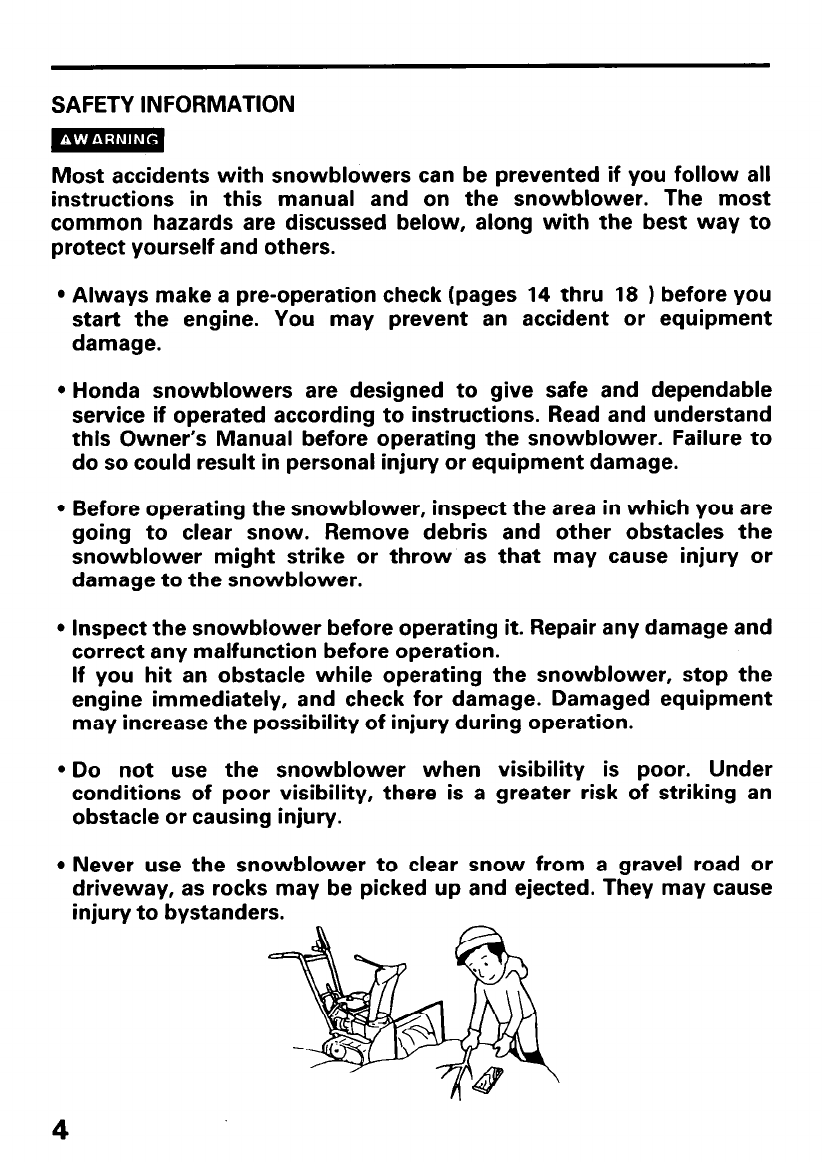

SAFETY INFORMATION
Most accidents with snowblowers can be prevented if you follow all
instructions in this manual and on the snowblower. The most
common hazards are discussed below, along with the best way to
protect yourself and others.
Always make a pre-operation check (pages 14 thru 18 ) before you
start the engine. You may prevent an accident or equipment
damage.
Honda snowblowers are designed to give safe and dependable
service if operated according to instructions. Read and understand
this Owner’s Manual before operating the snowblower. Failure to
do so could result in personal injury or equipment damage.
Before operating the snowblower, inspect the area in which you are
going to clear snow. Remove debris and other obstacles the
snowblower might strike or throw as that may cause injury or
damage to the snowblower.
Inspect the snowblower before operating it. Repair any damage and
correct any malfunction before operation.
If you hit an obstacle while operating the snowblower, stop the
engine immediately, and check for damage. Damaged equipment
may increase the possibility of injury during operation.
Do not use the snowblower when visibility is poor. Under
conditions of poor visibility, there is a greater risk of striking an
obstacle or causing injury.
Never use the snowblower to clear snow from a gravel road or
driveway, as rocks may be picked up and ejected. They may cause
iniurv to bvstanders.
l Adjust the snow discharge chute to avoid hitting the operator,
bystanders, windows, and other objects with ejected snow. Stay
clear of the snow discharge chute while the engine is running.
l Children and pets must be kept away from the area of operation to
avoid injury from flying debris and contact with the snowblower.
l To avoid overturning, be careful when changing the direction of the
snowblower while operating it on a slope.
Do not use the snowblower to remove snow from roofs. The
snowblower may overturn on steep slopes if left unattended,
causing injury to the operator or bystanders.
l Know how to stop the snowblower quickly, and understand the
operation of all controls.
l Never permit anyone to operate the snowblower without proper
instruction. If people or pets suddenly appear in front of the
snowblower while it is in operation, immediately release the auger
and drive clutch levers to stop the snowblower and avoid possible
injury from rotating auger blades.
l If the snow discharge chute becomes clogged, stop the engine and
use a wooden stick to unclog it. Never put your hand into the snow
discharge chute while the engine is running; serious personal injury
could result.
5

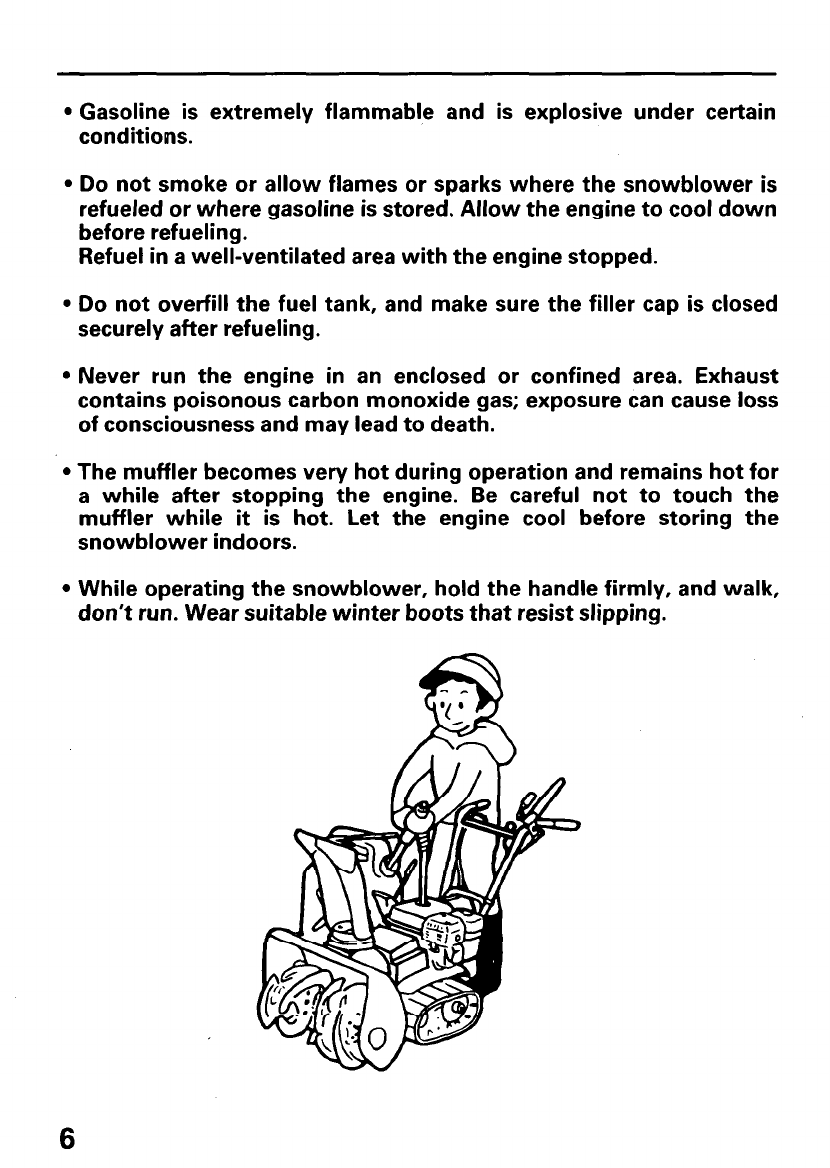

l Gasoline is extremely flammable and is explosive under certain
conditions.
l Do not smoke or allow flames or sparks where the snowblower is
refueled or where gasoline is stored. Allow the engine to cool down
before refueling.
Refuel in a well-ventilated area with the engine stopped.
l Do not overfill the fuel tank, and make sure the filler cap is closed
securely after refueling.
l Never run the engine in an enclosed or confined area. Exhaust
contains poisonous carbon monoxide gas; exposure can cause loss
of consciousness and may lead to death.
l The muffler becomes very hot during operation and remains hot for
a while after stopping the engine. Be careful not to touch the
muffler while it is hot. Let the engine cool before storing the
snowblower indoors.
l While operating the snowblower, hold the handle firmly, and walk,
don’t run. Wear suitable winter boots that resist slipping.
6

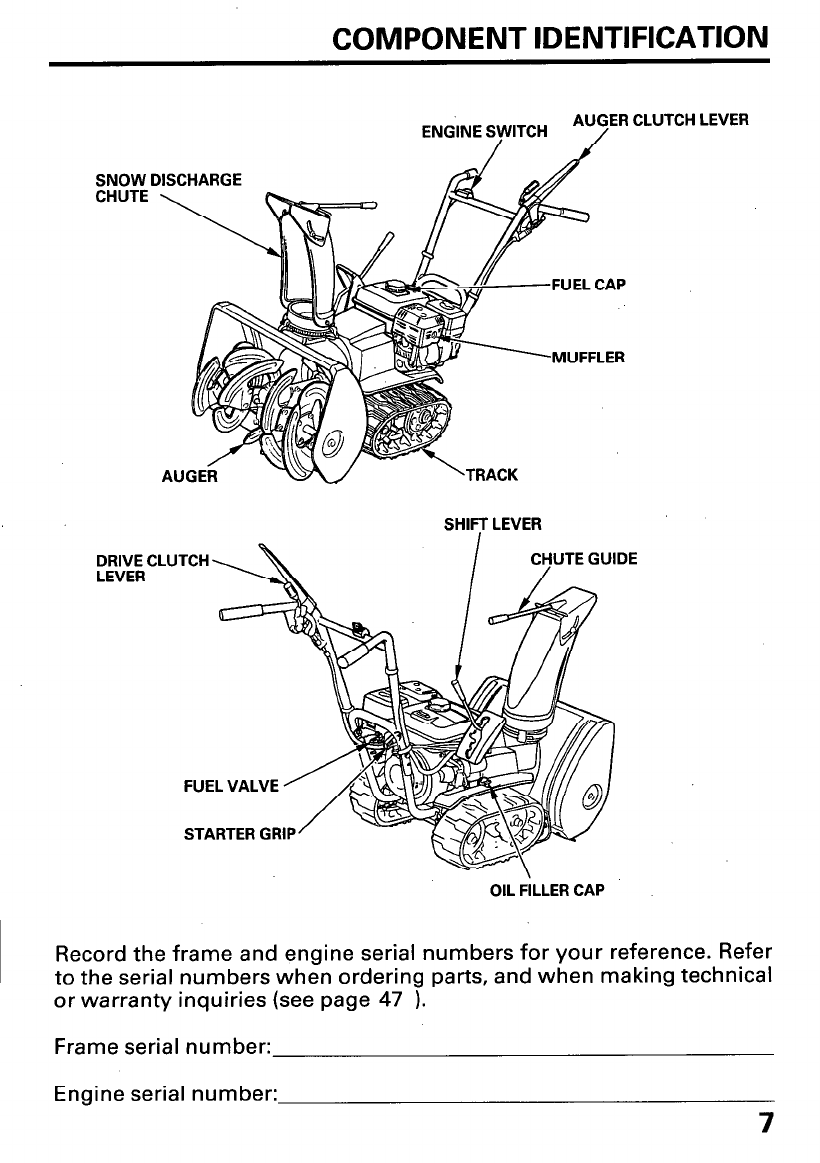

COMPONENT IDENTIFICATION
ENGINE SWITCH AUG/ER CLUTCH LEVER
SNOW
CHUTE
SHIFT LEVER
CHUTE GUIDE
/
FUEL VALVE
STARTER GRIP
OIL FILLER CAP
Record the frame and engine serial numbers for your reference. Refer
to the serial numbers when ordering parts, and when making technical
or warranty inquiries (see page 47 ).
Frame serial number:
Engine serial number:
7

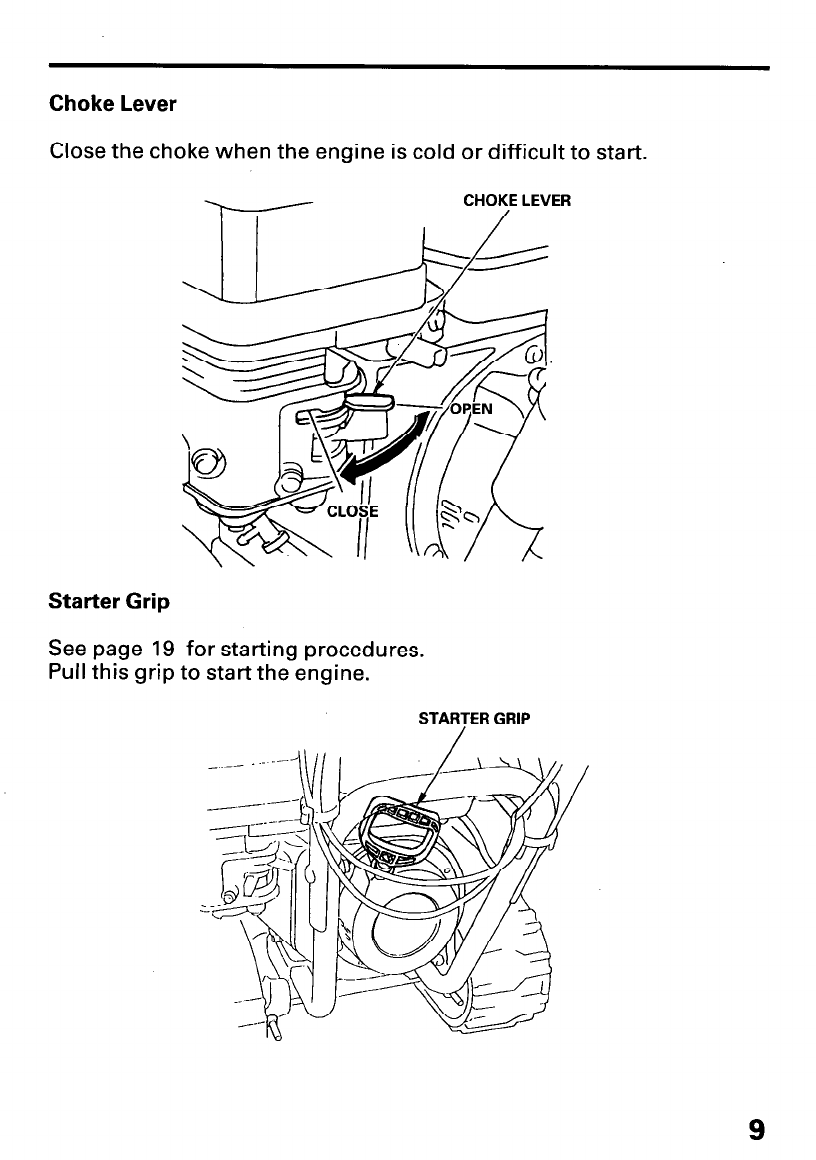

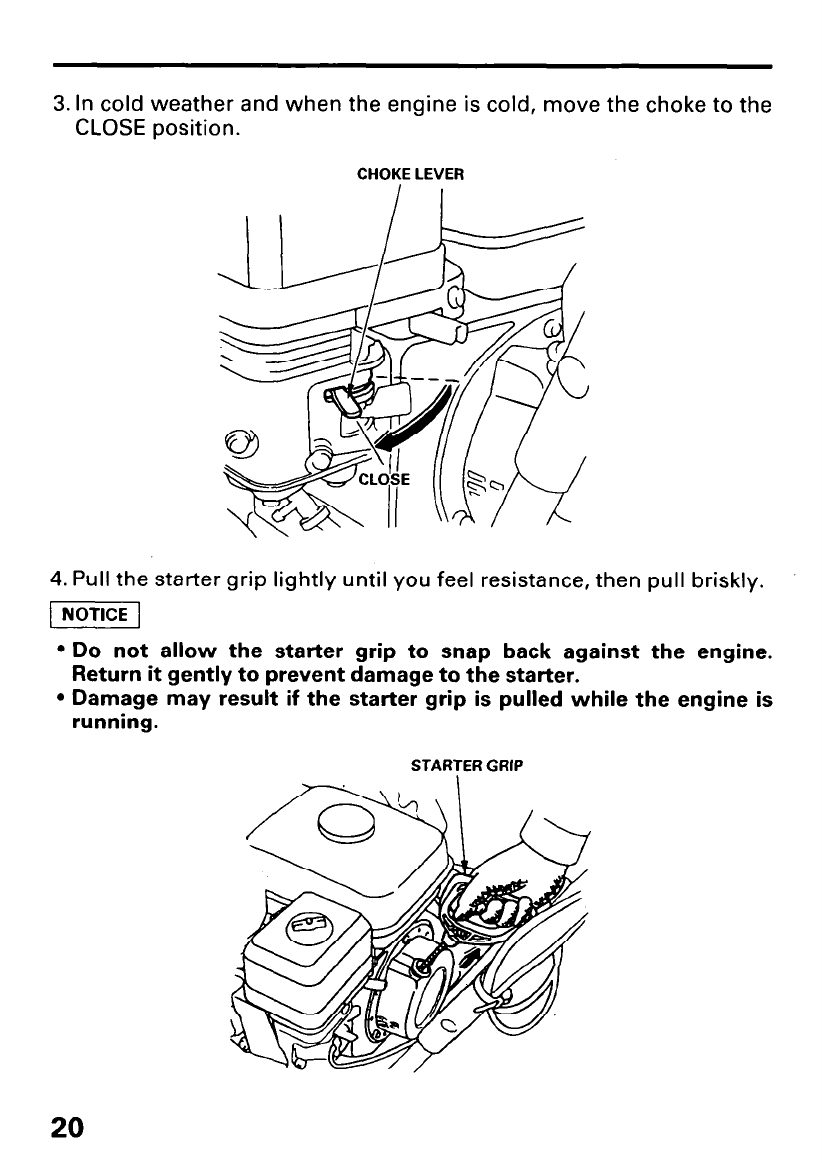

Choke Lever
Close the choke when the engine is cold or difficult to start.
Starter Grip
See page 19 for starting procedures.
Pull this grip to start the engine.
STARTER GRIP
/
9

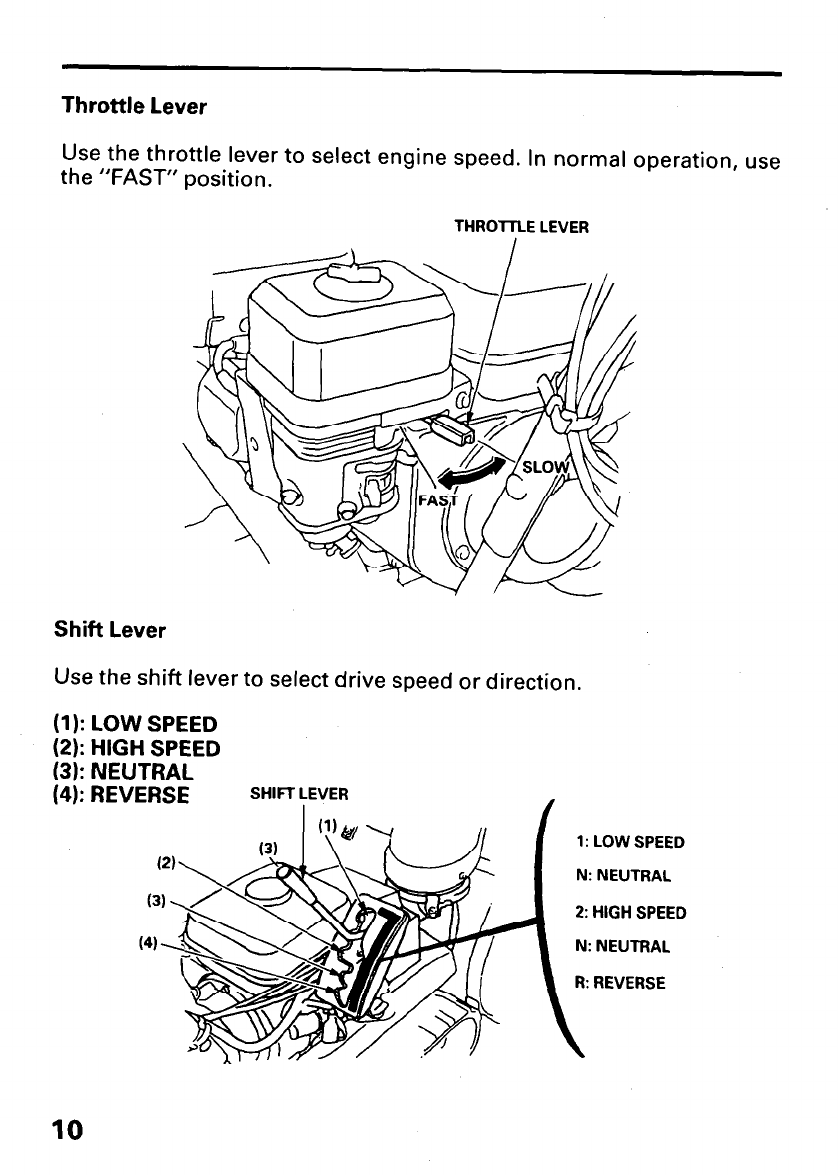

Throttle Lever
Use the throttle lever to select engine speed. In normal operation, use
the “FAST” position.
THROlTLE LEVER

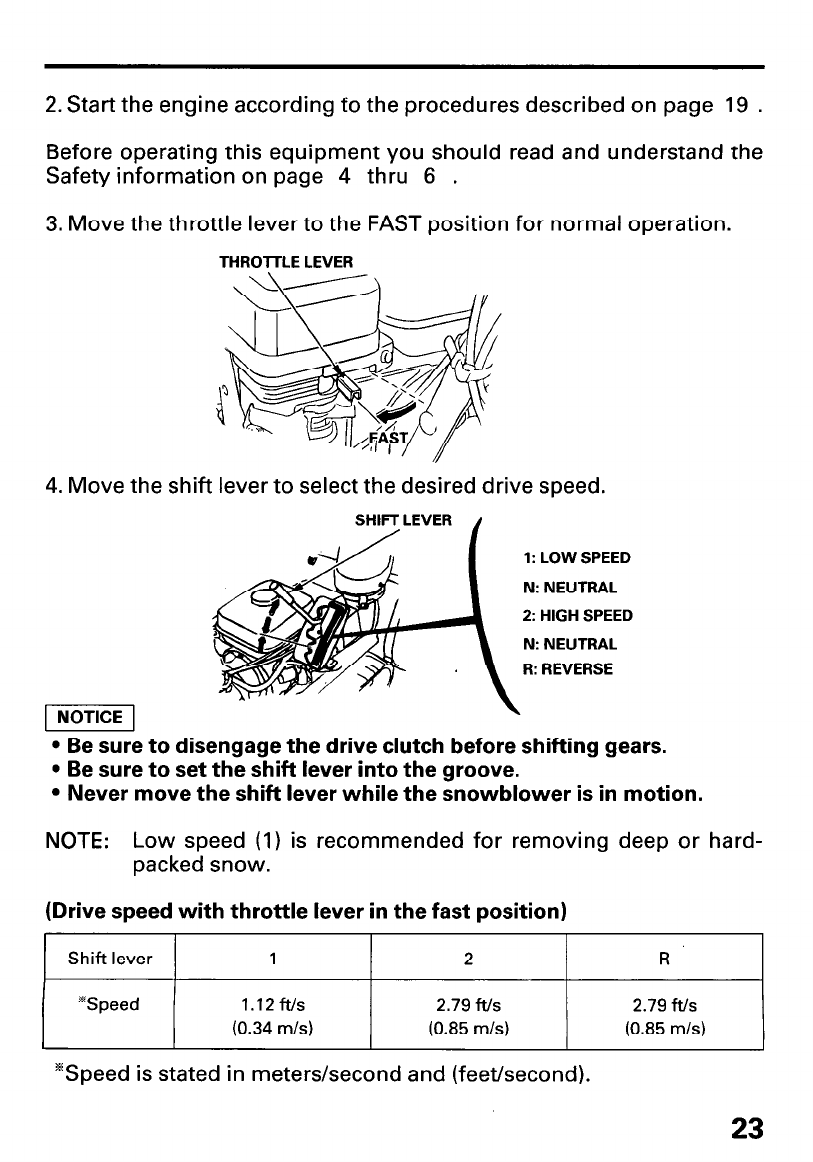

Shift Lever
Use the shift lever to select drive speed or direction.
(1): LOW SPEED
(2): HIGH SPEED
(3): NEUTRAL
(4): REVERSE SHIFT LEVER
1: LOW SPEED
N: NEUTRAL
2: HIGH SPEED
10

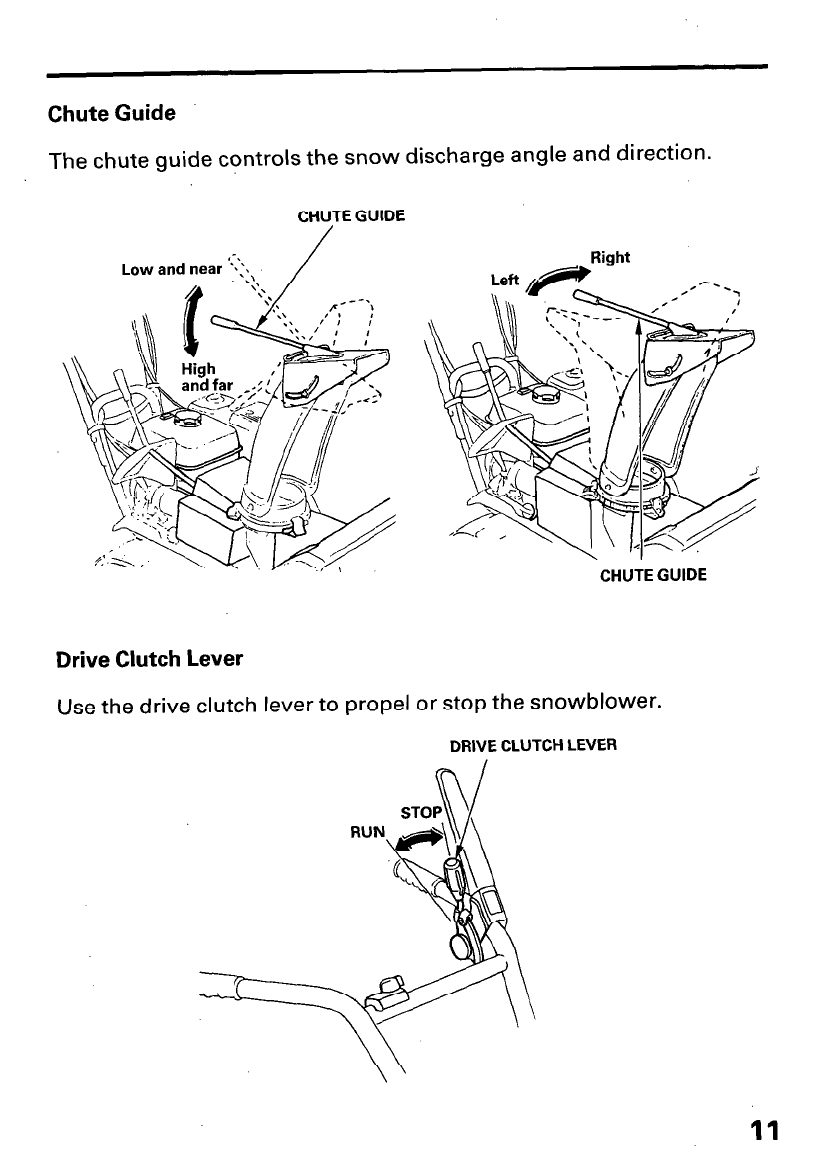

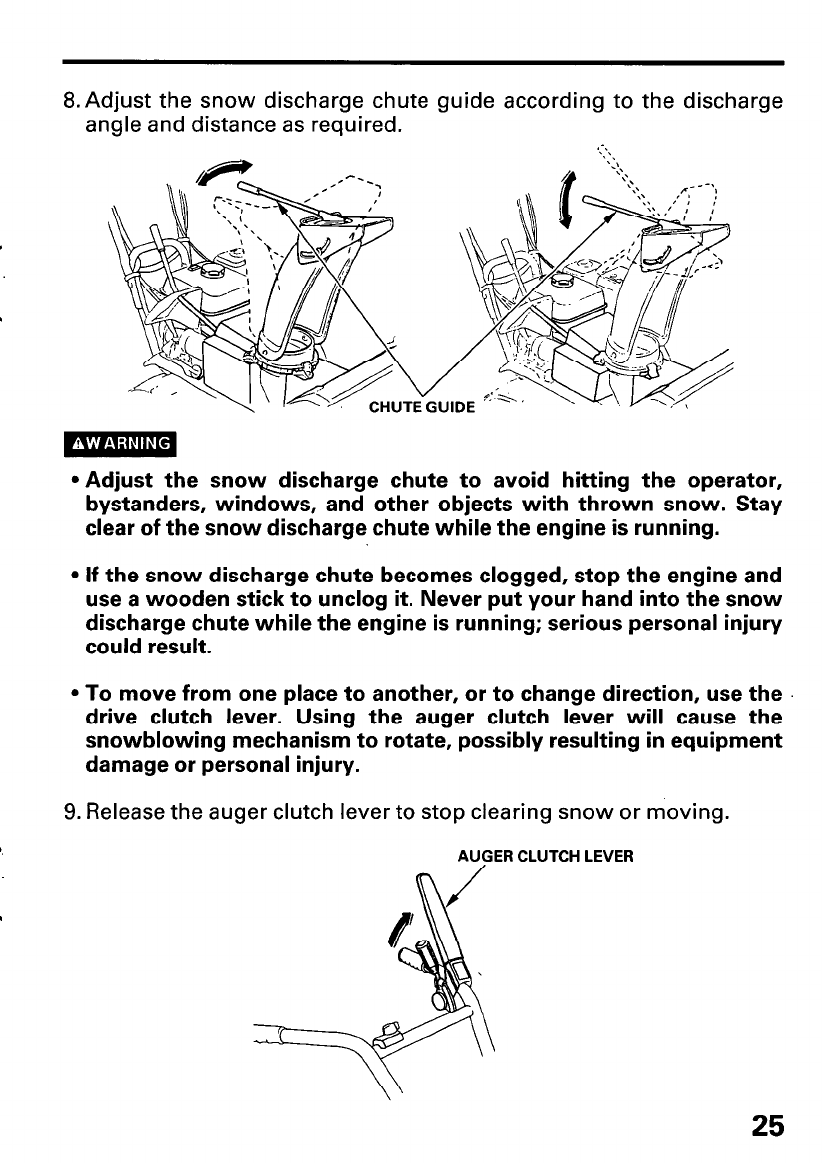

Chute Guide
The chute guide controls the snow discharge angle and direction.
CHUTE GUIDE
CHUTE GUIDE
Drive Clutch Lever
Use the drive clutch lever to propel or stop the snowblower.
DRIVE CLUTCH LEVER
11

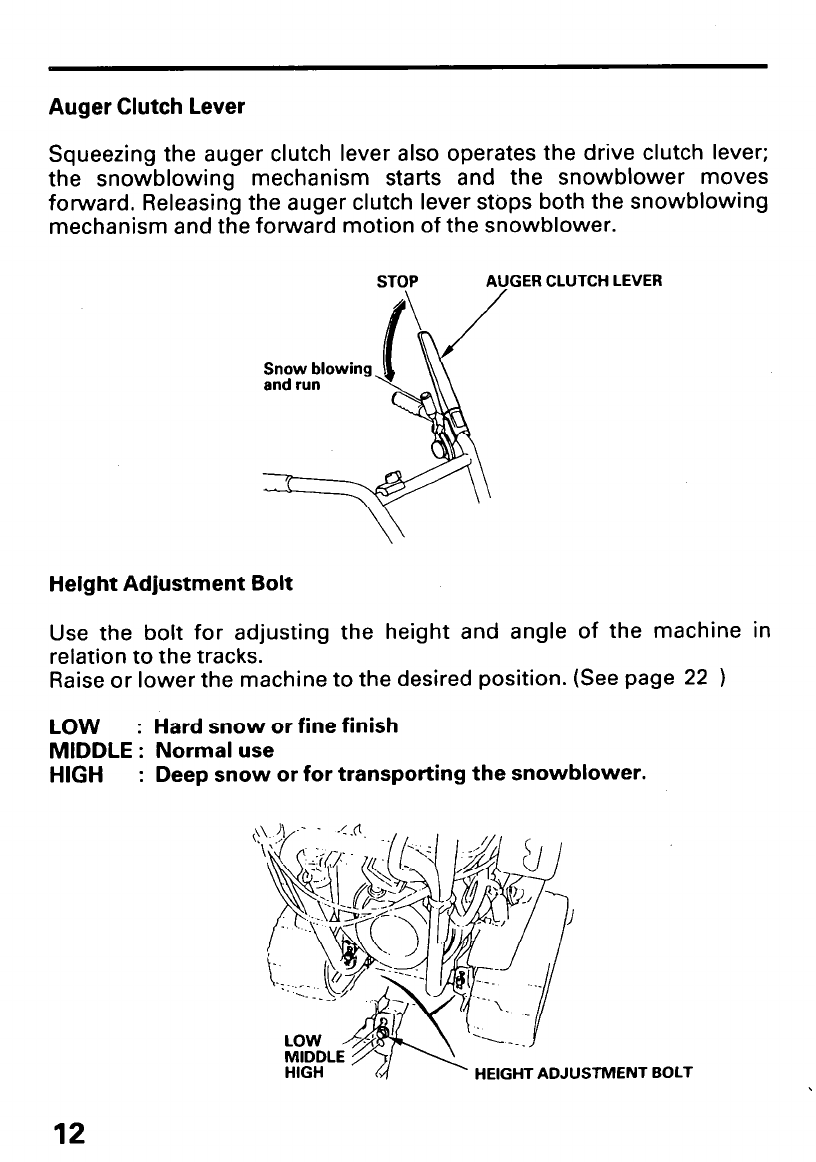

Auger Clutch Lever
Squeezing the auger clutch lever also operates the drive clutch lever;
the snowblowing mechanism starts and the snowblower moves
forward. Releasing the auger clutch lever stops both the snowblowing
mechanism and the forward motion of the snowblower.
STOP AUGER CLUTCH LEVER
Height Adjustment Bolt
Use the bolt for adjusting the height and angle of the machine in
relation to the tracks.
Raise or lower the machine to the desired position. (See page 22 1
LOW : Hard snow or fine finish
MIDDLE : Normal use
HIGH : Deep snow or for transporting the snowblower.
HEIGHT ADJUSTMENT BOLT
12

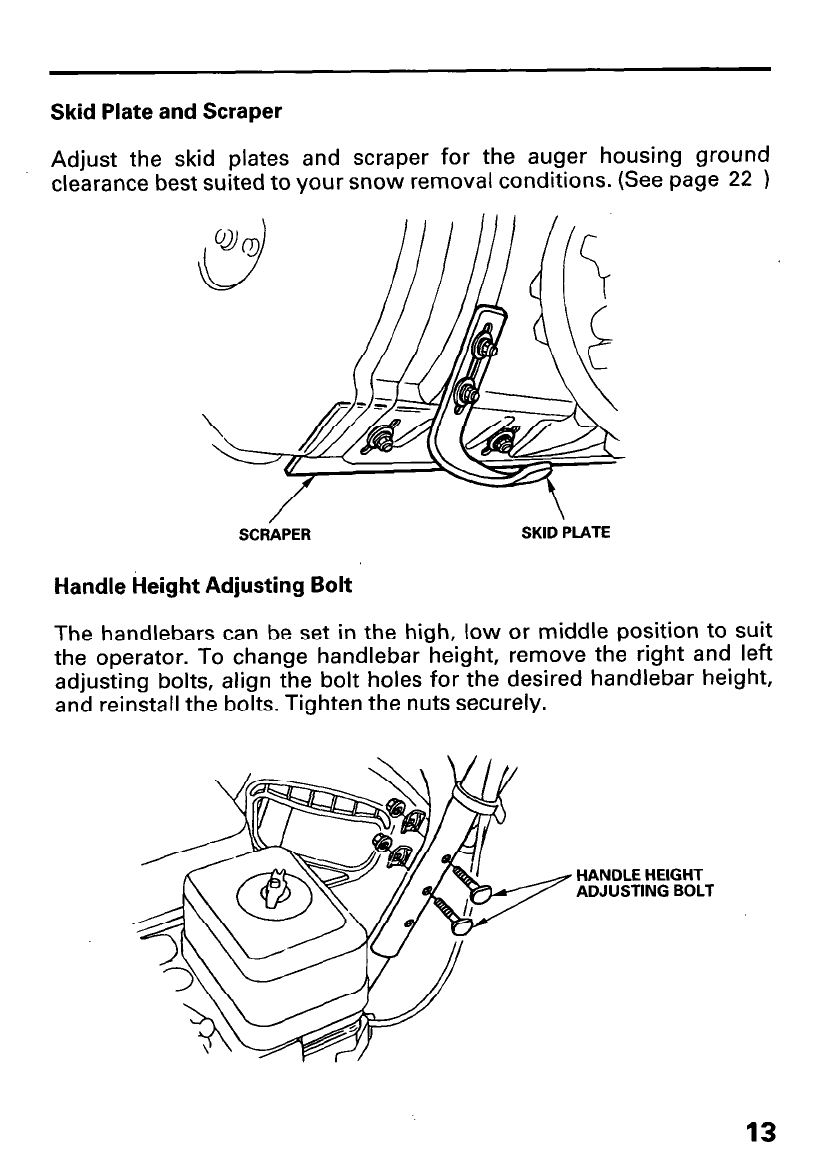

Skid Plate and Scraper
Adjust the skid plates and scraper for the auger housing ground
clearance best suited to your snow removal conditions. (See page 22 )
/
SCRAPER
Handle Height Adjusting Bolt
The handlebars can be set in the high, low or middle position to suit
the operator. To change handlebar height, remove the right and left
adjusting bolts, align the bolt holes for the desired handlebar height,
and reinstall the bolts. Tighten the nuts securely.
HANDLE HEIGHT
ADJUSTING BOLT
13
Engine Oil
Inspection
With the snowblower on a level surface, remove the oil filler cap and
wipe the dipstick clean. Insert the dipstick into the filler neck, but do
not screw it in. Remove the dipstick and check the oil level.
If the level is low, fill to the top of the oil filler neck with the
ret :ommended oil.
OIL FILLER NECK
OIL FILLER CAP AND DIPSTICK
-20 0 20 40 50°F
-30 -20 -10 0 10°C
Oil capacity: 0.60 !J (0.63 US qt ,0.53 Imp qt)
Recommended oil
Use 4-stroke motor oil that meets or exceeds the requirements for API
service classification SF or SG. Always check the API SERVICE label on
the oil container to be sure it includes the letters SF or SG.
SAE 5W-30 is recommended for general use. Other viscosities shown
in the chart may be used when the average temperature in your area is
within the indicated range.
(NOTlCEI
l Using nondetergent oil can shorten the engine’s service life, and
using P-stroke oil can damage the engine.
l Running the engine with a low oil level can cause engine damage.
14
Fuel
Refueling
Fuel tank capacity: 3.5 0 (0.92 US gal, 0.77 Imp gal)
Check the fuel level gauge, and refill the tank if the fuel level is low.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
l Stop the engine and keep heat, sparks, and flames away.
l Handle fuel only outdoors.
l Wipe up spills immediately.
Refuel in a well-ventilated area before starting the engine. If the engine
has been running, allow it to cool. Refuel carefully to avoid spilling fuel.
Do not overfill: there should be no fuel in the filler neck. After refueling,
tighten the fuel tank cap securely.
Never refuel the snowblower inside a building where gasoline fumes
may reach flames or sparks. Keep gasoline away from appliance pilot
lights, barbeques, electric appliances, power tools, etc.
Spilled fuel is not only a fire hazard, it causes environmental damage.
Wipe up spills immediately.
1 NOTICE 1
Fuel can damage paint and plastic. Be careful not to spill fuel when
filling your fuel tank. Damage caused by spilled fuel is not covered
under warranty.
GAUGE
UPPER LIMIT FILLER NECK
-- -
FUEL -
15
Fuel Recommendations
Use unleaded gasoline with a pump octane rating of 86 or higher.
This engine is desi P ned to operate on unleaded gasoline. Unleaded
gasoline produces ewer engine and spark plug deposits and extends
exhaust system life.
Never use stale or contaminated gasoline or an oil/gasoline mixture.
Avoid getting dirt or water in the fuel tank.
Occasionally you ma
(metallic rapping noise Y hear a light “spark knock” or “pinging”
cause for concern. while operating under heavy loads. This is no
If spark knock or pin ing occurs at a steady engine speed, under
normal load, than
persists, see an aut R
e % rands of gasoline. If spark knock or pinging
orized Honda servicing dealer.
Running the engine with persistent spark knock or pinging can cause
engine damage.
Running the engine with persistent spark knock or pinging is misuse,
and the Distributor’s Limited Warranty does not cover parts damaged
by misuse.
16

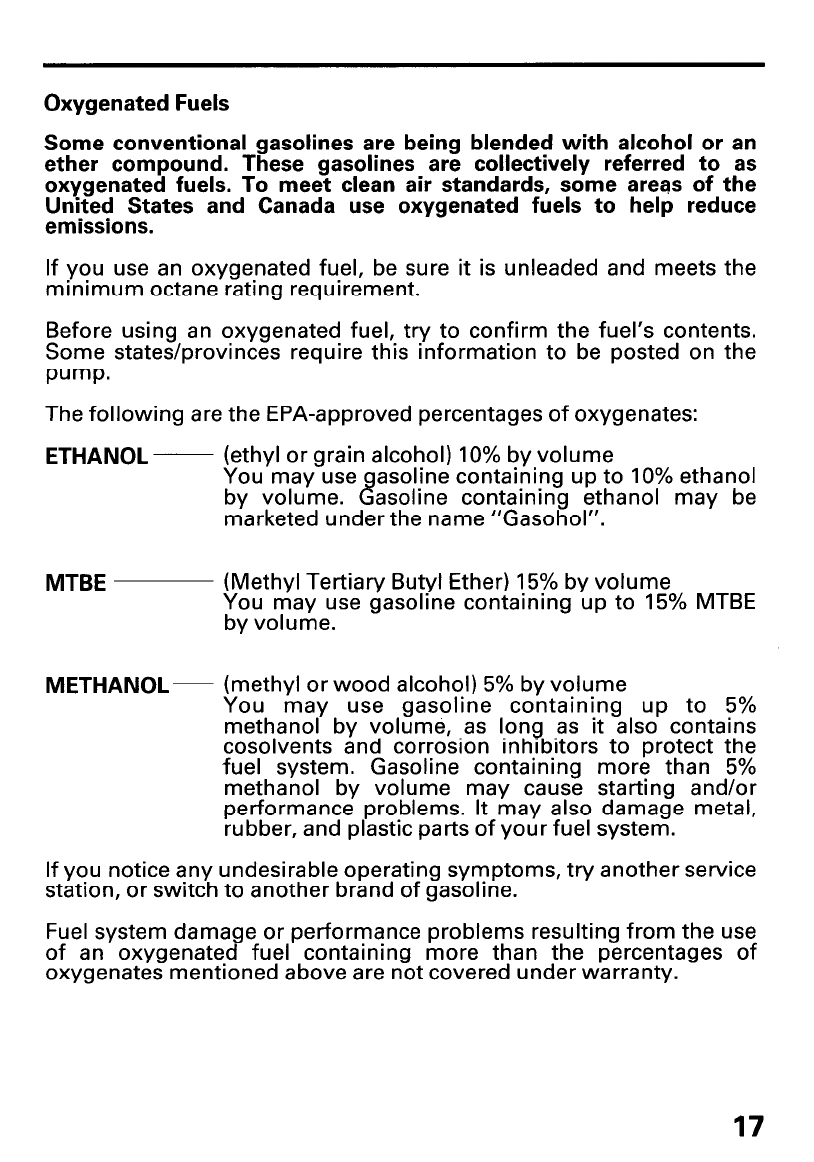

Oxygenated Fuels
Some conventional gasolines are being blended with alcohol or an
ether compound. These gasolines are collectively referred to as
oxygenated fuels. To meet clean air standards, some areas of the
United States and Canada use oxygenated fuels to help reduce
emissions.
If you use an oxygenated fuel, be sure it is unleaded and meets the
minimum octane rating requirement.
Before using an oxygenated fuel, try to confirm the fuel’s contents.
Some states/provinces require this information to be posted on the
pump.
The following are the EPA-approved percentages of oxygenates:
ETHANOL -
MTBE
METHANOL ~
(ethyl or grain alcohol) 10% by volume
You may use asoline containing up to 10% ethanol
by volume. 8 asoline containing ethanol may be
marketed under the name “Gasohol”.
(Methyl Tertiary Butyl Ether) 15% by volume
You may use gasoline containing up to 15% MTBE
by volume.
(methyl or wood alcohol) 5% by volume
You may use gasoline containing up to 5%
methanol by volume, as long as it also contains
cosolvents and corrosion inhrbitors to protect the
fuel system. Gasoline containing more than 5%
methanol by volume may cause starting and/or
performance problems. It may also damage metal,
rubber, and plastic parts of your fuel system.
If you notice any undesirable operating symptoms, try another service
station, or switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use
of an oxygenated fuel containing more than the percentages of
oxygenates mentioned above are not covered under warranty.
17
Auger Bolts
Check the auger for loose or broken bol,ts. If broken, replace them with
new ones (page 39 ).
NUT
AUGER SHEAR BOLT
Other Checks
1. Check all bolts, nuts and other fasteners for security.
2. Check each part for operation.
3.Check the entire machine for any other faults which might have
been caused in previous operation.
18
STARTING THE ENGINE
Never run the engine in an enclosed or confined .area. Exhaust
contains poisonous carbon monoxide gas; exposure can cause loss of
consciousness and may lead to death.
1. Turn the engine switch to the ON position.
ENGIN,E SWITCH
2. Turn the fuel valve to the ON position.
Be sure that the drain knob is tightened securely.
FUEL VALVE
DRAIN KNOB
19
5. Let the engine warm up for several minutes. If the choke has been
moved to the CLOSE position, gradually move the choke lever to the
OPEN position as the engine warms up.
CHOKE LEVER
--T---- I
21
SNOWBLOWER OPERATION
Operating the Controls
1. Adjust the skid plate and scraper positions with the engine stopped
and the spark plug cap removed.
The skid plate and scraper have three adjusting positions. Select the
position according to the surface conditions described in the chart.
NOTE: Adjust the height equally on both sides.
After adjusting the height, be sure to tighen the adjusting bolts and
nuts securely.
TO RAISE
HEIGHT ADJUSTING BOLT SCRAPER SKID PLATE
Operation
HtltiH I,
ADJUSTING
BOLT
Scraper Skid
Regular work MIDDLE Middle
position
Middle
position
Clearing of hard,
compact snow
UPPER Upper
position
Upper
position
Clearing of snow
covering uneven
ground
LOWER Upper
position
Lower
position
22
2. Start the engine according to the procedures described on page 19 .
Before operating this equipment you should read and understand the
Safety information on page 4 thru 6 .
3. Move the throttle lever to the FAST position for normal operation.
THROlTLE LEVER
4. Move the shift lever to select the desired drive speed.
SHIFT LEVER
1: LOW SPEED
N: NEUTRAL
2: HIGH SPEED
N: NEUTRAL
R: REVERSE
l Be sure to disengage the drive clutch before shifting gears.
l Be sure to set the shift lever into the groove.
l Never move the shift lever while the snowblower is in motion.
NOTE: Low speed (1) is recommended for removing deep or hard-
packed snow.
(Drive speed with throttle lever in the fast position)
Shift lever 1 2 R
“Speed 1.12ftki 2.79 ftk 2.79 ft./s
(0.34 m/s) (0.85 m/s) (0.85 m/s)
‘Speed is stated in meters/second and (feet/second).
23
5. With the shift lever in a forward gear, the machine will move and
clear snow simultaneously when you squeeze the auger clutch lever.
AUGER CLUTCH LEVER
6.To move from one place to another, or to change direction, use the
drive clutch lever without squeezing the auger clutch lever.
DRIVE CLUTCH LEVER
7.To operate the snow-clearing mechanism without moving the
machine, set the shift lever in NEUTRAL, then squeeze the auger
clutch lever.
SHIFT
24
8.Adjust the snow discharge chute guide according to the discharge
angle and distance as required.
l Adjust the snow discharge chute to avoid hitting the operator,
bystanders, windows, and other objects with thrown snow. Stay
clear of the snow discharge chute while the engine is running.
l If the snow discharge chute becomes clogged, stop the engine and
use a wooden stick to unclog it. Never put your hand into the snow
discharge chute while the engine is running; serious personal injury
could result.
l To move from one place to another, or to change direction, use the
drive clutch lever. Using the auger clutch lever will cause the
snowblowing mechanism to rotate, possibly resulting in equipment
damage or personal injury.
9. Release the auger clutch lever to stop clearing snow or moving.
AUGER CLUTCH LEVER
25
l Clear with back-and-forth motions
If the snow is so hard that the snowblower tends to ride over the
surface, move it back and forth to remove snow gradually.
l Clear in layers
If the height of the snow is greater than the height of the
snowblowing mechanism, remove it in several layers as shown.
2nd
___---_-----------_-_-__-_-_--___
3rd
_-------------- ---------
27
High Altitude Operation
At high altitude, the standard air-fuel mixture will be too rich.
Performance will decrease, and fuel consumption will increase. A very
rich mixture will also foul the spark plug and cause hard starting.
High altitude performance can be improved by specific modifications
to the carburetor. If you always operate your snowblower at altitudes
above 6,000 feet (1,800 meters), have your servicing dealer perform
this carburetor modification.
Even with carburetor modification, engine horsepower will decrease
about 3.5 % for each 1,000 foot (300 meter) increase in altitude. The ef-
fect of altitude on horsepower will be greater than this if no carburetor
modification is made.
( NOTICE 1
When the carburetor has been modified for high altitude operation,
the air-fuel mixture will be too lean for low altitude use. Operation at
altitudes below 6,000 feet (1,800 meters) with a modified carburetor
may cause the engine to overheat and result in serious engine
damage. For use at low altitudes, have your servicing dealer return
the carburetor to original factory specifications.
28

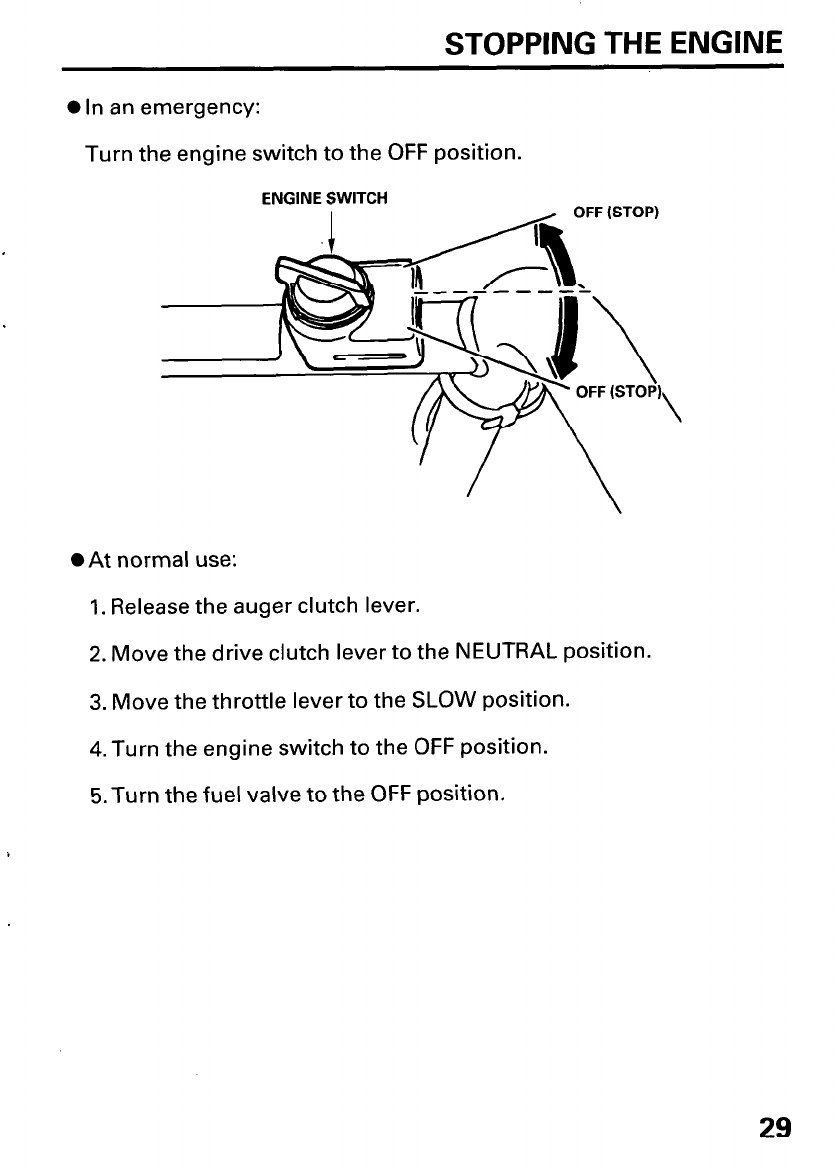

STOPPING THE ENGINE
0 In an emergency:
Turn the engine switch to the OFF position.
ENGINE SWITCH
@At normal use:
1. Release the auger clutch lever.
2. Move the drive clutch lever to the NEUTRAL position.
3. Move the throttle lever to the SLOW position.
4. Turn the engine switch to the OFF position.
5. Turn the fuel valve to the OFF position.
29
MAINTENANCE
The Importance of Maintenance
Good maintenance is essential for safe, economical, and trouble-free
operation. It will also help reduce air pollution.
To help you properly care for your snowblower, the following pages
include a maintenance schedule, routine inspection procedures, and
simple maintenance procedures using basic hand tools. Other service
tasks that are more difficult, or require special tools, are best handled
by professionals and are normally performed by a Honda technician or
other qualified mechanic.
The maintenance schedule applies to normal operating conditions. If
you operate your snowblower under unusual conditions, consult your
servicing dealer for recommendations applicable to your individual
needs and use.
Improper maintenance, or failure to correct a problem before
operation, can cause a malfunction in which you can be seriously hurt
or killed.
Always follow the inspection and maintenance recommendations and
schedules in this owner’s manual.
30
Maintenance Safety
Some of the most important safety precautions follow. However, we
cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you
should perform a given task.
Failure to properly follow maintenance instructions and precautions
can cause you to be seriously hurt or killed.
Always follow the procedures and precautions in the owner’s manual.
Safety precautions
l Make sure the engine is off before you begin any maintenance or
repairs, This will eliminate several potential hazards:
-Carbon monoxide poisoning from engine exhaust.
Be sure there is adequate ventilation whenever you operate the
engine.
-Burns from hot parts.
Let the engine and exhaust system cool before touching.
-Injury from moving parts.
Do not run the engine unless instructed to do so.
l Read the instructions before you begin, and make sure you have the
tools and skills required.
l To reduce the possibility of fire or explosion, be careful when
working around gasoline. Use only a nonflammable solvent, not
gasoline, to clean parts. Keep cigarettes, sparks, and flames away
from all fuel-related parts..
Remember that your servicing dealer knows your snowblower best
and is fully equipped to maintain and repair it.
To ensure the best quality and reliability, use only new, genuine
Honda parts or their equivalents for repair or replacement.
31
Proper Maintenance is the Owner’s Responsibility
Replacement parts
The emission control systems on your Honda engine were designed,
built, and certified. to conform with California emissions regulations.
Honda recommends only the use of new, genuine Honda parts or their
equivalent. The use of other replacement parts which are not of
equivalent quality may impair the effectiveness of your emission
control system.
Maintenance
Follow the maintenance schedule on page 33 . Remember that this
schedule is based on the assumption that your machine will be used
for its designed purpose. Sustained high-load or high-temperature
operation, or use in unusually wet conditions, will require more
frequent service.
J
32
Maintenance schedule
ITEM
Engine oil
Spark plug
Track
SERVICE FIRST 20 EVERY YEAR
EACH USE HOURS BEFORE BEFORE
OPERATION OPERATION STORAGE
Check level 0
Change 0 O(l)
Clean- O(1)
Readjust
Replace Every 5 years or 300 hours
Adjust O(1)
Auger and blower,auger Check 0
housing bolts
Bolts, nuts, fasteners Check 0
Sediment cup Clean 0
Fuel tank and Drain 0
carburetor
Idle speed Check-
adiust
Every 5 years or 300 hours (2)
Anticorrosion oil Apply oil 1
Auger clutch cable Check- 0
O(1)(2) 1
Auger clutch disk
Drive clutch cable
Throttle cable
Fuel line
Valve clearance
Readjust
Check
Check-
Readjust
Check-
Readjust
Check-
(Replace if
necessary)
Check-
Every 5 years or 300 hours (2)
c-xl K-2
Of1 KY
Every 2 years (2)
Every 5 years or 300 hours (2)
Readjust
Fuel tank and strainer Clean Every 5 years or 300 hours
(1)These parts may require more frequent inspection and replacement under heavy use.
(2)These items should be serviced by an authorized Honda dealer, unless the owner has the
proper tools and is mechanically proficient. See the Honda Shop Manual for service
information.
(3)For professional commercial use, log hours of operation to determine proper maintenance
intervals.
33
Tools
SPARK PLUG WRENCH
t 1 1
WRENCH HANDLE
10 x 12 mm WRENCH
10 x 14 mm WRENCH
SPARE AUGER SHEAR BOLT SET
TWO 6 x 35 mm BOLTS
TWO 6 mm LOCK NUTS
TOOL BAG
34
Engine Oil Change
I
Drain the oil while the engine is still warm to assure rapid and
complete draining.
1. Remove the drain plug and filler cap, and drain the oil. Retighten the
drain plug securely.
2. Fill the crankcase with the recommended oil (see page 14 ) and
check the level.
Oil capacity: 0.60 !Z (0.63 US qt , 0.53 Imp qt)
DRAIN PLUG OIL FILLER CAP
UPPER LIMIT
NOTE:
Please dispose of used motor oil in a manner that is compatible with
the environment. We suggest you take it in a sealed container to your
local recycling center or service station for reclamation. Do not throw it
in the trash, pour it on the ground, or down the drain.
35
Spark Plug Service
Recommended spark plug: BPR5ES (NGK)
Wl GEPR-U (NIPPONDENSO)
To ensure proper engine operation, the spark plug must be properly
gapped and free of deposits. If the engine has been running, the
muffler will be very hot. Be careful not to touch the muffler.
1. Remove the spark plug cap.
SPARK PLUG WRENCH
2. Clean any dirt from around the spark plug base.
3. Use the wrench supplied in the tool kit to remove the spark plug.
4. Inspect the spark plug. Discard it if the electrodes are worn or if the
insulator is cracked or chipped. If it is to be reused, clean the
electrode and insulator with a wire brush.
36
5. Measure the plug gap with a feeler gauge.
Correct as necessary by bending the side electrode.
The gap should be:
0.70-0.80 mm (0.028-0.031 in)
4
PLUG GAP
6. Make sure that the spark plug washer is in good condition, and
thread the spark plug in by hand to prevent cross-threading.
7,After the spak plug is seated, tighten with a spark plug wrench to
compress the washer.
NOTE:
If installing a new spark plug, tighten l/2 turn after the spark plug seats
to compress the washer. If reinstalling a used spark plug, tighten l/8 to
l/4 turn after the spark plug seats.
pciq
l Use only the recommended spark plugs or equivalent. Spark plugs
which have an improper heat range may cause engine damage.
l The spark plug must be securely tightened. An improperly
tightened spark plug can become very hot and may damage the
engine.
37
Track Adjustment
Make sure the tracks are clean and dry before adjustment. The tracks
cannot be correctly adjusted if clogged with snow or debris, or coated
with ice.
Check track deflection by pressing down midway between the wheels
with a force of 15 kg (33 lb).
When correctly adjusted, it should be:
25.0-30.0 mm (0.98-1.18 in)
25.0-30.0
(0.98-1.18
TRACK
Adjusting procedure
1. Loosen the left and right tension bolt lock nuts at the rear axle, and
turn the adjusting nuts to correctly tension both tracks.
2. After adjustment, tighten the lock nuts securely.
, , , ADJUSTlNG NUT
TENSION BOLT
Decrease tension
Increase tensio
38
Auger and Blower Inspection
Check the auger, auger housing, blower and shear bolts for signs of
damage or other faults. If any of the shear bolts are broken, replace
them with the ones furnished with the snowblower. Additional shear
bolts and nuts are available from authorized Honda snowblower
dealers.
riisiq
Shear bolts are designed to break under force that would otherwise
damage auger and blower parts. Do not replace shear bolts with or-
dinary hardware bolts.
Shear Bolt Replacement Procedure
1. Place the showblower on a firm, level surface.
2. Turn the engine switch OFF, and remove the cap from the spark plug.
3.Clean the auger and blower of snow, ice or any other foreign
particles.
4. Check the entire snow clearing mechanism.
5. Replace any broken shear bolts. Tighten securely.
6 mm LOCK NUT
AUGER SHEAR BOLT
39
STORAGE
RECOMMENDED SERVICE
STORAGE TIME PROCEDURE TO PREVENT HARD
STARTING
Less than 1 month
1 to 2 months
No preparation required
Fill with fresh gasoline and add gasoline
conditioner*.
2 months to 1 year Fill with fresh gasoline and add gasoline
conditioner*.
Drain the carburetor float bowl and fuel
sediment cup (p. 41 1.
1 year or more Fill with fresh gasoline and add gasoline
conditioner*.
Drain the carburetor float bowl and fuel
sediment cup (p. 41 1.
Put a tablespoon of oil in the cylinder
through the spark plug hole(p. 42 ).
Pull the starter grip several times to
distribute the oil in the cylinder.
Then pull the starter grip slowly until
resistance is felt; this will close the valves
so moisture cannot enter the cylinder.
After removal from storage, drain the
stored gasoline into a suitable container,
and fill with fresh gasoline before starting.
*Use gasoline conditioners that are formulated to extend storage
life. Contact your authorized Honda snowblower dealer for
recommendations for gasoline conditioners.
40

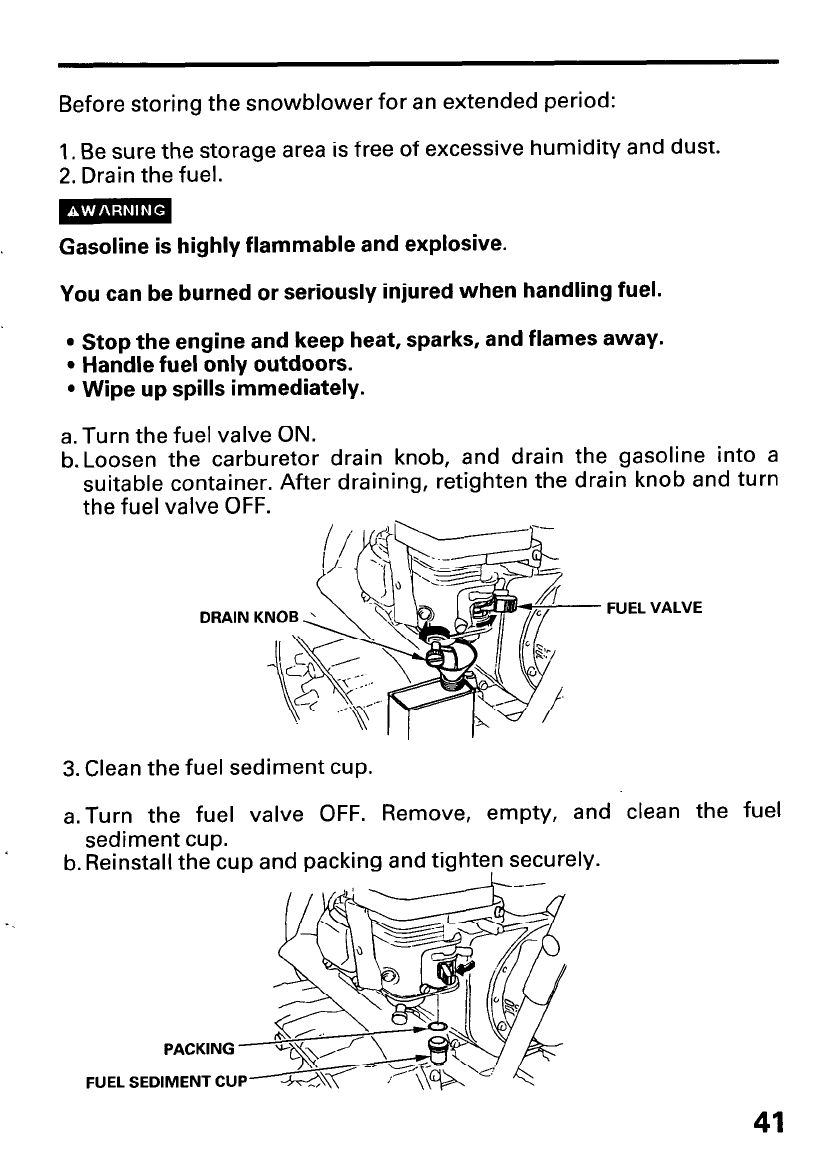

Before storing the snowblower for an extended period:
I. Be sure the storage area is free of excessive humidity and dust.
2. Drain the fuel.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
l Stop the engine and keep heat, sparks, and flames away.
l Handle fuel only outdoors.
l Wipe up spills immediately.
a. Turn the fuel valve ON.
b.Loosen the carburetor drain knob, and drain the gasoline into a
suitable container. After draining, retighten the drain knob and turn
the fuel valve OFF.
FUEL VALVE
3. Clean the fuel sediment cup.
a.Turn the fuel valve OFF. Remove, empty, and
sediment cup.
b. Reinstall the cup and packing and tighten securely.
FUEL
PACKING
SEDIMENT CU
clean the fuel
41
4. Remove the spark plug and pour a tablespoon (5- 10 cc) of clean
motor oil into the cylinder. Pull the starter rope slowly two or three
times to distribute the oil. Reinstall the spark plug.
5. Pull the starter grip until resistance is felt. This closes the valves and
protects the engine from internal corrosion.
STARTER GRIP
42
6. Apply oil to the following parts for lubrication and rust prevention.
CLUTCH LEVER PIVOT
-3
-
CHUTE SLIDING
SURFACE
AUGER CLUTCH
LEVER PIVOT
AND SPRING JOINT
43
TROUBLESHOOTING
When the engine will not start:
1. Is there enough fuel?
2. Is the fuel valve on?
3. Is gasoline reaching the carburetor?
To check, loosen the drain screw with the fuel valve on. Fuel should
flow freely.
B
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
l Keep heat, sparks, and flames away.’
l Handle fuel only outdoors.
l Wipe up spills immediately.
5. Is the engine switch on?
6. Is there a spark at the spark plug?
a. Remove the spark plug cap. Clean any dirt from around the spark
plug base, then remove the spark plug.
b. Install the spark plug in the plug cap.
c. Turn the engine switch on.
d.Ground the side electrode at any engine ground and crank the
engine to see if sparks jump across the gap.
B
Gasoline is highly flammable and explosive.
If ignited, gasoline can burn you severely.
l Be sure there is no spilled fuel near the engine.
l Place the spark plug away from the spark plug hole.
e. If there are no sparks, replace the plug. If sparks occur, try to start
the engine according to the instructions.
7. If the engine still does not start, take the snowblower to an -
authorized Honda dealer.
If the auger or blower does not operate, check the shear bolts (p. 39 1.
Replacement shear bolts and nuts were supplied with your
snowblower. Additional shear bolts and nuts are available from
authorized Honda snowblower dealers. Do not replace shear bolts
with ordinary hardware bolts.
44

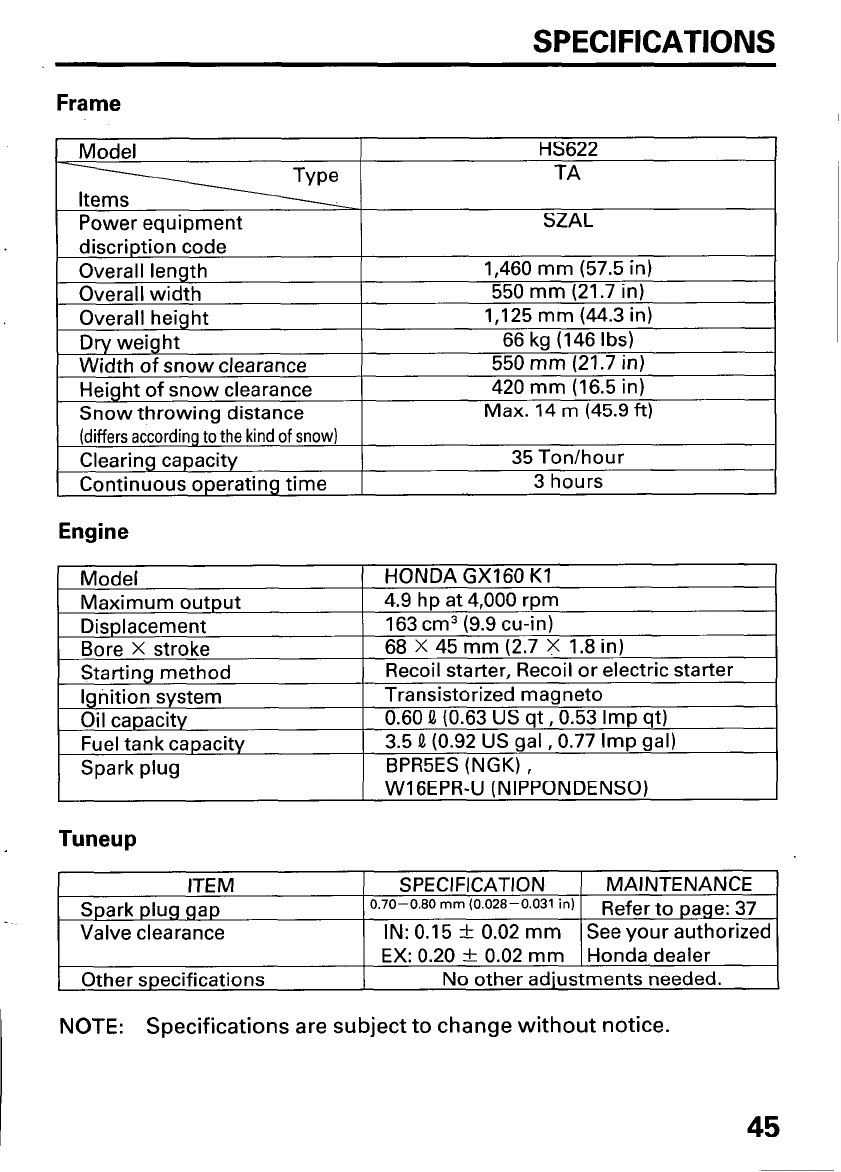

SPECIFICATIONS
Frame
Model HS622
TA
Power equipment SZAL
discription code
Overall length
Overall width
Overall height
Dry weight
Width of snow clearance
Height of snow clearance
Snow throwing distance
(differs according to the kind of snow)
Clearing capacity
Continuous operating time
1,460 mm (57.5 in)
550 mm (21.7 in)
1,125 mm (44.3 in)
66 kg (146 Ibs)
550 mm (21.7 in)
420 mm (16.5 in)
Max. 14 m (45.9 ft)
35 Ton/hour
3 hours
Engine
t HONDA GX160 Kl
1 4.9 hp at 4,000 rpm
<
I IE i3 cm3 (9.9 cu-in)
68 X 45 mm (2.7 x 1.8 in)
Recoil starter, Recoil or electric starter
Transistorized magneto
0.60 I?, (0.63 US qt ,0.53 Imp qt)
3.5 !J (0.92 US gal, 0.77 Imp gal)
BPR5ES (NGK) ,
Mnfbl
Maximum output
Displacement
Bore X stroke
Starting method
Ignition system
Oil capacity
Fuel tank capacity
Spark PIUR
1. .- 1 WIGEPR-U (NIPPONDENSO) I
Tuneup
ITEM
Spark plug gap
Valve clearance
Other specifications
SPECIFICATION MAINTENANCE
0.70-0.80 mm (0.028-0.031 in) Refer to page: 37
IN: 0.15 Y!Z 0.02 mm See your authorized
EX: 0.20 + 0.02 mm Honda dealer
No other adjustments needed.
NOTE: Specifications are subject to change without notice.
45
WARRANTY SERVICE INFORMATION
Honda power equipment dealership personnel are trained
professionals. They should be able to answer any question you may
have. If you encounter a problem that your dealer does not solve to
your satisfaction, please discuss it with the dealership’s management.
The Service Manager or General Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the decision made by the dealership’s ,
management, contact the Honda Power Equipment Customer Service
Office. You can write to:
American Honda Motor Co., Inc.
Honda Power Equipment Division
Customer Service Office
4475 River Green Parkway
Duluth, Georgia 30136-2565
Or telephone: (770)497-6400
When you write or call, please give us this information:
l Model and serial number
l Name of dealer who sold the snowblower to you
l Name and address of dealer who services your snowblower
l Date of purchase
l Your name, address, and telephone number
l A detailed description of the problem
46
INDEX
COMPONENT IDENTIFICATION ................................................................. 7
CONTENTS ..................................................................................................
CONTROLS .................................................................................................. ;
Auger Clutch Lever ................................................................................ 12
Choke Lever .............................................................................................. 9
Chute Guide ........................................................................................... 11
Drive Clutch Lever ................................................................................. 11
Engine Switch ......................................................................................... .8
Fuel Valve ................................................................................................. 8
Handle Height Adjusting Bolt ............................................................... 13
Height Adjustment Bolt ......................................................................... 12
Shift Lever ............................................................................................. .I0
Skid Plate and Scraper .......................................................................... 13
Starter Grip ..... ..i ....................................................................................... 9
Throttle Lever ........................................................................................ .I0
MAINTENANCE ......................................................................................... 30
Auger and Blower Inspection, ............................................................... 39
Engine Oil Change ................................................................................. 35
Maintenance Schedule .......................................................................... 33
Proper Maintenance is the Owner’s Responsibility .......................... .32
Maintenance Safety ............................................................................... 31
Spark Plug Service ................................................................................. 36
The Importance of Maintenance .......................................................... 30
Tools ...................................................................................................... .34
Track Adjustment ................................................................................... 38
PRE-OPERATION CHECK .......................................................................... 14
Auger Bolts ............................................................................................. 18
Engine Oil ............................................................................................... 14
Fuel ......................................................................................................... 15
Other Checks.. ....................................................................................... .I8
SAFETY ........................................................................................................ 3
SAFETY LABEL LOCATIONS .................................................................. 3
SAFETY INFORMATION .......................................................................... 4
SNOWBLOWER OPERATION ................................................................... 22
Clearing Snow.. ..................................................................................... .26
Operating the Controls .......................................................................... 22
High Altitude Operation ........................................................................ 28
SPECIFICATIONS ....................................................................................... 45
STARTING THE ENGINE ........................................................................... 19
STOPPING THE ENGINE ........................................................................... 29
STORAGE ................................................................................................... 40
TROUBLESHOOTING ................................................................................ 44
WARRANTY SERVICE INFORMATION ....................................................
150.2001.12
PRINTED IN U.S.A.
P/N 31743700
00X31-743-7000
Printed on
Recycled Paper
EM

Navigation menu
