LAWN MOWERS

© 2018 American Honda Motor Co., Inc.—All rights reserved 1-1

Bulk Starter Rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Grass Bag Kits & Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Miimo House. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Mulching Kits & Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Miscellaneous Kits & Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

HRC216K2, HRC216K3 Single Blade Spacer Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

HRS Twin-Blade Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Side Discharge Chute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Silver Lawn Mower Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Deck Guard Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Handle Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Leaf Shredder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Adjustable Smart Drive® Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Spark Arrester Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Battery Charger Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Battery Float Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Charger Harness Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

LAWN MOWERS

1-2 © 2018 American Honda Motor Co., Inc.—All rights reserved

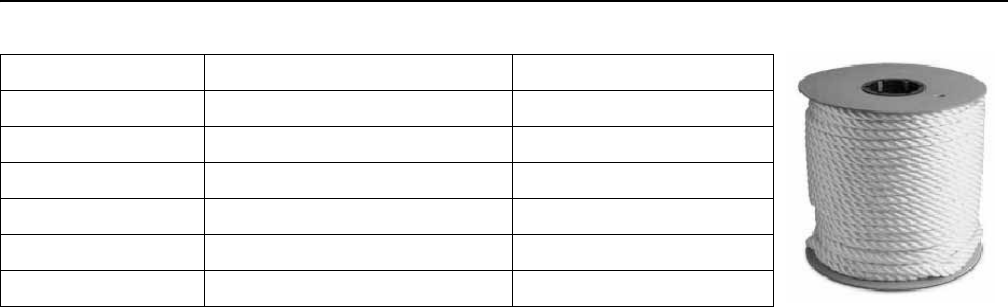

Bulk Starter Rope

#3.5 x 200' 0.109 in (diameter) 08535-ZG921-11

#4 x 200' 0.122 in (diameter) 08540-ZG921-11

#4.5 x 200' 0.140 in (diameter) 08545-ZG921-11

#5 x 200' 0.156 in (diameter) 08550-ZG921-11

#5.5 x 200' 0.170 in (diameter) 08555-ZG921-11

#6 x 200' 0.187 in (diameter) 08560-ZG921-11

#7 x 200’ 0.210 in (diameter) 08570-ZG921-11

LAWN MOWERS

© 2018 American Honda Motor Co., Inc.—All rights reserved 1-3

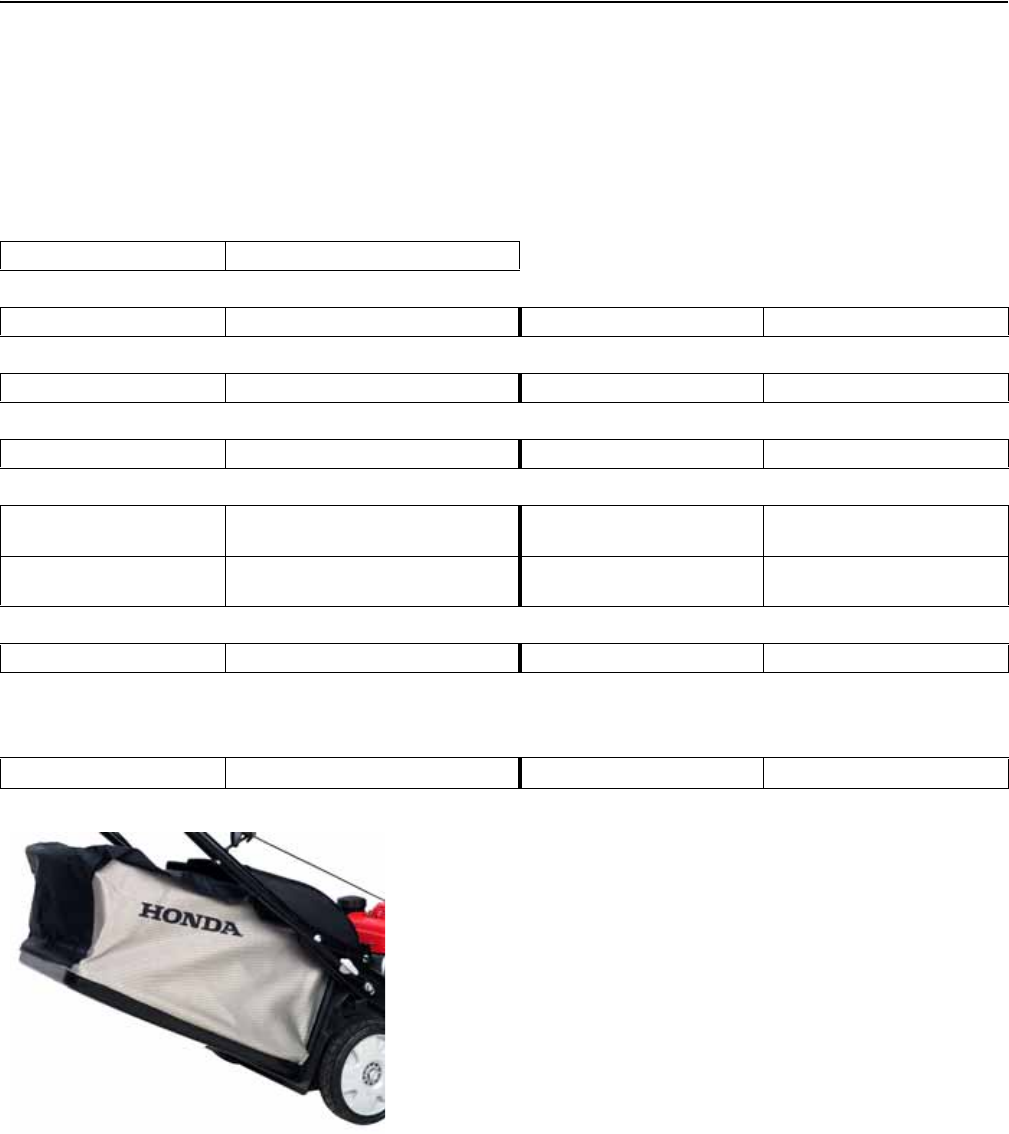

Grass Bag Kits & Parts

When you want the best possible lawn appearance, you just can’t beat a grass bag. Clippings are blown into the ventilated bag

for easy handling and disposal. Build your own kit with the following parts.

OPTIONAL GRASS BAGS

STANDARD GRASS BAGS

HRC216K2, HRC216K3 GRASS BAG KIT (COMPLETE KIT)

Complete kit 06813-VK6-000

HRR216K0~K2, HRT216K0~K2, HRZ216

Frame comp, bag 81330-VG4-010 Fabric comp, grass bag 81320-VG4-010

HRR216K3~K7

Frame 81330-VG4-010 Fabric grass bag 81320-VL0-B10

HRR216K8~K10

Frame 81330-VL0-P00 Fabric grass bag 81320-VL0-P00

HRX217K0~K1

Fabric, grass bag (HMA,

HXA, VKA only) 81320-VH7-000 Frame, bag 81330-VH7-000

Fabric, grass bag (HMA,

HXA only) 81320-VH7-810

HRX217K2~K5

Frame (collapsible) 81330-VH7-D01 Fabric comp, grass bag 81320-VH7-D00

HRX217K0 and Later LOW DUST GRASS BAG KIT (COMPLETE KIT)

Complete kit 04813-VH7-K50 Fabric grass bag 81320-VH7-K51

LAWN MOWERS

1-4 © 2018 American Honda Motor Co., Inc.—All rights reserved

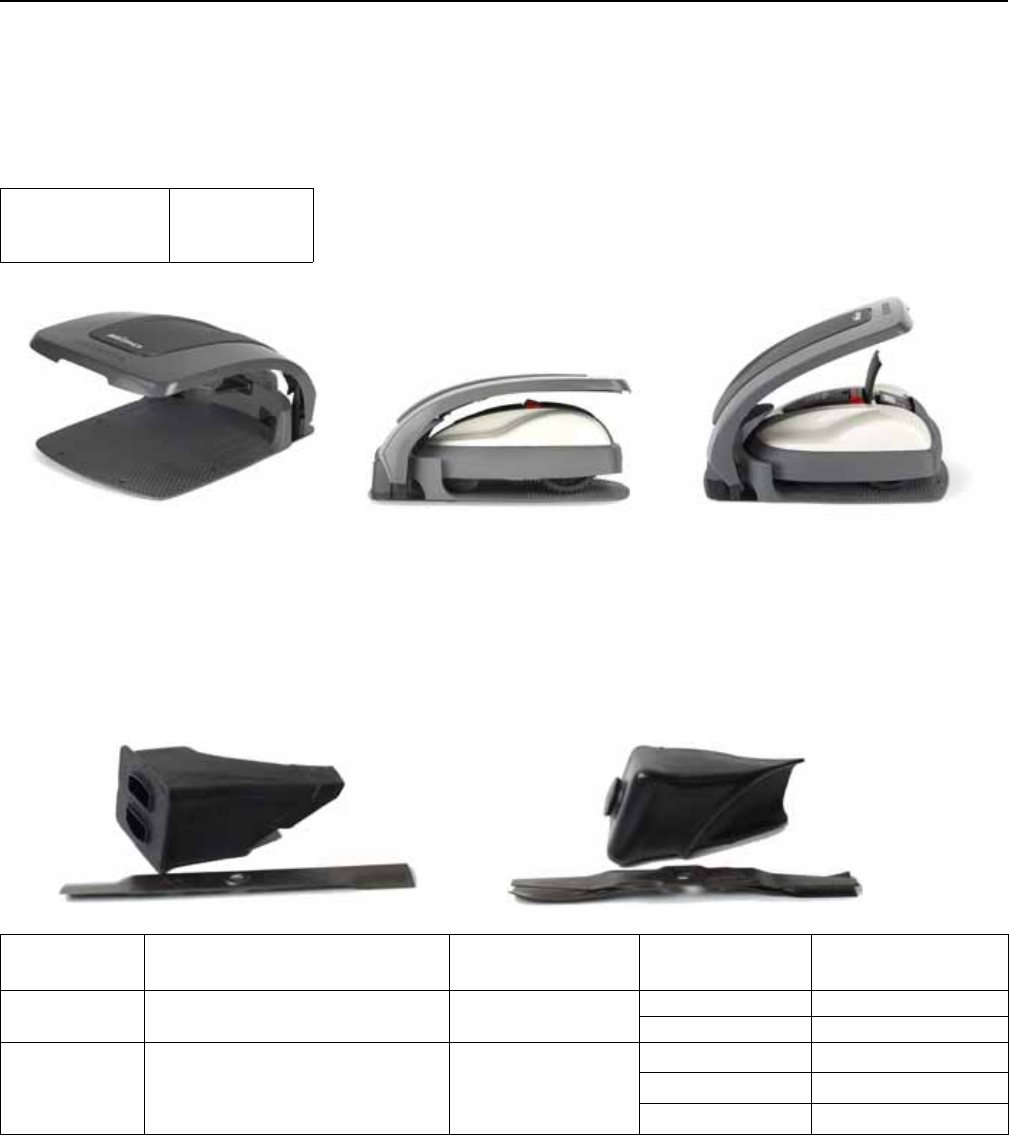

Miimo House

The Miimo House was designed to help protect Miimo and the charging station from rain and direct sunlight.

The Miimo House can be set in two positions, raised and lowered. The raised position allows access to Miimo’s control panel

while Miimo is parked in the docking station. The lowered position protects Miimo from the elements during recharging, or when

Miimo is not scheduled to mow.

Mulching Kits & Replacement Parts

These mulching kits convert a rear-bagging unit to a mulching mower. An engineered low-lift blade cuts the grass

and then cuts it again and again to produce fine mulch. Heavy-duty plugs, blades, and all hardware (as required)

are included. For listed models/types only.

Miimo House

HRM310K1,

HRM520K1

06800-VP7-000

Model Comments Kit Part Number Kit Contents Replacement

Part Nos.

HR194PXA Replace original blade with mulching

blade; install mulching plug. 06764-VA5-850 Mulching blade 72511-VB4-700

Mulching plug Not available

HRB215

Complete low-lift mulching kit

includes two new blades. Replace

single high-lift blade with two new

blades, install mulching plug.

06764-VE2-810

Upper blade 72531-VE2-020

Lower blade 72511-VG4-K00

Mulching plug 76266-VE2-000ZA

SINGLE BLADE

MULCHING KIT TWIN BLADE

MULCHING KIT

LAWN MOWERS

© 2018 American Honda Motor Co., Inc.—All rights reserved 1-5

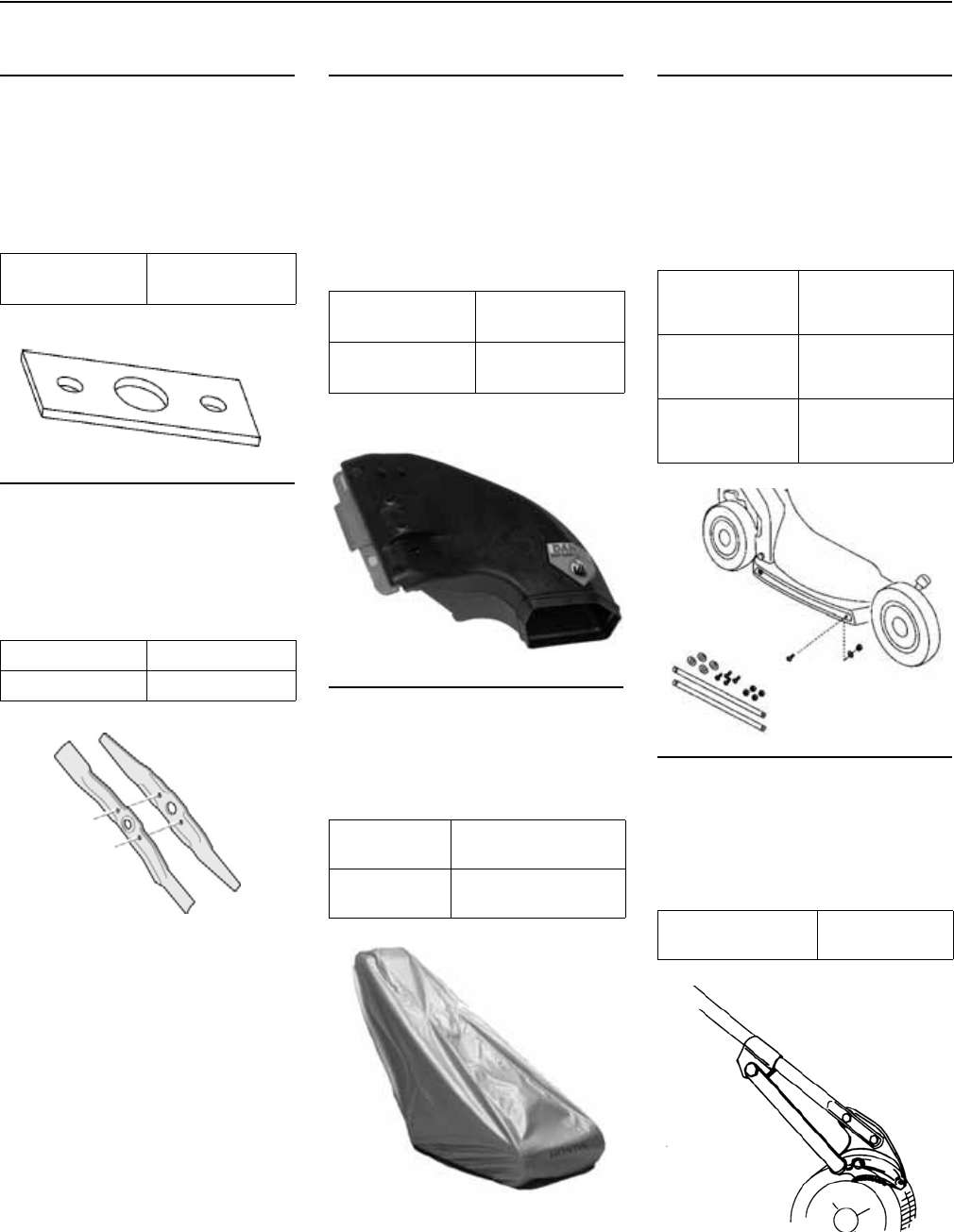

Miscellaneous Kits & Parts

HRC216K2, HRC216K3 Single

Blade Spacer Kit

For single blade operation, install this

spacer in place of the upper blade. Not

for use on HRR/HRX twin-blade

models.

HRS216 Twin-Blade

Conversion

Convert a single blade HRS216 to a

twin-blade configuration for maximum

cutting performance.

Side Discharge Chute

Convert a rear-bag lawn mower to

side-discharge. This is a simple,

90-degree elbow that slips onto the

rear of the unit and is held in place by

the rear guard. The chute is made of

tough polyethylene. Not for use on

HRR216K8/K9 or HRX217 mowers.

Silver Lawn Mower Cover

Protect your walk behind (21” deck)

lawn mower with a custom fitted

waterproof, breathable polyester cover.

Deck Guard Kits

Honda mower decks are built tough,

but you can add these all-steel guards

to protect the sides of the deck from

wear. These guards are standard

equipment on walk-behind commercial

mowers.

Handle Support

For severe conditions, install this kit for

added support. These supports are

standard on walk-behind commercial

mowers.

Single Blade

Spacer Kit

06725-VK6-000

Upper Blade 72531-VE2-020

Lower Blade 72511-VE1-020

HRC216K2,

HRC216K3 06814-VK6-000

HRR216K0~K7,

HRT216, HRZ216 06814-VG4-010

21” deck,

red logo 08P59-VE2-000AH

21” deck,

black logo 08P59-VE2-010AH

HR215K0,

HR215K1

(2 guards included)

06761-VA3-690

HRB215, HRB216,

HRB217, HRM215

(2 guards included)

06761-VE2-000

HRX217

(2 stainless steel

guards included)

06761-VH7-000AH

HR214, HR215,

HR216

06531-VA3-010

LAWN MOWERS

1-6 © 2018 American Honda Motor Co., Inc.—All rights reserved

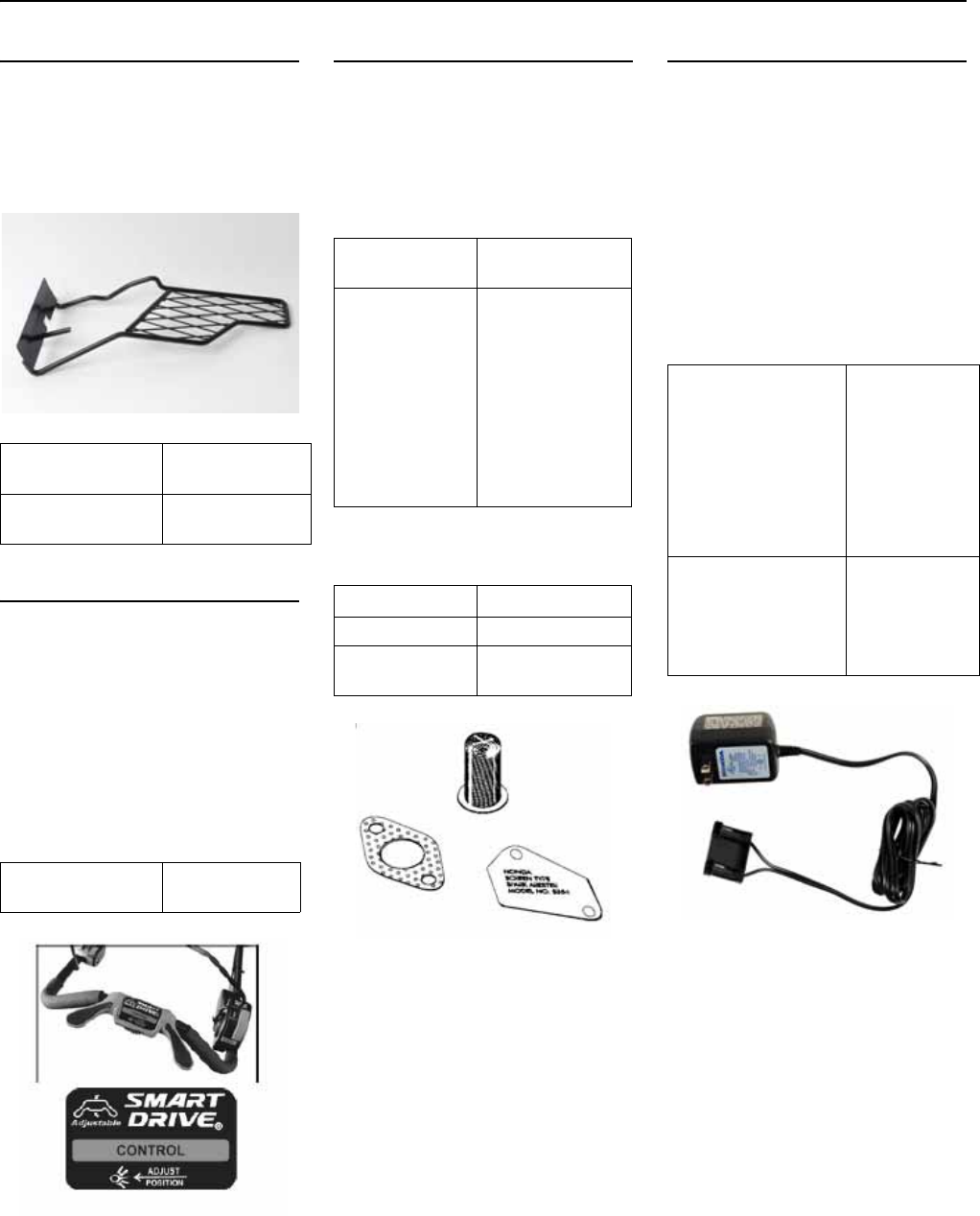

Miscellaneous Kits & Parts (cont.)

Leaf Shredder

Use this special shredder to chop up

leaves. It helps to better pack the grass

bag, so it won’t have to be emptied as

often. Not for use on HRR216K9 or

HRX217 models.

Adjustable Smart Drive Kit

This optional kit is for use with

HRR216K3VXA, HRR216K4VXA, and

HRX217K1VKA lawn mowers only. The

parts in this kit are standard equipment

on later models. Move the Smart Drive

control up or down into the most

comfortable position for the operator.

The multi-position adjuster can be

moved to five different positions.

Spark Arrester Kits

To help reduce fire hazards when

mowing in extremely dry conditions,

install this kit. A spark arrester is

mandatory on any unit operated in a

U.S. National Forest.

Battery Charger Assembly

Electric start lawn mowers are now

equipped with automatic on-board

battery charging. However, an optional

AC charger can be used to keep the

battery charged during the off-season

or to fully charge the battery at the start

of the season. Note: The charger is not

designed to be left connected for more

than 24 hours and will not fit earlier

model lawn mowers. 31570-VL0-W01

is shown.

HRB215, HRB216,

HRB217, HRM215

81510-VE2-000

HRR216 (K0~K8),

HRT216, HRZ216 81560-VG4-000

Adjustable Smart

Drive Kit

06554-VH7-305

HR21, HR21K1,

HR21K2, HRA21

06180-888-505

HR194, HR195,

HR214, HR215,

HR216, HRA214,

HRA215,

HRA216,

HRB215,

HRC215,

HRC216,

HRM195,

HRM215

06180-ZE6-820

HRB216, HRB217, HRR216,

HRS216, HRT216, HRZ216, HRX217

Arrester, spark 18350-ZL8-000

Plate 18356-ZL8-000

Screw, tapping

(4 x 6 mm) 90055-ZE1-000

HRR216K9VLA

(MZCG-8670001~9349370),

HRX217K4HZA

(all serial numbers),

HRX217K4VLA

(all serial numbers),

HRX217K5HZA

(MAGA-2370001~2417294),

HRX217K5VLA

(MAGA-2370001~2417294)

31570-VL0-W01

HRR216K9VLA

(MZCG-9349371~),

HRX217K5HZA

(MAGA-2417295~),

HRX217K5VLA

(MAGA-2417295~),

31570-VH7-V31

LAWN MOWERS

© 2018 American Honda Motor Co., Inc.—All rights reserved 1-7

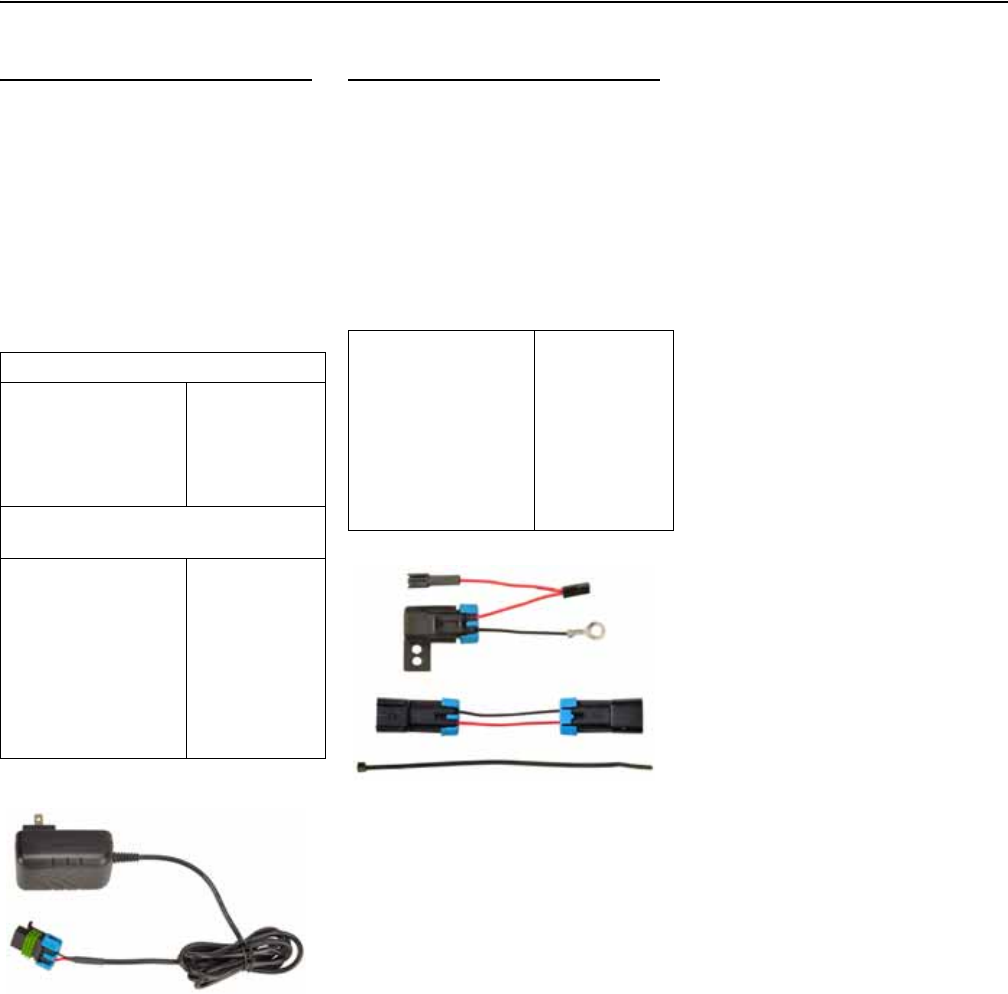

Miscellaneous Kits & Parts (cont.)

Battery Float Charger

The accessory float charger can be

used to supplement the onboard

charging system and features a ‘float

mode,’ allowing it to be left connected

continuously between uses or during

long-term storage. This maximizes

battery life and ensures the battery is

always fully charged and ready when

your customer is ready to mow.

Charger Harness Kit

The charger harness kit is available for

earlier models that were not equipped

with a charger connection. The kit

equips the lawn mower with a charge

connector, allowing the charger to be

quickly connected without having to

remove the battery from the lawn

mower.

Harness Kit Not Required

HRR216K9VLA

(MZCG-9349371~),

HRX217K5HZA

(MAGA-2417295~),

HRX217K5VLA

(MAGA-2417295~),

31570-VH7-S31

Harness Kit

(PN 06320-VH7-S00) Required

HRR216K9VLA

(MZCG-8670001~9349370),

HRX217K4HZA

(MZCG-2200001~2369999)

HRX217K4VLA

(MZCG-2200001~2369999)

HRX217K5HZA

(MAGA-2370001~2417294),

HRX217K5VLA

(MAGA-2370001~2417294)

31570-VH7-S31

HRR216K9VLA

(MZCG-8670001~9349370),

HRX217K4HZA

(MZCG-2200001~2369999)

HRX217K4VLA

(MZCG-2200001~2369999)

HRX217K5HZA

(MAGA-2370001~2417294),

HRX217K5VLA

(MAGA-2370001~2417294)

06320-VH7-S00
