OmniSmart™ Reader Family
Installation Instructions Models OS10/20/30/40/45
7600055 Rev. 4, 5-Dec-03
3. Splice the reader pigtail wires to the corresponding
host wires and cover each connection (see Figure 2).
WHAT IS THE OmniTek OmniSmart™ READER?
The OmniSmart Reader is an RFID Contactless Smart Card
proximity card reader for use with access control systems. 4. If the tamper output is being utilized, connect the
purple wire to the correct input on the host.
These installation instructions contain the following
information: 5. Trim and cover all conductors that are not used.

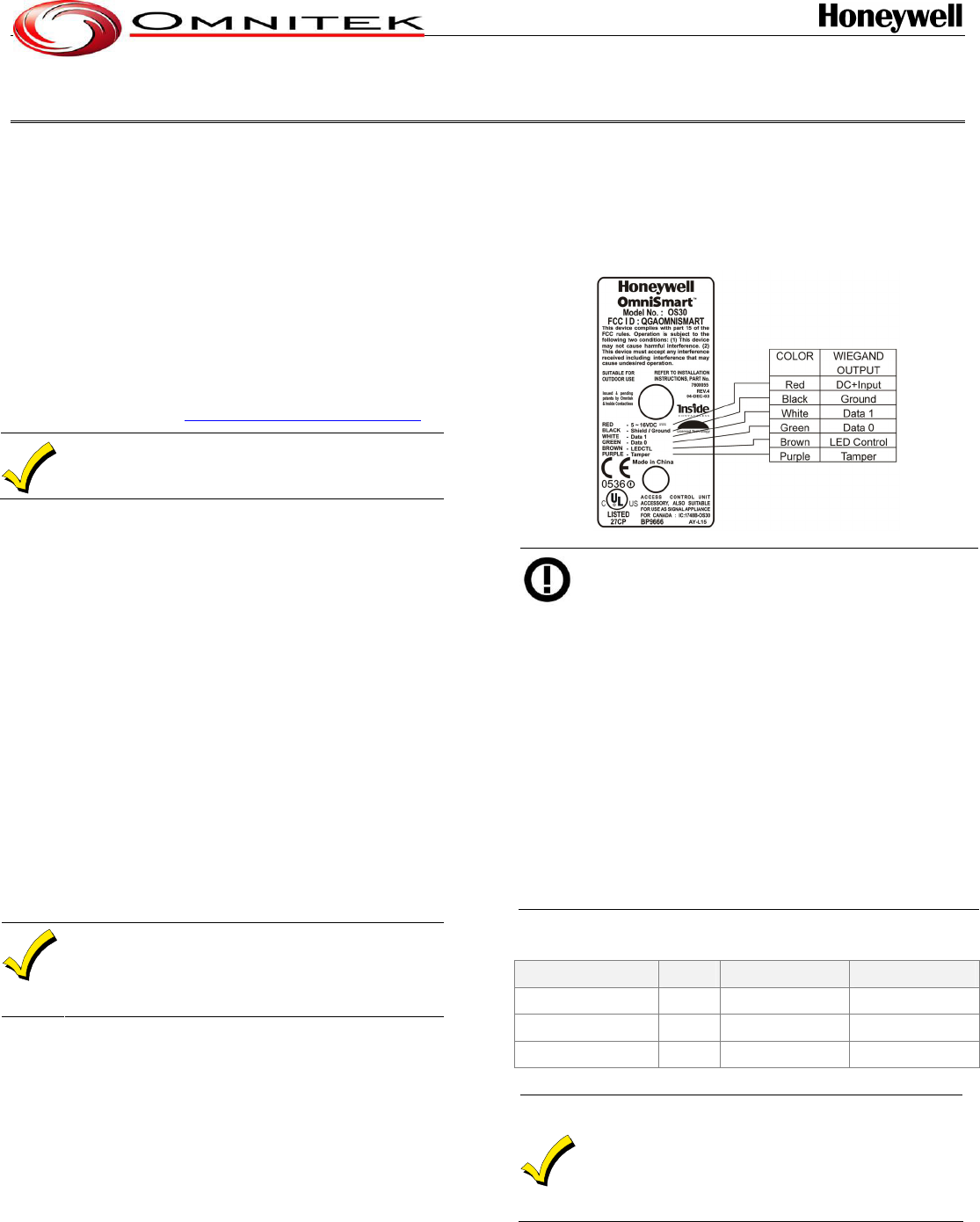

• Mounting Instructions Figure 1 below shows how to wire the reader to the host.
• Connecting the reader to a host using the Wiegand
interface
• Testing and operation of the reader
If a different output protocol is required (Clock & Data or
Serial TTL), or an alternate configuration (different
security keys, tamper operation, LED control, etc.) is
required, consult the OmniSmart Configuration Manual
which can be found at www.omnitek.com/support.shtm.
Visit www.omnitek.com for the latest information and
technical support.
HOW TO MOUNT THE READER
To surface mount the reader, perform the following:
Wiring Notes:
1. The individual wires coming out of the reader are colo
r
coded according to the recommended Wiegand standard.
2. If either 5 or 12 volts are available, use 12 volts for bette
r
performance.
3. When using a separate power supply for the reader, the
reader, power supply and host must have a common ground.
4. The recommended cable depends on the distance from
the reader to the host. See Table 1 below for the correct
wire gauge based upon distance. Larger wire gauges
(lower numbers) are desirable. The wire must be stranded
with an overall shield, either foil or braided. If the tamper is
not being used, 5 conductor cable is required; otherwise 6
conductor cable is required.
5. The cable shield wire on the reader should be attached to
an Earth ground (best) or signal ground connection at the
panel or power supply end of the cable. This configuration
is best for shielding the reader cable from external
interference.
1. Determine an appropriate mounting position for the
reader. Ideally, for the maximum operating distance,
avoid mounting the reader directly on metal surfaces
and near other OmniSmart readers.
2. Peel off the back of the self-stick mounting label
template included with the unit and position it at the
desired mounting position. (Additional templates can
be downloaded from www.omnitek.com.)
3. Using the template as a guide, drill two holes (hole size
is indicated on mounting template) for mounting the
reader to the surface.
4. Drill a 1/2” (13 mm) hole for the cable. If mounting on
metal, place a grommet or electrical tape around the
edge of the hole to protect the wire from chaffing.
5. Attach the reader to the mounting surface using the
appropriate screws (not supplied). The mounting
template may be left in place if desired since the
reader will cover it completely.
Check all electrical codes for proper installation.
Card Reader Models OS10/30/40/45 are to be used
with control panels whose power supply is UL
listed Class 2 or equivalent.
TABLE 1: WIRE GAUGE SPECIFICATIONS
Distance Gauge 5 Conductor 6 Conductor
≤ 200 ft. (61m) 22 Alpha 1295C Alpha 1296C
≤300 ft. (91m) 20 Alpha 58126 Alpha 58126
≤ 500 ft. (153 m) 18 Alpha 58136 Alpha 58136
Cable recommendations are only a guideline; use
any manufacturer that meets the gauge and shield
specifications. Lower gauges (smaller numbers)
have less resistance and are preferrable. The use o
f
plenium cable may be required by the local building
codes.
HOW TO CONNECT THE READER TO THE HOST
The OmniSmart Reader is supplied with an 18-inch pigtail,
having a 6-conductor cable. To connect the reader to the
host, perform the following steps:
1. If the reader has a connector attached to it, cut it off
and discard it. This connector is used during testing.
2. Prepare both the reader cable and host cables by
cutting the cable jacket back 1¼ inches and strip the
wires ½ inch.
-1-
![](/img.php?id=457599&img=bg2.png)
HOW TO TEST AND OPERATE THE READER Maximum input current:
The reader should be tested after wiring it to the host. Do
this by performing the following steps:
OS10
Standby: 60 mA
Read: 75 mA
1. Power up the reader. The LED and beeper will
activate three times. This indicates that the
reader is working properly.
OS20, OS30, OS40, OS45
Standby: 60 mA
Read: 100 mA
2. Present an OmniSmart Contactless Smart Card
to the reader. The LED will momentarily flash
green and a short beep will be emitted (if the
reader is the factory default configuration). This
indicates that the card was read properly by
OmniSmart.
Tamper Output
Open collector, active low, max.sink current is 30 mA
Maximum Cable Distance to Host:
500 ft. (150 meters)
Output Interfaces
Wiegand1, Clock & Data, TTL serial asychronus2
3. After the card data is processed by the host, the
host can then turn the LED green or yellow.
Refer to the host description of the LED
operation if the reader LED is controlled by the
host.
ISO Standards Supported
IEC/ISO 14443A, 14443B, and 15693
Card Read Distance: (Ideal conditions3)
OmniSmart
Model
Read Ranges
(inches)
Read Range
(cm)
OS10 1.8 – 2.0 4.5 – 5.0
OS20 2.56 – 2.76 6.5 – 7.0
OS30 2.76 – 2.95 7.0 – 7.5
OS40 2.95 – 3.15 7.5 – 8.0
OS45 3.0 – 3.35 7.6 – 8.5
HOW TO USE THE COVERS
OmniSmart readers include three different color covers.
After installation and test, the cover should be installed to
hide the mounting screws and deter vandalisim. Choose
the desired color and place on the reader from the top first
to engage the mounting tabs and then swing it down onto
the reader. Secure the cover to the reader using the
supplied Philips head screw or the supplied security screw.
(A security tool is included in the package with the screws.)
Regulatory Approvals:
USA: FCC Part 15 B, UL294 (only model OS30)
Canada: Industry Canada, C22.2 No. 205-M1983
ERROR CONDITIONS Europe: CE Listed
Whenever an error condition is signaled by the reader, the
red LED is flashed accompanied by a beep several times. The
following table explains what error message is being conveyed
by the number of flashes/beeps:
Note: The term "IC:" before the radio certification number
only signifies that Industry of Canada technical
specifications were met.
Operating Temperature Range:
-31° F to 150° F (-35°C to 66°C)
# of Beeps Meaning
4 The first byte of the data in the OmniTek
format is invalid, i.e., it is not of type
Wiegand, Clock & data, or Serial Text.
5 The Application Issuer data in the reader
does not match what is on the card.
6 No matching cryptographics keys were
found; authentication failed.
Continually A tamper condition exists
Operating Humidity:
0 to 85% (non condensing)
Suitable for outdoor use
Dimensions:
OS10:
3.15” (80mm) L x 1.58” (40mm) W x 0.50” (12.8mm) D
OS20:
4.73” (120mm) L x 1.65” (42mm) W x 0.55” (14mm) D
OS30:
5.71” (145mm) L x 1.69” (43mm) W x 0.79” (20mm) D
OS40:
4.33” (110mm) L x 2.96” (75mm) W x 0.59” (15mm) D
OP45:
SPECIFICATIONS
3.5” (89mm) L x 3.5” (89mm) W x 0.59” (15mm) D
Electrical Characteristics:
Frequency:
13.56 MHz
Power Supply Type:
Linear or switching; ripple < 30 MHZ @ 50 mVss 1 For additional information on the Wiegand™ Protocol, see
“Access Control Standard – Wiegand Card Reader Interface SIA
AC-01 (1996.10)” which can be purchased from SIA (see
www.siaonline.org).
Operating Voltage Range:
5.0 – 16 VDC (Operational down to 4.25 VDC)
2 A converter module to true RS232 is optionally available.
3 Using 2k bit PVC PicoPass card, part # OCP0. Mounting
on metal can reduce read range up to 25%.
-2-
![](/img.php?id=457599&img=bg3.png)
FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement
for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the
manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with
the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user or
master may find the following booklet prepared by the Federal Communications Commission helpful: "Interference Handbook"
This booklet is available from the U.S. Government Printing Office, Washington, DC 20402.
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's
Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
CE CERTIFICATION
DECLARATION OF CONFORMITY TO COUNCIL DIRECTIVE R&TTE 1999/5/CE
Issued by: EMITECH, 3 rue des Coudriers, ZA de l’Observatoire - CAP 78, 78180 Montigny le Bretonneux, France
Date of issue: 25-March-2003
Equipment type: Access Control Contactless Smart Card Reader
Model numbers OS30
File No.
BP9666 0536
UL Notes:
1. The Model OS-30 is compatible with Control Units as indicated in the Control Unit’s Installation
Instructions.
2. OS30 reader was tested by UL for compliance using Control Unit, Model NSTAR/NS2,
manufactured by Northern Computers Inc.
3. Only the OS30 is UL Listed. The models OS10, OS20, OS40, and OS45 have not been investigated
by UL.
Acknowledgements:
OmniSmart is a registered trademark of Honeywell Corp.
PicoPass is a registered trademark of Inside Contactless.
-3-
![](/img.php?id=457599&img=bg4.png)
135 W. Forest Hill Avenue, Oak Creek, WI 53154
Copyright 2003 Honeywell Corporation
OmniTek Limited Warranty
OmniTek and its divisions, subsidiaries and affiliates ("Seller"), 135 West Forest Hill Avenue, Oak Creek, WI 53154, warrants
OmniSmart products to be in conformance with its own plans and specifications and to be free from defects in materials and
workmanship under normal use and service for the life of the product. Seller's obligation shall be limited to repairing or replacing, at its
option, free of charge for materials or labor, any product which is proved not in compliance with Seller's specifications or proves
defective in materials or workmanship under normal use and service. Seller shall have no obligation under this Limited Warranty or
otherwise if the product is altered or improperly repaired or serviced by anyone other than Ademco factory service. For warranty
service, return product transportation prepaid, to OmniTek Factory Service, 135 West Forest Hill Avenue, Oak Creek, WI 53154.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE
OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO CASE SHALL SELLER BE
LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR
DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT.
Seller does not represent that the products it sells may not be compromised or circumvented; that the products will prevent any
personal injury or property loss by burglary, robbery, fire or otherwise; or that the products will in all cases provide adequate warning
or protection. Customer understands that a properly installed and maintained alarm may only reduce the risk of a burglary, robbery,
fire or other events occurring without providing an alarm, but it is not insurance or a guarantee that such will not occur or that there
will be no personal injury or property loss as a result. CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY
PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING.
However, if Seller is held liable, whether directly or indirectly, for any loss or damage arising under this Limited Warranty or
otherwise, regardless of cause or origin, Seller's maximum liability shall not in any case exceed the purchase price of the product, which
shall be the complete and exclusive remedy against Seller. This warranty replaces any previous warranties and is the only warranty
made by Seller on this product. No increase or alteration, written or verbal, of the obligations of this Limited Warranty is authorized.
