INNCOMTXRRFModuleDatasheet

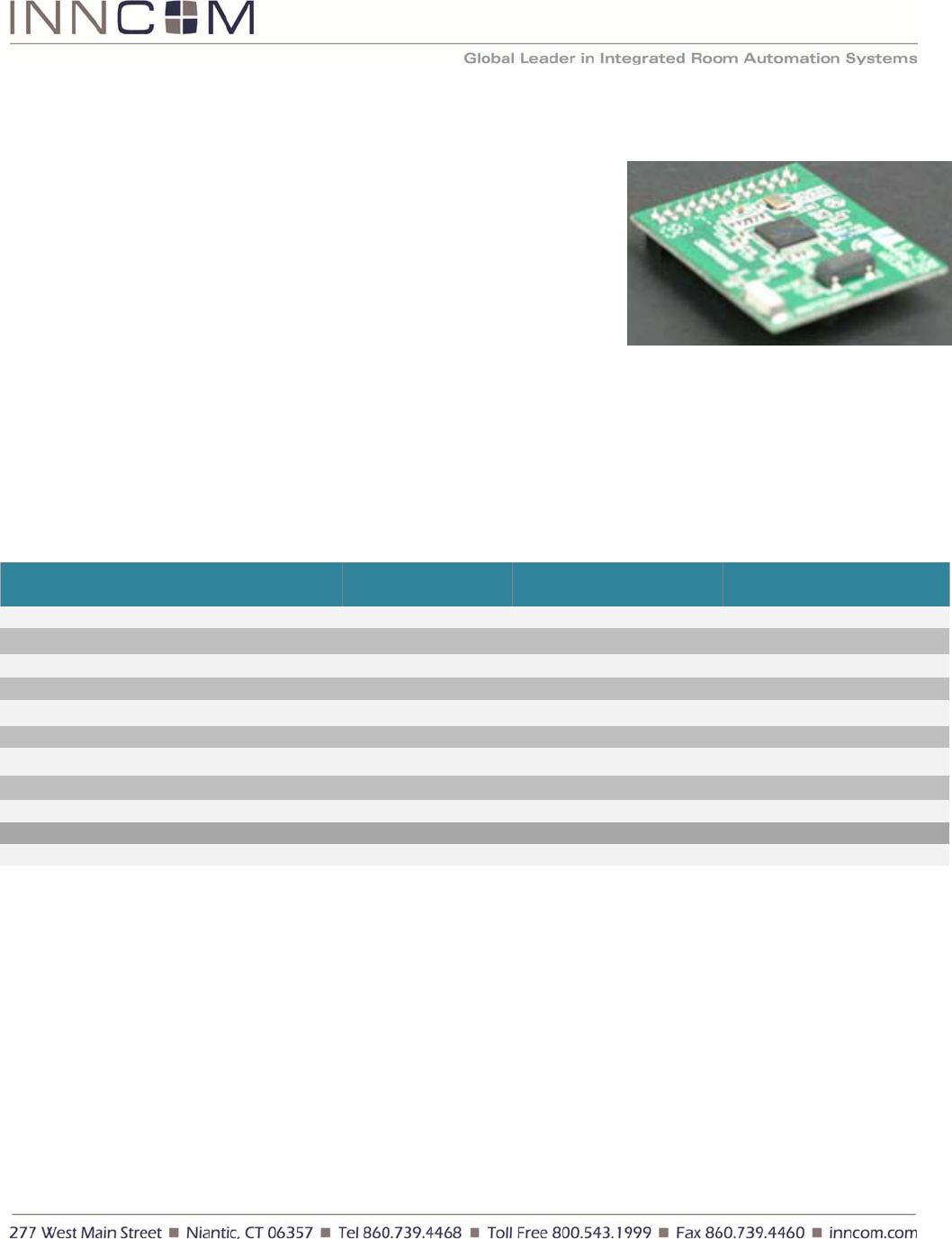

Overview
The INNCOM TXR series of embedded RF radio modules provides
INNCOM products with a common radio platform. The TXR RF
radios are used in the point to point Layer-1 in-room network and
in Layer-2 802.15.4 Zigbee 2006 mesh network topologies at 2.4
GHz.
Features
• Common footprint designed for use with a variety of host
products
• Multiple antenna options
• 2.4Ghz IEEE 802.15.4 compliant RF transceiver (CC2430 radio core)
• Low power and long range variants available
• Industrial temperature ratings 0-65 C°
• FCC Part 15C
Table 1 INNCOM TXR Radio Specifications
Performance02‐999402‐989402‐9927
RF Data Rate 250kbps 250kbps 250kbps
Antenna Type SMT u.FL male connector SMT
Indoor Range 70ft 98ft 100ft
Outdoor/ RF line-of-sight range 540ft 980ft+ 1000ft+
Transmit Power 1mW (+0dBm) 2mW (+2dBm) 10mW (+18dBm)
Receive Sensitivity -94.6dBm -94dBi -94.6dBm
Frequency Band 2.4Ghz 2.4Ghz 2.4Ghz
Encryption AES-128 AES-128 AES-128
Protocol 802.15.4 802.15.4 802.15.4
Frequency Channels 11-26 11-26 11-26
Dimensions 28mm x 38mm 28mm x 38mm 28mm x 38mm
Ranges are determined by performing an RF link quality test using two identical e528.3G
thermostats containing radios as defined in tables 2 and 3. The maximum distance threshold is
based on a 95% overall link quality. Outdoor ranges were conducted in a low noise, free air
environment. Indoor ranges are for reference. Indoor ranges are impacted by the ambient
environmental noise floor, and building construction materials.
INNCOM TXR RF Module Datasheet Page | 2
SecondaryRangePerformanceData
The following table describes the indoor and outdoor range when using un-like antenna combinations.
Table 2 INNCOM TXR Radio Indoor Range
TransmitterReceiverReceiverReceiver
02-9994 02-9894 02-9927
02-9994 70ft (21m) 73ft (22m) 98ft (30m)
02-9894 100ft (31m) 100ft (31m) 100ft (31m)
02-9927 90ft (27m) 100ft (31m) 98ft (30m)
Table 3 INNCOM TXR Radio Outdoor Range
TransmitterReceiverReceiverReceiver
02-9994 02-9894 02-9927
02-9994 540ft (165m) 570ft (174m) 654ft (199m)
02-9894 640ft (195m) 980ft+ (299m+) 768ft (234m)
02-9927 550ft (168m) 620ft (189m) 980ft+ (299m+)
Table 4 INNCOM TXR Operating Conditions
ParameterMinMaxUnit
Operating ambient temperature range -40 85 °C
Operating supply voltage 2.0 3.6 V
The supply pins to the radio must be driven by the 1.8VDC on-chip voltage regulator.
Table 5 INNCOM TXR Safety / Regulatory
AgencyApprovalSpecificationStatus
FCC 15.247 02-9994 Certified under FCC ID: GTC029994TXR
FCC 15.247 02-9894 Certified under FCC ID: GTC029894TXR
Only approved antennas can be used with this module. Additional antennas would require an
application filing with the FCC in order to have them approved. Antennas which have either a
higher gain or are of a different type may not be used, with this module, unless additional
certification is obtained.
All Final Products containing the INNCOM TXR 02-9994 must contain the following statements on
their label:
This device contains FCC ID: GTC029994TXR.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The followings statements are required in the final product user manuals:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
INNCOM TXR RF Module Datasheet Page | 3
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of th is equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
All Final Products containing the INNCOM TXR 02-9894 should keep a safe distance of at least
20cm from all persons. The final product cannot be co located with any other antenna or
transmitter.
Modifications not expressly approved by INNCOM International Inc. could void the user’s authority
to operate the equipment.
OrderingInformation
PartNumberModelNumberAssembly
02-9994 TXR-154.1 0dB radio with SMT antenna
02-9927 TXR-154.x 0dB radio with 5”u.fl to rpsma harness / ½ wave
dipole antenna
02-9894 TXR-154.2 20dB radio with SMT antenna
DocumentRevisionHistory
RevisionDateIssued Reason
0.1 20-Mar-2009 FCC Reports for 02-9894, 02-9927
0.2 24-Mar-2009 Revised for formatting and style
0.3 27-Mar-2009 Revised to update range performance data
1.0 07-Apr-2009 Released
1.1 23-Dec-2009 Updated to add FCC statements
1.2 07-Jan-2010 Added modifications warning
1.3 14-Jan-2010 Updated FCC statements
