Hyperion 1300g User's Guide

™

Hyperion 1300g

General Purpose Handheld Linear Scanner

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in speci-

fications and other information contained in this document without prior notice,

and the reader should in all cases consult HII to determine whether any such

changes have been made. The information in this publication does not repre-

sent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained

herein; nor for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this material. HII disclaims all responsibility for the

selection and use of software and/or hardware to achieve intended results.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied, repro-

duced, or translated into another language without the prior written consent of

HII.

Web Address: www.honeywellaidc.com

Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their

respective owners.

For patent information, refer to www.hsmpats.com.

Chapter 1 - Getting Started

About This Manual ...................................................... 1-1

Unpacking the Scanner............................................... 1-1

Connecting with USB .................................................. 1-1

Connecting with Keyboard Wedge.............................. 1-2

Connecting with RS-232 Serial Port............................ 1-3

Connecting with RS485............................................... 1-3

Reading Techniques ................................................... 1-4

Menu Bar Code Security Settings ............................... 1-5

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge................................................... 2-1

Laptop Direct Connect........................................... 2-1

RS232 Serial Port.................................................. 2-2

RS485 ................................................................... 2-2

OPOS Mode .......................................................... 2-3

USB IBM SurePos................................................. 2-4

USB PC or Macintosh Keyboard ........................... 2-5

USB HID POS ....................................................... 2-5

USB Serial Commands ............................................... 2-5

USB Serial Emulation............................................ 2-5

CTS/RTS Emulation .............................................. 2-6

ACK/NAK Mode..................................................... 2-6

Honeywell Bioptic Aux Port Configuration................... 2-6

Datalogic™ Magellan®Bioptic Aux Port Configuration2-7

Wincor Mode A............................................................ 2-7

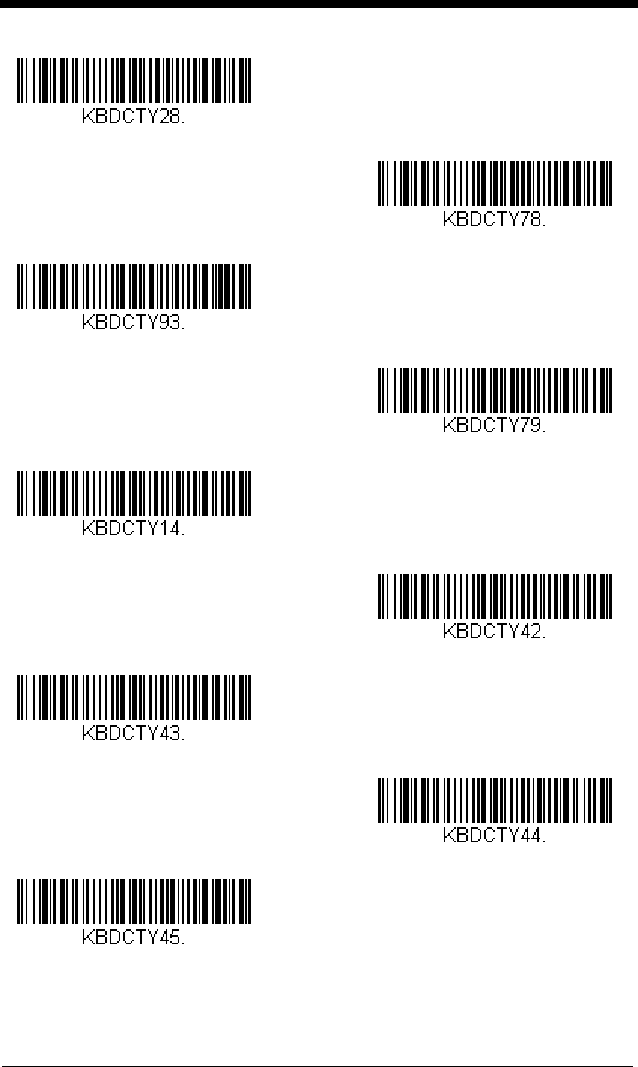

Keyboard Country Layout ........................................... 2-8

Keyboard Mode Options ........................................... 2-18

ALT Mode............................................................ 2-18

Keyboard Style .................................................... 2-18

Keyboard Modifiers ............................................. 2-19

Table of Contents

RS232 Modifiers ........................................................2-22

RS-232 Baud Rate...............................................2-22

RS-232 Word Length: Data Bits, Stop Bits, and Parity

2-23

RS-232 Handshaking.................................................2-24

RS232 Timeout....................................................2-27

XON/XOFF ..........................................................2-27

ACK/NAK .............................................................2-27

Scanner to Bioptic Communication............................2-28

Scanner-Bioptic Packet Mode .............................2-28

Chapter 3 - Input/Output Settings

Good Read Indicators..................................................3-1

Beeper – Good Read.............................................3-1

Beeper Volume – Good Read................................3-1

Beeper Pitch – Good Read....................................3-2

Beeper Duration – Good Read ..............................3-2

Beeper Pitch – Error ..............................................3-3

LED – Good Read .................................................3-3

Number of Beeps – Good Read ............................3-3

Good Read Delay ........................................................3-4

User-Specified Good Read Delay..........................3-4

Trigger Modes..............................................................3-5

Manual/Serial Trigger ............................................3-5

Automatic Trigger ..................................................3-5

Presentation Mode.................................................3-6

Continuous Illumination Mode (Manual Trigger only) .

3-6

Hands Free Time-Out ..................................................3-6

Reread Delay...............................................................3-7

User-Specified Reread Delay ................................3-8

Centering .....................................................................3-8

iii

Output Sequence Overview ...................................... 3-10

To Add an Output Sequence............................... 3-10

Other Programming Selections ........................... 3-10

Output Sequence Editor ...................................... 3-11

Output Sequence Editor ...................................... 3-13

Require Output Sequence................................... 3-13

Multiple Symbols ....................................................... 3-13

No Read .................................................................... 3-14

Video Reverse........................................................... 3-15

Chapter 4 - Data Editing

Prefix/Suffix Overview ................................................. 4-1

To Add a Prefix or Suffix ....................................... 4-2

To Clear One or All Prefixes or Suffixes................ 4-2

To Add a Carriage Return Suffix to All Symbologies4-

Prefix Selections.................................................... 4-3

Suffix Selections.................................................... 4-4

Function Code Transmit ........................................ 4-6

Intercharacter, Interfunction, and Intermessage Delays 4-

Intercharacter Delay .............................................. 4-7

User Specified Intercharacter Delay...................... 4-7

Interfunction Delay ................................................ 4-8

Intermessage Delay .............................................. 4-8

Chapter 5 - Data Formatting

Data Format Editor Introduction .................................. 5-1

To Add a Data Format........................................... 5-1

Other Programming Selections ............................. 5-2

Interface / Terminal ID Table....................................... 5-4

Data Format Editor Commands ...................................5-4

Send Commands ...................................................5-4

Move Commands...................................................5-7

Search Commands ................................................5-8

Miscellaneous Commands...................................5-10

Data Format Editor ..............................................5-14

Data Formatter.....................................................5-14

Chapter 6 - Symbologies

Introduction ..................................................................6-1

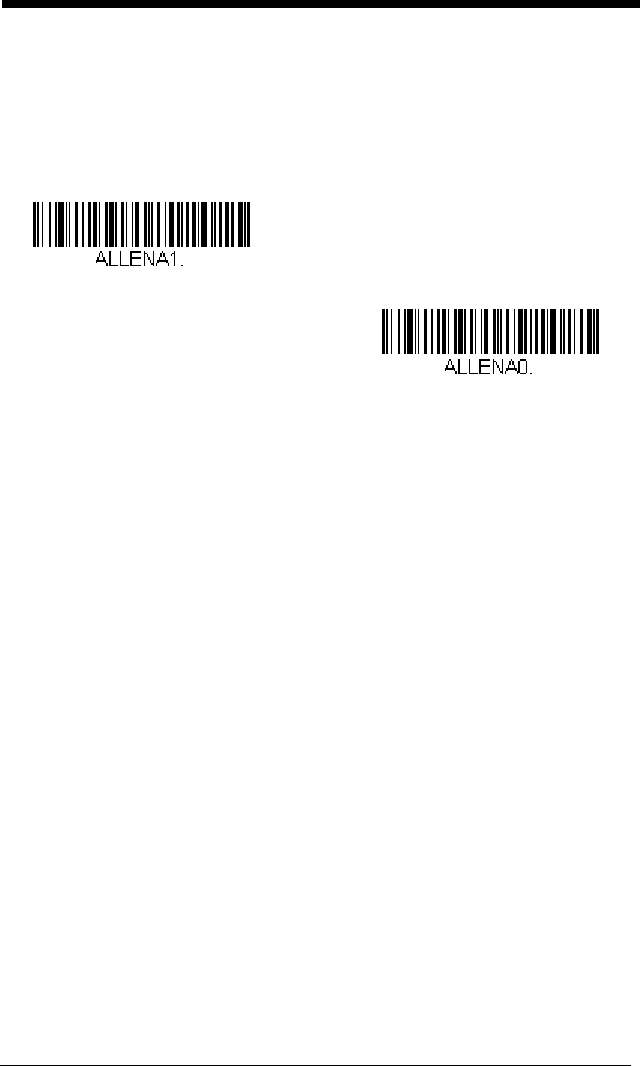

All Symbologies........................................................... 6-2

Codabar Start/Stop Characters ............................ 6-3

Codabar Check Character..................................... 6-4

Codabar Concatenation ........................................ 6-5

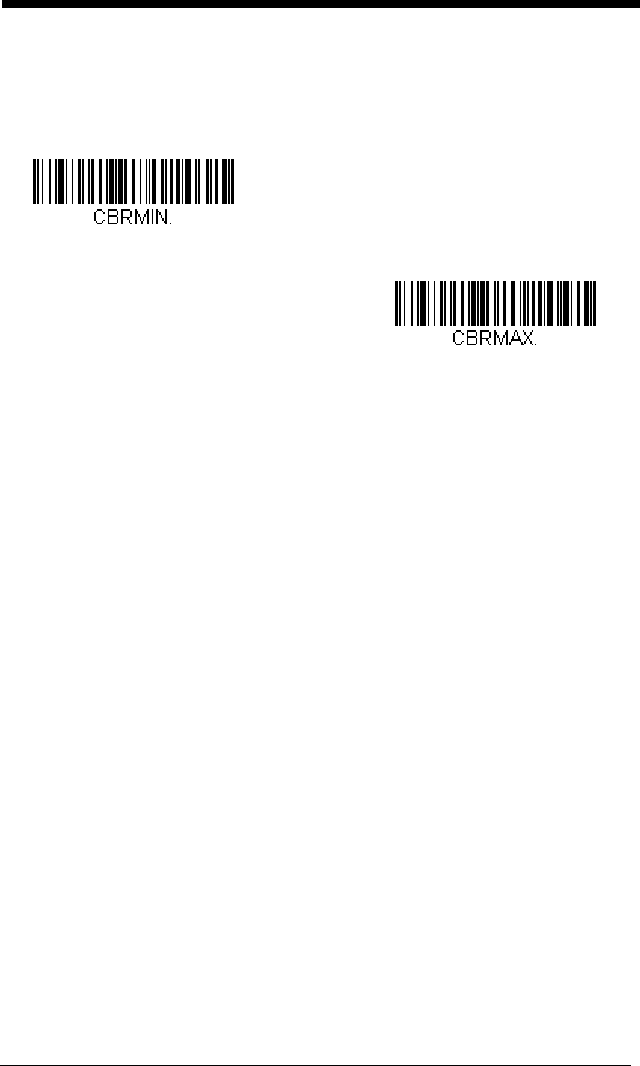

Codabar Message Length ..................................... 6-6

Code 39 Start/Stop Characters............................. 6-7

Code 39 Check Character..................................... 6-7

Code 39 Message Length ..................................... 6-8

Code 39 Append ................................................... 6-8

Full ASCII ............................................................ 6-10

Code 39 Code Page............................................ 6-10

Check Digit .......................................................... 6-11

Interleaved 2 of 5 Message Length..................... 6-12

Code 93 Message Length ................................... 6-13

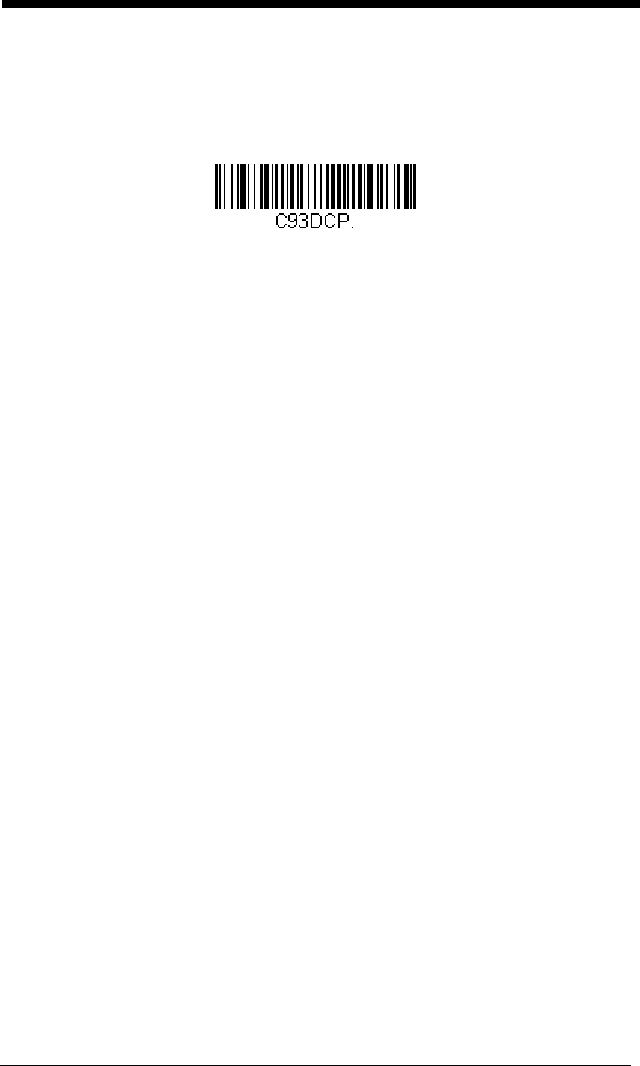

Code 93 Code Page............................................ 6-13

Straight 2 of 5 Industrial Message Length........... 6-15

Straight 2 of 5 IATA Message Length ................. 6-16

Matrix 2 of 5 Message Length ............................. 6-17

Check Digits Required......................................... 6-18

Code 11 Message Length ................................... 6-19

ISBT 128 Concatenation ..................................... 6-19

Code 128 Message Length ................................. 6-20

Code 128 Code Page.......................................... 6-20

Code 128 Function Code Transmit ..................... 6-21

Telepen Output.................................................... 6-22

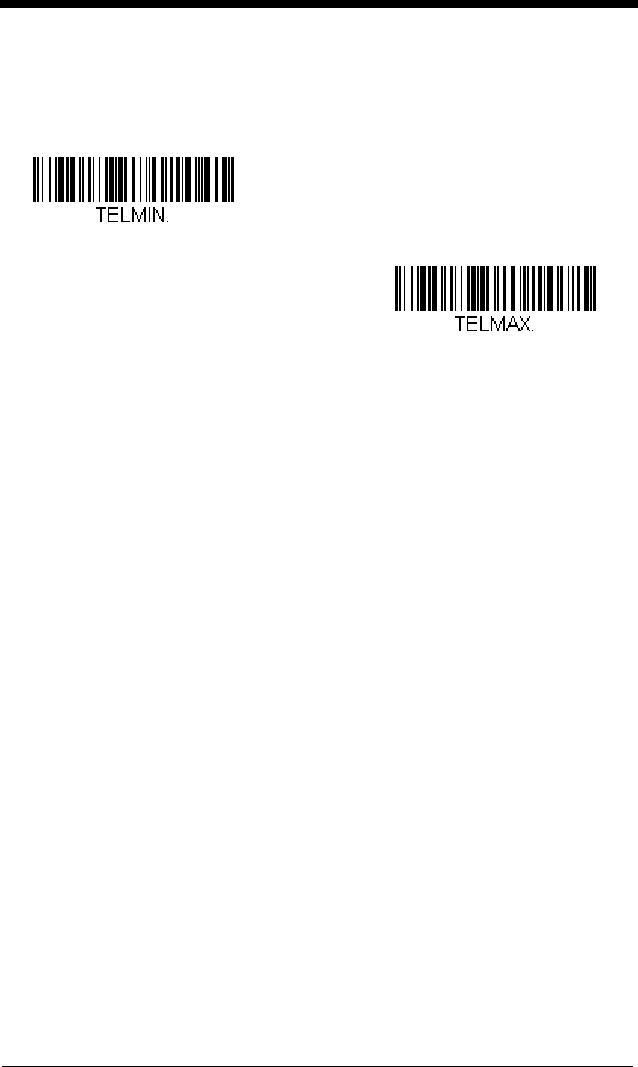

Telepen Message Length.................................... 6-23

UPC A Check Digit .............................................. 6-24

UPC A Number System....................................... 6-25

UPC A Addenda .................................................. 6-25

UPC A Addenda Required .................................. 6-26

UPC A Addenda Separator ................................. 6-26

UPC E0 and UPC E1 .......................................... 6-28

UPC E0 and UPC E1 Expand ............................. 6-29

UPC E0 and UPC E1 Addenda Required ........... 6-29

UPC E0 and UPC E1 Addenda Separator .......... 6-30

UPC E0 Check Digit ............................................ 6-30

UPC E0 Number System..................................... 6-31

UPC E0 Addenda ................................................6-31

EAN/JAN 13 Check Digit .....................................6-32

EAN/JAN 13 Addenda .........................................6-33

EAN/JAN 13 Addenda Required..........................6-33

EAN/JAN 13 Addenda Separator ........................6-34

ISBN Translate ....................................................6-34

EAN/JAN 8 Check Digit .......................................6-35

EAN/JAN 8 Addenda ...........................................6-36

EAN/JAN 8 Addenda Required............................6-36

EAN/JAN 8 Addenda Separator ..........................6-37

MSI Check Character ..........................................6-37

MSI Message Length...........................................6-38

Plessey Message Length.....................................6-39

GS1 DataBar Expanded Message Length...........6-41

Korea Post Message Length ...............................6-43

Codablock F Message Length .............................6-44

Code 49 Message Length....................................6-45

Chapter 7 - Interface Keys

Keyboard Function Relationships ................................7-1

Supported Interface Keys ............................................7-2

Chapter 8 - Utilities

To Add a Test Code I.D. Prefix to All Symbologies .....8-1

Show Software Revision..............................................8-1

Show Data Format.......................................................8-1

Resetting the Standard Product Defaults ....................8-3

Chapter 9 - Serial Programming Commands

Conventions.................................................................9-1

Menu Command Syntax ..............................................9-1

Query Commands..................................................9-2

Concatenation of Multiple Commands...................9-2

Responses.............................................................9-2

Examples of Query Commands.............................9-3

vii

Trigger Commands ..................................................... 9-4

Resetting the Standard Product Defaults.................... 9-4

Menu Commands........................................................ 9-5

Chapter 10 - Product Specifications

Hyperion 1300g Product Specifications .................... 10-1

Standard Connector Pinouts ..................................... 10-2

Chapter 11 - Maintenance

Repairs...................................................................... 11-1

Maintenance.............................................................. 11-1

Cleaning the Device ............................................ 11-1

Inspecting Cords and Connectors....................... 11-1

Replacing the Interface Cable ............................. 11-2

Troubleshooting ........................................................ 11-2

Chapter 12 - Customer Support

Limited Warranty ....................................................... 12-1

Symbology Charts....................................................... A-1

Linear Symbologies............................................... A-1

Postal Symbologies...............................................A-3

ASCII Conversion Chart (Code Page 1252) ...............A-3

Lower ASCII Reference Table .................................... A-5

ISO 2022/ISO 646 Character Replacements .............. A-9

viii

1 - 1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the

Hyperion 1300g. Product specifications, dimensions, warranty, and customer

support information are also included.

Honeywell bar code scanners are factory programmed for the most common

terminal and communications settings. If you need to change these settings,

programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking the Scanner

After you open the shipping carton containing the product, take the following

steps:

• Check for damage during shipment. Report damage immediately to the

carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

Connecting with USB

A scanner can be connected to the USB port of a computer. The scanner emu-

lates the keyboard.

1. Connect the appropriate interface cable to the scanner first, then to the com-

puter.

2. The scanner beeps.

1 - 2

3. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual.

For additional USB programming and technical information, refer to the Honey-

well “USB Application Note,” available at www.honeywellaidc.com.

Connecting with Keyboard Wedge

A scanner can be connected between the keyboard and PC as a “keyboard

wedge,” where the scanner provides data output that is similar to keyboard

entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cables from the back of the ter-

minal/computer.

2. Connect the appropriate interface cable to the scanner and to the terminal/

computer.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface

with a USA keyboard. A carriage return (CR) suffix is added to bar code data.

only if

power

supply is

included

1 - 3

Connecting with RS-232 Serial Port

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

3. Plug the serial connector into the serial port on your computer. Tighten the

two screws to secure the connector to the port.

4. Once the scanner has been completely connected, power up the computer.

5. This interface programs 38,400 baud, 8 data bits, no parity, and 1 stop bit.

Connecting with RS485

A scanner can be connected for an IBM POS terminal interface.

only if

power

supply is

included

1 - 4

1. Connect the appropriate interface cable to the device, then to the computer.

2. Turn the terminal/computer power back on. The scanner beeps.

3. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

4. For further RS485 settings, refer to RS485 on page 2-2.

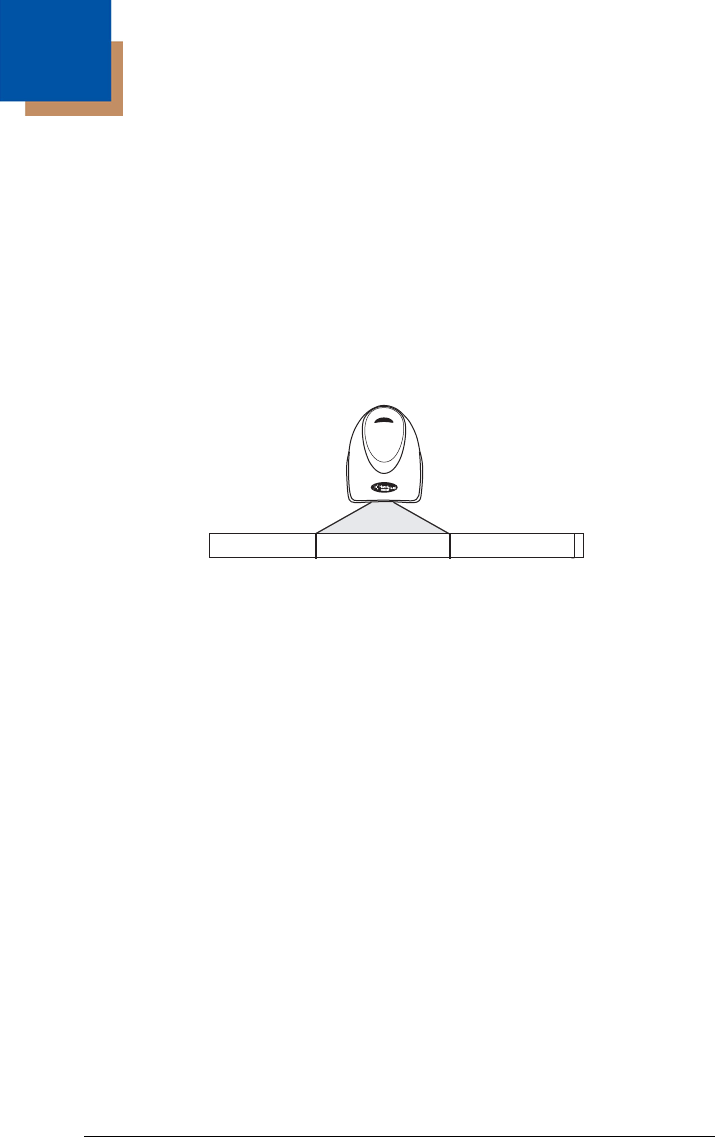

Reading Techniques

The scanner has a bright red aiming beam that corresponds to its horizontal

field of view. The aiming beam should be centered horizontally over the bar

code; it will not read if the aiming beam is in any other direction.

Good Technique

Bad Technique

1 - 5

The best focus point for reading most code densities is about 5 inches (12.7 cm)

from the unit. To read a single bar code or multiple bar codes (on a page or on

an object), hold the scanner at an appropriate distance from the target, pull the

trigger, and center the aiming beam on the bar code.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by send-

ing serial commands to the scanner. If you want to restrict the ability to scan

menu codes, you can use the Menu Bar Code Security settings. Contact Tech-

nical Support (seeCustomer Support on page 12-1) for further information.

Setting Custom Defaults

You have the ability to create a set of menu commands as your own, custom

defaults. To do so, scan the Set Custom Defaults bar code below before each

menu command or sequence you want saved. If your command requires scan-

ning numeric codes from the back cover, then a Save code, that entire

sequence will be saved to your custom defaults. Scan the Set Custom

Defaults code again before the next command you want saved to your custom

defaults.

You may have a series of custom settings and want to correct a single setting.

To do so, just scan the new setting to overwrite the old one. For example, if you

had previously saved the setting for Beeper Volume at Low to your custom

defaults, and decide you want the beeper volume set to High, just scan the Set

Custom Defaults bar code, then scan the Beeper Volume High menu code.

The rest of the custom defaults will remain, but the beeper volume setting will be

updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Acti-

vate Custom Defaults bar code below. This resets the scanner to the custom

default settings. If there are no custom defaults, it will reset the scanner to the

factory default settings. Any settings that have not been specified through the

custom defaults will be defaulted to the factory default settings.

Set Custom Defaults

Activate Custom Defaults

1 - 6

The Serial Programming Commands starting on page 9-1 lists the factory

default settings for each of the commands (indicated by an asterisk (*) on the

programming pages).

2 - 1

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used

interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles key-

board wedge interface with a USA keyboard, scan the bar code below. Key-

board wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows opera-

tion of the scanner in parallel with the integral keyboard. The following Laptop

Direct Connect bar code selects terminal ID 03, programs a carriage return

(CR) suffix and turns on Emulate External Keyboard (page 2-19).

IBM PC AT and Compatibles with CR Suffix

Laptop Direct Connect

with CR suffix

2 - 2

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port of a

PC or terminal. The following RS232 Interface bar code also programs a car-

riage return (CR) and a line feed (LF) suffix, baud rate, and data format as indi-

cated below.

RS485

Scan one of the following “Plug and Play” codes to program the scanner for an

IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash

Option Setting

Baud Rate 38,400 bps

Data Format 8 data bits, no parity bit, 1 stop bit

RS232 Interface

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

2 - 3

Each bar code above also programs the following suffixes for each symbology:

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B

HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

OPOS Mode

The following bar code configures your scanner for OPOS (OLE for Retail Point

of Sale) by modifying the following OPOS-related settings:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 * 00 0A 0B

UPC E 0A Code 128 ** 00 18 0B

Option Setting

Interface RS232

Baud Rate 38400

RS232

Handshaking

Flow Control, No Timeout

XON/XOFF Off

ACK/NAK Off

Data Bits, Stop

Bits, and Parity

8 Data, 1 Stop, Parity None

Prefix/Suffix

Clear All Prefixes and Suffixes

Add Code ID and AIM ID Prefix

Add CR Suffix

Intercharacter

Delay

Off

Symbologies Enable UPC-A with check digit and number system

Enable UPC-E0 with check digit

Enable EAN/JAN-8 with check digit

Enable EAN/JAN-13 with check digit

Enable Code 128

Enable Code 39

Enable OPOS with automatic disable off

2 - 4

USB IBM SurePos

Scan the following “Plug and Play” codes to program the scanner for an IBM

SurePos (USB handheld scanner) interface.

Note: After scanning the code below, you must power cycle the cash register.

The bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 00 18 0B

UPC E 0A Code 39 00 0A 0B

OPOS Mode

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

2 - 5

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard

or USB Macintosh Keyboard. Scanning these codes also adds a CR and LF.

USB HID POS

Scan the following code to program the scanner for USB HID POS bar code

scanners.

USB Serial Commands

USB Serial Emulation

Scan the following code to program the scanner to emulate a regular RS232-

based COM Port. If you are using a Microsoft® Windows® PC, you will need to

download a driver from the Honeywell website (www.honeywellaidc.com). The

driver will use the next available COM Port number. Apple® Macintosh comput-

ers recognize the scanner as a USB CDC class device and automatically uses a

class driver.

Scanning this code also adds a CR and LF.

Note: No extra configuration (e.g., baud rate) is necessary.

USB Keyboard (PC)

USB Keyboard (Mac)

USB HID POS Bar Code

Scanner

USB Serial Emulation

2 - 6

CTS/RTS Emulation

ACK/NAK Mode

Honeywell Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Honeywell

bioptic scanner auxiliary port configuration. This bar code sets the baud rate to

38400 bps and the data format to 8 data bits, no parity, 1 stop bit. Character

RTS/CTS with timeout and 232 ACK/NAK are also enabled.

Note: If you are having unexpected results with this programming code, scan

the Resetting the Custom Defaults bar code on page 1-5 first, then scan

the programming code above.

CTS/RTS Emulation On

* CTS/RTS Emulation Off

ACK/NAK Mode On

* ACK/NAK Mode Off

Honeywell Bioptic Settings

2 - 7

Datalogic™ Magellan®Bioptic

Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Datalogic

Magellan bioptic scanner auxiliary port configuration. This bar code sets the

baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

Note: If you are having unexpected results with this programming code, scan

the Resetting the Custom Defaults bar code on page 1-5 first, then scan

the programming code above.

Wincor Mode A

Scan the following Plug and Play code to program the scanner for Wincor Mode

A mode. This bar code sets the baud rate to 9600 bps and the data format to 8

data bits, odd parity, 1 stop bit.

Note: If you are having unexpected results with this programming code, scan

the Resetting the Custom Defaults bar code on page 1-5 first, then scan

the programming code above.

Datalogic Magellan Bioptic Settings

Wincor Mode A

2 - 8

Keyboard Country Layout

Scan the appropriate country code below to program the keyboard layout for

your country or language. As a general rule, the following characters are sup-

ported, but need special care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

* United States

Albania

Arabic

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

Bosnia

2 - 9

Brazil

Brazil (MS)

Bulgaria (Cyrillic)

Bulgaria (Latin)

Canada (French legacy)

Canada (French)

Canada (Multilingual)

China

Croatia

2 - 10

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Denmark

Dutch (Netherlands)

Estonia

Faroese

Finland

2 - 11

France

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

Greek (319 Latin)

Greek (319)

Greek (Latin)

2 - 12

Greek (MS)

Greek (Polytonic)

Hebrew

Hungarian (101 key)

Hungary

Iceland

Ireland

Italian (142)

Italy

2 - 13

Japan ASCII

Kazakh

Korea

Kyrgyz (Cyrillic)

Latin America

Latvia

Latvia (QWERTY)

Lithuania

Lithuania (IBM)

2 - 14

Macedonia

Malta

Mongolian (Cyrillic)

Norway

Poland

Polish (214)

Polish (Programmers)

Portugal

Romania

2 - 15

[

Russia

Russian (MS)

Russian (Typewriter)

SCS

Serbia (Cyrillic)

Serbia (Latin)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

2 - 16

Slovenia

Spain

Spanish variation

Sweden

Switzerland (French)

Switzerland (German)

Tatar

Thailand

Turkey F

2 - 17

Turkey Q

Ukrainian

United Kingdom

United Stated (Dvorak right)

United States (Dvorak left)

United States (Dvorak)

United States (International)

Uzbek (Cyrillic)

Vietnam

2 - 18

Keyboard Mode Options

ALT Mode

If your bar code contains special characters from the extended ASCII chart for

example, an e with an accent grave (è), you will use ALT Mode. (See Extended

ASCII Characters on page A-6.)

Note: Scan the ALT mode bar code after scanning the appropriate Keyboard

Country code.

If your keystrokes require the ALT key and 4 characters, scan the 4 Characters

bar code. The data is then output with the special character(s). Default = Off.

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. Default =

Regular.

Regular is used when you normally have the Caps Lock key off.

Caps Lock is used when you normally have the Caps Lock key on.

* Off

4 Characters

* Regular

Caps Lock

2 - 19

Shift Lock is used when you normally have the Shift Lock key on (not common

to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off.

The software tracks and reflects if you have Caps Lock on or off (AT and PS/2

only). This selection can only be used with systems that have an LED, which

notes the Caps Lock status.

Autocaps via NumLock bar code should be scanned in countries (e.g., Ger-

many, France) where the Caps Lock key cannot be used to toggle Caps Lock.

The NumLock option works similarly to the regular Auotcaps, but uses the Num-

Lock key to retrieve the current state of the Caps Lock.

Emulate External Keyboard should be scanned if you do not have an external

keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes.

Control + X (Control + ASCII) Mode On: The scanner sends key combina-

tions for ASCII control characters for values 00-1F. Windows is the preferred

mode. All keyboard country codes are supported. DOS mode is a legacy

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

Emulate External Keyboard

2 - 20

mode, and it does not support all keyboard country codes. New users should

use the Windows mode. Refer to Keyboard Function Relationships, page 7-1

for CTRL+ X Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for

ASCII control characters for values 00-1F (refer to ASCII Conversion Chart

(Code Page 1252) on page A-3 for non-reprintable characters), but it does not

translate any prefix or suffix information.

Default = Control + ASCII Off

Windows Mode Control + X

Mode On

* Control + X Mode Off

DOS Mode Control + X Mode

Windows Mode Prefix/Suffix Off

2 - 21

Numeric Keypad Mode: Sends numeric characters as if entered from a

numeric keypad. Default = Off

Automatic Direct Connect Mode: This selection can be used if you have an

IBM AT style terminal and the system is dropping characters. Default = Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct

Connect Mode On

* Automatic Direct Connect

Mode Off

2 - 22

RS232 Modifiers

RS-232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate.

The host terminal must be set for the same baud rate as the scanner.

Default = 38,400.

300

600

1200

2400

4800

9600

19200

2 - 23

RS-232 Word Length: Data Bits, Stop Bits, and Parity

Data Bits sets the word length at 7 or 8 bits of data per character. If an applica-

tion requires only ASCII Hex characters 0 through 7F decimal (text, digits, and

punctuation), select 7 data bits. For applications which require use of the full

ASCII set, select 8 data bits per character. Default = 8.

Stop Bits sets the stop bits at 1 or 2. Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

Note: When using 7 Data, 1 Stop, Parity None, the host must insert at least a 1

bit delay between characters. If this is not done, a different RS232 Word

Length format must be used.

* 38400

57,600

115,200

7 Data, 1 Stop, Parity None

(see note above)

7 Data, 1 Stop, Parity Even

2 - 24

RS-232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using

software commands from the host device.

RTS/CTS Off: RTS/CTS is turned off so no data flow control is used, but RTS

is still active.

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop Parity None

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop, Parity Odd

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Even

8 Data, 1 Stop, Parity Odd

2 - 25

RTS/CTS Off, RTS Inactive: RTS/CTS is turned off so no data flow control is

used and RTS is inactive.

Flow Control, No Timeout: The scanner asserts RTS when it has data to

send, and will wait indefinitely for CTS to be asserted by the host.

Character-Based Flow Control, No Timeout: The scanner asserts RTS when

it has a character to send, and will wait indefinitely for CTS to be asserted by the

host

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the

host to transmit. The host asserts CTS when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to

send and waits for a delay (see RS232 Timeout on page 2-27) for CTS to be

asserted by the host. If the delay time expires and CTS is not asserted, the

device transmit buffer is cleared and scanning may resume.

Character-Based Flow Control with Timeout: The scanner asserts RTS

when it has a character to send and waits for a delay (see RS232 Timeout on

page 2-27) for CTS to be asserted by the host. If the delay time expires and

CTS is not asserted, the device transmit buffer is cleared and scanning may

resume.

CTS-Based Flow Control, No Timeout: When the host asserts CTS, scan-

ning is enabled. When CTS is not asserted, scanning is disabled.

RTS On: RTS only is on during transmission. CTS is ignored.

Default = RTS/CTS Off.

* RTS/CTS Off

RTS/CTS Off, RTS Inactive

Flow Control, No Timeout

2 - 26

Character-Based Flow

Control, No Timeout

Two-Direction Flow

Control

Flow Control with

Timeout

Character-Based Flow

Control with Timeout

CTS-Based Flow Control,

No Timeout

RTS On

No RTS if CTS is On

2 - 27

RS232 Timeout

When using Flow Control with Timeout, you must program the length of the

delay you want to wait for CTS from the host. Set the length (in milliseconds) for

a timeout by scanning the bar code below, then setting the timeout (from 1-

65535 milliseconds) by scanning digits from the inside back cover, then scan-

ning Save. Default = 1000.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start send-

ing data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the

host sends the XOFF character (DC3, hex 13) to the scanner, data transmission

stops. To resume transmission, the host sends the XON character (DC1, hex

11). Data transmission continues where it left off when XOFF was sent. Default

= XON/XOFF Off.

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a

NAK character (hex 15) response from the host. If ACK is received, the commu-

nications cycle is completed and the scanner looks for more bar codes. If NAK

is received, the last set of bar code data is retransmitted and the scanner waits

RS232 Timeout

* XON/OFF Off

XON/XOFF On

2 - 28

for ACK/NAK again. Turn on the ACK/NAK protocol by scanning the ACK/NAK

On bar code below. To turn off the protocol, scan ACK/NAK Off. Default =

ACK/NAK Off.

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell

scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout

must be set to 3000 in order to communicate with a bioptic scanner. See

"RS232 Modifiers" on page 2-22, and RS232 Timeout on page 2-27 for

further information.

Scanner-Bioptic Packet Mode

Packet Mode On must be scanned to set the scanner’s format so it is compati-

ble with a bioptic scanner. Default = Packet Mode Off.

ACK/NAK On

* ACK/NAK Off

* Packet Mode Off

Packet Mode On

3 - 1

Input/Output Settings

Good Read Indicators

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read. Turning

this option off, only turns off the beeper response to a good read indication. All

error and menu beeps are still audible. Default = On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits on

a good read. Default = High.

* On

Off

*High

Medium

Off

Low

3 - 2

Beeper Pitch – Good Read

The beeper pitch codes modify the pitch (frequency) of the beep the scanner

emits on a good read. Default = Medium

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits on

a good read. Default = Normal.

Low (1600 Hz)

* Medium (2750 Hz)

High (4200 Hz)

* Normal Beep

Short Beep

3 - 3

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scanner

emits when there is a bad read or error. Default = 100 Hz.

LED – Good Read

The LED indicator can be programmed On or Off in response to a good read.

Default = On.

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The same

number of beeps will be applied to the beeper and LED in response to a good

read. For example, if you program this option to have five beeps, there will be

five beeps and five LED flashes in response to a good read. The beeps and

* Razz (100 Hz)

* Medium (2000 Hz)

High (4200 Hz)

* On

Off

3 - 4

LED flashes are in sync with one another. To change the number of beeps,

scan the bar code below and then scan a digit (1-9) bar code and the Save bar

code on the inside the back cover of this manual. Default = One.

Good Read Delay

This sets the minimum amount of time before the scanner can read another bar

code. Default = No Delay.

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code

below, then set the delay (from 0-30,000 milliseconds) by scanning digits from

the inside back cover, then scanning Save.

Number of Pulses

* No Delay

Short Delay (500 ms)

Medium Delay (1000 ms)

Long Delay (1500 ms)

User-Specified Good Read Delay

3 - 5

Trigger Modes

Manual/Serial Trigger

You can activate the scanner either by pressing the trigger, or using a serial trig-

ger command (see Trigger Commands on page 9-4). When in manual trigger

mode, the scanner scans until a bar code is read, or until the trigger is released.

When in serial mode, the scanner scans until a bar code has been read or until

the deactivate command is sent. In serial mode, the scanner can also be set to

turn itself off after a specified time has elapsed (see Read Time-Out, which fol-

lows).

Read Time-Out

Use this selection to set a time-out (in milliseconds) of the scanner’s trigger

when using serial commands to trigger the scanner. Once the scanner has

timed out, you can activate the scanner either by pressing the trigger or using a

serial trigger command. After scanning the Read Time-Out bar code, set the

time-out duration (from 0-300,000 milliseconds) by scanning digits from the

inside back cover, then scanning Save. Default = 30,000.

Automatic Trigger

The scanner scans continuously using internal LEDs to detect bar codes.

* Manual/Serial Trigger

Read Time-Out

Automatic Trigger

3 - 6

Presentation Mode

Presentation Mode uses ambient light to detect bar codes. The LEDs are off for

ambient conditions until a change occurs in the scanner’s field of view. Then

the LEDS turn on automatically to read the code. If the light level in the room is

not high enough, Presentation Mode may not work properly.

Continuous Illumination Mode (Manual Trigger only)

If you have several bar codes that are close together, you may wish to have a

continuous aiming beam on in order to properly aim the scanner at one bar

code. Scan the Continuous Illumination On bar code to program the scanner

for this capability. Once you have the aiming beam over the correct bar code,

pull the trigger to read the code. Scan the Continuous Illumination Off bar

code to turn off this feature.

Hands Free Time-Out

The Automatic Trigger and Presentation Modes are referred to as “hands free”

modes. If the scanner’s trigger is pulled when using a hands free mode, the

scanner changes to manual trigger mode. You can set the time the scanner

should remain in manual trigger mode by setting the Hands Free Time-Out.

Once the time-out value is reached, (if there have been no further trigger pulls)

the scanner reverts to the original hands free mode.

Presentation Mode

Continuous Illumination

Mode On

* Continuous Illumination

Mode Off

3 - 7

Scan the Hands Free Time-Out bar code, then scan the time-out duration

(from 0-300,000 milliseconds) from the inside back cover, and Save. Default =

5,000 ms.

Reread Delay

This sets the time period before the scanner can read the same bar code a sec-

ond time. Setting a reread delay protects against accidental rereads of the

same bar code. Longer delays are effective in minimizing accidental rereads at

POS (point of sale). Use shorter delays in applications where repetitive bar

code scanning is required. Default = Medium.

Reread Delay only works when in automatic trigger mode or presentation mode

(see page 3-5).

Hands Free Time-Out

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

3 - 8

User-Specified Reread Delay

If you want to set your own length for the reread delay, scan the bar code below,

then set the delay (from 0-30,000 milliseconds) by scanning digits from the

inside back cover, then scanning Save.

Centering

Use Centering to narrow the scanner’s field of view to make sure the scanner

reads only those bar codes intended by the user. For instance, if multiple codes

are placed closely together, centering will insure that only the desired codes are

read.

If a bar code is not touched by a predefined window, it will not be decoded or

output by the scanner. If centering is turned on by scanning Centering On, the

scanner only reads codes that pass through the centering window you specify

using the Left of Centering Window, or Right of Centering Window bar

codes.

In the example below, the red line is the full scanner field of view and the white

boxed area is the centering window. The centering window has been set to

20% left and 30% right, as shown in the legend at the bottom. Since Bar Code

1 passes through the centering window, it will be read. Bar Code 2 does not

pass through the centering window, so it will not be read.

Scan Centering On, then scan one of the following bar codes to change the left

or right of the centering window. Then scan the percent you want to shift the

centering window using digits on the inside back cover of this manual. Scan

Save. Default Centering = 40% for Left, 60% for Right.

User-Specified Reread Delay

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

Bar Code 1 Bar Code 2

3 - 9

Left of Centering Window

Right of Centering Window

* Centering Off

Centering On

3 - 10

Output Sequence Overview

Output Sequence Editor

This programming selection allows you to program the scanner to output data

(when scanning more than one symbol) in whatever order your application

requires, regardless of the order in which the bar codes are scanned. Reading

the Default Sequence symbol programs the scanner to the Universal values,

shown below. These are the defaults. Be certain you want to delete or clear all

formats before you read the Default Sequence symbol.

Note: To make Output Sequence Editor selections, you’ll need to know the

code I.D., code length, and character match(es) your application

requires. Use the Alphanumeric symbols (inside back cover) to read

these options.

Note: You must hold the trigger while reading each bar code in a sequence.

To Add an Output Sequence

1. Scan the Enter Sequence symbol (see Require Output Sequence, page 3-

13).

2. Code I.D.

On the Symbology Charts on page A-1, find the symbology to which you

want to apply the output sequence format. Locate the Hex value for that

symbology and scan the 2 digit hex value from the Programming Chart

(inside back cover).

3. Length

Specify what length (up to 9999 characters) of data output will be acceptable

for this symbology. Scan the four digit data length from the Programming

Chart. (Note: 50 characters is entered as 0050. 9999 is a universal num-

ber, indicating all lengths.) When calculating the length, you must count any

programmed prefixes, suffixes, or formatted characters as part of the length

(unless using 9999).

4. Character Match Sequences

On the ASCII Conversion Chart (Code Page 1252), page A-3, find the Hex

value that represents the character(s) you want to match. Use the Program-

ming Chart to read the alphanumeric combination that represents the ASCII

characters. (99 is the Universal number, indicating all characters.)

5. End Output Sequence Editor

Scan F F to enter an Output Sequence for an additional symbology, or Save

to save your entries.

Other Programming Selections

•Discard

This exits without saving any Output Sequence changes.

3 - 11

Output Sequence Editor

Output Sequence Example

In this example, you are scanning Code 93, Code 128, and Code 39 barcodes,

but you want the image scanner to output Code 39 1st, Code 128 2nd, and

Code 93 3rd, as shown below.

Note: Code 93 must be enabled to use this example.

You would set up the sequence editor with the following command line:

SEQBLK62999941FF6A999942FF69999943FF

The breakdown of the command line is shown below:

SEQBLKsequence editor start command

62 code identifier for Code 39

9999 code length that must match for Code 39, 9999 = all lengths

41 start character match for Code 39, 41h = “A”

FF termination string for first code

6A code identifier for Code 128

9999 code length that must match for Code 128, 9999 = all lengths

Enter Sequence

Default Sequence

A - Code 39

B - Code 128

C - Code 93

3 - 12

42 start character match for Code 128, 42h = “B”

FF termination string for second code

69 code identifier for Code 93

9999 code length that must match for Code 93, 9999 = all lengths

43 start character match for Code 93, 43h = “C”

FF termination string for third code

To program the previous example using specific lengths, you would have to

count any programmed prefixes, suffixes, or formatted characters as part of the

length. If you use the example on page 3-11, but assume a <CR> suffix and

specific code lengths, you would use the following command line:

SEQBLK62001241FF6A001342FF69001243FF

The breakdown of the command line is shown below:

SEQBLK sequence editor start command

62 code identifier for Code 39

0012 A - Code 39 sample length (11) plus CR suffix (1) = 12

41 start character match for Code 39, 41h = “A”

FF termination string for first code

6A code identifier for Code 128

0013 B - Code 128 sample length (12) plus CR suffix (1) = 13

42 start character match for Code 128, 42h = “B”

FF termination string for second code

69 code identifier for Code 93

0012 C - Code 93 sample length (11) plus CR suffix (1) = 12

43 start character match for Code 93, 43h = “C”

FF termination string for third code

3 - 13

Output Sequence Editor

Require Output Sequence

When an output sequence is Required, all output data must conform to an

edited sequence or the image scanner will not transmit the output data to the

host device. When it’s On/Not Required, the image scanner will attempt to get

the output data to conform to an edited sequence, but if it cannot, the image

scanner transmits all output data to the host device as is.

When the output sequence is Off, the barcode data is output to the host as the

image scanner decodes it.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

Multiple Symbols

When this programming selection is turned On, it allows you to read multiple

symbols with a single pull of the scanner’s trigger. If you press and hold the trig-

ger, aiming the scanner at a series of symbols, it reads unique symbols once,

Enter Sequence

Default Sequence

Required

On/Not Required

*Off

3 - 14

beeping (if turned on) for each read. The scanner attempts to find and decode

new symbols as long as the trigger is pulled. When this programming selection

is turned Off, the scanner will only read the symbol closest to the aiming beam.

No Read

With No Read turned On, the scanner sends an “NR” to the host if you pull and

release the trigger without reading a code (e.g., bad bar code). If No Read is

turned Off, the “NR” will not be sent to the host.

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”

you can edit the output message using the Data Formatter (page 5-14). The

hex code for the No Read symbol is 9C.

* Off

3 - 15

Video Reverse

Video Reverse is used to allow the scanner to read bar codes that are inverted.

The “Off” bar code below is an example of this type of bar code.

Note: If additional menuing is required, Video Reverse must be disabled to read

the menu bar codes and then re-enabled after menuing is completed.

VIDREV0REV.

* Off

3 - 16

4 - 1

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer

along with the bar code data. This group of bar code data and additional,

user-defined data is called a “message string.” The selections in this section

are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and

after scanned data. You can specify if they should be sent with all symbologies,

or only with specific symbologies. The following illustration shows the break-

down of a message string:

Points to Keep In Mind

•It is not necessary to build a message string. The selections in this chapter

are only used if you wish to alter the default settings.

Note: Plug and Play bar codes for interface selections (see Programming the

Interface - Plug and Play on page 2-1) automatically program a CR/LF

suffix.

• A prefix or suffix may be added or cleared from one symbology or all

symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code Page

1252), page A-3, plus Code I.D. and AIM I.D.

• You can string together several entries for several symbologies at one time.

• Enter prefixes and suffixes in the order in which you want them to appear on

the output.

• When setting up for specific symbologies (as opposed to all symbologies), the

specific symbology ID value counts as an added prefix or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters, which

includes header information

Prefix Scanned DataSuffix

1-11

alpha numeric

characters

variable length1-11

alpha numeric

characters

4 - 2

To Add a Prefix or Suffix

Step 1. Scan the Add Prefix or Add Suffix symbol (page 4-3).

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in

Appendix A) for the symbology to which you want to apply the prefix or

suffix. For example, for Code 128, Code ID is “j” and Hex ID is “6A”.

Step 3. Scan the 2 hex digits from the inside the back cover of this manual or

scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code Page

1252), page A-3, for the prefix or suffix you wish to enter.

Step 5. Scan the 2 digit hex value from the inside the back cover of this man-

ual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.

Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.

To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once to

create the leading backslash and then to create the backslash itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving.

Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Tab Suffix to All Symbologies

Step 1. Scan Add Suffix.

Step 2. Scan 9, 9 from the Programming Chart inside the back cover of this

manual to apply this suffix to all symbologies.

Step 3. Scan 0, 9 from the Programming Chart inside the back cover of this

manual. This corresponds with the hex value for a horizontal tab,

shown in the ASCII Conversion Chart (Code Page 1252), beginning on

page A-3.

Step 4. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbol-

ogy. When you Clear One Prefix (Suffix), the specific character you select is

deleted from the symbology you want. When you Clear All Prefixes (Suffixes),

all the prefixes or suffixes for a symbology are deleted.

4 - 3

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in

Appendix A) for the symbology from which you want to clear the prefix

or suffix.

Step 3. Scan the 2 digit hex value from the inside the back cover of this man-

ual or scan 9, 9 for all symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all sym-

bologies at once. This action first clears all current suffixes, then programs a

carriage return suffix for all symbologies.

Prefix Selections

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

4 - 4

Suffix Selections

Transmit Alternate Extended ASCII Characters

You may need to emulate special keyboard functions, such as up or down

arrows, Alt/Make or Alt/Break commands, that are not supported in the

Extended ASCII Character table. Refer to Alternate Extended ASCII Charac-

ters (page 4-5) for a range of keyboard function keys and corresponding deci-

mal and hex characters. If you scan the Transmit Alternate Extended ASCII

code, any hex entries in a prefix or suffix will result in the corresponding Key-

board Function output.

Example: Transmit Alternate Extended ASCII is enabled, and you scan Add

Suffix, then scan 9 9 8 9. All symbologies (99) would have a suffix

of a Page Down (hex 89) added to them.

When Transmit Normal Extended ASCII is selected, the normal extended

ASCII character is transmitted (see ASCII Conversion Chart (Code Page 1252)

on page A-3).

Example: Transmit Normal Extended ASCII is enabled, and you scan Add

Suffix, then scan 9 9 8 9. All symbologies (99) would have a suffix

of a ‰ character added to them.

Default = Transmit Alternate Extended ASCII.

Add Suffix

Clear One Suffix

Clear All Suffixes

Transmit Alternate Extended

ASCII

* Transmit Normal Extended

ASCII

4 - 5

Alternate Extended ASCII Characters

DEC HEX Keyboard Function DEC HEX Keyboard Function

128 80 up arrow ↑152 98 F9

129 81 down arrow ↓153 99 F10

130 82 right arrow →154 9A F11

131 83 left arrow ←155 9B F12

132 84 Insert 156 9C Numeric Keypad +

133 85 Delete 157 9D Numeric Keypad -

134 86 Home 158 9E Numeric Keypad *

135 87 End 159 9F Caps Lock

136 88 Page Up 160 A0 Num Lock

137 89 Page Down 161 A1 Left Alt

138 8A Right ALT 162 A2 Left Ctrl

139 8B Right CTRL 163 A3 Left Shift

140 8C Reserved 164 A4 Right Shift

141 8D Reserved 165 A5 Print Screen

142 8E Numeric Keypad Enter 166 A6 Tab

143 8F Numeric Keypad / 167 A7 Shift Tab

144 90 F1 168 A8 Enter

145 91 F2 169 A9 Esc

146 92 F3 170 AA Alt Make

147 93 F4 171 AB Alt Break

148 94 F5 172 AC Control Make

149 95 F6 173 AD Control Break

150 96 F7 174 AE Alt Sequence with 1 Character

151 97 F8 175 AF Ctrl Sequence with 1 Character

4 - 6

Function Code Transmit

When this selection is enabled and function codes are contained within the

scanned data, the scanner transmits the function code to the terminal. Charts

of these function codes are provided in Supported Interface Keys starting on

page 7-2. When the scanner is in keyboard wedge mode, the scan code is con-

verted to a key code before it is transmitted. Default = Enable.

Intercharacter, Interfunction, and Intermessage

Delays

Some terminals drop information (characters) if data comes through too quickly.

Intercharacter, interfunction, and intermessage delays slow the transmission of

data, increasing data integrity.

Each delay is composed of a 5 millisecond step. You can program up to 99

steps (of 5 ms each) for a range of 0-495 ms.

* Enable

Disable

4 - 7

Intercharacter Delay

An intercharacter delay of up to 495 milliseconds may be placed between the

transmission of each character of scanned data. Scan the Intercharacter

Delay bar code below, then scan the number of steps in 5 millisecond incre-

ments and the Save bar code using the inside the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the

number of steps to 0. Scan the Save bar code using the inside the back cover

of this manual.

Note: Intercharacter delays are not supported in USB serial.

User Specified Intercharacter Delay

An intercharacter delay of up to 495 milliseconds may be placed after the trans-

mission of a particular character of scanned data. Scan the Delay Length bar

code below, then scan the number of steps in 5 millisecond increments and the

Save bar code using the inside the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value

for a printable character to trigger the delay (see Lower ASCII Reference Table

on page A-5). The range is 00-FF.

12345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

Delay Length

Character to Trigger Delay

4 - 8

To remove this delay, scan the Delay Length bar code, and set the number of

steps to 0. Scan the Save bar code using the inside the back cover of this

manual.

Interfunction Delay

An interfunction delay of up to 495 milliseconds may be placed between the

transmission of each control character in the message string. Scan the Inter-

function Delay bar code below, then scan the number of steps in 5 millisecond

increments and the Save bar code using the inside the back cover of this man-

ual.

To remove this delay, scan the Interfunction Delay bar code, then set the num-

ber of steps to 0. Scan the Save bar code using the inside the back cover of

this manual.

Intermessage Delay

An intermessage delay of up to 495 milliseconds may be placed between each

scan transmission. Scan the Intermessage Delay bar code below, then scan

the number of steps in 5 millisecond increments and the Save bar code using

the inside the back cover of this manual.

Interfunction Delays

Prefix Scanned Data Suffix

12345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

4 - 9

To remove this delay, scan the Intermessage Delay bar code, then set the

number of steps to 0. Scan the Save bar code using the inside the back cover

of this manual.

4 - 10

5 - 1

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For exam-

ple, you can use the Data Format Editor to insert characters at certain points in

bar code data as it is scanned. The selections in the following pages are used

only if you wish to alter the output. Default Data Format setting = None.

Normally, when you scan a bar code, it gets outputted automatically; however

when you do a format, you must use a “send” command (see Send Commands

on page 5-4) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the

order in which they are entered. However, the following list presents the order

in which formats are applied:

1. Specific Term ID, Actual Code ID, Actual Length

2. Specific Term ID, Actual Code ID, Universal Length

3. Specific Term ID, Universal Code ID, Actual Length

4. Specific Term ID, Universal Code ID, Universal Length

5. Universal Term ID, Actual Code ID, Actual Length

6. Universal Term ID, Actual Code ID, Universal Length

7. Universal Term ID, Universal Code ID, Actual Length

8. Universal Term ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 256 bytes, which includes

header information. No format can contain more than 50 bytes.

If a bar code is read that fails the first data format, the next data format, if there

is one, will be used on the bar code data. If there is no other data format, the

raw data is output.

If you have changed data format settings, and wish to clear all formats and

return to the factory defaults, scan the Default Data Format code below.

To Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 5-14).

Step 2. Select Primary Format

Scan 0 using the inside the back cover of this manual to indicate that

this is your primary format.

* Default Data Format

5 - 2

Step 3. Terminal Type

Refer to the Supported Terminals Chart (page 5-4) and locate the Ter-

minal ID number for your PC. Scan three numeric bar codes on the

inside back cover to program the scanner for your terminal ID (you must

enter 3 digits). For example, scan 0 0 3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In Appendix A find the symbology to which you want to apply the data

format. Locate the Hex value for that symbology and scan the 2 digit

hex value from the inside the back cover of this manual.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable

for this symbology. Scan the four digit data length from the inside the

back cover of this manual. (Note: 50 characters is entered as 0050.

9999 is a universal number, indicating all lengths.)

Step 6. Editor Commands

Refer to the Format Editor Commands Chart (page 5-4). Scan the

symbols that represent the command you want to enter.

Step 7. Scan Save from the inside the back cover of this manual to save your

entries.

Other Programming Selections

•Clear One Data Format

This deletes one data format for one symbology. Scan 0 from the inside the

back cover of this manual to indicate you are clearing your primary format.

Scan the Terminal Type (refer to the Supported Terminals Chart on page 5-

4), Code I.D. (refer to the Symbology Charts on page A-1), and the bar code

Enter Data Format

Save

Discard

5 - 3

data length for the specific data format that you want to delete. All other

formats remain unaffected.

•Save from the inside the back cover of this manual

This exits, saving any Data Format changes.

•Discard from the inside the back cover of this manual

This exits without saving any Data Format changes.

Clear One Data Format

Clear All Data Formats

Save

Discard

5 - 4

Interface / Terminal ID Table

Data Format Editor Commands

When working with the Data Format Editor, a virtual cursor is moved along your

input data string. The following commands are used to both move this cursor to

different positions, and to select, replace, and insert data into the final output.

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input

message, starting from current cursor position, followed by an insert

character. Syntax = F1xx where xx stands for the insert character’s hex

value for the CP1252 character. Refer to the ASCII Conversion Chart

(Code Page 1252), page A-3 for decimal, hex and character codes.

Send a number of characters

F2 Include in the output message a number of characters followed by an

insert character. Start from the current cursor position and continue for

“nn” characters or through the last character in the input message,

followed by character “xx.” Syntax = F2nnxx where nn stands for the

numeric value (00-99) for the number of characters, and xx stands for

the the insert character’s hex value for the CP1252 character. Refer to

the ASCII Conversion Chart (Code Page 1252), page A-3 for decimal,

hex and character codes.

Interface Terminal ID

USB PC keyboard (HID) 124

Mac Keyboard 125

PC Keyboard (Japanese) 134

Serial (COM driver required) 130

HID POS 131

USB SurePOS Handheld 128

USB SurePOS Tabletop 129

Serial RS232 TTL 000

RS232 True 000

RS485 (IBM-HHBCR 1+2, 46xx) 051

Keyboard PS2 compatibles 003

AT compatibles 002

5 - 5

F2 Example: Send a number of characters

Send the first 10 characters from the bar code above, followed by a

carriage return. Command string: F2100D

F2 is the “Send a number of characters” command

10 is the number of characters to send

0D is the hex value for a CR

The data is output as: 1234567890

F2 and F1 Example: Split characters into 2 lines

Send the first 10 characters from the bar code above, followed by a

carriage return, followed by the rest of the characters.

Command string: F2100DF10D

F2 is the “Send a number of characters” command

10 is the number of characters to send for the first line

0D is the hex value for a CR

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: 1234567890

ABCDEFGHIJ

<CR>

Send all characters up to a particular character

F3 Include in the output message all characters from the input message,

starting with the character at the current cursor position and continuing

to, but not including, the search character “ss,” followed by an insert

character. The cursor is moved forward to the “ss” character. Syntax

= F3ssxx where ss stands for the search character’s hex value for the

CP1252 character, and xx stands for the insert character’s hex value for

the CP1252 character.

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

F3 Example: Send all characters up to a particular character

Using the bar code above, send all characters up to but not including

“D,” followed by a carriage return.

Command string: F3440D

F3 is the “Send all characters up to a particular character” command

5 - 6

44 is the hex value for a 'D”

0D is the hex value for a CR

The data is output as: 1234567890ABC

<CR>

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting

from the current cursor position. The cursor is moved forward to one

position past the last input message character included. Syntax = E9nn

where nn stands for the numeric value (00-99) for the number of

characters that will not be sent at the end of the message.

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the

cursor in the current position. Syntax = F4xxnn where xx stands for the

insert character’s hex value for the CP1252 character, and nn is the

numeric value (00-99) for the number of times it should be sent. Refer

to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

E9 and F4 Example: Send all but the last characters, followed by

2 tabs

Send all characters except for the last 8 from the bar code above, fol-

lowed by 2 tabs.

Command string: E908F40902

E9 is the “Send all but the last characters” command

08 is the number of characters at the end to ignore

F4 is the “Insert a character multiple times” command

09 is the hex value for a horizontal tab

02 is the number of time the tab character is sent

The data is output as: 1234567890AB <tab><tab>

Insert symbology name

B3 Insert the name of the bar code’s symbology in the output message,

without moving the cursor. Only symbologies with a Honeywell ID are

included (see Symbology Charts on page A-1). Refer to the ASCII

Conversion Chart (Code Page 1252), page A-3 for decimal, hex and

character codes.

5 - 7

Insert bar code length

B4 Insert the bar code’s length in the output message, without moving the

cursor. The length is expressed as a numeric string and does not

include leading zeroes.

B3 and B4 Example: Insert the symbology name and length

Send the symbology name and length before the bar code data from

the bar code above. Break up these insertions with spaces. End with

a carriage return.

Command string: B3F42001B4F42001F10D

B3 is the “Insert symbology name” command

F4 is the “Insert a character multiple times” command

20 is the hex value for a space

01 is the number of time the space character is sent

B4 is the “Insert bar code length” command

F4 is the “Insert a character multiple times” command

20 is the hex value for a space

01 is the number of time the space character is sent

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: Code128 20 1234567890ABCDEFGHIJ

<CR>

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn where nn is the numeric value (00-99) for the number

of characters the cursor should be moved ahead.

F5 Example: Move the cursor forward and send the data

Move the cursor forward 3 characters, then send the rest of the the bar

code data from the bar code above. End with a carriage return.

Command string: F503F10D

F5 is the “Move the cursor forward a number of characters” command

5 - 8

03 is the number of characters to move the cursor

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: 4567890ABCDEFGHIJ

<CR>

Move the cursor backward a number of characters

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn where nn is the numeric value (00-99) for the number

of characters the cursor should be moved back.

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message. Syntax =

F7.

Move the cursor to the end

EA Move the cursor to the last character in the input message. Syntax =

EA.

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character.

Syntax = F8xx where xx stands for the search character’s hex value for

the CP1252 character.

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

F8 Example: Send bar code data that starts after a particular

character

Search for the letter “D” in bar codes and send all the data that follows,

including the “D.” Using the bar code above:

Command string: F844F10D

F8 is the “Search forward for a character” command

44 is the hex value for “D”

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: DEFGHIJ

<CR>

5 - 9

Search backward for a character

F9 Search the input message backward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character. Syntax

= F9xx where xx stands for the search character’s hex value for the

CP1252 character.

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

Search forward for a string

B0 Search forward for “s” string from the current cursor position, leaving

cursor pointing to “s” string. Syntax = B0nnnnS where nnnn is the string

length (up to 9999), and S consists of the ASCII hex value of each

character in the match string. For example, B0000454657374 will

search forward for the first occurrence of the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

B0 Example: Send bar code data that starts after a string of char-

acters

Search for the letters “FGH” in bar codes and send all the data that fol-

lows, including “FGH.” Using the bar code above:

Command string: B00003464748F10D

B0 is the “Search forward for a string” command

0003 is the string length (3 characters)

46 is the hex value for “F”

47 is the hex value for “G”

48 is the hex value for “H”

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: FGHIJ

<CR>

Search backward for a string

B1 Search backward for “s” string from the current cursor position, leaving

cursor pointing to “s” string. Syntax = B1nnnnS where nnnn is the string

length (up to 9999), and S consists of the ASCII hex value of each

character in the match string. For example, B1000454657374 will

search backward for the first occurrence of the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

5 - 10

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from

the current cursor position, leaving the cursor pointing to the non-“xx”

character. Syntax = E6xx where xx stands for the search character’s

hex value for the CP1252 character. Refer to the ASCII Conversion

Chart (Code Page 1252), page A-3 for decimal, hex and character

codes.

E6 Example: Remove zeroes at the beginning of bar code data

This example shows a bar code that has been zero filled. You may

want to ignore the zeroes and send all the data that follows. E6

searches forward for the first character that is not zero, then sends all

the data after, followed by a carriage return. Using the bar code

above:

Command string: E630F10D

E6 is the “Search forward for a non-matching character” command

30 is the hex value for 0

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: 37692

<CR>

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character

from the current cursor position, leaving the cursor pointing to the non-

“xx” character. Syntax = E7xx where xx stands for the search

character’s hex value for the CP1252 character. Refer to the ASCII

Conversion Chart (Code Page 1252), page A-3 for decimal, hex and

character codes.

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the

current cursor position, as the cursor is advanced by other commands.

When the FC command is encountered, the suppress function is

terminated. The cursor is not moved by the FB command.

Syntax = FBnnxxyy . .zz where nn is a count of the number of

suppressed characters in the list, and xxyy .. zz is the list of characters

to be suppressed.

5 - 11

FB Example: Remove spaces in bar code data

This example shows a bar code that has spaces in the data. You may

want to remove the spaces before sending the data. Using the bar

code above:

Command string: FB0120F10D

FB is the “Suppress characters” command

01 is the number of character types to be suppressed

20 is the hex value for a space

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: 34567890

<CR>

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters. Syntax =

FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving

the cursor. Replacement continues until the E5 command is

encountered. Syntax = E4nnxx1xx2yy1yy2...zz1zz2 where nn is the total

count of of the number of characters in the list (characters to be

replaced plus replacement characters); xx1 defines characters to be

replaced and xx2 defines replacement characters, continuing through

zz1 and zz2.

E4 Example: Replace zeroes with CRs in bar code data

If the bar code has characters that the host application does not want

included, you can use the E4 command to replace those characters

with something else. In this example, you will replace the zeroes in the

bar code above with carriage returns.

Command string: E402300DF10D

E4 is the “Replace characters” command

02 is the total count of characters to be replaced, plus the replacement

characters (0 is replaced by CR, so total characters = 2)

30 is the hex value for 0

0D is the hex value for a CR (the character that will replace the 0)

5 - 12

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as: 1234

5678

ABC

<CR>

Stop replacing characters

E5 Terminates character replacement. Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character

“xx.” If characters are equal, move the cursor forward one position.

Syntax = FExx where xx stands for the comparison character’s hex

value for the CP1252 character.

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

Compare string

B2 Compare the string in the input message to the string “s.” If the strings

are equal, move the cursor forward past the end of the string. Syntax

= B2nnnnS where nnnn is the string length (up to 9999), and S consists

of the ASCII hex value of each character in the match string. For

example, B2000454657374 will compare the string at the current

cursor position with the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), page A-3 for

decimal, hex and character codes.

Check for a number

EC Check to make sure there is an ASCII number at the current cursor

position. The format is aborted if the character is not numeric.

EC Example: Only output the data if the bar code begins with a

number

If you want only data from bar codes that begin with a number, you can

use EC to check for the number.

Command string: ECF10D

EC is the “Check for a number” command

F1 is the “Send all characters” command

0D is the hex value for a CR

If this bar code is read, the next data format,

if there is one, will be used on the data. If there is no other format, the

format fails and the raw data is output as AB1234.

5 - 13

If this bar code is read: the data is output as:

1234AB

<CR>

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the

current cursor position. The format is aborted if the character is

numeric.

ED Example: Only output the data if the bar code begins with a

letter

If you want only data from bar codes that begin with a letter, you can

use ED to check for the letter.

Command string: EDF10D

ED is the “Check for a non-numeric character” command

F1 is the “Send all characters” command

0D is the hex value for a CR

If this bar code is read, the next data format, if

there is one, will be used on this data. If there is no other format, the

format fails and the raw data is output as 1234AB.

If this bar code is read: the data is output as:

AB1234

<CR>

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting

from the current cursor position. Syntax = EFnnnn where nnnn stands

for the delay in 5ms increments, up to 9999. This command can only

be used with keyboard emulation.

5 - 14

Data Format Editor

Data Formatter

When Data Formatter is turned off, the bar code data is output to the host as

read (including prefixes and suffixes). Choose one of the following options.

Enter Data Format

* Default Data Format

Clear One Data Format

Save

Discard

Clear All Data Formats

5 - 15

Default = Data Formatter On.

When Data Formatter is required, all input data must conform to an edited for-

mat or the scanner does not transmit the input data to the host device.

Data Formatter Off

* Data Formatter On,

but Not Required

Data Format On, Format Required

5 - 16

6 - 1

Symbologies

Introduction

This programming section contains the following menu selections. Refer to

Chapter 9 for settings and defaults.

•All Symbologies •GS1 DataBar Expanded

•China Post Code •Interleaved 2 of 5

•Codabar •Label Code

•Codablock F •Matrix 2 of 5

•Code 11 •MSI

•Code 39 •Plessey Code

•Code 32 Pharmaceutical (PARAF) •Straight 2 of 5 IATA (two-bar

start/stop)

•Code 49 •Straight 2 of 5 Industrial

(three-bar start/stop)

•Code 93 •Telepen

•Code 128 •Trioptic Code

•UPC-A/EAN-13 with Extended

Coupon Code •UPC A

•EAN/JAN 8 •UPC E

•GS1 DataBar Omnidirectional •Straight 2 of 5 IATA (two-bar

start/stop)

•GS1 DataBar Limited •Straight 2 of 5 Industrial

(three-bar start/stop)

6 - 2

All Symbologies

If you want to decode all the symbologies allowable for your scanner, scan the

All Symbologies On code. If on the other hand, you want to decode only a

particular symbology, scan All Symbologies Off followed by the On symbol for

that particular symbology.

Message Length

You are able to set the valid reading length of some of the bar code symbologies.

If the data length of the scanned bar code doesn’t match the valid reading length,

the scanner will issue an error beep. You may wish to set the same value for

minimum and maximum length to force the scanner to read fixed length bar code

data. This helps reduce the chances of a misread.

All Symbologies On

All Symbologies Off

6 - 3

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

Min. length = 09 Max. length = 20

EXAMPLE: Decode only those bar codes with a count of 15 characters.

Min. length = 15 Max. length = 15

For a value other than the minimum and maximum message length defaults,

scan the bar codes included in the explanation of the symbology, then scan the

digit value of the message length and Save bar codes on the inside the back

cover of this manual. The minimum and maximum lengths and the defaults are

included with the respective symbologies.

Codabar

Codabar

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You

may either transmit, or not transmit Start/Stop characters.

*On

Off

6 - 4

Default = Don’t Transmit.

Codabar Check Character

Codabar check characters are created using different “modulos.” You can pro-

gram the scanner to read only Codabar bar codes with Modulo 16 check char-

acters. Default = No Check Character.

No Check Character indicates that the scanner reads and transmits bar code

data with or without a check character.

When Check Character is set to Validate and Transmit, the scanner will only

read Codabar bar codes printed with a check character, and will transmit this

character at the end of the scanned data.

When Check Character is set to Validate, but Don’t Transmit, the unit will only

read Codabar bar codes printed with a check character, but will not transmit the

check character with the scanned data.

Transmit

* Don’t Transmit

* No Check Character

Validate Modulo 16 and Transmit

Validate Modulo 16, but

Don’t Transmit

6 - 5

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatenation, the

scanner looks for a Codabar symbol having a “D” start character, adjacent to a

symbol having a “D” stop character. In this case the two messages are concat-

enated into one with the “D” characters omitted.

Select Require to prevent the scanner from decoding a single “D” Codabar sym-

bol without its companion. This selection has no effect on Codabar symbols

without Stop/Start D characters.

A12D D34A

Codabar

Character Stop Start StopStart

* Off

Require

6 - 6

Codabar Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-60. Minimum Default = 4, Maximum Default = 60.

Minimum Message Length

Maximum Message Length

6 - 7

Code 39

< Default All Code 39 Settings >

Code 39

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You

may either transmit, or not transmit Start/Stop characters. Default = Don’t

Transmit.

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar code

data with or without a check character.

When Check Character is set to Validate, but Don’t Transmit, the unit only

reads Code 39 bar codes printed with a check character, but will not transmit

the check character with the scanned data.

*On

Off

Transmit

* Don’t Transmit

6 - 8

When Check Character is set to Validate and Transmit, the scanner only reads

Code 39 bar codes printed with a check character, and will transmit this charac-

ter at the end of the scanned data. Default = No Check Character.

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-48. Minimum Default = 0, Maximum Default = 48.

Code 39 Append

This function allows the scanner to append the data from several Code 39 bar

codes together before transmitting them to the host computer. When this func-

tion is enabled, the scanner stores those Code 39 bar codes that start with a

space (excluding the start and stop symbols), and does not immediately trans-

mit the data. The scanner stores the data in the order in which the bar codes

Validate, but Don’t Transmit

* No Check Character

Validate and Transmit

Minimum Message Length

Maximum Message Length

6 - 9

are read, deleting the first space from each. The scanner transmits the

appended data when it reads a Code 39 bar code that starts with a character

other than a space. Default = Off.

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian

pharmacies. This symbology is also known as PARAF. Default = Off.

*Off

* Off

6 - 10

Full ASCII

If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar

code symbol will be interpreted as a single character. For example: $V will be

decoded as the ASCII character SYN, and /C will be decoded as the ASCII

character #. Default = Off.

Character pairs /M and /N decode as a minus sign and period respectively.

Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the data

received does not display with the proper characters, it may be because the bar

code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, scan the bar code below,

select the code page with which the bar codes were created from the chart,

NUL %U DLE $P

SP SPACE

00@%VPP‘%Wp+P

SOH $A DC1 $Q !/A 11AAQQ a+Aq+Q

STX $B DC2 $R “/B 22 BBRRb+Br+R

ETX $C DC3 $S #/C 33CCSS c+Cs+S

EOT $D DC4 $T $/D 44 DDTTd+Dt+T

ENQ $E NAK $U %/E 55EEUU e+Eu+U

ACK $F SYN $V &/F 66FFVV f+Fv+V

BEL $G ETB $W ‘/G77GG WWg+Gw+W

BS $H CAN $X (/H 88 HHXXh+Hx+X

HT $I EM $Y )/I 99II YYi+Iy+Y

LF $J SUB $Z */J :/ZJJZZj+Jz+Z

VT $K ESC %A +/K ;%FKK[%Kk+K{%P

FF $L FS %B ,/L <%GLL\%Ll+L|%Q

CR $M GS %C -- =%HMM]%Mm+M}%R

SO $N RS %D .. >%INN^%Nn+N~%S

SI $O US %E //O ?%JOO_%Oo+ODEL %T

* Full ASCII Off

Full ASCII On

6 - 11

ASCII Conversion Chart (Code Page 1252), page A-3, and scan the value and

the Save bar code from the inside the back cover of this manual. The data

characters should then appear properly.

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data

with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only reads

Interleaved 2 of 5 bar codes printed with a check digit, but will not transmit the

check digit with the scanned data.

Code 39 Code Page

* On

Off

6 - 12

When Check Digit is set to Validate and Transmit, the scanner only reads

Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this digit

at the end of the scanned data. Default = No Check Digit.

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

Validate, but Don’t Transmit

* No Check Digit

Validate and Transmit

Minimum Message Length

Maximum Message Length

6 - 13

Code 93

< Default All Code 93 Settings >

Code 93

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Code 93 Code Page

Code pages define the mapping of character codes to characters. If the data

received does not display with the proper characters, it may be because the bar

code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, scan the bar code below,

* On

Off

Minimum Message Length

Maximum Message Length

6 - 14

select the code page with which the bar codes were created from the chart,

ASCII Conversion Chart (Code Page 1252), page A-3, and scan the value and

the Save bar code from the inside the back cover of this manual. The data

characters should then appear properly.

Code 93 Code Page

6 - 15

Straight 2 of 5 Industrial (three-bar start/stop)

Straight 2 of 5 Industrial

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

* On

Off

Minimum Message Length

Maximum Message Length

6 - 16

Straight 2 of 5 IATA (two-bar start/stop)

Straight 2 of 5 IATA

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

Off

Minimum Message Length

Maximum Message Length

6 - 17

Matrix 2 of 5

Matrix 2 of 5

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

* Off

Minimum Message Length

Maximum Message Length

6 - 18

Code 11

Code 11

Check Digits Required

This option sets whether 1 or 2 check digits are required with Code 11 bar

codes. Default = Two Check Digits.

* Off

One Check Digit

* Two Check Digits

6 - 19

Code 11 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

Code 128

Code 128

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a standard

for communicating critical blood information in a uniform manner. The use of

ISBT formats requires a paid license. The ISBT 128 Application Specification

describes 1) the critical data elements for labeling blood products, 2) the current

recommendation to use Code 128 due to its high degree of security and its

Minimum Message Length

Maximum Message Length

* On

Off

6 - 20

space-efficient design, 3) a variation of Code 128 that supports concatenation

of neighboring symbols, and 4) the standard layout for bar codes on a blood

product label. Use the bar codes below to turn concatenation on or off. Default

=Off.

Code 128 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Code 128 Code Page

Code pages define the mapping of character codes to characters. If the data

received does not display with the proper characters, it may be because the bar

code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, scan the bar code below,

select the code page with which the bar codes were created from the chart,

ASCII Conversion Chart (Code Page 1252), page A-3, and scan the value and

the Save bar code from the inside the back cover of this manual. The data

characters should then appear properly.

* Off

Minimum Message Length

Maximum Message Length

6 - 21

Code 128 Function Code Transmit

By default, Code 128 function codes are not transmitted with Code 128 bar

code data. However, if you wish to transmit Code 128 function codes with the

bar code data, scan the Function Codes On bar code, below. Default = Off

Telepen

Code 128 Code Page

* Function Codes Off

Function Codes On

6 - 22

Telepen

Telepen Output

Using AIM Telepen Output, the scanner reads symbols with start/stop pattern 1

and decodes them as standard full ASCII (start/stop pattern 1). When Original

Telepen Output is selected, the scanner reads symbols with start/stop pattern 1

and decodes them as compressed numeric with optional full ASCII (start/stop

pattern 2). Default = AIM Telepen Output.

* Off

Original Telepen Output

*AIM Telepen Output

6 - 23

Telepen Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-60. Minimum Default = 1, Maximum Default = 60.

Minimum Message Length

Maximum Message Length

6 - 24

UPC A

UPC A

UPC A Check Digit

This selection allows you to specify whether the check digit should be transmit-

ted at the end of the scanned data or not. Default = On.

* On

Off

* On

Off

6 - 25

UPC A Number System

The numeric system digit of a U.P.C. symbol is normally transmitted at the

beginning of the scanned data, but the unit can be programmed so it will not

transmit it. Default = On.

UPC A Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC A data.

Default = Off for both 2 Digit and 5 Digit Addenda.

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

6 - 26

UPC A Addenda Required

When Addenda Required is set to on, the scanner will only read UPC A bar

codes that have addenda. Default = Not Required.

UPC A Addenda Separator

When this feature is on, there is a space between the data from the bar code

and the data from the addenda. When turned off, there is no space.

Default = On.

* Not Required

Required

Off

* On

6 - 27

UPC-A/EAN-13

with Extended Coupon Code

Use the following codes to enable or disable UPC-A and EAN-13 with Extended

Coupon Code. Default = On.

* Off

6 - 28

UPC E

UPC E0 and UPC E1

Most U.P.C. bar codes lead with the 0 number system. For these codes, use

the UPC E0 selection. If you need to read codes that lead with the 1 number

system, use the UPC E1 selection. Default = On (UPC E0) and Off (UPC E1).

* UPC E0 On

UPC E0 Off

UPC E1 On

* UPC E1 Off

6 - 29

UPC E0 and UPC E1 Expand

UPC E Expand expands the UPC E code to the 12 digit, UPC A format.

Default = Off.

UPC E0 and UPC E1 Addenda Required

When Addenda Required is set to on, the scanner will only read UPC E bar

codes that have addenda. Default = Not Required.

* Off

* Not Required

Required

6 - 30

UPC E0 and UPC E1 Addenda Separator

When this feature is on, there is a space between the data from the bar code

and the data from the addenda. When turned off, there is no space.

Default = On.

UPC E0 Check Digit

Check Digit specifies whether the check digit should be transmitted at the end

of the scanned data or not. Default = On.

Off

* On

Off

* On

6 - 31

UPC E0 Number System

The numeric system digit of a U.P.C. symbol is normally transmitted at the

beginning of the scanned data, but the unit can be programmed so it will not

transmit it. Default = On.

UPC E0 Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC E data.

Default = Off for both 2 Digit and 5 Digit Addenda.

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

6 - 32

EAN/JAN 13

EAN/JAN 13

EAN/JAN 13 Check Digit

This selection allows you to specify whether the check digit should be transmit-

ted at the end of the scanned data or not. Default = On.

* On

Off

* On

6 - 33

EAN/JAN 13 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN 13 data.

Default = Off for both 2 Digit and 5 Digit Addenda.

EAN/JAN 13 Addenda Required

When Addenda Required is set to on, the scanner will only read EAN/JAN 13

bar codes that have addenda. Default = Not Required.

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

* Not Required

Required

6 - 34

EAN/JAN 13 Addenda Separator

When this feature is on, there is a space between the data from the bar code

and the data from the addenda. When turned off, there is no space.

Default = On.

Note: If you want to enable or disable EAN13 with Extended Coupon Code,

refer to UPC-A/EAN-13 with Extended Coupon Code on page 6-27.

ISBN Translate

This selection causes EAN-13 Bookland symbols to be translated into their

equivalent ISBN number format. Default = Off.

EAN/JAN 8

Off

* On

* Off

6 - 35

EAN/JAN 8

EAN/JAN 8 Check Digit

This selection allows you to specify whether the check digit should be transmit-

ted at the end of the scanned data or not. Default = On.

* On

Off

* On

6 - 36

EAN/JAN 8 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN 8 data.

Default = Off for both 2 Digit and 5 Digit Addenda.

EAN/JAN 8 Addenda Required

When Addenda Required is set to on, the scanner will only read EAN/JAN 8 bar

codes that have addenda. Default = Not Required.

* 5 Digit Addenda

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

* 5 Digit Addenda Off

* Not Required

Required

6 - 37

EAN/JAN 8 Addenda Separator

When this feature is on, there is a space between the data from the bar code

and the data from the addenda. When turned off, there is no space.

Default = On.

MSI

MSI

MSI Check Character

Different types of check characters are used with MSI bar codes. You can

program the scanner to read MSI bar codes with Type 10 check characters.

Default = Validate Type 10, but Don’t Transmit.

Off

* On

* Off

6 - 38

When Check Character is set to Validate and Transmit, the scanner will only

read MSI bar codes printed with the specified type check character, and will

transmit this character at the end of the scanned data.

When Check Character is set to Validate, but Don’t Transmit, the unit will only

read MSI bar codes printed with the specified type check character, but will not

transmit the check character with the scanned data.

MSI Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 4-48. Minimum Default = 4, Maximum Default = 48.

Plessey Code

Validate Type 10 and Transmit

* Validate Type 10, but Don’t

Transmit

Minimum Message Length

Maximum Message Length

6 - 39

Plessey Code

Plessey Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 4-48. Minimum Default = 4, Maximum Default = 48.

GS1 DataBar Omnidirectional

< Default All GS1 DataBar Omnidirectional Settings >

* Off

Minimum Message Length

Maximum Message Length

6 - 40

GS1 DataBar Omnidirectional

GS1 DataBar Limited

< Default All GS1 DataBar Limited Settings >

GS1 DataBar Limited

GS1 DataBar Expanded

< Default All GS1 DataBar Expanded Settings >

* On

Off

* On

Off

6 - 41

GS1 DataBar Expanded

GS1 DataBar Expanded Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 4-74. Minimum Default = 4, Maximum Default = 74.

China Post Code

* On

Off

Minimum Message Length

Maximum Message Length

6 - 42

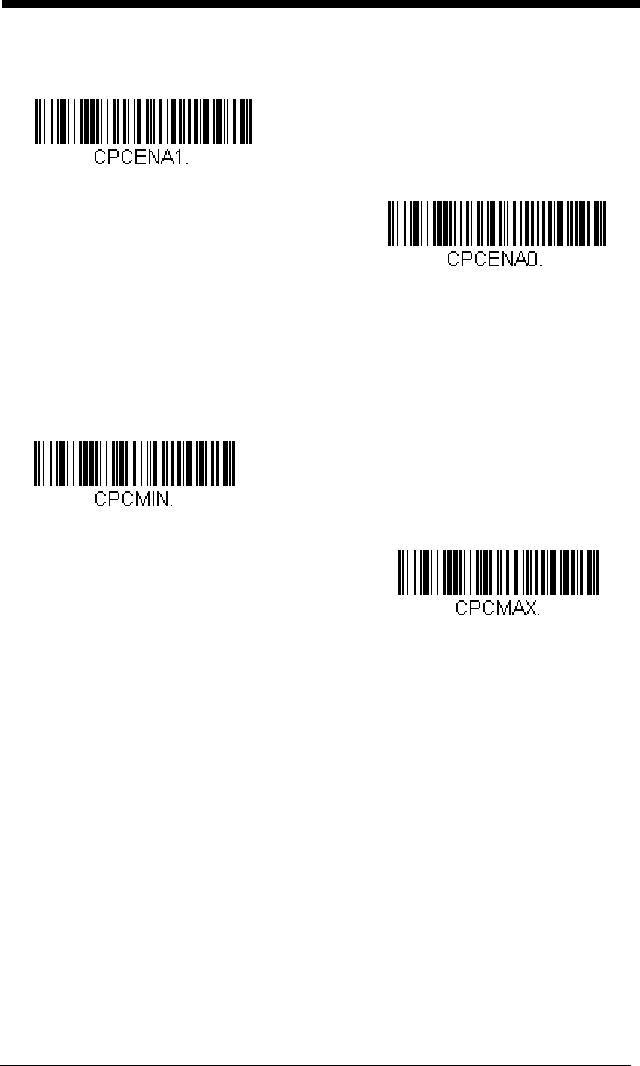

China Post Code

China Post Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

* Off

Minimum Message Length

Maximum Message Length

6 - 43

Korea Post Code

Korea Post Code

Korea Post Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-80. Minimum Default = 4, Maximum Default = 48.

* Off

Minimum Message Length

Maximum Message Length

6 - 44

Codablock F

Codablock F

Codablock F Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048.

* Off

Minimum Message Length

Maximum Message Length

6 - 45

Code 49

Code 49

Code 49 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-81. Minimum Default = 1, Maximum Default = 81.

* Off

Minimum Message Length

Maximum Message Length

6 - 46

Trioptic Code

Trioptic Code is used for labeling magnetic storage media.

GS1 Emulation

The scanner can automatically format the output from any GS1 data carrier to

emulate what would be encoded in an equivalent GS1-128 or GS1 DataBar

symbol. GS1 data carriers include UPC-A and UPC-E, EAN-13 and EAN-8,

ITF-14, GS1-128, and GS1-128 DataBar and GS1Composites. If GS1-128

Emulation is selected, the AIM Symbology Identifier will be reported as “]C1”. If

GS1 DataBar Emulation is selected, the AIM Symbology Identifier will be

reported as “]e0.” Any application that accepts GS1 data can be simplified

since it only needs to recognize one data carrier type. Default = GS1 Emulation

Off.

Off

GS1 Data Bar Emulation

GS1-128 Emulation

* GS1 Emulation Off

6 - 47

Label Code

The standard Label Code is used in library situations. Default = Off.

* Off

6 - 48

7 - 1

Interface Keys

Keyboard Function Relationships

The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII

“CTRL”+ relationships apply to all terminals that can be used with the scanner.

Refer to Windows Mode Control + X Mode On (page 2-20) to enable Control +

ASCII mode.

Function Code HEX/ASCII Value Full ASCII “CTRL” +

NUL 00 2

SOH 01 A

STX 02 B

ETX 03 C

EOT 04 D

ENQ 05 E

ACK 06 F

BEL 07 G

BS 08 H

HT 09 I

LF 0A J

VT 0B K

FF 0C L

CR 0D M

SO 0E N

SI 0F O

DLE 10 P

DC1 11 Q

DC2 12 R

DC3 13 S

DC4 14 T

NAK 15 U

SYN 16 V

ETB 17 W

CAN 18 X

EM 19 Y

SUB 1A Z

ESC 1B [

FS 1C \

GS 1D ]

RS 1E 6

US 1F -

7 - 2

Supported Interface Keys

ASCII HEX

IBM AT/XT and

PS/2 Compatibles,

WYSE PC/AT

Supported Keys

NUL 00 Reserved

SOH 01 Enter (KP)

STX 02 Cap Lock

ETX 03 ALT make

EOT 04 ALT break

ENQ 05 CTRL make

ACK 06 CTRL break

BEL 07 CR/Enter

BS 08 Reserved

HT 09 Tab

LF 0A Reserved

VT 0B Tab

FF 0C Delete

CR 0D CR/Enter

SO 0E Insert

SI 0F Escape

DLE 10 F11

DC1 11 Home

DC2 12 Print

DC3 13 Back Space

DC4 14 Back Tab

NAK 15 F12

SYN 16 F1

ETB 17 F2

CAN 18 F3

EM 19 F4

SUB 1A F5

ESC 1B F6

FS 1C F7

GS 1D F8

RS 1E F9

US 1F F10

* IBM 3191/92, 3471/72, 3196/97, 3476/77,

Telex (all models)

7 - 3

Supported Interface Keys

ASCII HEX

Apple Mac/iMac

Supported Keys

NUL 00 Reserved

SOH 01 Enter/Numpad Enter

STX 02 CAPS

ETX 03 ALT make

EOT 04 ALT break

ENQ 05 CNTRL make

ACK 06 CNTRL break

BEL 07 RETURN

BS 08 APPLE make

HT 09 TAB

LF 0A APPLE break

VT 0B TAB

FF 0C Del

CR 0D RETURN

SO 0E Ins Help

SI 0F ESC

DLE 10 F11

DC1 11 Home

DC2 12 Prnt Scrn

DC3 13 BACKSPACE

DC4 14 LSHIFT TAB

NAK 15 F12

SYN 16 F1

ETB 17 F2

CAN 18 F3

EM 19 F4

SUB 1A F5

ESC 1B F6

FS 1C F7

GS 1D F8

RS 1E F9

US 1F F10

DEL 7F BACKSPACE

7 - 4

8 - 1

Utilities

To Add a Test Code I.D. Prefix to All Symbologies

This selection allows you to turn on transmission of a Code I.D. before the

decoded symbology. (See the Symbology Charts (page A-1) for the single

character code that identifies each symbology.) This action first clears all cur-

rent prefixes, then programs a Code I.D. prefix for all symbologies. This is a

temporary setting that will be removed when the unit is power cycled.

Show Software Revision

Scan the bar code below to output the current software revision, unit serial num-

ber, and other product information.

Show Data Format

Scan the bar code below to show current data format settings.

EZConfig-Scanning Introduction

EZConfig-Scanning provides a wide range of PC-based programming functions

that can be performed on a scanner connected to your PC's COM port. EZCon-

fig-Scanning allows you to download upgrades to the scanner's firmware,

Add Code I.D. Prefix to

All Symbologies (Temporary)

Show Revision

Data Format Settings

DFMBK3?.

8 - 2

change programmed parameters, and create and print programming bar codes.

Using EZConfig-Scanning, you can even save/open the programming parame-

ters for a scanner. This saved file can be e-mailed or, if required, you can cre-

ate a single bar code that contains all the customized programming parameters

and mail or fax that bar code to any location. Users in other locations can scan

the bar code to load in the customized programming.

To communicate with a scanner, EZConfig-Scanning requires that the PC have

at least one available serial communication port, or a serial port emulation using

a physical USB port. If you are using the serial port and RS232 cable, an exter-

nal power supply is required. When using a USB serial port emulation, only a

USB cable is required.

EZConfig-Scanning Operations

The EZConfig-Scanning software performs the following operations:

Scan Data

Scan Data allows you to scan bar codes and display the bar code data

in a window. Scan Data lets you send serial commands to the scanner

and receive scanner response that can be seen in the Scan Data win-

dow. The data displayed in the Scan Data window can either be saved

in a file or printed.

Configure

Configure displays the programming and configuration data of the

scanner. The scanner's programming and configuration data is

grouped into different categories. Each category is displayed as a tree

item under the "Configure" tree node in the application explorer. When

one of these tree nodes is clicked, the right-hand side is loaded with

the parameters' form belonging to that particular category. The "Con-

figure" tree option has all the programming and configuration parame-

ters specified for a scanner. You can set or modify these parameters

as required. You can later write the modified settings to the scanner,

or save them to a dcf file.

Installing EZConfig-Scanning from the Web

1. Access the Honeywell web site at www.honeywellaidc.com

2. Click on the Resources tab. Select Download.

3. Click on the dropdown for Select Product Number and select the

number of your product.

4. Under Tools and Utilities, click on the listing for EZConfig for

Scanning.

8 - 3

5. Follow the security directions as prompted on the screen and click on

Download.

6. When prompted, select Save, and save the file to your desktop.

7. Double click on the EZConfig-Scanning zip file.

8. Double click on the EZConfig-Scanning Setup.exe file. Select Extract

All.

9. Go to the EZConfig-Scanning folder that has been created on your

desktop and double click on the EZConfig-Scanning Setup.exe file.

10. Follow the screen prompts to install the EZConfig-Scanning program.

11. If you’ve selected the defaults during installation, you can click on the

shortcut on your desktop to start EZConfig for Scanning.

Once the software is installed, you may delete the zip file and the EZCon-

fig-Scanning folder from your desktop.

Resetting the Standard Product Defaults

If you aren’t sure what programming options are in your scanner, or you’ve

changed some options and want to restore the scanner to factory default set-

tings, first scan the Remove Custom Defaults bar code, then scan Activate

Defaults. This resets the scanner to the factory default settings.

The Serial Programming Commands, beginning on page 9-1 lists the standard

product default settings for each of the commands (indicated by an asterisk (*)

on the programming pages).

This selection erases all your settings and resets the scanner to the

original factory defaults.

Remove Custom Defaults

Activate Defaults

8 - 4

9 - 1

Serial Programming Commands

The serial programming commands can be used in place of the programming

bar codes. Both the serial commands and the programming bar codes will pro-

gram the scanner. For complete descriptions and examples of each serial pro-

gramming command, refer to the corresponding programming bar code in this

manual.

The device must be set to an RS-232 interface (see page 2-2). The following

commands can be sent via a PC com port using terminal emulation software.

Conventions

The following conventions are used for menu and query command descriptions:

parameterA label representing the actual value you should send as part of a

command.

[option] An optional part of a command.

{Data} Alternatives in a command.

bold Names of menus, menu commands, buttons, dialog boxes, and

windows that appear on the screen.

Menu Command Syntax

Menu commands have the following syntax (spaces have been used for clarity

only):

Prefix Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] […] Storage

Prefix Three ASCII characters: SYN M CR (ASCII 22,77,13).

Tag A 3 character case-insensitive field that identifies the desired menu

command group. For example, all RS-232 configuration settings

are identified with a Tag of 232.

SubTag A 3 character case-insensitive field that identifies the desired menu

command within the tag group. For example, the SubTag for the

RS-232 baud rate is BAD.

Data The new value for a menu setting, identified by the Tag and Sub-

Tag.

Storage A single character that specifies the storage table to which the

command is applied. An exclamation point (!) performs the com-

mand’s operation on the device’s volatile menu configuration table.

A period (.) performs the command’s operation on the device’s

non-volatile menu configuration table. Use the non-volatile table

only for semi-permanent changes you want saved through a power

cycle.

9 - 2

Query Commands

Several special characters can be used to query the device about its settings.

^What is the default value for the setting(s).

?What is the device’s current value for the setting(s).

*What is the range of possible values for the setting(s). (The de-

vice’s response uses a dash (-) to indicate a continuous range of

values. A pipe (|) separates items in a list of non-continuous val-

ues.)

Tag Field Usage

When a query is used in place of a Tag field, the query applies to the entire set

of commands available for the particular storage table indicated by the Storage

field of the command. In this case, the SubTag and Data fields should not be

used because they are ignored by the device.

SubTag Field Usage

When a query is used in place of a SubTag field, the query applies only to the

subset of commands available that match the Tag field. In this case, the Data

field should not be used because it is ignored by the device.

Data Field Usage

When a query is used in place of the Data field, the query applies only to the

specific command identified by the Tag and SubTag fields.

Concatenation of Multiple Commands

Multiple commands can be issued within one Prefix/Storage sequence. Only

the Tag, SubTag, and Data fields must be repeated for each command in the

sequence. If additional commands are to be applied to the same Tag, then the

new command sequence is separated with a comma (,) and only the SubTag

and Data fields of the additional command are issued. If the additional com-

mand requires a different Tag field, the command is separated from previous

commands by a semicolon (;).

Responses

The device responds to serial commands with one of three responses:

ACK Indicates a good command which has been processed.

ENQ Indicates an invalid Tag or SubTag command.

NAK Indicates the command was good, but the Data field entry was out of

the allowable range for this Tag and SubTag combination, e.g., an entry

for a minimum message length of 100 when the field will only accept 2

characters.

When responding, the device echoes back the command sequence with the

status character inserted directly before each of the punctuation marks (the

period, exclamation point, comma, or semicolon) in the command.

9 - 3

Examples of Query Commands

In the following examples, a bracketed notation [ ] depicts a non-displayable

response.

Example: Example #1:What is the range of possible values for Codabar

Coding Enable?

Enter: cbrena*.

Response: CBRENA0-1[ACK]

This response indicates that Codabar Coding Enable (CBRENA) has a range of

values from 0 to 1 (off and on).

Example: Example #2: What is the default value for Codabar Coding Enable?

Enter: cbrena^.

Response: CBRENA1[ACK]

This response indicates that the default setting for Codabar Coding Enable

(CBRENA) is 1, or on.

Example: Example #3: What is the device’s current setting for Codabar

Coding Enable?

Enter: cbrena?.

Response: CBRENA1[ACK]

This response indicates that the device’s Codabar Coding Enable (CBRENA) is

set to 1, or on.

Example: Example #4: What are the device’s settings for all Codabar

selections?

Enter: cbr?.

Response: CBRENA1[ACK],

SSX0[ACK],

CK20[ACK],

CCT1[ACK],

MIN2[ACK],

MAX60[ACK],

DFT[ACK].

This response indicates that the device’s Codabar Coding Enable (CBRENA) is

set to 1, or on;

the Start/Stop Character (SSX) is set to 0, or Don’t Transmit;

the Check Character (CK2) is set to 0, or Not Required;

concatenation (CCT) is set to 1, or Enabled;

the Minimum Message Length (MIN) is set to 2 characters;

the Maximum Message Length (MAX) is set to 60 characters;

and the Default setting (DFT) has no value.

9 - 4

Trigger Commands

You can activate and deactivate the scanner with serial trigger commands.

First, the scanner must be put in Manual/Serial Trigger Mode either by scanning

the Manual/Serial Trigger Mode bar code (page 3-5), or by sending the Manual/

Serial Menu Command (page 9-13). Once the scanner is in serial trigger mode,

the trigger is activated and deactivated by sending the following commands:

Activate:SYN T CR

Deactivate:SYN U CR

The scanner scans until a bar code has been read, until the deactivate com-

mand is sent, or until the serial time-out has been reached (see Read Time-

Out on page 3-5 for a description, and the serial command on page 9-13).

Resetting the Standard Product Defaults

If you aren’t sure what programming options are in your scanner, or you’ve

changed some options and want the factory settings restored, scan the Stan-

dard Product Default Settings bar code below.

The chart on the following pages lists the factory default settings for each of the

menu commands (indicated by an asterisk (*) on the programming pages).

Standard Product Default Settings

9 - 5

Menu Commands

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

Product Default Settings

Setting Custom

Defaults

Set Custom Defaults MNUCDF 1-5

Resetting the Custom

Defaults

Activate Custom

Defaults

DEFALT 1-5

Programming the Interface

Plug and Play Codes Keyboard Wedge: IBM

PC AT and

Compatibles with CR

suffix

PAP_AT 2-1

Laptop Direct Connect PAPLTD 2-1

RS232 Serial Port PAP232 2-2

Plug and Play Codes:

RS485

IBM Port 5B Interface PAPP5B 2-2

IBM Port 9B HHBCR-1

Interface

PAP9B1 2-2

IBM Port 17 Interface PAPP17 2-2

IBM Port 9B HHBCR-2

Interface

PAP9B2 2-2

OPOS Mode PAPOPS 2-2

Plug and Play Codes:

IBM SurePos

USB IBM SurePos

Handheld

PAPSPH 2-4

USB IBM SurePos

Tabletop

PAPSPT 2-4

Plug and Play Codes:

USB

USB Keyboard (PC) PAP124 2-5

USB Keyboard (Mac) PAP125 2-5

USB HID POS PAP131 2-5

9 - 6

USB Serial

Commands

USB Serial Emulation PAP130 2-5

CTS/RTS Emulation

USBCTS1 2-6

*CTS/RTS Emulation

Off

USBCTS0 2-6

ACK/NAK Mode On USBACK1 2-6

*ACK/NAK Mode Off USBACK0 2-6

Plug and Play Codes: Honeywell Bioptic Aux

Port

PAPBIO 2-6

Datalogic Magellan

Bioptic Aux Port

PAPMAG 2-7

Wincor Mode A PAPWMA 2-7

Program Keyboard

Country

*U.S.A. KBDCTY0 2-8

Albania KBDCTY35 2-8

Arabic KBDCTY91 2-8

Azeri (Cyrillic) KBDCTY81 2-8

Azeri (Latin) KBDCTY80 2-8

Belarus KBDCTY82 2-8

Belgium KBDCTY1 2-8

Bosnia KBDCTY33 2-8

Brazil KBDCTY16 2-9

Brazil (MS) KBDCTY59 2-9

Bulgaria (Cyrillic) KBDCTY52 2-9

Bulgaria (Latin) KBDCTY53 2-9

Canada (French

legacy)

KBDCTY54 2-9

Canada (French) KBDCTY18 2-9

Canada (Multilingual) KBDCTY55 2-9

China KBDCTY92 2-9

Croatia KBDCTY32 2-9

Czech KBDCTY15 2-10

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 7

Czech (Programmers) KBDCTY40 2-10

Czech (QWERTY) KBDCTY39 2-10

Czech (QWERTZ) KBDCTY38 2-10

Denmark KBDCTY8 2-10

Dutch (Netherlands) KBDCTY11 2-10

Estonia KBDCTY41 2-10

Faroese KBDCTY83 2-10

Finland KBDCTY2 2-10

France KBDCTY3 2-11

Gaelic KBDCTY84 2-11

Germany KBDCTY4 2-11

Greek KBDCTY17 2-11

Greek (220 Latin) KBDCTY64 2-11

Greek (220) KBDCTY61 2-11

Greek (319 Latin) KBDCTY65 2-11

Greek (319) KBDCTY62 2-11

Greek (Latin) KBDCTY63 2-11

Greek (MS) KBDCTY66 2-12

Greek (Polytonic) KBDCTY60 2-12

Hebrew KBDCTY12 2-12

Hungarian (101 key) KBDCTY50 2-12

Hungary KBDCTY19 2-12

Iceland KBDCTY75 2-12

Ireland KBDCTY73 2-12

Italian (142) KBDCTY56 2-12

Italy KBDCTY5 2-12

Japan ASCII KBDCTY28 2-13

Kazakh KBDCTY78 2-13

Korea KBDCTY93 2-13

Kyrgyz (Cyrillic) KBDCTY79 2-13

Latin America KBDCTY14 2-13

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 8

Latvia KBDCTY42 2-13

Latvia (QWERTY) KBDCTY43 2-13

Lithuania KBDCTY44 2-13

Lithuania (IBM) KBDCTY45 2-13

Macedonia KBDCTY34 2-14

Malta KBDCTY74 2-14

Mongolian (Cyrillic) KBDCTY86 2-14

Norway KBDCTY9 2-14

Poland KBDCTY20 2-14

Polish (214) KBDCTY57 2-14

Polish (Programmers) KBDCTY58 2-14

Portugal KBDCTY13 2-14

Romania KBDCTY25 2-14

Russia KBDCTY26 2-15

Russian (MS) KBDCTY67 2-15

Russian (Typewriter) KBDCTY68 2-15

SCS KBDCTY21 2-15

Serbia (Cyrillic) KBDCTY37 2-15

Serbia (Latin) KBDCTY36 2-15

Slovakia KBDCTY22 2-15

Slovakia (QWERTY) KBDCTY49 2-15

Slovakia (QWERTZ) KBDCTY48 2-15

Slovenia KBDCTY31 2-16

Spain KBDCTY10 2-16

Spanish variation KBDCTY51 2-16

Sweden KBDCTY23 2-16

Switzerland (French) KBDCTY29 2-16

Switzerland (German) KBDCTY6 2-16

Tatar KBDCTY85 2-16

Thailand KBDCTY94 2-16

Turkey F KBDCTY27 2-16

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 9

Turkey Q KBDCTY24 2-17

Ukrainian KBDCTY76 2-17

United Kingdom KBDCTY7 2-17

United Stated (Dvorak

right)

KBDCTY89 2-17

United States (Dvorak

left)

KBDCTY88 2-17

United States (Dvorak) KBDCTY87 2-17

United States

(International)

KBDCTY30 2-17

Uzbek (Cyrillic) KBDCTY77 2-17

Vietnam KBDCTY95 2-17

ALT Mode *Off KBDSTY0 2-18

4 Characters KBDALT0 2-18

Keyboard Style *Regular KBDALT7 2-18

Caps Lock KBDSTY1 2-18

Shift Lock KBDSTY2 2-19

Automatic Caps Lock KBDSTY6 2-19

Autocaps via

NumLock

KBDSTY7 2-19

Emulate External

Keyboard

KBDSTY5 2-19

Keyboard Modifiers Windows Mode

Control + X Mode On

KBDCAS2 2-20

*Control + X Off KBDCAS0 2-20

DOS Mode Control +

X Mode On

KBDCAS1 2-20

Windows Mode Prefix/

Suffix Off

KBDCAS3 2-20

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 10

*Numeric Keypad Off KBDNPS0 2-21

Numeric Keypad On KBDNPS1 2-21

*Auto Direct Conn. Off KBDADC0 2-21

Auto Direct Conn. On KBDADC1 2-21

Serial Port Connection RS-232 PAP232 2-2

Baud Rate 300 BPS 232BAD0 2-22

600 BPS 232BAD1 2-22

1200 BPS 232BAD2 2-22

2400 BPS 232BAD3 2-22

4800 BPS 232BAD4 2-22

9600 BPS 232BAD5 2-22

19200 BPS 232BAD6 2-22

*38400 BPS 232BAD7 2-23

57600 BPS 232BAD8 2-23

115200 BPS 232BAD9 2-23

Word Length: Data

Bits, Stop Bits, and

Parity

7 Data, 1 Stop, Parity

None

232WRD0 2-23

7 Data, 1 Stop, Parity

Even

232WRD3 2-23

7 Data, 1 Stop, Parity

Odd

232WRD6 2-24

7 Data, 2 Stop, Parity

None

232WRD1 2-24

7 Data, 2 Stop, Parity

Even

232WRD4 2-24

7 Data, 2 Stop, Parity

Odd

232WRD7 2-24

*8 Data, 1 Stop, Parity

None

232WRD2 2-24

8 Data, 1 Stop, Parity

Even

232WRD5 2-24

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 11

8 Data, 1 Stop, Parity

Odd

232WRD8 2-24

RS-232 Handshaking *RTS/CTS Off 232CTS0 2-25

RTS/CTS Off, RTS

Inactive

232CTS10 2-25

Flow Control, No

Timeout

232CTS1 2-25

Character-Based Flow

Control, No Timeout

232CTS7 2-26

Two-Direction Flow

Control

232CTS2 2-26

Flow Control with

Timeout

232CTS3 2-26

Character-Based Flow

Control with Timeout

232CTS4 2-26

CTS-Based Flow

Control, No Timeout

232CTS5 2-26

RTS On 232CTS8 2-26

No RTS if CTS is On 232CTS9 2-26

*XON/XOFF Off 232XON0 2-27

RS232 Timeout 232DEL#### 2-27

XON/XOFF On 232XON1 2-27

*ACK/NAK Off 232ACK0 2-28

ACK/NAK On 232ACK1 2-28

Scanner-Bioptic

Packet Mode

*Packet Mode Off 232PKT0 2-28

Packet Mode On 232PKT1 2-28

Output Selections

Beeper - Good Read Off BEPBEP0 3-1

*On BEPBEP1 3-1

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 12

Beeper Volume - Good

Read

Off BEPLVL0 3-1

Low BEPLVL1 3-1

Medium BEPLVL2 3-1

*High BEPLVL3 3-1

Beeper Pitch - Good

Read (Frequency)

Low (1600 Hz) BEPFQ11600 3-2

*Medium (2750 Hz) BEPFQ12750 3-2

High (4200 Hz) BEPFQ14200 3-2

Beeper Duration -

Good Read

*Normal Beep BEPBIP0 3-2

Short Beep BEPBIP1 3-2

Beeper Pitch - Error *Razz (100 Hz) BEPFQ2100 3-3

*Medium (2000 Hz) BEPFQ22000 3-3

High (4200 Hz) BEPFQ24200 3-3

LED - Good Read Off BEPLED0 3-3

*On BEPLED1 3-3

Number of Beeps -

Good Read

*1 BEPRPT1 3-4

Range 1 - 9 BEPRPT# 3-4

Good Read Delay *No Delay DLYGRD0 3-4

Short Delay (500 ms) DLYGRD500 3-4

Medium Delay (1000

ms)

DLYGRD1000 3-4

Long Delay (1500 ms) DLYGRD1500 3-4

User-Specified Good

Read Delay

Range 0 - 30,000 ms DLYGRD##### 3-4

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 13

Trigger Mode *Manual/Serial Trigger TRGMOD0 3-5

Read Time-Out (0 -

300,000 ms) *30,000

TRGSTO#### 3-5

Automatic Trigger TRGMOD1 3-5

Presentation Mode TRGMOD3 3-6

Continuous

Illumination On

ILLAON1 3-6

*Continuous

Illumination Off

ILLAON0 3-6

Hands Free Time-Out

(0-300,000 seconds)

*5000

TRGPTO####

3-7

Reread Delay Short (500 ms) DLYRRD500 3-7

*Medium (750 ms) DLYRRD750 3-7

Long (1000 ms) DLYRRD1000 3-7

Extra Long (2000 ms) DLYRRD3000 3-7

User-Specified Reread

Delay

Range 0 - 30,000 ms DLYRRD##### 3-8

Centering Centering On DECWIN1 3-9

*Centering Off DECWIN0 3-9

Left of Centering

Window *40

DECLFT### 3-9

Right of Centering

Window *60

DECRGT### 3-9

Output Sequence

Editor

Enter Sequence SEQBLK 3-11

Default Sequence SEQDFT 3-11

Require Output

Sequence

Required SEQ_EN2 3-13

On/Not Required SEQ_EN1 3-13

*Off SEQ_EN0 3-13

Multiple Symbols On SHOTGN1 3-15

*Off SHOTGN0 3-15

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 14

No Read On SHWNRD1 3-14

*Off SHWNRD0 3-14

Video Reverse On VIDREV1 3-14

*Off VIDREV0 3-14

Prefix/Suffix Selections

Add CR Suffix to All Symbologies VSUFCR 4-3

Prefix Add Prefix PREBK2## 4-3

Clear One Prefix PRECL2 4-3

Clear All Prefixes PRECA2 4-3

Suffix Add Suffix SUFBK2## 4-4

Clear One Suffix SUFCL2 4-4

Clear All Suffixes SUFCA2 4-4

Transmit Alternative

Extended ASCII

Characters

Transmit Alternate

Extended ASCII

KBDEXT0 4-4

*Transmit Normal

Extended ASCII

KBDEXT1 4-4

Function Code

Tran sm i t

*Enable RMVFNC0 4-6

Disable RMVFNC1 4-6

Intercharacter Delay DLYCHR## 4-7

User Specified

Intercharacter Delay

Delay Length DLYCRX## 4-7

Character to Trigger

Delay

DLY_XX### 4-7

Interfunction Delay DLYFNC## 4-8

Intermessage Delay DLYMSG## 4-8

Data Formatter Selections

Data Format Editor *Default Data Format

(None)

DFMDF3 5-14

Enter Data Format DFMBK3## 5-14

Clear One Data

Format

DFMCL3 5-14

Clear All Data Formats DFMCA3 5-14

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 15

Data Formatter Off DFM_EN0 5-15

*On, but Not Required DFM_EN1 5-15

On, Required DFM_EN2 5-15

Symbologies

All Symbologies All Symbologies Off ALLENA0 6-2

All Symbologies On ALLENA1 6-2

Codabar Default All Codabar

Settings

CBRDFT 6-3

Codabar Off CBRENA0 6-3

*On CBRENA1 6-3

Codabar Start/Stop

Char.

*Don’t Transmit CBRSSX0 6-4

Transmit CBRSSX1 6-4

Codabar Check Char. *No Check Char. CBRCK20 6-4

Validate, But Don’t

Tran sm it

CBRCK21 6-4

Validate, and Transmit CBRCK22 6-4

Codabar

Concatenation

*Off CBRCCT0 6-5

On CBRCCT1 6-5

Require CBRCCT2 6-5

Codabar Message

Length

Minimum (2 - 60) *4 CBRMIN## 6-6

Maximum (2 - 60) *60 CBRMAX## 6-6

Code 39 Default All Code 39

Settings

C39DFT 6-7

Code 39 Off C39ENA0 6-7

*On C39ENA1 6-7

Code 39 Start/Stop

Char.

*Don’t Transmit C39SSX0 6-7

Transmit C39SSX1 6-7

Code 39 Check Char. *No Check Char. C39CK20 6-8

Validate, But Don’t

Tran sm it

C39CK21 6-8

Validate,

and Transmit

C39CK22 6-8

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 16

Code 39 Message

Length

Minimum (0 - 48) *0 C39MIN## 6-8

Maximum (0 - 48) *48 C39MAX## 6-8

Code 39 Append *Off C39APP0 6-9

On C39APP1 6-9

Code 32

Pharmaceutical

(PARAF)

*Off C39B320 6-9

On C39B321 6-9

Code 39 Full ASCII *Off C39ASC0 6-10

On C39ASC1 6-10

Interleaved 2 of 5 Default All Interleaved

2 of 5 Settings

I25DFT 6-11

Interleaved 2 of 5 Off I25ENA0 6-11

*On I25ENA1 6-11

Interleaved 2 of 5

Check Digit

*No Check Char. I25CK20 6-12

Validate, But Don’t

Tran sm it

I25CK21 6-12

Validate, and Transmit I25CK22 6-12

Interleaved 2 of 5

Message Length

Minimum (2 - 80) *4 I25MIN## 6-12

Maximum (2 - 80) *80 I25MAX## 6-12

Code 93 Default All Code 93

Settings

C93DFT 6-13

Code 93 Off C93ENA0 6-13

*On C93ENA1 6-13

Code 93 Message

Length

Minimum (0 - 80) *0 C93MIN## 6-13

Maximum (0 - 80) *80 C93MAX## 6-13

Straight 2 of 5

Industrial

Default All Straight 2 of

Settings

R25DFT 6-15

Straight 2 of 5

Industrial

Off R25ENA0 6-15

*On R25ENA1 6-15

Straight 2 of 5

Industrial Message

Length

Minimum (1 - 48) *4 R25MIN## 6-15

Maximum (1 - 48) *48 R25MAX## 6-15

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 17

Straight 2 of 5 IATA Default All Straight 2 of

5 IATA

Settings

A25DFT 6-16

Straight 2 of 5 IATA *Off A25ENA0 6-16

On A25ENA1 6-16

Straight 2 of 5 IATA

Message Length

Minimum (1 - 48) *4 A25MIN## 6-16

Maximum (1 - 48) *48 A25MAX## 6-16

Matrix 2 of 5 Default All Matrix 2 of

Settings

X25DFT 6-17

Matrix 2 of 5 *Off X25ENA0 6-17

On X25ENA1 6-17

Matrix 2 of 5 Message

Length

Minimum (1 - 80) *4 X25MIN## 6-17

Maximum (1 - 80) *80 X25MAX## 6-17

Code 11 Default All Code 11

Settings

C11DFT 6-18

Code 11 *Off C11ENA0 6-18

On C11ENA1 6-18

Code 11 Check Digits

Required

1 Check Digit C11CK20 6-18

*2 Check Digits C11CK21 6-18

Code 11 Message

Length

Minimum (1 - 80) *4 C11MIN## 6-19

Maximum (1 - 80) *80 C11MAX## 6-19

Code 128 Default All Code 128

Settings

128DFT 6-19

Code 128 Off 128ENA0 6-20

*On 128ENA1 6-19

ISBT Concatenation On ISBENA1 6-20

*Off ISBENA0 6-20

Code 128 Message

Length

Minimum (0 - 80) *0 128MIN## 6-20

Maximum (0 - 80) *80 128MAX## 6-20

Code 128 Code Page Code 128 Code Page 128DCP 6-21

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 18

Code 128 Function

Code Transmit

*Off 128FNX0 6-21

On 128FNX1 6-21

Telepen Default All Telepen

Settings

TELDFT 6-22

Telepen *Off TELENA0 6-22

On TELENA1 6-22

Telepen Output *AIM Telepen Output TELOLD0 6-22

Original Telepen

Output

TELOLD1 6-22

Telepen Message

Length

Minimum (1 - 60) *1 TELMIN## 6-23

Maximum (1 - 60) *60 TELMAX## 6-23

UPC A Default All

UPC A Settings

UPADFT 6-24

UPC A Off UPAENA0 6-24

*On UPAENA1 6-24

UPC A Check Digit Off UPACKX0 6-24

*On UPACKX1 6-24

UPC A Number

System

Off UPANSX0 6-25

*On UPANSX1 6-25

UPC A 2 Digit

Addenda

*Off UPAAD20 6-25

On UPAAD21 6-25

UPC A 5 Digit

Addenda

*Off UPAAD50 6-25

On UPAAD51 6-25

UPC A Addenda

Required

*Not Required UPAARQ0 6-26

Required UPAARQ1 6-26

UPC A Addenda

Separator

Off UPAADS0 6-26

*On UPAADS1 6-26

UPC-A/EAN-13 with

Extended Coupon

Code

*Off CPNENA0 6-27

On CPNENA1 6-27

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 19

UPC E Default All UPC E

Settings

UPEDFT 6-28

UPC E0 Off UPEEN00 6-28

*On UPEEN01 6-28

UPC E1 *Off UPEEN10 6-28

On UPEEN11 6-28

UPC E Expand *Off UPEEXP0 6-29

On UPEEXP1 6-29

UPC E Check Digit Off UPECKX0 6-30

*On UPECKX1 6-30

UPC E Number

System

Off UPENSX0 6-31

*On UPENSX1 6-31

UPC E 2 Digit

Addenda

*Off UPEAD20 6-31

On UPEAD21 6-31

UPC E 5 Digit

Addenda

*Off UPEAD50 6-31

On UPEAD51 6-31

UPC E Addenda

Required

*Not Required UPEARQ0 6-29

Required UPEARQ1 6-29

UPC E Addenda

Separator

Off UPEADS0 6-30

*On UPEADS1 6-30

EAN/JAN 13 Default All EAN/

JAN 13 Settings

E13DFT 6-32

EAN/JAN 13 Off E13ENA0 6-32

*On E13ENA1 6-32

EAN/JAN 13 Check

Digit

Off E13CKX0 6-32

*On E13CKX1 6-32

EAN/JAN 13 2 Digit

Addenda

*Off E13AD20 6-33

On E13AD21 6-33

EAN/JAN 13 5 Digit

Addenda

*Off E13AD50 6-33

On E13AD51 6-33

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 20

EAN/JAN 13 Addenda

Required

*Not Required E13ARQ0 6-33

Required E13ARQ1 6-33

EAN/JAN 13 Addenda

Separator

Off E13ADS0 6-34

*On E13ADS1 6-34

ISBN Translate *Off E13ISB0 6-34

On E13ISB1 6-34

EAN/JAN 8 Default All EAN/

JAN 8 Settings

EA8DFT 6-35

EAN/JAN 8 Off EA8ENA0 6-35

*On EA8ENA1 6-35

EAN/JAN 8 Check

Digit

Off EA8CKX0 6-35

*On EA8CKX1 6-35

EAN/JAN 8 2 Digit

Addenda

*Off EA8AD20 6-36

On EA8AD21 6-36

EAN/JAN 8 5 Digit

Addenda

*Off EA8AD50 6-36

On EA8AD51 6-36

EAN/JAN 8 Addenda

Required

*Not Required EA8ARQ0 6-29

Required EA8ARQ1 6-29

EAN/JAN 8 Addenda

Separator

Off EA8ADS0 6-37

*On EA8ADS1 6-37

MSI Default All MSI

Settings

MSIDFT 6-37

MSI *Off MSIENA0 6-37

On MSIENA1 6-37

MSI Check Character *Validate Type 10, but

Don’t Transmit

MSICHK0 6-38

Validate Type 10 and

Tran sm it

MSICHK1 6-38

MSI Message Length Minimum (4 - 48) *4 MSIMIN## 6-38

Maximum (4 - 48) *48 MSIMAX## 6-38

Plessey Code Default All Plessey

Settings

PLSDFT 6-39

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 21

Plessey Code *Off PLSENA0 6-39

On PLSENA1 6-39

Plessey Message

Length

Minimum (4 - 48) *4 PLSMIN## 6-39

Maximum (4 - 48) *48 PLSMAX## 6-39

GS1 DataBar

Omnidirectional

Default All

GS1 DataBar

Omnidirectional

Settings

RSSDFT 6-40

GS1 DataBar

Omnidirectional

Off RSSENA0 6-40

*On RSSENA1 6-40

GS1 DataBar Limited Default All GS1

DataBar

Limited Settings

RSLDFT 6-40

GS1 DataBar Limited Off RSLENA0 6-40

*On RSLENA1 6-40

GS1 DataBar

Expanded

Default All GS1

DataBar

Expanded Settings

RSEDFT 6-41

GS1 DataBar

Expanded

Off RSEENA0 6-41

*On RSEENA1 6-41

GS1 DataBar

Expanded Msg.

Length

Minimum (4 - 74) *4 RSEMIN## 6-41

Maximum (4 - 74) *74 RSEMAX## 6-41

China Post Code Default All China Post

Code Settings

CPCDFT 6-42

China Post Code *Off CPCENA0 6-42

On CPCENA1 6-42

China Post Code Msg.

Length

Minimum (2 - 80) *4 CPCMIN## 6-42

Maximum (2 - 80) *80 CPCMAX## 6-42

Korea Post Code Default All Korea Post

Code Settings

CPCDFT 6-43

Korea Post Code *Off CPCENA0 6-43

On CPCENA1 6-43

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

9 - 22

Korea Post Code Msg.

Length

Minimum (2 - 80) *4 CPCMIN## 6-43

Maximum (2 - 80) *80 CPCMAX## 6-43

Codablock F Default All Codablock

F Settings

CBFDFT 6-44

Codablock F *Off CBFENA0 6-44

On CBFENA1 6-44

Codablock F Msg.

Length

Minimum (1 - 2048) *1 CBFMIN#### 6-44

Maximum (1 - 2048)

*2048

CBFMAX#### 6-44

Code 49 Default All Code 49

Settings

C49DFT 6-45

Code 49 * Off C49ENA0 6-45

On C49ENA1 6-45

Code 49 Minimum (1 - 81) *1 C49MIN## 6-45

Maximum (1 - 81) *81 C49MAX## 6-45

GS1 Emulation

GS1 Emulation EANEMU2 6-46

GS1-128 Emulation EANEMU1 6-46

*GS1 Emulation Off EANEMU0 6-46

Label Code *Off LBLENA0 6-47

On LBLENA1 6-47

Selection Setting

* Indicates default

Serial

Command

# Indicates a

numeric entry

Page

10 - 1

Product Specifications

Hyperion 1300g Product Specifications

Parameter Specification

Mechanical

Height 5.9 inches (15 cm)

Length 4.4 inches (11.2 cm)

Width 3.1 inches (7.9 cm)

Weight 5.6 ounces (160 g)

Electrical

LED source 630 nm visible red LED

Input Voltage 4.5-5.5VDC at imager

Operating Power 200mA @ 5V

Standby Power 125mA @5V

Environmental

Operating Temperature 32 F to +122 F (0 C to +50 C)

Storage Temperature -40 F to +140 F (-40 C to +60 C)

Humidity 0 to 95% non-condensing

Drop Operational after 50 drops from 5 feet

(1.5 m) to concrete

Environmental Sealing IP41

Light Levels 70,000 lux

ESD 15 kV to any external surface

Sealant Rating IP41

Scan Performance

Scan Pattern Single Line

Motion Tolerance 20 inches (51 cm) per second

Scan Rate Up to 270 scans per second

Print Contrast 20%

Pitch, Skew 65

Decode Capabilities Reads standard 1D and GS1 DataBar

symbologies

Optional External Power Supply

Requirements

Use only a Listed Limited Power Source (LPS) or

Class 2 type power supply with output rated 5 to

5.2Vdc, 1A

10 - 2

Standard Connector Pinouts

Keyboard Wedge

10 Pin RJ41 Modular Plug - connects to the scanner handle

Serial Output

10 Pin RJ41 Modular Plug - connects to the scanner handle

USB

10 Pin Modular Plug - connects to the scanner handle

1 Cable shield

2 Cable select

3 Supply ground

4 Terminal data

5 Terminal clock

6 Keyboard clock

7+5V power

8 Keyboard data

1 Cable shield

2 Cable select

3 Supply ground

4 Transmit data

5 Receive data - serial data to scanner

6CTS

7 +5V power

8RTS

1 Cable shield

2 Cable select

3 Supply ground

7+5V power

9 Data +

10 Data -

10 - 3

Required Safety Label Locations

Light Source

Item

Number,

Serial

Number

and

Revision Compliance

Label location

10 - 4

11 - 1

Maintenance

Repairs

Repairs and/or upgrades are not to be performed on this product. These ser-

vices are to be performed only by an authorized service center. See Customer

Support on page 12-1 for further information.

Maintenance

Your device provides reliable and efficient operation with a minimum of care.

Although specific maintenance is not required, the following periodic checks

ensure dependable scanner operation:

Cleaning the Device

Reading performance may degrade if the scanner’s window is not clean. If the

window is visibly dirty, or if the scanner isn’t operating well, clean the window

with a soft cloth or lens tissue dampened with water (or a mild soapy water solu-

tion). If a soapy water solution is used, rinse with a clean lens tissue dampened

with water only.

The scanner’s housing may also be cleaned the same way.

Inspecting Cords and Connectors

Inspect the scanner’s interface cable and connector for wear or other signs of

damage. A badly worn cable or damaged connector may interfere with scanner

operation. Contact your Honeywell distributor for information about cable

replacement. Cable replacement instructions are on page 11-2.

!Caution:

Do not submerge the scanner in water. Do not use

abrasive wipes or tissues on the scanner’s window –

abrasive wipes may scratch the window.

Never use solvents (e.g., acetone, benzene, ether, or

phenol-based agents) on the housing or window –

solvents may damage the finish or the window.

11 - 2

Replacing the Interface Cable

The standard interface cable is attached to the scanner with an 10-pin modular

connector. When properly seated, the connector is held in the scanner’s handle

by a flexible retention tab. The interface cable is designed to be field replace-

able.

• Order replacement cables from Honeywell or from an authorized distributor.

• When ordering a replacement cable, specify the cable part number of the

original interface cable.

Replacing the Interface Cable:

1. Turn the power to the host system

OFF.

2. Disconnect the scanner’s cable from

the terminal or computer.

3. Locate the small hole on the side of

the scanner’s handle. This is the

cable release.

4. Straighten one end of a paper clip.

5. Insert the end of the paper clip into the

small hole and press in. This

depresses the retention tab, releasing

the connector. Pull the connector out

while maintaining pressure on the

paper clip, then remove the paper clip.

6. Replace with the new cable.

Insert the connector into the opening

and press firmly. The connector is

keyed to go in only one way, and will click into place.

Troubleshooting

The scanner automatically performs self-tests whenever you turn it on. If your

scanner is not functioning properly, review the following Troubleshooting Guide

to try to isolate the problem.

Is the power on? Is the aiming beam line on?

If the aiming beam line isn’t illuminated, check that:

• The cable is connected properly.

• The host system power is on (if external power isn’t used).

• The trigger works.

Cable

Release

11 - 3

Is the scanner having trouble reading your symbols?

If the scanner isn’t reading symbols well, check that the symbols:

• Aren’t smeared, rough, scratched, or exhibiting voids.

• Aren’t coated with frost or water droplets on the surface.

• Are enabled in the scanner or in the decoder to which the scanner connects.

Is the bar code displayed but not entered?

The bar code is displayed on the host device correctly, but you still have to press

a key to enter it (the Enter/Return key or the Tab key, for example).

You need to program a suffix. Programming a suffix enables the scanner to out-

put the bar code data plus the key you need (such as “CR”) to enter the data

into your application. Refer to Prefix/Suffix Overview on page 4-1 for further

information.

Does the scanner read the bar code incorrectly?

If the scanner reads a bar code, but the data is not displayed correctly on the

host screen:

• The scanner may not be programmed for the appropriate terminal interface.

For example, you scan “12345” and the host displays “@es%.”

Reprogram the scanner with the correct Plug and Play or Terminal selection

bar code. See Chapter 1 and Chapter 2.

• The scanner may not be programmed to output your bar code data properly.

For example, you scan “12345” and the host displays “A12345B.”

Reprogram the scanner with the proper symbology selections. See

Symbologies beginning on page 6-1.

The scanner won’t read your bar code at all.

1. Scan the sample bar codes in the back of this manual. If the scanner reads

the sample bar codes, check that your bar code is readable.

Verify that your bar code symbology is enabled (see Symbologies beginning

on page 6-1).

2. If the scanner still can’t read the sample bar codes, scan All Symbologies on

page 6-2.

If you aren’t sure what programming options have been set in the scanner, or if

you want the factory default settings restored, scan Resetting the Custom

Defaults on page 1-5.

11 - 4

12 - 1

Customer Support

Technical Assistance

If you need assistance installing or troubleshooting your device, please contact

us by using one of the methods below:

Knowledge Base: www.hsmknowledgebase.com

Our Knowledge Base provides thousands of immediate solutions. If the

Knowledge Base cannot help, our Technical Support Portal (see below)

provides an easy way to report your problem or ask your question.

Technical Support Portal: www.hsmsupportportal.com

The Technical Support Portal not only allows you to report your problem, but it

also provides immediate solutions to your technical issues by searching our

Knowledge Base. With the Portal, you can submit and track your questions

online and send and receive attachments.

Web form: www.hsmcontactsupport.com

You can contact our technical support team directly by filling out our online

support form. Enter your contact details and the description of the question/

problem.

Telephone: www.honeywellaidc.com/locations

For our latest contact information, please check our website at the link above.

Limited Warranty

Honeywell International Inc. ("HII") warrants its products and optional accesso-

ries to be free from defects in materials and workmanship and to conform to

HII’s published specifications applicable to the products purchased at the time

of shipment. This warranty does not cover any HII product which is (i) improp-

erly installed or used; (ii) damaged by accident or negligence, including failure

to follow the proper maintenance, service, and cleaning schedule; or (iii) dam-

aged as a result of (A) modification or alteration by the purchaser or other party,

(B) excessive voltage or current supplied to or drawn from the interface connec-

tions, (C) static electricity or electro-static discharge, (D) operation under condi-

tions beyond the specified operating parameters, or (E) repair or service of the

product by anyone other than HII or its authorized representatives.

This warranty shall extend from the time of shipment for the duration published

by HII for the product at the time of purchase ("Warranty Period"). Any defective

product must be returned (at purchaser’s expense) during the Warranty Period

to HII factory or authorized service center for inspection. No product will be

accepted by HII without a Return Materials Authorization, which may be

obtained by contacting HII. In the event that the product is returned to HII or its

authorized service center within the Warranty Period and HII determines to its

satisfaction that the product is defective due to defects in materials or workman-

12 - 2

ship, HII, at its sole option, will either repair or replace the product without

charge, except for return shipping to HII.

EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE

FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR

WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN,

INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR NON-

INFRINGEMENT.

HII’S RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER

THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE

DEFECTIVE PRODUCT WITH NEW OR REFURBISHED PARTS. IN NO

EVENT SHALL HII BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSE-

QUENTIAL DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY OF HII

ARISING IN CONNECTION WITH ANY PRODUCT SOLD HEREUNDER

(WHETHER SUCH LIABILITY ARISES FROM A CLAIM BASED ON CON-

TRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE ACTUAL

AMOUNT PAID TO HII FOR THE PRODUCT. THESE LIMITATIONS ON LIA-

BILITY SHALL REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HII MAY

HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH INJURIES, LOSSES,

OR DAMAGES. SOME STATES, PROVINCES, OR COUNTRIES DO NOT

ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY

NOT APPLY TO YOU.

All provisions of this Limited Warranty are separate and severable, which

means that if any provision is held invalid and unenforceable, such determina-

tion shall not affect the validity of enforceability of the other provisions hereof.

Use of any peripherals not provided by the manufacturer may result in damage

not covered by this warranty. This includes but is not limited to: cables, power

supplies, cradles, and docking stations. HII extends these warranties only to the

first end-users of the products. These warranties are non-transferable.

The duration of the limited warranty for the Hyperion 1300g is five (5) years.

A - 1

Appendix A

Symbology Charts

Note: “ m” represents the AIM modifier character. Refer to International

Technical Specification, Symbology Identifiers, for AIM modifier character

details.

Prefix/Suffix entries for specific symbologies override the universal (All

Symbologies, 99) entry.

Refer toData Editing beginning on page 4-1 and Data Formatting beginning on

page 5-1 for information about using Code ID and AIM ID.

Linear Symbologies

AIM Honeywell

Symbology ID

Possible

modifiers

(m)

ID Hex

All Symbologies 99

Codabar ]Fm0-1 a 61

Code 11 ]H3 h 68

Code 128 ]Cm0, 1, 2, 4 j 6A

Code 32 Pharmaceutical

(PARAF)

]X0 < 3C

Code 39 (supports Full ASCII

mode)

]Am0, 1, 3, 4, 5, 7 b 62

TCIF Linked Code 39

(TLC39)

]L2 T 54

Code 93 and 93i ]Gm0-9, A-Z,

a-m

i69

EAN ]Em0, 1, 3, 4 d 64

EAN-13 (including Bookland

EAN)

]E0 d 64

EAN-13 with Add-On ]E3 d 64

EAN-13 with Extended

Coupon Code

]E3 d 64

EAN-8 ]E4 D 44

A - 2

EAN-8 with Add-On ]E3 D 44

GS1

GS1 DataBar ]em0y79

GS1 DataBar Limited ]em{ 7B

GS1 DataBar Expanded ]em}7D

GS1-128 ]C1 I 49

2 of 5

China Post (Hong Kong 2 of

]X0 Q 51

Interleaved 2 of 5 ]Im0, 1, 3 e 65

Matrix 2 of 5 ]X0 m 6D

NEC 2 of 5 ]X0 Y 59

Straight 2 of 5 IATA ]Rm0, 1, 3 f 66

Straight 2 of 5 Industrial ]S0 f 66

MSI ]Mm0, 1 g 67

UPC 0, 1, 2, 3, 8,

9, A, B, C

UPC-A ]E0 c 63

UPC-A with Add-On ]E3 c 63

UPC-A with Extended

Coupon Code

]E3 c 63

UPC-E ]E0 E 45

UPC-E with Add-On ]E3 E 45

UPC-E1 ]X0 E 45

Add Honeywell Code ID 5C80

Add AIM Code ID 5C81

Add Backslash 5C5C

AIM Honeywell

Symbology ID

Possible

modifiers

(m)

ID Hex

A - 3

Postal Symbologies

ASCII Conversion Chart (Code Page 1252)

In keyboard applications, ASCII Control Characters can be represented in 3 dif-

ferent ways, as shown below. The CTRL+X function is OS and application

dependent. The following table lists some commonly used Microsoft functional-

ity. This table applies to U.S. style keyboards. Certain characters may differ

depending on your Country Code/PC regional settings..

AIM Honeywell

Symbology ID

Possible

modifiers

(m)

ID Hex

All Symbologies 99

Australian Post ]X0 A 41

British Post ]X0 B 42

Canadian Post ]X0 C 43

China Post ]X0 Q 51

InfoMail ]X0 , 2c

Intelligent Mail Bar Code ]X0 M 4D

Japanese Post ]X0 J 4A

KIX (Netherlands) Post ]X0 K 4B

Korea Post ]X0 ? 3F

Planet Code ]X0 L 4C

Postal-4i ]X0 N 4E

Postnet ]X0 P 50

Non-printable

ASCII control

characters

Keyboard Control + ASCII (CTRL+X) mode

ON (KBDCAS1) OFF (KBDCAS0)

DEC HEX Char CTRL+'X' CTRL+ X

function

Control

Character Output

Off (KBDNPE0)

Control

Character

Output On

(KBDNPE1)

000 NUL CTRL+ @ Reserved Txt: [NUL]

101 SOH CTRL+ A Select all NP Enter Txt: [SOH]

A - 4

202 STX CTRL+ B Bold Caps Lock Txt: [STX]

303 ETX CTRL+ C Copy ALT Make Txt: [EXT]

404 EOT CTRL+ D Bookmark ALT Break Txt: [EOT]

505 ENQ CTRL+ E Center CTRL Make Txt: [ENQ]

606 ACK CTRL+ F Find CTRL Break Txt: [ACK]

707 BEL CTRL+ G Enter / Ret Txt: [BEL]

808 BS CTRL+ H History (Apple Make) Txt: [BS]

909 HT CTRL+ I Italic Tab Txt: [HT]

10 0A LF CTRL+ J Justify (Apple Break) Txt: [LF]

11 0B VT CTRL+ K hyperlink Tab Txt: [VT]

12 0C FF CTRL+ L list,

left align Delete Txt: [FF]

13 0D CR CTRL+ M Enter / Ret Txt: [CR]

14 0E SO CTRL+ N New Insert Txt: [SO]

15 0F SI CTRL+ O Open ESC Txt: [SI]

16 10 DLE CTRL+ P Print F11 Txt: [DLE]

17 11 DC1 CTRL+ Q Quit Home Txt: [DC1]

18 12 DC2 CTRL+ R PrtScn Txt: [DC2]

19 13 DC3 CTRL+ S Save Backspace Txt: [DC3]

20 14 DC4 CTRL+ T Back Tab Txt: [DC4]

21 15 NAK CTRL+ U F12 Txt: [NAK]

22 16 SYN CTRL+ V Paste F1 Txt: [SYN]

23 17 ETB CTRL+ W F2 Txt: [ETB]

24 18 CAN CTRL+ X F3 Txt: [CAN]

25 19 EM CTRL+ Y F4 Txt: [EM]

26 1A SUB CTRL+ Z F5 Txt: [SUB]

27 1B ESC CTRL+ [ F6 Txt: [ESC]

28 1C FS CTRL+ \ F7 Txt: [FS]

29 1D GS CTRL+ ] F8 Txt: [GS]

30 1E RS CTRL+ ^ F9 Txt: [RS]

31 1F US CTRL+ - F10 Txt: [US]

127 7F ⌂ NP Enter n/a

A - 5

Lower ASCII Reference Table

Note: Windows Code page 1252 and lower ASCII use the same characters.

Printable Characters

DEC HEX Character DEC HEX Character DEC HEX Character

32 20 <SPACE> 64 40 @96 60 `

33 21 !65 41 A97 61 a

34 22 "66 42 B98 62 b

35 23 #67 43 C99 63 c

36 24 $68 44 D100 64 d

37 25 %69 45 E101 65 e

38 26 &70 46 F102 66 f

39 27 '71 47 G103 67 g

40 28 (72 48 H104 68 h

41 29 )73 49 I105 69 i

42 2A *74 4A J106 6A j

43 2B +75 4B K107 6B k

44 2C ,76 4C L108 6C l

45 2D -77 4D M109 6D m

46 2E .78 4E N110 6E n

47 2F /79 4F O111 6F o

48 30 080 50 P112 70 p

49 31 181 51 Q113 71 q

50 32 282 52 R114 72 r

51 33 383 53 S115 73 s

52 34 484 54 T116 74 t

53 35 585 55 U117 75 u

54 36 686 56 V118 76 v

55 37 787 57 W119 77 w

56 38 888 58 X120 78 x

57 39 989 59 Y121 79 y

58 3A :90 5A Z122 7A z

59 3B ;91 5B [123 7B {

60 3C <92 5C \124 7C |

61 3D =93 5D ]125 7D }

62 3E >94 5E ^126 7E ~

63 3F ?95 5F _127 7F ⌂

A - 6

Extended ASCII Characters

DEC HEX CP 1252 ASCII Alternate Extended PS2 Scan

Code

128 80 €Ç

up arrow ↑0x48

129 81 üdown arrow ↓0x50

130 82 ‚é

right arrow →0x4B

131 83 ƒâ

left arrow ←0x4D

132 84 „äInsert 0x52

133 85 …àDelete 0x53

134 86 †åHome 0x47

135 87 ‡çEnd 0x4F

136 88 ˆ ê Page Up 0x49

137 89 ‰ ë Page Down 0x51

138 8A ŠèRight ALT 0x38

139 8B ‹ ï Right CTRL 0x1D

140 8C ŒîReserved n/a

141 8D ì Reserved n/a

142 8E Ž Ä Numeric Keypad Enter 0x1C

143 8F Å Numeric Keypad / 0x35

144 90 ÉF1 0x3B

145 91 ‘æF2 0x3C

146 92 ’ÆF3 0x3D

147 93 “ôF4 0x3E

148 94 ”öF5 0x3F

149 95 •òF6 0x40

150 96 –ûF7 0x41

151 97 —ùF8 0x42

152 98 ˜ÿF9 0x43

153 99 ™ÖF10 0x44

154 9A šÜF11 0x57

155 9B ›¢F12 0x58

156 9C œ £ Numeric Keypad + 0x4E

157 9D ¥ Numeric Keypad - 0x4A

158 9E ž₧Numeric Keypad * 0x37

159 9F ŸƒCaps Lock 0x3A

160 A0 á Num Lock 0x45

161 A1 ¡íLeft Alt 0x38

162 A2 ¢óLeft Ctrl 0x1D

163 A3 £úLeft Shift 0x2A

164 A4 ¤ñRight Shift 0x36

A - 7

165 A5 ¥ÑPrint Screen n/a

166 A6 ¦ªTab 0x0F

167 A7 §ºShift Tab 0x8F

168 A8 ¨¿Enter 0x1C

170 AA ª¬Alt Make 0x36

171 AB «½Alt Break 0xB6

172 AC ¬¼Control Make 0x1D

173 AD ¡Control Break 0x9D

174 AE ®«Alt Sequence with 1 Character 0x36

175 AF ¯»Ctrl Sequence with 1 Character 0x1D

176 B0 °░

177 B1 ±▒

178 B2 ²▓

179 B3 ³│

180 B4 ´┤

181 B5 µ╡

182 B6 ¶╢

183 B7 ·╖

184 B8 ¸╕

185 B9 ¹╣

186 BA º║

187 BB »╗

188 BC ¼╝

189 BD ½╜

190 BE ¾╛

191 BF ¿┐

192 C0 À└

193 C1 Á┴

194 C2 Â┬

195 C3 Ã├

196 C4 Ä─

197 C5 Åí

198 C6 Æ╞

199 C7 Ç╟

200 C8 È╚

201 C9 É╔

202 CA Ê╩

203 CB Ë╦

Extended ASCII Characters (Continued)

DEC HEX CP 1252 ASCII Alternate Extended PS2 Scan

Code

A - 8

204 CC Ì╠

205 CD Í═

206 CE Î╬

207 CF Ï╧

208 D0 Ð╨

209 D1 Ñ╤

210 D2 Ò╥

211 D3 Ó╙

212 D4 Ô╘

213 D5 Õ╒

214 D6 Ö╓

215 D7 ×╫

216 D8 Ø╪

217 D9 Ù┘

218 DA Ú┌

219 DB Û█

220 DC Ü▄

221 DD Ý▌

222 DE Þ▐

223 DF ß▀

224 E0 àα

225 E1 áß

226 E2 âΓ

227 E3 ãπ

228 E4 äΣ

229 E5 åσ

230 E6 æµ

231 E7 çτ

232 E8 èΦ

233 E9 éΘ

234 EA êΩ

235 EB ëδ

236 EC ì∞

237 ED íφ

238 EE îε

239 EF ï∩

240 F0 ð≡

241 F1 ñ±

242 F2 ò≥

Extended ASCII Characters (Continued)

DEC HEX CP 1252 ASCII Alternate Extended PS2 Scan

Code

A - 9

ISO 2022/ISO 646 Character Replacements

Code pages define the mapping of character codes to characters. If the data

received does not display with the proper characters, it may be because the bar

code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, select the code page with

which the bar codes were created. The data characters should then appear

properly.

243 F3 ó≤

244 F4 ô⌠

245 F5 õ⌡

246 F6 ö÷

247 F7 ÷≈

248 F8 ø°

249 F9 ù·

250 FA ú·

251 FB û√

252 FC üⁿ

253 FD ý²

254 FE þ■

255 FF ÿ

Code Page Selection

Method/Country

Standard Keyboard

Country

Honeywell

Code Page

Option

UnitedStates

(standardASCII) ISO/IEC646‐IRV n/a 1

AutomaticNational

Character

Replacement ISO/IEC2022 n/a 2(default)

BinaryCodepage n/a n/a 3

Default“AutomaticNationalCharacterreplacement”willselectthebelow

HoneywellCodePageoptionsforCode128,Code39andCode93.

Extended ASCII Characters (Continued)

DEC HEX CP 1252 ASCII Alternate Extended PS2 Scan

Code

A - 10

UnitedStates ISO/IEC646‐06 0 1

Canada ISO/IEC646‐121 54 95

Canada ISO/IEC646‐122 18 96

Japan ISO/IEC646‐14 28 98

China ISO/IEC646‐57 92 99

GreatBritain(UK) ISO/IEC646‐04 7 87

France ISO/IEC646‐69 3 83

Germany ISO/IEC646‐21 4 84

Switzerland ISO/IEC646‐CH 6 86

Sweden/Finland

(extendedAnnexC) ISO/IEC646‐11 2 82

Ireland ISO/IEC646‐207 73 97

Danmark ISO/IEC646‐08 8 88

Norway ISO/IEC646‐60 9 94

Italy ISO/IEC646‐15 5 85

Portugal ISO/IEC646‐16 13 92

Spain ISO/IEC646‐17 10 90

Spain ISO/IEC646‐85 51 91

A - 11

Dec 35 36 64 91 92 93 94 96 123 124 125 126

Hex 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E

US 0 1 # $ @ [ \ ] ^ ` { | } ~

CA 54 95 # $ à â ç ê î ô é ù è û

CA 18 96 # $ à â ç ê É ô é ù è û

JP 28 98 # $ @ [ ¥ ] ^ ` { | } ⎯

CN 92 99 # ¥ @ [ \ ] ^ ` { | } ⎯

GB 787 £ $ @ [ \ ] ^ ` { | } ˜

FR 383 £ $ à ° ç § ^ µ é ù è ¨

DE 484 # $ § Ä Ö Ü ^ ` ä ö ü ß

CH 686 ù $ à é ç ê î ô ä ö ü û

SE/FI 282 # ¤ É Ä Ö Å Ü é ä ö å ü

DK 888 # $ @ Æ Ø Å ^ ` æ ø å ˜

NO 994 # $ @ Æ Ø Å ^ ` æ ø å ¨

IE 73 97 £ $ Ó É Í Ú Á ó é í ú á

IT 585 £ $ § ° ç é ^ ù à ò è ì

PT 13 92 # $ § Ã Ç Õ ^ ` ã ç õ °

ES 10 90 # $ § ¡ Ñ ¿ ^ ` ° ñ ç ˜

ES 51 91 # $ ∙¡ Ñ Ç ¿ ` ´ ñ ç ¨

COUNTRY

Country Keyboard

Honeywell

CodePage

ISO / IEC 646 National Character Replacements

A - 12

Unicode Key Maps

6E 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E

4B 50 55

4C 51 56

01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0F

10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D

1F 20 21 22 23 24 25 26 27 28 29 2B

392E 2F 30 31 32 33 34 35 36 37

4F 54 59

3A 3B 3C 3E 3F 38 40

5A 5F 64

5B 60 65

5C 61 66

5D 62 67

63 68

104 Key U.S. Style Keyboard

6E 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E

4B 50 55

4C 51 56

01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0F

10 11 12 13 14 15 16 17 18 19 1A 1B 1C

1F 20 21 22 23 24 25 26 27 28 29

392E 2F 30 31 32 33 34 35 36 37

4F 54 59

3A 3B 3C 3E 3F 38 40

5A 5F 64

5B 60 65

5C 61 66

5D 62 67

63 68

105 Key European Style Keyboard

Sample Symbols

UPC A

0 123456 7890 Interleaved 2 of 5

Code 128

EAN 13

1234567890

Code 128

9 780330 290951

654

EAN 8

3210 5

456123 80

UPC-E

Sample Symbols

Code 93

123456-9$ Straight 2 of 5 Industrial

123456

Matrix 2 of 5

6543210 GS1 DataBar

(01)00123456789012

Code 39

Codabar

BC321

A13579B

Programming Chart

Note: If you make an error while scanning the letters or digits (before scanning

Save), scan Discard, scan the correct letters or digits, and Save again.

Save

Discard

Honeywell Scanning & Mobility

9680 Old Bailes Road

Fort Mill, SC 29707

www.honeywellaidc.com

HP1300-UG Rev D

1/15
