Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 9 - 17

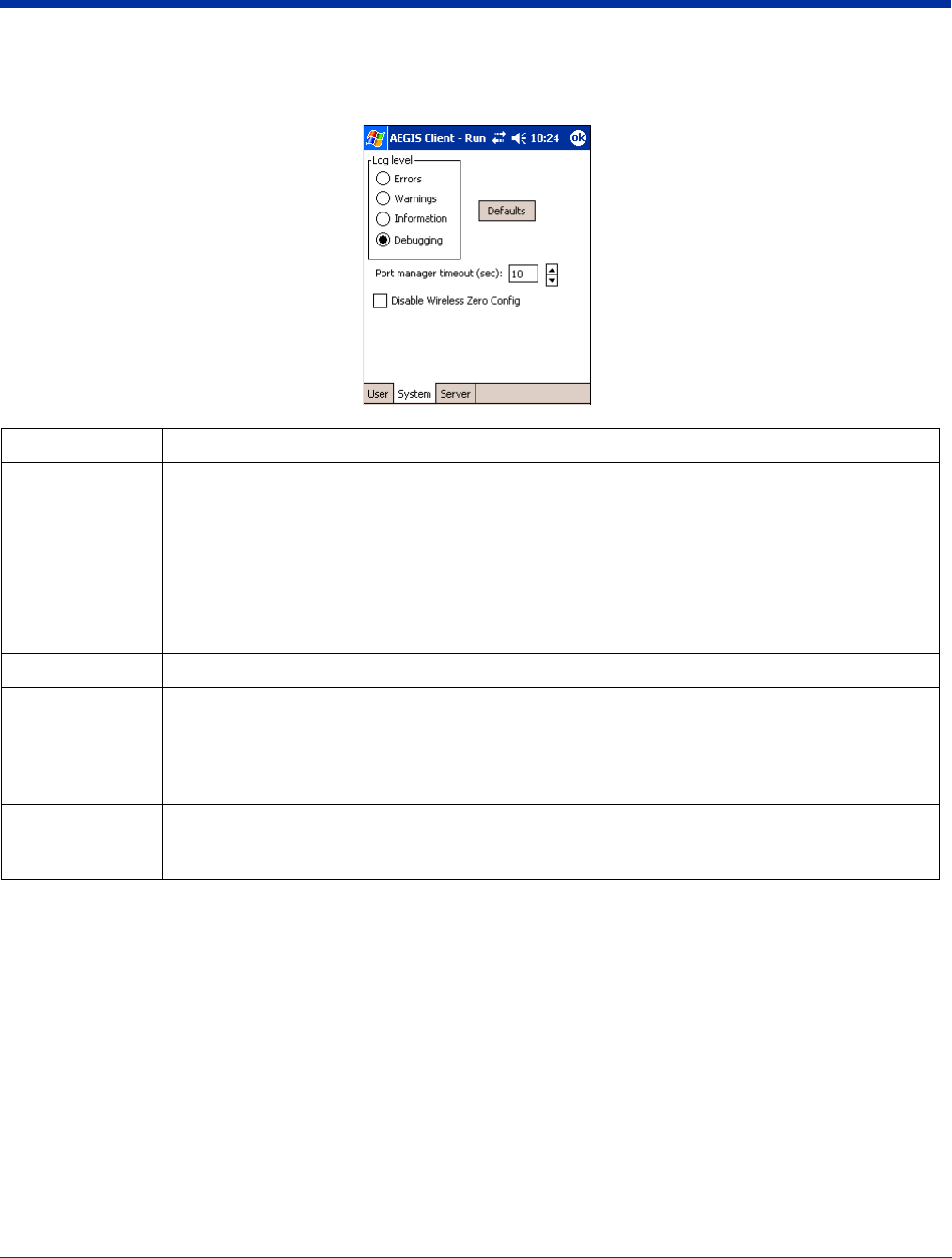

System Tab
The System Settings tab controls logging and the port manger timeout period.
Field Description
Log Level These settings control the detail of the log messages generated by the Client. Each level is cumula-
tive. By default, all errors, warnings, and information events are logged. Each entry records a severity
code (of one [debug message] to four [error] asterisks), a time stamp, and a message.
•Errors - only the most severe conditions are logged.
•Warnings - less severe conditions are logged.
•Information - all errors, warnings, and information events are logged. This is the default setting.
•Debugging - creates a log message each time the Client detects or reacts to an event. Be advised
that log entries fill memory quickly if the Debugging level is chosen. Do not use the Debugging
option for a significant length of time because most internal operations generate messages.
Defaults Tap this button to return log settings to the default settings.
Disable Wireless
Zero Config Use this option only as directed by technical support.
Selecting this option disables other wireless utilities whether the Client is running or not. If not
selected, other wireless utilities cannot apply their settings to the wireless card while the Client is run-
ning (although their status displays are usually unaffected). You will need to perform a soft reset
whenever this setting is changed.
Port Manager
Timeout The interval at which the client polls the ports. This is used under different circumstances, for instance
after physical changes such as card removal or insertion have been detected. This value should not
be changed from the 10-second default unless so advised by technical support.
9 - 18 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Server Tab

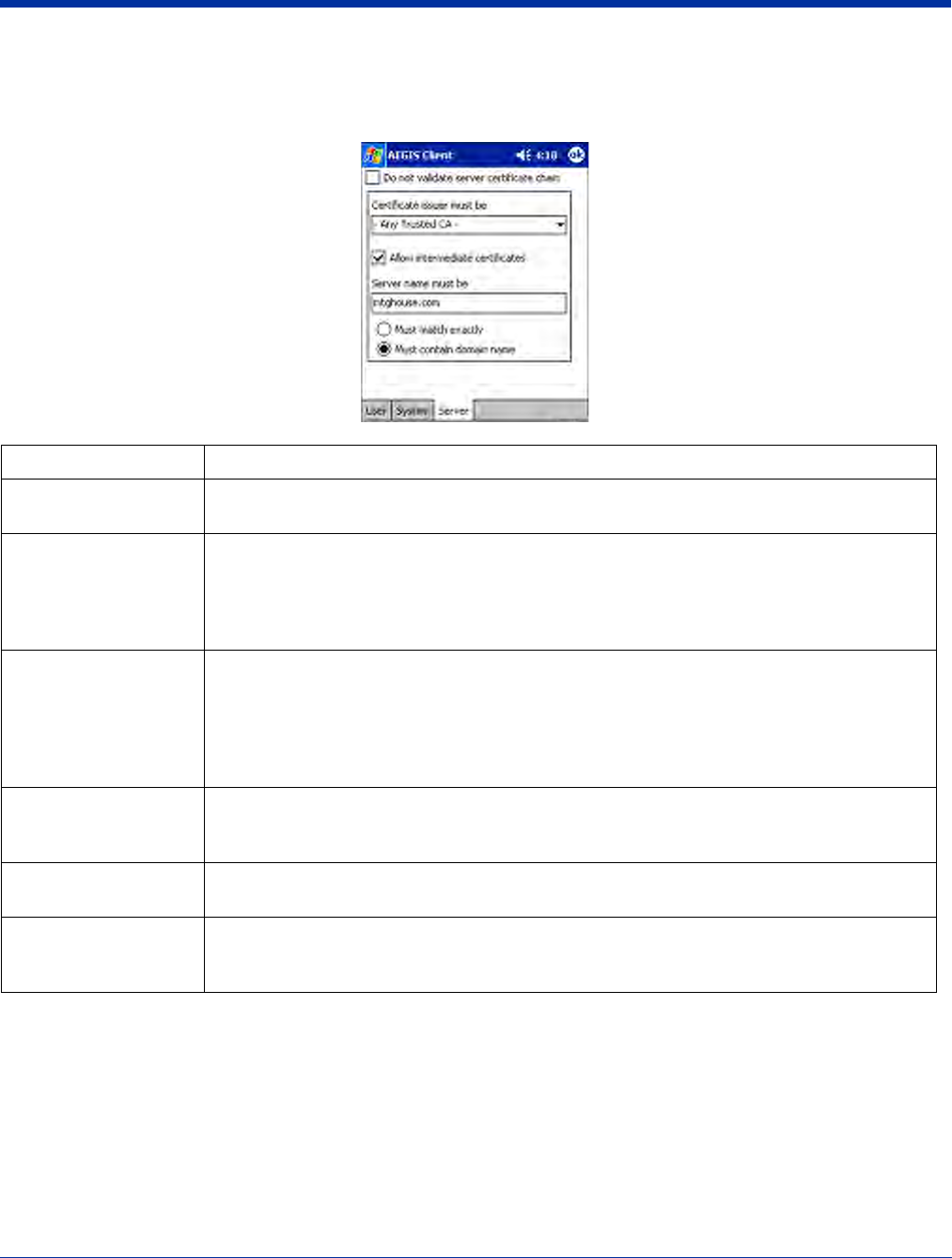

The Server identity tab defines the credentials the client uses to authenticate the server during TLS/TTLS/PEAP authentication
message exchange. The Client uses this information to verify that the Client is communicating with a trusted server.
Field Description
Do not validate server
certificate chain If this option is selected, the server certificate received during the TLS/TTLS/PEAP message
exchange is not validated.
Certificate issuer
must be This is the certificate authority used during TLS/TTLS/PEAP message exchange. Any Trusted
CA is the default selection and means that any certificate authority can be used during authen-
tication.
Both trusted intermediate certificate authorities and root authorities whose certificates exist in
the system store are available for selection in the drop-down list.
Allow intermediate
certificates This option is selected by default and enables unspecified certificates to be in the server certifi-
cate chain between the server certificate and the certificate authority selected in the Certificate
issuer must be field.
When selected, this option allows the server certificate received during negotiation to be issued
directly by the certificate authority or by one of its intermediate certificate authorities.
If disabled, then the selected Certificate issuer must have directly issued the server certificate.
Server name must be This is either the server name or the domain the server belongs to, depending on which option
is selected below the text field.
During authentication, this name will be compared to the server certificate’s Subject: CN field.
Must match exactly When selected, the server name entered must match the server name found on the certificate
exactly.
Must contain domain
name When selected, the server name field identifies a domain and the certificate must have a server
name belonging to this domain or to one of its sub-domains (e.g., zeelans.com, where the
server is blueberry.zeelans.com).
Configuring the Port
On the main screen, tap and hold on a port, and select Configure on the popup menu. The Port Settings Configuration screen
opens displaying the Wireless Networks tab.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 9 - 19
Wireless Networks Tab
Field Description
Available Networks Displays the networks the terminal recognizes as available to connect to. When the Client is first
installed, there are no entries in the Available Networks list.
Scan Displays a list of networks broadcasting their availability.
You can also attach to networks who are not broadcasting.
Move to Configured Activates after Scan has been tapped and the available networks have been retrieved. In the list
of networks retrieved, select the network you wish to connect to, and tap Move to Configured.
This selects the network.
Configured Networks Displays the networks your terminal is connected to. This section adds and removes networks as
well as reviews and edits the properties of existing configured networks.
Default When the Client is first installed, there is a Configured Network named "default" in the list. This
profile has Associate with any network selected in its Properties selection screen.
If you are going to be in a location with only one AP (or more than one AP that attaches to the
same network), the default profile may be sufficient for you needs, without necessitating the
selection of a specific network or networks.
If default is last in the list, it can act as a wildcard should you be out of the range of your primary
networks (which are listed first). Do not place default at the top or middle of the list because, if it
is, connection to the other list entries will never be attempted.
Up Moves a selected network up one place in the list.
Down Moves a selected network down one place in the list.
Note: The order of the networks in this list is the exact order that connections will be attempted. The network listed first will
be attempted first and so on. Place your primary networks first.
Add Manually adds a network to the Configured Networks list if the AP does not broadcast its SSID or
you are pre-configuring the client for an AP that is not currently in range.
Remove Removes a selected network in the list.
Properties Displays the properties of the network selected in the list. This button opens the same network
configuration screen as the Add button does; use it to edit network configuration properties.
9 - 20 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Protocol Tab

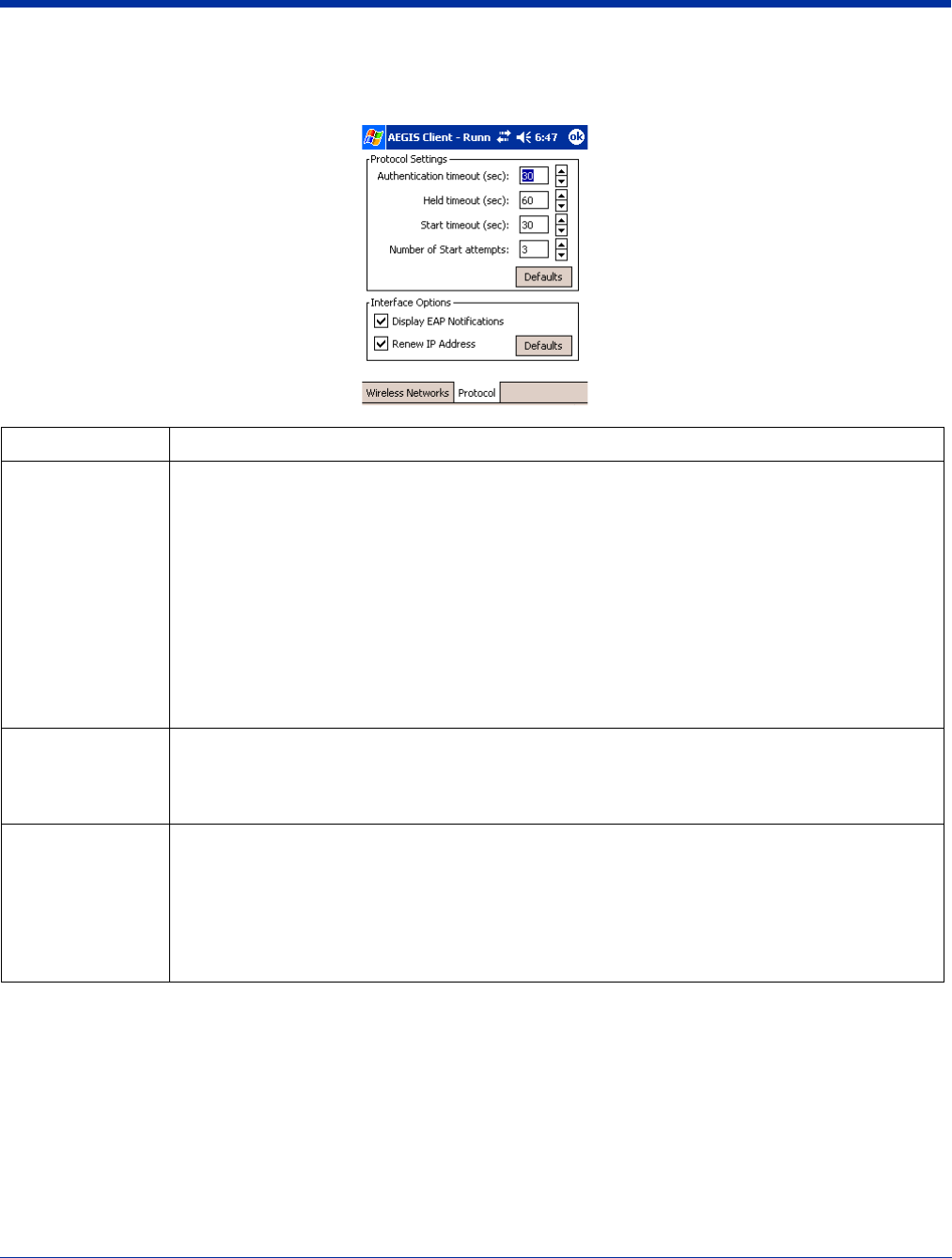

The Protocol tab configures parameters that apply to all the networks the selected port connects to.
Field Description
Protocol Settings These are the timer intervals and retry settings defined in the 802.1X standard. They determine how
long the supplicant state machine will wait in a given state. These parameters shouldn’t be modified
without an understanding of the supplicant state machine. For more information about the supplicant
state machine, obtain its 802.1X protocol specification.
The parameters are:
•Authentication Timeout - The period of time the Client remains in the authenticating or acquired
state without receiving a response from the AP or switch.
•Held Timeout - The period of time the Client remains in the held state after failing authentication.
•Start Timeout - The period of time the Client remains in the connecting state before restarting when
there is no response.
•Number of Start Attempts - The number of times the Client restarts before giving up. At that point,
the Client then defaults to the authenticated state, but there will be no network connectivity because
the protocol exchange was never completed.
Display EAP
notifications Specifies that the EAPOL notification message will be displayed to the user. An authenticator may
use such notification to inform you, for example, about a near password expiration. However, some
authenticators send chatty and annoying notifications that may, for the convenience of the user, be
suppressed. Note that all notifications are written to the event log even if they are not displayed.
Renew IP address Initiates a DHCP request to obtain a dynamic IP address after a successful authentication, but only if
the client detects that the connected network (the SSID) has changed. The result is that renewal
should not occur upon re-authentication, but does occur at boot or when connecting to a different net-
work.
If you have a slow authenticator, you may wish to enable this option when configuring the service
because a slow authenticator may prevent you from getting a DHCP-assigned IP address upon boot-
up. This option is ignored if the given adapter has a static IP address.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 9 - 21
Configuring a Network Profile
To configure a network profile, on the main screen, tap and hold on the port, tap Configure, then tap Add. The Network Profile
screen opens displaying the Profile Info tab.
Note: The settings on these tab windows are interrelated. This means that selecting one may disable access to others.
9 - 22 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Profile Info Tab
Field Description
Network Profile Enter the name of this record. This is the name that appears in the Configured Networks list and, by
default, is the same as the broadcast SSID. Note that there is nothing special about the name "default".
You could configure any other record similarly and it would behave the same way.
Network Name This is the SSID of the AP. If the AP broadcasts its SSID, then this value may be derived from the Avail-
able Networks list. If the SSID does not broadcast, then you must manually enter the value here.
Peer-to-Peer
Group Select this option to have two or more client workstations communicate with each other without the ben-
efit of an AP. You should also select Do Active Scan and, in the WEP Management page, enable Use
key for data encryption while entering a common key for both sides.
WPA is not supported in this mode.
Do active scan Select this option whenever the AP (or client, for ad hoc mode) is not broadcasting its SSID.
Authentication
Profile Select the Client Configuration (user) profile associated with this network. The drop-down list contains
the profile names created onn the User tab of the Client configuration area.
To open the selected profile, select it in the drop-down list and tap View. The User tab opens displaying
the profile details. If you tap OK (to save changes) or Cancel, you are returned to the Profile Info tab.
WEP Mgmt Tab
Field Description
Provide encryption
key dynamically This option is selected by default. If this option is selected, the other WEP settings on this page
are disabled. To enter a custom WEP, de-select this option. The other fields become active.
Use key for data
encryption Select this option to manually enter a WEP key to encrypt your data to the AP. You enter that key
in the Key field below.
Use key to
authenticate with AP Select this option if your network does not support 802.1x authentication and you need to con-
nect to the AP without username and password authentication. The key entered below is used to
authenticate instead.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 9 - 23
WPA Settings Tab
Field Description

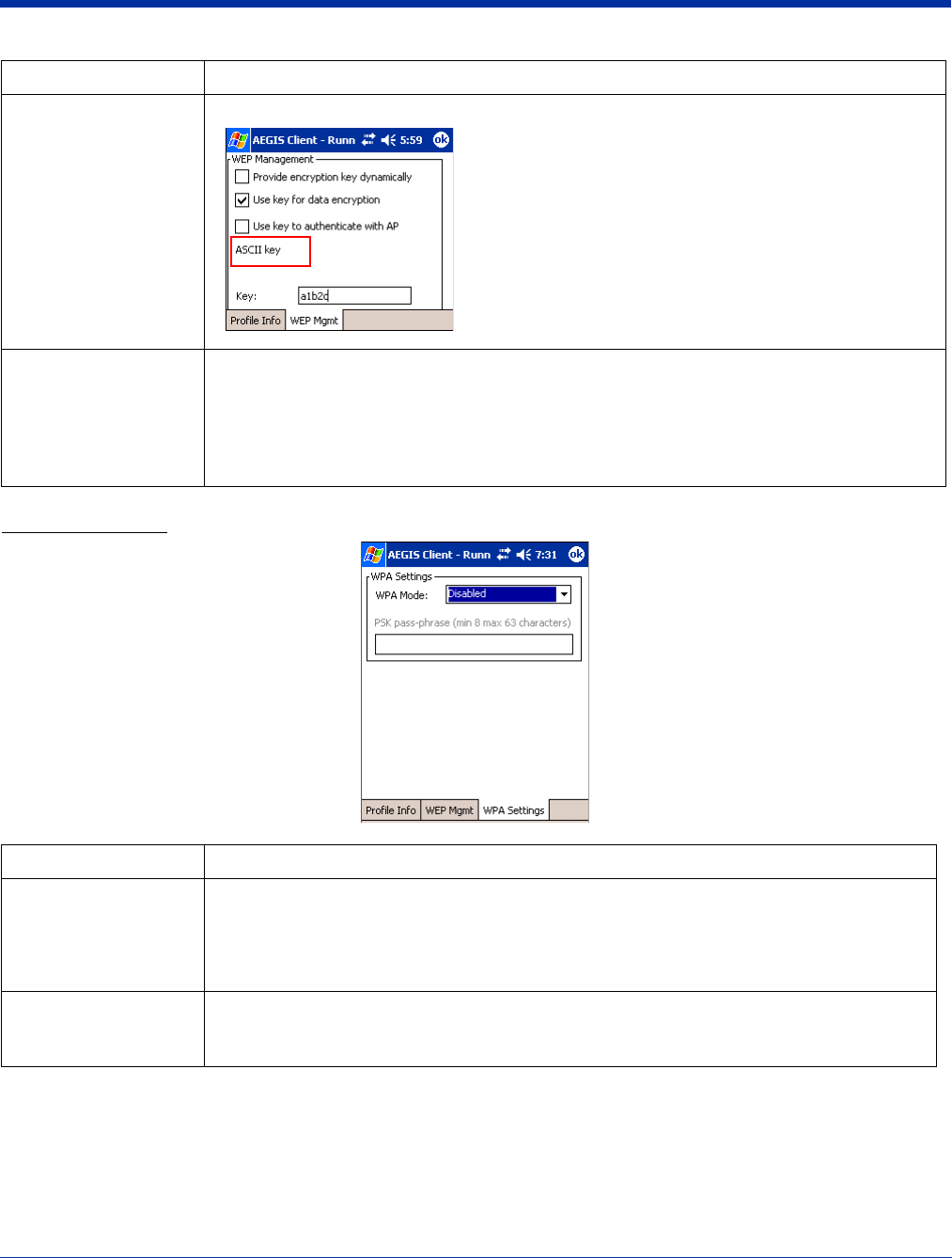

WPA Mode This drop-down list contains the following options:
•Disabled - Do not enable WPA mode. This is the default selection.
•WPA 802.1x - Enable WPA and obtain key information through the 802.1x protocol.
•WPA PSK - Enable WPA with Pre-Shared Key (PSK) information entered in the field below.
This mode is used if the 802.1x protocol is not being used for authentication.
PSK pass-phrase This field activates if you select WPA PSK in the WPA Mode drop-down list.
Enter a Hexadecimal value that is 64 characters long. Asterisks appear as you type for
increased security.
Logging
The event log is an ASCII text file named “LOG8021X.TXT” located in the directory defined by the WINDIR environment variable
(usually the Windows directory). The information the log records is determined by the log settings on the System tab.
The format of the entries is
Time Stamp Message Text
Key In this field, enter the WEP key. ASCII: 5 or 13 characters
Hexadecimal: 10 or 26 characters.
When the key entered is in the correct format, the screen
changes to display the type - ASCII or Hexadecimal.
Key Index/Transmit
Key The Key Index drop-down list contains the available keys. You may enter up to four keys for
reception; the Client will try all four to find one that works with the AP.
From the drop-down list, select the key to be used for transmission as well. If the key selected is
the transmit key, the Transmit key box is checked.
To change the transmit key, select another key and check the Transmit key box. The check box
of the original transmit key will be automatically de-selected.
Field Description
9 - 24 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
The Refresh button at the bottom of the screen is used to update the log file while you are reading it. If the file gets too large, old
entries are automatically deleted.
If you wish to start with a blank file, exit from the Client (so the icon no longer appears at the lower right of the screen) and delete

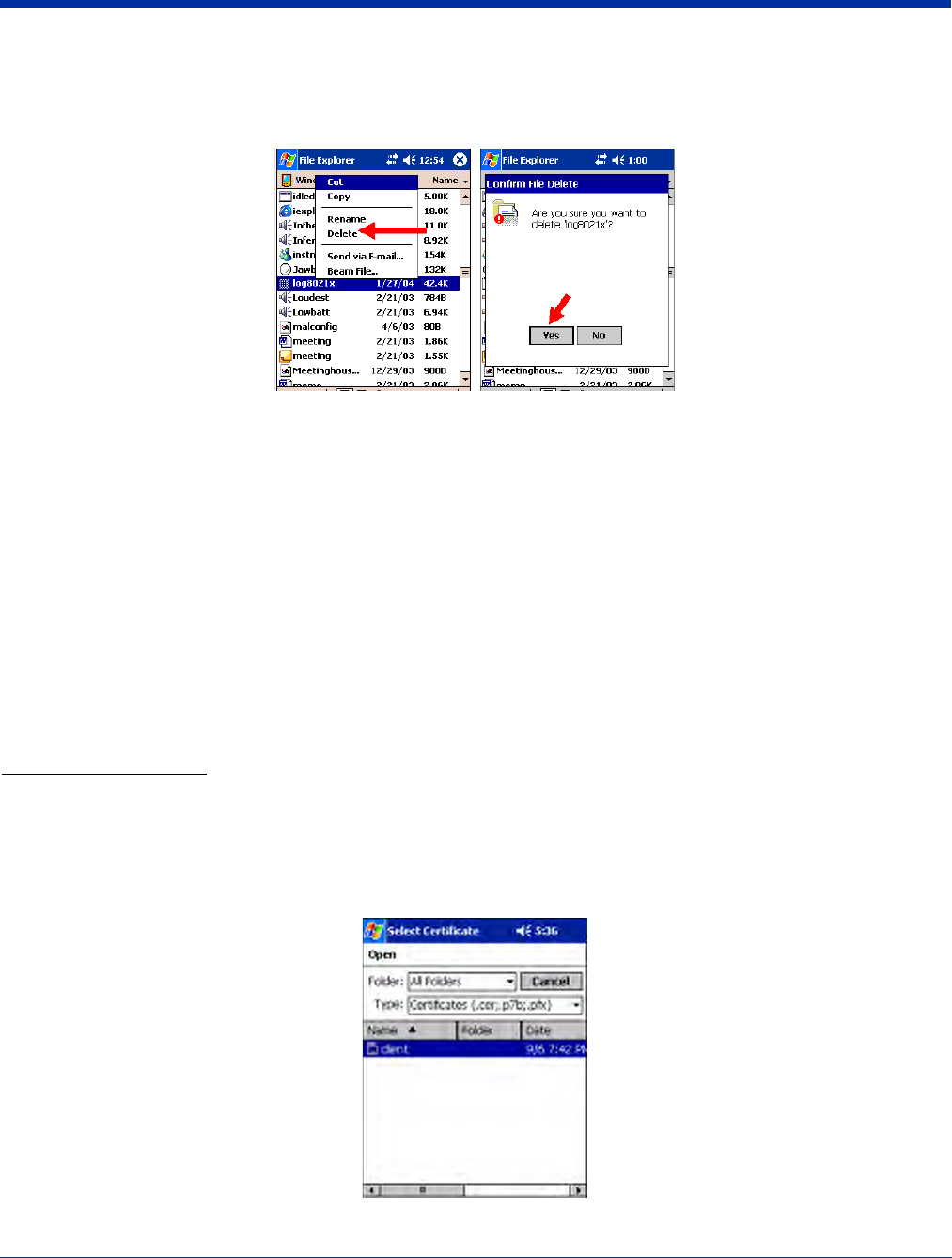

the log file (log8021x) in File Explorer; see Using Find on page 4-11.
When you restart the Client, a new log file is created.
Installing Certificates with CertAdd
Certificate Requirements
During configuration, you may have specified one or two certificates to use during the authentication process. The specified
identity should match the Issued to field in the certificate and should be registered on the authentication server (i.e., RADIUS
server) that is used by the authenticator. In addition, your certificate must be valid on the authentication server. This requirement
depends on the authentication server and generally means that the authentication server must know the issuer of your certificate
as a trusted Certificate Authority (CA).
If the selected certificate does require a password or pass phrase to decode the private key, enter this value in the “Certificate
Pass Phrase” field. This value will be encrypted when the configuration is saved. However, on some systems, there may not be
a certificate. If that is the case, you can use the section below as a primer on OS X certificate management.
About CertAdd
CertAdd is a standalone utility that allows certificates to be selected and installed on a Windows Mobile device.
Installing Certificates
Client or CA certificates can be imported from *.cer (same as *.der), *.p7b, or *.pfx files.
1. Download the certificate file to the My Documents folder. The location isn’t critical, although you may want to create a
standard folder for consistency.
2. Go to Start > Programs > Meetinghouse Certificate Installer. All valid certificate file types located in the My Documents
folder appear in the list.
3. Tap and hold on a certificate in the list. A pop-up appears asking if you want to install the certificate.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 9 - 25
4. Tap OK. The certificate is loaded into the correct certificate store.
Advice and Workarounds
Issue Possible Causes and Solutions
The Client will not start on the device with an
error message about missing files. Perform a soft reset.
The wireless network interface (port) does not
appear in the main AEGIS screen.
• The license is not valid (If you have entered a time-limited license, is
your clock on the device correct?).
• Restart the client - on the main screen tap Client > Restart.
• Perform a soft reset.
• If the radio is turned off or the radio card is not present, this will
sometimes cause the port name to not appear.
• If the radio driver is very old and does not support NDIS 5.1
commands, the Client may not be able to detect it.
The wireless network interface appears, but
when I select it and tap Configure, the Scan
button is disabled.
Enable the radio; Start > Settings > Connections tab > Radio Man-
ager.
The client is not attaching to the correct AP. The default network profile instructs the client to attach to the first
available AP. On the Wireless Networks window, select a network, move
it to Configured Networks, and then move it above default in the list.
The Client is failing authentication even though
all my information was entered correctly.
1. Verify that the network profile for the AP corresponds to the
authentication profile you created for it.
• Select the network profile in the Configured Networks list.
• Tap Properties. The Profile Info tab opens - see page 9-22.
• In the Authentication profiles drop-down list, select the profile
you want to review.
• Tap View. The User tab appears displaying the profile’s
information.
2. Verify that you have configured the identity and password into the
correct fields on the User tab in the authentication profile. If you are
using PEAP or TTLS, the username and password are entered in
the Tunneled authentication section.
My AP does not broadcast its SSID. Even
though I have manually configured an AP with
that name, the Client won't associate with it.
• Make sure that the desired SSID is listed as the Network Name, not
the Network Profile (which is a screen label).
• Verify that Do Active Scan is selected on the Profile Info tab. If not
selected, the Client will not attempt to find the AP.
I am authenticated, but I don't get an IP
address through DHCP.
On the main screen, tap and hold on your AP, tap Configure on the
popup menu, and select the Protocol tab. Verify that Renew IP Address
is selected.
I cannot attach to my old network that does not
support 802.1x authentication, but is using
WEP encryption.
• Verify that you can see your SSID in the Available Networks list on the
Wireless Networks tab. Move the SSID to the top of the Configured
Networks list so that it is accessed first. If the SSID is not there, you
can add it manually and enter the SSID as the network name.
• Select the SSID and tap Properties.
• On the Profile Info tab, select Do active scan if your AP does not
broadcast its SSID.
• On the WEP Mgmt tab, select Use key for data encryption and Use
key to authenticate with AP.
• Enter the WEP Key.
• On the Protocol tab, select Renew IP Address (unless you have
entered one manually separate from the Client)
• Note that the port status indicator in the main screen reads
"Associated," not "Authenticated" when the connection is complete;
although the log file will indicate "Entered AUTHENTICATED state."
I made changes, but they do not appear to have
taken effect. Always tap OK before exiting a screen you have changed. Then restart
the Client from the Client menu on the main screen.
9 - 26 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
How do I enable peer-to-peer (ad-hoc) mode to
have two clients communicate without an AP?
• On the Wireless Networks tab, add a new profile to the Configured
Network list.
• On the Profile Info tab, give each side the same network name (SSID).
• Select Peer-to-Peer Group (ad hoc mode) and Do active scan.
• On the WEP management section, select Use key for data encryption
and enter an identical key for both clients.
• Verify that this network profile is the first (or only) one in the
Configured Network list and try to restart both clients at roughly the
same time.
Advice and Workarounds
Issue Possible Causes and Solutions
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 1
10
Wireless PAN (WPAN) Communications with Bluetooth
Overview
Dolphin terminals are available with a Bluetooth radio for WPAN (Wireless Personal Area Network) usage. When the Dolphin is
first initialized, the *.cab file and module for Bluetooth are installed.
Enabling the Bluetooth Radio
Before using the radio, make sure that the Bluetooth radio is enabled. When the radio is enabled, the Bluetooth icon appears in

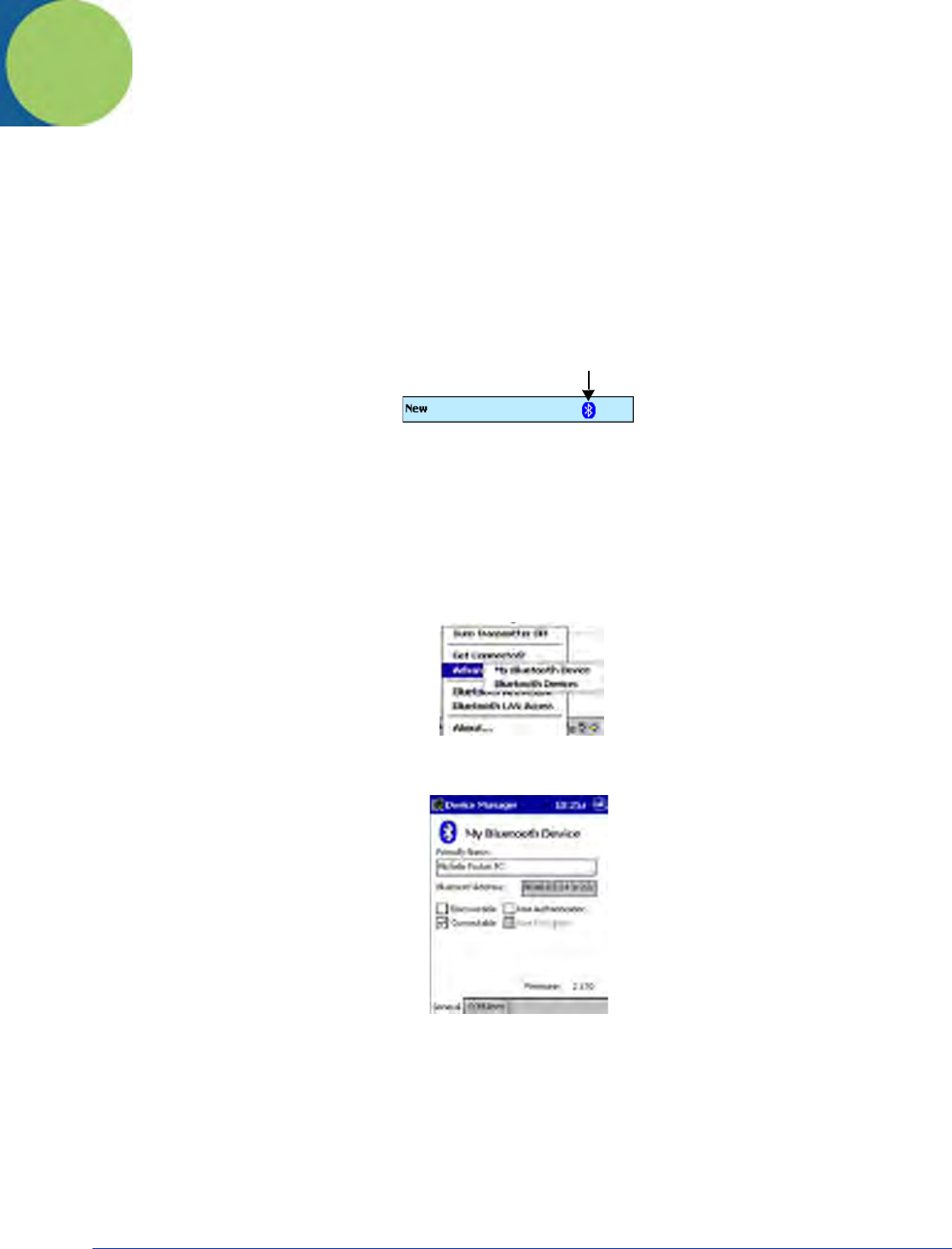

the task tray on the Today screen.
Note: Radios are enabled in the Radio Manager; tap Start > Settings > Connections tab > Radio Manager.
Setting Up Your Bluetooth Card
Note: If you use the Get Connected! Wizard, which is recommended for normal usage, then this step is not necessary. This step
would be used to change the friendly name of your device.

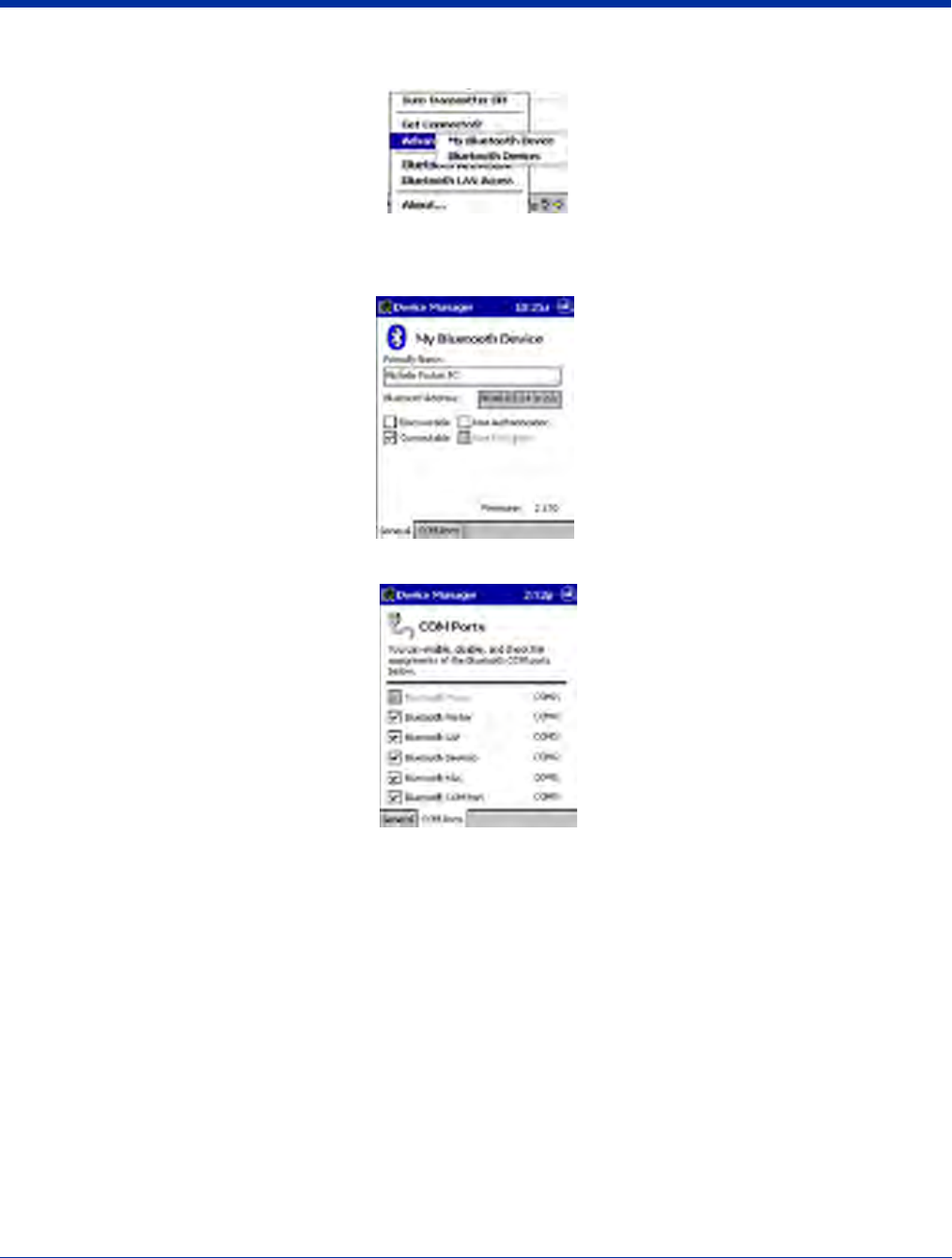

1. Tap the Bluetooth icon that appears in the task tray on the Today screen.
2. In the pop-up menu, select Advanced Features, then My Bluetooth Device. (If you installed OBEX, the menu also lists
Transfer via Bluetooth.)
3. In the My Bluetooth Device screen, you can modify the Friendly Name and make any desired configuration changes.
When done, tap OK.
• In normal phone connect operation, Discoverable mode is not needed and should be disabled.
• If you do enable Discoverable mode (e.g., for ActiveSync), note that it does not shut off by itself. To save power, remember
to disable it when not needed.
• Connectable, Use Authentication, and Use Encryption are also not required for printing or dial-up networking applications.
• Check Use Authentication to enable the Use Encryption option.
Assign COM Ports
Follow these steps to view and/or modify the Bluetooth COM ports.
10 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
1. Tap on the Bluetooth icon on the Today screen. Select Advanced Features then My Bluetooth Device.
Note: If you installed OBEX, the menu also lists Transfer via Bluetooth.
2. The My Bluetooth Device screen appears. Tap on the COM Ports tab.
3. As needed, view and/or enable/disable the Bluetooth COM port assignments. Tap OK.
You can also disable the IrDA port to free up a port for Bluetooth devices. Tap Start > Settings > Connections tab > IrDA and
select Disable IrDA Port.
Note: The Bluetooth Phone port cannot be disabled.
Discover Bluetooth Device(s)
Follow these steps to discover other Bluetooth devices nearby, including non-phone devices. The Device Discovery Wizard is a
more detailed alternative to using the Bluetooth “Get Connected!” Wizard or Bluetooth ActiveSync or Bluetooth LAN Access
options. The Device Discovery Wizard allows you to discover any type of Bluetooth device.
1. If not open, launch the Bluetooth Devices folder. Tap on the Bluetooth icon on the Today screen. Select Advanced
Features then Bluetooth Devices.
2. In the Bluetooth Devices Folder, tap on the Device Discovery icon. Or you can tap on Tools. In the pop-up menu, select
Device Discovery.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 3

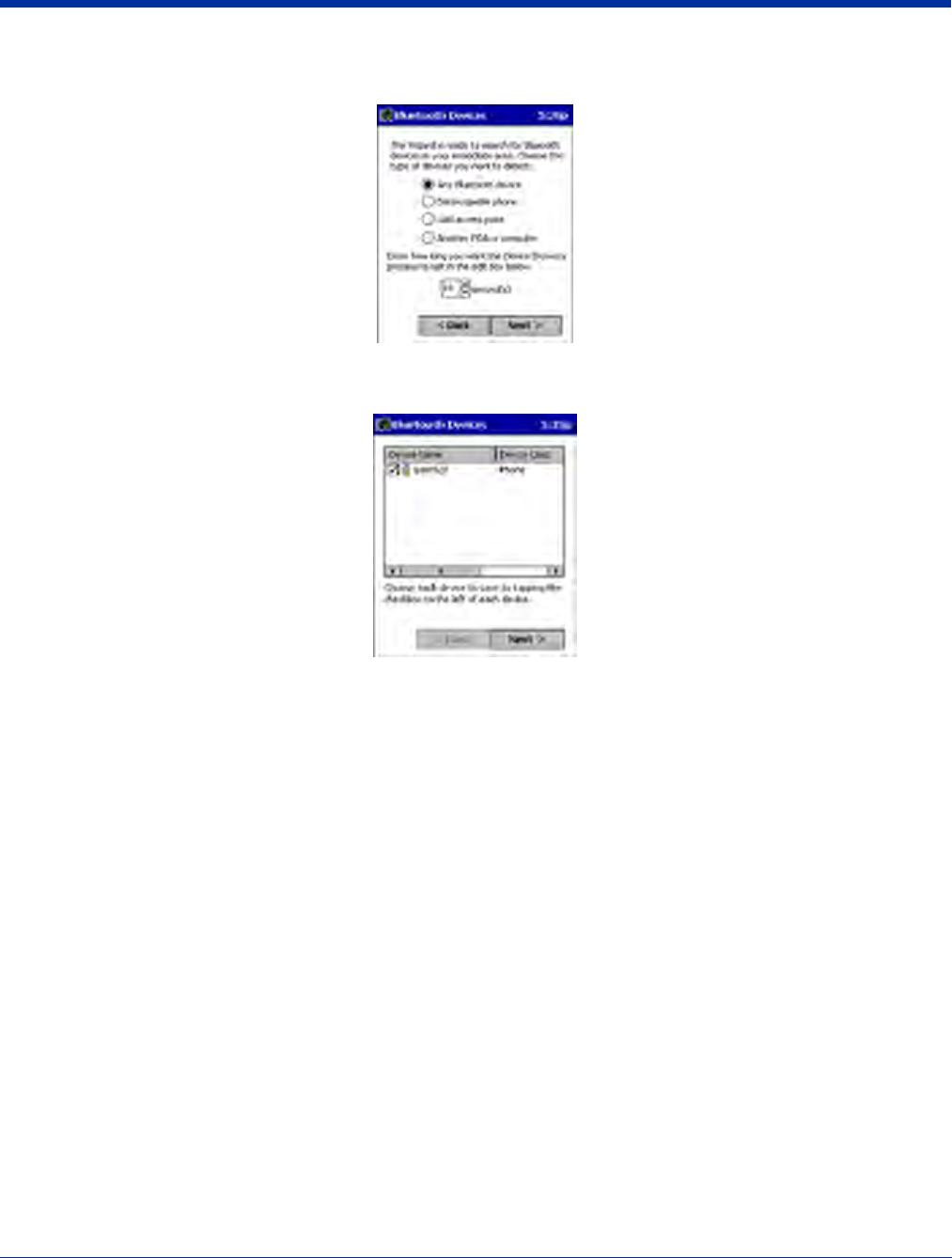

3. Follow the Bluetooth Device Discovery Wizard to search for Bluetooth devices nearby. When prompted, select the device
type you seek.
4. When the search is complete, a screen reports the discovered Bluetooth devices. Check the box next to any device you
wish to save information about, (i.e., any devices you wish to connect to). Tap Next.
5. A service discovery phase begins, 5-10 seconds per chosen device.
6. In the next screen, tap Finish.
Bond With Discovered Device(s)
Follow these steps to bond with an already discovered Bluetooth device. In most cases, bonding is for establishing secure
communications with a Bluetooth-enabled phone. This is a more detailed alternative to using the Bluetooth “Get Connected!
Wizard.”
Important!
• Do not try to bond with a Motorola Timeport 270C or Nokia 6310!
• Do not use this method to bond with a printer! The third-party printing software included on the installation CD also handles
bonding.
1. If not open, launch the Bluetooth Devices folder. Tap on the Bluetooth icon in the Today screen. Select Advanced
Features, then Bluetooth Devices.
10 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

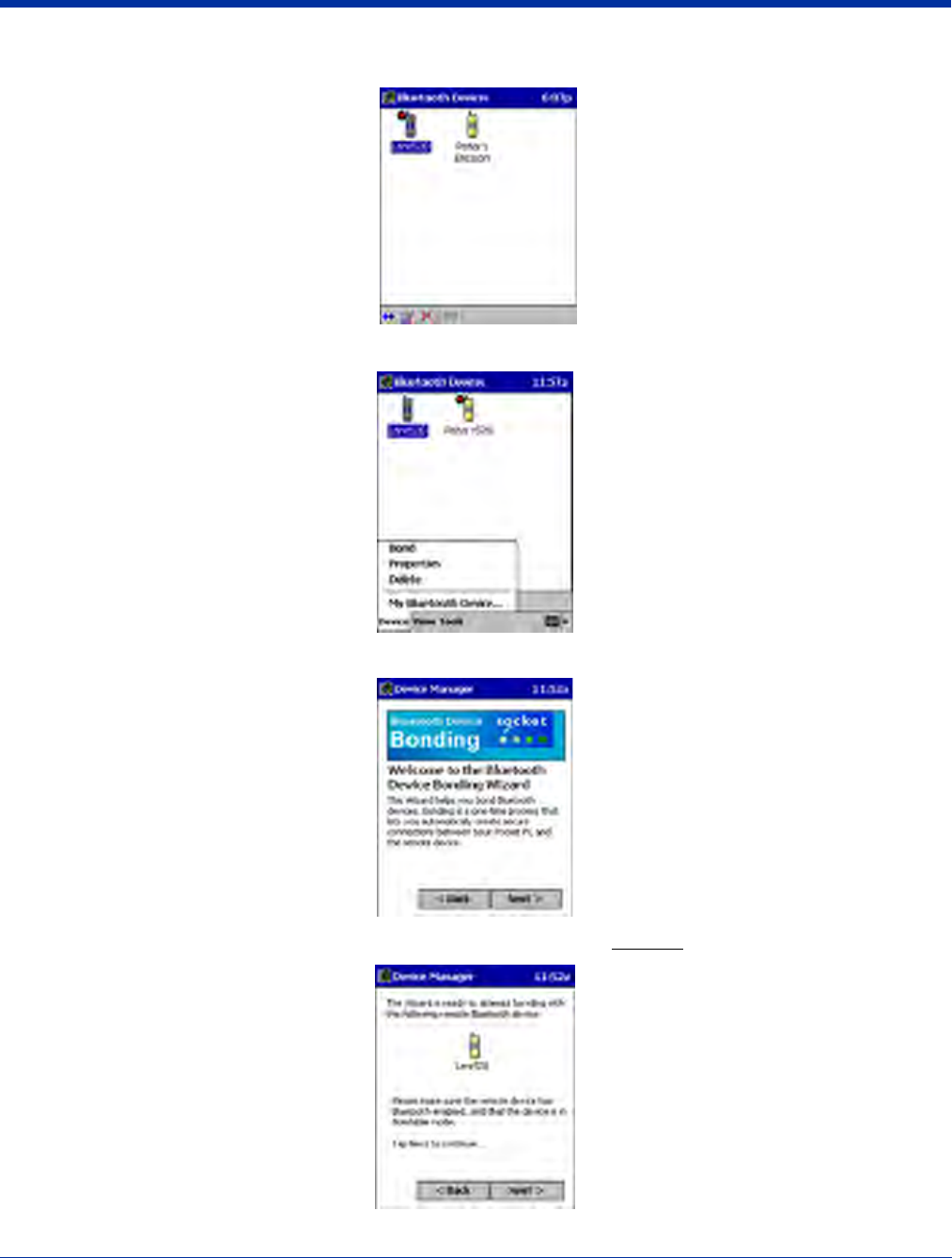

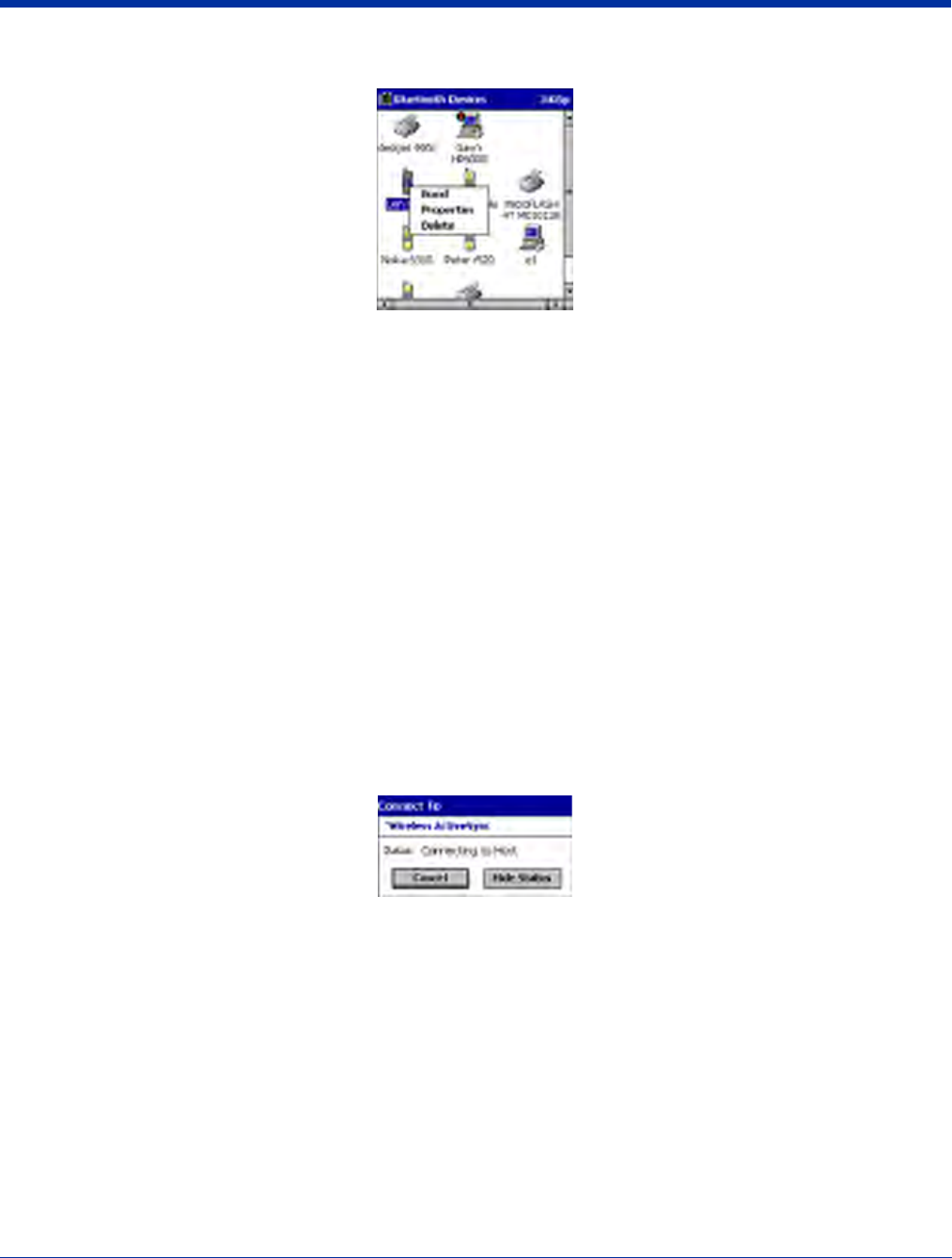

2. Tap and hold your stylus on the Bluetooth device you want to bond with. In the pop-up menu, select Bond.
3. Alternatively, after selecting a device, tap on the Bond icon. Or tap on Device, then select Bond.
4. The Bluetooth Device Bonding Wizard launches. Follow the wizard to bond with your selected device.
5. As prompted, make sure the Bluetooth device that you want to bond with is in Bondable mode.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 5
6. If the remote device is set up to accept bonding, a Bluetooth Passkey screen appears. To continue bonding, enter the
correct passkey and tap Reply.
7. When you have successfully bonded with the other device, tap Finish.
View Device Properties
Follow these steps to view the properties of an already discovered device.
1. If not open, launch the Bluetooth Devices folder. Tap on the Bluetooth icon on the Today screen. Select Advanced
Features then Bluetooth Devices.
2. Select a device. Tap on the Properties icon, or tap on Device then select Properties. Alternatively, you can tap and hold
your stylus on the Bluetooth device you want to view information about. In the pop-up menu, select Properties.
3. Use the General and Services screens to research device properties. If needed, assign a new device type icon by tapping
on the arrow buttons in the General screen. You can also use the Device name field to rename the device. When done, tap
OK for the setting to take effect.
Set Up Your Favorite Device
Follow these steps to set up default devices in the Bluetooth Devices folder. Please note that the Get Connected! Wizard
automatically assigns the favorite phone.
1. Tap Tools > My Favorites.
10 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
2. Tap on the tab for the type of device you would like to set a favorite for. If needed, use the arrow buttons to scroll and find
the tab you need.
Note: Tabs appears only for COM ports you have enabled. To enable a port, refer to the “Assign COM Ports” section earlier in
this chapter.
3. To select a favorite device, select Use the favorite selected above. In the drop-down list, select your device. Tap OK.

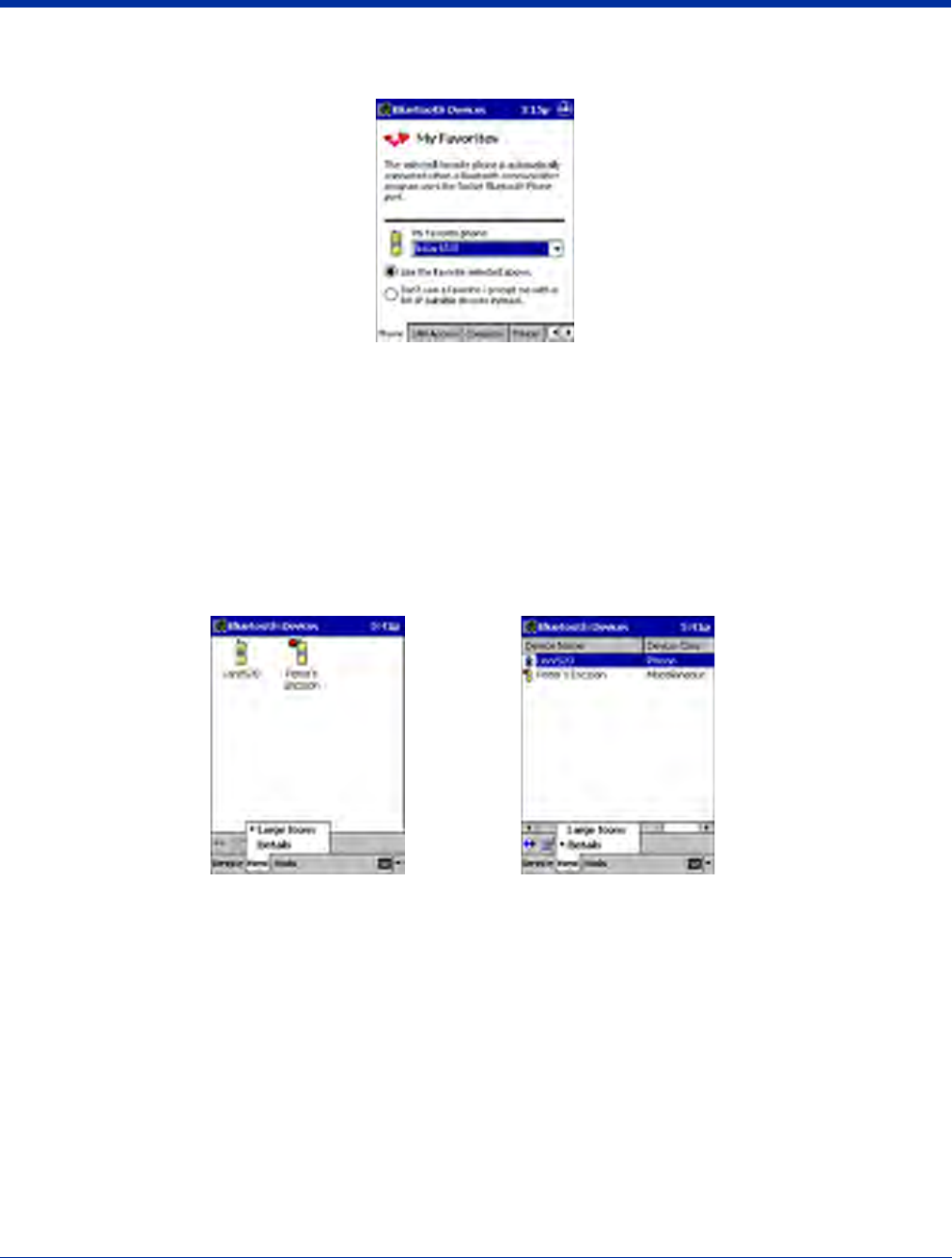

4. After setting a device as your favorite, its icon appears in the Bluetooth Devices folder with a heart next to it.
Change Views
You can switch between the Large Icons or Details views for the Bluetooth Devices folder.
1. In Bluetooth Devices, tap on View.
2. In the pop-up menu, choose between Large Icons or Details.
Large Icons Details
Note: In Details view, you can see the Device Class and scroll right to see the current Bonded status.
Delete a Device From the Folder
If you no longer plan to connect with it, you can delete a device from the Bluetooth Devices folder.
1. If not open, launch the Bluetooth Devices folder.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 7
2. Tap and hold your stylus on the device you wish to delete. In the pop-up menu, select Delete.
Turn Radio Transmitter ON/OFF
You may want to turn off the radio transmitter to save power or if you are entering an area with radio restrictions (e.g., an airplane).
1. Tap on the Bluetooth icon in the task tray on the Today screen.
2. In the pop-up menu, select Turn Transmitter OFF.
3. The Bluetooth Card radio transmitter shuts off. The Bluetooth icon and menu options becomes gray.
4. To turn the radio transmitter back on, tap on the gray Bluetooth icon. In the pop-up-menu, select Turn Transmitter ON.

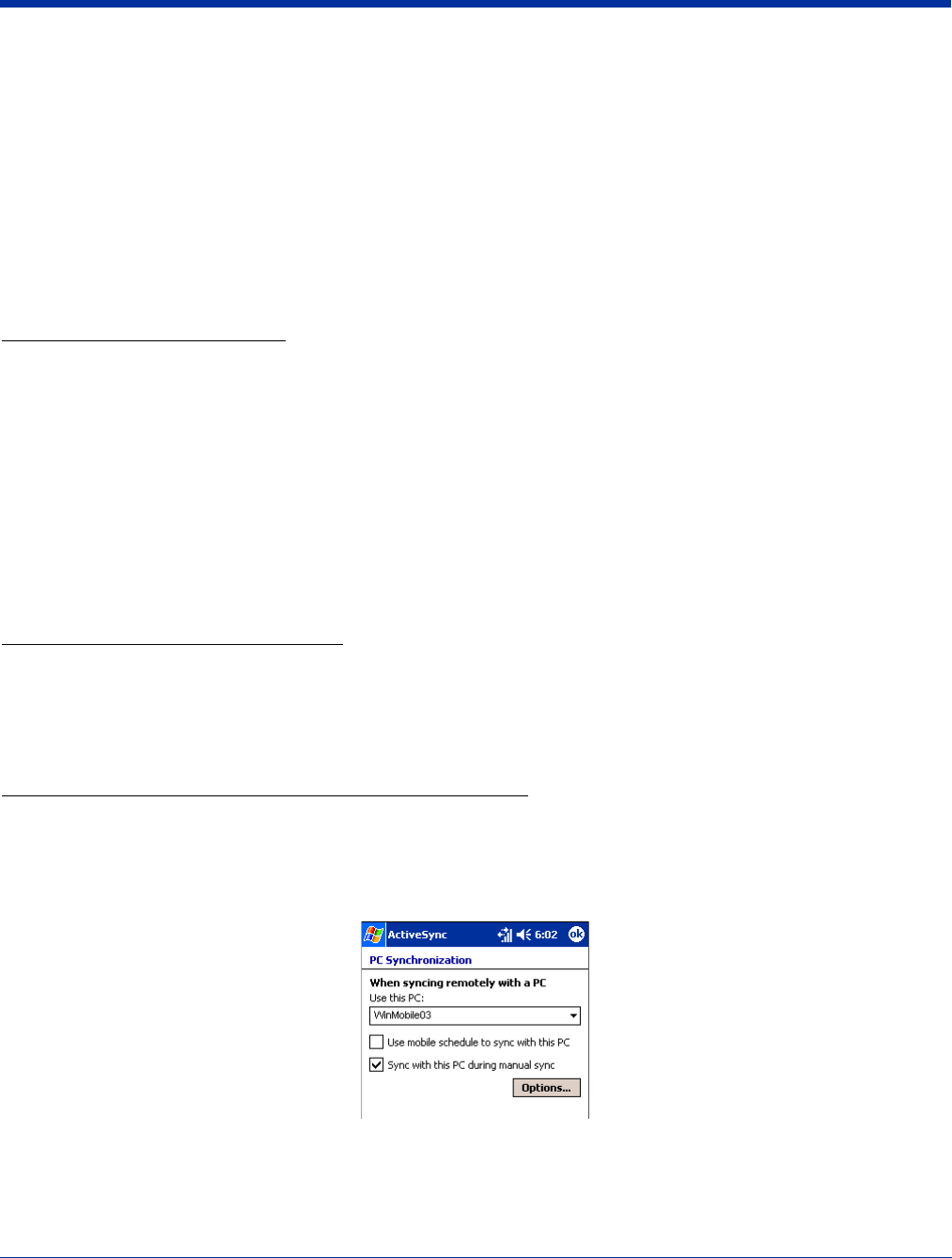

Bluetooth ActiveSync
This section explains how to quickly and easily ActiveSync to a notebook or desktop computer with Microsoft ActiveSync.
1. Tap on the Bluetooth icon. In the pop-up menu, select Bluetooth ActiveSync.
2. The next screens varies depending on if your Bluetooth Devices folder contains any computers, and if one is chosen as your
favorite. Please refer to the appropriate scenario:

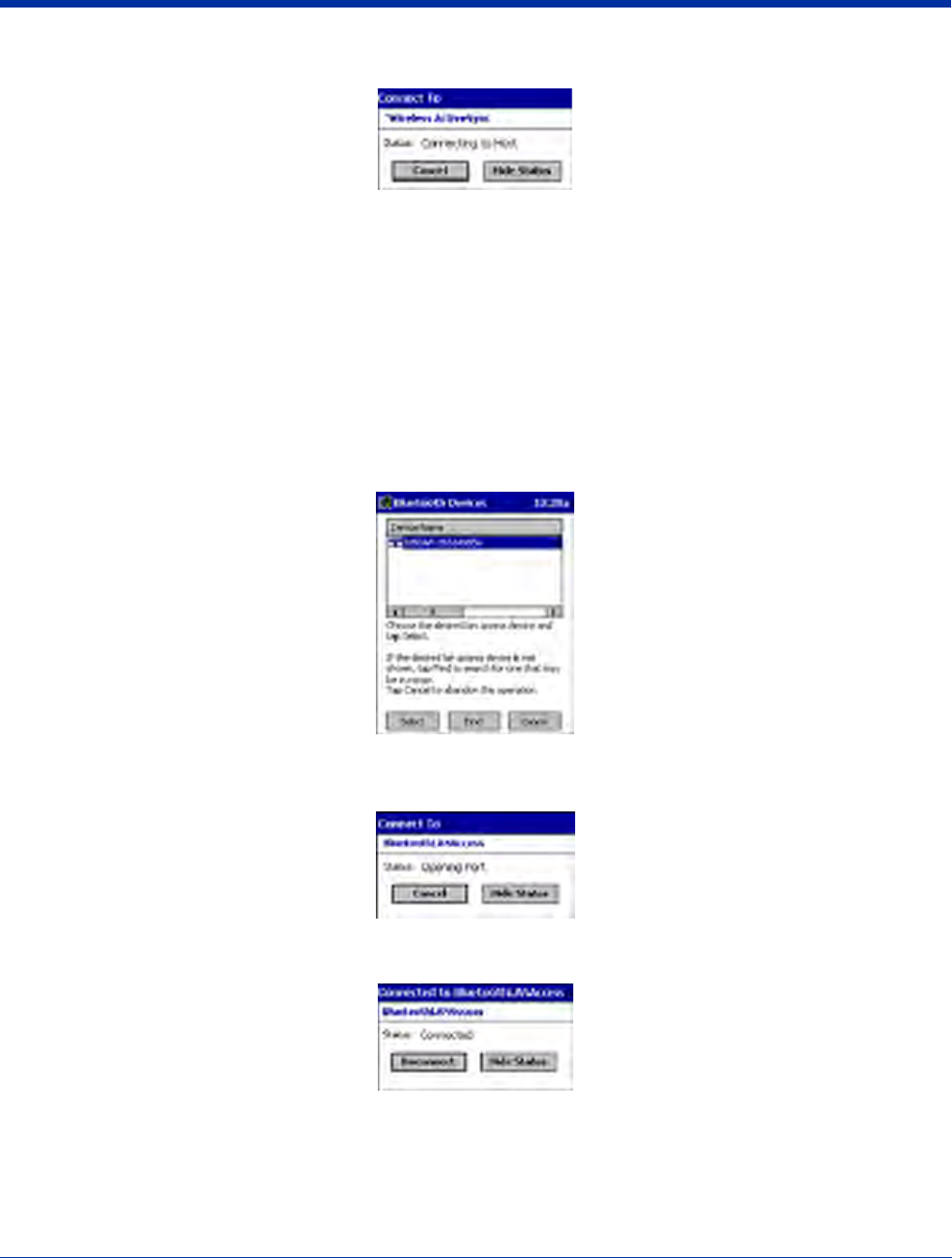

SCENARIO #1: Your Bluetooth Devices folder contains a favorite desktop computer.

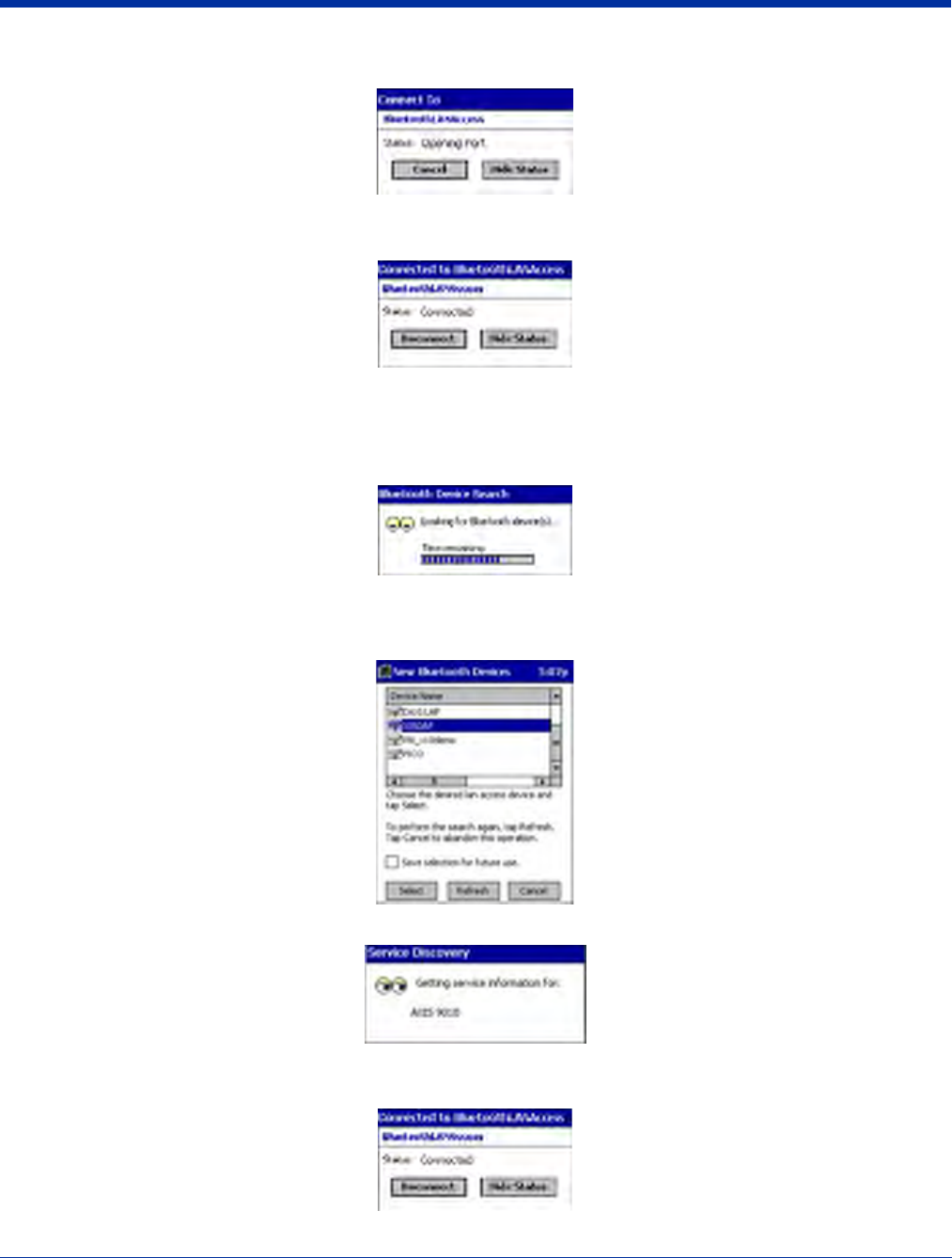

(a) When you tap Bluetooth ActiveSync, your device automatically tries to connect to your favorite computer.
(b) The Connect To screen appears, reporting that it is trying to connect to Wireless ActiveSync.
(c) After a successful connection is made, the status screen reports Connected. Now you are ready to synchronize files, if
desired.
SCENARIO #2: Your Bluetooth Devices folder contains no favorite desktop computer.
10 - 8 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
(a) When you tap on Bluetooth ActiveSync, a screen appears that allows you to choose which computer to connect to in
your Bluetooth Devices folder. Choose a computer from the list and tap Select, or tap Find to search for another computer.
Note: If the computer you want to connect to is not listed, tap Find to begin a search. Proceed as described in Scenario #3 on
page 10-8.
(b) Your device attempts to connect to your selected computer.
(c) After a successful connection is made, the status screen reports Connected. Now you are ready to synchronize files, if
desired.
SCENARIO #3: Your Bluetooth Devices folder contains no computers.
(a) When you tap on Bluetooth ActiveSync, a Bluetooth Device Search automatically begins.
Note: You can also start the device search by tapping Find in the Bluetooth Devices screen.
(b) After the search is complete, select the computer you wish to ActiveSync with and tap Select. If the computer is not listed,
make sure the computer is discoverable and tap Refresh to search again.
(c) After you tap Select, a service discovery phase begins.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 9
(d) The Connect To screen appears, reporting that it is trying to connect to Wireless ActiveSync.
(e) After a successful connection is made, the status screen reports Connected. Now you are ready to synchronize, if desired.
Bluetooth LAN Access
This section explains how to use the Bluetooth LAN Access feature to quickly and easily connect to a Bluetooth-enabled LAN
access point.
1. Tap on the Bluetooth icon. In the pop-up menu, select Bluetooth LAN Access.
2. The next screens varies depending on if your Bluetooth Devices folder contains any access points, and if one is chosen as
your favorite. Please refer to the appropriate scenario:
SCENARIO #1: Your Bluetooth Devices folder contains no favorite access point.
(a) When you tap Bluetooth LAN Access, a screen appears that allows you to choose which access point to connect to in
your Bluetooth Devices folder. Choose an access point from the list and tap Select.
Note: If your access point is not listed, tap Find and proceed as described in Scenario #3.
(b) Your device tries to connect to the selected access point.
(c) If your LAN requires a passkey, a screen appears asking for the passkey. Enter the passkey, then tap OK.
(d) After a successful connection is made, the status screen reports Connected.
(e) Now you are ready to access your LAN for Internet access, files, etc.
SCENARIO #2: Your Bluetooth Devices folder contains a favorite access point.
10 - 10 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
(a) When you tap Bluetooth LAN Access, the device automatically tries to connect with your favorite access point.
(b) If your LAN requires a passkey, a screen appears, asking for the passkey. Enter the passkey, then tap OK.
(c) After a successful connection is made, the status screen reports Connected.
(d) Now you are ready to access your LAN for Internet access, files, etc.
SCENARIO #3: Your Bluetooth Devices folder has no access points.
(a) When you tap Bluetooth LAN Access, the device automatically begins to search for new Bluetooth devices.
Note: You can also start the device search by tapping Find in the Bluetooth Devices screen. See Scenario #2.
(b) After the search is complete, select the access point you wish to connect to. Tap Select. If the access point is not listed,
tap Refresh to search again.
(c) After you tap Select, a service discovery phase begins.
(d) If the LAN requires a Passkey, a screen appears, asking for the Passkey. Enter the passkey, then tap OK.
(e) After a successful connection is made, the screen reports Connected.
(f) Now you are ready to access your LAN for Internet access, files, etc.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 11
OBEX
This section explains how to use the OBEX (object exchange) application to trade business cards, contacts or files with another
Bluetooth device that supports OBEX.
Bluetooth OBEX application supports five operations:
• Exchange Business Cards
• Send a Contact
• Send a File
• Browse Remote Device
• Receive Contact or File
• Enable File Sharing
The first four operations - exchange business cards, send a contact, send a file, and browse remote device - are client-oriented.
They involve initiating an object exchange.
The last two operations - receive contact or file and enable file sharing - are server-oriented. They involve accepting objects in
an exchange initiated by another Bluetooth device.
Exchange Business Cards
1. Make sure both Bluetooth devices have a business card assigned to them.
If each device does not have a business card assigned to it, you cannot exchange business cards.
To assign a business card to your device, do the following:
• Tap on the Bluetooth icon. In the pop-up menu, tap Advanced Features > My Bluetooth Device.

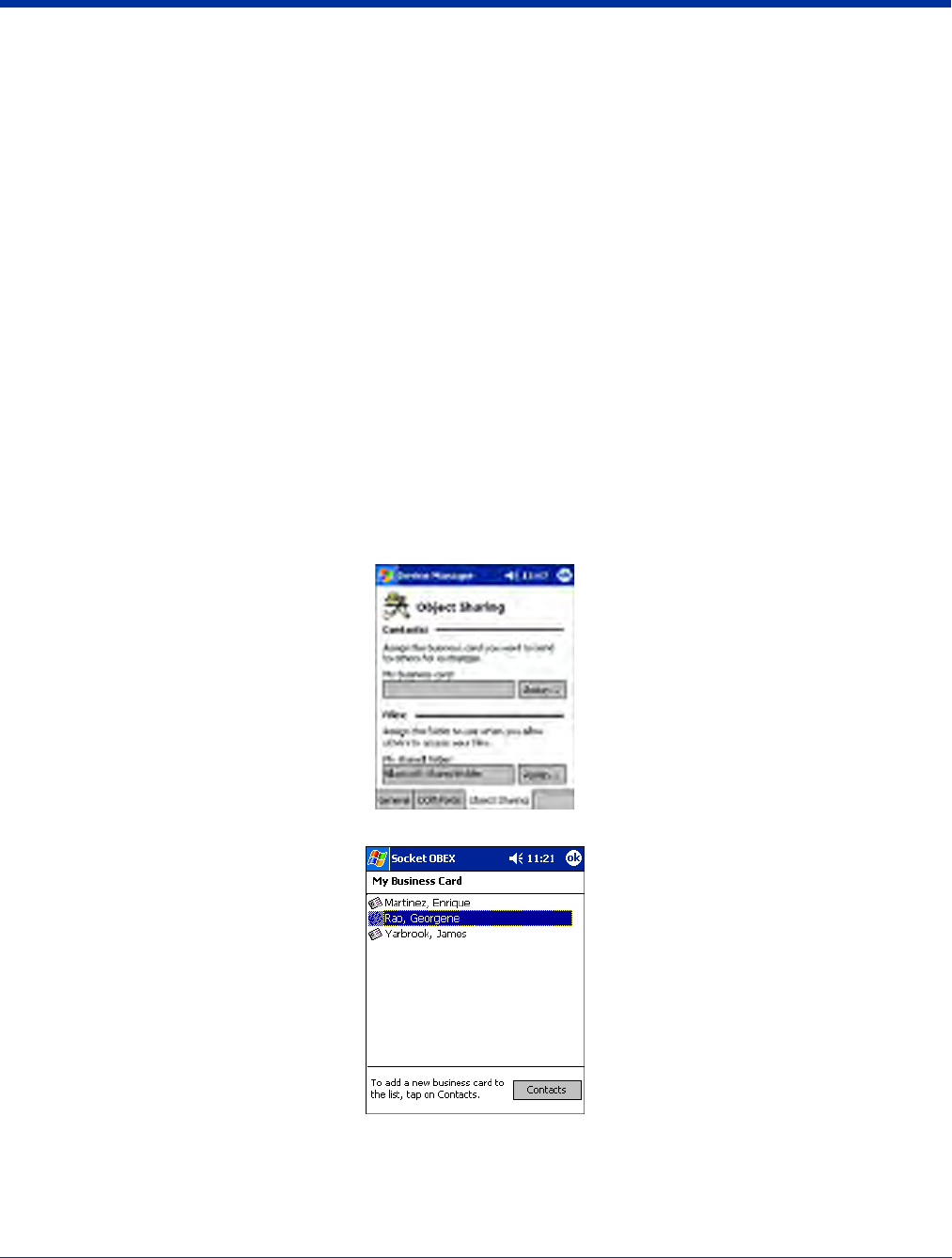

• Tap on the Object Sharing tab. Under My business card, tap Assign
• In the next screen, select your business card and tap OK. If your business card is not listed, tap Contacts to create one.
When you return to the Object Sharing screen, tap OK.
2. Make sure the other Bluetooth device is set up to receive a contact. The device must support the OBEX Object Push profile.
Note: If the other device is also using the Bluetooth Connection Kit, you can set it up to receive a contact by tapping the Bluetooth
icon. In the pop-up menu, tap Transfer via Bluetooth > Receive Contact or File.
10 - 12 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

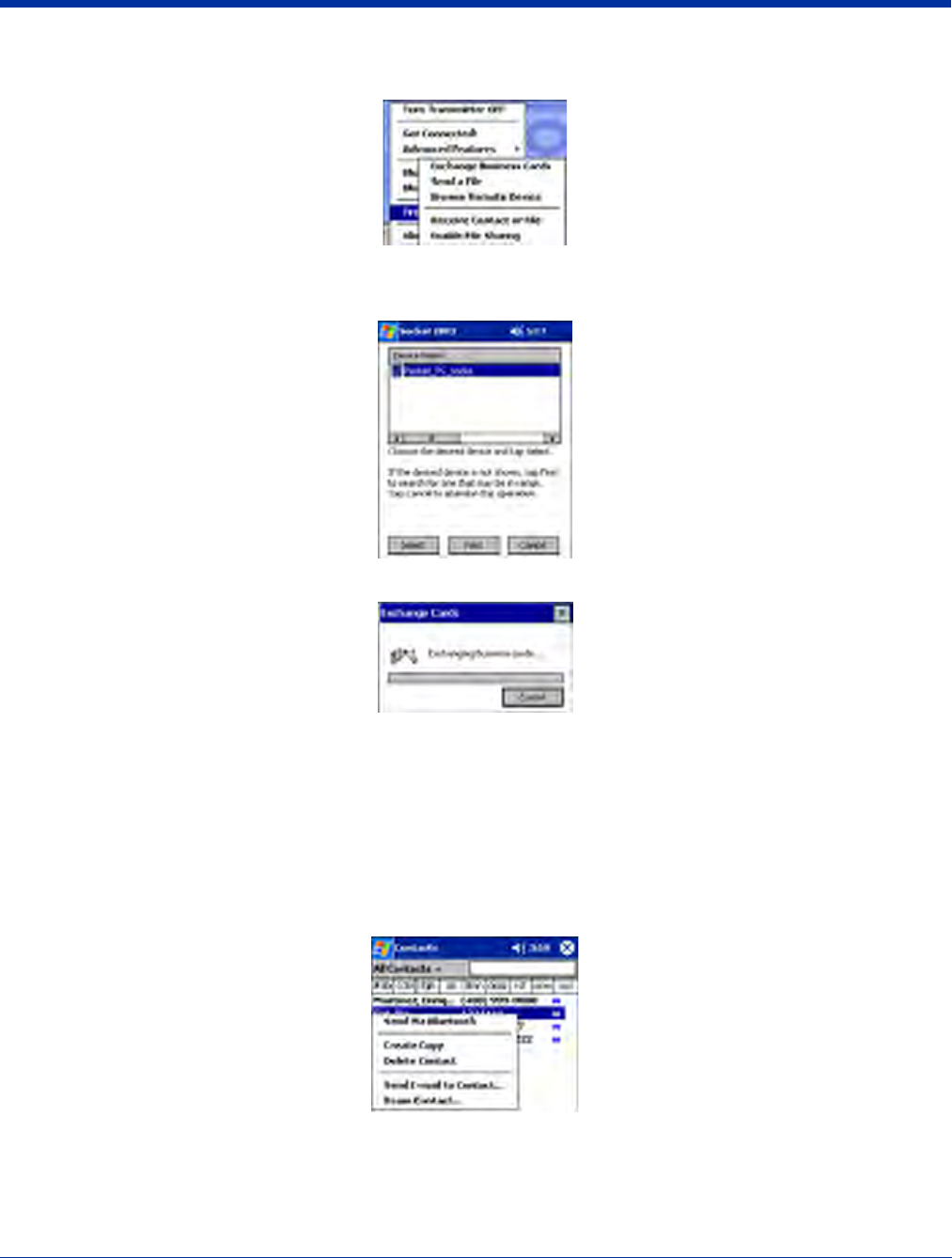

3. Now you are ready to exchange business cards. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via
Bluetooth > Exchange Business Cards.
4. If your device has no devices in the Bluetooth Devices Folder, then it begins to search for Bluetooth devices nearby.
5. Select the Bluetooth device you wish to exchange business cards with. If the device is not listed, tap Find.
6. Your device begins exchanging business cards. After the exchange, the new business card should appear in your Contacts
Send a Contact
1. Make sure the other Bluetooth device is set up to receive a contact. It must support the OBEX Object Push server profile.
Refer to the documentation that came with the device for instructions.
Note: If the other device is also using the Bluetooth Connection Kit, you can set it up to receive a contact by tapping the Bluetooth
icon. In the pop-up menu, tap Transfer via Bluetooth > Receive Contact or File.
2. Now you are ready to send a contact. Go to your Contacts folder.
3. Tap and hold your stylus on the contact(s) you would like to send. In the pop-up menu, select Send Via Bluetooth.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 13

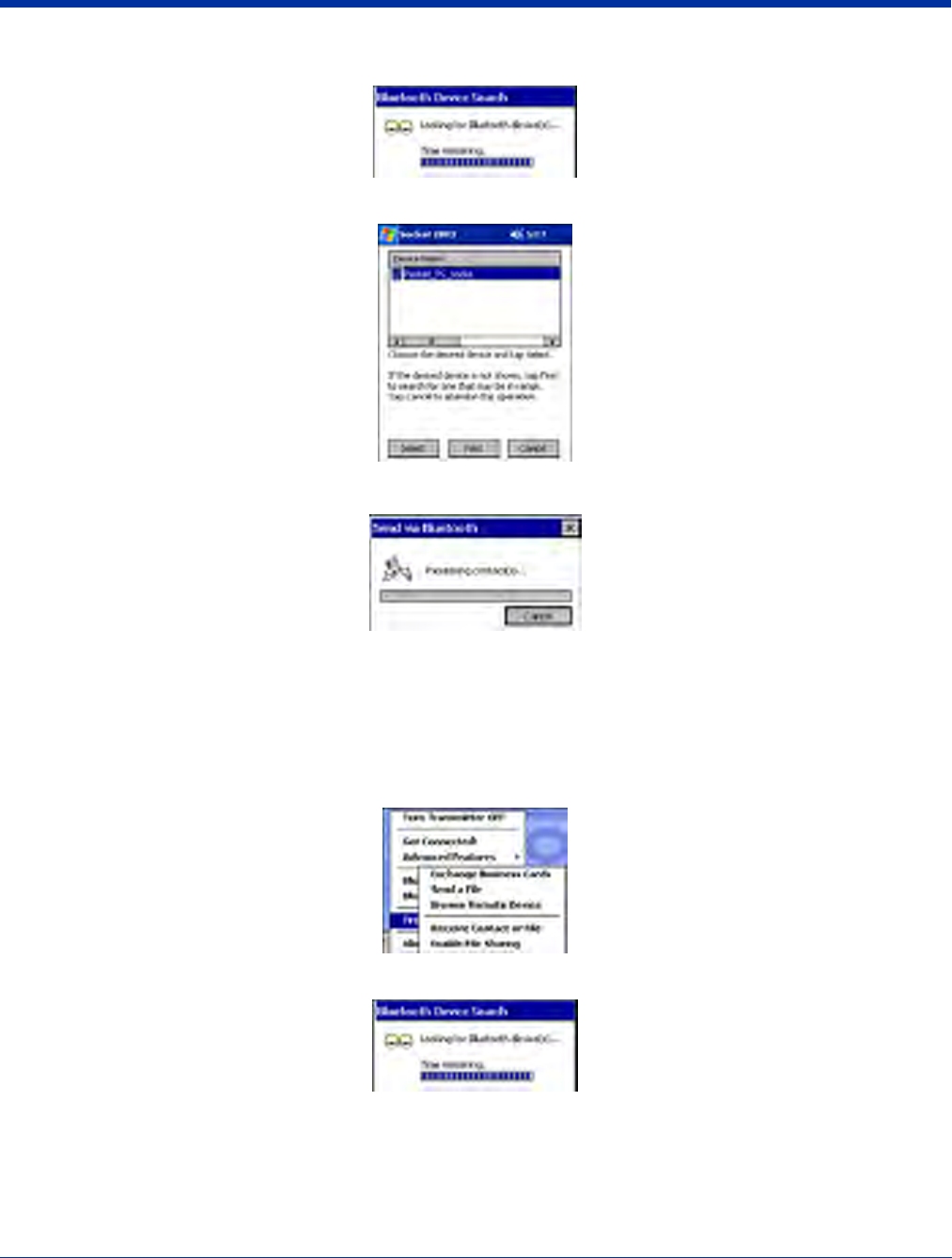

4. If your device has no devices in the Bluetooth Devices Folder, then it begins to search for Bluetooth devices nearby.
5. Select the Bluetooth device you wish to send the contact(s) to. If the desired device is not listed, tap Find.
6. Your device processes and sends the contact(s).
Send a File
1. Make sure the other Bluetooth device can receive a file; that device must support the OBEX Object Push server profile.
Note: If the other device is also using the Bluetooth Connection Kit, you can set it up to receive a file by tapping the Bluetooth
icon. In the pop-up menu, tap Transfer via Bluetooth > Receive Contact or File.
2. Now you are ready to send a file. Tap the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth > Send a File.
3. If your device has no devices in the Bluetooth Devices Folder, then it begins to search for Bluetooth devices nearby.
10 - 14 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

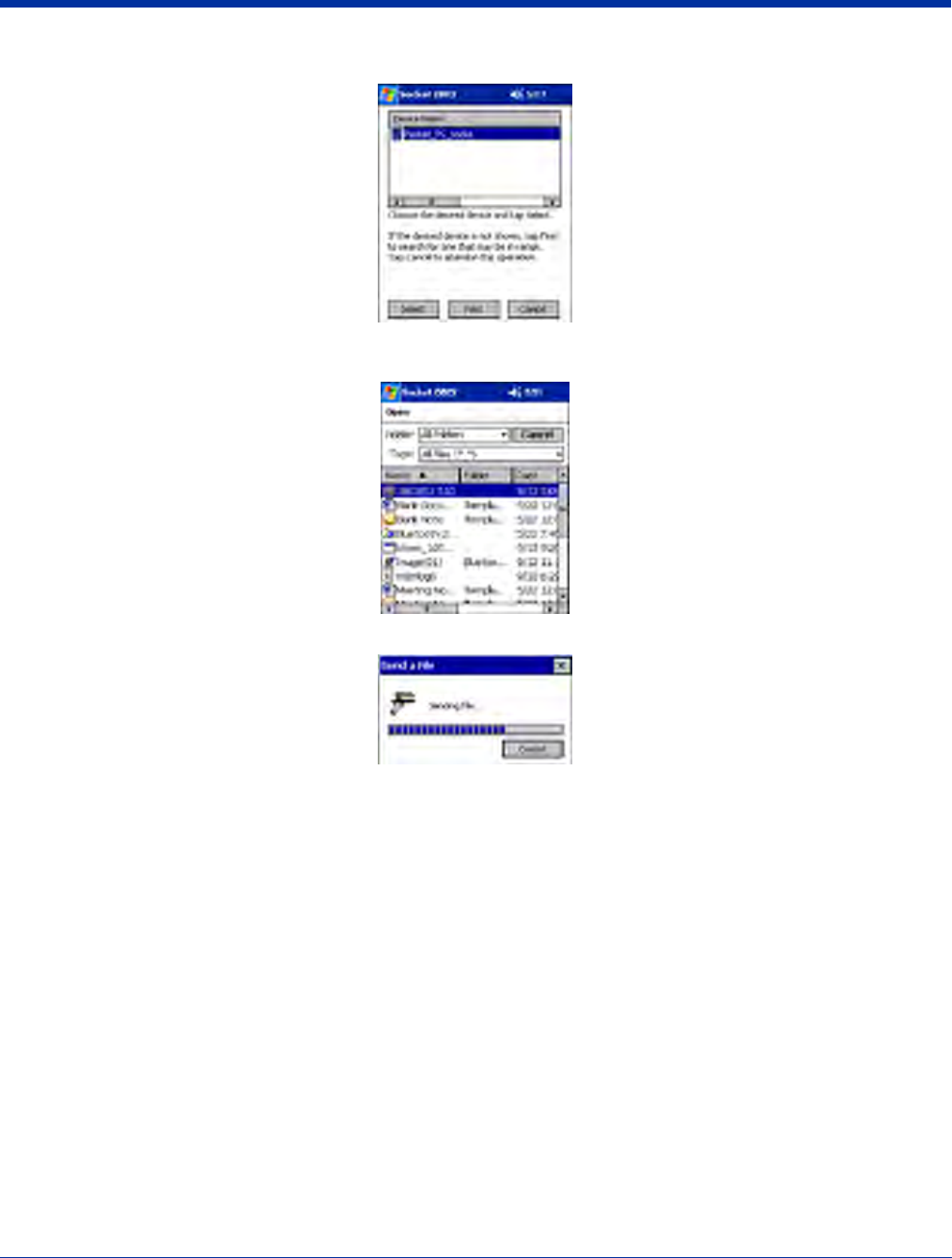

4. Select the Bluetooth device you wish to send a file. If the desired device is not listed, tap Find.
5. In the next screen, tap on the file you wish to send. You can use the Folder and Type drop-down menus to search for your
file. Also, you can scroll horizontally to view the folder, date, size, type, and location of each file.
6. Your device sends the file.
Browse Remote Device
The Bluetooth File Explorer lets your device share files with another Bluetooth device. The other device must support the OBEX
File Transfer server profile.
This section covers the following file transfer operations:
• Prepare for file transfer
• Send/receive file(s) or folder(s)
• Create a folder
• Delete file(s) or folder(s)
• Refresh remote view
• Connect/disconnect
• Exit the program
Note: “Local device” refers to the device you are running the OBEX from. “Remote device” refers to the Bluetooth device you
are trying to transfer files with.
Prepare for File Transfer

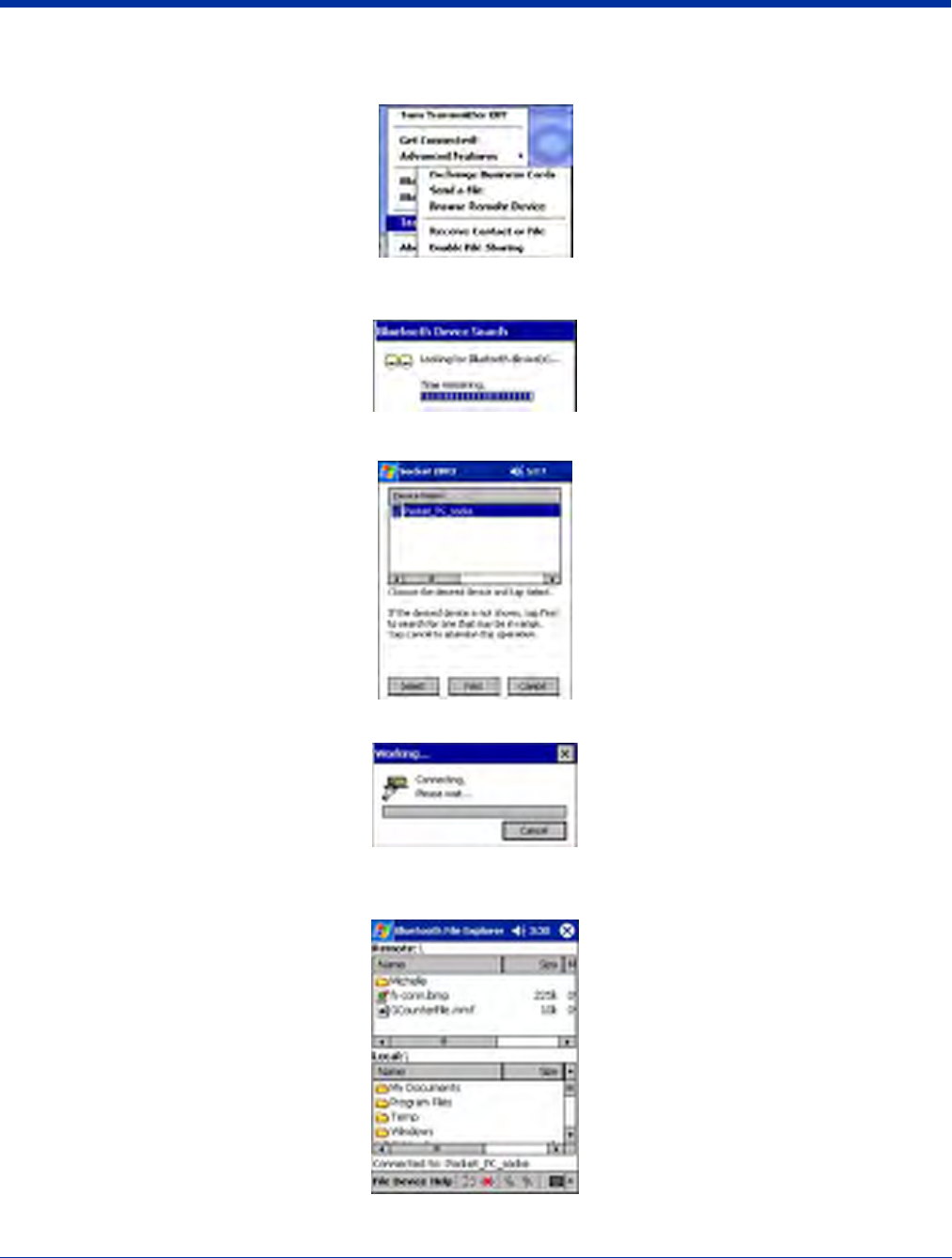

1. Make sure the remote device has file sharing enabled. It must support the OBEX File Transfer server profile.
Note: If the other device is also using the Bluetooth Connection Kit, you can enable file sharing by tapping the Bluetooth icon.
In the pop-up menu, tap Transfer via Bluetooth > Enable File Sharing.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 15
2. Now you are ready to browse the remote device. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via
Bluetooth > Browse Remote Device.
3. If your device has no devices in the Bluetooth Devices Folder that supports OBEX File Transfer, then it begins to search for
Bluetooth devices nearby.
4. Select the Bluetooth device you wish to browse. If the desired device is not listed, tap Find.
5. Your device begins to establish a file sharing connection.

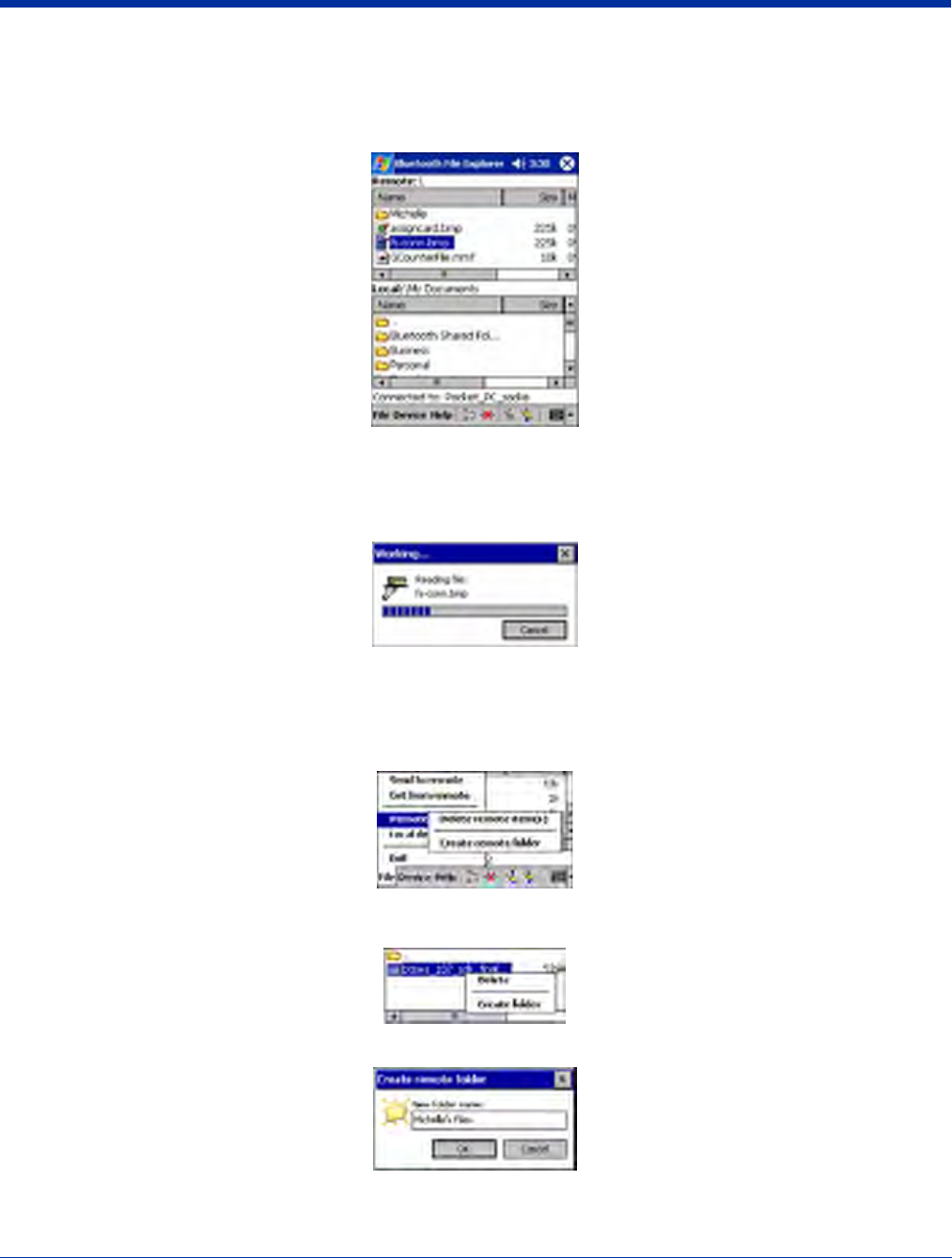

6. After the devices successfully connect, the Bluetooth File Explorer appears. Half of the screen shows contents of the remote
device, while the other half shows contents of your device (the local device). The very bottom of the screen reports the
connection status.
10 - 16 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Send/Receive File(s) or Folder(s)
• Single-tap items to select them for transfer.
• Double-tap on a folders to open it and see its contents.
1. Select the file(s) or folder(s) that you wish to transfer. You can select items from only one device per transfer session.
2. There are two different ways to initiate the transfer:
• Tap File > Send to remote or Get from remote, as applicable. The inappropriate option should be gray.
• Tap on the Send to remote icon or Get from remote icon, as applicable. The inappropriate icon should be gray.
3. A screen reports the status of the transfer.
4. After the transfer, a copy of each selected item should appear in the other device.
Create a Folder
1. Tap on the File menu. Select Remote device or Local device, wherever you want to create a folder, then tap Create
remote folder or Create local folder, as applicable.
2. You can also tap and hold your stylus on an item in either the remote or local device that you wish to put in a new folder. In
the pop-up menu, select Create folder.
3. In the next screen, enter a name for your new folder. Tap OK.
4. The new folder should be listed under the appropriate device.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 17

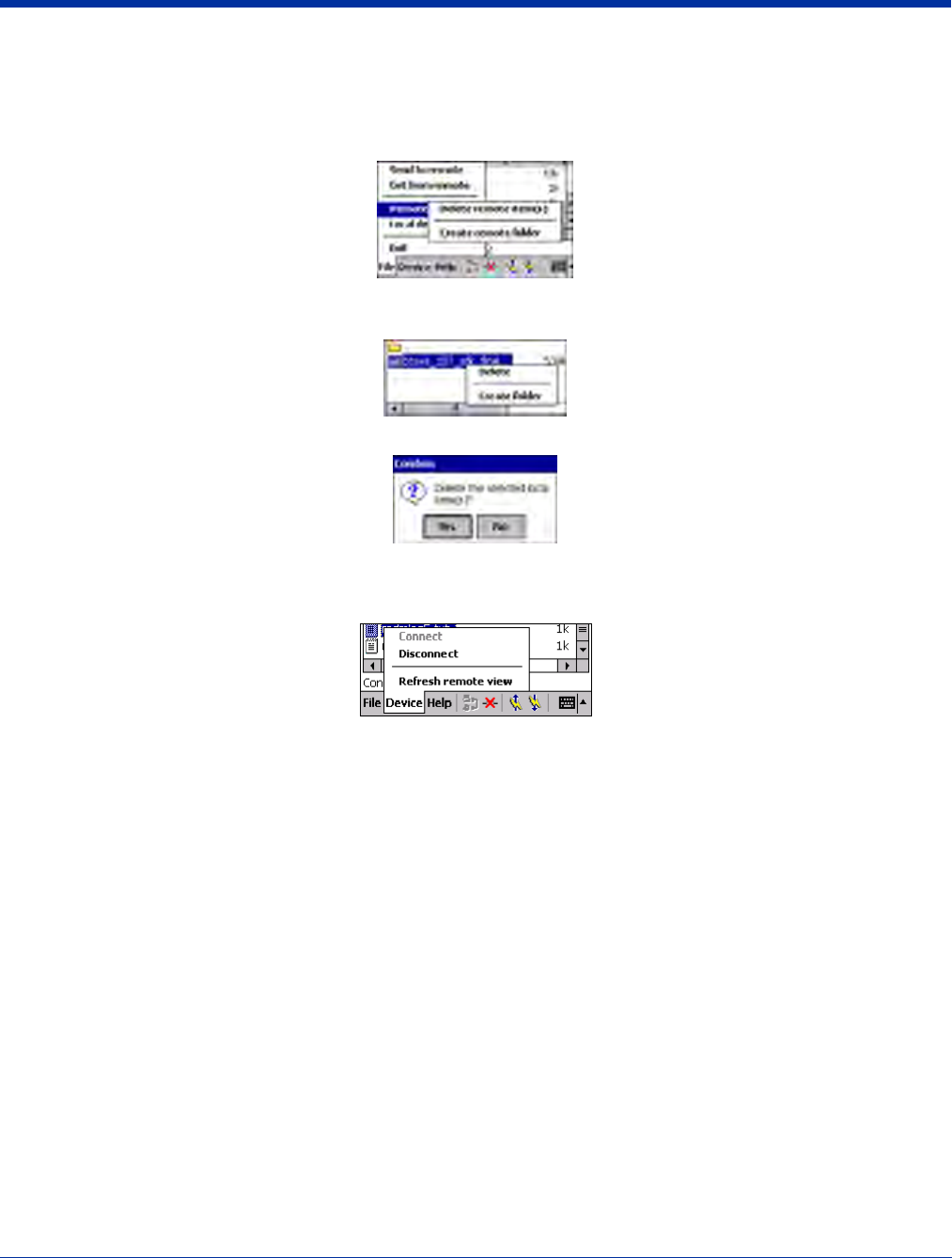

Delete File(s) or Folder(s)
1. Select the items you wish to delete. You can only delete items from one device at a time.
2. Tap on the File menu. Select Remote device or Local device, wherever the items are located, then tap Delete remote
item(s) or Delete local item(s), as applicable.
3. Tap and hold your stylus an item in either the remote or local device that you wish to put in a new folder. In the pop-up
menu, select Delete folder.
4. In the Confirm screen, tap Yes.
Refresh Remote View
1. Tap on the Device menu. Select Refresh remote view.
2. Your local device begins to read the contents of the remote device.
3. After a few seconds, the contents view of the remote device is refreshed.
Connect/Disconnect
To connect to the remote device, do the following:
1. Make sure the remote device has file sharing enabled.
2. Start the connection process by either of two methods:
• Tap Device > Connect.
• Tap the Connect icon.
3. On the next screen, select the device you wish to connect to and tap Select. Your device attempts to connect to the
selected device.
To disconnect from the remote device, do the following:
1. Start the disconnection process by either of two methods:
• Tap Device > Disconnect.
• Tap the Connect icon.
2. Your device disconnects from the remote device. Afterwards, no contents are listed for the remote device.
10 - 18 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

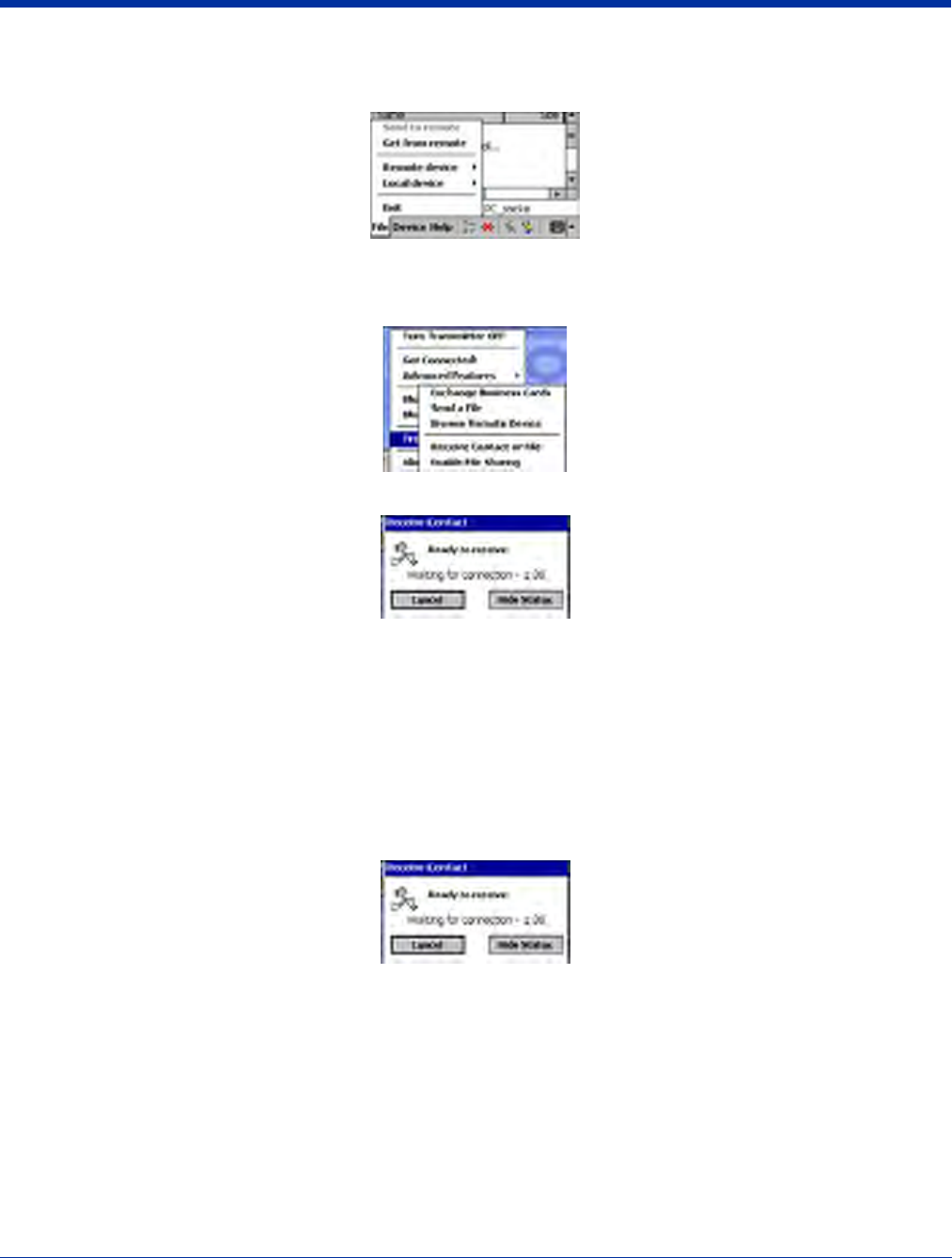

Exit Bluetooth File Explorer
To exit the Bluetooth File Explorer, tap File > Exit.
Receive Contact or File
1. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth > Receive Contact or File.
2. The Receive Contact or File status screen appears. Your device waits two minutes for the contact or file.
3. After successfully connecting to the remote device, the screen reports Connected then disappear. The new contact or file
should now be on your device.
4. If two minutes passes before you receive the item, tap Wait Again.
5. After you receive the file or contact, the “Receive Contact or File” feature is automatically disabled.
Enable File Sharing
1. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth > Enable File Sharing.
2. The Enable File Sharing status screen appears. Your device waits two minutes for the remote device to connect.
3. After successfully connecting to the remote device, the screen reports that you are connected.
4. If two minutes passes before you connect, tap Wait Again.
5. File sharing is enabled until you end it by tapping Cancel.
Using the Dialer
This section explains how to assign a dialing prefix and use the Dialer to dial a number directly from your Contacts list. The Dialer
makes it quick and easy to perform dial-up networking.
Note: The Dialer has been verified to work with Nokia and Ericcson phones and is known not to work with the Motorola 270c,
NTT Docomo Paldio 633S or Sony au C413S phone. Results may vary with other phones that are not listed as being
supported by the Bluetooth system.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 19
Assign a Dialing Prefix

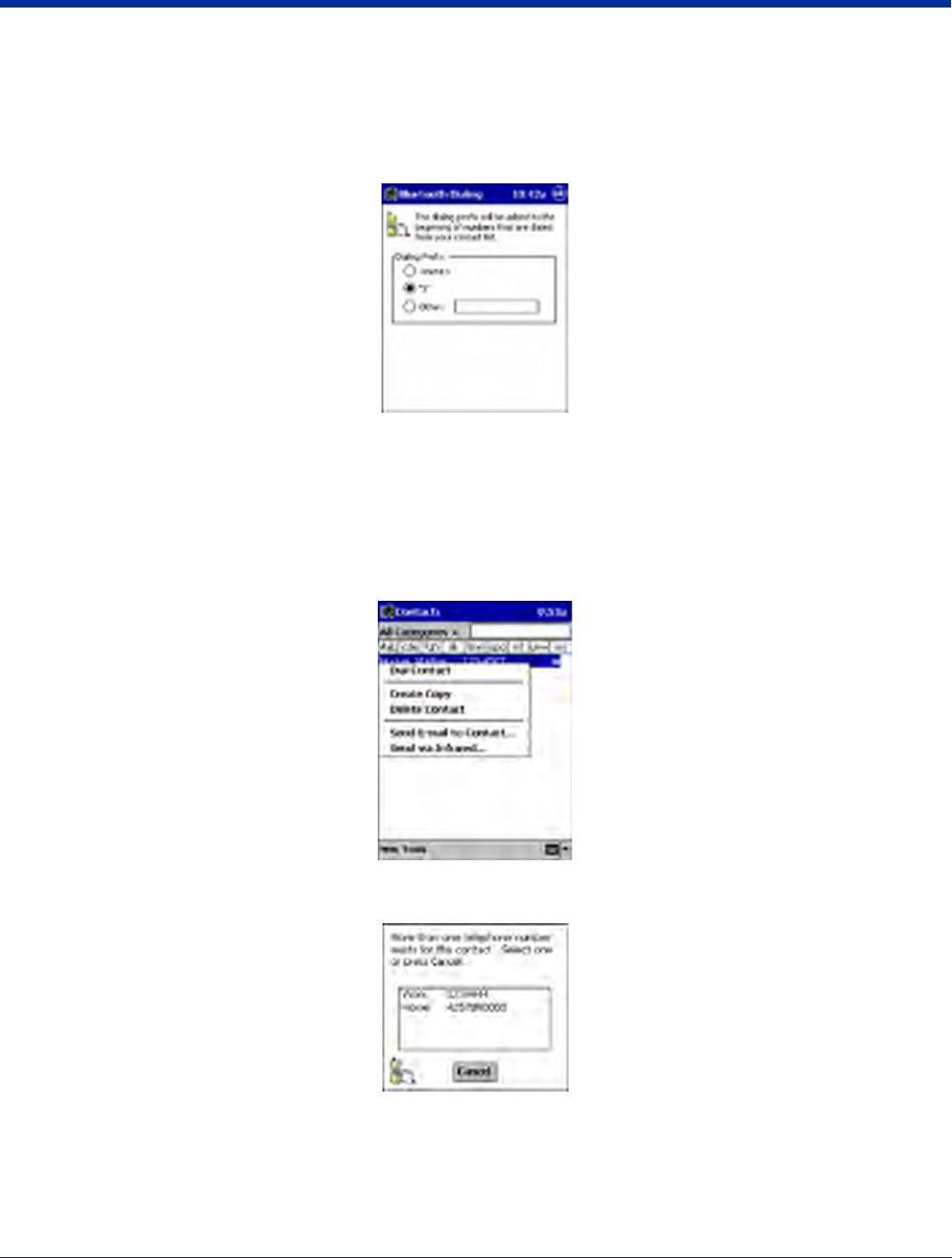

If you have not already assigned a dialing prefix during the install process, you can do so by following these steps:
1. Tap Start > Settings > System tab > Dialer.
2. Select the appropriate Dialing Prefix, then tap OK.
Using the Dialer
1. To use the dialer, the device must already be connected to the Bluetooth phone. You can use the Get Connected! Wizard to
do this. Also, the Bluetooth phone must be selected as your favorite.
2. Tap Start > Contacts.
3. Tap and hold your stylus on the contact you wish to dial to. In the pop-up menu, select Dial Contact. Alternatively, you can
tap on Tools and select Dial Contact.
4. If you have multiple phone numbers for a contact, a screen appears listing them, including any dialing prefix you may have
assigned. Select the phone number you wish to dial.
10 - 20 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
5. Your device connects to your phone and begins dialing.
The Dialer can dial a phone number containing any of the following non-numeric characters:
*#+./!@-\space A B C D T P W
The following string can also be included in a phone number: (',')
The Dialer cannot dial a phone number containing non-numeric characters other than those listed above. HHP recommends that
you follow the standard Microsoft Outlook format for phone numbers.
Get Connected Wizard
The Get Connected! Wizard guides you through a one-time setup process that prepares the device and phone for Bluetooth
connections. The wizard varies depending on what phone you want to connect to.
Ericcson, Nokia 6210, NTT DoCoMo, Sony Phones
1. Tap on the Bluetooth task tray icon. In the pop-up menu, select Get Connected!
2. Follow the Bluetooth “Get Connected!” Wizard. In the second screen, use the drop-down list to select your Bluetooth phone.
The wizard provides tailored instructions based on your selection.
3. Follow the next screen(s) to prepare your specific phone for Bluetooth connections. You may need to do 1, 2 or all of the
following steps:
(a) Naming your Bluetooth phone
(b) Setting your Bluetooth phone in Discoverable mode
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 21
(c) Preparing your Bluetooth passkey.
4. When the search is complete, a list of the discovered Bluetooth phones appears. Choose the phone you wish to connect to,
and tap Select. A service discovery phase begins, about 5-10 seconds.
5. As prompted in the next screen, prepare your phone for bonding. For instructions on setting your phone to “Bondable” or
“Pairable” mode, refer to your phone manual. Have your passkey ready, then tap Next>.
6. In the next screen, enter the passkey. Tap Reply.
7. The mobile phone may then either automatically accept the passkey or ask you to enter one. If prompted for a passkey, use
the same one you entered on the mobile computer.
Note: Ericsson T68/T68i only: When the phone asks you if you want to bond, select 2: Add to paired devices. Do not tap
ACCEPT.
8. Tap Finish. After successfully connecting, the phone appears in the Bluetooth Devices folder. On the Today screen, the
Bluetooth icon blinks. You do not need to run the Get Connected! Wizard again unless you plan to switch between different
phones.
Note: You may also switch between different phones by assigning a new “favorite phone” in the Bluetooth Devices folder.
Motorola Timeport 270C, Nokia 3650/6310/7650/8910/8910i
1. Tap on the Bluetooth task tray icon. In the pop-up menu, select Get Connected!
2. Follow the Bluetooth “Get Connected!” Wizard. In the second screen, use the drop-down list to select your Bluetooth phone.
The wizard provides tailored instructions for your phone.
Note: The screens below are for the Nokia 7650.
10 - 22 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

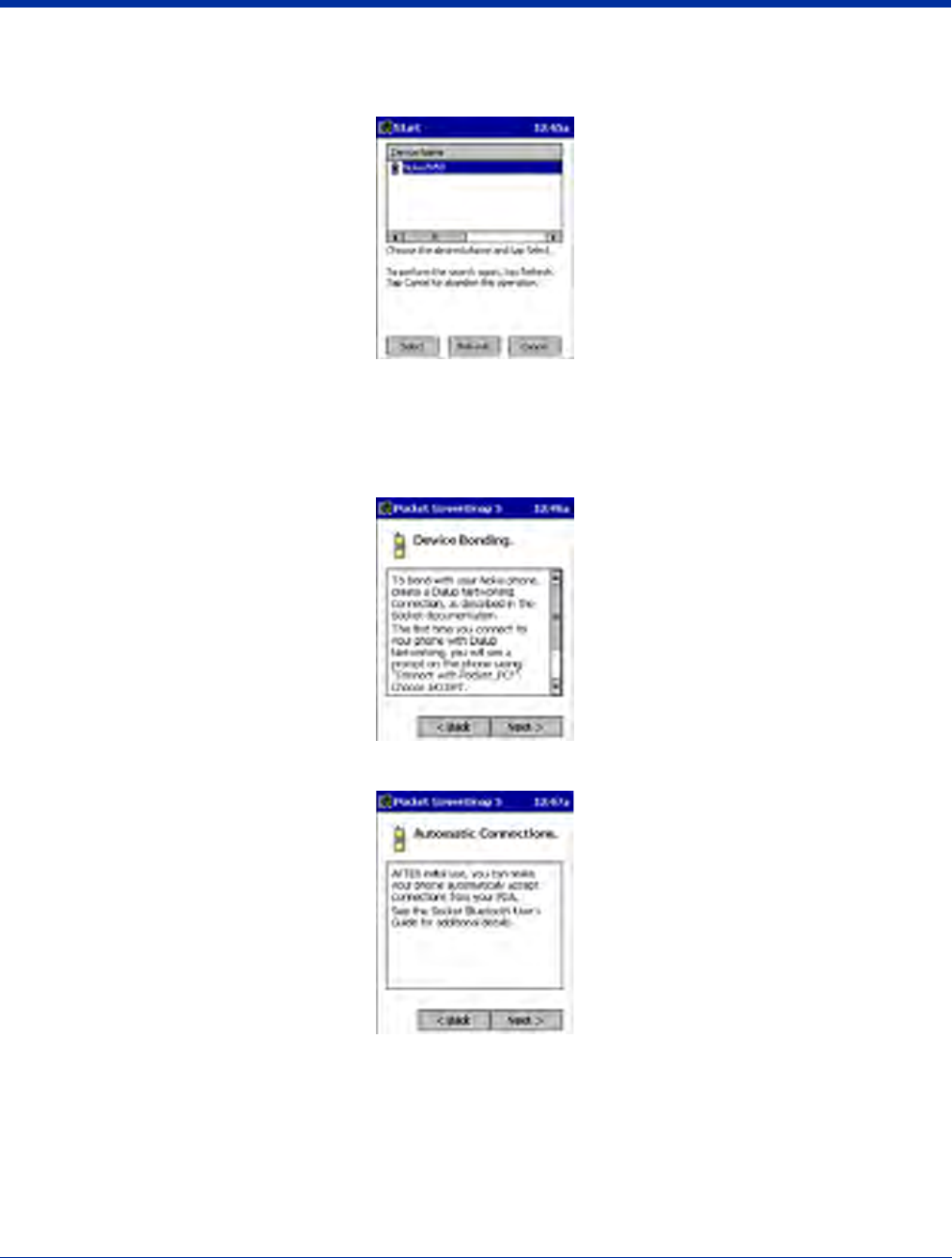

3. As directed on the next two screens, assign the phone a unique name, set the phone to Discoverable mode, and tap Next.
4. The device searches for the phone. When the search is over, a list of the discovered Bluetooth phones appears.
5. Choose the phone you want to connect to, and tap Select. A service discovery phase begins, about 5-10 seconds.
6. The next two screens describe procedures you complete outside of the wizard. Read through each screen but do not
complete the described procedures until you exit the wizard.
Bonding with your phone - This must be completed to establish the Bluetooth connection and involves dial-up
networking.
Automatic Connections - This procedure is optional but makes future Bluetooth connections more convenient.
7. Continue to the last screen of the wizard and tap Finish. Now proceed to STEP 6 to complete the bonding process and, if
desired, set up automatic connections.
Dial Up Connection
Complete the following steps to create a new Bluetooth internet connection via an ISP. Before setting up dial-up networking,
prepare yourself with dial-up information and other necessary settings from your office network or isp. Also, refer to Microsoft’s
connection manager for additional information.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 10 - 23

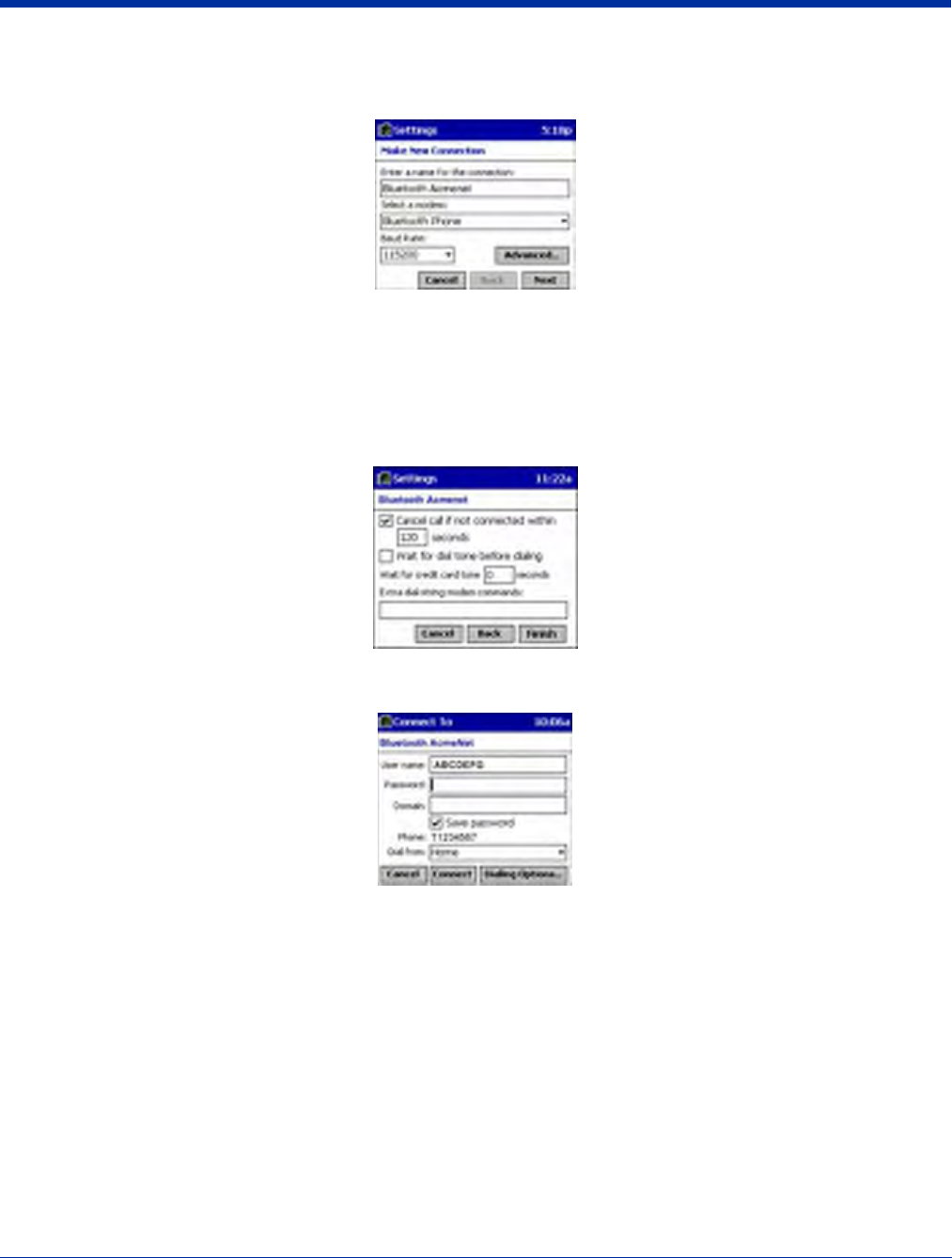

1. Tap Start > Settings > Connections tab > Connections.
2. In the top field, select Internet Settings and tap Modify. Then, tap New.
3. Name=A name that you will remember for future connections.
Modem=Bluetooth Phone.
Baud Rate=115200.
4. Tap Next.
5. In the Phone number field, enter the dial-up number. Tap Next.
6. Uncheck Wait for dial tone before dialing. Tap Finish.
7. Now you are ready to start the connection. In the Connections screen, under Internet Settings, tap Connect. In Network Log
On, verify the dialing settings. Tap OK.
Automatic Connections for Motorola Timeport 270C:
• On the phone, press MENU.
• Scroll to Settings, then press SELECT.
• Scroll to Connection, then press ON.
• On Bluetooth Link, press SELECT.
• Scroll to Devices, then press SELECT.
• Choose your mobile computer, then press EDIT.
• Scroll to Access:Ask, then press CHANGE.
• Scroll to Automatic, then press SELECT. Press DONE.
Automatic Connections for Nokia 3650/7650:
• On the phone, press MENU.
• Scroll to Connectivity, then press OPTIONS.
• The Open option should be highlighted. Press SELECT.
• The Bluetooth option should be highlighted. Press OPTIONS.
• The Open option should be highlighted. Press SELECT.
10 - 24 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
• Scroll to the right tab to access the Paired devices list. Highlight your mobile computer, then press OPTIONS.
• Scroll to Set as authorized, then press SELECT.
• In the confirmation screen, press YES.
Automatic Connections for Nokia 6310/8910/8910i:
• On the phone, press MENU.
• Scroll to 10 Bluetooth, then press SELECT.
• Scroll to 4 View Paired Devices, then press SELECT.
• Highlight the Dolphin terminal, then press OPTIONS.
• Scroll to 3 Request Connection Authorization, then press NO.
To use a different Bluetooth phone for dial-up networking, you can use the same connection setup, but you must make the new
phone your favorite. Just run the Get Connected! Wizard again, select the new phone, and make it your new Favorite when
prompted.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 1
11
Wireless WAN (WWAN) Communications with GSM/GPRS
Overview
Dolphin terminals can be configured with a Siemens® GSM/GPRS quad-band radio module for Wireless WAN connectivity.
GSM GSM stands for Global System for Mobile communications. It is an open, non-proprietary wireless
wide area networking system that is constantly evolving and growing. One of its great strengths is
international roaming capability, which provides standardized dialing in more than 170 countries.
GPRS GPRS stands for General Packet Radio Service. It is a non-voice value added service that allows
packet switched data and information to be instantly sent and received across a network.
Enabling the GSM/GPRS Radio Driver
When the mobile computer is first initialized, the radio driver for the GSM module is installed. Before using the radio, make sure
that the GSM radio is enabled. For more information, see Radio Manager on page 4-5.
GSM Radios
Dolphin 7900 terminals can support an MC-45, MC-46, or MC-75 radio.
MC-45 Radio Supports 900/1800/1900 MHz frequencies for use in Europe, Middle East, Asia and Australia.
Dolphin terminals with an MC-45 radio have two-way voice and data communication.
MC-46 Radio Supports 850/1800/1900 MHz frequencies for use in the U.S., Canada, and Latin America.
Dolphin terminals with an MC-46 radio have two-way data communication only.
MC-75 Radio Supports 850/900/1800/1900 MHz frequencies for use in the U.S., Canada, Latin America, Europe,
Middle East, Asia, and Australia.
Dolphin terminals with an MC-75 radio have two-way voice and data communication .

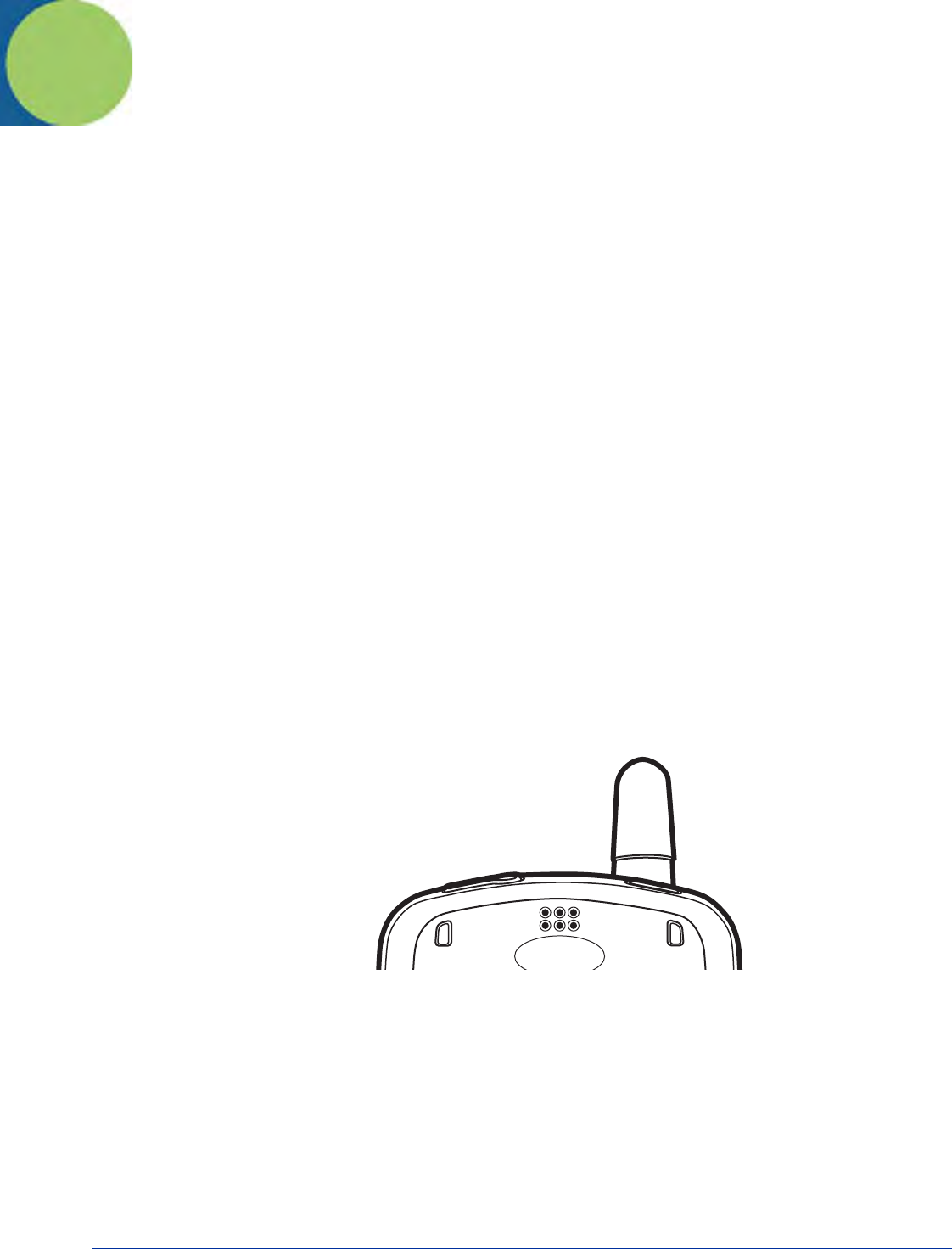

Antenna
Dolphin 7900 terminals configured with an MC-45 or MC-46, or MC-75 radio feature an external antenna that is optimized for
power output and receiver sensitivity.
Requirements
Using GMS/GPRS on a Dolphin terminal requires a:
• Network subscription to a GSM/GPRS network (you need to know what service providers are in your geographic area), and
• SIM card installed on the terminal (see SIM Card on page 11-2).
Capabilities
Dolphin computers with integrated GSM/GPRS MC-45 radios are optimized for the following two-way voice and data
communications:
• GSM voice data ("dial-up")
• Short Message Service (SMS) text messages
• GPRS Class 10 data transmissions average - 40-60 Kbps (The speed is dependent on the wireless network carrier.)
11 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
SIM Card
SIM stands for Subscriber Information Module. A SIM card stores the subscriber's personal information, GSM/GPRS radio
settings, security key, contacts, etc. SIM cards can be installed and removed from compatible mobile devices, enabling you to
switch devices without losing your personal information. SIM cards are obtained and activated by the network provider that
supports your GSM/GPRS network.
SIM Card Requirements
Before installing the SIM card:
• The SIM card must be activated by the service provider.
• The terminal must be powered down.
Note: If no SIM card is installed, you can still make emergency phone calls such as 9-1-1, for example.
Installing a SIM Card
For detailed instructions, see Opening the Access Door on page 3-6. If the SIM card is not installed properly, the Dialler screen
will indicate that no SIM card is installed.
Audio Modes
The Dolphin 7900 contains both a speaker and a microphone that you can use to send and receive audio signals over the GSM
network. For details about the microphone and speaker, see Front Panel Features on page 3-2.
There are three audio modes: Handset, Headset, and Speakerphone
Handset
Handset mode is when you use the use the front panel of the terminal just as you would a cell phone, holding the
speaker to your ear to receive audio information and the microphone to your mouth to send audio information. This
is the default audio mode.
Headset
Headset mode is when you plug a headset into the audio jack and speak into the microphone. You must use a
2.5mm plug; no other audio plug will fit. For details see, see Audio Jack on page 3-2.
Speakerphone
The microphone on the front panel (Microphone, page 3-2) can be used as a speakerphone. To switch the front
panel to speakerphone, open the Dialler (Start > Programs > uPhone > Dialler) and tap Settings >
Speakerphone. The audio levels adjust appropriately for speakerphone use.
Keyboard Combinations for Calls
Each keyboard option contains a Blue modifier key combination to send and end a call.
Keyboard To Send, Press… To End (reject), Press…
25-key keyboard Blue + Left Arrow Blue + Right Arrow
36-key keyboard Blue + Left Arrow Blue + Right Arrow
For more information about Dolphin 7900 keyboards, see Using the Keyboards on page 6-1.
Using uPhone
The uPhone Application Suite contains three programs that function together to provide a complete voice, data, and text
messaging solution for a mobile device fitted with a radio modem:
Dialler emulates a mobile phone and is used to make and receive telephone calls.
Call Log displays a list of the most recent calls.
SMS Manager is a text messaging program.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 3
Accessing uPhone
Tap Start > Programs > uPhone. Tap one of the icons to launch the program.
Navigation Bar Icons
When the Dialler or SMS Manager applications are not open, the icons in the Navigation bar at the top of the screen indicates
the status of the phone and messaging system. Each icon indicates s specific action and, when tapped, displays a bubble window
that lets you know what is happening.

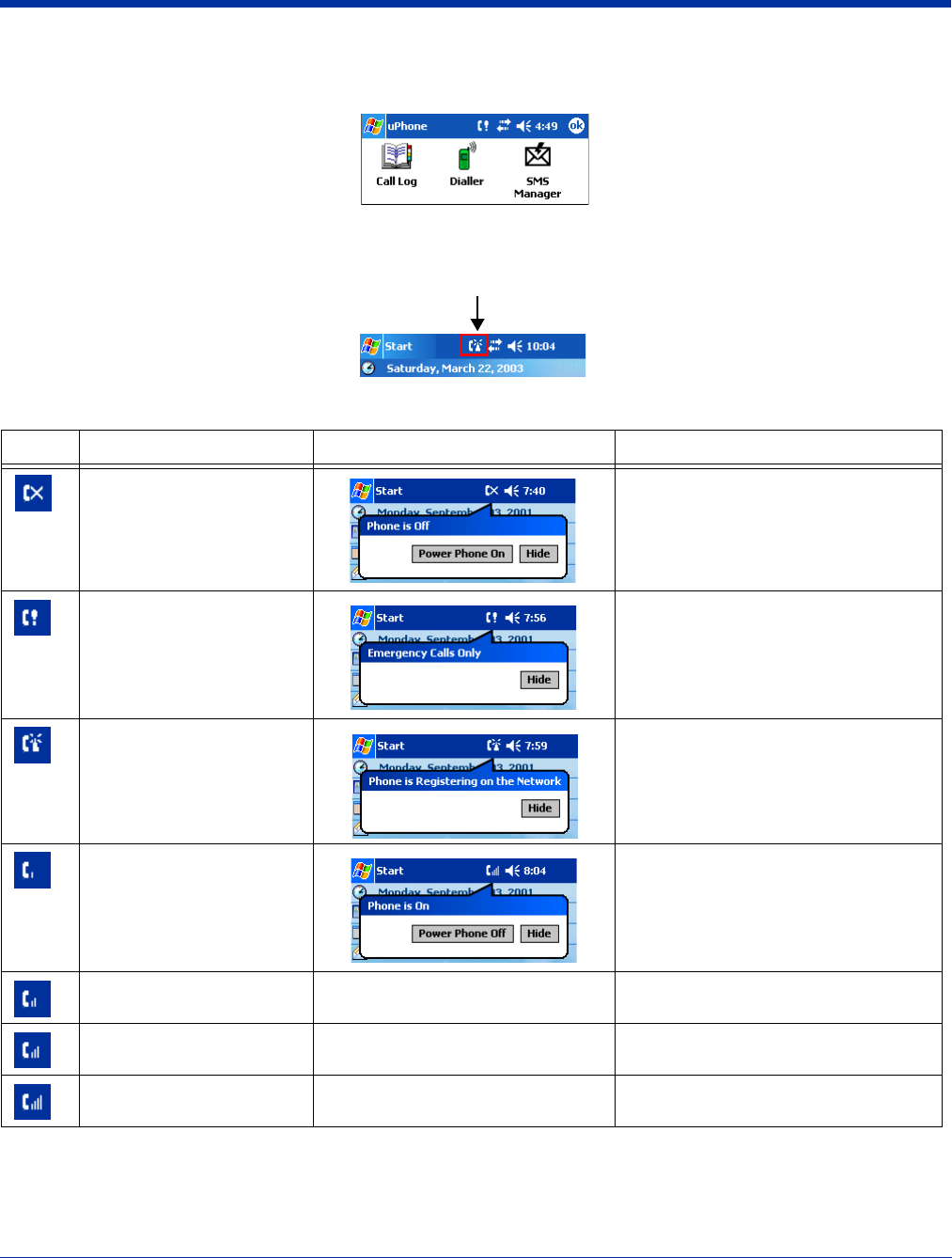

Icons and Bubble Messages
Icon Description Tap this icon to display: Bubble Options
The phone is off.
Tap Power Phone On to turn the phone
on and close the bubble.
Tap Hide to leave the phone off and
close the bubble.
The phone can only make
emergency calls. This usu-
ally means there is no SIM
card installed or PIN num-
ber established.
Tap Hide to dismiss the bubble.
This icon will appear in the Navigation bar
until a SIM card is installed or a PIN is
entered.
The phone is registering on
the network. Tap Hide to dismiss the bubble.
This is a temporary state. This icon
appears only until the phone is registered
on the network.
The phone is on and regis-
tered.
To the right of the phone is a
bar that indicates signal
strength.
Tap Hide to dismiss the bubble.
Tap Power Phone Off to turn off the
phone. The icon in the Navigation bar
changes to indicate the phone is now off.
Medium signal strength.
Good signal strength.
Full signal strength.
11 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Using the Dialler
The Dialler is the is the program that manages your GSM/GPRS cell phone calls.

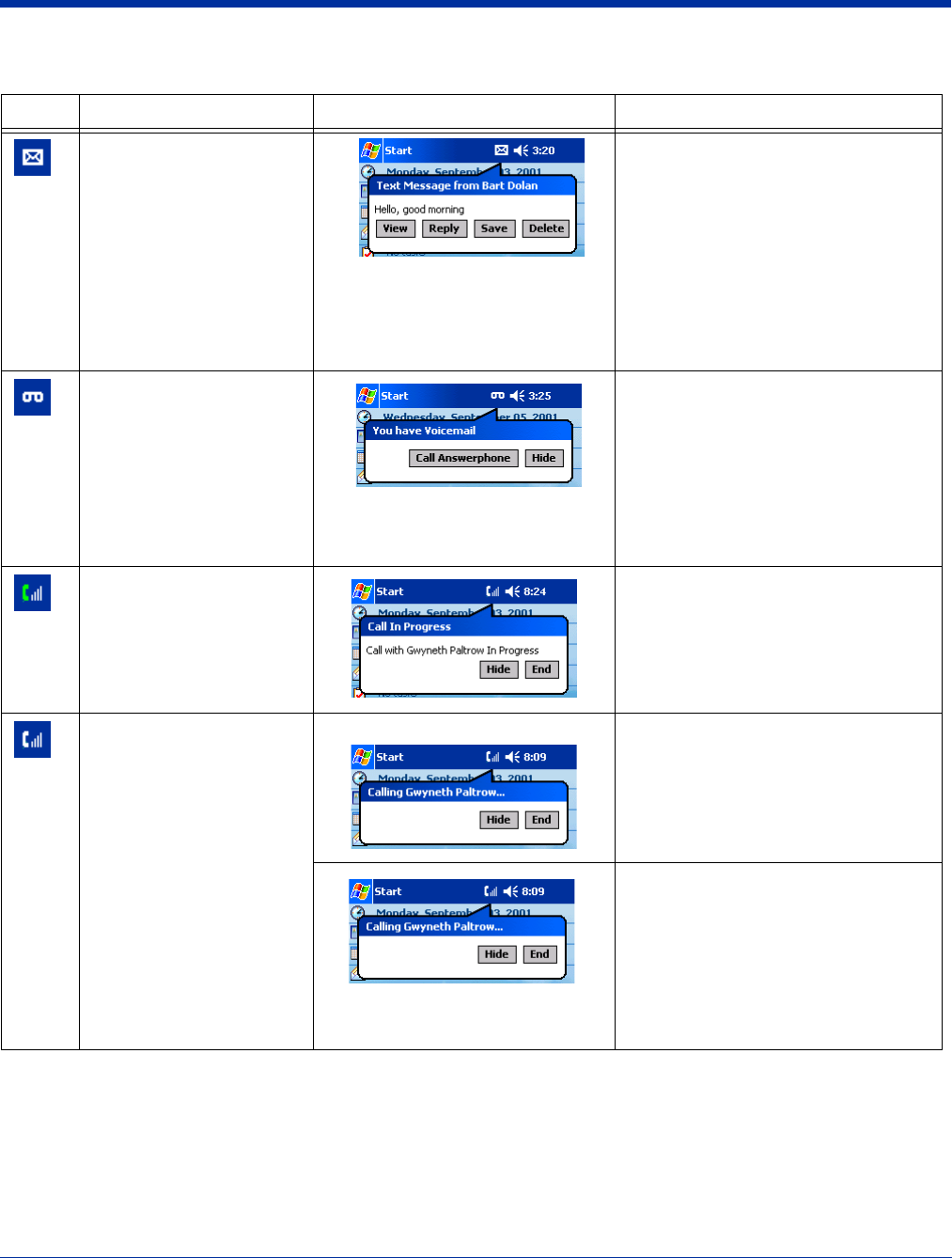

Incoming SMS message
available.
This bubble appears automatically
when a new SMS message is
received. It contains the sender’s
information and the first line of the
text message.
Tap View to display the full message in
SMS Manager.
Tap Reply to switch to the SMS Manager
Compose screen. The 'To:' field is auto-
filled with the sender’s address.
Tap Save to put the message in the SMS
Manager Inbox.
Tap Delete to delete the message.
Tapping each button closes the bubble.
A new voicemail message is
available.
This bubble appears automatically
when a voicemail notification is
received.
Tap Call Answerphone to dial the
Answerphone service and retrieve
voicemail messages.
Tap Hide to close the bubble.
There is a call in progress to
the name or number shown
in the bubble. Tap Hide to close the bubble.
Tap End to end the call.
This icon appears when
there is a call coming in or
going out.
A different bubble displays
for each circumstance.
If the incoming call is a con-
ference call, a different bub-
ble displays.
For a call going out
Tap Hide to close the bubble.
Tap End to end the call.
This bubble appears automatically
when a call comes in and while the
ringtone sounds.
If the caller is in the Phonebook, the
name displays. If not in the Phonebook,
the caller’s number displays; if the
number can’t be read, “no number”
displays.
Tap Answer to answer the call; this
places any current call on hold.
Tap Reject to reject the call.
Icons and Bubble Messages
Icon Description Tap this icon to display: Bubble Options
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 5
To launch the Dialler, tap Start > Programs > uPhone > Dialler. The program launches and the uPhone Dialler screen opens:
Three information lines:
Network–name of service provider.
Number/Name–dialed, incoming, and
outgoing calls.
Status–status of the phone.
Tap to end a call
Phone keypad - tap the numbers to dial
Signal Strength -
Four bars is optimal.
Tap to send a call or
accept an incoming call
Dialler screen
Tap to clear the Dialler screen
Tap * and # buttons for
interactive voice systems;
i.e., touchtones.
Making a Call
Entering a Phone Number
You can:
Enter the numbers manually using the phone keypad on the Dialler screen, the SIP, or the Dolphin keyboard.
As you enter each number, the digits appears on the Dialler screen in the Name/Number line. If a contact matching the entered
number is found in the Phonebook, the name of the contact appears in the Name/Number line as you type; tapping on the name
enters the rest of the number automatically.
Use the Phonebook to
Select an existing contact.
Tap Tools > Phonebook, select a name or number in the list, and tap OK (you can also tap and hold on the entry). The number
is automatically entered in the Dialler and appears on the screen.
Use speed dial.
Tap and hold on the list to see a popup menu of speed dial numbers.
Use the Call Log
When the phone is in Idle status, you can tap the Send button on the screen , press the ENTER key, or tap Tools > Call
Log to see a list of the last 20 calls made or received. Tap and hold on an entry in the list and select Dial.
Pressing the Send button or ENTER key performs this function only when the phone is in an Idle Status.
Sending a Call
You can:
Tap the Send button .
Press the ENTER key on the keyboard.
Press the appropriate key combination on the keyboard.
11 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
When the call is connected, the three information lines display the following:
Network Operator Displays the name of the service provider you are using.
Name/Number Displays the name and/or number you called. If the number is from your Phonebook, that entry displays.
StatusThe status of the call.
Idle - means no calls are incoming or outgoing.
In Call - means a phone call is in progress.
Incoming Call - means that a a call is coming in.
0:00 The numbers in the lower, right corner display the minutes:seconds that have elapsed.
Receiving a Call
When the Dialler screen is open and an incoming call is detected, text is displayed on the Dialler screen. If the Dialler is not visible
at the time of the incoming call, a Navigation Bar notification appears.
When a call is coming in, the ringtone sounds and the three information lines on the Dialler screen display the following:
Network Operator Displays the name of the service provider you are using.
Name/Number Displays the name and/or number calling in. If the number is in your Phonebook, that entry displays.
StatusIncoming Call.
Answering a Call
You can:
Tap the Send button .
Press the ENTER key on the keyboard.
Press the appropriate key combination on the keyboard.
Rejecting a Call
You can:
Tap the End button .
Press the appropriate key combination on the keyboard.
Call Waiting
If call waiting is enabled, a second incoming call can be received while a first call is in progress. The second incoming call uses
a different ringtone but displays the same incoming call notification.
If a second call is coming in, answering it automatically places the first call on hold. You can also reject the second call by tapping
the End button.
Ending a Call
To end or reject a call, you can:
Tap the End button .
Press the appropriate key combination on the keyboard.
Call WaitingIf two calls are in progress, the above options end the active call and place the other on hold.
To activate the call on hold, tap Send or press ENTER or the key combination to send calls.
To end the call on hold, tap End or press the key combination to end calls on the keyboard.
Conference CallIf a conference call is in progress, tap End or the key combination to end calls.
Call Waiting
The uPhone Dialler supports call waiting functionality. This means that you can receive a second call while on a first call.
Placing the Current Call on Hold
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 7
When a second call is coming in, to place the current call on hold
Tap the Send button .
Press the ENTER key on the keyboard.
Press the key combination for sending calls on the keyboard.
The Status line of the first call changes to Call on Hold. Tapping Send again restores the call on hold.
Making a Second CallTo make a second call, place the current call on hold, then dial the second number. When there are two
calls (one active and one held) the status line displays In Call, Call on Hold.
Switching Between Calls
To switch between the active and held call, tap Send, press ENTER, or the appropriate key combination to send calls. The
display is updated to show the active call details, and that the other call is on hold.
Making Conference Calls
In addition to supporting call waiting functionality, the uPhone Dialler enables you to join two calls into a conference call. When
two calls are in progress, tap the phone icon on the Navigation bar. This opens a bubble dialog that enables you to conference
both calls into one.
Button Tapping this button…
Hold Active and Accept Held Swaps between the currently held and active calls. Tapping Send or pressing ENTER per-
forms the same function without opening this bubble dialog.
End Active and Accept Held Drops the current active call and connects the held call.
Join Held in Conference Call Connects the held call and the currently active call in a three-way conference call.
More than three parties can join a conference call via networking; each of the other parties
can add another call to the conference, and so on.
End Held Drops the held call, and continues with the currently active call.
Hide Closes the bubble.
Touchtones
To transmit touchtones for interactive voice systems while in a call, you can
Tap the 0-9, *, and # buttons on the uPhone Dialler screen.
Press 0-9 keys on the Dolphin keyboard; use the uPhone Dialler screen buttons for * and #.
Dialler Menus
There are three menus in the Dialler application:
Tools - Accesses application tools.
Settings - Opens application settings.
Help - Opens the About screen.
Tools Menu
11 - 8 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

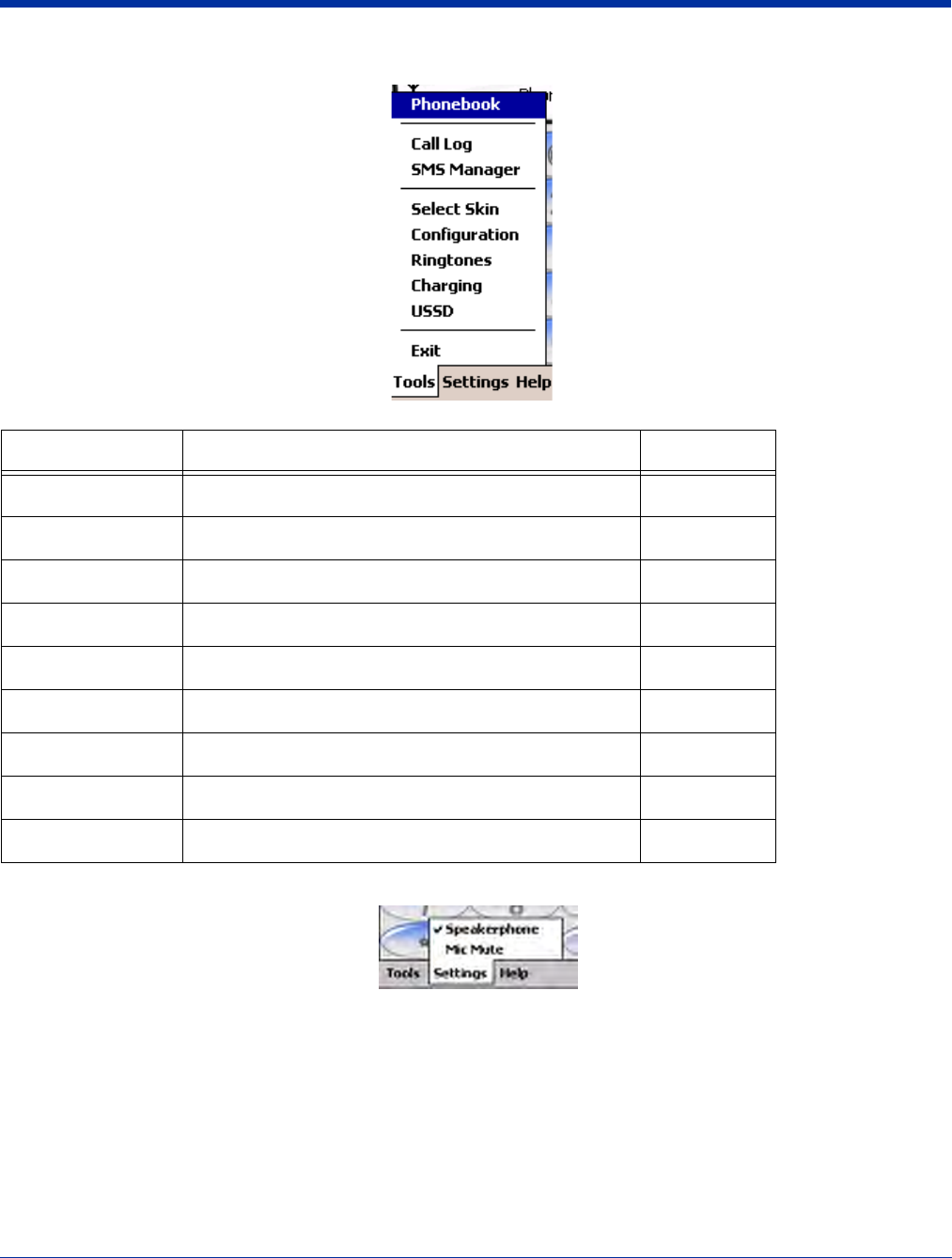

The Tools menu provides the following options:
Menu Item Description See Page
Phonebook Displays the Phonebook 11-8
Call Log Opens the Call Log 11-11
SMS Manager Opens the SMS Manager Inbox 11-16
Select Skin Selects a new skin for the uPhone Dialler application. N/A
Configuration Opens the uPhone Configuration control panel. 11-12
Ringtones Opens the ring tone selection control panel. 11-9
Charging Displays call meter values. 11-10
USSD Sends text messages via USSD as opposed to SMS. 11-10
Exit Exit the uPhone Dialler.
Settings Menu
SpeakerphoneToggles speakerphone mode on and off. When an audio plug (for a headset) is inserted into the audio jack
(2.5mm), Speakerphone is inactive on this menu.
Mic muteToggles microphone mute on and off (the other party cannot hear a private conversation when the microphone is
muted). This mode is active only during a call and automatically cancelled at the end of a call.
A checkmark to the left of the menu item indicates that the mode is active. When the menu item is grayed-out, it is unavailable
and cannot be selected.
Phonebook
The Phonebook contains the contacts from the SIM card and Pocket Contacts. If fixed dialing is set in the SIM, then only those
numbers in the fixed dialing list are shown in the Phonebook, and only these numbers can be called from the Dialler.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 9

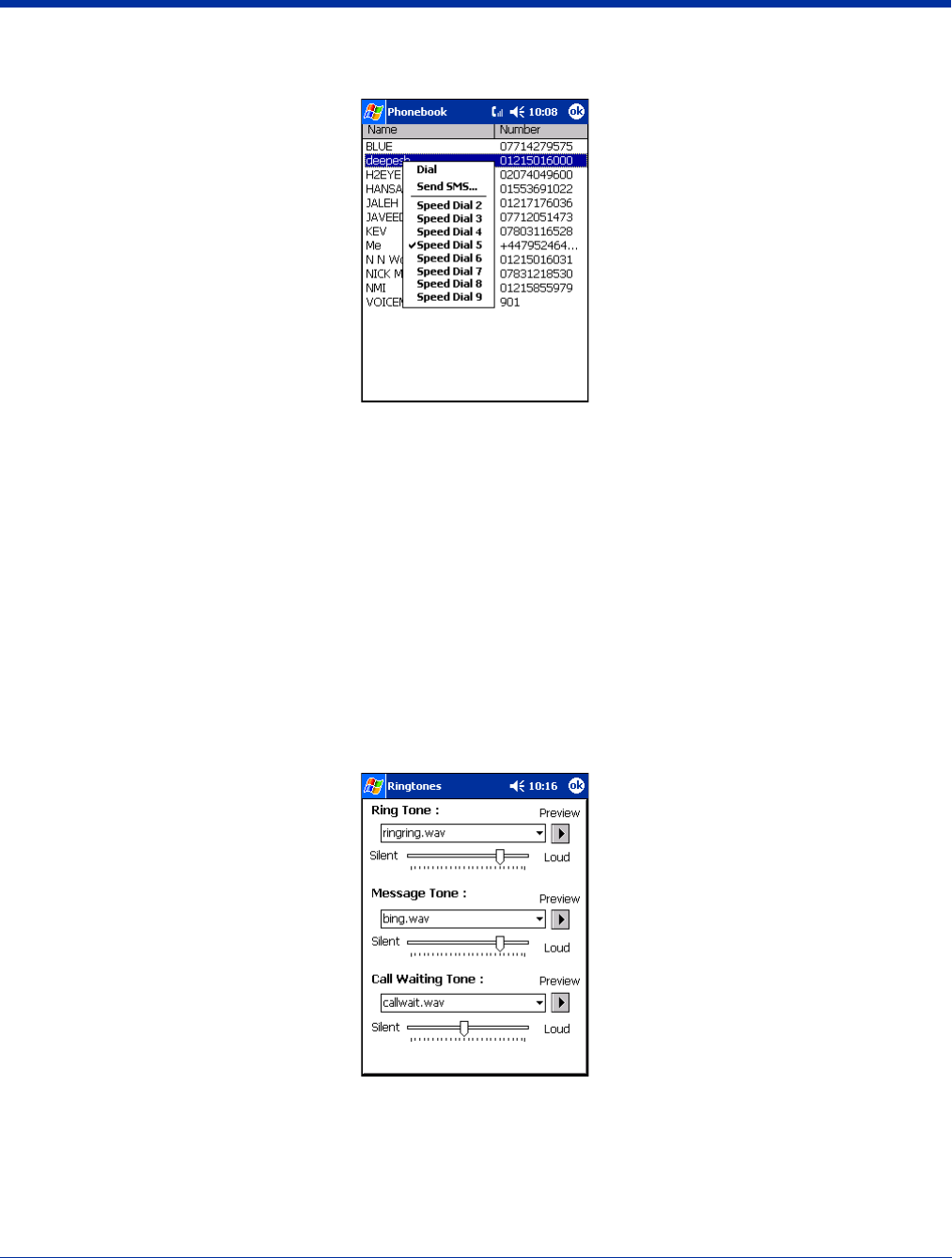

You can access the Phonebook manually by opening the Dialler and going to Tools > Phonebook. When you tap and hold on
an entry, a popup menu displays.
Dial Opens the Dialler with the number entered ready for dialing.
Send SMSOpens the SMS Manager in the Compose screen with the 'To:' field populated with the number.
Speed Dial 2-9These eight slots are used to assign the Dialler Speed Dial keys. To assign a number to a Speed Dial slot, tap
on an entry to assign the number. Tapping and holding the associated button when in Dialler will automatically dial the assigned
contact.
Ringtone Configuration
Different ringtones, with individual volume settings, can be set for the following:
Ring ToneSounds on an incoming call.
Message ToneSounds on an incoming SMS or Voicemail notification.
Call Waiting ToneSounds to indicate an incoming call while you are already on a voice call.
You can access Ringtones two ways:
Tap Start > Settings > Personal tab > Ringtones icon OR
Open the Dialler (tap Start > Programs > uPhone > Dialler) and tap Tools > Ringtones. The Ringtones screen opens
displaying the current settings.
Select the desired ringtone for each type of tone in the drop-down lists. Tapping OK saves any changes. Opening another screen
without tapping OK discards any changes.
WAV Files
You can customize your ringtones with *.wav files installed on your terminal. To appear here, *.wav files must be stored in the
Programs Files > uPhone >Ring Tones folder.
Previewing Tones
11 - 10 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
You can preview each tone by selecting the *.wav file in the drop-down list and tapping the Preview button. Use the slider to set
the volume for each tone.
While the tone is playing, the Preview button changes to a Stop button; tap it to stop the preview.
Charging
Accessed from the Tools menu, the Charging tool displays call meter values from the network service provider. Tap Tools >
Charging and the Charging window opens displaying the current values for the phone.

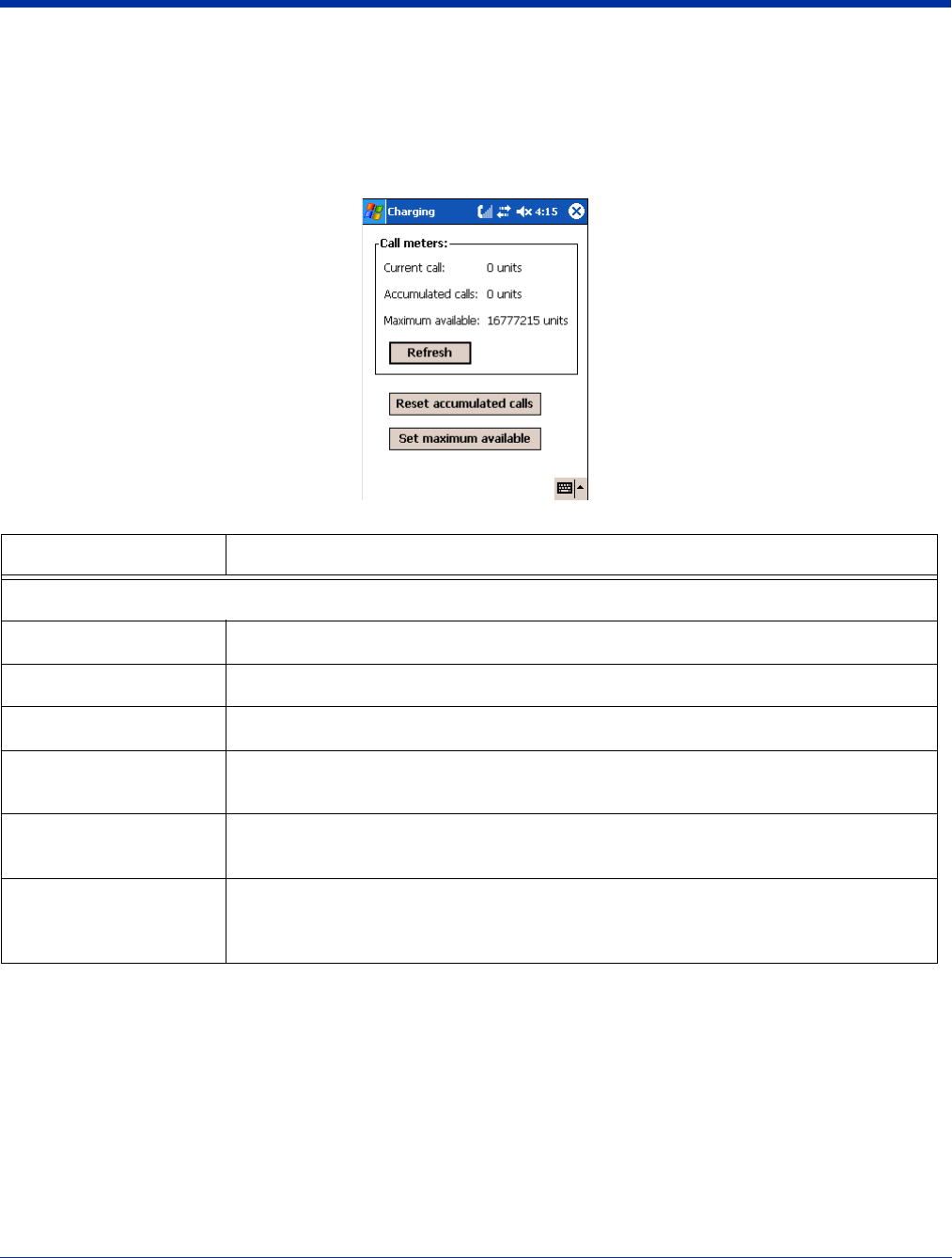

Field Description
Call meters
Current call Displays the number of charge units used on the current call.
Accumulated calls Displays the number of charge units used to date.
Maximum available Displays the maximum number of units available from the subscriber.
Refresh Updates the Current call and Accumulated calls fields with the number of charge units used,
read from the SIM card.
Reset accumulated calls Display a window for the subscriber to enter a PIN number–“PIN2”–from the subscriber.
When the correct PIN is entered, the accumulated call units are reset to 0 on the SIM card.
Set maximum available Display a window for the subscriber to enter a PIN number–“PIN2”–from the subscriber.
When the correct PIN is entered, the maximum available charge units for the user is set on
the SIM card.
USSD
Short for Unstructured Supplementary Service Data, (USSD) is a technology unique to GSM that enables session-based text-
messaging as opposed to SMS, which is store-and-send text-messaging. Turnaround response times for interactive applications
are generally shorter for USSD than SMS. USSD is not currently available on all carrier networks.
USSD communicates with a USSD application portal, a news portal or a chat session with a co-worker.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 11
Tap Tools > USSD.
SendSends the text entered in the Message section and begins the USSD session.
End Ends the USSD session.
MessageEnter text to a USSD portal.
Network messageDisplays the USSD message received from the network, allowing a session-based interaction.
Call Log
The Call Log maintains a list of the last 20 calls made or received in each of the following categories:
Voice Calls In (Default)
Voice Calls Out
Voice Calls Missed
GPRS Data
You can access the Call Log two ways:
Tap Start > Programs > uPhone > Call Log OR
Open the Dialler and tap Tools > Call Log.
The Call Log opens displaying the last few Voice Calls In; the most recent call always appears at the top.
NameThe phone number or the name if the call was from or to a matching entry in the Phonebook.
TimeTime and date the call started. This is the local time and date.
DurationDuration of the call (hours:minutes:seconds). The clock starts when the call connects, not when dialed.
11 - 12 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

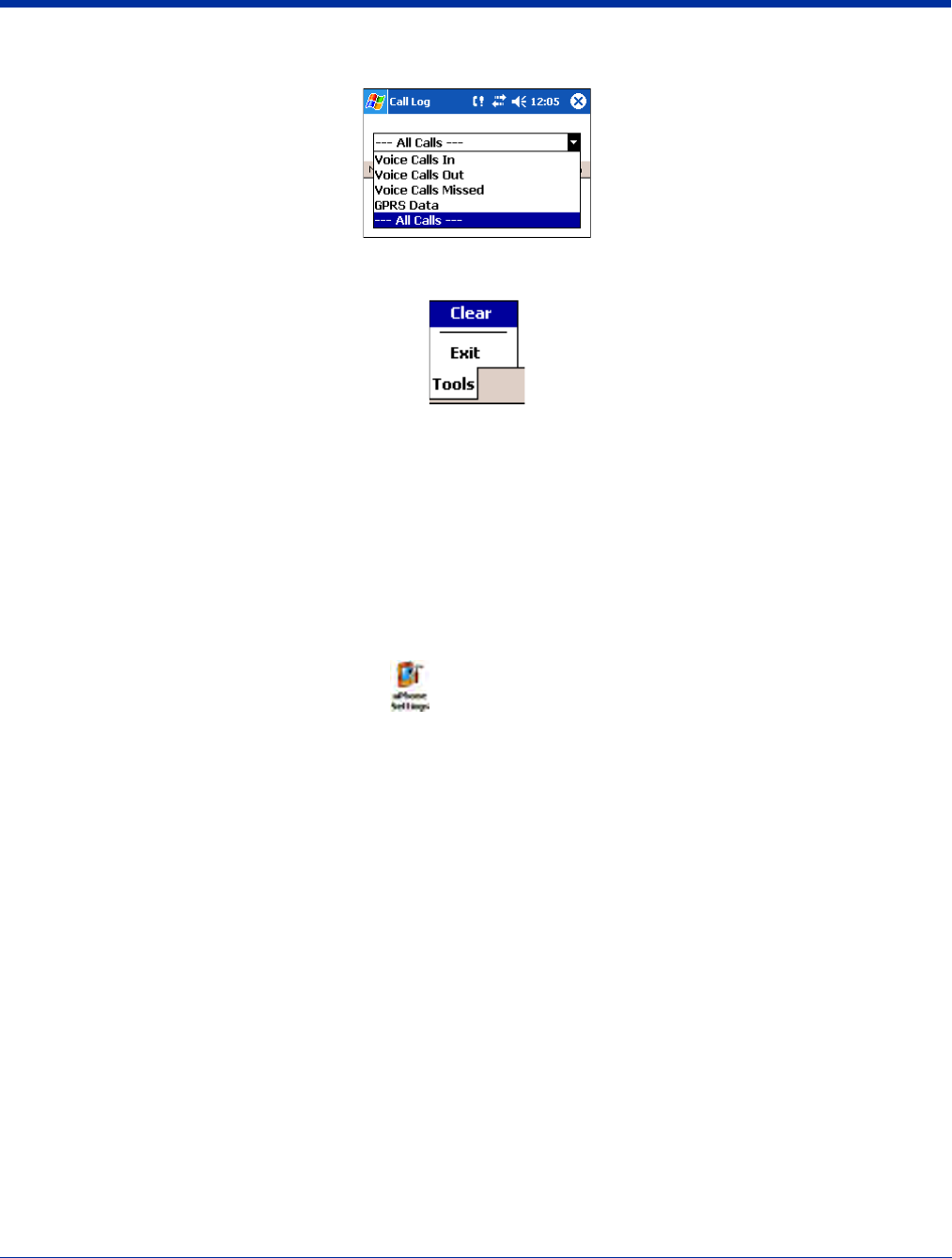

From the drop-down list, select the option you want to view.
To see everything, select All Calls.
Tools Menu
ClearDeletes the entire Call Log.
Exit Closes the Call Log.
uPhone Configuration
uPhone Settings enable you to establish the normal operating parameters for uPhone applications.
Requirements
To open the uPhone configuration tools, the GSM radio must be enabled and an active SIM must be installed. The configuration
tools access the network directly. If you are not connected, settings cannot be configured and you will receive an error notification
when you attempt to open the configuration tools.
Accessing uPhone Configuration
You can access uPhone Settings two ways:
Tap Start > Settings > System tab > uPhone icon .
In the Dialler application, selecting Tools > Configuration.
An animated wait icon displays the following message while the system accesses the network.
If there is no response from the network within 60 seconds, this message times-out and the control panel closes.
If the network responds, the uPhone Settings screen displays; the General tab appears first by default.
Tab Windows
uPhone Configuration consists of five tabs: General, Network, Divert, Bar, and Messaging.
Tapping OK accepts any changes and exits the uPhone Configuration.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 13

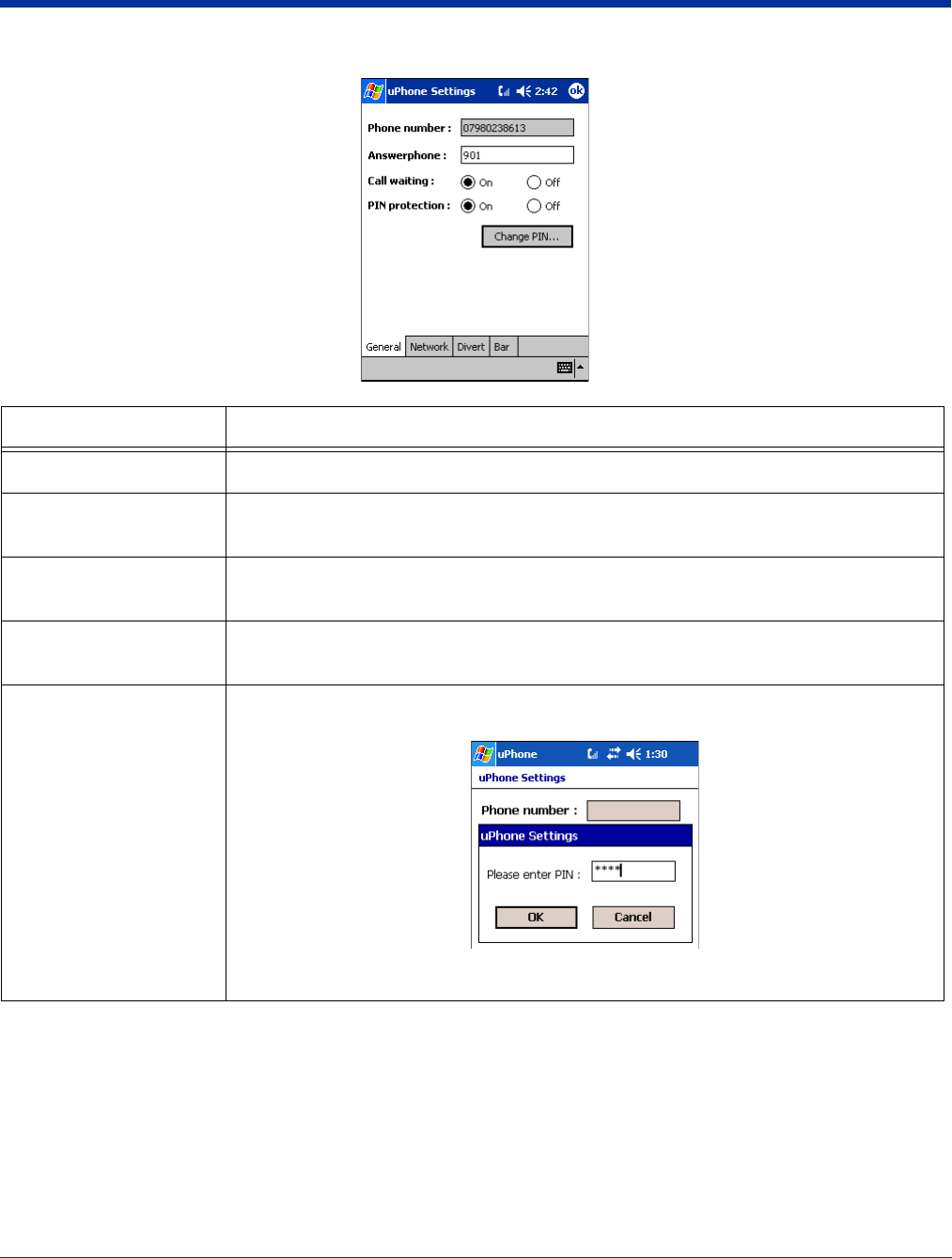

General Tab
Field Description
Phone Number This is the phone number stored on the SIM. It is displayed here for information only.
Answerphone This is the number to dial to retrieve voicemail messages. To enter a new number, tap on this
field and enter the digits.
Call waiting Select On or Off to enable or disable call waiting functionality. Call waiting must be set to On
for conference calls.
PIN protection Select On or Off to enable or disable PIN protection. If enabled, a PIN number is requested
when the phone is switched on.
Change PIN This button is active only if PIN protection is set to On. Otherwise, the button is grayed-out.
If you tap Change PIN, a dialog box appears enabling you to change the PIN.
Enter the PIN. Tap OK to save the change. While typing, the numbers appear as asterisks to
hide the number from observation by third parties.
Network Tab
The Network tab provides the ability to choose between Automatic and Manual network selection.
11 - 14 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
If you choose Manual network selection, the drop-down list of available networks activates. Choose a network from this list and
tap OK. A wait icon appears while the system accesses the selected network.
Divert Tab
The divert tab enables you to select divert options for incoming calls when you are unavailable to answer; e.g., when the phone
is off, you are out of network coverage, busy, or not able to answer.
All Calls diverts all incoming calls automatically.
Unavailable diverts incoming calls when you are unavailable.
The options in both lists are as follows:
Not DivertedSelect this option to not divert calls. This is the default setting for both All Calls and Unavailable lists.
AnswerphoneSelect this option to divert calls to voicemail.
To numberSelect this option to forward incoming calls to another number.
Bar Tab
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 15

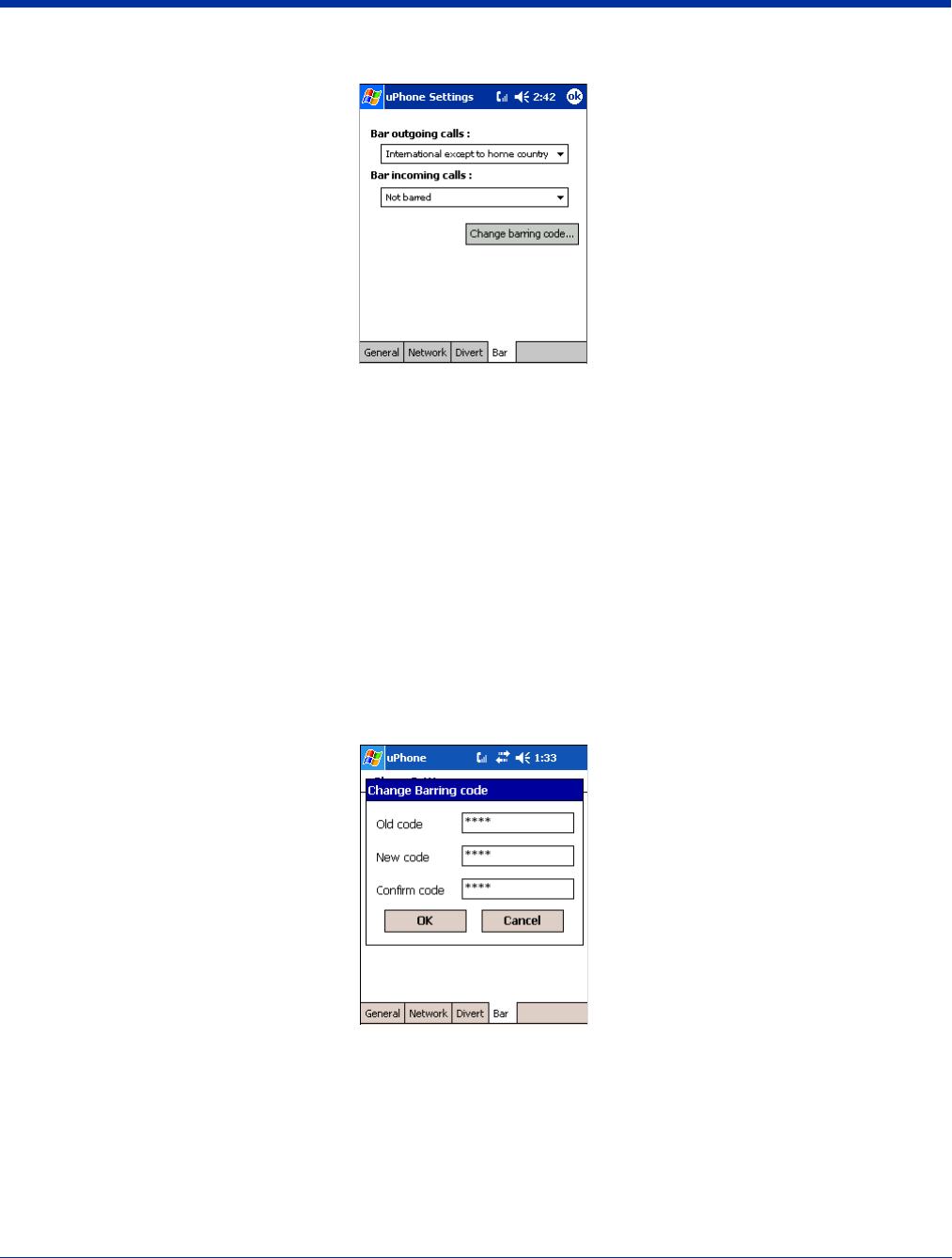

The Bar tab sets enables you to bar both incoming and outgoing calls.
Bar outgoing calls Select one of the following options from the drop-down list:
Not barred No restrictions on outgoing calls.
International calls Bar international calls.
International except… Only international calls to the home country designated on the SIM
card can be made.
All outgoing calls Bar all outgoing calls.
Bar incoming callsSelect one of the following options from the drop-down list:
Not barred No restrictions on incoming calls.
Incoming calls when… Bar incoming calls when the network coverage is in roaming status.
All incoming calls Bar all incoming calls.
Change barring codeTap this button to change the barring code.
In the Old code field, enter the current code, and enter the new code in the New code and the Confirm code fields. While
typing, the numbers appear as asterisks to hide the number from observation by third parties.
To save the barring options, tap OK. The system displays a dialog requesting the barring password before sending the
updated settings to the network. Type in the password and tap OK.
Messaging Tab
11 - 16 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

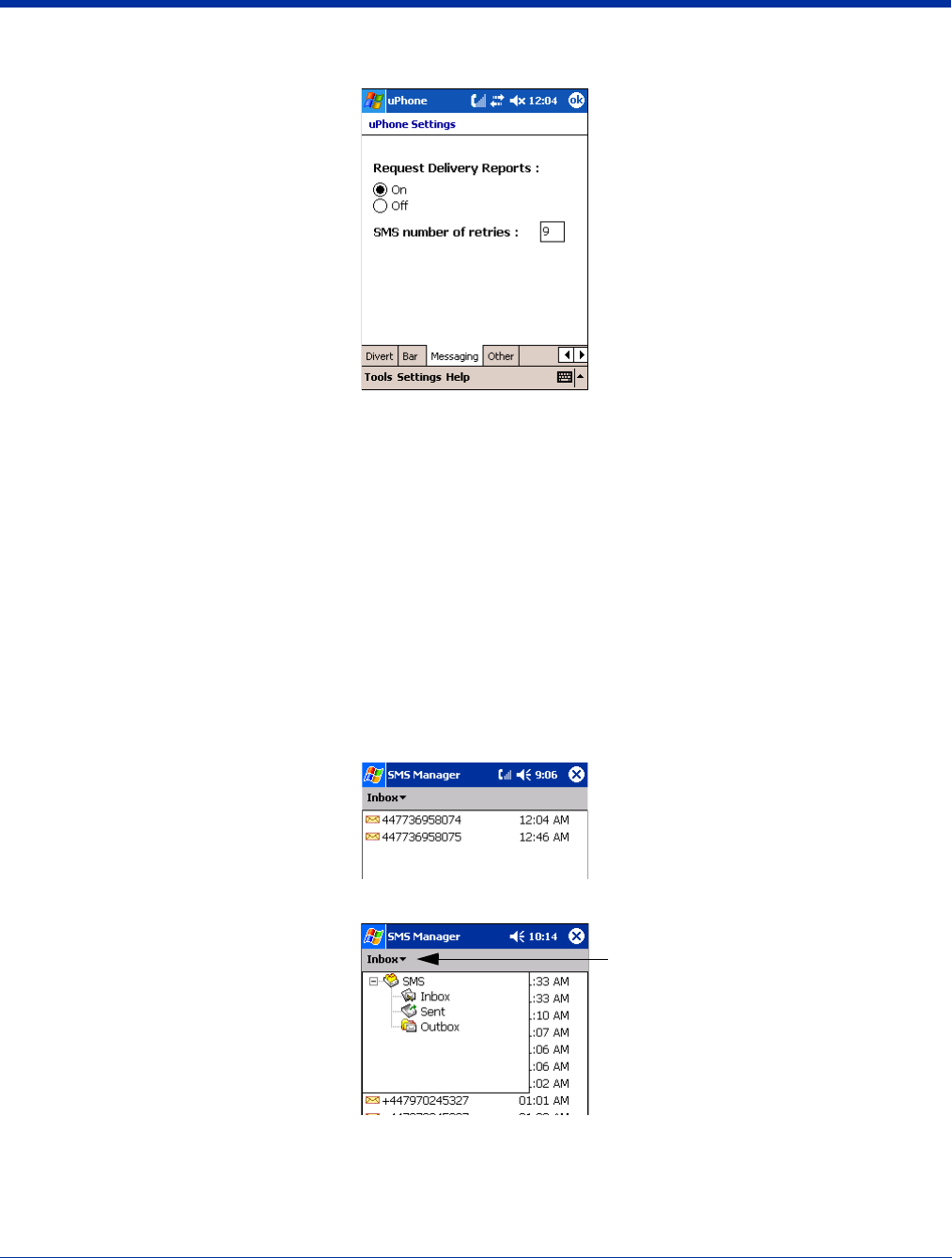

The Messaging tab enables you to adjust the default SMS settings.
Request Delivery Reports
By default, the SMS manager receives a confirmation report that each SMS message has been sent. These confirmation reports
can take up valuable space and memory. Therefore, you can cancel these reports on this tab by selecting Off and tapping OK.
SMS number of retriesThis setting enables you to control the number of times the system will try to send an SMS message until
the message is sent. Nine is the default number. To change the default, enter the number in the field and tap OK.
SMS Manager
Abbreviated for Short Message Service, SMS enables the transmission of short messages (140-160 characters) to and from a
cell phone. SMS messages travel over the system's control channel, which is separate from the voice channel.
SMS Manager supports creation, sending, receiving, and storing of SMS text messages. Text messages sent or received can
be up to 160 characters long.
Opening the SMS Manager
You can access the SMS Manager two ways:
Tap Start > Programs > uPhone > SMS Manager, OR
Open the Dialler (Start > Programs > uPhone > Dialler) and tap Tools > SMS Manager. The SMS Manager opens to the Inbox,
which displays a list of your most recent text messages.
There are three folders: Inbox, Sent, and Outbox. Tap the Inbox folder to see all three folders. The name of the folder appears
in the gray bar just under the title bar.
Tap here
Click the SMS box to expand and collapse the folders.
Inbox
The Inbox folder displays received text messages. Received messages have an envelope icon to the left. The Inbox folder also
receives error messages from text messages that could not transmit successfully.
When the Inbox folder is selected, received messages appear in the list.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 17

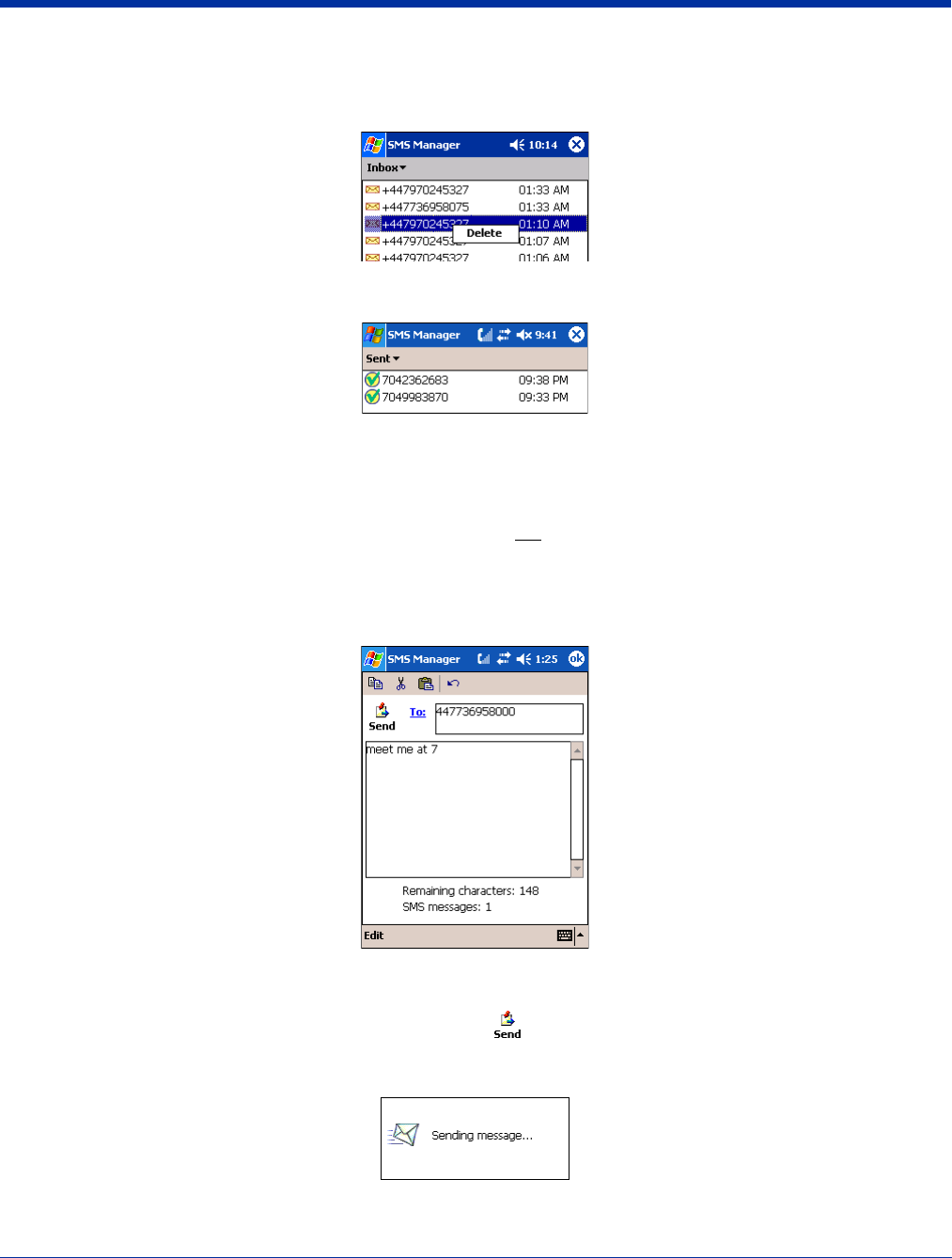

To Do this…
Open a messageTap on the message and the content of the message appears.
Delete a messageTap and hold on the message. Tap Delete on the popup menu that appears.
Sent Folder
The Sent folder displays sent messages.
Outbox Folder
The Outbox folder displays text messages waiting to be sent.
Sending an SMS Message
In the task tray at the bottom of the screen, tap New. The new message screen opens with the cursor active in the text area.
Tap inside the To: field. To add the number, you can type it in or tap To: to select an entry from your Phonebook.
You must type a number that is in the appropriate international ISDN format for the country you are dialing. However, you can
dial a local number without the country code.
Destination numbers can start with a “+” sign.
Tap inside the text area. To write a message, you can use the SIP or the terminal keyboard.
The Remaining characters field displays how many characters you can type in a message. Because 160 is the maximum
number of characters per message, the number portion of the field counts backwards from160 as you type.
When finished typing, tap the Send icon to transmit the message .
If you tap OK before tapping Send, the program requests confirmation before discarding the message.
The Sending message box appears over the message.
When the message has been sent, the Message sent box appears.
Icons at the Top of the Message Screen
Icon Description
At the top of the window:
Copy selected text.
Cut selected text.
Paste text.
Undo the previous action.
This icon appears only in a message that has been sent.
Tapping this button will re-send the message.
In the task tray at the bottom of the window:
Send all messages in the Outbox.
11 - 18 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Edit Menu
The Edit menu provides the same options as the icons at the top of the screen, with the following additional options:
Select AllSelects all text in the active message section.
Clear SelectionDe-selects all text in the active message section.
GPRS Settings
uPhone includes pre-configured GPRS connection profiles to connect to a GPRS network. When the GSM driver is enabled
uPhone selects the appropriate pre-configured profile based on the service provider information on the installed SIM card.
Before connecting to GPRS, you need to confirm and save the selected uPhone GPRS profile (or create one) in uPhone GPRS
Settings, then enter the ISP information in Microsoft’s connection manager.
The default profiles are for a modem connection. However, you can also configure GPRS for VPN or Proxy Server connections
by creating a GPRS connection profile for that connection type in Microsoft’s connection manager.
Requirements
No ActiveSyncMake sure that you are not connected to a host PC via ActiveSync when configuring the connection settings!
Service Provider Information
You need the APN Number, and User name and Password from your network service provider.
Configuring the GPRS Connection
The GSM driver installs pre-configured GPRS connection profiles. When enabled, the GSM driver reads the installed SIM card
and selects the matching pre-configured connection profile.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 19

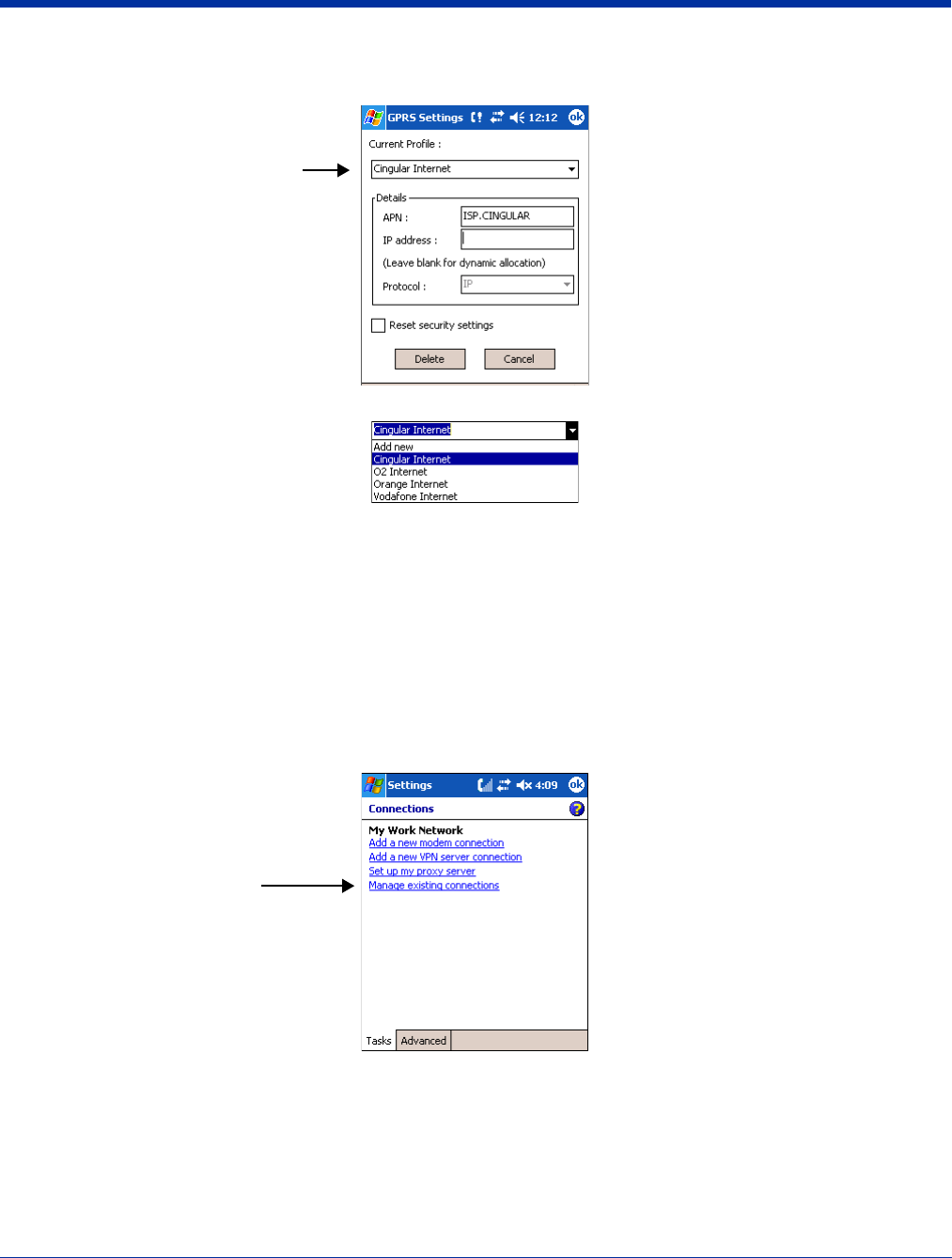

Tap Start > System > Connections tab > uPhone GPRS. The GPRS Settings screen appears with the selected profile in the
Current Profile drop-down list. .
In the Current Profile drop-down list, select the profile associated with your account.
The Details section is already complete. A default GPRS profile (for a modem connection) is created in Microsoft’s connection
manager based on the profile selected here.
If your profile does not appear in the Current Profile list, select Add new and complete the Details section.
In the Details section
Type in the APN number
Type in the IP address (Leave blank to use DHCP.)
Select the Protocol
Tap OK. You return to the Connections tab.
Because GPRS is ISP technology, you need to complete the connection profile in Microsoft’s connection manager with
information from your ISP. On the Connections tab, tap Connections. The connections manager opens.
11 - 20 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Tap Manage existing connections.
This default GPRS profile
loads into the connection
manager based on the
service provider profile
selected in uPhone’s GPRS
Settings; see Step 2 above.
A modem connection is the default connection type. If you want to create a VPN connection, for example, you need to create a
GPRS profile on the VPN tab using the parameters in the following steps.
Make sure that GPRS is selected and tap Edit.
You can enter a custom name for the connection but leave PhoneTSP Line (GPRS) as the selected modem.
Tap Next.
Enter the number provided by your ISP or leave the default “GPRS” if no number has been provided. If you leave “GPRS,” the
GSM radio uses the APN Number entered in the uPhone profile (see Step 2 above). Tap Next.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 11 - 21
Enter the User name and Password provided by your ISP. Tap Finish.
Entering your user name and password here in the connection manager profile means that you don’t have to enter them every
time you try to connect via GPRS.

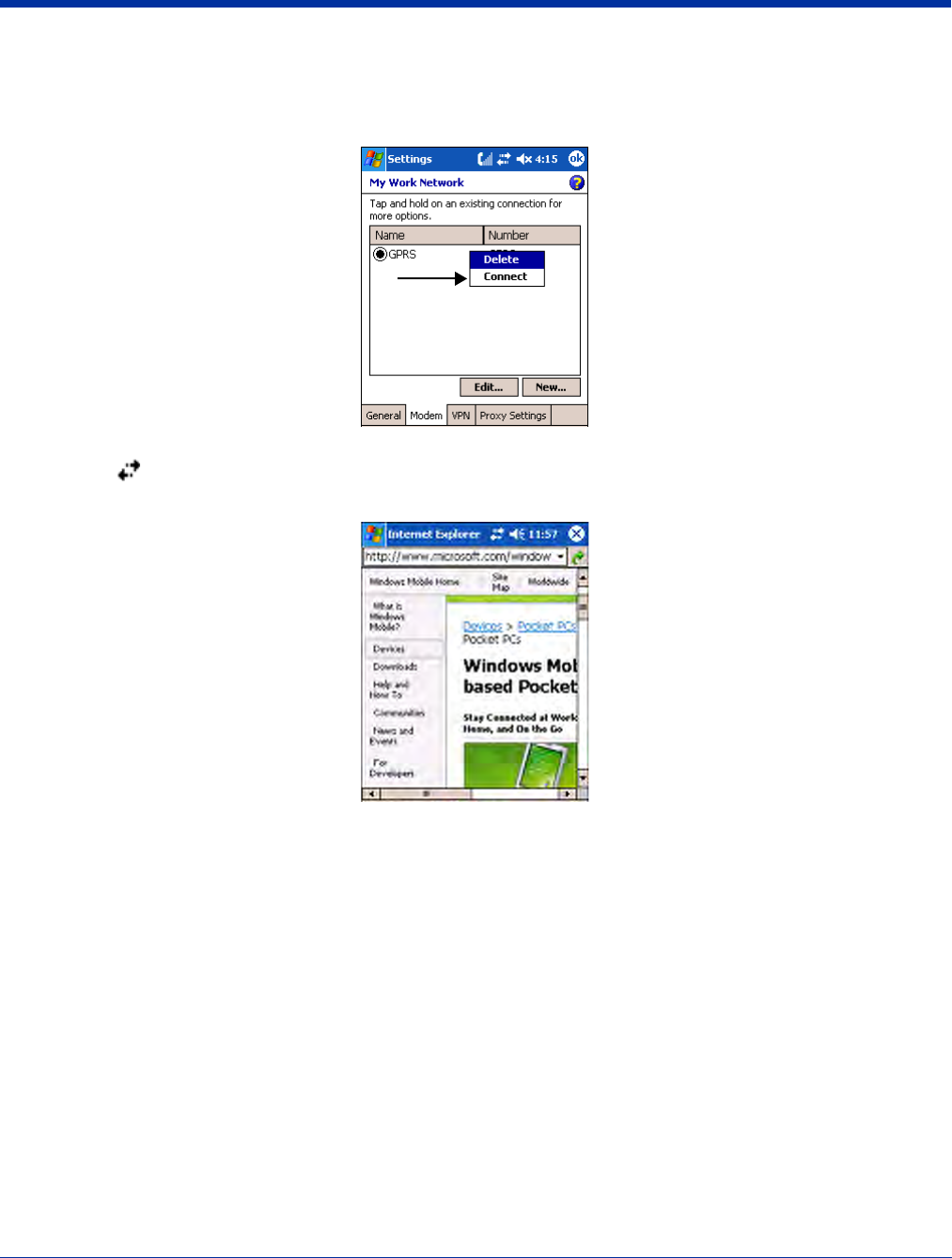

Tap and hold on the GPRS connection and select Connect on the popup menu.
You terminal attempts to connect to the GPRS network. When the connection is established, the double arrows appear in the
Navigation bar .
To verify your connection, tap Start > Programs > Internet Explorer. Your homepage should appear.

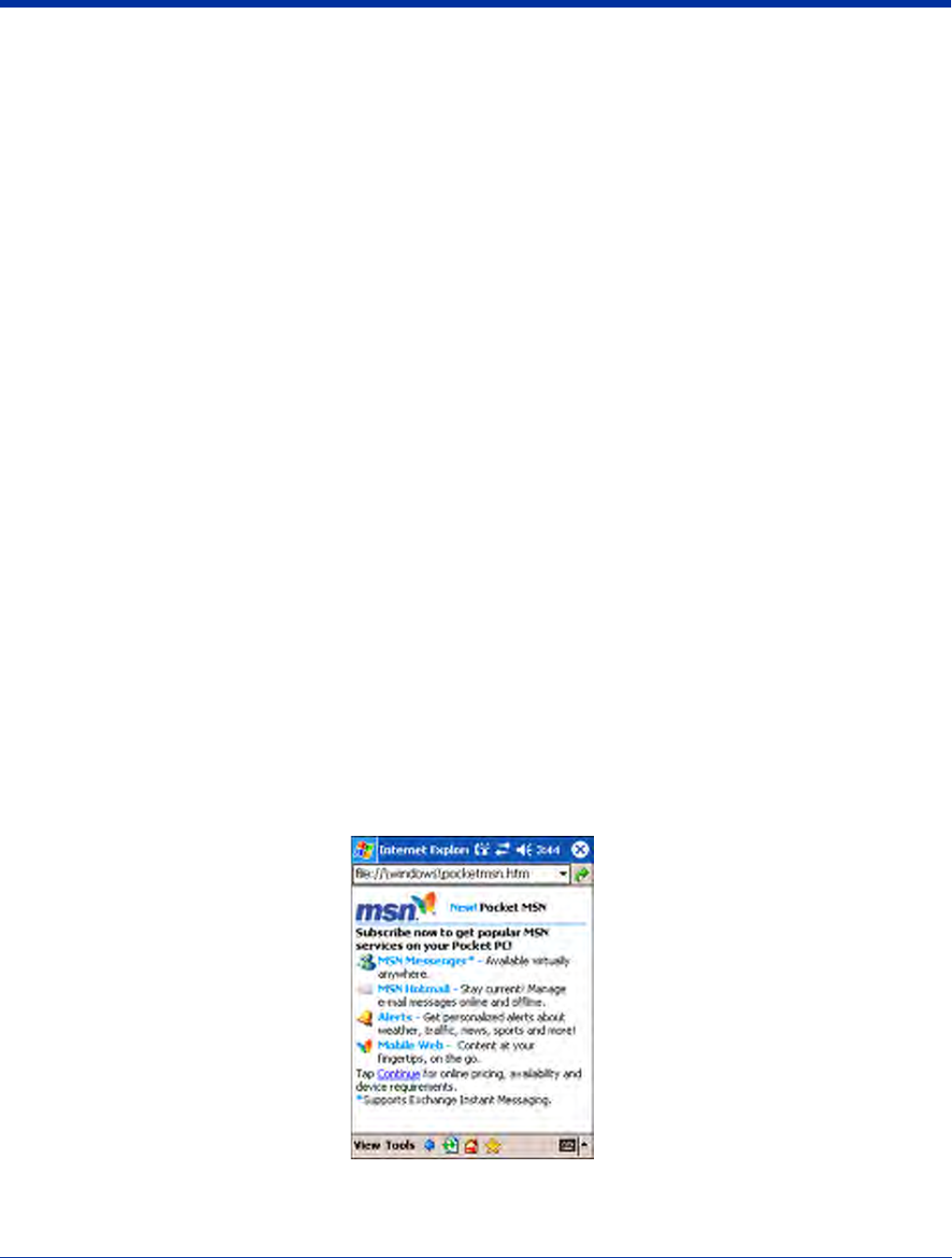

Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 1
12
Applications
Dolphin terminals ship with the following Microsoft applications installed:
• Calendar (page 12-1)
• Contacts (page 12-3)
• Tasks (page 12-5)
• Notes (page 12-7)
• Messaging (page 12-7)
• Pocket Internet Explorer (page 12-11)
• Pocket Word (page 12-14)
• Pocket Excel (page 12-15)
• Windows Media Player for Pocket PC (page 12-17)
• MSN Messenger (page 12-18)
• Pictures (page 12-19)
Note: Microsoft® Money, Microsoft® Reader are NOT installed on the Dolphin 7900 when shipped but may be installed from the
Microsoft Companion CD.

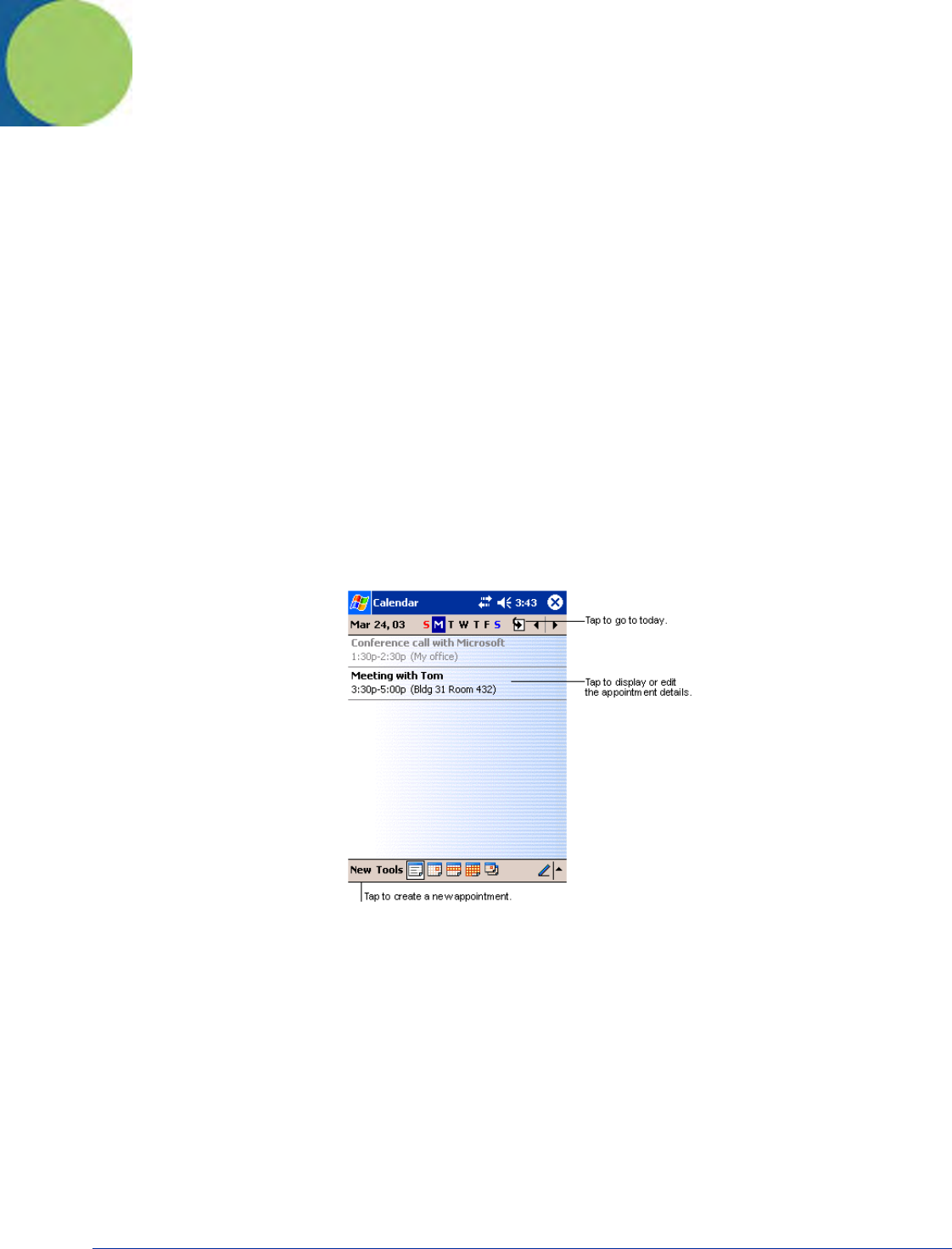

Calendar
Use Calendar to schedule appointments, including meetings and other events. You can check your appointments in one of
several views (Agenda, Day, Week, Month, and Year) and easily switch views by using the View menu.
Note: You can customize the Calendar display, such as changing the first day of the week, by tapping the Tools menu.

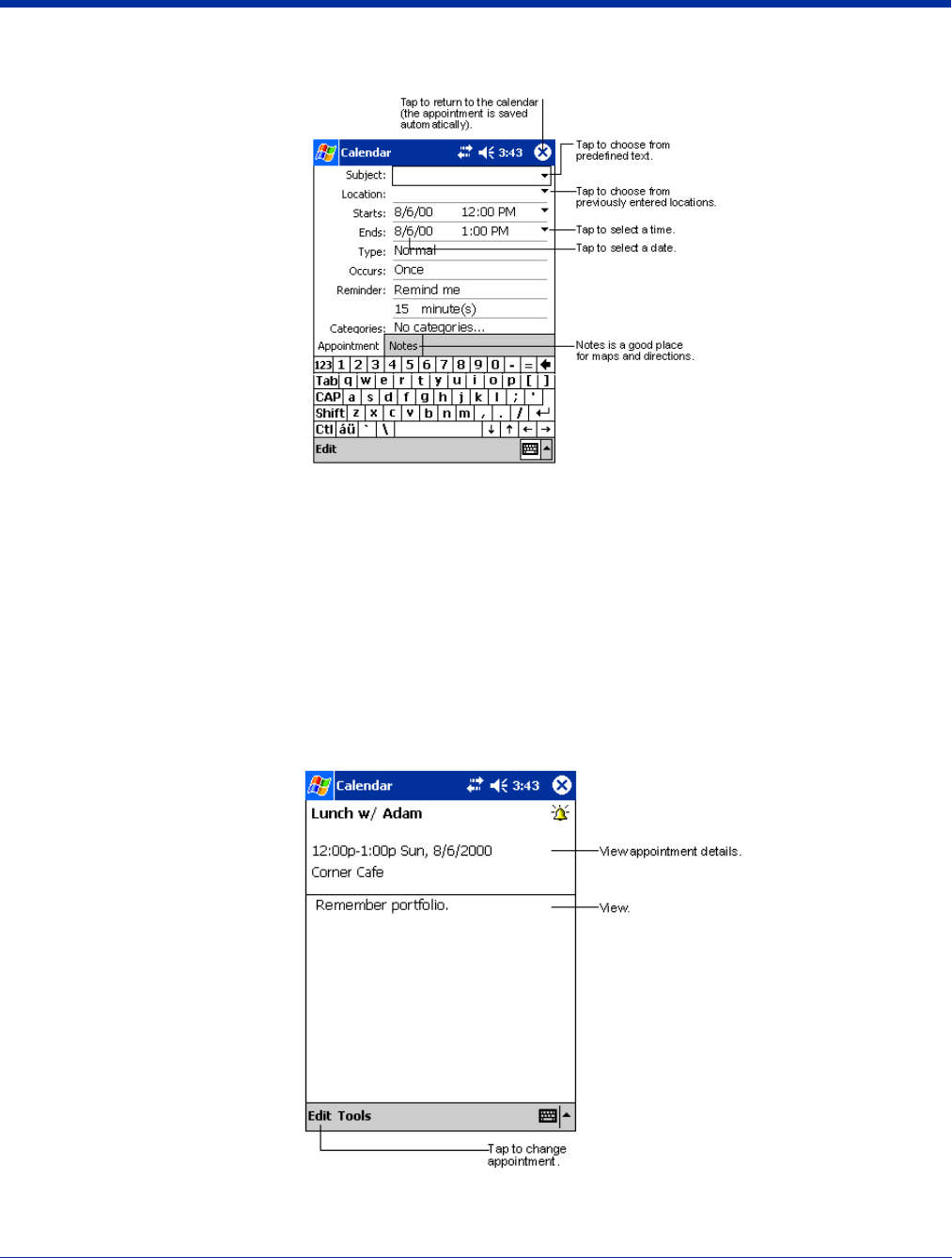

Creating an Appointment
1. If you are in Day or Week view, tap the desired date and time for the appointment.
2. Tap New.
12 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
3. Using the input panel, enter a description and a location. Tap first to select the field.
4. If needed, tap the date and time to change them.
5. Enter other desired information. To see all available fields, hide the input panel.
6. To add notes, tap the Notes tab. You can enter text, draw, or create a recording.
For more information on creating notes, refer to Notes on page 12-7.
7. When finished, tap OK to return to the calendar.
Note: If you select Remind me in an appointment, you will be reminded according to the options set in Start > Settings >
Personal tab > Sounds & Reminders.
Using the Summary Screen
When you tap an appointment in Calendar, a summary screen displays the details of the appointment.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 3
Creating Meeting Requests
You can use Calendar to set up meetings with users of Outlook or Pocket Outlook. The meeting request is created automatically
and sent either when you synchronize Inbox or when you connect to your e-mail server. Indicate how you want meeting requests
sent by tapping Tools and then Options. If you send and receive e-mail messages through ActiveSync, select ActiveSync.
Scheduling a Meeting
1. Create an appointment.
2. In the appointment details, hide the input panel, and then tap Attendees.
3. From the list of e-mail addresses you’ve entered in Contacts, select the meeting attendees. The meeting notice is created
automatically and placed in the Outbox folder.
For more information on sending and receiving meeting requests, see Calendar Help and Inbox Help.

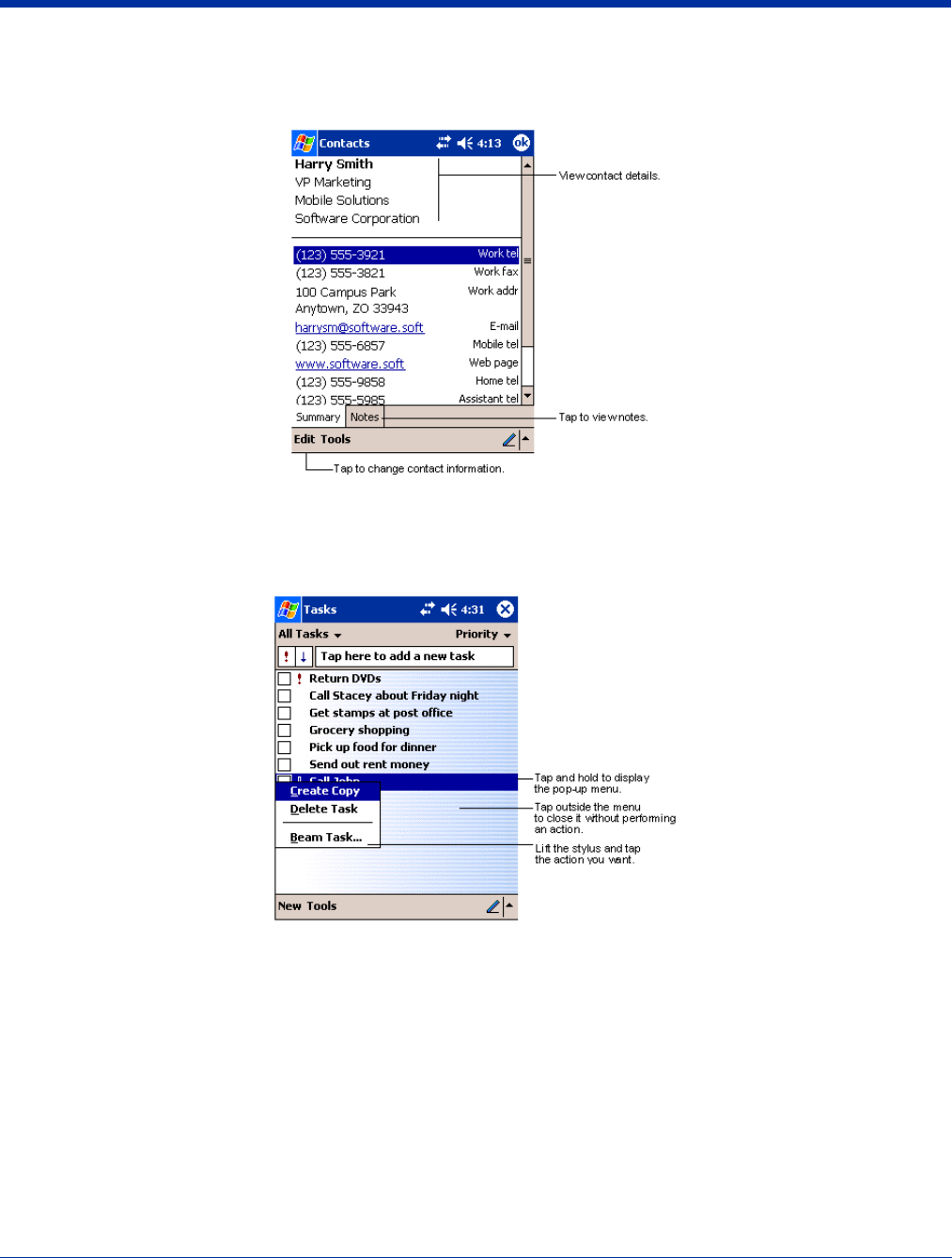

Contacts
Contacts maintains the contact information - phone numbers, e-mails, addresses, etc. - you need on your terminal.
Note: To change the way information is displayed in the list, tap Tools > Options.
12 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

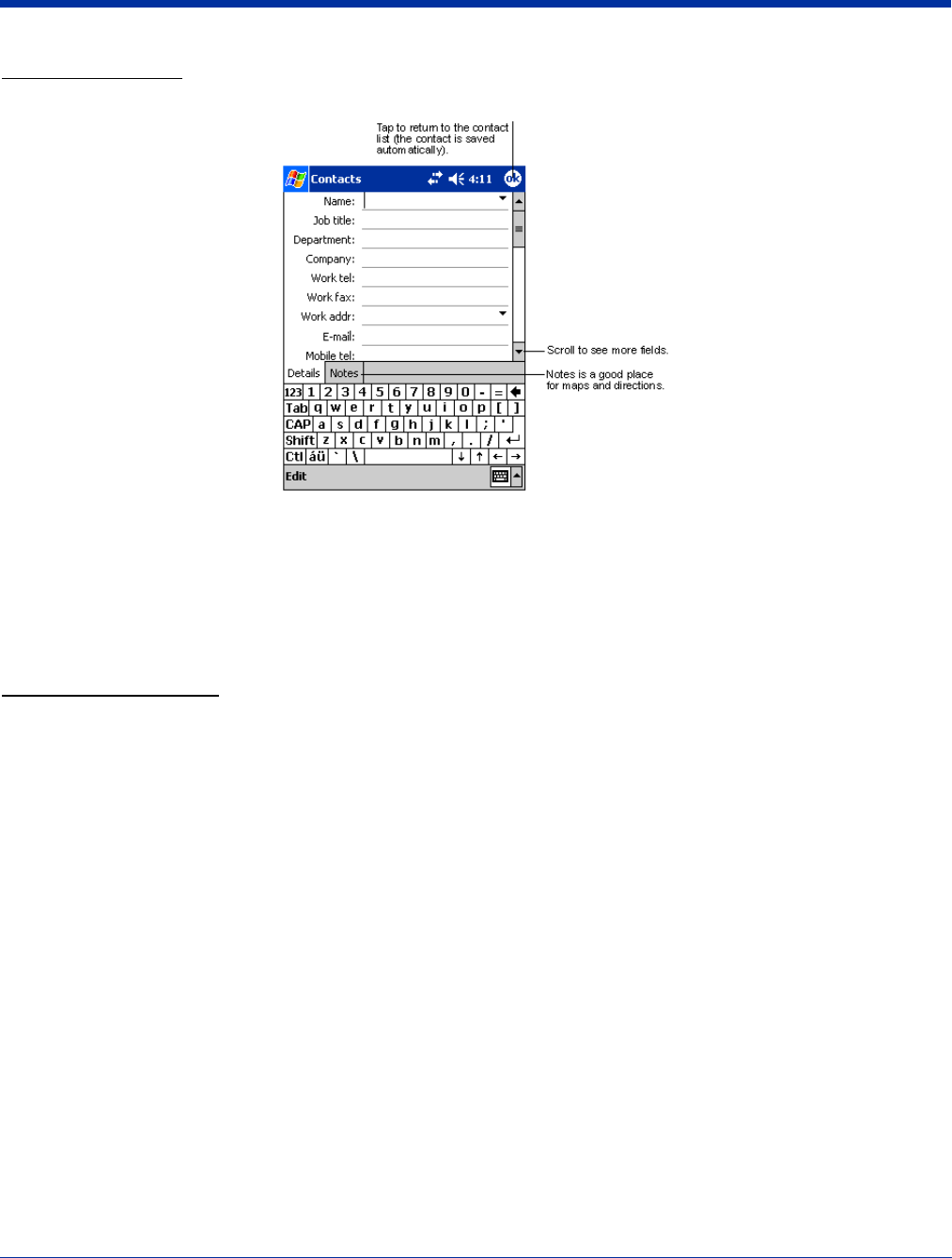

Creating a Contact
1. On the Contacts screen, tap New.
2. Using the SIP or Dolphin keyboard, enter the contact’s information. Scroll down to see all available fields.
3. To assign the contact to a category, scroll to and tap Categories, then select a category from the list.
(In the contact list, you can display contacts by category.)
4. To add notes about this contact, tap the Notes tab. For more information on creating notes, refer to Notes on page 12-7.
5. When finished, tap OK to return to the contact list.
Searching for Contacts
There are four ways to find a contact:
• In the contact list, enter a contact name in the box under the navigation bar. To show all contacts again, clear text from the
box or tap the button to the right of the box.
• In the contact list, tap the category list (labeled All Contacts by default) and select the type of contact that you want displayed.
To show all contacts again, select All Contacts. To view a contact not assigned to a category, select None.
• To view the names of companies your contacts work for, in the contact list, tap View > By Company. The number of contacts
that work for that company are displayed to the right of the company name.
• Tap Start > Find, enter the contact name, select Contacts for the type, and then tap Go.
12 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

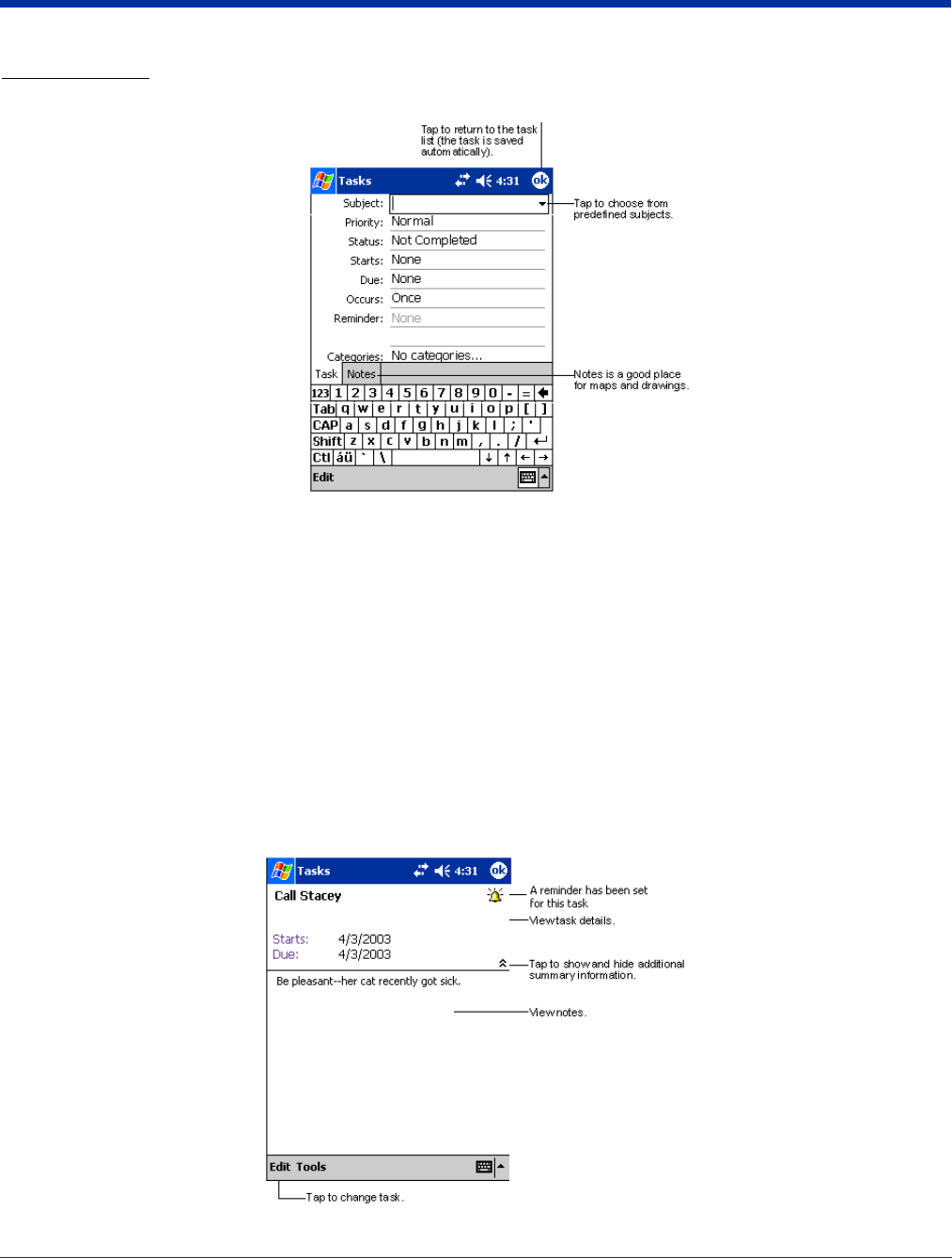

Creating a Task
1. Tap New.
2. Using the SIP or Dolphin keyboard, enter the task information.
If the input panel is open, you need to hide it to see all available fields.
3. Tap Starts to enter a start date and/or Due to enter a due date for the task.
4. To assign the task to a category, tap Categories and select a category from the list.
In the task list, you can display tasks by category.
5. To add notes, tap the Notes tab.
For more information on creating notes, refer to Notes on page 12-7.
6. When finished, tap OK to return to the task list.
Note: To quickly create a task with only a subject, tap Entry Bar on the Tools menu. Then, tap Tap here to add a new task and
enter your task information.
Using the Summary Screen
When you tap a task in the task list, a summary screen displays the task information.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 7

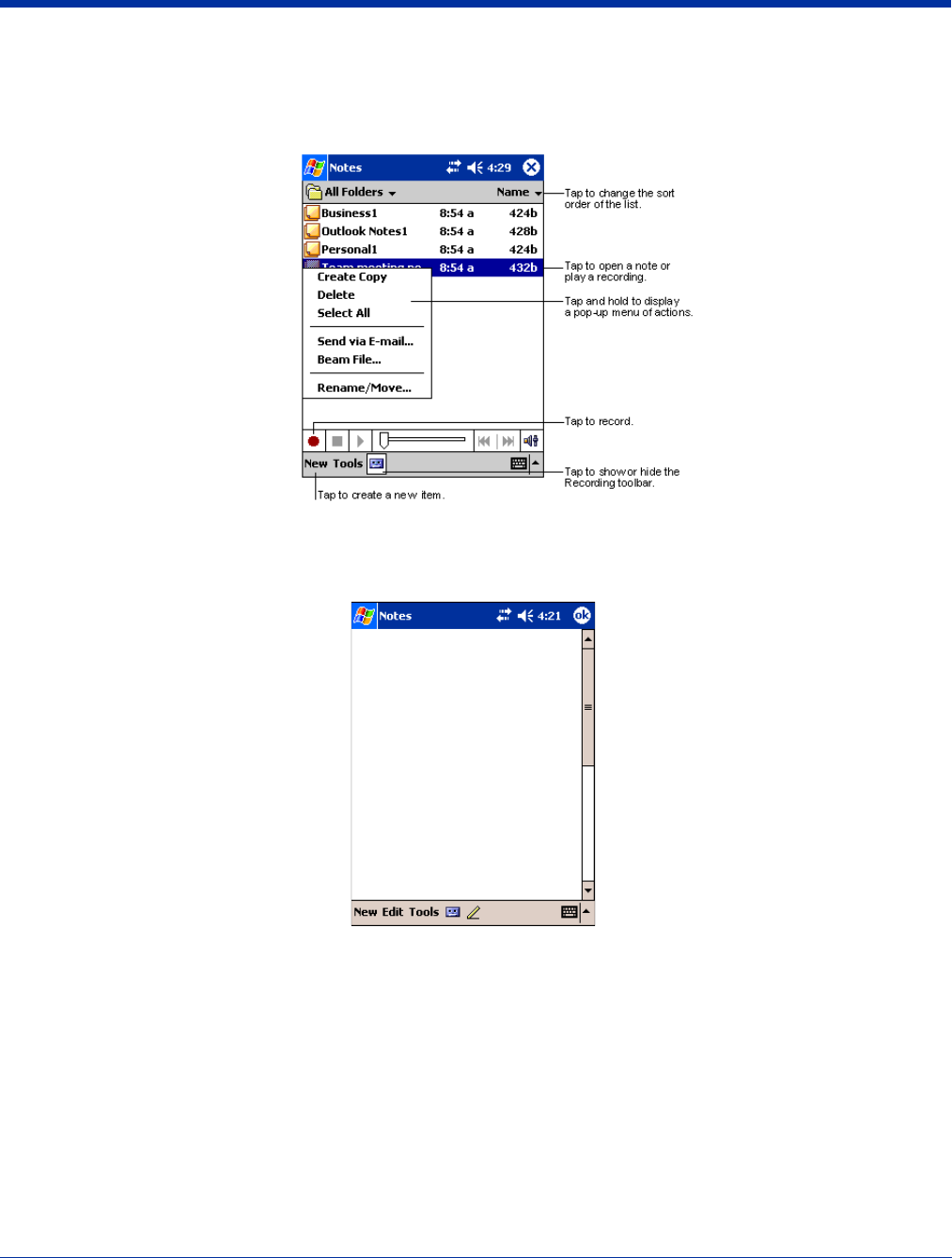

Notes
Quickly capture thoughts, reminders, ideas, drawings, and phone numbers with Notes. If a note is open when you create the
recording, it will be included in the note as an icon.
Creating a Note
1. Tap New.
2. Type your note using the SIP or the Dolphin keyboard.
Messaging
Use Messaging to send and receive e-mail messages; this is your email Inbox. To use e-mail, you can:
• Synchronize e-mail messages with Microsoft Exchange or Microsoft Outlook on your desktop computer.
• Send and receive e-mail messages by connecting directly to an e-mail server through an ISP or a network.
Synchronizing E-mail Messages
E-mail messages can be synchronized as part of the general synchronization process. You need to enable Inbox synchronization
in ActiveSync. For information on enabling Inbox synchronization, see ActiveSync Help on the desktop computer.
During synchronization:
12 - 8 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
• Messages are copied from the mail folders of Exchange or Outlook on your desktop computer to the ActiveSync folder in Inbox
on the terminal. By default, you will receive messages from the past three days only, the first 100 lines of each message, and
file attachments of less than 100 KB in size.
• E-mail messages in subfolders must be selected in ActiveSync on your desktop computer to be transferred.
• E-mail messages in the Outbox folder on the terminal are transferred to Exchange or Outlook, and then sent from those
programs.
Note: You can also synchronize e-mail messages with your desktop computer from a remote location. For more information,
see Chapter 7.
Connecting Directly to an E-mail Server
In addition to synchronizing e-mail messages with your desktop computer, you can send and receive e-mail messages by
connecting to an e-mail server. When you connect the terminal to the e-mail server, new messages are downloaded to the Inbox
folder, messages in the Outbox folder are sent, and messages that have been deleted on the e-mail server are removed from
the Inbox folder.
Messages received directly from an e-mail server are linked to your e-mail server rather than your desktop computer. When you
delete a message on the terminal, it is also deleted from the e-mail server the next time you connect the terminal to the e-mail
server according to the settings selected in ActiveSync.
You can work online or offline. When working online, you read and respond to messages while connected to the e-mail server.
Messages are sent as soon as you tap Send, which saves space on the terminal. When working offline, after you’ve downloaded
new message headers or partial messages, you can disconnect from the e-mail server and then decide which messages to
download completely. The next time you connect, Inbox downloads the complete messages you’ve marked for retrieval and
sends the messages you’ve composed.
Receiving Messages
When you connect to your e-mail server or synchronize with your desktop computer, by default, you’ll receive messages from
the last five days only, the first 100 lines of each new message, and file attachments of less than 100 KB in size. The original
messages remain on the e-mail server or your desktop computer.
You can mark the messages that you want to retrieve in full during your next synchronization or e-mail server connection. In the
message list, tap and hold the message you want to retrieve. On the pop-up menu, tap Mark for Download. The icons in the
Inbox message list give you visual indications of message status.
You specify your downloading preferences when you set up the service or select your synchronization options. You can change
them at any time:
• Change options for Inbox synchronization using ActiveSync options. For more information, see ActiveSync Help.
• Change options for direct e-mail server connections in Inbox on the terminal. Tap Tools and then tap Options. On the Service
tab, tap the service you want to change. Tap and hold the service and select Delete to remove a service.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 9
Using the Message List
Messages you receive are displayed in the message list. By default, the most recently received messages are displayed first in
the list and unread messages are displayed in bold type.
When you tap on a message to open it, the following screen appears:
Composing Messages
1. Tap New.
2. In the To field, enter the e-mail or SMS address of one or more recipients, separating them with a semicolon (;), or select a
name from the contact list by tapping the Address Book button.
All e-mail addresses entered in the e-mail fields in Contacts appear in the Address Book.
3. Compose your message. To enter preset or frequently used messages, tap My Text and select a message.
4. Tap Send when you’ve finished the message.
If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.
12 - 10 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
5. If you are sending an SMS message and want to know if it was received, tap Edit, Options, and select Request SMS text
message delivery notification before sending the message.
Managing E-mail Messages and Folders
Messages are displayed in one of five folders for each service you have created: Inbox, Deleted Items, Drafts, Outbox, and Sent
Items.
The Deleted Items folder contains messages that have been deleted on the device. The behavior of the Deleted and Sent Items
folders depends on the selected options. To select these options, tap Tools > Options > Message tab.
To move a message to another folder, in the message list, tap and hold the message, tap Move to on the pop-up menu, and
select the desired folder.
To create additional folders, tap Tools > Manage Folders.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 11
Folder Behavior with a Direct Connection to an E-mail Server
The behavior of the folders you create depends on whether you are using ActiveSync, SMS, POP3, or IMAP4.
ActiveSync
If you use ActiveSync, e-mail messages in the Inbox folder in Outlook on your desktop computer are automatically synchronized
with the terminal. You can select to synchronize additional folders by designating them for ActiveSync. The folders you create
and the messages you move will then be mirrored on the server.
For example, if you move two messages from the Inbox folder to a folder named Family, and you have designated Family for
synchronization, the server creates a copy of the Family folder and copies the messages into that folder. You can then read the
messages while away from your desktop computer.
SMS
If you use SMS, messages are stored in the Inbox folder.
POP3
If you use POP3 and you move e-mail messages to a folder you created, the link is broken between the messages on the terminal
and their copies on the mail server. The next time you connect, the mail server will see that the messages are missing from the
terminal Inbox and delete them from the server. This prevents you from having duplicate copies of a message, but it also means
that you will no longer have access to messages that you move to folders created from anywhere except the terminal.
IMAP4
If you use IMAP4, the folders you create and the e-mail messages you move are mirrored on the server. Therefore, messages
are available to you anytime you connect to your mail server, whether it is from the terminal or desktop computer. This
synchronization of folders occurs whenever you connect to your mail server, create new folders, or rename/delete folders when
connected.
Pocket Internet Explorer
Use Microsoft Pocket Internet Explorer to view Web or WAP pages. You can use the following methods:
• During synchronization with your desktop computer, download your favorite links and mobile favorites that are stored in the
Mobile Favorites subfolder in Internet Explorer on the desktop computer.
• Connect to an ISP or network and browse the Web. When connected to an ISP or network, you can also download files and
programs from the Internet or intranet.
Accessing Pocket Internet Explorer
To open Pocket Internet Explorer, tap Start and then Internet Explorer.
You can use Pocket Internet Explorer to browse Mobile Favorites and channels that have been downloaded without connecting
to the Internet. You can also connect to the Internet through an ISP or a network connection and browse the Web.
12 - 12 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Browse the Internet on Your Terminal
Note: You must set up a connection to your ISP or corporate network using Connections before browsing; see Using an ISP on
page 8-8.. If you select Pocket Internet Explorer before setting up the network connections, a screen may appear allowing
you to proceed to the connection settings screen.
1. Open Internet Explorer (Start > Internet Explorer).
2. To connect and start browsing, tap View and then Address Bar.
3. In the address bar that appears at the top of the screen, enter the Web address you want to visit and then tap Go.
4. Tap the arrow to choose from previously entered addresses. If Mobile Favorites have been set up, you can tap one of them
to start browsing. See Mobile Favorites Folder on page 12-12.
View Options
You can switch to a One Column view, which condenses web content into a single column so that you do not have to scroll right
to see the entire page. Tap View > Layout > One Column.
Default View One Column View
Mobile Favorites Folder
Purpose
The Mobile Favorites folder was created on your desktop computer when you installed ActiveSync. It enables you to create
Favorite Links on your desktop computer that you can transfer to your Dolphin terminal. Those Favorite Links are then available
when browsing the internet on your terminal.
Process
First, you create your Favorite Links in the Mobile Favorites folder on your desktop computer. Then, the next time you sync your
desktop computer with your terminal, those Mobile Favorites are transferred to the Mobile Favorites folder on to your terminal.
Only items stored in the Mobile Favorites subfolder in the Favorites folder in Internet Explorer on your desktop computer are
synchronized with the Mobile Favorites folder on your terminal.
Note: Unless you mark a Favorite Link as a mobile favorite, only the link downloads to your terminal, and you will need to connect
to your ISP or network to view the content. For more information on synchronization, see ActiveSync Help on the desktop
computer.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 13
Creating and Synchronizing Mobile Favorites
If you are using Microsoft Internet Explorer 5.0 or later on your desktop computer, you can download Mobile Favorites to the
terminal. Synchronizing mobile favorites downloads Web content to your device so that you can view pages while you are
disconnected from your ISP and desktop computer.
Use the Internet Explorer plug-in installed with ActiveSync to create mobile favorites

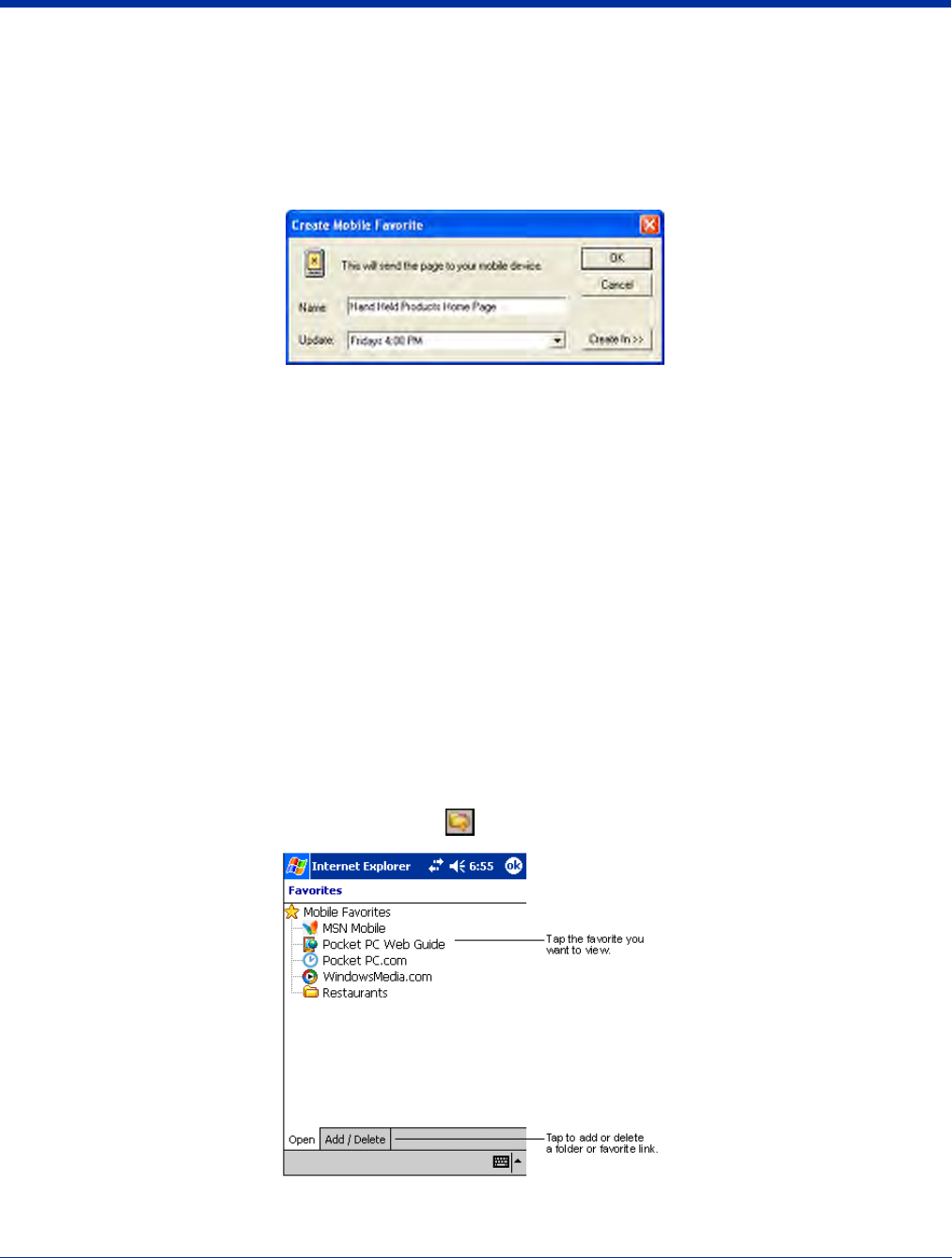

1. On your desktop computer, open Internet Explorer, click Tools > Create Mobile Favorite.
2. To change the link name, enter a new name in the Name box.
3. Optionally, in Update, select a desired update schedule.
4. Tap OK. Internet Explorer downloads the latest version of the page to your desktop computer.
5. If you want to download the pages that are linked to this mobile favorite, in Internet Explorer on the desktop computer, right-
click the mobile favorite and then click Properties. On the Download tab, specify the number of links down that you want to
download. To conserve memory, go only one level down.
6. Synchronize the terminal and desktop computer. Mobile favorites that are stored in the Mobile Favorites folder in Internet
Explorer are downloaded to the terminal.
If you did not specify an update schedule in Step 3, you will need to manually download content to keep the information updated
on your desktop computer and terminal. Before synchronizing, in Internet Explorer on your desktop computer, click Tools and
then Synchronize. You will see the last time content was downloaded to the desktop computer, and you can manually download
content if needed.
You can add a button to the Internet Explorer toolbar for creating mobile favorites. In Internet Explorer on your desktop computer,
click View, Toolbars, and then Customize.
Using Mobile Favorites and Channels
1. Open Pocket Internet Explorer.
2. Tap the Favorites button to display your list of favorites .
3. Tap the page you want to view.
12 - 14 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
You’ll see the page that was downloaded the last time you synchronized with your desktop computer. If the page is not on the
terminal, the favorite will be dimmed. You will need to synchronize with your desktop computer again to download the page to
the terminal, or connect to the Internet to view the page.
Mobile favorites take up storage memory on the terminal. To minimize the amount of memory used:
• In the settings for the Favorites information type in ActiveSync options, turn off pictures and sounds, or stop specific
mobile favorites from being downloaded to the terminal. For more information, see ActiveSync Help.
• Limit the number of downloaded linked pages. In Internet Explorer on the desktop computer, right-click the mobile
favorite you want to change and then Properties. On the Download tab, specify 0 or 1 for the number of linked pages
you want to download.
Using AvantGo® Channels
AvantGo is a free interactive service that provides access to personalized content and thousands of popular web sites. Subscribe
to AvantGo channels directly from the terminal. For more information, visit: http://avantgo.com/frontdoor/index.html.
1. In ActiveSync options on the desktop computer, turn on synchronization for the AvantGo information type.
2. In Pocket Internet Explorer, tap the Favorites button to display your list of favorites .
3. Tap the AvantGo Channels link.
4. Tap Activate and follow the directions on the screen. Synchronize the terminal with your desktop computer and then tap the
My Channels button to complete the AvantGo setup.
5. When synchronization is complete, tap the AvantGo Channels link in your list of favorites to see a few of the most popular
channels. To add or remove channels, tap the Add or Remove link.
Pocket Word
Pocket Word works with Microsoft Word on your desktop computer to give you easy access to copies of your documents. You
can create new documents on the terminal, or you can copy and paste documents from your desktop computer. Synchronize
documents between your desktop computer and your device so that you have the most up-to-date content in both locations.
You can open only one document at a time; when you open a second document, you’ll be asked to save the first. You can save
a document you create or edit in a variety of formats, including Word (.doc), Pocket Word (.psw), Rich Text Format (.rtf), and
Plain Text (.txt).
Using Pocket Word
Pocket Word contains a list of the files stored on the terminal. Tap a file in the list to open it. To delete, make copies of, and send
files, tap and hold a file in the list. Then, select the appropriate action on the pop-up menu.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 15
You can change the zoom magnification by tapping View > Zoom, and then selecting the percentage you want. Select a higher
percentage to enter text and a lower one to see more of your document. If you’re opening a Word document created on a desktop
computer, select Wrap to Window on the View menu so that you can see the entire document.
Creating a Word File
To create a new file, tap Start > Programs > Pocket Word > New. A blank document appears. If you’ve selected a template for
new documents in the Options dialog box, that template appears with appropriate text and formatting already provided.
You can enter information in Pocket Word in one of two modes (typing on the SIP or keyboard and drawing), which are displayed
on the View menu.

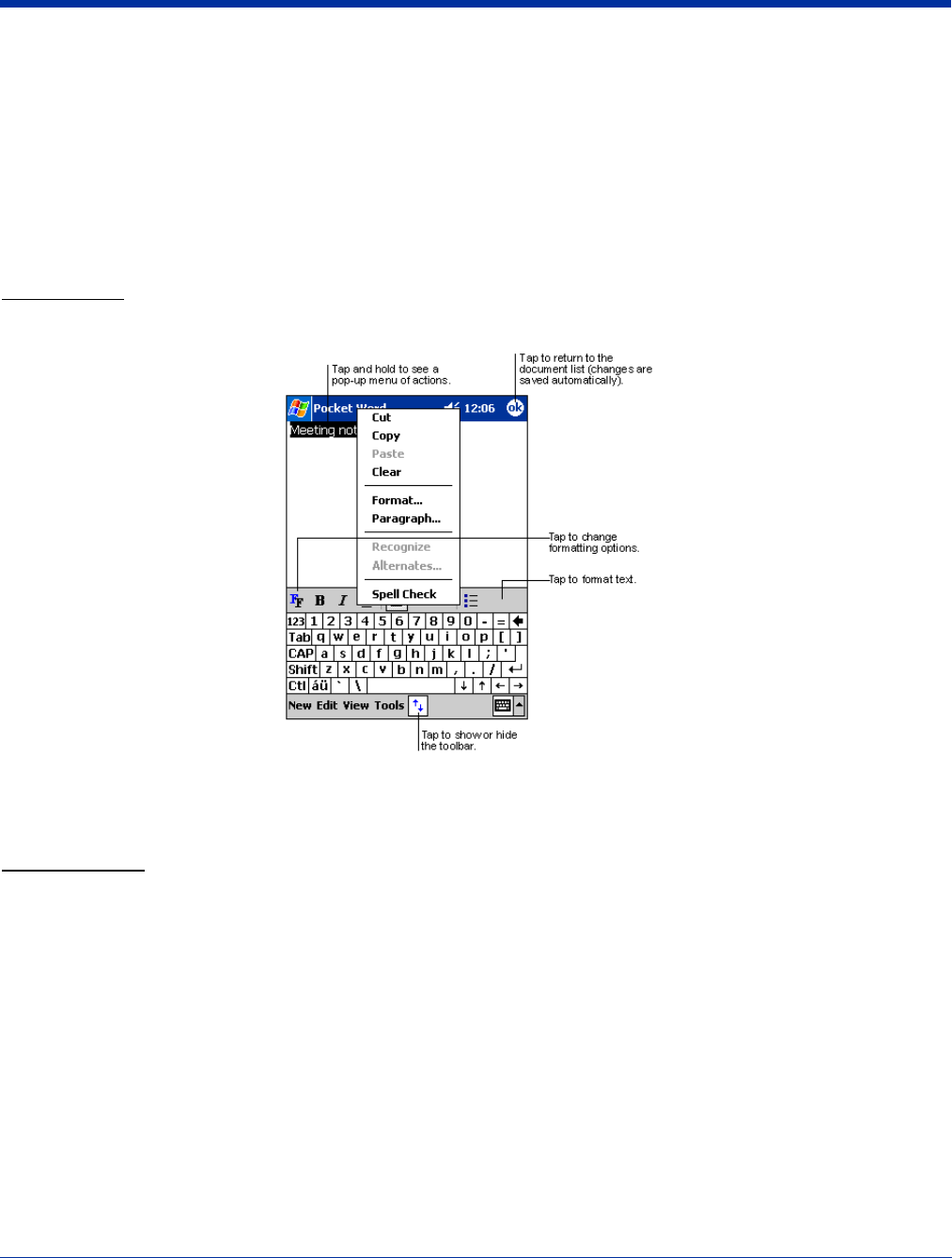

Typing Mode
Using the SIP or Dolphin keypad, enter typed text into the document.
To format existing text and to edit text, first select the text. You can select text as you do in a Word document, using your stylus
instead of the mouse to drag through the text you want to select. You can search a document to find text by tapping Edit and
then Find/Replace.
Drawing Mode
In drawing mode, use your stylus to draw on the screen. Gridlines appear as a guide. When you lift your stylus off the screen
after the first stroke, you’ll see a drawing box indicating the boundaries of the drawing. Every subsequent stroke within or touching
the drawing box becomes part of the drawing.
For more information on using Pocket Word, tap Start and then Help.
Pocket Excel
Pocket Excel works with Microsoft Excel on your desktop computer to give you easy access to copies of your workbooks. You
can create new workbooks on the terminal, or you can copy and paste workbooks from your desktop computer. Synchronize
workbooks between your desktop computer and the terminal so that you have the most up-to-date content in both locations.
You can open only one workbook at a time; when you open a second workbook, you’ll be asked to save the first. You can save
a workbook you create or edit in a variety of formats, including Pocket Excel (.pxl) and Excel (.xls).
Pocket Excel contains a list of the files stored on your device. Tap a file in the list to open it. To delete, make copies of, and send
files, tap and hold a file in the list. Then select the appropriate action from the pop-up menu. Pocket Excel provides fundamental
spreadsheet tools, such as formulas, functions, sorting, and filtering. To display the toolbar, tap View > Toolbar.
12 - 16 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

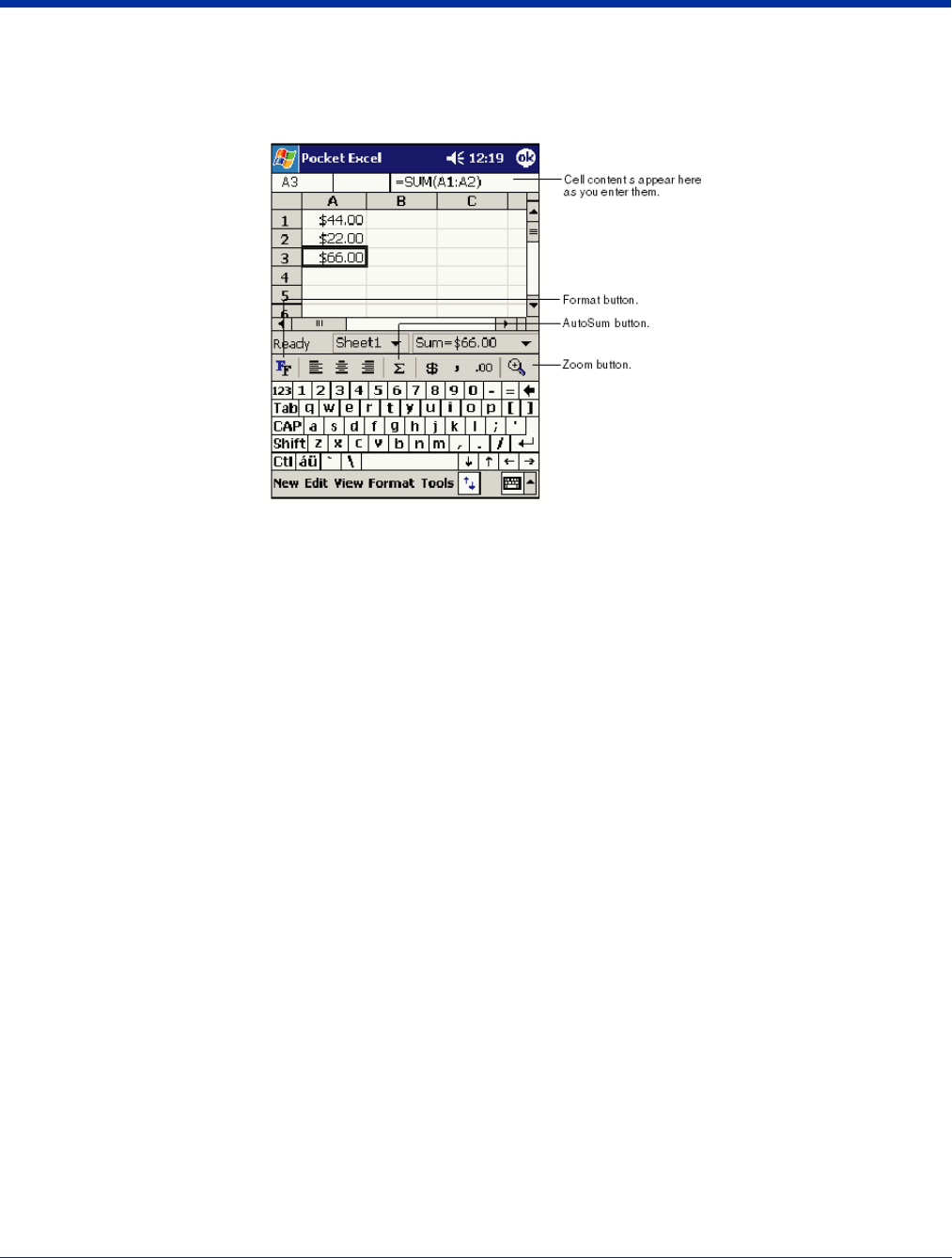

Creating an Excel File
To create a new file, tap Start > Programs > Pocket Excel > New. A blank workbook appears. If you’ve selected a template for
new workbooks in the Options dialog box, that template appears with appropriate text and formatting already provided.
If your workbook contains sensitive information, you can protect it with a password. To do so, open the workbook, tap Edit, and
then Password. Every time you open the workbook, you will need to enter the password, so choose one that is easy for you to
remember but hard for others to guess.
Tips for Working in Pocket Excel
• View in full-screen mode to see as much of your worksheet as possible. Tap View and then Full Screen. To exit full-screen
mode, tap Restore.
• Show and hide window elements. Tap View and then tap the elements you want to show or hide.
• Freeze panes on a worksheet. First select the cell where you want to freeze panes. Tap View > Freeze Panes. You might
want to freeze the top and left-most panes in a worksheet to keep row and column labels visible as you scroll through a sheet.
• Split panes to view different areas of a large worksheet. Tap View > Split. Then drag the split bar to where you want it. To
remove the split, tap View > Remove Split.
• Show and hide rows and columns. To hide a hidden row or column, select a cell in the row or column you want to hide. Then
tap Format,> Row or Column > Hide. To show a hidden row or column, tap Tools > Go To, and then type a reference that
is in the hidden row or column. Then tap Format > Row or Column > Unhide.
For more information on using Pocket Excel, tap Start > Help.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 17
Windows Media Player for Pocket PC
Use Microsoft Windows Media Player (WMP) for Pocket PC to play digital audio and video files stored on the terminal. To switch
to Windows Media Player for Pocket PC, tap Start > Windows Media.

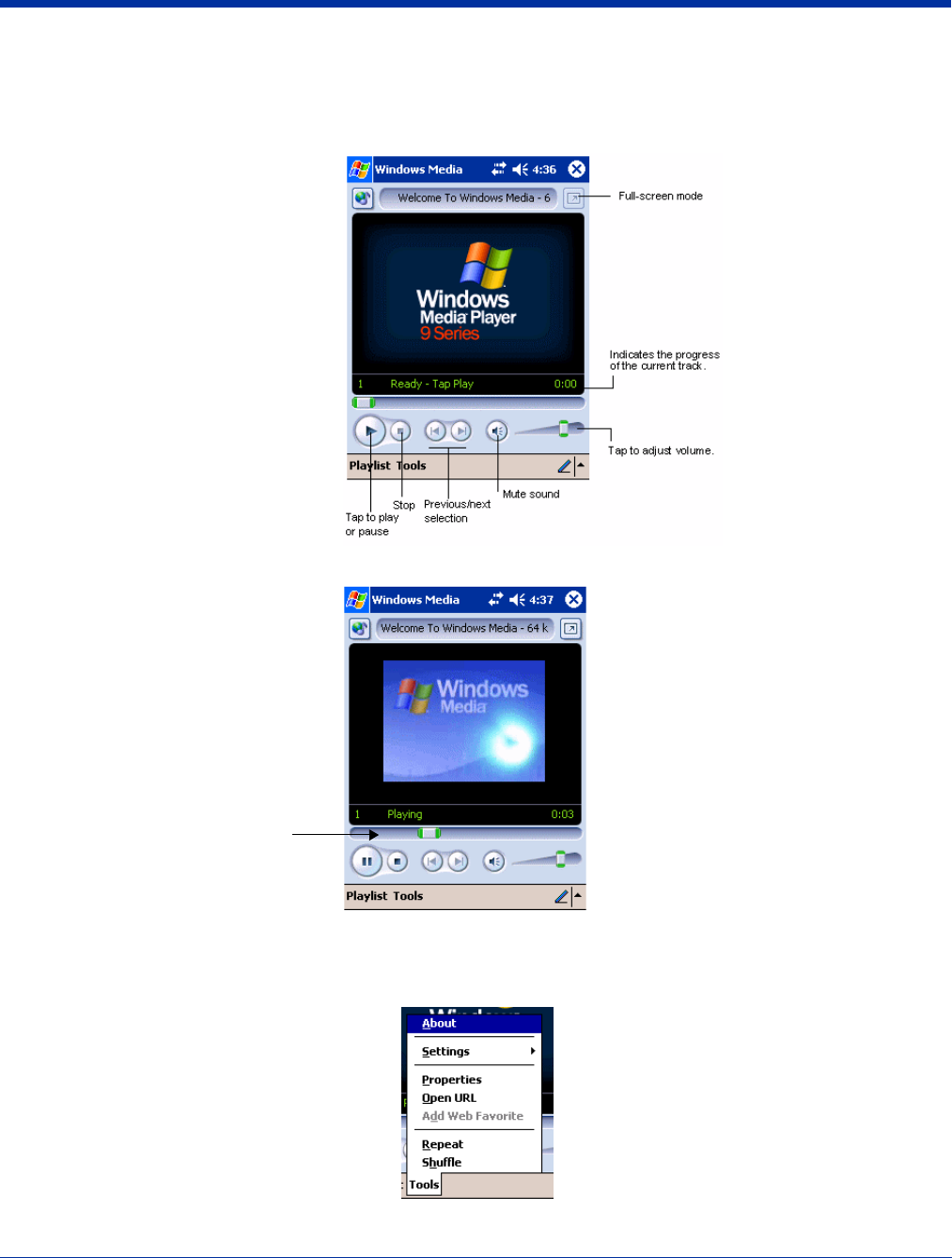

After a media file has been loaded, you can play, pause, stop, song advance/reverse, mute sound, or adjust volume.
This slider indicates the
progress of media playback.
Tools Menu
The tools menu allows you to perform several important functions.
About gives you information about the codecs used in your version of WMP.
12 - 18 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Settings allows you to configure several important aspects of WMP.
Properties gives a detailed listing of a media file's attributes.
Open URL allows you to open WMP-compliant media from a network or Internet resource.
Add Web Favorite adds a streaming media file that is currently playing to web favorites.
Repeat plays a playlist repeatedly.
Shuffle plays items in a playlist in a random order.
MSN Messenger
MSN Messenger is an instant messaging program that lets you:
• See who is online.
• Send and receive instant messages.
• Have instant message conversations with groups of contacts.
Note: To use MSN Messenger, you must have a Microsoft Passport™ account or a Microsoft Exchange e-mail account. You
must have a Passport to use MSN Messenger Service. If you have a Hotmail or MSN account, you already have a
Passport account. Sign up for a Microsoft Passport account at www.passport.com.
Setting Up
Before you can connect for the first time, you must enter the information from your Passport or Exchange account. After you set
up your account information on the terminal for the first time, you will go directly to login when you access MSN Messenger.
Note: Ensure that you are connected to the Internet (see Connections Tab on page 7-14).
1. Tap Start > Programs > MSN Messenger
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 12 - 19
2. Tap Tools > Options > Account tab.
3. In the Accounts tab, enter your Passport or Exchange account information.
Be sure to indicate the service you’re using to connect - Messenger or Exchange.
4. When complete, tap OK. You are returned to the sign-in screen.
5. To sign in, tap the sign-in screen and enter your e-mail address and password.
Note: If you already use MSN Messenger, your contacts will show up on your device without being added again.
Pictures
Use Pictures to view JPEG pictures stored on the terminal or storage card.
To begin, tap Start > Programs > Pictures.
Choose to view main memory or storage card contents. By tapping and holding on an image, you can create a clone of that file,
delete that file, select all files, send file via e-mail, beam picture, or rename the image.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 1
13
Dolphin HomeBase
Overview
As the hub of your Dolphin 7900 system, the Dolphin HomeBase charging and communication cradle supports both RS-232 and
USB communications, enabling your terminal to interface with the majority of PC-based enterprise systems.
Communications
RS-232 transmits data at speeds of up to 115 Kbps. With USB port, the data transmission rate goes up to 12 Mbps.
Dolphin HomeBases cannot be physically connected to each other–sometimes referred to as “daisy-chaining”–but can be
networked together via serial or USB hubs.
Convenient Storage
Intelligent battery charging makes the Dolphin HomeBase a safe and convenient storage receptacle for your Dolphin terminal.
Capacity
The Dolphin HomeBase can charge two battery packs: one that’s installed in the terminal and another in the auxiliary battery
well. While charging the battery pack in the terminal, the HomeBase also powers the Dolphin terminal. The auxiliary battery well
located behind the terminal well charges a battery pack independently of the terminal well.
Intelligent Battery Charging
The Dolphin HomeBase completes a full charge of the main battery pack in less than four hours.
In addition to charging, the HomeBase powers the intelligent battery charging system in the terminal that protects the battery
from being damaged by overcharging. The unit senses when a battery pack is fully charged and automatically switches to a trickle
charge that maintains the battery at full capacity.
As battery packs charge, the charging circuitry follows the two-step charging process (CC-CV) that is recommended for Li-Ion
batteries. The process monitors changes in temperature, current, and voltage.
As a result, Dolphin terminals may be stored in the HomeBase without damage to the terminals, battery packs, or peripherals.
Power Supply
The Dolphin HomeBase is available with US, UK, and European power supplies. Each version is designed to convert that voltage
from the power sources in each geography to the 9.5 volts DC required by the Dolphin terminal.
Use only the peripherals, power cables, and power adapters from Hand Held Products. Use of peripherals, cables, or
power adapters not sold/manufactured by Hand Held Products will void the warranty and may damage the terminal.
Use only the Li-ion battery packs provided by Hand Held Products. The use of any battery pack not sold/manufactured by
Hand Held Products in a Dolphin terminal will void your warranty and may result in damage to the Dolphin terminal or
battery.
!
!
13 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

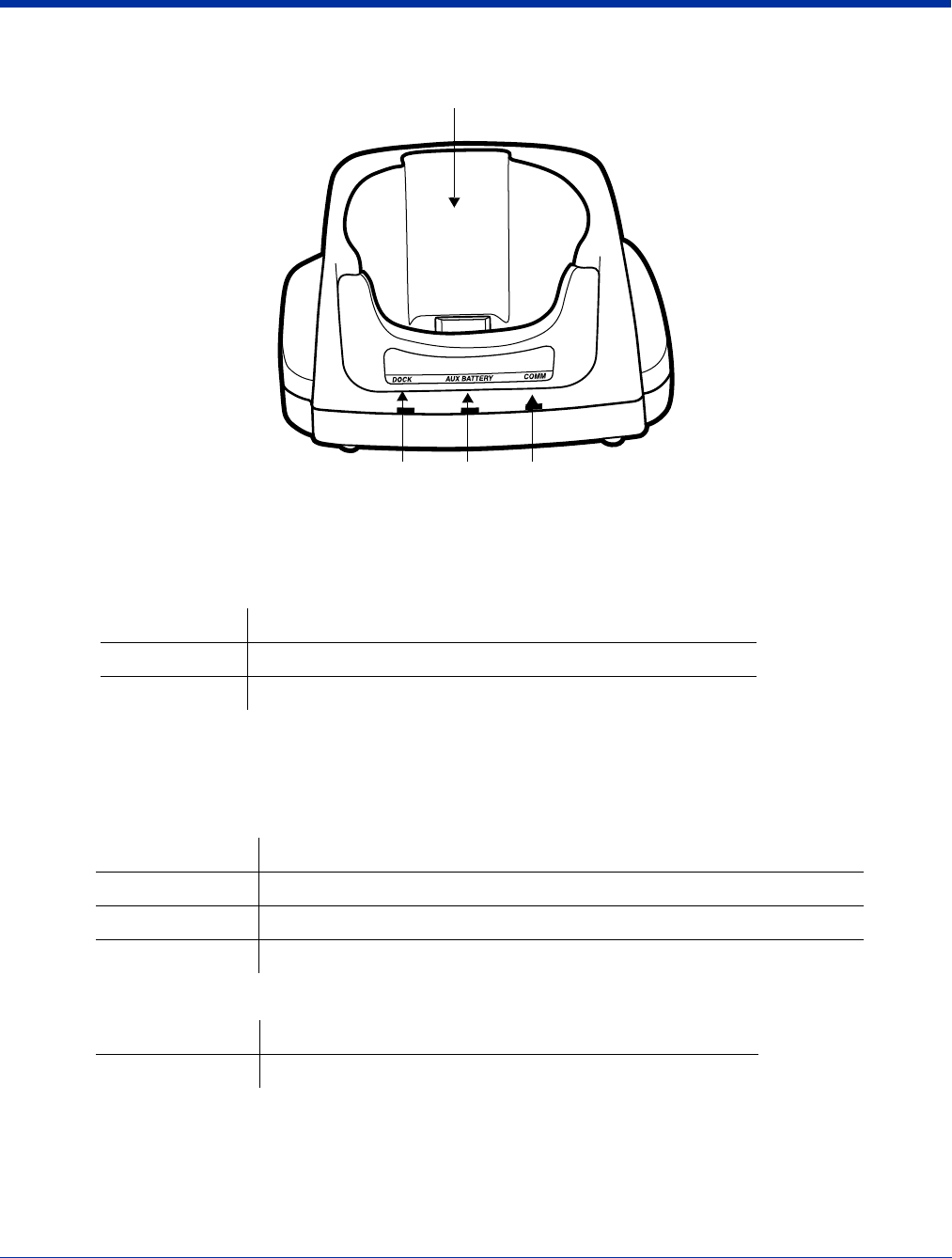

Front Panel
Terminal Well
DOCK
LED AUX
Battery
LED
COMM
LED
AUX Battery LED
Indicates status of the battery charging in the auxiliary battery well; see page 13-5.
This color… means…
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is ready for use.
COMM LED
This is the communication LED. It indicates the status of data transfer between the Dolphin terminal and the host
PC. The color of this LED differs if the HomeBase is using the serial or USB port connection.
If using the serial port
This color… means…
Red Serial data is being sent from the host device to the Dolphin HomeBase.
Green Serial data is being sent from the Dolphin HomeBase to the host device.
Orange Serial data is being sent at high data rates.
If using the USB port
This color… means…
Green LED A USB connection is established with the host computer.
DOCK LED
Turns solid green when the Dolphin terminal is properly seated in the Dolphin HomeBase. When this light is on, the
terminal is connected to the base.
Terminal Well
Place the Dolphin terminal in this well to communicate with a host device, power the terminal, and charge its battery
pack. If the host device is a desktop computer that uses ActiveSync, synchronization begins immediately.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 3

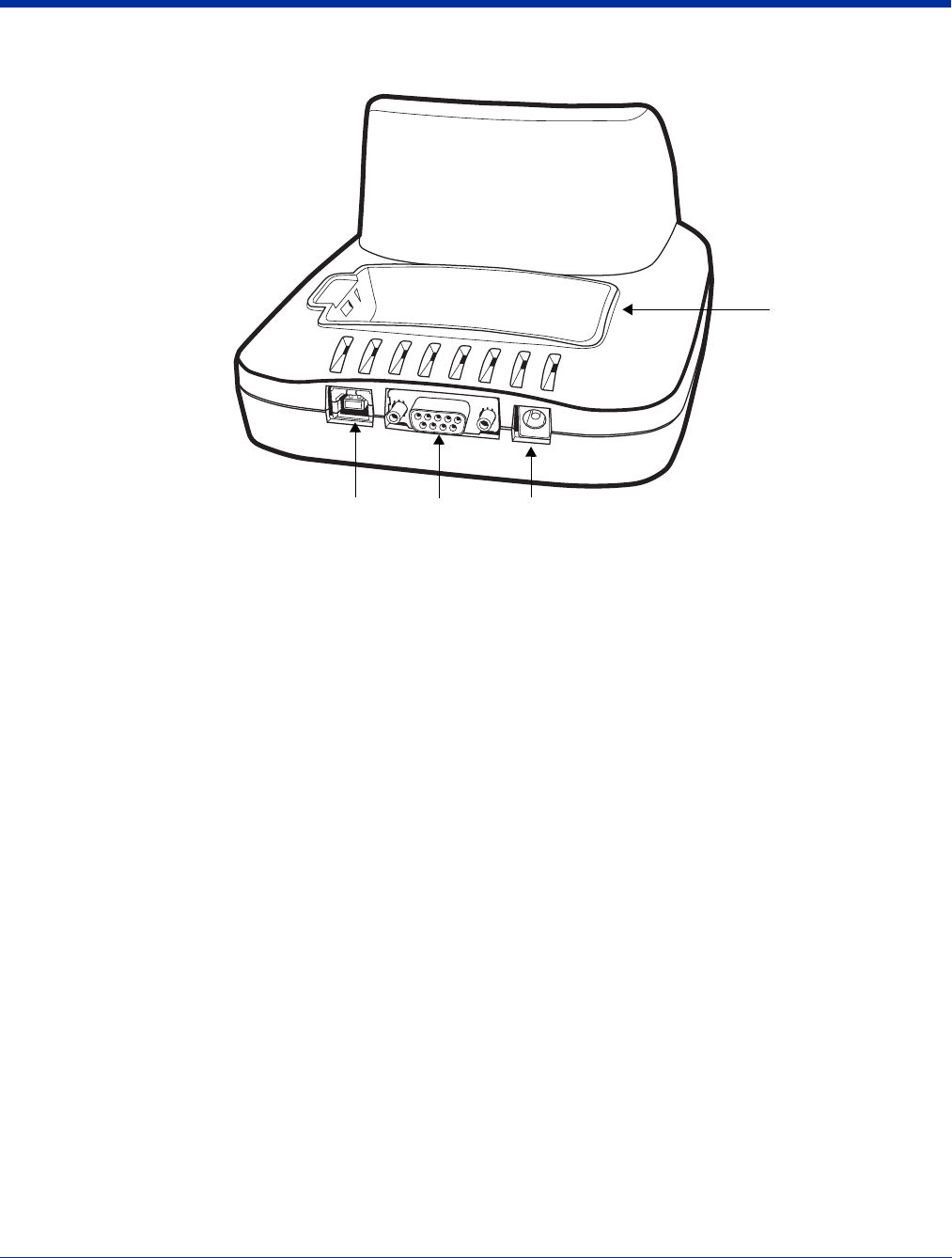

Back Panel
Auxiliary Battery
Well
DC Power
Jack RS-232 Port USB Port
Auxiliary Battery Well
The auxiliary battery well charges an additional Li-ion battery pack independently of the terminal well. This feature
ensures that you can always have a fully-charged battery for your Dolphin terminal; see Charging a Spare Battery
in the Auxiliary Battery Well on page 13-5.
DC Power Jack
Use a power cable from Hand Held Products to supply power to this power jack. For more information, see Powering
the Dolphin HomeBase on page 13-4.
RS-232 Port
For RS-232 data communication, use the 9-pin, RS-232 cable from Hand Held Products to connect this port to a
peripheral device. For more information, see RS-232 Serial Connector on page 13-4.
USB Port
This USB Port is full-speed and 2.0 compliant and requires ActiveSync 3.7 or higher. Using a USB cable, you can
connect the HomeBase to a USB-compliant device. When the HomeBase is connected to the device, the terminal
is connected to the device when seated in the terminal well.
13 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

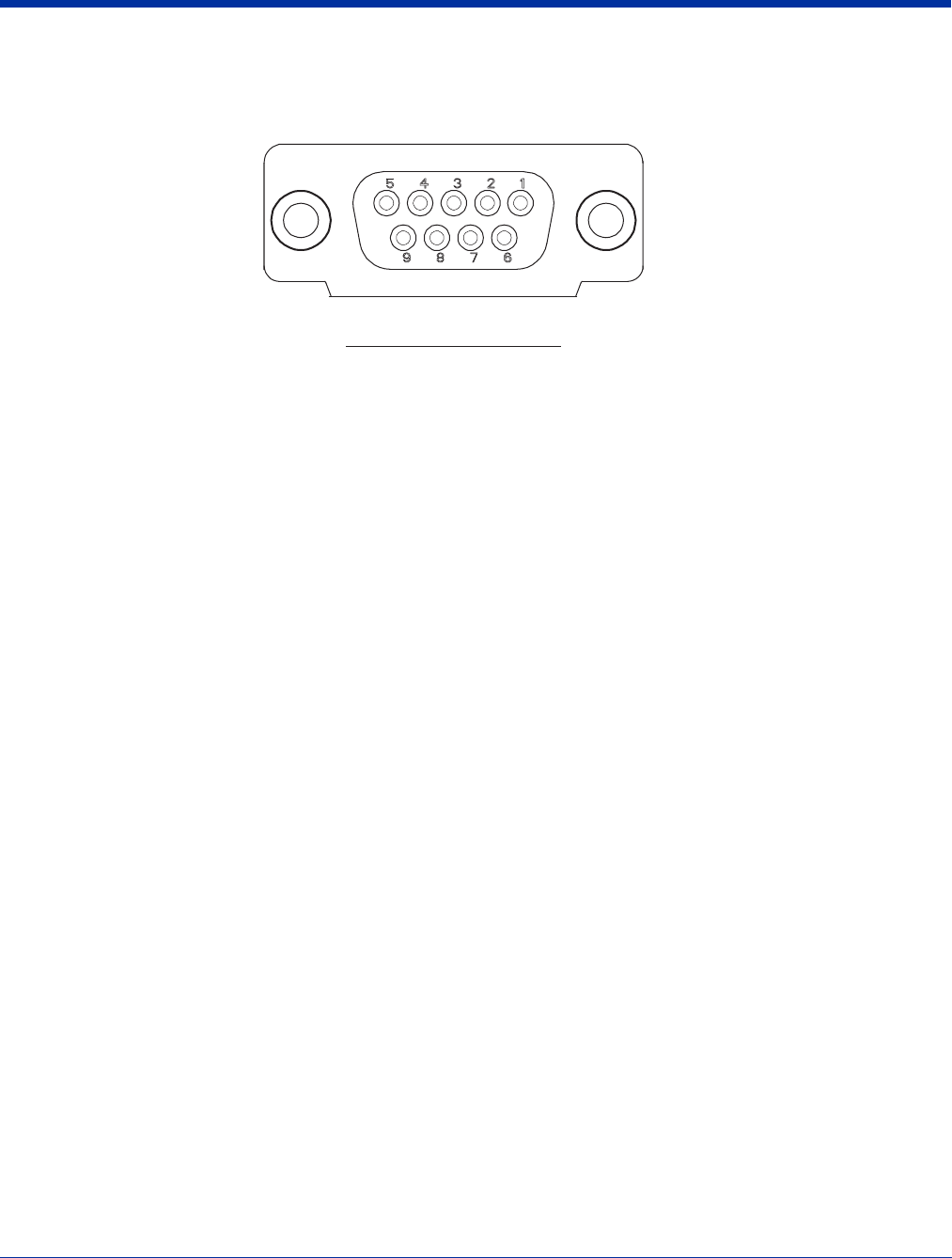

RS-232 Serial Connector

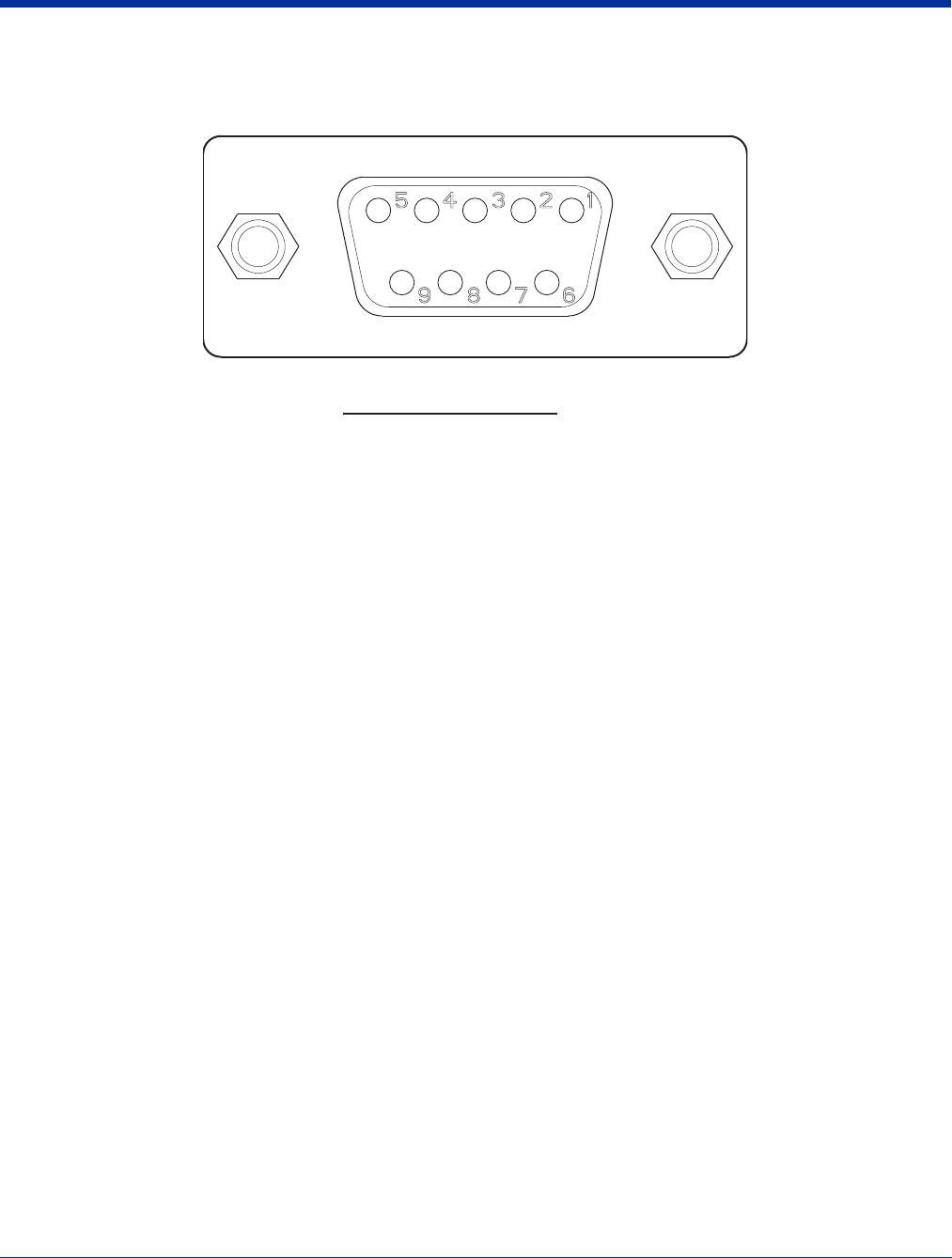

The following diagram displays the pins of the RS-232 serial connector of the Back Panel (see page 13-3).
Pi n # Description
1 Interna l Jumpe r to Pi n 6
2TXD
3RXD
4DSR
5GND
6DTR
7CTS
8RTS
9RI
Note: Signals referenced are for a DTE device. The HomeBase is at a right-angle to the printed circuit board (PCB). The ninth
pin has a ring indicator (RI).
Powering the Dolphin HomeBase
The terminal requires 9.5 volts DC input for communications and battery charging; the power adapter on the power cable converts
the voltage from the power source to 9.5 volts DC. Only power adapter cables from Hand Held Products converts the voltage
appropriately.
We recommend that you leave the Dolphin HomeBase connected to its power source at all times, so that it is always ready to use.
1. Connect the power cable to the DC jack on the rear panel of the HomeBase.
2. Connect the power cable to the power adapter.
3. Plug the power adapter into the power source.
4. The HomeBase is now powered. When a terminal is inserted into the terminal well, the HomeBase powers the terminal,
charges the terminal’s main battery pack, and launches ActiveSync communications (if applicable.)
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 5
Charging the Main Battery
The Dolphin HomeBase powers the terminal and fully charges its main battery pack in less than four hours. To check battery
power, see Power on page 7-10.
To Power a Terminal and Charge its Main Battery
1. Install the battery pack in the terminal; see Install the Main Battery Pack on page 2-5.
2. Power the HomeBase; see Powering the Dolphin HomeBase on page 13-4.

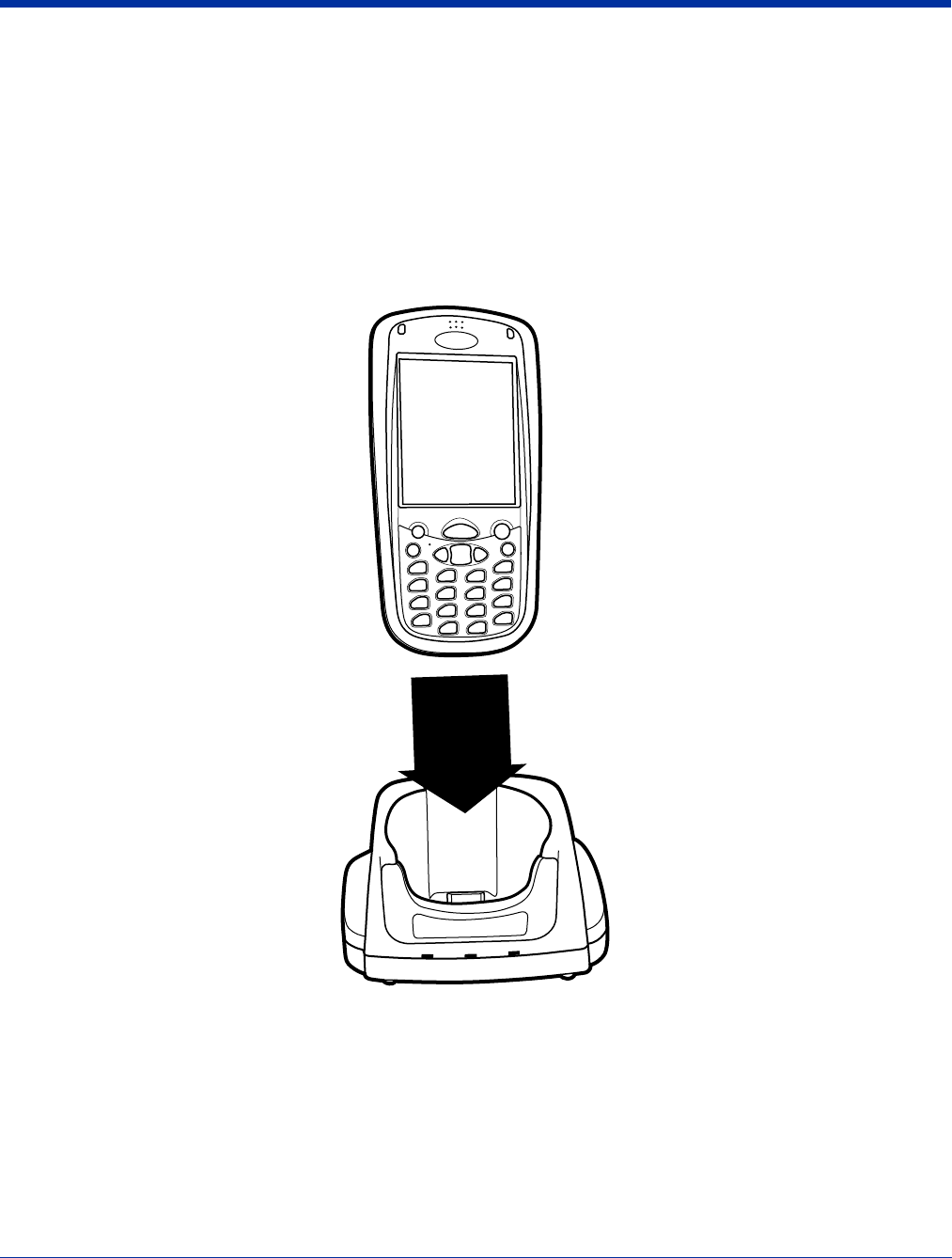

3. Slide the terminal into the terminal well until the Dock LED lights green to indicate that the terminal is properly seated.
4. The battery pack begins charging.
Charging a Spare Battery in the Auxiliary Battery Well
The auxiliary battery well located on the back panel (Auxiliary Battery Well, page 13-3) charges a spare battery. The AUX Battery
LED (page 13-2) on the front panel indicates the charge status of the battery in this well. Charge time is less than four hours and
the charge process is independent of the terminal well.
1. Insert the end of the battery without the locking tab into the bottom of the auxiliary well opening.
2. Snap the battery into place with a hinging motion. The Aux Battery LED lights orange.
3. The AUX Battery LED monitors the charge progress.
13 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
ActiveSync Communications with the HomeBase
The HomeBase can communicate via USB or RS-232 using ActiveSync 3.7 or higher. The HomeBase should have only one type
of interface cable connected at a time, either USB or RS-232.
USB The USB Port (see page 13-3) on the back panel allows the Dolphin terminal to communicate with a
PC or to networked through a USB hub. The HomeBase acts as a USB device by interfacing the USB
signals of the Dolphin to the USB signals of the host computer.
Maximum data transfer rate is 12 Mbps.
RS-232 The RS-232 Port (see page 13-3) on the back panel allows the Dolphin terminal to communicate with
a PC, modem, or any RS-232 device using a standard serial cable and communications software.
Maximum data transfer rate is 115 Kbps.
Required Equipment for Setup
• HomeBase powered by a power adapter cable from Hand Held Products
• USB Cable
• Serial Cable (for RS-232)
• ActiveSync v3.7 or higher
• Windows® 98 Second Edition*, Windows® Me, Windows® 2000, or Windows® XP computer.
Note: The HomeBase does not support Windows
NT
®
when using a USB connection.
This is because Windows
NT
does not
support USB
.
*Windows® 98 second edition provides full USB support.
USB Communications
The Dolphin terminal is defaulted to support USB communications out of the box.
To Install the HomeBase Using USB
1. Plug in the power supply and connect it to the back of the HomeBase.
2. Plug the USB cable into the back of the HomeBase and the PC.
3. At this point, the hardware is installed and operating. (You may need to reboot your PC to complete the installation process.)
Setting up the Terminal for ActiveSync Communications
1. On the terminal, tap Start > ActiveSync > Tools > Options. ActiveSync opens displaying the PC tab.
2. In the Use this PC drop-down list, select the name of the host PC.
3. Select Sync with this PC during manual sync to indicate that the terminal syncs with the selected host PC when
synchronization is run from the terminal.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 7
4. Tap Options.

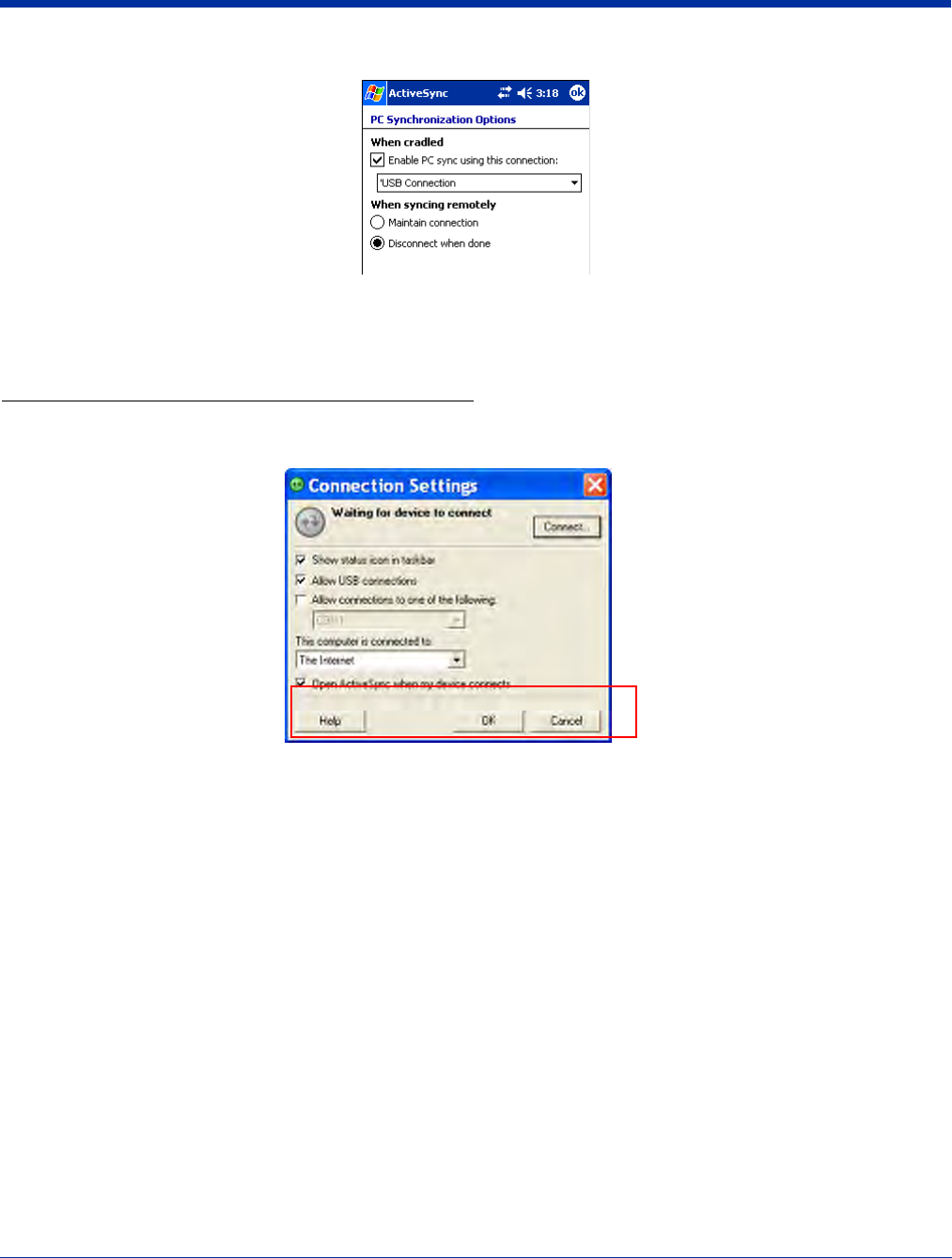

5. Select Enable PC sync using this connection, and select ‘USB Connection from the drop-down list.
6. Tap OK and place the Dolphin in the HomeBase. The Dolphin terminal attempts to start an ActiveSync connection with the
PC automatically.
Setting up the PC for ActiveSync Communications
Verify that ActiveSync on the PC has selected the appropriate communication type by clicking File > Communication
Properties.
The Allow USB connection with this desktop computer box must be checked. Do not check the serial cable box.
RS-232 Communications
Connecting the Cables
Connect the HomeBase to the host computer or other device by plugging an RS-232 serial cable into the RS-232 Port (see page
13-3) on the back panel. The wiring of your cable depends on whether the other device is set up as a Data Communications
Equipment (DCE) or Data Terminal Equipment (DTE) device.
The HomeBase communication port is configured as a DCE device. To communicate with a DCE device, use either a null modem
adapter in line with a standard RS-232 cable, or a null-modem serial cable. To communicate with a DTE device such as a PC,
use a standard (or straight-through) RS-232 cable.
You can make your own cables by following the pin configuration in the chart below. To do so, you must determine if your host
RS-232 device is 9-pin or 25-pin, and whether it is configured as a DCE or DTE device.
13 - 8 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
RS-232 Pin Configuration
HomeBase /Host Port
(DCE) IBM AT DB9
(DTE) IBM XT DB25
(DTE) Modem DB25
(DCE)
Pin / Input Signal
2 / (RD) 2 3 2
3 / (TD) 3 2 3
5 / (SG) 5 7 7
4 / (DTR) 420 6
6 / (DSR) 6 6 20
7 / (RTS) 7 4 5
8 / (CTS) 8 5 4
Note: The HomeBase cannot be daisy-chained.

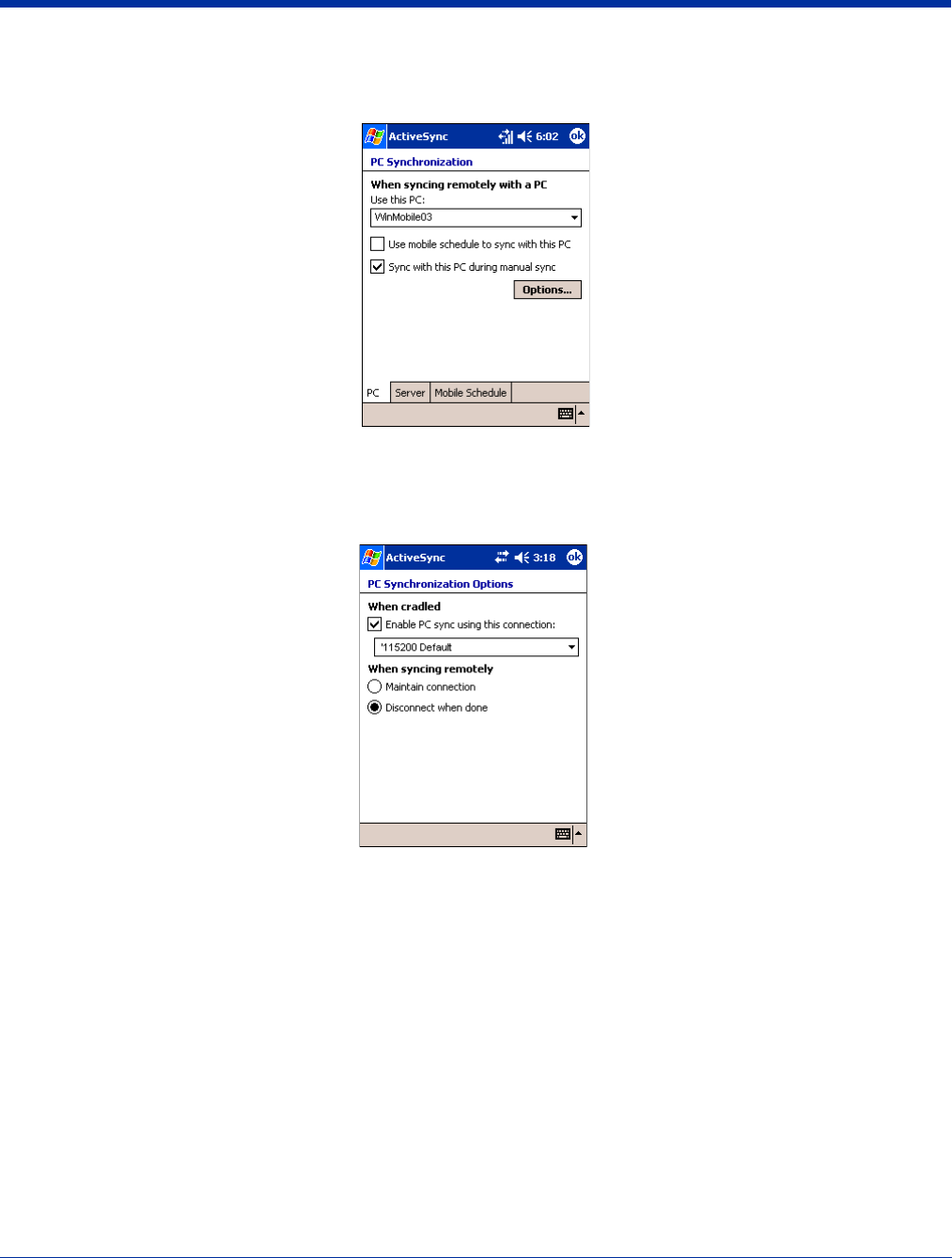

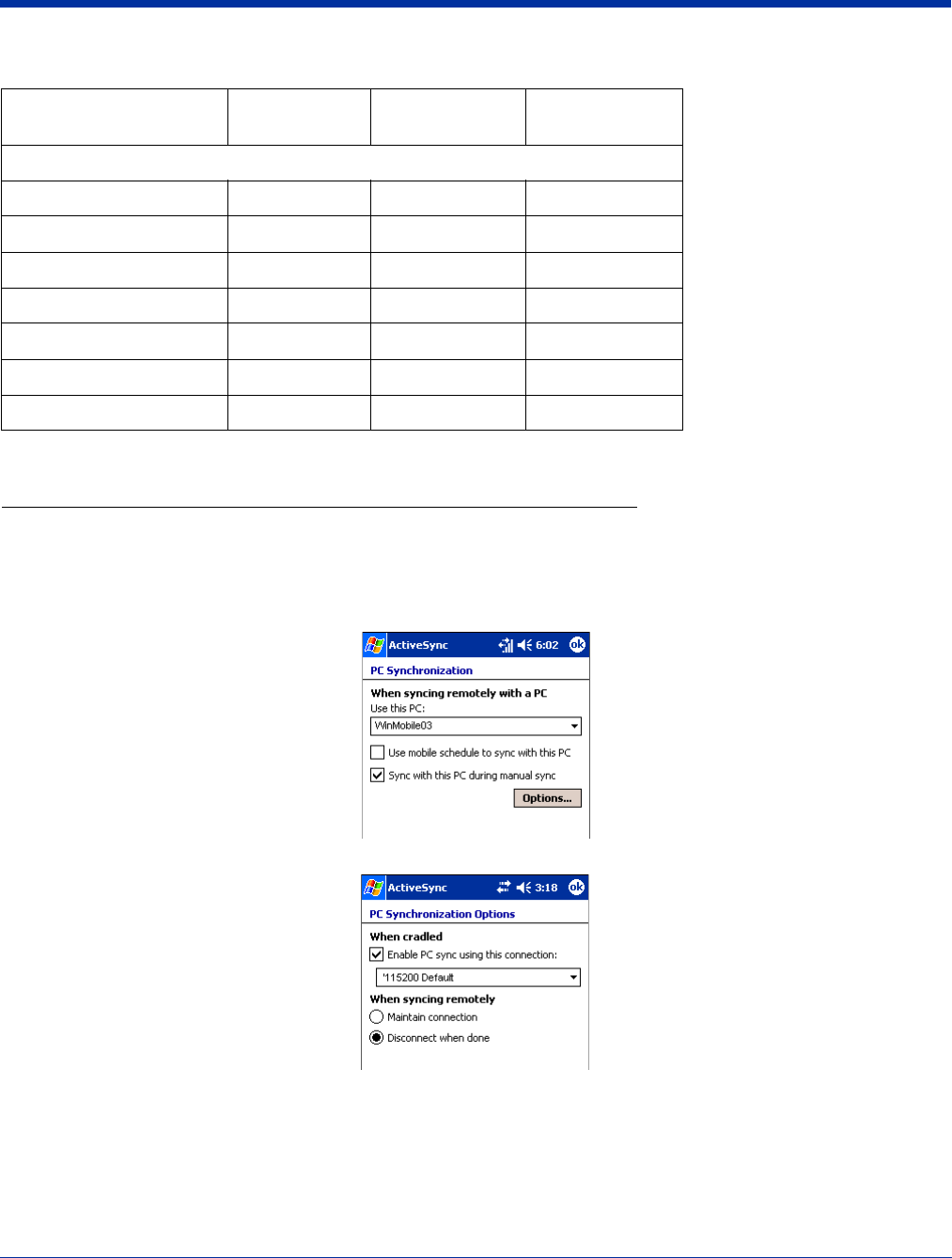

Setting up the Terminal for ActiveSync Communications via RS-232
1. On the terminal, tap Start > ActiveSync > Tools > Options. ActiveSync opens displaying the PC tab.
2. In the Use this PC drop-down list, select the name of the host PC.
3. Select Sync with this PC during manual sync to indicate that the terminal syncs with the selected host PC when
synchronization is run from the terminal.
4. Tap Options.
5. Under When cradled, select Enable PC sync using this connection, and select ‘115200 Default from the drop-down list.
‘115200 baud is recommended for RS-232 communication.
6. Tap OK and place the Dolphin in the HomeBase. The Dolphin terminal attempts to start an ActiveSync connection with the
PC automatically.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 9
Setting up the PC for ActiveSync Communications
ActiveSync must be installed and configured for RS-232 on the desktop computer to sync successfully with a Dolphin terminal
that is configured for RS-232 communication. Verify that ActiveSync on the PC has the correct ActiveSync Connection Settings.

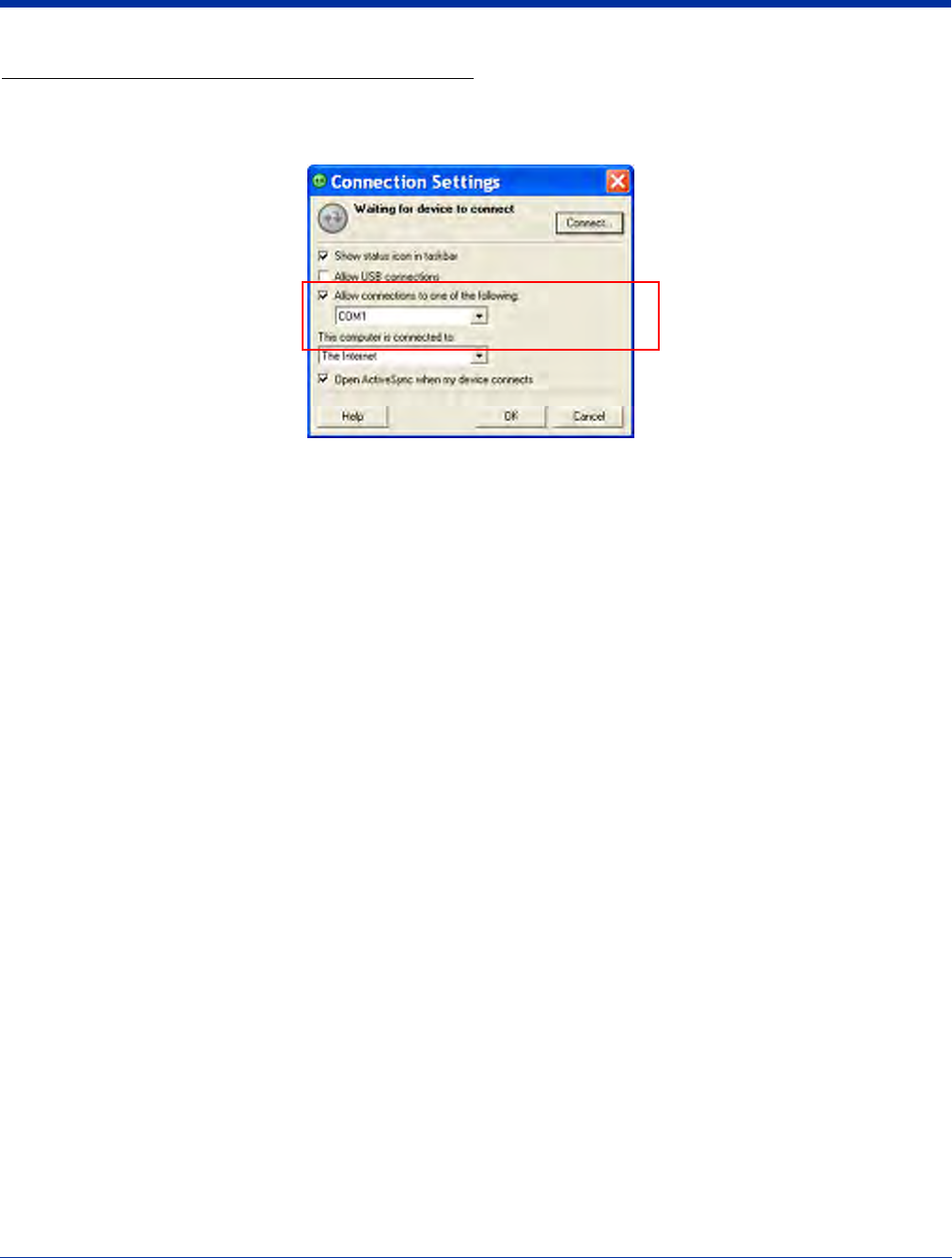

Open ActiveSync and click File > Communication Properties.
Note: You can have the USB connection box checked in addition to the serial cable box without affecting processing. However,
you should use RS-232 or USB.
Communicating with the Dolphin Terminal
1. Insert the Dolphin terminal into the terminal well of the HomeBase.
• The DOCK LED lights green. If the DOCK LED does not light, make sure that the terminal is properly seated. You
may need to remove and re-insert the terminal.
• T h e D o l p h i n t e r m i n a l a c t i v a t e s . I f the terminal does not power on, verify that the Hand Held Products power supply
is properly connected to the cradle and plugged into a functioning outlet.
• The Dolphin terminal automatically opens ActiveSync to establish a connection.
2. The HomeBase can now transfer data between the terminal and the host device. If communication does not occur, check
the port connections to ensure that the cradle is correctly configured.
Verifying Communication
You can verify that the USB driver is functioning by watching the COMM LED on the USB HomeBase. When the
COMM LED lights solid green, the HomeBase is communicating with the PC.
Verifying Data Transfer
The COMM LED flashes when data is being transferred via the HomeBase. For an RS-232 connection, the COMM
LED flashes red and green. For a USB connection, the COMM LED flashes green.
13 - 10 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Mounting the HomeBase
Set the Dolphin HomeBase on a dry, stable surface, such as a desktop or workbench near an electrical outlet. Be sure to provide
enough workspace with good lighting for the user to view and operate the Dolphin terminal while it is in the HomeBase.
When choosing a location, bear in mind that:
• The mounting location must allow users easy access to the AUX Battery LED (see page 13-2).
• The serial, USB, and power jack face straight out of the rear panel. You will most likely want easy access to them in the future.
Desk Mounting
Dolphin charging/communication cradles have a DIN rail (7.5mm high X 35mm wide) slot on the bottom to allow for secure desk
attachment of the unit if desired.

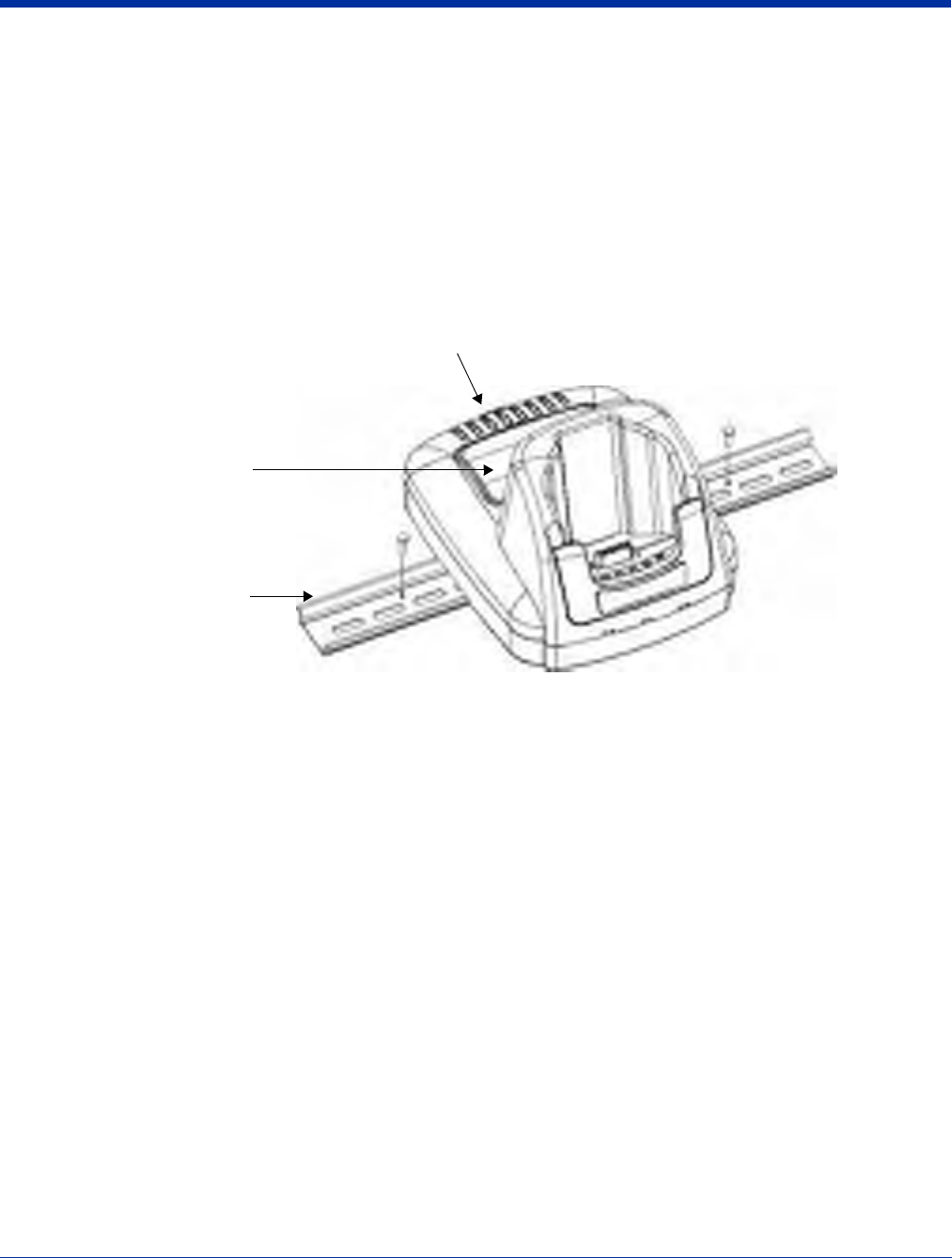

Auxiliary
Battery
Well
Serial and USB port location (not in view)
DIN Rail
(7.5 X 35 mm)
1. Slide the DIN rail slot along the bottom panel.
2. Using the appropriate nuts and bolts, secure the DIN rail to the desk or flat surface.
Wall Mounting
A wall mount kit that contains a screws and a mounting bracket can be purchased separately. The bottom panel of the HomeBase
contains four rubber feet - one at each corner - that help keep it stable and secure when resting on a flat surface. Those rubber
feet should be removed with pliers before wall mounting the HomeBase.
1. Secure screws to the bottom panel by sliding them into the available slots.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 13 - 11

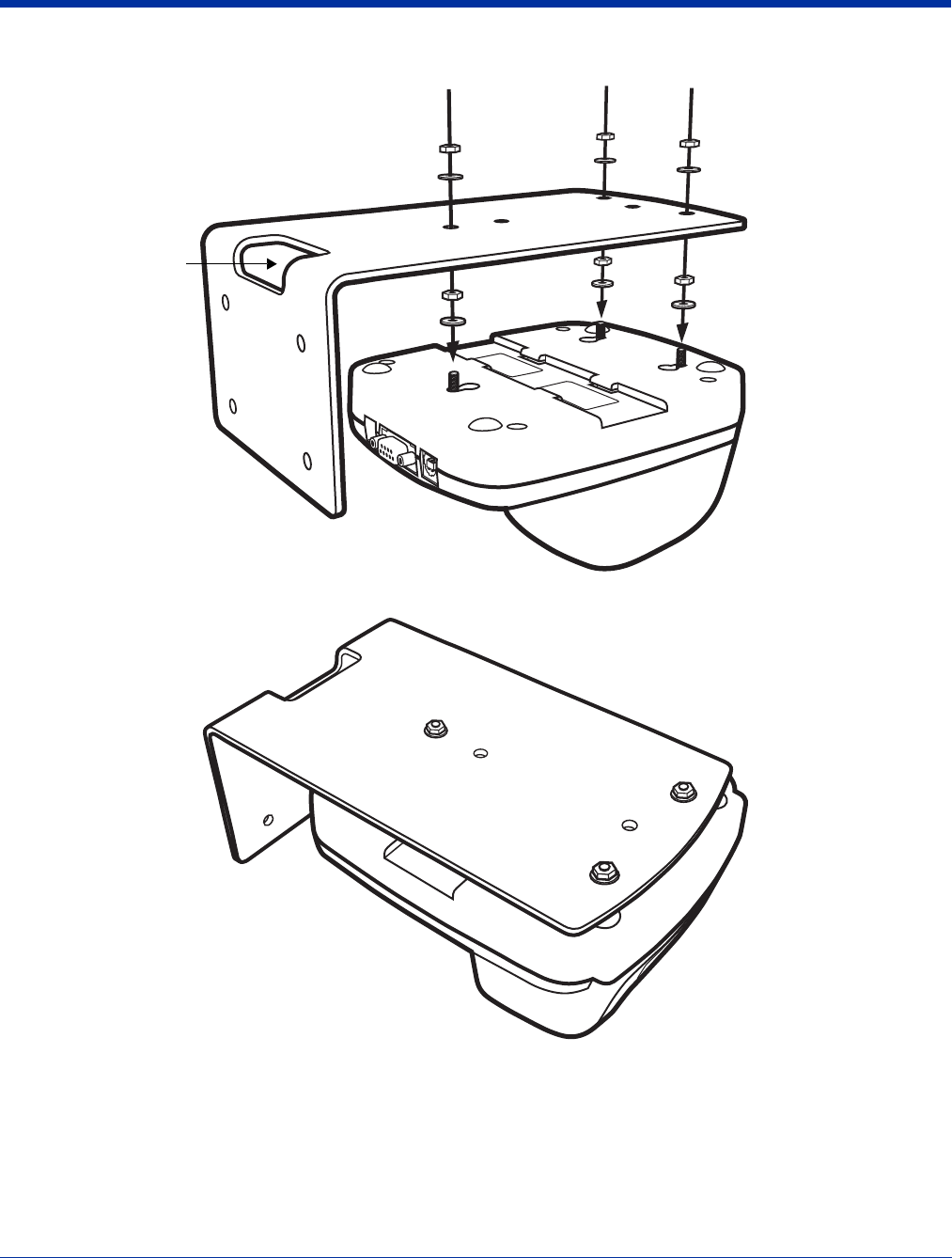

2. Attach the bottom panel to the mounting bracket - match the holes to the secured screws.
Open slot for the
connector and
power cables
3. Fasten the screws to secure the HomeBase to the mounting bracket.
4. Turn the secured HomeBase right side up.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 14 - 1
14
Dolphin Mobile Base
Overview
The Dolphin Mobile Base charging and communication cradle is designed specifically for in-premise and in-transit data collection
applications. It features a flexible mounting bracket, a cigarette lighter adapter, and a power cable to adapt it to your environment.
When a terminal is seated in the Mobile Base, its main battery pack charges in less than four hours. The serial connector supports
RS-232 communication and power out to peripheral devices, such as hand held scanners.
As the hub of your mobile data collection system, the Mobile Base performs three important functions: charging, communications,
and storage.
Charging
The Mobile Base completes a full charge of the main battery pack in less than four hours. The Mobile Base also
provides power to the intelligent battery charging system in all Dolphin terminals that senses when a full charge has
been achieved and switches to a trickle charge to prevent over- and undercharging.
Communications
The Mobile Base transmits data at speeds of up to 115K baud via its RS-232 serial port.
Convenient Storage
Intelligent battery charging makes the Mobile Base a safe and convenient storage receptacle for your Dolphin
terminal.
Capacity
The Mobile Base holds one terminal.
Use only the peripherals, power cables, and power adapters from Hand Held Products. Use of peripherals, cables, or
power adapters not sold/manufactured by Hand Held Products will void the warranty and may damage the terminal.
Use only the Li-ion battery packs provided by Hand Held Products. The use of any battery pack not sold/manufactured by
Hand Held Products in a Dolphin terminal will void your warranty and may result in damage to the Dolphin terminal or
battery.
!
!
14 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Dolphin Mobile Base Hardware Overview

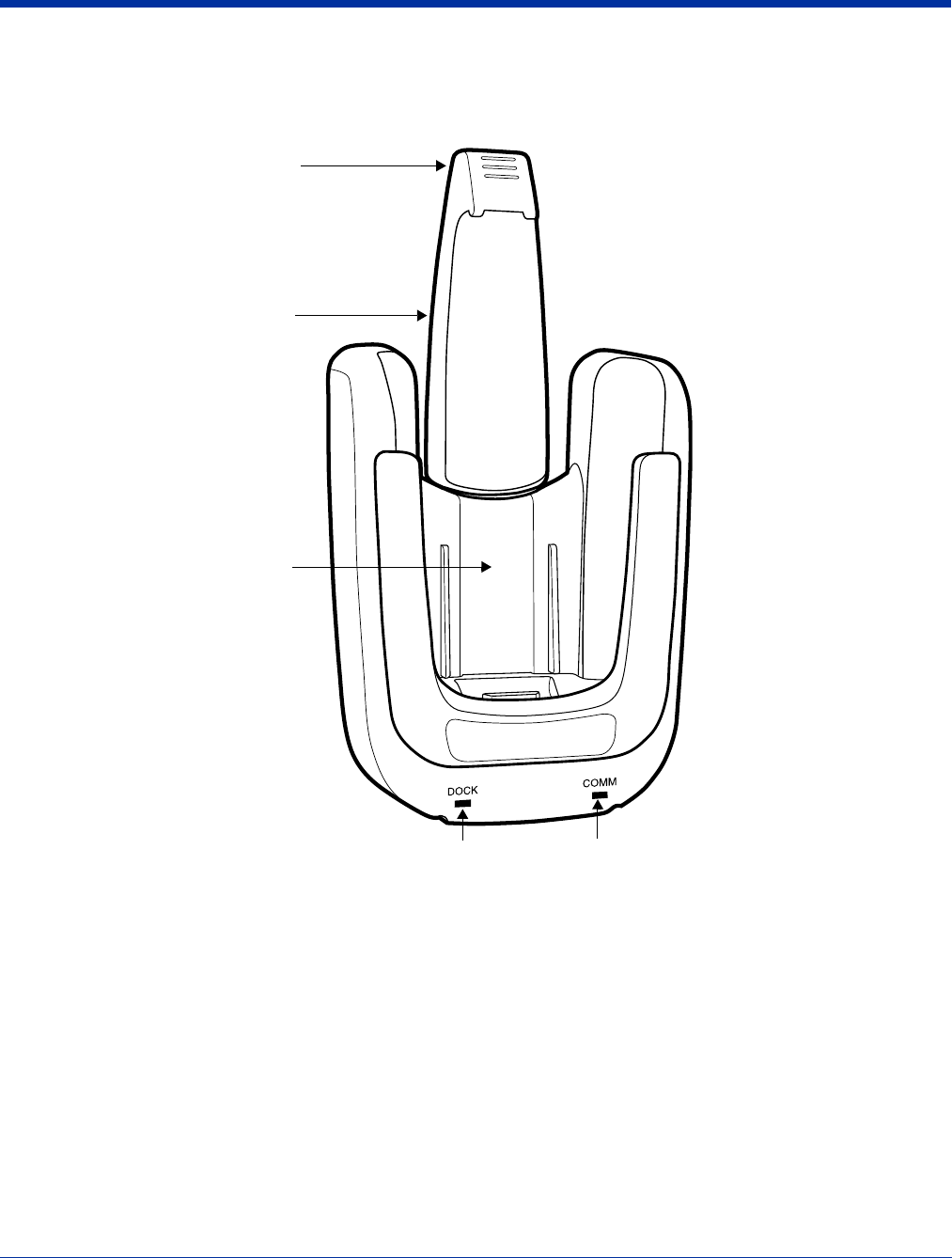

Front Panel
Terminal Well
COMM LED
Spring Arm Assembly
DOCK LED
Latch
Latch
You can use the latch at the top of the spring arm assembly to snap a seated terminal into place. The latch can rest
on top of the hand strap slot on the back panel of the terminal; see page 14-6.
Spring Arm Assembly
For more information, see Spring Arm Assembly on page 14-5..
Terminal Well
Place the terminal in this well to communicate with a host device and charge the main battery pack.
DOCK LED
Lights solid green when the Dolphin terminal is properly seated in the terminal well.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 14 - 3
COMM LED
Indicates the status of data transfer between the host device and the Dolphin terminal
COMM LED Color Indicates that…
Red Data is being sent from the host device to the Dolphin Mobile Base.
Green Data is being sent from the Dolphin Mobile Base to the host device.
Orange Data is being sent at high data rates.
Bottom Panel
RS-232 Serial
Communications
Port
Power
Supply
Connector
Power Supply Connector
Attach a power cable from Hand Held Products to this connector. The Mobile Base can be powered by an external
DC power source between 11 VDC to 48 VDC. To run on vehicle power, you can use the 12 VDC cable or 24 VDC
cable option. The appropriate cable comes with the kit you ordered. The 12 VDC cable can be used with a cigarette
lighter outlet. The 24 VDC, pigtail cable can be used to “hard-wire” into the vehicle power bus.
Verify that the power source is always within the specified range and observe correct input voltage polarity. An improper input
voltage range (above the 48 VDC maximum) or reverse polarity could damage the power conversion circuitry.
!
14 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
RS-232 Serial Communications Port
Use a standard serial cable to connect to the host device via RS-232. The following diagram displays the pin
diagram of the serial connector of the bottom panel of the Mobile Base.
Pin # Description
1 Internal Jumper to Pin 6
2 TXD
3 RXD
4 DSR
5 GND
6 DTR
7 CTS
8RTS
9 5 VOLT OUT
Signals referenced are for a DTE device.
The Mobile Base connector is straight to the printed circuit board (PCB). The ninth pin sends 500mA at 5 Volts
power out. This can power a peripheral device, such as a mobile printer, as long as that peripheral device can
accept 500mA at 5 Volts.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 14 - 5

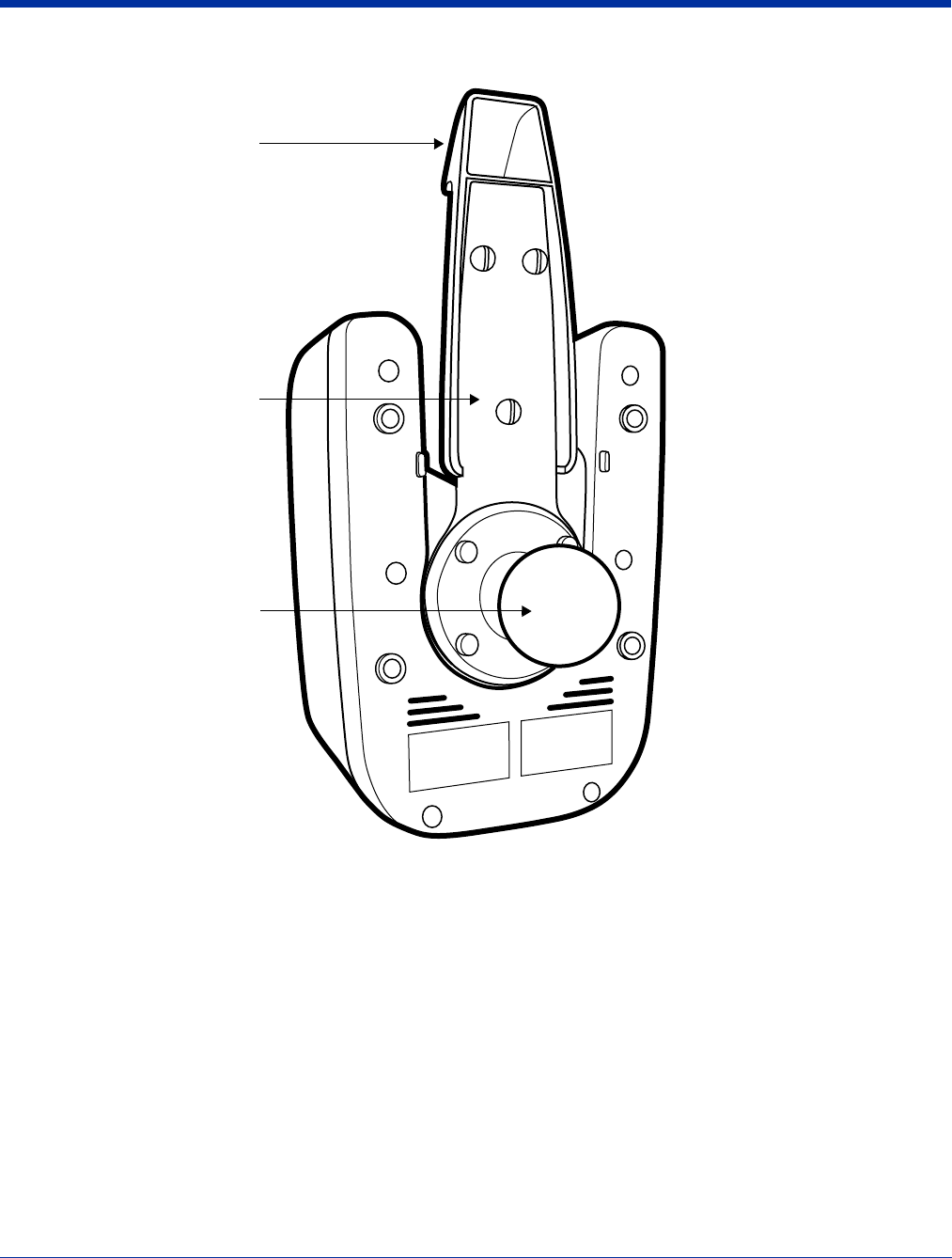

Back Panel
Spring Arm Assembly
Latch
Ball Joint
Spring Arm Assembly
The spring arm assembly holds the terminal securely in place and connects the Mobile Base to the ball joint.
Ball Joint
There are two ball joints: one on the back of the Mobile Base and one on the mounting bracket. Both ball joints are
inserted into the mounting bracket and secured by the turnscrew.
14 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Mounting the Dolphin Mobile Base
There are three items you use to mount the Dolphin Mobile Base: the ball joints on the both the back panel and the ball joint
connector, the mounting bracket, and the turnscrew.
Turnscrew
Mounting Bracket
Ball Joint
Connector
Latch - securing the
terminal
Turnscrew
The turnscrew is located on the top of the bracket. Rotate the turnscrew to secure or loosen the ball joint slots.
Mounting Bracket
The bracket contains the turnscrew and two slots - one for the ball joint on the back panel and one for the ball joint
connector. Both ball joints are inserted into a slot and secured with the turnscrew.
Ball Joint Connector
The ball joint is what you attach to the mounting surface. It is comprised of a ball joint and flat disk. The disk contains
drill holes you use to secure the Mobile Base to the mounting surface.
To Mount the Dolphin Mobile Base
1. Secure the ball joint connector to a stable, mounting surface.
When selecting a surface, keep in mind that the power supply and serial connectors point straight out the bottom panel.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 14 - 7
2. On the mounting bracket, loosen the turnscrew.
3. Insert both ball joints into the mounting bracket.
4. Tighten the turnscrew to secure both ball joints.
Powering the Dolphin Terminal
When seated in a Mobile Base that is connected to the appropriate power source, the Dolphin terminal receives the power to
charge its main battery and run its internal circuitry. Keep the Mobile Base plugged into the power source so that the Dolphin
terminal battery pack stays fully charged.
Charging the Dolphin Terminal
Dolphin terminals contain an intelligent battery charging system that monitors the charging of the battery pack to protect the
battery from damage by overcharging. Therefore, the Dolphin terminal may be stored indefinitely in the Mobile Base without
damage to the terminal, the battery pack, or the Mobile Base.
1. Insert a battery pack into the Dolphin terminal.
2. Slide the terminal, imager window up and the LCD visible, into the terminal well of the Mobile Base until it stops.
3. When the Dolphin terminal is properly seated, the DOCK LED lights solid green. The terminal begins charging
automatically.
Setting Up the Mobile Base for Communications
The Mobile Base RS-232 interface allows the Dolphin terminal to communicate to a personal computer, modem, or any standard
RS-232 device using a standard serial cable and communications software.
Connecting the Cables
Plug an RS-232 serial cable into the RS-232 Communications Port on the bottom panel. Plug the other end of the RS-232 serial
cable into the correct port on the host RS-232 device.
The wiring of your cable depends on whether the other device is set up as a Data Communications Equipment (DCE) or Data
Terminal Equipment (DTE) device. The Mobile Base communication port is configured as a DCE device. To communicate with
a DCE device, use either a null modem adapter in line with a standard RS-232 cable, or a null-modem serial cable. To
communicate with a DTE device such as a computer, use a standard (or straight-through) RS-232 cable.
RS-232 Pin Configuration
Refer to this table if you want to make your own cables. To do so, you must determine if your host RS-232 device is 9-pin or 25-
pin and configured as a DCE or DTE device.
Mobile Base /Host Port
(DCE) IBM AT DB9
(DTE) IBM XT DB25
(DTE) Modem DB25
(DCE)
Pin / Input Signal
2 / (RD) 232
3 / (TD) 323
5 / (SG) 577
4 / (DTR) 420 6
6 / (DSR) 6620
7 / (RTS) 745
8 / (CTS) 854
14 - 8 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Configuring the Terminal for ActiveSync Communications
1. On the terminal, tap Start > ActiveSync > Tools > Options. ActiveSync opens displaying the PC tab.
2. In the Use this PC drop-down list, select the name of the host PC.
3. Select Sync with this PC during manual sync to indicate that the terminal syncs with the selected host PC when
synchronization is run from the terminal.
4. Tap Options.
5. Under When cradled, select Enable PC sync using this connection, and select 115200 Default from the drop-down list.
‘115200 baud is recommended for RS-232 communication.
6. Tap OK.
7. Place the Dolphin in the Mobile Base. The Dolphin attempts to start an ActiveSync connection with the desktop computer
automatically.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 15 - 1
15
Dolphin ChargeBase
Overview
The Dolphin ChargeBase is a four-slot charging cradle that can power four Dolphin terminals, and charge their main batteries in
less than four hours. Each charging slot charges terminals independently of the other slots.
Charging
The Dolphin ChargeBase completes a full charge of the main battery pack in less than four hours. The ChargeBase
also provides power to the intelligent battery charging system in all Dolphin terminals that senses when a full charge
has been achieved and switches to a trickle charge to maintain the full charge.
As battery packs charge, the charging circuitry follows the two-step charging process (CC-CV) that is recommended
for Li-Ion batteries. The process monitors changes in temperature, current, and voltage.
Convenient Storage
Intelligent battery charging makes the Dolphin ChargeBase a safe and convenient storage receptacle for Dolphin
terminals.
Capacity
The ChargeBase can hold up to four Dolphin 7900 terminals.
Use only the peripherals, power cables, and power adapters from Hand Held Products. Use of peripherals, cables, or
power adapters not sold/manufactured by Hand Held Products will void the warranty and may damage the terminal.
Use only the Li-ion battery packs provided by Hand Held Products. The use of any battery pack not sold/manufactured by
Hand Held Products in a Dolphin terminal will void your warranty and may result in damage to the Dolphin terminal or
battery.
Dolphin ChargeBase Parts and Functions

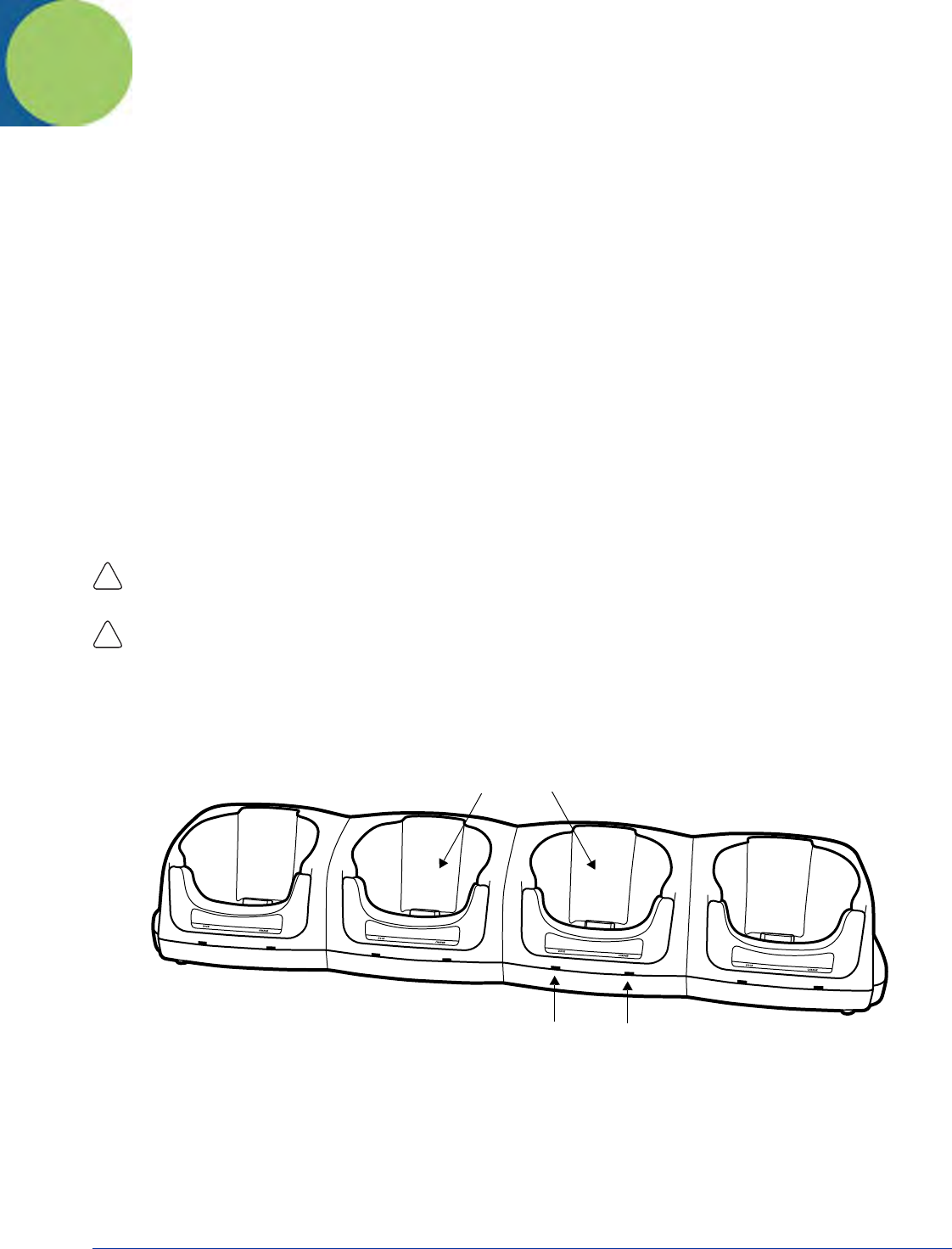

Front Panel
Charge LEDDock LED
Terminal Wells
Terminal Wells
The ChargeBase contains four terminals wells. Each terminal well
• Holds and charges the main battery pack of one Dolphin terminal.
• Contains the companion to the industrial-grade, 17-pin connector on the bottom panel of Dolphin terminals.
• Has two LEDs on the front: the Dock LED and the Charge LED.
!
!
15 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Dock LED
Each terminal well displays a Dock LED on the front that lights solid green when a terminal is properly seated, which
means that the terminal and the base are connected.
Charge LEDs
Each terminal well displays a Charge LED on the front that lights green to indicate charging. For details, see
Charging Terminals in the ChargeBase on page 15-3.

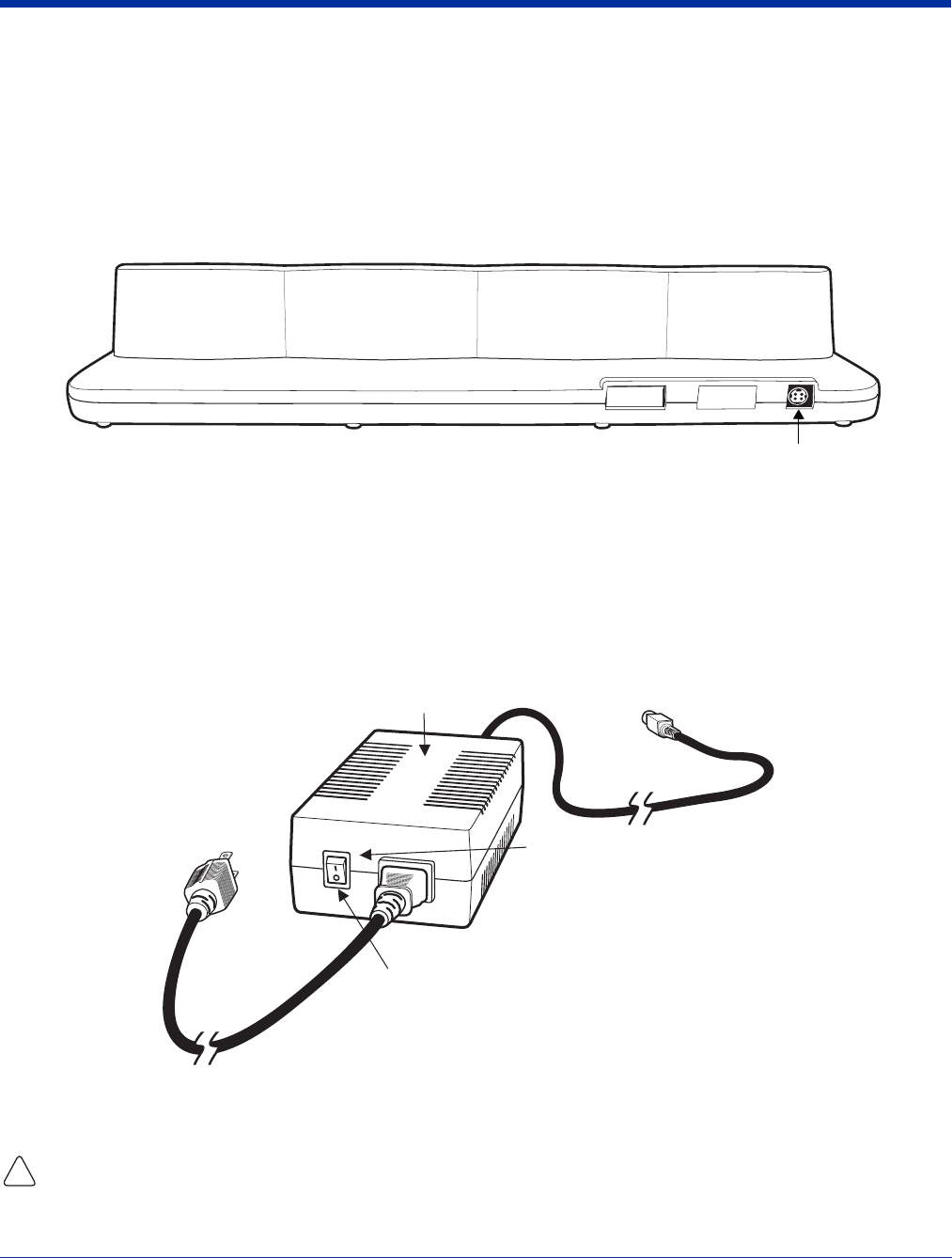

Back Panel
Power Supply Connector
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from the power adapter into
this connector. There is no ON/OFF switch on the back panel of the ChargeBase. The ON/OFF switch is on the
power adapter.
Power Supply
The Dolphin ChargeBase includes a power supply that contains a power adapter to ensure the proper voltage. The power adapter
plugs into standard AC/DC outlets.
Power Cord
ON/OFF
Switch
ON Position
Power Adapter
Power
Connector
Cable
Supplying Power to the ChargeBase
You must use the power adapter provided by Hand Held Products with the Dolphin ChargeBase. Using a non-Hand Held Products
power adapter voids your warranty and could result in serious damage to the circuitry of the Dolphin ChargeBase.
1. Be sure the power switch on the power adapter is in the OFF position.
!
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 15 - 3
2. Plug the power cord into the power adapter.
3. Plug the power connector cable into the power connector on the back panel of the ChargeBase.
4. Plug the power cord into a standard wall outlet.
5. On the power adapter, turn the power switch to the ON position. The LEDs light as the ChargeBase powers up.
6. The Dolphin ChargeBase is ready to begin charging terminals.
Inserting and Removing Terminals
To insert a terminal, hold the terminal with the bottom panel perpendicular to the base. Slide the terminal into the well until the
Dock LED lights solid green. Charging begins immediately.
To remove a terminal, grasp it firmly in your hand and lift it up and out of the terminal well. The LEDs for the terminal well turns off.
Charging Terminals in the ChargeBase
The Dolphin ChargeBase charges the main battery of each terminal in less than four hours. The Dolphin ChargeBase works with
the intelligent battery charging system incorporated in the Dolphin terminal to prevents overcharging. This means that Dolphin
terminals may be stored in the ChargeBase indefinitely without damage to the terminals, battery packs, or the ChargeBase.
1. Power the ChargeBase; see Supplying Power to the ChargeBase on page 15-2.
2. Insert a terminal into a terminal well; see Inserting and Removing Terminals on page 15-3.
3. The Charge LED lights green to indicate that the terminal is powered and charging.
Mounting the Dolphin ChargeBase
The Dolphin ChargeBase should be placed on a dry, stable surface. To easily adapt the ChargeBase to your environment, it can
be mounted on a flat, horizontal surface such as a desktop or workbench, or a flat, vertical surface such as a wall.
When choosing a location, always bear in mind that
• The mounting location must allow users easy access to the power connector.
• The ChargeBase should be oriented so that users can easily read the labels.
Bottom Panel
The bottom panel of the Dolphin ChargeBase offers two mounting options: insert a DIN Rail in the available slot for desk mounting
or secure two mounting brackets with the available screw slots.
DIN Rail Slot
Screw Slots
Rubber Feet
15 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

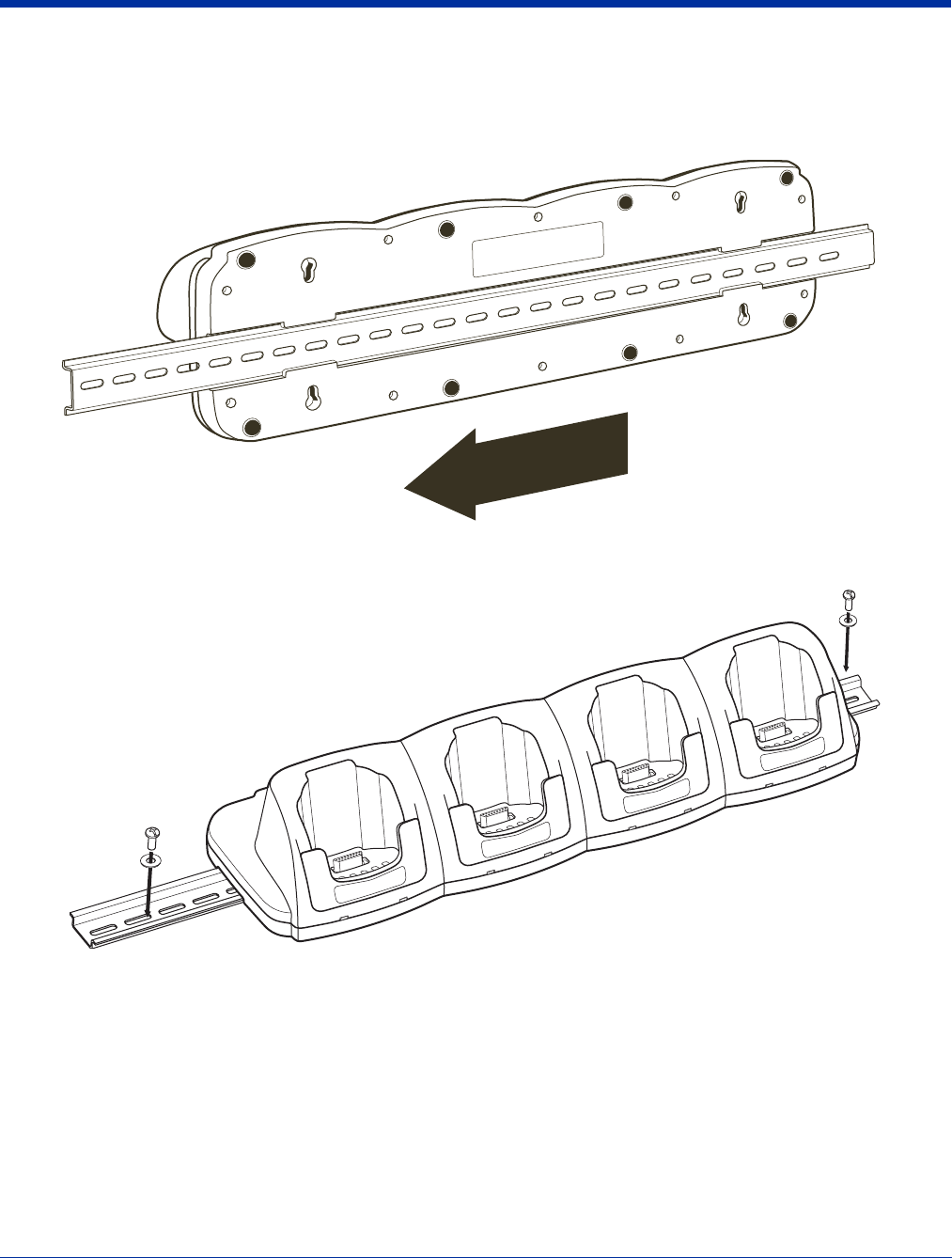

Using the DIN Rail
All Dolphin charging/communication cradles have a slot for a 7.5mm (high) X 35mm (wide) DIN rail on the bottom panel that
enables you to mount to a desk or secure, flat surface.
1. Slide the DIN Rail into the DIN Rail slot on the bottom panel.
2. Turn the ChargeBase and DIN Rail right side up.
3. Secure the DIN Rail to a stable, flat horizontal surface.

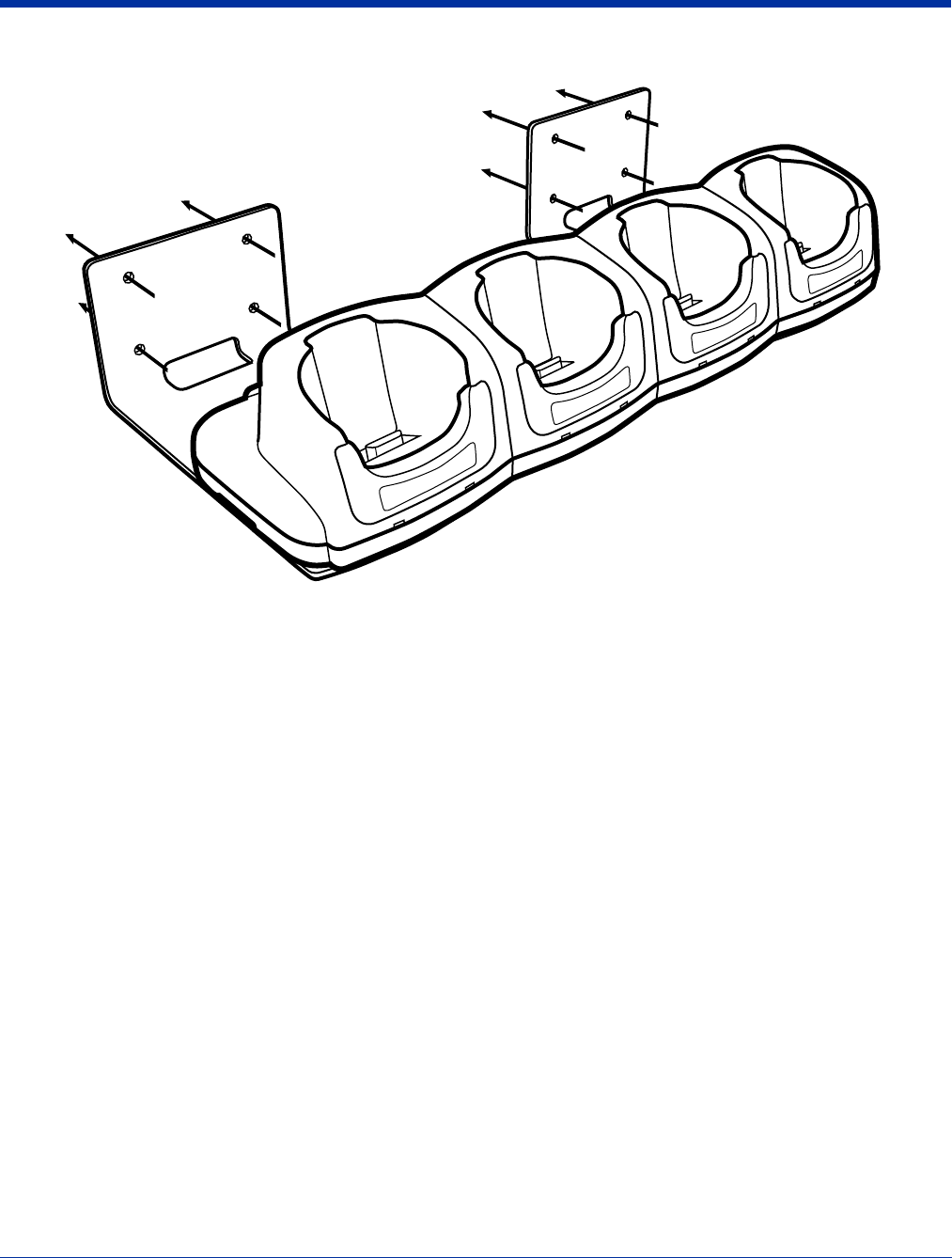

Using the Mounting Brackets
A wall mount kit can be purchased separately. It contains two mounting brackets to secure both ends of the ChargeBase. Use
the screws and the mounting brackets to mount the ChargeBase to a wall or other vertical surface. Each mounting bracket
contains an open slot in the back to accommodate the connector cables.
The bottom panel of the ChargeBase contains rubber feet that hold it steady on a flat surface. We recommend that those rubber
feet be removed with pliers prior to applying the mounting brackets to the bottom panel.
1. Secure the screws into the four screw slots on the bottom panel. Insert the heads into the round end and slide towards the
narrow end until the screw is secure.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 16 - 1
16
Dolphin QuadCharger
Overview
The Dolphin QuadCharger is a four-slot charging station that can charge a Li-ion battery in less than four hours. The fourth slot
features a battery analyzer that completely resets and re-calibrates a battery and displays its resulting capacity.
Compatibility
The QuadCharger is compatible with the Li-ion batteries that power Dolphin 7900 Series terminals.
Charging Process
Each charging slot works independently of the other three.
As battery packs charge, the charging circuitry follows the two-step charging process (CC-CV) that is recommended
for Li-Ion batteries. The process monitors changes in temperature, current, and voltage. The charger also resets
and calibrates battery pack data to accurately show battery status on the Dolphin display.
Use only the peripherals, power cables, and power adapters from Hand Held Products. Use of peripherals, cables, or
power adapters not sold/manufactured by Hand Held Products will void the warranty and may damage the terminal.
Use only the Li-ion battery packs provided by Hand Held Products. The use of any battery pack not sold/manufactured by
Hand Held Products in a Dolphin terminal will void your warranty and may result in damage to the Dolphin terminal or
battery.
Dolphin QuadCharger Parts and Functions
Front Panel
O
SLOT 4
BATTERY
CAPACITY
100%
0%
ANALYZE
CHARGE/ANALYZE
1
2
3
4
Charging Slots
Status LEDs
Charge/
Battery
Capacity
Indicator
LEDs
Analyze Button
Charging Slots
The QuadCharger contains four charging slots. Each slot holds one battery. When a battery is placed in a slot, it
immediately begins charging.
Charge/Analyze Slot
This is the fourth slot and the only one that can be used to analyze a battery. When a battery is placed in this slot,
it begins charging just as it does in the other three slots. However, if you press the ANALYZE button, it runs the
battery in this slot through the complete Analyze cycle. For more information, see Using the Battery Analyzer on
page 16-4.
!
!
16 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Battery Capacity Indicator LEDs
These LEDs give a readout of the remaining battery capacity after it has run through a complete analyze cycle. For
more information, see Battery Capacity Indicator LEDs on page 16-2.
Analyze Button
Press this button to start a battery analyze cycle; see Using the Battery Analyzer on page 16-4..
Status LEDs
A status LED is located above each of the four battery slots. The color of the LED indicates the charge status of the
batteries in its slot.
Status LED color This color indicates that the battery in the slot…
Green Has completed its charge cycle and is ready for use.
Orange Is being charged at a maximum charge rate.
Red Encountered an error during the most recent charge cycle.

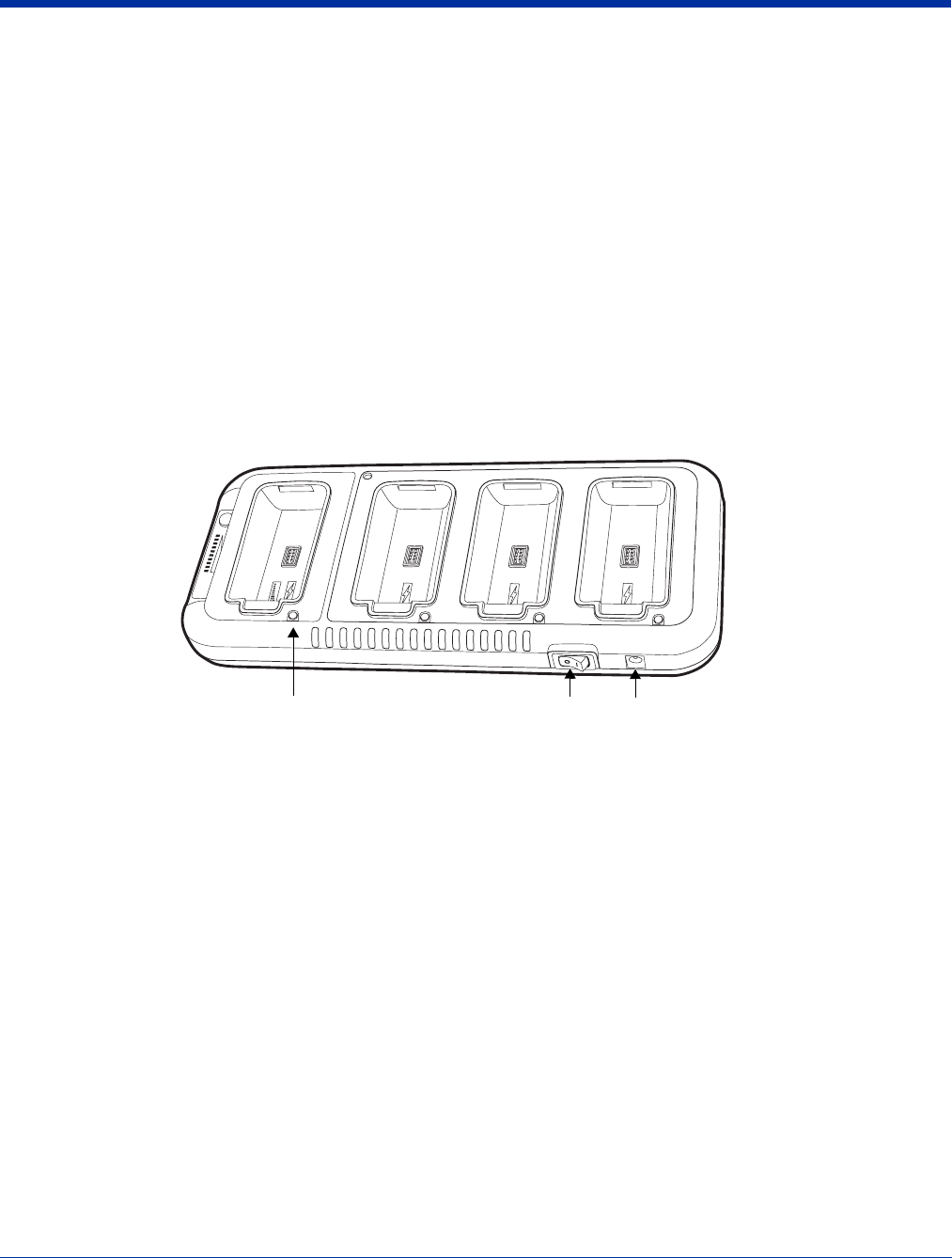

Rear Panel
1
2
3
4
Swc
O
CHARGE/ANALYZE
0%
ALYZE
LOT 4
TTERY
PACITY
0%
Power Supply Connector
Power Switch
Status LED
Power Switch
Toggle the power switch to turn the QuadCharger on and off.
Power Supply Connector
Use this connector to attach the power supply to the QuadCharger. The universal power supply accepts input
voltages between 90-265 volts.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 16 - 3
Supplying Power to the QuadCharger
You must use the power adapter cable from Hand Held Products so that voltage is adjusted appropriately.
1. Locate the AC power adapter cable and plug it into the power source.
2. Connect the power cable to the power adapter.
3. Connect the power cable to the supply connector on the back of the QuadCharger.
4. Press the power switch to the ON position.
The power LED illuminates green, and the charger performs a self-diagnostic test that lasts approximately five seconds.
Inserting and Removing Battery Packs
To insert a battery pack, place the end of the battery without the locking tab into the bottom of the charging pocket and snap the
battery into place with a hinging motion. The Status LED for that particular slot illuminates orange when the battery has been
properly inserted.
To remove a battery pack, push the locking tab down and pull the battery out from the charging slot with a hinging motion.
Recommendations for Storing Batteries
To maintain top performance from batteries, follow these storage guidelines:
• Avoid storing batteries outside of the specified temperature range of -4 to 104° F (-20 to 40°C) or in extremely high humidity.
• For prolonged storage, do not keep batteries stored in a charger that is connected to a power source.
Charging Batteries in the QuadCharger
For best results, battery packs should be at room temperature before recharging them; temperature has a marked effect on
charging. The recommended temperature range is 50° to 95° F (10° to 35° C).
1. Set up the QuadCharger.
2. Supply the QuadCharger with power and turn the power switch on.
3. Insert batteries into the appropriate slots. The Status LED for each slot turns orange to indicate that the battery has begun a
charge cycle.
4. When the Status LED turns green, the battery in the slot has completed charging.
16 - 4 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Using the Battery Analyzer
Purpose
Using the Charge/Analyze slot helps you monitor the charge capacity of Li-ion batteries over time. The LEDs in this slot provides
a readout of the battery’s capacity after a complete discharge and full charge. They tell you the maximum charge level the battery
can hold.
Location
The battery analyzer is located in the fourth slot of the ChargeBase. Only batteries in this slot can be analyzed.
Analyze Cycle
The Analyze cycle is initiated when a battery is placed in the Charge/Analyze slot and the ANALYZE button is
pressed. In an Analyze cycle, batteries are completely discharged, then recharged to capacity, as well as
completely reset and re-calibrated.
The length of time it takes for a battery to complete the Analyze cycle varies depends on initial state of the battery’s
charge. Minimum time is 8 hours, maximum time is 12 hours.

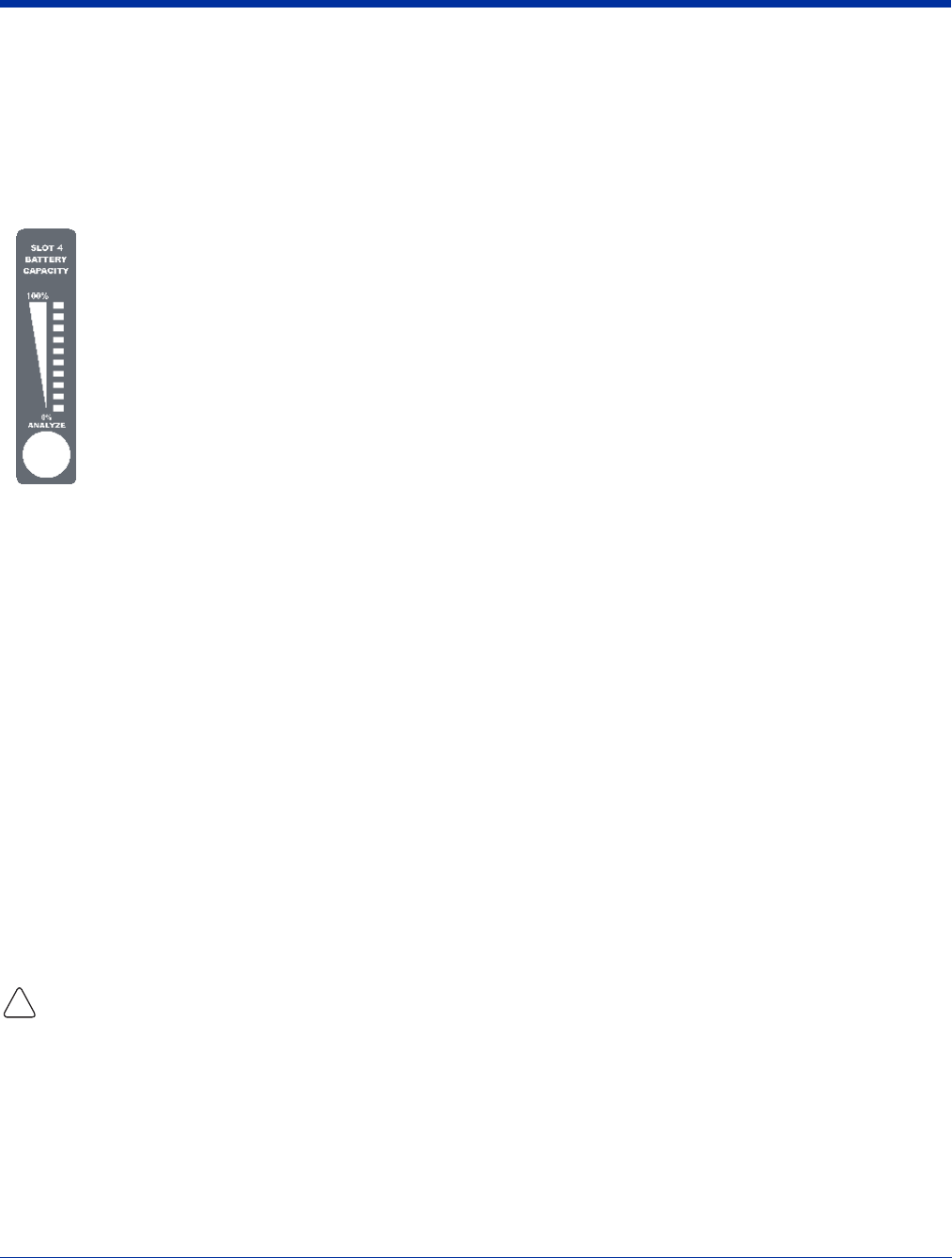

Battery Capacity Indicator LEDs
The Battery Capacity Indicator LEDs are located along the right side of the Charge/Analyze slot. These LEDs
display the capacity of the battery at the end of the Analyze cycle. Battery capacity is displayed as a percentage of
measured capacity/rated capacity. Each LED equates to 10% battery capacity.
Status LED
The Charge/Analyze slot also contains a standard status LED in the upper, left corner of the slot. When this slot is used for regular
charging, this LED operates in the usual manner; see Status LEDs on page 16-2..
When this slot is being used to analyze a battery, the status LED functions as follows:
Status LED color Indicates that the battery in the slot…
Solid Green Has completed the Analyze cycle.
Flashing Orange Is being analyzed.
Solid Red Encountered an error during the Analyze cycle.
To Analyze a Battery
Complete these steps:
1. Insert the battery into the Charge/Analyze slot (the fourth).
2. Press the ANALYZE button. The Status LED flashes orange to indicate that the analyzing cycle has begun.
3. Upon completion of the Analyze cycle, the Status LED lights solid green, and the Battery Capacity Indicator LEDs display
the battery’s capacity.
The Dolphin QuadCharger is accumulating battery pack information during the entire Analyze cycle. Do NOT remove the battery
until the cycle has been completed.
!
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 16 - 5
Mounting the QuadCharger
The Dolphin QuadCharger should be on a dry, stable surface. To easily adapt the QuadCharger to your environment, it can be
mounted on a flat, horizontal surface such as a desktop or workbench, or a flat, vertical surface such as a wall.
When choosing a location, always bear in mind that
• the mounting location must allow users easy access to power switch and power connector.
• the QuadCharger should be oriented so that users can easily insert and remove battery packs and read the labels, especially
for the Battery Analyzer.
Using the DIN Rail
Most Dolphin peripherals have a DIN Rail (7.5 high X 35 wide mm) slot on the bottom panel to enable secure mounting.
To mount the Dolphin QuadCharger, you slide the DIN Rail into the slot on the bottom panel. Then, using the appropriate nuts
and bolts, secure the DIN rail to the desk or wall.

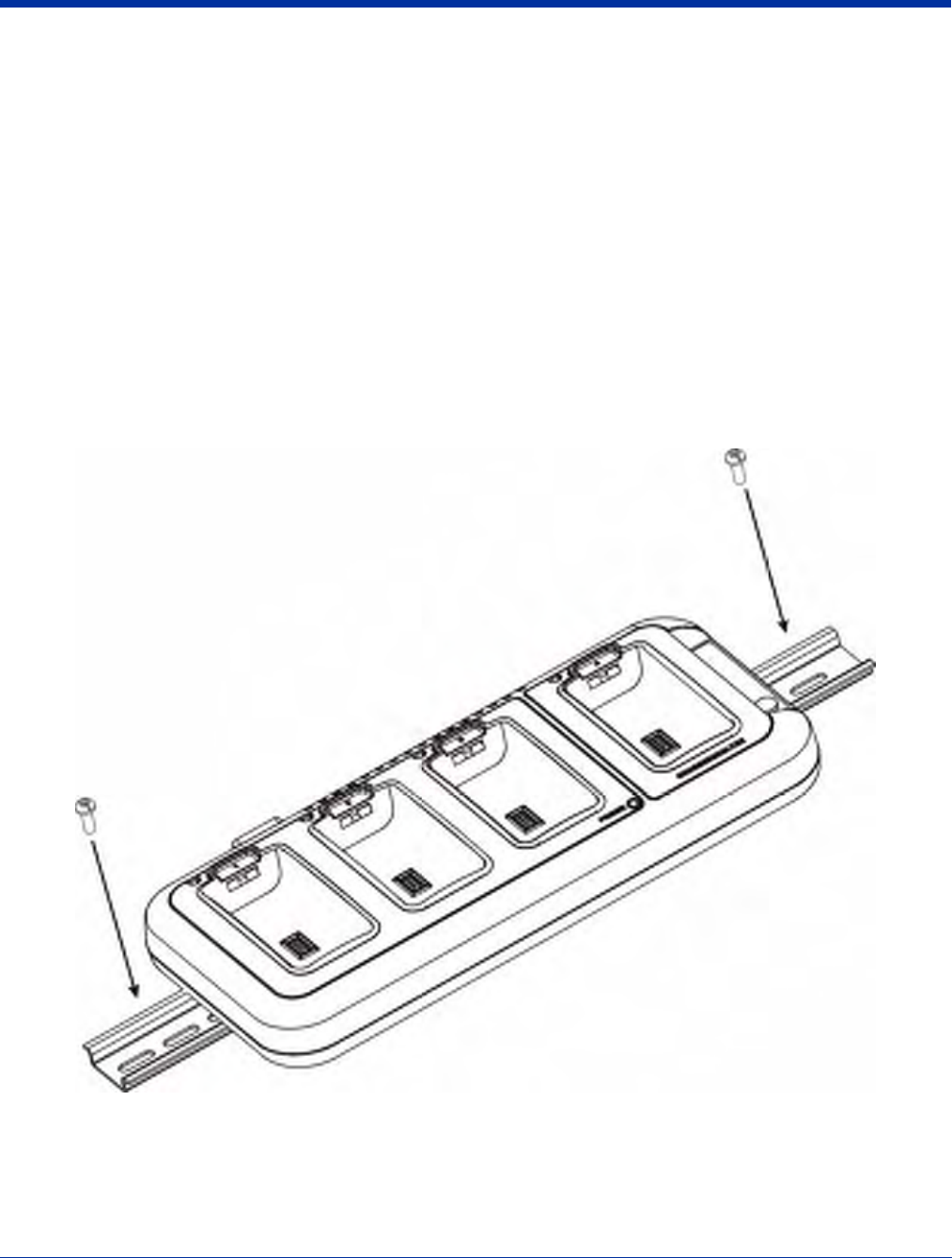

Desk Mounting
The following graphic displays how to mount the QuadCharger to a desk:
16 - 6 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary

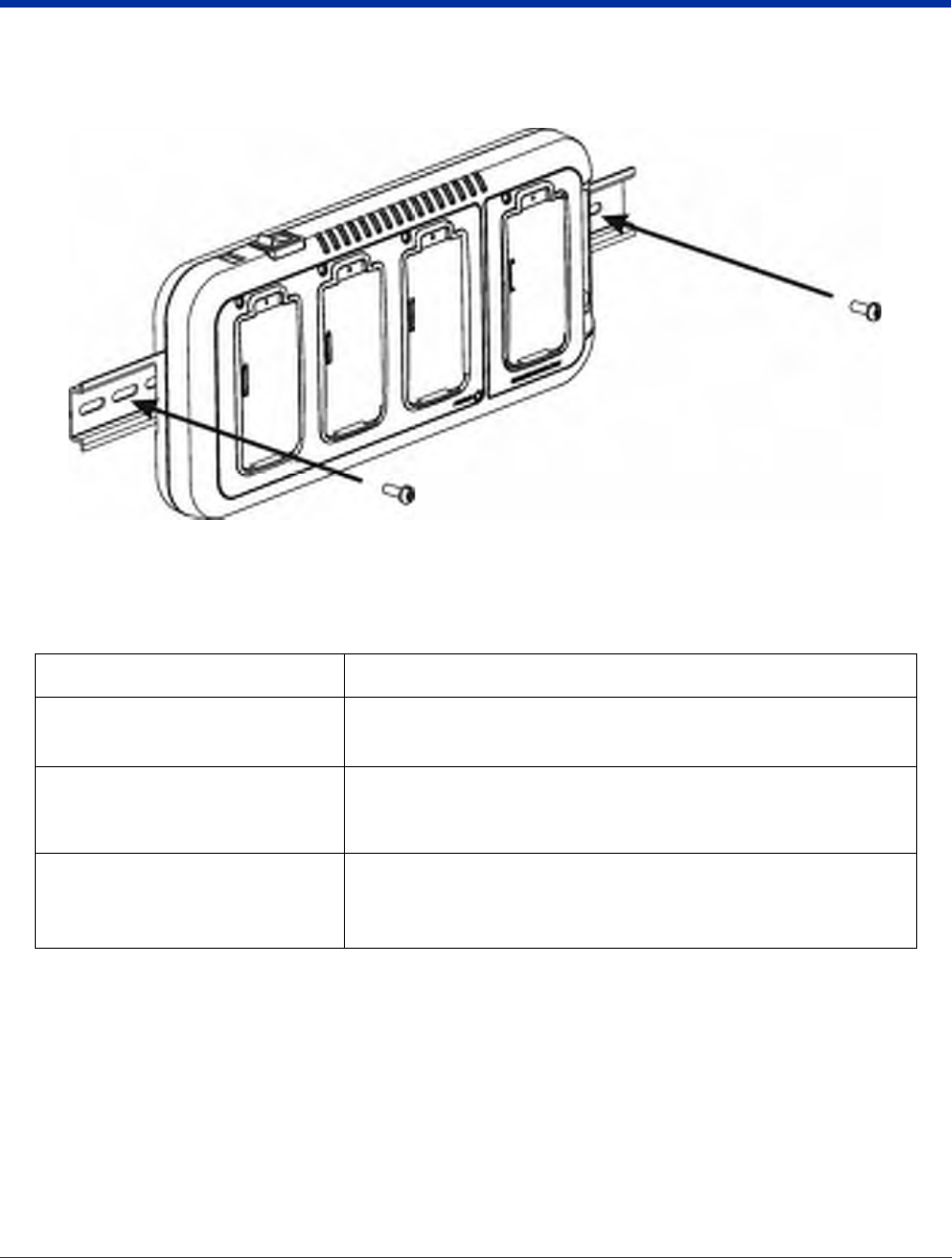

Wall Mounting
The following graphic displays how mount a QuadCharger to a wall:
Troubleshooting
If you encounter problems with your Dolphin QuadCharger, refer to chart below for possible solutions. If problems persist, please
contact Technical Support.
Problem Issue
The Status LED does not come on when
I insert a battery pack into the Dolphin
QuadCharger
Check the power connections on the Dolphin QuadCharger; make sure the
POWER switch is ON and the battery pack is properly seated.
The Status LED lights red during
charging. Try to charge the battery in one of the other charging slots. If the red Status
LED comes on again, then the problem is associated with the battery pack.
If the red status stays with the charging slot, the problem is associated with
the charging circuity.
The Status LED lights red and stays on
without a battery in the charging slot. An error occurred during the self-diagnostic test for that particular charging
pocket. Call Hand Held Products Product Service and request an RMA.
For additional warranty and return information, see Customer Support on
page 17-1.
Dolphin® 7900 Series User’s Guide–
Preliminary Rev (e) 17 - 1
17
Customer Support
Product Service and Repair
Hand Held Products provides service for all its products through service centers throughout the world. To obtain warranty or
non-warranty service, return the unit to Hand Held Products (postage paid) with a copy of the dated purchase record attached.
Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product.
North America
Hand Held Products Corporate Offices
Telephone:(800) 782-4263, option 3
Fax: (704) 566-6015
E-mail: naservice@handheld.com
América Latina
Hand Held Products América Latina
Teléfono: (800) 782-4263, opción 8, opción 4
Teléfono: (704) 998-3998, opción 8, opción 4
Fax: (239) 263-9689
E-mail: laservice@handheld.com
Brasil
Hand Held Products São Paulo
Teléfono: Int+55 (11) 2178-0500
Fax: Int+55 (11) 2178-0502
Hand Held Products Rio de Janeiro
Teléfono: Int+55 (21) 2178-0500
Fax: Int+55 (21) 2178-0505
São Paulo and Rio de Janeiro
E-mail: brservice@handheld.com
México
Hand Held Products México
Teléfono: Intl+52 (55) 5203-2100
Fax: Intl+52 (55) 5531-3672
E-mail: mxservice@handheld.com
Europe, Middle East, and Africa
Hand Held Products Europe
Telephone:+31 (0) 40 29 01 633
Fax: +31 (0) 40 2901631
E-mail: euservice@handheld.com
Asia Pacific
Hand Held Products Asia/Pacific
Telephone:+852-2511-3050
Fax: +852-2511-3557
E-mail: apservice@handheld.com
Japan
Hand Held Products Japan
Telephone:+81-3-5770-6312
Fax: +81-3-5770-6313
E-mail: apservice@handheld.com
Online Product Service and Repair Assistance
You can also access product service and repair assistance online at www.handheld.com.
17 - 2 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Technical Assistance
If you need assistance installing or troubleshooting, please call your Distributor or the nearest Hand Held Products technical
support office:
North America/Canada:
Telephone: (800) 782-4263, option 4 (8 a.m. to 6 p.m. EST)
Fax number: (315) 685-4960
E-mail: natechsupport@handheld.com
América Latina:
Teléfono: (800) 782-4263, opción 8, opción 3
Teléfono: (704) 998-3998, opción 8, opción 3
E-mail: latechsupport@handheld.com
Brasil
São Paulo
Teléfono: Int+55 (11) 2178-0500
Fax: Int+55 (11) 2178-0502
Rio de Janeiro
Teléfono: Int+55 (21) 2178-0500
Fax: Int+55 (21) 2178-0505
São Paulo and Rio de Janeiro
E-mail: brtechsupport@handheld.com
México
Teléfono: (800) 782-4263, opción 8, opción 3
Teléfono: (704) 998-3998, opción 8, opción 3
E-mail: latechsupport@handheld.com
Europe, Middle East, and Africa:
Telephone-
European Ofc: Int+31 (0) 40 79 99 393
U.K. Ofc: Int+44 1925 240055
E-mail: eutechsupport@handheld.com
Asia Pacific:
Telephone: Int+852-3188-3485 or 2511-3050
E-mail: aptechsupport@handheld.com
Online Technical Assistance
You can also access technical assistance online at www.handheld.com.
17 - 3 Rev (e) Dolphin® 7900 Series User’s
Guide–Preliminary
Limited Warranty
Hand Held Products, Inc. ("Hand Held Products") warrants its products to be free from defects in materials and workmanship and
to conform to Hand Held Products’ published specifications applicable to the products purchased at the time of shipment. This
warranty does not cover any Hand Held Products product which is (i) improperly installed or used; (ii) damaged by accident or
negligence, including failure to follow the proper maintenance, service, and cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party, (B) excessive voltage or current supplied to or drawn from the interface
connections, (C) static electricity or electro-static discharge, (D) operation under conditions beyond the specified operating
parameters, or (E) repair or service of the product by anyone other than Hand Held Products or its authorized representatives.
This warranty shall extend from the time of shipment for the duration published by Hand Held Products for the product at the time
of purchase ("Warranty Period"). Any defective product must be returned (at purchaser’s expense) during the Warranty Period
to Hand Held Products’ factory or authorized service center for inspection. No product will be accepted by Hand Held Products
without a Return Materials Authorization, which may be obtained by contacting Hand Held Products. In the event that the product
is returned to Hand Held Products or its authorized service center within the Warranty Period and Hand Held Products determines
to its satisfaction that the product is defective due to defects in materials or workmanship, Hand Held Products, at its sole option,
will either repair or replace the product without charge, except for return shipping to Hand Held Products.
EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE FOREGOING WARRANTY IS IN LIEU OF ALL
OTHER COVENANTS OR WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
HAND HELD PRODUCTS’ RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT. IN NO EVENT SHALL HAND HELD
PRODUCTS BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, AND, IN NO EVENT, SHALL ANY
LIABILITY OF HAND HELD PRODUCTS ARISING IN CONNECTION WITH ANY PRODUCT SOLD HEREUNDER (WHETHER
SUCH LIABILITY ARISES FROM A CLAIM BASED ON CONTRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE
ACTUAL AMOUNT PAID TO HAND HELD PRODUCTS FOR THE PRODUCT. THESE LIMITATIONS ON LIABILITY SHALL
REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HAND HELD PRODUCTS MAY HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME STATES, PROVINCES, OR COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and
unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof.
Hand Held Products extends these warranties only to the first end-users of the products. These warranties are non-transferable.
The limited duration of the warranty for the Dolphin 7900 Series is as follows:
• Terminals with an integrated imager are covered by a two-year limited warranty.
• Terminals with an integrated laser engine are covered by a one-year limited warranty.
• Touch screens are covered by a one-year limited warranty.
• HomeBase, Mobile Base, Mobile Charger, Net Base, ChargeBase, and QuadCharger are covered by a one-year limited
warranty.
• Batteries are covered by a one-year limited warranty. Use of any battery not sold/manufactured by Hand Held Products may
damage the terminal and/or the battery and will void the warranty. Batteries returned to Hand Held Products in a reduced state
may or may not be replaced under this warranty. Battery life will be greatly increased when following the battery instructions
in the Dolphin 7900 Series User’s Guide.
• Use of any peripheral not manufactured/sold by Hand Held Products will void the warranty. This includes but is not limited to:
cables, power supplies, cradles, and docking stations.
• Use only power adapters approved for use by Hand Held Products. Failure to do so may result in improper operation or
damage to the unit and will void the warranty.
Hand Held Products extends these warranties only to the first end-users of the products. These warranties are non-transferable.
How to Extend Your Warranty
Hand Held Products offers a variety of service plans on our hardware products. These agreements offer continued coverage for
your equipment after the initial warranty expires. For more information, contact your Sales Representative, Customer Account
Representative, or Product Service Marketing Manager from Hand Held Products, or your Authorized Reseller.
™
Hand Held Products, Inc.
700 Visions Drive
P.O. Box 208
Skaneateles Falls, NY 13153-0208
79-UG
Rev (e)
8/10/06
