Dolphin™ Power Tools vers 8.x User's Guide

Dolphin™ Power Tools 8.x

for Mobile Devices with Windows

Embedded Handheld

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other

information contained in this document without prior notice, and the reader should in all cases consult HII

to determine whether any such changes have been made. The information in this publication does not

represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or

consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims

any and all responsibility and liability for the selection and use of software and/or hardware to achieve

intended results.

This document contains proprietary information that is protected by copyright. All rights are reserved. No

part of this document may be photocopied, reproduced, or translated into another language without the

prior written consent of HII.

Web Address: www.honeywellaidc.com

Trademarks

Microsoft, Windows, Windows Mobile, Windows Phone, Windows Embedded Handheld, Windows NT,

Windows 2000, Windows XP, Windows 7, Windows 8, Windows Vista, ActiveSync, Word Mobile, Excel

Mobile and the Windows logo are either a registered trademark or registered trademark of Microsoft

Corporation in the United States and/or other countries.

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell.

Other product names mentioned in this manual may be trademarks or registered trademarks of their

respective companies and are the property of their respective owners.

Patents

For patent information, please refer to www.hsmpats.com.

iii

Chapter 1 - Introduction

Dolphin Power Tools Overview............................................................................................1-1

Software Requirements..................................................................................................1-1

Power Tools Main Window ..................................................................................................1-1

About the EZMenu Tool .................................................................................................1-2

Upgrading the Power Tools .................................................................................................1-3

File Storage Locations .........................................................................................................1-3

Chapter 2 - EZConfig Utilities

Overview ..............................................................................................................................2-1

Accessing the EZConfig Utilities on the Terminal ..........................................................2-1

EZConfig Editor....................................................................................................................2-1

Workstation EZConfig Editor..........................................................................................2-1

Terminal EZConfig Editor...............................................................................................2-1

EZConfig Client....................................................................................................................2-2

EXM Files.............................................................................................................................2-2

EXM File Descriptions....................................................................................................2-2

Chapter 3 - EZConfig Editor on the Dolphin Terminal

Overview ..............................................................................................................................3-1

EXM File Structure .........................................................................................................3-1

Opening the EZConfig Editor on the Terminal .....................................................................3-1

Opening EXM Files ..............................................................................................................3-1

Viewing the EXM File Structure in the EZConfig Editor .......................................................3-1

Menu Options.......................................................................................................................3-2

File Menu .......................................................................................................................3-2

Edit Menu .......................................................................................................................3-2

View Menu .....................................................................................................................3-2

Tools Menu ....................................................................................................................3-2

Editing Sections and Keys ...................................................................................................3-3

Modifying Section Name and Description ......................................................................3-3

Modifying a Key Name, Value, or Description................................................................3-3

Moving a Section or Key ................................................................................................3-3

Enabling a Section .........................................................................................................3-3

Disabling a Section ........................................................................................................3-4

Adding a Section or Child Section..................................................................................3-4

Associating an Application to an EXM File ..........................................................................3-4

Launching.......................................................................................................................3-4

Viewing...........................................................................................................................3-4

Adding or Editing............................................................................................................3-4

Command Line Arguments ............................................................................................3-5

Table of Contents

Chapter 4 - EZConfig Editor on the Workstation (PC)

Overview.............................................................................................................................. 4-1

EXM File Structure......................................................................................................... 4-1

Installing EZConfig for Mobility on the Workstation ............................................................. 4-1

Upgrades ....................................................................................................................... 4-1

Opening the EZConfig Editor on the Workstation................................................................ 4-1

Menus and Toolbar Options ................................................................................................ 4-1

File Menu.......................................................................................................................4-2

Edit Menu.......................................................................................................................4-2

View Menu ..................................................................................................................... 4-2

Tools Menu.................................................................................................................... 4-3

Opening EXM Files.............................................................................................................. 4-3

Opening EXM Files Stored on the Workstation ............................................................. 4-3

Opening Remote EXM Files .......................................................................................... 4-3

Working with Open EXM Files............................................................................................. 4-4

Status Bar......................................................................................................................4-4

Working with Sections ................................................................................................... 4-4

Working with Keys ......................................................................................................... 4-7

Saving to the Device...................................................................................................... 4-9

Configuration Documents .................................................................................................. 4-10

Creating New Configuration Documents ..................................................................... 4-10

Associating Applications .............................................................................................. 4-11

Registry Documents .......................................................................................................... 4-11

Creating Registry Documents...................................................................................... 4-12

Adding Registry Keys .................................................................................................. 4-12

Default Application Association for Registry Documents............................................. 4-13

Updating the Registry on the Terminal ........................................................................ 4-13

Processing Registry Documents on the Terminal........................................................ 4-13

Create EZConfig Bar Code................................................................................................ 4-13

Document Types.......................................................................................................... 4-14

Bar Code Type, Size and Number............................................................................... 4-14

Bar Code Sheet ........................................................................................................... 4-14

Generating Bar Codes................................................................................................. 4-14

Chapter 5 - EZConfig Client

Overview.............................................................................................................................. 5-1

Accessing EZConfig Client .................................................................................................. 5-1

The EZConfig Client Screen................................................................................................ 5-1

Using EZConfig Client ......................................................................................................... 5-2

Scanning Bar Codes Directly from the Power Tools or Demos Main Window .............. 5-2

EXM File Processing ........................................................................................................... 5-2

Chapter 6 - Autorun and AutoInstall

Overview.............................................................................................................................. 6-1

Autorun ................................................................................................................................ 6-1

Autorun.exm File............................................................................................................ 6-1

Programs Section and the Launch Sequence ............................................................... 6-1

Enabling and Disabling Sections ................................................................................... 6-1

Programs’ Subsections.................................................................................................. 6-1

Editing the Autorun.exm File.......................................................................................... 6-2

Adding a Program Subsection ....................................................................................... 6-2

Copying a File................................................................................................................ 6-2

Start Options.................................................................................................................. 6-2

Applying Startup Options to the Autorun.exm File......................................................... 6-3

AutoInstall............................................................................................................................ 6-4

Program Install Locations .............................................................................................. 6-4

AutoInstall.exm .............................................................................................................. 6-4

Command Line Arguments............................................................................................ 6-4

Chapter 7 - DeviceConfig

Overview.............................................................................................................................. 7-1

DeviceConfig.exm File......................................................................................................... 7-1

Enabling DeviceConfig Functionality ............................................................................. 7-1

Autorun .......................................................................................................................... 7-1

Bar Code Delivery.......................................................................................................... 7-1

Settings in the WLAN Supplicant................................................................................... 7-1

DeviceConfig.exm Sections and Keys................................................................................. 7-1

Connections Section...................................................................................................... 7-1

System Section.............................................................................................................. 7-5

Applications Section ...................................................................................................... 7-6

Launching DeviceConfig.exe Manually ............................................................................... 7-6

Temporary Option for Bar Code Deployment ...................................................................... 7-6

Chapter 8 - Network Utilities

Accessing Network Utilities ................................................................................................. 8-1

Network Utilities Main Window ........................................................................................... 8-1

IP Config.............................................................................................................................. 8-1

Displaying the Terminal’s IP Configuration.................................................................... 8-2

Ping ..................................................................................................................................... 8-2

Route ................................................................................................................................... 8-3

Print ............................................................................................................................... 8-3

Add ................................................................................................................................ 8-4

Delete ............................................................................................................................ 8-4

Clear .............................................................................................................................. 8-4

Backup Settings (Radio)...................................................................................................... 8-5

............................................................................................................................................. 8-6

Chapter 9 - Registry Power Tools

Overview.............................................................................................................................. 9-1

Editing the Registry ............................................................................................................. 9-1

File Menu.......................................................................................................................9-2

Edit Menu.......................................................................................................................9-3

Importing Registry Files ................................................................................................. 9-3

Exporting Specific Registry Settings.............................................................................. 9-3

Backing Up the Entire Registry............................................................................................ 9-3

Restoring the Registry ................................................................................................... 9-4

RegBackup.exm ............................................................................................................ 9-4

Command Line Arguments.................................................................................................. 9-6

Registry Edit Options in EZConfig ....................................................................................... 9-6

Chapter 10 - ScanWedge

Overview............................................................................................................................ 10-1

Enabling, Disabling, and Exiting ScanWedge ................................................................... 10-1

Enabling ScanWedge .................................................................................................. 10-1

Exiting ScanWedge ..................................................................................................... 10-1

Disabling ScanWedge without Exiting the Application................................................. 10-1

Modifying the ScanWedge Configuration File ................................................................... 10-1

ScanWedge.exm Sections ................................................................................................ 10-2

Data Formatting Reference Charts.................................................................................... 10-2

ASCII Conversion Chart (Code Page 1252)................................................................ 10-2

Symbology Chart ......................................................................................................... 10-4

Symbology Section...................................................................................................... 10-6

OCR............................................................................................................................. 10-7

VK (Virtual Key) Mapping Section ............................................................................... 10-7

Virtual Key Codes Table.............................................................................................. 10-8

Command Line Arguments........................................................................................ 10-12

Chapter 11 - EZ Pairing

Hardware Requirements.............................................................................................. 11-1

Using EZ Pairing to Establish a Connection...................................................................... 11-1

Modifying the ScanWedge Configuration File to Support EZ Pairing ................................ 11-1

Accessing the EZ Pairing Menu ........................................................................................ 11-2

Menu Options .............................................................................................................. 11-2

Modifying the EZ Pairing Configuration File ...................................................................... 11-2

EZPairing.exm Service Settings Section .................................................................... 11-2

Command Line Arguments.......................................................................................... 11-3

Chapter 12 - Additional Power Tools

BattMon ............................................................................................................................. 12-1

To Enable BattMon...................................................................................................... 12-1

To Disable BattMon ..................................................................................................... 12-1

Keyboard Status ................................................................................................................ 12-1

To Enable Keyboard Status......................................................................................... 12-1

To Disable Keyboard Status........................................................................................ 12-2

vii

NoSIP ................................................................................................................................ 12-2

To Enable NoSIP......................................................................................................... 12-2

To Disable NoSIP ........................................................................................................ 12-2

Reboot ............................................................................................................................... 12-2

Chapter 13 - SysInfo

Overview............................................................................................................................ 13-1

Chapter 14 - EZMenu

Overview............................................................................................................................ 14-1

Creating Menu Configuration Files .................................................................................... 14-1

Modifying Menu Configuration Files .................................................................................. 14-1

Menu Configuration File Sections...................................................................................... 14-1

Settings........................................................................................................................ 14-1

MenuEntries................................................................................................................. 14-1

Including an Exit Application Icon................................................................................ 14-1

Start Options................................................................................................................ 14-2

Programming the Terminal to Boot to an Application Window .......................................... 14-3

Chapter 15 - Printing

Overview............................................................................................................................ 15-1

BTPrint......................................................................................................................... 15-1

Print Demo................................................................................................................... 15-1

Chapter 16 - Customer Support

Technical Assistance......................................................................................................... 16-1

viii

1 - 1

Introduction

Dolphin Power Tools Overview

Note: Screen captures and icons in this user’s guide may differ from what appears on your device.

Power Tools are used to create custom launch menus and to control your application environment. Once you have created a

custom environment, the terminal displays only the applications you wish the user to see. Dolphin™ Power Tools are installed

on every Dolphin terminal. Different versions of Power Tools apply to different Dolphin terminals depending on the model or

operating system.

Software Requirements

Dolphin Terminal

Dolphin Power Tools 8.x is designed to work with Microsoft® Windows® Embedded Handheld 6.x.

Workstation (PC)

The Power Tools installer and the workstation version of EZConfig Editor are designed to work with the following oper-

ating systems and applications:

• Microsoft Windows XP

• Microsoft Windows 2000

• Microsoft Windows NT

• Microsoft Windows Vista®

• Microsoft Windows 7

• Microsoft Windows 8

• Microsoft .NET Framework 2.0

• Microsoft ActiveSync® (version 4.5 or higher)

• Microsoft Windows Mobile Device Center

Power Tools Main Window

Tap Start > Power Tools to access the Power Tools main window. The content of the window varies by Dolphin

model. To modify how the content is displayed, tap Menu > View, and then select either Small Icon, Large Icon, List, or Detail.

Icon Description Page

SysInfo displays system information including firmware versions, DLL versions, system

parameters, network information, and radio information.

11-3

BattMon programs the LEDs on the terminal to monitor battery power.

Note: BattMon is model dependent and may not be present on your device. Refer to the

terminal User’s Guide for battery status indicators specific to your Dolphin model.

11-1

EZConfig Utilities provides access to EZConfig Client, EZConfig Editor, and a series of

EXM configuration files.

3-1

EZ Pairing connects the terminal to a ring scanner using Bluetooth wireless technology.

Note: EZ Pairing is model dependent and may not be present on your device.

11-1

1 - 2

About the EZMenu Tool

EZMenu is an additional Power Tool that does not appear in the main window. EZMenu formats application windows to dis-

play and launch software programs on the terminal. For further information, see EZMenu beginning on page 14-1.

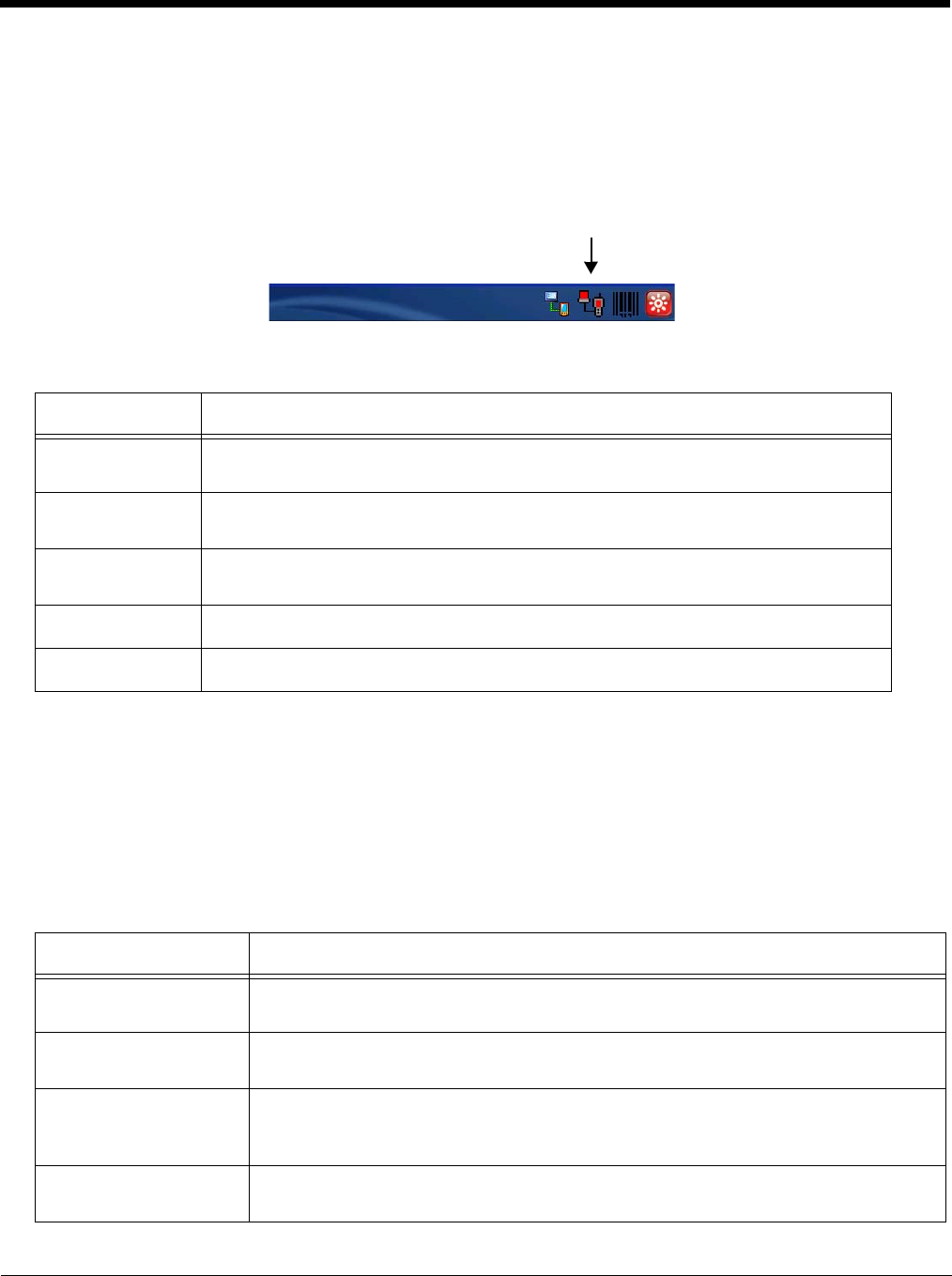

Keyboard Status places an icon on the status/notification bar at the top of the screen that

indicates the alpha-numeric status of the keyboard.

Note: Keyboard Status is model dependent and may not be present on your device. Refer

to the terminal User’s Guide for keyboard information specific to your Dolphin model.

11-1

Network Utilities provides access to the Network Utilities (i.e., IP Config, Ping, Route,

Backup Settings).

8-1

NoSIP turns off the Soft Input Panel (SIP) in every application window. 11-2

Reboot performs a reboot. 11-2

RegBackup backs up the registry. 9-3

RegRestore loads the RegBackup file. 9-4

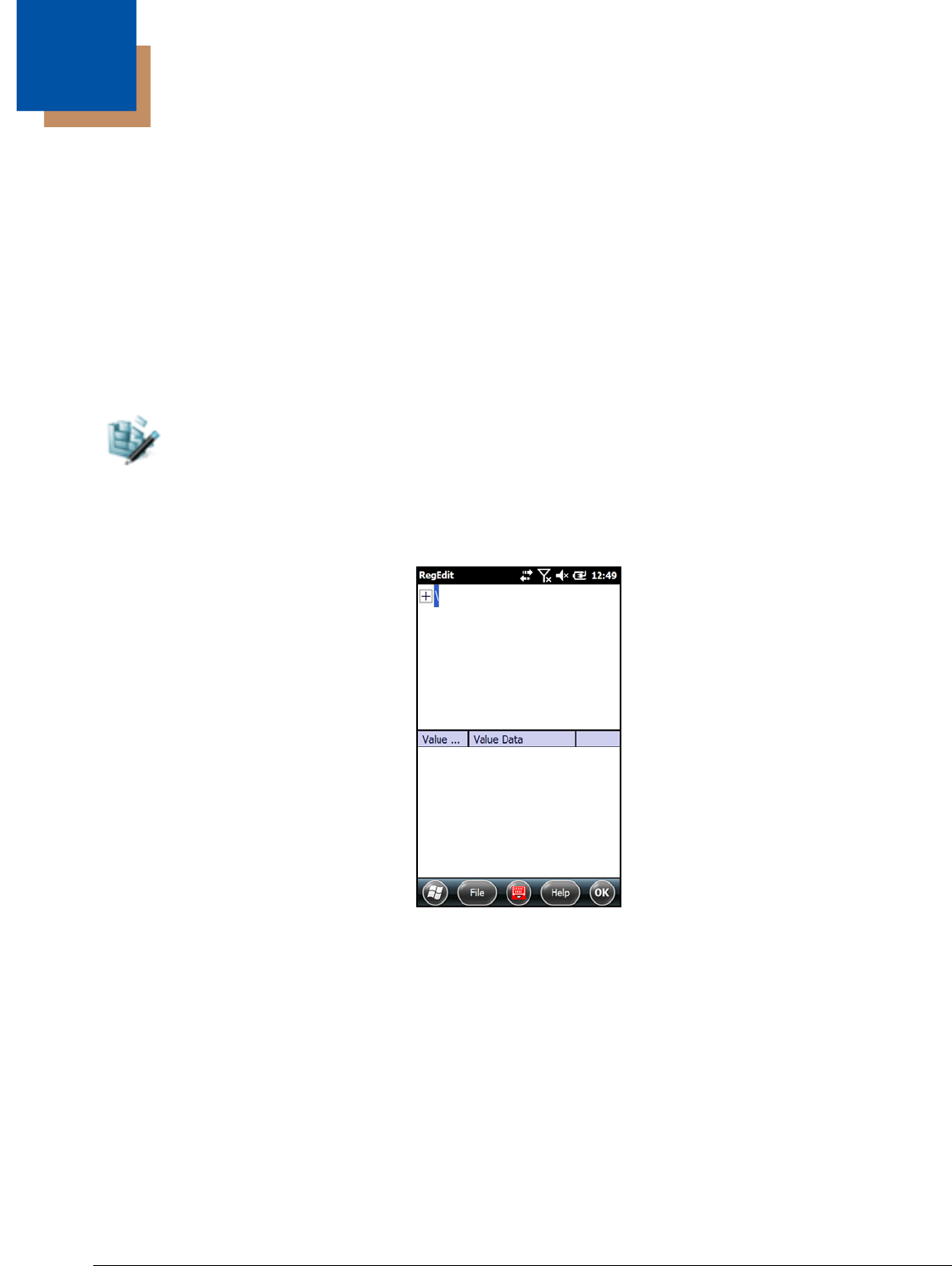

RegEdit allows you to edit the registry and import and export registry keys. 9-1

ScanWedge allows you to send bar code data to your application. 10-1

Suspend places the terminal in Suspend mode until the Power button is pressed. 11-3

Exit Power Tools.

Icon Description Page

1 - 3

Upgrading the Power Tools

Upgrades for the Power Tools on the Dolphin terminal come in the form of an executable file that installs the upgrade files onto a

workstation (PC). Once the workstation installation is complete, transfer the appropriate upgrade files to the Dolphin terminal to

upgrade the Power Tools.

Upgrades are available from Customer Support (see page 16-1) or www.honeywellaidc.com.

Note: An active Microsoft ActiveSync, Windows Mobile Device Center or Windows Phone app connection between a host

workstation and the Dolphin terminal is required to upgrade your Power Tools software.

File Storage Locations

Two folders or paths are used to denote where your files are stored. One path is for permanent storage( \IPSM\Honeywell )

and one is for active files ( \Honeywell ).

\IPSM\Honeywell

The IPSM folder is the only partition on the terminal that persists across a kernel upgrade (*.UPG file extension).

During a kernel upgrade, files are automatically copied from the \IPSM\Honeywell folder and then installed in the

\Honeywell (root file system) folder as part of the upgrade process.

\IPSM\Honeywell\AutoInstall

The files in the IPSM\Honeywell\AutoInstall folder are only installed when a factory reset or kernel upgrade

occurs. Once the files are installed, they persist through hard and soft resets. If a file is added to the folder and a

hard or soft reset is performed, it will have no effect.

\Honeywell

The Honeywell partition or root file system partition is persistent over a hard reset, soft reset, and the removal of the

battery pack or the removal of AC power. However, during a kernel upgrade, the root file system is reformatted so all

data in the folder is deleted and replaced by any files in the \IPSM\Honeywell folder as part of the upgrade process.

To prevent data loss, back up all user data to an SD card or external memory device before performing an

upgrade.

\Honeywell\AutoInstall

If you run a CAB file from within the \Honeywell\AutoInstall (user store) folder, after the program has been

installed, the CAB file will be deleted from the User Store but the program remains installed through all successive

Hard and Soft resets.

If you want the program to be part of the Autoinstall that occurs after a factory reset or software upgrade, paste the

program file(s) in both the \IPSM\Honeywell\Autoinstall folder and the \Honeywell\Autoinstall.

1 - 4

2 - 1

EZConfig Utilities

Overview

EZConfig Utilities is made up of the EZConfig Editor, the EZConfig Client, and a series of EXM files.

EZConfig Editor is the tool used to open and edit EXM files. EXM files are the building blocks for creating the Power Tools

screens you see on your terminal. Some EXM files (e.g., AutoInstall, Autorun, and DeviceConfig) are used to display and run

your applications. Other EXM files are used to build your own customized screens and applications for the Dolphin terminal.

There are two versions of the EZConfig Editor. One that runs on the Dolphin terminal, and one that can run on your workstation

(PC). The EZConfig Editor that runs on your workstation is also capable of generating configuration bar codes from EXM files.

EZConfig Client decodes the bar codes generated by the workstation EZConfig Editor.

Accessing the EZConfig Utilities on the Terminal

Tap Start > Power Tools > EZConfig Utilities .

EZConfig Editor

You can use the EZConfig Editor tool to create and edit configuration files in the EXM file format for Dolphin terminals. There are

two versions of the EZConfig Editor: one for the Dolphin terminal, and one for your workstation (PC).

Workstation EZConfig Editor

The workstation editor is used to:

• Create and modify EXM files that are transferred to the Dolphin terminal.

• Generate bar codes from EXM files.

For details about the workstation editor, see EZConfig Editor on the Workstation (PC), beginning on page 4-1.

Terminal EZConfig Editor

The terminal editor is used to modify and save EXM files right on the terminal.

For details about the terminal editor, see EZConfig Editor on the Dolphin Terminal, beginning on page 3-1.

2 - 2

EZConfig Client

You can use the EZConfig Client tool to scan and decode bar codes generated by EZConfig Editor on the workstation.

For details on scanning configuration bar codes, see EZConfig Client beginning on page 5-1.

EXM Files

The EXM file format is an XML format customized for Dolphin terminals that is comprised of sections that may include child

sections and keys. Keys contain the values that configure the terminal. The EXM file format supports a multi-level, hierarchical,

tree structure. The terminal reads the highest-level section first and then reads the key values in each section. EXM files replace

INI files for Power Tools and terminal configuration settings. If both an INI file and an EXM file are present for the same

application, a warning message displays at startup and the terminal uses the EXM. Remove the INI file from the terminal to

avoid the warning message.

EXM File Descriptions

Icon Name (File Name) Description Page

AutoInstall

(AutoInstall.exm)

Installs cab files in the AutoInstall folder, ensuring they persist

through hard resets.

6-4

Autorun

(Autorun.exm)

Specifies the software applications to be launched after each hard

reset.

6-1

CameraDemo.exm Specifies the configuration settings for the Camera Demo.

DemosMenu

(DemosMenu.exm)

Specifies the menu for the Honeywell Demos window.

Demo RF Settings.exm

(DemoRfSettings.exm)

Specifies the IP Address and TCP Port used by the Imaging Demo,

Scan Demo, IQ Imaging Demo and the Signature Capture Demo.

DeviceConfig

(DeviceConfig.exm)

Contains terminal configuration settings. 7-1

EZConfig Menu

(EZConfigMenu.exm)

Specifies the menu for the Honeywell EZConfig Utilities window.

EZ Pairing

(EZPairing.exm)

Specifies the configuration settings for EZ Pairing. 11-2

ImageDemo

(ImageDemo.exe.config.exm)

Specifies the configuration settings for the Imaging Demo.

ImagingProfiles.exm Specifies imager configuration profile used for custom application

development. For detailed information, refer to the Honeywell SDK for

Windows Embedded Handheld available for download from

www.honeywellaidc.com.

IQImageDemo

(IQImageDemo.exe.config.exm)

Specifies the configuration settings for the IQ Imaging Demo.

Network Menu

(NetworkMenu.exm)

Specifies the menu for the Honeywell Network Utilities window.

2 - 3

Power Tools Menu

(PowerToolsMenu.exm)

Specifies the menu for the Honeywell Power Tools window.

PrintDemo Menu

(PrintDemo Menu.exm)

Specifies the menu for the Print Demo window.

RegBackup

(RegBackup.exm)

Specifies the exclusion or inclusion of registry key sections and

values during an export.

9-1

Scandemo

(ScanDemo.exe.config.exm)

Specifies the configuration settings for the Scan Demo.

Scanwedge

(ScanWedge.exm)

Sends data from the decoder or serial port to the foreground

application as keystrokes.

10-1

SignatureCapture.exm Specifies the configuration settings for the Signature Capture demo.

Icon Name (File Name) Description Page

2 - 4

3 - 1

EZConfig Editor on the Dolphin Terminal

Overview

EZConfig Editor creates, edits, and manages EXM files for Dolphin terminals. There are two versions of the EZConfig Editor:

one for the Dolphin terminal and one for the workstation. In the workstation editor, EXM files are edited, saved, and then

transferred to the Dolphin terminal. In the terminal editor, EXM files are edited and saved right on the terminal.

This chapter details the terminal version of the EZConfig Editor. For information about using the workstation version of the

EZConfig Editor, see EZConfig Editor on the Workstation (PC) beginning on page 4-1.

EXM File Structure

The EXM file format supports a multi-level, hierarchical, tree structure. The terminal reads the highest level section first and

then reads the key values in each child section. The key values configure the terminal. EXM files replace INI files for Power

Tools and terminal configuration settings. If both an INI file and an EXM file are present for the same application, the termi-

nal defaults to the EXM file and a warning message is displayed at startup.

There are two types of configuration files in the EXM file format:

• Configuration Documents program and configure the terminal. See Configuration Documents on page 4-10.

• Registry Documents update and modify the registry. See Registry Documents on page 4-11.

Opening the EZConfig Editor on the Terminal

Tap Start > Power Tools > EZConfig Utilities > EZConfig Editor .

Opening EXM Files

To open an EXM file, do one of the following:

• Open EZConfig Utilities and tap once on the EXM file.

• Open the EZConfig Editor on the terminal and select File > Open. Browse to the file location and tap once on the EXM file.

• Open File Explorer on the terminal, browse to the file location and then tap once on the EXM file.

Viewing the EXM File Structure in the EZConfig Editor

Sections appear in the top half of the editor window. Select the + sign next to a section folder to view any associated child

sections. If a section folder is gray, the section is disabled. Keys appear in the bottom half of the window when a section is

selected. When a key is enabled for editing the value, the box contains a check mark. Menu selections are displayed at the

bottom of the screen.

Swipe left to view the full description for

the key.

Sections

Keys

Tap the keyboard icon, or to turn

the virtual keyboard display on or off.

Menu Bar

3 - 2

Menu Options

File Menu

Edit Menu

For editing options, see Editing Sections and Keys, beginning on page 3-3.

View Menu

Tools Menu

Menu Item Description

New

Creates a new document. There are two options:

•Config Doc - Creates a configuration file.

See Configuration Documents (page 4-10).

•Registry Doc - Creates a registry file in the EXM file format.

See Registry Documents (page 4-11).

Open Opens an EXM file.

Save Saves the open file to the location you select on the terminal. This option is disabled for

new and imported files.

Save As Saves the open file with a new name to the location you select on the terminal.

Properties Associates the EXM file with an application on the terminal. See Registry Documents on

page 4-11.

Exit Closes EZConfig Editor.

Menu Item Description

Show Locks

Shows or hides the icons indicating if a subsection or key is locked.

For additional information on locks on subsections and keys, see Status Bar on page 4-4.

Menu Item Description

Launch Associated App For information on this item menu, see Launching on page 3-4.

Simplify Document

Note: You cannot undo

this action!

Reduces the EXM file size by permanently removing:

• Disabled sections and keys

• Descriptions

Warm Boot Reboots the terminal.

The lock icon means the section’s

subsections are locked.

The key icon means that the

section’s keys are locked.

3 - 3

Editing Sections and Keys

Modifying Section Name and Description

You can only edit the name and description of a section if it is unlocked or enabled. To edit a section name or description:

1. Access the Edit Section window by doing one of the following:

• Select the section and tap Edit > Modify.

• Tap and hold on the section name, and then select Modify from the Edit menu.

2. Tap inside the Name or description fields to edit the text.

3. Tap OK or Enter on the virtual keyboard to save your changes. To close without saving your changes, tap Cancel.

Modifying a Key Name, Value, or Description

You can only edit the name and description of a section if it is unlocked or enabled. To edit a key name, value, or descrip-

tion:

1. Access the Edit Key window by doing one of the following:

• Select the key and then tap Edit > Modify.

• Double-tap the key.

• Tap and hold on the key name, and then select Modify from the Edit menu.

2. Tap inside the Name, Value, or Description fields to edit the text.

3. Tap OK or Enter on the virtual keyboard to save your changes. To discard your changes, tap Cancel.

Note: You cannot edit the key name or description if the key is locked.

Moving a Section or Key

To move a section or key, use the Cut, Copy, Past, or Paste as Child commands on the Edit menu. Drag and drop is not

supported.

Note: By default, the Paste function pastes sections at the same level they were cut.

Enabling a Section

Sections are enabled by default. If a section was previously disabled, you can re-enable by selecting Enable from the Edit

menu. You can enable a child section only if its parent section is enabled.

Tap the keyboard icon,

or to turn the virtual

keyboard display on or off.

Description Field

3 - 4

Disabling a Section

To disable a section and all of its keys, select Disable All from the Edit menu. Disabled sections remain in the file and are

indicated with a gray folder. If you disable a section that has child sections, all of its child sections (and the child section

keys) are disabled automatically. The child section folders are also change to gray to indicate they are disabled.

When reading the EXM file, the terminal behaves as though disabled sections are not there and moves on to read the next

enabled section.

A disabled section can be removed from the EXM file permanently by using the Delete option on the Edit menu when the

section is selected. If you want all disabled section permanently removed, use the Simplify Document option on the Tools

menu.

Adding a Section or Child Section

Select Insert Section from the Edit menu.

Select Append Child Section from the Edit menu to insert a new child section to the selected section. The new child sec-

tion is inserted below the previous section.

Associating an Application to an EXM File

Launching

To launch an application associated to an EXM file, open the EXM file in EZConfig editor, and then tap

Tools > Launch Associated App. The open EXM file automatically saves, and the associated application launches while

the EXM file remains open.

Viewing

To see if an open EXM file has an associated application, open the EXM file in EZ Config editor, and tap File > Properties.

The Path field contains the launch location of the application and the Args field contains any command line arguments to

execute when the application launches.

Adding or Editing

To add or edit an application association to an EXM file:

1. Open the EXM file in EZ Config editor on the terminal.

2. Tap File > Properties.

3. In the Path field, enter or edit the location of the application executable (.exe) file on the terminal.

When an application is entered in the Path field, the following occurs:

• the command line /exm %filename appears in the Args (argument) field.

• the Execute box is automatically selected.

Execute must be selected for Configuration documents. You can deselect Execute for registry documents; however,

EZConfig Client cannot update the registry unless Execute is selected. For more information, see Creating Registry

Documents (page 4-12).

4. In the Args field, enter additional command line arguments next to the command line/exm %filename. For more

information, see Command Line Arguments.

5. If the EXM should wait until the associated application has exited before continuing, select Wait Until Finished.

6. Tap OK.

7. To save your changes to the EXM file, tap File > Save or Save As.

3 - 5

Command Line Arguments

/exm %filename executes the EXM file; this is the default entry

/q quiet mode

/s full screen

/o no menu

/e exit if first scan fails to deliver a valid bar code

/u accept (decode) unsecured bar codes

3 - 6

4 - 1

EZConfig Editor on the Workstation (PC)

Overview

EZConfig Editor creates, edits, and manages EXM files for Dolphin terminals. There are two versions of the EZConfig Editor:

one for the Dolphin terminal and one for the workstation. In the workstation editor, EXM files are edited, saved, and then trans-

ferred to the Dolphin terminal. In the terminal editor, EXM files are edited and saved right on the terminal.

This chapter details the workstation (PC) version of the EZConfig Editor. For information about using the terminal version of the

EZConfig Editor, see EZConfig Editor on the Dolphin Terminal beginning on page 3-1.

EXM File Structure

The EXM file format supports a multi-level, hierarchical, tree structure. The terminal reads the highest level section first and

then reads the key values in each child section. The key values configure the terminal. EXM files replace INI files for Power

Tools and terminal configuration settings. If both an INI file and an EXM file are present for the same application, the termi-

nal defaults to the EXM file and a warning message is displayed at startup.

There are two types of configuration files in the EXM file format:

• Configuration Documents program and configure the terminal. See Configuration Documents on page 4-10.

• Registry Documents update and modify the registry. See Registry Documents on page 4-11.

Installing EZConfig for Mobility on the Workstation

1. Access the Honeywell web site at www.honeywellaidc.com, and then locate the product page for your Dolphin model.

2. Select the Software tab.

3. Under the Tools and Utilities heading, click on the listing for Honeywell EZConfig for Mobility Setup.

4. Follow the security directions as prompted on the screen and then click on Download.

5. When prompted, select Save, and then select a location on your workstation (e.g., your desktop).

6. Double click on the downloaded EZConfig for Mobility Setup.zip file.

7. Double click on the Setup.exe file. Select OK.

8. Follow the screen prompts to install the EZConfig for Mobility program.

Upgrades

Upgrades for EZConfig Editor on the workstation are available from Customer Support (see page 16-1) or

www.honeywellaidc.com.

Opening the EZConfig Editor on the Workstation

After you complete the software installation, EZConfig Editor is available on the workstation from the Start menu.

Click Start > All Programs > Honeywell > EZConfig for Mobility > EZConfig for Mobility to open the EZConfig Editor.

Menus and Toolbar Options

When you open the EZConfig Editor, menu selections are displayed across the top of the screen, and icons for actions are

shown below the menu bar.

Note: Some menu selections and Toolbar icons will be grayed out until an EXM file is opened.

4 - 2

File Menu

Edit Menu

For Section Edit menu options, see Working with Sections on page 4-4.

For Key Edit menu options, see Working with Keys on page 4-7.

View Menu

Menu Item Description

New

Creates a new document. There are two options:

•Configuration Document - Creates a configuration file in the EXM file format.

See Configuration Documents (page 4-10).

•Registry Document - Creates a registry file in the EXM file format.

See Registry Documents (page 4-11).

Open Opens an EXM file located on the workstation.

Open Recent Opens an EXM file selected from a list of recent files opened.

Open from Device

Opens an EXM file located on the terminal. The location of the file appears on the title bar with

the word “[Remote]” to identify that the open file is located on the terminal.

Note: This option requires an active connection between the workstation and the terminal

(e.g., ActiveSync, Windows Device Mobile).

Save Saves the open file to the location you select on the workstation.

This option is disabled for new and imported files; use the Save As option instead.

Save As Saves the open file with a new name to the location you select on the workstation.

Save to Device As Saves an open file to the Dolphin terminal.

Note: This option requires an active connection between the workstation and the terminal.

Create EZConfig

Bar Code

Embeds the open EXM file in an Aztec bar code.

Properties Associates the EXM file with an application on the terminal.

See Registry Documents on page 4-11.

Exit Closes EZConfig Editor.

Menu Item Description

Show Locks

Shows or hides the icons that indicate if a subsection or key has been locked against editing.

For additional information on locks on subsections and keys, see Status Bar on page 4-4.

The lock icon means the section’s

subsections are locked.

The key icon means that the

section’s keys are locked.

4 - 3

Tools Menu

Opening EXM Files

EZConfig Editor opens EXM files either stored on the workstation or on the Dolphin terminal if an active connection has been

established between the terminal and workstation (e.g., ActiveSync, Windows Mobile Device Center, or Windows Phone app).

Opening EXM Files Stored on the Workstation

Click File > Open or the Open toolbar icon and select the EXM file.

Opening Remote EXM Files

To open and edit an EXM file located on the Dolphin terminal using EZConfig

Editor on the workstation:

1. Establish an active connection between the terminal and workstation.

2. Open EZConfig Editor on the workstation.

3. Click File > Open From Device.

4. Select the file, and then OK.

Note: You can also open EXM files in the editor on the terminal. See EZConfig

Editor on the Dolphin Terminal beginning on page 3-1.

Menu Item Description

Simplify Document

Note: You cannot

undo this

action!

Simplifies the EXM file, which makes it smaller. Simplifying a document permanently

removes:

• disabled sections and keys.

• descriptions.

• bar code settings.

Note: When you create a bar code, you can simplify the file embedded in the bar code without

affecting the open EXM file. This reduces the size of the bar code package yet keeps

the disabled sections, descriptions, and bar code settings in the open EXM file for future

reference.

Because the following menu items execute commands on the terminal, there must be an active connection between the

workstation and the terminal (e.g., ActiveSync, Windows Mobile Device Center, or Windows Phone app).

Launch Associated

App

If the open EXM file is associated with an application on the terminal, this item appears active

on the Tools menu and when selected launches the associated application on the terminal.

You would use this option after saving the EXM file to the terminal; see Saving to the Device

on page 4-9.

Warm Boot Soft Reset (Warm Reboot) the terminal.

Factory Reset

Device

Factory Reset the terminal.

4 - 4

Working with Open EXM Files

When you open an EXM file, EZConfig Editor displays the content in four different sections of the window.

Status Bar

The Status Bar appears at the bottom of the window and displays information about selected sections and keys.

Selected Section

See Section Locks on page 4-6.

Selected Key

See Key Types on page 4-9.

Working with Sections

The EXM file format supports a multi-level tree structure. The section tree appears in the top left quadrant of the window

when a file is open. When selected, the root node identifies the EXM file and includes the word “Root” in the description dis-

played in the lower left quadrant.

Sections have a name and description and contain keys that appear in the upper right quadrant when you select the section

name. Select a section by clicking on it. You can select only one section at a time.

Displays the root node

and sections.

Select a section and the

details appear in the other

portions of the window.

The folders appear in

different colors to indicate

their status.

Displays the section

name and description.

Displays the keys in the

selected section.

Text that appears in blue

can be edited.

Displays the selected

key’s name and

description.

Displays the file name.

If the file is on the

terminal, the title bar

displays the remote path.

Status Bar

Section

Name

Merge

Mode

Locks on subsections and keys

Key Name

Enabled or

Disabled

Read Only Encrypted Key locked by section

4 - 5

Edit Menu Options

Select a section and click Edit to see the available options.

Moving Sections

To move sections within an EXM file, use the drag and drop method. By default, sections are dropped at the same level

in the tree.

For additional functionality when dragging and dropping, hold:

• ALT to drop a section as a child section.

Menu Item Description

Rename

Allows you to rename the section name. You can also double click on the description to bring

up the Modify screen.

Note: You cannot modify the name if the section is locked or disabled; see Section Locks

(page 4-6).

Cut Cuts a selected section.

Copy Copies a selected section.

Paste Pastes the section that was just cut or copied at the same level as the selected section.

Paste as Child Pastes the section that was just cut or copied as a child of the selected section.

Note: You can cut, copy and paste sections within an EXM file or across EXM files.

Delete Deletes a selected section.

Note: Because you cannot undo a delete, consider disabling rather than deleting.

Enable

Sections are enabled by default. This menu item enables sections that were previously

disabled. You can enable a section only if its parent section is enabled.

To enable all the keys inside a section you are enabling, SHIFT + right-click and select

Enable All.

Disable All

Sections are enabled by default. This menu item disables a selected section and all of its

keys. Disabled sections remain in the file with a gray folder .

If you disable a section that has child sections, all of its child sections (and the child section

keys) are disabled automatically. The child section folders are also in gray.

When reading the EXM file, the terminal behaves as though disabled sections are not there

and moves on to read the next enabled section.

Disabled sections can be removed from the EXM file permanently using the Simplify

Document (see page 4-3) option. If you want to keep disabled sections in the EXM file on the

workstation but not in the file deployed to the terminal, use the Simplified option (see page 4-

3).

Insert Section This menu item inserts a new section.

Append Child

Section

This menu item adds a new child section to a selected section. The new child section is

inserted below the previous section.

4 - 6

• CTRL to copy a section and drop the copy at the same level in the tree.

• CTRL + ALT to copy a section and drop the copy as a child section.

Note: You can select only one section at a time; you cannot use SHIFT+Click or CTRL+Click to select more than one

section.

To move sections between EXM files, open two instances of EZConfig Editor and drag and drop sections between the

session windows. When dragging, a copy of the section is dragged to the new file. When dropping, drop the section

directly on top of the section where you want the child section to appear.

Note: To drop the first section into a new file, press and hold the ALT key and drop the section on the root node. All

sections must be child sections of the root node.

Section Locks

There are different types of locks on sections. The status bar indicates what type of lock is applied to a selected sec-

tion.

Note: All locks are applied to each individual section and are not recursive. Only text that appears in blue can be

modified.

Section-Level Merge Modes

EXM files ship with section-level merge modes already defined according to section content. Merge modes determine

how section information is handled when an updated EXM file is deployed to the terminal where an existing version of

that EXM file is stored.

Merge modes are indicated by folder icons and in the Status bar.

Lock Type Status Bar

Indicator Description Effect

Name Lock The section name is

locked.

Section Name and Description cannot be

modified.

Key Lock

All keys are locked. Key Names and Descriptions cannot be

modified. Keys cannot be added, moved, or

deleted within the section.

Subsection

Lock

All immediate subsections

are locked.

Immediate subsection Names and

Descriptions cannot be modified. Immediate

subsections cannot be added, moved, or

deleted.

Mode Description Merge

Effect

Delete + Add

Deletes non-common children elements (i.e., subsections, and keys) in the

target file, then adds the new information from the exm file. Basically, the

new section replaces the old section.

This is the default merge mode for new sections.

Exclusive

Disable +

Add

Disables non-common children elements (i.e., subsections, and keys) in the

target file, then adds the new information from the bar code.

Note: Disabled sections and keys end up as disabled in the target file.

Add Only Adds new information (sections and keys) to the existing section. If this is a

brand new section, the new section is added to the existing EXM file.

Note: Disabled sections are not modified in the target file.

Inclusive

4 - 7

To change section-level merge modes, select a section and right click.

The folder colors change immediately after selection.

Working with Keys

Keys have a Name, a Description, and a Value and reside inside sections. For specific key values, consult the chapters of

this User’s Guide that describe the EXM file you are editing.

Edit Menu Options

Select a key and right-click or click Edit to see the available options.

Menu Item Description

Rename Activates the key name so that you can rename the key. Rename is disabled if the key is

locked or disabled; see Key Types (page 4-9).

Cut Cuts a selected key.

Copy Copies a selected key.

Paste Disabled; keys can be pasted only as children of a section.

The same options

appear on both

menus.

4 - 8

Modifying Key Names

To modify key names, double-click on the key name or select Rename on the Edit menu. Type in the new name and

press ENTER or TAB.

Note: You cannot modify the description if the key is locked, see Key Types (page 4-9). Only text that appears in blue

can be modified.

Modifying Key Values

You can modify a key value only if its text appears in blue. In that case, double-click on the value or select the key and

press ENTER. Type in the new value and press ENTER or TAB to save.

Modifying Key Descriptions

Descriptions are not required to process key values but do help document the EXM file and often contain valuable

information. To modify a key’s description, click on the key, then click in the key description area. When the cursor is

active, you can type in the text.

Note: You cannot modify the description if the key is locked; see Key Types (page 4-9).

Moving Keys

To move keys within an EXM file, use the drag and drop method. Press and hold the CTRL key to drag and drop a copy

of the key to the new location.

Note: You cannot move a key if it is locked by its section.

Paste as Child

Pastes the key just cut or copied in the selected section. Keys are not multi-level; all keys

paste at the same level within a section.

You can cut, copy and paste keys within an EXM file or across EXM files.

Delete Deletes a selected key.

Note: You cannot undo a delete; you might want to consider disabling rather than deleting.

Enable

Enables keys that were disabled. When a key is enabled, the client application can read

and apply its value. When you enable a key, make sure to specify a value for that key; do

not leave it blank.

To enable a key, its parent section must be enabled.

Disable

Disables keys.

Disabled keys have key values in black. Enabled keys have key values in blue.

The terminal does not read disabled keys and disabled keys are removed if the file is

simplified. See Simplify Document on page 4-3.

Because many key values are 1 for enable and 0 for disable, remember that disabling a key

means that the terminal behaves as if the key is not there when reading the file, NOT that

the key’s value is set to disabled. The terminal simply moves on to read the next enabled

key.

Insert Key This menu item inserts a new key above the selected key.

Note: You can also press the Insert key (INS) on your keyboard.

Menu Item Description

4 - 9

To move keys between EXM files, open two instances of EZConfig Editor and drag and drop keys between the win-

dows. When you select the key and drag, a copy of the key is dragged to the new file. In the new file, drop the key in the

key area of a selected section; keys are always dropped at the same level within a section.

Key Types

When a key is selected, its properties display in the Status bar.

Note: Locked and Read Only properties are not recursive. Properties are applied to each individual key. Only text that

appears in blue can be modified.

Saving to the Device

You can save EXM files directly to the terminal when there is an active connection between the terminal and the workstation

(e.g., ActiveSync, Windows Mobile Device Center, or Windows Phone app).

1. Select File > Save to the Device As.

2. From the Save Remote File window, select the location on the terminal where you want to store the file.

3. Click OK. The file is downloaded directly to the terminal via the active connection.

Lock Type Status Bar

Indicator Description Effect

Name Lock

Keys are locked by the section. • Name and Description cannot be

modified.

• Keys cannot be added, moved, or

deleted within the section.

The key name is locked

individually.

• Name and Description cannot be

modified.

• These keys can be moved.

Read Only

Read-only keys cannot be

modified in any way. They

appear in red.

• Name, Description, and Value cannot

be modified.

• Keys cannot be added, moved, or

deleted within the section.

Encrypted

Key’s value appears as asterisks

(*) for added security.

Note: Encrypted keys are also stored

encrypted in the EXM file. If you

open the EXM file in a text editor,

you won't see the data as clear

text.

4 - 10

Configuration Documents

EZConfig Editor creates configuration documents in the EXM file format to use for programming and configuring terminals.

Creating New Configuration Documents

To create new EXM files that are configuration documents, you can open an existing EXM file and save it with a new name

or create an EXM file from scratch.

1. Click File > New > Configuration Document. The root node is created and appears as the top level section. All sec-

tions must be at least one level down from the root node. The name of the root node is always the same as the filename.

2. To create the first subsection, select the root node, right-click, and select Append Child Section.

Insert Section is disabled because you cannot insert sections at the same level as the root node.

3. Enter a Name and a Description and click OK. The name is required, the description is optional.

4. To add a new section at the same level, right-click and select Insert Section.

To add a new section one level down, right-click and select Append Child Section.

5. To add keys, select a section, right-click in the key value area, and select Append Key.

6. After the first key is added under a section, right click and select Insert Key for additional entries.

7. Input the Name of the new key then double click under the Value column heading to enter a value.

8. Right-click in the key description area to add a Description for the new key.

9. The name is required, the description is optional.

10. Continue adding sections and keys.

11. If necessary, associate this EXM file with an application; see Registry Documents (page 4-11).

12. Click File > Save As to save the file.

Note: Save is disabled so that you save the document with a name other than “NewDocument.exm.”

The terminal reads

root node first.

The Description

says “Root” to

indicate that this is

the root section.

Key Value

Area

Key

Description

Area

4 - 11

Associating Applications

The Properties function associates an EXM file with an application on the terminal. The associated application launches

after EZConfig Client decodes the bar code containing the EXM file. While the EXM file is open, click File > Properties or

the Document Properties toolbar button .

Registry Documents

EZConfig Editor creates registry documents in the EXM file format and also opens existing REG files and converts them to the

EXM file format. EZConfig Editor cannot save registry documents in the REG file format.

Field Description

Path Enter the location of the EXE on the terminal.

Arguments

Enter the command line argument you want applied when the application launches.

When an application is entered in the Path field, the following command line appears as the

argument: /exm %filename.

Enter additional command line arguments next to /exm %filename in this field.

“%filename” means that the value immediately after the “%” is variable. Type in the location and

file name where the EXM file should be deployed on the terminal. For example,

\Honeywell\deviceconfig.exm.

Command Line Arguments

/exm %filename Executes the EXM file; this is the default entry.

/q Quiet mode

/s Full screen

/o No menu

/e Exit if first scan fails to deliver a valid bar code

/u Accept (decode) unsecured bar codes

Execute

If selected, EZConfig Client launches the application after decoding the bar code. Execute is

enabled automatically when an application is entered in the Path field.

You cannot de-select Execute for configuration documents.

You can de-select Execute for registry documents, however, the registry is not updated unless

Execute is selected. For more information, see Creating Registry Documents (page 4-12).

Wait Until Finished If selected, EZConfig Client waits until the associated application is finished processing before

finalizing.

4 - 12

Creating Registry Documents

1. In EZConfig Editor, click File > New > Registry Document.

The new document contains the three top-level sections in a registry. These sections are locked and cannot be

changed. You can add subsections to each section and then add keys to those subsections.

2. Click File > Save As.

3. Choose the name and location and click Save.

You cannot save the document as a .reg file; you must save it as an EXM file.

4. To add sections, select one of the registry levels, right-click, and select Append Child Section.

Enter the section information, and click OK.

For more information about adding sections, see Working with Sections on page 4-4.

5. To add keys to the new section, select the section, and right-click in the key value area.

For details, see Adding Registry Keys on page 4-12.

6. Continue adding sections and keys.

7. Save the file.

Adding Registry Keys

1. Select a section, right-click in the key value area and select Append Key.

Note: After the first key is added under a section, right click and select Insert Key for additional entries.

2. Input the Name of the new registry key then double click under each column heading to input the key Type and Value.

3. Right-click in the key description area of the screen to add a description for the new key.

Key Value

Area

Key

Description

Area

4 - 13

Default Application Association for Registry Documents

While a registry document is open, click File > Properties. By default, registry documents are associated with EZConfig

Client with Execute enabled.

Note: Execute must remain selected for the registry to be updated. If Execute is not selected, the registry document is

deployed, but the registry is not updated.

Updating the Registry on the Terminal

To update the terminal’s registry using an active connection between the terminal and PC:

1. Create an EXM file that is a registry document; see Creating Registry Documents on page 4-12.

2. Save the EXM to the terminal; see Saving to the Device on page 4-9.

3. On the terminal open the EZConfig Editor, open the EXM, tap Tools > Launch Associated App to update the

registry.

To update the terminal’s registry using a EZConfig bar code:

1. Create an EXM file that is a registry document; see Creating Registry Documents on page 4-12.

2. Create a bar code package from that EXM file; see Create EZConfig Bar Code, below.

3. Scan the bar code with the terminal.

Processing Registry Documents on the Terminal

After EZConfig Client updates the registry, the EXM file itself is deployed to the location entered in the Remote Path (page

4-15) field on the Bar Codes Tab.

Note: EXM files are identified with an icon.

If you do not want to store the registry EXM file on the terminal after updating the registry, select the Temporary (page 4-17)

option on the Bar Codes Tab.

Persistent Registry Documents

If you want to update the registry during every Hard Reset (Cold Reboot), create a registry document in the EXM for-

mat, save it to the terminal in the active storage folder, then perform a Hard Reset. The registry settings in the EXM file

will load during startup.

If you want to save a registry file but not load it every startup, store the registry EXM file in the permanent storage

folder where it will only be loaded if a Factory Reset or kernel upgrade is performed.

See File Storage Locations on page 1-3 for further information on active and permanent file storage locations.

Create EZConfig Bar Code

EZConfig Editor embeds EXM files in Aztec bar codes. The EZConfig Client on the terminal decodes the bar code and deploys

the data. Using bar codes quickly and easily configures Dolphin terminals without an ActiveSync or network connection to a

workstation.

4 - 14

Document Types

EZConfig Editor produces two kinds of EXM files: Configuration Documents (page 4-10) and Registry Documents (page 4-

11). Both can be embedded in bar codes and processed by EZConfig Client on the terminal.

Note: EXM files are stamped with the time and date the moment EZConfig Editor creates the bar code.

Bar Code Type, Size and Number

EZConfig Editor creates an Aztec bar code. The amount of data in the EXM file determines how many bar codes are gen-

erated and the physical size of each bar code. More data means more bar codes and larger bar codes.

EZConfig Editor offers four ways to control how many bar codes are produced and adjust the size of each bar code:

• Set the byte size limits on how much data each bar code can contain (see page 4-16).

• Split the data across a specified number of bar codes (see page 4-15).

• Simplify the EXM file in the bar code(see page 4-15).

• Scale the bar codes on the bar code sheet (see page 4-18).

Bar Code Sheet

EZConfig Editor produces a bar code sheet that contains the generated bar codes. Bar code sheets can be printed from a

laser printer, copied to the clipboard, and saved as an HTML file. See Printing and Saving Options on page 4-18.

In addition, individual bar codes can be saved as TIF or PNG graphic files that can then be emailed and printed. See Bar

Codes Tab on page 4-15.

Generating Bar Codes

When creating a bar code, EZConfig Editor automatically encrypts and compresses the data in the EXM file. EXM files are

stamped with the time and date the moment EZConfig Editor creates the barcode.

Note: The number of bar codes produced depends on the amount of data present in the EXM file. The more data present,

the more bar codes generated. You must scan all bar codes to deploy the package!

To generate a bar code(s):

1. Click File > Create EZConfig Bar Code OR Generate Bar Code while the EXM file is open.

2. The EZconfig Bar Code Bar window opens displaying the details of the bar code package generated.

3. You can make adjustments using the options on the Bar Codes Tab (page 4-15) and the Advanced Tab (page 4-16) or

use one of the options provided to output the package.

Note: The number of bar codes produced depends on the amount of data present in the EXM file. The more data present,

the more bar codes generated. You must scan all bar codes to deploy the package!

4 - 15

Bar Codes Tab

The Bar Codes tab previews and customizes generated bar code(s).

Field/Option Description

Display

Indicates which bar code is displayed in the preview area; the default is “1,” the first bar code

in the package. If more than one bar code was generated, you can use the up and down

arrows to scroll through the bar codes.

(___ bytes)

Displays the exact byte size of the bar code displayed in the preview area.

Tot al Package Size (page 4-18) is displayed at the bottom of the window.

The sum of bar code size is typically larger than the package size.

Remote Path

Type in the active storage location and filename where the EXM file should be deployed on

the terminal. For example:\Honeywell\deviceconfig.exm

Tap the browse button to navigate to the location on the terminal. An active connection

between the terminal and workstation is required (e.g., ActiveSync, Windows Mobile Device

Center, or Windows Phone app).

You may want to copy this file into permanent storage (page 1-3) if you want it to persist after

a factory reset or kernel upgrade.

Full Contents Includes the full content of the EXM file in the bar code, without simplifying.

Simplified

Simplifies the EXM file in the bar code, which removes disabled sections, description

information, and bar code settings (if any), which decreases the size of the bar code.

The open EXM file is not simplified.

Simplified is selected by default. The differences in total package size are displayed in the

Package Size (page 4-18) field. Individual bar code size can be seen in the Display (page 4-

15) field.

# Bar codes to

generate

This is active only if the Always use minimum # bar codes (see page 4-16) is not selected.

When this slider is active, you can move the slider toward minimum or maximum to change

the number of bar codes generated. As you move the slider, you’ll see the number of bar

codes in the counter at the bottom of the window and you’ll notice the graphic of the bar code

in the preview area change.

Copy to Clipboard Copies the bar code displayed in the preview area to the clipboard.

Use this option to paste the bar code into another application.

4 - 16

Advanced Tab

The Options tab contains settings that tell EZConfig Client how to process the EXM file on the terminal.

Save

Saves the bar code displayed in the preview area as a graphic file as a .png or .tiff.

By default, the name of the graphic file is the same as the name of the open EXM file. You

can enter a different name when saving.

Save All

Saves all bar codes in the package as individual graphic files.

By default, the graphic files are saved with the same name as the open EXM file with a

number at the end to distinguish the individual graphic files from each other.

Print Opens the printing window where you can select print options and print the bar code

package. For details, see Printing and Saving Options on page 4-18.

Field Description

Bar Code Options – This section determines some of the basic bar code parameters.

Max Barcode Size Set the maximum amount of data (in bytes) one bar code can contain. The lower the

number of bytes, the smaller the bar code.

On the Bar Codes tab, bar code size appears in the Display field (see page 4-15).

The total number of bar codes created as a result of the maximum bar code size limit

appears at the bottom of the Advanced window; see Bar Codes (page 4-18).

Always use

minimum # bar

codes

This option is selected by default. It calibrates the data so that the minimum number of bar

codes are used. When this option is selected, the number of bar codes slider on the Bar

Codes tab is disabled.

Use custom

password

This option enables you to password-protect the bar code you’re creating.

Select this option, then enter the password in the field provided. You will be able to see the

password when you enter it; however, you will not be able to see the password again once

you close the window because the password will be encrypted.

If you password-protect the bar code, EZConfig Client on the terminal will prompt you to

enter that same password on decoding.

Field/Option Description

4 - 17

Full screen

progress dialog

This option runs the deployment progress dialog box on the terminal in full screen mode so

that the user cannot open another application while the bar codes are being deployed on

the terminal.

Warm boot after

finished

This option automatically launches a warm boot on the terminal after the bar code is

deployed. Use this options with EXM files that contain application information requiring a

warm boot to take effect, such as registry settings.

Deployment Options – These options determine how to deploy the EXM file on the terminal.

Merge each

section…

(Default selection)

Deploys information according to the section-level merge mode settings; see Section-Level

Merge Modes on page 4-6.

If already exists, deploy:

Always–Select to always use the section-level merge mode settings.

Only if newer–Select to use the section-level merge mode settings only if the sections are

newer than the existing file.

Temporary Deploys the EXM file temporarily. The settings in the EXM file are applied, but the file does

not remain in the system after EZConfig Client is done.

If the terminal contains a previous EXM file with the same name, the previous EXM file is

preserved.

Replacement EXM Options – This section determines how the EXM file will be deployed if there exists on the

terminal an EXM file of the same name in the same location.

Replace remote file Replaces the existing file; no section-level merge modes are applied.

If already exists, deploy:

Always–Select to always replace the existing file.

Only if newer–Select to replace the existing file only if the file in the bar code is newer than

the existing.

Never—Do not deploy the new file; this preserves the existing file.

Prompt—EZConfig Client asks the user if they want to overwrite the existing file during

deployment.

Persist Bar Code Settings

Stores the settings from the Options, Bar Codes, and Web Page tabs within the EXM file so that the same bar code

settings are applied the next time a bar code is created. This increases the size of both the EXM file and the bar

code(s).

If the Simplify option is selected, bar code setting information is not included in the bar code but remains in the

open EXM file.

Field Description

4 - 18

Information at the Bottom of Tab Windows

Printing and Saving Options

On the Bar Codes tab, when you click Print, a bar code printing window opens offering you a number of printing

options.

Field Description

Package Size Displays the total size of the bar code package. This number changes with simplifying.

Compression On Notifies you that compression and encryption are both on.

Compression and encryption are always on by default. EZConfig Editor uses 128-bit

encryption automatically.

Encryption On

Bar Codes Displays the total number of bar codes generated. This number changes as you move

the slider on the Bar Codes tab.

Field/Option Description

Preview Area This is the largest section of the tab window and displays a preview of the bar code

sheet. Use the scroll bars to see all the bar codes.

Header Type in a custom header for the page.

Footer Type in a custom footer for the page.

Bar Code Scaling

Factor

Adjusts the size of each bar code by scaling all of them up or down, which determines

how many bar codes can fit on each page. This does not change the amount of data in

each bar code, just the size of the bar code on the page.

Save Saves the bar code sheet as an HTML file.

Preview Click to see a print preview. Click Print on this window to print your bar codes.

5 - 1

EZConfig Client

Overview

EZConfig Client decodes bar codes created in EZConfig Editor and deploys the data in the terminal. In addition, if the EXM file

in the bar code is associated with an application, EZConfig Client launches that application, which then processes the decoded

data.

EZConfig Client decodes bar codes with 40-bit and 128-bit encryption.

Accessing EZConfig Client

On the Dolphin terminal, tap Start > Power Tools > EZConfig Utilities > EZConfig Client .

The EZConfig Client Screen

Note: Bar code decoding in EZConfig Client is compatible with ScanWedge. You can set ScanWedge to pass bar code

information to EZConfig Client for further processing.

Field Description

Package ID Displays the package ID assigned by the EZConfig Editor

Status

Indicates the decode status of the bar codes scanned. If there is more than one bar code in the

package, the field acts as a decode counter indicating; how many bar codes have been scanned

and how many codes are in the package.

Read # Box Displays a list of the bar codes scanned and decoded.

Accept Unsecured If enabled (checked) the EZConfig Client scans bar codes that are not encrypted.

Note: By default, all bar codes created in EZConfig Editor are encrypted.

5 - 2

Using EZConfig Client

1. On the Dolphin terminal, tap Start > Power Tools.

2. Tap EZConfig Utilities > EZConfig Client.

3. Point the terminal at the first EZConfig Editor bar code, then press the Scan key.

4. EZConfig Client decodes the bar code.

• If there is only one bar code in the package, EZConfig Client deploys the package.

• If there is more than one bar code in the package, EZConfig Client decodes the bar code, records that one bar code has

been read, and waits for the next scan.

5. Scan all the bar codes in the package. Bar codes can be scanned in any order.

6. When all bar codes in the package have been scanned, the EZConfig client deploys the data.

Note: If the EXM file is programmed to launch an application such as ScanWedge, a window pops up informing you of

initialization.

Scanning Bar Codes Directly from the Power Tools or Demos Main Window

When the Power Tools or Demos main windows are open, press the Scan key and:

• If there is only one bar code in the package, EZConfig Client decodes and deploys the bar code without opening the

EZConfig Client window.

• If there are multiple bar codes in the package, EZConfig Client decodes the first bar code and opens the EZConfig Client

window showing that one bar code in the package has been scanned.

EXM File Processing

After decoding, EZConfig Client saves EXM files to the location in the terminal specified in the Remote Path (page 4-15) field on

the Bar Codes Tab (page 4-15).

Note: If the Temporary (page 4-17), option is selected in the bar code, EZConfig Client does not save the EXM file.)

There are two types of EXM files: configuration documents and registry documents. EZConfig Client processes each type of file

differently.

Configuration Documents: If the EXM file was associated with an application, EZConfig Client launches and deploys the

data to that application for processing.

Note: DeviceConfig.exm must be associated with DeviceConfig.exe to be processed on the terminal appropriately. After

decoding the bar code, EZConfig Client deploys the data to DeviceConfig.exe, which applies the settings to the

terminal.

Registry Documents: Registry documents are always associated with EZConfig Client. The Execute option

(Execute, page 4-11) determines whether the registry is updated or not. If Execute is selected, EZConfig Client updates

the registry immediately after decoding the bar code.

Note: Some EXM files generate more than one bar code. If multiple bar codes were generated, EZConfig Client recognizes that

there is more than one bar code in the package and tracks each bar code scanned and decoded. Bar codes can be

scanned in any order, but EZConfig Client does not deploy the data until all the bar codes in the package have been

scanned.

6 - 1

Autorun and AutoInstall

Overview

Startup is the launch sequence when a Dolphin terminal is booted. There are two startup Power Tools: Autorun and AutoInstall.

Autorun

Autorun specifies the software applications to launch after each hard reset (cold reboot). Autorun is located in the

\Honeywell folder. Autorun consists of an Autorun.exe that is programmed by the Autorun.exm file (see below).

During startup, after a soft (warm) or hard (cold) reset, the operating system looks for and launches \Autorun.exe. If the

Autorun.exe is configured (by Autorun.exm) to launch an application, that application launches when Autorun.exe launches.

Autorun can launch up to 32 applications or utility programs after each hard reset.

Note: The Autorun.exm file allows applications to be launched based on conditional situations, including the return code of

another application launched previously and specific characteristics of the Dolphin terminal itself.

Autorun.exm File

The Autorun.exm file has a multi-level tree structure. There are two top level sections: Settings and Programs.

Settings Section

The Settings section stores general Autorun settings.

Programs Section

The Programs section contains many child sections and determines the sequence of events at startup, including which

programs launch and when.

Programs Section and the Launch Sequence

Under the Programs Section, each child section is a program to launch at startup. The sequence of child sections deter-

mines the launch sequence on the terminal; the terminal reads this file consecutively. To change the launch sequence,

move the child section up or down in the list. See Working with Sections (page 4-4).

Enabling and Disabling Sections

If you do not want the application to launch at startup, you can delete the child section. However, program child sections

contain settings you’ll want to keep when adding that same application back into the startup sequence. To keep the pro-

gram child section in the file for future reference, use disable instead of delete. Disabled child sections appear in gray.

When processing files, the terminal behaves as though disabled sections are not there and moves on to the next enabled

section.

Programs’ Subsections

Each Programs’ subsection (child section) contains or can contain the following keys:

Key Function

Required Keys—These keys must be present in each Program subsection (child section).

Program Specifies the command line to execute. This is the location of the program’s executable. If

you want a Power Tool to launch at startup, enter the location of that tool’s EXE here.

Args Specifies the command line arguments to execute at startup.

Wait

Determines if Autorun should wait for the program to complete and close before continuing to

the next program in the sequence.

•0=Continue to the next program immediately

•1=Wait enabled

6 - 2

Editing the Autorun.exm File

Edit Autorun.exm in EZConfig Editor. For details, see Working with Open EXM Files on page 4-4.

Adding a Program Subsection

To launch at startup, a new program must be a child section of the Programs section.

1. In EZConfig Editor on your workstation, right-click on the Programs section and select Append Child Section. A “New

Section” folder is added to the bottom of the list.

2. Enter the Name. Click in the section description area (lower left area of the screen) to add a Description.

3. Use the click and drag method to move the section to the desired launch sequence.

Press and hold the ALT key to make sure that you move the section at the same level. Do not append the section to an

existing section!

4. Right-click in the key area (upper right area of the screen) and select Append Key. You must add all the required

Autorun keys; see Programs’ Subsections on page 6-1.

5. Save the file and transfer it to the terminal.

Copying a File

If you want to copy a file and move it to another location, use AutoInstall and the /copy command line argument. For

details, see Command Line Arguments on page 6-4.

Start Options

Start Options define the required system parameters for a software application to launch. The following values can be

entered for the StartOption key, wherever it appears:

StartOption

Specifies the startup options for the program. Autorun launches the program only if the

startup options entered here are met.

•Blank= Always run the program.

•X=See "Start Options" on page 6-2

Optional Keys—These are keys you can add.

PNPID Specifies a card description. This option needs to be entered only when PNPID or

NONPNPID values are specified in the StartOption key.

DependIndex Specifies the index of a dependent program.

DependExitCode

Specifies the required result of the dependent program. If the result of the dependent

program does not equal the DependExitCode entered here, the current program will not be

executed at startup.

Option Name The program launches if … Category

DISABLED Never, regardless of other startup options specified. None

COLDBOOT The terminal has performed a Hard Reset (Cold Reboot).

Boot type

WARMBOOT The terminal has performed a Soft Reset (Warm Reboot).

TOUCH The terminal has a touch screen display installed.

Touch Screen

NONTOUCH The terminal doesn’t have a touch screen display installed.

Key Function

6 - 3

Multiple options can be specified for each category. For example, you can specify both 35KEY and 43KEY options to

request that the program run in either a 35- or 43-key keyboard terminal. Separate multiple options with commas.

To ignore a category, do not specify any of its options.

Applying Startup Options to the Autorun.exm File

For each category, Autorun validates each startup option specified in the StartOption key. If no specified option is valid in a

category, Autorun does not execute the program. If at least one of the specified options is valid in each category evaluated,

the program is executed.

To always execute a program, specify no options in the StartOption key.

BATCH The terminal is a batch unit (no RF or internal modem cards installed).

Mobility

RF The terminal has an RF card installed (e.g., Cisco 802.11b).

GSM The terminal has a GSM radio.

BT The terminal has a Bluetooth radio.

MODEM The terminal has an internal modem card installed.

IMAGER The terminal has an imager installed.

Scanner

LASER The terminal has a laser scanner installed.

BLIND The terminal has no laser or imager installed.

ANYSCAN The terminal has either an imager or a laser scanner installed.

RFON The RF radio is Enabled.

Radio

GSMON The GSM radio is enabled.

BTON The Bluetooth radio is enabled.

RFGSMBTOFF The RF, GSM, & Bluetooth radios are disabled.

xxKEY

The terminal has a xx-key keyboard.

Note: Input the key quantity in place of “xx” in xxKey (e.g., 29KEY, 56KEY

or 30KEY). Keyboard

NO_KEY The terminal has no keyboard.

PNPID The terminal has a card installed whose identification contains ALL of the

strings specified in the PNPID setting.

Expansion Card

NONPNPID The terminal doesn’t have a card installed whose identification contains

ALL of the strings specified in the PNPID setting.

Option Name The program launches if … Category

6 - 4

AutoInstall

AutoInstall consists of an AutoInstall.exe program file and an AutoInstall.exm file located in the root \Honeywell folder on

the terminal. The AutoInstall.exe program runs according to the settings in the AutoInstall.exm file. During a hard reset (cold

reboot), the AutoInstall program is launched and any cab files placed in the active storage folder (\Honeywell\AutoInstall)

are installed. See File Storage Locations on page 1-3 for additional information on permanent and active file storage locations.

Program Install Locations

When triggered by a reset, the CAB file installs the applications to the directories established in the CAB file. For most

applications, this means that an EXE for the software application is placed in the \Program Files folder.

AutoInstall.exm

The AutoInstall.exm file controls the behavior and appearance of the AutoInstall window and install process.

Note: The Autorun.exm file determines the programs and install sequence, not AutoInstall.exm.

Command Line Arguments

Add /copy to the Autorun.exm file to automatically move a file from one location to another.

Usage: autoinstall /copy <sourcefilename> <destination>

Example: autoinstall /copy "/windows/data.mdf" "/storage card/data.mdf"

7 - 1

DeviceConfig

Overview

DeviceConfig configures the Dolphin terminal. DeviceConfig consists of the DeviceConfig.exe and the DeviceConfig.exm file.

DeviceConfig.exe looks for and applies the settings in the DeviceConfig.exm file.

DeviceConfig.exm File

The DeviceConfig.exm file contains terminal configuration settings. This file’s configuration settings persist through reboots and

should be considered system defaults.

Enabling DeviceConfig Functionality

By default, all sections except the About Section (see page 7-5) are disabled, which means that the key values are not

applied to the terminal. To use the DeviceConfig.exm file to configure the terminal, enable the sections and keys required

by your configuration.

Autorun

Autorun (see page 6-1) launches DeviceConfig.exe, which applies the DeviceConfig.exm settings, then launches a reboot.

The DeviceConfig.exm file must be associated with DeviceConfig.exe. The associated application path must be

\Honeywell\deviceconfig.exe

For more information, see Registry Documents, page 4-11.

Bar Code Delivery

When the DeviceConfig.exm file is delivered to the terminal via bar code, EZConfig Client launches DeviceConfig.exe auto-

matically after decoding. DeviceConfig.exe then applies the settings in theDeviceConfig.exm file in the terminal. For more

information, see Creating Bar Codes (page 2-17) and EZConfig Client (page 2-26).

The DeviceConfig.exm file must be associated with DeviceConfig.exe for EZConfig Client to launch DeviceConfig.exe after

decoding the bar code. The associated application path must be \Honeywell\deviceconfig.exe

For more information, see Registry Documents, page 4-11.

Settings in the WLAN Supplicant

Many settings in the DeviceConfig.exm file match the settings in the WLAN Supplicant on the terminal that allow the user to

enter and save the same values. If you change a setting in the WLAN Supplicant, that setting is applied. During the next

reboot, Autorun launches DeviceConfig, which then re-applies the settings in the DeviceConfig.exm file.

DeviceConfig.exm Sections and Keys

The sections and keys in the DeviceConfig.exm file are locked, which means that you can change values but not names or

descriptions.

Connections Section

The Connections section contains child sections that set communication parameters on the terminal.

Section Name Description See Page

Connections Configures communication parameters. There are child sections that

configure the on-board radios and the ActiveSync connection.

7-1

System Configures basic system settings. 7-5

Applications Configures software applications. 7-6

7 - 2

ActiveSync Section

The ActiveSync Section configures the terminal’s ActiveSync connection parameters. Double tap or click on any Key to

get full information or to edit the settings.

Note: The Connection values must be typed exactly as they appear in the Description field, e.g., ‘115200@Desktop.

Beam Section

The Beam section enables and disables the IrDA port.

Note: Not all Dolphin products/models are equipped IrDA capabilities. Consult the User’s Guide for to see if your

terminal is equipped with an IrDA port.

Radio Manager Section

In the Radio Manager, typically, you would enable the radio in the WiFi section, enable DHCP in the TCPIP section,

then configure the radio settings in the Security\Supplicant\Profile section.

Bluetooth Section

The keys in this section enable the Bluetooth radio and configure a Bluetooth printer as a Favorite. Double tap or

click on any Key to get full information or to edit the settings. If there is no Bluetooth radio installed in the terminal,

disable this section.

Bluetooth Default Printer Values

In general, to establish a printer as a Bluetooth Favorite Device, you must establish the printer as a Bluetooth

Favorite on the terminal. The Default Printer section stores these settings permanently in the DeviceConfig.exm

file so the printer remains a Favorite.

You can distribute a DeviceConfig.exm file with the printer settings to multiple terminals. After DeviceConfig.exe

applies the settings in the DeviceConfig.exm file (launched manually or after a reboot), the printer is set up as a

Favorite automatically, without any special configuration to each terminal.

After you have established a printer as a Bluetooth Favorite Device on an individual terminal, obtain the value for

the Address key from the registry in RegEdit.

Obtaining the MAC Address

After you have set up the Bluetooth printer on the terminal, use RegEdit to find the printer values.

1. Tap Start > Power Tools > RegEdit.

2. Navigate to HKEY_LOCAL_MACHINE > Software> Microsoft > Bluetooth > Device > [MAC Address].

3. Copy the name of the subsection; this is the MAC address of the printer.

4. Enter this address in the Address key in the Bluetooth > DefaultPrinter section of the DeviceConfig.exm

file.

WiFi Section

The keys in the WiFi section control the settings of the WLAN radio. Double tap or click on any Key to get full infor-

mation or to edit the settings.

TCPIP Section

The keys in the TCPIP section determine how the radio handles IP addresses. Double tap or click on any Key

to get full information or to edit the settings.

Security Section

The Security section has no keys and one child section named “Supplicant,” which contains several profile

subsections.

Supplicant Section

The Supplicant section consists of a number of child sections. The default child section is named Profile1 and

contains all the keys necessary to create a configuration profile for the WLAN radio.

7 - 3

To create multiple radio configurations, copy the Profile1 section and paste it at the root level of the Suppli-

cant section. Then, rename that profile and configure the keys according the desired network configuration.

Each child section name is arbitrary, but each name must be different.

The Supplicant section contains one key named ActiveProfile. Type in the Value equal to name of one of the

desired profile child sections.

When DeviceConfig is activated on the terminal, the terminal will apply the settings in the profile specified in

the ActiveProfile key. If the ActiveProfile key does not have a matching profile, the radio will be enabled by

DeviceConfig but no specific radio configuration will be activated, which means that the radio will not connect

to your network.

Profile Subsections

Each Profile subsection contains the keys that configure the radio connection from the terminal to the net-

work.

Key Description Available Values

Name

SSID

The service set identifier used to connect to

network; usually the network name of the access

point or peer station.

X=Your network’s SSID

Any=Connect to any network

Mode The radio mode. 0 = Infrastructure

1 = IBSS (Adhoc)

Band

The radio band. 0 = Auto

1 = 802.11b/g/n

2 = 802.11 a/n

Assoc. Mode

The general association mode (sometimes called

“authentication”) of the radio.

• None (no authentication or

encryption)

•WEP

• IEEE 802.1X (WEP)

• WPA-Personal (PSK)

• WPA-Enterprise (EAP)

• WPA2-Personal (PSK)

• WPA2-Enterprise (EAP)

Encryption

The encryption mode available for the

association mode.

•Open

• Shared

•TKIP

• AES-CCMP

•TKIP

7 - 4

EAP Method

Available EAP methods for IEEE 802.1X and

WPA(2)-Enterprise (EAP) association modes.

• LEAP

• PEAPv0-MSCHAPV2

• PEAPv1-MSCHAPV2

• PEAPv1-GTC

• PEAPv1-TLS

• FAST-MSCHAPV2

• FAST-GTC

• FAST-TLS

•TLS

• TTLS-MD5

• TTLS-MSCHAPV2

•TTLS-GTC

PSK Enter the private share key for the WEP

association mode.

User-defined

Identity

This is the 802.1X identity supplied to the

authenticator. The identity value can be up to 63

ASCII characters and is case-sensitive.

User-defined

Password

This is the password used for MD5-Challenge or

LEAP authentication. It may contain up to 63

ASCII characters and is case-sensitive. Asterisks

appear instead of characters for enhanced

security.

User-defined

Anonymous ID

Enter the anonymous ID. This ID creates a tunnel

through which the real ID (as entered in the

Identity field) can pass.

For additional security, make this ID different than

the one entered in the Identity field.

User-defined

Tunnel PAC

Machine PAC

For EAP-FAST, a one-time provisioning

exchange establishes a shared secret, called a

Protected Access Credential (PAC) Key. That

PAC Key is used for all subsequent

authentications.

Enter the address on the

Dolphin terminal of either PAC

(tunnel or machine).

Note: The PACs must be

located on the Dolphin

terminal!

Provisioning

Provisioning refers to service activation and

involves programming various network

databases with the customer's information.

• No Provisioning

• Anonymous

• Authenticated

• Anonymous + Authenticated

CA and/or Client

Certificate

CA certificates are any certificates created by a

certified authority (CA).

Client certificates contain information that

identifies the user, as well as information about

the organization that issued the certificate. This

ensures that you can encrypt data end-to-end.

Enter the address on the

Dolphin terminal of either

certificate (CA or Client).

The certificates must be located

on the Dolphin terminal!

Private Key

Private keys are used with certain types of EAP

authentication.

Enter the address on the

Dolphin terminal of the private

key.

The private key must be located

on the Dolphin terminal!

Key Description Available Values

7 - 5

GSM Section

If there is no GSM radio installed in the terminal, disable this section. Double tap or click on any Key to get full

information or to edit the settings.

System Section

The System section contains child sections that configure various system settings. Double tap or click on any Key to get full

information or to edit the settings.

About Section

The About section sets a unique device name and description for the terminal. By default, this section is enabled and

applied to the terminal after each reboot.

DeviceName Restrictions

• The DeviceName must begin with a letter.

• The DeviceName cannot exceed 15 characters in length.

• Any text outside brackets (“[xxxx]”) will appear as text in the Device name field.

The following appears in the Device name field:

[SERIALNUMBER] The terminal’s serial number pulled dynamically from the kernel.

This is the serial number that appears in SysInfo (see page 13-1).

[MODELNUMBER] The terminal’s model number pulled dynamically from the kernel.

This is the serial number that appears in SysInfo (see page 13-1).

Power Management Section

The Power Management section contains child sections that configure various Backlight and Power Timeout settings

by power source (i.e., Battery, External or USB) and enabling or disabling the Power Button. Double tap or click on any

Key to get full information or to edit the settings.

Priv Key

Password

Private keys can be locked by passwords. Enter the password that unlocks

the private key.

WEP Key Mode

Mode being used by the WEP keys (in Key1–

Key4 keys).

Key validation occurs when DeviceConfig is

loaded on the terminal (often during AutoInstall),

not when you save the DeviceConfig.exm file.

ASCII uses all alpha numeric

characters.

HEX uses only numerics and A-

Valid lengths are as follows:

• 64-bit ASCII=5

• 128-bit ASCII=13

• 64-bit HEX=10

• 128-bit HEX=26

WEP Key1–Key4

In fields Key 1—Key 4, enter the specific key.

The format of each key must match the key

length type selected in the WEP Key Mode key.

To use dynamic keys in your configuration, leave

all the key fields blank.

User-defined

Active Key Enter the number of the key that you want to be

active in this configuration.

1, 2, 3, or 4

Key Description Available Values

7 - 6

Keyboard

The Keyboard section contains the Default SIP child section, which enables or disables the enhanced Honeywell vir-

tual keyboard as the default virtual keyboard.

Note: Not all Dolphin models come equipped with the enhanced Honeywell virtual keyboard. A license fee is required

to run the enhanced keyboard on all mobile devices except the Dolphin 70e Black. Contact a Honeywell sales

representative to purchase a license for your Dolphin device.

Honeywell Virtual Keypad Creator

The enhanced Honeywell virtual keyboard is fully customizable using the Honeywell Virtual Keypad Creator soft-

ware available for download at www.honeywellaidc.com. The user-friendly utility allows you to personalize multiple

keyboard features including key position, size, quantity, color, and the keyboard skin. In addition, you can make

language changes, create alternate or function keys for special character sets, and add application launch keys to

streamline common business tasks. Refer to the terminal User’s Guide for additional information on the Honeywell

Virtual Keypad Creator.

Applications Section

The Applications section configures specific software applications installed on the terminal. Double tap or click on any Key

to get full information or to edit the settings.

Internet Explorer Section

The Internet Explorer section defines the home page for Pocket® Internet Explorer and enables or disables Clear Type

text in Internet Explorer.

ReM Section

If the terminal includes the MobiControl Bootstrap Agent (MCBootstrapAgent.exe), then DeviceConfig can be used to

configure the terminal to connect to a MobiControl Server and download the appropriate agent to the device.

This section is disabled by default and should only be enabled when configuring the device to connect to the MobiCon-

trol Server for the first time.

The root level of the ReM section contains the main ConfigPath.

Command Line Arguments

/q Quits the program; this command line in the Args field of the Associated Application window stops the confirmation

message from appearing after DeviceConfig.exe finishes processing.

Launching DeviceConfig.exe Manually

DeviceConfig.exe launches automatically after each reboot. However, if you make changes to the DeviceConfig.exm file that

you want applied in the terminal immediately, manually launch DeviceConfig.exe.

1. Tap Start > Power Tools > EZConfig Utilities > DeviceConfig.exm.

2. Tap Tools > Launch Associated App.

3. The settings in the DeviceConfig.exm file are saved and applied to the terminal configuration by DeviceConfig.exe.

Temporary Option for Bar Code Deployment

Enable the Temporary option on the Advanced Tab (see page 4-16) during bar code creation in the EZConfig Editor on the

Workstation (PC) if you want to establish a temporary configuration in the Dolphin terminal (e.g., access to a specific network in

a facility) without changing the default configuration. When the bar code is scanned, EZConfig Client launches DeviceCon-

fig.exe, which applies the settings in the temporary DeviceConfig.exm file on the terminal. After processing, the temporary

DeviceConfig.exm file is deleted and the original DeviceConfig.exm file settings are restored during the next Hard Reset (Cold

Reboot).

8 - 1

Network Utilities

Accessing Network Utilities

Tap Start > Power Tools > Network Utilities. The Network Utilities window opens.

Network Utilities Main Window

IP Config

IPConfig is a kernel utility that displays, releases, and renews IP parameters for on-board network adapters. IP Config contains

three tab windows: Input, Output, and About.

The following fields appear on the Input tab:

Icon Description Page

IP Config displays, releases, and renews IP parameters for on-board network adapters. 8-1

Ping sends out an echo request to a specific computer on the network. 8-2

Route determines how packets are routed to subnets. 8-3

Backup Settings backs up the radio settings. 8-5

Return takes you back to the Power Tools menu.

Field Description

Adapter This drop-down list contains the network adapters currently installed in the Dolphin terminal.

Every field and button on this screen pertains to the adapter selected in this drop-down list.

8 - 2

Displaying the Terminal’s IP Configuration

On the Input tab, tap the Display full configuration button. The Dolphin terminal retrieves and displays the IP configura-

tion for the entire terminal. The results display on the Output tab.

Ping

Ping provides a GUI-based version of the traditional command line ping utility. Pinging sends out an echo request to a specific

computer on the network. Use Ping to verify communication links or to make sure a specific IP address is working.

Ping contains three tab windows: Input, Output, and About. Enter and send packet information to a specified remote host on

the Input tab, and see the result on the Output tab. The following fields appear on the Input tab:

MAC Addr Displays the MAC (Media Access Control) address of the selected Adapter. This is the serial

number burned into the adapter that uniquely identifies it.

IP Addr Displays the IP address.

Subnet Mask Displays the adapter’s subnet mask. The subnet mask determines the subnet upon which the

adapter resides.

Gateway Displays the adapter’s gateway information.

Release the IP address Tap this button to release the IP address.

Renew the IP address Tap this button to renew the IP address.

Display full

configuration

Tap this button to retrieve and review the full configuration of the terminal’s IP setup. For more

information, see below.

Field Description

Note: You do not need to complete all the fields on the Ping window to successfully execute. Just enter the Destination IP

address.

Destination Enter the IP address. This field is required.

Timeout (milliseconds) Enter the timeout time in millisecond intervals; 1000 is the default.

Send buffer size Indicate the buffer size for sending; 32 is the default.

Send count Indicate the count for sending; 4 is the default. Check Infinite to make the send count infinite.

TTL Short for Time To Live (TTL), this is the maximum amount of time a packet is allowed to travel

through the network before it is discarded.

TOS Enter the Type of Service (TOS); it should be eight bits broken into five subfields.

Field Description

8 - 3

Reading the Output Tab

After you enter the IP information on the Input tab and click Execute, the Output tab appears and begins displaying the ping

results.

You can click the Stop button at any time to stop the ping. Any errors encountered display on the screen.

Route

Route is a kernel utility that allows the user to view and edit the rules that govern how packets destined for various subnets are

routed. These rules tell the device which gateways on a given interface's subnet may be used to route packets to hosts on other

subnets.

On the Network Utilities menu window, tap the Route icon once. The Route screen opens to the Input tab. Route contains three

tab windows: Input, Output, and About. Enter and execute a command on the Input tab and review the results on the Output

tab.

This selection prints network routing tables to the Output tab.

Rec route for count hops

Enter the number of hops to record in the IP header; 1–9.

This field traces the route of the packets for each hop. The hop count is the number of network

devices between the starting node and the destination node that an IP packet hits while

traveling over a network. The number of hops is recorded in the IP header.

Timestamp route Enter the number of timestamps to record for each hop; 1–4

The timestamp is the packet’s arrival time at each hop.

Don’t fragment Check this box if you don’t want the packet to fragment during routing.

DNS address required Check this box if you want the domain name server to be part of the route path.

Execute Tap Execute to send the ping. The Output tab displays the response.

Field Description

8 - 4

On the Input tab, select PRINT from the drop-down list and tap Execute. The Output tab appears displaying the network

routing table.

Add

This selection adds a route.

1. On the Input tab, select ADD from the drop-down menu.

2. Specify the range of IP addresses to which this rule will apply using the Destination and Netmask fields.

For example, the settings below specify an address range from 300.300.0.1 to 300.300.255.254.

3. Enter the Gateway.

4. Enter the Metric (not required).

5. Enter the Interface (not required).

6. Tap Execute. The system verifies your results and the Output tab lets you know if your entry was added successfully.

Delete

You can delete active routes.

1. On the Input tab, tap DELETE.

2. Enter the IP address in the Destination field.

3. Tap Execute. The system processes the request and displays how many routes were deleted.

Clear

Executing this command clears routing tables of all gateway entries.

On the Input tab, tap CLEAR and tap Execute. The system processes your request and the number of entries deleted

appears on the Output tab.

8 - 5

Backup Settings (Radio)

The registry contains configuration settings for the terminal radios. You can use the Backup Settings option on the Network

Utilities window, to export the radio settings into a RadioSettings.reg file.

Note: The RegBackup.exm file determines the content of the RadioSettings.reg file; see RegBackup.exm on page 9-4.

1. On the Network Utilities (page 8-1) window, tap the Backup Settings icon.

2. A pop-up window notifies you where the RadioSettings.reg file will be saved on the terminal. Tap Yes verify the export.

By default, the settings in the RadioSettings.reg file are added to the registry during the next Hard Reset (Cold Reboot) auto-

matically configuring the radios when the boot process is complete.

8 - 6

9 - 1

Registry Power Tools

Overview

The registry is the configuration database in all 32-bit versions of Windows that contains settings for the hardware and software,

consisting of the SYSTEM.DAT and USER.DAT files. Many settings previously stored in the WIN.ini and SYSTEM.ini files in 16-

bit Windows (Windows 3.x) are in the registry.

The RegEdit Power Tool enables you to edit the registry through an easy-to-use application window. You can also import and

export specific registry keys.

Editing the Registry

1. On the Power Tools Main Window (see page 1-1), tap the RegEdit icon once. RegEdit opens to a split-pane window with a

collapsible menu in the top half.

Note: The top level of the registry cannot be edited, copied, pasted, or renamed.

2. Click the + sign to expand the menu options.

3. RegEdit offers the following registry categories:

• HKEY_CLASSES_ROOT

• HKEY_CURRENT_USER

• HKEY_LOCAL_MACHINE

4. Expand the appropriate menu by clicking on the + sign next to the category.

9 - 2

5. Drill-down to the appropriate registry entry. When you click on registry entry in the top half of the screen, the data appears in

the lower half of the screen. The two columns in the bottom half of the window show the Value Name and the Value Data of

the selected entry.

6. Double tap Value Name. The Edit Value window pops up.

7. In the Value Data field, type the new value.

8. Tap OK. The new data appears in the list.

9. After all your edits are complete, Warm Reboot (see page 12-2) the terminal to save your changes to the registry.

Note: If you want your edits to persist through the next Hard Reset (Cold Reboot), run RegBackup after saving your changes;

see RegBackup.exm on page 9-4.

File Menu

Tap the File menu button at the bottom of the RegEdit window to access the following options:

Menu Item Description

New Creates a new Key, String, or DWORD Value.

Edit Edits existing registry entries; see Edit Menu on page 9-3.

View Shift focus between the Keys Panel and the Values Panel.

Import Imports a registry file; see Importing Registry Files on page 9-3.

Export Exports the current registry; see RegBackup.exm on page 9-4.

Exit Closes RegEdit.

9 - 3

Edit Menu

The Edit menu allows you to edit existing registry entries.

Importing Registry Files

The Registry file must be loaded on the terminal and have a *.reg extension.

1. Tap the File menu button at the bottom of the RegEdit window.

2. Select Import. By default, the import function searches for Registry files on the terminal and displays the results in the

lower half of the window.

3. Tap once on the Registry file (*.reg) you want to load.

Exporting Specific Registry Settings

To export specific registry settings:

1. In RegEdit, select the section you would like to export.

2. Tap File > Export.

3. Input the parameters (i.e., Name, Folder, Type, and Location) for the Registry file that will contain the exported settings.

Backing Up the Entire Registry

To back up the entire registry:

1. On the Power Tools main window, tap the RegBackup icon once to export the current registry.

2. A pop-up window notifies you where the _RegBackup.reg file will be stored on the terminal. Tap Yes to verify the export.

Note: The next time a Hard Reset (Cold Reboot) is performed, the _RegBackup.reg is installed.

Menu Item Description

Copy Copies a selected item.

Paste Pastes a copied item within RegEdit.

Rename Renames a registry entry.

Enter the new name then tap OK.

Delete Deletes a selected registry entry.

Find

Searches for registry entries within a selected section. (Select an item in the top half of the window

before tapping Edit > Find.)

Enter the search criteria and tap OK. RegEdit notifies you if the selected section contains data

matching the entered criteria.

Find Next Launches another search for the criteria entered in Find.

9 - 4

Restoring the Registry

Once the entire registry is backed up to the _RegBackup.reg file using the RegBackup application, you can use any of the

following methods to restore the registry:

• On the Power Tools Main Window (see page 1-1), tap the RegBackup icon once, then tap Yes to verify you want to

import the information in the _RegBackup.reg to the registry.

• Tap the _RegBackup.reg file

• Perform a Hard Reset (Cold Reboot).

RegBackup.exm

The RegBackup.exm file is located in the root \Honeywell folder and determines the content of the _RegBackup.reg file

and the RadioBackup.reg file (see page 8-5).

Note: The RegBackup.exm file does NOT contain registry settings! Only *.reg files contain registry settings.

Sections

_TEMPLATE_ Section

The _TEMPLATE_ section is a template of the basic registry sections. This section is not used when creating the

_RegBackup.reg file. Use these subsections as a basis for modifications and additions to the file.

Backup Section

This default section should never be removed as it contains default “excludes” specified by Honeywell. You can,

however, add to the section. Do NOT change the Mode (page 9-5)!

Radio Section

The Radio section determines the content of the RadioBackup.reg file when the Backup Settings (page 8-5) app

is used on Network Utilities (page 8-1) screen.

Modifying

Modifying the RegBackup.exm file allows you to include or exclude registry key sections and values during an export.

Multiple subsections can be created. All should be copied from the Template section which should not be modified.

To specify keys and values in the RegBackup.exm file, re-create the registry keys as sections and subsections in the

tree structure just as they appear in the registry. The same rules that apply to copying directories apply here; if you re-

create a key from the registry, all the key’s values and subkey’s values will be copied unless there are values in the top-

level key.

Note: Only the key or value name is needed in the EXM file and not the associated value data. The EXM file is a

structure used to define the backup file and not the actual registry data.

These registry values will

be included in the

_RegBackup.reg file.

9 - 5

Mode and Kernel Check

In each Subsection root in the tree, there should be two key-value pairs: Mode and KernelCheck.

If these keys are not present, the following defaults will be applied:

•Mode = Exclude

•KernelCheck = Enabled

Mode

The Mode key specifies export behavior of the values in the section.

Include Only the values that follow will be included.

Exclude Everything but the values that follow will be included.

KernelCheck

KernelCheck forces kernel version and service pack validation when a previously exported REG file is imported on a

Dolphin terminal. This means that if you attempt to load a _RegBackup.reg file (during AutoInstall, for example), Reg-

Backup.exm verifies that the REG file matches the kernel installed on the terminal. If yes, then the REG file loads. If

not, you’ll receive a warning message and the REG file will not load.

Disabled No kernel validation occurs on importing. In general (especially for radio settings), KernelCheck should

be enabled. If the registry does not match the kernel, the terminal will not function properly.

Enabled Kernel validation occurs on importing.

9 - 6

Command Line Arguments

Registry Edit Options in EZConfig

You can also use EZConfig Editor to create registry documents on the workstation, create a bar code, then use EZConfig Client

to decode the bar code and update the registry on the terminal. See EZConfig Editor on the Workstation (PC) (page 4-1).

/export <filename> Export registry to <filename>.

The <filename> part is optional. If no filename is entered, the file will default to

\Honeywell\AutoInstall\_RegBackup.reg.

/import <filename> Import <filename> to registry.

The <filename> part is optional. If no filename is entered, the file will default to

\Honeywell\AutoInstall\_RegBackup.reg.

/exm <filename> Specify the non-default backup EXM file <filename>. Filenames with spaces must be

wrapped in quotes. If omitted, the filename defaults to \Honeywell\RegBackup.exm.

This argument is only valid when used with /export.

/section <SectionName> Specify the non-default section in the EXM file for exclude or include export, depending on

the mode setting in that section. If omitted, this defaults to the Backup section of whatever

EXM file is specified. This argument is only valid when used with /export.

/key <key> Specify the top level of the registry key structure to export.

This argument is not valid when using /export or /import.

/silent Displays no dialogs.

10 - 1

ScanWedge

Overview

ScanWedge sends bar code data from the decoder to the foreground application as keystrokes (as if the data were entered via

the keyboard). The foreground application is the open software application whose window is currently active on the display. You

can review input data in Windows Mobile applications such as Word Mobile and Excel Mobile without having to load third-party

applications.

Enabling, Disabling, and Exiting ScanWedge

Enabling ScanWedge

To enable ScanWedge from the Power Tools Main Window (see page 1-1), tap the ScanWedge icon once.

Enabling ScanWedge at Startup

To run ScanWedge automatically when the Dolphin terminal boots up, either:

• add a link to the ScanWedge.exe in the \Windows\Startup folder, or

• enable the ScanWedge section of the Autorun.exm File (see page 6-1).

Exiting ScanWedge

To exit the ScanWedge application:

1. Tap the ScanWedge icon once from the Power Tools Main Window (see page 1-1).

2. Tap Yes to exit the application.

1. Select the ScanWedge icon near the bottom of the Home screen. The icon is only available if the Windows Default

screen configuration has been disabled (not selected) under Start > Settings > Home > Items.

2. Tap Exit.

Disabling ScanWedge without Exiting the Application

To disable ScanWedge but not exit the application:

1. Select the ScanWedge icon near the bottom of the Home screen. This icon is only available if the Windows Default

screen configuration has been disabled (not selected) under Start > Settings > Home > Items.

2. Tap Enable once. No check mark next to “Enable” indicates ScanWedge has been disabled.

Modifying the ScanWedge Configuration File

A ScanWedge.exm file is inserted in the \Honeywell folder when ScanWedge is installed. This file specifies configuration

parameters for ScanWedge and must not be moved.

Either use EZConfig Editor on your workstation or terminal to modify the ScanWedge.exm configuration file. For more informa-

tion, see EZConfig Editor on the Workstation (PC) on page 4-1 or EZConfig Editor on the Dolphin Terminal on page 3-1.

ScanWedge Icon

10 - 2

ScanWedge.exm Sections

Select the Section then click or double tap on any Key to view the key’s full information or to edit the key values in the

ScanWedge.exm.

Data Formatting Reference Charts

ASCII Conversion Chart (Code Page 1252)

Note: This table applies to U.S. style keyboards. Certain characters may differ depending on your Country Code/PC

regional settings.

Section Description

Settings Programs general settings for ScanWede (e.g., sound, leds, prefix and suffix keys, prefix and suffix ID,

EZConfig Client compatibility)

Comm Specifies serial port settings.

Decode Specifies how the decoder/scanner interfaces with ScanWedge.

Centering Defines the centering window for scanning bar codes when ScanWedge is interfacing with the decoder.

Formatting Defines data formatting functionality.

Symbology Defines the symbologies that the scanner can decode and send to ScanWedge.

VKMapping Defines the virtual key sent to ScanWedge for any decoded ASCII character.

Blacklist Specifies applications where ScanWedge will be disabled.

Non-Printable Characters

DEC HEX Character (Code) DEC HEX Character (Code)

0 0 NULL 16 10 DATA LINK ESCAPE (DLE)

1 1 START OF HEADING

(SOH)

17 11 DEVICE CONTROL 1 (DC1)

2 2 START OF TEXT (STX) 18 12 DEVICE CONTROL 2 (DC2)

3 3 END OF TEXT (ETX) 19 13 DEVICE CONTROL 3 (DC3)

4 4 END OF TRANSMISSION

(EOT)

20 14 DEVICE CONTROL 4 (DC4)

5 5 END OF QUERY (ENQ) 21 15 NEGATIVE ACKNOWLEDGE-

MENT (NAK)

6 6 ACKNOWLEDGE (ACK) 22 16 SYNCHRONIZE (SYN)

7 7 BEEP (BEL) 23 17 END OF TRANSMISSION

BLOCK (ETB)

8 8 BACKSPACE (BS) 24 18 CANCEL (CAN)

9 9 HORIZONTAL TAB (HT) 25 19 END OF MEDIUM (EM)

10 ALINE FEED (LF) 26 1A SUBSTITUTE (SUB)

11 BVERTICAL TAB (VT) 27 1B ESCAPE (ESC)

12 CFF (FORM FEED) 28 1C FILE SEPARATOR (FS)

RIGHT ARROW

13 DCR (CARRIAGE RETURN) 29 1D GROUP SEPARATOR (GS)

LEFT ARROW

10 - 3

14 ESO (SHIFT OUT) 30 1E RECORD SEPARATOR (RS)

UP ARROW

15 FSI (SHIFT IN) 31 1F UNIT SEPARATOR (US)

DOWN ARROW

Printable Characters

DEC HEX Character DEC HEX Character DEC HEX Character

32 20 <SPACE> 64 40 @96 60 `

33 21 !65 41 A97 61 a

34 22 "66 42 B98 62 b

35 23 #67 43 C99 63 c

36 24 $68 44 D100 64 d

37 25 %69 45 E101 65 e

38 26 &70 46 F102 66 f

39 27 '71 47 G103 67 g

40 28 (72 48 H104 68 h

41 29 )73 49 I105 69 i

42 2A *74 4A J106 6A j

43 2B +75 4B K107 6B k

44 2C ,76 4C L108 6C l

45 2D -77 4D M109 6D m

46 2E .78 4E N110 6E n

47 2F /79 4F O111 6F o

48 30 080 50 P112 70 p

49 31 181 51 Q113 71 q

50 32 282 52 R114 72 r

51 33 383 53 S115 73 s

52 34 484 54 T116 74 t

53 35 585 55 U117 75 u

54 36 686 56 V118 76 v

55 37 787 57 W119 77 w

56 38 888 58 X120 78 x

57 39 989 59 Y121 79 y

58 3A :90 5A Z122 7A z

59 3B ;91 5B [123 7B {

60 3C <92 5C \124 7C |

61 3D =93 5D ]125 7D }

62 3E >94 5E ^126 7E ~

63 3F ?95 5F _127 7F <DEL>

Extended ASCII Characters

DEC HEX Character DEC HEX Character DEC HEX Character

128 80 €171 AB «214 D6 Ö

129 81 172 AC ¬215 D7 ×

130 82 ‚173 AD 216 D8 Ø

131 83 ƒ174 AE ®217 D9 Ù

132 84 „175 AF ¯218 DA Ú

133 85 …176 B0 °219 DB Û

134 86 †177 B1 ±220 DC Ü

135 87 ‡178 B2 ²221 DD Ý

136 88 ˆ179 B3 ³222 DE Þ

137 89 ‰180 B4 ´223 DF ß

138 8A Š181 B5 µ224 E0 à

10 - 4

Symbology Chart

139 8B ‹182 B6 ¶225 E1 á

140 8C Œ183 B7 ·226 E2 â

141 8D 184 B8 ¸227 E3 ã

142 8E Ž185 B9 ¹228 E4 ä

143 8F 186 BA º229 E5 å

144 90 187 BB »230 E6 æ

145 91 ‘188 BC ¼231 E7 ç

146 92 ’189 BD ½232 E8 è

147 93 “190 BE ¾233 E9 é

148 94 ”191 BF ¿234 EA ê

149 95 •192 C0 À235 EB ë

150 96 –193 C1 Á236 EC ì

151 97 —194 C2 Â237 ED í

152 98 ˜195 C3 Ã238 EE î

153 99 ™196 C4 Ä239 EF ï

154 9A š197 C5 Å240 F0 ð

155 9B ›198 C6 Æ241 F1 ñ

156 9C œ199 C7 Ç242 F2 ò

157 9D 200 C8 È243 F3 ó

158 9E ž201 C9 É244 F4 ô

159 9F Ÿ202 CA Ê245 F5 õ

160 A0 203 CB Ë246 F6 ö

161 A1 ¡204 CC Ì247 F7 ÷

162 A2 ¢205 CD Í248 F8 ø

163 A3 £206 CE Î249 F9 ù

164 A4 ¤207 CF Ï250 FA ú

165 A5 ¥208 D0 Ð251 FB û

166 A6 ¦209 D1 Ñ252 FC ü

167 A7 §210 D2 Ò253 FD ý

168 A8 ¨211 D3 Ó254 FE þ

170 AA ª213 D5 Õ

Symbology Code ID (hex)

All Symbologies (0x99)

Australian Post A (0x41)

Aztec Code z (0x7A)

British Post B (0x42)

Canadian Post C (0x43)

China Post Q (0x51)

Chinese Sensible Code (Han Xin Code) H (0x48)

Codabar a (0x61)

Codablock A V (0x56)

Codablock F q (0x71)

Code 11 h (0x68)

Code 128 j (0x6A)

GS1-128 I (0x49)

Extended ASCII Characters (Continued)

DEC HEX Character DEC HEX Character DEC HEX Character

10 - 5

Code 32 Pharmaceutical (PARAF) < (0x3C)

Code 39 (supports Full ASCII mode) b (0x62)

Code 49 l (0x6C)

Code 93 and 93i i (0x69)

Data Matrix w (0x77)

EAN-13 (including Bookland EAN) d (0x64)

EAN-13 with Add-On d (0x64)

EAN-13 with Extended Coupon Code d (0x64)

EAN-8 D (0x44)

EAN-8 with Add-On D (0x44)

GS1 Composite y (0x79)

GS1 DataBar y (0x79)

GS1 DataBar Limited { (0x7B)

GS1 DataBar Omnidirectional y (0x79)

GS1 DataBar Expanded } (0x7D)

InfoMail , (0x2c)

Intelligent Mail Bar Code M (0x4D)

Interleaved 2 of 5 e (0x65)

Japanese Post J (0x4A)

KIX (Netherlands) Post K (0x4B)

Korea Post ? (0x3F)

Matrix 2 of 5 m (0x6D)

MaxiCode x (0x78)

MicroPDF417 R (0x52)

MSI g (0x67)

NEC 2 of 5 Y (0x59)

OCR MICR (E 13 B) O (0x4F)

OCR SEMI Font O (0x4F)

OCR-A O (0x4F)

OCR-B O (0x4F)

PDF417 r (0x72)

Planet Code L (0x4C)

Postal-4i N (0x4E)

Postnet P (0x50)

QR Code and Micro QR Code s (0x73)

Straight 2 of 5 IATA f (0x66)

Straight 2 of 5 Industrial f (0x66)

TCIF Linked Code 39 (TLC39) T (0x54)

Telepen t (0x54)

UPC-A c (0x63)

UPC-A with Add-On c (0x63)

Symbology Code ID (hex)

10 - 6

Symbology Section

The Symbology section specifies the settings for each of the symbologies supported by the decoder. 1D symbologies are

available in ScanWedge.exm. Tap on the symbology child section name to display the default value, and the settings for

that symbology.

Viewing/Editing the ScanWedge.exm File on the Terminal

Ta p Start > Power Tools > EZConfig Utilities > Scanwedge.

Viewing/Editing the ScanWedge.exm File on the Workstation (PC)

To open the ScanWedge.exm file stored on the workstation:

1. Open EZConfig for Mobility on your workstation; see Opening the EZConfig Editor on the Workstation on page 4-1.

2. Click File > Open or the Open toolbar button and select the ScanWedge.exm file.

UPC-A with Extended Coupon Code c (0x63)

UPC-E E (0x45)

UPC-E with Add-On E (0x45)

UPC-E1 E (0x45)

Symbology Code ID (hex)

Tap a symbology name to

view/edit the key values for

the symbology type.

Displays the keys in the

selected section.

Double tap on the key to edit

the value.

Note: To edit a key value the

key must be enabled.

Displays the file name.

Symbology Section

Tap the box next to the

key to enable (check) or

disable (uncheck) the

key.

10 - 7

To open the Scanwedge.exm file stored on the terminal:

1. Click File > Open From Device. This option requires an active connection between the terminal and workstation

(e.g., ActiveSync, Windows Mobile Device Center, or Windows Phone app).

2. Expand the \Honwyewell root folder. Select ScanWedge.exm, then click OK.

For more information regarding the individual settings for each of the symbologies, refer to the Honeywell Decode API doc-

umentation in the SDK documentation.

OCR

For comprehensive information about using OCR, refer to the OCR Programming User’s Guide available on our website at

www.honeywellaidc.com.

VK (Virtual Key) Mapping Section

The virtual key map settings are located in the VKMapping section in the ScanWedge configuration file. The virtual key map

settings define the virtual key that will be sent to ScanWedge for any decoded ASCII character.

The settings are in the form: ASCII Key = Virtual Key, ShiftMode, Modifier

Where:

• ASCII Key is an ASCII value between 0 an 255 (decimal)

• Virtual Key is the virtual key to be sent when the specified ASCII key is decoded

• ShiftMode can have the following values:

• 0 = the virtual key is never shifted

• 1 = the virtual key must be shifted

• 2 = the virtual key needs to be shifted if Caps Lock is off

• 3 = the virtual key needs to be shifted if Caps Lock is on

• Modifier

Tap a symbology

name to view/edit

the key values for

the symbology

type.

Displays the

keys in the

selected section.

Double click on

the key value to

edit the setting.

Displays a

description of the

selected Key.

ScanWedge.exm

If the file is on the terminal, the title bar displays the remote path.

Symbology Section

10 - 8

Virtual Key Codes Table

The following table shows the symbolic constant names, hexadecimal values, and keyboard equivalents for the virtual-key

codes used by Windows Embedded Handheld 6.5. The codes are listed in numeric order.

Note: To use these codes in the VKMapping section, the hexadecimal values need to be converted to decimals.

Symbolic Constant Name Decimal Value Hexadecimal

Value Touch Screen or Keyboard Equivalent

VK_LBUTTON 1 01 Touch screen

VK_CANCEL 3 03 Control-break processing

—— 5-7 05-07 Undefined

VK_BACK 8 08 BACKSPACE key

VK_TAB 9 09 TAB key

—— 10-11 0A-0B Undefined

VK_CLEAR 12 0C CLEAR key

VK_RETURN 13 0D ENTER key

—— 14-15 0E-0F Undefined

VK_SHIFT 16 10 SHIFT key

VK_CONTROL 17 11 CTRL key

VK_MENU 18 12 ALT key

VK_CAPITAL 20 14 CAPS LOCK key

—— 21-25 15-19 Reserved for Kanji systems

—— 26 1A Undefined

VK_CLEAR 12 0C CLEAR key

VK_RETURN 13 0D ENTER key

—— 14-15 0E-0F Undefined

VK_SHIFT 16 10 SHIFT key

VK_CONTROL 17 11 CTRL key

VK_MENU 18 12 ALT key

VK_CAPITAL 20 14 CAPS LOCK key

—— 21-25 15-19 Reserved for Kanji systems

—— 26 1A Undefined

VK_ESCAPE 27 1B ESC key

—— 28-31 1C-1F Reserved for Kanji systems

VK_SPACE 32 20 SPACEBAR key

VK_PRIOR 33 21 PAGE UP key

10 - 9

VK_NEXT 34 22 PAGE DOWN key

VK_END 35 23 END key

VK_HOME 36 24 HOME key

VK_LEFT 37 25 LEFT ARROW key

VK_UP 38 26 UP ARROW key

VK_RIGHT 39 27 RIGHT ARROW key

VK_DOWN 40 28 DOWN ARROW key

VK_SELECT 41 29 SELECT key

—— 42 2A Original equipment manufacturer

(OEM)– specific

VK_EXECUTE 43 2B EXECUTE key

VK_SNAPSHOT 44 2C PRINT SCREEN key for Windows 3.0 and later

VK_HELP 47 2F HELP key

VK_0 48 30 0 key

VK_1 49 31 1 key

VK_2 50 32 2 key

VK_3 51 33 3 key

VK_4 52 34 4 key

VK_5 53 35 5 key

VK_6 54 36 6 key

VK_7 55 37 7 key

VK_8 56 38 8 key

VK_9 57 39 9 key

—— 58-64 3A-40 Undefined

VK_A 65 41 A key

VK_B 66 42 B key

VK_C 67 43 C key

VK_D 68 44 D key

VK_E 69 45 E key

VK_F 70 46 F key

VK_G 71 47 G key

VK_H 72 48 H key

Symbolic Constant Name Decimal Value Hexadecimal

Value Touch Screen or Keyboard Equivalent

10 - 10

VK_I 73 49 I key

VK_J 74 4A J key

VK_K 75 4B K key

VK_L 76 4C L key

VK_M 77 4D M key

VK_N 78 4E N key

VK_O 79 4F O key

VK_P 80 50 P key

VK_Q 81 51 Q key

VK_R 82 52 R key

VK_S 83 53 S key

VK_T 84 54 T key

VK_U 85 55 U key

VK_V 86 56 V key

VK_W 87 57 W key

VK_X 88 58 X key

VK_Y 89 59 Y key

VK_Z 90 5A Z key

—— 91-95 5B-5F Undefined

VK_NUMPAD0 96 60 Numeric keypad 0 key

VK_NUMPAD1 97 61 Numeric keypad 1 key

VK_NUMPAD2 98 62 Numeric keypad 2 key

VK_NUMPAD3 99 63 Numeric keypad 3 key

VK_NUMPAD4 100 64 Numeric keypad 4 key

VK_NUMPAD5 101 65 Numeric keypad 5 key

VK_NUMPAD6 102 66 Numeric keypad 6 key

VK_NUMPAD7 103 67 Numeric keypad 7 key

VK_NUMPAD8 104 68 Numeric keypad 8 key

VK_NUMPAD9 105 69 Numeric keypad 9 key

VK_MULTIPLY 106 6A Asterisk (*) key

VK_ADD 107 6B Plus sign (+) key

Symbolic Constant Name Decimal Value Hexadecimal

Value Touch Screen or Keyboard Equivalent

10 - 11

VK_SEPARATOR 108 6C Separator key

VK_SUBTRACT 109 6D Minus sign (–) key

VK_DECIMAL 110 6E Period (.) key

VK_DIVIDE 111 6F Slash mark (/) key

—— 88 88-8F Unassigned

—— 146-185 92-B9 Unassigned

—— 186-192 BA-C0 OEM-specific

—— 193-218 C1-DA Unassigned

—— 219-228 DB-E4 OEM-specific

—— 229 E5 Unassigned

—— 230 E6 OEM-specific

—— 231-232 E7-E8 Unassigned

—— 233-245 E9-F5 OEM-specific

VK_ATTN 246 F6

VK_CRSEL 247 F7

VK_EXSEL 248 F8

VK_EREOF 249 F9

VK_PLAY 250 FA

VK_ZOOM 251 FB

VK_NONAME 252 FC

VK_PA1 253 FD

VK_EM_CLEAR 254 FE

VK_LWIN 91 5B

VK_RWIN 92 5C

VK_APPS 93 5D

VK_LSHIFT 160 A0

VK_RSHIFT 161 A1

VK_LCONTROL 162 A2

VK_RCONTROL 163 A3

VK_LMENU 164 A4

VK_RMENU 165 A5

Symbolic Constant Name Decimal Value Hexadecimal

Value Touch Screen or Keyboard Equivalent

10 - 12

Command Line Arguments

/restart Forces ScanWedge to process its configuration file (ScanWedge.exm) again, which applies

changes immediately. If the SoundConnect setting is enabled (set to 1), an ascending

connect sound is played on restart.

/quit Shuts down ScanWedge.

11 - 1

EZ Pairing

Overview

The EZ Pairing Power Tool provides a quick and easy way to connect a ring scanner to the Dolphin terminal using Bluetooth

wireless technology.

Note: EZ Pairing is a model dependent and may not appear on the Power Tools Main Window (page 1-1) of your terminal.

Hardware Requirements

EZ Pairing is compatible with the following ring scanner models:

• Honeywell 8650 Wireless Ring Scanner

• Motorola RS507 Wireless Ring Scanner

Using EZ Pairing to Establish a Connection

1. Open the EZPairing.exm file in EZConfig on the terminal.

2. Under the Service Settings, set the Device key to the correct ring scanner type (i.e., Honeywell or Motorola).

For more information on how to use the EZConfig Editor on the Dolphin Terminal to modify EXM files, see page 3-1.

3. Select File > Save.

4. Select File > Exit, and then tap Return.

5. On the Power Tools main screen, tap EZ Pairing.

When EZ Pairing launches:

• the Bluetooth wireless radio turns on,

• the EZ Pairing service initiates, and

• an EZ Pairing bar code appears on the terminal screen.

6. Scan the bar code with the ring scanner to pair the devices. The terminal emits a tone when a successful connection has

been made.

If your device does not support scanning the bar code from the terminal screen, capture an image of the terminal screen,

print the image, and then scan the bar code.

Modifying the ScanWedge Configuration File to Support EZ Pairing

1. If ScanWedge is not enabled, open the Power Tools main screen and tap ScanWedge once.

2. Open the ScanWedge.exm file in EZConfig on the terminal.

3. Select Comm from the sections.

4. Under the Key column, double-tap on Enable. Set the value to Yes and then tap OK.

5. Double-tap on LinkEZPairing. Set the value to Enable and then tap OK.

6. Select File > Save.

7. Select File > Tools > Launch Associated Application to restart ScanWedge.

8. Select File > Exit.

9. Open an application (e.g., Word Mobile) and scan a bar code with the ring scanner to test the pairing. The bar code

information should display on the terminal screen.

11 - 2

Accessing the EZ Pairing Menu

To access the application menu, tap the EZ Pairing icon near the bottom right corner of the Home screen. This icon is only

available if:

• the EZ Pairing application has been enabled (Start > Power Tools > EZ Pairing) and

•the Windows Default screen configuration on the terminal has been disabled (not selected) under Start > Settings >

Home > Items.

Menu Options

Modifying the EZ Pairing Configuration File

The EZPairing.exm configuration file is stored in the \Honeywell root folder of the terminal. This file specifies configuration

parameters for EZ Pairing and must not be moved. You can use the EZConfig Editor on your workstation or terminal to modify

the EZ Pairing service settings.

For more information on how to use the EZConfig Editor, see EZConfig Editor on the Workstation (PC) on page 4-1 or EZConfig

Editor on the Dolphin Terminal on page 3-1.

EZPairing.exm Service Settings Section

Menu Item Description

Launch Barcode Displays the Mac Address bar code on the screen so you can re-initiate a pairing if the

connection was lost or initiate a pairing with a different device.

Start Service Starts the service connection between the terminal and paired device without exiting the

EZ Pairing application.

Stop Service Stops the service connection between the terminal and paired device without exiting the

EZ Pairing application.

About Displays version and copyright information about EZ Pairing.

Exit Exits the EZ Pairing application.

Key Description

Debug Enable or disable the creation of a EZ Pairing debug log. When enabled, information is

saved to /IPSM/EZPAIRING.LOG.

Device Specify the type of ring scanner (e.g., Honeywell) to be paired with the Dolphin terminal.

The device type determines the required header for the EZ Pairing bar code.

COMPort

Specify the COM Port to use for data transmission. Auto Select enables or disables the

automatic selection of the COM Port. Refer to the terminal user's guide for additional

information on available ports.

Security Select authentication and encryption security levels for connecting and communicating

with the remote device (ring scanner).

EZ Pairing Icon

11 - 3

Command Line Arguments

The following command line arguments can be used in the CommandArgs key of the EZPairing section of the

PowerToolsMenu.exm file.

Passcode Set the passcode for the remote device.

ShowStatus Enable or disable status dialogs.

ShowError Enable or disable error messages.

SoundConnect

Enable or disable audio notification when EZ Pairing connects or disconnects. Sounds are

set through the Connect and Disconnect entries in the Sound & Notification control panel

applet.

ScanWedgeOnConnect Enable or disable automatic launching of ScanWedge on connect.

BarcodeOnDisconnect Enable or disable automatic display of EZ Pairing bar code on disconnect.

BarcodeText Set the user text displayed when the connection bar code is generated.

BarcodeRotate

Enable or disable bar code rotation. The barcode text and the Close Barcode button do not

show when BarcodeRotate is enabled.

BarcodeResident

Enable or disable keeping the EZ pairing bar code resident to improve performance. If

enabled, the bar code settings are not refreshed until the EZ Pairing applet is closed and

reloaded.

BarcodeType Select the bar code type to be generated for initiating EZ Pairing.

AcceptOrDeny Enable or disable the prompt to accept or deny incoming Bluetooth connections.

/quit Initiates a shutdown of the application.

Key Description

BarcodeRotate Disabled BarcodeRotate Enabled

11 - 4

/start Starts the Bluetooth service.

/stop Stops the Bluetooth service.

/barcode Generates an EZ Pairing connection bar code

/closebarcode Closes an existing bar code.

/silent Suppress the start up dialog messages.

12 - 1

Additional Power Tools

BattMon

When the BattMon application is enabled, the terminal LED indicates the charge status of the battery. The LED indicators are

located on the top, front panel of Dolphin terminals. Refer to the terminal User’s Guide for additional LED status information

applicable for your Dolphin model.

Note: The BattMon application is model dependent and may not appear on the Power Tools Main Window (see page 1-1) of

your terminal. Refer to the terminal User’s Guide for information on battery charge indicators applicable for your specific

Dolphin model.

To Enable BattMon

Tap the BattMon icon once. After initialization, the terminal LED indicates the charge status of the battery.

When the battery is at 100%, the LED lights solid green.

When the battery is charging the LED solid red.

Note: To start BattMon automatically after each Hard Reset (Cold Reboot), enable the BattMon Program section of the

Autorun.exm File (see page 6-1).

To Disable BattMon

Navigate to the Power Tools Main Window (see page 1-1), then tap the BattMon icon. Select Yes to close the application.

Keyboard Status

On Dolphin terminals equipped with physical keyboards, you can switch between alpha and numeric keyboard modes using key

combinations. When enabled, the Keyboard Status application displays a status icon in the Title bar at the top of the screen,

which indicates the active keyboard mode (e.g., alpha mode or numeric mode). Refer to the terminal User's Guide for additional

information on keyboard modes and key combinations applicable for your Dolphin model.

Note: The Keyboard Status application is model dependent and may not appear on the Power Tools Main Window (see page

1-1) of your terminal.

To Enable Keyboard Status

Tap the Keyboard Status icon once.

Indicator Keyboard is in …

Alpha mode, lower case (CAPS lock off).

Alpha mode, upper case (CAPS lock on).

Numeric mode.

Note: The background color of the icon indicates if a modifier key (e.g., blue or red ) is enabled. Refer to the terminal

User's Guide for additional information on modifier keys applicable for your Dolphin model.

12 - 2

To Disable Keyboard Status

Navigate to the Power Tools Main Window (see page 1-1), then tap the Keyboard Status icon once.

NoSIP

NoSIP toggles the Soft Input Panel (SIP) between enabled (on) or disabled (off). When NoSIP is enabled, the SIP (virtual key-

board) does not automatically pop-up over application windows and the SIP icon, or does not appear in the Tile bar on

the terminal screen.

To Enable NoSIP

Tap the NoSIP icon once to initialize NoSIP.

Note: To disable the SIP automatically after each hard reset, enable the NoSIP Program section of the Autorun.exm File

(see page 6-1).

To Disable NoSIP

Navigate to the Power Tools Main Window (see page 1-1), then tap the NoSIP icon. Select Yes to close the application.

Reboot

Tap the Reboot icon and then select Warm Boot to perform a Soft reset when:

• the terminal fails to respond,

• after installing software applications that require a re-boot, or

• after making changes to certain system settings, such as network cards.

Note: Refer to the terminal User’s Guide for additional information on the methods and types of resets supported by your Dolphin

model.

13 - 1

SysInfo

Overview

SysInfo provides a read-out of important system information including firmware versions, DLL versions, system parameters, as

well as network and radio information.

To See System Information

Tap the SysInfo icon once. SysInfo queries the system, compiles the data, and displays a read-only file on the SysInfo screen.

This information is gathered from the Dolphin terminal and changes only when the terminal’s configuration has changed. To

refresh the system information, go to File > Refresh. The system re-compiles system information.

To Save the System Information to a Text File

Tap File > Save to File. A file named “SYSINFO.txt” is generated and saved to the folder specified in the prompt.

To open the file, tap Start > File Explorer. Navigate to the \Honeywell folder. The SysInfo.txt file appears in the list. If you tap

on the SysInfo.txt file, the file opens in Word® Mobile. You cannot change system information by editing the text.

To Upload SYSINFO.txt to a Workstation

You can upload the SysInfo.txt file to a workstation via ActiveSync.

1. On the workstation, open Windows Explorer.

2. Navigate to the Mobile Device folder.

3. Double click My Windows Mobile-Based Device and navigate to the \Honeywell folder. The SysInfo.txt file appears

here.

4. Copy this file to your workstation.

13 - 2

14 - 1

EZMenu

Overview

EZMenu formats application windows to display and launch software programs on the terminal. For example, the Power Tools

Main Window is managed by the EZMenu application.

EZMenu consists of an EZMenu.exe file located under \Program Files\Power Tools and EXM menu configuration

files (*Menu.exm). When you access an application window that has an associated menu configuration file, the EZMenu.exe file

uses the application window settings contained in the menu file (*Menu.exm) to format the window. By default, the EZMenu.exe

file is launched during AutoInstall.

Creating Menu Configuration Files

Samples of default menu configuration files are included when you download and install EZConfig for Mobility on your work-

station. To create menu configuration files using the samples:

1. On the workstation click Start > Program Files > Honeywell Power Tools and Demos > EZConfig EXM Files.

2. Open a sample menu configuration file in EZConfig Editor.

3. Click on File > Save As and save the file with a new name ending in “Menu.exm.”

4. Modify the file. Refer to Menu Configuration File Sections.

5. Save or transfer the file to the terminal.

Modifying Menu Configuration Files

Menu configuration files end in “*Menu.exm” and are located under the root \Honeywell folder. The files can be modified

in EZConfig Editor on the workstation or the terminal. If modified on the workstation, the *Menu.exm file must be deployed to the

terminal after editing.

For details about modifying EXM files in EZConfig Editor:

•See EZConfig Editor on the Workstation (PC) on page 4-1.

•See EZConfig Editor on the Dolphin Terminal on page 3-1.

Menu Configuration File Sections

Menu configuration files contain two basic sections: Settings and MenuEntries.

Both sections are locked, which means only their Values can be changed, not their

section names.

Settings

The Settings section defines general EZMenu settings. Click on each Key in

EZConfig Editor to display the available values.

MenuEntries

The MenuEntries section determines which programs appear on the applica-

tion window. The MenuEntries section is locked, which means that you cannot

change its name or description; however, its child sections are not locked and

can have any name and description. Each child section is a program that

launches from the application window and must be at the same level under-

neath the MenuEntries section. The order of child sections from top to bottom

determines the order that the programs appear on the application window.

Child

Sections

14 - 2

Including an Exit Application Icon

Default EZMenu configuration files contain a child section named Exit under the MenuEntries section.

Enabling the Exit section places the Exit icon on the application window. If you do not want an Exit application icon to

show, disable or delete the Exit child section under the MenuEntries section.

Start Options

Start Options define the required system parameters for a software application to launch. The following values can be

entered for the StartOption key, wherever it appears:

Option Name The program launches if … Category

DISABLED Never, regardless of other startup options specified. None

COLDBOOT The terminal has performed a cold restart (hard reboot).

Boot type

WARMBOOT The terminal has performed a warm restart (soft reboot).

TOUCH The terminal has a touch screen display installed.

Touch Screen

NONTOUCH The terminal doesn’t have a touch screen display installed.

BATCH The terminal is a batch unit (no RF or internal modem cards installed).

Mobility

RF The terminal has an RF card installed (e.g., Cisco 802.11b).

GSM The terminal has a GSM radio.

BT The terminal has a Bluetooth radio.

UPHONE The terminal has a UPHONE installed.

NOUPHONE The terminal does not have a UPHONE installed.

MODEM The terminal has an internal modem card installed.

CAMERA The terminal has a camera installed

IMAGER The terminal has an imager installed.

Scanner

LASER The terminal has a laser scanner installed.

BLIND The terminal has no laser or imager installed.

ANYSCAN The terminal has either an imager or a laser scanner installed.

14 - 3

Multiple options can be specified for each category. For example, you can specify both 35KEY and 43KEY options to

request that the program run in either a 35- or 43-key keyboard terminal. Separate multiple options with commas.

To ignore a category, don’t specify any of its options.

Programming the Terminal to Boot to an Application Window

You can program the terminal to boot to a specific application window by modifying the Autorun.exm File (see page 6-1).

1. In EZConfig Editor, open Autorun.exm.

2. Open the Programs section and enable the EasyMenu section.

3. In the EasyMenu section, modify the Args key to call the EXM file of the application window. This is the path to the menu

configuration file.

By default, the Args key calls \honeywell\demosmenu.exm

4. Warm boot the terminal and verify that startup finishes on the application window.

RFON The RF radio is Enabled.

Radio

GSMON The GSM radio is enabled.

BTON The Bluetooth radio is enabled.

RFGSMBTOFF The RF, GSM, & Bluetooth radios are disabled.

xxKEY

The terminal has a xx-key keyboard.

Note: Input the key quantity in place of “xx” in xxKey (e.g., 35KEY, 43KEY

or 56KEY). Keyboard

NO_KEY The terminal has no keyboard.

PNPID The terminal has a card installed whose identification contains ALL of the

strings specified in the PNPID setting.

Expansion Card

NONPNPID The terminal doesn’t have a card installed whose identification contains

ALL of the strings specified in the PNPID setting.

Option Name The program launches if … Category

14 - 4

15 - 1

Printing

Overview

Dolphin terminals contain two print utilities, BTPrint and Print Demo.

BTPrint

BTPrint allows you to print to a Bluetooth printer wirelessly via the command line, provided that the Bluetooth printer is set

up as a Bluetooth Favorite on the Dolphin terminal.

Call BTPrint.exe from the command line \Program Files\Power Tools\BTPrint.exe – with the path of the docu-

ment as the command line argument.

Print Demo

All Dolphin terminals contain a Print Demo (Start > Demos > Print Demo) that prints a sample receipt or bar code to a

Bluetooth printer. The Print Demo calls the BTPrint.exe when printing to a Bluetooth device.

Note: You can also call EXE to print to a Bluetooth printer via command line.
