Honeywell 88352 802.11b Wireless LAN Module User Manual TT8870 RF UG Rev A

Honeywell International Inc 802.11b Wireless LAN Module TT8870 RF UG Rev A

Revised Module Guide

1
Draft 4/1/04
TT8870-352 Wireless Module Users Guide
Components
The TT8870-352 wireless module consists of the following components:
The TT8870-352 wireless module is primarily designed to use Cisco Aironet™ 350 Series with HHP Transaction Terminal product
family, TT88XX.
FCC Information
Per FCC rules, it is not permissible to provide information to the end user on how to install and uninstall/remove the module.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not
cause harmful interference, and 2) this device must accept any interference received, including interference that may cause
undesired operation.
According to FCC 15.21, changes or modifications to the device not expressly approved by HHP (the party responsible for
compliance) could void the user's authority to operate the equipment.
Caution: This device is classified as a mobile device according to FCC RF Exposure requirements. This device must be installed
with no less than 20cm of separation between the device and operators.
FCC ID: HD588352
HHP
Part Number Part Name Additional Part Information Comments
80000382-US PC Card 350 Cisco Aironet 350 Series, 2.4 Ghz
500000882 Antenna, TT8870 Centurion Wireless Technologies,
CAF 94627
Peak gain 1.5 dBi
500001823 TT8870-352 wireless module
label
500000XXX TT8870-352 FCC label
2TT8870-352 Wireless Module User’s Guide

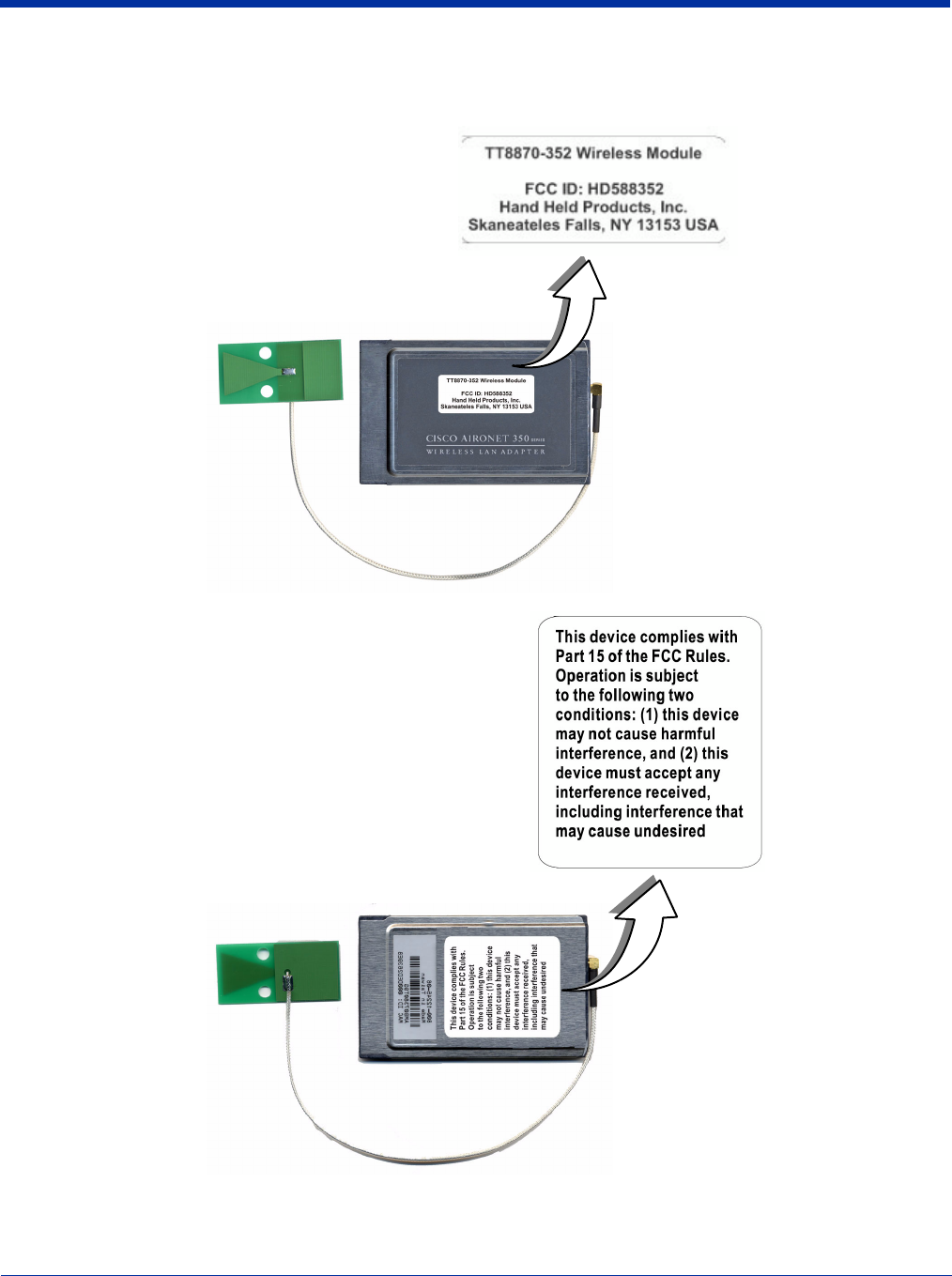

TT8870-352 Label Location
TT8870-352 Wireless Module User’s Guide 3
Wireless Module Operation
1. The wireless transmitter and antenna form the wireless module. These components of the module must remain the same.
2. Further instructions on the module are provided in the Cisco Aironet 350 Series User Guide.
Contact Information
If you need assistance installing or troubleshooting your wireless module, please call your Distributor or the nearest HHP
technical support office listed below. You can also get help at our website at www.hhp.com.
North America/Canada:
HHP
700 Visions Drive
P. O . B o x 2 0 8
Skaneateles Falls, NY 13153-0208
Telephone: (315) 685-2476, Option 4 (8 a.m. to 6 p.m. EST)
or in the U.S. (800) 782-4263
Fax number: (315) 685-4960
E-mail: support@HHP.com
Europe, Middle East, and Africa:
Telephone-
European Ofc: Int+31 (0) 40 29 01 600
U.K. Ofc: Int+44 1925 240055
E-mail: euro_support@HHP.com
Asia:
Telephone: Int+852-2511-3050
or
2511-3132
E-mail: asia_support@HHP.com
Latin America:
Telephone: (239) 263-7600
E-mail: la_support@HHP.com
Disclaimer
Hand Held Products, Inc. d/b/a HHP (“HHP”) reserves the right to make changes in specifications and other information contained
in this document without prior notice, and the reader should in all cases consult HHP to determine whether any such changes
have been made. The information in this publication does not represent a commitment on the part of HHP.
HHP shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated into another language without the prior written consent of HHP.
© 2001-2004 Hand Held Products, Inc. All rights reserved.
Web Address: www.HHP.com
TT8870-RF-UG Rev (a)
