A - 4 Dolphin® 9500/9550 Mobile Computer User’s Guide

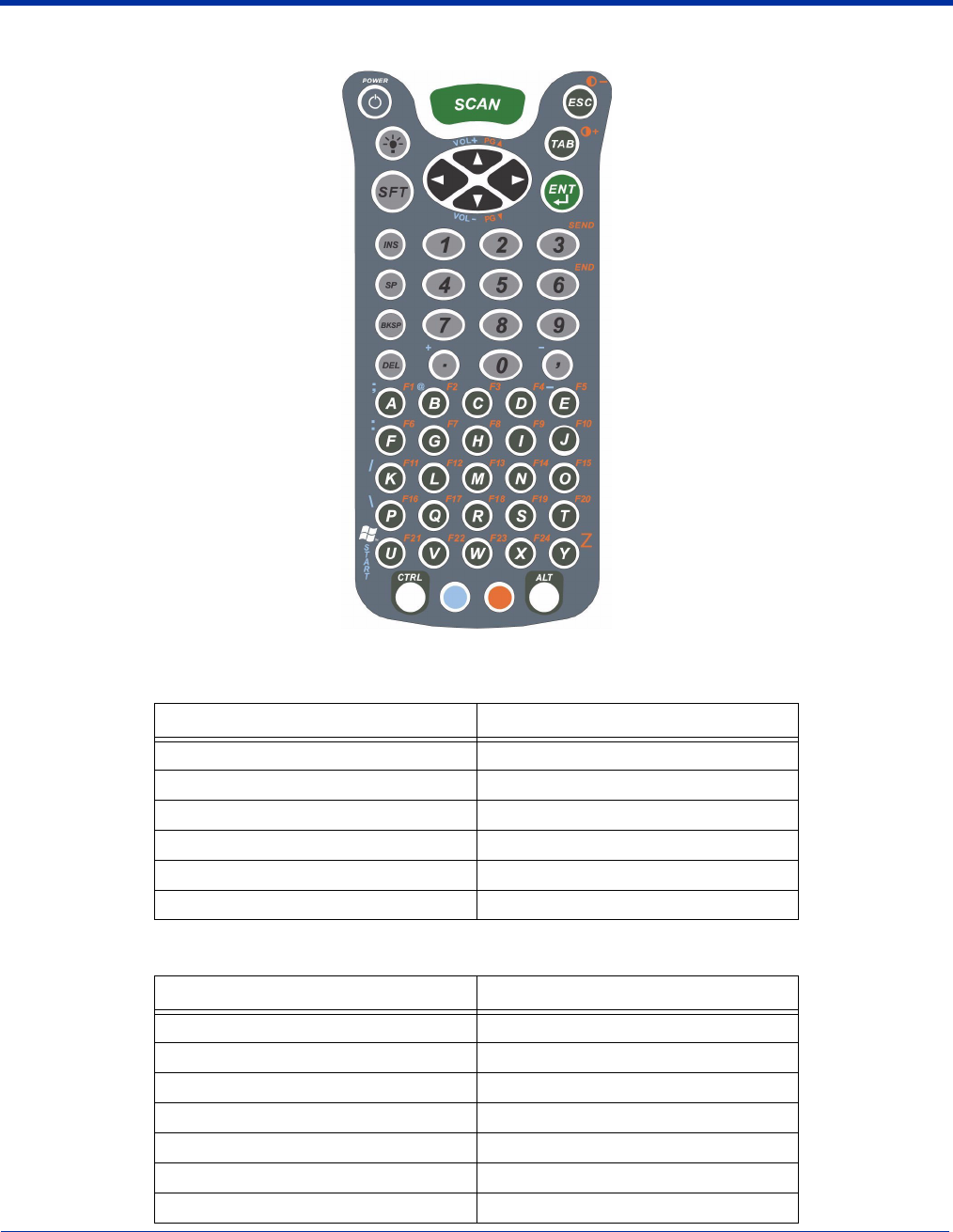

43-Key Alpha/Numeric Keyboard
Blue Key Functions and Characters
Key Combination Function/Special Character
Blue key + D - (minus)
Blue key + H _ (underscore)
Blue key + L =
Blue key + P +
Blue key + Q ;
Blue key + R :
Blue key + S *
Blue key + T /
Blue key + U @
Blue key + X \
Blue key + Y START
Dolphin® 9500/9550 Mobile Computer User’s Guide A - 5
Red Key Functions and Characters
* Exit the mouse utility prior to adjusting the contrast.
Key Combinations
Use the key combinations listed below to access certain keyboard functions or to use special characters that are not defined on
the 43-key version of the Dolphin 9500/9550 keyboard.
Key Combination Function/Special Character
Red key + ESC Lightens Contrast*
Red key + TAB Darkens Contrast*
Red key + SFT Toggles on Caps Lock
Red key + Q F1
Red key + R F2
Red key + S F3
Red key + T F4
Red key + U F5
Red key + V F6
Red key + W F7
Red key + X F8
Red key + Z INS (insert)
Red key + SP BKSP (backspace)
Red key + BACKLIGHT KEY DEL (delete)
Key/Key Combination Function/Special Character
NUM + SFT + A !
NUM + SFT + B @
NUM + SFT + C #
NUM + SFT + E $
NUM + SFT + F %
NUM + SFT + G ^
NUM + SFT + I &
NUM + SFT + J *
NUM + SFT + K (
NUM + SFT + M >
NUM + SFT + N )
NUM + SFT + O <
A - 6 Dolphin® 9500/9550 Mobile Computer User’s Guide
Key combinations using Blue + SFT keys
Miscellaneous key combinations
Key/Key Combinations Function/Special Characters
SFT + Blue + T ?
SFT + Blue + X |
Key/Key Combinations Function/Special Characters
NUM + ALT + 3 + 9* ‘
NUM + ALT + 3 + 4*
*Hold the ALT key down as you type in the
numbers.
“
Dolphin® 9500/9550 Mobile Computer User’s Guide A - 7

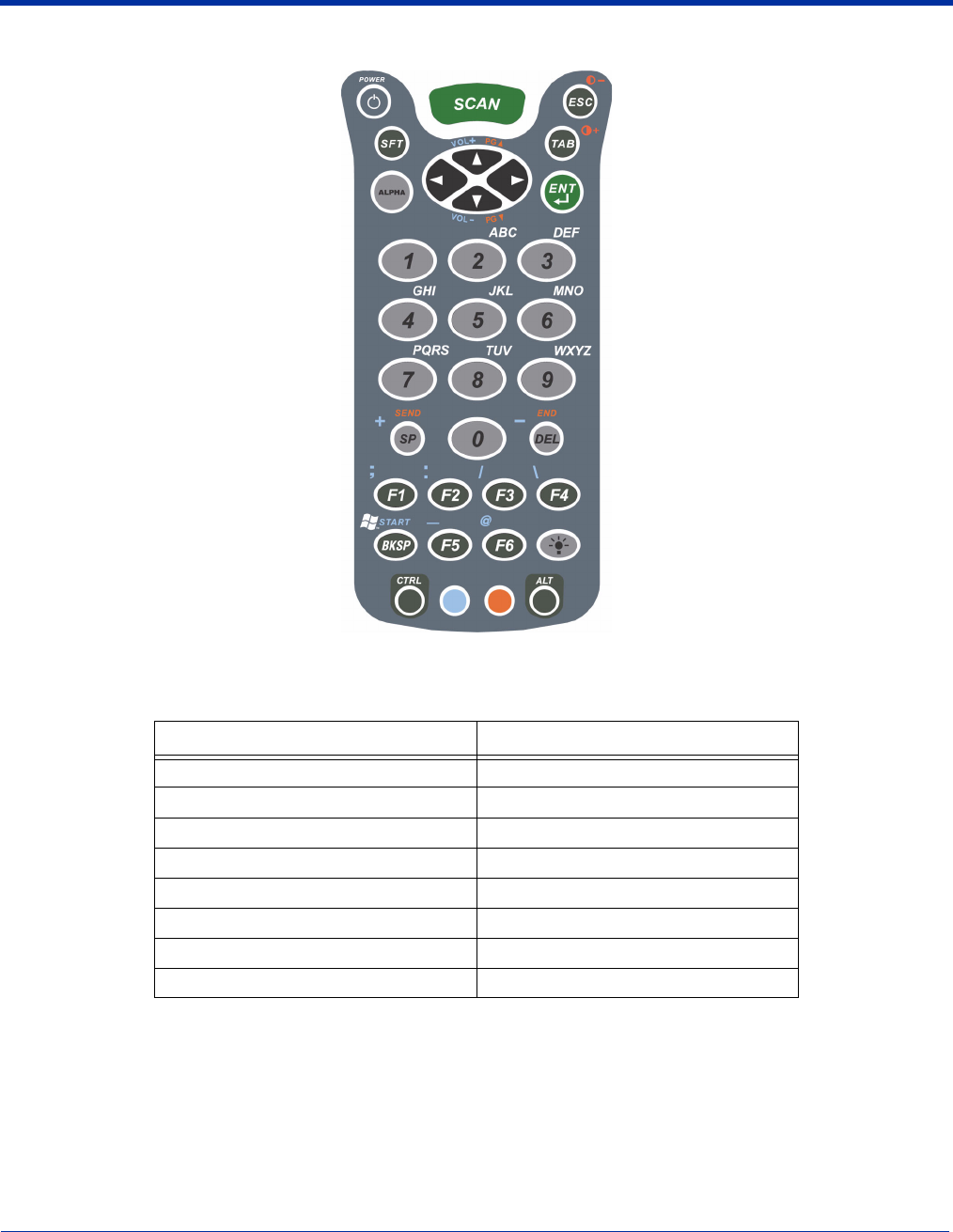

35 Key Numeric/Alpha Keyboard
Blue Key Functions and Characters
Key Combination Function/Special Character
Blue key + . +
Blue key + , -
Blue key + F1 ;
Blue key + F2 :
Blue key + F3 /
Blue key + F4 \
Blue key + SP +
Blue key + DEL -
A - 8 Dolphin® 9500/9550 Mobile Computer User’s Guide
Key Combinations
Use the key combinations listed below to access certain keyboard functions or to use special characters that are not defined on
the 35-key version of the Dolphin keyboard.
Key combinations using ALPHA + SFT Keys
Miscellaneous Key Combinations
Key/Key Combination Function/Special Character
ALPHA + SFT + 1 !
ALPHA + SFT + 2 @
ALPHA + SFT + 3 #
ALPHA + SFT + 4 $
ALPHA + SFT + 5 %
ALPHA + SFT + 6 ^
ALPHA + SFT + 7 &
ALPHA + SFT + 8 *
ALPHA + SFT + 9 (
ALPHA + SFT + 0 )
Key/Key Combinations Function/Special Characters
ALT + 3 + 9* ‘
ALT + 3 + 4*
*Hold the ALT key down as you type in the
numbers.
“
Dolphin® 9500/9550 Mobile Computer User’s Guide A - 9
56 Key Full Alpha Numeric
Blue Key Functions and Characters
Red Key Functions and Characters
Key Combination Function/Special Character
Blue key + . +
Blue key + , -
Blue key + A ;
Blue key + B @
Blue key + E _
Blue key + F :
Key Combination Function/Special Character
Red key + ESC Lightens Contrast*
Red key + TAB Darkens Contrast*
Red key + SFT Toggles on Caps Lock
Red key + A F1
Red key + B F2
Red key + C F3
Red key + D F4
A - 10 Dolphin® 9500/9550 Mobile Computer User’s Guide
* Exit the mouse utility prior to adjusting the contrast.
Key Combinations
Use the key combinations listed below to access certain keyboard functions or to use special characters that are not defined on
the 56-key version of the Dolphin keyboard.
Red key + E F5
Red key + F F6
Red key + G F7
Red key + H F8
Red key + I F9
Red key + J F10
Red key + K F11
Red key + L F12
Red key + M F13
Red key + N F14
Red key + O F15
Red key + P F16
Red key + Q F17
Red key + R F18
Red key + S F19
Red key + T F20
Red key + U F21
Red key + V F22
Red key + W F23
Red key + X F24
Red key + Y Z
Key Combination Function/Special Character
Dolphin® 9500/9550 Mobile Computer User’s Guide A - 11
Key Combinations Using SFT & Number Keys
Miscellaneous Key Combinations
Key/Key Combination Function/Special Character
SFT + 1 !
SFT + 2 @
SFT + 3 #
SFT + 4 $
SFT + 5 %
SFT + 6 ^
SFT + 7 &
SFT + 8 *
SFT + 9 (
SFT + 0 )
SFT + . (period) >
SFT + , (comma) <
Key/Key Combinations Function/Special Characters
ALT + 3 + 9* ‘
ALT + 3 + 4*
*Hold the ALT key down as you type in the
numbers.
“
A - 12 Dolphin® 9500/9550 Mobile Computer User’s Guide
Com Port Assignment Table
Com Port Assignment
Com Port 1 Serial port. This is the 17-pin connector on the bottom panel of
Dolphin 9500/9550 terminals.
Com Port 2 Bluetooth Module
If there is no Bluetooth hardware installed on the terminal, this com
port is unassigned.
Com Port 3 Raw Infrared
Com Port 4 GSM Module
Com Port 5 USB virtual serial port
Com Port 6 IrDA, if IrDA is enabled.
If IrDA is disabled, this com port becomes available.
Com Ports 7-9 Unassigned.
These are available for selection only when connecting to devices
that use virtual com ports such as Bluetooth.
™
95/9550/UG Rev A
