Honeywell CS20A Xenon Charge/Communication Base User Manual Xenon UG

Honeywell International Inc Xenon Charge/Communication Base Xenon UG

User Manual

™
Xenon™ 1900/1902
Area-Imaging Scanner
User’s Guide
Preliminary Draft
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in speci-
fications and other information contained in this document without prior notice,
and the reader should in all cases consult HII to determine whether any such
changes have been made. The information in this publication does not repre-
sent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnish-
ing, performance, or use of this material.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied, repro-
duced, or translated into another language without the prior written consent of
HII.
© 2010 Honeywell International Inc. All rights reserved.
Other product names or marks mentioned in this document may be trademarks
or registered trademarks of other companies and are the property of their
respective owners.
Web Address: www.honeywellaidc.com
Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows
XP, and the Windows logo are trademarks or registered trademarks of Microsoft
Corporation.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc.
Other product names or marks mentioned in this document may be trademarks
or registered trademarks of other companies and are the property of their
respective owners.
Preliminary Draft
Product Agency Compliance - Xenon 1900
USA
FCC Part 15 Subpart B Class B
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for
help.
If necessary, the user should consult the dealer or an experienced radio/
television technician for additional suggestions. The user may find the fol-
lowing booklet helpful: “Something About Interference.” This is available at
FCC local regional offices. Honeywell is not responsible for any radio or
television interference caused by unauthorized modifications of this equip-
ment or the substitution or attachment of connecting cables and equipment
other than those specified by Honeywell. The correction is the responsibil-
ity of the user.
Use only shielded data cables with this system.
Caution: Any changes or modifications made to this equipment not
expressly approved by Honeywell may void the FCC authorization to oper-
ate this equipment.
UL Statement
UL listed: UL60950-1.
Preliminary Draft
Canada
Industry Canada ICES-003
This Class B digital apparatus complies with Canadian ICES-003. Opera-
tion is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Conformité à la règlementation canadienne
Cet appareil numérique de la Classe A est conforme à la norme NMB-003
du Canada. Son fonctionnement est assujetti aux conditions suivantes :
1. Cet appareil ne doit pas causer de brouillage préjudiciable.
2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.
cUL Statement
cUL listed: CSA C22.2 No.60950-1-03.
Europe
The CE marking indicates compliance to 2004/108/EC EMC Directive
with Standards EN55022 CLASS B, EN55024, EN61000-3-2,
EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage Direc-
tive, when shipped with recommended power supply.
For further information please contact:
Honeywell Imaging & Mobility Europe BV
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell International Inc. shall not be liable for use of our product with
equipment (i.e., power supplies, personal computers, etc.) that is not CE
marked and does not comply with the Low Voltage Directive.
Waste Electrical and Electronic Equipment
Information
Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR-
LIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical
and electronic equipment (WEEE).
This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.
Preliminary Draft
In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems for product disposal. Those sys-
tems will reuse or recycle most of the materials of the product you are dis-
posing in a sound way.
The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to
use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling sys-
tems, please contact your local or regional waste administration.
You may also contact your supplier for more information on the environ-
mental performances of this product.
Germany
If your product is marked with the GS symbol, then the product
has been issued a GS certificate showing compliance to IEC
60950-1.
Australia/NZ
C-Tick Statement
Conforms to AS/NZS 3548 EMC requirement
Mexico
Conforms to NOM-019.
Russia
Gost-R certificate
Preliminary Draft
South Korea
International
Eye Safety Statement: LED
This device has been tested in accordance with IEC60825-1 LED safety,
and has been certified to be a Class 1 LED product.
CB Scheme
Certified to IEC60950-1 (2001) First Edition.
Patents
Please refer to the product packaging for patent information.
Solids and Water Protection
The Xenon 1900 has a rating of IP41, immunity of foreign particles and dripping
water.
Preliminary Draft
Product Agency Compliance - Xenon 1902 and
CCB01-010BT Base
USA
FCC Part 15 Subpart C
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modifications made to this equipment
not expressly approved by Honeywell may void the
FCC authorization to operate this equipment.
UL Statement
UL listed: UL60950-1.
Canada
Industry Canada
This device complies with Canadian RSS-210. Operation is subject to the
following conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation.
Conformité à la règlementation canadienne
Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonc-
tionnement est assujetti aux conditions suivantes :
1. Cet appareil ne doit pas causer de brouillage préjudiciable.
2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.
Preliminary Draft
C-UL Statement
C-UL listed: CSA C22.2 No.60950-1-03 for I.T.E product safety.
Europe
The CE marking on the product indicates that this device is in confor-
mity with all essential requirements of the 1999/5/EC R&TTE Directive.
In addition, complies to 2006/95/EC Low Voltage Directive, when
shipped with recommended power supply. For further information, con-
tact:
Honeywell Imaging & Mobility Europe BV
International Inc.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell shall not be liable for use of our product with equipment (i.e.,
power supplies, personal computers, etc.) that is not CE marked and does
not comply with the Low Voltage Directive. This equipment is intended for
use throughout the European Community and has been assessed to the
following standards:
EN 300 328
EN 301 489-1
EN 301 489-17
EN60950-1
EN60825-1
Waste Electrical and Electronic Equipment
Information
Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR-
LIAMENT AND OF THE COUNCIL on waste electrical and electronic
equipment (WEEE).
This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you
to use the appropriate take-back systems for product disposal. Those sys-
tems will reuse or recycle most of the materials of the product you are dis-
posing in a sound way.
The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to
use the appropriate separate take-back systems for product disposal.
Preliminary Draft
If you need more information on the collection, reuse, and recycling sys-
tems, contact your local or regional waste administration.
You may also contact your supplier for more information on the environ-
mental performances of this product.
Germany
If your product is marked with the GS symbol, then the product
has been issued a GS certificate showing compliance to IEC
60950-1.
Australia/NZ
C-Tick Statement
Conforms to AS/NZS 3548 EMC requirements.
Russia
International
Safety Precautions for Lithium Batteries
• Do not place batteries in fire or heat the batteries.
• Do not store batteries near fire or other high temperature locations.
• Do not store or carry batteries together with metal objects.
• Do not expose batteries to water or allow the batteries to get wet.
• Do not connect (short) the positive and negative terminals, of the
batteries, to each other with any metal object.
• Do not pierce, strike or step on batteries or subject batteries to strong
impacts or shocks.
• Do not disassemble or modify batteries.
Caution:
Danger of explosion if batteries are incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer. Dispose of used batteries according to
the recycle program for batteries as directed by the governing
agency for the country where the batteries are to be discarded.
!
Preliminary Draft
Eye Safety Statement
LED
This device has been tested in accordance with IEC60825-1:
1993+A1+A2 LED safety, and has been certified to be a Class 1 LED
device.
Radio Technology
Class II
CB Scheme
Certified to CB Scheme IEC 60950-1.
Solids and Water Protection
The Xenon 1902 has a rating of IP41, immunity of foreign particles and
dripping water.
Patents
Refer to product packaging for patent information.
Preliminary Draft

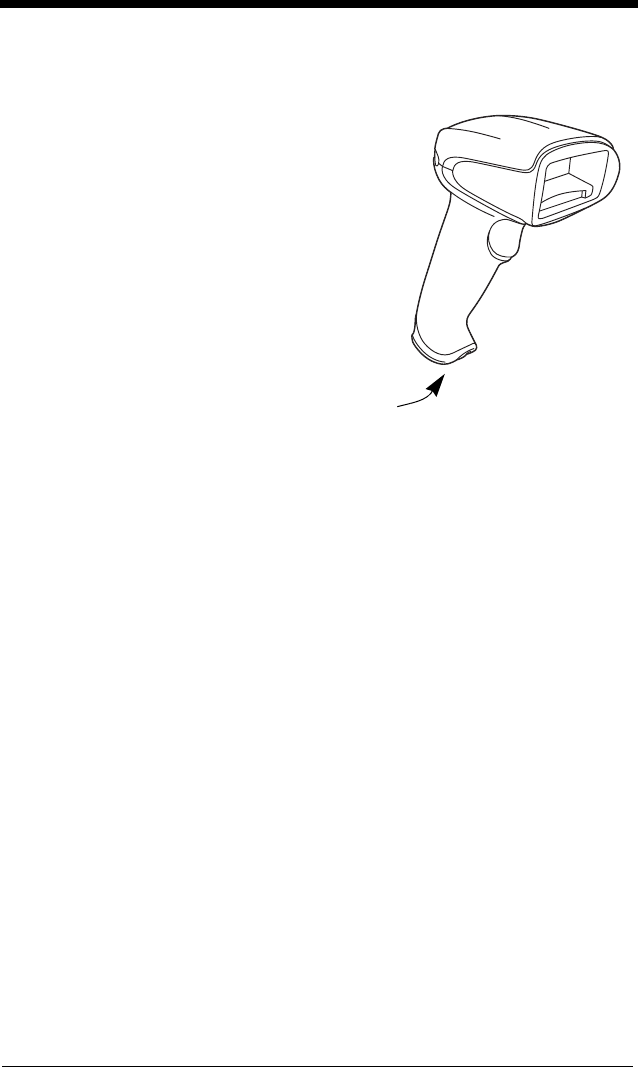

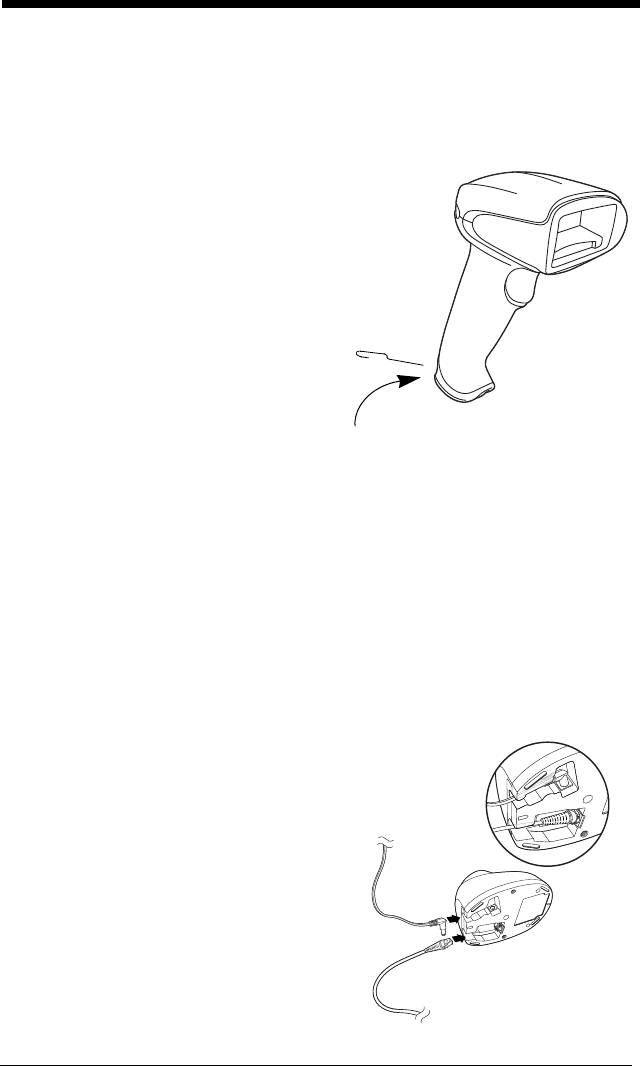

Required Safety Labels
Scanner
Compliance
Label
location
Item
Number, Serial
Number and
Revision
Information
location
Illumination output
Preliminary Draft
CCB01-010BT Base
Item Number,
Serial
Number and
Revision
Information
location
Compliance
Label
location
Preliminary Draft
i
Chapter 1 - Getting Started
About This Manual ...................................................... 1-1
Unpacking Your Device............................................... 1-1

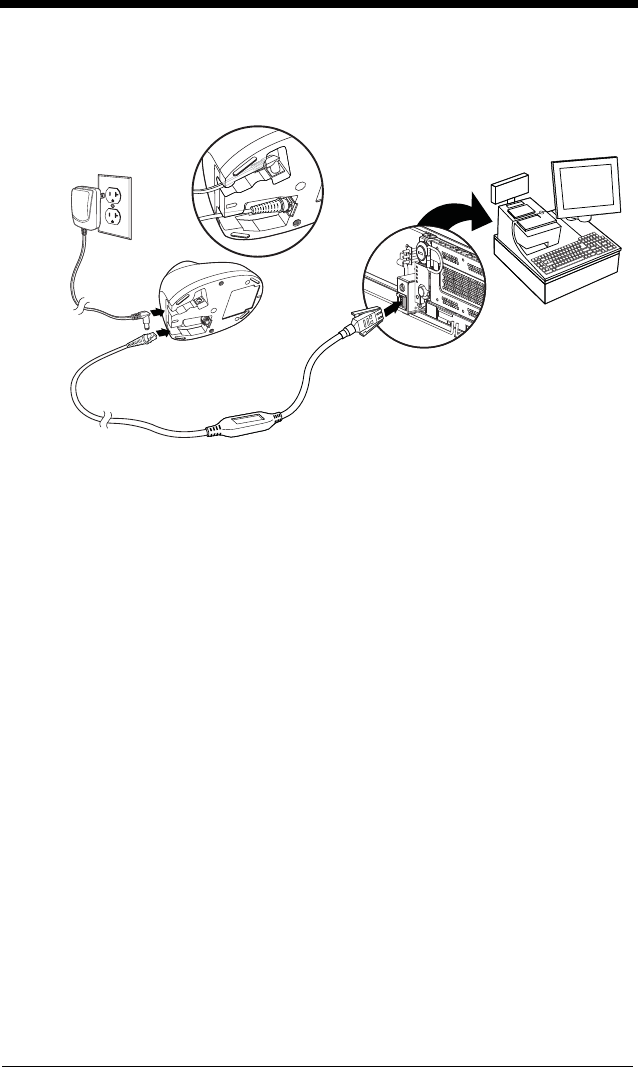

Connecting the Device ................................................ 1-2

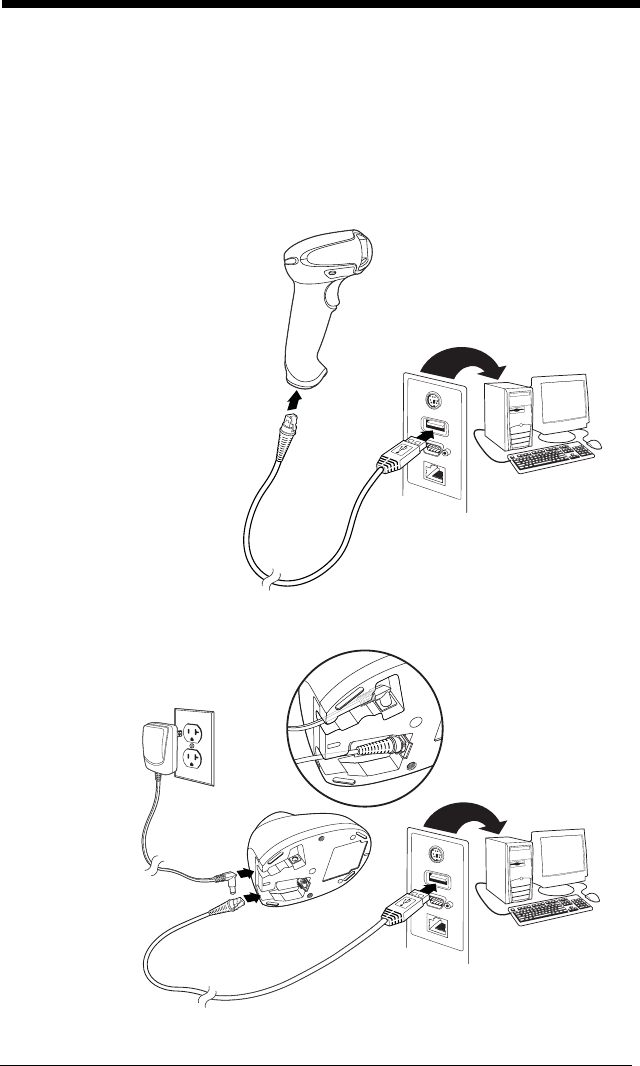

Connecting with USB ............................................ 1-2
Connecting with Keyboard Wedge........................ 1-3

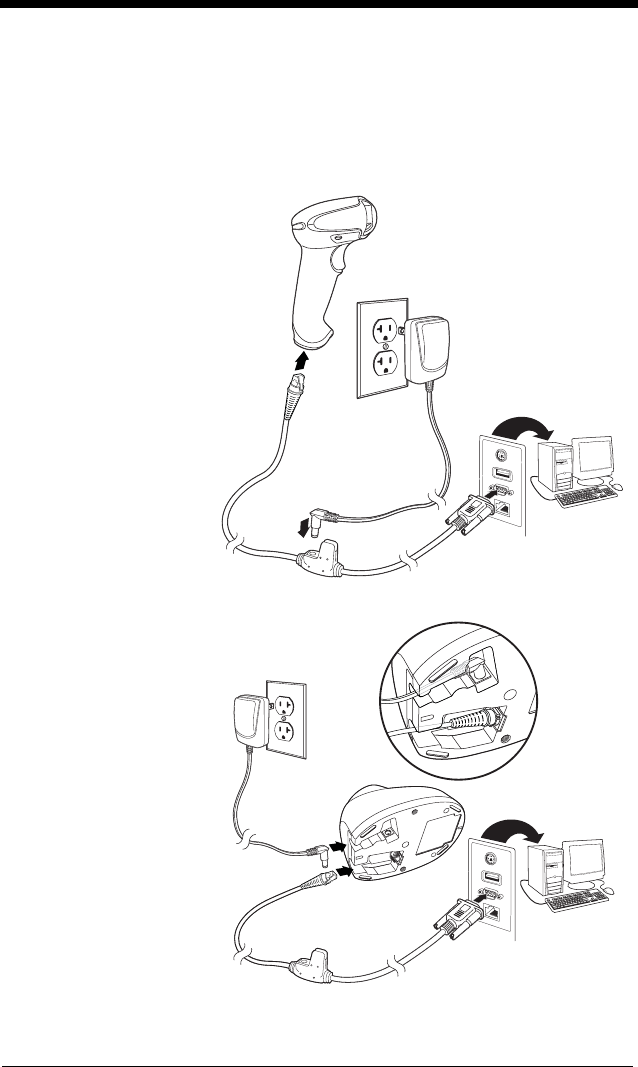

Connecting with RS232 Serial Port....................... 1-5
Connecting with RS485......................................... 1-6
Reading Techniques ................................................... 1-8
Menu Bar Code Security Settings ............................... 1-8

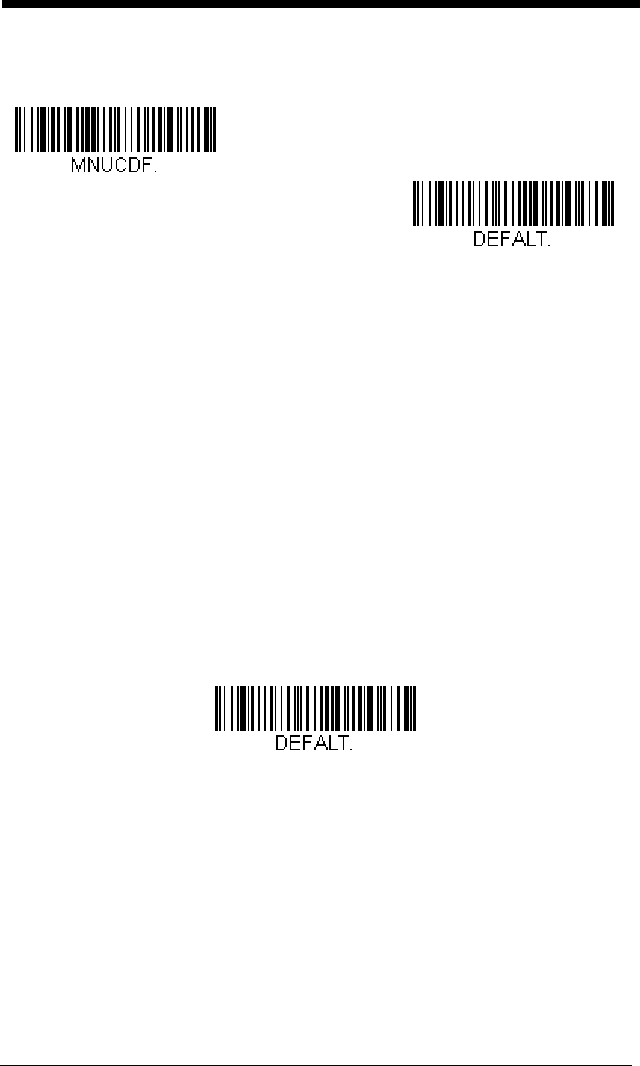

Resetting the Factory Defaults.................................... 1-9
Setting Custom Defaults ............................................. 1-9
Resetting the Custom Defaults ................................. 1-10
Chapter 2 - Programming the Interface
Introduction ................................................................. 2-1
Programming the Interface - Plug and Play ................ 2-1

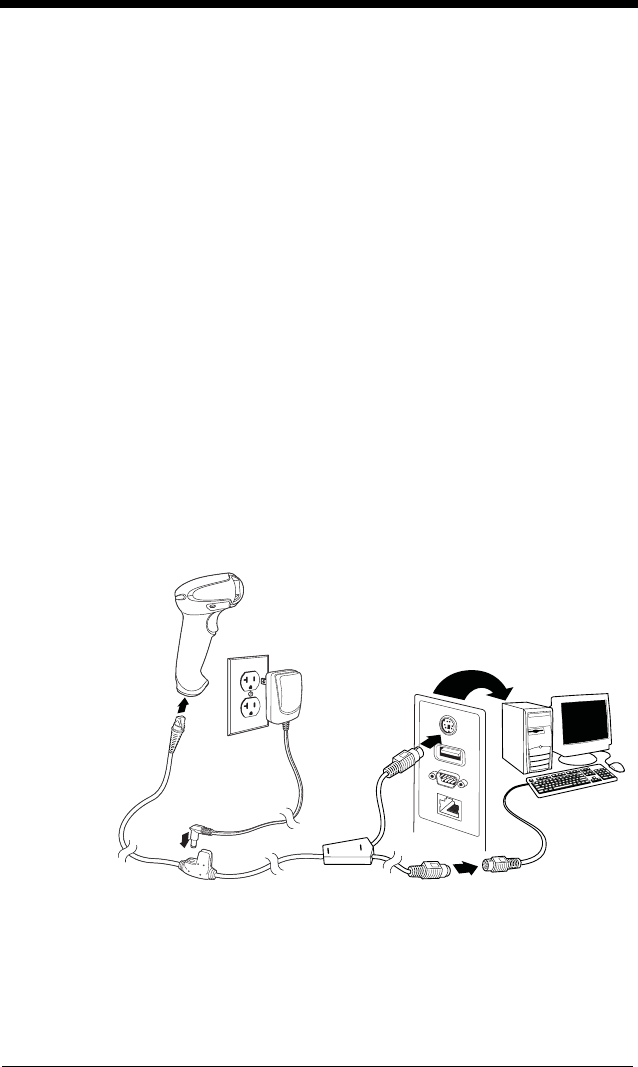

Keyboard Wedge................................................... 2-1
Laptop Direct Connect........................................... 2-1
RS232 Serial Port.................................................. 2-2
RS485 ................................................................... 2-2
RS485 Packet Mode ............................................. 2-3
USB IBM SurePos................................................. 2-4
USB PC or Macintosh Keyboard........................... 2-4
USB HID................................................................ 2-5
USB Serial............................................................. 2-5
Verifone® Ruby Terminal Default Settings ............ 2-6
Gilbarco® Terminal Default Settings ..................... 2-7
Honeywell Bioptic Aux Port Configuration............. 2-7
Datalogic™ Magellan© Bioptic
Aux Port Configuration..................................... 2-7
NCR Bioptic Aux Port Configuration...................... 2-8
Wincor Nixdorf Terminal Default Settings ............. 2-8
Table of Contents
Preliminary Draft
ii
Wincor Nixdorf Beetle™ Terminal
Default Settings................................................2-9

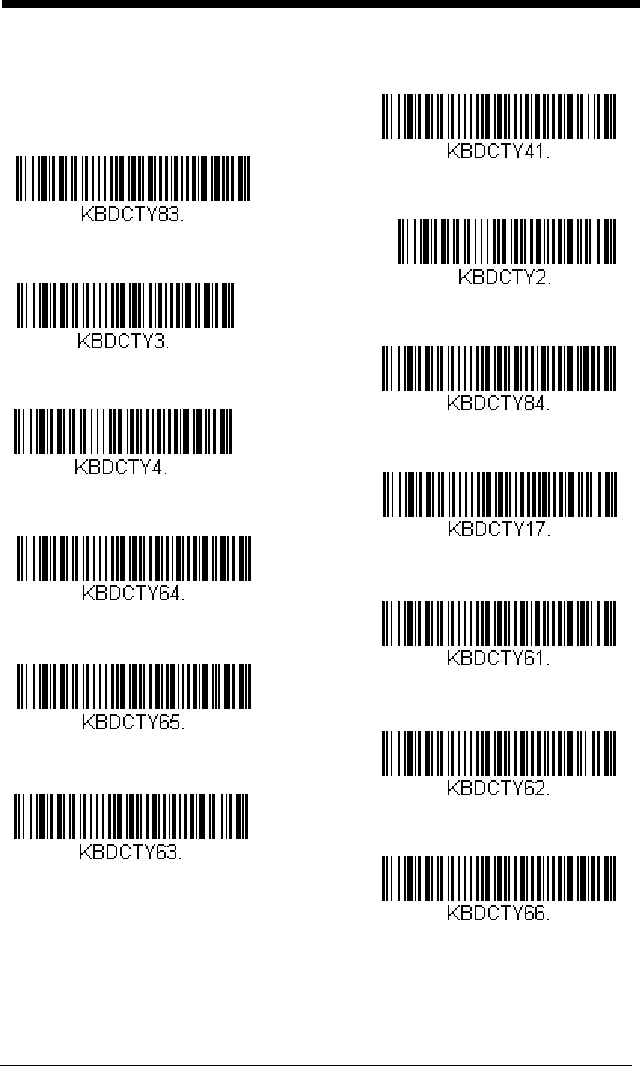

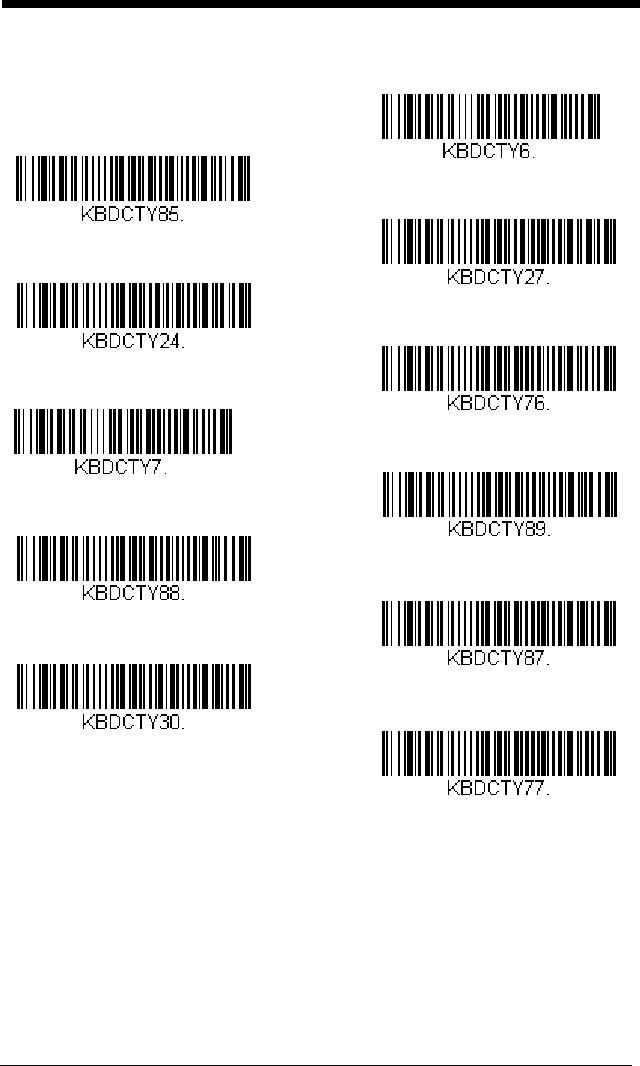

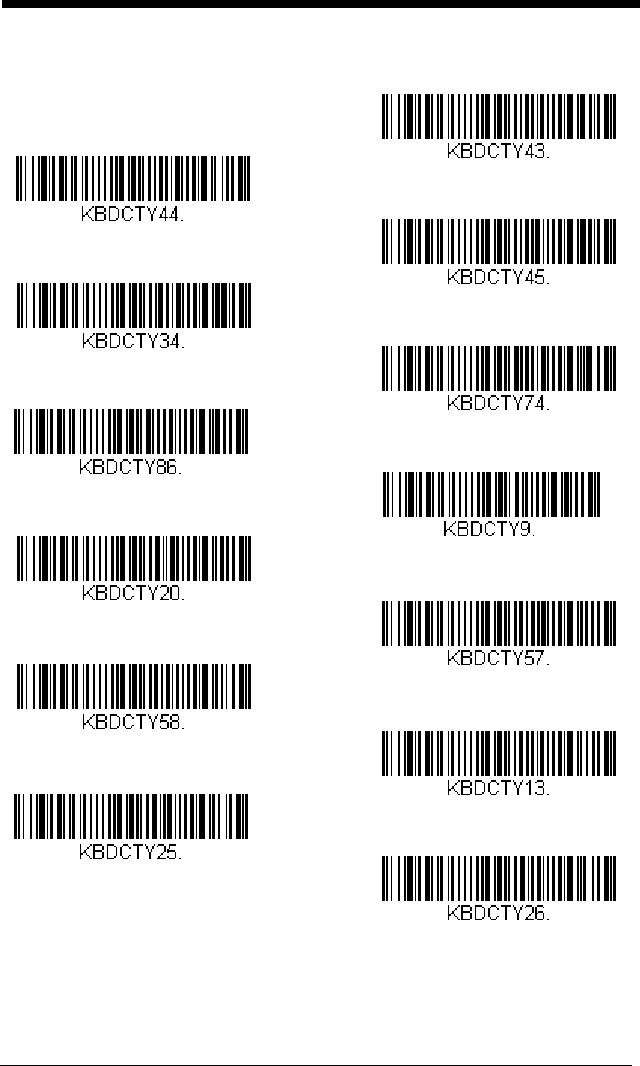

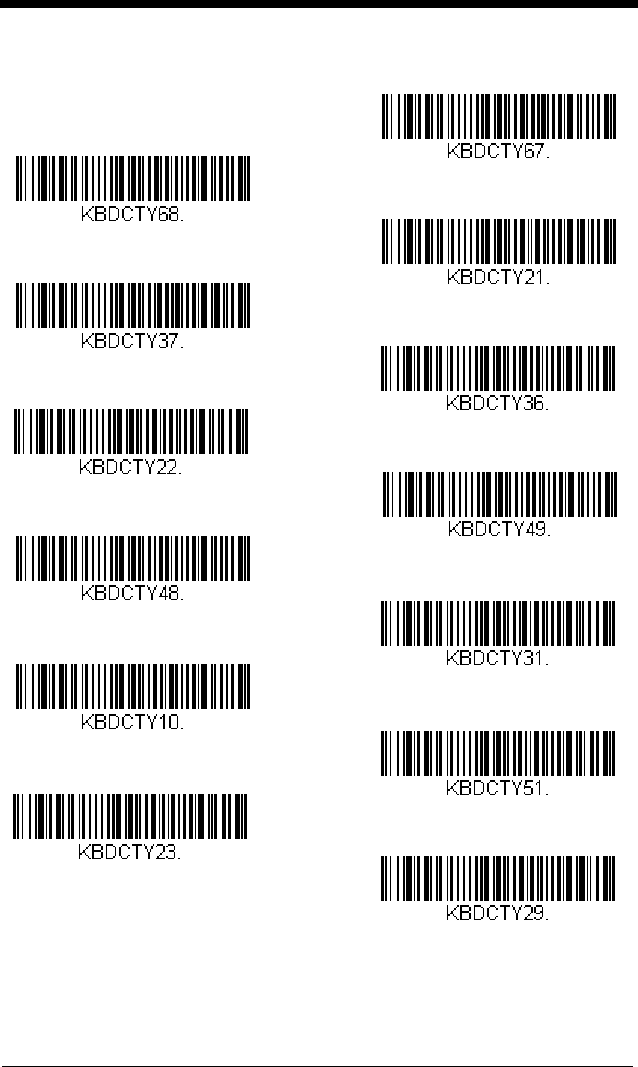

Keyboard Country Layout..........................................2-10
Keyboard Style ..........................................................2-17
Keyboard Conversion ................................................2-18
Control Character Output...........................................2-19
Keyboard Modifiers....................................................2-19
RS232 Baud Rate......................................................2-22
RS232 Word Length: Data Bits, Stop Bits,
and Parity ................................................................2-23
RS232 Receiver Time-Out.........................................2-24
RS232 Handshaking..................................................2-24
RS232 Timeout....................................................2-25
XON/XOFF ..........................................................2-25
ACK/NAK .............................................................2-25
Scanner to Bioptic Communication............................2-26
Scanner-Bioptic Packet Mode .............................2-26
Scanner-Bioptic ACK/NAK Mode.........................2-27
Scanner-Bioptic ACK/NAK Timeout.....................2-27
Chapter 3 - Cordless System Operation
How the Cordless Base Works....................................3-1

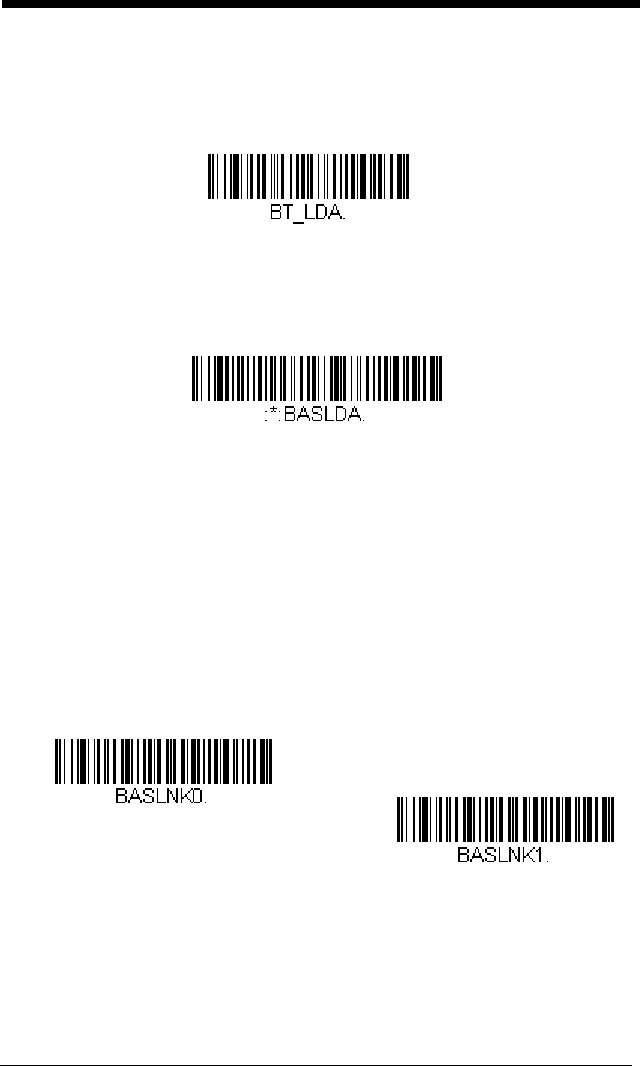

Linking the Scanner to the Base..................................3-1
Communication Between the Cordless System
and the Host..............................................................3-2
RF (Radio Frequency) Module Operation....................3-2
System Conditions.......................................................3-2
Linking Process .....................................................3-3
Scanner Is Out of Range .......................................3-3
Scanner Is Moved Back Into Range ......................3-3
Out of Range and Back into Range
with Batch Mode On.........................................3-3
Page Button.................................................................3-3
About the Battery.........................................................3-3
Charging Information .............................................3-4
Battery Recommendations ....................................3-4
Preliminary Draft
iii
Proper Disposal of the Battery .............................. 3-5
Beeper and LED Sequences and Meaning................. 3-5
Scanner LED Sequences and Meaning ................ 3-6
Base LED Sequences and Meaning ..................... 3-6
Base Power Communication Indicator .................. 3-7
Reset Scanner ............................................................ 3-7
Scanning while in Base Cradle ................................... 3-7

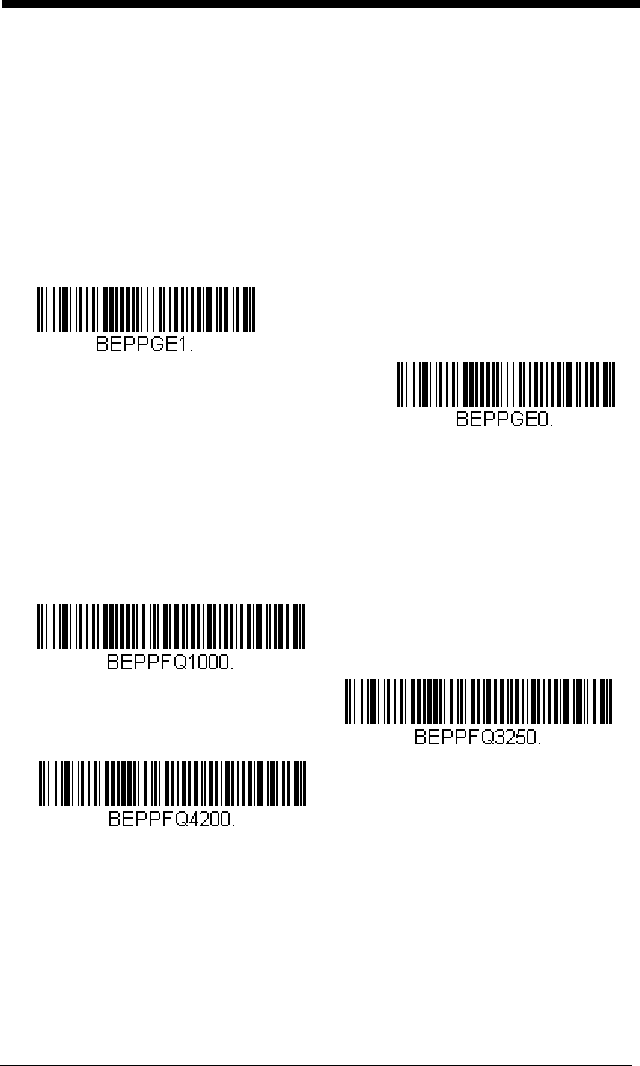

Paging ......................................................................... 3-8
Paging Mode ......................................................... 3-8
Paging Pitch ......................................................... 3-8
Error Indicators............................................................ 3-9
Beeper Pitch - Base Error ..................................... 3-9
Number of Beeps - Base Error.............................. 3-9
Scanner Report ........................................................... 3-9
Scanner Address....................................................... 3-10
Base Address............................................................ 3-10
Single Scanner Modes .............................................. 3-10
Charge Only Mode .............................................. 3-10
Linked Modes...................................................... 3-11
Unlinking the Scanner ............................................... 3-11
Override Locked Scanner.................................... 3-12
Out-of-Range Alarm .................................................. 3-12
Alarm Sound Type............................................... 3-12
Flexible Power Management..................................... 3-13
Batch Mode ............................................................... 3-14
Batch Mode Beep................................................ 3-15
Batch Mode Storage............................................ 3-15
Batch Mode Quantity........................................... 3-16
Batch Mode Output Order ................................... 3-18
Delete Last Code................................................. 3-18
Clear All Codes ................................................... 3-18

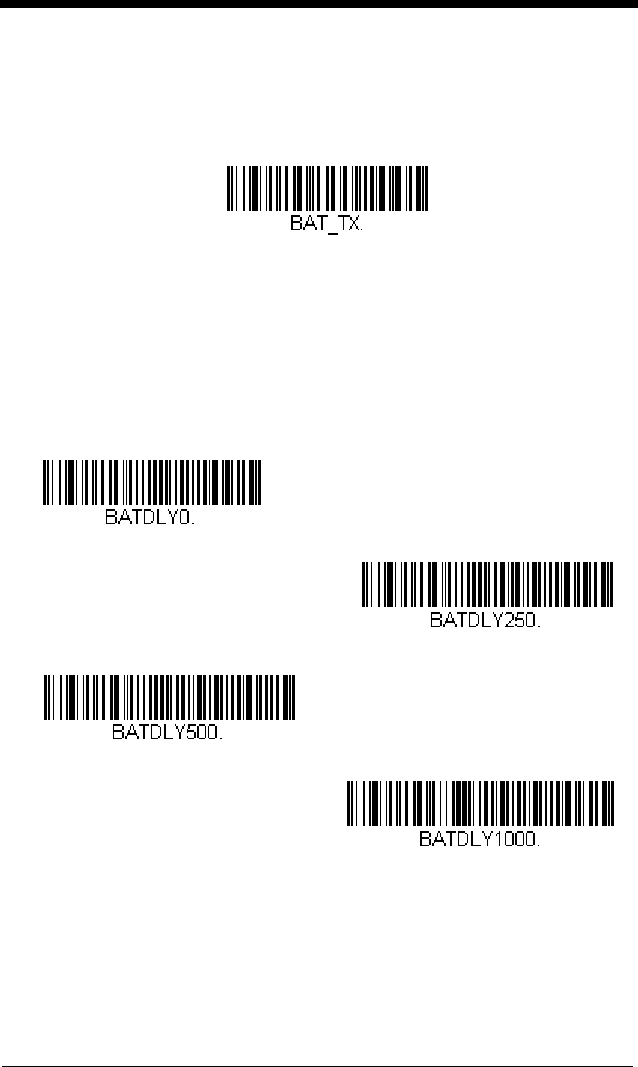

Transmit Records to Host.................................... 3-19
Batch Mode Transmit Delay................................ 3-19
Multiple Scanner Operation....................................... 3-19

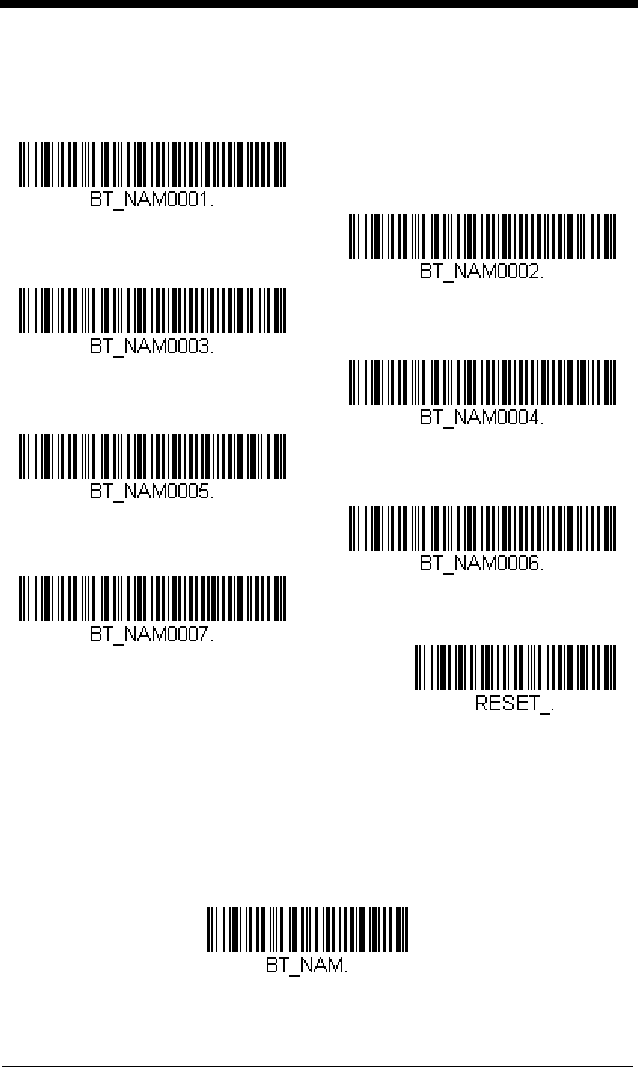

Scanner Name .......................................................... 3-20
Application Work Groups .......................................... 3-22
Application Work Group Selection....................... 3-23
Preliminary Draft
iv
Resetting the Factory Defaults:
All Application Work Groups....................................3-23
Resetting the Custom Defaults:
All Application Work Groups....................................3-24
Using the Scanner with Bluetooth Devices................3-24
PCs/Laptops ........................................................3-24
PDAs/Mobility Systems Devices..........................3-25
Changing the Scanner’s Bluetooth PIN Code......3-25
Minimizing Bluetooth/ISM Band Network Activity ......3-25
Auto Reconnect Mode .........................................3-26
Maximum Link Attempts ......................................3-27
Relink Time-Out...................................................3-27
Bluetooth/ISM Network Activity Examples...........3-28
Host Command Acknowledgment .............................3-29
Chapter 4 - Input/Output Settings
Power Up Beeper ........................................................4-1
Beep on BEL Character...............................................4-1
Trigger Click.................................................................4-2
Good Read and Error Indicators..................................4-2
Beeper – Good Read.............................................4-2
Beeper Volume – Good Read................................4-3
Beeper Pitch – Good Read....................................4-3
Beeper Pitch – Error ..............................................4-4
Beeper Duration – Good Read ..............................4-4
LED – Good Read .................................................4-4
Number of Beeps – Good Read ............................4-5
Number of Beeps – Error.......................................4-5
Good Read Delay ..................................................4-6
User-Specified Good Read Delay..........................4-6
Manual/Serial Trigger Modes.......................................4-6
Manual Trigger.......................................................4-6
Serial Trigger .........................................................4-7
In-Stand Sensor Mode.................................................4-8
Presentation Mode.......................................................4-9
Presentation LED Behavior after Decode..............4-9
Preliminary Draft
v
Presentation Sensitivity....................................... 4-10
Streaming Presentation™ Mode ............................... 4-10
Mobile Phone Read Mode......................................... 4-11

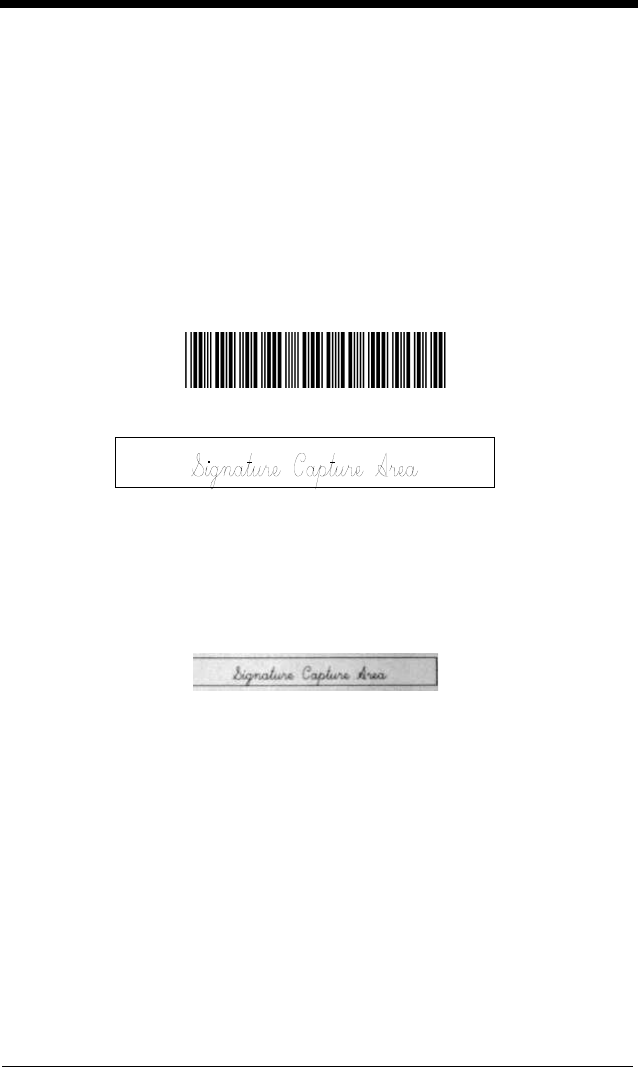

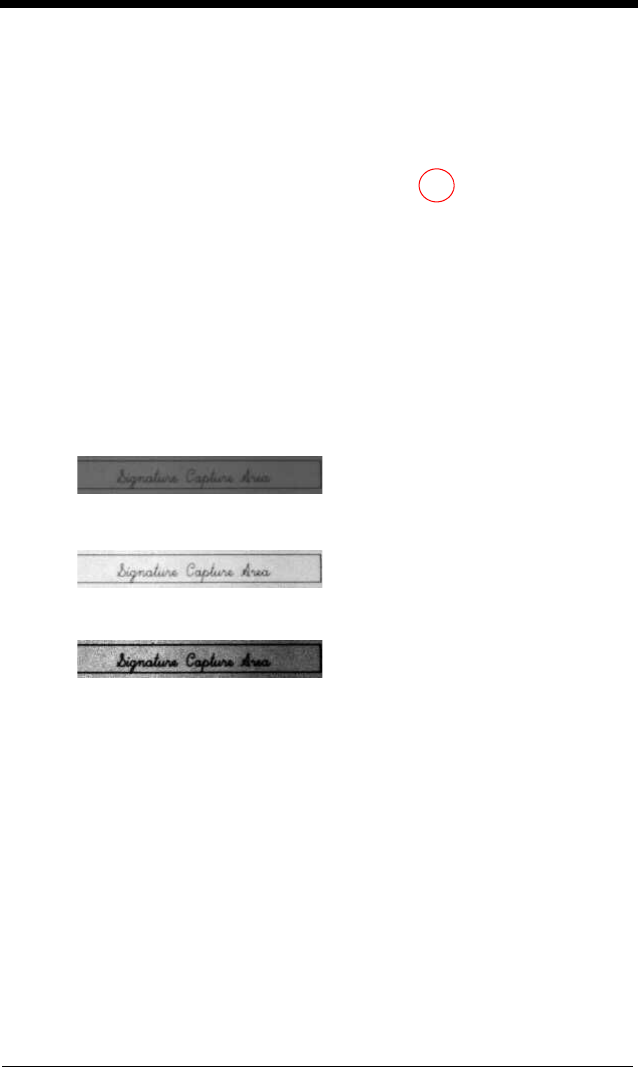

Image Snap and Ship................................................ 4-11
Hands Free Time-Out ............................................... 4-11

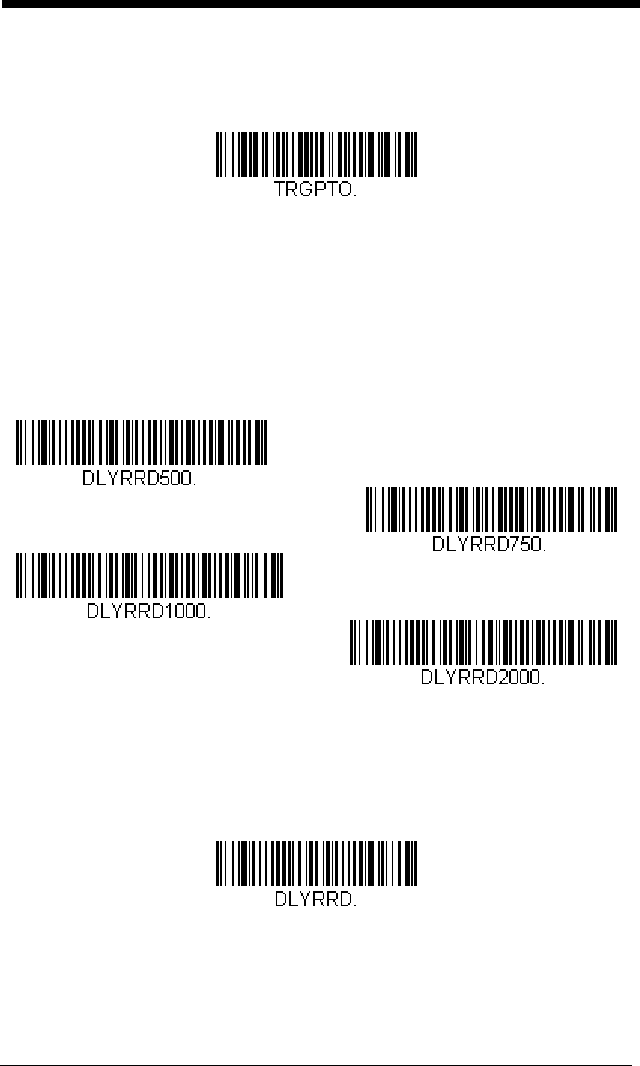

Reread Delay ............................................................ 4-12
User-Specified Reread Delay.................................... 4-12
Illumination Lights ..................................................... 4-13
Aimer Delay............................................................... 4-13
User-Specified Aimer Delay ................................ 4-13
Scanner Time-Out..................................................... 4-14
Aimer Mode............................................................... 4-14
Centering................................................................... 4-14
Preferred Symbology ................................................ 4-16
High Priority Symbology...................................... 4-17
Low Priority Symbology....................................... 4-17
Preferred Symbology Time-out ........................... 4-17
Preferred Symbology Default .............................. 4-18
Output Sequence Overview ...................................... 4-18
Require Output Sequence................................... 4-18
Output Sequence Editor...................................... 4-18
To Add an Output Sequence............................... 4-19
Other Programming Selections ........................... 4-19

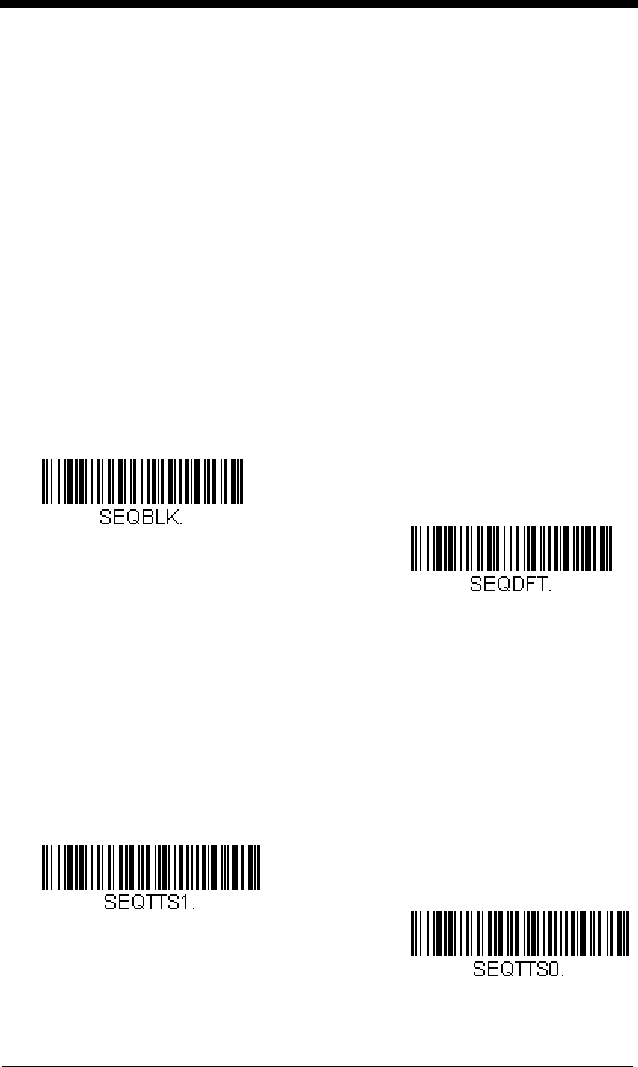

Output Sequence Editor...................................... 4-21
Partial Sequence................................................. 4-21

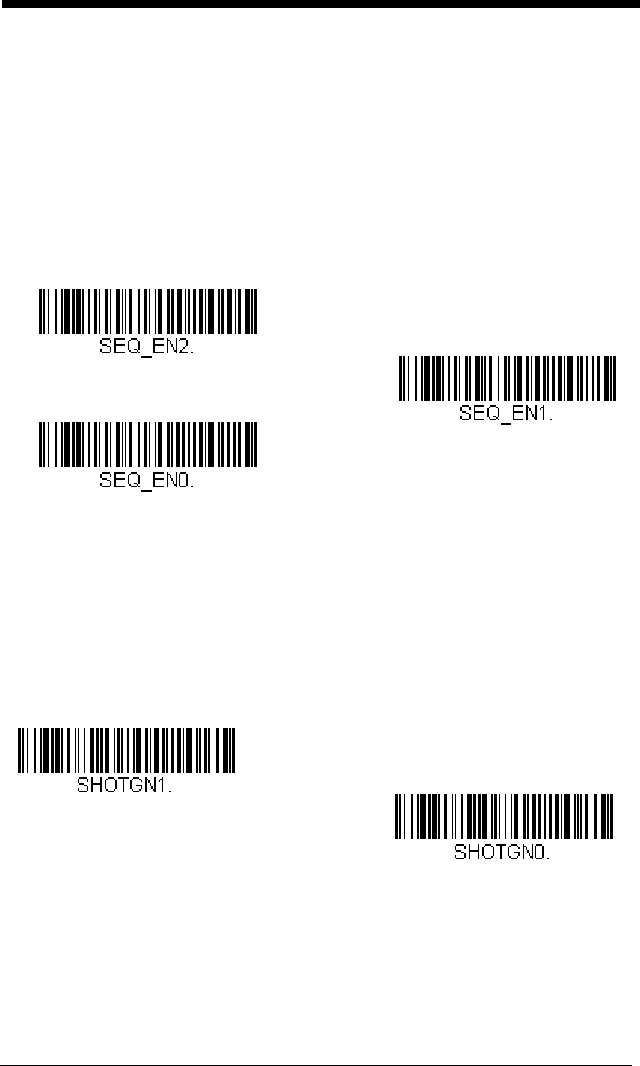

Require Output Sequence................................... 4-22
Multiple Symbols ....................................................... 4-22
No Read .................................................................... 4-23
Video Reverse........................................................... 4-23
Chapter 5 - Data Editing
Prefix/Suffix Overview ................................................. 5-1
To Add a Prefix or Suffix: ...................................... 5-1
To Clear One or All Prefixes or Suffixes................ 5-2
To Add a Carriage Return Suffix
to All Symbologies ........................................... 5-3
Preliminary Draft
vi
Prefix Selections..........................................................5-3
Suffix Selections ..........................................................5-4
Function Code Transmit ..............................................5-4
Intercharacter, Interfunction,
and Intermessage Delays..........................................5-4
Intercharacter Delay ..............................................5-5
User Specified Intercharacter Delay ......................5-5
Interfunction Delay.................................................5-6
Intermessage Delay...............................................5-6
Chapter 6 - Data Formatting
Data Format Editor Introduction...................................6-1
To Add a Data Format .................................................6-1
Other Programming Selections..............................6-3
Terminal ID Table ........................................................6-4
Data Format Editor Commands...................................6-4
Move Commands...................................................6-5
Search Commands ................................................6-6
Miscellaneous Commands.....................................6-7
Data Formatter.............................................................6-8
Data Format Non-Match Error Tone ......................6-9
Primary/Alternate Data Formats ................................6-10
Single Scan Data Format Change .......................6-10
Chapter 7 - Symbologies
All Symbologies ...........................................................7-2
Message Length Description .......................................7-2
Codabar.......................................................................7-3
Codabar Concatenation.........................................7-4

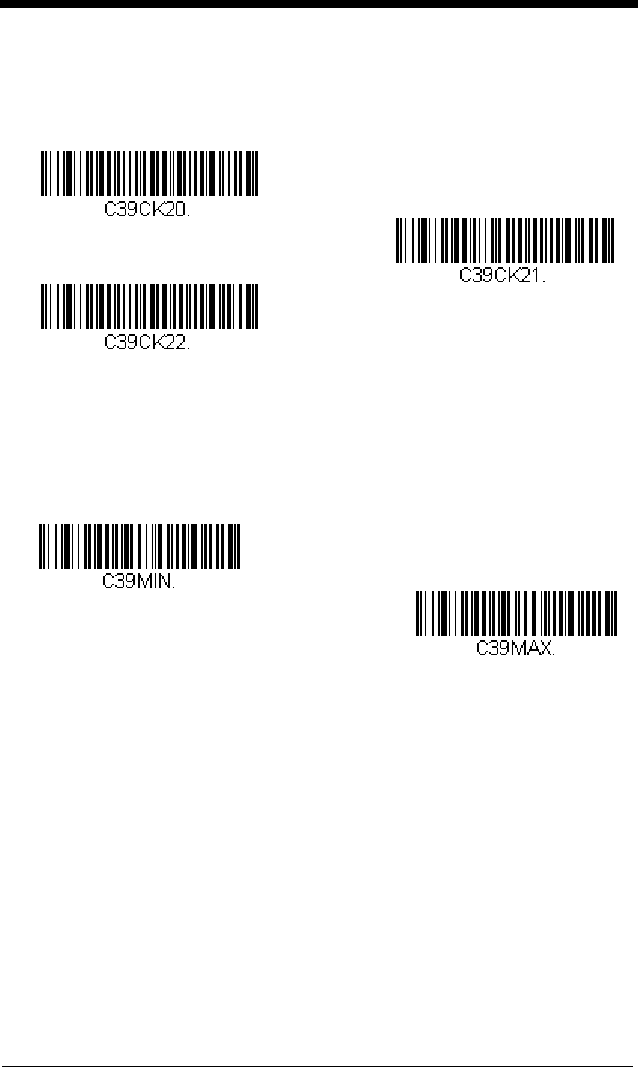

Code 39 .......................................................................7-6
Code 32 Pharmaceutical (PARAF) ........................7-8

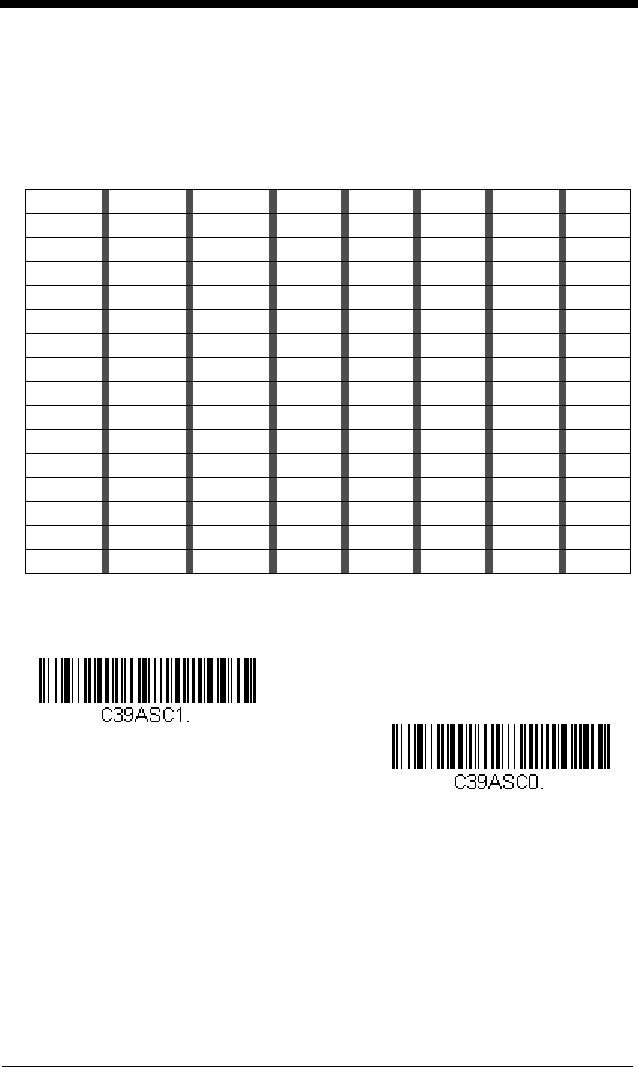

Full ASCII...............................................................7-9
Code 39 Code Page ..............................................7-9
Interleaved 2 of 5.......................................................7-10

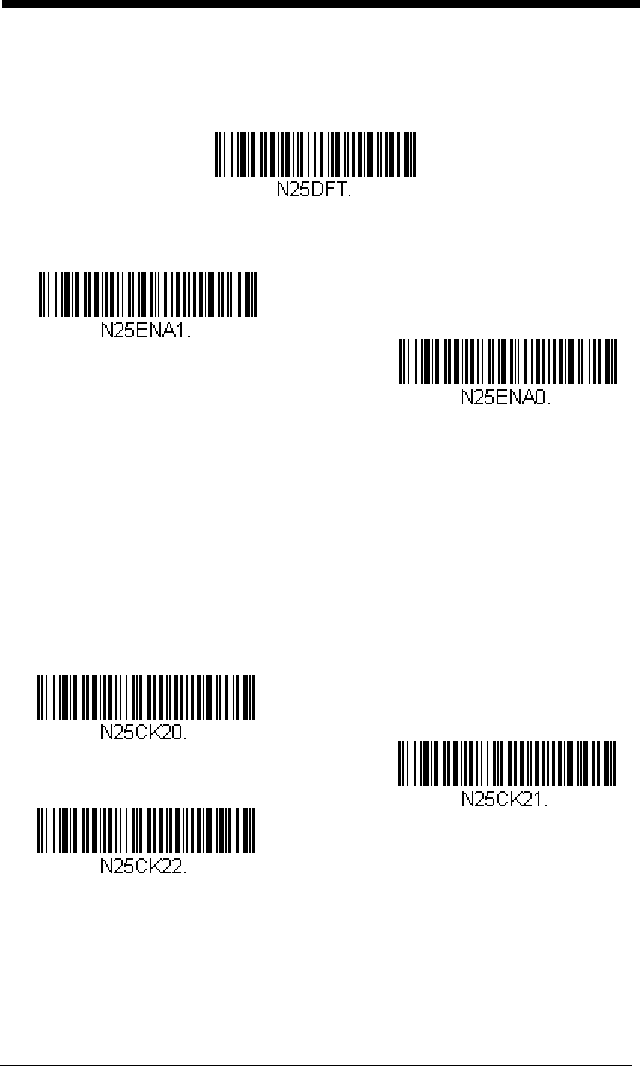

NEC 2 of 5 .................................................................7-12
Code 93 .....................................................................7-14
Preliminary Draft
vii
Code 93 Code Page............................................ 7-14
Straight 2 of 5 Industrial (three-bar start/stop) .......... 7-15
Straight 2 of 5 IATA (two-bar start/stop).................... 7-16
Matrix 2 of 5 .............................................................. 7-17
Code 11..................................................................... 7-18
Code 128................................................................... 7-19

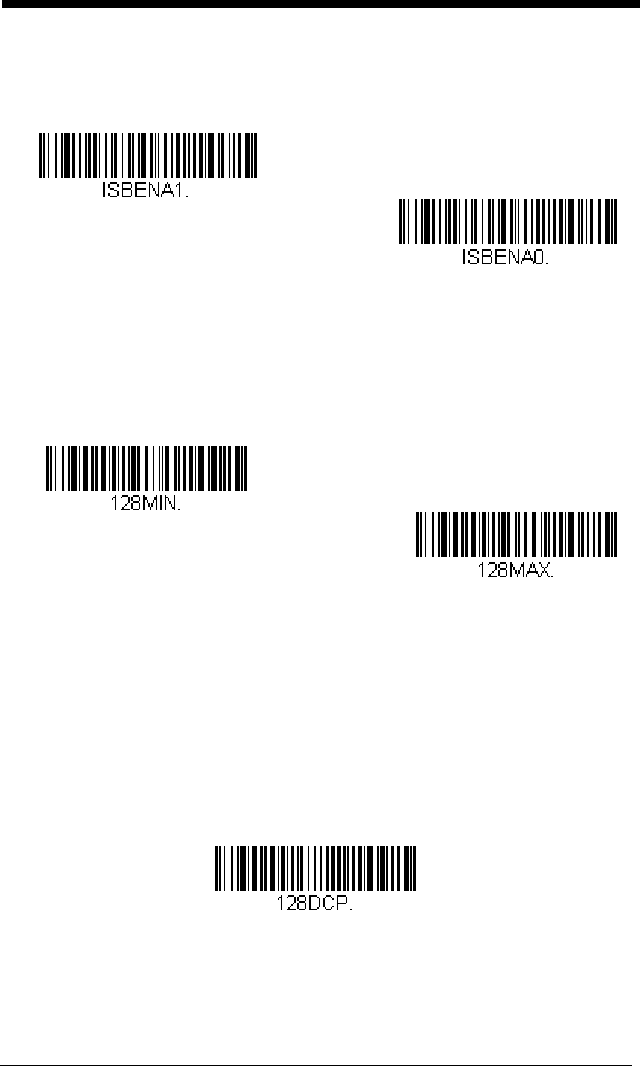

ISBT 128 Concatenation ..................................... 7-19
Code 128 Code Page.......................................... 7-20

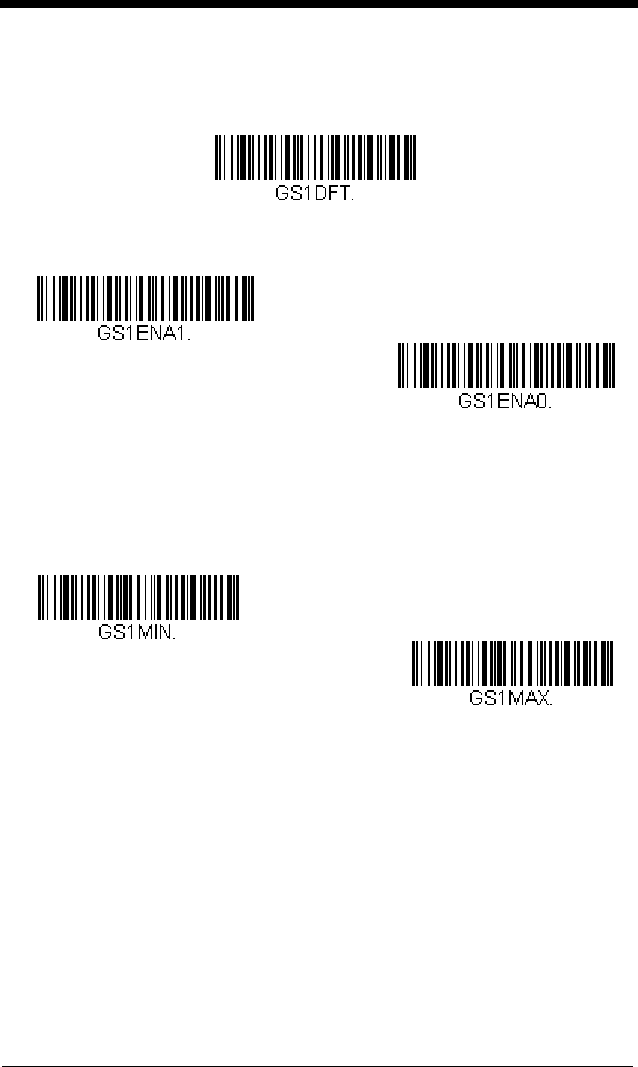

GS1-128.................................................................... 7-21
Telepen ..................................................................... 7-22
UPC-A ....................................................................... 7-23
UPC-A/EAN-13
with Extended Coupon Code .................................. 7-25

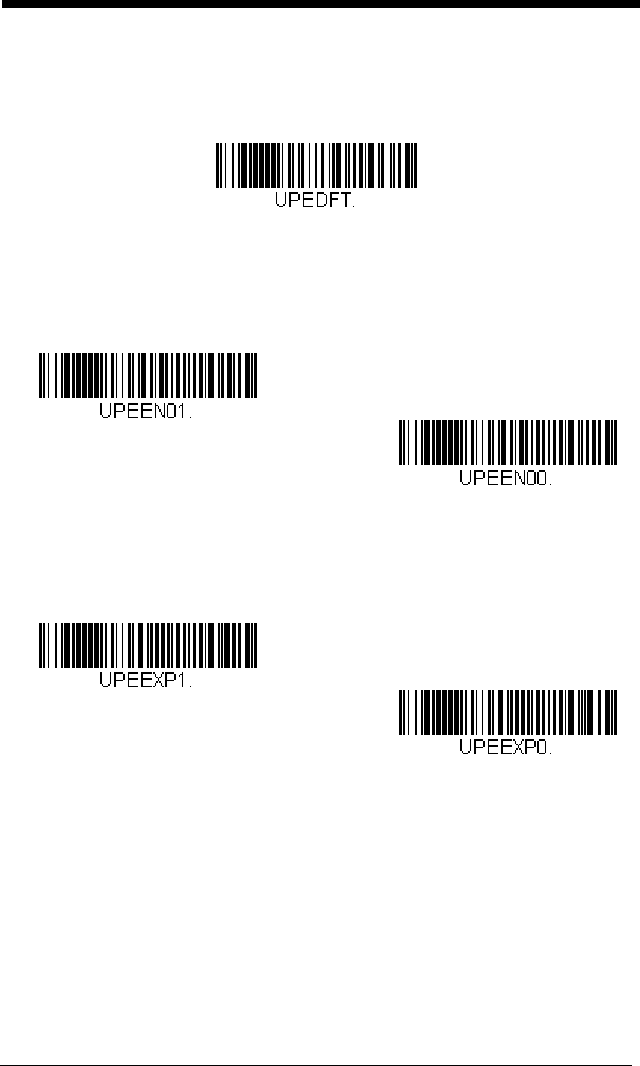

UPC-E0 ..................................................................... 7-26
UPC-E1 ..................................................................... 7-29

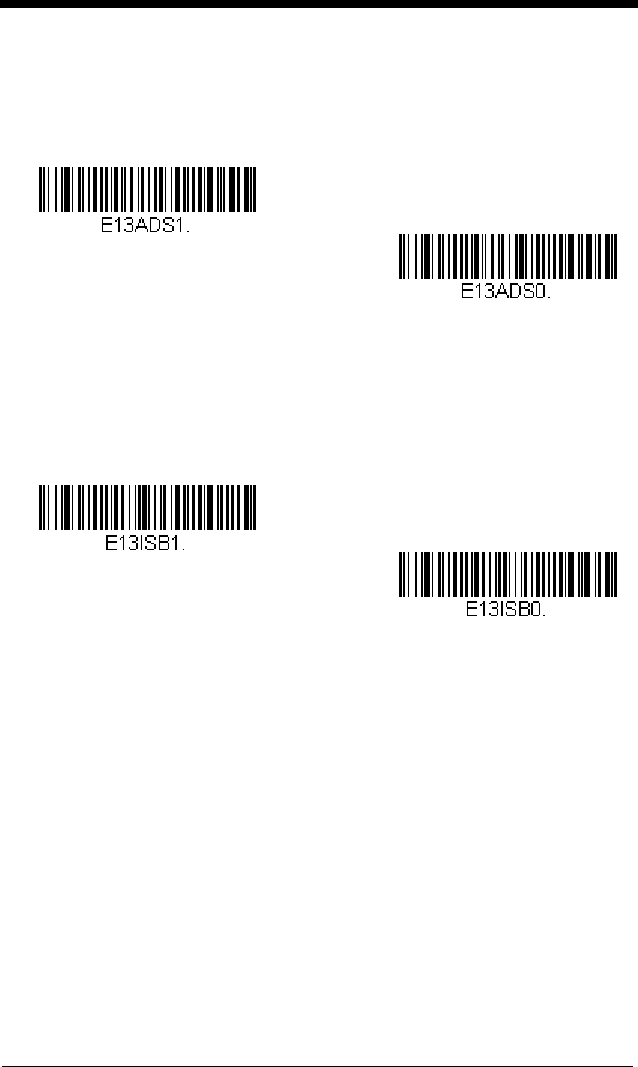

EAN/JAN-13.............................................................. 7-29
ISBN Translate.................................................... 7-31
EAN/JAN-8................................................................ 7-32

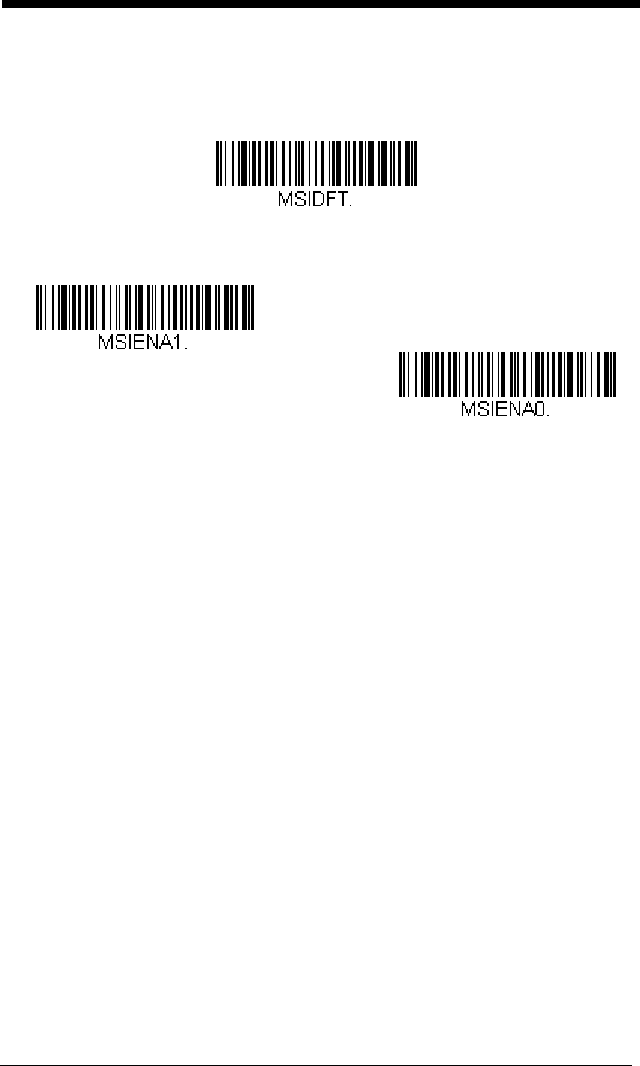

MSI............................................................................ 7-34
GS1 DataBar Omnidirectional................................... 7-36
GS1 DataBar Limited ................................................ 7-36
GS1 DataBar Expanded............................................ 7-37
Trioptic Code............................................................. 7-38
Codablock A.............................................................. 7-38
Codablock F .............................................................. 7-40
PDF417 ..................................................................... 7-41
MicroPDF417 ............................................................ 7-42
GS1 Composite Codes ............................................. 7-43
UPC/EAN Version ............................................... 7-43
GS1 Emulation .......................................................... 7-44

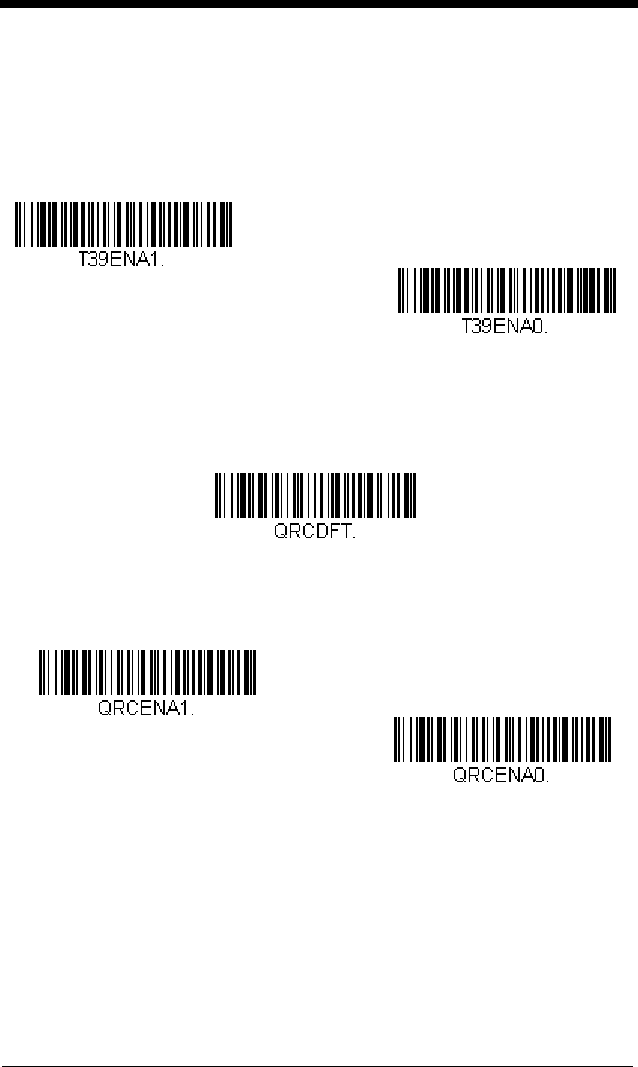

TCIF Linked Code 39 (TLC39).................................. 7-45
QR Code ................................................................... 7-45
Data Matrix................................................................ 7-47
MaxiCode .................................................................. 7-48
Aztec Code................................................................ 7-49
Chinese Sensible (Han Xin) Code ............................ 7-50
Postal Codes - 2D ..................................................... 7-51
Preliminary Draft
viii
Single 2D Postal Codes:......................................7-51
Combination 2D Postal Codes:............................7-52
Postal Codes - Linear ................................................7-54
China Post (Hong Kong 2 of 5)............................7-54
Korea Post ...........................................................7-56
Chapter 8 - Imaging Commands
Single-Use Basis .........................................................8-1
Command Syntax ........................................................8-1
Image Snap - IMGSNP................................................8-2
IMGSNP Modifiers .................................................8-2
Image Ship - IMGSHP .................................................8-5
IMGSHP Modifiers .................................................8-5

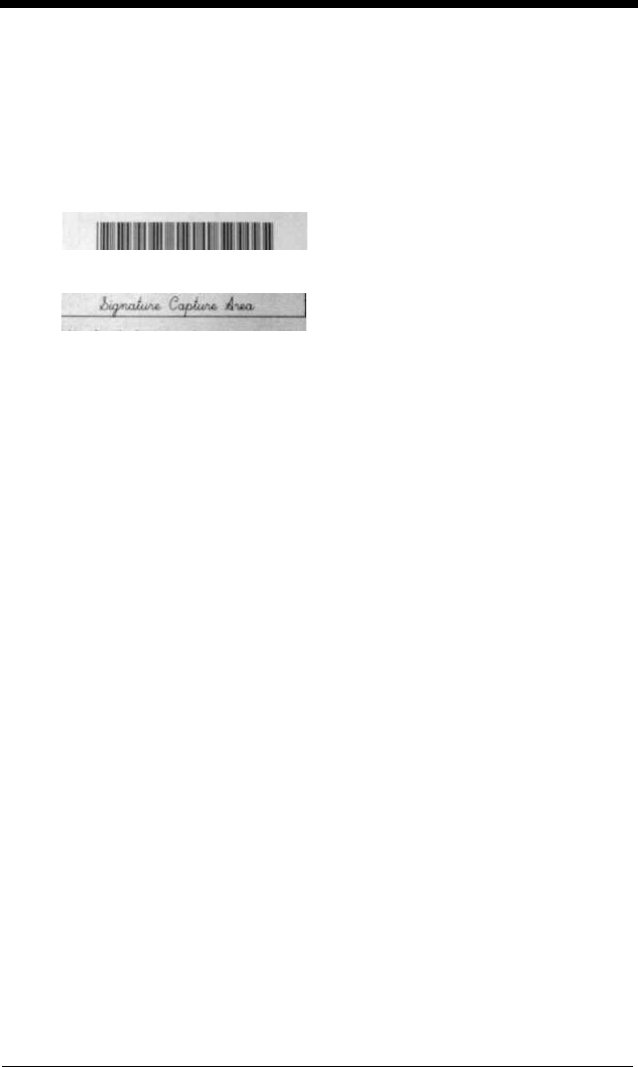

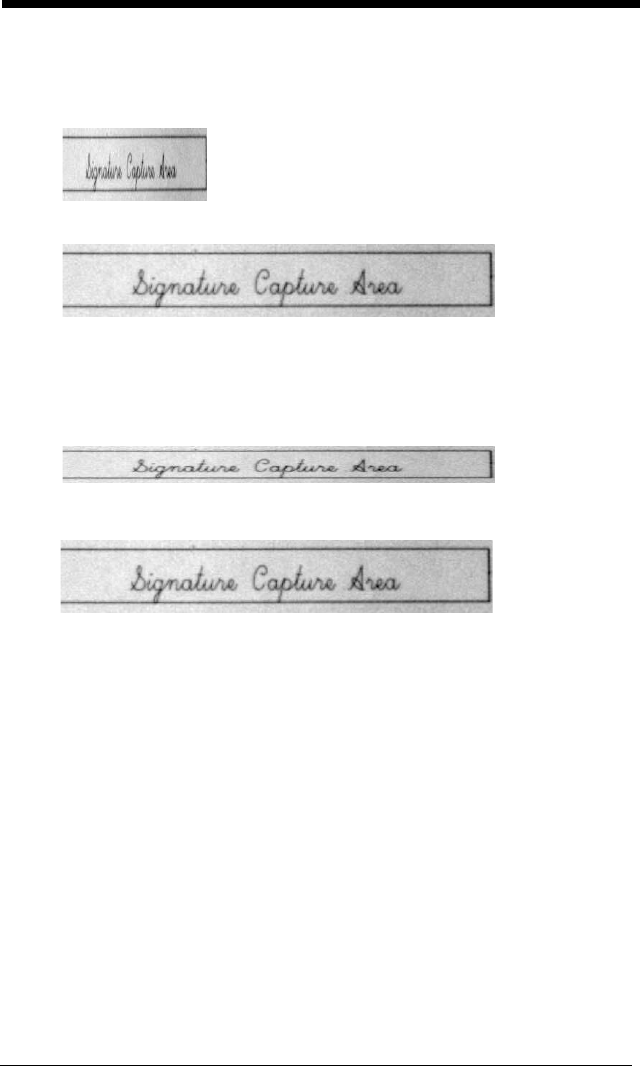

Intelligent Signature Capture - IMGBOX....................8-14
Signature Capture Optimize ................................8-14
IMGBOX Modifiers...............................................8-15
RF Default Imaging Device........................................8-19
Chapter 9 - Interface Keys
Keyboard Function Relationships................................9-1
Supported Interface Keys ............................................9-3
Chapter 10 - Utilities
To Add a Test Code I.D. Prefix to All Symbologies ...10-1
Show Decoder Revision ............................................10-1
Show Scan Driver Revision .......................................10-1
Show Software Revision............................................10-1
Show Data Format.....................................................10-2
Test Menu..................................................................10-2
TotalFreedom ............................................................10-2

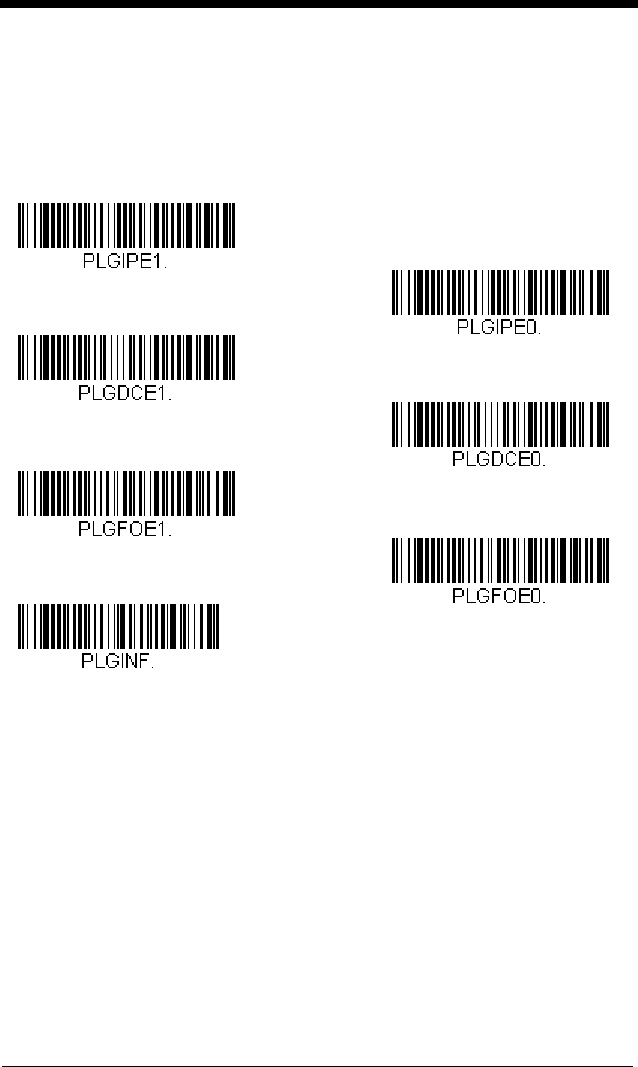

Application Plug-Ins (Apps) .......................................10-3
EZConfig Introduction................................................10-3
Installing EZConfig from the Web ........................10-4
Preliminary Draft
ix
Chapter 11 - Serial Programming Commands
Conventions .............................................................. 11-1
Menu Command Syntax............................................ 11-1
Query Commands ..................................................... 11-2
Responses .......................................................... 11-3
Trigger Commands ................................................... 11-4
Resetting the Standard Product Defaults.................. 11-4
Menu Commands...................................................... 11-5
Chapter 12 - Product Specifications
1900 Scanner Product Specifications ....................... 12-1
1902 Scanner Product Specifications ....................... 12-2
CCB01-010BT Charge Base Product Specifications 12-3
Standard Cable Pinouts ............................................ 12-4
Keyboard Wedge................................................. 12-4
Serial Output ...................................................... 12-5
RS485 Output ..................................................... 12-6
USB..................................................................... 12-7
Chapter 13 - Maintenance
Repairs...................................................................... 13-1
Maintenance.............................................................. 13-1
Cleaning the Device ............................................ 13-1
Inspecting Cords and Connectors....................... 13-1
Replacing Cables in Corded Scanners ..................... 13-1
Replacing an Interface Cable.............................. 13-2
Replacing Cables and Batteries
in Cordless Systems ............................................... 13-2
Replacing an Interface Cable in a Base.............. 13-2
Changing a scanner Battery................................ 13-3
Troubleshooting a Xenon Scanner............................ 13-3
Troubleshooting a Cordless System ......................... 13-4
Troubleshooting a Base ...................................... 13-4
Troubleshooting a Cordless Scanner.................. 13-5
Preliminary Draft
x
Chapter 14 - Customer Support
Appendix A - Reference Charts
Symbology Chart ........................................................ A-1
ASCII Conversion Chart (Code Page 1252)............... A-4
Code Page Mapping of Printed Barcodes .................. A-6
Preliminary Draft
1 - 1
1
Getting Started
About This Manual
This User’s Guide provides installation and programming instructions for the
Xenon™ 1900 and 1902 area-imaging scanners. Product specifications,
dimensions, warranty, and customer support information are also included.
Honeywell bar code scanners are factory programmed for the most common
terminal and communications settings. If you need to change these settings,
programming is accomplished by scanning the bar codes in this guide.
An asterisk (*) next to an option indicates the default setting.
Unpacking Your Device
After you open the shipping carton containing the product, take the following
steps:
• Check for damage during shipment. Report damage immediately to the
carrier who delivered the carton.
• Make sure the items in the carton match your order.
• Save the shipping container for later storage or shipping.
Preliminary Draft
1 - 2
Connecting the Device
Connecting with USB
A scanner or a cordless base can be connected to the USB port of a com-
puter.
1. Connect the appropriate interface cable to the device first, then to the
computer.
Preliminary Draft
1 - 3
2. Make sure the cables are secured in the wireways in the bottom of the
cordless base and that the base sits flat on a horizontal surface.
3. The scanner beeps.
4. Verify the scanner or cordless base operation by scanning a bar code
from the Sample Symbols in the back of this manual.
The unit defaults to a USB PC Keyboard. Refer to page 2-4 for other USB
terminal settings.
For additional USB programming and technical information, refer to “USB
Application Note,” available at www.honeywellaidc.com.
Connecting with Keyboard Wedge
A scanner or cordless base can be connected between the keyboard and
PC as a “keyboard wedge,” plugged into the serial port, or connected to a
portable data terminal in wand emulation or non decoded output mode.
The following is an example of a keyboard wedge connection:
1. Turn off power and disconnect the keyboard cable from the back of the
terminal/computer.
2. Connect the appropriate interface cable to the device and to the
terminal/computer.
Preliminary Draft
1 - 4
3. Make sure the cables are secured in the wireways in the bottom of the
cordless base and that the base sits flat on a horizontal surface.
4. Turn the terminal/computer power back on. The scanner beeps.
5. Verify the scanner or cordless base operation by scanning a bar code
from the Sample Symbols in the back of this manual. The scanner
beeps once.
The unit defaults to an IBM PC AT and compatibles keyboard wedge inter-
face with a USA keyboard. A carriage return (CR) suffix is added to bar
code data.
Preliminary Draft
1 - 5

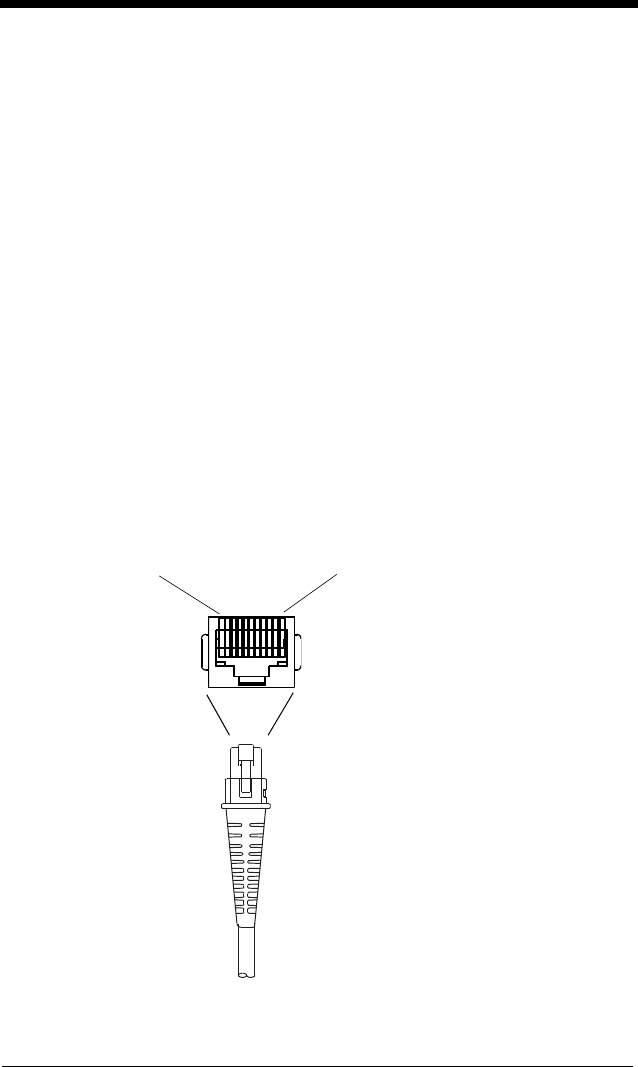

Connecting with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the scanner.
Note: For the scanner or cordless base to work properly, you must have the
correct cable for your type of terminal/computer.
Preliminary Draft
1 - 6
3. Make sure the cables are secured in the wireways in the bottom of the
cordless base and that the base sits flat on a horizontal surface.
4. Plug the serial connector into the serial port on your computer.
Tighten the two screws to secure the connector to the port.
5. Once the scanner or cordless base has been fully connected, power
up the computer.
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

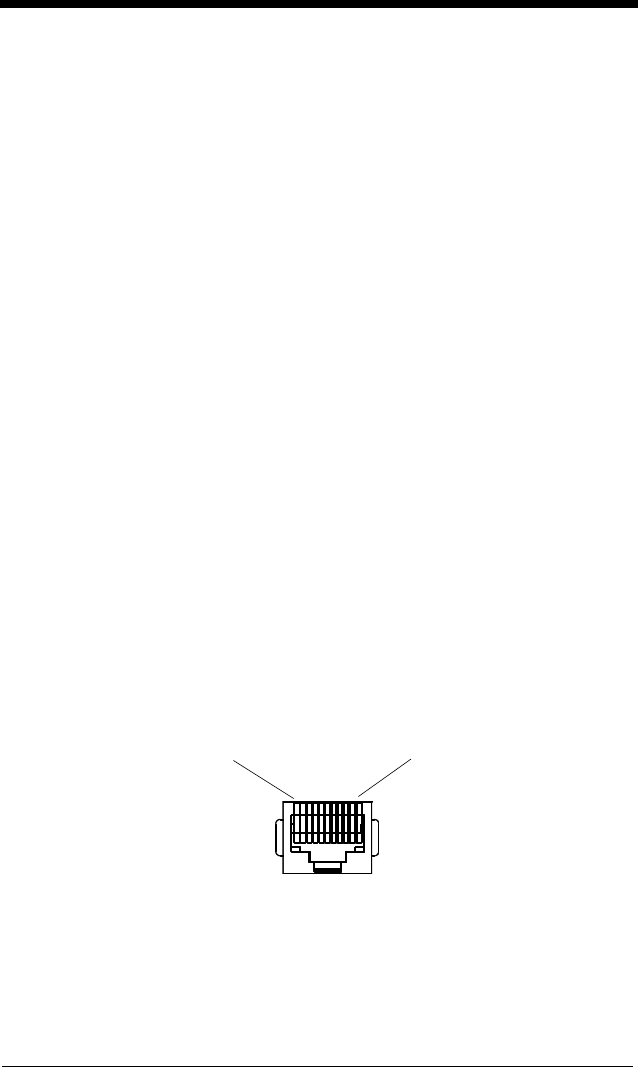

Connecting with RS485
A scanner or cordless base can be connected for an IBM POS terminal
interface
1. Connect the appropriate interface cable to the device, then to the com-
puter.
Preliminary Draft
1 - 7
2. Make sure the cables are secured in the wireways in the bottom of the
cordless base and that the base sits flat on a horizontal surface.
3. Turn the terminal/computer power back on. The scanner beeps.
4. Verify the scanner or cordless base operation by scanning a bar code
from the Sample Symbols in the back of this manual. The scanner
beeps once.
For further RS485 settings, refer to RS485, page 2-2..
Preliminary Draft
1 - 8

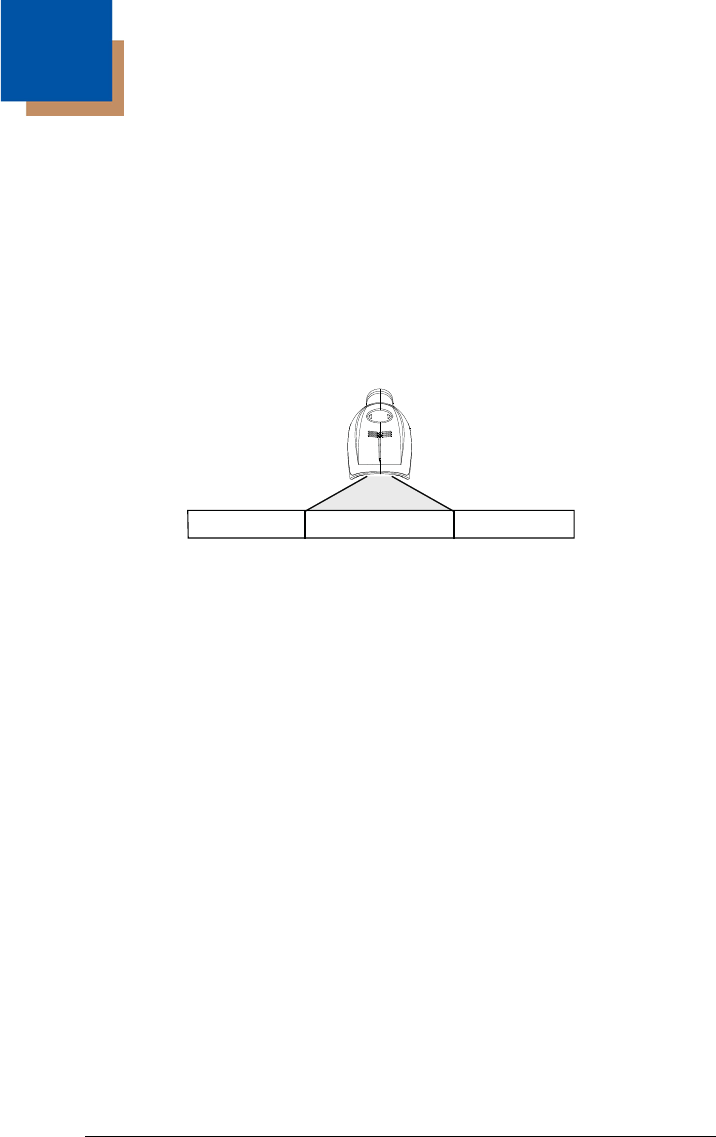

Reading Techniques
The scanner has a view finder that projects a bright red aiming beam that corre-
sponds to the scanner’s horizontal field of view. The aiming beam should be
centered over the bar code, but it can be positioned in any direction for a good
read.
The aiming beam is smaller when the scanner is closer to the code and larger
when it is farther from the code. Symbologies with smaller bars or elements
(mil size) should be read closer to the unit. Symbologies with larger bars or ele-
ments (mil size) should be read farther from the unit. To read single or multiple
symbols (on a page or on an object), hold the scanner at an appropriate dis-
tance from the target, pull the trigger, and center the aiming beam on the sym-
bol. If the code being scanned is highly reflective (e.g., laminated), it may be
necessary to tilt the code up 15° to 18° to prevent unwanted reflection.
Menu Bar Code Security Settings
Honeywell scanners are programmed by scanning menu bar codes or by send-
ing serial commands to the scanner. If you want to restrict the ability to scan
menu codes, you can use the Menu Bar Code Security settings. Please contact
the nearest technical support office (see Technical Assistance on page 14-1)
for further information.

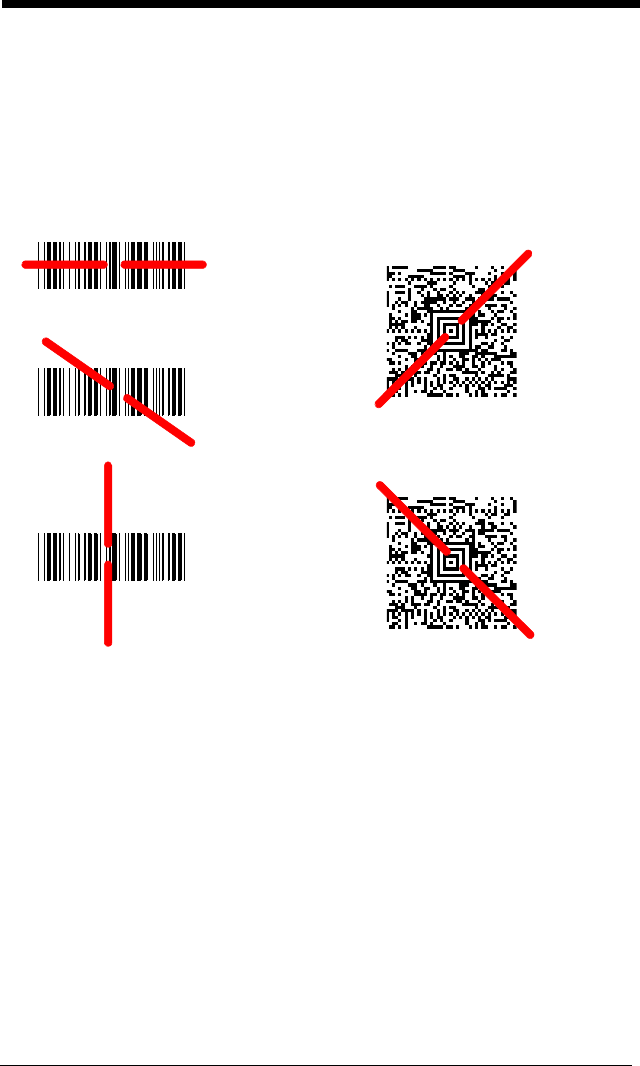

Linear bar code 2D Matrix symbol
Preliminary Draft
1 - 9
Resetting the Factory Defaults
If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want the factory default settings restored, first scan
the Restore Factory Defaults bar code, then scan Save Defaults. This resets
the scanner to the factory defaults.
Note: If using a cordless system, scanning the Save Defaults bar code also
causes both the scanner and the base to perform a reset and become
unlinked. The scanner must be placed in its base to re-establish the link
before any setup codes are entered. See Cordless System
Operation beginning on page 3-1 for additional information.
The Menu Commands, beginning on page 11-5 list the factory default settings
for each of the commands (indicated by an asterisk (*) on the programming
pages).
Setting Custom Defaults
You have the ability to create a set of menu commands as your own, custom
defaults. To do so, scan the Set Custom Defaults bar code below before each
menu command or sequence you want saved. If your command requires scan-
ning numeric codes from the back cover, then a Save code, that entire
sequence will be saved to your custom defaults. Scan the Set Custom
Defaults code again before the next command you want saved to your custom
defaults.
Restore Factory Defaults
Save Defaults
Preliminary Draft
1 - 10
When you have entered all the commands you want to save for your custom
defaults, scan the Save Custom Defaults bar code.
Note: If using a cordless system, scanning the Save Defaults bar code also
causes both the scanner and the base to perform a reset and become
unlinked. The scanner must be placed in its base to re-establish the link
before any setup codes are entered. See Cordless System
Operation beginning on page 3-1 for additional information.
You may have a series of custom settings and want to correct a single setting.
To do so, just scan the new setting to overwrite the old one. For example, if you
had previously saved the setting for Beeper Volume at Low to your custom
defaults, and decide you want ithe beeper volume set to High, just scan the Set
Custom Defaults bar code, then scan the Beeper Volume High menu code,
and then Save Custom Defaults. The rest of the custom defaults will remain,
but the beeper volume settiing will be updated.
Resetting the Custom Defaults
If you want the custom default settings restored to your scanner, scan the Cus-
tom Product Default Settings bar code below. This resets the scanner to the
custom defaults. If there are no custom defaults, it will reset the scanner to the
factory defaults. Any settings that have not been specified through the custom
defaults will be defaulted to the factory default settings.
Note: If using a cordless system, scanning this bar code also causes both the
scanner and the base to perform a reset and become unlinked. The
scanner must be placed in its base to re-establish the link. See Cordless
System Operation beginning on page 3-1 for additional information.
Save Custom Defaults
Set Custom Defaults
Custom Product Default Settings:
Current Application Group
Preliminary Draft
2 - 1
2
Programming the Interface
Introduction
This chapter describes how to program your system for the desired interface.
Programming the Interface - Plug and Play
Plug and Play bar codes provide instant scanner set up for commonly used
interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have
the interface in effect.
Keyboard Wedge
If you want your system programmed for an IBM PC AT and compatibles
keyboard wedge interface with a USA keyboard, scan the bar code below.
Keyboard wedge is the default interface.
Note: The following bar code also programs a carriage return (CR) suffix.
Laptop Direct Connect
For most laptops, scanning the Laptop Direct Connect bar code allows
operation of the scanner in parallel with the integral keyboard. The follow-
ing Laptop Direct Connect bar code also programs a carriage return (CR)
suffix and turns on Emulate External Keyboard (page 2-18).
IBM PC AT and Compatibles with
CR suffix
Laptop Direct Connect
with CR suffix
Preliminary Draft
2 - 2
RS232 Serial Port
The RS232 Interface bar code is used when connecting to the serial port
of a PC or terminal. The following RS232 Interface bar code also pro-
grams a carriage return (CR) and a line feed (LF) suffix, baud rate, and
data format as indicated below. It also changes the trigger mode to man-
ual.
RS485
Scan one of the following “Plug and Play” codes to program the scanner for
an IBM POS terminal interface.
Note: After scanning one of these codes, you must power cycle the cash
register.
Option Setting
Baud Rate 115,200 bps
Data Format 8 data bits, no parity bit, 1 stop bit
RS232 Interface
IBM Port 5B Interface
IBM Port 9B
HHBCR-1 Interface
IBM Port 17 Interface
IBM Port 9B
HHBCR-2 Interface
Preliminary Draft
2 - 3
Each bar code above also programs the following suffixes for each symbol-
ogy:
* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B
HHBCR-1, and IBM 4683 Port 17 Interfaces
**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface
RS485 Packet Mode
The following selection allows you to break up large bar code data into
smaller packets on an IBM POS terminal. To break up large bar codes into
small packets, scan the Packet Mode On bar code below. Scan the Packet
Mode Off bar code if you want large bar code data to be sent to the host in
a single chunk.
Default = Packet Mode Off.
RS485 Packet Length
If you are using Packet mode, you can specify the size of the data
“packet” that is sent to the host. Scan the Packet Length bar code,
then then the packet size (from 20 - 256) from the Programming Chart
inside the back cover of this manual, then Save.
Default = 40
.
Symbology Suffix Symbology Suffix
EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 * 00 0A 0B
UPC E 0A Code 128 ** 00 18 0B
Packet Mode On
* Packet Mode Off
Packet Length
Preliminary Draft
2 - 4
USB IBM SurePos
Scan one of the following “Plug and Play” codes to program the scanner for
an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop
scanner) interface.
Note: After scanning one of these codes, you must power cycle the cash
register.
Each bar code above also programs the following suffixes for each symbol-
ogy:
USB PC or Macintosh Keyboard
Scan one of the following codes to program the scanner for USB PC Key-
board or USB Macintosh Keyboard. Scanning these codes also adds a CR
and LF.
Symbology Suffix Symbology Suffix
EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 00 18 0B
UPC E 0A Code 39 00 0A 0B
USB IBM SurePos
(USB Handheld Scanner)
Interface
USB IBM SurePos
(USB Tabletop Scanner)
Interface
USB Keyboard (PC)
USB Keyboard (Mac)
USB Japanese Keyboard (PC)
Preliminary Draft
2 - 5
USB HID
Scan the following code to program the scanner for USB HID bar code
scanners.
USB Serial
Scan the following code to program the scanner to emulate a regular
RS232-based COM Port. If you are using a Microsoft® Windows® PC, you
will need to download a driver from the Honeywell website
(www.honeywellaidc.com). The driver will use the next available COM Port
number. Apple® Macintosh computers recognize the scanner as a USB
CDC class device and automatically uses a class driver.
Note: No extra configuration (e.g., baud rate) is necessary.
CTS/RTS Emulation
USB HID Bar Code Scanner
USB Serial
CTS/RTS Emulation On
* CTS/RTS Emulation Off
Preliminary Draft
2 - 6
ACK/NAK Mode
Verifone® Ruby Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Veri-
fone Ruby terminal. This bar code sets the baud rate to 1200 bps and the
data format to 8 data bits, no parity bit, 1 stop bit. It also also adds a line
feed (LF) suffix and programs the following prefixes for each symbology:
Symbology Prefix
UPC-A A
UPC-E A
EAN-8 FF
EAN-13 F
ACK/NAK Mode On
* ACK/NAK Mode Off
Verifone Ruby Settings
Preliminary Draft
2 - 7

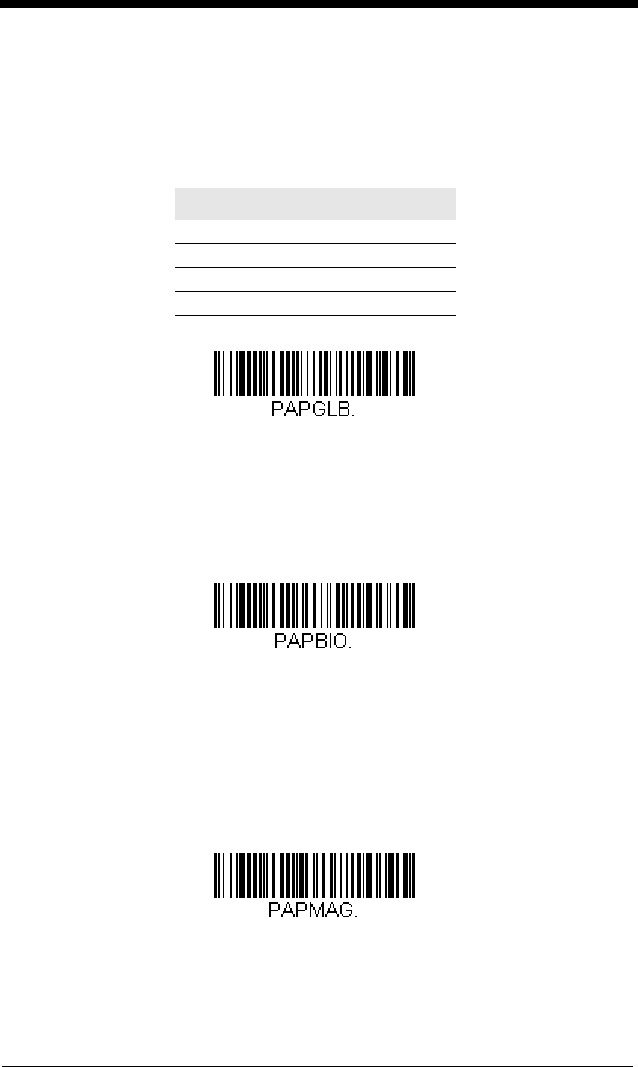

Gilbarco® Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Gil-
barco terminal. This bar code sets the baud rate to 2400 bps and the data
format to 7 data bits, even parity, 2 stop bits. It also also adds a carriage
return (CR) suffix and programs the following prefixes for each symbology:
Honeywell Bioptic Aux Port Configuration
Scan the following Plug and Play code to program the scanner for a Honey-
well bioptic scanner auxiliary port configuration. This bar code sets the
baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop
bit.
Datalogic™ Magellan
©
Bioptic
Aux Port Configuration
Scan the following Plug and Play code to program the scanner for a Data-
logic Magellan bioptic scanner auxiliary port configuration. This bar code
sets the baud rate to 9600 bps and the data format to 8 data bits, no parity,
1 stop bit.
Symbology Prefix
UPC-A A
UPC-E E0
EAN-8 FF
EAN-13 F
Gilbarco Settings
Honeywell Bioptic Settings
Datalogic Magellan Bioptic Settings
Preliminary Draft
2 - 8
NCR Bioptic Aux Port Configuration
Scan the following Plug and Play code to program the scanner for an NCR
bioptic scanner auxiliary port configuration. The following prefixes are pro-
grammed for each symbology:
Wincor Nixdorf Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Wincor
Nixdorf terminal. This bar code sets the baud rate to 9600 bps and the
data format to 8 data bits, no parity, 1 stop bit.
Symbology Prefix Symbology Prefix
UPC-A A Code 39 B1
UPC-E E0 Interleaved 2 of 5 B2
EAN-8 FF All other bar
codes
B3
EAN-13 F
NCR Bioptic Settings
Wincor Nixdorf Terminal Settings
Preliminary Draft
2 - 9
Wincor Nixdorf Beetle™ Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Wincor
Nixdorf Beetle terminal. The following prefixes are programmed for each
symbology:
Symbology Prefix Symbology Prefix
Code 128 K EAN-13 A
Code 93 L GS1-128 P
Codabar N Interleaved 2 of 5 I
UPC-A A0 Plessey O
UPC-E C Straight 2 of 5 IATA H
EAN-8 B All other bar codes M
Wincor Nixdorf Beetle Settings
Preliminary Draft
2 - 10
Keyboard Country Layout
Scan the appropriate country code below to program the keyboard layout for
your country or language. As a general rule, the following characters are sup-
ported, but need special care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~
* United States
United States (Dvorak left)
United States (International)
Albania
Azeri (Cyrillic)
Azeri (Latin)
Belarus
Belgium
United States (Dvorak)
United States (Dvorak right)
Bosnia
Brazil
Preliminary Draft
2 - 11

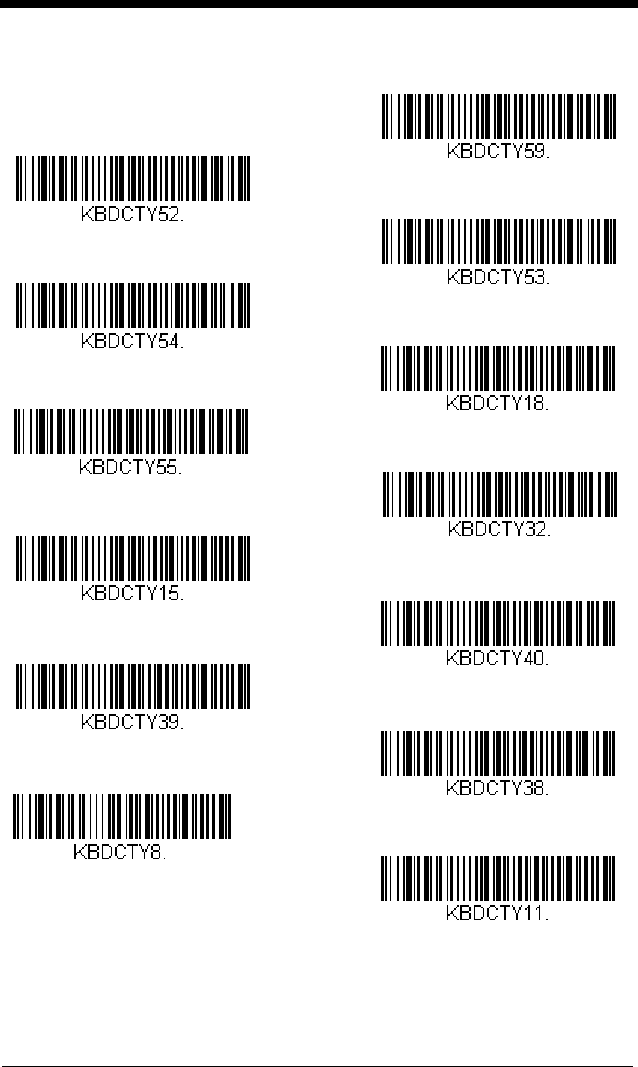

Keyboard Country (continued)
Bulgaria (Latin)
Canada (French)
Canada (Multilingual)
Croatia
Czech
Czech (Programmers)
Czech (QWERTY)
Czech (QWERTZ)
Bulgaria (Cyrillic)
Canada (French legacy)
Brazil (MS)
Denmark
Dutch (Netherlands)
Preliminary Draft
2 - 12

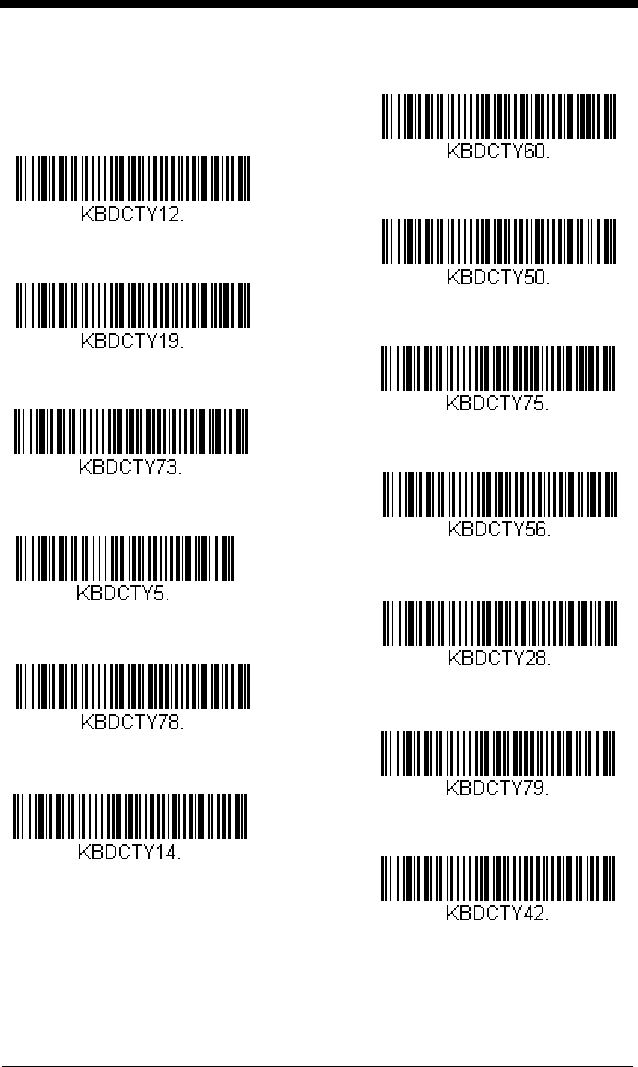

Keyboard Country (continued)
Finland
Gaelic
Germany
Greek
Greek (220 Latin)
Greek (220)
Greek (319 Latin)
Greek (319)
Faeroese
France
Estonia
Greek (Latin)
Greek (MS)
Preliminary Draft
2 - 13
Keyboard Country (continued)
Italian (142)
Hungarian (101 key)
Iceland
Irish
Italy
Japan ASCII
Kazakh
Kyrgyz (Cyrillic)
Hebrew
Hungary
Greek (Polytonic)
Latin America
Latvia
Preliminary Draft
2 - 14
Keyboard Country (continued)
Lithuania (IBM)
Malta
Mongolian (Cyrillic)
Norway
Poland
Polish (214)
Polish (Programmers)
Portugal
Lithuania
Macedonia
Latvia (QWERTY)
Romania
Russia
Preliminary Draft
2 - 15
Keyboard Country (continued)
SCS
Serbia (Latin)
Slovakia
Slovakia (QWERTY)
Slovakia (QWERTZ)
Slovenia
Spain
Spanish variation
Russian (Typewriter)
Serbia (Cyrillic)
Russian (MS)
Sweden
Switzerland (French)
Preliminary Draft
2 - 16
Keyboard Country (continued)
Refer to the Honeywell website (www.honeywell.com/aidc) for complete key-
board country support information and applicable interfaces. If you need to pro-
gram a keyboard for a country other than one listed above, scan the Program
Keyboard Country bar code below, then scan the numeric bar code(s) for the
Turkey F
Ukrainian
United Kingdom
United Stated (Dvorak right)
United States (Dvorak left)
United States (Dvorak)
United States (International)
Uzbek (Cyrillic)
Tatar
Turkey Q
Switzerland (German)
Preliminary Draft
2 - 17

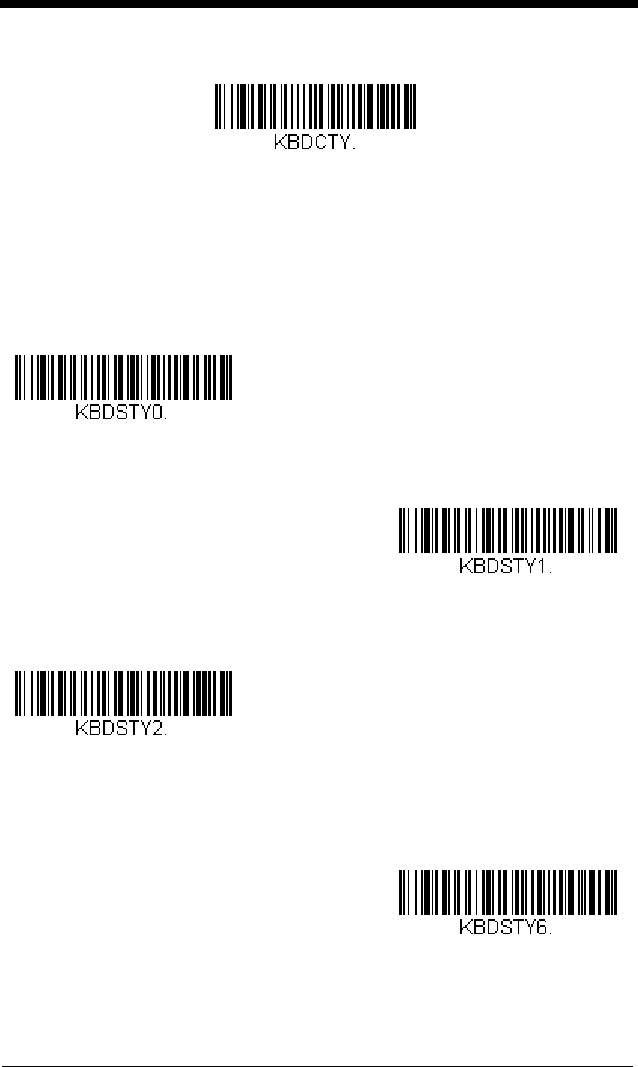

appropriate country from the inside back cover, then the Save bar code.
Keyboard Style
This programs keyboard styles, such as Caps Lock and Shift Lock. If you have
used Keyboard Conversion settings, they will override any of the following Key-
board Style settings.
Default = Regular.
Regular is used when you normally have the Caps Lock key off.
Caps Lock
is used when you normally have the Caps Lock key on.
Shift Lock
is used when you normally have the Shift Lock key on (not common
to U.S. keyboards).
Automatic Caps Lock is used if you change the Caps Lock key on and off.
The software tracks and reflects if you have Caps Lock on or off . This selection
can only be used with systems that have an LED that notes the Caps Lock sta-
tus (AT keyboards).
Program Keyboard Country
* Regular
Caps Lock
Shift Lock
Automatic Caps Lock
Preliminary Draft
2 - 18
Autocaps via NumLock
bar code should be scanned in countries (e.g., Ger-
many, France) where the Caps Lock key cannot be used to toggle Caps Lock.
The NumLock option works similarly to the regular Autocaps, but uses the Num-
Lock key to retrieve the current state of the Caps Lock.
Emulate External Keyboard should be scanned if you do not have an external
keyboard (IBM AT or equivalent).
Note: After scanning the Emulate External Keyboard bar code, you must power
cycle your computer.
Keyboard Conversion
Alphabetic keyboard characters can be forced to be all upper case or all lower-
case. So if you have the following bar code: “abc569GK,” you can make the
output “ABC569GK” by scanning Convert All Characters to Upper Case, or to
“abc569gk” by scanning Convert All Characters to Lower Case.
These settings override Keyboard Style selections.
Note: If your interface is a keyboard wedge, first scan the menu code for
Automatic Caps Lock (page 2-17). Otherwise, your ouput may not be as
expected.
Default = Keyboard Conversion Off
.
Autocaps via NumLock
Emulate External Keyboard
* Keyboard Conversion Off
Convert All Characters
to Upper Case
Convert All Characters
to Lower Case
Preliminary Draft
2 - 19
Control Character Output
This selection sends a text string instead of a control character. For example,
when the control character for a carriage return is expected, the output would
display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart
(Code Page 1252) on page A-4. Only codes 00 through 1F are converted (the
first column of the chart).
Note: Control + ASCII Mode overrides this mode.
Default = Off.
Keyboard Modifiers
This modifies special keyboard features, such as CTRL+ ASCII codes and
Turbo Mode.
Control + ASCII Mode On: The scanner sends key combinations for ASCII
control characters for values 00-1F. Windows is the preferred mode. All key-
board country codes are supported. DOS mode is a legacy mode, and it does
not support all keyboard country codes. New users should use the Windows
mode. Refer to Keyboard Function Relationships, page 9-1 for CTRL+ ASCII
Values.
Windows Mode Prefix/Suffix Off: The scanner sends key combinations for
ASCII control characters for values 00-1F, but it does not transmit any prefix or
suffix information.
Control Character Output On
* Control Character Output Off
Preliminary Draft
2 - 20
Default = Control + ASCII Mode Off.
Turbo Mode: The scanner sends characters to a terminal faster. If the termi-
nal drops characters, do not use Turbo Mode.
Default = Off
Numeric Keypad Mode: Sends numeric characters as if entered from a
numeric keypad.
Default = Off
Windows Mode Control + ASCII
Mode On
* Control + ASCII Mode Off
DOS Mode Control + ASCII Mode
On
Windows Mode Prefix/Suffix Off
Turbo Mode On
* Turbo Mode Off

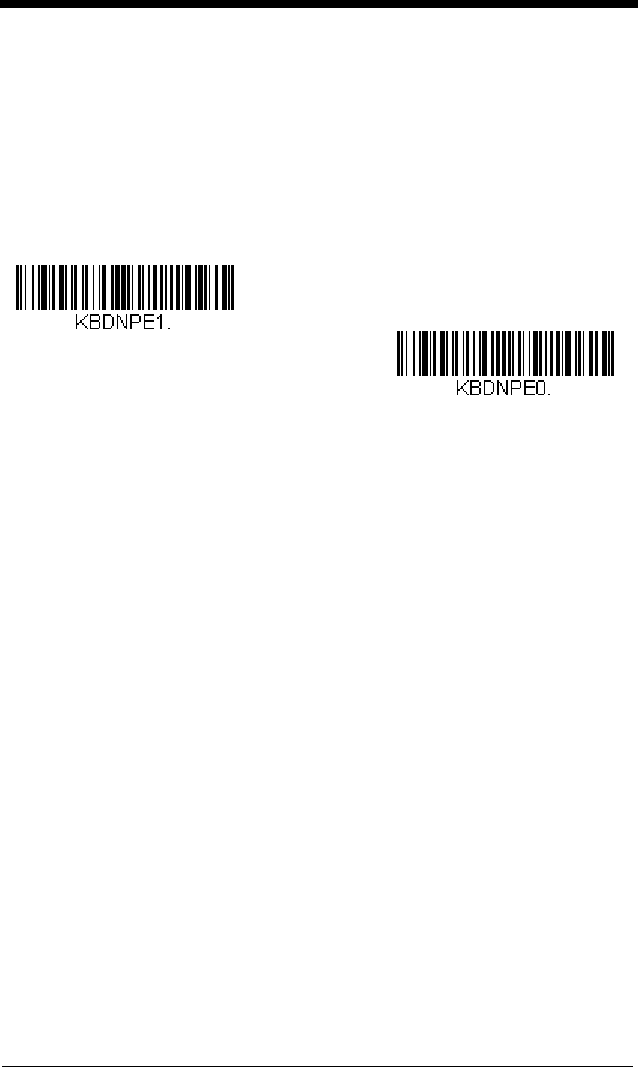

Numeric Keypad Mode On
* Numeric Keypad Mode Off
Preliminary Draft
2 - 21

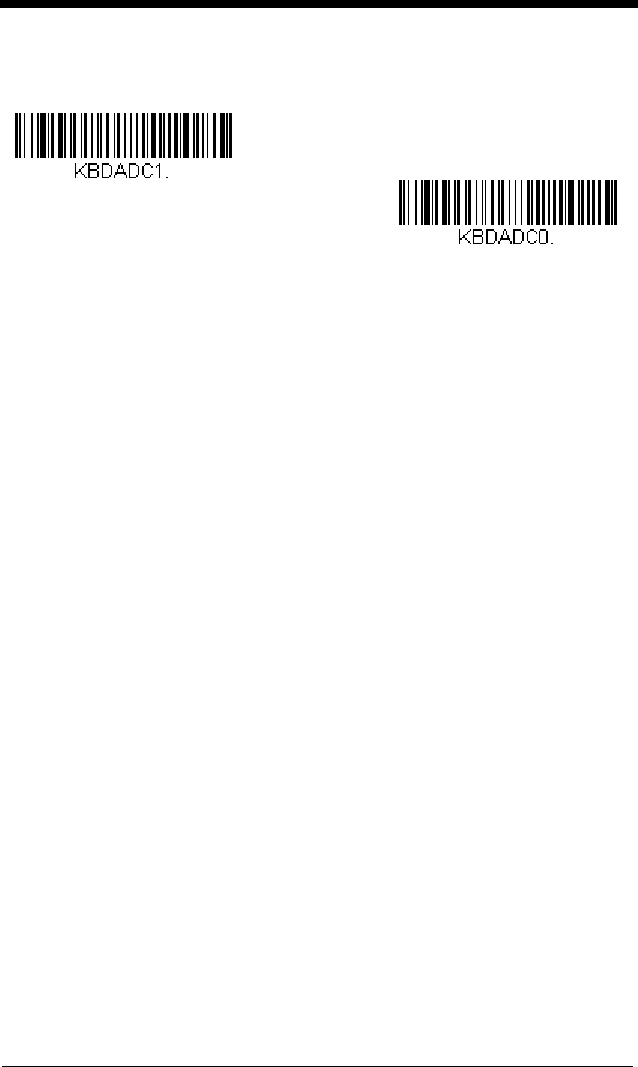

Automatic Direct Connect Mode: This selection can be used if you have an
IBM AT style terminal and the system is dropping characters.
Default = Off
Automatic Direct Connect Mode
On
* Automatic Direct Connect
Mode Off
Preliminary Draft
2 - 22
RS232 Baud Rate
Baud Rate sends the data from the scanner to the terminal at the specified rate.
The host terminal must be set for the same baud rate as the scanner.
Default =
9600.
300
2400
600
1200
4800
38400
* 9600
19200
115,200
57,600
Preliminary Draft
2 - 23
RS232 Word Length: Data Bits, Stop Bits,
and Parity
Data Bits sets the word length at 7 or 8 bits of data per character. If an applica-
tion requires only ASCII Hex characters 0 through 7F decimal (text, digits, and
punctuation), select 7 data bits. For applications that require use of the full
ASCII set, select 8 data bits per character.
Default = 8.
Stop Bits sets the stop bits at 1 or 2.
Default = 1.
Parity provides a means of checking character bit patterns for validity.
Default = None.
7 Data, 1 Stop, Parity Even
7 Data, 1 Stop, Parity None
7 Data, 1 Stop, Parity Odd
7 Data, 2 Stop, Parity Even
7 Data, 2 Stop Parity None
* 8 Data, 1 Stop, Parity None
8 Data, 1 Stop, Parity Even
7 Data, 2 Stop, Parity Odd
8 Data, 1 Stop, Parity Odd
Preliminary Draft
2 - 24

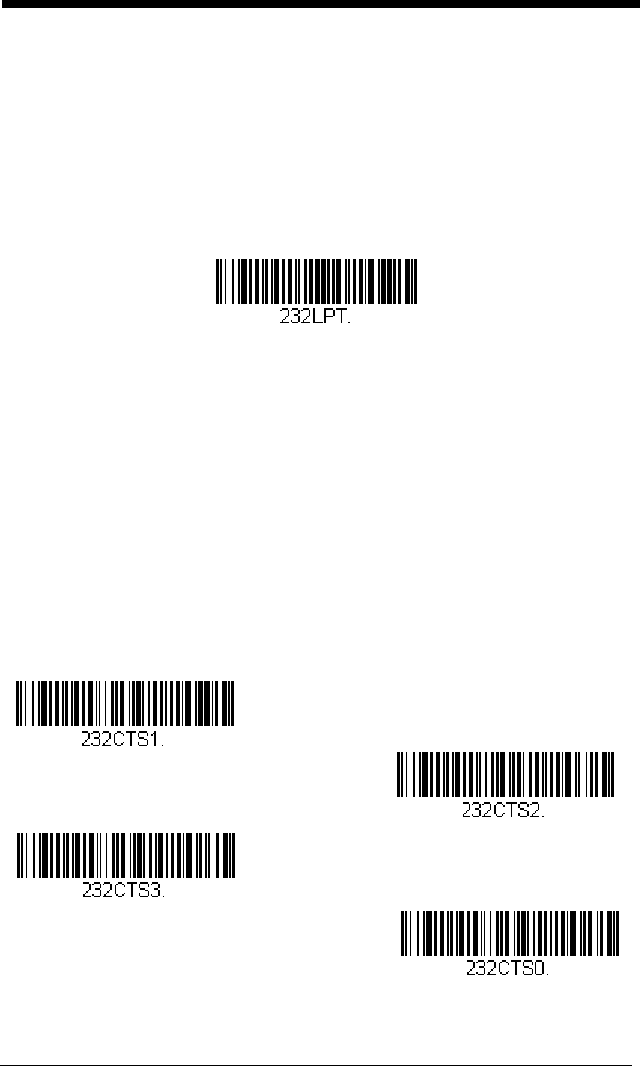

RS232 Receiver Time-Out
The unit stays awake to receive data until the RS232 Receiver Time-Out
expires. A manual or serial trigger resets the time-out. When an RS232
receiver is sleeping, a character may be sent to wake up the receiver and reset
the time-out. A transaction on the CTS line will also wake up the receiver. The
receiver takes 300 milliseconds to completely come up. Change the RS232
receiver time-out by scanning the bar code below, then scanning digits from the
inside back cover of this manual, then scanning Save. The range is 0 to 300
seconds.
Default = 0 seconds (no time-out - always on).
RS232 Handshaking
RS232 Handshaking allows control of data transmission from the scanner using
software commands from the host device. When RTS/CTS is turned Off, no
data flow control is used.
Flow Control, No Timeout: The scanner asserts RTS when it has data to
send, and will wait indefinitely for CTS to be asserted by the host.
Two-Direction Flow Control: The scanner asserts RTS when it is OK for the
host to transmit. The host asserts CTS when it is OK for the device to transmit.
Flow Control with Timeout: The scanner asserts RTS when it has data to
send and waits for a delay (see RS232 Timeout on page 2-25) for CTS to be
asserted by the host. If the delay time expires and CTS is not asserted, the
device transmit buffer is cleared and scanning may resume.
Default = RTS/CTS Off.
RS232 Receiver Time-Out
Flow Control, No Timeout
* RTS/CTS Off
Two-Direction Flow Control
Flow Control with Timeout
Preliminary Draft
2 - 25

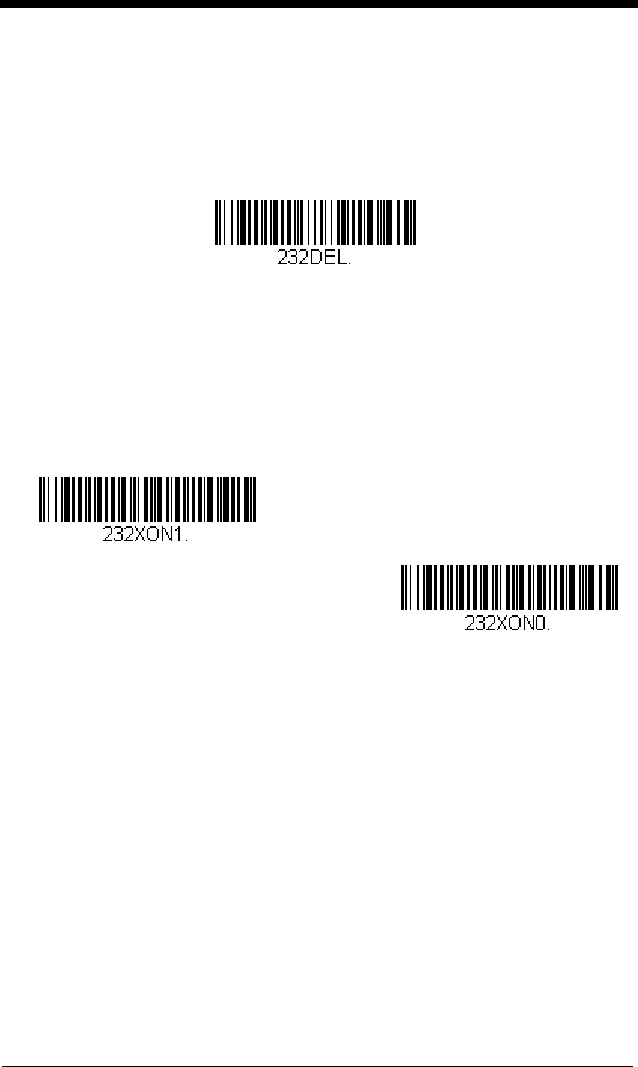

RS232 Timeout
When using Flow Control with Timeout, you must program the length of the
delay you want to wait for CTS from the host. Set the length (in millisec-
onds) for a timeout by scanning the bar code below, then setting the time-
out (from 1-5100 milliseconds) by scanning digits from the inside back
cover, then scanning Save.
XON/XOFF
Standard ASCII control characters can be used to tell the scanner to start
sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off).
When the host sends the XOFF character (DC3, hex 13) to the scanner,
data transmission stops. To resume transmission, the host sends the XON
character (DC1, hex 11). Data transmission continues where it left off
when XOFF was sent.
Default = XON/XOFF Off
.
ACK/NAK
After transmitting data, the scanner waits for an ACK character (hex 06) or
a NAK character (hex 15) response from the host. If ACK is received, the
communications cycle is completed and the scanner looks for more bar
codes. If NAK is received, the last set of bar code data is retransmitted and
RS232 Timeout
* XON/XOFF Off
XON/XOFF On
Preliminary Draft
2 - 26
the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by
scanning the ACK/NAK On bar code below. To turn off the protocol, scan
ACK/NAK Off.
Default = ACK/NAK Off
.
Scanner to Bioptic Communication
The following settings are used to set up communication between Honeywell
scanners and bioptic scanners.
Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout
must be set to 3000 in order to communicate with a bioptic scanner. See
RS232 Baud Rate on page 2-22, and RS232 Timeout on page 2-25 for
further information.
Scanner-Bioptic Packet Mode
Packet Mode On must be scanned to set the scanner’s format so it is com-
patible with a bioptic scanner.
Default = Packet Mode Off.

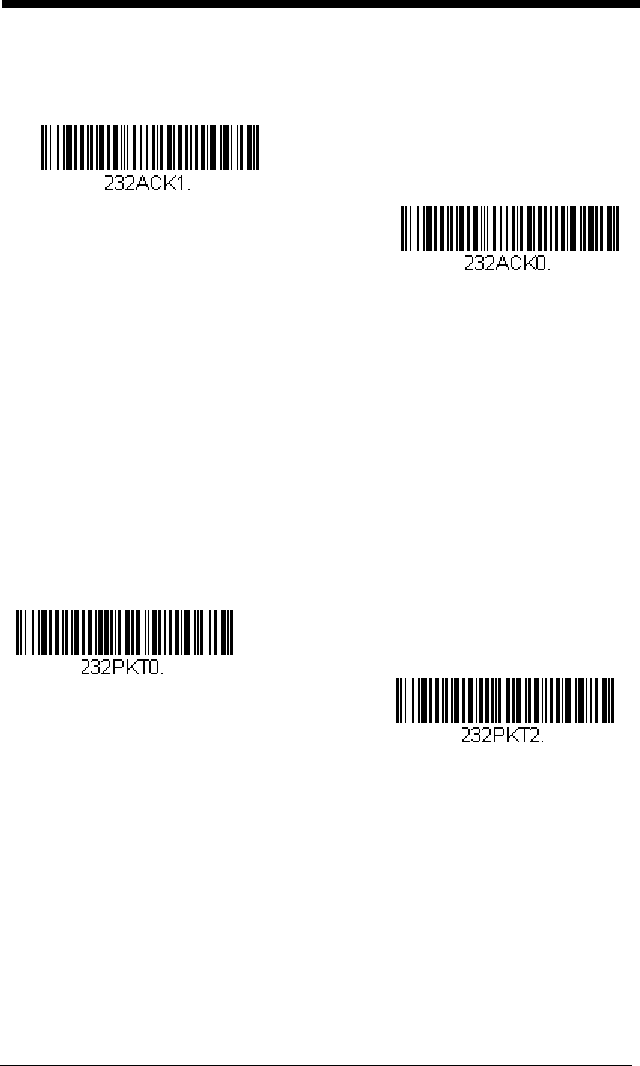

ACK/NAK On
* ACK/NAK Off
* Packet Mode Off
Packet Mode On
Preliminary Draft
2 - 27
Scanner-Bioptic ACK/NAK Mode
Bioptic ACK/Nak On must be scanned so the scanner will wait for an ACK
or NAK from a bioptic scanner after each packet is sent. The Scanner-
Bioptic ACK/NAK Timeout (below) controls how long the scanner will wait
for a response.
Default =
Bioptic ACK/NAK Off.
Scanner-Bioptic ACK/NAK Timeout
This allows you to set the length (in milliseconds) for a timeout for a bioptic
scanner’s ACK/NAK response. Scan the bar code below, then set the time-
out (from 1-30,000 milliseconds) by scanning digits from the inside back
cover, then scanning Save.
Default = 5100.
* Bioptic ACK/NAK Off
Bioptic ACK/NAK On
ACK/NAK Timeout
Preliminary Draft
2 - 28
Preliminary Draft
3 - 1
3
Cordless System Operation
Note: This chapter applies only to cordless scanning systems. It does not apply
to corded scanners.
How the Cordless Base Works
The cordless base provides the link between the cordless scanner and the host
system. The base contains an interface assembly and an RF communication
module. The RF communication module performs the data exchange between
the cordless scanner and the interface assembly. The control assembly coordi-
nates the central interface activities including: transmitting/receiving commands
and data to/from the host system, performing software activities (parameter
menuing, visual indicator support, power-on diagnostics), and data translation
required for the host system.
The base also is the scanner’s battery charger. Refer to Beeper and LED
Sequences and Meaning, page 3-5, for additional information.
Linking the Scanner to the Base
Turn off power before connecting the base, then power up the computer once
the base is fully connected. When the base is connected and powered up, put
the scanner in the base to establish a link. The green LED on the base flashes
to indicate the scanner’s battery is charging.
If the scanner and base have previously been linked, you do not receive any
feedback. If this is the first time that the scanner and base are linked, both
devices emit a short chirp when their radios link. At this point, that one scanner
is linked to one base.
To determine if your cordless system is set up correctly, scan one of the sample
bar codes in the back of this manual. If the scanner provides a single good read
beep and the green LED lights, the scanner has successfully linked to the base.
If you receive an error tone and the red LED lights, the scanner has not linked to
the base. Refer to page 13-5 for troubleshooting information.

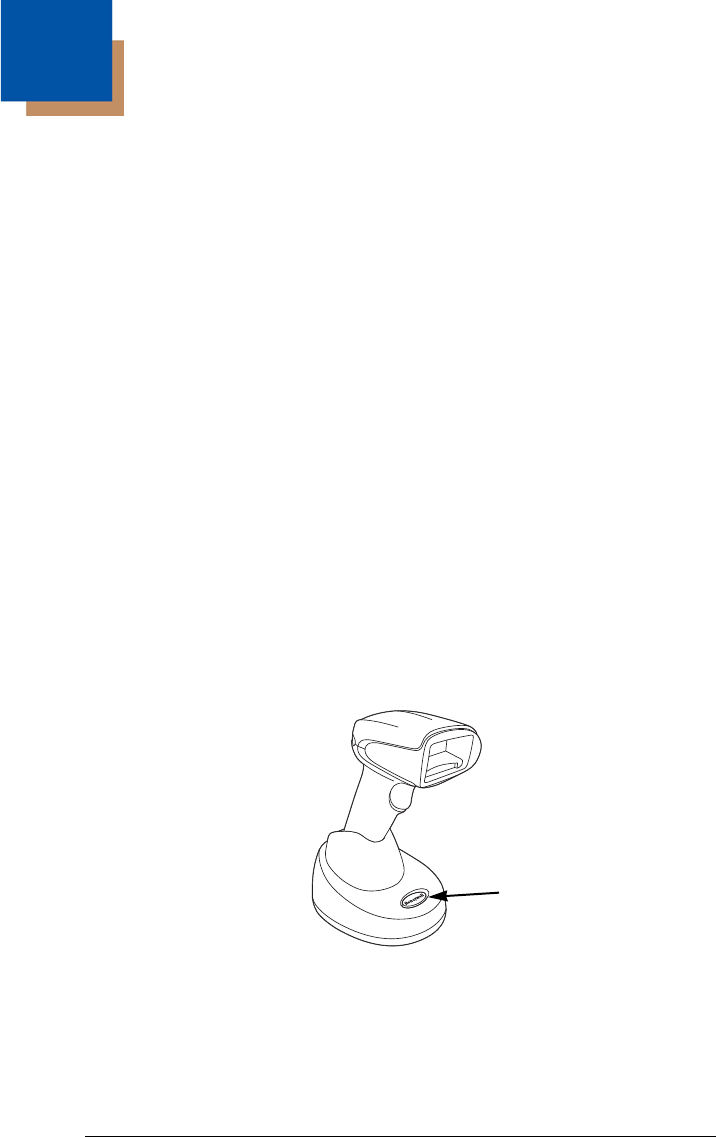

Scanner
CCB01-010BT
Charge Base
Page Button and
Base LEDs
Preliminary Draft
3 - 2
Communication Between the Cordless System
and the Host
The cordless scanner provides immediate feedback in the form of a “good read”
indication (a green LED on the scanner and an audible beep) after a bar code is
scanned correctly and the base has acknowledged receiving the data. This is
possible since the cordless system provides two-way communication between
the scanner and the base.
When data is scanned, the data is sent to the host system via the base unit.
The cordless scanner recognizes data acknowledgement (ACK) from the base
unit. If it cannot be determined that the data has been properly sent to the
base, the scanner issues an error indication. You must then check to see if the
scanned data was received by the host system.
RF (Radio Frequency) Module Operation
The cordless system uses a two-way Bluetooth® radio to transmit and receive
data between the scanner and the base. Designed for point-to-point and multi-
point-to-single point applications, the radio operates using a license free ISM
band, which sends relatively small data packets at a fast data rate over a radio
signal with randomly changing frequencies, makes the cordless system highly
responsive to a wide variety of data collection applications and resistant to
noisy RF environments. Bluetooth Class 2 power level provides a communica-
tion range of 33 feet (10m) between the scanner and base/Bluetooth adapter,
depending on the environment.
System Conditions
The components of the cordless system interact in specific ways as you associ-
ate a scanner to a base, as you move a scanner out of range, bring a scanner
back in range, or swap scanners between two cordless systems. The following
information explains the cordless system operating conditions.
3) Base sends data to host
1) Good Read
2) ACK from base
Preliminary Draft
3 - 3
Linking Process
Once a scanner is placed into the base, the scanner’s battery charge status
is checked, and software automatically detects the scanner and links it to
the base depending on the selected link mode.
Scanner Is Out of Range
The cordless scanner is in communication with its base, even when it is not
transmitting bar code data. Whenever the scanner can’t communicate with
the base for a few seconds, it is out of range. If the scanner is out of range
and you scan a bar code, the scanner issues an error tone indicating no
communication with the base. In addition, your scanner and base can
sound an alarm if programmed to emit an alarm. Refer to Out-of-Range
Alarm, page 3-12.
Scanner Is Moved Back Into Range
The scanner re-links if the scanner or the base have been reset or the
scanner comes back into range. If the scanner re-links, you will hear a sin-
gle chirp when the re-linking process (uploading of the parameter table) is
complete.
OutofRangeandBackintoRange
with Batch Mode On
The scanner may store a number of symbols (approximately 500 U.P.C.
symbols; others may vary) when out of range and then send them to the
base when back in range (see Batch Mode on page 3-14).
You will not hear a communication error tone in this mode, but you will hear
a short buzz when you pull the trigger if the radio communication is not
working. Once the radio connection is made, the scanner produces a
series of beeps while the data is being transferred to the base.
Page Button
When you press the Page button on the base, the scanners associated with
that base will begin beeping (3 short and 1 long beep). If you pull the trig-
ger on a scanner that is beeping in response, that scanner will stop beep-
ing. If you press the Page button on the base a second time, all associated
scanners will stop beeping. See Paging on page 3-8 for further information
about Page Button settings.
About the Battery
There is a danger of explosion if the batteries are incorrectly replaced.
Replace the batteries with only the same or equivalent type recom-
mended by the manufacturer. Dispose of used batteries according to
the recycle program for batteries as directed by the governing agency
for the country where the batteries are to be discarded.
!
Preliminary Draft
3 - 4
Power is supplied to the cordless scanner by a rechargeable battery that is inte-
grated in the scanner handle. Batteries are shipped approximately 30% to 60%
charged and should be fully charged for maximum charge capacity.
Charging Information
The battery is designed to charge while the scanner is positioned in the
cordless base unit. Refer to Base LED Sequences and Meaning, page 3-
6, for an interpretation of the Charge Status indicators.
Place the scanner in the base that is connected to an appropriate power
supply.
Note: If you are powering the base through the interface cable (for
example, a USB cable) and not using an external power supply
plugged into the aux port, the current available for charging is
reduced and charge times are increased.
Battery Recommendations
• The battery is a lithium ion cell and can be used without a full charge, and
can also be charged without fully discharging, without impacting the
battery life. There is no need to perform any charge/discharge
conditioning on this type of battery.
• Keep the base connected to power when the host is not in use.
• Replace a defective battery immediately since it could damage the
scanner.
• Although your battery can be recharged many times, it will eventually be
depleted. Replace it after the battery is unable to hold an adequate
charge.
• If you are not sure if the battery or charger is working properly, send it to
Honeywell International Inc. or an authorized service center for
inspection. Refer to Customer Support on page 14-1 for additional
information.
Safety Precautions for Lithium Batteries
• Do not place batteries in fire or heat the batteries.
• Do not store batteries near fire or other high temperature locations.
• Do not store or carry batteries together with metal objects.
• Do not expose batteries to water or allow the batteries to get wet.
• Do not connect (short) the positive and negative terminals, of the
batteries, to each other with any metal object.
• Do not pierce, strike, or step on batteries or subject batteries to strong
impacts or shocks.
• Do not disassemble or modify batteries.
Preliminary Draft
3 - 5
Proper Disposal of the Battery
When the battery has reached the end of its useful life,
the battery should be disposed of by a qualified recycler
or hazardous materials handler. Do not incinerate the
battery or dispose of the battery with general waste
materials. You may send the scanner’s battery to us.
(postage paid). The shipper is responsible for complying
with all federal, state, and local laws and regulations
related to the packing, labeling, manifesting, and ship-
ping of spent batteries. Contact the Product Service Department (page 14-
1) for recycling or disposal information. Since you may find that your cost
of returning the batteries significant, it may be more cost effective to locate
a local recycle/disposal company.
Beeper and LED Sequences and Meaning
The scanner contains LEDs on the top of the unit to indicate its power up, com-
munication, and battery status. Simply stated, red LED = error; green
LED = success of any type. The unit’s audible indicators have meaning as well:
1 razz or error tone = error; 2 beeps = menu change; 1 beep = all other suc-
cesses.
The table below lists the indication and cause of the LED illumination and beeps
for the scanner.
Preliminary Draft
3 - 6
Scanner LED Sequences and Meaning
Base LED Sequences and Meaning
The base contains a red LED that indicates the status of the unit and veri-
fies its communication with the host system and a green LED that indicates
scanner battery charge condition.
Note: Charging only occurs with external power applied to the charge base
or 12 volt host power.
The table below lists the indication and cause of the LED illumination and
beeps for the CCB01-010BT charge base.
LED Indication Beeper Indication Cause
Normal Operation
Red Flash None Battery low
Green Flash 1 beep Successful
communication or linking
Red, blinking Razz or error tone Failed communication
Menu Operation
Green Flash 2 beeps Successful menu change
Red, blinking Razz or error tone Unsuccessful menu
change
Charge Condition Charge Status Indicator (Green LED)
Scanner inserted into base Three flashes
>80% charged On continuously
30% to 80% charged Slow flash, 1 second on, 1 second off
<30% charged Fast flash, 300 mSec on, 300 mSec off
System Condition System Status Indicator (Red LED)
Power On/System Idle LED is on
Receiving Data (charge
base only)
Blink LED for short duration in multiple
pulses. Occurs while transferring data to/
from the RF module or the Host port.
Base requests status from
its own Bluetooth radio
Blink LED once (occurs approx. every 30
seconds)
Preliminary Draft
3 - 7
Base Power Communication Indicator
To display the power indicator on the base, scan the Base Power Commu-
nication Indicator On bar code. To turn off the power indicator, scan the Off
bar code.
Default =
On
.
Reset Scanner
Scanning this bar code causes the scanner to re-link with the base.
Scanning while in Base Cradle
If you want to be able to scan bar codes while the scanner is in the base cradle,
scan the Scanning in Cradle on bar code below. If you want to only allow scan-
ning when the scanner is out of the base cradle, scan Scanning in Cradle Off.
Default = Scanning in Cradle Off
.
* Base Power Communication
Indicator On
Base Power Communication
Indicator Off
Reset Scanner
* Scanning in Cradle Off
Scanning in Cradle On
Preliminary Draft
3 - 8
Paging
Paging Mode
By default, the paging button on the base pages the scanners associated
with that base. If you want the paging button on your base to be disabled,
scan the Paging Mode Off bar code, below. When Paging Mode is off, the
base will no longer page scanners when the button is pressed. The red
LED on the base will remain lit to indicate that Paging Mode is off. (This
light will go out when the button is pressed, then back on when it’s
released.)
Default = Paging Mode On.
Paging Pitch
When you press the Page button on the base, the scanners associated
with that base will begin beeping (see Page Button on page 3-3). You can
set the pitch of the paging beep for each scanner by scanning one of the
following bar codes.
Default = Low.
* Paging Mode On
Paging Mode Off
* Low (1000 Hz)
Medium (3250 Hz)
High (4200 Hz)
Preliminary Draft
3 - 9
Error Indicators
Beeper Pitch - Base Error
The base can be configured to beep at a particular pitch when an error
occurs, such as transmission problems to a host system. The beeper pitch
codes modify the pitch (frequency) of the error tone the base emits when
there is an error.
Default = Low.
Number of Beeps - Base Error
The number of beeps and LED flashes emitted by the base for an error
condition can be programmed from 1 - 9. For example, if you program this
option to have five error beeps, there will be five error beeps and five LED
flashes in response to an error. To change the number of error beeps, scan
the bar code below and then scan a digit (1-9) bar code and the Save bar
code on the Programming Chart inside the back cover of this manual.
Default = 1.
Scanner Report
Scan the bar code below to generate a report for the connected scanners. The
report indicates the port, work group, scanner name, and address. To assign a
name to your scanner, refer to Menu Command Syntax, page 11-1.
* Razz (250 Hz)
Medium (3250 Hz)
High (4200 Hz)
Number of Base Error Beeps/LED Flashes
Scanner Report
Preliminary Draft
3 - 10
Scanner Address
Scan the bar code below to determine the address of the scanner you are
using.
Base Address
Scan the bar code below to determine the address of the base you are using.
Single Scanner Modes
The Xenon is capable of working in single scanner mode, multiple scanner
mode, or with Bluetooth devices other than the CCB01-010BT charge base.
Charge Only Mode
There may be times when you want to charge your scanner, but not link to
the base. For example, if the scanner is linked to a Bluetooth device and
you need to charge the scanner, but want to retain your existing link. To do
so, scan the Charge Only Mode bar code. If you want to charge the scan-
ner and link to the base, scan Charge and Link Mode.
Default = Charge
and Link Mode.
Note: When in Charge Only Mode, the scanner periodically wakes up
and beeps. See "Power Up Beeper" on page 4-1 to change this
setting.
Note: If you have scanned Charge Only Mode, and then scan the
linking bar code on the base, the scanner will link to the base.
Scanner Address
Base Address
Charge Only Mode
* Charge and Link Mode
Preliminary Draft
3 - 11
Linked Modes
Locked Link Mode and Open Link Mode are the link modes that accommo-
date different applications. Scan the appropriate bar codes included in the
Open Link and Locked Link Mode explanations that follow to switch from
one mode to another.
Default = Open Link Mode
.
Locked Link Mode - Single Scanner
If you link a scanner to a base using the Locked Link Mode, other
scanners are blocked from being linked if they are inadvertently placed
into the base. If you do place a different scanner into the base, it will
charge the scanner, but the scanner will not be linked.
To use a different scanner, you need to unlink the original scanner by
scanning the Unlink Scanner bar code. (See Single Scanner
Modes, page 3-10.)
Open Link Mode - Single Scanner
When newly shipped or defaulted to factory settings, the base and
scanner are not linked. By placing a scanner into the base, they estab-
lish a link. Placing a different scanner into the base establishes a new
link and the old scanner is unlinked. Each time a scanner is placed
into the base, it becomes the linked scanner; the old scanner is
unlinked.
Unlinking the Scanner
If the base has a scanner linked to it, that scanner must be unlinked before a
new scanner can be linked. Once the previous scanner is unlinked, it will no
longer communicate with the base. To unlink a scanner from the base, scan the
Unlink Scanner bar code below.
Locked Link Mode
(Single Scanner)
* Open Link Mode
(Single Scanner)
Unlink Scanner
Preliminary Draft
3 - 12
Override Locked Scanner
If you need to replace a broken or lost scanner that is linked to a base,
scan the Override Locked Scanner bar code below with a new scanner
and place that scanner in the base. The locked link will be overridden; the
broken or lost scanner’s link with the base will be removed, and the new
scanner will be linked.
Out-of-Range Alarm
If your scanner is out range of the base, an alarm sounds from both your base
and scanner. The alarm stops when the scanner is moved closer to the base,
when the base connects to another scanner, or when the alarm duration
expires. To activate the alarm options for the scanner or the base and to set the
alarm duration, scan the appropriate bar code below and then set the time-out
duration (from 0-3000 seconds) by scanning digits on the Programming Chart
inside the back cover, then scanning Save.
Default = 0 sec (no alarm).
Note: If you are out of range when you scan a bar code, you will receive an error
tone even if you do not have the alarm set. You receive the error tone
since the data could not be communicated to the base or the host.
Alarm Sound Type
If you have set the out-of-range alarm enabled, you may change the alarm
type for the scanner or base by scanning the appropriate bar code below
and then scanning a digit (0-7) bar code and the Save bar code on the
Programming Chart inside the back cover of this manual.
Default = 0.
The sounds are as follows:
Setting Sound
0 3 long beeps, medium pitch
1 3 long beeps, high pitch
Override Locked Scanner
(Single Scanner)
Base Alarm Duration
Scanner Alarm Duration
Preliminary Draft
3 - 13
Flexible Power Management
If you are experiencing network performance issues, and suspect the scanner is
interfering with other devices, you can turn down the power output of the scan-
ner. This reduces the range between the scanner and the base as shown in the
following illustration:
Scan one of the bar codes below to set the scanner’s power output to Full
Power (100%) [2.5mW, 4dBm], Medium Power (35%) [.875mW, 0dBm],
Medium Low Power (5%) [.125mW, -9dBm], or Low Power (1%, .025mW,
-16dBm).
Default = Full Power.
2 4 short beeps, medium pitch
3 4 short beeps, high pitch
4 single chirps, medium pitch
5 2 chirps, then 1 chirp, medium pitch
6 single chirps, high pitch
7 2 chirps, then 1 chirp, high pitch
Setting Sound
Base Alarm Type
Scanner Alarm Type
F
u
l
l
P
o
w
e
r
R
e
d
u
c
e
d
P
o
w
e
r
1902
Scanner
802.11
LAN
Preliminary Draft
3 - 14
For the new power setting to take effect, the scanner and base must be reset.
See Reset Scanner and Base (page 3-14).
Reset Scanner and Base
Once the power level is set, you must scan the Reset Base bar code and
wait for the scanner to unlink and relink to the base. Once that is done,
scan the Reset Scanner bar code and wait for the base to unlink and relink
to the scanner.
Batch Mode
Batch mode is used to store bar code data when a scanner is out of range of its
base, or when performing inventory. The data is transmitted to the base once
the scanner is back in range or when the records are manually transmitted.
Note: Batch mode has limitations when using multiple scanners to one base. If
a cordless system is being used in "multiple link mode," where up to 7
scanners are to be connected to one base, some accumulated or batched
scans could be lost if scanners are constantly being moved in and out of
range.
Automatic Batch Mode stores bar code data when the scanner is out of range
of the base. The data is automatically transmitted to the base once the scanner
is back in range. When the scanner’s buffer space is full, any bar codes
scanned generate an error tone. In order to scan bar codes again, the scanner
must be moved back into range of the base so data can be transmitted.
* Full Power
Medium Power
Medium Low Power
Low Power
:*:RESET_.³
Reset Base
Reset Scanner
Preliminary Draft
3 - 15

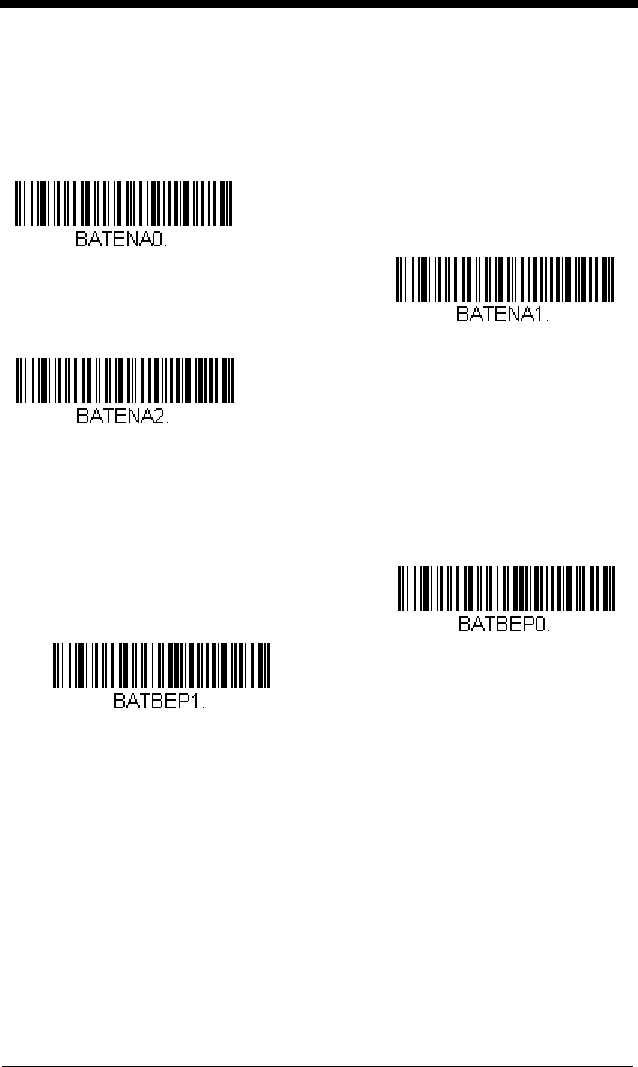

Inventory Batch Mode stores bar code data, whether or not you are in range of
the base. To transmit the stored data to the base, either place the scanner in
the base, or scan Transmit Inventory Records (page 3-19). When the scanner’s
buffer space is full, any bar codes scanned generate an error tone. In order to
scan bar codes again, the data must be transmitted to the base.
Default = Batch Mode Off.
Batch Mode Beep
Scan Batch Mode Beep On to program the scanner to beep when it enters
Batch Mode.
Default = Batch Mode Beep On.

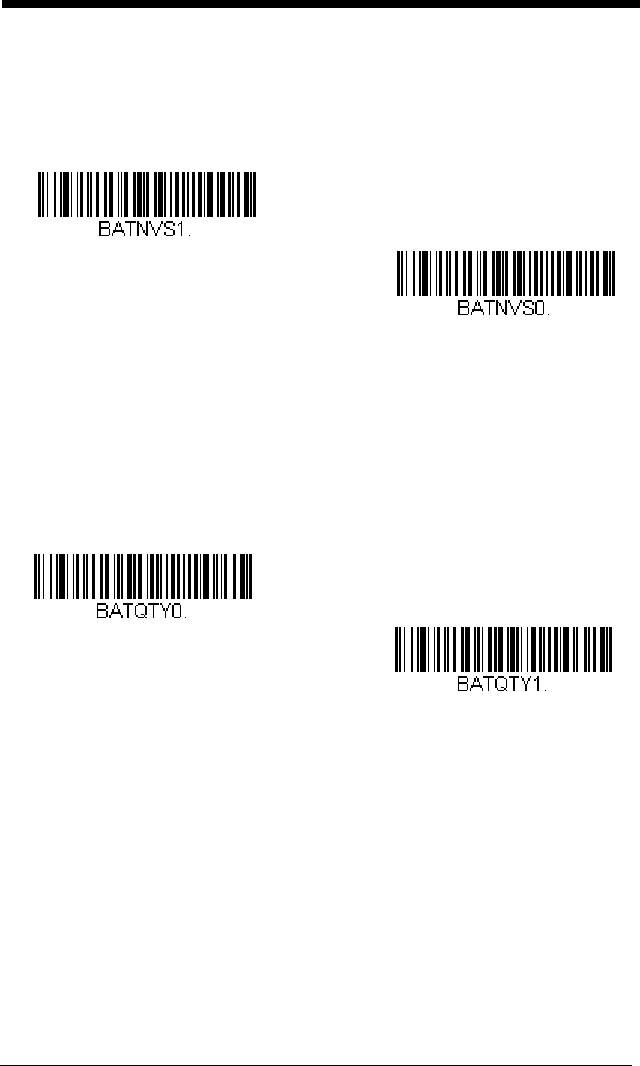

Batch Mode Storage
When a scanner is storing data during a Batch Mode process, you can
select whether the data is stored in Flash memory or in RAM.
Flash Storage: The scanner writes any untransmitted data to flash mem-
ory prior to powering down. The data will still be there when the scanner
powers back up. However, the scanner will power down, even with untrans-
mitted data, if it reaches a power down timeout or if the battery power is
very low.
Automatic Batch Mode
* Batch Mode Off
Inventory Batch Mode
* Batch Mode Beep On
Batch Mode Beep Off
Preliminary Draft
3 - 16
RAM Storage: The scanner will not power down while it contains data that
has not been transmitted to the base, even if it reaches a power down time-
out. However, if the scanner runs out of battery power, it will power down
and the data will be lost.
Default = Flash Storage.
Batch Mode Quantity
When in Batch Mode, you may wish to transmit the number of multiple bar
codes scanned, rather than a single bar code multiple times. For example,
if you scan three bar codes called XYZ with Batch Mode Quantity Off,
when you transmit your data it will appear as XYZ three times. Using
Batch Mode Quantity On and the Quantity Codes (page 3-17), you could
ouptut your data as “XYZ, 00003” instead.
Default = Batch Mode Quantity
Off.
Entering Quantities
Quantity Codes (page 3-17) allow you to enter a quantity for the last item
scanned, up to 9999 (default = 1). Quantity digits are shifted from right to
left, so if a 5th digit is scanned, the 1st digit scanned is discarded and the
2nd, 3rd and 4th digits are moved to the left to accommodate the new digit.
For example, if the Quantity 5 bar code is scanned after the quantity has
been set to 1234, then the 1 is dropped, the quantity will be 2345.
Example: Add a quantity of 5 for the last item scanned.
1. Scan the item's bar code.
2. Scan the quantity 5 bar code.
Example: Add a quantity of 1,500 for the last item scanned.
1. Scan the item's bar code.
RAM Storage
* Flash Storage
Batch Mode Quantity On
* Batch Mode Quantity Off
Preliminary Draft
3 - 17
2. Scan the quantity 1 bar code.
3. Scan the quantity 5 bar code.
4. Scan the quantity 0 bar code.
5. Scan the quantity 0 bar code.
Example: Change a quantity of 103 to 10.
To correct an incorrect quantity, scan the quantity 0 bar code to replace the
incorrect digits, then scan the correct quantity bar codes.
1. Scan the quantity 0 bar code to change the quantity to 1030.
2. Scan the quantity 0 bar code to change the quantity to 0300.
3. Scan the quantity 1 bar code to change the quantity to 3001.
4. Scan the quantity 0 bar code to change the quantity to 0010.
Default = 1.
Quantity Codes
1
0
3
2
4
6
5
7
Preliminary Draft
3 - 18
Quantity Codes (continued)
Batch Mode Output Order
When data is transmitted to the base, select whether you want that data
sent as FIFO (first-in first-out), or LIFO (last-in last-out).
Delete Last Code
If you are accumulating data in Batch Mode and want to delete the last bar
code scanned, scan Delete Last Code.
Clear All Codes
If you want to clear the scanner’s buffer of all data accumulated in Batch
Mode, scan Clear All Codes.
8
9
Batch Mode LIFO
Batch Mode FIFO
Delete Last Code
Clear All Codes
Preliminary Draft
3 - 19
Transmit Records to Host
If you are operating in Inventory Batch Mode (see Inventory Batch Mode on
page 3-15), you must scan the following bar code to transmit all the stored
data to the host system.
Batch Mode Transmit Delay
Sometimes when accumulated scans are sent to the host system, the
transmission of those scans is too fast for the application to process. To
program a transmit delay between accumulated scans, scan one of the fol-
lowing delays.
Default = Off.
Note: In most cases, a short (250 ms (milliseconds) delay is ideal; however,
longer delays may be programmed. Contact Technical Support
(page 14-3) for additional information.
Multiple Scanner Operation
Note: Multiple Scanner Operation Mode allows you to link up to 7 scanners to
one base. You cannot join an 8th scanner until you unlink one of the 7
scanners or take a scanner out of range.
Transmit Inventory Records
* Batch Mode Transmit Delay Off
(No Delay)
Batch Mode Transmit Delay Short
(250 ms)
Batch Mode Transmit Delay Medium
(500 ms)
Batch Mode Transmit Delay Long
(1000 ms)
Preliminary Draft
3 - 20
To put the scanner in multiple scanner mode, scan the bar code below. Once
you scan this bar code, the scanner is unlinked from the base and must be
placed into the base to re-link.
Scanner Name
You may assign a name to each scanner you are using. When you have multi-
ple scanners linked to one base, you may want to name each scanner so you
will be able to control the scanner receiving imaging commands sent from the
base.
The default name for a Xenon is “Xenon.” If you have more than one scanner
linked to a base, and they all have the default names, the first scanner linked to
the base receives commands. You can change the name of a scanner using a
serial command (refer to Scanner Name, page 11-15) or using a bar code com-
mand. To change the name serially, unlink all except one of the scanners from
the base. Send “:Xenon:BT_NAM
name
.”, where
name
is the new scanner
name. If you wish to change the names of additional scanners, re-link them one
at a time and repeat the “:Xenon:BT_NAM
name
.”
command for each scanner.
Multiple Scanner Operation
Preliminary Draft
3 - 21
To rename scanners with sequential, numeric names, scan the bar codes
below.
Scan the Reset code after each name change and wait for the scanner
to re-link to the base before scanning another bar code to rename the next
scanner.
Alternatively, you may change the name with a bar code command if you cannot
send serial commands to the base. One way to do this is to scan the bar code
below and scan a number for the scanner name. For example, if you had 7
scanners to one base, scan the bar code below with the first scanner, scan the
1 bar code on the Programming Chart inside the back cover of this manual and
scan Save. Then scan the Reset bar code and wait for the scanner to re-link to
the base before scanning the next bar code. Repeat that process for scanner
number 2, 3, 4, etc.
0001
0002
0003
0005
0007
0004
Reset
0006
Scanner Name
Preliminary Draft
3 - 22
If you want to assign an alphabetic name to the scanner, create a Code 128 bar
code containing “~BT_NAM
name
.” followed by a FNC3 character (hexidecimal
83), where
name
is the new scanner name. Scan the Reset bar code (page 3-
21 or on the Programming Chart inside the back cover of this manual).
Application Work Groups
Your cordless system can have up to 7 scanners linked to one base. You can
also have up to 7 work groups. If you want to have all of the scanners’ settings
programmed alike, you don’t need to use more than 1 work group. If you want
each scanner to have unique settings (e.g., beeper volume, prefix/suffix, data
formatter), then you may program each scanner to its own unique work group
and may program each scanner independently. For example, you might want to
have multiple work groups in a retail/warehouse application where you need to
have different data appended to bar codes used in the warehouse area versus
the retail area. You could assign all the scanners in the retail area to one work
group and those in the warehouse to another. Consequently, any desired
changes to either the retail or warehouse area would apply to all scanners in
that particular work group. EZConfig (page 10-2) makes it easy for you to pro-
gram your system for use with multiple scanners and multiple work groups.
The scanner keeps a copy of the menu settings it is using. Whenever the scan-
ner is connected or reconnected to a base, the scanner is updated with the lat-
est settings from the base for its work group. The scanner also receives menu
setting changes processed by the base. If a scanner is removed from one base
and placed into another base, it will be updated with the new base settings for
whatever work group that the scanner was previously assigned. For example, if
the scanner was in work group 1 linked to the first base, it will be placed in work
group 1 in the second base with the associated settings.
Preliminary Draft
3 - 23
Application Work Group Selection
This programming selection allows you to assign a scanner to a work group
by scanning the bar code below. You may then program the settings (e.g.,
beeper volume, prefix/suffix, data formatter) that your application requires.
Default = Group 0.

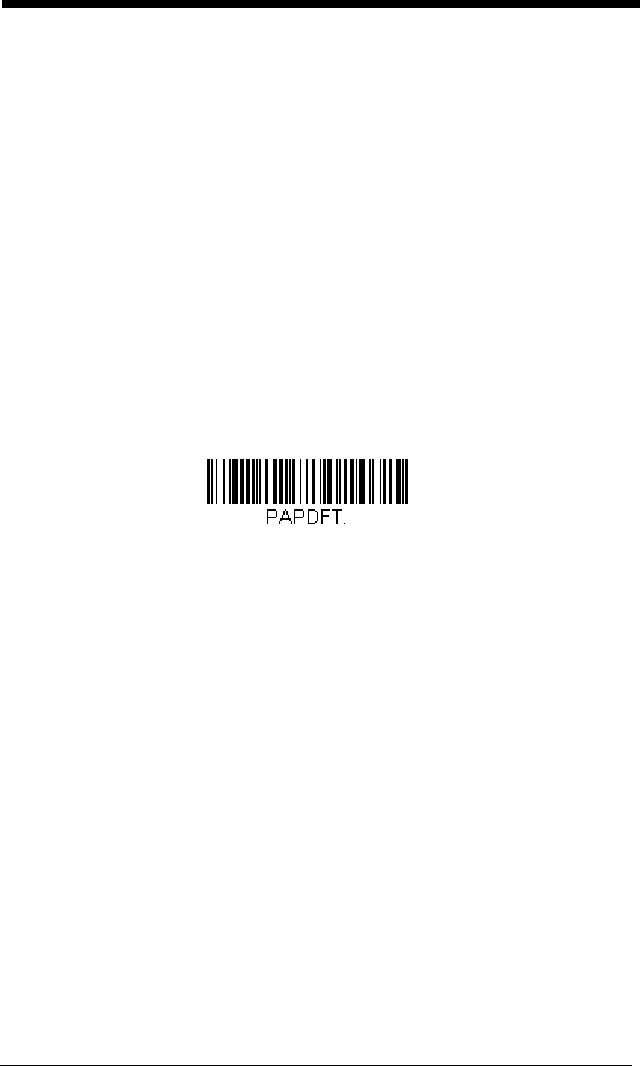

Resetting the Factory Defaults:
All Application Work Groups
The following bar code defaults all of the work groups to the factory default set-
tings.
* Group 0
Group 1
Group 2
Group 4
Group 6
Group 5
Group 3
Factory Default Settings:
All Work Groups
PAPDFT&
Preliminary Draft
3 - 24
To see what the factory default settings are, refer to the table of Menu
Commands, beginning on page 11-5. The standard product default settings for
each of the commands are indicated by an asterisk (*).
Note: Scanning this bar code also causes both the scanner and the base to
perform a reset and become unlinked. The scanner must be placed in its
base to re-establish the link. Refer to Single Scanner Modes, page 3-10
for additional information.
If your scanner is in multiple scanner mode, you will hear up to 30
seconds of beeping while all scanners are re-linked to the base and the
settings are changed.

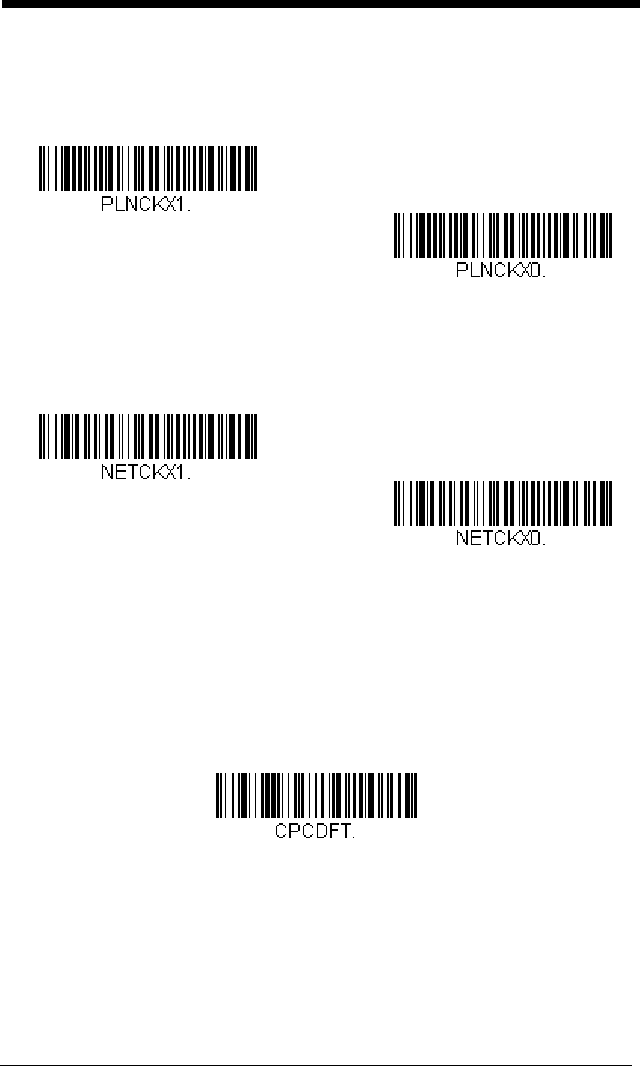

Resetting the Custom Defaults:
All Application Work Groups
If you want the custom default settings restored to all of the work groups, scan
the Custom Product Default Settings bar code below. (If there are no custom
defaults, it will reset the work groups to the factory defaults.) See Setting
Custom Defaults on page 1-9 for further information about custom defaults.
Note: Scanning this bar code also causes both the scanner and the base to
perform a reset and become unlinked. The scanner must be placed in its
base to re-establish the link. Refer to Single Scanner Modes, page 3-10
for additional information.
If your scanner is in multiple scanner mode, you will hear up to 30
seconds of beeping while all scanners are re-linked to the base and the
settings are changed.
Using the Scanner with Bluetooth Devices
The scanner can be used either with the CCB01-010BT charge base or with
other Bluetooth devices. Those devices include personal computers, laptops,
PDAs, and Honeywell mobility systems devices.
PCs/Laptops
Scanning the Non-Base BT Connection bar code below allows the scan-
ner to be used with other Bluetooth devices (e.g., PC/laptop). After you
scan the bar code below, follow the instructions supplied with your Blue-
tooth device to locate the scanner and connect to it. If you go out of range
Custom Default Settings:
All Work Groups
Preliminary Draft
3 - 25
with your scanner, the scanner will not reconnect to the Bluetooth device
when it is back in range. If you want to re-link to the charge base, refer to
Override Locked Scanner, page 3-12.
Note: The multiple work groups option is not available when you are using
the scanner with Bluetooth devices other than the charge base.

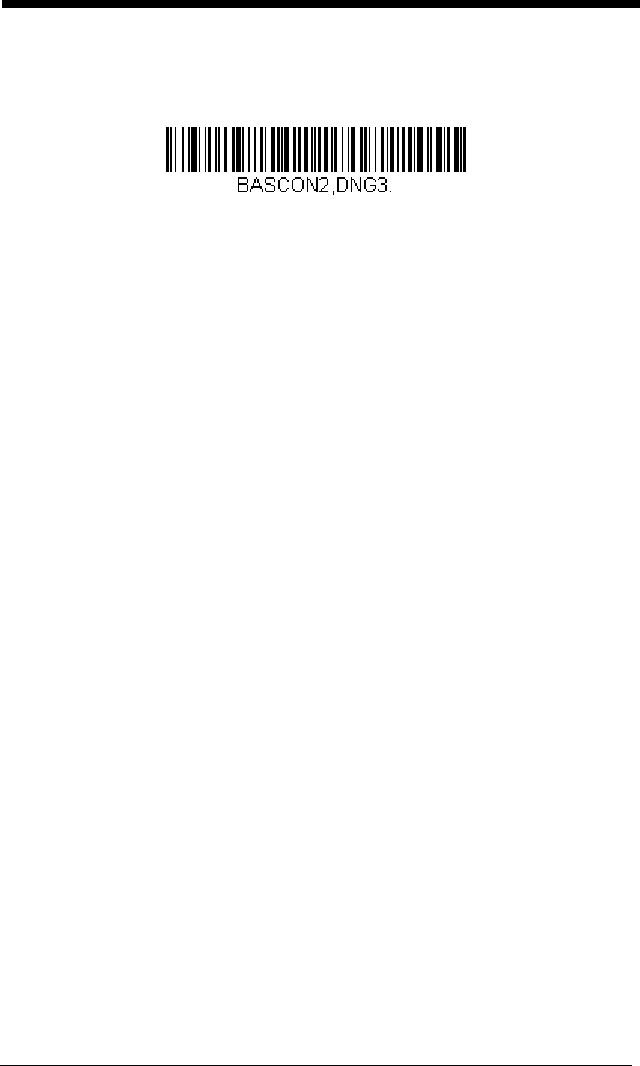

PDAs/Mobility Systems Devices
You may also use the scanner with a PDA or a Honeywell Mobility Systems
device. Scan the bar code below and follow the instructions supplied with
your Bluetooth device to locate the scanner, and connect with it.
Changing the Scanner’s Bluetooth PIN Code
Some devices require a PIN code as part of the Bluetooth security features.
Your scanner’s default PIN is 1234, which you may need to enter the first
time you connect to your PDA or PC. The PIN code must be between 1
and 16 characters. To change the PIN, scan the bar code below and then
scan the appropriate numeric bar codes from the Programming Chart
inside the back cover of this manual. Scan Save to save your selection.
Minimizing Bluetooth/ISM Band Network Activity
The settings described below can help you customize the re-linking behavior of
the cordless area-imaging system to obtain the best compromise between con-
venience and low interference.
Note: ISM band refers to the 2.4 to 2.48 GHz frequency band used by wireless
networks, cordless phones, and Bluetooth.
Non-Base BT Connection
BT Connection - PDA/Mobility Systems Device
Bluetooth PIN
Preliminary Draft
3 - 26
Auto Reconnect Mode
Auto Reconnect controls whether or not the scanner automatically begins
the re-link process when a loss of connection is detected. When the Auto
Reconnect On bar code is scanned, the scanner begins the re-link pro-
cess immediately, without user intervention.
Default = Auto Reconnect On.
Note: If you are connecting to a Bluetooth Interface Module, set Auto
Reconnect to Off.
The table below shows the results of the Auto Reconnect On and Off set-
tings:
Event Auto Reconnect On Auto Reconnect Off
Scanner out of
range
Re-link occurs
automatically. If
maximum number of link
attempts (see Maximum
Link Attempts on page
3-27) is unsuccessful,
then the trigger must be
pulled or the scanner
must be placed in the
base unit to re-link.
The trigger must be
pulled to initiate re-
linking.
Base reset
(firmware upgrade
or power cycle)
Scanner behaves as if
out of range.
No attempt to re-link
made while base unit
is powered off.
Trigger must be
pulled to initiate re-
linking.
Scanner power
down due to Power
Time-Out Timer
setting (see page 4-
7)
Trigger must be pulled or the scanner must be
placed in the base unit to re-link.
(Note: scanner re-links on power up, but powers
on due to one of the above actions.)
* Auto Reconnect On
Auto Reconnect Off
Preliminary Draft
3 - 27
Maximum Link Attempts
The Maximum Link Attempts setting controls the number of times the scan-
ner tries to form a connection with a base unit or PC. During the connec-
tion setup process, the scanner transmits in order to search for and
connect to a base unit. In order to prevent continuous transmissions that
could interfere with other users of the ISM band, the number of attempts to
connect is limited by this setting. After the maximum number of attempts is
reached, the scanner will not attempt to reconnect to the base unit. Press-
ing the trigger or placing the scanner in the cradle resets the attempt count
and the scanner will again try to link to the base unit. When set to zero, the
scanner will try to link until the Power Time-Out Timer setting (see page 4-
7) expires.
Scan the Maximum Link Attempts bar code, then scan the number of
attempts for the setting (from 0-100) from the inside back cover. Scan Save
to save the setting.
Default = 0.
Relink Time-Out
Relink Time-Out controls the idle time between re-link attempts. An
attempt to link a scanner to a base unit typically lasts up to 5 seconds. This
is the time when the scanner is actually attempting to contact base unit.
Relink Time-Out controls the amount of time, in seconds, that elapses
between the end of one connection attempt and the start of the next.
Note: The length of time for an attempt depends on the number of scanners
connected to a base unit. An extra 7 seconds may be required when
a connection is successful.
Scanner reset due
to firmware
upgrade
Re-link occurs automatically.
Scanner reset due
to battery change
Re-link occurs automatically.
Scanner placed in
different base unit
Re-link to new base occurs automatically.
Event Auto Reconnect On Auto Reconnect Off
Maximum Link Attempts
Preliminary Draft
3 - 28
Scan the Relink Time-Out bar code, then scan the number of seconds for
the setting (from 1-100) from the inside back cover. Scan Save to save the
setting.
Default = 3 seconds.
Bluetooth/ISM Network Activity Examples
Default values
When the scanner goes out of range, the scanner repeatedly attempts to
connect to base unit. Each attempt consists of approximately 5 seconds of
active time followed by 3 seconds of idle time. After one hour, the scanner
powers off and batch mode data is lost.
Maximum Link Attempts set to 15
Other values at default setting
When the scanner goes out of range, 15 attempts are made to link to the
base unit. Each attempt consists of approximately 5 seconds of active time
followed by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2
minutes, the scanner stops trying to connect to the base unit, but retains
any bar codes that may have been saved in batch mode. After one hour,
the scanner powers off and batch mode data is lost.
Auto Reconnect Mode set to 0
Maximum Link Attempts set to 15
Other values at default setting
When the scanner goes out of range, no action is taken to re-link. When
the trigger is pulled, 15 attempts are made to link to the base unit. Each
attempt consists of approximately 5 seconds of active time followed by 3
seconds of idle time. After 15 cycles (8*15 =120), or about 2 minutes, the
scanner stops trying to connect to the base unit, but retains any bar codes
that may have been saved in batch mode. After one hour, the scanner
powers off and batch mode data is lost. Refer to Auto Reconnect
Mode, page 3-26, to review other events that can start the re-link process.
Auto Reconnect Mode set to 1
Maximum Link Attempts set to 0
Relink Time-Out set to 10
Scanner Power Time-Out Timer set to 1800
Note: See Scanner Power Time-Out Timer on page 4-7.
The scanner attempts to connect to the base unit every 15 seconds, mea-
sured from start of attempt to start of attempt. After one half hour, the
scanner powers off.
Relink Time-Out
Preliminary Draft
3 - 29
Host Command Acknowledgment
Some applications require that the host terminal (or server) approve or reject
incoming bar code data and notify the operator of these actions. These applica-
tions require that the host maintain control over the response indicators emitted
from the scanner. Turning on Host ACK configures the scanner to respond to
commands from the host system.
Note: System performance degrades when using Host ACK at rates lower than
9600 baud.
The following criteria must be met for the Host ACK to work correctly:
• The cordless system must be configured for Host Port RS232 (terminal ID =
000) or USB COM Emulation (terminal ID = 130).
• RTS/CTS is defaulted off. You must enable it if the host system requires it.
• Host ACK must be set to On (page 3-30).
• The host terminal software must be capable of interpreting the bar code data,
make decisions based on the data content, and send out appropriate escape
commands to the scanner.
Escape commands are addressed to the scanner via “Application Work
Groups.” Once a command is sent, all scanners in a group respond to that com-
mand. Because of this situation, it is recommended that each scanner is
assigned to its own group in Host ACK mode.
The commands to which the scanner responds are listed on page 3-30. The
<ESC> is a 1B in hex. A typical command string is y <ESC> x, where “y” is the
application work group number, “<ESC> x” is the escape command, and the
comma is the terminator, which is required.
Commands may be strung together to create custom response sequences. An
example of a command string is listed below.
0<ESC>4<ESC>5<ESC>6,
The above example will make a scanner in application work group zero beep
low, then medium, then high.
Once Host ACK is enabled, the system works as follows:
• The scanner reads a code and sends data to the base/host system. No
audible or visual indication is emitted until the scanner receives an escape
command. The scanner read illumination goes out when there’s a successful
read.
• Scanner operation is suspended until 1) a valid escape string is received from
the host system (via the base) or 2) the scanner times out.
• Once condition 1 or 2 above has been met, the scanner is ready to scan
again, and the process repeats.
A time-out occurs if the scanner does not receive a valid escape command
within 10 seconds. A time-out is indicated by an error tone. If a time-out occurs,
the operator should check the host system to understand why a response to the
scanner was not received.
Preliminary Draft
3 - 30
Host Acknowledgment On/Off
Cordless Base Host Escape Commands
Command Action
<ESC> a Double beeps to indicate a successful menu change
was made.
<ESC> b Razz or error tone to indicate a menu change was
unsuccessful.
<ESC> 1 The green LED illuminates for 135 milliseconds followed
by a pause.
<ESC> 2 The green LED illuminates for 2 seconds followed by a
pause.
<ESC> 3 The green LED illuminates for 5 seconds followed by a
pause.
<ESC> 4 Emits a beep at a low pitch.
<ESC> 5 Emits a beep at a medium pitch.
<ESC> 6 Emits a beep at a high pitch.
<ESC> 7 Beeps to indicate a successful decode and
communication to host.
<ESC> 8 Razz or error tone to indicate a decode/communication
to host was unsuccessful.
Host ACK On
* Host ACK Off
Preliminary Draft
4 - 1
4
Input/Output Settings
Power Up Beeper
The scanner can be programmed to beep when it’s powered up. If you are
using a cordless system, the base can also be programmed to beep when it is
powered up. Scan the Off bar code(s) if you don’t want a power up beep.
Default = Power Up Beeper On - Scanner.
Beep on BEL Character
You may wish to force the scanner to beep upon a command sent from the host.
If you scan the Beep on BEL On bar code below, the scanner will beep every
time a BEL character is received from the host.
Default = Beep on BEL Off.
Power Up Beeper Off -
Scanner
* Power Up Beeper On -
Scanner
Power Up Beeper Off -
Cordless Base
Power Up Beeper On -
Cordless Base
*Beep on BEL Off
Beep on BEL On
Preliminary Draft
4 - 2
Trigger Click
To hear an audible click every time the scanner trigger is pressed, scan the
Trigger Click On bar code below. Scan the Trigger Click Off code if you don’t
wish to hear the click. (This feature has no effect on serial or automatic trigger-
ing.)
Default =
Trigger Click Off.
Good Read and Error Indicators
Beeper – Good Read
The beeper may be programmed On or Off
in response to a good read.
Turning this option off, only turns off the beeper response to a good read
indication. All error and menu beeps are still audible.
Default = Beeper -
Good Read On.
Trigger Click On
*Trigger Click Off
* Beeper - Good Read On
Beeper - Good Read Off
Preliminary Draft
4 - 3

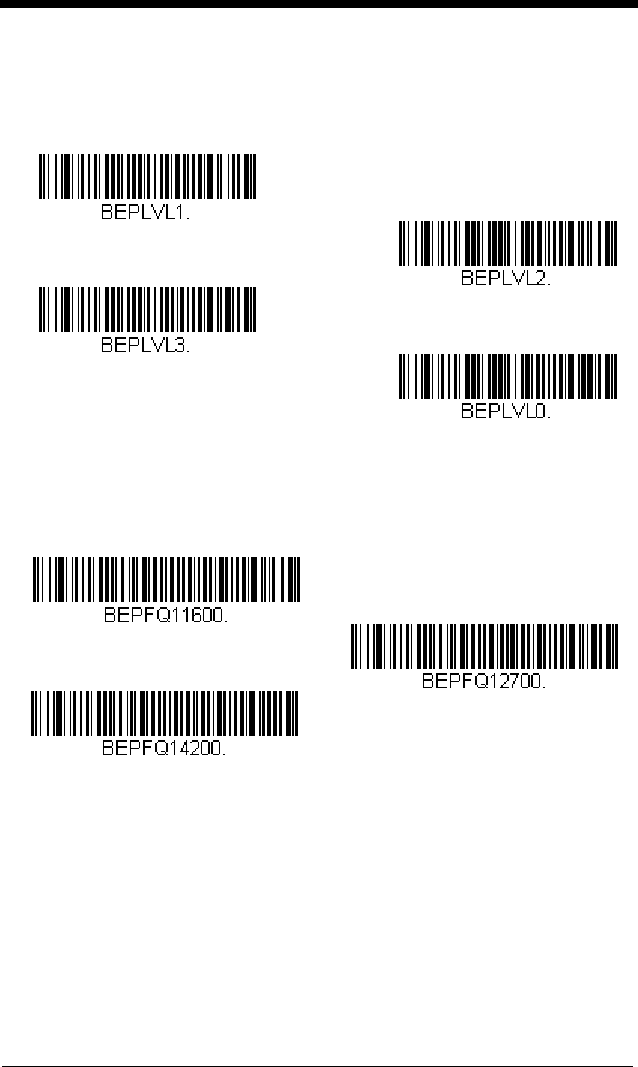

Beeper Volume – Good Read
The beeper volume codes modify the volume of the beep the scanner emits
on a good read.
Default = High.
Beeper Pitch – Good Read
The beeper pitch codes modify the pitch (frequency) of the beep the scan-
ner emits on a good read.
Default = Medium.
* High
Medium
Off
Low
Low (1600 Hz)
* Medium (2700 Hz)
High (4200 Hz)
Preliminary Draft
4 - 4

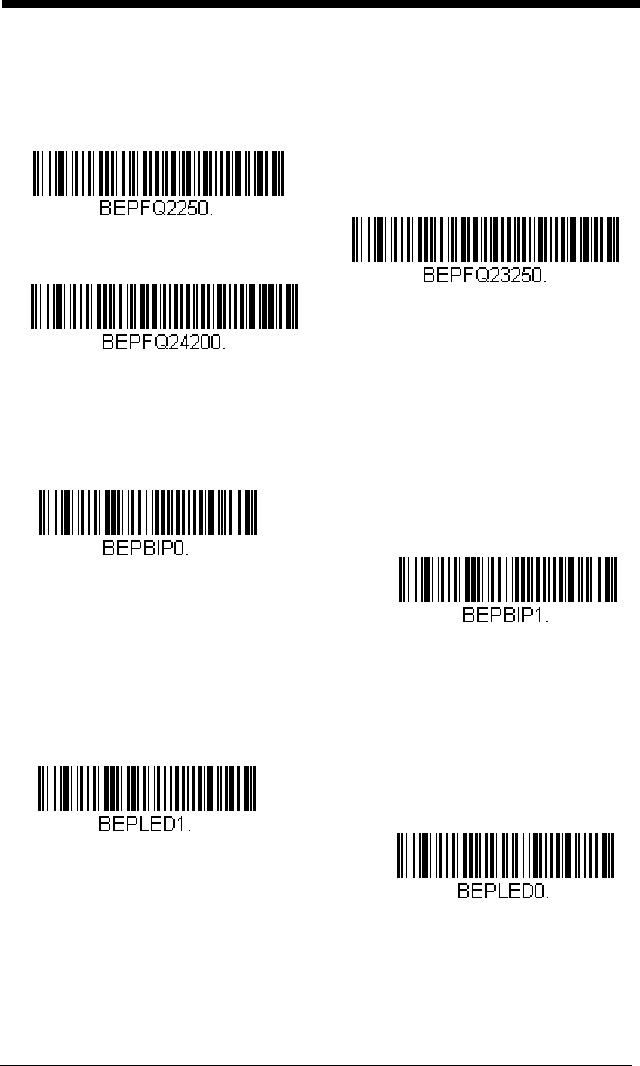

Beeper Pitch – Error
The beeper pitch codes modify the pitch (frequency) of the sound the scan-
ner emits when there is a bad read or error.
Default = Low.
Beeper Duration – Good Read
The beeper duration codes modify the length of the beep the scanner emits
on a good read.
Default = Normal.
LED – Good Read
The LED indicator can be programmed On or Off in response to a good
read.
Default = On.
* Razz (250 Hz)
Medium (3250 Hz)
High (4200 Hz)
* Normal Beep
Short BeepShort Beep
* LED - Good Read On
LED - Good Read Off
Preliminary Draft
4 - 5

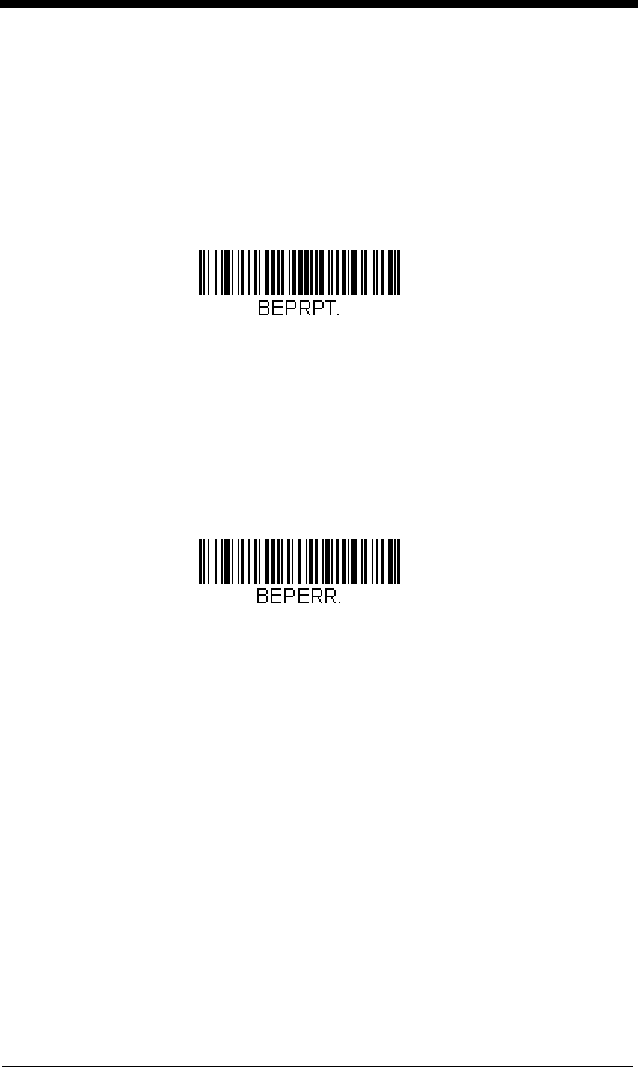

Number of Beeps – Good Read
The number of beeps of a good read can be programmed from 1 - 9. The
same number of beeps will be applied to the beeper and LED in response
to a good read. For example, if you program this option to have five beeps,
there will be five beeps and five LED flashes in response to a good read.
The beeps and LED flashes are in sync with one another. To change the
number of beeps, scan the bar code below and then scan a digit (1-9) bar
code and the Save bar code on the Programming Chart inside the back
cover of this manual.
Default = 1.
Number of Beeps – Error
The number of beeps and LED flashes emitted by the scanner for a bad
read or error can be programmed from 1 - 9. For example, if you program
this option to have five error beeps, there will be five error beeps and five
LED flashes in response to an error. To change the number of error beeps,
scan the bar code below and then scan a digit (1-9) bar code and the Save
bar code on the Programming Chart inside the back cover of this manual.
Default = 1.
Number of Good Read Beeps/LED Flashes
Number of Error Beeps/LED Flashes
Preliminary Draft
4 - 6

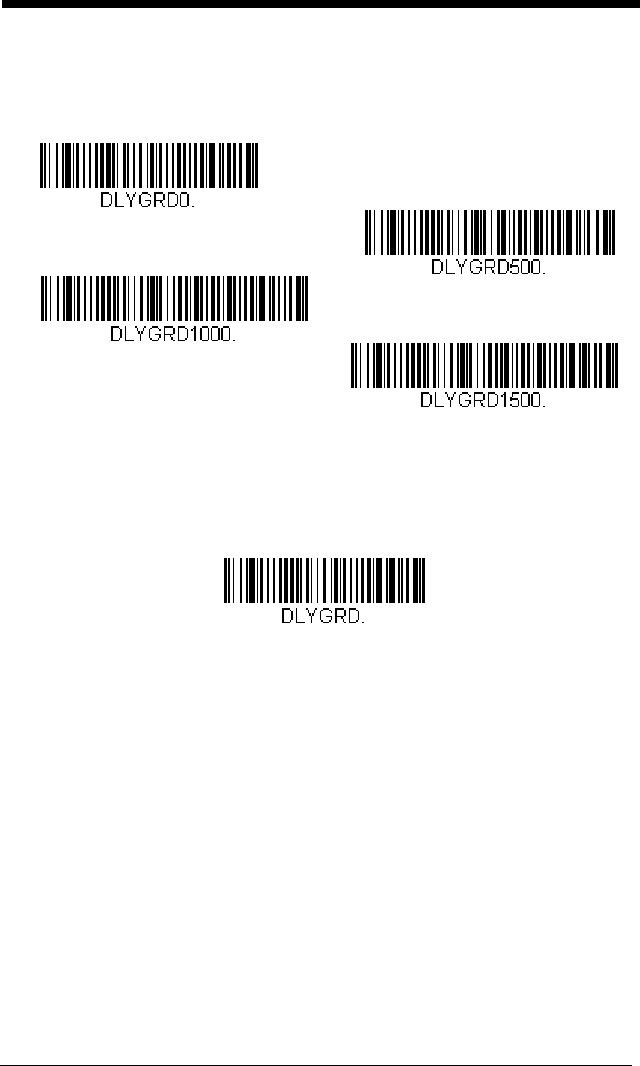

Good Read Delay
This sets the minimum amount of time before the scanner can read another
bar code.
Default = 0 ms (No Delay).
User-Specified Good Read Delay
If you want to set your own length for the good read delay, scan the bar
code below, then set the delay (from 0-30,000 milliseconds) by scanning
digits from the inside back cover, then scanning Save.
Manual/Serial Trigger Modes
Manual Trigger
When in manual trigger mode, the scanner scans until a bar code is read,
or until the trigger is released. Two modes are available, Normal and
Enhanced. Normal mode offers good scan speed and the longest work-
ing ranges (depth of field). Enhanced mode will give you the highest possi-
* No Delay
Short Delay (500 ms)
Medium Delay (1,000 ms)
Long Delay (1,500 ms)
User-Specified Good Read Delay
Preliminary Draft
4 - 7
ble scan speed but slightly less range than Normal mode. Enhanced mode
is best used when you require a very fast scan speed and don’t require a
long working range.
Serial Trigger
You can activate the scanner either by pressing the trigger, or using a serial
trigger command (see Trigger Commands on page 11-4). When in serial
mode, the scanner scans until a bar code has been read or until the deacti-
vate command is sent. The scanner can also be set to turn itself off after a
specified time has elapsed (see Read Time-Out, which follows).
Read Time-Out
Use this selection to set a time-out (in milliseconds) of the scanner’s
trigger when using serial commands to trigger the scanner. Once the
scanner has timed out, you can activate the scanner either by pressing
the trigger or using a serial trigger command. After scanning the Read
Time-Out bar code, set the time-out duration (from 0-300,000 millisec-
onds) by scanning digits on the Programming Chart inside the back
cover, then scanning Save.
Default = 30,000 ms.
Scanner Power Time-Out Timer
Note: Scanner Power Time-out Timer only applies to cordless systems.
It does not apply to corded scanners.
When there is no activity within a specified time period, the scanner
enters low power mode. Scan the appropriate scanner power time-out
bar code to change the time-out duration (in seconds).
Note: Scanning zero (0) is the equivalent of setting no time-out.
* Manual Trigger - Normal
Manual Trigger - Enhanced
Read Time-Out
Preliminary Draft
4 - 8
If there are no trigger pulls during the timer interval, the scanner goes
into power down mode. Whenever the trigger is enabled, the timer is
reset. If the scanner is placed in the charge base cradle and the bat-
tery is in the process of being charged, the scanner will not go into
power down mode.
Default = 3600 seconds.
Note: When the scanner is in power down mode, pull the trigger to
power the unit back up. There will be a set of power up beeps
and a delay of up to a few seconds for the radio to join. The
scanner will then be ready to use.
In-Stand Sensor Mode
This feature senses when the scanner is removed from the stand and tells it to
begin manual triggering. When you scan Sensor On, the scanner goes into
manual trigger mode when it is removed from the stand. For example, if the

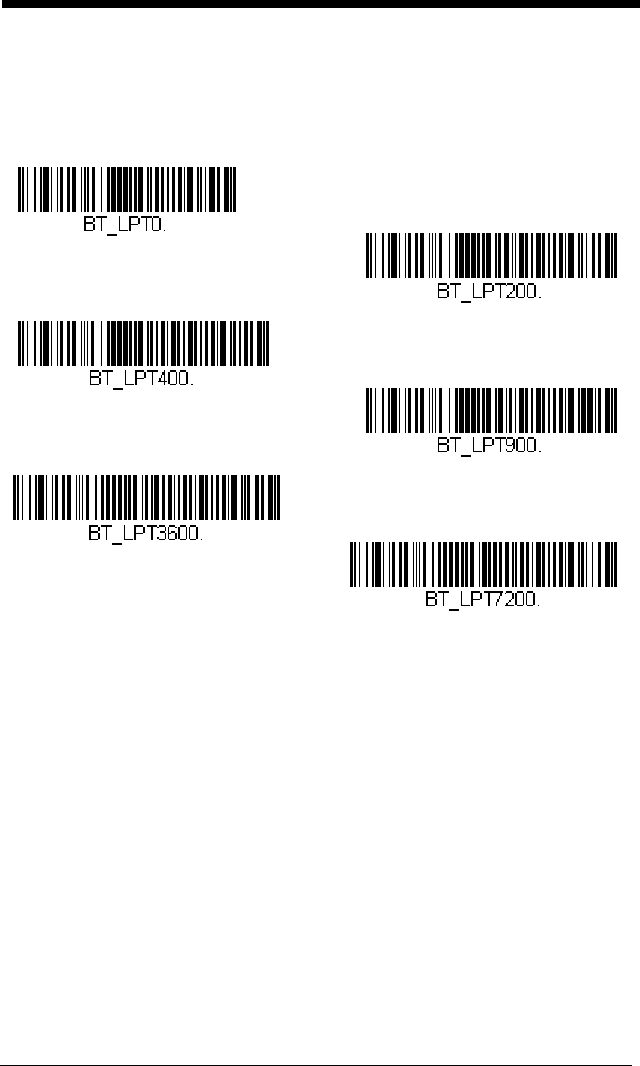

0 seconds
200 seconds
400 seconds
900 seconds
* 3600 seconds
7200 seconds
Preliminary Draft
4 - 9
scanner is programmed for Presentation Mode (page 4-9), it would be in pre-
sentation mode whenever it is in the stand, and in manual trigger mode when-
ever it is removed from the stand.
Default = Sensor On.
Presentation Mode
Presentation Mode uses ambient light to detect bar codes. The LEDs remain
off until a bar code is presented to the scanner, then the LEDs turn on automat-
ically to read the code. If the light level in the room is not high enough, Presen-
tation Mode may not work properly.
Note: If you are using a cordless device in Presentation Mode, the battery will
not charge unless the power supply is plugged into the base’s auxiliary
power port.
Presentation LED Behavior after Decode
When a scanner is in presentation mode, the LEDs remain on and continue
scanning for a short time after a bar code is decoded. If you wish to turn
the LEDs off immediately after a bar code is decoded, scan the LEDs Off
bar code, below.
Default = LEDs On.
* Sensor On
Sensor Off
Presentation Mode
* LEDs On
LEDs Off
Preliminary Draft
4 - 10
Presentation Sensitivity
Presentation Sensitivity is a numeric range that increases or decreases the
scanner's reaction time to bar code presentation. To set the sensitivity,
scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-
20) from the inside back cover, and Save. 0 is the most sensitive setting,
and 20 is the least sensitive.
Default = 1.
Streaming Presentation
™
Mode
When in Streaming Presentation mode, the scanner’s aimer goes out after a
short time, but the scan illumination remains on all the time to continuously
search for bar codes. Two modes are available, Normal and Enhanced. Nor-
mal mode offers good scan speed and the longest working ranges (depth of
field). Enhanced mode will give you the highest possible scan speed but
slightly less range than Normal mode. Enhanced mode is best used when you
require a very fast scan speed and don’t require a long working range.
When using Preferred Symbology (page 4-16), a lower priority symbol must be
centered on the aiming pattern to be read in Streaming Presentation Mode.
Note: If you are using a cordless system, the base must have an external power
supply plugged into the aux port for Streaming Presentation to work
properly.
Sensitivity
Streaming Presentation Mode
- Normal
Streaming Presentation Mode
- Enhanced
Preliminary Draft
4 - 11
Mobile Phone Read Mode
When this mode is selected, your scanner is optimized to read bar codes from
mobile phone or other LED displays. However, the speed of scanning printed
bar codes may be slightly lower when this mode is enabled. You can enable
Mobile Phone Reading for either a hand held device, or for a hands-free (pre-
sentation) application.
Note: To turn off Mobil Phone Read Mode, scan a Manual or Serial Trigger
Mode bar code (see page 4-6).
Image Snap and Ship
Image Snap and Ship tells the scanner to take a picture (rather than read a bar
code) when the trigger is pressed. Once the picture is snapped, it is shipped to
the host system as a jpeg file by default. To revert to bar code reading, you
must change to a different trigger mode (see Manual/Serial Trigger Modes
beginning on page 4-6).
Note: You must use an RS232 interface to use this code. Otherwise, menu
codes will not work until you send a serial command for Manual/Serial
Trigger Modes (see page 11-18).
Hands Free Time-Out
The Scan Stand and Presentation Modes are referred to as “hands free”
modes. If the scanner’s trigger is pulled when using a hands free mode, the
scanner changes to manual trigger mode. You can set the time the scanner
should remain in manual trigger mode by setting the Hands Free Time-Out.
Once the time-out value is reached, (if there have been no further trigger pulls)
the scanner reverts to the original hands free mode.

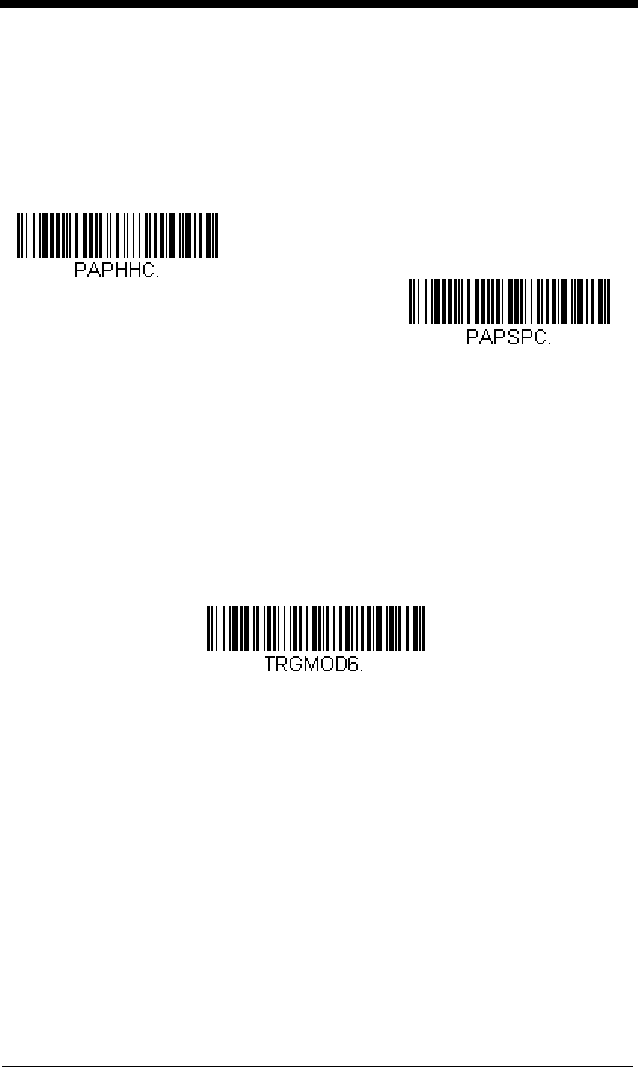

Hand Held Scanning - Mobile
Phone
Streaming Presentation -
Mobile Phone
Image Snap and Ship
Preliminary Draft
4 - 12
Scan the Hands Free Time-Out bar code, then scan the time-out duration
(from 0-300,000 milliseconds) from the inside back cover, and Save.
Default =
5,000 ms.
Reread Delay
This sets the time period before the scanner can read the
same
bar code a sec-
ond time. Setting a reread delay protects against accidental rereads of the
same bar code. Longer delays are effective in minimizing accidental rereads.
Use shorter delays in applications where repetitive bar code scanning is
required. Reread Delay only works when in Presentation Mode (see page 4-9).
Default = Medium.
User-Specified Reread Delay
If you want to set your own length for the reread delay, scan the bar code below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the
inside back cover, then scanning Save.
Hands Free Time-Out
Short (500 ms)
* Medium (750 ms)
Long (1000 ms)
Extra Long (2000 ms)
User-Specified Reread Delay
Preliminary Draft
4 - 13

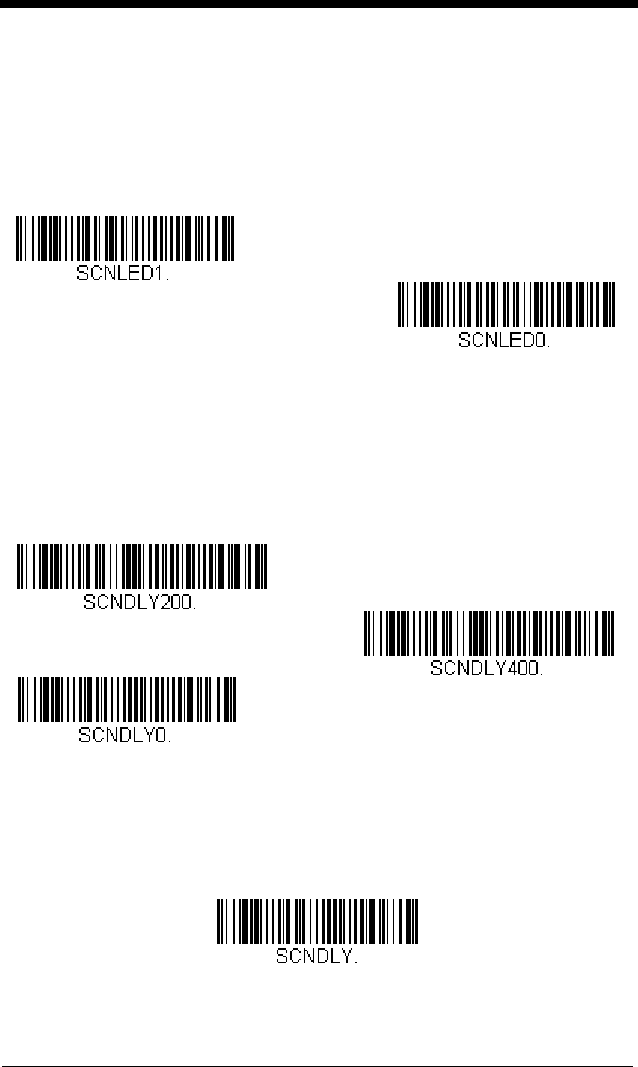

Illumination Lights
If you want the illumination lights on while reading a bar code, scan the Lights
On bar code, below. However, if you want to turn just the lights off, scan the
Lights Off bar code.
Default = Lights On.
Note: This setting does not affect the aimer light. The aiming light can be set
using Aimer Mode (page 4-14).
Aimer Delay
The aimer delay allows a delay time for the operator to aim the scanner before
the picture is taken. Use these codes to set the time between when the trigger
is pulled and when the picture is taken. During the delay time, the aiming light
will appear, but the LEDs won’t turn on until the delay time is over.
Default =
Off.
User-Specified Aimer Delay
If you want to set your own length for the duration of the delay, scan the bar
code below, then set the time-out by scanning digits (0 - 4,000 ms) from the
Programming Chart inside the back cover of this manual, then scan Save.
Lights Off
* Lights On
400 milliseconds
* Off
(no delay)
200 milliseconds
Delay Duration
Preliminary Draft
4 - 14

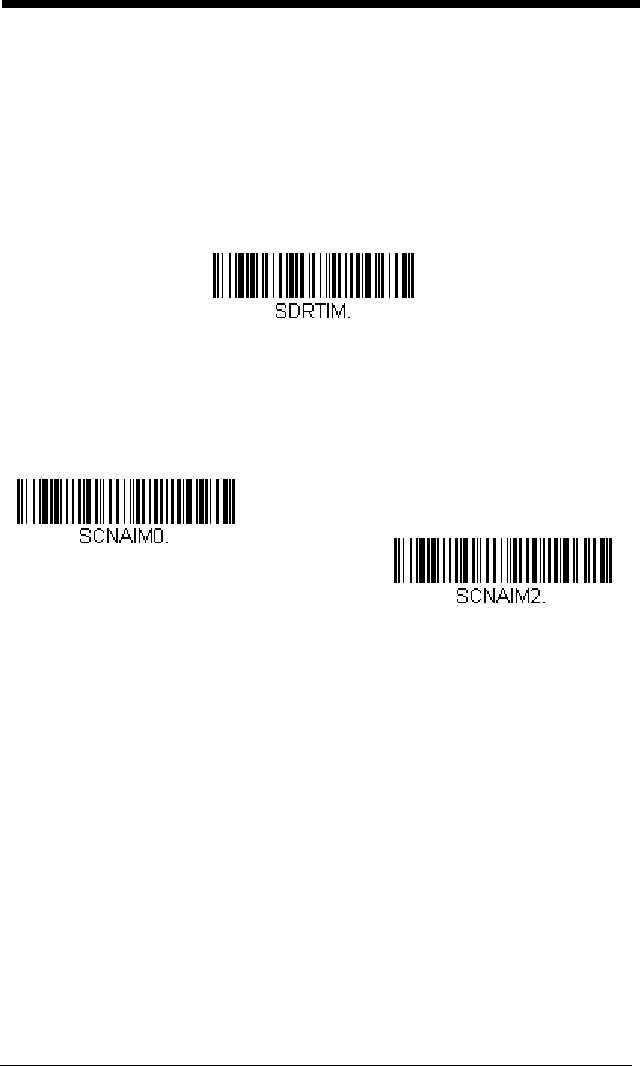

Scanner Time-Out
Note: Scanner Time-Out applies only to corded scanners. It does not apply to
cordless systems.
Scanner Time-Out powers down the scanner after the unit has been idle for the
specified time. To prevent the scanner from powering down, set this time-out to
0. Sca Scanner Time-Out, then set the time-out by scanning digits (from 0 -
999,999 ms) from the inside back cover, then scanning Save.
Default = 60,000
ms.
Aimer Mode
This feature allows you to turn the aimer on and off. When the Interlaced bar
code is scanned, the aimer is interlaced with the illumination LEDs.
Default =
Interlaced.
Centering
Use Centering to narrow the scanner’s field of view to make sure the scanner
reads only those bar codes intended by the user. For instance, if multiple codes
are placed closely together, centering will insure that only the desired codes are
read. (Centering can be used in conjunction with Aimer Delay, page 4-13, for
the most error-free operation in applications where multiple codes are spaced
closely together. Using the Aimer Delay and Centering features, the scanner
can emulate the operation of older systems, such as linear laser bar code scan-
ners.)
Scanner Time-Out
* Interlaced
Off
Preliminary Draft
4 - 15

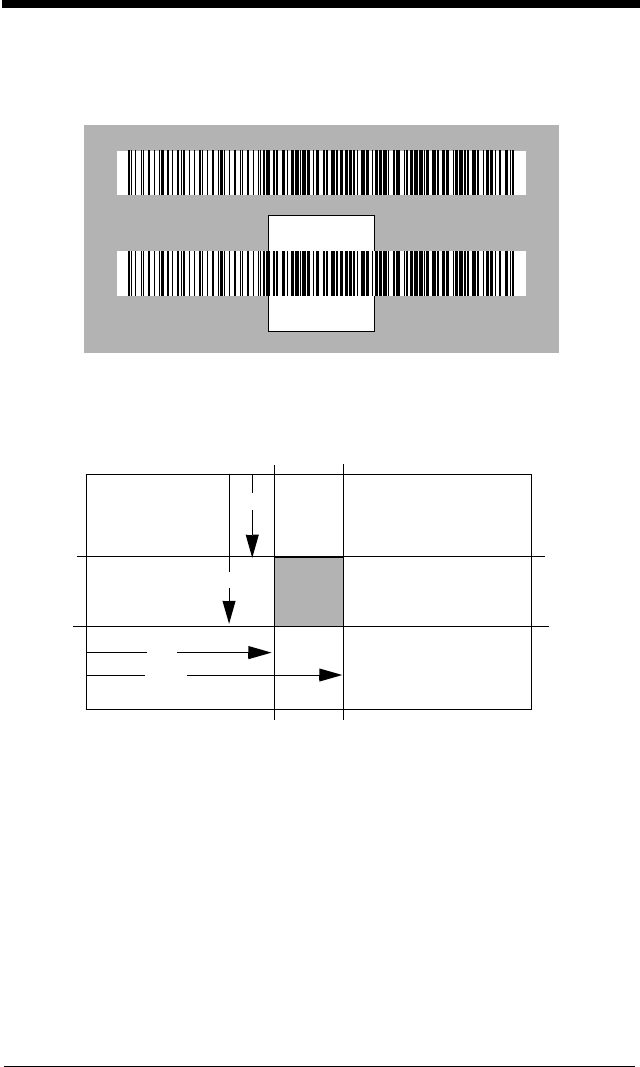

In the example below, the gray area is the full scanner field of view and the white
area is the centering window. Bar Code 1 will not be read, while Bar Code 2 will
be.
The default centering window is a 169x128 pixel area in the center of the scan-
ner’s field of view. The following diagram illustrates the default top, bottom, left,
and right pixel positions, measured from the top and the left side of the scan-
ner’s field of view, which is 844 by 640 pixels.
If a bar code is not within the predefined window, it will not be decoded or output
by the scanner. If centering is turned on by scanning Centering On, the scan-
ner only reads codes that intersect the centering window you specify using the
Top, Bottom, Left, or Right bar codes.
Bar Code 1
Bar Code 2
0
100%
100%
Default
Center
40% 60%
40%
60%
Left
Right
Bottom
Top
Preliminary Draft
4 - 16

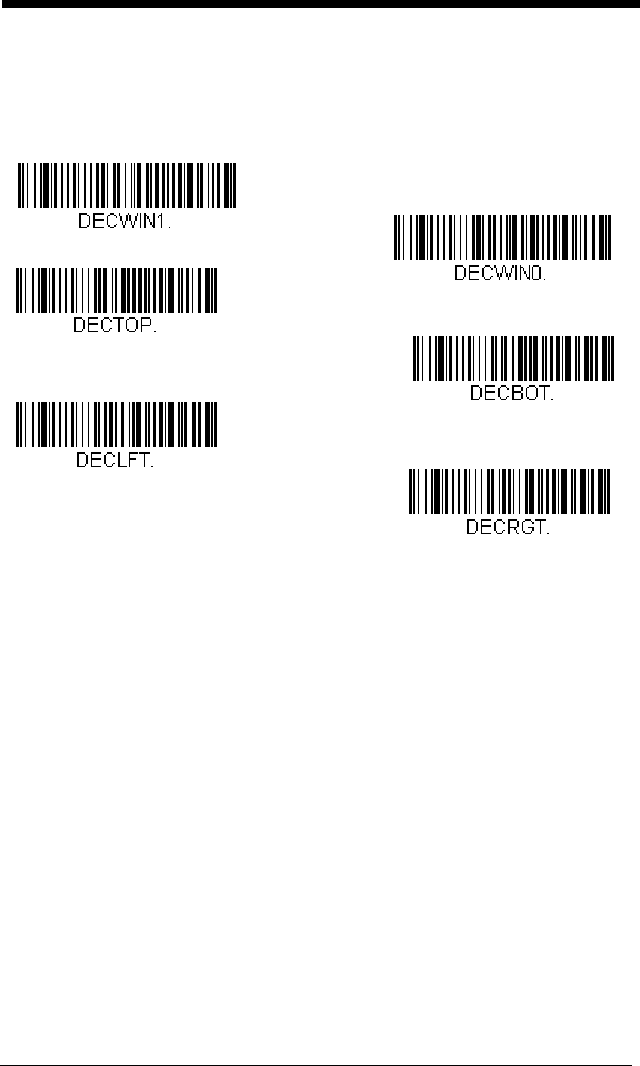

Scan Centering On, then scan one of the following bar codes to change the
top, bottom, left, or right of the centering window. Then scan the percent you
want to shift the centering window using digits on the inside back cover of this
manual. Scan Save.
Default Centering = 40% for Top and Left, 60% for Bot-
tom and Right.
Preferred Symbology
The scanner can be programmed to specify one symbology as a higher priority
over other symbologies in situations where both bar code symbologies appear
on the same label, but the lower priority symbology cannot be disabled.
For example, you may be using the scanner in a retail setting to read U.P.C.
symbols, but have occasional need to read a code on a drivers license. Since
some licenses have a Code 39 symbol as well as the PDF417 symbol, you can
use Preferred Symbology to specify that the PDF417 symbol be read instead of
the Code 39.
Preferred Symbology classifies each symbology as high priority, low priority,
or as an unspecified type. When a low priority symbology is presented, the
scanner ignores it for a set period of time (see Preferred Symbology Time-out
on page 4-17) while it searches for the high priority symbology. If a high priority
symbology is located during this period, then that data is read immediately.
If the time-out period expires before a high priority symbology is read, the scan-
ner will read any bar code in its view (low priority or unspecified). If there is no
bar code in the scanner’s view after the time-out period expires, then no data is
reported.
Note: A low priority symbol must be centered on the aiming pattern to be read.
Left of Centering Window
Top of Centering Window
Right of Centering Window
Bottom of Centering Window
* Centering Off
Centering On
Preliminary Draft
4 - 17

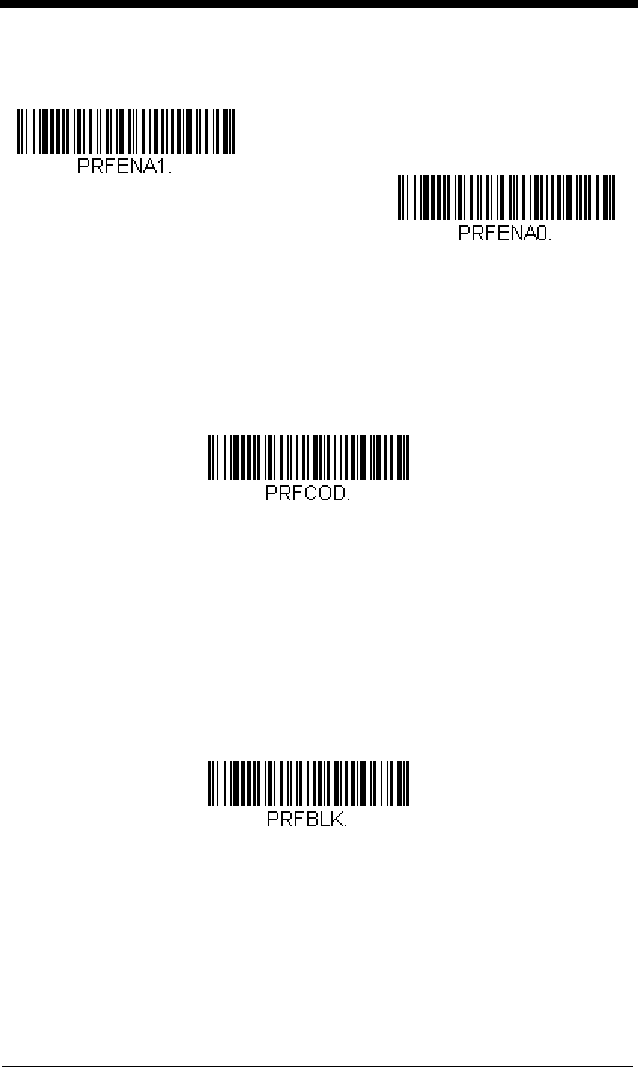

Scan a bar code below to enable or disable Preferred Symbology.
Default =
Preferred Symbology Off.
High Priority Symbology
To specify the high priority symbology, scan the High Priority Symbology
bar code below. On the Symbology Chart on page A-1, find the symbology
you want to set as high priority. Locate the Hex value for that symbology
and scan the 2 digit hex value from the Programming Chart (inside back
cover). Scan Save to save your selection.
Default = None
Low Priority Symbology
To specify the low priority symbology, scan the Low Priority Symbology bar
code below. On the Symbology Chart on page A-1, find the symbology you
want to set as low priority. Locate the Hex value for that symbology and
scan the 2 digit hex value from the Programming Chart (inside back cover).
If you want to set additional low priority symbologies, scan FF, then scan
the 2 digit hex value from the Programming Chart for the next symbology.
You can program up to 5 low priority symbologies. Scan Save to save your
selection.
Default = None
Preferred Symbology Time-out
Once you have enabled Preferred Symbology and entered the high and low
priority symbologies, you must set the time-out period. This is the period of
time the scanner will search for a high priority bar code after a low priority
* Preferred Symbology Off
Preferred Symbology On
High Priority Symbology
Low Priority Symbology
Preliminary Draft
4 - 18
bar code has been encountered. Scan the bar code below, then set the
delay (from 1-3,000 milliseconds) by scanning digits from the inside back
cover, then scanning Save.
Default = 500 ms.
Preferred Symbology Default
Scan the bar code below to set all Preferred Symbology entries to their
default values.
Output Sequence Overview
Require Output Sequence
When turned off, the bar code data will be output to the host as the scanner
decodes it. When turned on, all output data must conform to an edited
sequence or the scanner will not transmit the output data to the host
device.
Note: This selection is unavailable when the Multiple Symbols Selection is
turned on.
Output Sequence Editor
This programming selection allows you to program the scanner to output
data (when scanning more than one symbol) in whatever order your appli-
cation requires, regardless of the order in which the bar codes are
scanned. Reading the
Default Sequence
symbol programs the scanner to
the Universal values, shown below. These are the defaults. Be certain
you want to delete or clear all formats before you read the
Default
Sequence
symbol.
Note: You must hold the trigger while reading each bar code in a sequence.
Note: To make Output Sequence Editor selections, you’ll need to know the
code I.D., code length, and character match(es) your application
requires. Use the Alphanumeric symbols (inside back cover) to read
these options.
Preferred Symbology Time-out
Preferred Symbology Default
Preliminary Draft
4 - 19
To Add an Output Sequence
1. Scan the
Enter Sequence
symbol (see Require Output
Sequence, page 4-22).
2. Code I.D.
On the Symbology Chart on page A-1, find the symbology to which you
want to apply the output sequence format. Locate the Hex value for that
symbology and scan the 2 digit hex value from the Programming Chart
(inside back cover).
3. Length
Specify what length (up to 9999 characters) of data output will be
acceptable for this symbology. Scan the four digit data length from the
Programming Chart. (Note: 50 characters is entered as 0050. 9999 is
a universal number, indicating all lengths.) When calculating the length,
you must count any programmed prefixes, suffixes, or formatted
characters as part of the length (unless using 9999).
4. Character Match Sequences
On the Code Page Mapping of Printed Barcodes, page A-6, find the
Hex value that represents the character(s) you want to match. Use the
Programming Chart to read the alphanumeric combination that
represents the ASCII characters. (99 is the Universal number,
indicating all characters.)
5. End Output Sequence Editor
Scan
F F
to enter an Output Sequence for an additional symbology, or
Save
to save your entries.
Other Programming Selections
•
Discard
This exits without saving any Output Sequence changes.
Preliminary Draft
4 - 20
Output Sequence Example
In this example, you are scanning Code 93, Code 128, and Code 39 bar
codes, but you want the scanner to output Code 39 1st, Code 128 2nd, and
Code 93 3rd, as shown below.
Note: Code 93 must be enabled to use this example.
You would set up the sequence editor with the following command line:
SEQBLK62999941FF6A999942FF69999943FF
The breakdown of the command line is shown below:
SEQBLKsequence editor start command
62 code identifier for Code 39
9999 code length that must match for Code 39, 9999 = all lengths
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
9999 code length that must match for Code 128, 9999 = all lengths
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
9999 code length that must match for Code 93, 9999 = all lengths
43 start character match for Code 93, 43h = “C”
FF termination string for third code
To program the previous example using specific lengths, you would have to
count any programmed prefixes, suffixes, or formatted characters as part of
the length. If you use the example on page 4-20, but assume a <CR> suf-
fix and specific code lengths, you would use the following command line:
SEQBLK62001241FF6A001342FF69001243FF
The breakdown of the command line is shown below:
A - Code 39
B - Code 128
C - Code 93
Preliminary Draft
4 - 21
SEQBLKsequence editor start command
62 code identifier for Code 39
0012 A - Code 39 sample length (11) plus CR suffix (1) = 12
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
0013 B - Code 128 sample length (12) plus CR suffix (1) = 13
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
0012 C - Code 93 sample length (11) plus CR suffix (1) = 12
43 start character match for Code 93, 43h = “C”
FF termination string for third code
Output Sequence Editor
Partial Sequence
If an output sequence operation is terminated before all your output
sequence criteria are met, the bar code data acquired to that point is a
“partial sequence.”
Scan Discard Partial Sequence to discard partial sequences when the
output sequence operation is terminated before completion. Scan Trans-
mit Partial Sequence to transmit partial sequences. (Any fields in the
sequence where no data match occurred will be skipped in the output.)
Default Sequence
Enter Sequence
Transmit Partial Sequence
* Discard Partial Sequence
Preliminary Draft
4 - 22
Require Output Sequence
When an output sequence is Required, all output data must conform to an
edited sequence or the scanner will not transmit the output data to the host
device. When it’s On/Not Required, the scanner will attempt to get the
output data to conform to an edited sequence but, if it cannot, the scanner
transmits all output data to the host device as is.
When the output sequence is
Off
, the bar code data is output to the host as
the scanner decodes it.
Default = Off.
Note: This selection is unavailable when the Multiple Symbols Selection is
turned on.
Multiple Symbols
When this programming selection is turned On, it allows you to read multiple
symbols with a single pull of the scanner’s trigger. If you press and hold the trig-
ger, aiming the scanner at a series of symbols, it reads unique symbols once,
beeping (if turned on) for each read. The scanner attempts to find and decode
new symbols as long as the trigger is pulled. When this programming selection
is turned Off, the scanner will only read the symbol closest to the aiming beam.
Default = Off.
Required
On/Not Required
*Off
On
* Off
Preliminary Draft
4 - 23
No Read
With No Read turned On, the scanner notifies you if a code cannot be read. If
using an EZConfig Tool Scan Data Window (see page 10-3), an “NR” appears
when a code cannot be read. If No Read is turned Off, the “NR” will not appear.
Default = Off.
If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”
you can edit the output message (see Data Formatting beginning on page 6-1).
The hex code for the No Read symbol is 9C.
Video Reverse
Video Reverse is used to allow the scanner to read bar codes that are inverted.
The Video Reverse Off bar code below is an example of this type of bar code.
Scan Video Reverse Only to read
only
inverted bar codes. Scan Video
Reverse and Standard Bar Codes to read both types of codes.
Note: After scanning Video Reverse Only, menu bar codes cannot be read.
You must scan Video Reverse Off or Video Reverse and Standard Bar
Codes in order to read menu bar codes.
Note: Images downloaded from the unit are not reversed. This is a setting for
decoding only.
On
* Off
Video Reverse Only
* Video Reverse Off
VIDREV0REV.
Video Reverse and Standard Bar
Codes
Preliminary Draft
4 - 24
Preliminary Draft
5 - 1
5
Data Editing
Prefix/Suffix Overview
When a bar code is scanned, additional information is sent to the host computer
along with the bar code data. This group of bar code data and additional,
user-defined data is called a “message string.” The selections in this section
are used to build the user-defined data into the message string.
Prefix and Suffix characters are data characters that can be sent before and
after scanned data. You can specify if they should be sent with all symbologies,
or only with specific symbologies. The following illustration shows the break-
down of a message string:
Points to Keep In Mind
• It is not necessary to build a message string. The selections in this
chapter are only used if you wish to alter the default settings.
Default
prefix = None. Default suffix = None
.
• A prefix or suffix may be added or cleared from one symbology or all
symbologies.
• You can add any prefix or suffix from the ASCII Conversion Chart (Code
Page 1252), beginning on page A-4, plus Code I.D. and AIM I.D.
• You can string together several entries for several symbologies at one
time.
• Enter prefixes and suffixes in the order in which you want them to appear
on the output.
• When setting up for specific symbologies (as opposed to all
symbologies), the specific symbology ID value counts as an added prefix
or suffix character.
• The maximum size of a prefix or suffix configuration is 200 characters,
which includes header information.
To Add a Prefix or Suffix:
Step 1. Scan the Add Prefix or Add Suffix symbol (page 5-3).
Step 2. Determine the 2 digit Hex value from the Symbology Chart
(included in the Symbology Chart, beginning on page A-1) for the
Prefix Scanned DataSuffix
1-11
alpha numeric &
control characters
variable length1-11
alpha numeric &
control characters
Preliminary Draft
5 - 2
symbology to which you want to apply the prefix or suffix. For
example, for Code 128, Code ID is “j” and Hex ID is “6A”.
Step 3. Scan the 2 hex digits from the Programming Chart inside the back
cover of this manual or scan 9, 9 for all symbologies.
Step 4. Determine the hex value from the ASCII Conversion Chart (Code
Page 1252) on page A-4, for the prefix or suffix you wish to enter.
Step 5. Scan the 2 digit hex value from the Programming Chart inside the
back cover of this manual.
Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.
Step 7. To add the Code I.D., scan 5, C, 8, 0.
To add AIM I.D., scan 5, C, 8, 1.
To add a backslash (\), scan 5, C, 5, C.
Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once
to create the leading backslash and then to create the backslash
itself.
Step 8. Scan Save to exit and save, or scan Discard to exit without saving.
Repeat Steps 1-6 to add a prefix or suffix for another symbology.
Example: Add a Suffix to a specific symbology
To send a CR (carriage return)Suffix for U.P.C. only:
Step 1. Scan Add Suffix.
Step 2. Determine the 2 digit hex value from the Symbology Chart
(included in the Symbology Chart, beginning on page A-1) for
U.P.C..
Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this
manual.
Step 4. Determine the hex value from the ASCII Conversion Chart (Code
Page 1252) on page A-4, for the CR (carriage return).
Step 5. Scan 0, D from the Programming Chart inside the back cover of this
manual.
Step 6. Scan Save, or scan Discard to exit without saving.
To Clear One or All Prefixes or Suffixes
You can clear a single prefix or suffix, or clear all prefixes/suffixes for a
symbology. If you have been entering prefixes and suffixes for single sym-
bologies, you can use Clear One Prefix (Suffix) to delete a specific char-
acter from a symbology. When you Clear All Prefixes (Suffixes), all the
prefixes or suffixes for a symbology are deleted.
Preliminary Draft
5 - 3

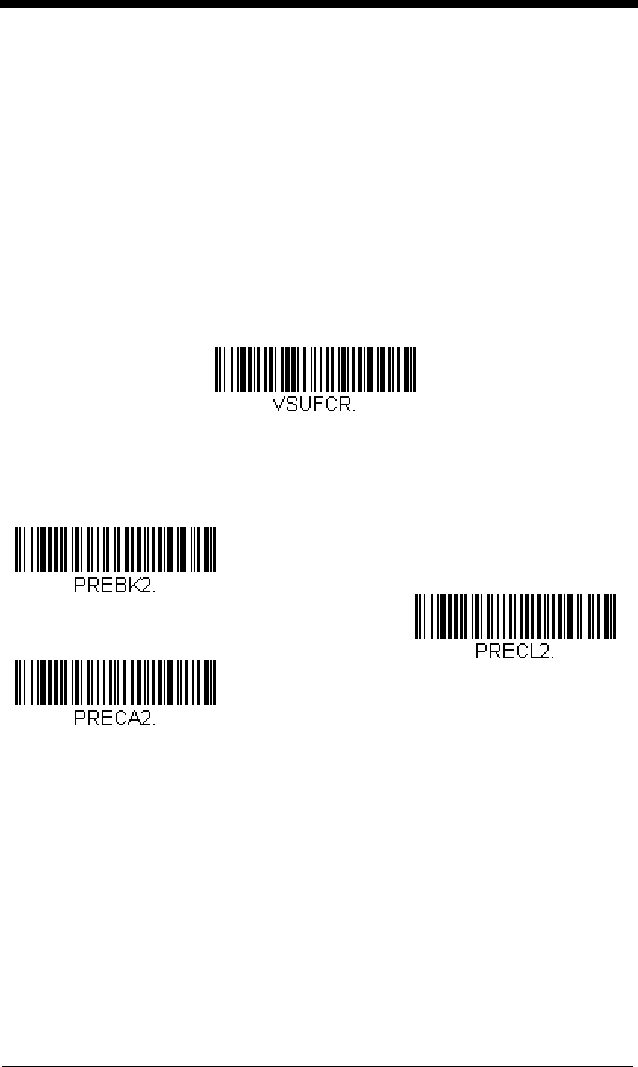

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.
Step 2. Determine the 2 digit Hex value from the Symbology Chart
(included in the Symbology Chart, beginning on page A-1) for the
symbology from which you want to clear the prefix or suffix.
Step 3. Scan the 2 digit hex value from the Programming Chart inside the
back cover of this manual or scan 9, 9 for all symbologies.
Your change is automatically saved.
To Add a Carriage Return Suffix to All Symbologies
Scan the following bar code if you wish to add a carriage return suffix to all
symbologies at once. This action first clears all current suffixes, then pro-
grams a carriage return suffix for all symbologies.
Prefix Selections
Add CR Suffix
All Symbologies
Add Prefix
Clear One Prefix
Clear All Prefixes
Preliminary Draft
5 - 4
Suffix Selections
Function Code Transmit
When this selection is enabled and function codes are contained within the
scanned data, the scanner transmits the function code to the terminal. Charts
of these function codes are provided in Supported Interface Keys starting on
page 9-3. When the scanner is in keyboard wedge mode, the scan code is con-
verted to a key code before it is transmitted.
Default = Enable.
Intercharacter, Interfunction, and
Intermessage Delays
Some terminals drop information (characters) if data comes through too quickly.
Intercharacter, interfunction, and intermessage delays slow the transmission of
data, increasing data integrity.

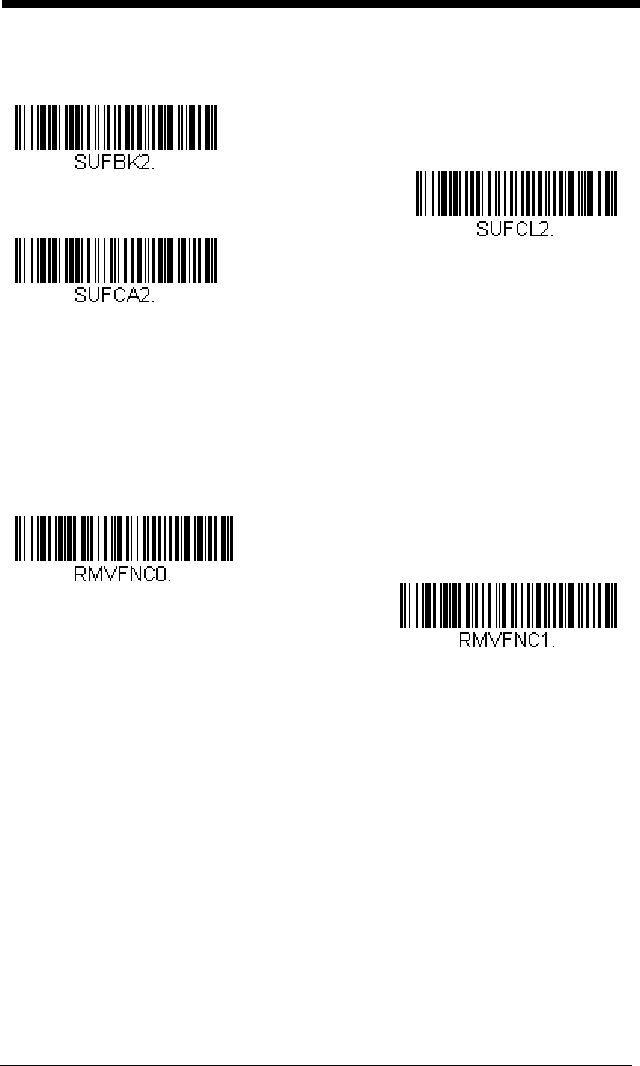

Add Suffix
Clear One Suffix
Clear All Suffixes
* Enable
Disable
Preliminary Draft
5 - 5
Intercharacter Delay
An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may
be placed between the transmission of each character of scanned data.
Scan the Intercharacter Delay bar code below, then scan the number of
5ms delays, and the Save bar code using the Programming Chart inside
the back cover of this manual.
To remove this delay, scan the Intercharacter Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming
Chart inside the back cover of this manual.
Note: Intercharacter delays are not supported in USB serial emulation.
User Specified Intercharacter Delay
An intercharacter delay of up to 5000 milliseconds (in 5ms increments)
may be placed after the transmission of a particular character of scanned
data. Scan the Delay Length bar code below, then scan the number of
5ms delays, and the Save bar code using the Programming Chart inside
the back cover of this manual.
Next, scan the Character to Trigger Delay bar code, then the 2-digit hex
value for the ASCII character that will trigger the delay ASCII Conversion
Chart (Code Page 1252) on page A-4.
To remove this delay, scan the Delay Length bar code, and set the number
of delays to 0. Scan the Save bar code using the Programming Chart
inside the back cover of this manual.
12345
Intercharacter Delay
Prefix Scanned Data Suffix
Intercharacter Delay
Delay Length
Character to Trigger Delay
Preliminary Draft
5 - 6
Interfunction Delay
An interfunction delay of up to 5000 milliseconds (in 5ms increments) may
be placed between the transmission of each segment of the message
string. Scan the Interfunction Delay bar code below, then scan the num-
ber of 5ms delays, and the Save bar code using the Programming Chart
inside the back cover of this manual.
To remove this delay, scan the Interfunction Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming
Chart inside the back cover of this manual.
Intermessage Delay
An intermessage delay of up to 5000 milliseconds (in 5ms increments)
may be placed between each scan transmission. Scan the Intermessage
Delay bar code below, then scan the number of 5ms delays, and the Save
bar code using the Programming Chart inside the back cover of this man-
ual.
To remove this delay, scan the Intermessage Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming
Chart inside the back cover of this manual.
Interfunction Delays
Prefix Scanned Data Suffix
12345STX HT CR LF
Interfunction Delay
2nd Scan Transmission1st Scan Transmission
Intermessage Delay
Intermessage Delay
Preliminary Draft
6 - 1
6
Data Formatting

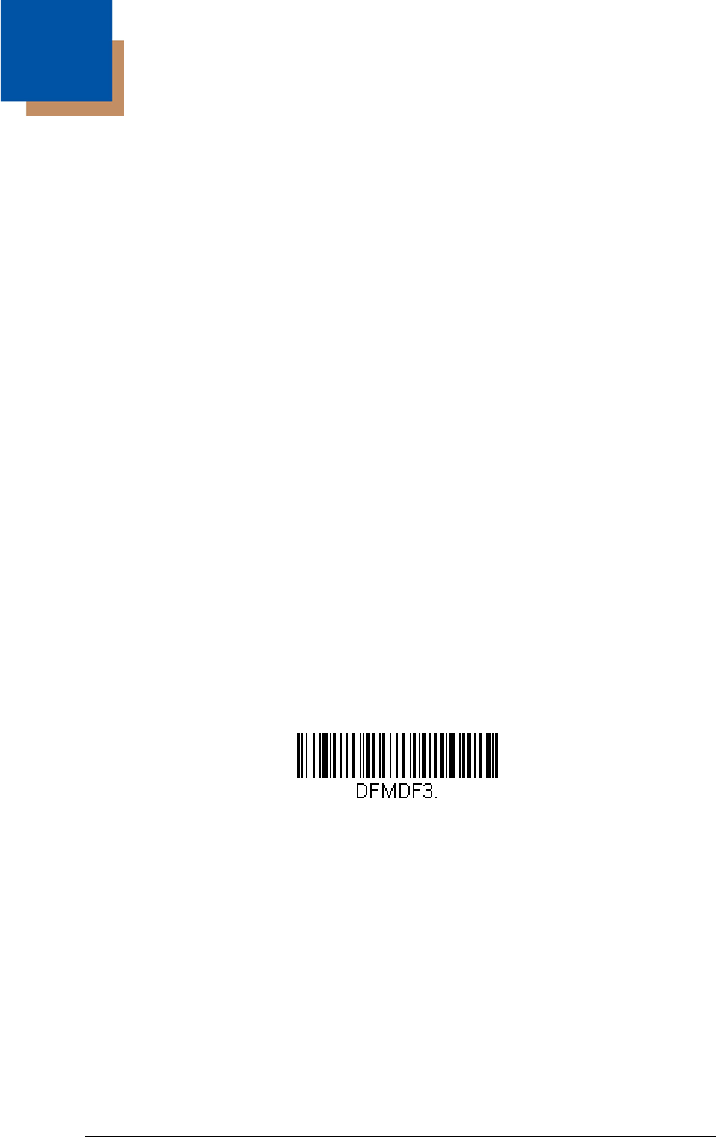

Data Format Editor Introduction
You may use the Data Format Editor to change the scanner’s output. For exam-
ple, you can use the Data Format Editor to insert characters at certain points in
bar code data as it is scanned. The selections in the following pages are used
only if you wish to alter the output.
Default Data Format setting = None.
Normally, when you scan a bar code, it gets outputted automatically; however
when you create a format, you must use a “send” command (see Send
Commands on page 6-4) within the format program to output data.
Multiple formats may be programmed into the scanner. They are stacked in the
order in which they are entered. However, the following list presents the order
in which formats are applied:
1. Specific Terminal ID, Actual Code ID, Actual Length
2. Specific Terminal ID, Actual Code ID, Universal Length
3. Specific Terminal ID, Universal Code ID, Actual Length
4. Specific Terminal ID, Universal Code ID, Universal Length
5. Universal Terminal ID, Actual Code ID, Actual Length
6. Universal Terminal ID, Actual Code ID, Universal Length
7. Universal Terminal ID, Universal Code ID, Actual Length
8. Universal Terminal ID, Universal Code ID, Universal Length
The maximum size of a data format configuration is 2000 bytes, which includes
header information.
If you have changed data format settings, and wish to clear all formats and
return to the factory defaults, scan the Default Data Format code below.
To Add a Data Format
Step 1. Scan the Enter Data Format symbol (page 6-2).
Step 2. Select Primary/Alternate Format
Determine if this will be your primary data format, or one of 3 alternate
formats. This allows you to save a total of 4 different data formats. To
program your primary format, scan 0 using the Programming Chart
inside the back cover of this manual. If you are programming an
alternate format, scan 1, 2, or 3, depending on which alternate format
* Default Data Format
Preliminary Draft
6 - 2
you are programming. (See Primary/Alternate Data Formats on page
6-10 for further information.)
Step 3. Terminal Type
Refer to Terminal ID Table (page 6-4) and locate the Terminal ID
number for your PC. Scan three numeric bar codes on the inside back
cover to program the scanner for your terminal ID (you must enter 3
digits). For example, scan 0 0 3 for an AT wedge.
Note: The wildcard for all terminal types is 099.
Step 4. Code I.D.
In the Symbology Chart, beginning on page A-1, find the symbology to
which you want to apply the data format. Locate the Hex value for that
symbology and scan the 2 digit hex value from the Programming Chart
inside the back cover of this manual.
Step 5. Length
Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the
Programming Chart inside the back cover of this manual. (Note: 50
characters is entered as 0050. 9999 is a universal number, indicating
all lengths.)
Step 6. Editor Commands
Refer to (page 6-4). Scan the symbols that represent the command you
want to enter. 94 alphanumeric characters may be entered for each
symbology data format.
Step 7. Scan Save to save your data format, or Discard to exit without saving
your changes.

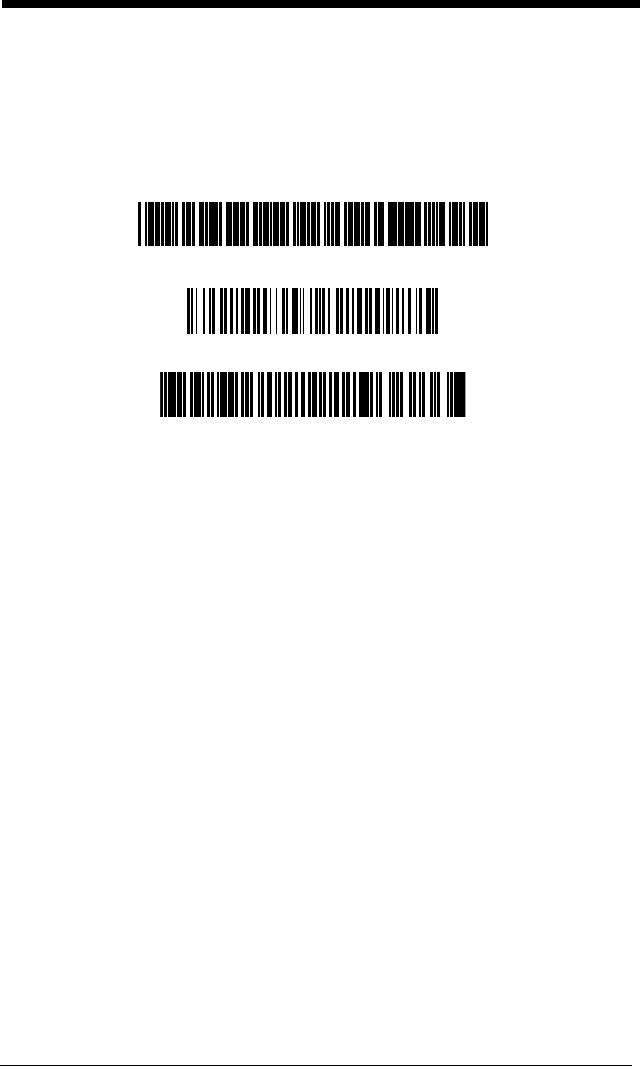

Enter Data Format
Save
Discard
Preliminary Draft
6 - 3
Other Programming Selections
Clear One Data Format
This deletes one data format for one symbology. If you are clearing the
primary format, scan 0 from the Programming Chart inside the back
cover of this manual. If you are clearing an alternate format, scan 1, 2,
or 3, depending on the format you are clearing. Scan the Terminal Type
and Code I.D. (see Symbology Chart on page A-1), and the bar code
data length for the specific data format that you want to delete. All other
formats remain unaffected.
Clear all Data Formats
This clears all data formats.
Save to exit and save your data format changes.
Discard to exit without saving any data format changes.
Clear One Data Format
Clear All Data Formats
Save
Discard
Preliminary Draft
6 - 4
Data Format Editor Commands
Send Commands
Send all characters
F1 Include in the output message all of the characters from the input
message, starting from current cursor position, followed by an insert
character.
Syntax = F1xx
where xx stands for the insert character’s hex
value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Send a number of characters
F2 Include in the output message a number of characters followed by an
insert character. Start from the current cursor position and continue for
“nn” characters or through the last character in the input message,
followed by character “xx.”
Syntax = F2nnxx
where nn stands for the
numeric value (00-99) for the number of characters, and xx stands for
the the insert character’s hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Send all characters up to a particular character
F3 Include in the output message all characters from the input message,
starting with the character at the current cursor position and continuing
to, but not including, the search character “ss,” followed by an insert
character. The cursor is moved forward to the “ss” character.
Syntax
= F3ssxx
where ss stands for the search character’s hex value for its
Terminal ID Table
Terminal Model(s) Terminal
ID
IBM PC/AT and compatibles 003
USB SurePOS Handheld
Scanner 128
USB SurePOS Tabletop
Scanner 129
RS232 True 000
TTL 000
RS485 051
USB Serial 130
PC Keyboard 124
Mac Keyboard 125
Japanese Keyboard (PC) 134
HID POS 131
Preliminary Draft
6 - 5
ASCII code, and xx stands for the insert character’s hex value for its
ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.
Send all but the last characters
E9 Include in the output message all but the last “nn” characters, starting
from the current cursor position. The cursor is moved forward to one
position past the last input message character included.
Syntax = E9nn
where nn stands for the numeric value (00-99) for the number of
characters that will not be sent at the end of the message.
Insert a character multiple times
F4 Send “xx” character “nn” times in the output message, leaving the
cursor in the current position.
Syntax = F4xxnn
where xx stands for the
insert character’s hex value for its ASCII code, and nn is the numeric
value (00-99) for the number of times it should be sent.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.
Insert symbology name
B3 Insert the name of the bar code’s symbology in the output message,
without moving the cursor. Only symbologies with a Honeywell ID are
included (see Symbology Chart on page A-1).
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.
Insert bar code length
B4 Insert the bar code’s length in the output message, without moving the
cursor. The length is expressed as a numeric string and does not
include leading zeroes.
Move Commands
Move the cursor forward a number of characters
F5 Move the cursor ahead “nn” characters from current cursor position.
Syntax = F5nn
where nn is the numeric value (00-99) for the number
of characters the cursor should be moved ahead.
Move the cursor backward a number of characters
F6 Move the cursor back “nn” characters from current cursor position.
Syntax = F6nn
where nn is the numeric value (00-99) for the number
of characters the cursor should be moved back.
Move the cursor to the beginning
F7 Move the cursor to the first character in the input message.
Syntax =
F7.
Preliminary Draft
6 - 6
Move the cursor to the end
EA Move the cursor to the last character in the input message.
Syntax =
EA.
Search Commands
Search forward for a character
F8 Search the input message forward for “xx” character from the current
cursor position, leaving the cursor pointing to the “xx” character.
Syntax = F8xx
where xx stands for the search character’s hex value for
its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Search backward for a character
F9 Search the input message backward for “xx” character from the current
cursor position, leaving the cursor pointing to the “xx” character.
Syntax = F9xx
where xx stands for the search character’s hex value for
its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Search forward for a string
B0 Search forward for “s” string from the current cursor position, leaving
cursor pointing to “s” string. Syntax = B0nnnnS where nnnn is the string
length (up to 9999), and S consists of the ASCII hex value of each
character in the match string. For example, B0000454657374 will
search forward for the first occurrence of the 4 character string “Test.”
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Search backward for a string
B1 Search backward for “s” string from the current cursor position, leaving
cursor pointing to “s” string. Syntax = B1nnnnS where nnnn is the string
length (up to 9999), and S consists of the ASCII hex value of each
character in the match string. For example, B1000454657374 will
search backward for the first occurrence of the 4 character string “Test.”
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Search forward for a non-matching character
E6 Search the input message forward for the first non-“xx” character from
the current cursor position, leaving the cursor pointing to the non-“xx”
character.
Syntax = E6xx
where xx stands for the search character’s
hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Preliminary Draft
6 - 7
Search backward for a non-matching character
E7 Search the input message backward for the first non-“xx” character
from the current cursor position, leaving the cursor pointing to the non-
“xx” character.
Syntax = E7xx
where xx stands for the search
character’s hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.
Miscellaneous Commands
Suppress characters
FB Suppress all occurrences of up to 15 different characters, starting at the
current cursor position, as the cursor is advanced by other commands.
When the FC command is encountered, the suppress function is
terminated. The cursor is not moved by the FB command.
Syntax = FBnnxxyy . .zz where nn is a count of the number of
suppressed characters in the list, and xxyy .. zz is the list of characters
to be suppressed.
Stop suppressing characters
FC Disables suppress filter and clear all suppressed characters.
Syntax =
FC.
Replace characters
E4 Replaces up to 15 characters in the output message, without moving
the cursor. Replacement continues until the E5 command is
encountered.
Syntax = E4nnxx1xx2yy1yy2...zz1zz2
where nn is the total
count of of the number of characters in the list (characters to be
replaced plus replacement characters); xx1 defines characters to be
replaced and xx2 defines replacement characters, continuing through
zz1 and zz2.
Stop replacing characters
E5 Terminates character replacement.
Syntax = E5.
Compare characters
FE Compare the character in the current cursor position to the character
“xx.” If characters are equal, move the cursor forward one position.
Syntax = FExx
where xx stands for the comparison character’s hex
value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.
Compare string
B2 Compare the string in the input message to the string “s.” If the strings
are equal, move the cursor forward past the end of the string. Syntax
= B2nnnnS where nnnn is the string length (up to 9999), and S consists
of the ASCII hex value of each character in the match string. For
Preliminary Draft
6 - 8
example, B2000454657374 will compare the string at the current
cursor position with the 4 character string “Test.”
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4
for decimal, hex and character codes.
Check for a number
EC Check to make sure there is an ASCII number at the current cursor
position. The format is aborted if the character is not numeric.
Check for non-numeric character
ED Check to make sure there is a non-numeric ASCII character at the
current cursor position. The format is aborted if the character is not
numeric.
Insert a delay
EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting
from the current cursor position. Syntax = EFnnnn where nnnn stands
for the delay in 5ms increments, up to 9999. This command can only
be used with keyboard wedge interfaces.

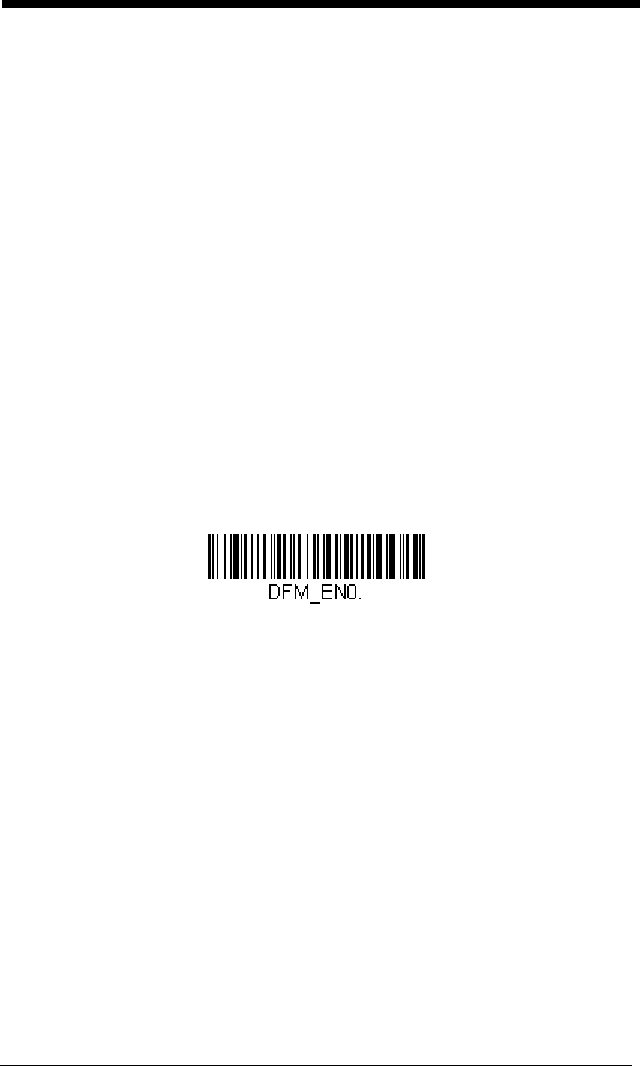

Data Formatter
When Data Formatter is turned Off, the bar code data is output to the host as
read, including prefixes and suffixes.
You may wish to require the data to conform to a data format you have created
and saved. The following settings can be applied to your data format:
Data Formatter On, Not Required, Keep Prefix/Suffix
Scanned data is modified according to your data format, and prefixes and
suffixes are transmitted.
Data Formatter On, Not Required, Drop Prefix/Suffix
Scanned data is modified according to your data format. If a data format is
found for a particular symbol, those prefixes and suffixes are not
transmitted.
Data Format Required, Keep Prefix/Suffix
Scanned data is modified according to your data format, and prefixes and
suffixes are transmitted. Any data that does not match your data format
requirements generates an error tone and the data in that bar code is not
transmitted. If you wish to process this type of bar code without generating
an error tone, see Data Format Non-Match Error Tone.
Data Formatter Off
Preliminary Draft
6 - 9

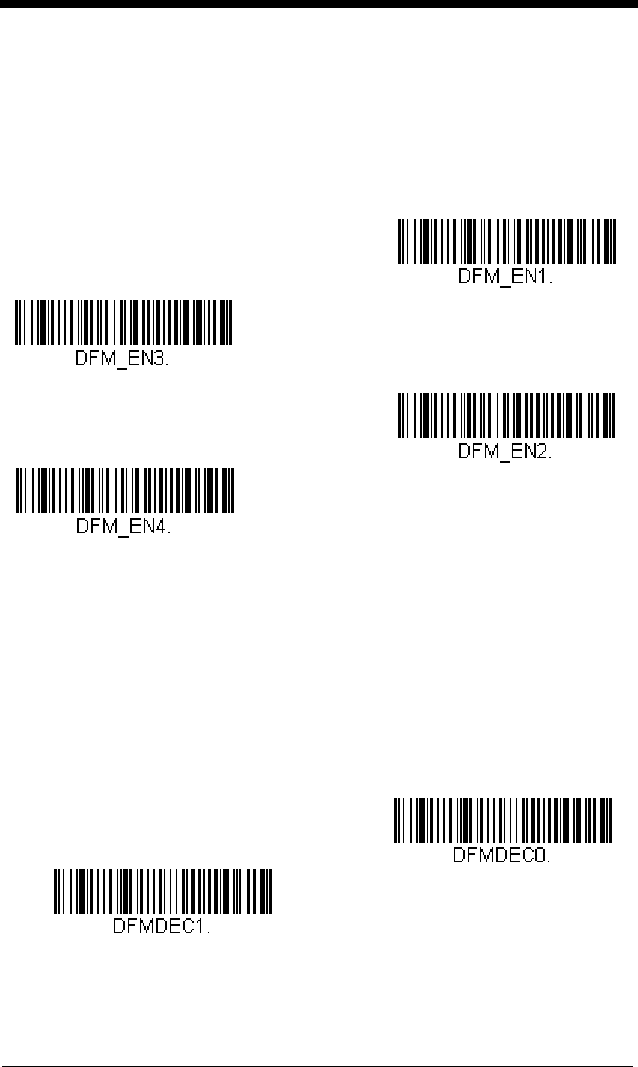

Data Format Required, Drop Prefix/Suffix
Scanned data is modified according to your data format. If a data format is
found for a particular symbol, those prefixes and suffixes are not
transmitted. Any data that does not match your data format requirements
generates an error tone. If you wish to process this type of bar code without
generating an error tone, see Data Format Non-Match Error Tone.
Choose one of the following options.
Default = Data Formatter On, Not
Required, Keep Prefix/Suffix.
Data Format Non-Match Error Tone
When a bar code is encountered that doesn’t match your required data for-
mat, the scanner normally generates an error tone. However, you may
want to continue scanning bar codes without hearing the error tone. If you
scan the Data Format Non-Match Error Tone Off bar code, data that
doesn’t conform to your data format is not transmitted, and no error tone
will sound. If you wish to hear the error tone when a non-matching bar
code is found, scan the Data Format Non-Match Error Tone On bar code.
Default = Data Format Non-Match Error Tone On
.
* Data Formatter On,
Not Required,
Keep Prefix/Suffix
Data Formatter On,
Not Required,
Drop Prefix/Suffix
Data Format Required,
Keep Prefix/Suffix
Data Format Required,
Drop Prefix/Suffix
* Data Format Non-Match Error
Tone On
Data Format Non-Match
Error Tone Off
Preliminary Draft
6 - 10

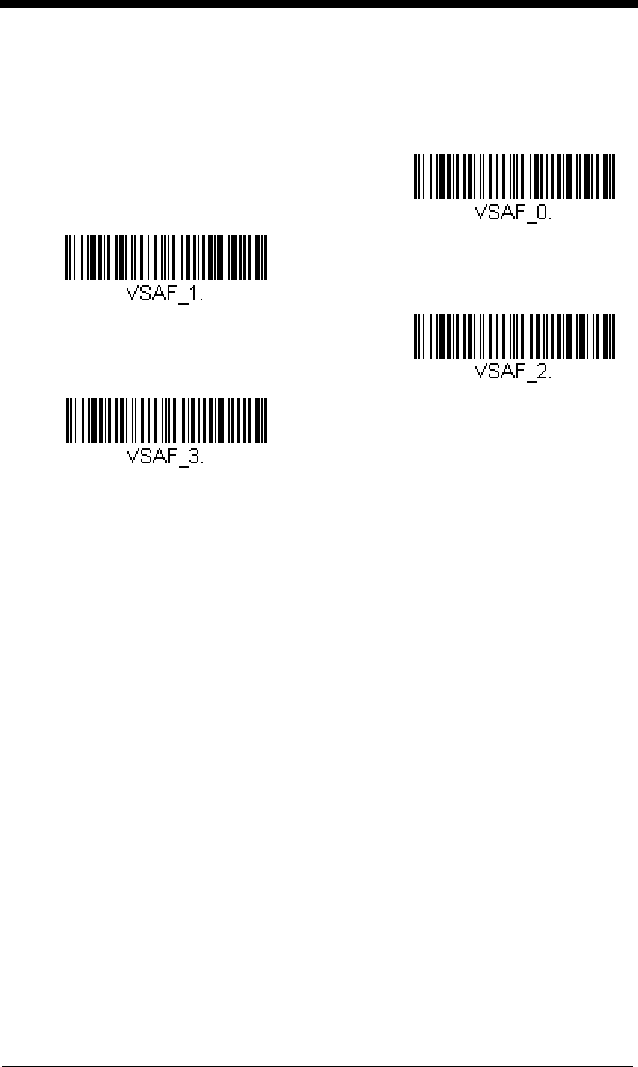

Primary/Alternate Data Formats
You can save up to four data formats, and switch between these formats. Your
primary data format is saved under 0. Your other three formats are saved under
1, 2, and 3. To set your device to use one of these formats, scan one of the bar
codes below.
Single Scan Data Format Change
You can also switch between data formats for a single scan. The next bar
code is scanned using an alternate data format, then reverts to the format
you have selected above (either Primary, 1, 2, or 3).
Primary Data Format
Data Format 1
Data Format 2
Data Format 3
Preliminary Draft
6 - 11
For example, you may have set your device to the data format you saved as
Data Format 3. You can switch to Data Format 1 for a single trigger pull by
scanning the Single Scan-Data Format 1 bar code below. The next bar
code that is scanned uses Data Format 1, then reverts back to Data Format
3.
Single Scan-Data Format 1
Single Scan-Data Format 2
Single Scan-Data Format 3
Single Scan-Primary
Data Format
Preliminary Draft
6 - 12
Preliminary Draft
7 - 1
7
Symbologies
This programming section contains the following menu selections. Refer to
Chapter 11 for settings and defaults.
• All Symbologies • Interleaved 2 of 5
• Aztec Code • Korea Post
• China Post (Hong Kong 2 of 5) • Matrix 2 of 5
• Chinese Sensible (Han Xin) Code • MaxiCode
• Codabar • MicroPDF417
• Codablock A • MSI
• Codablock F • NEC 2 of 5
• Code 11 • Postal Codes - 2D
• Code 128 • Postal Codes - Linear
• Code 32 Pharmaceutical (PARAF) • PDF417
• Code 39 • GS1 DataBar Omnidirectional
• Code 93 • QR Code
•Data Matrix • Straight 2 of 5 IATA (two-bar start/
stop)
•EAN/JAN-13 • Straight 2 of 5 Industrial (three-bar
start/stop)
• EAN/JAN-8 • TCIF Linked Code 39 (TLC39)
• GS1 Composite Codes • Telepen
• GS1 DataBar Expanded • Trioptic Code
• GS1 DataBar Limited • UPC-A
• GS1 DataBar Omnidirectional • UPC-A/EAN-13 with Extended
Coupon Code
• GS1 Emulation • UPC-E0
• GS1-128 • UPC-E1
Preliminary Draft
7 - 2

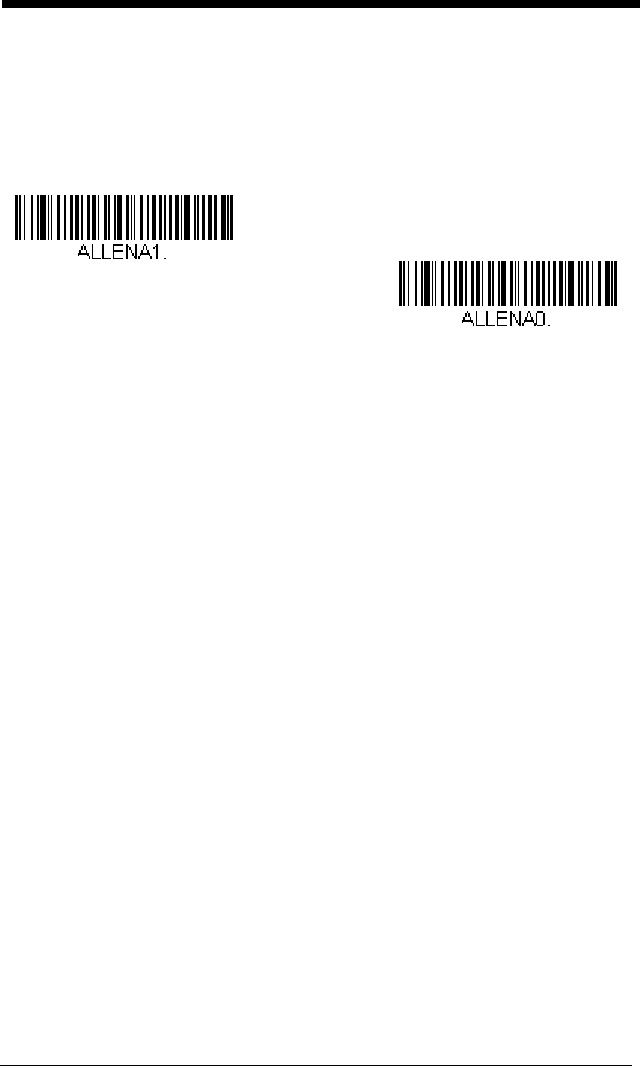

All Symbologies
If you want to decode all the symbologies allowable for your scanner, scan the
All Symbologies On
code. If on the other hand, you want to decode only a
particular symbology, scan All Symbologies Off followed by the On symbol for
that particular symbology.
Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled.
2D Postal Codes must be enabled separately.
Message Length Description
You are able to set the valid reading length of some of the bar code symbolo-
gies. If the data length of the scanned bar code doesn’t match the valid read-
ing length, the scanner will issue an error tone. You may wish to set the same
value for minimum and maximum length to force the scanner to read fixed
length bar code data. This helps reduce the chances of a misread.
EXAMPLE: Decode only those bar codes with a count of 9-20 characters.
Min. length = 09Max. length = 20
EXAMPLE: Decode only those bar codes with a count of 15 characters.
Min. length = 15Max. length = 15
For a value other than the minimum and maximum message length defaults,
scan the bar codes included in the explanation of the symbology, then scan the
digit value of the message length and Save bar codes on the Programming
Chart inside the back cover of this manual. The minimum and maximum
lengths and the defaults are included with the respective symbologies.
All Symbologies On
All Symbologies Off
Preliminary Draft
7 - 3
Codabar
<Default All Codabar Settings>
Codabar On/Off
Codabar Start/Stop Characters
Start/Stop characters identify the leading and trailing ends of the bar code.
You may either transmit, or not transmit Start/Stop characters.
Default = Don’t Transmit
.
Codabar Check Character
Codabar check characters are created using different “modulos.” You can
program the scanner to read only Codabar bar codes with Modulo 16 check
characters.
Default = No Check Character.
No Check Character
indicates that the scanner reads and transmits bar
code data with or without a check character.
When Check Character is set to
Validate and Transmit
, the scanner will
only read Codabar bar codes printed with a check character, and will trans-
mit this character at the end of the scanned data.
* On
Off
Transmit
* Don’t Transmit
Preliminary Draft
7 - 4

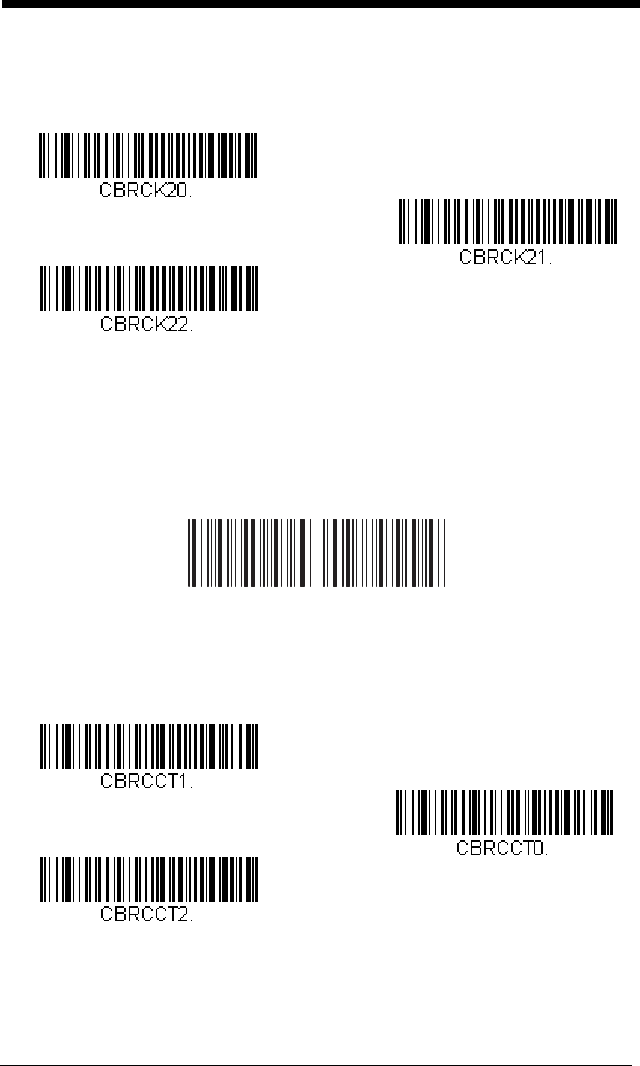

When Check Character is set to
Validate, but Don’t Transmit
, the unit will
only read Codabar bar codes printed
with
a check character, but will not
transmit the check character with the scanned data.
Codabar Concatenation
Codabar supports symbol concatenation. When you enable concatena-
tion, the scanner looks for a Codabar symbol having a “D” start character,
adjacent to a symbol having a “D” stop character. In this case the two mes-
sages are concatenated into one with the “D” characters omitted.
Select Require to prevent the scanner from decoding a single “D” Codabar
symbol without its companion. This selection has no effect on Codabar
symbols without Stop/Start D characters.
* No Check Character
Validate Modulo 16
and Transmit
Validate Modulo 16, but
Don’t Transmit
A12 34D
D5 6 7 8A
On
* Off
Require
Preliminary Draft
7 - 5
Codabar Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 2-60. Minimum Default = 4, Maximum
Default = 60.
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 6

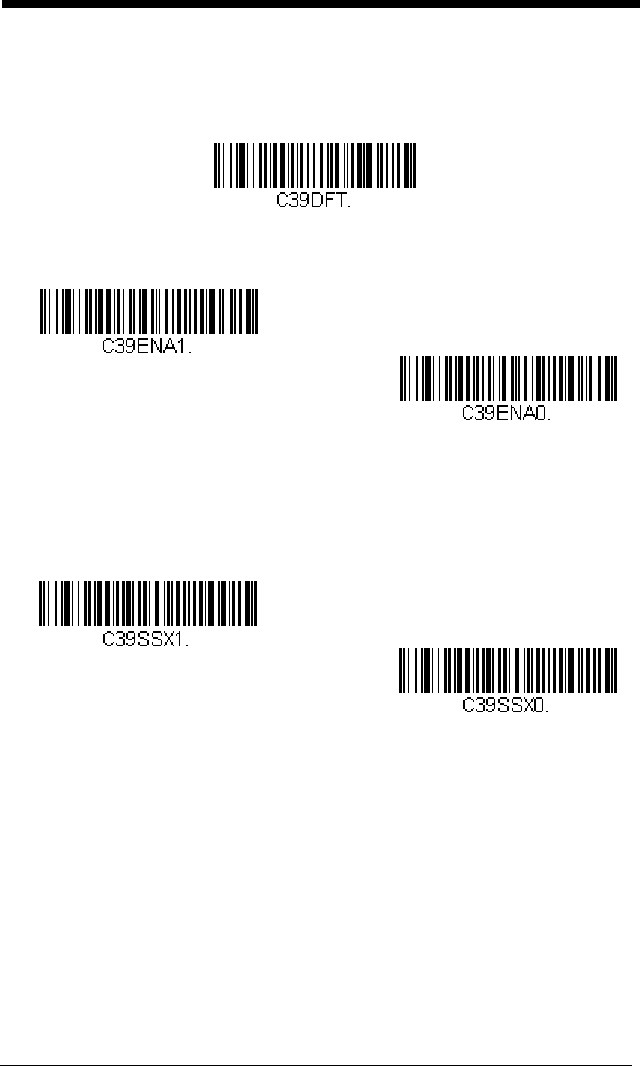

Code 39
< Default All Code 39 Settings >
Code 39 On/Off
Code 39 Start/Stop Characters
Start/Stop characters identify the leading and trailing ends of the bar code.
You may either transmit, or not transmit Start/Stop characters.
Default =
Don’t Transmit.
Code 39 Check Character
No Check Character indicates that the scanner reads and transmits bar
code data with or without a check character.
When Check Character is set to Validate, but Don’t Transmit, the unit
only reads Code 39 bar codes printed with a check character, but will not
transmit the check character with the scanned data.
* On
Off
Transmit
* Don’t Transmit
Preliminary Draft
7 - 7
When Check Character is set to Validate and Transmit, the scanner only
reads Code 39 bar codes printed with a check character, and will transmit
this character at the end of the scanned data.
Default = No Check Charac-
ter.
Code 39 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 0-48. Minimum Default = 0, Maximum
Default = 48.

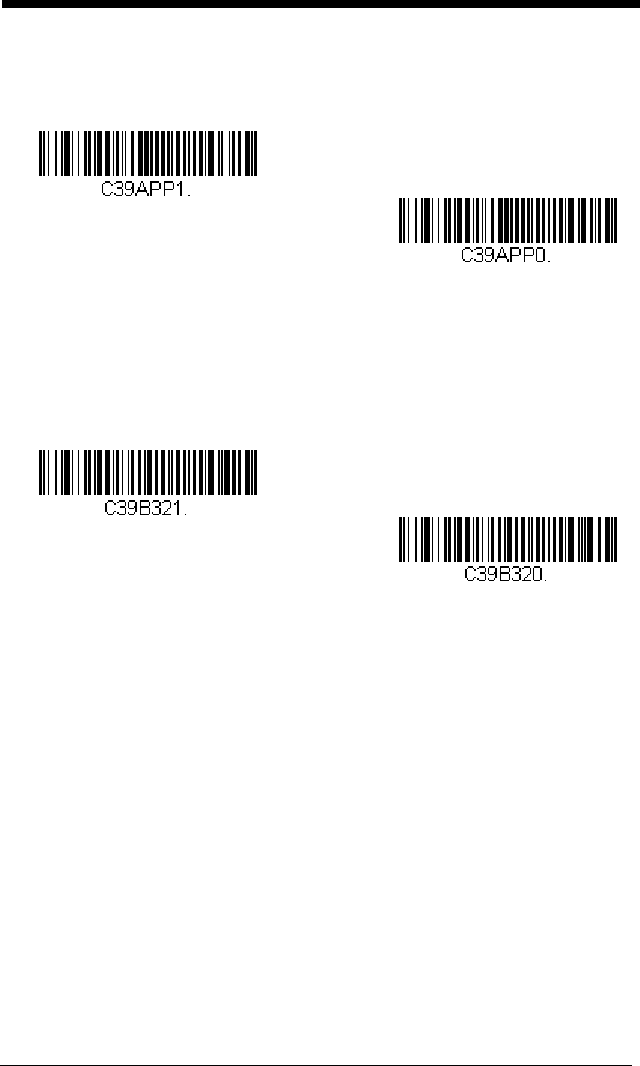

Code 39 Append
This function allows the scanner to append the data from several Code 39
bar codes together before transmitting them to the host computer. When
this function is enabled, the scanner stores those Code 39 bar codes that
start with a space (excluding the start and stop symbols), and does not
immediately transmit the data. The scanner stores the data in the order in
* No Check Character
Validate and Transmit
Validate, but Don’t Transmit
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 8
which the bar codes are read, deleting the first space from each. The
scanner transmits the appended data when it reads a Code 39 bar code
that starts with a character other than a space.
Default = Off.
Code 32 Pharmaceutical (PARAF)
Code 32 Pharmaceutical is a form of the Code 39 symbology used by Ital-
ian pharmacies. This symbology is also known as PARAF.
Note: Trioptic Code (page 7-38) must be turned off while scanning Code
32 Pharmaceutical codes.
* Off
On
* Off
On
Preliminary Draft
7 - 9
Full ASCII
If Full ASCII Code 39 decoding is enabled, certain character pairs within
the bar code symbol will be interpreted as a single character. For example:
$V will be decoded as the ASCII character SYN, and /C will be decoded as
the ASCII character #.
Default = Off
.
Character pairs /M and /N decode as a minus sign and period respectively.
Character pairs /P through /Y decode as 0 through 9.
Code 39 Code Page
Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Barcodes on page A-6),
NUL %U DLE $P
SP SPACE
00@%VPP‘%Wp+P
SOH $A DC1 $Q !/A 11AAQQa+Aq+Q
STX $B DC2 $R “/B 22BBRRb+Br+R
ETX $C DC3 $S #/C 33CCSSc+Cs+S
EOT $D DC4 $T $/D 44DDTTd+Dt+T
ENQ $E NAK $U %/E 55EEUUe+Eu+U
ACK $F SYN $V &/F 66FFVVf+Fv+V
BEL $G ETB $W ‘/G77GGWWg+Gw+W
BS $H CAN $X (/H 88HHXXh+Hx+X
HT $I EM $Y )/I 99IIYYi+Iy+Y
LF $J SUB $Z */J :/ZJJZZj+Jz+Z
VT $K ESC %A +/K ;%FKK[%Kk+K{%P
FF $L FS %B ,/L <%GLL\%Ll+L|%Q
CR $M GS %C -- =%HMM]%Mm+M}%R
SO $N RS %D .. >%INN^%Nn+N~%S
SI $O US %E //O ?%JOO_%Oo+ODEL %T
* Full ASCII Off
Full ASCII On
Preliminary Draft
7 - 10

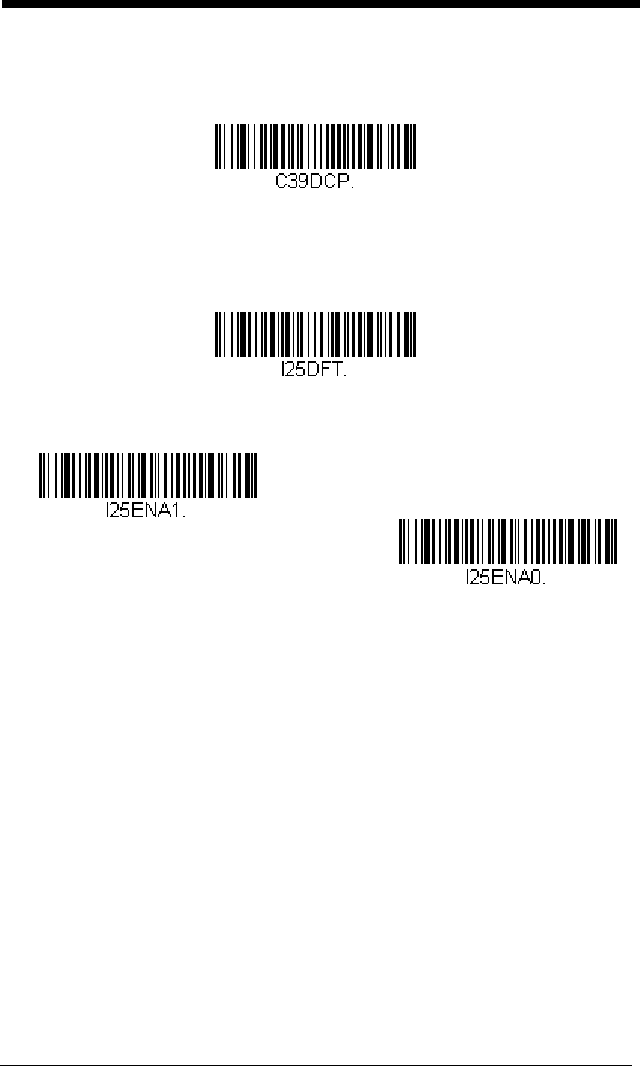

and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.
Interleaved 2 of 5
< Default All Interleaved 2 of 5 Settings >
Interleaved 2 of 5 On/Off
Check Digit
No Check Digit indicates that the scanner reads and transmits bar code
data with or without a check digit.
When Check Digit is set to Validate, but Don’t Transmit, the unit only
reads Interleaved 2 of 5 bar codes printed with a check digit, but will not
transmit the check digit with the scanned data.
Code 39 Code Page
* On
Off
Preliminary Draft
7 - 11

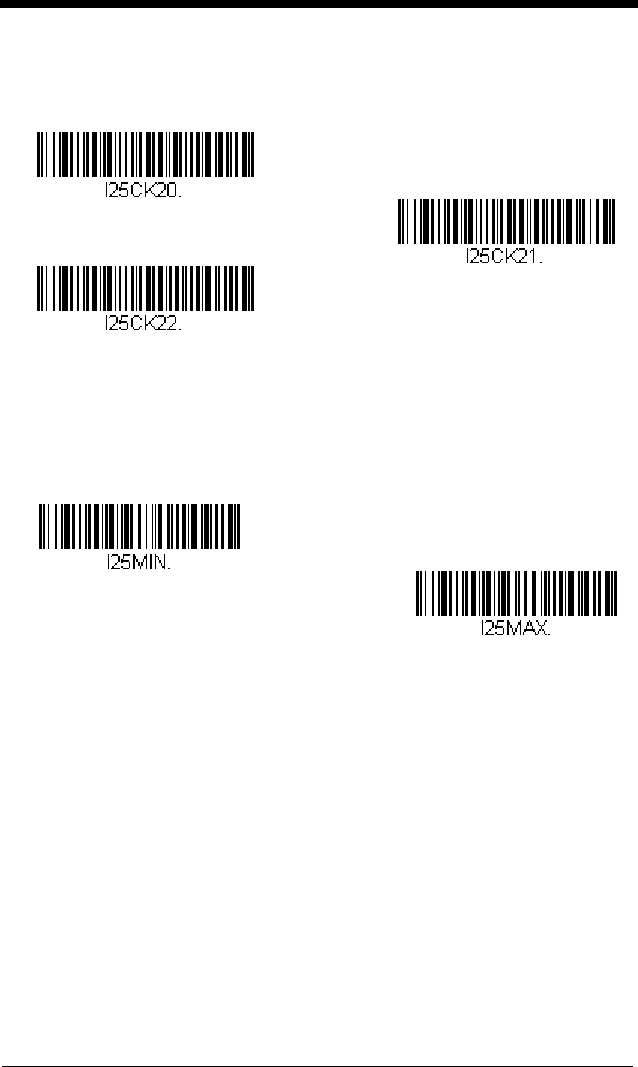

When Check Digit is set to Validate and Transmit, the scanner only reads
Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this
digit at the end of the scanned data.
Default = No Check Digit.
Interleaved 2 of 5 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum
Default = 80.
Validate, but Don’t Transmit
* No Check Digit
Validate and Transmit
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 12
NEC 2 of 5
< Default All NEC 2 of 5 Settings >
NEC 2 of 5 On/Off
Check Digit
No Check Digit indicates that the scanner reads and transmits bar code
data with or without a check digit.
When Check Digit is set to Validate, but Don’t Transmit, the unit only
reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit
the check digit with the scanned data.
When Check Digit is set to Validate and Transmit, the scanner only reads
NEC 2 of 5 bar codes printed with a check digit, and will transmit this digit
at the end of the scanned data.
Default = No Check Digit.
* On
Off
* No Check Digit
Validate and Transmit
Validate, but Don’t Transmit
Preliminary Draft
7 - 13

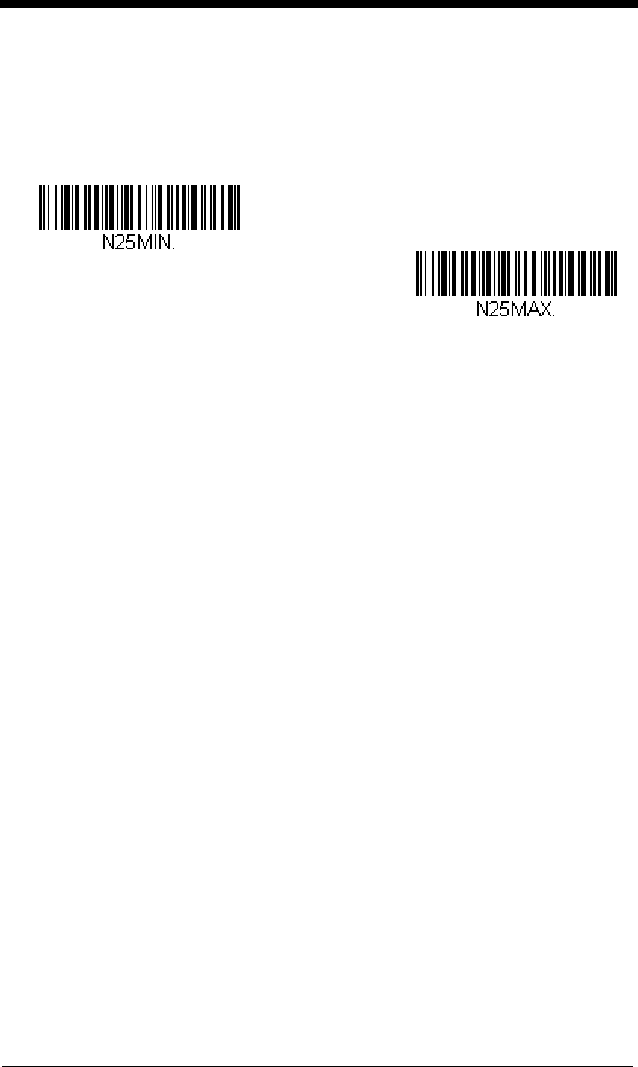

NEC 2 of 5 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum
Default = 80.
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 14
Code 93
< Default All Code 93 Settings >
Code 93 On/Off
Code 93 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum
Default = 80.
Code 93 Code Page
Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Barcodes on page A-6),
* On
Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 15

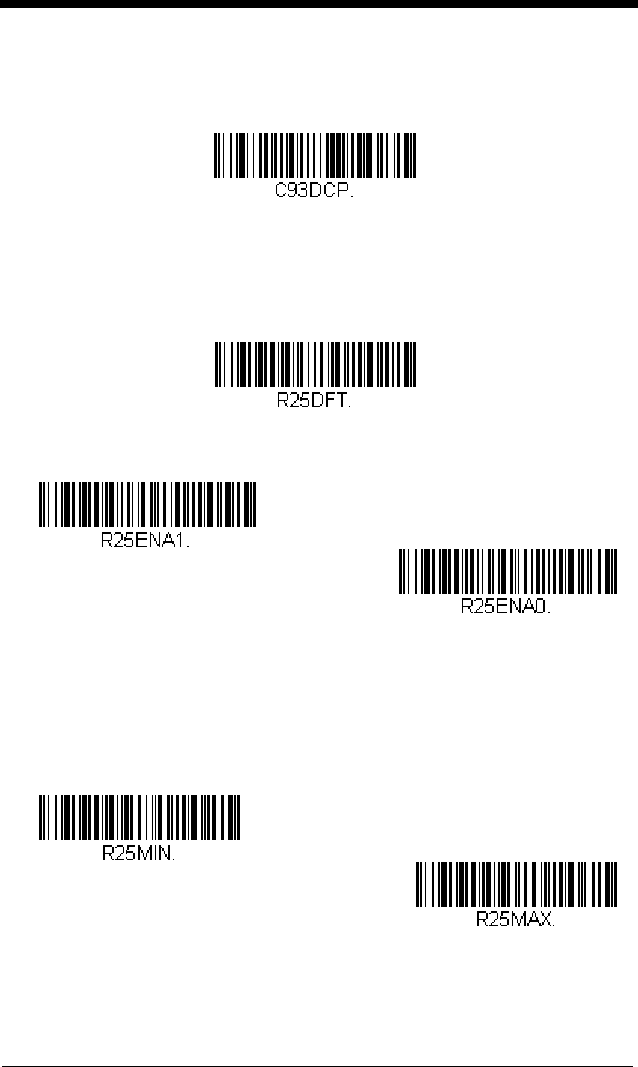

and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.
Straight 2 of 5 Industrial (three-bar start/stop)
<Default All Straight 2 of 5 Industrial Settings>
Straight 2 of 5 Industrial On/Off
Straight 2 of 5 Industrial Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum
Default = 48.
Code 93 Code Page
On
* Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 16
Straight 2 of 5 IATA (two-bar start/stop)
<Default All Straight 2 of 5 IATA Settings>
Straight 2 of 5 IATA On/Off
Straight 2 of 5 IATA Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum
Default = 48.
* Off
On
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 17
Matrix 2 of 5
<Default All Matrix 2 of 5 Settings>
Matrix 2 of 5 On/Off
Matrix 2 of 5 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum
Default = 80.
On
* Off
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 18
Code 11
<Default All Code 11 Settings>
Code 11 On/Off
Check Digits Required
This option sets whether 1 or 2 check digits are required with Code 11 bar
codes.
Default = Two Check Digits.
On
* Off
One Check Digit
* Two Check Digits
Preliminary Draft
7 - 19

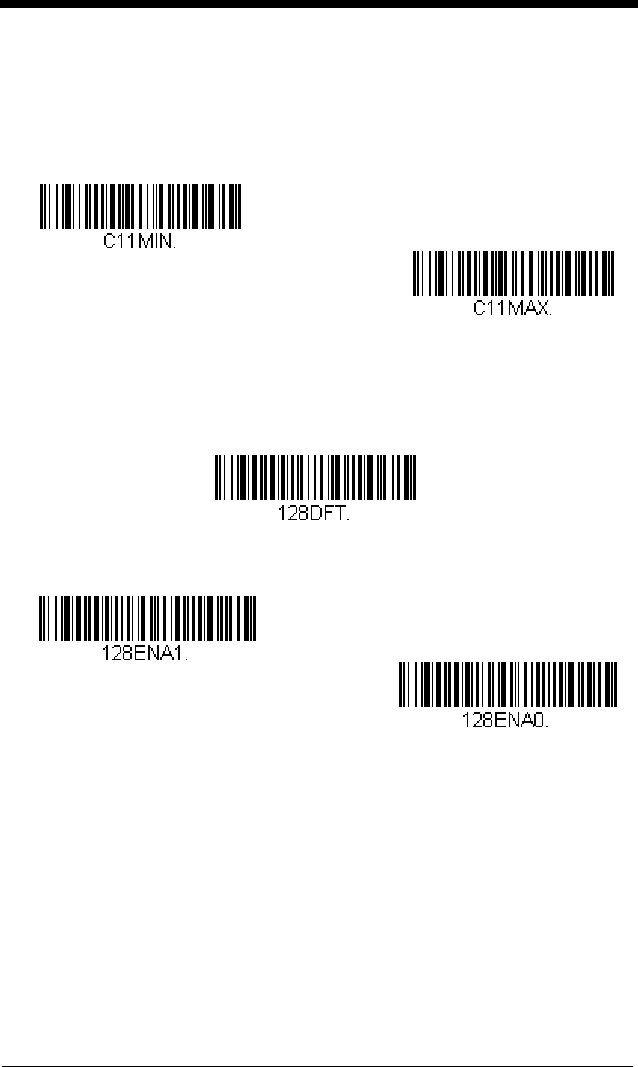

Code 11 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum
Default = 80.
Code 128
<Default All Code 128 Settings>
Code 128 On/Off
ISBT 128 Concatenation
In 1994 the International Society of Blood Transfusion (ISBT) ratified a
standard for communicating critical blood information in a uniform manner.
The use of ISBT formats requires a paid license. The ISBT 128 Application
Specification describes 1) the critical data elements for labeling blood prod-
ucts, 2) the current recommendation to use Code 128 due to its high
degree of security and its space-efficient design, 3) a variation of Code 128
Minimum Message Length
Maximum Message Length
* On
Off
Preliminary Draft
7 - 20
that supports concatenation of neighboring symbols, and 4) the standard
layout for bar codes on a blood product label. Use the bar codes below to
turn concatenation on or off.
Default =Off.
Code 128 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum
Default = 80.
Code 128 Code Page
Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Barcodes on page A-6),
and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.
* Off
On
Minimum Message Length
Maximum Message Length
Code 128 Code Page
Preliminary Draft
7 - 21
GS1-128
<Default All GS1-128 Settings>
GS1-128 On/Off
GS1-128 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-80. Minimum Default = 1, Maximum
Default = 80.
* On
Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 22
Telepen
<Default All Telepen Settings>
Telepen On/Off
Telepen Output
Using AIM Telepen Output, the scanner reads symbols with start/stop pat-
tern 1 and decodes them as standard full ASCII (start/stop pattern 1).
When Original Telepen Output is selected, the scanner reads symbols with
start/stop pattern 1 and decodes them as compressed numeric with
optional full ASCII (start/stop pattern 2).
Default = AIM Telepen Output.
On
* Off
Original Telepen Output
* AIM Telepen Output
Preliminary Draft
7 - 23

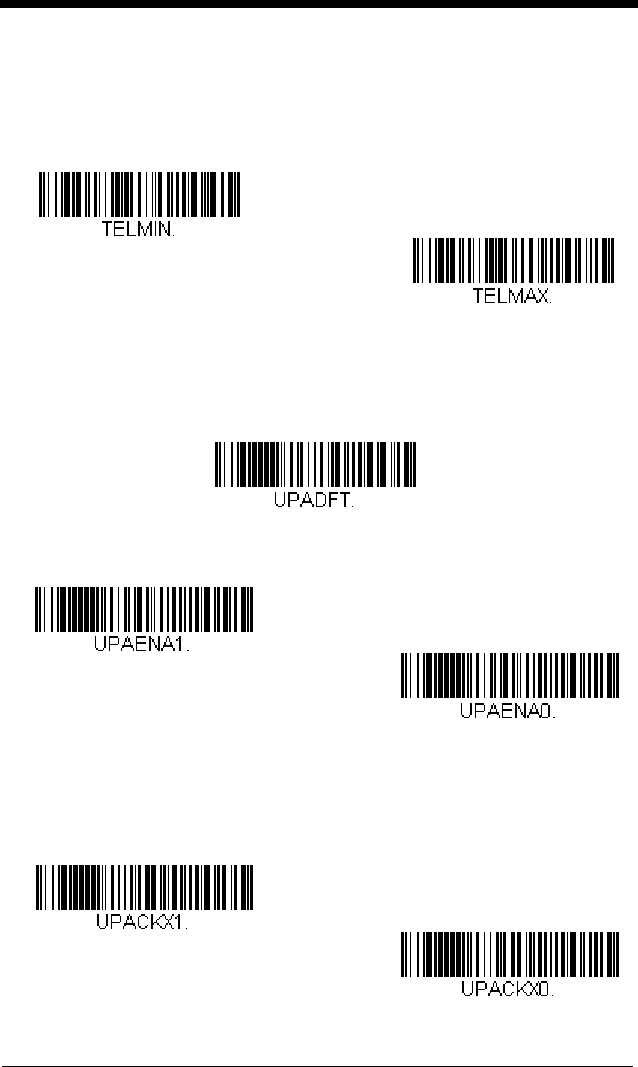

Telepen Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-60. Minimum Default = 1, Maximum
Default = 60.
UPC-A
<Default All UPC-A Settings>
UPC-A On/Off
UPC-A Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.
Default = On
.
Minimum Message Length
Maximum Message Length
* On
Off
* On
Off
Preliminary Draft
7 - 24

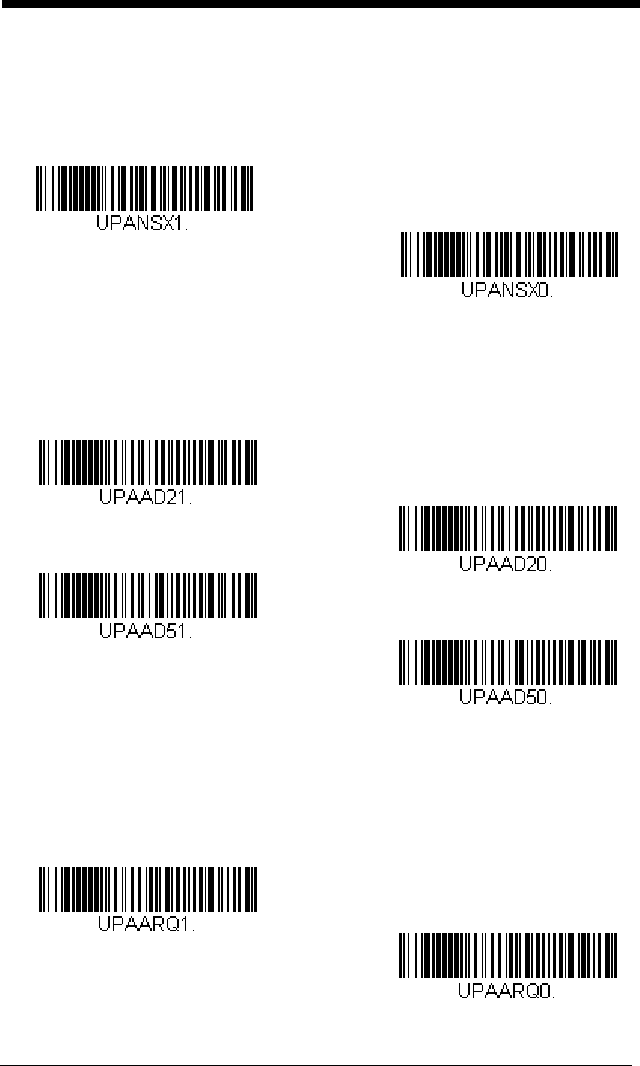

UPC-A Number System
The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will
not transmit it.
Default = On.
UPC-A Addenda
This selection adds 2 or 5 digits to the end of all scanned UPC-A data.
Default = Off for both 2 Digit and 5 Digit Addenda.
UPC-A Addenda Required
When
Required
is scanned, the scanner will only read UPC-A bar codes
that have addenda. You must then turn on a 2 or 5 digit addenda listed on
page 7-24.
Default = Not Required.
Off
* On
* 5 Digit Addenda Off
5 Digit Addenda On
* 2 Digit Addenda Off
2 Digit Addenda On
* Not Required
Required
Preliminary Draft
7 - 25

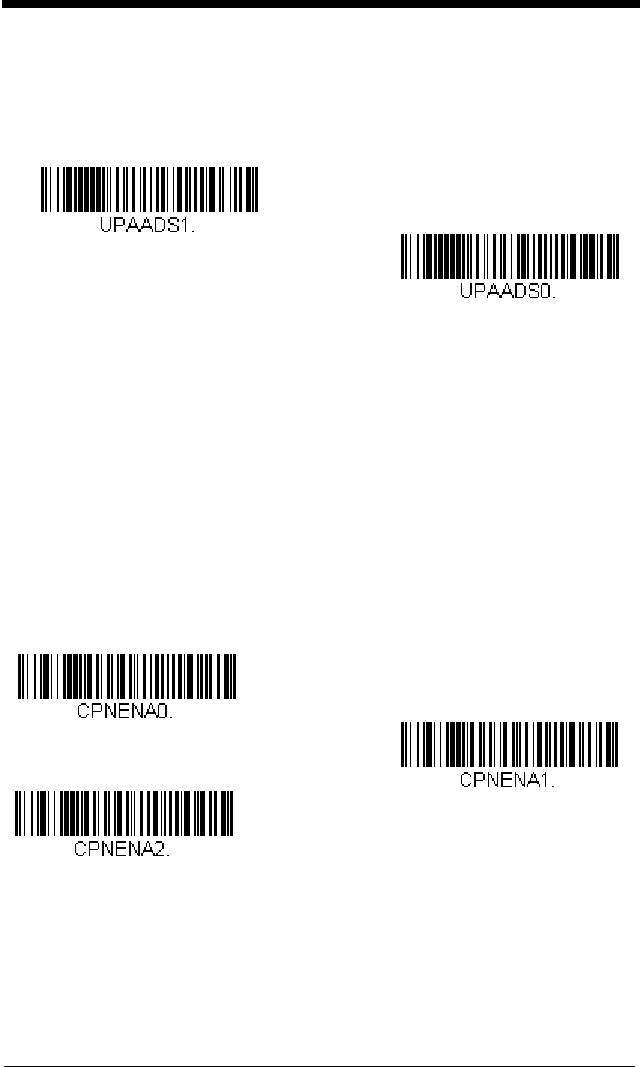

UPC-A Addenda Separator
When this feature is on, there is a space between the data from the bar
code and the data from the addenda. When turned off, there is no space.
Default = On.
UPC-A/EAN-13
with Extended Coupon Code
Use the following codes to enable or disable UPC-A and EAN-13 with Extended
Coupon Code. When left on the default setting (Off), the scanner treats Cou-
pon Codes and Extended Coupon Codes as single bar codes.
If you scan the Allow Concatenation code, when the scanner sees the coupon
code and the extended coupon code in a single scan, it transmits both as sepa-
rate symbologies. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read
the coupon code and extended coupon code in a single read to transmit the
data. No data is output unless both codes are read.
Default = Off.
Off
* On
Allow Concatenation
* Off
Require Concatenation
Preliminary Draft
7 - 26
UPC-E0
<Default All UPC-E Settings>
UPC-E0 On/Off
Most U.P.C. bar codes lead with the 0 number system. To read these
codes, use the UPC-E0 On selection. If you need to read codes that lead
with the 1 number system, use UPC-E1 (page 7-29).
Default = On.
UPC-E0 Expand
UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format.
Default = Off.
* UPC-E0 On
UPC-E0 Off
On
* Off
Preliminary Draft
7 - 27

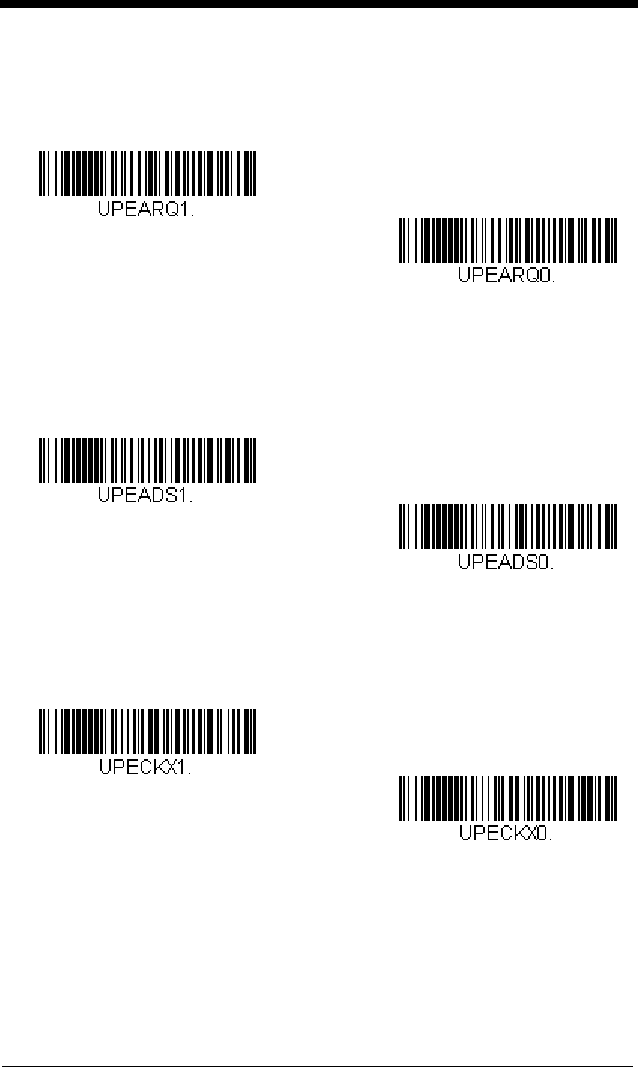

UPC-E0 Addenda Required
When Required is scanned, the scanner will only read UPC-E bar codes
that have addenda.
Default = Not Required.
UPC-E0 Addenda Separator
When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.
Default = On.
UPC-E0 Check Digit
Check Digit specifies whether the check digit should be transmitted at the
end of the scanned data or not.
Default = On.
* Not Required
Required
Off
* On
Off
* On
Preliminary Draft
7 - 28
UPC-E0 Number System
The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will
not transmit it. To prevent transmission, scan Off.
Default = On.
UPC-E0 Addenda
This selection adds 2 or 5 digits to the end of all scanned UPC-E data.
Default = Off for both 2 Digit and 5 Digit Addenda.
Off
* On
* 5 Digit Addenda Off
5 Digit Addenda On
* 2 Digit Addenda Off
2 Digit Addenda On
Preliminary Draft
7 - 29
UPC-E1
Most U.P.C. bar codes lead with the 0 number system. For these codes, use
UPC-E0 (page 7-26). If you need to read codes that lead with the 1 number
system, use the UPC-E1 On selection.
Default = Off.
EAN/JAN-13
<Default All EAN/JAN Settings>
EAN/JAN-13 On/Off
EAN/JAN-13 Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.
Default = On.
UPC-E1 On
* UPC-E1 Off
* On
Off
Off
* On
Preliminary Draft
7 - 30

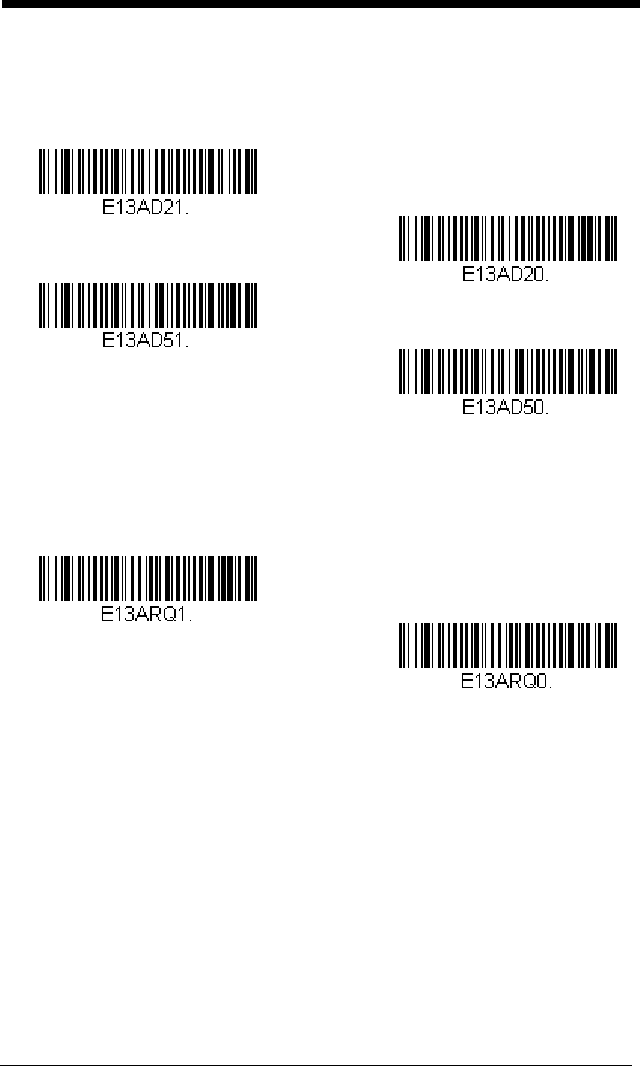

EAN/JAN-13 Addenda
This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13
data.
Default = Off for both 2 Digit and 5 Digit Addenda.
EAN/JAN-13 Addenda Required
When Required is scanned, the scanner will only read EAN/JAN-13 bar
codes that have addenda.
Default = Not Required.
* 5 Digit Addenda Off
5 Digit Addenda On
* 2 Digit Addenda Off
2 Digit Addenda On
* Not Required
Required
Preliminary Draft
7 - 31
EAN/JAN-13 Addenda Separator
When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.
Default = On.
Note: If you want to enable or disable EAN13 with Extended Coupon Code,
refer to UPC-A/EAN-13 with Extended Coupon Code (page 7-25).
ISBN Translate
When On is scanned, EAN-13 Bookland symbols are translated into their
equivalent ISBN number format.
Default = Off.
Off
* On
* Off
On
Preliminary Draft
7 - 32

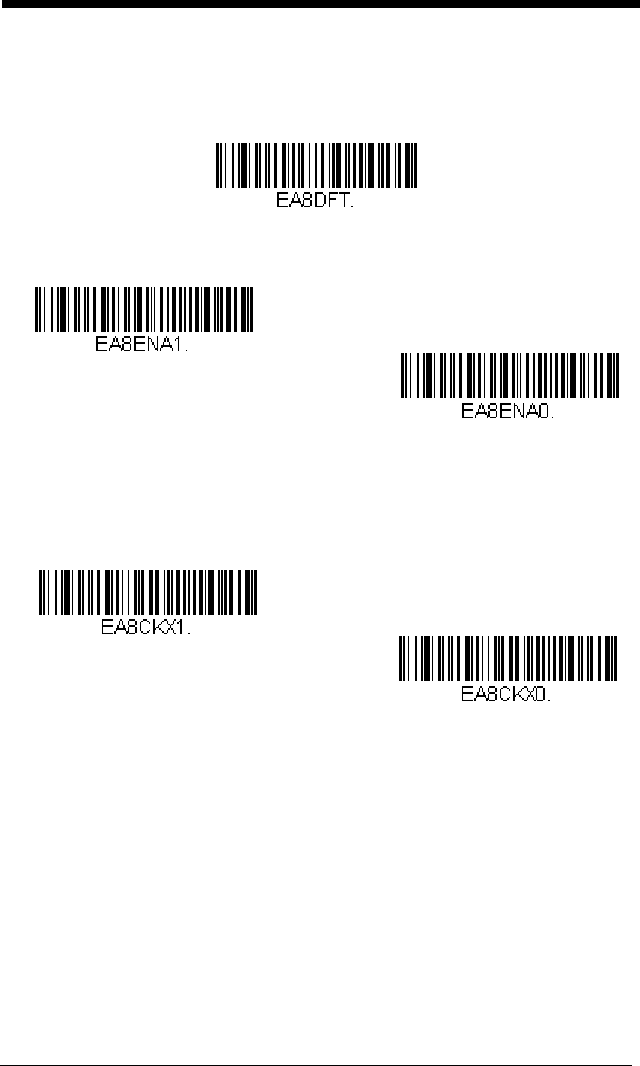

EAN/JAN-8
<Default All EAN/JAN-8 Settings>
EAN/JAN-8 On/Off
EAN/JAN-8 Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.
Default = On.
* On
Off
Off
* On
Preliminary Draft
7 - 33

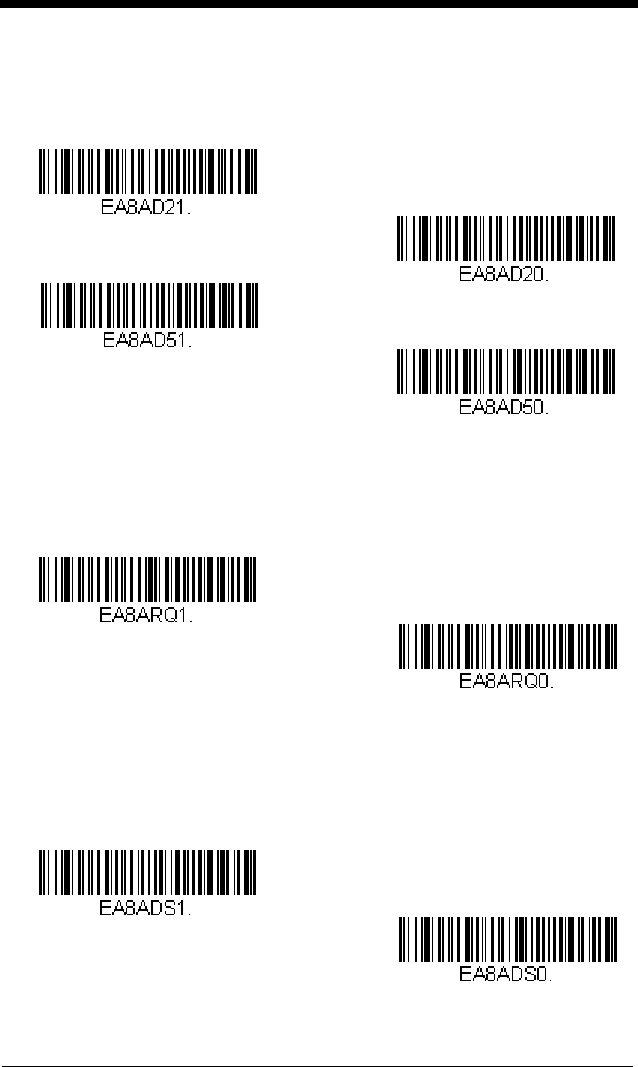

EAN/JAN-8 Addenda
This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data.
Default = Off for both 2 Digit and 5 Digit Addenda.
EAN/JAN-8 Addenda Required
When Required is scanned, the scanner will only read EAN/JAN-8 bar
codes that have addenda.
Default = Not Required.
EAN/JAN-8 Addenda Separator
When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.
Default = On.
* 5 Digit Addenda Off
5 Digit Addenda On
* 2 Digit Addenda Off
2 Digit Addenda On
* Not Required
Required
Off
* On
Preliminary Draft
7 - 34
MSI
<Default All MSI Settings>
MSI On/Off
MSI Check Character
Different types of check characters are used with MSI bar codes. You can
program the scanner to read MSI bar codes with Type 10 check charac-
ters.
Default = Validate Type 10, but Don’t Transmit.
When Check Character is set to Validate Type 10/11 and Transmit, the
scanner will only read MSI bar codes printed with the specified type check
character(s), and will transmit the character(s) at the end of the scanned
data.
On
* Off
Preliminary Draft
7 - 35

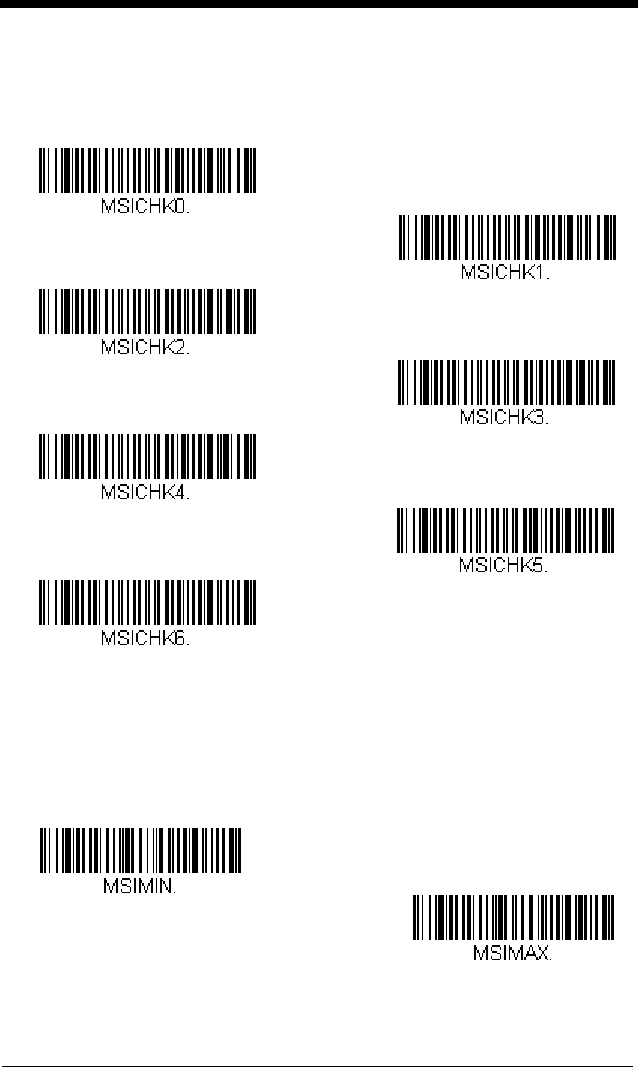

When Check Character is set to Validate Type 10/11, but Don’t Transmit,
the unit will only read MSI bar codes printed with the specified type check
character(s), but will not transmit the check character(s) with the scanned
data.
MSI Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 4-48. Minimum Default = 4, Maximum
Default = 48.
Validate Type 10 and Transmit
* Validate Type 10, but Don’t
Transmit
Validate 2 Type 10 Characters,
but Don’t Transmit
Validate 2 Type 10 Characters
and Transmit
Validate Type 10 then Type 11
Character, but Don’t Transmit
Validate Type 10 then
Type 11 Character and Transmit
Disable MSI Check Characters
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 36

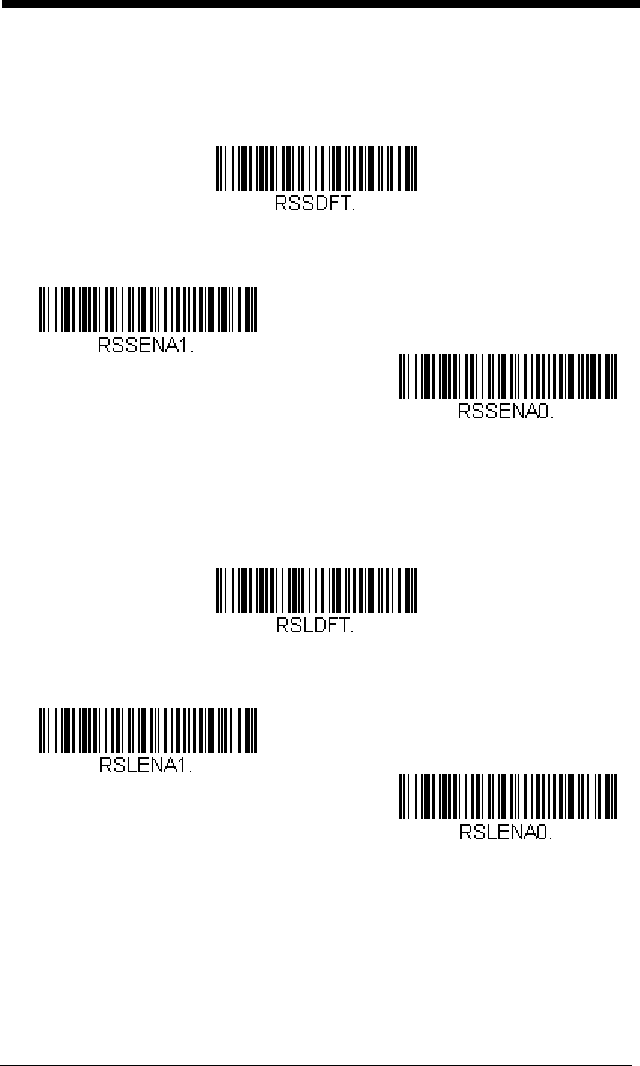

GS1 DataBar Omnidirectional
< Default All GS1 DataBar Omnidirectional Settings >
GS1 DataBar Omnidirectional On/Off
GS1 DataBar Limited
< Default All GS1 DataBar Limited Settings >
GS1 DataBar Limited On/Off
* On
Off
* On
Off
Preliminary Draft
7 - 37
GS1 DataBar Expanded
< Default All GS1 DataBar Expanded Settings >
GS1 DataBar Expanded On/Off
GS1 DataBar Expanded Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 4-74. Minimum Default = 4, Maximum
Default = 74.
* On
Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 38

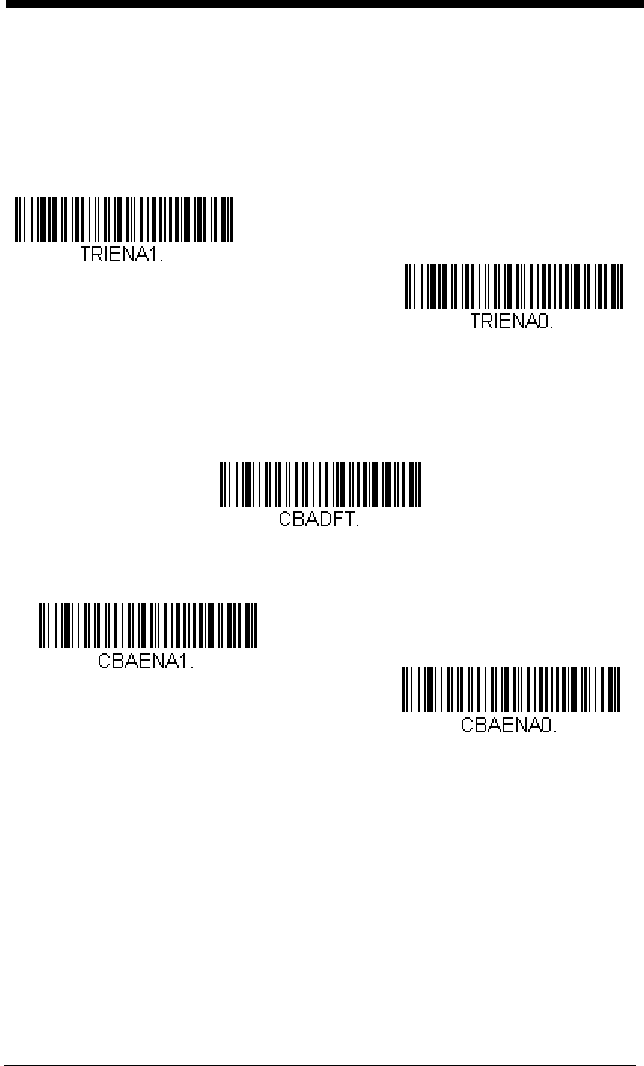

Trioptic Code
Note: If you are going to scan Code 32 Pharmaceutical codes (page 7-8),
Trioptic Code must be off.
Trioptic Code is used for labeling magnetic storage media.
Codablock A
<Default All Codablock A Settings>
Codablock A On/Off
On
* Off
On
* Off
Preliminary Draft
7 - 39
Codablock A Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-600. Minimum Default = 1, Maximum
Default = 600.
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 40

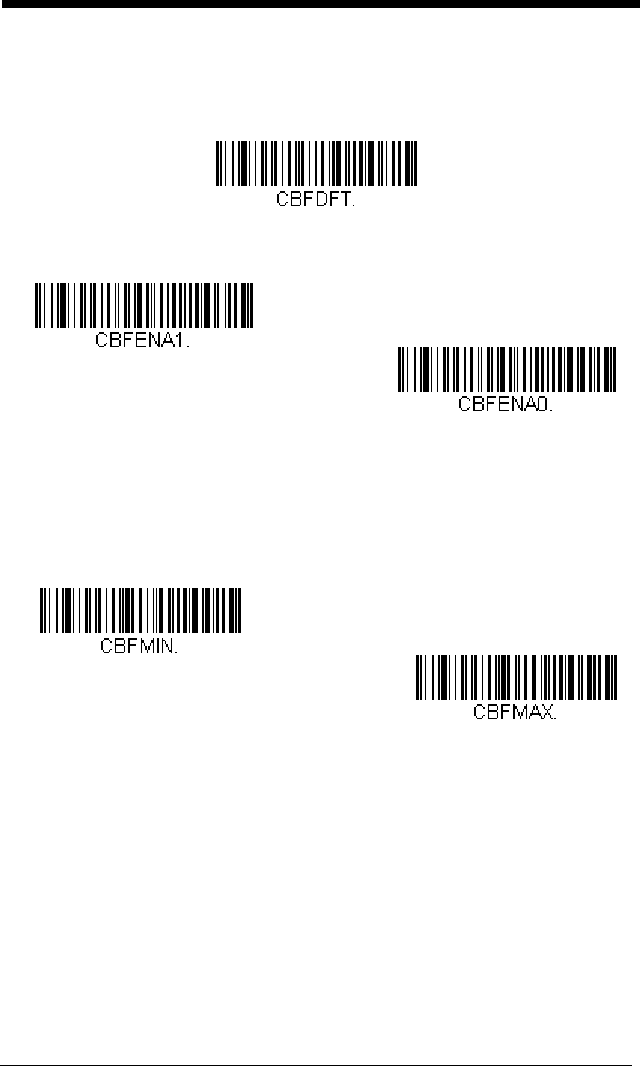

Codablock F
<Default All Codablock F Settings>
Codablock F On/Off
Codablock F Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum
Default = 2048.
On
* Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 41
PDF417
< Default All PDF417 Settings >
PDF417 On/Off
PDF417 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum
Default = 2750.
* On
Off
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 42
MicroPDF417
< Default All MicroPDF417 Settings >
MicroPDF417 On/Off
MicroPDF417 Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-366. Minimum Default = 1, Maximum
Default = 366.
* Off
On
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 43
GS1 Composite Codes
Linear codes are combined with a unique 2D composite component to form a
new class called GS1 Composite symbology. GS1 Composite symbologies
allow for the co-existence of symbologies already in use.
UPC/EAN Version
Scan the
UPC/EAN Version On
bar code to decode GS1 Composite sym-
bols that have a U.P.C. or EAN linear component. (This does not affect
GS1 Composite symbols with a GS1-128 or GS1 linear component.)
GS1 Composite Code Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-2435. Minimum Default = 1, Maximum
Default = 2435.
On
* Off
UPC/EAN Version On
* UPC/EAN Version Off
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 44

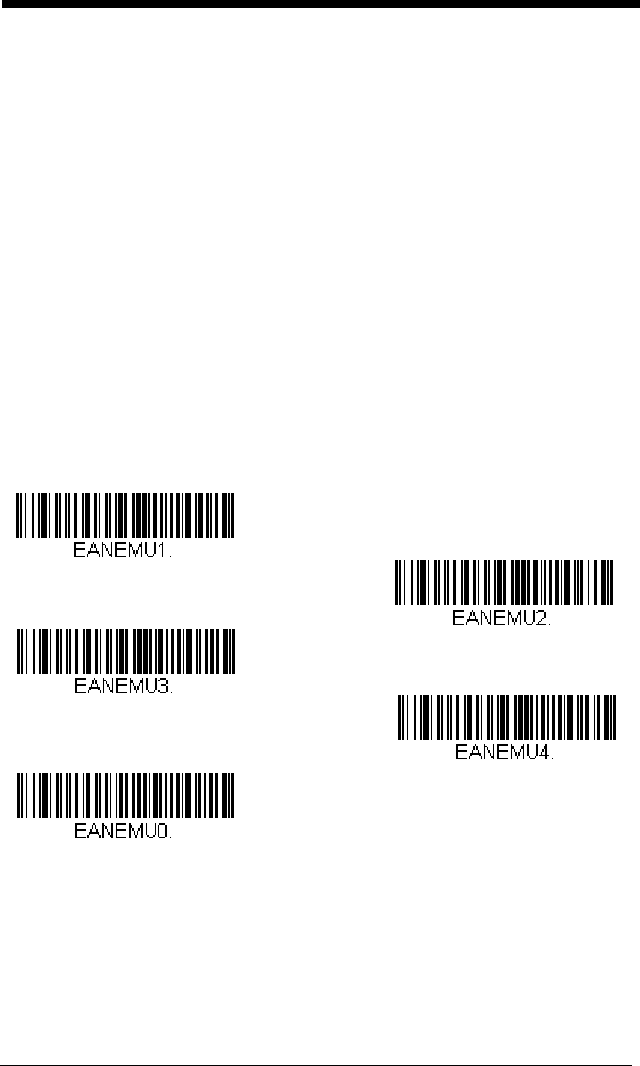

GS1 Emulation
The scanner can automatically format the output from any GS1 data carrier to
emulate what would be encoded in an equivalent GS1-128 or GS1 DataBar
symbol. GS1 data carriers include UPC-A and UPC-E, EAN-13 and EAN-8,
ITF-14, GS1-128, and GS1-128 DataBar and GS1 Composites. (Any applica-
tion that accepts GS1 data can be simplified since it only needs to recognize
one data carrier type.)
If GS1-128 Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8,
EAN13) are expanded out to 16 digits. If the AIM ID is enabled, the value will
be the GS1-128 AIM ID, ]C1 (see Symbology Chart on page A-1).
If GS1 DataBar Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8,
EAN13) are expanded out to 16 digits. If the AIM ID is enabled, the value will
be the GS1-DataBar AIM ID, ]e
m
(see Symbology Chart on page A-1).
If GS1 Code Expansion Off is scanned, retail code expansion is disabled, and
UPC-E expansion is controlled by the UPC-E0 Expand (page 7-26) setting. If
the AIM ID is enabled, the value will be the GS1-128 AIM ID, ]C1 (see
Symbology Chart on page A-1).
If EAN8 to EAN13 Conversion is scanned, all EAN8 bar codes are converted
to EAN13 format.
Default = GS1 Emulation Off
.
GS1 DataBar Emulation
GS1-128 Emulation
* GS1 Emulation Off
GS1 Code Expansion Off
EAN8 to EAN13 Conversion
Preliminary Draft
7 - 45
TCIF Linked Code 39 (TLC39)
This code is a composite code since it has a Code 39 linear component and a
MicroPDF417 stacked code component. All bar code readers are capable of
reading the Code 39 linear component. The MicroPDF417 component can only
be decoded if TLC39 On is selected. The linear component may be decoded
as Code 39 even if TLC39 is off.
Default = Off.
QR Code
< Default All QR Code Settings >
QR Code On/Off
This selection applies to both QR Code and Micro QR Code.
* Off
On
* On
Off
Preliminary Draft
7 - 46

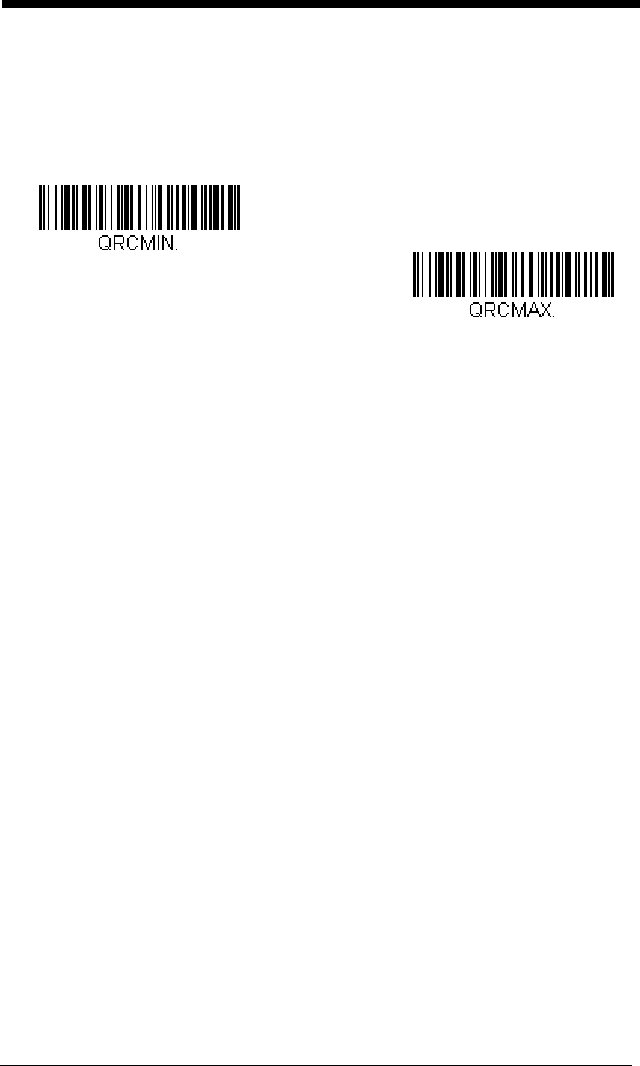

QR Code Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-7089. Minimum Default = 1, Maximum
Default = 7089.
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 47
Data Matrix
< Default All Data Matrix Settings >
Data Matrix On/Off
Data Matrix Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-3116. Minimum Default = 1, Maximum
Default = 3116.
Off
* On
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 48

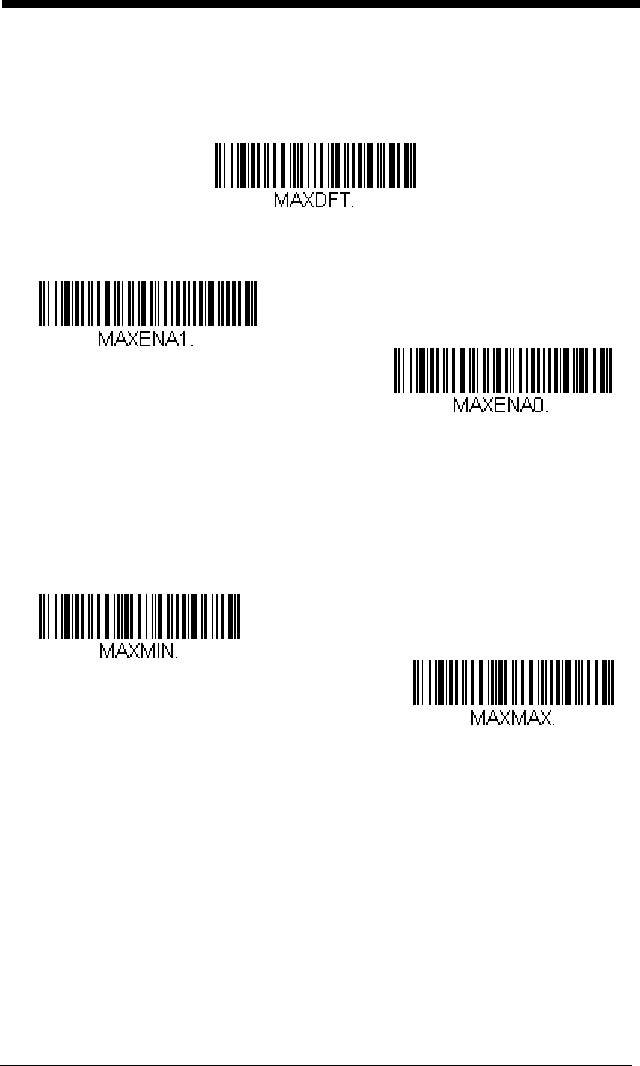

MaxiCode
< Default All MaxiCode Settings >
MaxiCode On/Off
MaxiCode Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-150. Minimum Default = 1, Maximum
Default = 150.
* On
Off
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 49

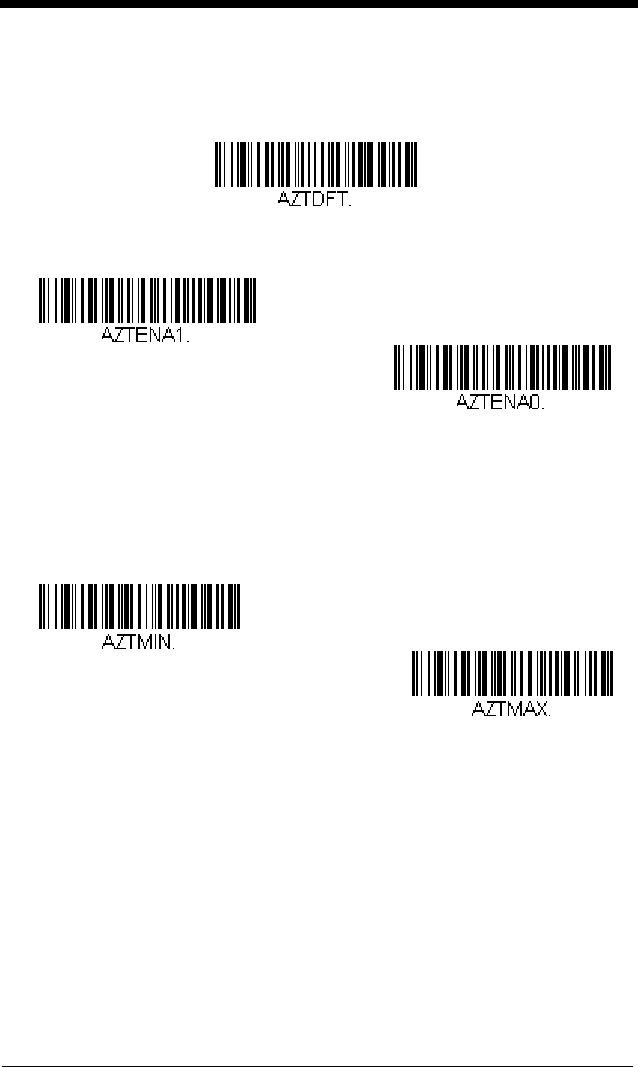

Aztec Code
< Default All Aztec Code Settings >
Aztec Code On/Off
Aztec Code Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-3832. Minimum Default = 1, Maximum
Default = 3832.
Off
* On
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 50

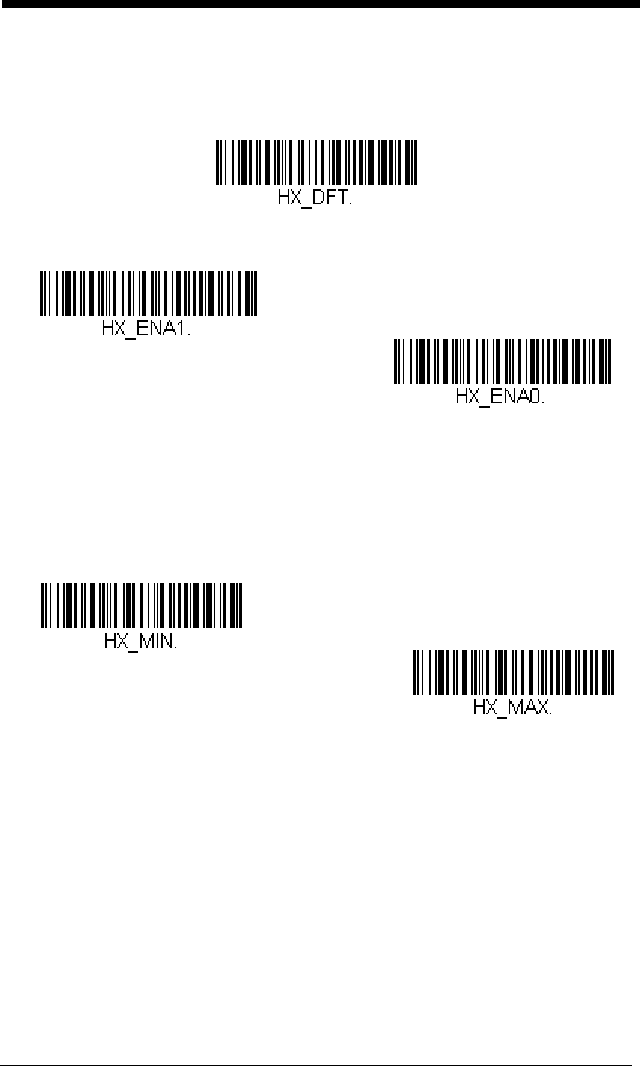

Chinese Sensible (Han Xin) Code
< Default All Han Xin Settings >
Han Xin Code On/Off
Han Xin Code Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information. Mini-
mum and Maximum lengths = 1-7833. Minimum Default = 1, Maximum
Default = 7833.
* Off
On
Maximum Message Length
Minimum Message Length
Preliminary Draft
7 - 51

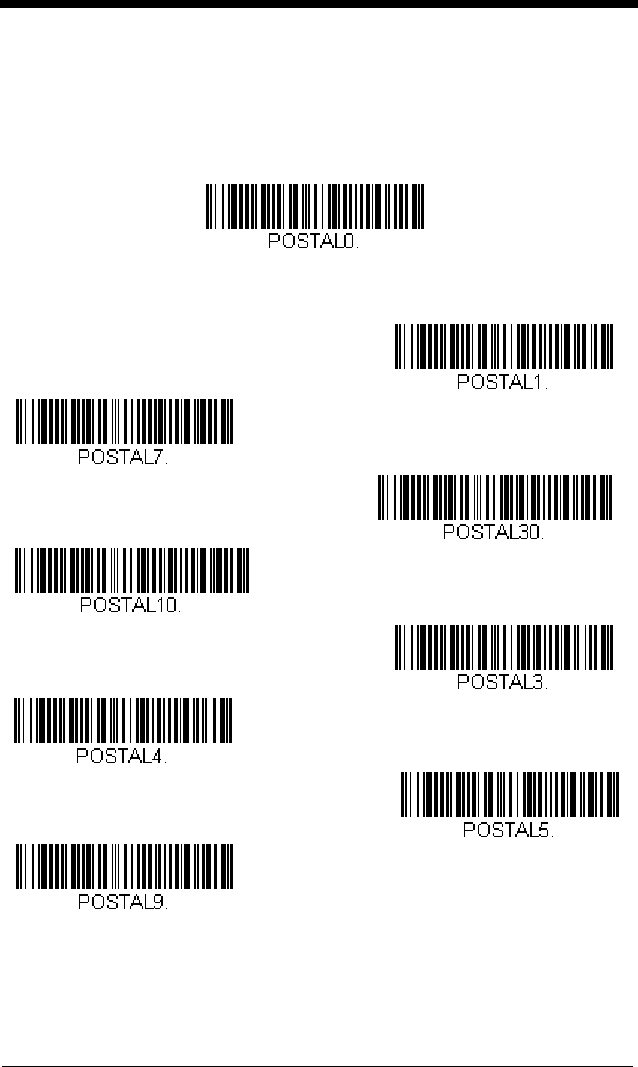

Postal Codes - 2D
The following lists the possible 2D postal codes, and 2D postal code combina-
tions that are allowed. Only one 2D postal code selection can be active at a
time. If you scan a second 2D postal code selection, the first selection is over-
written.
Default = 2D Postal Codes Off.
Single 2D Postal Codes:
* 2D Postal Codes Off
Australian Post On
Japanese Post On
KIX Post On
Planet Code On
British Post On
Also see Planet Code
Check Digit, page 7-54.
Canadian Post On
Intelligent Mail Bar Code On
Postal-4i On
Preliminary Draft
7 - 52

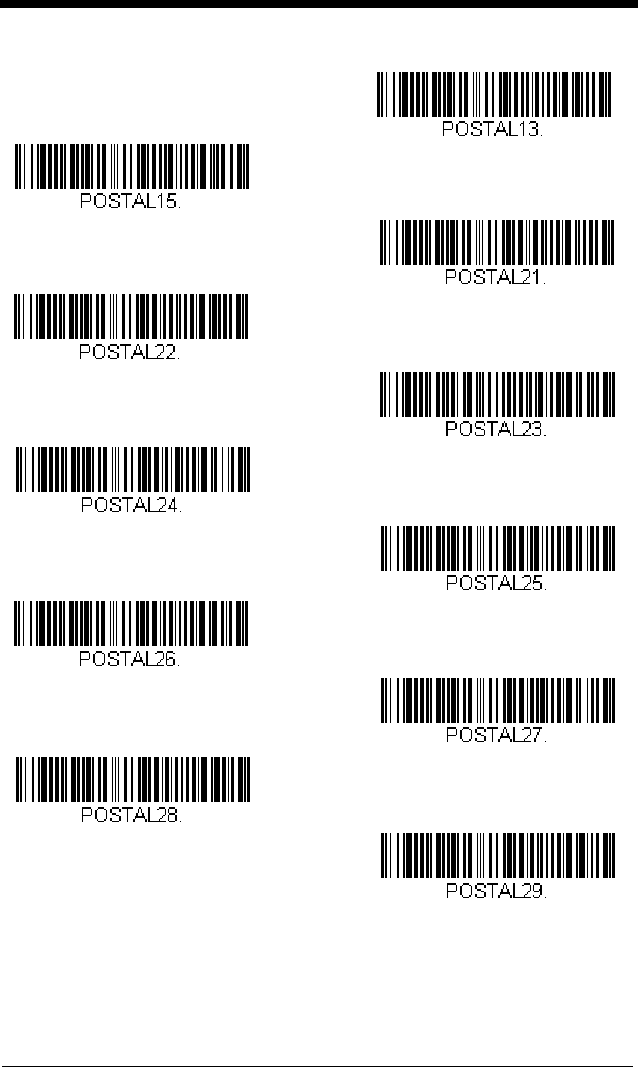

Combination 2D Postal Codes:
Postnet with B and B’ Fields On
InfoMail On
Postnet On
Also see Postnet Check
Digit, page 7-54.
Planet Code and
Postnet On
Postnet and
Postal-4i On
Postnet and
Intelligent Mail Bar Code On
Postal-4i and
Intelligent Mail Bar Code On
Planet Code and
Postnet with B and B’ Fields On
Postal-4i and
Postnet with B and B’ Fields On
Intelligent Mail Bar Code and
Postnet with B and B’ Fields On
InfoMail and British
Post On
Preliminary Draft
7 - 53
Planet Code,
Postal-4i, and
Intelligent Mail Bar Code On
Postnet,
Postal-4i, and
Intelligent Mail Bar Code On
Planet Code,
Postal-4i, and
Postnet with B and B’ Fields On
Planet Code,
Intelligent Mail Bar Code, and
Postnet with B and B’ Fields On
Postal-4i,
Intelligent Mail Bar Code, and
Postnet with B and B’ Fields On
Planet Code,
Postal-4i,
Intelligent Mail Bar Code, and
Postnet On
Planet Code,
Postal-4i,
Intelligent Mail Bar Code, and
Postnet with B and B’ Fields On
Planet Code,
Postnet, and
Postal-4i On
Planet Code,
Postnet, and
Intelligent Mail Bar Code On
Planet Code and
Intelligent Mail Bar Code On
Planet Code and
Postal-4i On
Preliminary Draft
7 - 54
Planet Code Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of Planet Code data.
Default = Don’t Transmit.
Postnet Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of Postnet data.
Default = Don’t Transmit.
Postal Codes - Linear
The following lists linear postal codes. Any combination of linear postal code
selections can be active at a time.
China Post (Hong Kong 2 of 5)
<Default All China Post (Hong Kong 2 of 5) Settings>
* Don’t Transmit Check Digit
Transmit Check Digit
* Don’t Transmit Check Digit
Transmit Check Digit
Preliminary Draft
7 - 55
China Post (Hong Kong 2 of 5) On/Off
China Post (Hong Kong 2 of 5) Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information.
Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maxi-
mum Default = 80.
On
* Off
Minimum Message Length
Maximum Message Length
Preliminary Draft
7 - 56

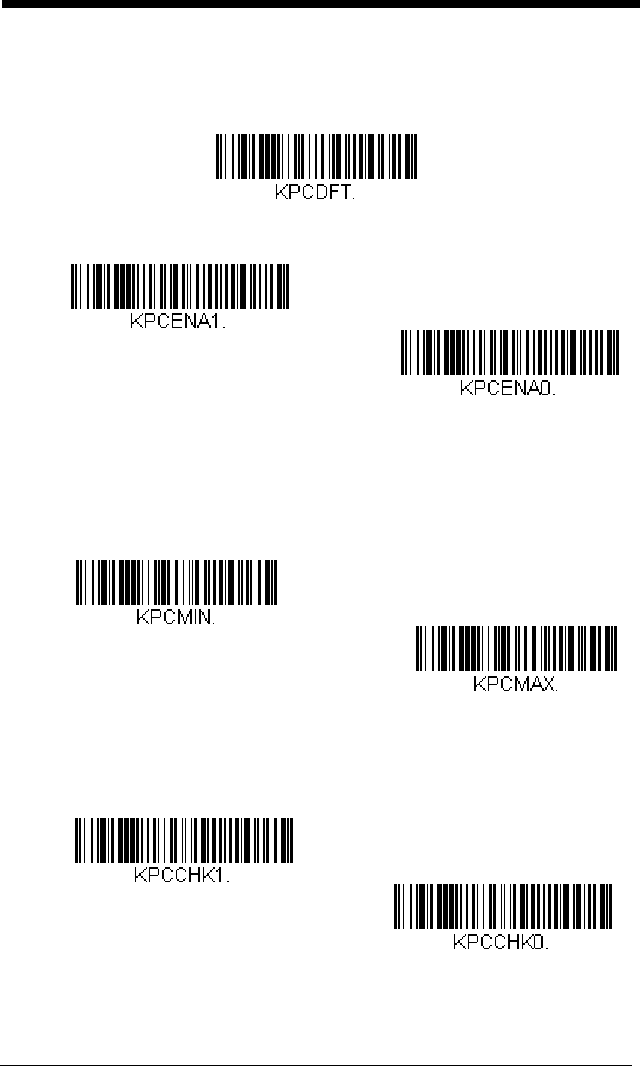

Korea Post
<Default All Korea Post Settings>
Korea Post
Korea Post Message Length
Scan the bar codes below to change the message length. Refer to
Message Length Description (page 7-2) for additional information.
Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maxi-
mum Default = 48.
Korea Post Check Digit
This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data.
Default = Don’t Transmit.
On
* Off
Minimum Message Length
Maximum Message Length
* Don’t Transmit Check Digit
Transmit Check Digit
Preliminary Draft
8 - 1
8
Imaging Commands
The scanner is like a digital camera in the way it captures, manipulates, and
transfers images. The following commands allow you to alter the way the scan-
ner performs these functions.
Single-Use Basis
Imaging Commands with their modifiers send instructions to the scanner on a
single-use basis, and take effect for a single image capture. Once that capture
is complete, the scanner reverts to its imaging default settings. If you want to
permanently change a setting, you must use the serial default commands (see
Chapter 11). When the serial default command is used, that selection becomes
the new, permanent setting for the scanner.
Command Syntax
Multiple modifiers and commands can be issued within one sequence. If addi-
tional modifiers are to be applied to the same command, just add the modifiers
to that command. For example, to add 2 modifiers to the Image Snap com-
mand, such as setting the Imaging Style to 1P and the Wait for Trigger to 1T,
you would enter IMGSNP1P1T.
Note: After processing an image capture command (IMGSNP or IMGBOX), you
must follow it with an IMGSHP command if you want to see it on your
terminal.
To add a command to a sequence, each new command is separated with a
semicolon. For example, to add the Image Ship command to the above
sequence, you would enter IMGSNP1P1T;IMGSHP.
The imaging commands are:
Image Snap - IMGSNP (page 8-2)
Image Ship - IMGSHP (page 8-5)
Intelligent Signature Capture - IMGBOX (page 8-14)
The modifiers for each of these commands follow the command description.
Note: The images included with each command description are examples only.
The results you achieve may be different from those included in this
manual. The quality of the output you receive will vary depending on
lighting, quality of the initial image/object being captured, and distance of
the scanner from the image/object. To achieve a high quality image, it is
recommended that you position your scanner 4-6" (10.2-15.2 cm) away
from the image/object you are capturing.
Preliminary Draft
8 - 2
Step 1 - Take a Picture Using IMGSNP
Image Snap - IMGSNP
An image is taken whenever the hardware button is pressed, or when the Image
Snap (IMGSNP) command is processed.
The image snap command has many different modifiers that can be used to
change the look of the image in memory. Modifiers always begin with numbers
and end with a letter (case insensitive). Any number of modifiers may be
appended to the IMGSNP command. For example, you can use the following
command to snap an image, increase the gain, and have the beeper sound
once the snap is complete: IMGSNP2G1B
IMGSNP Modifiers
P - Imaging Style
This sets the Image Snap style.
0P Decoding Style. This processing allows a few frames to be taken
until the exposure parameters are met. The last frame is then
available for further use.
1P Photo Style
(default).
This mimics a simple digital camera, and
results in a visually optimized image.
2P Manual Style. This is an advanced style that should only be used
by an experienced user. It allows you the most freedom to set up
the scanner, and has no auto-exposure.
B - Beeper
Causes a beep to sound after an image is snapped.
0B No beep
(default)
1B Sounds a beep when the image is captured.
T - Wait for Trigger
Waits for a hardware button push before taking the image. This is only
available when using Photo Style (1P).
0T Takes image immediately
(default)
1T Waits for a button push, then takes the image
L - LED State
Determines if the LEDs should be on or off, and when. Ambient illumina-
tion (0L) is preferred for taking pictures of color documents, such as ID
cards, especially when the scanner is in a stand. LED illumination (1L) is
preferred when the scanner is handheld. LED State is not available when
using Decoding Style (0P).
0L LEDs off
(default)
1L LEDs on
Preliminary Draft
8 - 3
E - Exposure
Exposure is used in Manual Style only (2P), and allows you to set the expo-
sure time. This is similar to setting a shutter speed on a camera. The
exposure time determines how long the scanner takes to record an image.
On a bright day, exposure times can be very short because plenty of light is
available to help record an image. At nighttime, exposure time can increase
dramatically due to the near absence of light. Units are 127 microseconds.
(Default = 7874)
n
E Range: 1 - 7874
G - Gain
Gain is used in Manual Style only (2P). Like a volume control, the gain
modifier boosts the signal and multiplies the pixel value. As you increase
the gain, the noise in an image is also amplified.
1G No gain
(default)
2G Medium gain
4G Heavy gain
8G Maximum gain

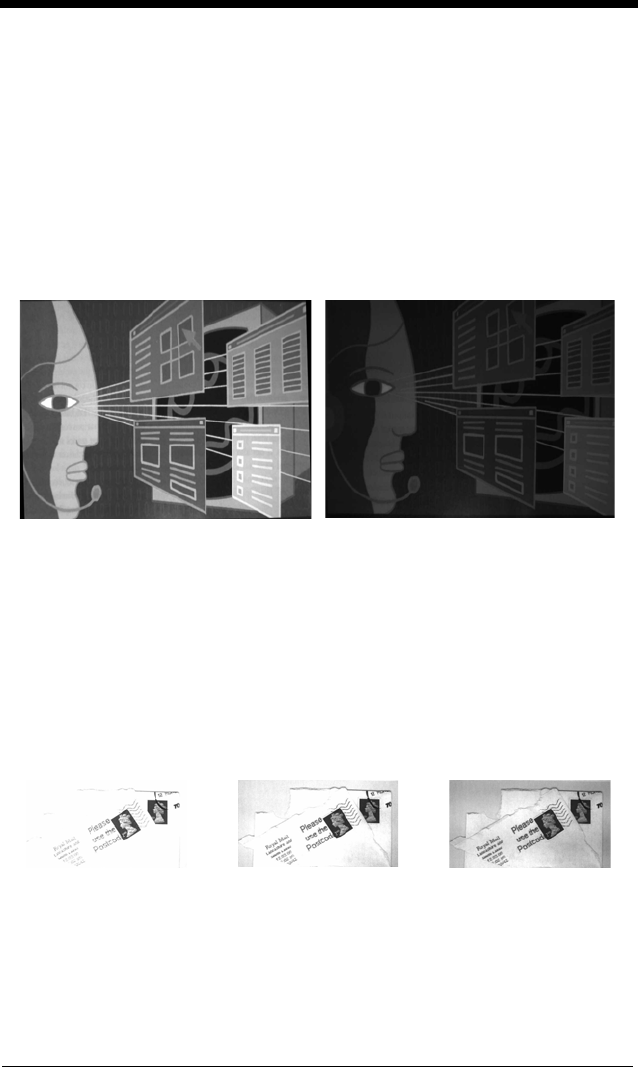

Example of Exposure at 7874E with
fluorescent lighting: Example of Exposure at 100E with
fluorescent lighting:
Example of Gain at
1G: Example of Gain at
4G: Example of Gain at
8G:
Preliminary Draft
8 - 4
W - Target White Value
Sets the target for the median grayscale value in the captured image. For
capturing close-up images of high contrast documents, a lower setting,
such as 75, is recommended. Higher settings result in longer exposure
times and brighter images, but if the setting is too high, the image may be
overexposed. Target White Value is only available when using Photo Style
(1P).
(Default = 125)
n
W Range: 0 - 255
D - Delta for Acceptance
This sets the allowable range for the white value setting (see W - Target
White Value). Delta is only available when using Photo Style (1P).
(Default = 25)
n
D Range: 0 - 255
U - Update Tries
This sets the maximum number of frames the scanner should take to reach
the D - Delta for Acceptance. Update Tries is only available when using
Photo Style (1P).
(Default = 6)
n
U Range: 0 - 10
% - Target Set Point Percentage
Sets the target point for the light and dark values in the captured image. A
setting of 75% means 75% of the pixels are at or below the target white
value, and 25% of the pixels are above the target white value. Altering this
setting from the default is not recommended under normal circumstances.
To alter grayscale values, W - Target White Value should be used.
(Default
= 50)
n% Range: 1 - 99
Example of White
Value at 75W: Example of White
Value at 125W: Example of White
Value at 200W:
Example of Target
Set Point
Percentage at 97%:
Example of Target
Set Point
Percentage at 40%:
Example of Target
Set Point
Percentage at 50%:
Preliminary Draft
8 - 5
Step 2 - Ship a Picture Using IMGSHP
Image Ship - IMGSHP
An image is taken whenever the button is pressed, or when the Image Snap
(IMGSNP) command is processed. The last image is always stored in memory.
You can “ship” the image by using the IMGSHP command.
The image ship commands have many different modifiers that can be used to
change the look of the image output. Modifiers affect the image that is transmit-
ted, but do not affect the image in memory. Modifiers always begin with a num-
ber and end with a letter (case insensitive). Any number of modifiers may be
appended to the IMGSHP command. For example, you can use the following
command to snap and ship a bitmap image with gamma correction and docu-
ment image filtering: IMGSNP;IMGSHP8F75K26U
IMGSHP Modifiers
A - Infinity Filter
Enhances pictures taken from very long distances (greater than 10 feet or
3m). The Infinity Filter should not be used with IMGSHP Modifiers (page 8-
5).
0A Infinity filter off
(default)
1A Infinity filter on

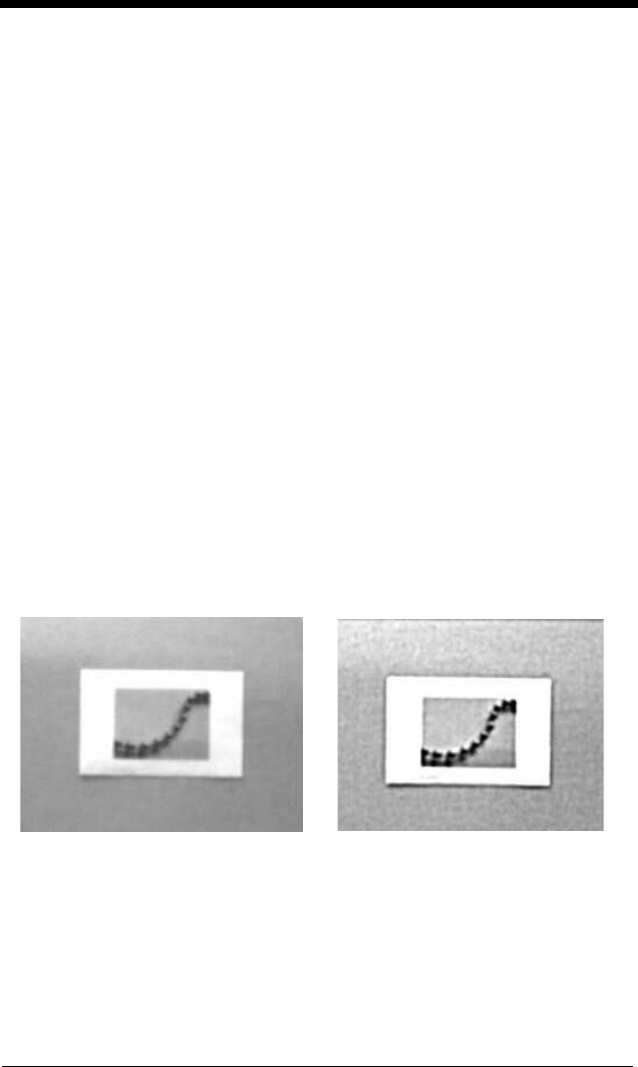

Example of Infinity Filter off (0A)
from approximately 12 feet
(3.66m) away:
Example of Infinity Filter on (1A)
from approximately 12 feet (3.66m)
away:
Preliminary Draft
8 - 6
C - Compensation
Flattens the image to account for variations in illumination across the
image.
0C Compensation disabled
(default)
1C Compensation enabled
D - Pixel Depth
Indicates the number of bits per pixel in the transmitted image (KIM or BMP
format only).
8D 8 bits per pixel, grayscale image
(default)
1D 1 bit per pixel, black and white image

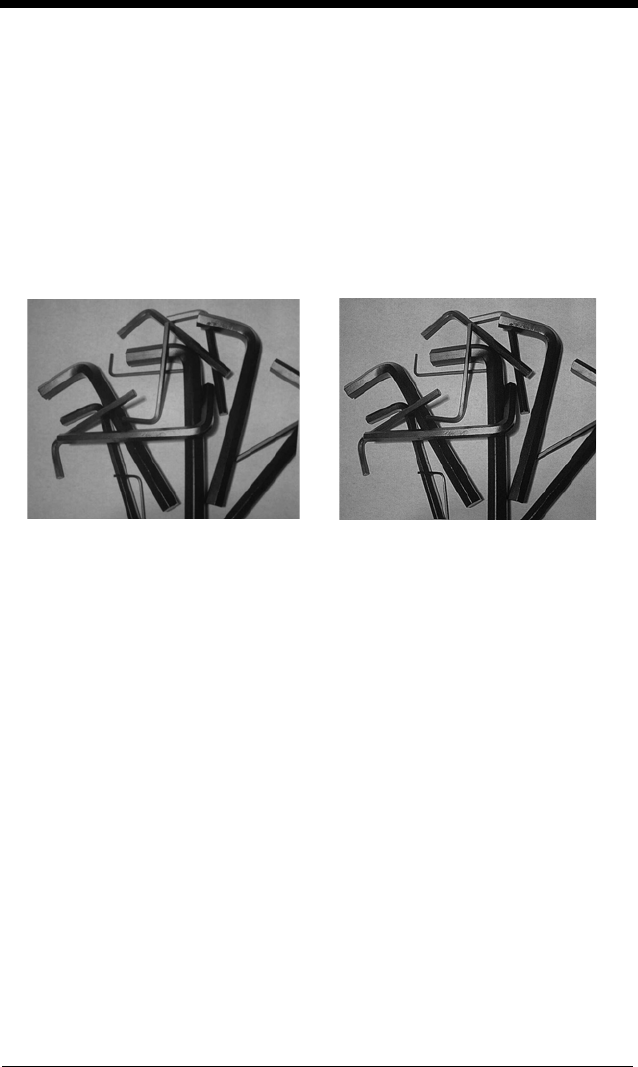

Example of Compensation at 0C: Example of Compensation at 1C:
Preliminary Draft
8 - 7
E - Edge Sharpen
An edge sharpen filter cleans up the edges of an image, making it look
cleaner and sharper. While edge sharpening does make the image look
cleaner, it also removes some fine detail from the original image. The
strength of the edge sharpen filter can be entered from 1 to 24. Entering a
23E gives the sharpest edges, but also increases noise in the image.
0E Don’t sharpen image
(default)
14E Apply edge sharpen for typical image
n
e Apply edge sharpen using strength
n
(
n
= 1-24)
F - File Format
Indicates the desired format for the image.
0F KIM format
1F TIFF binary
2F TIFF binary group 4, compressed
3F TIFF grayscale
4F Uncompressed binary (upper left to lower right, 1 pixel/bit, 0
padded end of line)
5F Uncompressed grayscale (upper left to lower right, bitmap format)
6F JPEG image
(default)
8F BMP format (lower right to upper left, uncompressed)
Example of Edge Sharpen at 0E: Example of Edge Sharpen at 24E:
Preliminary Draft
8 - 8

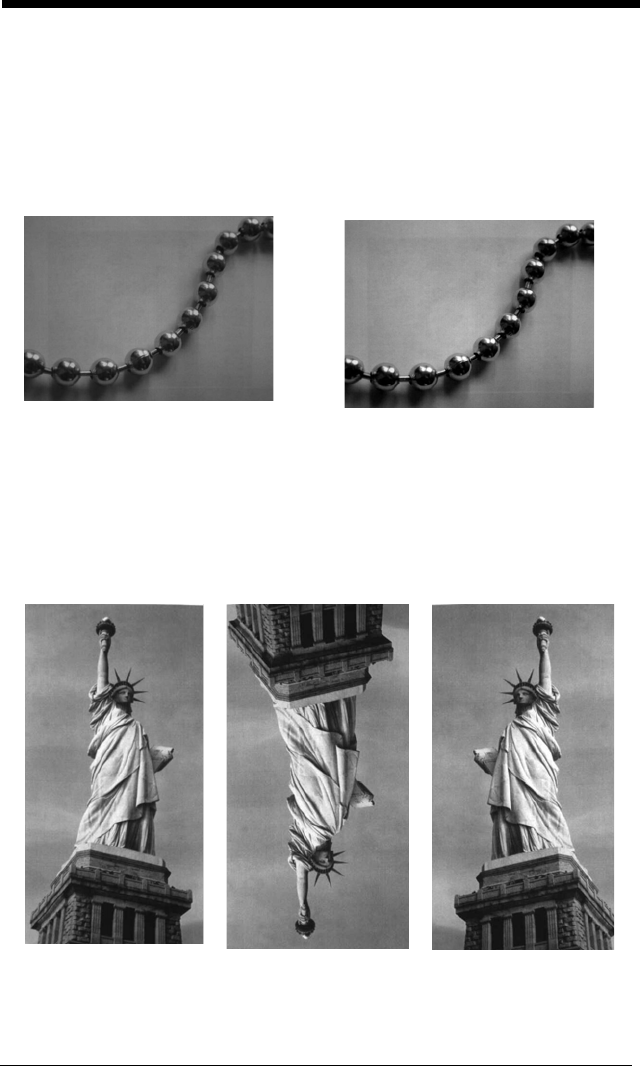

H - Histogram Stretch
Increases the contrast of the transmitted image. Not available with some
image formats.
0H No stretch
(default)
1H Histogram stretch
I - Invert Image
Invert image is used to rotate the image around the X or Y axis.
1ix Invert around the X axis (flips picture upside down)
1iy Invert around the Y axis (flips picture left to right)
Example of Histogram Stretch at 0H: Example of Histogram Stretch at 1H:
Example of image
with Invert Image set to
1ix:
Example of image not
inverted: Example of image
with Invert Image set
to 1iy:
Preliminary Draft
8 - 9
IF- Noise Reduction
Used to reduce the salt and pepper noise in an image.
0if No salt and pepper noise reduction (default)
1if Salt and pepper noise reduction
IR - Image Rotate
0ir Image as snapped (rightside up) (default)
1ir Rotate image 90 degrees to the right
2ir Rotate image 180 degrees (upside down)
3ir Rotate image 90 degrees to the left
Example of Noise Reduction On (1if):Example of Noise Reduction Off (0if):
Example of Image Rotate set to 0ir: Example of Image Rotate set to 2ir:
Example of Image Rotate set to 1ir: Example of Image Rotate set to 3ir:
Preliminary Draft
8 - 10
J - JPEG Image Quality
Sets the desired quality when the JPEG image format is selected. Higher
numbers result in higher quality, but larger files. Smaller numbers result in
greater amounts of lossy compression, faster transmission times, lower
quality, but smaller files.
(Default = 50)
n
J Image is compressed as much as possible while preserving quality
factor of
n
(
n
= 0 - 100)
0J worst quality (smallest file)
100Jbest quality (largest file)
K - Gamma Correction
Gamma measures the brightness of midtone values produced by the
image. You can brighten or darken an image using gamma correction. A
higher gamma correction yields an overall brighter image. The lower the
setting, the darker the image. The optimal setting for text images is 50K.
0K Gamma correction off
(default)
50K Apply gamma correction for brightening typical document image
n
K Apply gamma correction factor
n
(
n
= 0-1,000)
L, R, T, B, M - Image Cropping
Note: Image Cropping should not be used with IMGSHP Modifiers (see
page 8-5).
Ships a window of the image by specifying the left, right, top, and bottom
pixel coordinates. Device columns are numbered 0 through 1279, and
device rows are numbered 0 through 959.
n
L The left edge of the shipped image corresponds to column
n
of the
image in memory. Range: 000 - 640.
(Default = 0)
n
R The right edge of the shipped image corresponds to column
n
- 1
of the image in memory. Range: 000 - 640.
(Default = all
columns)
n
T The top edge of the shipped image corresponds to row
n
of the
image in memory. Range: 000 - 480.
(Default = 0)

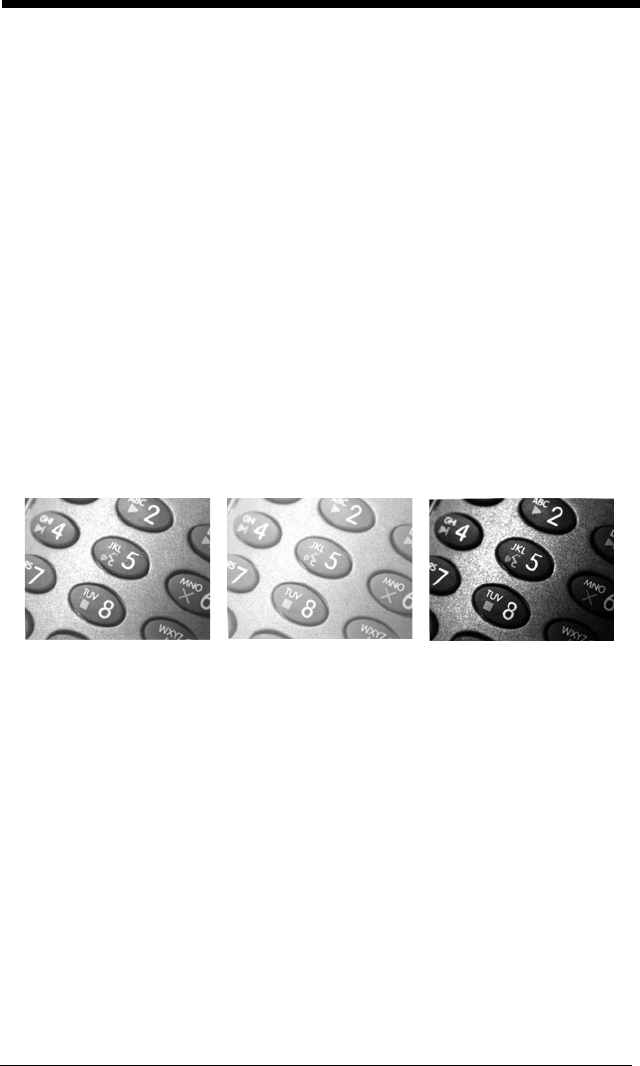

Example of Gamma
Correction set to 50K:
Example of Gamma
Correction set to 0K: Example of Gamma
Correction set to 255K:
Preliminary Draft
8 - 11
n
B The bottom edge of the shipped image corresponds to row
n
- 1 of
the image in memory. Range: 000 - 480.
(Default = all rows)
Alternately, specify the number of pixels to cut from the outside margin of
the image; thus only the center pixels are transmitted.
n
M Margin: cut
n
columns from the left,
n
+ 1 columns from the right,
n
rows from the top, and
n
+ 1 rows from the bottom of the image.
Ship the remaining center pixels. Range: 0 - 238.
(Default = 0, or full image)
P - Protocol
Used for shipping an image. Protocol covers two features of the image
data being sent to the host. It addresses the protocol used to send the data
(Hmodem, which is an Xmodem 1K variant that has additional header infor-
mation), and the format of the image data that is sent.
0P None (raw data)
2P None
(default for USB)
3P Hmodem compressed
(default for RS232)
4P Hmodem
S - Pixel Ship
Pixel Ship sizes an image in proportion to its original size. It decimates the
image by shipping only certain, regularly spaced pixels. For example, 4S
would transmit every fourth pixel from every fourth line. The smaller num-
ber of pixels shipped, the smaller the image, however, after a certain point
the image becomes unusable.

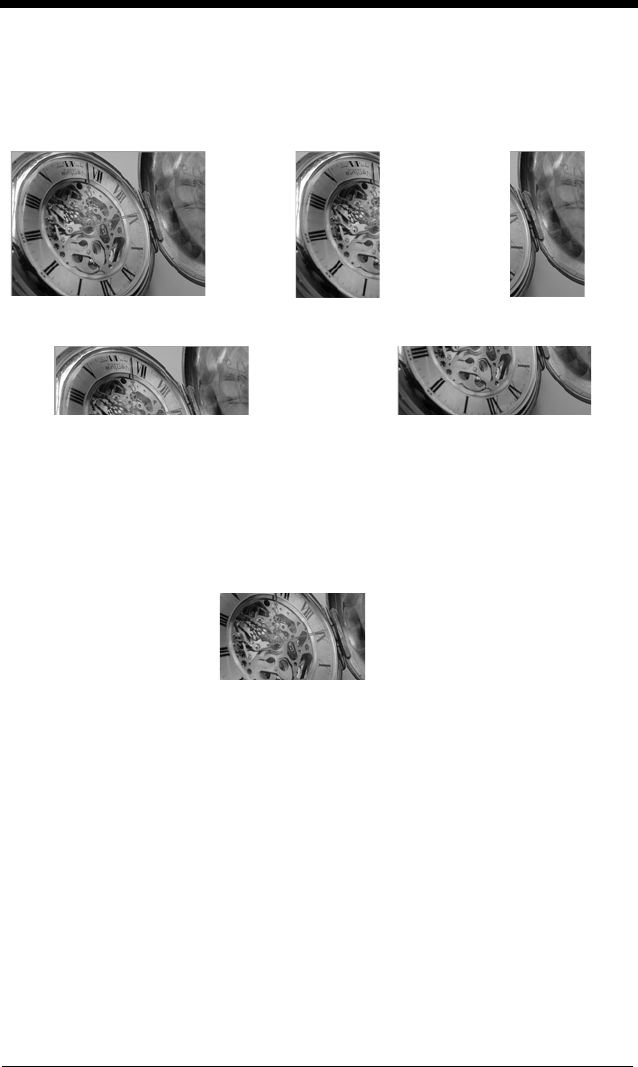

Example of Image
Crop set to 300L:
Example of Image Crop
set to 300R:
Uncropped Image:
Example of Image Crop set to 200T:Example of Image Crop set to 200B:
Example of Image Crop set to 238M:
Preliminary Draft
8 - 12
1S ship every pixel
(default)
2S ship every 2nd pixel, both horizontally and vertically
3S ship every 3rd pixel, both horizontally and vertically
U - Document Image Filter
Allows you to input parameters to sharpen the edges and smooth the area
between the edges of text in an image. This filter should be used with
gamma correction (see page 8-10), with the scanner in a stand, and the
image captured using the command:
IMGSNP1P0L168W90%32D
This filter typically provides better JPEG compression than the standard E -
Edge Sharpen command (see page 8-13). This filter also works well when
shipping pure black and white images (1 bit per pixel). The optimal setting
is 26U.
0U Document image filter off
(default)
26U Apply document image filter for typical document image
n
U Apply document image filter using grayscale threshold n. Use
lower numbers when the image contrast is lower. 1U will have a
similar effect to setting E - Edge Sharpen (page 8-7) to 22e.
Range: 0-255.
Example of Pixel Ship set to 1S: Example of Pixel
Ship set to 2S: Example of Pixel
Ship set to 3S:
Example of Document
Image Filter set to 0U: Example of Document
Image Filter set to 26U:
Preliminary Draft
8 - 13
V - Blur Image
Smooths transitions by averaging the pixels next to the hard edges of
defined lines and shaded areas in an image.
0V Don’t blur
(default)
1V Blur
W - Histogram Ship
A histogram gives a quick picture of the tonal range of an image, or key
type. A low-key image has detail concentrated in the shadows; a high-key
image has detail concentrated in the highlights; and an average-key image
has detail concentrated in the midtones. This modifier ships the histogram
for an image.
0W Don’t ship histogram
(default)
1W Ship histogram
Example of Blur Image Off (0V): Example of Blur Image On (1V):
Image used for histogram: Histogram of image at left:
Preliminary Draft
8 - 14
Image Size Compatibility
If you have applications that expect an image ship to return exactly
640x480 pixels, scan the Force VGA Resolution bar code.
Default = Native
Resolution
Intelligent Signature Capture - IMGBOX
IMGBOX allows you to configure the size and location of a signature capture
area relative to its proximity to a bar code. This allows you to tailor a signature
capture area to a specific form. In order to use IMGBOX, you need a set form
where the signature box location is in a known location relative to a bar code.
You can input the overall size of the signature area, as well as specify how far
the signature area is from the bar code, vertically and horizontally. You can also
set the resolution and file format for the final output of the signature capture
image.
Note: IMGBOX commands can only be triggered by one of the following types
of bar codes: PDF417, Code 39, Code 128, Aztec, Codabar, and
Interleaved 2 of 5. Once one of these symbologies has been read, the
image is retained for a possible IMGBOX command.
Signature Capture Optimize
If you will be using your scanner to capture signatures frequently, you
should optimize it for this purpose. However, the speed of scanning bar
codes may be slowed when this mode is enabled.
Default = Off.
Force VGA Resolution
* Native Resolution
Optimize On
* Optimize Off
Preliminary Draft
8 - 15
The following IMGBOX example was executed and viewed using QuickView
software. This software is available at www.honeywellaidc.com. Click on Soft-
ware Downloads. Select 4600r from the Products list, then select QuickView
Software Utility.
Below is an example of a signature capture application. In this example, the
aimer is centered over the signature capture area and the trigger is pressed. A
single beep is emitted, indicating that the scanner has read a Code 128 bar
code and the data has been transferred to the host. An IMGBOX command
may now be sent from the host to specify the coordinates of the signature cap-
ture area below that code, and indicating that only that area containing the sig-
nature should be transferred as an image to the host.
To see this example, align the aimer with the signature area (not with the bar
code), then press the trigger.
Send the following IMGBOX command string after the button push:
Example: IMGBOX245w37h55y.
Note: Case is not important in the command string. It is used here only for
clarity.
The following image is captured:
The IMGBOX commands have many different modifiers that can be used to
change the size and appearance of the signature image output by the scanner.
Modifiers affect the image that is transmitted, but do not affect the image in
memory. Modifiers always begin with a number and end with a letter (case
insensitive). Any number of modifiers may be appended to the IMGBOX com-
mand.
Note: The IMGBOX command will return a NAK unless a window size (width
and height) are specified. See H - Height of Signature Capture Area
(page 8-17) and W - Width of Signature Capture Area (page 8-18).
IMGBOX Modifiers
A - Output Image Width
Preliminary Draft
8 - 16
This option is used to size the image horizontally. If using this option, set
the resolution (R) to zero.
B - Output Image Height
This option is used to size the image vertically. If using this option, set the
resolution (R) to zero.
D - Pixel Depth
This indicates the number of bits per pixel in the transmitted image, which
defines whether it will be grayscale or black and white.
8D 8 bits per pixel, grayscale image
(default)
1D 1 bit per pixel, black and white image
F - File Format
This option indicates the type of file format in which to save the image.
0F KIM format
1F TIFF binary
2F TIFF binary group 4, compressed
3F TIFF grayscale
4F Uncompressed Binary
5F Uncompressed grayscale
6F JPEG image
(default)
7F Outlined image
Example of Image Width set to 200A:
Example of Image Width set to 600A:
Example of Image Height set to 50B:
Example of Image Height set to 100B:
Preliminary Draft
8 - 17
8F BMP format
H - Height of Signature Capture Area
The height of the signature capture area must be measured in inches
divided by .01. In the example, the height of the area to be captured is 3/8
inch, resulting in a value of H = .375/0.01 = 37.5.
K - Gamma Correction
Gamma measures the brightness of midtone values produced by the
image. You can brighten or darken an image using gamma correction. A
higher gamma correction yields an overall brighter image. The lower the
setting, the darker the image. The optimal setting for text images is 50K.
0K Gamma correction off
(default)
50K Apply gamma correction for brightening typical document image
n
K Apply gamma correction factor
n
(
n
= 1-255)
R - Resolution of Signature Capture Area
The resolution is the number of pixels that the scanner outputs per each
minimum bar width. The higher the value for R, the higher the quality of the
image, but also the larger the file size. Values begin at 1000. The scanner
automatically inserts a decimal point between the first and second digit.
Example: IMGBOX245w37h55y.
Example of Gamma Correction
set to 50K:
Example of Gamma
Correction set to 0K:
Example of Gamma Correction
set to 255K:
Preliminary Draft
8 - 18
For example, use 2500 to specify a resolution of 2.5. Set to zero when
using the A and B modifiers (see A - Output Image Width and B - Output
Image Height on page 8-16).
S - Bar Code Aspect Ratio
All dimensions used in IMGBOX are measured as multiples of the minimum
element size of the bar code. The bar code aspect ratio allows you to set
the ratio of the bar code height to the narrow element width. In the exam-
ple, the narrow element width is .010 inches and the bar code height is
0.400 inches, resulting in a value of S = 0.4/0.01 = 40.
W - Width of Signature Capture Area
The width of the signature capture area must be measured in inches
divided by .01. In the example, the width of the area to be captured is 2.4
inches, resulting in a value of W = 2.4/0.01 = 240. (A value of 245 was
used in the example to accommodate a slightly wider image area.)
X - Horizontal Bar Code Offset
The horizontal bar code offset allows you to offset the horizontal center of
the signature capture area. Positive values move the horizontal center to
the right and negative values to the left. Measurements are in multiples of
the minimum bar width.
Example of Resolution set to 1000R:
Example of Resolution set to 0R:
Example of Resolution set to 2000R:
Example: IMGBOX245w37h55y.
Example of Horizontal Offset set to -75X:
Example of Horizontal Offset set to 75X:
Preliminary Draft
8 - 19
Y - Vertical Bar Code Offset
The vertical bar code offset allows you to offset the vertical center of the
signature capture area. Negative numbers indicate that the signature cap-
ture is above the bar code, and positive numbers indicate that the area is
below the bar code. Measurements are in multiples of the minimum bar
width.
RF Default Imaging Device
The scanner supports imaging command processing (IMGSHP, IMGSNP, IMG-
BOX) so that EZConfig-Scanning (see page 10-3) and other applications are
able to perform imaging functions as if they were communicating directly with a
scanner. To accomplish this, the scanner uses a menu command called
RF_DID (RF Default Imaging Device). RF_DID is the name of the scanner
(BT_NAM) that is to receive imaging commands. The default for RF_DID is
“*”indicating that imaging commands are to be sent to all associated scanners.
Change this setting to RF_DID
scanner_name
to ensure that they are sent to a
particular scanner. Refer to "Paging" on page 3-8 to generate a report contain-
ing the port, work group, scanner name, and address for each scanner. Refer to
"Scanner Name" on page 3-20 set a unique name for each scanner.
Example of Vertical Offset set to -7Y:
Example of Vertical Offset set to 65Y:
Preliminary Draft
8 - 20
Preliminary Draft
9 - 1
9
Interface Keys
Keyboard Function Relationships
The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII
“CTRL”+ relationships apply to all terminals that can be used with the scanner.
Refer to page 2-19 enable Control + ASCII mode.
Function Code HEX/ASCII Value Full ASCII “CTRL” +
NUL 00 @
SOH 01 A
STX 02 B
ETX 03 C
EOT 04 D
ENQ 05 E
ACK 06 F
BEL 07 G
BS 08 H
HT 09 I
LF 0A J
VT 0B K
FF 0C L
CR 0D M
SO 0E N
SI 0F O
DLE 10 P
DC1 11 Q
DC2 12 R
DC3 13 S
DC4 14 T
NAK 15 U
SYN 16 V
ETB 17 W
CAN 18 X
EM 19 Y
SUB 1A Z
ESC 1B [
FS 1C \
GS 1D ]
RS 1E ^
US 1F _
Preliminary Draft
9 - 2
The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to
US only. The following chart indicates the equivalents of these five characters
for different countries.
Country Codes
United States [ \ ] 6 -
Belgium [ < ] 6 -
Scandinavia 8 < 9 6 -
France ^8$6=
Germany à + 6 -
Italy \ + 6 -
Switzerland <. . 6 -
United Kingdom [ ¢ ] 6 -
Denmark 8 \ 9 6 -
Norway 8\ 96-
Spain [ \ ] 6 -
Preliminary Draft
9 - 3
Supported Interface Keys
ASCII HEX
IBM AT/XT and
PS/2
Compatibles,
WYSE PC/AT
Supported Keys
IBM XTs and
Compatibles
Supported
Keys
IBM, DDC,
Memorex Telex,
Harris*
Supported Keys
NUL 00 Reserved Reserved Reserved
SOH 01 Enter (KP) CR/Enter Enter
STX 02 Cap Lock Caps Lock F11
ETX 03 ALT make Reserved F12
EOT 04 ALT break Reserved F13
ENQ 05 CTRL make Reserved F14
ACK 06 CTRL break Reserved F15
BEL 07 CR/Enter CR/Enter New Line
BS 08 Reserved Reserved F16
HT 09 Tab Tab F17
LF 0A Reserved Reserved F18
VT 0B Tab Tab Tab/Field Forward
FF 0C Delete Delete Delete
CR 0D CR/Enter CR/Enter Field Exit/New Line
SO 0E Insert Insert Insert
SI 0F Escape Escape F19
DLE 10 F11 Reserved Error Reset
DC1 11 Home Home Home
DC2 12 Print Print F20
DC3 13 Back Space Back Space Back Space
DC4 14 Back Tab Back Tab Backfield/Back Tab
NAK 15 F12 Reserved F21
SYN 16 F1 F1 F1
ETB 17 F2 F2 F2
CAN 18 F3 F3 F3
EM 19 F4 F4 F4
SUB 1A F5 F5 F5
ESC 1B F6 F6 F6
FS 1C F7 F7 F7
GS 1D F8 F8 F8
RS 1E F9 F9 F9
US 1F F10 F10 F10
Preliminary Draft
9 - 4
* IBM 3191/92, 3471/72, 3196/97, 3476/77, Telex (all models)
ASCII HEX
IBM AT/XT and
PS/2
Compatibles,
WYSE PC/AT
Supported Keys
IBM XTs and
Compatibles
Supported
Keys
IBM, DDC,
Memorex Telex,
Harris*
Supported Keys
Preliminary Draft
9 - 5
Supported Interface Keys
ASCII HEX
IBM, Memorex Telex
(102)*
Supported Keys
Memorex Telex (88)**
Supported Keys
NUL 00 Reserved Reserved
SOH 01 Enter Enter
STX 02 F11 PF10
ETX 03 F12 PF11
EOT 04 F13 PF12
ENQ 05 F14 Reserved
ACK 06 F15 Reserved
BEL 07 New Line New Line
BS 08 F16 Field Forward
HT 09 F17 Field Forward
LF 0A F18 Reserved
VT 0B Tab/Field Forward Field Forward
FF 0C Delete Delete
CR 0D Field Exit New Line
SO 0E Insert Insert
SI 0F Clear Erase
DLE 10 Error Reset Error Reset
DC1 11 Home Reserved
DC2 12 Print Print
DC3 13 Back Space Back Space
DC4 14 Back Tab Back Field
NAK 15 F19 Reserved
SYN 16 F1 PF1
ETB 17 F2 PF2
CAN 18 F3 PF3
EM 19 F4 PF4
SUB 1A F5 PF5
ESC 1B F6 PF6
FS 1C F7 PF7
GS 1D F8 PF8
RS 1E F9 PF9
US 1F F10 Home
* IBM 3196/97, 3476/77, 3191/92, 3471/72, Memorex Telex (all models) with 102
key keyboards
** Memorex Telex with 88 key keyboards
Preliminary Draft
9 - 6
Supported Interface Keys
ASCII HEX
Esprit 200, 400
ANSI
Supported
Keys
Esprit 200, 400
ASCII
Supported
Keys
Esprit 200, 400
PC
Supported
Keys
NUL 00 Reserved Reserved Reserved
SOH 01 New Line New Line New Line
STX 02 N/A N/A N/A
ETX 03 N/A N/A N/A
EOT 04 N/A N/A N/A
ENQ 05 N/A N/A N/A
ACK 06 N/A N/A N/A
BEL 07 New Line New Line New Line
BS 08 N/A N/A N/A
HT 09 Tab Tab Tab
LF 0A N/A N/A N/A
VT 0B Tab Tab Tab
FF 0C N/A N/A Delete
CR 0D New Line New Line New Line
SO 0E N/A N/A Insert
SI 0F Escape Escape Escape
DLE 10 F11 F11 F11
DC1 11 Insert Insert Home
DC2 12 F13 F13 Print
DC3 13 Back Space Back Space Back Space
DC4 14 Back Tab Back Tab Back Tab
NAK 15 F12 F12 F12
SYN 16 F1 F1 F1
ETB 17 F2 F2 F2
CAN 18 F3 F3 F3
EM 19 F4 F4 F4
SUB 1A F5 F5 F5
ESC 1B F6 F6 F6
FS 1C F7 F7 F7
GS 1D F8 F8 F8
RS 1E F9 F9 F9
US 1F F10 F10 F10
Preliminary Draft
9 - 7
Supported Interface Keys
ASCII HEX Apple Mac/iMac
Supported Keys
NUL 00 Reserved
SOH 01 Enter/Numpad Enter
STX 02 CAPS
ETX 03 ALT make
EOT 04 ALT break
ENQ 05 CNTRL make
ACK 06 CNTRL break
BEL 07 RETURN
BS 08 APPLE make
HT 09 TAB
LF 0A APPLE break
VT 0B TAB
FF 0C Del
CR 0D RETURN
SO 0E Ins Help
SI 0F ESC
DLE 10 F11
DC1 11 Home
DC2 12 Prnt Scrn
DC3 13 BACKSPACE
DC4 14 LSHIFT TAB
NAK 15 F12
SYN 16 F1
ETB 17 F2
CAN 18 F3
EM 19 F4
SUB 1A F5
ESC 1B F6
FS 1C F7
GS 1D F8
RS 1E F9
US 1F F10
DEL 7F BACKSPACE
Preliminary Draft
9 - 8
Preliminary Draft
10 - 1
10
Utilities
To Add a Test Code I.D. Prefix to All Symbologies
This selection allows you to turn on transmission of a Code I.D. before the
decoded symbology. (See the Symbology Chart, beginning on page A-1) for
the single character code that identifies each symbology.) This action first
clears all current prefixes, then programs a Code I.D. prefix for all symbologies.
This is a temporary setting that will be removed when the unit is power cycled.
Show Decoder Revision
Scan the bar code below to output the decoder revision.
Show Scan Driver Revision
Scan the bar code below to output the scan driver revision. The scan driver
controls image capture.
Show Software Revision
Scan the bar code below to output the current software revision, unit serial num-
ber, and other product information for both the scanner and base.
Add Code I.D. Prefix to
All Symbologies (Temporary)
Show Decoder Revision
Show Scan Driver Revision
Show Revision
Preliminary Draft
10 - 2
Show Data Format
Scan the bar code below to show current data format settings.
Test Menu
When you scan the Test Menu On code, then scan a programming code in this
manual, the scanner displays the content of a programming code. The pro-
gramming function will still occur, but in addition, the content of that program-
ming code is output to the terminal.
Note: This feature should not be used during normal scanner operation.
TotalFreedom
TotalFreedom is an open system architecture that makes it possible for you cre-
ate applications that reside on your scanner. Three types of appls can be cre-
ated using TotalFreedom: Image Processing, Decoding, and Data Formatting.
For further information about TotalFreedom, go to our website at
www.honeywellaidc.com.
Data Format Settings
DFMBK3?.
On
* Off
Preliminary Draft
10 - 3
Application Plug-Ins (Apps)
Any apps that you are using can be turned off or on by scanning the following
bar codes. Apps are stored in groups: Imaging, Decoding, and Formatting. You
can enable and disable these groups of apps by scanning that group’s On or Off
bar code below. You can also scan the List Apps bar code to output a list of all
your apps.
Note: You must reset your device in order for the apps setting to take effect.
EZConfig Introduction
EZConfig provides a wide range of PC-based programming functions that can
be performed on a scanner connected to your PC's COM port. EZConfig allows
you to download upgrades to the scanner's firmware, change programmed
parameters, and create and print programming bar codes. Using EZConfig, you
can even save/open the programming parameters for a scanner. This saved file
can be e-mailed or, if required, you can create a single bar code that contains all
the customized programming parameters and mail or fax that bar code to any
location. Users in other locations can scan the bar code to load in the custom-
ized programming.
* Imaging Apps On
Imaging Apps Off
* Decoding Apps On
Decoding Apps Off
* Formatting Apps On
Formatting Apps Off
List Apps
Preliminary Draft
10 - 4
To communicate with a scanner, EZConfig requires that the PC have at least
one available serial communication port, or a serial port emulation using a
physical USB port. If you are using the serial port and RS232 cable, an external
power supply is required. When using a USB serial port emulation, only a USB
cable is required.
EZConfig Operations
The EZConfig software performs the following operations:
Scan Data
Scan Data allows you to scan bar codes and display the bar code data
in a window. Scan Data lets you send serial commands to the scanner
and receive scanner response that can be seen in the Scan Data win-
dow. The data displayed in the Scan Data window can either be saved
in a file or printed.
Configure
Configure displays the programming and configuration data of the
scanner. The scanner's programming and configuration data is
grouped into different categories. Each category is displayed as a tree
item under the "Configure" tree node in the application explorer. When
one of these tree nodes is clicked, the right-hand side is loaded with
the parameters' form belonging to that particular category. The "Con-
figure" tree option has all the programming and configuration parame-
ters specified for a scanner. You can set or modify these parameters
as required. You can later write the modified settings to the scanner,
or save them to a dcf file.
Imaging
Imaging provides all the image-related functions that a 2D Scanner
can perform. You can capture an image using the current settings, and
the image will be displayed in an image window. Images captured
from the scanner can be saved to files in different image formats. You
can modify the image settings and save the image settings to an INI
file, which can be loaded later to capture new images. Imaging also
lets you preview the images continuously captured by the scanner.
Installing EZConfig from the Web
Note: EZConfig requires .NET software. If .NET is not installed on your
PC, you will be prompted to install it during the EZConfig installation.
1. Access the Honeywell web site at www.honeywellaidc.com
2. Click on the Resources tab. Select Product Downloads-Software.
3. Click on the dropdown for Select Product Number. Click on Xenon.
4. Click on the listing for EZConfig.
5. When prompted, select Save File, and save the files to the
c:\windows\temp directory.
Preliminary Draft
10 - 5
6. Once you have finished downloading the file, exit the web site.
7. Using Explorer, go to the c:\windows\temp file.
8. Double click on the Setup.exe file. Follow the screen prompts to install
the EZConfig program.
9. If you’ve selected the defaults during installation, you can click on Start
Menu-All Programs-Honeywell-EZConfig.
Preliminary Draft
10 - 6
Preliminary Draft
11 - 1
11
Serial Programming Commands
The serial programming commands can be used in place of the programming
bar codes. Both the serial commands and the programming bar codes will pro-
gram the scanner. For complete descriptions and examples of each serial pro-
gramming command, refer to the corresponding programming bar code in this
manual.
The device must be set to an RS232 interface (see page 2-2). The following
commands can be sent via a PC COM port using terminal emulation software.
Conventions
The following conventions are used for menu and query command descriptions:
parameter
A label representing the actual value you should send as part of a
command.
[
option
] An optional part of a command.
{Data} Alternatives in a command.
bold Names of menus, menu commands, buttons, dialog boxes, and
windows that appear on the screen.
Menu Command Syntax
Menu commands have the following syntax (spaces have been used for clarity
only):
Prefix [:Name:] Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] […]
Storage
Prefix Three ASCII characters: SYN M CR (ASCII 22,77,13).
:Name: To send information to the scanner (with the base connected to host),
use :Xenon: The default factory setting for a Xenon scanner is Xenon
scanner. This setting is changed by using the BT_NAM command,
which accepts alphanumeric values. If the name is not known, a
wildcard (*) can be used :*:.
Note: Since the base stores all work group settings and transfers to them to
scanner once they are linked, changes are typically done to the base and
not to the scanner.
Tag A 3 character case-insensitive field that identifies the desired menu
command group. For example, all RS232 configuration settings are
identified with a Tag of 232.
SubTag A 3 character case-insensitive field that identifies the desired menu
command within the tag group. For example, the SubTag for the
RS232 baud rate is BAD.
Data The new value for a menu setting, identified by the Tag and SubTag.
Preliminary Draft
11 - 2
Storage A single character that specifies the storage table to which the
command is applied. An exclamation point (!) performs the command’s
operation on the device’s volatile menu configuration table. A period (.)
performs the command’s operation on the device’s non-volatile menu
configuration table. Use the non-volatile table only for semi-permanent
changes you want saved through a power cycle.
Query Commands
Several special characters can be used to query the device about its settings.
^What is the default value for the setting(s).
?What is the device’s current value for the setting(s).
*What is the range of possible values for the setting(s). (The device’s
response uses a dash (-) to indicate a continuous range of values. A
pipe (|) separates items in a list of non-continuous values.)
:Name: Field Usage (Optional)
This command returns the query information from the scanner.
Tag Field Usage
When a query is used in place of a Tag field, the query applies to the
entire
set of commands available for the particular storage table indicated by the
Storage field of the command. In this case, the SubTag and Data fields
should not be used because they are ignored by the device.
SubTag Field Usage
When a query is used in place of a SubTag field, the query applies only to
the subset of commands available that match the Tag field. In this case,
the Data field should not be used because it is ignored by the device.
Data Field Usage
When a query is used in place of the Data field, the query applies only to
the specific command identified by the Tag and SubTag fields.
Concatenation of Multiple Commands
Multiple commands can be issued within one Prefix/Storage sequence.
Only the Tag, SubTag, and Data fields must be repeated for each com-
mand in the sequence. If additional commands are to be applied to the
same Tag, then the new command sequence is separated with a comma (,)
and only the SubTag and Data fields of the additional command are issued.
If the additional command requires a different Tag field, the command is
separated from previous commands by a semicolon (;).
Preliminary Draft
11 - 3
Responses
The device responds to serial commands with one of three responses:
ACK Indicates a good command which has been processed.
ENQ Indicates an invalid Tag or SubTag command.
NAK Indicates the command was good, but the Data field entry was out of
the allowable range for this Tag and SubTag combination, e.g., an
entry for a minimum message length of 100 when the field will only
accept 2 characters.
When responding, the device echoes back the command sequence with
the status character inserted directly before each of the punctuation marks
(the period, exclamation point, comma, or semicolon) in the command.
Examples of Query Commands
In the following examples, a bracketed notation [ ] depicts a non-displayable
response.
Example: What is the range of possible values for Codabar Coding Enable?
Enter: cbrena*.
Response: CBRENA0-1[ACK]
This response indicates that Codabar Coding Enable (CBRENA) has a range of
values from 0 to 1 (off and on).
Example: What is the default value for Codabar Coding Enable?
Enter: cbrena^.
Response: CBRENA1[ACK]
This response indicates that the default setting for Codabar Coding Enable
(CBRENA) is 1, or on.
Example: What is the device’s current setting for Codabar Coding Enable?
Enter: cbrena?.
Response: CBRENA1[ACK]
This response indicates that the device’s Codabar Coding Enable (CBRENA) is
set to 1, or on.
Example: What are the device’s settings for all Codabar selections?
Enter: cbr?.
Response: CBRENA1[ACK],
SSX0[ACK],
CK20[ACK],
CCT1[ACK],
MIN2[ACK],
Preliminary Draft
11 - 4
MAX60[ACK],
DFT[ACK].
This response indicates that the device’s Codabar Coding Enable (CBRENA) is
set to 1, or on;
the Start/Stop Character (SSX) is set to 0, or Don’t Transmit;
the Check Character (CK2) is set to 0, or Not Required;
concatenation (CCT) is set to 1, or Enabled;
the Minimum Message Length (MIN) is set to 2 characters;
the Maximum Message Length (MAX) is set to 60 characters;
and the Default setting (DFT) has no value.
Trigger Commands
You can activate and deactivate the scanner with serial trigger commands.
First, the scanner must be put in Manual Trigger Mode by scanning a Manual
Trigger Mode bar code (page 4-6), or by sending a serial menu command for
triggering (page 11-18). Once the scanner is in serial trigger mode, the trigger
is activated and deactivated by sending the following commands:
Activate: SYN T CR
Deactivate: SYN U CR
The scanner scans until a bar code has been read, until the deactivate com-
mand is sent, or until the serial time-out has been reached (see "Read Time-
Out" on page 4-7 for a description, and the serial command on page 11-18).
Resetting the Standard Product Defaults
If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want the factory default settings restored, scan the
Standard Product Default Settings bar code below.
Note: If using a cordless system, scanning this bar code also causes both the
scanner and the base to perform a reset and become unlinked. The
scanner must be placed in its base to re-establish the link before any
setup codes are entered. See Cordless System Operation beginning on
page 3-1 for additional information.
The charts on the following pages list the factory default settings for each of the
commands (indicated by an asterisk (*) on the programming pages).
Standard Product Default Settings:
Current Application Group
Preliminary Draft
11 - 5
Menu Commands
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Product Default Settings
Resetting the Factory
Defaults
Restore Factory
Defaults
DEFOVR 1-9
Save Defaults DEFALT 1-9
Setting Custom
Defaults
Set Custom Defaults MNUCDF 1-10
Save Custom
Defaults
DEFALT 1-10
Resetting the
Custom Defaults
Custom Product
Default Settings:
Current Application
Group
DEFALT 1-10
Resetting the Factory
Defaults - cordless
scanners
Factory Default
Settings:
All Application
Groups
PAPDFT& 3-23
Resetting the
Custom Defaults -
cordless scanners
CustomDefault
Settings:
All Application
Groups
PAPDFT 3-24
Programming the Interface
Plug and Play Codes Keyboard Wedge:
IBM PC AT and
Compatibles with
CR suffix
PAP_AT 2-1
Laptop Direct
Connect with CR
suffix
PAPLT D 2-1
RS232 Serial Port PAP232 2-2
Preliminary Draft
11 - 6
Plug and Play Codes:
RS485
IBM Port 5B
Interface
PAPP5B 2-2
IBM Port 9B
HHBCR-1 Interface
PAP9B1 2-2
IBM Port 17
Interface
PAPP17 2-2
IBM Port 9B
HHBCR-2 Interface
PAP9B2 2-2
RS485 Packet Mode
On
RTLPDF1 2-3
RS485 Packet Mode
Off
RTLPDF0 2-3
RS485 Packet
Length (20-256)
RTLMPS 2-3
Plug and Play Codes:
IBM SurePos
USB IBM SurePos
Handheld
PAPSPH 2-4
USB IBM SurePos
Tabletop
PAPSPT 2-4
Plug and Play Codes:
USB
USB Keyboard (PC) PAP124 2-4
USB Keyboard
(Mac)
PAP125 2-4
USB Japanese
Keyboard (PC)
TERMID134 2-4
USB HID PAP131 2-5
USB Serial TERMID130 2-5
CTS/RTS Emulation
On
USBCTS1 2-5
CTS/RTS Emulation
Off*
USBCTS0 2-5
ACK/NAK Mode On USBACK1 2-6
ACK/NAK Mode Off* USBACK0 2-6
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 7
Plug and Play Codes Verifone Ruby
Te r mi na l
PAPRBY 2-6
Gilbarco Terminal PAPGLB 2-7
Honeywell Bioptic
Aux Port
PAPBIO 2-7
Datalogic Magellan
Bioptic Aux Port
PAPMAG 2-7
NCR Bioptic Aux
Port
PAPNCR 2-8
Wincor Nixdorf
Te r mi na l
PAPWNX 2-8
Wincor Nixdorf
Beetle
PAPBTL 2-9
Program Keyboard
Country
*U.S.A. KBDCTY0 2-10
Albania KBDCTY35 2-10
Azeri (Cyrillic) KBDCTY81 2-10
Azeri (Latin) KBDCTY80 2-10
Belarus KBDCTY82 2-10
Belgium KBDCTY1 2-10
Bosnia KBDCTY33 2-10
Brazil KBDCTY16 2-10
Brazil (MS) KBDCTY59 2-11
Bulgaria (Cyrillic) KBDCTY52 2-11
Bulgaria (Latin) KBDCTY53 2-11
Canada (French
legacy)
KBDCTY54 2-11
Canada (French) KBDCTY18 2-11
Canada
(Multilingual)
KBDCTY55 2-11
Croatia KBDCTY32 2-11
Czech KBDCTY15 2-11
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 8
Program Keyboard
Country
Czech
(Programmers)
KBDCTY40 2-11
Czech (QWERTY) KBDCTY39 2-11
Czech (QWERTZ) KBDCTY38 2-11
Denmark KBDCTY8 2-11
Dutch (Netherlands) KBDCTY11 2-11
Estonia KBDCTY41 2-12
Faeroese KBDCTY83 2-12
Finland KBDCTY2 2-12
France KBDCTY3 2-12
Gaelic KBDCTY84 2-12
Germany KBDCTY4 2-12
Greek KBDCTY17 2-12
Greek (220 Latin) KBDCTY64 2-12
Greek (220) KBDCTY61 2-12
Greek (319 Latin) KBDCTY65 2-12
Greek (319) KBDCTY62 2-12
Greek (Latin) KBDCTY63 2-12
Greek (MS) KBDCTY66 2-12
Greek (Polytonic) KBDCTY60 2-13
Hebrew KBDCTY12 2-13
Hungarian (101 key) KBDCTY50 2-13
Hungary KBDCTY19 2-13
Iceland KBDCTY75 2-13
Irish KBDCTY73 2-13
Italian (142) KBDCTY56 2-13
Italy KBDCTY5 2-13
Japan ASCII KBDCTY28 2-13
Kazakh KBDCTY78 2-13
Kyrgyz (Cyrillic) KBDCTY79 2-13
Latin America KBDCTY14 2-13
Latvia KBDCTY42 2-13
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 9
Program Keyboard
Country
Latvia (QWERTY) KBDCTY43 2-14
Lithuania KBDCTY44 2-14
Lithuania (IBM) KBDCTY45 2-14
Macedonia KBDCTY34 2-14
Malta KBDCTY74 2-14
Mongolian (Cyrillic) KBDCTY86 2-14
Norway KBDCTY9 2-14
Poland KBDCTY20 2-14
Polish (214) KBDCTY57 2-14
Polish
(Programmers)
KBDCTY58 2-14
Portugal KBDCTY13 2-14
Romania KBDCTY25 2-14
Russia KBDCTY26 2-14
Russian (MS) KBDCTY67 2-15
Russian (Typewriter) KBDCTY68 2-15
SCS KBDCTY21 2-15
Serbia (Cyrillic) KBDCTY37 2-15
Serbia (Latin) KBDCTY36 2-15
Slovakia KBDCTY22 2-15
Slovakia (QWERTY) KBDCTY49 2-15
Slovakia (QWERTZ) KBDCTY48 2-15
Slovenia KBDCTY31 2-15
Spain KBDCTY10 2-15
Spanish variation KBDCTY51 2-15
Sweden KBDCTY23 2-15
Switzerland (French) KBDCTY29 2-15
Switzerland
(German)
KBDCTY6 2-16
Tatar KBDCTY85 2-16
Turkey F KBDCTY27 2-16
Turkey Q KBDCTY24 2-16
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 10
Program Keyboard
Country
Ukrainian KBDCTY76 2-16
United Kingdom KBDCTY7 2-16
United Stated
(Dvorak right)
KBDCTY89 2-16
United States
(Dvorak left)
KBDCTY88 2-16
United States
(Dvorak)
KBDCTY87 2-16
United States
(International)
KBDCTY30 2-16
Uzbek (Cyrillic) KBDCTY77 2-16
Keyboard Conversion *Keyboard
Conversion Off
KBDCNV0 2-18
Convert all
Characters to Upper
Case
KBDCNV1 2-18
Convert all
Characters to Lower
Case
KBDCNV1 2-18
Keyboard Style *Regular KBDSTY0 2-17
Caps Lock KBDSTY1 2-17
Shift Lock KBDSTY2 2-17
Automatic Caps
Lock
KBDSTY6 2-17
Emulate External
Keyboard
KBDSTY5 2-18
Control Character
Output
*Control Character
Output Off
KBDNPE0 2-19
*Control Character
Output On
KBDNPE1 2-19
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 11
Keyboard Modifiers *Control + ASCII Off KBDCAS0 2-20
DOS Mode Control
+ ASCII
KBDCAS1 2-20
Windows Mode
Control + ASCII
KBDCAS2 2-20
Windows Mode
Prefix/Suffix Off
KBDCAS3 2-20
*Turbo Mode Off KBDTMD0 2-20
Turbo Mode On KBDTMD1 2-20
*Numeric Keypad
Off
KBDNPS0 2-20
Numeric Keypad On KBDNPS1 2-20
*Auto Direct
Connect Off
KBDADC0 2-21
Auto Direct Connect
On
KBDADC1 2-21
Baud Rate 300 BPS 232BAD0 2-22
600 BPS 232BAD1 2-22
1200 BPS 232BAD2 2-22
2400 BPS 232BAD3 2-22
4800 BPS 232BAD4 2-22
*9600 BPS 232BAD5 2-22
19200 BPS 232BAD6 2-22
38400 BPS 232BAD7 2-22
57600 BPS 232BAD8 2-22
115200 BPS 232BAD9 2-22
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 12
Word Length: Data
Bits, Stop Bits, and
Parity
7 Data, 1 Stop,
Parity Even 232WRD3 2-23
7 Data, 1 Stop,
Parity None
232WRD0 2-23
7 Data, 1 Stop,
Parity Odd
232WRD6 2-23
7 Data, 2 Stop,
Parity Even
232WRD4 2-23
7 Data, 2 Stop,
Parity None
232WRD1 2-23
7 Data, 2 Stop,
Parity Odd
232WRD7 2-23
8 Data, 1 Stop,
Parity Even
232WRD5 2-23
*8 Data, 1 Stop,
Parity None
232WRD2 2-23
8 Data, 1 Stop,
Parity Odd
232WRD8 2-23
RS232 Receiver
Time-out
Range 0 - 300
seconds
232LPT### 2-24
RS232 Handshaking *RTS/CTS Off 232CTS0 2-24
Flow Control, No
Timeout
232CTS1 2-24
Two-Direction Flow
Control
232CTS2 2-24
Flow Control with
Timeout
232CTS3 2-24
RS232 Timeout 232DEL#### 2-25
*XON/XOFF Off 232XON0 2-25
XON/XOFF On 232XON1 2-25
*ACK/NAK Off 232ACK0 2-26
ACK/NAK On 232ACK1 2-26
Scanner-Bioptic
Packet Mode
*Packet Mode Off 232PKT0 2-26
Packet Mode On 232PKT2 2-3
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 13
Scanner-Bioptic
ACK/NAK Mode
*Bioptic ACK/NAK
Off
232NAK0 2-27
Bioptic ACK/NAK
On
232NAK1 2-27
Scanner-Bioptic
ACK/NAK Timeout
ACK/NAK Timeout
*5100
232DLK##### 2-27
Cordless System Operation
Note: This section applies only to cordless systems. It does not apply to
corded scanners.
Base Power
Communication
Indicator
*On BASRED1 3-7
Off BASRED0 3-7
Reset Scanner Reset Scanner RESET_ 3-7
Scanning while in
Base Cradle
*Scanning in Cradle
Off
BT_SIC0 3-7
Scanning in Cradle
On
BT_SIC1 3-7
Paging Mode *On BEPPGE1 3-8
Off BEPPGE0 3-8
Paging Pitch Range 400 - 9000
Hz (*1000)
BEPPFQ#### 3-8
Beeper Pitch - Base
Error
*Razz (250) (min
200Hz)
BASFQ2250 3-9
Medium (3250) BASFQ23250 3-9
High (4200) (max
9000Hz)
BASFQ24200 3-9
Number of Beeps -
Base Error
*1 BASERR3 3-9
Range 1 - 9 BASERR# 3-9
Scanner Report Scanner Report RPTSCN 3-9
Scanner Address Scanner Address BT_LDA 3-10
Base Address Base Address BASLDA 3-10
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 14
Scanner Modes -
Single
Charge Only Mode BASLNK0 3-10
*Charge and Link
Mode
BASLNK1 3-10
Locked Link Mode BASCON0,DNG1 3-11
*Open Link Mode BASCON1,DNG1 3-11
Unlink Scanner BT_RMV 3-11
Override Locked
Scanner
BT_RPL1 3-12
Out-of-Range Alarm Base Alarm
Duration (Range 1 -
3000 sec (*0))
BASORD 3-12
Scanner Alarm
Duration (Range 1 -
3000 sec (*0))
BT_ORD 3-12
Alarm Sound Type Base Alarm Type BASORW 3-13
Scanner Alarm Type BT_ORW 3-13
Flexible Power
Management
*Full Power BT_TXP100 3-14
Medium Power BT_TXP35 3-14
Medium Low Power BT_TXP5 3-14
Low Power BT_TXP1 3-14
Batch Mode Automatic Batch
Mode
BATENA1 3-15
*Batch Mode Off BATENA0 3-15
Inventory Batch
Mode
BATENA2 3-15
Batch Mode Beep Off BATBEP0 3-15
*On BATBEP1 3-15
Batch Mode Storage *Flash Storage BATNVS1 3-16
RAM Storage BATNVS0 3-16
Batch Mode Quantity *Off BATQTY0 3-16
On BATQTY1 3-16
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 15
Quantity Codes 0 BATNUM0 3-17
*1 BATNUM1 3-17
2 BATNUM2 3-17
3 BATNUM3 3-17
4 BATNUM4 3-17
5 BATNUM5 3-17
6 BATNUM6 3-17
7 BATNUM7 3-17
8 BATNUM8 3-18
9 BATNUM9 3-18
Batch Mode Output
Order
FIFO BATLIF0 3-18
LIFO BATLIF1 3-18
Delete Last Code Delete Last Code BATUND 3-18
Clear All Codes Clear All Codes BATCLR 3-18
Transmit Records to
Host
Transmit Inventory
Records
BAT_TX 3-19
Batch Mode Transmit
Delay
*Off BATDLY0 3-19
Short (ms) BATDLY250 3-19
Medium (ms) BATDLY500 3-19
Long (ms) BATDLY1000 3-19
Multiple Scanner
Operation
Multiple Scanner
Operation
BASCON2,DNG3 3-20
Scanner Name Name 1-7 BT_NAM##### 3-21
Reset RESET_ 3-21
Scanner Name BT_NAM 3-21
Application Work
Group
Selections
*Group 0 GRPSEL0 3-23
Group 1-6 GRPSEL# 3-23
Resetting the Factory
Defaults: All
Application Work
Groups
Factory Default
Settings:
All Work Groups
PAPDFT& 3-23
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 16
Resetting the
Custom Defaults: All
Application Work
Groups
Custom Default
Settings:
All Work Groups
PAPDFT 3-24
Bluetooth
Connection
PCs/Laptops:
Non-Base BT
Connection
BT_DNG5 3-25
BT Connection -
PDA/Mobility
Systems Device
BT_DNG1 3-25
Bluetooth PIN Code Bluetooth PIN BT_PIN 3-25
Auto Reconnect
Mode
*Auto Reconnect On BT_ACM1 3-26
Auto Reconnect Off BT_ACM0 3-26
Maximum Link
Attempts
Maximum Link
Attempts
BT_MLA 3-27
Relink Time-Out Relink Time-Out BT_RLT 3-28
Host Command
Acknowledgment
Host ACK On HSTACK1 3-30
*Host ACK Off HSTACK0 3-30
Input/Output Selections
Power Up Beeper Power Up Beeper
Off - Scanner
BEPPWR0 4-1
*Power Up Beeper
On - Scanner
BEPPWR1 4-1
Power Up Beeper
Off - Cordless Base
BASPWR0 4-1
Power Up Beeper
On - Cordless Base
BASPWR1 4-1
Beep on BEL
Character
Beep on BEL On BELBEP1 4-1
*Beep on BEL Off BELBEP0 4-1
Trigger Click On BEPTRG1 4-2
*Off BEPTRG0 4-2
Beeper - Good Read Off BEPBEP0 4-3
*On BEPBEP1 4-2
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 17
Beeper Volume -
Good Read
Off BEPLVL0 4-2
Low BEPLVL1 4-3
Medium BEPLVL2 4-3
*High BEPLVL3 4-3
Beeper Pitch - Good
Read (Frequency)
Low (1600) (min
400Hz)
BEPFQ11600 4-3
*Medium 2700) BEPFQ12700 4-3
High (4200) (max
9000Hz)
BEPFQ14200 4-3
Beeper Pitch - Error
(Frequency)
*Razz (250) (min
200Hz)
BEPFQ2800 4-4
Medium (3250) BEPFQ23250 4-4
High (4200) (max
9000Hz)
BEPFQ24200 4-4
Beeper Duration -
Good Read
*Normal Beep BEPBIP0 4-4
Short Beep BEPBIP1 4-4
LED - Good Read Off BEPLED0 4-4
*On BEPLED1 4-4
Number of Beeps -
Error
*1 BEPERR3 4-5
Range 1 - 9 BEPERR# 4-5
Number of Beeps -
Good Read
*1 BEPRPT1 4-5
Range 1 - 9 BEPRPT# 4-5
Good Read Delay *No Delay DLYGRD0 4-6
Short Delay (500
ms)
DLYGRD500 4-6
Medium Delay (1000
ms)
DLYGRD1000 4-6
Long Delay (1500
ms)
DLYGRD1500 4-6
User-Specified Good
Read Delay
Range 0 - 30,000
ms
DLYGRD##### 4-6
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 18
Manual/Serial Trigger
Modes
*Manual Trigger -
Normal
PAPHHF 4-7
Manual Trigger -
Enhanced
PAPHHS 4-7
Read Time-Out
(0 - 300,000 ms)
*30,000
TRGSTO#### 4-7
Scanner Power
Time-Out Timer (0-
7200 seconds)
*3600
BT_LPT0 4-8
BT_LPT200 4-8
BT_LPT400 4-8
BT_LPT900 4-8
BT_LPT3600 4-8
BT_LPT7200 4-8
In-Stand Sensor
Mode
Sensor On TRGSSW1 4-9
Sensor Off TRGSSW0 4-9
Presentation Presentation Mode TRGMOD3 4-9
Presentation LED
Behavior After
Decode
*LEDs On TRGPCK1 4-9
LEDs Off TRGPCK0 4-9
Presentation
Sensitivity
Range 0-20 (*1) TRGPMS## 4-10
Streaming
Presentation
Streaming
Presentation Mode -
Normal
PAPSPN 4-10
Streaming
Presentation Mode -
Enhanced
PAPSPE 4-10
Mobile Phone Read
Mode
Hand Held Scanning
- Mobile Phone
PAPHHC 4-11
Streaming
Presentation -
Mobile Phone
PAPSPC 4-11
Image Snap and
Ship
Image Snap and
Ship
TRGMOD6 4-11
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 19
Hands Free Time-
Out
Range 0 - 300,000
ms
TRGPTO###### 4-12
Reread Delay Short (500 ms) DLYRRD500 4-12
*Medium (750 ms) DLYRRD750 4-12
Long (1000 ms) DLYRRD1000 4-12
Extra Long (2000
ms)
DLYRRD2000 4-12
User-Specified
Reread Delay
Range 0 - 30,000
ms
DLYRRD##### 4-12
Illumination Lights *Lights On SCNLED1 4-13
Lights Off SCNLED0 4-13
Aimer Delay 200 milliseconds SCNDLY200 4-13
400 milliseconds SCNDLY400 4-13
*Off (no delay) SCNDLY0 4-13
User-Specified Aimer
Delay
Range 0 - 4,000 ms SCNDLY#### 4-13
Scanner Time-Out SDRTIM#### 4-14
Aimer Mode Off SCNAIM0 4-14
*Interlaced SCNAIM2 4-14
Centering Window Centering On DECWIN1 4-16
*Centering Off DECWIN0 4-16
Left of Centering
Window (*40%)
DECLFT### 4-16
Right of Centering
Window (*60%)
DECRGT### 4-16
Top of Centering
Window (*40%)
DECTOP### 4-16
Bottom of Centering
Window (*60%)
DECBOT### 4-16
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 20
Preferred Symbology On PRFENA1 4-17
*Off PRFENA0 4-17
High Priority
Symbology
PRFCOD## 4-17
Low Priority
Symbology
PRFBLK## 4-17
Preferred
Symbology Timeout
(*500) Range 100-
3000
PRFPTO#### 4-18
Preferred
Symbology Default
PRFDFT 4-18
Output Sequence
Editor
Enter Sequence SEQBLK 4-21
Default Sequence SEQDFT 4-21
Partial Sequence Transmit Partial
Sequence
SEQTTS1 4-21
*Discard Partial
Sequence
SEQTTS0 4-21
Require Output
Sequence
Required SEQ_EN2 4-22
On/Not Required SEQ_EN1 4-22
*Off SEQ_EN0 4-22
Multiple Symbols On SHOTGN1 4-22
*Off SHOTGN0 4-22
No Read On SHWNRD1 4-23
*Off SHWNRD0 4-23
Video Reverse Video Reverse Only VIDREV1 4-23
Video Reverse and
Standard Bar Codes
VIDREV2 4-23
*Video Reverse Off VIDREV0 4-23
Prefix/Suffix Selections
Add CR Suffix to All Symbologies VSUFCR 5-3
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 21
Prefix Add Prefix PREBK2## 5-3
Clear One Prefix PRECL2 5-3
Clear All Prefixes PRECA2 5-3
Suffix Add Suffix SUFBK2## 5-4
Clear One Suffix SUFCL2 5-4
Clear All Suffixes SUFCA2 5-4
Function Code
Transmit
*Enable RMVFNC0 5-4
Disable RMVFNC1 5-4
Intercharacter Delay Range 0 - 1000
(5ms increments)
DLYCHR## 5-5
User Specified
Intercharacter Delay
Delay Length
0 - 1000 (5ms
increments)
DLYCRX## 5-5
Character to Trigger
Delay
DLY_XX## 5-5
Interfunction Delay Range 0 - 1000
(5ms increments)
DLYFNC## 5-6
Intermessage Delay Range 0 - 1000
(5ms increments)
DLYMSG## 5-6
Data Formatter Selections
Data Format Editor *Default Data
Format (None)
DFMDF3 6-1
Enter Data Format DFMBK3## 6-2
Clear One Data
Format
DFMCL3 6-3
Clear All Data
Formats
DFMCA3 6-3
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 22
Data Formatter Data Formatter Off DFM_EN0 6-8
*Data Formatter On,
Not Required,
Keep Prefix/Suffix
DFM_EN1 6-9
Data Format
Required,
Keep Prefix/Suffix
DFM_EN2 6-9
Data Formatter On,
Not Required,
Drop Prefix/Suffix
DFM_EN3 6-9
Data Format
Required,
Drop Prefix/Suffix
DFM_EN4 6-9
Data Format Non-
Match Error Tone
*Data Format Non-
Match Error Tone
On
DFMDEC0 6-9
Data Format Non-
Match Error Tone
Off
DFMDEC1 6-9
Primary/Alternate
Data Formats
Primary Data
Format
ALTFNM0 6-10
Data Format 1 ALTFNM1 6-10
Data Format 2 ALTFNM2 6-10
Data Format 3 ALTFNM3 6-10
Single Scan Data
Format Change
Single Scan-Primary
Data Format
VSAF_0 6-11
Single Scan-Data
Format 1
VSAF_1 6-11
Single Scan-Data
Format 2
VSAF_2 6-11
Single Scan-Data
Format 3
VSAF_3 6-11
Symbologies
All Symbologies All Symbologies Off ALLENA0 7-2
All Symbologies On ALLENA1 7-2
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 23
Codabar Default All Codabar
Settings
CBRDFT 7-3
Off CBRENA0 7-3
*On CBRENA1 7-3
Codabar Start/Stop
Char.
*Don’t Transmit CBRSSX0 7-3
Transmit CBRSSX1 7-3
Codabar Check
Char.
*No Check Char. CBRCK20 7-4
Validate, But Don’t
Transmit
CBRCK21 7-4
Validate, and
Transmit
CBRCK22 7-4
Codabar
Concatenation
*Off CBRCCT0 7-4
On CBRCCT1 7-4
Require CBRCCT2 7-4
Codabar Message
Length
Minimum (2 - 60) *4 CBRMIN## 7-5
Maximum (2 - 60)
*60
CBRMAX## 7-5
Code 39 Default All Code 39
Settings
C39DFT 7-6
Off C39ENA0 7-6
*On C39ENA1 7-6
Code 39 Start/Stop
Char.
*Don’t Transmit C39SSX0 7-6
Transmit C39SSX1 7-6
Code 39 Check Char. *No Check Char. C39CK20 7-7
Validate, But Don’t
Transmit
C39CK21 7-7
Validate,
and Transmit
C39CK22 7-7
Code 39 Message
Length
Minimum (0 - 48) *0 C39MIN## 7-7
Maximum (0 - 48)
*48
C39MAX## 7-7
Code 39 Append *Off C39APP0 7-8
On C39APP1 7-8
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 24
Code 32
Pharmaceutical
(PARAF)
*Off C39B320 7-8
On C39B321 7-8
Code 39 Full ASCII *Off C39ASC0 7-9
On C39ASC1 7-9
Code 39 Code Page C39DCP 7-10
Interleaved 2 of 5 Default All
Interleaved
2 of 5 Settings
I25DFT 7-10
Off I25ENA0 7-10
*On I25ENA1 7-10
Interleaved 2 of 5
Check Digit
*No Check Char. I25CK20 7-11
Validate, But Don’t
Transmit
I25CK21 7-11
Validate, and
Transmit
I25CK22 7-11
Interleaved 2 of 5
Message Length
Minimum (2 - 80) *4 I25MIN## 7-11
Maximum (2 - 80)
*80
I25MAX## 7-11
NEC 2 of 5 Default All NEC
2 of 5 Settings
N25DFT 7-12
Off N25ENA0 7-12
*On N25ENA1 7-12
NEC 2 of 5 Check
Digit
*No Check Char. N25CK20 7-12
Validate, But Don’t
Transmit
N25CK21 7-12
Validate, and
Transmit
N25CK22 7-12
NEC 2 of 5 Message
Length
Minimum (2 - 80) *4 N25MIN## 7-13
Maximum (2 - 80)
*80
N25MAX## 7-13
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 25
Code 93 Default All Code 93
Settings
C93DFT 7-14
Off C93ENA0 7-14
*On C93ENA1 7-15
Code 93 Message
Length
Minimum (0 - 80) *0 C93MIN## 7-14
Maximum (0 - 80)
*80
C93MAX## 7-14
Code 93 Code Page C93DCP 7-15
Straight 2 of 5
Industrial
Default All Straight 2
of 5 Industrial
Settings
R25DFT 7-15
*Off R25ENA0 7-15
On R25ENA1 7-15
Straight 2 of 5
Industrial Message
Length
Minimum (1 - 48) *4 R25MIN## 7-15
Maximum (1 - 48)
*48
R25MAX## 7-15
Straight 2 of 5 IATA Default All Straight 2
of 5 IATA
Settings
A25DFT 7-16
Straight 2 of 5 IATA *Off A25ENA0 7-16
On A25ENA1 7-16
Straight 2 of 5 IATA
Message Length
Minimum (1 - 48) *4 A25MIN## 7-16
Maximum (1 - 48)
*48
A25MAX## 7-16
Matrix 2 of 5 Default All Matrix 2
of 5
Settings
X25DFT 7-17
*Off X25ENA0 7-17
On X25ENA1 7-17
Matrix 2 of 5
Message Length
Minimum (1 - 80) *4 X25MIN## 7-17
Maximum (1 - 80)
*80
X25MAX## 7-17
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 26
Code 11 Default All Code 11
Settings
C11DFT 7-18
*Off C11ENA0 7-18
On C11ENA1 7-18
Code 11 Check
Digits Required
1 Check Digit C11CK20 7-18
*2 Check Digits C11CK21 7-18
Code 11 Message
Length
Minimum (1 - 80) *4 C11MIN## 7-19
Maximum (1 - 80)
*80
C11MAX## 7-19
Code 128 Default All Code 128
Settings
128DFT 7-19
Off 128ENA0 7-19
*On 128ENA1 7-19
ISBT Concatenation *Off ISBENA0 7-20
On ISBENA1 7-20
Code 128 Message
Length
Minimum (0 - 80) *0 128MIN## 7-20
Maximum (0 - 80)
*80
128MAX## 7-20
Code 128 Code Page Code 128 Code
Page (*2)
128DCP## 7-20
GS1-128 Default All GS1-128
Settings
GS1DFT 7-21
*On GS1ENA1 7-21
Off GS1ENA0 7-21
GS1-128 Message
Length
Minimum (1 - 80) *1 GS1MIN 7-21
Maximum (0 - 80)
*80
GS1MAX 7-21
Telepen Default All Telepen
Settings
TELDFT 7-22
*Off TELENA0 7-22
On TELENA1 7-22
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 27
Telepen Output *AIM Telepen Output TELOLD0 7-22
Original Telepen
Output
TELOLD1 7-22
Telepen Message
Length
Minimum (1 - 60) *1 TELMIN## 7-23
Maximum (1 - 60)
*60
TELMAX## 7-23
UPC-A Default All
UPC-A Settings
UPADFT 7-23
Off UPAENA0 7-23
*On UPAENA1 7-23
UPC-A Check Digit Off UPACKX0 7-23
*On UPACKX1 7-23
UPC-A Number
System
Off UPANSX0 7-24
*On UPANSX1 7-24
UPC-A 2 Digit
Addenda
*Off UPAAD20 7-24
On UPAAD21 7-24
UPC-A 5 Digit
Addenda
*Off UPAAD50 7-24
On UPAAD51 7-24
UPC-A Addenda
Required
*Not Required UPAARQ0 7-24
Required UPAARQ1 7-24
UPC-A Addenda
Separator
Off UPAADS0 7-25
*On UPAADS1 7-25
UPC-A/EAN-13 with
Extended Coupon
Code
*Off CPNENA0 7-25
Allow Concatenation CPNENA1 7-25
Require
Concatenation
CPNENA2 7-25
UPC-E0 Default All UPC-E
Settings
UPEDFT 7-26
Off UPEEN00 7-26
*On UPEEN01 7-26
UPC-E0 Expand *Off UPEEXP0 7-26
On UPEEXP1 7-26
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 28
UPC-E0 Addenda
Required
Required UPEARQ1 7-27
*Not Required UPEARQ0 7-27
UPC-E0 Addenda
Separator
*On UPEADS1 7-27
Off UPEADS0 7-27
UPC-E0 Check Digit Off UPECKX0 7-27
*On UPECKX1 7-27
UPC-E0 Number
System
Off UPENSX0 7-28
*On UPENSX1 7-28
UPC-E0 Addenda 2 Digit Addenda On UPEAD21 7-28
*2 Digit Addenda Off UPEAD20 7-28
5 Digit Addenda On UPEAD51 7-28
*5 Digit Addenda Off UPEAD50 7-28
UPC-E1 *Off UPEEN10 7-29
On UPEEN11 7-29
EAN/JAN-13 Default All EAN/
JAN Settings
E13DFT 7-29
Off E13ENA0 7-29
*On E13ENA1 7-29
EAN/JAN-13 Check
Digit
Off E13CKX0 7-29
*On E13CKX1 7-29
EAN/JAN-13 2 Digit
Addenda
2 Digit Addenda On E13AD21 7-30
*2 Digit Addenda Off E13AD20 7-30
5 Digit Addenda On E13AD51 7-30
*5 Digit Addenda Off E13AD50 7-30
EAN/JAN-13
Addenda Required
*Not Required E13ARQ0 7-30
Required E13ARQ1 7-30
EAN/JAN-13
Addenda
Separator
Off E13ADS0 7-31
*On E13ADS1 7-31
ISBN Translate *Off E13ISB0 7-31
On E13ISB1 7-31
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 29
EAN/JAN-8 Default All EAN/
JAN 8 Settings
EA8DFT 7-32
Off EA8ENA0 7-32
*On EA8ENA1 7-32
EAN/JAN-8 Check
Digit
Off EA8CKX0 7-32
*On EA8CKX1 7-32
EAN/JAN-8 Addenda *2 Digit Addenda Off EA8AD20 7-33
2 Digit Addenda On EA8AD21 7-33
*5 Digit Addenda Off EA8AD50 7-33
5 Digit Addenda On EA8AD51 7-33
EAN/JAN-8 Addenda
Required
*Not Required EA8ARQ0 7-33
Required EA8ARQ1 7-33
EAN/JAN-8 Addenda
Separator
Off EA8ADS0 7-33
*On EA8ADS1 7-33
MSI Default All MSI
Settings
MSIDFT 7-34
*Off MSIENA0 7-34
On MSIENA1 7-34
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 30
MSI Check Character *Validate Type 10,
but Don’t Transmit
MSICHK0 7-35
Validate Type 10 and
Transmit
MSICHK1 7-35
Validate 2 Type 10
Chars, but Don’t
Transmit
MSICHK2 7-35
Validate 2 Type 10
Chars and Transmit
MSICHK3 7-35
Validate Type 10
then Type 11 Char,
but Don’t Transmit
MSICHK4 7-35
Validate Type 10
then Type 11 Char
and Transmit
MSICHK5 7-35
Disable MSI Check
Characters
MSICHK6 7-35
MSI Message Length Minimum (4 - 48) *4 MSIMIN## 7-35
Maximum (4 - 48)
*48
MSIMAX## 7-35
GS1 DataBar
Omnidirectional
Default All
GS1 DataBar
Omnidirectional
Settings
RSSDFT 7-36
Off RSSENA0 7-36
*On RSSENA1 7-36
GS1 DataBar Limited Default All GS1
DataBar Limited
Settings
RSLDFT 7-36
Off RSLENA0 7-36
*On RSLENA1 7-36
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 31
GS1 DataBar
Expanded
Default All GS1
DataBar
Expanded Settings
RSEDFT 7-37
Off RSEENA0 7-37
*On RSEENA1 7-37
GS1 DataBar
Expanded Msg.
Length
Minimum (4 - 74) *4 RSEMIN## 7-37
Maximum (4 - 74)
*74
RSEMAX## 7-37
Trioptic Code *Off TRIENA0 7-38
On TRIENA1 7-38
Codablock A Default All
Codablock A
Settings
CBADFT 7-38
*Off CBAENA0 7-38
On CBAENA1 7-38
Codablock A Msg.
Length
Minimum (1 - 600)
*1
CBAMIN#### 7-39
Maximum (1 - 600)
*600
CBAMAX#### 7-39
Codablock F Default All
Codablock F
Settings
CBFDFT 7-38
*Off CBFENA0 7-40
On CBFENA1 7-40
Codablock F Msg.
Length
Minimum (1 - 2048)
*1
CBFMIN#### 7-40
Maximum (1 - 2048)
*2048
CBFMAX#### 7-40
PDF417 Default All PDF417
Settings
PDFDFT 7-41
*On PDFENA1 7-41
Off PDFENA0 7-41
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 32
PDF417 Msg. Length Minimum (1-2750)
*1
PDFMIN 7-41
Maximum (1-2750)
*2750
PDFMAX 7-41
MicroPDF417 Default All Micro
PDF417 Settings
MPDDFT 7-42
On MPDENA1 7-42
*Off MPDENA0 7-42
MicroPDF417 Msg.
Length
Minimum (1-366) *1 MPDMIN 7-42
Maximum (1-366)
*366
MPDMAX 7-42
GS1 Composite
Codes
On COMENA1 7-43
*Off COMENA0 7-43
UPC/EAN Version On COMUPC1 7-43
*Off COMUPC0 7-43
GS1 Composite
Codes Msg. Length
Minimum (1-2435)
*1
COMMIN 7-43
Maximum (1-2435)
*2435
COMMAX 7-43
GS1 Emulation GS1-128 Emulation EANEMU1 7-44
GS1 DataBar
Emulation
EANEMU2 7-44
GS1 Code
Expansion Off
EANEMU3 7-44
EAN8 to EAN13
Conversion
EANEMU4 7-44
*GS1 Emulation Off EANEMU0 7-44
TCIF Linked Code 39 On T39ENA1 7-45
*Off T39ENA0 7-45
QR Code Default All QR Code
Settings
QRCDFT 7-50
*On QRCENA1 7-45
Off QRCENA0 7-45
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 33
QR Code Msg.
Length
Minimum (1-7089)
*1
QRCMIN 7-46
Maximum (1-7089)
*7089
QRCMAX 7-46
Data Matrix Default All Data
Matrix Settings
IDMDFT 7-47
*On IDMENA1 7-47
Off IDMENA0 7-47
Data Matrix Msg.
Length
Minimum (1-3116)
*1
IDMMIN 7-47
Maximum (1-3116)
*3116
IDMMAX 7-47
MaxiCode Default All
MaxiCode Settings
MAXDFT 7-48
*On MAXENA1 7-48
Off MAXENA0 7-48
MaxiCode Msg.
Length
Minimum (1-150) *1 MAXMIN 7-48
Maximum (1-150)
*150
MAXMAX 7-48
Aztec Code Default All Aztec
Code Settings
AZTDFT 7-49
*On AZTENA1 7-49
Off AZTENA0 7-49
Aztec Code Msg.
Length
Minimum (1-3832)
*1
AZTMIN 7-49
Maximum (1-3832)
*3832
AZTMAX 7-49
Chinese Sensible
(Han Xin) Code
Default All Han Xin
Code Settings
HX_DFT 7-50
On HX_ENA1 7-50
*Off HX_ENA0 7-50
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 34
Chinese Sensible
(Han Xin) Code Msg.
Length
Minimum (1-7833)
*1
HX_MIN 7-50
Maximum (1-7833)
*7833
HX_MAX 7-50
Postal Codes - 2D
2D Postal Codes *Off POSTAL0 7-51
Single 2D Postal
Codes
Australian Post On POSTAL1 7-51
British Post On POSTAL7 7-51
Canadian Post On POSTAL30 7-51
Intelligent Mail Bar
Code On
POSTAL10 7-51
Japanese Post On POSTAL3 7-51
KIX Post On POSTAL4 7-51
Planet Code On POSTAL5 7-51
Postal-4i On POSTAL9 7-51
Postnet On POSTAL6 7-52
Postnet with B and
B’ Fields On
POSTAL11 7-52
InfoMail On POSTAL2 7-52
Combination 2D
Postal Codes
InfoMail and British
Post On
POSTAL8 7-52
Intelligent Mail Bar
Code and Postnet
with B and B’ Fields
On
POSTAL20 7-52
Postnet and Postal-
4i On
POSTAL14 7-52
Postnet and
Intelligent Mail Bar
Code On
POSTAL16 7-52
Postal-4i and
Intelligent Mail Bar
Code On
POSTAL17 7-52
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 35
Combination 2D
Postal Codes
(continued)
Postal-4i and
Postnet with B and
B’ Fields On
POSTAL19 7-52
Planet and Postnet
On
POSTAL12 7-52
Planet and Postnet
with B and B’ Fields
On
POSTAL18 7-52
Planet and Postal-4i
On
POSTAL13 7-53
Planet and
Intelligent Mail Bar
Code On
POSTAL15 7-53
Planet, Postnet, and
Postal-4i On
POSTAL21 7-53
Planet, Postnet, and
Intelligent Mail Bar
Code On
POSTAL22 7-53
Planet, Postal-4i,
and Intelligent Mail
Bar Code On
POSTAL23 7-53
Postnet, Postal-4i,
and Intelligent Mail
Bar Code On
POSTAL24 7-53
Planet, Postal-4i,
and Postnet with B
and B’ Fields On
POSTAL25 7-53
Planet, Intelligent
Mail Bar Code, and
Postnet with B and
B’ Fields On
POSTAL26 7-53
Postal-4i, Intelligent
Mail Bar Code, and
Postnet with B and
B’ Fields On
POSTAL27 7-53
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 36
Combination 2D
Postal Codes
(continued)
Planet, Postal-4i,
Intelligent Mail Bar
Code, and Postnet
On
POSTAL28 7-53
Planet, Postal-4i,
Intelligent Mail Bar
Code, and Postnet
with B and B’ Fields
On
POSTAL29 7-53
Planet Code Check
Digit
Transmit PLNCKX1 7-54
*Don’t Transmit PLNCKX0 7-54
Postnet Check Digit Transmit NETCKX1 7-54
*Don’t Transmit NETCKX0 7-54
Postal Codes - Linear
China Post (Hong
Kong 2 of 5)
Default All China
Post (Hong Kong 2
of 5) Settings
CPCDFT 7-54
*Off CPCENA0 7-55
On CPCENA1 7-55
China Post (Hong
Kong 2 of 5) Msg.
Length
Minimum (2 - 80) *4 CPCMIN## 7-55
Maximum (2 - 80)
*80
CPCMAX## 7-55
Korea Post Default All Korea
Post Settings
KPCDFT 7-56
*Off KPCENA0 7-56
On KPCENA1 7-56
Korea Post Msg.
Length
Minimum (2 - 80) *4 KPCMIN## 7-56
Maximum (2 - 80)
*48
KPCMAX## 7-56
Korea Post Check
Digit
Transmit Check Digit KPCCHK1 7-56
*Don’t Transmit
Check Digit
KPCCHK0 7-56
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 37
Imaging Default Commands
Image Snap Default all Imaging
Commands
IMGDFT 8-1
Imaging Style -
Decoding
SNPSTY0 8-2
*Imaging Style -
SNPSTY1 8-2
Imaging Style -
Manual
SNPSTY2 8-2
Beeper On SNPBEP1 8-2
*Beeper Off SNPBEP0 8-2
*Wait for Trigger Off SNPTRG0 8-2
Wait for Trigger On SNPTRG1 8-2
*LED State - Off SNPLED0 8-2
LED State - On SNPLED1 8-2
Exposure (1-7874
microseconds)
SNPEXP 8-3
*Gain - None SNPGAN1 8-3
Gain - Medium SNPGAN2 8-3
Gain - Heavy SNPGAN4 8-3
Gain - Maximum SNPGAN8 8-3
Target White Value
(0-255) *125
SNPWHT### 8-4
Delta for
Acceptance (0-255)
*25
SNPDEL### 8-4
Update Tries (0-10)
*6
SNPTRY## 8-4
Target Set Point
Percentage (1-99)
*50
SNPPCT## 8-4
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 38
Image Ship *Infinity Filter - Off IMGINF0 8-5
Infinity Filter - On IMGINF1 8-5
*Compensation Off IMGCOR0 8-6
Compensation On IMGCOR1 8-6
*Pixel Depth - 8 bits/
pixel (grayscale)
IMGBPP8 8-6
Pixel Depth - 1 bit/
pixel (B&W)
IMGBPP1 8-6
*Don’t Sharpen
Edges
IMGEDG0 8-7
Sharpen Edges (0-
23)
IMGEDG## 8-7
*File Format - JPEG IMGFMT6 8-7
File Format - KIM IMGFMT0 8-7
File Format - TIFF
binary
IMGFMT1 8-7
File Format - TIFF
binary group 4,
compressed
IMGFMT2 8-7
File Format - TIFF
grayscale
IMGFMT3 8-7
File Format -
Uncompressed
binary
IMGFMT4 8-7
File Format -
Uncompressed
grayscale
IMGFMT5 8-7
File Format - BMP IMGFMT8 8-7
*Histogram Stretch
Off
IMGHIS0 8-8
Histogram Stretch
On
IMGHIS1 8-8
*Noise Reduction
Off
IMGFSP0 8-9
Noise Reduction On IMGFSP1 8-9
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 39
Image Ship
(continued)
Invert Image around
X axis
IMGNVX1 8-8
Invert Image around
Y axis
IMGNVY1 8-8
Rotate Image none IMGROT0 8-9
Rotate Image 90°
right
IMGROT1 8-9
Rotate Image 180°
right
IMGROT2 8-9
Rotate Image 90°
left
IMGROT3 8-9
JPEG Image Quality
(0-100) *50
IMGJQF### 8-10
*Gamma Correction
Off
IMGGAM0 8-10
Gamma Correction
On (0-1000)
IMGGAM### 8-10
Image Crop - Left (0-
640) *0
IMGWNL### 8-10
Image Crop - Right
(0-640) *639
IMGWNR### 8-10
Image Crop - Top (0-
480) *0
IMGWNT### 8-10
Image Crop -
Bottom (0-480) *479
IMGWNB### 8-11
Image Crop - Margin
(1-238) *0
IMGMAR### 8-11
Protocol - None
(raw)
IMGXFR0 8-11
Protocol - None
(default USB)
IMGXFR2 8-11
Protocol - Hmodem
Compressed
IMGXFR3 8-11
Protocol - Hmodem IMGXFR4 8-11
Ship Every Pixel IMGSUB1 8-12
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
11 - 40
Image Ship
(continued)
Ship Every 2nd Pixel IMGSUB2 8-12
Ship Every 3rd Pixel IMGSUB3 8-12
*Document Image
Filter Off
IMGUSH0 8-12
Document Image
Filter On (0-255)
IMGUSH### 8-12
*Don’t Ship
Histogram
IMGHST0 8-13
Ship Histogram IMGHST1 8-13
Image Size
Compatibility
Force VGA
Resolution
IMGVGA1 8-14
*Native Resolution IMGVGA0 8-14
Intelligent Signature
Capture
Optimize On DECBND1 8-14
*Optimize Off DECBND0 8-14
Selection Setting
* Indicates default
Serial Command
# Indicates a numeric
entry
Page
Preliminary Draft
12 - 1
12
Product Specifications
1900 Scanner Product Specifications
Parameter Specification
Dimensions (Typical):
Height 6.3 inches (16 cm)
Length 4.1 inches (10.41cm)
Width 2.8 inches (7.11cm)
Weight 5.2 ounces (147.42g)
Illumination:
Scan and Aiming LEDs
LED output power
617nm + 18nm
.339mW
Image Size 838 x 640 pixels
Skew Angle +65°
Pitch Angle +45°
Motion Tolerance:
Streaming Presentation Trigger up to 240 inches per second for 13 mil UPC
Symbol Contrast Grade 1.0 (20% or greater)
Voltage Requirements 4 - 5.5 VDC at input connector
Current Draw @5VDC Scanning Standby
450mA, 2.3W 90mA, .45W
Power Supply Noise Rejection Maximum 100mV peak to peak, 10 to 100 kHz
Temperature Ranges:
Operating +32°F to +122°F (0°C to 50°C)
Storage -40°F to +158°F (-40°C to 70°C)
Humidity 0 to 95% non-condensing
Mechanical Drop Operational after 50 drops from 6 feet
(1.83m) to concrete at 23°C
Vibration Withstands 5G peak from 22 to 300 Hz
ESD Tolerance Up to 15kV direct air
Up to 8 kV indirect coupling plane
Preliminary Draft
12 - 2
1902 Scanner Product Specifications
*Storage outside of this temperature range could be detrimental to battery life.
Parameter Specification
Dimensions (Typical):
Height 6.3 inches (16 cm)
Length 4.1 inches (10.41cm)
Width 2.8 inches (7.11cm)
Weight 7.5 ounces (212.62g)
Illumination:
Scan and Aiming LEDs
LED output power
617nm + 18nm
.339mW
Image Size 838 x 640 pixels
Skew Angle +65°
Pitch Angle +45°
Motion Tolerance:
Streaming Presentation Trigger up to 240 inches per second for 13 mil UPC
Symbol Contrast Grade 1.0 (20% or greater)
Battery:
Lithium Ion 1800 mAHr minimum
Number of Scans Up to 50,000 per charge
Expected Hours of Operation 14
Expected Charge Time 4.5 hours
Radio:
Frequency 2.4 to 2.5 GHz (ISM Band) Frequency Hopping
Bluetooth v.2.1
Range 33 ft. (10 m) typical
Data Rate up to 1 Mbit/sec
Temperature Ranges:
Operating 32° F to +122° F (0° C to 50° C)
Storage* -40°F to +158°F (-40°C to 70°C)
Humidity Up to 95% non-condensing
Mechanical Drop Operational after 50 drops from 6 feet
(1.8 m) to concrete
Vibration Withstands 5G peak from 22 to 300 Hz
ESD Sensitivity Up to 15kV direct air
Up to 8 kV indirect coupling plane
Sealant Rating IP41
Preliminary Draft
12 - 3
CCB01-010BT Charge Base
Product Specifications
Parameter Specification
Dimensions (Typical):
Height 3.2 inches (8.128cm)
Length 5.19 inches (13.183cm)
Width 3.98 inches (10.109cm)
Weight 6.3 oz (179g)
Voltage: 4.5 to 5.5 volts
Current Draw:
Host Terminal Port 500mA
Aux Power Port 1A
Charge Time 5 hours
Radio:
Frequency 2.4 to 2.5 GHz (ISM Band) Frequency Hopping
Bluetooth v.2.1
Range 33 ft. (10 m) typical
Data Rate up to 1 Mbit/sec
Temperature Ranges:
Operating 32° F to +122° F (0° C to +50° C)
Battery Charge 41° F to +104° F (5° C to +40° C)
Storage -40° F to +158° F (-40° C to +70° C)
Humidity Up to 95% non-condensing
Mechanical Drop Operational after 50 drops from 3.28 feet
(1 m) to concrete
Vibration 5G Peak from 22Hz to 300Hz
ESD Sensitivity Up to 15kV direct air
Up to 8 kV indirect coupling plane
Preliminary Draft
12 - 4
Standard Cable Pinouts
Keyboard Wedge
10 Pin RJ41 Modular Plug
connects to the base
1 Cable shield
2Cable select
3 Supply ground
4 Terminal data
5 Terminal clock
6 Keyboard clock
7 Supply power input +5V power
8 Keyboard data
9
10
Note: Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.
Preliminary Draft
12 - 5
Standard Cable Pinouts
Serial Output
10 Pin RJ41 Modular Plug
connects to the base
1 Cable shield
2Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10
Note: Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.
Preliminary Draft
12 - 6
Standard Cable Pinouts
RS485 Output
10 Pin RJ41 Modular Plug
connects to the base
1 Cable shield
2Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7+5V power
8Transmit Enable
9
10
Note: RS485 signal conversion is performed in the cable.
Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.
Preliminary Draft
12 - 7
Standard Cable Pinouts
USB
10 Pin Modular Plug
connects to the base
1 Cable shield
2 Cable select
3 Supply ground
4
5
6
7 +5V power
8
9Data +
10 Data -
Note: Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.
Preliminary Draft
12 - 8
Preliminary Draft
13 - 1
13
Maintenance
Repairs
Repairs and/or upgrades are not to be performed on this product. These ser-
vices are to be performed only by an authorized service center (see Customer
Support on page 14-1).
Maintenance
Your device provides reliable and efficient operation with a minimum of care.
Although specific maintenance is not required, the following periodic checks
ensure dependable operation:
Cleaning the Device
Reading performance may degrade if the scanner’s window is not clean. If
the window is visibly dirty, or if the scanner isn’t operating well, clean the
window with a soft cloth or lens tissue dampened with water (or a mild
detergent- water solution). If a detergent solution is used, rinse with a
clean lens tissue dampened with water only.
The scanner and base’s housing may also be cleaned the same way.
Inspecting Cords and Connectors
Inspect the interface cable and connector for wear or other signs of dam-
age. A badly worn cable or damaged connector may interfere with scanner
operation. Contact your distributor for information about cable replace-
ment. Cable replacement instructions are on page 13-1.
Replacing Cables in Corded Scanners
The standard interface cable is attached to the scanner with an 10-pin modular
connector. When properly seated, the connector is held in the scanner’s handle
by a flexible retention tab. The interface cable is designed to be field replace-
able.
Do not submerge the scanner in water. The scanner’s
housing is not watertight.
Do not use abrasive wipes or tissues on the scanner’s
window – abrasive wipes may scratch the window. Never
use solvents (e.g., alcohol or acetone) on the housing or
window – solvents may damage the finish or the window.
!Caution:
Preliminary Draft
13 - 2
• Order replacement cables from Honeywell or from an authorized distributor.
• When ordering a replacement cable, specify the cable part number of the
original interface cable.
Replacing an Interface Cable
1. Turn the power to the host system
OFF.
2. Disconnect the scanner’s cable
from the terminal or computer.
3. Locate the small hole on the back
of the scanner’s handle. This is
the cable release.
4. Straighten one end of a paper
clip.
5. Insert the end of the paper clip
into the small hole and press in.
This depresses the retention tab,
releasing the connector. Pull the
connector out while maintaining
pressure on the paper clip, then
remove the paper clip.
6. Replace with the new cable.
Insert the connector into the opening and press firmly. The connector is
keyed to go in only one way, and will click into place.
Replacing Cables and Batteries in Cordless
Systems
Replacing an Interface Cable in a Base
1. Turn the power to the host system
OFF.
2. Disconnect the base’s cable from the
terminal or computer.
3. Turn the base upside down.
4. Pull the connector out while
maintaining pressure on the
connector release clip.
5. Replace with the new cable.
Insert the connector into the opening
Cable
Release
Preliminary Draft
13 - 3
and press firmly. The connector is keyed to go in only one way, and will
click into place.
Changing a scanner
Battery
1. Loosen the thumbwheel
screw on the end cap by
hand or use a hex wrench.
2. Remove the battery from
the handle.
3. Insert replacement
battery.
4. Replace end cap and
screw.
Troubleshooting a
Xenon Scanner
The scanner automatically performs self-tests whenever you turn it on. If
your scanner is not functioning properly, review the following Troubleshoot-
ing Guide to try to isolate the problem.
Is the power on? Is the aiming beam on?
If the aiming beam isn’t illuminated, check that:
• The cable is connected properly.
• The host system power is on (if external power isn’t used).
• The trigger works.
Is the scanner having trouble reading your symbols?
If the scanner isn’t reading symbols well, check that the symbols:
• Aren’t smeared, rough, scratched, or exhibiting voids.
• Aren’t coated with frost or water droplets on the surface.
• Are enabled in the scanner or in the decoder to which the scanner
connects.
Is the bar code displayed but not entered?
The bar code is displayed on the host device correctly, but you still have to
press a key to enter it (the Enter/Return key or the Tab key, for example).
• You need to program a suffix. Programming a suffix enables the scanner
to output the bar code data plus the key you need (such as “CR”) to enter
the data into your application. Refer to Prefix/Suffix Overview on page 5-
1 for further information.
Does the scanner read the bar code incorrectly?
End Cap
Preliminary Draft
13 - 4
If the scanner reads a bar code, but the data is not displayed correctly on
the host screen:
• The scanner may not be programmed for the appropriate terminal
interface.
For example, you scan “12345” and the host displays “@es%.”
Reprogram the scanner with the correct Plug and Play bar code. See
Programming the Interface beginning on page 2-1.
• The scanner may not be programmed to output your bar code data
properly.
For example, you scan “12345” and the host displays “A12345B.”
Reprogram the scanner with the proper symbology selections. See
Chapter 7.
The scanner won’t read your bar code at all.
1. Scan the sample bar codes in the back of this manual. If the scanner
reads the sample bar codes, check that your bar code is readable.
Verify that your bar code symbology is enabled (see Chapter 7).
2. If the scanner still can’t read the sample bar codes, scan All
Symbologies On, page 7-2.
If you aren’t sure what programming options have been set in the scanner,
or if you want the factory default settings restored, refer to Resetting the
Factory Defaults on page 1-9.
Troubleshooting a Cordless System
Troubleshooting a Base
Note: Visit the Services and Support section of our website
(www.honeywellaidc.com) to check for the latest software for both
the scanner and the base.
If your base is not functioning properly, review the following troubleshooting
guidelines to try to isolate the problem.
Is the red LED on?
If the red LED isn’t illuminated, check that:
• The power cable is connected properly and there is power at the power
source.
• The host system power is on (if external power isn’t used).
Is the green LED on?
If the
green
LED isn’t illuminated, check that:
• The scanner is correctly placed in the base.
• There is external power or 12 volt host power.
• Charge mode is turned on. (See "Beeper and LED Sequences and
Meaning" on page 3-5)
Preliminary Draft
13 - 5
• The battery is not bad or deeply discharged. In some cases, the
scanner’s battery may trickle charge to bring it into an acceptable level
and then transition to a normal charge cycle.
Troubleshooting a Cordless Scanner
Note: Make sure that your scanner’s battery is charged.
Visit the Services and Support section of our website
(www.honeywellaidc.com) to check for the latest software for both
the scanner and the base.
Is the scanner having trouble reading your symbols?
If the scanner isn’t reading symbols well, check that the symbols:
• Aren’t smeared, rough, scratched, or exhibiting voids.
• Aren’t coated with frost or water droplets on the surface.
• Are enabled in the base to which the scanner connects.
Is the bar code displayed but not entered into the application?
The bar code is displayed on the host device correctly, but you still have to
press a key to enter it (the Enter/Return key or the Tab key, for example).
• You need to program a suffix. Programming a suffix enables the scanner
to output the bar code data plus the key you need (such as “CR”) to enter
the data into your application. Refer to Prefix/Suffix Overview on page 5-
1 for further information.
Does the scanner read the bar code incorrectly?
If the scanner reads a bar code, but the data is not displayed correctly on
the host screen:
• The base may not be programmed for the appropriate terminal interface.
For example, you scan “12345” and the host displays “@es%.”
Reprogram the base with the correct Plug and Play bar code. See
Programming the Interface beginning on page 2-1.
• The base may not be programmed to output your bar code data properly.
For example, you scan “12345” and the host displays “A12345B.”
Reprogram the base with the proper symbology selections. See Chapter 7.
The scanner won’t read your bar code at all.
• Scan the sample bar codes in the back of this manual. If the scanner
reads the sample bar codes, check that your bar code is readable.
Verify that your bar code symbology is enabled (see Chapter 7).
If the scanner still can’t read the sample bar codes, scan All
Symbologies on page 7-2.
Preliminary Draft
13 - 6
Preliminary Draft
14 - 1
14
Customer Support
Technical Assistance
If you need assistance installing or troubleshooting your device, please call your
distributor or the nearest technical support office:
North America/Canada
Telephone: (800) 782-4263
E-mail: hsmnasupport@honeywell.com
Latin America
Telephone: (803) 835-8000
Telephone: (800) 782-4263
E-mail: hsmlasupport@honeywell.com
Brazil
Telephone: +55 (11) 5185-8222
Fax: +55 (11) 5185-8225
E-mail: brsuporte@honeywell.com
Mexico
Telephone: 01-800-HONEYWELL (01-800-466-3993)
E-mail: soporte.hsm@honeywell.com
Europe, Middle East, and Africa
Telephone: +31 (0) 40 7999 393
Fax: +31 (0) 40 2425 672
E-mail: hsmeurosupport@honeywell.com
Hong Kong
Telephone: +852-29536436
Fax: +852-2511-3557
E-mail: aptechsupport@honeywell.com
Singapore
Telephone: +65-6842-7155
Fax: +65-6842-7166
E-mail: aptechsupport@honeywell.com
China
Telephone: +86 800 828 2803
Fax: +86-512-6762-2560
E-mail: aptechsupport@honeywell.com
Japan
Telephone: +81-3-3839-8511
Fax: +81-3-3839-8519
E-mail: aptechsupport@honeywell.com
Preliminary Draft
14 - 2
Online Technical Assistance
You can also access technical assistance online at www.honeywellaidc.com.
Product Service and Repair
Honeywell International Inc. provides service for all its products through service
centers throughout the world. To obtain warranty or non-warranty service,
contact the appropriate location below to obtain a Return Material Authorization
number (RMA #) before returning the product.
North America
Telephone: (800) 782-4263
E-mail: hsmnaservice@honeywell.com
Latin America
Telephone: (803) 835-8000
Telephone: (800) 782-4263
Fax: (239) 263-9689
E-mail: laservice@honeywell.com
Brazil
Telephone: +55 (11) 5185-8222
Fax: +55 (11) 5185-8225
E-mail: brservice@honeywell.com
Mexico
Telephone: 01-800-HONEYWELL (01-800-466-3993)
Fax: +52 (55) 5531-3672
E-mail: mxservice@honeywell.com
Europe, Middle East, and Africa
Telephone: +31 (0) 40 2901 633
Fax: +31 (0) 40 2901 631
E-mail: euroservice@honeywell.com
Hong Kong
Telephone: +852-29536436
Fax: +852-2511-3557
E-mail: apservice@honeywell.com
Singapore
Telephone: +65-6842-7155
Fax: +65-6842-7166
E-mail: apservice@honeywell.com
China
Telephone: +86 800 828 2803
Fax: +86-512-6762-2560
E-mail: apservice@honeywell.com
Preliminary Draft
14 - 3
Japan
Telephone: +81-3-3839-8511
Fax: +81-3-3839-8519
E-mail: apservice@honeywell.com
Online Product Service and Repair Assistance
You can also access product service and repair assistance online at
www.honeywellaidc.com.
Limited Warranty
Honeywell International Inc. ("HII") warrants its products to be free from defects
in materials and workmanship and to conform to HII’s published specifications
applicable to the products purchased at the time of shipment. This warranty
does not cover any HII product which is (i) improperly installed or used; (ii) dam-
aged by accident or negligence, including failure to follow the proper mainte-
nance, service, and cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party, (B) excessive voltage
or current supplied to or drawn from the interface connections, (C) static elec-
tricity or electro-static discharge, (D) operation under conditions beyond the
specified operating parameters, or (E) repair or service of the product by any-
one other than HII or its authorized representatives.
This warranty shall extend from the time of shipment for the duration published
by HII for the product at the time of purchase ("Warranty Period"). Any defective
product must be returned (at purchaser’s expense) during the Warranty Period
to HII factory or authorized service center for inspection. No product will be
accepted by HII without a Return Materials Authorization, which may be
obtained by contacting HII. In the event that the product is returned to HII or its
authorized service center within the Warranty Period and HII determines to its
satisfaction that the product is defective due to defects in materials or workman-
ship, HII, at its sole option, will either repair or replace the product without
charge, except for return shipping to HII.
EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE
FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR NON-
INFRINGEMENT.
HII’S RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT WITH NEW OR REFURBISHED PARTS. IN NO
EVENT SHALL HII BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSE-
QUENTIAL DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY OF HII
ARISING IN CONNECTION WITH ANY PRODUCT SOLD HEREUNDER
(WHETHER SUCH LIABILITY ARISES FROM A CLAIM BASED ON CON-
TRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE ACTUAL
AMOUNT PAID TO HII FOR THE PRODUCT. THESE LIMITATIONS ON LIA-
BILITY SHALL REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HII MAY
Preliminary Draft
14 - 4
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH INJURIES, LOSSES,
OR DAMAGES. SOME STATES, PROVINCES, OR COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
All provisions of this Limited Warranty are separate and severable, which
means that if any provision is held invalid and unenforceable, such determina-
tion shall not affect the validity of enforceability of the other provisions hereof.
Use of any peripherals not provided by the manufacturer may result in damage
not covered by this warranty. This includes but is not limited to: cables, power
supplies, cradles, and docking stations. HII extends these warranties only to the
first end-users of the products. These warranties are non-transferable.
The duration of the limited warranty for the Xenon 1900 scanner is five (5)
years.
The duration of the limited warranty for the Xenon 1902 scanner and CCB01-
010BT Charge Base is three (3) years.
The duration of the limited warranty for the Xenon battery is one (1) year.
Preliminary Draft
A - 1
A
Reference Charts
Symbology Chart
Symbology AIM ID
Possible
AIM ID
Modifiers
(
m
)
Code ID
(hex)
All Symbologies
(0x99)
Australian Post ]X0 A (0x41)
Aztec Code ]z
m
0-9, A-C z (0x7A)
British Post ]X0 B (0x42)
Canadian Post ]X0 C (0x43)
China Post ]X0 Q (0x51)
Chinese Sensible Code (Han Xin
Code)
]X0 H (0x48)
Codabar ]F
m
0-1 a (0x61)
Codablock A ]O
m
0, 1, 4, 5, 6 V (0x56)
Codablock F ]O
m
0, 1, 4, 5, 6 q (0x71)
Code 11 ]H3 h (0x68)
Code 128 ]C
m
0, 1, 2, 4 j (0x6A)
GS1-128 ]C1 I (0x49)
Code 16K ]K
m
0, 1, 2, 4 o (0x6F)
Code 32 Pharmaceutical (PARAF) ]X0 < (0x3C)
Code 39 (supports Full ASCII
mode)
]A
m
0, 1, 3, 4, 5, 7 b (0x62)
Code 49 ]T
m
0, 1, 2, 4 l (0x6C)
Code 93 and 93i ]G
m
0-9, A-Z,
a-m
i (0x69)
Data Matrix ]d
m
0-6 w (0x77)
EAN-13 (including Bookland EAN) ]E0 d (0x64)
EAN-13 with Add-On ]E3 d (0x64)
EAN-13 with Extended
Coupon Code
]E3 d (0x64)
EAN-8 ]E4 D (0x44)
Preliminary Draft
A - 2
EAN-8 with Add-On ]E3 D (0x44)
GS1 Composite ]e
m
0-3 y (0x79)
GS1 DataBar ]e
m
0y (0x79)
InfoMail ]X0 , (0x2c)
Intelligent Mail Barcode ]X0 M (0x4D)
Interleaved 2 of 5 ]I
m
0, 1, 3 e (0x65)
Japanese Post ]X0 J (0x4A)
KIX (Netherlands) Post ]X0 K (0x4B)
Korea Post ]X0 ? (0x3F)
Matrix 2 of 5 ]X0 m (0x6D)
MaxiCode ]U
m
0-3 x (0x7 8)
MicroPDF417 ]L
m
3-5 R (0x52)
MSI ]M
m
0g (0x67)
NEC 2 of 5 ]X0 Y (0x59)
OCR MICR (E 13 B) ]o3 O (0x4F)
OCR SEMI Font ]o3 O (0x4F)
OCR-A ]o1 O (0x4F)
OCR-B ]o2 O (0x4F)
PDF417 ]L
m
0-2 r (0x72)
Planet Code ]X0 L (0x4C)
Postal-4i ]X0 N (0x4E)
Postnet ]X0 P (0x50)
QR Code and Micro QR Code ]Q
m
0-6 s (0x73)
Straight 2 of 5 IATA ]R
m
0, 1, 3 f (0x66)
Straight 2 of 5 Industrial ]S0 f (0x66)
TCIF Linked Code 39 (TLC39) ]L2 T (0x54)
Telepen ]B
m
t (0x54)
UPC-A ]E0 c (0x63)
Symbology AIM ID
Possible
AIM ID
Modifiers
(
m
)
Code ID
(hex)
Preliminary Draft
A - 3
Note: “m” represents the AIM modifier character. Refer to International
Technical Specification, Symbology Identifiers, for AIM modifier character
details.
Prefix/Suffix entries for specific symbologies override the universal (All
Symbologies, 99) entry.
Refer to Data Editing beginning on page 5-1 and Data Formatting beginning on
page 6-1 for information about using Code ID and AIM ID.
UPC-A with Add-On ]E3 c (0x63)
UPC-A with Extended
Coupon Code
]E3 c (0x63)
UPC-E ]E0 E (0x45)
UPC-E with Add-On ]E3 E (0x45)
UPC-E1 ]X0 E (0x45)
Symbology AIM ID
Possible
AIM ID
Modifiers
(
m
)
Code ID
(hex)
Preliminary Draft
A - 4
ASCII Conversion Chart (Code Page 1252
)
Note: This table applies to U.S. style keyboards. Certain characters may differ
depending on your Country Code/PC regional settings.
Dec Hex Char Dec Hex Char Dec Hex Char Dec Hex Char
000 NUL 32 20 64 40 @96 60 ‘
101 SOH 33 21 !65 41 A97 61 a
202 STX 34 22 “66 42 B98 62 b
303 ETX 35 23 #67 43 C99 63 c
404 EOT 36 24 $68 44 D100 64 d
505 ENQ 37 25 %69 45 E101 65 e
606 ACK 38 26 &70 46 F102 66 f
707 BEL 39 27 ‘71 47 G103 67 g
808 BS 40 28 (72 48 H104 68 h
909 HT 41 29 )73 49 l105 69 i
10 0A LF 42 2A *74 4A J106 6A j
11 0B VT 43 2B +75 4B K107 6B k
12 0C FF 44 2C ,76 4C L108 6C l
13 0D CR 45 2D -77 4D M109 6D m
14 0E SO 46 2E .78 4E N110 6E n
15 0F SI 47 2F /79 4F O111 6F o
16 10 DLE 48 30 080 50 P112 70 p
17 11 DC1 49 31 181 51 Q113 71 q
18 12 DC2 50 32 282 52 R114 72 r
19 13 DC3 51 33 383 53 S115 73 s
20 14 DC4 52 34 484 54 T116 74 t
21 15 NAK 53 35 585 55 U117 75 u
22 16 SYN 54 36 686 56 V118 76 v
23 17 ETB 55 37 787 57 W119 77 w
24 18 CAN 56 38 888 58 X120 78 x
25 19 EM 57 39 989 59 Y121 79 y
26 1A SUB 58 3A :90 5A Z122 7A z
27 1B ESC 59 3B ;91 5B [123 7B {
28 1C FS 60 3C <92 5C \124 7C |
29 1D GS 61 3D =93 5D ]125 7D }
30 1E RS 62 3E >94 5E ^126 7E ~
31 1F US 63 3F ?95 5F _127 7F
Preliminary Draft
A - 5
Dec Hex Char Dec Hex Char Dec Hex Char Dec Hex Char
128 80 €
€160 A0 192 C0 À224 E0 à
129 81 161 A1 ¡193 C1 Á225 E1 á
130 82 ‚162 A2 ¢194 C2 Â226 E2 â
131 83 ƒ163 A3 £195 C3 Ã227 E3 ã
132 84 „164 A4 ¤196 C4 Ä228 E4 ä
133 85 …165 A5 ¥197 C5 Å229 E5 å
134 86 †166 A6 ¦198 C6 Æ230 E6 æ
135 87 ‡167 A7 §199 C7 Ç231 E7 ç
136 88 ˆ168 A8 ¨200 C8 È232 E8 è
137 89 ‰169 A9 ©201 C9 É233 E9 é
138 8A Š170 AA 202 CA Ê234 EA ê
139 8B ‹171 AB «203 CB Ë235 EB ë
140 8C Œ172 AC ¬204 CC Ì236 EC ì
141 8D 173 AD -205 CD Í237 ED í
142 8E Ž174 AE ®206 CE Î238 EE î
143 8F 175 AF ¯207 CF Ï239 EF ï
144 90 176 B0 °208 D0 Ð240 F0 ð
145 91 ‘177 B1 ±209 D1 Ñ241 F1 ñ
146 92 ’178 B2 ²210 D2 Ò242 F2 ò
147 93 “179 B3 ³211 D3 Ó243 F3 ó
148 94 ”180 B4 ´212 D4 Ô244 F4 ô
149 95 •181 B5 µ213 D5 Õ245 F5 õ
150 96 –182 B6 214 D6 Ö246 F6 ö
151 97 —183 B7 ·215 D7 ×247 F7 ÷
152 98 ˜184 B8 ¸216 D8 Ø248 F8 ø
153 99 ™185 B9 ¹217 D9 Ù249 F9 ù
154 9A š186 BA 218 DA Ú250 FA ú
155 9B ›187 BB »219 DB Û251 FB û
156 9C œ188 BC ¼220 DC Ü252 FC ü
157 9D 189 BD ½221 DD Ý253 FD ý
158 9E ž190 BE ¾222 DE Þ254 FE þ
159 9F Ÿ191 BF ¿223 DF ß255 FF ÿ
ª
Preliminary Draft
A - 6
Code Page Mapping of Printed Barcodes
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the
barcode being scanned was created using a code page that is different from
the one the host program is expecting. If this is the case, select the code page
with which the barcodes were created. The data characters should then appear
properly.
Note: The Code Page option is available for Code 39, Code 93, and Code 128.
Code Page Standard Description
1CP ISO646
2 (Default) ISO 2022 Automatic National Replacement
Characters
3 CP Binary
82 ISO 2022 11 Swe Swedish Replacement Characters
83 ISO 2022 69 Fra French/Belgium Replacement
Characters
81 ISO 2022 25 Fra French/Belgium Replacement
Characters
84 ISO 2022 11 Ger German Replacement Characters
85 ISO 2022 11 Ita Italian Replacement Characters
86 ISO 2022 11 Swi Swiss Replacement Characters
87 ISO 2022 11 UK British Replacement Characters
88 ISO 2022 11 Dan Danish Replacement Characters
89 ISO 2022 11 Nor Norwegian Replacement Characters
90 ISO 2022 11 Spa Spanish Replacement Characters
Preliminary Draft
Preliminary Draft
Preliminary Draft
Sample Symbols
UPC-A
0 123456 7890 Interleaved 2 of 5
Code 128
EAN-13
Code 39
Codabar
1234567890
Code 128
9 780330 290951
BC321
A13579B
Code 93
123456-9$ Straight 2 of 5 Industrial
123456
Preliminary Draft
Sample Symbols
6543210 GS1 DataBar
(01)00123456789012
PDF417
Postnet
Car Registration
Zip Code
Data Matrix
QR Code Test Symb ol
Numbers
Matrix 2 of 5
ID-tag (UPU 4-State)
J18CUSA8E6N062315014880T
4-CB (4-State Customer Bar Code)
01,234,567094,987654321,01234567891
Preliminary Draft
Sample Symbols
Preliminary Draft
Programming Chart
1
0
2
3
6
7
5
4
8
9
Preliminary Draft
Programming Chart
Note: If you make an error while scanning the letters or digits (before scanning
Save), scan Discard, scan the correct letters or digits, and Save again.
A
C
B
F
E
D
Save
Discard
Reset
Preliminary Draft
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
Xenon-UG Rev (b)
5/10
Preliminary Draft
