CT50AND-ENUS-UG_Rev_B.pdf
CT50
Mobile Computer
with Android™ 4.4 Operating System
User Guide
ii Dolphin CT50 Mobile Computer User Guide
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and
other information contained in this document without prior notice, and the reader should in all
cases consult HII to determine whether any such changes have been made. The information
in this publication does not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor for
incidental or consequential damages resulting from the furnishing, performance, or use of
this material. HII disclaims all responsibility for the selection and use of software and/or
hardware to achieve intended results.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated into
another language without the prior written consent of HII.
Trademarks
Android, Google, and other marks are trademarks of Google Inc.
Microsoft, Windows are either registered trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to
Honeywell.
Other product names mentioned in this manual may be trademarks or registered trademarks
of their respective companies and are the property of their respective owners.
Patents
For patent information, see www.hsmpats.com.
Copyright © 2015 Honeywell International Inc. All rights reserved.
Contents
Dolphin CT50 Mobile Computer User Guide iii
Contents
Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Send Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
1 About the Computer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About the Dolphin CT50 Mobile Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Change the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About the Battery Status Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Change the Battery Status LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . 11
Check the Battery Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
About Battery Life and Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Recommendations and Safety Precautions. . . . . . . . . . . . . . . . . . 13

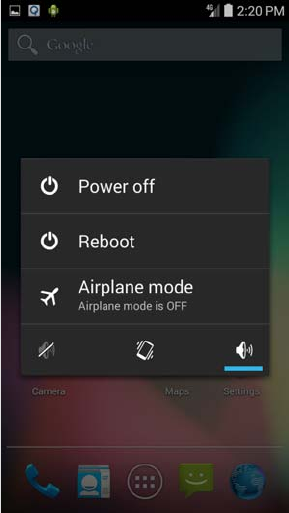

Enable Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

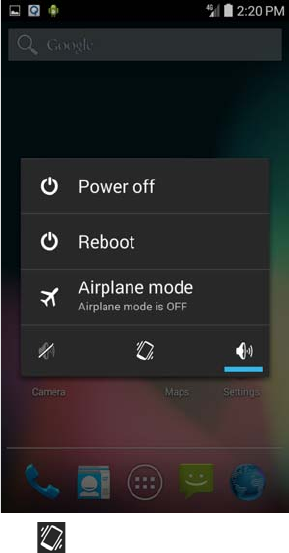

Power On the CT50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

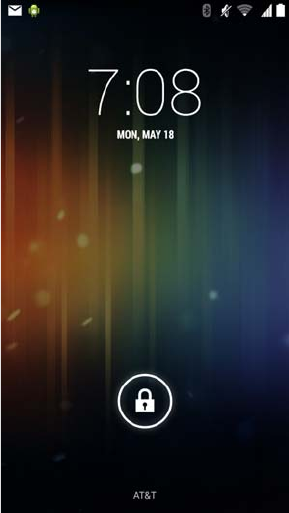

Unlock the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
About the Good Read LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Configure the Screen Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
About the Audio Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

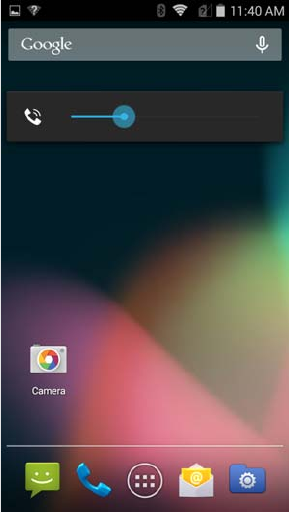

Adjust Ringtone and Notification Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Enable Vibrate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

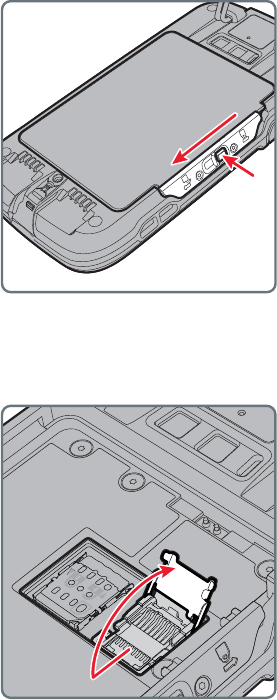

Insert a MicroSD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
How to Transfer Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
How to Browse Files on the CT50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Accessories for the CT50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2 About the User Interface and Applications . . . . . . . . . . . . . . . . 27
About the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
iv Dolphin CT50 Mobile Computer User Guide
About the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Navigation and Function Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
About Status Bar Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Remap a Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
View Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Manage Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Customize the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Customize the Favorites Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Use Google™ Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
About Screen Gestures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Set the Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
About Honeywell Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Download Honeywell Launcher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Unlock Developer Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3 About the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
About the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
How to Scan Bar Codes as Keyboard Input . . . . . . . . . . . . . . . . . . . . . . . . 38
Change the Scanner Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Restore Default Scanner Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Scanners Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Data Processing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Symbology Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Decode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Imager Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Trigger Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Notification Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

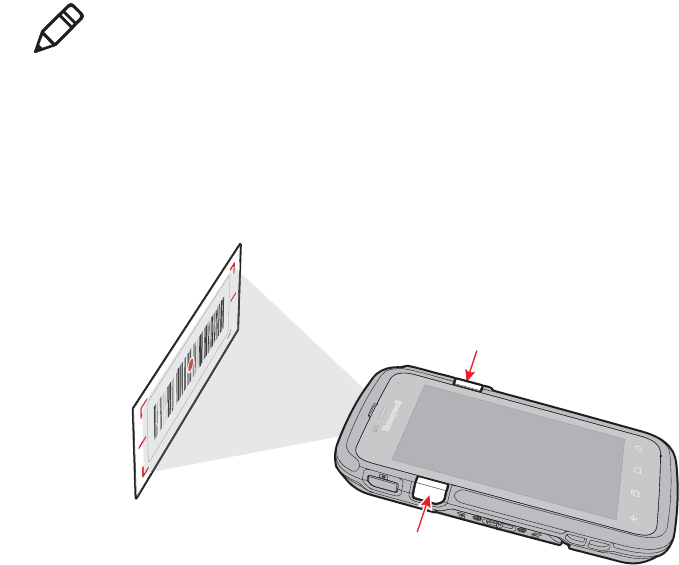

Scan a Bar Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
4 Use the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
About the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Activate the UMTS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Activate the CDMA Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Make a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Answer the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Switch Apps During a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Check Your Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Set Your Voicemail Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Change Voicemail Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
Dolphin CT50 Mobile Computer User Guide v
Make an Emergency Phone Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Configure Phone Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5 Use the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
About the Color Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Adjust the Camera and Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
How to Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Change Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Take a Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Record a Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Change Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6 Configure the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
How to Configure the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

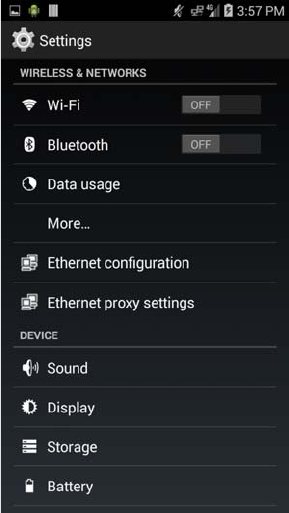

Start the Settings App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
About the Structure of the Settings App. . . . . . . . . . . . . . . . . . . . . . . . . . . 58
About Network Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

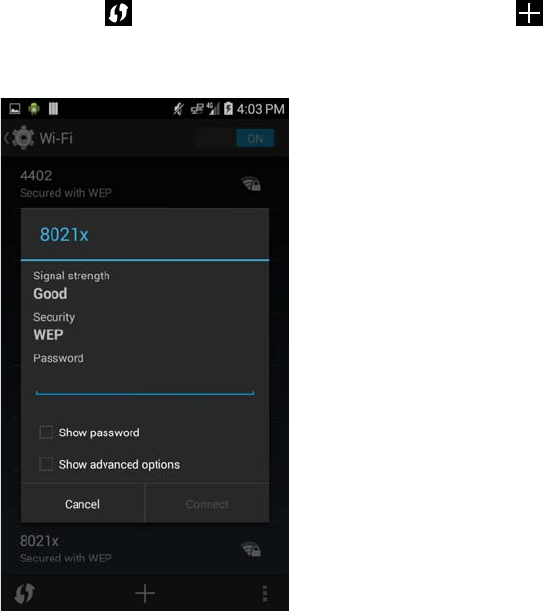

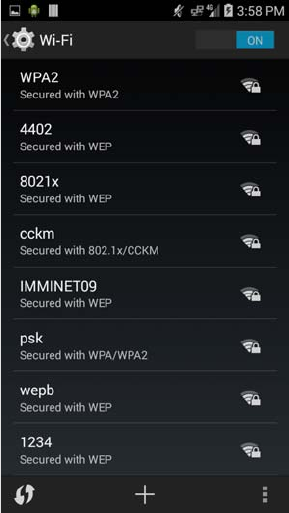

Connect to a Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Configure Proxy Settings for a Wi-Fi Network. . . . . . . . . . . . . . . . 63
Disable Wi-Fi Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connect to an Ethernet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
How to Connect to Virtual Private Networks . . . . . . . . . . . . . . . . . . . . . . . 65
Add a VPN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Connect to a VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Edit VPN Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
About Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
About Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Load a Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Disable or Remove Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . 67
About Bluetooth Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

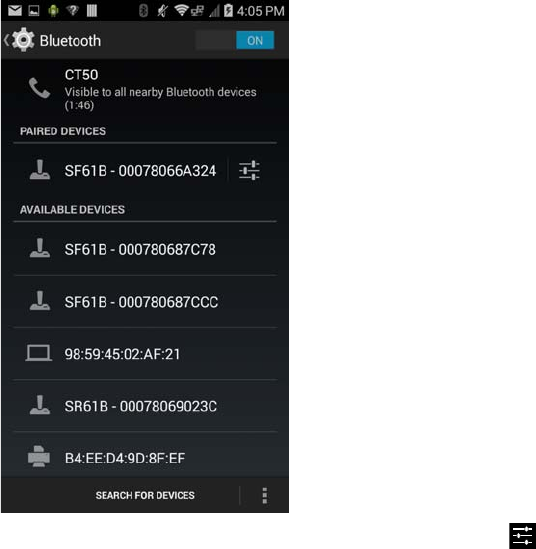

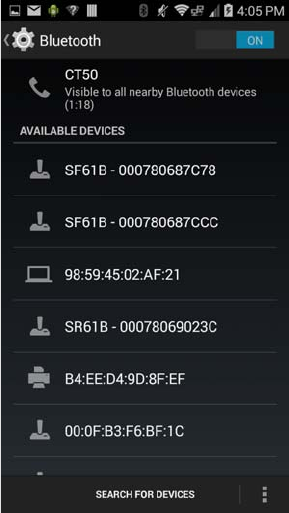

Connect a Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Configure Bluetooth Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Making the CT50 Discoverable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Rename or Disconnect a Paired Device. . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Contents
vi Dolphin CT50 Mobile Computer User Guide
About Serial and USB Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
About Near Field Communication (NFC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
7 Manage and Maintain the CT50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
How to Upgrade the System Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
How to Restart the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Reset the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Clean Boot the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Clean the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
A Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Physical and Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Customer Support
Dolphin CT50 Mobile Computer User Guide vii
Customer Support
If you need assistance installing or troubleshooting your product, contact
us by using one of these methods:
Knowledge Base: www.hsmknowledgebase.com
Our Knowledge Base provides thousands of immediate solutions. If the
Knowledge Base does not help you solve your problem, log into the
Technical Support Portal to submit your problem or ask your question.
Technical Support Portal: www.hsmsupportportal.com
Log into the Technical Support Portal to search our Knowledge Base,
submit your problem or question, request a call back, or provide
feedback. When filling out one of the forms, provide as much detail as
possible. You can even include attachments.
Telephone: www.honeywellaidc.com/locations
For our latest contact information, please check our website.
Product Service and Repair
Honeywell International Inc. provides service for all of its products
through service centers throughout the world. To find your service
center, go to www.honeywellaidc.com and select Support > Contact
Support > Service and Repair. Contact your service center to obtain a
Return Material Authorization number (RMA #) before you return the
product.
To obtain warranty or non-warranty service, return your product to
Honeywell (postage paid) with a copy of the dated purchase record.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and click
Resources > Warranty.
Send Feedback
Your feedback is crucial to the continual improvement of our
documentation. To provide feedback about this manual, please contact
the Technical Communications department directly at
ACSHSMTechnicalCommunications@honeywell.com.
Customer Support
viii Dolphin CT50 Mobile Computer User Guide
1
1
About the Computer Features
This chapter introduces the Dolphin CT50 Mobile Computer with
the Android 4.4 operating system. Use this chapter to learn
about the basic computer features, functions, and accessories.
Chapter 1 — About the Computer Features
2 Dolphin CT50 Mobile Computer User Guide
About the Dolphin CT50 Mobile Computer
The Honeywell Dolphin CT50 Mobile Computer is an enterprise-focused
smartphone that uses the Android operating system to provide reliable
and secure management of corporate data and wireless
communications. The CT50 offers key features such as a large display,
long-lasting battery, bar code imager, and rugged durability.The
healthcare version of the CT50 offers most of the same functionality as
the other CT50s, but it only offers the WLAN option.
•Android 4.4 operating system.
•2 GB DRAM, 16 GB flash memory
•Large, sunlight-readable display with responsive multi-touch screen
•High performance 2D imager with ergonomic scan trigger keys
•Software-definable LTE/UMTS or CDMA/EVDO wireless WWAN
radio for high speed data and quality voice support across all network
technologies
•IEEE 802.11a/b/g/n (ac if supported) radio
•Bluetooth 4.0 radio
•NFC technology for short-range wireless data exchange
•Value-added software components supporting specialized imaging
and OCR functions
•Mid-tier rugged specifications with IP67 sealing
•Customer-accessible microSD™ slot for removable memory cards
(up to 32 GB)
•Integrated GPS receiver (with WWAN radio option)
•8-megapixel color camera
•Receiver Category 3 in accordance with EN 300 440-1
Caution: The CT50 Healthcare mobile computer shall not be used
directly for active patient monitoring purposes or used for
displaying alerts and alarms directly from a patient’s medical
device.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 3
Front View of the CT50
Scan buttons
Volume buttons
Navigation panel
Touch panel
Chapter 1 — About the Computer Features
4 Dolphin CT50 Mobile Computer User Guide
Top View of the CT50
Power button
Battery status LED
Good Read LED Scanner window
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 5
Back View of the CT50
Camera
button
Camera lens
Battery door
latch
microSIM and microSD door
Battery
Chapter 1 — About the Computer Features
6 Dolphin CT50 Mobile Computer User Guide
About the Battery
The CT50 uses a rechargeable 3.6 V Li-ion battery as its main power
source. The battery has a 14.6 watt hour capacity. Several factors
determine the life of your battery, such as display brightness, display
timeout, input device, extreme temperature, and your usage.
Honeywell recommends that you keep the battery charged at all times to
prevent data loss. When you change the battery, the computer
automatically goes into a power-off state and then cold boots.
Contact your local sales representative for replacement batteries.
Charge the Battery
Make sure you fully charge the battery (Model CT50-BTSC) before you
use your CT50. You can charge the battery before or after you install it in
the CT50. It takes about 6 hours for the battery to fully charge in any of
the accessories
•Insert the battery into a Quad Battery Charger or the battery well of
an eHomeBase.
or
•Insert the CT50 with the battery installed into an eHomeBase,
ChargeBase, NetBase, Quad Battery Charger, USB Adapter, or
Vehicle Power Adapter (not supported on the CT50 Healthcare
computer).
Caution: The battery used in this device may present a fire or
chemical burn hazard if it is mistreated. Do not disassemble it, heat
it above 100 °C (212 °F), or incinerate it. Dispose of used batteries
promptly. Keep away from children.
Caution: We recommend the use of Honeywell Li-ion battery packs.
The use of any non-Honeywell battery may result in damage not
covered by the warranty. A non-Honeywell battery will not be
charged in the device or in a Honeywell charger.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 7
Change the Battery
If your battery power is low, you need to either charge the battery in the
computer, or replace it with a charged battery.
1Save your files and close any open applications.
2Press and hold the Power button. This screen appears:
3Tap Power off.
4When prompted that the CT50 will shut down, tap OK.
Chapter 1 — About the Computer Features
8 Dolphin CT50 Mobile Computer User Guide
5Disconnect the handstrap from the bottom of the computer. If you
have a CT50 Healthcare computer, you do not have a handstrap.
6Press and slide the battery door toward the bottom of the computer
to unlock the door.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 9
7Lift up on the edge of the battery and remove it from the computer.
8Insert the charged battery into the computer.
9Press in on the battery door and slide it into the locked position.
About the Battery Status Icon
Use the battery icon in the Status bar to see the power status of your
battery. The table below only includes some of the icons. If you want
more detailed information on your battery, such as usage time or charge
remaining on the battery, go to Settings > Battery.
Battery Status Icons
Icon Status
The battery charge is at 100%.
The battery charge is at 50%.
The battery is critically low. You need to replace the
battery now.
The computer is connected to external power and the
battery is charging.
There is a battery error. Install another battery. If the
problem persists, call Honeywell Technical Support.
Chapter 1 — About the Computer Features
10 Dolphin CT50 Mobile Computer User Guide
The Battery status LED in the upper right corner of the computer
indicates the charging status of the battery. You can also use the Battery
status LED as a notification LED. For more information on how to use the
LED as a notification LED, see http://developer.android.com/guide/
topics/ui/notifiers/notifications.html.
Out-of-Box Battery Status LED Descriptions
Connected to
Power LED State Description
No Blinking amber Battery level is below 20%
No Off Battery level is more than 20%
Yes Steady amber Battery level is between 0% and 60%
Yes Blinking green Battery level is between 60% and 95%
Yes Steady green Battery level is above 95%
Either Blinking red Battery error
Battery status LED
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 11
Change the Battery Status LED Behavior
You can change the behavior of the Battery status LED if the default
behavior for a charging battery (blinking green) is not acceptable to your
environment.
In addition to the out-of-box Battery status LED behavior, you can
choose:
•Default Battery LED
•No Battery LED
Use the Default Battery LED setting if you want the status LED to turn on
steady amber and then steady green when charging. Select the No
battery LED setting if you want to use the LED as a notification LED for
applications or device management solutions.
1Tap All Apps > Settings > Battery LED.
2Select one of these options:
•Default Battery LED
•HSM Battery LED (Out-of-Box setting)
•No Battery LED
Default Battery LED Descriptions
Connected to
Power LED State Description
No Blinking red Battery level is below 15%
No Off Battery level is 15% or more
Yes Steady red Battery level is below 15%
Yes Steady amber Battery level is between 15% and 90%
Yes Steady green Battery level is 90% or more
Chapter 1 — About the Computer Features
12 Dolphin CT50 Mobile Computer User Guide
Check the Battery Level
In addition to the Battery status icons and the Battery status LED, you
can get the battery status from the Settings app.
1Tap All Apps > Settings.
2Tap Battery. The current percentage of battery power remaining and
the amount of usage time left on the battery appear on the screen. A
list shows the battery usage for individual apps and services.
For usage details, tap one of the apps or services in the list.
About Battery Life and Conservation
If you store the batteries outside of the computer for long periods of time,
they slowly discharge. Honeywell recommends storing the battery in a
charger to maintain battery performance.
Battery Conservation Tips
When You Want to: Do this to Save Battery Power:
Use the computer and
the low battery status
icon appears or the
battery light turns on.
Press and hold the Power button and then
select Power off from the menu. After the
computer turns off, remove the battery and
insert a fully charged battery.
Stop using the
computer for 5 minutes
or more.
Make sure that the low battery status icon is not
on the screen and that the battery status LED
is not on. Press the Power button to suspend
the computer.
Store the computer for
more than a day.
•If you are storing the computer for a few
days (such as over the weekend), install a
charged battery or connect the computer to
a power source.
•If you are storing the computer for a longer
period of time, remove and charge the
battery. When the battery is done charging,
store both the battery and the computer is a
cool location.
•If you store the battery for several months,
recharge the battery periodically to keep it at
peak performance.
Store the battery
outside of the
computer.
Store the batteries in a charger.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 13
Battery Recommendations and Safety Precautions
•Charge the battery before use. Battery ships with a partial charge
only.
•See “Charge the Battery” on page 6 for approved charging
methods. Use of this battery in other devices could result in damage
to the device or battery.
•Avoid dropping the battery or computer. If you suspect that the
battery or computer is damaged, send it to Honeywell service center
for inspection.
•Replace this battery only with another model CT50-BTSC battery.
These batteries have been tested in accordance with applicable
safety standards. Contact your Honeywell sales representative or
distributor if this battery is no longer available.
•Discarded batteries may create a safety hazard. Before disposal,
cover the battery contacts with electrical insulating tape.
•Do not modify the battery or attempt to insert foreign objects into it.
•Do not solder directly to the battery contacts.
•Do not short circuit the battery, and keep it away from metallic items.
•Do not drop the battery or apply mechanical shocks or pressure to it.
•Do not disassemble or open, crush, bend or deform, puncture, shred
or burn the battery.
•Do not immerse the battery in water or get the battery wet.
Enable Airplane Mode
If you do not need to connect to any wireless networks, you can enable
Airplane mode to turn off all the radios and save battery power.
1Tap the Settings app.
2In the Wireless & Networks section, tap More.
3Select the Airplane mode check box to enable it.
Chapter 1 — About the Computer Features
14 Dolphin CT50 Mobile Computer User Guide
Power On the CT50
The first time you power on the CT50, a Welcome screen appears.
Follow the prompts on the Welcome screen as the setup wizard helps
you:
•set the default language for the CT50.
•set up the Wi-Fi network connections.
•set the time, date, and time zone.
•personalize (name) the CT50.
After you have fully charged and installed a battery, power on the CT50
for the first time:
•Press and release the Power button.
Note: Once you complete the Setup Wizard, the Welcome screen no
longer appears when you power on the CT50. You will now see the Lock
screen each time you power it on.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 15
Unlock the Screen
Every time you power on the CT50, you will need to unlock it.
•Drag the lock toward any edge of the screen to unlock it.
After you start using the CT50, you should set a password to protect the
computer. Tap All Apps > Settings > Security.
Chapter 1 — About the Computer Features
16 Dolphin CT50 Mobile Computer User Guide
About the Good Read LED
The Good Read LED indicates the status of the scanner. For more
information on how to scan bar codes, see “Scan a Bar Code” on
page 44.
I
Good Read LED Descriptions
LED Color Description
Green Good read of a bar code.
Blinking green The data collection engine is processing or starting
up.
Good Read LED
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 17
Configure the Screen Backlight
The display has an ambient light sensor that automatically adjusts the
backlight intensity to conserve power and ensure the display is readable.
You can set the backlight intensity level as needed for your environment.
1Tap the Settings app.
2Tap Display > Brightness.
3Tap AUTO to use the ambient light sensor to automatically adjust the
brightness for your work environment.
Or, adjust the slider to set the brightness level.
About the Audio Features
The CT50 has a speaker, a microphone, and several software tools for
configuring the volume of sounds.
Adjust Ringtone and Notification Volume
You can quickly adjust the volume of ringtone and notification sounds by
using the side volume buttons.
Note: This method of adjusting the volume only affects the volume of
ringtone and notification sounds. To change the volume for other sounds,
open the Settings app and tap Sound > Volumes.
Chapter 1 — About the Computer Features
18 Dolphin CT50 Mobile Computer User Guide
1Press one of the buttons on the right side of the computer. The
Volume slider appears.
2Press the buttons or adjust the slider to change the volume.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 19
Enable Vibrate Mode
You can switch to Vibrate mode and disable the speaker if necessary for
your working environment.
1Press and hold the Power button. The power options screen appears.
2Tap to turn on Vibrate mode.
Chapter 1 — About the Computer Features
20 Dolphin CT50 Mobile Computer User Guide
Audio Settings
This section describes the audio and sound settings you can configure in
the Settings app. To change audio settings, start the Settings app and
tap Sound.
Audio and Sound Settings
Setting Description
Volumes Use the sliders to set the volume for:
•music, video, games, and other media.
•ringtone and notifications. You can also
use the side volume buttons to change
the volume.
•alarms.
Phone ringtone Select a ringtone.
Vibrate when ringing Select to enable vibrate mode when the
phone is ringing.
Default notification sound Select a notification sound.
Dial pad touch tones Select to enable audio tones when you use
the phone keypad.
Touch sounds Select to enable audio sounds when you
use the touch screen.
Screen lock sound Select to enable an audio tone when the
screen is locked.
Vibrate on touch Select to enable vibrate mode when you
touch the screen.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 21
Insert a microSD Card
You can use a microSD card to increase file storage capacity or to install
software. Honeywell recommends the use of Single Level Cell (SLC)
industrial grade microSD or microSDHC memory cards with the CT50
computer for maximum performance and durability.
1Power off the computer.
2Disconnect the handstrap from the bottom of the computer. If you
have a CT50 Healthcare computer, you do not have a handstrap.
Note: Format memory card before initial use.
Chapter 1 — About the Computer Features
22 Dolphin CT50 Mobile Computer User Guide
3Press and slide the battery door toward the bottom of the computer
to unlock the door.
4Lift up on the edge of the battery and remove it from the computer.
5Press down on the SD card door and slide it toward the top of the
computer to open it.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 23
6Insert the SD card into the door.
7Press down on the SD card door and slide the door toward the
bottom of the computer to lock it.
8Insert the battery into the computer.
9Press in on the battery door and slide it into the locked position.
10 Replace the handstrap.
Chapter 1 — About the Computer Features
24 Dolphin CT50 Mobile Computer User Guide
How to Transfer Files
You can transfer files between your desktop PC and the CT50 with the
HomeBase or USB adapter and a standard USB cable. When the
computer is connected through USB, you can browse to it and drag-and-
drop to move files back and forth to a Windows PC. If you are
transferring files to and from a Mac, use the Android File Transfer
application (available from www.android.com/filetransfer).
By default, the computer connects using MTP (Media Transfer Protocol).
If you are transferring mainly camera images, you can configure the
connection to use PTP (Picture Transfer Protocol). If your Windows PC
does not support MTP, you may be able to transfer files using PTP
instead.
1Connect the CT50 to your PC.
2On the CT50, select either Connected as a media device (MTP) or
Camera (PTP). The CT50 stores your selection as the default.
3Browse to the CT50 from your PC. You can now copy, delete, or
move files between the CT50 and your PC.
How to Browse Files on the CT50
You can use the File Browser application in Power Tools to browse the
files on the CT50 and the microSD card.
1Touch All Apps > Power Tools > File Browser .
2Touch a folder name or file name to open it.
Note: The CT50 supports Hi-Speed USB communications (USB 2.0)
with a maximum data transfer rate of 480 Mbps.
Note: Due to system permissions, some files cannot be opened.
Depending on the associated application, a choice of applications may
be available to open the file.
Chapter 1 — About the Computer Features
Dolphin CT50 Mobile Computer User Guide 25
Accessories for the CT50
The CT50 ships with a battery. All other accessories are ordered and
shipped separately. For help, contact your local sales representative.
CT50 Accessories and Descriptions
Accessory Description
CT50 Battery
(Model CT50-BTSC)
The battery provides hours of power to the
CT50. You may want to purchase spare
battery packs for longer shifts.
eHomeBase
(Model CT50-EB)
Use the eHomeBase to hold a CT50 with its
battery installed, charge a spare battery
pack, charge the main battery pack, and
provide power to the mobile computer. The
eHomeBase has a USB client connector as
well as an Ethernet connector.
HomeBase
(Model CT50-HB)
Use the HomeBase to hold a CT50 with its
battery installed, charge a spare battery
pack, charge the main battery pack, and
provide power to the mobile computer. The
HomeBase has a USB client connector.
ChargeBase
(Model CT50-CB)
The CT50 ChargeBase is a 4-slot charging
cradle that can power four computers, and
charge their main batteries in 6 hours.
NetBase
(Model CT50-NB)
The NetBase enables up to four CT50
computers to communicate with a host
device over an Ethernet network. The Net
Base also provides a second RJ45 Ethernet
port for connection to an additional device
such as a printer, workstation, or another Net
Base.
Vehicle Power Adapter
(Model CT50-MC)
(Not available for CT50
Healthcare)
Use the vehicle power adapter to charge the
battery installed in the CT50 from the
accessory port in your vehicle.
Vehicle Dock
(Model CT50-MB)
(Not available for CT50
Healthcare)
Use the vehicle docks to hold and charge the
CT50 while using it on a vehicle. The vehicle
dock also contains a USB host port.
Chapter 1 — About the Computer Features
26 Dolphin CT50 Mobile Computer User Guide
Quad Charger
(Model CT50-QBC)
Use the quad charger to charge up to four
batteries.
USB Adapter
(Model CT50-USB)
Use this snap-on adapter to connect to a
USB port for transferring data or charging
your CT50.
Scan Handle
(Not available for CT50
Healthcare)
Attach to a CT50 to have an easy way to grip
the computer and scan labels.
Holster
(Not available for CT50
Healthcare)
Use the holster to carry the CT50 hands-free
in the work environment. You can choose
between three different holsters.
Belt Clip
(CT50 Healthcare only)
Use the belt slip to carry the CT50 attached
to your belt.
CT50 Accessories and Descriptions
Accessory Description
27
2
About the User Interface and
Applications
Use this chapter to learn about the Android user interface and
how to interact with the screen. You can also use this chapter to
learn about the Honeywell applications on the computer.
Chapter 2 — About the User Interface and Applications
28 Dolphin CT50 Mobile Computer User Guide
About the User Interface
The Android 4.4 operating system provides a touch-friendly and easy-
to-navigate user interface.
About the Home Screen
When you turn on the mobile computer, the Home screen is the first
screen that appears after language provisioning is complete.
Understand the Home Screen
Item Description
Status bar Status icons to the left tell you when an app has sent
notifications, such as an arriving message. System
icons to the right display the current wireless and
network connection state and battery level.
Favorites tray App icons in the tray are visible on the Home screen.
The All Apps icon is in the center of the Favorites tray.
Search bar Search the internet or the computer using Google.
Status bar
Search bar
Camera app
Favorites tray
Chapter 2 — About the User Interface and Applications
Dolphin CT50 Mobile Computer User Guide 29
Navigation and Function Buttons
There are navigation and function buttons below the Favorites tray on the
front panel of the CT50.
About Status Bar Icons
Status and notification icons show you the current status of your
network, the battery, notifications, and sounds. Use this table to
understand some of the available status icons.
Navigation and Function Buttons
Button Description Function
Back Takes you back to the previous
screen.
Recent Apps Lets you view and switch between
recently used apps.
Home Returns you to the Home screen
Search Starts a search on the computer or the
internet.
Volume Raises or lowers the volume of the
speaker.
Status and Notification Icons
Icon Description Icon Description
Pending calendar event Sound is turned off
Pending alarm and
Alarm is set
Vibrate mode is turned on
New text message or
multimedia message
Battery charge is at 100%
Chapter 2 — About the User Interface and Applications
30 Dolphin CT50 Mobile Computer User Guide
Remap a Button
You can change the default function of the Left Scan, Right Scan, or
Camera buttons.
1Tap All Apps > Settings > Key remap.
2Touch to button you want to remap.
3Tap KEYS or APP to view the available functions.
4Select the function you want to assign to the button. The function you
selected now appears under the button name.
Error with text or
multimedia message
delivery
Terminal is connected to
external power and the
battery is charging
New email Airplane mode is turned on
Terminal is connected to
a computer with a USB
cable
CT50 paired with a Bluetooth
device
ABD active (USB
debugging enabled)
Bluetooth is turned on
Synchronizing data Wi-Fi network connected
with full signal strength
Error with sync or sign-in Wi-Fi network connected but
no signal strength
SD card is full Ethernet status connected
Status and Notification Icons (continued)
Icon Description Icon Description
Chapter 2 — About the User Interface and Applications
Dolphin CT50 Mobile Computer User Guide 31
View Notifications
You can view the notifications shade to see a list of events on the CT50.
•To open the shade, swipe down from the top of the screen.
•To close the shade, swipe up from the bottom of the screen, or tap
the Back or Home buttons.
Manage Notifications
When an app sends a notification to the CT50, you can easily respond to
it.
1When a notification icon appears, swipe down from the top of the
screen.
2To respond to a notification, touch it. The associated app opens so
that you can respond.
•To dismiss a notification, swipe it sideways.
•To dismiss all notifications, tap in the top right corner.
Chapter 2 — About the User Interface and Applications
32 Dolphin CT50 Mobile Computer User Guide
Customize the Home Screen
You can add application icons to any Home screen to access them more
easily.
1Touch . The All Apps screen appears.
2To add an app icon to a Home screen, touch and hold the icon for the
app, and then slide your finger to place the icon on one of the Home
screens.
To add a widget icon to a Home screen, touch WIDGETS at the top
of the screen, touch and hold the icon for the widget, and then slide
your finger to place the widget icon on one of the Home screens.
3To remove an app or widget from the Home screen, touch and hold
the icon and slide it over Remove at the top of the screen.
Customize the Favorites Tray
You can add application icons to the Favorites tray to access them more
easily.
1Touch . The All Apps screen appears.
2Touch and hold an icon in the Favorites tray, and slide it over
X Remove at the top of the screen.
3To add an app icon to the Favorites tray, touch and hold the icon for
the app, and then slide your finger to place the icon in the Favorites
tray.
To add a Widget icon to the Favorites tray, touch WIDGETS at the top
of the All Apps screen, touch and hold the icon for the widget, and
then slide your finger to place the icon in the Favorites tray.
Use Google™ Search
Use the Google Search field at the top of the Home screen to help you
find anything you need on the computer or on the web.
1At the top of any Home screen, touch Google to type your search
term. As you type, suggestions from Google web search appear
below the Search box, and results from the computer (such as apps
or contacts) appear below the web search results.
2Tap a suggestion to search for it immediately, or touch its arrow just
to add the term to the search field without starting to search.
Chapter 2 — About the User Interface and Applications
Dolphin CT50 Mobile Computer User Guide 33
About Screen Gestures
Use your fingers or the stylus to manipulate icons, buttons, menus, the
onscreen keyboard, and other items on the screen.
•To select or activate something, tap it.
•To type something, such as a name or password, touch where you
want to type. A keyboard appears that lets you type into the field.
Other common gestures include:
•Touch and hold: Touch and hold an item by touching it and lifting your
finger until an action occurs.
•Drag: Touch and hold an item for a moment. Without lifting your
finger, move your finger on the screen until you reach the target
position. For example, you can drag to reposition shortcuts on the
Home screen.
•Swipe or slide: Quickly move your finger across the screen, without
pausing when you first touch. For example, you can slide a Home
screen left or right to view the other Home screens.
•Double-tap: Tap quickly twice on a web page, map, or other screen to
zoom in. Double-tap again to zoom out.
•Pinch: In some apps, you can zoom in and out by placing two fingers
on the screen at once and pinching them together (to zoom out) or
spreading them apart (to zoom in).
Set the Time Zone
The CT50 gets the current date and time from its network connection.
You can manually set the time zone for your location.
1Start the Settings app.
2Tap Date & time.
3Clear the check box for Automatic time zone.
4Tap Select time zone and select the time zone for your location.
Chapter 2 — About the User Interface and Applications
34 Dolphin CT50 Mobile Computer User Guide
About Honeywell Applications
Honeywell applications help you troubleshoot and connect your
computer to other devices and networks. Many of the applications in this
table are located in the Power Tools folder. For more information on
Power Tools, look for Dolphin Power Tools on www.honeywellaidc.com.
Honeywell Applications Available on the CT50
Icon Application Description
AppsConfig Provides a way to disable/enable apps
and uninstall updates.
AutoInstall
Settings
Use to automatically install packages,
APKs, and configure during the boot
sequence.
Configure
Autorun
Configure which applications you want
to run during the boot sequence.
Backup Backup and restore settings and user
data.
BattMon Monitor the charge status of the
battery.
Demo Use ScanDemo to demonstrate how
the scanner works. You can use it to
scan a bar code, set the symbologies
it scans, and determine the computer
response to a scanned bar code.
Diagnostic
Information
Use the DiagnosticInfo app to view
device information, Honeywell Apps,
Radio Information, Battery
Information, Memory Information, and
Scanner Information.
EZConfig Configure device and applications
efficiently with bar code and
configuration files.
EZConfig
Editor
View and edit the configuration(.xml)
files and update settings.
Chapter 2 — About the User Interface and Applications
Dolphin CT50 Mobile Computer User Guide 35
Download Honeywell Launcher
Honeywell Launcher is an Android application, designed for Honeywell
mobile computers, that provides a platform from which other applications
may be launched while attempting to provide a locked-down
environment. You can configure Honeywell Launcher for your specific
application requirements. You can download and use Honeywell
Launcher for a 60-day evaluation period. After the evaluation period
expires, you will need to purchase a license. For more information on
Honeywell Launcher, see the Launcher for Android User Guide available
for download from www.honeywellaidc.com.
EZConfig Utils Displays a list of the .xml files for apps
that you can edit on the CT50.
File Browser Provides an efficient way to browse
files on the CT50.
IPConfig Use IPConfig to view network adapter
information.
LogView Displays LogCat and Dmesg
information in real time.
Ping Use Ping to verify communication
links or to make sure a specific IP
address is working.
Route Use Route to view and edit the rules
that govern how packets destined for
various subnets are routed.
Wi-Fi Info Provides Wi-Fi information on the
CT50.
Wi-Fi Radio
Settings
Provides an easy way to configure
Wi-Fi settings on the CT50
Honeywell Applications Available on the CT50
Icon Application Description
Chapter 2 — About the User Interface and Applications
36 Dolphin CT50 Mobile Computer User Guide
Unlock Developer Options
If you are a developer working with the CT50, you can easily unlock the
Developer options. The Developer options allow you to easily test and
debug applications under development for the CT50. After you unlock
the developer options, a link to Devleoper options appears in the System
menu.
1Start the Settings app.
2Tap About phone.
3Tap Build number seven times. A popup message appears
informing you that you are now a developer.
37
3
About the Scanner
Use this chapter to understand how to scan bar codes and
how to configure the scanner.
Chapter 3 — About the Scanner
38 Dolphin CT50 Mobile Computer User Guide
About the Scanner
The internal scanner can read 1D and 2D bar code symbologies,
composite symbologies, and postal codes. It also supports omni-
directional scanning for greater flexibility in real-world settings. The
image engine can also capture black and white images, such as
signatures and pictures of damaged inventory.
How to Scan Bar Codes as Keyboard Input
The scan wedge feature sends scanned bar code data to an active
application as Android keypad input. To scan a bar code as keyboard
input, open an application that accepts text input and then scan a bar
code. By default, scan wedging is enabled on the CT50 computer.
You can use applications that are coded to use the scanner or
applications that receive data through the scan wedge feature. If an
application claims the scanner through the BarcodeReader API, the
scan wedge feature is temporarily disabled. You can find information on
how to create custom applications for the CT50 in the Software
Development Kit (SDK) available for download at
www.honeywellaidc.com.
Change the Scanner Settings
Changes you make to the Default profile apply to all applications with no
profile.
1Tap the Settings app.
2Tap Scanning.
3Tap Default.
4Select Data Processing Settings, Symbology Settings, Decode
Settings, Imager Settings, Trigger Settings, or Notification Settings.
5Modify the settings to meet your application needs.
Restore Default Scanner Settings
You can easily discard all changes you made to the Default profile and
restore the default values.
Note: When you select to restore the default values of one of the
settings, it also restores the default values of all settings within the
profile.
Chapter 3 — About the Scanner
Dolphin CT50 Mobile Computer User Guide 39
1Tap in the upper right corner of any of the scan settings screens.
2Tap Restore all defaults.
Scanners Default Settings
Use these tables to understand the Data Processing Settings,
Symbology Settings, Imager Settings, Trigger Settings, and Notification
Settings.
Data Processing Settings
Use the Data Processing Settings to specify how bar code data is
processed by the CT50.
Data Processing Settings
Setting Description Default
Wedge Enable or disable sending the bar code data as Android
KeyEvents when sending data to the active application.
Enabled
Charset Select the character set to use when interpreting the bar
code data into a string. Options include:
•ISO-8859-1
•US-ASCII
•UTF-16
•UTF-16BE
•UTF-16LE
•UTF-8
Corresponds to BarcodeReader property:
PROPERTY_DATA_PROCESSOR_CHARSET
ISO-8859-1
Prefix Defines the string added before the decoded bar code
data. Substitutions occur within the Prefix string values
as follows:
•\r is replaced by 13
•\n is replaced by 10
•\t is replaced by 9
•\\ is replaced by ‘\’
None
Chapter 3 — About the Scanner
40 Dolphin CT50 Mobile Computer User Guide
Suffix Defines the string added after the decoded bar code
data. Substitutions occur within the Suffix string values
as follows:
•\r is replaced by 13
•\n is replaced by 10
•\t is replaced by 9
•\\ is replaced by ‘\’
None
Data Editing Plugin Specify a Total Freedom data editing plug-in. None
Symbology Prefix Specify a symbology identifier prefix to the bar code
data. Options include:
•None
•Honeywell
•AIM
None
Launch Browser Enable or disable URL bar code handling. If a bar code
starts with http:// or https://, the browser opens using the
bar code data as a URL.
Corresponds to BarcodeReader property:
PROPERTY_DATA_PROCESSOR_LAUNCH-
BROWSER
Enable
Scan to Intent Enable or disable special handling of scan-to-intent bar
codes. Applies to bar codes in one of the following
formats:
‘//’ ACTION
‘//’ ACTION '$' extra-data
Where:
ACTION and extra-data are any string of characters.
Launches an application listening for the intent:
Intent action: “com.honeywell.scantointent.intent.action.”
+ ACTION
Intent extra
“com.honeywell.scantointent.intent.extra.DATA” contains
the remainder of the bar code data after the first ‘$’
character.
Corresponds to BarcodeReader property:
PROPERTY_DATA_PROCESSOR_SCAN_TO_INTENT
Enabled
Data Processing Settings (continued)
Setting Description Default
Chapter 3 — About the Scanner
Dolphin CT50 Mobile Computer User Guide 41
Symbology Settings
Use the Symbology Settings to enable and disable bar code
symbologies. Tap a symbology to view and modify the symbology
configuration parameters.
Launch EZ Config Enable or disable special handling of EZConfig bar
codes. Applies to EZConfig bar codes, which are
encoded with the Aztec symbology and containing
specific header data.
Corresponds to BarcodeReader property:
PROPERTY_DATA_PROCESSOR_LAUNCH_EZ_
CONFIG
Enabled
Data Processing Settings (continued)
Setting Description Default
Symbology Settings
Setting Default
Code 128 Enabled
GS1-128 Enabled
Code 39 Enabled
Datamatrix Enabled
UPC-A Enabled
UPC-E Disabled
EAN-8 Disabled
EAN-13 Enabled
Aztec Enabled
China Post Disabled
Codabar Enabled
Codablock A Disabled
Codablock F Disabled
Code 11 Disabled
Code 93 Disabled
Composite Disabled
Han Xin Disabled
IATA 2 of 5 Disabled
Chapter 3 — About the Scanner
42 Dolphin CT50 Mobile Computer User Guide
Decode Settings
Use the Decode Settings to scan bar codes that are densely packed.
When enabled, the scanner will only decode a bar code is part of it is at
the center of the aimer. Although you can adjust the Window
dimensions, Honeywell recommends leaving the settings at 50 to define
the “center” area for the bar code.
Interleaved 2 of 5 Enabled
Korean Post Disabled
Matrix 2 of 5 Disabled
Maxicode Disabled
Micro PDF 417 Disabled
MSI Disabled
PDF 417 Disabled
QR Code Disabled
RSS (GS1) Disabled
Standard 2 of 5 Disabled
Telepen Disabled
TLC 39 Disabled
Trioptic Disabled
2D Postal Settings Disabled
OCR Disabled
Decode Settings
Setting Description Default
Center Decode Enables the ability for the scanner to
scan only the bar code at the center of
the aimer.
Disabled
Symbology Settings (continued)
Setting Default
Chapter 3 — About the Scanner
Dolphin CT50 Mobile Computer User Guide 43
Imager Settings
You should not need to modify the Imager Settings. The Override
Recommended Values setting is disabled by default. The recommended
Imager Settings are designed to work in a wide range of environments
and should only be modified if you have an advanced understanding of
imagers.
Trigger Settings
Use the Trigger Settings to configure how the scan buttons work.
Notification Settings
Use the Notification Settings to configure how your CT50 responds when
you scan a bar code.
Trigger Settings
Setting Description Default
Decode Timeout Scanning automatically turns off after this
number of seconds if the scan trigger is
pressed and nothing has successfully
decoded.
20
Notification Settings
Setting Description Default
Good Read Notification Enables or disables a good read notification.
The notification consists of a green blink of the
Good Read LED, a short beep, and an optional
short vibration.
Enabled
Bad Read Notification Enables or disables notification of a failed scan.
The notification consists of a red blink of the
Good Read LED, an error beep, and an optional
short vibration.
Disabled
Vibrate Enabled Enables or disables whether the computer
vibrates when there is a good or bad read.
Disabled
Chapter 3 — About the Scanner
44 Dolphin CT50 Mobile Computer User Guide
Scan a Bar Code
The scanner has an aiming beam to help you correctly frame bar codes.
It also supports omni-directional (360°) scanning to make it easier for
you to scan bar codes.
1Tap All Apps > Demos > ScanDemo.
2Point the scanner window at the bar code and hold the computer
steady a few inches from the label.
3Press one of the Scan buttons or press Scan on the touch screen.
Make sure the entire bar code is inside of the illumination frame.
When the scanner successfully reads a bar code, you hear a high
beep and the Good Read LED turns on briefly
Note: Before you start scanning bar codes, use the Settings app to
enable only the bar code symbologies that you need.
45
4
Use the Phone
You can use the phone feature to make and receive phone calls
as well as transmit data through wireless wide-area networks
(WWANs).
Chapter 4 — Use the Phone
46 Dolphin CT50 Mobile Computer User Guide
About the Phone
Phone features on the computer include a speaker and a microphone.
You can also use a Bluetooth headset or hands-free kit. The phone
feature is enabled by default.
The WAN radio in your computer determines the supported network
types:
•If your computer includes the UMTS/HSPA+ WAN radio, you can
connect to UMTS networks.
•If your computer includes the Flexible Network Radio, you can
connect to CDMA or UMTS networks in all regions that support these
technologies. The Flexible Network Radio is a software-defined radio
(SDR) that can be configured for CDMA or UMTS depending on your
wireless communication needs.
Honeywell supports Verizon in the United States (only) as a CDMA
network carrier. For other carriers, contact Honeywell Technical
Support.
After you turn on the phone and activate service with your wireless
carrier, you can customize the phone features and network settings in
the Wireless & Networks section of the Settings app.
Activate the UMTS Phone
Activating the UMTS phone (Model CT50LUN) on your CT50 is done the
same way whether your computer has the Flexible Network Radio or the
UMTS/HSPA+WAN radio.
You use a SIM card to activate the UMTS phone on the CT50. You can
purchase the SIM card from your network provider.
1Power off the CT50.
2Disconnect the handstrap from the bottom of the computer.
3Press and slide the battery door toward the bottom of the computer
to unlock the door.
4Lift up on the edge of the battery and remove it from the computer.
Note: Both WWAN radios support Network Information and Time Zone
(NITZ) messages to automatically set the system time.
Chapter 4 — Use the Phone
Dolphin CT50 Mobile Computer User Guide 47
5Lift up on the SIM and MicroSD door.
6Press down and slide the SIM door toward the top of the CT50 to
open it.
Chapter 4 — Use the Phone
48 Dolphin CT50 Mobile Computer User Guide
7Insert the SIM card in the door.
8Close the SIM card door and slide it toward the bottom of the CT50 to
secure it.
9Replace the battery, reconnect the handstrap, and press the Power
button to turn on the CT50. The phone is now ready to use.
Chapter 4 — Use the Phone
Dolphin CT50 Mobile Computer User Guide 49
Activate the CDMA Phone
To activate the CDMA phone (Model CT50LFN) in your mobile computer,
you need to contact your wireless carrier and set up an account.
You also need to provide the carrier with the Mobile Equipment Identifier
(MEID) for the computer. You can find the MEID:
•on a label located in the battery compartment.
•on the outside of the computer shipping box.
The activation process is slightly different for each CDMA carrier. Your
carrier sales contact and an Honeywell representative can guide you
through the process. In general, you activate the CDMA phone as
follows:
1Contact your wireless provider and give the provider the MEID for the
computer.
2If your carrier is Verizon, tap , enter *228 on the phone keypad,
and tap . After a short wait, a message appears, confirming either
success or failure of the activation. After successful activation, the
phone is ready to use.
Make a Phone Call
Once the phone is activated, you can make a phone call.
1On the Home or All Apps screen, tap .
If the Phone app opens to a list of numbers instead of the keypad,
swipe left or touch to return to the keypad.
2Touch the keys to enter the number, and then touch below the
keypad to dial.
3To end a call in progress, tap .
Note: For the CDMA phone, settings are permanently stored in the
WWAN radio after activation. CDMA settings persist through a factory
data reset.
Chapter 4 — Use the Phone
50 Dolphin CT50 Mobile Computer User Guide
Answer the Phone
When you receive a phone call, the Incoming Call screen opens,
showing the caller ID. All incoming calls are recorded in the Call log. If
you miss a call, you receive a notification.
When a call arrives, touch the white phone icon and slide over one of the
icons:
•To answer the call:
•To send the call to voicemail:
•To send a message from a list of default text messages:
Switch Apps During a Phone Call
You can switch apps while a phone call is in progress. For example, you
can use the People app to look up contact information during your call.
•During a phone call, tap another app icon on the Home or All Apps
screen to run that application. The green Phone icon appears in the
Status bar while the call is underway.
Check Your Voicemail
When you have a new voicemail message, the voicemail icon appears at
the top left of the screen.
1Swipe down from the top of the screen to view your notifications. The
voicemail notification shows the number of unread messages and a
number to dial.
2Touch New voicemail. The phone dials the number. Follow the
instructions to retrieve your messages.
Note: If you have only a WWAN connections, apps that need a data
connection may be unable to access online data while the phone call is
in progress. If simultaneous phone calls and stat connections are not
possible due to provider limitations, voice calls receive priority. Check
with your provider for more information.
Note: Consult your service provider for more information on setting up
your voicemail account.
Chapter 4 — Use the Phone
Dolphin CT50 Mobile Computer User Guide 51
Set Your Voicemail Number
To access your voicemail, you must set your voicemail number in the
Phone app.
1Tap .
2Tap and then tap Settings. A list of call settings appears.
3Tap Voicemail > Setup > Voicemail number.
If you are an AT&T customer, enter your voicemail number.
4Tap OK.
Change Voicemail Settings
1Tap on a Home or All Apps screen.
2Tap and then tap Settings.
3Tap the voicemail setting you want to change.
Make an Emergency Phone Call
You can use the phone to make an emergency phone call, even if the
SIM card is missing from your UMTS phone or if you do not have a valid
CDMA account. In either case, the phone shows that you have no
service. However, if you dial certain emergency numbers (such as 112,
911, 000, 08, 118, 119, or 999) the call will go through.
Configure Phone Settings
You can customize settings for the phone, including the ringtone,
voicemail options, keypad tones, internet call settings, and other options.
1Tap .
2Tap and then tap Settings. The Call settings menu appears.
3Change phone settings as necessary.
Note: This procedure does not apply if you are a Verizon customer.
Chapter 4 — Use the Phone
52 Dolphin CT50 Mobile Computer User Guide
53
5
Use the Camera
Use this chapter to learn how to take pictures and record
videos with the color camera.
Chapter 5 — Use the Camera
54 Dolphin CT50 Mobile Computer User Guide
About the Color Camera
The CT50 contains an 8-megapixel color camera for taking pictures and
videos. The camera and flash are located on the back of the computer.
Use the Gallery app to view photos and videos stored on the CT50.
Adjust the Camera and Video Settings
The camera and video settings are adjustable from within the Camera
app.
How to Zoom
The camera zoom is controlled using a pinching motion on the touch
screen. Place two fingers on the screen at the same time, and then:
•spread them apart to zoom in (enlarge and object).
•pinch them together to zoom out.
Change Camera Settings
You can change the camera settings for best results when taking
pictures.
1Press the Camera button or tap All Apps and then tap Camera .
2Tap to view the options for the camera.
3Tap HDR or one of the icons to change basic camera settings.
•When HDR is enabled, the computer automatically captures
multiple photos and combines them into one photo creating the
best quality image possible.
•Enable or disable different options such as scene mode, store
location, and picture size.
Take a Photo
1Press the Camera button or tap All Apps and then tap Camera .
2Using the screen as a viewfinder, move the computer until you see
the image you want to capture.
3Tap the screen to set the focus. By default, the camera senses the
lighting in the environment and turns the torch on if needed.
Chapter 5 — Use the Camera
Dolphin CT50 Mobile Computer User Guide 55
4Press the Camera button or tap to take a photo.
•To view the picture, swipe the screen to the left.
•To return to the Camera app, swipe the screen to the right.
Record a Video
This section explains how to record video with the camera in the
computer.
1Press the Camera button or tap All Apps and then tap Camera .
2Swipe the screen to the right until the camera options appear in the
left column.
3Tap to select video.
4Tap to begin recording video. To zoom in or out, drag the slider
at the bottom of the viewfinder.
5When you are done recording, tap .
Change Video Settings
You can change the camera settings for best results when recording
video.
1Press the Camera button or tap All Apps and then tap Camera .
2Tap .
3Tap to view the options for video.
4Tap the grid or the flash icon to turn the option on or off.
Chapter 5 — Use the Camera
56 Dolphin CT50 Mobile Computer User Guide
57
6
Configure the Computer
Use this chapter to learn how to configure the CT50. You
will also find information on how to configure network
communications and wireless security.
Chapter 6 — Configure the Computer
58 Dolphin CT50 Mobile Computer User Guide
How to Configure the Computer
You can configure many parameters on the computer such as the
bar code symbologies it decodes, or the network settings. The values
you set for these parameters determine how the computer operates.
You configure the computer using the Settings app.
Start the Settings App
The Settings app is located in the All Apps menu.
•Tap All Apps > Settings.
About the Structure of the Settings App
Use this section to learn about the structure of the Settings app so you
can find parameters quickly.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 59
Wireless & Networks
Setting Description
Wi-Fi Turns the Wi-Fi radio on and off. When Wi-Fi is turned
on, tap the bar to see a list of Wi-Fi networks.
Bluetooth Turns the Bluetooth radio on and off. when bluetooth is
turned on, tap the bar to see a list of Bluetooth devices
in range.
Data usage Displays a list of phone data usage for the current data
usage cycle. Tap the Data usage cycle list to select
another date range.
More... Airplane mode: Turns airplane mode on and off.
Default SMS app:
NFC: Turns on NFC which allows data exchange when
the CT50 touches another device.
Android Beam: When NFC is enabled, this feature lets
you beam app content to another NFC-capable device
by holding the devices close together. The app
determines what content gets beamed.
VPN: Sets the password parameters for a virtual
private network (VPN).
Mobile networks: Includes settings for mobile
networks, including enabling data access and roaming
over mobile networks, selecting access points and
network operators, or selecting only 2G networks (to
save battery life).
Mobile plan: Provides information on your cell phone
plan.
Cell broadcasts: Sets what emergency information you
want to receive and how you want to receive it.
Device
Setting Description
Sound Settings for the phone and notification sounds,
including tones and volume.
Display Settings for the display brightness, wallpaper, sleep
timeout, font size, and screen auto-rotation.
Storage Shows the remaining amount of storage.
Chapter 6 — Configure the Computer
60 Dolphin CT50 Mobile Computer User Guide
Battery Shows battery usage data and the current battery
state.
Apps Lists downloaded and running apps.
Personal
Setting Description
Location Turns location services (Google and GPS
satellite data) on and off.
Security Sets screen lock and administrator privileges.
Language & input Selects the active language and default
keyboard. Sets auto-typing features such as
capitalization and punctuation. Adjusts the
pointer speed for an external mouse or trackpad.
Backup & reset Restores factory default settings.
Honeywell Settings
Setting Description
Key remap Remaps the Left Scan, Right Scan, and Camera
buttons. For help, see “Remap a Button” on
page 30.
Smart sensors Configures the integrated motion detection sensors for
advanced power management.
Battery LED Configures the battery LED behavior.
Battery Health View the current health of the battery.
Logger Activates a logging service that creates an Android
logcat log and kernel log for APP and system
troubleshooting.
Scanning Configures the CT50 imager. For help, see “Change
the Scanner Settings” on page 38.
Web
applications
Enables the web interface settings and lets you set a
port.
Device (continued)
Setting Description
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 61
Accounts
Setting Description
Add account Adds a Corporate or Email account to the CT50.
System
Setting Description
Date & time Configures all date and time settings
Accessibility Sets accessibility levels, such as larger display text
and enabling text-to-speech output.
Printing Configure the printing options.
Developer options Enables developer-specific options such as USB
debugging and SD card protection.
About phone Provides information about your phone settings.
Chapter 6 — Configure the Computer
62 Dolphin CT50 Mobile Computer User Guide
About Network Communications
You can use the mobile computer in your wireless or wired data
collection network. You can connect your computer using:
•802.11 radio communications.
•Ethernet communications.
•Bluetooth communications.
•USB and serial communications.
Connect to a Wi-Fi Network
The CT50 has an 802.11 radio to transfer data using wireless
communications. Before you connect to a Wi-Fi network, you need to
know about your network security protocol and its required credentials.
By default, the 802.11 radio is disabled.
1Start the Settings app and slide the Wi-Fi switch on.
2When the switch turns blue, tap Wi-Fi. A list of discovered
networks appears.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 63
3To quickly connect to a network through Wi-Fi Protected Access
(WPS), tap . To search for a network not in the list, tap and
type the network name.
4Tap a network name in the list to view details:
If the network is secured, a list of required information appears (such
as a certificate name, a password, or other credentials). To connect
to the secured network, enter the required information and tap
Connect.
•To leave a connected network, tap Forget. For example, you
could choose to forget a network you no longer use.
•To close the network details screen, tap Cancel.
Configure Proxy Settings for a Wi-Fi Network
If you need to connect to network resources through a proxy server, you
can configure settings for the proxy server for each Wi-Fi network you
add. By default, the Wi-Fi networks you add are not configured to
connect through a proxy server.
Chapter 6 — Configure the Computer
64 Dolphin CT50 Mobile Computer User Guide
1Open the Settings app and tap Wi-Fi. The list of available Wi-Fi
networks appears.
2Tap and hold the network name and then tap Modify network. A list
of network settings appears.
3At the bottom of the list of network settings, select Show advanced
options.
4If the network has no proxy settings, tap None in the Proxy Settings
list, and then tap Manual in that list.
5Enter the proxy settings for the network.
6Tap Save.
Disable Wi-Fi Notifications
By default, when Wi-Fi is enabled, you receive notifications in the Status
bar when the computer discovers a wireless network. You can disable
these notifications.
1Start the Settings app.
2Tap and hold Wi-Fi.
3Tap and then tap Advanced. The Advanced Wi-Fi menu appears.
4Clear the Network notification check box to disable notifications.
Connect to an Ethernet Network
To connect the computer to an Ethernet network, you need an Ethernet
dock.
1Make sure the dock is connected to your Ethernet network.
2Place the computer in the dock.
3Start the Settings app and make sure Ethernet is enabled (Ethernet
is enabled by default).
To enable Ethernet, slide the Ethernet switch on. When the switch
turns blue, Ethernet is enabled.
4Tap Ethernet. The Ethernet list shows the name of the current
Ethernet connection. By default, the computer assumes a DHCP
connection, and that your network has assigned an IP address
Note: Proxy settings apply only to the Wi-Fi network you modify. You
must change proxy settings for each network requiring a proxy server.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 65
automatically. If DHCP is working, the Ethernet dock should indicate
that communication with the network is occurring.
5(Optional) To assign a static IP address, tap the connection
name (for example, eth0). The IP settings dialog box appears.
aTap DHCP and then select Static from the list.
bEnter the required network information and then tap Apply.
How to Connect to Virtual Private Networks
The computer supports connecting to virtual private networks (VPNs).
This section describes how to add and connect to VPNs. To configure
VPN access, you must obtain details from your network administrator.
You view and change VPN settings in the Settings app.
Add a VPN
Before you can connect to a VPN, you must add VPN information.
1Start the Settings app.
2In the Wireless & Networks section, tap More.
3Tap VPN.
4Tap Add VPN Profile.
5Enter information for the VPN.
6Tap Save. The VPN name appears in the VPN list.
Connect to a VPN
1Start the Settings app.
2In the Wireless & Networks section, tap More.
3Tap VPN.
4Tap the name of the VPN in the list, and enter any necessary
credentials when prompted.
5Tap Connect. The computer connects to the VPN, and a Status icon
and notification appear.
To disconnect from the VPN, tap the notification.
Note: Before you can access VPNs, you need to set a lock screen PIN or
password.
Chapter 6 — Configure the Computer
66 Dolphin CT50 Mobile Computer User Guide
Edit VPN Information
1Start the Settings app.
2In the Wireless & Networks section, tap More.
3Tap VPN.
4Tap and hold the name of the VPN you want to edit, and select Edit
network from the list.
5Edit VPN settings as necessary.
6When you are done, tap Save.
About Wireless Security
The computer provides these security solutions for your wireless
network:
•Wi-Fi Protected Access 2 (WPA2™)
•Wi-Fi Protected Access (WPA)
•802.1x
•LEAP
•WEP
Honeywell recommends WPA2 security with PSK (Personal) or 802.1x
(Enterprise) key management.
Before you set security, you need to enable the radio, set the date, and
set the SSID on your computer. To use 802.1x security, you need to load
a root certificate on your computer. To use transport layer security (TLS)
with 802.1x security, you also need to load a user certificate.
Use the Settings app to access and configure all wireless security
settings.
About Certificates
You can use digital certificates to identify the computer for network
access or authentication to servers. To use a certificate to identify your
device, you must install it in the trusted credential storage on the
computer.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 67
Android supports DER-encoded X.509 certificates saved in files with a
.crt or .cer file extension. To install a valid certificate with a .der or it.
Android also supports X.509 certificates saved in PKCS#12 key store
files with a .p12 or .pfx entension. To install a valid key store file with
another extension, you must change the extension to .p12 or .pfx to
install it. When you install a certificate from a PKCS#12 key store,
Android also installs any accompanying private key or certificate
authority certificates.
Load a Certificate
To use a certificate, you must install it in the trusted credential storage on
the computer.
1Copy the certificate or key store from your PC to a microSD card.
2Install the microSD card in the computer and turn the computer on.
3Start the Settings app and tap Security > Install from SD card.
4Tap the name of the certificate or key store to install it. If prompted,
enter the key store password and tap OK.
5Enter a name for the certificate and tap OK.
Disable or Remove Certificates
If a certificate is compromised, or your organization chooses not to trust
it, you can disable or remove it.
1Start the Settings app and tap Security > Trusted credentials. The
trusted credentials screen has two tabs:
•System shows CA certificates that are installed in the ROM.
•User shows CA certificates you have installed yourself.
2Tap the name of the certificate to disable or remove. The certificate
details screen appears.
3Scroll to the bottom of the details screen and tap Disable (for System
certificates) or Remove (for User certificates).
If necessary, you can enable a disabled System certificate from this
location. If you remove a User certificate, you must install it again to
enable it.
4Tap OK.
Note: Apps such as Email and Browser that support certificates allow
you to install certificates directly from within the app. For more
information, see the Help that comes with the app.
Chapter 6 — Configure the Computer
68 Dolphin CT50 Mobile Computer User Guide
About Bluetooth Communications
The CT50 is Bluetooth-enabled, which lets you connect to other
Bluetooth devices.
You need to turn on the Bluetooth radio before you can discover and
connect to Bluetooth devices. By default, the radio is turned off.
The Bluetooth radio maintains its current state through a system reset. If
you perform a factory data reset, you must recreate pairings to devices.
The System bar icons indicate Bluetooth status.
Connect a Bluetooth Device
To connect to a Bluetooth device, you must enable Bluetooth and then
select the device from a list of discovered devices.
1Start the Settings app.
2If Bluetooth is off, slide the Bluetooth switch on.
3Tap Bluetooth. A list of available Bluetooth devices appears.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 69
4(Optional) If the device you want does not appear in the list, make
sure the device is turned on and discoverable, and tap Search for
devices.
5Tap a device in the list to select it. If a pairing request message
appears, enter the device PIN and tap OK. When the device is paired
with the computer, the device name appears in Paired Devices at
the top of the list.
6To disconnect a paired device, tap the Quick Settings icon next to
the device name and then tap Unpair.
Chapter 6 — Configure the Computer
70 Dolphin CT50 Mobile Computer User Guide
Configure Bluetooth Settings
You configure Bluetooth settings in the Settings app.
1Start the Settings app and tap Bluetooth.
2Tap the Menu icon and select a setting from the menu:
•Tap Rename phone to change the computer device name. Type
the new name and then tap Rename.
•Tap Visibility timeout to set the amount of time that the
computer is visible to other Bluetooth devices. By default, the
timeout is set to 2 minutes. You can select 5 minutes, one hour, or
no timeout. Setting a shorter timeout value preserves battery life.
•Tap Show received files to view statistics on the received files.
Making the CT50 Discoverable
By default, the CT50 is not discoverable, which means that the computer
will not be found by other Bluetooth devices.
1Tap All Apps > Settings.
2Verify the Bluetooth radio is activated.
3Tap Bluetooth.
4Tap CT50 (the default computer name) at the top of the screen to
make the device discoverable. The computer starts a 2 minute count
down during which time the computer is temporarily discoverable by
other devices using Bluetooth technology.
Rename or Disconnect a Paired Device
You can rename or disconnect a paired Bluetooth device from the
Settings app.
1Open the Settings app and tap Bluetooth.
2Tap the Settings icon in the Paired Devices list.
3To rename the device, tap Rename, type the new name, and then tap
OK.
•To disconnect the device, tap Unpair.
Chapter 6 — Configure the Computer
Dolphin CT50 Mobile Computer User Guide 71
About Serial and USB Communications
You can use these accessories to transmit data to and receive data from
another device through serial or USB communications:
•vehicle dock
•HomeBase
•Ehternet HomeBase
•USB snap-on adapter
•RS-232 DEX adapter
For information on these accessories, contact your local sales
representative.
About Near Field Communication (NFC)
NFC technology provides the ability for short-range, wireless data
transfer between the CT50 and NFC tags or other NFC enabled devices
placed in close proximity to the back of the computer. NFC equipped
CT50 models support the following modes of operation:
• NFC tag reader/writer mode: The computer reads and/or writes
digital information from or to an NFC tag.
• Peer-to-Peer (P2P) mode: The computer uses Android Beam and/or
Bluetooth technology to transfer screen content (such as a picture,
contact information, Web page url, or file) between NFC enabled
devices.
• NFC card emulation mode: The computer emulates an NFC card
(smart card) that an external card reader can access. You have the
option to enable the embedded secure element (eSE) SmartMX™ or
Host Emulation. Secure element implementation is commonly used
for financial transactions or coupon and loyalty mobile marketing
applications that require a secure memory and execution
environment for the storage of personal information (such as account
information and credentials) and running custom smart card applets.
Note: Sleep Mode (Suspend Mode) and the screen lock temporarily
turns the NFC radio off.
Chapter 6 — Configure the Computer
72 Dolphin CT50 Mobile Computer User Guide
73
7
Manage and Maintain the CT50
Use this chapter to understand how to upgrade software, reset the
computer, and maintain the CT50.
Chapter 7 — Manage and Maintain the CT50
74 Dolphin CT50 Mobile Computer User Guide
How to Upgrade the System Software
Upgrades for Power Tools and other system software on the CT50 are
provided as .zip files and are available from Technical Support
(www.hsmcontactsupport.com) or www.honeywellaidc.com.
1Copy the upgrade .zip file into one of these folders on the CT50:
•Internal storage\honeywell\autoinstall
•IPSM card\honeywell\autoinstall
•\honeywell\autoinstall (on a microSD card if installed)
2Tap All Apps > Power Tools > AutoInstall Settings.
3Verify that Autoinstall is enabled.
4Select Packages Update from the screen. The CT50 automatically
initiates a reboot and installs the software upgrade.
How to Restart the Computer
If the computer or an application locks up, or if the computer does not
respond when you press the Power button, you may need to restart the
computer.
The computer uses the configuration currently saved in flash memory
during the boot process. Try these methods, in order, to restart the
computer:
• Reset: Restarts the computer and goes through the initialization
process.
• Clean boot: Completely erases the computer memory, including all
applications and data files, except those in the Flash File Store or
any removable storage.
Chapter 7 — Manage and Maintain the CT50
Dolphin CT50 Mobile Computer User Guide 75
Reset the Computer
You may need to restart the computer to correct conditions where an
application stops responding to the system.
1Save your files and close any open applications.
2Press and hold the Power button. This screen appears:
3Tap Power off.
4When prompted that the CT50 will shut down, tap OK.
5Press the Power button to turn on the CT50.
Clean Boot the Computer
If the computer seems to be locked up, try cold booting it. If reset does
not work, use a clean boot to get the computer up and running for further
troubleshooting.
Caution: A clean boot erases the memory on the computer,
including all applications and data files with the exception of the
information in the Flash File Store or any removable storage.
Chapter 7 — Manage and Maintain the CT50
76 Dolphin CT50 Mobile Computer User Guide
1Tap All Apps > Settings.
2Tap Backup & Reset.
3Tap Factory Data Reset.
4Select any options you want to include, such as erasing the SD card.
5Tap Reset phone. The CT50 performs the clean boot procedure and
turns off.
6Press the Power button to turn on the CT50. You will need to set up
your computer again.
Clean the Computer
To keep the computer in good working order, you may need to clean the
scanner window, color camera window, and the touch screen. Clean the
windows and the touch screen as often as needed for the environment in
which you are using the computer. The CT50 will withstand application of
the following cleaning agents when applied to a clean soft cloth and
removed immediately with a dry soft cloth:
•Acetic acid, 10% in water
•Ethyl alcohol, 10% in water
•Mild soap solutions
1Press the Power button to suspend the computer.
2Dip a clean cloth towel in the cleaning agent and wring out the
excess.
3Wipe off the scanner window, camera lens, and flash area. Do not
allow any abrasive material to touch these surfaces.
4Wipe dry.
5Let the computer completely air dry before using again.
Caution: There are no user-serviceable parts inside the computer.
Opening the computer will void the warranty and may cause
damage to the internal components.
Note: Honeywell recommends that you leave the battery installed when
you clean the computer. Leaving the battery installed helps prevent fluids
from entering the computer through the SIM card and microSD card
connectors,
77
A
Specifications
Chapter A — Specifications
78 Dolphin CT50 Mobile Computer User Guide
Physical and Environmental Specifications
This sections lists the physical and environmental specifications for the
CT50.
Screen Specifications
4.66-inch TFT color LCD with backlight, 720-pixel HD, outdoor viewable
touch screen.
Physical Dimensions
Length: 160 mm
Width: 82.5 mm
Depth: 19 mm
Weight (with battery): 342 g (including battery)
Tumble and Drop Specifications
Tumble specification: 1000 1 m tumbles
Drop specification: 5 ft multiple drops to unyielding steel plate, -10
to +50 °C temperature range and 4 ft drop at
20 ° C
Power and Electrical Specifications
Battery Pack: Rechargeable Lithium-ion 3.6 V, 4040 mAh
battery
Electrical rating: 5 V, 2 A
Temperature and Humidity Specifications
Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
For maximum battery life, store at 23 °C
(73 °F) at 50% charge.
Relative humidity
(operating):
0% to 95% non-condensing
Environmental rating: IP67, Category 1
Chapter A — Specifications
Dolphin CT50 Mobile Computer User Guide 79
Language Support
World-wide English, French, German, Italian, Spanish, Simplified
Chinese, Traditional Chinese.
Bar Code Symbologies Supported
The CT50 supports these bar code symbologies:
1D Symbologies
•Codabar
•Code 3 of 9
•Code 11
•Code 32
•Code 93
•Code 128
•EAN-8
•EAN-13
•GS1-128
•Korea Post
•IATA 2 of 5
•Industrial 2 of 5
•Interleaved 2 of 5
•ISBN
•ISBT 128
•Matrix 2 of 5
•MSI Plessey
•EAN.RCC (RSS-14)
•RSS Limited
•RSS Expanded
•Tele p e n
•Trioptic Code
•UPC-A
•UPC-E
2D Symbologies
•Aztec Code
•Codablock A
Chapter A — Specifications
80 Dolphin CT50 Mobile Computer User Guide
•Codablock F
•DataMatrix
•HanXin
•Maxicode
•Micro PDF 417
•MicroQr
•PDF 417
•QR Code
•TLC39
•OCR-A
•OCR-B
Postal Codes
•Australian Post
•Canadian Post
•KIX (Netherlands Dutch) Post
•Japanese Post
•British Post
•Planet Code
•Postnet
•UsIntelligent
Chapter A — Specifications
Dolphin CT50 Mobile Computer User Guide 81
Imager Reading Distances
The guaranteed depth of field measurements were taken using these
parameters:
•Distances are measured from the front of the engine.
•23 °C (73 °F), 0 lux
•Photographic quality codes
Note: Time to Read and Depth of Field are impacted if the bar code
symbol is at the edge of the image.
White Illumination Monochrome Sensor Only - Guaranteed Specs
Focus Standard Range (SR)
Symbology Near Distance
(in/cm)
Far Distance
(in/cm)
Delta
(in/cm)
5 mil Code 39/128 3.6 (9.1) 5.6 (14.2) 2.0 (5.1)
10 mil Code 39/128 1.9 (4.8) 12.0 (30.5) 10.1 (25.6)
100% UPC 2.1 (5.3) 15.1 (38.1) 12.9 (32.7)
6.7 mil PDF 417 2.5 (6.4) 6.6 (16.7) 4.1 (10.4)
10 mil DataMatrix/Aztec 2.9 (7.4) 7.3 (18.5) 4.4 (11.1)
White Illumination Monochrome Sensor Only - Typical Specs
Focus Standard Range (SR)
Symbology Near Distance
(in/cm)
Far Distance
(in/cm)
Delta
(in/cm)
5 mil Code 39/128 2.5 (6.4) 6.4 (16.3) 3.9 (9.9)
10 mil Code 39/128 1.1 (2.8) 13.0 (33.0) 11.9 (30.2)
100% UPC 1.8 (4.6) 16.5 (41.9) 14.7 (37.3)
6.7 mil PDF 417 1.8 (4.6) 7.3 (18.5) 5.5 (14.0)
10 mil DataMatrix/Aztec 2.1 (5.3) 8.0 (20.3) 5.9 (15.0)
Chapter A — Specifications
82 Dolphin CT50 Mobile Computer User Guide
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
www.honeywellaidc.com
Dolphin CT50 Mobile Computer for Android User Guide
*CT50AND-ENUS-UG*
P/N CT50AND-ENUS-UG Rev B
