SYSTEM ENGINEERING
® U.S. Registered Trademark
© 2004 Honeywell International Inc.
All Rights Reserved 63-4368
T7350
Commercial Programmable Thermostat
Contents
Introduction .................................................................................................................................. 2
Device Description .............................................................................................. 2
Control Application .............................................................................................. 2
Network Control Provided ................................................................................... 3
Models .................................................................................................................................. 3
Products Covered ................................................................................................ 3
Applicable Literature ............................................................................................ 4
Abbreviations and Definitions .................................................................................................................................. 4
Performance Specifications ................................................................................. 5
Communications .................................................................................................. 7
LONMARK® Functional Profile .............................................................................. 8
Network Configurations .................................................................................................................................. 9
Application Steps .................................................................................................................................. 10
Overview ............................................................................................................. 10
Step 1. Plan the System ...................................................................................... 11
Step 2. Determine Required Network Devices .................................................... 11
Step 3. Layout Communications and Power Wiring: .......................................... 11
LONWORKS® Bus Layout ...................................................................................... 11
Cable Termination ............................................................................................... 12
Wiring Details ...................................................................................................... 12
Step 4. Prepare Wiring Diagrams ........................................................................ 12
General Considerations ....................................................................................... 15
Step 5. Order Equipment ..................................................................................... 17
Step 6. Configure T7350 ..................................................................................... 17
Step 7. Troubleshooting ....................................................................................... 18
Appendix A - Network Tools & Workstations ......................................................................................................................... 20
Appendix B - Network Alarm Reporting .................................................................................................................................. 21
Appendix C - Network Error Reporting ................................................................................................................................... 23
Appendix D - Network Access to Local Sensor Data ............................................................................................................. 25
Appendix E - Scheduling Network Devices ............................................................................................................................ 25
Appendix F - Network Master Clock ........................................................................................................................................ 25
Appendix G - Network Connections to Other LCBS Devices ................................................................................................ 26
Appendix H - T7350H Network Variable Summary ................................................................................................................. 34
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 2
INTRODUCTION
Device Description
The T7350H is a LONMARK® certified thermostat that provides
networking capability in a LONWORKS® system using a
transformer-coupled Free Topology Transceiver (FTT). See
Fig. 1.
The T7350H communicates with many LONMARK® devices
including the following:
— Other T7350H Communicating Commercial Thermostat
devices.
— T7300F/Q7300H Commercial Thermostat/Communicating
Subbase.
— Excel 15 S7760A Command Display.
— Excel 10 W7750A,B,C Constant Volume Air Handler Unit
(CVAHU) Controller.
— Excel 15 W7760A, B, C Building & Plant Managers.
— Excel 10 W7751B, D, F, H, J Variable Air Volume Terminal
Unit Controllers.
— Excel 10 W7752D, E, F, G Fan Coil Unitcontrollers.
— Excel 10 W7753A Unit Ventilator Controller.
— Excel 10 W7762A,B Hydronic Controllers.
— Excel 10 W7763C, D, E Chilled Ceiling Controllers.
Control Application
The T7350H programmable communicating Thermostat
controls commercial single zone heating, ventilating and air
conditioning (HVAC) equipment through staged and
modulating outputs. The T7350H consists of a two piece
assembly with a thermostat cover and subbase. The
thermostat cover includes the keypad and display for 7-day
programming. Calendar programming is available through a
direct connect PDA (Configuration Tool) or network
(LONSPEC™ with model T7350H) tool configuration. The
subbase includes equipment control, inputs and network
connections. The subbase mounts on the wall and the
thermostat cover mounts to the subbase. In addition, the
T7350H model can communicate local sensor data, schedule
information, master clock operations and accept configuration
and override instructions to or from other devices/tools in a
LONWORKS® network. Fig. 9 shows a typical T7350H
application in a three-stage heat and two-stage cool heat
pump system. For additional hookups, see Fig. 10 through 12.

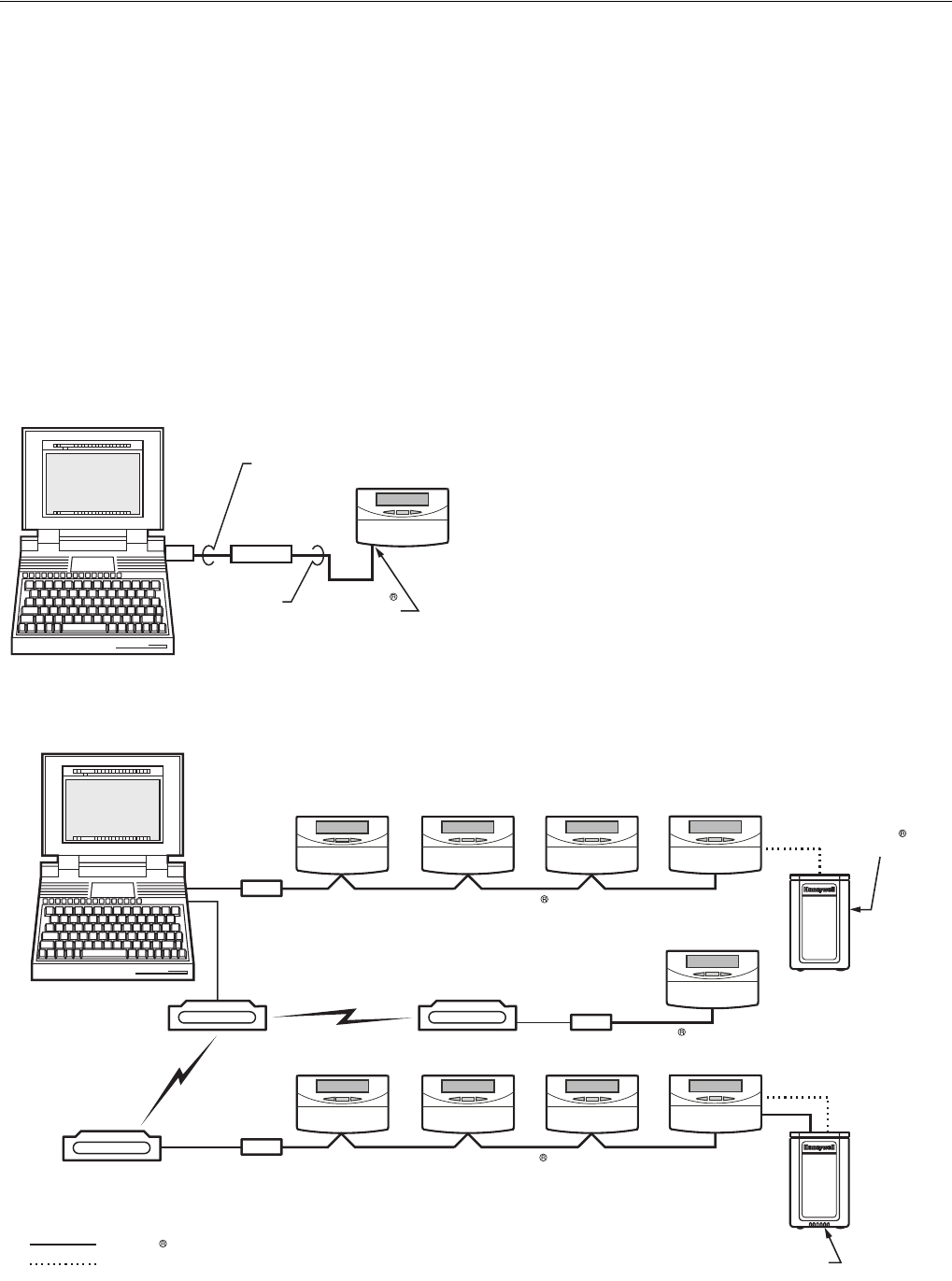

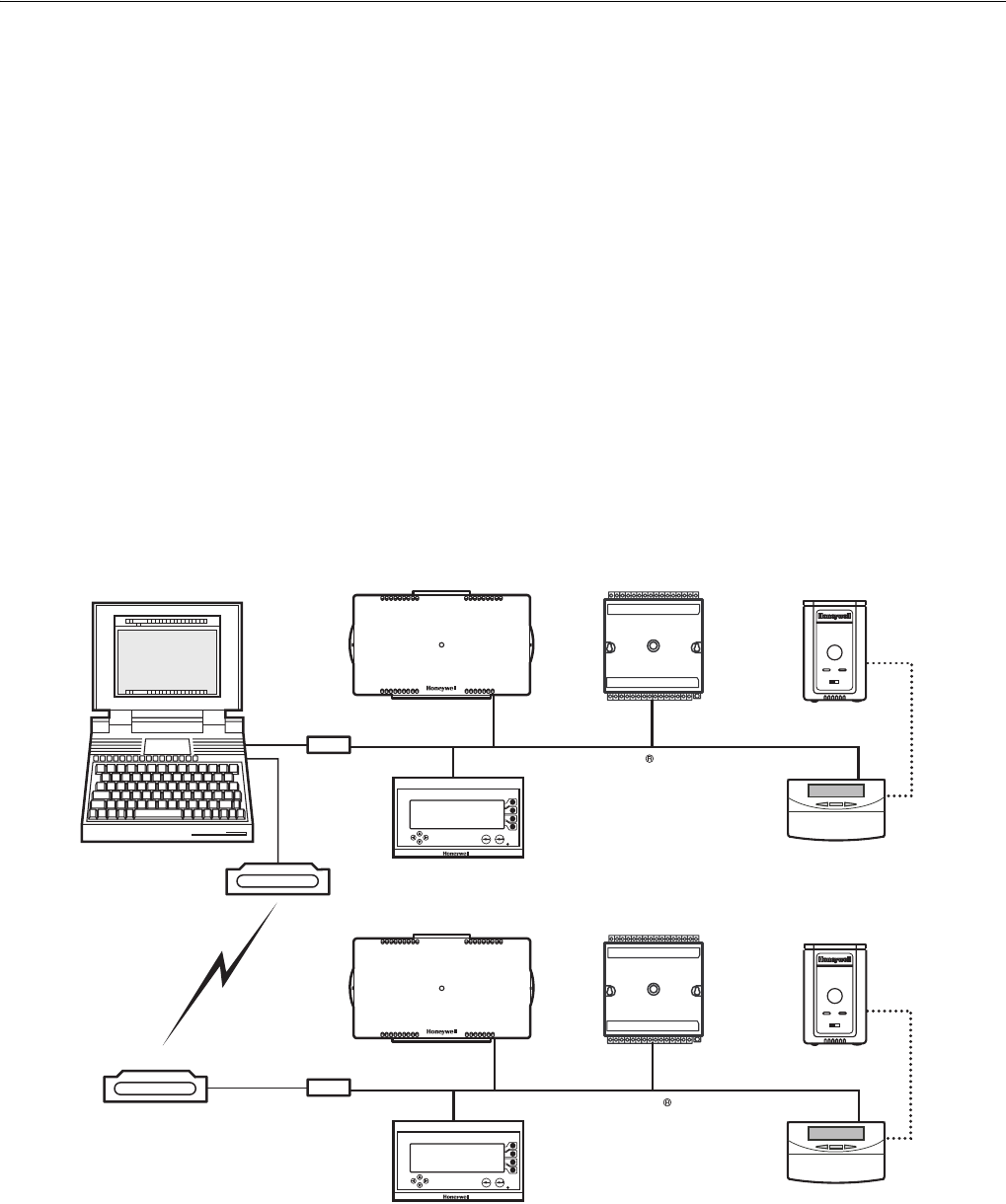

Fig. 1. Typical T7350H LONWORKS® network diagram.
NOTEBOOK PC
RS-232
SERIAL
PORT
RS-232
SERIAL
PORT
SLTA
SLTA
T7350H
MODEM
MODEM
M22490
EXCEL 10
CVAHU
Back Select
1481216
17 23 30 31 37 44
EXCEL 15
W7760
WALL MODULE
S7760
BUILDING MANAGER
T7350H
EXCEL 10
CVAHU
Back Select
1481216
17 23 30 31 37 44
EXCEL 15
W7760
WALL MODULE
S7760
BUILDING MANAGER
LonWorks BUS
LonWorks BUS
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
3 63-4368
Network Control Provided
The T7350H communicates with other network devices, or
nodes, for sharing data such as local inputs. Through the
network, a Command Display (S7760) is used to view or
modify T7350H operational modes including:
• Weekly Schedule.
• Holiday Schedule.
• Room Temperature SetPoints (Occupied, Unoccupied,
Standby).
• Manual Occupancy Override.
• Temperature Setpoints.
• Update Time Clock.
Network connected Workstations and Configuration Tools are
used to view and modify additional T7350 operational modes:
• Command Fan operating mode (On, Auto)
• Command Application mode (Auto, Off, Heating, Cooling)
By using network messaging, the T7350H may share the
following local inputs with other T7350, T7300/Q7300, XL15
or XL10 network connected devices:
• Room Humidity and Temperature.
• Outdoor Air Temperature.
• Occupancy Sensor.
• Unoccupied Bypass User Input.
Network messaging also supports distribution of local user
commands and operational states from a single T7350H. That
is, network connected T7350H and XL10 devices can be
configured to follow the local user commands and states from
a single (master) T7350H. These local T7350 commands
include the following:
• Application mode (Auto, Off, Heating, Cooling).
• Occupancy (Occupied, Unoccupied, Bypass, Standby).
• Bypass (unoccupied override).
• Setpoint.
• Time synchronization from a T7350H designated as
network master clock.
• Master Time Scheduling of Occupied, Unoccupied and
Standby states.
MODELS
Table 1. T7350 Communicating Thermostat Models.
aAll models are down-selectable and can be configured to
control fewer stages than the maximum allowed.
bHeat pump applications for these models have a maximum
of two heat stages and two cool stages.
cOne extra stage (of either heat or cool) can be configured
using the auxiliary relay.
Products Covered
This System Engineering manual describes how to apply the
T7350H Communicating Thermostat and related accessories
to typical applications. Devices include:
• T7350H Commercial Communicating Thermostat.
• Excel 15 W7760A or B Building Manager.
• Excel 15 W7760C Plant Manager.
• Excel 10 Controllers including: W7750, W7751, W7752,
W7753, W7762.
Other products:
• Q7760A Serial LonTalk® Adapter.
• Q7740A,B FTT Repeaters.
• 209541B FTT Termination Module.
See Table 2 for additional products.
Table 2. Additional Products.
Model Applications
Maximum
Stagesa
FeaturesHeat Cool
T7350H1009 Conventional
or
Heat Pump
3 (2)b3 (4)bHumidity, Occupancy,
Outdoor, Discharge Air
Capability
T7350H1017 Modulating 2 modulating, 2c
relay
Humidity, Occupancy,
Outdoor, Discharge Air
Capability, 4-20 mA
output (2-10 Vdc with
500 ohm resistor)
Part Number
Product
Description Comments
R8242A Contactor, 24 Vac
coil, DPDT.
AT72D, AT88A … 24vac
Transformers.
T7770A-D Wall Modules
T7771 Wall Module with
active display.
4074EYD Wallplate for
T7770 Wall
Modules.
For covering an
existing hole in
a wall
AK3798 Single pair network
cable, U.L. Type
CMR
AK3797 Single pair network
cable plenum
rated, U.L. Type
CMP
AK3799 Double pair
network cable
plenum rated, U.L.
Type CMP
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 4
Applicable Literature
The following list of documents contains general information
related to the T7350H Communicating Commercial
Thermostats.
Table 3. Applicable Literature
ABBREVIATIONS AND DEFINITIONS
Application—A special use Building Control function.
Binding—The process of logically connecting network
variables in one node to network variable(s) in other node(s).
Binding is performed by a network management Tool (such as
LONSPEC™) that writes the binding information into the
EEPROM memory of all the neuron’s involved. The binding
information is saved in the network image of each neuron.
Building Manager—A LONMARK® certified device that can be
used to monitor and control HVAC equipment and other
miscellaneous loads in a distributed network.
Command Display—A device that can be used to monitor
data and change parameters of network connected devices.
CVAHU—Excel 10 Constant Volume Air Handler Unit
Controller.
Excel 10s—A family of application - specific HVAC controllers
such as the Excel 10 CVAHU and Excel 10 VAV.
HVAC—Heating, Ventilating and Air Conditioning.
I/O—Input/Output.
LCBS—Light Commercial Building Solution. These systems
are configured with the LONSPEC™ network tool and
monitored with a Workstation such as LonStation®. Many
LCBS networks include the W7760B & C plant managers.
Routers (including Q7751A) are not supported by the LCBS
network configuration LONSPEC™ tool.
LONSPEC™-ZL7760A—A network connected tool which
configures, commissions, calibrates and monitors the
Honeywell Light Commercial Building Solution Q7300,
T7350H, Excel 10 and Excel 15 family of controllers.
LONSTATION™—A low-cost, easy-to-use Light Commercial
Building Solution workstation that provides advanced building
control capabilities for small to medium-size buildings.
LONWORKS® Network—A data network based on neurons
communicating with each other using the LonTalk® protocol.
Mandatory Mechanisms/Objects/Network Variables—
Mandatory mechanisms and network variables that are
implemented in all the Excel 10 devices.
NamedObjects—These objects are visible on the network as
functional independent entities and are accessed by name.
Typical examples of NamedObjects are Controllers,
ControlLoops and LogicFunction blocks contained in devices
such as the XL5a or XL15b.
Network Management Node—A LONWORKS® node that is
responsible for configuring the network, installing the nodes,
binding the network variables between nodes, and general
network diagnostics.
Form No. Title
63-1299 T7350 Commercial Programmable
Thermostat Spec Data
62-0195 T7350 Commercial Programmable
Thermostat Installation Instructions
63-2605 T7350 Commercial Programmable
Thermostat Product Data
74-2976 Excel LONSPEC™ ZL7760A Specification
Data
74-2937 Excel LONSPEC™ ZL7760A User’s Guide
74-3123 Light Commercial Building Solution System
Communication Guide
74-2697 T7770A, B, C, D, E, F, G Wall Module
Specification Data
95-7538 T7770A, B, C, D, E, F, G Wall Module
Installation Instructions
63-2617 T7771 Wall Module Product Data
74-2972 S7760A Command Display Specification
Data.
74-2858 Q7740A,B FTT Repeater Specification
Data.
95-7555 Q7740A,B FTT Repeater Installation
Instructions.
74-2954 Q7760A SLTA-10 Serial LonTalk® Adapter
Specification Data.
95-7511 Q7760A SLTA-10 Serial LonTalk® Adapter
Installation Instructions.
95-7554 209541B Termination Module Installation
Instructions
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
5 63-4368
Network Variables—A class of variables defined in Neuron C
that allows communication over the LONWORKS® network to
other nodes on the network. An output network variable in one
node can be bound to a corresponding input network
variable(s) in other node(s). Changing the value of the output
network variable in one node causes the new value to be
automatically communicated to the bound input network
variable(s) in other node(s). When an input network variable is
updated, a nv_update_occurs and the event is posted at the
receiving node(s) so that the application program can take
action based on the change. A network management node
(for example XL15A or XL15C) that explicitly reads and/or
writes the network variable can also poll network variables.
Network variables can contain one data field (one or two
bytes) or multiple data fields (a structure).
Neuron—Refers to the Echelon® semiconductor device which
implements the LONWORKS® protocol on a network connected
device such as the T7350H Honeywell controller.
Node—A device implementing layers one through six of the
LonTalk® protocol including a Neuron® Chip, transceiver,
memory, and support hardware.
Notebook PC—Portable personal computer.
PDA—Personal Digital Assistant. In the case of the T7350
product this is a hand held electronic device operating with the
Palm OS. A Honeywell provided PDA application program is
used to configure the T7350 thermostat using a direct RS232
connection. Before purchasing a PDA, check the latest
Configuration software release note for a list of qualified PDA
models. Network connected T7350H models can be
configured without a PDA using LONSPEC™.
Programmable Controller—A controller that has a variable
number of control loops of different types and is user
programmed to execute an application. The user can select
the number and type of control loops. The user also has the
capability of generating new types of control loops. Some
examples of Honeywell programmable controllers include the
XL15A and XL15B.
Recovery Mode or Recovery Period—The time in
unoccupied periods when the temperature control is adjusting
the control setpoint so that the space temperature reaches the
occupied setpoint when the schedule change occurs.
RIO—Excel 10 Remote Input/Output device.
RTC—Real Time Clock.
Schedule—The structure that defines the occupancy states
and the time of the changes between these states. In the case
of the T7350, schedules are organized around a eight day
weekly structure including an extra day for designated
holidays. Holidays are scheduled by yearly calendar events.
SGPU—Significant Event Notification and Guaranteed
Periodic Update.
SGPUC—Significant Event Notification and Guaranteed
Periodic Update with Change Field.
SLTA—Serial LonTalk® Adapter. Adapts the transformer
coupled LonTalk® messages to the RS-232 Serial Port.
SNVT—Standard Network Variable Type.
SCPT—Standard Configuration Parameter Type.
XL15A—W7760A Honeywell building level controller.
XL15B—W7760B Honeywell building level controller.
XL15C—W7760C Honeywell plant level controller.
Performance Specifications
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit might not exactly match listed specifications.
This product is tested and calibrated under closely
controlled conditions; minor performance differences
can be expected if those conditions are changed.
Models: See Table 4.
Dimensions: See Fig. 2.
Finish (color): Trident White.
Batteries: No batteries required.
Table 4. T7350 Thermostat Features.
aAll models are down-selectable and can be configured to control fewer stages than the maximum allowed.
bHeat pump applications for these models have a maximum of two heat stages and two cool stages.
cOne extra stage (of either heat or cool) can be configured using the auxiliary relay.
Model Applications
Maximum Stagesa
Features
Auxiliary
Relay
LONWORKS®
Capability?Heat Cool
T7350H1009 Conventional
or
Heat Pump
3 (2)b3 (4)bHumidity, Occupancy,
Outdoor, Discharge Air Capability
Isolated
Normally
Open
Yes
T7350H1017 Modulating 2 modulating, 2c relay Humidity, Occupancy,
Outdoor, Discharge Air Capability,
4-20 mA output (2-10 Vdc with 500 ohm resistor)
Yes
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 6
Mounting Means:
Mounts on subbase.
Subbase Mounts On:
Wall: Using two 5/8 in. long #6-32 screws (included).
Outlet Box: Using sheet metal screws.
Throttling Range for Modulating Outputs:
Automatically adjusts based on heat/cool stages. Manually
adjustable with PDA.
Clock Accuracy (at 77°F [25°C]): ±1 min./month (30 days).
Minimum Stage Operation Time (fixed):
Minimum On
Heat: 1 minutes.
Cool: 3 minutes.
Minimum Off (Cool and Heat Pump): 1 minute.
Electrical Ratings:
Power: 24 Vac, 50/60 Hz.; 20 to 30 Vac, 50/60 Hz.
Input:
Temperature: 20K ohms.
Humidity: 0-10 Vdc.
Outdoor: 3000 PTC.
Discharge Air: 20K ohms.
Occupancy Sensor: Dry contact switching 30 Vdc at 1 mA.
All Relay Outputs (at 30 Vac):
Running: 1.5A maximum.
Inrush: 7.5A maximum.
Modulating Output: 4 to 20 mA with 510 ohm maximum
terminating resistance.
System Current Draw (without load):
5 VA maximum at 30 Vac, 50/60 Hz.
NOTE: Relays are N.O. Single-Pole, Single-Throw (SPST).
Outdoor Sensor Wiring: Requires 18 gauge wire.
Humidity Ratings: 5% to 90% RH, noncondensing.
Emergency Heat Indication:
Display indicates when Emergency Heat is activated (Em).
Temperature:
Ratings:
Operating Ambient: 30°F to 110°F (-1°C to 43°C).
Shipping: -30°F to +150°F (-34°C to +66°C).
Display Accuracy: ±1°F (±1°C).
Setpoint:
Range:
Heating: 40°F to 90°F (4°C to 32°C).
Cooling: 45°F to 99°F (7°C to 37°C).
Deadband: 2°F (1°C).
Default Settings: See Table 5.
Loss of Power: The thermostat maintains programmed times
and temperatures for the life of the product. Clock and day
information is retained for a minimum of 48 hours.
NOTE: To achieve the 48-hour power-loss clock retention,
the T7350 must be powered for at least 5 minutes.
Communicating Model T7350H:
Connection Terminals for the LONWORKS® Bus.
Network jack for quick access by personal computer based
tools.
Communications service-pin pushbutton to simplify startup.
LONMARK® Functional Profile: 8500_20 Space Comfort
Controller.
LONMARK® SCC Object Type: 8504 Rooftop See Fig. 3.
LONMARK® Program Identifier: 80:00:0C:55:04:03:04:2E.
LONMARK® Application Interoperability: version 3.3
Honeywell LONMARK® Plug-In file downloads:
http://plugin.ge51.honeywell.de/index.htm#
PDA System Requirements:
Palm OS: 3.5.x to 5.2.1
Dynamic Heap: 256K bytes.
Free RAM Space: 1000K bytes.
Serial Communications: RS232.
Approvals:
European Community Mark (CE) Listed.
UL 873 Recognized, NEC Class 2.
FCC Part 15 subpart J Class A.
cUL.
Table 5. Default Setpoints.
Accessories:
Duct Discharge Air Sensors: C7041B (6 or 12 in.),
C7041C (18 in.), C7041J (12 ft averaging),
C7770A (8 in. probe).
Outdoor Air Sensors: C7089A, C7170A,
C7031G2014 (weatherproof).
Temperature Sensors (Remote): C7772A, T7770A1006,
T7770B1046, T7770C1044, T7770D1000, T7771.
Economizer Logic Modules: W6210, W6215, W7210, W7212,
W7215, W7459.
Humidity Sensors: H7625A,B; H7635A,B,C, H7655B.
PDA Units: Palm™ V, M125, and i705 handhelds;
TRGPro™ handheld; ZIRE™ 71 handheld;
TUNGSTEN™ T handheld.
Others:
209541B FTT network termination module.
209651A Vertical Mounting Hardware Wallplate Adapter
(Trident white).
50000083-001 Thermostat Interface Module (TIM).
50000452-001 Troubleshooting Cable.
AK3797 Single pair network cable plenum rated,
U.L. Type CMP.
AK3798 Single pair network cable, U.L. Type CMR.
AK3799 Double pair network cable plenum rated,
U.L. Type CMP.
Q7740A FTT network 2-way repeater.
Q7740B FTT network 4-way repeater.
TG511, TG512 Universal Versaguard™ Thermostat
guards.
Control Occupied
Not
Occupied Standby
Heating 70°F (21°C) 55°F (13°C) 67°F (19°C)
Cooling 75°F (24°C) 85°F (29°C) 78°F (26°C)
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
7 63-4368

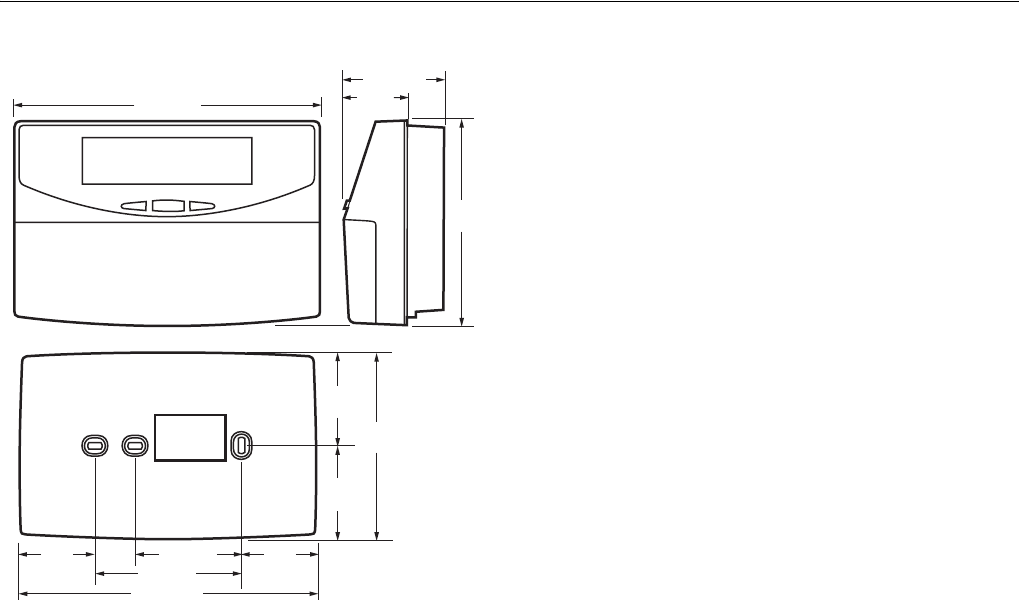

Fig. 2. Dimensions of thermostat and subbase in in. (mm).
Communications
The T7350H provides networking capability in a LONWORKS®
system using a Free Topology Transceiver (FTT) transformer-
coupled communications port running at 78 kilobits per
second (kbs). The transformer-coupled communications
interface offers a much higher degree of common-mode noise
rejection while ensuring dc isolation. LONWORKS® FTT
networks are very flexible and convenient to install and
maintain, but it is imperative that the network layout be
carefully planned and accurate documentation created and
maintained. This aids in compliance verification and future
expansion of the network. It also minimizes unknown or
inaccurate wire run lengths, node-to-node (device-to-device)
distances, node counts, total wire length, inaccurate repeater/
router locations, and misplaced or missing terminations.
LONWORKS® networks can be configured in a variety of ways;
refer to the E-Bus FTT Network Wiring Guidelines, form 74-
2865, for a complete description of network topology rules and
maximum network wire length. If longer runs are required, add
a Q7740A 2-way or Q7740B 4-way repeater to extend the
LONWORKS® Bus length. Q7751A routers are not supported
on LCBS LONSPEC™ configured systems. Approved cable
types for LONWORKS® Bus communications wiring are Level
IV, 22 AWG (0.34 sq mm) plenum or non-plenum rated
unshielded, twisted pair, solid or stranded conductor wire.
Refer to Table 2 for a list of Honeywell network cable part
numbers. Other Echelon® approved cable may also be used.
Run communications wiring in a conduit, if needed, with non-
switched 24 Vac or sensor wiring. The Free Topology
Transceiver (FTT) communications LONWORKS® Bus supports
a polarity insensitive, free topology wiring scheme that, in turn,
supports star, loop, and/or bus wiring.
6-3/4 (171)
2-3/16 (56)
1-9/16
(40)
4-1/2
(114)
2-1/32
(52)
2-1/32
(52)
4-1/16
(104)
1-5/8
(42)
2-3/8 (60)
3-1/4 (83)
6-9/16 (166) M22432
1-5/8
(42)
SUBBASE
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 8
LONMARK® Functional Profile
Fig. 3. T7350H LONMARK® Space Comfort Controller Rooftop Object (8504) with Node Object.
nv28
nv26 nvoSpaceTemp
SNVT_ temp_p
nv27 nvoUnitStatus
SNVT_hvac_status
nvoEffectSetpt
SNVT_temp_p
Hardware OutputHardware Output
Hardware Input
Hardware Input
SCC-Rooftop
Object Number 8504.
Mandatory
Network
Variables
Manufacturer
Defined
Section
Optional
Network
Variables
Configuration Properties
nv45 nvoOutdoorTemp
SNVT_temp_p
nv29 nvoEffectOccup
SNVT_occupancy
nv30 nvoHeatCool
SNVT_hvac_mode
nv34 nvoDischAirTemp
SNVT_temp_p
nv37 nvoTerminalLoad
SNVT_lev_percent
nv43 nvoSpaceRH
SNVT_lev_percent
nv7 nviOccSensor
SNVT_occupancy
nv2 nviSetpoint
SNVT_ temp_p
nv6 nviOccManCmd
SNVT_occupancy
nv5 nviOccSchedule
SNVT_tod_event
nviSpaceTemp
SNVT_temp_p
nv1
nv8 nviApplicMode
SNVT_hvacMode
nv19 nviOutdoorTemp
SNVT_Temp_p
nv20 nviSpaceRH
SNVT_lev_percent
nv43 nvoBypass
SNVT_switch
nv44 nvoOccSchedule
SNVT_tod_event
nv45 nvoOccSensor
SNVT_occupancy
nv46 nvoData1
UNVT_data1
nv47 nvoData2
UNVT_data2
nv30 nviBypass
SNVT_switch
nv31 nviFanAuto
SNVT_switch
nv32 nviManValue
UNVT_manValue
nv34 nviDlcShed
UNVT_dlcShed
M22431
SNVT_time_sec
SNVT_time_sec
SNVT_temp_setpt
SNVT_time_min
UCPTconfig
UCPTconfigPts
UCPTdaylightSav
UCPTschedule0
UCPTschedule1
UCPTschedule2
UCPTschedule3
UCPTschedule4
UCPTschedule5
UCPTschedule6
UCPTschedule7
UCPTholSched
(mandatory)
(optional)
(mandatory)
(optional)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
(manf specific)
nc1 - nciSndHrtBt
nc4 - nciRevHrtBt
nc2 - nciSetpoints
nc6 - nciBypassTime
nciConfig
nciConfigPts
nciDayLghtSav
nciDaySchedule0
nciDaySchedule1
nciDaySchedule2
nciDaySchedule3
nciDaySchedule4
nciDaySchedule5
nciDaySchedule6
nciDaySchedule7
nciHolSched
nv6
nv2 nvoStatus
SNVT_ obj_status
nvoFileStat
SNVT_file_status
Node
Object
Mandatory
Network
Variables
Manufacturer
Defined
Section
Optional
Network
Variables
Configuration Properties
nv3 nviTimeSet
SNVT_ time_stamp
nv7 nviFilePos
SNVT_file_pos
nv5 nviFileReq
SNVT_file_req
nviRequest
SNVT_obj_request
nv1
nv11 nroT7350Ver
UNVT_version
nv12 nroPgmVer
UNVT_pgmId
nv13 nvoPgm
UNVT_pgmOut
nv14 nvoTime
SNVT_time_stamp
nv15 nvoAlarmH
UNVT_alarm
nv16 nvoAlarmStatus
UNVT_alarmStatus
nv17 nvoAlarmLog
UNVT_alarmLog
nv18 nvoError
UNVT_error
nv9 nviInUse
UNVT_inUse
nv10 nviPgm
UNVT_pgmIn
UCPTdevName
UCPTapplVer
(manf specific)
(manf specific)
nc1 - nciDeviceName
nc2 - nciApplVer
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
9 63-4368
NETWORK CONFIGURATIONS
The T7350H can be configured to perform a variety of
activities in which data is sent to and/or received from other
nodes on the LONWORKS® network. Information that can be
shared with other network devices includes:
— Current year, month, day, hour, minute, second.
— System mode (HEAT, COOL, AUTO, OFF, EM HEAT).
— Current fan setting (ON, AUTO).
— Space temperature.
— Space relative humidity.
— Discharge air temperature.
— Outdoor air temperature.
— Occupancy sensor status.
— Terminal load.
— Current setpoint.
— Occupied/Unoccupied schedule commands.
— Current occupancy status.
— Occupancy schedule including current occupancy state,
next state and time in minutes until next scheduled
change of occupancy state.
— Relay status (heat/cool stages and fan).
— Alarm status.
— Alarm log including the last five alarms.
— Device Error status.
— Bypass state (multiple XL10 devices follow the bypass
operation of a master device).
A network configuration tool is used to configure the T7350H
Thermostats and other nodes with which the T7350H
interacts. The following is a brief description of the
configurable features that can be commanded over the
network:
•Time Master:
When a T7350H is designated as the network time master,
the current time of day and date is synchronized across the
network every minute. The LONSPEC™ T7350H General
Screen can be used to configure a T7350H as the Network
Time Master. Whenever the time of day or date of the time
master is changed, it automatically adjusts all the other
network devices (T7350H, Q7300 & XL15A) bound to the
time master. When a T7350H is controlled by a time
master, the local day light saving schedule is disabled. The
Day Light Saving option on all time master recipients
should be disabled. This prevents erroneous time changes
(local daylight savings switchover) during temporary
network outages.
• Time Schedule:
The occupancy schedule used by a T7350H may reside
locally in that device or remotely in another schedule
device (T7350H, XL15a, XL15b or T7300/Q7300). Local
schedules can be created and modified using the T7350H
keypad, a direct connected PDA, a network connected
configuration tool (LONSPEC™) or Command Display.
External schedules can also be modified using the keypad
of the master schedule device, or with a network
connected configuration tool or Workstation. When a
T7350H receives scheduling information over the network,
the user is not prevented from making local schedule
changes at the recipient thermostat. Local schedule
changes (at a recipient device) have no effect on the
scheduling commands received from the master device.
When a T7350H is designated as a master schedule
device, it sends its schedule information (current state,
next state, time until next change of state) to the
appropriate T7350H(s) which, in turn, overrides any
existing internal time schedule. The T7350H Thermostat
can provide master scheduling information to multiple
Excel 10 devices. One T7350H shares the schedule
information (current state, next state, time until next
change of state) with the designated Excel 10 devices.
• System Mode Settings:
System mode settings (HEAT, COOL, AUTO, OFF, EM
HEAT) can be commanded by a remote T7350H or other
compatible XL10 device. A one to many network binding
can be used to command multiple devices from a single
unit. In addition, a network connected Workstation can be
used to change the System Mode.
• Fan Settings:
Fan settings (ON, AUTO) can be changed from a network
connected Workstation.
• Outdoor Air Temperature Sharing:
If a valid outdoor air temperature value is received at the
T7350H OAT network variable input, that value will be used
in the T7350H. The local OAT sensor of the T7350H is
ignored until the network sensor fails.
• Discharge Air Temperature Sharing:
The discharge air temperature value can be shared with
other devices on the network. Note that the T7350H does
not accept a network discharge air temperature input.
• Space Temperature Sharing:
If a valid space temperature value is received at the
T7350H Space Temperature network variable input, that
Source Destination
T7350H.nvoTime
or
XL15a.nvoTimeOut
Q7300.nvoTime
T7350H.nviTimeSet
or
XL15a.nviTimeIn
Q7300.nviTime
Source Destination
T7350H.nvoOccSchedule
or
XL15a.nvoTodEventCmd[i]
Q7300.nvoOccSchedulei
T7350H.nviOccSchedule
or
XL10.nviTodEvent
XL15c.nviTodEventIn[i]
Command Source Command Destination
T7350H.nvoHeatCool
or Workstation
T7350H.nviApplicMode
Source Destination
Workstation
or Network Tool
T7350H.nviFanAuto
Source Destination
T7350H.nviOutdoorTemp
or
XL10.nvoOdTemp
XL15c.nvoOdTemp
T7350H.nvoOutdoorTemp
or
XL10.nviOdTemp
XL15c.nviOdTemp
Source Destination
T7350H.nvoDischAirTemp XL15c.nviDATemp
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 10
value will be used in the T7350H as the primary controlled
variable. The local space temperature sensor of the
T7350H is ignored until the network sensor fails.
• Space Humidity Sharing:
If a valid humidity value is received at the T7350H Space
Humidity network variable input, that value will be used in
the T7350H as the humidity control variable. The local
space humidity sensor of the T7350H is ignored until the
network sensor fails.
• Current Setpoint Sharing:
If a valid setpoint value is received at T7350H nviSetpoint,
that value will be used by the T7350H as the center
setpoint. The heat and cool setpoints are then calculated
from this value and are used in the T7350H as the
occupied setpoints. During unoccupied periods,
nviSetpoint is ignored.
• Occupancy Sensor Sharing:
If a valid value is received at the T7350H occupancy
sensor network variable input, that value will be used in the
T7350H as the occupancy sensor. The local T7350H
occupancy sensor is ignored until the network sensor fails.
NOTE: The occupancy or motion sensor is active whenever
the device is scheduled “Occupied” and a remote or
network occupancy sensor is configured.
The T7350H effective occupancy is determined in Table 6.
Table 6. T7350H Effective Occupancy.
• Occupancy Bypass:
Any internal or external scheduled unoccupied state in the
T7350H is overridden by a network occupancy bypass
command. Bypass is a method to command unoccupied
override over the network from another controller (typically
a T7350H or XL10). The source controller manages the
bypass timing.
• Manual occupancy:
Provides a method to command the occupancy state from
a network workstation. Effective occupancy override works
on a “last in wins” basis. That is, the last occupancy
override command received from any source determines
the override state. The workstation can command
occupied, unoccupied, standby, bypass, or not active (null).
There are several ways to return the device to normal
schedule operation.
1. Power failure reset at the T7350H.
2. Workstation issues a “not active” (null) network com-
mand to T7350H.nviOccManCmd.
3. User activates “Temporary Occupied” button on the
local keyboard. This can be followed by a “Run Sched-
ule” local command.
4. If manual occupancy is commanded to bypass and the
bypass timer times out.
APPLICATION STEPS
Overview
The application steps shown in Table 7 are guidelines for
configuring the T7350H in a LONWORKS® Bus network and
explain the network role of the T7350H.
Table 7. Application Steps.
Source Destination
T7350H.nvoSpaceTemp
or XL10.nvoSpaceTemp
T7350H.nviSpaceTemp
Source Destination
T7350H.nvoSpaceRH T7350H.nviSpaceRH
or XL15c.nviRARH
Source Destination
T7350H.nvoEffectSetpt
or XL10.nvoEffectSetpt
T7350H.nviSetpoint
Source Destination
T7350H.nvoOccSensor
or XL10.nvoSensorOcc
NetworkSensor
T7350H.nviOccSensor
Schedule
Occupancy
Occupancy/Motion
Sensor Contact
Effective
Occupancy
Occupied Open Standby
Occupied Closed Occupied
Standby NA Standby
Unoccupied NA Unoccupied
Source Destination
T7350H.nvoBypass
or
XL10.nvoBypass
XL15a.nvoBypass[i]
XL15c.nvoBypass[i]
T7350H.nviBypass
Source Destination
Workstation
Command Display
XL15b
T7350H.nviOccManCmd
Step Description
1 Plan the system.
2 Determine required network devices.
3 Lay out communications and power wiring.
4 Prepare wiring diagrams.
5 Order equipment.
6 Configure T7350.
7 Troubleshooting.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
11 63-4368
Refer to the Light Commercial Building Solution System
Communication Guide form 71-3123 and the E-Bus Wiring
Guidelines, form 74-2865 for a complete description of
network topology rules. Prepare Wiring Diagrams, for wiring
details. Plan to configure each controller. Refer to the Excel
LONSPEC™ User Guide, form 74-2937, to configure the
T7350H, XL15 and XL10 Controllers.
Step 1. Plan the System
Plan the use of the T7350H Thermostat according to the job
requirements. Determine the location and functionality of each
device. Verify the sales estimate for the number of other
controllers and devices required. Check the number and type
of other required accessories. When planning the system
layout, consider potential expansion possibilities for future
growth. Planning is very important if HVAC systems and
controllers are to be added in future projects.
Fig. 4. Connecting personal computer to LonWorks® bus.
Step 2. Determine Required Network Devices
A maximum of 60 nodes can communicate on a single
LONWORKS® Bus segment. Each LONWORKS® Bus device
comprises one node. If more than 60 nodes are needed, a
Q7751A Router or Q7740 Repeater is necessary. A router or
repeater allows up to 120 controller nodes per network,
divided between two LONWORKS® Bus segments. Please note
that routers are not supported by the LCBS LONSPEC™
system configuration tool. Refer to the Light Commercial
Building Solution System Communication Guide form 71-3123
for LCBS details. Refer to the E-Bus Wiring Guidelines, form
74-2865, for a complete description of network topology rules
and maximum wire lengths. A 209541B Termination Module
may be required. Refer to the Excel 10 FTT Termination
Module Installation Instructions form, 95-7554.
Step 3. Layout Communications and Power
Wiring:
LONWORKS® Bus Layout
The communications LONWORKS® Bus, is a 78-kilobit network
that uses transformer isolation and differential Manchester
encoding. The Free Topology Transceiver (FTT) LONWORKS®
communications Bus supports a polarity insensitive, free
topology wiring scheme, refer to the E-Bus Wiring Guidelines
form, 74-2865, for a complete description of LONWORKS®
network topology rules. Fig. 5 shows T7350H devices
connected in a typical free topology LONWORKS® network.
Fig. 5. Typical topology for T7350 devices in LONWORKS® network.
M22492
NOTEBOOK PC
RS-232
SERIAL
PORT
Q7760
SLTA
CABLE
PART
NO. 205979
SHIELDED
INTERFACE
CABLE T7350H
LonWorks
BUS PORT
NOTEBOOK PC
RS-232
SLTA
SLTA
SLTA
RS-232
RS-232
T7350H
MODEM
MODEM
MODEM
M22493
LonWorks BUS
LonWorks BUS
LonWorks BUS
T7770
WITH NO
LonWorks
BUS ACCESS
T7770
JACK FOR OPERATOR TERMINAL
LonWorks BUS
I/O CONNECTIONS
T7350H T7350H T7350H
T7350H T7350H T7350H T7350H
T7350H
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 12
Cable Termination
The FTT network segment requires termination for proper
data transmission performance. Use a 209541B Termination
Module to connect two of the three termination module wires
to the LONWORKS® Bus terminals. Refer to LONWORKS® Bus
Wiring Guidelines form 74-2865 for details.
Singly Terminated Network Segment
In a singly terminated topology segment, only one termination
is required and can be placed anywhere on the segment.
Singly terminated segments use the yellow and brown wires.
If the network topology requires a singly terminated
termination module at a T7350H, connect the singly
terminated module wiring on the appropriate terminals as
shown in Fig. 6.

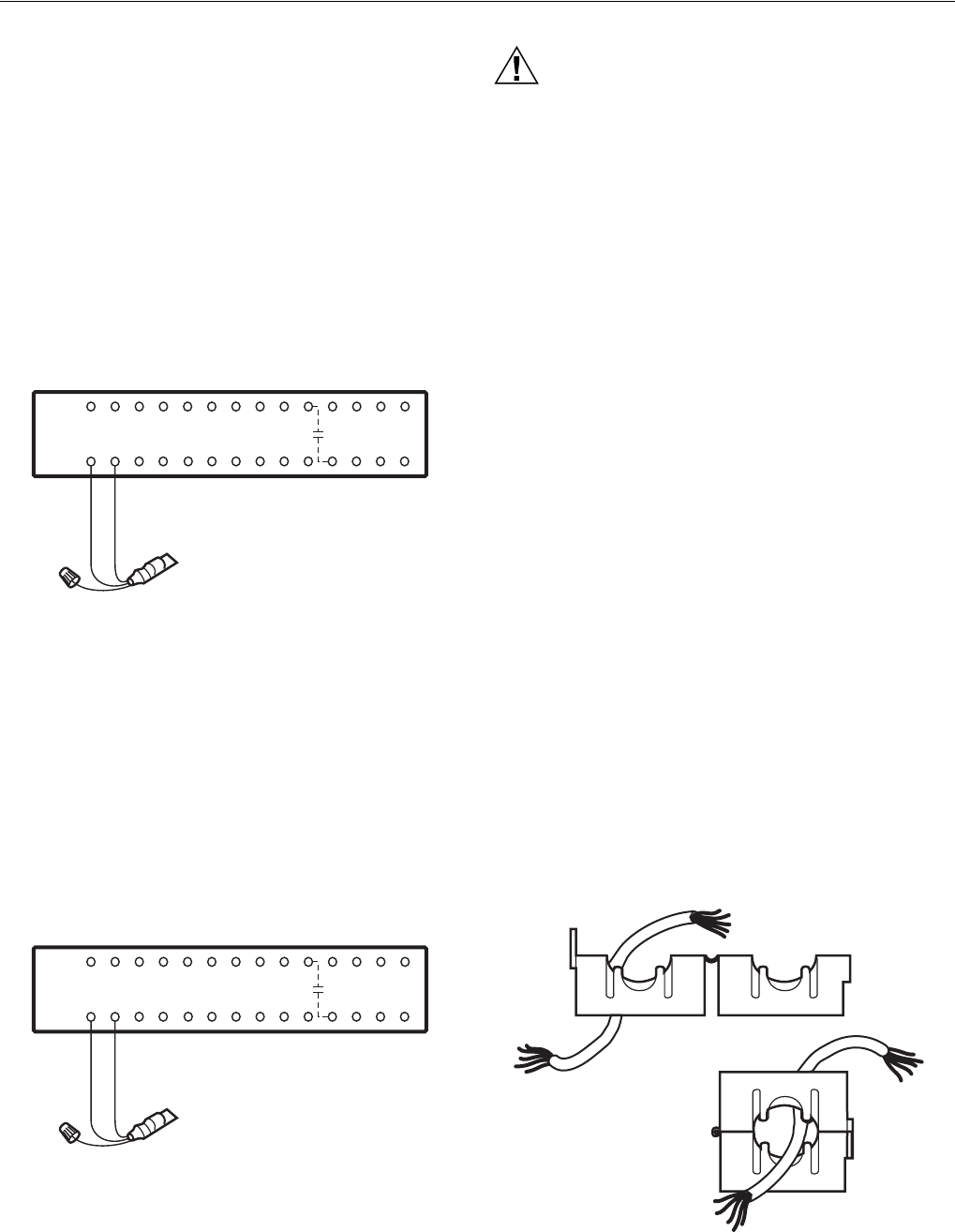

Fig. 6. Singly terminated LonWorks® bus termination
module.
Doubly Terminated Daisy-Chain Network Segment
In a doubly terminated daisy-chained topology segment, two
terminations are required, one at each end of the topology
segment. Doubly terminated segments use the orange and
brown wires. If the network topology requires a doubly
terminated module at a T7350H (T7350H is the first or last
device on the network cable) connect the termination module
wiring on the appropriate terminals as shown in Fig. 7. For
additional wiring information, refer to the E-Bus Wiring
Guidelines, form 74-2865, and the Excel 10 FTT Termination
Module Installation Instructions, form 95-7554.
Fig. 7. Doubly terminated LONWORKS® bus termination
modules.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect power supply before installation.
IMPORTANT
All wiring must agree with applicable codes, ordi-
nances and regulations.
1. Loosen subbase terminal screws and connect system
wires.
NOTE: Maximum (and recommended) wire size is 18-
gauge. Do not use wire smaller than 22-gauge. Fol-
low equipment manufacturer wiring instructions
when available. Refer to the Wiring Diagram section
for typical hookups. A letter code is located near
each terminal for identification. Refer to the Specifi-
cations section, Tables 8 and 9 for terminal designa-
tions.
2. Securely tighten each terminal screw.
3. Push excess wire back into the hole in the wall.
4. Plug the hole with nonflammable insulation to prevent
drafts from affecting the thermostat.
Wiring Details
LONWORKS® network cable should be wired separately from
the power and I/O wires when installing T7350H models. If
this is not possible, use a minimum of 4 in. (102 mm)
separation between split ferrite cores (Fair-Rite 0443164151,
www.fair-rite.com) to ensure compliance with Class B limits
(does not apply to Class A limits). See Fig. 8 to apply ferrite
cores to LONWORKS® Bus input and output.
Step 4. Prepare Wiring Diagrams
Fig. 9 through 12 show T7350 terminal arrangements and
provide detailed wiring diagrams. Reference these diagrams
to prepare the site-specific job drawings.
Fig. 8. Ferrite core wires from T7350H to LONWORKS®
inputs and outputs.
ORANGE
BROWN YELLOW
PART NO. 209541B
TERMINATION MODULE
M22494
RC
AUX
X
SUBBASE
W1 GY1
W3/Y4 Y3 W2 Y2
AUXRH
T5 T6 T7 T4 T3
M
OSOS ASAS
MHC HPHSEB
EB
YELLOW
BROWN ORANGE
PART NO. 209541B
TERMINATION MODULE
M22495
RC
AUX
X
SUBBASE
W1 GY1
W3/Y4 Y3 W2 Y2
AUXRH
T5 T6 T7 T4 T3
M
OSOS ASAS
MHC HPHSEB
EB
M22496
WIRES TO T7300H
COMMUNICATING SUBBASE
WIRES TO T7300H
COMMUNICATING SUBBASE
WIRES TO ALL
INPUTS AND
OUTPUTS
WIRES TO ALL
INPUTS AND
OUTPUTS
1.
2.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
13 63-4368

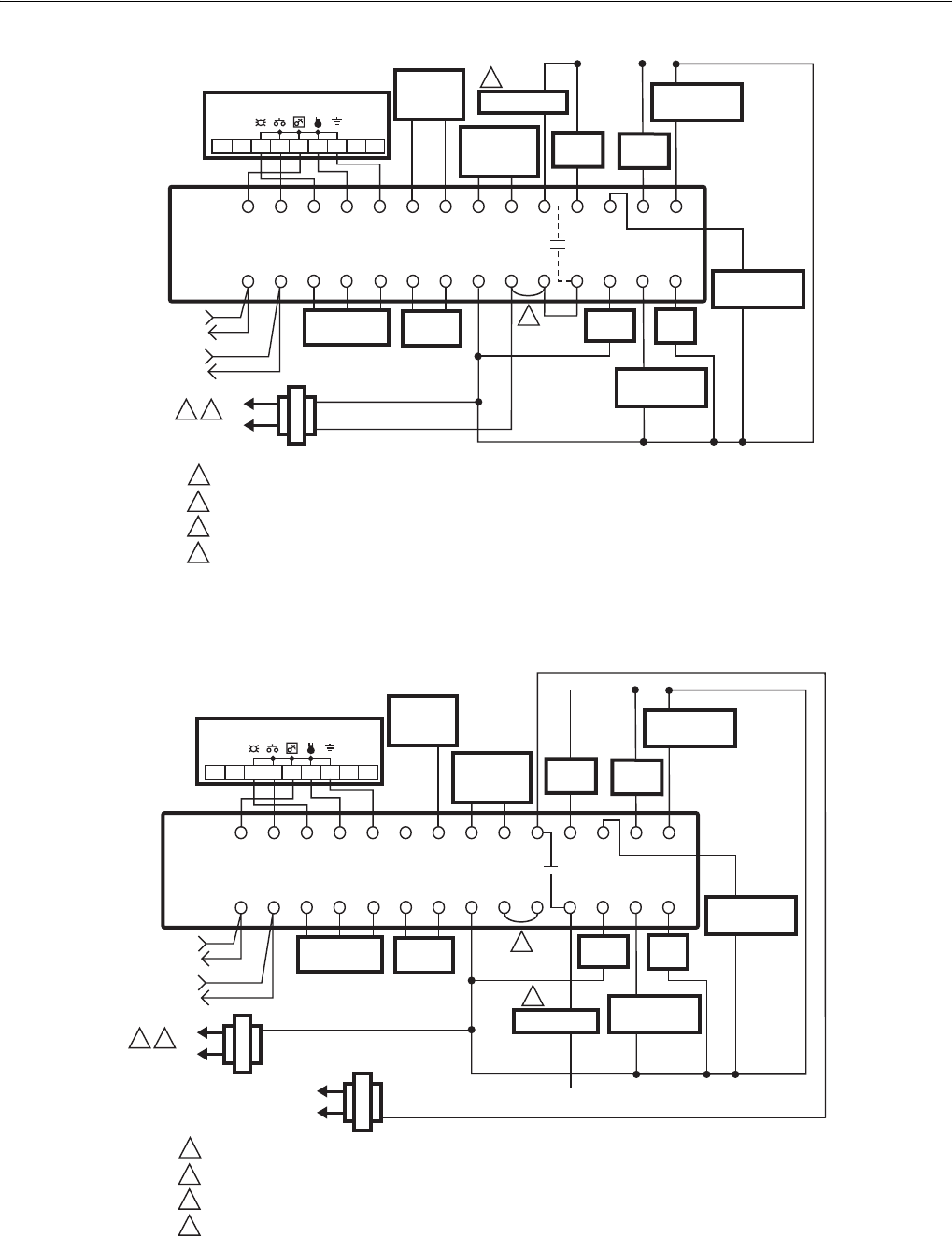

Fig. 9. Typical hookup of T7350H1009 in three-stage heat and three-stage cool conventional system with one
transformer.
Fig. 10. Typical hookup of T7350H1009 with auxiliary transformer.
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
ENSURE TRANSFORMER IS SIZED TO HANDLE THE LOAD.
HEAT/COOL SYSTEMS WITH ONE TRANSFORMER REQUIRE THE FACTORY-INSTALLED JUMPER.
USE ECONOMIZER INSTRUCTIONS FOR INSTALLATION DIRECTIONS.
1
M22499
2
3
2
3
4
RC
AUX
X
SUBBASE
W1 G
T7770 REMOTE SENSOR
Y1
W3/Y4 Y3 W2 Y2
AUXRH
T5 T6 T7 T4 T3
DISCHARGE
AIR
SENSOR
OUTDOOR
AIR
SENSOR
MOTION
SENSOR
HUMIDITY
SENSOR
M
OSOS ASAS
MHC HPHSEB
EB
1
4
L2
LONWORKS®
BUS
COMPRESSOR
CONTACTOR 1
COMPRESSOR
CONTACTOR 2
HEAT
RELAY 1
123456789
FAN
RELAY
ECONOMIZER
HEAT
RELAY 2
COMPRESSOR
CONTACTOR 3
HEAT
RELAY 3
LONWORKS®
BUS
L1
(HOT)
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
ENSURE TRANSFORMER IS SIZED TO HANDLE THE LOAD.
HEAT/COOL SYSTEMS WITH ONE TRANSFORMER REQUIRE THE FACTORY-INSTALLED JUMPER.
USE ECONOMIZER INSTRUCTIONS FOR INSTALLATION DIRECTIONS.
1
M22497
2
3
2
3
4
RC
AUX
X
SUBBASE
W1 G
T7770 REMOTE SENSOR
Y1
W3/Y4 Y3 W2 Y2
AUXRH
T5 T6 T7 T4 T3
DISCHARGE
AIR
SENSOR
OUTDOOR
AIR
SENSOR
MOTION
SENSOR
HUMIDITY
SENSOR
M
OSOS ASAS
MHC HPHSEB
EB
1
4
L1
(HOT)
L2
LONWORKS®
BUS
COMPRESSOR
CONTACTOR 1
COMPRESSOR
CONTACTOR 2
HEAT
RELAY 1
123456789
FAN
RELAY
HEAT
RELAY 2
COMPRESSOR
CONTACTOR 3
HEAT
RELAY 3
LONWORKS®
BUS
L2
ECONOMIZER
AUXILIARY
TRANSFORMER
L1
(HOT)
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 14
Fig. 11. Typical hookup of T7350H1017 for system with two independent heat stages (one modulating), two independent
cool stages (one modulating), and two transformers.
Fig. 12. Typical hookup of T7350H1017 for system with two independent heat stages (one modulating), two independent
cool stages (one modulating), and three transformers.
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
WHEN INSTALLED ON A SYSTEM WITH TWO TRANSFORMERS, REMOVE THE FACTORY-INSTALLED JUMPER.
USE ECONOMIZER INSTRUCTIONS FOR INSTALLATION DIRECTIONS.
1
M22498
2
2
3
RCX
SUBBASE
W1 G
AUX
T7770 REMOTE SENSOR
Y1
AH AC
AUXRH
T5 T6 T7 T4 T3
DISCHARGE
AIR
SENSOR
OUTDOOR
AIR
SENSOR
MOTION
SENSOR
HUMIDITY
SENSOR
M
OSOS AS AXAS
MHC HPHSEB
EB
1
3
HEATING
TRANSFORMER COOLING
TRANSFORMER
L2
1
L2
COMPRESSOR
CONTACTOR 1
HEAT
RELAY 1
123456789
FAN
RELAY
ECONOMIZER
MODULATING
HEAT
(4-20 mA)
–
+
MODULATING
COOL
(4-20 mA)
–
+
R
X
R
X
LONWORKS®
BUS
LONWORKS®
BUS
L1
(HOT) L1
(HOT)
M22491
2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
WHEN INSTALLED ON A SYSTEM WITH TWO TRANSFORMERS, REMOVE THE FACTORY-INSTALLED JUMPER.
USE ECONOMIZER INSTRUCTIONS FOR INSTALLATION DIRECTIONS.
1
2
3
RCX
SUBBASE
W1 G
T7770 REMOTE SENSOR
Y1
MH MC
AUXRH
T5 T6 T7 T4 T3
DISCHARGE
AIR
SENSOR
OUTDOOR
AIR
SENSOR
MOTION
SENSOR
HUMIDITY
SENSOR
M
OSOS AS MXAS
MHC HP
HS
1
3
L1
(HOT)
HEATING
TRANSFORMER
L2
COOLING
TRANSFORMER
1
L2
COMPRESSOR
CONTACTOR 1
HEAT
RELAY 1
123456789
FAN
RELAY
ECONOMIZER
MODULATING
HEAT
(4-20 mA)
–
+
MODULATING
COOL
(4-20 mA)
–
+
R
X
R
X
L2 AUXILIARY
TRANSFORMER
AUX
LONWORKS®
BUS
LONWORKS®
BUS
L1
(HOT)
L1
(HOT)
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
15 63-4368
General Considerations
Table 8 lists wiring types, sizes and distances for the T7350
and Excel 10 products. The T7350 terminal strip accepts 18
through 22 AWG (0.82 to 0.34 sq. mm) wire.
Table 8. Field Wiring Reference.
NOTE: 1. The X, RH and RC terminals will accept 14 to 22 AWG. 14 and 16 AWG should be avoided since the stiff cable
interferes with the cover to subbase installation.
Wire Function
Recommended Wire
Size (Minimum)
Specification or
Requirement
Honeywell Part
Number Distance (Maximum)
Digital Outputs:
W Y G AUX X
18 AWG (0.82 sq mm)
five wire cable bundle.
Standard thermostat
wire.
AK3726 1000 feet.
Modulating Outputs:
MX MH MC
18 AWG (0.82 sq mm) 1 pair per output. AK3757C, AK3744C,
AK3741A, AK3702x
1000 feet.
Remote Humidity
Sensor:
HS HC HP
18 to 22 AWG
(0.82 to 0.34 sq mm)
3 wires. AK3746C, AK3724,
AK3703x
500 feet.
Discharge Air
Temperature Sensor:
AS
18 to 22 AWG
(0.82 to 0.34 sq mm)
1 pair. AK4606ABE,
AK4628AWH,
AK3702x, AK3741A,
AK3744C, AK3757C
1000 feet.
Outdoor Air
Temperature Sensor:
OS
18 AWG (0.82 sq mm) 1 pair. AK3757C, AK3744C,
AK3741A, AK3702x
500 feet.
Motion Sensor:
M
18 to 22 AWG
(0.82 to 0.34 sq mm)
1 pair. AK4606ABE,
AK4628AWH,
AK3702x, AK3741A,
AK3744C, AK3757C
1000 feet.
Wall Module
connections:
T3-T7
18 to 22 AWG
(0.82 to 0.34 sq mm)
Twisted pair wire is
recommended for wire
runs longer than 100
ft. The number of pairs
depends on the model
and functions
selected.
AK4606ABE,
AK4628AWH,
AK3702x, AK3741A,
AK3744C, AK3757C,
AK3726
1000 feet.
Power Wiring to:
X RH RC
18 to 141 AWG
(0.82 to 2.0 sq mm)
use heavier wire for
longer runs.
NEC Class II,
140°F (60°C) rating.
AK3702x, AK3741A,
AK3744C, AK3757C,
AK3712x, AK3754
Limited by line-loss
effects on power
consumption.
LONWORKS® Bus
(Non-Plenum).
22 AWG
(0.34 sq mm)
Nema Level IV
U.L. Type CMR
Twisted pair stranded
conductor,
nonshielded.
AK3798 (1 pair) Refer to E-bus Wiring
Guidelines Users
Guide 74-2865 for
maximum length and
generic cable
specifications.
LONWORKS® Bus
(Plenum Rated).
22 AWG
(0.34 sq mm)
Nema Level IV
U.L. Type CMP
Twisted pair stranded
conductor,
nonshielded.
AK3797 (1 pair)
AK3799 (2 pair)
—
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 16
Table 9. Honeywell Cable Details.
Honeywell Part
Number Size (AWG) Number of wires Jacket Plenum Rated Description
AK3798 22 2 Yes No E-bus cable.
AK3797 22 2 Yes Yes E-bus cable.
AK3799 22 4 Yes Yes E-bus cable.
AK4606ABE 22 2 Yes No Beige jacket.
AK4628AWH 22 2 Yes Yes White jacket.
AK3702x 18 2 No No —
AK3741A 18 2 Yes No —
AK3744C 18 2 Yes Yes Red jacket.
AK3757C 18 2 Yes Yes White jacket.
AK3703x 18 3 No No —
AK3724 18 3 Yes No Tan jacket.
AK3746C 18 3 Yes Yes Tan jacket.
AK3726 18 5 Yes No Tan jacket.
AK3712x 16 2 No No TFN
AK3754 14 2 No No TFN
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
17 63-4368
Step 5. Order Equipment
After compiling a bill of materials through completion of the
previous application steps, refer to Table 10, Ordering
Information.
Table 10. Ordering Information.
Step 6. Configure T7350
Use Excel LONSPEC™ Software to configure the T7350H
Thermostat for specific applications. The Excel LONSPEC™
User’s Guide, form 74-2937, provides software operation
instructions for this personal computer based application.
Part Number Product Description Comments
T7350H1009 Communicating Thermostat with three heating and
three cooling digital outputs.
• Optional heat pump control.
• Isolated auxiliary digital output.
T7350H1017 Communicating Thermostat with two modulating
outputs, one heating and one cooling digital output.
• Isolated auxiliary digital output.
T7771A Remote Temperature Sensor. • Pushbutton setpoint adjustment with LED indicators.
• Occupied/unoccupied override (bypass) with LED.
•L
ONWORKS® Bus jack.
T7770A1006 Remote Wall Module. • Basic model with room temperature sensor.
T7770B1046 Remote Wall Module. • ± setpoint change.
T7770C1044 Remote Wall Module. • ± setpoint change.
• OCC button and LED.
T7770D1000 Remote Wall Module. • OCC button and LED.
AK3798 LONWORKS® Bus (Non-Plenum), 1 pair. —
AK3797 LONWORKS® Bus (Plenum rated), 1 pair. —
AK3799 LONWORKS® Bus (Plenum rated), 2 pair. —
209541B FTT Network Termination Module. —
H7625
H7635
Remote Humidity Sensors —
C7089A
C7170A,
C7031G2014
Outdoor Air Sensors. —
C7041B
C7041C
C7041J
C7770A
Duct Discharge Air Sensors:
6 inch probe.
18 inch probe.
150 inch averaging.
6 inch probe.
—
50000452-
001
Troubleshooting Cable. One Troubleshooting Cable required for each
installation technician.
50000083-
001
Thermostat Interface Module (TIM). One TIM required for each installation technician. Note
that a network tool such as LONSPEC™ eliminates the
need for a TIM.
PDA Qualified Palm OS PDA. One PDA required for each installation technician.
Refer to the PDA Configuration Software for an up-to-
date list of qualified PDA hardware. Note that a network
tool such as LONSPEC™ eliminates the need for a PDA.
50000314-
001
PDA Configuration Software. One Configuration software package can be used to
program multiple PDAs. Note that a network tool such
as LONSPEC™ eliminates the need for a PDA.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 18
Step 7. Troubleshooting
Table 11. Troubleshooting Information.
Symptom Possible Cause Action
Display will not
come on.
Thermostat is not being powered. Check that X terminal is connected to the system transformer.
Check for 24 Vac between X and RH terminals.
If missing 24 Vac:
•Check if circuit breaker is tripped; if so, reset circuit breaker.
•Check if system fuse is blown; if so, replace fuse.
•Check if the HVAC equipment power switch is in the Off position; if
so, set to the On position.
•Check wiring between thermostat and HVAC equipment. Replace
broken wires and tighten loose connections.
If 24 Vac is present, proceed with troubleshooting.
Temperature
display is
incorrect.
Room temperature display has been
recalibrated.
Use PDA or LONSPEC™ configuration software to recalibrate as
desired.
Thermostat is configured for °F or °C
display.
Press both Run Schedule and Copy, then reconfigure the display.
Bad thermostat location. Relocate the thermostat.
Display shows three dashes and a
degree sign (all systems shut down).
T7350 is set for remote sensing and sensor is missing or circuit is
either open or shorted.
Temperature
settings will not
change.
(Example: Cannot
set heating higher
or cooling lower.)
Upper or lower temperature limits
were reached.
Check the temperature setpoints:
•Heating limits are 40 to 90°F (7 to 31°C)
•Cooling limits are 45 to 99°F (9 to 37°C)
Occupied setpoint temperature
range stops were configured.
Using a PDA or LONSPEC™, check setpoint stops. If necessary,
reconfigure the stop(s).
Keypad is locked. When a locked
key is pressed, LOCKED appears
momentarily on the LCD.
•Use PDA or LONSPEC™ (Set, Display) to unlock keypad.
•Press both Run Schedule and Copy, then change keypad lock
level.
Room
temperature is out
of control.
Remote temperature sensing is not
working.
Check all remote sensors.
Heat will not come
on.
No power to the thermostat. Check that X terminal is connected to the system transformer.
Check for 24 Vac between X and RH terminals.
If missing 24 Vac:
•Check if circuit breaker is tripped; if so, reset circuit breaker.
•Check if system fuse is blown; if so, replace fuse.
•Check if the HVAC equipment power switch is in the Off position; if
so, set to the On position.
•Check wiring between thermostat and HVAC equipment. Replace
broken wires and tighten loose connections.
If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off time is
activated.
•Wait up to five minutes for the system to respond.
•Use PDA or LONSPEC™ to configure heating response.
System selection is set to Off or
Cool.
Set system selection to Heat or Auto.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
19 63-4368
Cooling will not
come on.
No power to the thermostat. Check that X terminal is connected to the system transformer.
Check for 24 Vac between X and RH terminals.
If missing 24 Vac:
•Check if circuit breaker is tripped; if so, reset circuit breaker.
•Check if system fuse is blown; if so, replace fuse.
•Check if the HVAC equipment power switch is in the Off position; if
so, set to the On position.
•Check wiring between thermostat and HVAC equipment. Replace
broken wires and tighten loose connections.
If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off time is
activated.
•Wait up to five minutes for the system to respond.
•Use PDA or LONSPEC™ to configure cooling response.
System selection is set to Off or
Heat.
Set system selection to Cool or Auto.
System indicator
(flame: heat,
snowflake: cool) is
displayed, but no
warm or cool air is
coming from the
registers.
The call for heat or cool is not yet
given.
Check if any stage indicators (dots next to the system indicator) are
displayed. With no display of stage indicators, no call for cool/heat is
yet given.
For the modulating T7350H1017 only: Check the information
screens. MODHEAT or MODCOOL percentages of zero and 100
indicate an extreme signal from the given terminal.
Conventional heating equipment
turns the fan on only after the
furnace has warmed to a setpoint.
Wait one minute after seeing the on indicator and then check the
registers.
Heating or cooling equipment is not
operating.
Verify operation of heating or cooling equipment in self-test.
Table 11. Troubleshooting Information. (Continued)
Symptom Possible Cause Action
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 20
APPENDIX A - NETWORK TOOLS & WORKSTATIONS
Table 12. T7350H Operational Support.
Network Tools & Workstations
Summary of
T7350H Operational Support
LONSPEC™
LONSTATION™
W7760B -
XL15B
Cmd Display -
S7760
CARE
LNS Plugin
DataMon
Device Configuration X X X
View & Modify Weekly Schedule X X X X X
View & Modify Holiday Schedule X X X X X
Data Monitoring XXXXXX
Command Outputs to Manual Value X X X X
Override System Delays X X X X
Room Temperature Calibration X X X
Command Occupancy Override XXXXXX
Command Fan Operation (On Auto) X X X X
Command System Mode (off, auto, heat, cool) X X X X
View & Modify Temperature Setpoints XXXXXX
Report T7350 alarm data XXXX
Network Time Scheduler for T7350 Devices X
Generate Trend & Log files with T7350 data X
User defined T7350 analog & digital alarms X
Update T7350 Time Clock XXXXXX
Set T7350 as network Time Master X
View T7350 Cover Firmware Version X X X
Update T7350 Cover Firmware X
View T7350H SubBase Firmware Version X X X
Update T7350H SubBase Firmware X
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
21 63-4368
APPENDIX B - NETWORK ALARM REPORTING
Table 13. T7350H Alarm Change of State Event.
A T7350H alarm change of state event is reported by the manufacturer defined output network variable nvoAlarmH.
nvoAlarmH Field Description
subnet The LONWORKS® subnet number in the domain entry to which nvoAlarmH is bound. If nvoAlarmH is not
bound, it reports domain index 0.
0: Invalid subnet (power up value)
1-255: Subnet number
node The LONWORKS® node number in the domain entry to which nvoAlarmH is bound. If nvoAlarmH is not
bound, it reports domain index 0.
0: Invalid entry (power up value)
1-127: Node number
type The alarm type being issued.
0: AT_NO_ALARM (power up value)
1: AT_INVALID_SUBBASE_TYPE
2: AT_NETWORK_COMM_FAIL
3: AT_SENSOR_FAIL
4: AT_INVALID_IO_CONFIG
5: AT_COVER_COMM_FAIL
6: AT_COVER_SUBBASE_MISMATCH
Return to Normal Codes
-127: AT_rtnINVALID_SUBBASE_TYPE
-126: AT_rtnNETWORK_COMM_FAIL
-125: AT_rtnSENSOR_FAIL
-124: AT_rtnINVALID_IO_CONFIG
-123: AT_rtnCOVER_COMM_FAIL
-122: AT_rtnCOVER_SUBBASE_MISMATCH
-1: AT_ALARM_NOTIFY_DISABLED
Table 14. T7350 Current Alarm Status.
The T7350 current alarm status is reported by the manufacturer defined output network variable nvoAlarmStatus.
nvoAlarmStatus
Field Description
coverCommFail Communications between the cover and sub-base.
0: No alarm (power up value).
1: The communications between the thermostat cover assembly and the sub-base has failed in one or
both directions. The data from the cover to the sub-base has not been received for at least 90
seconds, or data from the sub-base is not updating the cover assembly.
invalidIOConfig Output configuration error.
0: No alarm (power up value).
1: The number of outputs configured exceeds the capability of the sub-base to support them.
Considers sub-base type, heat pump/conventional application, maxCoolStgs, maxHeatStgs.
sensorFail Sensor failure.
0: No alarm (power up value).
1: One of the analog sensors on the cover assembly has failed or is out of range (high or low).
networkCommFail Network Communications Failure.
0: No alarm (power up value).
1: One of the bound network input network variables is not being updated periodically. This alarm may
be caused by a failed node or a damaged LONWORKS NETWORK cable.
invidSubBaseTyp Sub-base type error.
0: No alarm (power up value).
1: The detected sub-base type is not supported by the firmware version of the cover assembly.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 22
Table 15. Identifying Five Most Recent T7350 Alarms.
The five most recent T7350 alarms are identified in the manufacturer defined output network variable nvoAlarmLog.
nvoAlarmLog Field Description
alarm1 Alarm log: Most recent alarm.
Alarm Codes
0: AT_NO_ALARM (power up value)
1: AT_INVALID_SUBBASE_TYPE
2: AT_NETWORK_COMM_FAIL
3: AT_SENSOR_FAIL
4: AT_INVALID_IO_CONFIG
5: AT_COVER_COMM_FAIL
6: AT_COVER_SUBBASE_MISMATCH
Return to Normal Codes
-127: AT_rtnINVALID_SUBBASE_TYPE
-126: AT_rtnNETWORK_COMM_FAIL
-125: AT_rtnSENSOR_FAIL
-124: AT_rtnINVALID_IO_CONFIG
-123: AT_rtnCOVER_COMM_FAIL
-122: AT_rtnCOVER_SUBBASE_MISMATCH
-1: AT_ALARM_NOTIFY_DISABLED
alarm2 Alarm log: 2nd most recent alarm.
0: No alarm (power up value).
alarm3 Alarm log: 3rd most recent alarm.
0: No alarm (power up value).
alarm4 Alarm log: 4th most recent alarm.
0: No alarm (power up value).
alarm5 Alarm log: Oldest alarm.
0: No alarm (power up value).
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
23 63-4368
APPENDIX C - NETWORK ERROR REPORTING
Table 16. Reporting T7350H Errors.
T7350H errors are reported through the manufacturer defined output network variable, nvoError.
nvoError Field Description
errLoclSpaceSensr Local space temperature sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errRemtSpaceSensr Remote space temperature sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errNetSpaceSensr Network space temperature sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured by the thermostat to function but is not being updated by either the bound
network sensor or by the subbase (faulty subbase).
errLoclHumSensr Local Humidity sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errRemtHumSensr Remote Humidity sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errNetHumSensr Network Humidity sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured by the thermostat to function but is not being updated by either the bound
network sensor or by the subbase (faulty subbase).
errRemtOdSensr Remote Outdoor air sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errNetOdSensr Network Outdoor air sensor not working.
0: Sensor value is OK. (power up value)
1: Sensor is configured by the thermostat to function but is not being updated by either the bound
network sensor or by the subbase (faulty subbase).
errRemtSetPt Remote wall module set point is out of range or disconnected.
0: Value is OK. (power up value)
1: Remote wall module set point is configured to function and is out of range or disconnected.
errDischSensr Discharge sensor out of range or disconnected.
0: Sensor value is OK. (power up value)
1: Sensor is configured to function and is out of range or disconnected.
errIOConfig Output configuration error. Considers sub-base type, heat pump / conventional application.
maxCoolStgs, maxHeatStgs.
0: The outputs configuration is consistent with the sub-base type selected (power up value)
1: The number of outputs configured exceeds the capability of the sub-base to support them.
errSubBaseType Sub-base type error.
0: The sub-base is a valid sub-base type (power up value)
1: The detected sub-base type is not supported by the firmware version of the cover assembly.
errUnused1 Not currently used
errSelfTest Self test failure. Upon factory test power up, a self test of memory is performed. If external RAM,
EEPROM, or application FLASH memory fails the test, nvoError.errSelfTest is set. This bit is intended
for use in production testing. Field devices should ignore this bit.
0: Passed the test
1: Failed the test
errCoverCommFail Communications between the cover and sub-base
0: No error (power up value)
1: The communications between the thermostat cover assembly and the sub-base has failed in
one or both directions. The data from the cover to the sub-base has not been received for at least
90 seconds, or data from the sub-base is not updating the cover assembly.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 24
nvoError Field Description
errSubBaseVerMisMatch Sub-base/cover firmware mismatch.
0: Sub-base and cover firmware are compatible. (power up value)
1: The firmware version in the sub-base is unable to communicate correctly with the firmware
version of the cover assembly. The cover assembly Public Interface number of the sub-base is not
compatible with the Public Interface number of the sub-base. That is nroT7350Ver.commVer does
not match the version supported by the sub-base. Communications with the sub-base is turned
off.
errNviSpaceTemp nviSpaceTemp network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviOccSchedule nviOccSchedule network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure).
errNviOccSensor nviOccSensor network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviApplicMode nviApplicMode network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviOutdoorTemp nviOutdoorTemp network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviSpaceRH nviSpaceRH network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviBypass nviBypass network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
errNviDlcShed nviDlcShed (Demand Limit Control Shed signal) network variable is:
0: either not bound or is bound and being updated periodically (power up value)
1: bound and not being updated periodically (communications or source node failure)
Table 16. Reporting T7350H Errors. (Continued)
T7350H errors are reported through the manufacturer defined output network variable, nvoError.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
25 63-4368
APPENDIX D - NETWORK ACCESS TO LOCAL SENSOR DATA
APPENDIX E - SCHEDULING
NETWORK DEVICES
A T7350H can be used to time schedule the following
Honeywell controllers:
• Another T7350H.
• T7300/Q7300.
• XL15C application objects (Control loops/StartStop loops).
• XL10 controllers.
A single T7350 can be configured to schedule all (up to 119)
of the compatible controllers connected to the same network.
This is accomplished by a one to many binding from the
source T7350 to the destination controller or object.
T7350.nvoOccSchedule > XL10.nviOccSchedule.
LONSPEC™ automatically implements these NV bindings
based on the selection of Unscheduled Objects (XL10(s),
Q7300(s), T7300H(s) and XL15cAP(s) located on the
LONSPEC™ T7350 Scheduling Screen.
APPENDIX F - NETWORK MASTER
CLOCK
A T7350H can be used as the network time master for the
following network connected Honeywell controllers:
• Another T7350H.
• T7300/Q7300.
• XL15A.
This is accomplished by a one to many binding from the
source T7350H to the destination controller. The following is
an example NV binding of one T7350H as a time master to
another.
T7350H.nvoTime > T7350H.nviTimeSet
LONSPEC™ automatically implements these NV bindings
based on the selection of Network Time Master check box on
the T7350 General configuration screen. The Day Light
Saving Start and Stop Month on all time master recipients
should be configured to None (invalid). This prevents
erroneous time changes during temporary network outages.
Table 17. T7350H Reports Local Sensor Data.
The T7350H reports local sensor data using the following output network variables.
Nv Name
LonSpec Reference
Name Description
nvoDischAirTemp Discharge Temperature
Out
The current discharge air temperature. The sensor value source is configured
by nciConfig.dischAirSensor. A value of 327.67 means the sensor is not
functioning correctly or is out of range.
327.67: Power up value
nvoOccSensor Occupancy Sensor Out Status of occupancy sensor
0: OC_OCCUPIED
1: OC_UNOCCUPIED
-1: OC_NUL (not configured and power up value)
nvoOutdoorTemp Outdoor Temperature Out The current outdoor temperature. The sensor value source is specified by
nciConfig.oDAirSensor. A value of 327.67 means the sensor is not functioning
correctly or is out of range.
327.67: Power up value
nvoSpaceRH Space Humidity Out The current space humidity. The sensor value source is specified by
nciConfig.humiditySensor. A value of 163.84 means the sensor is not
functioning correctly or is out of range.
163.84: Power up value
nvoSpaceTemp Space Temperature Out The current space temperature. The sensor value source is specified by
nciConfig.spaceSensor. A value 327.67 means the sensor is not functioning
correctly or is out of range.
327.67: power up value
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 26
APPENDIX G - NETWORK CONNECTIONS TO OTHER LCBS DEVICES
Table 18. Network Connections to XL15A AP Inputs.
T7350H Network Variable Outputs can be used as inputs to XL15A application objects.
XL15A
Application Object Application Input
Source T7350H
Network Variable Network Variable Field
Analog Alarm Selected Analog Value nvoSpaceTemp
nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
Digital Alarm Selected Digital Value nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Bypass Logs Select Bypass Object nvoEffectOccup
Run Times Select Point Name nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
Trends Trend Pt nvoSpaceTemp
nvoEffectSetpt
nvoEffectOccup
nvoHeatCool
nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 HeatStgsOn
nvoData1 CoolStgsOn
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
27 63-4368
XL15A
Application Object
Application Input Source T7350H
Network Variable
Network Variable Field
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
DLC Override If nvoSpaceTemp
Demand Limit Control nvoEffectSetpt
nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
Analog Logic Function Analog Input nvoSpaceTemp
nvoEffectSetpt
nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
Digital Logic Function Digital Input nvoAlarmStatus CoverCommFail
nvoAlarmStatus InvalidIOConfig
nvoAlarmStatus SensorFail
nvoAlarmStatus networkCommFail
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
Table 18. Network Connections to XL15A AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15A application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 28
XL15A
Application Object
Application Input Source T7350H
Network Variable
Network Variable Field
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Control Loop LoopDisable nvoAlarmStatus CoverCommFail
nvoAlarmStatus InvalidIOConfig
nvoAlarmStatus SensorFail
nvoAlarmStatus networkCommFail
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
Table 18. Network Connections to XL15A AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15A application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
29 63-4368
XL15A
Application Object Application Input
Source T7350
Network Variable Network Variable Field
nvoData2 RelayFan
nvoData2 dehumidActive
Control Loop MainSensor nvoSpaceTemp nvoSpaceTemp
ResetSensor nvoEffectSetpt nvoEffectSetpt
nvoDischAirTemp nvoDischAirTemp
nvoTerminalLoad nvoTerminalLoad
nvoSpaceRH nvoSpaceRH
nvoOutdoorTemp nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
Start/Stop Loop LoopDisable nvoAlarmStatus CoverCommFail
nvoAlarmStatus InvalidIOConfig
nvoAlarmStatus SensorFail
nvoAlarmStatus networkCommFail
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Table 18. Network Connections to XL15A AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15A application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 30
Table 19. Network Connections to XL15A AP Outputs.
T7350H Network Variable Inputs can be connected to XL15A application outputs.
XL15A
Application Object Application Output
Destination T7350H
Network Variable Network Variable Field
Network Time Schedule Scheduled Device List nviOccSchedule
DLC External Load Assignment nviDlcShed
Table 20. Network Connections to XL15C AP Inputs.
T7350H Network Variable Outputs can be used as inputs to XL15C application objects.
XL15C
Application Object Application Input
Source T7350H
Network Variable Network Variable Field
Math Functions: Analog Input nvoSpaceTemp
Min, Max, Avg, Sqrt Add, nvoEffectSetpt
Subt, Mult, Div nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
nvoData1 HeatStgsOn
nvoData1 CoolStgsOn
nvoData1 BypassTime
nvoOccSensor
nvoEffectOccup
nvoHeatCool
nvoData2 stagesActive
Math Functions: nvoSpaceTemp
Network Special nvoEffectSetpt
SNVT_temp_p nvoDischAirTemp
nvoOutdoorTemp
Math Functions: nvoSpaceRH
Network Special nvoTerminalLoad
SNVT_lev_percent
Logic Loop ACDO Analog Input nvoSpaceTemp
DCAO Analog Input nvoEffectSetpt
nvoDischAirTemp
nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
nvoData1 HeatStgsOn
nvoData1 CoolStgsOn
nvoData1 BypassTime
nvoOccSensor
nvoEffectOccup
nvoHeatCool
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
31 63-4368
XL15C
Application Object Application Input
Source T7350H
Network Variable Network Variable Field
nvoData2 stagesActive
Logic Loop DCAO Digital Input nvoAlarmStatus CoverCommFail
OR Digital Input nvoAlarmStatus InvalidIOConfig
AND Digital Input nvoAlarmStatus SensorFail
nvoAlarmStatus networkCommFail
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 Relay Aux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Control Loop SetPtOverride Digital Input nvoAlarmStatus CoverCommFail
LoopDisable nvoAlarmStatus InvalidIOConfig
Bypass Input nvoAlarmStatus SensorFail
OccupancySensor nvoAlarmStatus networkCommFail
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
Table 20. Network Connections to XL15C AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15C application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 32
XL15C
Application Object Application Input
Source T7350H
Network Variable Network Variable Field
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Control Loop MainSensor nvoSpaceTemp
ResetSensor nvoEffectSetpt
RecoverySensor nvoDischAirTemp
LimitAnalogInput nvoTerminalLoad
nvoSpaceRH
nvoOutdoorTemp
nvoData1 PercentCmdHeat
nvoData1 PercentCmdCool
nvoData1 HeatStgsOn
nvoData1 CoolStgsOn
nvoData1 BypassTime
nvoOccSensor
nvoEffectOccup
nvoHeatCool
nvoData2 stagesActive
Start/Stop Loop LoopDisable nvoAlarmStatus CoverCommFail
Bypass nvoAlarmStatus InvalidIOConfig
nvoAlarmStatus SensorFail
nvoAlarmStatus networkCommFail
Table 20. Network Connections to XL15C AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15C application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
33 63-4368
S7760 - Command Display
A network connected Command display can be configured (by
LonSpec) to implement the following T7350H functions:
View and Modify Schedules:
• Occupied, Unoccupied and Standby setpoints1
• weekly schedule
• holiday schedule
NOTE: If a T7350H is connected to a wall module with set-
point adjustment, the user will not be allowed to
change occupied setpoints through Command Dis-
play.
Command manual occupancy, Annunciate T7350H alarms,
Monitor T7350H data:
• Room Temperature
• Active Room Temperature SetPoint
• Occupancy Status
• Operating Mode
• Discharge Air Temperature
• Space Humidity
• Outdoor Temperature
• Heat Stages Active
• Cool Stages Active
• Heat Modulating Output Position
• Cool Modulating Output Position
• Bypass Minutes Remaining
• Auxiliary Relay Status
• Fan Status
XL15C
Application Object Application Input
Source T7350H
Network Variable Network Variable Field
nvoAlarmStatus InvalidSubBaseType
nvoError errLoclSpaceSensr
nvoError ErrRemtSpaceSensr
nvoError ErrNetSpaceSensr
nvoError ErrLoclHumSensr
nvoError ErrRemtHumSensr
nvoError errNetHumSensr
nvoError ErrRemtOdSensr
nvoError ErrNetOdSensr
nvoError ErrRemtSetPt
nvoError ErrDischSensr
nvoError errIOConfig
nvoError errSubBaseType
nvoError errSubBaseVerMisMatch
nvoError errNviSpaceTemp
nvoError errNviOccSchedule
nvoError errNviOccSensor
nvoError errnviApplicMode
nvoError errnviOutdoorTemp
nvoError errnviSpaceRH
nvoError errNviBypass
nvoError errNviDLCShed
nvoData2 RelayHeat3
nvoData2 RelayCool3
nvoData2 RelayHeat2
nvoData2 RelayCool2
nvoData2 RelayAux
nvoData2 RelayHeat1
nvoData2 RelayCool1
nvoData2 RelayFan
nvoData2 dehumidActive
Table 20. Network Connections to XL15C AP Inputs. (Continued)
T7350H Network Variable Outputs can be used as inputs to XL15C application objects.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 34
APPENDIX H - T7350H NETWORK VARIABLE SUMMARY
Table 21. T7350H Network Variable Summary.
Nv Name LONSPEC™ Ref Name Class Description
nciApplVer Application version CONFIG Application type: identifies the current application number for this
device given by a tool.
0: (Default).
Increment: increased by one whenever any configuration
parameter changed by PDA or thermostat keyboard. LONSPEC™
and LONSTATION™ does not change this field.
0: (Default).
Time Stamp: indicates the last change to the device application
configuration. The time stamp meets the ANSI C time stamp
requirement specifying the number of seconds elapsed since
midnight (0:00:00), January 1, 1970. It is represented in the Intel
Format. If the T7350 keyboard or the PDA Config Tool updates
any configuration parameters, the time is incremented.
0: (Default).
Version Number: identifies the version number of the application
for this device. If the T7350 keyboard or the PDA Config Tool
updates any configuration parameters, is incremented.
0: (Default).
nciBypassTime Bypass Time CONFIG Temporary Occupied Override duration in minutes.
180: (Default).
nciConfig NA FTP
CONFIG
Thermostat configuration parameters.
nciConfigPts NA FTP
CONFIG
Thermostat operating setpoint values for the control algorithms
contained in the Thermostat application code.
nciDayLghtSav NA FTP
CONFIG
Daylight-saving start and end calendar schedule.
nciDaySchedule0 NA FTP
CONFIG
Event time schedule for Sunday.
nciDaySchedule1 NA FTP
CONFIG
Event time schedule for Monday.
nciDaySchedule2 NA FTP
CONFIG
Event time schedule for Tuesday.
nciDaySchedule3 NA FTP
CONFIG
Event time schedule for Wednesday.
nciDaySchedule4 NA FTP
CONFIG
Event time schedule for Thursday.
nciDaySchedule5 NA FTP
CONFIG
Event time schedule for Friday.
nciDaySchedule6 NA FTP
CONFIG
Event time schedule for Saturday.
nciDaySchedule7 NA FTP
CONFIG
Event time schedule for designated Holiday.
nciDeviceName Device Name CONFIG Device Name is an 18 character field used to identify the device
uniquely as one device at the site or project. The content of Device
Name is maintained by a management node. If Device Name is all
ASCII blanks, it is considered un-configured by Honeywell tools.
ASCII blanks: (Default)
nciHolSched NA FTP
CONFIG
Holiday calendar schedule.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
35 63-4368
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nciRcvHrtBt Controller Receive Time CONFIG Receive heartbeat time (seconds) for all failure detect heartbeat
network variables in this node.
0: Disable failure (Default).
300: Typical value in Honeywell system.
nciSetpoints Setpoint Config CONFIG Heating and Cooling SetPoints in Celsius engineering units.
Occupied cool set-point.
23.9 C: (Default)
Standby cool set-point.
25.6 C: (Default).
Unoccupied cool set-point.
29.4 C: (Default).
Note:
It is required that:
UnoccCl>=OccCl>=OccHt+1.11 C.
UnoccCl>=StdByCl>=StdByHt+1.11 C.
If the above criteria is not met, then the nciSetpoints received over
the LONWORKS network will not be accepted, and all the current
controlling set points will be restored from the thermostat.
Occupied heat set-point.
21.1 C: (Default).
Standby heat set-point.
19.4 C: (Default).
Unoccupied heat set-point.
12.8 C: (Default).
It is required that:
UnoccHt<=OccHt<=OccCl-1.11 C.
UnoccHt<=StdByHt<=StdByCl-1.11 C.
If the above criteria is not met, then the nciSetpoints received over
the LONWORKS network will not be accepted, and all the current
controlling set points will be restored from the thermostat.
nciSndHrtBt Controller Send Time CONFIG Send heartbeat time (seconds) for all Guaranteed periodic update
heartbeat network variables in this node.
0: Disable periodic update (Default).
55: Typical value in Honeywell system.
nroPgmVer Program Version CONST The Honeywell program identifier and subbase firmware version
number.
nroT7350Ver T7350 Version CONST Detailed T7350 cover assembly firmware version information.
nviApplicMode Application Mode In IN Thermostat System mode switch:
0: HVAC_AUTO
1: HVAC_HEAT
3: HVAC_COOL
6: HVAC_OFF
8: HVAC_EMERG_HEAT
Others: Considered to be HVAC_AUTO.
Failure detect and mains power up value: HVAC_AUTO.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 36
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nviBypass Bypass In IN Remote time bypass input from usually from another device.
Bypass is a method to command unoccupied override over the
network from another controller. The other controller does the
bypass timing. nviBypass can be used to place the T7350H into
temporary occupied mode. This mode will bypass the time of day
occupancy schedule in this device.
Value State Action
0 NA Do not bypass the time of day
occupancy schedule.
NA 0 or -1 Do not bypass the time of day
occupancy schedule.
0.5 - 100 1 or Bypass the time of day occupancy
greater schedule.
0 0 Mains power up and fail detect value.
nviDlcShed DLC Shed In IN Demand limit duty cycle load shed command from a network
device.
When a shed request is received, the thermostat “bumps” the
control set point up for cooling and down for heating. The amount
of the “bump is a user set point selection. The shed state remains
until a DLC restore command is received or network
communication is lost. When the unit transitions from shed to
restore, the set point is ramped back to the original set point over a
period of 60 minutes. The control only sheds when the thermostat
is in the occupied mode.
Value:
0: No load shed being called (mains power up or failure detect
value).
1 or other values: Call for load shedding.
nviFanAuto FanOnAuto In IN Auto Fan switch (last in wins).
value = 0, state = don’t care:
Fan is On.
value = Don’t care, state = 0 or -1:
Fan is On.
Value = 0.5 - 100: state = 1 or greater:
Fan is On when there is a call for heat / cool.
Failure detect and mains power up value: No change from
previous value.
Value State Action
0 NA Fan is ON.
NA 0 or -1 Fan is ON.
0.5 - 100 1 or Fan is ON when there is a call for
greater heat / cool.
no no Mains power up and fail detect value.
change change
nviFilePos File Position In IN Supports LONMARK® FTP file transfer. Random Access file Pointer
to first byte to be transferred and Number of bytes to transfer.
nviFileReq File Request In IN Supports LONMARK® FTP file transfer. Message request
management is communicated through this input variable.
nviInUse InUse IN In use number is used by a management node to indicate to all
other management nodes that it is “logged on.”
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
37 63-4368
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nviManValue Manual Value In IN Manual override values for outputs:
Relays: Y1, Y2, Y3, Aux, G, W1, W2, W3
Analog Outputs: Mc, Mh
nviOccManCmd Occupancy Cmd In IN Manual occupancy is a method to command the occupancy state
from a network workstation. Effective occupancy override works
on a “last in wins” basis. That is, the last occupancy override
command received from any source determines the override state.
The workstation can command occupied, unoccupied, standby,
bypass, or not active (null).
nviOccManCmd is used to place the T7350H into manual
occupancy (note there is no timer associated with
nviOccManCmd).
Manual occupancy input from a network device:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
2: OC_BYPASS
3: OC_STANDBY
-1: OC_NUL not connected (mains power up).
Others: same as OC_NUL.
NOTE: If nviOccManCmd is OC_BYPASS and the bypass timer
(nvoData1.bypassTime) times out, then nviOccManCmd
is set to OC_NUL.
nviOccSchedule Occupancy Schedule In IN There are 2 distinct modes of operation: local schedule and
network schedule. The local schedule mode causes the T7350H
to change set points by using the scheduler in the T7350H. The
network schedule mode causes the T7350H to change set points
from a network-based scheduler. The network schedule, when
valid, overrides the local schedule.
The network schedule input is nviOccSchedule. This input has
current state, next state and tuncos (Time Until Next Change of
State). It is bound from another scheduler such as the XL15A or
T7300/Q7300H. The XL15B or a workstation can also write to it in
an “unbound” relationship.
If the network schedule is not periodically updated the T7350H
resumes local scheduling. Periodically means at a rate greater
than the fail detect time. This rate is typically 55 seconds, 300
seconds maximum. (The actual rate and maximum depend on the
configured heartbeat and failure detect times.)
Current scheduled occupancy state:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
3: OC_STANDBY
Others: same as OC_NUL.
-1: OC_NUL (mains power up and fail detect value).
Next scheduled occupancy state:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
3: OC_STANDBY
Others: same as OC_NUL.
-1: OC_NUL (mains power up and fail detect value).
Time in minutes until next scheduled change of occupancy state:
0: (mains power up and fail detect value).
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 38
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nviOccSensor Occupancy Sensor In IN There are 3 distinct modes of operation: local occupancy sensor,
network occupancy sensor, or none.
The network occupancy input is nviOccSensor. It is bound from
another sensor or controller with occupancy status.
Occupancy sensor input from a network device:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
-1: OC_NUL not connected (mains power up and fail detect
value).
Others: same as OC_NUL.
NOTE: If nviOccSensor is not invalid (OC_NUL), nviOccSensor
is used as the occupancy sensor even if another sensor
or no sensor is configured.
nviOutdoorTemp Outdoor Temperature In IN Outdoor temperature input from a network device. Ignored unless
nciConfig.oDAirSensor specifies a network configuration.
327.67: means to ignore comODTemp.
327.67: mains power up and failure detect value.
NOTE: If nviOutdoorTemp is not invalid (327.67), nviOutdoor-
Temp is used as the outdoor temperature even if another
sensor or no sensor is configured.
nviPgm Program In IN Memory address and data being sent to cover assembly flash
memory.
nviRequest Request IN Input variable for managing network requests for status.
nviSetpoint Setpoint In IN Desired space temperature (Celsius) set by remote network
device.
327.67: means to ignore nviSetPoint.
327.67: mains power up value.
nviSpaceRH Space Humidity In IN Space humidity input (percent) from a network device. Ignored
unless nciConfig.humiditySensor specifies a network
configuration.
163.83: mains power up and failure detect value.
NOTE: If nviSpaceRH is not invalid (163.83), nviSpaceRH is
used as the space relative humidity even if another sen-
sor or no sensor is configured.
nviSpaceTemp Space Temperature In IN When configured for a network sensor and periodically updated,
the network space temperature sensor will override both the local
and remote sensors.
Space temperature input (Celsius) from a network device. Values
less than -2.2 will be clipped to -2.2. Values greater than 60 will be
clipped to 60.
327.67: means to ignore nviSpaceTemp.
327.67: mains power up and failure detect value.
NOTE: If nviSpaceTemp is not invalid (327.67), nviSpaceTemp is
used as the space temperature even if another sensor or
no sensor is configured.
nviTimeSet Time In IN Set current month, day, year, hour, minute, second
Time synchronization will be to a network device that has been
designated as the “time master.” Time synchronization will occur at
the Guaranteed Periodic Update rate (typically every 55 seconds).
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
39 63-4368
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nvoAlarmH Alarm Out OUT Alarm subnet, node and type.
Alarm subnet is the LonWorks subnet number in domain entry to
which nvoAlarmH is bound. If nvoAlarmH is not bound reports
domain index 0.
0: Invalid subnet (power up value).
1-255: Subnet number.
Alarm node is the LonWorks node number (in domain entry to
which nvoAlarmH is bound. If nvoAlarmH is not bound reports
domain index 0).
0: Invalid entry (power up value).
1-127: Node number.
Alarm type is the alarm type being issued:
0: AT_NO_ALARM (power up value).
1: AT_INVALID_SUBBASE_TYPE
2: AT_NETWORK_COMM_FAIL
3: AT_SENSOR_FAIL
4: AT_INVALID_IO_CONFIG
5: AT_COVER_COMM_FAIL
6: AT_COVER_SUBBASE_MISMATCH
-127: AT_rtnINVALID_SUBBASE_TYPE
-126: AT_rtnNETWORK_COMM_FAIL
-125: AT_rtnSENSOR_FAIL
-124: AT_rtnINVALID_IO_CONFIG
-123: AT_rtnCOVER_COMM_FAIL
-122: AT_rtnCOVER_SUBBASE_MISMATCH
-1: AT_ALARM_NOTIFY_DISABLED
nvoAlarmLog Alarm Log Out OUT Reports the last five alarms.
nvoAlarmStatus Alarm Status Out OUT Status of the following alarms states:
Communications between the cover and sub-base.
0: No alarm (power up value).
1: The communications between the thermostat cover
assembly and the sub-base has failed in one or both directions.
The data from the cover to the sub-base has not been received
for at least 90 seconds, or data from the sub-base is not
updating the cover assembly.
Output configuration error:
0: No alarm (power up value).
1: The number of outputs configured exceeds the capability of
the sub-base to support them. Considers sub-base type, heat
pump / conventional application, maxCoolStgs, maxHeatStgs.
Sub-base type error:
0: No alarm (power up value).
1: The sub-base is not a valid sub-base type for the firmware in
the cover assembly.
Network Communications Failure:
0: No alarm (power up value).
1: One of the bound network input variables is not being
updated periodically. This alarm may be caused by a failed
node or a damaged LonWorks network cable.
Sensor failure:
0: No alarm (power up value).
1: One of the analog sensors on the cover assembly has failed
or is out of range (high or low).
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 40
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nvoBypass Bypass Out OUT The T7350H uses nvoBypass to command bypass to other XL10
nodes. When the T7350 is in bypass, it commands nvoBypass.
This is a one to many bound relationship. “Many” means one
T7350H can command bypass on all XL10s connected on the
subnet.
Reports whether this device is in timed bypass of the scheduled
occupancy state. Used by other devices to also bypass the time of
day schedule.
Value State Action
0 0 This device is not in bypass
Power up value
1 100 This device is in bypass
nvoData1 nvoData1 OUT Reports Manufacturer Specific Device Data including:
bypassTime, coolStgsOn, DaysLeftKeypadHoliday, dischTemp,
effMode, effOccCurrentState, effSetPt, fan, heatStgsOn, oDTemp,
percentCmd,Cool, percentCmdHeat, spaceHumidity, spaceTemp,
subBaseType, sysMode, terminalLoad.
nvoData2 nvoData2 OUT Reports Manufacturer Specific Device Data including: auxRelay,
DALimit, dehumidActive, ESR, holiday, noAuxHeat1, noAuxHeat2,
occSensor, relayAux, relayCool1, relayCool2, relayCool3,
relayFan, relayHeat1, relayHeat2, relayHeat3, remoteStPtOffset,
schedNextState, scheduledState, scheduledTuncos, stagesActive,
T7350CommWorks, temporarySetPt, totalError.
nvoDischAirTemp Discharge Temperature
Out
OUT The current discharge air temperature (Celsius). The sensor is
configured by nciConfig.dischAirSensor. A value of 327.67 means
the sensor is not functioning correctly or is out of range.
327.67: Power up value.
nvoEffectOccup Effective Occ Out OUT Current effective occupancy state:
0: OC_OCCUPIED (power up value).
1: OC_UNOCCUPIED
2: OC_BYPASS
3: OC_STANDBY
-1: OC_NUL
nvoEffectSetpt Effective Stpt Out OUT Effective room temperature control set point (Celsius).
327.67: Power up value.
nvoError nvoError OUT Device error status. Refer to Appendix C - Network Error
Reporting for details.
nvoFileStat File Status Out OUT File transfer status.
nvoHeatCool Application Mode out OUT Effective operating mode:
0: HVAC_AUTO
1: HVAC_HEAT (heat or re-heat).
3: HVAC_COOL
6: HVAC_OFF (power up value).
7: HVAC_TEST (manual mode or cover in factory test mode).
8: HVAC_EMERG_HEAT
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
41 63-4368
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nvoOccSchedule Time Of Day Out OUT This output has current state, next state and tuncos (Time Until
Change of State). This output is typically bound to other
controller(s) that need a schedule command.
This output is the combination of the local schedule and the
network schedule command. It doesn’t include any bypass,
override, or manual occupancy commands that affect this T7350H.
There is no TOD assignment table in the T7350H. The T7350H
allows a one to many binding of nvoOccSchedule. This means
one T7350H can command all of the XL10s on the subnet – up to
119 controllers.
Current scheduled occupancy state:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
3: OC_STANDBY
-1: OC_NUL (power up value).
Next scheduled occupancy state:
0: OC_OCCUPIED (power up value).
1: OC_UNOCCUPIED
3: OC_STANDBY
-1: OC_NUL (power up value).
Time in minutes until next scheduled change of occupancy state:
2880: Means there is not a next change of occupancy state or it is
longer than 2 days from now (Power up value).
nvoOccSensor Occupancy Sensor Out OUT Status of occupancy sensor:
0: OC_OCCUPIED
1: OC_UNOCCUPIED
-1: OC_NUL (not configured and power up value).
nvoOutdoorTemp Outdoor Temperature Out OUT The current outdoor temperature (Celsius). The sensor source is
specified by nciConfig.oDAirSensor. A value of 327.67 means the
sensor is not functioning correctly or is out of range.
327.67: Power up value.
nvoPgm Program Out OUT Cover assembly flash memory programming data.
nvoSpaceRH Space Humidity Out OUT The current space humidity (percent). The sensor source is
specified by nciConfig.humiditySensor. A value of 163.84 means
the sensor is not functioning correctly or is out of range.
163.84: Power up value.
nvoSpaceTemp Space Temperature Out OUT The current space temperature (Celsius). The sensor source is
specified by nciConfig.spaceSensor. A value 327.67 means the
sensor is not functioning correctly or is out of range.
327.67: power up value.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 42
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nvoStatus Status OUT Status:
Alarm notify disabled:
0: Alarm notification is turned on (power up value).
1: Alarm notification via nvoAlarmH, nvoAlarmLog,
nvoUnitStatus, and nvoStatus has been turned off.
Alarm
0: no alarm (power up value).
1: there is an alarm.
Override the delays associated with automatic control:
0: Delays turned on (power up value).
1: Delays turned off (Useful for troubleshooting).
Invalid ID:
0: The request was for a valid ID (Power up value).
1: The request was not for a valid ID.
Invalid Request:
0: The request was for a valid operation (Power up value).
1: Invalid request for an operation.
Manual control:
0: The function block is in automatic operation (power up
value).
1: The function is in manual operation and outputs respond to
nviManValue.
Status report. Function block number being in status report:
0: Node function block.
1: Space comfort controller function block.
Programming Mode:
0: Normal operating mode (power up value).
1: The node is in the “programming the cover flash memory”
mode, and is not automatically controlling temperature.
Report mask:
0: Normal operation (power up value).
1: RQ_REPORT_MASK received. The status bits that are set
have been implemented.
nvoTerminalLoad Terminal Load Out OUT Terminal load (percent): Reports the demand for supply energy.
Positive numbers are cooling demand and negative numbers are
heating demand. 100 percent is full capacity. Terminal loads
greater than 100 percent or less than -100 percent indicate that
the equipment is not able to supply the required heating or cooling
energy. The valid range is between 163 and minus 163 percent.
Terminal load is used by supervisory level control applications to
reset Boiler or Chiller discharge water temperatures.
163.84: Power up condition.
nvoTime Time Out OUT Current year, month, day, hour, minute, second.
The T7350H can be a time master to other T7350Hs, XL15As, and
Q7300s.
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
43 63-4368
Table 21. T7350H Network Variable Summary. (Continued)
Nv Name LONSPEC™ Ref Name Class Description
nvoUnitStatus Unit Status OUT Unit Status:
Percentage of cooling capability currently being supplied to the
controlled space.
163.84: Power up value.
Fan turned on or off:
0: Fan not running.
100: Fan running.
163.84: (power up value).
Percentage of auxiliary heating capability currently being supplied
to the controlled space (Applies to heat pump application only):
163.84: Power up value.
Alarm report:
0: No alarms reported in the unit (power up value).
1: One or more alarms reported in the unit.
-1: The Alarms have been suppressed by alarm notified
disabled command.
Effective operating mode:
0: HVAC_AUTO (power up value).
1: HVAC_HEAT
3: HVAC_COOL
6: HVAC_OFF (power up value).
7: HVAC_TEST (manual mode or cover in factory test mode).
8: HVAC_EMERG_HEAT
T7350 COMMERCIAL PROGRAMMABLE THERMOSTAT
63-4368 B.B. 11-04 www.honeywell.com
Automation and Control Solutions Honeywell International Honeywell Europe S.A. Honeywell Latin American
Honeywell International Inc. Honeywell Limited-Honeywell Limitée Control Products 3 Avenue du Bourget Region
1985 Douglas Drive North 35 Dynamic Drive Honeywell Building 1140 Brussels 480 Sawgrass Corporate Parkway
Golden Valley, MN 55422 Scarborough, Ontario 17 Changi Business Park Central 1 Belgium Suite 200
M1V 4Z9 Singapore 486073 Sunrise FL 33325
Class Description
CONFIG: LonMark network configuration parameters
FTP CONFIG: Configuration parameters implemented with
the LonMark file transfer protocol
IN: Network variable inputs.
OUT: Network variable outputs.
ZIRE and TUNGSTEN are trademarks of palmOne, Inc.
HotSync and Palm OS are registered trademarks of PalmSource, Inc.
Palm is a trademark of PalmSource, Inc.
TRGPro is a trademark of HandEra, Inc.
LONMARK®, LONTALK®, and LONWORKS® are registered trademarks of Echelon® Corporation.
LonSpec™, and LonStation™ are trademarks of Echelon® Corporation.

Navigation menu
