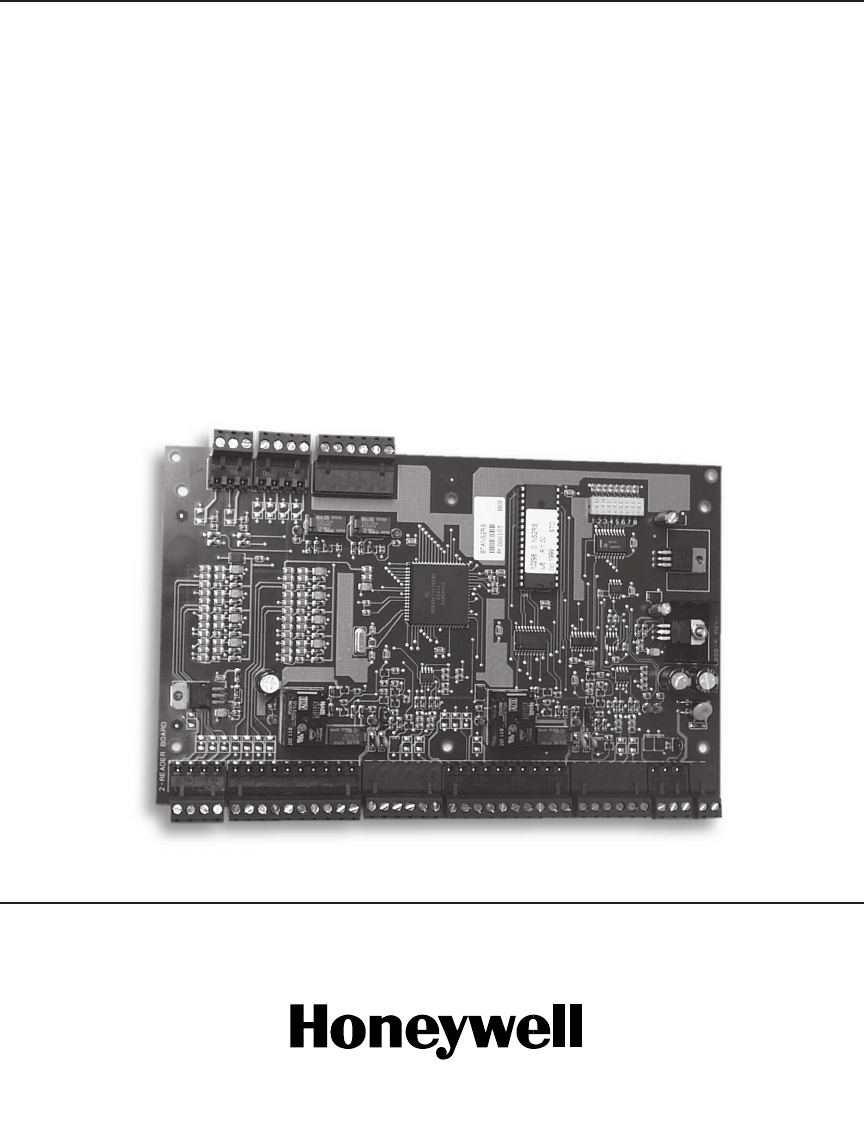

PRO-2200

Two Reader Module

Installation Manual

Part Number: PRO22R2

TD1143 rev 0501

A division of Northern Computers, Inc.

PRO-2200 Two Reader Module PRO22R2 3Installation Guide

Contents

Warnings and Cautions ........................................................................................ 4

Disclaimer........................................................................................................... 6

Product Liability; Mutual Indemnification................................................................ 6

Unpacking Procedure ........................................................................................... 6

Shipping Instructions ............................................................................................ 7

Limited Warranty .................................................................................................7

Confidentiality ..................................................................................................... 8

Description .......................................................................................................... 9

Set Up ................................................................................................................ 9

LED Operation ..................................................................................................11

Power................................................................................................................ 11

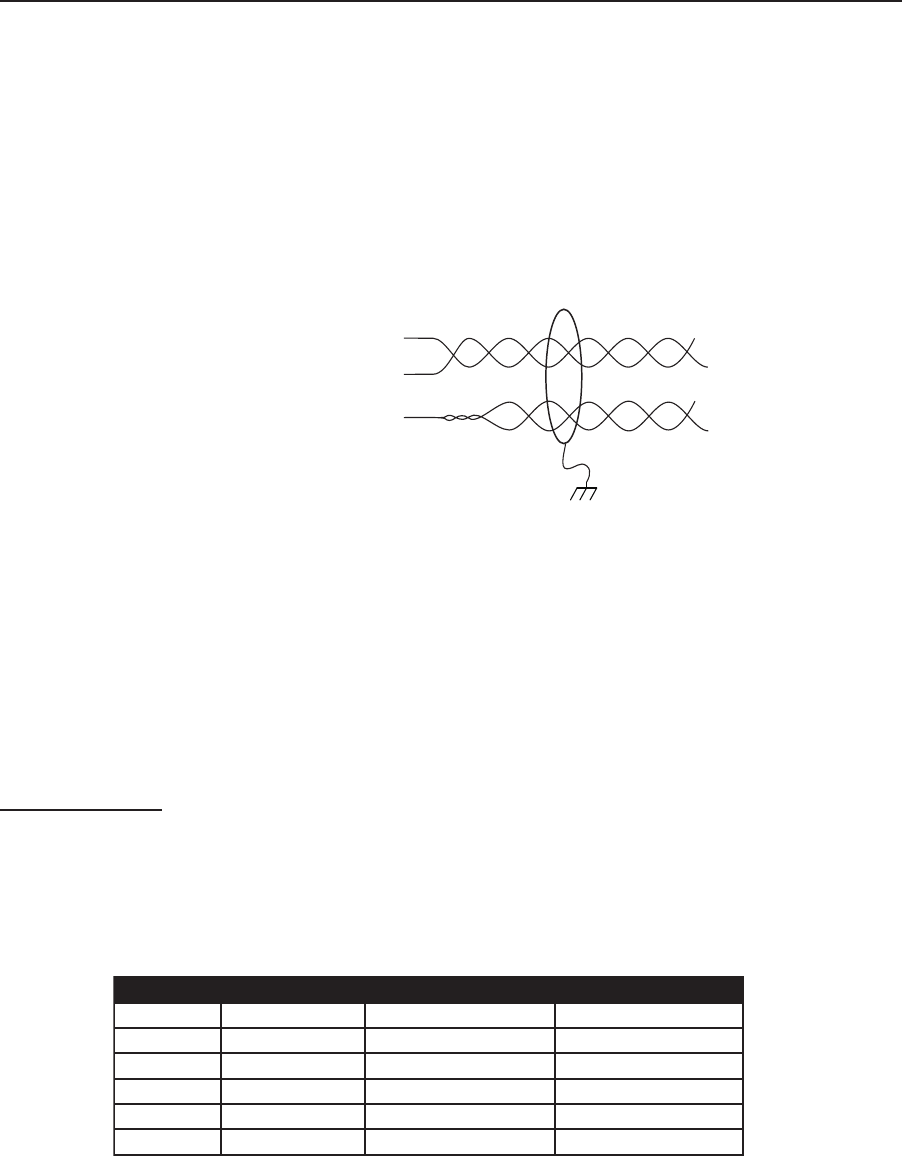

Communications ............................................................................................... 11

Reader Wiring ................................................................................................... 12

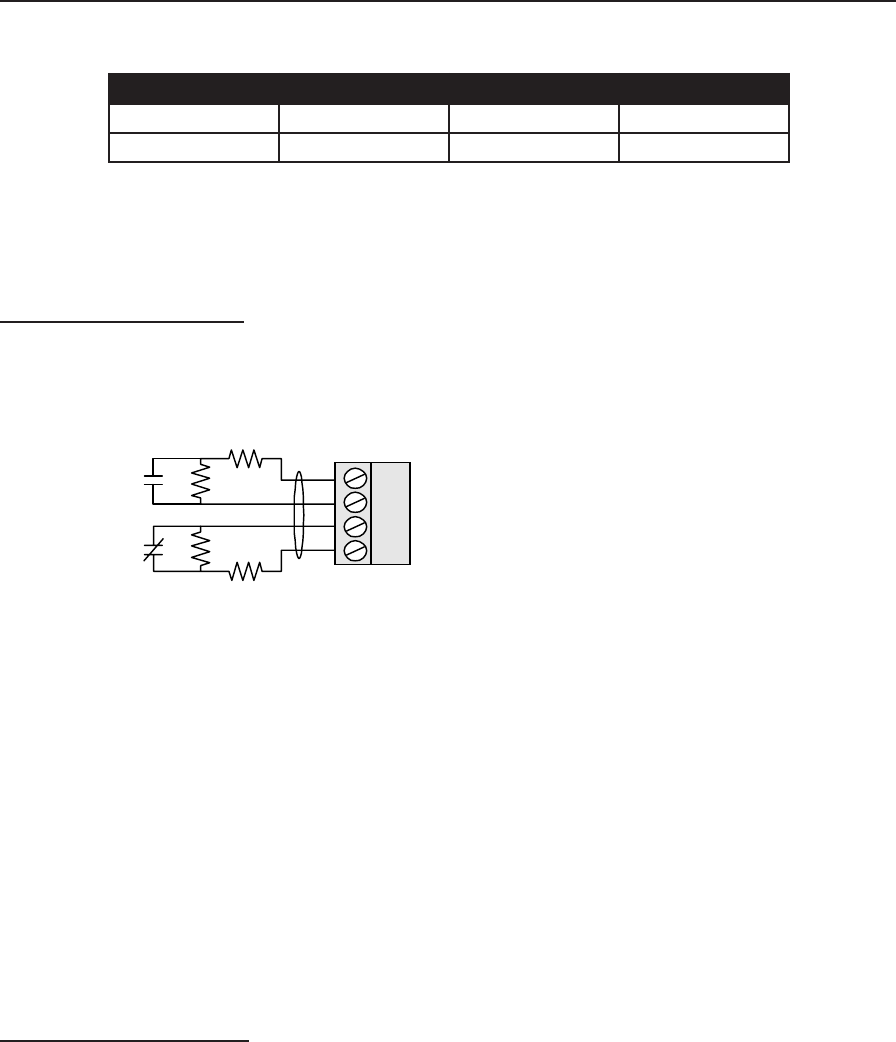

Alarm Contact Wiring ........................................................................................ 13

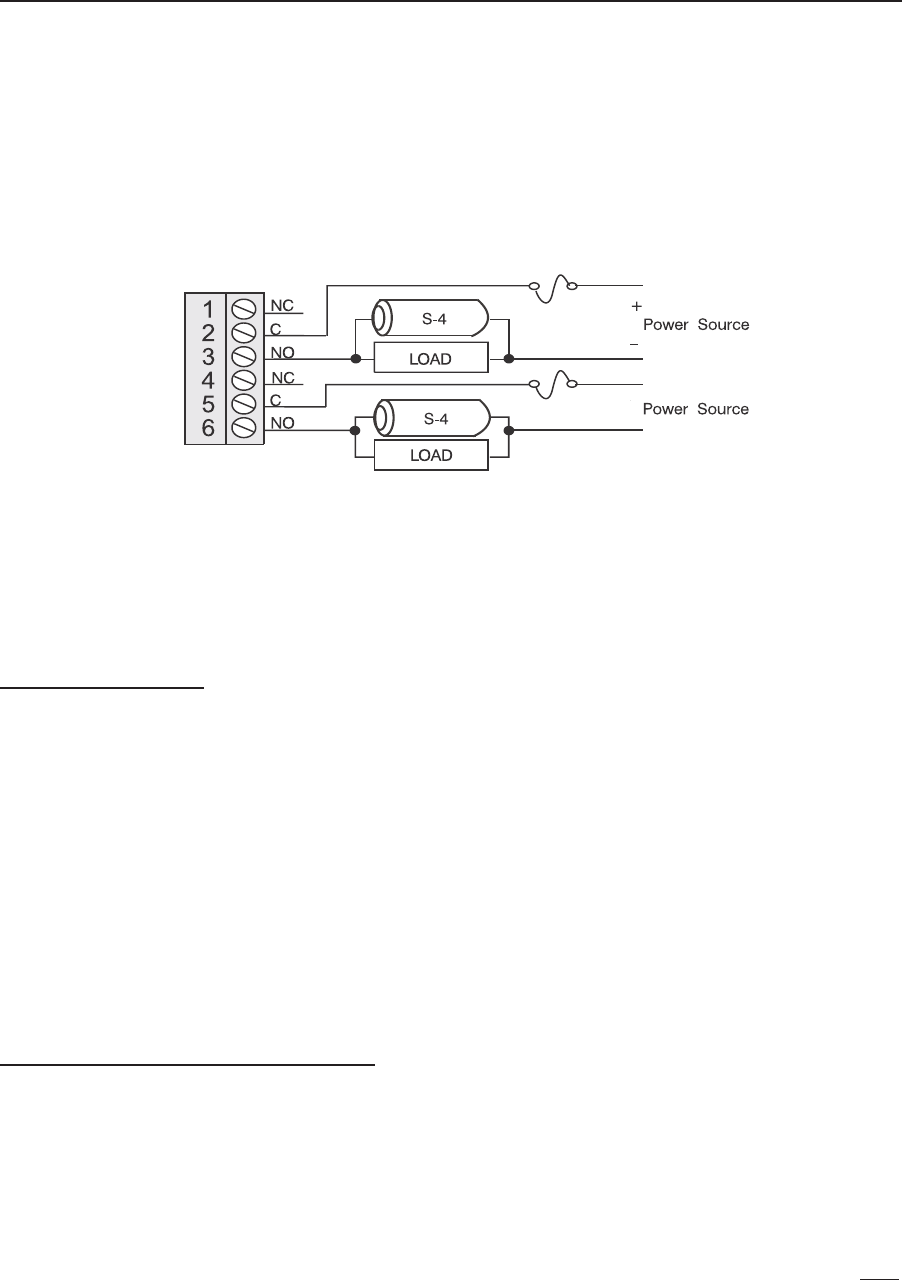

Control Output Wiring ....................................................................................... 13

Mounting Options ............................................................................................. 14

Suggested Installation Sequence ......................................................................... 14

Specification...................................................................................................... 15

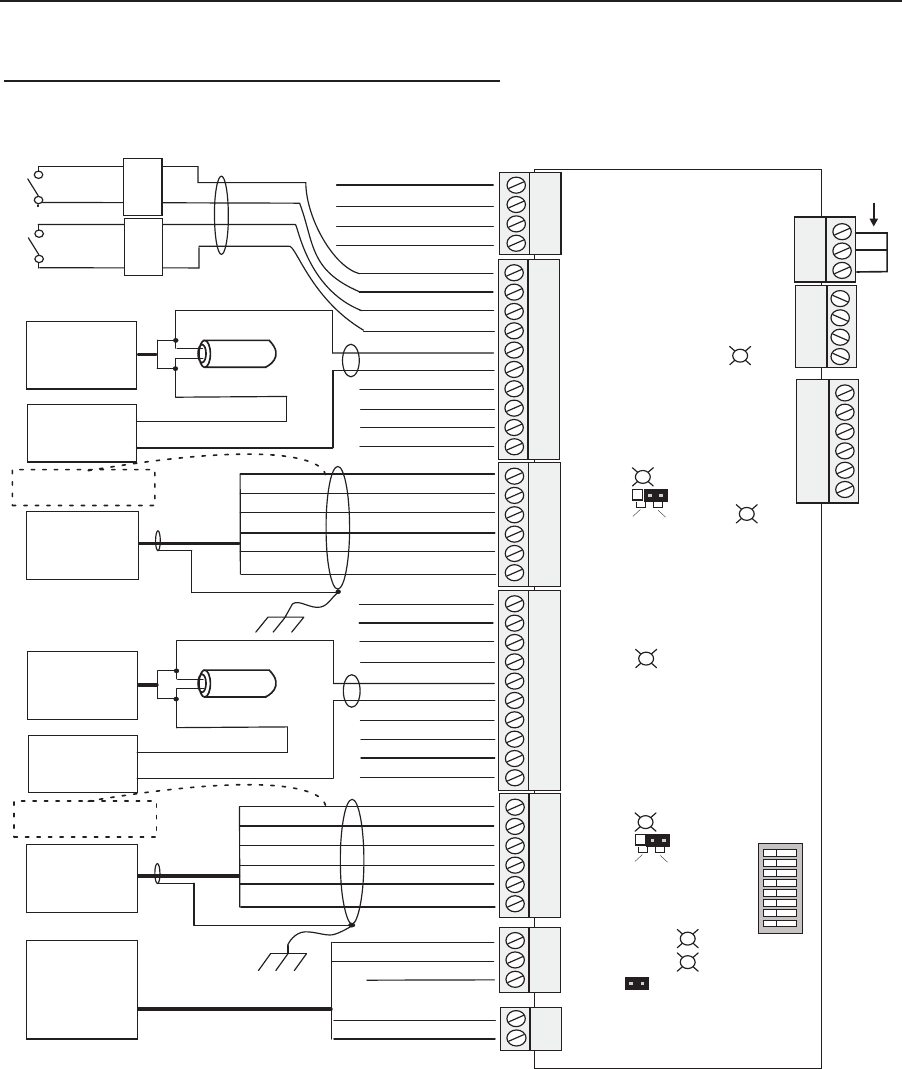

Wiring Diagram for Connectors 1 through 7........................................................ 16

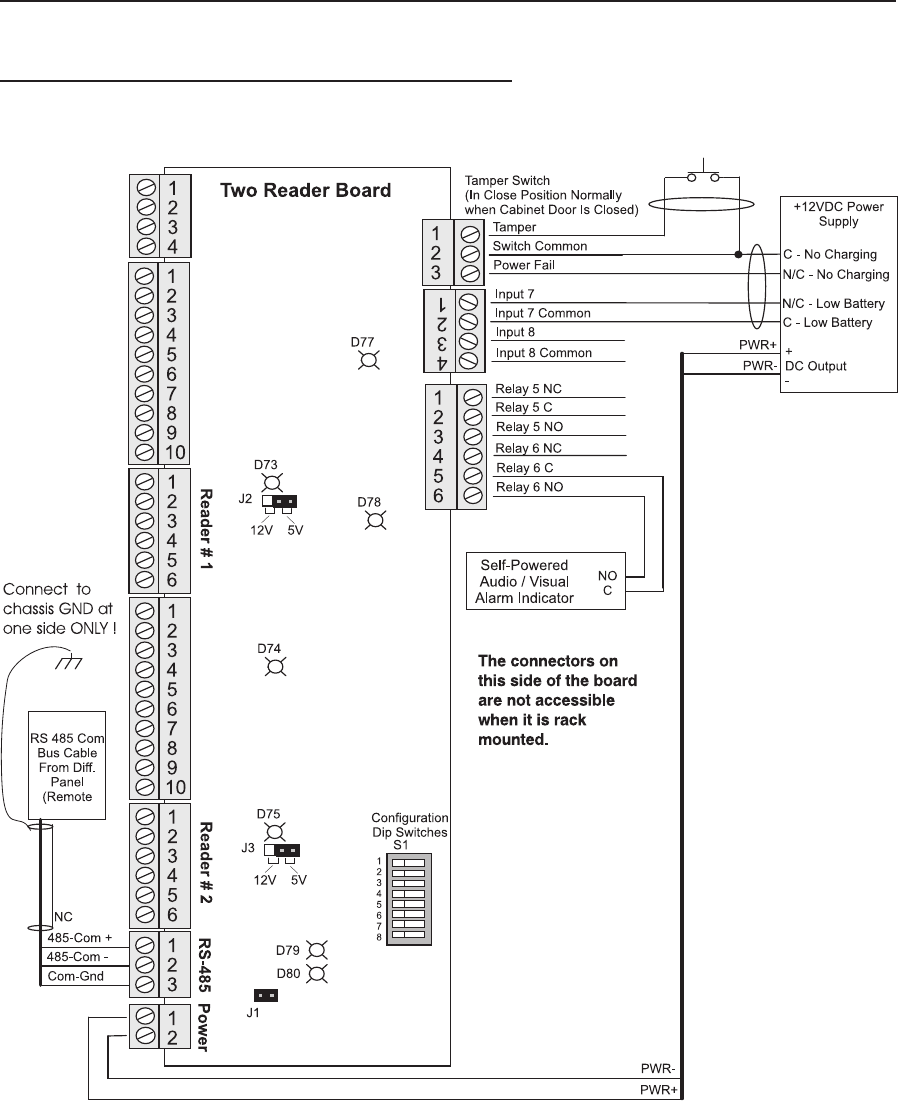

Wiring Diagram for Connectors 6 through 10 ...................................................... 17

4PRO-2200 Two Reader Module PRO22R2Installation Guide

Warnings and Cautions

WARNING

Before installation, TURN OFF the external circuit breaker which supplies power to the

system.

Before connecting the device to the power supply, verify that the output voltage is within

specifications of the power supply.

Do not apply power to the system until after the installation has been completed.

Personal injury or death could occur, and the equipment could be damaged beyond

repair, if this precaution is not observed!

WARNING

Fire Safety and Liability Notice

Never connect card readers to any critical entry, exit door, barrier, elevator or gate

without providing an alternative exit in accordance with all fire and life safety codes

pertinent to the installation. These fire and safety codes vary from city to city and you

must get approval from local fire officials whenever using an electronic product to control

a door or other barrier. Use of egress buttons, for example, may be illegal in some cities.

In most applications, single action exit without prior knowledge of what to do is a life

safety requirement. Always make certain that any required approvals are obtained in

writing. DO NOT ACCEPT VERBAL APPROVALS, AS THEY ARE NOT VALID.

Engineered Systems never recommends using the PRO-2200 or related products as a

primary warning or monitoring system. Primary warning or monitoring systems should

always meet local fire and safety code requirements. The installer must also test the

system on a regular basis by instructing the end user in appropriate daily testing proce-

dures. Failure to test a system regularly could make installer liable for damages to the end

user if a problem occurs.

WARNING

EARTH ground all enclosures, for proper installation.

WARNING

Use suppressors on all door strikes. Use S-4 suppressors for installation. Engineered

Systems recommends only DC strikes.

The information in this document is subject to change without notice.

PRO-2200 Two Reader Module PRO22R2 5Installation Guide

CAUTION

IF ANY DAMAGE TO THE SHIPMENT IS NOTICED, A CLAIM MUST BE FILED WITH

THE COMMERCIAL CARRIER RESPONSIBLE.

CAUTION

Electro-static discharge can damage CMOS integrated circuits and modules.

To prevent damage always follow these procedures:

Use static shield packaging and containers to transport all electronic components,

including completed reader assemblies.

Handle all ESD sensitive components at an approved static controlled workstation. These

workstations consist of a desk mat, floor mat and an ESD wrist strap. Workstations are

available from various vendors.

NOTICE

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio fre-

quency energy and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

NOTICE

This document and the data in it shall not be duplicated, used or disclosed to others for

procurement or manufacture, except as authorized by and with the written permission of,

Engineered Systems The information contained in this document or in the product itself is

considered the exclusive property and trade secrets of Engineered Systems. Copyright

laws of the United States protect all information in this document or in the software

product itself.

NOTICE

Any use of this product is subject to the terms and acceptance of the Engineered Sys-

tems Software Agreement. Please request a copy from Engineered Systems, and review

the agreement carefully.

6PRO-2200 Two Reader Module PRO22R2Installation Guide

Disclaimer

Product Liability; Mutual Indemnification

In the event that a Customer receives a claim that a Product or any component thereof

has caused personal injury or damage to property of others, Customer shall immediately

notify Engineered Systems in writing of all such claims. Engineered Systems shall defend

or settle such claims and shall indemnify and hold Customer harmless for any costs or

damages including reasonable attorneys’ fees which Customer may be required to pay as

a result of the defective Product or the negligence of Engineered Systems, its agents, or

its employees.

Customer shall hold harmless and indemnify Engineered Systems from and against all

claims, demands, losses and liability arising out of damage to property or injury to

persons occasioned by or in connection with the acts or omissions of Customer and its

agents and employees, and from and against all claims, demands, losses and liability for

costs of fees, including reasonable attorneys’ fees, in connection therewith.

Unpacking Procedure

CAUTION

If any damage to the shipment is noticed before unpacking, a claim must be filed with the

commercial carrier.

All containers should be opened and unpacked carefully in order to prevent damage to

the contents.

The following steps are used to unpack equipment in preparation for installation:

1. Open the container and remove the unit(s) and all packing material. Retain the

container and all packing materials. They may be used again for reshipment

of the equipment, if needed.

2. Inspect the contents for shortage. If items are missing items, contact the order entry

department.

3. Visually check contents. If damage is discovered, perform the following:

If shipping caused damage to the unit, a claim must be filed with the

commercial carrier.

If any other defect is apparent, call 800-323-4576 for a return authorization.

PRO-2200 Two Reader Module PRO22R2 7Installation Guide

Shipping Instructions

To ship equipment back to Engineered Systems:

1. Contact the customer service department before returning equipment at 800-323-4576.

When calling, please have available:

• A description of the problem or reason for returning the equipment.

• Original purchase order number, invoice number and if the unit is under warranty.

• A new purchase order number if the unit is not under warranty

2. Obtain the Return Authorization Number (RMA) from the customer service

department at 800-323-4576.

3. Show the RMA number on all packages shipped. Packages, which are not marked with

an RMA number will be refused at the factory and returned COD.

4. Carefully pack the equipment for shipment. Use the original packing material whenever

possible

Limited Warranty

All Products sold or licensed by Engineered Systems include a warranty registration card

which must be completed and returned to Engineered Systems by or on behalf of the end

user in order for Engineered Systems to provide warranty service, repair, credit or

exchange. All warranty work shall be handled through Customer which shall notify

Engineered Systems and apply for a Return Merchandise Authorization (RMA) number

prior to returning any Product for service, repair, credit or exchange. Engineered Systems

warrants that its Products shall be free from defects in materials and workmanship for a

period of two years from date of shipment of the Product to Customer. The warranty on

Terminals, Printers, Communications Products and Upgrade kits is 90 days from date of

shipment. Satisfaction of this warranty shall be limited to repair or replacement of

Products which are defective or defective under normal use. Engineered Systems’

warranty shall not extend to any Product which, upon examination, is determined to be

defective as a result of misuse, improper storage, incorrect installation, operation or

maintenance, alteration, modification, accident or unusual deterioration of the Product due

to physical environments in excess of the limits set forth in Product manuals. THERE

ARE NO WARRANTIES WHICH EXTEND BEYOND THIS PROVISION. THIS WARRANTY

IS IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATU-

TORY, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

ANY PARTICULAR PURPOSE. NO REPRESENTATION OR WARRANTY OF THE

DISTRIBUTOR SHALL EXTEND THE LIABILITY OR RESPONSIBILITY OF THE

MANUFACTURER BEYOND THE TERMS OF THIS PROVISION. IN NO EVENT SHALL

ENGINEERED SYSTEMS BE LIABLE FOR ANY RE-PROCUREMENT COSTS, LOSS

OF PROFITS, LOSS OF USE, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAM-

AGES TO ANY PERSON RESULTING FROM THE USE OF ENGINEERED SYSTEMS’

PRODUCTS.

8PRO-2200 Two Reader Module PRO22R2Installation Guide

Confidentiality

All software, drawings, diagrams, specifications, catalogs, literature, manuals and other

materials furnished by Engineered Systems relating to the design, use and service of the

Products shall remain confidential and shall constitute proprietary rights of Engineered

Systems and Customer agrees to treat such information as confidential. Customer shall

acquire no rights in the design of the Products or the related materials except to use such

information solely for the purpose of and only during the time it sells the Products. Cus-

tomer shall not copy the design of any of the Products or use or cause to be used any

Product design or related materials for its own benefit or for the benefit of any other party.

The covenants contained in this section shall remain effective throughout the term of this

Agreement and thereafter unless specifically waived by Engineered Systems in writing.

PRO-2200 Two Reader Module PRO22R2 9Installation Guide

N-1000-IV FourN-1000-IV Four

N-1000-IV FourN-1000-IV Four

N-1000-IV Four

Reader BoardReader Board

Reader BoardReader Board

Reader Board

Description

The Two Reader Board provides support for up to two access control doors by providing

connections for Wiegand or Clock/Data type readers, supervised inputs and relay outputs.

This board can be rack mounted, in which case, only one edge is accessible for wiring.

Mounting the board flat increases the amount of available I/O slightly but also significantly

decreases the number of boards that can be mounted in one enclosure.

The I/O terminals are organized to support two doors. Starting at the bottom of the rack-

mount side of the board, the first connector provides power to the board. The next connec-

tor provides communication with the Intelligent Controller (PRO22IC). The next set of

terminals is used to connect reader 2. The next set of terminals is used to connect the I/O

typically associated with reader 2, namely the Door Status and REX status inputs and the

Door Lock and Lock Status relay outputs. Continuing up this edge the next two connec-

tors provide the reader and associated I/O terminals for reader 1. The last connector on

the rack-mount edge provides terminals for two additional general-purpose alarm inputs

When the board is mounted flat, two additional relay outputs and two additional general-

purpose alarm inputs are available along with two dedicated alarm inputs for cabinet

tamper and power fault detection on the opposite edge of the board.

The reader interface accepts a Wiegand signal of Data 1 and Data 0 or a Clock and Data

signal and provides 5 VDC or 12 VDC reader power, a tri-stated LED control and buzzer

control. Two of the six form-C relay outputs are sized for the inductive load of door locks

and the other four are designed to handle dry-circuit signals. All of the inputs are capable

of four-state supervision except the two dedicated inputs. Communication to the control

panel is accomplished via an RS-485 interface. This board requires 12 VDC input power.

When communication to the control panel is lost this board can grant access based on

facility code only. General purpose outputs will retain the setting at the time communica-

tion was lost. Up to eight facility codes may be active in each PRO22R2. Keypad input

must follow the reader input format and is in place of or multiplexed with the reader data.

Set Up

Jumper Settings:

Jumper Setting Default Selected

J1 OFF *Port 1 RS-485 EOL terminator is not active

ON Port 1 RS-485 EOL terminator is active

J2 5 * Reader 1 Power Terminal provides 5 VDC

12 Reader 1 Power Terminal provides 12 VDC

J3 5 Reader 2 Power Terminal provides 5 VDC

12 Reader 2 Power Terminal provides 12 VDC

*

10 PRO-2200 Two Reader Module PRO22R2Installation Guide

Dipswitch Settings:

8S 7S 6S 5S 4S 3S 2S 1S NOITCELES

FFOFFOFFOFFONO*1SSERDDA

FFOFFOFFONOFFO2SSERDDA

FFOFFOFFONONO3SSERDDA

FFOFFONOFFOFFO4SSERDDA

FFOFFONOFFONO5SSERDDA

FFOFFONONOFFO6SSERDDA

FFOFFONONONO7SSERDDA

FFONOFFOFFOFFO8SSERDDA

FFOFFO devreseR

FFONO SPB006,9

NOFFO SPB002,91

NONO *SPB004,83

FFO *desUtoN

* = Default

PRO-2200 Two Reader Module PRO22R2 11Installation Guide

LED Operation

The Reader board uses two on-board LEDs D79 & D80 to provide status information

during its Power-up sequence as well as normal operation.

In addition to the status LEDs, there are 6 additional relay status LEDs on board. When

any relay is energized or ON, its corresponding status LED will become ON also. The LED

will remain ON for as long as the relay is energized. The assignment for each relay status

LED is shown in the following table.

#YALER 1 2 3 4 5 6

DEL37D57D47D67D77D87D

Power

The Two Reader Board accepts 12 VDC with an operating range of 10 to 16 VDC and

consumes 400mA of current. Locate power source as close to this board as possible.

Connect power with minimum of 18AWG wire. The input voltage is regulated to 5 VDC. The

regulated voltage or the 12 VDC (pass through) is available for powering the readers. The

selection is made via jumpers and is available at both reader connectors.

NOTE: POLARITY for 12 VDC power is important. Make sure the +12 VDC is connected

to the terminal labeled +12V and the return is connected to the terminal labeled

GND.

Communications

The Two Reader Board communicates to host controller via an RS-485 interface. The

interface allows for multi-drop communication of up to 4,000 feet (1,200 m) total per port.

Use two twisted pair (minimum 24AWG) with shield for communication. The default speed

of this port is 38.4Kbps but it can be downgraded to 19.2Kbps or 9.6Kbps if the line

conditions or receiving equipment require it (see jumper and DIP switch settings).

EDOM

DEL 97D DEL 08D NOITPIRCSED

pu-rewoP ecneuqeS

NOFFOputeserawdrah,pu-rewoPtratS

FFONOMARgnitseT

NONOnoitazilaitinignitelpmocdnaMORgnitseT

HSALFNOretfasemit4sehsalf97DDEL detelpmocsipu-rewoP

lamroN noitarepO

HSALF

ecnosehsalftI.DELtaeb-traehrossecorpehtsisihT )elcycytud%02~(emitNOtrohsA.dnocesyreve lairestsolsahroenil-ffosidraobehtsetacidni NOgnolA.draobrellortnoCehthtiwnoitacinummoc enilnosidraobehtsetacidni)elcycytud%08~(emit .draobrellortnoCehthtiwgnitacinummocdna

HSALF.troPlaireSstinoytivitcasierehtnehwhsalF

12 PRO-2200 Two Reader Module PRO22R2Installation Guide

For Wiring to an RS-485 port:

1. TR+ is the plus side of the transmit and receive differential signal.

2. TR- is the negative side of the transmit and receive differential signal.

3. GND is the signal ground. The wiring for this signal is required and NOT optional.

This signal must NOT be connected to chassis GND.

4. Use 24 AWG low capacitance, two twisted-pair, shielded cable (Belden 9842 or

equivalent).

+

—

Common

Orange/white stripe

W

hite/orange stripe

Note: For N-485 Communication Connections, twist the blue pair together and use as the

common; use the orange pair as your data pair, observing polarity. Connect the

external drain shield to the appropriate earth ground on one end.

5. When daisy-chaining RS-485 ports together connect the TR+ wires from the upstream

and downstream boards to the TR+ terminal and likewise, connect the TR– wires from

the upstream and downstream boards to the TR– terminal.

By factory default J1 is set open. If this board is the last board on the RS-485 bus, install

jumper J1 across both pins (closed). Closing J1 provides the bus termination required.

Reader Wiring

Each reader port supports a reader with TTL interface. Power to the reader is selectable

as 5 VDC or 12 VDC (pass-through). This selection is done via setting of jumpers J2 for

reader 1 and J3 for reader 2. Set jumper at position “5" for 5 VDC or “12” for pass-through

12 VDC. The factory defaults set J2 and J3 to “5”.

For wiring to a reader port:

lanimreT roloCeriWpyT redaeRdnageiW redaeRataD/kcolC

1deR)cdV21ro5(rewoP)cdV21ro5(rewoP

2nworBlortnocDELlortnocDEL

3wolleYlortnoCrepeeBlortnoCrepeeB

4etihWlangiS1ataDlangiSkcolC

5neerGlangiS0ataDlangiSataD

6kcalBnommoCnommoC

The LED control terminal in each reader port can be configured via host software to

support one-wire single or bi-colored reader LED. An example of the most common

configuration is shown below. If Beeper control is not used, its terminal can be pro-

grammed to be the 2nd wire for the two-wire bi-colored reader LED.

PRO-2200 Two Reader Module PRO22R2 13Installation Guide

Single Wire Reader LED Control Configuration

tuptuODEL

>- hgiH detatS-irT woL

DELroloCelgniSnODELffODELffODEL

DELroloC-iBnODELneerGffOsDELhtoBnODELdeR

To fully utilize each reader port, a 6-conductor cable (18AWG) is required. Reader port

configuration is set via host software.

Alarm Contact Wiring

Inputs 1 to 8 may be configured to use normally open or normally closed contacts and

non-supervised or supervised (with standard ±1 tolerance 1K ohm). Four of these inputs

have default functional definitions, but all eight can be configured to monitor general-

purpose alarm sensors.

1

2

3

4

1K

1K

NO

1K

1K

NC

By default, Input 1 is defined as the Door Status Input corresponding to reader 1 and Input

2 is defined as the REX input corresponding to reader 1. Also by default, Input 3 is

defined as the Door Status Input corresponding to reader 2 and Input 4 is defined as the

REX input corresponding to reader 2.

Inputs 5, 6, 7, and 8 are general purpose inputs that can be used to monitor alarm sen-

sors or can be used as control inputs. Inputs 7 and 8 are not accessible when the board is

rack mounted.

Inputs TMP and PFL are typically used for monitoring cabinet tamper and power failure

respectively. These 2 inputs are not supervised and are not accessible when the board is

rack mounted. These inputs were primarily provided for the case when this board is

mounted remotely and can not take advantage of the tamper and power fail detect inputs

on the controller board. If these inputs are not used, install a short piece of wire at the

input to indicated safe condition.

Input configuration including debounce and hold time is set via host software.

Control Output Wiring

Six form-C relay contacts are provided for controlling door strike or other devices. Each

may be assigned to door-related functions or general-purpose output. They are

configurable as standard (energize to activate) or fail-safe (de-energize to activate) via

host software.

The energized or ON time of each relay can be configured using Pulse control for single or

repeating pulses via host software. The energized or ON time for a single pulse can be

extended up to 24 hours. For repeating pulses, the on/off time can be defined in 0.1

second increments and be repeated up to 255 times.

14 PRO-2200 Two Reader Module PRO22R2Installation Guide

Relays 1 and 3 are rated for and normally used to control the door locks associated with

readers 1 and 2 respectively. While Relays 1 and 3 are sized to handle the typical loads

generated by electrical locks, load switching can cause abnormal contact wear and

premature contact failure. Switching of inductive loads (i.e., strike) also causes EMI

(electromagnetic interference) which may interfere with normal operation of other equip-

ment. To minimize premature contact failure and to increase system reliability, contact

protection circuit is highly recommended. The following two circuits are suggested. Locate

the protection circuit as close to the load as possible (within 12 inches [30cm]), as the

effectiveness of the circuit will decrease as the distance from the load increases.

(See diagram to follow.)

Relays 2 and 4 are dry-circuit level signal relays typically used to indicate the status of

the door lock. Relays 5 and 6 are general-purpose relay outputs and are not available

when the board is rack mounted.

Use sufficiently large gauge of wires for the load current to avoid voltage loss.

Mounting Options

This board can be mounted on-edge in the rack-mount enclosure provided by Northern

Computers or it can be mounted flat against any surface using standoffs under the

mounting holes provided in each of the four corners of this board.

When this board is rack-mounted, the connectors for two general-purpose inputs, two

general-purpose outputs, and two dedicated inputs are not accessible and should not be

used.

The most common reason for mounting a board flat is that it is being installed remotely to

be located near the door(s) being monitored. In this case it will be mounted in its own

enclosure creating the need to monitor cabinet tamper and power fault detection inputs.

The two additional general-purpose inputs and outputs provided allow for the monitoring of

extra alarm sensors and control of local horns or other equipment.

Suggested Installation Sequence

1. Set Jumpers and DIP switches.

2. Mount this board in the appropriate enclosure. If this board is being mounted in a rack,

the component side of the board is to the right when facing the rack.

3. Connect the communications and power supply to the circuit boards with the Power

Supply Harness.

WARNING: DO NOT CONNECT THE POWER SUPPLY TO THE AC SOCKET UNTIL ALL

WIRING HAS BEEN INSTALLED AND RECHECKED.

4. Connect wiring to the reader interfaces as appropriate.

PRO-2200 Two Reader Module PRO22R2 15Installation Guide

5. Connect wiring to alarm input sensors or install jumper wire as appropriate.

6. Connect relay output wiring as appropriate.

7. Connect communications wiring to the Intelligent Controller.

8. Recheck wiring for correct connections and continuity.

9. When all boards have been installed, connect the Power Supply Cord for proper

connections and power.

10. Setup the panel controls using the host software.

Specification

The Two Reader is for use in low voltage, class 2 circuits only.

Primary power:

12VDC±10% 400mA

Relay contacts:

Relays 1 & 3 outputs, Form-C, 5A @ 28 VDC, resistive

Relays 2 & 4 & 5 & 6 outputs, Form-C, 2A @ 28 VDC, resistive

Inputs:

8 supervised, End of Line resistors 1k ohm ± 1% tolerance

2 unsupervised dedicated inputs

Reader interface

Reader power 5 VDC (5 - 6.2) or 12 VDC (pass-through) 150mA max. each

Reader LED output TTL compatible, high > 3V, low < 0.5V, 5mA

source/sink max.

Reader buzzer output Open collector, 5 VDC open circuit max. 10mA sink max.

Reader data inputs TTL compatible inputs

Communication:

RS-485 9,600 to 38,400 bps

Wire requirements:

Power 1 twisted pair, 18AWG

RS-485: 24AWG, 4,000 feet (1,200m) max., 2-twisted pair with shield (120Ω,

23pf) (Belden 9842 or equivalent.)

Alarm inputs 1 twisted pair per input, 30 ohms max.

Outputs As required for the load

Readers 6 conductors, 18AWG, 500 feet (150m) max. shield and drain

Mechanical:

Dimension 5.5" (140mm) W x 9" (229mm) L x 1" (25mm) H

Weight 12 oz. (340g) nominal

Environment:

Temperature 0°C to +49°C, operating, –55°C to +85°C, storage

Humidity 0% to 85% RHNC

16 PRO-2200 Two Reader Module PRO22R2Installation Guide

Wiring Diagram for Connectors 1 through 7

Note: For N-485 Communication Connections, twist the blue pair together and use as the

common; use the orange pair as your data pair, observing polarity. Connect the

external drain shield to the appropriate earth ground on one end.

1

2

3

4

1

2

Two Reader Board

Reader 1 Reader 2

Input 5 Common

Input 5

RED

BLACK

Door

Status Switch

Relay 1 C

GREEN Input 6 Common

Egress

Push-Button

Switch

WHITE Input 6

Input 1

Input 1 Common

Input 2

Relay 1 NO

S-4

Suppressor

Door Lock

BLACK

RED

DRAIN

RED +5 or +12V DC Out

YELLOW Beeper

BROWN Red LED

BLACK Common

GREEN Data-0

NC

KP-13

Weigand

Keypad

Separate

Power

Supply

-

VDC

+

Input 2 Common

Relay 1 NC

Relay 2 NO

Relay 2 C

Relay 2 NC

1

2

3

4

5

6

10

1

2

3

4

5

6

7

8

9

WHITE Data-1

Chassis GND

Inside Panel

1

2

3

4

5

6

10

1

2

3

4

5

6

7

8

9

Input 3

Input 3 Common

Input 4

Input 4 Common

Relay 3 C

Relay 3 NO

Relay 3 NC

Relay 4 NO

Relay 4 C

Relay 4 NC

DRAIN

RED +5 or +12V DC Out

YELLOW Beeper

BROWN Red LED

BLACK Common

GREEN Data-0

Proximity

Reader

WHITE Data-1

Chassis GND

Inside Panel

Voltage Is Selected By

Jumper J2 On Board

S-4

Suppressor

Door Lock

BLACK

RED

Separate

Power

Supply

–

VDC

+

EOL

EOL

1

2

3

485-Com +

485-Com -

485-Gnd

CardRack

PWR & Com

Harness*

( For Rack

Mount Only )

RS-485 Power

D73

D75

D74

J1 - RS485

Termination

Jumper

D79

D80

1

2

3

4

5

6

7

8

S1

1

2

3

4

5

6

1

2

3

1

2

3

4

D77

D78

12V 5V

12V 5V

Configuration

Dip Switches

J3 - Reader2

VDC Select

J2 - Reader1

VDC Select

Voltage Is Selected By

Jumper J3 On Board

PWR +

PWR -

Typical Connection

Short

Together*

*Rack mount configuration

PRO-2200 Two Reader Module PRO22R2 17Installation Guide

Wiring Diagram for Connectors 6 through 10

Note: For N-485 Communication Connections, twist the blue pair together and use as

the common; use the orange pair as your data pair, observing polarity. Connect the

external drain shield to the appropriate earth ground on one end.

18 PRO-2200 Two Reader Module PRO22R2Installation Guide

NOTES

Honeywell Security & Data Collection

2700 Blankenbaker Pkwy, Suite 150

Louisville, KY 40299

(800) 675-3364

www.honeywellaccess.com
