OWNER’S GUIDE

® U.S. Registered Trademark

Copyright © 2003 Honeywell International Inc.

All Rights Reserved

CT3200 Programmable Thermostat

Welcome to the world of comfort and energy savings with your

new Honeywell Programmable Thermostat. Your new thermostat

will automatically control the temperature in your home, keeping

you comfortable while saving energy.

Weekday/Weekend (5-day/2-day)

Programmable Heat and/or Cool

Low Voltage (20 to 30 Vac)

Thermostat and Mounting Plate

Model CT3200

Table of Contents

Installation .................................................................................................................................................................. 2

Programming.............................................................................................................................................................. 12

Operation.................................................................................................................................................................... 18

Frequently Asked Questions ...................................................................................................................................... 22

Customer Assistance ................................................................................................................................................. 23

Limited Warranty ........................................................................................................................................................ 24

69-1631—1 2

MERCURY NOTICE

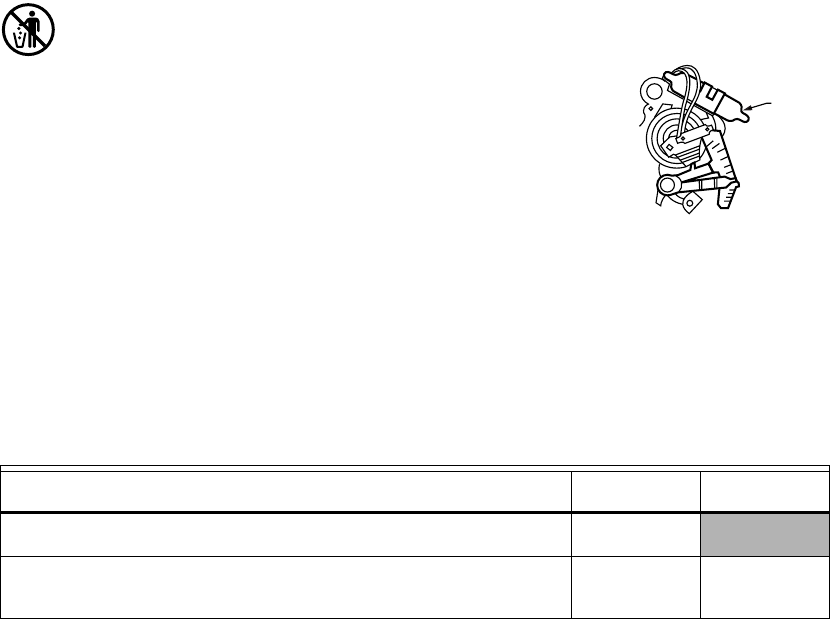

If you are removing an old thermostat that contains mercury in a sealed tube

(Fig. 1), do not place the old thermostat in the trash. Contact your local waste

management authority for instructions regarding recycling and the proper

disposal of the old thermostat.

INSTALLATION

Verify You Have Correct Thermostat

Make sure that the CT3200 is the correct thermostat for your heating/cooling system. Read the compatibility chart

below to determine which system you have. If your system is not compatible with the CT3200, the table recommends

an alternate Honeywell model. If you are unsure what type of thermostat is right for your system, visit us on the Web at

www.honeywell.com/yourhome or call Honeywell Customer Care at 1-800-468-1502.

M3701

MERCUR

Y

SWITCH

Fig. 1.

Heating/Cooling System

Compatible

with CT3200? Alternate Model

Conventional

Single stage systems that include warm air furnaces and hot water.

Yes

Electric Baseboard

Electric-powered heating strips located just above the floor, usually 120 to 240

volts.

No CT1950 for 240

volts

3 69-1631—1

Step 1. Prepare for Installation

1. Carefully unpack your new thermostat. Save your receipt and make sure you have the following parts:

• Thermostat and mounting plate

• Labels

• Screws and anchors

• Installation and Programming Instructions

2. Gather the needed tools and supplies listed below.

3. Make sure that your heating and cooling systems are working properly. If there is a problem with either system,

call a heating/air conditioning contractor—the problem may persist after you install the new thermostat.

IMPORTANT:

To avoid damaging the compressor in the air conditioner, do not operate the cooling system when the tem-

perature outdoors is below 50°F (10°C).

Steam

A steam boiler with radiator heat.

No CT3600

Heat Pump

Heating and cooling are produced from the same outdoor unit (compressor) with

no auxiliary or backup heat.

No CT3600

Multistage Heat Pump

Heating and cooling are produced from the same outdoor unit (compressor) with

auxiliary or backup heat.

No CT3611

Multistage Conventional

A heating or cooling system with more than one stage.

No See your

contractor

Required Tools and Supplies Optional Tools

• Two AA alkaline batteries. Honeywell recommends Energizer®

batteries.

• Screwdriver.

• Hand or power drill with 3/16-inch or 7/32-inch drill bit.

• Pencil.

• Wire cutter/stripper or sharp knife.

• Level.

• Electrical tape.

Heating/Cooling System

Compatible

with CT3200? Alternate Model

69-1631—1 4

Step 2. Remove Old Thermostat

Fig. 2. a. Turn off power to the heating/cooling system, either at the

furnace or at the fuse/circuit breaker panel.

b. Remove the cover of your old thermostat (Fig. 2).

c. Unscrew and remove the old thermostat’s mounting plate

from the wall, but do not disconnect the wires.

d. Inspect the old thermostat wiring. If wiring meets any of

the following conditions, see special wiring instruc-

tions section after Step 7.

Fig. 3. • The old thermostat is a clock thermostat with wires attached

to the C or C1 terminals.

• The old thermostat has six or more wires, excluding wires

attached to C or C1 terminals.

• The old thermostat has three wires.

• There are five wires connected to the old thermostat.

• There are extra wires that are not connected to the old

thermostat.

e. Using enclosed labels, mark wires with letter of terminal it is

attached to on the old thermostat (Fig. 3). Do not label

using colors. If labels do not match letters on old thermostat

terminals, see wiring cross reference table in Special Wiring

Instructions section.

Fig. 4. f. Disconnect the wires from the old thermostat and wrap the

wires around a pencil to keep them from falling back into the

wall.

NOTE: Remember, if your old thermostat contains mercury,

you must recycle it. See Mercury Notice for more

recycling information.

✓Check your progress

Your wall should now look like Fig. 4.

M2014

0

M19086

WIRES THROUG

H

WALL OPENING

M20133

5 69-1631—1

Step 3. Install Mounting Plate

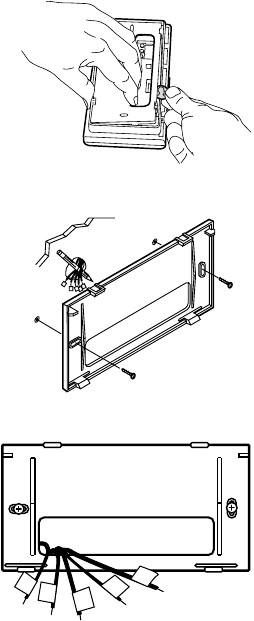

Fig. 5. a. Separate the mounting plate from the thermostat using a

coin, as shown in Fig 5.

b. Position the mounting plate on the wall. Be sure the mount-

ing plate is flush against the wall and none of the wires are

trapped behind it.

c. Level the mounting plate and use a pencil to mark the cen-

ter of the mounting plate screw holes.

d. Remove the mounting plate and drill holes at the locations

marked.

• For drywall, drill two 3/16-inch holes.

• For plaster or wood, drill two 7/32-inch holes.

Fig. 6. e. If installing in drywall, gently tap the anchors (provided) into

the drilled holes until they are flush with the wall.

f. Reposition the mounting plate over the holes, pull the wires

through the wiring opening, and loosely insert the mounting

screws into each of the drilled holes or anchors (Fig. 6).

g. Make sure the mounting plate is level and tighten the

mounting screws.

Fig. 7. ✓ Check your progress

The mounting plate is now mounted on the wall and should look like

Fig. 7.

M20139

M20129

M2012

8

W

R

G

R

c

Y

69-1631—1 6

Step 4. Set Thermostat for Your Type of Heating System

I

M

P

O

R

T

A

N

T

:

IMPORTANT:

Setting your thermostat correctly

for your type of heating system

allows it to maintain accurate

temperature control, minimize

swings in the temperature of the

room, and efficiently run the fan.

a. Use the FUEL SWITCH on the

back of the thermostat to set your

new thermostat for the type of fuel

that your heating system uses: F–

gas or oil, or E–electric.

NOTE: This setting enables

proper fan operation.

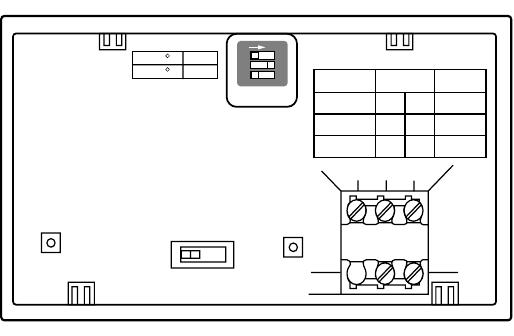

b. Use DIP switches 1 and 2 on

the back of the thermostat to set

your new thermostat for your type

of heating system. See the Heat-

ing System Table on the next

page to find the correct settings.

NOTE: These DIP switches are

factory-set for a warm air, gas, or

oil heating system.

c. The thermostat is set to display the temperature in degrees Fahrenheit (°F). If you want to display the tem-

perature in degrees Celsius (°C), turn DIP Switch 3 to Off position.

d. You can install the batteries and program your thermostat now, or you can wait until the thermostat is

mounted on the wall. To install the batteries, see Step 7.To program the thermostat, see the Programming

section.

Fig. 8.

M2063

7

R

W Y G

W Y G

C R R

THERMOSTAT BACK

DISPLAY F

DISPLAY C 3 - ON

3 - OFF

FE

FUEL SWITCH

WARM AIR

FURNACE 1 - ON 2 - ON F

1 - OFF 2 - ON F

1 - ON 2 - OFF E

FUEL SWITCH

POSITION

DIP SWITCH

POSITION

HEATING

SYSTEM

C

C

C

1

OFF ON

2

3

ON

1

2

3

HOT WATER OR

HIGH EFFICIENCY

ELECTRIC

FURNACE

7 69-1631—1

Heating System Table

Step 5. Wire Thermostat Terminals

Type of System

D I P S wit ch e s

1 and 2 Fuel Switch

Warm air, gas, or oil heating system with an efficiency rating under 90%.

(The furnace efficiency rating should be on the furnace.)

Use factory setting

1–On; 2–On

F

High-efficiency furnace such as a 90% or greater AFUE (Average Fuel

Utilization Efficiency) unit

1–Off; 2–On F

Hot water boiler 1–Off; 2–On F

Electric furnace 1–On; 2–Off E

Fig. 9. a. Hold thermostat as shown in Fig. 9.

b. Using the labels on the wires, match letter of your old ther-

mostat wire with the corresponding terminal on the back of

your new thermostat.

NOTE: If letters on old thermostat terminals do not match letters on

new thermostat terminals, all old wires may not need con-

necting to new thermostat. See Special Wiring Instructions

section.

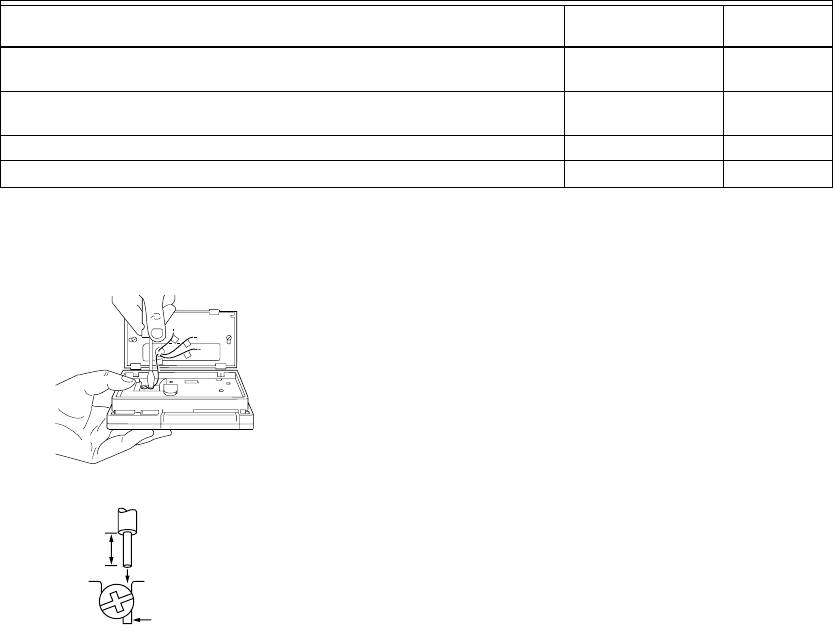

Fig. 10. c. Loosen terminal screws and slip each wire beneath its

matching terminal (Fig 10).

d. Securely tighten terminals.

W

Y

G

R

M2012

5

INSERT

STRAIGHT

UNDER

SCREW HEAD

5

/16 in.

(

8 mm)

S

TRIP

END OF WIR

E

VISIBLE HER

E

M20126

69-1631—1 8

Step 6. Mount Thermostat

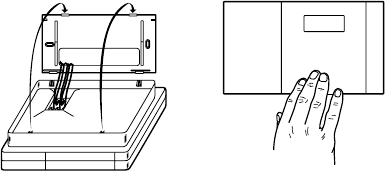

Fig. 11. Fig. 12. e. Align the tabs at the top of the thermostat

with the tabs at the top of the mounting

plate (Fig. 11).

f. Press the lower edge of the case to latch

the bottom of the thermostat (Fig. 12)

M2013

0

M2013

1

9 69-1631—1

Step 7. Install the batteries

Special Wiring Instructions

Clock thermostat with C or C1 terminals

A clock thermostat has one or two extra wires attached to the C or C1 terminals that allow the clock to operate. These

wires are not used during the installation of your new 3200 Thermostat and must be insulated from each other to avoid

damaging your electrical circuit.

a. Make sure that power to the heating/cooling system is turned off.

b. Locate the wires that are connected to the clock terminals marked C or C1.

c. As you disconnect the wires, do not allow these wires to touch.

d. Wrap the wires separately, using electrical tape to insulate the wires.

e. Place the wires where they do not interfere with the operation of the new thermostat.

You will not connect these wires to your 3200 Thermostat.

f. Continue with the installation.

Fig. 13.

Fig. 14.

IMPORTANT:

Batteries must be installed for programming and operation of

the thermostat and heating/cooling system. Honeywell rec-

ommends using Energizer® batteries.

a. Make sure that the System switch is set in the OFF position.

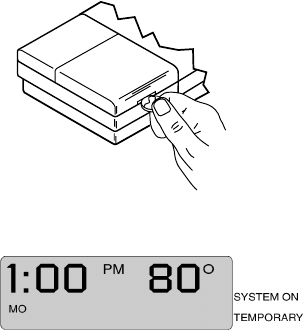

b. Using a coin, open the battery door as shown in Fig. 13.

c. Install the batteries. Make sure that the positive and nega-

tive terminals are oriented correctly as marked inside the

battery case.

d. Replace the battery door.

e. Remove the clear plastic label from the digital display.

✓ Check your progress

When the batteries are installed correctly, the digital display flashes all

entries once, then begins to flash a default time and the current

temperature (Fig. 14). The flashing continues until you begin to

program the thermostat. You are now ready to program the thermostat.

See Programming section.

M1719C

REMOVING

BATTERY

DOOR

69-1631—1 10

Six or more wires

If your old thermostat has six or more wires (excluding clock wires attached to the C or C1 terminals), your heating/

cooling system is most likely a variation of a heat pump or multistage system. Your 3200 Thermostat will NOT work

with such systems and should be returned to the place of purchase. See the thermostat compatibility table for

information about which programmable thermostat will work with your system.

Three thermostat wires

If you have three wires for heating only and can operate the fan using the fan ON switch, the 3200 Thermostat will

work with your system. Continue the installation procedure.

If you have a three-wire heating-only system and cannot operate the fan using the fan ON switch, the 3200

Thermostat will probably NOT work with your system. Contact your heating contractor for installation assistance.

Wires that are not connected to old thermostat

If there are extra wires that do not connect to your old thermostat, do not label them. You will not connect these wires

to your new thermostat. Tape off the wires individually with electrical tape and place them where they will not interfere

with the operation of the new thermostat. Continue the installation procedure.

Five wires connected to old thermostat

Your new thermostat has a factory-installed metal jumper between the R and Rc

terminals (Fig. 15). Remove the jumper before wiring the R and Rc terminals.

Thermostat C Terminal

This thermostat does not use the C wiring terminal.

M20127

JUMPER (FACTORY-

INSTALLED). REMOVE

IF 5-WIRE SYSTEM

RR

c

WY G

Fig. 15.

11 69-1631—1

Old thermostat terminals that do not match new thermostat terminals

Use the table below to wire the new thermostat.

*Remove factory-installed jumper between R and Rc terminals in 5-wire systems.

Old Thermostat

Terminal

Connect to New

Thermostat

Terminal Description

R, RH, 4, V R* Power

Rc, R Rc* Power for cooling

W, W1, H W Heat

Y, Y 1, M Y Cooling

G, F G Fa n

O Do not continue

installation

Changeover in cool (O terminal) or changeover in heat (B terminal).

You have a single-stage heat pump or zoning system. Select an alternate

thermostat model.

B

C, X, B Do not connect Transformer common.

W2, H2Do not continue

installation.

Second stage heat (W2, H2) or second stage cooling (Y2).

You have a multistage heating/cooling system. Select an alternate

thermostat model.

Y2

69-1631—1 12

PROGRAMMING

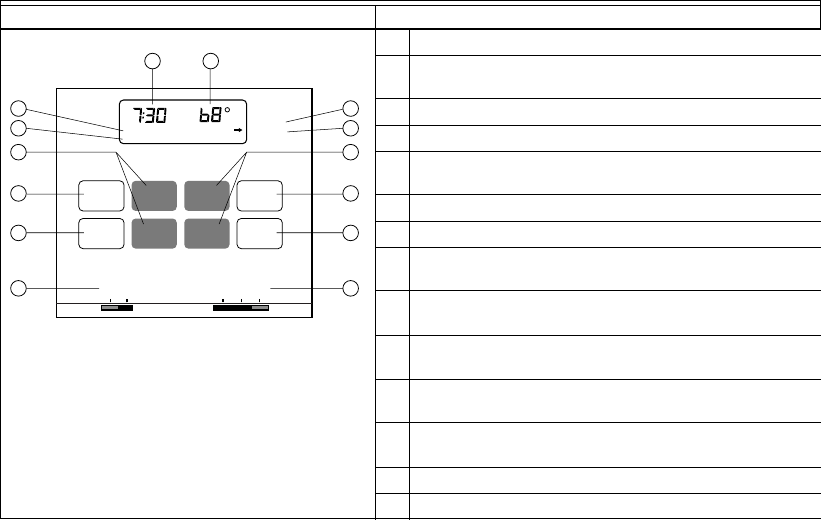

Faceplate Illustration and Description

Descriptions

Fig. 16. 1 Fan switch–Selects automatic fan operation or fan on.

2 Set Schedule–Puts the thermostat into programming

mode.

3 Set Clock/Day–Sets the clock and day.

4 Time Ahead and Back–Sets the time ahead and back.

5 Program periods–Current program period or period being

programmed.

6 Day of the week–Current day or day being programmed.

7 Time–Current time or program time.

8 Temperature–Room temperature or programmed

temperature.

9 SYSTEM ON–An arrow displays when the heating/

cooling system is running.

10 TEMPORARY–An arrow displays when a temporary

override is made to the program.

11 Temp Warmer and Cooler–Sets the temperature warmer

and cooler.

12 Run Program–Returns thermostat to normal operating

mode

13 Hold Temp–Holds a selected temperature.

14 System switch–Selects Cool, Off, Heat.

Fan

Auto On System

Cool Off Heat

Set

Schedule

Set

clock/Day

BackBack

AheadAhead

CoolerCooler

WarmerWarmer

Hold

Temp

Run

Program

SYSTEM ON

TEMPORARY

TempTime

AM

PM

MO TU WE TH FR SA SU

WAKE LEAVE RETURN SLEEP

SET

M2014

1

1

2

3

4

5

6

14

13

12

11

10

9

7 8

13 69-1631—1

Step 1. Set Current Time and Day

Step 2. Learn About Programming Features

Your 3200 Thermostat allows you to program schedules for both a heating season and a cooling season.

• During the heating season, you will want to set the normal room temperature higher and the energy-saving

temperature lower.

• The reverse is true during the cooling season—the normal room temperature will be lower and the energy-saving

temperature higher.

For each season, you can set up to four program periods for the weekdays (Monday–Friday), and up to two program

periods for the weekends (Saturday and Sunday). The program periods are defined in the following table.

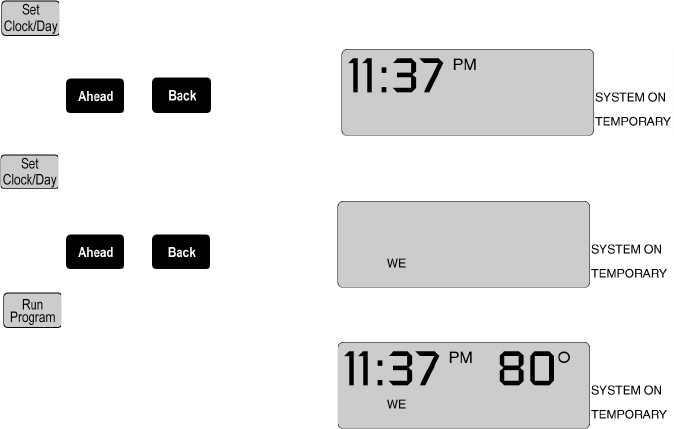

a. Press once.

The time is displayed (Fig. 17).

b. Press and hold or until the cur-

rent time is displayed.

Fig. 17.

c. Press again.

The day is displayed (Fig. 18).

d. Press and hold or until the cur-

rent day is displayed.

Fig. 18.

e. Press once.

The current time and day and the current tempera-

ture are displayed (Fig. 19).

Fig. 19.

69-1631—1 14

Programming Tips

• You do not need to program times and temperatures for all program periods.

If you decide not to program your thermostat, it automatically controls heating at 68°F (20°C), and cooling at 78°F

(26°C), 24 hours a day.

If you decide not to program weekend schedules, the temperature that is programmed for the weekday SLEEP

schedule remains in effect until the next program period, which begins on Monday morning.

• The temperatures cannot be set any higher than 88°F (31°C) or any lower than 45°F (7°C).

• When pressing the buttons, use the ball of your finger or a soft pencil eraser. Using sharp fingernails or pencil

points can damage the keypad.

• If you make an error at any time during programming, press . Then press until you reach the

program period you last programmed.

Program Period Description When Available

WAKE The time when you get up and get ready to leave your home. You can

set the system at a comfortable temperature for this period.

Weekdays and weekend

LEAVE The time when you are regularly away from home. You can set up an

energy-saving temperature for this period.

Weekdays only

RETURN The time between returning home and going to bed. You can set the

system at a comfortable temperature for this period.

Weekdays only

SLEEP The time when you are sleeping. You can set up an energy-saving

temperature for this period.

Weekdays and weekend

15 69-1631—1

Step 3. Program Heating Schedule

a. Write in the times and temperatures that you want to program for your heating schedule.

Heating Schedule

Program

Period WAKE LEAVE RETURN SLEEP

Suggested

Settings

Time 6:00 AM 8:00 AM 6:00 PM 10:00 PM

Temp 70°F (21°C) 62°F (16.5°C) 70°F (21°C) 62°F (16.5°C)

Weekday (Mon–Fri) Time

Tem p

Weekend (Sat–Sun) Time

Tem p

b. Set the System switch to HEAT.

c. Press once.

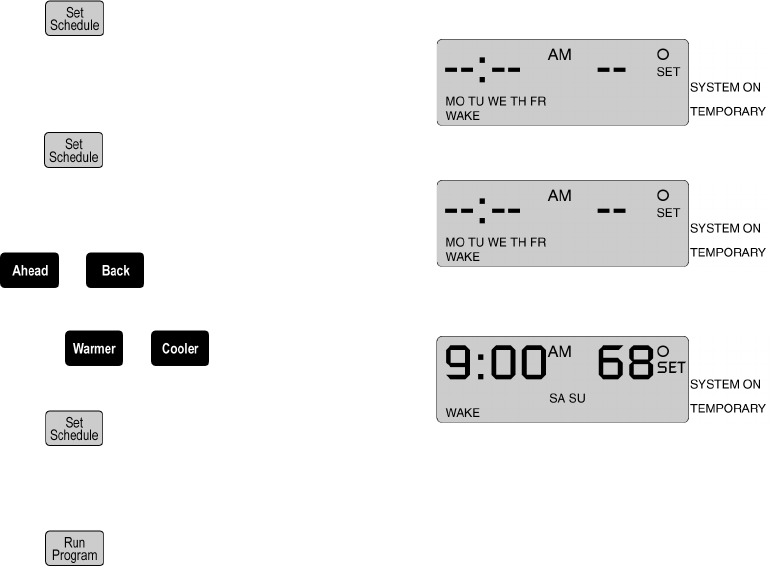

A blank schedule is displayed (Fig. 20).

Fig. 20.

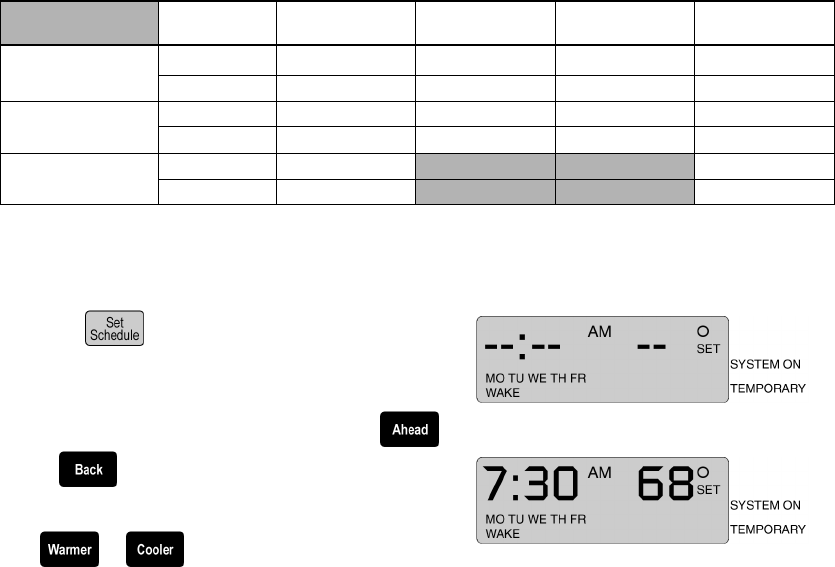

d. Set the Monday–Friday WAKE time by pressing

or until the desired time is displayed (Fig. 21).

e. Set the Monday–Friday WAKE temperature by pressing

or until desired temperature is

displayed.

Fig. 21.

69-1631—1 16

f. Press to display a blank schedule for the next

program period (Fig. 22) and repeat steps d. through f. for

each weekday program period.

Fig. 22.

g. Press until the weekend schedule is displayed

(Fig. 23).

h. Set the Saturday and Sunday WAKE time by pressing

or until the desired time is displayed.

Fig. 23.

i. Set the Saturday and Sunday WAKE temperature by

pressing or until desired temperature

displays (Fig. 24).

j. Press again to display blank schedule for SLEEP

program period and repeat steps h. through j. to set pro-

gram.

k. Press to start the program.

Fig. 24.

17 69-1631—1

Step 4. Program Cooling Schedule

a. Write in the times and temperatures you want to program for your cooling schedule.

b. Set the System switch to COOL.

c. Repeat steps 3c. through 3k. to program the weekday and weekend cooling schedule.

Step 5. Check System

Verify that your heating system works

Cooling Schedule

Program

Period WAKE LEAVE RETURN SLEEP

Suggested

Settings

Time 6:00 AM 8:00 AM 6:00 PM 10:00 PM

Temp 78°F (25.5°C) 85°F (29.5°C) 78°F (25.5°C) 82°F (28°C)

Weekday (Mon–Fri) Time

Tem p

Weekend (Sat–Sun) Time

Tem p

a. Set the System switch to HEAT, and the Fan switch to

AUTO.

b. Press until the setting is 10°F (6°C) above room

temperature (Fig. 25). Your heating system should start

and the fan should run after a short delay.

Fig. 25.

c. Press until the setting is 10°F (6°C) below room

temperature. Your heating system should shut off.

69-1631—1 18

Verify that your cooling system works

IMPORTANT:

To avoid damaging the compressor in the air conditioner, do not operate the cooling system when the tem-

perature outdoors is below 50°F (10°C).

OPERATION

Change Clock for Daylight/Standard Time

a. Press once. The time is displayed.

b. Press and hold or until the correct time is displayed.

c. Press once. The current time and day and current temperature display.

d. Set the System switch to COOL, and the Fan switch to AUTO.

e. Press until the setting is 10°F (6°C) below room tem-

perature (Fig. 26). Your cooling system and fan should start.

NOTE: When cooling setting is changed, thermostat can

delay up to five minutes before turning on air condi-

tioner. This delay protects the compressor.

Fig. 26.

f. Press until setting is 10°F (6°C) above room temper-

ature.Your cooling system and fan should stop.

g. Set the System switch to OFF and the Fan switch to AUTO.

The cooling system and fan should be off.

19 69-1631—1

Set Fan and System Switches

The switches on the bottom of the thermostat faceplate control the operation of your fan and the heating and cooling

system. Set the Fan switch first and then set the System switch.

Replace Batteries

As the batteries run low, your thermostat shows the following in the digital display:

a. Make sure that the System switch is set to the OFF position.

b. Open the battery door.

c. Press on the left side of the batteries to remove them.

NOTE: If new batteries are inserted within 20-30 seconds of removing old ones, reprogramming is not

needed. If display is blank, batteries are dead or incorrectly installed and reprogramming is needed.

Switch Setting Result

Fan Auto A single-speed fan turns on automatically with the air conditioner or furnace.

A two-speed fan usually runs on high with the air conditioner and on low with the furnace.

Auto is the normal setting for most homes.

On The fan runs continuously. Use this setting for improved air circulation during special

occasions or for more efficient air cleaning.

NOTE: In a heat-only system, the fan runs continuously only if the fan wire has been con-

nected to the G terminal on the back of the thermostat.

System Cool The thermostat controls your air conditioning system.

Off Both the heating and air conditioning systems are off.

Heat The thermostat controls your heating system.

If you see: Batteries are: You should:

Flashing “bAt Lo” Low Replace the batteries as soon as possible, within the month.

Blank display Dead Replace the batteries immediately. Your heating/cooling system is not

operating.

69-1631—1 20

d. Install new batteries. Make sure that positive and negative terminals are oriented as marked inside battery

case.

e. Close the battery door and set the System switch to HEAT or COOL.

NOTE: If “bAt Lo” continues to display after replacing the batteries, set System switch to OFF, insert batteries back-

ward, wait for five to ten seconds, and return batteries to correct orientation. Then reprogram.

IMPORTANT:

Replace batteries once a year to prevent heating/cooling system from shutting down due to lack of battery

power in thermostat. If leaving home for longer than a month, change batteries before leaving.

Override program settings

NOTE: Make sure the System switch is set to either HEAT or COOL before making any changes to the schedule.

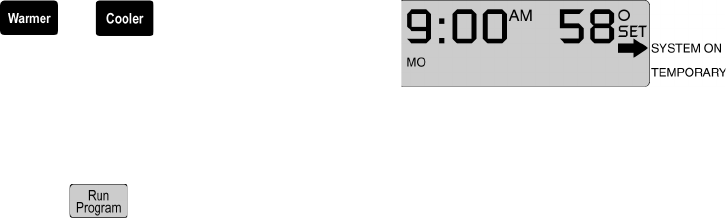

Change the temperature temporarily

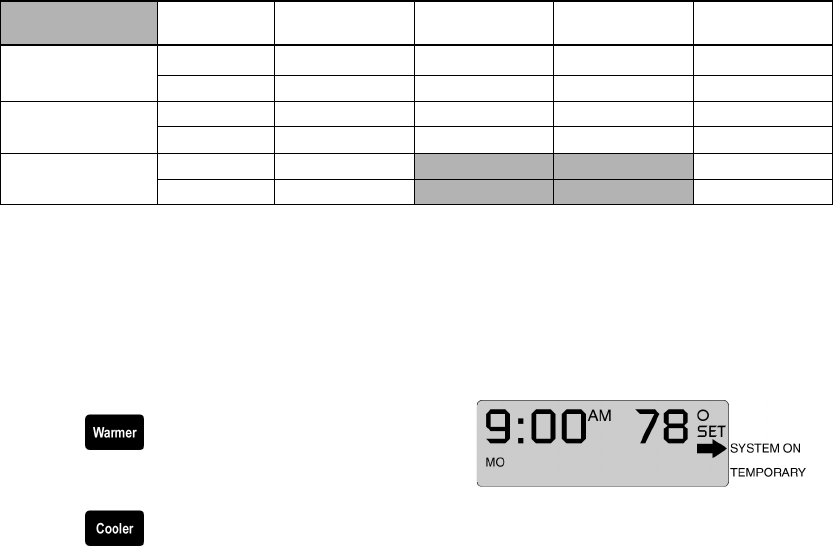

Press or until the desired temperature is

displayed. An arrow is displayed, indicating that the change is

temporary (Fig. 27).

NOTE: A temporary change to temperature lasts for current

program period only. Heating/cooling schedule you

programmed resumes when next scheduled pro-

gram period is reached.To cancel temporary

change before next scheduled program period,

press .

Fig. 27.

21 69-1631—1

Hold a temperature indefinitely

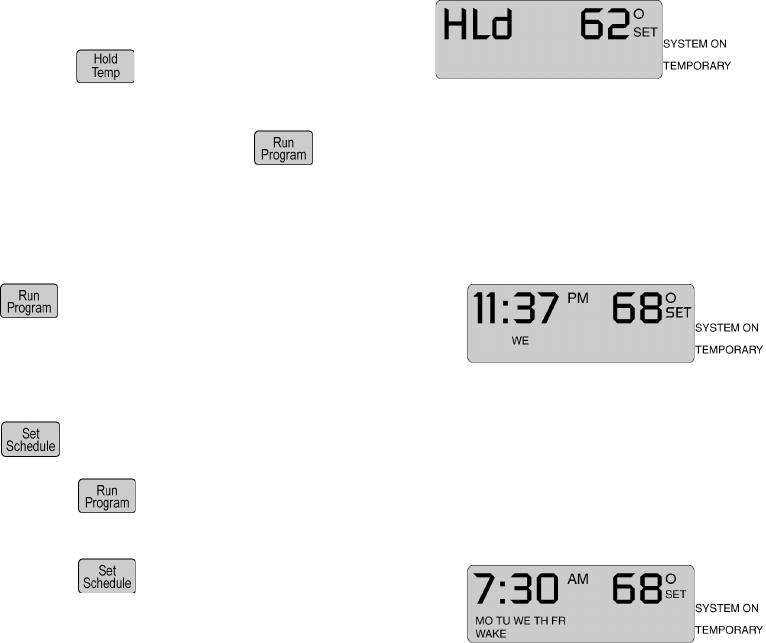

Use the Hold Temp feature when you want to maintain a

constant temperature indefinitely, such as when you go on

vacation.

a. Press . “HLd” is displayed (Fig. 28).

b. Press or until the desired temperature is displayed.

NOTE: To cancel the hold, press .

Fig. 28.

Check the current programmed temperature

Press to display temperature programmed for current

program period. The SET indicator displays briefly along with the

programmed temperature (Fig. 29). The display then returns to the

room temperature.

Fig. 29.

Check programs

Press repeatedly to display the times and temperatures

that you programmed.

a. Press to resume the program

Cancel a program

a. Press until the desired program is displayed

(Fig 30).

Fig. 30.

69-1631—1 22

FREQUENTLY ASKED QUESTIONS

b. Press and simultaneously.

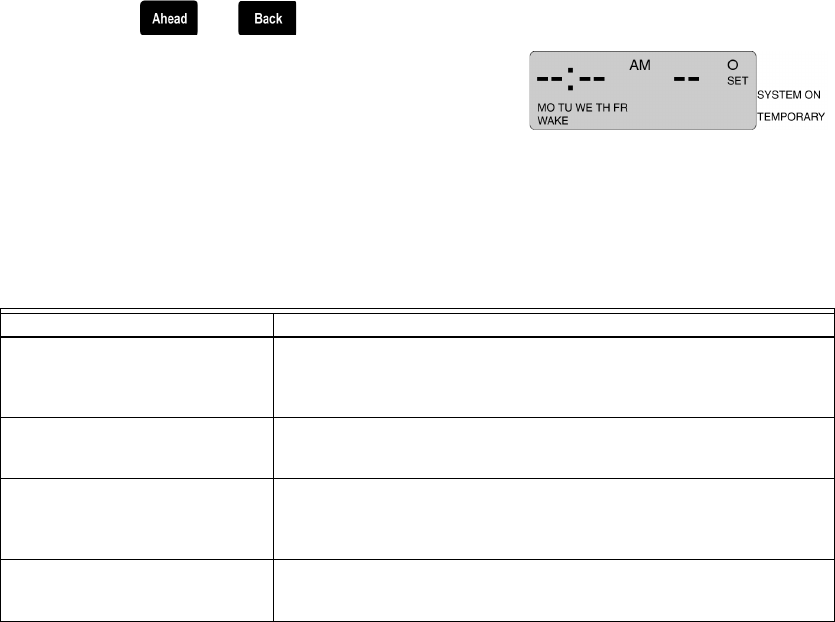

A blank program schedule is displayed and the program

is canceled (Fig. 31).

Fig. 31.

Change a program permanently

Follow steps for programming heating schedule or programming

cooling schedule.

If... Then...

Display does not come on •Make sure the batteries are fresh and installed correctly.

•Set System switch to Off. Remove batteries and insert backward for five to

ten seconds to reset thermostat. Replace batteries correctly; display should

come on.

Temperature display does not go

lower than 45°F (7°C) or higher than

88°F (31°C) during programming.

•Temperature limit setting is reached; range is 45°F to 88°F (7°C to 31°C).

Display shows flashing “bAt Lo.” •The batteries are low; replace them as soon as possible.

•If “bAt Lo” continues to display after replacing batteries, set System switch

to Off and insert batteries backward for five to ten seconds. Replace

batteries correctly; display should come on.

Temperature change occurs at wrong

times

•Check program times for period in question. Be sure AM and PM

indications are correct. Make sure current day and time are correct.

Reprogram if necessary.

23 69-1631—1

CUSTOMER ASSISTANCE

Visit us on the Web at www.honeywell.com/yourhome or call Honeywell Customer Care at 1-800-468-1502.

Before you call, please have the following information available:

— Thermostat model number and serial code (located under the battery cover).

— Type of heating/cooling system (hot water, warm air, oil, gas, etc.).

— Number of wires connected to the thermostat.

NOTICE: This equipment is a Class B digital apparatus, that complies with Canadian Radio Interference Regulations, CRC c.1374.

Heating does not come on •Check that the System switch is set to Heat.

•Check the system fuse or circuit breaker and replace or reset if necessary.

•Check for correct wiring and good connections.

•If display is blank or displays “bAt Lo,” install fresh batteries.

•Allow time for the furnace to heat up and the fan to come on before

checking for heat at the register.

•If temperature setting is higher than current room temperature and

SYSTEM ON arrow is displayed, thermostat is operating correctly. Contact

heating contractor for assistance.

Cooling does not come on •Check that the System switch is set to Cool.

•Check the system fuse or circuit breaker and replace or reset if necessary.

•Check for correct wiring and good connections.

•If display is blank or says “bAt Lo,” install fresh batteries.

•The thermostat has a built-in time delay on cooling. Allow 5-10 minutes

after changing setting before air conditioner starts.

•If temperature setting is lower than room temperature and SYSTEM ON

arrow is displayed, thermostat is operating correctly. Contact ac contractor.

The house is too warm or too cool • Press RUN PROGRAM to check the current temperature setting.

• If desired, change the temperature setting.

Furnace cycles too often or system

cycle length is too short or too long

•Adjust the screws on the back of the thermostat.

The thermostat current setting does

not match the display temperature to

within plus or minus 1°

•Plug the wiring hole in the wall behind the mounting plate with insulation to

prevent drafts that might adversely affect thermostat operation.

•Be aware that it is normal for the current setting and the displayed room

temperature to differ on occasion.

•During recovery from setback or setup, setting and displayed room

temperatures can differ for up to 30 minutes after recovery period.

If... Then...

69-1631—1 J.S. Rev. 10-03 Printed in U.S.A. www.honeywell.com/yourhome

Automation and Control Solutions

Honeywell International Inc. Honeywell Limited-Honeywell Limitée

1985 Douglas Drive North 35 Dynamic Drive

Golden Valley, MN 55422 Scarborough, Ontario

M1V 4Z9

LIMITED WARRANTY

Honeywell warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service,

for a period of one (1) year from the date of purchase by the consumer. If, at any time during the warranty period, the product is

defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option) within a reasonable period of time.If the product is

defective,

(i) return it, with a bill of sale or other dated proof of purchase, to the retailer from which you purchased it, or

(ii) package it carefully, along with proof of purchase (including date of purchase) and a short description of the malfunction, and mail it,

postage prepaid, to the following address:

Honeywell Inc. USA Honeywell Canada:

Dock 4 — MN10-3860 Honeywell Limited/Honeywell Limitée

1885 Douglas Drive North 35 Dynamic Drive

Golden Valley, MN 55422-3992 Scarborough, Ontario M1V 4Z9

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or

malfunction was caused by damage which occurred while the product was in the possession of a consumer.

Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE

LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER

FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY

IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an

implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

If you have any questions concerning this warranty, please write Honeywell Customer Relations Center, 1985 Douglas Dr. N., Golden

Valley, MN 55422-3992, or call 1-800-468-1502. In Canada, write Retail Products ON30 Honeywell Limited/Honeywell Limitée, 35

Dynamic Drive, Scarborough, Ontario M1V 4Z9.
