User Guide

VisionPRO Wi-Fi

Programmable Thermostat

Model TH8320WF

69-2715EF—01 ii

In the box you will find

• Quick Start Guide

• Thermostat ID Card

• User Guide

Welcome

Congratulations on your purchase of a

Honeywell Wi-Fi touchscreen programmable

thermostat. When registered to Honeywell’s

Total Connect Comfort Solutions, you can

remotely monitor and control the heating and

cooling system in your home or business—you

can stay connected to your comfort system

wherever you go.

Honeywell’s Total Connect Comfort is the

perfect solution if you travel frequently, own

a vacation home, a business or manage an

Investment property or if you are simply looking

for peace of mind.

69-2715EF—01 2

69-2715EF—01 3

About your new thermostat

Home screen quick reference ..................... 5

Message center messages ......................... 6

Connecting to your Wi-Fi network ............... 8

Registering your thermostat online ........... 13

Preset energy-saving schedules ............... 17

Operation

Setting the clock ........................................18

Setting the fan ........................................... 19

Selecting system mode ............................. 20

Adjusting program schedules ....................21

Overriding schedules temporarily .............22

Overriding schedules permanently ........... 23

Setting vacation hold .................................24

Setting filter reminder intervals ................. 25

Cleaning the screen .................................. 26

Unregistering thermostat........................... 27

Disconnecting Wi-Fi .................................. 28

Special features ........................................29

Setting functions and options .................... 30

System Setup

System setup ............................................ 29

Appendices

Frequently asked questions ......................36

Troubleshooting ......................................... 39

Limited warranty ........................................44

Table of contents

69-2715EF—01 4

Features of your Wi-Fi thermostat

With your new thermostat, you can:

• Connect to the Internet to monitor and control your heating/cooling system

• View and change your heating/cooling system settings

• View and set temperature and schedules

• Receive alerts via email and get automatic upgrades

Your new thermostat provides:

• Adaptive Intelligent Recovery (AIR) - the thermostat learns your system so it

can turn the heat or cool on early to reach your desired temperature at your

desired time.

• Compressor protection - the compressor waits a few minutes before restarting,

to prevent equipment damage.

• Heat/cool auto changeover - the thermostat automatically changes from

heating to cooling to keep you comfortable.

5 69-2715EF—01

Home screen quick reference

Once your Wi-Fi thermostat is installed, it will display the home screen. Portions of this

display will change depending on how you are viewing it. To change settings, simply press

the appropriate area lightly with your finger.

Unless you change the lighting function, the screen is always lit at low intensity. When you

touch the screen, the screen brightens.

Set clock

Message center

Select fan mode

Select system mode

Program schedules

Override schedule

Wi-Fi status

Schedule is on (does not

display when off)

Additional settings

Lock screen for cleaning

M31565

Inside

69-2715EF—01 6

Message center messages

The Message Center at the top of the screen communicates Wi-Fi connection and

registration status. It also displays the MAC ID and MAC CRC for registering the

thermostat at mytotalconnectcomfort.com

Displayed before you begin Wi-Fi setup.

Displayed while connecting to the Wi-Fi network.

Displayed after connecting to the Wi-Fi network.

[Wi-Fi network name] Displayed when connected to the Wi-Fi network.

Displayed when Wi-Fi connection is complete.

Displayed when the thermostat fails to establish a connection

to the Wi-Fi network.

Displayed when the thermostat is connected to the Wi-Fi

network but not registered at mytotalconnectcomfort.com

Displays the thermostat’s MAC ID and MAC CRC for

registering at mytotalconnectcomfort.com

[Found on your ID card]

7 69-2715EF—01

Message center messages

Displayed when the thermostat is registered at

mytotalconnectcomfort.com

Displayed when the thermostat is removed from your Total

Connect Comfort account.

Wi-Fi signal strength. Displayed when the thermostat

is connected to the Wi-Fi network and registered at

mytotalconnectcomfort.com

Displayed if there is no Wi-Fi signal.

Displayed if the home Wi-Fi password is entered incorrectly.

Displayed if no IP Address is supplied by the router.

Displayed if there is no Wi-Fi signal.

69-2715EF—01 8

Connecting to your Wi-Fi network

Connect your wireless device to your home network. Any of these device types will work:

• Tablet (recommended)

• Laptop (recommended)

• Smartphone

If you get stuck... At any point in this process, restart the thermostat by removing

the thermostat from the wallplate, wait for 5 seconds, and snap it back into place. Go

to Step 1 in this procedure, starting on page 9.

View the Wi-Fi Enrollment video at wifithermostat.com/videos

9 69-2715EF—01

Connecting to your Wi-Fi network

1 Connect to your thermostat.

1a Make sure the thermostat message center displays

Wi-Fi SETUP

1b On the wireless device (tablet, laptop,

smartphone), view the list of available Wi-Fi

networks.

1c Connect to the network called

NewThermostat_123456 (the number will vary).

Note: If you are asked to specify a home, public, or

office network, select Home Network.

M31566

Inside

Message Center

69-2715EF—01 10

Connecting to your Wi-Fi network

2 Join your home network.

2a Open your web browser to access the

Thermostat Wi-Fi Setup page. The browser

should automatically direct you to the correct

page; if it does not, go to http://192.168.1.1

2b Find the name of your home network on this

page and select it.

Note: Some routers have enhanced features such as

guest networks; use your home network.

2c Complete the instructions for joining your Wi-Fi

network and click on the Connect button.

(Depending on your network setup, you may see

an instruction such as Enter Password for your home network.)

Note: If you did not correctly connect to the thermostat, you may see your home

router page. If so, return to Step 1.

M31567

11 69-2715EF—01

Connecting to your Wi-Fi network

Note: If your Wi-Fi network does not appear in the list on the Thermostat Wi-Fi Setup

page:

• Try performing a network rescan by pressing the Rescan button. This is helpful in

areas with a lot of networks.

• If you are connecting to a hidden network, then enter the network SSID in the

textbox, select the encryption type from the drop down menu, and click on the

Add button. This manually adds the network to the top of the list. Click on the new

network in the list and enter the password if necessary. Click on Connect to join the

network.

69-2715EF—01 12

Connecting to your Wi-Fi network

M31568

Inside

3 Make sure your thermostat is connected.

The message center on your thermostat

will now display CONNECTING… for up

to 30 seconds.

3a Look at the thermostat display. Verify

that the message center displays one

of the following:

CONNECTION SUCCESSFUL

JOINED: [WI-FI NETWORK NAME]

YOU ARE ALMOST DONE

If you don’t see these messages,

see page 8.

To register online for remote access to

your thermostat continue on page 13.

Note: If you see CONNECTION

FAILURE or Wi-Fi SETUP in the

message center, confirm you

correctly entered your home

network password in step 2.

If correct, refer to the FAQ at

wifithermostat.com/support

13 69-2715EF—01

Registering your thermostat online

M31570

To view and set your Wi-Fi thermostat remotely,

you must have a Total Connect Comfort account.

Follow the instructions below.

View the Wi-Fi Thermostat Registration

video at wifithermostat.com/videos

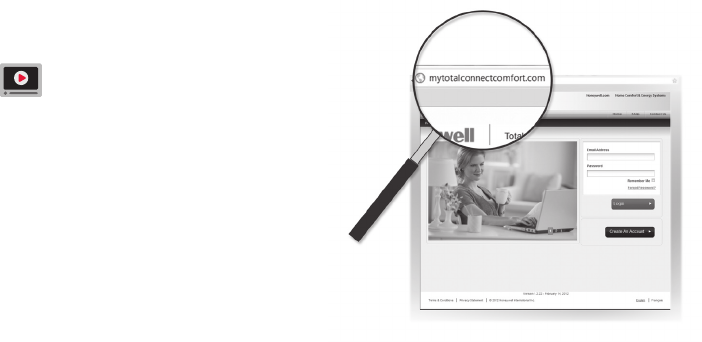

1 Open the Total Connect Comfort web site.

Go to www.mytotalconnectcomfort.com

69-2715EF—01 14

Registering your thermostat online

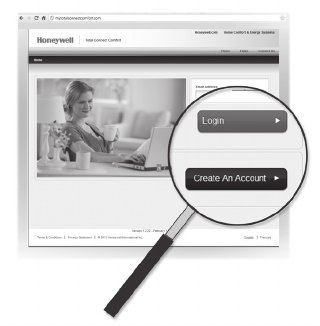

2 Login or create an account.

If you have an account, click Login

– or –

click Create An Account

2a Follow the instructions on the screen.

2b Check your email for a response from

My Total Connect Comfort. This may

take several minutes.

Note: If you do not receive a response,

check your junk mailbox or use an

alternate e-mail address.

2c Follow activation instructions in the

email.

2d Log in.

M31571

15 69-2715EF—01

Registering your thermostat online

3 Register your Wi-Fi thermostat.

After you are logged in to your Total Connect Comfort account,

3a Follow the instructions on

the screen. After adding your

thermostat location, you must

enter the thermostat’s unique

identifiers:

• MACID

• MACCRC

Note: These IDs are listed on

the Thermostat ID Card included

in the thermostat package. The

IDs are not case sensitive.

® U.S. Registered Trademark.

69-2723EFS—01 M.S. 04-12

Printed in U.S.A.

HONEYWELL MODEL: TH8320WF

MAC ID: MAC CRC:

69-2723EFS-01

Thermostat ID Card

Use the MAC ID and CRC ID to register

this product at mytotalconnectcomfort.com

Carte d’identification de thermostat

Utilisez l’identication MAC et l’identication CRC pour

enregistrer ce produit à mytotalconnectcomfort.com

Tarjeta de identificación del termostato

Utilice la identicación MAC y la identicación CRC para

inscribir este producto en mytotalconnectcomfort.com

MAC ID MAC CRC

69-2715EF—01 16

Registering your thermostat online

3b Notice that when the thermostat

is successfully registered,

the Total Connect Comfort

registration screen will display a

SUCCESS message.

In the thermostat message

center you will see:

CONGRATULATIONS

SETUP COMPLETE

17 69-2715EF—01

Preset energy-saving schedules

This thermostat is pre-set with energy-saving program settings for four time periods.

Using the default settings can reduce your heating/cooling expenses by as much as 33%

if used as directed. Savings may vary depending on geographic region and usage.

Default Heat Settings Default Cool Settings

WAKE

6:00 am 70 °78 °

LEAVE

8:00 am 62 °85 °

RETURN

6:00 pm 70 °78 °

SLEEP

10:00 pm 62 °82 °

To change the settings, see pages 21–24.

69-2715EF—01 18

1 Press CLOCK to display setting arrows.

2 Press s or t to adjust the time. (You can

advance the time more quickly by holding the

s or t buttons.)

3 Press DONE to save and exit (or press

CANCEL to exit without changing the time).

Note: You should never need to adjust the

real-time clock; it automatically updates

for daylight saving time and all date/time

information is stored.

Note: To change the current week day format,

see “Setting functions and options” on page

30.

Setting the clock

19 69-2715EF—01

1 Press FAN to select fan operation.

2 Press FAN again to select ON or AUTO (toggle

to re-select). The selected option blinks.

3 Press DONE to save setting. Your selection

appears under FAN.

ON: Fan is always on.

AUTO: Fan runs only when the heating or

cooling system is on.

CIRC: Fan runs randomly approximately

35% of the time. Use this setting for

improved air circulation or for more

efficient central air cleaning when you do

not want the fan running continuously.

Inside

MCR31582

Setting the fan

69-2715EF—01 20

Selecting system mode

Note: The AUTO and EM HEAT

system settings may not

appear, depending on how

your thermostat was installed.

1 Press SYSTEM to display options.

2 Press SYSTEM again to select an option.

You may need to press two or three times to

make a selection—the selected option blinks.

3 Press DONE to save setting.

Possible system modes:

HEAT: Controls only the heating system.

COOL: Controls only the cooling system.

OFF: Heating/cooling systems are off.

AUTO: Selects heating or cooling

depending on the indoor temperature.

EM HEAT (heat pumps with aux. heat):

Controls auxiliary/emergency heat.

Compressor is locked out.

Inside

MCR31583

21 69-2715EF—01

SLEEP

MCR31584

Adjusting program schedules

1 Press SCHED, then EDIT. Screen displays day

buttons at top.

2 Press day buttons (MON–SUN) to select days.

3 Press s or t to set Wake time for selected

day(s).

4 Press s or t to set Heat and Cool

temperature for this time period.

5 Press another period (LEAVE, RETURN, SLEEP)

and set time and temperatures for each.

6 Press DONE to save and exit (or press CANCEL

to exit without saving changes).

Note: You can press CANCEL PERIOD to eliminate

any unwanted time period.

69-2715EF—01 22

Overriding schedules temporarily

1 On the home screen, press s or t to

immediately adjust the temperature.

2 Adjust the time to when you want the hold

to end (the default is the end of the current

period).

The new setting will be maintained until the

time shown under Hold Until. When the timer

expires, the schedule will resume, and the

temperature will return to the setting for the

current time period.

To cancel the temporary setting at any time,

press CANCEL (or SCHED). The program

schedule will resume.

Temporary Hold

Hold Until

Inside

MCR31556

23 69-2715EF—01

Overriding schedules permanently

1 Press HOLD to permanently adjust the

temperature. This will turn off the program

schedule.

2 Whatever temperature you set will be

maintained 24 hours a day until you

manually change it or press CANCEL

(or SCHED) to cancel “Hold” and resume

the program schedule.

Permanent Hold

Inside

MCR31585

69-2715EF—01 24

Setting vacation hold

Use this function to suspend the program schedule

while you are away for an extended period.

1 Press s or t to set the temperature.

2 Press s or t to set the time of day you want

the schedule to resume on the day you return.

3 Press HOLD twice. Hold Until appears.

4 Press s or t to select the number of days.

The selected temperature will be maintained 24

hours a day for the number of days you select.

After the selected number of days has elapsed, the

previously programmed schedule will resume at

the time you set.

Note: You can press CANCEL (or SCHED) to resume

normal schedule.

Hold Until

Inside

Hold Until

DAYS

MCR31558

25 69-2715EF—01

Setting filter reminder intervals

MCR31559

SLEEP

FILTER

DAYS

CHANGE FILTER

Inside

RESET

If activated during installation, the filter reminder

alerts you with a message above the time when

it is time to replace your filter.

Press RESET after changing the filter, to restart

the timer.

To change the reminder interval:

1 Press MORE, then EDIT.

2 Press s or t to select the desired interval

(in days), then press DONE.

3 Press RESET.

4 Press DONE to save and exit.

Note: System setting function 0500 governs the

filter interval. See “Filter Change Reminder” on

page 33.

69-2715EF—01 26

Cleaning the screen

MCR31560

1 Press SCREEN to lock the screen for cleaning.

The screen will remain locked for 30 seconds

so you can clean the screen without changing

any settings.

2 After 30 seconds, press DONE to resume

normal operation, or press SCREEN again if

you require more time for cleaning.

Note: Do not spray any liquid directly on the

thermostat. Spray liquid onto a cloth, then use

the damp cloth to clean the screen. Use water

or household glass cleaner. Avoid abrasive

cleansers.

27 69-2715EF—01

Unregistering thermostat

If you remove the thermostat from your

Total Connect Comfort website account (for

example, you’re moving and leaving the

thermostat behind), the message center

will scroll UNREGISTERED FROM TOTAL

CONNECT for 3 minutes.

After that, it will alternate displaying

ID and the MAC CRC.

M31572

Inside

69-2715EF—01 28

Disconnecting Wi-Fi

If you disconnect the thermostat from your

Wi-Fi network (for example, you’re replacing

your router):

1 Enter system setup (see page 30).

2 Change setting 900 to 0 (see page 35).

The Message Center will display Wi-Fi

DISCONNECTED for 1 minute.

After that it will display Wi-Fi SETUP.

M31573

Inside

29 69-2715EF—01

Special features

Adaptive Intelligent Recovery (AIR)

This feature allows the thermostat to “learn” how long the heating/cooling system takes to reach

programmed temperature settings, so the temperature is reached at the time you set. For example:

Set the Wake time to 6:00 am, and the temperature to 70°. The heat will come on before 6:00 am,

so the temperature is 70° by 6:00 am. The message “Recovery” is displayed when the system is

activated before a scheduled time period.

Note: System setting function 0530 controls AIR. See “AIR” on page 34.

Compressor protection

This feature forces the compressor to wait a few minutes before restarting, to prevent equipment

damage. During the wait time, the message “Wait” is displayed on screen.

Auto changeover

This feature is used in climates where both air conditioning and heating are used on the same day.

When the system is set to AUTO, the thermostat automatically selects heating or cooling depending

on the indoor temperature. Heat and cool settings must be at least 3 degrees apart. The thermostat

will automatically adjust settings to maintain this 3-degree separation.

Note: System setting function 0300 controls Auto changeover.

69-2715EF—01 30

Setting functions and options

You can change options for a number of system functions. Available functions depend on

the type of system you have. The functions, designated with four-digit numbers, along with

available options are described on pages 31–35.

This thermostat is pre-set for a single-stage heating/cooling system.

Setting function 0170 for a heat pump will adjust the default settings.

DONE CANCEL

6:30

SYSTEM

HEAT

MCR31562

DONE

0120 20

MCR31563

1 Press SYSTEM. You’ll see several blank buttons

on the bottom of the display.

2 Press and hold the center blank key for

approximately five seconds until screen

changes.

3 Cycle through the functions, press st next to

the four digit number on the left.

4 As needed, change options for any function by

pressing st next to the number on the right.

5 When you have made all changes, press DONE

to save and exit.

31 69-2715EF—01

User setup

Function Settings & Options

0112 Device Name

This name will

identify the

thermostat when you

view it remotely.

If you register

multiple thermostats,

give each one a

different name.

52 = Thermostat

1 Basement 18 Fireplace 35 Media Room 52 Thermostat

2 Bathroom 19 Foyer 36 Music Room 53 Upper Level

3 Bathroom 1 20 Game Room 37 Nursery 54 Utility Room

4 Bathroom 2 21 Garage 38 Office 55 Walk In Closet

5 Bathroom 3 22 Great Room 39 Office 1 56 Wine Cellar

6 Bedroom 23 Guest Room 40 Office 2 57 Workshop

7 Bedroom 1 24 Gym 41 Pantry 64 Conference Room

8 Bedroom 2 25 Kid's Room 42 Play Room 65 Dressing Room

9 Bedroom 3 26 Kitchen 43 Pool Room 66 Meeting Room

10 Bedroom 4 27 Kitchen 1 44 Porch 67 Machine Room

11 Boat House 28 Kitchen 2 45 Rec Room 68 Open Area 1

12 Bonus Room 29 Laundry Room 46 Sewing Room 69 Open Area 2

13 Computer Room 30 Library 47 Spa 70 Server 1

14 Den 31 Living Room 48 Storage Room 71 Server 2

15 Dining Room 32 Lower Level 49 Studio 72 Stock Room

16 Exercise Room 33 Master Bath 50 Sun Room

17 Family Room 34 Master Bed 51 Theater

69-2715EF—01 32

User setup

Function Settings & Options

0120 Year Setting

(rst two digits)

20 = Year 20xx

21 = Year 21xx

0130 Year Setting

(last two digits)

01–99 (i.e., 2001–2099)

0140 Month Setting 01–12 (i.e., January–December)

0150 Date Setting 01–31

0160 Schedule Options 4 Program schedule is on (7-day programmable).

0 Program schedule is off. Thermostat can not be programmed.

0165 Restore Schedule

Defaults

0 Continue using programmed schedule.

1 Restore thermostat program to energy saving settings

0280 Backlight 0 Backlight off, then on for approximately 8 seconds after keypress.

1 Backlight always on low intensity, full bright after keypress.

33 69-2715EF—01

User setup

Function Settings & Options

0320 Temperature For-

mat (°F/°C)

0 Fahrenheit

1 Celsius

0330 Automatic Daylight

Saving Time Ad-

justment

0 Off

1 On

0500 Filter Change

Reminder

The reminder

appears after

selected number of

days run time not

actual time.

0 Off (no reminder)

1 Reminder after 10-day run time (about 1 calendar month)

2 Reminder after 30-day run time (about 3 calendar months)

3 Reminder after 60-day run time (about 6 calendar months)

4 Reminder after 90-day run time (about 9 calendar months)

5 Reminder after 120-day run time (about 1 calendar year)

6 Reminder after 180-day run time (about 18 calendar months)

7 Reminder after 270-day run time (about 2 calendar years)

8 Reminder after 365-day run time (about 3 calendar years)

69-2715EF—01 34

User setup

Function Settings & Options

0510 Humidier Pad

Replacement Re-

minder

0 Disabled

1 30-day run time (about 3 months)

2 60-day run time (about 6 months)

3 90-day run time (about 9 months)

0520 UV Lamp Replace-

ment Reminder

0 Disabled

1 365 days

2 730 days

0530 Adaptive Intelligent

Recovery (AIR)

1 On

0 Off

0640 Clock Format 12 12-hour clock (i.e., “3:30 pm”)

24 24-hour clock (i.e., “15:30”)

35 69-2715EF—01

User setup

Function Settings & Options

0670 Keypad lock 0 Keypad unlocked (fully functional)

1 Partially locked (access to temperature settings only)

2 Fully locked

0710 Restore Original

Settings

0 No

1 Disconnects thermostat from Wi-Fi and restores original settings (erases

customizations).

0890 Wi-Fi On/Off 1 Wi-Fi is on and can be connected to a Wi-Fi network.

0 Wi-Fi is off. Thermostat cannot be connected to a Wi-Fi network. If you

are not connecting the thermostat to a Wi-Fi network this will remove the

text “Wi-Fi Setup” from the messaging center.

0900 Wi-Fi Connection 1 Connected to Wi-Fi network. This is set automatically when the

thermostat is connected to the Wi-Fi network.

0 Set to 0 to disconnect from the Wi-Fi network.

69-2715EF—01 36

Frequently asked questions

:Q Will my thermostat still work if I lose my Wi-Fi connection?

:AYes, the thermostat will operate your heating and/or cooling system with or without Wi-Fi.

:Q How do I find the password to my router?

:AContact the manufacturer of the router or check the router documentation.

:Q Why am I not seeing my Wi-Fi setup page?

:AYou are probably connected only to your router, not to your thermostat. Try connecting to the

thermostat again.

:Q Why isn’t my thermostat connecting to my Wi-Fi router even though it is very close to the

thermostat?

:AVerify that the password entered for the Wi-Fi router is correct.

37 69-2715EF—01

:Q Where can I find my MAC ID and MAC CRC codes?

:AThe MAC ID and MAC CRC will show in the message center of the thermostat. The numbers are

also included on a card packed with the thermostat or on the back of the thermostat (visible when

removed from wallplate). Each thermostat has a unique MAC ID and MAC CRC.

:Q My thermostat is unable to register to the Total Connect Comfort website.

:AVerify that the thermostat is correctly enrolled on your homeWi-Fi network. The message center

will display “CONNECTION SUCCESSFUL” or “REGISTER AT TOTAL CONNECT.” You might also

see the Wi-Fi Signal strength icon. Verify that the Wi-Fi router has a good internet connection. On

your computer, verify that you can open the site at mytotalconnectcomfort.com If you cannot open

the site, switch off the internet modem for a few seconds, then power it back on.

Frequently asked questions

69-2715EF—01 38

Frequently asked questions

:Q I registered on the Total Connect Comfort website but was unable to login using my new

account.

:ACheck your email and ensure that you received an activation email. Follow the instructions to

activate your account and then login to the website.

:Q I have signed up on Total Connect Comfort website and have not received a confirmation

email.

:ACheck for the email in your Junk or Deleted folder.

:Q Is there a way to extend the signal strength?

:AMost standard routers can be set up to be a repeater. You can also purchase and install a Wi-Fi

repeater.

39 69-2715EF—01

If you have difficulty with your thermostat, please try the following suggestions.

Most problems can be corrected quickly and easily.

Display is

blank

• Checkcircuitbreakerandresetifnecessary.

• Makesurepowerswitchatheatingandcoolingsystemison.

• Makesurefurnacedoorisclosedsecurely.

“Wait” appears

on the screen

• Compressorprotectionfeatureisengaged.Wait5minutesforthesystemto

restart safely, without damage to the compressor.

Button on

lower right of

screen is blank

• Thisbuttonwillremainblankunlessthefurnacefilter,humidifierpad,orUV

bulb change reminder is activated or if an outdoor temperature sensor is

wired to your thermostat.

Red light is on • IfthermostatisinEmergencyHeatmodetheredlightisnormal.Itshows

that the thermostat is in emergency heat mode.

• IfthermostatisnotinEmergencyHeatmode,contactaqualifiedservice

contractor for repair.

Troubleshooting

69-2715EF—01 40

Troubleshooting

Heating or

cooling system

does not

respond

• PressSYSTEM to set system to Heat. Make sure the temperature is set

higher than the Inside temperature.

• PressSYSTEM to set system to Cool. Make sure the temperature is set lower

than the Inside temperature.

• Checkcircuitbreakerandresetifnecessary.

• Makesurepowerswitchatheating&coolingsystemison.

• Makesurefurnacedoorisclosedsecurely.

• If“Wait”isdisplayed,thecompressorprotectiontimerison.Wait5minutes

for the system to restart safely, without damaging the compressor (see page

29).

Need help?

Visit http://yourhome.honeywell.com or call 1-855-733-5465 for assistance.

41 69-2715EF—01

Glossary

MAC ID, MAC CRC

Alphanumeric codes that uniquely identify your thermostat.

QR Code®

Quick response code. A two-dimensional,machine-readable image. Your wireless device can read

the black and white pattern in the square and link its browser directly to a web site. QR Code is a

registered trademark of DENSO WAVE INCORPORATED.

69-2715EF—01 42

Regulatory information

FCC Compliance Statement (Part 15.19) (USA only)

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and

2 This device must accept any interference received,

including interference that may cause undesired

operation.

FCC Warning (Part 15.21) (USA only)

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b))

(USA only)

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio

or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following

measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentand

receiver.

• Connecttheequipmentintoanoutletonacircuit

different from that to which the receiver is connected.

• Consultthedealeroranexperiencedradio/TV

technician for help.

43 69-2715EF—01

Regulatory information

Thermostats

To comply with FCC and Industry Canada RF exposure

limits for general population/ uncontrolled exposure, the

antenna(s) used for these transmitters must be installed

to provide a separation distance of at least 20 cm from

all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

Section 7.1.2 of RSS-GEN

Under Industry Canada regulations, this radio transmitter

may only operate using an antenna of type and

maximum (or lesser) gain approved for the transmitter by

Industry Canada. To reduce potential radio interference

to other users, the antenna type and its gain should

be so chosen that the equivalent isotropically radiated

power (e.i.r.p.) is not more than that necessary for

successful communication.

Section 7.1.3 of RSS-GEN

Operation is subject to the following two conditions:

1 this device may not cause interference, and

2 this device must accept any interference, including

interference that may cause undesired operation of the

device.

69-2715EF—01 44

5-year limited warranty

Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and

service, for a period of five (5) years from the date of purchase by the consumer. If at any time during the warranty period the product

is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or

(ii) call Honeywell Customer Care at 1-855-733-5465. Customer Care will make the determination whether the product should be

returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or

whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or

malfunction was caused by damage which occurred while the product was in the possession of a consumer.

Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT

BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER

FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY

IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an

implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN

55422 or call 1-855-733-5465. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,

Toronto, Ontario M1V4Z9.

Automation and Control Systems

Honeywell International Inc.

1985 Douglas Drive North

Golden Valley, MN 55422

http://yourhome.honeywell.com

® U.S. Registered Trademark.

Apple, iPhone, iPad, iPod touch and iTunes are trademarks of Apple Inc.

All other trademarks are the property of their respective owners.

69-2734—01 M.S. 08-12

Printed in U.S.A.

69-2734-01

Honeywell Thermostat Th8320Wf Users Manual 69 2734 01 Wi Fi Touchscreen Programmable

Honeywell Thermostat TH8320WF 69-2734_A

TH8320WF to the manual 7f75c88e-3a69-4725-8577-aff1c015b09e

Navigation menu

Versions of this User Manual:

Views

Navigation
