Installation and
Operations Manual
INTELLIKNIGHT
5820XL
Part Number 151209 Rev R
ECN 09- 570 08/27/09
Addressable Fire System
®
Installation Procedure
Adherence to the following will aid in problem-free installation with long-term reliability:
Installation Precautions - Adherence to the following will aid in problem-free installation
with long-term reliability: WARNING - Several different sources of power can be connected
to the fire alarm control panel. Disconnect all sources of power before servicing. Control unit
and associated equipment may be damaged by removing and/or inserting cards, modules, or
interconnecting cables while the unit is energized. Do not attempt to install, service, or operate
this unit until manuals are read and understood. CAUTION - System Re-acceptance Test after
Software Changes: To ensure proper system operation, this product must be tested in
accordance with NFPA 72 after any programming operation or change in site-specific
software. Re-acceptance testing is required after any change, addition or deletion of system
components, or after any modification, repair or adjustment to system hardware or wiring. All
components, circuits, system operations, or software functions known to be affected by a
change must be 100% tested. In addition, to ensure that other operations are not inadvertently
affected, at least 10% of initiating devices that are not directly affected by the change, up to a
maximum of 50 devices, must also be tested and proper system operation verified. This
system meets NFPA requirements for operation within the range of 0°C-49°C (32°F-120°F) or
humidity within the range of 10%-93% at 30°C (86°F) noncondensing. However, the useful
life of the system's standby batteries and the electronic components may be adversely affected
by extreme temperature ranges and humidity. Therefore, it is recommended that this system
and its peripherals be installed in an environment with a normal room temperature of 15-27º
C/60-80º F. Verify that wire sizes are adequate for all initiating and indicating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the specified device voltage.
Like all solid state electronic devices, this system may operate erratically or can be damaged
when subjected to lightning induced transients. Although no system is completely immune
from lightning transients and interference, proper grounding will reduce susceptibility.
Overhead or outside aerial wiring is not recommended, due to an increased susceptibility to
nearby lightning strikes. Consult with the Technical Services Department if any problems are
anticipated or encountered. Disconnect AC power and batteries prior to removing or
inserting circuit boards. Failure to do so can damage circuits. Remove all electronic
assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible,
make all cable entries from the sides or rear. Before making modifications, verify that they
will not interfere with battery, transformer, or printed circuit board location. Do not tighten
screw terminals more than 9 in-lbs. Over-tightening may damage threads, resulting in
reduced terminal contact pressure and difficulty with screw terminal removal. Silent Knight
fire alarm control panels contain static-sensitive components. Always ground yourself with a
proper wrist strap before handling any circuits so that static charges are removed from the
body. Use static suppressive packaging to protect electronic assemblies removed from the
unit.
Follow the instructions in the installation, operating, and programming manuals. These
instructions must be followed to avoid damage to the control panel and associated equipment.
Installation Manual
FACP operation and reliability depend upon proper installation.
While installing a fire alarm system may make lower insurance rates possible, it is not a
substitute for fire insurance! An automatic fire alarm system - typically made up of smoke
detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm
control with remote notification capability - can provide early warning of a developing fire.
Such a system, however, does not assure protection against property damage or loss of life
resulting from a fire. Any fire alarm system may fail for a variety of reasons: Smoke
detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in
walls, or roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire
on another level or floor of a building. A second floor detector, for example, may not sense a
first floor or basement fire. Furthermore, all types of smoke detectors, including ionization
and photoelectric types, have sensing limitations. No type of smoke detector can sense every
kind of fire caused by carelessness and safety hazards like smoking in bed, violent explosions,
escaping gas, improper storage of flammable materials, overloaded electrical circuits, children
playing with matches, or arson.
IMPORTANT! Smoke detectors must be installed in the same room as the control panel and
in rooms used by the system for the connection of alarm transmission wiring,
communications, signaling, and/or power. If detectors are not so located, a developing fire
may damage the alarm system, crippling its ability to report a fire. Audible warning devices
such as bells may not alert people if these devices are located on the other side of closed or
partly open doors or are located on another floor of a building. A fire alarm system will not
operate without any electrical power. If AC power fails, the system will operate from standby
batteries only for a specified time. Rate-of-Rise heat detectors may be subject to reduced
sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested
at least once per year by a qualified fire protection specialist. Equipment used in the system
may not be technically compatible with the control. It is essential to use only equipment listed
for service with your control panel. Telephone lines needed to transmit alarm signals from a
premise to a central monitoring station may be out of service or temporarily disabled. The
most common cause of fire alarm malfunctions, however, is inadequate maintenance. All
devices and system wiring should be tested and maintained by professional fire alarm
installers following written procedures supplied with each device. System inspection and
testing should be scheduled monthly or as required by National and/or local fire codes.
Adequate written records of all inspections should be kept.
151209 1
Contents
Section 1
Introduction .............................................................................................................................................. 1-1
1.1 Overview of Basic System ....................................................................................................................... 1-1
1.1.1 Hardware Features ............................................................................................................................ 1-1
1.1.2 Software Features ............................................................................................................................. 1-2
1.2 About this Manual .................................................................................................................................... 1-2
1.2.1 Terms Used in this Manual ............................................................................................................... 1-2
1.3 Compatible Products ................................................................................................................................ 1-3
1.4 How to Contact Silent Knight .................................................................................................................. 1-4
Limitations of Fire Alarm Systems ........................................................................................ 1-5
Requirements and recommendations for proper use of fire alarm systems including smoke
detectors and other fire alarm devices: .................................................................................. 1-7
Section 2
Agency Listings, Approvals, and Requirements ................................... 2-1
2.1 Federal Communications Commission (FCC) ......................................................................................... 2-1
2.2 Underwriters Laboratories (UL) .............................................................................................................. 2-2
2.2.1 Requirements for All Installations .................................................................................................... 2-2
2.2.2 Requirements for Central Station Fire Alarm Systems .................................................................... 2-3
2.2.3 Requirements for Local Protected Fire Alarm Systems ................................................................... 2-3
2.2.4 Requirements for Remote Station Protected Fire Alarm Systems - Digital Alarm Communicator
Transmitter (DACT) 2-3
Section 3
Before You Begin Installing ............................................................................................... 3-1
3.1 What’s in the Box? ................................................................................................................................... 3-1
3.2 Environmental Specifications .................................................................................................................. 3-1
3.3 Electrical Specifications ........................................................................................................................... 3-2
3.4 Wiring Specifications ............................................................................................................................... 3-3
3.5 Board Assembly Diagram ........................................................................................................................ 3-5
3.6 Calculating Current Draw and Standby Battery ...................................................................................... 3-6
3.6.1 Current Draw Worksheet Requirements ........................................................................................... 3-6
3.6.2 Current Draw Worksheet for SK SLC Devices ................................................................................ 3-7
3.6.3 Current Draw Worksheet for Hochiki SLC Devices ...................................................................... 3-10
3.6.4 Maximum Battery Standby Load .................................................................................................... 3-12
3.7 Installation Tasks Overview ................................................................................................................... 3-12
IntelliKnight 5820XL Installation Manual
2151209
Section 4
Control Panel Installation ...................................................................................................... 4-1
4.1 Mounting the Control Panel Cabinet ....................................................................................................... 4-1
4.1.1 Preventing Water Damage ................................................................................................................ 4-1
4.1.2 Removing the 5820XL Assembly from the Housing ....................................................................... 4-1
4.2 AC Connection ......................................................................................................................................... 4-2
4.3 Battery Connection .................................................................................................................................. 4-3
4.3.1 RBB Accessory Cabinet ................................................................................................................... 4-4
4.3.1.1 Installing the RBB Accessory Cabinet and Batteries ............................................................. 4-4
4.4 SBUS Wiring ........................................................................................................................................... 4-6
4.4.1 Calculating Wiring distance for SBUS modules ..............................................................................4-6

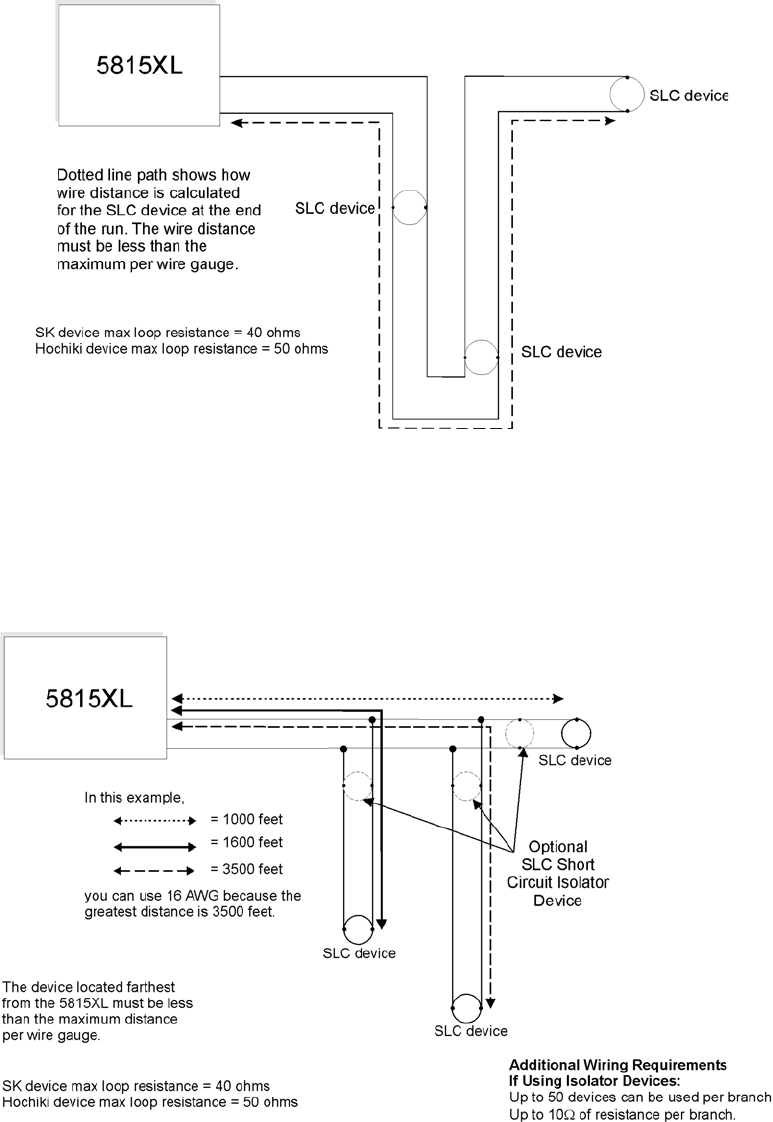

Wiring Distance calculation example: ................................................................................... 4-8
4.4.2 Wiring Configurations ...................................................................................................................... 4-9
4.5 Remote Annunciator 5860 Installation .................................................................................................. 4-10
4.5.1 Mounting the 5860 .......................................................................................................................... 4-11
4.5.1.1 Flush Mounting .................................................................................................................... 4-12
Flush Mounting with an Electrical Box ............................................................................... 4-13
Flush Mounting Steps .......................................................................................................... 4-13
4.5.1.2 Surface Mounting ................................................................................................................. 4-14
4.5.2 Model 5860 Connection to the Panel .............................................................................................. 4-15
4.6 5815XL Installation ............................................................................................................................... 4-16
4.6.1 5815XL Connection to the Panel .................................................................................................... 4-17
4.7 5824 Serial/Parallel Interface Module Installation ................................................................................ 4-18
4.7.1 Selecting 5824 Options ................................................................................................................... 4-19
Printer and Output Port Options ........................................................................................... 4-20
4.8 5880 LED I/O Module ........................................................................................................................... 4-21
4.8.1 5880 Board Layout ......................................................................................................................... 4-21
4.8.2 FACP Connection ........................................................................................................................... 4-22
4.8.3 LED Wiring .................................................................................................................................... 4-23
4.8.4 Dry Contact Wiring ........................................................................................................................ 4-24
4.9 5865-3 / 5865-4 LED Annunciator Installation ..................................................................................... 4-25
4.9.1 FACP Connection ........................................................................................................................... 4-26
4.9.2 5865 Mounting ................................................................................................................................ 4-27
4.10 Configuring Modules ............................................................................................................................. 4-28
4.10.1 Assigning Module IDs .................................................................................................................... 4-28
4.11 Telephone Connection ........................................................................................................................... 4-29
4.12 5211 Ground Start Relay ........................................................................................................................ 4-29
4.13 Flexputs™ I/O Circuits ........................................................................................................................... 4-30
4.13.1 Conventional Notification Appliance ............................................................................................. 4-30
4.13.1.1 Regulated Class B Notification Wiring ............................................................................... 4-30
4.13.1.2 Class A Notification Wiring ................................................................................................ 4-32
4.13.2 Conventional Input Switch Circuits ................................................................................................ 4-33
4.13.2.1 Class B Inputs ...................................................................................................................... 4-33
4.13.2.2 Class A Inputs ...................................................................................................................... 4-34
4.13.3 Installing 2-Wire Smoke Detectors ................................................................................................. 4-35
4.13.3.1 Installing 2-Wire Class B Smoke Detectors ........................................................................ 4-35
4.13.3.2 Installing 2-Wire Class A Smoke Detector .......................................................................... 4-36
4.13.4 Installing 4-Wire Smoke Detectors ................................................................................................. 4-37
4.13.4.1 Installing a Class B 4-Wire Smoke Detector ....................................................................... 4-37
4.13.4.2 Installing 4-Wire Class A Smoke Detectors ........................................................................ 4-38
Contents
151209 3
4.13.5 Auxiliary Power Installation ........................................................................................................... 4-39
4.13.5.1 Door Holder Power .............................................................................................................. 4-39
4.13.5.2 Constant Power .................................................................................................................... 4-39
4.13.5.3 Resettable Power .................................................................................................................. 4-40
4.14 On-Board Relays (Conventional) ........................................................................................................... 4-40
4.14.1 Trouble Relay ................................................................................................................................. 4-40
4.14.2 Programmable Relays ..................................................................................................................... 4-40
4.15 Remote Station Applications ................................................................................................................. 4-41
4.15.1 Keltron Model 3158 Installation ..................................................................................................... 4-41
4.15.2 City Box Connection Using the 5220 Module ................................................................................4-42
4.15.3 NFPA 72 Polarity Reversal ............................................................................................................. 4-43
4.15.3.1 Using the 5220 Module ........................................................................................................ 4-43
4.15.3.2 Using the 7644 Module ........................................................................................................ 4-44
4.15.4 Using the SD500-ARM Addressable Relay Module ...................................................................... 4-45
4.15.5 Using a MR-201/T Control Relay From Air Products ................................................................... 4-46
4.15.6 Transmitter Activated by Dry Contacts .......................................................................................... 4-47
Section 5
Hochiki and SK SLC Device Installation ........................................................... 5-1
5.1 List of SK SLC Devices ........................................................................................................................... 5-1
5.2 List of Hochiki SLC Devices ................................................................................................................... 5-2
5.3 Maximum Number of Devices ................................................................................................................. 5-3
5.4 Wiring Requirements for SLC Devices ................................................................................................... 5-3
5.4.1 Wiring 5815XL in Style 4 (Class B) Configuration ......................................................................... 5-3
5.4.2 Wiring 5815XL in Style 6 & 7 (Class A) Configuration .................................................................. 5-5
5.5 Wiring SK SLC Detectors ........................................................................................................................ 5-6
5.6 Addressing SK SLC Devices ................................................................................................................... 5-7
5.7 Hochiki Detector Installation ................................................................................................................... 5-8
5.7.1 Wiring Hochiki Detectors ................................................................................................................. 5-8
5.8 Addressing Hochiki Devices .................................................................................................................... 5-9
5.8.1 SD505-APS, SD505-AHS, & SD505-AIS ....................................................................................... 5-9
5.8.2 SLC Devices with Dip Switches ..................................................................................................... 5-10
Section 6
Programming Overview ........................................................................................................... 6-1
6.1 JumpStart Autoprogramming ................................................................................................................... 6-1
6.1.1 Input Points ....................................................................................................................................... 6-2
6.1.2 Output Points .................................................................................................................................... 6-2
6.1.3 Running JumpStart ........................................................................................................................... 6-2
6.2 Mapping Overview .................................................................................................................................. 6-4
6.2.1 Input Point Mapping ......................................................................................................................... 6-5
6.2.2 Output Circuit Mapping .................................................................................................................... 6-6
6.2.3 Zone Event Mapping ........................................................................................................................ 6-7
6.2.4 Mapping LED Points ........................................................................................................................ 6-9
6.3 Programming Using the 5660 Silent Knight Software Suite ................................................................. 6-10
6.4 Programming Using an Annunciator ..................................................................................................... 6-10
IntelliKnight 5820XL Installation Manual
4151209
6.4.1 Entering & Exiting the Program Menu ........................................................................................... 6-11
6.4.1.1 Moving through the Menus .................................................................................................. 6-11
6.4.1.2 Selecting Options and Entering Data ................................................................................... 6-12
6.4.1.3 Editing Keys ......................................................................................................................... 6-12
6.5 Programming Menu Quick Reference ................................................................................................... 6-13
Section 7
Programming ......................................................................................................................................... 7-1
7.1 UL 864 Programming Requirements ....................................................................................................... 7-1
7.2 SLC Family .............................................................................................................................................. 7-2
7.3 Modules .................................................................................................................................................... 7-2
7.3.1 Edit Modules ..................................................................................................................................... 7-3
7.3.1.1 Naming Modules .................................................................................................................... 7-3
7.3.1.2 Setting the 5815XL Wiring Class .......................................................................................... 7-4
7.3.2 Adding a Module .............................................................................................................................. 7-4
7.3.3 Deleting a Module ............................................................................................................................ 7-5
7.4 Zone ......................................................................................................................................................... 7-5
7.4.1 Edit Zone ........................................................................................................................................... 7-5
7.4.1.1 Edit Zone Name ..................................................................................................................... 7-6
7.4.1.2 Edit Zone Properties ............................................................................................................... 7-6
Alarm Delay Characteristics .................................................................................................. 7-7
Heat Temperature Setting ...................................................................................................... 7-7
7.4.1.3 Zone Outputs .......................................................................................................................... 7-8
Mapping to Zone Events ........................................................................................................ 7-8
Zone Mapping Example ......................................................................................................... 7-9
7.4.1.4 Cadence Patterns .................................................................................................................. 7-11
7.4.1.5 Zone Accessory Options ...................................................................................................... 7-11
7.4.2 Add Zone ........................................................................................................................................ 7-12
7.4.3 Delete Zone ..................................................................................................................................... 7-12
7.4.4 View Zone Points ............................................................................................................................ 7-13
7.5 Group ..................................................................................................................................................... 7-14
7.5.1 Edit Group ....................................................................................................................................... 7-14
7.5.1.1 Edit Group Name ................................................................................................................. 7-14
7.5.1.2 Edit Group Properties ........................................................................................................... 7-15
Latching / Non-latching Outputs .......................................................................................... 7-15
Silencing Options ................................................................................................................. 7-15
Response with System-Wide Conditions ............................................................................. 7-16
7.5.2 Add Group ...................................................................................................................................... 7-17
7.5.3 Delete Group ................................................................................................................................... 7-17
7.5.4 View Group Points .......................................................................................................................... 7-18
7.5.5 Edit Output Group Templates ......................................................................................................... 7-18
7.6 Point ....................................................................................................................................................... 7-19
7.6.1 Point Programming For 5815XL Module .......................................................................................7-19
7.6.2 Point Programming For Internal or External Power Module (5895XL) ........................................ 7-24
7.6.3 Point Programming For 5880 and 5865 Modules ........................................................................... 7-26
Contents
151209 5
7.6.3.1 Assigning a Name to Points ................................................................................................. 7-27
7.7 System Options ...................................................................................................................................... 7-27
7.7.1 Reporting Account .......................................................................................................................... 7-28
7.7.1.1 Edit Accounts ....................................................................................................................... 7-29
Select Account (ID) ............................................................................................................. 7-29
Edit Account Number .......................................................................................................... 7-29
Select Reporting Format ...................................................................................................... 7-29
Events to Report ................................................................................................................... 7-30
Switch Attempts ................................................................................................................... 7-30
Fail Attempts ........................................................................................................................ 7-30
Selecting Primary and Secondary Phone Lines ................................................................... 7-30
Telephone Number ...............................................................................................................7-31
7.7.1.2 Auto Test Time .................................................................................................................... 7-32
7.7.2 Phone Lines ..................................................................................................................................... 7-32
7.7.2.1 Dialing Prefix ....................................................................................................................... 7-33
7.7.2.2 Number of Answer Rings .................................................................................................... 7-34
7.7.2.3 Dial Option (TouchTone or Pulse) ....................................................................................... 7-34
7.7.2.4 Rotary Format ...................................................................................................................... 7-34
7.7.2.5 Line Monitor ........................................................................................................................ 7-34
7.7.2.6 Ground Start Relay ............................................................................................................... 7-34
7.7.2.7 Answering Machine Bypass ................................................................................................. 7-35
7.7.3 Sys. Event Outputs .......................................................................................................................... 7-35
7.7.3.1 Trouble Events ..................................................................................................................... 7-36
7.7.3.2 System Alarm Cadence ........................................................................................................ 7-37
7.7.4 Miscellaneous Options 1 ................................................................................................................. 7-38
7.7.4.1 Water Flow Delay ................................................................................................................ 7-38
7.7.4.2 Low AC Report Delay ......................................................................................................... 7-40
7.7.4.3 Automatic Daylight Savings Adjustment ............................................................................ 7-40
7.7.4.4 Clock Display Format (AM/PM or Military) ....................................................................... 7-40
7.7.4.5 Change AC Line Frequency ................................................................................................. 7-40
7.7.5 Miscellaneous Options 2 ................................................................................................................. 7-41
7.7.5.1 Synchronize Strobes Active During Silence ........................................................................ 7-41
7.7.5.2 Auto Display Oldest Event .................................................................................................. 7-41
7.7.5.3 Report by Zone or by Point .................................................................................................. 7-41
7.7.6 Miscellaneous Options 3 ................................................................................................................. 7-42
7.7.6.1 Alarm Verification Time ...................................................................................................... 7-42
7.7.6.2 Plex Door Option ................................................................................................................. 7-42
7.7.6.3 Daylight Saving Time Start and End ................................................................................... 7-43
7.7.7 Edit Banner Message ...................................................................................................................... 7-44
7.8 JumpStart Autoprogramming ................................................................................................................. 7-45
7.9 Computer Account ................................................................................................................................. 7-46
IntelliKnight 5820XL Installation Manual
6151209
7.10 Access Codes ......................................................................................................................................... 7-47
7.10.1 Profile Edit Menu ............................................................................................................................ 7-48
7.10.1.1 Edit Name ............................................................................................................................ 7-48
7.10.1.2 Edit Access Code ................................................................................................................. 7-48
7.10.1.3 Panel Functions .................................................................................................................... 7-48
Section 8
System Operation ............................................................................................................................ 8-1
8.1 User and Installer Default Codes ............................................................................................................. 8-1
8.2 Annunciator Description .......................................................................................................................... 8-1
8.2.1 LCD Displays ................................................................................................................................... 8-2
8.2.2 Banner ............................................................................................................................................... 8-2
8.3 Key Operation .......................................................................................................................................... 8-2
8.4 Menu System ............................................................................................................................................ 8-3
8.4.1 Main Menu Overview ....................................................................................................................... 8-3
8.4.2 Using the Menus ............................................................................................................................... 8-4
8.5 Basic Operation ........................................................................................................................................ 8-4
8.5.1 Setting Time and Date ...................................................................................................................... 8-4
8.5.2 Disable / Enable a Point .................................................................................................................... 8-4
8.5.3 Disable / Enable NACs by Group ..................................................................................................... 8-4
8.5.4 View Event History .......................................................................................................................... 8-5
8.5.4.1 To clear the event history ....................................................................................................... 8-5
8.5.5 Conduct a Fire Drill .......................................................................................................................... 8-5
8.5.6 Conduct an Indicator Test ................................................................................................................. 8-5
8.5.7 Conduct a Walk Test ......................................................................................................................... 8-6
8.5.8 Conduct a Dialer Test ....................................................................................................................... 8-6
8.5.9 Silence alarms or troubles ................................................................................................................. 8-7
8.5.10 Reset alarms ...................................................................................................................................... 8-7
8.5.11 Check Detector Through Point Status .............................................................................................. 8-7
8.5.12 View Status of a Point ...................................................................................................................... 8-8
8.5.13 View Alarms or Troubles ................................................................................................................. 8-8
8.5.14 View System Information ................................................................................................................. 8-8
8.5.15 Reset dialer ....................................................................................................................................... 8-8
8.5.16 Communicating with a Remote Computer ....................................................................................... 8-9
8.5.17 Working with a Printer ................................................................................................................... 8-10
8.6 Operation Mode Behavior ...................................................................................................................... 8-11
8.7 Releasing Operations ............................................................................................................................. 8-14
8.7.1 Single Interlock Zone Releasing ..................................................................................................... 8-15
Conditions Required for an Pre-Alert Output Activation .................................................... 8-15
Conditions required for an General Alarm and Release Output Activation ........................ 8-15
Contents
151209 7
8.7.2 Double Interlock Zone Releasing ................................................................................................... 8-16
Conditions Required for a Pre-Alert Output Activation ...................................................... 8-16
Conditions Required for a General Alarm Output Activation ............................................. 8-16
Conditions Required for a Release Output Activation ......................................................... 8-16
8.8 Smoke Alarm Verification ..................................................................................................................... 8-17
Section 9
Reporting ..................................................................................................................................................... 9-1
9.1 Receivers Compatible with the Control Panel ......................................................................................... 9-1
9.2 Reporting Formats Dialer Outputs ......................................................................................................... 9-1
Section 10
Testing and Troubleshooting ......................................................................................... 10-1
10.1 Troubleshooting ..................................................................................................................................... 10-1
10.2 Common Problems ................................................................................................................................. 10-1
10.2.1 Periodic Testing And Maintenance .................................................................................. 10-2
10.2.2 Event History .................................................................................................................................. 10-3
10.3 Built-in Troubleshooting and Testing Tools .......................................................................................... 10-4
10.3.1 SLC Device Locator ....................................................................................................................... 10-4
10.3.2 SLC Multi Locator .......................................................................................................................... 10-5
10.3.3 I/O Point Control ............................................................................................................................ 10-6
10.3.4 Earth Fault Resistance .................................................................................................................... 10-7
Section 11
Installation Records .................................................................................................................... 11-1
11.1 SLC Point Record .................................................................................................................................. 11-1
11.2 Conventional Output Point Record ........................................................................................................ 11-8
Appendix A
Compatible Devices ..................................................................................................................... A-1
A.1 Notification Appliances .......................................................................................................................... A-1
A.2 Two-Wire Smoke Detectors .................................................................................................................. A-12
Appendix B
Special Characters Lists .........................................................................................................B-1
B.1 Characters used for Naming .....................................................................................................................B-1
Silent Knight Fire Product Warranty and Return Policy
IntelliKnight 5820XL Installation Manual
8151209
151209 1-1
Section 1
Introduction
The IntelliKnight 5820XL Fire Alarm Control/Communicator is an addressable fire control
system that meets the requirements of UL 864.
1.1 Overview of Basic System
The IntelliKnight 5820XL base system is packaged as an assembled stack of 3 circuit boards
mounted to an aluminum housing.
1.1.1 Hardware Features
• The IntelliKnight 5820XL panel has one signaling line circuit (SLC). Up to three
additional SLC loops can be added using the 5815XL SLC expander. The SLC(s) support
the SK series addressable detectors and modules or Hochiki protocol detectors and
modules.
• Each SLC supports up to 99 detectors and 99 modules for a total of 396 detectors and 396
modules per 5820XL panel when using SK series devices. Alternatively, each SLC
supports up to 127 Hochiki devices for a total of 508 devices per 5820XL panel.
• 6.0A of output power is available through 6 sets of terminals for notification and auxiliary
applications. Each circuit is power limited per UL 864 and can source up to 3.0A (total
output power for all 6 circuits must not exceed 6.0A).
• Built-in dual phone line, digital alarm communicator/transmitter (DACT).
• Reports events to central station by point or by zone.
• UL Listed for pre-action and deluge releasing systems.
• Dedicated Form C trouble relay and two general purpose Form C programmable relays.
• Basic system operation can be performed using a key or a user code.
• Can be used with up to 8 Model 5860 Remote Annunciators (sold separately).
• Supports the 5865-3, 5865-4, and 5880 in any combination for a total of eight devices on
one control panel. See sections 4.8 and 4.9 for additional information on these models.
• Printing of detector status, event history, and real time event log available through the
Model 5824 Serial/Parallel Printer Interface Module (sold separately).
• Supports conventional 2-wire & 4-wire detectors using the 6 Flexput™ circuits.
• Add 6 Flexput™ circuits with each 5895XL Intelligent Power Module (up to 8 5895XLs
per system). See note below.
• Add 4 notification/auxiliary power circuits with each 5496 Intelligent Power Module. See
note below.
Note: The system can support a maximum of eight Intelligent Power modules, either the 5895XL or 5496, in any
combination.
IntelliKnight 5820XL Installation Manual
1-2 151209
1.1.2 Software Features
• 125 software zones, 250 output groups.
• Advanced smoke detector features:
Automatic drift compensation
Maintenance alert region
Point status eliminates calibrated smoke test requirements for NFPA 72
• “JumpStart” feature for easy programming
• Non-volatile event history stores 1000 events
• A choice of output patterns available for notification outputs, including ANSI 3.41
temporal signal
• Built-in synchronization appliance support for AMSECO, Faraday, Gentex®, System
Sensor®, and Wheelock®.
1.2 About this Manual
This manual is intended to be a complete reference for all installation and operation tasks for
the 5820XL. Please let us know if the manual does not meet your needs in any way. We value
your feedback!
1.2.1 Terms Used in this Manual
The following terminology is used with the IntelliKnight 5820XL system:
Table 1-1 Manual Terminology
Term Description
SLC Signaling line circuit
Module The term module is used for all hardware devices except for SLC
addressable devices and notification appliances. This includes the 5820XL
panel itself and the built-in 5897 power supply. It also refers to any
(optional) 5815XL SLC expansion modules.
Input Point An addressable sensing device, such as a smoke or heat detector or a contact
monitor device.
Input Zone A protected area made up of input points.
Output Point
(or Output Circuit)
A notification point or circuit for notification appliances. Relay circuits and
auxiliary power circuits are also considered output points.
Group (or “Output Group”) A group of output points. Operating characteristics are common to all
output points in the group.

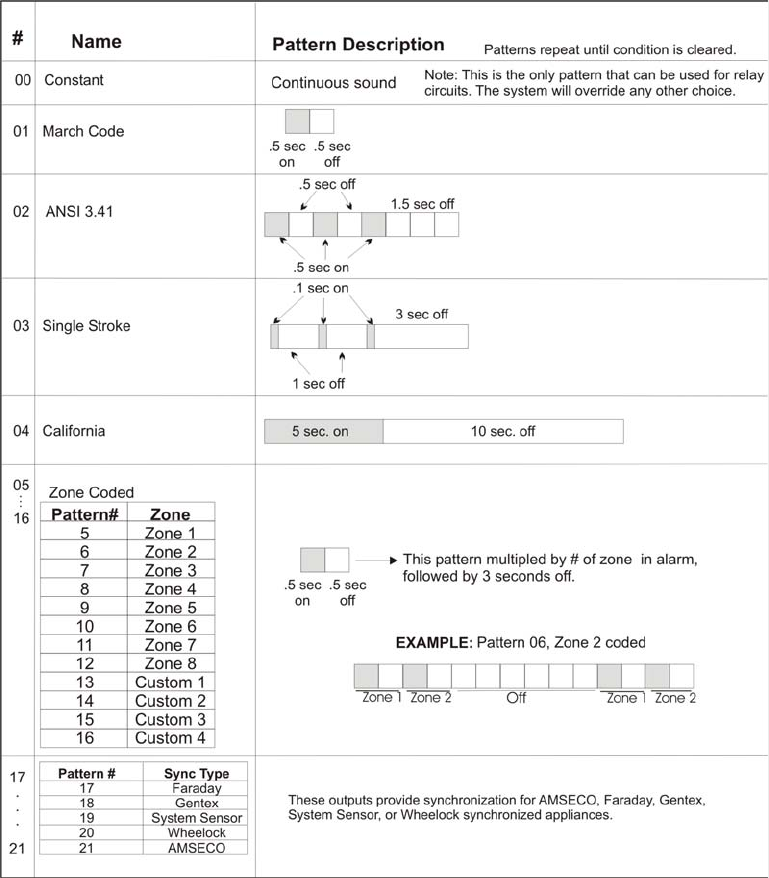

Output (or “Cadence”) Pattern The pattern that the output will use, for example, Constant, March Code,
ANSI 3.41. Applies to zones and special system events. See Section 7.7.3.2
for additional information.
Mapping Mapping is the process of specifying which outputs are activated when
certain events occur in the system. Section 6.2 explains mapping in detail.
Introduction
151209 1-3
1.3 Compatible Products
Table 1-2 lists the products available from Silent Knight for use with the IntelliKnight
5820XL.
Note: Models SD500-FRCM, and SD500-FRCM-4 are no longer manufactured, but they are still compatible with
the IntelliKnight system. Contact Silent Knight if you need information about these modules.
Table 1-2: 5820XL Compatible Products
Type of
Device Model Description
Addressable
SLC Devices
See Section 5.2 for a list of compatible devices.
Other
Modules

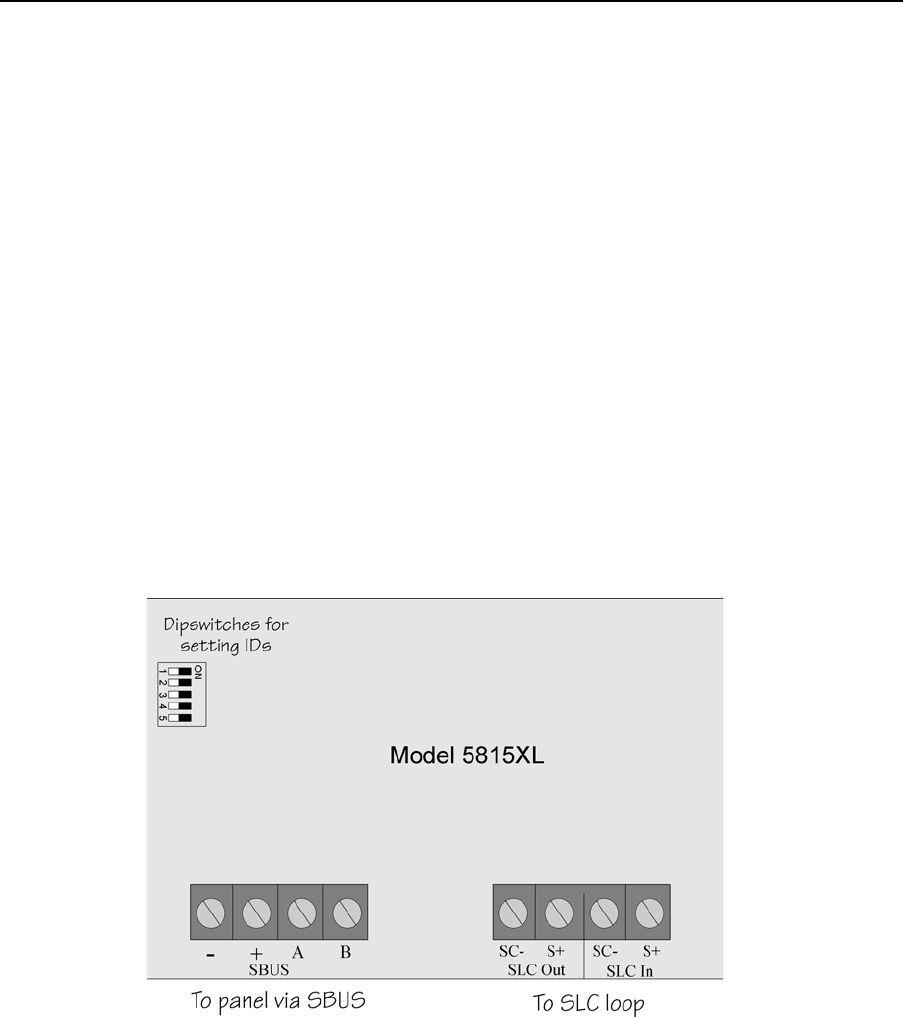

5815XL SLC Expander Allows an additional 127 Hochiki SLC devices, or 99 SK detectors and 99 SK modules
to be added to the system. Up to three 5815XLs per system.
5211 Ground Start Relay For use with ground start telephone network. (Do not use in UL installations.)
5824 Serial/Parallel Printer
Interface Module
Allows a printer to be attached for the system for on-site event logging, detector status
and event history reports. Two maximum per system.
5895XL Intelligent Power
Module
Provides additional power, six Flexput™ circuits, and two
Form C relays. Max. 8 per system see Model 5895
Installation Instructions P/N 151024.
5895XLs and 5496s can be
used in any combination,
up to a total of eight
devices on one system.
5496 Intelligent Power
Module
Provides 4 additional Notification Appliance Circuits/
Auxiliary power. (Up to 8 per system.)
5860 and 5860R Remote Fire
Alarm Annunciator
Same operation, similar appearance as on-board
annunciator. Up to 8 5860s per system. 5860 is gray; 5860R
is red.
5860TG and 5860TR Trim
Ring Kit
Trim ring kits for surface mounting the 5860 annunciator. 5860TG is gray; 5860TR is
red.
5865-3 and 5865-4 LED
Annunciator
LED annunciator can display up to 30 LEDs (15 red and 15
yellow). 5865-4 has key switches for silence and reset, and
a system trouble LED.
5865-3, 5865-4, and 5880
can be used in any
combination, up to a total
of eight devices on one
panel.
5880 LED I/O Module Driver for up to 40 LEDs. Interfaces with customized
annunciator boards. In addition the 5880 has eight generic
switch input points.
5883 General Purpose Relay
Module
Provides 10 Form C relays. Designed to be driven by the 5880. Up to four, 5883s can be
used with each 5880 module.
Misc. 7860 Telephone Cord RJ31X cord for connecting phone line to the 5820XL.
5660 Silent Knight Software
Suite (SKSS)
For communication and panel programming with a Windows-based computer and
*modem (not sold by Silent Knight, see Table 1-3 for compatible modems). Enables
remote viewing of detector status and event history.
5670 Silent Knight Software
Suite (SKSS)
Facility management software. For remote viewing of detector status and event history.
Requires a modem (not sold by Silent Knight).
RBB Remote Battery Box for mounting backup batteries that are too large to fit into the main
control panel cabinet.
Dimensions: 16" W x 10" H x 6" D (40.64 cm W x 25.4 cm H x 15.24 cm D)
IntelliKnight 5820XL Installation Manual
1-4 151209
The following modems have been tested by Silent Knight for compatibility with the 5820XL
and the Silent Knight Software Suite software packages:
1.4 How to Contact Silent Knight
If you have a question or encounter a problem not covered in this manual, contact Silent
Knight Technical Support at 800-446-6444.
To order parts, contact Silent Knight Customer Service at 800-328-0103 or in Connecticut
203-484-7161.
IntelliKnight® is a registered trademarks of Silent Knight. Flexput™ is a trademark of Silent
Knight.
Table 1-3: Compatible Modems
Manufacturer Model
US Robotics 28.8
Motorola
LifeStyle
28.8, 3400 series
Premier 33.6
MultiTech MT19321ZDX
Introduction
151209 1-5
Limitations of Fire Alarm Systems
Manufacturer recommends that smoke and/or heat detectors be located throughout a protected
premise following the recommendations of the current edition of the National Fire Protection
Association Standard 72 (NFPA 72), manufacturer’s recommendations, State and local codes,
and the recommendations contained in Guide for the Proper Use of System Smoke Detectors,
which is made available at no charge to all installing dealers. A study by the Federal
Emergency Management Agency (an agency of the United States government) indicated that
smoke detectors may not go off or give early warning in as many as 35% of all fires. While
fire alarm systems are designed to provide warning against fire, they do not guarantee warning
or protection against fire. A fire alarm system may not provide timely or adequate warning, or
simply may not function, for a variety of reasons. For example:
• Particles of combustion or smoke from a developing fire may not reach the sensing
chambers of smoke detectors because:
Barriers such as closed or partially closed doors, walls, or chimneys may inhibit particle or
smoke flow.
Smoke particles may become cold, stratify, and not reach the ceiling or upper walls where
detectors are located.
Smoke particles may be blown away from detectors by air outlets
Smoke particles may be drawn into air returns before reaching the detector.
In general, smoke detectors on one level of a structure cannot be expected to sense fires
developing on another level.
• The amount of smoke present may be insufficient to alarm smoke detectors. Smoke
detectors are designed to alarm at various levels of smoke density. If such density levels
are not created by a developing fire at the location of detectors, the detectors will not go
into alarm.
• Smoke detectors, even when working properly, have sensing limitations. Detectors that
have photoelectronic sensing chambers tend to detect smoldering fires better than flaming
fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers
tend to detect fast flaming fires better than smoldering fires. Because fires develop in
different ways and are often unpredictable in their growth, neither type of detector is
necessarily best and a given type of detector may not provide adequate warning of a fire.
• Smoke detectors are subject to false alarms and nuisance alarms and may have been
disconnected by users. For example, a smoke detector located in or near a kitchen may go
into nuisance alarm during normal operation of kitchen appliances. In addition, dusty or
steamy environments may cause a smoke detector to falsely alarm. If the location of a
smoke detector causes an abundance of false alarms or nuisance alarms, do not disconnect
the smoke detector; call a professional to analyze the situation and recommend a solution.
• Smoke detectors cannot be expected to provide adequate warning of fires caused by arson,
children playing with matches (especially within bedrooms), smoking in bed, violent
explosions (caused by escaping gas, improper storage of flammable materials, etc.).
IntelliKnight 5820XL Installation Manual
1-6 151209
• Heat detectors do not sense particles of combustion and are designed to alarm only when
heat on their sensors increases at a predetermined rate or reaches a predetermined level.
Heat detectors are designed to protect property, not life.
• Warning devices (including horns, sirens, and bells) may not alert people or wake up
sleepers who are located on the other side of closed or partially open doors. A warning
device that activates on a different floor or level of a dwelling or structure is less likely to
awaken or alert people. Even persons who are awake may not notice the warning if the
alarm is muffled by noise from a stereo, radio, air conditioner or other appliance, or by
passing traffic. Audible warning devices may not alert the hearing-impaired (strobes or
other devices should be provided to warn these people). Any warning device may fail to
alert people with a disability, deep sleepers, people who have recently used alcohol or
drugs, or people on medication or sleeping pills.
Please note that:
i) Strobes can, under certain circumstances, cause seizures in people with conditions
such as epilepsy.
ii) Studies have shown that certain people, even when they hear a fire alarm signal, do not
respond or comprehend the meaning of the signal. It is the property owner’s responsi-
bility to conduct fire drills and other training exercises to make people aware of fire
alarm signals and instruct on the proper reaction to alarm signals.
iii) In rare instances, the sounding of a warning device can cause temporary or permanent
hearing loss.
• Telephone lines needed to transmit alarm signals from a premises to a central station may
be out of service or temporarily out of service. For added protection against telephone line
failure, backup radio transmission systems are recommended.
• System components, though designed to last many years, can fail at any time. As a
precautionary measure, it is recommended that smoke detectors be checked, maintained,
and replaced per manufacturer’s recommendations.
• System components will not work without electrical power. If system batteries are not
serviced or replaced regularly, they may not provide battery backup when AC power fails.
• Environments with high air velocity or that are dusty or dirty require more frequent
maintenance.
In general, fire alarm systems and devices will not work without power and will not function
properly unless they are maintained and tested regularly.
While installing a fire alarm system may make the owner eligible for a lower insurance rate,
an alarm system is not a substitute for insurance. Property owners should continue to act
prudently in protecting the premises and the people in their premises and should properly
insure life and property and buy sufficient amounts of liability insurance to meet their needs.
Introduction
151209 1-7
Requirements and recommendations for proper use of fire alarm systems in-
cluding smoke detectors and other fire alarm devices:
Early fire detection is best achieved by the installation and maintenance of fire detection
equipment in all rooms and areas of the house or building in accordance with the requirements
and recommendations of the current edition of the National Fire Protection Association
Standard 72, National Fire Alarm Code (NFPA 72), the manufacturer’s recommendations,
State and local codes and the recommendations contained in Guide for the Proper Use of
System Smoke Detectors, which is made available at no charge to all installing dealers. For
specific requirements, check with the local Authority Having Jurisdiction (ex. Fire Chief) for
fire protection systems.
Requirements and Recommendations include:
• Smoke Detectors shall be installed in sleeping rooms in new construction and it is
recommended that they shall also be installed in sleeping rooms in existing construction.
• It is recommended that more than one smoke detector shall be installed in a hallway if it is
more than 30 feet long.
• It is recommended that there shall never be less then two smoke detectors per apartment or
residence.
• It is recommended that smoke detectors be located in any room where an alarm control is
located, or in any room where alarm control connections to an AC source or phone lines
are made. If detectors are not so located, a fire within the room could prevent the control
from reporting a fire.
• All fire alarm systems require notification devices, including sirens, bells, horns, and/or
strobes. In residential applications, each automatic alarm initiating device when activated
shall cause the operation of an alarm notification device that shall be clearly audible in all
bedrooms over ambient or background noise levels (at least 15dB above noise) with all
intervening doors closed.
• It is recommended that a smoke detector with an integral sounder (smoke alarm) be
located in every bedroom and an additional notification device be located on each level of
a residence.
• To keep your fire alarm system in excellent working order, ongoing maintenance is
required per the manufacturer’s recommendations and UL and NFPA standards. At a
minimum the requirements of Chapter 7 of NFPA 72 shall be followed. A maintenance
agreement should be arranged through the local manufacturer’s representative.
Maintenance should be performed annually by authorized personnel only.
• The most common cause of an alarm system not functioning when a fire occurs is
inadequate maintenance. As such, the alarm system should be tested weekly to make sure
all sensors and transmitters are working properly.
IntelliKnight 5820XL Installation Manual
1-8 151209
151209 2-1
Section 2
Agency Listings, Approvals, and Requirements
2.1 Federal Communications Commission (FCC)
1. The following information must be provided to the telephone company before the
IntelliKnight 5820XL can be connected to the phone lines:
This equipment complies with Part 68 of the FCC rules and the requirements adopted by
ACTA. On the inside cover of this equipment is a label that contains, among other
information, a product identifier. If requested, this information must be provided to the
telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone network
must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA.
A compliant telephone cord (not provided) and modular jack must be utilized with this
product. It is designed to be used with a modular jack that is also compliant.
The REN (ringer equivalence number) provided on this installation sheet is used to determine
the number of devices that may be connected to the public switched telephone network. This
number must not exceed 5.0. Since this product has an REN of 1.0, the number of devices is
limited. The REN number is imbedded in the FCC registration number as 10B.
If the 5820XL causes harm to the telephone network, the telephone company will notify you
in advance that the temporarily discontinuance of service may be required. But if advance
notice is not practical, the telephone company will notify the customer as soon as possible.
Also, you will be advised of your right to file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
If trouble is experienced with the 5820XL, for repair or warranty information, please contact
Silent Knight at 1-800-328-0103 or www.silentknight.com. If the equipment is causing harm
to the telephone network, the telephone company may request that you disconnect the
5820XL until the problem has been resolved.
A Manufacturer: Silent Knight
B Model Number: IntelliKnight 5820XL
C FCC registration number: AC6USA-23901-AL-E
Ringer equivalence: 0.8B
D Type of jack: RJ31X
E Facility Interface Codes: Loop Start: 02LS2
Ground Start: 02GS2
F Service Order Code: 9.0F
IntelliKnight 5820XL Installation Manual
2-2 151209
This product cannot be adjusted or repaired in the field. It must be returned to the factory for
service.
This equipment is not designed for use with party line service. Connection to party line
service is subject to state tariffs. You may contact the state public utility commission, public
service commission or corporation commission for information.
Since the 5820XL is a commercial fire alarm panel, it must be connected upstream of all other
equipment utilizing the phone lines. If you have questions about the installation, contact your
telephone company or a qualified installer.
2.2 Underwriters Laboratories (UL)
2.2.1 Requirements for All Installations
General requirements are described in this section. When installing an individual device, refer
to the specific section of the manual for additional requirements. The following subsections
list specific requirements for each type of installation (for example, Central Station Fire
Alarm systems, Local Protected Fire Alarm systems, and so on). See Section 8.7 for
information on releasing operation.
1. All field wiring must be installed in accordance with NFPA 70 National Electric Code.
2. Use the addressable smoke detectors specified in Section 5.2 of this manual and or con-
ventional detectors listed in the compatibility chart. (See Appendix A.)
3. Use UL listed notification appliances compatible with the 5820XL from those specified in
the Appendix at the back of this manual.
4. A full system checkout must be performed any time the panel is programmed.
Warning
This device has been verified to comply with FCC Rules Part 15. Operation is subject to the following conditions:
(1) This device may not cause radio interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Agency Listings, Approvals, and Requirements
151209 2-3
Restricted Options:

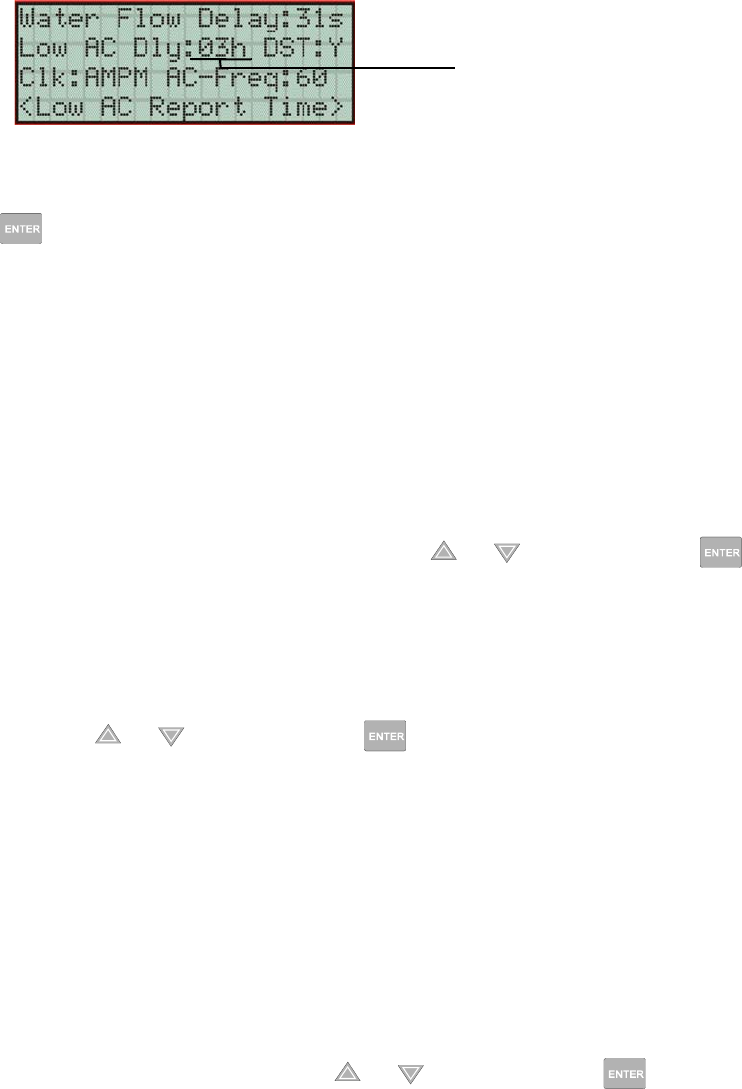

• The loss of AC signal is defaulted to 3 hours however the system allows settings from 0 -
30 hours. For UL certified installations this number must be set from 1 to 3 hours.
• The system allows the use of non-latching spot type smoke detectors. This feature may not
be used in commercial applications whereby a general alarm is sounded. It is intended for
elevator recall, door holding applications, and hotel/motel room applications.
• The system allows the Alarm Verification time to be set from 1 to 255 seconds. For UL
certified installations the setting must be a minimum of 60 seconds.
• Call forwarding shall not be used.
• When two count is used detector spacing shall be cut in half, you shall not use the alarm
verification feature, and no delay shall be used.
• P.A.S feature shall be used only with automatic detectors.
2.2.2 Requirements for Central Station Fire Alarm
Systems
1. Use both phone lines. Enable phone line monitors for both lines.
2. You must program a phone number and a test time so that the 5820XL sends an automatic
daily test to the central station.
3. Do not use the ground start option.
4. The AC Loss Hours option must be set from 1-3 hours.
5. The Attempts to Report option must be set for 5.
2.2.3 Requirements for Local Protected Fire Alarm
Systems
At least one UL listed supervised notification appliance must be used.
2.2.4 Requirements for Remote Station Protected Fire
Alarm Systems - Digital Alarm Communicator
Transmitter (DACT)
1. Do not exceed the current load restrictions shown in Section 3.6.
2. The AC Loss Hours option must be set from 15-30 hours.
IntelliKnight 5820XL Installation Manual
2-4 151209
151209 3-1
Section 3
Before You Begin Installing
This section of the manual is intended to help you plan your tasks to facilitate a smooth
installation. Please read this section thoroughly, especially if you are installing a 5820XL
panel for the first time.
3.1 What’s in the Box?
The IntelliKnight 5820XL ships with the following hardware:
• A cabinet with all hardware assembled
• Two keys for the front door
• Two keys for user operation of the on-board annunciator (installer operations require the
Installer’s Code)
• Ten 4.7K ohm end-of-line resistors
• A battery cable for batteries wired in series
3.2 Environmental Specifications
It is important to protect the 5820XL control panel from water. To prevent water damage, the
following conditions should be AVOIDED when installing the units:
• Intended for indoor use in dry locations only
• Do not mount directly on exterior walls, especially masonry walls (condensation)
• Do not mount directly on exterior walls below grade (condensation)
• Protect from plumbing leaks
• Protect from splash caused by sprinkler system inspection ports
• Do not mount in areas with humidity-generating equipment (such as dryers, production
machinery)
When selecting a location to mount the 5820XL control panel, the unit should be mounted
where it will NOT be exposed to temperatures outside the range of 0°C-49°C (32°F-120°F) or
humidity not exceeding 93% noncondensing.
IntelliKnight 5820XL Installation Manual
3-2 151209
3.3 Electrical Specifications
Terminal # and Label Description Rating Earth Ground
Faults
Voltage Current
1 L AC input (hot) 120 VAC, 60 Hz 2.5 A N/A
2 Earth ground N/A N/A N/A
3 N AC input (neutral) 120 VAC 60 Hz 2.5 A N/A
4X *I/O 6 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
5 O 100 mA for initiation circuits
6 X *I/O 5 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
7 O 100 mA for initiation circuits
8X *I/O 4 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
9 O 100 mA for initiation circuits
10 X *I/O 3 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
11 O100 mA for initiation circuits
12 X *I/O 2 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
13 O 100 mA for initiation circuits
14 X *I/O 1 Flexput™ Circuits 24 VDC
3.0 Amp Notification and
Aux power Circuits 0Ω
15 O 100 mA for initiation circuits
16 B
SBUS OUT
SBUS communication 5 VDC 100 mA
0Ω
17 A
18 + SBUS power 24 VDC 1.0 A
19 -
20 B
SBUS IN Used for Class A installations 0Ω
21 A
22 +
23 -

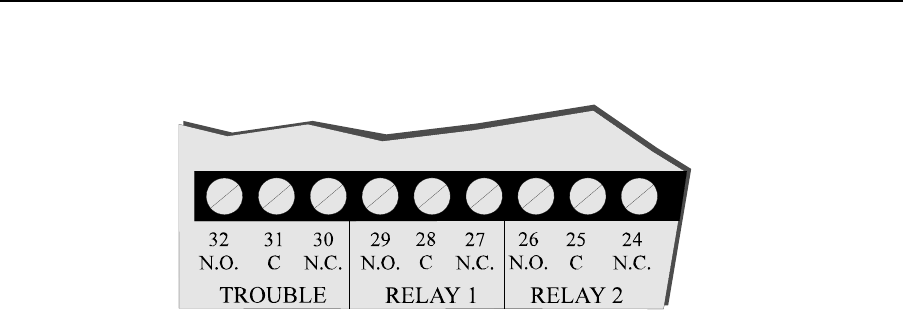

24 N.C.
RELAY 2 General Purpose Relay 2 24 VDC 2.5 A, resistive N/A25 C
26 N.O.
27 N.C.
RELAY 1 General Purpose Relay 1 24 VDC 2.5 A, resistive N/A28 C
29 N.O.
30 N.C.
TROUBLE Trouble Relay 24 VDC 2.5 A, resistive N/A31 C
32 N.O.
33 SC- L1
SLC OUT SLC terminals 32 VDC 150 mA 0Ω
34 SC+
35 SC- L2
SLC IN Used for Class A installations 0Ω
36 SC+
* Regulated/Special application when used for releasing.
Before You Begin Installing
151209 3-3
3.4 Wiring Specifications
Induced noise (transfer of electrical energy from one wire to another) can interfere with
telephone communication or cause false alarms. To avoid induced noise, follow these
guidelines:
• Isolate input wiring from high current output and power wiring. Do not pull one multi-
conductor cable for the entire panel. Instead, separate the wiring as follows:
• Do not pull wires from different groups through the same conduit. If you must run them
together, do so for as short a distance as possible or use shielded cable. Connect the shield
to earth ground at the panel. You must route high and low voltages separately.
• Route the wiring around the inside perimeter of the cabinet. It should not cross the circuit
board where it could induce noise into the sensitive microelectronics or pick up unwanted
RF noise from the high speed circuits. See Figure 3-1 for an example.
• High frequency noise, such as that produced by the inductive reactance of a speaker or
bell, can also be reduced by running the wire through ferrite shield beads or by wrapping it
around a ferrite toroid.
37 Ring Phone Line 1 Telco Ring
N/A 0Ω
38 Tip Phone Line 1 Telco Tip
39 Ring Phone Line 1 Premises Ring
40 Tip Phone Line 1 Premises Tip
41 Ring Phone Line 2 Telco Ring
N/A 0Ω
42 Tip Phone Line 2 Telco Tip
43 Ring Phone Line 2 Premises Ring
44 Tip Phone Line 2 Premises Tip
45 SC- SLC Programming Terminal ( - ) 32 VDC 150 mA 0Ω
46 SC+ SLC Programming Terminal ( + ) 32 VDC 150 mA
High voltage AC power, Terminals 1-3
SLC loops Terminals 33-36
Audio input/output Phone line circuits, Terminals
37-44
Notification circuits Terminals 4-15
SBUS Terminals 16-23
Relay circuits Terminals 24-32
Terminal # and Label Description Rating Earth Ground
Faults
Voltage Current
IntelliKnight 5820XL Installation Manual
3-4 151209

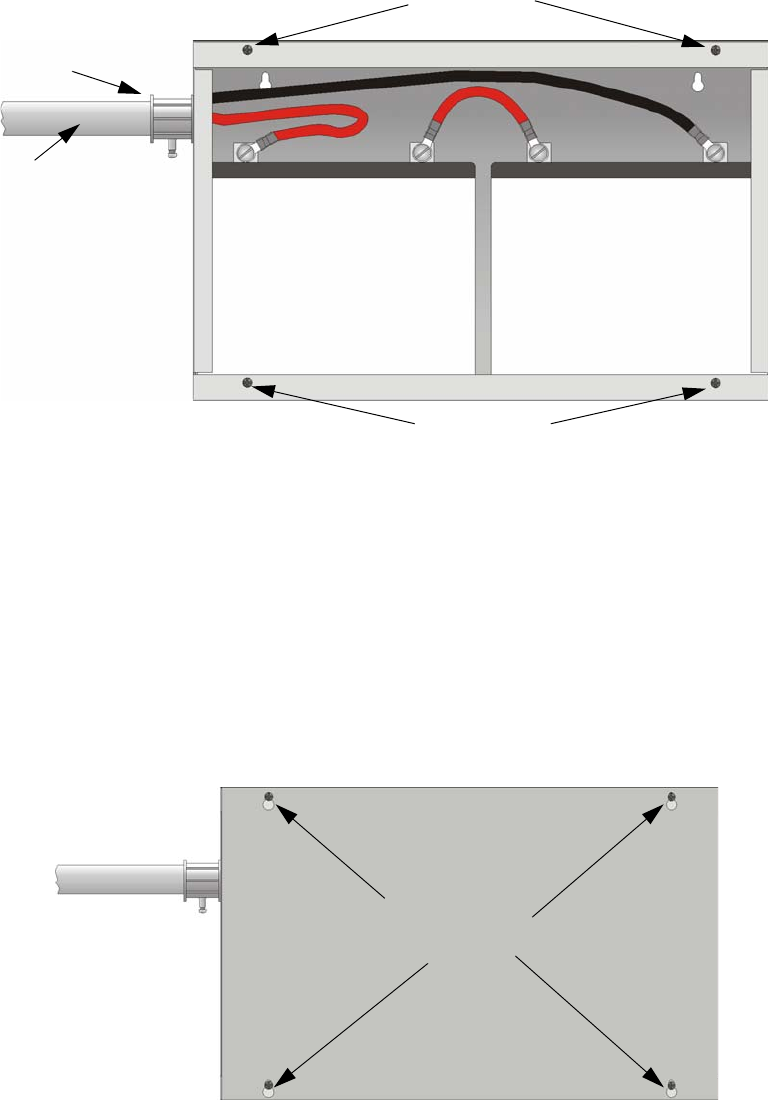

Figure 3-1 Wire Routing Example
Before You Begin Installing
151209 3-5
3.5 Board Assembly Diagram
Figure 3-2 Model 5820XL Assembly
Figure 3-2 shows the circuit boards, metal housing and annunciator that attach the 5820XL
assembly to the cabinet. If you should need to remove the board assembly for repair, remove
the four mounting nuts which hold the assembly in the cabinet. Then lift the entire assembly
out of the cabinet. Do not attempt to remove the circuit boards from the metal bracket.
IntelliKnight 5820XL Installation Manual
3-6 151209
3.6 Calculating Current Draw and Standby Battery
This section is for helping you determine the current draw and standby battery needs for your
installation.
3.6.1 Current Draw Worksheet Requirements
The following steps must be taken when determining 5820XL current draw and standby
battery requirements.
1. You will use the Current Draw Worksheet to determine current draw and standby battery
requirements. Use Table 3-1 if installing SK SLC Devices and Table 3-2 if installing
Hochiki SLC Devices. For the 5820XL, the worst case current draw is listed for the panel,
addressable devices, and all SBUS expanders. Fill in the number of addressable devices
and expanders that will be used in the system and compute the current draw requirements
for alarm and standby. Record this information in the Current Draw Worksheet on Line A.
2. Add up the current draw for all auxiliary devices and record in the table at Line B.
3. Add up all notification appliance loads and record in the table at Line C.
4. For notification appliances and auxiliary devices not mentioned in the manual, refer to the
device manual for the current ratings.
5. Make sure that the total alarm current you calculated, including current for the panel itself,
does not exceed 6.0 A. This is the maximum alarm current for the 5820XL control panel.
If the current is above 6.0 A you will need to use a notification power expander(s) such as
the Silent Knight 5495 or the 5895XL intelligent power expander, to distribute the power
loads so that the 5820XL or the power expanders do not exceed their power rating. Refer
to the current draw worksheets provided with the 5495 or the 5895XL manuals so you do
not exceed their power requirements.
6. Complete the remaining instructions in the appropriate Current Draw Worksheet for deter-
mining battery size requirements.
Before You Begin Installing
151209 3-7
3.6.2 Current Draw Worksheet for SK SLC Devices
Use Table 3-1 to determine current requirements during alarm/battery standby operation when
SK SLC devices are installed. You can install up 99 SK detectors per loop (396 max per
panel) and 99 SK modules per loop (396 max per panel). Copy this section if additional space
is required.
Table 3-1: Current Draw Worksheet for SK SLC Devices
Device # of Devices Current per Device Standby
Current Alarm
Current
For each device use this formula: This column X This column = Current per number of devices.
Fire Panel (Current draw from
battery) 1Standby: 215 mA 215 mA
Alarm: 385 mA 385 mA
Addressable SLC Detectors
SK-Photo
(99 max/loop
& 396 max/
panel)1
Standby/Alarm: 0.27 mA
mA mA
SK-Photo-T mA mA
SK-Ion mA mA
SK-Heat mA mA
SK-Heat-HT mA mA
SK-Beam (without integral test)
SLC Standby/
Alarm: 2 mA
Aux. Pwr Standby: 2 mA mA
Alarm: 8.5 mA mA
SK-Beam-T 5(with integral test)
SLC Standby/
Alarm: 2 mA
Aux. Pwr Standby: 2 mA mA
Alarm: 8.5 mA mA
SK-Duct6SLC Standby/
Alarm: 0.27 mA mA mA
SK-Acclimate Standby/Alarm: 0.3 mA mA mA
SK-Heat-ROR mA mA
IntelliKnight 5820XL Installation Manual
3-8 151209
Addressable SLC Modules
SK-Control
(99 max/loop
& 396 max/
panel)1
SLC Standby/ 0.375mA mA
Alarm 0.375mA mA
Aux Pwr Standby/ 1.7mA mA
Alarm: 7mA mA
SK-Monitor
Standby/Alarm: 0.375 mA
mA mA
SK-Minimon mA mA
SK-Pull-SA mA mA
SK-Pull-DA
SK-Monitor-2 Standby/Alarm: 0.75 mA mA mA
SK-Mon10 Standby/Alarm: 3.5 mA mA mA
SK-Relay-6 Standby/Alarm: 1.45 mA mA mA
SK-Control-6
SLC Standby/ 2.25 mA mA
Alarm: 2.25 mA
Aux Pwr Standby/ 1.7 mA mA
Alarm: 20 mA mA
SK-Relay Standby/Alarm: 0.255 mA mA mA
SK-Zone
Aux Pwr Standby 12 mA mA
Alarm 90 mA mA
SLC Standby/
Alarm 0.27mA mA mA
SK-Zone-6 Aux Pwr Standby 50 mA mA
Alarm 270 mA mA
SLC Standby/Alarm 2 mA mA mA
SLC Accessories
B501BHT-2 Sounder Base (99 max/loop
& 396 max/
panel)
Aux Pwr Standby: 1 mA mA
Alarm: 15 mA mA
SLC Alarm: 0.7 mA mA
B224RB Relay Base Standby/Alarm: 0.5 mA mA mA
RTS151/151 KEY Alarm: 7.5 mA mA
RA100Z Alarm: 10 mA mA
SLC Isolator Devices
SK-Iso (Isolator Module) (100 max/loop
&400 max/
panel)
Standby/Alarm: 0.45 mA mA mA
B224BI Isolator Base Standby/Alarm: 0.5 mA mA mA
Accessories Modules
5815XL SLC Expander (3 max.) Standby/Alarm: 55 mA mA mA
5860 Remote Fire Alarm
Annunciator (8 max) Standby: 20 mA mA
Alarm: 25 mA mA
5824 Serial/Parallel Printer
Interface Module (2 max.) Standby/Alarm: 45 mA mA mA
5496 Intelligent Power Module
(8 max.)
Standby/Alarm: 10 mA
5895XL IntelliKnight Power
Module Standby/Alarm: 10 mA mA mA
Device # of Devices Current per Device Standby
Current Alarm
Current
Before You Begin Installing
151209 3-9
1. Total does not include isolator devices or accessory bases.
3. If using door holders, you do not need to consider door holder current for alarm/battery standby, because power is
removed during that time. However, during normal operation, door holders draw current and must be included in the
6.0A total current that can be drawn from the panel.
4. Use next size battery with capacity greater than required.
5. SK-Beam-T draws a maximum of 500mA from Auxiliary power only when the test feature is used. this should be
considered when determining auxiliary power capacity but not calculated into current requirements for day to day
operation.
6. The SK-Duct housing contains a vacant mount for a SK-Relay (sold separately). Current draw for the SK-Relay is
calculated by increasing the SK-Relay row of the calculation sheet by one for each SK-Relay used with a SK-Duct.
5865-4 LED Annunciator
(with reset and silence switches)
(8 max.)
Standby: 35 mA mA
Alarm: 145 mA mA
5865-3 LED Annunciator Standby: 35 mA mA
Alarm: 145 mA mA
5880 I/O Module Standby: 35 mA mA
Alarm: 200 mA mA
5883 Relay Interface (32 max.)
Standby: 0 mA mA
Alarm: 220 mA
(22 mA per relay) mA
ATotal System Current
Auxiliary Devices3Refer to devices manual for current rating.
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
BAuxiliary Devices Current
Notification Appliance Circuits Refer to device manual for current rating.
Alarm: mA mA
Alarm: mA mA
Alarm: mA mA
Alarm: mA mA
CNotification Appliances Current mA
D Total current ratings of all devices in system (line A + line B + C) mA mA
E Total current ratings converted to amperes (line D x .001): A A
F Number of standby hours (24 or 60 for NFPA 72, chapter 1, 1-5.2.5): H
G Multiply lines E and F. Total standby AH AH
H Alarm sounding period in hours. (For example, 5 minutes = .0833 hours) H
I Multiply lines E and H. Total alarm AH AH
JAdd lines G and I. 4Total ampere hours
required AH
Device # of Devices Current per Device Standby
Current Alarm
Current
IntelliKnight 5820XL Installation Manual
3-10 151209
3.6.3 Current Draw Worksheet for Hochiki SLC Devices
Use Table 3-2 to determine current requirements during alarm/battery standby operation when
Hochiki SLC devices are installed. You can install up 127 Hochiki devices per loop (508 max
per panel). Copy this section if additional space is required.
Table 3-2: Current Draw Worksheet for Hochiki SLC Devices
Device # of Devices Current per Device Standby
Current Alarm
Current
For each device use this formula: This column X This column = Current per number of devices.
IntelliKnight 5820XL Fire Panel
(Current draw from battery) 1Standby: 215 mA 215 mA
Alarm: 385 mA 385 mA
Addressable SLC Devices
SD500-AIM
(508 max.)1 Standby/Alarm: 0.55 mA
mA mA
SD500-MIM mA mA
SD500-PS
SD500-ARM mA mA
SD505-AHS mA mA
SD505-AIS mA mA
SD505-APS mA mA
SD500-ANM (508 max.)1Aux. Pwr Standby: 8 mA mA
Alarm: 60 mA mA
SLC Standby/
Alarm: .55 mA mA mA
SD500-SDM (508 max.)1
SLC Standby/
Alarm: .55 mA mA mA
Aux. Pwr Standby: 20 mA mA
Alarm: 106 mA mA
SD500-LED (100 max.)1Aux. Pwr
Standby: 10 mA mA
Alarm: 220 mA mA
LED: 10 mA mA mA
SLC Standby/
Alarm: 0.55 mA mA mA
SLC Accessory Bases
SD505-6RB (508 max.) Standby/Alram: .082 mA mA mA
SD505-6SB (508 max.) Aux. Pwr Standby: 1 mA mA
Alarm: 32 mA mA
SLC Standby/
Alarm: .082 mA mA mA
SD505-ADHR
SD505-DUCTR (508 max.) Aux. Pwr Standby: 35 mA2mA
Alarm: 75 mA2mA
SLC Standby/
Alarm: .082 mA mA mA
SD505-DTS
SD505-DTS-K (508 max.) None, included with SD505-ADHR worst case.
SD505-ADH
SD505-DUCT (508 max.) None, included with detector current.
SLC Isolator Devices
SD500-LIM (1024 max.) Standby/Alarm 0.092 mA mA mA
SD505-6IB (508 max.)
Accessories Modules
5815XL SLC Expander (3 max.) Standby/Alarm: 55 mA mA mA
5860 Remote Fire Alarm Annun. (8 max.) Standby: 20 mA mA
Alarm: 25 mA mA
Before You Begin Installing
151209 3-11
1. Total does not include isolator devices or accessory bases.
2. If using 24 VDC aux power only. No standby or alarm current for battery calculation if using 24 VAC, 120 VAC or
240 VAC.
3. If using door holders, you do not need to consider door holder current for alarm/battery standby, because power is
removed during that time. However, during normal operation, door holders draw current and must be included in the
6.0A total current that can be drawn from the panel.
4. Use next size battery with capacity greater than required.
5824 Serial/Parallel Printer Interface (2 max.) Standby/Alarm: 45 mA mA mA
5895XL IntelliKnight Power Expander (8 max.) Standby/Alarm: 10 mA mA mA
5496 Intelligent Power Module Standby/Alarm: 10 mA mA mA
5865-4 LED Annunciator
(with reset and silence switches)
(8 max.)
Standby: 35 mA mA
Alarm: 145 mA mA
5865-3 LED Annunciator Standby: 35 mA mA
Alarm: 145 mA mA
5880 LED I/O Module Standby: 35 mA mA
Alarm: 200 mA mA
5883 Relay Interface (32 max.) Standby: 0 mA mA
Alarm: 220 mA
(22 mA per relay) mA
ATotal System Current
Auxiliary Devices3Refer to devices manual for current rating.
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
Alarm/Standby: mA mA mA
BAuxiliary Devices Current
Alarm: mA mA
Alarm: mA mA
Alarm: mA mA
Alarm: mA mA
CNotification Appliances Current mA
D Total current ratings of all devices in system (line A + line B + C) mA mA
E Total current ratings converted to amperes (line D x .001): A A
F Number of standby hours (24 or 60 for NFPA 72, chapter 1, 1-5.2.5): H
G Multiply lines E and F. Total standby AH AH
H Alarm sounding period in hours. (For example, 5 minutes = .0833 hours) H
I Multiply lines E and H. Total alarm AH AH
JAdd lines G and I.4 Total ampere hours
required AH
Device # of Devices Current per Device Standby
Current Alarm
Current
IntelliKnight 5820XL Installation Manual
3-12 151209
3.6.4 Maximum Battery Standby Load
Table 3-3 shows the maximum battery standby load for the 5820XL based on 24 and 60 hours
of standby. The standby load calculations of line D in the Current Draw Calculation
Worksheet (Table 3-1 for SK devices and Table 3-2 for Hochiki devices) must be less than the
number shown in Table 3-3 for the battery size used and standby hours required
* 33AH max battery size for FM (Factory Mutual) installations..
* Required for NFPA 72 Auxiliary Protected Fire Alarm systems for Fire Alarm Service (City Box) and Remote
Station Protected Fire Alarm systems (Polarity Reversal) and Digital Alarm Communicator/Transmitter
(DACT).
3.7 Installation Tasks Overview
This section provides a chart listing tasks that need to be performed when installing the
IntelliKnight 5820XL system. The chart is intended to be a handy way for you to make sure
you have completed all necessary tasks. Unless noted, these tasks do not have to be performed
in the order they are listed here.
Important: Connect and address SLC devices before running JumpStart.
Table 3-3: Maximum Battery Standby Load
Rechargeable Battery Size Max. Load for 24 hrs.
Standby, 5 mins. Alarm *Max. Load for 60 hrs.
Standby, 5 mins. Alarm
7 AH 270 mA 105 mA
12 AH 475 mA 190 mA
18 AH 685 mA 270 mA
35 AH 1.3 A 540 mA
Warning!
Silent Knight does not support the use of batteries smaller than those listed in Table 3-3. If you use a battery
too small for the installation, the system could overload the battery resulting in the installation having less than
the required 24 hours standby power. Use Table 3-3 to calculate the correct battery amperes/hour rating needed
for your installation.
Task See Sec.
(for more info.)
Main Panel Hardware Installation
UMount the control panel cabinet. 4.1
UConnect AC. 4.2
UConnect phone lines. 4.11
UInstall 5815XL SLC expander modules (if needed). Required if more than
127 SLC devices are used.
4.6
UInstall 5860 Remote Fire Alarm Annunciator modules if used. 4.5
UInstall 5865 or LED Annunciator modules if used. 4.9
UInstall 5880 LED I/O module if customized LED annunciation will be used. 4.8
UInstall notification appliances. 4.13
UInstall auxiliary power devices (if used). 4.13.5
UIf using a printer, install the 5824 Serial/Parallel Printer Interface Module. 4.7
UConnect batteries (typically last step). 4.3
Before You Begin Installing
151209 3-13
SLC Device Hardware Installation
Perform these steps before running JumpStart.
UConnect device bases to the loop. SK 5.5
Hochiki 5.3
USet device addresses. SK 5.6
Hochiki 5.8
UPhysically connect detectors to their bases. Connect relay and contact
monitor modules.
5.4 & see device
install instructions
JumpStart
JumpStart is for initial system programming. JumpStart automatically selects
some options for SLC devices. See “Input Point Configuration” section of this
chart for other options.
JumpStart makes selections for the following options. You can customize
options, if necessary.
6.1 & 7.8
Device type (detector or switch) configured by JumpStart. To change, see 7.6
Program type of detector (heat, photoelectric, or ionization) selected by
JumpStart.
To change, see 7.6
System Software Configuration
USelect low AC hours report time (6 hours by default). 7.7.4.2
USelect Auto Test Time (2:00 AM by default). 7.7.1.2
UEnable/disable automatic DST adjustment feature (enabled by default). 7.7.4.3
UChange clock display format (12-hour with AM/PM by default). 7.7.4.4
USet up reporting accounts. 7.7.1
USelect options for phone lines. 7.7.2
USelect system-wide response to trouble conditions, if desired. 7.7.3
USelect system-wide cadence patterns for special conditions (fire drill, Aux1
and Aux2 alarms) if desired.
7.7.3
UCustomize banner message (message that displays on LCD in normal
mode) if desired.
7.7.7
Input Point (SLC Device) Configuration
JumpStart automatically selects some options for SLC devices (see “JumpStart” section of this chart).
You can change options selected by JumpStart, if necessary and further customize input point options.
USelect device type (SK or Hochiki). Only one device type can be used per
control panel.
7.2
UProgram type of switch (manual pull, fire drill, and so on), if necessary.
(JumpStart assigns all switches as Manual Pull type.)
7.6
UIf the installation includes duct detectors, program detector type.
(JumpStart does not distinguish duct detectors from ordinary smoke
detectors.)
7.6
UAssign a name (or description) to the point. 7.6.3.1
UAssign input points to zones, if necessary. (JumpStart assigns all input
points to Zone 1.)
7.6
Zone Configuration
UAdd the zone to the system if it does not already exist. (Zone 1 created by
JumpStart.)
7.4.2
UProgram a name (or description) for the zone. 7.4.1.1
Task See Sec.
(for more info.)
IntelliKnight 5820XL Installation Manual
3-14 151209
USelect alarm delay options (detection characteristics) for zone. 7.4.1.2
USelect heat detector trip temperature. (JumpStart selects 150°F for heat
detectors.)
7.4.1.2
Output Point Configuration
Conventional notification circuits (circuits 1-6):
UEnable circuits used for notification appliances through programming, if
necessary. (JumpStart enables circuits 1-6 as Notification.)
7.5.1
Conventional relay circuits (circuits 7-8):
USelect options for relay circuits, if desired. Note: Relay circuits will always
output continuously (constant pattern), even if assigned to an Output Group
that uses a different output pattern.
7.5.1
Auxiliary power circuits (circuits 1-6):
UEnable any circuit used for auxiliary power devices through programming. 7.6
USelect type of power (door holder, constant, or resettable) 7.6
Addressable relay modules
UAssign addressable relay modules to output groups through programming.
(JumpStart assigns all relay modules to Group 1.)
7.6
LED output points (from the 5880 LED I/O module or 5865/66 LED Annunciator)
UAssign LED modules to output groups through programming. 7.6.3
All output circuits (1-8):
UDisable (set to UNUSED) any unused circuits. If you do not disable unused
output circuits, they will cause a trouble condition (unless an EOL resistor
is used).
7.6
USelect a name for the point, if desired. 7.6
Output Group Configuration
UAdd the group to the system if it does not already exist. 7.5.2
UAssign output points to the group. 7.6
UProgram a name (or description) for the group, if desired. 7.5.1.1
Select “group properties” (see below).
ULatching / non-latching 7.5.1
USilencing option 7.5.1
USelect options for activation with system switches. 7.5.1
UMap zones to output groups that will activate when zone goes into alarm. 7.4.1.3
USelect a cadence pattern for outputs in the zone. 7.4.1.3
Task See Sec.
(for more info.)
151209 4-1
Section 4
Control Panel Installation
4.1 Mounting the Control Panel Cabinet
Read the environmental specifications in Section 3.2 before mounting the control panel
cabinet. This will ensure that you select a suitable location.
The panel should be accessible to main drop wiring runs. It should be mounted as close to the
center of the building as possible and located within a secured area, but should be accessible
for testing and service.
Mount the control panel cabinet so it is firmly secured to the wall surface. When mounting on
concrete, especially when moisture is expected, attach a piece of 3/4-inch plywood to the
concrete surface and then attach the cabinet to the plywood. Also mount any other modules to
the plywood.
The cabinet can be surface- or flush-mounted. If you will be flush-mounting the cabinet, the
hole for the enclosure should be 14.75" W x 25" H x 4" D. Do NOT flush-mount in a wall
designated as a fire break.
4.1.1 Preventing Water Damage
Water damage to the fire system can be caused by moisture entering the cabinet through the
conduits. Conduits that are installed to enter the top of the cabinet are most likely to cause
water problems. Installers should take reasonable precautions to prevent water from entering
the cabinet. Water damage is not covered under warranty.
4.1.2 Removing the 5820XL Assembly from the Housing
If it should ever be necessary to remove the control panel assembly from the cabinet for
repair, do so by unscrewing the nuts that connect the control panel assembly to the cabinet. Do
not attempt to disassemble the circuit boards. See Section 3.5 for location of the nuts.
Caution!
To avoid the risk of electrical shock and damage to the unit, power should be OFF at the control panel while
installing or servicing.
IntelliKnight 5820XL Installation Manual
4-2 151209
4.2 AC Connection
At installation, connect the AC terminals to the power source as shown in Figure 4-1. It may
be necessary for a professional electrician to make this connection.
The AC terminals are rated at 120 VAC, 50 or 60 Hz, 2.5A.
Figure 4-1 120 VAC Power Connection
Control Panel Installation
151209 4-3
4.3 Battery Connection
The control panel battery charge capacity is 7.0 to 35 AH. Use 12V batteries of the same AH
rating. Determine the correct AH rating as per your current load calculation (see Section 3.6).
Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase
the AH rating. It is recommended that you replace batteries every five years.
Figure 4-2 Battery Connection
To Control Panel
Red Black
Battery Jumper
(P/N 140694)
Shipped With Panel
UL Listed 12V Battery
UL Listed 12V Battery
IntelliKnight 5820XL Installation Manual
4-4 151209
4.3.1 RBB Accessory Cabinet
The Model RBB Accessory cabinet can be used when your backup batteries requirements use
backup batteries that are too large to fit into the main control panel cabinet. The RBB cabinet
holds batteries up to the 35 AH size. The RBB dimensions are 16" W x 10" H x 6" D (40.64
cm W x 25.4 cm H x 15.24 cm D).
4.3.1.1 Installing the RBB Accessory Cabinet and Batteries
To properly install the accessory cabinet and backup batteries, follow these steps:
1. Mount the accessory cabinet. See figure Figure 4-3 for the four cabinet mounting holes.
• If mounting onto drywall the accessory cabinet must be mounted onto 3/4-inch ply-
wood. This is necessary because the weight of the batteries inside the accessory cabi-
net could cause the cabinet to pull away from the drywall.
• When mounting on concrete, especially when moisture is expected, attach a piece of
3/4-inch plywood to the concrete surface and then attach the RBB cabinet to the ply-
wood.
• If using the battery cable extenders provided (P/N 140643), mount the RBB cabinet no
more than 18" away from the main control panel cabinet. This will ensure that the bat-
tery cables reach the battery terminals.
Figure 4-3 RBB Cabinet Mounting Holes
2. Connect the main control panel battery cables to the battery cable extenders as shown in
Figure 4-4.
Figure 4-4 Splicing Control panel Battery Cable to RBB Battery Cable Extenders
Cabinet
Mounting Holes
Control Panel Installation
151209 4-5
3. Run extended battery cable from control panel cabinet through conduit to RBB cabinet.
See Figure 4-5.
Figure 4-5 Battery Connections in the RBB Cabinet
Note: Figure 4-5 is an example of how the wire connections can be routed. However, any other cabinet knock-
outs (on either the main control panel or the RBB cabinet), that are not previously being used may be uti-
lized to connect conduit between the two cabinets.
4. Connect battery leads to the backup battery terminals. See Figure 4-5.
Observe the proper polarity to prevent damage to the batteries or the control panel.
5. Insert the RBB cover screws into the cover mounting holes (see Figure 4-5).
Screw the cover screw 3/4 of the way into the cover mounting hole.
6. Align the cover plate mounting keyhole over the cover mounting screws. See Figure 4-6.
Figure 4-6 Cover Plate Mounting Keyholes and Cover Mounting Screws Alignment
7. Slide the cover into place and tighten the cover mounting screws. See Figure 4-6
Conduit
Conduit
Coupler
++
--
RBB Cabinet
Cover Screws
RBB Cabinet
Cover Screws
Cover Plate
Mounting Keyholes
IntelliKnight 5820XL Installation Manual
4-6 151209
4.4 SBUS Wiring
This section contains information on calculating SBUS wire distances and the types of wiring
configurations (Class A and B).
4.4.1 Calculating Wiring distance for SBUS modules
The following instructions will guide you in determining the type of wire and the maximum
wiring distance that can be used with control panel SBUS accessory modules.
To calculate the wire gauge that must be used to connect SBUS modules to the control panel,
it is necessary to calculate the total worst case current draw for all modules on a single 4-
conductor bus. The total worst case current draw is calculated by adding the individual worst
case currents for each module. The individual worst case values are shown in the table below.
Note: Total worst case current draw on a single SBUS cannot exceed 1 amp. If a large number of accessory mod-
ules are required, and the worst case current draw will exceed the 1 amp limit, then the current draw must
be distributed using 5895XL Power Expanders. Each 5895XL Power Expander provides an additional
SBUS, with an additional 1 amp of SBUS current. Wiring distance calculations are done separately for
each 5895XL, and separately for the control panel itself.
Note: Refer to Table 3-2 for maximum number of each type of device that can be used per system.
After calculating the total worst case current draw, Table 4-1 specifies the maximum distance
the modules can be located from the panel on a single wire run. The table insures 6.0 volts of
line drop maximum. In general, the wire length is limited by resistance, but for heavier wire
gauges, capacitance is the limiting factor.
Model Number Worst Case Current Draw
5860 Fire Annunciator .100 amps
5824 Serial/Parallel Printer Interface Module .040 amps
5880 LED I/O Module .250 amps
5865 LED Fire Annunciator .200 amps
5895XL Intelligent Power Supply .010 amps
5496 Intelligent Power Supply .010 amps
Control Panel Installation
151209 4-7
These cases are marked in the chart with an asterisk (*). Maximum length can never be more
than 6,000 feet, regardless of gauge used. (The formula used to generate this chart is shown in
the note below).
Note: The following formulas were used to generate the wire distance chart:
Table 4-1: Wire Distances Per Wire Gauge Using Copper Wire
Wiring Distance: SBUS Modules to Panel
Total Worst Case
Current Draw (amps) 22 Gauge 18 Gauge 16 Gauge 14 Gauge
0.100 1852 ft. 4688 ft. * 6000 ft. * 6000 ft.
0.200 926 ft. 2344 ft. 3731 ft. 5906 ft.
0.300 617 ft. 1563 ft. 2488 ft. 3937 ft.
0.400 463 ft. 1172 ft. 1866 ft. 2953 ft.
0.500 370 ft. 938 ft. 1493 ft. 2362 ft.
0.600 309 ft. 781 ft. 1244 ft. 1969 ft.
0.700 265 ft. 670 ft. 1066 ft. 1687 ft.
0.800 231 ft. 586 ft. 933 ft. 1476 ft.
0.900 206 ft. 521 ft. 829 ft. 1312 ft.
1.000 (Max) 185 ft. 469 ft. 746 ft. 1181 ft.
Maximum Resistance (Ohms) = 6.0 Volts
Total Worst Case Current Draw (amps)
Maximum Wire Length (Feet) =
(6000 feet maximum)
Maximum Resistance (Ohms) * 500
Rpu
where: Rpu = Ohms per 1000 feet for various wire gauges (see table below)
Table 4-2: Typical Wire Resistance Per 1000 ft. Using Copper Wire
Wire Gauge Ohms per 1000 feet (Rpu)
22 16.2
18 6.4
16 4.02
14 2.54
IntelliKnight 5820XL Installation Manual
4-8 151209
Wiring Distance calculation example:
Suppose a system is configured with the following SBUS modules:
2 - Module 5860 Fire Annunciator
1 - 5895XL Intelligent Power Expander
1 - 5865 LED Fire Annunciator
1 - 5824 Serial/Parallel Interface Module
The total worst case current is calculated as follows:
Using this value, and referring to the Wiring Distance table, it can be found that the available
options are:
370 feet maximum using 22 Gauge wire
938 feet maximum using 18 Gauge wire
1493 feet maximum using 16 Gauge wire
2362 feet maximum using 14 Gauge wire
5860 Current Draw = 2 x .100 amps = .200 amps
5895XL Current Draw = 1 x .010 amps = .010 amps
5865 Current Draw = 1 x .200 amps = .200 amps
5824 Current Draw = 1 x .040 amps = .040 amps
Total Worst Case Current Draw = .450 amps
Control Panel Installation
151209 4-9
4.4.2 Wiring Configurations
Figure 4-7 illustrates Class A wiring configuration and Figure 4-8 illustrates Class B
configuration.
Figure 4-7 SBUS Class A Wiring
Figure 4-8 SBUS Class B Wiring
Supervised
Power Limited
Caution
For proper system supervision do not use looped wire
under terminals marked A, B, +, and - of the SBUS
device connectors. Break wire runs to provide
supervision of connections.
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-10 151209
4.5 Remote Annunciator 5860 Installation
The optional Model 5860 Remote Annunciator, shown in Figure 4-9, performs the same
functions as the on-board annunciator. Operation is identical. Up to 8 annunciators can be
added to the IntelliKnight 5820XL system.

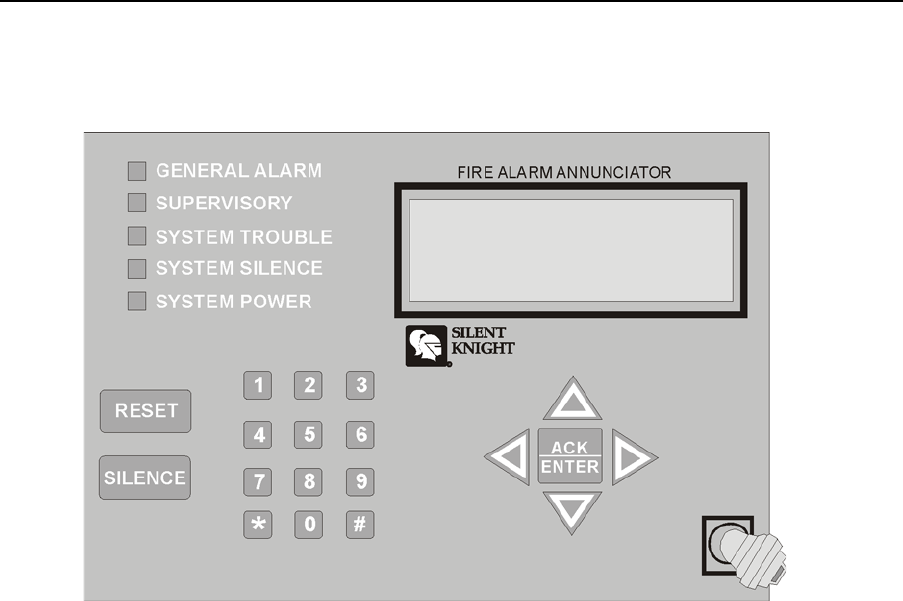

Figure 4-9 Model 5860 Remote Annunciator, Front View
5860 installation involves the following steps:
1. Make sure power is off at the panel.
2. Mount the 5860 in the desired location (see Section 4.5.1).
3. Connect the 5860 to the panel (see Section 4.5.2).
4. Use the on the back of the 5860 to assign an ID# to the 5860 (see Section 4.10.1).
5. The new 5860 module must be added to the system through programming. JumpStart will
add the module automatically (see Section 6.1). You can also add it manually (see Section
7.3.2). Select a name, if desired (see Section 7.3.1.1).
Control Panel Installation
151209 4-11
4.5.1 Mounting the 5860
This section of the manual describes mounting the remote annunciator. The annunciator can
be flush- or surface-mounted.
Figure 4-10 shows the parts of the annunciator. Instructions for disassembling and mounting
appear on the following pages.
Figure 4-10 Annunciator Parts
IntelliKnight 5820XL Installation Manual
4-12 151209
The 5860 comes from the factory fully assembled. You must disassemble it for mounting. To
disassemble the annunciator, use a 5/64 hex wrench to remove the set screws, located on the
bottom of the annunciator bezel. (See Figure 4-11 for location of the set screws.)
Figure 4-11 Annunciator Back Box and Bezel Details
4.5.1.1 Flush Mounting
This section of the manual describes flush mounting. You can flush-mount with or without an
electrical box.
Control Panel Installation
151209 4-13
Flush Mounting with an Electrical Box
The 5860 annunciator can be used with the following types of electrical boxes: 4S, single-
gang, and double-gang.
If an electrical box is used, the box must be 1-3/8” back from the face of the wall to
accommodate the annunciator. Studs used with an electrical box must be two by fours (or
larger).
Figure 4-12 Placement of Electrical Box for Flush Mounting
Flush Mounting Steps
1. Cut a hole in the sheet rock to the following dimensions: 8-1/4” w x 6-5/8” h. If an electri-
cal box is used, the box must be 1-3/8” back from face of wall to accommodate the annun-
ciator (see Figure 4-12).
2. Remove knockout holes as needed for wires.
3. Fit the annunciator back box into the hole and stabilize with mounting wires. Angle the
mounting wires into the first hole past the sheet rock. Secure the wires behind the screws
as shown in Figure 4-13. When all four wires are in place, the back box should fit snugly
into the hole in the sheet rock.
IntelliKnight 5820XL Installation Manual
4-14 151209
4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2),
replace the electronic assembly in the back box. Place the bezel over the back box and
tighten the set screws on the bezel.
Figure 4-13 Flush Mounting the Back Box
4.5.1.2 Surface Mounting
The 5860 can be mounted directly to a surface or can be attached to a single, double, or four-
square electrical box. The Model 5860TG/TR trim ring kit is available for use when surface
mounting.
1. Drill holes in the surface to match the screw holes on the back box.
2. Fit the trim ring over the back box.
3. Attach the back box to the surface using screws provided.
4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2),
replace the electronic assembly in the back box. Place the bezel over the back box and
tighten the set screws on the bezel.
Control Panel Installation
151209 4-15
4.5.2 Model 5860 Connection to the Panel
Connect the 5860 to the panel as shown in Figure 4-14.

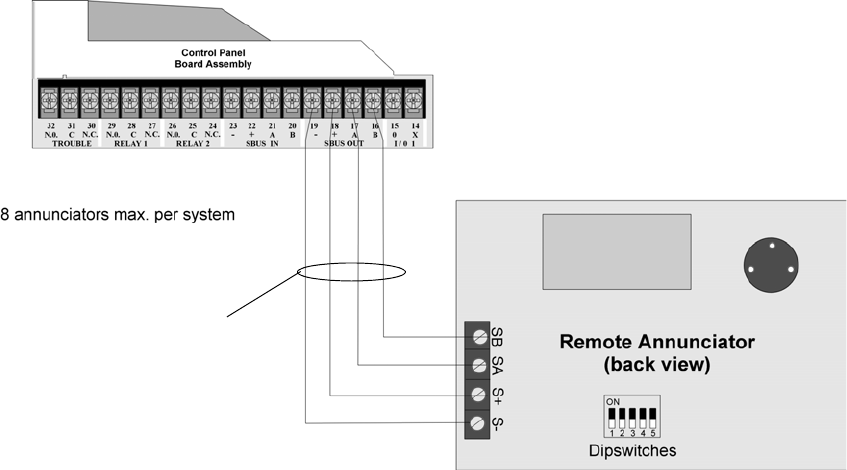

Figure 4-14 Model 5860 Connection to the Panel
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-16 151209
4.6 5815XL Installation
The 5815XL SLC expander lets you add 127 addressable devices. Up to three 5815XLs
(adding 381 SLC devices for a total of 508 points) can be used with the system.
To install the 5815XL:
1. Make sure power is off at the panel.
2. Mount the 5815XL in the 5820XL, the 5895XL cabinet, or the 5815RMK remote mount-
ing kit. Use the standoffs located under the control panel board assembly and secure with
screws provided with the 5815XL. See also Model 5895XL Installation Instructions (P/N
151142) or 5815RMK Remote Mounting Kit Installation Instructions (P/N 151391).
3. Connect the 5815XL to the control panel. (See Section 4.6.1.)
4. Use on-board dipswitches to select an ID#. (See Section 4.10.1.)
5. The new 5815XL module must be added to the system through programming. JumpStart
will add the module automatically (see Section 6.1). You can also add it manually (see
Section 7.3.2). Select a name, if desired (see Section 7.3.1.1).
6. You are now ready to connect SLC devices to the 5815XL (see Section 5.4).
Figure 4-15 is a drawing of the 5815XL board, showing the location of terminals and
dipswitches.
Figure 4-15 5815XL Board
Control Panel Installation
151209 4-17
4.6.1 5815XL Connection to the Panel
Connect the 5815XL to the control panel as shown in Figure 4-16. After the 5815XL is
connected to the panel, it must be added to the system. This programming step is described in
Section 4.10.

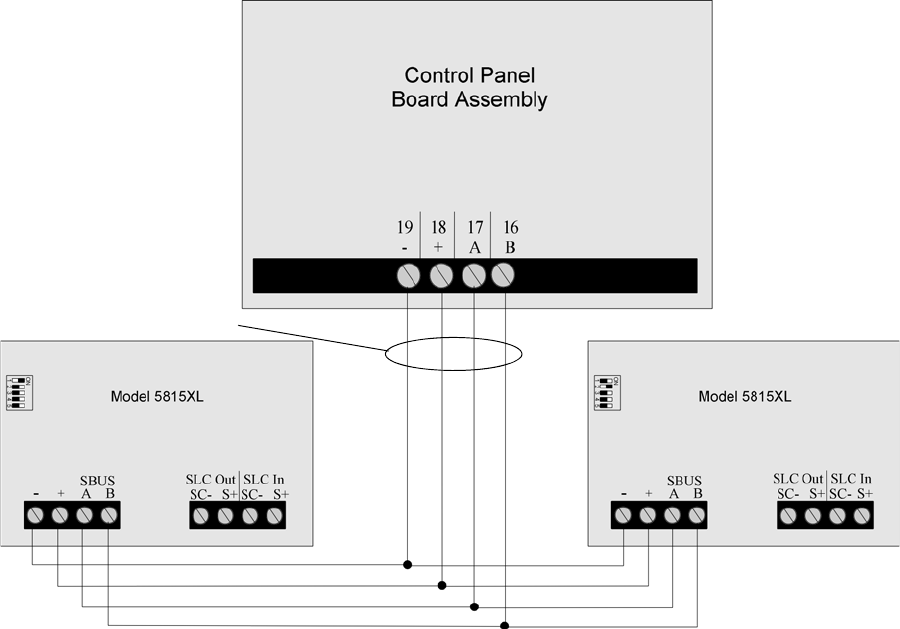

Figure 4-16 5815XL Connection to Main Panel Assembly
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-18 151209
4.7 5824 Serial/Parallel Interface Module
Installation
The 5824 serial/parallel interface module allows you to connect a printer to the panel, so you
can print a real-time log of system events, a report of detector status, and event history.
Instructions for installing the 5824 appear below. The 5824 is for ancillary use only.
5824 installation involves the following steps:
1. Make sure power is off at the panel.
2. Connect the 5824 to the panel as shown in Figure 4-17.
Note: Two 5824s per panel maximum.
3. Use the dipswitches on the back of the 5824 board to assign an ID# to the 5824 (see Sec-
tion 4.10.1).
4. Configure the 5824 device through programming. See Section 4.7.1.
5. Connect a printer to the 5824 as shown in Figure 4-18.

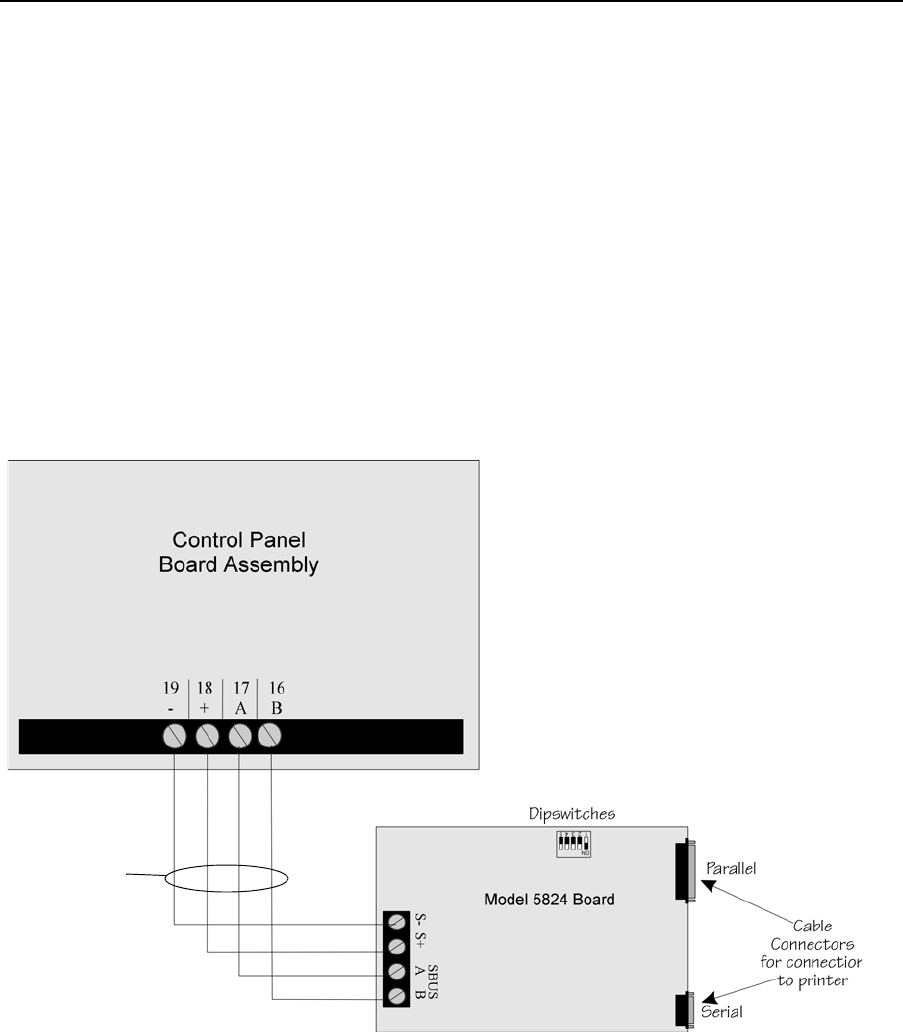

Figure 4-17 5824 Connection to the Panel
Supervised
Power Limited
Control Panel Installation
151209 4-19
Figure 4-18 Printer Connection
4.7.1 Selecting 5824 Options
Configuring the 5824 includes the following steps:
• Add the module to the system. JumpStart will add the module automatically (see Section
6.1). You can also add it manually (see Section 7.3.2).
• Select a name, if desired (see Section 7.3.1.1).
• Select options for the printer and the output port. See below.
Model 5824 (with housing)
To Parallel Printer
To Serial Printer
IntelliKnight 5820XL Installation Manual
4-20 151209
Printer and Output Port Options
1. From the Installer Main Menu, select for Program Menu.
2. Select for Module.
3. Select for Edit Module.
4. From the list that displays, select the 5824 module you want to configure.
5. Press to bypass the next two screens. A screen similar to the one shown in
Figure 4-19 will display.
Figure 4-19 Selecting Printer and Output Port Options
6. Select options for the printer as needed for your installation. Most printers are parallel.
7. If you are using a serial printer, use the next screen to select serial port options as required
for your printer. Refer to your printer manual if you need more information.
Option Choices
Baud Rate: 75 - 19200
Data Bits: 5 - 8
Stop Bits: .5, 1, 2
Parity: None, Even, Odd
7
1
1
ENTER
ENTER
Control Panel Installation
151209 4-21
4.8 5880 LED I/O Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including
as an interface with most customized floor plan annunciator boards. The 5880 can drive up to
40 LEDs and has one PZT controller. The 5880 also has eight inputs for
monitoring. The following sub-sections describe hardware installation. Refer to Section 6 for
programming information.
4.8.1 5880 Board Layout
Figure 4-20 is a picture of the 5880 board showing locations of screw terminals for connection
to the panel and contact monitor wiring; pin connectors for connecting LEDs; and the
dipswitch for selecting an SBUS ID number.
Figure 4-20 5880 Board Layout
SBUS Connection
SBUS Address
DIPs
Dry Contact Inputs
IntelliKnight 5820XL Installation Manual
4-22 151209
4.8.2 FACP Connection
The 5880 connects to the panel via the SBUS. Make connections as shown in Figure 4-21.
After the 5880 is connected to the panel, it must be added to the system. This programming
step is described in Section 4.10.

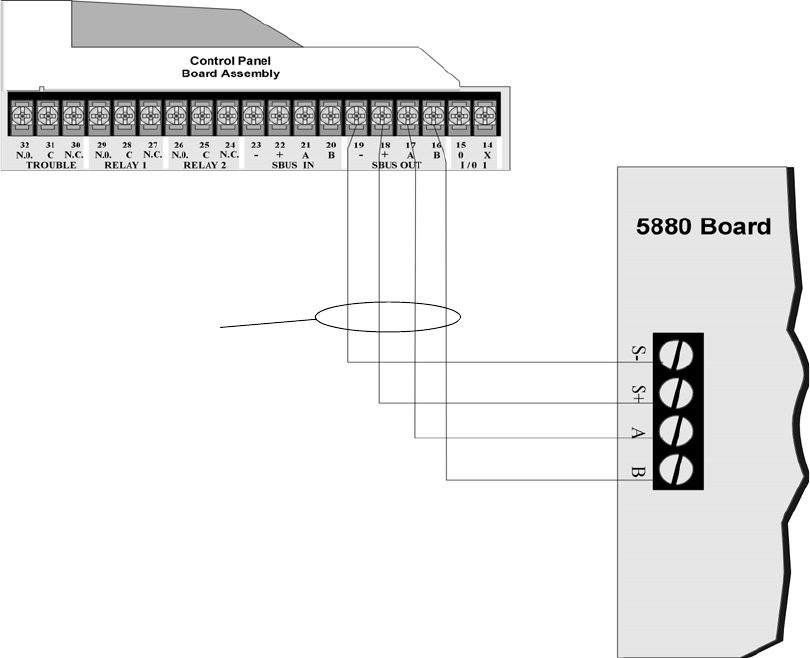

Figure 4-21 5880 Connection to Main Control Panel Assembly
Supervised
Power Limited
Control Panel Installation
151209 4-23
4.8.3 LED Wiring
There are four 12-pin connectors on the 5880 board for connecting LEDs. Each LED gets its
power from Pin 11. Internal resistors are sized so that there is approximately 10 mA of current
for each LED, no series resistors are required. LED outputs can be mapped to output circuits.
See Section 6 for programming details.
Wire the LEDs as shown in Figure 4-22.
On connector P1, Pin 12 is an open collector output for controlling a PZT. If used, the 5880
PZT will match the PZT pattern of the on-board (or 5860) annunciator.
Note: The circuit connected to “Open Collector Output” (last pin on P1) must be current limited so that no more
than 100 mA of current is allowed to flow into the open collector transistor.
Figure 4-22 5880 Board Layout
11
20
12
13
14
15
16
17
18
19
LED Power
no connection
Anode
Cathode
LEDs
P2
5880 LED Outputs
1
10
2
3
4
5
6
7
8
9
LED Power
Programmable Open Collector Output
Not mappable.
Matches PZT pattern
on on-board
annunciator
Anode
Cathode
LEDs
P1
Connectors P3 and P4 wired same as P2.
IntelliKnight 5820XL Installation Manual
4-24 151209
4.8.4 Dry Contact Wiring
The 8 input circuits on the 5880 board are for monitoring switch inputs-any type of switch
supported by the control panel can be used with the 5880. For example, you can use a 5880 to
monitor pull stations, water flow, tamper, reset, or silence switches.
Wire dry contacts as shown in Figure 4-23. Notice grouping of terminals; power terminals are
shared by two inputs.
Figure 4-23 Dry Contact Wiring
Model 7628
Supervised
Control Panel Installation
151209 4-25
4.9 5865-3 / 5865-4 LED Annunciator Installation
The 5865-3 and 5865-4 are LED annunciators. The 5865-4 has 30 mappable LEDs, remote
silence and reset key switches, and a general system trouble LED. The 5865-3 has 30
mappable LEDs only. These are arranged as 15 pairs of red (typically used for alarm) and
yellow (typically used for trouble) LEDs.
Installation of the 5865-5 and 5865-4 is identical. The key switches and the trouble LED
follow the behavior of other system annunciators and do not require any installation steps. The
following sub-sections describe how to install the 5865-3 and 5865-4 hardware. Refer to
Section 6 for programming information.
Note: This manual uses “5865” when referring to aspects of the 5865-3 and 5865-4 that are common to both
models.
Figure 4-24 5865-3 and 5865-4 Assembly (front view)
IntelliKnight 5820XL Installation Manual
4-26 151209
4.9.1 FACP Connection
The 5865 connects to the panel via the SBUS. Make connections as shown in Figure 4-25.
After the 5865 is connected to the panel, it must be added to the system. This programming
step is described in Section 4.10.
Figure 4-25 5865 Connection to the FACP
Supervised
Power Limited
Control Panel Installation
151209 4-27
4.9.2 5865 Mounting
Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang
electrical box. In Figure 4-26, the 5865-4 attached to a 4-gang box is used as an example.
Figure 4-26 5865 Mounting Example
The 5865 ships with a set of zone description labels that can be inserted into the 5865 board
assembly. These labels can be used in a typewriter or can be written on by hand. Slide the
labels under the plexiglass as shown in Figure 4-27. The LEDs will show through the label
when illuminated.
Figure 4-27 Inserting Zone Description Labels
IntelliKnight 5820XL Installation Manual
4-28 151209
4.10 Configuring Modules
This section describes how to configure any system hardware modules that have been added
to the system.
4.10.1 Assigning Module IDs
When installing a hardware module (such as, 5815XL, 5824, 5860, 5895XL, 5865-3 or 5865-
4), you must use the dipswitches on the module to assign an ID# to the module.
Figure 4-28 shows all possible dipswitch positions and their correlation to a numerical ID. For
example, to select ID 2, place dipswitch 2 in the up position.

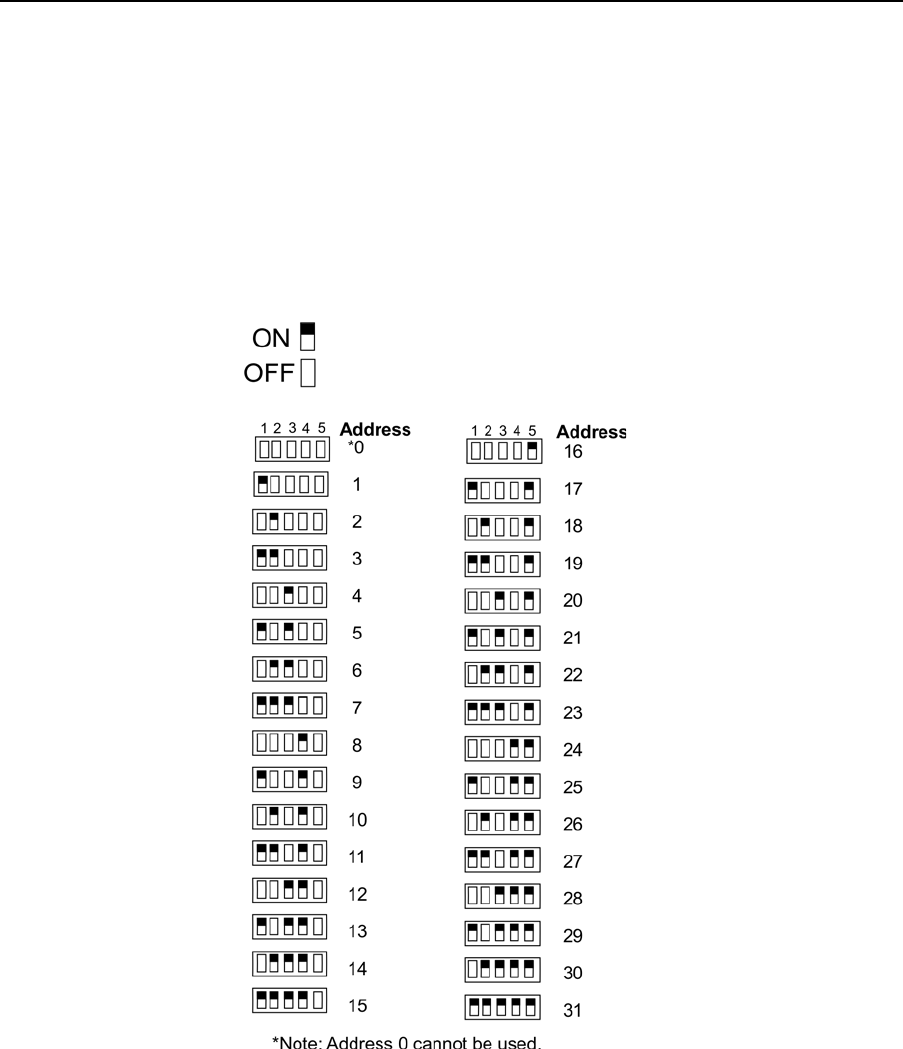

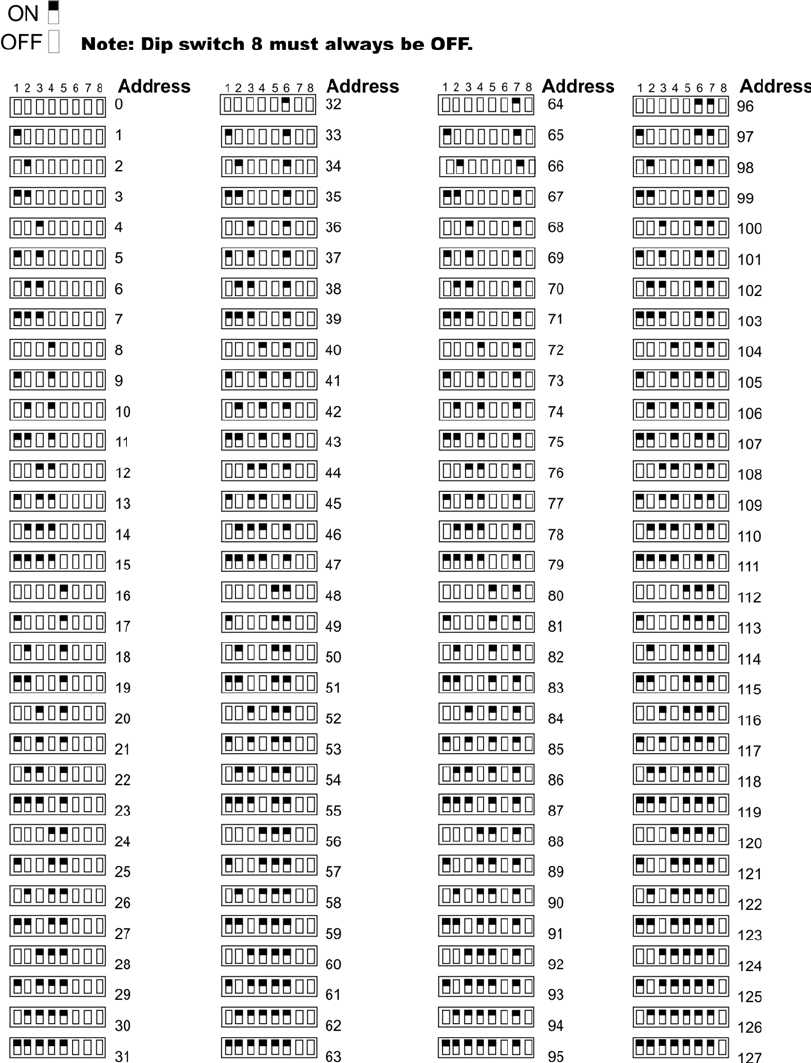

Figure 4-28 Possible module addresses
Refer to Section 6. to edit, add, delete, and view module list.
Control Panel Installation
151209 4-29
4.11 Telephone Connection
Connect the telephone lines as shown in Figure 4-29. The Model 7860 phone cord is available
from Silent Knight for this purpose.
A number of programmable options are available for customizing telephone lines. These
options are described in Section 7.7.
Figure 4-29 Connection of Telephone Lines
4.12 5211 Ground Start Relay
Note: Do not use ground start in UL installations.
If connecting the control panel to a ground start telephone network, you must use the 5211
ground start relay (order separately).
To install the 5211:
1. Install the 5211 on the ground relay socket as shown in Figure 4-29.
2. Enable ground start through the ground start programming option as described in Section
7.7.2.6
5211 Ground
Start Relay Socket
IntelliKnight 5820XL Installation Manual
4-30 151209
4.13 Flexputs™ I/O Circuits
The six Flexput™ circuits are an innovative and versatile feature of the control panel. They
can be used as: Class A or B notification circuits, Class A or B initiation circuits (either 2 or 4
wire detectors), or as auxiliary power (resettable, continuous, or door holder).
The polarity of the Flexput terminals differs depending on whether the circuit is programmed
as an input or and output circuit. If the circuit is programmed as an input circuit (for a detector
or normally open contact) the X terminal is negative and O terminal is positive. If the circuit is
programmed as an output circuit (Aux power or NAC) then the X terminal is positive and the
O terminal is negative.
This section of the manual explains how to install conventional notification appliances and
initiating devices to be used with the system.
4.13.1 Conventional Notification Appliance
This sub-section of the manual explains how to install conventional notification appliances for
Class A (Style Z) and Class B (Style Y) configurations.
4.13.1.1 Regulated Class B Notification Wiring
You must use an appliance from the list of compatible appliances in the Appendix A at the
back of this manual.
To install a circuit:
1. Wire Class B Notification appliances as shown in Figure 4-30.
Control Panel Installation
151209 4-31
2. Configure the circuit through programming (see Section 7.6).
Figure 4-30 Class B Notification Appliance Circuit Wiring
Alarm
Polarity
UL Listed EOL
Model 7628
4.7 kΩ
Supervised
Power Limited
Notification Wiring
Max. Impedance: 1.5Ω
Regulated 24 VDC Full Wave Rectified
27.4 VDC, 3A per Circuit, 6A max Combined
IntelliKnight 5820XL Installation Manual
4-32 151209
4.13.1.2 Class A Notification Wiring
You must use an appliance from the list of compatible appliances in the Appendix at the back
of this manual.
To install a Class A notification appliance circuit:
1. Wire the Class A notification appliances as shown in Figure 4-31.
2. Configure the circuit for Class A in programming (see Section 7.6).
Figure 4-31 Class A Notification Appliance Circuit Configuration
Note: In programming any point that uses multiple Flexput circuits, the lowest Flexput circuit number is used to
refer to the circuit pair. For example, Figure 4-31 uses both Flexput circuit 5 and 6, so in programming it
would be referred to as point 5.
Caution
For proper system supervision do not use looped wire under terminals marked O and X of the Flexput
connectors. Break wire runs to provide supervision of connections.
Supervised
Power Limited
Regulated 24 VDC Full Wave Rectified
27.4 VDC, 3A per Circuit, 6A max Combined
Control Panel Installation
151209 4-33
4.13.2 Conventional Input Switch Circuits
This section of the manual explains how to install conventional initiating devices for Class A
(Style D) or Class B (Style B) configurations.
4.13.2.1 Class B Inputs
You can connect conventional Class B switches, such as waterflow switches and pull stations,
directly to the Flexput circuits of the control panel.
To install a Class B switch:
1. Wire the Class B switch as shown in Figure 4-32.
2. Configure the circuit through programming (see Section 7.6).

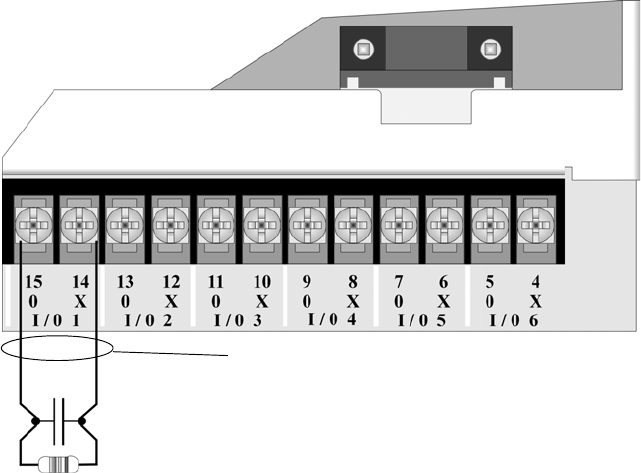

Figure 4-32 Class B Input Switches
UL Listed EOL
Model 7628
4.7 kΩ
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-34 151209
4.13.2.2 Class A Inputs
You can connect conventional Class A switches, such as waterflow switches and pull stations,
directly to the Flexput circuits of the control panel.
To install a Class A switch:
1. Wire the Class A switch as shown in Figure 4-33.
2. Configure the circuit through programming (see Section 7.6).
Figure 4-33 Class A initiating Switches
Note: In programming any point that uses multiple Flexput circuits, the lowest Flexput circuit number is used to
refer to the circuit pair. For example, Figure 4-33 uses both Flexput circuit 5 and 6, so in programming it
would be referred to as point 5.
Note:
Flexput circuit 5 and 6
used as an example.
Any Flexput point pairing
could be used.
Supervised
Power Limited
Control Panel Installation
151209 4-35
4.13.3 Installing 2-Wire Smoke Detectors
Any compatible U.L. listed two-wire smoke detector can be used with the control panel (see
Appendix A for list of compatible smoke detectors). Figure 4-34 and Figure 4-35 illustrate
how to connect a UL listed 2-wire detector to the control panel.
4.13.3.1 Installing 2-Wire Class B Smoke Detectors
To install a Class B two-wire smoke detector, wire as shown in Figure 4-34.

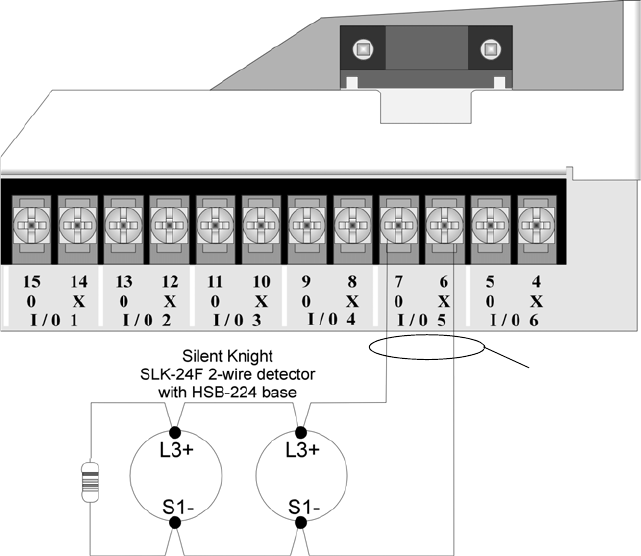

Figure 4-34 Two-Wire Class B Smoke Detector
Note:
Flexput circuit 5
used as an example.
Any Flexput circuit
could be used.
UL Listed EOL
Model 7628
4.7 kΩ
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-36 151209
4.13.3.2 Installing 2-Wire Class A Smoke Detector
To install a Class A two-wire smoke detector, wire as shown in Figure 4-35.
Figure 4-35 Two-Wire Class A Smoke Detector Connections
Note: In programming any point that uses multiple Flexput circuits, the lowest Flexput circuit number is used to
refer to the circuit pair. For example, Figure 4-35 uses both Flexput circuit 5 and 6, so in programming it
would be referred to as point 5.
Note:
Flexput circuit 5 and 6
used as an example.
Any Flexput point pairing
could be used.
Supervised
Power Limited
Control Panel Installation
151209 4-37
4.13.4 Installing 4-Wire Smoke Detectors
Any compatible U.L. listed four-wire smoke detector can be used with the control panel (see
Appendix A for list of compatible smoke detectors). Figure 4-34 and Figure 4-35 illustrate
how to connect a UL listed four-wire detector to the control panel.
4.13.4.1 Installing a Class B 4-Wire Smoke Detector
Figure 4-36 illustrates how to install a 4-wire Class B smoke detector.
Conventions used for wiring 4-wire Class B loops:
1. Up to three Class B 4-wire smoke detector loops can be connected to the control panel at
once.
2. Each Class B loop input is paired with a unique power source as shown in Figure 4-36.
3. Each loop gets smoke power from the even numbered Flexput circuit and the contact input
is connected to the odd numbered Flexput circuit.

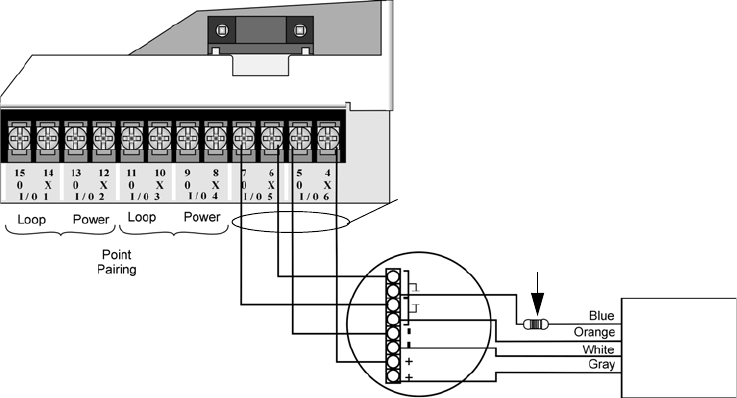

Figure 4-36 Class B 4-Wire Smoke Detector Connections
Note: In programming any point that uses multiple Flexput circuits, the lowest Flexput circuit number is used to
refer to the circuit pair. For example, Figure 4-36 uses both Flexput circuit 5 and 6, so in programming it
would be referred to as point 5.
Air Products
PAM-2
Model 160150
Supervision
Module
UL Listed
EOL Resistor
Model 7628
ESL 449CT
Note:
Flexput circuit 5 and 6
used as an example.
Any Flexput point pairing
could be used.
Supervised
Power Limited
IntelliKnight 5820XL Installation Manual
4-38 151209
4.13.4.2 Installing 4-Wire Class A Smoke Detectors
Figure 4-37 illustrates how to install 4-wire Class A detectors.
Conventions used for wiring 4-wire Class A loops:
1. Up to two Class A 4-wire loops can be connected to the control panel at once.
2. Smoke power is supplied to each Class A loop as shown in Figure 4-37.
Figure 4-37 Class A 4-Wire Smoke Detector Connections
Note: In programming any point that uses multiple Flexput circuits are always referred to as the lowest Flexput
circuit number used. For example, Figure 4-37 uses Flexput circuits 1, 2, 3 together and 4, 5, 6 together.
In programming (1, 2, 3) would be referred to as point 1, and (4, 5, 6) would be referred to as point 4.
Air Products
PAM-2
Model 160150
Supervision
Module
Air Products
PAM-2
Model 160150
Supervision
Module
Supervised
Power Limited
Control Panel Installation
151209 4-39
4.13.5 Auxiliary Power Installation
Flexput Circuits 1-6 on the control panel can be used as auxiliary power circuits. The three
types of auxiliary power available are:
• Door Holder (see Section 4.13.5.1)
• Constant (see Section 4.13.5.2)
• Resettable Power (see Section 4.13.5.3)
Auxiliary power circuits are power limited. Each circuit can source up to 3A (total current for
all Flexput circuits must not exceed 6.0 A).
To install an auxiliary power circuit:
1. Wire the Flexput circuit(s) that will be used for auxiliary power. See Figure 4-38 for loca-
tion of Flexput circuits.
2. Configure the auxiliary power output through programming (see Section 7.6).
Figure 4-38 Flexput Circuit Location
4.13.5.1 Door Holder Power
Door holder power is intended for fire door applications. When there are no alarms in the
system and the panel has AC power, door holder circuits have 24-volt power present at their
terminals. Any alarm will cause power to disconnect. Power will be re-applied when the
system is reset. If AC power is off for more than 15 seconds, the auxiliary door holder power
will be disconnected to conserve the battery backup. When AC power is restored, power is
immediately restored to the door holder circuits.
Use a UL listed door holder ESL DHX-1224, for this application.
4.13.5.2 Constant Power
Use constant power for applications that require a constant auxiliary power source. Power is
always present at Constant circuits.
IntelliKnight 5820XL Installation Manual
4-40 151209
4.13.5.3 Resettable Power
Resettable power is typically used to power beam detectors, flame detectors and conventional
4-wire smoke detectors. For circuits selected as Resettable, 24-volt power is always present at
the terminals unless a system reset occurs. If a system reset occurs, power is disconnected
from the terminals for 30 seconds, then re-applied.
4.14 On-Board Relays (Conventional)
The control panel has two built-in programmable relays and a built-in trouble relay. All relays
are Form C rated at 2.5 A @ 24 VDC.
Figure 4-39 Location of Conventional Relay Circuits
4.14.1 Trouble Relay
The control panel has a dedicated Form C trouble relay built into terminals 30-32. The relay
provides a normally open and a normally closed contact. The trouble relay will deactivate
under any trouble condition.
Note: The N.C. contact is the relay contact that is closed when the panel has power and there are no trouble con-
ditions.
4.14.2 Programmable Relays
The control panel has two Form C programmable relays built into terminals 24-29. Each relay
provides a normally open and a normally closed contact.
To install one or two programmable relays, follow these steps.
1. Wire Relay 1 and/or Relay 2 as needed for your application. See Figure 4-39 for the loca-
tion of the relay terminals.
2. Configure the relay through programming (see Section 7.6).
Control Panel Installation
151209 4-41
4.15 Remote Station Applications
4.15.1 Keltron Model 3158 Installation
The control panel is compatible with Keltron Model 3158, used for direct connection to a
Keltron receiver. The 3158 reports alarms, supervisories, and troubles.
The steps for connecting the 3158 to the control panel. Refer to the 3158 installation
instructions for complete information.
1. Wire the 3158 to the control panel as shown in the connection list and Figure 4-40.
2. Wire the 3158 within 20 feet of the control panel. Wiring must be enclosed in conduit.
3. Program control panel Relay 1 for alarm.
4. Program Flexput circuit 5 for alarm.
5. Program Flexput circuit 6 for supervisory non latching.
Figure 4-40 Keltron 3158 Connection to Control Panel
Table 4-3: Keltron 3158 to Control Panel Connections
Terminal # Connects To Terminal # Connects To
3158 Term. 1 To Keltron receiving equipment 3158 Term. 8 Control panel Term. 28
3158 Term. 2 To Keltron receiving equipment 3158 Term. 9 Control panel Term. 5
3158 Term. 3 Earth ground 3158 Term. 10 Control panel Term. 4
3158 Term. 4 Not used; no connection. Control panel Term. 6 Control panel Term. 29
3158 Term. 5 Control panel Term. 18 Control panel Term. 28 Control panel Term. 31
3158 Term. 6 Control panel Term. 19 Control panel Term. 29 Control panel Term. 30
3158 Term. 7 Control panel Term. 7
Not suitable for remote station
where separate transmission
supervisory (if applicable), and
protected premise service
circuits are required for fire
trouble signals.
Intended for connection to a
polarity reversal circuit of a
remote station receiving unit
having compatible ratings.
Example
IntelliKnight 5820XL Installation Manual
4-42 151209
4.15.2 City Box Connection Using the 5220 Module
This section describes how to connect the control panel to a local energy municipal fire alarm
box or “city box” as required by NFPA 72 Auxiliary Protected Fire Alarm systems for fire
alarm service. The city (master) box is an enclosure that contains a manually operated
transmitter used to send an alarm to the municipal communication center which houses the
central operating part of the fire alarm system.
City Box Standby Current: 0 (Notification supervision current
accounted for in control panel draw.)
Alarm Current: 1 Amp for 1 second
27.2 VDC max
The maximum coil and wire resistance (combined) must not exceed 30 ohms.
To install the 5220 for city box connection:
1. Use one of the knockouts on the right side of the control panel to connect the 5220 using a
short piece of conduit (must not exceed 20 feet in length).
2. Wire the 5220 to the control panel as shown in Figure 4-41. This drawing also shows how
to connect the city box coil to terminals 3 and 4 on the 5220. Do not install an EOL resis-
tor in the terminals of the Flexput circuit used for this application.
3. Connect earth ground wire to the 5220 chassis with mounting screw.
4. Program the Flexput circuit used as a notification circuit, continuous and non-silencing.
Refer to Section 7.6.1 for zone grouping and mapping.
It is not possible to reset the remote indication until you clear the condition and reset the
control panel.
Figure 4-41 City Box Connection
Note:
Flexput Circuit 1 Used
as an example.
Any Flexput circuit
could be used.
All circuits non-power-limited.
All wiring non-supervised.
Control Panel Installation
151209 4-43

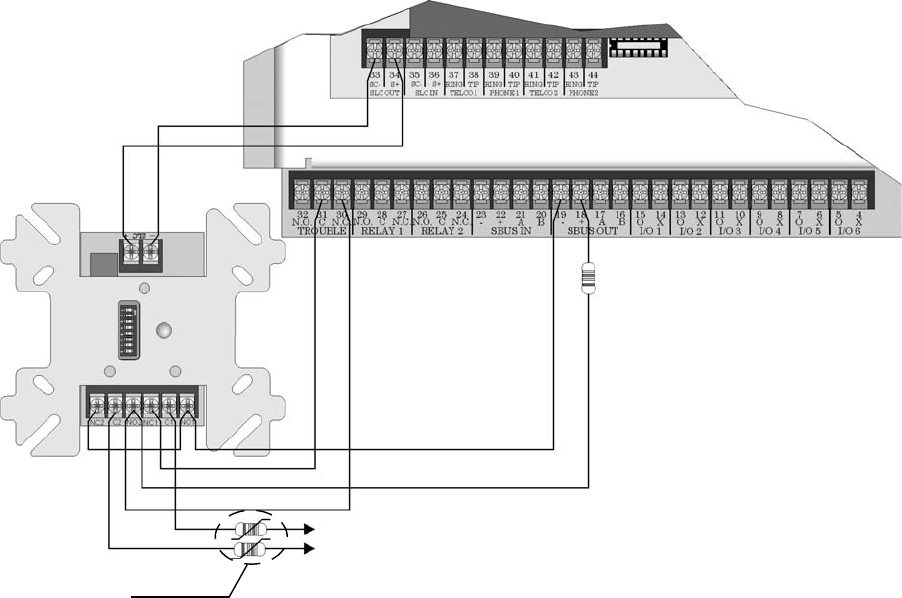

4.15.3 NFPA 72 Polarity Reversal
Note: Intended for connection to a polarity reversal circuit of a control unit at the protected premises having
compatible rating.
4.15.3.1 Using the 5220 Module
When the 5220 is wired and programmed for polarity reversal, it reports alarm and trouble
events to a remote site. Alarms will override trouble conditions and it will not be possible to
reset the remote indicator until the condition is cleared and the control panel is reset.
If an alarm condition occurs, the alarm relay will close, overriding the trouble condition.
Standby Current: 100 mA, 24 VDC
Alarm: 100 mA, 24 VDC
To install the 5220 for polarity reversal, follow the steps below:
1. Locate the knockout on the right side of the control panel cabinet to connect the 5220
using a short piece of conduit (must not exceed 20 feet in length).
2. Wire the 5220 to the control panel using the four-wire pigtail provided as shown in Figure
4-42. This diagram also shows how to connect the 5220 to the remote indicator. Do not
install an EOL resistor in the terminals of the Flexput circuit used for this application.
3. Connect earth ground wire to the 5220 chassis with mounting screw.
4. Program the Flexput circuit used as a notification circuit, continuous and non-silencing.
Refer to Section 7.4.1 for zone grouping and mapping.
5. If necessary, adjust loop current using the potentiometer (R10) on the 5220 board . Normal
loop current is 2-to-8 mA with a 1k ohm remote station receiving unit. Maximum loop
resistance is 3k ohm.
Figure 4-42 Polarity Reversal Connection Using the 5220 Module
All circuits power-limited.
All wiring supervised.
Note:
Flexput circuit 1 and Relay 1
used as examples. Any
Flexput circuit and either
relay 1 or relay 2 could
be used.
Jumper these terminals
when City Box is not used.
Intended for connection to a Polarity Reversal
circuit of a Remote Station receiving unit having
compatible ratings.
IntelliKnight 5820XL Installation Manual
4-44 151209
4.15.3.2 Using the 7644 Module
When the 7644 is used for polarity reversal, it allows alarm and trouble events to be reported
to a remote site. Alarms will override trouble conditions and it will not be possible to reset the
remote indicator until the condition is cleared and the control panel is reset.
To install the 7644 for polarity reversal:
1. Wire the 7644 to the control panel as shown in Figure 4-43. Do not install an EOL resistor
on the terminals of the Flexput circuit used.
Note: Use only Flexput circuits on the control panel for reverse polarity.
2. Program the Flexput circuit as a notification circuit. See Section 7.6.2.
3. Map the group to activate constant on from the zone event. See Section 7.4.1.3.
4. Program the output group characteristics as non-silenceable and reverse polarity. See Sec-
tion 7.5.1.2.

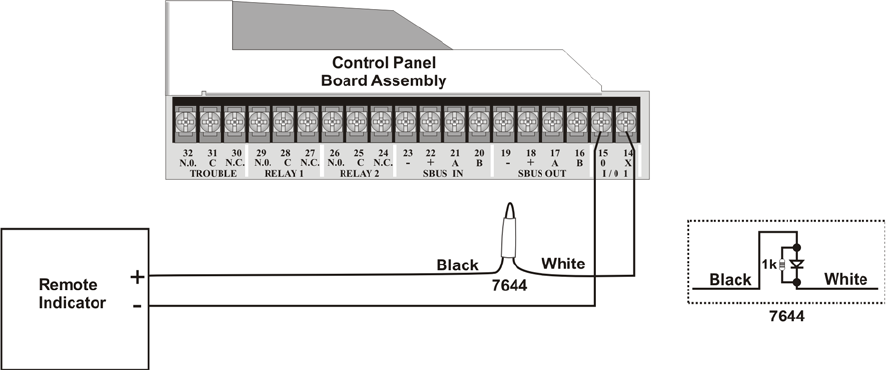

Figure 4-43 Polarity Reversal Connection Using the 7644
Control Panel Installation
151209 4-45
4.15.4 Using the SD500-ARM Addressable Relay Module
When the SD500-ARM is wired for polarity reversal, it reports alarm and trouble events to a
remote site. Alarms will override trouble conditions and it will not be possible to reset the
remote indicator until the condition is cleared and the control panel is reset.
Wire the SD500-ARM as shown in Figure 4-44.
Figure 4-44 Polarity Reversal Connection Using the SD500-ARM Module
UL Listed
Model 7642
1 kΩ
To City Box
Intended for Connection to a
Polarity Reversal Circuit of A
Remote Station Receiving Unit
Having Compatible Rating.
Must be installed
in City Box enclosure
IntelliKnight 5820XL Installation Manual
4-46 151209
4.15.5 Using a MR-201/T Control Relay From Air Products
When the MR-201/T control relay is wired for polarity reversal, it reports alarm and trouble
events to a remote site. Alarms will override trouble conditions and it will not be possible to
reset the remote indicator until the condition is cleared and the control panel is reset.
If an alarm condition occurs, the alarm relay will close, overriding the trouble condition.
Current: 15 mA max.
Operating Voltage: 24 VDC nominal
Resistance: 4 KΩ
To install the MR-201/T for polarity reversal, follow the steps below:
1. Wire the MR-201/T as shown in Figure 4-45.
Figure 4-45 Wiring the MR-201/T
2. Program the Flexput circuit for non silence NAC circuit (see Section 7.6).
Intended for Connection
to a Polarity Reversal
Circuit of A Remote
Station Receiving Unit
Having Compatible
Rating.
Control Panel Installation
151209 4-47
4.15.6 Transmitter Activated by Dry Contacts
This section describes the connection of a UL 864 listed remote station transmitter to the
5820XL FACP dry contacts. The FACP contacts must be supervised by the remote station
transmitter module using end-of-line resistors (ELRs) with a value determined by the
transmitter manufacturer. Power is also provided by the remote station transmitter
manufacturer. Refer to the remote station transmitter manufacturer’s manual for details.
IntelliKnight 5820XL Installation Manual
4-48 151209
151209 5-1
Section 5
Hochiki and SK SLC Device Installation
Caution!
To avoid the risk of electrical shock and damage to the unit, power should be OFF at the
control panel while installing or servicing.
5.1 List of SK SLC Devices
The following SK SLC devices can be used with the control panel. See the device installation
instructions for more information (packaged with the device).
Note: The control panel supports the use of either SK SLC devices or Hochiki SLC devices. You cannot install
both SLC device types on the control panel.
SK
Part Number Model Name/Description Section/ Install
Sheet PN
SK-Photo Photoelectric smoke detector
I56-3426-001SK-Photo-T Photoelectric smoke detector with thermal (135°F)
SK-Acclimate Multicriteria photoelectric smoke detector with thermal (135°F)
SK-Beam Reflected beam smoke detector without test feature I56-3433-001
SK-Beam-T Reflected beam smoke detector with test feature
SK-Ion Ionization smoke detector I56-3428-001
SK-Duct Photoelectric duct smoke detector with extended air speed range I56-3432-000
SK-Heat Fixed temperature thermal detector (135°F)
I56-3429-000SK-Heat-ROR Rate-of-rise thermal detector with 135° fixed temperature
SK-Heat-HT Fixed high temperature thermal detector (190°F)
SK-Pull-SA Addressable single action pull station I56-3446-001
SK-Pull-DA Addressable dual action pull station I56-3447-001
SK-Iso Fault isolator module I56-3445-000
SK-Monitor Monitor module I56-3442-000
SK-Minimon Mini monitor module I56-3444-000
SK-Monitor-2 Dual input monitor module I56-3435-000
SK-Mon-10 10 input monitor module I56-3443-000
SK-Relay Addressable relay module I56-3438-000
SK-Relay-6 Six relay control module I56-3439-000
SK-Zone Addressable zone interface module I56-3440-000
SK-Zone-6 Six zone interface module I56-3441-000
SK-Control Supervised control module I56-3436-000
SK-Control-6 Six circuit supervised control module I56-3437-000
B201LP 6" mounting base K200-07-00
B224BI 6" isolator base D450-15-00
B224RB 6" relay base D450-16-01
B501BHT-2 6" temporal sounder base D550-06-00
B501 4" mounting base D550-02-00
IntelliKnight 5820XL Installation Manual
5-2 151209
5.2 List of Hochiki SLC Devices
The following Hochiki SLC devices can be used with the control panel. See the appropriate
section number in this manual or the device installation instructions (packaged with the
device) for more information.
Note: The control panel supports the use of either Hochiki SLC devices or SK SLC devices. You cannot install
both SLC device types on this control panel.
Model Number Model Name/Description Section No./
Installation
Instructions PN
SD505-APS Photoelectric smoke detector.
Section 5.7
SD505-AIS Ionization smoke detector
SD505-AHS Absolute temperature heat detector. Trip point range from 135°F–150°F (0°C–37°C).
SD505-6AB 6" base for use with the SD505-AHS, SD505-AIS, and SD505-APS. 150955
SD505-6IB 6" short circuit isolator base for use with the SD505-AHS, SD505-AIS, and SD505-APS 151175
SD505-6RB 6" relay base for use with the SD505-AHS, SD505-AIS, and SD505-APS 151192
SD505-6SB 6" sounder base for use with the SD505-AHS, SD505-AIS, and
SD505-APS SLC devices
151191
SD505-DUCT Duct Smoke Detector. Duct Housing including the SD505-APS Analog Photoelectric Smoke
Sensor. Intake tubing for duct available in three lengths:
SD505-T2.5 (2.5 foot); SD505-T5 (5 foot); SD505-T10 (10 foot)
1700-09882
SD505-DUCTR Duct Detector housing with relay base. Duct housing with relay base including SD505-APS
Analog Photoelectric Smoke detector pre-installed
1700-09882
SD505-ADH Duct Detector Housing for use with the SD505-AIS or SD505-APS smoke detectors. Intake
tubing for duct available in three lengths:
STS-2.5: Duct widths 1.0’ to 2.5’; STS-5.0: Duct widths 2.5’ to 5.0’; STS-10.0: Duct widths
5.0’ to 10.0’ When ordering SD505-ADH, specify intake tubing size and order the appropriate
smoke detector (if needed).
151040
SD505-ADHR Duct detector housing with relay (for use with SD505-AIS or SD505-APS smoke detectors) 151126
SD500-PS/-PSDA Single or dual action addressable pull station 151177
SD500-AIM Addressable input module (switch input), standard size, dipswitch configurable 151071
SD500-MIM Mini input monitor module (switch input), small size, dipswitch configurable. Fits in single-
gang box with manual pull station switch. 151071
SD500-ANM Addressable notification module 151109
SD500ARM Addressable relay module dipswitch configurable. 151091
SD500-SDM Addressable smoke detector module. Use to assign an address to a loop of conventional
devices.
151193
SD500-LIM Line isolator module. Fits in a double gang box. 151125
SD500-LED Addressable LED driver module. Capable of driving up to 80 LEDs. Up to 40 SD500-LED
Driver Modules can be used per SLC loop.
151232
SD505-DTS, SD505-DTS-K Remote test switch & LED indicator for the SD505-ADHR and SD505-DUCTR 151126
Hochiki and SK SLC Device Installation
151209 5-3
5.3 Maximum Number of Devices
The 5820XL supports SK or Hochiki devices on one 5820XL system. The maximum number
of devices per system varies depending on device protocol and the number of 5815XL
signaling circuit loop (SLC) expanders added to the system. Device support is as follows:
• SK Devices–A 5820XL system can support a total of 396 SK detectors and 396 SK
modules. 99 detectors and 99 modules can be connected to the built-in SLC loop. Each
optional 5815XL adds another 99 detectors and 99 modules. Add up to three 5815XLs to a
system to achieve the maximum number of devices on the system.
OR
• Hochiki Devices–A 5820XL system can support a total of 508 Hochiki SLC detectors and
modules, in any combination. 127 devices can be connected to the built-in SLC loop. Each
optional 5815XL adds another 127 devices.
5.4 Wiring Requirements for SLC Devices
The following information applies to all SLC devices. Refer to the section that describes the
type of device you are installing for details.
5.4.1 Wiring 5815XL in Style 4 (Class B) Configuration
No special wire is required for addressable loops. The wire can be untwisted, unshielded, solid
or stranded as long as it meets the National Electric Code 760-51 requirements for power
limited fire protective signaling cables. Wire distances are computed using copper wire.
Maximum wiring resistance is 40 ohms for SK devices and 50 ohms for Hochiki devices.
Maximum loop length depends on the wire gauge. See Table 5-1 for SK and Table 5-2 for
Hochiki.
Table 5-2 Maximum wiring distance for Hochiki devices
Table 5-1 Maximum wiring distance for SK modules
Wire Gauge MAx. Distance for SK
22 AWG 1200 feet
18 AWG 3100 feet
16 AWG 4900 feet
14 AWG 7900 feet
12 AWG 10,000 feet
Wire Gauge Max. Distance for Hochiki
22 AWG 1500 feet
18 AWG 3900 feet
16 AWG 6200 feet
14 AWG 10,000 feet
IntelliKnight 5820XL Installation Manual
5-4 151209
Figure 5-1 and Figure 5-2 show how wire length is determined for out-and-back tap and T-tap
style wiring.
Figure 5-1 Calculating wire run length for a simple out and back tap
When using T-taps, the total length of all taps and the main bus must not exceed 40,000 feet.
This requirement must be met in addition to the maximum distance requirements for the
various wire gauges.
Figure 5-2 Calculating Wire Run Length for a T-tap
Hochiki and SK SLC Device Installation
151209 5-5
5.4.2 Wiring 5815XL in Style 6 & 7 (Class A) Configuration
Figure 5-3 illustrates how to wire the SLC loop for Style 6 or Style 7 Class A installations.
Note: Style 6 does not use short circuit isolator devices.
Figure 5-3 Class A SLC Configuration
Note: No t-taps allowed on class A SLC loops.
Caution
For proper system supervision do not use looped wire under terminals marked SLC + and – of the SLC device connectors.
Break wire runs to provide supervision of connections.
IntelliKnight 5820XL Installation Manual
5-6 151209
5.5 Wiring SK SLC Detectors
This section describes how to install SK heat and smoke detectors. All detectors ship with
installation instructions. Refer to the detector’s installation instructions for more detailed
information.
This information applies to the following SK models:
• SK-Photo Photoelectric Smoke Detector
• SK-Photo-T Photoelectric Smoke Detector with Thermal
• SK-Acclimate Photoelectric Smoke Detector with Thermal
• SK-Heat Fixed Temperature Detector
• SK-Heat-T High Temperature Thermal Detector
• SK-Heat-ROR Rate-of-Rise Thermal Detector
• SK-Ion Ionization Smoke Detector
To wire SK detectors:
1. Wire device bases as shown in Figure 5-4.
2. Set the address for each device as described in Section 5.6.

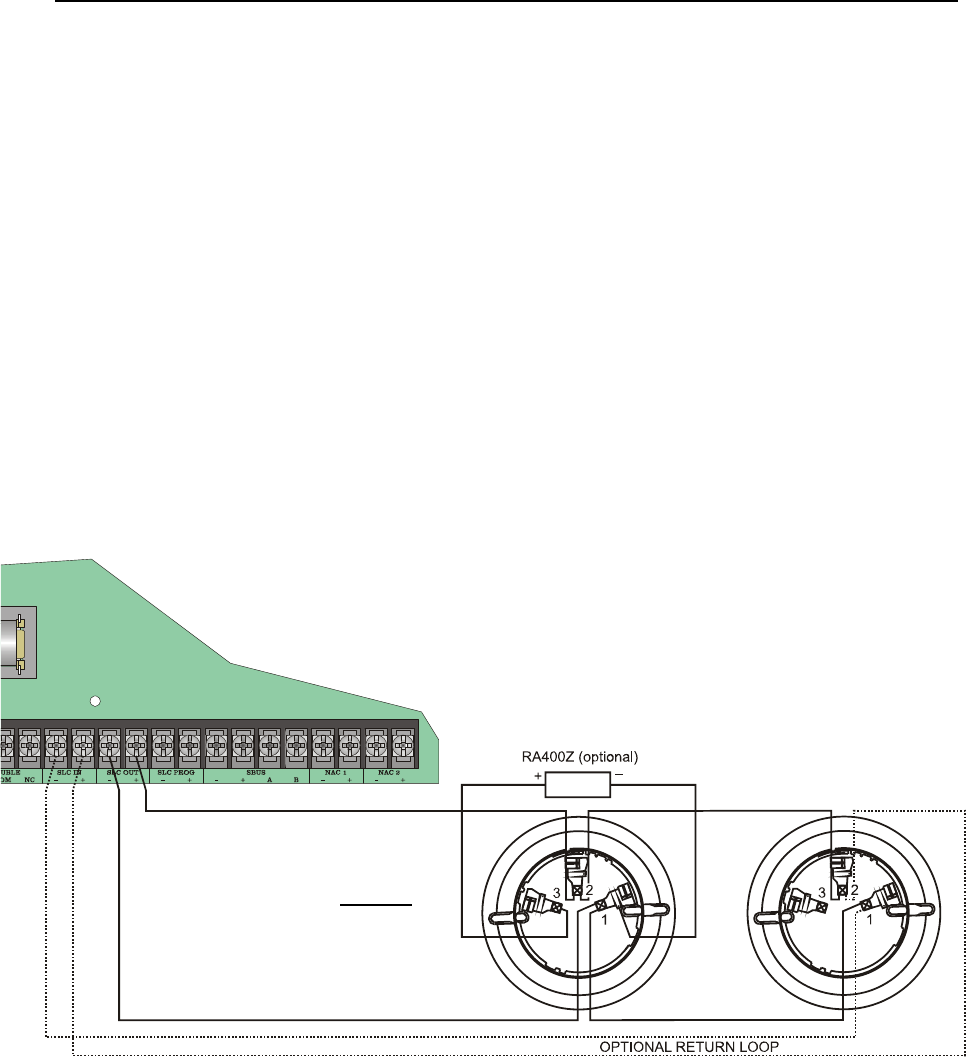

Figure 5-4 Heat and Smoke Detector Connection to the Panel.
Caution: Do not loop wire under Terminal 1 or 2.
Break wire run to provide supervision of connections.
Class A wiring:
Class B wiring:
...............
Hochiki and SK SLC Device Installation
151209 5-7
5.6 Addressing SK SLC Devices
All SK devices are addressed using the two rotary dials that appear on the device board. Use
the ONES rotary dial to set the ones place in a one or two digit number, and use the TENS
rotary dial to set the tens place in a two digit number.
SK device addresses are handled differently than Hochiki device addresses. The control panel
recognizes when an SK detector or SK module is installed. For this reason, SK detectors can
be assigned any unique address from 1 to 99, and SK modules can be assigned any unique
address from 1 to 99. Unlike Hochiki detectors and modules which share addresses 1 through
99, there can be an SK detector using address 1 and an SK module using address 1. 0 is an
invalid address.
Example 1: To select device address 1, turn the ONES rotary dial to 1 and the TENS rotary
dial to 0 as shown in Figure 5-5.
Example 2: To select device address 42, turn the ONES rotary dial to 2 and the TENS rotary
dial to 4 as show in Figure 5-5.
Figure 5-5 SK SLC Device Addressing Using Rotary Dials
Example 1: Device Set to 01. Example 2: Device Set to 42.
All dials labeled for ONES
or TENS position.
IntelliKnight 5820XL Installation Manual
5-8 151209
5.7 Hochiki Detector Installation
The information in this section applies to the following Hochiki models: SD505-AHS Heat
Detector, SD505-AIS Ionization Smoke Detector, and SD505-APS Photoelectric Smoke
Detector.
Also see Section 5.8 for information on how to address the detectors.
5.7.1 Wiring Hochiki Detectors
1. Wire device bases as shown in Figure 5-6.
2. Set the address for each device as described in Section 5.8.
3. If you are connecting to the main panel, do not connect any devices to terminals 35 and
36. If you are connecting to the 5815XL, do not connect any devices to “SLC IN”.
Figure 5-6 Heat or Smoke Detector Connection to the FACP (Class B)
Hochiki and SK SLC Device Installation
151209 5-9
5.8 Addressing Hochiki Devices
This section tells how to address detectors and modules.
5.8.1 SD505-APS, SD505-AHS, & SD505-AIS
The SD505-APS photoelectric smoke detector, SD505-AHS heat detector, and SD505-AIS
ionization smoke detector are easily addressed at the FACP. The Installer Code is required to
perform this task.
To address a SD505-APS, SD505-AHS, or SD505-AIS:
1. Connect a detector base temporarily to the programming terminals as shown in
Figure 5-7. (You can use the same base for each detector.)
Figure 5-7 Temporary Connection of Detector Base to Panel for Addressing
2. Enter the Installer code, then press .
3. Select for Point Functions.
4. Select for Set SLC Dev Addr.
5. Select “Yes” by pressing the up arrow, then press . (The panel will go into
trouble at this point. You can use the key to stop the PZT. The trouble will clear
automatically when the panel re initializes when you finish programming.)
6. When the wait message clears, the following options display:
for Read Address. Use to read (or check) a single detector’s address.
for Write Address. Use to program a single detector’s address.
for Seq. Programming. Use to program more than one detector in sequential order.
7. If you are changing addresses, write the programmed address on the back of the device.
8. To exit press left arrow until fully exited.
ENTER
2
3
ENTER
SILENCE
1
2
3
IntelliKnight 5820XL Installation Manual
5-10 151209
5.8.2 SLC Devices with Dip Switches
Input and relay module addresses are set using the dip switches on the module board. The
chart below shows the available addresses. For example, to select address 3, place dip
switches 1 and 2 in the up position. The range of valid addresses is 1-127. 0 is an invalid
address.
Figure 5-8 Hochiki SLC Device Addressing Using Dip Switches
151209 6-1
Section 6
Programming Overview
This section of the manual is intended to give you an overview of the programming process.
Please read this section of the manual carefully, especially if you are programming the control
panel for the first time.
The JumpStart feature automates many programming tasks and selects default options for the
system. You will run JumpStart at least once when you are installing the system. See Section
6.1 for details. After you run JumpStart, you may need to do some additional programming
depending on your installation. Section 7 of this manual covers manual programmable options
in detail.
Programming the panel can be thought of as a three part process. You must program:
• System options. These are options that affect general operation of the panel (see Section
7.7 for details).
• Options for input points and zones. These are primarily options that control detection
behavior of devices (see Section 7.6 for details).
• Options for output points and groups. This includes selecting characteristics for output
groups and mapping output circuits to output groups (see Section 7.6 for details).
6.1 JumpStart Autoprogramming
The JumpStart feature allows for faster system setup. When you run JumpStart (immediately
after addressing SLC devices), the system scans devices on all SLC loops and determines
device type (for example, ionization smoke detector or heat sensor) and selects some system
options based on the device type. This saves the installer from having to program options for
each device. Depending on the application, the installer may need to make some changes after
JumpStart completes.
See Section 6.1.3 for complete details about running JumpStart.
IMPORTANT
JumpStart is intended to be run one time only, immediately after SLC devices have been addressed and connected.
JumpStart will reset all manually programmed options to default settings. Do not run JumpStart after you have
configured the system.
IntelliKnight 5820XL Installation Manual
6-2 151209
6.1.1 Input Points
JumpStart will determine the number and type of input points (detectors or contact monitor
modules) on each SLC loop. JumpStart assigns the correct detector type (heat, ionization or
photoelectric), so the installer does not need to edit device type for detectors. Any contact
monitor modules on the system will be assigned type "Manual Pull." The installer will need to
manually change the switch type if manual pull is not correct.
JumpStart creates one zone (Zone 1) and assigns all input points to Zone 1. Zone 1 is mapped
to Output Group 1. After JumpStart completes, you can re-map to configure a multiple zone/
output group system (see Section 7.4.1.3). For a general explanation of mapping, see Section
6.2.
6.1.2 Output Points
JumpStart creates three output groups and assigns output circuits as follows:
Circuits 1-6:
Configured as Notification and assigned to Group 1. JumpStart automatically programs Zone
1 to activate Group 1 using constant on output.
Circuit 7 (Relay 1):
Assigned to Group 249. JumpStart automatically programs Zone 1 to activate Group 249
using constant on output when a supervisory condition occurs.
Circuit 8 (Relay 2):
Assigned to Group 250. JumpStart automatically programs Zone 1 to activate Group 250
using constant on output when an alarm occurs.
Addressable output points (Relay modules, NAC Modules, Sounder Bases, Relay Bases):
All addressable relay devices will be configured as “Output Pt” (general purpose output point)
and assigned to Group 1.
Note: Relay output is constant even if the zone activating the relay is programmed with an output pattern.
6.1.3 Running JumpStart
Run JumpStart immediately after you have addressed and connected all input devices
(detectors, pull stations, and so on) and output devices (notification appliances, relays, and so
on).
Note: If you need to install a few devices after you have run JumpStart, you can install them manually. Follow
instructions in Section 8 for configuration.
To run JumpStart, follow these steps.
1. Press to view Main Menu.
2. Select for Program Menu.
7
Programming Overview
151209 6-3
3. From the next menu, select for JumpStart.
4. The message "WARNING Will DELETE all system options" displays on the LCD. Select
Yes to continue. A series of messages displays for the next several seconds. JumpStart
scans the SLC loops for devices. This can take several minutes, depending on the number
of devices attached.
5. When the message, "SLC FAMILY HOCHIKI" flashes. Press to accept Hochiki if
installing, or press to display SK and press to accept SK.
6. When the message “Configuring System Done” displays, press any key to continue.
7. Select one of the following options from the menu that displays.
- Review System Press if you need to review the JumpStart configuration.
- Repeat JumpStart Press if you need to rerun JumpStart for any reason.
- Accept Configuration 1. If you are ready to make the JumpStart configuration permanent, select .
2. The system will ask you if the installation contains duct detectors. If there
are none, select for No and skip to Step 8. If the system contains duct
detectors, select for Yes and continue with Step 3.
3. From the list that displays, select the 5815XL device that contains the duct
detectors.
4. The first photoelectric or ionization detector on the system will display.
Select for DUCT and for NonDUCT.
5. Press to select the next detector. Select for DUCT and for Non-
DUCT. Continue until all duct detectors have been selected. (Note: You can
move backwards through the list with .)
6. When you reach the last detector on this device, press .
7. The system will ask you if there are more duct detectors in the system. If
there are, select for Yes and repeat from Step 3. If there are no more
duct detectors, select for No and continue with Step 8.
8. The system will restart in 10 seconds. You can press to restart immedi-
ately. Do not select for System Diagnostics. (This feature is for use in
testing at the factory.)
9. After the system resets, it will use the new JumpStart configuration.
- Enter Programming If you want to go directly to Program Mode to configure any devices, press
. The Programming Menu appears and you can begin programming.
6
1
1
2
2
3
3
2
1
1
2
1
2
1
2
1
2
4
4
IntelliKnight 5820XL Installation Manual
6-4 151209
6.2 Mapping Overview
This section of the manual is an overview of mapping. Details about how to select mapping
options appear in the appropriate subsections in Section 7.
Mapping is an important concept with the control panel. In general terms, mapping is
assigning or linking events to outputs that should activate when events occur. You do this by
assigning input points to input zones, output points to output groups and then linking or
mapping zones and output groups.
Figure 6-1 is a brief overview of the concept of mapping. The next several pages of the
manual show these subjects in detail.

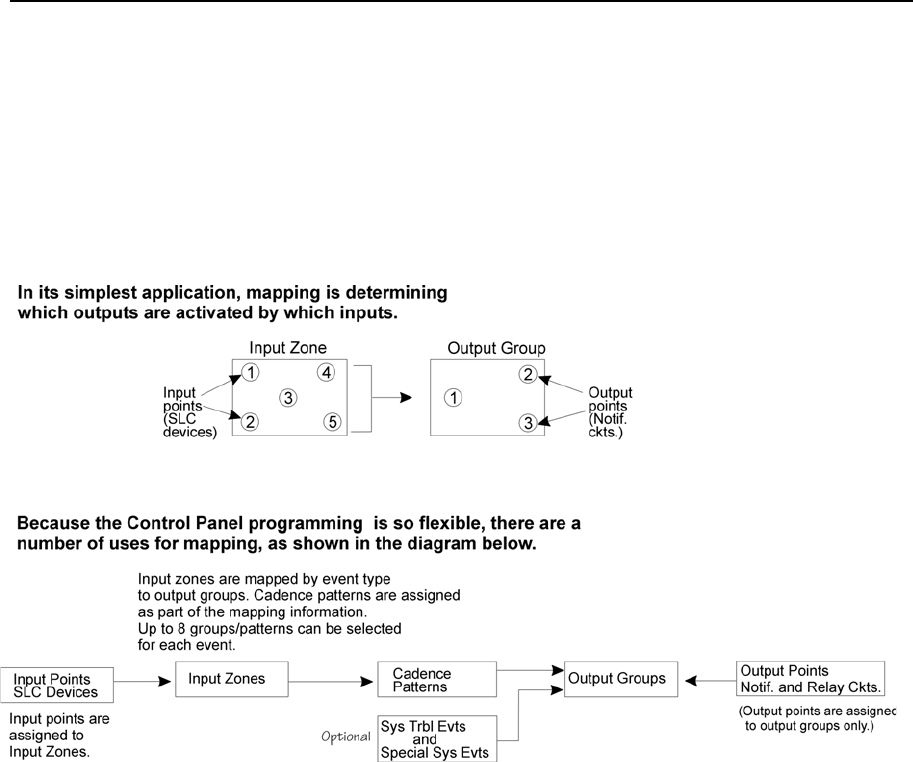

Figure 6-1 Mapping Overview
Programming Overview
151209 6-5
6.2.1 Input Point Mapping
Input points are assigned to input zones. Any input point can be assigned to any input zone.
(Input points can be assigned to one zone only. An input point can be designated as “Unused,”
which means it has not been assigned to a zone.)
Figure 6-2 Input Point Assignment Example
IntelliKnight 5820XL Installation Manual
6-6 151209
6.2.2 Output Circuit Mapping
Figure 6-3 is a simple example showing how to assign notification and relay output circuits to
groups. For an example of a simple floor above/floor below application, see Figure 6-5.
Figure 6-3 Assigning Output Circuits to Groups (Example)
Programming Overview
151209 6-7
6.2.3 Zone Event Mapping
There are 8 types of events that can occur in zones (see below). For each event type, you can
activate up to 8 output groups and patterns. If it is necessary to map to more than 8 output
groups, an output group template may be used (see Section 7.5.5 for information on output
group templates). Event types are:
• Manual Pull Alarm
• Water Flow Alarm
• Detector Alarm (heat or smoke detectors)
• Aux 1 and Aux 2 Alarm (user-specified alarm types)
• Pre-alarm
• Supervisory
• Trouble

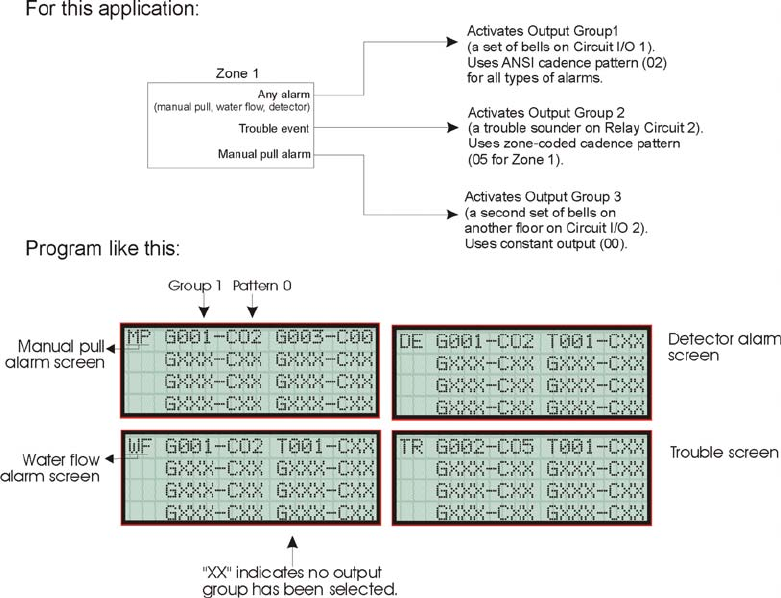

Figure 6-4 Example of Zone Events Mapped to Output Groups and Patterns
IntelliKnight 5820XL Installation Manual
6-8 151209
Figure 6-5 Example of Zone Events Mapped to Output Groups and Patterns
Programming Overview
151209 6-9
6.2.4 Mapping LED Points
Figure 6-6 is a simple example showing how LED points are mapped to zones and output
groups. Typically you would create two output groups for each zone, one for alarms and one
for troubles. (LED points are available when Models 5865-3/4 and/or 5880 are used with the
system.)

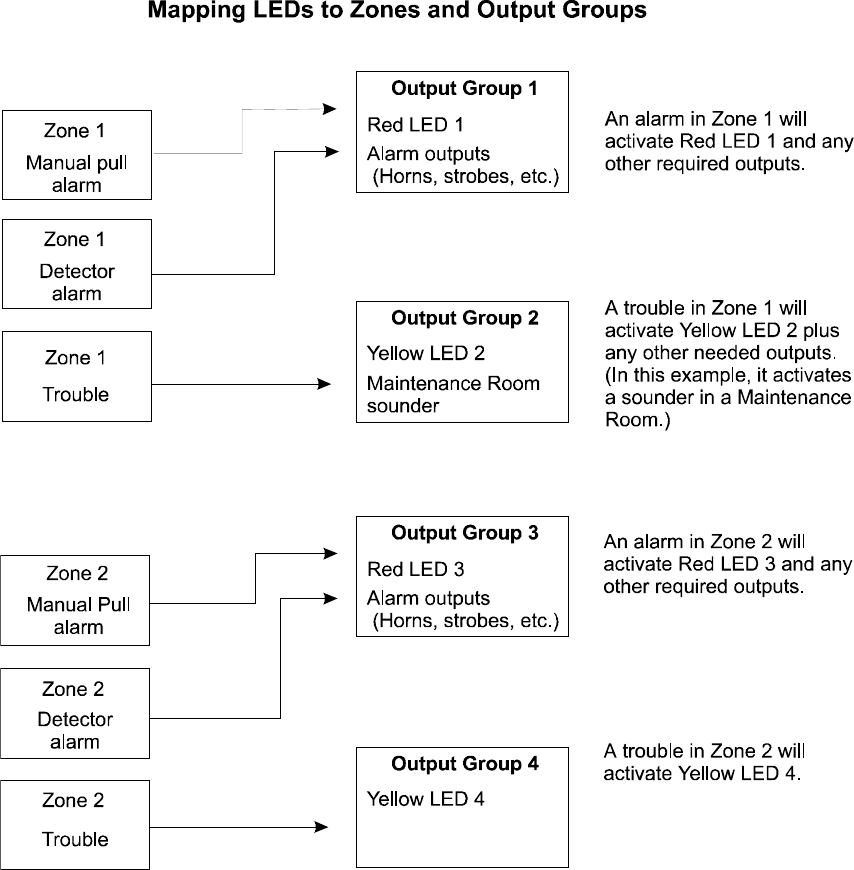

Figure 6-6 Example of LED Points Mapped to Output Groups
(applies to Models 5865-3/4 and 5880)
IntelliKnight 5820XL Installation Manual
6-10 151209
6.3 Programming Using the 5660 Silent Knight
Software Suite
You can use the 5660 Silent Knight Software Suite (SKSS) to program the control panel
onsite or remotely. SKSS is an optional software package that lets you easily program the
control panel using a Windows-based computer and a modem* (not sold by Silent Knight).
When using SKSS, you can set up the programming options for the panel, save the options in
a file, then download the file to the panel. You connect to the control panel directly using the
control panel’s onboard USB or serial port or remotely using a modem. If you need to connect
to an older control panel that does not have a USB port, and your laptop does not have a serial
port, use a USB to serial converter. SKSS includes an online help system and a manual. See
the SKSS manual (PN 151240) for more information.
* See Section 1.3 for a list of modems that have been tested for compatibility with the control panel and SKSS.
6.4 Programming Using an Annunciator
You can program the control panel from a system annunciator, using either the control panel’s
on-board annunciator or a Model 5860 Remote Annunciator.
The following subsections describe programming basics, including a description of editing
keys available for programming and how to move through programming menus. Section 7
contains specific information about individual programming options.
Programming Overview
151209 6-11
6.4.1 Entering & Exiting the Program Menu
To enter Program Mode:
1. Enter the Installer Code (factory programmed default code is 5820).
2. The display prompts you to press the or key to bring up the Main Menu (see Figure
6-7).
Figure 6-7 Keypad Enabled Screen
3. Then press . The menu option displays. See Section 7 for detailed menu information and
Section 6.5 for a quick reference listing all programmable options and JumpStart defaults.
To exit Program Mode:
When you have completed working with the menus, press (left arrow) several times until
you are exited from programming mode. Two prompts will display. The first prompt is to
make sure you intended to leave the Program Menu (select Yes or No as appropriate). The
second prompt is for accepting all changes. If you select No, any changes you have made
since you entered the Program Menu will have no effect.
6.4.1.1 Moving through the Menus
Figure 6-8 shows how to move through Program Menu screens, using the System Options
screen as an example.
Figure 6-8 Moving through Program Menu
(System Options Sub-Menu Used as an Example)
7
IntelliKnight 5820XL Installation Manual
6-12 151209
6.4.1.2 Selecting Options and Entering Data
There are several ways to make programming selections using the control panel depending on
which screen you are currently using. The chart below is a generic explanation.
6.4.1.3 Editing Keys
The keys shown in Figure 6-9 are available for use when you are in the Program Menu.

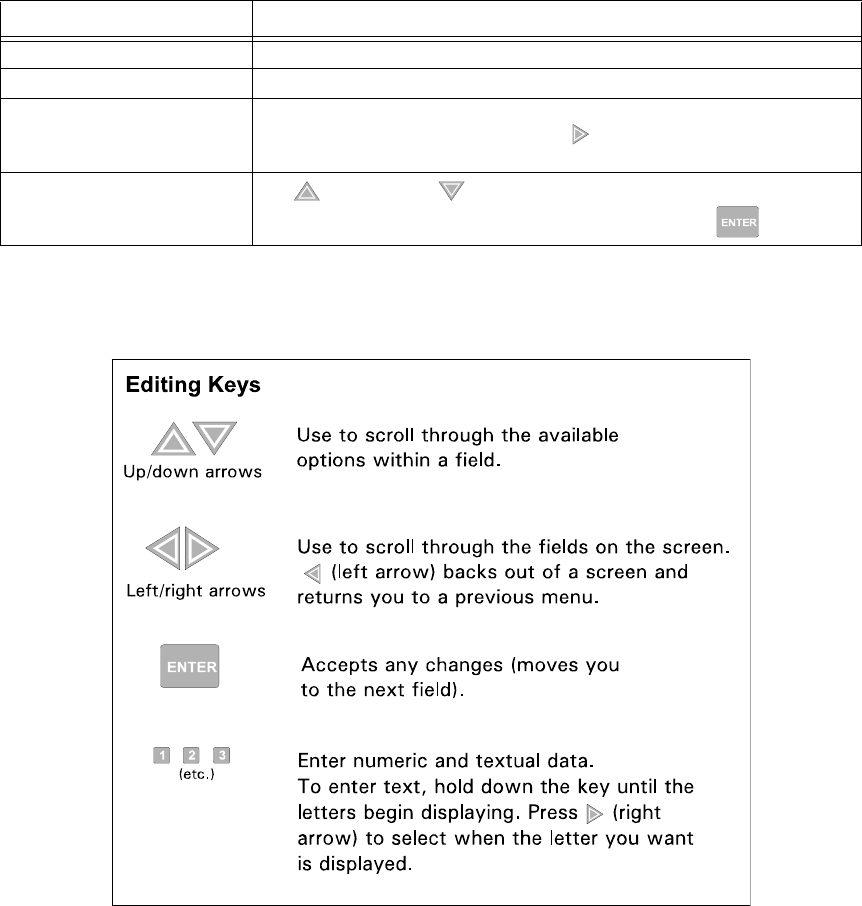

Figure 6-9 Editing Keys Available from Program Menu
To Press
Select from a menu. Enter the number of the option.
Enter numeric data. Press the appropriate number on the annunciator.
Enter text (alphanumeric data). Enter each letter individually by pressing and holding any numeric key until the
one you wish to select displays. Then press (right arrow) to select the letter. See
Section 6.4 for complete information.
Select from a scrolling list. Use (up arrow) and (down arrow) to move through a list of available
options. When the option you want to select is displayed, press .
Programming Overview
151209 6-13
6.5 Programming Menu Quick Reference
This section of the manual lists all Program Menu options in the order they appear on the sub-
menus. Default settings are indicated in text or marked with an asterisk. The comments
column provide quick information and a reference to a section (if applicable) which has more
detailed information.
Menu Options/Defaults Comments
SLC
Family
Hochiki Section 7.2
SK
Module
Edit Module Select Module Enter Module Name Select Class Section 7.3.1
Add Module
5815XL-SLC
See Section 7.3.2
5860-Keystation
5824-Ser/Par/IO
5895XL-io/Pwr Sup
5496 NAC Expand
5880-LED/IO Dev
5865-LED Annunc
Delete Module List of Modules Section 7.3.3
View Module List List of Modules
Zone
Edit Zone Select Zone to Edit
Edit Zone Name
Enter Name1 Section 7.4.1.1
Enter Number1
Enter Name2
Enter Number2
Zone Properties Verification Type
*1 Count Section 7.4.1.2
2 Count
Alarm Ver.
PAS
SNGL ILOCK
DBL ILOCK
Heat Temp Set 135° to 150°F Section 7.4.1.2
Zone Outputs
Manual Pull
(MP) (Groups 01 &
250, Pattern
00)
Section 7.4.1.3
Water Flow
(WF)
Detector Alarm
Aux 1
no groupAux 2
Pre-alarm (PRE)
Supervisory
(SUP) (Group 249,
Pattern 00)
Trouble (TRB) no group
Zone Accessory Opt Cadence 00-20 Section 7.4.1.5
Local Zone Yes or No
Add Zone Adds next available zone number. Section 7.4.2
Delete Zone Select Zone to be Deleted Section 7.4.3
View Zone Points List of all points in selected zone. Section 7.4.4
IntelliKnight 5820XL Installation Manual
6-14 151209
Group1
Edit Group Select Group
Group Name
Enter Name1
Section 7.5.1.1
Enter Number1
Enter Name2
Enter Number2
Group Properties
Latching
Options *Non-
Latching Section 7.5.1.2
Latching
Silencing
Options
*SILENCE Silenceable
Section 7.5.1.2
NON-SIL Non-Silenceable
Section 7.5.1.2
Auto
Unsilence Auto Un-silenced
Section 7.5.1.2
SIL-INHIB Silence after inhib
delay. Section
7.5.1.2
SHUT-
DOWN Automatic
Shutdown
Section 7.5.1.2
Group Active
With:
Group
Activates for
all Man. Pull
*No.
Section 7.5.1.2
Group
Activates for
Fire Drill
*Yes.
Section 7.5.1.2
Group
Activates for
Aux 1
*No.
Section 7.5.1.2
Group
Activates for
Aux 2
*No
Section 7.5.1.2
Ignore Global
Cadence *No
Section 7.5.1.2
Add Group Section 7.5.2
Delete Group Select Group to Delete Section 7.5.3
View Group Points Select Group Section 7.5.4
Edit OPG Template Select Template
Number
Select Group Section 7.5.5
Include in template Yes
No
Select Pattern 0-16 0 = Constant. Section 7.4.1.4
Menu Options/Defaults Comments
Programming Overview
151209 6-15
Point Internal and
External 5815XL Enter Pt
UNUSED
DETECTOR
Select
Latching
Section 7.6
ION
HEAT
PHOT DUCT
ION DUCT
2WIRE SMK
SUP DET SUP PHOTO Select
Latching
SUP ION
SWITCH
MAN_PULL
Section 7.6
WATERFLOW LATCH
NLATCH
SUPERVSY LATCH
NLATCH
FIREDRILL
SILENCE
RESET
PAS_ACK
ZN_AUX1 LATCH
NLATCH
ZN_AUX2 LATCH
NLATCH
SYS_AUX1 LATCH
NLATCH
SYS_AUX2 LATCH
NLATCH
DETECT SW
TAMPER LATCH
NLATCH
MAN REL
ILOCK
NOTIF
OUTPUT PT Select Group
Section 7.6
AUX CONST
AUX RESET
AUX DOOR
RELAY
OUTPUT PT Select Group
Section 7.6AUX RESET
AUX DOOR
SLC LED LED No. 01 - 80 Select Group Section 7.6
Menu Options/Defaults Comments
IntelliKnight 5820XL Installation Manual
6-16 151209
Point
(cont.)
Internal Pwr and
External Power
Enter Pt Input Point Type
(detector/switch) Select Function Per JumpStart
Select Type
UNUSED Section 7.6
B NOTIF Select Group
A NOTIF
AUX PWR
CONSTANT
RESETABLE
DOOR
B SWITCH
MAN PULL Select zone Latch and Non-
latch feature only
appear for
waterfowl,
supervisory,
tamper, zone
aux1, zone aux2,
system aux1, and
system aux2.
Section 7.6.
WATERFLOW Select zone
SUPERVSY Select zone
TAMPER Select zone
DETECT SW
FIREDRILL
SILENCE
RESET
PAS_ACK Select zone
ZN_AUX1 Select zone
ZN_AUX2 Select zone
SYS_AUX1
SYS_AUX2
MAN REL Section 7.6
ILOCK
A SWITCH Same as B SWITCH Section 7.6
B DETECTOR 2-WIRE SMK
4-WIRE SMK
A DETECTOR 2-WIRE SMK
4-WIRE SMK
Select Group or
Zone Number Group or Zone
selection will
appear depending
on the type
selected.
Section 7.6
Edit Name Enter Name Section 7.6.3
5880
Enter Point # NOTIF
UNUSED
Select Group #
Edit Name Enter Name
5865
Enter Point # NOTIF Section 7.6.3
UNUSED
Select Group #
Edit Name Enter Name
Menu Options/Defaults Comments
Programming Overview
151209 6-17
System
Options Reporting
Accounts
Edit Acct.
For each account (1-4), select:
Edit Account # *123456 Account # (6-digit
number, identifies
account to central
station)
Section 7.7.1
Edit Format *Contact ID Reporting Format
(SIA, S20,
Contact ID)
Section 7.7.1
Report Alarms
Y (Yes) *Yes Section 7.7.1
N (No)
M (Must)
Rep. Alarm Restore
Y (Yes) *No
N (No)
M (Must)
Report Troubles
Y (Yes)
N (No)
M (Must)
Report Ena/Disable
Y (Yes)
N (No)
M (Must)
Report Test
Y (Yes)
N (No)
M (Must)
Report Resets
Y (Yes)
N (No)
M (Must)
Switch attempts 1 - 5 *5 Section 7.7.1
Fail attempts 1 - 15 *10
Primary Phone Line 1 or 2 *Line 1
Secondary Phone
Line 1 or 2 *Line 2
Edit Phone #1 up to 40 digits blank
Auto Test Time
Set the Hour
*02:00 AMSet the Minutes
Select AM/PM
Menu Options/Defaults Comments
IntelliKnight 5820XL Installation Manual
6-18 151209
System
Options
(cont.)
Phone Lines Select Phone Line
For each phone line (1 & 2), select:
Dialing Prefix Up to 9 digits none Section 7.7.2.1
# of Answer Rings Range: 00-15 06 Number of rings
before panel
answers a call
from a computer
Section 7.7.2.2
Select Dialing
Option
TT
TouchTone
Touch Tone
TT/PL TouchTone
alternating with
pulse see Section
7.7.2.3
PULSE Pulse dialing
Rotary Pulse Format U = 60/40 *U Section 7.7.2.4
E = 66/34
Line Monitor Yes *Yes Section 7.7.2.5
No
Ground Start Yes = enabled *N = Disabled Section 7.7.2.6
No = disabled
Answering Machine
Bypass Yes = enabled *Y = Enabled Section 7.7.2.7
No = disabled
System Event
Outputs
Trouble Events
System Trouble Select Group None selected Section 7.7.3.1
Select Cadence
Alarm Silence Select Group None selected
Select Cadence
Trbl Silence Select Group None selected
Select Cadence
User Selected
Group Tr
Select Group
SBUS Com
SBUS Pwr
SLC Loop
AC Loss
Battery
Gnd Flt
Select
Cadence
Phone Ln
Account
Printer
Aux Pwr
Sys Sw
Sys Alarm Cadence
Fire Drill
Select Cadence Constant
Section 7.7.3.2
System Aux1
System Aux2
Menu Options/Defaults Comments
Programming Overview
151209 6-19
System
Options
(cont.)
Misc. Options 1

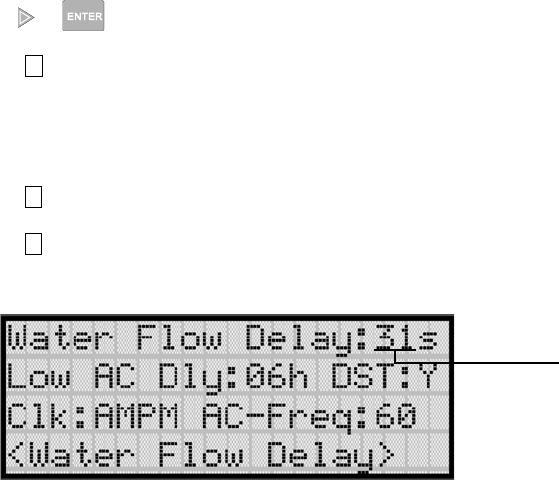

Water Flow Delay
0 - 90 Seconds *30 sec Water Flow delay
is the number of
sec. before water
flow alarm is
generated. Section
7.7.4.1
Low AC Delay
0 - 30 hours *3 hrs Low AC Report
Delay. Section
7.7.4.2
DST
Y (Enabled)
*Enabled
Automatic Daylight Saving Time
enable or disable. Section 7.7.4.3
and 7.7.6.3. See also DST settings
in Misc. Option 3, below.
N (Disabled)
CLK
AM/PM
*AM/PM
System Clock
Format (AM/PM
or military).
Section 7.7.4.4
MIL
AC Freq:
50 Hz Section 7.7.4.5
60 Hz
Neither
Misc. Options 2
SYNC Strbs w/ Sil Y (Enabled) *Disabled Section 7.7.5.1
N (Disabled)
Auto Display Oldest Y (Enabled) *Disabled Section 7.7.5.2
N (Disabled)
Report By Zone *Zone Section 7.7.5.3
Point
Misc. Options 3
Alarm Verification
time Enter time from 1 to
250 seconds *60 Seconds Section 7.7.6
Plex Door Y (Enabled) *Disabled
N (Disabled)
DST Start
Select week: 1st,
2nd, 3rd, 4th or Last Select month
Section 7.7.4.3
and 7.7.6.3. See
also DST settings
in Misc. Options
1, above.
DST End
Edit Banner
Internal Message Section 7.7.7
Custom Message Edit Line 1
Edit Line 2
JumpStart
AutoPrg
No Section 7.8
Yes
Computer
Account
Computer Account
#*5820 Section 7.9
Computer Access
Code *0

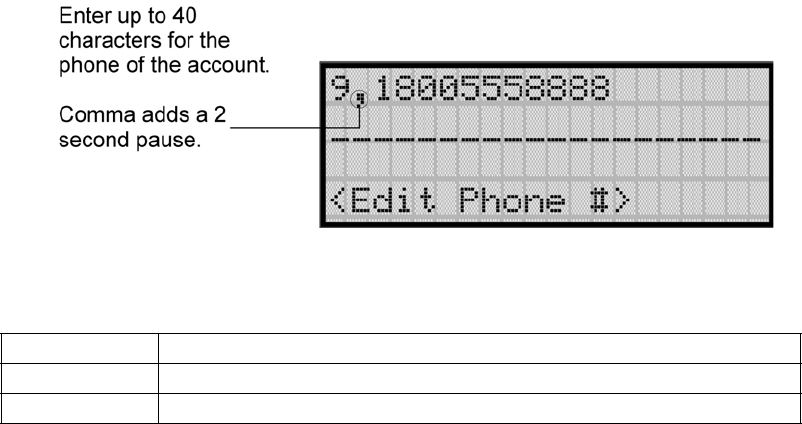

Computer Phone # Up to 40 digits
Menu Options/Defaults Comments
IntelliKnight 5820XL Installation Manual
6-20 151209
Access
Codes Select Profile
(01 - 20)
Edit Name
Edit Access Code
Profile 1 is the profile that dictates
what functions the Firefighter Key
has access to. Because this is the
profile for a key the user name
and the access code can not be
edited for this profile.
Profile 2 is the profile for the
installer and is referred to as the
"Installer Code". This profile’s
user name and panel functions can
not be edited.
See Section 7.10.
Edit Panel Functions
System Reset
System Silence
System Event Ack.
Fire Drill Key
System Tests
Fire Drill Menu
Indicator Test
Walk Test no-Report
Walk Test w/Report
Dialer Test
Clear History Buffer
Point Functions
Disable/Enable Point
Point Status
Set SLC Device Address

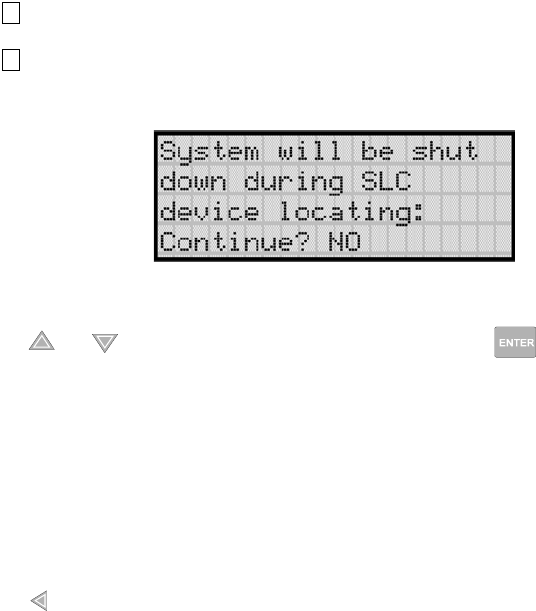

SLC Device Locator
SLC Multi-Device Locator
I/O Point Control
Event History
Set Time & Date
Printer Options
Event Logging
Print Event History

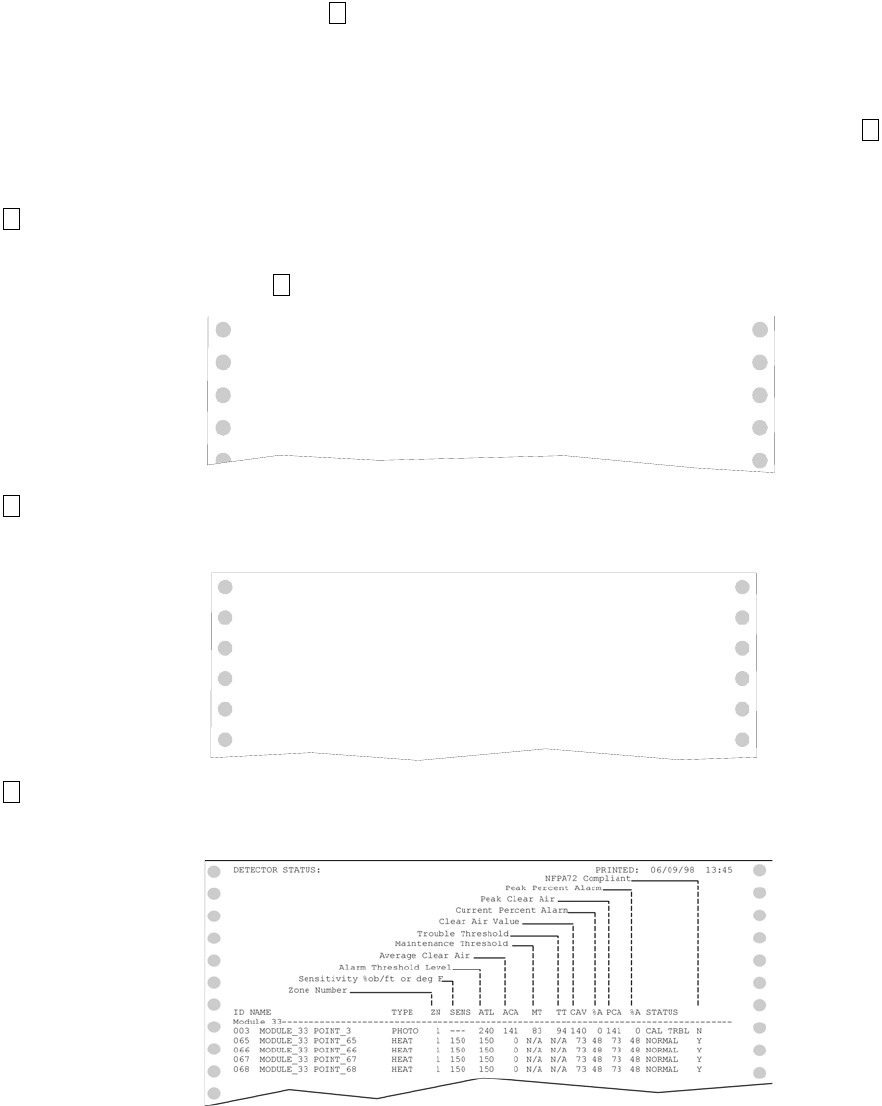

Print Detector Status
Print System Config
Reset Dialer
Program Menu
System Information
Upload/Download
1. Use of multiple notification groups may not synchronize with each other.
Menu Options/Defaults Comments
151209 7-1
Section 7
Programming
This section of the manual describes how to manually program the control panel from the
built-in annunciator. Each subsection discusses these menu options in detail. All options
described in this section can be performed using the 5660 Silent Knight Software Suite
(SKSS).
7.1 UL 864 Programming Requirements
Important!
Before any customized programming is done, JumpStart should be run first. After
JumpStart is run, thoroughly test the system. The reason the system should be tested
after JumpStart is because Jumpstart automatically programs the system, searching for
and configuring all SLC and SBUS devices it finds. JumpStart allows you to confirm
the integrity of the installation prior to performing any custom programming. After
determining that the hardware is properly installed, custom programming can be
performed. Refer to Section 6.
NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND
OTHER INVOLVED PARTIES: This product incorporates field programmable software. In
order for the product to comply with the requirements in the Standard for Control Units and
Accessories for Fire Alarm Systems, UL 864, certain programming features or options must be
limited to specific values or not used at all as indicated below.
Programming Option Menu Item Permitted in
UL 864 (Y/N) Possible
Settings Settings Permitted in
UL 864
Phone Lines Enable Gnd Start No Yes & No No
Misc Options 1 Low AC Report Delay Yes 0–30 hours 1–3
IntelliKnight 5820XL Installation Manual
7-2 151209
7.2 SLC Family
The 5820XL supports Hochiki protocol SLC devices or SK series SLC devices. You must
configure the 5820XL to accept the protocol of the devices you are installing. You cannot mix
SLC devices of different protocols.
1. Press or to display the main menu.
2. Enter the installer code if requested.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter module menu.
5. Press to select the desired SLC device type.
6. Press to accept the displayed SLC device type.
7.3 Modules
This section lists the options available under the module option in the program menu. The
following modules are available for the control panel: 5815XL SLC expander, 5860 remote
fire alarm annunciator, 5824 serial/parallel printer interface module, 5496 intelligent power
module, 5895XL intelligent power module, 5880 LED I/O module, and 5865 LED
annunciator.
7
0
Programming
151209 7-3
7.3.1 Edit Modules
The features that can be edited when this option is selected are module name and class of
wiring (Class A or Class B), or features that are specific to the module to be edited.
To edit an existing module:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter module menu.
5. Press to edit a module.
6. Use the or arrow to select the module you wish to edit.
7.3.1.1 Naming Modules
You can assign an English name to a system hardware module to make it easier to recognize
on a display.
7. If you wish to edit the modules name press the or arrow to select each character
for the modules name (or press to bypass name edit).
Press the to move to the next character.
Figure 7-1 Edit module Name Programming Screen Example
7
1
1
IntelliKnight 5820XL Installation Manual
7-4 151209
7.3.1.2 Setting the 5815XL Wiring Class
8. Choose the class of wiring you wish to use for this module by pressing the or
arrow, then press .
7.3.2 Adding a Module
If you need to add a new hardware module to the system, follow these steps.
You must be in the Main Menu to perform this task. If necessary, enter the Installer Code.
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter module menu.
5. Press to add a module.
6. From the next screen, select the number that corresponds to the type of module you are
adding from the <New Module Type> screen.
The screen will display “Adding module [#]...” for a few moments. You will be returned to
the <New Module Type> screen where you can select another module if desired.
You must save changes when you exit the Program Menu or the new module will not be
added.
Note: If you Add a Module that has not been physically connected, the panel will go into trouble after it
reinitializes (when you exit the Program Menu). When the new module is attached, the trouble will correct
itself automatically the next time you power up the system.
7
1
2
Programming
151209 7-5
7.3.3 Deleting a Module
If you ever need to delete a module, follow these steps.
You must be in the Main Menu to perform this task. If necessary, enter the Installer Code.
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter module menu.
5. Press to delete a module.
6. A warning screen will display. If you want to proceed with deleting the module, select
Yes. To cancel, select No.
7.4 Zone
Through the zone option in the program menu you can edit, add, delete, and view zone points.
Selections made here affect all detectors and switches in the zone. Up to 125 zones can be
used in the system.
7.4.1 Edit Zone
Features that can be edited through the edit zone option are, edit zone name, zone properties
(which includes, zone type, and detector sensitivity), and zone output mapping.
To edit a zone, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter zone menu.
5. Press to edit a zone.
6. Enter the zone number, then press .
7
1
3
7
2
1
IntelliKnight 5820XL Installation Manual
7-6 151209
7.4.1.1 Edit Zone Name
7. Press to edit the selected zone’s name.
A screen similar to the one shown in Figure 7-2 displays.
Figure 7-2 Selecting Character for Zone Name
8. Select the characters for the zone name by pressing the or arrow until the desired
character is shown then press .
OR
Enter the Numerical Designator for the character you want, then press . See Appendix B for
a list of available characters and their numeric designators.
9. Repeat step 8 until the name is complete.
10. Press when the name is complete.
7.4.1.2 Edit Zone Properties
Zone properties consist of alarm delay characteristics, and heat detector sensitivity.
1. Do steps 1 through 6 of Section 7.4.1.
2. Press to edit the properties of the selected zone.
1
2
Detection type also selected from this screen
(see Table 7-1).
Programming
151209 7-7
Alarm Delay Characteristics
3. Select the alarm delay characteristics (see Table 7-1) by pressing the or arrow.
4. Press .
Heat Temperature Setting
Use this feature to set the temperature at which heat detectors will respond. The range is 135°
to 150° F. All detectors in the zone will respond in the same way.
The Model SD505-AHS Heat Detector is an absolute temperature device. This means that it
responds to an alarm immediately if the temperature in the zone goes above the programmed
temperature.
5. Enter the temperature at which the heat detector will respond.
Or
Use the or keys to scroll through the range or enter directly from the number keys
on the annunciator, then press .
6. Use the or keys to scroll through the range or enter directly from the number keys
on the annunciator.
Table 7-1: Alarm Delay Characteristics
Type of Delay Description
1-Count
One Count (No Delay). When this option is enabled, an alarm occurs immediately when a single device
of any of the following types goes into alarm: detector, manual pull, water flow, Aux1 or Aux2. This is
considered the most typical operation and is the default for all zones.
2-Count
When this type of alarm delay is used, two or more detectors within the zone must go into alarm in order
for the zone to report an alarm. Switches of type manual pull, water flow, Aux1 and Aux2 are an
exception; they will cause an alarm when only one switch is in alarm.

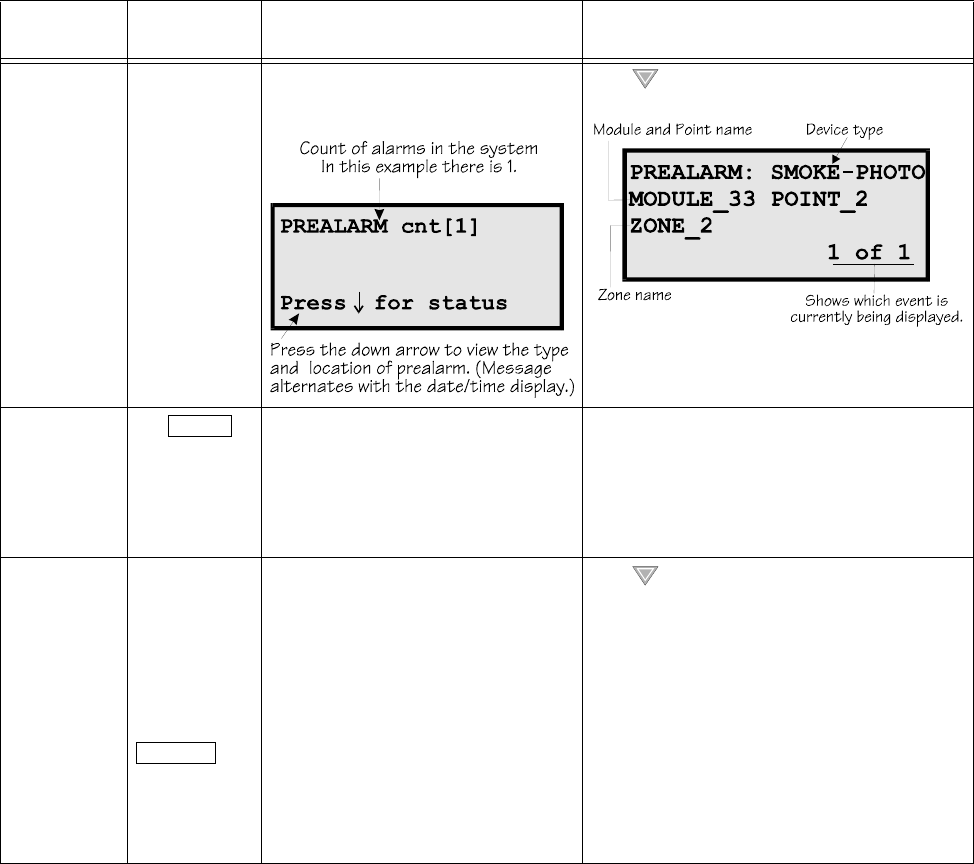

When a single detector is in alarm in a 2-Count zone, the system enters a prealarm condition. In a
prealarm condition, the touchpad PZT beeps and the annunciator display indicates that a prealarm has
occurred. If the zone has been mapped to an output group for the prealarm event, the output group will
activate. The prealarm will not be reported to the central station.
Alarm Ver.
Alarm verification is an optional false alarm prevention feature that verifies an alarm condition by
resetting the smoke detector. If the alarm condition still exists by the time the reset cycle has completed,
the detector will go into alarm. If the detector is no longer in alarm, no report will go to the central
station. The alarm verification sequence is ignored if the zone is already in alarm.
PAS
This option is intended to be used with an acknowledge switch. An alarm is delayed for 15 seconds,
giving on-site personnel a chance to investigate the alarm. If the acknowledge switch is not activated
within 15 seconds, an alarm occurs automatically.
If this option is enabled for a zone, the zone will respond to an alarm condition as follows:
• The zone will not go into alarm for 15 seconds to allow an on-site operator to activate the acknowl-
edge switch.
• If the operator does not press the acknowledge switch within 15 seconds, the zone will go into
alarm.
• If the operator presses the acknowledge switch within 15 seconds, a 180-second time-frame will
begin counting down. This time-frame allows the operator to investigate the cause of the alarm.
If the operator performs a reset within 180 seconds, the alarm will not occur. If the operator does
not perform a reset within 180 seconds, an alarm will occur automatically.
• The P.A.S. feature will be overridden if another alarm occurs.
SNGL ILOCK See Section 8.7.1 for single interlock releasing operation.
DBL ILOCK See Section 8.7.2 for double interlock releasing operation.
IntelliKnight 5820XL Installation Manual
7-8 151209
7. Then press .
7.4.1.3 Zone Outputs
Output groups and cadence patterns are mapped to events. They can be programmed to output
when an event occurs in a zone. Some system trouble events can be mapped for the entire
system. Section 6.2 of this manual contains a general explanation of mapping. The following
sections explain how to select mapping options.
Note: Use of multiple notification groups may not synchronize with each other.
Mapping to Zone Events
Eight types of events can occur in zones. For each event type, you can activate up to 8 output
groups or output group template, specifying a pattern for each. The following is a list of all
event types:
Note: Abbreviations in the parenthesizes are the characters that are displayed in programming (see
Figure 7-3).
• Manual Pull Alarm (MP)
• Water Flow Alarm (WF)
• Detector Alarm (DE). This applies to heat or smoke detectors.
• Aux 1 and Aux 2 Alarm (A1 or A2). User-specified alarm types.
• Pre-alarm (PR)
• Supervisory (SU)
• Trouble (TR)
To map zone events to outputs:
1. From the Installer Main Menu, select for Program Menu.
2. From the Program Menu, select for Zone.
3. From the next menu, select for Edit Zone.
4. Enter the zone number you wish to edit.
5. From the next menu, select for Zone Outputs.
6. From the next screen, a list of 8 event types will display. Select the event type you want to
program. A screen similar to the one shown in Figure 7-3 will display. Press .
7. Press the or key to toggle the group letter to either G = Group or T = output group
template depending on want you need for this zone. Press .
7
2
1
3
Programming
151209 7-9
8. Select options for each event that could occur in this zone. Figure 7-3 is a complete exam-
ple of how you might map a zone.

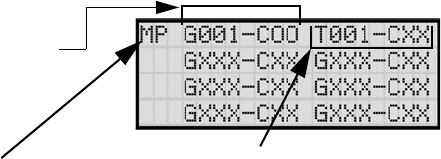

Figure 7-3 Selecting Output Groups/templates and Cadence Patterns for a Zone Event
Zone Mapping Example
Suppose you want to program Zone 1 so that:
• Any alarm (detector, water flow or manual pull) would activate Output Group 1 using the
ANSI cadence pattern.
• Manual pull alarm would activate Output Group 3 using constant output.
• Troubles would activate Output Group 2 using the zone-coded cadence pattern.
To accomplish this you need to access the screen for each event and then select your output
Indicates type of event (in
this case, Manual Pull alarm).
See Section 6.5 for choices.
Indicates output group 1, cadence
pattern 00 has been selected. 00 is
a constant output cadence.
“T” Indicates output group
template 1. See Section 7.5.5 for
more information on output group
templates.
IntelliKnight 5820XL Installation Manual
7-10 151209
groups. Figure 7-4 shows how you would program this application.
Figure 7-4 Zone Mapping Example
Programming
151209 7-11
7.4.1.4 Cadence Patterns
The cadence patterns shown in Figure 7-5 are available for use with the control panel.
Cadence patterns can be selected by event type for each zone or for the entire system. Special
cadence patterns can be selected for fire drills and any auxiliary system switches used with the
system.
Figure 7-5 Cadence Patterns Available with the Control Panel
7.4.1.5 Zone Accessory Options
This option applies to detectors that are used with SD505-6SB, SD505-6RB, and
SD505-ADHRs.
Single or Multi-station cadence pattern (choose from Patterns 00 to 21).
Local Zone (choose Y or N, for Yes or No).
IntelliKnight 5820XL Installation Manual
7-12 151209
7.4.2 Add Zone
To add a zone, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter zone menu.
5. Press to add a zone.
A zone will be added. The system will assign the next available zone number. Options for
this zone can now be programmed through the Zone Edit sub-menu. Up to 125 zones can
be used.
7.4.3 Delete Zone
To delete a zone, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter zone menu.
5. Press to delete a zone.
A warning screen will display. If you want to proceed with deleting the zone, select Yes.
To cancel, select No.
7
2
2
7
2
3
Programming
151209 7-13
7.4.4 View Zone Points
To view the points in a zone, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter zone menu.
5. Press to view zone points.
6. Enter the number of the zone you wish to view, then press .

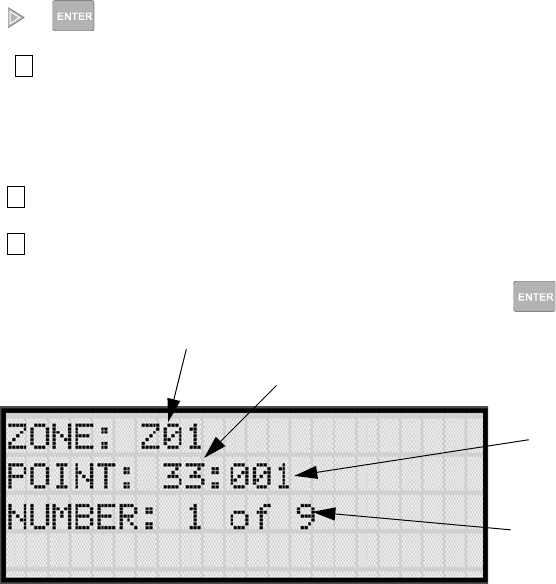

Figure 7-6 View Zone Points Screen
7
2
4
Zone Number
Module or
Device Address
Point Number
Total Number of
Points in the Zone
IntelliKnight 5820XL Installation Manual
7-14 151209
7.5 Group
An output group is made up of output points that have been programmed to respond in the
same way. Output groups simplify programming because you have to program the output
characteristics that are common to all of the group points once, instead of programming each
individual point. Once you have defined the characteristics of output groups, you can assign
each point to the appropriate group. All valid output points are assigned to only one output
group. Unused points are not assigned to any output group. Up to 250 output groups can be
defined.
7.5.1 Edit Group
In the edit group option you can program the name of an output group (Section 7.5.1.1) and
change the properties (Section 7.5.1.2) of that group.
To edit a group, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter group menu.
5. Press to edit group.
6. Enter the number of the group you wish to edit, then press .
7.5.1.1 Edit Group Name
7. To edit the group name, press .
A screen similar to the one shown in Figure 7-2 displays.
Figure 7-7 Selecting Character for Zone Name
7
3
1
1
Programming
151209 7-15
8. Select the characters for the zone name by pressing the or arrow until the desired
character is shown then press .
OR
Enter the Numerical Designator for the character you want, then press . See Appendix B
of this manual for a list of available characters and their numeric designators.
9. Repeat step 8 until the name is complete.
10. Press when the name is complete.
7.5.1.2 Edit Group Properties
The Edit Group Menu allows you to select options for each group for the following items:
• Latching or non-latching outputs.
• Silencing operation.
• Operation with system switches.
Figure 7-8 Group Properties Screen Programming Options
Latching / Non-latching Outputs
Outputs that are programmed as Latching remain active until the system has been manually
reset. Non-latching outputs stop activating automatically when the condition clears.
Silencing Options
The following silencing options are available for each output group.
Table 7-2: Silencing Options
Option Description
SILENCE Silenceable. The output group can be silenced through the key.
NON-SIL Not silenceable. The output group cannot be silenced. Activation of the key will be
ignored for this output group.
SILENCE
SILENCE
IntelliKnight 5820XL Installation Manual
7-16 151209
Response with System-Wide Conditions
You can select whether an output group will respond to various system-wide occurrences.
(See Figure 7-8 for location of this field.)
11. To get to this menu item repeat steps 1 through 6 of Section 7.5.1.
12. To edit group properties, press .
13. Press the or arrows to select the desired latching option.
14. Press .
15. Press the or arrows to select the desired silencing option. Refer to Table 7-2.
AUT UNSIL Auto Unsilenced. If this option is selected, the output group can be silenced for a programmed time-
frame. If the condition that caused the output to activate has not cleared during the time-frame, the
output reactivates. If you select this option, select the time-frame in the DLY: field. Range is 00-60
minutes. (See Figure 7-8 for location of field.)
SIL-INHIB Timed Silence after Inhibit. If this option is selected, the output group must be audible for a
programmed number of minutes before it can be silenced. If the condition that caused the output to
activate has not cleared during the time-frame, the output can be silenced. If you select this option,
select the timeframe in the DLY: field. Range is 00-60 minutes. (See Figure 7-8 for location of field.)
SHUT-DOWN If this option is selected, the output group will automatically silence (shut down) after the
programmed time period. If you select this option, select the timeframe in the DLY: field. Range is
01-60 minutes. (See Figure 7-8 for location of field.)
Table 7-3: Output Group Response Choices
Option Description
ManPull Manual Pull Activation. Select Yes if you want this group to activate for all manual pull
alarms that occur in the system.
Note: Even though manual pull switches are assigned to zones, activation
selected here for manual pull will override zone-programmed activation.
Fire Drill Fire Drill Activation. Select Yes if you want this group to activate for fire drills.
Sys Aux1 and Sys Aux2 Select Yes if you want this output group to activate for system-wide Aux1 and Aux2
alarms.
(Aux 1 and Aux 2 alarm types are for auxiliary alarm conditions. For example, you
might want to use Aux 1 to provide a unique alarm type.)
Ignore Global Cad Ignore Global Cadence. If you want to create an output group that can never be
overridden, you can select Yes for this option. Selecting No means that system-wide
events that have been assigned an output pattern could override the pattern for the
output group.
For example, suppose you had assigned a set of strobes to Output Group 3. You would
never want these strobes to output in a pattern under any circumstances. To make sure
this happens, select Yes for Ignore Global Cadence for Output Group 3.
Reverse Polarity This option programs the output group for reverse polarity operation. Selecting Reverse
Polarity–Troubles will cause the output group to be de-energized for any system
trouble. Selecting Reverse Polarity–No Troubles will cause system troubles to be
ignored. Activation is accomplished through standard mapping methods. Use with the
7644 assembly to implement reverse polarity. See Section 4.15.3.2 for more
information on the 7644.
Table 7-2: Silencing Options
Option Description
2
Programming
151209 7-17
16. Press .
17. Enable group activation for a condition (see Table 7-3) by pressing the or arrows to
select Y (yes) or N (no).
18. Press .
19. Repeat steps 14 and 15 for all the activation options.
7.5.2 Add Group
To add a group:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter group menu.
5. Press to add a group.
The system will assign the next available group number. Properties for the new group can
now be edited if desired (see Section 7.5.1.2). A total of 250 output groups can be defined.
7.5.3 Delete Group
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter group menu.
5. Press to delete a group.
A warning screen will display. If you want to proceed with deleting the group, select Yes.
To cancel, select No.
7
3
2
7
3
3
IntelliKnight 5820XL Installation Manual
7-18 151209
7.5.4 View Group Points
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter group menu.
5. Press to view group points.
6. Enter the group number, then press .
7.5.5 Edit Output Group Templates
Some installations may require that zones be mapped to more than 8 output groups. With
output group templates you can combine one or all output groups into one template, which can
be used when the same combination of outputs are used for several zones.
For example, lets say an installation has five zones (See Table 7-4). The check mark indicates
what output groups are mapped to each zone. You will notice that every zone is mapped to
outputs 1 and 2. As an alternative you can create a template that combines output group 1 and
2 as one choice.
This can be done by creating a template which includes output groups 1 and 2. Then you can
map all the zones to the template you created. This will free up output group assignments that
are common to several zones. This is very useful when you need to map zones to more than
Table 7-4: Zone Group Example
Zone Group Number
12345678
1st Floor Smoke Detectors  
2nd Floor Smoke Detectors  
3rd Floor smoke Detectors  
Manual Fire Pull Stations  
Water Flow Switches  
7
3
4
Programming
151209 7-19
eight output groups.
To create Output Group Templates:
1. From the Main Menu, select for Program Menu.
2. From the Program Menu, select for Group.
3. At the next screen, select for Edit OPG Template.
4. Select the template number (01 - 08).
5. Select output group number. See Figure 7-9.

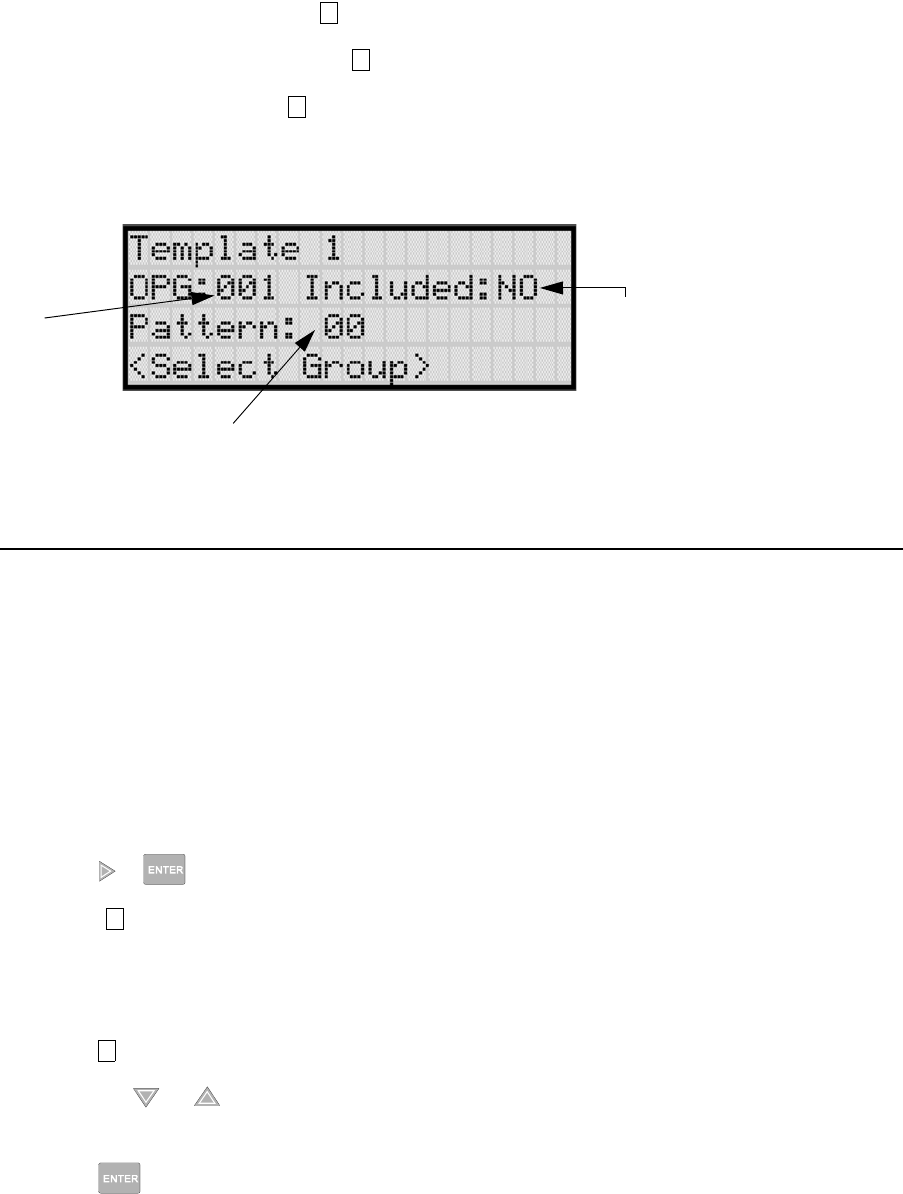

Figure 7-9 Output Group Template Programming Screen
7.6 Point
You may need to change characteristics of individual input points (detectors and switches)
even after using JumpStart. This section explains how to change options for: type of input
point; latching/non-latching status (switches); and name and zone assignment of a point.
7.6.1 Point Programming For 5815XL Module
To program for an 5815XL Module points, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter point menu.
5. Press the or arrows to select the desired module. Refer to Section 6.5 Quick Refer-
ence Table for available choices.
6. Press .
7. Enter the number of the point you wish to edit.
7
3
5
Output
Group #
Yes = Include the selected
output group in this template
No = Do Not include output
group in this template
Select the
Cadence Pattern
7
4
IntelliKnight 5820XL Installation Manual
7-20 151209
8. Press .
9. Select the type of device by pressing the or arrows. Refer to Table 7-5 under col-
umn heading “Type Selection” for a list of choices.
Table 7-5: Point Programming Options for 5815XL Modules
Type
Selection Function Latching
Option Comments
UNUSED
DETECTOR
ION
HEAT
PHOT DUCT
ION DUCT
2WIRE SMK
SUP DET SUP PHOTO Latching
Non Latching
SUP ION
Programming
151209 7-21
SWITCH
MAN_PULL
Use this switch type for manual pull stations. This input is always latched.
The switch can clear only when an alarm is reset. This switch type has the
highest priority; it overrides any other type of alarm.
WATERFLOW
Latching Use this switch type for monitoring water flow in a sprinkler system. Switch
closure will cause a sprinkler alarm. Water flow switches can be
programmed as latching or non-latching.
You can program a delay of up to 90 seconds to be used with a water flow
switch. The delay allows for normal, brief changes in sprinkler system water
pressure. The water flow alarm will not activate unless the switch is active
for the programmed delay time.
If a delay is used, the system begins counting down when the switch closes.
If the switch opens (restores) before the timer expires, a water flow alarm is
not generated. If the water flow switch remains closed after the timer
expires, a water flow alarm will be generated.
Non Latching
SUPERVISY
Latching Use this switch type for tamper monitoring of sprinklers and other fire
protection devices. If a contact closes, a sprinkler supervisory event will be
generated. Supervisory switches can be latching or non-latching.
Non Latching
FIREDRILL
System-level, non latching switch. This switch is an alternative way of
causing a fire drill. It has the same operation as the fire drill option available
from the annunciator. When the switch is activated, a fire drill begins; when
the switch is de-activated, the fire drill ends.
SILENCE This system-level switch is an alternative way to silence the system. It has
the same effect as pressing the key.
RESET This system-level switch is an alternative way to reset the system. It has the
same effect as pressing the key.
PAS_ACK
Positive acknowledge switch. This switch must be used in zones
programmed as Positive Alarm Sequence (see Table 7-1).
If an acknowledge switch closes when an alarm or trouble condition is not
already in progress, a trouble will occur.
You must use a UL listed normally open, momentary switch type. The
switch must be rated at 5V, 100 mA (minimum) and be used with an EOL
resistor for supervision.
Table 7-5: Point Programming Options for 5815XL Modules
Type
Selection Function Latching
Option Comments
SILENCE
RESET
IntelliKnight 5820XL Installation Manual
7-22 151209
SWITCH
(cont.)
ZN_AUX1 Latching Use these switch types if you want to monitor special zone-level conditions
(such as operation of a fan or damper).
Non Latching
ZN_AUX2 Latching
Non Latching
SYS_AUX1 Latching Use these switch types if you want to monitor special system-wide
conditions (such as operation of a fan or damper).
Non Latching
SYS_AUX2 Latching
Non Latching
DETECT SW Used to monitor conventional 4-wire detectors, a contact closure will
generate a detector alarm event.
TAMPER Latching Performs identically to a supervisory switch, but will be indicated as a
tamper switch on the LCD annunciator.
Non Latching
MAN REL Latching Manual release switch, typically a pull station.
Non Latching
ILOCK Latching Interlock release switch input.
Non Latching
NOTIF
OUTPUT PT Select Group Output Point, a general use notification type. Use for driving standard
notification appliances.
AUX CONST Use constant power for applications that require a constant auxiliary power
source. Power is always present at Constant circuits.
AUX RESET Use for auxiliary power, resettable applications. See Section 4.13.5.3 for a
description of how this option operates.
AUX DOOR
Use for auxiliary power, door holder applications. For example, if you were
using an auxiliary power supply for door holders, you would use this option.
See Section 4.13.5.1 for a description of how this option operates.
RELAY
OUTPUT PT Select Group Output Point, a general use relay type. Use for applications requiring a relay,
such as fan shutdown, elevator recall, and so on.
AUX RESET Select Group Use for auxiliary power, resettable applications. See Section 4.13.5.3 for a
description of how this option operates.
AUX DOOR Select Group
Use for auxiliary power, door holder applications. For example, if you were
using an auxiliary power supply for door holders, you would use this option.
See Section 4.13.5.1 for a description of how this option operates.
Table 7-5: Point Programming Options for 5815XL Modules
Type
Selection Function Latching
Option Comments
Programming
151209 7-23
SLC LED Select LED No.
01 -80 Select Group
Table 7-5: Point Programming Options for 5815XL Modules
Type
Selection Function Latching
Option Comments
IntelliKnight 5820XL Installation Manual
7-24 151209
7.6.2 Point Programming For Internal or External Power
Module (5895XL)
To program for an internal or external power module points:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter point menu.
5. Press the or arrows to select the desired module. Refer to Section 6.5 for available
choices.
6. Press .
7. Enter the number of the circuit or point you wish to edit. Refer to Table 7-6 for available
selections.
8. Press .
9. Select the type by pressing the or arrows.
10. Press .
11. Select the function by pressing the or arrows.
12. Press .
13. Select the zone by pressing the or arrows.
14. Press .
15. Edit point name. See Section 7.6.3.1.
7
4
Programming
151209 7-25
Or
Press to skip point name edit.
16. Repeat Steps 1 through 15 for all circuits.
Table 7-6: Menu choices for Internal/External Power Module
Choices Type Selections Function
Selections for
each Type Comments
Enter Point or Circuit
Select Type
UNUSED
B NOTIF
A NOTIF
AUX PWR
CONSTANT Constant auxiliary power.
RESETTABLE Resettable auxiliary power.
DOOR Door holder auxiliary power.
B SWITCH
MAN PULL Refer to comments column of
Table 7-5 for description of these
options.
Latch or Non-latching feature only
appears for waterflow, supervisory,
tamper, zone aux1, zone aux2, system
aux1, and system aux2.
WATERFLOW
SUPERVSY
TAMPER
FIREDRILL
SILENCE
RESET
PAS_ACK
ZN_AUX1
ZN_AUX2
SYS_AUX1
SYS_AUX2
MAN REL
ILOCK
A SWITCH Same as B SWITCH Used for
B DETECTOR 2-WIRE SMK Used for Class B, 2-wire detectors.
4-WIRE SMK Used for Class B, 4-wire detectors.
A DETECTOR 2-WIRE SMK Used for Class A, 2-wire detectors.
4-WIRE SMK Used for Class A, 4-wire detectors.
Select Zone/Group Group or Zone selection will appear
depending on the type selected.
Edit Name See Section 7.3.1.1.
IntelliKnight 5820XL Installation Manual
7-26 151209
7.6.3 Point Programming For 5880 and 5865 Modules
To program 5880 or 5865 module points:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Press to enter point menu.
5. Press the or arrows to select the desired module. Refer to Section 6.5 for available
choices.
6. Press .
Figure 7-10 Programming Points Screen for 5880 and 5865 Modules
7. Enter the point number.
8. Press .
9. Press the or arrows to select the type (Notification or unused).
10. Press .
11. Press the or arrows to select the desired Group.
12. Press .
13. Edit module name. See Section 7.6.3.1.
Or
Press to skip module name edit.
7
4
Programming
151209 7-27
14. Repeat Steps 1 through 13 for all points.
7.6.3.1 Assigning a Name to Points
You can assign a name to a point to make it easier to recognize on a display.
To edit a point name:
1. Do steps 1 through 4 in Section 7.6.3.
2. Using the or arrow, select the module of the point you want to edit, press .
3. Enter the point number.
4. Press until the module name is blinking.
5. Press .
A screen similar to the one shown in Figure 7-2 displays.

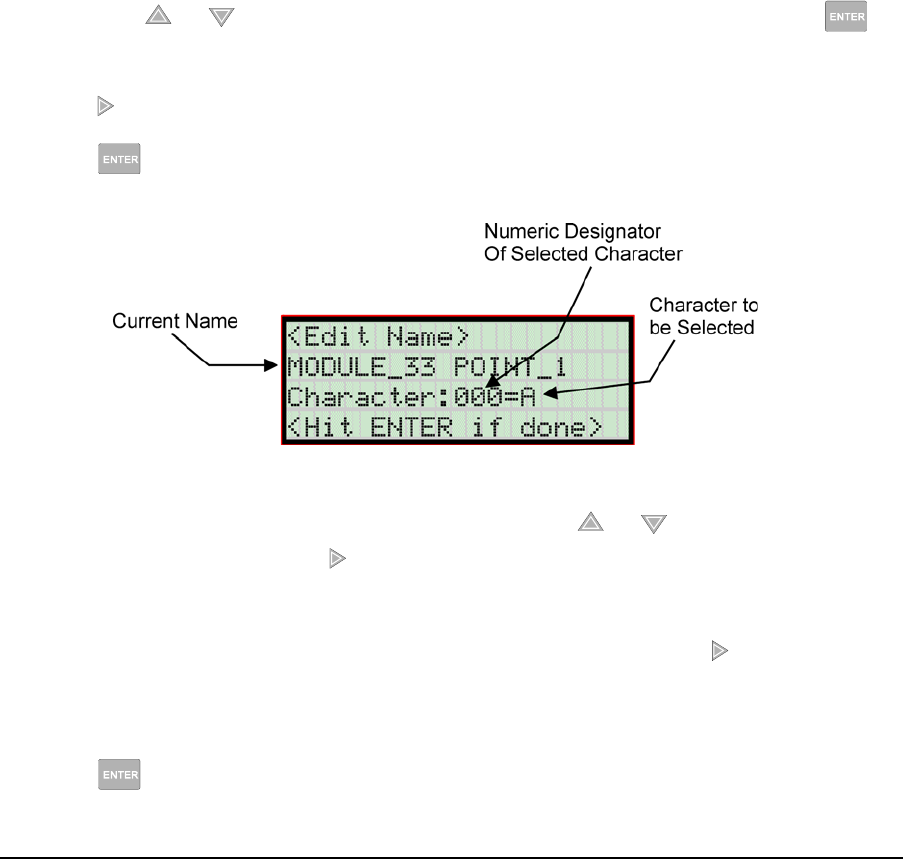

Figure 7-11 Selecting Character for Zone Name
6. Select the characters for the point name by pressing the or arrow until the desired
character is shown then press .
OR
Enter the Numerical Designator for the character you want, then press . See Appendix B
for a list of available characters and their numeric designators.
7. Repeat step 6 until the name is complete.
8. Press when the name is complete.
7.7 System Options
This section of the manual explains how to customize software options that affect general
operation of the system. This includes such items as: AC loss hours, system clock options,
holidays schedule, telephone and reporting account options. Refer to each individual
subsection for complete instructions.
IntelliKnight 5820XL Installation Manual
7-28 151209
7.7.1 Reporting Account
Up to four reporting accounts can be used with the control panel. Events in accounts are
reported by zone.
Each account is assigned an up-to-6-digit account number. Each account is also assigned a
unique ID (1-4) which determines the priority for reporting ("1" has the highest priority; "4"
has the lowest).
Disable any unused accounts by selecting “N” for all events (see Figure 7-12). If the system is
local only (does not connect to a central station), disable all events for all four reporting
accounts.
Options for each account can be customized. These options appear on the Reporting Accounts
screen. Some related options appear on the Phone Lines screen (see Section 7.7.2).
To access the Reporting Accounts screen:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. From the Program Menu, select for System Options.
5. From the next menu, select for Reporting Accounts.
7
5
0
Programming
151209 7-29
7.7.1.1 Edit Accounts
6. From the next menu, select for Edit Account.
A screen similar to one shown in Figure 7-12 will display. The following subsections
describe the options on each field.
Figure 7-12 Reporting Account Editing Screen
Select Account (ID)
The control panel provides up to 4 reporting accounts. The priority of an account is based on
its account ID. Account 1 is highest priority; Account 4 is lowest. Use Account 1 to report the
highest priority events.
7. Press the or arrow to select account ID number, then press .
Edit Account Number
Enter an up-to-6-digit number for each account to identify the account to the central station.
See Figure 7-12 for location of this option on the screen. The account number should be
compatible with the reporting format used. For example, the Contact ID format transmits up
to four digits only.
8. Enter the desired account number (up to 6-digits), then press .
Select Reporting Format
Select a reporting format for each account. Options are:
9. Press the or arrow to select the reporting format, then press .
SIA SIA format. 8 events per call.
CID Ademco’s Contact ID format
S20 Same as SIA but limits events reported to 20 events per phone call.
1
IntelliKnight 5820XL Installation Manual
7-30 151209
Events to Report
The next six options select which types of events (or event families) will be reported to this
account. (See Figure 7-12 for location of these options on the screen.) Events are reported by
zone.
10. Press the or arrow to select Must, Yes, or No (see table below), then press .
11. Repeat step 10 for all six event report options.
For each event family, select M, Y, or N.
Switch Attempts
Specify the number of times the dialer should attempt to report to this account before
switching to the next account. Range is 01-15.
12. Enter the number of switch attempts (or press the or arrow), then press .
Fail Attempts
This feature specifies the number of times the dialer should attempt to perform the dial/switch
sequence before issuing an account trouble condition. Range is 01 - 15 (Default = 10).
13. Enter the number of fail attempts (or press the or arrow), then press .
Selecting Primary and Secondary Phone Lines
For each account, select which phone line (Line 1 or Line 2) is primary. See Figure 7-12 for an
example of how to make this selection.
14. Press the or arrow to select line 1 or 2 as primary phone line, then press .
Event Family Events Included in this Family
Alarms All alarms (Water Flow, Manual Pull, Detectors, Auxiliary Switches)
Alarm Restore All alarm restores.
Supervisory/Trouble All trouble and supervisory conditions and trouble and supervisory restores.
Enable/Disable Point Enabling and disabling of input and output points.
Service/Test Fire drill, walk test, dialer test, automatic test, all programming sessions.
System Reset All system resets.
M(ust) Must Report. Selecting "M" makes this a primary reporting account for this family of events. The dialer
MUST report events in this family to this account.
Selecting Must makes an account a primary reporting account. The dialer will try to report the event to
the primary account until it exceeds the "Switch Attempts" value. When the dialer has exceeded the
Switch Attempt retry limit, it will switch to a backup account (a "Can Report" or "Yes" account, see
below). If the dialer cannot report the event to any of the backup accounts, it will return to the primary
account and repeat the process until it exceeds the "Fail Attempts" value. If the Fail Attempts limit is
exceeded, an Account Trouble condition is generated and a local trouble will sound.
Y(es) Can Report. Selecting Y makes this a backup account for this event family. The dialer will report to this
account only if it was previously unable to report the event to a Must account.
N(o) No events in this family will ever be reported to this account.
Programming
151209 7-31
15. Repeat step 14 for the secondary phone line.
Telephone Number
Enter up to 40 characters for phone number for this account.
The following special characters are available:
Use the number buttons on the annunciator or the up- and down-arrow keys to select special
characters. Characters begin displaying after “9”. See Figure 7-12 for an example.
Table 7-7: Special Character for Dialing
# Pound (or number) key on the telephone
* Star key on the telephone
, Comma (character for 2-second pause)
IntelliKnight 5820XL Installation Manual
7-32 151209
7.7.1.2 Auto Test Time
To access the automatic dialer test time screen:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. From the Program Menu, select for System Options.
5. From the next menu, select for Reporting Account.
6. From the next menu, select for auto test time.
7. Enter the hour you desire the control panel to send an automatic test report (or press the
or arrow), then press .
8. Enter the minutes (or press the or arrow), then press .
9. Select AM or PM by pressing the or arrow, then press .
7.7.2 Phone Lines
To access the phone lines screen:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. From the Program Menu, select for System Options.
5. Select for the phone lines menu.
7
5
0
2
7
5
1
Programming
151209 7-33
6. Select the phone line to be edited (1 or 2) by pressing the or arrow, then press .
Figure 7-13 Phone Lines Editing Screen
7.7.2.1 Dialing Prefix
Enter up to 8 characters to be used for such things as PBX dial-out codes, a pause, and so on.
The following special characters are available:
Use the number buttons on the annunciator or the up- and down-arrow keys to select special
characters. Characters begin displaying after “9”. See Figure 7-13 for an example.
7. Enter a dialing prefix (if needed), then press .
Or
Press to bypass the dialing prefix option.
# Pound (or number) key on the telephone
* Star key on the telephone
, Comma (character for 2-second pause)
IntelliKnight 5820XL Installation Manual
7-34 151209
7.7.2.2 Number of Answer Rings
This option is used in conjunction with the 5660 SKSS. Use the option to determine the
number of rings before the panel answers a call from the computer. Range is 00-15 rings. This
option is factory-programmed as 06 rings, which should be compatible for most installations
where the answering machine bypass feature is used. You may need to adjust it depending on
the installation’s telephone system.
The selection made here must match the programming for this option in the Communication
Configuration dialog box of the 5660 SKSS. See the software manual for more information
(PN 151240).
8. Enter the desired number of answer rings, then press .
7.7.2.3 Dial Option (TouchTone or Pulse)
9. Press the or arrow to select the dial option, then press .
7.7.2.4 Rotary Format
10. Press the or arrow to select the pulse ratio for rotary dialing option, then press
.
Options are:
7.7.2.5 Line Monitor
Enable the line monitor for each phone line that will be used. See Figure 7-13 for location of
this field on the phone lines screen. When the phone line monitor has been enabled for a
phone line, a trouble condition will occur if the line is not connected. If a phone line will not
be used, it must be disabled.
11. Select Y (monitor line) or N (don’t monitor line) by pressing the or arrow, then
press .
7.7.2.6 Ground Start Relay
If using the 5211 ground start relay, you must enable the ground start relay programming
option. See Figure 7-13 for the location of this field on the phone lines screen. This option is
Dial Option Description
PULSE If this option is selected, only pulse dialing will be used for this phone line.
TT TouchTone dialing. If this option is selected, only TouchTone dialing will be used for this
phone line.
TT/PL
TouchTone alternating with pulse. If this option is selected, the dialer will first attempt to
use TouchTone. It will switch to pulse if TouchTone is not successful on the first attempt.
It will continue to alternate between TT and pulse for additional attempts.
U U.S. standard format. Uses the 60 msec / 40 msec make/break ratio.
E European format. Uses the 66 msec / 34 msec make/break ratio.
Programming
151209 7-35
disabled by default. For 5211 installation, see Section 4.12.
Note: Ground start cannot be used in UL installations.
12. Select Y (ground start used monitor line) or N (ground start not used don’t monitor line)
by pressing the or arrow, then press .
7.7.2.7 Answering Machine Bypass
This option is used in conjunction with the 5660 SKSS. This feature ensures that an answering
machine will not interfere with communication between the panel and the computer. If an
answering machine is used at the panel site, enable this feature; if an answering machine is not
used, disable the feature.
This option is factory-programmed as Yes (enabled).
The selection made here must match the programming for this option in the Communication
Configuration dialog box of the 5660 SKSS. See the 5660 SKSS manual for more information
(PN 151240).
13. Select Y (answering machine bypass enabled) or N (answering machine bypass disabled)
by pressing the or arrow, then press .
7.7.3 Sys. Event Outputs
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. From the Program Menu, select for System Options.
5. From the System Options Menu, select for Sys. Event Outputs.
7
5
2
IntelliKnight 5820XL Installation Manual
7-36 151209
7.7.3.1 Trouble Events
You can map certain system trouble events to an output group. To access the screen for
selecting output groups and cadence patterns for system trouble events.
6. Press for Trouble Events. A screen similar to the one in Figure 7-14 will display. Select
a group and a cadence pattern for each event as needed for your application. The U: field
is for a user-specified trouble condition. You can program an output group and cadence
pattern for any of the following events:
Figure 7-14 System Trouble Event Mapping Example
Battery Low battery condition.
Gnd Flt Ground fault.
Phone Ln Phone Line 1 or 2 trouble.
Account Account trouble; cannot report to account.
Printer Printer trouble. (Currently not supported; do not select.)
Aux Pwr Auxiliary power trouble.
Sys Sw Trouble with a system switch.
Group Tr Trouble with an output group.
SBUS Com SBUS communication trouble.
SBUS Pwr SBUS power trouble.
SLC Loop Trouble on the SLC loop.
AC Loss AC power lost.
1
Programming
151209 7-37
7.7.3.2 System Alarm Cadence
Fire drill and system auxiliary alarm events can have special cadence patterns to distinguish
them from other types of alarms. See Section 7.4.1.4 for available cadence patterns.
A typical use of the System Aux1 and Aux2 patterns is to distinguish fire emergencies from
other types of emergencies. The System Aux1 and Aux2 alarms would be triggered by a
system-wide switch.
To access the screen for selecting output groups and cadence patterns for system trouble
events:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. From the Program Menu, select for System Options.
5. From the System Options Menu, select for Sys. Event Outputs.
6. Press for System Alarm Cadence.
A screen similar to the one in Figure 7-15 will display. Select a cadence pattern for these
special events if required for your application.
Figure 7-15 Special Cadence Patterns for Fire Drill and Auxiliary Alarm Events
7
5
2
2
IntelliKnight 5820XL Installation Manual
7-38 151209
7.7.4 Miscellaneous Options 1
Through this programming option you can set the water flow delay time, low AC report delay,
enable or disable automatic daylight savings time adjustment, clock format, and AC clock
frequency.
7.7.4.1 Water Flow Delay
You can program a delay of 0-90 seconds (zero means no delay) to be used in conjunction
with a water flow switch. The delay is system-wide. All water flow switches on the system
will use the same delay period.
To access the screen for programming water flow delay, follow these steps:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Select for System Options.
5. Select for Miscellaneous Options 1.
A screen similar to the one shown in Figure 7-16 will display.
Figure 7-16 Water Flow Delay Programming Screen
7
5
5
Delay in seconds
before waterflow
alarm occurs.
(00 - 90)
Programming
151209 7-39
6. Enter the number of seconds (0 to 90 ) to delay an a water flow switch alarm, then press
.
IntelliKnight 5820XL Installation Manual
7-40 151209
7.7.4.2 Low AC Report Delay
Note: You must select 1-3 hours in UL central station installations and UL remote signaling installations.
You can adjust the number of hours before a Low AC report will be sent to the central station.
To program low AC report delay, follow these steps:
Note: Steps continued from step 6 of Section 7.7.4.1.
Figure 7-17 Low AC Report Delay Programming Screen
7. Enter the number of hours before a low AC report will be sent to the central station, then
press . Refer to Figure 7-17.
7.7.4.3 Automatic Daylight Savings Adjustment
The control panel has an automatic DST (Daylight Saving Time) adjustment feature. Before
January 2007, if this feature is enabled (set to Yes), the system clock will switch to DST on the
first Sunday in April at 2:00 a.m. and revert to standard time on the last Sunday in October at
2:00 a.m. After January 2007, if this feature is enabled, the system clock will start and end
DST according to the settings made in Misc. Options 3 (see Section 7.7.6.3). If this feature is
not enabled (set to No) the Daylight Saving Time change is not made to the system clock.
To enable or disable DST adjustment continue programming form step 7 above:
8. Select Y (enabled) or N (disabled) by pressing the or arrow, then press .
7.7.4.4 Clock Display Format (AM/PM or Military)
To change the system clock display format, continue programming from step 8 above:
9. Select AMPM (for AM/Pm display format) or MIL (for military or 24 hr display format)
by pressing the or arrow, then press .
7.7.4.5 Change AC Line Frequency
The panel’s AC line frequency is selectable for 50, 60 Hz, or Neither. AC Frequency feature
dictates how the control panel will calculate time based on the AC line frequency used in the
installation site. The "Neither" option can be used in areas where the AC line frequency is not
dependable and you want the panel to calculate time from the internal crystal. The internal
crystal is not as accurate as the AC power source and either 60 Hz or 50 Hz should normally
selected. The panel defaults to the 60 Hz. selection
To change the AC line frequency, continue programming from step 9 above:
10. Select 50, 60 or Neither, by pressing the or arrow, then press .
Low AC Report
Delay in Hours
(00 - 30)
Programming
151209 7-41
7.7.5 Miscellaneous Options 2
Through this programming option you can turn the strobe synchronization during silence
feature On or Off, and select the control panel to report events by zone or by point.
To edit miscellaneous options 2:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Select for System Options.
5. Select for Miscellaneous Options 2.
7.7.5.1 Synchronize Strobes Active During Silence
When "SYNC Strbs w/ Sil:" is Selected as Y (Yes) then strobes will continue to flash when the
system is silenced and will stop flashing when the system is reset.
Note: The "SYNC Strbs w/ Sil:" only functions with outputs that use a synchronized output pattern.
6. Press the or arrow to toggle this selection between Y (Yes) or N (No).
7. Press or to make your selection and move to the next programming option.
Note: See Section 7.4.1.4 for more information about Synchronization protocol choices.
7.7.5.2 Auto Display Oldest Event
When this feature is programmed Y (Yes) then the oldest un-acknowledge event will
automatically display on the control panel and remote annunciators after there has been no
activity on any system touchpad for two minutes.
8. Press the or arrow to toggle this selection between Y (Yes) or N (No).
9. Press or to make your selection and move to the next programming option.
7.7.5.3 Report by Zone or by Point
When the "Report by" option is set to Zone, then the control panel will report events by zone.
If Point is selected then the control panel will report events by point.
10. Press the or arrow to toggle this selection between Zone or Point.
11. Then press or . See Section 9 for reporting codes.
7
5
6
IntelliKnight 5820XL Installation Manual
7-42 151209
7.7.6 Miscellaneous Options 3
From Miscellaneous Options 3, you set the alarm verification time, turn the Plex Door option
on/off, and set the start and end week and month of Daylight Saving Time.
To edit Miscellaneous Options 3:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
4. Enter code if prompted.
Display reads: Initializing
Please wait . . .
5. Select for System Options.
6. Select for Miscellaneous Options 3.
7.7.6.1 Alarm Verification Time
You can set the alarm verification time from 1 to 250 seconds (default is 60 seconds).
To set the alarm verification:
7. Enter the desired number of seconds for the alarm verification time.
8. Press or to make your selection and move to the next programming option.
7.7.6.2 Plex Door Option
If installing the plex door hardware (PN Plex-1), you must turn the Plex Door option On as
described in this section.
To turn the Plex Door option on/off:
9. Press the or arrow to toggle this selection between Y (Yes) or N (No).
10. Press or to make your selection and move to the next programming option.
7
5
7
Programming
151209 7-43
7.7.6.3 Daylight Saving Time Start and End
This option lets you to adjust the week and month Daylight Saving Time (DST) starts and
ends. For this feature to work, you must enable (set to Yes) the DST option under Misc.
Options 1 (see Section 7.7.6.3). You can view and change the settings in this option anytime,
however, settings will not take effect until 2007. The default values for the DST Start and End
options reflect the August 8, 2005 DST law that goes into effect in 2007:
DST Start: The second Sunday in March
DST End: The first Sunday in November
To set the start and end for Daylight Saving Time:
11. Press the or arrow to select the week (1st, 2nd, etc.) Daylight Saving Time starts,
then press to make your selection and move to the month setting.
12. Press the or arrow to select the month (January – December) Daylight Saving Time
starts, then press to make your selection and move to the DST End option.
13. Press the or arrow to select the week (1st, 2nd, etc.) Daylight Saving Time ends,
then press to make your selection and move to the month setting.
14. Press the or arrow to select the month (January – December) Daylight Saving Time
ends, then press two times to make your selection and exit Misc. Options 3.
IntelliKnight 5820XL Installation Manual
7-44 151209
7.7.7 Edit Banner Message
The banner is the message that displays on the panel LCD when the system is normal, that is,
when no alarms or troubles exist and no one is currently using system menus. You can create a
customized message, which can be up to 40 characters, two lines of 20 characters each.
If you do not create a customized message, the system will use the internal banner. You cannot
change the internal banner.
To customizing the banner display message:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Select for System Options.
5. Select for Edit Banner. A screen similar to the one shown in Figure 7-18 will display.

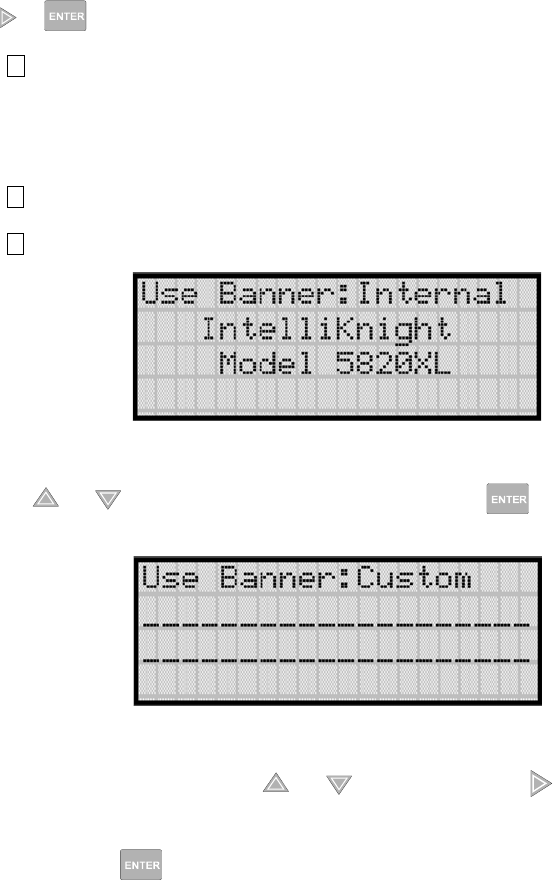

Figure 7-18 Internal Banner Message
6. Press the or arrow to select “Custom”, then press . A screen similar to the one
shown in Figure 7-19 will display.
Figure 7-19 Custom Banner Edit Screen
7. Select each letter by pressing the or arrow, then press to move to the next char-
acter.
8. When done, press to move to line two of the custom banner. Repeat step 7 and 8.
7
5
8
Programming
151209 7-45
7.8 JumpStart Autoprogramming
To run JumpStart:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Select for System Options.
5. Press the or arrow to select "Yes" from the warning screen.
6. Press .
IMPORTANT!
JumpStart is intended to be used prior to performing any custom programming. Each time
JumpStart is executed, all options will be reset to their default values. Do not run
JumpStart after you have configured the system through programming.
7
6
IntelliKnight 5820XL Installation Manual
7-46 151209
7.9 Computer Account
An installer at the panel site can initiate communications between the panel and a computer
running the 5660 SKSS (see also Section 8.5.16). In order for this communication to function
properly both the computer (running the software) and the control panel must have matching
computer account numbers and computer access codes.
Before you program in this location you should know how your control panel will
communicate with the downloading computer, either through direct connect (RS232) or via
the phone lines (Internal Modem).
If the panel initiates the call to a downloading computer, a phone number must be
programmed in the computer accounts area. If the computer initiates the call, answering
machine bypass may need to be selected (see Section 7.7.2.7).
To program computer account information:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Please wait . . .
4. Select for System Options.
5. Enter the computer account number, then press .
6. Enter the computer code (up to 7-digits), then press .
7. Enter the phone number the panel will dial to connect to a downloading computer (up to
40-digits), then press . See Table 7-7 for special dialing characters.
7
7
Programming
151209 7-47
7.10 Access Codes
Access codes provide the user access to the control panel functions. Each access code can be
customized for each user. This allows some users the ability to access programming and other
higher level panel functions, while other users may only need access to lower level functions
such as preforming fire drills, or acknowledging trouble conditions.
Profile 1 is the profile that dictates what functions the Fire Fighter Key has access to. Because
this is the profile for a key the user name and the access code can not be edited for this profile.
Profile 2 is the profile for the installer and is referred to as the "Installer Code". This profile’s
user name and panel functions can not be edited.
Table 7-8 lists the panel functions that can be selected for each user profile.
To change an access code:
1. Enter the installer code.
2. Press or to display the main menu.
3. Select for Program Menu.
Display reads: Initializing
Table 7-8: User Profile Selectable Panel Functions
Type of Function Selectable Functions
Panel Operations
System Reset
System Silence
System Event Acknowledge
Fire Drill Key
Panel Menus
System Test
Fire Drill Menu
Indicator Test
Walk Test no Report
Walk Test with Report
Dialer Test
Clear History Buffer
Point Functions
Disable/Enable Point
Point Status
Set SLC Device Address
SLC Device Locator
SLC Mult-Device Locator
I/O Point Control
Event History
Set Time & Date
Printer Options
Event Logging
Print Event History
Print Detector Status
Print System Configuration
Reset Dialer
Program Menu
System Information
Upload/Download
7
IntelliKnight 5820XL Installation Manual
7-48 151209
Please wait . . .
4. Select for System Options.
Display reads: Select Profile 01
Fire Fighter’s Key
5. Select the access code you wish to edit by pressing the or arrow.
6. Then press .
7.10.1 Profile Edit Menu
From the Profile Edit Menu you can change the users name, access code, and the panel
functions that the user will have access to with their code.
Note: Profile 1 (Fire Fighter’s Key) the user name and access code can not be edited. Profile 2 (Installer) the
user name and panel functions can not be edited.
7.10.1.1 Edit Name
7. Select each character of a word by pressing the or arrow, then press to move to
the next character.
8. Repeat step 7 until user name is complete.
9. Then press to finish.
7.10.1.2 Edit Access Code
10. Enter new access code (minimum of 4 digits, maximum of 7 digit)
11. Press .
12. Enter code again.
13. Press .
7.10.1.3 Panel Functions
14. Press the or arrow to move through the list of available functions.
15. Then press to move to Y (yes) or N (no) selection column.
16. Press the or arrow to select Y or N.
17. Press .
18. Repeat steps 14 through 17 until user profile is complete.
8
151209 8-1
Section 8
System Operation
Operation of the control panel is simple. Menus guide you step-by-step through operations.
This section of the manual is an overview of the operation menus. Please read this entire
section carefully before operating the panel.
Press to view Main Menu: Select the desired menu option. Enter your access code if
prompted.
Note: See Section 7.10 for information on how to modify user access code profiles.
8.1 User and Installer Default Codes
User Code (factory-programmed as 1111).
Installer Code (factory-programmed as 5820).
8.2 Annunciator Description
Figure 8-1shows the annunciator that is part of the control panel board assembly.
Figure 8-1 Control Panel Annunciator
IntelliKnight 5820XL Installation Manual
8-2 151209
8.2.1 LCD Displays
The control panel LCD displays system messages, annunciates alarms, supervisories and
troubles; provides status information; and prompts for input. These messages can be up to 80
characters, displaying over four lines of 20 characters each. Annunciator keys beep when they
are pressed.
8.2.2 Banner
The banner is the message that displays on the control panel when the system is in normal
mode (no alarm or trouble condition exists and menus are not in use). You can create a
customized message that will display instead of the internal (default) message. See Section
7.7.7 for information on customizing the banner.
Figure 8-2 Banner Display Examples
8.3 Key Operation
The key on the control panel board assembly is for accessing the Main Menu. The key is
activated when it is turned once to the right (clockwise). If the key has been used to activate
the menu, it must be turned counter-clockwise to exit the menu.
Figure 8-3 Using a Key to Access the Main Menu
System Operation
151209 8-3
8.4 Menu System
The control panel is easy to operate from Main Menu. To view the Main Menu press the
or button on the control panel or remote annunciator, then turn the firefighter’s key
clockwise or enter your access code. The Main Menu will appear as shown in Section 8.4.1.
Select the desired option. If you have entered a code or firefighter’s key does not have access
to the menu item you have selected the following display message will appear:
-Access denied.-
Entered PIN does not
allow access to this
function.
You must enter an access code with the correct profile settings to gain access to that menu
item.
The control panel supports up to 20 access codes. The profile for each access code (or user)
can be modified through the programming menu option (see Section 7.10 for access code
programming).
8.4.1 Main Menu Overview
The chart below is a brief overview of the Main Menu. These options are described in greater
detail throughout this section of the manual.
Main Menu Options Description
System Tests From here both menus can access Fire Drill and Indicator Test.
Point Functions From here both menus can enable / disable points.
Event History Display event history on the LCD. See Section 8.5.4 for more information.
Set Time and Date Set time and date for the system.
Printer Options Options for controlling a printer if attached to the system. If a printer is used,
the Model 5824 serial/parallel interface module must be used.
Reset Dialer Cancel any attempt to call the central station. Any calls awaiting additional
attempts will be aborted.
Program Menu Brings up a set of menus for programming the panel, including changing
access codes. These options are described in detail in Section 7.
System Info View system information, including model and serial numbers and revision
number and date.
Up/Download Initiate communication from the panel site between the panel and a
computer running the Silent Knight Software Suite.
1
2
3
4
5
6
7
8
9
IntelliKnight 5820XL Installation Manual
8-4 151209
8.4.2 Using the Menus
8.5 Basic Operation
8.5.1 Setting Time and Date
1. From the Main Menu, select for Set Date and Time.
2. Make changes in the fields on the screen. Use (right arrow) to move through the fields.
Use the and to select options in the fields.
3. When the date and time are correct, press .
8.5.2 Disable / Enable a Point
1. From the Main Menu, select for Point Functions.
2. Select for Disable/Enable Point. A list of modules displays.
3. Use and to move through the list. Press to select the module where the
point you want to disable/enable is located. A description of the point should display. The
fourth line of the screen should show "NORMAL" (meaning that the point is currently
enabled) or "DISABLED" (the point is currently disabled). Press to toggle between NOR-
MAL and DISABLE.
8.5.3 Disable / Enable NACs by Group
1. From the Main Menu, select for point functions.
2. Select to Disable NACs by group or to Enable NACs by group.
3. Use and to move through the list of groups. Press to select the group high-
lighted.
To move through the menus: Use and to move through the options in a menu. Use to move to a
previous menu.
To select an option: Enter the number of the option.
–OR–
Press (Enter key) if the option appears at the top of the menu (= symbol
displays after the option number in this case).
ENTER
4
ENTER
2
1
ENTER
2
1
2
ENTER
System Operation
151209 8-5
8.5.4 View Event History
Use the View Event History feature to display events on LCD. From the Main Menu, press
to select Event History. Events will begin displaying with most recent events first.
The panel can store up to 1000 events. When it reaches its 1000-event capacity, it begins
deleting, starting with the oldest events.
If a printer is attached to the system (via a Module 5824 serial/parallel interface module), you
can print event history (see Section 8.5.17).
The 5660 SKSS or 5670 SKSS can be used to retain more than 1000 events and to create
event history reports.
8.5.4.1 To clear the event history
From the Installer menu select for System Tests. From the test menu select Clear
History Buffer.
8.5.5 Conduct a Fire Drill
1. From the Main Menu, press for System Tests.
2. Press for Fire Drill. You will be prompted to press .
3. The drill will begin immediately after you press .
4. Press any key to end the drill. (If you do not press any key to end the fire drill manually, it
will time out automatically after ten minutes.)
If a fire drill switch has been installed, activating the switch will begin the drill; deactivating
the switch will end the drill.
8.5.6 Conduct an Indicator Test
The indicator test checks the annunciator LEDs, PZT, and LCD display.
1. From the Main Menu, press for System Tests.
2. Press for Indicator Test. The system turns on each LED several times, beeping the PZT
as it does so. At the same time it scrolls each available character across the LCD. A prob-
lem is indicated if any of the following occurs:
• An LED does not turn on;
• You do not hear a beep;
• All four lines of the LCD are not full.
This test takes approximately 15 seconds to complete. You can press any key to end manually
while the test is still in progress. When the test ends, you will be returned to the <Test Menu>.
3
1
6
1
1
ENTER
ENTER
1
2
IntelliKnight 5820XL Installation Manual
8-6 151209
8.5.7 Conduct a Walk Test
1. From the Main Menu, press for System Tests.
2. Select for Walk Test-No Rpt. The LCD will display “WALK TEST STOPPED” on
Line 1 and “ENTER = start test” on Line 2. If you select this option, central station report-
ing will be disabled while the test is in progress.
Or
Select for Walk Test-with Rpt. The LCD will display “WALK TEST STOPPED” on
Line 1 and “ENTER = start test” on Line 2. If you select this option, central station report-
ing will occur as normal during the walk test.
The panel generates a TEST report to the central station when the walk test begins. During
a walk test, the panel’s normal fire alarm function is completely disabled, placing the
panel in a local trouble condition. All zones respond as 1-Count zones (respond when a
single detector is in alarm) during a walk test. Each alarm initiated during the walk test
will be reported and stored in the event history buffer.
3. Press to end the walk test. The system will reset. The panel will send a "TEST
RESTORE" report to the central station.
If you do not end the walk test manually within four hours, it will end automatically.
If an alarm or pre-alarm condition is occurring in the system, you will not be able to enter the
walk test.
Note: the panel does not do a full 30 second reset on resettable power outputs. As soon as the device is back to
normal, the panel is ready to go to the next device.
8.5.8 Conduct a Dialer Test
1. From the Main Menu, press for System Tests.
2. Select for Dialer Test. The screen will display “Manual dialer test started”. When the
test is completed, you will be returned to the <Test Menu>.
IMPORTANT!
If any alarm verification zones are being used, the user will be asked if they
wish to disable alarm verification during walk test. This occurs for either walk
test option.
1
3
4
ENTER
1
5
System Operation
151209 8-7
8.5.9 Silence alarms or troubles
Press and enter your code or rotate the key at the prompt. If an external silence
switch has been installed, activating the switch will silence alarms or troubles. If you are
already using system menus when you press , you will not need to enter your code or
rotate the key.
Note: Alarm and trouble signals that have been silenced but the detector remains un-restored will un-silence ev-
ery 24 hours until it is restored.
8.5.10 Reset alarms
Press and enter your code or rotate the key at the prompt. If an external reset switch
has been installed, activating the switch will reset alarms. If you are already using system
menus when you press , you will not need to enter your code or rotate the key.
8.5.11 Check Detector Through Point Status
The control panel constantly monitors smoke detectors to ensure that sensitivity levels are in
compliance with NFPA 72.
If sensitivity for a detector is not in compliance, the panel goes into trouble, generating a CAL
TRBLE condition. A detector enters a CAL MAINT state to indicate that it is approaching an
out of compliance condition (but is currently still in compliance).
When a CAL TRBLE condition occurs, the central station receives a detector trouble report
(“373” + Zone # for Contact ID format; “FT” + Zone # in SIA format).
To check sensitivity for an individual detector, follow the steps below. Section 8.5.17 provides
instructions for printing the status of all detectors in the system.
1. From the Main Menu, press for Point Functions.
2. Press for Point Status.
3. Select the module where the point you want to check is located.
4. Enter the number of the point you want to check and press .
SILENCE
SILENCE
RESET
RESET
2
2
ENTER
IntelliKnight 5820XL Installation Manual
8-8 151209
5. A screen similar to those shown in Figure 8-4 will display.
Figure 8-4 Checking Detector Sensitivity Compliance
If a printer is attached to the system (via a Module 5824 serial/parallel interface module), you
can print detector status (see Section 8.5.17).
8.5.12 View Status of a Point
1. From the Main Menu, select for Point Status.
2. From the list that displays, press to select the module where this point is located.
The screen that displays will show you if the point has a trouble and will provide sensitiv-
ity compliance information. (See Section 8.5.11 for complete information about detector
sensitivity compliance.)
8.5.13 View Alarms or Troubles
When the system is in alarm or trouble, you can press to view the location of an alarm or
trouble. See Section 8.5.13 for more information.
8.5.14 View System Information
Press from the Main Menu to view the panel model and serial number and system version
number and date. The information displays for several seconds then returns to the main menu.
8.5.15 Reset dialer
From the Main Menu, select . The LCD will display “Dialer reset in progress...” You will be
returned to the Main Menu when the reset is completed.
2
ENTER
8
6
System Operation
151209 8-9
8.5.16 Communicating with a Remote Computer
An installer at the panel site can initiate communications between the panel and a computer
running the SKSS 5660. You can use this feature to upload a panel configuration. For
example, if you have made programming changes to an installation on site using an
annunciator, you can send your changes to the computer, so that the central station will have
the latest data about the installation. See the software manual for more information (PN
151240).
To initiate communication:
1. From the Main Menu, select for Up/Download.
2. From the next screen that displays, select the communication device. Options are:
3. If you are using the panel’s internal modem to communicate, you will be prompted to
enter a phone number. If you are communicating via the RS232 connection, a phone num-
ber is not needed and this step will be skipped.
If the phone number you will be calling is already displayed, press . Continue with
Step 4.
If the phone number you will be calling is not already displayed, enter the number and press
. A phone number can be up to 40 digits long and can contain the following special
characters.
Use the number buttons on the annunciator or the up- and down-arrow keys to select special
characters. Characters begin displaying after “9”.
4. You will be prompted to enter an account number. If the account number you want to use
is already displayed, just press to begin communication.
If the account number displayed is not the correct one, enter the account number and press
to begin communication.
5. The panel will attempt to communicate with the computer. If communication was estab-
lished, the upload task you created will be placed in the SKSS 5660 job queue, awaiting
processing. When processing is completed, an “Unsolicited Upload” task will appear in
the queue.
= Internal Modem If you select this option, you will use the panel’s built-in modem to call
the panel.
= RS232 connection If you select this option, the panel and a computer are both on-site
connected via a 9-pin straight-through serial cable.
# Pound (or number) key on the telephone
* Star key on the telephone
, Comma (character for 2-second pause)
9
1
2
ENTER
ENTER
ENTER
ENTER
IntelliKnight 5820XL Installation Manual
8-10 151209
8.5.17 Working with a Printer
If you are using the Model 5824 serial/parallel interface module, several printing options are
available. See Section 4.7 for information about installing the 5824.
1. From the Main Menu, select Printer Options.
2. From the next screen, select the 5824 module where the printer is connected.
3. If the printer is not currently busy printing another report, a screen with the following
options will be available. If the printer is busy, a message will display. You can press to
cancel the current print job. These options will then display.
Note: Detector status can also be viewed and printed using the 5660 SKSS or 5670 SKSS (facility monitoring on-
ly).
= Event Logging Enables event logging, which causes the printer to continuously print events as they occur. The
date/time will print in 24-hour military format. Once event logging is enabled, it will remain
enabled until canceled by the installer. If you need to disable event logging, return to this option
and press to disable.
Sample Event Log
= Print Event History Prints the up-to-1000 events currently stored in the panel’s event history buffer. Events print
starting with the newest. The date and time printed will be when the event actually occurred and
will print in 24-hour military format.
Sample Event
History Print-Out
= Print Detector
Status
Prints the current status of all detectors in the system. This is a method for finding out if any
detectors are out of NFPA compliance or any detectors need maintenance (are approaching an
out of compliance condition).
Sample Detector
Status Print-Out
5
1
1
1
EVENT LOG:
EVENT LOG:
STARTED: 02/17/97 02:23
STOPPED: 02/17/97 15:02
02/17/97 11:23 Event: System Silenced
02/17/97 11:24 Event: System Reset
02/17/97 14:30 Event: Local Programming Begin
02/17/97 15:01 Event: Local Programming Ended Successfully
2
EVENT HISTORY: PRINTED: 02/28/97 13:35
02/20/97 09:05 Event 2 of 10: System Reset
02/28/97 13:31 Event 2 of 10: Walk Test End
02/20/97 09:02 Event 3 of 10: System Silenced
02/22/97 08:47 Event 4 of 10: Printer Off Line 4
02/22/97 08:52 Event 4 of 10: Printer On Line 4
02/25/97 15:54 Event 5 of 10: Local Programming Begin
02/25/97 16:10 Event 5 of 10: Local Programming Ended Successfully
02/28/97 12:50 Event 6 of 10: Walk Test Begin
.
.
.
3
System Operation
151209 8-11
8.6 Operation Mode Behavior
The control panel can be in one of seven conditions at any given moment: Normal, Alarm,
Prealarm, Supervisory, Trouble, Silenced, and Reset. Table 8-1 describes the behavior of the
panel in each of these modes.
Table 8-1: Operation Mode Behavior
Operation
Mode Occurs When System Behavior In This Mode You Can
Normal No alarm or
trouble
condition exists
and menus are
not in use.
SYSTEM POWER LED is on.
The All Systems Normal display indicates
that the system is in normal mode.
The current date and time display on the
last line of the LCD.
Enter the appropriate code to activate the User or
Installer Menu, or rotate the key to activate the User
Menu.
Alarm A smoke
detector goes
into alarm or a
pull station is
activated.
The dialer seizes control of the phone line
and calls the central station.
The on-board annunciator sounds a loud,
steady beep (any notification devices
attached to the system will also sound).
GENERAL ALARM LED flashes.
The LCD displays a screen similar to this
one.
Press the down arrow to view the alarm. A screen
similar to this one displays.
Press and enter an access code (or
activate the key) to silence the annunciator (and any
notification devices attached to the system).
When the alarm condition clears, press
and enter a code (or activate the key) to restore the
panel to normal.
SILENCE
RESET
IntelliKnight 5820XL Installation Manual
8-12 151209
Supervisory The system
detects a
supervisory
condition.
The dialer seizes control of the phone line
and calls the central station.
The on-board annunciator sounds a loud,
pulsing beep in the sequence one second
on, one second off.
SUPERVISORY LED flashes.
The LCD displays a screen similar to this
one.
Press (down arrow) to view the supervisory
condition. A screen similar to this one displays.
Press and enter an access code (or
activate the key) to silence the annunciator.
Once the supervisory condition has been corrected,
the system will restore itself automatically.
Trouble A system trouble
condition
occurs.
The dialer seizes control of the phone line
and calls the central station.
The on-board annunciator sounds a loud,
pulsing beep in the sequence one second
on, nine seconds off.
SYSTEM TROUBLE LED flashes.
The LCD displays a screen similar to this
one.
Press (down arrow) to view the trouble. A
screen similar to this one displays.
Press and enter an access code (or
activate the key) to silence the annunciator.
Once the trouble condition has been fixed, the
system will restore itself automatically.
Table 8-1: Operation Mode Behavior
Operation
Mode Occurs When System Behavior In This Mode You Can
SILENCE
SILENCE
System Operation
151209 8-13
Prealarm A single detector
trips in a 2-
Count zone. (2-
Count means
two detectors
must trip before
an alarm is
reported.)
Touchpad PZT beeps.
The LCD displays a screen similar to this
one.
Press (down arrow) to view the prealarm. A
screen similar to this one displays.
All system operations are available in this mode.
Reset The
button is pressed
followed by a
valid code or
rotation of the
key.
All LEDs are on briefly then the LCD
displays "ALARM RESET IN
PROGRESS". If the reset process
completes normally, the date and time
normal mode screen displays.
Menus are not available during the reset process.
Silenced An alarm or
trouble
condition has
been silenced
but still exists.
To silence
alarms and
troubles, press
followed by the
Installer or User
Code or rotate
the key.
SYSTEM SILENCE LED is on. SYSTEM
TROUBLE, SUPERVISORY or
GENERAL ALARM LED (depending on
condition) is on. The annunciator (and any
notification devices attached to the
system) will be silenced.
Press (down arrow) to view the location of the
alarm or trouble. When the condition no longer
exists, the SYSTEM SILENCED and SYSTEM
TROUBLE LED, SUPERVISORY or GENERAL
ALARM LEDs turn off.
Table 8-1: Operation Mode Behavior
Operation
Mode Occurs When System Behavior In This Mode You Can
RESET
SILENCE
IntelliKnight 5820XL Installation Manual
8-14 151209
8.7 Releasing Operations
This control panel supports two types of releasing, Double Interlock Zone, and Single
Interlock Zone. The Double Interlock Zone operation requires an interlock switch input in the
system, and the Single Interlock does not. An interlock switch is typically a dry-contact
pressure switch.
When a Single or Double Interlock Zone releasing is selected the system is will automatically
default the following system parameters:
Note: The defaults created can be modified through programming if desired.
• Output Group 2 is created. Output Group 2 will be defaulted as an "Alarm" output group
for all releasing zones. NAC [34:001] is assigned to Output Group 2.
• Output Group 3 is created. Output Group 3 will be defaulted as an "Pre-Alert" output
group for all releasing zones. NAC [34:002] is assigned to Output Group 3.
• Output Group 4 is created. Output Group 4 will be defaulted as a "Release" output group
for all releasing zones. NAC circuit [34:003] is assigned to Output Group 4.
Note: The installer must define which input points will be used for detectors, manual release switches, or inter-
lock/pressure switches.
Figure 8-5 Wiring Configuration for Solenoid
Do not mix cross alarming zones with smoke verification zones. There must be at least two
automatic detection devices in each protected space. Spacing must be reduced to 0.7 times the
linear spacing in accordance with NFPA 72. See Section 7.4 for zone option programming.
Table 8-2: Approved Releasing Solenoids
Manufacturer Part Number Rating Current Freq
Asco T8210A107 24 VDC 3A max 0 Hz
8210G207 24 VDC 3A max 0 Hz
Model 7641
Must Mounted
at the Solenoid
System Operation
151209 8-15
8.7.1 Single Interlock Zone Releasing
A single interlock zone utilizes a minimum of two addressable detectors and a designated
manual release switch.
Conditions Required for an Pre-Alert Output Activation
If any single addressable detector is activated, the “Pre-Alert” output will activate. This alerts
the user that the initial stages required for a release condition are present. (Also refer to Table
8-3.)
Conditions required for an General Alarm and Release Output Activation
If two or more addressable detectors, or a manual release switch activate, the “Alarm” and the
“Release” outputs will activate. (Also refer to Table 8-3.)
Important!
Only addressable detectors can be used. No conventional detectors can be used.
Each Single Interlock Zone input requires at least one manual release switch.
Table 8-3: Single Interlock Zone Operation
Inputs Output Results
1st Addressable Detector    
2nd Addressable Detector    
Manual Release Station    
Normal
Pre-Alert
Pre-Alert
Release and General Alarm
Release and General Alarm
Release and General Alarm
Release and General Alarm
Release and General Alarm
IntelliKnight 5820XL Installation Manual
8-16 151209
8.7.2 Double Interlock Zone Releasing
A Double Interlock Zone uses a minimum of two Addressable detectors, a designated manual
release switch, and an interlock switch input. An interlock switch is typically a dry-contact
pressure switch and will be referred to as an interlock/pressure switch in this document.
Conditions Required for a Pre-Alert Output Activation
If any single addressable detector is activated, the “Pre-Alert” output will activate. This alerts
the user that the initial stages required for a release condition are present. (Also refer to Table
8-3.)
Conditions Required for a General Alarm Output Activation
If two addressable detectors, a manual release switch is activated, or an interlock switch is
active, the "Pre-Alert", and "General Alarm" outputs will activate.
Conditions Required for a Release Output Activation
Any release requires the activation of an interlock switch, and either a manual release switch
or 2 activated addressable detectors. When these conditions are met, the "Release" and
"General Alarm" outputs will activate, and the "Alert" outputs will deactivate.
Important!
Only addressable detectors can be used. No conventional detectors can be used.
Each Single Interlock Zone input requires at least one manual release switch.
Each Double Interlock Zone input requires at least one Interlock/pressure switch
Table 8-4: Double Interlock Zone Operation
Inputs Output Results
1st Addressable Detector 4 4 4
2nd Addressable Detector     4 4 4
Manual Release Station     4 4 4 4
Interlock/Pressure Switch 4 4 4 4 4
Normal
Pre-Alert
Pre-Alert
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Pre-Alert and General Alarm
Release and General Alarm
Release and General Alarm
Release and General Alarm
Release and General Alarm
Release and General Alarm
System Operation
151209 8-17
8.8 Smoke Alarm Verification
Figure 8-6 illustrates how the Smoke Alarm Verification cycle operates.
Figure 8-6 Smoke Verification Cycle
During the Confirmation Period if there is no alarm indication then the system will return to
normal operation.
IntelliKnight 5820XL Installation Manual
8-18 151209
151209 9-1
Section 9
Reporting
This section lists receivers that are compatible with this control panel, and the reporting codes sent
by the control panel for SIA and Contact ID formats.
9.1 Receivers Compatible with the Control Panel
Table 9-1 shows receivers compatible with the control panel.
9.2 Reporting Formats Dialer Outputs
Table 9-1: Receivers Compatible with the Control Panel
Manufacturer Model Format
Silent Knight Model 9800 SIA and Contact ID
Model 9000 (SIA formats) SIA
Ademco Model 685 (Contact ID ) Contact ID
Sur-Gard SG-MLR2-DG (V. 1.64 or higher) SIA and Contact ID
Osborne Hoffman Quickalert SIA and Contact ID
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
System Events Note: Note: System events are reported when either "Report by Point" or "Report by
Zone" is selected.
AC power restore Trouble System Event AR 3 301 00 000
AC power lost Trouble System Event AT 1 301 00 000
SBUS expander trouble restore Trouble System Event ER Exp. ID 3 333 00 Exp. ID
SBUS Class A supervision restore Trouble System Event ER Exp. ID 3 333 00 Exp. ID
Short circuit removed from SLC
communication loop
Trouble System Event ER Exp. ID 3 332 00 Exp. ID
SLC Class A supervision restored Trouble System Event ER Exp. ID 3 331 00 Exp. ID
SBUS expander trouble Trouble System Event ET Exp. ID 1 333 00 Exp. ID
SBUS Class A supervision lost Trouble System Event ET Exp. ID 1 333 00 Exp. ID
Short circuit detected on SLC com-
munication loop
Trouble System Event ET Exp. ID 1 332 00 Exp. ID
SLC Class A supervision lost Trouble System Event ET Exp. ID 1 331 00 Exp. ID
Fire drill has begun Test System Event FI 1 604 00 000
Fire drill ended Test System Event FK 3 604 00 000
Panel date has been changed Trouble System Event JD 1 625 00 000
IntelliKnight 5820XL Installation Manual
9-2 151209
Panel time has been changed Trouble System Event JT 1 625 00 000
Local programming begin Trouble System Event LB 1 627 00 000
Phone line 1 trouble restore Trouble System Event LR 1 3 351 00 001
Phone line 2 trouble restore Trouble System Event LR 2 3 352 00 002
Local programming ended normally Trouble System Event LS 1 628 00 000
Phone line 1 trouble detected Trouble System Event LT 1 1 351 00 001
Phone line 2 trouble detected Trouble System Event LT 2 1 352 00 002
Local programming aborted or ended
with errors
Trouble System Event LU 1 628 00 000
Periodic test event – normal Test System Event RP 1 602 00 000
Periodic test event – off normal Test System Event RY 1 608 00 000
Initial power up Trouble System Event RR 1 305 00 000
Remote programming ended nor-
mally
Trouble System Event RS 1 412 00 000
Unable to report to an account Trouble System Event RT Acct # 1 354 Acct # Acct #
Remote programming aborted or
ended with errors
Trouble System Event RU 1 413 00 000
User has initiated dialer test Test System Event RX 1 601 00
Water release circuit has been dis-
abled
Trouble System Event pi Exp. ID SS Pnt # 1 203 Exp.
ID
Pnt #
Water release circuit has been re-
enabled
Trouble System Event pi Exp. ID SR Pnt # 3 203 Exp.
ID
Pnt #
Walk test end Test System Event TE 3 607 00 000
SLC address programming ended;
system has been re-enabled.
Test System Event TE 3 607 00 000
Walk test begin Test System Event TS 1 607 00 000
SLC address programming started;
system has been shut down.
Test System Event TS 1 607 00 000
Printer paper restore Trouble System Event VI Exp ID 3 335 00 Exp. ID
Printer is out of paper Trouble System Event VO Exp ID 1 335 00 Exp. ID
Printer back online Trouble System Event VY Exp ID 3 336 00 Exp. ID
Printer offline Trouble System Event VZ Exp ID 1 336 00 Exp. ID
Auto dialer test communication trou-
ble
Trouble System Event YC Line # 1 350 00 Line #
Report to an account successful Trouble System Event YK Acct # 3 354 Acct # Acct #
Auto dialer test communication trou-
ble restore
Trouble System Event YK Line # 3 350 00 Line #
Ground fault condition detected Trouble System Event YP Exp. ID 1 310 00 Exp. ID
Ground fault condition restore Trouble System Event YQ Exp. ID 3 310 00 Exp. ID
Battery voltage restore Trouble System Event YR Exp. ID 3 302 00 Exp. ID
Battery voltage low Trouble System Event YT Exp. ID 1 302 00 Exp. ID
Zone Events Note: Note: Zone events are reported only when "Report by Zone" is selected.
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
Reporting
151209 9-3
SLC LED Module trouble restore Trouble Zone Event ER 0000 3 333 00 000
SLC LED Module trouble Trouble Zone Event ET 0000 1 333 00 000
Manual pull switch alarm Alarm Zone Event FA Zone 1 115 00 Zone
Detector alarm Alarm Zone Event FA Zone 1 110 00 Zone
Manual pull switch alarm restore Restore Zone Event FH Zone 3 115 00 Zone
Detector alarm restore Restore Zone Event FH Zone 3 110 00 Zone
Manual pull switch trouble restore Trouble Zone Event FJ Zone 3 373 00 Zone
Detector trouble restore Trouble Zone Event FJ Zone 3 373 00 Zone
Positive Alarm Sequence acknowl-
edge switch trouble restore
Trouble Zone Event FJ Zone 3 373 00 Zone
Auxiliary power trouble restore Trouble Zone Event FJ 0000 3 320 00 000
Notification output trouble restore Trouble Zone Event FJ 1000+Gro
up #
3 320 00 Group #
Manual pull switch trouble Trouble Zone Event FT Zone 1 373 00 Zone
Detector trouble Trouble Zone Event FT Zone 1 373 00 Zone
Positive Alarm Sequence acknowl-
edge switch trouble
Trouble Zone Event FT Zone 1 373 00 Zone
Auxiliary power trouble Trouble Zone Event FT 0000 1 320 00 000
Notification trouble Trouble Zone Event FT 1000+Gro
up#
1 320 00 Group #
User initiated a system reset Reset Zone Event OR 1 401 00 000
Water flow switch alarm Alarm Zone Event SA Zone 1 113 00 Zone
Water flow switch alarm restore Restore Zone Event SH Zone 3 113 00 Zone
Water flow switch trouble restore Trouble Zone Event SJ Zone 3 373 00 Zone
Supervisory/Tamper switch trouble
restore
Trouble Zone Event SJ Zone 3 373 00 Zone
Supervisory condition restore Trouble Zone Event SR Zone 3 203 00 Zone
Supervisory condition Trouble Zone Event SS Zone 1 203 00 Zone
Water flow switch trouble Trouble Zone Event ST Zone 1 373 00 Zone
Supervisory/Tamper switch trouble Trouble Zone Event ST Zone 1 373 00 Zone
Zone-based AUX1 switch alarm Alarm Zone Event UA 1000+Zon
e
1 140 01 Zone
Zone-based AUX2 switch alarm Alarm Zone Event UA 2000+Zon
e
1 140 02 Zone
System-based AUX1 switch alarm Alarm Zone Event UA 1000 1 140 01 000
System-based AUX2 switch alarm Alarm Zone Event UA 2000 1 140 02 000
Zone-based AUX1 switch alarm
restore
Restore Zone Event UH 1000+Zon
e
3 140 01 Zone
Zone-based AUX2 switch alarm
restore
Restore Zone Event UH 2000+Zon
e
3 140 02 Zone
System-based AUX1 switch alarm
restore
Restore Zone Event UH 1000 3 140 01 000
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
IntelliKnight 5820XL Installation Manual
9-4 151209
System-based AUX2 switch alarm
restore
Restore Zone Event UH 2000 3 140 02 000
Zone-based AUX1 switch trouble
restore
Trouble Zone Event UJ 1000+Zon
e
3 373 01 Zone
Zone-based AUX2 switch trouble
restore
Trouble Zone Event UJ 2000+Zon
e
3 373 02 Zone
System-based AUX1 switch trouble
restore
Trouble Zone Event UJ 1000 3 373 01 000
System-based AUX2 switch trouble
restore
Trouble Zone Event UJ 2000 3 373 02 000
External Reset/Silence/Fire Drill
switch trouble restore
Trouble Zone Event UJ 0000 3 373 00 000
Zone-based AUX1 switch trouble Trouble Zone Event UT 1000+Zon
e
1 373 01 Zone
Zone-based AUX2 switch trouble Trouble Zone Event UT 2000+Zon
e
1 373 02 Zone
System-based AUX1 switch trouble Trouble Zone Event UT 1000 1 373 01 000
System-based AUX2 switch trouble Trouble Zone Event UT 2000 1 373 02 000
External Reset/Silence/Fire Drill
switch trouble
Trouble Zone Event UT 0000 1 373 00 000
Point Events Note: Note: Point events are reported only when "Report by Point" is selected.
Manual pull switch alarm Alarm Point Event pi Exp. ID FA Pnt # 1 115 Exp.
ID
Pnt #
Manual release switch alarm (Water
Release Zone)
Alarm Point Event pi Exp. ID FA Pnt # 1 110 Exp.
ID
Pnt #
Interlock switch alarm (Water
Release Zone)
Alarm Point Event pi Exp. ID FA Pnt # 1 110 Exp.
ID
Pnt #
Detector alarm Alarm Point Event pi Exp. ID FA Pnt # 1 110 Exp.
ID
Pnt #
Point disabled Disable Point Event pi Exp. ID FB Pnt # 1 571 Exp.
ID
Pnt #
Manual pull switch alarm restore Restore Point Event pi Exp. ID FH Pnt # 3 115 Exp.
ID
Pnt #
Manual release switch alarm restore
(Water Release Zone)
Restore Point Event pi Exp. ID FH Pnt # 3 110 Exp.
ID
Pnt #
Interlock switch alarm restore (Water
Release Zone)
Restore Point Event pi Exp. ID FH Pnt # 3 110 Exp.
ID
Pnt #
Detector alarm restore Restore Point Event pi Exp. ID FH Pnt # 3 110 Exp.
ID
Pnt #
Notification output trouble restore Trouble Point Event pi Exp. ID FJ Pnt # 3 320 Exp.
ID
Pnt #
Manual pull switch trouble restore Trouble Point Event pi Exp. ID FJ Pnt # 3 373 Exp.
ID
Pnt #
Manual release switch trouble restore
(Water Release Zone)
Trouble Point Event pi Exp. ID FJ Pnt # 3 373 Exp.
ID
Pnt #
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
Reporting
151209 9-5
Interlock switch trouble restore
(Water Release Zone)
Trouble Point Event pi Exp. ID FJ Pnt # 3 373 Exp.
ID
Pnt #
Detector trouble restore Trouble Point Event pi Exp. ID FJ Pnt # 3 373 Exp.
ID
Pnt #
Positive Alarm Sequence acknowl-
edge switch trouble restore
Trouble Point Event pi Exp. ID FJ Pnt # 3 373 Exp.
ID
Pnt #
Aux power trouble restore Trouble Point Event pi Exp. ID FJ Pnt # 3 320 Exp.
ID
Pnt #
Notification output trouble Trouble Point Event pi Exp. ID FT Pnt # 1 320 Exp.
ID
Pnt #
Manual pull switch trouble Trouble Point Event pi Exp. ID FT Pnt # 1 373 Exp.
ID
Pnt #
Manual release switch trouble (Water
Release Zone)
Trouble Point Event pi Exp. ID FT Pnt # 1 373 Exp.
ID
Pnt #
Interlock switch trouble (Water
Release Zone)
Trouble Point Event pi Exp. ID FT Pnt # 1 373 Exp.
ID
Pnt #
Detector trouble Trouble Point Event pi Exp. ID FT Pnt # 1 373 Exp.
ID
Pnt #
Positive Alarm Sequence acknowl-
edge switch trouble
Trouble Point Event pi Exp. ID FT Pnt # 1 373 Exp.
ID
Pnt #
Auxiliary Power Trouble Trouble Point Event pi Exp. ID FT Pnt # 1 320 Exp.
ID
Pnt #
Point Enabled Disable Point Event pi Exp. ID FU Pnt # 3 571 Exp.
ID
Pnt #
Water flow switch alarm Alarm Point Event pi Exp. ID SA Pnt # 1 113 Exp.
ID
Pnt #
Water flow switch disabled Disable Point Event pi Exp. ID SB Pnt # 1 571 Exp.
ID
Pnt #
Supervisory/Tamper switch or
supervisory duct dectector disabled
Disable Point Event pi Exp. ID SB Pnt # 1 571 Exp.
ID
Pnt #
Water flow switch alarm restore Restore Point Event pi Exp. ID SH Pnt # 3 113 Exp.
ID
Pnt #
Water flow switch trouble restore Trouble Point Event pi Exp. ID SJ Pnt # 3 373 Exp.
ID
Pnt #
Supervisory/Tamper switch or
supervisory duct dectector trouble
restore
Trouble Point Event pi Exp. ID SJ Pnt # 3 373 Exp.
ID
Pnt #
Supervisory condition restore Trouble Point Event pi Exp. ID SR Pnt # 3 203 Exp.
ID
Pnt #
Supervisory condition Trouble Point Event pi Exp. ID SS Pnt # 1 203 Exp.
ID
Pnt #
Water flow switch trouble Trouble Point Event pi Exp. ID ST Pnt # 1 373 Exp.
ID
Pnt #
Supervisory/Tamper switch or
supervisory duct dectector trouble
Trouble Point Event pi Exp. ID ST Pnt # 1 373 Exp.
ID
Pnt #
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
IntelliKnight 5820XL Installation Manual
9-6 151209
Water flow switch re-enabled Disable Point Event pi Exp. ID SU Pnt # 3 571 Exp.
ID
Pnt #
Supervisory/Tamper switch or
supervisory duct dectector re-enabled
Disable Point Event pi Exp. ID SU Pnt # 3 571 Exp.
ID
Pnt #
Zone-based AUX1 switch alarm Alarm Point Event pi Exp. ID UA Pnt # 1 140 Exp.
ID
Pnt #
Zone-based AUX2 switch alarm Alarm Point Event pi Exp. ID UA Pnt # 1 140 Exp.
ID
Pnt #
System-based AUX1 switch alarm Alarm Point Event pi Exp. ID UA Pnt # 1 140 Exp.
ID
Pnt #
System-based AUX2 switch alarm Alarm Point Event pi Exp. ID UA Pnt # 1 140 Exp.
ID
Pnt #
Auxiliary switch input disabled Disable Point Event pi Exp. ID UB Pnt # 1 571 Exp.
ID
Pnt #
Zone-based AUX1 switch alarm
restore
Restore Point Event pi Exp. ID UH Pnt # 3 140 Exp.
ID
Pnt #
Zone-based AUX2 switch alarm
restore
Restore Point Event pi Exp. ID UH Pnt # 3 140 Exp.
ID
Pnt #
System-based AUX1 switch alarm
restore
Restore Point Event pi Exp. ID UH Pnt # 3 140 Exp.
ID
Pnt #
System-based AUX2 switch alarm
restore
Restore Point Event pi Exp. ID UH Pnt # 3 140 Exp.
ID
Pnt #
Zone-based AUX1 switch trouble
restore
Trouble Point Event pi Exp. ID UJ Pnt # 3 373 Exp.
ID
Pnt #
Zone-based AUX2 switch trouble
restore
Trouble Point Event pi Exp. ID UJ Pnt # 3 373 Exp.
ID
Pnt #
External Reset/Silence/Fire Drill
switch trouble restore
Trouble Point Event pi Exp. ID UJ Pnt # 3 373 Exp.
ID
Pnt #
System-based AUX1 switch trouble
restore
Trouble Point Event pi Exp. ID UJ Pnt # 3 373 Exp.
ID
Pnt #
System-based AUX2 switch trouble
restore
Trouble Point Event pi Exp. ID UJ Pnt # 3 373 Exp.
ID
Pnt #
Zone-based AUX1 switch trouble Trouble Point Event pi Exp. ID UT Pnt # 1 373 Exp.
ID
Pnt #
Zone-based AUX2 switch trouble Trouble Point Event pi Exp. ID UT Pnt # 1 373 Exp.
ID
Pnt #
External Reset/Silence/Fire Drill
switch trouble
Trouble Point Event pi Exp. ID UT Pnt # 1 373 Exp.
ID
Pnt #
System-based AUX1 switch trouble Trouble Point Event pi Exp. ID UT Pnt # 1 373 Exp.
ID
Pnt #
System-based AUX2 switch trouble Trouble Point Event pi Exp. ID UT Pnt # 1 373 Exp.
ID
Pnt #
Auxiliary switch input re-enabled Disable Point Event pi Exp. ID UU Pnt # 3 571 Exp.
ID
Pnt #
An unexpected SLC device has been
detected
Trouble Point Event pi Exp. ID XE Pnt # 1 380 Exp.
ID
Pnt #
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
Reporting
151209 9-7
An unexpected SLC device has been
removed
Trouble Point Event pi Exp. ID XI Pnt # 3 380 Exp.
ID
Pnt #
SIA Reporting Format Contact ID Reporting Format
Event Description Event
Family
Event Class
(System, Zone,
or Point)
Module
ID #
(if any)
SIA
Event
Code
Parameter
(if any) Qualifier Event
Code Group
#Contact
#
IntelliKnight 5820XL Installation Manual
9-8 151209
151209 10-1
Section 10
Testing and Troubleshooting
10.1 Troubleshooting
This section of the manual offers suggestions for troubleshooting hardware problems. Please
read this section if you encounter a problem when installing the control panel. If these
suggestions do not solve your problem or if you encounter a problem that is not listed here,
contact Silent Knight Technical Support at 800-446-6444 for assistance.
10.2 Common Problems
Problem Possible Cause / Suggested Actions
Trouble message "DBL ADDR" (Double
Address) displays on LCD.
An address has been assigned to more than one detector. Correct the address
following the procedure described in Section 5.8.
Auxiliary power or notification circuits
have incorrect polarity.
Correct polarity. For notification and auxiliary power circuits: When in alarm
or powered, terminals labeled "X" are positive, terminals labeled "O" are
negative.
SLC devices are not being recognized
(trouble message "Missing" displays).
Check hardware connections.
If devices are physically connected, make sure wiring is correct (see Section
5.4). For the main panel, the positive side of device must be connected to
terminal 34; the negative side must be connected to Terminal 33. For 5815XL
devices, make sure the device connects to the 5815XL via the SLC OUT
terminals.
There can be only one SLC loop on the main panel and on each 5815XL
module. Do not connect devices to terminals labeled SLC IN.
Make sure SLC devices have been addressed properly following the
procedure described in Section 5.8.
For contact monitor modules, which are addressed using dip switches, the dip
switch must be set to the correct address before power is applied to the SLC
loop. If this procedure is not followed, the device will have an incorrect
address.
Make sure correct polarity has been observed for SLC device wiring. See
Section 5.4.
IntelliKnight 5820XL Installation Manual
10-2 151209
10.2.1 Periodic Testing And Maintenance
To ensure proper and reliable operation, it is recommended that system inspection and testing
be scheduled monthly or as required by national and/or local fire codes. Testing should be
done by a qualified services representative if a malfunction is encountered.
Before testing:
1) Notify the fire department and/or central alarm receiving station if an alarm condition is
transmitted.
2) Notify facility personnel of a test so that alarm sounding devices are ignored during the test
period.
SLC devices are not being recognized
(trouble message "Missing" displays on
the annunciator).
Check that SLC loop impedance is within the required range.
To measure impedance, use the following procedure.
1. Disconnect both wires from the terminal block at the panel (SLC devices
can remain connected).
2. Measure the impedance from positive to negative and from negative to
positive. Both measurements should be greater than 500 K ohms. If the
installation uses T-taps, test each T-tap individually.
3. Temporarily connect the positive wire to the negative wire of the SLC loop
at the point farthest from the panel (SLC devices can remain connected).
4. Measure the impedance from positive to negative and from negative to
positive. Both measurements must be less than 50 ohms.
The panel indicates a ground fault trouble
condition (trouble message "GROUND
FAULT" displays).
An earth ground fault occurs when the panel senses an unexpected flow of
current from one or more of its terminals to the earth connection (Terminal 2).
Isolate the wiring that is causing the fault by removing wiring connections
one at a time until the earth fault is no longer present. Pause at least five
seconds after removing a wire before removing the next one.
The panel will also go into ground fault if a computer is connected to the
panel via a serial cable attached to the panel’s 9-pin connector. This is a
correct method for on-site communication between a panel and a computer.
Ignore the ground fault message in this case. The trouble will clear
automatically when you disconnect the computer from the cable
5815XL module that has been physically
connected to the panel but is not being
recognized.
Check the status of the 5815XL green LED. If it flashes in the pattern .5 sec.
on / .5 sec. off, it is likely that the 5815XL has not been added to the system
through programming. JumpStart will add any 5815XLs connected to the
panel. If you have already run JumpStart, 5815XLs can be added manually
(see Section 7.3.2).
Check that the correct ID for the 5815XL module has been set through the
DIP switches. Assign ID#1 to the first 5815XL and ID#2 to the second
5815XL. See Section 4.10.1 for complete details.
If the wiring between the 5815XL and the panel is correct, measure the
voltage from 5815XL Terminal (+) to Terminal (-). Voltage should be in the
range 27.2-27.4V when AC power is present.
If the green LED is not flashing, the likely cause is incorrect wiring from
between the 5815XL and the panel. See Section 4.6.1 for wiring details.
Problem Possible Cause / Suggested Actions
Testing and Troubleshooting
151209 10-3
3) When necessary, activation of Notification Appliances can be prevented by the DISABLE
function
Testing:
1) Activate a input via an alarm initiating device and check that the correct outputs activate
(Notification Appliances sound/flash, relays activate, alarm LED lights). Reset system.
Repeat for each alarm initiating device.
2) Momentarily open the following circuits one at a time and check for a trouble signal:
• Notification Appliance (bell) Circuits.
• Initiating devices
3) If new batteries were installed, wait 48 hours before completing this step. Remove AC
power, activate initiating device and check that:
• The ALARM indicator lights.
• All active Notification Appliances sound.
Measure battery voltage while the Notification Appliances are sounding. Replace any battery
with terminal voltage less than 85% of rating. Reapply AC power and RESET system.
10.2.2 Event History
The event history can be useful for tracking or recalling a trouble condition.
IntelliKnight 5820XL Installation Manual
10-4 151209
10.3 Built-in Troubleshooting and Testing Tools
The fire control panel has several built-in testing and troubleshooting tools that can be utilized
to save time while testing and troubleshooting points and SLC devices.
10.3.1 SLC Device Locator
SLC device locator can be used to locate a device on a SLC loop.
Follow these steps to locate a particular SLC device:
1. Select (Point Functions) from the Main Menu.
2. Select (SLC Dev Locator).
A message similar to the one shown in Figure 10-1 will display.
Figure 10-1 Shut Down Warning
3. Press the or arrow to toggle NO to YES then press .
If NO is chosen you will exit back to the Point Function menu.
If Yes is chosen the system will cease normal operation leaving the premise unprotected.
4. Select the SLC loop.
5. Enter the SLC address of the device you wish to locate.
The LED on the selected device will start flashing.
6. Press any key to exit SLC device locator function.
Note: Once you exit the system will resume normal operation.
2
4
Testing and Troubleshooting
151209 10-5
10.3.2 SLC Multi Locator
This feature is the same as SLC Device Locator, except you can locate up to 8 devices on a
single search.
Follow these instructions to locate multiple SLC devices:
1. Select (Point Functions) from the Main Menu.
2. Select (SLC Dev Locator).
A message similar to the one shown in Figure 10-1 will display.
Figure 10-2 Shut Down Warning
3. Press the or arrow to toggle NO to YES then press .
If NO is chosen you will exit back to the Point Function menu.
If Yes is chosen the system will cease normal operation leaving the premise unprotected.
4. Select the SLC loop.
5. Enter up to 8 SLC addresses for the devices you wish to locate.
The LEDs on the selected devices will start flashing.
6. Press the to exit SLC multi-locator function.
Note: Once you exit the system will resume normal operation.
2
5
IntelliKnight 5820XL Installation Manual
10-6 151209
10.3.3 I/O Point Control
This feature allows you to toggle any output on or off and trip any input device. This can be
useful to test a point’s output mapping.
Follow these steps to control a I/O point:
1. Select (Point Functions) from the Main Menu.
2. Select (I/O Point Control).
3. Select the Module the point is on.
4. Enter the zone number , or press the or arrow to select the point you wish to test,
then press .
5. Press to generate an alarm for an input point or activate an output point.
6. To exit press .
2
6
Testing and Troubleshooting
151209 10-7
10.3.4 Earth Fault Resistance
Table 10-1 lists the earth fault resistance detection for each applicable terminal on the FACP.
Table 10-1: Earth Fault Resistance Values by Terminal
Function Terminal
Number
Terminal Label Low Biased High Biased
(Values in Ohms) High
Trip High
Restore Low
Trip Low
Restore
Flexput™
Notification
Circuits
4XI/O 6 - - 00
5O 0 0 - -
6XI/O 5 - - 00
7O 0 0 - -
8XI/O 4 - - 00
9O 0 0 - -
10 X I/O 3 - - 0 0
11 O 0 0 - -
12 X I/O 2 - - 0 0
13 O 0 0 - -
14 X I/O 1 - - 0 0
15 O 0 0 - -
SBUS
Communication
16 B SBUS OUT - - 0 0
17 A - - 0 0
SBUS Power 18 + 0 0 - -
19 - - - 0 0
SBUS
Communication
20 B SBUS IN - - 0 0
21 A - - 0 0
SBUS Power 22 + 0 0 - -
23 - - - 0 0
SLC Terminals 33 SC- SLC OUT - - 0 0
34 S+ 0 0 - -
35 SC- SLC IN - - 0 0
36 S+ 0 0 - -
IntelliKnight 5820XL Installation Manual
10-8 151209
151209 11-1
Section 11
Installation Records
This section of the manual is for you to use if you wish to track of how points, zones, and
groups have been programmed.
11.1 SLC Point Record
You can use the chart that begins below to keep track of SLC points.
Default addresses for ID: On-board: = 33
5815-1: = 1
5815-2: = 2
5815-3 = 3
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
On-board 1 On-board 25
On-board 2 On-board 26
On-board 3 On-board 27
On-board 4 On-board 28
On-board 5 On-board 29
On-board 6 On-board 30
On-board 7 On-board 31
On-board 8 On-board 32
On-board 9 On-board 33
On-board 10 On-board 34
On-board 11 On-board 35
On-board 12 On-board 36
On-board 13 On-board 37
On-board 14 On-board 38
On-board 15 On-board 39
On-board 16 On-board 40
On-board 17 On-board 41
On-board 18 On-board 42
On-board 19 On-board 43
On-board 20 On-board 44
On-board 21 On-board 45
On-board 22 On-board 46
On-board 23 On-board 47
On-board 24 On-board 48
IntelliKnight 5820XL Installation Manual
11-2 151209
On-board 49 On-board 89
On-board 50 On-board 90
On-board 51 On-board 91
On-board 52 On-board 92
On-board 53 On-board 93
On-board 54 On-board 94
On-board 55 On-board 95
On-board 56 On-board 96
On-board 57 On-board 97
On-board 58 On-board 98
On-board 59 On-board 99
On-board 60 On-board 100
On-board 61 On-board 101
On-board 62 On-board 102
On-board 63 On-board 103
On-board 64 On-board 104
On-board 65 On-board 105
On-board 66 On-board 106
On-board 67 On-board 107
On-board 68 On-board 108
On-board 69 On-board 109
On-board 70 On-board 110
On-board 71 On-board 111
On-board 72 On-board 112
On-board 73 On-board 113
On-board 74 On-board 114
On-board 75 On-board 115
On-board 76 On-board 116
On-board 77 On-board 117
On-board 78 On-board 118
On-board 79 On-board 119
On-board 80 On-board 120
On-board 81 On-board 121
On-board 82 On-board 122
On-board 83 On-board 123
On-board 84 On-board 124
On-board 85 On-board 125
On-board 86 On-board 126
On-board 87 On-board 127
On-board 88
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
Installation Records
151209 11-3
5815-1 1 5815-1 42
5815-1 2 5815-1 43
5815-1 3 5815-1 44
5815-1 4 5815-1 45
5815-1 5 5815-1 46
5815-1 6 5815-1 47
5815-1 7 5815-1 48
5815-1 8 5815-1 49
5815-1 9 5815-1 50
5815-1 10 5815-1 51
5815-1 11 5815-1 52
5815-1 12 5815-1 53
5815-1 13 5815-1 54
5815-1 14 5815-1 55
5815-1 15 5815-1 56
5815-1 16 5815-1 57
5815-1 17 5815-1 58
5815-1 18 5815-1 59
5815-1 19 5815-1 60
5815-1 20 5815-1 61
5815-1 21 5815-1 62
5815-1 22 5815-1 63
5815-1 23 5815-1 64
5815-1 24 5815-1 65
5815-1 25 5815-1 66
5815-1 26 5815-1 67
5815-1 27 5815-1 68
5815-1 28 5815-1 69
5815-1 29 5815-1 70
5815-1 30 5815-1 71
5815-1 31 5815-1 72
5815-1 32 5815-1 73
5815-1 33 5815-1 74
5815-1 34 5815-1 75
5815-1 35 5815-1 76
5815-1 36 5815-1 77
5815-1 37 5815-1 78
5815-1 38 5815-1 79
5815-1 39 5815-1 80
5815-1 40 5815-1 81
5815-1 41 5815-1 82
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
IntelliKnight 5820XL Installation Manual
11-4 151209
5815-1 83 5815-1 123
5815-1 84 5815-1 124
5815-1 85 5815-1 125
5815-1 86 5815-1 126
5815-1 87 5815-1 127
5815-1 88
5815-1 89 5815-2 1
5815-1 90 5815-2 2
5815-1 91 5815-2 3
5815-1 92 5815-2 4
5815-1 93 5815-2 5
5815-1 94 5815-2 6
5815-1 95 5815-2 7
5815-1 96 5815-2 8
5815-1 97 5815-2 9
5815-1 98 5815-2 10
5815-1 99 5815-2 11
5815-1 100 5815-2 12
5815-1 101 5815-2 13
5815-1 102 5815-2 14
5815-1 103 5815-2 15
5815-1 104 5815-2 16
5815-1 105 5815-2 17
5815-1 106 5815-2 18
5815-1 107 5815-2 19
5815-1 108 5815-2 20
5815-1 109 5815-2 21
5815-1 110 5815-2 22
5815-1 111 5815-2 23
5815-1 112 5815-2 24
5815-1 113 5815-2 25
5815-1 114 5815-2 26
5815-1 115 5815-2 27
5815-1 116 5815-2 28
5815-1 117 5815-2 29
5815-1 118 5815-2 30
5815-1 119 5815-2 31
5815-1 120 5815-2 32
5815-1 121 5815-2 33
5815-1 122 5815-2 34
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
Installation Records
151209 11-5
5815-2 35 5815-2 75
5815-2 36 5815-2 76
5815-2 37 5815-2 77
5815-2 38 5815-2 78
5815-2 39 5815-2 79
5815-2 40 5815-2 80
5815-2 41 5815-2 81
5815-2 42 5815-2 82
5815-2 43 5815-2 83
5815-2 44 5815-2 84
5815-2 45 5815-2 85
5815-2 46 5815-2 86
5815-2 47 5815-2 87
5815-2 48 5815-2 88
5815-2 49 5815-2 89
5815-2 50 5815-2 90
5815-2 51 5815-2 91
5815-2 52 5815-2 92
5815-2 53 5815-2 93
5815-2 54 5815-2 94
5815-2 55 5815-2 95
5815-2 56 5815-2 96
5815-2 57 5815-2 97
5815-2 58 5815-2 98
5815-2 59 5815-2 99
5815-2 60 5815-2 100
5815-2 61 5815-2 101
5815-2 62 5815-2 102
5815-2 63 5815-2 103
5815-2 64 5815-2 104
5815-2 65 5815-2 105
5815-2 66 5815-2 106
5815-2 67 5815-2 107
5815-2 68 5815-2 108
5815-2 69 5815-2 109
5815-2 70 5815-2 110
5815-2 71 5815-2 111
5815-2 72 5815-2 112
5815-2 73 5815-2 113
5815-2 74 5815-2 114
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
IntelliKnight 5820XL Installation Manual
11-6 151209
5815-2 115 5815-3 28
5815-2 116 5815-3 29
5815-2 117 5815-3 30
5815-2 118 5815-3 31
5815-2 119 5815-3 32
5815-2 120 5815-3 33
5815-2 122 5815-3 34
5815-2 123 5815-3 35
5815-2 124 5815-3 36
5815-2 125 5815-3 37
5815-2 126 5815-3 38
5815-2 127 5815-3 39
5815-3 40
5815-3 1 5815-3 41
5815-3 2 5815-3 42
5815-3 3 5815-3 43
5815-3 4 5815-3 44
5815-3 5 5815-3 45
5815-3 6 5815-3 46
5815-3 7 5815-3 47
5815-3 8 5815-3 48
5815-3 9 5815-3 49
5815-3 10 5815-3 50
5815-3 11 5815-3 51
5815-3 12 5815-3 52
5815-3 13 5815-3 53
5815-3 14 5815-3 54
5815-3 15 5815-3 55
5815-3 16 5815-3 56
5815-3 17 5815-3 57
5815-3 18 5815-3 58
5815-3 19 5815-3 59
5815-3 20 5815-3 60
5815-3 21 5815-3 61
5815-3 22 5815-3 62
5815-3 23 5815-3 63
5815-3 24 5815-3 64
5815-3 25 5815-3 65
5815-3 26 5815-3 66
5815-3 27 5815-3 67
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
Installation Records
151209 11-7
Copy these pages if you additional sheets.
5815-3 68 5815-3 98
5815-3 69 5815-3 99
5815-3 70 5815-3 100
5815-3 71 5815-3 101
5815-3 72 5815-3 102
5815-3 73 5815-3 103
5815-3 74 5815-3 104
5815-3 75 5815-3 105
5815-3 76 5815-3 106
5815-3 77 5815-3 107
5815-3 78 5815-3 108
5815-3 79 5815-3 109
5815-3 80 5815-3 110
5815-3 81 5815-3 111
5815-3 82 5815-3 112
5815-3 83 5815-3 113
5815-3 84 5815-3 114
5815-3 85 5815-3 115
5815-3 86 5815-3 116
5815-3 87 5815-3 117
5815-3 88 5815-3 118
5815-3 89 5815-3 119
5815-3 90 5815-3 120
5815-3 91 5815-3 121
5815-3 92 5815-1 122
5815-3 93 5815-3 123
5815-3 94 5815-3 124
5815-3 95 5815-3 125
5815-3 96 5815-3 126
5815-3 97 5815-3 127
Table 11-1: Installation Record
Module Addr Zone /
Group Description Module Addr Zone/
Group Description
IntelliKnight 5820XL Installation Manual
11-8 151209
11.2 Conventional Output Point Record
This chart can be used to keep track of how conventional output points (circuits) have been
configured.
Point/Circuit Group Description
1
2
3
4
5
6
7
8
151209 A-1
Appendix A
Compatible Devices
A.1 Notification Appliances
For proper operation, you must use polarized devices with a Model 7628 4.7k ohm EOL
resistor on each loop. All supervised notification appliances used with the control panel must
be polarized.
Note:Not all devices can use the Sync feature, be sure to check Table A-1 to ensure the device you have chosen
will work with this feature. This control is UL listed for panel wide Synchronization.
Table A-1 below lists notification appliances compatible with the fire alarm control panel.
Appliances which can be synchronized indicate the type of snyc available in the columns
marked Audio and/or Visual.
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
AMSECO
SH24W-153075 Horn/Strobe
SAD24-153075 Strobe
SAD24-75110 Strobe
SL24W-75110 Strobe
SL24C-3075110 Strobe
SLB24-75 Strobe
RSD24-153075 Strobe
RSD24-75110 Strobe
SH24W-75110 Horn/Strobe
SH24W-3075110 Horn/Strobe
SHB24-75 Horn/Strobe
SCM24W-153075 Chimes/Strobe
SCM24W-75110 Chimes/Strobe
SCM24C-3075110 Chimes/Strobe
SCM24C-177 Chimes/Strobe
H24W Horn
H24R Horn
IntelliKnight 5820XL Installation Manual
A-2 151209
Faraday
446 Vibrating Bell
476 Vibrating Bell
477 Single Stroke Bell
2700 -M. -R, -T, -Y, -Z Strobe
2701 Series Strobe
2705 Series Strobe
2820 Snyc Temporal Horn/Strobe
2821 Snyc Temporal Horn/Strobe
2824 Horn Strobe
5333 Multi-Tone Horn)
5336 Multi-Tone Horn/Strobe
5337 Multi-Tone Horn/Strobe
5338 Multi-Tone Horn/Strobe
5343 Single Tone Horn/Strobe
5346 Electronic Horn with Strobe
5347 Electronic Horn with Strobe
5348 Single Tone Horn/Strobe
5373 8-Tone Horn/Strobe
6321 Sync Mini Horn/Strobe
6322 Mini Horn/Sync Strobe
6380 8-Tone Electronic Signal/Strobe
5376 8-Tone Horn/Strobe
5377 8-Tone Horn/Strobe
5378 8-Tone Horn/Strobe
5383 8-Tone Horn/Strobe with Sync Strobe
5386 8-Tone Horn/Strobe with Sync Strobe
5387 8-Tone Horn/Strobe with Sync Strobe
5388 8-Tone Horn/Strobe with Sync Strobe
5508 Single Gang Sync Strobe
5509 Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
Compatible Devices
151209 A-3
Faraday 5510 Strobe
5511 Strobe
5512 Strobe
5516 Strobe
5517 Strobe
5518 Strobe
5519 Strobe
5521 4” Square Sync Strobe
5522 4” Square Sync Strobe
6120 Horn
6140 Horn
6223 Horn
6226 Horn/Strobe
6227 Horn/Strobe
6228 Horn/Strobe
6243 Electron-Mechanical Horn
6244 Electron-Mechanical Horn
6245 Electron-Mechanical Horn
6246 Electron-Mechanical Horn/Strobe
6247 Electron-Mechanical Horn/Strobe
6248 Electron-Mechanical Horn/Strobe
6300 Mini-Horn
6301 Mini-Horn
6302 Mini-Horn
6310 Mini-Horn/Strobe
6311 Mini-Horn/Strobe
6312 Mini-Horn/Strobe
6314 Series -M, -R, -T, -Y, -Z Strobe
6320 Sync Mini Horn/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
IntelliKnight 5820XL Installation Manual
A-4 151209
FCI
S2415-FC Strobe
S241575-FC Strobe
S2430-FC Strobe
130-3117C Mini Horn
130-3147C Mini Horn
BLV-6 Vibrating Bell
BLV-10 Vibrating Bell
BLVCH Vibrating Chime
H12/24-FC Horn
H12/24W-FC Horn
H12/24K-FC Horn
HC12/24-FC Horn
HC12/24W-FC Horn
HC12/24K-FC Horn
FCI P2415-FC Horn/Strobe
P2415W-FC Horn/Strobe
P2415K-FC Horn/Strobe
P241575-FC Horn/Strobe
P241575W-FC Horn/Strobe
P241575F-FC Horn/Strobe
P241575K-FC Horn/Strobe
P2430-FC Horn/Strobe
P2430W-FC Horn/Strobe
P2430K-FC Horn/Strobe
P2475-FC Horn/Strobe
P2475W-FC Horn/Strobe
P2475K-FC Horn/Strobe
P24110-FC Horn/Strobe
P24110W-FC Horn/Strobe
P24110K-FC Horn/Strobe
S2430W-FC Strobe
S2430K-FC Strobe
S2475-FC Strobe
S2475W-FC Strobe
S2475K-FC Strobe
S24110-FC Strobe
S24110W-FC Strobe
S24110K-FC Strobe
Federal Signal 450 Horn
VALS Horn/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
Compatible Devices
151209 A-5
Gentex GEC-24-15 Horn/Strobes
GEC-24-30 Horn/Strobes
GEC-24-60 Horn/Strobes
GEC-24-75 Horn/Strobes
GEC-24-177 Horn/Strobes
GEC-24-110 Horn/Strobe
GEC-24-15/75 Horn/Strobe
GX91 MiniHorn Steady Tone
GX93 MiniHorn Temporal Tone
Gentex HG124 Horn
HS24-15 Horn/Strobe
HS24-30 Horn/Strobe
HS24-60 Horn/Strobe
HS24-75 Horn/Strobe
HS24-110 Horn/Strobe
HS24-1575 Horn/Strobe
GCC24 Multi Candella Horn/Strobe Ceiling Mount
GCCR24 Multi Candella Horn/Strobe Ceiling Mount
GCS24 Multi Candella Strobe Ceiling Mount
GCSR24 Multi Candella Strobe Ceiling Mount
GECR-24 Multi Candella Horn/Strobe
GES24-15 Strobes
GES24-30 Strobes
GES24-60 Strobes
GES24-75 Strobes
GES24-110 Strobes
GES24-15/75 Strobes
GES24-177 Strobes
GES3-24 Multi Candella Strobe
GESR-24 Multi Candella Strobe
GEH-24 Horn
ST24-30 Strobe
ST24-60 Strobe
ST24-75 Strobe
ST24-110 Strobe
ST24-1575 Strobe
WGEC24-75W Weatherproof Horn/Strobe
WGES24-75W Weatherproof Strobe
WGMS-24-X Horn/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
IntelliKnight 5820XL Installation Manual
A-6 151209
System Sensor
CHR Chime
CHW Chime
CHSR 2-Wire Chime/Strobe
CHSW 2-Wire Chime/Strobe
HR Horn
HW Horn
HRK Horn
P2R 2-Wire Horn/Strobe
P2R-P 2-Wire Horn/Strobe
PC2R 2-Wire Horn/Strobe
PC2R-P 2-Wire Horn/Strobe
P2RH 2-Wire Horn/Strobe High Candela
P2RH-P 2-Wire Horn/Strobe High Candela
PC2RH 2-Wire Horn/Strobe High Candela
PC2RH-P 2-Wire Horn/Strobe High Candela
P2W 2-Wire Horn/Strobe
P2W-P 2-Wire Horn/Strobe
PC2W 2-Wire Horn/Strobe
PC2W-P 2-Wire Horn/Strobe
P2WH 2-Wire Horn/Strobe High Candela
P2WH-P 2-Wire Horn/Strobe High Candela
PC2WH 2-Wire Horn/Strobe High Candela
PC2WH-P 2-Wire Horn/Strobe High Candela
P2RK 2-Wire Horn/Strobe
PC2RK 2-Wire Horn/Strobe
P2RHK 2-Wire Horn/Strobe High Candela
PC2RHK 2-Wire Horn/Strobe High Candela
P4R 4-Wire Horn/Strobe
PC4R 4-Wire Horn/Strobe
P4RH 4-Wire Horn/Strobe High Candela
P4W 4-Wire Horn/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
Compatible Devices
151209 A-7
System Sensor PC4W 4-Wire Horn/Strobe
P4WH 4-Wire Horn/Strobe High Candela
PC4WH 4-Wire Horn/Strobe High Candela
P4RK 4-Wire Horn/Strobe
PC4RK 4-Wire Horn/Strobe
P4RHK 4-Wire Horn/Strobe High Candela
PC4RHK 4-Wire Horn/Strobe High Candela
PC4RH 4-Wire Horn/Strobe High Candela
SR Strobe
SR-P Strobe
SCR Strobe
SCR-P Strobe
SRH Strobe High Candela
SRH-P Strobe High Candela
SCRH Strobe High Candela
SCRH-P Strobe High Candela
SW Strobe
SW-P Strobe
SCW Strobe
SCW-P Strobe
SWH Strobe High Candela
SWH-P Strobe High Candela
SCWH Strobe High Candela
SCWH-P Strobe High Candela
SRK Strobe
SCRK Strobe
SRHK Strobe High Candela
SCRHK Strobe High Candela
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
IntelliKnight 5820XL Installation Manual
A-8 151209
Wheelock AH-12 Horn
AH-24 Horn
AH-12WP Horn Weatherproof
AH-24WP Horn Weatherproof
AMT-241575W Multi-Tone Horn Strobe
AMT-24MCW Mutli-Tone Horn Strobe
AMT-241575W-NYC Multi-Tone Horn Strobe
AMT-12/24 Multi-tone Horn
AMT-12/24 NYC Multi-tone Horn
AS-121575W Horn/Strobe
NH-12/24 Horn
AS-241575W Horn/Strobe
AS-24MCC Horn/Strobe
AS-24MCCH Horn/Strobe
AS-24MCW Horn/Strobe
AS-24MCWH Horn/Strobe
ASWP-2475W Horn/Strobe Weatherproof
ASWP-2475C Horn/Strobe Weatherproof
ASWP-24MCWH Horn/Strobe
ASWP-24MCCH Horn/Strobe
CH-70 Chime
CH-90 Chime
CH70-241575W Chime/Strobe
CH70-24MCW Chime/Strobe
CH70-24MCWH Chime/Strobe
CH90-24MCC Chime/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
Compatible Devices
151209 A-9
Wheelock
Con’t
CH90-24MCCH Chime/Strobe
HS-24 Horn
HS4-241575W Horn/Strobe
HS4-24MCW Horn/Strobe
HS4-24MCWH Horn/Strobe
HS4-24MCC Horn/Strobe
MIZ-24S Mini Horn Strobe
MT-121575W MultitoneHorn Strobe
MT-241575W Multitone Horn Strobe
MT-24MCW Multitone Horn Strobe
MTWP-2475W Multitone Horn Strobe
MTWP-2475C Multitone Horn Strobe
MTG-121575W Multitone Horn Strobe
MTR-121575W Multitone Horn Strobe
MTWPA-2475W Multitone Horn Strobe
MTWPB-2475W Multitone Horn Strobe
MTWPG-2475W Multitone Horn Strobe
MTWPR-2475W Multitone Horn Strobe
MTWPA-24MCCH Multitone Horn Strobe
ZNH Horn
NS-121575W Horn/Strobe
NS-241575W Horn/Strobe
NS-24MCW Horn/Strobe
NS-24MCC Horn/Strobe
NS-24MCCH Horn/Strobe
ZNS-MCW Horn/Strobe
ZNS-MCWH Horn/Strobe
ZNS-24MCC Horn/Strobe
ZNS-24MCCH Horn/Strobe
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
IntelliKnight 5820XL Installation Manual
A-10 151209
Wheelock
Con’t
RSS-121575W Strobe
RSS-241575W Strobe
RSS-24MCC Strobe
RSS-24MCCR Strobe
RSS-24MCCH Strobe
RSS-24MCCHR Strobe
RSS-24MCW Strobe
RSS-24MCWH Strobe
RSSP-121575W Strobe
RSSP-241575W Strobe
RSSR-2415W Strobe
RSSR-2415C Strobe
RSSR-2475W Strobe
RSSR-2475C Strobe
RSSR-24110C Strobe
RSSA-24110W Strobe
RSSB-24110W Strobe
RSSG-24110W Strobe
RSSR-24110W Strobe
RSSA-24MCC Multi-Cd Strobe
RSSB-24MCC Multi-Cd Strobe
RSSG-24MCC Multi-Cd Strobe
RSSR-24MCC Multi-Cd Strobe
RSSWPA-2475W Strobe Weatherproof
RSSWPA-24MCCH Strobe Weatherproof
RSSWPG-24MCCH Strobe Weatherproof
RSSWPR-24MCCH Strobe Weatherproof
RSSWP-2475W Strobe Weatherproof
RSSWP-2475C Strobe Weatherproof
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
Compatible Devices
151209 A-11
Wheelock
con’t
RSSWP-24MCWH Strobe Weatherproof
ZRS-MCWH Strobe
ZRS-24MCC Strobe
ZRS-24MCCH Strobe
MB-G6-24 Motor Bell
MB-G10-24 Motor Bell
MB-G6-12 Motor Bell
MB-G10-12 Motor Bell
MIZ-24-R Mini-Horn
MT-12/24-R Multitone Horn
MT4-12/24 Multitone Horn
ZRS-MCW Strobe
MTWPR-24MCCH Multitone Horn Strobe
NH-12/24R Horn
HSR Horn/Strobe
HSW Horn/Strobe
STR Strobe
STW Strobe
HNR Horn
HNW Horn
Table A-1: Compatible Notification Appliances
Manufacturer Model Audio Visual Type
IntelliKnight 5820XL Installation Manual
A-12 151209
A.2 Two-Wire Smoke Detectors
Table A-2 lists two-wire smoke detectors that are compatible with the fire control panel. The
table is organized by manufacturer. The columns show the number of detectors per loop that
can be used.
Note: The maximum number of smoke detectors per zone is determined by both the current draw and the imped-
ance of the smoke detector. If too many smoke detectors are used on any zone, false alarms could occur.
Do not mix different models of detectors on any zone; false alarms could occur.
Do not mix detectors of different models unless the system is specifically intended to be installed in that
configuration.
Control unit Smoke Reset Time must be programmed for a number greater than or equal to the maximum
reset time of the smoke detector.
Table 1-1:
5820XL
Identifier 24H
Operating Voltage Range 18.5–27.4 VDC
Table A-2: Compatible Two-Wire Smoke Detectors
Manufacturer Model Name or Number
(Base model name or number
in parentheses.)
Compatibility ID # per Loop
Head Base
Apollo 55000-350 (45681-200) 55000-350 45681-200 24 / loop
55000-250 (45681-200) 55000-250 45681-200 24 / loop
Apollo 55000-225 55000-225 45681-255, 256,
45681-200, 220,
230, 232, 251,252
15 / loop for
Ion Detectors
15 / loop for
Photo Electric
Detectors
55000-226 55000-226
55000-227 55000-227
55000-325 55000-325
55000-328 55000-328
55000-326 55000-326
55000-327 55000-327
Compatible Devices
151209 A-13
ESL
429C (S10A) N/A S10A 30 / loop
429CRT (S11A) N/A S11A 30 / loop
429CST (S11A) N/A S11A 30 / loop
429CT (S10A) N/A S10A 30 / loop
609U01-11 S10 S00 40 / loop
609U02-11 S10 S00/S03 40 / loop
611U (601U or 602U) S10 S00/S03 40 / loop
611UD (601U or 602U) S10 S00/S03 40 / loop
611UT (601U or 602U) S10 S00/S03 40 / loop
612U (601U or 602U) S10 S00/S03 40 / loop
612UD (601U or 602U) S10 S00/S03 40 / loop
711U (701E or 701U) N/A S10A 25 / loop
712U (701E or 701U) N/A S10A 25 / loop
713-5U (702E or 701U) N/A S10A 25 / loop
713-6U (702E or 701U) N/A S10A 25 / loop
721-U (S10A) N/A S10A 30 / loop
721-UT (S10A) N/A S10A 30 / loop
Falcon 525 FDT1 N/A 17 / loop
525T FDT1 N/A 17 / loop
Hochiki
SIH-24F (HS-224D OR HSD-
224)
HD-3 HB-5 25 / loop
SLK-24F (HS-224D) HD-3 HB-5 25 / loop
SLK-24FH (HS-224D) HD-3 HB-5 25 / loop
Table A-2: Compatible Two-Wire Smoke Detectors
Manufacturer Model Name or Number
(Base model name or number
in parentheses.)
Compatibility ID # per Loop
Head Base
IntelliKnight 5820XL Installation Manual
A-14 151209
System Sensor
1400 A N/A 20 / loop
1451 (B401B) A A 20 / loop
2100 A N/A 20 / loop
2100T A N/A 20 / loop
2151 (B401) A N/A 16 / loop
2151T (B401) A N/A 16 / loop
2300T A N/A 20 / loop
2300 A N/A 20 / loop
2300TB A N/A 20 / loop
2400 A N/A 20 / loop
2400 (DH400) A N/A 20 / loop
2400AIT A N/A 20 / loop
2400AT A N/A 20 / loop
2400TH A N/A 20 / loop
2451 (B401B) A N/A 20 / loop
2451DH (DH 400) A N/A 20 / loop
2451TH (B401B) A N/A 20 / loop
2W-B A N/A 16 / loop
2WT-B A N/A 16 / loop
2WTR-B A N/A 16 / loop
Table A-2: Compatible Two-Wire Smoke Detectors
Manufacturer Model Name or Number
(Base model name or number
in parentheses.)
Compatibility ID # per Loop
Head Base
151209 B-1
Appendix B
Special Characters Lists
This section contains tables of programmable characters that may be used for device, module,
and zone names or phone numbers.
B.1 Characters used for Naming
Table B-1 list the available character and their associated numeric designator. When
programming these numbers can be entered as a short cut to using the up or down arrow keys,
to select characters when naming a point or zone.
Table B-1: Character Table
000 A 001 B 002 C 003 D
004 E 005 F 006 G 007 H
008 I 009 J 010 K 011 L
012 M 013 N 014 O 015 P
016 Q 017 R 018 S 019 T
020 U 021 V 022 W 023 X
024 Y 025 Z 026 a 027 b
028 c 029 d 030 e 031 f
032 g 033 h 034 i 035 j
036 k 037 l 038 m 039 n
040 o 041 p 042 q 043 r
044 s 045 t 046 u 047 v
048 w 049 x 050 y 051 z
052 053 0 054 1 055 2
056 3 057 4 058 5 059 6
060 7 061 8 062 9 063 :
064 - 065 _ 066 . 067 ,
068 & 069 * 070 #
IntelliKnight 5820XL Installation Manual
B-2 151209
Silent Knight Fire Product Warranty and Return Policy
General Terms and Conditions
• All new fire products manufactured by Silent Knight have a limited warranty period of
36 months from the date of manufacture against defects in materials and workmanship.
See limited warranty statement for details.
• This limited warranty does not apply to those products that are damaged due to misuse,
abuse, negligence, exposer to adverse environmental conditions, or have been modified in
any manner whatsoever.
Repair and RA Procedure
• All products that are returned to Silent Knight for credit or repair require a RMA (Return
Authorization) number. Call Silent Knight Customer Service at 800-328-0103 or
203-484-7161 between 8:00 A.M. and 5:00 P.M. EST, Monday through Friday to obtain a
return authorization number.
• Silent Knight Technical Support is available at 800-446-6444 between 8:00 A.M. and
5:00 P.M. CST, Monday through Friday.
• All returns for credit are subject to inspection and testing at the factory before actual deter-
mination is made to allow credit.
• RMA number must be prominently displayed on the outside of the shipping box. See
return address example under Advanced Replacement Policy.
• Include a packing slip that has the RMA number, a content list, and a detailed description
of the problem should be included with each return.
• All products returned to Silent Knight must be sent freight pre-paid. After product is pro-
cessed, Silent Knight will pay for shipping product back to customer via UPS ground.
• Return the Silent Knight product circuit board only. Products that are returned in cabinets
will be charged an additional $50 to cover the extra shipping and handling costs over
board only returns. Do not return batteries. Silent Knight has the authority to determine
if a product is repairable. Products that are deemed un-repairable will be returned to the
customer.
• Product that is returned that has a board date code more than 36 months from date of man-
ufacture will be repaired and the customer will be assessed the standard Silent Knight
repair charge for that model.
Advanced Replacement Policy
• Silent Knight offers an option of advance replacement for fire product printed circuit
boards that fail during the first 6 months of the warranty period. These items must be
returned with transportation charges prepaid and must be accompanied by a return
authorization.
• For advance replacement of a defective board contact your local Silent Knight Distributor
or call Silent Knight at 203-484-7161 to obtain a RMA (Return Authorization) number
and request advanced replacement,
• A new or refurbished board will be shipped to the customer. The customer will initially be
billed for the replacement board but a credit will be issued after the repairable board is
received at Silent Knight. All returned products must comply with the guidelines
described under “General Terms and Conditions”.
• The defective board must be returned within 30 days of shipment of replacement board for
customer to receive credit. No credit will be issued if the returned board was damaged due
to misuse or abuse.
• Repairs and returns should be sent to:
Silent Knight / Honeywell
Attn: Repair Department
12 Clintonville Road
Northford, CT 06472
USA
RMA Number:___________________
This warranty replaces all previous warranties and is the only warranty made by SILENT
KNIGHT. No increase or alteration, written or verbal, of the obligation of this warranty is
authorized.
“SILENT KNIGHT” is a registered trademark.
Limited Warranty
SILENT KNIGHT warrants products manufactured by it to be free from defects in materials a
nd
workmanship for thirty-six (36)
months from the date of manufacture, under normal use and service.
Products are date stamped at time of manufactu
re. The sole and exclusive obligation of SILEN
T
KNIGHT is to repair or replace, at its option, free of charge for parts and labor, any part that i
s
defective in materials or workmanship under normal use and service.
A
ll returns for credit are
subject to
inspection and testing at the factory before actual determination is made to allo
w
credit
. SILENT KNIGHT does not warrant products not manufactured by it, but assigns to the
purchaser any warranty extended by the manufacturer of such products. This warrant
y is void if the
product is altered or repaired by anyone other than SILENT KNIGHT or as expressly authorized b
y
SILENT KNIGHT in writing, or is serviced by anyone other than SILENT KNIGHT or its authorized
distributors. This warranty is also void if there
is a failure to maintain the products and systems in
which they operate in a proper and workable manner. In case of defect, secure a Return Material
A
uthorization form from our Return Authorization Department.
This writing constitutes the only warrant
y made by SILENT KNIGHT, with respect to it
s
products. SILENT KNIGHT, does not represent that its products will prevent any loss b
y
fire or otherwise, or that its products will in all cases provide the protection for which the
y
are installed or intended.
Buyer acknowledges that SILENT KNIGHT is not an insurer an
d
assumes no risk for loss or damages or the cost of any inconvenience, transportatio
n
damage, misuse, abuse, accident or similar incident.
SILENT KNIGHT GIVES NO WARRANTY, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR OTHERWISE
WHICH EXTENDS BEYOND THE DESCRIPTION ON THE FACE HEREOF. UNDER NO
CIRCUMSTANCES SHALL SILENT KNIGHT BE LIABLE FOR ANY LOSS OF OR
DAMAGE TO PROPERTY, DIRECT, INCIDENTAL OR CONSEQUENTIAL, ARISING
OUT OF THE USE OF, OR INABILITY TO USE SILENT KNIGHT ALARM’S PRODUCTS.
FURTHERMORE, SILENT KNIGHT SHALL NOT BE LIABLE FOR ANY PERSONAL
INJURY OR DEATH WHICH MAY ARISE IN THE COURSE OF, OR AS A RESULT OF,
PERSONAL, COMMERCIAL OR INDUSTRIAL USE OF ITS PRODUCTS

Navigation menu
