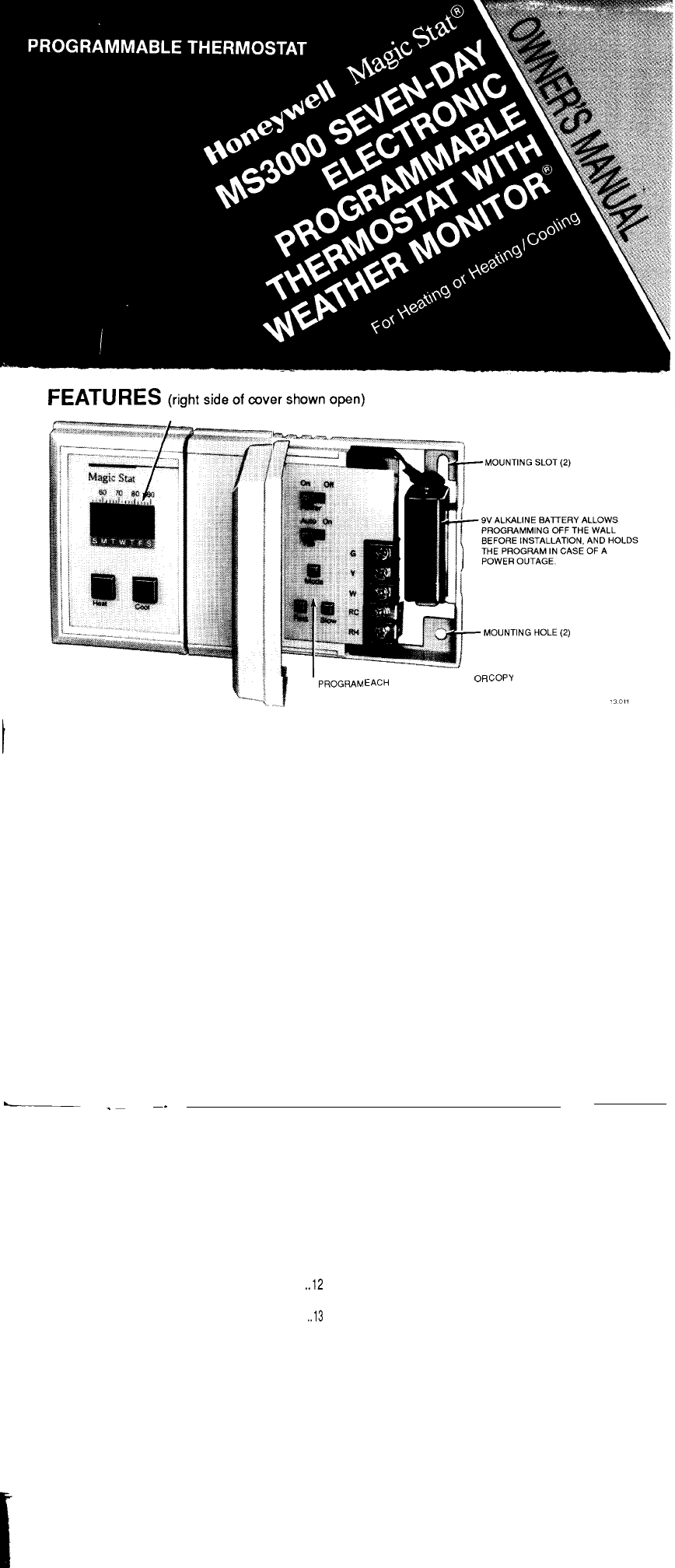

, DISPLAY WINDOW
See pages 1-3 for
description of keys.
.!
I
PROGRAM
EACH
DAY DIFFERENTLY
OR
copy
THE FIRST DAYS PROGRAM TO ALL 7 DAYS
,30,
,
SIMPLE PROGRAMMING
It’s easy to program the thermostat to fit your lifestyle.
1. Move the power switch to ON.
2. Hold MODE key until 12:00 AM shows in display.
3. Use SLOW key to set the time of your first program. Hold to go forward; tap to go back.
4. Use HEAT and COOL keys to set temperatures for your first program. For heat, hold
HEAT key to go higher, tap to go lower. For air conditioning, hold COOL to go lower, tap to go
higher.
5. Set all other programs by repeating steps 3 & 4. Press MODE to lock in for all 7 days.
6. Hold MODE until SET CLOCK shows in display. Use FAST, then SLOW to move to
current time and day. (Clock only accurate to within 10 minutes. ) Tap MODE to lock in (tempera-
ture and set point indicators will appear).
7. To review programs, hold FAST or SLOW key.
—..
_.
TABLE OF CONTENTS
Quick Reference to the Keys . . . . . . . . . . . . . . . . . . . . .. I
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...4
Programming Your Thermostat . . . . . . . . . . . . . . . ...5
Set the Program Schedule and
Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...5
Set the Current Day and Time . . . . . . . . . . . . . ...10
Check Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..I2
Option—Adding an Extra Nighttime
Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..l3
Set the Fan Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...14
Changing Your Program
. . . . . . . . . . . . . . . . . . . . . . . . . ...15
Making Permanent Program Changes . ...15
Erasing the Entire Program . . . . . . . . . . . . . . . . . . ...18
Making Temporary Program Changes . ...19
Changing for Daylight-Saving or
Standard Time , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...25
Maintaining Your Thermostat . . . . . . . . . . . . . . . . ...28
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . ...28
Recalibrating the Thermostat . . . . . . . . . . . . . . . ...29
The “Waiting” Indicator During
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...30
Your Personal Program . . . . . . . . . . . . . . . . . . . . . . . . . . ...31
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . ...32
index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...36
Relay Ordering Information . . . . . . . . . . . . . . . . . . . . ...37
Limited One-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . 41
I
![](asset-2.png)
Welcome to the world of comfort and energy savings with your new Honeywell Magic
Stat@
electronic thermostat. The Magic
Stat@
name is synonymous with innovation and state-of -the-arl
electronic controls.
Your new thermostat will automatically control the temperature in your home, keeping you
comfortable while saving energy when programmed according to the instructions in this manual.
This thermostat includes the Weather
Monitor@
feature. The operation of your furnace or air
conditioner is started early enough to reach the desired temperature at the times you set. There
is no need for you to guess when the system should turn on to reach the desired temperature.
When the outside temperature drops or rises dramatically, the thermostat activates earlier or
later to meet the next programmed setting,
-
——
TABLE OF CONTENTS
Quick Reference to the Keys . . . . . . . . . . . . . . . . . . . ...1
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...4
Programming Your Thermostat . . . . . . . . . . . . . . . ...5
Set the Program Schedule and
Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...5
Set the Current Day and Time . . . . . . . . . . . . . ...10
Check Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...12
Option—Adding an Extra Nighttime
Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..l3
Set the Fan Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...14
Changing
Your Program . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Making Permanent Program Changes . ...15
Erasing the Entire Program . . . . . . . . . . . . . . . . . . . . . 18
Making Temporary Program Changes . ...19
Changing for Daylight-Saving or
Standard Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...25
I
Maintaining Your Thermostat . . . . . . . . . . . . . . . . ...28
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . ...28
Recalibrating the Thermostat . . . . . . . . . . . . . . . ...29
The “Waiting” Indicator During
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..3o
Your Personal Program
. . . . . . . . . . . . . . . . . . . . . . . . . . ...31
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . ...32
index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...36
Relay Ordering information . . . . . . . . . . . . . . . . . . . . ...37
Limited One-Year Warrant y . . . . . . . . . . . . . . . . . . . . . . . 41
QUICK REFERENCE TO THE KEYS
Use to program heating temperatures. To raise the temperature by 2° increments,
press and hold the key. To lower the temperature, tap the key.
Heat
Use to program air conditioning temperatures. To lower the temperature by 2°
increments, press and hold the key. To raise the temperature, tap the key.
cool
On Off
ON
allows
for thermostat operation. OFF erases
any
program and disables the
m—l
furnace and air conditioner.
Power
Auto On AUTO sets the fan to turn on and off with the heating or air conditioning system.
m—[
;~i~~~
the fan to run continuously. (Applicable only to systems with more than
Fan
1
60-8026—2
![](asset-3.png)
Before the thermostat is programmed, holding this key sequences through
PROGRAM and SET CLOCK. After the thermostat is programmed, holding this key
Mode sequences through the 4 functions; release when desired function is reached. The
four functions include:
PROGRAM—allows you to program the heating and cooling temperature points,
at 2 to 6 different times per day, for each day of the week.
SET CLOCK—allows you to enter the current time to within 10 minutes.
HOLD—allows you to set and hold one temperature until you choose to change
it. This feature can be used only after the thermostat has been programmed. See
page 20.
HOLD UNTIL—allows you to set and hold one temperature for up to a week; it
will return to your normal schedule at a time and day you set. This feature can be
used only after the thermostat has been programmed. See page 22.
Tapping the Mode key interrupts function sequencing, and returns to display of
present room temperature.
2
When in SET CLOCK mode, hold key to advance clock time in 4 hour
incre-
Fast
ments. To step the clock backward by 4 hour increments, tap the key.
When in PROGRAM mode, use to review entered programs. Hold key to
advance to next programmed temperature range; tap to back up.
When in SET CLOCK mode, hold key to advance clock time in 10 minute
slow increments. To step the clock backward by 10 minute increments, tap the key.
When in PROGRAM mode, hold key to advance program time in 30 minute
increments. To step the time backward by 30 minute increments, tap the key.
69-8026-2
.LOvbw
r--AM 311V8
3N11V)11V
/
AH3..LV83H1
9N111V1SNI
![](asset-4.png)
PROGRAMMING YOUR THERMOSTAT
You may program this thermostat either before or after installation. See installation manual
form number 69-8025 for installation instructions.
If you are programming the thermostat before installation, be sure the battery is installed (see
page 4). During programming, if you leave the thermostat for a few minutes, it will go blank to
save battery power. This does not affect your program; hold HEAT key to relight the
display.
STEP 1
SET THE PROGRAM SCHEDULE AND TEMPERATURES
Before you begin... The schedule form on page 31 provides an opportunity to plan your
schedule. Please fill it out before you begin.
On Off Open right-hand door of thermostat. Switch to OFF to clear the thermostat.
Power
5
69-8026—2
On Off
Switch ON. The display shows this test position.
=
60 70 80 90
1111111111111111111
3
mmmmmmmm mmmmmmmmmmm
18:80
:y&kyMK
AM PM
~~};~nL
■ ■ ■ ■ ■ ■ ■
SMTWTFS
A few seconds later, the display looks like this.
60 70 80 90
1111111111111111111
3
■
mmmmn
70
Y
■ mmmnmm
SMTWTFS
z~
ROOM
TEMPERATURE
OISPLAYEO
6
-—-

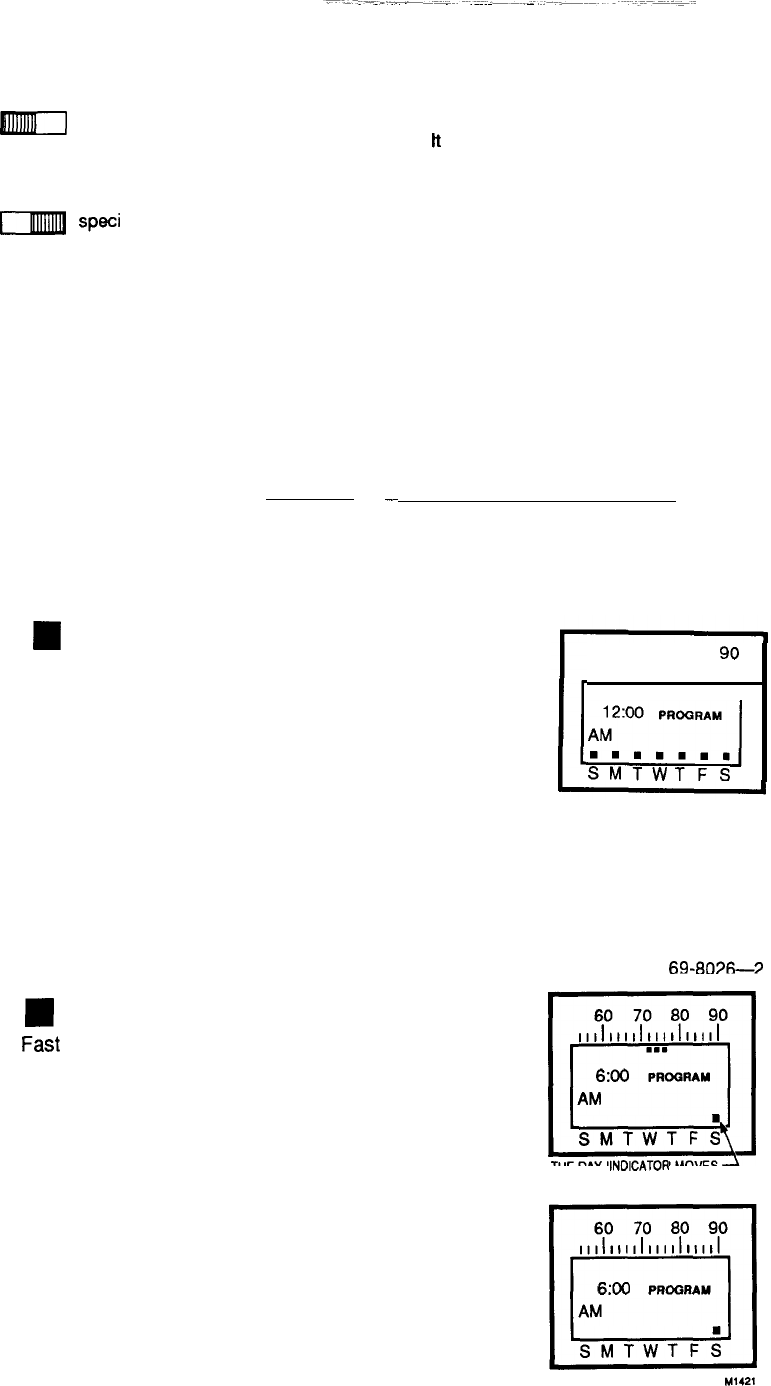

To begin programming, press and hold until the
display looks like this. If you pass this display,
‘ode continue to hold key until this display comes back.
NOTE: All seven day indicators are onto tell you that
you are programming every day of the week the
same. You will be able to change individual days
later.
To set the first time program, press and hold until
the display shows the time you want to wake up
(6:00
“ow AM shown).
The time advances in 30-minute intervals. You can
back up by tapping the key; go forward by holding the
key.
60 70 80 90
~1111
,1111,11,1,11111
12:00
PROGRAM
AM
60 70 80 90
,1,1,,,,1,,,,1,,,,1
n
6:00
PROGRAM
AM
■ ■ ■ ■ ■ ■ ■
SMTWTFS
69-8026—2
![](asset-5.png)

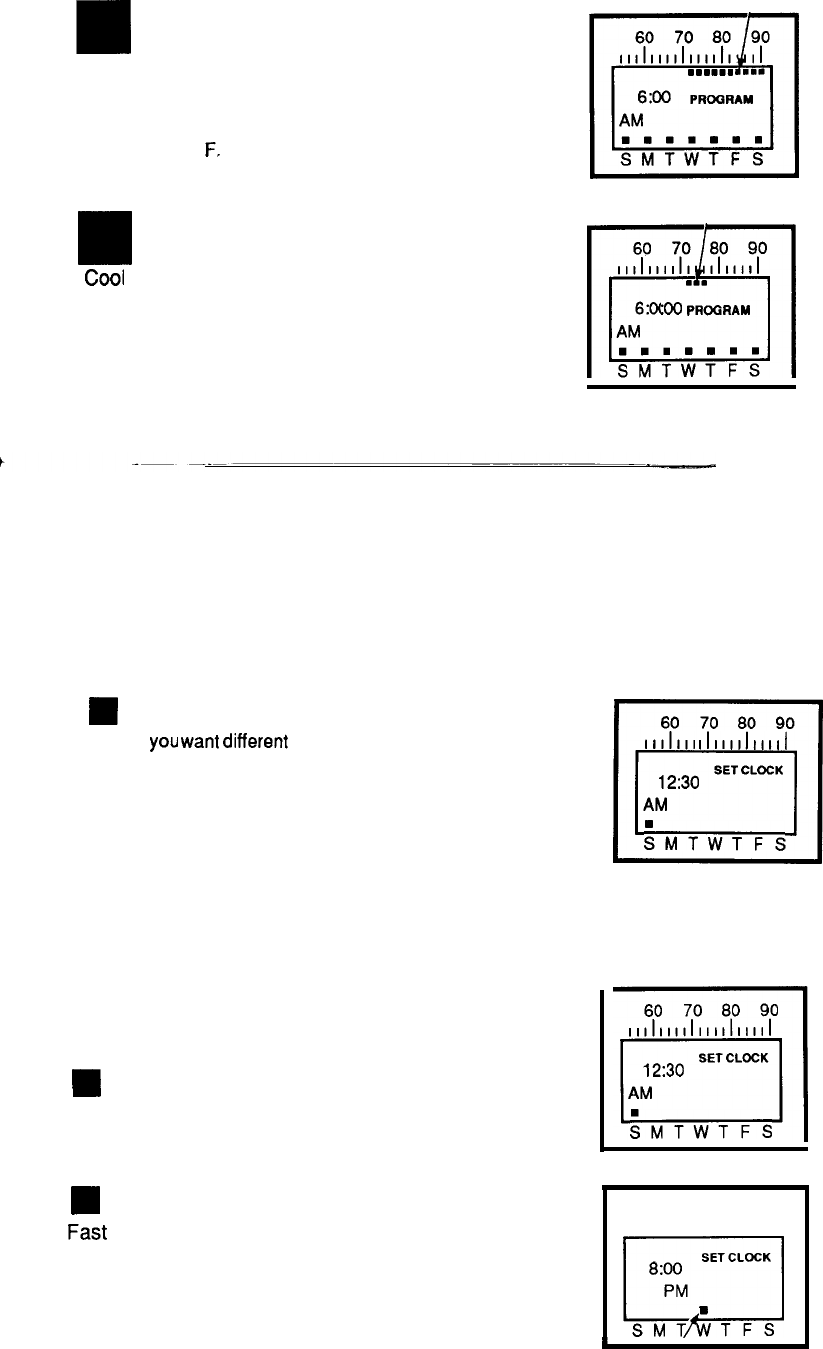

To set the first temperature program, press and
TEMPERATURE SET POINT INDICATORS
hold until the display shows the temperature you want
when you wake up during the heating season (72°
m
60 70 80 90
Heat shown) .Youcan backup bytapping thekey. 111111111111111 II
¤~~~~~ ■ mw
The LEFT temperature set point indicator should be stopped
6:00
PROGRAM
under the heating temperature you desire when you wake up, with ‘M
a maximum of 80°
F,
■ mmmmnm
SMTWTFS
If you have air conditioning, press and hold until
the display shows the temperature you want when
you wake up during cooling season (76° shown). You
COOi
can backup by tapping the key. You must have a 6°
or greater difference between heat and cool tempera-
ture settings.
TEMPERATURE SET POINT INDICATORS
m
60 70 80 90
1111111111 1111111
●
m
6
:~
PRCGRAM
AM
■ mmmumm
SMTWTFS
8
The RIGHT temperature set point indicator should be stopped under the cooling temperature
you desire when you wake up, with a minimum of 62° F.
To set additional program times and temperatures, repeat steps starting on lower
half of page 7 through here. First set a time, then enter heating and cooling tem-
peratures desired at that time.
You must set at least one more time/temperature schedule, and may set up to a total of 6 per
day. They must beat least 30 minutes apart.
After programming is complete, hoId to lock in
place. It is now copied into all 7 days of the. week. If
n
60 70 80 90
Mode YOU
want
different
programs for different days, see1111111
llllllllilll
page
15.
El
12:30
SET CLOCK
AM
;MTwITFs
69-8026—2
STEP 2
SET THE CURRENT DAY AND TfME
Now you will set the current day and time of day.

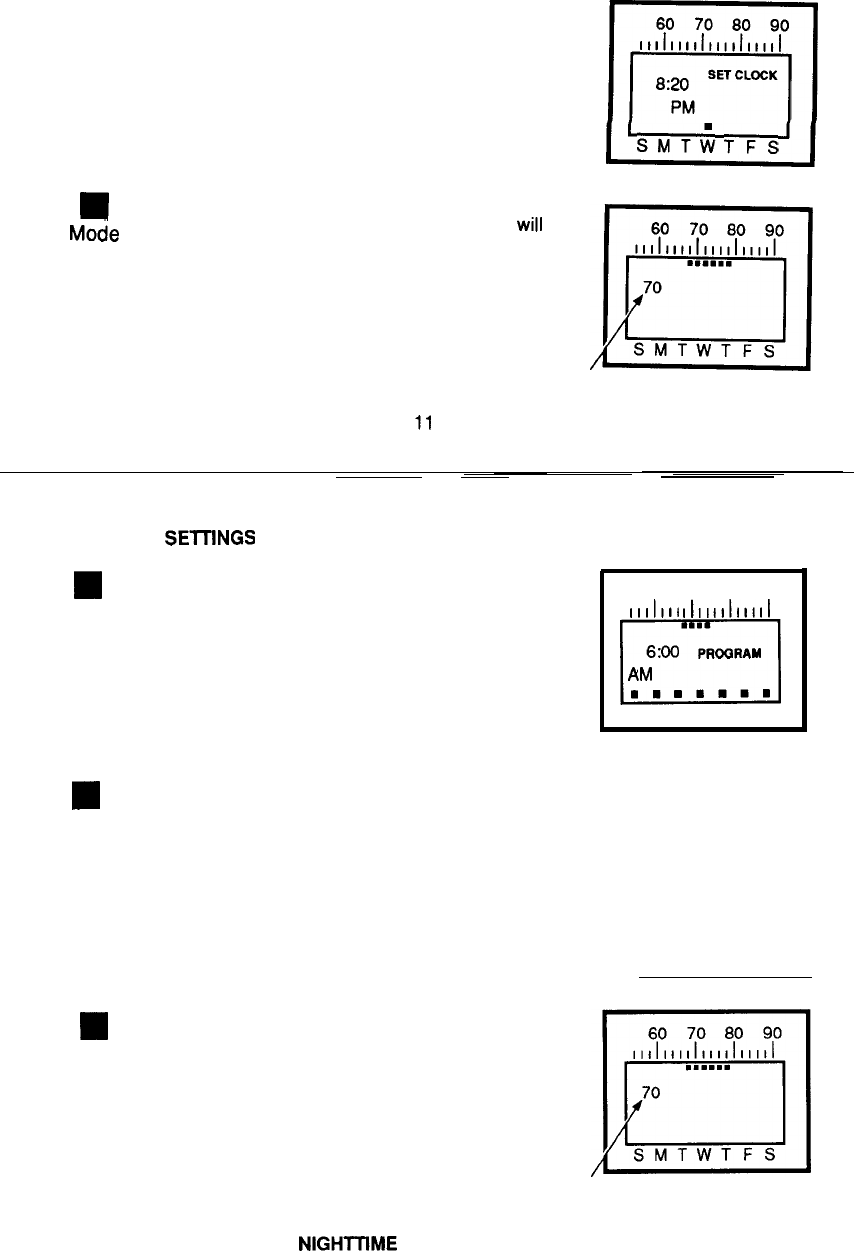

Press until the display looks like this.
Mode
Press until you reach the correct day (Wednesday
shown) and approximately the correct time, within 4
‘ast
hours. (Hold the key to advance the time in 4 hour
increments, tap the key to back up. )
BI
60 70 80 90
1111111111111111111
sET CLOCK
12:30
AM
;MTWTFS
60 70 80 90
1111111111111111111
D
8:00
SET CLOCK
PM
m
SMTTFS
F
/
WEDNESDAY SHOWN’
10
![](asset-6.png)
■
Press until you reach the exact time, within 10
minutes. (Hold the key to advance the time in 10-
“ow minute increments, tap the key to back up. )
Tap to store the time and date in the thermostat’s
Mode memory. The normal room temperature display
will
return.
11
c1
60 70 80 90
1111111111111111111
n
8:20
SET CLOCK
PM
SMT;
TFS
H
60 70 80 90
1111111111111111111
●
.mmmm
70
SMTWTFS
ROOM TEMPERATURE
DISPLAYED
69-8026—2
STEP 3
CHECK YOUR
SETIINGS
Press until PROGRAM shows in the display.
Mode 60 70 80 90
1111111
lllllllillll
n
■
6:00
PROQRAM
AM
■ nmnmmm
SMTWTFS
Press to review each program you have set.
Fast
12
.- —
Press until normal temperature display returns.
Mode
D
60 70 80 90
1111111111111111111
■
mmmmm
70
SMTWTFS
ROOM TEMPERATURE
DISPLAYED
STEP 4
OPTION-ADDING AN EXTRA NIGHITIME SET POINT
If you have not used all 6 set points in any given day, consider programming a second
nighttime set point.
For example, if your regular bedtime is 10:30 p.m., put in a 1:00 a.m. set point that is the
same temperature as the 10:30 p.m. set point. The entry of the second set point ensures that
even if
you stay up past
your bedtime and override your program, you won’t have to remember
to set the thermostat back when you go to bed.
13
69-8026—2
![](asset-7.png)
STEP 5
SET THE
FAN SWITCH
Auto On
FAN AUTO: Normal or energy saving setting for most homes. The fan goes on
m—l
and off with the air conditioner in summer. In winter, the fan on most systems starts
Fan a few minutes after the furnace comes on.
tt
stops a few minutes after the furnace
goes off. The fan starts and stops with the furnace in some electric heat systems.
Auto On
FAN ON: The fan runs continuously. Use for improved air circulation during
1-
speci
I
a occasions or for more efficient electronic air cleaning.
Fan
14
—
CHANGING YOUR PROGRAM
MAKING PERMANENT PROGRAM CHANGES
Press until display shows PROGRAM.
Mode 60 70 80
90
1111111111111111111
a
slvf-rw
TFs
15
69-8071i-9
Press to review programs; notice the day of the
week indicator position change as you review the
a
60 70 80 90
Fast programs. When the day and time you want to
1111111111111111111
■ ■ ■
change is displayed, release.
6:00
PROGRAM
AM
SMTWTF;
THE DAY
INOICATOR
MOVES
AS YOU REVIEW
■ ■
To erase a program, hold both buttons
down until set point indicators disappear.
n
60 70 80 90
1111111111111111111
Heat cool
n
6:00
PROGRAM
AM
SMTWTF;
M1421
16
![](asset-8.png)
Display new time by holding (to advance) or
tapping (to back up).
9
9‘ouwant
Hold to set heating and cooling set points
Heat cool
Verify change by holding (to advance) or tapping
~=t
(to back up).
Repeat steps on pages 15-17
until
all changes you
want are made.
17
60 70 80 90
1111111111111111111
n
8:00
PROGRAM
AM
sMTWTF;
al
60 70 80 90
,,,1,,,,1
,111111111
●
mmmmm
8:00
PROGRAM
AM
SMTWTF~
69-8026-2
Tap to store the changes in the thermostat’s
Mode
memory.
60 70 80 90
1111111111111111111
J=
●
mmm. m
70
SMTWTFS
RCQM
TEMPERATURE
DISPLAYED
ERASING THE ENTIRE PROGRAM
On Off To erase the existing program completely, turn power switch OFF...
pmuuJl
On Off
. ..then ON.
S
Until you reprogram (see page 5), a factory-installed program will operate the
heating system at 68° F, the cooling system at 78°
F.
18
MAKING TEMPORARY PROGRAM CHANGES
The “shotl term hold” feature lets you custom-tailor the program for those times when
someone comes home early, or you’re staying up late, or you plan to be out for the evening.
To temporarily raise or lower the temperature for the current period only:
Press to change the heating or cooling
set point (shown with heat setting holding at
I
60 70 80 90
■
orm
62°).This
change will stay in
eff~
only
~ntil
Heat
Ir
1111111111111111111
COOI the next scheduled program change. ● m.......
70
1
I
ROOM TEMPERATURE
DISPLAYED
19
69-8026-2
![](asset-9.png)
The
“long

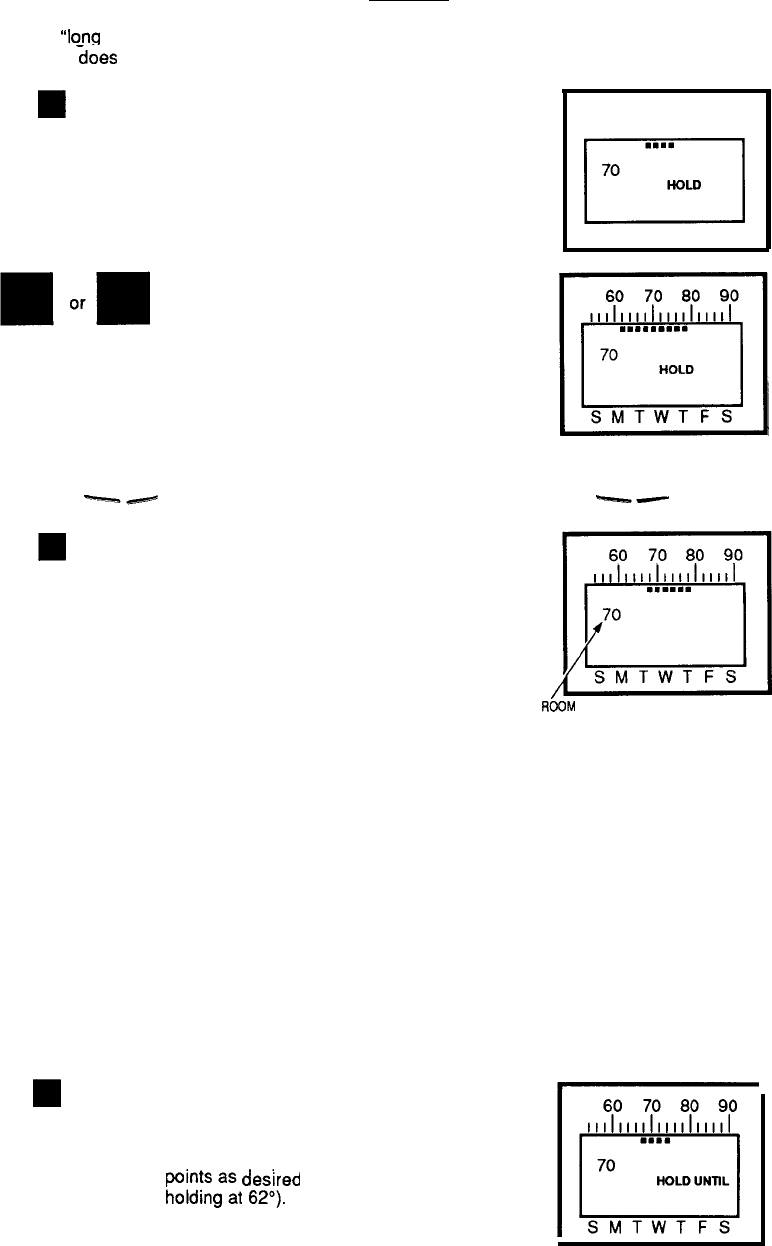

term hold” feature is particularly useful when you go on vacation or other extended
absence. It
~oes
not cancel your program.
Press and hold until the display shows HOLD.
Mode
Heat
Mode
cool
60 70 80 90
1111111111111111111
n
■ ■ ■ ■
70
NOLD
SMTWTFS
Tap or hold until temperature indicators
show the range at which you want the
thermostat to maintain the heating and
cooling temperatures.
n
60 70 80 90
1111111111111111111
n
■
mmmmmmwm
70
HOLD
SMTWTFS
20
~+
To cancel HOLD, press and hold until HOLD
disappears from display. Continue to hold until you
see the normal room temperature display.
Your regular program will resume at the next
programmed time.
DI
60 70 80 90
,,,1,,,,1,,,,1,,,,1
●
mmmmm
70
SMTWTFS
ROCJM
TEMPERATURE
DISPLAYED
21
69-8026—2
The “HOLD UNTIL” feature holds the temperature range for up to a week, and then cancels
it, returning control to your program so your home is at the comfort level you want when you
ret urn.
Press until HOLD UNTIL is displayed.
Mode
~
60 70 80 90
1111111111111111111
●
mmm
■ ‘r~
h~dingat~p:).
Use to change heating and cooling set
70
points as
desred
(shown with heat setting
NOLD UNTIL
Heat cool SMTWTFS
22
![](asset-a.png)
Press and hold to step through your weekly
program until you reach the day and time at which
‘ast
you want the thermostat to resume normal pro-
grammed operation (shown holding until
10:30
PM 011
Sunday).
Press once,
Mode
60 70 80 90
Illlill
llllllllllll
.m.
m.m.
mmm.
60 70 80 90
1111111111111111111
n
.mam
70
NOLD UNTIL
SMTWTFS
23
69-8026—2
To cancel HOLD UNTIL early, hold key until the
display cycles through the various displays. Release
60 70 80 90
Mode the key when it cycles to the normal display of room
11111,,111,,111,,11
temperature.
/b
.mmm.
m
70
Your regular program will resume at the
nexl
programmed time.
SMTWTFS
ROOM TEMPERATURE
DISPLAYED
24
CHANGING FOR DAYLIGHT-SAVING OR STANDARD TIME
To move clock ahead an hour in spring, hold key
60 70 80 90
Mode
until SET CLOCK shows.
1111111111111111111
n
SET CLOCK
10:30
PM
■
SMTWTFS
Press and hold until clock advances 1 hour.
slow
25
d
60 70 80 90
1111111111111111111
SET CLOCK
11:30
PM
SMTWTF;
69-8026-2
![](asset-b.png)
Tap to lock in change.
Mode 60 70 80 90
1111111111111111111
Jz2
■ nmmmm
70
SMTWTFS
ROOM TEMPERATURE
DISPLAYED

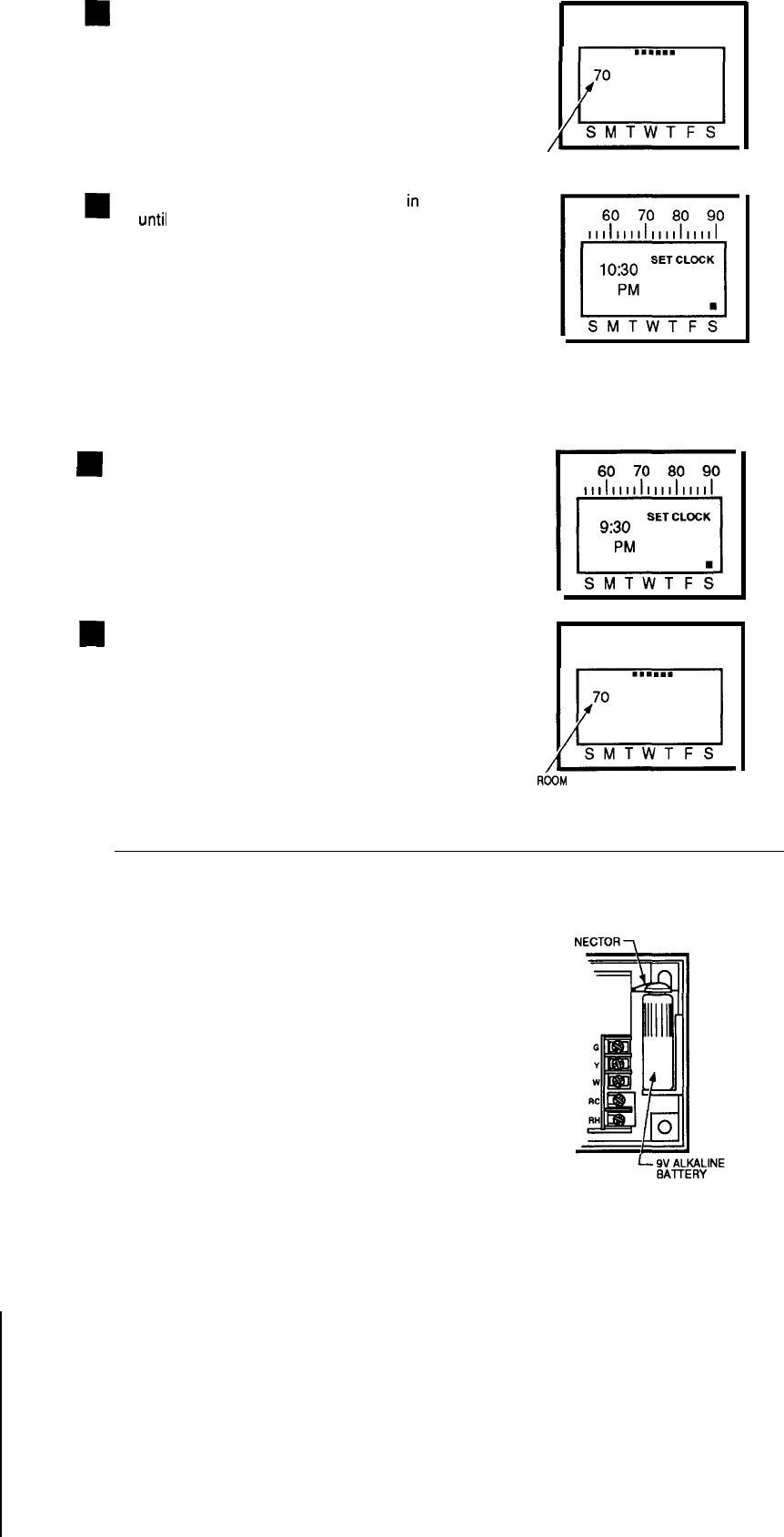

To move the clock back one hour
in
fall, hold key
until
SET CLOCK shows.
b
60 70 80 90
Mode 1111111111111111111
10:30
SET CLOCK
PM
■
SMTWTFS
26
Tap 6 times to back up the clock one hour.
slow
~
60 70 80 90
1111111111111111111
9:30
SET CLOCK
PM
SMTWTF;
Tap to lock in change,
Mode 60 70 80 90
,111111111111111111
a
. . . . . .
70
SMTWTFS
RiX)M
TEMPERATURE
DISPLAYED
27
69-8026-2
MAINTAINING YOUR THERMOSTAT
REPLACING THE BATTERY
Your thermostat uses a 9 V alkaline battery as backup to hold
the program in case of a power outage. For best results, replace
battery every 5 years.
To replace:
❑ Open right-hand thermostat door.
❑ Remove battery from battery holder and battery connector.
❑ Press battery connector onto a fresh 9 V alkaline battery. Place
battery in the battery holder as shown.
BATTERY
CON
❑ Close the door.
28
![](asset-c.png)

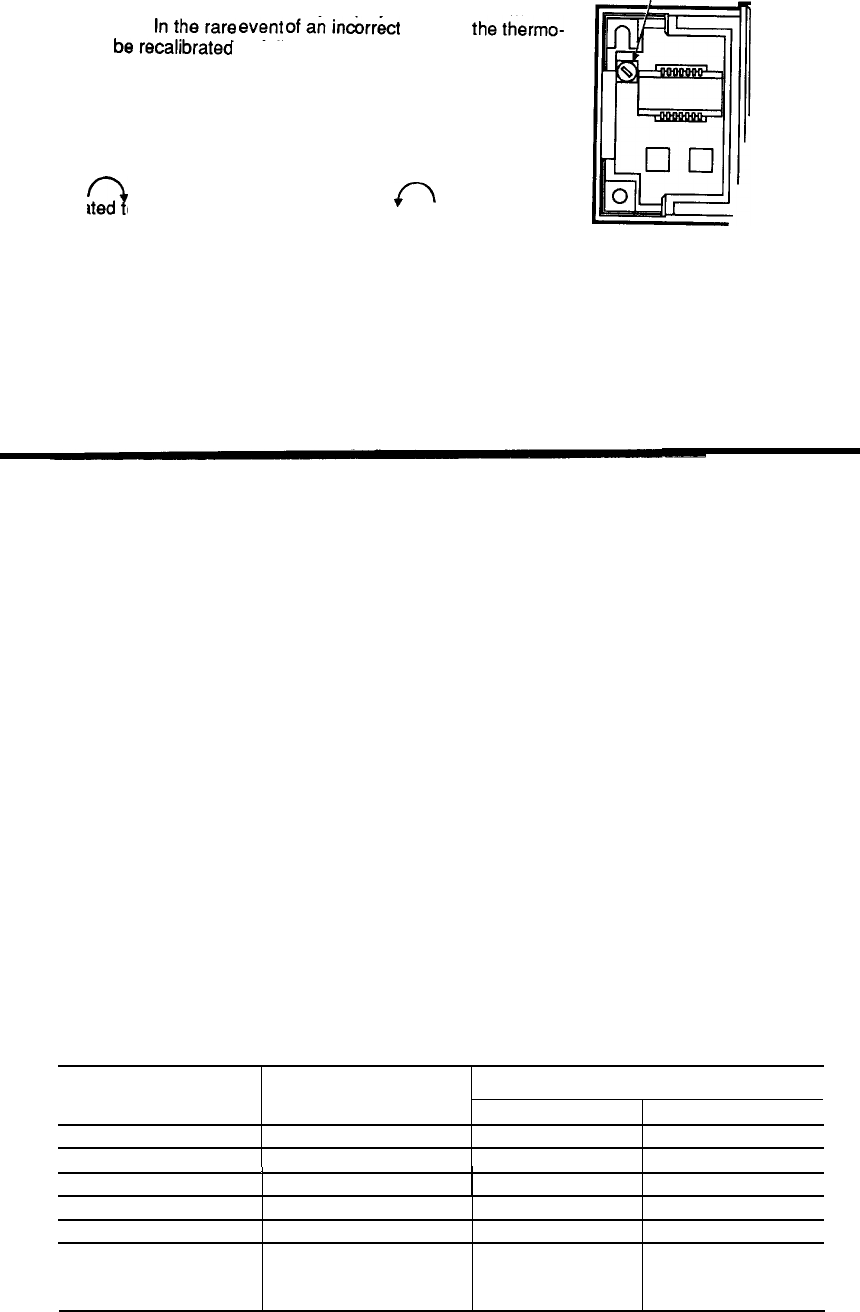

RECALIBRATING THE THERMOSTAT
TEMPERATURE ADJUSTMENT
Your thermostat should normally display the correct room
SCREW
temperature.
Intherare
event
ofaninmrred
display,
thethermo-
stat can
berecalibrated
as follows:
❑ Make sure the thermostat has been on for at least 2 hours.
❑ Place an accurate room thermometer near the left side of the
thermostat. Be careful not to touch thermometer or breathe on it.
❑ Open the left door of the thermostat.
•l Locate the temperature adjustment screw.
❑ Use a flat blade screwdriver to turn the screw slightly clock-
wise
~
to increase, or counterclockwise
~
to decrease the
indicated emperature.
❑ After each turn, allow the thermostat to stabilize about 30 seconds.
❑ Continue this procedure until the thermostat has the same temperature reading as the room
thermometer.
29
69-8026—2
THE “WAITING” INDICATOR DURING AIR CONDITIONING
To prevent possible damage to your compressor, and to maximize the efficiency of your air
conditioning system, no controls can be activated for approximately 6 minutes after the com-
pressor shuts off. If you try to override the temperature during this time, the display will show
WAITING until the 6 minutes pass.
30
YOUR PERSONAL PROGRAM
Use the table below to plan your schedule before you begin programming. If you are pro-
gramming a different schedule for each day of the week, fill out-a different table for each day.
Desired Temperatureb
Typical ActivityaYour Start Time
Heating Cooling
Wake up
Leave home
,
I
Arrive home
After dinner
Retire
Extra Nighttime
Set Point (see
page 13)
aYou may program between 2 and 6 typical activity times.
bYou may program up to 8 different heating/cooling temperature combinations over the duration
of a week.
31
69-8026—2
![](asset-d.png)
TROUBLESHOOTING GUIDE
IF... THEN...
Thermostat loses program.
❑
Check for loose battery.
❑ Check that power switch is ON.
Thermostat shows no display,
❑ Check that power switch is ON.
unless HEAT or COOL key is held.
•l Check main switches, fuse and circuit breakers
on heating equipment to make sure the thermostat
has power. The heating control circuit powers the
thermostat even when it is controlling air condition-
ing equipment.
❑ Check the wiring connections to the thermostat.
❑ Make sure your system uses 24 Vat. The
thermostat will not operate on a millivolt system.
❑ Jumper
RC
& Y or RH & W. If system comes on,
thermostat needs replacement. If system does not
come on, a problem exists in the system (such as
transformer, relay or valve).
32
Troubleshooting Guide continued
IF...
Display goes blank less than 30
seconds before or after a furnace
burn cycle.
Display goes blank for several
minutes during a long furnace burn
cycle.
Temperature display is incorrect.
THEN...
❑ Your furnace is interrupting power to the
thermostat. This is not a problem, as the 9 V
alkaline battery will be adequate to carry the
program for the entire heating season. Do NOT
use a rechargeable battery.
❑ Check for dirty air filters or blocked registers. If
registers are not blocked and the air filter is clean,
an isolating relay probably needs to be installed on
your heating system. See Table 1 in the installation
manual, form number 69-8025.
•l See “Recalibrating the Thermostat,” page 29.
33 69-8026—2
Troubleshooting Guide continued
IF... THEN...
Furnace or air conditioner ❑ Check the thermostat to see if it is wired properly.
operates continuously.
❑ Check the furnace and air conditioning systems to
make sure they are operating correctly.
Thermostat will not turn heat or •l Check
circuk
breaker on heater or air conditioner
air conditioner on. to make sure it has power.
❑ Check that pilot light/power is on; this thermostat
“steals” power from the heating circuit.
❑ Verify wiring.
Thermostat will not let you make ❑ Check if you have already made 6 settings. A
a temperature setting. maximum of 6 settings per day are available. The
thermostat will not accept a seventh setting.
❑ Check if you have used all 8 available temperature
combinations. A maximum of 8 heating and cooling
combinations are allowed in total in your weekly
34
![](asset-e.png)
Troubleshooting Guide continued
IF... THEN...
Thermostat will not let you make a program. The thermostat will not accept a ninth
temperature setting. (continued)
combination.
(Use the programming chart on page 31 to make
sure you do not use any more settings or combina-
tions than allowed.).
•l Your program has probably been lost. The
Thermostat is not following your thermostat will maintain the factory-set program
program, but is maintaining a (68° heat, 78° cool) until you reenter a new
constant temperature. program.
IF ADDITIONAL ASSISTANCE IS NEEDED, CALL HONEYWELL CONSUMER AFFAIRS AT
1-800-468-1502, MONDAY-FRIDAY,
7:30
a.m.
-4:OO
p.m., CENTRAL TIME.
35
69-8026-2
Batteries, installation . . . . . . . . . . . . . . ...4
Batteries, replacement . . . . . . . . . . ...28
Blank display . . . . . . . . . . . . . . . . . . . . . . . . ...33
Changing your program . . . . . . . . ...15
Consumer Affairs Group . . . . . . . ...39
Cool key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Daylight-Saving Time change.. 25
Energy savings, typical.. . . . . . . . ...42
Erasing the entire program . . . ...18
Factory-installed program . . . . . ...18
Fan switch . . . . . . . . . . . . . . . . . . . . . . 1
Fastkey
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...”
Heat key . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...2. 20
HOLD
UNTIL
. . . . . . . . . . . . . . . . . . . . . ...2. 22
Incorrect display . . . . . . . . . . . . . . . . . . . ...33
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..l
INDEX
Long term
hold
. . . . . . . . . . . . . . . . . . . . . . . ..2O
Mode key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...2
Nighttime set point, extra . . . . . . ...13
Ordering information, relay . . . ...37
Permanent program changes.. 15
Personal program . . . . . . . . . . . . . . . . . ...31
Power switch . . . . . . . . . . . . . . . . . . . . . 1
PROGRAM ., . . . . . . . . . . . . . . . . . . . . . . . . . . . ...2
Program changing . . . . . . . . . . . . . . . . ...15
Quick reference to the keys . . . . . . . 1
Recalibrating the thermostat . . . . 29
Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...33. 37
Relay ordering information . . . ...37
Replacing batteries ... . . . . . . . . . . . . ...28
SET CLOCK . . . . . . . . . . . . . . . . . . . . . ...2. 11
Set cooling temperatures . . . . . . . . ...8
Set current day 10
Set current time 11
Set fan switch , . . . . . . . . . . . . . . . . . . . . . . ...14
Set heating temperatures . . . . . . . ...8
Short term hold . . . . . . . . . . . . . . . . . . . . . ...19
Slow key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...3
Standard Time change . . . . . . . . . ...26
Switch, fan . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of
mntents
. . . . . . . . . . . . . . . . . . . . . . ..i
Temperature adjustment
screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...29
Temperature set point indicator. 8
Temporary program changes ..19
Time . . . . . . . . . . .
11
Troubleshooting . . . . . . . . . . . . . . . . . . . . ...32
“Waiting” indicator during air
conditioning . . . . . . . . . . . . . . . . . . . . . ...30
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...41
Weather
Monitor@
. . . . . . . . . . . . . . . . . . . ...*
“See inside front cover.
36
—
———
———
———
———
———
———
———
———
———
———
-
RELAY ORDERING INFORMATION
Send orders to: Honeywell Inc., Consumer
Affairs MNIW1 462, 1885 Douglas Dr. N., Golden Valley, MN 55422-3992.
Shipping/
I
Total
1
Parl No. Oeacription
Price Ea.
Handling
MSICOQ
Isolatina
Relav
Kit
$10
$3.00
Quantity Price
“,
MS101Q Isolating Relay
&24
V $20
$3.(33
Transformer Kit
❑
❑
❑
❑
Subtotal
Your bcal sales tax
Total
Check enclosed
❑ Money order
enclased
Charge
ta
my Visa card
#
exp. date
signature
Charge
ta
my MasterCard
#
exp. date
signature
Charge
ta
my
Discaver
Card #
exp,
date
signature
NOTE: Credit card orders may also be made by calling 1-800-468-1502
Manday-Friday
7:30
a.m.-4:OO
p.m., Central rime.
Send ta: Name
Address
City State
zip
Your daytime phone number
37 69-8026—2
![](asset-f.png)
Toll-free Installation and Programming Assistance
For all questions concerning this thermostat, please read and follow the instructions. If
additional assistance is needed, call our toll-free Consumer Affairs group number at 1-800-468-
1502, Monday-Friday,
7:30
a.m. -4:00 p.m., Central time.
r
NOTICE
f
This equipment is a Class B digital apparatus which complies with Canadian Radio
Interference Regulations, CRC c.1374.
This thermostat is manufactured under one or more of the following patents; U.S. Patent No
4,172,555; RE32,960; 4,314,665; 4,335,847; 4,356,962. Other Patents Pending.
39 69-8026—2
LIMITED ONE-YEAR WARRANTY
Honeywell warrants all products fisted in this book to be free from defects in workmanship or materials, under normal use
and service, for a period of one (1) year from the date of purchase by the consumer. If, at any time during the warranty
period, the product is defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option) within a
reasonable period of time.
If the product is defective,
(i) return
it,
with a
bill
of
sale,
receipt or other dated proof of purchase, to the retailer from whom you purchased it, or
(ii) package it
carefully,
alon9
with a
Ml
of
sale,
receipt or other dated proof of purchase and a short description of
the malfunction, and mai
I
it, postage prepaid, to the following address:
Honeywell Inc.
Return Goods
1050 Berkshire Lane
Plymouth, MN 55441-4437
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that
the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL
NOT BE LIABLE FOR ANY LOSS OR DAMAGE Of ANY KIND, INCLUDING
ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR
IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANN IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION
OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do
not allow limitations on how long an implied warranty lasts, so the above
Umitation
may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
If you have any questions
mncerning
this warranty, please write our Consumer Affairs Department, Honeywell Inc. 18S5
Douglas Drive North, Golden Valley, MN 55422-3992, or call 1 -S00-468-1 502, Monday-Friday, 7:30 to
4:0I3
Central time.
■

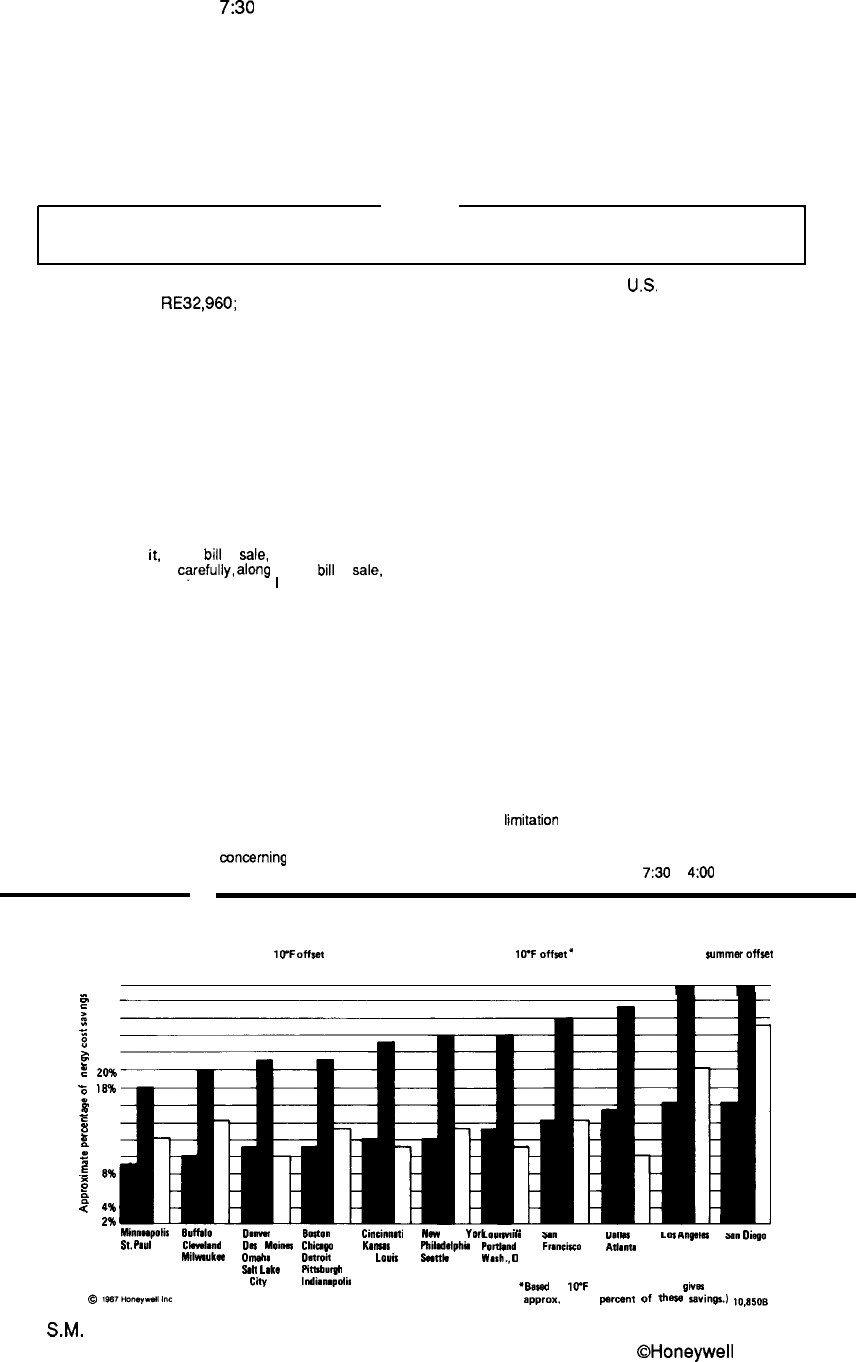

TYPICAL ENERGY SAVINGS FOR REPRESENTATIVE CITIES IN THE U.S.
■ %Sw.g5forOnee4.Oay,
10T
.ffset ■ %SavinmforTwiceA-Oay, 10Ydf5et” ❑ %Savingsfor5T
surnrneroff*t
30%
m
-
~
2s%
.
;
26%
~
24%
“
> 22%
P
:
2M
.
~
18%
:
16%
:
5 14%
f?
%
12%
g 10%
.E
8%
;
& 6%
;
4%
2%
Minmupolis
BuwdO
Dmvm
Boston
Cinciniuti
NW
York
‘..
- -.. ..”
-.
St
Paul
Chnlmd DU
Moines
Chicw
Kwnm
City
Phihddphi,
Mtlwwkw
Omthc
Oafmk
St
LouiI Semrh
Ssh
Lake
mlIbul#l
Columbus
cm
Indialllpolh
Lo”M1l,
~“
Lmlml
La
R“sW@I
M“
U,sqo
PwOmd
Fm.cism
AdInfI
Wash.,
O
C
%ased
on
1(TF
offset-( 5°F offset
giw
arwr... 55
wce.t
of
6=.3
savinpd
,.,850S
S.M.
Form Number 69-8026—2
Rev. 7-90 OHoneywell
Inc. 1990
