Fire Alarm Control Panel

MS-9200UDLS

MS-9200UDLSE

PN: 52750:A ECN 05-680

IMPORTANT! The SLC Manual Document #51309 must be referenced in addition to this

manual when installing or servicing the Fire Alarm Control Panel.

Document #52750

11/04/05 Revision: A

PrecauLarge.PMD 01/10/2005

An automatic fire alarm system–typically made up of smoke

detectors, heat detectors, manual pull stations, audible warn-

ing devices, and a fire alarm control panel with remote notifi-

cation capability–can provide early warning of a developing

fire. Such a system, however, does not assure protection

against property damage or loss of life resulting from a fire.

The Manufacturer recommends that smoke and/or heat de-

tectors be located throughout a protected premise following

the recommendations of the current edition of the National

Fire Protection Association Standard 72 (NFPA 72),

manufacturer's recommendations, State and local codes, and

the recommendations contained in the Guide for Proper Use

of System Smoke Detectors, which is made available at no

charge to all installing dealers. A study by the Federal Emer-

gency Management Agency (an agency of the United States

government) indicated that smoke detectors may not go off in

as many as 35% of all fires. While fire alarm systems are de-

signed to provide early warning against fire, they do not guar-

antee warning or protection against fire. A fire alarm system

may not provide timely or adequate warning, or simply may not

function, for a variety of reasons:

Smoke detectors may not sense fire where smoke cannot

reach the detectors such as in chimneys, in or behind walls, on

roofs, or on the other side of closed doors. Smoke detectors

also may not sense a fire on another level or floor of a build-

ing. A second-floor detector, for example, may not sense a

first-floor or basement fire.

Particles of combustion or "smoke" from a developing fire

may not reach the sensing chambers of smoke detectors be-

cause:

• Barriers such as closed or partially closed doors, walls, or

chimneys may inhibit particle or smoke flow.

• Smoke particles may become "cold," stratify, and not reach

the ceiling or upper walls where detectors are located.

• Smoke particles may be blown away from detectors by air

outlets.

• Smoke particles may be drawn into air returns before reaching

the detector.

The amount of "smoke" present may be insufficient to alarm

smoke detectors. Smoke detectors are designed to alarm at

various levels of smoke density. If such density levels are not

created by a developing fire at the location of detectors, the

detectors will not go into alarm.

Smoke detectors, even when working properly, have sensing

limitations. Detectors that have photoelectronic sensing

chambers tend to detect smoldering fires better than flaming

fires, which have little visible smoke. Detectors that have ion-

izing-type sensing chambers tend to detect fast-flaming fires

better than smoldering fires. Because fires develop in differ-

ent ways and are often unpredictable in their growth, neither

type of detector is necessarily best and a given type of detec-

tor may not provide adequate warning of a fire.

Smoke detectors cannot be expected to provide adequate

warning of fires caused by arson, children playing with

matches (especially in bedrooms), smoking in bed, and violent

explosions (caused by escaping gas, improper storage of

flammable materials, etc.).

Heat detectors do not sense particles of combustion and

alarm only when heat on their sensors increases at a prede-

termined rate or reaches a predetermined level. Rate-of-rise

heat detectors may be subject to reduced sensitivity over

time. For this reason, the rate-of-rise feature of each detector

should be tested at least once per year by a qualified fire pro-

tection specialist. Heat detectors are designed to protect

property, not life.

IMPORTANT! Smoke detectors must be installed in the

same room as the control panel and in rooms used by the

system for the connection of alarm transmission wiring, com-

munications, signaling, and/or power. If detectors are not so

located, a developing fire may damage the alarm system,

crippling its ability to report a fire.

Audible warning devices such as bells may not alert people

if these devices are located on the other side of closed or

partly open doors or are located on another floor of a building.

Any warning device may fail to alert people with a disability or

those who have recently consumed drugs, alcohol or medi-

cation. Please note that:

• Strobes can, under certain circumstances, cause seizures

in people with conditions such as epilepsy.

• Studies have shown that certain people, even when they

hear a fire alarm signal, do not respond or comprehend the

meaning of the signal. It is the property owner's responsi-

bility to conduct fire drills and other training exercise to

make people aware of fire alarm signals and instruct them

on the proper reaction to alarm signals.

• In rare instances, the sounding of a warning device can

cause temporary or permanent hearing loss.

A fire alarm system will not operate without any electrical

power. If AC power fails, the system will operate from standby

batteries only for a specified time and only if the batteries

have been properly maintained and replaced regularly.

Equipment used in the system may not be technically com-

patible with the control. It is essential to use only equipment

listed for service with your control panel.

Telephone lines needed to transmit alarm signals from a

premise to a central monitoring station may be out of service

or temporarily disabled. For added protection against tele-

phone line failure, backup radio transmission systems are rec-

ommended.

The most common cause of fire alarm malfunction is inade-

quate maintenance. To keep the entire fire alarm system in

excellent working order, ongoing maintenance is required per

the manufacturer's recommendations, and UL and NFPA stan-

dards. At a minimum, the requirements of NFPA 72 shall be

followed. Environments with large amounts of dust, dirt or

high air velocity require more frequent maintenance. A main-

tenance agreement should be arranged through the local

manufacturer's representative. Maintenance should be

scheduled monthly or as required by National and/or local

fire codes and should be performed by authorized profes-

sional fire alarm installers only. Adequate written records of

all inspections should be kept.

While a fire alarm system may lower insurance

rates, it is not a substitute for fire insurance!

Fire Alarm System Limitations

PrecauLarge.PMD 01/10/2005

WARNING - Several different sources of power can be con-

nected to the fire alarm control panel. Disconnect all sources

of power before servicing. Control unit and associated equip-

ment may be damaged by removing and/or inserting cards,

modules, or interconnecting cables while the unit is energized.

Do not attempt to install, service, or operate this unit until this

manual is read and understood.

CAUTION - System Reacceptance Test after Software

Changes. To ensure proper system operation, this product

must be tested in accordance with NFPA 72 after any pro-

gramming operation or change in site-specific software. Re-

acceptance testing is required after any change, addition or

deletion of system components, or after any modification,

repair or adjustment to system hardware or wiring.

All components, circuits, system operations, or software func-

tions known to be affected by a change must be 100% tested.

In addition, to ensure that other operations are not inadvert-

ently affected, at least 10% of initiating devices that are not

directly affected by the change, up to a maximum of 50 de-

vices, must also be tested and proper system operation veri-

fied.

This system meets NFPA requirements for indoor dry opera-

tion at 0-49° C/32-120° F and at a relative humidity of 93 ±2%

RH (non-condensing) at 32 ±2° C/90 ±3° F. However, the

useful life of the system's standby batteries and the elec-

tronic components may be adversely affected by extreme

temperature ranges and humidity. Therefore, it is recom-

mended that this system and all peripherals be installed in

an environment with a nominal room temperature of 15-27°

C/60-80° F.

Verify that wire sizes are adequate for all initiating and

indicating device loops. Refer to manual Specifications sec-

tion for maximum allowable I.R. drop from the specified de-

vice voltage.

Like all solid state electronic devices, this system may

operate erratically or can be damaged when subjected to

lightning-induced transients. Although no system is com-

pletely immune from lightning transients and interferences,

proper grounding will reduce susceptibility. Overhead or out-

side aerial wiring is not recommended, due to an increased

susceptibility to nearby lightning strikes. Consult with the

Technical Services Department if any problems are antici-

pated or encountered.

Disconnect AC power and batteries prior to removing or in-

serting circuit boards. Failure to do so can damage circuits.

Remove all electronic assemblies prior to any drilling, filing,

reaming, or punching of the enclosure. When possible, make

all cable entries from the sides or rear. Before making modifi-

cations, verify that they will not interfere with battery, trans-

former, and printed circuit board location.

Do not tighten screw terminals more than 9 in-lbs.

Over-tightening may damage threads, resulting in reduced

terminal contact pressure and difficulty with screw terminal

removal.

This system contains static-sensitive components.

Always ground yourself with a proper wrist strap before han-

dling any circuits so that static charges are removed from the

body. Use static-suppressive packaging to protect electronic

assemblies removed from the unit.

Follow the instructions in the installation, operating, and

programming manuals. These instructions must be followed

to avoid damage to the control panel and associated

equipment. FACP operation and reliability depend upon

proper installation by authorized personnel.

Adherence to the following will aid in problem-free

installation with long-term reliability:

WARNING: This equipment generates, uses, and can ra-

diate radio frequency energy and if not installed and used

in accordance with the instruction manual, may cause in-

terference to radio communications. It has been tested

and found to comply with the limits for class A computing

device pursuant to Subpart B of Part 15 of FCC Rules,

which is designed to provide reasonable protection against

such interference when operated in a commercial environ-

ment. Operation of this equipment in a residential area is

likely to cause interference, in which case the user will be

required to correct the interference at their own

expense.

Canadian Requirements

This digital apparatus does not exceed the Class A

limits for radiation noise emissions from digital

apparatus set out in the Radio Interference Regulations

of the Canadian Department of Communications.

Le present appareil numerique n'emet pas de bruits

radioelectriques depassant les limites applicables aux

appareils numeriques de la classe A prescrites dans le

Reglement sur le brouillage radioelectrique edicte par le

ministere des Communications du Canada.

FCC Warning

Installation Precautions

4MS-9200UDLS PN 52750:A 11/04/05

Notes

MS-9200UDLS P/N: 52750:A 11/04/05 5

SECTION 1: Product Description ........................................................................................................................12

1.1: Features and Options...................................................................................................................................12

1.2: Specifications ..............................................................................................................................................13

1.2.1: Current Availability...........................................................................................................................15

1.3: Controls and Indicators ...............................................................................................................................16

1.4: Circuits ........................................................................................................................................................17

1.5: Digital Alarm Communicator/Transmitter..................................................................................................17

1.6: Components.................................................................................................................................................18

1.6.1: Intelligent Addressable Detectors: Newer Series..............................................................................18

1.6.2: Intelligent Addressable Modules: Newer Series...............................................................................19

1.6.3: 300 Series Intelligent Addressable Devices......................................................................................19

1.6.4: Addressable Device Accessories.......................................................................................................19

1.7: Optional Modules........................................................................................................................................20

1.8: Accessories..................................................................................................................................................20

1.8.1: PK-CD Programming Utility ............................................................................................................20

1.8.2: Dress Panel........................................................................................................................................20

1.8.3: Battery Box .......................................................................................................................................21

1.8.4: Battery Charger.................................................................................................................................21

1.8.4.1 CHG-75 Battery Charger ........................................................................................................21

1.8.4.2 CHG-120F Battery Charger ....................................................................................................21

1.8.5: Annunciators .....................................................................................................................................22

1.9: Getting Started.............................................................................................................................................23

1.10: Telephone Requirements and Warnings ....................................................................................................24

1.10.1: Telephone Circuitry.........................................................................................................................24

1.10.2: Digital Communicator.....................................................................................................................24

1.10.3: Telephone Company Rights and Warnings .....................................................................................25

1.10.4: For Canadian Applications..............................................................................................................26

SECTION 2: Installation .......................................................................................................................................27

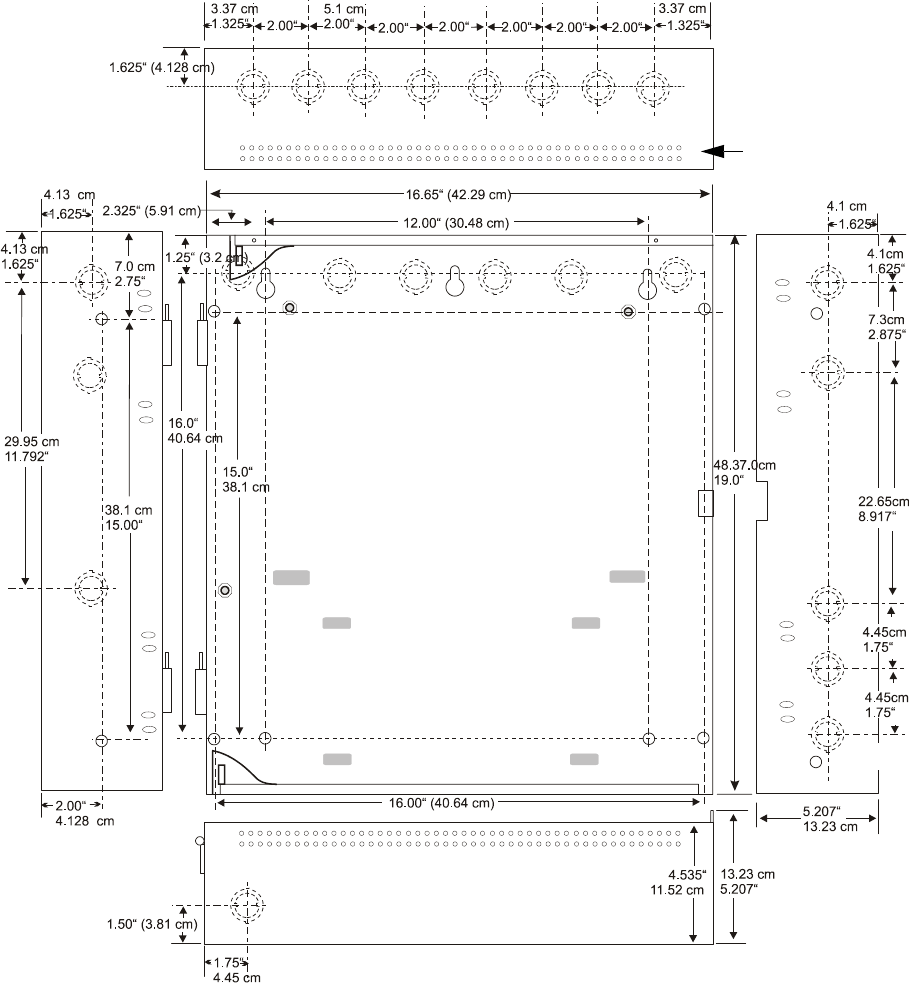

2.1: Mounting Backbox......................................................................................................................................27

2.2: Mounting Transformer ................................................................................................................................28

2.3: Power...........................................................................................................................................................31

2.3.1: AC Power and Earth Ground Connection.........................................................................................31

2.3.2: Battery Power....................................................................................................................................31

2.3.3: Special Application DC Power Output Connection..........................................................................31

2.4: Relays..........................................................................................................................................................32

2.5: Notification Appliance Circuits ..................................................................................................................32

2.5.1: Configuring NACs ............................................................................................................................33

2.5.2: Style Y (Class B) NAC Wiring .........................................................................................................33

2.5.3: Style Z (Class A) NAC Wiring ........................................................................................................34

2.6: Remote Synchronization Output .................................................................................................................34

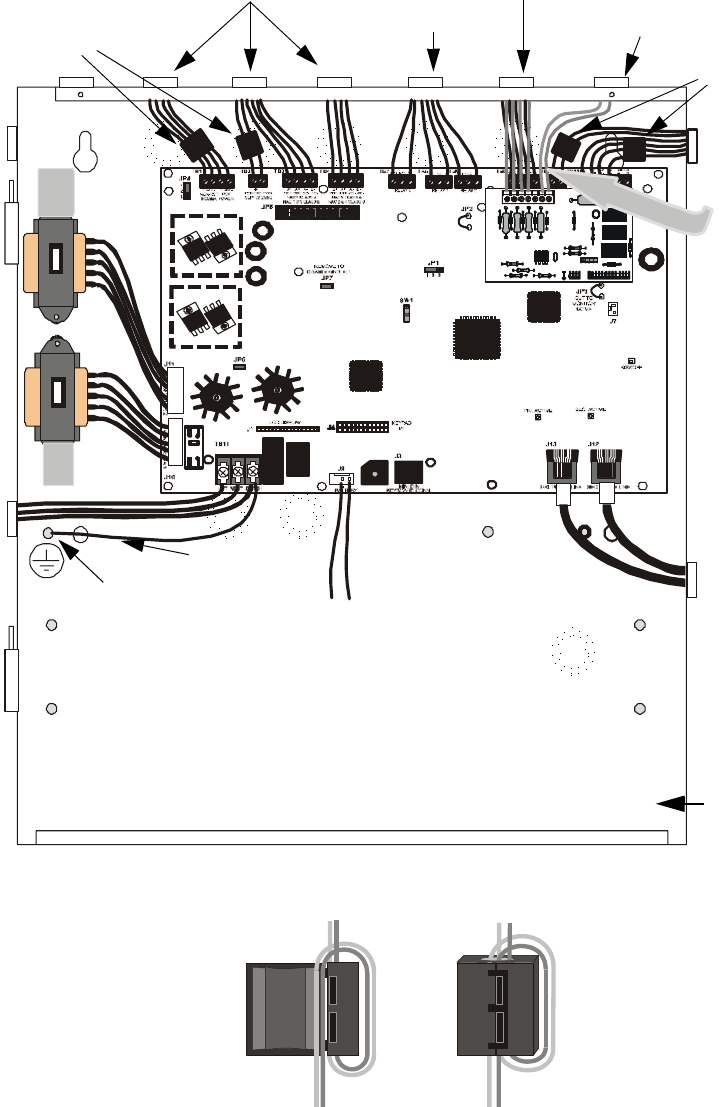

2.7: UL Power-limited Wiring Requirements ....................................................................................................35

2.8: Digital Communicator.................................................................................................................................36

2.9: Optional Module Installation ......................................................................................................................37

2.9.1: 4XTMF Transmitter Module Installation..........................................................................................38

2.9.2: Printer/PC..........................................................................................................................................40

2.9.3: Digital Communicator and Annunciators .........................................................................................41

2.9.3.1 ACM-8RF Relay Control Module ..........................................................................................41

2.9.3.2 ACS and AFM Series Annunciators .......................................................................................41

SECTION 3: Programming ..................................................................................................................................42

3.1: Programming Data Entry ............................................................................................................................42

3.2: User Programming ......................................................................................................................................43

3.3: Initial Power-up...........................................................................................................................................44

Table of Contents

6 MS-9200UDLS P/N: 52750:A 11/04/05

3.4: Programming Screens Description..............................................................................................................44

3.5: Programming and Passwords ......................................................................................................................44

3.6: Master Programming Level.........................................................................................................................46

3.6.1: Autoprogram .....................................................................................................................................47

3.6.2: Point Program....................................................................................................................................48

3.6.2.1 Detector Programming ............................................................................................................48

3.6.2.1.1 Add Detector ........................................................................................................................48

3.6.2.1.2 Delete Detector .....................................................................................................................49

3.6.2.1.3 Edit Detector ........................................................................................................................49

3.6.2.2 Module Programming .............................................................................................................58

3.6.2.2.1 Add Module .........................................................................................................................58

3.6.2.2.2 Delete Module ......................................................................................................................59

3.6.2.2.3 Edit Module Screen for Monitor Module .............................................................................59

3.6.2.2.4 Edit Module Screen for Control Modules ............................................................................68

3.6.3: Zone Setup.........................................................................................................................................75

3.6.3.1 Enable ......................................................................................................................................75

3.6.3.2 Disable .....................................................................................................................................76

3.6.3.3 Zone 97, 98 and 99 ..................................................................................................................76

3.6.3.4 Zones Installed ........................................................................................................................77

3.6.3.5 Zones Enabled .........................................................................................................................77

3.6.3.6 Zones Disabled ........................................................................................................................77

3.6.3.7 Zone Type ...............................................................................................................................78

3.6.3.8 Zones Available ......................................................................................................................79

3.6.4: Loop Setup ........................................................................................................................................79

3.6.4.1 Style .........................................................................................................................................79

3.6.4.2 Loop Protocol ..........................................................................................................................79

3.6.5: System Setup.....................................................................................................................................80

3.6.5.1 Trouble Reminder ...................................................................................................................81

3.6.5.2 Banner .....................................................................................................................................81

3.6.5.3 Time-Date ...............................................................................................................................82

3.6.5.3.1 Time .....................................................................................................................................82

3.6.5.3.2 Date ......................................................................................................................................83

3.6.5.3.3 Clock Format ........................................................................................................................83

3.6.5.3.4 Daylight Savings Time .........................................................................................................83

3.6.5.4 Timers .....................................................................................................................................84

3.6.5.4.1 PAS (Positive Alarm Sequence) Delay ................................................................................84

3.6.5.4.2 Pre-signal Delay ...................................................................................................................85

3.6.5.4.3 Waterflow Delay ..................................................................................................................85

3.6.5.4.4 AC Loss Delay .....................................................................................................................86

3.6.5.5 NAC (Notification Appliance Circuit) ....................................................................................86

3.6.5.5.1 Enabled .................................................................................................................................87

3.6.5.5.2 Type ......................................................................................................................................88

3.6.5.5.3 Silenceable ...........................................................................................................................88

3.6.5.5.4 Auto Silence .........................................................................................................................89

3.6.5.5.5 Coding (only for NACs not programmed as Sync Strobe Type) .........................................89

3.6.5.5.6 Zone ......................................................................................................................................91

3.6.5.5.7 Silence Inhibited ...................................................................................................................91

3.6.5.5.8 Sync Type .............................................................................................................................91

3.6.5.6 Relays ......................................................................................................................................92

3.6.5.7 Canadian Option ......................................................................................................................93

3.6.5.8 Waterflow Silenceable ............................................................................................................93

3.6.6: Verify Loop .......................................................................................................................................93

3.6.7: History...............................................................................................................................................94

3.6.7.1 View Events ............................................................................................................................94

3.6.7.2 Erase History ...........................................................................................................................94

3.6.8: Walktest.............................................................................................................................................95

MS-9200UDLS P/N: 52750:A 11/04/05 7

Table of Contents

3.6.9: Option Modules................................................................................................................................96

3.6.9.1 Annunciators/UDACT ............................................................................................................96

3.6.9.2 Onboard DACT .......................................................................................................................97

3.6.9.2.1 Onboard DACT Enable ........................................................................................................97

3.6.9.2.2 Primary Phone ......................................................................................................................98

3.6.9.2.3 Secondary Phone ..................................................................................................................98

3.6.9.2.4 Service Terminal ..................................................................................................................99

3.6.9.2.5 Central Station ......................................................................................................................101

3.6.9.2.6 Trouble Call Limit (Dialer Runaway Prevention) ...............................................................102

3.6.9.2.7 Manual Dial Mode ...............................................................................................................114

3.6.9.3 Printer/PC ................................................................................................................................115

3.6.10: Password Change ............................................................................................................................116

3.6.11: Clear Program .................................................................................................................................117

3.6.12: Program Check................................................................................................................................118

3.7: Maintenance Programming Level ...............................................................................................................120

3.7.1: Disable Point .....................................................................................................................................121

3.7.2: History...............................................................................................................................................122

3.7.3: Program Check..................................................................................................................................123

3.7.4: Walktest.............................................................................................................................................124

3.7.5: System...............................................................................................................................................124

3.7.6: Zone Setup ........................................................................................................................................126

SECTION 4: Operating Instructions ....................................................................................................................128

4.1: Panel Control Buttons .................................................................................................................................128

4.1.1: Acknowledge/Step ............................................................................................................................128

4.1.2: Alarm Silence....................................................................................................................................128

4.1.3: Drill/Hold 2 Sec ................................................................................................................................128

4.1.4: Reset..................................................................................................................................................128

4.2: LED Indicators ............................................................................................................................................129

4.3: Normal Operation........................................................................................................................................130

4.4: Trouble Operation .......................................................................................................................................130

4.5: Alarm Operation..........................................................................................................................................132

4.6: Supervisory Operation.................................................................................................................................133

4.7: Process Monitor Operation..........................................................................................................................134

4.8: Hazard/Tornado Condition Operation.........................................................................................................134

4.9: Medical Alert Condition Operation.............................................................................................................134

4.10: NAC Operation .........................................................................................................................................134

4.11: Programmed Zone Operation ....................................................................................................................135

4.12: Disable/Enable Operation .........................................................................................................................135

4.13: Waterflow Circuits Operation ...................................................................................................................135

4.14: Detector Functions ....................................................................................................................................135

4.15: Time Functions: Real-Time Clock ............................................................................................................135

4.16: Synchronized NAC Operation ..................................................................................................................136

4.17: Coded Operation .......................................................................................................................................136

4.18: Presignal....................................................................................................................................................136

4.19: Positive Alarm Sequence ..........................................................................................................................137

4.20: Special System Timers ..............................................................................................................................138

4.20.1: Silence Inhibit Timer.......................................................................................................................138

4.20.2: Autosilence Timer...........................................................................................................................138

4.20.3: Trouble Reminder ...........................................................................................................................138

4.20.4: Waterflow Retard Timer..................................................................................................................138

4.20.5: Alarm Verification (None or One Minute)......................................................................................139

4.21: Walktest.....................................................................................................................................................139

4.22: Read Status................................................................................................................................................140

4.22.1: System Point ...................................................................................................................................141

Table of Contents

8 MS-9200UDLS P/N: 52750:A 11/04/05

4.22.2: Zones ...............................................................................................................................................142

4.22.3: Power...............................................................................................................................................143

4.22.4: Trouble Reminder............................................................................................................................144

4.22.5: Timers..............................................................................................................................................144

4.22.6: NAC ................................................................................................................................................145

4.22.7: Relays..............................................................................................................................................145

4.22.8: Program Check................................................................................................................................146

4.22.9: History.............................................................................................................................................146

4.22.10: Annunciators .................................................................................................................................147

4.22.11: Phone Line.....................................................................................................................................147

4.22.12: Central Station...............................................................................................................................148

4.22.13: Service Terminal............................................................................................................................149

4.22.14: Printer/PC......................................................................................................................................149

4.22.15: Print ...............................................................................................................................................150

4.22.16: Time-Date......................................................................................................................................152

SECTION 5: Central Station Communications ...................................................................................................153

5.1: Transmittal Priorities ...................................................................................................................................156

SECTION 6: Remote Site Upload/Download .......................................................................................................158

6.1: Downloading Program.................................................................................................................................158

6.1.1: Security Features...............................................................................................................................159

6.2: Downloading Initiated at a Service Terminal..............................................................................................161

6.3: Uploading Initiated at a Service Terminal...................................................................................................162

SECTION 7: Power Supply Calculations .............................................................................................................163

7.1: Overview .....................................................................................................................................................163

7.2: Calculating the AC Branch Circuit..............................................................................................................163

7.3: Calculating the System Current Draw.........................................................................................................164

7.3.1: Overview ...........................................................................................................................................164

7.3.2: How to Use Table 7.3 on page 165 to Calculate System Current Draw ...........................................164

7.4: Calculating the Battery Size ........................................................................................................................166

7.4.1: NFPA Battery Requirements .............................................................................................................166

7.4.2: Selecting and Locating Batteries.......................................................................................................166

APPENDIX A: Software Zones ............................................................................................................................167

A.1: Correlations ...............................................................................................................................................167

APPENDIX B: Default Programming .................................................................................................................173

APPENDIX C: NFPA Standard-Specific Requirements ...................................................................................174

APPENDIX D: Wire Requirements .....................................................................................................................178

APPENDIX E: HVAC Control .............................................................................................................................179

E.1: Control Module Operation .........................................................................................................................179

E.1.1: HVAC SHUTDN .............................................................................................................................179

E.2: Monitor Module Operation ........................................................................................................................179

E.2.1: HVAC RESTART ...........................................................................................................................179

E.2.2: HVAC OVRRIDE ...........................................................................................................................180

MS-9200UDLS PN 52750:A 11/04/05 9

It is imperative that the installer understand the requirements of the Authority Having Jurisdiction

(AHJ) and be familiar with the standards set forth by the following regulatory agencies:

• Underwriters Laboratories Standards

• NFPA 72 National Fire Alarm Code

• CAN/ULC - S527-99 Standard for Control Units for Fire Alarm Systems

NFPA Standards

NFPA 72 National Fire Alarm Code

NFPA 70 National Electrical Code

Underwriters Laboratories Documents:

UL 38 Manually Actuated Signaling Boxes

UL 217 Smoke Detectors, Single and Multiple Station

UL 228 Door Closers–Holders for Fire Protective Signaling Systems

UL 268 Smoke Detectors for Fire Protective Signaling Systems

UL 268A Smoke Detectors for Duct Applications

UL 346 Waterflow Indicators for Fire Protective Signaling Systems

UL 464 Audible Signaling Appliances

UL 521 Heat Detectors for Fire Protective Signaling Systems

UL 864 Standard for Control Units for Fire Protective Signaling Systems

UL 1481 Power Supplies for Fire Protective Signaling Systems

UL 1610 Central Station Burglar Alarm Units

UL 1638 Visual Signaling Appliances

UL 1971 Signaling Devices for Hearing Impaired

CAN/ULC - S524-01 Standard for Installation of Fire Alarm Systems

Other:

EIA-232E Serial Interface Standard

EIA-485 Serial Interface Standard

NEC Article 250 Grounding

NEC Article 300 Wiring Methods

NEC Article 760 Fire Protective Signaling Systems

Applicable Local and State Building Codes

Requirements of the Local Authority Having Jurisdiction (LAHJ)

Fire-Lite Documents:

Fire-LiteDevice Compatibility Document #15384

SLC Wiring Manual Document #51309

AFM-16ATF & AFM-32AF Document #15970

AFM-16AF Annunciator Document #15210

ACS Series Annunciators Document #51480

CHG-120F Battery Charger Document #50888

CHG-75 Battery Charger Document #51315

LDM Series Lamp Driver Modules Document #50055

LCD-80F Remote Fire Annunciator Document #51338

ACM-8RF Relay Control Module Document #50362

This product has been certified to comply with the requirements in the Standard for Control Units and Accessories for Fire

Alarm Systems, UL 864, 9th Edition. Operation of this product with products not tested for UL 864, 9th Edition has not

been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ).

Before proceeding, the installer should be familiar with the following documents.

10 MS-9200UDLS PN 52750:A 11/04/05

PS2 Keyboard Interface DACT Phone Line Jacks

(Nonpower-Limited)

DB9F

Resettable Power - 24 VDC filtered, power-limited

(0.500 amps maximum) to smoke detectors (IDC).

Supervision required.

Nonresettable or Resettable Power

Jumper selectable by JP4, 24 VDC filtered,

power-limited (0.500 amps maximum)

Supervision required. Nonresettable

Power suitable for powering annunciators,

Resettable Power suitable for powering

smoke detectors..

NAC #1 & #2

Style Z (Class A)

2.5 amps max. per circuit.

JP6 configured for Class A

using NACKEY card.

(Supervised, Power Limited)

NAC #1 NAC #2

NAC #1, #2, #3 & #4, Style Y (Class B) (Supervised, Power Limited)

(Special Application) 2.5 amps max. per circuit. JP6 configured

for Class B using NACKEY card.

(See Style Z illustrated near right edge of board).

Nonsupervised relay contacts

Contact Ratings:

2.0 amps @ 30 VDC (resistive)

0.5 amps @ 30 VAC (resistive)

Contacts shown below in normal

condition (AC power with no alarm,

trouble or supervisory activity).

A Fail Safe Trouble

relay switches to the

NO position during

trouble conditions and

under loss of all power.

(nonsupervised)

For EDP-listed equipment or

personal computer with FACP

Upload/Download Utility.

50 foot maximum within same room.

(supervised)

Refer to the SLC Wiring

Manual for detailed

information on wiring

addressable devices

for Style 4, 6 and 7.

ACS (EIA-485)

to ACS Annunc.

(power-limited,

supervised)

ELRs 4.7K, ½W

Special Application DC Power Outputs (24 VDC)

Nonsupervised, power-limited circuits

Supervise with a power supervision relay A77-716B

Battery

Basic System Connections

Notification Appliance Circuits

2 Programmable Relays &

1 Fixed Trouble Relay

EIA-232

to printer or

personal computer

SLC Loop

NO NC C NC NO CNO NC C

Alarm* Trouble

Supervisory*

5 4 3 2 1

9 8 7 6

Green

Black

White

Red

TB8 (option to DB-25)

TB3

TB8

TB4

5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

9 8 7 613 12 11 10

CAUTION! HIGH VOLTAGE

NC NO C

120 VAC, 60 HZ, 3.0 amps

220/240 VAC, 50 Hz, 1.5 amps

24 VDC, supervised,

nonpower-limited

18 Amp Hour maximum

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

REMOT E PWR

SUPPLY SYNC NAC 1 CLAS S A

NAC 1 & 3 CLASS B

NAC 2 CLA SS A

NAC 2 & 4 CLASS B

RELAY 3 RELAY 1

HOT NEUT EARTH

- +

BATTERY

LCD DISPLAY

REMOVE TO

DISABLE GND. FLT.

CUT TO

MONITOR

4XTMF

KISSOFF

PRI. ACTIVE SEC. ACTIVE

SEC. PHONE LINE

PRI. PHONE LINE

4XTMF

MINI DIN

KEYBOARD CONN.

KEYPAD

I/F

RELAY 2

TRANSFORMER 1

TRANSFORMER 2

+ -

B+ A+ A- B- B+ A+ A- B-

1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B-

NO NC C NO NC C NO NC C B+ A + B- A- A B

ACS

SHIELDSL CSLC

SLCSLC

OUT+ IN+ OUT- IN-

TB5 TB6 TB8 TB9 TB10

JP2

JP3

SW1

JP7

JP5

JP6

TB11

J10

J13 J12

J1 J4

J11

CAUTION!

HIGH VOLTAGE

(* )Factory default relay programming

shield

TERM

(EIA-485)

to LCD-80F

Remove this jumper

to disable the FACP

battery charger when

using external charger.

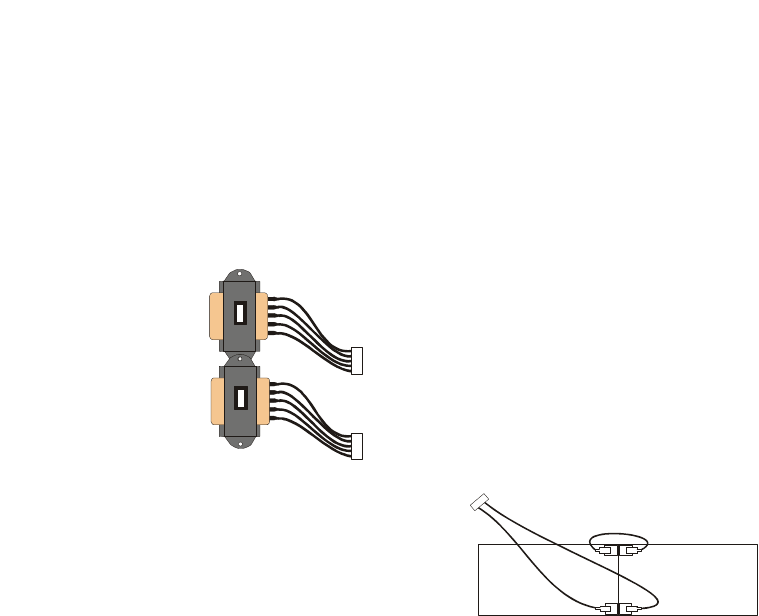

Transformer 2 Connector

Transformer 1 Connector

Flash Memory Load Enable Switch.

UP is normal position for switch.

DOWN position allows loading of

factory software upgrades.

Cut this jumper to enable

Supervisory relay when

4XTMF module is installed

Cut this jumper to supervise

the 4XTMF module when

installed (see J5 & J6)

To disable ground fault detection,

remove jumper/shunt from JP7

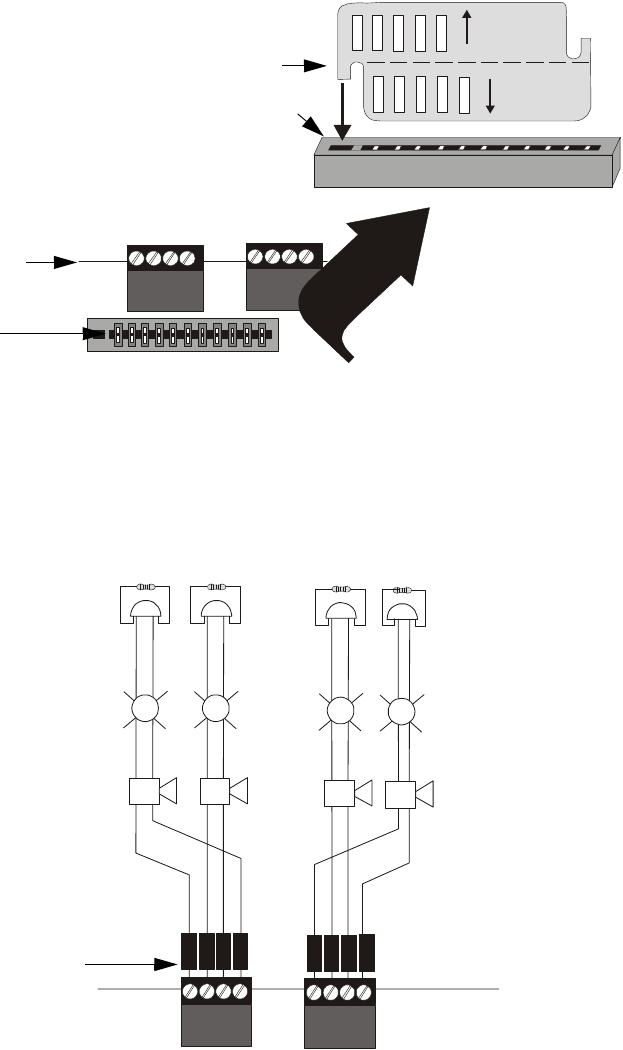

Configure NACs for Class A or

Class B wiring using NACKEY

card. Factory default is Class B.

NAC #1 NAC #3

NAC

Number

NAC #4 NAC #2

2244

TB3 TB4 TB7

+ +

- -

TB1 TB2

JP4

Remote Synchronization Output

Special Application Power

24 VDC filtered, supervised and power-limited.

0.040 amps maximum, follows NAC1 control circuit.

Requires 4.7kohm End-of-Line resistor.

Important!

voids

only

Removing Ground

Fault Disable Jumper JP7

UL/NFPA Style/Class

identifications for circuits.

Remove jumper JP7

with the approval of the AHJ

(Authority Having Jurisdiction)

MS-9200UDLS PN 52750:A 11/04/05 11

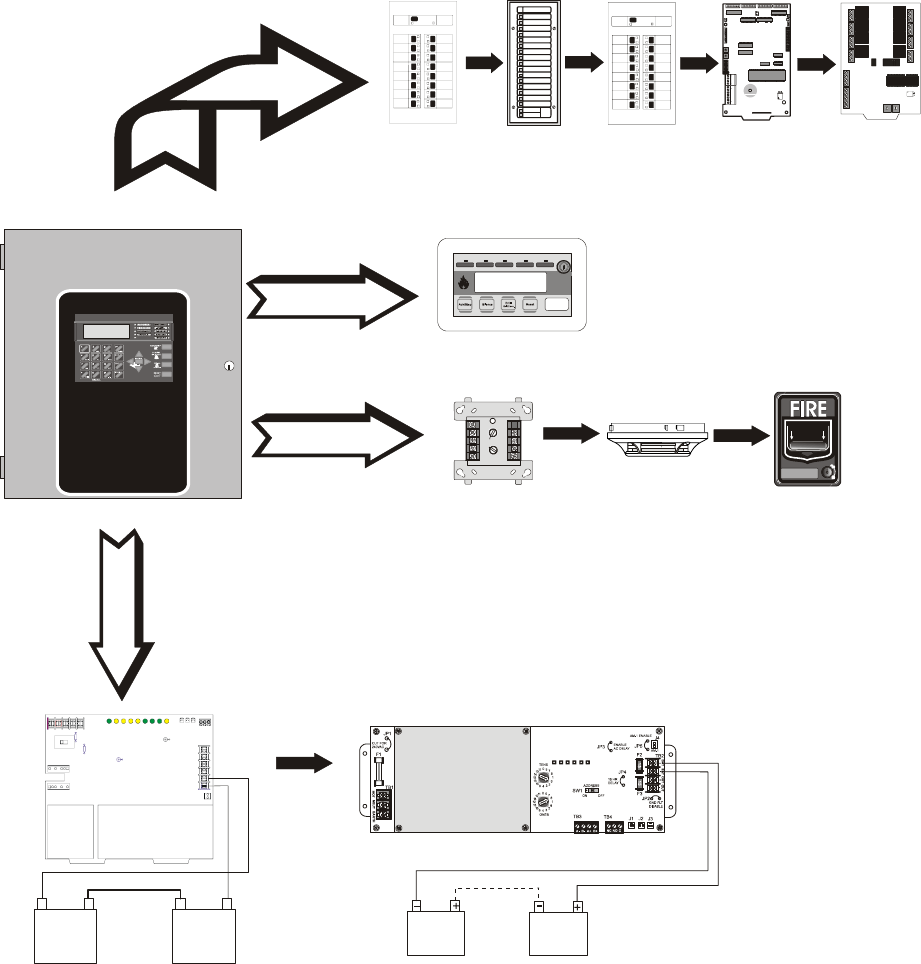

Peripheral Devices and Their Documents:

LCD-80F

Doc. #51338

AFM-16AF

Doc. #15210

LDM-32F

Doc. #50055

AFM-16ATF &

AFM-32AF

Doc. #15970

ACS Series

51480

ACM-8RF

Doc. #50362

Addressable Devices and SLC Wiring

Doc. #51309

CHG-120F Charger

Doc. #50888

TERM (EIA-485)

Annunciators

ACS (EIA-485)

Annunciators

SLC Loop

Battery Connector

92udperi.cdr

CHG-75 Charger

Doc. # 51315

Product Description Features and Options

12 MS-9200UDLS PN 52750:A 11/04/05

SECTION 1 Product Description

The Fire-LiteMS-9200UDLS is a combination FACP (Fire Alarm Control Panel) and

DACT (Digital Alarm Communicator/Transmitter) all on one circuit board. This

compact, cost effective, intelligent addressable control panel has an extensive list of

powerful features. The combination of Fire-Lite’s newer series devices and legacy 300

Series devices, along with the MS-9200UDLS FACP, offer the latest in fire protection

technology. The power supply and all electronics are contained on a single circuit

board housed in a metal cabinet, providing a complete fire control system for most

applications. Optional modules, which plug into the main circuit board, are available

for special functions. Available accessories include LED, graphic and LCD

annunciators, reverse polarity/city box transmitter, local and remote upload/download

software and remote power expansion.

The integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a Central

Station via the public switched telephone network. It also allows remote and local

programming of the control panel using the PK-CD Upload/Download utility. In

addition, the control panel may be programmed or interrogated off-site via the public

switched telephone network. Any personal computer with Windows™ 95 or greater,

and compatible modem with a speed of 14.4 kbps or faster and Fire•Lite Upload/

Download software kit PK-CD, may serve as a Service Terminal. This allows

download of the entire program or upload of the entire program, history file, walktest

data, current status and system voltages.

MS-9200UDLS is used in this manual to refer to both the MS-9200UDLS and the MS-

9200UDLSE FACPs (Fire Alarm Control Panels).

Inventory

When the MS-9200UDLS shipment is received, check to make certain that all parts

have been included in the shipment. The MS-9200UDLS shipment should consist of

one of each of the following:

main circuit board with display

backbox with door

plastic bag containing screws, cables, key, etc.

manual

1.1 Features and Options

• New LiteSpeed™ polling protocol for faster SLC response time

• SLC operates up to 10,000 ft. (3,000 m) with twisted, unshielded wire (refer to

"Wire Requirements" on page 178)

• Built-in DACT (Digital Alarm Communicator/Transmitter)

• Single addressable SLC loop which meets NFPA Style 4, 6 and 7 requirements

• 198 addressable device capacity (99 detectors and 99 control/relay/monitor

modules)

• 99 software zones

• Onboard NACs (Notification Appliance Circuits) which can be configured as

four Style Y (Class B) or two Style Z (Class A) circuits - special application

• 3.0 amps total power for NACs and 24 VDC special application auxiliary power

outputs expandable to 6.0 amps

• 3.6 amps total system power (includes battery charger) expandable to 6.6 amps

• Two programmable relay outputs and one fixed trouble relay

• Synchronization output for remote power supply applications (special

application)

• Built-in Programmer

Specifications Product Description

MS-9200UDLS PN 52750:A 11/04/05 13

• Telephone Line Active LEDs

• Communication Confirmation (Kissoff) LED

• Touchtone/Rotary dialing

• Programmable Make/Break Ratio

• EIA-232 Printer/PC interface (variable baud rate)

• 80-character LCD display (backlit)

• Real-time clock/calendar with daylight savings time control

• History file with 1,000 event capacity

• Advanced fire technology features:

Automatic drift compensation

Maintenance alert

Detector sensitivity test capability (NFPA 72 compliant)

Automatic device type-code verification

Point trouble identification

• Waterflow selection per module point

• Alarm verification selection per detector point

• Walktest, silent or audible

• PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant)

• Silence inhibit timer option per NAC

• Autosilence timer option per NAC

• Continuous, March Time, Temporal or California code for main circuit board

NACs with two-stage capability

• Selectable strobe synchronization per NAC

• Remote Acknowledge, Alarm Silence, Reset and Drill via addressable modules,

AFM annunciators or LCD-80F Remote annunciator

• Auto-program (learn mode) reduces installation time. Reports two devices set to

the same address

• Password and key-protected nonvolatile memory

• User programmable password

• Fully programmable from local keypad or optional keyboard

• Upload/Download (local or remote) of program and data via integral DACT

• Compatible with Fire-Lite’s newer series devices (refer to SLC Wiring Manual

for a list of compatible addressable devices)

• Compatible with legacy Fire-Lite 300 Series devices in CLIP mode only (refer to

the SLC Wiring Manual for a list of compatible addressable devices)

• Optional 4XTMF module (conventional reverse polarity/city box transmitter)

• Annunciators:

ACS Series-LED Zone Annunciators

LDM Graphic Annunciator Series

LCD-80F Liquid Crystal Display point annunciator

ACM-8RF Relay Module

1.2 Specifications

Refer to Illustration on page 10 for terminal locations and connections.

AC Power - TB11

MS-9200UDLS: 120 VAC, 60 Hz, 3.0 amps

MS-9200UDLSE: 240 VAC, 50 Hz, 1.5 amps

Wire size: minimum 14 AWG (2.00 mm2) with 600 V insulation

Product Description Specifications

14 MS-9200UDLS PN 52750:A 11/04/05

Battery (Lead Acid Only) - J9

Maximum Charging Circuit: Normal Flat Charge - 27.6 VDC @ 0.80 amp

Maximum Battery Charger Capacity: 18 Amp Hour (MS-9200UDLS cabinet holds

maximum of two 18 Amp Hour batteries. For greater than 25 Amp Hour up to 120

Amp Hour batteries, use the CHG-75 or CHG-120F Battery Charger and BB-55F

Battery Box.

Note: Jumper JP5, on the FACP main circuit board, must be removed to disable the

FACP battery charger when using an external battery charger.

Communication Loop - TB10

24 VDC nominal, 27.6 VDC maximum

Maximum length is 10,000 ft. (3,000 m) total twisted, shielded pair length or 3,000 ft.

(900 m) untwisted, unshielded pair length

Maximum loop current is 400 mA (short circuit) or 100 mA (normal)

Maximum loop resistance is 40 ohms

Supervised and power-limited circuit requires ferrite bead per FCC requirement

Refer to SLC Loop manual for wiring information

Notification Appliance Circuits - TB3 & TB4

Each Terminal Block provides connections for two Style Y (Class B) or one Style Z

(Class A) for a total of Four Style Y (Class B) or two Style Z (Class A) NACs

Style is configured using NACKEY card plugged into JP6 on main board

Special Application full-wave rectified power

Power-limited circuitry

Maximum voltage drop in wiring: 2.0 VDC

Nominal operating voltage: 24 VDC

Current-limit: fuseless, electronic, power-limited circuitry

Maximum signaling current per circuit: 2.5 amps (see Figure 1.1 on page 15)

End-of-Line Resistor: 4.7 kΩ, ½ watt (P/N 71252 UL listed) for Style Y (Class B) NAC

Refer to the Device Compatibility Document for listed compatible devices

Two Programmable Relays and One Fixed Trouble Relay - TB5, TB6 & TB7

Contact rating: 2.0 amps @ 30 VDC (resistive), 0.5 amps @ 30 VAC (resistive)

Form-C relays

Refer to Figure 2.6 on page 32 for information on power-limited relay circuit wiring

Nonresettable Special Application Power (24 VDC Nominal) -

TB1, Terminals 1 (+) & 2 (-)

Jumper selectable (JP4) for conversion to resettable power output

Maximum ripple voltage: 10mVRMS

Total DC current available from each output is up to 0.5 amps (see Figure 1.1)

Power-limited circuit requires ferrite bead per FCC requirements

Four-Wire Resettable Special Application Smoke Detector Power (24 VDC

nominal) - TB3, Terminals 3 (+) & 4 (-)

Maximum ripple voltage: 10 mVRMS

Up to 0.5 amps is available for powering 4-wire smoke detectors (see Figure 1.1)

Power-limited circuit requires ferrite bead per FCC requirements

Refer to the Device Compatibility Document for listed compatible devices

Remote Sync Output - TB2

Remote power supply synchronization output

24 VDC nominal special application power

Maximum current is 40 mA

End-of-Line Resistor: 4.7KΩ

Output linked to NAC 1 control

Supervised and power-limited circuit requires ferrite bead per FCC requirements

Specifications Product Description

MS-9200UDLS PN 52750:A 11/04/05 15

EIA-485 (TERM) or EIA-232 (ACS) - TB8

EIA-485 Terminal Mode annunciator connections: Terminal 1 (Out +), 2 (In +),

3 (Out -), 4 (In -)

EIA-232 PC/Printer applications connections: Terminal 1 (Transmit), 2 (Receive),

3 (Ground)

EIA-485 (ACS) - TB9

ACS annunciator connector, Terminal 1 (+) and Terminal 2 (-), requires ferrite bead

1.2.1 Current Availability

The following figure illustrates the maximum current that is possible for each panel

circuit and the total current available from the FACP with optional second transformer.

Figure 1.1 Current Availability

owerdist9200ud.cdr

Refer to the battery calculations section for additional information.

Note: If NACs are

configured as two Style Z

(Class A) circuits, each

circuit can handle 2.5

amps maximum.

6.0 amps with optional second

XRM-24(E) transformer.

3.0 amps max. with only

standard transformer installed.

Product Description Controls and Indicators

16 MS-9200UDLS PN 52750:A 11/04/05

1.3 Controls and Indicators

LCD Display

The FACP uses an 80-character

(4 lines X 20 characters) high

viewing angle LCD display. The

display includes a long life LED

backlight that remains illuminated. If

AC power is lost and the system is

not in alarm, the LED backlight will turn off to conserve batteries.

LED Indicators

LED indicators are provided to annunciate the following conditions:

• AC Power (green)

• Fire Alarm (red)

• Supervisory (yellow)

• Trouble (yellow)

• Maintenance/presignal (yellow)

• Alarm Silenced signals (yellow)

• Disabled (yellow)

• Battery fault (yellow)

• Ground fault (yellow)

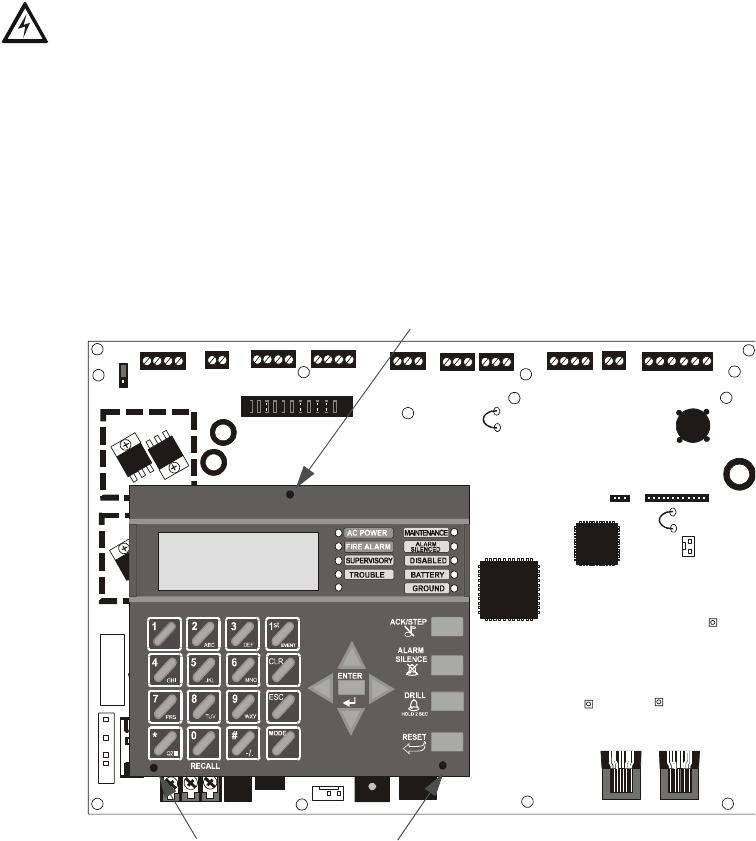

Key Panel

Mounted on the main circuit board, the key panel includes a window for the LCD

display and LED indicators as listed above. The key panel, which is visible with the

cabinet door closed, has 25 keys, including a 16 key alpha-numeric pad similar to a

telephone keypad.

Function keys:

• Acknowledge/Step

• Alarm Silence

• Drill

• Reset (lamp test)

Service/program keys:

• Keys labeled 1 to 9

• * key

• # key

• 0 (recall) key

•1st Event key

• Clear key

• Escape key

• Mode key

• Four cursor keys (up, down, left and right)

• Enter key

Local Piezo Sounder

A piezo sounder provides separate and distinct pulse rates for alarm, trouble and

supervisory conditions.

HONEYWELL LIFE SAFETY

SYSTEM ALL NORMAL

10:00A 012102

EVENT

ABC DEF

GHI JKL MNO

PRS TUV WXY

-/.

CLR

78 9

ESC

ENTER

RECALL

ACK/STEP

ALARM

SILENCE

DRILL

HOLD 2 SEC

RESET

MODE

MAINTENANCE

ALARM

SILENCED

DISABLED

BATTERY

GROUND

SUPERVISORY

TROUBLE

AC POWER

FIRE ALARM

Figure 1.2 Membrane/Display Panel

9600kypd.cdr

Circuits Product Description

MS-9200UDLS PN 52750:A 11/04/05 17

1.4 Circuits

SLC Communication Loop

One SLC loop is provided standard on the FACP main circuit board. The SLC loop,

configurable for NFPA Style 4, 6 or 7, provides communication to addressable

detectors, monitor (initiating device) and control (output device) modules. Refer to the

SLC Wiring manual for information on wiring devices.

Output Circuits

The following output circuits are available on the FACP:

• Special Application Power

24 VDC Resettable (smoke detector power) output - 0.5 amps maximum

24 VDC Nonresettable or Resettable power output - 0.5 amps maximum

• 24 VDC Battery Charger (up to 18 AH batteries)

NAC (Notification Appliance Circuits)

NACs configurable for four Style Y (Class B) or two Style Z (Class A) using NACKEY

card in JP6, are provided with various programmable features.

Relays

One fixed and two fully programmable Form-C dry contact relays are provided. The

fixed fail-safe relay monitors system trouble and the two programmable relays are

factory default programmed for system alarm and system supervisory. Contacts are

rated 2.0 amps @ 30 VDC (resistive) and 0.5 amps @ 30 VAC (resistive). The

programmable relays can be programmed for the following operations:

• fire alarm

• trouble

• supervisory

• supervisory auto-resettable

• DACT communication failure

• process monitor

• process monitor auto-resettable

• hazard alert

• medical alert

•AC loss

1.5 Digital Alarm Communicator/Transmitter

Two modular phone jacks allow easy connection to telephone lines. Modular jacks are

labeled PH1 for Primary Phone Line and PH2 for Secondary Phone Line. Two

telephone line active red LEDs are provided as well as a green Kissoff LED. The

integral digital communicator provides the following functions:

• Line Seizure: takes control of the phone lines disconnecting any premises phones

• Off/On Hook: performs on and off-hook status to the phone lines

• Listen for dial tone: 440 Hz tone typical in most networks

• Dialing the Central Station(s) number: default is Touch-Tone®, programmable to

rotary

• For tone burst or touchtone type formats: discern proper Ack and Kissoff tone(s).

The frequency and time duration of the tone(s) varies with the transmission

format. The control panel will adjust accordingly.

• Communicate in the following formats:

12 Tone Burst types: 20 pps

(3+1, 4+1, 4+2, 3+1 Exp., 4+1 Exp., 4+2 Exp.)

3 Touchtone Types

4+1 Ademco Express

4+2 Ademco Express

Ademco Contact ID



Reference

Manual

Product Description Components

18 MS-9200UDLS PN 52750:A 11/04/05

1.6 Components

Main Circuit Board

The main circuit board contains the system’s CPU, power supply, other primary

components and wiring interface connectors. The 4XTMF option module plugs in and

is mounted to the main circuit board.

Cabinet

The MS-9200UDLS backbox provides space for two batteries (up to 18 Amp Hour).

Ample knockouts are provided for system wiring. Also available is an optional dress

panel (DP-9692), which mounts to the inside of the cabinet (required by ULC for

Canadian installations). The dress panel must be installed to meet FM requirements.

Transformer Assembly

One 100VA transformer is provided standard

with the panel (3.6 amps maximum). An

optional 100 VA transformer XRM-24

(XRM-24E for the MS-9200UDLSE) is

available to provide maximum system and

accessory power (6.6 amp total).

Batteries

The MS-9200UDLS cabinet provides space

for two batteries (up to 18 Amp Hour).

Batteries larger than 18 Amp Hour require an

external charger such as the CHG-75 or

CHG-120F and a UL listed battery box such

as the BB-55F. Batteries must be ordered

separately.

1.6.1 Intelligent Addressable Detectors: Newer Series

Intelligent, addressable detectors provide information to the control panel on an SLC

Signaling Line Circuit (refer to the SLC Wiring Manual for detailed information on

device installation, wiring and operation). This allows the control panel to continually

process the information to determine the status (alarm, trouble, maintenance or normal)

of each detector. Each detector responds to an SLC address that is set in the detector

head using built-in rotary decimal switches. The maximum address cannot exceed

address 99. Note that a blinking LED on an intelligent detector indicates

communication between the detector and the control panel.

These devices (350 Series or newer) can operate in CLIP mode (Classic Loop Interface

Protocol) or LiteSpeed mode to provide a quicker response. They are also compatible

with older 300 Series devices. If a mix of old and new series devices are installed on

the same loop, the FACP must be programmed to operate in CLIP mode. Refer to the

SLC Wiring Manual for a list of compatible addressable detectors.

See Page



Standard

XRM-24(E)

Optional

XRM-24(E)

9200xfor.cdr

Battery Cable P/N 75287

9200batt.cdr

Components Product Description

MS-9200UDLS PN 52750:A 11/04/05 19

1.6.2 Intelligent Addressable Modules: Newer Series

The newer series of Control Modules and Monitor Modules provide an interface

between the control panel and conventional notification and initiating devices. Each

module can be set to respond to an address with built-in rotary switches. The maximum

address cannot exceed address 99. Note that a blinking LED on an addressable module

indicates communication between the module and the control panel.

These devices (350 Series or newer) can operate in CLIP mode (Classic Loop Interface

Protocol) or LiteSpeed mode to provide a quicker response. They are also compatible

with older 300 series devices. If a mix of old and new series devices are installed on the

same loop, the FACP must be programmed to operate in CLIP mode. Refer to the SLC

Wiring Manual for a list of compatible addressable modules. Refer to the Device

Compatibility Document for a list of approved conventional notification and initiating

devices.

1.6.3 300 Series Intelligent Addressable Devices

Fire-Lite’s 300 Series Intelligent Addressable Devices are fully compatible with the

MS-9200UDLS FACP. The address of 300 Series devices cannot be set above 99.

Refer to the SLC Wiring Manual for a list of compatible addressable devices.

1.6.4 Addressable Device Accessories

End-of-Line Resistor Assembly

The End-of-Line resistors are included with each module. Refer to the specific module

documentation for specific information.

Power Supervision Relay

The UL listed End-of-Line power supervision relay is used to supervise the power to 4-

wire smoke detectors and notification appliances.

N-ELR Mounting Plate

The N-ELR is a single End-of-Line resistor plate which is required for use in Canada.

An ELR, which is supplied with each module and fire alarm control panel, is mounted

to the ELR plate. Resistors mounted to the N-ELR plate can be used for the supervision

of a monitor and control module circuit.



Reference

Manual

Product Description Optional Modules

20 MS-9200UDLS PN 52750:A 11/04/05

1.7 Optional Modules

The MS-9200UDLS main circuit board includes option module connectors for the

following module:

4XTMF Transmitter Module

The 4XTMF provides a supervised output for local energy municipal box transmitter,

alarm and trouble reverse polarity. It includes a disable switch and disable trouble

LED. A jumper on the module is used to select an option which allows the reverse

polarity circuit to open with a system trouble condition if no alarm condition exists.

The module plugs into connectors J5 and J6 which are located near the right edge the

main circuit board. When the 4XTMF module is installed, Jumper JP3, on the main

circuit board, must be cut to allow supervision of the module.

1.8 Accessories

1.8.1 PK-CD Programming Utility

The PK-CD Programming Utility can be used to program an MS-9200UDLS directly

from most IBM compatible computers, including laptops and portables, equipped with

a serial port. MS-9200UDLS program files can also be created and stored on the PC

and then downloaded to the control panel. The PK-CD Kit includes the MS-

9200UDLS Windows-based Programming Utility software on CD-ROM with on-line

help file. A serial cable (P/N: PRT/PK-CABLE), which must be purchased separately,

is required for connection of the PC to the RS-232 (PC/Printer) terminals at TB8 of the

MS-9200UDLS main circuit board. Refer to the illustration on page 10 and the section

titled "Printer/PC" on page 40, for the location and connections to this terminal.

1.8.2 Dress Panel

An optional dress panel DP-9692 is available for the MS-9200UDLS (required by ULC

for Canadian installations). The dress panel restricts access to the system wiring while

allowing access to the key panel. A ground strap must be connected between the stud

on the inside of the dress panel and the ground stud in the backbox. The dress panel

must be installed to meet FM requirements.

dp9200udls.cdr

Accessories Product Description

MS-9200UDLS PN 52750:A 11/04/05 21

1.8.3 Battery Box

BB-26

The BB-26 battery box may be used to house up to two 26 AH batteries and the

CHG-75 Battery Charger. The battery box, which is red and is provided with

knockouts, was designed specifically to compliment mounting below the FACP.

BB-55F

The BB-55F battery box may be used to house two 25 AH batteries, two 60 AH

batteries or one 100 AH battery. When the CHG-120F is mounted in the BB-55F, two

25 AH or one 60 AH battery may also be housed in the battery box.

1.8.4 Battery Charger

1.8.4.1 CHG-75 Battery Charger

The CHG-75 is capable of charging up to 75 AH lead-acid batteries with the MS-

9200UDLS FACP. The FACP battery charger must be disabled, by removing

jumper JP5, when using the CHG-75. The charger and up to 26 AH batteries can be

housed in the BB-26 battery box. Larger batteries and the charger can be housed in

the BB-55F battery box which can be mounted up to 20 feet away from the control

panel. Refer to the CHG-75 Manual for additional information.

1.8.4.2 CHG-120F Battery Charger

The CHG-120F is capable of charging up to 120 AH lead-acid batteries with the

MS-9200UDLS FACP. The FACP battery charger must be disabled, by removing

jumper JP5, when using the CHG-120F. The batteries and charger can be housed in

the BB-55F battery box which can be mounted up to 20 feet away from the control

panel. Note that when using the BB-55F for housing the charger and batteries

greater than 25AH, multiple BB-55Fs are required. Refer to the CHG-120F Manual

for additional information.



Reference

Manual

Product Description Accessories

22 MS-9200UDLS PN 52750:A 11/04/05

1.8.5 Annunciators

ACS Series LED Zone Type Annunciators

The ACS Series Annunciators remotely display alarm and trouble status as well as

system status. In addition, they can provide remote Acknowledge, Silence, Reset and

Drill functions. For more detailed information, refer to the appropriate annunciator

manual. Following is a list of annunciators which can be used with the MS-

9200UDLS.

•ACM-16ATF* Annunciator Control Module annunciates 16 zones with 16 red

alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble

LED, an On Line/Power LED and a local piezo sounder. It also has switches for

FACP Acknowledge, Silence, Reset and Drill. It has rotary address switches and

will accept up to three AEM-16ATF Expanders. In Canada, this module must be

used to annunciate the fire alarm input points/zones only.

•AEM-16ATF Annunciator Expander Module annunciates 16 zones with 16 red

alarm LEDs and 16 yellow trouble LEDs

•AFM-16ATF* Annunciator Fixed Module annunciates 16 zones with 16 red

alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble

LED, an On Line/Power LED and a local piezo sounder. It also has switches for

FACP Acknowledge, Silence, Reset and Drill. It is fixed at address ‘1.’ In

Canada, this module must be used to annunciate the fire alarm input points/zones

only.

•ACM-32AF* Annunciator Control Module annunciates 32 alarm zones with 32

red LEDs. In addition, it has a System Trouble LED, an On Line/Power LED

and a local piezo sounder. It also has a switch for local piezo silence. It has

rotary address switches and will accept one AEM-32AF Expander. In Canada,

this module must be used to annunciate the fire alarm input points/zones only.

•AEM-32AF Annunciator Expander Module annunciates 32 alarm zones with 32

red LEDs

•AFM-16AF* Annunciator Fixed Module annunciates 16 alarm zones with 16 red

alarm LEDs. In addition, it has a System Trouble LED, an On Line/Power LED

and a local piezo sounder. It also has a switch for local piezo silence. It is fixed

at address ‘1.’ In Canada, this module must be used to annunciate the fire alarm

input points/zones only.

•AFM-32AF* Annunciator Fixed Module annunciates 32 alarm zones with 32 red

LEDs. In Canada, this module must be used to annunciate the fire alarm input

points/zones only.

* In Canada, the color red must be used to indicate active alarm inputs. Yellow

indicates supervisory, burglary or trouble signals. Green indicates the presence of

power, or an activated output.



Reference

Manual

Getting Started Product Description

MS-9200UDLS PN 52750:A 11/04/05 23

LCD-80F Remote Fire Annunciator

The LCD-80F annunciator is a compact 80-character backlit LCD remote fire

annunciator that is capable of displaying English language text. It mimics the display

on the control panel and will annunciate device type, point alarm, trouble or

supervisory condition, zone assignment plus any custom alpha labels programmed into

the FACP. The annunciator also provides system status LEDs to display AC Power,

Alarm, Trouble, Supervisory and Alarm Silenced conditions. Additionally, the LCD-

80F is capable of remotely performing critical system functions such as Acknowledge,

Silence, Reset and Drill.

Communications between the control panel and the annunciator is accomplished over a

serial interface employing the EIA-485 communication standard. Up to 32 LCD-80F

annunciators may be connected to the EIA-485 circuit. The annunciators may be

powered from the host FACP or a remote UL listed filtered power supply such as the

FCPS Series. For more detailed information, refer to the LCD-80F manual.

LDM Series Lamp Driver Modules (Graphic Annunciator)

The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and

LDM-E32F expander modules, are used to provide an interface to a custom graphic

LED annunciator. The master module provides power and control for a maximum of

three expander modules. The LDM-32F and LDM-E32F have output connectors which

are used to drive lamps or LEDs and input connectors which are used for remote switch

functions. Refer to the LDM Series Lamp Driver Modules manual for a complete

description.

1.9 Getting Started

The following is a brief summary of the minimal steps involved in bringing an MS-

9200UDLS on-line:

• Install Backbox and Main Circuit Board (refer to "Mounting Backbox" on page

27)

• Address and Install Intelligent Devices (refer to the SLC Wiring Manual)

• Enter Autoprogramming (refer to "Autoprogram" on page 47)

• Resolve Programming Conflicts

• Go to Point Program to Enter Specific Data (refer to "Point Program" on page

48). Use the right and left arrow keys to navigate between devices.



Reference

Manual



Reference

Manual

Product Description Telephone Requirements and Warnings

24 MS-9200UDLS PN 52750:A 11/04/05

1.10 Telephone Requirements and Warnings

1.10.1Telephone Circuitry

Ringer Equivalence Number (REN) = 0.0B

AC Impedance: 10.0 Mega Ohm

Complies with FCC Part 68

Mates with RJ31X Male Connector

Supervision Threshold: less than 4.0 volts for 2 minutes

The REN is used to determine the quantity of devices which may be connected to the

telephone line. Excessive RENs on the telephone line may result in the devices not

ringing in response to an incoming call. In most, but not all areas, the sum of the RENs

should not exceed five (5.0). To be certain of the number of devices that may be con-

nected to the line as determined by the total RENs, contact the telephone company to

determine the maximum REN for the calling area.

1.10.2Digital Communicator

Before connecting the control panel to the public switched telephone network, the

installation of two RJ31X jacks is necessary. If trouble is experienced with this equip-

ment, for repair or warranty information, please contact:

Manufacturer: Fire•Lite Alarms, Inc.

One Fire-Lite Place

Northford, CT 06472

(203) 484-7161

Product Model Number: MS-9200UDLS

FCC Registration Number: US:1W6AL00B9200UD

Ringer Equivalence: 0.0B

Note: This equipment complies with Part 68 of the FCC rules and the

requirements adopted by the ACTA. On the inside of the FACP door is a

label that contains, among other information, a product identifier in the

format US:AAAEQ##TXXXX. If requested, this number must be

provided to the telephone company.

Alarm dialing equipment must be able to seize the telephone line and place a call in an

emergency situation. It must be able to do this even if other equipment (telephone,

answering system, computer modem, etc.) already has the telephone line in use. To do

so, alarm dialing equipment must be connected to a properly installed RJ31X jack that

is electrically in series with and ahead of all other equipment attached to the same

telephone line. If there are any questions concerning these instructions, consult the

telephone company or a qualified installer about installing the RJ31X jack and alarm

dialing equipment. Refer to "Digital Communicator" on page 36 for an illustration of

the proper installation of this equipment.

Important! The DACT must not be used to dial a phone number that is call-forwarded

per requirements of UL 864 9th Edition.

Telephone Requirements and Warnings Product Description

MS-9200UDLS PN 52750:A 11/04/05 25

1.10.3Telephone Company Rights and Warnings

The telephone company, under certain circumstances, may temporarily discontinue

services and/or make changes in its facilities, services, equipment or procedures which

may affect the operation of this control panel. However, the telephone company is

required to give advance notice of such changes or interruptions.

If the control panel causes harm to the telephone network, the telephone company

reserves the right to temporarily discontinue service. Advance notification will be

provided except in cases when advance notice is not practical. In such cases, notifica-

tion will be provided as soon as possible. The opportunity will be given to correct any

problems and to file a complaint with the FCC if you believe it is necessary.

DO NOT CONNECT THIS PRODUCT TO COIN TELEPHONE, GROUND START, OR

PARTY LINE SERVICES.

When the control panel activates, premise phones will be disconnected.

Two separate phone lines are required. Do not connect both telephone interfaces to the

same telephone line.

The control panel must be connected to the public switched telephone network

upstream (as first device) of any private telephone system at the protected premises.

A plug and jack used to connect this equipment to the premises wiring and telephone

network must comply with the applicable FCC Part 68 rules and requirements adopted

by ACTA. This equipment is designed to be connected to the telephone network or pre-

mises wiring using a compliant RJ31X male modular plug and compatible modular

jack that is also compliant.

Product Description Telephone Requirements and Warnings

26 MS-9200UDLS PN 52750:A 11/04/05

1.10.4For Canadian Applications

The following is excerpted from CP-01 Issue 5:

NOTICE: The Industry Canada (IC) label identifies certified equipment. This certifica-

tion means that the equipment meets certain telecommunications network protective,

operational and safety requirements as prescribed in the appropriate Terminal Equip-

ment Technical Requirements document(s). The Department does not guarantee the

equipment will operate to the users’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be con-

nected to the facilities of the local telecommunications company. The equipment must

also be installed using an acceptable method of connection. The customer should be

aware that compliance with the above conditions may not prevent degradation of ser-

vice in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance

facility designated by the supplier. Any repairs or alterations made by the user to this

equipment, or equipment malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure, for their own protection, that the electrical ground connections of

the power utility, telephone lines and internal metallic water pipe system, if present, are

connected together. This precaution may be particularly important in rural areas.

CAUTION

Users should not attempt to make such connections themselves, but should contact the

appropriate electric inspections authority, or electrician.

“The Ringer Equivalence Number (REN) assigned to each terminal device provides an

indication of the maximum number of terminals allowed to be connected to a telephone

interface. the termination of an interface may consist of any combination of devices

subject only to the requirement that the sum of the REN of all devices does not exceed

5.”

DOC Compliance - “This digital apparatus does not exceed the Class A limits for radio

noise emissions from digital apparatus set out in the Radio Interference Regulations of

the Canadian Department of Communications.”

Representative: NOTIFIER/FIRE•LITE, CANADA

24 Viceroy Road

Concord, Ontario L4K2L9

Phone: (905) 660-7210

FAX: (905) 660-7204

IC Certificate Number:

Ringer Equivalence Number (REN): 1.3B

Load Number: 2

Mounting Backbox Installation

MS-9200UDLS PN 52750:A 11/04/05 27

SECTION 2 Installation

The cabinet may be either semi-flush or surface mounted. The cabinet mounts using

two key slots and two 0.250” (6.35 mm) diameter holes located in the backbox. The

key slots are located at the top of the backbox and the two securing holes at the bottom.

Carefully unpack the system and check for shipping damage. Mount the cabinet in a

clean, dry, vibration-free area where extreme temperatures are not encountered. The

area should be readily accessible with sufficient room to easily install and maintain the

panel. Locate the top of the cabinet approximately 5 feet (1.5 m) above the floor with

the hinge mounting on the left. Determine the number of conductors required for the

devices to be installed. Sufficient knockouts are provided for wiring convenience.

Select the appropriate knockout(s) and pull the conductors into the box. All wiring

should be in accordance with the National and/or Local codes for fire alarm systems.

2.1 Mounting Backbox

The circuit board contains static-sensitive components. Always ground yourself with a

proper wrist strap before handling any boards so that static charges are removed from

the body. Use static suppressive packaging to protect electronic assemblies.

To prevent damage to the circuit board and to facilitate backbox mounting, the chassis

with main circuit board and transformer can be easily removed. Loosen the tow 3/8”

nuts securing the top flanges of the chassis, then slide the chassis up to free it from the

lower tabs. Place the chassis assembly in a safe location until it can be reinstalled in the

backbox.

Mark and predrill hole in the wall for the center top keyhole mounting bolt

using the dimensions illustrated in Figure 2.3 on page 29

Install center top fastener in the wall with the screw head protruding

Place backbox over the top screw, level and secure

Mark and drill the left and right upper and lower mounting holes

Note: outer holes (closest to sidewall) are used for 16” O.C. stud mounting

Install remaining fasteners and tighten

See Page



Figure 2.1 MS-9200UDLS Chassis Removal

Backbox

Main Circuit Board on chassis

mounting studs

92udchassisinbox.cdr

grounding stud

mounting slots

Installation Mounting Transformer

28 MS-9200UDLS PN 52750:A 11/04/05

2.2 Mounting Transformer

One XRM-24(E) transformer is supplied standard with the control panel. An optional

second XRM-24(E) transformer can be ordered and installed to provide maximum

system power. Install the transformers in the locations indicated in the following

illustration.

1. When the location is dry and free of construction dust, install the chassis/

transformer/circuit board assembly.

2. Mount the chassis to the backbox by aligning the two mounting tabs with the

slots in the backbox, then position the two mounting hole tabs over the studs with

nuts located in the upper portion of the backbox.

3. Slide the tabs located on the bottom of the chassis into the mounting slots in the

backbox by pressing the chassis down.

4. Secure the chassis to the backbox by tightening the two mounting nuts (#10-32)

at the top, and to ensure proper grounding, use a 3/8” nut driver or socket.

5. If the main circuit board is not already attached to the chassis, install it by

positioning the ten mounting holes over the studs on the chassis and secure with

the supplied screws.

6. Connect the Standard XRM-24 Transformer plug to Transformer 1 Connector

J10 on the FACP main circuit board

7. Connect the Optional XRM-24 Transformer plug to Transformer 2 Connector J11

on the FACP main circuit board.

8. Complete the installation as detailed in the following sections.

Figure 2.2 MS-9200UDLS Main Board/Chassis Installation

Standard XRM-24 Transformer

Optional XRM-24 Transformer

Mounting Slot

Mounting Studs

Mounting Transformer Installation

MS-9200UDLS PN 52750:A 11/04/05 29

Figure 2.3 MS-9200UDLS Cabinet Mounting

9050udencl.cdr

Semi-Flush Mounting

Do not recess box more

than 3.875” into wall to

avoid covering venting

holes on top of box.

Installation Mounting Transformer

30 MS-9200UDLS PN 52750:A 11/04/05

Figure 2.4 MS-9200UDLS Cabinet Dimensions

9050udcab.cdr

Power Installation

MS-9200UDLS PN 52750:A 11/04/05 31

2.3 Power

WARNING: Several different sources of power can be connected to this panel.

Disconnect all sources of power before servicing. The panel and associated equipment

may be damaged by removing and/or inserting cards, modules or interconnecting

cables while this unit is energized.

2.3.1 AC Power and Earth Ground Connection

Primary power required for the FACP is 120 VAC,

60 Hz, 3.0 amps for the MS-9200UDLS or 240

VAC, 50 Hz, 1.5 amps for the MS-9200UDLSE.

Overcurrent protection for this circuit must comply

with Article 760 of the National Electrical Code

(NEC) and/or local codes. Use 14 AWG (2.00

mm2) or larger wire with 600 volt insulation rating.

Make certain that the AC mains circuit breaker is off before wiring any connections

between the mains and the control panel. Connect wiring from the AC mains to TB11

on the FACP, being careful to observe proper connections.

Connect a wire from the grounding stud in the cabinet to a known solid earth ground in

the building. Refer to Figure 2.1 on page 27 for location of the stud. This connection is

vital for maintaining the control panel’s immunity to unwanted transients generated by

lightning and electrostatic discharge. Apply AC power to the panel only after the

system is completely installed and visually checked. Note that AC power must be

applied to the panel before installing the battery interconnect cable (refer to the

following section).

2.3.2 Battery Power

Before connecting the batteries to the FACP, make

certain that the interconnect cable between the

batteries is not connected. Do not connect the

interconnect cable until the system is completely

installed. Observe polarity when connecting the batteries. Connect the battery cable to

J9 on the main circuit board. Refer "Power Supply Calculations" on page 163, for

calculation of the correct battery rating.

WARNING: Battery contains sulfuric acid which can cause severe burns to the skin

and eyes and can destroy fabrics. If contact is made with sulfuric acid, immediately

flush the skin or eyes with water for 15 minutes and seek immediate medical attention.

2.3.3 Special Application DC Power Output Connection

All Special Application DC power outputs are power-limited and require a ferrite bead

per FCC requirements (refer to "UL Power-limited Wiring Requirements" on page 35).

HOT NEUT EARTH

- +

BATTERY

LCD DISPLAY

TB11

J1 J4

Interconnect

Cable

See Page



+ - + -

1 2 3 4

Figure 2.5 Special Application Power Outputs - 24 VDC

Power-limited Resettable or Nonresettable Power

0.5 amperes max., 24 VDC nominal filtered, resettable

or nonresettable power can be drawn from TB1

Terminals 1(+) and 2(-)

Power-limited Resettable Power

0.5 amperes max., 24 VDC nominal filtered, resettable power can

be drawn from TB1 Terminals 3(+) and 4(-)

92udtb1.cdr

JP4 TB1

JP4 is used to configure TB1,

Terminals 1 & 2 for:

• Resettable Power - jumper pins 1 and

2 of JP4 as shown

• Nonresettable Power - jumper pins 2

& 3 of JP4

Installation Relays

32 MS-9200UDLS PN 52750:A 11/04/05

2.4 Relays

The FACP provides two programmable Form-C relays and one fixed fail-safe Form-C

trouble relay, all with contacts rated for 2.0 amps @ 30 VDC (resistive) or 0.5 amps @

30 VAC (resistive).

Note that relay connections may be power-limited or nonpower-limited, provided that

0.25” spacing is maintained between conductors of power-limited and nonpower-

limited circuits. Refer to UL Power-limited wiring requirements.

2.5 Notification Appliance Circuits

The control panel provides four Style Y (Class B) or two Style Z (Class A) NACs

(Notification Appliance Circuits). Each circuit is capable of 2.5 amps of current. Total

current in alarm for all external devices cannot exceed 6.0 amps (refer to "Calculating

the System Current Draw" on page 164). Use UL listed 24 VDC notification

appliances only. Circuits are supervised and power-limited. Refer to the Device

Compatibility Document for a listing of compatible notification appliances. The

NACs, which are located on the main circuit board, may be expanded via the FCPS

Series field charger/power supplies.

The following sections describe the configuration and wiring of Style Y and Style Z

Notification Appliance Circuits on the MS-9200UDLS main circuit board. The NACs

are configured for Style Y (Class B) from the factory. Refer to "Configuring NACs"

on page 33 for information on changing the NAC configuration to Style Z (Class A).

RELAY 3 RELAY 1 RELAY 2

NO NC C NO NC C NO NC C

Figure 2.6 Relay Terminals

Relay contacts shown with power applied to panel and

no active troubles, alarms or supervisories

TB7

Note that the programmable relay labeled as

Relay 1 is factory default programmed as

Alarm and programmable Relay 3 is factory

default programmed as Supervisory.

The relay labeled Relay 2 is fixed as a

Trouble relay and cannot be changed. It is a

fail-safe relay which will transfer on any

trouble or total power failure.

92udreyp.cdr

TB5 TB6



Reference

Manual

See Page



Notification Appliance Circuits Installation

MS-9200UDLS PN 52750:A 11/04/05 33

2.5.1 Configuring NACs

The Notification Appliance Circuits on the main circuit board are configured for Style

Y (Class B) or Style Z (Class A) by properly orienting the NACKEY card in JP6 which

is located at the top of the main circuit board near the NAC terminal blocks TB3 and

TB4. The default configuration is for Style Y (Class B). Refer to Figure 2.7 for

information on installing the NACKEY card.

2.5.2 Style Y (Class B) NAC Wiring

CLASS A

CLASS B

NACKEY -PCA

Figure 2.7 NAC Configuration Using NACKEY

NACKEY Card

JP6

Top edge of MS-9200UDLS

Main Circuit Board

• Style Z (Class A) - install NACKEY into JP6 with

Class A pointing down toward circuit board as

illustrated to the right.

• Style Y (Class B) - install NACKEY into JP6 with

Class B pointing down toward circuit board .

NACKEY must be inserted with text side facing in

toward center of main circuit board and key into key-

slot as illustrated to the right. It is keyed to prevent

incorrect insertion.

NACKEY card slot

JP6

TB3 TB4

92nackey.cdr

Key

Key-slot

33 22

Figure 2.8 NAC Style Y (Class B) Wiring

4 Style Y (Class B) Notification Appliance Circuits, supervised and power-limited - 4.7 kΩ, ½ watt P/N:71252 UL listed

Polarized Bells Polarized Bells

Polarized HornsPolarized Horns

Polarized Strobes

Notification Appliance Circuit

polarity shown in alarm state

Dummy Load all unused circuit

TB4

9200nacy.cdr

Polarized Strobes

circuit number

NAC 1 NAC 3 NAC 4 NAC 2

TB3

Installation Remote Synchronization Output

34 MS-9200UDLS PN 52750:A 11/04/05

2.5.3 Style Z (Class A) NAC Wiring

2.6 Remote Synchronization Output

Synchronization is a feature that controls the activation of notification appliances in

such a way that all devices will turn on and off at exactly the same time. This is

particularly critical when activating strobes which must be synchronized to avoid

random activation and a potential hazard to individuals. Devices connected directly to

the control panel’s NACs can be synchronized as described in "Type" on page 88.

Notification appliances connected to remote power sources may require

synchronization with the FACP’s devices. This can be accomplished by connecting the

Remote Synchronization Output from TB2 of the MS-9200UDLS to a compatible sync

input of a power supply such as the FCPS-24FS6/8. The 24 VDC, 40 mA signal from

TB2 follows, that is mimics, the signal on NAC1. This allows the devices connected to

the power supply to be synchronized with the devices connected to NAC1 on the FACP.

The Remote Synchronization Output is power-limited and supervised and requires a

ferrite bead (refer to "UL Power-limited Wiring Requirements" on page 35). A 4.7 kΩ

ELR resistor must be connected to the end of the wiring at the remote power supply.

2 Style Z (Class A) Notification Appliance Circuits,

supervised and power-limited

Polarized Bell

Polarized Horn

Notification Appliance Circuit

polarity shown in alarm state

Polarized Bell

Polarized Strobe Polarized Strobe

Figure 2.9 NAC Style Z (Class A) Wiring

9200nacz.cdr

NAC 1 NAC 2

TB3 TB4

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

REMOTE PWR

SUPPLY SYNC

+ -

B+ A+ A- B- B+ A+ A- B-

1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B-

TB1 TB2 TB3 TB4

JP4

Figure 2.10 Remote Sync Output

Remote Power Supply

FACP main circuit board

Remote Sync Output

Sync Input

4.7 kΩ ELR

UL Power-limited Wiring Requirements Installation

MS-9200UDLS PN 52750:A 11/04/05 35

2.7 UL Power-limited Wiring Requirements

Power-limited and nonpower-limited circuit wiring must remain separated in the

cabinet. All power-limited circuit wiring must remain at least 0.25” (6.35 mm) away

from any nonpower-limited circuit wiring and nonpower-limited circuit wiring must

enter and exit the cabinet through different knockouts and/or conduits. A typical wiring

diagram for the MS-9200UDLS is shown below.

Figure 2.11 Typical UL Power-limited Wiring Requirements

Power-limited Circuits Power-limited Circuits

Nonpower-limited Circuits

Power-limited Circuits

Nonpower-limited

Circuits

AC Power

Grounding Stud

92udulpw.cdr

Nonpower-limited Circuits

To Batteries

maintain minimum 0.25”

between power-limited

and nonpower-limited

circuits wiring

Ground Strap

*Ferrite Beads

Wrap wire around ferrite bead as shown. Close ferrite bead.

*Ferrite Bead Installation

Per FCC requirements, ferrite beads are required for the DC Power Outputs, Remote Power Supply Sync, ACS Output and SLC Circuit.

Installation Digital Communicator

36 MS-9200UDLS PN 52750:A 11/04/05

2.8 Digital Communicator

Two independent telephone lines can be connected to the control panel. Telephone line

control/command is made possible via double line seizure as well as usage of an RJ31X

style interconnection. Note that it is critical that the panel's digital communicator be

located as the first device on the incoming telephone circuit to properly function.

Important! The DACT must not be used to dial a phone number that is call-forwarded

per requirements of UL 864 9th Edition.

The control panel's digital communicator is built into the main circuit board.

Connection and wiring of two phone lines is required as shown below.

Figure 2.12 DACT Installation

Customer Premises Equipment and Wiring

Telephone

Line

FACP with DACT

Network

Service

Provider’s

Facilities

Network

Demarcation

Point

RJ31X

Jack Unused

RJ-11 Jack

Unused

RJ-11 Jack

Telephone

Telephone Answering

System

Fax Machine

Computer

actadact.cdr

Modular Female

Connectors

Male Plug

Connectors

7 foot

Cable

MCBL-7

(ordered

separately)

Note:Shorting bars

inside RJ31X Jack

removed during

male plug insertion

1234567

123456 8

Tip

Ring

Green Wire

To premise phones To premise phones

Red Wire

Ring Ring

(Primary Lines)

Incoming Telco

Phone Lines

(Secondary Lines)

Incoming Telco

Phone Lines

Tip Tip

KISSOFF

PRI. ACTIVE SEC. ACTIVE

SEC. PHONE LINE

PRI. PHONE LINE

J13 J12

Figure 2.13 Wiring Phone Jacks

Optional Module Installation Installation

MS-9200UDLS PN 52750:A 11/04/05 37

2.9 Optional Module Installation

WARNING! Disconnect all sources of power (AC and DC) before installing or

removing any modules or wiring.

MS-9200UDLS Keypad/Display Removal

Removal of the keypad/display is normally not necessary. If, however, it becomes

necessary to replace the keypad/display or access jumpers JP5 and JP7 or switch SW1,

the Keypad/Display can be removed by inserting a Phillips screwdriver into each of the

three holes located in the flexible covering of the Keypad/Display and loosening the

three mounting screws. Note that it is not necessary to disconnect the cables between

the Keypad/Display and the main circuit board unless the unit itself is being replaced.

Carefully lift the Keypad/Display and rest the unit at the bottom of the main circuit

board.

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

REMOTE PWR

SUPPLY SYNC NAC 1 CLASS A

NAC 1 & 3 CLASS B

NAC 2 CLASS A

NAC 2 & 4 CLASS B

RELAY 3 RE LAY 1

HOT NEUT E ARTH

- +

BATTERY

LCD DISPLAY

REMOVE TO

DISABLE GND. FLT.

CUT TO

MONITOR

4XTMF

KISSOFF

PRI. ACTIVE SEC. ACTIVE

SEC. PHONE LINE

PRI. PHONE LINE

4XTMF

MINI DIN

KEYBOARD CONN.

KEYPAD

I/F

RELAY 2

TRANSFORMER 1

TRAN SFORM ER 2

+ -

B+ A+ A- B- B+ A+ A- B-

1B+ 3B+ 3B - 1B- 2B+ 4B+ 4B- 2B-

NO NC C NO NC C NO NC C B+ A+ B- A- A B

ACS

SHIEL DSLCSLC

SLCSLC

OUT+ I N+ OU T- IN-

TB1 TB2 TB3 TB4 TB7 TB5 TB6 TB8 TB9 TB10

JP4

JP1

JP2

JP3

SW1

JP7

JP5

JP6

1 2 3

TB11

J10

J13 J12

J1 J4

J11

CAUTION!

HIGH VOLTAGE

Figure 2.14 Keypad/Display Removal

Mounting Screw Access Hole

Mounting Screw Access Holes

96dact1.cdr

Installation Optional Module Installation

38 MS-9200UDLS PN 52750:A 11/04/05

2.9.1 4XTMF Transmitter Module Installation

The 4XTMF provides a supervised output for a local energy municipal box transmitter

in addition to alarm and trouble reverse polarity. A jumper option allows the reverse

polarity circuit to open with a system trouble condition if no alarm condition exists. A

disable switch allows disabling of the transmitter output during testing to prevent

accidental calling of the monitoring service.

Local Energy Municipal Box Service (NFPA 72 Auxiliary Fire Alarm Systems):

Supervisory Current: 5.0 mA

Trip Current: 350 mA (subtracted from notification appliance power)

Coil Voltage: 3.65 VDC

Maximum Coil Resistance: 14.6 ohms

Maximum allowable wire resistance between panel and trip coil: 3 ohms

Municipal Box wiring can leave the building

Remote Station Service (NFPA 72 Remote Station Fire Alarm Systems) - Intended

for connection to a polarity reversal circuit or a Remote Station receiving unit

having compatible ratings:

Maximum load for each circuit: 10 mA

Reverse polarity output voltage: 24 VDC

Remote Alarm and Remote Trouble wiring can leave the building

Before installing the module, place the disconnect switch to the right (disconnect)

position to prevent accidental activation of the municipal box. Note that a Disconnect

LED will illuminate after the module is installed in the MS-9200UDLS. In addition,

the System Trouble LED will turn on to indicate the Disconnect condition.

Figure 2.15 4XTMF Transmitter Module

Connect to FACP J10 & J11

Disconnect Switch

shown in disconnect

position

TBL Jumper

}Remote Alarm (power-limited)*

}Remote Trouble (power-limited)*

No connection

}Municipal Box (nonpower-limited)*

1 2 3 4 5 6 7

+ - + - + -

Polarities are shown for module activation

Note: 4XTMF Module is not suitable for

transmitting reverse polarity supervisory signal.

* Wiring from these

terminals can exit the

protected premises.

Dummy load terminals

6 and 7 (4.7kΩ, ¼ watt

resistor) if Municipal

Box is not connected.

Disconnect LED

4xtmfl.cdr

Optional Module Installation Installation

MS-9200UDLS PN 52750:A 11/04/05 39

The following steps must be followed when installing the 4XTMF module:

1. Remove all power (Primary and Secondary) from the FACP before installing

4XTMF

2. Cut jumper JP3 on the main circuit board to allow the control panel to supervise

the 4XTMF module

3. Carefully plug the connectors on the 4XTMF module into connectors J5 and J6

on the MS-9200UDLS main circuit board, being careful not to bend any pins

4. Secure 4XTMF module to standoffs with supplied screws.

5. Reapply power to the FACP

6. For proper 4XTMF operation, the output relays must be programmed for the

factory default settings: Alarm Relay 1, Trouble Relay 2 and Supervisory Relay 3

7. When the installation has been complete, enable the 4XTMF module by sliding

the disconnect switch to the left

8. Test system for proper operation

NOTE: Jumper JP2 on the FACP main circuit board can be used to configure the FACP

supervisory relay for operation with the 4XTMF module. Relay 3 at TB5 must be

programmed as a supervisory relay.

Cutting JP2 will allow the 4XTMF to generate a trouble if the supervisory contact opens

Leaving JP2 in will prevent generation of a trouble if the supervisory contact opens

RELAY 1

CUT TO

MONITOR

4XTMF

KISSOFF

PRI. ACTIVE SEC. ACTIVE

SEC. PHONE LINE

PRI. PHONE LINE

4XTMF

RELAY 2

NO NC C NO NC C B+ A+ B- A- A B

ACS

SHIELDSLC

SLCSLCSLC

OUT+ I N+ OUT- I N-

TB5 TB6 TB8 TB9 TB10

JP1

JP2

JP3

1 2 3

J13 J12

J5 J6

Figure 2.16 4XTMF Connectors to MS-9200UDLS Connectors

J5 & J6 Connectors

Cut Jumper JP3

Standoff Standoff

4XTMF

FACP main circuit board

92ud4xtm.cdr

Installation Optional Module Installation

40 MS-9200UDLS PN 52750:A 11/04/05

2.9.2 Printer/PC

A serial printer or a PC (personal computer) may be connected to TB8 Terminals 1 - 4

on the FACP. The printer can be used to provide a hard-copy printout of real-time

events, history file and walktest data. An IBM compatible PC can be connected to

provide local FACP programming capabilities using the PK-CD programming utility.

Installation of either device requires panel programming to allow the FACP to

communicate with the device.

CAUTION! Do not connect a printer or PC to the MS-9200UDLS FACP if a ground

fault (zero impedance to ground) exists on the control panel. Circuit damage may

result. Remove all power (Primary and Secondary) before installing or removing any

wiring.

Installation

Remote printers and PCs require separate primary power. Also required is the PRT/

PK-CABLE which is an interface cable prewired to a DB9F connector. Wire the PRT/

PK-CABLE to TB8 Terminals 1 - 4 as illustrated in the following figure. Connect the

DB9F connector to the printer or PC serial EIA-232 port. If a nine-pin serial connector

is not available on the printer or PC, use a DB25 adapter. Make certain that the DB25

adapter does not swap the Transmit and Receive lines. Apply power to the FACP and

printer or PC. Note that a ground fault (zero impedance to ground) may occur on the

FACP, dependent on the printer or PC being used, due to this connection. For this

reason, it is important that there be no preexisting ground fault on the panel.

Note that the printer may or may not be supervised as determined by user

programming. Refer to "Printer/PC" on page 115.

Printer Configuration

Refer to the documentation supplied with the printer for pertinent information about

printer setup. Set the printer’s options as listed in the following table:

PC Configuration

The Windows-based PK-CD Programming Utility Kit contains CD-ROM with on-line

help file.

COMMUNICATION SETUP

BUFFER: LARGE

DATA BITS: 7

PARITY: EVEN

STOP BIT: 1 STOP

BAUD RATE: 2400/4800/9600

AUTOMATIC LINE FEED NO

AUTOMATIC CARRIAGE RETURN NO

Black

RCV

DTR

GRND

5 4 3 2 1

9 8 7 6

White

Green

Red

B+ A+ B- A- A B

ACS

SHIELDSLCSLC

SLC

OUT+ IN+ OUT- IN-

TB8 TB9 TB10

PRT/PK-CABLE

9600tb7a.cdr

Figure 2.17 Serial Printer and Computer Connections

Optional Module Installation Installation

MS-9200UDLS PN 52750:A 11/04/05 41

2.9.3 Digital Communicator and Annunciators

2.9.3.1 ACM-8RF Relay Control Module

The ACM-8RF module provides eight Form-C relays with contacts rated for 5

amps. When installed with an MS-9200UDLS FACP, the ACM-8RF modules

provide relay activation for each of the 99 possible FACP zones plus special

functions. Options exist to allow for alarm only or alarm and trouble activation per

zone. Output activation for general alarm, general trouble, general supervisory,

NAC fault, AC fail, walktest start and battery trouble are also available. The ACM-

8RF can be mounted remotely in an ABS-8RF annunciator surface-mount backbox.

Refer to the ACM-8RF manual for information on setting module switches for

addressing and relay functions.

2.9.3.2 ACS and AFM Series Annunciators

ACS and AFM Series Annunciators provide visual indications of FACP status in

remote locations. Refer to the appropriate annunciator manual for information on

installation, wiring and operation.

Annunciator addressing is specific to the MS-9200UDLS control panel. The

following table describes the annunciator addresses and the corresponding

addressable devices that will be annunciated at each annunciator address.

The MS-9200UDLS must be programmed for the annunciators installed on the

system. Refer to "Annunciators/UDACT" on page 96 for information on

annunciator programming. Make certain to program the annunciator addresses that

have been physically installed on the system.

Note: The 8 General System Status Points include the following:



Reference

Manual

ACM Annunciator Address Annunciator Displays the Following Points

1 8 General System Status Points & Zones 1 - 56

2 Zones 57 - 99 & 4 NACs

3 SLC Loop, Module Addresses 1 - 64

4 not used

5 SLC Loop, Module Addresses 65 - 99

6 not used

7 not used

8 SLC Loop, Detector Addresses 1 - 64

9 not used

10 SLC Loop, Detector Addresses 65 - 99

11 not used

12 not used

13 not used

14 not used

15 not used

16 not used

17 not used

18 not used

19 not used

20 8 General System Status Points & Zones 1 - 56

21 Zones 57 - 99 & 4 NACs

22 SLC Loop, Module Addresses 1 - 64

23 not used

24 SLC Loop, Module Addresses 65 - 99

25 not used

26 not used

27 SLC Loop, Detector Addresses 1 - 64

28 not used

29 SLC Loop, Detector Addresses 65 - 99

30 not used

31 not used

32 not used

• General Alarm • Alarm Silenced • Battery Fault

• General Trouble • System Off Normal • NAC Fault

• General Supervisory • AC Loss

Programming Programming Data Entry

42 MS-9200UDLS PN 52750:A 11/04/05

SECTION 3 Programming

3.1 Programming Data Entry

Programming can be accomplished using the MS-9200UDLS keypad or by connecting

an optional standard computer keyboard. The keyboard can be connected to the PS-2

connector J3 on the control panel main circuit board.

The information presented in this section refers to programming the MS-9200UDLS

via the onboard keypad. If an optional computer keyboard is connected to the MS-

9200UDLS main circuit board, the following table describes the keyboard keys which

correspond to the onboard keypad keys.

NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION

AND OTHER INVOLVED PARTIES

This product incorporates field-programmable software. In order for the product to comply with the requirements in the

Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must

be limited to specific values or not used at all as indicated below:

Program feature

or option

Permitted in

UL 864? (Y/N) Possible settings Settings permitted

in UL 864

Trouble Call Limit N

Refer to "Trouble Call Limit (Dialer Runaway Preven-

tion)" on page 102.

Trouble Call Limit = 0 (factory default): unlimited

calling to Central Station for any trouble condition

Trouble Call Limit = 1 - 99: limits call for each unique

trouble to from 1 to 99 within a 24 hour period

Trouble Call Limit

= 0 for unlimited

Central Station

trouble calls

Keypad Keys Computer Keyboard Keys

1st Event Home

CLR Delete

ESC Esc

RECALL Insert

A - Z A - Z

0 - 9 0 - 9

 (on QZ key) Space bar

——

••









ENTER Enter

ACK/STEP F1

SILENCE F2

DRILL F3

RESET F4

User Programming Programming

MS-9200UDLS PN 52750:A 11/04/05 43

3.2 User Programming

The MS-9200UDLS is completely field programmable and requires no special software

skills. While programming the MS-9200UDLS, the fire protection capabilities of the

control panel are enabled.

Site-specific programming may be accomplished in three ways:

•Autoprogramming Feature - This is a convenient method for quickly bringing

the FACP addressable SLC devices on-line without the necessity of

programming each device individually. Refer to "Autoprogram" on page 47 for

a detailed description of Autoprogramming

• Manual programming or editing, using the FACP keypad or a PC keyboard

• Off-line Programming and Editing Feature - allows creation and editing of site-

specific custom programs using a Windows-based computer. For programs

requiring a large amount of data entry, this method may be preferred. A PK-CD

programming kit can be ordered for this purpose

The System All Normal screen will be displayed in a programmed system with no active

alarms, troubles or supervisories, as illustrated below:

Programming, Read Status and Manual Dial mode can be entered while the panel is in

any mode of operation. If the panel is in alarm, the alarm condition must be

acknowledged before entering any other mode. To access any of the programming or

read status features, the Enter or Mode key must be pressed, which will cause the LCD

to display the following:

Pressing 1, while this screen is being displayed, will cause the control panel to enter the

Read Status Mode which allows the user to view the programmed features and status of

the control panel The Read Status feature is not password protected. Refer to "Read

Status" on page 140 for a detailed description of this feature.

Pressing 2 will select user Programming Mode which may only be accomplished by an

authorized person. After pressing 2, a screen will prompt for a password. After

entering the correct password, the user may select from a list of programming options.

Pressing 3 will select the Manual Dial Mode which allows the user to enter a

troubleshoot mode of operation.

Exit Programming, Read Status and Manual Dial Mode

The programmer can exit any mode by repeatedly pressing the keypad ESC (Escape)

key until the display reads System All Normal. Note that the data which is entered

during Programming mode is not saved until the programmer exits this mode by

repeatedly pressing the ‘ESC’ key. If the Reset key is pressed or power is lost before

exiting Programming mode, all data just entered will be lost.

HONEYWELL LIFE SAFETY

SYSTEM ALL NORMAL

10:00A 012102

1=READ STATUS MODE

2=PROGRAMMING MODE

3=MANUAL DIAL MODE

See Page



Programming Initial Power-up

44 MS-9200UDLS PN 52750:A 11/04/05

User Programming Levels

There are two user programming levels:

• User Master Program Level 1 is used for programming panel specific data

relating to device types, zoning, messages, control panel functions, etc.

• User Maintenance Program Level 2 is used by a qualified operator to access

features such as Disable/Enable, View and Clear History, Walktest and System

Time Change.

3.3 Initial Power-up

The following sections describe the initial programming procedures for a new system.

The same procedures are used to modify programming in an existing system.

After completing the wiring of addressable devices to the SLC, apply power to the

control panel. If the addressable devices have not yet been programmed into the FACP,

their LEDs will not flash and the following trouble message will be displayed.

3.4 Programming Screens Description

Three options are available when the Enter key is pressed: Read Status, Programming

and Manual Dial Mode. The Read Status and Programming options have multiple

functions or features which may be chosen. To view all of the choices, it is necessary

that the programmer scroll through a number of additional subscreens. These

selections are displayed on multiple screens to make them more readable for the

programmer. Refer to "Master Programming Level" on page 46, for additional

information on the various screens.

The title of the main option screen will always be displayed at the top of the subscreens

for the programmer’s convenience. If additional subscreens exist, an Up or Down

arrow will be displayed in the upper right corner of the screen being viewed. The

programmer can then press the keypad Up or Down arrow key to view the new

subscreen. To select one of the choices in a screen, the programmer presses the keypad

numerical key corresponding to the desired choice.

Note that subscreens may also have multiple options which require viewing more than

one screen. The same process, as detailed in the previous paragraphs, is followed to

view all option choices.

3.5 Programming and Passwords

There are two factory set programming passwords which will access the Programming

screens as indicated in the following examples. From either of the screens, access to

specific system and device features or programming may be obtained. All user

programming entries are stored in nonvolatile memory. The factory set passwords can

be changed by the user as described in "Password Change" on page 116. If an invalid

password is entered, the blinking cursor will return to the first password character

position. To exit Programming, Read Status or Manual Dial mode at any time, press

the ESC (Escape) key repeatedly. Note that Programming mode must be exited using

the ESC key in order to store the program data entered during this mode. If the Reset

key is pressed or power is lost before exiting Programming mode, the data just entered

will not be saved.

TROUBL IN SYSTEM

NO DEVICES INSTALLED

09:03A 012102

See Page



See Page



Programming and Passwords Programming

MS-9200UDLS PN 52750:A 11/04/05 45

To access user Programming mode, press the Enter or Mode key. The LCD will display

the following:

To enter the user Programming mode, press 2. The display will read as follows:

Entering the Master level password (default 00000) will cause the following screen to

appear:

If the Maintenance level password (default 11111) is entered, the following screen will

appear:

Note that in the two preceding screens, an arrow appears to inform the programmer that

additional options can be viewed by pressing the keypad down arrow key.

1=READ STATUS MODE

2=PROGRAMMING MODE

3=MANUAL DIAL MODE

PROGRAMMING

ENTER PASSWORD

*****

PROGRAMMING

1=AUTOPROGRAM

2=POINT PROGRAM

3=ZONE SETUP

PROGRAMMING

1=POINT PROGRAM

2=HISTORY

3=PROGRAM CHECK

Programming Master Programming Level

46 MS-9200UDLS PN 52750:A 11/04/05

3.6 Master Programming Level

When the Master Program Level password is entered, the control panel will enter user

Programming mode. In this mode, the piezo sounder remains off, the trouble relay is

activated and the system Trouble LED flashes until Programming mode is exited. The

following display will appear:

The down arrow which appears in the display indicates that additional programming

choices can be viewed by pressing the down arrow key on the keypad. If a down and

up arrow appear in the display, pressing the ‘down’ arrow key will display the

subsequent Programming Screens as illustrated below while pressing the ‘up’ arrow

key will display the previous screen.

PROGRAMMING

1=AUTOPROGRAM

2=POINT PROGRAM

3=ZONE SETUP

Programming Screen #1

PROGRAMMING

1=LOOP SETUP

2=SYSTEM SETUP

3=VERIFY LOOP

PROGRAMMING

1=HISTORY

2=WALKTEST

3=OPTION MODULES

PROGRAMMING

1=PASSWORD CHANGE

2=CLEAR PROGRAM

3=PROGRAM CHECK

Programming Screen #2

Programming Screen #3

Programming Screen #4

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 47

3.6.1 Autoprogram

Pressing 1 while viewing Programming Screen #1, will select the Autoprogram option,

which prompts the control panel to poll all devices installed on the SLC loop. The

primary purpose of autoprogramming is to allow the installer a fast and easy way to

bring the system on-line as quickly as possible. The first time the system is powered-

up, it should be autoprogrammed.

If the system is already programmed and Autoprogram is initiated, the system will only

add default values for newly installed devices.

When Autoprogram is selected, the control panel will begin autoprogramming the

system by communicating with each addressable device installed on the SLC loop.

While autoprogramming, the panel will display the following:

When Autoprogramming is completed, the control panel will display the type and

quantity of each device installed on the SLC loop similar to the following display:

In the preceding example, the display indicates that the SLC Loop has 55 addressable

detectors, 35 monitor modules and 30 control modules installed.

Pressing the ESC key will return the display to Programming Screen #1.

PROGRAMMING

1=AUTOPROGRAM

2=POINT PROGRAM

3=ZONE SETUP

Programming Screen #1

AUTOPROGRAM

AUTOPROGRAMMING!

PLEASE WAIT

Autoprogram Progress Screen

# OF DET LOOP1 055

# OF MON LOOP1 035

# OF CON LOOP1 030

Autoprogram Result Screen #1

Programming Master Programming Level

48 MS-9200UDLS PN 52750:A 11/04/05

3.6.2 Point Program

The Point Program option allows the programmer to add a new addressable device to an

SLC loop, delete an existing device from a loop or change the programming for an

existing device. Pressing 2, while viewing Programming Screen #1, will select the

Point Program option and display the following screen:

3.6.2.1 Detector Programming

Pressing 1, while viewing the Point Program Screen, will allow the programmer to

add, delete or change the programming of an addressable detector. The following

screen will be displayed by the control panel:

3.6.2.1.1 Add Detector

Pressing 1 while viewing the Detector Screen will display the following screen

which allows the programmer to add a new detector address to programming:

A flashing cursor will appear in the position of the first asterisk to the left. The

programmer keys in the three digit detector address, such as 005.

When the last digit is keyed-in, the following screen will be displayed:

Press the down arrow key to view additional choices. Press the number

corresponding to the desired selection to program that type to the newly added

detector.

PROGRAMMING

1=AUTOPROGRAM

2=POINT PROGRAM

3=ZONE SETUP

Programming Screen #1

POINT PROGRAM

SELECT TYPE

1=DETECTOR

2=MODULE

Point Program Screen

DETECTOR

1=ADD

2=DELETE

3=EDIT

Detector Screen

ADD DETECTOR

ENTER DETECTOR#

***

Add Detector Screen

DETECTOR TYPE

1=SMOKE(PHOTO)

2=USER-DEFINED-1

3=SMOKE(ION)

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 49

When the type has been selected, the following screen will be displayed:

The programmer can continue adding detectors by pressing the ESC key which will

return the display to the Add Detector Screen.

3.6.2.1.2 Delete Detector

Pressing 2 in the Detector Screen will display the Delete Detector Screen which

allows the programmer to delete a specific detector:

A flashing cursor will appear in the position of the first asterisk to the left. The

programmer keys in the three digit detector address, such as 005. When the last

digit is keyed-in, the following screen will be displayed:

The programmer can continue deleting detectors by pressing the ESC key which

will return the display to the Delete Detector Screen.

3.6.2.1.3 Edit Detector

The programmer can change a detectors existing or factory default programming by

pressing 3 in the Detector Screen. The following screen will be displayed:

A flashing cursor will appear in the position of the first asterisk to the left. The

programmer keys in the three digit detector address, such as 017.

When the last digit is keyed-in, if the selected address has not been added to

programming, a screen showing information about a device with the highest address

that is installed will be displayed.

ADD DETECTOR

DETECTOR# 005

IS ADDED

DETECTOR

1=ADD

2=DELETE

3=EDIT

Detector Screen DELETE DETECTOR

ENTER DETECTOR#

***

Delete Detector Screen

DELETE DETECTOR

DETECTOR# 005

IS DELETED

EDIT DETECTOR

ENTER POINT ADDRESS

***

Edit Detector Screen

Programming Master Programming Level

50 MS-9200UDLS PN 52750:A 11/04/05

If no detectors have been installed on the loop, the following will be displayed:

If the selected address has been added to programming, device summary screens

will be displayed. These screens allow the programmer to view all device settings

at a single glance. Pressing the left or right arrow keys will allow the programmer

to rapidly view the devices at the previous or next address (if installed).

If a detector (such as a photoelectric detector) with the selected address is not

physically installed on the SLC or has a communication fault but the address is

programmed in the system, the following screen will be displayed:

If the selected address has been added to programming and a detector (such as a

photoelectric detector) with the selected address is physically installed on the SLC

and is communicating with the control panel, the following will be displayed:

To change the programming for the displayed detector, press the keyboard ‘down’

arrow key to view the Edit Detector screens.

In the preceding example:

Normal - indicates that the detector with the selected address is physically

installed on the SLC and communicating with the control panel (enabled)

<ADJ><NOUN> - represents the adjective and noun, which have been

programmed, describing the location of the displayed device

ZNNN - represents the first of five possible software zones that the detector is

assigned to (NNN = the three digit zone number from 000 - 099)

V or * - indicates whether or not alarm verification is enabled (V = alarm

verification enabled and * = alarm verification disabled)

1D017 - represents the Loop, Device type and Device address (1 = SLC Loop,

D=Detector and 017 = Detector Address 017)

NO DETECTOR

INSTALLED

Edit Detector Screen #1

TROUBL SMOKE(PHOTO)

ZNNN

* 1D017

Edit Detector Screen #1

NORMAL SMOKE (PHOTO)

ZNNN

V 1D017

Edit Detector Screen #1

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 51

The following examples show the editing of a photoelectric smoke detector with

address 017, located on the SLC loop:

Enable/Disable Detector

To Enable or Disable the detector, press the 1 key while viewing the Edit Detector

Screen #2. Each press of the key will toggle the screen between Enabled Yes and

Enabled No. If Enabled No is selected, the detector will not be polled by the control

panel, preventing the detector from reporting alarms and troubles to the panel. The

control panel will display the device type and address which has been disabled and

will turn on the Trouble LED and Disable LED.

EDIT DETECTOR 1D017

1=ENABLED YES

2=TYPE SMOKE(PHOTO)

3=VERIFICATION OFF

Edit Detector Screen #2

EDIT DETECTOR 1D017

1=WALKTEST NO

2=PAS NO

3=PRE-SIGNAL NO

Edit Detector Screen #3

EDIT DETECTOR 1D017

1=ZONE ASSIGNMENT

00 ** ** ** **

Edit Detector Screen #4

Edit Detector Screen #5

EDIT DETECTOR 1D017

1=NOUN/ADJECTIVE

2=DESCRIPTION

********************

EDIT DETECTOR

1=ENABLED

2=TYPE

3=VERIFICATION

Edit Detector Screen #2

Programming Master Programming Level

52 MS-9200UDLS PN 52750:A 11/04/05

Type

To select the type of detector being programmed, press the 2 key while viewing the

Edit Detector Screen #2. This will cause the control panel to display the following

Detector Type Screens:

Pressing the down arrow key will display additional detector types as indicated in

the following table.

While viewing either Detector Type screen, select the type of detector being

programmed by pressing the corresponding keyboard number key. The display will

return to Edit Detector Screen #2 and indicate the selection next to the Type option.

Note: If a detector is selected to be a SUPERV DUCTP type, it will function like a

supervisory point not a fire alarm point. The supervisory LED and supervisory

relay will activate, not the fire alarm LED or alarm relay, if the detector senses

smoke.

Verification

Alarm verification is used to confirm that a smoke detector activation is a true alarm

condition and not a false alarm. This feature is selected by pressing 3 while viewing

the Edit Detector Screen #2 so that the display reads Verification On. Each time the

3 key is pressed, the display will toggle between Verification On and Verification

Off. For a detailed description, refer to "Alarm Verification (None or One Minute)"

on page 139.

Walktest

The Walktest feature allows one person to test the system devices without the

necessity of manually resetting the control panel after each device activation. To

enable a device for the Walktest feature, press 1 while viewing the Edit Detector

Screen #3 until the display reads Walktest Yes. Each press of the 1 key will cause

the display to toggle between Walktest Yes and Walktest No. Refer to "Walktest" on

page 139.

Detector Type Action When Activated

Smoke Photo Fire Alarm

User-Defined-1 same as previous (Smoke Photo)

Smoke Ion Fire Alarm

User-Defined-2 same as previous (Smoke Ion)

Heat Detect Fire Alarm

User-Defined-3 same as previous (Heat Detect)

Smoke DuctP Fire Alarm

User-Defined-4 same as previous (Smoke DuctP)

Superv-DuctP Supervisory, latching

User-Defined-5 same as previous (Superv DuctP)

Future not used

EDIT DETECTOR

1=ENABLED

2=TYPE

3=VERIFICATION

Edit Detector Screen #2 DETECTOR TYPE

1=SMOKE(PHOTO)

2=USER-DEFINED-1

3=SMOKE (ION)

Detector Type Screen #1

See Page



EDIT DETECTOR

1=WALKTEST

2=PAS

3=PRE-SIGNAL

Edit Detector Screen #3

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 53

PAS

The PAS (Positive Alarm Sequence) option will program the detector to delay panel

activation (including alarm relay and communicator) for a period of 15 seconds plus

a programmable time of up to 3 minutes. Zone 97, however, will activate

immediately and may be used to connect a signaling device to indicate PAS

activation (do not use a Notification Appliance Circuit for this purpose). To enable

the PAS feature, press 2 while viewing the Edit Detector Screen #3 until the display

reads PAS Ye s . Each press of the 2 key will cause the display to toggle between PA S

Yes and PA S No. Refer to "Positive Alarm Sequence" on page 137.

For example, if a detector with address 005 is to be configured for PAS operation:

Select PAS Yes when editing the detector set to address 005

Program the desired zone or zones to be activated by this detector, in this

example Z001

Program an output, such as a control module that is to be activated by detector

005 by assigning the same zone to it; in this example Z001

Program an output, such as a control module, for PAS activation by assigning

zone Z97 to it. This control module may be connected to a signaling device

used to indicate a PAS condition (do not use a Notification Appliance Circuit

for this purpose)

Enable zones Z001 and Special Purpose Zone PAS 97 and set the PAS delay

timer to some value

With the preceding program settings, when the detector with address 005 is

activated, zone Z97 will cause its associated control module to activate

immediately, sounding the connected PAS signaling device. Following the PAS

delay time, zone Z001 will cause its associated control module to activate and the

control panel will initiate an alarm condition.

Pre-signal

The Pre-signal option programs the detector to delay panel activation for a

preprogrammed time delay of up to three minutes while allowing for visual

verification by a person. Note that the alarm relay and communicator will respond

to the initial alarm immediately. In addition, Zone 98 will activate. This zone can

be programmed to a control module which may be used to activate a sounder or

indicator which the installer designates as a Presignal indication (do not use a

Notification Appliance Circuit for this purpose). To enable the Pre-signal feature,

press 3 while viewing Edit Detector Screen #3 until the display reads Pre-signal

Yes. Each press of the 3 key will cause the display to toggle between Pre-signal Yes

and Pre-signal No. Refer to "Presignal" on page 136.

For example, if a detector with address 005 is to be configured for Pre-Signal

operation:

Select Pre-signal Yes when editing the detector set to address 005

Program the desired zone or zones to be activated by this detector, in this

example Z001

Program an output, such as a control module that is to be activated by detector

005 by assigning the same zone to it; in this example Z001

Program an output, such as a control module, for Pre-signal activation by

assigning zone Z98 to it. This control module may be connected to a signaling

device used to indicate a Pre-signal condition (do not use a Notification

Appliance Circuit for this purpose)

Enable zones Z001 and Special Purpose Zone Pre-signal 98 and set the Pre-

signal delay timer to some value

See Page



EDIT DETECTOR

1=WALKTEST

2=PAS

3=PRE-SIGNAL

Edit Detector Screen #3

See Page



Programming Master Programming Level

54 MS-9200UDLS PN 52750:A 11/04/05

With the preceding program settings, when the detector with address 005 is

activated, zone Z98 will cause its associated control module to activate

immediately, sounding the connected signaling device to indicate the Pre-signal

condition. Following the Pre-signal delay time, zone Z001 will cause its associated

control module to activate and the control panel will initiate an alarm condition.

Zone Assignment

A maximum of five zones can be programmed to each addressable detector.

Pressing 1 while viewing Edit Detector Screen #4 displays the following screen:

Note that Z** represents the Zone Number(s) corresponding to this device. The

factory default for an unprogrammed device is Z00 for general alarm zone. A

flashing cursor will appear on the first 0 to the left. Enter the two digit number

corresponding to the zone that is to be assigned to this device. The cursor moves to

the next Z** designation. Continue entering zone assignments or the remaining

zones can be left blank or programmed as general alarm zone Z00. When all

desired changes have been made, press the Enter key to store the zone assignments.

The display will return to the Edit Detector Screen #4. Note that the left and right

arrow keys can be used to navigate through the zones and the CLEAR key can be

used to quickly clear a zone.

Noun/Adjective

The Noun/Adjective selection allows the programmer to enter specific descriptors

about the detector currently being programmed. Pressing 1 while viewing Edit

Detector Screen #5 will cause the following screen to be displayed:

EDIT DETECTOR

1=ZONE ASSIGNMENT

00 ** ** ** **

Edit Detector Screen #4 ZONE ASSIGNMENT

Z00 Z** Z** Z** Z**

Zone Assignment Screen

See Page



EDIT DETECTOR

1=NOUN/ADJECTIVE

2=DESCRIPTION

*****************

Edit Detector Screen #5 1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 55

Pressing 1 while viewing the Noun/Adjective Screen will cause the following

screen(s) to be displayed. Note that the keyboard down arrow key must be pressed

to see all the Adjective screens. Press the number corresponding to the adjective

that is to be used as a descriptor for the location of the detector currently being

programmed. When an adjective has been selected, it will appear at the top of the

display as indicated by the asterisks.

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

**********************

1=NORTH

2=SOUTH

3=EAST

Adjective Screen #1

**********************

1=WEST

2=FRONT

3=CENTER

Adjective Screen #2

**********************

1=REAR

2=UPPER

3=LOWER

Adjective Screen #3

*********************

1=MAIN

2=FIRST

3=2ND

Adjective Screen #4

**********************

1=3RD

2=4TH

3=5TH

Adjective Screen #5

**********************

1=FLOOR4

2=FLOOR5

3=ROOM

Adjective Screen #7

**********************

1=FLOOR1

2=FLOOR2

3=FLOOR3

Adjective Screen #6

Programming Master Programming Level

56 MS-9200UDLS PN 52750:A 11/04/05

Pressing 2 while viewing the Noun/Adjective Screen will cause the following

screen(s) to be displayed. Note that the keyboard down arrow key must be pressed

to see all the Noun screens. Press the number corresponding to the noun that is to

be used as a descriptor for the location of the detector currently being programmed.

When a noun has been selected, it will appear at the top of the display as indicated

by the asterisks.

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

**********************

1=BASEMENT

2=BOILER RM

3=CLASSROOM

Noun Screen #1

**********************

1=CLOSET

2=CORRIDOR

3=ELECTRIC RM

Noun Screen #2

**********************

1=ELEVATOR

2=ENTRANCE

3=FLOOR

Noun Screen #3

**********************

1=GARAGE

2=HALLWAY

3=HVAC RM

Noun Screen #4

**********************

1=KITCHEN

2=LOBBY

3=OFFICE

Noun Screen #5

**********************

1=STAIRWAY

2=STOREROOM

3=WING

Noun Screen #7

**********************

1=PATIENT

2=RESTROOM

3=ROOM

Noun Screen #6

**********************

1=ZONE

Noun Screen #8

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 57

Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens

similar to the previous Adjective and Noun Screens. The new screens will list

custom Adjectives and Nouns which have been programmed into the control panel

using the PK-CD programming kit. These descriptors are selected as described in

the previous sections.

Description

The Description selection allows the programmer to enter additional information

about the detector currently being programmed. This information will be displayed

as part of the device label on the display. Pressing 2 while viewing Edit Detector

Screen #5 will cause the following screen to be displayed:

A flashing cursor will appear at the first asterisk to the left. The programmer can

enter additional descriptive information about the device being programmed. This

information will appear on the display along with the standard device label

information.

A maximum of 20 characters (including spaces) can be entered. To enter

alphanumeric characters from the keypad, repeatedly press the appropriate key until

the desired character is displayed in the first position. For example, to enter the

letter B, press the 2 (ABC) key three times to toggle through the characters 2, A and

B. Press the right arrow key to move the cursor one position to the right and repeat

the process to enter the next character. To enter a space, press the * (QZ) key four

times until a blank appears in the desired position. When all characters have been

entered, press the Enter key to store the information. The display will return to the

Edit Detector Screen #5, displaying the new information at the bottom of the screen.

Recall/Increment Function

In addition, the user may use the Recall/Increment function at any time when the

cursor is on the first letter of the Description, Adjective or Noun field as follows:

• If the zero key is pressed, a 0 is placed in the first letter position

• If the zero key is then pressed a second time with no intervening key actions, the

entire field is replaced with the field entered for the previous device programmed,

and the cursor moves to the last character of the field (Recall function). The

Recalled Adjective or Noun field may now be changed letter-by-letter

• If the zero key is pressed again with no other intervening key actions and the last

character in the field is a number 0-9, the number is incremented by one. If the

last character is a letter, it changes to a 0. If the last character goes from 9 to 0

and the characters to the left of the last character are also numbers, they are also

incremented (overflow)

• The above increment function may be repeated with each press of the zero key

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

EDIT DETECTOR

1=NOUN/ADJECTIVE

2=DESCRIPTION

Edit Detector Screen #5

DESCRIPTION 1D002

1=NOUN/ADJECTIVE

********************

Adjective/Noun Screen

Programming Master Programming Level

58 MS-9200UDLS PN 52750:A 11/04/05

As an example, the user could quickly enter ‘FLR_3_ROOM_305’ as follows:

1. The cursor is on the first letter of the Adjective field. Press the zero key twice to

display FLR_3

2. With the cursor on the first letter of the Noun field, press the zero key twice to

recall the display ROOM_304. The cursor automatically jumps from the first to

the last letter of the Noun field

3. With the cursor on the last letter of the Noun field, press the zero key again to

increment the room number to 305

4. Press the right arrow key to advance the zone field

5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm

zone. Z01 through Z99 may be selected to link software zones

3.6.2.2 Module Programming

Pressing 2, while viewing Point Program Screen #2, will allow the programmer to

add, delete or change the programming of an addressable module. The following

screen will be displayed by the control panel:

3.6.2.2.1 Add Module

Pressing 1 while viewing the Modules Screen will display the following screen

which allows the programmer to add a new module address to programming:

A flashing cursor will appear in the position of the first asterisk to the left. The

programmer keys in the three digit module address, such as 005.

When the last digit is keyed-in, the following screen will be displayed:

POINT PROGRAM

SELECT TYPE

1=DETECTOR

2=MODULE

Point Program Screen #2

MODULES

1=ADD

2=DELETE

3=EDIT

Modules Screen

ADD MODULE

ENTER MODULE#

***

Add Module Screen #1

ADD MODULE

1=CONTROL

2=MONITOR

Add Module Screen #2

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 59

Pressing 1 for Control Module or 2 for Monitor Module will cause the following

screen to be displayed:

The programmer can continue adding modules by pressing the ESC or left arrow

key which will return the display to the Add Module Screen #1.

3.6.2.2.2 Delete Module

Pressing 2 in the Modules Screen will display the Delete Module Screen which

allows the programmer to delete a specific module:

A flashing cursor will appear in the position of the first asterisk to the left. Using

the panel keypad, key in the module address such as 005. When the last digit is

keyed in, the following confirmation that the module has been deleted will be

displayed:

3.6.2.2.3 Edit Module Screen for Monitor Module

The programmer can change a modules existing or factory default programming by

pressing 3 in the Modules Screen. The following screen will be displayed:

ADD MODULE

MODULE# 005

IS ADDED

Add Module Screen #3

MODULES

1=ADD

2=DELETE

3=EDIT

Modules Screen

DELETE MODULE

ENTER MODULE#

***

Delete Module Screen

DELETE MODULE

MODULE# 005

IS DELETED

EDIT MODULE

ENTER MODULE ADDRESS

***

Edit Module Screen

Programming Master Programming Level

60 MS-9200UDLS PN 52750:A 11/04/05

A flashing cursor will appear in the position of the first asterisk to the left. The

programmer keys in the three digit module address, such as 012. When the last digit

is keyed-in, if the selected address has not been added to programming, a screen

showing information about the highest address that is installed will be displayed. If

no modules are installed on the loop, the following screen will be displayed:

If the selected address has been added to programming but a module (such as a

monitor module) with the selected address is not physically installed on the SLC or

has a communication fault, the following screen will be displayed:

If the selected address has been added to programming and a module (such as a

monitor module) with the selected address is physically installed on the SLC and is

communicating with the control panel, the following screen will be displayed:

To change the programming for the displayed module, press the keyboard down

arrow key to view the following Edit Monitor screens. In the preceding example:

Normal - indicates that the module with the selected address is physically

installed on the SLC and communicating with the control panel (enabled)

<ADJ><NOUN> - represents the adjective and noun, which have been

programmed, describing the location of the displayed device

ZNNN - represents the first of five possible software zones that the module is

assigned to (NNN = the two digit zone number from 000 - 099)

1M012 - represents the Loop, Device type and Device address (1 = SLC Loop

1, M=Module and 012 = Module Address 012)

W or * - indicates whether or not the device is programmed for Walktest (W =

programmed for walktest, * = not programmed for walktest).

NO MODULE

INSTALLED

Edit Module Screen

TROUBL MONITOR

ZNNN

* 1M012

NORMAL MONITOR

ZNNN

W 1M012

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 61

If the selected address corresponds to a control module, a screen displaying

information about the control module with the selected address will be displayed as

shown in "Edit Module Screen for Control Modules" on page 68.

If the selected address corresponds to a monitor module, a screen displaying

information about the module with the selected address will be displayed as

illustrated in the following:

See Page



NORMAL MONITOR

ZNNN

1M012

EDIT MONITOR 1M012

1=ENABLED YES

2=TYPE MONITOR

Edit Monitor Screen #2

EDIT MONITOR 1M012

1=PRE-SIGNAL NO

Edit Monitor Screen #3

EDIT MONITOR 1M012

1=WALKTEST YES

2=ZONE ASSIGNMENT

00 ** ** ** **

Edit Monitor Screen #4

EDIT MONITOR 1M012

1=ADJECTIVE/NOUN

2=DESCRIPTION

********************

Edit Monitor Screen #5

Programming Master Programming Level

62 MS-9200UDLS PN 52750:A 11/04/05

Enable/Disable Module

To Enable or Disable the monitor module, press the 1 key while viewing the Edit

Module Screen #2. Each press of the key will toggle the screen between Enabled

Yes and Enabled No. If Enabled No is selected, the module will not be polled by the

control panel, preventing the module from reporting alarms and troubles to the

panel. The control panel will indicate a system trouble condition and the Disable

LED with turn on if any devices are disabled.

Type Monitor

Using the PK-CD Upload/Download utility program, unique user-defined monitor

types can be created and loaded into the FACP for later use. The FACP response to

the activation of a user-defined type is the same as most previous standard types in

the list, thus allowing a variety of user-defined types and responses. To select the

type of monitor module being programmed, press the 2 key while viewing the Edit

Monitor Screen #2. This will cause the control panel to display the following

Monitor Type Screens:

Pressing the down arrow key will display additional Monitor Type screens. While

viewing one of the Monitor Type screens, select the type of monitor module being

programmed by pressing the corresponding keypad number key. The display will

return to the Edit Monitor Screen #2 which will show the new type selection.

Table 3.1 on page 63 lists the Monitor Types and their respective functions.

EDIT MONITOR

1=ENABLED

2=TYPE MONITOR

Edit Monitor Screen #2

MONITOR TYPE

1=PULL-STATION

2=USER-DEFINED-1

3=WATERFLOW

Monitor Type Screen #1

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 63

Monitor module type selection will affect the function of the point as follows:

Note:

1. For the PROCESS-MONITOR-AR selection, AR refers to AutoResettable

2. For HVAC RESTART and HVAC OVRRIDE descriptions, refer to "Monitor

Module Operation" on page 179

Table 3.1 Monitor Types

Monitor Type Action When Activated

Pull-Station Fire Alarm

User-Defined-1 same as previous (Pull-Station)

Waterflow Fire Alarm Delayed

User-Defined-2 same as previous (Waterflow)

Monitor Fire Alarm

User-Defined-3 same as previous (Monitor)

Future not used

Smoke-Conventional Fire Alarm

User-Defined-5 same as previous (Smoke-Conventional)

Heat-Conventional Fire Alarm

User-Defined-6 same as previous (Heat-Detector)

Medic-Alert Supervisory, latching

User-Defined-7 same as previous (Medic-Alert)

Hazard-Alert Supervisory, latching

User-Defined-8 same as previous (Hazard-Alert)

Tornado-Alert Supervisory, latching

User-Defined-9 same as previous (Tornado-Alert)

Future not used

Tamper Supervisory, nonlatching (tracking)

User-Defined 11 same as previous (Tamper)

Supervisory Supervisory, latching

User-Defined 12 same as previous (Supervisory)

Supervisory-AR Supervisory, nonlatching (tracking)

User-Defined 13 same as previous (Supervisory-AR)

Power-Monitor Power Fault

User-Defined 14 same as previous (Power Monitor)

Trouble-Monitor Trouble

User-Defined-15 same as previous (Trouble Monitor)

Process-Monitor Piezo

User-Defined 16 same as previous (Process-Monitor)

Process-Monitor-AR Piezo, nonlatching (tracking)

User-Defined-17 same as previous (Process-Monitor-AR)

Future not used

Ack-Switch Acts like panel Acknowledge Key

Sil-Switch Acts like panel Silence Key

Reset-Switch Acts like panel Reset Key

Drill-Switch Acts like panel Drill Key

PAS-Bypass PAS Disable

HVAC RESTART Switch

HVAC OVRRIDE Switch

Drill-Switch-AR Acts like panel Drill Key, nonlatching (tracking)

Programming Master Programming Level

64 MS-9200UDLS PN 52750:A 11/04/05

Pre-signal

To enable the Pre-signal feature, press 1 while viewing Edit Monitor Screen #3 until

the display reads Pre-signal Yes. Each press of the 1 key will cause the display to

toggle between Pre-signal Yes and Pre-signal No. Refer to "Presignal" on page 136

for additional information.

Walktest

The Walktest feature allows one person to test the system devices without the

necessity of manually resetting the control panel after each device activation. To

enable devices, which are connected to a monitor module, for the Walktest feature,

press 1 while viewing the Edit Monitor Screen #4 until the display reads Walktest

Yes. Each press of the 1 key will cause the display to toggle between Walktest Yes

and Walktest No. Refer to "Walktest" on page 139 for additional information.

Zone Assignment

A maximum of five zones can be programmed to each addressable monitor module.

Pressing 2 while viewing Edit Monitor Screen #4 displays the following screen:

Note that Z** represents the Zone Number(s) corresponding to this device. The

factory default for an unprogrammed device is Z00 for general alarm zone. A

flashing cursor will appear on the first 0 to the left. Enter the two digit number

corresponding to the zone that is to be assigned to this device. The cursor moves to

the next Z** designation. Continue entering zone assignments or the remaining

zones can be left blank or programmed as general alarm zones Z00. When all

desired changes have been made, press the Enter key to store the zone assignments.

The display will return to the Edit Monitor Screen #4.

Noun/Adjective

The Noun/Adjective selection allows the programmer to enter specific descriptors

about the monitor module currently being programmed. Pressing 1 while viewing

Edit Monitor Screen #5 will cause the following screen to be displayed:

EDIT MONITOR

1=PRE-SIGNAL

Edit Monitor Screen #3

See Page



EDIT MONITOR

1=WALKTEST

2=ZONE ASSIGNMENT

00 ** ** ** **

Edit Monitor Screen #4

MON ZONE ASSIGN

Z00 Z** Z** Z** Z**

Zone Assignment Screen

EDIT MONITOR

1=NOUN/ADJECTIVE

2=DESCRIPTION

*****************

Edit Monitor Screen #5

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 65

Pressing 1 while viewing the Noun/Adjective Screen will cause the following

screen(s) to be displayed. Note that the keyboard down arrow key must be pressed

to see all the Adjective screens. Press the number corresponding to the adjective

that is to be used as a descriptor for the location of the monitor module currently

being programmed.

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

**********************

1=NORTH

2=SOUTH

3=EAST

Adjective Screen #1

**********************

1=WEST

2=FRONT

3=CENTER

Adjective Screen #2

**********************

1=REAR

2=UPPER

3=LOWER

Adjective Screen #3

**********************

1=MAIN

2=FIRST

3=2ND

Adjective Screen #4

**********************

1=3RD

2=4TH

3=5TH

Adjective Screen #5

**********************

1=FLOOR 4

2=FLOOR 5

3=ROOM

Adjective Screen #7

**********************

1=FLOOR 1

2=FLOOR 2

3=FLOOR 3

Adjective Screen #6

Programming Master Programming Level

66 MS-9200UDLS PN 52750:A 11/04/05

Pressing 2 while viewing the Noun/Adjective Screen will cause the following

screen(s) to be displayed. Note that the keyboard down arrow key must be pressed

to see all the Noun screens. Press the number corresponding to the noun that is to

be used as a descriptor for the location of the monitor module currently being

programmed.

Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens

similar to the previous Adjective and Noun Screens. The new screens will list

Custom Adjectives and Nouns which have been programmed into the control panel

using the PK-CD programming kit.

1=STANDARD ADJECTIVE

2=STANDARD NOUN

3=CUSTOM ADJECTIVE

4=CUSTOM NOUN

Noun/Adjective Screen

**********************

1=BASEMENT

2=BOILER RM

3=CLASSROOM

Noun Screen #1

**********************

1=CLOSET

2=CORRIDOR

3=ELECTRIC RM

Noun Screen #2

**********************

1=ELEVATOR

2=ENTRANCE

3=FLOOR

Noun Screen #3

**********************

1=GARAGE

2=HALLWAY

3=HVAC RM

Noun Screen #4

**********************

1=KITCHEN

2=LOBBY

3=OFFICE

Noun Screen #5

**********************

1=STAIRWAY

2=STOREROOM

3=WING

Noun Screen #7

**********************

1=PATIENT

2=RESTROOM

3=ROOM

Noun Screen #6

**********************

1=ZONE

Noun Screen #8

Master Programming Level Programming

MS-9200UDLS PN 52750:A 11/04/05 67

Description

The Description selection allows the programmer to enter additional information

about the monitor module currently being programmed. This information will be

displayed as part of the device label on the LCD display. Pressing 2 while viewing

Edit Monitor Screen #5 will cause the following screen to be displayed:

A flashing cursor will appear at the first asterisk to the left. The programmer can

enter additional descriptive information about the device being programmed. This

information will appear on the LCD display along with the standard device label
