NXL HVAC & COMPACT

USER’S MANUAL

AT LEAST THE 11 FOLLOWING STEPS OF THE START-UP QUICK GUIDE MUST BE PERFORMED

DURING THE INSTALLATION AND COMMISSIONING.

IF ANY PROBLEMS OCCUR, PLEASE CONTACT YOUR LOCAL DISTRIBUTOR.

Start-up Quick Guide

1. Check that the delivery corresponds to your order, see Chapter 3.

2. Before taking any commissioning actions read carefully the safety instructions in Chapter

3. Before the mechanical installation, check the minimum clearances around the unit and

check the ambient conditions in Chapter 5.

4. Check the size of the motor cable, mains cable, mains fuses and check the cable

connections, read Chapter 6.

5. Follow the installation instructions, see Chapter 5.

6. Control cable sizes and the grounding system are explained in Chapter 6.1.1.

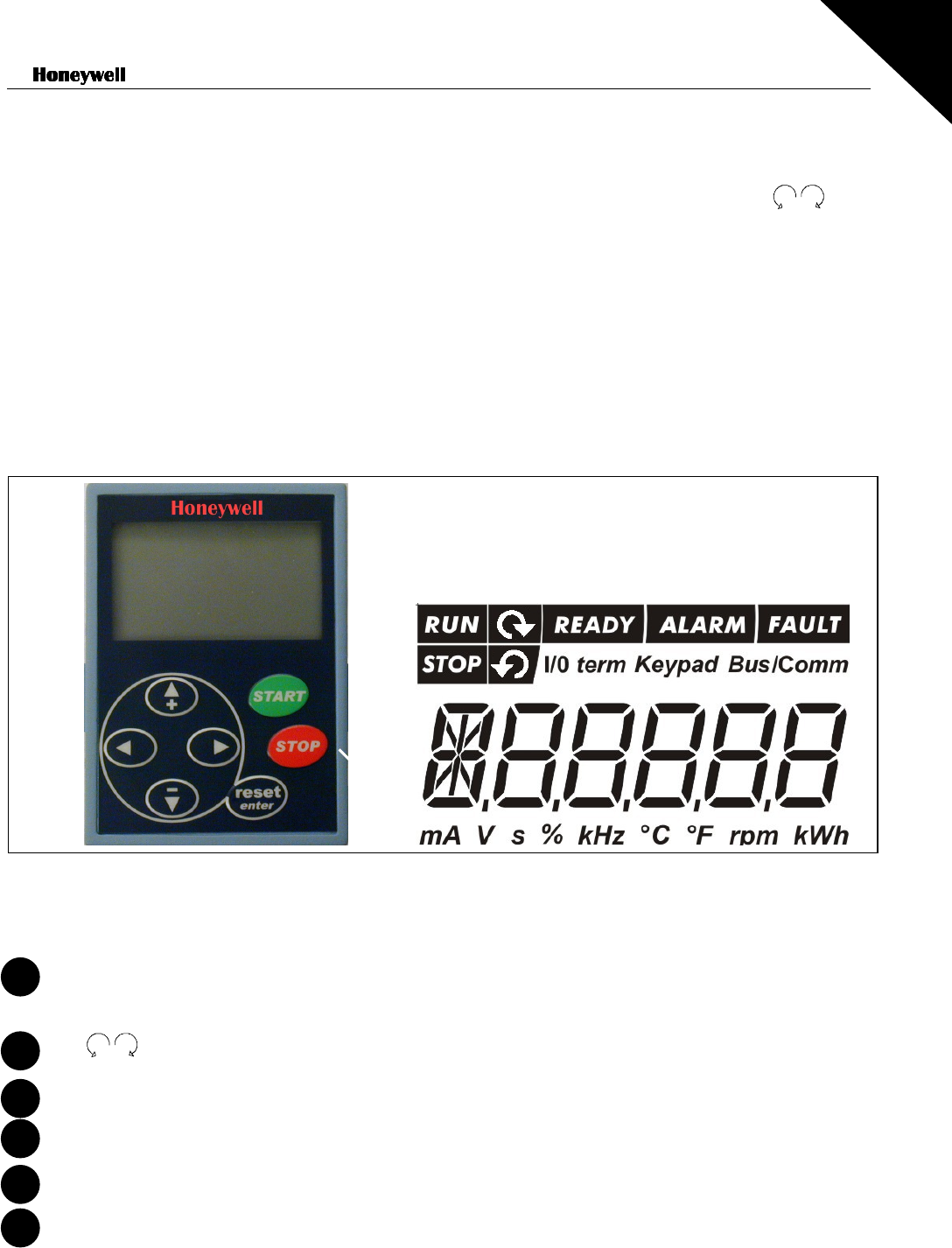

7. Instructions on using the keypad are given in Chapter 7.

8. All parameters have factory default values. In order to ensure proper operation, check

the rating plate data for the values below and the corresponding parameters of

parameter group P2.1. See Chapter 8.3.3. In all cases Honeywell NXL start up wizard is

recommended to ensure easy commissioning.

• nominal speed of the motor, par 2.1.7 (2.1.8 in NXL Compact)

• nominal current of the motor, par. 2.1.6 (2.1.9 in NXL Compact)

The following motor parameters need adjusting only if the motor voltage is different from

400 V or the equipment is installed to a electrical network which does not have the

frequency of 50 Hz (e.g. North America 60 Hz).

• nominal voltage of the motor, par. 2.1.11 (2.1.6 in NXL Compact)

• nominal frequency of the motor, par. 2.1.12 (2.1.7 in NXL Compact)

All parameters are explained in the Application Manuals.

9. Follow the commissioning instructions, see Chapter 8.

10. The Honeywell NXL Frequency Converter is now ready for use.

11. In the end of this manual, you will find a quick help with the default I/O, control panel

menus, monitoring values, fault codes and basic parameters

Honeywell is not responsible for the use of the frequency converters

against the instructions.

CONTENTS

NXL HVAC & COMPACT

USER’S MANUAL

INDEX

1 SAFETY

2 EU DIRECTIVE

3 RECEIPT OF DELIVERY

4 TECHNICAL DATA

5 INSTALLATION

6 CABLING AND CONNECTIONS

7 CONTROL KEYPAD

8 COMMISSIONING

9 FAULT TRACING

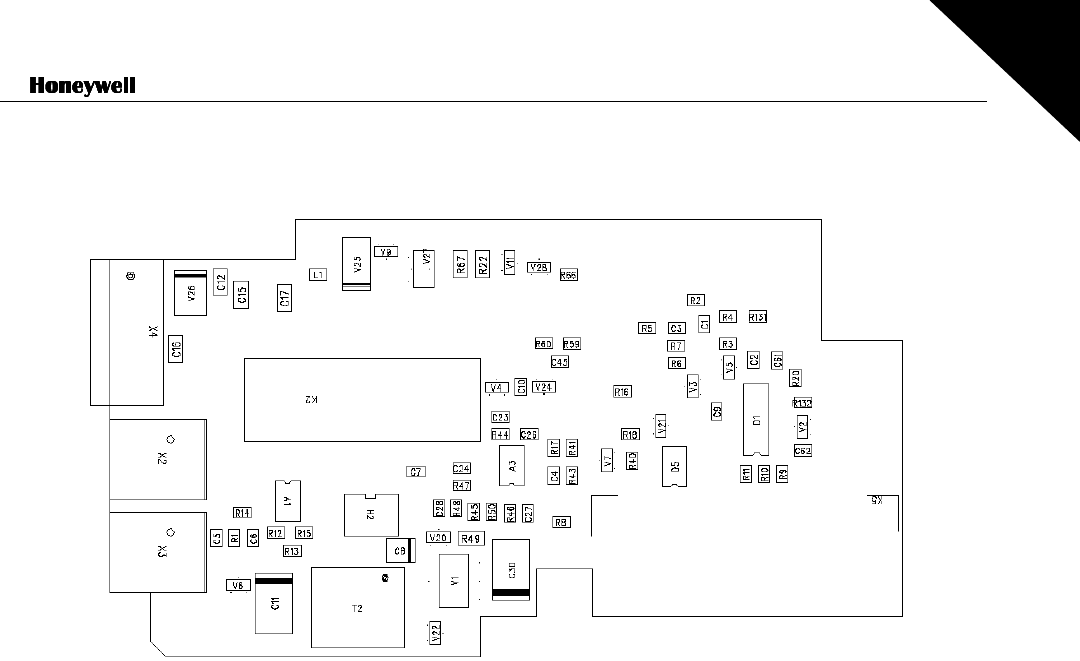

10 DESCRIPTION OF BOARD NXLOPTAA

11 DESCRIPTION OF BOARD NXLOPTAI

12 NXL HVAC BASIC SPEED CONTROL

OTHER NXL MANUALS:

NXL HVAC APPLICATION MANUAL

Programming Manual for NXL HVAC drives

MULTICONTROL APPLICATION MANUAL

Programming Manual for standard NXL and NXL Compact.

ABOUT THE NXL HVAC & COMPACT USER'S MANUAL

AND NXL APPLICATION MANUALS

Congratulations for choosing the Smooth Control provided by NXL frequency converters!

The User's Manual will provide you with the necessary information about the installation, commissioning

and operation of NXL Frequency Converter. We recommend that you carefully study these instructions

before powering up the frequency converter for the first time.

In the NXL HVAC Application Manual and the Multi-Control Application Manual you will find information

about the application used in Honeywell NXL drives.

Honeywell

HoneywellHoneywell

Honeywell Index 5(96)

NXL HVAC & COMPACT User's Manual

Index

Date: 28.10.2008

SAFETY .................................................................................................................................. 7

1.1

Warnings ............................................................................................................................. 7

1.2

Safety instructions................................................................................................................ 7

1.3

Earthing and earth fault protection ....................................................................................... 8

1.4

Running the motor ............................................................................................................... 8

EU DIRECTIVE ....................................................................................................................... 9

2.1

CE marking.......................................................................................................................... 9

2.2

EMC directive ...................................................................................................................... 9

2.2.1

General ............................................................................................................................ 9

2.2.2

Technical criteria .............................................................................................................. 9

2.2.3

NXL frequency converter EMC classification.................................................................... 9

2.2.4

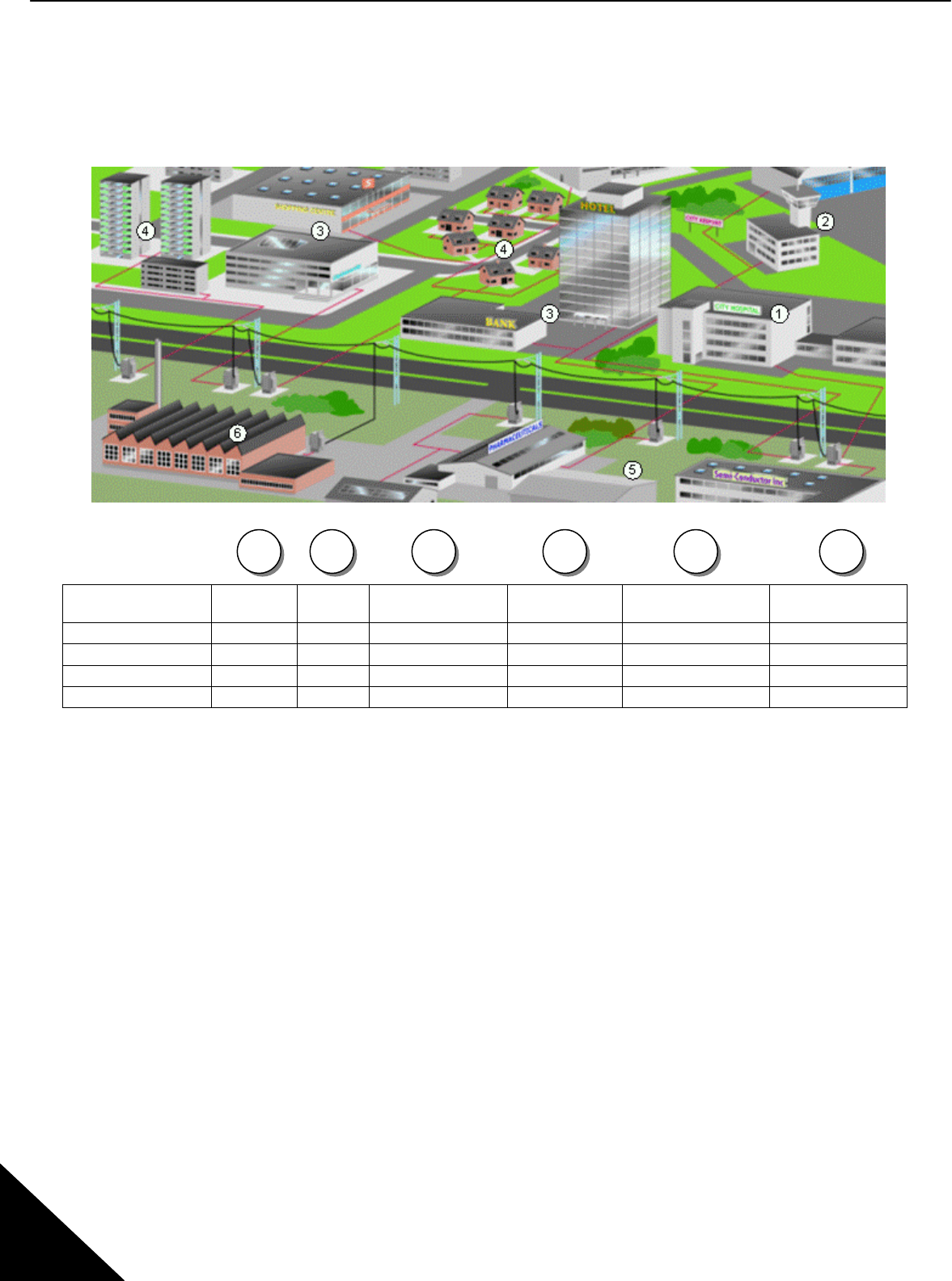

Honeywell EMC classes and market requirements......................................................... 10

2.2.5

Manufacturer's declaration of conformity ........................................................................ 10

RECEIPT OF DELIVERY ...................................................................................................... 13

3.1

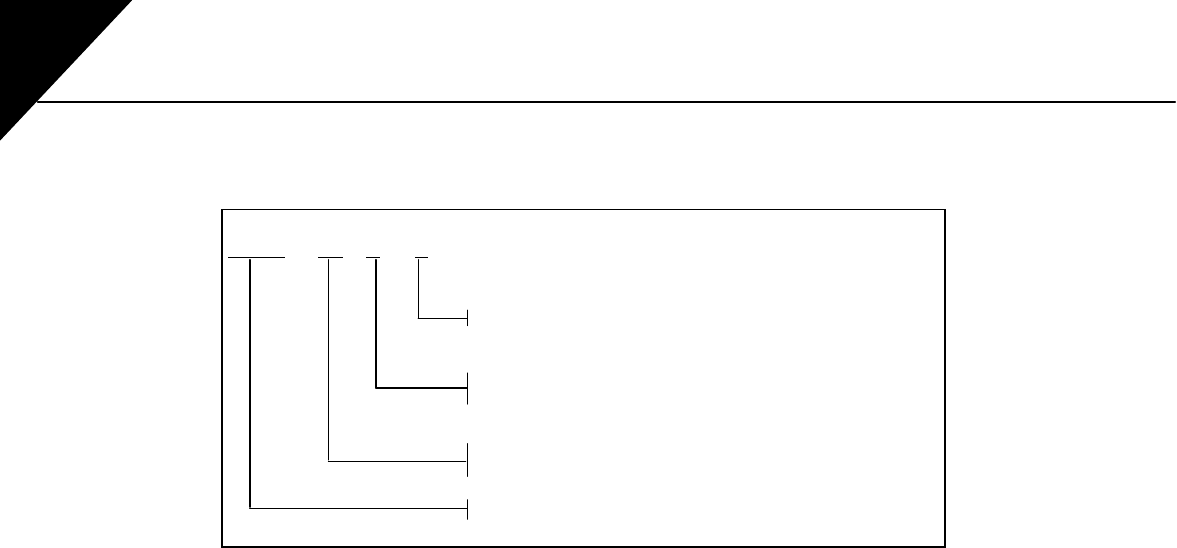

Type designation code NXL Compact................................................................................ 13

3.2

Type designation code NXL HVAC .................................................................................... 14

3.3

Storage.............................................................................................................................. 14

3.4

Maintenance ...................................................................................................................... 14

3.5

Warranty............................................................................................................................ 15

TECHNICAL DATA ............................................................................................................... 16

4.1

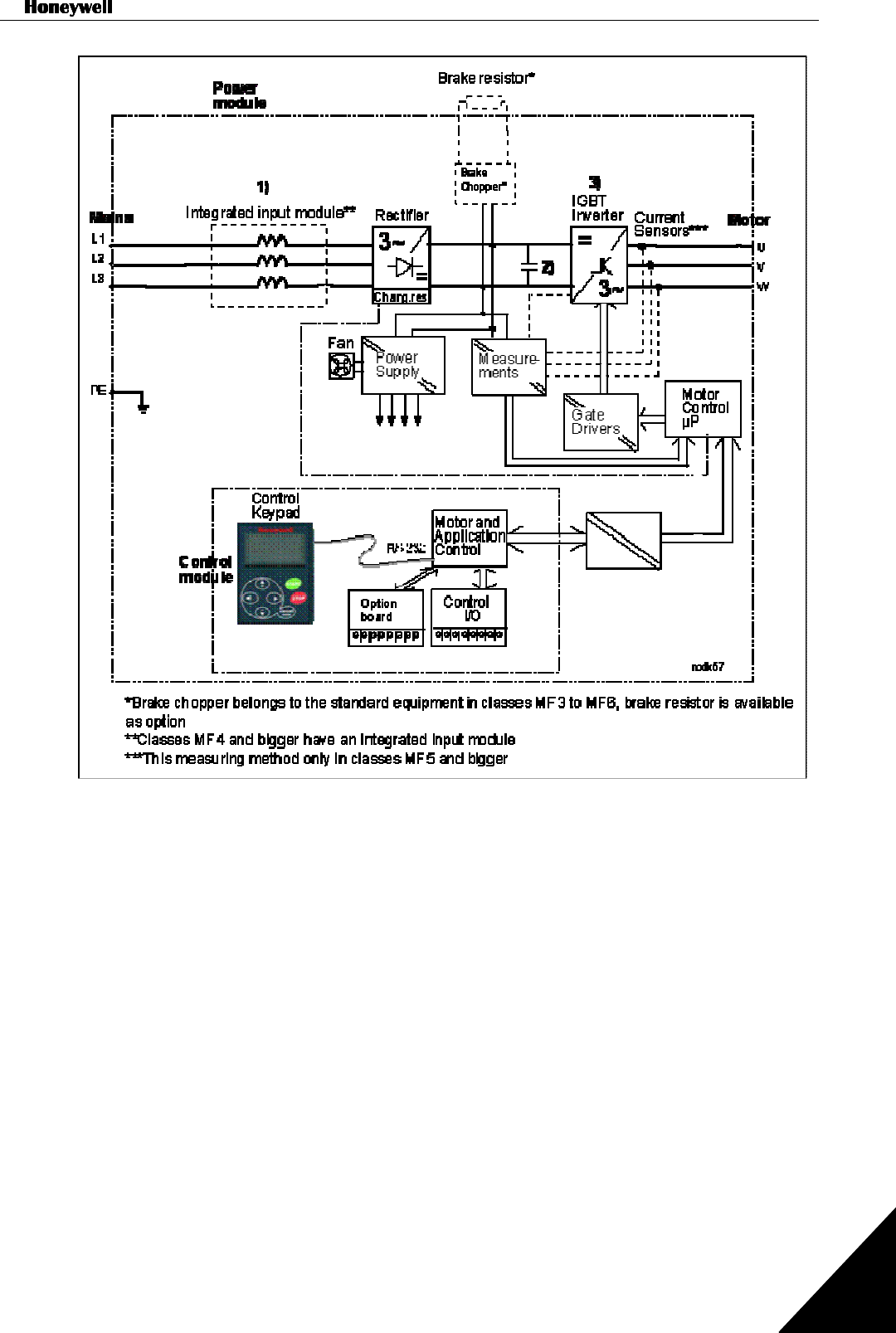

Introduction........................................................................................................................ 16

4.2

Power ratings..................................................................................................................... 18

4.2.1

NXL Compact – Mains voltage 208 – 240 V & 380 – 500 V............................................ 18

4.2.1

NXL HVAC – Mains voltage 380 – 500 V ....................................................................... 19

4.3

Technical data ................................................................................................................... 20

INSTALLATION .................................................................................................................... 22

5.1

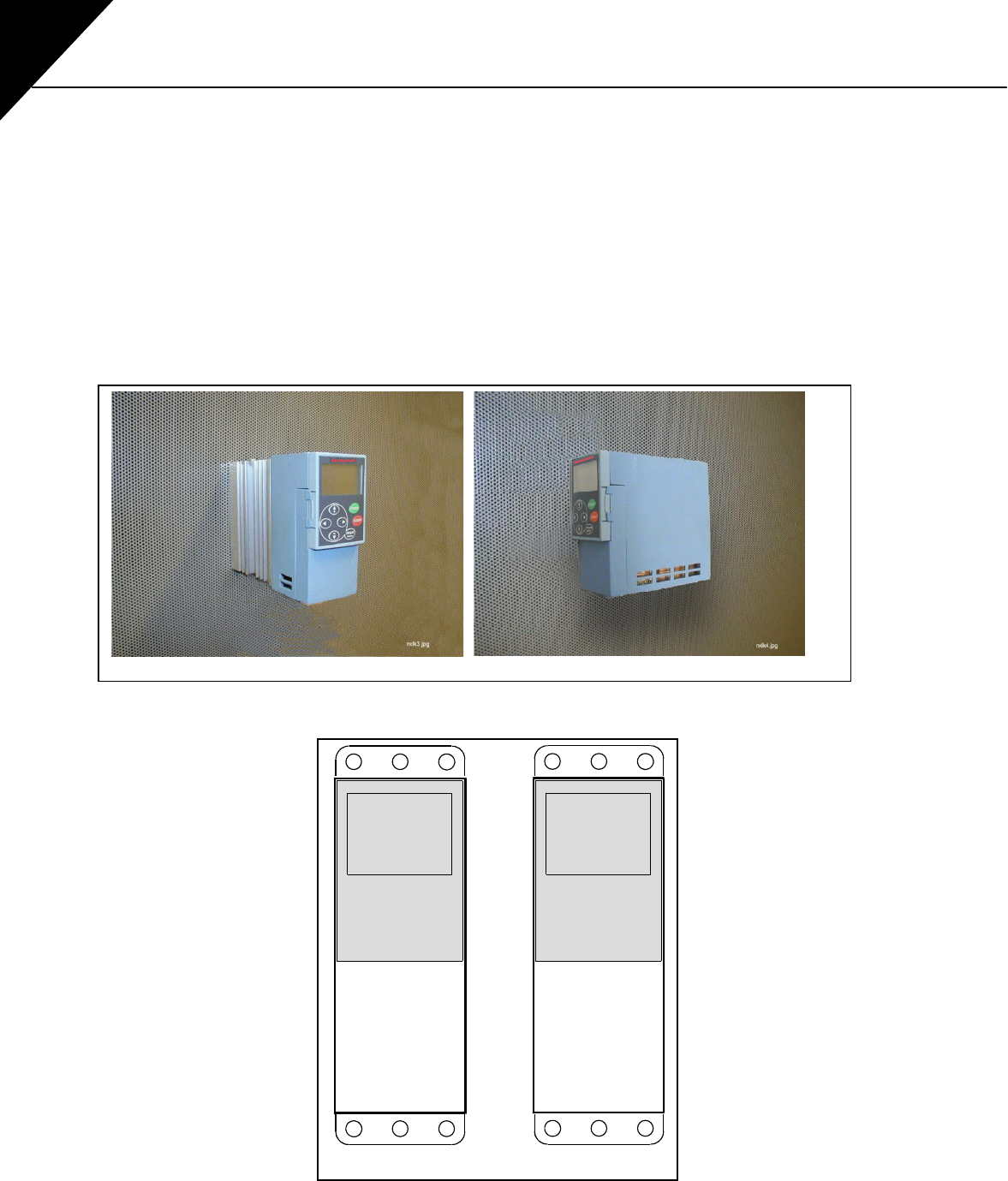

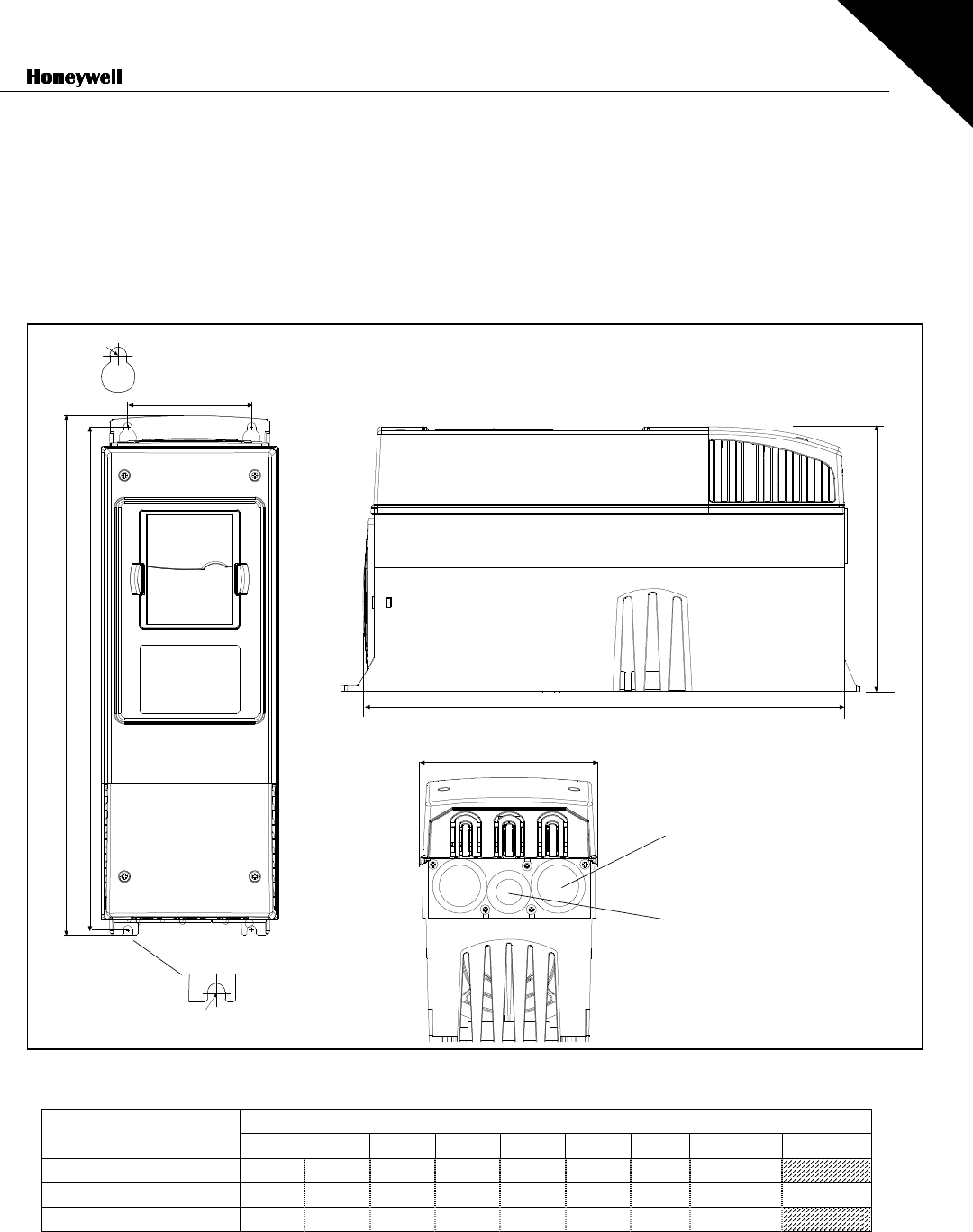

Mounting............................................................................................................................ 22

5.1.1

NXL Compact (MF2 and MF3)........................................................................................ 22

5.1.2

NXL HVAC (MF4 – MF6)................................................................................................ 25

5.2

Cooling .............................................................................................................................. 26

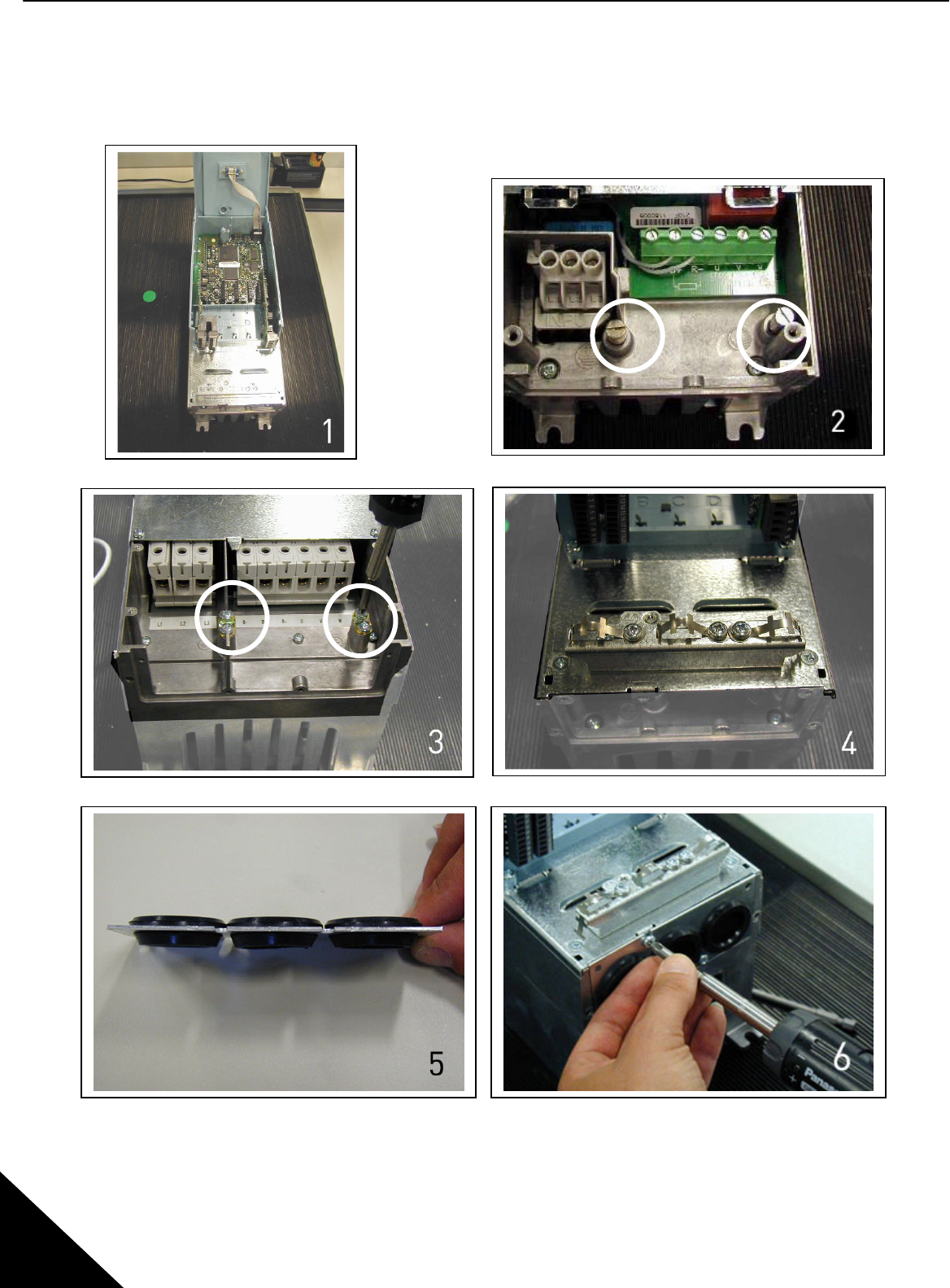

5.3

Changing EMC protection class from H/C to T in NXL HVAC ............................................ 27

CABLING AND CONNECTIONS .......................................................................................... 28

6.1

Power connections............................................................................................................. 28

6.1.1

Cabling........................................................................................................................... 29

6.1.1.1

Cable and fuse sizes .................................................................................................. 30

6.1.2

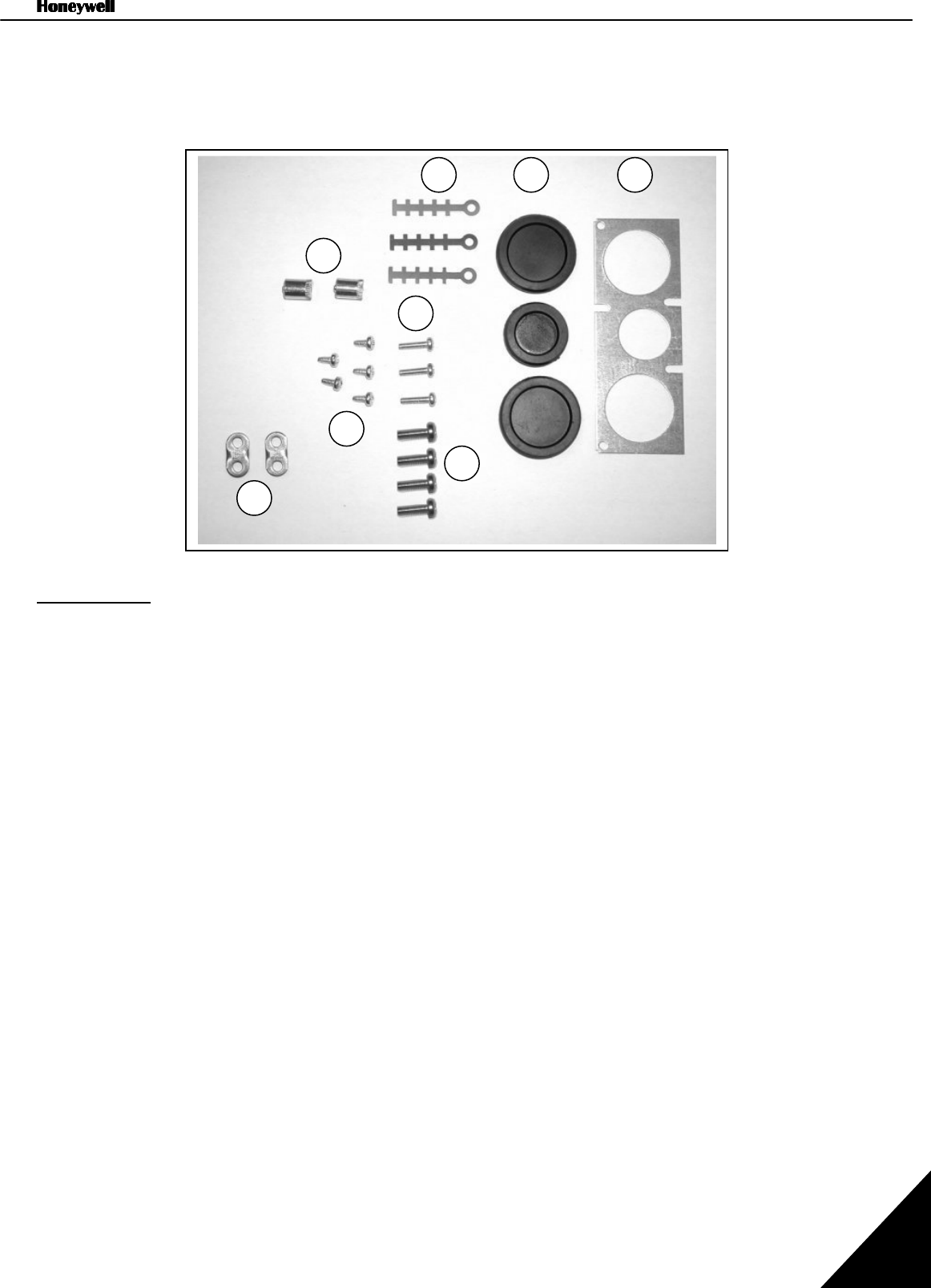

Mounting of cable accessories ....................................................................................... 31

6.1.3

Installation instructions ................................................................................................... 33

6.1.3.1

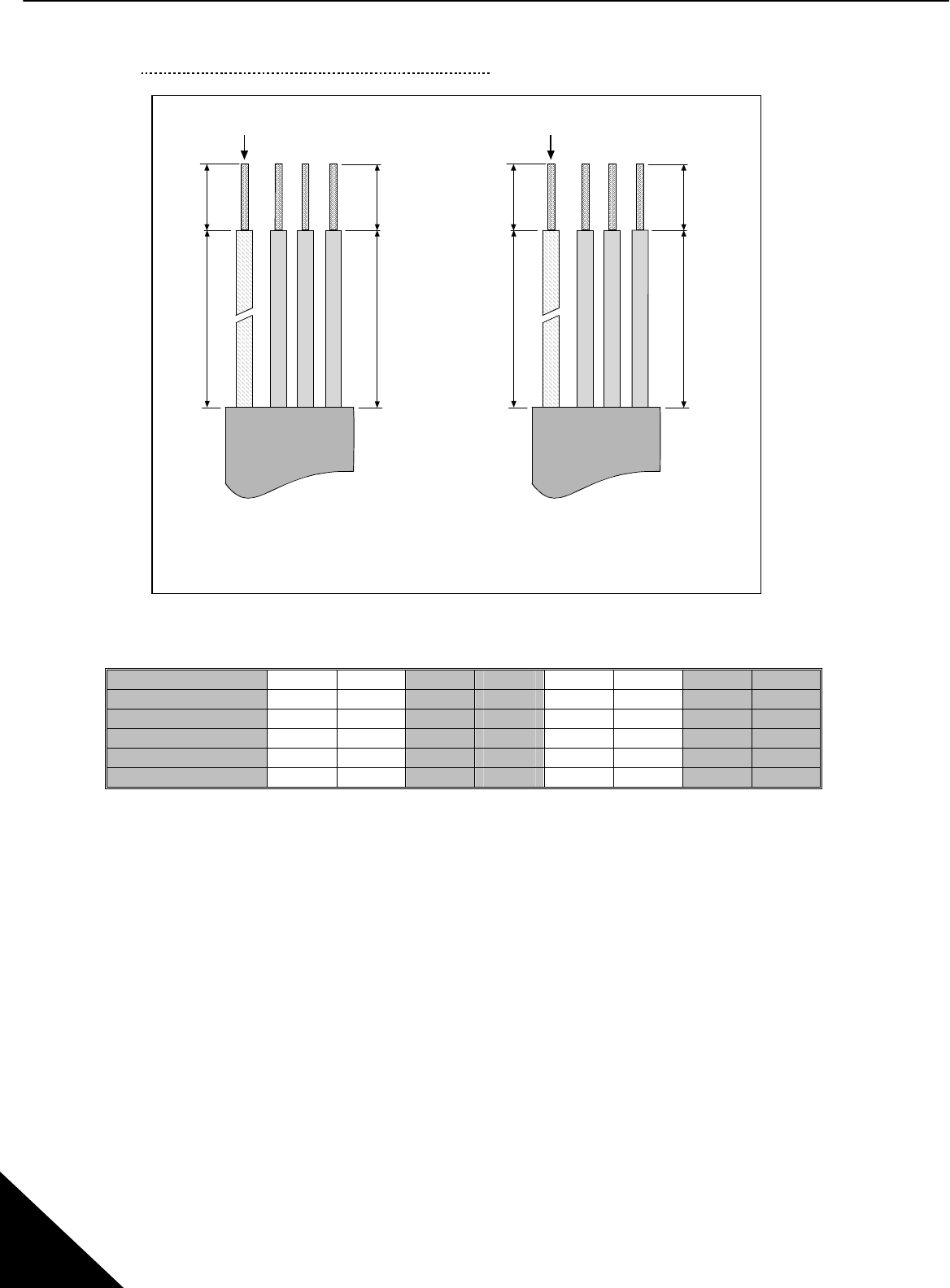

Stripping lengths of motor and mains cables .............................................................. 34

6.1.3.2

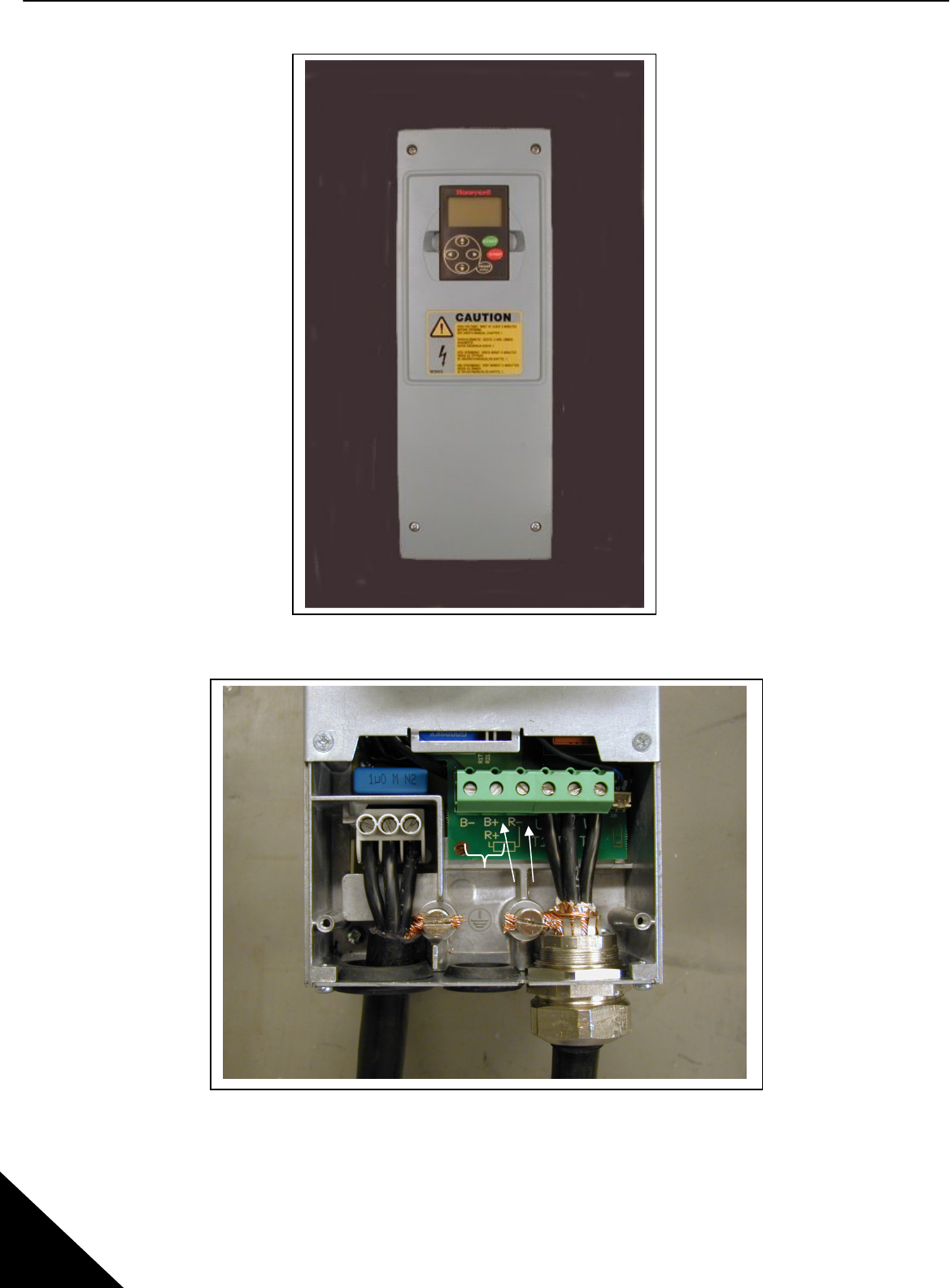

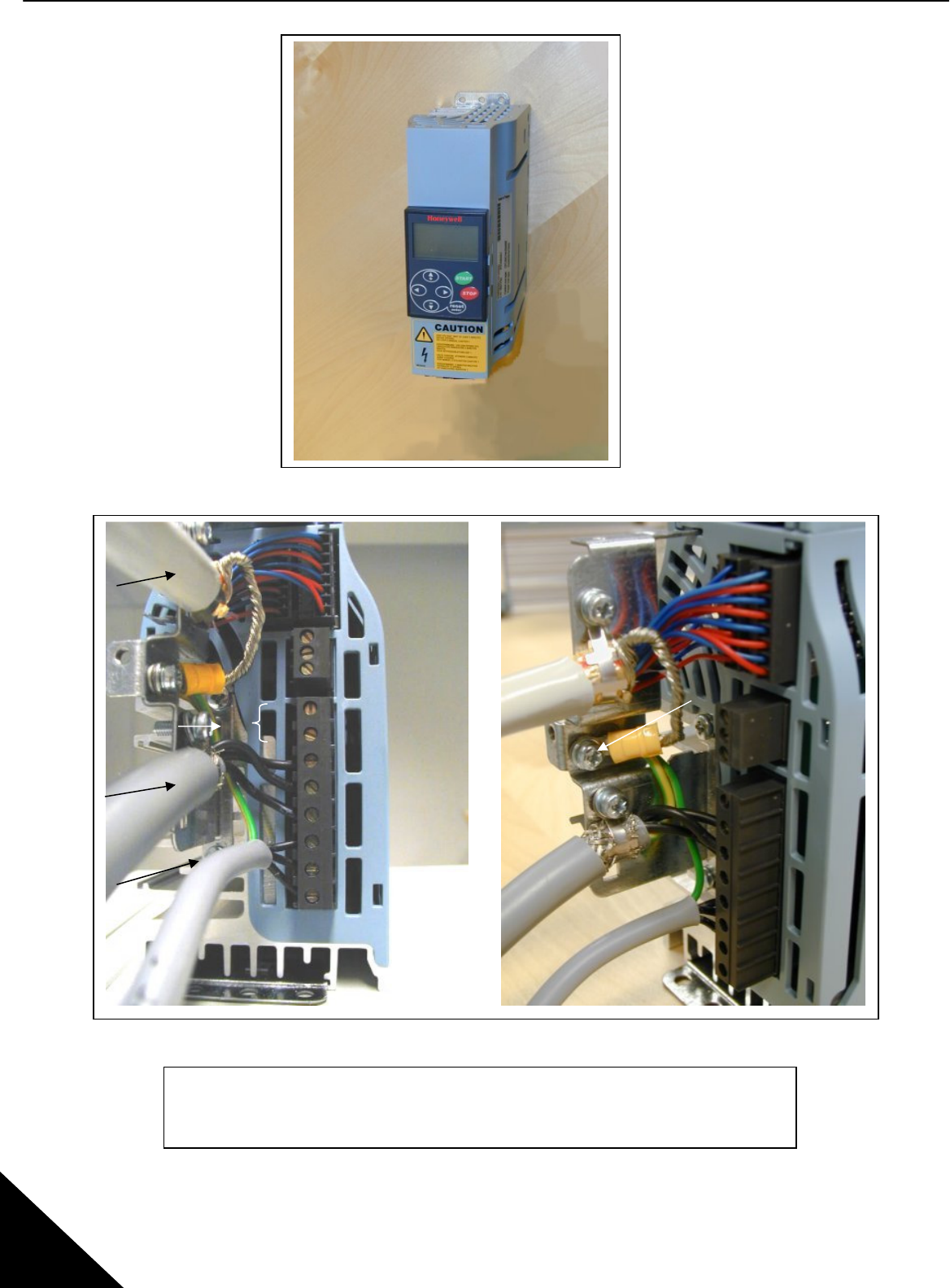

Installation of cables to NXL ....................................................................................... 35

6.1.4

Cable installation and the UL standards ......................................................................... 42

6.1.5

Cable and motor insulation checks................................................................................. 42

6.2

Control unit ........................................................................................................................ 43

6.2.1

NXL Compact (MF2 – MF3) ........................................................................................... 43

6.2.2

NXL HVAC (MF4 – MF6)................................................................................................ 43

6.2.2.1

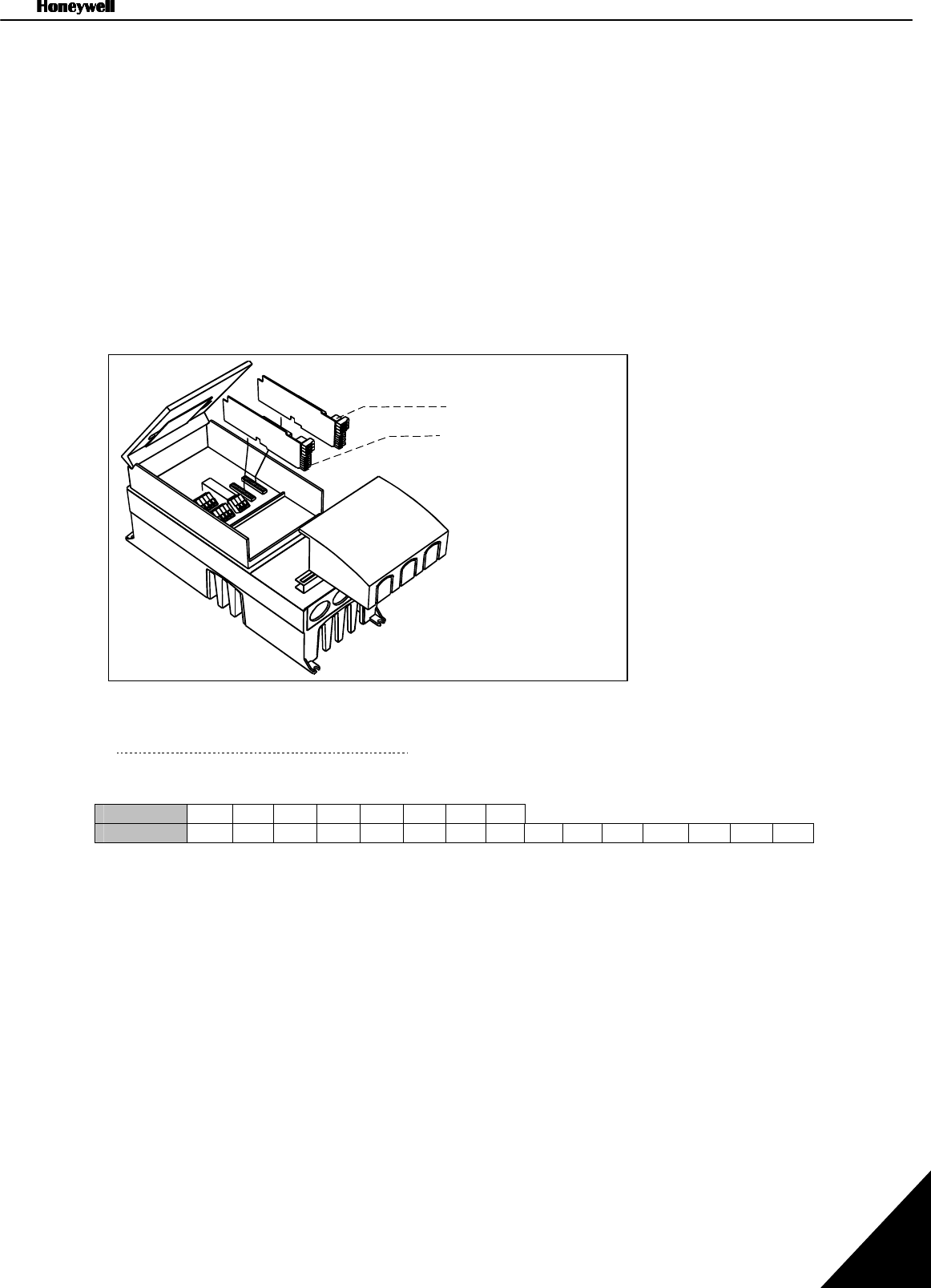

Allowed option boards in NXL HVAC:......................................................................... 43

6.2.3

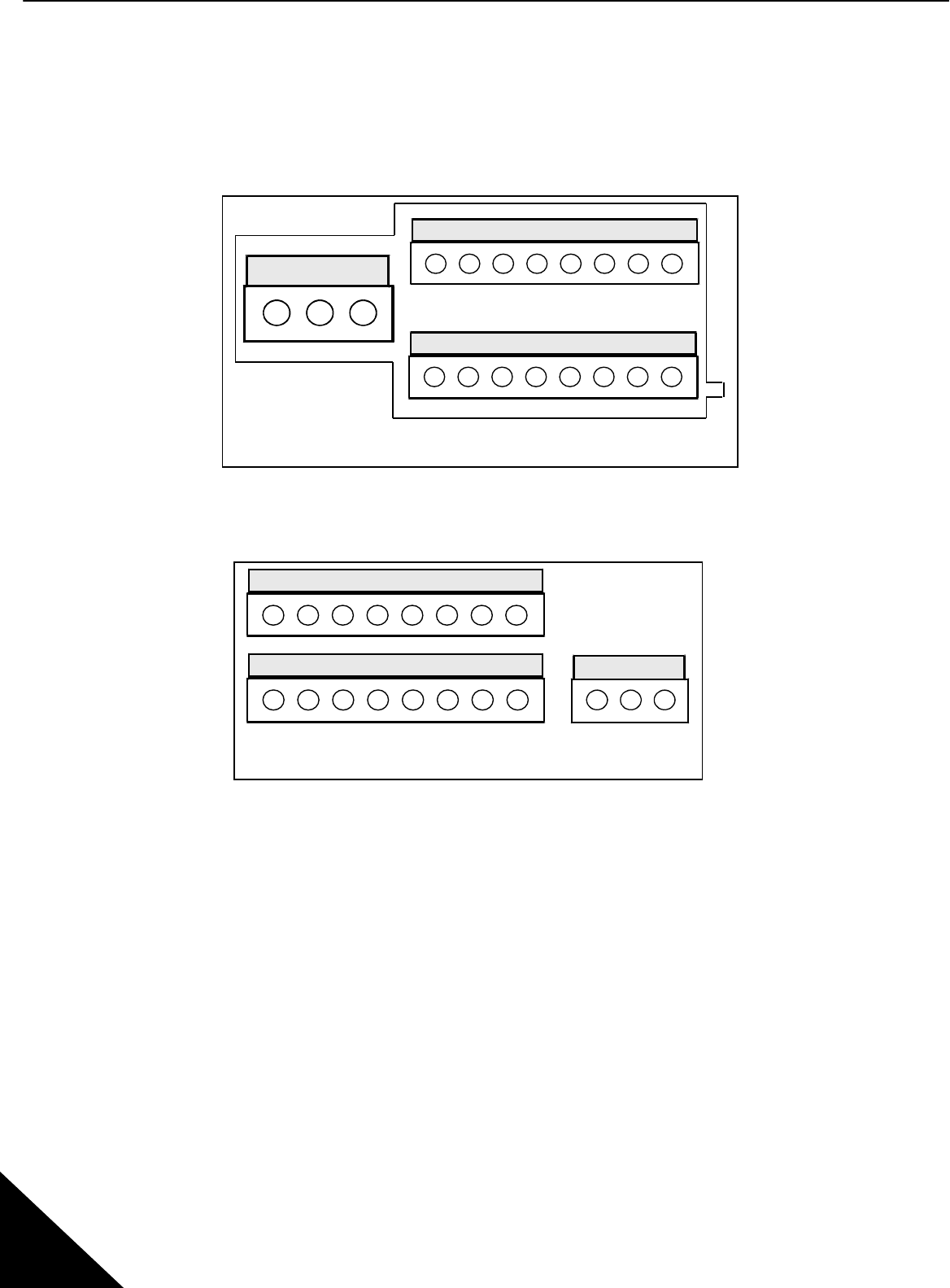

Control connections........................................................................................................ 44

6.2.4

Control I/O...................................................................................................................... 45

6(96) Index

6.2.5

Control terminal signals.................................................................................................. 46

6.2.5.1

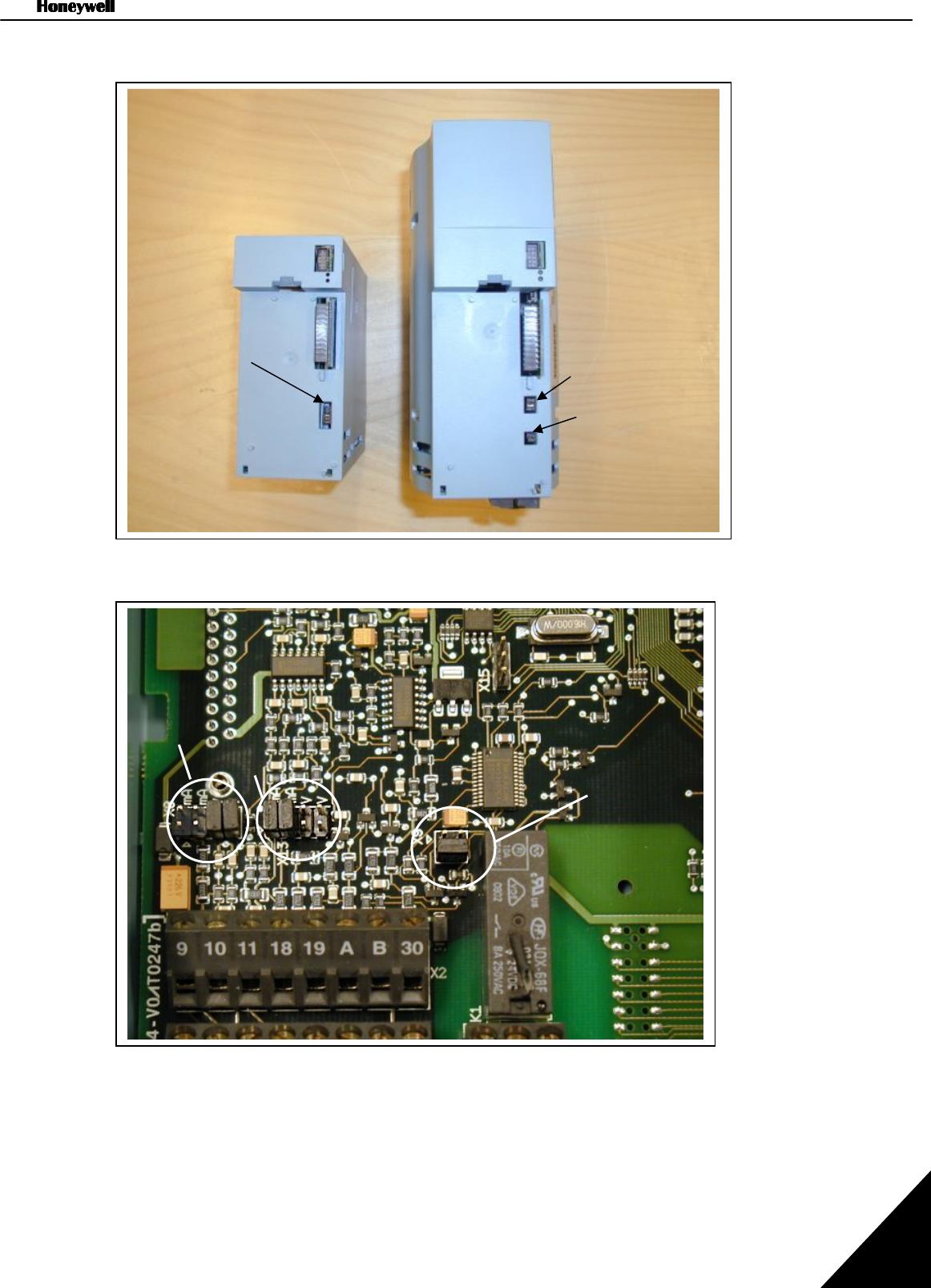

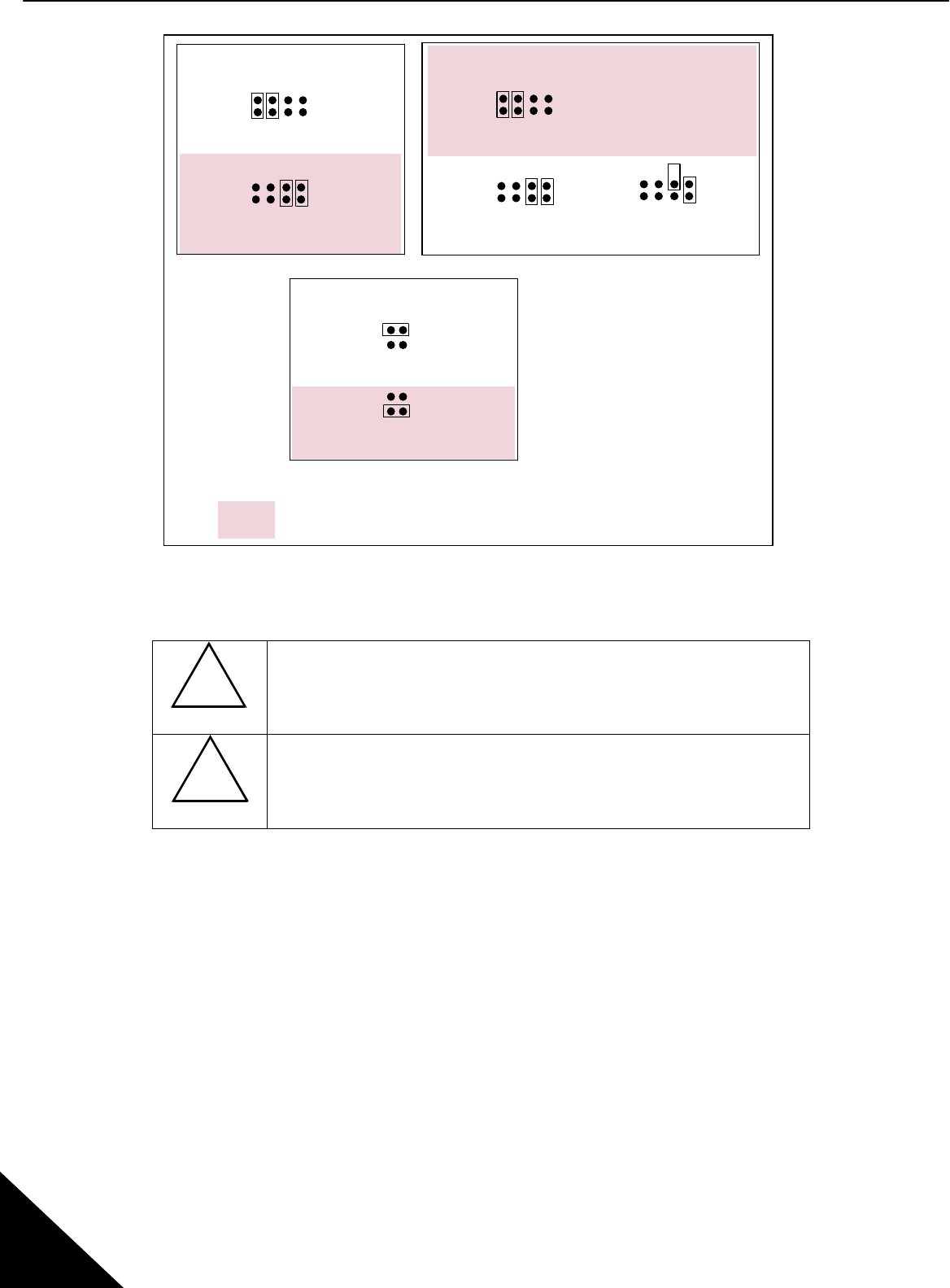

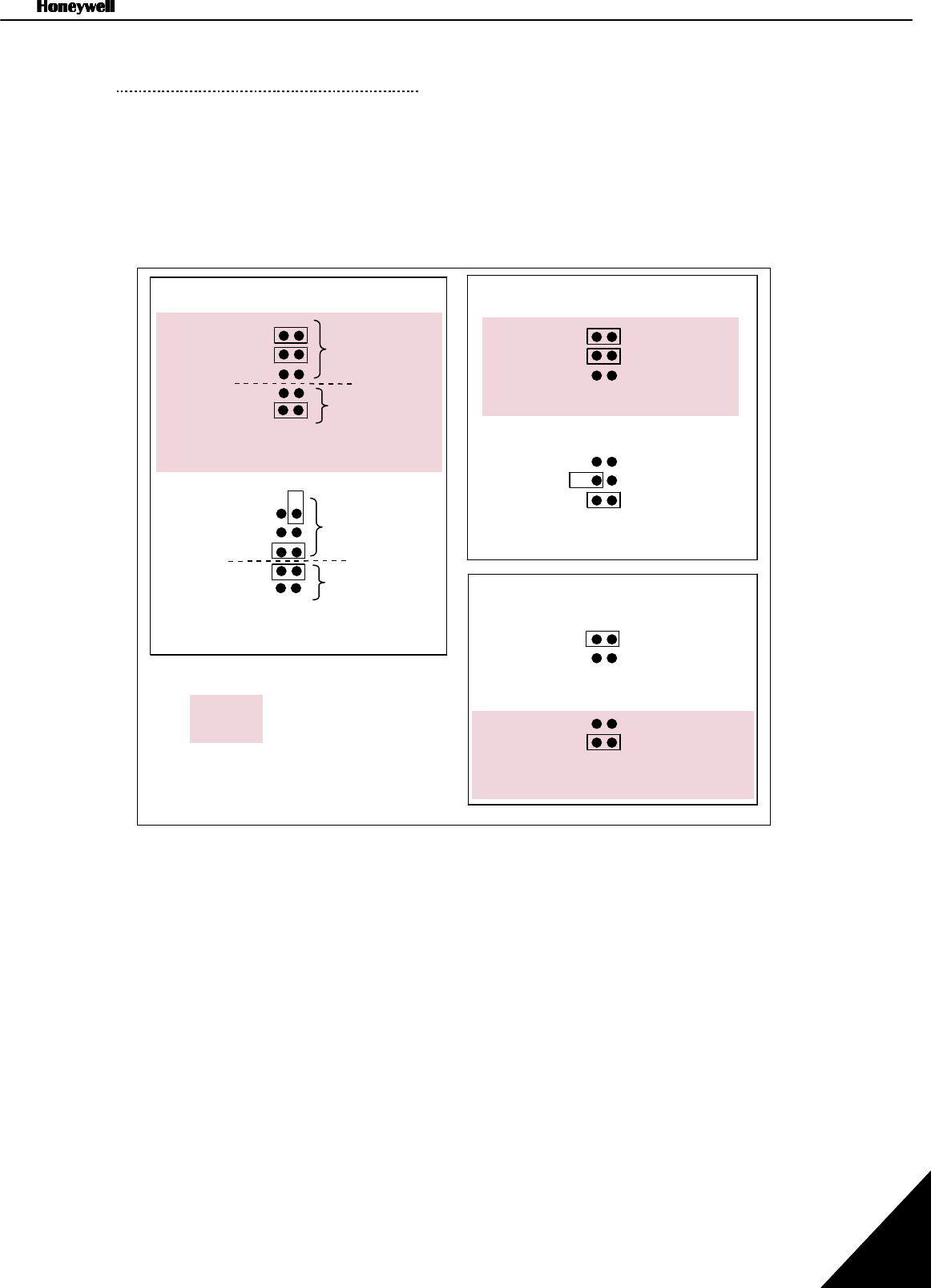

Jumper selections on NXL basic board....................................................................... 47

6.2.6

Motor thermistor (PTC) connection................................................................................. 50

CONTROL KEYPAD ............................................................................................................. 51

7.1

Indications on the Keypad display...................................................................................... 51

7.1.1

Drive status indications................................................................................................... 51

7.1.2

Control place indications ................................................................................................ 52

7.1.3

Numeric indications........................................................................................................ 52

7.2

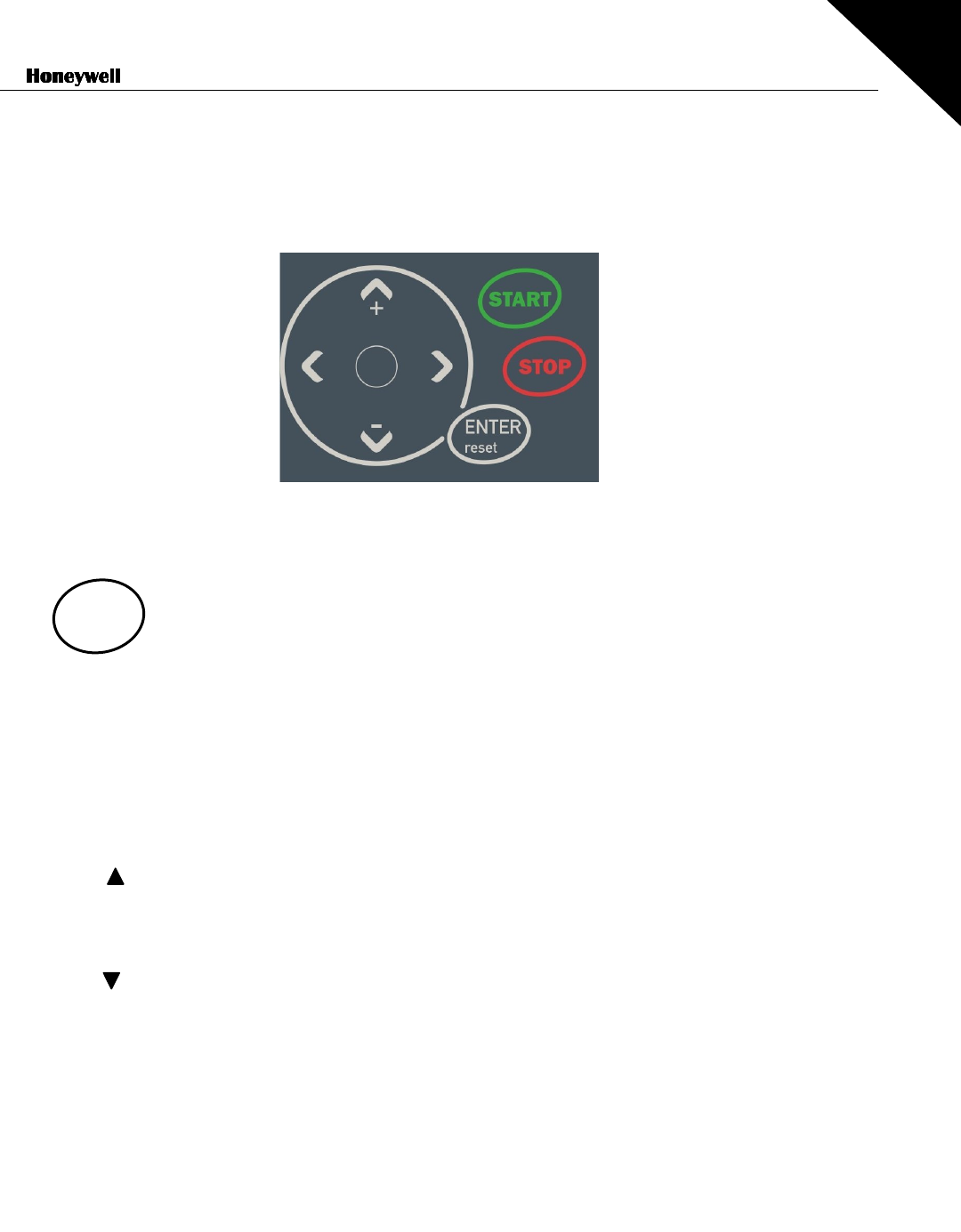

Keypad push-buttons......................................................................................................... 53

7.2.1

Button descriptions......................................................................................................... 53

7.3

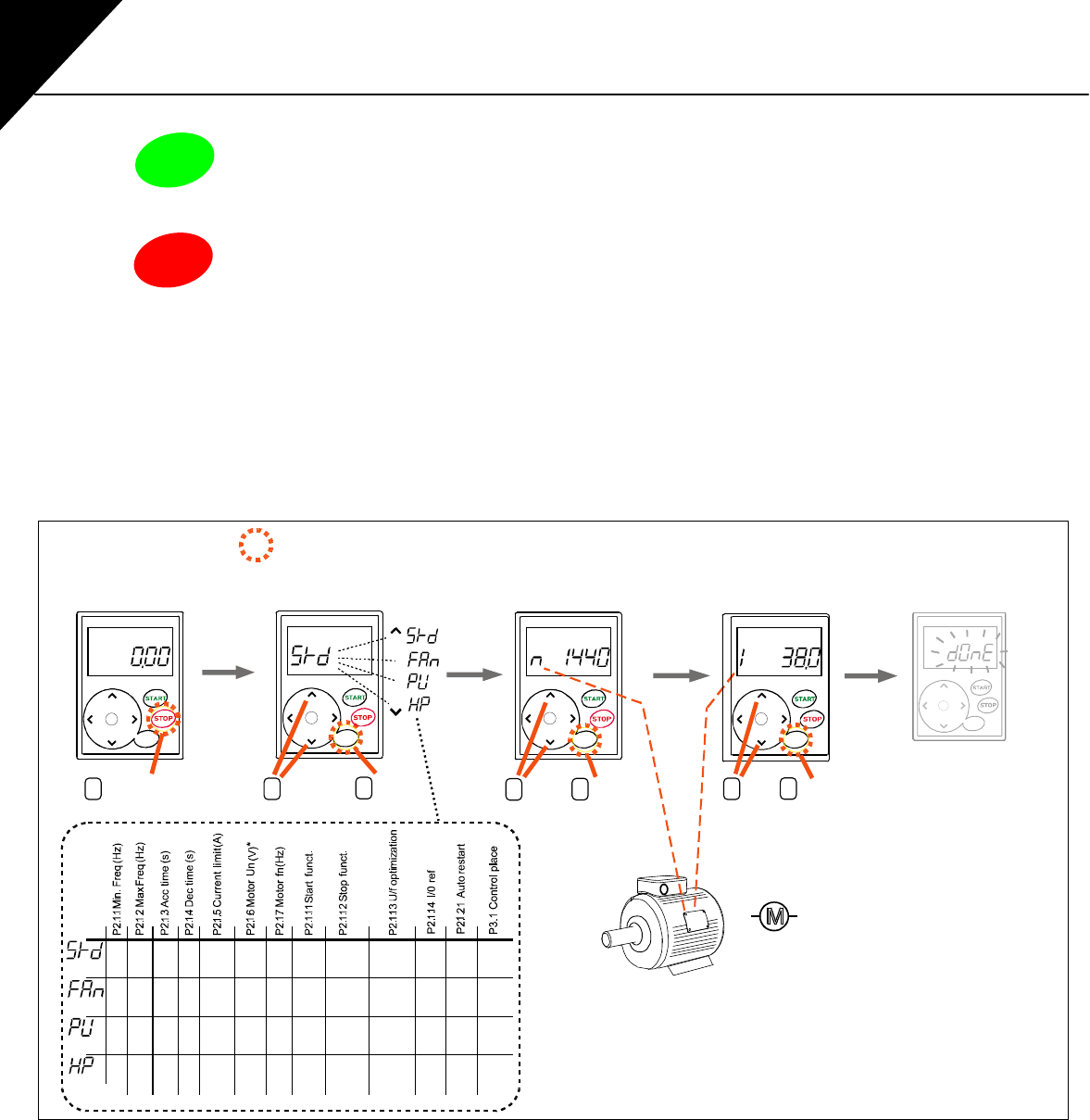

Start-up wizard................................................................................................................... 54

7.4

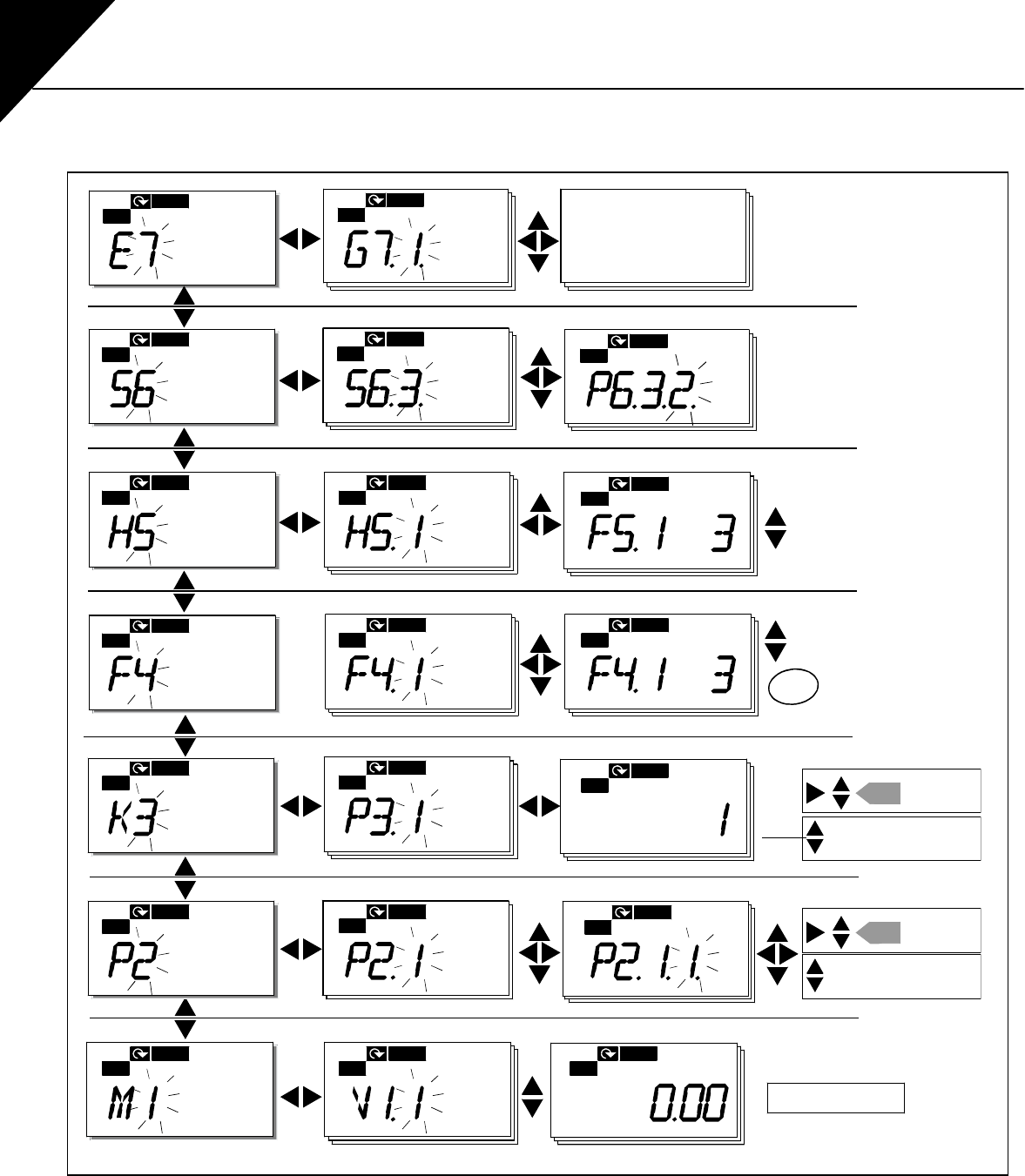

Navigation on the control keypad....................................................................................... 55

7.4.1

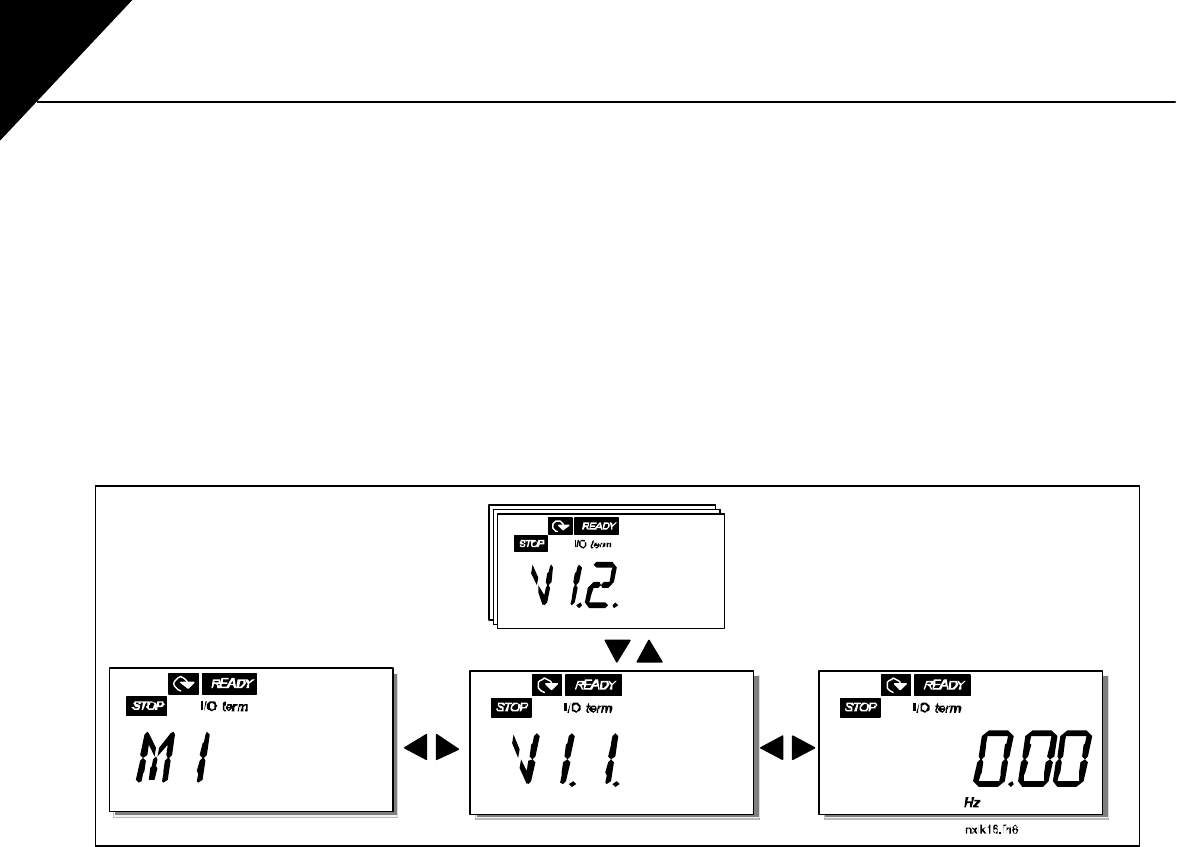

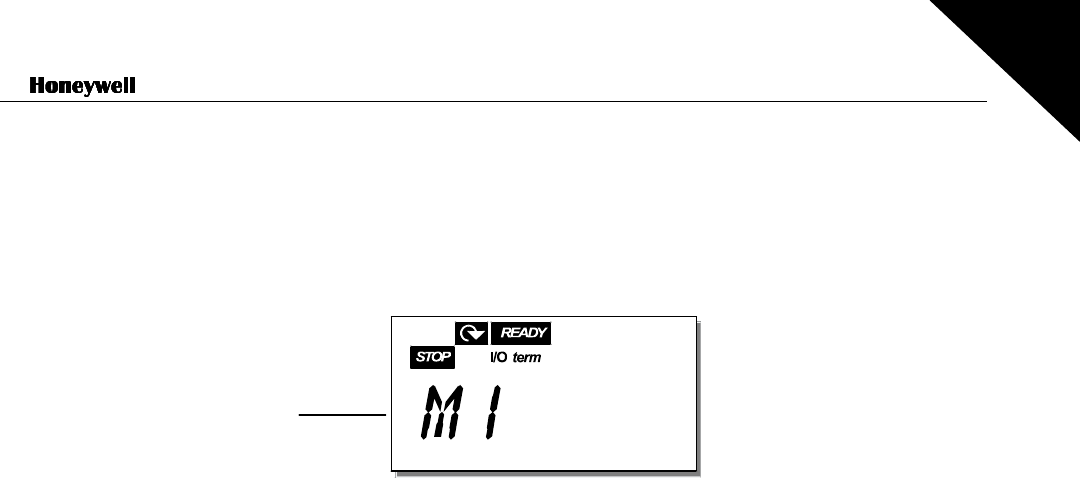

Monitoring menu (M1) .................................................................................................... 58

7.4.2

Parameter menu (P2)..................................................................................................... 60

7.4.3

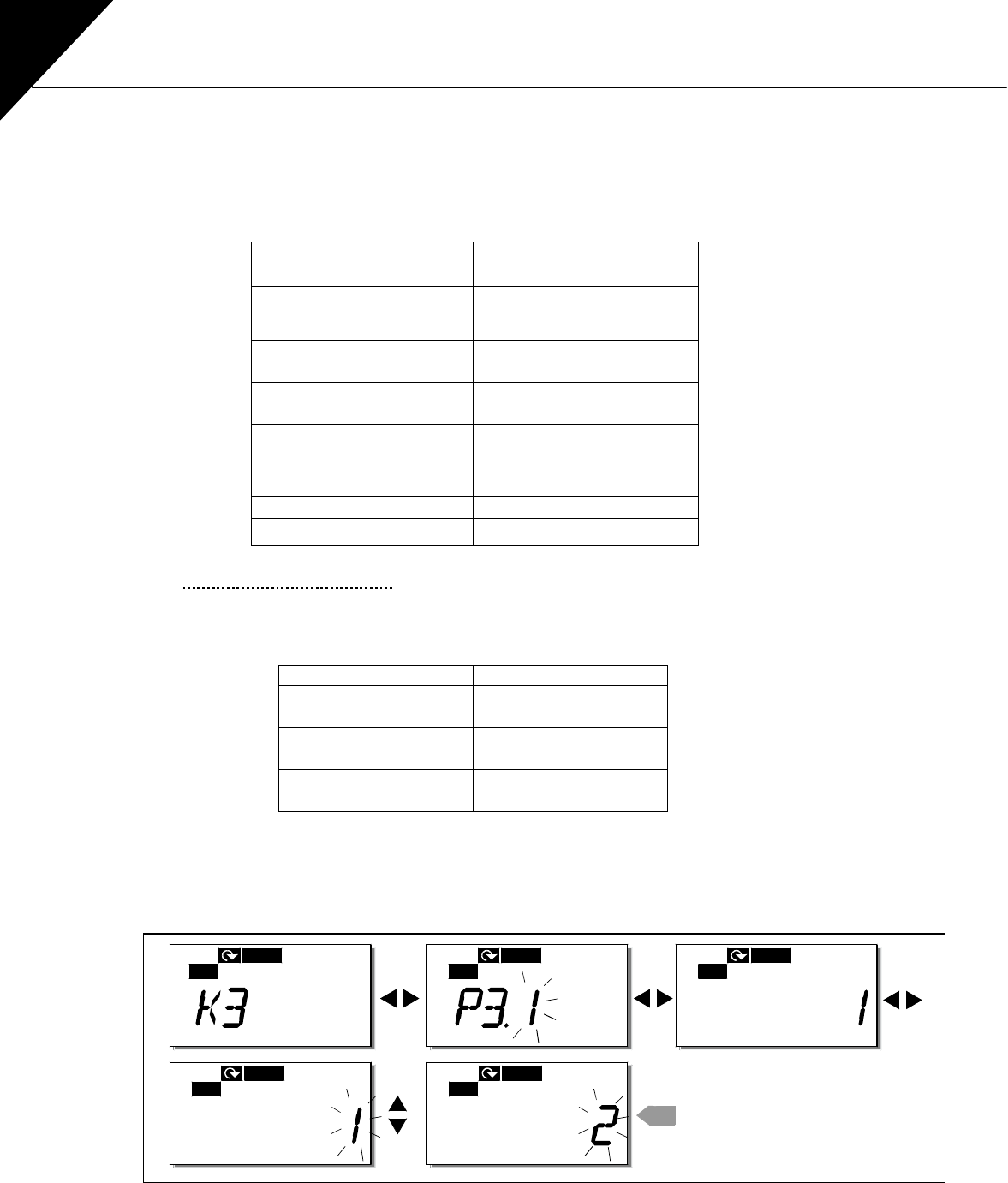

Keypad control menu (K3).............................................................................................. 62

7.4.3.1

Selection of control place............................................................................................ 62

7.4.3.2

Keypad reference ....................................................................................................... 63

7.4.3.3

Keypad direction......................................................................................................... 63

7.4.3.4

Stop button activation................................................................................................. 63

7.4.4

Active faults menu (F4)................................................................................................... 64

7.4.4.1

Fault types.................................................................................................................. 64

7.4.5

Fault codes..................................................................................................................... 65

7.4.6

Fault history menu (H5).................................................................................................. 67

7.4.7

System menu (S6).......................................................................................................... 68

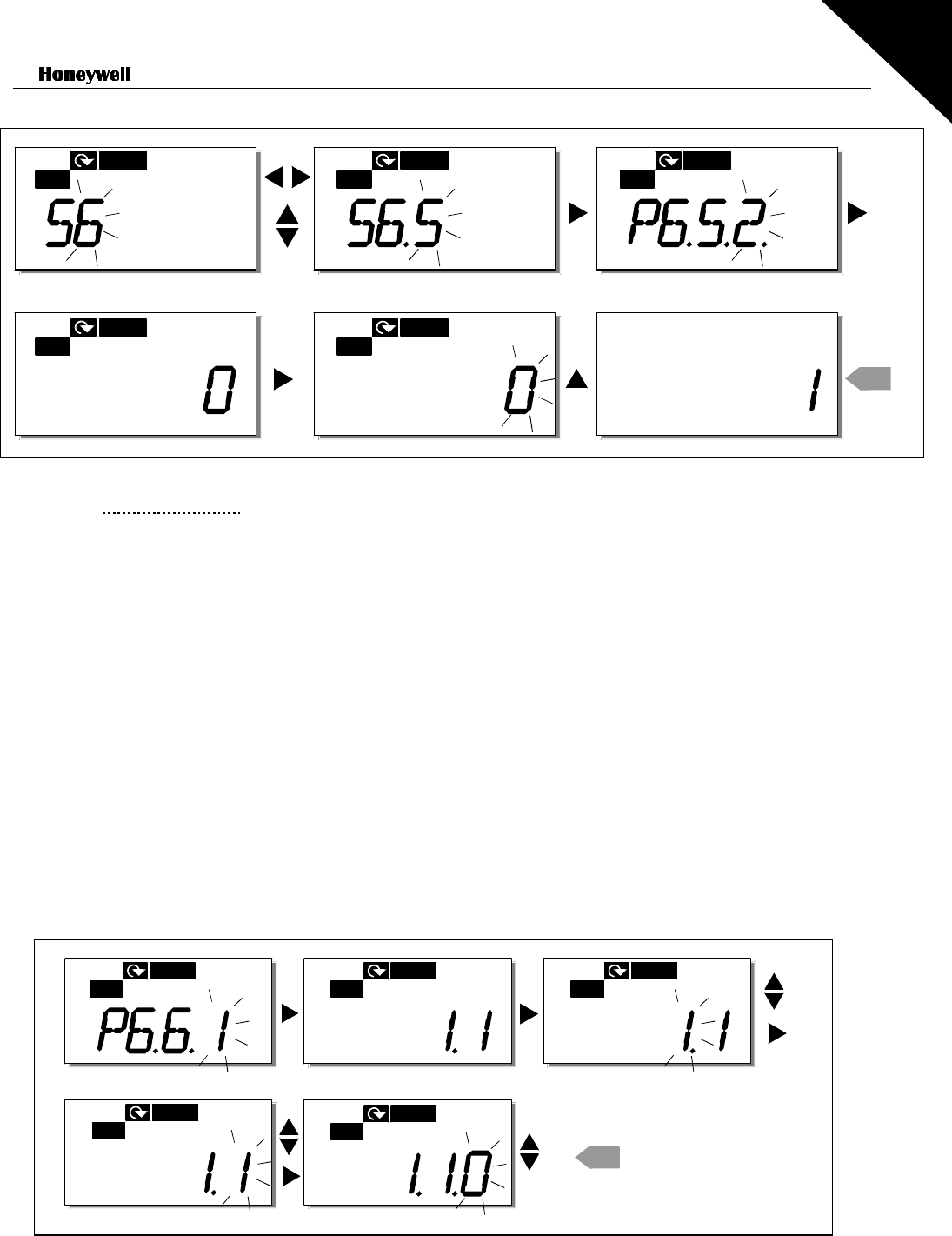

7.4.7.1

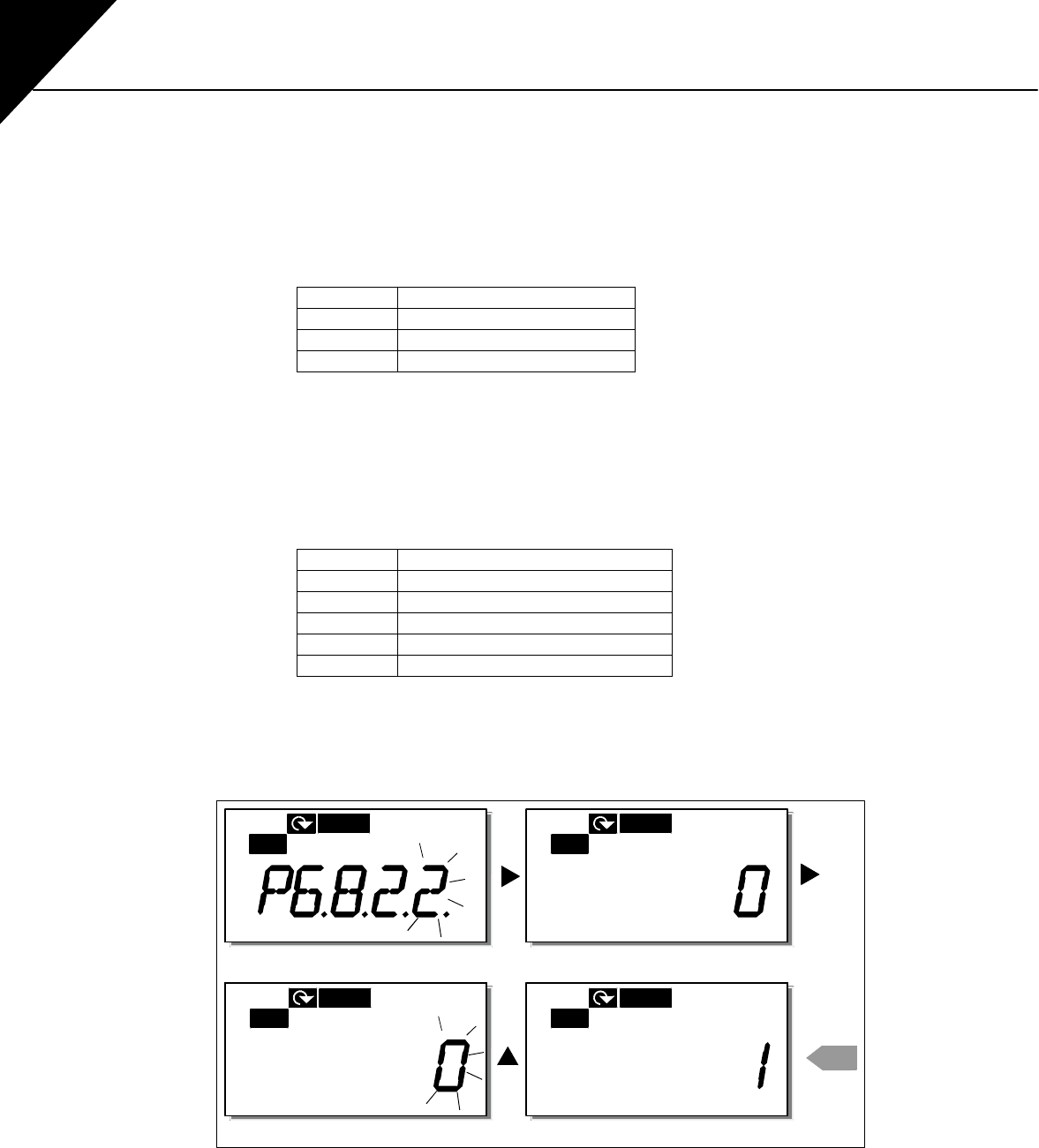

Copy parameters........................................................................................................ 70

7.4.7.2

Security ...................................................................................................................... 70

7.4.7.3

Keypad settings.......................................................................................................... 71

7.4.7.4

Hardware settings....................................................................................................... 72

7.4.7.5

System information..................................................................................................... 73

7.4.7.6

AI mode...................................................................................................................... 76

7.4.8

Modbus interface............................................................................................................ 77

7.4.8.1

Modbus RTU protocol................................................................................................. 77

7.4.8.2

Termination Resistor .................................................................................................. 78

7.4.8.3

Modbus address area................................................................................................. 78

7.4.8.4

Modbus process data ................................................................................................. 78

7.4.8.5

Fieldbus parameters................................................................................................... 80

7.4.9

Expander board menu (E7) ............................................................................................ 81

7.5

Further keypad functions.................................................................................................... 81

COMMISSIONING................................................................................................................. 82

8.1

Safety ................................................................................................................................ 82

8.2

Commissioning of the frequency converter ........................................................................ 82

8.3

Basic parameters............................................................................................................... 85

8.3.1

Monitoring values (Control keypad: menu M1) ............................................................... 85

8.3.2

HVAC parameters in NXL HVAC (Control keypad: Menu P2  B2.1) ............................ 86

8.3.3

Basic parameters (Control keypad: Menu P2  B2.1 / B2.1.15)..................................... 87

FAULT TRACING.................................................................................................................. 88

10.

DESCRIPTION OF EXPANDER BOARD NXLOPTAA ......................................................... 92

11.

DESCRIPTION OF EXPANDER BOARD NXLOPTAI ........................................................... 93

12.

NXL HVAC Basic Speed Control – Quick SETUP .............................................................. 95

HoneywellHoneywell

Honeywell

Safety 7(96)

1. SAFETY

1.1

Warnings

The components of the power unit of the frequency converter are live

when NXL is connected to mains potential. Coming into contact with

this voltage is extremely dangerous and may cause death or severe

injury. The control unit is isolated from the mains potential.

The motor terminals U, V, W (T1, T2, T3) and the DC-link/brake resistor

terminals –/+ (in NXL ≥1.1 kW) are live when NXL is connected to mains,

even if the motor is not running.

The control I/O-terminals are isolated from the mains potential. However,

the relay outputs and other I/O-terminals may have a dangerous control

voltage present even when NXL is disconnected from mains.

The frequency converter has a large capacitive leakage current.

If the frequency converter is used as a part of a machine, the machine

manufacturer is responsible for providing the machine with a main switch

(EN 60204-1).

Only spare parts delivered by Honeywell can be used.

HOT SURFACE

The heat sink of types MF2 and MF3 may be hot when the frequency

converter is in use. Coming into contact with the heat sink may cause

burns.

1.2

Safety instructions

The Honeywell NXL frequency converter is meant for fixed installations

only.

Do not perform any measurements when the frequency converter is

connected to the mains.

After disconnecting the frequency converter from the mains, wait until the

fan stops and the indicators on the display go out. Wait 5 more minutes

before doing any work on NXL connections.

Do not perform any voltage withstand tests on any part of NXL. There is

a certain procedure according to which the tests shall be performed.

Ignoring this procedure may result in damaged product.

Prior to measurements on the motor or the motor cable, disconnect the

motor cable from the frequency converter.

Do not touch the IC-circuits on the circuit boards. Static voltage discharge

may damage the components.

ONLY A COMPETENT ELECTRICIAN MAY CARRY OUT

THE ELECTRICAL INSTALLATION

WARNING

8(96) Safety Honeywell

HoneywellHoneywell

Honeywell

1.3

Earthing and earth fault protection

The Honeywell NXL frequency converter must always be earthed with an earthing conductor

connected to the earthing terminal .

The earth fault protection inside the frequency converter protects only the converter itself against

earth faults in the motor or the motor cable.

Due to the high capacitive currents present in the frequency converter, fault current protective

switches may not function properly. If fault current protective switches are used they must be tested

with the drive with earth fault currents that are possible to arise in fault situations.

1.4

Running the motor

Warning symbols

For your own safety, please pay special attention to the instructions marked with the following

symbols:

= Dangerous voltage

WARNING

= General warning

HOT SURFACE = Hot surface – Risk of burn

MOTOR RUN CHECK LIST

Before starting the motor, check that the motor is mounted properly and

ensure that the machine connected to the motor allows the motor to be

started.

Set the maximum motor speed (frequency) according to the motor and

the machine connected to it.

Before reversing the motor shaft rotation direction make sure that this

can be done safely.

Make sure that no power correction capacitors are connected to the

motor cable.

Make sure that the motor terminals are not connected to mains potential.

WARNING

EU Directive 9(96)

2. EU DIRECTIVE

2.1

CE marking

The CE marking on the product guarantees the free movement of the product within the EEA

(European Economic Area). It also guarantees that the product meets the various requirements

placed upon it (such as the EMC Directive and possibly other directives according to the so-called

new procedure).

NXL frequency converters carry the CE label as a proof of compliance with the Low Voltage

Directive (LVD) and the Electro Magnetic Compatibility (EMC). The company SGS FIMKO has acted

as the Competent Body.

2.2

EMC directive

2.2.1 General

The EMC Directive provides that the electrical apparatus must not excessively disturb the

environment they are used in, and, on the other hand, it shall have an adequate level of immunity

toward other disturbances from the same environment.

The compliance of NXL frequency converters with the EMC directive is verified with Technical

Construction Files (TCF) checked and approved by SGS FIMKO, which is a Competent Body.

2.2.2 Technical criteria

EMC compliance is a major consideration for NXL drives from the outset of the design. NXL

frequency converters are marketed throughout the world, a fact which makes the EMC requirements

of customers different. All NXL frequency converters are designed to fulfil even the strictest immunity

requirements.

2.2.3 NXL frequency converter EMC classification

NXL frequency converters are divided into two classes according to the level of electromagnetic

disturbances emitted. Later in this manual the division is made according to the mechanical sizes

(MF2, MF3, etc.). The technical data of the different sizes can be found in Chapter 0.

Class C (NXL HVAC IP54):

NXL HVAC drives with IP54 enclosure are delivered as class C products with an integrated RFI

filter. NXL HVAC drives IP54 selection fulfil the requirements of the product standard EN 61800-

3 (2004) category C1 (EN 55011 class B).

The emission levels correspond to the requirements of EN 61000-6-3.

Class N (NXL Compact):

No EMC emission protection. NXL Compact drives (frames MF2 and MF3) are delivered from the

factory without an integrated RFI filter as class N products. External RFI filters for these products for

class H are available.

Class H (NXL HVAC IP21):

NXL HVAC drives with IP21 enclosure are delivered as class H products with an integrated RFI

filter. NXL HVAC drives IP21 selection fulfil the requirements of the product standard EN 61800-

3 (2004) category C2 (EN 55011 class A).

The emission levels correspond to the requirements of EN 61000-6-4.

Class T:

The T-class converters have a small earth current and can be used with IT supplies only. If they are

used with other supplies no EMC requirements are complied with.

10(96) EU Directive Honeywell

HoneywellHoneywell

Honeywell

All NX frequency converters fulfil all EMC immunity requirements (standards EN 61000-6-1,

61000-6-2 and EN 61800-3).

2.2.4 Honeywell EMC classes and market requirements

NX EMC levels Hospital Airport Residential Area Commercial Light Industry

Area

Heavy Industry

C O O

H R R R R O O

L R R

T R

(IT Network)

2.2.5 Manufacturer's declaration of conformity

The following page presents the photocopy of the Manufacturer's Declaration of Conformity assuring

the compliance of frequency converters with the EMC-directives.

O = Optional, R= Required

1 2 3 4 5 6

EU Directive 11(96)

EU DECLARATION OF CONFORMITY

Manufacturer's name: Vacon Oyj

Manufacturer's address: P.O.Box 25

Runsorintie 7

FIN-65381 Vaasa

Finland

hereby declare that the product

Product name: NXL Frequency Converter

Model designation: NXL 0001 V3 5…to 0061 V3 5…

NXL 0002 V3 2...to 0006 V3 2…

has been designed and manufactured in accordance with the following standards:

Safety:

EN 50178 (1997), EN 60204-1 (1996)

EN 60950 (3rd edition 2000, as relevant)

EMC:

EN 61800-3 (1996)+A11(2000), EN 61000-6-2

(2001), EN 61000-6-4 (2001)

and conforms to the relevant safety provisions of the Low Voltage Directive (73/23/EEC) as

amended by the Directive (93/68/EEC) and EMC Directive 89/336/EEC as amended by

92/31/EEC.

It is ensured through internal measures and quality control that the product conforms at all

times to the requirements of the current Directive and the relevant standards.

In Vaasa, 6th of September, 2002

Vesa Laisi

President

The year the CE marking was affixed: 2002

12(96) EU Directive Honeywell

HoneywellHoneywell

Honeywell

EU DECLARATION OF CONFORMITY

Manufacturer's name: Vacon Oyj

Manufacturer's address: P.O.Box 25

Runsorintie 7

FIN-65381 Vaasa

Finland

hereby declare that the product

Product name: NXL HVAC DRIVE

Model designation: HVAC03C… to HVAC61C…

has been designed and manufactured in accordance with the following standards:

Safety:

EN 50178 (1997), EN 60204-1 (1996)

EN 60950 (3rd edition 2000, as relevant)

EMC:

EN 61800-3 (1996)+A11(2000), EN 61000-6-2

(2001), EN 61000-6-4 (2001)

and conforms to the relevant safety provisions of the Low Voltage Directive (73/23/EEC) as

amended by the Directive (93/68/EEC) and EMC Directive 89/336/EEC as amended by

92/31/EEC.

It is ensured through internal measures and quality control that the product conforms at all

times to the requirements of the current Directive and the relevant standards.

In Vaasa, 10th of May, 2006

Vesa Laisi

President

The year the CE marking was affixed: 2002

Receipt of delivery 13(96)

3. RECEIPT OF DELIVERY

NXL frequency converters have undergone scrupulous tests and quality checks at the factory before

they are delivered to the customer. However, after unpacking the product, check that no signs of

transport damages are to be found on the product and that the delivery is complete (compare the

type designation of the product to the code below.

Should the drive have been damaged during the shipping, please contact primarily the cargo

insurance company or the carrier.

If the delivery does not correspond to your order, contact the supplier immediately.

3.1

Type designation code NXL Compact

NXL

0005

Harware modifications:

S = Standard

D = DIN rail mounting

Brake chopper

0 = No brake chopper (MF2)

1 = Internal brake chopper

EMC emission level

N = No EMC emission protection

(External filters available for EN61800-3 cat. C2)

Enclosure classification

1 = IP20

Control keypad

B = No control keypad

C = Standard 7-segment keypad

Nominal mains voltage

2 = 208-240Vac

5 = 380-500Vac

Input Phases

V3 = 3 Phase

Nominal current (low overload)

0005 = 5A etc.

Product range: NXL

Figure 3-1. NXL Compact type designation code for sizes MF2 and MF3

14(96) Receipt of delivery Honeywell

HoneywellHoneywell

Honeywell

3.2

Type designation code NXL HVAC

HVAC

Enclosure & EMC classification

2 = IP21, EMC class H (fulfils EN 61800-3 cat C2, EN 55011 class A)

5 = IP54, EMC class C (fullfils EN 61800-3 cat C1, EN 55011 class B)

Control keypad

C = Standard 7-segment keypad

Nominal current (low overload)

03 = 3 A etc.

Product range: HVAC = NXL HVAC

Figure 3-2. NXL HVAC type designation code for (sizes MF4 - MF6).

3.3

Storage

If the frequency converter is to be kept in store before use make sure that the ambient conditions are

acceptable:

Storing temperature –40…+70

Relative humidity <95%, no condensation

3.4

Maintenance

In normal conditions, NXL frequency converters are maintenance-free. However, we recommend to

clean the heatsink (using e.g. a small brush) whenever necessary.

Most NXL drives are equipped with a cooling fan, which can easily be changed if necessary.

Receipt of delivery 15(96)

3.5

Warranty

Only manufacturing defects are covered by the warranty. The manufacturer assumes no

responsibility for damages caused during or resulting from transport, receipt of the delivery,

installation, commissioning or use.

The manufacturer shall in no event and under no circumstances be held responsible for damages

and failures resulting from misuse, wrong installation, unacceptable ambient temperature, dust,

corrosive substances or operation outside the rated specifications. Neither can the manufacturer be

held responsible for consequential damages.

Honeywell's time of warranty is 30 months from the delivery or 24 months from the commissioning

whichever expires first.

The local distributor may grant a warranty time different from the above. This warranty time shall be

specified in the distributor's sales and warranty terms. Honeywell assumes no responsibility for any

other warranties than that granted by Honeywell itself.

In all matters concerning the warranty, please contact first your distributor.

16(96) Technical data Honeywell

HoneywellHoneywell

Honeywell

4. TECHNICAL DATA

4.1

Introduction

Honeywell NXL is a compact frequency converter with the output ranging from 250 W to 30 kW.

The Motor and Application Control Block is based on microprocessor software. The microprocessor

controls the motor basing on the information it receives through measurements, parameter settings,

control I/O and control keypad. The IGBT Inverter Bridge produces a symmetrical, 3-phase PWM-

modulated AC-voltage to the motor.

The control keypad constitutes a link between the user and the frequency converter. The control

keypad is used for parameter setting, reading status data and giving control commands. Instead of

the control keypad, also a PC can be used to control the frequency converter if connected through a

cable and a serial interface adapter (optional equipment).

You can have your Honeywell NXL drive equipped with control I/O boards NXLOPTAA, NXLOPTAI,

NXOPTB_ or NXOPTC_. Honeywell NXL HVAC series already includes I/O board NXLOPTAI as

standard.

All other sizes but MF2 have an internal brake chopper. For closer information, contact Honeywell

see back cover). The input EMC filters are available as options externally for MF2 and MF3. In other

sizes the filters are internal and included as standard.

Technical data 17(96)

Figure 4-1. NXL block diagram

18(96) Technical data Honeywell

HoneywellHoneywell

Honeywell

4.2

Power ratings

4.2.1 NXL Compact – Mains voltage 208 – 240 V & 380 – 500 V

Mains voltage 208-240 V, 50/60 Hz, 1~/3~ Series NXL Compact

Loadability Motor shaft

power

Low High

Frequency

converter type

Rated

con-

tinuous

current

(A)

10%

over-

load

current

(A)

Rated

continuous

current I

(A)

50%

overload

current

(A)

Low

40°C

P(kW)

High

50°C

P(kW)

Nominal

input

current

1~/3~

Mechanical

size

Enclosure

and

protection

class

Dimensions

WxHxD

Weight

(kg)

NXL 0002 2 2,4 2,6 1,7 2,6 0,37 0,25 4,8/-- MF2/IP20 60x130x150 1,0

NXL 0003 2 3,7 4,1 2,8 4,2 0,75 0,55 7,4/5,6 MF3/IP20 84x184x172 1,9

NXL 0004 2 4,8 5,3 3,7 5,6 1,1 0,75 9,6/7,2 MF3/IP20 84x184x172 1,9

EMC-level N

NXL 0006 2 6,6 7,3 4,8 7,2 1,5 1,1 13,2/9,9 MF3/IP20 84x220x172 2,0

Table 4-1. Power ratings and dimensions of NXL, supply voltage 208-240V.

NOTE! NXL 0002 2 is suitable for single phase supply only

Mains voltage 380-500 V, 50/60 Hz, 3~ Series NXL Compact

Loadability Motor shaft power

Low High 400V supply 500V supply

Frequency

converter type

Rated

con-

tinuous

current

(A)

10%

over-

load

current

(A)

Rated

con-

tinuous

current

(A)

50%

over-

load

current

(A)

10%

over-

load

40°C

P(kW)

50%

over-

load

50°C

P(kW)

10%

over-

load

40°C

P(kW)

50%

over-

load

50°C

P(kW)

Nominal

input

current

Mechanical

size

Enclosure

and

protection

class

Dimensions

WxHxD

Weight

(kg)

NXL 0001 5 1,9 2,1 1,3 2 0,55 0,37 0,75 0,55 2,9 MF2/IP20

60x130x150

1,0

NXL 0002 5 2,4 2,6 1,9 2,9 0,75 0,55 1,1 0,75 3,6 MF2/IP20

60x130x150

1,0

NXL 0003 5 3,3 3,6 2,4 3,6 1,1 0,75 1,5 1,1 5,0 MF3/IP20

84x220x172

2,0

NXL 0004 5 4,3 4,7 3,3 5 1,5 1,1 2,2 1,5 6,5 MF3/IP20

84x220x172

2,0

EMC-level N

NXL 0005 5 5,4 5,9 4,3 6,5 2,2 1,5 3 2,2 8,1 MF3/IP20

84x220x172

2,0

Table 4-2. Power ratings and dimensions of NXL, supply voltage 380-500V.

Technical data 19(96)

4.2.1 NXL HVAC – Mains voltage 380 – 500 V

Mains voltage 380-500 V, 50/60 Hz, 3~ Series NXL HVAC

Loadability Motor shaft power

Low High 400V supply 500V supply

Frequency

converter type

Rated

con-

tinuous

current

(A)

10%

over-

load

current

(A)

Rated

con-

tinuous

current

(A)

50%

over-

load

current

(A)

10%

over-

load

45°C

P(kW)

50%

over-

load

50°C

P(kW)

10%

over-

load

45°C

P(kW)

50%

over-

load

50°C

P(kW)

Mechanical

size

Enclosure

and

protection

class

Dimensions

WxHxD

Weight

(kg)

HVAC03C2 3,3 3,6 2,2 3,3 1,1 0,75 1,5 1,1 MF4/IP21 128x292x190 5

HVAC04C2 4,3 4,7 3,3 5,0 1,5 1,1 2,2 1,5 MF4/IP21 128x292x190 5

HVAC05C2 5,6 5,9 4,3 6,5 2,2 1,5 3 2,2 MF4/IP21 128x292x190 5

HVAC07C2 7,6 8,4 5,6 8,4 3 2,2 4 3 MF4/IP21 128x292x190 5

HVAC09C2 9 9,9 7,6 11,4 4 3 5,5 4 MF4/IP21 128x292x190 5

HVAC12C2 12 13,2 9 13,5 5,5 4 7,5 5,5 MF4/IP21 128x292x190 5

HVAC16C2 16 17,6 12 18 7,5 5,5 11 7,5 MF5/IP21 144x391x214 8,1

HVAC23C2 23 25,3 16 24 11 7,5 15 11 MF5/IP21 144x391x214 8,1

HVAC31C2 31 34 23 35 15 11 18,5 15 MF5/IP21 144x391x214 8,1

HVAC38C2 38 42 31 47 18,5 15 22 18,5 MF6/IP21 195x519x237 18,5

HVAC46C2 46 51 38 57 22 18,5 30 22 MF6/IP21 195x519x237 18,5

EMC-level H

HVAC61C2 61 67 46 69 30 22 37 30 MF6/IP21 195x519x237 18,5

HVAC03C5 3,3 3,6 2,2 3,3 1,1 0,75 1,5 1,1 MF4/IP54 128x292x190 5

HVAC04C5 4,3 4,7 3,3 5,0 1,5 1,1 2,2 1,5 MF4/IP54 128x292x190 5

HVAC05C5 5,6 5,9 4,3 6,5 2,2 1,5 3 2,2 MF4/IP54 128x292x190 5

HVAC07C5 7,6 8,4 5,6 8,4 3 2,2 4 3 MF4/IP54 128x292x190 5

HVAC09C5 9 9,9 7,6 11,4 4 3 5,5 4 MF4/IP54 128x292x190 5

HVAC12C5 12 13,2 9 13,5 5,5 4 7,5 5,5 MF4/IP54 128x292x190 5

HVAC16C5 16 17,6 12 18 7,5 5,5 11 7,5 MF5/IP54 144x391x214 8,1

HVAC23C5 23 25,3 16 24 11 7,5 15 11 MF5/IP54 144x391x214 8,1

HVAC31C5 31 34 23 35 15 11 18,5 15 MF5/IP54 144x391x214 8,1

HVAC38C5 38 42 31 47 18,5 15 22 18,5 MF6/IP54 195x519x237 18,5

HVAC46C5 46 51 38 57 22 18,5 30 22 MF6/IP54 195x519x237 18,5

EMC-level C

HVAC61C5 61 67 46 69 30 22 37 30 MF6/IP54 195x519x237 18,5

Table 4-3. Power ratings and dimensions of NXL HVAC, supply voltage 380 – 500V.

20(96) Technical data Honeywell

HoneywellHoneywell

Honeywell

4.3

Technical data

Input voltage U

380 - 500V, -15%...+10% 3~

208…240V, -15%...+10% 3~

208…240V, -15%...+10% 1~

Input frequency 45…66 Hz

Mains

connection

Connection to mains Once per minute or less (normal case)

Output voltage 0—U

Continuous output

current

: Ambient peak temperature max. +45°C (with 24h

average ambient +40°C),*

overload 1.1 x IL (1min/10min)

: Ambient temperature max. +50ºC,

overload 1.5 x IH (1min/10min)

Starting torque 150% (Low overload); 200% (High overload)

Starting current

2 x IH 2 seconds every 20 seconds, if output frequency

<30Hz

and temperature of heatsink <+60ºC

Output frequency 0…320 Hz

Motor

connection

Frequency resolution 0,01 Hz

Control method

Frequency Control U/f

Open Loop Sensorless Vector Control

Switching frequency

(See parameter 2.6.8)

1...16 kHz; Factory default 6 kHz

Frequency reference

Analogue input

Keypad reference

Resolution 0.1% (10bit), accuracy ±1%

Resolution 0.01 Hz

Field weakening point 30…320 Hz

Acceleration time 0.1…3000 sec

Deceleration time 0.1…3000 sec

Control

characteristics

Braking torque DC-brake: 30%*TN (without brake option)

Ambient operating

temperature

–10°C (no frost)…+45°C: I

(ambient temperature derating 1,5%/Cº)

–10°C (no frost)…+50°C: I

Storage temperature –40°C…+70°C

Relative humidity 0…95% RH, non-condensing, non-corrosive,

no dripping water

Air quality:

- chemical vapours

- mechanical particles

IEC 721-3-3, unit in operation, class 3C2

IEC 721-3-3, unit in operation, class 3S2

Altitude 100% load capacity (no derating) up to 1000m

1-% derating for each 100m above 1000m; max. 3000m

Vibration:

EN50178/EN60068-2-6

5...150 Hz

Displacement amplitude 1(peak) mm at 5...15.8 Hz

Max acceleration amplitude 1 G at 15.8...150 Hz

Shock

EN50178, IEC 68-2-27

UPS Drop Test (for applicable UPS weights)

Storage and shipping: max 15 G, 11 ms (in package)

Ambient

conditions

Enclosure class IP20; MF2 and MF3. IP21/IP54; MF4 – MF6

Technical data (continues on next page)

* In NXL Compact the maximum ambient operation temperature is +40°C. (+45°C only applies to NXL HVAC)

Technical data 21(96)

Immunity Complies with EN50082-1, -2, EN61800-3

EMC

Emissions MF2-MF3: EMC level N; With an external RFI filter (option)

attached EMC-level H (see Ch. 6.1.2.2)

MF4-MF6: IP21 : EMC-level H: EN 61800-3 (2004) Cat C2,

EN 55011 Class A

IP54 : EMC level C: EN 61800-3 (2004) Cat C1,

EN 55011 Class B

Safety EN50178, EN60204-1, CE, UL, cUL, FI, GOST R, IEC

61800-5

(see unit nameplate for more detailed approvals)

Analogue input voltage 0...+10V, Ri = 200kΩ,

Resolution 10 bit, accuracy ±1%

Analogue input current 0(4)…20 mA, R

= 250Ω differential

Digital inputs 3 positive logic; 18…24VDC NXL Compact

6 positive logic; 18…24VDC NXL HVAC

Auxiliary voltage +24V, ±15%, max. 100mA

Output reference voltage +10V, +3%, max. load 10mA

Analogue output 0(4)…20mA; R

max. 500Ω; resolution 16 bit;

accuracy ±1%

Relay outputs 1 programmable change over relay output NXL Compact

2 programmable change over relay output NXL HVAC

Switching capacity: 24VDC/8A, 250VAC/8A, 125VDC/0.4A

Control

connections

Motor thermistor Input *)

Rtrip = 4.7 kΩ (PTC) NXL HVAC

Overvoltage protection NXL_2: 437VDC; NXL_5: 911VDC

Undervoltage protection NXL_2: 183VDC; NXL_5: 333VDC

Earth-fault protection In case of earth fault in motor or motor cable, only the

frequency converter is protected

Unit overtemperature

protection

Yes

Motor overload

protection

Yes

Motor stall protection Yes

Motor underload

protection

Yes

Short-circuit protection of

+24V and +10V

reference voltages

Yes

Protections

Overcurrent protection Trip limit 4,0*I

instantaneously

Table 4- 4. Technical data

22(96) Installation Honeywell

HoneywellHoneywell

Honeywell

5. INSTALLATION

5.1

Mounting

5.1.1 NXL Compact (MF2 and MF3)

There are two possible positions in the wall mounting for the frames MF2 and MF3 (see Figure 5-1)

The NXL type MF2 is mounted with two screws using the middle holes of the mounting plates. If an

RFI filter is used, the upper mounting plate shall be attached with two screws (see Figure 5-2). MF3

and bigger types are always mounted with four screws.

Figure 5-1. The two possible mounting positions of NXL (MF2 and MF3)

Figure 5-2. Mounting of NXL, MF2

MF2 without a filter MF2 with a filter

Installation 23(96)

Figure 5-3. NXL Compact dimensions, MF2

Table 5-1. Dimensions of NXL, MF2

Dimensions (mm)

Type W1 W2 H1 H2 H3 H4 H5 H6 H7 H8 D1 D2 ∅

MF2 30 60 172 152 140 130 80 42 11 6 150 144 6

H2 H3

nxlk7.fh8

24(96) Installation Honeywell

HoneywellHoneywell

Honeywell

Figure 5-4. NXL Compact dimensions, MF3

W1 W2 W3 H1 H2 H3 H4 H5 H6 H7 D1 D2 ∅

MF3 84 35 23 262 235 223 199 193 184 220 172 166 6

Table 5-2. Dimensions of NXL, MF3

Type Dimensions (mm)

H4 H2 H1 H6

nxlk8.fh8

Installation 25(96)

5.1.2 NXL HVAC (MF4 – MF6)

The frequency converter shall be fixed with four screws (or bolts, depending on the unit size).

Enough space shall be reserved around the frequency converter in order to ensure a sufficient

cooling, see Table 5-4 and Figure 5-6.

Also see to that the mounting plane is relatively even.

Figure 5-5. NXL HVAC dimensions

Dimensions Type

W1 W2 H1 H2 H3 D1 ∅ E1∅ E2∅*

MF4 (HVAC03-12) 128 100 327 313 292 190 7 3 x 28,3

MF5 (HVAC16-31) 144 100 419 406 391 214 7 2 x 37 1 x 28,3

MF6 (HVAC38-61) 195 148 558 541 519 237 9 3 x 37

Table 5-3. Dimensions of NXL HVAC, MF4—MF6

* = MF5 only

H1 H2

fr5ip21.fh8

E1Ø

E2Ø*

26(96) Installation Honeywell

HoneywellHoneywell

Honeywell

NK5

5.2

Cooling

Forced air flow cooling is used for NXL HVAC and NXL Compact size MF3.

Enough free space shall be left above and below the frequency converter to ensure sufficient air

circulation and cooling. You will find the required dimensions for free space in the table below.

Type Dimensions [mm]

A B C D

NXL 0002-0006 2 10 10 100 50

NXL 0001-0005 5 10 10 100 50

HVAC 03-12 20 20 100 50

HVAC 16-31 20 20 120 60

HVAC 38-61 30 20 160 80

Table 5-4. Mounting space dimensions

Figure 5-6. Installation space

Type Cooling air required [m

/h)

HVAC 03—12 70

HVAC 16—31 190

HVAC 38—61 425

Table 5-5. Required cooling air

= clearance around the freq. converter (see also

)

B = distance from one frequency converter to another or

distance to cabinet wall

C = free space above the frequency converter

D = free space underneath the frequency converter

Installation 27(96)

5.3

Changing EMC protection class from H/C to T in NXL HVAC

The EMC protection class of NXL HVAC frequency converter types can be changed from class H/C

to class T with a simple procedure presented in the figures below.

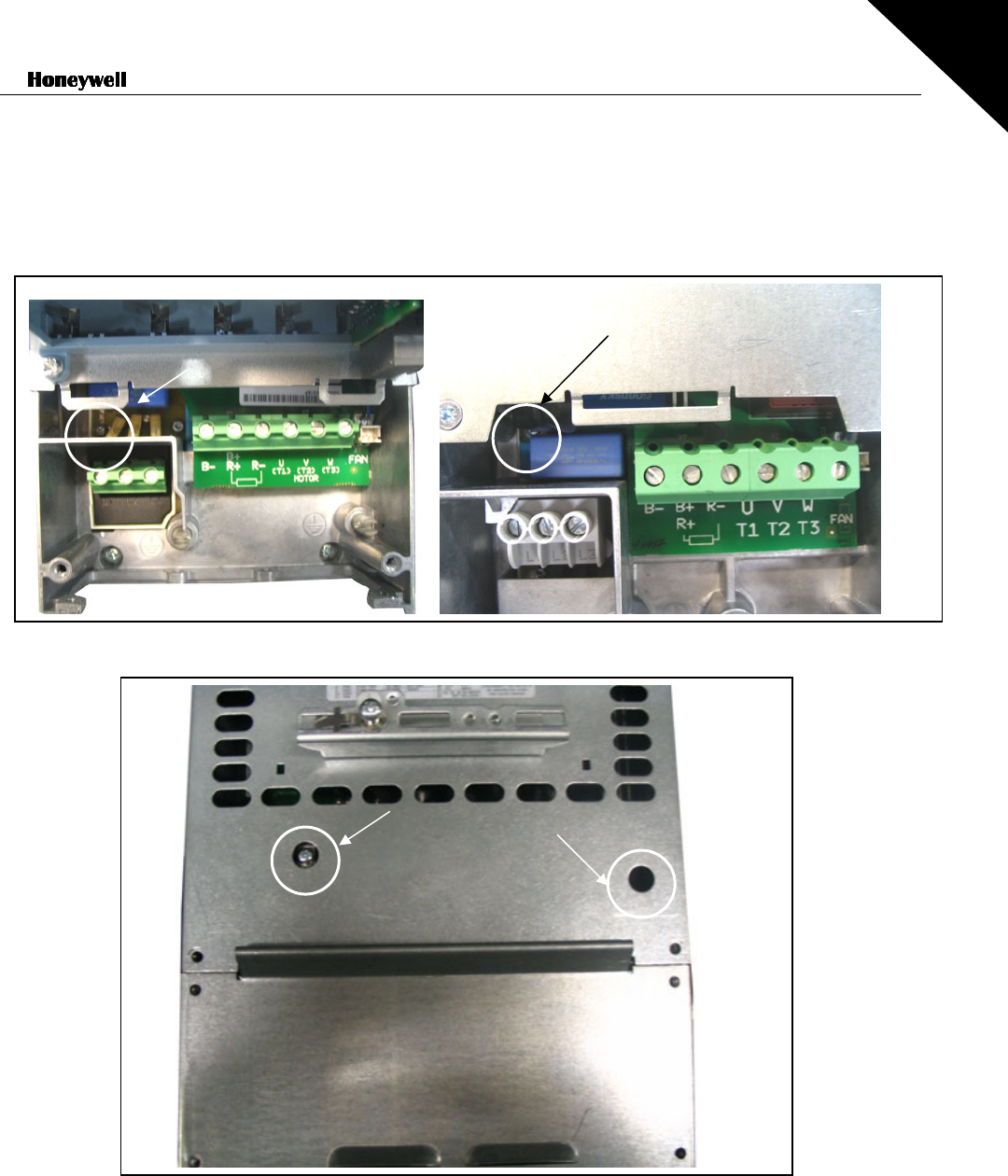

Figure 5-7. Changing of EMC protection class, MF4 (left) and MF5 (right)

Figure 5-8. Changing of EMC protection class, MF6

Note! Do not attempt to change the EMC-level back to class H or C. Even if the procedure above is

reversed, the frequency converter will no longer fulfil the EMC requirements of class H or C!

Remove this

screw

Remove this screw

Remove these

screws

28(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6. CABLING AND CONNECTIONS

6.1

Power connections

Figure 6-1. Power connections, MF2

Figure 6-2. Power connections, NXL Compact MF3 (1~/3~)

Figure 6-3. Power connections, NXL HVAC (MF4-MF6)

nxlk10.fh8

L1 L2

U/T1 V/T2 W/T3

L1 L2 L3

U/T1 V/T2 W/T3

1 ~ 3 ~

nxlk11.fh8

L1 L2 L3

U/T1 V/T2 W/T3 BR+ BR-

nxlk58.fh8

L1 L2 L3

B- B+ R-

U/T1 V/T2 W/T3

HoneywellHoneywell

Honeywell Cabling and connections 29(96)

6.1.1 Cabling

Use cables with heat resistance of at least +70

C. The cables and the fuses must be dimensioned

according to the tables below. Installation of cables according to UL regulations is presented in Chapter

6.1.4.

The fuses function also as cable overload protection.

These instructions apply only to cases with one motor and one cable connection from the frequency

converter to the motor. In any other case, ask the factory for more information.

environment

(restricted

distribution)

environment

Cable type Level H/C Level L Level T Level N

Mains cable 1 1 1 1

Motor cable 3* 2 1 1

Control cable 4 4 4 4

Table 6-1. Cable types required to meet standards.

Level C =

EN 61800-3 (2004), category C1

EN 61000-6-3

Level H

= EN 61800-3 (2004), category C2

EN 61000-6-4

Level L

= EN61800-3 (2004), 2

environment (industrial)

Level T:

See page 9.

Level N:

See page 9.

1 = Power cable intended for fixed installation and the

specific mains voltage. Shielded cable not required.

(NKCABLES/MCMK or similar recommended)

2 = Power cable equipped with concentric protection wire

and intended for the specific mains voltage.

(NKCABLES /MCMK or similar recommended).

3 = Power cable equipped with compact low-impedance

shield and intended for the specific mains voltage.

(NKCABLES /MCCMK, SAB/ÖZCUY-J or similar recommended).

*360º earthing of both motor and FC connection required to meet the standard

4 = Screened cable equipped with compact low-impedance

shield (NKCABLES /jamak, SAB/ÖZCuY-O or similar).

In NXL HVAC (MF4 – MF6): A cable entry flange should be used when installing the motor cable at both

ends in order to reach the EMC levels.

Note: The EMC requirements are fulfilled at factory defaults of switching frequencies (all frames).

30(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.1.1.1 Cable and fuse sizes

Terminal cable size (min/max) Frame Type I

[A]

Fuse

[A]

Mains

cable

Cu [mm

]

Main terminal

[mm

]

Earth

terminal

[mm

]

Control

terminal

[mm

]

Relay

terminal

[mm

]

MF2 NXL0002 2 10 2*1.5+1.5 0.5—2.5 0.5—2.5 0.5—1.5 0.5—2.5

MF3 NXL0003—0006 3-6 16 2*2.5+2.5 0.5—2.5 0.5—2.5 0.5—1.5 0.5—2.5

Table 6-2. Cable and fuse sizes for NXL Compact, 208 - 240V

Terminal cable size (min/max) Frame Type I

[A]

Fuse

[A]

Mains

cable

Cu [mm

]

Main terminal

[mm

]

Earth

terminal

[mm

]

Control

terminal

[mm

]

Relay

terminal

[mm

]

MF2 NXL0001—0002 1-2 10 3*1.5+1.5 0.5—2.5 0.5—2.5 0.5—1.5 0.5—2.5

MF3 NXL0003—0005 1-5 10 3*1.5+1.5 0.5—2.5 0.5—2.5 0.5—1.5 0.5—2.5

MF4 HVAC03—09 7—9 10 3*1.5+1.5 1—4 1—2.5 0.5—1.5 0.5—2.5

MF4 HVAC12 12 16 3*2.5+2.5 1—4 1—2.5 0.5—1.5 0.5—2.5

MF5 HVAC16 16 20 3*4+4 1—10 1—10 0.5—1.5 0.5—2.5

MF5 HVAC23 22 25 3*6+6 1—10 1—10 0.5—1.5 0.5—2.5

MF5 HVAC31 31 35 3*10+10 1—10 1—10 0.5—1.5 0.5—2.5

MF6 HVAC38—45 38-

50 3*10+10 2.5—50 Cu

6—50 Al

6—35 0.5—1.5 0.5—2.5

MF6 HVAC61 61 63 3*16+16 2.5—50 Cu

6—50 Al

6—35 0.5—1.5 0.5—2.5

Table 6-3. Cable and fuse sizes for NXL, 380 – 500V

Note! This cable recommendation is based on standard EN 60204-1 and PVC isolated cable where there

is either one cable on a shelf in temperature of + 40°C or four cables on a shelf in temperature of + 30°C.

Cabling and connections 31(96)

6.1.2 Mounting of cable accessories

Enclosed to your NXL frequency converter you have received a plastic bag containing components that are

needed for the installation of the mains and motor cables in the frequency converter.

Figure 6-4. Cable accessories

Components:

Grounding terminals (MF4, MF5) (2)

Cable clamps (3)

Rubber grommets (sizes vary from class to class) (3)

Cable entry gland (1)

Screws, M4x10 (5)

Screws, M4x16 (3)

Grounding cable clamps (MF6) (2)

Grounding screws M5x16 (MF6) (4)

NOTE: The cable accessories installation kit for frequency converters of protection class IP54 includes all

components except 4 and 5.

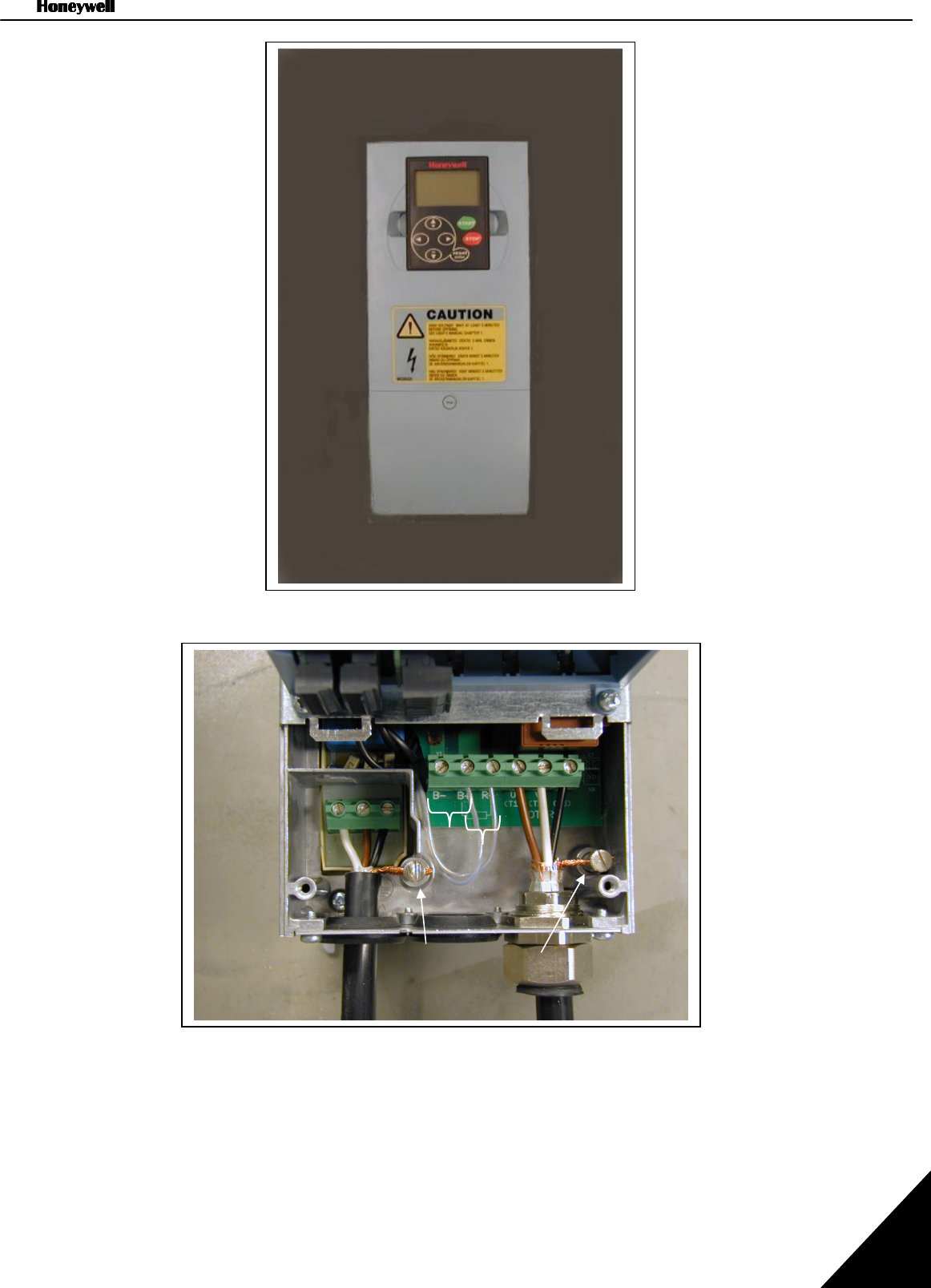

Mounting procedure

1. Make sure that the plastic bag you have received contains all necessary components.

2. Open the cover of the frequency converter (Figure 1).

3. Remove the cable cover. Observe the places for

a) the grounding terminals (MF4/MF5) (Figure 2).

b) the grounding cable clamps (MF6) (Figure 3).

4. Re-install the cable cover. Mount the cable clamps with the three M4x16 screws as shown in Figure 4.

Note that the location of the grounding bar in FR6/MF6 is different from what is shown in the picture.

2 3 4

32(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

5. Place the rubber grommets in the openings as shown in Figure 5.

6. Fix the cable entry gland to the frame of the frequency converter with the five M4x10 screws (Figure 6).

Close the cover of the frequency converter.

Cabling and connections 33(96)

6.1.3 Installation instructions

Before starting the installation, check that none of the components of the

frequency converter is live.

The NXL frequency converter types MF2 and MF3 shall be installed inside

switchgear, separate cubicle or electrical room because of the protection class

IP20 and the fact that the cable terminals are not protected.

Place the motor cables sufficiently far from other cables:



Avoid placing

the motor cables in long parallel lines with other cables



If the motor cables run in parallel with other cables, note the

minimum

distances

between the motor cables and other cables given in table

below.



The given distances also apply between the motor cables and signal

cables of other systems.



The maximum length of the motor cables is 30 m (MF2-MF3), 50 m

(MF4) and 300 m (MF5 – MF6)



The

motor cables should cross

other cables at an angle of 90 degrees.

cable insulation checks

are needed, see Chapter 6.1.5.

Connect the cables:



Strip the motor and mains cables

as advised in Table 6-4 and Figure

6-5.



Connect the mains, motor and control cables

into their respective

terminals (see e.g.).



For Information on

cable installation according to UL regulations

see

Chapter 6.1.4.



Make sure

that the control cable wires do not come in contact with the

electronic components of the unit.



If an

external brake resistor

(option) is used, connect its cable to the

appropriate terminal.



Check the connection

of the earth cable to the motor and the frequency

converter terminals marked with .



Connect the

separate shield of the motor cable

to the earth plate of the

frequency converter, motor and the supply centre.



Ensure

that the control cables or the cables of the unit are

not trapped

between the frame and the protection plate.

Distance

between cables

[m]

Shielded

cable

[m]

0.3

≤

1.0

≤

34(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.1.3.1 Stripping lengths of motor and mains cables

Figure 6-5.Stripping of cables

Frame

A1 B1 C1 D1 A2 B2 C2 D2

MF2

7 35 7 20 7 50 7 35

MF3

7 40 7 30 7 60 7 40

MF4

15 35 10 20 7 50 7 35

MF5

20 40 10 30 20 60 10 40

MF6

20 90 15 60 20 90 15 60

Table 6-4. Cables stripping lengths [mm]

nk6141.fh8

MAINS MOTOR

Earth

conductor

Earth

conductor

C2A2

Cabling and connections 35(96)

6.1.3.2 Installation of cables to NXL

Note: In case you want to connect an external brake resistor (MF3 and bigger sizes), see separate Brake

Resistor Manual.

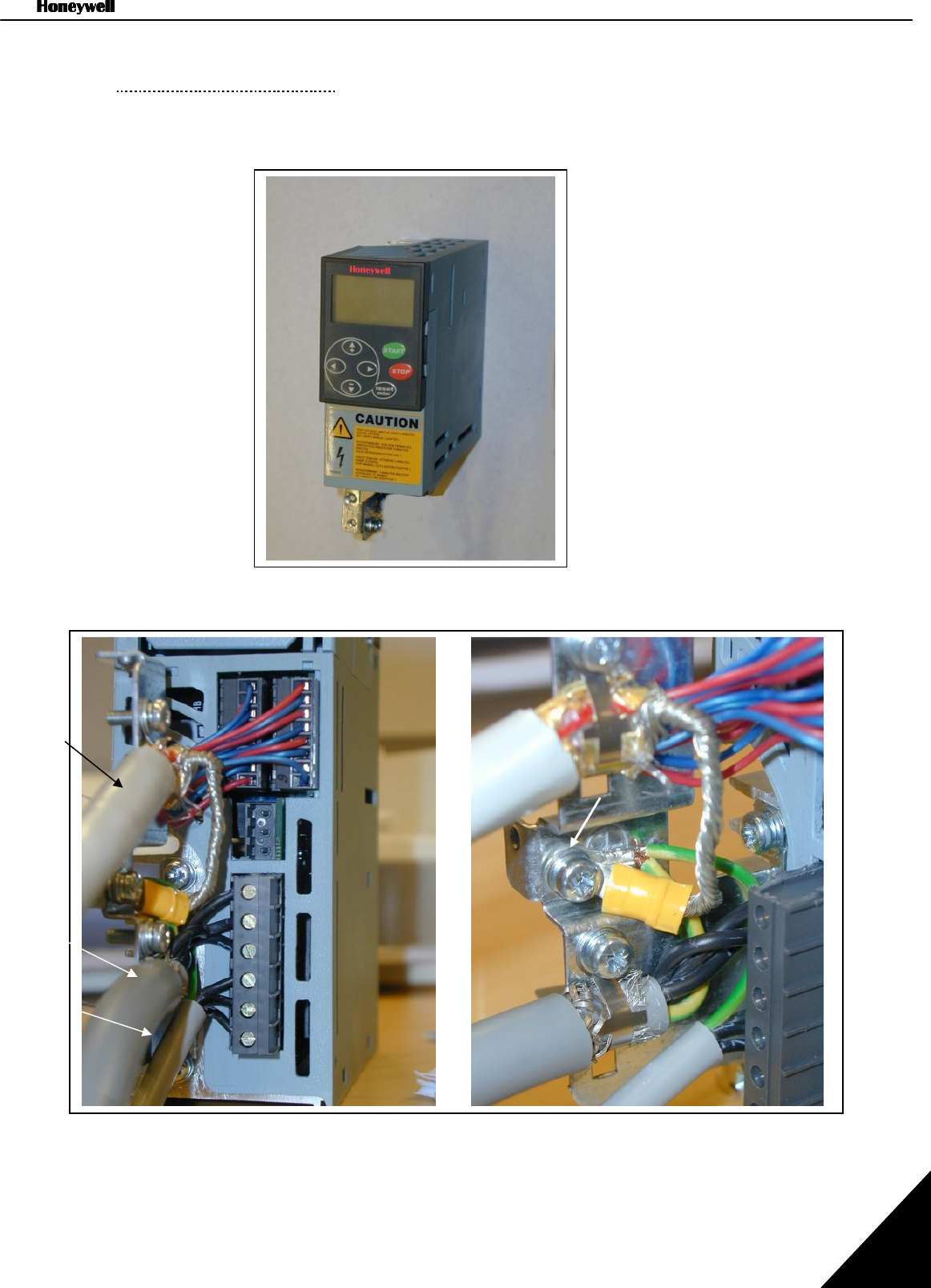

Figure 6-6. NXL Compact, MF2

Figure 6-7. Cable installation in NXL Compact, MF2 (500V, 3-phase)

Earth terminal

Control

cable

Motor

cable

Mains

cable

36(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

Figure 6-8. NXL Compact, MF3

Figure 6-9. Cable installation in NXL Compact, MF3

Control

cable

Motor

cable

Mains

cable

Earth terminal

Brake resistor

terminals

BR+

NOTE!

NXL Compact (MF2-3): It is advisable to connect the cables to the

terminals and earthing plate first and then attach the terminals and earthing

plate to the unit.

Cabling and connections 37(96)

Installation of an external RFI filter to NXL Compact (MF2-3)

The EMC protection class of NXL Compact frequency converters MF2 and MF3 can be changed from N to

H with an optional external RFI filter. Install the power cables in terminals L1, L2 and L3 and the grounding

cable in terminal PE of the filter. See the figures below. See also mounting instructions of MF2 in Figure

5-2.

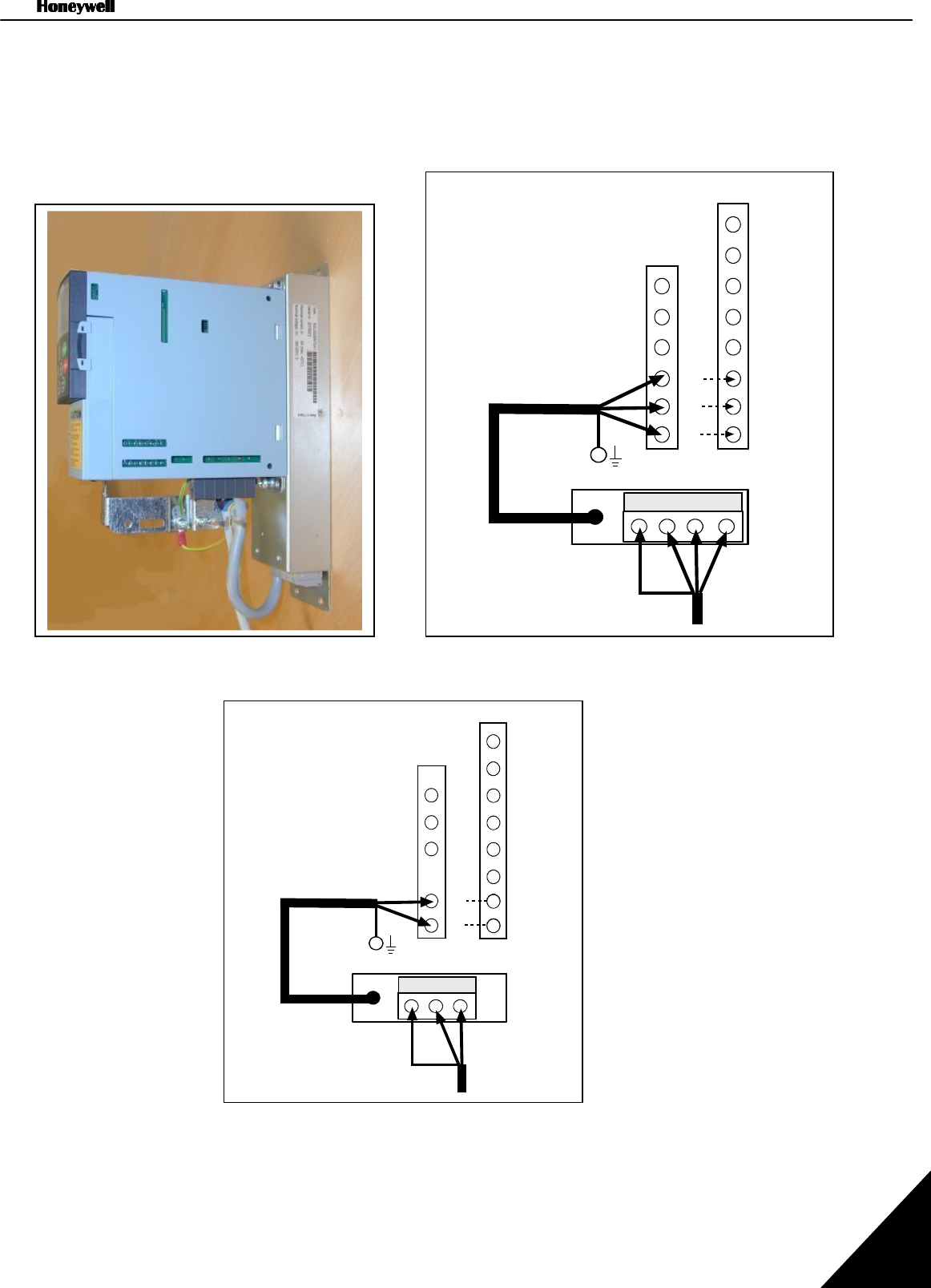

Figure 6-10. MF2 with the RFI-filter Figure 6-11. RFI installation for MF2 and MF3, 380…500V, 3

phase supply. Filter type NXLRFIV35

Figure 6-12. RFI cable installation for MF2 and MF3, 208…240V, 1 phase supply. Filter

type NXLRFIV12

MF2 MF3

nxlk1.fh8

BR+

BR-

U/T1

V/T2

W/T3

L1 L2 L3

U/T1

V/T2

W/T3

RFI filter

Mains cable

Earthing

cable

RFI filter

cable

Earthing

cable

Ground

MF2

MF3

rfi2.fh8

N L

U/T1

V/T2

W/T3

BR+

BR-

U/T1

V/T2

W/T3

RFI filter

Mains cable

Earthing

cable

RFI filter

cable

Earthing

cable

Ground

38(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

RFI Filter type Input voltage

Dimensions

WxHxD (mm)

NXLRFIV35 380-500V 3~ 60x252x35

NXLRFIV12 208-240V 1~ 60x252x35

Table 6-5. RFI filter types and their dimensions

Cabling and connections 39(96)

Figure 6-13. NXL HVAC (03-12), MF4

Figure 6-14. Cable installation in NXL HVAC (03-12), MF4

Earth terminals

Mains cable Motor cable

Brake resistor

terminals

DC terminals

40(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

Figure 6-15. NXL HVAC (16-31), MF5

Figure 6-16. Cable installation in NXL HVAC (16-31), MF5

Mains cable Motor cable

Earth terminals

Brake resistor

terminals

Cabling and connections 41(96)

Figure 6-17. NXL HVAC (38-61), MF6

Figure 6-18. Cable installation in NXL HVAC (38-61), MF6

Brake resistor

terminals

Mains cable

Motor cable

Earth terminals

terminals

42(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.1.4 Cable installation and the UL standards

To meet the UL (Underwriters Laboratories) regulations, a UL-approved copper cable with a minimum

heat-resistance of +60/75

C must be used.

The tightening torques of the terminals are given in Table 6-6.

Frame Tightening torque

[Nm]

Tightening torque

in-lbs.

MF2 0.5—0.6 4—5

MF3 0.5—0.6 4—5

MF4 0.5—0.6 4—5

MF5 1.2—1.5 10—13

MF6 4 35

Table 6-6. Tightening torques of terminals

6.1.5 Cable and motor insulation checks

1. Motor cable insulation checks

Disconnect the motor cable from terminals U, V and W of the frequency converter and from the motor.

Measure the insulation resistance of the motor cable between each phase conductor as well as

between each phase conductor and the protective ground conductor.

The insulation resistance must be >1MΩ.

2. Mains cable insulation checks

Disconnect the mains cable from terminals L1, L2 and L3 of the frequency converter and from the

mains. Measure the insulation resistance of the mains cable between each phase conductor as well as

between each phase conductor and the protective ground conductor.

The insulation resistance must be >1MΩ.

3. Motor insulation checks

Disconnect the motor cable from the motor and open the bridging connections in the motor connection

box. Measure the insulation resistance of each motor winding. The measurement voltage must equal at

least the motor nominal voltage but not exceed 1000 V. The insulation resistance must be >1MΩ.

Cabling and connections 43(96)

6.2

Control unit

6.2.1 NXL Compact (MF2 – MF3)

The control unit of the NXL frequency converter is integrated with the power unit and consists roughly of

the control board and one optional board, which can be connected to the slot connector of the control

board.

6.2.2 NXL HVAC (MF4 – MF6)

In NXL HVAC frames MF4-MF6 there are two option board connectors SLOT D and SLOT E (see Figure

6-19).

Figure 6-19. Option board slots D and E in frames MF4 – MF6

6.2.2.1 Allowed option boards in NXL HVAC:

See below for the allowed option boards in the two slots on NXL HVAC frequency converters:

In NXL HVAC series the option board NXLOPTAI is included in all deliveries as standard. The free slot

D is meant for additional fieldbus boards.

When two option boards are used, the one in slot E has to be NXLOPTAI or NXLOPTAA. It is not allowed

to use two NXOPTB_ or NXOPTC_ boards. Also combinations of NXOPTB_ and NXOPTC_ –boards are

prohibited.

See descriptions for NXLOPTAA and NXLOPTAI option boards in chapters 10 and 11.

SLOT D

C2 C3 C4 C6 C7 C8 CI CJ

SLOT E

B1 B2 B4 B5 B9 C2 C3 C4 C6 C7 C8 CI CJ

Slot D: Fieldbus boards

Slot E: I/O boards, fieldbus boards and expanders

44(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.2.3 Control connections

The basic control connections are shown below.

The signal descriptions of the HVAC and Multicontrol Applications are presented in Chapter 6.2.4 and in

Chapter 2 of the HVAC and Multicontrol Application Manuals.

Figure 6-20. Control connections NXL Compact, MF2 – MF3

Figure 6-21. Control connections NXL HVAC, MF4 – MF6

nxlk13.fh8

21 22 23

9 10 11 18 19 A B

1 2 3 4 5 6 7 8

nxlk49.fh8

9 10 11 18 19 A B

21 22 23

1 2 3 4 5 6 7 8

Cabling and connections 45(96)

6.2.4 Control I/O

Terminal Signal Description

1 +10V

ref

Reference output Voltage for potentiometer, etc.

2 AI1+

Analogue input, voltage range

0—10V DC.

Voltage input frequency reference

3 AI1- I/O Ground Ground for reference and controls

4 AI2+

5 AI2-

/GND

Analogue input, current range

0—20mA

Current input frequency reference

6 +24V Control voltage output Voltage for switches, etc. max 0.1 A

7 GND I/O ground Ground for reference and controls

8 DIN1 Start forward (programmable) Contact closed = start forward

9 DIN2 Start reverse (programmable) Contact closed = start reverse

10 DIN3 Preset speed selection 1

(programmable)

Contact closed = Preset speed 1

11 GND

I/O ground Ground for reference and controls

18 AO1+

19 AO1-

Output frequency

Analogue output

Programmable

Range 0—20 mA/R

, max. 500

Ω

A RS 485 Serial bus Differential receiver/transmitter

B RS 485 Serial bus Differential receiver/transmitter

30 +24V 24V aux. input voltage Control power supply backup

21 RO1

22 RO1

23 RO1

Relay output 1

FAULT

Programmable

Table 6-7. Default I/O configuration.

Terminal Signal Description

12 +24V

+24 V DC Control voltage output; voltage for

switches etc.

13 GND I/O ground Ground for reference and controls

14 Exp DIN1 Preset speed selection 2

(programmable)

Contact closed = Preset speed 2

15 Exp DIN2 Fault Reset

(programmable)

Contact closed = Fault reset

16 Exp DIN3 Disable PID (PID control

selection)

(Programmable)

Contact closed = Disable PID

25 Exp RO1

26 Exp RO1

Expander Relay output 1 (NO)

RUN

Programmable

28 TI+

29 TI-

Motor Thermistor input Active = Fault, stop according to defined

method

Table 6-8. Additional inputs in NXL HVAC (available as option for NXL Compact)

Terminal Signal Description

1 +10V

ref

Reference output Voltage for potentiometer, etc.

2 AI1+

DIN 4

Analogue input, voltage range

0—10V DC

Voltage input frequency reference (MF2-3)

Voltage/current input frequency reference

(MF4-MF6)

Can be programmed as DIN4

3 AI1- I/O Ground Ground for reference and controls

4 AI2+

5 AI2-

/GND

Analogue input, voltage range

0—10V DC or current range

0—20mA

Voltage or current input frequency

reference

6 + 24 V Control voltage output

7 GND I/O ground Ground for reference and controls

Table 6-9. AI1 configuration, when programmed as DIN4

Reference

Potentiometer 1-10

Ω

46(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.2.5 Control terminal signals

Terminal Signal Technical information

+10 Vref Reference voltage Maximum current 10 mA

AI1+ Analogue input,

voltage

(MF4 and bigger: voltage or current)

MF2-MF3: Voltage input

MF4-MF6 Selection V or mA with jumper block X8 (see

page 39):

Default: 0– +10V (Ri = 200 k

Ω

)

0– 20mA (Ri = 250

Ω

)

AI1– Analogue input common Differential input if not connected to ground;

Allows

20V differential mode voltage to GND

AI2+ Analogue input, voltage or

current

Selection V or mA with jumper block X4(MF2-MF3) and

X13 (MF4-MF6)

Default: 0– 20mA (Ri = 250

Ω

)

0– +10V (Ri = 200 k

Ω

)

AI2– Analogue input common Differential input;

Allows

20V differential mode voltage to GND

24 Vout 24V auxiliary output voltage

10%, maximum current 100 mA

GND I/O ground Ground for reference and controls

DIN1 Digital input 1

DIN2 Digital input 2

DIN3 Digital input 3

= min. 5k

Ω

GND I/O ground Ground for reference and controls

AO1+ Analogue signal (+output)

AO1–/GND Analogue output common

Output signal range:

Current 0(4)–20mA, R

max 500

Ω

RS 485 Serial bus Differential receiver/transmitter, bus impedance 120

Ω

RS 485 Serial bus Differential receiver/transmitter, bus impedance 120

Ω

+24V 24V auxiliary input voltage Control power supply backup

RO1/1

RO1/2

RO1/3

Relay output 1 Switching capacity: 24VDC/8A

250VAC/8A

125VDC/0,4A

Relay output terminals are galvanically isolated from the

I/O ground

Table 6-9. Control I/O terminal signals

NOTE! NXL HVAC additional inputs terminal signals defined in section 11 NXLOPTAI

Cabling and connections 47(96)

6.2.5.1 Jumper selections on NXL basic board

The user is able to customise the functions of the frequency converter to better suit his needs by selecting

certain positions for the jumpers on the NXL board. The positions of the jumpers determine the signal type

of analogue input (terminal #2) and whether the termination resistor RS485 is used or not.

The following figures present the jumper selections of NXL frequency converters:

Figure 6-22. Jumper selection for NXL, MF2 and MF3

nxlk15.fh8

Jumper block X 4 in M F3 :

Voltage input; 0...10V

Termination resistor RS 485 is in use

0...20mA; Current input

Voltage input; 0...10V

= Factory default

0...20mA; Current input

Termination resistor RS 485 is not used

Jumper block

X4 in M F2 :

Jumper block X 7 in M F3 :

Termination resistor RS 485 is in use

Termination resistor RS 485 is not used

Termination resistor

programming

Analogue input

programming

Analogue input

programming

Termination resistor

programming

48(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

Figure 6-23. Jumper selection for NXL HVAC, MF4 – MF6

WARNING

Check the correct positions of the jumpers. Running the motor

with signal settings different from the jumper positions will not

harm the frequency converter but may damage the motor.

NOTE

If you change the AI signal content also remember to change

the corresponding parameters (S6.9.1, 6.9.2) in System Menu.

nxlk54.fh8

= Factory default

Jumper block X 9 :

Voltage input; 0...10V

0...20mA; Current input

Jumper block

X 8 :

AI1 mode

Termination resistor RS 485 is in use

Termination resistor RS 485 is not used

Jumper block

X 1 3 :

AI2 m ode

0...20mA; Current input

Voltage input; 0...10V Voltage input; 0...10V

(differential)

Cabling and connections 49(96)

Figure 6-24. The location of jumper blocks in MF2 (left) and MF3 (right)

Figure 6-25. The location of jumper blocks in the control board of NXL HVAC

Jumper block X4 Jumper block X4

Jumper block X7

X13

50(96) Cabling and connections Honeywell

HoneywellHoneywell

Honeywell

6.2.6 Motor thermistor (PTC) connection

There are three possibilities to connect a PTC resistor to NXL:

1. With optional board NXLOPTAI. (Recommended method. Board included in NXL HVAC as standard)

NXL equipped with NXLOPTAI fulfils IEC 664 if the motor thermistor

is insulated (= effective double insulation).

2. With optional board NXOPTB2.

NXL equipped with NXOPTB2 fulfils IEC 664 if the motor thermistor

is insulated (= effective double insulation).

3. With the digital input (DIN3) of NXL.

The DIN3 is galvanically connected to other I/O's of NXL.

This is why reinforced or double insulation of the thermistor (IEC 664) is absolutely required outside

the frequency converter (in the motor or between the motor and the frequency converter).

Figure 6-26. Motor thermistor (PTC) connection

Note! The NXL trips when PTC impedance exceeds 4,7 kΩ

+24 V (terminal 6)

DIN3 (terminal 10, par.2.1.18 = 14)

nxlk60.fh8

External PTC Resistor

GND (terminal 11)

External resistor

4.7 kΩ...5.6 kΩ

It is strongly recommended to use NXLOPTAI or NXOPTB2 board for motor thermistor connection.

If the motor thermistor is connected to DIN3, the instructions above

must be

followed; otherwise a

serious safety hazard may result from the connection.

Control Keypad 51(96)

7. CONTROL KEYPAD

The control keypad is the link between the NXL frequency converter and the user. The NXL control

keypad features a seven-segment display with seven indicators for the Run status (RUN, ,

READY, STOP, ALARM, FAULT) and three indicators for the control place (I/O term, Keypad,

Bus/Comm).

The control information, i.e. the number of menu, the displayed value and the numeric information

are presented with numeric symbols.

The frequency converter is operable through the seven push-buttons of the control keypad.

Furthermore, the keypad serves the purposes of parameter setting and value monitoring.

The keypad is detachable and isolated from the input line potential.

7.1

Indications on the Keypad display

Figure 7-1. NXL control keypad and drive status indications

7.1.1 Drive status indications

The drive status indications tell the user what the status of the motor and the drive is.

RUN = Motor is running; Blinks when the stop command has been given but the

frequency is still ramping down.

= Indicate the direction of motor rotation.

STOP = Indicates that the drive is not running.

READY = Lights when AC power is on. In case of a fault, the symbol will not light up.

ALARM = Indicates that the drive is running outside a certain limit and a warning is given.

FAULT = Indicates that unsafe operating conditions were encountered due to which the

drive was stopped.

52(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.1.2 Control place indications

The symbols I/O term, Keypad and Bus/Comm (see chapter 7.4.3.1) indicate the choice of control

place made in the Keypad control menu (see chapter 7.4.3).

I/O term = I/O terminals are the selected control place; i.e. START/STOP

commands or reference values are given through the I/O terminals.

Keypad = Control keypad is the selected control place; i.e. the motor can be

started or stopped and its reference values altered from the keypad.

Bus/Comm = The frequency converter is controlled through a fieldbus.

7.1.3 Numeric indications

The numeric indications provide the user with information on his present location in the keypad menu

structure as well as with information related to the operation of the drive.

Control Keypad 53(96)

7.2

Keypad push-buttons

The NXL seven-segment control keypad features 7 push-buttons that are used for the control of the

frequency converter (and motor) and parameter setting.

Figure 7-2. Keypad push-buttons

7.2.1 Button descriptions

ENTER

reset = There are two operations integrated in this button. The button operates

mainly as reset button except in the parameter edit mode. The button

operation is shortly described below.

ENTER = The Enter button serves for:

1) confirmation of selections

2) fault history reset (2…3 seconds)

reset = This button is used to reset active faults.

Note! The motor may start immediately after resetting the faults.

= Browser button up

Browse the main menu and the pages of different submenus.

Edit values.

= Browser button down

Browse the main menu and the pages of different submenus.

Edit values.

= Menu button left

Move backward in menu.

Move cursor left (in parameter edit mode).

Exit edit mode.

Hold down for 5 seconds for quick change of control place;

manual (keypad) 



 remote (fielbuds or I/O).

= Menu button right

Move forward in menu.

Move cursor right (in parameter edit mode).

Enter edit mode.

–

54(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

= Start button.

Pressing this button starts the motor if the keypad is the active control

place. See Chapter 7.4.3.1.

= Stop button.

Pressing this button stops the motor (unless disabled by parameter P3.4).

Stop button serves also for activating the Start-up Wizard (see below)

7.3

Start-up wizard

NXL has a built-in start-up wizard, which speeds up the programming of the drive. The wizard helps

you choose between four different operating modes, Standard, Fan, Pump and High Performance.

Each mode has automatic parameter settings optimised for the mode in question. The programming

wizard is started by pressing the Stop button for 5 seconds, when the drive is in stop mode. See the

figure below for the procedure:

Figure 7-3. NXL Start-up wizard

Note! See the Application manuals for detailed parameter descriptions.

start

stop

START-UP WIZARD

ENTER

reset

Push 5 seconds

to activate (in

stop mode)

=Push the button

Tune

n(rpm)

rpm

Tune

I(A)

I *1,5 400

Ramp

Coasting

Not

used

Ai1

0-10V

Not

used

I *1,1 400 50

Ramp

Coasting

Not

used

Ai1

0-10V

Not

used

I *1,1 400 50

Ramp

Not

used

Ai1

0-10V

Not

used

I *1,8 400 50

Ramp

Coasting

automatic

torque

boost

Ai1

0-10V

Not

used

Standard

Fan

Pump

High

performance

Accept Accept

ENTER

reset

Select the

mode. See

table below!

1246

START MODE rpm

(A) DONE

357

ENTER

reset ENTER

reset

I/O

**In drives of 208V...230V

this value is 230V

NOTE! Startup Wizard resets all

other parameters to factory

defaults!

HoneywellHoneywellHoneywellHoneywell

Honeywell

** ** In NXL HVAC the default start function for Fan or Pump

mode is 2 = Conditional Flying Start which is

recommended start function with Trip Free Output

Switching function enabled as standard.

Control Keypad 55(96)

7.4

Navigation on the control keypad

The data on the control keypad are arranged in menus and submenus. The menus are used for

example for the display and editing of measurement and control signals, parameter settings (chapter

7.4.2), reference values (Chapter 7.4.3) and fault displays (chapter 7.4.4).

The first menu level consists of menus M1 to E7 and is called the Main menu. The user can

navigate in the main menu using the Browser buttons up and down. The desired submenu can be

entered from the main menu using the Menu buttons. When there still are pages to enter under the

currently displayed menu or page, the last digit of the figure on the display is blinking and by

pressing the Menu button right, you can reach the next menu level.

The control keypad navigation chart is shown on page 46. Please note that the menu M1 is located

in the lower left corner. From there you will be able to navigate your way up to the desired menu

using the menu and browser buttons.

More detailed descriptions of the menus you will find later in this Chapter.

Location

56(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

Figure 7-4. Keypad navigation chart

STOP

READY

I/O term

enter

reset

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

No editing!

Change

value

Change

value

Browse

Press to reset

Control Keypad 57(96)

Menu functions

Code Menu Min Max Selections

Monitoring menu V1.1 V1.24

See chapter 7.4.1 for the

monitoring values

NXL HVAC

P2.1 = HVAC parameters

P2.1.15 = Basic parameters

NXL Compact

P2.1 = Basic parameters

Parameter menu P2.1 P2.10

P2.2 = Input signals

P2.3 = Output signals

P2.4 = Drive control

P2.5 = Prohibit frequencies

P2.6 = Motor control

P2.7 = Protections

P2.8 = Autorestart

P2.9 = PID control

P2.10=Pump and fan control

See the application manuals

for detailed parameter lists

Keypad control menu P3.1 P3.6

P3.1 = Selection of control

place

R3.2 = Keypad reference

P3.3 = Keypad direction

P3.4 = Stop button activation

P3.5 = PID reference 1

P3.6 = PID reference 2

Active faults menu Shows the active faults and

their types

Fault history menu Shows the fault history list

System menu S6.3 S6.10

S6.3 = Copy parameters

S6.5 = Security

S6.6 = Keypad settings

S6.7 = Hardware settings

S6.8 = System info

S6.9 = AI mode

S6.10 = Fieldbus parameters

Parameters are described in

chapter 7.4.7

Expander board menu E7.1 E7.2 E7.1 = Slot D

E7.2 = Slot E

Table 7-1. Main menu functions

58(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.1 Monitoring menu (M1)

You can enter the Monitoring menu from the Main menu by pushing the Menu button right when the

location indication M1 is visible on the display. How to browse through the monitored values is

presented in Figure 7-5.

The monitored signals carry the indication V#.# and they are listed in Table 7-2. The values are

updated once every 0.3 seconds.

This menu is meant only for value checking. The values cannot be altered here. For changing values

of parameters see Chapter 7.4.2.

Figure 7-5. Monitoring menu

Control Keypad 59(96)

Code Signal name Unit ID Description

V1.1

Output frequency Hz 1 Frequency to the motor

V1.2

Frequency reference Hz 25

V1.3

Motor speed rpm 2 Calculated motor speed

V1.4

Motor current A 3 Measured motor current

V1.5

Motor torque % 4 Calculated actual torque/nominal torque of the motor

V1.6

Motor power % 5 Calculated actual power/nominal power of the motor

V1.7

Motor voltage V 6 Calculated motor voltage

V1.8

DC-link voltage V 7 Measured DC-link voltage

V1.9

Unit temperature ºC 8 Heat sink temperature

V1.10

Analogue input 1 13 AI1

V1.11

Analogue input 2 14 AI2

V1.12

Analogue output

current mA 26 AO1

V1.13

Analogue output

current 1, expander

board mA 31

V1.14

Analogue output

current 2, expander

board mA 32

V1.15

DIN1, DIN2, DIN3 15 Digital input statuses

V1.16

DIE1, DIE2, DIE3 33 I/O expander board: Digital input statuses

V1.17

RO1 34 Relay output 1 status

V1.18

ROE1, ROE2, ROE3 35 I/O exp. board: Relay output statuses

V1.19

DOE 1 36 I/O exp. board: Digital output 1 status

V1.20

PID Reference % 20 In percent of the maximum process reference

V1.21

PID Actual value % 21 In percent of the maximum actual value

V1.22

PID Error value % 22 In percent of the maximum error value

V1.23

PID Output % 23 In percent of the maximum output value

V1.24

Autochange outputs

1,2,3

30 Used only in

ump and

ascade control

V1.25

Mode

Shows the current drive configuration mode selected

with start-up wizard:

= No mode selected (Default)

= Standard

= Fan

= Pump

= High performance

Table 7-2. Monitored signals

60(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.2 Parameter menu (P2)

Parameters are the way of conveying the commands of the user to the frequency converter. The

parameter values can be edited by entering the Parameter Menu from the Main Menu when the

location indication P2 is visible on the display. The value editing procedure is presented in Figure 7-

Push the Menu button right once to move into the Parameter Group Menu (G#). Locate the

parameter group desired by using the Browser buttons and push the Menu button right again to

enter the group and its parameters. Use again the Browser buttons to find the parameter (P#) you

want to edit. Pushing the Menu button right takes you to the edit mode. As a sign of this, the

parameter value starts to blink. You can now change the value in two different manners:

Just set the new desired value with the Browser buttons and confirm the change with the Enter

button. Consequently, the blinking stops and the new value is visible in the value field.

Push the Menu button right once again. Now you will be able to edit the value digit by digit.

This editing manner may come in handy, when a relatively greater or smaller value than that

on the display is desired. Confirm the change with the Enter button.

The value will not change unless the Enter button is pushed. Pressing the Menu button left

takes you back to the previous menu.

Several parameters are locked, i.e. not editable, when the drive is in RUN status. The frequency

converter must be stopped in order to edit these parameters.

The parameters values can also be locked using the function in menu S6 (see Chapter 7.4.7.2).

You can return to the Main menu anytime by pressing the Menu button left for 1—2 seconds.

The basic parameters are listed in Chapter 8.3. You will find the complete parameter lists and

descriptions in the HVAC and Multi-Control Application manuals.

Once in the last parameter of a parameter group, you can move directly to the first parameter of that

group by pushing the Browser button up.

Control Keypad 61(96)

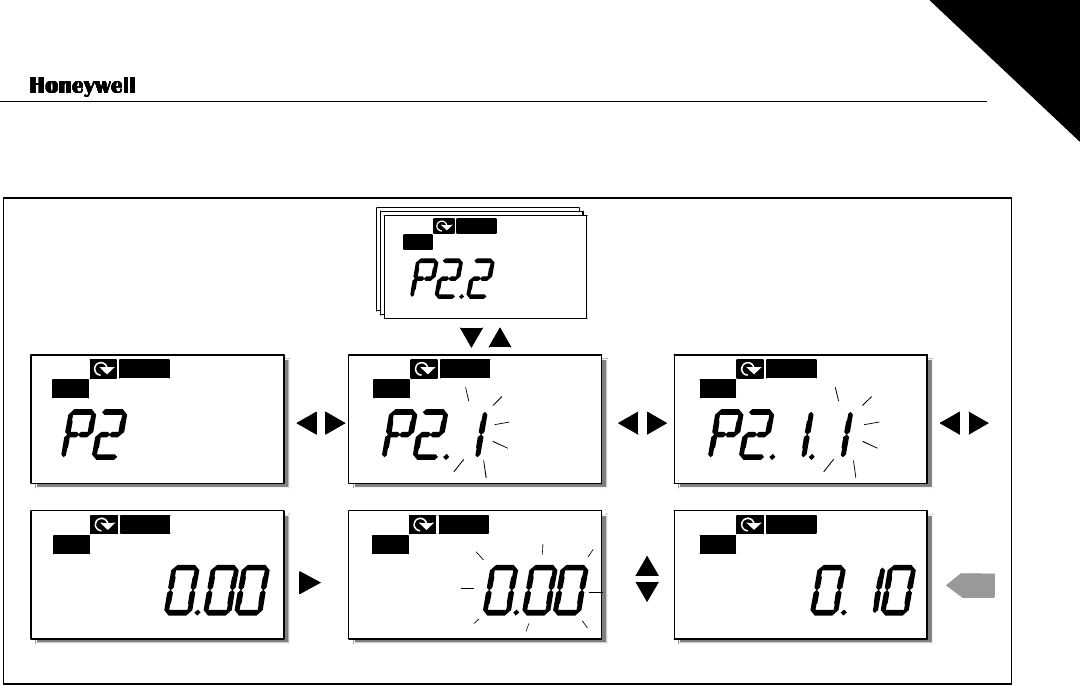

Figure 7-6. Parameter value change procedure

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk17.fh8

HzHzHz

62(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.3 Keypad control menu (K3)

In the Keypad Controls Menu, you can choose the control place, edit the frequency reference and

change the direction of the motor. Enter the submenu level with the Menu button right.

Parameters in Menu

Selections

P3.1 = Selection of control

place

1 = I/O terminals

2 = Keypad

3 = Fieldbus

R3.2 = Keypad reference

P3.3 = Keypad direction

0 = Forward

1 = Reverse

P3.4 = Stop button activation

0 = Limited function of Stop

button

1 = Stop button always

enabled

P3.5 = PID reference 1

P3.6 = PID reference 2

7.4.3.1 Selection of control place

There are three different places (sources) which the frequency converter can be controlled from. For

each control place, a different symbol will appear on the alphanumeric display:

Control place Symbol

I/O terminals

I/O term

Keypad (panel)

Keypad

Fieldbus

Bus/Comm

Change the control place by entering the edit mode with the Menu button right. The options can

then be browsed through with the Browser buttons. Select the desired control place with the Enter

button. See the diagram below. See also Chapter 7.4.3 above.

Figure 7-7. Selection of control place

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

Control Keypad 63(96)

7.4.3.2 Keypad reference

The keypad reference submenu (R3.2) displays and allows the operator to edit the frequency

reference. The changes will take place immediately. This reference value will not, however,

influence the rotation speed of the motor unless the keypad has been selected as the active

control place.

NOTE: The maximum difference between the output frequency and the keypad reference is 6 Hz.

The application software monitors the keypad frequency automatically.

See Figure 7-6 for how to edit the reference value (pressing the Enter button is not, however,

necessary).

7.4.3.3 Keypad direction

The keypad direction submenu displays and allows the operator to change the rotating direction of

the motor. This setting will not, however, influence the rotation direction of the motor unless

the keypad has been selected as the active control place.

See Figure 7-7 for how to change the rotation direction.

7.4.3.4 Stop button activation

By default, pushing the STOP button will always stop the motor regardless of the selected control

place. You can disable this function by giving parameter 3.4 the value 0. If the value of this

parameter is 0, the STOP button will stop the motor only when the keypad has been selected as

the active control place.

See Figure 7-7 for how to change the value of this parameter.

64(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.4 Active faults menu (F4)

The Active faults menu can be entered from the Main menu by pushing the Menu button right when

the location indication F4 is visible on the keypad display.

The memory of active faults can store the maximum of 5 faults in the order of appearance. The

display can be cleared with the Reset button and the read-out will return to the same state it was

before the fault trip. The fault remains active until it is cleared with the Reset button or with a reset

signal from the I/O terminal.

Note! Remove external Start signal before resetting the fault to prevent unintentional restart of the

drive.

Normal state,

no faults:

7.4.4.1 Fault types

In the NXL frequency converter, there are two different types of faults. These types differ from each

other on the basis of the subsequent behaviour of the drive. See Table 7-3. Fault types.

Figure 7-8. Fault display

Fault type symbol Meaning

(Alarm)

This type of fault is a sign of an unusual operating

condition. It does not cause the drive to stop, nor does it

require any special actions. The 'A fault' remains in the

display for about 30 seconds.

(Fault)

A 'F fault' is a kind of fault that makes the drive stop.

Actions need to be taken in order to restart the drive.

Table 7-3. Fault types

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk19.fh8

Control Keypad 65(96)

7.4.5 Fault codes

The fault codes, their causes and correcting actions are presented in the table below. The shadowed

faults are A faults only. The items written in white on black background present faults for which you

can program different responses in the application. See parameter group Protections.

Note! When you contact the factory or the distributor due to a fault, it is advisable to write down all

fault texts and codes that appear on the keypad

Fault

code

Fault Possible cause Correcting measures

Overcurrent Frequency converter has detected too high a

current (>4*I

) in the motor cable:

−

sudden heavy load increase

−

short circuit in motor cables

−

unsuitable motor

Check loading.

Check motor size.

Check cables.

Overvoltage The DC-link voltage has exceeded the limits

defined in Table 4-3.

−

too short a deceleration time

−

high overvoltage spikes in supply

Make the deceleration time longer.

Earth fault Current measurement has detected that the

sum of motor phase current is not zero.

−

insulation failure in cables or motor

Check motor cables and motor.

System fault component failure

faulty operation

Reset the fault

and restart.

Should the fault re-occur, contact

the distributor near to you.

Undervoltage DC-link voltage is under the voltage limits

defined in Table 4-3.

−

most probable cause: too low a supply

voltage

−

frequency converter internal fault

In case of temporary supply voltage

break reset the fault and restart the

frequency converter. Check the

supply voltage. If it is adequate, an

internal failure has occurred.

Contact the distributor near to you.

Output phase

supervision

Current measurement has detected that there

is no current in one motor phase.

Check motor cable and motor.

Frequency

converter under

temperature

Heatsink temperature is under –10

Frequency

converter

overtemperature

Heatsink temperature is over 90

Overtemperature warning is issued when the

heatsink temperature exceeds 85

Check the correct amount and flow

of cooling air.

Check the heatsink for dust.

Check the ambient temperature

(p2.6.8).

Make sure that the switching

frequency is not too high in relation

to ambient temperature and motor

load.

Motor stalled Motor stall protection has tripped. Check motor.

Check that Pump or Fan is not

jammed

Motor

overtemperature

Motor overheating has been detected by

frequency converter motor temperature

model. Motor is overloaded.

Decrease the motor load.

If no motor overload exists, check

the temperature model parameters.

66(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

Motor

underload/

Pump Dry

detection/

Broken belt

Detection

Motor underload protection has tripped. FAN: check that Belt is not broken

PUMP: check that Pump is not dry

EEPROM

checksum fault

Parameter save fault

−

faulty operation

−

component failure

Contact the distributor near to you

Counter fault Values displayed on counters are incorrect

Microprocessor

watchdog fault

−

faulty operation

−

component failure

Reset the fault and restart.

Should the fault re-occur, contact

the distributor near to you.

Thermistor fault The thermistor input of option board has

detected increase of the motor temperature

Check motor cooling and loading

Check thermistor connection

(If thermistor input of the option

board is not in use it has to be short

circuited)

Internal bus

communication

Ambient interference or defective hardware Reset the fault and restart

Should the fault re-occur, contact

the distributor near to you.

Application fault Selected application does not function. Contact the distributor near to you.

Device removed Option board removed.

Drive removed.

Reset

Device unknown Unknown option board or drive. Contact the distributor near to you.

IGBT temperature IGBT Inverter Bridge overtemperature

protection has detected too high a motor

current.

Check loading.

Check motor size.

Device change Option board changed.

Option board has default settings.

Reset

Device added Option board added. Reset

Analogue input

<4mA

(selected signal

range 4 to 20

mA)

Current at the analogue input is < 4mA.

−

control cable is broken or loose

−

signal source has failed

Check the current loop circuitry.

External fault Digital input fault. Digital input has been

programmed as external fault input and this

input is active.

Check the programming and the

device indicated by the external

fault information. Check also the

cabling of this device.

Keypad

communication

fault

The connection between the control keypad

and the frequency converter is broken.

Check keypad connection and

possible keypad cable.

Control Keypad 67(96)

Fieldbus fault The data connection between the fieldbus

Master and the fieldbus board is broken

Check installation.

If installation is correct contact the

nearest Honeywell distributor

Slot fault Defective option board or slot Check board and slot.

Contact the nearest Honeywell

distributor

Actual value

supervision

Actual value has exceeded or fallen below

(depending on par. 2.7.22) the actual value

supervision limit (par. 2.7.23)

Table 7-4. Fault codes

7.4.6 Fault history menu (H5)

The Fault history menu can be entered from the Main menu by pushing the Menu button right when

the location indication H5 is visible on the keypad display.

All faults are stored in the Fault history menu in which you can browse through them using the

Browser buttons. You can return to the previous menu anytime by pushing the Menu button left.

The memory of the frequency converter can store a maximum of 5 faults in the order of appearance.

The latest fault carries the indication H5.1, the second latest H5.2 etc. If there are 5 uncleared faults

in the memory the next occurring fault will erase the oldest from the memory.

Pressing the Enter button for about 2 to 3 seconds resets the whole fault history.

Figure 7-9. Fault history menu

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk20.fh8

Push Enter to reset!

68(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.7 System menu (S6)

The System menu can be entered from the main menu by pushing the Menu button right when the

location indication S6 is visible on the display.

The controls associated with the general use of the frequency converter, such as keypad settings, customised

parameter sets or information about the hardware and software are located under the

System menu

Below you will find a list of the functions available in the System menu.

Functions in the System menu

Code Function Min Max Unit Default Cust Selections

S6.3 Copy parameters

P6.3.1 Parameter sets

= Select

= Store set 1

= Load set 1

= Store set 2

= Load set 2

= Load factory defaults

= Fault

= Wait

= OK

S6.5 Security

P6.5.2 Parameter lock 0 1 0

= Change Enabled

= Change Disabled

S6.6 Keypad settings

P6.6.1 Default page 0 1.1

P6.6.3 Timeout time 5 65535 s 1200

S6.7 Hardware settings

P6.7.2 Fan control 0

= Continuous

= Temperature (only

sizes MF4 and bigger)

P6.7.3 HMI acknowledg.

timeout 200 5000 ms 200

P6.7.4 HMI number of retries

1 10 5

S6.8 System info

S6.8.1

Counters menu

C6.8.1.1 MWh counter KWh

C6.8.1.2 Operating days

counter hh:mm:

C6.8.1.3 Operating hours

counter hh:mm:

S6.8.2

Trip counters

T6.8.2.1 MWh trip counter kWh

P6.8.2.2 Clear MWh trip

counter

= No action

= Clear MWh trip counter

T6.8.2.3 Operating days trip

counter

Control Keypad 69(96)

T6.8.2.4 Operating hours trip

counter

hh:mm: ss

P6.8.2.5 Clear operating time

counter

= No action

= Clear

T6.8.2.3, T6.8.2.4

S6.8.3

Software info

I6.8.3.1 Software package

Scroll information with menu

button right

I6.8.3.2 System SW version

I6.8.3.3 Firmware interface

I6.8.3.4 System load %

S6.8.4

Application info

S6.8.4.1 Application

A6.8.4.1.1 Application id

A6.8.4.1.2 Application version

A6.8.4.1.3 Firmware interface

S6.8.5

Hardware info

I6.8.5.2 Unit voltage V

I6.8.5.3 Brake chopper

=Not present,

=Present

S6.8.6

Options

S6.8.6.1 Slot E OPT-

Note! the submenus are not

showing if no option board is

installed

I6.8.6.1.1 Slot E Status 1 5

=Connection lost

=Initializing

=Run

=Fault

I6.8.6.1.2

Slot E Program version

S6.8.6.2 Slot D OPT-

Note! the submenus are not

showing if no option board is

installed

I6.8.6.2.1 Slot D Status 1 5

=Connection lost

=Initializing

=Run

=Fault

I6.8.6.2.2

Slot D Program version

S6.9 AI mode

P6.9.1 AIA1 mode 0 1 0

=Voltage input

=Current input

(Types MF4 – MF6)

P6.9.2 AIA2 mode 0 1 1

=Voltage input

=Current input

S6.10 Fieldbus parameters

I6.10.1 Communication status

P6.10.2 Fieldbus protocol 1 1 1

=Not used

=Modbus protocol

P6.10.3 Slave address 1 255 1 Addresses 1 – 255

P6.10.4 Baud rate 0 8 5

=300 baud

=600 baud

=1200 baud

=2400 baud

=4800 baud

=9600 baud

=19200 baud

=38400 baud

=57600 baud

P6.10.5 Stop bits 0 1 0

P6.10.6 Parity type 0 2 0

=None

=Odd

=Even

P6.10.7 Communication

timeout 0 300 s 0

=Not used

=1 second

=2 seconds, etc

Table 7-5. System menu functions

70(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.7.1 Copy parameters

The Copy parameters submenu (S6.3) is located under the System menu.

The Honeywell NX frequency converter features a possibility for the user to store and load two

customised parameter sets (all parameters included in the application, not the system menu

parameters) and to load back the factory default parameter values.

Parameter sets (S6.3.1)

On Parameter sets page (S6.3.1), push the Menu button right to enter the Edit menu. You can store

or load two customised parameter sets or load back the factory defaults. Confirm with the Enter

button. Wait, until 8 (=OK) appears on the display.

Figure 7-10. Storing and loading of parameter sets

7.4.7.2 Security

The Security submenu (S6.5) under the system menu has a function that allows the user to prohibit

changes to the parameters.

Parameter lock (P6.5.2)

If the parameter lock is activated the parameter values cannot be edited.

NOTE: This function does not prevent unauthorised editing of parameter values.

Enter the edit mode by pushing the Menu button right. Use the Browser buttons to change the

parameter lock status (0 = changes enabled, 1 = changes disabled). Accept the change with the

Enter button or return to the previous level with the Menu button left.

enter

STOP

I/O term

READY

STOP

I/O term

READY

nxlk21.fh8

STOP

I/O term

READY

STOP

I/O term

READY

Control Keypad 71(96)

Figure 7-11. Parameter locking

7.4.7.3 Keypad settings

In the submenu S6.6 under the System menu you can further customise your frequency converter

operator interface.

Locate the Keypad settings submenu (S6.6). Under the submenu, there are two pages (P#)

associated with the keypad operation, Default page (P6.6.1) and Timeout time (P6.6.3)

Default page (P6.6.1)

Here you can set the location (page) to which the display automatically moves as the Timeout time

(see below) has expired or as the power is switched on to the keypad.

Press the Menu button right once to enter the edit mode. Pressing the Menu button right once again

makes you able to edit the number of the submenu/page digit by digit. Confirm the new default page

value with the Enter button. You can return to the previous step anytime by pushing the Menu button

left.

Note! If you set a page that does not exist in the menu, the display will automatically move to the last

available page in the menu.

Figure 7-12. Default page function

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk22.fh8

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk23.fh8

CONFIRM CHANGE

72(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

Timeout time (P6.6.3)

The Timeout time setting defines the time, after which the keypad display returns to the Default Page

(P6.6.1), see above.

Move to the Edit menu by pressing the Menu button right. Set the timeout time you want and confirm

the change with the Enter button. You can return to the previous step anytime by pushing the Menu

button left.

NOTE: This function cannot be disabled.

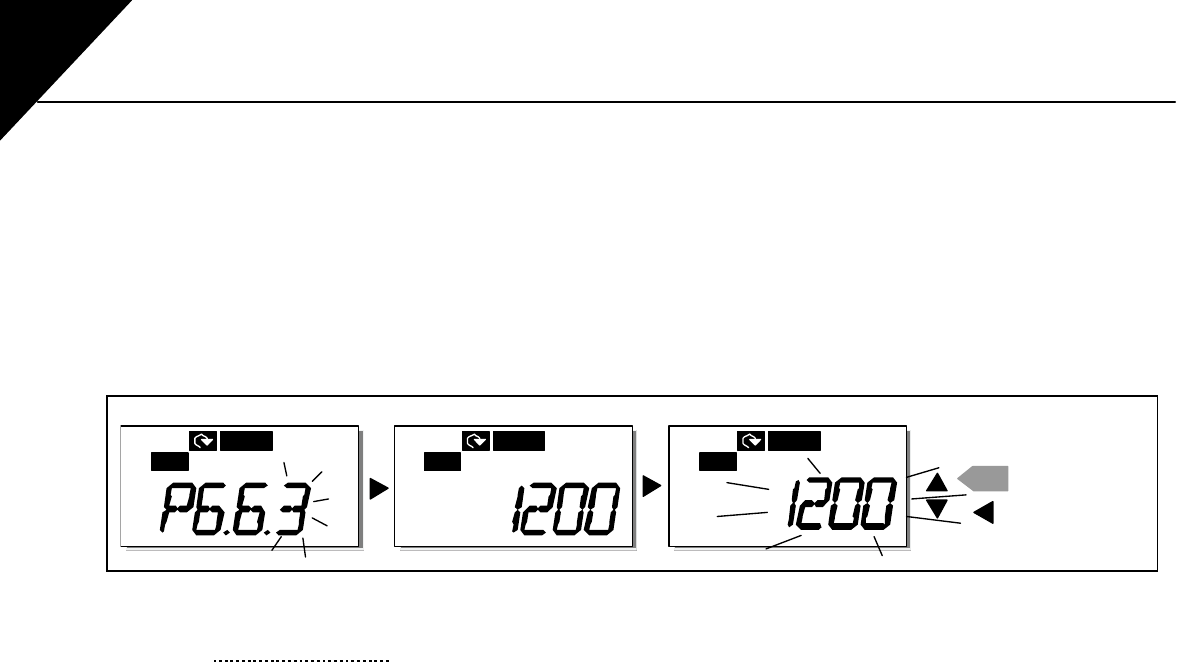

Figure 7-13. Timeout time setting

7.4.7.4 Hardware settings

In the Hardware settings submenu (S6.7) you can further customise the settings of the frequency

converter with three parameters: Fan control, HMI acknowledgement timeout and HMI retry.

Fan control (P6.7.2)

Note! Only the higher power modules of MF3 have been equipped with a cooling fan, in lower power

modules of MF3 the cooling fan is available as optional equipment.

If the cooling fan has been installed in MF3 it runs continuously, when the power is switched on.

NXL HVAC:

This function allows you to control the frequency converter’s cooling fan. You can set the fan to run

continuously when the power is switched on or depending on the temperature of the unit. If the latter

function has been selected the fan is switched on automatically when the heat sink temperature

reaches 60°C. The fan receives a stop command when the heat sink temperature falls to 55°C.

However the fan runs for about a minute after receiving the stop command, as well as after changing

the value from 0 (Continuous) to 1 (Temperature).

Enter the edit mode by pushing the Menu button right. The present mode shown starts to blink. Use

the Browser buttons to change the fan mode. Accept the change with the Enter button or return to

the previous level with the Menu button left.

enter

STOP

I/O

term

READY

STOP

I/O

term

READY

STOP

I/O

term

READY

nxlk24.fh8

s s

CANCEL

CONFIRM CHANGE

Control Keypad 73(96)

HMI acknowledge timeout (P6.7.3)

This function allows the user to change the timeout of the HMI acknowledgement time.

Note! If the frequency converter has been connected to the PC with a normal cable, the default

values of parameters 6.7.3 and 6.7.4 (200 and 5) must not be changed.

If the frequency converter has been connected to the PC via a modem and there is delay in

transferring messages, the value of par. 6.7.3 must be set according to the delay as follows:

Example

•

Transfer delay between the frequency converter and the PC = 600 ms

•

The value of par. 6.7.3 is set to 1200 ms (2 x 600, sending delay + receiving delay)

•

The corresponding setting shall be entered in the

[

Misc

]

-part of the file NCDrive.ini:

Retries = 5

AckTimeOut = 1200

TimeOut = 6000

It must also be considered that intervals that are shorter than the AckTimeOut-time cannot be used

in NC-Drive monitoring.

Enter the edit mode by pushing the Menu button right. Use the Browser buttons to change the

acknowledgement time. Accept the change with the Enter button or return to the previous level with

the Menu button left. See Figure 7-14 for how to change the HMI acknowledgement timeout.

Figure 7-14. HMI acknowledge timeout

Number of retries to receive HMI acknowledgement (P6.7.4)

With this parameter you can set the number of times the drive will try receive acknowledgement if

this does not succeed within the acknowledgement time (P6.7.3)

Enter the edit mode by pushing the Menu button right. The present value shown starts to blink. Use

the Browser buttons to change the amount of retries. Accept the change with the Enter button or

return to the previous level with the Menu button left.

7.4.7.5 System information

In the submenu S6.8 under the System menu you can find frequency converter-related hardware

and software information as well as operation-related information.

Enter the Info menu by pressing the Menu button right. Now you can browse through the information

pages with the Browser buttons.

enter

STOP

I/O term

READY

STOP

I/O term

READY

s s

STOP

I/O term

READY

nxlk25.fh8

74(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

Counters submenu (S6.8.1)

In the Counters submenu (S6.8.1) you can find information related to the frequency converter

operation times, i.e. the total numbers of MWh, operation days and operation hours passed so far.

Unlike the counters in the trip counters menu, these counters cannot be reset.

Note! The operation time counter (days and hours) runs always, when the power is on.

Page Counter

C6.8.1.1 MWh counter

C6.8.1.2 Operation day counter

C6.8.1.3 Operation hour counter

Table 7-6. Counter pages

Trip counters submenu (S6.8.2)

Trip counters (menu S6.8.2) are counters the values of which can be reset i.e. restored to zero. You

have the following resettable counters at your disposal:

Page Counter

T6.8.2.1 MWh counter

P6.8.2.2 Clear MWh counter

T6.8.2.3 Operation day counter

T6.8.2.4 Operation hour counter

P6.8.2.5 Clear operation time counter

Table 7-7. Trip counter pages

Note! The trip counters run only when the motor is running.

Example: When you want to reset the operation counters, you should do the following:

Figure 7-15. MWh counter reset

enter

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

STOP

I/O term

READY

nxlk26.fh8

Control Keypad 75(96)

Software info submenu (S6.8.3)

The following information can be found under the Software info submenu (S6.8.3):

Page Content

I6.8.3.1 Software package

I6.8.3.2 System software version

I6.8.3.3 Firmware interface

I6.8.3.4 System load

Table 7-8. Software information pages

Application information submenu (S6.8.4)

You can find the following information from the Application info submenu (S6.8.4)

Page Content

A6.8.4.1 Application

D6.8.4.1.1 Application id

D6.8.4.1.2 Version

D6.8.4.1.3 Firmware interface

Table 7-9. Application information pages

Hardware information submenu (S6.8.5)

You can find the following information from the Hardware info submenu (S6.8.5)

Page Content

I6.8.5.2 Unit voltage

I6.8.5.3 Brake chopper

Table 7-10. Hardware information pages

Connected options submenu (S6.8.6)

The Connected options submenu (S6.8.6) shows the following information on the option board

connected to the frequency converter:

Page Content

S6.8.6.1

Slot E

Option board

I6.8.6.1.1

Slot E

Option board status

I6.8.6.1.2

Slot E

Program version

S6.8.6.2

Slot D

Option board

I6.8.6.2.1

Slot D

Option board status

I6.8.6.2.2

Slot D

Program version

Table 7-11. Connected options submenu

In this submenu you find information about the option board connected to the control board (see

chapter 6.2)

You can check the status of the slot by entering the board submenu with the Menu button right and

using the Browser buttons. Push the Menu button right again to display the status of the board. The

selections are shown in Table 7-5. The keypad will also display the program version of the

respective board when you push either one of the Browser buttons.

76(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

For more information on the expander board-related parameters, see Chapter 7.4.9.

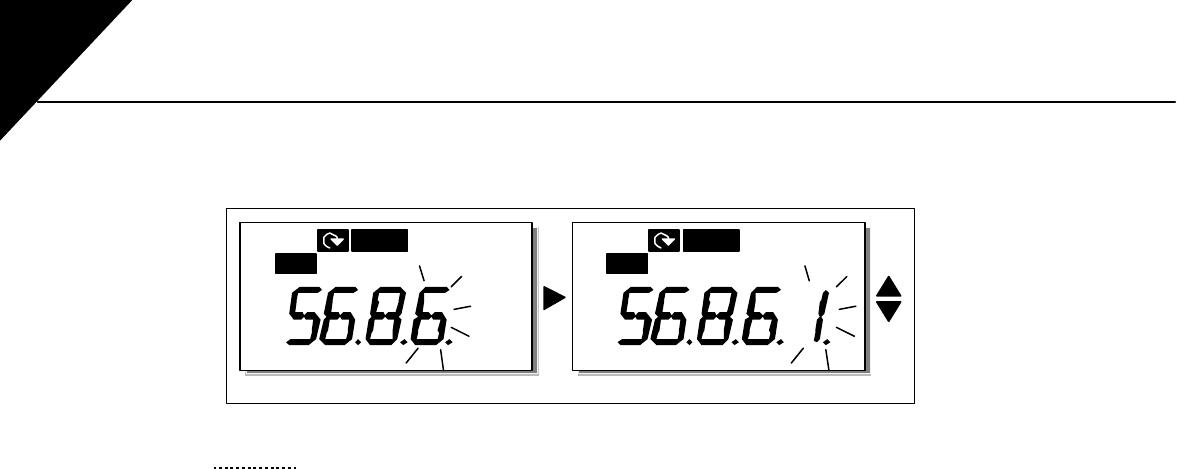

Figure 7-16. Expander board information menu

7.4.7.6 AI mode

The parameters P6.9.1 and P6.9.2 select the analogue input mode. P6.9.1 appears only in classes

MF4 – MF6

0 = voltage input (par. 6.9.1 default)

1 = current input (par. 6.9.2 default)

Note! Make sure that the jumper selections correspond to the selections of this parameter. See

Figure 6-23.

STOP

I/O term

READY

STOP

I/O term

READY

nxlk27.fh8

Control Keypad 77(96)

7.4.8 Modbus interface

NXL has a built-in Modbus RTU bus interface. The signal level of the interface is in accordance with

the RS-485 standard.

Protocol: Modbus RTU

Baud rates: 300, 600, 1200, 2400, 4800,

9600, 19200, 38700, 57600 (bit/s)

Signal level: RS-485 (TIA/EIA-485-A)

Input impedance: 2 kΩ

7.4.8.1 Modbus RTU protocol

Modbus RTU protocol is a simple but effective fieldbus protocol. Modbus network has a bus

topology, where every device has an individual address. With the help of the individual bus

addresses the commands are directed to the single devices within the network. Modbus supports

also broadcast -type messages, which are received by every device of the bus. Broadcast messages

are sent to the address ’0’ which is reserved for these messages.

The protocol includes CRC error detection and parity check for preventing the handling of messages

containing errors. In Modbus the data is transferred in hex mode asynchronically and a break of

approximately 3.5 characters is used as an end character. The length of the break depends on the

used baud rate.

Function

code

Function name Address Broadcast

messages

03 Read Holding Register All ID numbers No

04 Read Input Register All ID numbers No

06 Preset Single Register All ID numbers Yes

16 Preset Multiple Register All ID numbers Yes

Table 7-12. Modbus commands supported by NXL

RS-485 Transceiver Control terminal

RS-485 A

RS-485 B

Terminal resistor 120Ω

X7 -> MF2-MF3

X9 -> MF4-MF6

78(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.8.2 Termination Resistor

The RS-485 bus is terminated with 120 Ω termination resistors in both ends. NXL has a built-in

termination resistor which is switched off as a default. See the jumper selections in chapter 6.2.5.1

7.4.8.3 Modbus address area

The Modbus bus of NXL uses the ID numbers of the application as addresses. The ID numbers can

be found in the parameter tables of the Application manual.

When several parameters/monitoring values are read at a time they must be consecutive. 11

addresses can be read and the addresses can be parameters or monitoring values.

7.4.8.4 Modbus process data

Process data is an address area for fieldbus control. Fieldbus control is active when the value of

parameter 3.1 (Control place) is 2 (=fieldbus). The contents of the process data has been

determined in the application. The following tables present the process data contents in the Multi-

Control Application.

Output Process data

Addr. Modbus register Name Scale Type

2101 32101, 42101 FB Status Word - Binary coded

2102 32102, 42102 FB General Status Word - Binary coded

2103 32103, 42103 FB Actual Speed 0,01 %

2104 32104, 42104 Motor speed 0,01 +/- Hz

2105 32105, 42105 Motor speed 1 +/- Rpm

2106 32106, 42106 Motor current 0,1 A

2107 32107, 42107 Motor Torque 0,1 +/- % (of nominal)

2108 32108, 42108 Motor Power 0,1 +/- % (of nominal)

2109 32109, 42109 Motor Voltage 0,1 V

2110 32110, 42110 DC Voltage 1 V

2111 32111, 42111 Active Fault - Fault code

Input Process data

Addr. Modbus register Name Scale Type

2001 32001, 42001 FB Control Word - Binary coded

2002 32002, 42002 FB General Control Word - Binary coded

2003 32003, 42003 FB Speed Reference 0,01 %

2004 32004, 42004 PID Control Reference 0,01 %

2005 32005, 42005 PID Actual Value 0,01 %

2006 32006, 42006 - - -

2007 32007, 42007 - - -

2008 32008, 42008 - - -

2009 32009, 42009 - - -

2010 32010, 42010 - - -

2011 32011, 42011 - - -

Control Keypad 79(96)

Status Word

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

- - - - - - - - F Z AREF W FLT DIR RUN RDY

Information about the status of the device and messages is indicated in the Status word. The Status

word is composed of 16 bits the meanings of which are described in the table below:

Actual speed

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

MSB LSB

This is actual speed of the frequency converter. The scaling is –10000...10000. In the application,

the value is scaled in percentage of the frequency area between set minimum and maximum

frequency.

Control word

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

- - - - - - - - - - - - - RST DIR RUN

In Honeywell applications, the three first bits of the control word are used to control the frequency

converter. However, you can customise the content of the control word for your own applications

because the control word is sent to the frequency converter as such.

Speed reference

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

MSB LSB

This is the Reference 1 to the frequency converter. Used normally as Speed reference. The allowed

scaling is –10000...10000. In the application, the value is scaled in percentage of the frequency area

between the set minimum and maximum frequencies.

Bit definitions

Description Bit

Value = 0 Value = 1

RUN Stop Run

DIR Clockwise Counter clockwise

RST Rising edge of this bit will reset active fault

RDY Drive not ready Drive ready

FLT No fault Fault active

W No warning Warning active

AREF Ramping Speed reference reached

Z - Drive is running at zero speed

F - Flux Ready

80(96) Control Keypad Honeywell

HoneywellHoneywell

Honeywell

7.4.8.5 Fieldbus parameters

RS-485 communication status (I6.10.1)

With this function you can check the status of the RS 485 bus. If the bus is not in use, this value is 0.

xx.yyy

xx = 0 – 64 (Number of messages containing errors)

yyy = 0 – 999 (Number of messages received correctly)

Fieldbus protocol (P6.10.2)

With this function you can select the fieldbus communications protocol.

0 = Not used

1 = Modbus protocol

Slave address (P6.10.3)

Set here the slave address for the Modbus protocol. You can set any address between 1 and 255.

Baud rate (P6.10.4)

Selects the baud rate used with the Modbus communication.

0 = 300 baud

1 = 600 baud

2 = 1200 baud

3 = 2400 baud

4 = 4800 baud

5 = 9600 baud

6 = 19200 baud

7 = 38400 baud

8 = 57600 baud

Stop bits (P6.10.5)

Set the number of stop bits used in Modbus communication

0 = 1 stop bit

1 = 2 stop bits

Parity type (P6.10.6)

Here you can select the type of parity checking used with the Modbus communication.

0 = None

1 = Odd

2 = Even

Control Keypad 81(96)

Communication time-out (P6.10.7)

If communication between two messages is broken for a longer time than that defined by this

parameter, a communication error is initiated. If the value of this parameter is 0, the function is not

used.

0 = Not used

1 = 1 second

2 = 2 seconds, etc

7.4.9 Expander board menu (E7)

The Expander board menu makes it possible for the user 1) to see which expander board is

connected to the control board and 2) to reach and edit the parameters associated with the expander

board.

Enter the following menu level (E#) with the Menu button right. You can view and edit the parameter

values in the same way as described in chapter 7.4.2.

7.5

Further keypad functions

The Honeywell NXL control keypad embodies additional application-related functions. See NXL

Application Manuals for more information.

82(96) Commissioning

Honeywell

HoneywellHoneywell

Honeywell

8. COMMISSIONING

8.1

Safety

Before commissioning, note the following directions and warnings:

Internal components and circuit boards of the frequency converter

(except for the galvanically isolated I/O terminals) are live when NXL is

connected to mains potential. Coming into contact with this voltage is

extremely dangerous and may cause death or severe injury.

The motor terminals U, V, W and the DC-link/brake resistor terminals –/+

are live when NXL is connected to mains, even if the motor is not

running.

The control I/O-terminals are isolated from the mains potential. However,

the relay outputs and other I/O-terminals may have a dangerous control

voltage present even when NXL is disconnected from mains.

Do not make any connections with the frequency converter connected to

the mains.

After having disconnected the frequency converter from the mains, wait

until the fan stops and the indicators on the keypad go out (if no keypad

is attached see the indicator through the keypad base). Wait 5 more

minutes before doing any work on NXL connections. Do not even open

the cover before this time has expired.

Before connecting the frequency converter to mains make sure that the

NXL front cover is closed.

HOT SURFACE

The heat sink of types MF2 and MF3 may be hot when the frequency

converter is in use. Coming into contact with the heat sink may cause

burns.

8.2

Commissioning of the frequency converter

Read carefully the safety instructions in Chapter 6 and above and follow them.

After the installation, make sure that:

- both the frequency converter and the motor are grounded.

- the mains and motor cables comply with the requirements given in Chapter 6.1.1.

- the control cables are located as far as possible from the power cables (see Chapter 6.1.3,

step 3); the shields of the shielded cables are connected to protective earth . The wires

may not touch the electrical components of the frequency converter.

- For option boards only: make sure that the common ends of digital input groups are

connected to +24V or ground of the I/O terminal or the external supply.

Check the quality and quantity of cooling air (Chapter 5.2).

Check the inside of the frequency converter for condensation.

Check that all Start/Stop switches connected to the I/O terminals are in Stop-position.

Connect the frequency converter to mains.

Set the parameters of group 1 according to the requirements of your application. At least the

following parameters should be set:

- motor nominal voltage

- motor nominal frequency

WARNING

Commissioning 83(96)

- motor nominal speed

- motor nominal current

You will find the values needed for the parameters on the motor rating plate.

NOTE! You can also run the Start-up Wizard. See Chapter 7.3 or NXL HVAC quick guide for

more information.

Perform run test without motor

Perform either Test A or Test B:

A Controls from the I/O terminals:

Turn the Start/Stop switch to ON position.

Change the frequency reference (potentiometer)

Check in the Monitoring menu (M1) that the value of Output frequency changes according to the

change of frequency reference.

Turn the Start/Stop switch to OFF position.

B Control from the control keypad:

Change the control from the I/O terminals to the keypad as advised in Chapter 7.4.3.1.

Push the Start button on the keypad

start

Move over to the Keypad Control Menu (K3) and Keypad Reference submenu (Chapter7.4.3)

and change the frequency reference using the Browser buttons

Check in the Monitoring menu (M1) that the value of Output frequency changes according to the

change of frequency reference.

Push the Stop button on the keypad

stop

84(96) Commissioning

Honeywell

HoneywellHoneywell

Honeywell

Run the start-up tests without the motor being connected to the process, if possible. If this is not

possible, secure the safety of each test prior to running it. Inform your co-workers of the tests.

Switch off the supply voltage and wait up until the drive has stopped as advised at Chapter 8.1,

step 5.

Connect the motor cable to the motor and to the motor cable terminals of the frequency converter.

See to that all Start/Stop switches are in Stop positions.

Switch the mains ON

Repeat test 8A or 8B.

Connect the motor to the process (if the start-up test was run without the motor being connected)

Before running the tests, make sure that this can be done safely.

Inform your co-workers of the tests.

Repeat test 8A or 8B.

Commissioning 85(96)

8.3

Basic parameters

On the next pages you will find the list of parameters that are essential for the commissioning of the

frequency converter. You will find more details of these and other special parameters in the HVAC and in

the Multi-Control Application manuals.

Column explanations:

Code = Location indication on the keypad; Shows the operator the present param. number

Parameter = Name of parameter

Min = Minimum value of parameter

Max = Maximum value of parameter

Unit = Unit of parameter value; Given if available

Default = Value preset by factory

Cust = Customer’s own setting

ID = ID number of the parameter (used with PC tools)

On the parameter code: parameter value can only be changed after the FC has been

stopped

8.3.1 Monitoring values (Control keypad: menu M1)

The monitoring values are the actual values of parameters and signals as well as statuses and

measurements. Monitoring values cannot be edited. See Chapter 7.4.1 for more information.

Code Parameter Unit ID Description

V1.1 Output frequency Hz 1 Frequency to the motor

V1.2 Frequency reference Hz 25

V1.3 Motor speed rpm 2 Calculated motor speed

V1.4 Motor current A 3 Measured motor current

V1.5 Motor torque % 4 Calculated actual torque/nominal torque of the unit

V1.6 Motor power % 5 Calculated actual power/nominal power of the unit

V1.7 Motor voltage V 6 Calculated motor voltage

V1.8 DC-link voltage V 7 Measured DC-link voltage

V1.9 Unit temperature ºC 8 Heat sink temperature

V1.10 Analogue input 1 V 13 AI1

V1.11 Analogue input 2 14 AI2

V1.12 Analogue output current 26 AO1

V1.13 Analogue output current 1, expander board mA 31

V1.14 Analogue output current 2, expander board mA 32

V1.15 DIN1, DIN2, DIN3 15 Digital input statuses

V1.16 DIE1, DIE2, DIE3 33 I/O expander board: Digital input statuses

V1.17 RO1 34 Relay output 1 status

V1.18 ROE1, ROE2, ROE3 35 I/O exp. board: Relay output statuses

V1.19 DOE 1 36 I/O exp. board: Digital output 1 status

V1.20 PID Reference % 20 In percent of the maximum frequency

V1.21 PID Actual value % 21 In percent of the maximum actual value

V1.22 PID Error value % 22 In percent of the maximum error value

V1.23 PID Output % 23 In percent of the maximum output value

V1.24 Autochange outputs 1, 2, 3 30 Used only in pump and fan control

V1.25 Mode 66

Shows the current operating mode selected with the

Start-up Wizard: 1=Standard, 2= Fan, 3= Pump, 4=

High Performance

Table 8-1. Monitoring values

86(96) Commissioning

Honeywell

HoneywellHoneywell

Honeywell

8.3.2 HVAC parameters in NXL HVAC (Control keypad: Menu P2







B2.1)

Code Parameter Min Max Unit Default** Cust ID Note

P2.1.1 Min frequency 0,00 Par. 2.1.2 Hz 0,00 101

P2.1.2 Max frequency Par. 2.1.1

320,00 Hz 50,00

102

NOTE

: If f

max

> than the

motor synchronous speed,

check suitability for motor

and drive system

P2.1.3 Acceleration time 1

0,1 3000,0 s 1,0 103

P2.1.4 Deceleration time 1

0,1 3000,0 s 1,0 104

P2.1.5 Current limit 0,1 x I

1,5 x I

A I

107

NOTE

: Formulas apply

approximately for

frequency converters up to

MF3. For greater sizes,

consult the factory.

P2.1.6 Nominal current of

the motor 0,3 x I

1,5 x I

A I

113 Check the rating plate of

the motor

P2.1.7 Nominal speed of

the motor 300

20000 rpm 1440

112

The default applies for a 4-

pole motor and a nominal

size frequency converter.

P2.1.8 Start function 0 1 0

505

=Ramp

=Flying start

=Conditional Flying start*

P2.1.9 Stop function 0 1 0 506

=Coasting

=Ramp

P2.1.10 Automatic restart 0 1 0

731

=Not used

=Used (3 x automatic

Restart)

P2.1.11 Nominal voltage of

the motor 380 500 V 400V 110

P2.1.12 Nominal frequency

of the motor 30,00 320,00 Hz 50,00 111 Check the rating plate of

the motor

P2.1.13 Preset speed 1 0,00 Par. 2.1.2 Hz 10,00

105

P2.1.14 Parameter conceal 0 1

115

=All parameters and

menus visible

=HVAC group P2.1 and

menus M1 – H5 visible

Table 8-2. HVAC parameters P2.1 in NXL HVAC

* Start mode where Trip Free Output Switching is enabled, recommended to be used with all pump and fan

applications.

** Default values if Start-up wizard has not been used. Look Figure 7-3 on page 54 or NXL HVAC Quick

Guide to see the values with different modes in wizard.

NOTE! Deactivating Parameter conceal P.2.1.14 gets all parameters into use in NXL HVAC drive

Commissioning 87(96)

8.3.3 Basic parameters (Control keypad: Menu P2







B2.1 / B2.1.15)

In NXL HVAC the full NXL basic group can be found under the subgroup 2.1.15.

Code Parameter

Min Max Unit Default** ID Note

NXL

Compact

NXL

HVAC

P2.1.1 P2.1.15.1 Min

frequency

0,00 Par. 2.1.2 Hz 0,00 101

P2.1.2 P2.1.15.2 Max

frequency Par. 2.1.1

320,00 Hz 50,00 102

NOTE

: If f

max

> than the

motor synchronous speed,

check suitability for motor

and drive system

P2.1.3 P2.1.15.3 Acceleration

time 1 0,1 3000,0 s 1,0 103

P2.1.4 P2.1.15.4

Deceleration

time 1 0,1 3000,0 s 1,0 104

P2.1.5 P2.1.15.5 Current limit

0,1 x I

1,5 x I

A I

107

NOTE

: Formulas apply

approximately for

frequency converters up to

MF3. For greater sizes,

consult the factory.

P2.1.6 P2.1.15.6

Nominal

voltage of

the motor

180 690 V NXL2:230V

NXL5:400V

110

P2.1.7 P2.1.15.7

Nominal

frequency

of the motor

30,00 320,00 Hz 50,00 111

Check the rating plate of

the motor

P2.1.8 P2.1.15.8

Nominal

speed of

the motor

300 20 000 rpm 1440 112

The default applies for a 4-

pole motor and a nominal

size frequency converter.

P2.1.9 P2.1.15.9

Nominal

current of

the motor

0,3 x I

1,5 x I

A I

113

Check the rating plate of

the motor

P2.1.10 P2.1.15.10 Motor cos

0,30 1,00 0,85 120 Check the rating plate of

the motor

P2.1.11 P2.1.15.11 Start function

0 1 0 505

=Ramp

=Flying start

=Conditional Flying start*

P2.1.12 P2.1.15.12 Stop function

0 1 0 506

=Coasting

=Ramp

P2.1.13 P2.1.15.13 U/f

optimisation

0 1 0 109

=Not used

=Automatic torque boost

P2.1.14 P2.1.15.14 I/O reference

0 5 0 117

=AI1

=AI2

=Keypad reference

=Fieldbus reference

(FBSpeedReference)

=Motor potentiometer

=AI1/AI2 selection

P2.1.15 P2.1.15.15 AI2 signal

range 1 4 2 390

Not used if AI2 Custom min

> 0% or AI2 custom max. <

100%

=0mA – 20mA

=4mA – 20mA

=0V – 10V

=2V – 10V

88(96) Commissioning

Honeywell

HoneywellHoneywell

Honeywell

P2.1.16 P2.1.15.16

Analogue

output

function

0 12 1

307

=Not used

=Output freq. (0—f

max

)

=Freq. reference (0—f

max

)

=Motor speed (0—Motor

nominal speed)

=Output current (0—

nMotor

)

=Motor torque (0—T

nMotor

)

=Motor power (0—P

nMotor

)

=Motor voltage (0—

nMotor

)

=DC-link volt (0—1000V)

=PI controller ref. value

=PI contr. act. value 1

=PI contr. error value

=PI controller output

P2.1.17 P2.1.15.17 DIN2

function 0 10 1

319

=Not used

=Start Reverse

=Reverse

=Stop pulse

=External fault, cc

=External fault, oc

=Run enable

=Preset speed 2

= Motor pot. UP (cc)

= Disable PID (Direct freq.

reference)

=Interlock 1

P2.1.18 P2.1.15.18 DIN3

function 0 17 6

301

=Not used

=Reverse

=External fault, cc

=External fault, oc

=Fault reset

=Run enable

=Preset speed 1

=Preset speed 2

=DC-braking command

=Motor pot. UP (cc)

=Motor pot. DOWN (cc)

=Disable PID (PID

control selection)

=PID Keypad ref. 2

selection

=Interlock 2

=Thermistor input (

See

Chapter 6.2.4

)

=Force CP to I/O

=Force CP to Fieldbus

=AI1/AI2 selection

P2.1.19 P2.1.15.19 Preset

speed 1 0,00 Par. 2.1.2 Hz 10,00

105

P2.1.20 P2.1.15.20 Preset

speed 2 0,00 Par. 2.1.2 Hz 50,00

106

P2.1.21 P2.1.15.21 Automatic

restart 0 1 0

731

=Not used

=Used

P2.1.22 Parameter

conceal 0 1 0

115

=All parameters and

menus visible

=Only group P2.1 and

menus M1 – H5 visible

Table 8-3. Basic parameters P2.1

* Start mode where Trip Free Output Switching is enabled, recommended to be used with all pump and fan

applications.

** Default values if Start-up wizard has not been used. Look Figure 7-3 on page 54 or NXL HVAC Quick

Guide to see the values with different modes in wizard.

9. FAULT TRACING

When a fault is detected by the frequency converter control electronics, the drive is stopped and the

symbol F together with the ordinal number of the fault and the fault code appear on the display. The

Fault tracing 89(96)

fault can be reset with the Reset button on the control keypad or via the I/O terminal. The faults are

stored in the Fault history menu (H5) which can be browsed. The different fault codes you will find in

the table below.

The fault codes, their causes and correcting actions are presented in the table below. The shadowed

faults are A faults only. The items written in white on black background present faults for which you

can program different responses in the application. See parameter group Protections.

Fault

code

Fault Possible cause Correcting measures

Overcurrent Frequency converter has detected too

high a current (>4*I

) in the motor cable:

−

sudden heavy load increase

−

short circuit in motor cables

−

unsuitable motor

Check loading.

Check motor size.

Check cables.

Overvoltage The DC-link voltage has exceeded the

limits defined in.

−

too short a deceleration time

−

high overvoltage spikes in utility

Make the deceleration time longer.

Earth fault Current measurement has detected that

the sum of motor phase current is not

zero.

−

insulation failure in cables or motor

Check motor cables and motor.

System fault component failure

faulty operation

Reset the fault and restart.

Should the fault re-occur, contact the

distributor near to you.

Undervoltage DC-link voltage is under the voltage limits

defined in.

−

most probable cause: too low a

supply voltage

−

frequency converter internal fault

In case of temporary supply voltage

break reset the fault and restart the

frequency converter. Check the supply

voltage. If it is adequate, an internal

failure has occurred.

Contact the distributor near to you.

Output phase

supervision

Current measurement has detected that

there is no current in one motor phase.

Check motor cable and motor.

Frequency

converter under

temperature

Heatsink temperature is under –10

Frequency

converter

overtemperature

Heatsink temperature is over 90

Overtemperature warning is issued when

the heatsink temperature exceeds 85

Check the correct amount and flow of

cooling air.

Check the heatsink for dust.

Check the ambient temperature.

Make sure that the switching frequency

is not too high in relation to ambient

temperature and motor load.

Motor stalled Motor stall protection has tripped. Check motor.

Check that Pump or Fan is not blocked.

Motor

overtemperature

Motor overheating has been detected by

frequency converter motor temperature

model. Motor is overloaded.

Decrease the motor load.

If no motor overload exists, check the

temperature model parameters.

90(96) Fault tracing Honeywell

HoneywellHoneywell

Honeywell

Motor

underload/

Pump Dry

detection/

Broken belt

Detection

Motor underload protection has tripped. FAN: check that Belt is not broken

PUMP: check that Pump is not dry

EEPROM

checksum fault

Parameter save fault

−

faulty operation

−

component failure

Contact the distributor near to you

Counter fault Values displayed on counters are

incorrect

Microprocessor

watchdog fault

−

faulty operation

−

component failure

Reset the fault and restart.

Should the fault re-occur, contact the

distributor near to you.

Thermistor fault The thermistor input of option board has

detected increase of the motor

temperature

Check motor cooling and loading

Check thermistor connection

(If thermistor input of the option board is

not in use it has to be short circuited)

Internal bus

communication

Ambient interference or defective

hardware

Should the fault re-occur, contact the

distributor near to you.

Application fault Selected application does not function. Contact the distributor near to you.

Device removed Option board removed.

Drive removed.

Reset

Device unknown Unknown option board or drive. Contact the distributor near to you.

IGBT temperature IGBT Inverter Bridge overtemperature

protection has detected too high a motor

current.

Check loading.

Check motor size.

Device change Option board changed.

Option board has default settings.

Reset

Device added Option board added. Reset

Analogue input

< 4mA

(selected signal

range 4 to 20

mA)

Current at the analogue input is < 4mA.

−

control cable is broken or loose

−

signal source has failed

Check the current loop circuitry.

External fault Digital input fault. Digital input has been

programmed as external fault input and

this input is active.

Check the programming and the device

indicated by the external fault

information. Check also the cabling of

this device.

Keypad

communication

fault

The connection between the control

keypad and the frequency converter is

broken.

Check keypad connection and possible

keypad cable.

Fault tracing 91(96)

Fieldbus fault The data connection between the fieldbus

Master and the fieldbus board is broken

Check installation.

If installation is correct contact the

nearest Honeywell distributor.

Slot fault Defective option board or slot Check board and slot.

Contact the nearest Honeywell

distributor.

Actual value

supervision

Actual value has exceeded or fallen below

(depending on par. 2.7.22) the actual

value supervision limit (par. 2.7.23)

Table 9-1. Fault codes

92(96) Honeywell

HoneywellHoneywell

Honeywell

10. DESCRIPTION OF EXPANDER BOARD NXLOPTAA

Description: I/O expander board with one relay output, one open collector output

and three digital inputs.

Allowed slots: Honeywell NXL board slot E

Type ID: 16705

Terminals: Two terminal blocks; Screw terminals (M2.6 and M3); No coding

Jumpers: None

Board parameters: None

I/O terminals on NXLOPTAA

Terminal Parameter

setting

Description

1 +24V Control voltage output; voltage for switches etc, max. 150 mA

2 GND Ground for controls, e.g. for +24 V and DO

3 DIN1 DIGIN:x.1 Digital input 1

4 DIN2 DIGIN:x.2 Digital input 2

5 DIN3 DIGIN:x.3 Digital input 3

6 DO1 DIOUT:x.1 Open collector output, 50mA/48V

24 RO1/NC DIOUT:x.2

25 RO1/C

26 RO1/NO

Relay output 1 (NO)

Switching capacity: 24VDC/8A

250VAC/8A

125VDC/0,4A

Table 10-1. I/O terminals of board NXLOPTAA

Note! The +24 V control voltage terminal can also be used to power the control module (but not the

power module).

Expander board NXLOPTAI 93(96)

11. DESCRIPTION OF EXPANDER BOARD NXLOPTAI

Description: I/O expander board with one relay output (NO), three digital inputs and one

thermistor input for Honeywell NXL frequency converters

Allowed slots: Honeywell NXL board slot E (standard board in NXL HVAC)

Type ID: 16713

Terminals: Three terminal blocks; Screw terminals; No coding

Jumpers: None

Board parameters: None

94(96) Expander board NXLOPTAI Hone

HoneHone

Honeywell

ywellywell

ywell

Terminal Parameter

setting

Description

12 +24V Control voltage output; voltage for switches etc, max. 150 mA

13 GND Ground for controls, e.g. for +24 V and DO

14 DIN1 DIGIN:B.1 Digital input 1

15 DIN2 DIGIN:B.2 Digital input 2

16 DIN3 DIGIN:B.3 Digital input 3

25 RO1/

Common

26 RO1/

Normal

Open

DigOUT:B.1 Relay output 1 (NO)

Switching capacity: 24VDC/8A

250VAC/8A

125VDC/0,4A

28 TI+ DIGIN:B.4 Thermistor input; Rtrip = 4.7 kΩ (PTC), galvanically isolated

29 TI-

Table 11-1. I/O terminals of board NXLOPTAI

Note! The +24 V control voltage terminal can also be used to power the control module (but not the

power module).

NXL HVAC Basic speed control – Quick setup 95(96)

12. NXL HVAC BASIC SPEED CONTROL – QUICK SETUP

This chapter provides basic setup instructions for the user of NXL HVAC inverters, when using Basic

Speed Control in HVAC applications.

What you need to know

Motor nameplate data







Nominal current







Nominal speed

Speed signal specification







Signal type (V, mA)







Range (0-10, 2-10, 0-20, 4-20)

Setup

1 Run the Start-up Wizard

Note: Running the Start Up Wizard resets all parameters to their default values.

•

Hold STOP button down for 5 seconds

•

Select application type FAN or PUMP and confirm with ENTER

•

Select motor nominal speed and confirm with ENTER

•

Select motor nominal current and confirm with ENTER

•

For speed signal 0 – 10 V use AI1 (Analogue Input 1)

•

All settings DONE

2 Control Signal Settings for Speed Signals other than 0 – 10 V

•

For other selections full parameter view is needed:

P2.1.14 Parameter Conceal Set to 0 (not in use)

•

For speed signal 2 – 10 V use Analogue Input 1

P2.2.6 AI1 Signal Range Set to 4 (2 – 10 V)

•

For speed signal 4 – 20 mA use Analogue Input 2

P2.1.15.14 I/O Reference Set to 1 (AI2)

•

For speed signal 0 – 20 mA use Analogue Input 2

P2.1.15.14 I/O Reference Set to 1 (AI2)

P2.2.12 AI2 Signal Range Set to 1 (0 – 20 mA)

Manual Test

1 Hold LEFT down for 3-5 seconds

Control Place automatically switches to Keypad

2 Use normal keypad buttons for speed control

•

UP and DOWN to adjust the speed

•

START and STOP for control

3 Hold LEFT down for 3 seconds to return to remote control (I/O or Fieldbus)

Pump

Fan

Load

Pressure

Sensor

Control System

Variable Frequency Drive

Motor

Speed Signal

V signal to AI1

mA signal to AI2

Automation and Control Solutions

Honeywell GmbH

Böblinger Str. 17

71101 Schönaich, Germany

Telephone (49) 7031 637 01

Telefax (49) 7073 637 493

www.ecc.emea.honeywell.com

EN1B-0388GE51 R1107

November 2007

Find out more

For more information on

Honeywell’s frequency

converters and other Honeywell

products, visit us online at

http://ecc.emea.honeywell.com

Honeywell Nxl Users Manual EN1B 0388GE51 R0507 _NXL HVAC & Compact User Manual_

NXL EN-NXL HVAC & Compact User Manual R1107

NXL to the manual a49d748d-380c-4beb-b4dd-054755a82999

Navigation menu

Versions of this User Manual:

Views

Navigation
