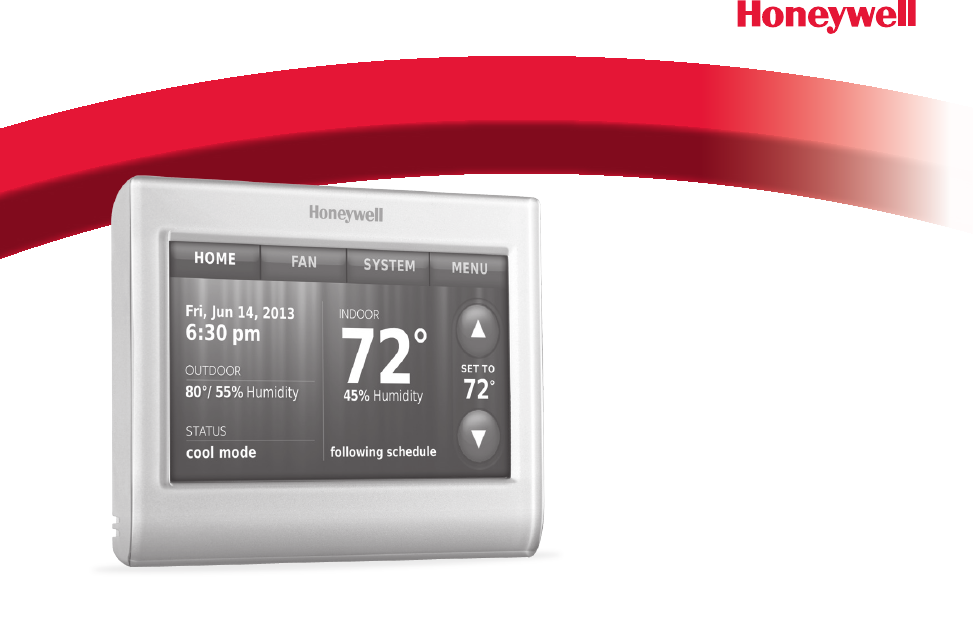

Quick Start Guide

Wi-Fi Color Touchscreen

Programmable Thermostat

RTH9580 Wi-Fi

2

Install your thermostat.

Connect your home Wi-Fi network.

Register online for remote access.

1

2

3

Welcome

Getting set up and ready is simple.

Before you begin

View the installation video at

wifithermostat.com/support

You will also need:

• Smallscrewdriver

• Pen

• ThermostatIDcard

• YourhomeWi-Fi

network password

You will need your camera

to take a picture of your old

wire connections.

3

This thermostat works with common 24

volt systems such as forced air, hydronic,

heat pump, oil, gas, and electric. It will not

work with millivolt systems, such as a gas

fireplace, or with 120/240 volt systems such

as baseboard electric heat.

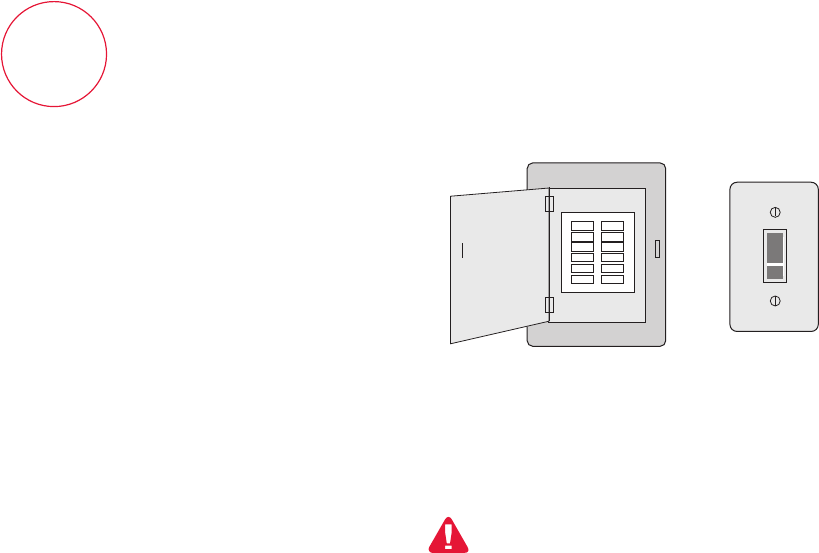

1.1 Switch OFF power to your

heating/cooling system

1.1a Important! To protect your

equipment, switch OFF the

power to your heating/

cooling system at the

breaker box or the system

switch.

1.1b Confirm power is OFF.

Try to turn on heating/

cooling equipment by

changing temperature

on your old thermostat.

Your power is OFF if your

system does not turn ON.

Installyourthermostat

1

Circuit

breaker

box

Heating/cooling

system power

switch

or

M31535

4

C

M33823A

Terminal

designation

If you have an older thermostat with a

sealed mercury tube, see warning page

for proper disposal instructions.

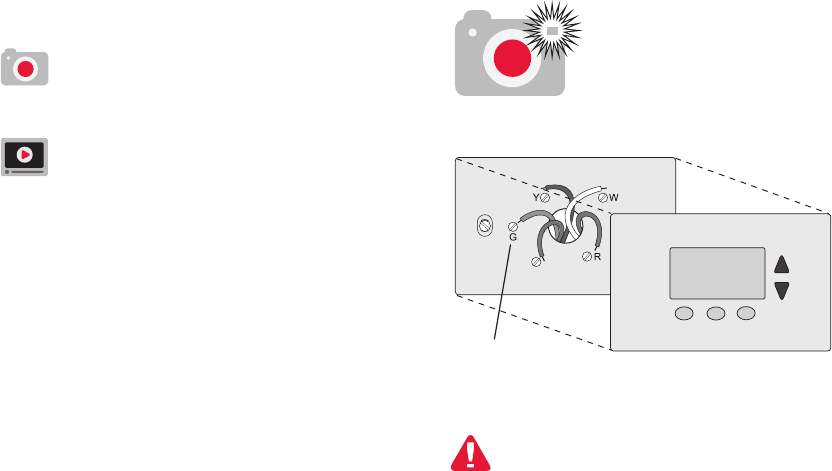

1.2 Remove old thermostat

faceplate and leave wires

connected

1.2a Take a picture of the wire

connections for later

reference.

1.2bIfnowireisconnectedtoa

terminal labeled C or no C

terminal exists on the old

thermostat, view the

Alternate Wiring videos at

wifithermostat.com/videos

Important! C wire is required

and is the power source for your

thermostat. Without a C wire, your

thermostat will not power up.

Note: You will need a

picture of your wire

connections to wire the

new thermostat.

5

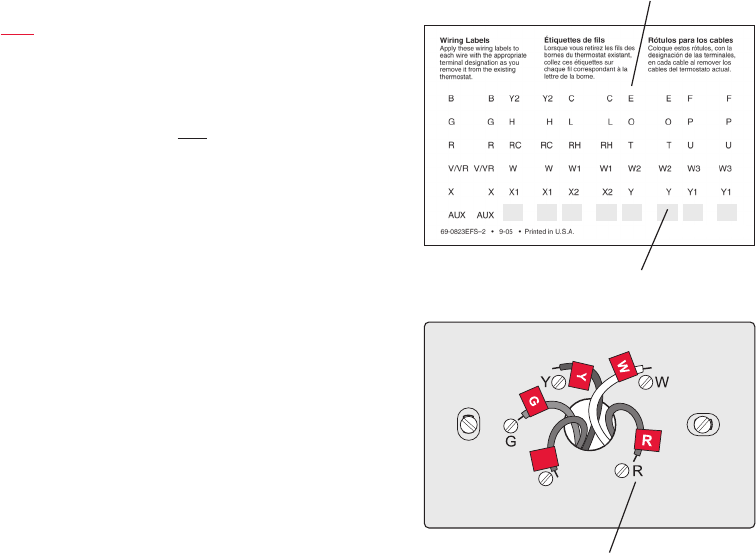

1.3 Label wires

Do not label by wire color.

Use the supplied sticky tags to label

each wire as you disconnect it. Label

wires according to old thermostat

terminal designations, not by wire

color.

Note: Ifnotagmatchesaterminal

designation, write the appropriate

letter on a blank sticky tag.

Note: Wrap the wires around a pencil

to prevent them from falling back into

the wall.

1.4 Remove wallplate

Remove the old wallplate from

the wall after all wires are

labeled and disconnected.

Blank tags

Stickytag

Terminal

designation

C

C

MCR31537

6

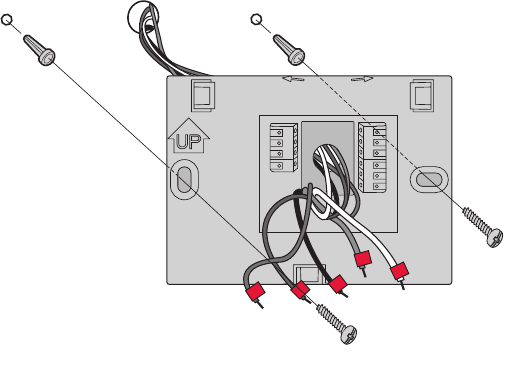

1.5 Mount wallplate for Wi-Fi

thermostat

Mount your new wallplate using

screws and anchors included

with the thermostat.

 Ifnecessary:

 • Drill3/16-inholesfordrywall

 • Drill7/32-inholesforplaster

Note: You may be able to use

your existing wall anchors. Hold

the wallplate up to the existing

anchors to check for alignment.

LEVEL

HERE

R

Y

C

W

G

MCR34499

C

K

Rc

R

W-

O/B

Y

G

W2-

Aux/E

Y2

L

Wallplate

7

MCR34540

C

K

Rc

R

W-

O/B

Y

G

W2-

Aux/E

Y2

L

W

Y

G

R

C

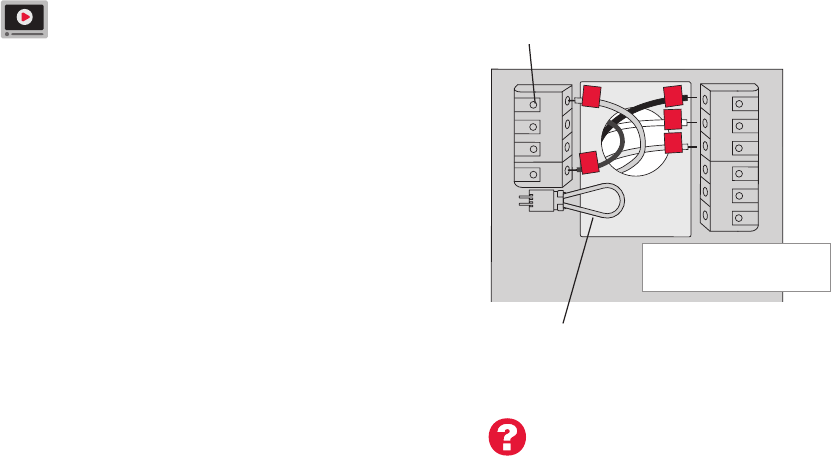

1.6 Connect wires

Important! C wire is required and

is the power source. Without a C wire,

your thermostat will not power up.

View the Alternate Wiring videos

at wifithermostat.com/videos

1.6a StartingwiththeCWire,match

the sticky tag on the wire to the

terminal labels.

 1.6b Straightenwireandgentlyslide

into terminal hole until it clicks

  intoplace.(Ifyouneedto 

remove a wire, use a pen tip to

press the terminal release and

then pull the wire out.)

Note: Refer to the wiring picture

 youtookinStep1.2.

Tip: To make it easier to slide the

wire into place, use a pen tip to

hold down the terminal release.

Note: The wiring for your application

might be different than the wiring

shown below.

Labels don’t match or have

heat pump system?

SeeUser Guide.

Terminal release

Remove jumper loop ONLY if

you have both R and Rc wires.

EXAMPLE WIRING

Yours may look different

8

Labels don’t match or have

heat pump system?

SeeUser Guide.

 1.6c Intheimageontheright,check

the box next to each connection.

You will use this checklist in

  Step1.9.

 1.6d Verifywireisfirmlysecuredby

gently pulling on wire.

 1.6e Repeatstepsa–d for all other

wires.

 1.6f Pushany excess wire back into

the wall opening after all wires

are installed.

Note: The L terminal on the lower

right is used only for Heat Pump

systems.

Note: IftheoldthermostatforHeat

PumpSystemhasseparatewires

on Aux and E, use a wire nut to

attach both wires to a separate

wire.Slidethisthirdwireintothe

W2-Aux/E terminal.

Important!

Check the box for each wire

you connect. You will need

thisinformationinStep1.9.

C

K

Rc

R

W-O/B

Y

G

W2-

Aux/E

Y2

L

9

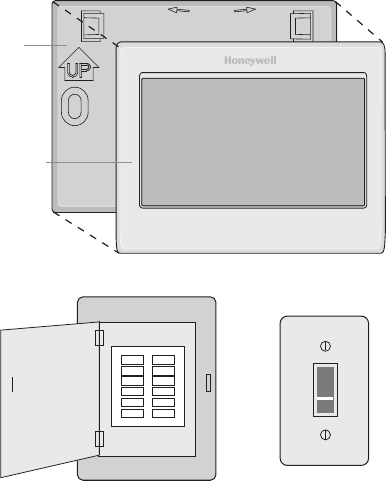

1.7 Attach thermostat

to wallplate

Align the thermostat with

wallplate and snap into

place.

Thermostat

Wallplate

LEVEL

HERE

M34498

1.8 Switch heating/cooling

system ON

Important!

1.8a Verify that the C wire is

connected at the thermostat

and at the heating/cooling

system.

1.8b Make sure the heating/

cooling system door is

firmly secured.

 1.8c SwitchpowerbackONfor 

your heating/cooling system

at the breaker box or its

power switch.

Circuit

breaker

box

Heating/cooling

system power

switch

or

M31535

10

Next

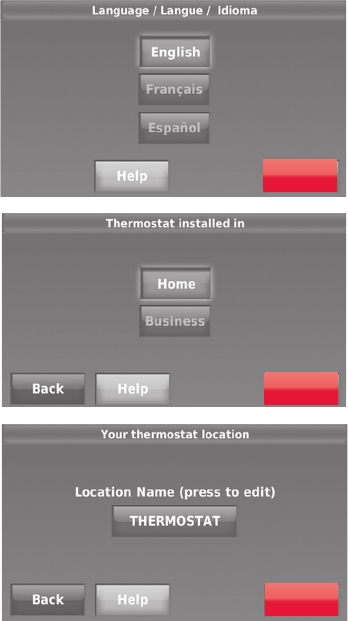

1.9 Select setup

Before connecting to your Wi-Fi

network, you need to set initial

thermostat options to define your

heating/cooling system:

 •Language

 •Homeorbusiness

Follow prompts on the screen to

select appropriate options.

1.9a Touch the language you want

the thermostat to display, then

touch Next.

 1.9b SelectHomeorBusiness 

application, then touch Next.

1.9c Touch Next or name the

thermostat location—touch

 THERMOSTATandfollowthe 

rest of the instructions.

Next

Next

11

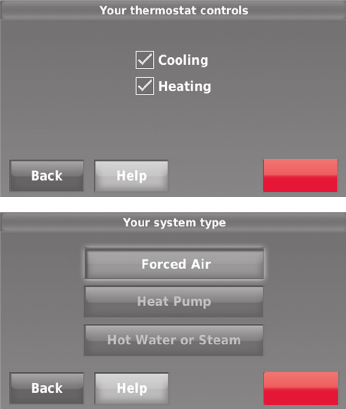

 1.9d Selectwhatyourthermostatwill

control and touch Next.

 1.9e Selectyoursystemtypeand

touch Next The system type

determines other selection for

completing initial setup. Use

  thechecklistfromStep1.6when

making selections.

1.9f Touch Next after making

selections on each screen.

1.9g Touch Done on the last screen.

The thermostat displays an option

to connect to your Wi-Fi network.

Next

Next

12

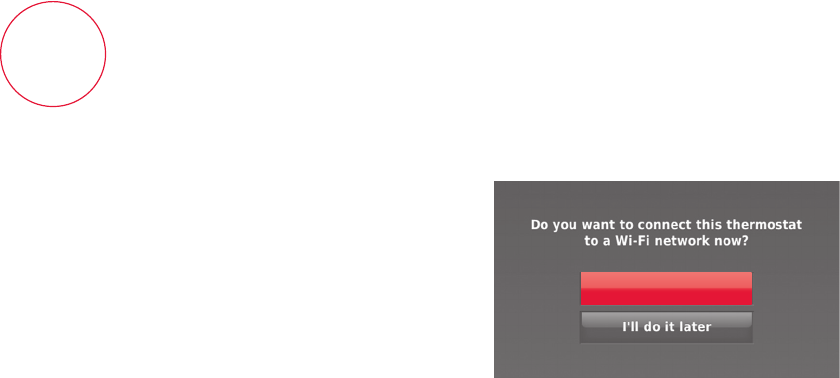

2.1 Connect the Wi-Fi network

After touching Done on the final screen

 oftheinitialsetup(Step1.9g),the

thermostat displays an option to

connect to your Wi-Fi network.

2.1a Touch

Yes

to connect the

thermostat to your Wi-Fi

network. The screen displays the

 message“Searchingforwireless

networks. Please wait...” after

which it displays a list of all Wi-Fi

networks it can find.

Note:Ifyoucannotcompletethisstep

now, touch I’ll do it later. The thermostat

will display the home screen. Complete

this process by selecting MENU > Wi-Fi

Setup.ContinuewithStep2.1b.

Connect to your Wi-Fi network

2

Yes

13

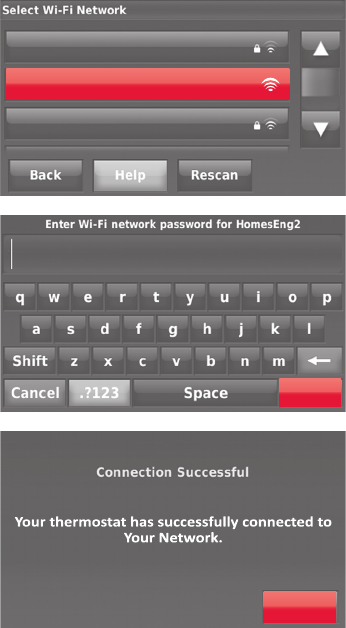

2.1b Touch the name of the network

you want to use. The thermostat

displays a password page.

2.1c Using the keyboard, touch the

characters that spell out your

home network password.

2.1d Touch Done. The thermostat

displays “Connecting to your

network. Please wait...” then

  showsa“ConnectionSuccessful”

screen.

Note: Ifyourhomenetworkisnot

shown on the list, touch

Rescan

.

2.1e Touch Next to display the

registration information screen.

Your Network

Neighbor

Public

Done

Next

14

If you get stuck...

At any point in the Wi-Fi connection process, restart the thermostat by

removing the thermostat from the wallplate, wait for 5 seconds, and snap it

back into place. From the home screen, touch MENU > Wi-Fi Setup > Choose a

Network.ContinuewithStep2.1b.

Need more help?

Find additional information in the User Guide.

Getting Help

15

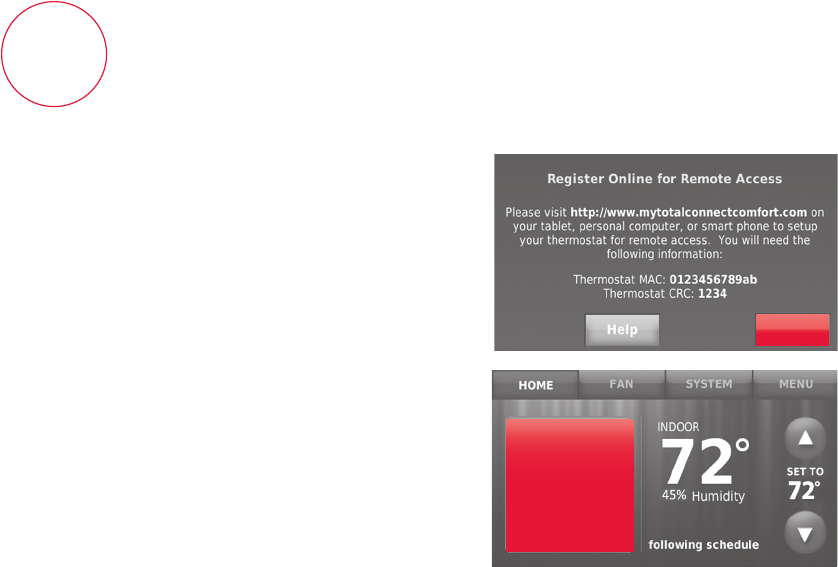

Register online for remote access

3

Done

Register

online for

remote

access

Press for info

To register your thermostat, follow the

instructionsonStep3.1.

Note: The Register Online screen remains

active until you complete registration and/or

touch Done.

Note:IfyoutouchDone before you register

online, your home screen displays an

orange alert button telling you to register.

Touching that button displays registration

information and an option to snooze the

task.

16

M31570

M31570

To view and set your Wi-Fi thermostat

remotely, you must have a Total Connect

Comfort account. Follow the instructions

below.

View the Wi-Fi Thermostat

Registration video at

wifithermostat.com/videos

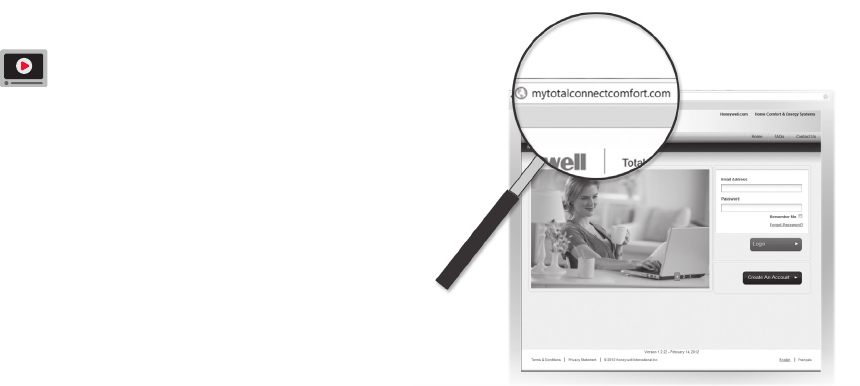

3.1 Open the Total Connect

Comfort web site

Go to www.mytotalconnectcomfort.com

17

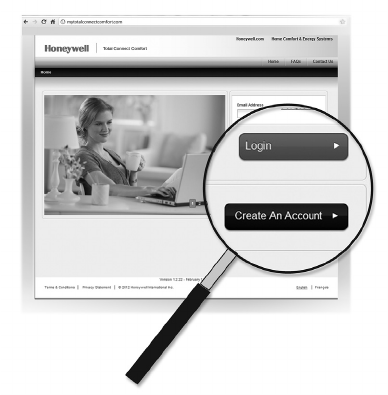

3.2 Login or create an account

Ifyouhaveanaccount,

click Login

 –or–

click Create An Account.

 3.2a Followtheinstructionsonthe 

screen.

 3.2b Check your email for a response

from My Total Connect Comfort.

This may take several minutes.

Note: Ifyoudonotreceivearesponse,

check your junk mailbox or use an

alternate e-mail address.

3.2c Follow activation instructions

in the email.

 3.2d Login.

18

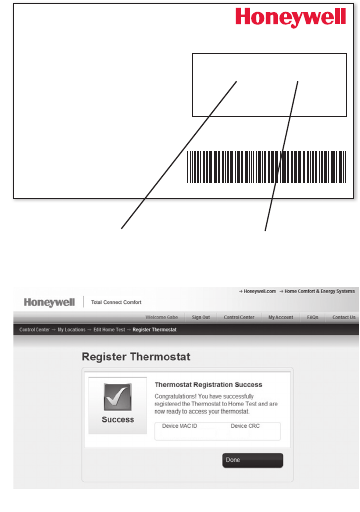

3.3 Register your Wi-Fi thermostat

After you are logged in to your Total

Connect Comfort account, register your

thermostat.

 3.3a Followtheinstructionsonthe

screen. After adding your

thermostat location you must enter

your thermostat’s unique identifiers:

  • MACID

  • MACCRC

Note: TheseIDsarelistedon the

 ThermostatIDCardincludedinthe 

 thermostatpackage.TheIDsarenot

case sensitive.

 3.3b Notice that when the thermostat is

successfully registered, the Total

Connect Comfort registration

  screenwilldisplayaSUCCESS 

message.

You can now control your thermostat

from anywhere through your laptop,

tablet, or smartphone.

® U.S. Registered Trademark.

© 2012 Honeywell International Inc.

69-2723EFS—01 M.S. 04-12

Printed in U.S.A.

HONEYWELL MODEL: RTH8580WF

MAC ID: MAC CRC:

69-2723EFS-01

Thermostat ID Card

Use the MAC ID and CRC ID to register

this product at mytotalconnectcomfort.com

Carte d’identification de thermostat

Utilisez l’identication MAC et l’identication CRC pour

enregistrer ce produit à mytotalconnectcomfort.com

Tarjeta de identificación del termostato

Utilice la identicación MAC y la identicación CRC para

inscribir este producto en mytotalconnectcomfort.com

MACID MAC CRC

19

GET IT ON

Download on

iTunes

Total Connect Comfort free app is available

for Apple® iPhone®, iPad® and iPod touch®

devices at iTunes® or at Google Play® for

all Android™ devices.

This thermostat works with common 24 volt systems such as forced air, hydronic,

heatpump,oil,gas,andelectric.Itwillnotworkwithmillivoltsystems,suchasa

gas fireplace, or with 120/240 volt systems such as baseboard electric heat.

MERCURY NOTICE:Donotplaceyouroldthermostatinthetrashifitcontains

mercury in a sealed tube. Contact the Thermostat Recycling Corporation at

www.thermostat-recycle.orgor1-800-238-8192forinformationonhowand

where to properly and safely dispose of your old thermostat.

NOTICE: To avoid possible compressor damage, do not run air conditioner if the

outside temperature drops below 50°F (10°C).

Need help?

Visitwifithermostat.comorcall1-855-733-5465forassistancebeforereturningthe

thermostat to the store.

Automation and Control Systems

HoneywellInternationalInc.

1985DouglasDriveNorth

Golden Valley, MN 55422

wifithermostat.com

®U.S.RegisteredTrademark.

Apple,iPhone,iPad,iPodtouchandiTunesaretrademarksofAppleInc.

All other trademarks are the property of their respective owners.

©2013HoneywellInternationalInc.

69-2810—01CNG03-13

PrintedinU.S.A.

69-2810-01
