VisionPRO® Series with RedLINK™
Installation Guide
TM
TM
OR
OR
Wired Directly to Equipment
2 Wires for Power or
Battery Only (no wires)
2 Wires for Power or
Battery Only (no wires)
Dual Powered - C Wire or Battery
(C wire or Wire Saver required to use RedLINK accessories)
RedLINK to Equipment Interface Module
RedLINK to TrueZONE Wireless Adapter
TM
2
Current display. Underlined label
signifies the current display.
Mode control buttons. Use to change
settings for Fan or System Heat/Cool.
Menu. Select options to: set schedules,
view equipment status, change IAQ
settings, access installer options*, etc.
Current status. Shows system mode
(heat/cool), outdoor temperature and
humidity (with optional outdoor sensor).
Current schedule. Shows desired
temperature and schedule status.
Indoor conditions. Shows indoor
temperature and humidity.
Current Time.
Alert Light. On when alert
message is active or system is set
to Em Heat. Flashes for battery-only
power; on continuous for 24 VAC.
microSD Card Port. Use card
to load settings and dealer
information.
Reference to key features
* Password is the date code.
Getting started
Follow these basic steps to install this thermostat,
link it with the wireless accessories, and set
installer options.
1 Installing the thermostat
2 Powering optional RedLINK accessories
3 Performing initial setup
4 Finding your password (Date Code)
• To add or remove RedLINK accessories
• To make changes to Installer Setup
• To perform an Installer Test
Residential/Résidentiel
1-800-468-1502
http://yourhome.honeywell.com
Commercial/Commerciale
1-888-245-1051
http://customer.honeywell.com
Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
Residential/Résidentiel
1-800-468-1502
http://yourhome.honeywell.com
Commercial/Commerciale
1-888-245-1051
http://customer.honeywell.com
Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
Thermostat (back view)
Password
(Date Code)
3
NOTE: For best RedLINK
performance, mount thermostats at
least 2 feet apart.

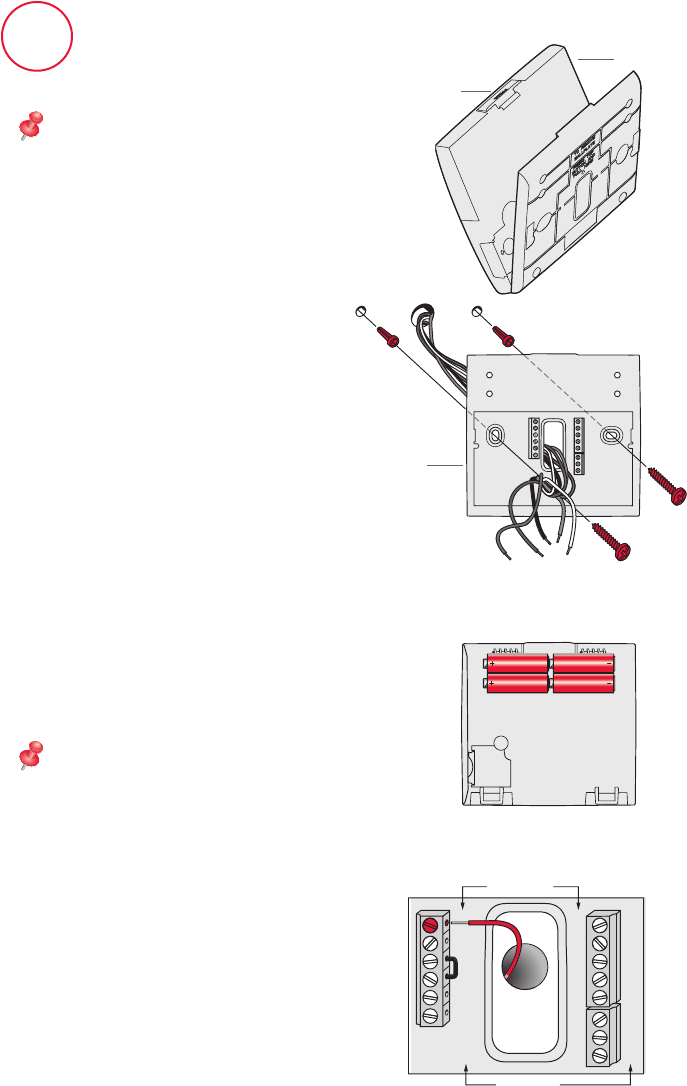

1.1 Separate wallplate from thermostat.
Press button on top and pull to
remove the wallplate.
1.3 Connect power.
1.3a Insert supplied AA alkaline
batteries for primary or backup
power.
NOTE: When the thermostat is NOT
used with the Equipment Interface
Module or the TrueZONE Wireless
Adapter, a C wire is required for
RedLINK.
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
CONVENTIONAL
HEAT PUMP
1.3b For 24VAC primary power,
connect common side of
transformer to C terminal.
1.2 Mount wallplate as shown.
Mount new wallplate using screws
and anchors included with the
thermostat.
Drill 3/16-in holes for drywall.
Drill 7/32-in holes for plaster.
Thermostat (back view)
Wallplate
(back view)
Wallplate
S1
S1
W
Y
G
W2
Y2
A
C
K
R
C
R
U1
U1
U2
U2
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
Thermostat
Button
1Installing the thermostat
4

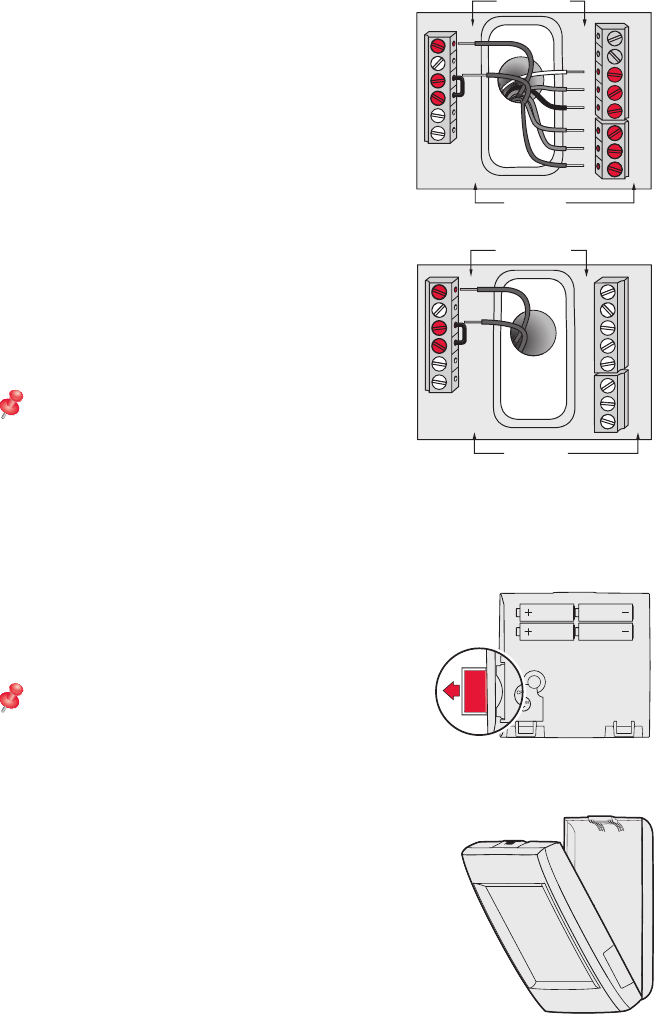

1.4 Wire the thermostat.
Is the thermostat wired directly to
the equipment?
• If the thermostat is wired directly to
the equipment:
a Refer to the table and wiring
diagrams on the next page.
b Turn on 24VAC NOW.
24VAC (C wire) is required to
connect RedLINK accessories.
• If the thermostat is used with an
Equipment Interface Module or
TrueZONE Wireless Adapter,
power the thermostat using Rc and
C terminals or with batteries.
NOTE: The relay outputs and inputs
on the thermostat do not function
when used with an Equipment
Interface Module or TrueZONE
Wireless Adapter.
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
CONVENTIONAL
HEAT PUMP
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
CONVENTIONAL
HEAT PUMP
1.5 Remove coin cell battery tab
1.5a Remove tab to activate coin
cell battery.
NOTE: Coin cell battery saves time
and date during a power loss.
1.6 Mount thermostat on wallplate.
Align thermostat at bottom and
snap into place as shown.
REMOVE DURING
INSTALLATION
REMOVE DURING
INSTALLATION
Thermostat
Coin
cell
battery
tab
Wallplate
5

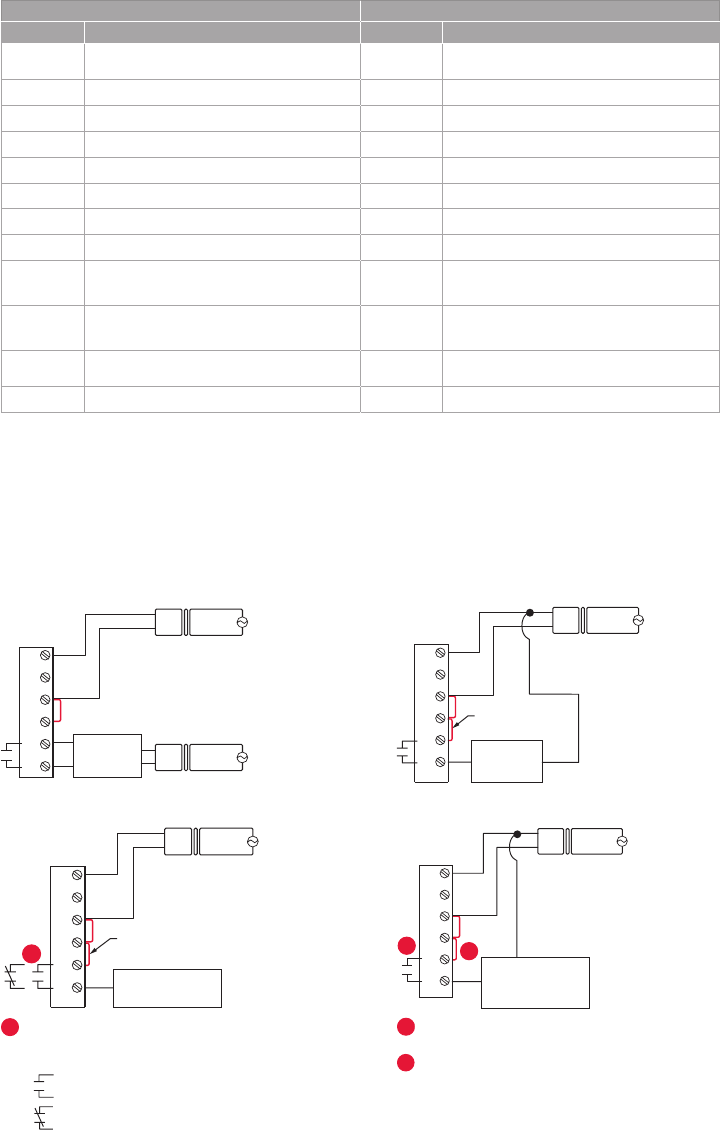

Terminal Designations
Conventional System Heat Pump
Terminal Description Terminal Description
CCommon wire from secondary side of
cooling transformer (if 2 transformers). CCommon wire from secondary side of
cooling transformer.
Rc* Cooling power. Rc Cooling power.
R* Heating power. R Heating power.
W Heat Stage 1 O/B Changeover valve for heat pumps.
W2 Heat Stage 2 AUX-E Backup Heat/Emergency Heat
Y Compressor Stage 1 Y Compressor Stage 1
Y2 Compressor Stage 2 Y2 Compressor Stage 2
G Fan Relay G Fan Relay
AConnect to Economizer Module or
Lighting Panel (TOD). L/A Connect to Compressor Monitor, Zone
Panel, Economizer Module or Lighting
Panel (TOD).
U1 / U1 Universal relay for humidification,
dehumidification, ventilation, or a stage of
heating/cooling. U1 / U1 Universal relay for humidification,
dehumidification, ventilation, or a stage of
heating/cooling.
S1 / S1 Universal input for a wired indoor, outdoor
or discharge sensor. S1 / S1 Universal input for a wired indoor, outdoor
or discharge sensor.
K** Connect to K on Wire Saver module. K** Connect to K on Wire Saver module.
* Remove factory installed jumper for two transformer systems.
** The THP9045A1023 Wire Saver module is used on heat/cool systems when you only have four wires at the thermostat and you
would like the thermostat to be powered with a common wire. Use the K terminal in place of the Y and G terminals on conventional
or heat pump systems to provide control of the fan and the compressor through a single wire—the unused wire then becomes your
common wire. See THP9045 instructions for more information.
C
K
RC
R
U1
U1
120
VAC
24
VAC
C
R
SYSTEM
TRANSFORMER
120
VAC
24
VAC
HUM, DEHUM OR
VENT
TRANSFORMER
THERMOSTAT
POWERED
HUMIDIFIER,
DEHUMIDIFIER
OR VENTILATOR
C
K
RC
R
U1
U1
120
VAC
24
VAC
C
R
SYSTEM
TRANSFORMER
THERMOSTAT
NON-POWERED
HUMIDIFIER,
DEHUMIDIFIER
OR VENTILATOR
FIELD INSTALL JUMPER
BETWEEN R AND U1
CONNECTING A HEAT OR COOL STAGE TO U1DEHUMIDIFICATION WITH LOW SPEED FAN
NON-POWERED HUMIDIFIER, DEHUMIDIFIER OR VENTILATORPOWERED HUMIDIFIER, DEHUMIDIFIER OR VENTILATOR
Wire the thermostat universal relay to the low speed fan
fordehumidicationcontrolattheequipment.The
thermostat relay can be set to normally open or
normally closed in the thermostat installer setup.
1U1 terminals are normally open dry contacts when set
up for a stage of heating or cooling.
Youmustinstallaeldjumperifthestageofheating
or cooling is powered by system transformer. Do NOT
installaeldjumperifthestageofheatinghasitsown
transformer.
1
2
Normally open, dry contacts
Normally closed, dry contacts
1
C
K
RC
R
U1
U1
120
VAC
24
VAC
C
R
SYSTEM
TRANSFORMER
THERMOSTAT
DEHUMIDIFICATION
WITH LOW SPEED FAN
FIELD INSTALL JUMPER
BETWEEN R AND U1
OR
2
C
K
RC
R
U1
U1
120
VAC
24
VAC
C
R
TRANSFORMER
THERMOSTAT
HEAT STAGE 3, COOL
STAGE 3, BACKUP HEAT
STAGE 2 FOR HEAT
PUMPS, OR GEOTHERMAL
RADIANT HEAT
1
6
2.1 Install batteries in RedLINK
accessories.
• Portable Comfort Control
• Wireless Outdoor Sensor*
• Wireless Indoor Sensor*
• Wireless Entry/Exit Remote*
• Wireless Vent and Filter Boost
Remote*
* Requires setup. See Installer
Setup options in Step 3.4.

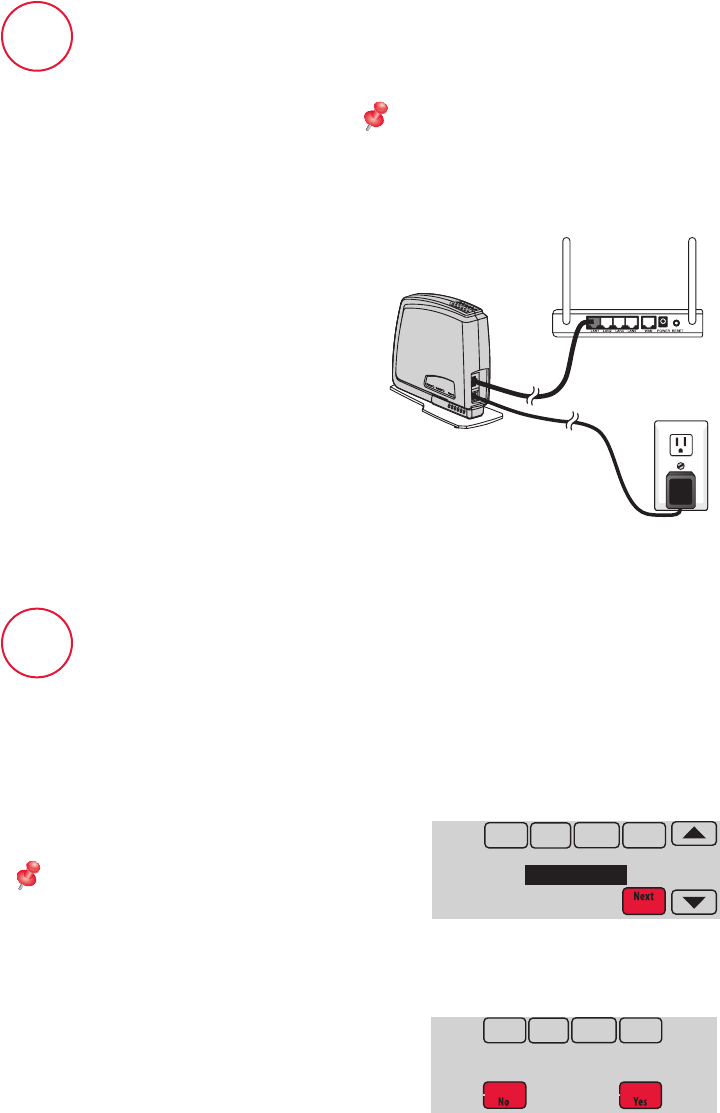

2.2 Connect gateway to internet and
connect to power.
2.2a Connect RedLINK Internet
Gateway to router or modem
with Ethernet cable (RJ45).
2.2b Connect gateway’s power cord
to an electrical outlet that is
not controlled by a wall switch.
NOTE: If the thermostat is wired
directly to the equipment, 24VAC (C
wire) is required to connect RedLINK
accessories. Turn on 24VAC before
performing initial setup in Step 3.
Initial setup options define the type of system you are installing:
• Residential or commercial
• Non-zoned or zoned
• Used with or without an Equipment Interface Module (THM5421)
• Used with or without the TrueZONE Wireless Adapter (THM4000)
3.1 Follow prompts on the screen to
select the appropriate options.
NOTE: If you are connecting the
thermostat to the TrueZONE Wireless
Adapter (THM4000), refer to the
TrueZONE instructions to link the
thermostat and RedLINK accessories.
Then go to Step 3.4.
3.2 When you see the prompt Connect
RedLINK Accessories? Touch No or Yes.
• If you select No, continue to Step 3.4.
• If you select Yes, you will be prompted
to Press Connect on New Accessories.
Continue to Step 3.3.
2.2a
2.2b
MCR33970
Connect RedLINK
Accessories?
APPLICATION
residential
2Powering optional RedLINK accessories
3Performing initial setup
7

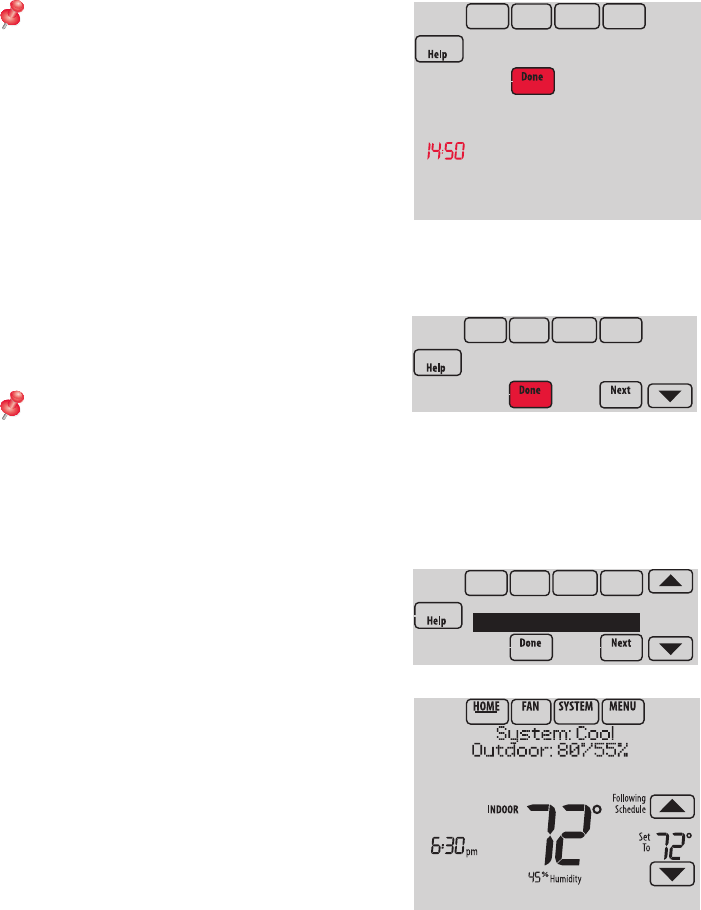

3.3 Connect each RedLINK accessory.
NOTE: Accessories must be at least 2
feet away from the thermostat during the
linking process.
3.3a While the Press Connect message
is displayed (listening mode), press
and quickly release the CONNECT
button on each new RedLINK
accessory.
3.3b After a short delay (up to 15
seconds), check thermostat to
confirm the connection of each
RedLINK accessory. Touch s or t
to review the list.
3.3c Touch Done at the thermostat after
all new RedLINK accessories are
connected.
NOTE: Thermostat displays a
countdown timer while in the listening
mode. If it detects no activity for 15
minutes, it exits listening mode.
3.4 Finish the initial setup.
Finish the setup by selecting the desired
options. Touch Done after you select the
last option you want to change.
The thermostat now displays its Home screen
and the thermostat setup is complete.
THERMOSTAT TYPE
programmable
Outdoor Sensor
has been added
Press Connect on
New Accessories.
Listening mode
8
• To add or remove RedLINK accessories
• To make changes to Installer Setup
• To perform an Installer Test
Finding your password
You can find the date code
on the back of the thermostat,
or
1 Touch Menu.
2 Select Dealer Information.
3 Scroll down to see the Date Code.
Linking RedLINK accessories to the
thermostat
1 Touch Menu.
2 Select Installer Options.
3 Enter password (date code) and
touch Done.
4 Select Wireless Manager.
Wireless Manager
Reset To Defaults
Enter password
0 0 0 0
Installer Options
TH8321R1001
Date Code: 1324
Dealer Information
Installer Options
4Finding your password (Date Code)
Residential/Résidentiel
1-800-468-1502
http://yourhome.honeywell.com
Commercial/Commerciale
1-888-245-1051
http://customer.honeywell.com
Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
Residential/Résidentiel
1-800-468-1502
http://yourhome.honeywell.com
Commercial/Commerciale
1-888-245-1051
http://customer.honeywell.com
Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
Thermostat (back view)
Password
(Date Code)
9
5 Select Add Device. The screen displays “Press
Connect on New Accessories.” The thermostat
is now in listening mode.
NOTE: Accessories must be at least 2
feet away from the thermostat during the
linking process.
5a Press and quickly release the CONNECT
button on each new RedLINK accessory.
5b After a short delay (up to 15
seconds), check thermostat to
confirm the connection of each RedLINK
accessory. Touch s or t
to review the list.
5c Touch Done at the thermostat after all
new RedLINK accessories are connected.
NOTE: Thermostat displays a count-down
timer while in the listening mode. If it
detects no activity for 15 minutes,
it exits listening mode.
Making changes to Installer Setup and performing an Installer Test
NOTE: Use a microSD card to save
set up time. See next page.
1 Touch Menu.
2 Select Installer Options.
3 Enter password (date code) and
touch Done.
4 Select Installer Setup or Installer Test.
5 Follow prompts on the screen to select
the desired setup options or to perform an
equipment test.
MCR33977
Enter password
0 0 0 0
Installer Options
MCR34015
Installer Setup
Installer Test
Press Connect on
New Accessories.
Outdoor Sensor
has been added
Add Device
Connected Devices
Listening mode
10
Using a microSD card for setup, data logs and software upgrades
Use a microSD (secure digital) card to save setup time by loading Installer Setup settings,
Dealer Information, Holiday Schedules, and Custom Reminders to multiple thermostats.
For troubleshooting help, you can save the thermostat Data Logs (Alerts Log and
Interaction Log) to a microSD card - then view them on your computer. Also use the
microSD card to upgrade the thermostat software.
Loading Dealer Information and New Thermostat Software:
1 Visit http://thermostatsetup.honeywell.com
to enter your dealer information or load new
thermostat software.
2 Connect a microSD USB Adapter to your
computer to download the file(s).
3 After the file(s) are downloaded, remove the
microSD card from the adapter and insert into
thermostat.
To use the microSD card in the thermostat:
1 Slide card into the bottom of thermostat.
2 Select the item to load or save.
3 Follow the prompts on the screen.
• To add information from the card to the
thermostat, select Load from SD Card.
• To put thermostat information on the
card, select Save to SD Card.
4 When you are finished, touch Done, then
Home, and remove the microSD card.
To replace a thermostat
When you replace a thermostat, you must reset the RedLINK
accessories before connecting them to the new thermostat. Follow
the instructions below:
At the Portable Comfort Control:
Press and hold the blank space (or arrow) in the lower
right hand corner of the screen until the display changes
(hold for about 4 seconds). Press REMOVE, then YES
to disconnect from the old thermostats. To reconnect the
thermostat, go to Step 3.2.
At the Indoor Sensor, RedLINK Internet Gateway,
Entry/Exit Remote, Vent-Filter Boost Remote or
TrueSTEAM Wireless Adapter:
Press and hold the CONNECT button on the accessory
until the status light glows amber (hold for about 10
seconds). To reconnect the thermostat, go to Step 3.2.
At the Equipment Interface Module (EIM):
Press and hold the CONNECT button on the EIM until
the CONNECTED LED glows amber (hold for about 10
seconds). Follow the prompts on the screen to connect the
new thermostat to the EIM.
Press and hold
Portable Comfort
Control
Installer Setup
Dealer Information
microSD
card
USB
adapter
Computer
microSD
card
Thermostat
11
Specifications and replacement parts
Operating Ambient Temperature
Thermostat: 32 to 120° F (0 to 48.9° C)
Portable Comfort Control: 32 to 120° F (0 to 48.9° C)
Wireless Outdoor Sensor: -40 to 140° F (-40 to 60° C)
Wireless Indoor Sensor: 0 to 120° F (-17.8 to 48.9° C)
-For Optimal Battery Life: 35 to 114° F (1.7 to 45.6° C)
Equipment Interface Module: -40 to 165° F (-40 to 73.9° C)
Return Air Sensor: 0 to 200° F (-17.8 to 93.3° C)
Discharge Air Sensor: 0 to 200° F (-17.8 to 93.3° C)
RedLINK Internet Gateway: 32 to 120° F (0 to 48.9° C)
Operating Relative Humidity
Thermostat: 5% to 90% (non-condensing)
Portable Comfort Control: 5% to 90% (non-condensing)
Wireless Outdoor Sensor: 0% to 100% (condensing)
Wireless Indoor Sensor: 5% to 90% (non-condensing)
Equipment Interface Module: 5% to 95% (non-condensing)
RedLINK Internet Gateway: 5% to 95% (non-condensing)
Physical Dimensions (height, width, depth)
Thermostat: 4-15/16 x 4-5/8 x 1-1/8 inches (126 mm x 118 mm x 29 mm)
Equipment Interface Module: 9-5/16 x 4-13/16 x 1-19/32 inches (91 x 147 x 42 mm)
Wireless Outdoor Sensor: 5 x 3-1/2 x 1-11/16 inches (127 x 89 x 43 mm)
Wireless Indoor Sensor: 2-7/8 x 1-7/8 x 15/16 inches (74 x 48 x 24 mm)
Portable Comfort Control: 6-1/4 x 3-1/8 x 1-5/8 inches (158 x 80 x 38 mm)
RedLINK Internet Gateway: 6 x 4-7/8 x 2-1/2 inches (152 x 124 x 64 mm)
RedLINK Communication
Frequency: 900 Mhz frequency range
Re-Sync Time: RedLINK devices re-establish communication within 6 minutes after AC power resumes.
Electrical ratings
Terminal Voltage (50/60 Hz) Max. Current Rating
W - OB 18 to 30 VAC and 750 mVDC 1.00A
Y (cooling) 18 to 30 VAC 1.00A
G (fan) 18 to 30 VAC 0.50A
W2 - Aux (heating) 18 to 30 VAC 0.60A
Y2 (cooling) 18 to 30 VAC 0.60A
A-L/A (output) 18 to 30 VAC 1.00A
U1/U1 30 VAC max. 0.50A
Accessories and replacement parts
Accessories / Replacement Parts Part Number
Equipment Interface Module YTHM5421R1010, THM5421R1021
Wireless Adapter for TrueZone, TrueSteam, or extend wireless range of EIM THM4000R1000
RedLINK Internet Gateway THM6000R1002
Wireless Entry/Exit Remote REM1000R1003
Wireless Vent and Filter Boost Remote HVC20A1000
Portable Comfort Control REM5000R1001
Wireless Outdoor Sensor C7089R1013
Wireless Indoor Sensor C7189R1004
Wireless Outdoor Sensor 10k ohm NTC C7089U1006
Wired Wall-mount Indoor Sensor 10k ohm NTC C7189U1005
Wired Flush-mount Indoor Sensor 20k ohm NTC C7772A1004, C7772A1012
Wired Wall-mount Indoor Sensor 20k ohm NTC TR21
Wired Wall-mount Indoor Sensor 10k ohm NTC TR21-A
Supply or Return Air Sensor 10k ohm NTC C7735A1000
Supply or Return Air Sensor 20k ohm NTC C7041
Supply or Return Air Sensor 20k ohm NTC C7770A1006
Cover Plate (covers marks left by old thermostats) THP2400A1019
Wire Saver Module THP9045A1023
Automation and Control Systems
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://customer.honeywell.com
® U.S. Registered Trademark.
© 2012 Honeywell International Inc.
69-2760—01 M.S. 11-12
Printed in U.S.A. 69-2760-01
TM
Model Numbering TH8321 TH8320 TH8110
Stages 3H/2C HP
2H/2C CONV
3H/2C HP
2H/2C CONV
1H/1C HP
1H/1C CONV
Residential or Commercial P P P
Dual Powered - C Wire or Battery P P P
Onboard Humidity Sensor P
Number of Universal Relays 1 0 0
Number of Universal Sensor Inputs 1 1 1
Economizer / TOD Output P P
Works with Optional Equipment Interface Module* P P P
Works with Optional TrueZONE Wireless Adapter* P P P
* The relay outputs and inputs on the thermostat do not function when used with an Equipment Interface Module or
the TrueZONE Wireless Adapter.
* If the thermostat has been setup WITHOUT an Equipment Interface Module or the TrueZONE Wireless Adapter
and you would like to add one, you must reset the thermostat back to factory defaults. Press MENU > Installer
Options > scroll down to select Reset to Defaults.
DISCONNECT POWER BEFORE INSTALLATION. Can cause electrical shock or equipment
damage.
This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate
MERCURY NOTICE: If this product is replacing a control that contains mercury in a sealed
tube, do not place the old control in the trash. Contact the Thermostat Recycling Corporation at
www.thermostat-recycle.org or 800-238-8192 for information on how and where to properly and
safely dispose of your old thermostat.
Must be installed by a trained, experience technician. Read these instructions carefully.
Failure to follow these instructions can damage the product or cause a hazardous condition.
Need Help?
For assistance please visit
http://customer.honeywell.com,
or call toll-free:
1-800-468-1502 (residential installation)
1-888-245-1051 (commecial installation) Scan for more information

Navigation menu
