MS9500 Voyager™ Series

MS9500 Voyager™ Series

Single-Line Hand Held Laser Scanner

User's Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in

specifications and other information contained in this document without prior

notice, and the reader should in all cases consult HII to determine whether any

such changes have been made. The information in this publication does not

represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained

herein: nor for incidental or consequential damages resulting from the furnishing,

performance, or use of this manual.

This document contains propriety information that is protected by copyright. All

rights reserved. No part of this document may be photocopied, reproduced, or

translated into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

Trademarks

Voyager, VoyagerCG, MetroSelect, MetroSet, and CodeGate are a trademarks

or registered trademarks of Metrologic Instruments, Inc. in the United States

and/or other countries.

Microsoft, Windows, and Windows 95 are trademarks or registered trademarks of

Microsoft Corporation.

IBM is a trademark of International Business Machines Corporation.

Other product names mentioned in this manual may be trademarks or registered

trademarks of their respective companies and are the property of their respective

owners.

Patents

For patent information, please refer to www.honeywellaidc.com/Patents.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories ................................................................................. 2

Scanner Components ....................................................................................... 4

The PowerLink Cable

Disconnecting ............................................................................................... 5

Connecting ................................................................................................... 5

Labels ............................................................................................................... 6

Maintenance ..................................................................................................... 6

Installing the Scanner to the Host System

RS232, Laser Emulation, and Light Pen Emulation .......................................... 7

RS485 .............................................................................................................. 8

Keyboard Wedge .............................................................................................. 9

Stand-Alone Keyboard ................................................................................... 10

Integrated USB

Full Speed .................................................................................................. 11

Low Speed ................................................................................................. 11

The MS9540 VoyagerCG Series

How to Use CodeGate and the Manual Activation Mode ............................... 12

Three Modes of Operation .............................................................................. 12

Stand Kits

Types .............................................................................................................. 13

Assembly ........................................................................................................ 14

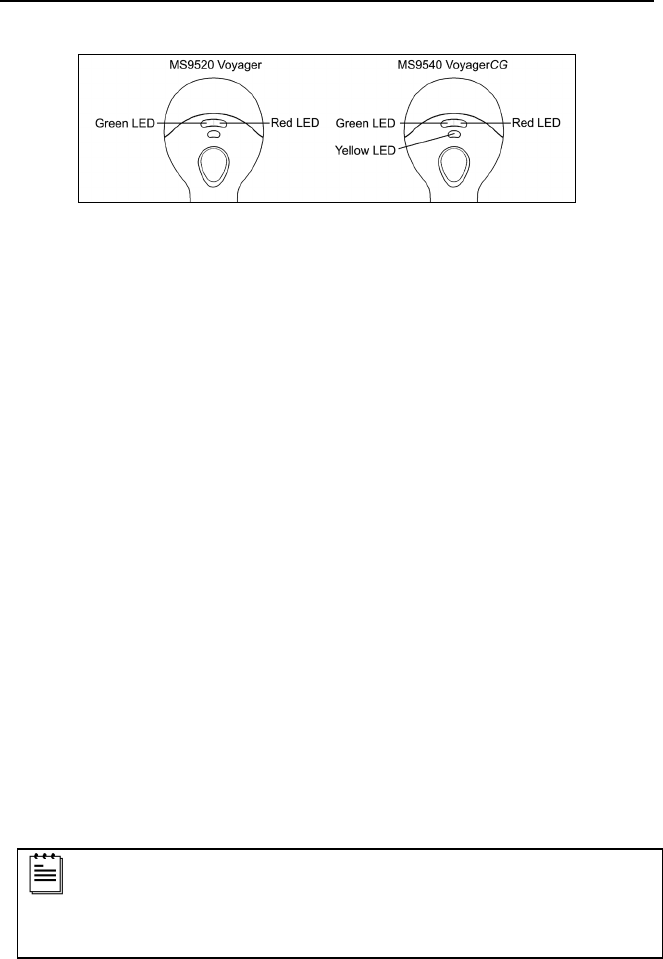

Indicators

Audible ........................................................................................................... 17

Visual .............................................................................................................. 18

Failure Modes ................................................................................................. 19

Configuration Modes .......................................................................................... 20

Upgrading the Firmware ..................................................................................... 23

Depth of Field ..................................................................................................... 24

iii

TABLE OF CONTENTS

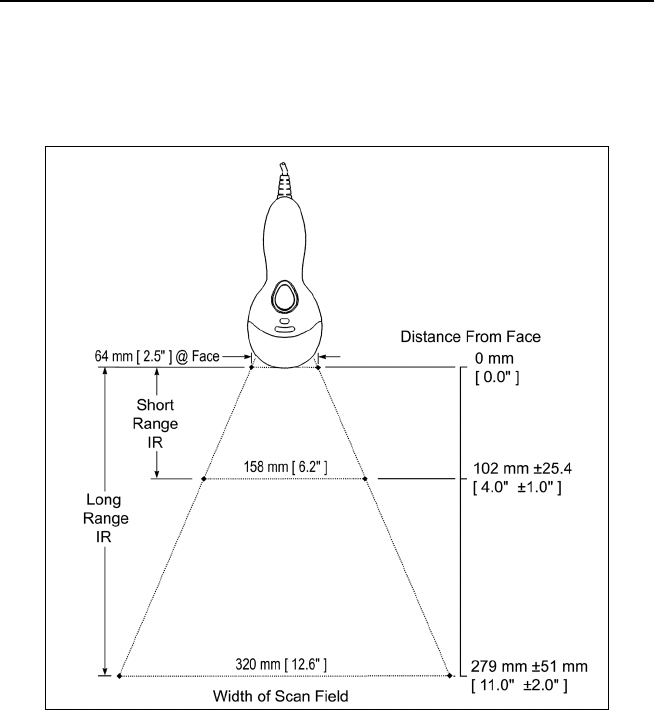

IR Activation Range ............................................................................................ 25

Applications and Protocols ................................................................................. 26

Troubleshooting Guide ....................................................................................... 27

Design Specifications

Operational ..................................................................................................... 30

Mechanical ..................................................................................................... 31

Electrical ......................................................................................................... 31

Environmental ................................................................................................ 31

Scanner and Cable Terminations

Scanner Pinout Connections .......................................................................... 32

Cable Connector Configurations .................................................................... 34

Limited Warranty ................................................................................................ 36

Regulatory Compliance

Safety ............................................................................................................. 37

EMC ............................................................................................................... 38

Index ................................................................................................................... 40

Customer Support .............................................................................................. 42

Technical Assistance ...................................................................................... 42

Product Service and Repair ............................................................................ 42

INTRODUCTION

Product Overview

Honeywell’s MS9500 Voyager™ series of hand-held (single-line) laser scanners

offers the user an aggressive solution for scanning all standard 1D bar codes

including GS1 DataBar™ (RSS) bar codes. The MS9500 series is equipped with

both in-stand and out-of-stand operation enabling hand-held or fixed projection

scanning. The MS9520 Voyager model includes all of the same features as the

MS9540 VoyagerCG™ model, with the exception of Honeywell’s patented

CodeGate™ technology.

The MS9540, VoyagerCG incorporates Honeywell’s patented auto-trigger and

CodeGate button feature. When a bar code is place in the scanner’s IR range,

the auto-trigger activates the laser enabling the user to align the visible laser line

over the bar code selected for scanning. The user can then press the CodeGate

button, to transmit the data to the host system. When the MS9540 is placed in

the stand the CodeGate button feature will automatically deactivating for hands

free operation.

Some additional key product features for the MS9500 series include:

• Auto-trigger operation and auto-stand detect

• CodeGate data transmission technology (MS9540 only)

• Flash – upgradeable firmware

• Easy configuration with MetroSelect™ bar codes and MetroSet™2

Windows®

• Support for common interfaces including USB (see chart below)

compatible software

VOYAGER VOYAGERCG INTERFACE

MS9520 – 00 MS9540 – 00 Laser Emulation RS232 Transmit/Receive

MS9520 – 11 MS9540 – 11 RS485

MS9520 – 14

, RS232 (TXD, RXD, RTS, CTS)

MS9540 – 14 RS232 (TXD, RXD, RTS, CTS, DTR, DSR)

MS9520 – 38 MS9540 – 38 Low Speed USB*, TTL RS232 (TXD, RXD, RTS,

CTS)

MS9520 – 40 MS9540 – 40 Full Speed USB, RS232 (TXD, RXD, RTS, CTS)

MS9520 – 41 MS9540 – 41 RS232/Light Pen Emulation

MS9520 – 47 MS9540 – 47 Keyboard Wedge, Stand-Alone Keyboard and TTL

RS232 Transmit/Receive

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode. The default

setting is Keyboard Emulation Mode.

 Applicable for IBM®

host applications.

INTRODUCTION

Scanner and Accessories

BASIC KIT

Part # Description

MS9520

MS9540

Voyager Bar Code Scanner

VoyagerCG Bar Code Scanner with CodeGate

00-02544 MetroSelect Single-Line Configuration Guide*

00-02410 MS9500 Voyager Series Single-Line Hand Held Laser

Scanner User’s Guide*

* Available for download at - www.honeywellaidc.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.

46-00525 90VAC to 255VAC, United States, Canada and Japan

46-00526 90VAC to 255VAC, Continental European

46-00527 90VAC to 255VAC, United Kingdom

46-00528 90VAC to 255VAC, Australia

46-00529 90VAC to 255VAC, China

53-53000x-3 RS232 PowerLink Cable with Built in Power Jack

Black, Coiled Cord, with Long Strain Relief

59-59000x-3 RS232 PowerLink Cable with Built in Power Jack

Black, Straight cord, with Short Strain Relief

53-53002x-3 Keyboard Wedge PowerLink Cable with Adapter Cable

Black, Coiled cord, with Long Strain Relief

53-53020x-3 Stand Alone Keyboard Wedge PowerLink Cable

Black, Coiled cord, with Long Strain Relief

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or a customer service representative.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part # Description

53-53213x-N-3 USB Full Speed Cable Locking Plus-Power™ Type A,

Black, Coiled Cord with Long Strain Relief

53-53214x-N-3

USB Full Speed Cable Locking Plus-Power™ Type A,

Black, Coiled Cord with Long Strain Relief, Extended

Length

Not for use with Low Speed USB scanners.

Use with Full Speed USB scanners only.

53-53235x-N-3 USB Low Speed Communication Cable, Type A

Black, Coiled Cord with Long Strain Relief

MVC** RS485

** Contact a customer service representative for additional information on

the MVC converter cable series and the host connections available.

MVC Cable ±12VDC to +5.2VDC

46-46128 Free-Standing Stand with Accessories

46-46351 Hard Mount Accessory Kit (used with kit #46-46128)

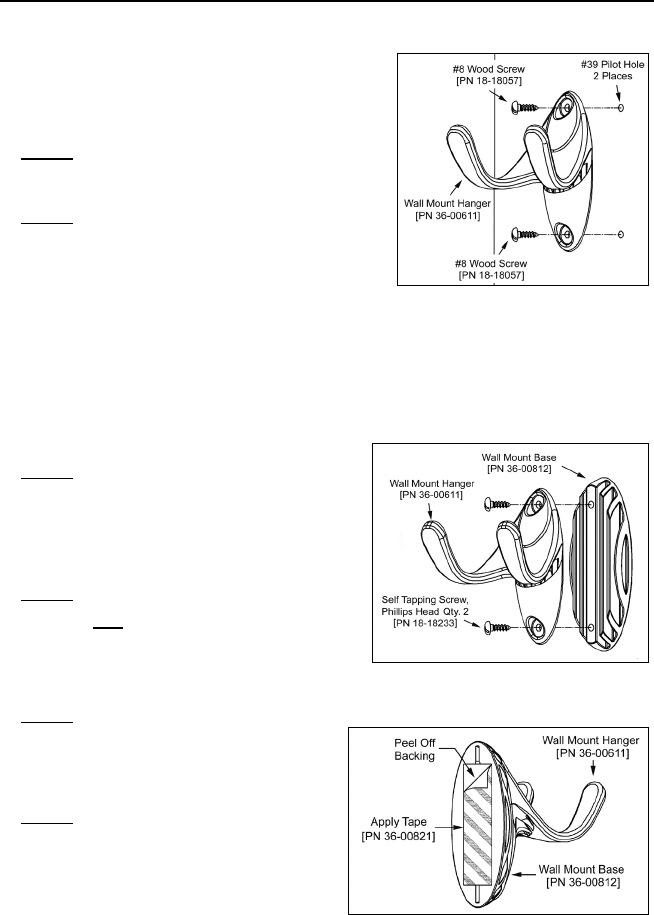

46-46508 Wall Mount Hanger Accessory Kit

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or a customer service representative.

INTRODUCTION

Scanner Components

No. Item Description

1 Green LED See Visual Indicators

♦ on page 18

2 Red LED See Visual Indicators

♦ on page 18

3 Yellow LED See Visual Indicators

♦♦ on page 18

4 Button See How to use CodeGate

♦♦ on page 12

5 Red Window Laser Aperture

6 Speaker See Audible Indicators on page 17

7 Cable Release Pin-Hole

See The PowerLink Cable on page 5

8 Cable Connection 10-pin RJ45, Female Socket,

See Scanner Pinout Connections on page 32

Figure 1. Scanner Components

♦ In some custom units the standard green LED has been replaced with a

blue LED and the red LED has been replaced with a white LED.

♦♦

Items are provided with the MS9540, VoyagerCG model only.

INTRODUCTION

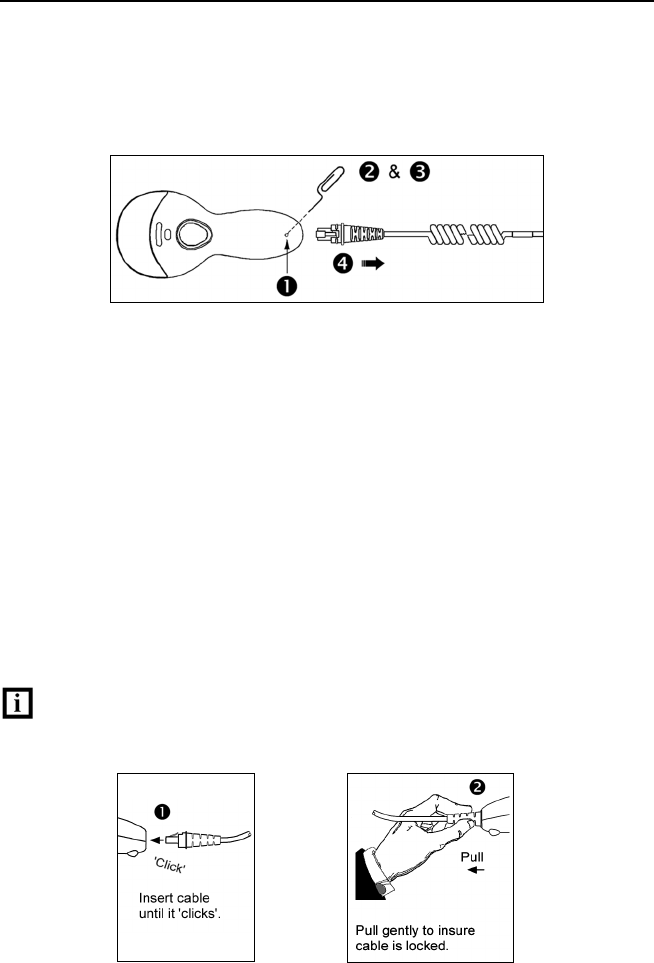

Disconnecting the PowerLink Cable

Before removing the cable from the scanner, Honeywell recommends that the

power on the host system is off and the power supply has been disconnected

from the PowerLink cable.

Figure 2.

1. Locate the small ‘pin-hole’ on the top of the unit near the bottom of the

scanner.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. There will be an audible click when the connector lock releases. Pull gently

on the strain-relief of the PowerLink cable to separate the cable from the

scanner.

Connecting the PowerLink Cable

Important: If the PowerLink cable is not fully latched, the unit can power

intermittently.

Figure 3.

Figure 4.

INTRODUCTION

Labels

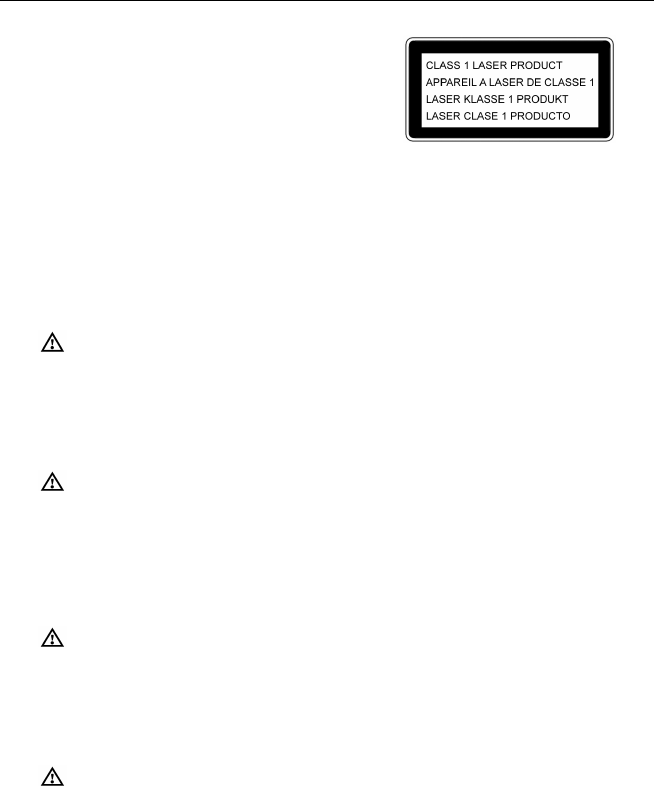

Every scanner has labels and molded text located on the underside of the unit.

The labels and text contain important information such as the unit’s date of

manufacture, serial number, CE and caution information. Figure 5 provides

examples of the labels and the molded text.

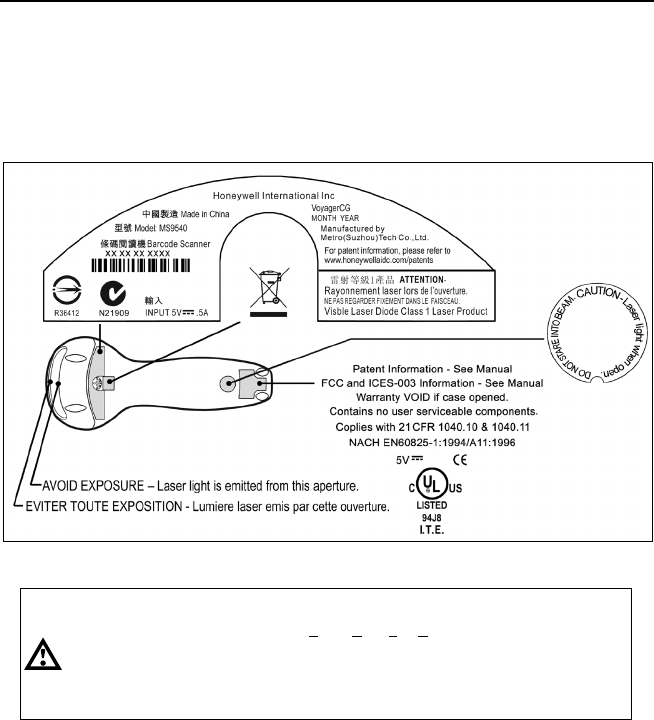

Figure 5 . Molded Text and Label Examples

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner

must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm

EN/IEC 60950-1, the power source should meet applicable performance requirements for

a limited power source.

Maintenance

Smudges and dirt on the unit's window can interfere with the unit's performance.

If the window requires cleaning, use only a mild glass cleaner containing no

ammonia. When cleaning the window, spray the cleaner onto a lint free,

non-abrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not

contain strong oxidizing chemicals. Strong cleaning agents may discolor or

damage the unit's exterior.

INSTALLING THE SCANNER TO THE HOST SYSTEM

RS232, Laser Emulation, and Light Pen Emulation

1. Turn off the host system.

2. Connect the 10-pin RJ45 male

connector into the jack on the

scanner. There will be an audible

click when the connector lock

engages.

If the scanner is receiving

power from the host system,

skip to step #5.

3. Connect the L-shaped plug of the

power supply into the power jack

on the PowerLink cable.

4. Verify the AC input requirements of

the power supply match the AC

outlet. Connect the power supply

into an AC outlet. The outlet should

be near the equipment and easily

accessible.

5. Connect the PowerLink cable to

the proper port on the host system.

6. Turn on the host system.

Plugging the scanner into a port on the host system does not guarantee

that scanned information will be communicated properly to the host

system. Please refer to the MetroSelect Single-Line Configuration

Guide or MetroSet2’s help files for instructions on changing the

scanner’s factory default configuration. The scanner and host system

must use the same communication protocols.

All MS95x0-00 scanners leave the factory with the Laser Emulation

Mode enabled. If you recall defaults while re-configuring your scanner

the Laser Emulation Mode will no longer be enabled. Refer to the

MS95

0-00 Laser Emulation Mode section of the MetroSelect Single-

Line Configuration Guide for information on enabling the Laser

Emulation Mode.

See caution on page 6.

Figure 6.

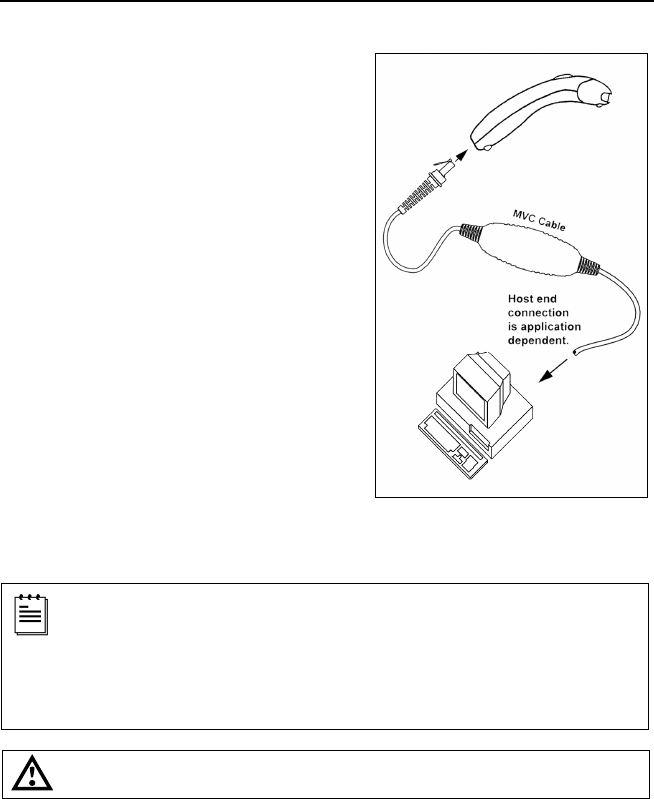

INSTALLING THE SCANNER TO THE HOST SYSTEM

RS485

1. Turn off the host system.

2. Plug the male 10-pin RJ45 end of the

MVC cable into the 10-pin socket on

the scanner. There will be an audible

click when the connection is made.

3. Connect the other end of the MVC

cable to the host device.

4. Turn on the host system.

Plugging the scanner into a port on the host system does not guarantee

that scanned information will be communicated properly to the host

system. Please refer to the MetroSelect Single-Line Configuration

Guide or MetroSet2’s help files for instructions on changing the

scanner’s factory default configuration. The scanner and host system

must use the same communication protocols.

See caution on page 6.

Figure 7.

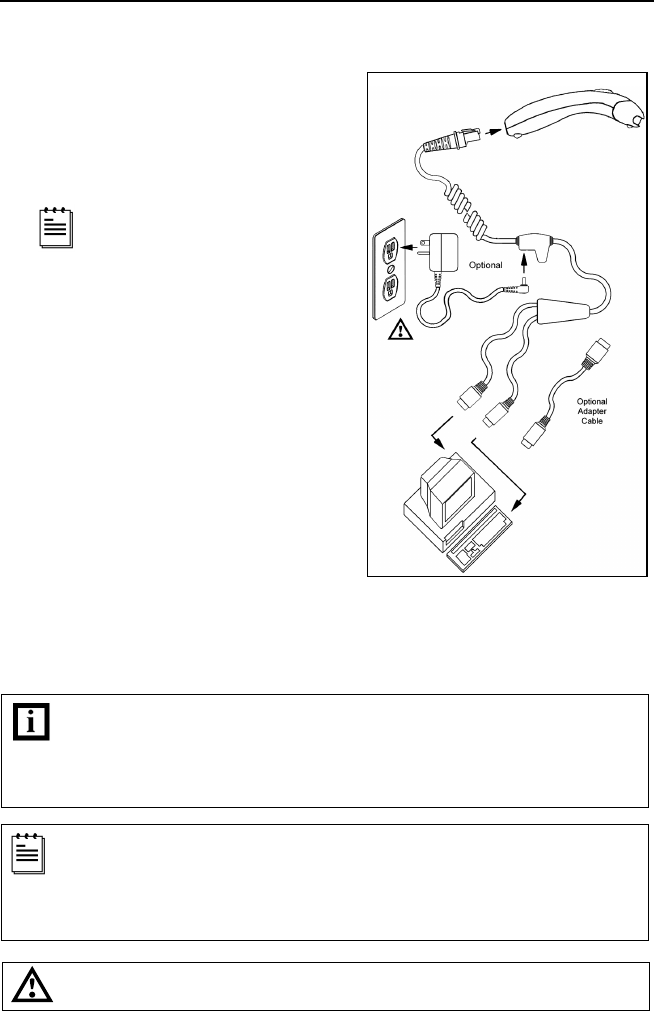

INSTALLING THE SCANNER TO THE HOST SYSTEM

Keyboard Wedge

1. Turn off the host system.

2. Connect the 10-pin RJ45 male

connector into the jack on the scanner.

There will be an audible click when the

connection is made.

If the scanner is receiving

power from the host system,

skip to step #5.

3. Connect the L-shaped plug of the

power supply into the power jack on

the PowerLink cable.

4. Verify the AC input requirements

of the power supply match the AC

outlet. Connect the power supply into

an AC outlet. The outlet should be near

the equipment and easily accessible.

5. Disconnect the keyboard from the PC.

6. Connect the PowerLink cable to the

keyboard and the PC’s keyboard port.

If necessary use the supplied adapter

cable (5-pin male DIN to 6-pin female

mini DIN adapter).

7. Power up the host system.

Plugging the scanner into a port on the host system does not guarantee that

scanned information will be communicated properly to the host system. Please

refer to the MetroSelect Single-Line Configuration Guide or MetroSet2’s help files

for instructions on changing the scanner’s factory default configuration.

The scanner and host system must use the same communication protocols.

Powering the MS95x0-47 directly from the computer can sometimes cause

interference with the operation of the scanner or the computer. Not all computers

supply the same current through the keyboard port, explaining why a scanner

may work on one computer and not another. Contact a Customer Service

Representative if you require an external power supply.

See caution on page 6.

Figure 8.

INSTALLING THE SCANNER TO THE HOST SYSTEM

Stand-Alone Keyboard

1. Turn off the host system.

2. Connect the 10-pin RJ45 male

connector into the jack on the

scanner. There will be an audible

click when the connection is made.

If the scanner is receiving

power from the host system,

skip to step #5.

3. Connect the L-shaped plug of the

power supply into the power jack

on the PowerLink cable.

4. Verify the AC input requirements

of the power supply match the AC

outlet. Connect the power supply

into an AC outlet. The outlet

should be near the equipment and

easily accessible.

5. Connect the PowerLink cable

to the keyboard port on the host

system.

6. Turn on the host system.

Powering the MS95x0-47 directly from the computer can sometimes cause

interference with the operation of the scanner or the computer. Not all computers

supply the same current through the keyboard port, explaining why a scanner

would work on one computer and not another. Contact a Customer Service

Representative if you require an external power supply.

Plugging the scanner into a port on the host system does not guarantee that

scanned information will be communicated properly to the host system. Please

refer to the MetroSelect Single-Line Configuration Guide or MetroSet2’s help files

for instructions on changing the scanner’s factory default configuration.

The scanner and host system must use the same communication protocols.

See caution on page 6.

Figure 9.

Figure 10.

INSTALLING THE SCANNER TO THE HOST SYSTEM

Integrated USB: Full Speed (-40)

Low Speed (-38)

1. Turn off the host system.

2. Connect the 10-pin RJ45 male

connector of the USB cable into the

jack on the scanner. There will be an

audible click when the connection is

made.

3. Connect the other end of the USB

cable to the host USB port.

4. Turn on the host system.

As a default, the MS95x0-38 leaves the factory with USB Keyboard

Emulation Mode enabled.

For information on configuring the MS95x0-38 for USB Serial

Emulation Mode, please refer to the USB section of the MetroSelect

Single-Line Configuration Guide (PN 00-02544).

Plugging the scanner into a port on the host system does not guarantee

that scanned information will be communicated properly to the host

system. Please refer to the MetroSelect Single-Line Configuration

Guide or MetroSet2’s help files for instructions on changing the

scanner’s factory default configuration. The scanner and host system

must use the same communication protocols.

See caution on page 6.

THE MS9540 VOYAGERCG SERIES

How to Use CodeGate and the Manual Activation Mode

CODEGATE MANUAL ACTIVATION MODE*

* This feature is not a default setting.

Refer to the MetroSelect Configuration

Guide for instructions on enabling the

Manual Activation Mode.

Figure 11. Figure 12.

Three Modes of Operation

Auto Trigger, In-Stand

• Auto-triggers while in the stand

• Bar code is automatically decoded and transmitted

CodeGate, Out-of-Stand

• CodeGate activates when removed from the stand

• Bar code data is transmitted when the button is pressed

Manual Activation Mode*, Out-of-Stand

• Button activates laser

• Bar code data is scanned and transmitted while button is held down

STAND KITS

Types

Free Standing Kit #46-46128

(Figure 13)

Kit Contains:

a. Stand .......................................................... Qty. 1

b. Apron ......................................................... Qty. 1

c. Screw, M3 x 6 mm ...................................... Qty. 2

d. Washer, #5 x .5 OD .................................... Qty. 2

e. Stand Anchor.............................................. Qty. 1

f. M3 x 20 mm Set Screw............................... Qty. 1

Optional

Hard Mount Accessory Kit #46-46351

(Figure 14)

This kit, used in conjunction with the stand kit

(#46-46128), can be used to hard mount (bolt)

the MS9500 to the countertop.

Kit Contains:

a. Screw, #8 Round Head .............................. Qty. 4

b. Base .......................................................... Qty. 1

Optional

Wall Mount Hanger Accessory Kit #46-46433

(Figure 15)

Kit Contains:

a. Screw #8 Round Head ............................... Qty. 2

b. Wall Mount Hanger ..................................... Qty. 1

Optional

Wall Mount Hanger Kit #46-46508

(Figure 16)

Kit Contains:

a. Wall Mount Hanger ..................................... Qty. 1

b. Wall Mount Base ....................................... Qty. 1

c. 4.8 x 13 mm, Self Tapping Screw .............. Qty. 2

d. Double-Sided Adhesive Tape .................... Qty. 1

e. #8 Wood Screw ......................................... Qty. 2

Figure 13.

Figure 14.

Figure 15.

Figure 16.

STAND KITS

Assembly

There are two options for assembling the stand. The first option is a self-

supporting stand that can be moved freely about on the countertop. The second

option is used if the stand will be bolted or hard-mounted to the countertop.

Stand Option 1: Self-Supported Stand Kit #46-46128

Step 1

Slide the apron over the stand.

Figure 17.

Step 2

Position the stand so that it sits

under the tab on the apron.

Then secure the apron to the

stand using the two M3 x 6 mm

screws and the two #5 washers

provided.

Figure 18.

Stand Option 2: Hard-Mount Accessory Kit #46-46351

Step 1

Drill four #39 holes in the countertop.

Figure 19.

Step 2

Secure the base to the countertop with

the four #8 wood screws provided.

Figure 20.

Stand

Apron

Stand

M3 x 6 mm

Screw

#5 Washer

Tab

Base

#8 Wood

Screw

2.00

STAND KITS

Assembly

Stand Option 2: Hard-Mount Kits #46-46128 and #46-46351

Step 3

Screw the stand anchor onto the base

assembly until it sits flush.

Step 4

Remove the logo plate on the stand by

gently using an exacto knife to release

the plate hook.

Step 5

Position the stand over the base

assembly.

Step 6

Secure the stand to the base assembly

by installing and tightening the M3 set

screw under the logo plate as shown.

Step 7

Snap the logo plate back into place.

Anchor from

Kit #46-

46128

Base Assembly from

Kit #46-

46351 or

MS951 Stand Base

Figure 21.

Figure 22.

Figure 23.

Figure 24.

Figure 25.

STAND KITS

Assembly

Wall Mount, Option 1:

For Kit #46-46508

Step 1

Drill two #39 pilot holes 3.00″ apart.

Step 2

Attach the Wall Mount Hanger to the wall

with the two #8 wood screws provided.

Wall Mount, Option 2:

Kit #46-46508

Step 1

Attach the Wall Mount Base to the

Wall Mount Hanger with the two

4.8 x 13 mm self-tapping screws.

Step 2

Remove one

side of the protective

backing from the double-sided

adhesive tape.

Step 3

Attach the tape to the back of the

Wall Mount Hanger as shown.

Step 4

Remove the protective backing from

the double-sided adhesive tape and

apply hook to the wall.

Figure 26.

Figure 27.

Figure 28.

INDICATORS

Audible

When the Voyager is in operation, it provides audible feedback. These sounds

indicate the status of the scanner. Eight settings are available for the tone of the

beep (normal, six alternate tones and no tone). To change the beeper tone, refer

to the MetroSelect

Single-Line Configuration Guide or MetroSet2’s help files.

One Beep

When the scanner first receives power, the green* LED will turn on, the red*

LED will flash, and the scanner will beep once. The scanner is ready to scan.

When the scanner successfully reads a bar code, the red LED will flash and

the scanner will beep once.

Three Beeps

During Operation

When entering the configuration mode, the red* LED will flash while the

scanner simultaneously beeps three times.

When exiting the configuration mode, the scanner will beep three times and

the red LED will stop blinking.

Three beeps can also indicate a communication timeout during normal

scanning mode if the scanner is configured to give this indication.

During Start-up

This is a failure indicator. Refer to “Failure Modes” on page 19.

Three Beeps

When using the single-code-configuration method, the scanner will sound a

3-combination tone (a single beep then a short pause followed by, a high tone,

and a low tone). This beep sequence signals that the single configuration bar

code has successfully configured the scanner.

Razzberry Tone

On startup, this tone indicates a failure mode. Refer to “Failure Modes" on

page 19.

When in configuration mode, a short razzberry tone will sound if an invalid bar

code is scanned.

* In some custom units the standard green LED has been replaced with a blue LED and

the red LED has been replaced with a white LED.

INDICATORS

Visual

Figure 29. LED Configuration

The MS9540 has three LED indicators located on the head of the scanner.

The MS9520 has two LED indicators located on the head of the scanner.

When the scanner is in operation, the flashing, or stationary activity of the LEDs

indicates the status of the scanner and the current scan.

All LEDs are Off

The LEDs will not be illuminated if the scanner is not receiving power from the

host or transformer.

The scanner is in stand-by mode, and CodeGate is enabled. Present a bar

code to the scanner and the green LED will turn on when the laser turns on.

Steady Yellow (MS9540’s Only)

The CodeGate button is not active. If a bar code is in the scan field, the laser

will turn on. The bar code will be decoded and transmitted to the host

automatically.

Steady Green

When the laser is active, the green LED is illuminated. The green* LED will

remain illuminated until the laser is deactivated (default mode only).

Steady Green and Single Red Flash

When the scanner successfully reads a bar code, the red* LED will flash and

the scanner will beep once. If the red LED does not flash or the scanner does

not beep once, then the bar code has not been successfully read (default mode

only).

After a successful scan, the scanner transmits the data to the host

device. Some communication modes require that the host inform the

scanner when data is ready to be received. If the host is not ready to

accept the information, the scanner’s red LED will remain on until the

data can be transmitted.

* In some custom units the standard green LED has been replaced with a blue LED and

the red LED has been replaced with a white LED.

INDICATORS

Failure Modes

Razzberry Tone – On Start-Up

This indicates the scanner has experienced a flipper/motor failure.

Return the unit for repair to an authorized service center.

Continuous Razzberry Tone with all LEDs Off

If, upon power, the scanner emits a continuous razzberry tone, then the

scanner has an experienced an electronic failure. Return the unit for repair to

an authorized service center.

Three Beeps – on power up

If the scanner beeps three times on power up then the non-volatile memory

(NovRAM) that holds the scanner configuration has failed. If the scanner does

not respond after reconfiguring, return the scanner for repair to an authorized

service center.

CONFIGURATION MODES

The MS9500 Voyager has three modes of configuration.

• Bar Codes

The MS7120 can be configured by scanning the bar codes located in the

MetroSelect Single-Line Configuration Guide. This manual is available for

download at www.honeywellaidc.com.

• MetroSet2

This user-friendly Windows®

-based configuration program allows you to

simply ‘point-and-click’ at the desired scanner options. MetroSet2 is

available for download at www.honeywellaidc.com.

• Serial Configuration

This mode of configuration is ideal for OEM applications. Serial

programming mode gives the end-user the ability to send a series of

commands using the serial port of the host system. The commands are

equivalent to the numerical values of the bar codes located in the

MetroSelect Configuration Guide.

How does Serial Configuration work?

1. Each command sent to the scanner is the ASCII representation of each

numeral in the configuration bar code. The entire numeric string is framed

with an ASCII [stx] and an ASCII [etx].

EXAMPLE #1

Command for Disabling Codabar

Command = [stx]100104[etx]

String Sent to Scanner = 02h 31h 30h 30h 31h 30h 34h 03h

(All values are hexadecimal).

2. If the command sent to the scanner is valid, the scanner will respond with an

[ack].

3. If the command sent to the scanner in invalid, the scanner will respond with

a [nak].

NOTE: If this occurs, the end-user must start over at the very beginning of

the configuration sequence. Re-transmitting the invalid command

will not work, the user must start over.

CONFIGURATION MODES

4. During configuration, the motor and laser turn off. YOU CANNOT SCAN A

BAR CODE WHILE IN SERIAL CONFIGURATION MODE.

5. There is a 20 second window between commands. If a 20 second timeout

occurs, the scanner will send a [nak] and you must start over.

6. To enter serial configuration mode, send the following command

[stx]999999[etx].

7. To exit serial configuration mode, send the following command

[stx]999999[etx], the scanner will respond with an [ack] followed by 3 beeps.

8. This mode uses the current Baud Rate, Parity, Stop Bits and Data Bits

settings that are configured in the scanner. The default settings of the

scanner are 9600, Space, 2, 7 respectively. If a command is sent to the

scanner to change any of these settings, the change will NOT take effect

until after serial configuration mode is exited.

EXAMPLE #2

The following example will set the scanner to the factory default settings,

Disable Scanning of Code 128 bar codes, change the beeper tone, and add

a “G” as a configurable prefix.

HOST

FEATURE

ASCII

COMMAND

SCANNER

REPRESENTATION

Enter Configuration Mode

RESPONSE

[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

Load Defaults [stx]999998[etx] 02h 39h 39h 39h 39h 39h 38h 03h [ack] or 06h

Disable Code 128 [stx]100113[etx] 02h 31h 30h 30h 31h 31h 33h 03h [ack] or 06h

Alternate Tone 1

[stx]318565[etx] 02h 33h 31h 38h 35h 36h 35h 03h [ack] or 06h

Configure. Prefix #1 [stx]903500[etx] 02h 39h 30h 33h 35h 30h 30h 03h [ack] or 06h

Code Byte 0 [stx]0[etx] 02h 30h 03h [ack] or 06h

Code Byte 7 [stx]7[etx] 02h 37h 03h [ack] or 06h

Code Byte 1 [stx]1[etx] 02h 31h 03h [ack] or 06h

Exit Configuration Mode [stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

The scanner will beep three times!

The commands sent to the scanner do not include the small superscripted

‘3’ that you see in front of each bar code string in the MetroSelect manual.

THE ‘3’ SHOULD NOT BE SENT. IT IS A CODE TYPE DESIGNATION

ONLY!

As you will note for commands requiring additional bar codes to be scanned

(such as prefixes, suffixes, timeouts, etc.), simply send the code bytes in the

same order that you would normally scan the bar codes.

CONFIGURATION MODES

EXAMPLE #3

The following example shows the events that occur when an invalid bar code

is sent. This sample will load the factory default settings and then set the

baud rate to 19200.

HOST

FEATURE

ASCII

COMMAND

SCANNER

REPRESENTATION

Enter Configuration Mode

RESPONSE

[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

Load Defaults [stx]99999:[etx] 02h 39h 39h 39h 39h 39h 3Ah 03h [nak] or 15h

Invalid command was sent, you must start over!

Enter Configuration Mode

[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

Load Defaults [stx]999998[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

19200 Baud Rate [stx]415870[etx] 02h 34h 31h 35h 38h 37h 30h 03h [ack] or 06h

Exit Configuration Mode [stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h

The scanner will beep three times!

This example illustrates two important points.

First, if an invalid command is sent from the host, the scanner responds with

a [nak] and the end-user must start over from the beginning.

Second, if a command is sent to change the Baud Rate, the new baud rate

does not take effect until after the end-user exits configuration mode.

ABBREVIATED ASCII TABLE

Character

Hex Value

Decimal Value

[STX] 02h 2

[ETX] 03h 3

[ACK] 06h 6

[NAK] 15h 21

0 30h 48

1 31h 49

2 32h 50

3 33h 51

34h

5 35h 53

6 36h 54

7 37h 55

8 38h 56

9 39h 57

UPGRADING THE FIRMWARE

The Voyager series is part of Honeywell’s line of scanners with flash upgradeable

firmware. The upgrade process requires a new firmware file supplied to the

customer by a customer service representative and MetroSet2 software

. A

personal computer running Windows 95 or greater with an available RS232 serial

or USB port is required to complete the upgrade.

Do not use the standard cable supplied with Keyboard Wedge or

RS485 interface kits for firmware upgrades. Use either cable

#54-54014x or #53-53014x. If using USB or RS232 for the upgrade

process, the standard USB or RS232 cable provided with the scanner

can be used.

To upgrade the firmware in the MS9520/MS9540:

1. Plug the scanner into a serial communication port on the host system.

2. Start the MetroSet2 software.

3. Click on the plus sign (+) next to POS Scanners to expand the supported

scanner list.

4. Choose the Voyager/9520 N/R or Voyager/9540 N/R from the list.

5. Click on the Configure Scanner button.

6. Choose Flash Utility from the options list located on the left side of the

screen.

7. Click on the Open File button in the Flash Utility window.

8. Locate and open the flash upgrade file supplied.

9. Select the COM port that the scanner is connected to on the host system.

10. Verify the settings listed in the Flash Utility window.

11. Click on the Flash Scanner button to begin the flash upgrade.

12. A message will appear on the screen when the upgrade is complete.

 42See Customer Support on page .

 MetroSet2 is available for download, at no additional cost, from

www.honeywellaidc.com

DEPTH OF FIELD

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E F G H J K

mm .13 .15 - - .19 - .25 .33 .53 -

mils 5.2 5.7 - - 7.5 - 10 13 21 -

Figure 30. Depth of Field

IR ACTIVATION RANGE

The scanner's laser will turn off if the scanner has been idle. When the scanner's

IR detects movement in the activation area (see figure below), the laser will

automatically turn on, preparing the scanner for bar code recognition, decoding,

and transmission. The default laser/scan mode for the MS9500 series is normal

scan.

Figure 31. Short and Long IR Activation Area

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory

default communication protocol.

Scanner Version Identifier Communication Protocol(s)

MS9520

MS9540

00 Laser Emulation and RS232 Transmit/Receive

11 RS485, RS232 - TXD, RXD, RTS, CTS

14 RS232 - TXD, RXD, RTS, CTS, DTR, DSR

38 Low Speed USB,

Serial Emulation or Keyboard Emulation

40 Full Speed Integrated USB

41 RS232/Light Pen Emulation

47 Keyboard Wedge, Stand-Alone Keyboard and

TTL RS232 Transmit/Receive

The MS9520/9540 Keyboard Wedge Series (-47) is designed for keyboard

emulation only. Many RS232 configurable functions available in other Honeywell

scanners are also available as keyboard wedge functions.

The following are the most important selectable options specific to keyboard

wedge:

Keyboard Type

• **AT (includes IBM®

• IBM PS2 (includes models 30, 70, 8556)

PS2 models 50, 55, 60, 80)

Keyboard Country Type

•

**USA

•

Italian

•

Swiss

•

Belgian

•

Japanese

•

Swedish/Finnish

•

French

•

Russian Cyrillic

•

Turkish

•

German

•

Slovenian

•

United Kingdom

•

Hungarian

•

Spanish

** Default setting. Refer to the MetroSelect®

Configuration Guide

(PN 00-02407) or MetroSet2’s help files for information on how to change the

default settings.

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a customer service

representative to preserve the limited warranty terms on page 36.

Symptoms Possible Causes Solution

All Interfaces

The unit has no

LEDs, beep or laser.

No power is being

supplied to the unit.

Check the transformer, the outlet

and power strip. Make sure the

cable is plugged into the unit.

No power is being

supplied to the unit

from host.

Some host systems cannot supply

enough current to power Voyager.

A power supply may be needed.

At power up the

unit beeps 2 times

and alternately

flashes the LEDs.

There is a ROM

failure. A flash ROM upgrade is required.

At power up the

unit beeps 3 times.

There is a non-

volatile RAM failure.

Contact a customer service

representative.

At power up there

is a continuous

razz tone.

There has been a

diagnostic failure.

At power up there

is a razz tone and

the green* LED

flashes.

There is a VLD

failure.

At power up there

is a razz tone and

both LEDs flash.

There is a scanning

mechanism failure.

The unit scans,

communicates, and

beeps twice.

The same symbol

timeout is set too

short.

Adjust the same symbol timeout for

a longer time.

The unit powers up,

but does not beep.

The beeper may be

disabled or no tone

has been selected.

Enable beeper and select a tone.

The unit powers up,

but does not scan

and/or beep.

The unit is trying to

scan a particular

symbology that is

not enabled.

UPC/EAN, Code 39, interleaved 2 of

5, Code 93, Code 128 and Codabar

are enabled by default. Verify that

the type of bar code being read has

been selected.

* In some custom units, the standard green LED has been replaced with a blue LED and the red

LED has been replaced with a white LED.

TROUBLESHOOTING GUIDE

Symptoms Possible Causes Solution

The unit powers

up, but does not

scan and/or

beep.

The bar code being

scanned does not

satisfy the configured

criteria for character

length lock or minimum

length.

Verify that the bar code being

scanned falls into the configured

criteria.

The scanner defaults to a minimum

of 3 character bar code.

The following item is only relevant for TTL RS232 and Serial Emulation USB

interfaces.

The unit scans a

bar code, but

locks up after the

first scan and the

red* LED stays on.

The unit is configured

to support some form

of host handshaking

but is not receiving the

signal.

If the unit is setup to support

ACK/NAK, RTS/CTS, XON/XOFF or

D/E, verify that the host cable and

host are supporting the handshaking

properly.

The unit scans,

but the data

transmitted to the

host is incorrect.

The unit’s data format

does not match the

host system’s

requirements.

Verify that the unit’s data format

matches that required by the host.

Make sure that the unit is connected

to the proper host port.

The unit beeps at

some bar codes

but NOT for

others of the

same bar code

symbology.

The bar code may

have been printed

incorrectly.

Check if it is a check digit/character

or border problem.

The unit is not

configured correctly for

the type of bar code

being scanned.

The minimum symbol

length setting does not

work with the bar code.

Check if the correct minimum

symbol length is set.

The unit scans

the bar code but

there is no data.

The unit’s configuration

is not correct.

Make sure the scanner is configured

for the appropriate mode.

The host is

receiving data

but the data does

not look correct.

The scanner and host

may not be configured

for the same interface

parameters.

Check that the scanner and the host

are configured for the same

interface parameters.

Characters are

being dropped.

Inter-character delay

needs to be added to

the transmitted output.

Add some inter-character delay to

the transmitted output by using the

MetroSelect Single-Line

Configuration Guide.

* In some custom units, the standard green LED has been replaced with a blue LED and the red

LED has been replaced with a white LED.

TROUBLESHOOTING GUIDE

Symptoms Possible Causes Solution

The following four items are relevant for a Keyboard Wedge interface only.

The unit scans

but the data is

not correct.

The unit’s configuration

is not correct.

Make sure that the proper PC type

AT, PS2 or XT is selected. Verify

the correct country code and data

format is selected. Adjust the inter-

character delay symptom.

The unit is

transmitting each

character twice.

The unit’s configuration

is not correct.

Increase the interscan code delay

setting. Adjust whether the F0

break is transmitted.

It may be necessary to try this in

both settings.

Alpha characters

show as lower

case.

The computer is in

Caps Lock mode.

Enable the Caps Lock detect feature

of the scanner to detect whether the

PC is operating in Caps Lock.

Everything works

except for a

couple of

characters.

These characters may

not be supported by

that country’s key look

up table.

Try operating the scanner in Alt

mode.

The following item is relevant for an RS232 interface only.

The unit will

power-up and

scan but does

not communicate

properly to the

host.

The com port at the

host is not working or

not configured

properly.

Check to make sure that the baud

rate and parity of the scanner and

the communication port match and

that the program is looking for

“RS232” data.

The unit will

power-up and

scan but does not

communicate

properly to the

host.

The cable is not

connected to the

proper com port.

Check to make sure that the unit is

connected to the correct com port

on the host device.

DESIGN SPECIFICATIONS

OPERATIONAL

Light Source Visible Laser Diode 650 nm

Laser Power: Less than 1 mW (peak)

Embedded Laser: Max Power: 10 mW

Wavelength: 650 nm

Depth of Scan Field: 0 mm - 203 mm (0" - 8") for

0.330 mm (13 mil) bar code at default settings

Scan Speed: 72 scan lines per second

Scan Pattern: Single scan line

Minimum Bar Width: 0.127 mm (5.0 mil)

Infrared Activation: Long Range: 0 mm – 279 mm ± 51 mm (0" – 11" ± 2")

Short Range: 0 mm – 102 mm ± 25 mm (0" – 4" ± 1")

Decode Capability: Autodiscriminates all standard bar codes for others call

a customer service representative

System Interfaces:

RS232, PC Keyboard Wedge, Stand-Alone Keyboard,

RS485, Light Pen Emulation, Laser Emulation, RS232

with DSR, Low Speed USB (Serial Emulation or

Keyboard Emulation), Full Speed USB

Print Contrast: 35% minimum reflectance difference

Number Characters

Read:

Up to 80 data characters (Maximum number will vary

based on symbology & density)

Roll, Pitch, Yaw: 42°, 68°, 52°

Beeper Operation: 7 tones or no beep

Visual Indicators:

Default Settings

Green* LED laser on, ready to scan

Red* LED good read

Yellow LED

(MS9540 Only)

ON, CodeGate button is inactive

OFF, CodeGate button is active

* In some custom units, the standard green LED has been replaced with a blue LED

and the red LED has been replaced with a white LED.

Specifications are subject to change without notice.

DESIGN SPECIFICATIONS

MECHANICAL

Length: 198 mm (7.8")

Width: Handle - 45 mm (1.8"), Head - 78 mm (3.1")

Depth: 40 mm (1.6")

Weight: 149 g (5.25 oz)

ELECTRICAL

Input Voltage: 5VDC ± 0.25V

Power:

Operating = 0.825 W typical

Standby = 0.600 W typical

Current:

Operating = 165 mA @ 5VDC typical

Standby = 120 mA @ 5VDC typical

DC Transformers: Class 2; 5.2V @ 1A

For regulatory compliance information see pages 37 – 39.

ENVIRONMENTAL

Temperature: Operating = 0°C to 40° (32° to 104°F)

Storage = -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Light Levels: Up to 4842 Lux (450 footcandles)

Shock: Designed to withstand 1.5 m (5 ft.) drops

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Specifications are subject to change without notice.

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The MS9520 and MS9540

scanner interfaces terminate to

a 10-pin modular jack.

The serial number label

indicates the interface enabled

when the scanner is shipped

from the factory.

MS95x0-41

RS232 and Light Pen Emulation

Function

Ground

RS232 Transmit Output

RS232 Receive Input

RTS Output

CTS Input

DTR Input/LTPN Source

Reserved

LTPN Data

+5VDC

Shield Ground

MS95x0-47

Keyboard Wedge and Stand-Alone Keyboard

Pin Function

Ground

TTL RS232 Transmit Output

TTL RS232 Receive Input

PC Data

PC Clock

KB Clock

PC +5V

KB Data

+5VDC

Shield Ground

MS95x0-11 RS485

Function

Ground

RS232 Transmit Output

RS232 Receive Input

RTS Output

CTS Input

DTR Input

IBM B-Transmit

IBM A+ Receive

+5VDC

Shield Ground

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

MS95x0-00 Laser Emulation

Pin Function

Ground

2 RS232 Transmit Output

3 RS232 Receive Input

Flip Sense/Start of Scan Output

Proximity Detect/Trigger Emulation Output

6 Scan/Laser Enable Input

7 Reserved

Data Out

+5VDC

10 Shield Ground

MS95x0-14 RS232

MS95x0-40 Full Speed USB &

MS95x0-38 Low Speed USB

Pin Function Pin Function

1 Ground 1 Ground

2 RS232 Transmit Output 2 RS232 Transmit Output

RS232 Receive Input

RTS Output

5 CTS Input 5 CTS Input

6 DTR Input 6 D+

Reserved

PC +5V/V_USB

DSR Out

D-

9 +5VDC 9 N/C

10 Shield Ground 10 Drain Wire

SCANNER AND CABLE TERMINATIONS

Cable Connector Configuration (Host End)

RS232 PowerLink Cable

PN 53-53000x-3

Pin Function

9-Pin Female, D-Type

1 Shield Ground

2 TTL RS232 Transmit Output

3 TTL RS232 Receive Input

4 DTR Input/Light Pen Source

5 Signal Ground

6 Light Pen Data

(DSR Out for -14 interfaces)

7 CTS Input

8 RTS Output

9 +5VDC

USB Cables

PN 53-53213x-N-3, 53-53214x-N-3 or

53-53235x-N-3

Pin Function

Locking

Type A

Non-Locking

Type A

1 PC +5V/V_USB

2 D-

3 D+

4 Ground

Shield

Stand-Alone Keyboard PowerLink

Cable PN 53-53020x-3

Function

6-Pin Male Mini-DIN Connector

1 PC Data

2 NC

3 Power Ground

4 +5VDC PC Power to KB

5 PC Clock

6 NC

SCANNER AND CABLE TERMINATIONS

Cable Connector Configuration (Host End)

Keyboard Wedge PowerLink Cable

PN 53-53002x-3

Function

5-Pin DIN, Female

1 Keyboard Clock

2 Keyboard Data

3 No Connect

4 Power Ground

5 +5 Volts DC

Function

6-Pin DIN, Male

1 PC Data

2 No Connect

3 Power Ground

4 +5 Volts DC

PC Clock

No Connect

Honeywell will supply an adapter cable with a 5-pin DIN male connector on one

end and a 6-pin mini DIN female connector on the other. According to the

termination required, connect the appropriate end of the adapter cable to the

PowerLink cable, leaving the necessary termination exposed for connecting to

the keyboard and the keyboard port on the PC.

Keyboard Wedge Adapter Cable

Function

5-Pin DIN, Male

1 PC Clock

2 PC Data

3 No Connect

4 Power Ground

5 +5 Volts DC

Function

6-pin Mini DIN, Female

1 Keyboard Data

2 No Connect

3 Power Ground

4 +5 Volts DC

Keyboard Clock

No Connect

LIMITED WARRANTY

Honeywell International Inc. ("HII") warrants its products and optional accessories to be

free from defects in materials and workmanship and to conform to HII’s published

specifications applicable to the products purchased at the time of shipment. This warranty

does not cover any HII product which is (i) improperly installed or used; (ii) damaged by

accident or negligence, including failure to follow the proper maintenance, service, and

cleaning schedule; or (iii) damaged as a result of (A) modification or alteration by the

purchaser or other party, (B) excessive voltage or current supplied to or drawn from the

interface connections, (C) static electricity or electro-static discharge, (D) operation under

conditions beyond the specified operating parameters, or (E) repair or service of the

product by anyone other than HII or its authorized representatives.

This warranty shall extend from the time of shipment for the duration published by HII for

the product at the time of purchase ("Warranty Period"). Any defective product must be

returned (at purchaser’s expense) during the Warranty Period to HII factory or authorized

service center for inspection. No product will be accepted by HII without a Return Materials

Authorization, which may be obtained by contacting HII. In the event that the product is

returned to HII or its authorized service center within the Warranty Period and HII

determines to its satisfaction that the product is defective due to defects in materials or

workmanship, HII, at its sole option, will either repair or replace the product without charge,

except for return shipping to HII.

EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE

FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR WARRANTIES,

EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT

LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, OR NON-INFRINGEMENT.

HII’S RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER THIS

WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE

PRODUCT WITH NEW OR REFURBISHED PARTS. IN NO EVENT SHALL HII BE

LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, AND, IN NO

EVENT, SHALL ANY LIABILITY OF HII ARISING IN CONNECTION WITH ANY

PRODUCT SOLD HEREUNDER (WHETHER SUCH LIABILITY ARISES FROM A CLAIM

BASED ON CONTRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE ACTUAL

AMOUNT PAID TO HII FOR THE PRODUCT. THESE LIMITATIONS ON LIABILITY

SHALL REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HII MAY HAVE BEEN

ADVISED OF THE POSSIBILITY OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME

STATES, PROVINCES, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE

LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

All provisions of this Limited Warranty are separate and severable, which means that if any

provision is held invalid and unenforceable, such determination shall not affect the validity

of enforceability of the other provisions hereof. Use of any peripherals not provided by the

manufacturer may result in damage not covered by this warranty. This includes but is not

limited to: cables, power supplies, cradles, and docking stations. HII extends these

warranties only to the first end-users of the products. These warranties are non-

transferable.

The duration of the limited warranty for the MS9500 is five (5) year(s). The accessories

have a 90 day limited warranty from the date of manufacture.

REGULATORY COMPLIANCE

Safety

ITE Equipment

IEC 60950-1 Second Edition

EN 60950-1 Second Edition

Laser

Laser Class 1: IEC 60825-1: Second Edition 2007

EN 60825-1: Second Edition 2007

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007.

LED

IEC 62471: Exempt Risk Group

Caution

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser light exposure. Under no circumstances should the

customer attempt to service the laser scanner. Never attempt to look at the laser beam, even

if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into

the device. Doing so could result in hazardous laser light exposure. The use of optical

instruments with the laser equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los

especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna

circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar

mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el

escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la

luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el

riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de

graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner

ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez que le

scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant,

vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils

optiques avec cet équipement laser augmente le risque d'endommagement de la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder

Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen

Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den

Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals

den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer

gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser

Laserausrüstung erhöht das Risiko einer Sehschädigung.

REGULATORY COMPLIANCE

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel

presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non

deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il

raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per

guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser

rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di

danni alla vista.

EMC

Emissions

FCC Part 15, ICES-003, CISPR 22, EN 55022

Immunity

CISPR 24, EN 55024

Note: Immunity performance is not guaranteed for scanner cables greater than 3 meters

in length when fully extended.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Class A Devices

The following is applicable when the scanner cable is greater

Les instructions ci-dessous s’appliquent aux cables de scanner dépassant 3 métres

(9.8 pieds) de long en extension maximale:

in length than 3 meters

(9.8 feet) when fully extended:

Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist:

This equipment has been tested and found to comply with limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at their own expense. Any unauthorized changes or modifications to this

equipment could void the user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

Notice

This Class A digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.

Warning

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

REGULATORY COMPLIANCE

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen

verursachen. In diesem Fall kann vom Betreiber verlangt werden, angemessene Massnahmen

durchzuführen.

Attenzione

Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe

causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention

Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la

cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les mesures

adéquates.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Class B Devices

The following is applicable when the scanner cable is less than 3 meters

(9.8 feet) in length when fully extended:

Les instructions ci-dessous s’appliquent aux cables de scanner ne dépassant

pas 3 métres (9.8 pieds) de long en extension maximale:

Folgendes trifft zu, wenn das Scannerkabel kürzer als 3 Meter ist:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Notice

This Class B digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.

INDEX

AC .................................. see power

accessories ............................... 2, 3

adapter .......................................... 2

cable .............................. 2–3, 27–29

adapter ....................................... 2

communication .... 1, 2–3, 5, 7–11,

29, 32–35

disconnect .................................. 5

MVC ....................................... 3, 8

pin assignments ................. 32–35

caution ..................................... 6, 37

labels ......................................... 6

laser ........................................... 6

CE ................................ see caution

CodeGate .......................... 1, 12, 18

communication ...................... 27–29

compliance ............................ 37–39

configuration .................... 20, 21, 26

converter ....................................... 3

current ......................................... 31

customer service ......................... 36

default.............................. 21, 22, 26

depth of field ................................ 24

EMC ............................................ 38

EMI .............................................. 38

emissions .................................... 38

firmware....................................... 23

green LED ...................see indicator

IBM ................ see interface: RS485

immunity ...................................... 38

indicator

audible ............................... 21, 30

failure................................. 27–29

visual ....................... 4, 27–29, 30

interface .......................... 30, 32–35

Keyboard Wedge . 1, 9, 26, 32, 35

Laser Emulation ........ 1, 7, 26, 33

Light Pen ................... 1, 7, 26, 32

RS232 ........... 1, 7, 26, 29, 33, 34

RS485 ....................... 1, 8, 26, 32

Stand Alone Keyboard . 1, 10, 32,

USB ................... 1, 11, 26, 33, 34

IR range ...................................... 25

Keyboard Wedge ........ see interface

labels ............................................ 6

laser .......................... 30, 37–39, 37

laser emulation ............ see interface

LED ............................. see indicator

light level ..................................... 31

Light Pen ..................... see interface

maintenance ................................. 6

manual .......................................... 2

output window ............................... 4

pin assignments ............... see cable

power ............................ 2, 7–11, 31

PowerLink .................. 35, see cable

protocols ..................... see interface

Red LED ..................... see indicator

regulatory compliance ........... 37–39

repair ........................................... 36

RMA ............................................ 36

RS232 ......................... see interface

RS485 ......................... see interface

INDEX

safety ........................................... 37

SELV ............................ see caution

serial number ................................. 6

specifications ......................... 30, 31

stand.................................. 3, 13–16

termination ............................. 32–35

troubleshooting ...................... 27–29

UL ................................. see caution

USB ............................ see interface

ventilation .................................... 31

voltage ................ 2, 31, see caution

warranty ...................................... 36

window ...................................... 4, 6

CUSTOMER SUPPORT

Technical Assistance

If you need assistance installing or troubleshooting your device, please contact

us by using one of the methods below:

Knowledge Base: www.hsmknowledgebase.com

Our Knowledge Base provides thousands of immediate solutions. If the

Knowledge Base cannot help, our Technical Support Portal (see below) provides

an easy way to report your problem or ask your question.

Technical Support Portal: www.hsmsupportportal.com

The Technical Support Portal not only allows you to report your problem, but it

also provides immediate solutions to your technical issues by searching our

Knowledge Base. With the Portal, you can submit and track your questions

online and send and receive attachments.

Web form: www.hsmcontactsupport.com

You can contact our technical support team directly by filling out our online

support form. Enter your contact details and the description of the

question/problem.

Telephone: www.honeywellaidc.com/locations

For our latest contact information, please check our website at the link above.

Product Service and Repair

Honeywell International Inc. provides service for all of its products through

service centers throughout the world. To obtain warranty or non-warranty service,

please visit www.honeywellaidc.com and select Support > Contact Service and

Repair to see your region’s instructions on how to obtain a Return Material

Authorization number (RMA #). You should do this prior to returning the product

Honeywell Scanning & Mobility

9680 Old Bailes Road

Fort Mill, SC 29707

www.honeywellaidc.com

00-02410 Rev M

1/13

Honeywell MS9500 User's Guide User Manual To The 80d6ad11 3baf 41d0 Ac54 D1c95c32881c

Navigation menu

Versions of this User Manual:

Views

Navigation
