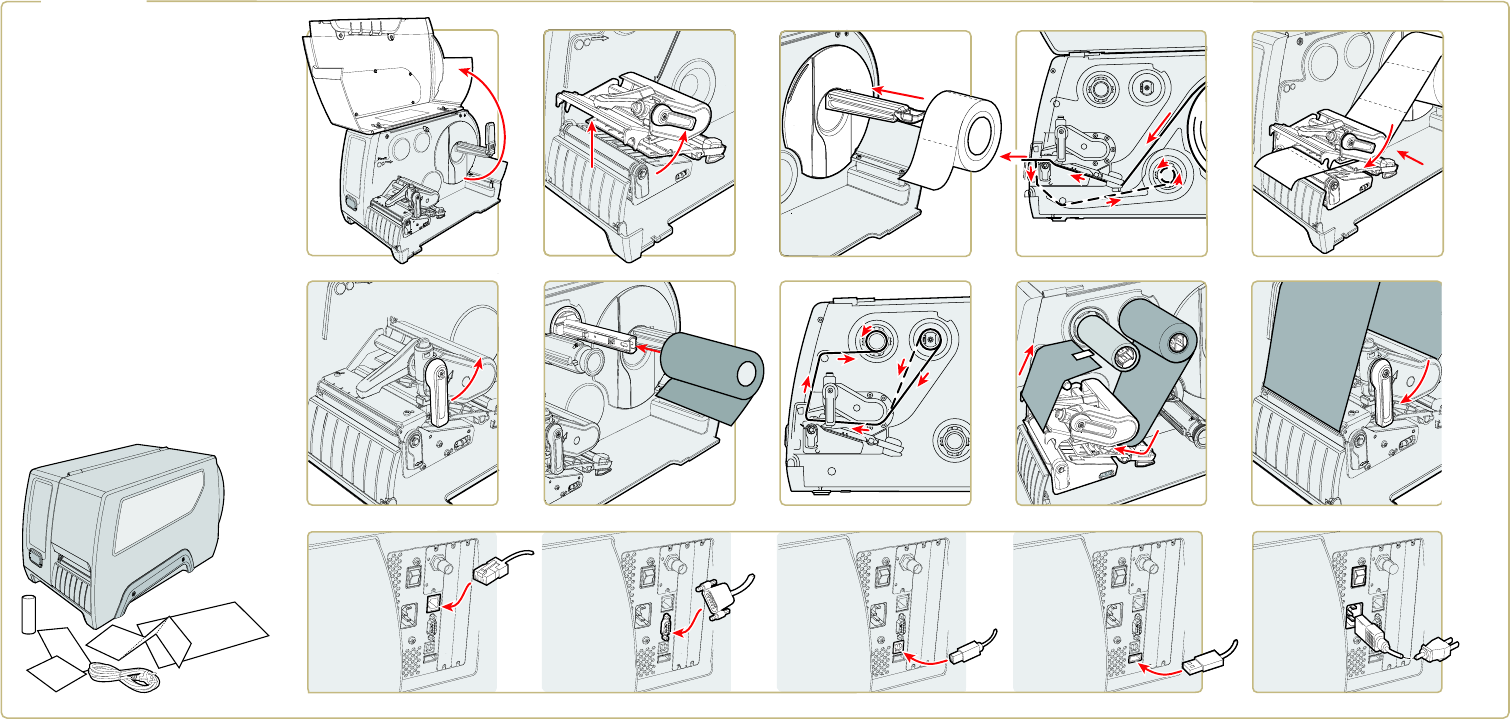

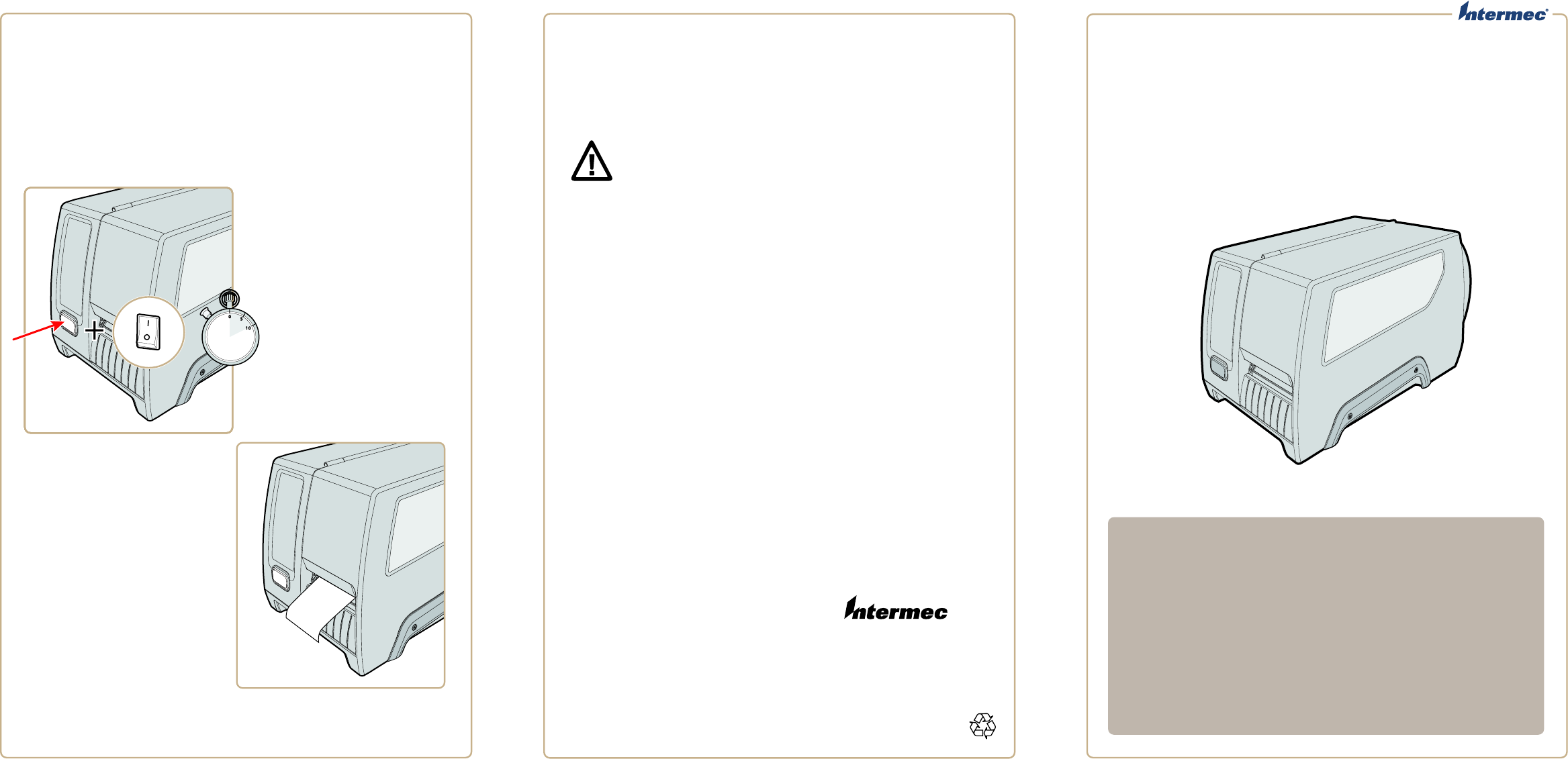

Print a Test Label
Impression d’une étiquette de test
Drucken Sie eine Testetikett
Stampa di un’etichetta di prova
Impressão de uma etiqueta de teste
Ïå÷àòü òåñòîâîé ýòèêåòêè
Impresión de una etiqueta de prueba Mid-Range Printer
Quick Start Guide
PM43 and PM43c Mid-Range Printer Quick Start Guide
*930-256-001*
P/N 930-256-001
Where to Find More Information
Où trouver d’autres détails
Verweise zu weiteren Informationen
Per ulteriori informazioni
Onde obter mais informações
Ãäå íàéòè äîïîëíèòåëüíóþ èíôîðìàöèþ
Dónde encontrar más información
www.intermec.com
In the U.S.A and Canada, call 1.800.755.5505
Caution: See Compliance Insert for use restrictions associated with this product.
Attention: Consultez la Déclaration de conformité pour les restrictions d’usage
associées à ce produit.
Vorsicht: Das Konformitätsblatt führt etwaige Verwendungseinschränkungen für
dieses Produkt an.
Attenzione: consultare l’inserto sulla conformità per informazioni sulle limitazioni
d’uso di questo prodotto.
Cuidado: Consulte as informações sobre as restrições de uso associadas a este
produto no encarte sobre conformidade.
Îñòðîæíî: Ñì. îãðàíè÷åíèÿ, ñâÿçàííûå ñ èñïîëüçîâàíèåì
óñòðîéñòâà, íà âêëàäûøå ñ òðåáîâàíèÿìè ïî îáåñïå÷åíèþ
ñîîòâåòñòâèÿ.
Precaución: Consulte el Inserto de cumplimiento para ver las restricciones de uso
asociadas con este producto.
.≠〕「｝“≠〔 」〕《【” 」｝｝【, 〔［ ÷±〕「《 ≠〕÷〕＝×〔 ≠〕《”（〔 《【 【）｝「《 :〔“÷≠〔
This product is protected by one or more patents. Ce produit
est protege par un brevet ou plus. Dieses Produkt ist durch ein oder mehrere Patente geschutzt.
Questo prodotto è protetto da uno o più dei seguenti brevetti. Este produto está protegido por
uma ou mais patentes. Ýòîò ïðîäóêò çàùèùåí îäíèì èëè íåñêîëüêèìè ïàòåíòàìè.
Este producto esta protegido por una o varias patentes.
Electrical rating. . Cote électrique. Stromversorgung. Specifi che elettriche. Espe-
cifi cações eléctricas. Ïèòàíèå. Califi cacón eléctrica: v100-240 V, 4A 50/60 Hz
Guide de démarrage de l’imprimante milieu de gamme
Kurzanleitung für Drucker mit mittlerer Reichweite
Mid-Range Guida rapida della stampante
Guia de iniciação rápida da impressora de médio alcance
Êðàòêîå ðóêîâîäñòâî ïî ýêñïëóàòàöèè ïðèíòåðà ñðåäíåé
ïðîèçâîäèòåëüíîñòè
Guía de comienzo rápido para la impresora de rango medio
PM43 | PM43c
DRAFT
|PM23
PM43
PM 23
PM 43c
PM43 |
PM43 | PM43 |
PM43 | PM43c
PM43c PM43c
PM43c | PM23
| PM23 | PM23
| PM23 Physical Specifications
Physical SpecificationsPhysical Specifications
Physical Specifications
Mid
MidMid
Mid-
--
-Range Printer
Range PrinterRange Printer
Range Printer
PM43c (With standard cover / short cover)
PM43c (With standard cover / short cover)PM43c (With standard cover / short cover)
PM43c (With standard cover / short cover)
Dimensions: 181.00 x 252.20 x 431.80 mm (7.31 x 9.90 x 17.00 ”)
Weight: 12.55 kg (27.66 lb)
PM43c (mega top cover)
PM43c (mega top cover)PM43c (mega top cover)
PM43c (mega top cover)
Dimensions: 244.87 x 252.50 x 500.22 mm (9.64 x 9.90 x 19.69 ”)
Weight: 12.71 kg (28.02 lb)
PM43
PM43PM43
PM43
Dimensions: 294.61 x 284.20 x 483.54 mm (11.61 x 11.19 x 19.04 ”)
Weight: 15.83 kg (34.89 lb)
PM23
PM23PM23
PM23
Dimensions: 181.00 x 210.00 x 431.80 mm (7.31 x 8.27 x 17.00 ”) (estimated)
Weight: 11.00 kg (24.25 lb) (estimated)
Power Specifications
Power SpecificationsPower Specifications
Power Specifications
Printer Voltage: 100-240 V, 4A, 50-60Hz
Temperature and Humidity Specifications
Temperature and Humidity SpecificationsTemperature and Humidity Specifications
Temperature and Humidity Specifications
Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 20 to 80% non-condensing
Communications and Connectivity
Communications and ConnectivityCommunications and Connectivity
Communications and Connectivity
•
• •
• Serial port (RS-232/RS-485/RS422) (optional)
•
• •
• USB 2.0
•
• •
• USB full speed host
•
• •
• Ethernet, 100 Mbps
•
• •
• 802.11b/g/n (RC12BGN) (optional)
•
• •
• IPv6
•
••
•
UHF RFID (INRD01u) (optional)
•
• •
• Parallel port (IEEE 1284) (optional)
Memory
MemoryMemory
Memory
•
• •
• 128MB SDRAM (DDR2) •
• •
• 128MB NAND Flash •
• •
• USB mass storage (USB 2.0)
PM43,
PM43, PM43,
PM43,
PM43c
PM43c PM43c
PM43c
and PM23
and PM23 and PM23
and PM23
Mid
MidMid
Mid
-
--
-
Range Printer Quick Start
Range Printer Quick Start Range Printer Quick Start
Range Printer Quick Start
