Thor™ VM3 Vehicle-Mount Computer
with Microsoft
®
Windows
®
7 Professional
User’s Guide
![](/img.php?id=2582426&img=bg2.png)
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been
made. The information in this publication does not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated into another language without the prior written consent of HII.
© 2014-2015 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Trademarks
RFTerm is a trademark or registered trademark of EMS Technologies, Inc. in the United States and/or other countries.Micro-
soft® Windows, ActiveSync®, MSN, Outlook®, Windows Mobile®, the Windows logo, and Windows Media are registered trade-
marks or trademarks of Microsoft Corporation.
Intel® and Atom™ are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other
countries.
Summit Data Communications, the Laird Technologies Logo, the Summit logo, and “Connected. No Matter What” are trade-
marks of Laird Technologies, Inc.
Wi-Fi®, WMM®, Wi-Fi Mutlimedia™, Wi-Fi Protected Access®, WPA™, WPA2™ and the Wi-Fi CERTIFIED™ logo are trade-
marks or registered trademarks of Wi-Fi Alliance.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
Symbol® is a registered trademark of Symbol Technologies. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized
M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.
Freefloat, Link*One, Key*One and Access*One are trademarks of Freefloat, Mölndalsvägen 30B, SE-412 63Gothenburg, Swe-
den.
RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.
Qualcomm® is a registered trademark of Qualcomm Incorporated. Gobi is a trademark of Qualcomm Incorporated.
Verizon® is a registered trademark of Verizon Trademark Services LLC.
T-MOBILE® is a registered trademark of Deutsche Telekom AG.
AT & T ® is a registered trademark of AT&T Intellectual Property.
SD and SDHC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
SanDisk® and CompactFlash® are trademarks of SanDisk Corporation, registered in the United States and other countries.
Transcend® is a registered trademark of Transcend Information, Inc.
ATP is a trademark of ATP Electronics, Inc.
Acrobat® Reader © 2015 with express permission from Adobe Systems Incorporated.
Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies
and are the property of their respective owners.
Patents
For patent information, please refer to www.honeywellaidc.com/patents.
![](/img.php?id=2582426&img=bg3.png)
1
Chapter 1 - Thor VM3 Agency Information
FCC Part 15 Statement........................................................................................................1-1
FCC 5GHz Statement ..........................................................................................................1-1
EMC Directive Requirements...............................................................................................1-1
Canada, Industry Canada (IC) Notices ................................................................................1-1
ANATEL (Brazil)...................................................................................................................1-2
Vehicle Power Supply Connection Safety Statement ..........................................................1-2
Li-Ion Battery........................................................................................................................1-2
RF Safety Notice..................................................................................................................1-3
Bluetooth..............................................................................................................................1-3
Honeywell Scanning & Mobility Product Environmental Information....................................1-3
CE Mark ...............................................................................................................................1-3
Chapter 2 - Getting Started
Overview ..............................................................................................................................2-1
About this Guide ..................................................................................................................2-1
Out of the Box ......................................................................................................................2-2
Initial Setup for Thor VM3 ....................................................................................................2-2
Hardware Setup .............................................................................................................2-2
Software .........................................................................................................................2-2
Languages ...............................................................................................................2-2
First Boot..................................................................................................................2-2
Software Setup.........................................................................................................2-2
Quick Mount Smart Dock .....................................................................................................2-2
Components.........................................................................................................................2-3

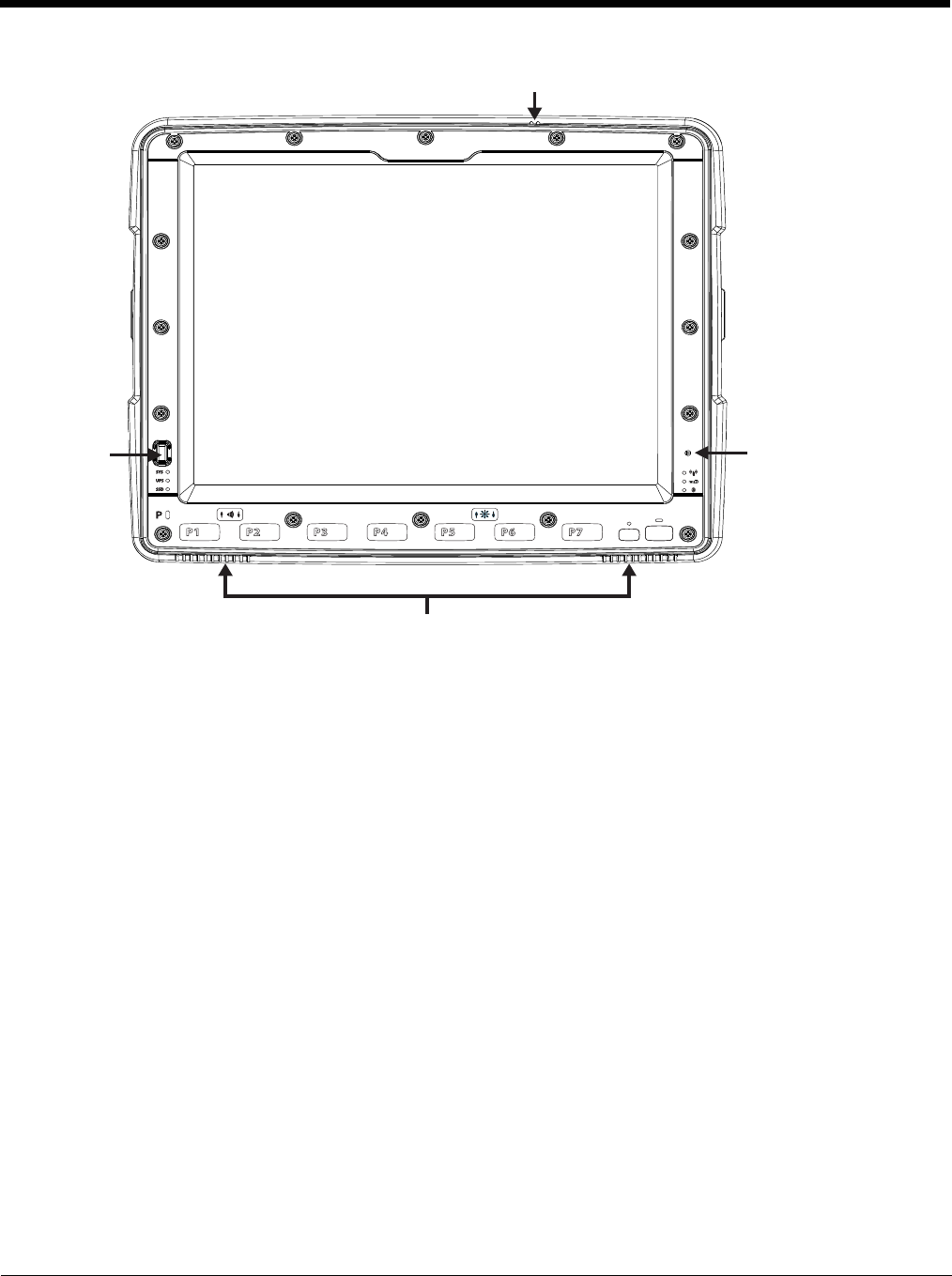

Front View ......................................................................................................................2-3

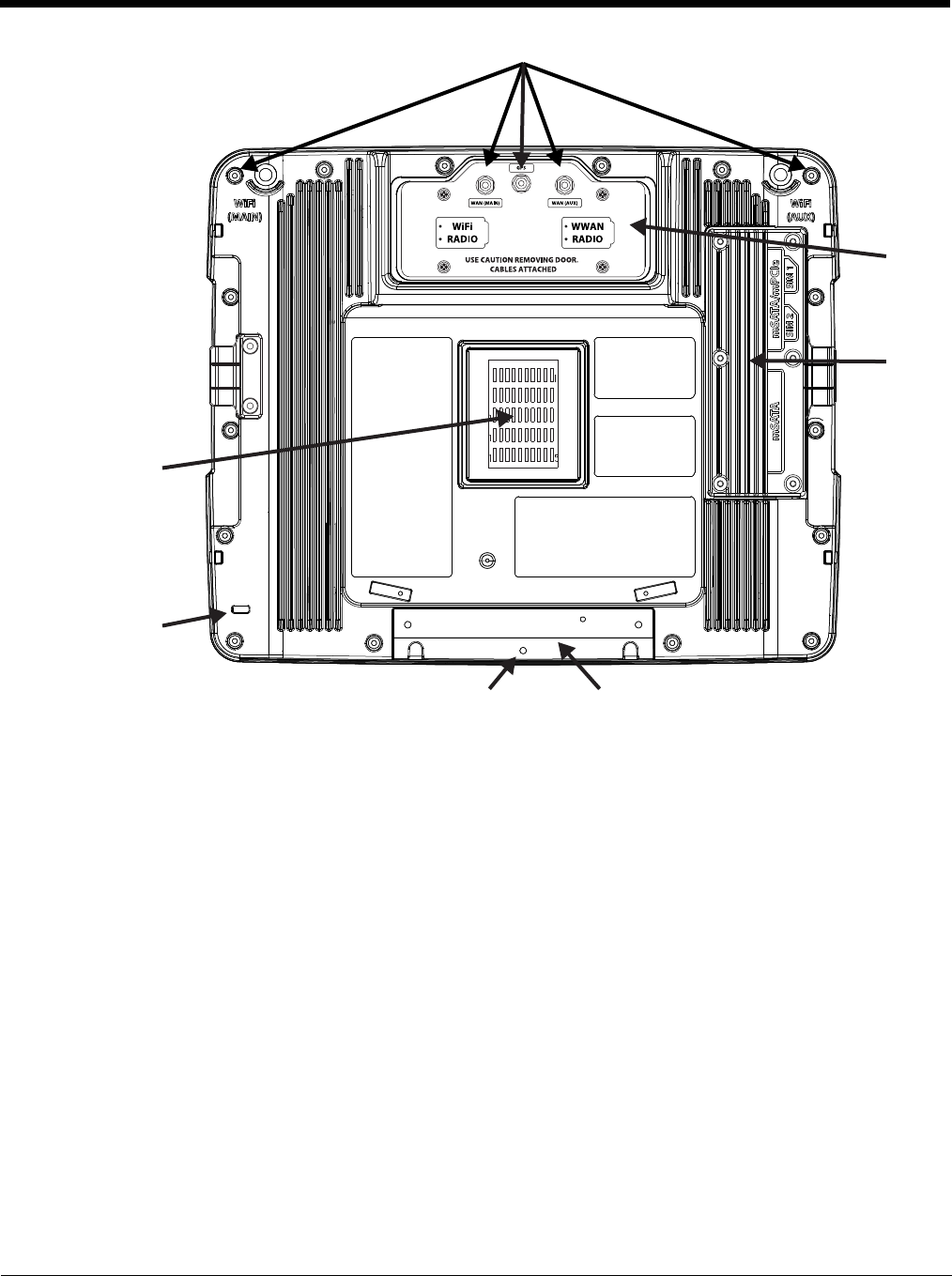

Back View with Quick Mount Smart Dock ......................................................................2-3

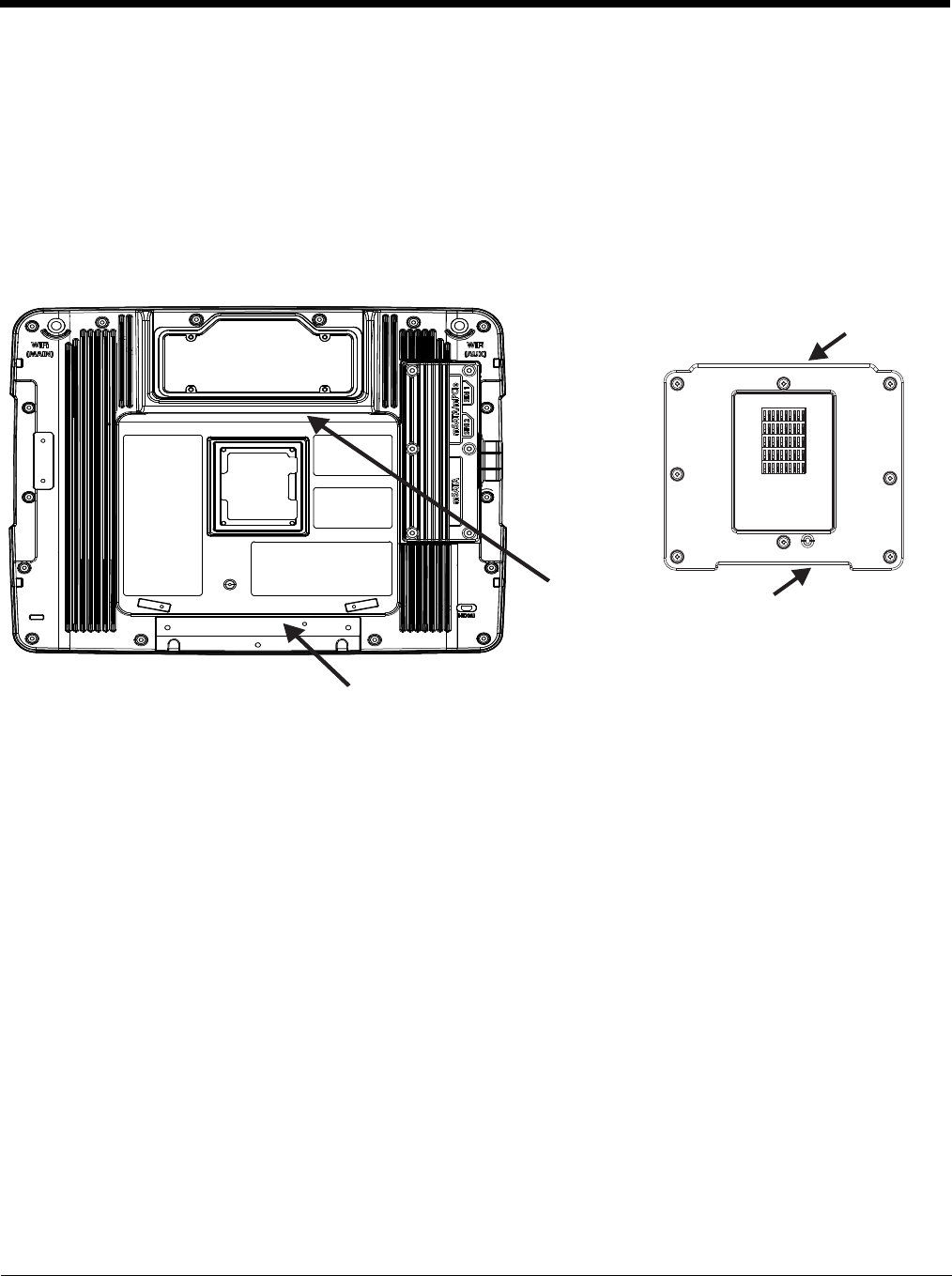

Access Panels...............................................................................................................2-4
Backlights and Indicators .....................................................................................................2-5
Display Backlight............................................................................................................2-5
Power Management .................................................................................................2-5
Backlight Brightness.................................................................................................2-5
Screen Blanking .......................................................................................................2-5
Keypad Backlight ...........................................................................................................2-5
Speaker Volume.............................................................................................................2-5
Power Up .............................................................................................................................2-6
Rebooting the Thor VM3 ................................................................................................2-7
Restart......................................................................................................................2-7
Tapping the Touch Screen with a Stylus .............................................................................2-7
Setup Terminal Emulation Parameters ................................................................................2-7
Cleaning the Touch Screen .................................................................................................2-8
Startup Help .........................................................................................................................2-8
Chapter 3 - Hardware Overview
Table of Contents
![](/img.php?id=2582426&img=bg4.png)
2
System Hardware ................................................................................................................ 3-1
802.11a/b/gWireless Client............................................................................................ 3-1
Central Processing Unit ................................................................................................. 3-1
Input/Output Components.............................................................................................. 3-1
System Memory............................................................................................................. 3-1
Video Subsystem........................................................................................................... 3-1
Audio Interface............................................................................................................... 3-1
Card Slots......................................................................................................................3-1
CompactFlash (CF) Slot .......................................................................................... 3-1
Secure Digital (SD) Slot........................................................................................... 3-1
Bluetooth EZPair............................................................................................................ 3-1
WWAN........................................................................................................................... 3-2
GPS ............................................................................................................................... 3-2
Power .................................................................................................................................. 3-2

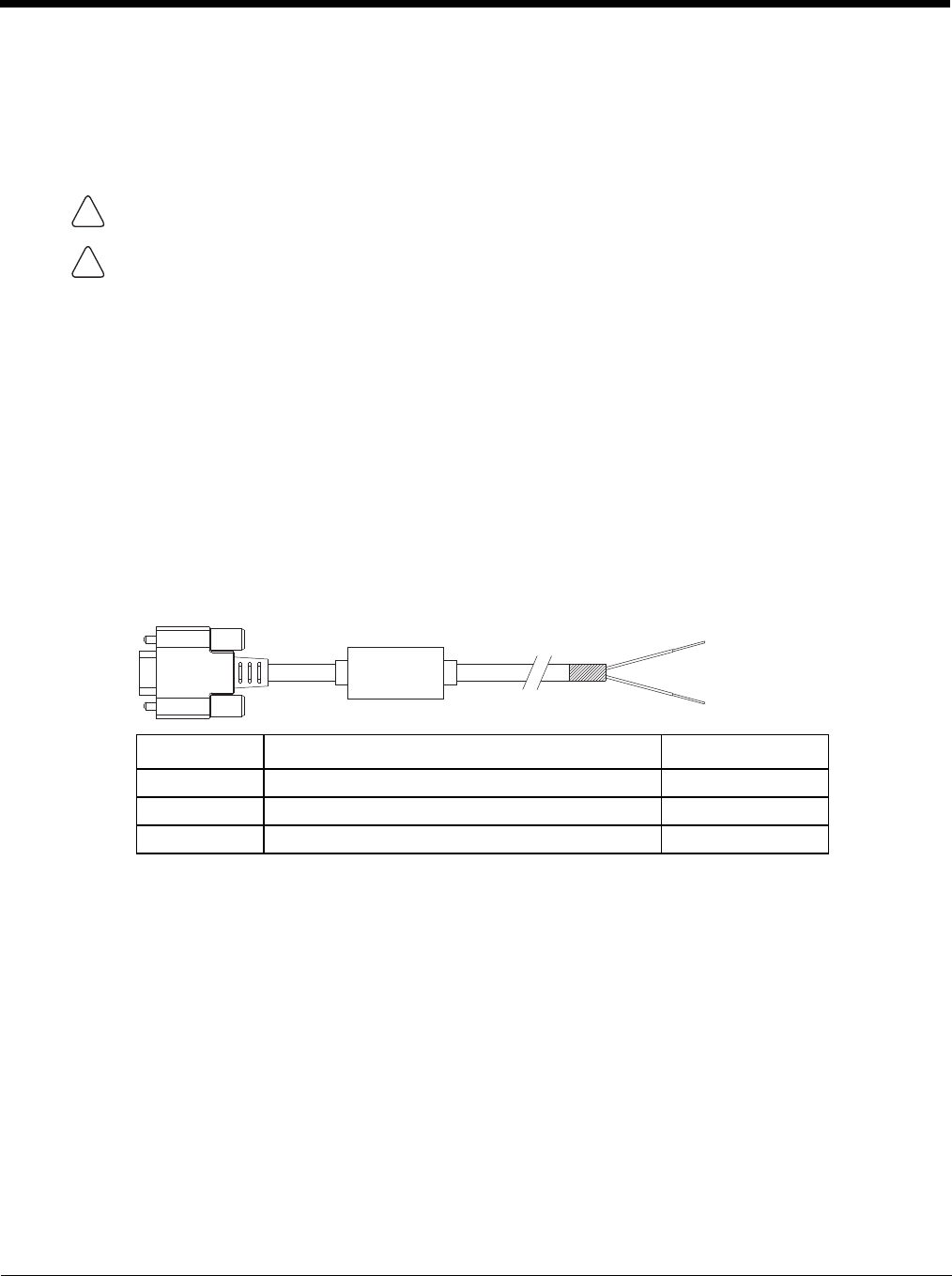

Vehicle DC Power Supply.............................................................................................. 3-2
External AC Power Supply ............................................................................................ 3-2

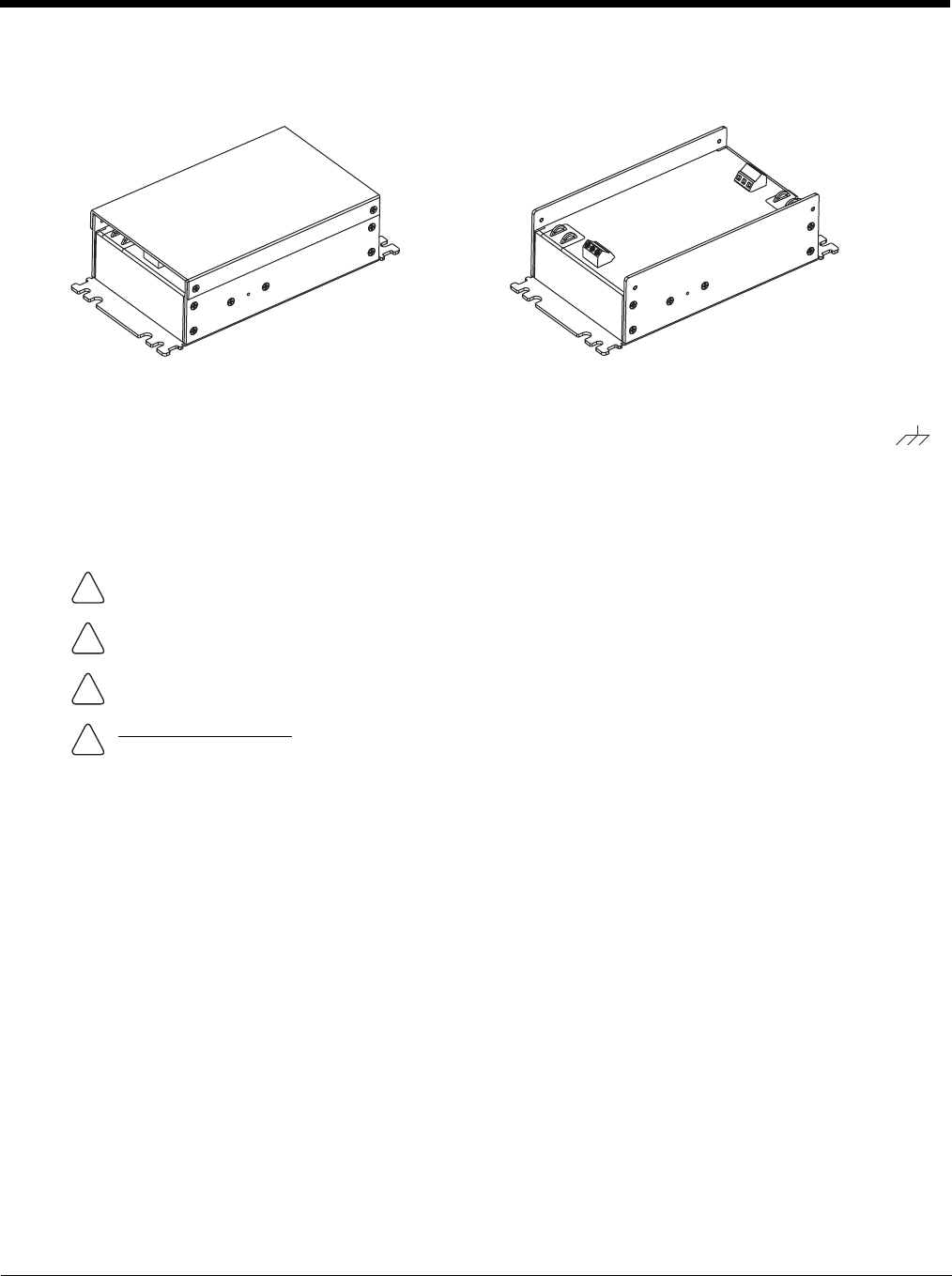

Uninterruptible Power Supply ........................................................................................ 3-2
Safe Charging Temperature Range......................................................................... 3-2
Charging Timeout .................................................................................................... 3-3
Charging and Power Management .......................................................................... 3-3
Backup Battery .............................................................................................................. 3-3
Fuse............................................................................................................................... 3-4
Power Management Modes........................................................................................... 3-4
Power Controls .............................................................................................................. 3-4
Power Switch ........................................................................................................... 3-4
Power Button ........................................................................................................... 3-4
External Connectors ............................................................................................................3-4
Serial Connector (COM1 and COM2)............................................................................ 3-5
Screen Blanking...................................................................................................... 3-5
USB Connector(s).......................................................................................................... 3-5

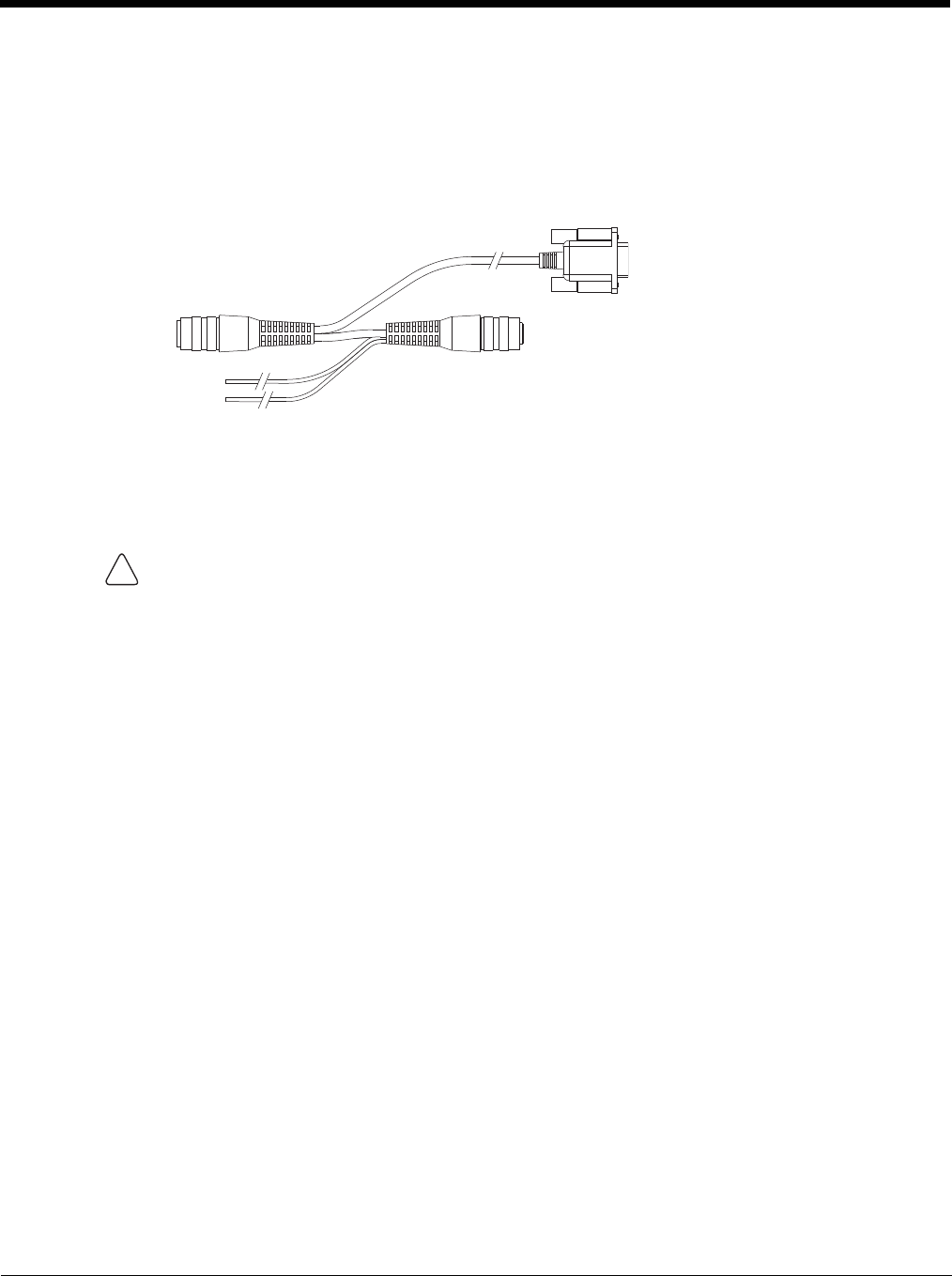

CANbus / Audio Connector............................................................................................ 3-6
Power Supply Connector ............................................................................................... 3-6
Antenna Connections .................................................................................................... 3-6

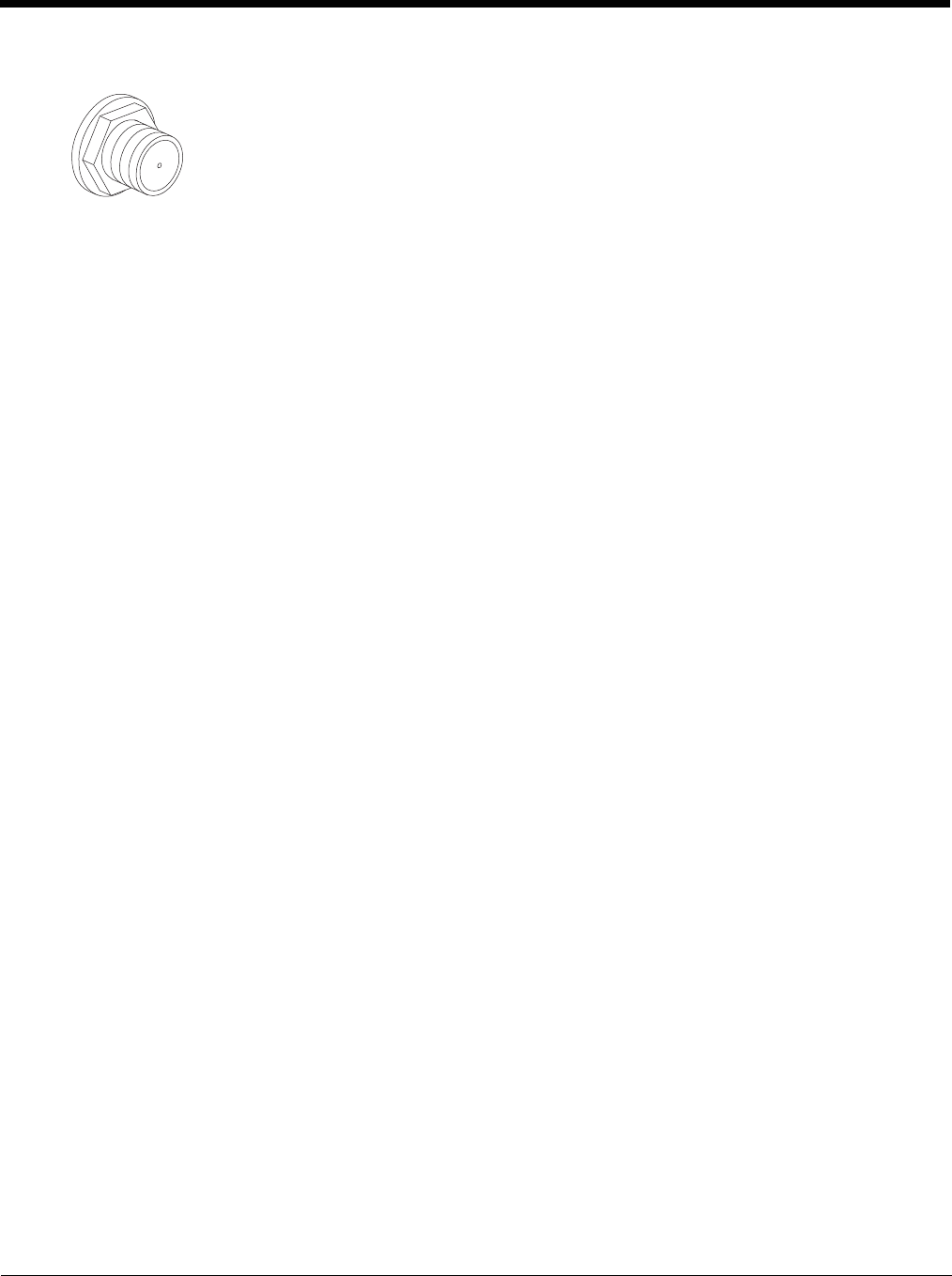

External Antenna Connector.................................................................................... 3-7
Internal 802.11 Antenna .......................................................................................... 3-7

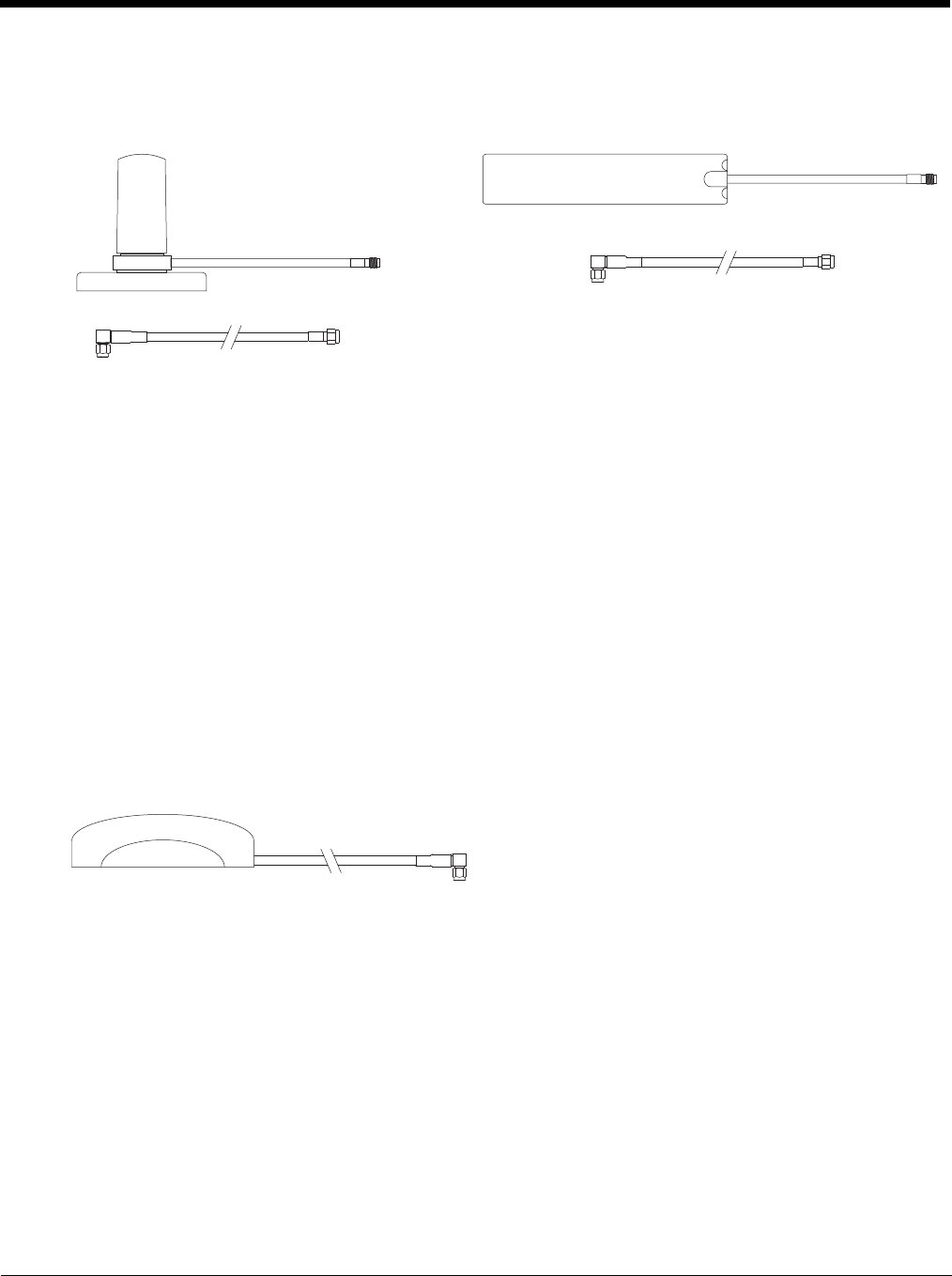

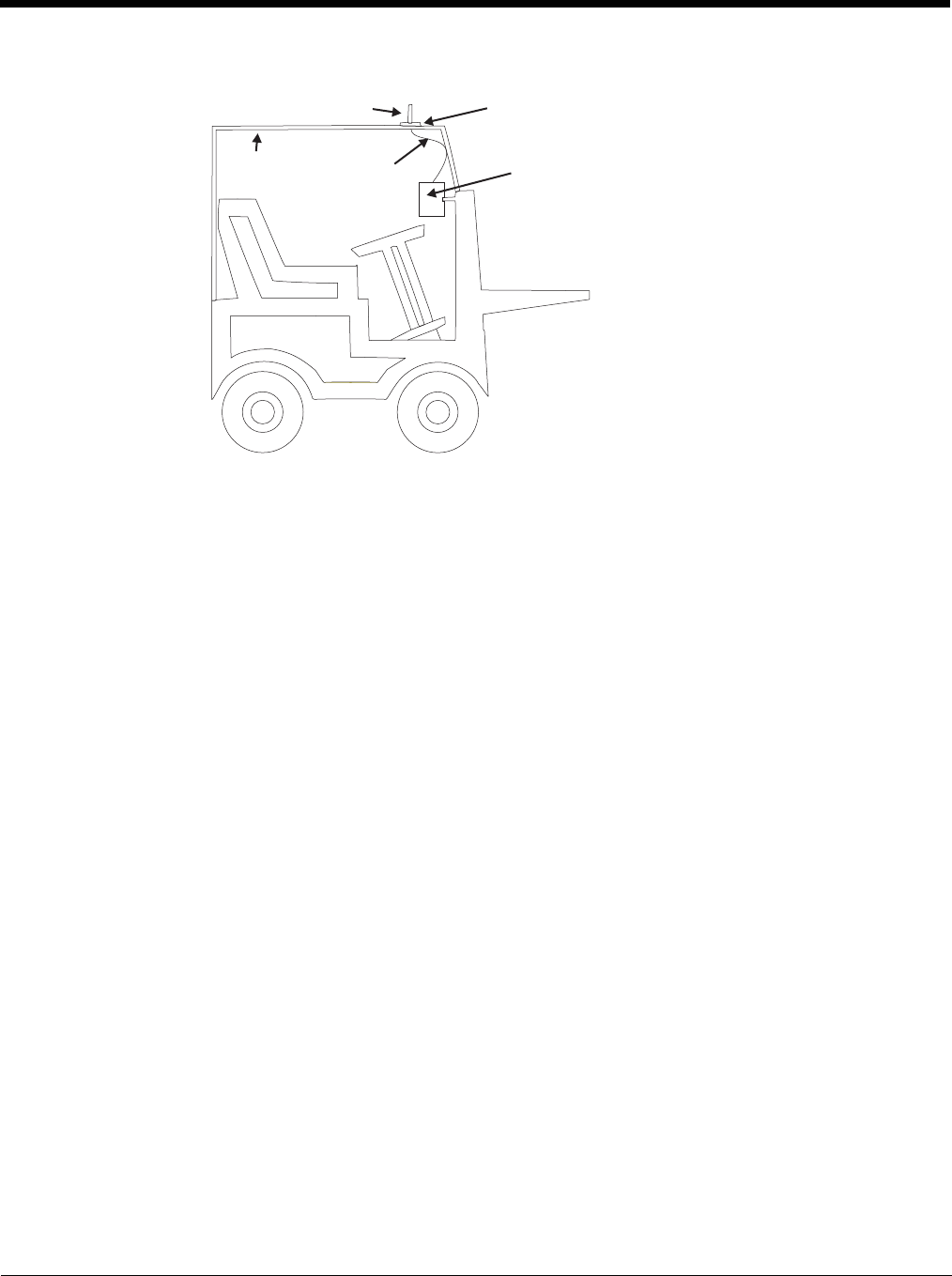

Vehicle Remote Antenna ......................................................................................... 3-7

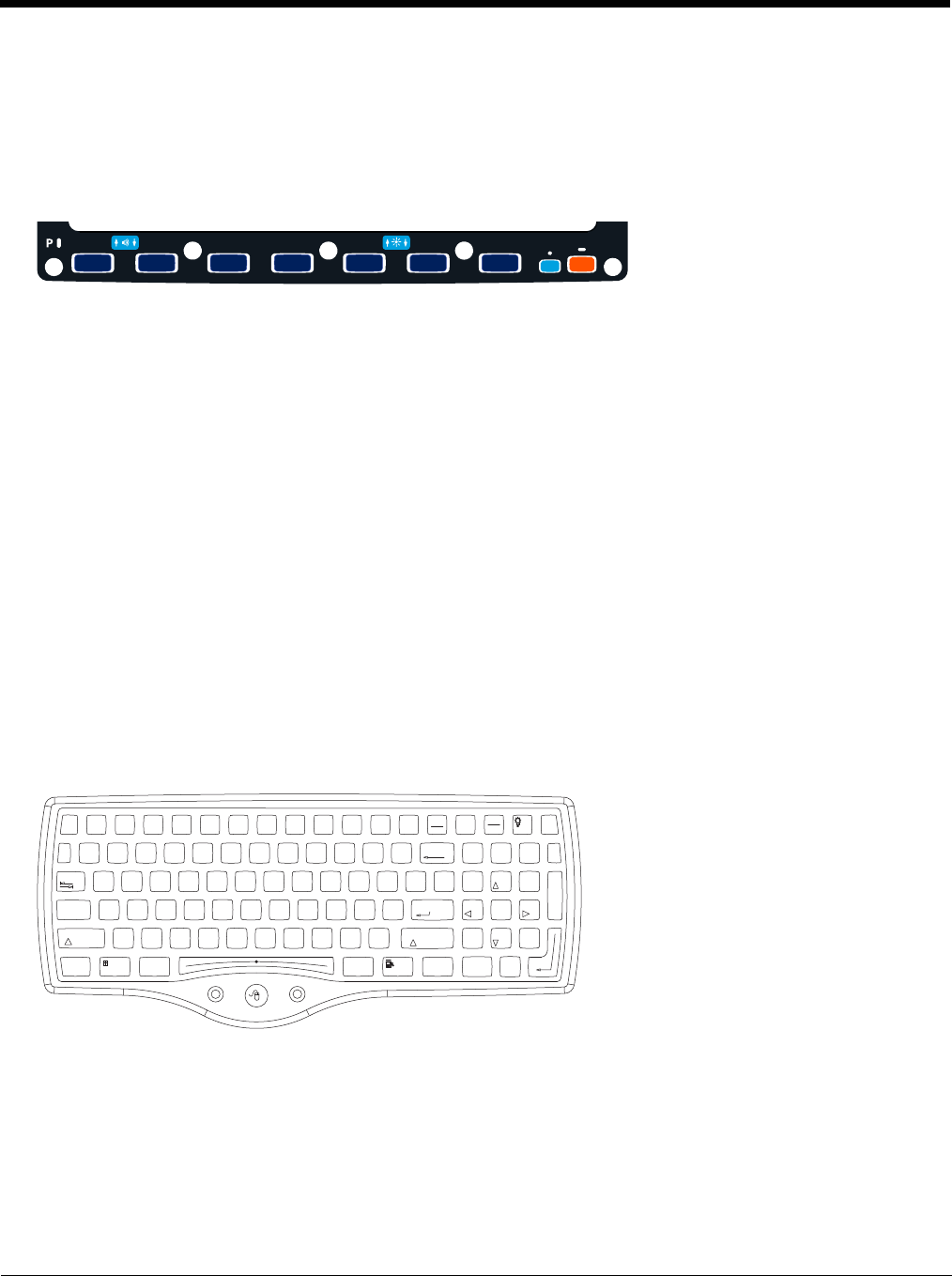

Keyboard Options................................................................................................................3-8
Integrated Keypad ......................................................................................................... 3-8
Keypad LEDs........................................................................................................... 3-8
95-Key USB Keyboard................................................................................................... 3-8
Keyboard Backlight.................................................................................................. 3-8
USB Keyboard / Mouse ................................................................................................. 3-9
LED Functions ..................................................................................................................... 3-9
System LEDs................................................................................................................. 3-9
SYS (System Status) LED ....................................................................................... 3-9
UPS Status LED .................................................................................................... 3-10
Charge Level.................................................................................................... 3-10
Charging State................................................................................................. 3-10
![](/img.php?id=2582426&img=bg5.png)
3
SSD (Solid State Drive) LED ................................................................................. 3-10
Connection LEDs......................................................................................................... 3-11
WWAN LED ........................................................................................................... 3-11
Wi-Fi LED .............................................................................................................. 3-11
Bluetooth LED........................................................................................................ 3-11
Keyboard LEDs............................................................................................................ 3-12
Blue LED................................................................................................................ 3-12
Orange LED........................................................................................................... 3-12
Programmable LED ............................................................................................... 3-12
Display............................................................................................................................... 3-12
Touch Screen .............................................................................................................. 3-12
Touch Screen Defroster............................................................................................... 3-12
Screen Blanking........................................................................................................... 3-13
Display Backlight Control............................................................................................. 3-13
Chapter 4 - Vehicle Mounting and Accessory Installation
Introduction........................................................................................................................ 4-15
Prepare for Vehicle Mounting ............................................................................................ 4-15
Quick Start ................................................................................................................... 4-15
Maintenance - Vehicle Mounted Devices .......................................................................... 4-15
Cleaning ............................................................................................................................ 4-16
Place Thor VM3 in the Dock.............................................................................................. 4-16
Dock I/O Pin Cover...................................................................................................... 4-17
Padlock ........................................................................................................................ 4-17
Laptop Security Cable ................................................................................................. 4-17
Install RAM Mount ............................................................................................................. 4-18
Components - RAM Mounting Kits .............................................................................. 4-18
Procedure - RAM Mount Assembly ............................................................................. 4-19
Torque Measurement ............................................................................................ 4-19

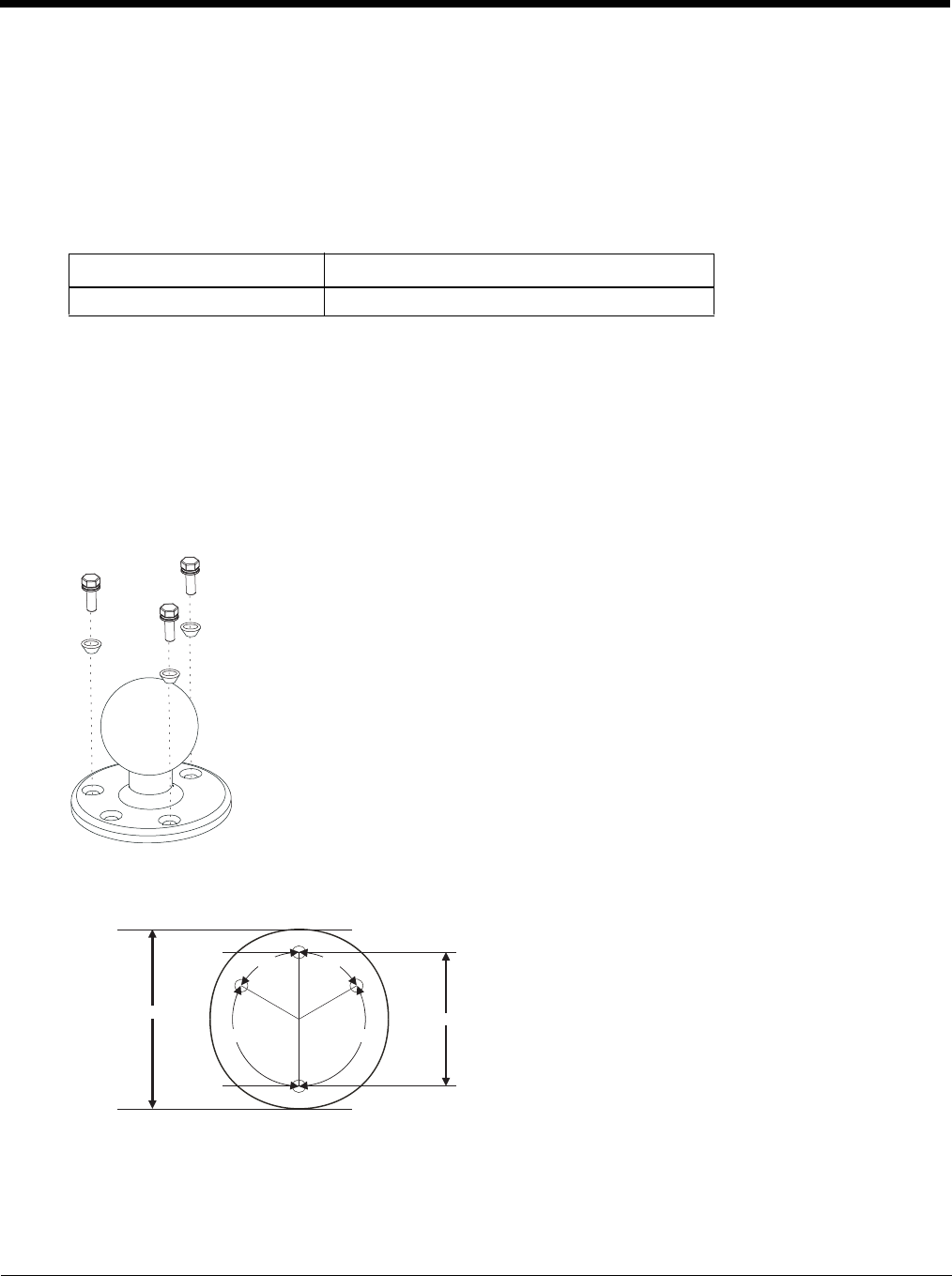

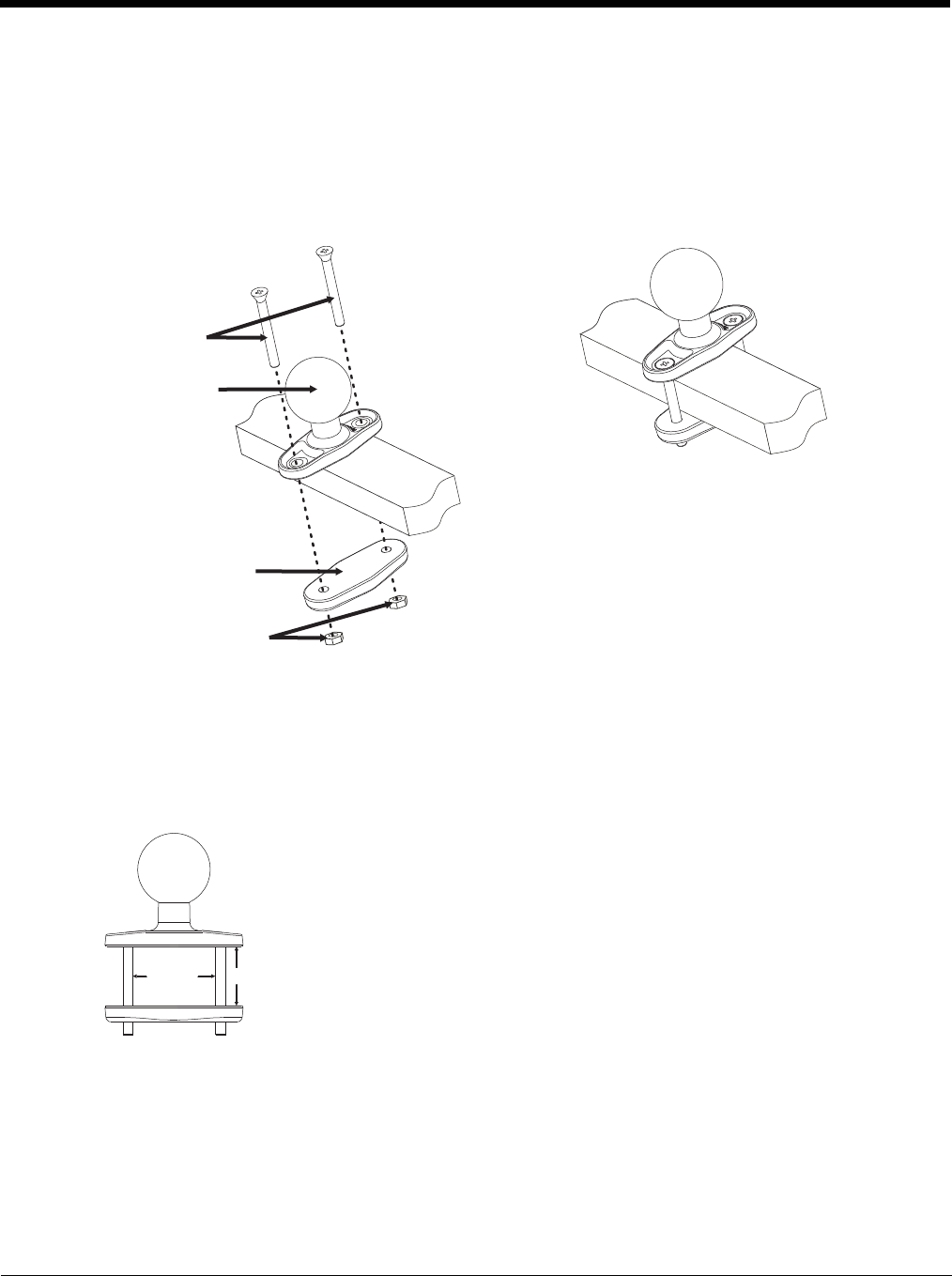

Step 1a – Attach RAM Ball to Vehicle ................................................................... 4-19
Mounting Dimensions ...................................................................................... 4-19
Step 1b – Mount RAM Clamp to Vehicle ............................................................... 4-20
Mounting Dimensions ...................................................................................... 4-20

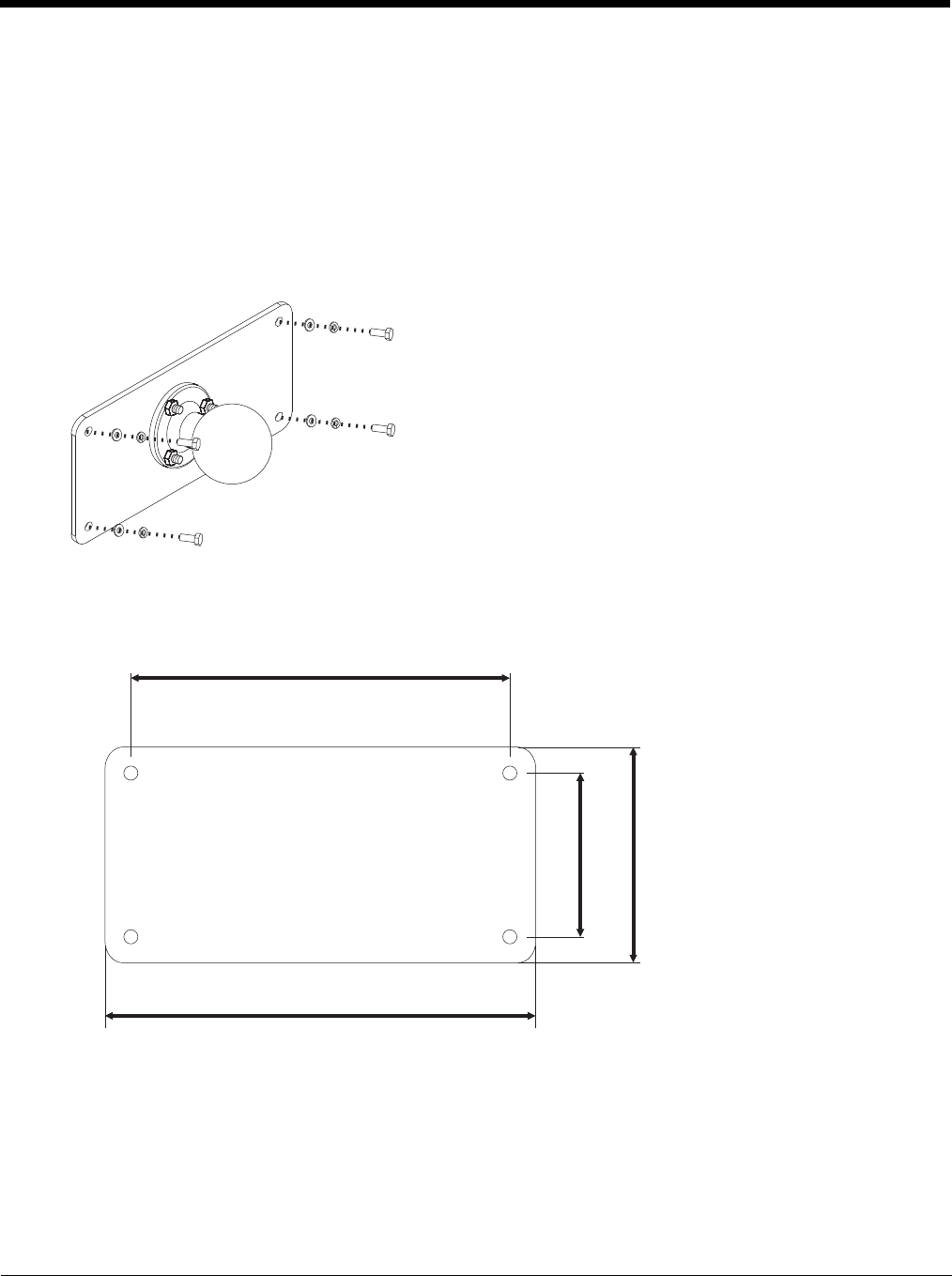

Step 1c – Attach RAM Plate to Vehicle and Attach RAM Ball ............................... 4-21
Mounting Dimensions ...................................................................................... 4-21
Step 2 – Attach RAM Mount Ball to the Thor VM3 Quick Mount Smart Dock ....... 4-22
Step 3 – Attach Thor VM3 Assembly to RAM Mount............................................. 4-22
Step 4 – Place the Thor VM3 into the Dock........................................................... 4-22
Install U Bracket Mount ..................................................................................................... 4-23
Components - U Bracket Mounting Assembly ............................................................. 4-23
Procedure - U Bracket Assembly................................................................................. 4-23
Torque Measurement ............................................................................................ 4-23
Mounting Positions ................................................................................................ 4-24
Step 1 - Install U Bracket to Vehicle ...................................................................... 4-24
Mounting Dimensions ...................................................................................... 4-25
Step 2 - Remove RAM Ball.................................................................................... 4-25
Step 3 - Attach Adapter Bracket ............................................................................ 4-25
![](/img.php?id=2582426&img=bg6.png)
4
Connect Cables ................................................................................................................. 4-26
Strain Relief Cable Clamps.......................................................................................... 4-26
Connect Power ............................................................................................................ 4-27
Power Cable Cautions ................................................................................................. 4-27
12-48 VDC Vehicles (10-60 VDC Direct Connection)............................................ 4-28
Power Cable Identification ..................................................................................... 4-28
Vehicle 10-60VDC Direct Power Connection.................................................. 4-28
Ignition Control Wiring Diagram ................................................................. 4-30
Auto-On Control Wiring Diagram ............................................................... 4-31
Manual Control Wiring Diagram................................................................. 4-32
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid) ......... 4-33
Power Cable Identification ..................................................................................... 4-34
Vehicle 50-150VDC Power Connection........................................................... 4-34
Wiring Diagram .......................................................................................... 4-36
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) .......... 4-37
Power Cable Identification ..................................................................................... 4-38
Vehicle 50-150VDC Power Connection........................................................... 4-38
Wiring Diagram .......................................................................................... 4-40
VX6 / VX7 Adapter Cable ...................................................................................... 4-41
Connect to VX6 / VX7 Power Cable ................................................................ 4-41
Thor VX8 / Thor VX9 Adapter Cable ..................................................................... 4-42
Connect to Thor VX8 / VX9 Power Cable........................................................ 4-42
Screen Blanking..................................................................................................... 4-43
Screen Blanking Cable .................................................................................... 4-43
Honeywell Screen Blanking Box Cable...................................................... 4-43
User-Supplied Cable.................................................................................. 4-44
Screen Blanking Box........................................................................................ 4-44
Screen Blanking with Switch............................................................................ 4-45
External AC/DC Power Supply .............................................................................. 4-46
Connect External Power Supply ...................................................................... 4-46
Connect USB Host....................................................................................................... 4-47
Connect USB Client..................................................................................................... 4-47
Connect Serial Device ................................................................................................. 4-47
Connect a Tethered Scanner................................................................................. 4-48
Connect Headset Cable............................................................................................... 4-48
Adjust Headset / Microphone and Secure Cable................................................... 4-49
Under Clothing ................................................................................................. 4-49
Over Clothing ................................................................................................... 4-49
Connect CANbus Cable............................................................................................... 4-49
Install Remote Antenna ............................................................................................... 4-50
802.11 Remote Mount Antenna............................................................................. 4-50
Components and Mounting Diagram ............................................................... 4-50
Typical Installation ........................................................................................... 4-51
Mounting Instructions....................................................................................... 4-51
WAN Remote Mount Antenna ............................................................................... 4-52
GPS Remote Mount Antenna ................................................................................ 4-52
![](/img.php?id=2582426&img=bg7.png)
5
Apply Touch Screen Protective Film ................................................................................. 4-53
Installation....................................................................................................................4-53
Removal....................................................................................................................... 4-53
Disconnect UPS Battery .................................................................................................... 4-54
Install SD Card .................................................................................................................. 4-55
Equipment Required.................................................................................................... 4-55
Installation Procedure.................................................................................................. 4-55
Install SLC Drive................................................................................................................ 4-56
Equipment Required.................................................................................................... 4-56
Install SIM Card ................................................................................................................. 4-57
Equipment Required.................................................................................................... 4-57
Installation Procedure.................................................................................................. 4-57
Replace Front Panel.......................................................................................................... 4-58
Equipment Required.................................................................................................... 4-58
Replacement Procedure .............................................................................................. 4-58
Chapter 5 - Software
Microsoft Windows Setup and Configuration....................................................................... 5-1
Drive C Folder Structure ................................................................................................ 5-1
Software Loaded on Drive C.................................................................................... 5-1
Microsoft Windows............................................................................................. 5-1
Device Drivers.................................................................................................... 5-1
Radio Software .................................................................................................. 5-1
Touch Screen Software ..................................................................................... 5-2
RFTerm.............................................................................................................. 5-2
Summit Client Utility........................................................................................... 5-2
Laird Configuration Manager ............................................................................. 5-2
Freefloat Link*One Wedge................................................................................. 5-2
Freefloat Access*One TE (Optional).................................................................. 5-2
Freefloat Key*One ............................................................................................. 5-2
Selecting Keyboard Layout .......................................................................... 5-2
Launching Keyboard .................................................................................... 5-2
Launching Keyboard with Programmable Key............................................. 5-2
Creating Customized Layout........................................................................ 5-3
Drive D Folder Structure ................................................................................................ 5-3
Control Panel....................................................................................................................... 5-4
About ............................................................................................................................. 5-4
Software................................................................................................................... 5-4
Firmware Versions ............................................................................................. 5-4
Language ........................................................................................................... 5-4
Versions................................................................................................................... 5-5
Versions Tab and the Registry........................................................................... 5-5
Network IP ............................................................................................................... 5-5
MAC Address..................................................................................................... 5-5
AutoOn........................................................................................................................... 5-6
Standard .................................................................................................................. 5-6
Ignition Control......................................................................................................... 5-6
![](/img.php?id=2582426&img=bg8.png)
6
Auto-On ................................................................................................................... 5-6
Bluetooth........................................................................................................................ 5-7
Bluetooth Devices.................................................................................................... 5-9
Discover................................................................................................................... 5-9
Stop Button ........................................................................................................ 5-9
Bluetooth Device List ....................................................................................... 5-10
Clear Button..................................................................................................... 5-10
Bluetooth Device Menu.................................................................................... 5-10
Right-Click Menu Options .......................................................................... 5-10
Bluetooth Device Properties ............................................................................ 5-11
Settings.................................................................................................................. 5-11
Turn Off Bluetooth............................................................................................ 5-11
Options............................................................................................................. 5-11
Reconnect.............................................................................................................. 5-13
Options............................................................................................................. 5-13
About ..................................................................................................................... 5-14
Using Bluetooth ..................................................................................................... 5-15
Bluetooth Devices Display - Before Discovering Devices................................ 5-15
Initial Configuration .......................................................................................... 5-15
Subsequent Use .............................................................................................. 5-15
Bluetooth Indicators ......................................................................................... 5-16
Bluetooth Bar Code Reader Setup .................................................................. 5-16
Thor VM3 with Label .................................................................................. 5-17
Thor VM3 without Label ............................................................................. 5-17
Bluetooth Beep and LED Indications ......................................................... 5-18
Bluetooth Printer Setup.............................................................................. 5-18
Easy Pairing and Auto-Reconnect................................................................... 5-18
Disk Lock ..................................................................................................................... 5-19
Display.........................................................................................................................5-21
Options ........................................................................................................................ 5-23
5V on COM1 .......................................................................................................... 5-23
5V on COM2 .......................................................................................................... 5-23
Touch Screen Disable ........................................................................................... 5-23
Keyboard Backlight................................................................................................ 5-23
USB Powered in Standby or Sleep........................................................................ 5-23
Power Options ............................................................................................................. 5-24
Select a Power Scheme or Power Plan................................................................. 5-24
Power Schemes............................................................................................... 5-24
Select a Power Plan......................................................................................... 5-25
AC/DC.............................................................................................................. 5-26
AC/DC Behavior............................................................................................... 5-27
Thor VM3 is Off.......................................................................................... 5-27
Conditions ............................................................................................ 5-27
Result................................................................................................... 5-27
Thor VM3 is On.......................................................................................... 5-27
Conditions ............................................................................................ 5-27
Result................................................................................................... 5-27
Ignition Control/Ignition On .............................................................................. 5-28
![](/img.php?id=2582426&img=bg9.png)
7
Ignition Control/Ignition On Behavior ............................................................... 5-29
Thor VM3 is Off and Vehicle Ignition is Switched to On ............................ 5-29
Conditions ............................................................................................ 5-29
Result................................................................................................... 5-29
Thor VM3 is On and Vehicle Ignition is Switched to On ............................ 5-29
Conditions ............................................................................................ 5-29
Result................................................................................................... 5-29
Ignition Control/Ignition Off .............................................................................. 5-30
Ignition Control/Ignition Off Behavior ............................................................... 5-31
Thor VM3 is Off and Vehicle Ignition is Off ................................................ 5-31
Conditions ............................................................................................ 5-31
Result................................................................................................... 5-31
Conditions ............................................................................................ 5-31
Result................................................................................................... 5-31
Thor VM3 is On and Vehicle Ignition is Switched to Off ............................ 5-31
Conditions ............................................................................................ 5-31
Result................................................................................................... 5-31
Auto-On............................................................................................................ 5-32
Auto-On Behavior ............................................................................................ 5-33
Thor VM3 is Off.......................................................................................... 5-33
Conditions ............................................................................................ 5-33
Result................................................................................................... 5-33
Thor VM3 is On.......................................................................................... 5-33
Conditions ............................................................................................ 5-33
Result................................................................................................... 5-33
UPS.................................................................................................................. 5-34
UPS Behavior .................................................................................................. 5-34
Thor VM3 is Off.......................................................................................... 5-34
Conditions ............................................................................................ 5-34
Result................................................................................................... 5-34
Conditions ............................................................................................ 5-34
Results ................................................................................................. 5-34
Thor VM3 is On.......................................................................................... 5-34
Conditions ............................................................................................ 5-34
Result................................................................................................... 5-34
View UPS Battery Status ....................................................................................... 5-35
Power Meter..................................................................................................... 5-35
Power Notification Icon .................................................................................... 5-36
Configure Power Button Behavior.................................................................... 5-36
Advanced ................................................................................................... 5-36
Choose What the Power Button Does ....................................................... 5-37
Hibernate ............................................................................................................... 5-38
Enable Hibernation .......................................................................................... 5-38
Configure Hibernation ...................................................................................... 5-39
Programmable Key...................................................................................................... 5-41
KeyMap.................................................................................................................. 5-42
Remap a Key to Single Key............................................................................. 5-43
Remap a Key to a Unicode Value.................................................................... 5-43
![](/img.php?id=2582426&img=bga.png)
8
Remap a Key to a Key Sequence.................................................................... 5-43
Remap a Key to a Sequence of Unicode Values............................................. 5-43
Remap a Key to a Special Function................................................................. 5-44
Remap a Key to Launch an Application........................................................... 5-44
Remap a Key to Run a Command................................................................... 5-44
LaunchApp............................................................................................................. 5-45
RunCmd................................................................................................................. 5-46
Region and Language ................................................................................................. 5-47
Install a Language ................................................................................................. 5-47
Change Display Language .................................................................................... 5-48
Uninstall Language ................................................................................................ 5-48
Screen Control............................................................................................................. 5-49
Screen Blanking..................................................................................................... 5-51
Automatic Brightness Control ................................................................................ 5-51
Current Level ......................................................................................................... 5-51
Defroster Control ................................................................................................... 5-51
Screen Rotation........................................................................................................... 5-52
Sounds......................................................................................................................... 5-52
System Rating (Windows Experience Index)............................................................... 5-53
Tablet PC Settings (Touch Screen Calibration)........................................................... 5-53
User Accounts ............................................................................................................. 5-53
Wi-Fi ............................................................................................................................ 5-53
Bar Code Readers............................................................................................................. 5-54
Scanner Wedge........................................................................................................... 5-54
Touch Screen Calibration .................................................................................................. 5-54
BIOS .................................................................................................................................. 5-55
Accessing the BIOS Setup .......................................................................................... 5-55
Boot Order ................................................................................................................... 5-55
Exiting BIOS Setup...................................................................................................... 5-55
Thor VM3 Recovery DVD .................................................................................................. 5-55
Thor VM3 with no Operating System................................................................................. 5-55
Upgrading the Thor VM3 ................................................................................................... 5-56
Automatic Firmware Update Utility .................................................................................... 5-56
Requirements .............................................................................................................. 5-56
Firmware Distribution Files .......................................................................................... 5-56
Update Process ........................................................................................................... 5-56
Configuration Cloning Utility (CCU) ................................................................................... 5-58
Launching Configuration Cloning Utility GUI ............................................................... 5-59
Windows Embedded Standard 7 and Windows 7 Professional:............................ 5-59
Using Configuration Cloning Utility GUI....................................................................... 5-59
Menu Options ........................................................................................................ 5-59
File ................................................................................................................... 5-59
About.......................................................................................................... 5-59
Open .......................................................................................................... 5-60
Close.......................................................................................................... 5-60
Save........................................................................................................... 5-60
Save As...................................................................................................... 5-60
Exit ............................................................................................................. 5-60
![](/img.php?id=2582426&img=bgb.png)
9
Edit................................................................................................................... 5-60
Registry............................................................................................................ 5-60
Import Settings........................................................................................... 5-60
Apply Settings ............................................................................................ 5-60
User ................................................................................................................. 5-60
Shortcuts................................................................................................................ 5-61
Modifying Settings ................................................................................................. 5-61
Using the CCU....................................................................................................... 5-62
Example 1: Import the current settings and save to a file ................................ 5-62
Example 2: Modify settings on the current device and save to a file ............... 5-63
Example 3: Reset a device to system defaults ................................................ 5-63
Example 4: Clone settings to another device................................................... 5-63
Configuration Cloning Utility Command Line Interface................................................ 5-64
Chapter 6 - Wireless Network Connections
Network Connections Control Panel.................................................................................... 6-1
Summit Wireless Network Configuration ............................................................................. 6-1
Important Notes ................................................................................................................... 6-1
Summit Client Utility ............................................................................................................ 6-1
Summit Tray Icon........................................................................................................... 6-1
Wireless Zero Config Utility ........................................................................................... 6-2
To Switch Control to the Wireless Zero Config Utility .............................................. 6-2
To Switch Control to SCU........................................................................................ 6-2
Main............................................................................................................................... 6-3
Admin Login............................................................................................................. 6-3
Profile............................................................................................................................. 6-5
Buttons..................................................................................................................... 6-5
Profile Parameters ................................................................................................... 6-6
Status............................................................................................................................. 6-8
Diags.............................................................................................................................. 6-9
Global ..........................................................................................................................6-10
Custom Parameter Option ..................................................................................... 6-11
Global Parameters................................................................................................. 6-11
Logon Options ....................................................................................................... 6-13
Single Signon................................................................................................... 6-14
Pre-Logon Connection..................................................................................... 6-14
Sign-On vs. Stored Credentials ......................................................................................... 6-15
To Use Stored Credentials .......................................................................................... 6-15
To Use Sign On Screen............................................................................................... 6-16
To Use Windows Username and Password ................................................................ 6-16
Windows Certificate Store vs. Certs Path.......................................................................... 6-17
User Certificates .......................................................................................................... 6-17
Root CA Certificates .................................................................................................... 6-17
Certs Path.............................................................................................................. 6-17
Windows Certificate Store ..................................................................................... 6-17
![](/img.php?id=2582426&img=bgc.png)
10
Configuring the Profile ....................................................................................................... 6-18
No Security .................................................................................................................. 6-19
WEP.............................................................................................................................6-20
LEAP............................................................................................................................6-21
PEAP/MSCHAP........................................................................................................... 6-22
PEAP/GTC................................................................................................................... 6-24
WPA/LEAP .................................................................................................................. 6-26
EAP-FAST ................................................................................................................... 6-27
EAP-TLS...................................................................................................................... 6-29
WPA PSK .................................................................................................................... 6-31
Certificates......................................................................................................................... 6-32
Generate a Root CA Certificate................................................................................... 6-32
Install a Root CA Certificate......................................................................................... 6-34
Generate a User Certificate......................................................................................... 6-35
Exporting a User Certificate................................................................................... 6-36
Install a User Certificate............................................................................................... 6-37
Manually Initiate Certificate Installation ................................................................. 6-38
OneClick Internet...............................................................................................................6-39
Preparing for Initial Use on the Thor VM3 ................................................................... 6-39
Install SIM Card ..................................................................................................... 6-39
Load Firmware....................................................................................................... 6-39
Activation ............................................................................................................... 6-39
Using OneClick Internet............................................................................................... 6-41
Connection Management....................................................................................... 6-41
Menu Buttons............................................................................................................... 6-42
Radio Button .......................................................................................................... 6-42
Statistics Button ..................................................................................................... 6-42
Update Button........................................................................................................ 6-42
Help Button ............................................................................................................ 6-42
Settings Button ...................................................................................................... 6-43
Profile............................................................................................................... 6-43
Buttons....................................................................................................... 6-44
Parameters ................................................................................................ 6-44
Network............................................................................................................ 6-45
Network with SIM Card .............................................................................. 6-45
CDMA Network .......................................................................................... 6-46
History.............................................................................................................. 6-46
PIN................................................................................................................... 6-47
Activate/Deactivate PIN ............................................................................. 6-47
Change PIN ............................................................................................... 6-47
Info ................................................................................................................... 6-48
Firmware .......................................................................................................... 6-48
Activation on CDMA................................................................................... 6-49
General ............................................................................................................ 6-49
Application ....................................................................................................... 6-50
Application Buttons...................................................................................................... 6-50
SMS ....................................................................................................................... 6-50
Folder............................................................................................................... 6-51
![](/img.php?id=2582426&img=bgd.png)
11
Settings............................................................................................................ 6-52
New SMS ......................................................................................................... 6-52
Reply................................................................................................................ 6-52
Forward............................................................................................................ 6-52
Move SMS.. ..................................................................................................... 6-52
Delete............................................................................................................... 6-52
Send/Receive................................................................................................... 6-52
Addresses ........................................................................................................ 6-53
Web Browser ......................................................................................................... 6-53
Email...................................................................................................................... 6-53
GPS ....................................................................................................................... 6-53
About ...........................................................................................................................6-54
System Requirements ........................................................................................... 6-54
Supported Languages...................................................................................... 6-54
Installing or Upgrading OneClick Internet ........................................................ 6-54
Installation........................................................................................................ 6-54
OneClick Internet Connection Manager....................................................................... 6-56
Connection Management....................................................................................... 6-57
Information Buttons................................................................................................ 6-58
Chapter 7 - Key Maps
Integrated Keypad ...............................................................................................................7-1
External 21-Key Keyboard................................................................................................... 7-2
External 95-Key Keyboard................................................................................................... 7-2
Chapter 8 - Specifications and Reference Material
Technical Specifications ...................................................................................................... 8-1
Thor VM3....................................................................................................................... 8-1
Quick Mount Smart Dock............................................................................................... 8-2
Quick Mount Smart Dock 2............................................................................................ 8-2
Dimensions.......................................................................................................................... 8-3
Thor VM3....................................................................................................................... 8-3
Quick Mount Smart Dock............................................................................................... 8-3
Environmental Specifications .............................................................................................. 8-4
Thor VM1 and Quick Mount Smart Dock....................................................................... 8-4
Network Card Specifications ............................................................................................... 8-4
?? 802.11a/b/g/n............................................................................................................ 8-4
Bluetooth........................................................................................................................ 8-4
WWAN ........................................................................................................................... 8-4
Port and Connector Pinouts ................................................................................................ 8-5
Power Supply Connector ............................................................................................... 8-5
COM1 and COM2 Connector ........................................................................................ 8-5
USB Connector.............................................................................................................. 8-6
USB Y Cable............................................................................................................ 8-6
D9 Male Connector............................................................................................ 8-6
USB Host Connector.......................................................................................... 8-6
![](/img.php?id=2582426&img=bge.png)
12
USB Client Connector........................................................................................ 8-6
USB Connector2............................................................................................................ 8-7
USB Y Cable............................................................................................................ 8-8
D15 Male Connector.......................................................................................... 8-8
USB Host Connector.......................................................................................... 8-8
USB Host Connector.......................................................................................... 8-8
CANbus / Audio Connector............................................................................................ 8-9

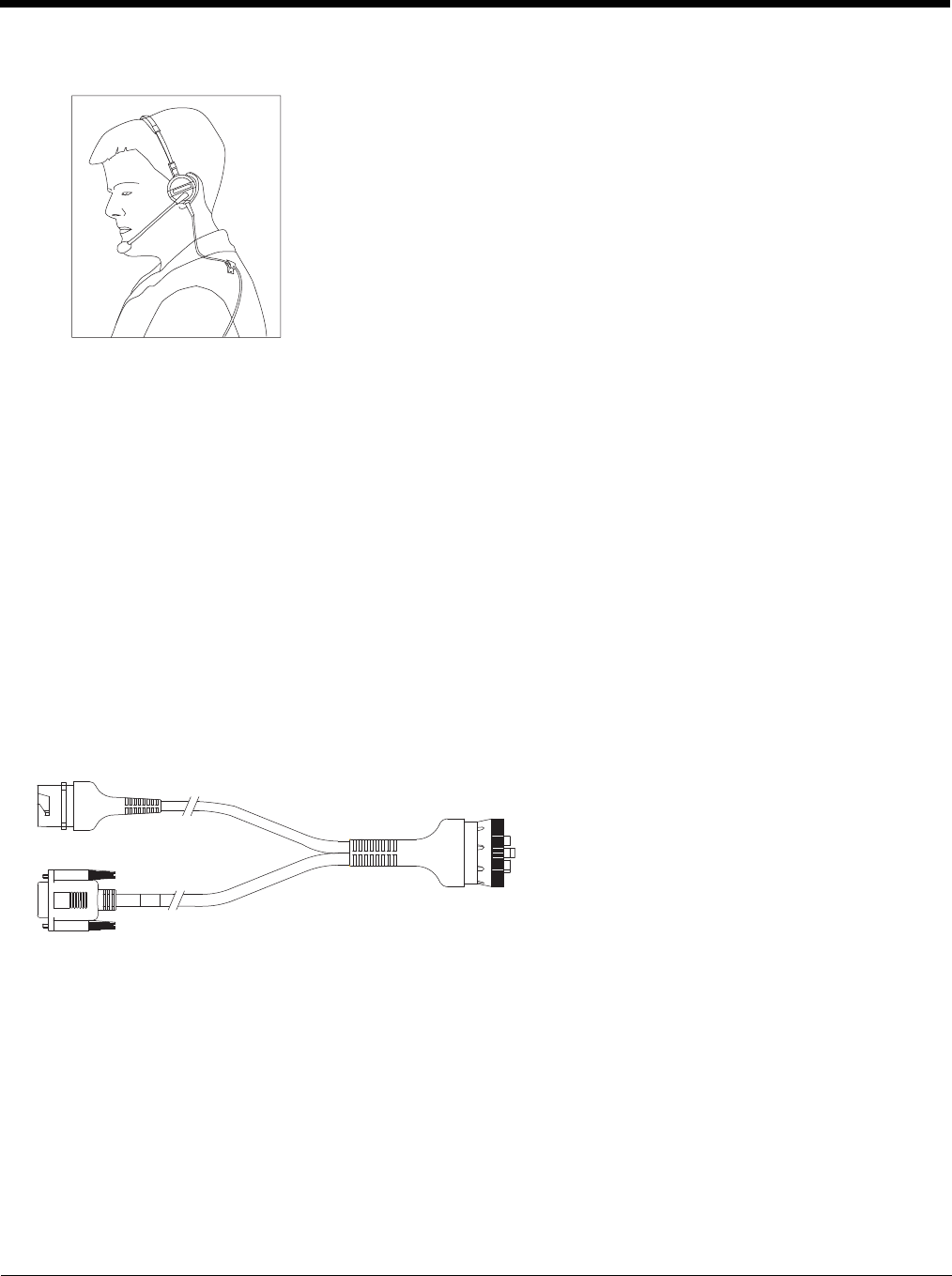

Headset Adapter Cable ........................................................................................... 8-9
D15 Female Connector...................................................................................... 8-9
Quick Connect Headset Connector ................................................................... 8-9

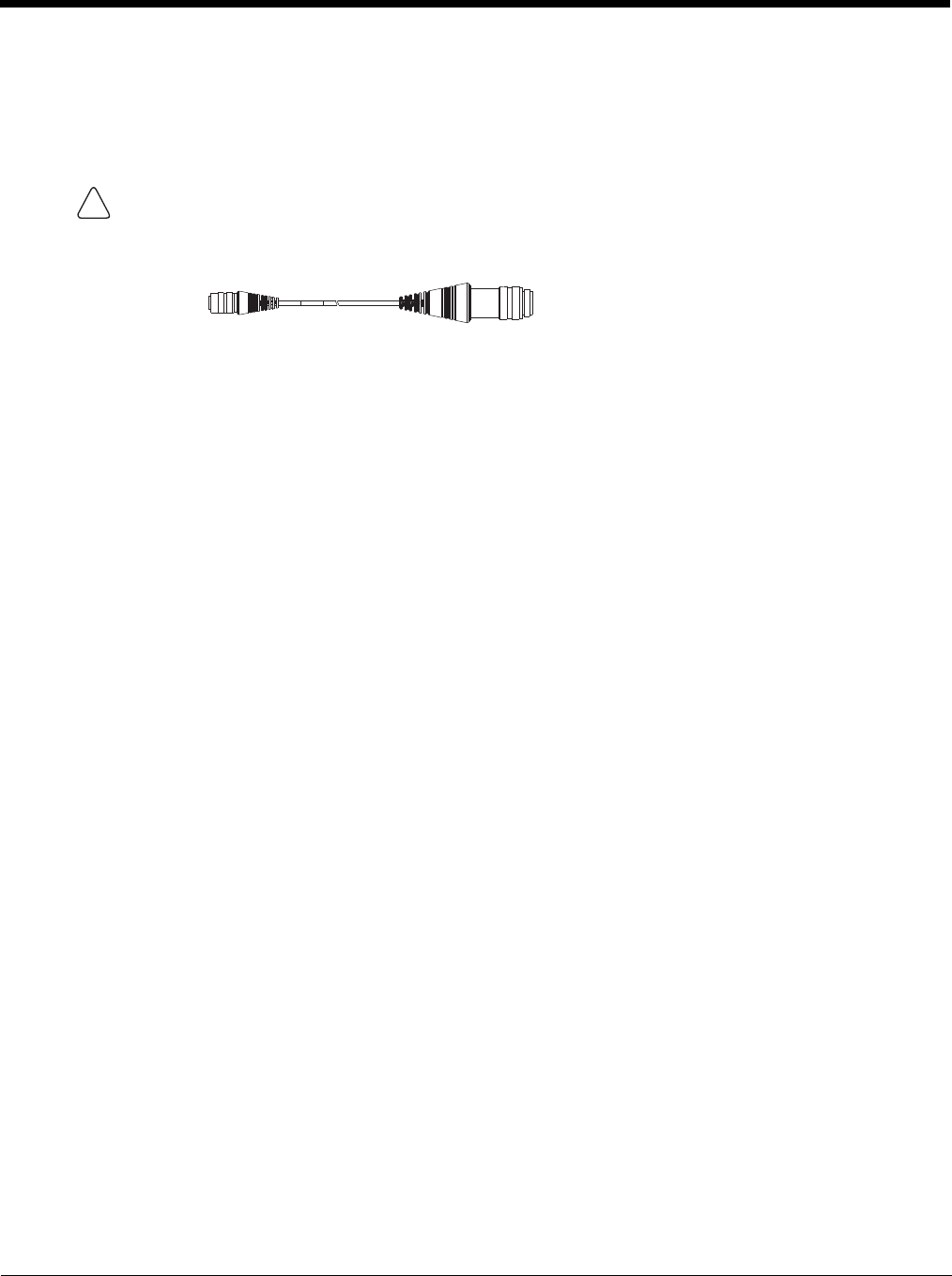

CANbus Y Cable.................................................................................................... 8-10
D15 Female Connector.................................................................................... 8-10
9-Pin J1939 (Deutsch) Connectors.................................................................. 8-10
Hat Encoding ..................................................................................................................... 8-11
Chapter 9 - Customer Support
Product Service and Repair................................................................................................. 9-1
Technical Assistance........................................................................................................... 9-1
Limited Warranty ................................................................................................................. 9-1
![](/img.php?id=2582426&img=bgf.png)
1 - 1
1
Thor VM3 Agency Information
Thor VM3 mobile computers meet or exceed the requirements of all applicable standards organizations for safe operation.
However as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency
guidelines that follow. Read these guidelines before using your Thor VM3.
This documentation is relevant for the following Thor models: VM3.
FCC Part 15 Statement
This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada]. Operation is subject to the follow-
ing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NOTE - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution - Changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authoriza-
tion to operate this equipment.
FCC 5GHz Statement
For the band 5600-5650 MHz, no operation is permitted.
EMC Directive Requirements
This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two condi-
tions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Exposure of humans to RF fields (RSS-102)
The computers employ low gain integral antennas that do not emit RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada's Web site at http://www.hc-sc.gc.ca/
The radiated energy from the antennas connected to the wireless adapters conforms to the IC limit of the RF exposure require-
ment regarding IC RSS-102, Issue 4 clause 4.1.
Cet appareil numérique de classe B est conforme à la norme NMB-003.
High-power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65- to 5.85-GHz bands.
These radar stations can cause interference with and/or damage to this device.
!
![](/img.php?id=2582426&img=bg10.png)
1 - 2
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage adioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Conformité des appareils de radiocommunication aux limites d'exposition humaine aux radiofréquences (CNR-102)
L'ordinateur utilise des antennes intégrales à faible gain qui n'émettent pas un champ électromagnétique supérieur aux normes
imposées par Santé Canada pour la population. Consultez le Code de sécurité 6 sur le site Internet de Santé Canada à
l'adresse suivante : http://www.hc-sc.gc.ca/
L'énergie émise par les antennes reliées aux cartes sans fil respecte la limite d'exposition aux radiofréquences telle que définie
par Industrie Canada dans la clause 4.1 du document CNR-102, version 4.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for
that type, are strictly prohibited for use with this device.
Immediately following the above notice, the manufacturer shall provide a list of all antenna types approved for use with the trans-
mitter, indicating the maximum permissible antenna gain (in dBi).
ANATEL (Brazil)
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não causar interferência a sistema operando em caráter primário.
警告
此为 A 级产品,在生活环境中,该产品可能会造成无线电干扰,在这种情况下,可能需要用户对干扰采取切实可行的措施。

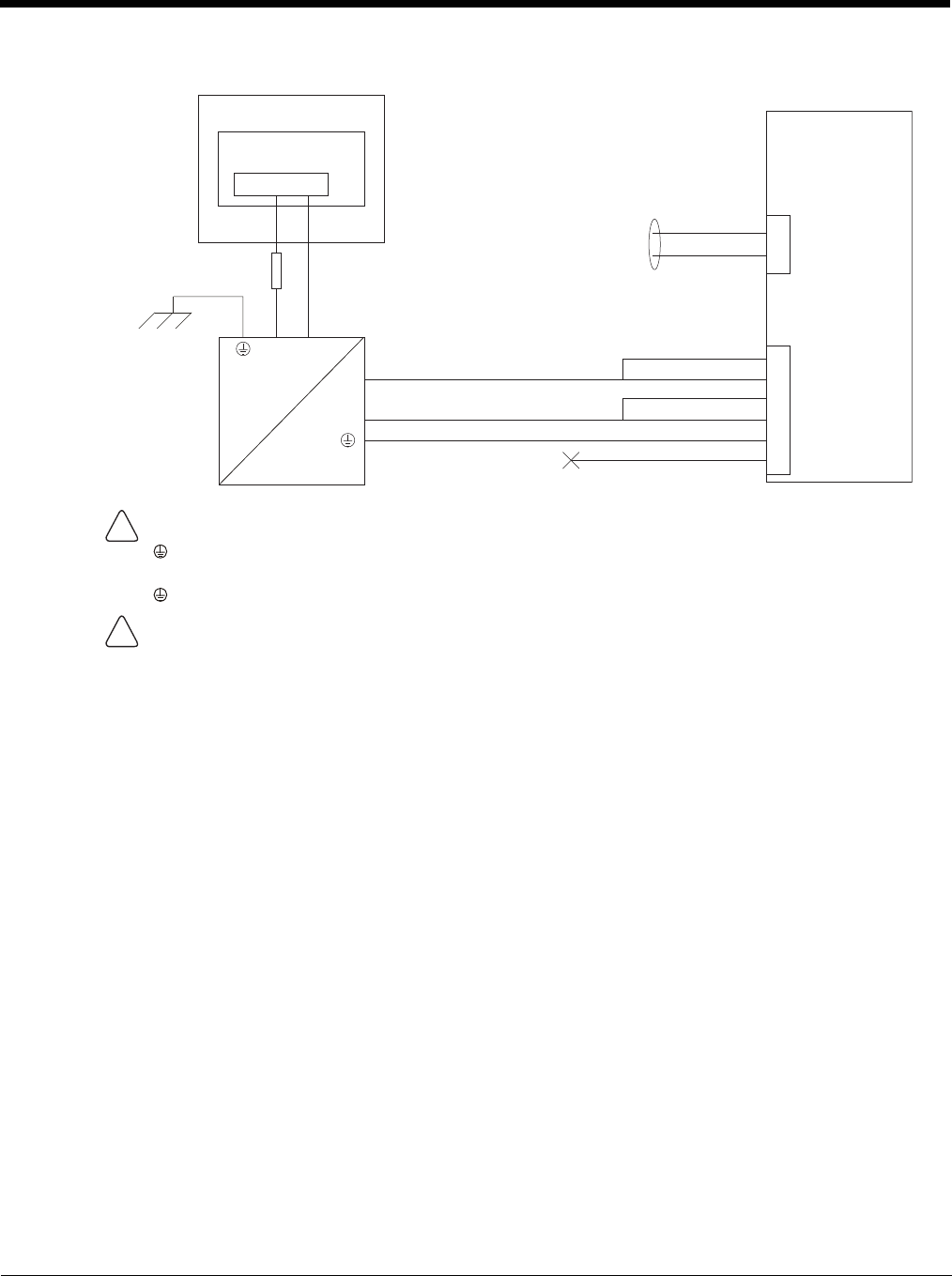

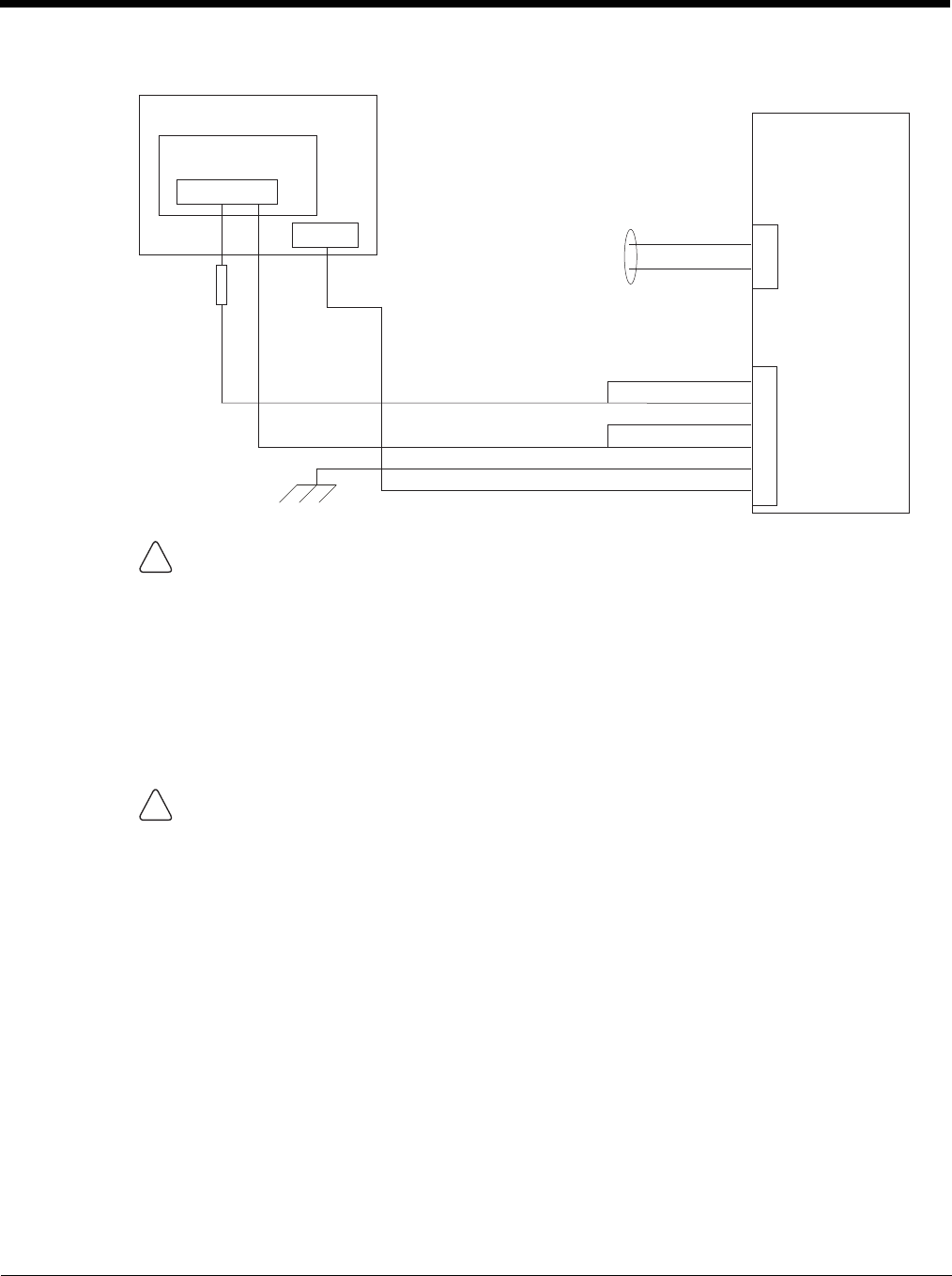

Vehicle Power Supply Connection Safety Statement
Note: For North America, a UL Listed fuse is to be used
For proper and safe installation, the input power cable must be connected to a fused circuit on the vehicle. If the supply connec-
tion is made directly to the battery, the fuse should be installed in the positive lead within 5 inches (12.7 cm) of the battery’s pos-
itive (+) terminal. Use VM3055FUSEKIT (or equivalent) to install the fuse as shown below:
•For 12VDC input, use the 10A in VM3055FUSEKIT or a slow blow fuse that has a DC voltage rating greater than 12VDC.
•For 24VDC input, use the 6A in VM3055FUSEKIT or a slow blow fuse that has a DC voltage rating greater than 24VDC.
•For 36VDC input, use the 4A in VM3055FUSEKIT or a slow blow fuse that has a DC voltage rating greater than 36VDC.
•For 48VDC input, use the 3A in VM3055FUSEKIT or a slow blow fuse that has a DC voltage rating greater than 48VDC.
Li-Ion Battery
When disposing of the Thor VM3 UPS battery, the following precautions should be observed: The battery should be disposed of
properly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F (100°C) or inciner-
ated.
Safety requirements restrict the temperature at which the Li-Ion UPS battery can be charged. Charging is disabled if the ambi-
ent temperature is outside of the 0ºC to 35ºC safe charging range. In order to maintain UPS charge the Thor VM3 should have
power applied while the unit is within the safe charging range for at least an hour each day.
Description Type Gain Manufacturer
External wifi antenna, dual band 2.40-2.50G/
4.90-5.90G. Dual Band Swivel Mount. Dipole
RP-TNC Blade
R380500314 2.4 ~ 2.5Ghz: 1.6dBi
4.9 ~ 5.9Ghz: 5dBi LARSEN
External Two-Way Radio Antenna WTS 2450 2.4 to 2.485Ghz: 3dBi
4.9 to 5.9Ghz: 3dBi LAIRD Technologies
![](/img.php?id=2582426&img=bg11.png)
1 - 3
RF Safety Notice
Bluetooth
Honeywell Scanning & Mobility Product Environmental Information
Refer to www.honeywellaidc.com/environmental for the RoHS / REACH / WEEE information.
CE Mark
The CE marking on the product indicates that this device is in conformity with the following directives:
• 1999/5/EC R&TTE
• 2004/108/EC
• 2011/65/EU RoHS (Recast)
In addition, complies to 2006/95/EC Low Voltage Directive, when shipped with recommended power supply.
European contact:
Hand Held Products Europe BV
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE
marked and does not comply with the Low Voltage Directive.
WWAN is not available in Singapore.
This device is intended to transmit RF energy. For protection against RF exposure to humans and in accordance with
FCC rules and Industry Canada rules, this transmitter should be installed such that a minimum separation distance of at
least 20 cm (7.8 in.) is maintained between the antenna and the general population. .
Class II
EN 300 328 V1.8.1: 2012
EN 301 893 V1.7.1: 2012
EN 62311: 2008
EN 301511 V9.0.2 : 2003
EN 301908-1 V5.2.1 : 2011
EN 300440-2 V1.4.1 : 2010
1999/5/EC EN 301489-1 V1.9.2: 2011
EN 301489-3 V1.6.1: 2013
EN 301489-7 V1.3.1 : 2005
EN 301489-17 V2.2.1: 2012
EN 301489-24 V1.5.1 : 2010
EN 55022 :2010
EN 55024 :2010
2004/108/EC EN 60950-1:2006 + A11:2009 +A1:2010 +A12:2011
![](/img.php?id=2582426&img=bg12.png)
1 - 4
![](/img.php?id=2582426&img=bg13.png)
1 - 5
![](/img.php?id=2582426&img=bg14.png)
1 - 6
![](/img.php?id=2582426&img=bg15.png)
2 - 1
2
Getting Started
Overview
The Thor VM3 Vehicle Mount Computer (VMC) is a rugged, vehicle mounted computer running a Microsoft® Windows® 7 Pro-
fessional (64-bit) operating system and capable of wireless data communications from a fork-lift truck or any properly configured
vehicle. Wireless communications are supported over a 802.11 WLAN network and, optionally, over a WWAN network. The
Bluetooth® module supports Bluetooth printers and scanners.
The Thor VM3 is designed for use with a vehicle Quick Mount Smart Dock. The dock installs in the vehicle and connects to
vehicle power. The dock provides conditioned input power for the Thor VM3. Peripheral connections are on the dock. The Thor
VM3 is designed to easily be removed from the dock with a latch on the lower rear of the Thor VM3 housing. Since the dock
remains attached to the vehicle, the Thor VM3 computer can easily be moved from one vehicle equipped with a dock to another
vehicle equipped with a dock.
The Thor VM3 contains a UPS battery which, when fully charged, can power the Thor VM3 for a minimum of 30 minutes. This
can be when the Thor VM3 is not attached to a Quick Mount Smart Dock or when the Thor VM3 is attached to a dock but the
vehicle power is interrupted, such as when the vehicle battery is being changed.
The Thor VM3 can be used with or without an external keyboard. There are 7 programmable keys (P1-P7) on the front bezel
and, when used with the Orange modifier key, provide 7 additional programmable keys (P8-P14).
Contact Technical Assistance (page 9-1) for information on the latest upgrades for your Thor VM3.
About this Guide
This user’s guide has been developed for a Thor VM3 with a Microsoft® Windows® 7 Professional operating system.
CAUTION - Before shipping the Thor VM3, be sure to Disconnect UPS Battery (page 4-54) .
!
P8
P1 P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2
![](/img.php?id=2582426&img=bg16.png)
2 - 2
Out of the Box
The following items may be packaged separately:
•Thor VM3
• Quick Mount Smart Dock (includes 10-60VDC power cable)
• RAM or U-Bracket vehicle mount kit
If you ordered additional accessories for the Thor VM3, verify they are also included with the order. Keep the original packaging
material in the event the Thor VM3 should need to be returned for service. For details, see Product Service and Repair (page 9-
1).
Initial Setup for Thor VM3
This page lists a quick outline of the steps you might take when setting up a new Thor VM3. More instruction for each step is
listed later in this guide.
Contact Technical Assistance (page 9-1) if you need additional help.
Hardware Setup
1. Install RAM Mount (page 4-18) or Install U Bracket Mount (page 4-23) to the vehicle.
2. Place Thor VM3 in the Dock (page 4-16).
3. Connect Cables (page 4-26) for any peripherals.
4. Connect Power (page 4-27).
5. Secure all cables in Strain Relief Cable Clamps (page 4-26).
6. Press the Power Switch (page 3-4) on the dock to the on position.
7. Press the Power Button (page 3-4) on the Thor VM3.
Software
This section only applies if the Thor VM3 was ordered with an operating system. For a Thor VM3 ordered without an oper-
ating system, see Thor VM3 with no Operating System (page 5-55).
Languages
The language selection and installation process varies by operating system:
• The Thor VM3 with a Windows 7 Professional operating system provides a choice between English or Simplified
Chinese upon initial configuration. Once selected, the operating system language cannot be changed without
reinstallation using a recovery DVD. Recovery DVDs may also be available for additional languages. Contact
Technical Assistance (page 9-1) to order a Thor VM3 Recovery DVD (page 5-14). The language installed is
identified on the Software tab of the About (see page 5-3) control panel.
First Boot
The first boot (also known as the Out of Box Experience) provides initial configuration of the Thor VM3. When a Thor
VM3 is ordered with a Windows 7 Professional operating system, the product key is printed on a decal on the rear of
the Thor VM3. It may be necessary to remove the Thor VM3 from the dock to view the product key decal. Under nor-
mal circumstances, it is not necessary to re-enter the product key as it was entered during the manufacturing process.
If the Thor VM3 was ordered without an operating system, a product key must be provided by the customer to activate
Windows.
When a new Thor VM3 starts up a EULA (End User License Agreement) may be displayed on the touch screen. It
remains on the screen until the Accept or Decline button is tapped with a stylus.
Tap the Accept button to accept the EULA terms and the Thor VM3 continues the startup process. The EULA is not
presented to the user again.
Tap the Decline button to decline the EULA and the Thor VM3 reboots. It will continue to reboot until the Accept but-
ton is tapped with the stylus.
![](/img.php?id=2582426&img=bg17.png)
2 - 3
Software Setup
Hardware setup should be completed before starting software setup.
Smart Dock
The Thor VM3 assembly consists of two parts, the Thor VM3 computer and the Smart Dock. The Thor VM3 contains an internal
UPS battery that, once fully charged, powers the Thor VM3 for a minimum of 30 minutes when the unit is not mounted in the
Smart Dock.
Standard Smart Dock
The Standard Smart Dock provides:
• A mount for the Thor VM3 computer. The dock attaches to a vehicle via a RAM or U-bracket mount or to a RAM table
stand for use in an office environment.
• Conditioned power for the Thor VM3. The dock accepts 10-60VDC power input directly or 50-150VDC power input with
a DC/DC converter.
• Strain relief cable mounts.
• Mobility of the Thor VM3, since the dock remains attached to the vehicle the Thor VM3 computer can easily be moved
from one vehicle equipped with a dock to another.
• COM1 and COM2 serial connections for a tethered scanner, printer, PC connection, etc.
• USB host connection via an adapter cable. This port also supports Honeywell external keyboards.
• CANbus connection via an adapter cable.
• Headset connection via an adapter cable. When a headset is not attached, the microphone and speakers on the Thor
VM3 are active.
Enhanced Smart Dock
The Enhanced Smart Dock provides:
• A mount for the Thor VM3 computer. The dock attaches to a vehicle via a RAM or U-bracket mount or to a RAM table
stand for use in an office environment.
• Conditioned power for the Thor VM3. The dock accepts 10-60VDC power input directly or 50-150VDC power input with
a DC/DC converter.
• Strain relief cable mounts.
• Mobility of the Thor VM3, since the dock remains attached to the vehicle the Thor VM3 computer can easily be moved
from one vehicle equipped with a dock to another.
• COM1 and COM2 serial connections for a tethered scanner, printer, PC connection, etc.
• USB1 connector provides host connection via an adapter cable. This port also supports Honeywell external keyboards.
• USB2 connector provides 2 USB host connections via an adapter cable.
• CANbus connection via an adapter cable.
• Headset connection via an adapter cable. When a headset is not attached, the microphone and speakers on the Thor
VM3 are active.
• A USB host port is located on the top of the Enhanced Smart Dock.
• An RJ-45 Ethernet connector is located on the top of the Enhanced Smart Dock.
Additional Connectors

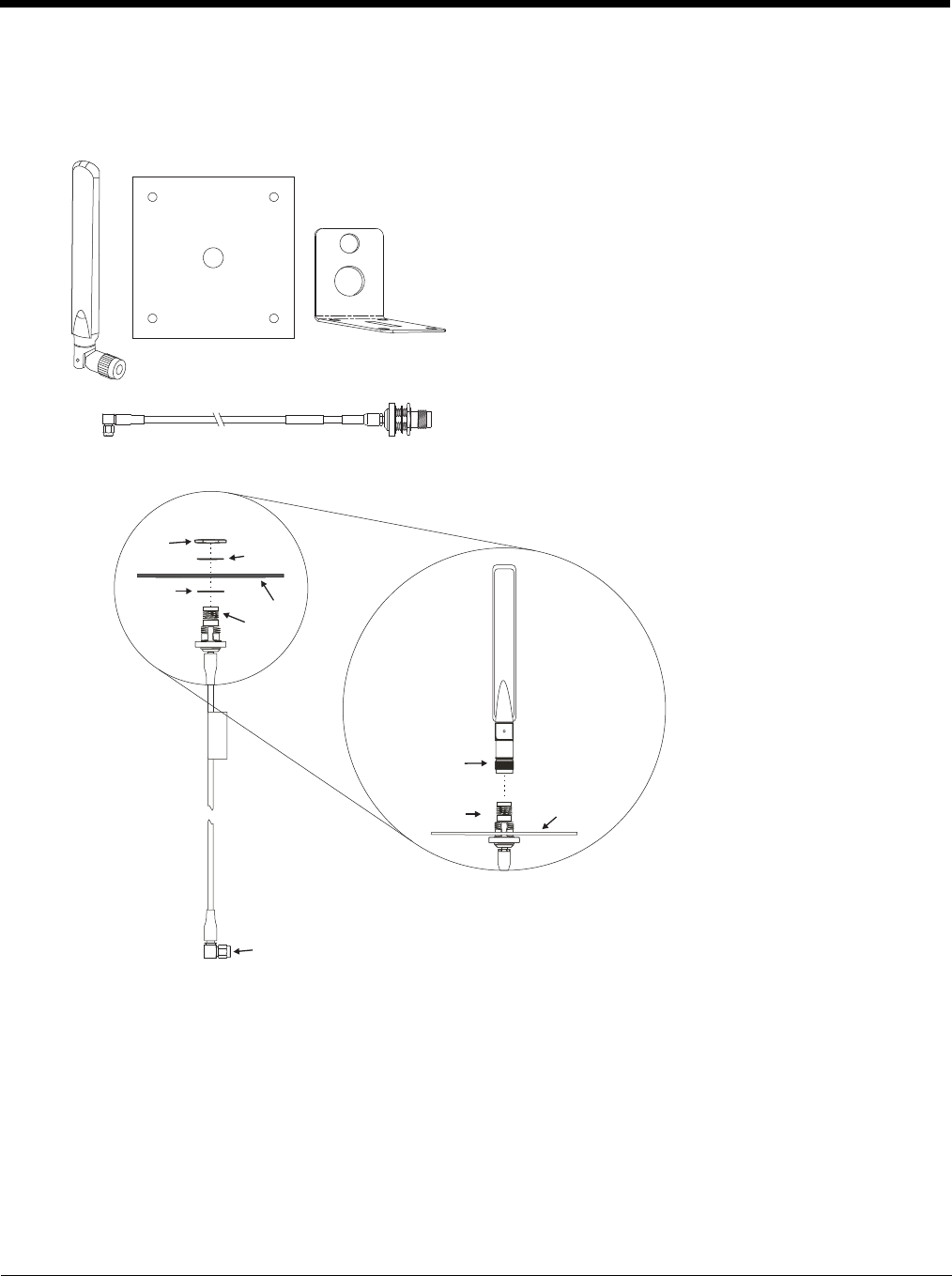

External antenna connectors may be present on the back of the Thor VM3. The connectors may include:
• 802.11 antenna connectors, used when the Thor VM3 is not equipped with internal antennas.
• External GPS antenna connector, when the Thor VM3 is equipped with GPS.
• External WWAN antenna connectors, when the Thor VM3 is equipped with WWAN. Optional WWAN radio (available in North
America, Europe, New Zealand, and Australia only).
Components

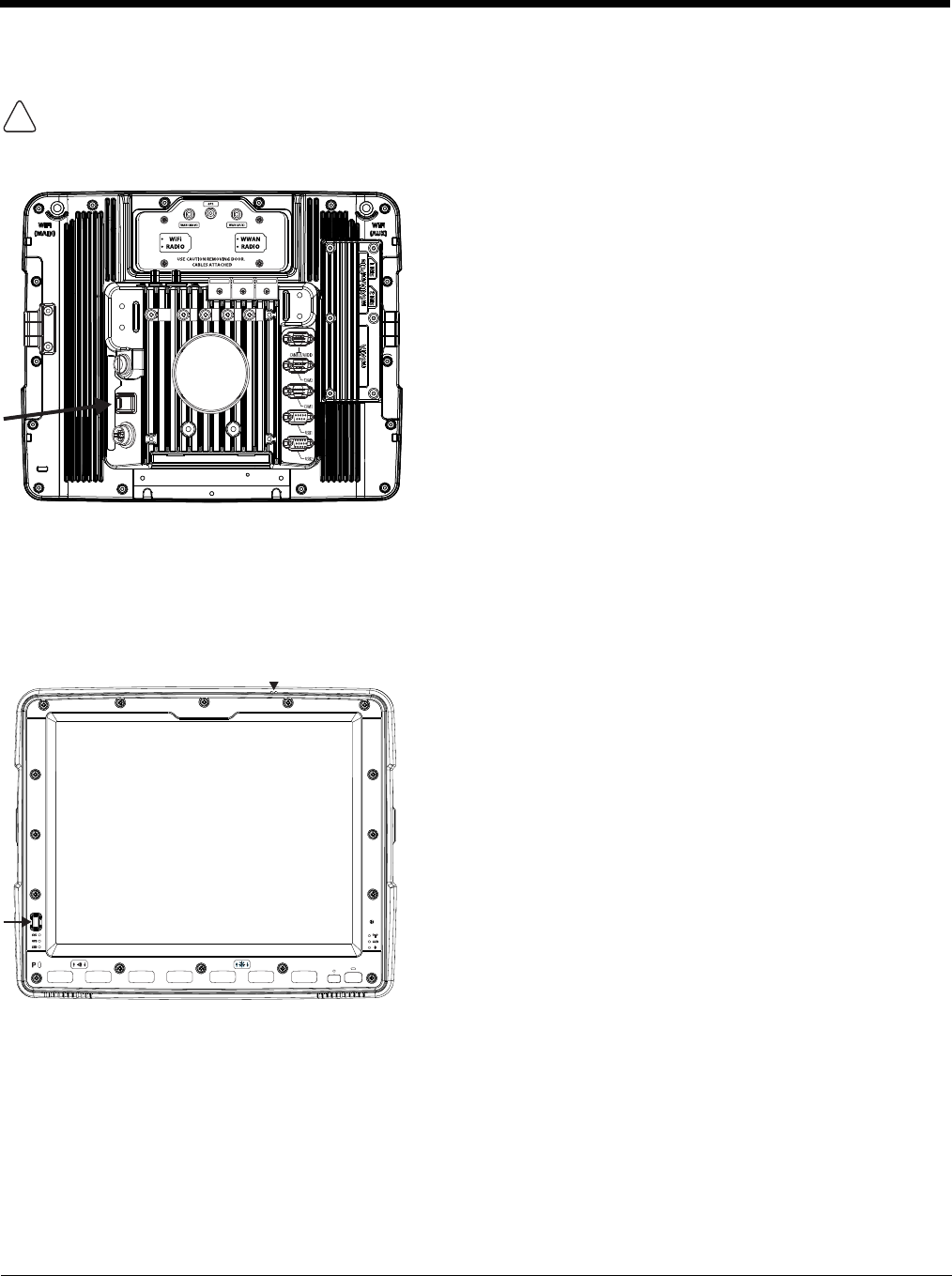

Front View - Thor VM3
![](/img.php?id=2582426&img=bg18.png)
2 - 4
Back View - Thor VM3
P8
P1 P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2
Speakers
Microphone
Power
Button
Ambient
Light
Sensor
![](/img.php?id=2582426&img=bg19.png)
2 - 5
Access Panels - Thor VM3
SIM and mSATA Card Access Pane with door removed
Provision for Padlock Quick Release Handle
Provision for
Laptop Security
Cable
SIM Card
and
mSATA
Access
Panel
WWAN
Antenna
Cable
Access
Panel
Dock
Connector
Panel
![](/img.php?id=2582426&img=bg1a.png)
2 - 6

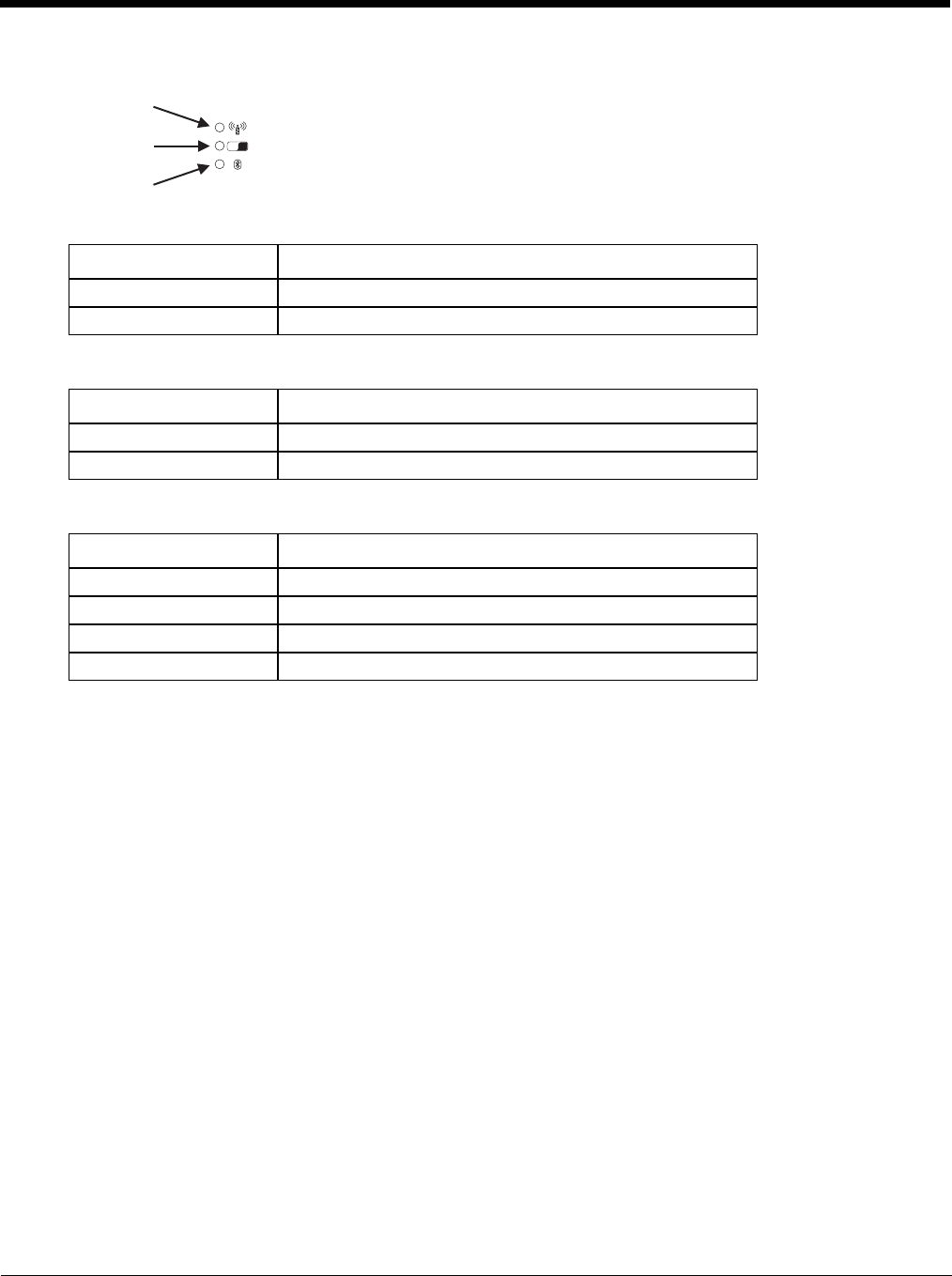

Backlights and Indicators
Display Backlight
There are several configuration options for the Thor VM3 display backlight:
Power Management
The display backlight is controlled by power management. When the user activity timer expires, the display backlight is
turned off. Timeouts can be set for the available power management schemes.
See Power Options (page 5-6) for configuration options.
Backlight Brightness
The intensity of the display backlight can be manually configured:
1. Press the Blue key to enter Blue mode
2.
3. Press the P5 key to increase backlight brightness or the P6 key to decrease backlight brightness.
4. Press the Blue key to exit Blue mode.
Refer to the Screen Control (page 5-9) panel for the current display brightness level.
Screen Blanking
The Thor VM3 can be configured to blank (blackout) the display while the vehicle is in motion.
Refer to the Screen Control (page 5-9) panel for information.
Keypad Backlight
By default, the integrated keypad backlight follows the display backlight. The integrated keypad backlight can be disabled.
To change this behavior, see the Options (see page 5-23) control panel.
The external USB keyboard backlight is manually controlled.
Speaker Volume
The speaker volume can be adjusted via the Thor VM3 keypad:
1. Press the Blue key to enter Blue mode
2. Press the P1 key to increase speaker volume or the P2 key to decrease speaker volume.
3. Press the Blue key to exit Blue mode.
The current volume level can be viewed on the Sounds (page 5-11) control panel or via the system tray speaker icon.
These items can also be used to adjust speaker volume
![](/img.php?id=2582426&img=bg1b.png)
2 - 7
Power Up
The Quick Mount Smart Dock has a power switch on the back.
The “On” side of this rocker switch has a raised bump to allow the state of the switch to be determined when the switch may not
be easily viewed, for example, after the dock is mounted in a vehicle.
After external power has been connected and the Thor VM3 has been mounted in the dock, press the side of the power switch
with the raised bump to pass power from the dock to the Thor VM3.
Next locate the power button on the front of the Thor VM3.
Press the power button to turn the Thor VM3 on. When the Windows desktop is displayed or an application begins, the power up
sequence is complete.
See Power Controls (see page 3-4) for more information.
If a USB drive, such as a thumb drive is attached to the Thor VM3, the device attempts to boot from the USB drive and
cannot. Please remove the USB drive and power up the Thor VM3 again.
!
![](/img.php?id=2582426&img=bg1c.png)
2 - 8
Rebooting the Thor VM3
•
Restart
Restart performs a controlled shutdown of the Thor VM3 and then restarts the device.
• Use the Ctrl + Alt + Del keypress sequence to start the task manager. Tap the Shut Down button and select
Restart from the pull-down list. Tap the OK button to restart the Thor VM3.
•Select Start > Shut Down > Restart and tap OK to restart the Thor VM3
Tapping the Touch Screen with a Stylus
Note: Always use the point of the stylus for tapping or making strokes on the touch screen.
Never use an actual pen, pencil, or sharp/abrasive object to write on the touch screen.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the stylus then remove the stylus from
the screen.
Firmly press the stylus into the stylus holder when the stylus is not in use.
Using a stylus is similar to moving the mouse pointer then left-clicking icons on a desktop computer screen.
Using the stylus to tap icons on the touch screen is the basic action that can:
• Open applications
• Choose menu commands
• Select options in dialog boxes or drop-down boxes
• Drag the slider in a scroll bar
• Select text by dragging the stylus across the text
• Place the cursor in a text box prior to typing in data
• Place the cursor in a text box prior to retrieving data using a scanner/imager.
Note: If the mouse icon is not displayed, this feature can be enabled by tapping the PenMount icon in the System Tray. From
the menu that pops up, tap the Right Button to enable the mouse icon. When this option is enabled, a checkmark is
displayed in the menu.
A stylus replacement kit is available.
When a dialog box is too large for the display, tap and drag the dialog box up or down or from side to side to view the remainder
of the dialog box.
Setup Terminal Emulation Parameters
Note: The instructions below are for Honeywell RFTerm. If a different terminal emulation software is installed on your Thor VM3
refer to the documentation for that software.
Before you make a host connection, you will, at a minimum, need to know:
• the alias name or IP address (Host Address) and
• the port number (Telnet Port) of the host system to properly set up your host session.
1. Make sure the mobile client network settings are configured and functional. If you are connecting over wireless LAN
(802.11x), make sure your mobile client is communicating with the Access Point.
2. From Start > Program, run RFTerm or tap the RFTerm icon on the desktop.
3. Select Session > Configure from the application menu and select the “host type” that you require. This will depend on the
type of host system that you are going to connect to; i.e., 3270 mainframe, AS/400 5250 server or VT host.
If a USB drive, such as a thumb drive is attached to the Thor VM3, the device attempts to boot from the USB drive:
• If the USB drive contains a bootable sector, the Thor VM3 boots from the USB drive.
• If the USB drive does not contain a bootable sector, the Thor VM3 does not boot. Remove the USB drive and boot
the Thor VM3 again.
A right click is generated by tapping the mouse icon , usually located in the upper right hand corner of the screen. After
tapping, the mouse icon highlights the right button. The next touch screen tap is treated as a right click. The mouse icon
returns to the left button highlighted so subsequent taps are treated as left clicks.
!
![](/img.php?id=2582426&img=bg1d.png)
2 - 9
4. Enter the “Host Address” of the host system that you wish to connect to. This may either be a DNS name or an IP address
of the host system.
5. Update the telnet port number, if your host application is configured to listen on a specific port. If not, just use the default
telnet port.
6. Select OK.
7. Select Session > Connect from the application menu or tap the “Connect” button on the Tool Bar. Upon a successful
connection, you should see the host application screen displayed.
To change options such as Display, Colors, Cursor, Bar Code, etc., refer to these sections in the RFTerm Reference Guide for
complete descriptions of these and other features.
Cleaning the Touch Screen
Note: These instructions are for components made of glass. If there is a removable protective film sheet on the display, remove
the film sheet before cleaning the screen.
Keep fingers and rough or sharp objects away from the bar code reader scanning aperture and the mobile device touch screen.
If the glass becomes soiled or smudged, clean only with a standard household cleaner such as Windex® without vinegar or use
isopropyl alcohol. Dampen the cloth with the cleaner and then wipe the surface.
Do not use paper towels or harsh-chemical-based cleaning fluids since they may result in damage to the glass surface. Use a
clean, damp, lint-free cloth.
Do not scrub optical surfaces. If possible, clean only those areas which are soiled. Lint and particulates can be removed with
clean, filtered canned air.
Startup Help
Contact Technical Assistance (page 9-1) if you need more help.
Thor VM3 seems to lockup as soon
as it is rebooted.
There may be slight delays while the wireless client connects to the network, authoriza-
tion for voice-enabled applications complete, and Bluetooth relationships establish or re-
establish.
When an application begins, the Thor VM3 is ready for use.
![](/img.php?id=2582426&img=bg1e.png)
2 - 10
![](/img.php?id=2582426&img=bg1f.png)
3 - 1
3
Hardware Overview
System Hardware
802.11a/b/gWireless Client
Central Processing Unit
The CPU is a 1.6 GHz Intel Atom processor. The operating system is Microsoft Windows . The OS image is stored on an
internal CompactFlash memory card and is loaded into DRAM for execution.
Input/Output Components
The Thor VM3 supports the following I/O components of the core logic:
• Two 9-pin RS-232 serial ports, COM1 and COM2.
• One slot for SD memory card.
• CompactFlash (CF) memory card drive.
• Integrated keyboard.
• Ports available via adapter cables: USB host port, CANbus, Audio.
System Memory
Main system memory is GB SDRAM.
Video Subsystem
The Thor VM3 video subsystem consists of a color TFT display. The video subsystem complies with the VESA VL bus
standard. The resolution of this display is 800 x 480 pixels. This resolution complies with the WVGA graphics industry
standard.
The display supports screen blanking to eliminate driver distraction when the vehicle is in motion.
Audio Interface
Speakers are located on the bottom front of the Thor VM3. A headset adapter cable provides a connection for headset
operation. When a headset is plugged into the adapter cable, the main speakers are disabled.
A microphone is located at the upper right of the Thor VM3 display, near the Thor VM3 emblem. When a headset is
plugged into the adapter cable, the internal microphone is disabled.
Card Slots
CompactFlash (CF) Slot
The CF ATA slot is not hot swappable. The Thor VM3 must be powered down to insert or remove an ATA card. Since
the operating system is stored on the CF ATA card, the Thor VM3 cannot operate without the ATA card.
Secure Digital (SD) Slot
The SD slot accepts an SD memory card. The SD card is hot swappable.
Bluetooth EZPair
The Thor VM3 contains Bluetooth version 2.0 with Enhanced Data Rate (EDR) up to 3.0 Mbit/s over the air. Bluetooth
device connection (or pairing) can occur at distances up to 32.8 ft (10 meters) Line of Sight. The wireless client retains
wireless connectivity while Bluetooth is active.
The user cannot select PIN authentication or encryption on connections from the Thor VM3. However, the Thor VM3 sup-
ports authentication requests from pairing devices. If a pairing device requests authentication or encryption, the Thor VM3
displays a prompt for the PIN or passcode. Maximum encryption is 128 bit. Encryption is based on the length of the user’s
passcode.
![](/img.php?id=2582426&img=bg20.png)
3 - 2
Bluetooth simultaneously supports one printer as a slave Bluetooth device and one scanner, either as a slave or as a mas-
ter Bluetooth device.
• The LED on the Bluetooth scanner illuminates during a scanning operation.
• Multiple beeps may be heard during a bar code scan using a mobile Bluetooth scanner; beeps from the mobile Bluetooth
scanner as the bar code data is accepted/rejected, and other beeps from the Thor VM3 during final bar code data
manipulation.
WWAN
WWAN (Wireless Wide Area Networking) is available on the Thor VM3. A slot is provided for a SIM card.
GPS
GPS (Global Positioning System) is available on the Thor VM3.
Power

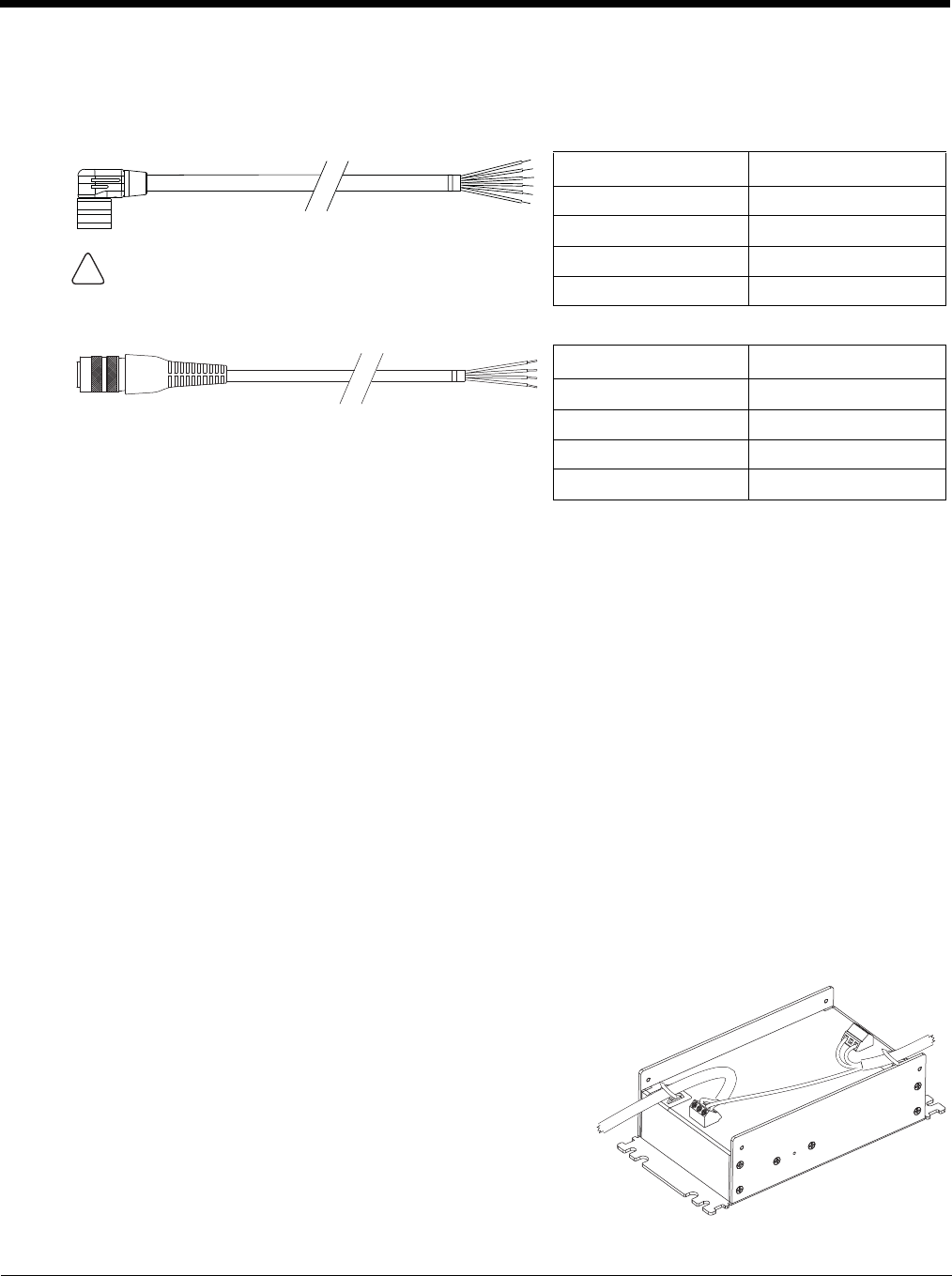

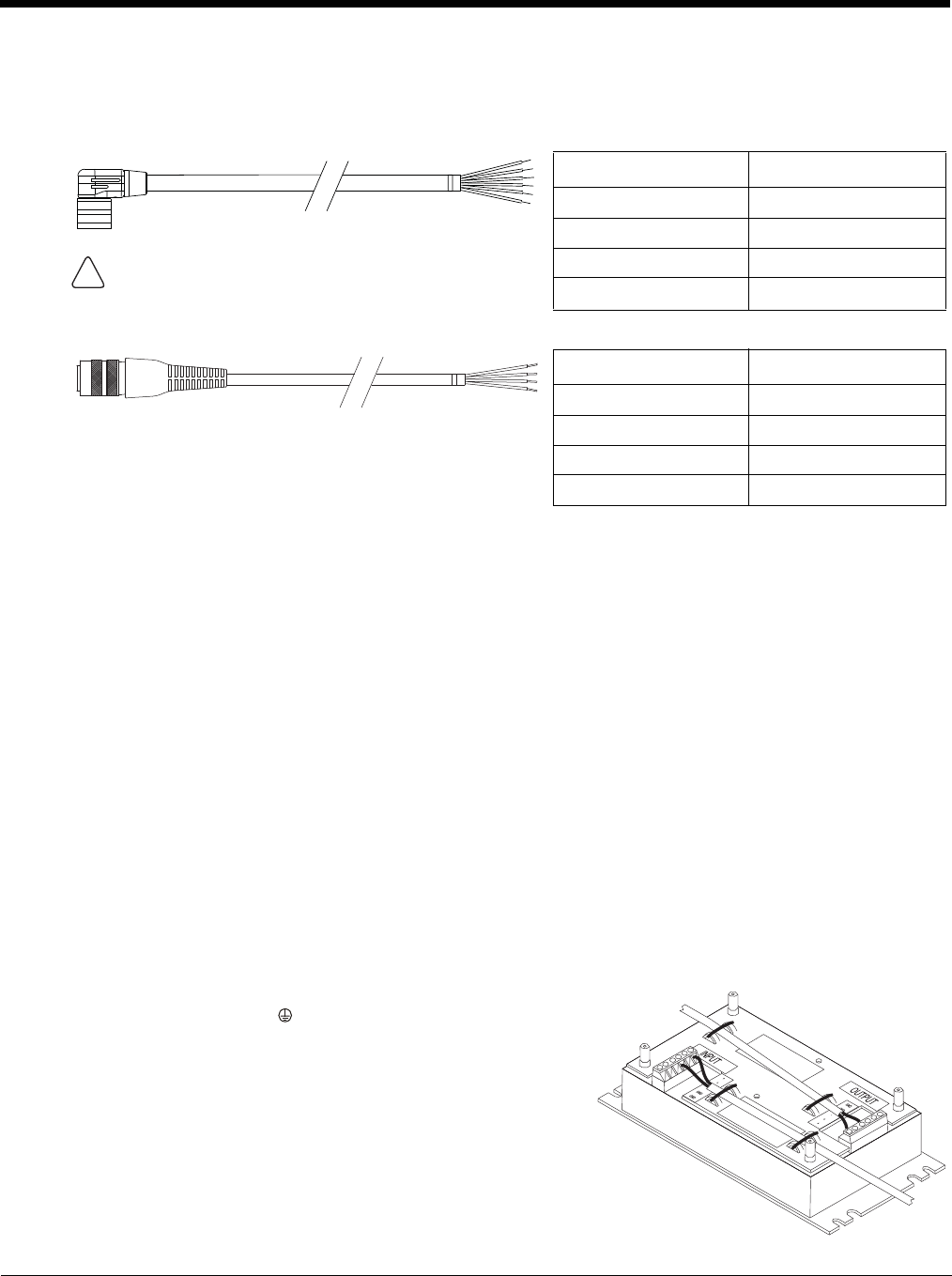

Vehicle DC Power Supply
Vehicle power input for the Thor VM3 dock is 10V to 60V DC and is accepted without the need to perform any manual oper-
ation within the Thor VM3 dock, see 12-48 VDC Vehicles (10-60 VDC Direct Connection) (page 4-28). The dock provides
a conditioned power output for the Thor VM3. By using a specified DC/DC power supply, input voltage of 50-150V DC can
be accepted, see 60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) (page 4-37) or 60-144 VDC
Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) (page 4-37).
Power input is fused for protection and the fuse is externally accessible, see Fuse (page 3-4).

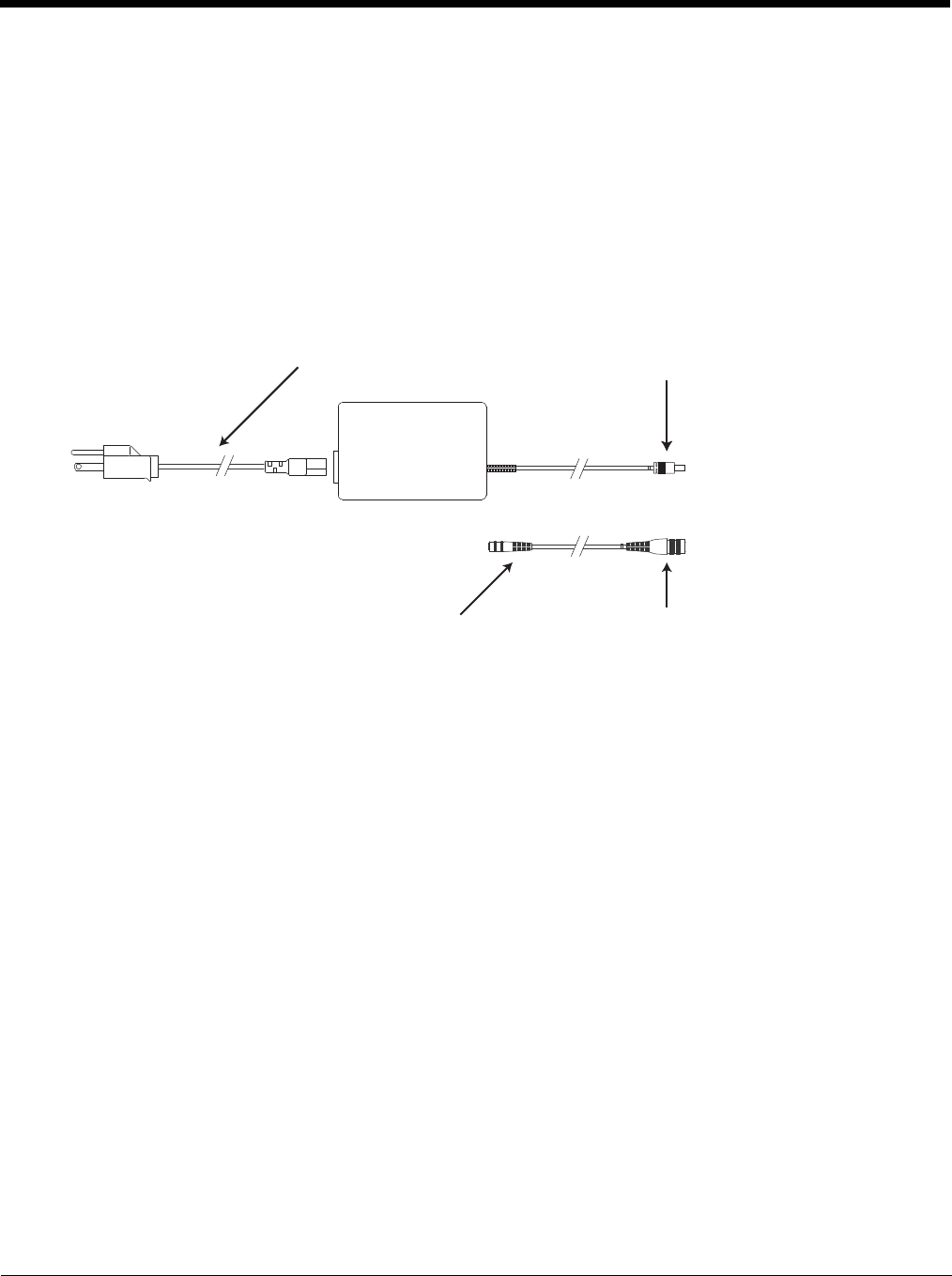

External AC Power Supply
If DC power is not available – for example, in an office environment – an optional external Universal Input Power Supply can
be used to convert AC wall power to an appropriate DC level. AC to DC power input for the Thor VM3 is delivered to the
Quick Mount Smart Dock via an optional external power supply and adapter cable. See External AC/DC Power Supply
(page 4-46).
Uninterruptible Power Supply
The Thor VM3 contains an internal UPS battery. The user can Replace UPS Battery (page 1-83)
The UPS battery is automatically charged when the Thor VM3 is placed in a powered dock, provided the safe charging tem-
perature conditions below are met.
When external power is removed, the UPS automatically powers the Thor VM3 with no user intervention. When running on
UPS power, the power management timeouts may be different than when vehicle power is applied.
The UPS allows the Thor VM3 to continue operation when not mounted in a dock or when the vehicle battery is being
swapped. When fully charged the UPS battery is designed to power the Thor VM3 for a minimum of 30 minutes at tem-
peratures of -20ºC (-4ºF) or greater. For the extended temperature version of the Thor VM3, the UPS provides a minimum
of 10 minutes of operation between -20ºC (-4ºF) and -30ºC (-22ºF).
If operating on UPS power and the UPS battery becomes critically low, the Thor VM3 performs a controlled shutdown.
If there is no external power available, there must be 10% or greater power in the UPS battery or the Thor VM3 does not
power on.
The UPS status LED and the Battery Control Panel can be used to monitor the state of the UPS battery.
Safe Charging Temperature Range
The internal temperature of the Thor VM3 is the trigger for UPS battery charging.
• The UPS battery is not charged when the internal Thor VM3 temperature is below 0°C (32°F). This corresponds to
an ambient (room) temperature of approximately -10°C (-14°F).
• The UPS battery is not charged when the internal Thor VM3 temperature is above 45°C (113°F). This corresponds
to an ambient (room) temperature of approximately 35°C (95°F).
![](/img.php?id=2582426&img=bg21.png)
3 - 3
• If the UPS battery cannot be charged due to a temperature extreme, the UPS Status LED (page 3-10) is amber.
Move the Thor VM3 to a different location to charge the UPS battery.
When the Thor VM3 is operated in an environment where the UPS battery is not able to charge due to temperature
extremes, the Thor VM3 should be removed to a location within the safe charging temperature range during off hours.
A discharged UPS battery cannot protect against data loss in the event vehicle power is interrupted.
Charging Timeout
• A fully discharged UPS battery normally recharges in less than 4 hours when the Thor VM3 is in a powered dock and
within the safe charging temperature range.
• If the UPS battery is not charged before an 8 hour (or 4 hours for some earlier software revisions) timeout period
expires, the UPS Status LED (page 3-10) is amber.
• The charge timeout is reset if charging resumes upon application of external power.
• The charge timeout is reset if charging resumes when the Thor VM3 enters the permissible temperature range for
charging.
Charging and Power Management
Backup Battery
The Thor VM3 has a permanent Lithium battery installed to maintain time, date and CMOS setup information for a minimum
of 90 days. The lithium battery is not user serviceable and should last years with normal use before it requires replace-
ment.
Note: The backup battery should only be changed by authorized service personnel.
![](/img.php?id=2582426&img=bg22.png)
3 - 4
Fuse
Power Management Modes
Power Controls
Power Switch
Power Button
External Connectors

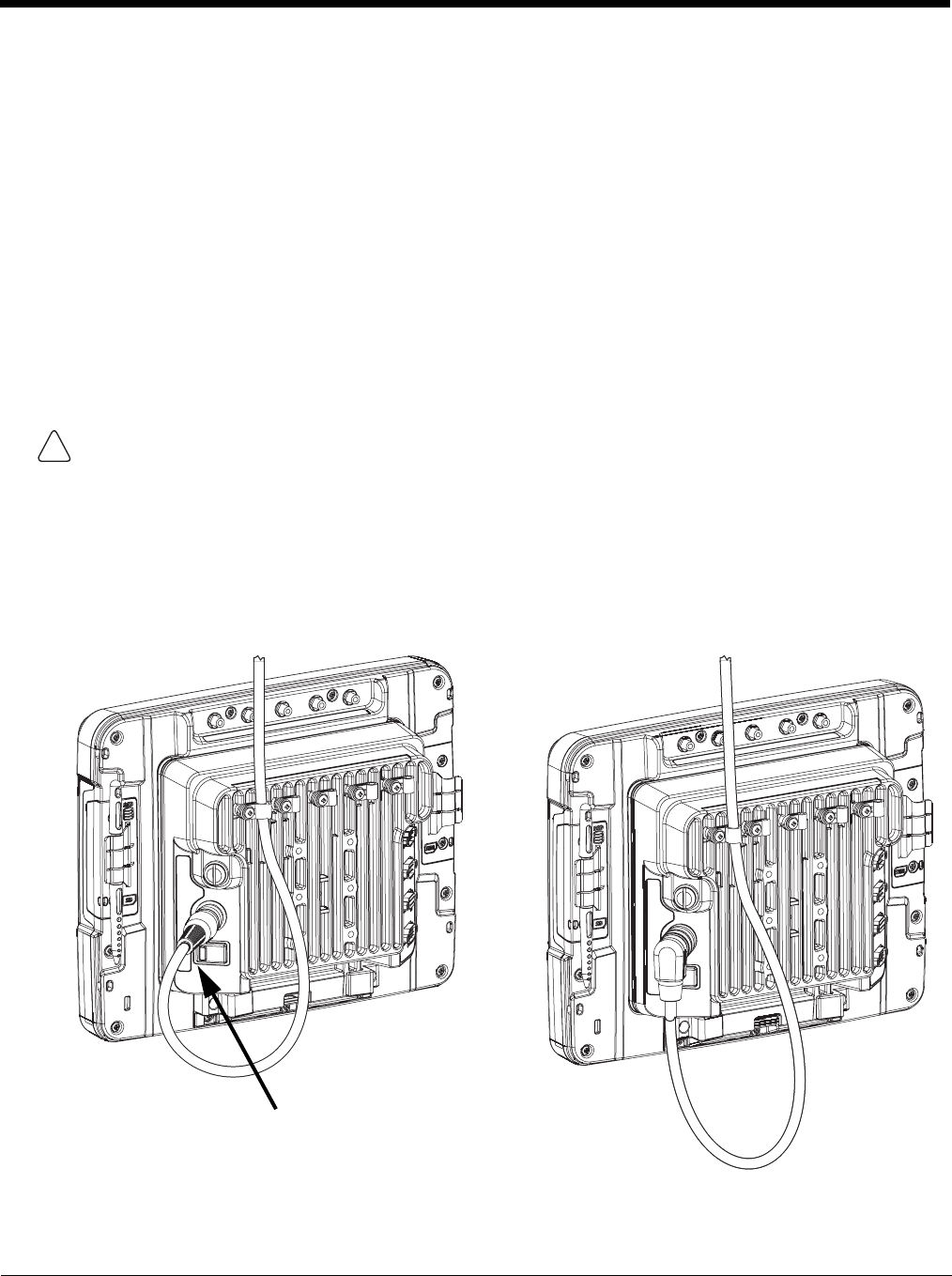

Power the Thor VM3 off before attaching a cable to any port (serial, USB, Audio/CAN, etc.).
The external I/O connectors for the Thor VM3 are located on the right side of the Quick Mount Smart Dock (when viewed from
the back).

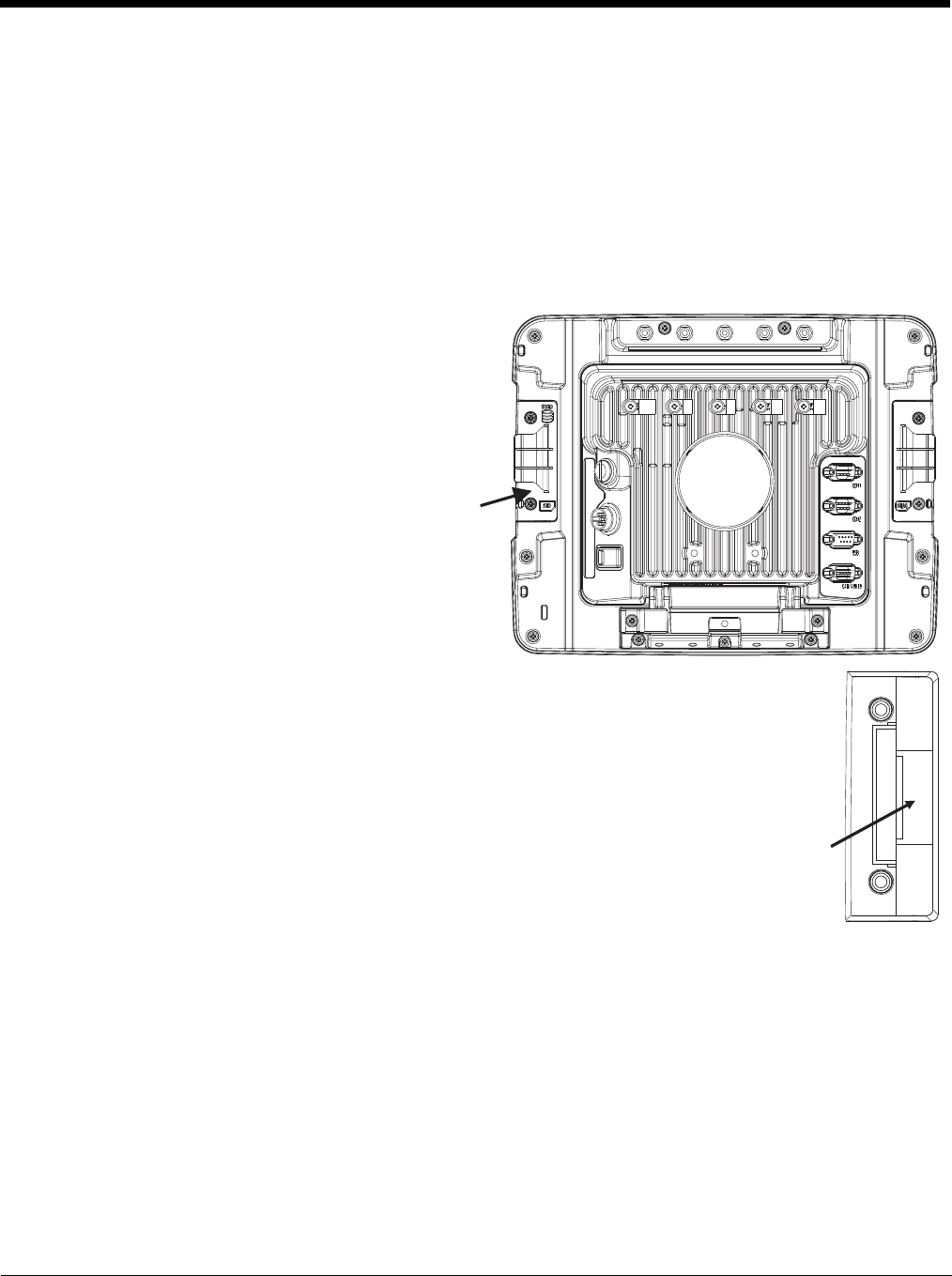

The Power Supply Connector (page 3-6) is on the left side of the dock (when viewed from the back).
Antenna connectors are located on the top rear of the Thor VM3.

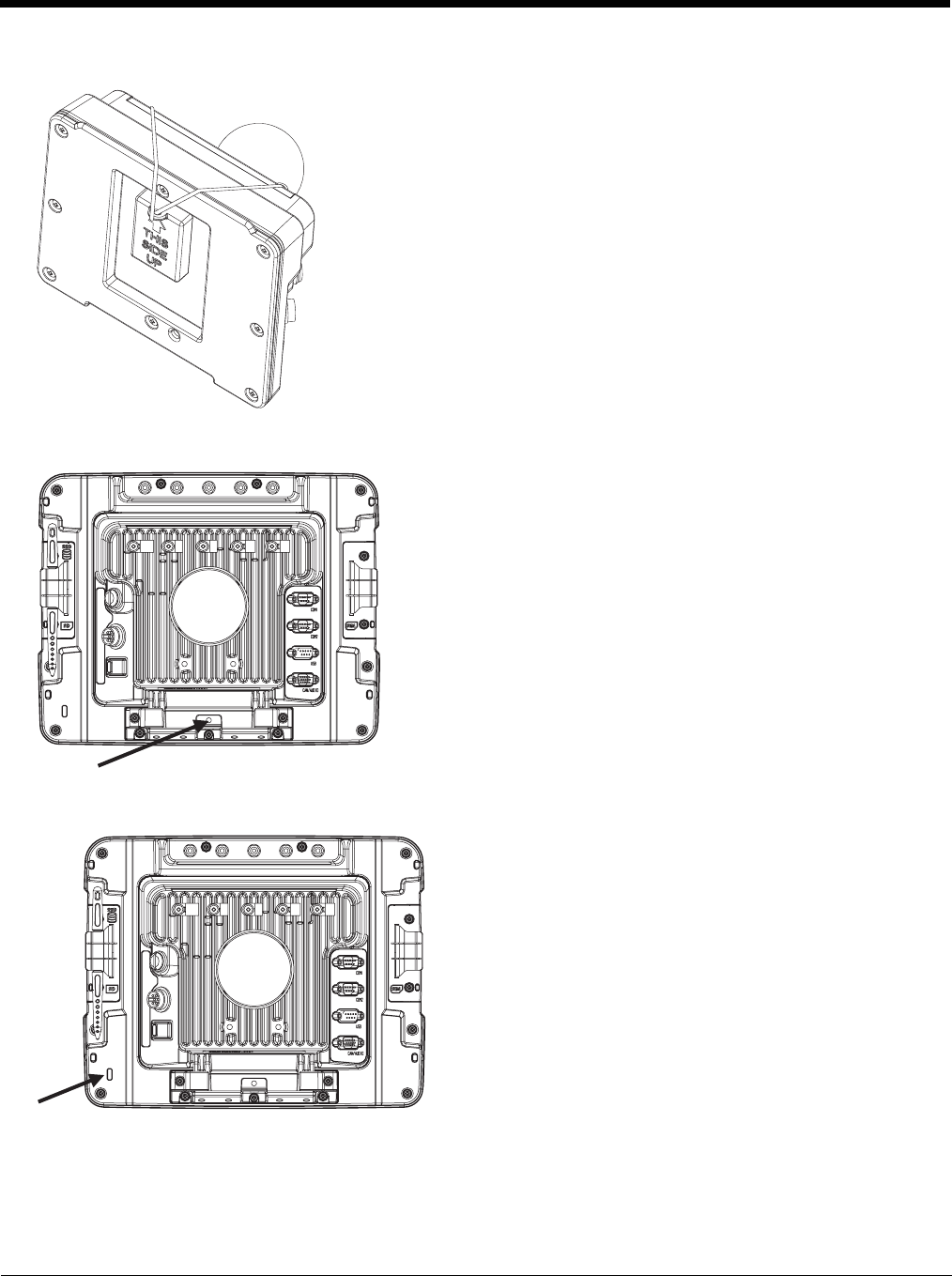

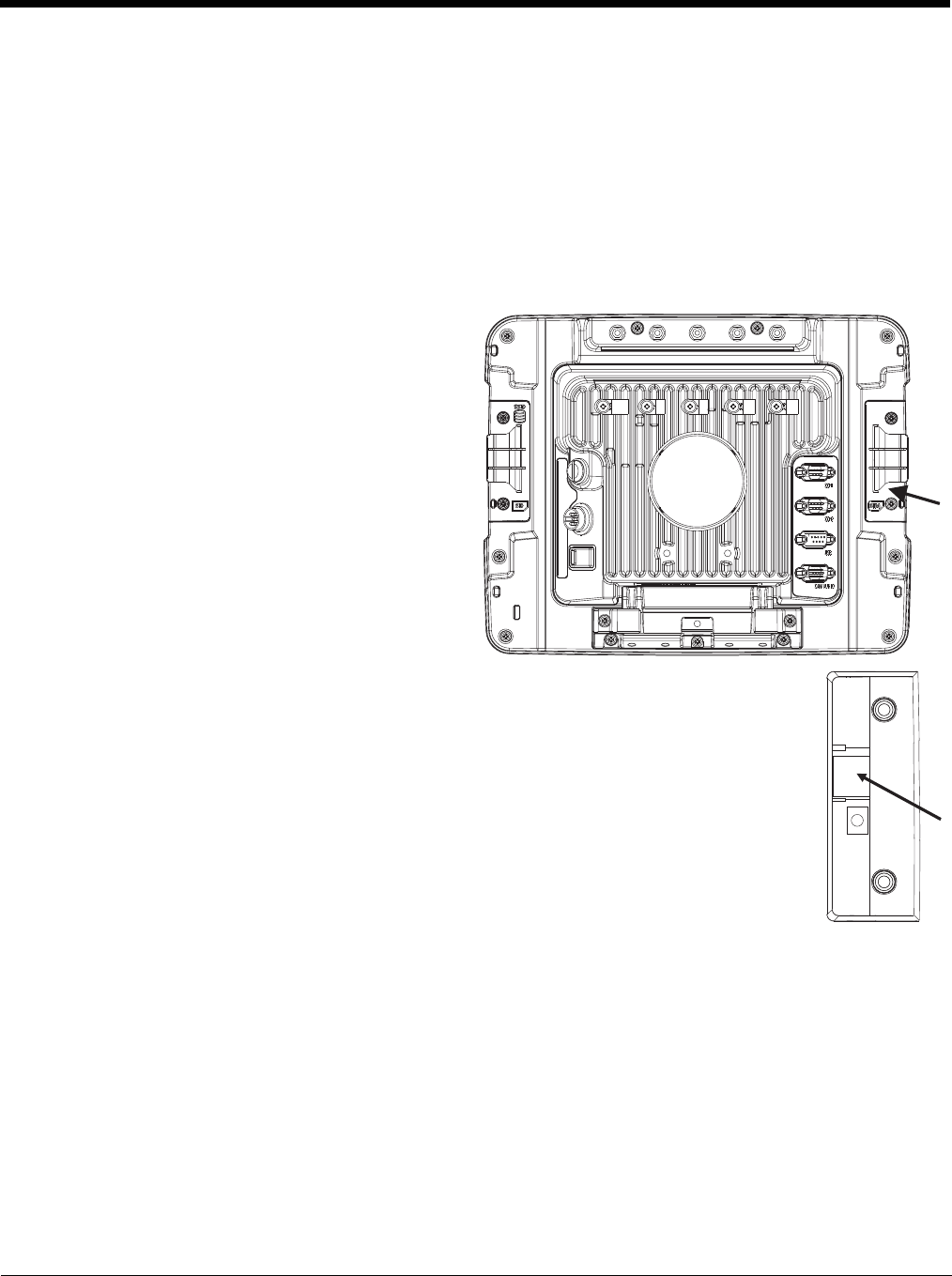

The Thor VM3 uses an 8A time delay (slow blow), fuse that is externally accessible and user
replaceable. The fuse is located on the back of the Quick Mount Smart Dock. The fuse is accessed
by unscrewing the cap as indicated.
Should it need replacement, replace with same size, rating and type of fuse:
• Littelfuse 0215008.MXP
• Cooper Bussmann BK1/S506-8-R
• Bel Fuse 5HT 8-R
or equivalent.
Fuse has voltage on it even when power is off. Always disconnect input power before changing the
fuse.
After all cables are connected, the Thor VM3 can be powered on.

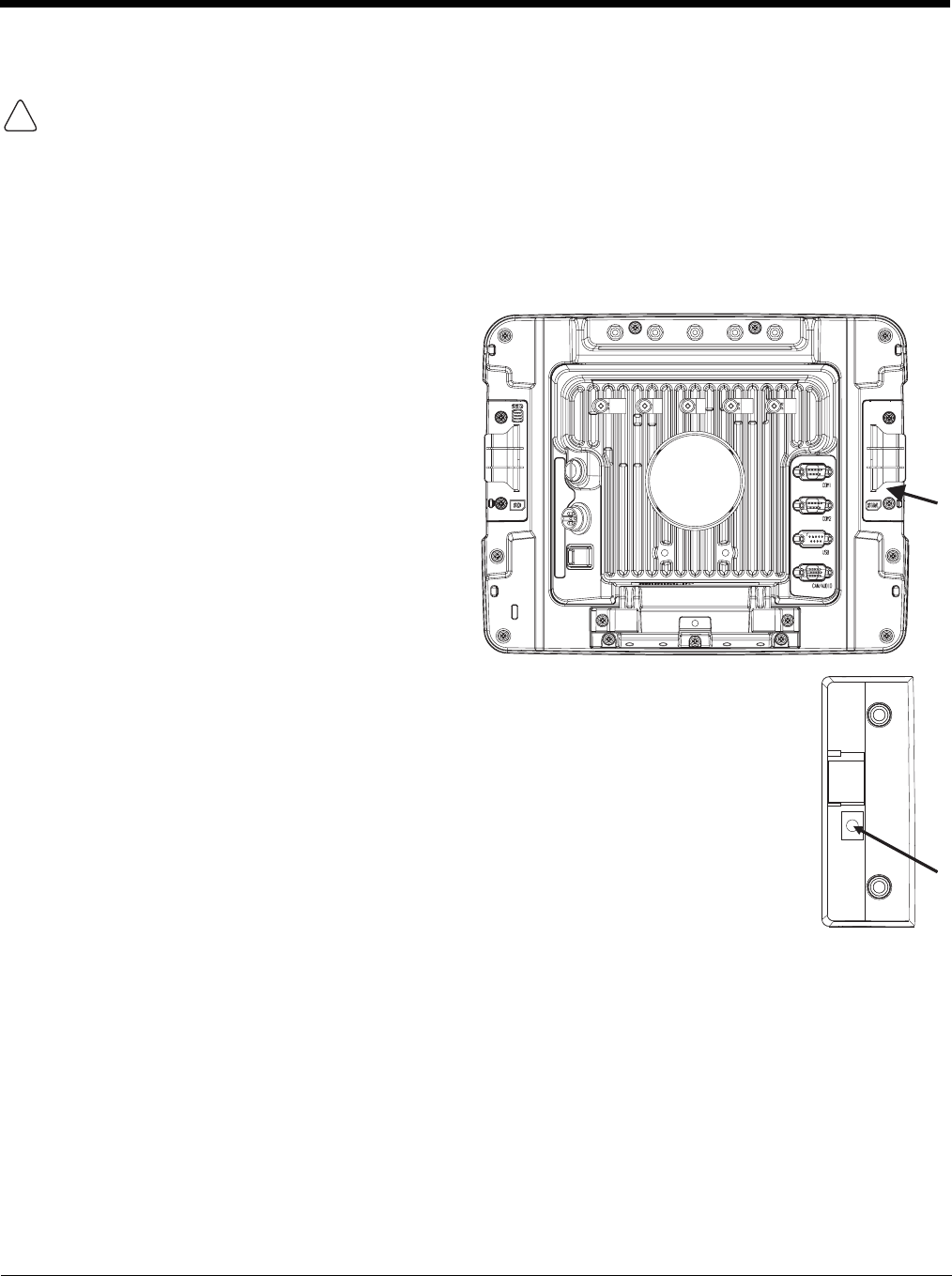

There is a power switch located on the back of the Quick Mount Smart Dock. The power switch
is a rocker switch.
The power switch has a raised bump to identify the switch position even when it is hidden from
view. When the side of the switch with the raised bump is pressed, the power switch is On. If
the dock is connected to external power, the dock delivers power to the Thor VM3.
Generally, once the dock is powered On, there is no need to power it off. The dock power can
remain On even when the Thor VM3 is not attached.
![](/img.php?id=2582426&img=bg23.png)
3 - 5

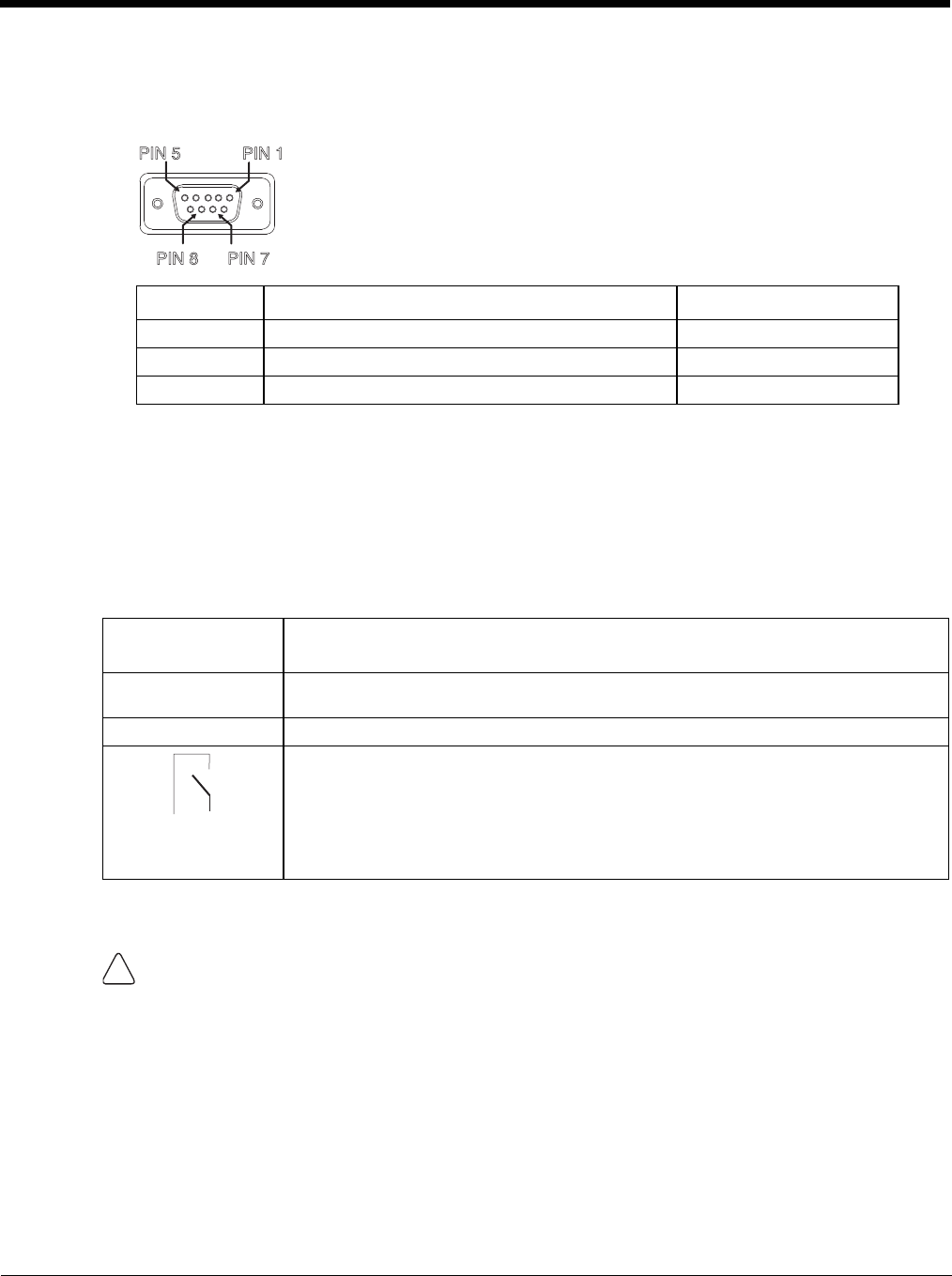

Serial Connector (COM1 and COM2)
Screen Blanking
The screen blanking signal can be provided either by a Honeywell Screen Blanking Box or a user supplied switch or
relay. See Screen Blanking (page 4-43) for information on connecting screen blanking accessories.
USB Connector(s)
The COM1 and COM2 connectors are D-9 male connectors
located on the back of the Quick Mount Smart Dock.
Power the Thor VM3 off before attaching a cable to any port
(serial, USB, Audio/CAN, etc.).
The serial connectors are industry-standard RS-232, PC/AT
standard 9–pin “D” male connector. See COM1 and COM2
Connector (page 8-5) for connector pinout detail.
See Connect Serial Device (page 4-47) for more information.
If a COM port is not being used for a scanner, it can be used
for Screen Blanking (page 4-43) when the vehicle is in
motion.
Smart Dock Enhanced Smart Doc
The USB or USB1 connector is a D-9 female connector
located on the back of the Quick Mount Smart Dock. See
USB Connector (page 8-6) for connector pinout detail.
The USB-2 connector is a D-15 female connector located on
the back of the Quick Mount Smart Dock. See USB
Connector (page 8-6) for connector pinout detail.
Power the Thor VM3 off before attaching a cable to any port
(serial, USB, Audio/CAN, etc.).
Smart Dock Enhanced Smart Doc
COM1
COM2
USB
CANBUS/AUDIO
COM1
COM2
USB
CANBUS/AUDIO
![](/img.php?id=2582426&img=bg24.png)
3 - 6
CANbus / Audio Connector
Power Supply Connector
Antenna Connections
The CANbus/Audio connector is a D-15 male connector
located on the back of the Quick Mount Smart Dock.
The connector supports a headset adapter cable or a CAN-
bus cable. The Thor VM3 does not support connecting audio
and CANbus simultaneously.
See CANbus / Audio Connector (page 8-9) for connector pin-
out detail.
A headset cable attaches to the CANbus / Audio connector
and provides a quick connect connection for a headset. See
Connect Headset Cable (page 4-48) for more information.
The CANbus Y cable has a 9 pin F SAE J1939 (Deutsch) and
9 pin M SAE J1939 (Deutsch) connector. See Connect
CANbus Cable (page 4-49) for more information.
The CANbus interface is a virtual COM4 port. This port can
be accessed using standard Windows API calls.
Smart Dock Enhanced Smart Doc
Power is supplied to the Thor VM3 through the power connector. Additionally this assembly pro-
vides a connection point for the vehicle’s chassis ground to be connected internally to the conduc-
tive chassis of the computer.
The Thor VM3 internal power supply can accept DC input voltages in the range of 10 to 60 Volts
DC.
See Power Supply Connector (page 8-5) for connector pinout detail. See Connect Power (page 4-
27) for more information on connecting power to the Thor VM3.
The Thor VM3 is equipped with an 802.11 radio and can be ordered with internal an-
tennas, external antennas or external remote mount antennas. When the Thor VM3 is
ordered with internal antennas, the external antenna connectors are not used. GPS
and WWAN are optional on the Thor VM3 and require external remote mount antennas.
1. WI-FI (MAIN) 802.11 Main
External Antenna Connector
2. WAN (MAIN) (Blue label)
Main WWAN Antenna
Connector
3. GPS (Green label) GPS
Antenna Connector
4. WAN (AUX) (Blue label)
Auxiliary WWAN Antenna
Connector
5. WI-FI (AUX) 802.11 Auxiliary
External Antenna Connector
COM1
COM2
USB
CANBUS/AUDIO
1 2 3 4 5
![](/img.php?id=2582426&img=bg25.png)
3 - 7
External Antenna Connector
Internal 802.11 Antenna
If the internal 802.11 antenna option is ordered, antennas are mounted inside the Thor VM3. The internal antennas
are not user accessible.
Vehicle Remote Antenna
The external antennas can be remotely mounted on the vehicle. See Install Remote Antenna (page 4-50) for instruc-
tions. External antenna kits are available for the 802.11 Wi-Fi radio, GPS and WWAN.
When the Thor VM3 is ordered with the internal antenna option, the 802.11 antenna connectors on
the back are not connected to the 802.11 radio. Instead the internal antenna connector is connected
to the 802.11 radio.
Remove the rubber cap, if present, from the antenna connector before connecting an external
antenna.
![](/img.php?id=2582426&img=bg26.png)
3 - 8
Keyboard Options
•
•
Integrated Keypad
The integrated keypad contains seven programmable keys, a blue modifier key and an orange modifier key.
The P1 though P7 keys are user programmable.
• When used with no modifier key, P1 through P7 can be configured for a user programmable function.
• When used with the Orange modifier key, P1 through P7 provide secondary programmable keys, P8 through P14, and
can be configured for a user programmable function.
• The programmable keys can be remapped to provide a single keypress, a string of keypresses or to execute an
application or command. Key remapping is configured via the Programmable Key (page 5-41) option in the Control
Panel.
• Programmable keys persist across a warmboot or power cycle.
• When used with the Blue modifier key, P1 and P2 keys are used to adjust speaker volume and P5 and P6 keys are used
to adjust display brightness.
The Thor VM3 integrated keypad is backlit.
• By default, the integrated keypad backlight follows the display backlight. When the display backlight is on, the integrated
keypad backlight is on.
• If the display backlight brightness is increased (or decreased) the integrated keypad backlight brightness is increased (or
decreased).The integrated keypad backlight and the display share the same timer, which is configured in the Power
Options (page 5-6) control panel.
• The integrated keypad backlight can be disabled via the Options (page 5-23) control panel.
Keypad LEDs
See Keyboard LEDs (page 3-12) for details.
95-Key USB Keyboard
The Thor VM3 uses an optional rugged QWERTY 95 key keyboard, designed for ease of use with the Windows CE operat-
ing system. The USB keyboard connects directly to the D9 USB connector on the Thor VM3 Quick Mount Smart Dock.
• The 95 key keyboard supports all 104 keyboard functions (101 standard keyboard plus Windows keys) and includes an
integrated pointing device and left and right mouse buttons. However, because the keyboard only has 95 keys, all
functions are not visible (or printed on the keyboard). Therefore the keyboard supports what is called hidden keys - keys
that are accessible but not visible on the keyboard.
• The 95 key keyboard keys are backlit. The keyboard backlight is manually controlled.
Keyboard Backlight
The keyboard backlight key in the top right hand corner has a light bulb icon.
P8
P1 P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2
Print
Screen
SysRq
Scroll
Lock
Pause
Break
67 BackSpace Num
Lock
ERTYUI O
P]\
[
{}|7
4
1
0
Home
DF GHJ K L ;'
:"Enter
Alt
CV B
N
M,
<.
>
/
?Shift
Alt Ctrl
Ins
End
4
$
5
%^&
9
(
0
)-
_
=
+
LR
X
Esc F3 F4 F5 F6 F7 F8 F9 F10 F11 F12F1 F2 Fn
123 /*-
Tab QW89
56
23
PgUp
Caps
Lock AS
Shift
Ctrl
PgDn
+
`
~!@#
Enter
.
Del
8
*
Z
![](/img.php?id=2582426&img=bg27.png)
3 - 9
The keyboard keys are backlit. The keyboard backlight is manually controlled using the backlight key in the upper right
hand corner of the keyboard. Pressing the backlight key cycles the keyboard backlight through the levels of backlight
intensity: Off, Low intensity, Medium intensity, Maximum intensity, Off, etc. When the Thor VM3 is powered on, the key-
board backlight defaults to Off.
Since the keyboard is a USB device, by default the external keyboard backlight is turned off when the Thor VM3 enters
Standby/Sleep. This behavior can be changed by enabling USB power in Standby/Sleep on the Options (page 5-23)
control panel.
USB Keyboard / Mouse
A standard USB keyboard or mouse can be attached to the Thor VM3 using the appropriate adapter cable.
The Y cable attaches to the Thor VM3 and provides a USB connector. Please refer to documentation provided with the
USB keyboard or mouse for more information on their operation.
LED Functions
System LEDs
SYS (System Status) LED
LED Behavior System State
Solid Green • On
• On but Display Off
Green blinking very slowly
External power present
(1/2 sec. on, 4 1/2 sec. off) •
Off
External power present • Off
Connection LEDs
System LEDs
Blue LED Orange LED
Programmable LED
UPS
SYS
SS D
SYS (System Status) LED
UPS (Uninterruptible Power Supply) LED
SSD (Solid State Drive) LED
![](/img.php?id=2582426&img=bg28.png)
3 - 10
UPS Status LED
The color of the UPS LED identifies the charge level, while the behavior of the LED identifies the charging state.
Charge Level
Charging State
SSD (Solid State Drive) LED
Off
External power not present • Off
Green blinking slowly
External power present
(1/2 sec. on, 1 1/2 sec. off)
CPU temperature less than -20ºC, Heater warming CPU for 30 sec.
Green blinking slowly
External power not present
(1/2 sec. on, 1 1/2 sec. off)
CPU temperature less than -20ºC, Need to move unit to warmer environment
LED Color Status
Green Fully charged (>90%)
Amber • Less than fully charged, but more than 2 minutes runtime remaining
• Out of Safe Charging Temperature Range (page 3-2) Charging only occurs between
approximately -10°C and 35°C ambient temperature
• No UPS present
•Charging Timeout (page 3-3) Not fully charged after 4 or 8 hours depending on software
revision.
Red Low battery, less than 2 minutes runtime until shutdown
LED Behavior Status
Slow Blink
(1 sec. on, 3 sec. off)
Charging
Fast Blink
(1/2 sec. on, 1/2 sec. off)
UPS supplying power and discharging
On Neither charging or discharging
Off Unit is off or is in Suspend
LED Behavior Status
Flashing Green SSD read or write activity
Off No SSD read or write activity
LED Behavior System State
![](/img.php?id=2582426&img=bg29.png)
3 - 11
Connection LEDs
WWAN LED
Wi-Fi LED
Bluetooth LED
The Bluetooth LED blinks once every 6 seconds when the Bluetooth client is paired but not connected. It blinks once
for a very short time every 2 seconds when paired and connected. It blinks every second when in discovery. The LED
is off when the Bluetooth client is off.
LED Behavior Status
Solid Green Indicates a WWAN connection to a network
Off Indicates no WWAN connection
LED Behavior Status
Solid Green Indicates a connection with an IP address to an Access Point
Off Indicates no connection to an Access Point
LED Behavior Status
Blue Blinking Slowly Bluetooth is paired but not connected to a device
Blue Blinking Medium Bluetooth is paired and connected to a device
Blue Blinking Fast Bluetooth is discovering Bluetooth devices
Off Bluetooth hardware has been turned off
Wi Fi
Wi-Fi LED
Bluetooth LED
WWAN LED
![](/img.php?id=2582426&img=bg2a.png)
3 - 12
Keyboard LEDs
The keyboard LEDs are located near the specified key.
Blue LED
Orange LED
Programmable LED
The Programmable LED is available for user applications. The LED defaults to Off unless activated by user applica-
tion.
Display
The display is a thin-film transistor display capable of supporting WSVGA graphics modes. Display size is 1024x768 pixels.
The display covering is designed to resist stains. The touch screen allows signature capture and touch input. The display sup-
ports screen blanking to eliminate driver distraction when the vehicle is in motion.
Touch Screen
The touch screen is a Resistive Panel with a scratch resistant finish that can detect touches by a stylus, and translate them
into computer commands. In effect, it simulates a computer mouse. Only Delrin or plastic styluses should be used. A right
mouse click is simulated by touching and holding the screen for the appropriate time interval.
When a dialog box is too large for the display, tap and drag the dialog box up or down or from side to side to view the
remainder of the dialog box.
Always use the point of the stylus for tapping or making strokes on the display. Never use an actual pen, pencil, sharp or
abrasive object to write on the touch screen.
An extra or replacement stylus may be ordered.
A replaceable touch screen protective film is available when the Thor VM3 is used in an abrasive environment. Contact
Technical Assistance (page 9-1) for availability.
Note: If the touch screen is disabled or looses calibration on a Thor VM3, you must use a USB mouse or keyboard attached
to the Thor VM3 to access the control panel to re-enable or recalibrate the touch screen unless a programmable key
has been assigned to that function.
Touch Screen Defroster
Extended temperature versions of the Thor VM3 contain a touch screen defroster. The touch screen defroster can be dis-
abled when not needed via the Screen Control (page 5-9) panel. The defroster trip point is configurable. The defroster is
always disabled when the device is operating from UPS battery power.
Solid Blue • Indicates the Blue modifier key is active
• Pressing the Blue key a second time exits this modifier mode and turns off the LED
• Pressing the Orange key exits the Blue mode and turns off the Blue LED
• If no key other key is pressed within five seconds, the Blue key times out and turns off the
LED
• When Blue mode is active, keys P1 through P4 provide volume and brightness adjustment
functions
Off Blue mode is not invoked
LED Behavior Status
Solid Orange • Indicates the Orange modifier key is active. Orange mode is invoked for the next keypress
only
• Pressing the Orange key a second time exits this modifier mode and turns off the LED
• Pressing the Blue key exits the Orange mode and turns off the Orange LED
Off Orange mode is not invoked.
![](/img.php?id=2582426&img=bg2b.png)
3 - 13
Screen Blanking
Screen blanking (blackout) can be enabled when the vehicle is in motion. See Screen Blanking (page 4-43) for hardware
setup and Screen Control (page 5-9) for software setup to enable screen blanking. Once screen blanking is enabled, the
display is blanked out any time when the cable sends the signal the vehicle is in motion. If the cable is removed, screen
blanking is disabled and the display remains on.
Display Backlight Control
The display brightness on a Thor VM3 equipped with an outdoor display can be configured to automatically adjust depend-
ing on the ambient light level via Screen Control (page 5-9).
Note: When automatic brightness control is enabled, the manual display brightness controls described below have no
effect.
The display brightness can be adjusted manually, via the keypad:
1. Press the Blue key to enter Blue mode.
2.
3. Press P5 to increase brightness or P6 to decrease brightness.
4. Press the Blue key to exit Blue mode.
![](/img.php?id=2582426&img=bg2c.png)
3 - 14
![](/img.php?id=2582426&img=bg2d.png)
4 - 15
4
Vehicle Mounting and Accessory Installation
Introduction
The Thor VM3 is designed to be mounted to a Quick Mount Smart Dock in a vehicle with either a RAM mount or U Bracket sys-
tem. A power cable is provided with the Thor VM3 dock. Optional communication cables are available.

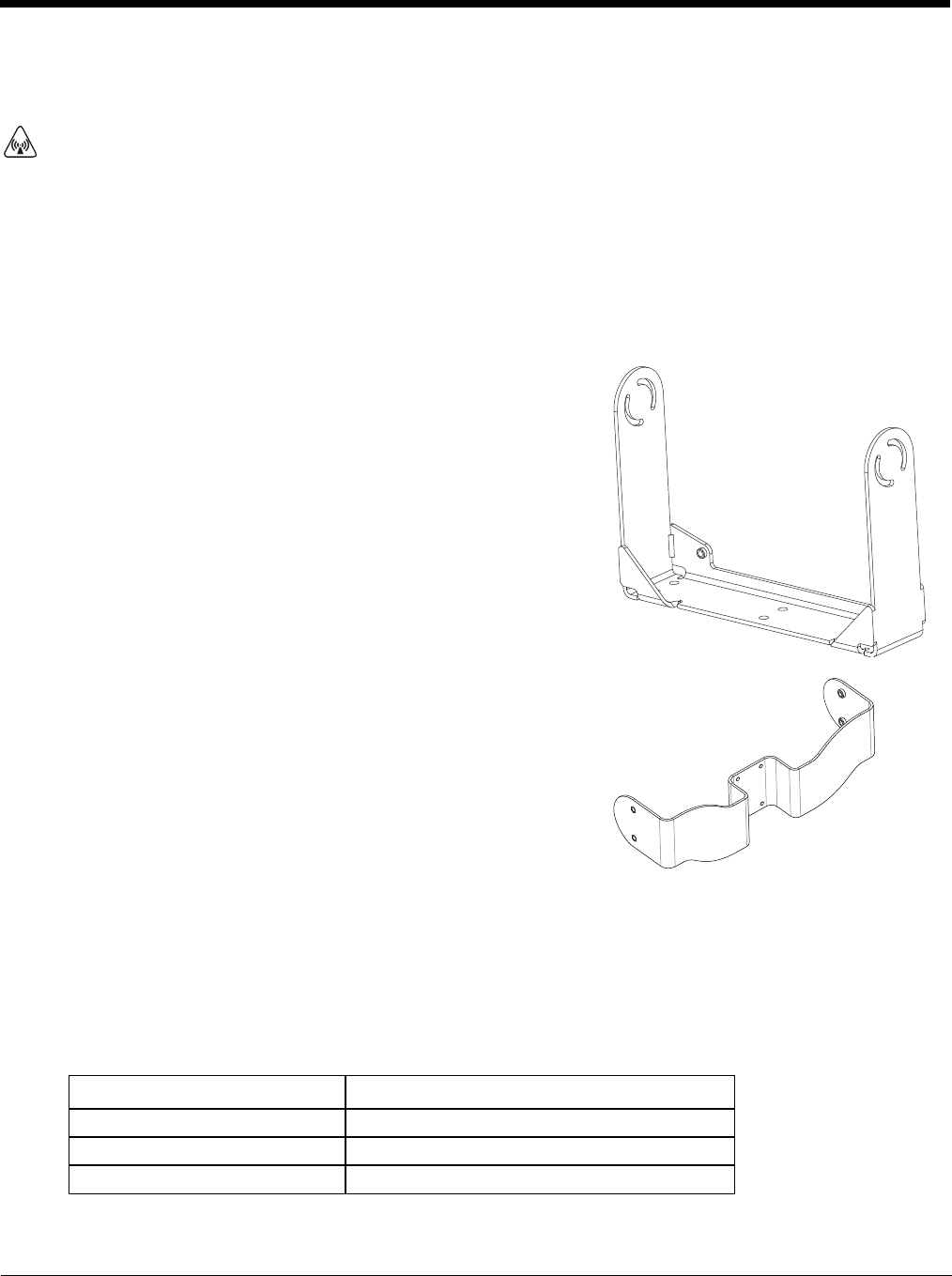

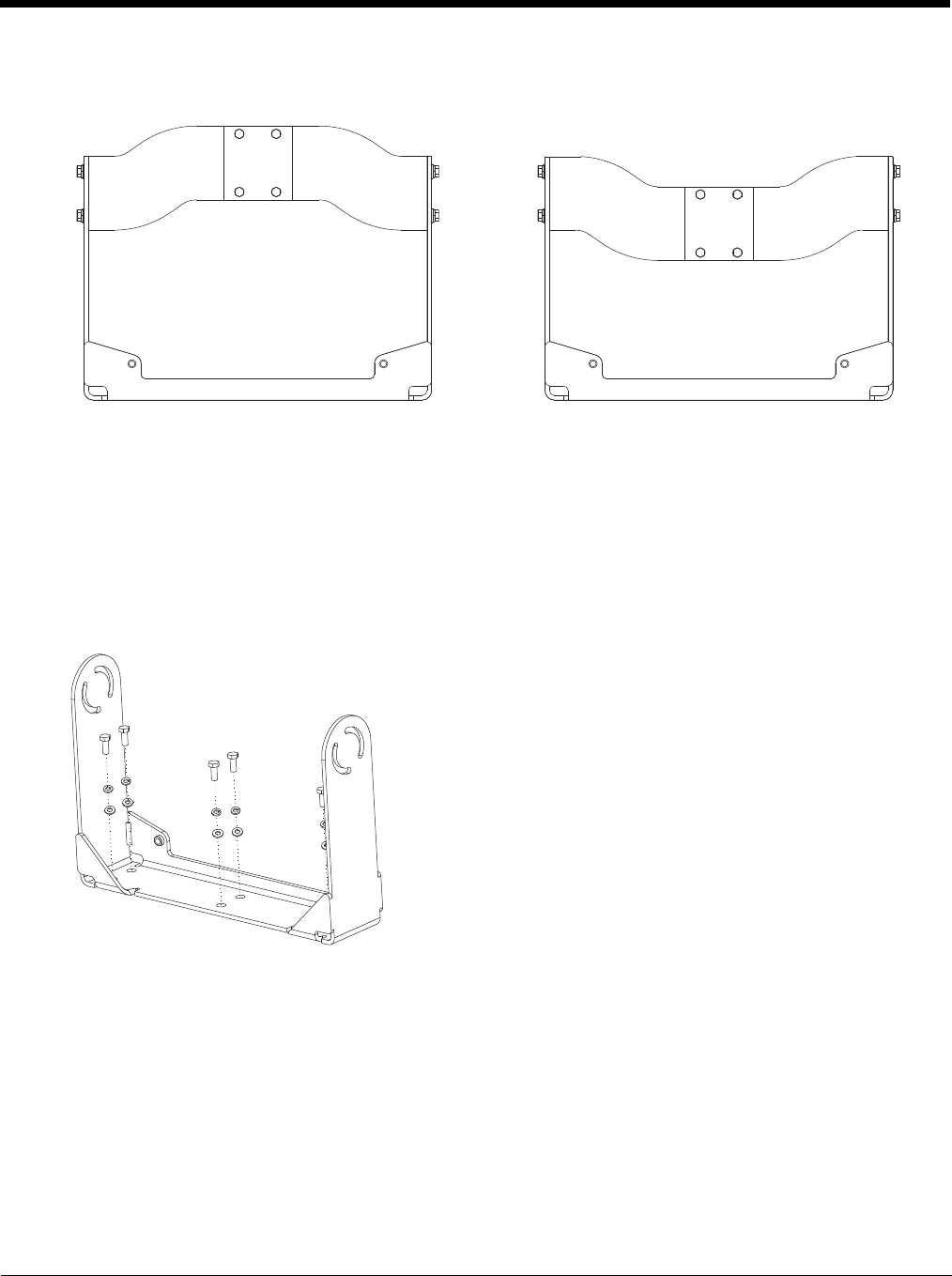

Vehicle mounting brackets are specifically designed for vehicle mount applications. The vehicle mounted assembly restrains the
Thor VM3 and isolates it from shock and vibration. A RAM metal table stand is available to secure the Thor VM3 and dock when
in an office environment, for example.
The vehicle mount holds the Quick Mount Smart Dock and the Thor VM3 attaches to the dock. The dock remains attached to
the vehicle, however, the Thor VM3 has a quick release located on the lower rear side that allows the Thor VM3 to easily be
removed from the dock. The Thor VM3 can be operated for a minimum of 30 minutes from an internal UPS battery when not
attached to a dock. The Thor VM3 can be transferred from one dock equipped vehicle to another for easy portability. The dock
provides accessory attachment and conditioned power for the Thor VM3.
Overhead, dash and roof support pillar mounting is via a RAM Mount or U-bracket accessory which includes all the hardware
required for vehicle mounting.
Never put the Thor VM3 into the vehicle mounted assembly until the assembly is securely fastened to the vehicle.
Prepare for Vehicle Mounting
The Thor VM3 should be secured to an area in the vehicle where it:
• Does not obstruct the driver's vision or safe vehicle operation.
• Will be protected from rain or inclement weather.
• Will be protected from extremely high concentrations of dust or wind-blown debris.
• Can be easily accessed by a user seated in the driver's seat while the vehicle is not in operation.
Quick Start
The following list outlines, in a general way, the process to follow when mounting the Thor VM3 in a vehicle. Refer to the fol-
lowing sections in this document for more details.
1. Install RAM Mount (page 4-18) or Install U Bracket Mount (page 4-23) to the vehicle.
2. Place Thor VM3 in the Dock (page 4-16).
3. Adjust the Thor VM3 to the best viewing angle.
4. Install Remote Antenna (page 4-50) if necessary.
5. Connect Cables (page 4-26) for any peripherals.
6. Connect vehicle power:
•12-48 VDC Vehicles (10-60 VDC Direct Connection) (page 4-28)
•60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) (page 4-37)
•60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid) (page 4-33).
•Thor VX8 / Thor VX9 Adapter Cable (page 4-42)
•VX6 / VX7 Adapter Cable (page 4-41)
7. Secure all cables in Strain Relief Cable Clamps (page 4-26).
The Thor VM3 is ready for use.
Maintenance - Vehicle Mounted Devices
Check the vehicle mounting hardware frequently and re-tighten if necessary.
If the vehicle mounting hardware and connections become broken, loose or cracked, the assembly must be taken out of service
and replaced. Contact Technical Assistance (page 9-1) for help.
![](/img.php?id=2582426&img=bg2e.png)
4 - 16
Cleaning
Do not use paper towels or harsh-chemical-based cleaning fluids since they may result in damage to the Thor VM3 surfaces,
cables, connectors and mounting hardware.
Use a clean soft cloth to wipe any dirt, moisture or grease from the Thor VM3, connectors, cables or the vehicle mounting hard-
ware. Do not use any liquid to clean the Thor VM3, or connectors. Spray or dampen the cleaning cloth with the cleaning liquid.
If possible, clean only those areas which are soiled. Lint/particulates can be removed with clean, filtered canned air.
Place Thor VM3 in the Dock
1. Locate the notch on the upper rear of the Thor VM3.
2. Slide this notch over the top lip of the dock. Slide the Thor VM3 from side to side on the dock to make sure it fully engages
on the lip of the dock. If the Thor VM3 cannot be slid side to side, the lip is engaged.
3. Pull the quick release lever on the Thor VM3 down and push the Thor VM3 against the dock.
4. Release the quick release lever. The quick release lever catches the lower lip on the dock and secures the Thor VM3 to the
dock.
5. If necessary, adjust the viewing angle of the Thor VM3.
When the Thor VM3 is placed in the dock, the following may happen:
When the Thor VM3 is removed from the dock, the following may happen:
Back of Thor VM3 Front of Smart Dock
Notch on
Thor VM3
Release Lever
Upper Lip on Dock
Lower Lip on Dock
![](/img.php?id=2582426&img=bg2f.png)
4 - 17
Dock I/O Pin Cover.
Padlock
Laptop Security Cable
The dock contains a tethered I/O Pin Cover to protect the I/O pins on the dock when
a Thor VM3 is not mounted in the dock.
• When the Thor VM3 is not installed in the dock, use the I/O Pin Cover to protect
the pins on the dock as shown.
• When a Thor VM3 is installed in the dock, the I/O Pin Cover can be placed out of
the way behind the dock.
It may be desirable to secure the Thor VM3 in the dock so it cannot be
removed from the dock. The quick release handle on the Thor VM3 is
notched to allow a user supplied standard padlock to be placed through a
hole in the bracket on the back of the Thor VM3 in the location shown
below. Once the padlock is installed, the release handle cannot be moved
so the Thor VM3 cannot be removed from the dock. The padlock shackle
must be smaller than 3/16” (4.76mm).
A cable tie wrap can be used instead of a padlock if desired.
The Thor VM3 can be secured with a standard laptop security cable
using the slot on the back of the Thor VM3.
![](/img.php?id=2582426&img=bg30.png)
4 - 18
Install RAM Mount
Before installation begins, verify you have the applicable vehicle mounting bracket assembly components necessary, as shown
in the following figures.
Components - RAM Mounting Kits
In addition to the kits below, individual RAM mounting components are also available.
Each mounting kit contains:
CAUTION - This device is intended to transmit RF energy. For protection against RF exposure to humans and in accor-
dance with FCC rules and Industry Canada rules, this transmitter should be installed such that a minimum separation dis-
tance of at least 20 cm (7.8 in.) is maintained between the antenna and the general population. This device is not to be
co-located with other transmitters.
RAM Ball (Size D) for back of Thor VM3 Quick Mount Smart Dock with
hardware (screws and washers) to attach RAM ball to dock
RAM Arm (Size D), length varies by kit selected
One of three mounting options:
• RAM Ball mount (Size D, may include 3 cone washers), or
• RAM Clamp mount (Size D), or
• RAM Plate mount with RAM Ball (Size D) with Hardware (cone washers
and nuts) to attach Ball to Plate
![](/img.php?id=2582426&img=bg31.png)
4 - 19
Procedure - RAM Mount Assembly
Equipment Needed: Sockets, screwdriver and a Torque wrench capable of measuring to 50 inch pounds (5.64±.56 N/m).
Note: Torquing tool is not supplied by Honeywell. Tools needed to attach the RAM Clamp Mount to the vehicle are not
supplied by Honeywell.
Torque Measurement
You will need a torquing tool capable of torquing to 20 inch pounds (1.10 N/m). Torque all screws and bolts according
to the following table:
Step 1a – Attach RAM Ball to Vehicle
Note: If you are using the RAM clamp mount, please go to Step 1b – Mount RAM Clamp to Vehicle (page 4-20). If
you are using the RAM plate mount, please go to Step 1c – Attach RAM Plate to Vehicle and Attach RAM Ball
(page 4-21).
1. Determine the position for mounting the RAM ball base. Be sure to position the RAM bracket to allow access to
the switches and ports on the bottom of the Thor VM3.
2. Attach the RAM ball base to the vehicle mounting surface using three or four 1/4 bolts (not included) or equivalent
fasteners. If the mounting kit includes cone washers, use those as illustrated below.
IMPORTANT: Mount to the most rigid surface available.
Mounting Dimensions
Note: Drill and tap holes for three 1/4 bolts. Drawing not to scale.
For these nuts… Torque to
10-32 lock nuts 17 - 20 in/lb (0-95 - 1.10 N/m)
120º120º
60º60º
2.75" / 69.85 mm
3.69" / 93.73 mm
![](/img.php?id=2582426&img=bg32.png)
4 - 20
Step 1b – Mount RAM Clamp to Vehicle
Note: If you are using the RAM ball mount, please go to Step 1a – Attach RAM Ball to Vehicle (page 4-19). If you are
using the RAM plate mount, please go to Step 1c – Attach RAM Plate to Vehicle and Attach RAM Ball (page 4-
21).
1. Determine the position for mounting the RAM clamp mount. The clamp mount can be used on a beam (such as on
a fork lift truck) up to 2.5” (63.5 mm) wide and approximately 2” (50.8 mm) thick. The clamp may be attached to a
thicker beam by substituting longer bolts (not included). Be sure to position the RAM clamp mount to allow access
to the switches and ports on the bottom of the Thor VM3.
2. Position the upper clamp piece with ball on the beam. Place the bolts through the holes in the upper clamp piece.
3. Position the lower clamp piece below the beam. Align the bolts with the holes in the lower clamp piece.
4. Place the nylon locking nuts on the bolts and tighten the bolts.
Mounting Dimensions
Note: Drawing not to scale.
Upper clamp piece
Bolts
Lower clamp piece
Nuts
2.56” /
65.02mm
1.84” (46.74mm)
![](/img.php?id=2582426&img=bg33.png)
4 - 21
Step 1c – Attach RAM Plate to Vehicle and Attach RAM Ball
Note: If you are using the RAM ball mount, please go to Step 1a – Attach RAM Ball to Vehicle (page 4-19) If you are
using the RAM clamp mount, please go to Step 1b – Mount RAM Clamp to Vehicle (page 4-20).
1. Determine the position for mounting the RAM ball plate. Be sure to position the RAM plate to allow access to the
switches and ports on the bottom of the Thor VM3.
2. Attach the RAM ball plate to the vehicle mounting surface using four 1/4 bolts (not included) or equivalent fasten-
ers.
3. If not already attached, attach the RAM ball to the RAM ball plate using three M6 nuts and washers.
IMPORTANT: Mount to the most rigid surface available.
Mounting Dimensions
There are 4 mounting holes in the plate. Use four 1/4 bolts to secure the plate to the vehicle.
Note: Drawing not to scale.
176 mm
6.99”
200 mm
7.87”
76mm 2.99”
100mm 3.94
”
![](/img.php?id=2582426&img=bg34.png)
4 - 22
Step 2 – Attach RAM Mount Ball to the Thor VM3 Quick Mount Smart Dock
1. Turn the Thor VM3 off before attaching the RAM mount ball.
2. Place the Thor VM3 face down on a stable surface.
Step 3 – Attach Thor VM3 Assembly to RAM Mount
1. Slip the Size D RAM arm over the ball on the vehicle RAM mount (RAM Ball mount shown).
2. Insert the ball on the dock into the RAM arm and tighten the knob on the RAM arm using the supplied RAM
wrench.
Step 4 – Place the Thor VM3 into the Dock
If the Thor VM3 is not already mounted to the dock, Place Thor VM3 in the Dock (page 4-16)
![](/img.php?id=2582426&img=bg35.png)
4 - 23
Install U Bracket Mount
Before installation begins, verify you have the applicable vehicle mounting bracket assembly components necessary, as shown
in the following figures.
Components - U Bracket Mounting Assembly
The U bracket kit is available in two configurations:
• With a U Bracket included for new vehicle installations
• Without a U Bracket for installing the Thor VM3 in place of a previous Honeywell vehicle mounted computer, such as a
VX6 or VX7.
Procedure - U Bracket Assembly
Equipment Needed: Sockets and a Torque wrench capable of measuring to 50 inch pounds (5.64±.56 N/m).
Note: Torquing tool is not supplied by Honeywell.
Torque Measurement
You will need a torquing tool capable of torquing to 35-50 inch pounds (1.10 N/m). Torque all screws and bolts accord-
ing to the following table:
CAUTION - This device is intended to transmit RF energy. For protection against RF exposure to humans and in accor-
dance with FCC rules and Industry Canada rules, this transmitter should be installed such that a minimum separation dis-
tance of at least 20 cm (7.8 in.) is maintained between the antenna and the general population. This device is not to be
co-located with other transmitters.
U Bracket (only included in kits for new installations)
Adapter Bracket (includes screws, flat washers and lock washers to attach
Adapter Bracket to Thor VM3 and to attach Adapter Bracket to existing U
Bracket (for example, to a vehicle where a VX1, VX2, VX4, VX5, VX6 or VX7
was previously installed)
For these bolts… Torque to
1/4-20x5/8 Bolts 50 in/lb (5.6 N/m)
M5x16mm Bolts 35 in/lb (4.0 N/m)
1/4 Bolts (user supplied) 50.0±5 in/lb (5.64±.56 N/m)
![](/img.php?id=2582426&img=bg36.png)
4 - 24
Mounting Positions
The adapter bracket can be mounted in a high or low position, depending on viewing position, as shown below.
Additionally, the slotted U bracket allows the Thor VM3 to be mounted vertically or tilted forward or backward for best
viewing angle.
Step 1 - Install U Bracket to Vehicle
1. Position the bracket to allow access to the switches and ports on the bottom of the Thor VM3.
2. Attach the bottom mounting bracket to the vehicle mounting surface using a minimum of four 1/4 bolts (or equiva-
lent) fasteners.
Note: 1/4 bolts and washers not included. It is recommended to use lock washers and flat washers on the fasteners.
IMPORTANT: Mount to the most rigid surface available.
After the bottom bracket has been attached to a rigid surface, you are ready to assemble the Thor VM3 bracket config-
uration.
[
![](/img.php?id=2582426&img=bg37.png)
4 - 25
Mounting Dimensions
Note: Drawing not to scale.
Step 2 - Remove RAM Ball
If the Thor VM3 Quick Mount Smart Dock has a RAM ball attached, the RAM ball must be removed from the dock to
use the U Bracket mount.
Remove the RAM ball. The hardware used to attach the RAM ball to the dock is not reused for the U bracket mount.
Step 3 - Attach Adapter Bracket
Note: For the steps below, always place the lock washer on the bolt before the flat washer.
1. Attach the Adapter Bracket to the Thor VM3 dock using four each M5x16mm bolt, M5 lock washer and M5 flat
washer. Torque to 35 in/lbs (4.0 N/m).
2. Attach the Thor VM3/Adapter Bracket assembly to the U Bracket using 4 each 1/4-20x5/8 bolt, 1/4 lock washer
and 1/4 flat washer.
3. If the Thor VM3 is not already mounted to the dock, Place Thor VM3 in the Dock (page 4-16).
4. Adjust the Thor VM3 to the desired viewing angle.
5. Torque the 14-20 bolts to 50 in/lbs (5.6 N/m).
1. 14.40 in / 359.2 mm
2. 12.10 in / 307.3 mm
3. 6.05 in / 153.6 mm
4. 1.02 in / 25.9 mm
5. 3.38 in / 85.85 mm
6. Vehicle Mount Footprint
7. 0.406 in / 10.312 mm
8. 0.88 in / 22.3 mm
9. 1.25 in / 31.75 mm
1
2
34
5
67
8
9
![](/img.php?id=2582426&img=bg38.png)
4 - 26
Connect Cables
There are many cables available for the Thor VM3 including power cables, and data/ communication cablesThor VM3.
Strain Relief Cable Clamps
Equipment Required: Phillips screwdriver (not supplied by Honeywell)
There are five strain relief cable clamps secured to the Thor VM3 Quick Mount Smart Dock.
Use the strain relief clamps to secure audio, power, and I/O cables attached to the Thor VM3 dock.
1. Determine the proper strain relief cable clamp. There are three sizes of cable clamps on the Thor VM3 which should
be matched to the cable to be secured. For example, the largest clamp (on the left when viewing the back of the Thor
VM3) is designed to secure the power cable.
2. Remove the strain relief clamp from the Thor VM3 by turning the screw counterclockwise. Put the screw aside in a
safe location.
3. Slide the strain relief clamp over the cable.
4. Using a Phillips screwdriver and the screw that was removed, refasten the clamp holding the cable to the Quick Mount.
Do not stretch the cable. Leave enough slack in the cable to allow it to be connected and disconnected easily when
needed.
5. Continue in this manner until all cables are secured to the Thor VM3 dock.
![](/img.php?id=2582426&img=bg39.png)
4 - 27
Connect Power
Power options include:
•12-48 VDC Vehicles (10-60 VDC Direct Connection) (see page 4-28) - Direct connection to vehicle power.
•60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid) (see page 4-33) - Requires the use of a DC/
DC power supply.
•60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) (see page 4-37) - Requires the use of a DC/
DC power supply.
•VX6 / VX7 Adapter Cable (see page 4-41) - For applications where the Thor VM3 replaces a previously installed VX6 or
VX7.
•Thor VX8 / Thor VX9 Adapter Cable (see page 4-42) - For applications where the Thor VM3 replaces a previously
installed Thor VX8 or Thor VX9.
•Screen Blanking (see page 4-43) - Optional connection to blank the Thor VM3 display while the vehicle is in motion.
•External AC/DC Power Supply (see page 4-46) - For use when DC power is not available to power the Thor VM3, such
as in an office environment.
See Power Supply Connector (page 8-5) for connector pinout
Power Cable Cautions
Power Cable Routing
CAUTION - When routing the power cable:
• Route power cable away from the outside of the fork truck.
• Choose a mounting location so that the power cable does not extend outside the vehicle and that provides sufficient
clearance so that the power cable (especially the dock connector end) is not pressed against part of the vehicle.
• Use the proper Strain Relief Cable Clamps (page 4-26) to secure cable.
• The power cable is less flexible in low temperature environments. Avoid sharp bends.
Regularly inspect power cable for damage, especially in low temperature environments. Contact Technical
Assistance (page 9-1) for replacement cable options.
Power cable with straight connector Power cable with right-angle connector
!
Avoid sharp bends in this
area of the power cable
![](/img.php?id=2582426&img=bg3a.png)
4 - 28

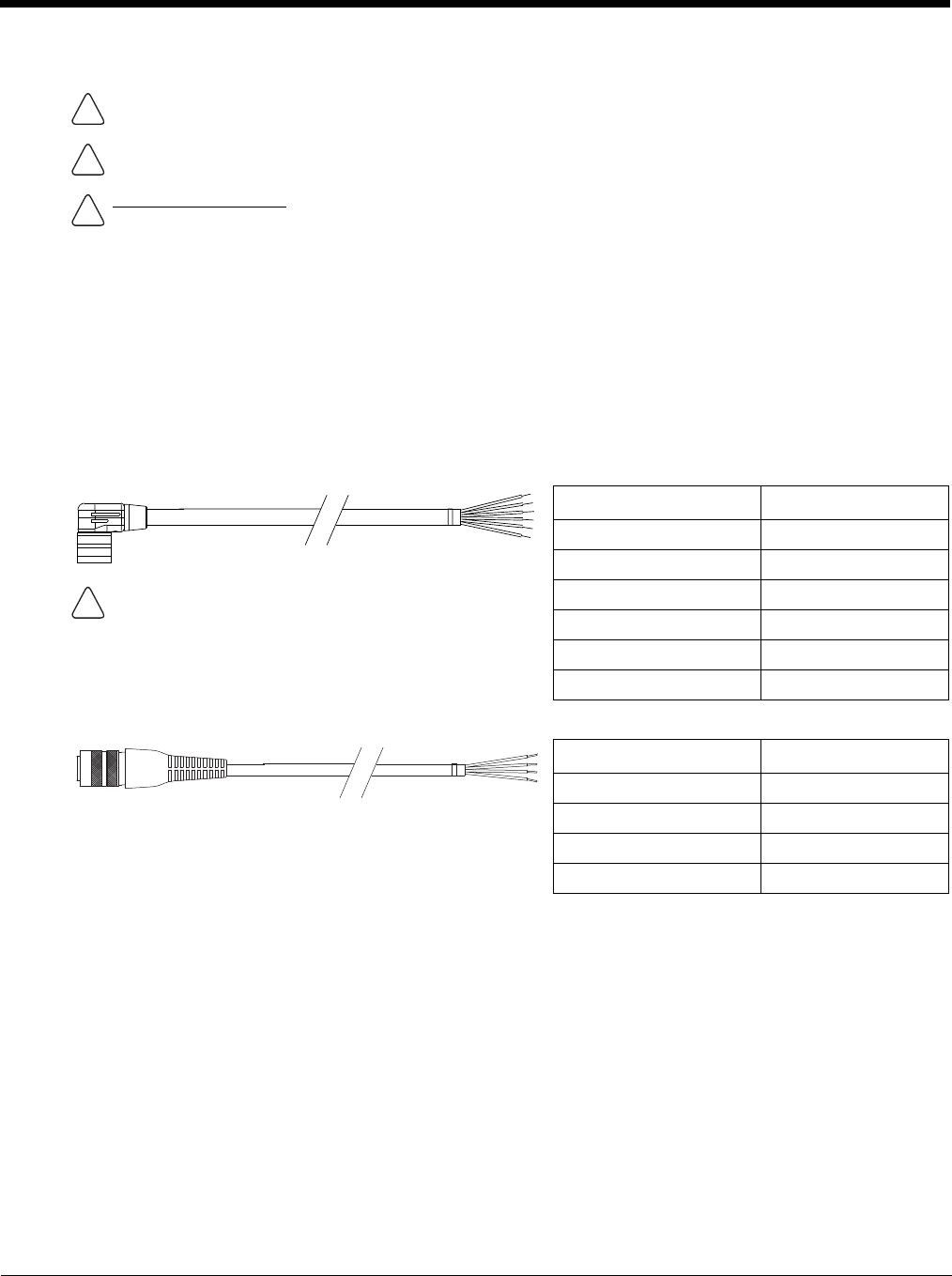

12-48 VDC Vehicles (10-60 VDC Direct Connection)
Power Cable Identification
The DC power cable (included with the dock) is one of the two styles below:
Note: Correct electrical polarity is required for safe and proper installation. See the figures below for additional wire
color-coding specifics.
The Thor VM3 DC input wires (Red, Red/White DC+ and Black, Black/White DC-) and the Blue ignition input wire are
galvanically isolated. The Green ground input is used for electrostatic discharge (ESD) protection.
Vehicle 10-60VDC Direct Power Connection
1. The Thor VM3 must not be mounted in the Quick Mount Smart Dock. The power switch on the dock must be
turned Off. The power cable must be UNPLUGGED from the dock.
2. While observing the Fuse Requirements (see page 4-28), connect the power cable as close as possible to the
actual battery terminals of the vehicle (if using unswitched power).
3. Use proper electrical and mechanical fastening means for terminating the cable. Properly sized “crimp” type
electrical terminals are an accepted method of termination. Please select electrical connectors sized for use
with 20AWG (0.81mm2) conductors.
4. Refer to the wiring diagrams following this section for wire colors and connections:
•Ignition Control Wiring Diagram (page 4-30)
CAUTION - For installation by trained service personnel only.
Use caution when routing the power cable. See Power Cable Cautions (page 4-27).
Fuse Requirements
WARNING - For proper and safe installation, the input power cable must be connected to a fused circuit on the
vehicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive lead
within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time delay (slow blow)
fuse with a current rating as noted below.
•For 12VDC input, use a 10A slow blow fuse that has a DC voltage rating greater than 12VDC.
•For 24VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 24VDC.
•For 36VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 36VDC.
•For 48VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 48VDC.
Note: For North America, a UL Listed fuse is to be used
Power cable with right angle connector and 6 wires:
Wire Color Connection
Red DC + (10-60 VDC)
Red/White DC + (10-60 VDC)
Twist the red and red/white wires together and twist the
black and black/white wires together before connecting to
vehicle power.
Black DC -
Black/White DC -
Green Ground
Blue Ignition Input (optional)
Power cable with straight connector and 4 wires:
Wire Color Connection
Red DC + (10-60 VDC)
Black DC -
Green Ground
Blue Ignition Input (optional)
!
!
!
!
![](/img.php?id=2582426&img=bg3b.png)
4 - 29
•Auto-On Control Wiring Diagram (page 4-31)
•Manual Control Wiring Diagram (page 4-32)
5. Route the power cable the shortest way possible removing any left-over cable. The cable is rated for a maxi-
mum temperature of 105°C (221°F). Therefore, when routing this cable it should be protected from physical
damage and from surfaces that might exceed this temperature. Cable should be protected from physical
damage from moving parts. Do not expose the cable to chemicals or oil that may cause the wiring insulation
to deteriorate. Always route the cable so that it does not interfere with safe operation and maintenance of the
vehicle.
6. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate outer cable jacket.
7. Connect the watertight connector end of the power cable to the Thor VM3 Quick Mount Smart Dock power
connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.
8. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-26).
9. Place Thor VM3 in the Dock (page 4-16)
10. If using the Screen Blanking (page 4-43) feature, install the screen blanking box or switch.
11. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
12. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
![](/img.php?id=2582426&img=bg3c.png)
4 - 30
Ignition Control Wiring Diagram
.
CAUTION
For battery powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire must be connected to battery negative. If there is a black wire and a black/white wire,
twist them together and connect to battery negative.
• Green wire must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire must be connected to battery negative. If there is a black wire and a black/white wire,
twist them together and connect to battery negative.
• Green wire is connected to the vehicle chassis ground, which can also be battery negative.
WARNING
For proper and safe installation, the input power cable must be connected to a fused circuit on the ve-
hicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive
lead within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time
delay (slow blow) fuse with a current rating as noted below.
•For 12VDC input, use a 10A slow blow fuse that has a DC voltage rating greater than 12VDC.
•For 24VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 24VDC.
•For 36VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 36VDC.
•For 48VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 48VDC.
Note: For North America, a UL Listed fuse is to be used.
Existing Circuitry On Vehicle
Battery
Main Switch
-Vo
+Vo
Fuse - See
Warning
statement below
Ignition
See Caution statement below
Quick Mount
Smart Dock
Circular
Power
Connector
COM1 or COM2
Connector
Cable for optional
screen blanking
connection
Red
Black
Green
Blue
Red/White (if present)
Black/White (if present)
!
!
![](/img.php?id=2582426&img=bg3d.png)
4 - 31
Auto-On Control Wiring Diagram
.
CAUTION
For battery powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire must be connected to battery negative. If there is a black wire and a black/white wire, twist
them together and connect to battery negative.
• Green wire must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire is connected to battery negative. If there is a black wire and a black/white wire, twist them
together and connect to battery negative.
• Green wire is connected to the vehicle chassis ground, which can also be battery negative.
WARNING
For proper and safe installation, the input power cable must be connected to a fused circuit on the ve-
hicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive
lead within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time
delay (slow blow) fuse with a current rating as noted below.
•For 12VDC input, use a 10A slow blow fuse that has a DC voltage rating greater than 12VDC.
•For 24VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 24VDC.
•For 36VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 36VDC.
•For 48VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 48VDC.
Note: For North America, a UL Listed fuse is to be used.
Quick Mount
Smart Dock
Circular
Power
Connector
COM1 or COM2
Connector
Existing Circuitry On Vehicle
Battery
Main Switch
-Vo+Vo Cable for optional
screen blanking
connection
See Caution statement below
Fuse - See
Warning
statement below
(not connected)
Red
Black
Green
Blue
Red/White (if present)
Black/White (if present)
!
!
![](/img.php?id=2582426&img=bg3e.png)
4 - 32
Manual Control Wiring Diagram
CAUTION
For battery powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire must be connected to battery negative. If there is a black wire and a black/white wire, twist
them together and connect to battery negative.
• Green wire must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
• Red wire is connected to battery positive. If there is a red wire and a red/white wire, twist them
together and connect to battery positive.
• Black wire is connected to battery negative. If there is a black wire and a black/white wire, twist them
together and connect to battery negative.
• Green wire is connected to the vehicle chassis ground, which can also be battery negative.
WARNING
For proper and safe installation, the input power cable must be connected to a fused circuit on the ve-
hicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive
lead within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time
delay (slow blow) fuse with a current rating as noted below.
•For 12VDC input, use a 10A slow blow fuse that has a DC voltage rating greater than 12VDC.
•For 24VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 24VDC.
•For 36VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 36VDC.
•For 48VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 48VDC.
Note: For North America, a UL Listed fuse is to be used.
Quick Mount
Smart Dock
Circular
Power
Connector
COM1 or COM2
Connector
Existing Circuitry On Vehicle
Battery
Main Switch
-Vo+Vo Cable for optional
screen blanking
connection
See Caution statement below
Fuse - See
Warning
statement below
(not connected)
Red
Black
Green
Blue
Red/White (if present)
Black/White (if present)
!
!
![](/img.php?id=2582426&img=bg3f.png)
4 - 33
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid)
This option requires DC/DC external power supply Honeywell Part no. 9000313PWRSPLY.
If the DC/DC power supply does not have screws in the side of the lid, see 60-144 VDC Vehicles (50-150 VDC Power
Supply, Screws on Top of Lid) (page 4-37).
Shown With Lid Attached
• Lid is secured with screws on the side of lid.
Shown With Lid Removed
• Input and output connector blocks under lid.
• One positive (Vin+), negative (Vin-) and ground ( )
connection in input block.
• One positive (Vo+) and negative (Vo-) connection in
output block.
CAUTION - For installation by trained service personnel only.
CAUTION - Usage in areas where moisture can affect the power supply connections should be avoided. The
power supply should be mounted in a dry location within the vehicle or placed in a suitable protective enclosure.
Use caution when routing the power cable. See Power Cable Cautions (page 4-27).
Fuse Requirements
WARNING - For proper and safe installation, the input power cable must be connected to a fused circuit on the
vehicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive lead
within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time delay (slow blow)
fuse with a current rating as noted below.
•For 60VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 60VDC.
•For 72VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 72VDC.
•For 96VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 96VDC.
•For 108VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 108VDC.
•For 120VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 120VDC.
•For 132VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 132VDC.
•For 144VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 144VDC.
Note: For North America, a UL Listed fuse is to be used,
!
!
!
!
![](/img.php?id=2582426&img=bg40.png)
4 - 34
Power Cable Identification
The DC power cable (included with the dock) is one of the two styles below:
Note: Correct electrical polarity is required for safe and proper installation. See Wiring Diagram (page 4-36) for
additional wire color-coding specifics.
The Thor VM3 DC input wires (Red, Red/White DC+ and Black, Black/White DC-) and the Blue ignition input wire are
galvanically isolated. The Green ground input is used for electrostatic discharge (ESD) protection.
Vehicle 50-150VDC Power Connection
1. Please review the Wiring Diagram (page 4-36), before beginning power cable install.
2. The Thor VM3 must not be mounted in the Quick Mount Smart Dock. The power switch on the dock must be
turned Off. The power cable must be UNPLUGGED from the dock.
3. Route the cable from the Thor VM3 to the DC/DC power supply. Route the power cable the shortest way pos-
sible. The cable is rated for a maximum temperature of 105°C (221°F). When routing this cable, it should be
protected from physical damage and from surfaces that might exceed this temperature. Do not expose the
cable to chemicals or oil that may cause the wiring insulation to deteriorate. Always route the cable so that it
does not interfere with safe operation and maintenance of the vehicle.
4. Cut the cable to length and strip the wire ends.
5. Remove the lid from the DC/DC power supply.
6. Connect the stripped end of the positive wires (red and red/white twisted together or a single red wire) to the
output block. See Power Cable Identification (page 4-34).
7. Connect the stripped end of the negative wires (black and black/white twisted together or a single black wire)
to the output. See Power Cable Identification (page 4-34).
Note: The input block has VIN+, VIN- and GND terminals. The
output block has VO+ and VO- terminals.
Power cable with right angle connector and 6 wires:
Wire Color Connection
Red (2 wires) DC + (10-60 VDC)
Black (2 wires) DC -
Twist the red and red/white wires together and twist the
black and black/white wires together before connecting to
vehicle power.
Green Ground
Blue Ignition Input (not used)
Power cable with straight connector and 4 wires:
Wire Color Connection
Red DC + (10-60 VDC)
Black DC -
Green Ground
Blue Ignition Input (not used)
!
![](/img.php?id=2582426&img=bg41.png)
4 - 35
8. Connect the ground (green) wire from the Thor VM3 to the GND terminal on the input side of the DC/DC
power supply.
9. Route the wiring from the DC/DC power supply to the vehicle’s electrical system. Do not connect to vehicle
power at this time.
10. Strip the wire ends and connect to the input side of the DC/DC power supply.
11. Use looms and wire ties to secure all wiring as shown.
12. Reattach the cover with the screws.
13. Connect the DC/DC power supply to the vehicle’s electrical system as directed below:
14. While observing the Fuse Requirements (see page 4-33) connect the power cable as close as possible to the
actual battery terminals of the vehicle. When available, always connect to unswitched terminals in the vehicle
fuse panel, after providing proper fusing.
ATTENTION: For uninterrupted power, electrical supply connections should not be made at any point
after the ignition switch of the vehicle.
15. Use proper electrical and mechanical fastening means for terminating the cable. Properly sized “crimp” type
electrical terminals are an accepted method of termination. Select electrical connectors sized for use with
18AWG (1mm2) conductors.
16. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate the outer cable jacket.
17. Connect the watertight connector end of the power cable to the Thor VM3 Quick Mount Smart Dock power
connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.Flip the power switch on the back of the dock to On.
18. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-26).
19. Place Thor VM3 in the Dock (page 4-16)
20. If using the Screen Blanking (page 4-43) feature, install the screen blanking box or switch.
21. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
22. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
Note: Ignition control is not available for trucks over 60VDC.
For battery powered vehicles:
VIN+ is connected to battery positive.
ViN- must be connected to battery negative.
GND must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
VIN+ is connected to battery positive.
ViN- is connected to battery negative.
GND is connected to the vehicle chassis ground, which can also be battery negative.
!
![](/img.php?id=2582426&img=bg42.png)
4 - 36
Wiring Diagram
CAUTION
For battery powered vehicles:
GND must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
GND is connected to the vehicle chassis ground, which can also be battery negative.
WARNING
For proper and safe installation, the input power cable must be connected to a fused circuit on the vehicle.
If the supply connection is made directly to the battery, the fuse should be installed in the positive lead within
5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time delay (slow blow)
fuse with a current rating as noted below.
•For 60VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 60VDC.
•For 72VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 72VDC.
•For 96VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 96VDC.
•For 108VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 108VDC.
•For 120VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 120VDC.
•For 132VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 132VDC.
•For 144VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 144VDC.
Note: For North America, a UL Listed fuse is to be used
Main Switch
Circular
Power
Connector
on Dock
VIN-
VO-
-Vo
+Vo COM1 or COM2
Connector
on Dock
VO+
VIN+
GND
User supplied serial
cable for optional
screen blanking
connection,
see below
Existing Circuitry on Vehicle
Forklift Battery
DC/DC
Power
Supply
Fuse - See
Warning
statement below
See
Caution
statement
below
(not connected)
Black
Green
Blue
Red
Red/White (if present)
Black/White (if present)
Quick Mount
Smart Dock
!
!
![](/img.php?id=2582426&img=bg43.png)
4 - 37
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid)
This option requires DC/DC power supply Honeywell Part no. VX89303PWRSPLY, shown below.
If the DC/DC power supply does not have screws in the top of the lid, see 60-144 VDC Vehicles (50-150 VDC Power
Supply, Screws on Side of Lid) (page 4-33).
Shown With Lid Attached
• Lid is secured with screws on the top of lid.
Shown With Lid Removed
• Input and output connector blocks under lid.
• Two positive (+), negative (-) and ground ( )
connections per terminal block
CAUTION - For installation by trained service personnel only.
CAUTION - The VX89303PWRSPLY power supply is sealed per IPXX. Usage in areas where moisture can affect
the power supply connections should be avoided. The power supply should be mounted in a dry location within
the vehicle or placed in a suitable protective enclosure.
Use caution when routing the power cable. See Power Cable Cautions (page 4-27).
Fuse Requirements
WARNING - For proper and safe installation, the input power cable must be connected to a fused circuit on the
vehicle. If the supply connection is made directly to the battery, the fuse should be installed in the positive lead
within 5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time delay (slow blow)
fuse with a current rating as noted below.
•For 60VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 60VDC.
•For 72VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 72VDC.
•For 96VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 96VDC.
•For 108VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 108VDC.
•For 120VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 120VDC.
•For 132VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 132VDC.
•For 144VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 144VDC.
Note: For North America, a UL Listed fuse is to be used.
!
!
!
!
![](/img.php?id=2582426&img=bg44.png)
4 - 38
Power Cable Identification
The DC power cable (included with the dock) is one of the two styles below:
Note: Correct electrical polarity is required for safe and proper installation. See Wiring Diagram (page 4-40) for
additional wire color-coding specifics.
The Thor VM3 DC input wires (Red, Red/White DC+ and Black, Black/White DC-) and the Blue ignition input wire are
galvanically isolated. The Green ground input is used for electrostatic discharge (ESD) protection.
Vehicle 50-150VDC Power Connection
1. Please review the Wiring Diagram (page 4-36), before beginning power cable install.
2. The Thor VM3 must not be mounted in the Quick Mount Smart Dock. The power switch on the dock must be
turned Off. The power cable must be UNPLUGGED from the dock.
3. Route the cable from the Thor VM3 to the DC/DC power supply. Route the power cable the shortest way pos-
sible. The cable is rated for a maximum temperature of 105°C (221°F). When routing this cable, it should be
protected from physical damage and from surfaces that might exceed this temperature. Do not expose the
cable to chemicals or oil that may cause the wiring insulation to deteriorate. Always route the cable so that it
does not interfere with safe operation and maintenance of the vehicle.
4. Cut the cable to length and strip the wire ends.
5. Remove the lid from the DC/DC power supply.
6. Connect the stripped end of the positive wires (red and red/white twisted together or a single red wire) to the
output block. See Power Cable Identification (page 4-38).
7. Connect the stripped end of the negative wires (black and black/white twisted together or a single black wire)
to the output. See Power Cable Identification (page 4-38).
Note: The input and output blocks each have two + (plus), two –
(minus) and two (ground) connectors. Either connector
in the block can be used to connect the matching polarity
wire.
Power cable with right angle connector and 6 wires:
Wire Color Connection
Red (2 wires) DC + (10-60 VDC)
Black (2 wires) DC -
Twist the red and red/white wires together and twist the
black and black/white wires together before connecting to
vehicle power.
Green Ground
Blue Ignition Input (not used)
Power cable with straight connector and 4 wires:
Wire Color Connection
Red DC + (10-60 VDC)
Black DC -
Green Ground
Blue Ignition Input (not used)
!
![](/img.php?id=2582426&img=bg45.png)
4 - 39
8. Route the wiring from the DC/DC power supply to the vehicle’s electrical system. Do not connect to vehicle
power at this time.
9. Strip the wire ends and connect to the input side of the DC/DC power supply.
10. Use looms and wire ties to secure all wiring as shown.
11. Reattach the cover with the screws.
12. Connect the DC/DC power supply to the vehicle’s electrical system as directed below
13. While observing the Fuse Requirements (see page 4-37), connect the power cable as close as possible to the
actual battery terminals of the vehicle. When available, always connect to unswitched terminals in the vehicle
fuse panel, after providing proper fusing.
ATTENTION: For uninterrupted power, electrical supply connections should not be made at any point
after the ignition switch of the vehicle.
14. Use proper electrical and mechanical fastening means for terminating the cable. Properly sized “crimp” type
electrical terminals are an accepted method of termination. Select electrical connectors sized for use with
18AWG (1mm2) conductors.
15. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate the outer cable jacket.
16. Connect the watertight connector end of the power cable to the Thor VM3 Quick Mount Smart Dock power
connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.Flip the power switch on the back of the dock to On.
17. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-26).
18. Place Thor VM3 in the Dock (page 4-16)
19. If using the Screen Blanking (page 4-43) feature, install the screen blanking box or switch.
20. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
21. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
Note: Ignition control is not available for trucks over 60VDC.
For battery powered vehicles:
+ is connected to battery positive.
- must be connected to battery negative.:
must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
+ is connected to battery positive.
- is connected to battery negative.
is connected to the vehicle chassis ground, which can also be battery negative.
!
![](/img.php?id=2582426&img=bg46.png)
4 - 40
Wiring Diagram
CAUTION
For battery powered vehicles:
must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
is connected to the vehicle chassis ground, which can also be battery negative.
WARNING
For proper and safe installation, the input power cable must be connected to a fused circuit on the vehicle.
If the supply connection is made directly to the battery, the fuse should be installed in the positive lead within
5 inches of the battery’s positive (+) terminal. The fused circuit requires a maximum time delay (slow blow)
fuse with a current rating as noted below.
•For 60VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 60VDC.
•For 72VDC input, use a 6A slow blow fuse that has a DC voltage rating greater than 72VDC.
•For 96VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 96VDC.
•For 108VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 108VDC.
•For 120VDC input, use a 4A slow blow fuse that has a DC voltage rating greater than 120VDC.
•For 132VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 132VDC.
•For 144VDC input, use a 3A slow blow fuse that has a DC voltage rating greater than 144VDC.
Note: For North America, a UL Listed fuse is to be used.
Power
Connector
-
-
-Vo
Black
Green
Blue
(not connected)
+Vo COM1 or COM2
Connector
+
+
User supplied serial
cable for optional
screen blanking
connection,
see below
Existing Circuitry on Vehicle
Forklift Battery
Main Switch
Quick Mount
Smart Dock
DC/DC
Power
Supply
Fuse - See
Warning
statement below
See
Caution
statement below
Red
Red/White (if present)
Black/White (if present)
!
!
![](/img.php?id=2582426&img=bg47.png)
4 - 41
VX6 / VX7 Adapter Cable
An adapter cable is available to attach the Thor VM3 to a vehicle previously equipped with a VX6/VX7 DC power cable.
The adapter cable has a 5-pin connector to match with the VX6/VX7 power supply cable on one end and a 6-pin con-
nector to match to the Thor VM3 on the other end. This section assumes the VX6/VX7 power cable is properly con-
nected to vehicle power. Refer to the VX6 or VX7 Vehicle Mounting Reference Guide for details.
When this adapter cable is used, there is no provision for an ignition switch input. Therefore the vehicle ignition moni-
toring function is not available when using this cable.
Connect to VX6 / VX7 Power Cable
1. Connect the cable to the Thor VM3 power cable by aligning the connector pins to the power connector; push
down on the watertight connector and twist it to fasten securely.
2. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, routing this cable it should be
protected from physical damage and from surfaces that might exceed this temperature. Cable should be pro-
tected from physical damage from moving parts. Do not expose the cable to chemicals or oil that may cause
the wiring insulation to deteriorate. Always route the cable so that it does not interfere with safe operation and
maintenance of the vehicle.
3. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate outer cable jacket.
4. Connect the watertight connector end of the power cable to the Thor VM3 Quick Mount Smart Dock power
connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.
5. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-26).
6. Place Thor VM3 in the Dock (page 4-16)
7. If using the Screen Blanking (page 4-43) feature, install the screen blanking box or switch.
8. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
9. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
CAUTION - Because the Thor supports 10-60 VDC power input, verify input voltages before using this adapt-
er cable with an existing VX6 or VX7 power connection installation.
!
To Power Connector on Dock
To VX6/VX7 Power Supply Cable
![](/img.php?id=2582426&img=bg48.png)
4 - 42
Thor VX8 / Thor VX9 Adapter Cable
An adapter cable is available to attach the Thor VM3 to a vehicle previously equipped with a VX8/VX9 DC power cable.
The adapter cable has a 6-pin connector to match the VX8/XVX9 power supply cable on one end and a 6-pin connec-
tor to match the Thor VM3 on the other end. The cable also has bare wires for ground and ignition sense connection
plus a D9 cable to connect to a COM port on the Thor VM3 dock to provide a screen blanking signal. This section
assumes the VX8/VX9 power cable is properly connected to vehicle power. Refer to the VX8 or VX9 Vehicle Mounting
Reference Guide for details.
Connect to Thor VX8 / VX9 Power Cable
1. Connect the cable to the Thor VX8/VX9 power cable by aligning the connector pins to the power connector;
push down on the watertight connector and twist it to fasten securely.
2. Connect the green wire to vehicle ground:
3. If ignition control will be used, connect the blue wire to an ignition switched circuit (less than 1mA over input
voltage range). If ignition control is not used, the blue wire can be left disconnected,
4. If the VX8/VX9 cable is connected to a screen blanking box or switch, connect the D9 connector to a COM
port on the dock.
5. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, when routing this cable it should
be protected from physical damage and from surfaces that might exceed this temperature. Cable should be
protected from physical damage from moving parts. Do not expose the cable to chemicals or oil that may
cause the wiring insulation to deteriorate. Always route the cable so that it does not interfere with safe opera-
tion and maintenance of the vehicle.
6. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate outer cable jacket.
7. Connect the watertight connector end of the power cable to the Thor VM3 Quick Mount Smart Dock power
connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.
8. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-26).
9. Place Thor VM3 in the Dock (page 4-16)
10. If using the Screen Blanking (page 4-43) feature, install the screen blanking box or switch if not previously
installed.
11. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
12. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
For battery powered vehicles:
The green wire must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
The green wire is connected to the vehicle chassis ground, which can also be battery negative.
To COM port
on Dock
To Power Connector
on Dock
To VX8/VX9
Power Cable
To Ground and
Ignition Sense
!
![](/img.php?id=2582426&img=bg49.png)
4 - 43
Screen Blanking
Prerequisite: The steps outlined in either 12-48 VDC Vehicles (10-60 VDC Direct Connection) (page 4-28), 60-144
VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid) (page 4-33) or 60-144 VDC Vehicles (50-150 VDC
Power Supply, Screws on Top of Lid) (page 4-37) have been completed.
Screen blanking is accomplished by either a Screen Blanking Box or a user supplied switch.
Screen Blanking Cable
Refer to Screen Control (in the Windows Control Panel) to configure the Thor VM3 for screen blanking.
When routing any additional cables for screen blanking:
• Route the cable the shortest way possible removing any left-over cable
• Fuses and cabling are user supplied. Therefore, route these cables so they are protected from physical damage
and from surfaces that might exceed the cable's rated temperature threshold.
• Cable should be protected from physical damage from moving parts
• Do not expose the cable to chemicals or oil that may cause the wiring insulation to deteriorate
• Always route the cable so that it does not interfere with safe operation and maintenance of the vehicle.
• Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot
intervals, taking care not to over tighten and pinch conductors or penetrate outer cable jacket.
Honeywell Screen Blanking Box Cable
An optional Honeywell Screen Blanking Box Cable is available.
Note: Wire colors only apply to optional Honeywell Screen Blanking Box Cable, VM1080CABLE. Wire colors
may vary in a user-supplied cable.
The optional Honeywell Screen Blanking Box Cable, VM1080CABLE, is installed as follows:
1. Connect the gray wire of the cable to the switched side of the Screen Blanking Box.
2. Connect the black wire of the cable to the unswitched side of the Screen Blanking Box.
3. Connect the D9 serial connector to either COM1 or COM2 serial port on the Thor VM3 Quick Mount
Smart Dock.
CAUTION - For installation by trained service personnel only.
CAUTION - For proper and safe installation, the input power lead to the Screen Blanking Box requires a 3 Amp
maximum time delay (slow blow) high interrupting rating fuse. Note: For North America, a UL Listed fuse is to be
used.
DB9 Female Function with Screen Blanking Box Wire color
1 -6, 9 Not Used
7 (RTS) Connected to Screen Blanking Box, unswitched side Black (see note)
8 (CTS) Connected to Screen Blanking Box, switched side Gray (see note)
!
!
![](/img.php?id=2582426&img=bg4a.png)
4 - 44
User-Supplied Cable
A user-supplied cable can be used as well. Pins 7 and 8 must be connected as detailed below. No other pins
are to be connected.
The user-supplied cable is installed as follows:
1. Connect the wire from Pin 8 of the cable to the switched side of the Screen Blanking Box or to a user-sup-
plied switch.
2. Connect the wire from Pin 7 of the cable to the unswitched side of the Screen Blanking Box or to a user-
supplied switch.
3. Connect the D9 serial connector to either COM1 or COM2 serial port on the Thor VM3 Quick Mount
Smart Dock.
Screen Blanking Box
It is assumed that the motion sensing circuitry in the illustrations below is powered by internal vehicle circuitry.
Please refer to the appropriate illustration below for Screen Blanking Box wiring diagrams.
DB9 Female Function with Screen Blanking Box Function with Switch
1 -6, 9 Not Used Not Used
7 (RTS) Connected to Screen Blanking Box, unswitched side Connected to Switch
8 (CTS) Connected to Screen Blanking Box, switched side Connected to Switch
Screen Blanking
Box Terminal
Connection
12-xxV Input from vehicle motion sensing circuitry.
Please refer to label on Screen Blanking Box for allowable voltage input range.
GND DC -
These two terminals are for connecting a serial cable:
• If using an optional Honeywell screen blanking cable, VM1080CABLE, connect the
gray wire to the switched side of the connection and connect the black wire to the
unswitched side.
• If using a user-supplied cable, the cable must be constructed so that Pin 7 (RTS)
connects to switched side of the connection and Pin 8 (CTS) connects to the
unswitched side.
CAUTION - Do not exceed the maximum input voltage, either 60 or 72VDC, specified on the Screen Blanking
Box label when using this configuration.
PIN7
PIN 8
PIN 5 PIN1
Unswitched Switched
!
![](/img.php?id=2582426&img=bg4b.png)
4 - 45
Note: The black and gray wire colors in the illustration only apply to the optional Honeywell Screen Blanking Box
Cable, VM1080CABLE. The wire colors may be different in a user-supplied cable.
Screen Blanking with Switch
In applications where it is impractical to use the screen blanking box due to vehicle voltage or lack of a motion
sensing signal, screen blanking can be controlled via a user supplied switch or relay that provides an electrical
conductive connection on vehicle motion.
Pins 7 and 8 must be connected as shown in the illustration above. No other pins are to be connected.
MOTION
CIRCUITRY
To
-Vo on vehicle,
i.e. Negative
battery terminal
3A fuse
+Vi
GND
To pin 7 of COM1 or
COM2
To pin 8 of COM1 or
COM2
To pins 7 and 8
of COM1 or
COM2
port on dock
![](/img.php?id=2582426&img=bg4c.png)
4 - 46
External AC/DC Power Supply
The optional external AC/DC power supply is for use in environments, such as an office, where DC power is not avail-
able.
Note: The Honeywell-approved AC/DC Power Supply and Adapter Cable are only intended for use in a 25ºC (77ºF)
maximum ambient temperature environment.
In North America, this unit is intended for use with a UL Listed ITE power supply with output rated 10 – 60 VDC, mini-
mum 15W. Outside North America, this unit is intended for use with an IEC certified ITE power supply with output
rated 10 – 60 VDC, minimum 15W.
The external power supply may be connected to either a 120V, 60Hz supply or, outside North America, to a 230V,
50Hz supply, using the appropriate detachable cordset. In all cases, connect to a properly grounded source of supply
provided with maximum 15 Amp overcurrent protection (10 Amp for 230V circuits).
Connect External Power Supply
1. Connect the provided detachable cordset (US only, all others must order cable separately) to the external
power supply (IEC 320 connector).
2. Plug cordset into appropriate, grounded, electrical supply receptacle (AC mains).
3. Connect the DC Output Cable end to the corresponding connector on the Adapter Cable.
4. Connect the watertight connector end of the Adapter Cable to the Thor VM3 Quick Mount Smart Dock Power
Connector by aligning the connector pins to the power connector; push down on the watertight connector and
twist it to fasten securely.
5. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
6. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
AC Input Cable (US only)
DC Output Cable
To DC Output Cable To Do ck
![](/img.php?id=2582426&img=bg4d.png)
4 - 47
Connect USB Host
See USB Connector (page 8-6) for connector pinouts.
1. Seat the D9 connector firmly over the USB (or USB1) Connector on the Quick Mount Smart Dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.
3. The USB-host connector provides a connector for a USB device such as a USB thumb drive.
4. Secure the cables to the Thor VM3 with Strain Relief Cable Clamps (page 4-26).
Connect USB Client
Connect Serial Device
See COM1 and COM2 Connector (page 8-5) for connector pinouts.
1. Seat the cable end connector firmly over the serial COM port on the Quick Mount Smart Dock.
2. Turn the thumbscrews in a clockwise direction. Do not over tighten.
3. Secure the cables to the Thor VM3 with Strain Relief Cable Clamps (page 4-26).
4. Connect the other cable end to the desired serial device.
D9 Connector USB Host Connector
USB Client Connector
D9 Connector USB Host Connector
USB Client Connector
![](/img.php?id=2582426&img=bg4e.png)
4 - 48
Connect a Tethered Scanner
1. The scanner cable is attached to either the COM1 or COM2 port on the Quick Mount Smart Dock.
2. Connect the serial cable for the scanner as directed above.
3. When the Thor VM3 is powered on, it provides power to the serial scanner.
4. Configure the Data Collection (DC) Wedge to manipulate scanned data as desired.
Connect Headset Cable
The CANbus/Audio connector supports a headset adapter cable or a CANbus cable. The Thor VM3 does not support con-
necting audio and CANbus simultaneously.
See CANbus / Audio Connector (page 8-9) for connector pinouts.
1. Seat the D15 cable end connector firmly over the CANbus/Audio Connector on the Quick Mount Smart Dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.
3. Slide the cable ends together until they click shut. Do not twist or bend the connectors. The Thor VM3 internal
microphone and speakers are automatically disabled when the headset is connected.
Headphones
Microphone To Audio cable
To Audio
connector
on dock
To headset
click!
![](/img.php?id=2582426&img=bg4f.png)
4 - 49
Adjust Headset / Microphone and Secure Cable
The headset consists of an earpiece, a microphone, a clothing clip and a cable.
1. Do not twist the microphone boom when adjusting the microphone. The microphone should be adjusted to be
about two finger widths from your mouth.
2. Make sure the microphone is pointed at your mouth. Note the small “Talk” label near the mouthpiece. Make sure
the Talk label is in front of your mouth. The microphone cable can be routed over or under clothing.
3. Follow the safety guidelines below when wearing the headset.
Under Clothing
• Leave the cable exposed only at the top of the collar.
• Be sure to leave a small loop of cable to allow movement of your head.
Over Clothing
• Use clothing clips to hold the cable close to your body.
• Tuck the cable under the belt, but leave a small loop where it goes under the belt.
• Do not wear the cable on the front of your body. It may get in your way or get caught on protruding objects.
Connect CANbus Cable
The CANbus/Audio connector supports a headset adapter cable or a CANbus Y cable. The Thor VM3 does not support
connecting audio and CANbus simultaneously.
See CANbus / Audio Connector (page 8-9) for connector pinouts.
1. Seat the D15 cable end connector firmly over the CANbus/Audio Connector on the Quick Mount Smart Dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.
3. The CANbus Y cable has a 9 pin F SAE J1939 (Deutsch) and 9 pin M SAE J1939 (Deutsch) connector. Connect the
appropriate cable connector as needed.
![](/img.php?id=2582426&img=bg50.png)
4 - 50
Install Remote Antenna
Remote antennas are available for the 802.11 WLAN radio, the WWAN radio and the GPS.
802.11 Remote Mount Antenna
Components and Mounting Diagram
The Remote Antenna Installation Kit consists of two brackets
(base plate and right angle), cable, and antenna. Tools are not
included.
The desired remote antenna bracket is mounted on the top of a
forklift, truck or other vehicle and cabled to the Thor VM3 inside
the vehicle.
The Vehicle Remote Mount Antenna cannot be used by devices
with an internal antenna.
Nut Washer
Washer Bracket
To antenna
To antenna connector on computer
Bracket
To antenna
Antenna
![](/img.php?id=2582426&img=bg51.png)
4 - 51
Typical Installation
Mounting Instructions
1. Attach and secure the desired mounting bracket to the highest point on the safety cage, following these pre-
cautions:
• The plate must be mounted so the antenna is not damaged while the vehicle or any of its parts are moving.
• The antenna mounting portion of the bracket must be parallel to the floor.
• If using two antennas, they must be mounted at least 12 inches (304.8mm) apart.
2. Attach the female connector of the coaxial cable to the antenna connector on the vehicle mounted Thor VM3.
3. Secure the whip antenna to the mounting bracket.
4. Connect the antenna cable to the whip antenna.
5. Use cable ties to secure the coaxial cable to the vehicle as necessary. Make sure the cable is routed so it is
not damaged by any moving parts of the vehicle.
6. Connect the cable to the antenna connector (Wi-Fi Main or Wi-Fi Aux) on the Thor VM3. If only one antenna
is used, be sure to connect it to the Wi-Fi Main connector.
7. Repeat the steps above for the second 802.11 antenna.
Antenna Mounting Bracket
Vehicle Safety Cage Cable Vehicle Mounted
Computer
![](/img.php?id=2582426&img=bg52.png)
4 - 52
WAN Remote Mount Antenna
The WAN remote mount antenna can be either a magnetic mount or an adhesive mount antenna.
The Remote Antenna Installation Kit consists of the WAN antenna and an extension cable. The remote antenna is
mounted on the top of a forklift, truck or other vehicle and cabled to the Thor VM3 inside the vehicle.
1. Locate a mounting position on highest point on the vehicle, following these precautions:
• The antenna must be mounted so the antenna is not damaged while the vehicle or any of its parts are moving.
2. Clean the area where the antenna is to be mounted.
3. If using an adhesive mount antenna, remove the protective backing paper from the adhesive on the antenna.
4. Position the antenna on the vehicle.
5. Attach the one end of the coaxial cable to the antenna and the other end to the Mobile Net WWAN connector on
the vehicle mounted Thor VM3.
6. Use cable ties to secure the coaxial cable to the vehicle as necessary. Make sure the cable is routed so it is not
damaged by any moving parts of the vehicle.
GPS Remote Mount Antenna
The external GPS antenna is an adhesive mount antenna.
1. Locate a mounting position on highest point on the vehicle, following these precautions:
• The antenna must be mounted so the antenna is not damaged while the vehicle or any of its parts are moving.
2. Clean the area where the antenna is to be mounted.
3. Remove the protective backing paper from the adhesive on the antenna and position the antenna on the vehicle.
4. Attach the connector on the coaxial cable to the GPS antenna connector on the vehicle mounted Thor VM3.
5. Use cable ties to secure the coaxial cable to the vehicle as necessary. Make sure the cable is routed so it is not
damaged by any moving parts of the vehicle.
Magnetic Mount WAN Antenna Adhesive Mount WAN Antenna
The Remote Antenna Installation Kit consists of the antenna
and an integrated cable. The remote antenna is mounted on the
top of a forklift, truck or other vehicle and cabled to the Thor
VM3 inside the vehicle.
To extension cable
To antenna
To antenna
connector on
computer
To extension cable
To antenna
To antenna
connector on
computer
![](/img.php?id=2582426&img=bg53.png)
4 - 53
Apply Touch Screen Protective Film
The optional Thor VM3 touch screen protective film is shipped in packs of 10. The protective film is flexible and treated with an
anti-glare coating on the outer surface.
Installation
1. Make sure the touch screen is clean and dry before installation. See Cleaning (page 4-16) for instructions on suitable
cleaning agents.
2. Pull the release tab to separate the protective backing from the rear of the protective film. Avoid touching the rear side
of the protective film while removing the liner.
3. Place the rear side of the protective film against the Thor VM3 display, roughly centering the protective film over the
display.
4. Slide the protective film until one corner can be slid back between the touch screen and the display housing as the
protective film is re-centered on the display. It may be necessary to press the edges of the protective film against the
display to ensure the entire edge slides under the display housing. It is easiest to start with one of the bottom corners.
5. Slide the protective film away from the other bottom corner. The film may bulge sligthly away from the Reference Guide
as it is being slid. Only slide the protective film enough so that the protective film can slide under the display housing on
that corner when the protective film is returned to center.
6. Repeat with each of the top corners, sliding the protective film away from the corner just enough that the protective film
can slide under the display housing when the protective film is returned to center.
7. It may be necessary to flex the protective film during the install, however use care not to flex the protective film so much
that the protective film kinks.
8. Once all corners are secure under the display housing, adjust the protective film, if necessary, so it is centered on the
touch screen.
Removal
1. To remove the protective film, slide the protective film in one direction until the edge clears.
2. Lift up on the edge of the protective film so it does not slide between the touch screen and display housing when the
protective film is slid back to the center.
3. Repeat until all edges are free and remove the protective film.
![](/img.php?id=2582426&img=bg54.png)
4 - 54
Disconnect UPS Battery
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
• #2 Phillips screwdriver bit
Disconnect Procedure
CAUTION - The UPS battery must be disconnected before you ship the Thor VM3 or Replace Front Panel (page 4-58).
1. For convenience, the Thor VM3 can be removed
from the Quick Mount Smart Dock, though it is not
necessary.
2. If the Thor VM3 remains in the dock, disconnect
the power cable from the dock.
3. Place the Thor VM3 face down on a stable
surface.
4. Using a #2 Phillips bit loosen the M3 screws and
then remove the tethered access panel with the
SIM label. This panel is on the right hand side
when the Thor VM3 is face down with the top
away from the user.
5. Locate the small push button located just below the SIM card installation slot.
6. Press the push button to disconnect the UPS. The UPS battery maintains its charge but is
disconnected from the power circuitry of the Thor VM3.
7. Reattach the access panel, torquing the M3 screws to 4-5 inch pounds using a #2 Phillips bit.
8. When the Thor VM3 is attached to external power, the UPS battery is automatically
reconnected.
9. Restart the Thor VM3.
!
![](/img.php?id=2582426&img=bg55.png)
4 - 55
Install SD Card
An SD card slot is provided for storage expansion.
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
• SD card - The following commercially available SD cards are recommended:
• #2 Phillips screwdriver bit
Installation Procedure
1. For convenience, the Thor VM3 can be removed
from the Quick Mount Smart Dock, though it is not
necessary.
2. If the Thor VM3 remains in the dock, disconnect the
power cable from the dock.
3. Place the Thor VM3 face down on a stable surface.
4. Using a #2 Phillips bit loosen the M3 screws and
then remove the tethered access panel with the
SIM label. This panel is on the right hand side
when the Thor VM3 is face down with the top away
from the user.
5. Locate the SD card installation slot.
6. Slide the SD card into the slot. The label side (front) of the SD card faces toward the back of the
Thor VM3.
7. Reattach the access panel, torquing the screws to 4-5 inch pounds.
8. If removed, reinstall the Thor VM3 in the dock.
![](/img.php?id=2582426&img=bg56.png)
4 - 56
Install SLC Drive
An mSATA card slot is provided for storage expansion. Only mSATA drives are supported.
. Connecting an mPCIe drive (connector pin 43 is grounded) can cause he Thor VM3
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
mSATA card - The following commercially available mSATA cards are recommended:
• SMART Modular SG9MST3D4GBS01
• Only mSATA drives are supported. Connector pin 43 is not connected on an mSATA drive.
• mPCIe drives are not supported. Connector pin 43 is grounded on an mPCIe drive.
• Connecting an mCPIe drive can result in system instability such as a failure to boot or non-functional accessories
such as keyboard or mouse.
!
![](/img.php?id=2582426&img=bg57.png)
4 - 57
Install SIM Card
A SIM card may be required for WWAN.
Equipment Required
The following equipment is user-supplied:
• SIM card for desired carrier
• Torquing tool capable of measuring inch pounds
• #2 Phillips screwdriver bit
Installation Procedure
1. For convenience, the Thor VM3 can be removed
from the Quick Mount Smart Dock, though it is not
necessary.
2. If the Thor VM3 remains in the dock, disconnect the
power cable from the dock.
3. Place the Thor VM3 face down on a stable surface.
4. Using a #2 Phillips bit loosen the M3 screws and
then remove the tethered access panel with the
SIM label. This panel is on the right hand side
when the Thor VM3 is face down with the top away
from the user.
5. Locate the SIM card installation slot.
6. Slide the SIM card into the slot.
7. Reattach the access panel, torquing the screws to 4-5 inch pounds.
8. If removed, reinstall the Thor VM3 in the dock.
![](/img.php?id=2582426&img=bg58.png)
4 - 58
Replace Front Panel
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
• #2 Phillips screwdriver bit
Replacement Procedure
9. Carefully lift the front panel away from the device.
10. Gently press the front panel into place.
11. Tighten the captive M3 screws. In the order shown in the top figure above, use a #2 Phillips bit and torque the screws
to 6-7 inch pounds.
12. Reinstall the Thor VM3 in the Quick Mount Smart Dock.
13. When the Thor VM3 is placed in the powered dock, the UPS battery automatically reconnects.
14. Restart the Thor VM3.
15. Remove the old battery and set it aside.
16. Inspect the battery well to verify the two foam pads are still in place.
17. Align the wiring connector on the new UPS battery with the connector on the Thor VM3. Gently press the connector
into place until the retaining tab snaps into place.
18. Place the UPS battery into the well. Note the orientation of the battery in the illustration below. The flat surface of the
battery points toward the bottom of the Thor VM3. Make sure all wires are inside the battery well so they are not
pinched when the front panel is reinstalled.
CAUTION - Before replacing the Thor VM3 front panel, Disconnect UPS Battery (page 4-54).
!
![](/img.php?id=2582426&img=bg59.png)
5 - 1
5
Software
Microsoft Windows Setup and Configuration
After the system files are processed, Microsoft Windows begins to load. Windows maintains a System Registry and INI files.
Standard Windows configuration options apply to the Thor VM3. Configuration options are located in the System Tray or the
Control Panel:
• The System Tray contains icons for adjusting the time, date or volume level.
• The Control Panel contains icons for many other configuration options, such as Power Management, Regional and Language
Options, etc.
• The Control Panel icons are also used to add, delete or modify software installed on the Thor VM3.
Drive C Folder Structure
Microsoft Windows is installed in the \Windows folder. In addition, Microsoft Windows creates other folders and several
subfolders. For more information on the folder structure, please refer to commercially available Microsoft Windows OS ref-
erence guides.
Software Loaded on Drive C
The software loaded on the Thor VM3 computer consists of:
•BIOS
• Microsoft operating system (Windows Embedded Standard 2009)
• device drivers
• radio software see Wireless Configuration Utility
• touch screen software
The software installed on the Thor VM3 is summarized below.
Note: Due to the complex folder structure and System Registry under Microsoft Windows, software should not be
removed manually. Instead use the Windows Control Panel:
Microsoft Windows
Microsoft Windows is installed in the \Windows subfolder, which is the Windows default. In addition, Windows
places files in other folders and subfolders during installation. For more information, please refer to commercially
available Microsoft Windows OS user guides.
Device Drivers
Device drivers are installed for all installed hardware options, such as the display, touch screen, radios, etc. For
more information on Microsoft Windows device drivers, please refer to commercially available Windows OS refer-
ence guides.
Radio Software
The Thor VM3 is delivered with the radio software installed. Because the Thor VM3 uses a Microsoft Windows
operating system, the radio installation includes Windows device drivers.
Touch Screen Software
PenMount Universal software is installed for calibrating the touch screen. See Touch Screen Calibration (page 5-
13) for more information.
RFTerm
Start > All Programs > Honeywell RFTerm
![](/img.php?id=2582426&img=bg5a.png)
5 - 2
Optional terminal emulation software. The application can also be accessed by double-clicking the RFTerm desk-
top icon.
Summit Client Utility
Start > Control Panel > Wi-Fi, or SCU icon on desktop
Manage wireless clients installed in the Thor VM3. If the Summit Client Utility is not present, the Laird Configura-
tion Manager may be installed.
Laird Configuration Manager
LCM icon on desktop
Manage wireless clients installed in the Thor VM3. If the Laird Configuration Manager is no present, the Summit
Client Utility may be installed.
For Microsoft Windows 7 and Windows Embedded 7:
It is necessary to run to run RFTerm as an administrator when modifying settings because RFTerm must be
able to access and make changes to the Windows registry.
Rather than selecting to run as administrator each time, right click on the RFTerm icon and select Proper-
ties. Tap the Compatibility tab and check Run this program as an administrator. This modification af-
fects the current user only unless Change settings for all users is tapped before changing the privilege
level.
!
![](/img.php?id=2582426&img=bg5b.png)
5 - 3
Control Panel
Most control panel applets on the Thor VM3 are standard Microsoft Windows items.
The control panels and other functions listed below may differ from a standard Microsoft Windows equipped PC or laptop.
About
Software
Firmware Versions
The Software tab lists the firmware versions installed. The BIOS, EC and Screen MCU firmware versions are
shown on this tab.
Language
The Software tab displays the localized language version of the OS image. The language is identified as English
or + an additional language.
The Thor VM3 may be pre-loaded with an English only OS. Contact Technical Assistance (page 9-1) for informa-
tion on ordering a recovery DVD with an additional language.
Versions
The Versions tab displays the versions of many of the software programs installed. Not all installed software is
included in this list and the list varies depending on the applications loaded on the Thor VM3. The Image line displays
the revision of the system software installed. Refer to the last three digits to determine the revision level.
Versions Tab and the Registry
The Versions tab displays program version details from the registry.
Customized information can be displayed by modifying the Registry using the Registry Editor. Use caution when
editing the Registry and make a backup copy of the registry before changes are made.
The registry settings for the Version tab are under HKEY_LOCAL_MACHINE \ Software \ LXE \ Version in the reg-
istry.
To add a user application to the Version panel, create a new string value under the HKLM\Software\LXE\Version
key. The string name should be the Application name to appear in the Version window. The data for the value
should be the version number to appear in the Version window.
Version strings can be equal to or less than 254 characters. Because the strings are displayed in a text box, any
number can be accommodated, up to the 64K byte text box limitation.
Network IP
![](/img.php?id=2582426&img=bg5c.png)
5 - 4

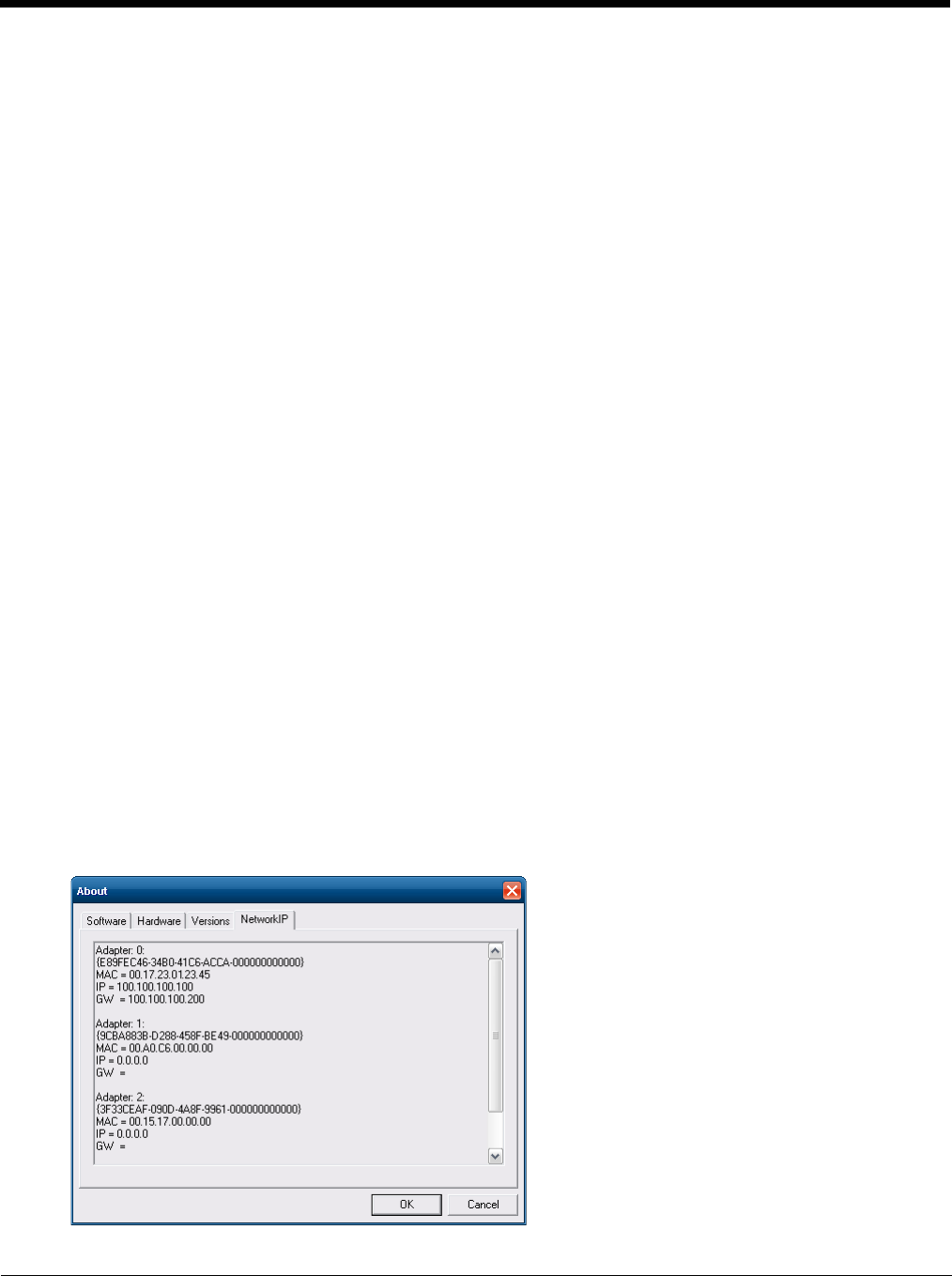

MAC Address
The Network IP tab displays the MAC address of the network card(s) such as the Summit WLAN radio and the
Bluetooth module.
1.
![](/img.php?id=2582426&img=bg5d.png)
5 - 5
Display
Start > Control Panel > Display (Classic View)
Start > Control Panel > Appearance and Themes (Category View)
The Thor VM3 supports a pixel display resolution.
Screen Rotation (page 5-11) Screen Blanking (page 5-10) are configured on separate control panels.
![](/img.php?id=2582426&img=bg5e.png)
5 - 6
Power Options
Select a Power Scheme
Power Schemes
Start > Control Panel > Power Options > Power Schemes tab (Classic View)
Start > Control Panel > Performance and Maintenance> Power Options > Power Schemes tab (Category
View)
![](/img.php?id=2582426&img=bg5f.png)
5 - 7
View UPS Battery Status
Power Meter
Start > Control Panel > Power Options > Power Schemes tab (Classic View)
Start > Control Panel > Performance and Maintenance> Power Options > Power Schemes tab (Category
View)
On the Power Meter tab, battery #1 refers to the UPS battery.
Shows power status: external power or UPS battery and the total battery power remaining before a recharge is
necessary.

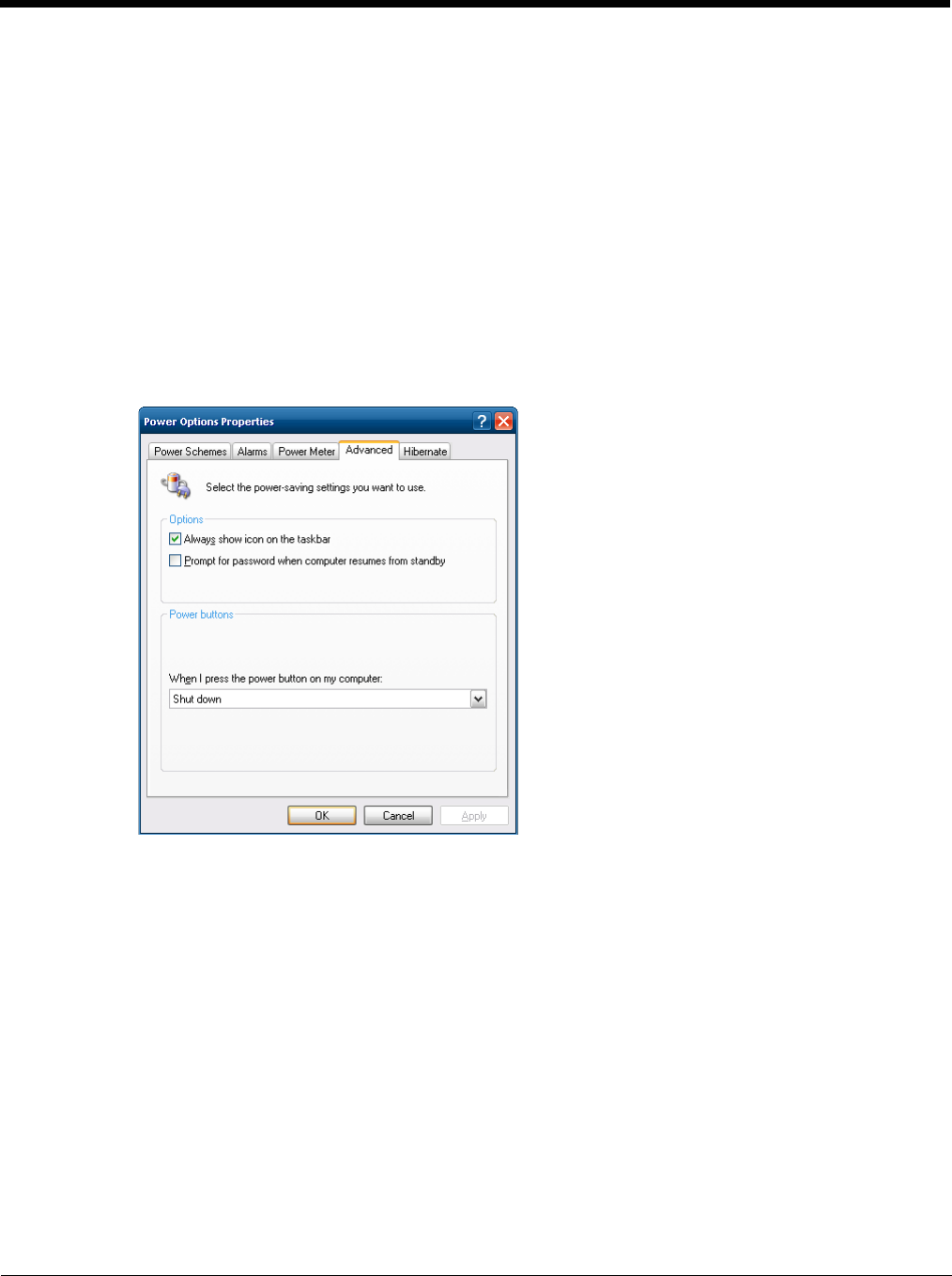

Configure Power Button Behavior
Start > Control Panel > Power Options > Power Schemes tab (Classic View)
Start > Control Panel > Performance and Maintenance> Power Options > Advanced tab (Category View)
Advanced
The Advanced panel allows setting the power button behavior when the unit is on and the power button is
pressed. Options are:
• Do nothing
• Ask me what to do
• Stand by
• Shut down.
The default is to shut down. The Thor VM3 performs an orderly shut down when the power key is pressed
when this option is enabled.
![](/img.php?id=2582426&img=bg60.png)
5 - 8
Hibernate
Enable Hibernation
Start > Control Panel > Power Options > Hibernate tab (Classic View)
Start > Control Panel > Performance and Maintenance> Power Options > Hibernate tab (Category View)
By default, hibernate is on the Thor VM3. The default can be changed on this page.
The disk space necessary for hibernation plus the free disk space on the hard drive are listed.
![](/img.php?id=2582426&img=bg61.png)
5 - 9
Screen Control
Start > Control Panel > Screen (Classic View)
Set screen properties for the Thor VM3.
Factory Default Settings
Note: There is no default value for Ambient Light % as it varies depending on the level of light where the Thor VM3 is
located.
Screen Blanking (Blackout)
Enable screen blanking Enabled
Screen on delay (ms) 1000
COM Port COM1
Current Level
LCD Brightness (%) 100 (see note)
![](/img.php?id=2582426&img=bg62.png)
5 - 10
Screen Blanking
Screen blanking allows the Thor VM3 display to automatically be turned off whenever the vehicle is in motion.
Use the Screen on delay to specify the period of time in ms (milliseconds) between when the vehicle stops and the
Thor VM3 screen turns on. For example, use the delay if the switch end of the cable is attached to the vehicle’s accel-
erator pedal. Release of the accelerator may mean the truck is coasting to a stop rather than stationary. Configure the
delay to allow time for the vehicle to coast to a stop. The default value is 1000 ms.
Specify the COM Port to which the screen blanking cable is attached. If a COM port is in use by another application,
that COM port is grayed out and cannot be selected for screen blanking.
To disable screen blanking, uncheck the Enable screen blanking checkbox.
See Screen Blanking (page 4-53) for hardware requirements.
Refer to the wiring instructions, including appropriate cautions and warnings, in the Connect Power (page 4-35) sec-
tion.
Do not enable Screen Blanking until the cable is properly connected to the specified COM port.
!
![](/img.php?id=2582426&img=bg63.png)
5 - 11
Screen Rotation
Start > Control Panel > Screen Rotation (Classic view)
The Screen Rotation panel provides options for rotating the display:
0 Degree - Returns screen to the default orientation.
90 Degree - Rotates the screen counter clockwise 90 degrees as compared to the default orientation.
180 Degree - Rotates the screen 180 degrees as compared to the default orientation.
270 Degree - Rotates the screen counter clockwise 270 degrees as compared to the default orientation.
Select the desired rotation and tap OK. The screen may briefly go blank during the rotation process.
Ta p Close to dismiss the panel and keep the current screen rotation.
Sounds
Start > Control Panel > Sounds and Audio Devices (Classic View)
Start > Control Panel > Sounds, Speech and Audio Devices (Category View)
Use the slider bar to adjust the volume level as desired.
Alternatively:
• Tap the Volume icon, if present, in the taskbar and move the slider until the volume level is as desired.
User Accounts
Note: The following applies to a Thor VM3 that is not part of a domain. When the Thor VM3 is part of a domain, the user
is prompted for credentials at Windows startup or log on.
The Thor VM3 is pre-configured with an administrator account named Administrator. By default, the Thor VM3 automati-
cally logs onto the Administrator account at Windows startup.
If the user assigns a password to the Administrator account:
• The password is stored and used when the Thor VM3 logs onto the Administrator account at Windows startup. The user
is not prompted to enter a password.
• If the user logs off, the password must be manually entered to log back onto the Thor VM3.
• At the logon prompt, the user could specify a different user account (and password, if necessary) to log on, assuming the
account has been added to the Thor VM3.
![](/img.php?id=2582426&img=bg64.png)
5 - 12
• When the Thor VM3 is restarted, the Administrator account automatically becomes the active user account, regardless
of the active account before the restart.
If using the Windows Certificate Store (page 6-17) the user must assign a password to the active (Administrator) account.
Sounds
By default the side tone is muted. If needed, the user should enable the side tone. If this causes interfering noise, the side
tone should be disabled. The VM3 audio is designed to be used with or without the side tone. This is acceptable permissi-
ble performance for the Thor VM3.
Wi-Fi
Start > Control Panel > Wi-Fi (Classic view)
Provides a shortcut to access the 802.11a/b/g/n radio configuration utility.
Tap the Wi-Fi icon to access the Summit Client Utility (page 6-1).
