BC01
BC01 Bluetooth Car Charger
Introduction
Thanks for selecting our product. Bluetooth car charger BC01, which combine with Bluetooth headset, car charger
and emergency hammer function together, is an unprecedented product. This product have been developed for
answer the phone while driving without affected.

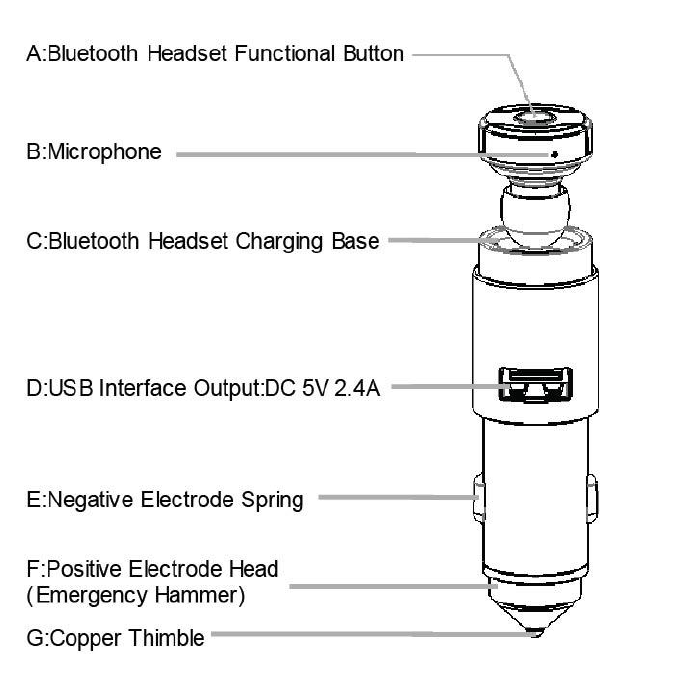

Product illustration:
A.Bluetooth Headset MFB
B.Microphone
C.Bluetooth Headset Charging Base
C.USB Output Interface:DC 5V 2.4A
E:Negative Electrode Spring
F:positive Electrode Head (emergency hammer)
G:Copper Thimble
Specification:
Model No:BC01
Input:DC 12-24V
Output:DC 5V/2.4A
Bluetooth Version:4.1
Pairing Name:BC01
Profile Supported:HSP,A2DP,AVRCP
Battery Specification:40mAh
Talk Time:About 2.5 Hours
Stand-by Time:≥40 Hours
Product Size:Φ24.5X85mm Headset Size:Φ21.5X23.5mm
N.W.:40g
How to use:
Put this product insert into the car cigarette lighter,when the car starts, the car will automatically charge the Bluetooth
headset.
A: Charging for Mobile and other digital products
Put this product insert into the car cigarette lighter,use USB cable connect this product with mobile or other digital
products. This product compatible with 99% of digital products. It automatically adjusts output power for different
devices. The maximum output is 2.4A.
Mobile,Bluetooth headset,iPad,PC etc.
Digital games and entertainment machine
Digital camera
Music and media player
B.Bluetooth headset function instructions:
Function
Operation
LED status
prompt tone
Description
Turn on
Long press
MFB for 3
seconds
Green light
will quick flash
twice,then
flash one times
in every 5
seconds
Power on
+Broadcast the
battery status
Turn on,green light quick flash,will flash one
time in every 5 seconds in one minute,it will
automatically turn off if without any operation
Turn off
Long press
MFB for 3
seconds
White light
flash 4 times
Power off
It get into turn off state,no light on.
Beyond the
Bluetooth
Bluetooth is
too far away
from the
Green light
quick
flash,then flash
”DUDU”
After green light quick flash one minute,it will
flash one time in every 5 seconds , then it will
automatically turn off if without any operation
range-Disconnected
phone
one time in
every 5
seconds in one
minute
Pairing Mode
Long press
MFB for 4
seconds
White and
green light
flash
alternately
Power on
+/Pairing+Broadcast
the battery status
White and green light flash alternately,it will
turn off automatically if without any operation
in 5 minutes
Headset connected
Headset
automatically
connected or
mobile
connected
8Green light
flash twice in
every 8
seconds in
music
time,green
light flash one
times in every
8 seconds in
stand-by time
Device connected
It will automatically connect with the last
connected mobile when turn on the headset
Headset
disconnected
Headset and
mobile
disconnect
Normally
Device disconnect
It will automatically turn off if without any
operation in 10 minutes
Answer call
Pick up the
headset from
car charger,
It will
automatically
answer the
incoming call
White and
green light will
flash three
times in every
3 seconds
Caller ID
Broadcast+”DUDU,
DUDU”
You can hear an incoming call broadcast from
the headset and see it from mobile.Pick up the
headset from the car charger,it will
automatically answer the call,then put back to
charging base for hang up .
Answer the call
when using the
headset separately
During an
incoming
call,light touch
MFB to
answer
White and
green light
flash three
times in every
3 seconds
Caller ID
Broadcast+”DUDU,
DUDU”
You can hear an incoming call broadcast from
the headset and see it from mobile. Light touch
MFB to answer the call.(Part of the phone
built-in buzzer sound)
Reject Call
Long press
MFB for 3
seconds to
reject the
Green light
flash one times
DU
Long Press MFB for 3 seconds to reject the
incoming call
incoming call
Call Mute
During a
call,double
click MFB to
realize the
mute mode
”DUDU” start and
close the mute
mode,”WUWU”
prompt tone in
every 3 seconds
during mute mode.
Block the microphone: repeat this operation to
cancel
Switch Mode
During the talk
mode,press
MFB for 1
seconds
/
”DUDU”
Headset can switch the sound to mobile or
back to the headset
End Call
During a
call,light touch
MFB one
times within
one seconds
During a call,light touch MFB one times within
one seconds to end the call or using mobile to
hang up
Play/Pause
During play
time,light
touch MFB to
play or pause
Green light will
flash twice in
every 8
seconds/green
light will flash
twice in every 5
seconds
/
开启/停止播放器时，需轻触多功能键一次。
During Play or pause,light touch MFB one times
Redial
Double click
MFB during
connected
state
/
“DU”
During connected state,double click MFB to
redial the last outgoing call.
Low voltage alarm
When voltage
is below 3.3V
White light will
flash twice
continuously in
every 20
seconds
Battery Low/
prompt one times
in every 20 seconds
Headset still in normal working state
Low voltage-turn off
3.0V When
voltage is
below 3.0V
White light
flash one times
and turn off
Headset turn off,no light on
Charging
Put the
headset back
to the
charging base
will
automatically
White light on
Start to charge/Full
charge
。White light on while charging,green light on
when full charge. Charging time:about 2 hours
charging
Reject &Hold
During a
call,double
click MFB till
you hear a
prompt
tone”DU”and
release your
hand to reject
the incoming
call and hold
the current
call.
”DU”
The third-party incoming call will be rejected
and hold the current call in mute state,double
click to restore the microphone work properly
End & Answer
During a call,
click the MFB
to end the
current
call,click again
to answer the
third-party
incoming call
”DU”
The third-party incoming call be answered and
end the current call.
Hold & Answer
During a
call,long press
MFB,you can
hear a prompt
tone”DU”,that
means you
answer the
third-party
incoming call
and hold the
current call.
“DU”, ”DU”prompt
tone will be heard
from the remaining
call continuously.
The third-party incoming call will be answered
and hold the current call.(Repeat this action
can switch the call )
Switch Language
During paring
mode,double
English,Chinese
click MFB
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
